Thank you for choosing our product!
This User Manual is designed to show you how to use this video processor quickly and make use of all the
features. Please read all directions and instructions carefully before using this product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the user will be responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of
guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred
during transport, as well as for material and manufacturing faults. RGBlink must be informed immediately in
writing of any complains.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the
date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant,
RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this
measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or
cancellation of the contract. All other claims, in particular those relating to compensation for direct or indirect
damage, and also damage attributed to the operation of software as well as to other service provided by RGBlink,
being a component of the system or independent service, will be deemed invalid provided the damage is not
proven to be attributed to the absence of properties guaranteed in writing or due to the intent or gross negligence
or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods
are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer
of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser
will be rendered invalid. Not included in the guarantee coverage are system failures which are attributed to
programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as normal
maintenance are not subject to the guarantee provided by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations specified in this manual must
be complied with by the customer.
3
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To
avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed.
Power Source
This product is intended to operate from a power source that will not apply more than 230 volts rms between the
supply conductors or between both supply conductor and ground. A protective ground connection by way of
grounding conductor in the power cord is essential for safe operation.
Grounding the Product
This product is grounded through the grounding conductor of the power cord. To avoid electrical shock, plug the
power cord into a properly wired receptacle before connecting to the product input or output terminals. A
protective-ground connection by way of the grounding conductor in the power cord is essential for safe operation.
Use the Proper Power Cord
Use only the power cord and connector specified for your product. Use only a power cord that is in good condition.
Refer cord and connector changes to qualified service personnel.
Use the Proper Fuse
To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer
fuse replacement to qualified service personnel.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For all product installation procedures, please observe the following important safety and handling rules to avoid
damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the
AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.
4
Unpacking and Inspection
Before opening product shipping box, inspect it for damage. If you find any damage, notify the shipping carrier
immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. If you
find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed components are
present, visually inspect the system to ensure there was no damage during shipping. If there is damage, notify the
shipping carrier immediately for all claims adjustments.
Site Preparation
The environment in which you install your product should be clean, properly lit, free from static, and have
adequate power, ventilation, and space for all components.
5
Chapter 1 Your Product

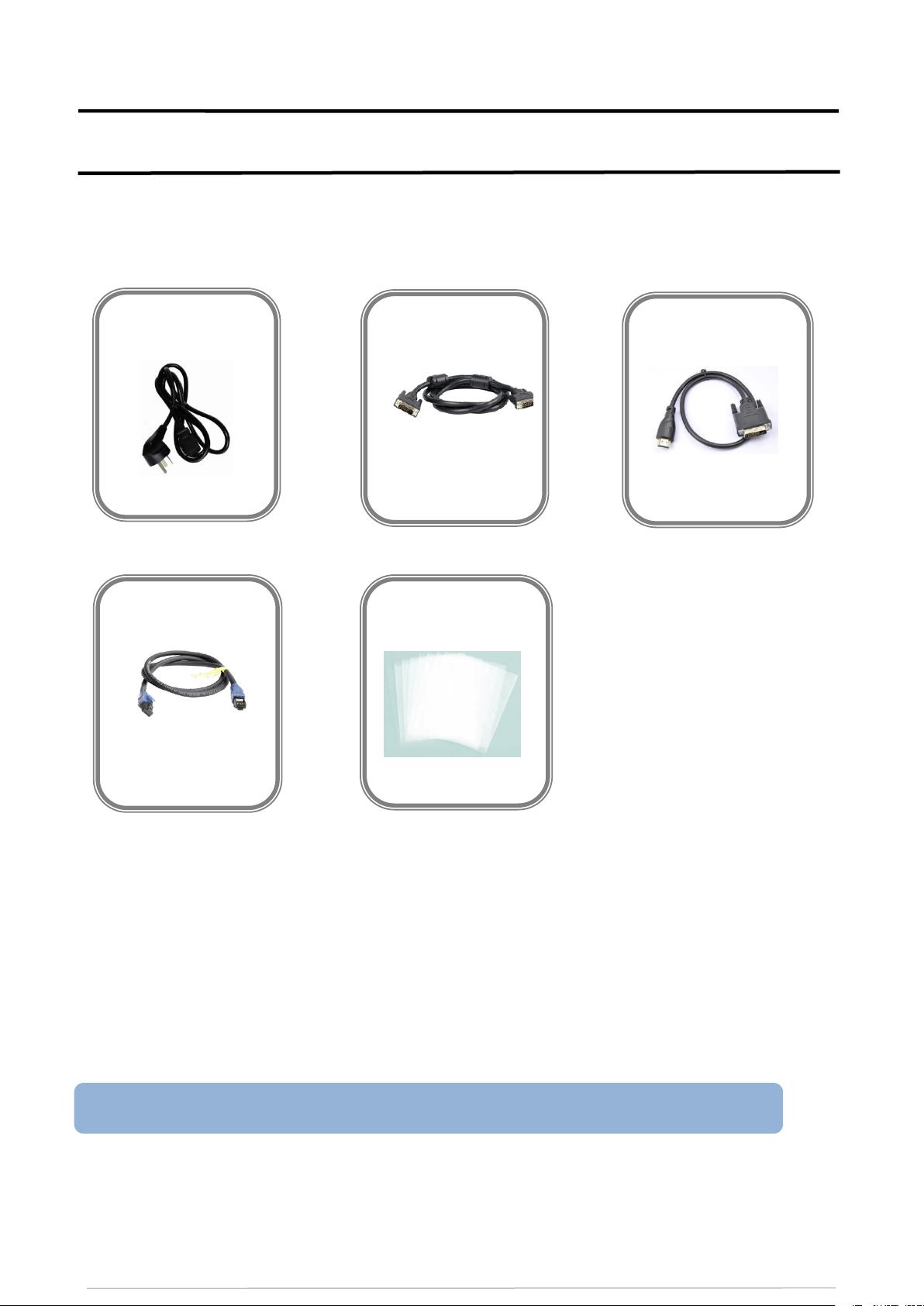

1.1 In the Box
AC Power Cord
DVI Cable
HDMI-DVI Cable
Network Cable
Anti-Static Bag
Note: AC Power Cable supplied as standard according to destination market.
© Xiamen RGBlink Science & Technology Co., Ltd.
6
1.2 Product Overview
Q16pro adopts modular design, supporting 8 layers on each output module.Each layer supports for scaling,
moving, crossing and overlying. Besides,It supports custom output resolutions. It also supports RGBlink XPOSE 2.0
software operation.

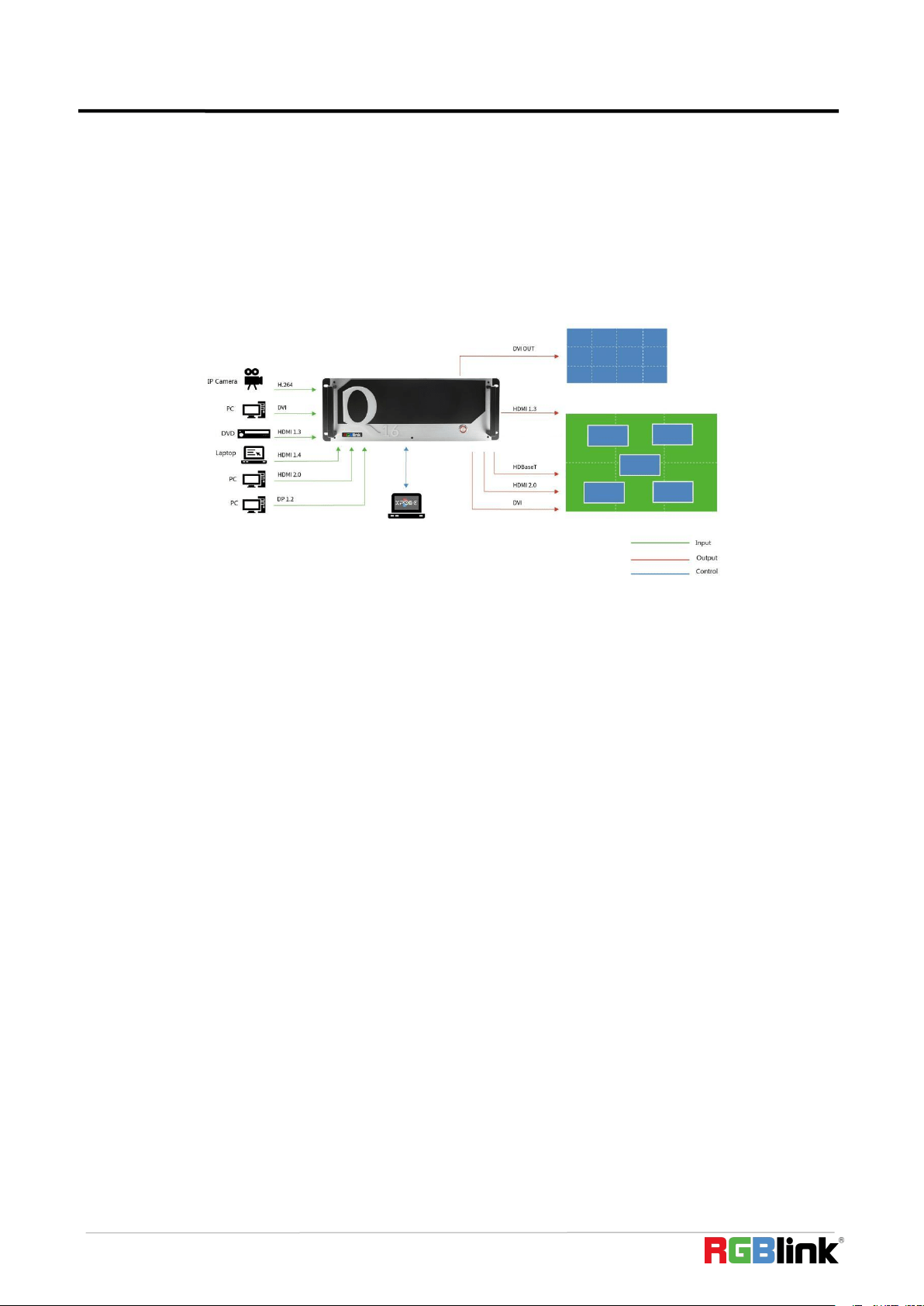

Q16pro SYSTEM CONNECTION DIAGRAM
1.2.1 Key Features
● Each module supports up to 8 layers
● Each layer support for scaling, moving, crossing and overlying
● Support 4K@60 inputs and outputs
● Each module supports for customized output resolution,single port's width up to 3840 and height up to 3840
● Optional independent audio input&output modules
● XPOSE visualization operation
● EDID management
© Xiamen RGBlink Science & Technology Co., Ltd.
7

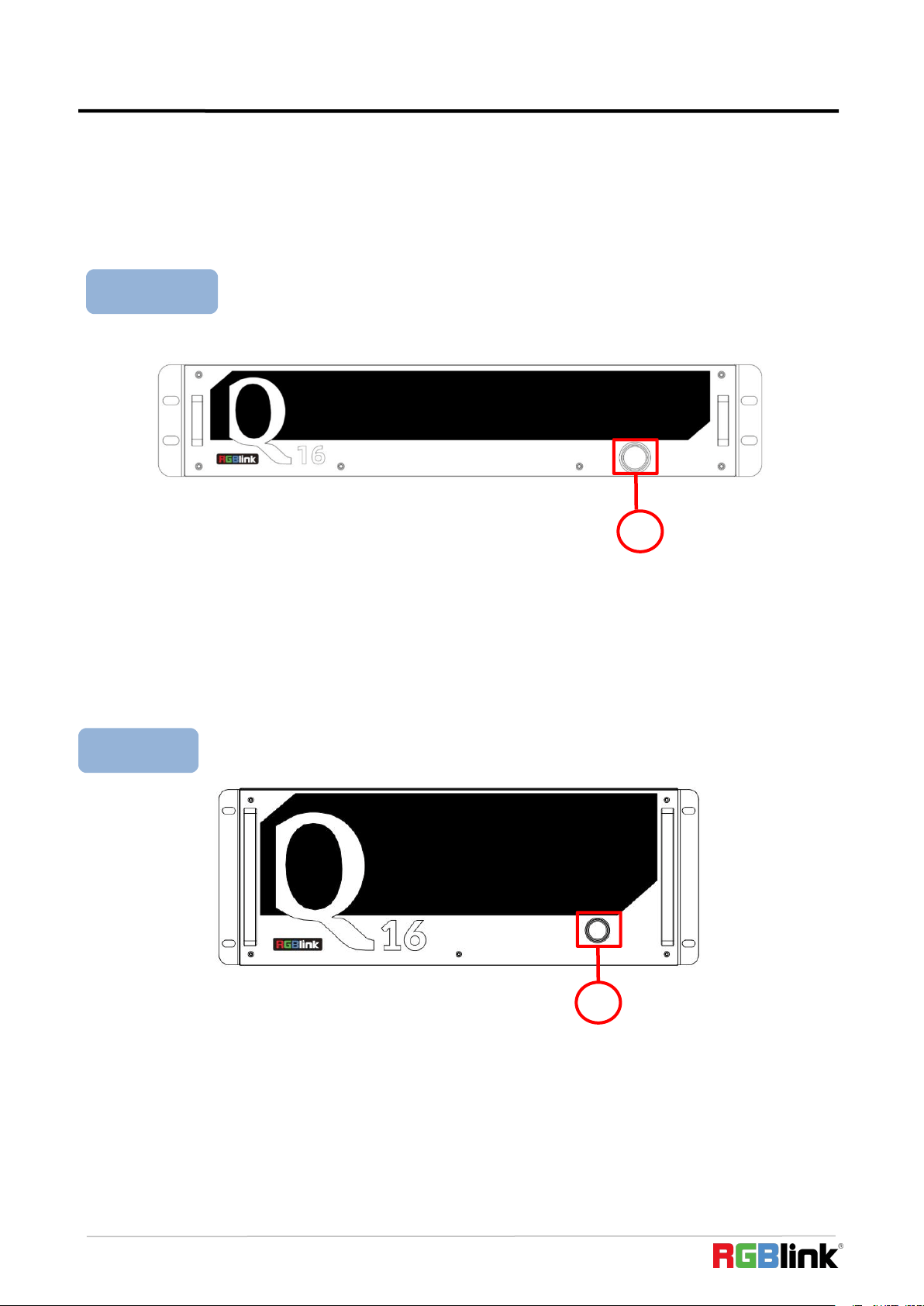

1.2.2 Front Panel
2
Q16pro-4U
Q16pro-2U
1
© Xiamen RGBlink Science & Technology Co., Ltd.
8

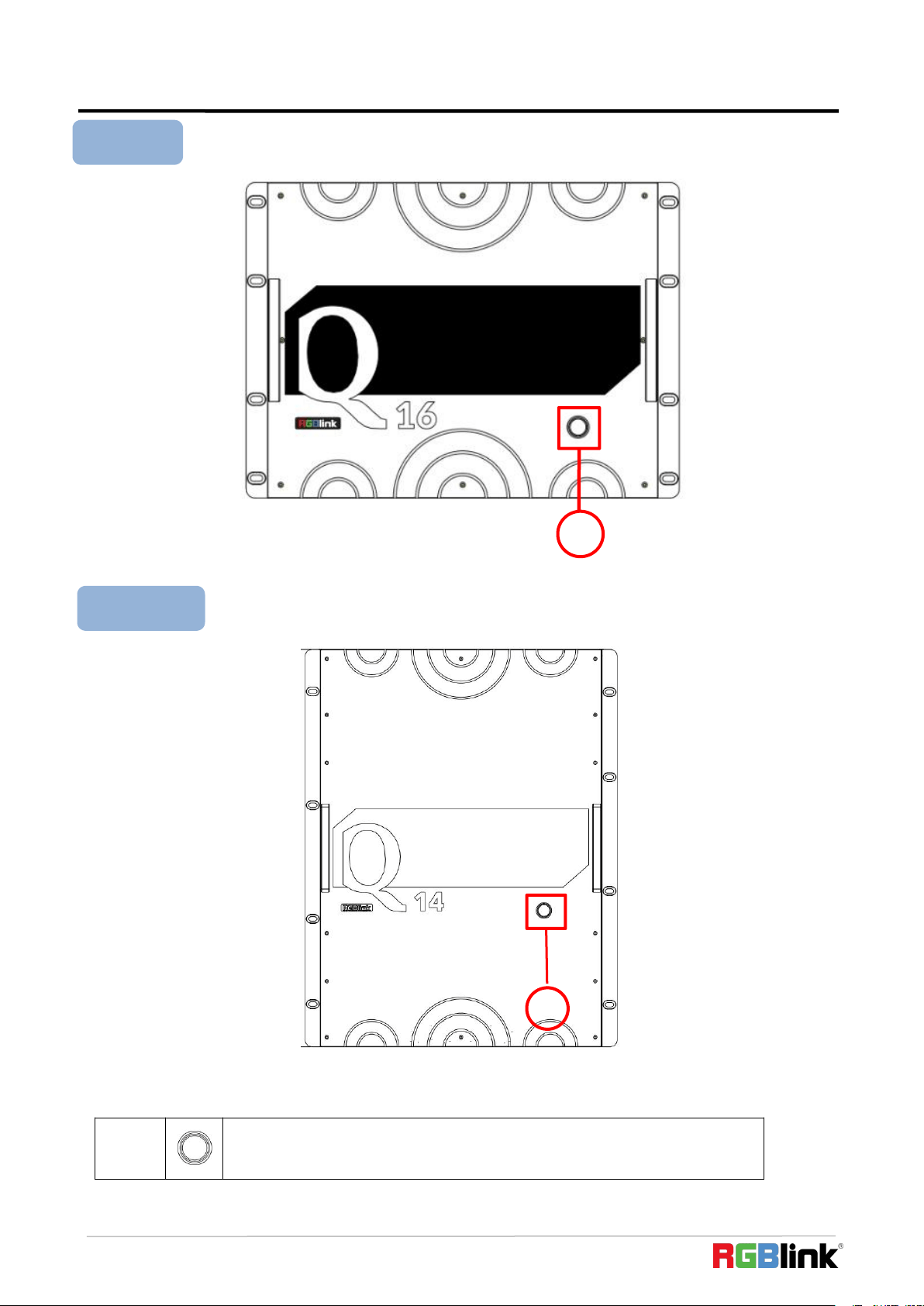

1/2/3/4
Power Switch
3
Q16pro-8U
Q16pro-14U
4
© Xiamen RGBlink Science & Technology Co., Ltd.
9

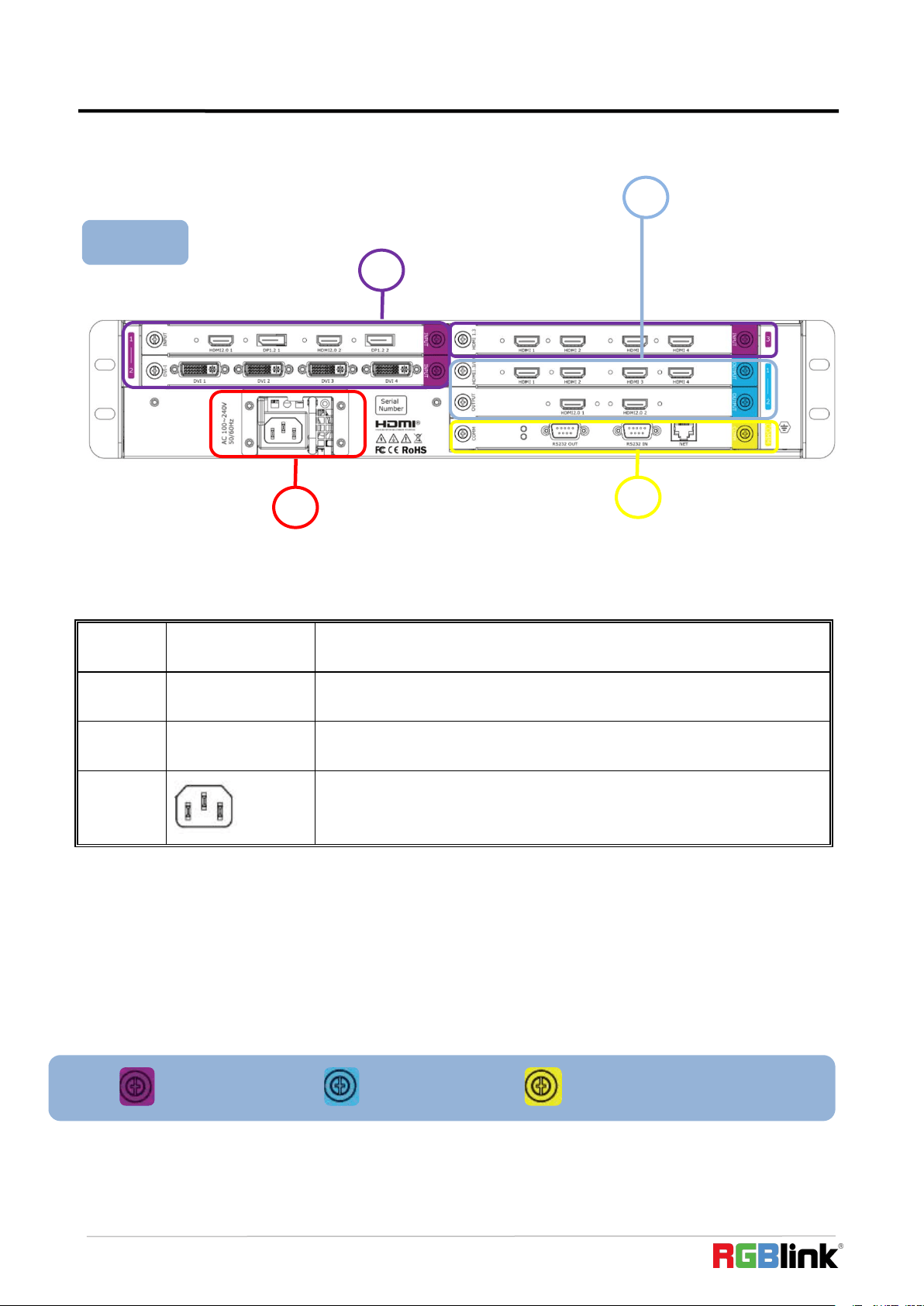

1.2.3 Rear Panel
1
Purple Input 1-3
Input slots 1-3, supporting DVI,HDMI,DP modules and other
optional modules.
2
Blue Output 1-2
Output slots 1-2, supporting HDMI and other optional modules.
3
Yellow COMM
Communication board with LAN and RS232 port,to connect router
or computer to realize software control.
4
Power Interface
Note： purple tip indicates input, blue tip indicates output, yellow tip indicates communication.
Q16pro-2U
1
2
4
3
© Xiamen RGBlink Science & Technology Co., Ltd.
10
1
2
3
4

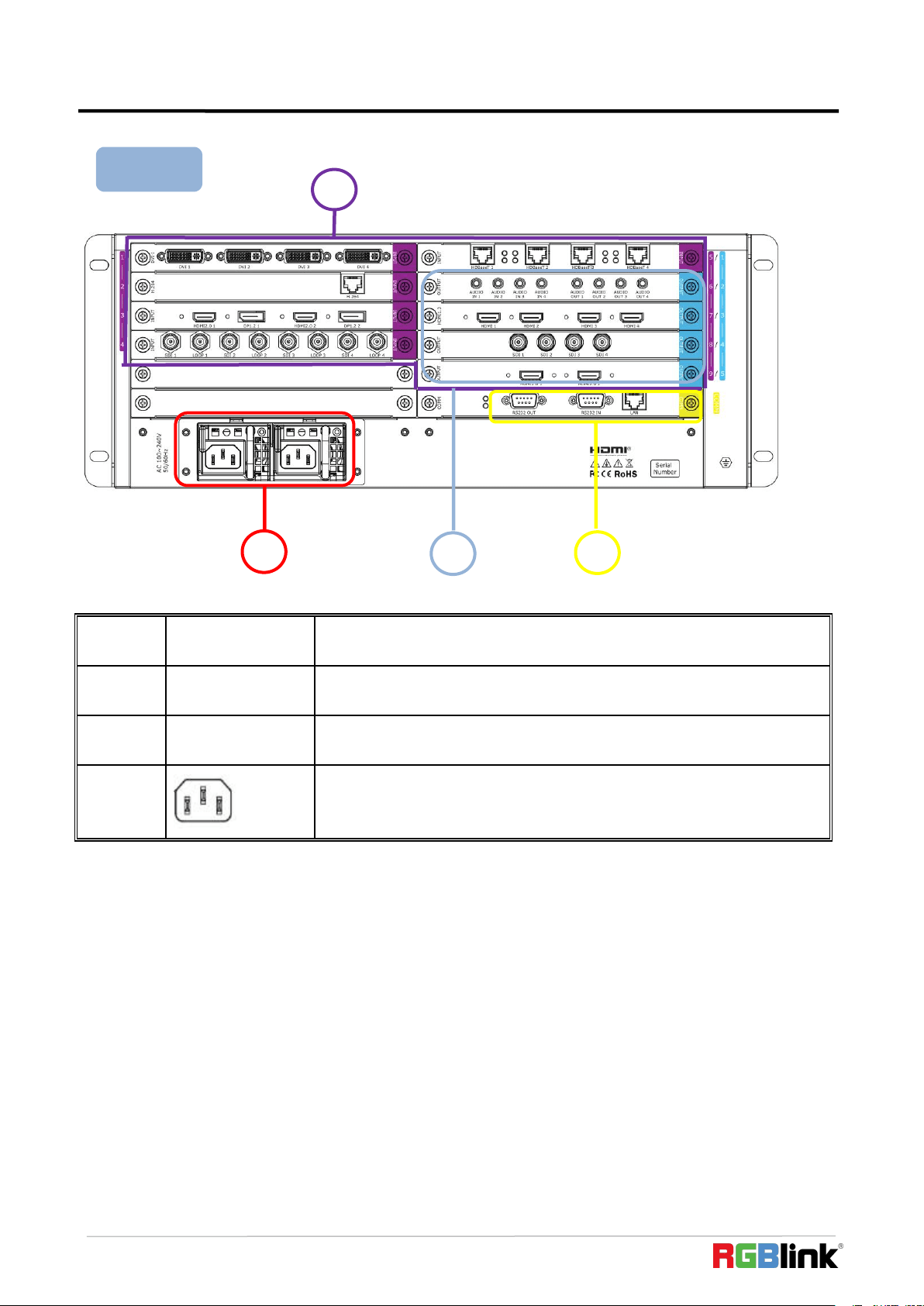

Q16pro-4U
1
Purple Input 1-4
Input slots 1-4,supporting DVI,HDMI,DP,H.264 modules and other
optional modules.
2
Blue Output 1-5
Output slots 1-5,supporting HDMI,DVI and other optional
modules.
3
Yellow COMM
Communication board with LAN and RS232 port,to connect router
or computer to realize software control.
4
Power Interface,4U and above supports double power supply.
© Xiamen RGBlink Science & Technology Co., Ltd.
11

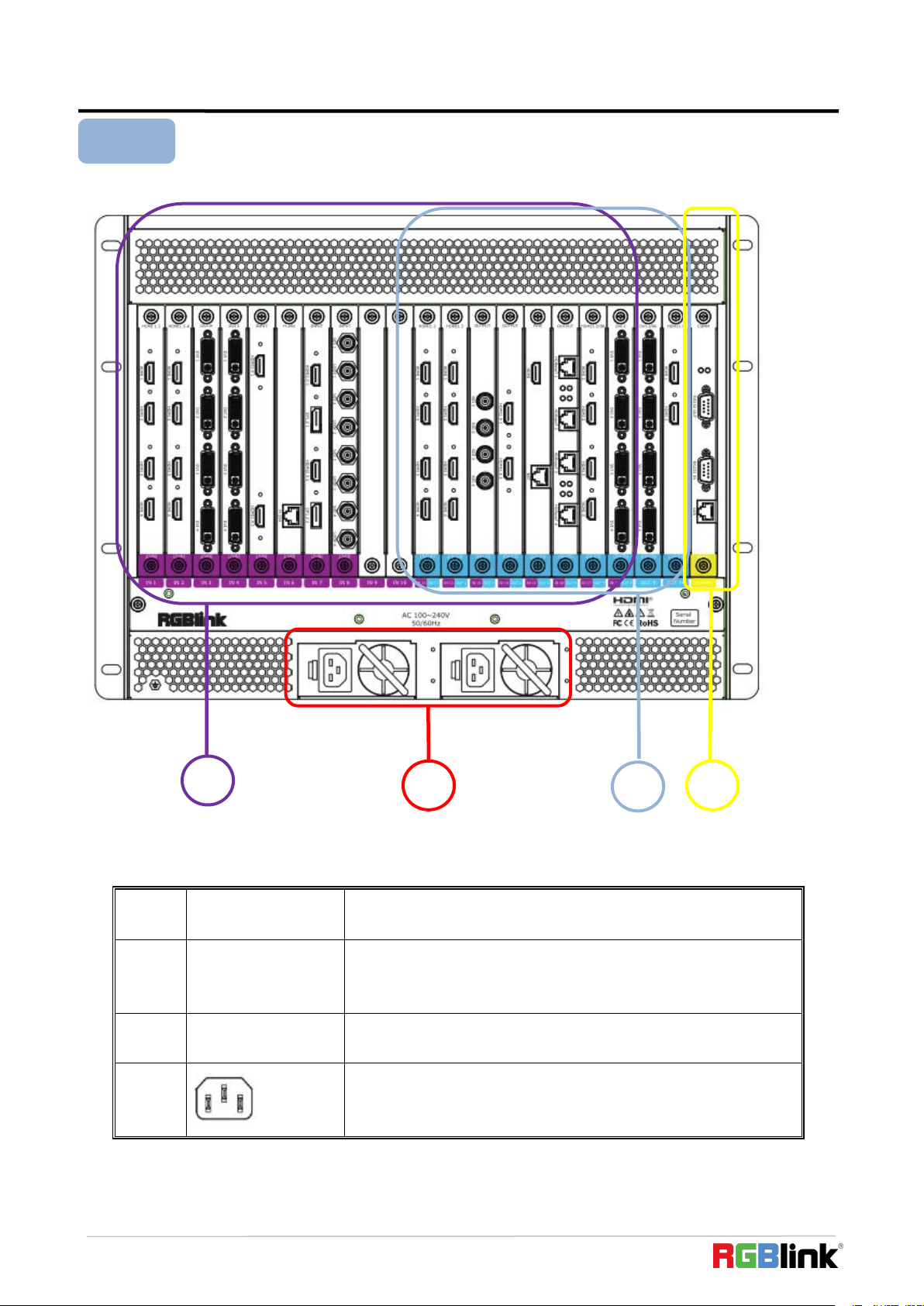

1
Purple Input 1-10
Input slots 1-10,supporting DVI,HDMI, DP,H.264 modules
and other optional modules.
2
Blue Output 1-20
Output slots 1-18, supporting HDMI,DVI and other
optional output modules, supporting input modules. Slot
19-20 can only be used for output.
3
Yellow COMM
Communication board with LAN and RS232 port ， to
connect router or computer to realize software control.
4
Power Interface，4U and above supports double power.
4
2
Q16pro-8U
3
1
© Xiamen RGBlink Science & Technology Co., Ltd.
12

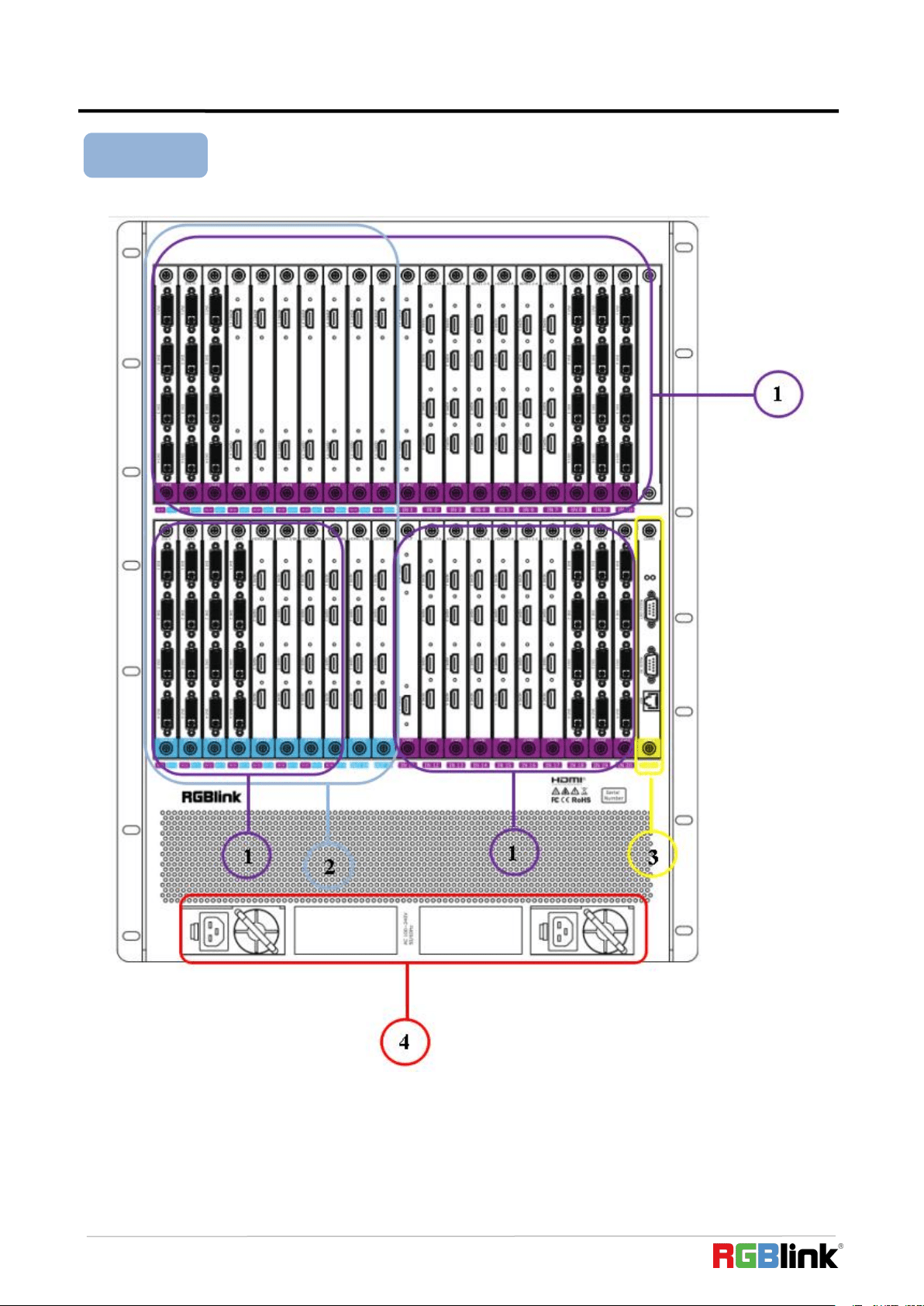

Q16pro-14U
© Xiamen RGBlink Science & Technology Co., Ltd.
13

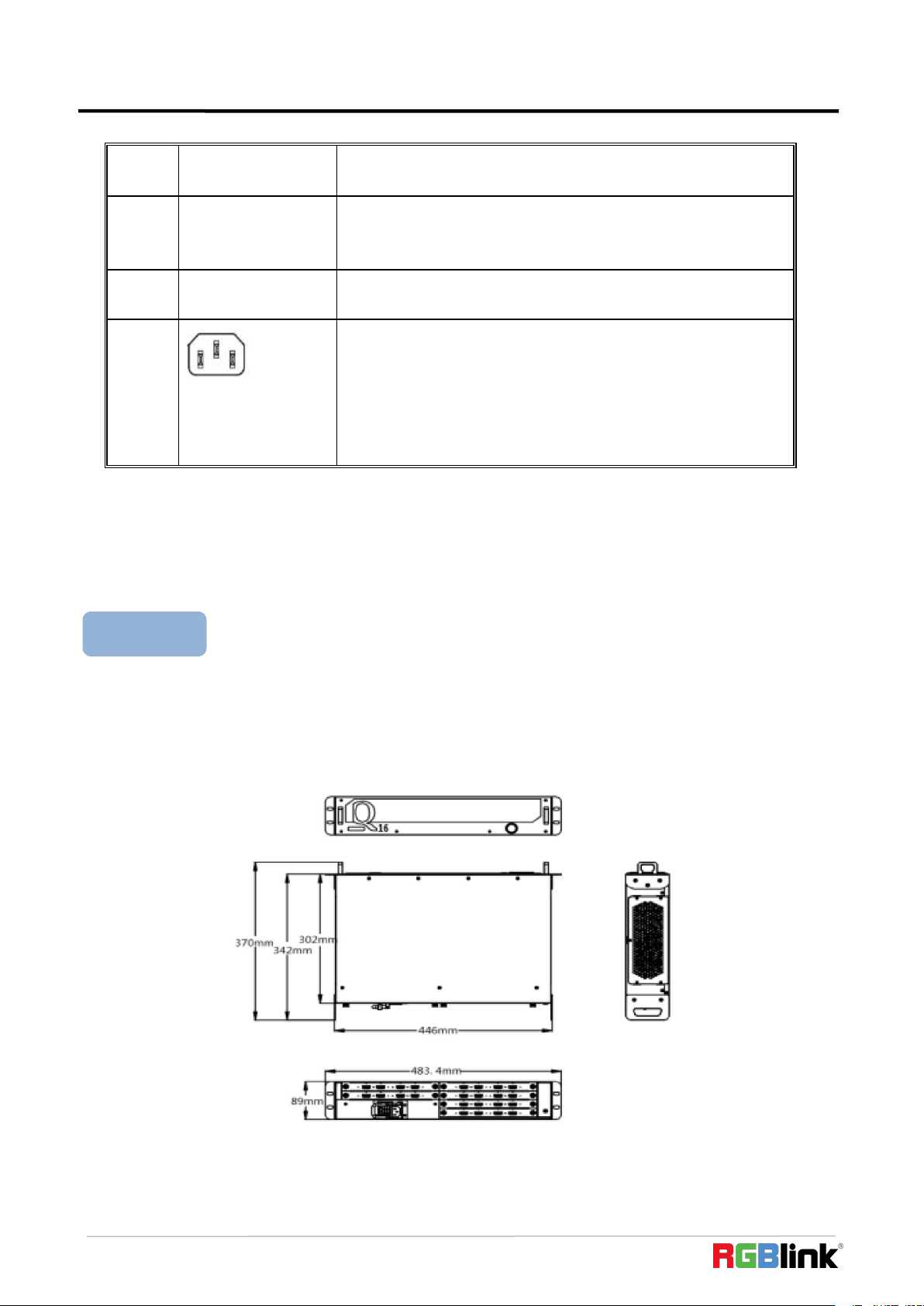

1.2.4 Dimension
Following is the dimension of Q16pro-2U for your reference:
446mm
×
370mm
×
89mm
1
Purple Input 1-20
Input slots 1-20, supporting DVI,HDMI, DP,H.264 modules
and other optional modules.
2
Blue Output 1-20
Output slots 1-18, supporting HDMI, DVI and other
optional output modules, supporting input modules. Slot
19-20 can only be used for output.
3
Yellow COMM
Communication board with LAN and RS232 port, to
connect router or computer to realize software control.
4
Power Interface，4U and above supports double power
supply.
Q16pro-2U
© Xiamen RGBlink Science & Technology Co., Ltd.
14

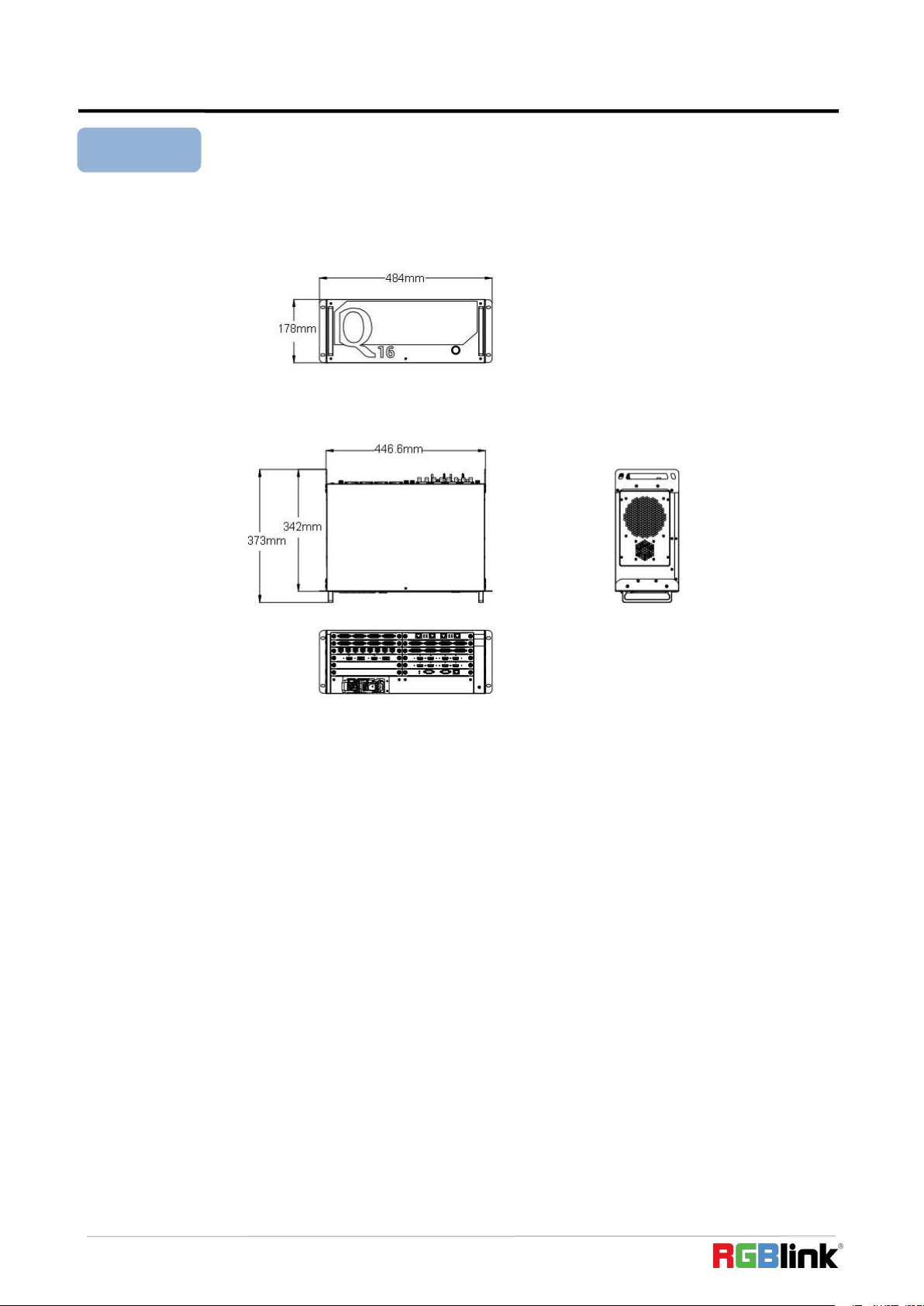

Following is the dimension of Q16pro-4U for your reference:
484mm×373mm×178mm
Q16pro-4U
© Xiamen RGBlink Science & Technology Co., Ltd.
15

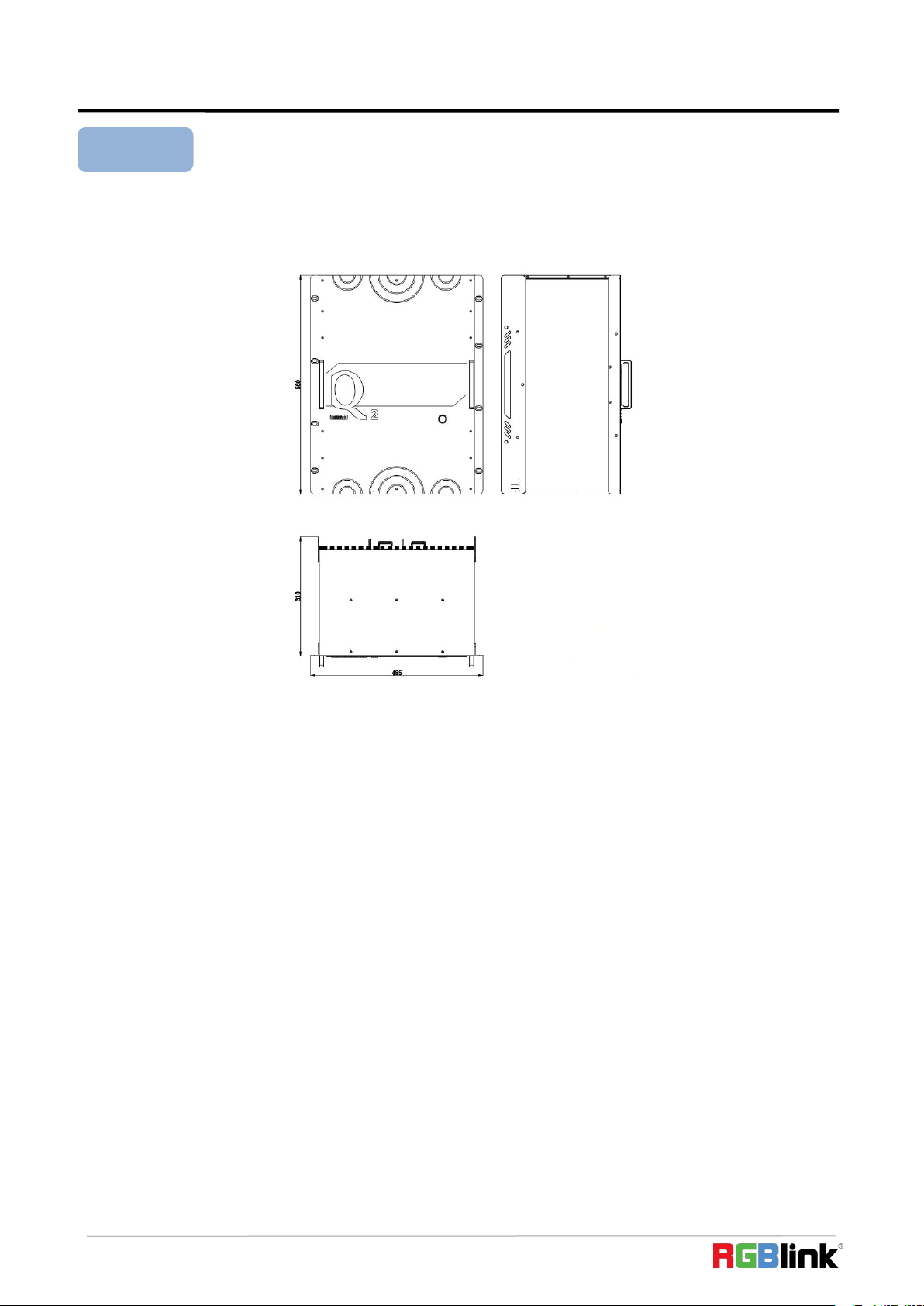

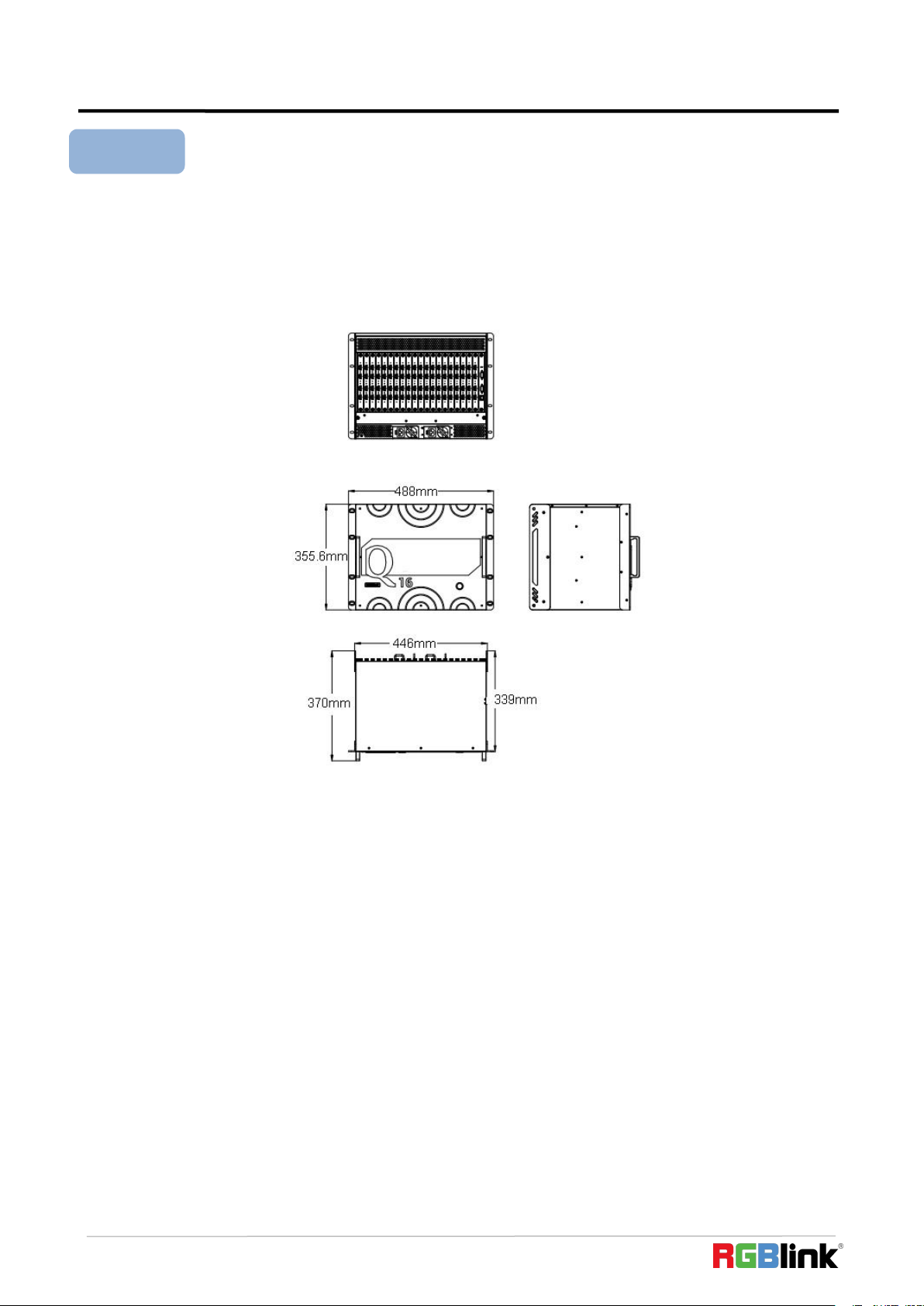

Following is the dimension of Q16pro-8U for your reference:
488mm×370mm×355.6mm
Q16pro-8U
© Xiamen RGBlink Science & Technology Co., Ltd.
16
Following is the dimension of Q16pro-14U for your reference:
485mm×310mm×560mm
Q16pro-14U
© Xiamen RGBlink Science & Technology Co., Ltd.
17
Chapter 2 Install Your Product

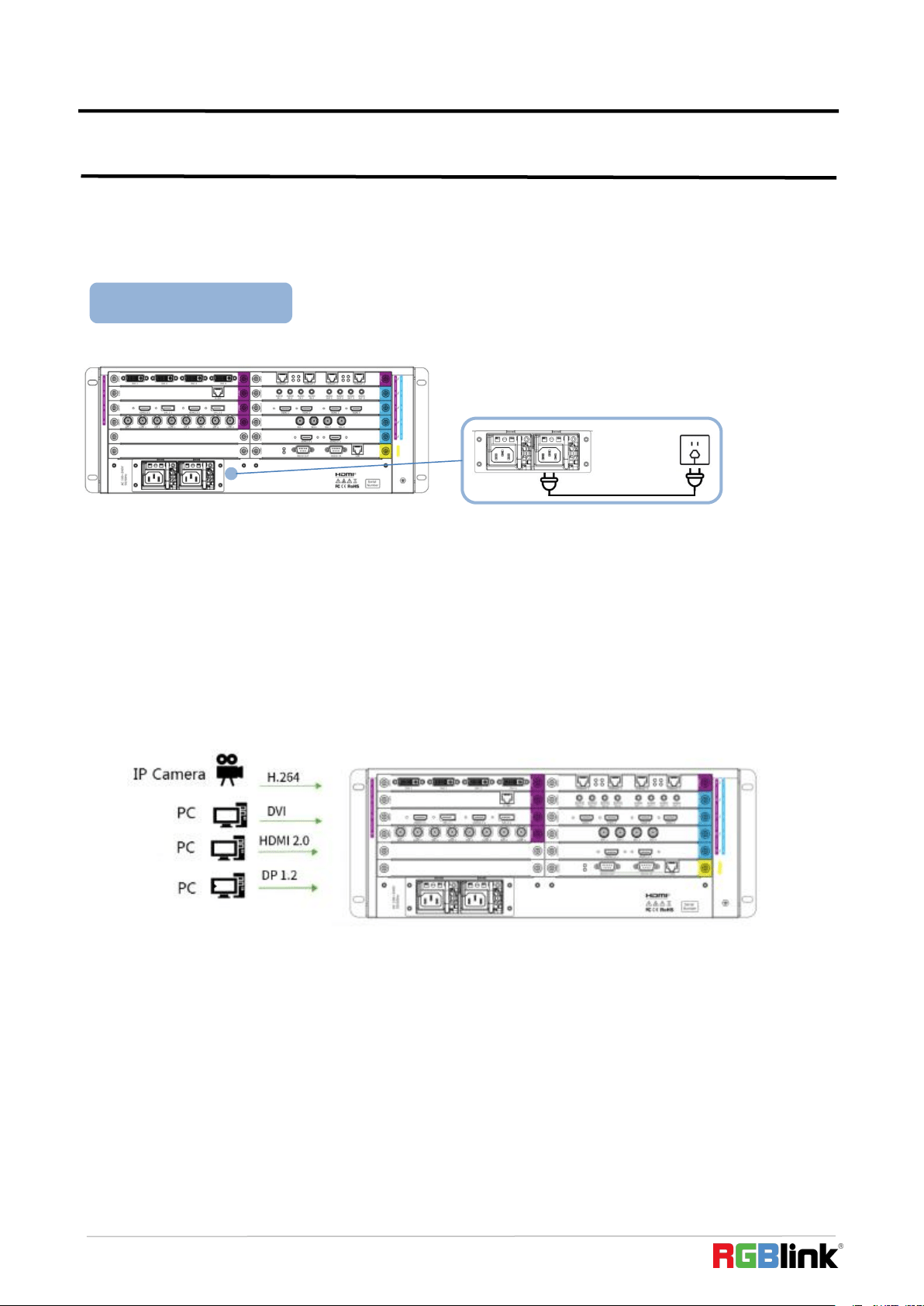

2.1 Plug in Power
2.2 Connect Input Signal Source
Connect power and Q16pro-4U with standard AC Power Cord.
Take Q16pro-4U as example
Q16pro series supports HDMI
、
DVI
、
SDI
、
DP1.2
、
HDBaseT and other optional input modules.
Connect Q16pro-4U with IP Camera,PC,DVD,laptop and other device as shown in the figure
above.
© Xiamen RGBlink Science & Technology Co., Ltd.
18

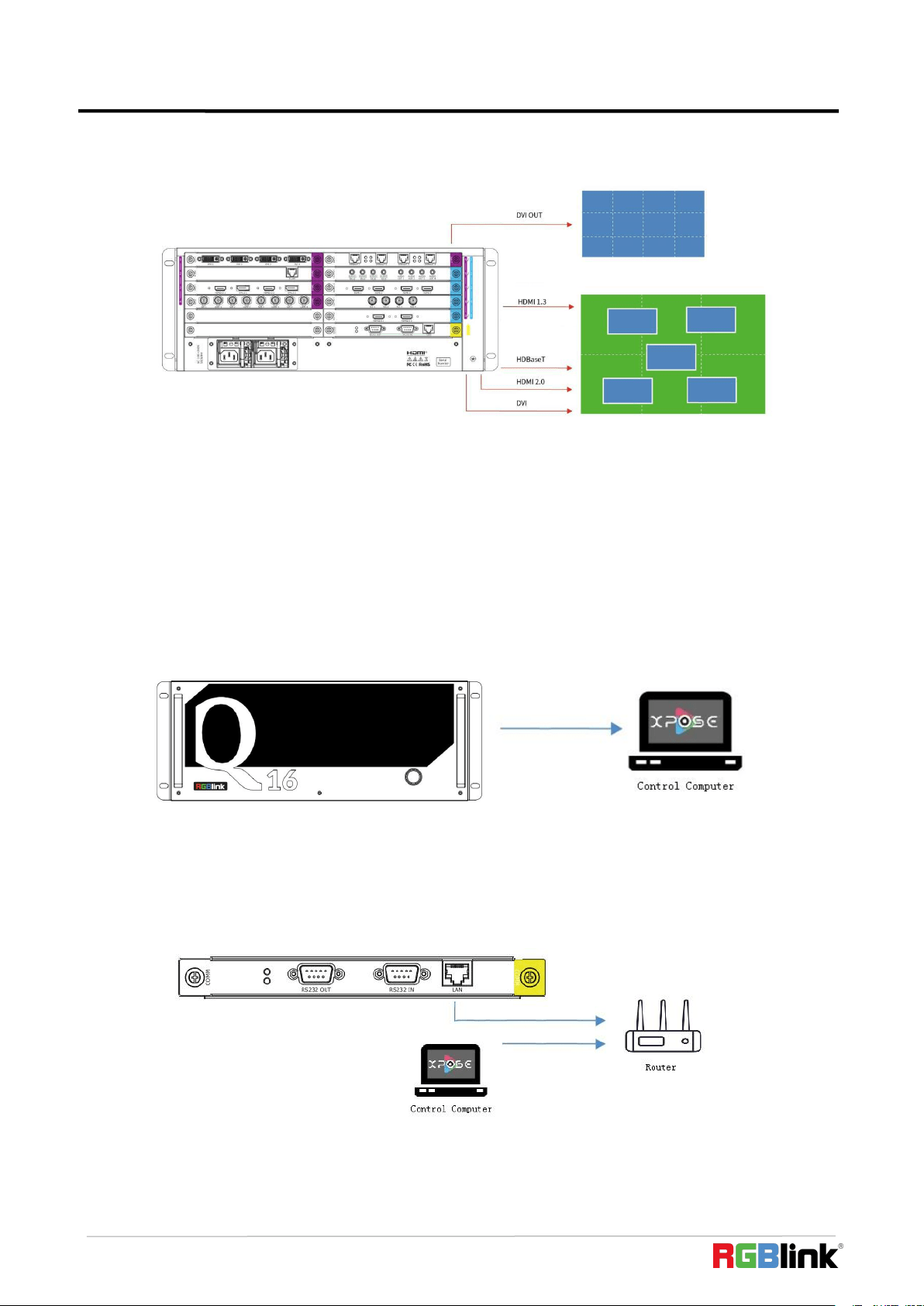

2.3 Connect Output Source
2.4 Connect control Computer

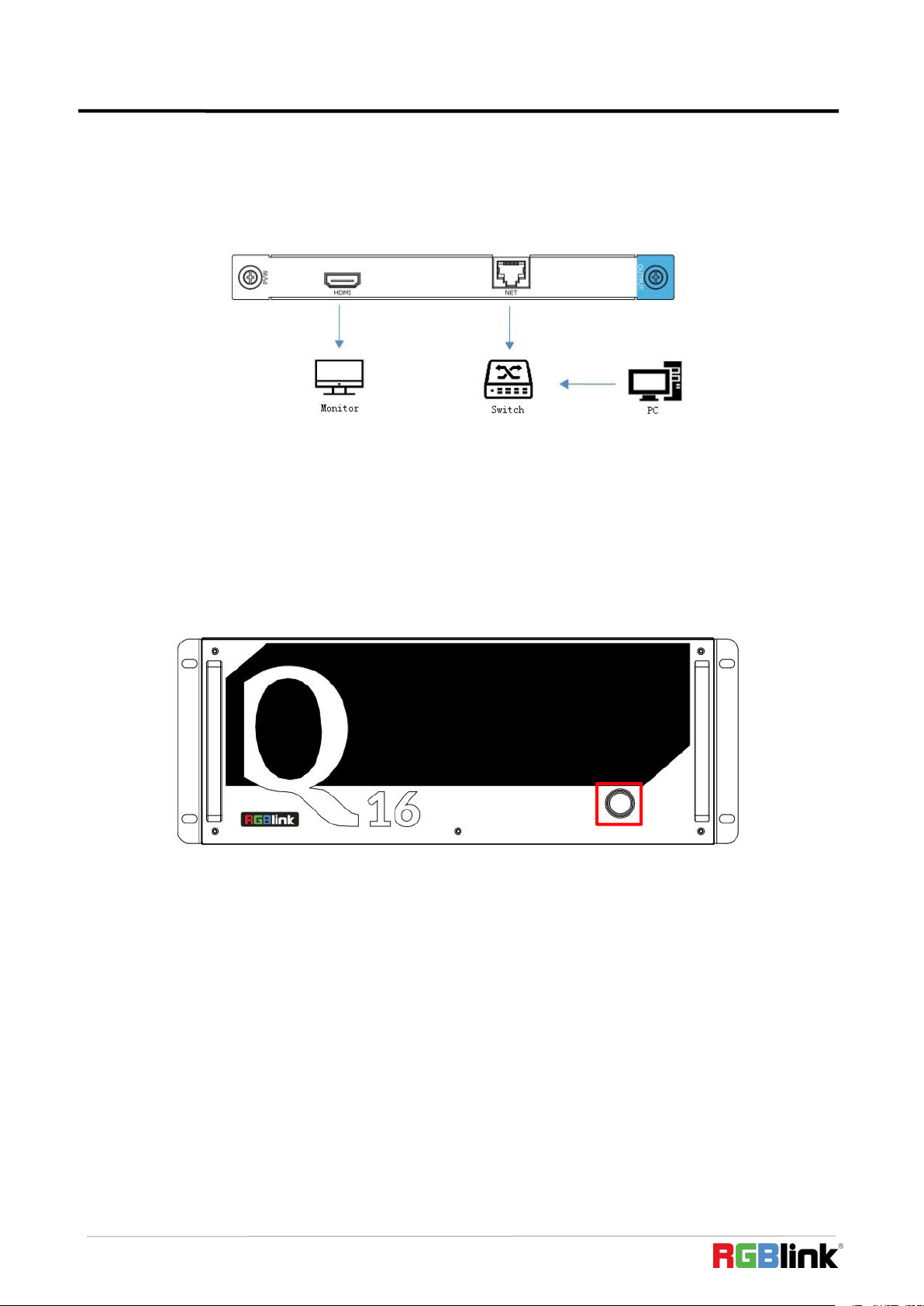

Method 1：Direct Connection:Connect Q16pro-4U with computer via network cable as shown in the figure
below.It is suitable for single user to control the device.
Method 2 ： Router Connection:Connect control computer and Q16pro-4U with Router as shown in the figure
below.It supports simultaneous online operation by multiple users.
Q16pro Series supports SDI
、
DVI
、
HDMI
、
HDBaseT and other optional output modules.
Connect Q16pro-4U with monitors.
Q16pro series is operated by XPOSE,so it is necessary to connect device with control computer.
© Xiamen RGBlink Science & Technology Co., Ltd.
19
2.5 Connect PVW Module
Q16pro series supports preview input source via control computer or output image via monitor.
2.6 Turn on Your Q16pro
LAN:preview input and output
HDMI monitor:preview input source
After connection,slightly press the power button in the front panel to turn on Q16pro.
© Xiamen RGBlink Science & Technology Co., Ltd.
20
Chapter 3 Use Your Product
3.1 XPOSE 2.0 Installation
Environment Requirements:
Window
Processor: 1 GHz or above 32 bit or 64 bit processor
Memory: 4 GB or more
Graphics: Support Direct X9 128M or above (open AERO effect)
Hard disk space: Above 16G (primary partitions, NTFS format)
Monitor：Resolution must be 1920×1080 pixel or above(it can not display normally if the resolution is lower than
1920×1080)
Operating system: Windows 7 or above (full version, not Ghost version or compact version)
CPU:i5 and above
Mac
Monitor:Resolution must be 1680×1050 pixel or above(it can not display normally if the resolution is lower than
1680×1050)
CPU:i5 and above
1. Double click ,it will pop-up the installer
language box, select the language, for example,
select “English”, and click “OK” to confirm.
Note
：
The following XPOSE operation takes Q16pro-4U as an example, and other U models operate the
same except for the difference of interface.
© Xiamen RGBlink Science & Technology Co., Ltd.
21
2. Click “Next” to install
3. Click “Browse...” to select the XPOSE software
install location
Click “Install”

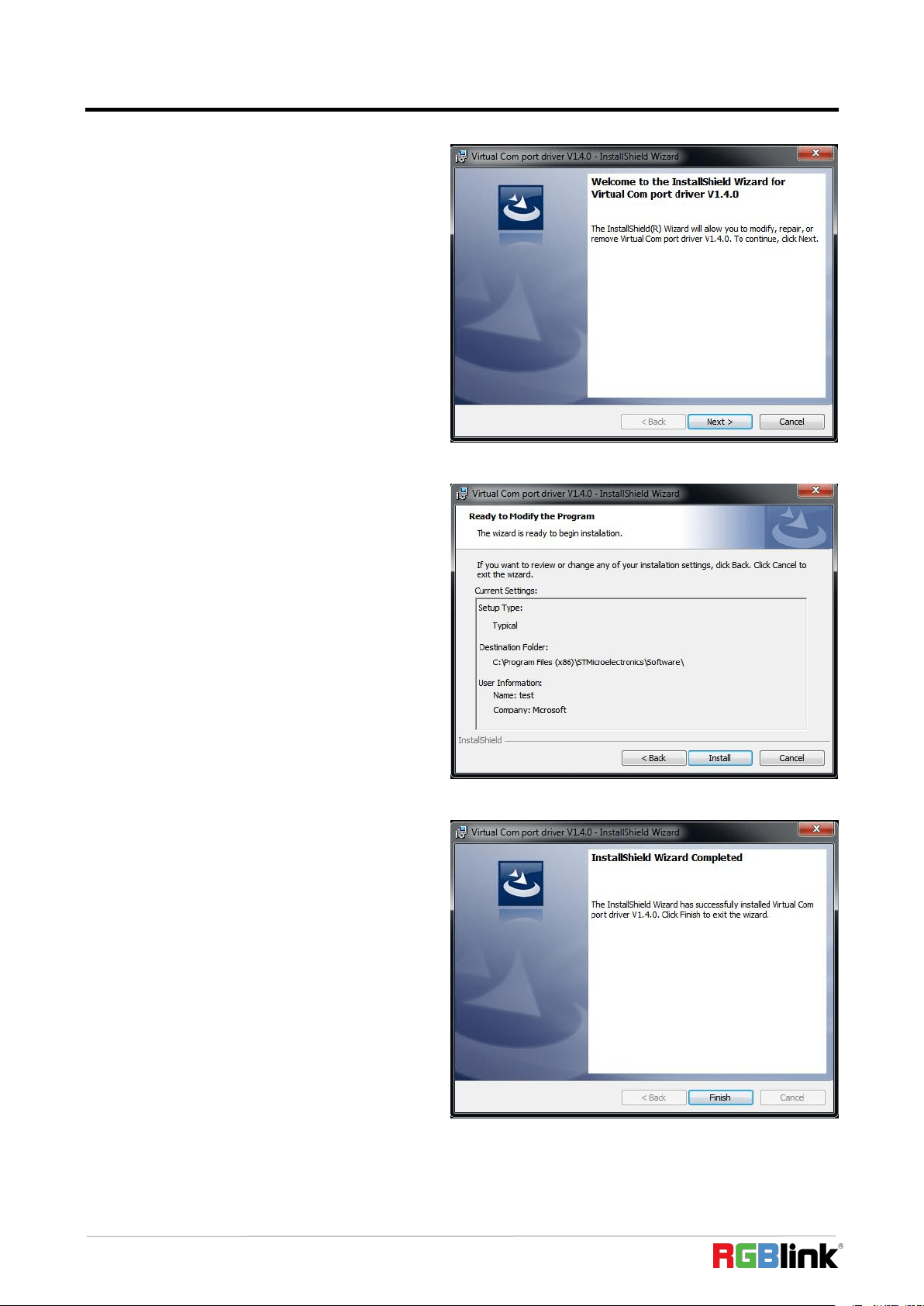

4. During installation, it will pop up the window of
Install Shield Wizard for Virtual Com port
© Xiamen RGBlink Science & Technology Co., Ltd.
22
5. click “Next”
6. Then click “Install", as shown in the figure
7.
Click “Finish” and complete the installation, as
shown in the figure below
© Xiamen RGBlink Science & Technology Co., Ltd.
23
3.2 XPOSE Operation

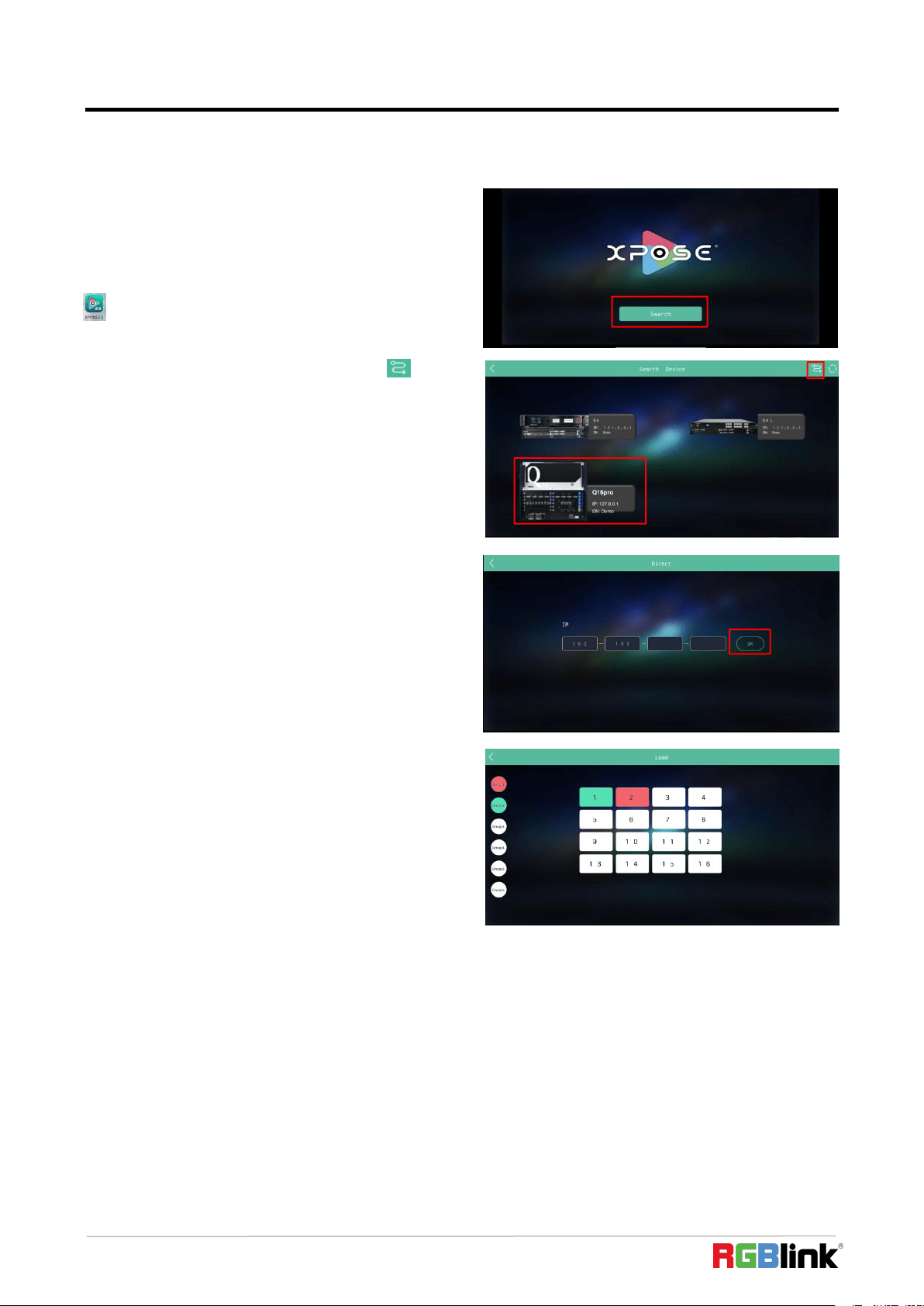

3.2.1 Login in XPOSE
Double click this icon ,and enter the log on
interface as follow
The initial language of XPOSE 2.0 is self adjusted
based on the operation system language of the
computer. Click Register and fill in the blank with
first name, last name, email, company and country
and then click Register Now.
Please note that the email shall be invalid and
complete otherwise Registration&Activation code
cannot be received.
Click Activate and scan the QR code
an email from RGBlink Registrations will be sent to the
Register email address.
Type in the activate code and confirm.
8. Click “Finish” and is ready to run the XPOSE
software
© Xiamen RGBlink Science & Technology Co., Ltd.
24
Type in the activate code and confirm.
Keep the user name as “Admin” and password
blank and then click Start Now.
If exact Name and Password are needed, users can
set up them in Authorization Setting under System
Setting.
After login, users can find the management
including:Topology Diagram,Search,Display
System,Layer Management, Preset Management,
Keyboard Settings. The details of each hierarchy will
be described hereafter.
© Xiamen RGBlink Science & Technology Co., Ltd.
25
3.2.2 System Setting
Click to enter <System Setting>interface.
Software Version：check current version
Language：Chinese/English/Russia
Find Device ： New version of XPOSE 2.0 is blank
default in Find Device. Users are supposed to
choose the device needed in System Setting.
Keyboard Management: click <keyboard> it will
redirected to keyboard setting window.
Keyboard setting is designed to fit for different
operation system such as Windows and Mac. Users
can set short cut keys.
© Xiamen RGBlink Science & Technology Co., Ltd.
26

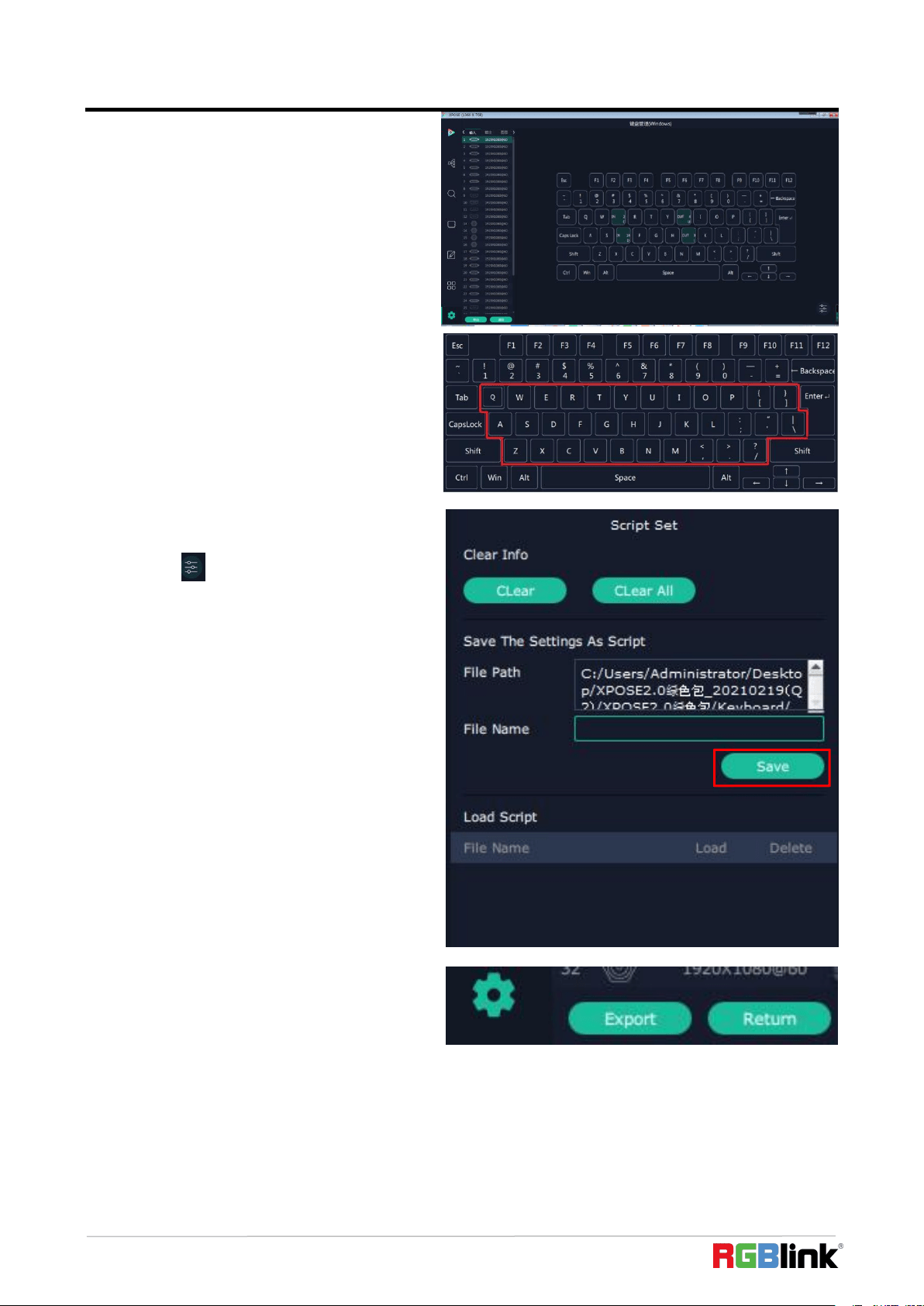

Scrip Set
File Path:Save the current keyboard Settings in the
script to the local path
File Name: script file name
Load Script: Load/Delete
Drag Input, Output, Layer and Preset from the list
to the keys you desired as shown in the figure:
Please note the keyboard area where allows
to set short cut keys
If the setting goes wrong or no need for short cut keys
any more, click to clear some keys or clear all.
Clear: is to clear some keys, the keys need to selected
before hand.
Clear all: is to remove all already set short cut keys.
Users can also save the keyboard setting as script.
Click Return to back to <system setting>
© Xiamen RGBlink Science & Technology Co., Ltd.
27

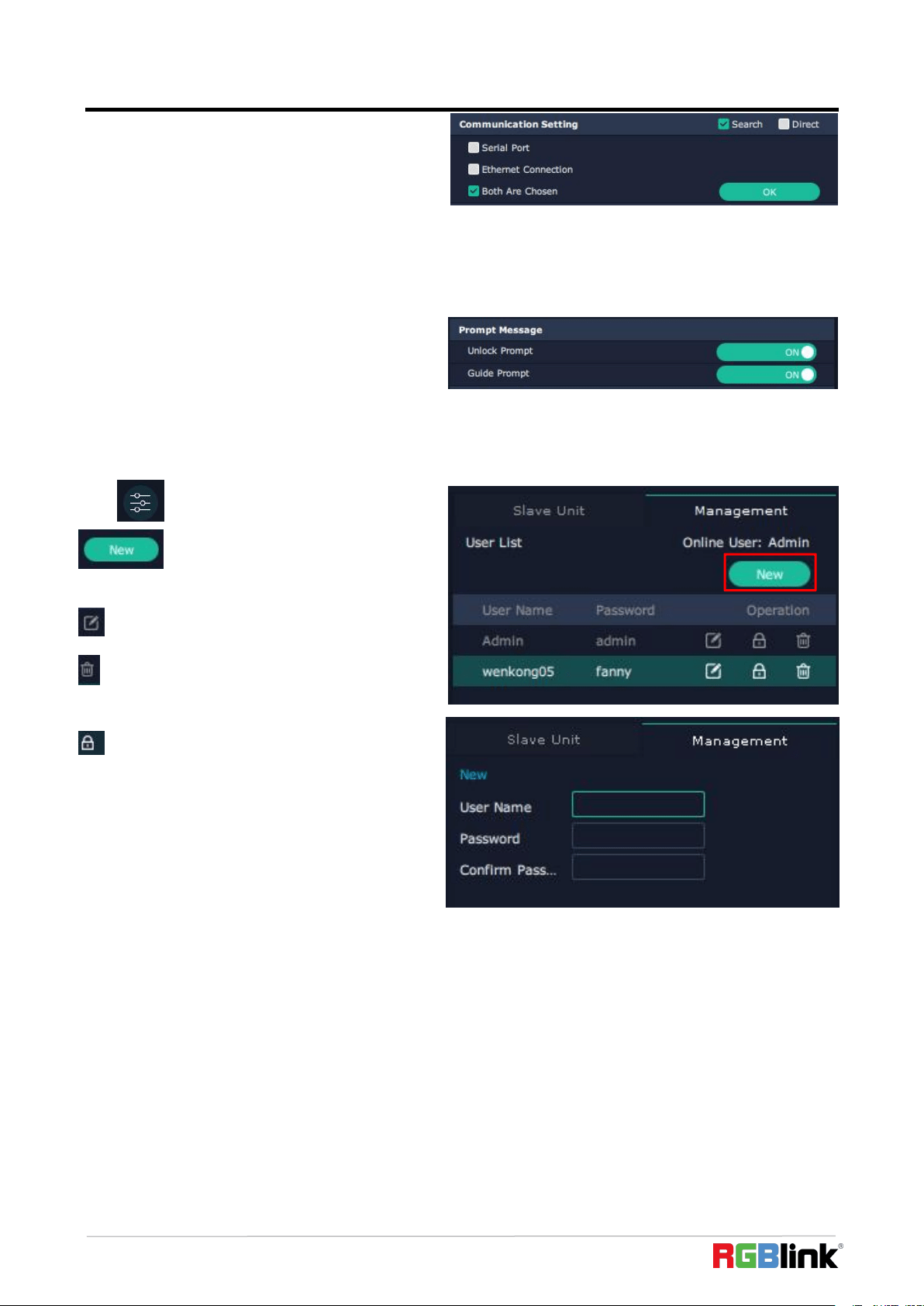

Authorization Setting
Click to open up the authorization entry.
New:Add new USER NAME and
PASSWORD
Edit: Edit user name and password already built.
Delete: Delete user name and password already
built.
Permission: functions on this XPOSE 2.0 on this
computer that the users are allowed to operate.
Click the green block to remove the function not to
be permitted.
Click
“
new
”
,type in User Name and Password.
Prompt Message: open and close unlock prompt
and guide prompt.
Communication Setting：The default is <search>, if it
is< direct>,users need to type the corresponding IP
address
Serial Port：search only those connect via serial port.
Ethernet Connection：search only those connect via
ethernet.
Both Are Chosen：click both, both connections change
synchronously.
© Xiamen RGBlink Science & Technology Co., Ltd.
28

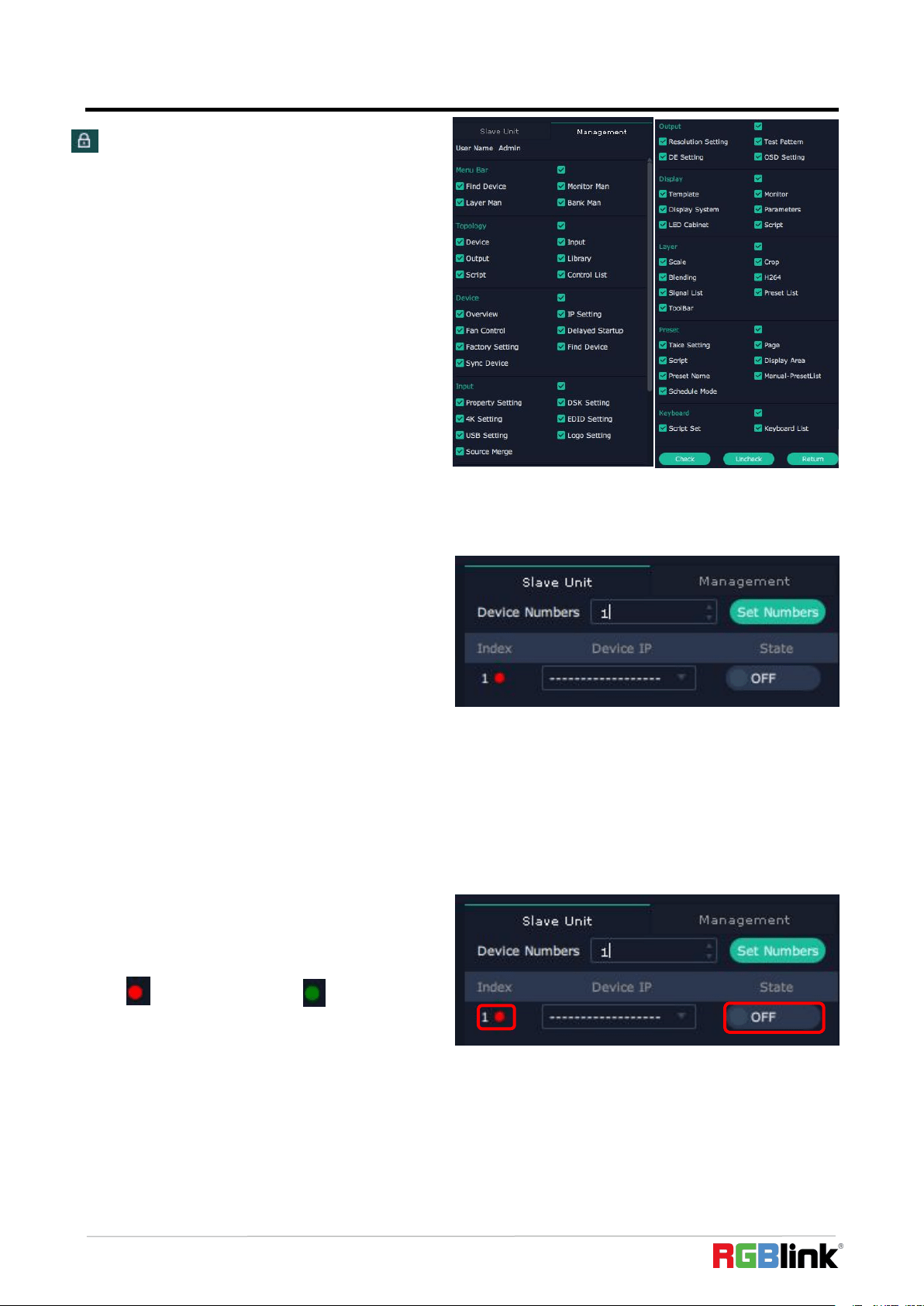

Authorization Set: click on the function that
allows other users to take action
Slave Unit：
Click Slave Unit
Slave Unit is to control multiple devices
simultaneously, which are connected to same
network. (“In the same network” means that the the
third section in the IP address digits are the same )
XPOSE do operation on one device, same operation
synchronized to other devices. For example, there is
another devices linked to the same network, one with
IP IP192.168.0.45
1. Set device numbers
；
2. Select the IP of the device in the drop-down menu
for Device IP
3. click ON,the tow device are connected when the
red pot turns to be green one .
4. click OFF to disconnect, it could not control two
device at the same time.
© Xiamen RGBlink Science & Technology Co., Ltd.
29

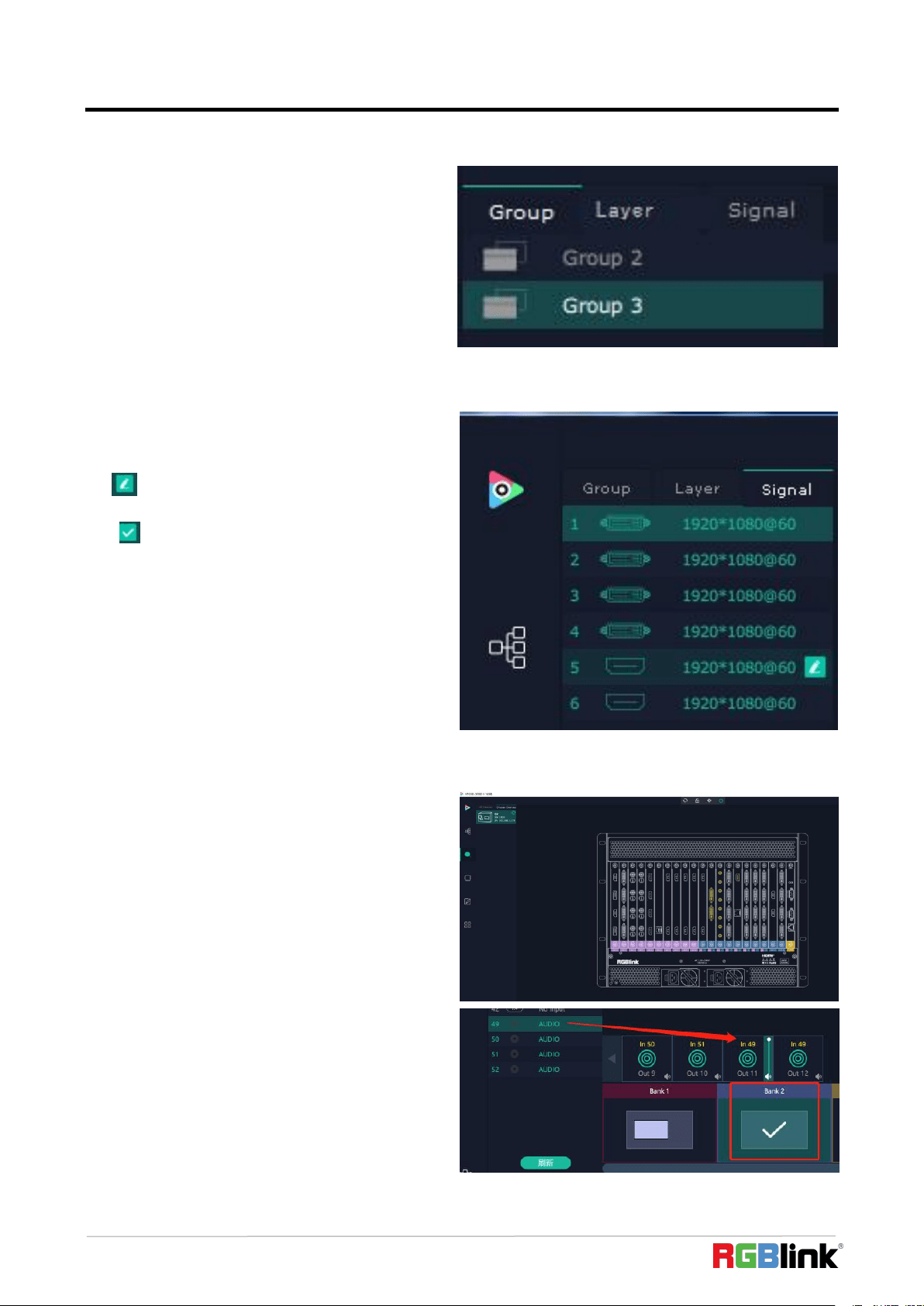

3.2.3 Output|Input|Overview
Device Connection
Output Setting
Standard Resolutions can be chosen as shown in the
right figure.
The rear panel can be seen after connection
1. Click the device you need in the <All Devices>
list,such as
Q16pro SN: 8043, IP: 192.168.0.114
2. click in the <Chosen Device>.
Resolution
Click any output port, the board where the port
locates is selected. Users can do settings to the port
now.
A red rectangle flashes around the chosen port
when it is clicked.
Note
：
purple tip indicates input, blue tip indicates output, yellow tip indicates communication.
© Xiamen RGBlink Science & Technology Co., Ltd.
30

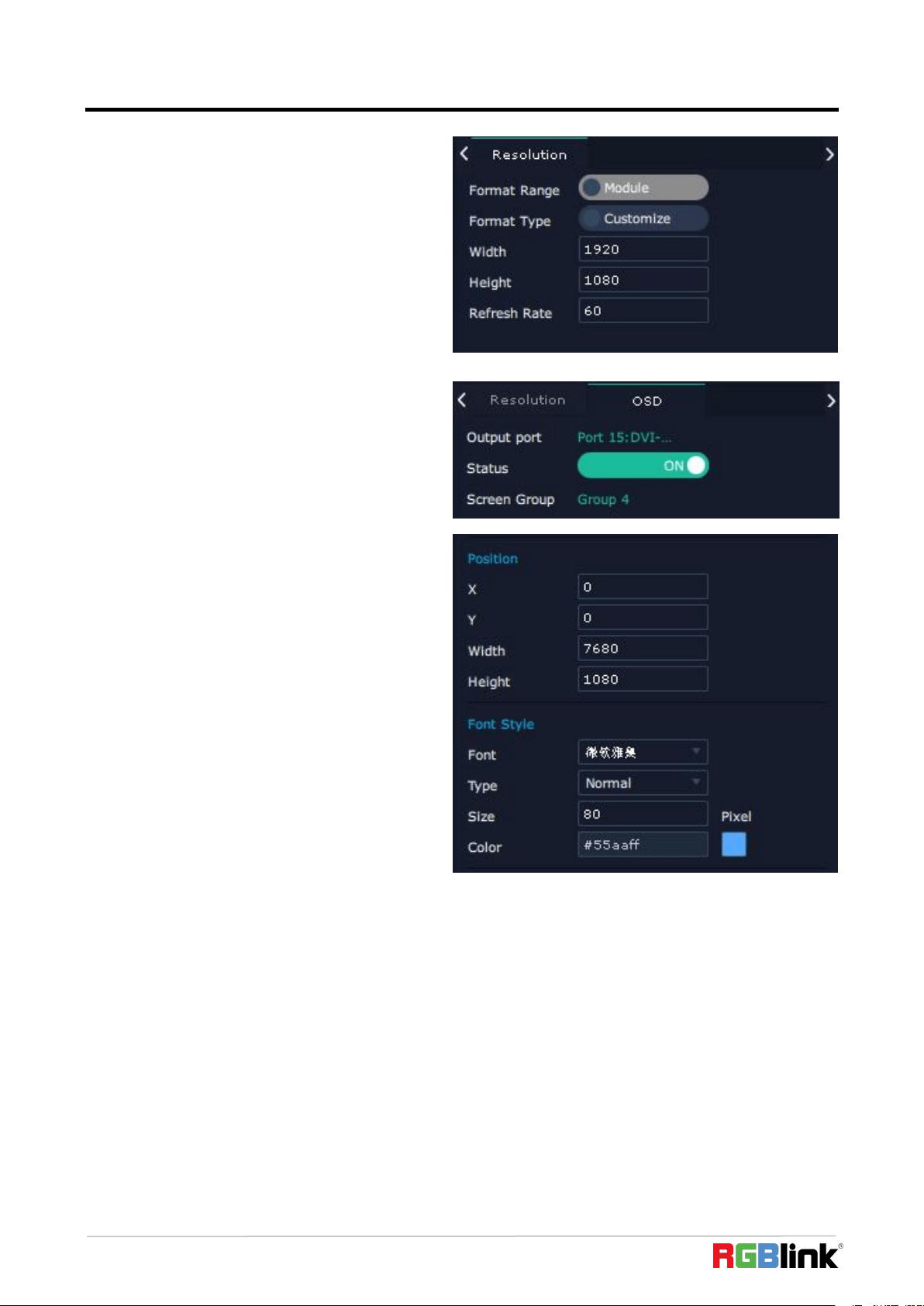

OSD:
Q16pro module which supports OSD as shown
below:
● 2K HDMI Output Module(with OSD and
background）
Order Codes refer to 4.2
Output port : current output port
Status : ON/OFF OSD
Screen Group : current group
X/Y
：
the starting horizontal and vertical position
Width/Height : the horizontal and vertical size of the
text
Font: font of the text,all fonts installed in the
computer is available
Font Type : Normal,Italic,Bold,Bold Italic
Font size : 0-300 pixels
Color
：
font color
Customize Resolution
Q16pro supports to customize output resolutions.
Click any output port and type in width,Height and
Refresh Rate.
© Xiamen RGBlink Science & Technology Co., Ltd.
31

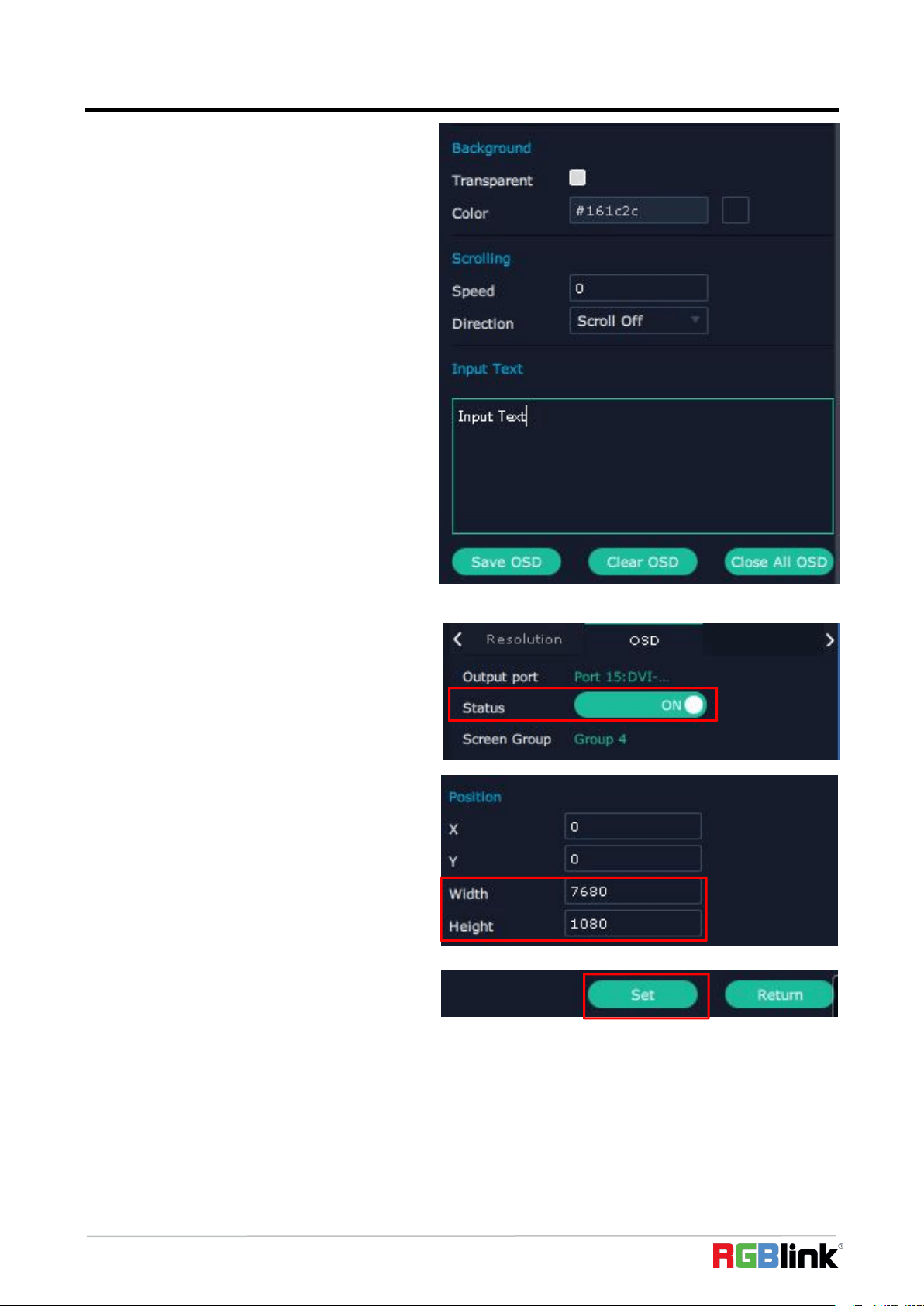

Steps of OSD Set are as follows：
Precondition: The Display Management of output
ports has been completed before the OSD Set.
1
、
Open OSD Status.
2
、
Position: If the width of a single output is 1920
and the OSD will be displayed on the screen which is
spliced by four outputs horizontally, then type
7680 for width (that is, the width of the four
outputs).
3
、
Font: choose font type,size and color.
4、After all settings done,click<Set> and the OSD will
be displayed on the screen.
Background : Transparent
Color: background color
Scroll Speed: 0-16
Scroll Direction: Scroll Off, Scroll Left, Scroll Right
Input Text: The exact content of the text.
After setting, users choose Save OSD,Clear OSD
(if the setting is not desired) or Close All OSD
© Xiamen RGBlink Science & Technology Co., Ltd.
32
Input Setting
Property Setting
Input Port: chosen port
Scale:
X/Y：the starting horizontal and vertical position
Width/Height : the horizontal and vertical size of
scale
EDID
Input Port: chosen port
Basic Parameters:
EDID Template: RGB-DVI or RGB-HDMI
Monitor Name: type the monitor name
Width/Height/Frequency: type in custom parameters
to meet your needs.
Q16pro’s modules which support EDID are as follows:
● HDMI Input Module (with audio)
● HDMI Input Module
● DVI-M Input Module
● DVI-I Input Module
● 4K@60 Input Module
Order Codes of module refer to 4.2
Click any input port in purple area, the board where
the port locates is selected. Users can do settings to
the board now. A red rectangle flashes around the
chosen port when it is clicked.
Click to open <Property>and<EDID>
© Xiamen RGBlink Science & Technology Co., Ltd.
33
Overview
Click Return , there are overview, IP,
Factory Setting.
Device Info：users can check version and MAC
information
H.264 IP Settings
When there is H.264 input module installed on Q16pro,
through the module, Q16pro is able to search and take
the video signal from webcam in the same local
network.
1. Click H.264 port,To make sure H.264 module take
effect, IP setting is required. IP of H.264 should in the
same network section, for example:network IP is
168.192.0.1, IP of H.264 shall be 168.192.0.X (X≠1)
2. Tick “URL”first and then fill in the URL of camera
(Note:URL address must be in RTSP format.The account and
password of camera should be included in the address.
e.g:rtsp://admin:[email protected]:554/cam/realmonitor
?channel=1&subtype=0&unicast=true&proto=Onvif,in which
admin:admin is the account and password of camera)
3. If only one camera’s address is set,click “Set” in the
right directly;If several cameras’ address are set
together,click “set”in the bottom of the page after all
the address being finished.(Note:For the account and
password will be hidden automatically after click“Set”,
repeatedly click“Set” will result in the error address)
4. The camera signal can be seen in the IPC list in
<Display Management>.Drag and drop the IP Port 1.1
to the display directly ,four camera signals will be in
one group to show the four image in only one layer;
Drag and drop the IP Port 1.11/1.12 to the display
respectively,the camera signals will show the image
© Xiamen RGBlink Science & Technology Co., Ltd.
34
IP : Show IP Address, Netmask, Gateway
IP default:192.168.1.200
Factory Setting
Note: after modifying IP, the device needs to be powered off and restated in 30s.
Note: After factory reset,the device needs to be powered off and restarted,and the IP will be reset to 192.168.1.200.
Output Module Info : users can check current
output module name and MCU version
Input Module Info : users can check current input
module name and MCU version
“
....
”
indicates that there are no input modules,as
shown in the right figure.
© Xiamen RGBlink Science & Technology Co., Ltd.
35

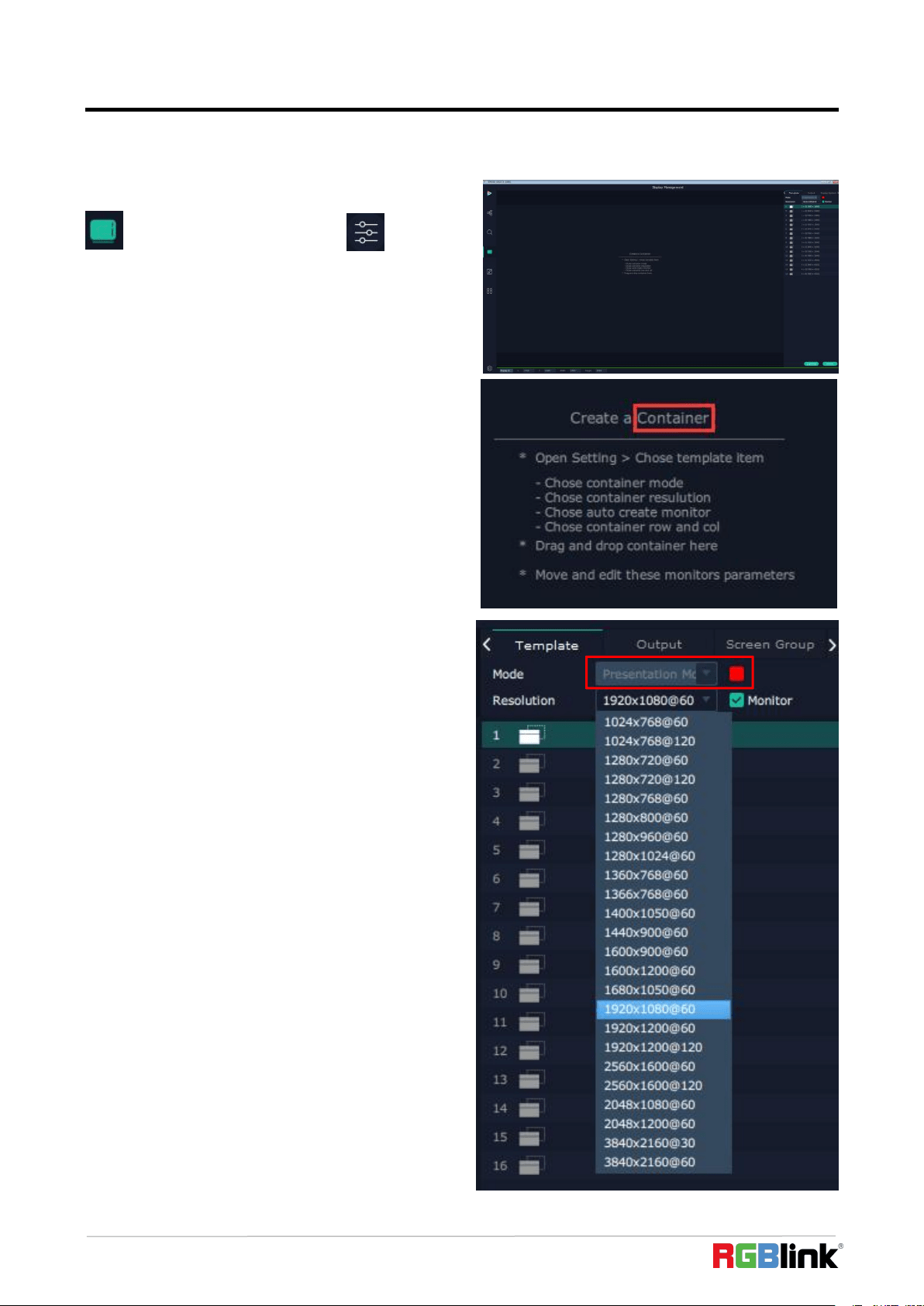

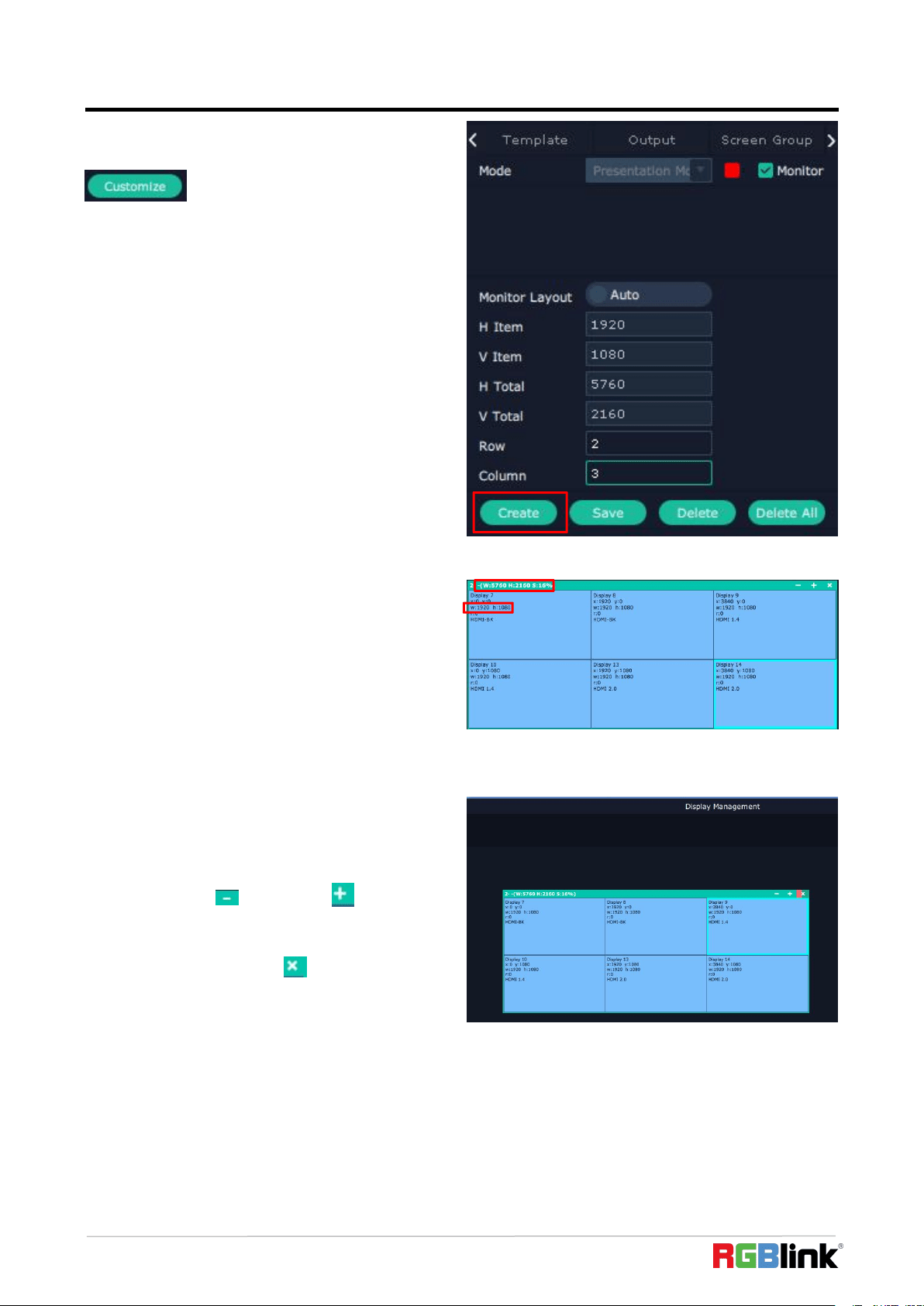

3.2.4 Display Management
Template
There are 16 types of basic “Display Area” which is used
to contain output interface,and could be regarded as
layout of output.
Drag a template to create a container in other word a
display area.
Mode
At present, there are Presentation Mode, PST+PGM
Mode,Rotation Mode and Edge Blending In XPOSE2.0 .
Each mode is marked in different color and provided
with fitted templates
Q16pro : Presentation Mode only.
Users can do operations like splice under Presentation
Mode.
Resolution
Users can choose output resolution as shown in the figure.
Display System is for users to set layout of outputs.
Click this icon first and then click enter the
interface.
Container：
Container here means the Display Area, for example it
could be a formed LED screen or an array of LCDs.
© Xiamen RGBlink Science & Technology Co., Ltd.
36
Customize Container
Click this icon at the bottom of
template list.
Monitor Layout: Auto or Manual
Steps of create container are as follows:
1. Fill in H Total/V Total and Row/Column,it will
calculate H item and V item automatically.
For example, if you would like to create a container
with 2 rows and 3 columns and each display has a
width of 1920 and a height of 1080, the total width will
be 5760 and the total height will be 2160.
Container Adjustment
1. Move：Drag the boarder of the display area to move
its place in the interface.
2. Scale：Click icon to shrink,Click to enlarge the
proportion of display area on interface.
3. Cancel：Long pressing the to cancel the screen
group.
2. Click <Create>,the container will display in the
interface, and shows the width and height of each
Display.
3. Click<Save> to save the container.
© Xiamen RGBlink Science & Technology Co., Ltd.
37

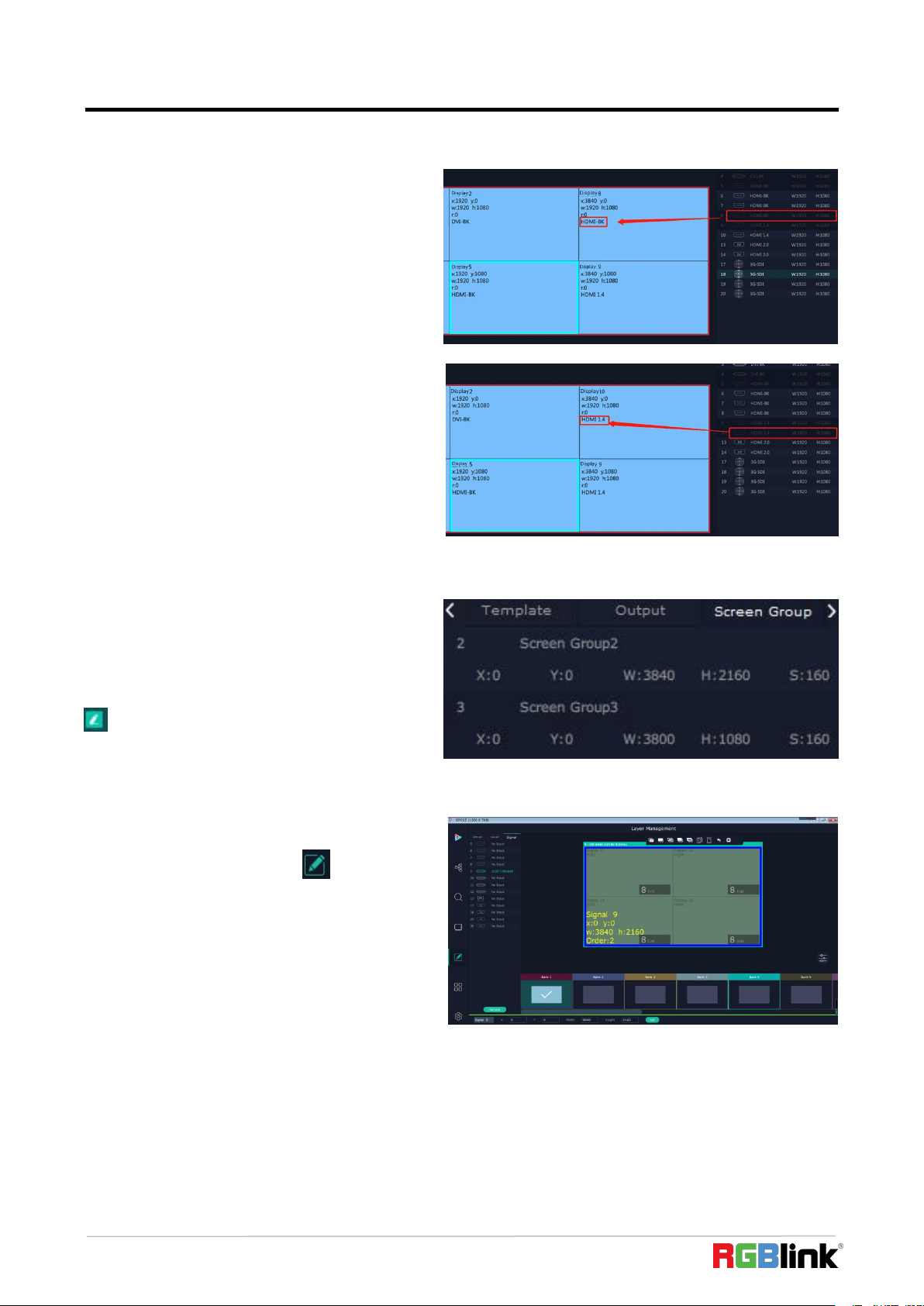

Display
Screen Group
3.2.5 Layer Management
Output List
：
White one
：
available
Gray one
：
unavailable
Operation Steps
：
Left-mouse click the output and drag it to the display
of the set container.
Replacement
：
Drag and drop the output into the corresponding
Display. The output being replaced will turns from
gray to white in the list.
Q16pro supports to manage 6 screen groups at most
on XPOSE.
It allows users to edit the name of the
Screen group that has been created just click the
.
Layer Management is designed to manage the layer
of each monitor.Click this icon to enter the
interface:
© Xiamen RGBlink Science & Technology Co., Ltd.
38
Group
Signal
Audio
When enter Layer Management interface, the
window is blank. The screen group created in Display
System shall be dragged from the Group.
Signal list, showing all input signals and resolutions
currently. Drag the signal to the display.
click ,users can rename the input signal and then
click to confirm.
Q16pro supports Audio Input/Output Module,which
should be inserted into the slots supporting both
input&output module.
1. Select a bank you would like to add audios;
Every bank and every layer can be added different audio
inputs&outputs.
2. Drag audio inputs from “Signal List”to audio outputs
as shown in the right figure;You can also drag a new
audio input to replace the previous one.
The relation between audio input and output is unique;
3. Click left mouse to adjust the volume in “volume
bar”shown in the audio output.
© Xiamen RGBlink Science & Technology Co., Ltd.
39

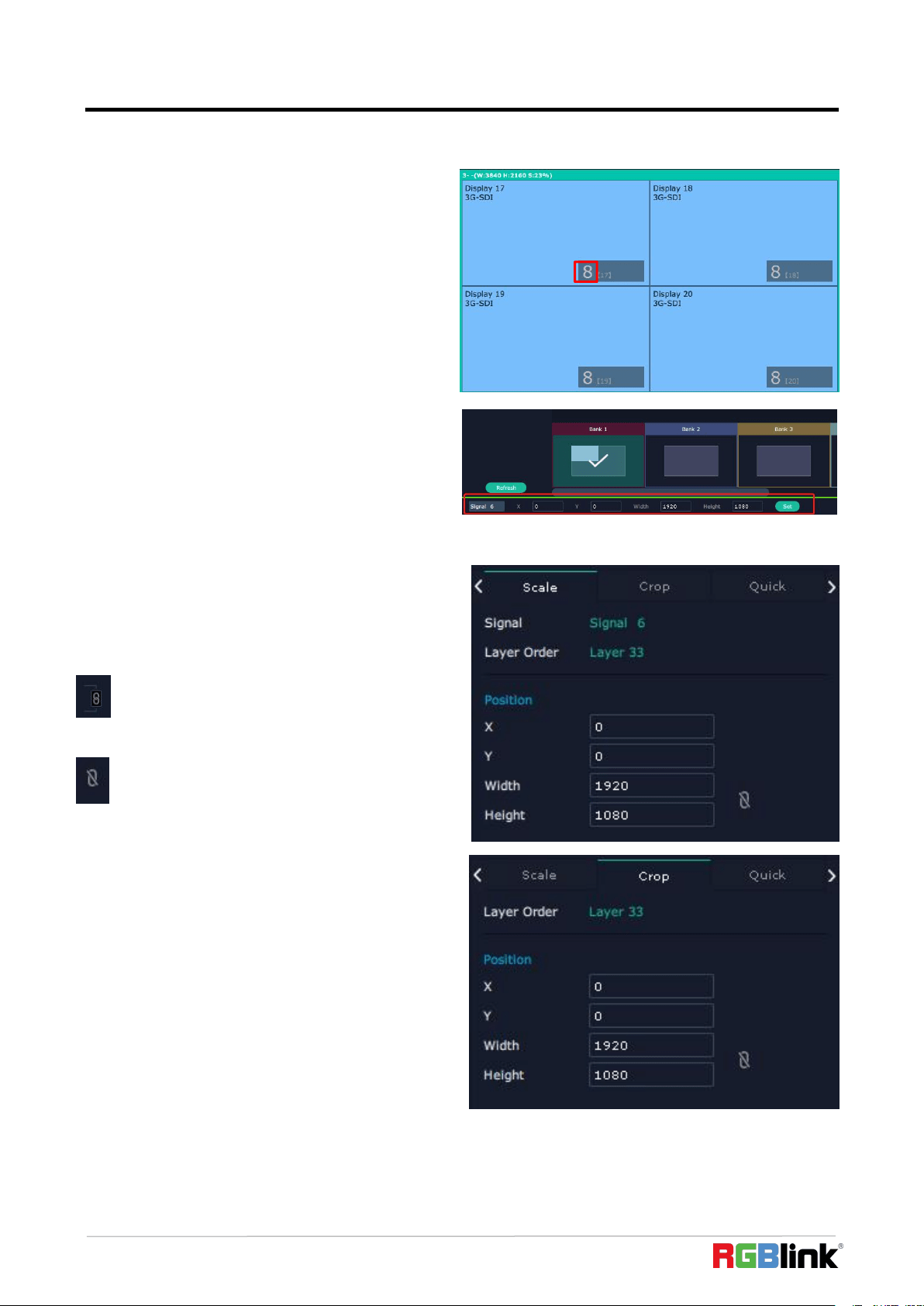

Layer
2. Layer Scale and Crop
Choose one layer needed to be adjusted,and type in its
position and size.
this icon means data related, when width is
changed, height will be changed as same proportion.
this icon means data not related, width and height
need to be filled respectively.
Layer number：Numbers in the corner is to show how
many layers at present allowed to put in the output.
A 2K signal occupies one layer, and a 4K2K60 signal
occupies four layers
The number in the red rectangle on the right figure
represents the number of layers that can be placed at
the output.
Layer Adjustment
：
there are two ways to adjust layer.
1. Use the bar under the interface
Choose one layer and the bar shows its signal source,
type in position and size.click Set to confirm.
© Xiamen RGBlink Science & Technology Co., Ltd.
40

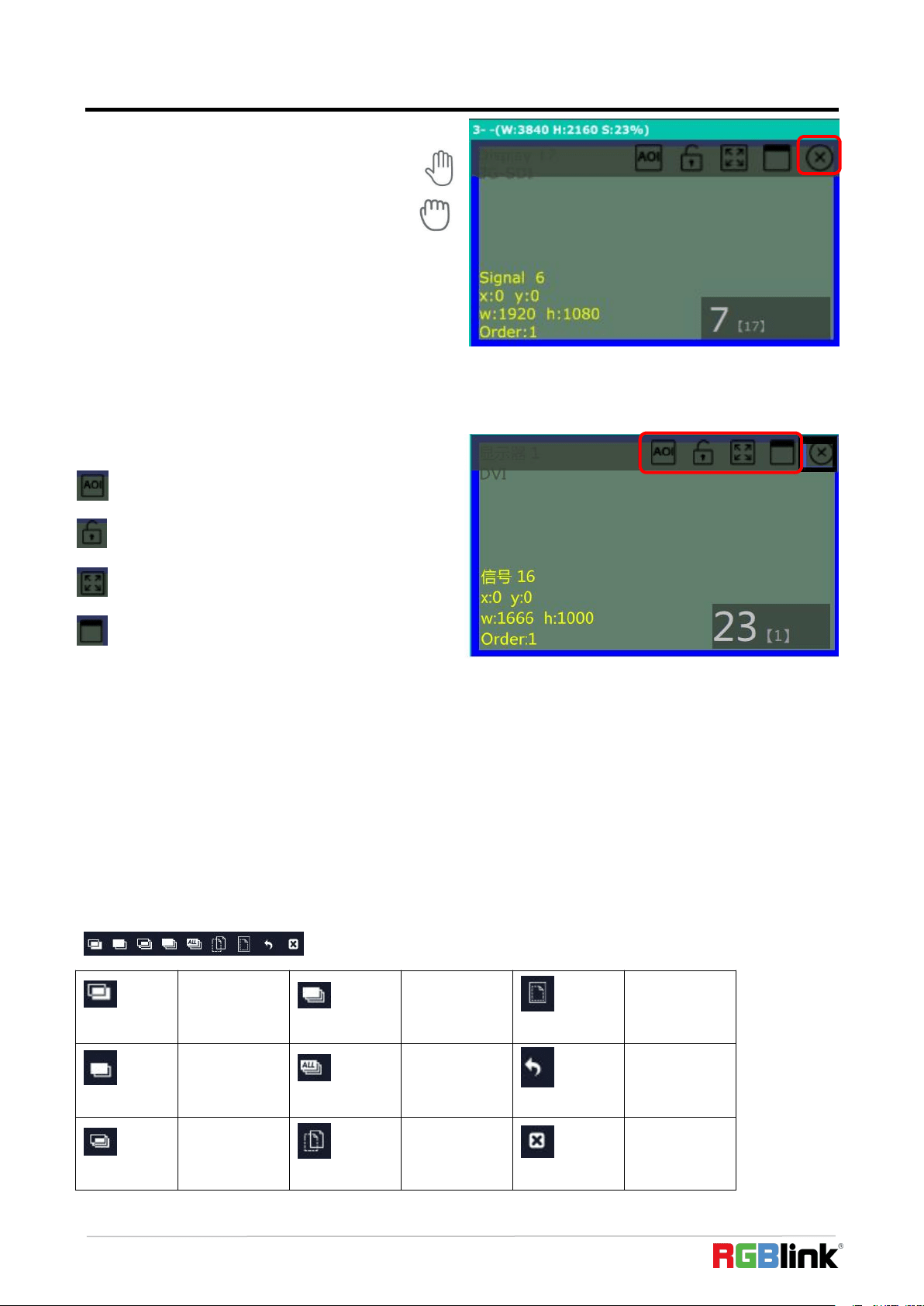

Other Operation on Layer
Use the tools bar on top of window to do such operations
Layer
Backward
Layer to Top
Paste
Selected
Layer Forward
Select All
Cancel
Selected
Layer to
Bottom
Copy Selected
Delete
Selected
Layer Movement
Place the cursor on the layer, it turns to a palm icon ,
press the left of mouse, the icon turns to a fist ,
moving the mouse can drag the layer.
Layer Remove
Click the cross on the top right of the layer to remove the
layer if needed.
Layer Set
:to crop the layer
:
lock the layer to prevent misoperations
:max to cover up the monitor.
:
cover up all monitors in the same screen group
with the one signal.
Layer Copy
Press Ctrl and mouse left at the same time, move the
mouse the layer selected can be copied and place in any
monitor in the same Display Area but it doesn’t work
when cross over display area.
© Xiamen RGBlink Science & Technology Co., Ltd.
41

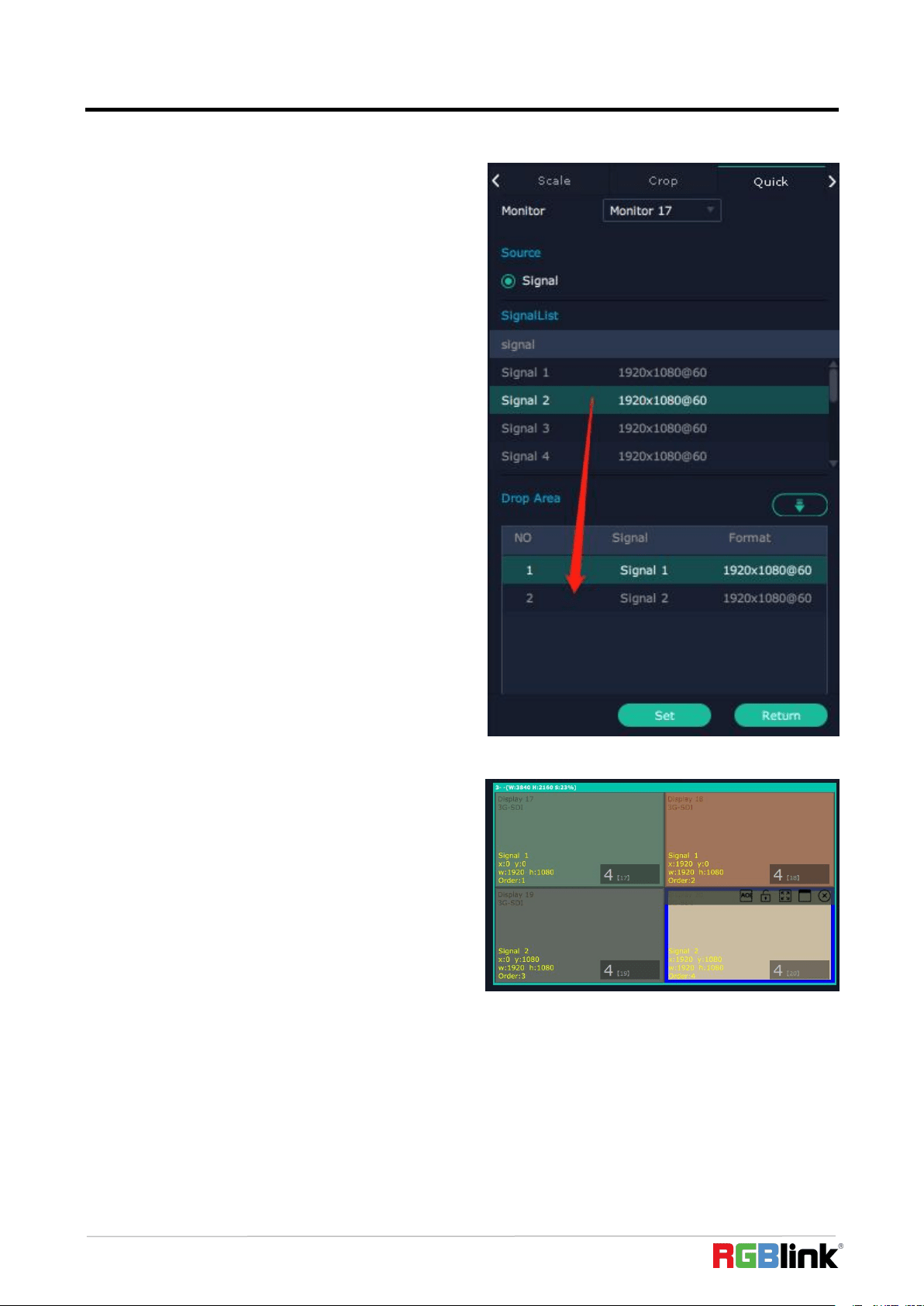

Quick
Quick is to set layer layout quickly.
1. Monitor：choose the monitor you would like to set
2. Source：Signal
3. Drop Area：Drag the source from the Signal List to the
Drop Area.Drag as many signals as you need, such as signal
1 and signal 2, into the drag area.
4. After setting,click <Set> to confirm and the layout will
be shown on the interface as shown in the right figure.
© Xiamen RGBlink Science & Technology Co., Ltd.
42

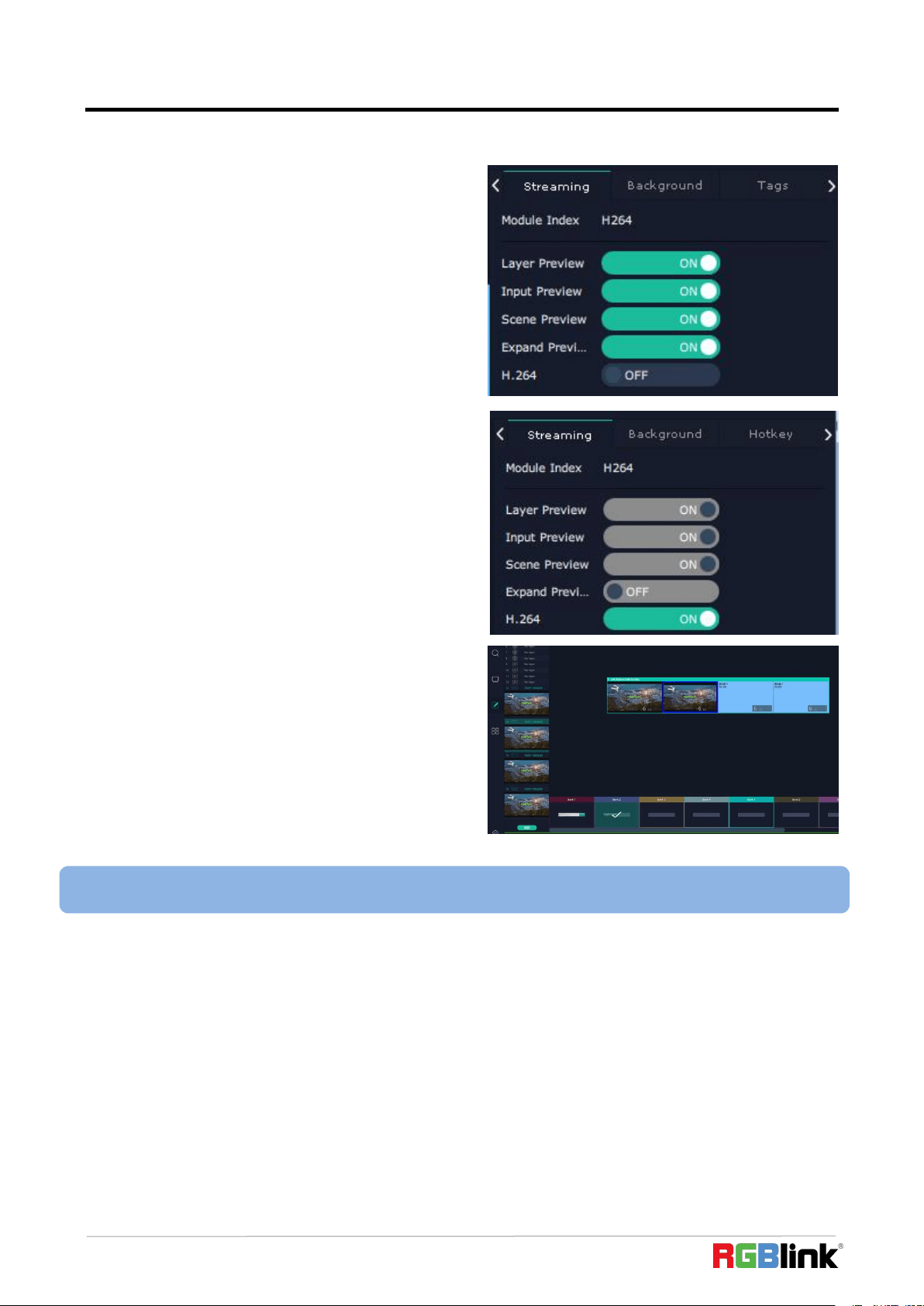

Stream
H.264 Module supports to preview image.
1. Turn on Layer Preview,Input Preview,Scene Preview or
Expand Preview according to the actual need.
2. Turn on H.264,and users can preview the image as
shown in the right figure.
Note: H.264 is the master switch. If the user turns on H.264 first, it cannot be set successfully.
© Xiamen RGBlink Science & Technology Co., Ltd.
43

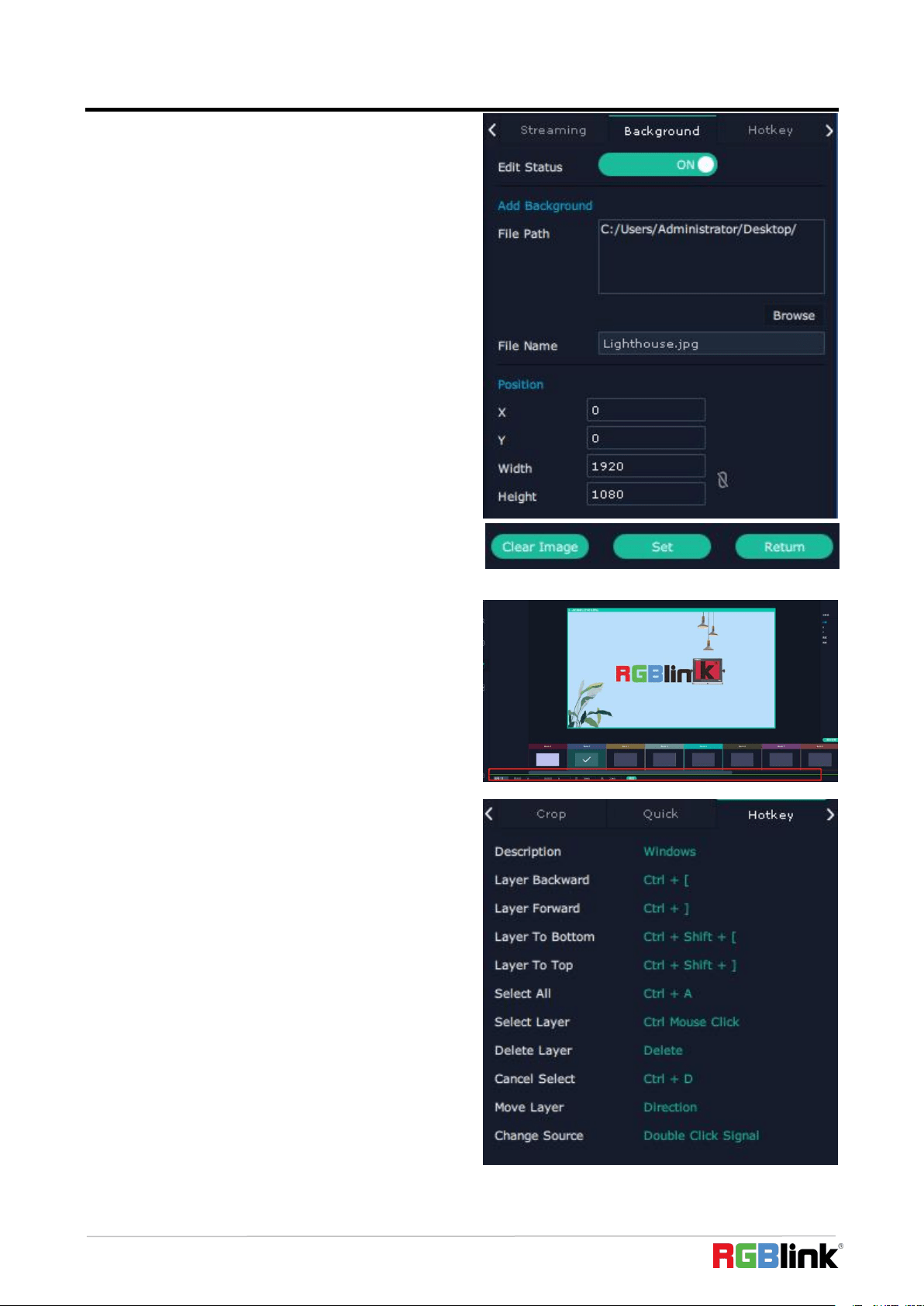

Background
Q16pro
’
s modules which supports background set are as
follows:
● 2K DVI Output Module（with OSD and background）
● 2K HDMI Output Module（with OSD and background）
Order Codes of modules refer to 4.2
Operation steps are as follows：
1. Turn on Edit Status；
2. Click
“
Browse
”
to choose picture.
3. Position：fill in the X/Y and Width/Height.
4. After settings,click
“
Set
”
to confirm and click
“
Clear
”
to clear the image if needed.
5. After click“Set”,the background is set successfully
when red progress bar at the bottom of the interface
turns to green.
Hotkey
© Xiamen RGBlink Science & Technology Co., Ltd.
44
3.2.6 Preset Management
1. Manual Mode
Script
Cut
Cut, switch from PST to PGM immediately
Preset Name
Select a bank and click Preset Name,fill in the blank after
New Preset Name to rename a Preset (Bank)
Click the color block after Color Selection and choose a
new color for the boarder of chosen bank.
Preset Management is designed to switch bank (scene
setting done in last step).
Preset Management Mode:
1. Manual Mode 2. Schedule Mode
The chosen scene will be displayed in the main interface,
and the PGM screen is in the first in the Bank Column.
Click<Script>,fill in the file name and click “Save”,the
file can be seen in the <Load Script>
Click“Load” to load the file into XPOSE.
Click“Delete” to delete saved script.
© Xiamen RGBlink Science & Technology Co., Ltd.
45

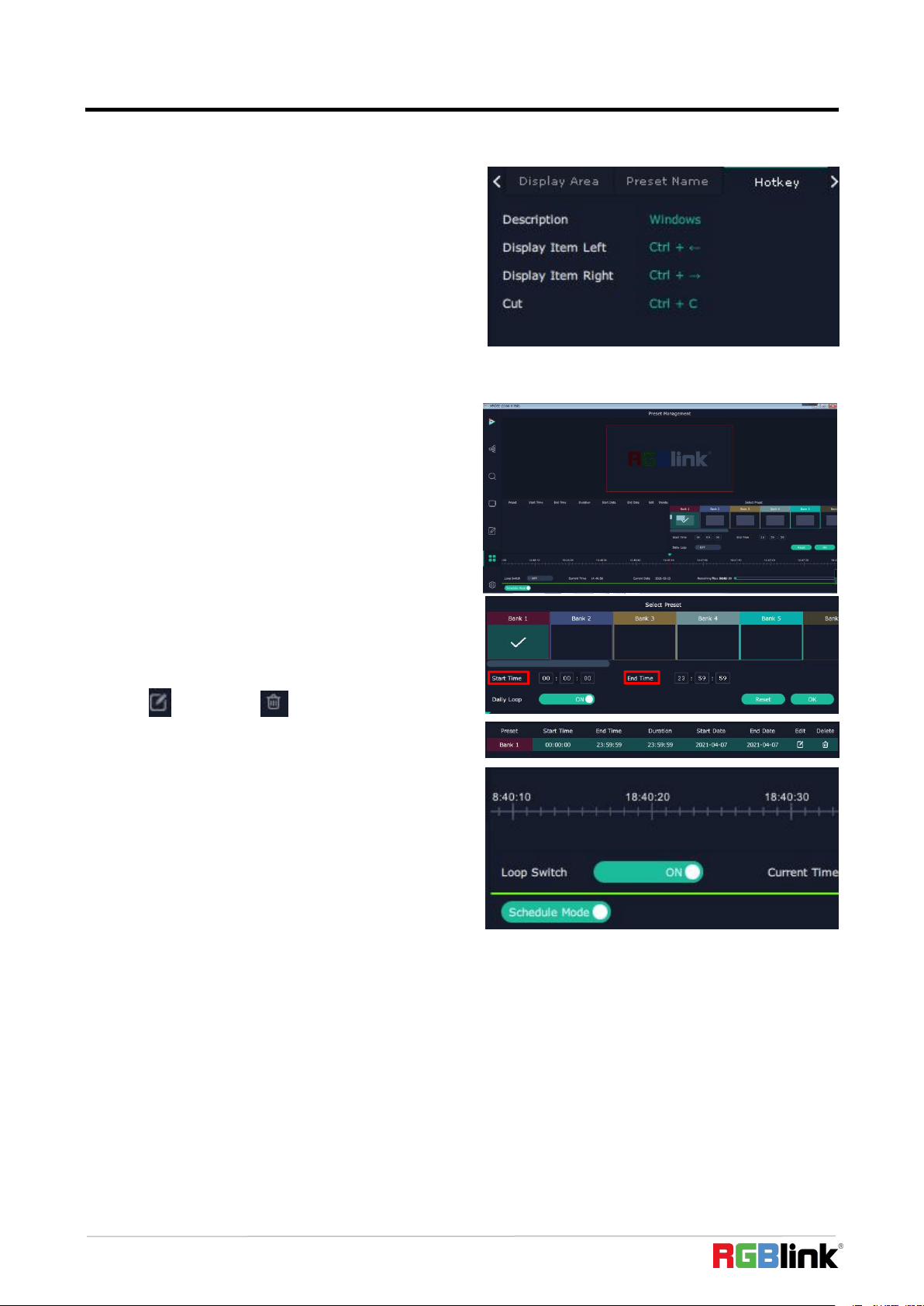

Hotkey
2. Schedule Mode
This mode is designed to set auto bank (scene/preset)
switch.
Steps are as follows：
1. Choose the BANK
2. Fill in the
“
Start Time
”
and
“
End Time
”
3. Turn on Daily Loop，and click “OK”
4. Click to edit and to delete.
5. Turn on
“
Loop Switch
”
© Xiamen RGBlink Science & Technology Co., Ltd.
46
3.3 XPOSE APP Control
Q16pro support to load scene via XPOSE APP.(Note:The device and phone must be in the same network)
Connect Q16pro and phone
Method 1:Connect wireless in the same WIFI
Method 2:Direct connection
(1) Install XPOSE APP in your phone first and then click
to open it,click “search”
(2) Select Q16pro model and click the icon in the
top right corner
(3) Fill in the IP address of Q16pro,and then click
“OK”.Now the device and Q16pro is connected.
Load Scene
Red indicates current scene,green indicates the save
scene,white indicates blank scene
e.g: As shown in the right picture,it is in Group 1 Scene2,
click 1 to switch to Group 1 Scene ;If you need to load
scenes in other groups,select group first and then the
scene.
© Xiamen RGBlink Science & Technology Co., Ltd.
47
Chapter 4 Order Code
4.1 Product Code
4.2 Module Code
711-0020-02-0-16
Q16pro-2U
711-0020-01-0-16
Q16pro-4U
711-0020-04-0-16
Q16pro-8U
711-0020-05-0-16
Q16pro-14U
711-0020-07-0-16
Q16pro-26U
791-0020-02-0
Q16pro Dual HDMI 1.4 Input Module
791-0020-03-0
Q16pro Quad DVI-M Input Module
791-0020-04-0
Q16pro Quad DVI Input Module
791-0020-05-0
Q16pro Quad HDMI 1.3 Input Module(with audio)
791-0020-07-0
Q16pro Dual DP 4K@30 Input Module
791-0020-08-0
Q16pro Dual DP1.2&HDMI2.0 4K@60 Input Module
791-0020-10-0
Q16pro Quad HDBaseT 1080P Input Module
791-0020-11-0
Q16pro Single H264 IP Input Module
791-0020-12-0
Q16pro Quad 3G SDI Input Module
791-0020-21-0
Q16pro Quad HDMI Output Module
791-0020-22-0
Q16pro Quad 2K DVI Output Module
791-0020-23-0
Q16pro Quad DVI-BK Output Module
791-0020-24-0
Q16pro Quad 2K HDMI Output Module(with OSD&background)
791-0020-25-0
Q16pro Dual HDMI 1.4 Output Module
791-0020-26-0
Q16pro Quad HDBaseT Output Module
791-0020-27-0
Q16pro Quad 3G SDI Output Module
791-0020-28-0
Q16pro Dual HDMI 2.0 4K60 Output Module
791-0020-30-0
Q16pro Analogy Audio Input & Output Module
791-0020-31-0
Q16pro PVW Module
791-0020-32-0
Q16pro DVI PVW Module
791-0020-33-0
Q16pro DP 1.2 Output Module
950-0013-01-0
Redundant Power Module 250W (for 4U)
950-0011-02-0
Redundant Power Module(for 8U and above)
© Xiamen RGBlink Science & Technology Co., Ltd.
48
Chapter 5 Support
5.1 Contact us
© Xiamen RGBlink Science & Technology Co., Ltd.
49
Chapter 6 Appendix
6.1 Specification
Quad DVI-M Input
Connector
Appearance
Numbers of Input
4
Connector Type
DVI-I(compatible with HDMI/DVI/VGA/YPbPr/CVBS)
Input Resolution
800×600@60 ~ 1920×1200@60
Quad DVI input
Connector
Appearance
Numbers of Input
4
Connector Type
DVI-I
Input Resolution
800
×
600@60 ~ 1920
×
1200@60
Quad HDMI1.3 Input with Audio
Connector
Appearance
Numbers of Input
4
Connector Type
HDMI-A
Supported Standard
HDMI 1.3
Input Resolution
800
×
600@60 ~ 1920
×
1200@60
Dual HDMI1.4 4K input
Connector
Appearance
Numbers of Input
2
Connector Type
HDMI-A
Supported Standard
HDMI 1.4
Input Resolution
800
×
600@60 ~ 3820
×
2160@30
Dual DP input
Connector
Appearance
Numbers of Input
2
Connector Type
DisplayPort 1.1
© Xiamen RGBlink Science & Technology Co., Ltd.
50
Input Resolution
800
×
600@60 ~ 3840
×
2160@30
DP1.2/HDMI2.0 8K input
Connector
Appearance
Numbers of Input
4
Connector Type
2×HDMI-A | 2×DisplayPort
Supported Standard
HDMI 2.0 | DP1.2
Input Resolution
800
×
600@60~7680
×
1080@60
Quad HDBaseT input
Connector
Appearance
Numbers of Input
4
Connector Type
2×RJ45
Input Resolution
800
×
600@60~1920
×
1080@60
Single IP input
Connector
Appearance
Numbers of Input
1
Connector Type
RJ45
Input Resolution
800×600@60~1920×1080@60
Quad SD/HD/3G-SDI input with loop out
Connector
Appearance
Numbers of Input
8
Connector Type
8
×
BNC
（
4 In | 4 Loop
）
Supported Standard
3G SDI
Input Resolution
720p@50/60 | 1080p@50/60
Quad DVI output
Connector
Appearance
Numbers of Input
4
Connector Type
DVI-I
Output Resolution
800×600@60~3840×570@60
Quad HDMI output with background/OSD
Connector
Appearance
Numbers of Input
4
© Xiamen RGBlink Science & Technology Co., Ltd.
51
Connector Type
HDMI-A
Supported Standard
HDMI1.3
Output Resolution
800×600@60~3840×570@60
Key Feature
Support background and scrolling OSD
Dual HDMI2.0 4K60 output
Connector
Appearance
Numbers of Input
2
Connector Type
HDMI-A
Supported Standard
HDMI2.0
Output Resolution
1024×768@60~4096×2160@60
Quad HDBaseT output
Connector
Appearance
Numbers of Input
4
Connector Type
RJ45
Output Resolution
800×600@60~3840×2160@30
Quad SD/HD/3G SDI output
Connector
Appearance
Numbers of Input
4
Connector Type
BNC
Supported Standard
3G SDI
Input Resolution
720P@50/60 | 1080p@24/30/50/60
Analog audio input/output
Connector
Appearance
Numbers of Input
8
Connector Type
3.5mm Audio Jack(4 In | 4 Out)
PVW
Connector
Appearance
Numbers of Input
2
Connector Type
1×HDMI-A | 1×RJ45
© Xiamen RGBlink Science & Technology Co., Ltd.
52
6.2 Terms & Definitions
●RCA:
Connector used primarily in consumer AV equipment for both audio and video. The RCA connector
was developed by the Radio Corporation of America.
●
BNC:
Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). A
cylindrical bayonet connector that operates with a twist-locking motion .
●CVBS: C
VBS or Composite video, is an analog video signal without audio. Most commonly CVBS is used for
transmission of standard definition signals. In consumer applications the connector is typically RCA type, while in
professional applications the connector is BNC type.
●YPbPr: Used to describe the colour space for progressive-scan. Otherwise known ascomponent video.
●VGA: Video Graphics Array. VGA is an analog signal typically used on earlier computers. The signal is non-interlaced in
modes 1, 2, and 3 and interlaced when using in mode.
●DVI:
Digital Visual Interface. The digital video connectivity standard that was developed by DDWG (Digital Display
Work Group). This connection standard offers two different connectors: one with 24 pins that handles digital
video signals only, and one with 29 pins that handles both digital and analog video.
●SDI: Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels are
characterized with a 10-bit depth and 4:2:2 color quantization. Ancillary data is included on this interface and typically
includes audio or other metadata. Up to sixteen audio channels can be transmitted. Audio is organised into blocks of 4
stereo pairs. Connector is BNC.
●HD-SDI: High-definition serial digital interface (HD-SDI), is standardized in SMPTE 292M this provides a nominal data
rate of 1.485 Gbit/s.
●3G-SDI: Standardized in SMPTE 424M, consists of a single 2.970 Gbit/s serial link that allows replacing dual link
HD-SDI.
●6G-SDI: Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30.
●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60.
●U-SDI: Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high
definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was
standardized as the SMPTE ST 2036-4.
●HDMI: H
igh Definition Multimedia Interface: An interface used for the transmission of uncompressed high
definition video, up to 8 channels of audio, and control signals, over a single cable.
●HDMI
1.3: R
eleased on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support
resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and 16 bpc color depth
(30, 36, and 48 bit/px), called deep color.
© Xiamen RGBlink Science & Technology Co., Ltd.
53
●HDMI 1.4: Released on June 5, 2009, added support for 4096 × 2160 at 24 Hz, 3840 × 2160 at 24, 25, and 30 Hz, and
1920 × 1080 at 120 Hz. Compared to HDMI 1.3, 3 more features added which are HDMI Ethernet Channel (HEC) , audio
return channel (ARC),3D Over HDMI, a new Micro HDMI Connector, an expanded set of color spaces.
●HDMI 2.0: Released on September 4, 2013 increases the maximum bandwidth to 18.0 Gbit/s. Other features of HDMI
2.0 include up to 32 audio channels, up to 1536 kHz audio sample frequency, the HE-AAC and DRA audio standards,
improved 3D capability, and additional CEC functions.
●HDMI 2.0a
: W
as released on April 8, 2015, and added support for High Dynamic Range (HDR) video with static
metadata.
●HDMI 2.0b:
W
as released March, 2016, support for HDR Video transport and extends the static metadata signaling to
include Hybrid Log-Gamma (HLG).
●HDMI 2.1: Released on November 28, 2017. It adds support for higher resolutions and higher refresh rates, Dynamic
HDR including 4K 120 Hz and 8K 120 Hz.
●DisplayPort: A VESA standard interface primarily for video, but also for audio, USB and other data. DisplayPort (orDP)
is backwards compatible with HDMI, DVI and VGA.
●DP 1.1: Was ratified on 2 April 2007, and version 1.1a was ratified on 11 January 2008. DisplayPort 1.1 allow a
maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link, enough to support
1920x1080@60Hz
●DP 1.2: Introduced on 7 January 2010, effective bandwidth to 17.28 Gbit/s support increased resolutions, higher
refresh rates, and greater color depth, maximum resolution 3840 × 2160@60Hz
●DP 1.4: Publish on 1 Mar, 2016.overall transmission bandwidth 32.4 Gbit/s ,DisplayPort 1.4 adds support for Display
Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with up to a 3:1 compression ratio. Using
DSC with HBR3 transmission rates, DisplayPort 1.4 can support 8K UHD (7680 × 4320) at 60 Hz or 4K UHD (3840 × 2160)
at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC.
●Multi-mode Fiber: Fibers that support many propagation paths or transverse modes are called multi-mode fibers,
generally have a wider core diameter and are used for short-distance communication links and for applications where
high power must be transmitted.
●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode fibers are used for
most communication links longer than 1,000 meters (3,300 ft).
●SFP: Small form-factor pluggable , is a compact, hot-pluggable network interface module used for
both telecommunication and data communications applications.
●Optical Fiber Connector: Terminates the end of an optical fiber, and enables quicker connection and disconnection
than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. 4 most common types
of optical fiber connectors are SC, FC, LC,ST.
© Xiamen RGBlink Science & Technology Co., Ltd.
54
●SC: (Subscriber Connector), also known as the square connector was also created by the Japanese company – Nippon
Telegraph and Telephone. SC is a push-pull coupling type of connector and has a 2.5mm diameter. Nowadays, it is used
mostly in single mode fiber optic patch cords, analog, GBIC, and CATV. SC is one of the most popular options, as its
simplicity in design comes along with great durability and affordable prices.
●LC
：
(Lucent Connector) is a small factor connector (uses only a 1.25mm ferrule diameter) that has a snap coupling
mechanism. Because of its small dimensions, it is the perfect fit for high-density connections, XFP, SFP, and SFP+
transceivers.
●FC: (Ferrule Connector) is a screw type connector with a 2.5mm ferrule. FC is a round shaped threaded fiber optic
connector,mostly used on Datacom, telecom, measurement equipment, single-mode laser.
●ST: (Straight Tip) was invented by AT&T and uses a bayonet mount along with a long spring-loaded ferrule to support
the fiber.
●USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and
communication protocols. This technology is designed to allow a connection, communication and power supply for
peripheral devices and computers.
●USB 1.1: Full–Bandwidth USB, specification was the first release to be widely adopted by the consumer market. This
specification allowed for a maximum bandwidth of 12Mbps.
●USB 2.0: or Hi–Speed USB, specification made many improvements over USB 1.1. The main improvement was an
increase in bandwidth to a maximum of 480Mbps.
● USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2
Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively.
USB version and connectors figure:
Type
A
Type B
Mini
A
Mini
B
Micro-
A
Micro
-B
Type C
USB 2.0
USB 3.0
USB
3.1&3.2
●
NTSC:
The colour video standard used in North America and some other parts of the world created by the
National Television Standards Committee in the 1950s. NTSC utilizes an interlaced video signals.
© Xiamen RGBlink Science & Technology Co., Ltd.
55
●
PAL:
Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated from line to line. It
takes four full images (8 fields) for the colour-to-horizontalimages (8 fields) for the colour-to-horizontal phase
relationship to return to the reference point. This alternation helps cancel out phase errors. For this reason, the hue
control is not needed on a PAL TV set. PAL, is widely used in needed on a PAL TV set. PAL, is widely used in Western
Europe, Australia, Africa, the Middle East, and Micronesia. PAL uses 625-line, 50-field (25 fps) composite colour
transmission system.
●
SMPTE:
Society of Motion image and Television Engineers. A global organization, based in the United States, that sets
standards for baseband visual communications. This includes film as well as video and television standards.
●
VESA:
Video Electronics Standards Association. An organization facilitating computer graphics through standards.
●
HDCP:
High-bandwidth Digital Content Protection (HDCP) was developed by Intel Corporation an is in wide use for
protection of video during transmission between devices.
●
HDBaseT:
A video standard for the transmission of uncompressed video (HDMI signals) and related features using Cat
5e/Cat6 cabling infrastructure.
●ST2110: A SMPTE developed standard, ST2110 describes how to send digital video over and IP networks. Video is
transmitted uncompressed with audio and other data in a separate streams.
SMPTE2110 is intended principally for broadcast
production and distribution facilities where quality and flexibility are
more important.
●
SDVoE:
Software Defined Video over Ethernet (SDVoE) is a method for transmission, distribution and management AV
signals using a TCP/IP Ethernet infrastructure for transport with low latency. SDVoE is commonly used in integration
applications.
●
Dante AV:
The Dante protocol was developed for and widely adopted in audio systems for
the transmission of
uncompressed digital
audio on IP based networks. The more recent Dante AV specification includes support for digital
video.
●
NDI:
Network Device interface (NDI) is a software standard developed by NewTek to enable
video-compatible
products to communicate,
deliver, and receive broadcast quality video in a high quality, low latency manner that is
frame-accurate and suitable for switching in
a live production environment over TCP (UDP) Ethernet based networks.
NDI is
commonly found in broadcastapplications.
●RTMP: Real-Time Messaging Protocol (RTMP) was initially a proprietary protocol developed by Macromedia (now
Adobe) for streaming audio, video and data over the Internet, between a Flash player and a server.
●RTSP:
The Real Time Streaming Protocol (RTSP) is
a network control protocol designed for use in entertainment and
communications systems to control streaming media servers. The protocol is used for establishing and controlling media
sessions between end points.
●MPEG: Moving Picture Experts Group is a working group formed from ISO and IEC developing standards that allow
audio/video digital compression and Transmission.
© Xiamen RGBlink Science & Technology Co., Ltd.
56
●H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video
compression standard. H.264 was
standard
ized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving Picture Experts
Group (MPEG).
●H.265: Also known as HEVC (High Efficiency Video Coding )H.265 is the successor to the widely used H.264/AVC
digital video coding standard. Developed under theauspices of ITU, resolutions up to 8192x4320 may be compressed.
●
API:
An Application Programming Interface (API) provides a predefined function which allows access capabilities
andfeaturesorroutinesviaa
software or hardware, without accessing source
code or understanding the details of inner
working mechanism. An API call may execute a
function and/or provide datafeedback/report.
●
DMX512:
The communication standard developed by USITT for entertainment and digital lighting systems.The wide
adoption of the Digital Multiplex (DMX) protocol has seen the protocol used for a wide
range of other devices including
video controllers.
DMX512 is delivered over cable of 2 twisted pairs with 5pin XLR cables for connection.
●ArtNet: An ethernet protocol based on TCP/IP protocol stack, mainly used in entertainment/events applications. Built
on the DMX512 data format, ArtNet enables multiple “universes” of DMX512 to be transmitted using ethernet networks
for transport.
●
MIDI:
MIDI is the abbreviation of Musical Instrument Digital Interface. As the name indicates the protocol was
developed for
communication between electronical musical
instruments and latterly computers. MIDI instructions are
triggers or commands sent over twisted pair cables, typically using 5pin DIN connectors.
●OSC:
The principle of Open Sound Control
(OSC) protocol is for networking sound
synthesizers, computers, and
multimedia
devices for musical performance or show control. As with XML and JSON, the OSC protocol allows sharing
data. OSC is transported via UDP packets between devices connected on an Ethernet.
●Brightness:
Usually refers to the amount or intensity
of video light produced on a screen without regard to colour.
Sometimes called black level.
●
Contrast
Ratio:
The ratio of the high light output level divided by the low light output level. In theory, the
contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several limitations.
Well-controlled viewing conditions should yield a practical contrast ratio of 30:1 to 50:1.
●
Colour
Temperature: The colour quality, expressed in degrees Kelvin (K), of a light source. The higher the
colour
temperature, the bluer the light. The lower the temperature, the redder the light. Benchmark colour temperature
for the A/V industry include 5000°K,6500°K,and 9000°K.
●
Saturation:
Chroma, Chroma gain. The intensity of the colour, or the extent to which a given colour in any image is free
from white. The less white in a colour, the truer the colour or the greater its saturation. Saturation is the amount of
pigment in a colour, and not the intensity.
© Xiamen RGBlink Science & Technology Co., Ltd.
57
●
Gamma:
The light output of a CRT is not linear with respect to the voltage input. The difference between what
you should have and what is actually output is known as gamma.
●Frame: In interlaced video, a frame is one complete image.A video frame is made up of two fields, or two sets of
interlaced lines. In a film, a frame is one still image of a series that makes up a motion image.
●
Genlock:
Allows synchronisation of otherwise video devices. A signal generator provides a signal pulses which
connected devices can reference. Also see Black Burst and Color Burst.
●Blackburst:
The video waveform without the video elements.It includes the vertical sync, horizontal sync, and
the Chroma burst information. Blackburst is used to synchronize video equipment to align the video output.
●ColourBurst: In colour TV systems, a burst of subcarrier frequency located on the back part of the composite video
signal. This serves as a colour synchronizing signal to establish a frequency and phase reference for the Chroma signal.
Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL.
●Colour Bars:
A standard test pattern of several basic
colours (white, yellow, cyan, green, magenta, red, blue, and black)
as a reference for system alignment and testing. In NTSC video, the most commonly used colour bars are the SMPTE
standard colour bars. In PAL video, the most commonly used colour bars are eight full field bars. On computer
monitors the most commonly used colour bars are two rows of reversed colour bars
●Seamless Switching: A feature found on many video switchers. This feature causes the switcher to wait until the
vertical interval to switch. This avoids a glitch (temporary scrambling) which often is seen when switching between
sources.
●Scaling: A conversion of a video or computer graphic signal from a starting resolution to a new resolution. Scaling from
one resolution to another is typically done to optimize the signal for input to an image processor, transmission path or
to improve its quality when presented on a particular display.
●
PIP:
Picture-In-Picture. A small image within a larger image created by scaling down one of image to make it smaller.
Other forms of PIP displays include Picture-By-Picture (PBP) and Picture- With-Picture (PWP), which are commonly used
with 16:9 aspect display devices. PBP and PWP image formats require a separate scaler for each video window .
●HDR: is a high dynamic range (HDR) technique used in imaging and photography to reproduce a greater dynamic
range of luminosity than what is possible with standard digital imaging or photographic techniques. The aim is to
present a similar range of luminance to that experienced through the human visual system.
●UHD:
Standing for Ultra High Definition and comprising
4K and 8K television standards with a 16:9 ratio, UHD follows
the 2K HDTV standard. A UHD 4K display has a physical resolution of 3840x2160 which is four times the area and twice
both the widthand heightofaHDTV/FullHD (1920 x1080) video signal.
●EDID: Extended Display Identification Data. EDID is a data structure used to communicate
video display information,
including native resolution and vertical interval refresh rate
requirements, to a source device. The source device will then
output the provided EDID data, ensuring proper video image quality.
© Xiamen RGBlink Science & Technology Co., Ltd.
58
6.3 Revision History
The table below lists the changes to the User Manual.
Format
Time
ECO#
Description
Principal
V1.0
2021-08-19
0000#
Release
Sylvia
V1.1
2022-01-12
0001#
Update product picture
Sylvia
V1.2
2022-04-26
0002#
Add Q16pro-14U info
Aster
V1.3
2022-10-08
0003#
Add Q16pro-2U info
Aster
V1.4
2022-10-31
0004#
Update order codes
Aster
All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a regis
tered trademark of Xiamen RGBlink Science & Technology Co Ltd.While all efforts are made for accuracy at time
of printing, we reserve the right to alter otherwise make change without notice.
