en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
GB standard:
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 10
5 Positioning and connecting 12
/ The main points in brief 20
* Getting to know the appliance 21
Z Laundry 24
0 Programme default settings 25
\ Additional programme settings 26
1 Operating the appliance 27
Q Appliance settings 30
2 Cleaning and maintenance 31
3 Faults and what to do about them 34
4 After-sales service 38
J Technical data 39
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/used appliance
Dispose of packaging in an environmentally-responsible manner.
Keep children away from the packaging materials and packaging materials are not toys.
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
All packaging materials used are in line with environmental protection requirements and reusable.
Name and content of hazardous substances in products
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
Û
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
Note:
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
Tips on economical use
5 Positioning and connecting
Positioning and connecting
Included with the appliance
Note:
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
Useful tools
Installation
Note:
Humidity in the drum is caused by the final inspection.
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Removing the foam block
Caution!
Damage to the appliance
: Warning
Risk of injury/damage to the appliance!
Note:
Remove the foam block first before you remove the transport locks.
1. Remove the foam block.
a) Tilt the appliance to the rear.
b) Remove the foam block and bottom pad.
2. Fit the bottom cover. (You can find it in the drum)
Note:
Installation surface
Note:
The appliance must be stable aligned so that it does not move around.
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
On wooden joist floors, install the appliance:
Installing the appliance in a kitchenette
: Warning
Risk of death!
Notes
Note:
Dedicated metal cover is available from customer service, order No. : 00478026.
Removing the transport locks
Caution!
Damage to the appliance
Note:
Keep the screws and sleeves in a safe place.

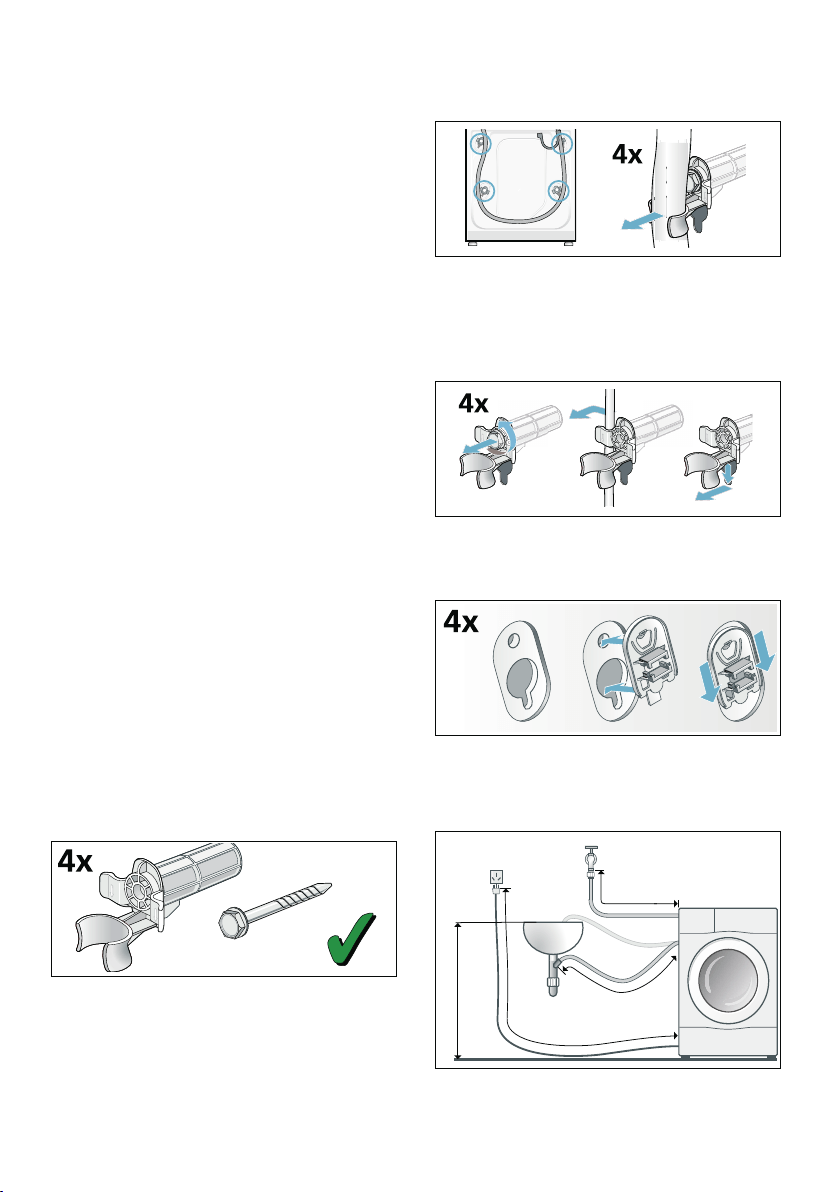

1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.

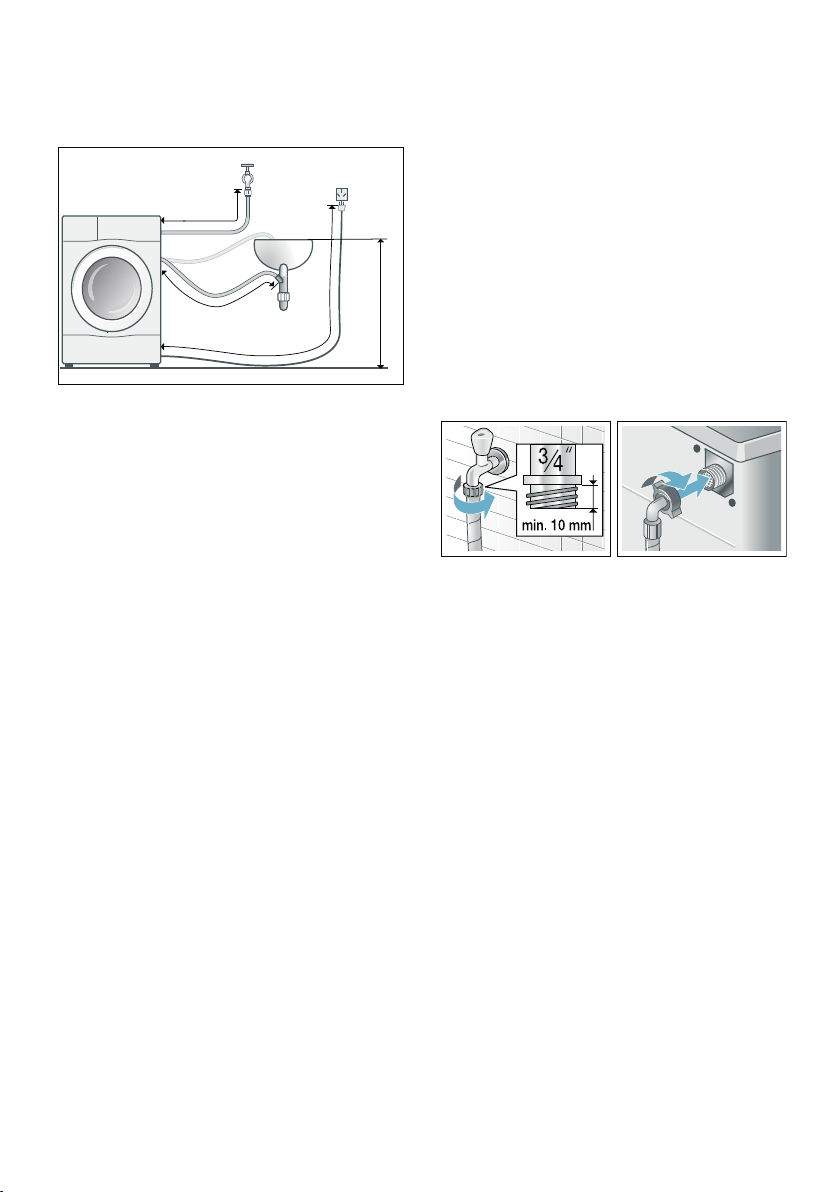

Hose and cable lengths
Note:
If the hose holders are used, the possible hose lengths are reduced!
Available from dealer/customer service:
Water inlet
: Warning
Risk of death!
Notes
Notes
Connection
Note:
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Notes
Connection

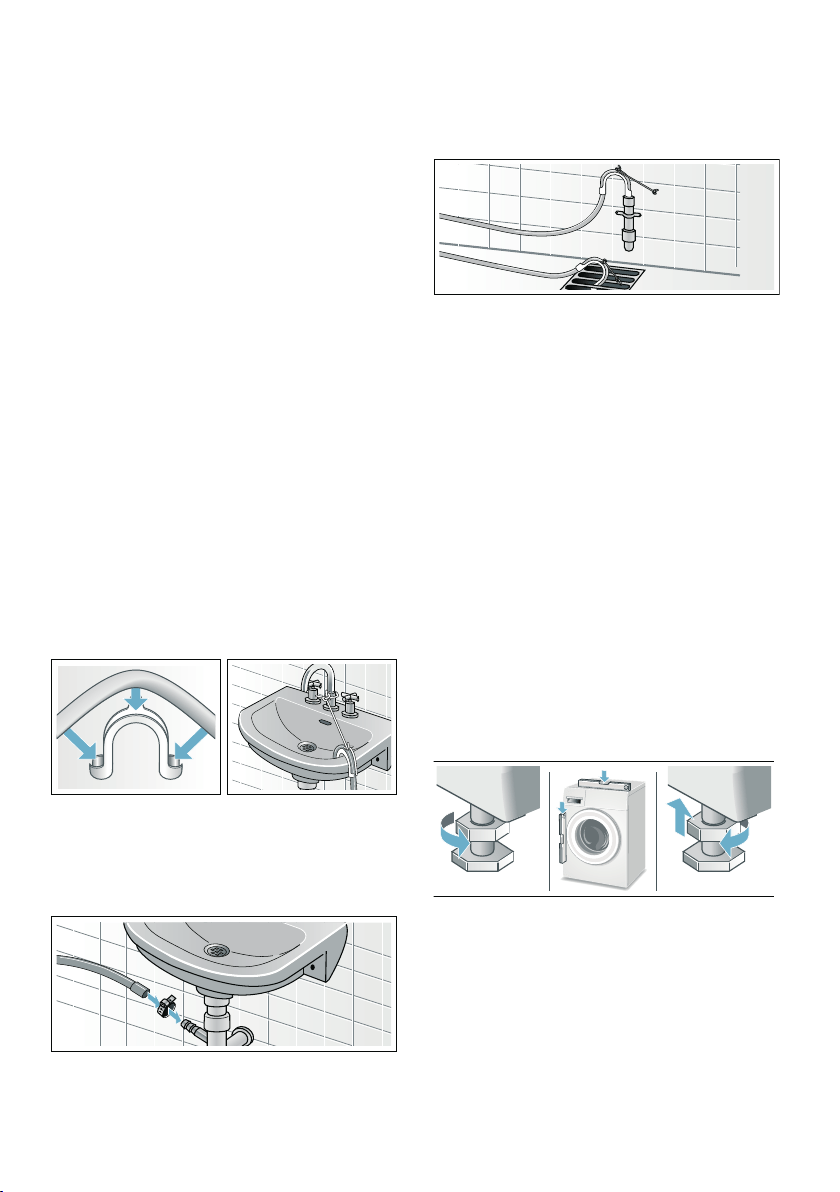

Alignment
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
Electrical safety
: Warning
Risk of electric shock!
Before washing for the first time
Note:
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any laundry.
4. Select the Drum clean 90°C programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into dispenser II.
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
Note:
8. Close the detergent drawer.
9. Select 开始/添衣(Start/Reload).
10. When the programme ends, turn the programme selector to Off. The appliance is switched off.
Transportation
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose. ~ Page 34
3. Drain any residual water. ~ Page 33
4. Disconnect the appliance from the mains.
5. Remove the hoses.
6. Empty the dispensers. and ~ "Cleaning the measuring aid A for liquid detergent" on page 32
1. Remove the covers and keep them in a safe place.
2. Insert all four sleeves.
Notes
/ The main points in brief
The main points in brief
* Getting to know the appliance

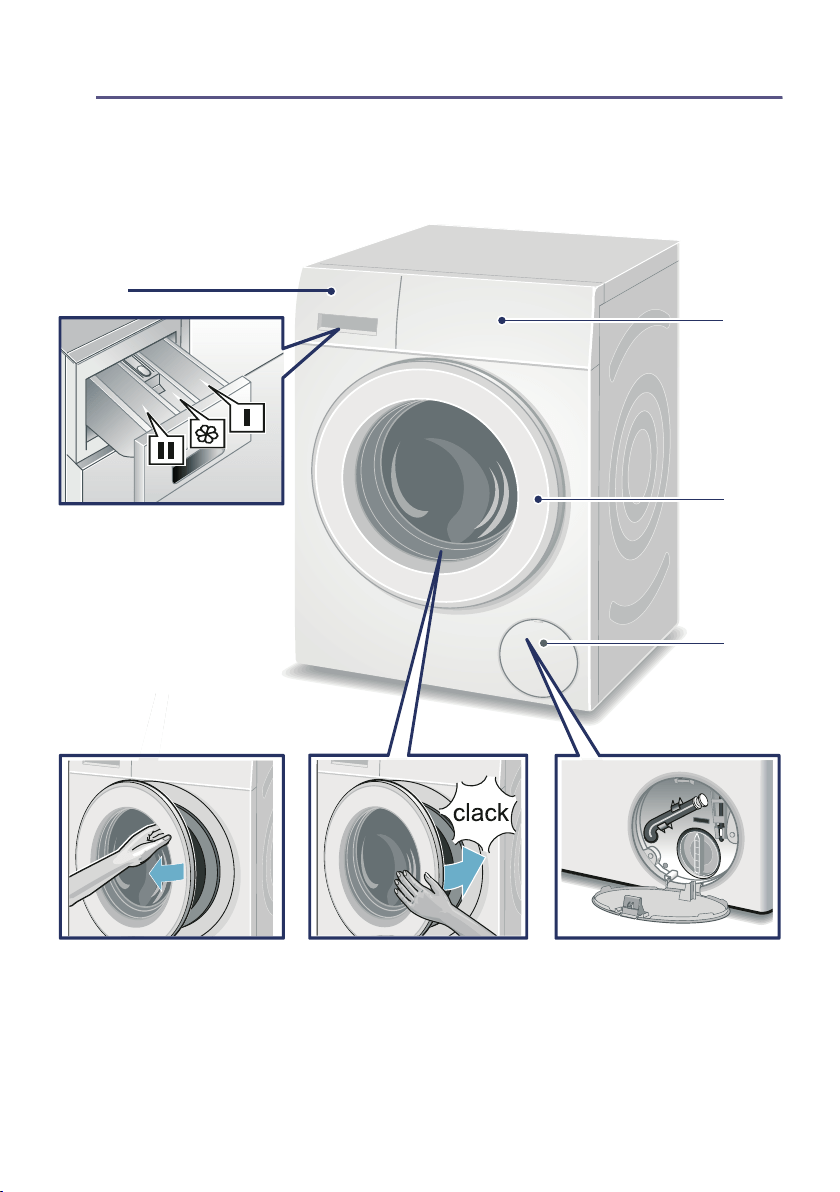

Getting to know the appliance
Appliance
Control panel
You can find possible programme default settings and additional programme settings in the overview; these differ depending on the model.
Display symbols
Note:
Z Laundry
Laundry
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Sorting laundry
Note:
0 Programme default settings
Programme default settings
温度(Temperature) °C
转速(Spin speed) 0
预约(Finish in) 0
1. Select a programme.
2. Touch the 预约(Finish in) 0 button repeatedly until the required number of hours is displayed.
3. Select the 开始/添衣(Start/Reload) button.
Note:
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or programme additional settings may also change the programme duration.
1. Select the 开始/添衣(Start/Reload) button.
2. Touch the 预约(Finish in) 0 button to change the number of hours.
3. Select the 开始/添衣(Start/Reload) button.
\ Additional programme settings
Additional programme settings
Note:
You can find possible additional programme settings in the overview; these differ depending on the model.
提速/节电(speedPerfect/ ecoPerfect)
Note:
轻松熨(Easy Iron)
Note:
The washing's residual moisture is increased.
加漂洗 (Rinse plus)
加浸泡(Soaking)
Notes
1. Put detergent in dispenser II before starting the appliance.
2. Select the Cotton 40 °C programme and the 开始/添衣(Start/Reload) button.
3. Select the 开始/添衣(Start/Reload) button after approx. 10 minutes. The laundry remains in the soaking solution.
4. Leave the laundry to soak for as long as required, then either select the 开 始/添衣(Start/Reload) button again to continue the programme or change the programme.
1 Operating the appliance
Operating the appliance
Preparing the appliance
Notes
1. Insert mains plug.
: Warning
Riskof death from electric shock!
2. Turn the tap on.

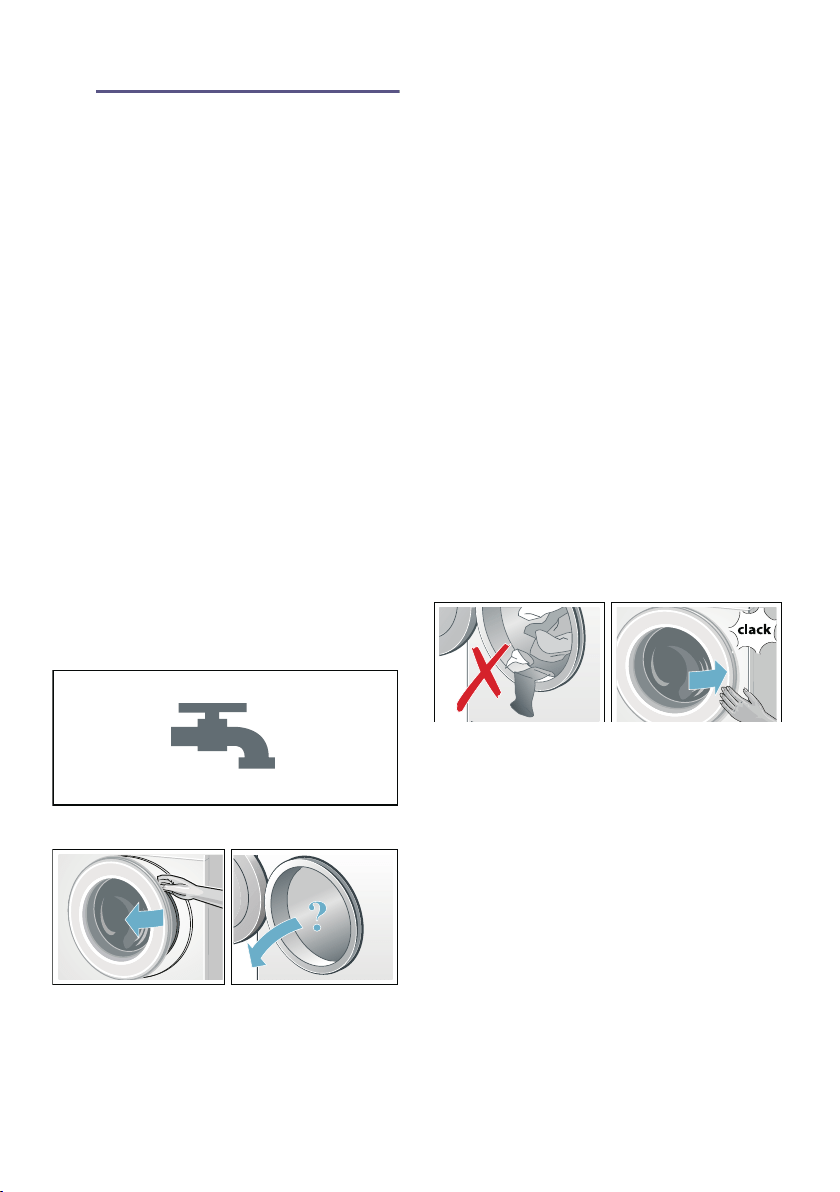

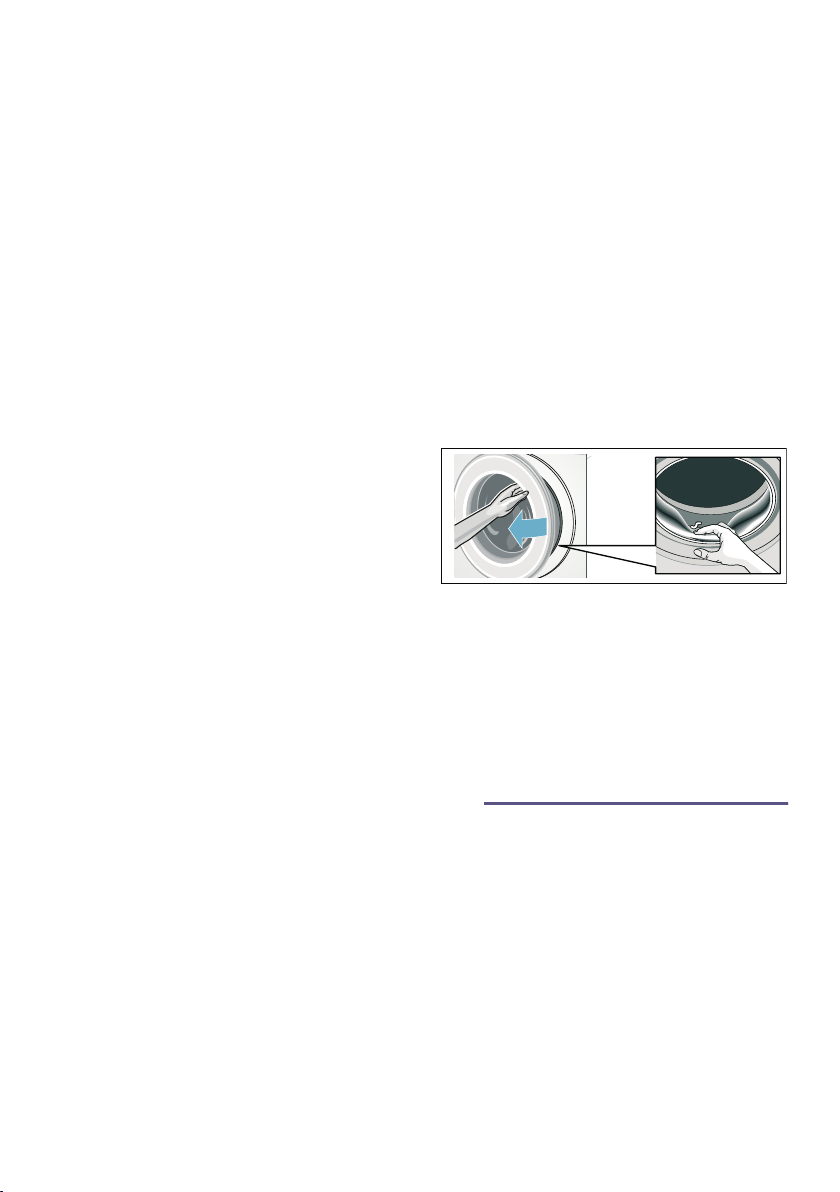

3. Open the appliance door.
Select programme/switch on the appliance
Note:
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
Placing laundry into the drum
Notes
Measure and add detergent and care products
Caution!
Damage to the appliance!

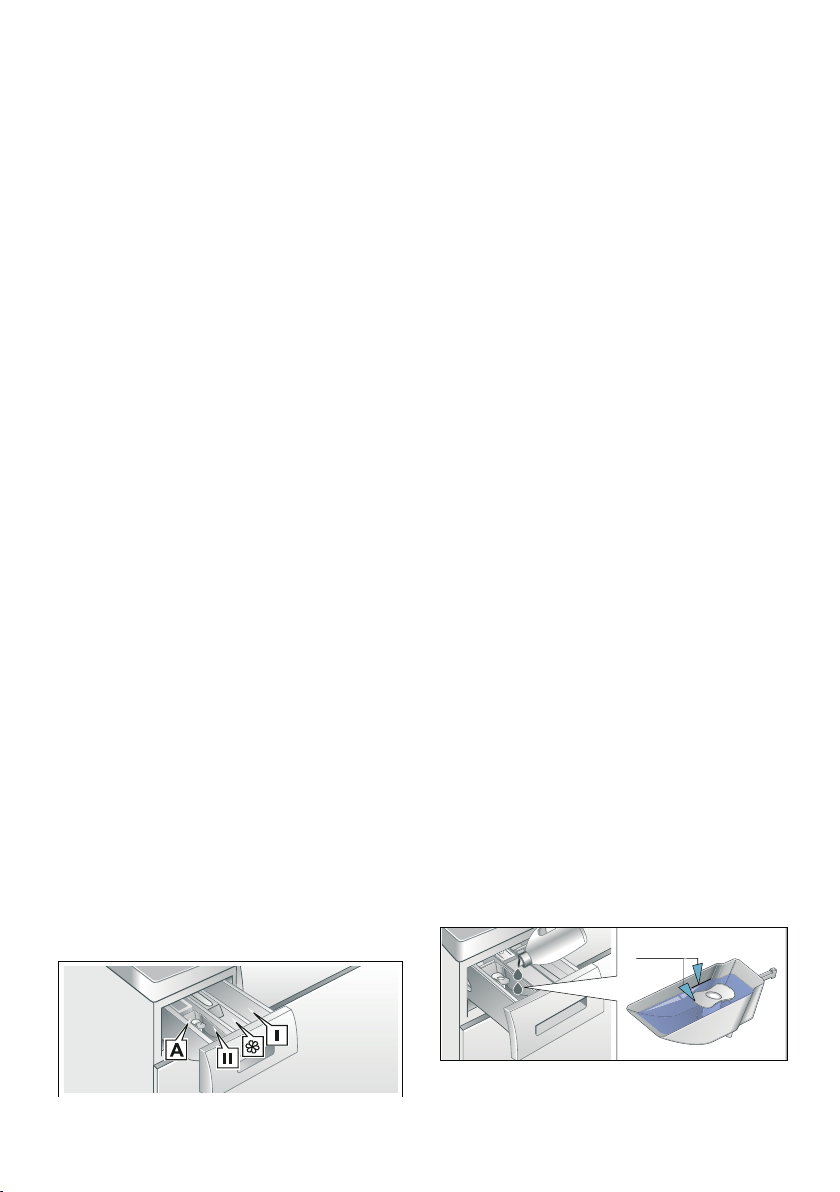

1. Pull out the detergent drawer.
: Warning
Eye / skin irritation!
2. Pour in detergent and/or cleaning product.
Notes
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximun mark.
3. Reinsert the drawer.
Note:
Do not use the viscous liquid detergent.
Start the programme
Childproof lock
Note:
When the programme ends, End is displayed. The door is closed. E and Õ symbols remain on to remind you to deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the 转速(Spin speed) 0 and 预约(Finish in) 0 buttons until the symbol E disappears.
Adding/removing laundry
Notes
Changing the programme
1. Touch the A button.
2. Select another programme.
3. And touch the A button again. The new programme starts from the beginning.
Cancel the programme
1. Touch the 开始/添衣(Start/Reload) button.
2. To cool down laundry: Select Single rinse.
3. Touch the 开始/添衣(Start/Reload) button.
1. Touch the 开始/添衣(Start/Reload) button.
2. Select Single spin.
3. Touch the 开始/添衣(Start/Reload) button.
Programme end during rinse hold
Programme end
After washing
1. Set programme selector to Off.
2. Open appliance door and remove laundry.
Note:
3. Turn off the tap.
Notes
Q Appliance settings
Appliance settings
Activate setting mode:
1. Set the programme selector to position 1. The appliance is switched on.
2. Touch and hold the 开始/添衣(Start/ Reload) button and, at the same time, turn the programme selector clockwise to position 2/3/4. Release the 开始/添衣(Start/Reload) button.
Changing the volume and drum care information
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of death!
Caution!
Fire and explosion hazard!
Caution!
The appliance may be damaged!
Appliance housing/control panel
Drum
: Warning
Risk of injury/material damage/ damage to the appliance!
Descaling
Detergent drawer and housing
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
Leave the detergent drawer open so that any residual water can evaporate.
Cleaning the measuring aid A for liquid detergent
1. Hold the mearsuring aid, pull the cover upward and disconnect them.
2. Clean the measuring aid and cover with water and brush.
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.

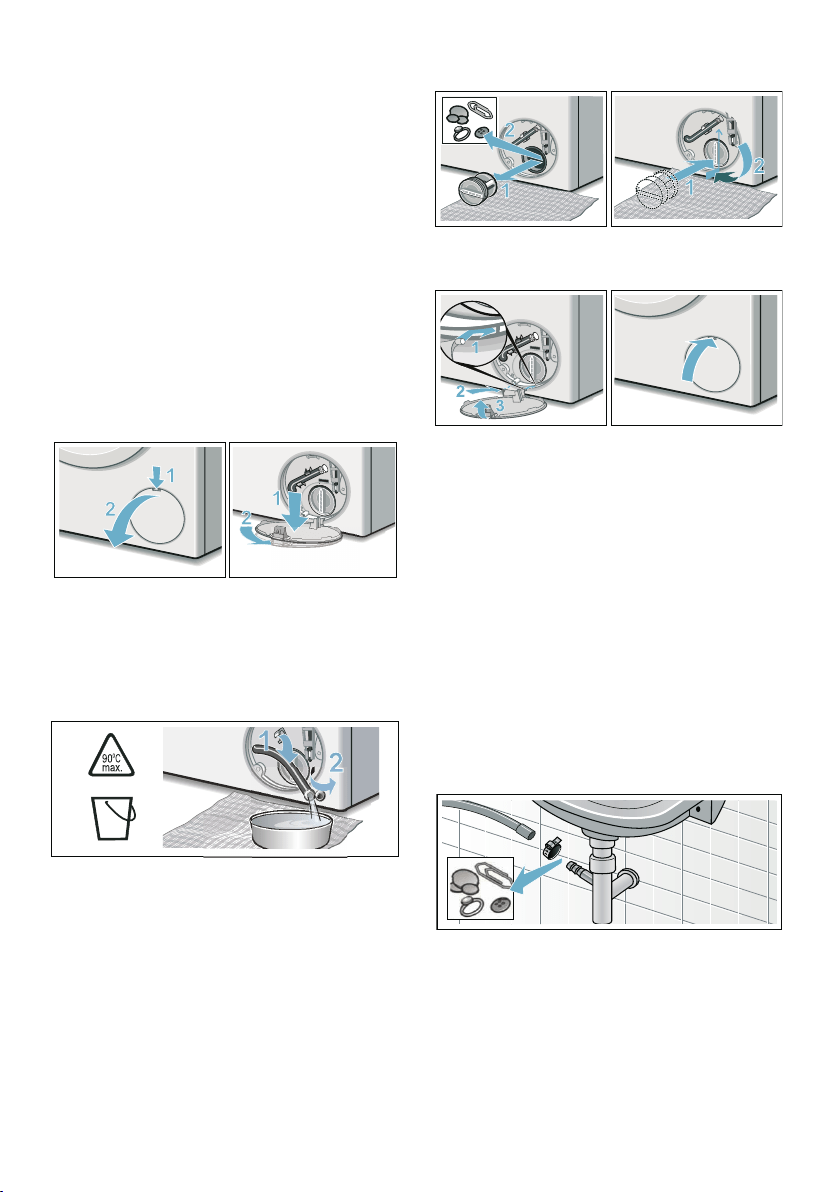

Drain pump is blocked
Note:
Turn the tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
: Warning
Risk of scalding!
1. Switch off the appliance. Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the retainer.
4. Carefully unscrew the pump cover; residual water may leak out.
5. Put the service flap back on, lock it into place and close it.
Note:
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into dispenser II and start the Single spin programme.
The drain hose at the siphon is blocked
1. Turn the programme selector to Off. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply is blocked
1. Release water pressure in the supply hose:
a) Turn off the tap.
b) Select any programme (except Single rinse and Single spin).
c) Select the 开始/添衣(Start/ Reload) button. Allow the programme to run for approx. 40 seconds.
d) Turn the programme selector to Off. The appliance is switched off.
e) Pull out the mains plug.
2. Clean the filters:
a) Disconnect the hose from the tap.
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
3. Connect the hose and check for leaks.
3 Faults and what to do about them
Faults and what to do about them
Emergency release
: Warning
Risk of scalding!
Caution!
Risk when reaching into/gripping the rotating drum!
Caution!
Water damage!
1. Switch off the appliance. Pull out the mains plug.
2. Drain the water.
3. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Notes
Faults and what to do about them
Faults
Cause/Remedy
1. Empty and clean.
2. Refill.
Note:
4 After-sales service
After-sales service
J Technical data
Technical data
*9001297074*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/40
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
ZPVS
OFXEF
WJDFPO
.Z#PTDIOP
XBOE
HFUGS
FFCFOFGJUT
CPTDIIPNFDPN
XFMDPNF
HQ
,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
:DVKLQJPDFKLQH
;4*:83:
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 58500860_wup241600w-01.pdf
File size: 4.18 MB
File Language: English
Pages: 40
Author: Bosch
File created: 2023-09-12
Published:
2023-11-04
Updated: 2023-11-03
Download File
Other documents for Bosch WUP241600W/01
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WUP241600W/01
View in the file:
Full Specifications
See other models:
PKK651E01E/02
HBG237BS0R/16
HEN100120C/01
DLN53AA70B/03
SBU50M02SK/21
Related Products
Bosch DBB97AM60-B
Bosch SMV6ZBX03N
Bosch FFL020MS2-B
Bosch SGS2HTI72EB
Bosch SGS2HTI79EB
Bosch SBV8ZCX09N
Bosch SMV8ZCX09N
Bosch SMI8ZCS02E
Bosch KGN367ICT
Bosch GUD15ADF0-B
Bosch SRV2IKX10EB
Bosch WUP241600W/03
Bosch WUP242680W/01
Bosch WUQ2448XES/01
Bosch WUQ20468ES/01
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
GB standard:
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 10
3
5 Positioning and connecting 12
3
/ The main points in brief 20
3
* Getting to know the appliance 21
3
Z Laundry 24
3
0 Programme default settings 25
3
\ Additional programme settings 26
3
1 Operating the appliance 27
3
Q Appliance settings 30
3
2 Cleaning and maintenance 31
3
3 Faults and what to do about them 34
3
4 After-sales service 38
4
J Technical data 39
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
7
Material damage/damage to the appliance
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of poisoning!
8
: Warning
8
Risk of injury!
8
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
9
: Warning
9
Risk of death!
9
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
10
Material damage/damage to the appliance
10
7 Environmental protection
10
Environmental protection
10
Packaging/used appliance
10
Dispose of packaging in an environmentally-responsible manner.
10
Keep children away from the packaging materials and packaging materials are not toys.
10
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
11
All packaging materials used are in line with environmental protection requirements and reusable.
11
Name and content of hazardous substances in products
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
x
11
Û
11
Û
11
Û
11
Û
11
Û
11
Note:
11
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
11
Tips on economical use
12
5 Positioning and connecting
12
Positioning and connecting
12
Included with the appliance
12
Note:
12
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
12
Useful tools
13
Installation
13
Note:
13
Humidity in the drum is caused by the final inspection.
13
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Removing the foam block
13
Caution!
13
Damage to the appliance
13
: Warning
14
Risk of injury/damage to the appliance!
14
Note:
14
Remove the foam block first before you remove the transport locks.
14
1. Remove the foam block.
14
a) Tilt the appliance to the rear.
14
b) Remove the foam block and bottom pad.
14
2. Fit the bottom cover. (You can find it in the drum)
14
Note:
14
Installation surface
14
Note:
14
The appliance must be stable aligned so that it does not move around.
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
On wooden joist floors, install the appliance:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
15
Note:
15
Dedicated metal cover is available from customer service, order No. : 00478026.
15
Removing the transport locks
15
Caution!
15
Damage to the appliance
15
Note:
15
Keep the screws and sleeves in a safe place.
15
1. Take the hoses out of the holders.
15
2. Unscrew and remove all four transport brace screws.
15
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Hose and cable lengths
15
Note:
16
If the hose holders are used, the possible hose lengths are reduced!
16
Available from dealer/customer service:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
Notes
16
Connection
16
Note:
16
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
16
Water outlet
16
: Warning
16
Risk of scalding!
16
Caution!
16
Water damage
16
Caution!
17
Damage to the appliance/fabrics
17
Notes
17
Connection
17
Alignment
17
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
17
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
17
3. Tighten the lock nut against the housing.
17
Electrical connection
18
Electrical safety
18
: Warning
18
Risk of electric shock!
18
Before washing for the first time
18
Note:
18
1. Insert mains plug.
18
2. Turn the water tap on.
18
3. Close the door. Do not load any laundry.
18
4. Select the Drum clean 90°C programme.
18
5. Open the detergent drawer.
18
6. Pour approx. 1 litre of water into dispenser II.
18
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
18
Note:
18
8. Close the detergent drawer.
18
9. Select 开始/添衣(Start/Reload).
18
10. When the programme ends, turn the programme selector to Off. The appliance is switched off.
18
Transportation
19
1. Turn off the water tap.
19
2. Reduce the water pressure in the supply hose. ~ Page 34
19
3. Drain any residual water. ~ Page 33
19
4. Disconnect the appliance from the mains.
19
5. Remove the hoses.
19
6. Empty the dispensers. and ~ "Cleaning the measuring aid A for liquid detergent" on page 32
19
1. Remove the covers and keep them in a safe place.
19
2. Insert all four sleeves.
19
Notes
19
/ The main points in brief
20
The main points in brief
20
* Getting to know the appliance
21
Getting to know the appliance
21
Appliance
21
Control panel
22
You can find possible programme default settings and additional programme settings in the overview; these differ depending on the model.
22
Display symbols
23
Note:
23
Z Laundry
24
Laundry
24
Protecting your laundry and appliance
24
Caution!
24
Damage to the appliance/textiles
24
Sorting laundry
24
Note:
24
0 Programme default settings
25
Programme default settings
25
温度(Temperature) °C
25
转速(Spin speed) 0
25
预约(Finish in) 0
25
1. Select a programme.
25
2. Touch the 预约(Finish in) 0 button repeatedly until the required number of hours is displayed.
25
3. Select the 开始/添衣(Start/Reload) button.
25
Note:
25
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or programme additional settings may also change the programme duration.
25
1. Select the 开始/添衣(Start/Reload) button.
25
2. Touch the 预约(Finish in) 0 button to change the number of hours.
25
3. Select the 开始/添衣(Start/Reload) button.
25
\ Additional programme settings
26
Additional programme settings
26
Note:
26
You can find possible additional programme settings in the overview; these differ depending on the model.
26
提速/节电(speedPerfect/ ecoPerfect)
26
Note:
26
轻松熨(Easy Iron)
26
Note:
26
The washing's residual moisture is increased.
26
加漂洗 (Rinse plus)
26
加浸泡(Soaking)
26
Notes
26
1. Put detergent in dispenser II before starting the appliance.
26
2. Select the Cotton 40 °C programme and the 开始/添衣(Start/Reload) button.
26
3. Select the 开始/添衣(Start/Reload) button after approx. 10 minutes. The laundry remains in the soaking solution.
26
4. Leave the laundry to soak for as long as required, then either select the 开 始/添衣(Start/Reload) button again to continue the programme or change the programme.
26
1 Operating the appliance
27
Operating the appliance
27
Preparing the appliance
27
Notes
27
1. Insert mains plug.
27
: Warning
27
Riskof death from electric shock!
27
2. Turn the tap on.
27
3. Open the appliance door.
27
Select programme/switch on the appliance
27
Note:
27
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
27
Placing laundry into the drum
27
Notes
27
Measure and add detergent and care products
28
Caution!
28
Damage to the appliance!
28
1. Pull out the detergent drawer.
28
: Warning
28
Eye / skin irritation!
28
2. Pour in detergent and/or cleaning product.
28
Notes
28
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
28
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximun mark.
28
3. Reinsert the drawer.
28
Note:
29
Do not use the viscous liquid detergent.
29
Start the programme
29
Childproof lock
29
Note:
29
When the programme ends, End is displayed. The door is closed. E and Õ symbols remain on to remind you to deactivate the childproof lock.
29
To deactivate the childproof lock:
29
Touch and hold the 转速(Spin speed) 0 and 预约(Finish in) 0 buttons until the symbol E disappears.
29
Adding/removing laundry
29
Notes
29
Changing the programme
29
1. Touch the A button.
29
2. Select another programme.
29
3. And touch the A button again. The new programme starts from the beginning.
29
Cancel the programme
30
1. Touch the 开始/添衣(Start/Reload) button.
30
2. To cool down laundry: Select Single rinse.
30
3. Touch the 开始/添衣(Start/Reload) button.
30
1. Touch the 开始/添衣(Start/Reload) button.
30
2. Select Single spin.
30
3. Touch the 开始/添衣(Start/Reload) button.
30
Programme end during rinse hold
30
Programme end
30
After washing
30
1. Set programme selector to Off.
30
2. Open appliance door and remove laundry.
30
Note:
30
3. Turn off the tap.
30
Notes
30
Q Appliance settings
30
Appliance settings
30
Activate setting mode:
31
1. Set the programme selector to position 1. The appliance is switched on.
31
2. Touch and hold the 开始/添衣(Start/ Reload) button and, at the same time, turn the programme selector clockwise to position 2/3/4. Release the 开始/添衣(Start/Reload) button.
31
Changing the volume and drum care information
31
2 Cleaning and maintenance
31
Cleaning and maintenance
31
: Warning
31
Risk of death!
31
Caution!
31
Fire and explosion hazard!
31
Caution!
31
The appliance may be damaged!
31
Appliance housing/control panel
31
Drum
32
: Warning
32
Risk of injury/material damage/ damage to the appliance!
32
Descaling
32
Detergent drawer and housing
32
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
32
2. To remove the insert: Push the insert upwards from below with your finger.
32
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
32
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
32
5. Push in the detergent drawer.
32
Note:
32
Leave the detergent drawer open so that any residual water can evaporate.
32
Cleaning the measuring aid A for liquid detergent
32
1. Hold the mearsuring aid, pull the cover upward and disconnect them.
32
2. Clean the measuring aid and cover with water and brush.
32
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.
32
Drain pump is blocked
33
Note:
33
Turn the tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
33
: Warning
33
Risk of scalding!
33
1. Switch off the appliance. Pull out the mains plug.
33
2. Open the service flap.
33
3. Take the drain hose out of the retainer.
33
4. Carefully unscrew the pump cover; residual water may leak out.
33
5. Put the service flap back on, lock it into place and close it.
33
Note:
33
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into dispenser II and start the Single spin programme.
33
The drain hose at the siphon is blocked
33
1. Turn the programme selector to Off. Pull out the mains plug.
33
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
33
3. Clean the drain hose and siphon connecting piece.
33
4. Re-attach the drain hose and secure the connection point using the hose clamp.
33
Filter in the water supply is blocked
34
1. Release water pressure in the supply hose:
34
a) Turn off the tap.
34
b) Select any programme (except Single rinse and Single spin).
34
c) Select the 开始/添衣(Start/ Reload) button. Allow the programme to run for approx. 40 seconds.
34
d) Turn the programme selector to Off. The appliance is switched off.
34
e) Pull out the mains plug.
34
2. Clean the filters:
34
a) Disconnect the hose from the tap.
34
b) For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
34
3. Connect the hose and check for leaks.
34
3 Faults and what to do about them
34
Faults and what to do about them
34
Emergency release
34
: Warning
34
Risk of scalding!
34
Caution!
34
Risk when reaching into/gripping the rotating drum!
34
Caution!
34
Water damage!
34
1. Switch off the appliance. Pull out the mains plug.
34
2. Drain the water.
34
3. Pull the emergency release downwards with a tool and release.
34
Information on the display panel
35
Display
35
Cause/Remedy
35
Notes
35
Faults and what to do about them
36
Faults
36
Cause/Remedy
36
1. Empty and clean.
36
2. Refill.
36
Note:
37
4 After-sales service
38
After-sales service
38
J Technical data
39
Technical data
39
*9001297074*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
Search:
×
Search
