PRODUCT DATA
The Honeywell Trademark is used under license from Honeywell
International Inc. by Air-Pure Systems.
Honeywell International Inc. makes no representations or
warranties with respect to this product.
F90A,B
Self-Contained
Commercial Electronic Air Cleaner
APPLICATION
The F90A,B Self-Contained Commercial Electronic Air
Cleaners are ceiling-mounted and remove airborne
contaminants such as tobacco and cooking smoke, dust,
pollen, bacteria, and larger viruses from the air circulated
through the unit.
FEATURES
• Removes up to 95 percent of the staining dirt from the air,
as measured by the Initial Dust Spot Method using
atmospheric dust; refer to the American Society of
Heating, Refrigerating, and Air Conditioning Engineers
(ASHRAE) Standard 52-76.

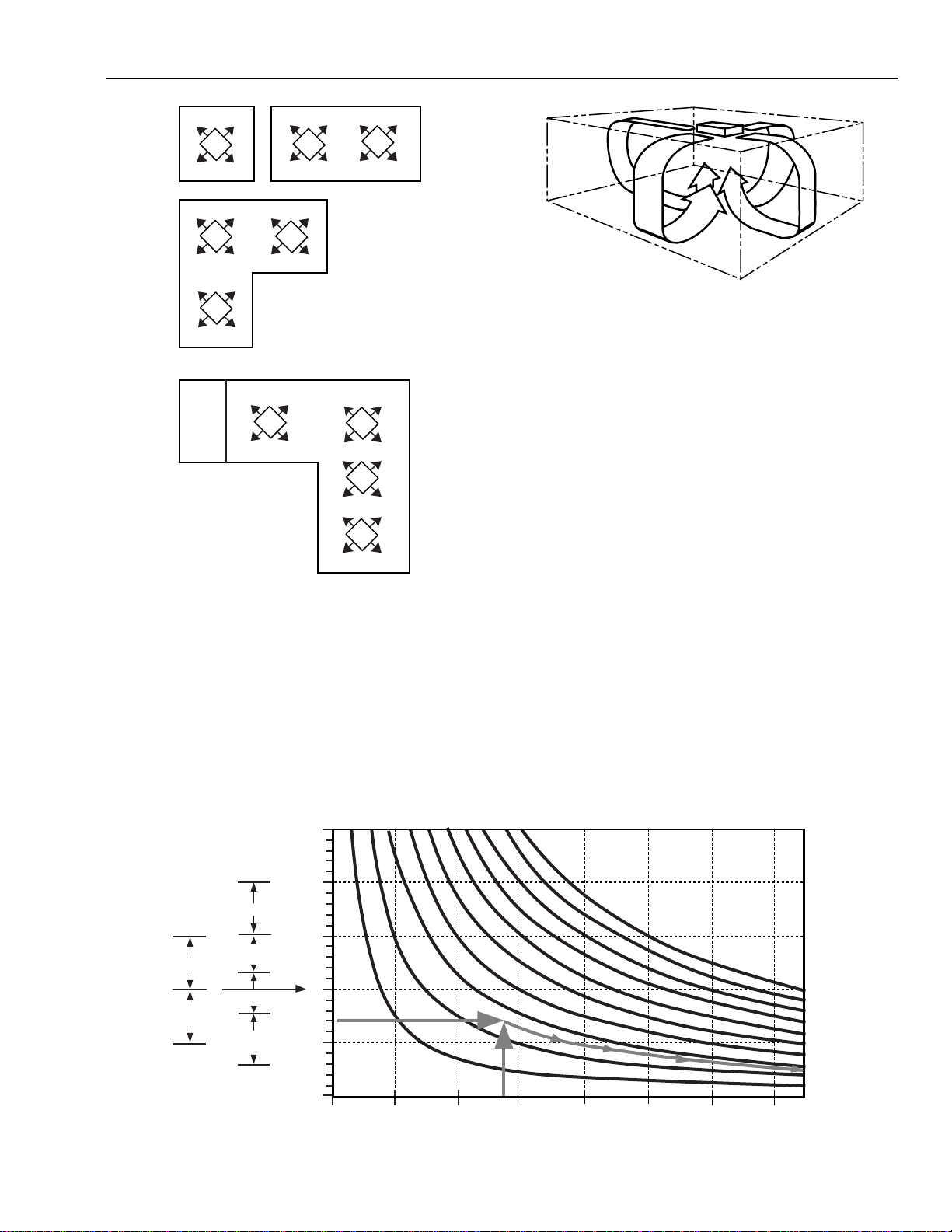

• Provides Coanda air distribution by drawing in dirty air
from below, cleaning it electronically, and discharging the
clean air in four directions parallel with the ceiling.
• Three-speed fan circulates up to 1250 cfm (35 m3/min) for
F90A and 550 cfm (15.5 m3/min) for F90B.
• Solid state power supply is self-regulating, maintains peak
efficiency over a wide range of cell dirt loading conditions,
and provides nonlethal current levels.
• Interlock switch prevents operation when the cover is
open or the grille is not in place.

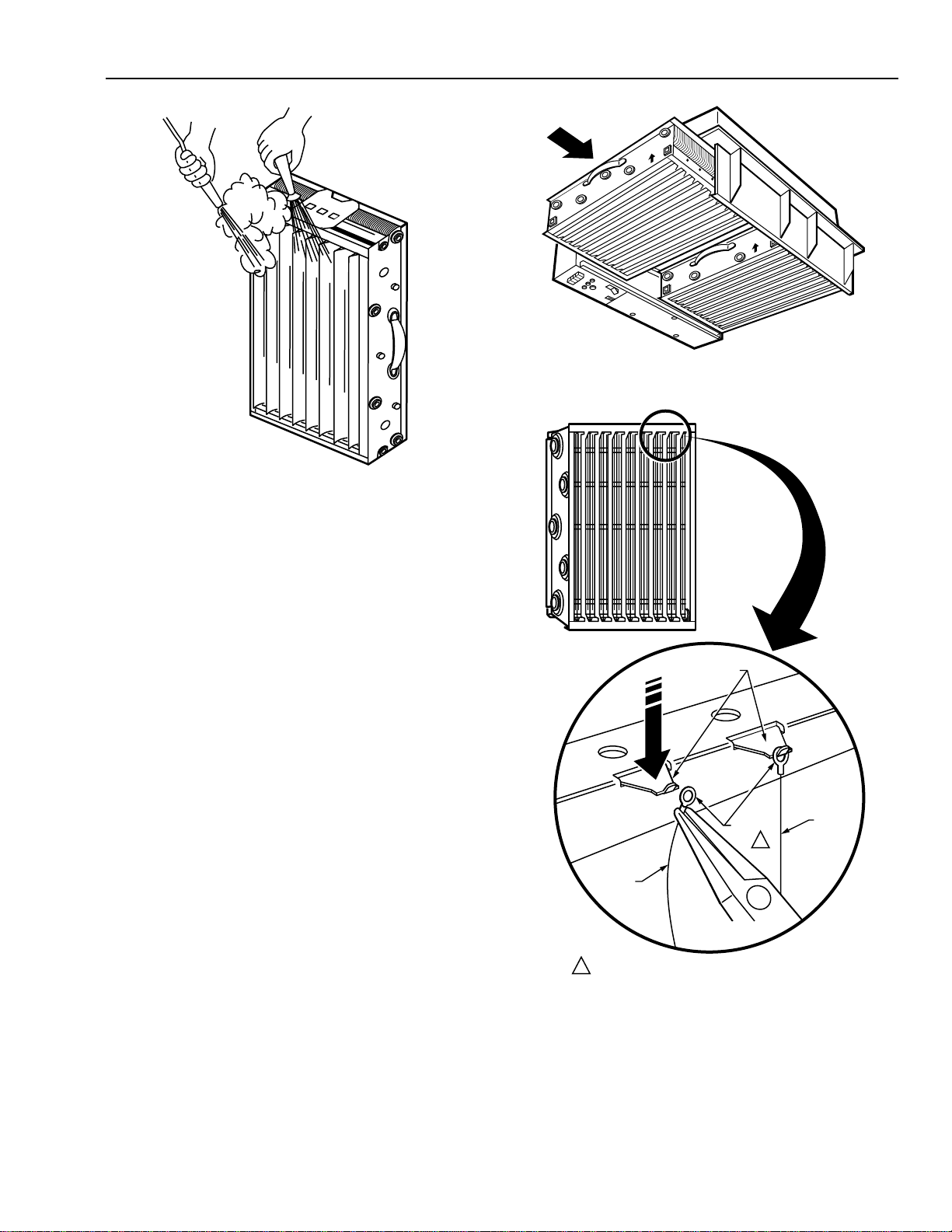

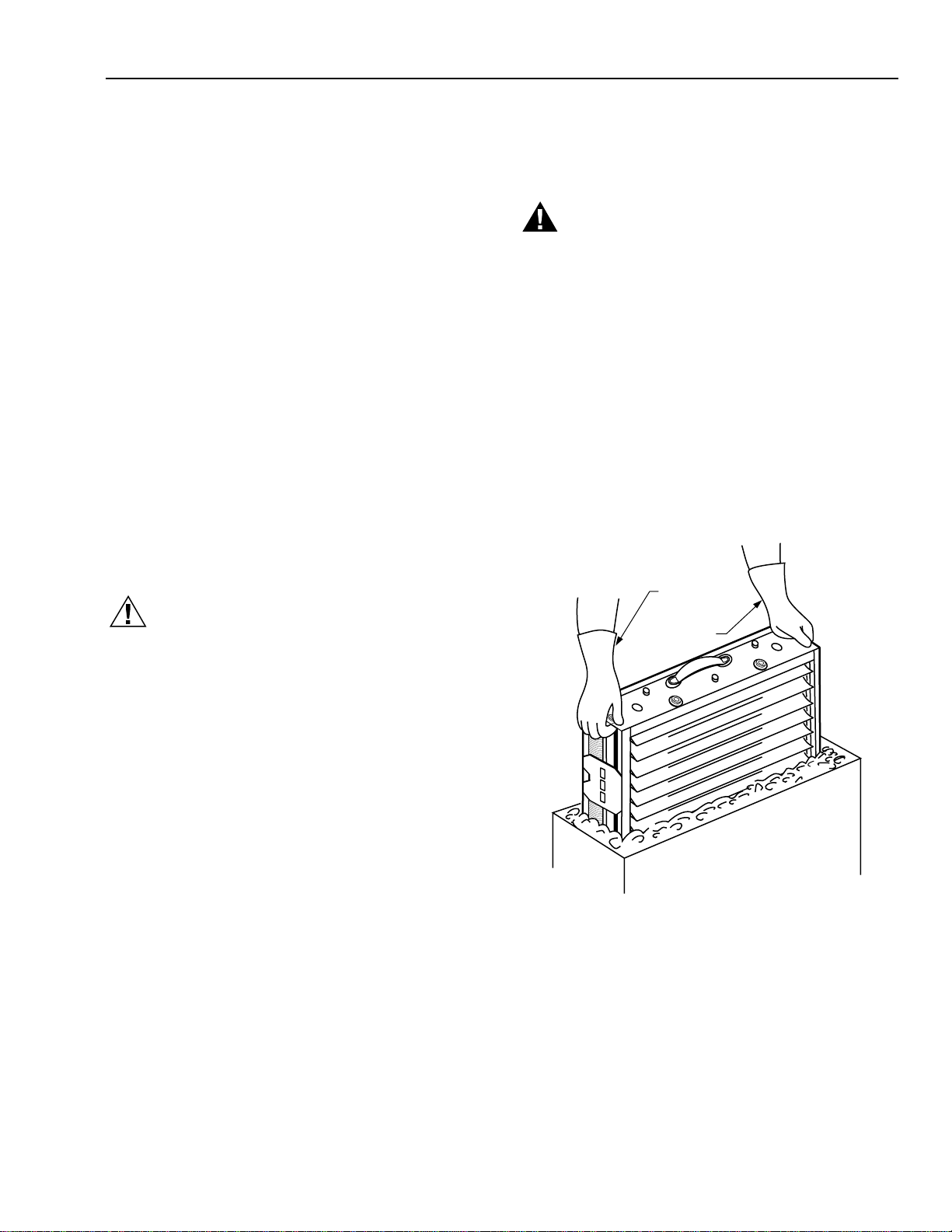

• Heavy duty commercial cells, prefilter, and grille are
removable for cleaning.
• Three-position adjustable discharge louvers control the
direction of discharged air.
• Light emitting diodes (LEDs) indicate ON and CHECK;
WASH LED optional.

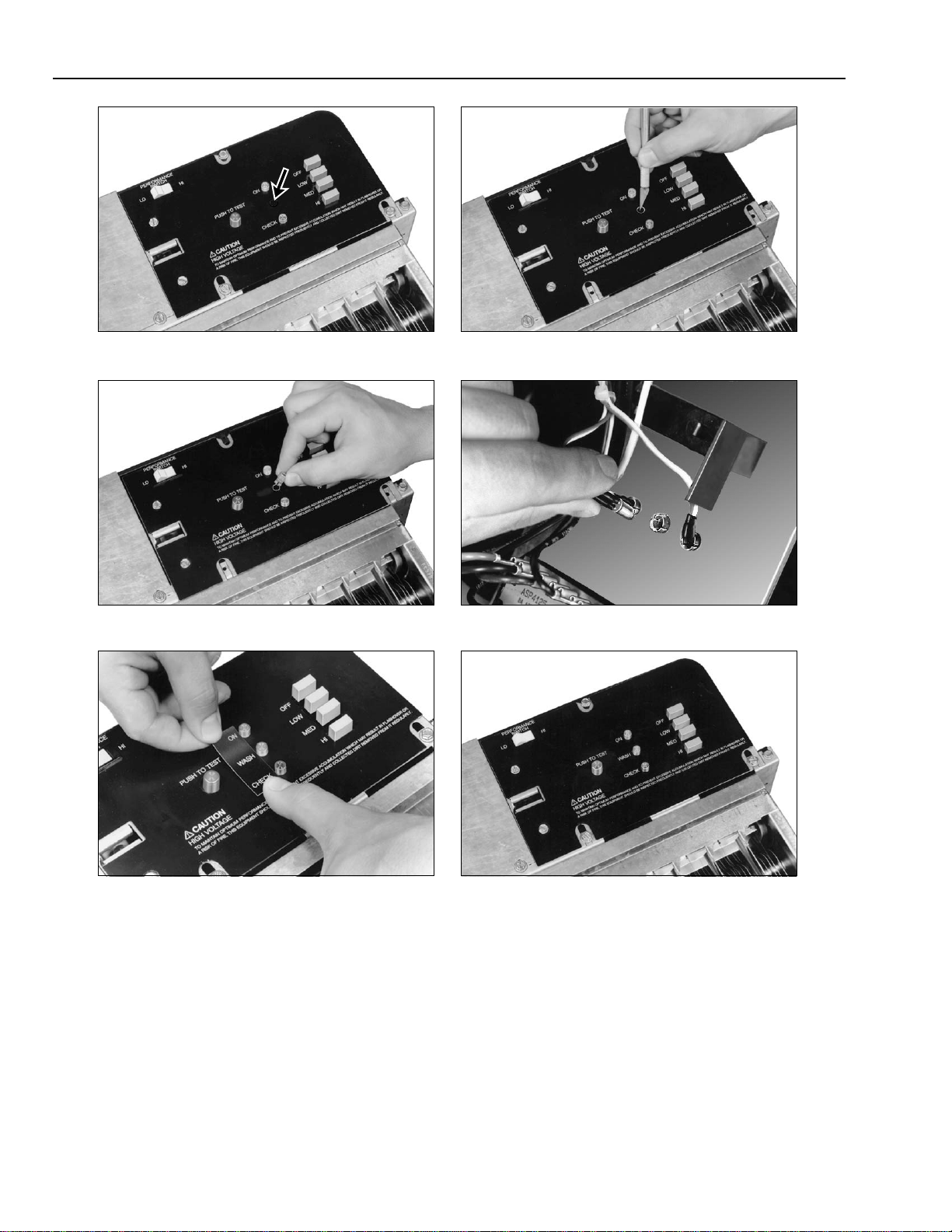

• Test button shows presence of high voltage.
• Available with gray finish or woodgrain with black trim.
• Optional hard-wired remote control assembly (part number
190097B).
• Optional carbon filters (part number 202614) for ozone
and odor control.
•
READ AND SAVE THESE
INSTRUCTIONS
Contents
Application .......................................................................... 1
Features ............................................................................. 1
Specifications ..................................................................... 2
Ordering Information .......................................................... 2

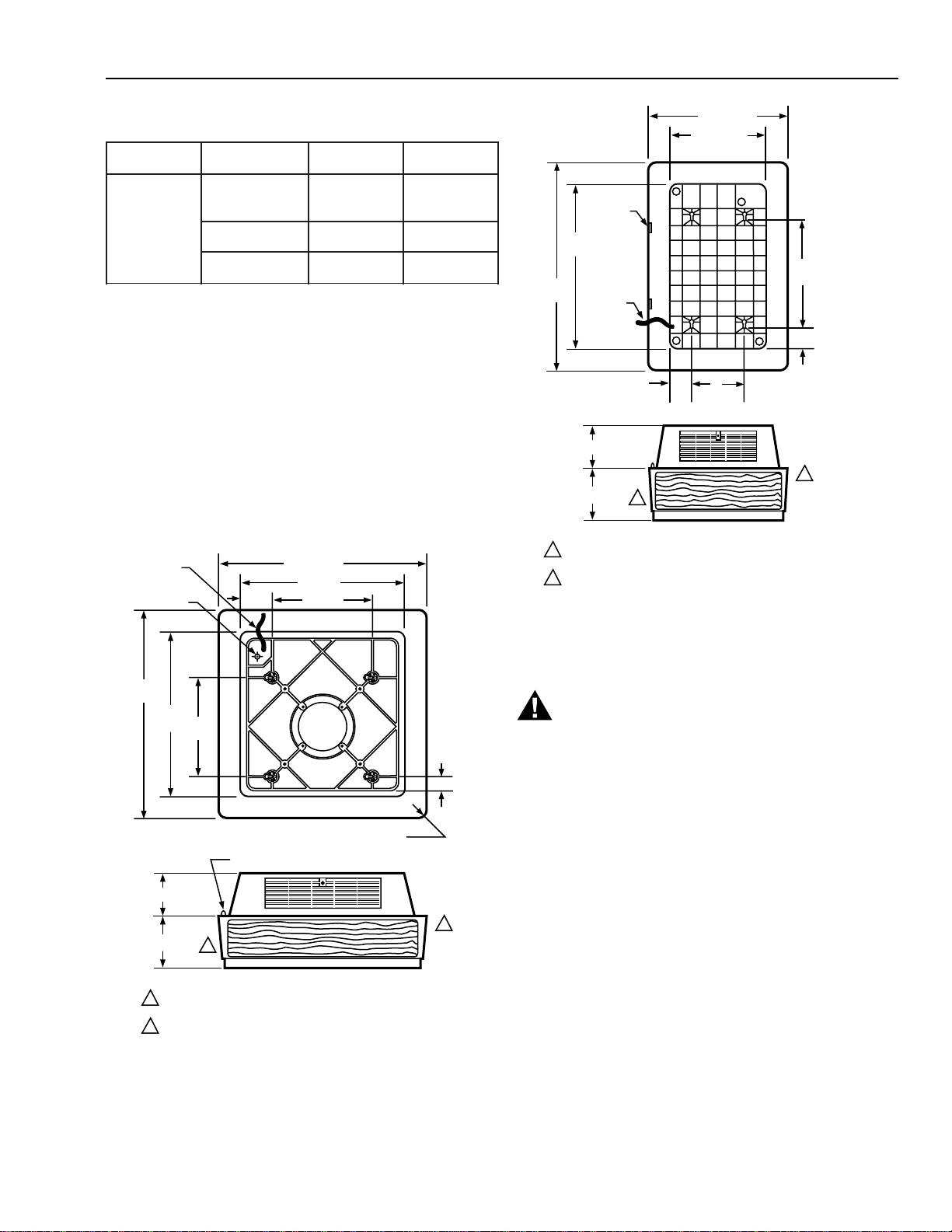

Planning the Installation .................................................... 3

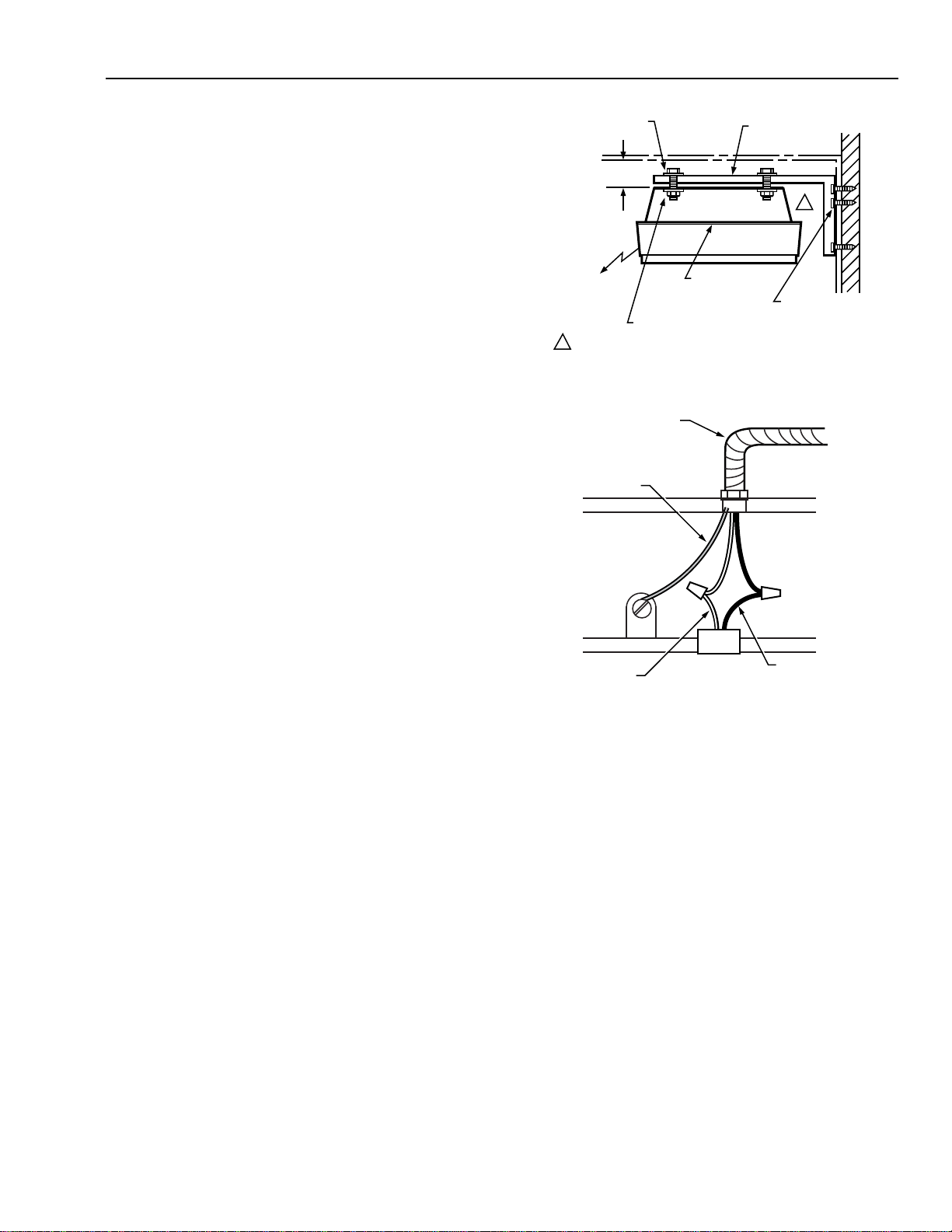

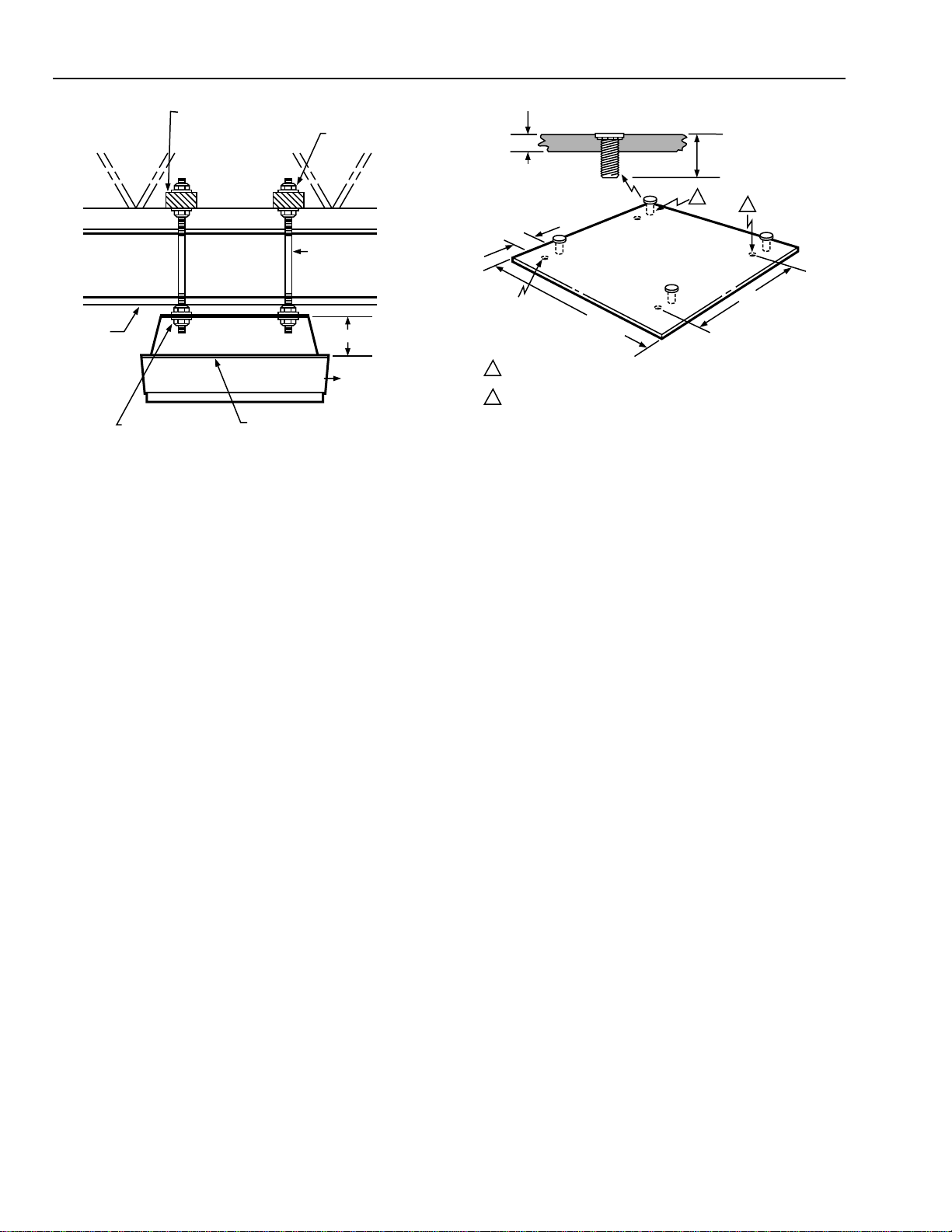

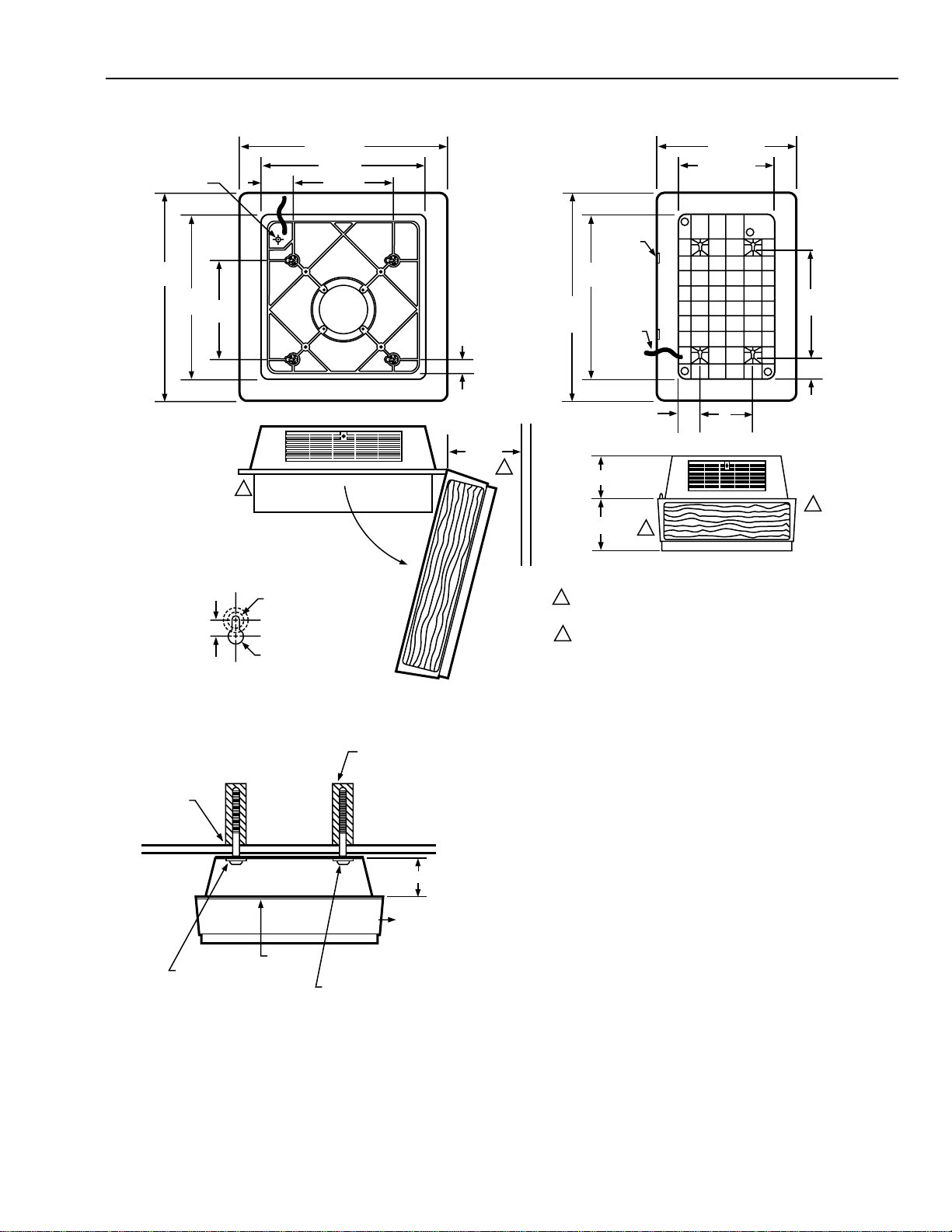

Installation .......................................................................... 6
Checkout ............................................................................ 12
Adjustments ....................................................................... 12

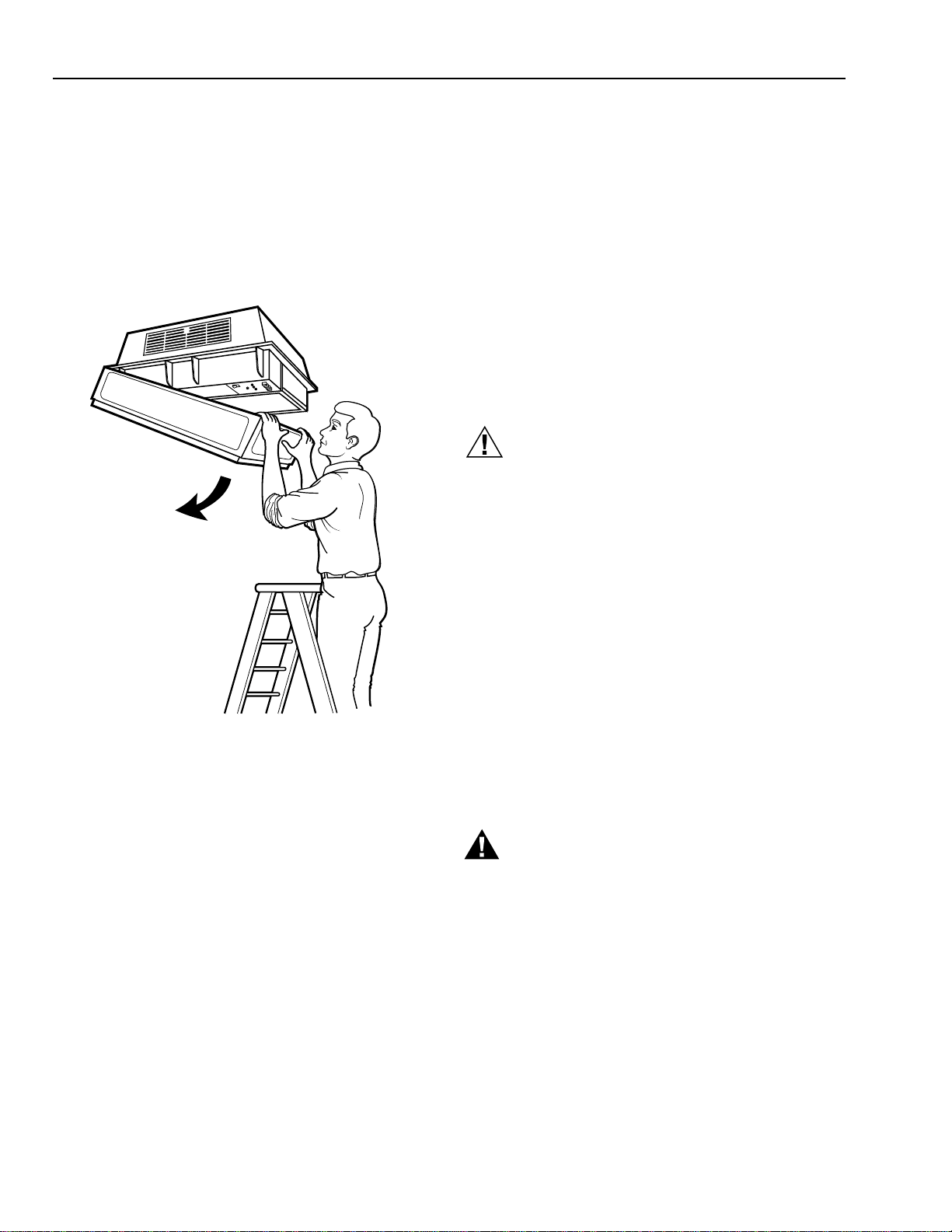

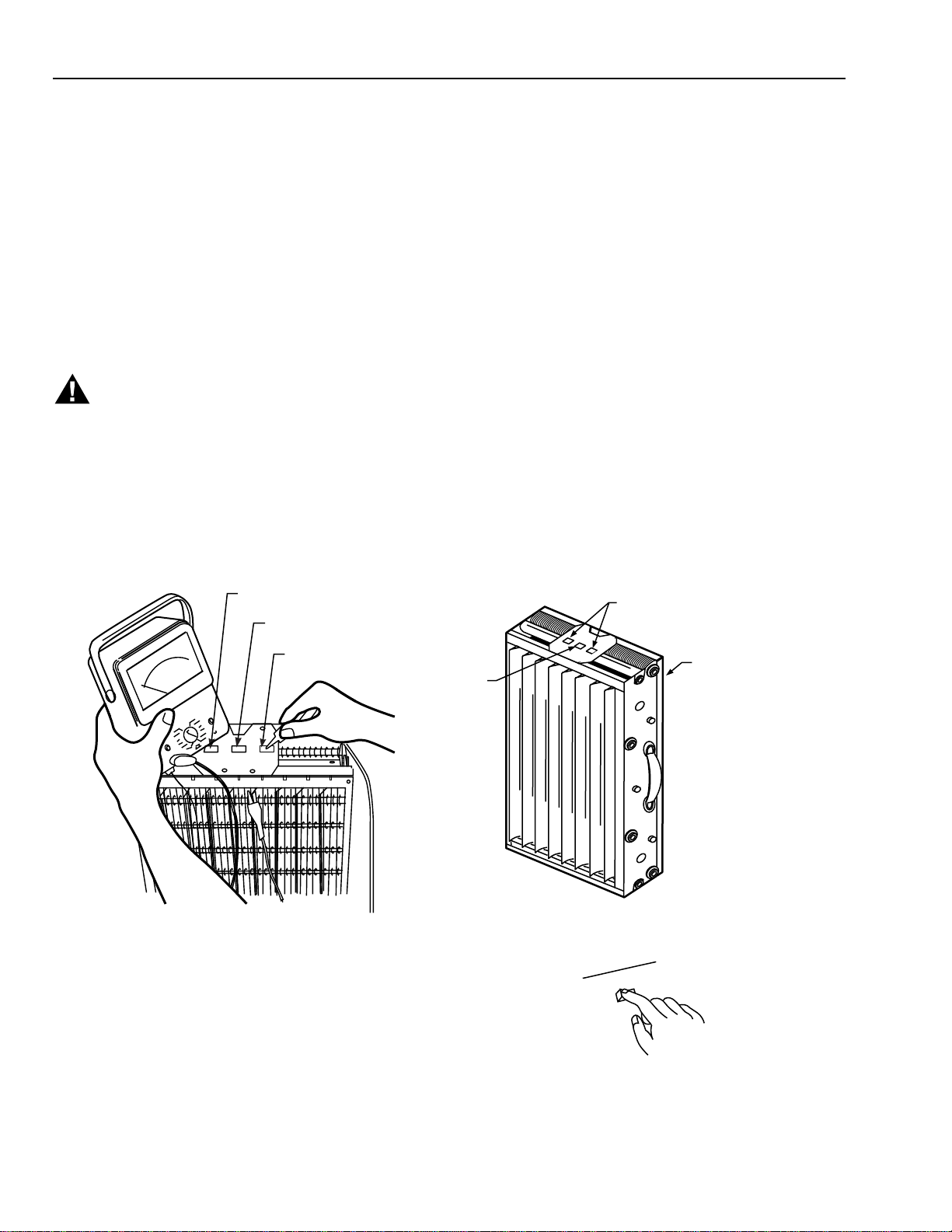

Service ................................................................................ 12

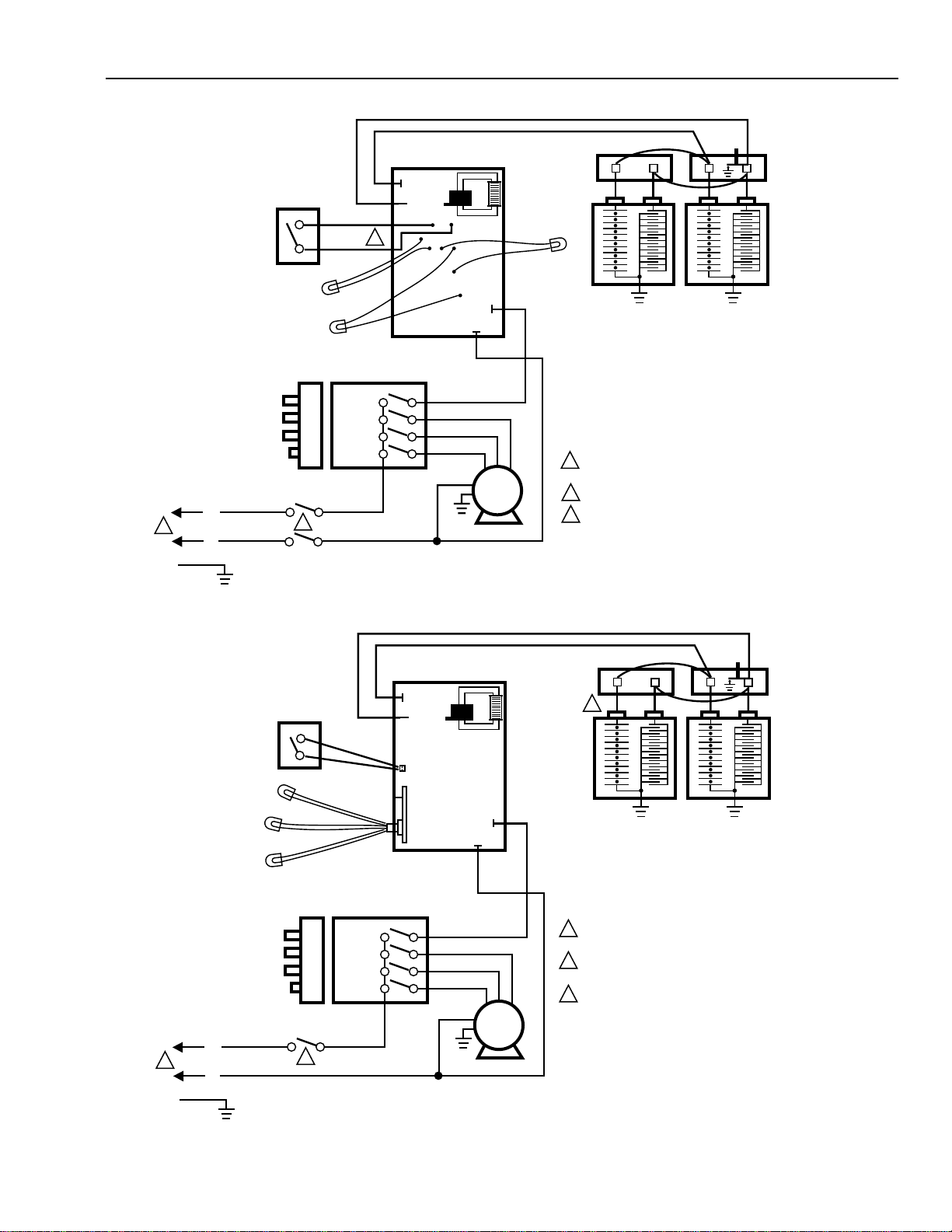

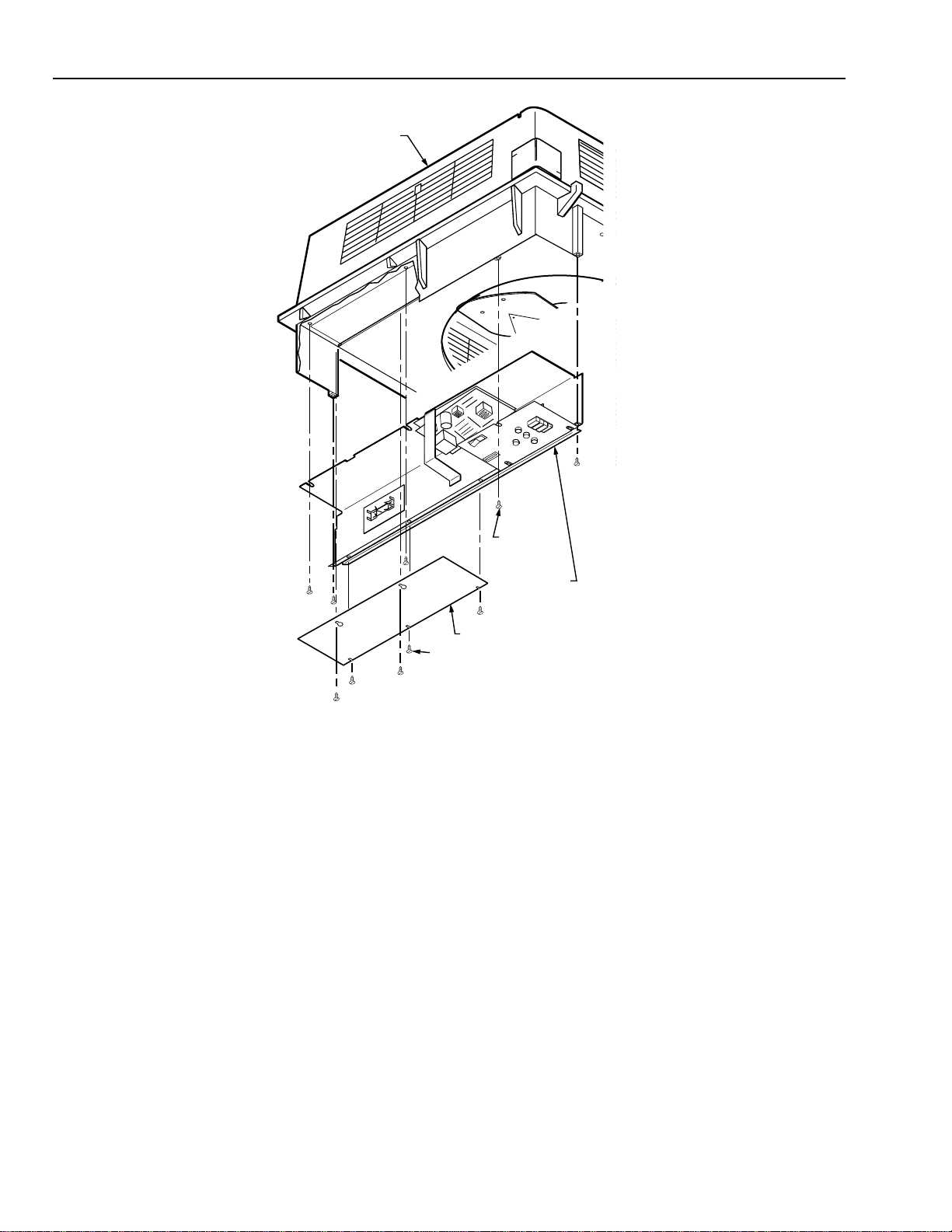

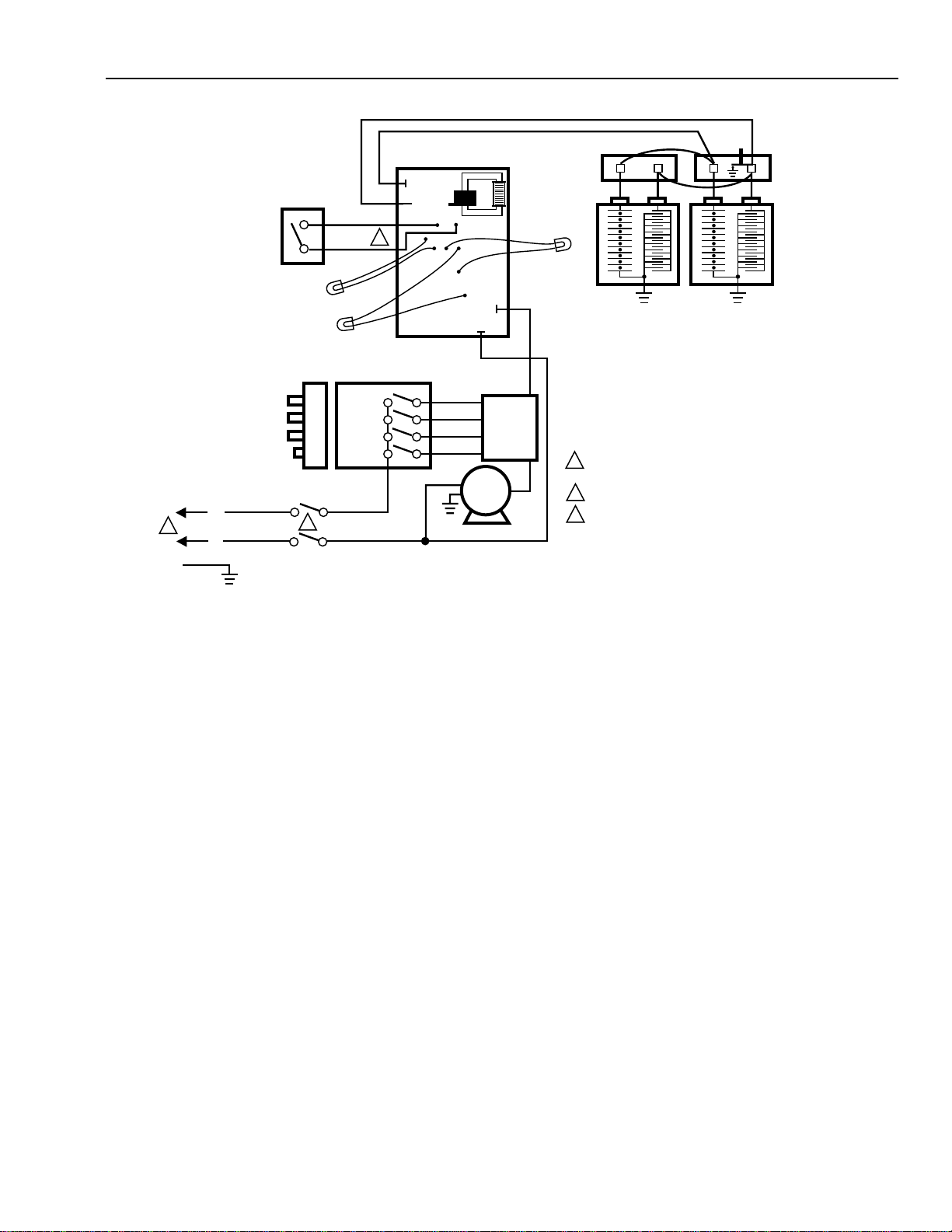

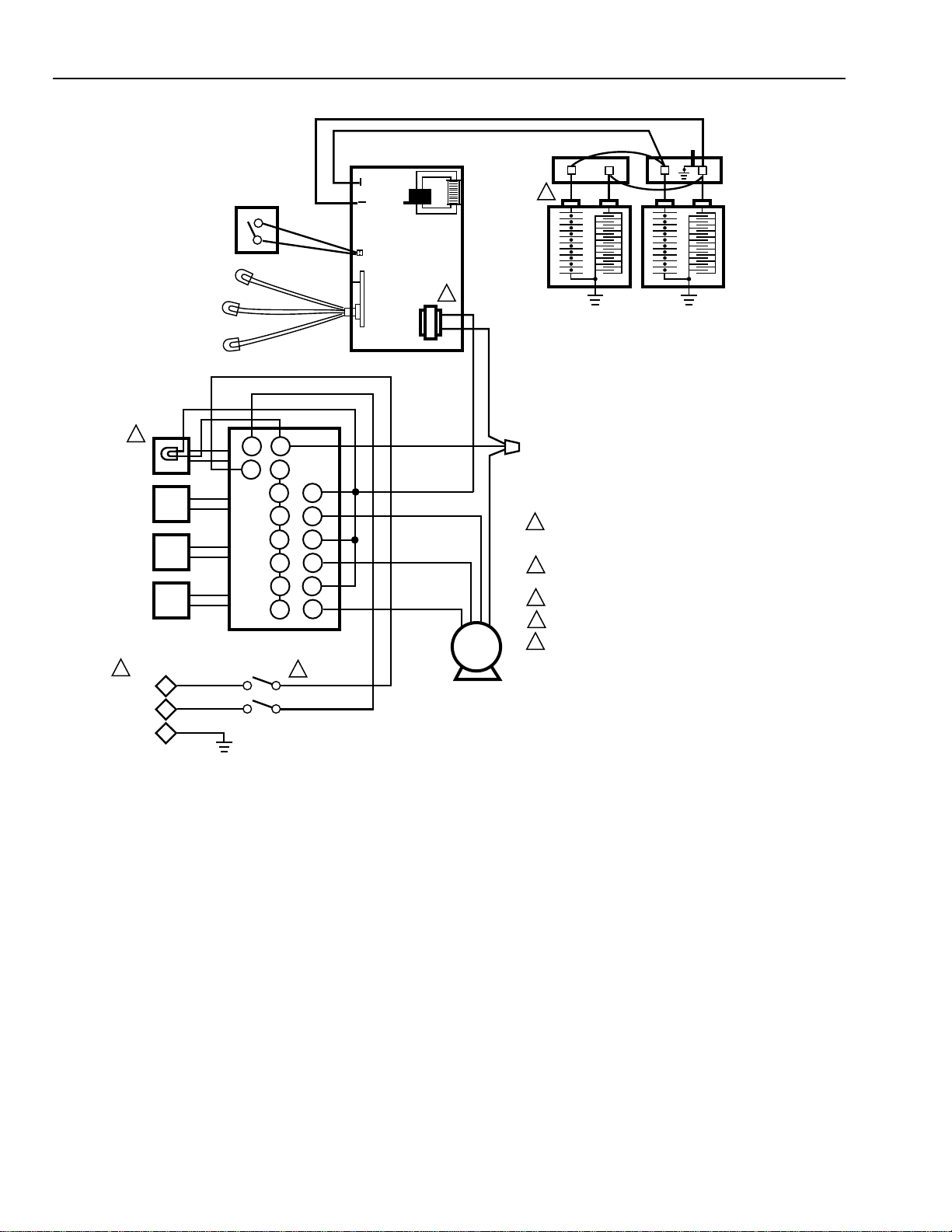

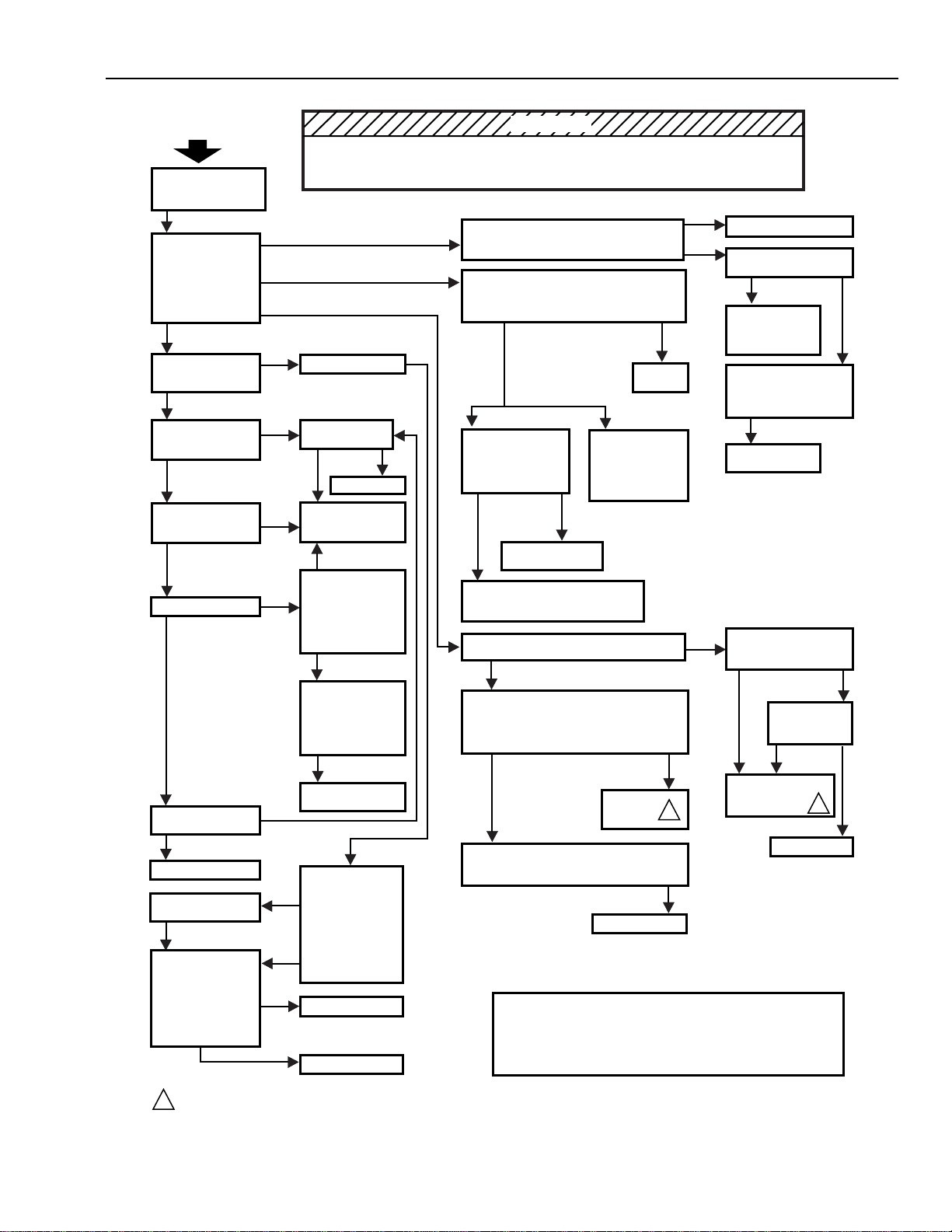

Electrical Troubleshooting ................................................. 16

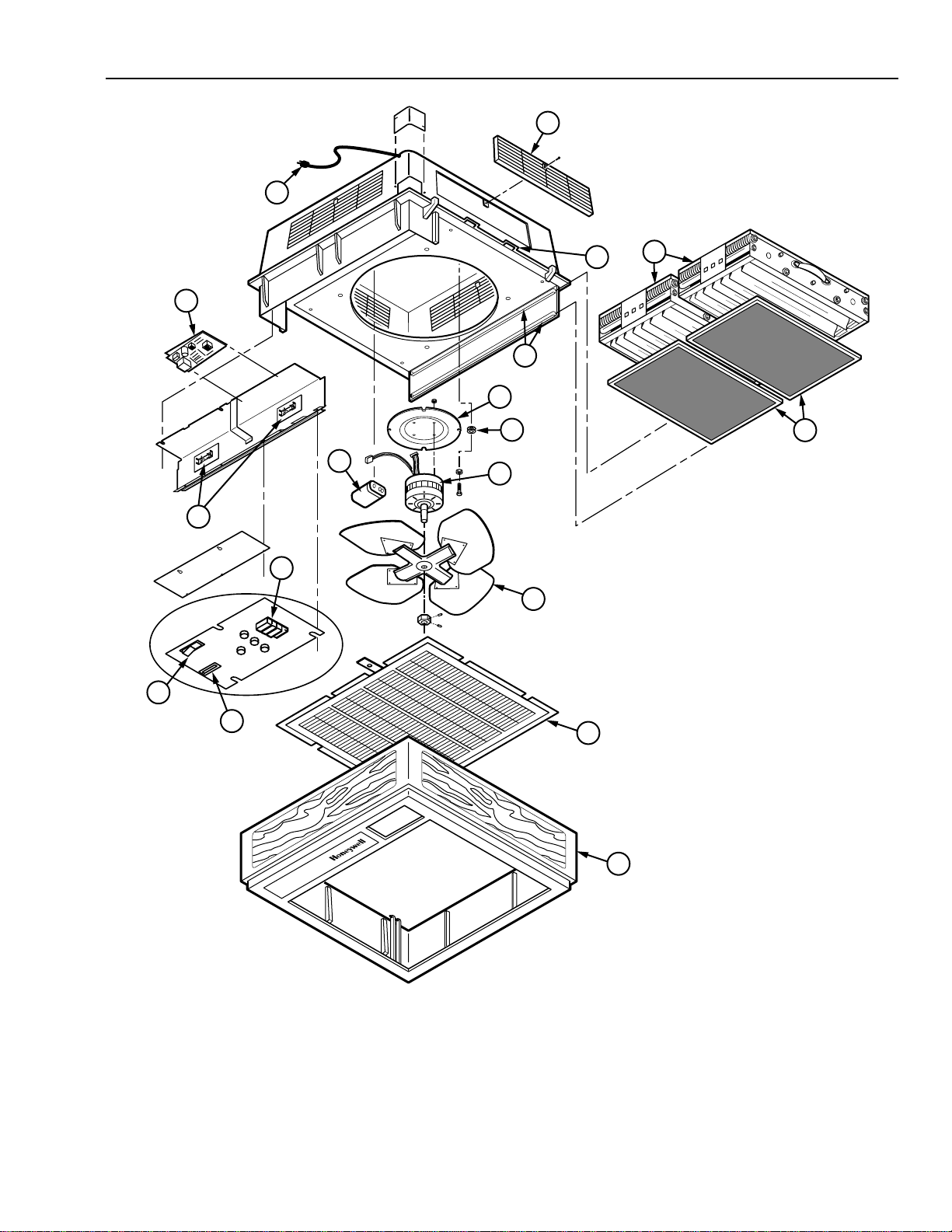

Replacement Parts List/Exploded View ............................ 22
Limited One-Year Warranty ................................................ 24
68-0103-7 Revised 02-08
