EQE5657
EQE5607
User ManualRefrigeration
EN
2
2 www.electrolux.com
CONTENTS
WE’RE THINKING OF YOU
Thank you for choosing Electrolux. We have designed this product to make your life
simpler and deliver impeccable performance for many years. Please spend a few
minutes reading this document to get the best from your new Electrolux appliance.
Visit our website to:
Get usage advice or service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/support/register-warranty
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
Get usage advice, brochures, troubl
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
Warning / Caution-Safety information.
General information and tips.
Thank you for choosing this Electrolux product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the follow-
The information can be found on the rating plate.
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
Warning / Caution-Safety information.
General information and tips.
Thank you for choosing this Electrolux product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the follow-
The information can be found on the rating plate.
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Thank you for choosing this Electrolux product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the follow-
The information can be found on the rating plate.
1. SAFETY INFORMATION .................................................................................................................. 3
2. DESCRIPTION OF THE APPLIANCE ........................................................................................... 5
3. INSTALLING YOUR NEW APPLIANCE ........................................................................................7
4. TEMPERATURE CONTROL.............................................................................................................12
5. STORAGE FEATURES .......................................................................................................................18
6. CONNECTING THE WATER SUPPLY .........................................................................................20
7. GENERAL INFORMATION ............................................................................................................ 22
8. FOOD STORAGE GUIDE................................................................................................................24
9. TROUBLESHOOTING ......................................................................................................................25
10. NOISES ................................................................................................................................................29
3EN
1. SAFETY INFORMATION
Note: You must read these warnings carefully
before installing or using the refrigerator. If
you need assistance, contact your customer
care centre. The manufacturer will not accept
liability, should these instructions or any other
safety instructions incorporated in this book be
ignored.
WARNING
• It is essential the electric outlet is properly
earthed to ground. Consult a qualified
electrician if you are unsure.
• Do not use electrical appliances inside the
food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
• Unplug the refrigerator before cleaning or
moving it to avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip
the plug firmly and pull straight out.
• If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
• Don’t use a steam cleaner. If livecomponents
come into contact with condensing steam,
they may short-circuit or cause an electric
shock.
• Do not store explosive substances such as
aerosol cans with a flammable propellant
this appliance. If pressurised aerosol
containers bear the word ‘flammable’ and/or
a small flame symbol, do not store them
inside any refrigerator or freezer.If you do so
you may cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed
with flammable blowing gases. Avoid safety
hazards by carefully disposing of this
appliance.
• If you wish to discard this refrigerator, please
contact your local authorities and ask for the
correct method of disposal.
• When you dispose of your old refrigerators
and freezers, remove any doors. Children
can suffocate if they get trapped inside.
• When positioning the appliance, ensure the
supply cord is not trapped or damaged.
• Do not locate multiple portable socket-
outlets or portable power supplies at the rear
of the appliance.
WARNING
R600a refrigerant warning
This appliance contains flammable
R600a refrigerant. Avoid safety
hazards by carefully installing,
handling, servicing and disposing
of this appliance.
• Ensure that the tubing of the refrigerant
circuit is not damaged during transportation
and installation.
• Leaking refrigerant may cause eye injuries or
ignite.
• The room for installing appliance must be
at least 1m
3
per 8g of refrigerant.The amount
of refrigerant in the appliance can be found
on the rating plate inside the appliance.
• If you are unsure of the refrigerant check the
rating plate inside the refrigerator
compartment.
• It is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland Australia the
Authorisation Service Person MUST hold
a Gas Work Authorisation for hydrocarbon
refrigerants to carry out servicing or repairs
which involve the removal of covers.
• Keep ventilation openings in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
• The maximum inlet water pressure 689 kPa
(100 psi), the minimum inlet water pressure
206 kPa (30 psi), if this is necessary for the
correct operation of the appliance.
4 www.electrolux.com
GENERAL WARNINGS
Read the following carefully to avoid damage
or injury. It is important to use your refrigerator
safely. Check these safety points before using
your refrigerator.
• The appliance must be plugged into its own
dedicated electrical outlet.
• The plug must be accessible when the
refrigerator is in position.
• It is essential the powerpoint is properly
earthed to ground. Consult a qualified
electrician if you are unsure.
• Don’t use extension cords or adapter plugs
with this refrigerator.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
• Unplug the appliance before cleaning and
before changing the light bulb(when fitted) to
avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip
the plug firmly and pull straight out.
• Choose a location for your refrigerator that
isn’t too cold. The ambient room temperature
should be above 10°C.
• Stand your refrigerator in a dry place avoid
areas of high moisture or humidity.
• Don’t put the refrigerator in frosty or
unprotected areas like a garage or on the
verandah.
• Don’t plug your refrigerator into a timer fitted
to the powerpoint.
• Do not put the refrigerator in direct sunlight,
near stoves, fires or heaters.
• Do not put the refrigerator on an uneven
surface.
• Do not store flammable materials on or
under the appliance, e.g. aerosols.
• Do not store explosive substances such as
aerosol cans with a flammable propellant in
this appliance.
• Never store fizzy drinks in the freezer
compartment.
• Never try to repair the refrigerator yourself,
only use a qualified or authorised service
person for repairs.
• Never use electric heaters or dryers to
defrost the freezer because you can receive
an electric shock.
• When transporting and installing the
refrigerator, care should be taken to ensure
that no parts of the refrigerating circuit are
damaged.
• When installed correctly, your refrigerator
should:
– Have adequate space at the back
and sides for air circulation.
– Be vertically aligned to the surrounding
cupboards.
– Have doors that will self-close from a
partially open position.
• The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children being supervised not to play with
the appliance.
NOTE: You must read these warnings carefully
before installing or using the refrigerator. If you
need assistance, contact your Customer Care
Department. The manufacturer will not accept
liability, should these instructions or any other
safety instructions incorporated in this book be
ignored.
ENVIRONMENTAL INFORMATION
This appliance is intended to be used in
household and similar applications such
as,
• The kitchen areas in shops, offices and
other working enviroments;
• Farm house and by clients in hotels,
motels and other residential type
enviroments;
• Bed and breakfast type environments;
• Catering and similar non-retail
applications;
5EN
2. DESCRIPTION OF THE APPLIANCE
2.1 QUATTRO FRENCH DOOR WITH ICE & WATER REFRIGERATOR FEATURES
1
13
2
2
3
2
2
2
14
4 4
15
5
17
17
16
6
17
17 17
7
8
8
9
11
10
11
12
EQE5657 illustrated
1
Water Dispenser
2
Door Bins*
3
Door Bin Small*
4
Bottle Storage Bins
5
Egg Tray
6
Water Filter
7
Air Filter
8
Glass shelves
9
Wine Rack
10
UI Control Panel (on the left side wall)
11
TasteLockAuto with Humidity Control Crisper
12
TasteSealPlus Temperature Controlled Drawer
13
Deli Drawer
14
Automatic Ice Maker
15
Ice Storage Small
16
Large ice storage bin
17
Freezer Drawer
NOTE:
* Door bin (3) is the slighly smaller than Door bin (2) ,
Position must be installed as per above picture.
6 www.electrolux.com
2.2 QUATTRO FRENCH DOOR REFRIGERATOR FEATURES
12
1
1
2
1
1
1
13
3 3
14 14
14
4
14 14
5
6
6
7
8
10 11
9 9
EQE5607 illustrated
1
Door Bins*
2
Door Bin Small*
3
Bottle Storage Bins
4
Egg Tray
5
Air Filter
6
Glass shelves
7
Wine Rack
8
UI Control Panel (on the left side wall)
9
TasteLockAuto with Humidity Control Crisper
10
TasteSealPlus Temperature Controlled Drawer
11
Drawer Deli
12
Twist & Serve Ice Bin
13
Large ice storage bin
14
Freezer Drawer
NOTE:
* Door bin (2) is the slighly smaller than Door bin (1) ,
Position must be installed as per above picture.
7EN
Product Dimensions
Total width (W) mm 896
Total depth (D) mm 755
Maximum height (H) mm 1795
Cabinet width (W1) mm 890
Cabinet depth (D1) mm 640
Depth door open 90° (D2) mm 1112
When positioned in a corner area, spacing of
at least 285mm on the hinge side will allow the
doors to open enough to enable the removal of
bins and shelves.
NOTE: Doors are designed to sit proud of
cabinetry (not flush).
Installation options for optimal aesthetics :
Minimum side clearance kitchen cabinet
fridge body must sit 10mm proud of kitchen
cabinetry.
Minimum cabinetry opening (WxDxH) :
900mm x 649mm x 1800mm
Front of fridge body in line with kitchen
cabinet
Side clearance must be 25mm either side of
the fridge body, to have the fridge doors siting
proud of the kitchen cabinetry.
Minimum cabinetry opening (WxDxH) :
940mm x 660mm x 1800mm
3. INSTALLING YOUR NEW APPLIANCE
Unpacking
ENVIRONMENT
Most of the packing materials are
recyclable. Please dispose of those
materials through your local recycling
depot or by placing them in appropriate
collection containers.
Important – check for any damages or marks.
If you find the refrigerator is damaged or
marked, you must report it within 7 days should
you wish to claim for damage/ marks under the
manufacturers warranty. This does not affect
your statutory rights.
Clean your refrigerator thoroughly following
the instructions in the “Cleaning” section and
wipe off any dust that has accumulated during
shipping.
Locating the refrigerator
CAUTION
Automatic aerosol systems (such as
insect control) should not be located
adjacent to the product as the spray
may cause long term damage to the
external plastics of he appliance.
Do not put the refrigerator in a location that
is too cold or is unprotected, for example
in a garage or on a veranda. The ambient
temperature should be above 10°C.
Put the refrigerator in a dry place avoiding
areas of high moisture or humidity.
Ensure the refrigerator is located on an even
surface.
Installing your refrigerator
W
H
122°
122°
285
mm
285
mm
W1
D2
D1
D
90
°
30 mm
5 mm
10mm
5 mm
30 mm
25 mm 25 mm
Note : Spacers supplied to assist
8 www.electrolux.com
5. If you find your refrigerator rocks from corner
to corner, it means your floor is uneven. Find
a piece of plastic or hardboard etc. and
pack it firmly under the roller.
6. You may now need to fine-tune the
installation by repeating steps 3, 4 and 5.
7. When you have the appliance in its final
position, it needs to be stabilised. Wind the
stability foot under the door hinge down to
the floor until it just makes contact with the
floor. Lift the front of the appliance to take
the weight off the stability foot, then turn it
half a turn further to ensure firm contact with
the floor. Wind the large height adjusting
nut back up to ensure all the weight is now
on the front stability foot. Wind the large
height adjusting nut back up to ensure all the
weight is now on the front stability foot.
8. Repeat step 7 for the stability foot on the
handle side. Whenever you need to move
the appliance, be sure to wind the feet back
up so that the appliance can roll freely and
be sure to reset it when reinstalling.
9. Plug your refrigerator straight into its own
power point and never use a double
adapter. If you need to roll the refrigerator
to get to the plug, remember to raise the
stability foot first.
10. Before you put any food in your refrigerator,
it’s recommended you leave it on for 2 or 3
hours to check it is running properly.
Fridge door flush with the cabinetry
Side clearance must be 30mm either side of
the fridge body, to have the fridge doors siting
flush with the kitchen cabinetry
Minimum cabinetry opening (WxDxH) :
950mm x 724mm x 1800mm
Note : Top gap all 5 mm.
1. Roll the refrigerator into place.
The rollers are designed for forward or
backward movement only. They are not
castors. Moving the refrigerator sideways
may damage your floor and the rollers.
Before moving your refrigerator ensure
height adjusting nut and the stability foot
are fully wound up off the floor.
2. Wind the large height adjusting nut under
door hinge down until the refrigerator is
tilted back by 10mm (see diagram).
3. Wind the large height adjusting nut on the
handle side down until the refrigerator is
level and stable. If you have difficulty
winding the nut or height adjusting foot
down, have someone tilt the refrigerator
back so you have better access.
4. Check the alignment of the refrigerator to
the surrounding cupboards to see if it is
level. You can adjust the level as detailed in
step 2 and 3.
stability foot
wound up
nut
For adjustment
where floor is not level
10-33mm
stability foot
wound down
Front view
30 mm
30 mm 30 mm
Note : Spacers supplied to assist
9EN
For 25mm spacer (door proud install – side
spacers)
Rotate the top half so that the 25 marking
on the top half is facing up . Pushing the two
halves together firmly should make a 25mm
thick assembly.
To secure this to your fridge, peel the
protective layer off the adhesive strips, and
attach the spacer to your fridge side in the
below four locations (two per side)
For 30mm spacer (door flush install – side
spacers / rear spacer - all install types)
Rotate the top half so that the 30 marking
on the top half is facing up . Pushing the two
halves together firmly should make a 30mm
thick assembly.
To secure this to your fridge, peel the
protective layer off the adhesive strips, and
attach the spacer to your fridge side in the
below four locations (two per side) plus two
at the rear of your fridge as shown.
Recommended dimensions for the door flush
installation
Before installation, ensure cabinetry opening is
not smaller than the minimum sizes specified for
your chosen install type. A rear chimney is not
necessary for this fridge model. The specified
ventilation cross-sections must be adhered to
in order to ensure the correct functioning of the
appliance.
D1
Cabinetry
Depth
W1
Cabinetry
Width
H1
Cabinetry
Height
724 mm 950 mm 1800 mm
Installing the product to the niche
1. There are six spacers included to help you
keep your fridge perfectly centred in the
cabinetry opening and with enough space
behind to vent correctly.
To setup the 25mm/30mm spacer blocks
to the correct size, you can join the two
spacer block halves together in one of two
directions.
Each spacer block has two components:
Top half (part A): curved dome with 25 and
30 printed on top
Bottom half (part B): Is a flatter piece with
two long adhesive strips on its underside
plus two clip arms on its top side
1795mm
1800mm
724mm
704mm
950mm
896mm
Part A
UP
Shown
by
arrows
Part B
50
mm
300mm
100
mm
100
mm
300mm
300mm
10 www.electrolux.com
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing food.
For best use of refrigerator drawers and freezer
baskets, the refrigerator should be in a position
where both can be fully opened.
WARNING
LED lighting
Your appliance is fitted with long life
LED lighting. In the unlikely event the
LED lights should fail, then the LED lights
should be serviced by the service agent,
to avoid a safety hazard. Refer to the
warranty page for contact details.
Cabinet leveling & refrigerator door
alignment (if necessary)
• All four corners of the cabinet must rest firmly
on the floor
• The front should be slightly elevated to
ensure that doors close and seal properly.
• Doors should align with each other and be
level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Lower anti-tip legs until they are both
touching the floor. Use a pair of pliers to
adjust.
To raise: turn leg clockwise.
To lower: turn leg counterclockwise.
2. Sliding appliance into the installation niche.
3. Adjust the leveling leg to keep the appliance
level and stable.
4. Confirm the Appliance Door flush with the
Niche. The leveling & stability of the product..
Anti-Tip
Legs
Clearance
30mm
11EN
Flipper mullion
Adjust Flipper Mullion for proper connection
with the mullion guide by ensuring the flipper
mullion is folded and perpendicular to the fresh
food door. If the mullion guide is not in the
correct position, it could prevent the door from
closing completely.
2. Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
Door Door
12 www.electrolux.com
4. TEMPERATURE CONTROL
The following pages explain the various functions of the user interface to help you better
understand how to get the most out of your new refrigerator.
IMPORTANT
NOTE: When you set a temperature, you set an average temperature for the whole
refrigerator cabinet. Ensuring that you make only small adjustments and wait at least
24 hours to see if the new temperature is correct to your liking.
Checking the softness of ice cream is a good indication that your freezer is the right
temperature, while checking the temperature of water kept in the refrigerator is a good
way of checking the temperature of the food compartment.
Temperatures inside each compartment may vary, depending on how much food you
store and where you place it.
High or low room temperature may also affect the actual temperature inside the refrigerator.
1
TasteSeal Plus Control
2
Fast Ice Botton
3
Auto Ice Maker Control
4
Fridge Temp Tontrol
5
Freezer Temp Control
6
Drinks Chill Button
7
Water Filter Reset Button
8
Air Filter Reset Button
4.1 Functions of the user interface
EQE5657
EQE5607
1
2
3
4
5
6
7
8
1
4
5
6
8
13EN
Function Icon Operation (depending on model)
1
TasteSeal Plus
Control
Meat & Fish Tap on TasteSealPlus button, Actives the next
mode. The LED of the next mode lights up.
TasteSeal plus has 3 temperature modes:
-2°C Meat & Fish
-0°C Cold Drinks
3°C Delisnacks
Cold Drinks mode
Delisnacks mode
2
Fast Ice
Botton
Fast Ice indicator
Tap on Fast ice button.
When Fast ice is ON, the Fast Ice indicator lights up.
When Fast ice is OFF, the Fast ice indicator turns off.
When Fast Ice is on, the compressor will run
continuously for 24 hours. Fridge and TasteSealPlus
compartment continue to run at set temperature.
Fast ice auto turn off on either of this condition:
- 24 hours has elasped
- Freezer temp is adjusted to -23°C
NOTE:
*Quick Freeze and Fast Ice cannot be activated
at the same time. If Quick Freeze is ON, Fast ice
cannot be activated.
**When ice bin is full - Fast ice will not be
deactivated. Auto Ice maker will stop working but
Fast ice 12 hours counter continus to countdown.
Whenever ice bin level drops, Auto Ice maker will
continue to make ice with Fast ice turn on.
14 www.electrolux.com
Function Icon Operation (depending on model)
3
Auto Ice
Maker
Control
Ice Off Alert indicator
Water Off Alert
indicator
Tap on Ice Maker on/off button.
When Ice maker is ON, the button LED lights up .
When Ice maker is OFF, the button LED turns off. Ice
Off alert lights up.
Press and hold on Ice Maker On/Off button for 3
secods.
When it is ON, water can be dispensed when the
water dispensar paddle is pressed.
When it is OFF, water cannot be dispensed when the
water dispensar paddle is pressed.
4
Fridge Temp
Control
Taps on the display to cycle through the
temperature range supported by the Fridge.
From 7°C
To 1°C
Default 4°C
5
Freezer Temp
Control
Taps on the display to cycle through the
temperature range supported by the Freezer.
From -14°C
To -23°C
Default -18°C
6
DrinksChill
Drinks Chill timer
indicator
The Drinks Chill timer is used to quickly chill a bottle
inside the freezer compartment and to warn the
user when it ends.
Tap on Drinks Chill button, Freezer display shows
20 ,"Min" and Drink Chill LED turns on.
The timer option is from 20 minutes and the user
can add time in 5 min intervals up to 45 minutes.
After it starts the timer will show the countdown
minute by minute.
NOTE:
When timer countdown is in progress, the timer
duration cannot be adjusted. User will need to
deactivate Drinks Chill and activate Drinks chill
again to set a new timer.
15EN
Function Icon Operation (depending on model)
7
Water Filter
Alert and
Reset
"GOOD" LED turns on is mean the filter used for 0-4
months.
"ORDER" LED turns on is mean the filter used for 5
months , to remind user to order new water filter.
"REPLACE" LED turns on is mean the filter used for
6 months,
Press and hold Water filter for 3 seconds to reset.
Status will reset to GOOD.
8
Air Filter Alert
and Reset
"GOOD" LED turns on is mean the filter used for 0-4
months.
"ORDER" LED turns on is mean the filter used for 5
months , to remind user to order new water filter.
"REPLACE" LED turns on is mean the filter used for
6 months,
Press and hold Air filter for 3 seconds to reset. Status
will reset to GOOD.
Quick Chill Control
Quick chill indicator
Press & Hold on Fridge digits for 3 seconds.
Tap on Fridge digits to adjust temperature.
When Quick chill is ON,
the Quick chill indicator lights up.
When Quick chill is OFF,
the Quick chill indicator turns off.
Use the Quick Chill when you add a large amount
of food to the refrigerator compartment after
grocery shopping or to quickly cooled your drink.
When Quick chill is on, the cold air circulate into the
refrigerator to temporarily reduce the temperature
to 1°C for 6 hours,
Freezer compartment continue to run at set
temperature.
Quick chill auto turn off on either of this condition:
- 6 hours has elasped
- Fridge temp is adjusted
16 www.electrolux.com
Function Icon Operation (depending on model)
Quick Freeze
Control
Quick Freeze Control
Press & Hold on Freezer digits for 3 seconds.
Tap on Freezer digits to adjust temperature.
When Quick freeze is ON,
the Quick Freeze indicator lights up.
When Quick freeze is OFF,
the Quick Freeze indicator turns off.
Use the Quick freeze function when you add a large
amount of food to the freezer compartment after
grocery shopping, to speed up the freezing
process. When Quick freeze is on, the compressor
will run continuously for 6 hours. Fridge
compartment continue to run at set temperature.
Quick freeze auto turn off on either of this condition:
- 6 hours has elasped
- Freezer temp is adjusted to -23°C
NOTE: Quick Freeze and Fast Ice cannot be
activated at the same time. If Fast ice is ON, Quick
Freeze cannot be activated.
Sabbath mode Press and hold Freezer and Drinks chill for 5
seconds and "Sb" shows on Fridge disply.
When activated, all lights and UI will not work until
Sabbath Mode is deactivated.
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls in
accordance with observance of the weekly
Sabbath and religious holidays within the Orthodox
Jewish Community.
NOTE: All alarm functions are deactivated except
High temperature alarm is not disabled for health
reasons. If high temp alarm active, The alarm will
sound intermittently for 10 minutes. The alram will
silence on its own.
The unit stays in Sabbath Mode after power outage
recovery. It must be deactivated by the user.
17EN
Air filter alert and reset
Air Filter alert warns user that the Air filters have
to be changed as soon as possible.
When air filter is used for 6 months since the last
filter reset, the LED "Replace" will automatically
turn ON.
Note:
1. Users could reset the filter when alert is not
visible. Play tone_Confirm once it is reset.
2. LED_air filter remains visible during sleep
mode, except when door is closed.
Error codes
Both Fridge & Freezer displays are used to
communicate problems by code.
When error codes are displayed in the numeric
display, the unit requires service attention.
"Er" shows up on Fridge display
Various error codes on Freezer display
Error code table
Communication error CE
FZ Cavity NTC T1
FZ Evaporator NTC T2
FF Cavity NTC T3
Third cavity NTC T5
FZ Ice maker NTC T8
4.2 Alert and Alarms
Door alarm
When any of the door is left open for 2 minutes.
The alarm will sound, and all LEDs that are
currently on.
• The alarm is turned off by closing the door
or resetting the countdown by pressing any
key on the control panel.
High Temperature alert
In the event of high temperature condition,
audio alarm is played every 10 seconds until
the alert is acknowledged.
The alarm by pressing any key on the control
panel.
Display and blink “HI” in the correspondent
compartment display, whichever is in the high
temperature condition.
ECO indicator
Eco mode indicator will light up
automatically to 100% when the
fridge and freezer compartments
are set within a temperature
range.
Fridge range: 4°C to 7°C
Freezer range: -18°C to -13°C
Selecting any of these mode: Quick Freeze,
Quick Chill, Fast Ice or Drinks Chill will
deactivate the Eco mode, the Eco icon will
fade.
Water filter alert and reset
Water Filter alert warns user that the Water filter
have to be changed as soon as possible.
When water filter is used for 6 months or 120
gallons (about 454 litres) of water has been
dispensed since the last filter reset, LED
"Replace" will automatically illuminate.
Note:
1. Users could reset the filter when alert is not
visible. Play tone_Confirm once it is reset.
2. LED "Replace" remains visible during sleep
mode, except when door is closed
High Temp indicator
on Fridge display
High Temp indicator
on Freezer display
18 www.electrolux.com
5. STORAGE FEATURES
Glass shelves
To remove the shelves, gently pull them forward
until the shelf comes clear of the shelf guides.
To return the shelf, make sure there is nothing
behind that may obstruct movement. Gently
push the shelf, into the cabinet and back into
position.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
shelves to stabilize to room temperature
before cleaning. Do not wash in
dishwasher.
Drawer
Your refrigerator includes a variety of storage
drawers.
Crisper (with automatic humidity control)
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Crispers have an auto humidity control (with
replaceable membrane) on the back of each
crisper under the humidity control cover.
To remove the auto humidity control
membrane:
1. Reach to back of humidity control cover.
2. Pull up on cover.
3. Pull cover towards back of cabinet and
remove.
4. Replace humidity membrane.
5. Replace cover by reversing the steps above.
Repeat for both crispers.
To remove the crisper for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.
Doors
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Bins can
be adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.
Opening the Crisper Drawer
Removing Crisper
Remove the auto humidity control
membrane
19EN

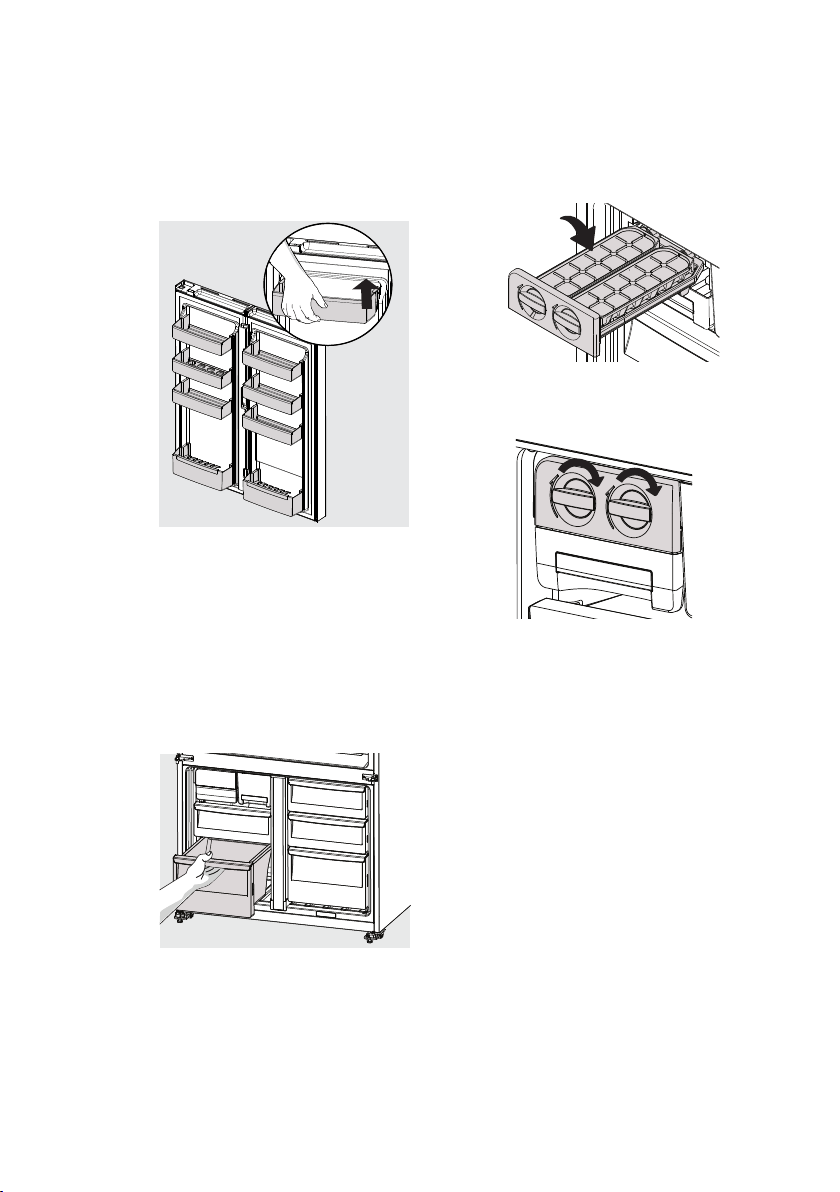

Twist & Serve Ice Bin:
1. Prior the first use clean the ice tray.
2. Fill the water up to max level of the ice tray.
3. Put the ice tray in place.
4. Rotate ice twist clockwise to release the ice
from ice tray.
To remove the door bin:
1. lift and unlock from lugs to remove.
2. Replace by lift up and push bin down until
the support lugs lock it in place.
Freezer storage
To remove freezer drawers:
All freezer drawers are removable.
1. Open doors completely to gain access to
drawers.
2. Pull the drawer to the stopper. Lift up
and pull to remove it from the cabinet.
3. Reverse the steps to reinstall drawer.
Removing Freezer Drawer
Removing door bin
Water
20 www.electrolux.com
6. CONNECTING THE WATER SUPPLY
WARNING
Connect to potable water supply
only. If using tank or bore water it is
recommended to also use an external
filter (not supplied).
The new hose-sets supplied with the appliances
must be used and old hose-sets should not be
reused.
Never connect the appliance to a hot water
supply.
Do not use with water that is microbiologically
unsafe or with water of unknown quality without
adequate disinfection.
Water Filter
It should not be used on water that is micro
biologicallyunsafe or with water of unknown
quality. The service life of the filter may be
reduced in water supplies that contain an
excess of particles or other impurities. Reduced
flow rate is an indication that a new filter is
required. Failure to replace the filter when
required can affect the function of the ice
maker. Service calls caused by a failure to
replace the filter are not covered by warranty.
Replacement water filters are available from
Electrolux Home Products Spare Parts Centres
and can be posted to you for your convenience
(refer to spare parts contact numbers on the
warranty page).
Contents of installation kit
Water supply and plumbing
A drinkable water supply to suit a 1/2” tap fitting
is required adjacent to the refrigerator. It is
recommended that a licensed plumber install a
new water supply outlet nearer to the appliance
should the tubing supplied not be long enough.
It is not recommended that the tubing be
extended as this could adversely affect the flow
of water to the ice maker or water dispenser.
If there is a risk of flow rate higher than the
maximum flow rate 2.46 L/min, a flow controller
should be installed. The water dispenser and
automatic ice maker require a drinkable water
supply with a pressure range of between
4 metres of water tubing 1 x 1/2” tap fitting
206kPa and 689kPa (30psi and 100psi). If the
water supply is above 100psi a pressure limiting
valve should be installed.
It is recommended that a noise reduction valve
also be fitted in the water supply line. This will
reduce water hammer and its effects from quick
action household taps and fast acting valves
on appliances.
The refrigerator water valve is pre-fitted with a
push-fit connector for inserting the water tube.
When the tap connection is other than 1/2”,
adapters can be purchased from plumbing
supply stores or good hardware stores.
Please read before beginning installation.
The appliance complies with the relevant
backflow prevention requirements specified in
AS/NZS 2845.1.
The water connection to your ice and water
product can be self installed. However, it is
recommended that you seek advice from
a licensed plumber before commencing the
installation.
IMPORTANT
Check for water leaks at all water
connection points in the first 2 to 3 hours
after installation, and correct it in case of
any water leak. Recheck after 24 hours;
if leak still occurs, it is recommended to
contact a licensed plumber for advice.
Water is to be connected as per diagram
below.
Step 1 Ensure that the refrigerator is
disconnected from power supply.
sink
mains
water
inlet
kitchen cupboard
½" tap
fitting
21EN
Step 2 Connect tap fitting to water supply tap.
Tap must be close to the refrigerator.
Step 3 Push the tube into tap fitting past
insertion mark.
Step 4 Connect other end of tube to inlet on
rear of refrigerator.
Step 5 Turn on water and check all joints and
tubes for leaks.
Step 6 Reconnect the power.
Step 7 Move the refrigerator back into place
being careful not to kink or split the tubing.
Step 8 Switch ON Water
Dispenser. By referring
to Ice & Water on/off
function. Using a large
container, run the water
dispenser to clear air
from lines. This may take
a few minutes. Purge and
dispense a minimum of 2
litres of water. Initial water
may be black in colour.
This is residual carbon dust from the filter and
is non-toxic. If the water is slow to shut off or
the dispenser is dripping, air may still be in
the lines. Either purge more water through the
system to remove this air or allow some time
for the air to be removed over subsequent
dispensing. For normal use, water dispenser
will automatically shut off after 2 minutes of
continuous operation.
IMPORTANT
As the water cut off is not instant, leave
glass under dispenser briefly until water
has stopped flowing to avoid spills.
Clean and empty the dispenser drip tray
regularly to avoid overflow.
Flushing system about 2 minutes after
period of non-use exceeding 30 days.
Step 9 Switch ON Ice Maker.
Once the refrigerator has been running for at
least 24 hours remove the ice bin and dispose
of the first few batches of ice to ensure that
impurities have been flushed from the system.
CAUTION
Water dispenser should not be used for
extended periods of time. After 2 minutes
of continuous use the water dispenser
will automatically shut off.
Party Ice
When the Ice Bin is removed from the cabinet
the Auto Ice Maker will continue to dispense ice
into the top freezer drawer.
IMPORTANT
• Always fit the filter as per manufacturer’s
instructions.
• If you need to replace water tube, only
use approved water quality piping that
meets the pressure requirements.
• Make sure your refrigerator is level to
avoid uneven ice cubes.
• Replace filter at suggested intervals
to avoid water/ice reduction and
irregularities in taste.
• Remove and clean ice bin once a
month, discarding unused ice cubes.
This will ensure fresh, clean ice and
smooth operation of your ice maker.
• Clean and empty the dispenser drip
tray regularly to avoid overflow.
22 www.electrolux.com
7. GENERAL INFORMATION
7.1 CLEANING YOUR REFRIGERATOR
WARNING
BEFORE CLEANING: Turn the refrigerator
off at the power point and unplug
the cord to prevent any chance of
electrocuting yourself.
Doors and exterior (white and silver):
You should only clean the doors with lukewarm
soapy water and a soft cloth.
Stainless Steel:
Your stainless steel refrigerator is manufactured
from mark-resistant stainless steel. This stainless
steel has a special advanced protective
coating that eases the removal of marks such
as fingerprints and water spots. To keep its
appearance, clean it regularly with lukewarm
soapy water and a soft cloth.
CAUTION
Never use stainless steel cleaners,
abrasive pads or other cleaners that
will scratch the surface. Damage to the
appliance after d elivery is not covered
by your warranty.
Interior
Clean the inside of your refrigerator regularly
with a soft cloth, unscented mild soap and
lukewarm water. Thoroughly dry all surfaces
and removable parts and avoid getting water
on the controls. Replace removable parts, plug
power cord in and switch the power on before
returning the food.
Door seals
Always keep door seals clean by washing them
with a mild detergent and warm water, followed
by a thorough drying. Sticky food and drink
can cause seals to stick to the cabinet and tear
when you open the door.
Never use hot water, solvents, commercial
kitchen cleaners, aerosol cleaners, metal
polishes, caustic or abrasive cleaners, or
scourers to clean your refrigerator. Many
commercially available cleaning products and
detergents contain solvents that will damage
your refrigerator. Use only a soft cloth with an
unscented mild soap and lukewarm water.
CAUTION
To clean a crisper or freezer bin with
telescopic extension slides, simply wipe
with a damp cloth and warm soapy
water. Never immerse the cover in water,
as this could affect the operation of the
slide.
Switching off your refrigerator
If you switch off your refrigerator for an
extended period, follow these steps to reduce
the chances of mould.
1. Remove all food.
2. Remove the power plug from the power
point.
3. Thoroughly clean and dry the Interior.
4. Ensure that all the doors are wedged open
slightly for air circulation.
7.2 Air Filter (select models)
The air filter is located in the top center of the
fresh food compartment.
Replacing your Air Filter
To ensure optimal filtering of refrigerator odors,
you should change the air filter six months (The
filter status light on the Touch Panel prompts
you to replace the filter after six month)
1. Remove the air filter cover by squeezing the
sides of the cover together and removing
from liner
2. Remove the old filter and discard it.
3. Unpack the new filter and slide it into the
housing. The open face must (carbon media)
of the filter should be installed facing the air
port (hole) in the multiflow.
4. Replace the air filter cover by squeezing the
sides and snapping it back into place.
5. Press and hold the “Reset Air Filter” button
on the control panel for three seconds. When
the LED turns off, the status has been reset.
23EN
7.3 Water Filter
Your refrigerator is equipped with a water
filtering system. The water filtering system filters
all dispensed drinking water, as well as the
water used to produce ice. The water filter is
located at the top right side of the fresh food
compartment.
In general, you should change the water filter
every six months to ensure the highest possible
water quality. Water filter status on the user
interface prompts you to replace the filter after
a standard amount of water (750 litres) has
flowed through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator
Note: When ordering your replacement filter,
please reorder the same filter type that is
currently in your refrigerator.
WARNING
Use the appliance with water filter
supplied by Electrolux Home Products
Pty Ltd or its authorized service agent
only.
For correct operation of this appliance
it is essential to observe the
manufacturer’s instructions.
Replacing the water filter
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the
filter replacement.
1. Ensure that the ice maker is turned off.
2. Remove the filter by turning anti-clockwise
180˚
3. Slide the old water filter cartridge straight out
of the housing and discard it.
4. Unwrap the new filter cartridge and using
the alignment guid e, slid e it gently into
filter housing until it stops against the filter
connection at the back of the housing.
5. Engage the filter by firmly rotating clockwise
until the filter snaps into position (once
engaged the filter cannot be rotated further).
6. Press a drinking glass against the water
dispenser while checking for any leaks at the
filter housing. Any spurts and sputters that
occur as the system purges air out of the
dispenser system are normal.
7. After filling one glass of water, continue
flushing the system for about four minutes.
8. Turn on the ice maker.
9. When the filter has been replaced press and
hold the ‘Reset Water Filter’ button for three
seconds to reset the filter replace timer.
10. Replace the filter, don't take off filter cover.
24 www.electrolux.com
8. FOOD STORAGE GUIDE
IMPORTANT
Please note, use this information as a guide only, actual storage times will vary depending
on how you use your refrigerator, climatic conditions and the freshness of the food.
Category Product
Recommended storage times
for fresh foods*
Storage tips
Refrigerator Freezer
Meat Sausages and
Mince
1-2 Days 2-3 Months Keep cold meat at the back of the
refrigerator where it is coldest.
Plastic can cause meat to sweat if
stored in refrigerator for more than
a day.
Roast can take up to 48 hours to
defrost properly, transfer frozen roast
to the refrigerator 2 days before use.
Chops and Steak 3-4 Days 4-6 Months
Cold Meats 3-5 Days 4-6 Months
Roasts 3-5 Days 12 Months
Poultry Chicken 1-2 Days 2 Months If poultry takes on a smell or colour
you are unsure about it is best to
throw it out.
Whole eggs are not suitable for
freezing, slightly beaten eggs may be
frozen for four months.
Roast Chicken 3-5 Days 12 Months
Eggs 6 Weeks Not Suitable
Seafood Whole fish and
fillets
2-3 Days 2 Months Store in an airtight container or foil.
Never freeze prawns in salty water as
this will dehydrate the flesh.
Lobster and Crab 1-2 Days 2 Months
Prawns 1-2 Days 2 Months
Dairy Milk Until Expiry Date Not Suitable If dairy takes on a smell or colour and
you are unsure about it, it is best to
throw it out.
Depending on the variety hard
cheese can last from 2 weeks to 2
months.
* Texture may change depending of
the type of soft cheese
Yoghurt 7- 10 Days Not Suitable
Hard Cheeses 2 Weeks – 2 Months 2 Months (Grated)
Soft Cheeses 1-2 Weeks Not Suitable
Butter 8 Weeks 12 Months
Fruit &
Vegetables
Every fruit and vegetable has a different
shelf life. Some stay fresh for a couple
of days e.g. beans, others can last for a
couple of months e.g. onions.
8-12 Months When
freezing chop and
blanch in small
portions.
Keep vegetables in the crisper and
away from the air vents to avoid
freezing.
If you wash fruit and vegetables
before storing them make sure they
are dry or wrap in absorbent paper
before storing in the refrigerator as
this can make them susceptible to
rotting.
Try to keep fruit and vegetables
separated as fruits that give off high
levels of ethylene (the ripening agent)
can prematurely ripen and spoil
surrounding vegetables
Left Overs Homemade
meals
3-4 Days 2-6 Months Store in sealed container.
Freeze meal in small portion sizes to
limit wastage.
25EN
9. TROUBLESHOOTING
CONCERN WHAT TO DO
Refrigerator is too warm • Adjust the refrigerator to a colder setting
• Ensure food is allowed to cool before placing inside the
refrigerator.
• Ensure the appliance is set up as per instructions
• Ensure that contents are not obstructing the cooling vents.
• Ensure the door is not held open or is being opened too
frequently.
Freezer is too warm • Adjust temperature to a colder setting.
• Ensure food is allowed to cool before placing inside the freezer.
• Ensure the appliance is set up as per instructions
• Ensure that contents are not obstructing the cooling vents.
• Ensure the door is not held open or is being opened too
frequently.
Food is freezing in the
refrigerator
• Adjust temperature to a warmer setting.
• Ensure that fruit and vegetables are stored in the crisper. Items
with a high water content should not be placed near the
cooling vents.
Unable to change
temperature settings
• Refer to sections “temperature control” and “about the user
interface”.
• Ensure that user interface is in “awake” mode before trying to
adjust temperature settings.
Appliance does not operate at desired temperature
In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments
through air vents using a high efficiency fan.
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new
to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces,
like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The
following describes the kinds of sounds and what may be making them.
CONCERN WHAT TO DO
Motor noise (compressor) Nothing. This is normal as your new refrigerator uses a high-speed
compressor which switches on and off during operation.
Note that the compressor noise may seem louder at the start of
the on cycle.
Motor noise (compressor); These refrigerators are fitted with a variable speed compressor
and fan. At start up and on warm days they run at a higher speed
to provide additional cooling. When less cooling is required
the compressor and fan will run at a lower speed. As a result it
is normal for sound levels to change depending on operating
conditions.
A clicking noise heard just
before the compressor
starts.
Nothing. This is normal as your new refrigerator has an automatic
switching action of the temperature control, turning the
compressor on and off.
26 www.electrolux.com
Crisper Operation
CONCERN WHAT TO DO
Occasional gurgling, similar
to water boiling.
Nothing. As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator system.
Nothing, this is normal as your new refrigerator uses high efficiency
fans to circulate air. Fan speed and noise may increase during
periods of heavy usage or hot weather.
Rattling and other noises. • Ensure that the cabinet is level and stable, refer to Installation
Instructions
• Check the surrounds of the appliance to ensure there is nothing
touching or placed on top of the appliance.
• Ensure that contents of the appliance are not placed in such a
way that they are vibrating (such as bottles).
CONCERN WHAT TO DO
Excess moisture build up in
crisper
It is normal for there to
be some moisture and
humidity in the crisper bin.
• Ensure that the crisper is not over packed.
Crisper bin can not be
removed
• If crisper bin interferes with the door bins, remove door bins
before removing crisper.
• Position cabinet so that the door can be fully opened.
Freezing items in the crisper • Adjust temperature to a warmer setting.
Refrigerator operation
CONCERN WHAT TO DO
Appliance will not run
It is normal for the freezer
fan not to operate during
the automatic defrost cycle,
or for a short time after the
appliance is switched on.
• Ensure that the cord is plugged into a live power outlet and
outlet is switched on.
• Ensure that the household circuit breaker has not tripped or that
the fuse has not blown.
• The appliance maybe in defrost mode, check again in half an
hour.
Compressor motor seems
to run too long
At normal room
temperatures, expect your
motor to run about 40%
to 80% of the time. Under
warmer conditions, expect
it to run more often.
• Ensure that the doors are not held open.
• Check that large amounts of warm food have not just been
placed inside the appliance.
• Note that the appliance will run more than normal just after you
install it or when adjusting the temperature setting changes.
27EN
CONCERN WHAT TO DO
Compressor motor seems
to run too long . These
appliances use a variable
speed compressor, which
by design can run for long
periods of time, this is
normal
• The variable speed compressor and fan that at start up and on
warm days, runs at high speeds to provide additional cooling.
When less cooling is required the compressor and fan will run
at a lower speed, but still may not switch off. This is normal.
• It is possible that the only time the compressor and fan will stop
is when the refrigerator is defrosting which is approximately
once per day.
The exterior of the
appliance is warm or hot
to touch
This is normal because the
appliance transfers heat
from the inside out through
the outer panels and the
divider between the doors.
• Ensure the appliance has the external clearances
recommended in the section “Installing your new appliance”.
• The exterior of the cabinet will be much warmer on warmer
days it may even feel hot to touch, as the appliance is working
harder.
User interface will not
respond
To ensure settings are not
accidentally changed the
user interface will go into
sleep mode when not in
use. Press any button to
wake user interface
• Check that the user interface is in awake mode, refer to section
“About the user interface”.
• Check that the user interface is not locked, refer to section
“About the user interface”.
• If the user interface is frozen turn the appliance off for five
minutes for the memory to clear, then turn back on.
• Check that the user interface is not in Sabbath Mode, refer to
control instructions. (I&W models only).
Alarms Sounding • Check that all doors are fully closed.
• Ensure that the over temperature alarm is not being activated
by hot food placed in the freezer.
• Check if the drinks timer has ended, refer control instructions.
Frost build up • Check that all doors are fully closed.
• Ensure that the doors are not opened too often.
• Ensure that the return air vents are not blocked with packaging.
• Ensure the seals are clean and not obstructed.
Odours • The interior may need cleaning, refer to cleaning guide.
• Ensure that food is stored correctly as some food, containers
and wrapping can produce odours.
• Check appliance for old or unusual food.
Lights not working
The LED lighting is esigned
to turn on gradually. The
LED lighting is designed
to dim automatically if the
door is left opened for
more than 5 minutes and
turn off completely if the
door is open for more than
7 minutes. Closing the door
will reset the timer.
• Ensure that the cord is plugged into a live power outlet and
outlet is switched on.
• Ensure that the household circuit breaker has not tripped or that
the fuse has not blown.
• Check that the user interface is not in Sabbath Mode, refer to
control instructions.
• Check the appliance features section to determine lighting
configuration for your model.
28 www.electrolux.com
Door operation
CONCERN WHAT TO DO
Freezer door pops open. • This is normal and should re-close. This happens when the
refrigerator door is closed too quickly.
• If the freezer door stays open, it indicates that the appliance
needs to be tilted backwards a little further. Refer to section
“Installing your new appliance”.
Self close not working. • Check if your appliance has self closing hinges as not all
models do.
• It indicates that the appliance needs to be tilted backwards a
little further. Refer to section “Installing your new appliance”.
Door not sealing properly • Ensure there is nothing that is preventing the door from closing
such as appliance contents or items placed near the appliance.
• Ensure that the crisper/freezer bin is closed completely. Refit if
required as referred to in the section “Using your refrigerator”.
• Ensure the appliance is set up as per recommendations.
Door difficult to open and
close
• If the door is difficult to open just after you have closed it this
is due to the pressure equalising, the door will open normally
after a few minutes.
If you still require service
If you have a problem, and the problem persists after you have made the checks mentioned,
contact your nearest Electrolux approved Service Centre or the dealer you bought the refrigerator
from. Be ready to quote the model number, the 9-digit PNC and 8-digit serial number, which is
stated on the label inside the refrigerator compartment.
29EN
BRRR
!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRR
R!
OK
CLICK!
CLICK!
SSSRRR!
SSSRRR!
BRRR!
BRRR!
HISSS!
HISSS!
BLUBB!
BLUBB!
CRACK!CRACK!
10. NOISES
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the
sounds are new to you, you might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem
louder than they actually are. The following describes the kinds of sounds and what
may be making them.
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: ELECTROLUX REFRIGERATORS AND FREEZERS
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
eht ot 2 eludehcS snaem ’waL remusnoC nailartsuA‘ ro ’LCA‘ )a(
Competition and Consumer Act 2010;
dna uoy yb desahcrup tcudorp xulortcelE yna snaem ’ecnailppA‘ )b(
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
warranty;
desahcrup gnivah ton ecnailppA eht fo resahcrup eht snaem ’uoy‘ )f(
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
:noitacilppA .2 This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
:doireP ytnarraW .3 Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
defects in Australia and New Zealand for the periods listed below ;
• Comp essor – Further 3 years parts only,
• Exte nal Condenser – Further 3 years parts only
• Evaporator – Further 3 years parts onl
• Drier – Further 3 years parts onl
:ytnarraw ecalper ro riapeR .4 During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
:stsoc noitatropsnart dna levarT .5 Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
esahcrup fo foorP .6 is required before you can make a claim under this
warranty.
:snoisulcxE .7 You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(b) parts and Appliances not supplied by Electrolux;
Appliance;
(d) damage to the Appliance caused by:
edicca ro ecnegilgen)i)i(
;ecivres ro niatniam ylreporp ot eaf gnidulcni ,esuba ro esusim)ii )ii(
yb enod skrow riaper ro gnicivres ytluaf ro tnegilgen ,reporpmi )iii(
anyone other than an Electrolux authorised repairer or ASC;
t dna raew lamron)vi )vi(
;ylppus rewop tcecni ro egamad mrots lacirtcele ,segrus rewop)v)v(
;noitallatsni reporo etelpmocni)iv )iv(
;noitarepo etairporppani ro reporpmi ,tcei)iiv )iiv(
tsefni nimrev ro tcesni)iiiv )iiiv(
htiw deilppus snoitcurtsni lanoitidda yna htiw ylpmoc ot eruliaf )xi(
the Appliance;
In addition, Electrolux is not liable under this warranty if:
eht taht seveileb ylbanosaer xulortcelE ro ,neeb sah ecnailppA eht )a(
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
devomer neeb sah laes ytnarraw ro rebmun laires s’ecnailppA eht )c(
or defaced.
:ytnarraw siht rednu mialc ot woH .8 To enquire about claiming under
this warranty, please follow these steps:
eht dna launam resu ,snoitcurtsni gnitarepo eht kcehc ylluferac )a(
terms of this warranty;
;elbaliava ecnailppA eht fo rebmun laires dna ledom eht evah )b(
;elbaliava )eciovni na .g.e( esahcrup fo foorp eht evah )c(
.woleb nwohs srebmun eht enohpelet )d(
:ailartsuA .9 For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
:dnalaeZ weN .01 For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Go ods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
FOR SERVICE
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
AUSTRALIA
ELECTROLUX HOME PRODUCTS
163 O’Riordan Street, Mascot NSW 2020
electrolux.com.au
FOR SPARE PARTS
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SERVICE
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
(New Zealand only)
NEW ZEALAND
ELECTROLUX (NZ) Limited
3-5 Niall Burgess Road, Mount Wellington
electrolux.co.nz
FOR SPARE PARTS
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
(New Zealand only)
EFridgeFreezer_Warr_Jun17
NOTE
www.electrolux.com/shop
telephone: 1300 363 640
fax:
email:
web:
1800 350 067
customercare@electrolux.com.au
electrolux.com.au
Electrolux Home Products New Zealand
telephone: 0800 436 245
fax:
email:
web:
0800 225 088
customerca[email protected]
electrolux.co.nz
Electrolux H ome Product Australia
To add a touch of professi
on
al inspiration to your home,
v
isit electrolux.com.au or electrolux.co.nz
electrolux.com.au
or electrolux.co.nz
A12081689-B-122023
