USER’S MANUAL
3-1
PlasmaSync Plasma Monitor
User’s Manual
NEC Solutions
Introduction to the PlasmaSync
42MP3,42MP4 Plasma Monitor
NEC’s PlasmaSync™ is a seamless blend of cutting-edge
visual technology and sophisticated design. At 42-inches, with
a 16:9 aspect ratio, the PlasmaSync 42MP3, 42MP4 certainly
makes a big impression. However, at a mere 3.5 inches/89
mm thin, the monitor’s sleek techno-art lines blend in
well with your environment. PlasmaSync’s crisp, vivid image
quality will transform data from any graphic medium from
PCs to DVD players- into art. And weighing only 61.8 lbs/
28.5 kg (42MP3), 65 lbs/ 29.5 kg (42MP4) it actually can be
hung almost anywhere. NEC has made sure that a host of
multimedia resources can be easily connected and displayed
as brilliantly as intended on the PlasmaSync™ monitor.
The features you’ll enjoy include:
• 42-inch screen
• 16:9 aspect ratio
• Capsulated Color Filter (CCF) and black matrix
• The enhanced display in red uses a two-stage filtering
system where Accucrimson™ is combined with our special
CCF.
• 3.5 inch / 89 mm thin
• 42MP3: 61.8 lbs/ 28.5 kg light, 42MP4: 65 lbs/ 29.5 kg
light
• High-resolution screen; 42MP3: 853480 pixels, 42MP4:
1024768 pixels
• 160-degrees of off-axis viewing, horizontally and vertically.
• Flicker - and warp - free display provides excellent image
geometry even in screen corners
• Not affected by magnetic fields, no color drift or edge
distortion.
• VGA, SVGA, XGA, SXGA, UXGA computer signal
compatibility
• NTSC, PAL, SECAM, composite and S-Video signal
compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source
compatibility
• AccuBlend scan conversion automatically converts SVGA,
XGA, SXGA and UXGA signals to the panel’s native
resolution (42MP4: VGA, SVGA, SXGA, UXGA)
• Advanced Mass Area Sampling Progressive Scan method
is employed.
• RGB input (3*), Video input (3*), DVD/HD input (2*),
Audio input (3), External Control input (1)
• AccuColor control system provides user selectable on-
screen color temperature settings
• New Drive Technology
• Component video input terminal for DVD, 15.75kHz (Y,
C
B, CR )
• Digital broadcasting source compatibility
• OSM menu-driven on screen control system that makes
image adjustments a snap
• Seven languages (English, German, French, Italian,
Spanish, Swedish, and Japanese)
* You can select RGB source, Component source or Video
source for the 5BNC terminal. When selecting an RGB input,
the source is switched to the RGB input (3); when selecting a
component input, the source is switched to the DVD/HD input
(2); when selecting a Video source, the source is switched to
the Video input (3).
Contents of the Package
Plasma monitor
Power cord
RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin
connector)
Remote control with two AAA Batteries
User’s manual
Remote cable
Safety metal fittings*
Screws for safety metal fitting*
Ferrite core (small2, large2), band
* These are fittings for fastening the unit to a wall to prevent tipping
due to external shock when using the stand (option). Fasten the
safety fittings to the holes in the back of the monitor using the
safety fitting mount screws.
Options
• Wall mount unit
• Ceiling mount unit
• Tilt mount unit
• Stand

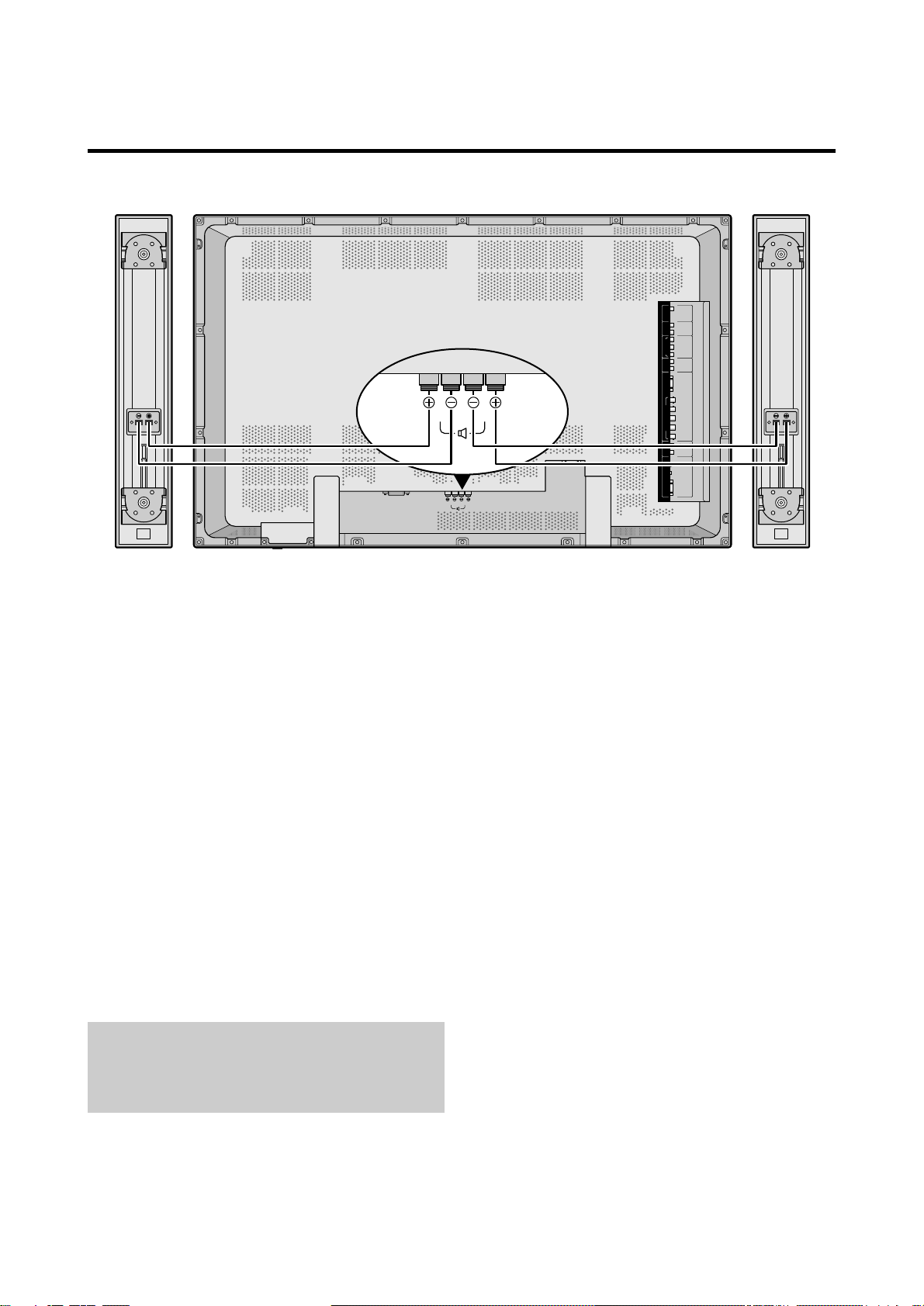

• Attachable speakers
• Pole unit
• Horizontal pole mount unit
Introduction
Precautions
Please read this manual carefully before using your plasma
monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct
the interference at his own expense.
Important Information
Warnings and Safety Precaution
This plasma monitor is designed and
manufactured to provide long, trouble-free service.
No maintenance other than cleaning is required. Use
a soft dry cloth to clean the panel. Never use
solvents such as alcohol or thinner to clean the panel
surface.
The plasma display panel consists of fine picture
elements (cells) with more than 99.99 percent active
cells. There may be some cells that do not produce
light or remain lit.
For operating safety and to avoid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal
heat build-up. Do not cover rear vents or install the unit
in a closed cabinet or shelves.
The unit is equipped with cooling fans (42XGA only).
If you install the unit in an enclosure, make sure there
is adequate space at the top of the unit to allow hot air
to rise and escape. If the monitor becomes too hot, the
overheat protector will be activated and the monitor will
be turned off. If this happens, turn off the power to the
monitor and unplug the power cord. If the room where
the monitor is installed is particularly hot, move the
monitor to a cooler location, and wait for 60 minutes to
cool the monitor. If the problem persists, contact your
dealer for service.
2. Do not use this unit polarized plug with extension cords
or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to
modify the power cord.
5. Unplug the power cord during electrical storms or if
the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous
high voltage components inside. If the unit is damaged in
this way the warranty will be void. Moreover, there is a
serious risk of electric shock.
7. Do not attempt to service or repair the unit. This is not
liable for any bodily harm or damage caused if unqualified
persons attempt service or open the back cover. Refer
all service to authorized Service Centers.
NOTE:
When you connect a computer to this monitor, attach
the supplied ferrite cores. If you do not do this, this
monitor will not comform to mandatory FCC standards.
Attaching the ferrite cores:
Set the ferrite cores on both ends of the DVI cable (not
supplied), and both ends of the power cable (supplied).
Close the lid tightly until the clamps click.
Use the band to fasten the ferrite core (supplied) to the
DVI cable.
DVI cable (not supplied)
core (small)
core (small)
Connector
band
band
Power cable (supplied)
core (large)
core (large)
To avoid damage and prolong operating life:
1. Use only with 120V 50/60Hz AC power supply.
Continued operation at line voltages greater than 120 Volts
AC will shorten the life of the unit, and might even cause
a fire hazard.
2. Handle the unit carefully when installing it and do not
drop.
3. Set the unit away from heat, excessive dust, and direct
sunlight.
4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the power
cord and have it serviced by an authorized Service
Center.
5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.
6. For correct installation and mounting it is strongly
recommended to use a trained, authorized dealer.
7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.
Recommendations to avoid or minimize phosphor burn-in
Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. To protect
your investment in this plasma monitor, please adhere to the
following guidelines and recommendations for minimizing
the occurrence of image burn:
* Always enable and use your computer’s screen saver
function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished
using it.
If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:
* Lower the Brightness and Contrast levels as much as
possible without impairing image readability.
* Display an image with many colors and color gradations
(i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light
and dark areas, for example white characters on black
backgrounds. Use complementary or pastel color whenever
possible.
* Avoid displaying images with few colors and distinct,
sharply defined borders between colors.
* Burn-in is not covered by the warranty.
Contact your dealer for other recommended procedures that
will best suit your particular application needs.
Précautions
Veuillez lire avec attention ce manuel avant d’utiliser le
moniteur à plasma et le conserver accessible pour s’y référer
ultérieurement.
ATTENTION
RISQUE D’ELECTROCUTION
NE PAS OUVRIR
MISE EN GARDE
:
AFIN DE REDUIRE LES RISQUES D’ELECTRO-
CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y
A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE
CET APPAREIL. NE CONFIER LES TRAVAUX
D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’une tension dangereuse, non isolée se trouvant
à l’intérieur de l’appareil. Elle est d’une intensité suffisante
pour constituer un risque d’électrocution. Eviter le contact
avec les pièces à l’intérieur de cet appareil.
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’importantes instructions concernant l’entretien
et le fonctionnement de cet appareil. Par conséquent, elles
doivent être lues attentivement afin d’éviter des problèmes.
AVERTISSEMENT
AFIN DE REDUIRE LES RISQUES D’INCENDIE OU
D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL
A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER
LA FICHE POLARISEE AVEC UN PROLONGATEUR OU
UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES
PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR
LE COFFRET, DES COMPOSANTS HAUTE TENSION SE
TROUVENT A L’INTERIEUR. LAISSER A UN
PERSONNEL QUALIFIE LE SOIN DE REPARER CET
APPAREIL.
DOC avis de conformation
Cet appareil numérigue de la classe A respecte toutes les exigences
du Réglement sur le Matériel Brouilleur du Canada.
Mises en garde et précautions de
sécurité
Ce moniteur à plasma a été conçu et fabriqué pour
une utilisation fiable et durable. Il ne nécessite aucun
entretien en dehors du nettoyage. Utiliser un chiffon
doux et sec pour nettoyer la surface de l’écran. Ne
jamais utiliser de solvant comme de l’alcool ou du
diluant.
Le panneau à affichage plasma est constitué de fines
particules d’images (cellules) dont plus de 99,99%sont
actives. Certaines d’entre elles ne produisent pas de
lumière ou restent allumées.
Pour des raisons de sécurité et pour éviter
d’endommager l’appareil, lire attentivement les
instructions suivantes.
Pour éviter les risques d’éléctrocution et d’incendie:
1. Laisser suffisament d’espace autour de l’appareil pour
la ventilation et éviter toute augmentation excessive de
la température interne. Ne pas couvrir les évents ou
l’installer dans un endroit trop exigu.
L’appareil est équipé de ventilateurs de refroidissement
(uniquement wide-VGA). Si vous installez l’appareil dans
un espace clos, assurezvous qu’il y ait suffisamment
d’espace au dessus pour permettre à l’air chaud de s’élever
et de s’évacuer.
Si la température du moniteur devient excessive, la
protection contre les surchauffes entrera en action et
coupera l’alimentation. Dans ce cas, éteindre l’appareil
et débrancher le câble d’alimentation. Si la température
de la pièce dans laquelle se trouve le moniteur est
particulièrement élevée, déplacer celui-ci dans un endroit
plus frais et attendre environ 60 minutes qu’il refroidisse.
Si le problème persiste, prendre contact avec votre
revendeur.
2. Ne pas raccorder la prise d’alimentation polarisée de ce
périphérique à une rallonge ou une prise murale si les
fiches ne peuvent pas être complètement insérées.
3. Ne pas exposer à L’eau ou à l’humidité.
4. Eviter d’endommager le cordon d’alimentation, et ne pas
modifier le cordon d’alimentation.
5. Débrancher le câble d’alimentation électrique pendant les
orages ou les longues périodes d’inactivité.
6. Ne pas ouvrir le coffret. Des composants de haute
tension se trouvent à l’intérieur. Si l’appareil est
endommagé de cette manière, la garantie devient
caduque. De plus, il y a risque d’électrocution.
7. Ne pas essayer d’intervenir ou de réparer l’appareil. Ceci
n’est en aucune manière responsable des blessures
corporelles ou dégâts matériels pouvant survenir si une
personne non qualifiée tente une réparation en ouvrant le
boîtier arrière. S’adresser aux services après-vente
autorisés.
Recommandations importantes
REMARQUE:
Lorsque vous branchez un micro-ordinateur sur ce
moniteur, fixez les noyaux en ferrites fournis. Si vous
ne le faîtes, le moniteur ne sera pas en conformité avec
les exigences des standards FCC.
Fixation des noyaux en ferrite.
Monter les tores en ferrite aux deux extrêmités du câble
DVI (non fourni) et aux deux extrêmités du câble
d’alimentation électrique (fourni).
Fermez doucement le couvercle jusqu’à ce que les crans
se clipsent.
Fixer le tore en ferrite (fourni) au câble DVI à l’aide d’un
collier.
Câble DVI (non fourni)
Connecteur
noyau (petit)
noyau (petit)
Collier Collier
noyau (large)
Câble d'alimentation
électrique (fourni)
noyau (large)
Pour éviter des dommages et prolonger la durée de
service de l’appareil:
1. N’utiliser qu’une source d’alimentation de 120 V 50/
60 Hz CA. Le fait d’utiliser l’appareil en continu à des
tensions de ligne supérieures à 120 Volts CA réduit sa
durée de vie et risque de provoquer un incendie.
2. Manipuler l’appareil avec soin pendant son
déplacement et ne pas le faire tomber.
3. Eloigner l’appareil des endroits chauds, très poussiéreux
et exposés en plein soleil.
4. Eviter que des liquides et des petits objets métalliques
pénètrent à l’intérieur de l’appareil. En cas d’incident de
ce genre, débrancher le câble d’alimentation électrique
et confier le moniteur à un service après-vente agréé.
5. Ne pas frapper ou rayer la surface de la écran plasma,
car des défauts risquent de se produire sur la surface
de la écran plasma.
6. Pour un montage et une installation correcte, il est
fortement recommandé de faire appel à un revendeur
agréé et qualifié.
7. Comme c’est le cas pour tout affichage à base de
phosphore (comme un moniteur CRT, par exemple), la
puissance de lumière baisse graduellement au cours de
la vie du Panneau d’Affichage à Plasma.
Pour éviter les risques de brûlage du luminophore, les
mesures suivantes sont recommandées:
Comme tous les périphériques d’affichage à base luminophore
et tous les autres affichages gaz plasma, les moniteurs plasma
peuvent être sujets au brûlage du luminophore dans certaines
circonstances. Certaines conditions d’utilisation, telles que
l’affichage continu d’une image statique pour une durée
prolongée, peuvent causer le brûlage du luminophore si
aucune précaution n’est prise. Pour protéger votre
investissement dans ce moniteur à plasma, veuillez suivre
les directives et les conseils suivantes pour minimiser
l’occurence le marquage de l’écran:
• Assurez-vous de mettre en marche et d’utliser
l’économisateur d’écran chaque fois que c’est possible
lorsque vous l’utilisez avec une source d’entrée
d’ordinateur.
• Affichez une image en mouvement aussi souvent que
possible.
• Changer la position de l’affichage de menu de temps à autre.
• Coupez toujours l’alimentation lorsque vous avez terminé
d’utiliser la moniteur.
Si le moniteur est en usage continu ou longue durée, prenez
les mesures suivantes afin d’éviter l’occurence le brûlage
du luminophore:
• Abaissez le niveau de l’image (contraste, luminosité)
autant que possible, sans faire perdre la lisibilité de
l’image.
• Affichez une image avec de nombreuses couleurs et
graduations de couleur (par ex. des images
photographiques ou photo-réalistes).
• Créez un contenu d’image avec un contraste minimal
entre les zones sombres et les zones claires, par exemple,
des caractères blancs sur un fond noir. Utilisez des
couleurs complémentaires ou pastels le plus souvent
possible.
•Évitez d’afficher des images avec peu de couleurs et des
limites nettes et clairement définies entre les couleurs.
* Le brûlage de l’écran n’est pas couvert par la garantie.
Contactez un revendeur agréé ou un revendeur de marque
pour d'autres procédures qui conviendront le mieux à vos
besoins particuliers.
How to Attach Options to the Plasma Monitor .... 1
Part Names and Function .................................. 2
Front View............................................................... 2
Rear View / Terminal Board ...................................... 3
Remote Control ........................................................ 4
Battery Installation and Replacement .......................... 5
Using the wired remote control mode ......................... 6
Operating Range ..................................................... 6
Handling the remote control ...................................... 6
Installation ...................................................... 7

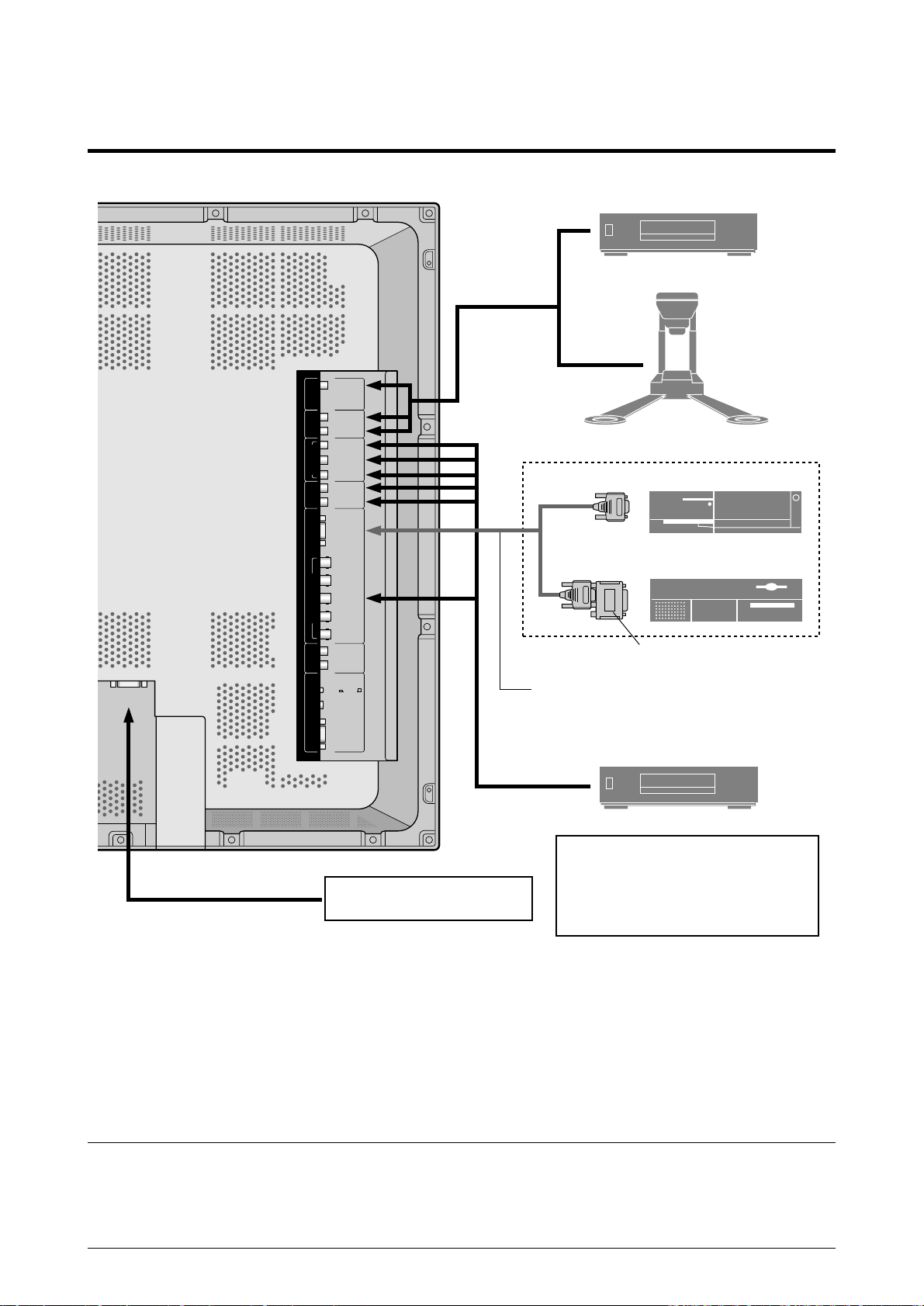

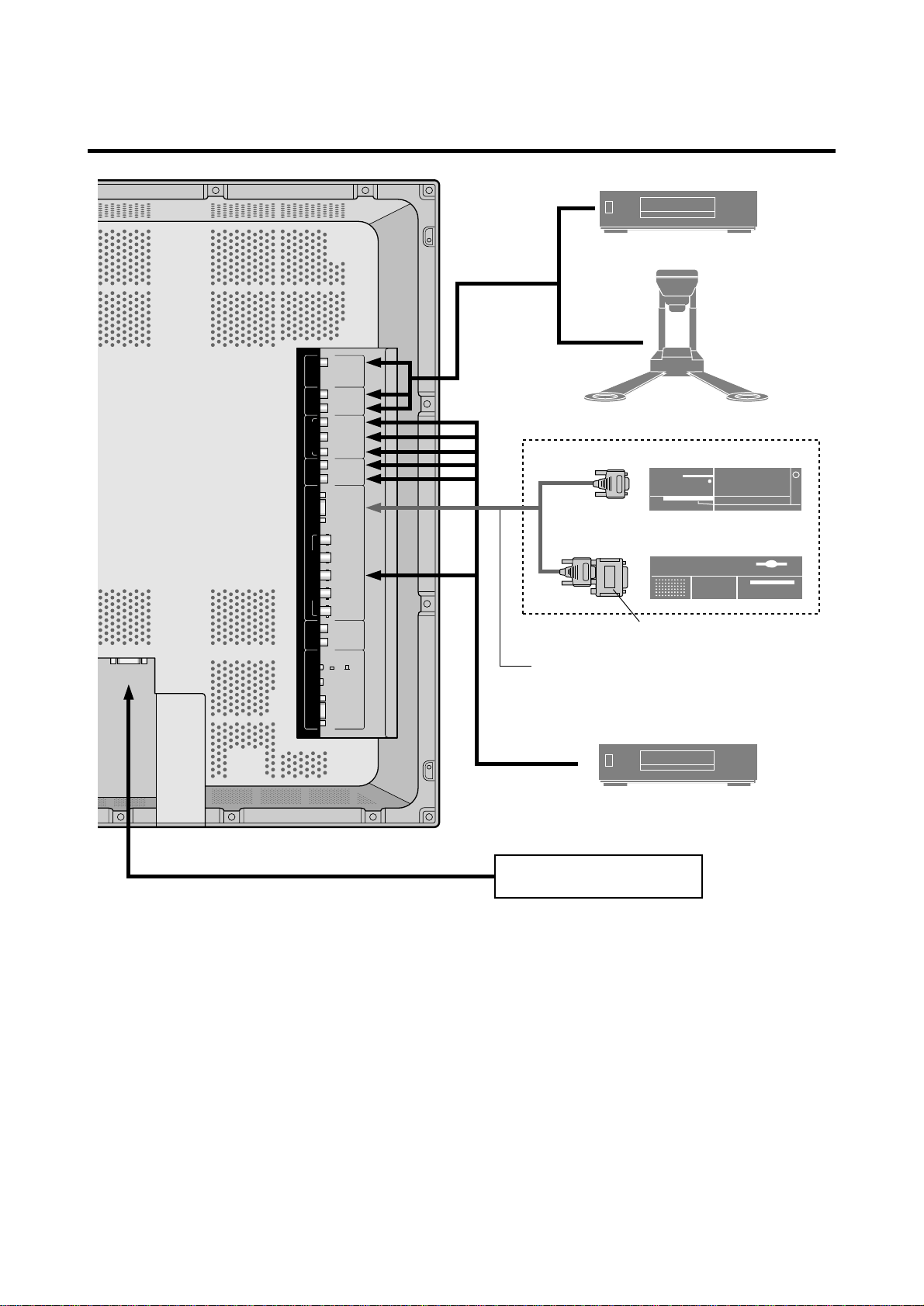

Connecting Your PC or Macintosh Computer ............... 8
Connections with Equipment that has a Digital Interface ...
8
Connecting Your Document Camera ........................... 8
Connecting Your VCR or Laser Disc Player.................. 8
Connecting Your DVD Player ..................................... 8
Attachable Speaker Connections ................................ 9
Pin Assignments and Signal Levels
for 15 pin RGB (Analog) ......................................... 10
Pin Configuration and Signal
of the RGB 3 IN Connector (DVI Connector) .............. 10
Basic Operations ............................................. 11
POWER ................................................................ 11
To turn the unit ON and OFF: .................................... 11
VOLUME .............................................................. 11
To adjust the sound volume:...................................... 11
MUTE ................................................................... 11
To cancel the sound:.................................................. 11
DISPLAY ................................................................ 11
To check the settings: ................................................. 11
DIGITAL ZOOM ..................................................... 11
OFF TIMER ........................................................... 12
To set the off timer: ................................................... 12
To check the remaining time: ..................................... 12
To cancel the off timer ............................................... 12

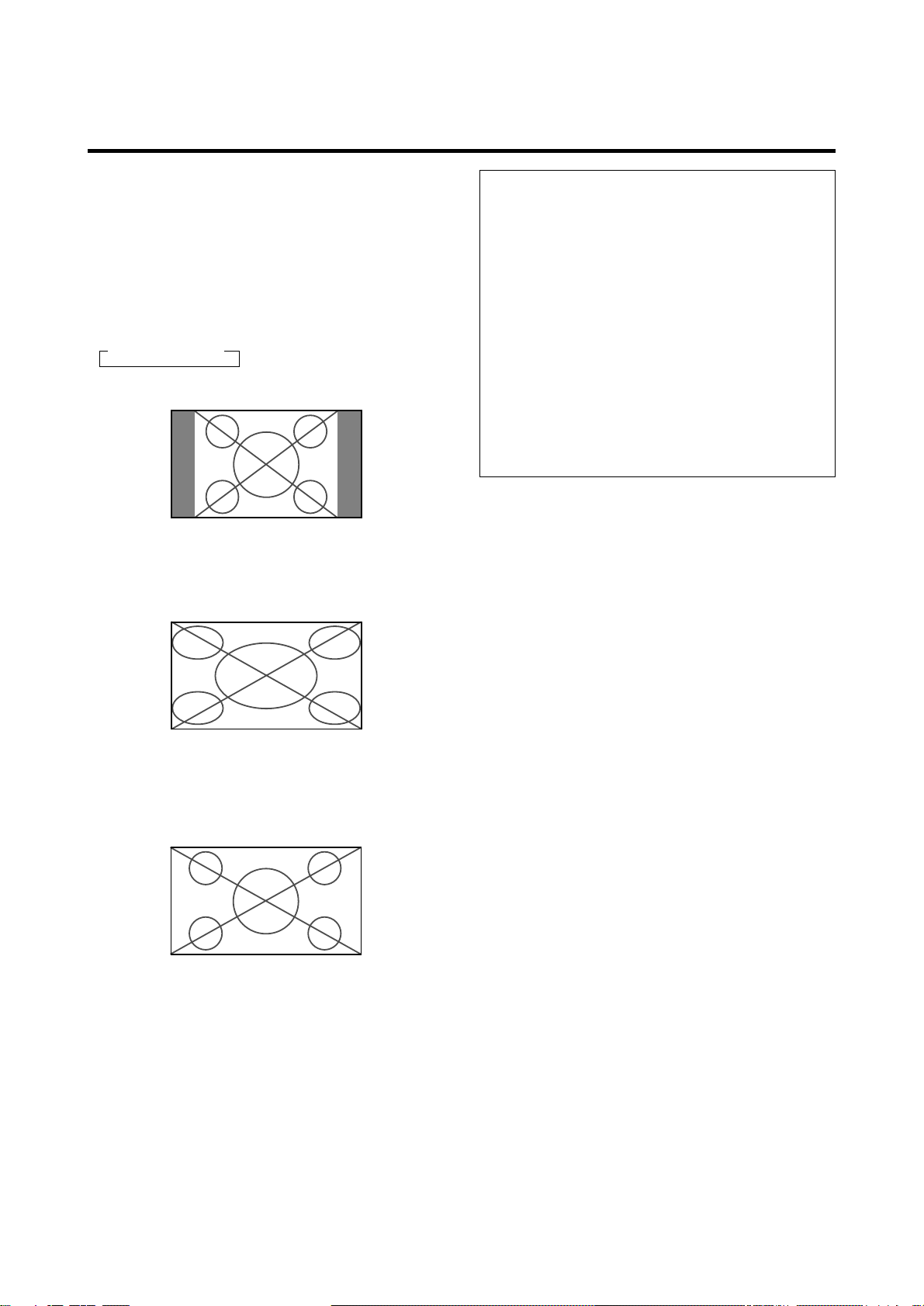

WIDE Operations ............................................. 13
Watching with a wide screen (manual) .................... 13
When watching videos or digital video discs............. 13
When watching high definition video source ............. 13
Watching computer images with a wide screen ......... 14
OSM Controls ................................................. 15
Menu Operations ................................................... 15
Picture Settings Menu ............................................. 17
Adjusting the picture ................................................. 17
Setting the picture mode according to the
brightness of the room ............................................... 18
Setting the color temperature .................................... 19
Adjusting the color to the desired quality ................... 20
Reducing noise in the picture ..................................... 21
Sound Settings Menu .............................................. 22
Adjusting the treble, bass and left/right balance ........ 22
Screen Settings Menu ............................................. 23
Adjusting the Position, Size, Fine Picture,
Picture Adj ................................................................ 23
Function Settings Menu .......................................... 24
Setting the on-screen menu ....................................... 24
Adjusting the position of the menu display ................ 25
Setting the power management for computer images .....
26
POWER/STANDBY indicator ................................... 27
Setting the gray level for the sides of the screen ......... 28
Setting the picture to suit the movie ........................... 28
Setting RGB3 ADJ..................................................... 29
Reducing burn-in of the screen .................................. 29
Setting the time for “INVERSE”................................ 30
Setting the time for “SCREEN WIPER” .................... 31
Resetting to the default values.................................... 32
Options Settings Menu ............................................ 33
Setting the allocation of the audio connectors ........... 33
Setting the BNC connectors ...................................... 34
Setting a computer image to the correct RGB
select screen ............................................................. 34
Setting high definition images to the suitable
screen size............................................................... 35
Information Menu ................................................. 36
Checking the frequencies, polarities of input signals,
and resolution ........................................................... 36
Setting the language for the menus............................. 36
Setting the video signal format.................................. 37
External Control ............................................. 38
Table of Signals Supported .............................. 51
Supported resolution .............................................. 51
Troubleshooting ............................................. 53
Specifications ................................................. 54
Contents
1
You can attach your optional mounts or stand to the plasma
monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing
B). Lay the protective sheet, which was wrapped around
the monitor when it was packaged, beneath the screen
surface so as not to scratch the screen face.
• This device cannot be installed on its own.
Be sure to use a stand or original mounting
unit. (Wall mount unit, Stand, etc.)
* See the inside of a cover.
• For correct installation and mounting it is
strongly recommended to use a trained,
authorized dealer.
Failure to follow correct mounting
procedures could result in damage to the
equipment or injury to the installer.
Product warranty does not cover damage
caused by improper installation.
Ventilation Requirements for
enclosure mounting
To allow heat to disperse, leave space between
surrounding objects as shown on the diagram
below when installing.
How to Attach Options to the Plasma Monitor
Drawing A
Drawing B
31
mm
(1.22")
1110
mm
(43.7")
748
mm
(29.5")
50
mm
(2") 50
mm
(2")
Wall
Wall
50
mm
(2")
31
mm
(1.22")
* Use only Listed Cart or Stand, or mounting
kit or stand provided by manufacturer.
2
q Power
Turns the monitor’s power on and off.
w Remote sensor window
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input, in the following order.
The available inputs depend on the setting of “BNC
SELECT”.
RGB:
COMP.:
VIDEO:
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.
Front View
Part Names and Function
POWER/ STANDBY
PROCEED
INPUT SELECT
DOWN UP LEFT/
-
RIGHT/
+
/EXIT
VOLUME
PROCEED
INPUT SELECT
DOWN UP LEFT
/
-
RIGHT
/
+
/
EXIT
VOLUME
POWER
/
STANDBY
7
6
5
4
1
3
2
t LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the
CURSOR (
/
) buttons in the On-Screen Menu
(OSM) mode.
y VOLUME DOWN and UP
Adjusts the volume. Functions as the CURSOR (▲/
▼) buttons in the On-Screen Menu (OSM) mode.
u PROCEED
Sets the On-Screen Menu (OSM) mode and displays
the main menu.
→ VIDEO1 → VIDEO2 → HD/DVD/DTV
RGB/PC3 ← RGB/PC2 ← RGB/PC1←
→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1
RGB/PC3 ← RGB/PC1 ← HD2/DVD2/DTV2 ←
→ VIDEO1 → VIDEO2 → VIDEO3
RGB/PC3 ← RGB/PC1 ← HD/DVD/DTV←
3
Rear View/ Terminal Board
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers here. Maintain the correct polarity.
C RGB3
(DVI 29pin)
Inputs a digital RGB signal (TMDS).
D VIDEO1, 2
Connect VCR’s, DVD’s or Laser Discs, etc. here.
E AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image to allot
them to on the menu screen.
F DVD1 / HD1
Connect DVD’s, High Definition or Laser Discs, etc.
here.
G RGB1
Inputs the analog RGB signal of personal computer,
etc.
H RGB2/ DVD2/ HD2
RGB2: Inputs the analog RGB signal and the
syncronization signal.
DVD2/ HD2: Connect DVD’s, High Definition or
Laser Discs, etc. here.
VIDEO3: Connect VCR’s, DVD’s or Laser
Discs, etc. here.
I CONTROL LOCK
When “CONTROL LOCK” is set “ON”, the buttons
on the set’s control panel do not function.
J REMOTE CONTROL
Connect the supplied remote cable here.
K EXTERNAL CONTROL
This terminal is used when power ON/OFF, input
selection and AUDIO MUTE and other controls are
operated externally (by external control). See also page
38 for external control.
AC IN
RGB 3
(
Digital RGB
)
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
CONTROL
LOCK
ON / OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
AC IN
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2
AB C
D
E
F
G
K
H
J
I
CONTROL
LOCK
ON /OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
4
→ VIDEO1 → VIDEO2 → VIDEO3
→ VIDEO1 → VIDEO2
Remote Control
q POWER ON/OFF
Switches Power ON/OFF.
(This does not operate when POWER/STANDBY
indicator of the main unit is off.)
w RGB/PC
Press this button to select RGB/PC as the source.
The available sources depend on the setting of “BNC
SELECT”.
RGB:
COMP. or VIDEO:
RGB/PC can also be selected using the INPUT
SELECT button on the monitor.
e DVD / HD
Press this button to select DVD/HD as the source.
The available sources depend on the setting of “BNC
SELECT”.
RGB or VIDEO:
COMP.:
DVD/HD can also be selected using the INPUT
SELECT button on the monitor.
r VIDEO
Press this button to select VIDEO as the source.
The available sources depend on the setting of “BNC
SELECT”.
VIDEO:
RGB or COMP.:
VIDEO can also be selected using the INPUT SELECT
button on the monitor.
t PROCEED
Press this button to access the OSM controls.
Press this button during the display of the main menu
to go to the sub menu.
y CURSOR (▲ / ▼ /
/
)
Use these buttons to select items or settings and to
adjust settings or switch the display patterns.
u EXIT
Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the main menu.
i POINTER
Press this button to display the pointer.
o ZOOM (+ /–)
Enlarges or reduces the image.
!0 VOLUME (+ /–)
Adjusts the sound volume.
!1 MUTE
Mutes the sound.
→ RGB/PC1 → RGB/PC2 → RGB/PC3
→ RGB/PC1 → RGB/PC3
HD/DVD/DTV
→ HD1/DVD1/DTV1 → HD2/DVD2/DTV2
5
!2 WIDE
The type of broadcast is detected automatically, and
the recommended wide screen is set.
!3 DISPLAY
Displays the source settings on the screen.
!4 OFF TIMER
Activates the off timer for the unit.
!5 Remote control signal transmitter
Transmits the remote control signals.
!6 Remote Jack
Insert the plug of the supplied remote cable here when
using the supplied remote control in the wired
condition.
Battery Installation and Replacement
Insert the 2 “AAA” batteries, making sure to set them in
with the proper polarity.
1.Press and open the cover.
2.Align the batteries according to the (+) and (–) indication
inside the case.
3.Replace the cover.
6
POWER/STANDBY
PROCEED
INPUT SELECT
DOWN UP LEFT/
-
RIGHT/
+
/EXIT
VOLUME
Approx.
7m/23ft
Using the wired remote control mode
Connect the supplied remote cable to the remote control’s
remote jack and the “REMOTE CONTROL” terminal on
the monitor.
When the cable is connected, the mode automatically
switches to wired remote control. When the wired remote
control mode is used, the remote control can be operated
even if no batteries are loaded.
Operating Range
* Use the remote control within a distance of about 7 m/
23ft. from the front of the monitor’s remote control sensor
and at horizontal and vertical angles of up to approximately
30°.
* The remote control operation may not function if the
monitor’s remote control sensor is exposed to direct
sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control.
Handling the remote control
• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control
gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period,
remove the batteries.
• Do not use new and old batteries together, or use different
types together.
• Do not take apart the batteries, heat them, or throw them
into a fire.
• When using the remote control in the wireless condition,
be sure to unplug the remote cable from the REMOTE
CONTROL terminal on the monitor.
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
RGB 1
R/CR/PR
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
B/CB/PB
HD
VD
R
R
Y
CB/ PB
CR/ PR
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
CONTROL
LOCK
ON/ OFF
R
EXTERNAL
CONTROL
REMOTE
CONTROL
Remote Control
Cable
To Remote Jack
7
Installation
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
CONTROL
LOCK
ON/ OFF
RGB 1
R/CR/PR
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
B/CB/PB
HD
VD
R
R
Y
CB/PB
CR/PR
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2
VCR or Laser Disc Player
Document Camera
DVD Player
IBM VGA or
Compatibles
Signal cable (supplied)
To Mini D-Sub 15 pin connector on the plasma monitor
To video inputs on
the plasma monitor
Monitor adapter for
Macintosh
Macintosh or Compatibles
(Desk top type)
Personal computer with a
digital RGB output
8
Connecting Your PC or Macintosh Computer
Connecting your PC or Macintosh computer to your plasma
monitor will enable you to display your computer’s screen
image for an impressive presentation. The plasma monitor
supports the signals described on page 51.
To connect a PC, Macintosh or compatible graphics adapter,
simply:
1. Turn off the power to your plasma monitor and computer.
2. If your PC does not support SXGA/XGA/SVGA/VGA
you will need to install an SXGA/XGA/SVGA/VGA
graphics board. Consult your computer’s owner’s manual
for your SXGA/XGA/SVGA/VGA configuration. If you
need to install a new board, see the manual that comes
with your new graphics board for installation instructions.
3. This plasma monitor provides signal compatibility up to
VESA 16001200 (UXGA). However, it is not
recommended to use this resolution due to image
readability on the monitor’s native pixel resolution panel
(42Wide VGA: 853480, 42XGA: 1024768).
4. Use the signal cable that’s supplied to connect your PC or
Macintosh computer to the plasma monitor. For Macintosh,
use the monitor adapter to connect to your computer’s
video port.
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity,
it may be caused by a screen saver installed on the computer
you’ve connected to the plasma monitor.
When using a Macintosh with the plasma monitor, the
following four display standards are supported using the
Macintosh adapter :
13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode
The 13" fixed mode is recommended for your 42Wide VGA,
and the 19" fixed mode is recommended for your 42XGA.
Connections with Equipment that
has a Digital Interface
Connections can be made with equipment that is equipped
with a digital interface compliant with the DVI (Digital
Visual Interface) standard.
* Use a DVI 29-pin signal cable and the ferrite cores
(supplied) when making connections to the RGB3 IN (DVI)
connector of the main unit.
Note that the RGB3 IN(DVI) terminal does not support
analog RGB input source.
Note:
1. Input TMDS signals conforming to DVI standards.
The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality
prescribed by DVI standards that is within 5 meters in length.
Connecting Your Document Camera
You can connect your plasma monitor to a document
camera. To do so, simply:
1. Turn off the power to your plasma monitor and
document camera.
2. Use a standard video cable to connect your document
camera to the Video input on your plasma monitor.
3. Turn on the plasma monitor and the document camera.
Note:
Refer to your document camera owner’s manual
for more information about your camera’s video output
requirements.
Connecting Your VCR or Laser Disc
Player
Use common RCA cables (not provided) to connect your
VCR or laser disc player to your plasma monitor. To make
these connections, simply:
1. Turn off the power to your plasma monitor and VCR
or laser disc player.
2. Connect one end of your RCA cable to the video output
connector on the back of your VCR or laser disc player,
connect the other end to the Video input on your plasma
monitor. Use standard RCA audio patch cords to
connect the audio from your VCR or laser disc player
to your plasma monitor (if your VCR or laser disc player
has this capability). Be careful to keep your right and
left channel connections correct for stereo sound.
3. Turn on the plasma monitor and the VCR or laser disc
player.
Note:
Refer to your VCR or laser disc player owner’s
manual for more information about your equipment’s video
output requirements.
Connecting Your DVD Player
You can connect your plasma monitor to a DVD player.
To do so, simply:
1. Turn off the power to your plasma monitor and DVD
player.
2. Use a standard video cable to connect your DVD player
to the Y, Cb, and Cr inputs on your plasma monitor.
Or use the DVD-player’s S-Video output. Use a
standard S-Video cable to connect to the S-Video input
on the plasma monitor.
3. Turn on the plasma monitor and the DVD player.
9
Attachable Speaker Connections
Attachable speakers (option) may be connected to the
plasma monitor to reproduce sound from VIDEO, DVD
or RGB signal sources.
Attachable speakers may be connected directly to the
SPEAKERS terminals or indirectly by connecting a stereo
system amplifier to the audio outputs.
CAUTION:
Unplug the plasma monitor and all
connected components before connecting external
speakers. Use only speakers with 6-ohm impedance and
a power input rating of 7 watts or more.
AC IN
RGB 3
(
Digital RGB
)
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/ VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
CONTROL
LOCK
ON / OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
RIGHT LEFT
To connect attachable speakers directly to the plasma
monitor:
1. Strip the ends of the speaker wires.
2. Press up the tabs below the SPEAKERS terminals,
insert the speaker wire and release the tab to secure the
speaker wire connection:
[a] Connect the right speaker (located at right side
of the monitor when viewed from the front)
positive (+) wire to RIGHT +.
[b] Connect the right speaker negative (–) wire to
RIGHT –.
[c] Connect the left speaker negative (–) wire to
LEFT–.
[d] Connect the left speaker positive (+) wire to
LEFT+.
10
Pin Assignments and Signal Levels for 15 pin RGB (Analog)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
5 4 3 2 1
15 14 13 12 11
10 9 8 7 6
RGB 3
1
9
17
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8 25 26
27 28
16
24
29
Signal (Analog)
Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock
Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)
The unit is equipped with a type of connector commonly
used for both analog and digital.
(Functionally, this cannot be used for an
analog input.)
(TMDS can be used for one link only.)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Signal (Digital)
T.M.D.S Data 2 -
T.M.D.S Data 2 +
T.M.D.S Data 2 Shield
No connection
No connection
DDC Clock
DDC Data
No connection
T.M.D.S Data 1 -
T.M.D.S Data 1 +
T.M.D.S Data 1 Shield
No connection
No connection
+5V Power
Ground
Hot Plug Detect
T.M.D.S Data 0 -
T.M.D.S Data 0 +
T.M.D.S Data 0 Shield
No connection
No connection
T.M.D.S Clock Shield
T.M.D.S Clock +
T.M.D.S Clock -
No connection
No connection
No connection
No connection
No connection
11
POWER
To turn the unit ON and OFF:
1. Plug the power cord into an active AC power outlet.
2. Press the POWER ON button (on the remote control)
to turn on the unit.
The monitor’s POWER/STANDBY indicator will light
up (green) when the unit is on.
3. Press the POWER OFF button (on the remote control
or the unit) to turn off the unit.
The monitor’s POWER/STANDBY indicator turns red
and the standby mode is set (only when turning off the
unit with the remote control).
VOLUME
To adjust the sound volume:
1. Press and hold the VOLUME button (on the remote
control or the unit) to increase sound output to the
desired level.
2. Press and hold the VOLUME
button (on the remote
control or the unit) to decrease to the desired level.
MUTE
To cancel the sound:
Press the MUTE button on the remote control to cancel
the sound; press again to restore.
DISPLAY
To check the settings:
1. The screen changes each time the DISPLAY button is
pressed.
2. If the button is not pressed for approximately three
seconds, the indication will disappear.
DIGITAL ZOOM
Digital zoom specifies the picture position and enlarges
the picture.
1. Press the POINTER button to display the pointer. (
)
To change the size of the picture:
Press the ZOOM+ button and enlarge the picture.
The pointer will change to resemble a magnifying
glass. (
)
A press of the ZOOM- button will reduce the picture
and return it to its original size.
To change the picture position:
Select the position with the ▲▼
buttons.
2. Press the POINTER button to delete the pointer.
Basic Operations
12
OFF TIMER
To set the off timer:
The off timer can be set to turn the power off after 30, 60,
90 or 120 minutes.
1. Press the OFF TIMER button to start the timer at 30
minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.
→ 30 → 60 → 90 → 120 → 0
OFF TIMER 30
To check the remaining time:
1. Once the off timer has been set, press the OFF TIMER
button once.
2. The remaining time is displayed, then turns off after a
few seconds.
3. When five minutes remain the remaining time appears
until it reaches zero.
OFF TIMER 28
To cancel the off timer:
1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.
OFF TIMER 0
Note:
After the power is turned off with the off timer ...
A slight current is still supplied to the monitor. When you
are leaving the room or do not plan to use the system for a
long period of time, turn off the power of the monitor.
13
Watching with a wide screen
(manual)
With this function, you can select one of four screen sizes.
When watching videos or digital video discs
1. Press the WIDE button on the remote control.
2. Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:
→ ZOOM → NORMAL → FULL → STADIUM
ZOOM size screen
The picture is expanded in the horizontal and vertical
direction, maintaining the original proportions.
* Use this for theater size (wide) movies, etc.
NORMAL size screen (4:3)
The normal size screen is displayed.
* The picture has the same size as video pictures with a
4 : 3 aspect ratio.
FULL size screen
The image is expanded in the horizontal direction.
* Images compressed in the horizontal direction (“squeezed
images”) are expanded in the horizontal direction and
displayed on the entire screen. (Normal images are
expanded in the horizontal direction.)
STADIUM size screen
The picture is expanded in the horizontal and vertical
directions at different ratios.
* Use this for watching normal video programs (4:3) with a
wide screen.
When watching high definition video source
1. Press the WIDE button on the remote control.
FULL size screen (16 : 9)
The full size screen is displayed.
* The picture has the same size as video pictures (16 : 9).
WIDE Operations
14
Watching computer images with a
wide screen
Switch to the wide screen mode to expand the 4 : 3 image
to fill the entire screen.
1.Press the WIDE button on the remote control.
2.Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:
→ NORMAL → FULL
NORMAL size screen (4:3 or SXGA 5:4)
The picture has the same size as the normal computer
image.
FULL size screen
The image is expanded in the horizontal direction.
When wide signals are input.
FULL size screen
Information
Supported resolution
See page 51 for details on the display output of the
various VESA signal standards supported by the
monitor.
When 852 (848) dot 480 line wide VGA*
signals with a vertical frequency of 60 Hz and
horizontal frequency of 31.7 (31.0) kHz are in-
put
Select an appropriate setting for RGB SELECT mode
referring to the“Table of Signals Supported” on page
51.
* “ IBM PC/AT” and “VGA” are registered trademarks
of IBM, Inc. of the United States.
15
Menu Operations
The OSM window is displayed with respect to the
screen as shown on the diagram.
* Depending on the screen’s mode, the OSM may be
displayed differently.
In the explanation, the OSM section is shown close up.
SEL. OK EXIT
EXITPROCEED
MAIN MENU
SOUND
SCREEN
FUNCTION
OPTIONS
INFORMATION
The following describes how to use the menus and the
selected items.
1. Press the PROCEED button on the remote control to
display the MAIN MENU.
MAIN MENU
SOUND
SCREEN
FUNCTION
OPTIONS
INFORMATION
SEL. OK EXIT
EXITPROCEED
2. Press the cursor buttons ▲ ▼ on the remote control to
highlight the menu you wish to enter.
3. Press the PROCEED button on the remote control to
select a submenu or item.
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
4. Adjust the level or change the setting of the selected
item by using the cursor buttons
on the remote
control.
OSM(On Screen Menu) Controls
5. The adjustment or the setting which you stored is
remained.
The change is stored until you change it again.
6. Repeat steps 2 – 5 to adjust an additional item, or press
the EXIT button on the remote control to return to the
main menu.
Note:
The main menu disappears by pressing the EXIT
button.
16
Main menu Sub menu Functions Default Reset
PICTURE CONTRAST Adjusts the contrast. Center Yes
BRIGHTNESS Adjusts the brightness. Center Yes
SHARPNESS Adjusts the sharpness. Center/1 Yes
COLOR Adjusts the color. Center Yes
TINT Adjusts the tint. Center Yes
PICTURE MODE Sets the picture mode according to the VIDEO environment and MEMORY Yes
image software.
COLOR TEMP Adjusts the color temperature and white balance. 2 Yes
NR Reduces noise visible in image. OFF Yes
Main menu Sub menu Functions Default Reset
SOUND BASS Sets the bass. Center Yes
TREBLE Sets the treble. Center Yes
BALANCE Sets the left/right balance. Center Yes
Main menu Sub menu Functions Default Reset
SCREEN V-POSITION Adjusts the vertical position. Center Yes
H-POSITION Adjusts the horizontal position. Center Yes
V-HEIGHT Adjusts the vertical size. Min Yes
H-WIDTH Adjusts the horizontal size. Min Yes
AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*
1
No
and “PICTURE ADJ”.
FINE PICTURE Adjusts for flickering on the computer image. Min*
1
Yes
PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*
1
Yes
Main menu Sub menu Functions Default Reset
FUNCTION OSM
Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).
ON Yes
When set to “ON”, the on-screen menu is displayed.
OSM ADJ. Adjusts the vertical and horizontal positions of the menu display. 1 Yes
POWER MGT Sets the monitor for use as an energy-saving display when used with a OFF Yes
computer.
GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. 3 Yes
CINEMA MODE Sets the picture to suit the movie. ON Yes
RGB3 ADJ. Adjusts the picture when the picture input from the RGB3 input 1 Yes
terminal is distorted.
LONG LIFE Sets the picture to reduce burn-in of the display. *
2
Yes
RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, ——
etc.) to the factory default values.
Main menu Sub menu Functions Default Reset
OPTIONS AUDIO INPUT Sets the allocation of the audio connectors. *
3
Yes
BNC SELECT Sets the BNC connectors. RGB Yes
RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes
RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.
HD SELECT
Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).
1080B No
Main menu Sub menu Functions Default Reset
INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal ——
currently being inputted.
LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No
Swedish, Italian or Spanish).
COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No
SECAM, 4.43 NTSC or 3.58 NTSC).
*1 RGB/PC only.
*2 PLE: AUTO ORBITER: OFF INVERSE: OFF SCREEN WIPER: OFF
*3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1
17
Picture Settings Menu
Adjusting the picture
The contrast, brightness, sharpness, color and tint can be
adjusted as desired.
Example: Adjusting the contrast
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button. The “PICTURE” screen
appears.
2. Use the ▲ and ▼ buttons to select “CONTRAST”.
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
3. Use the
and
buttons to adjust the contrast.
CONTRAST
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen
reappears.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Note:
If “CAN NOT ADJUST” appears ...
When trying to enter the PICTURE submenu, make sure
PICTURE MODE is set to MEMORY.
Information
Picture adjustment screen
CONTRAST ....Changes the picture’s contrast.
BRIGHTNESS.Changes the picture’s brightness.
SHARPNESS ..Changes the picture’s sharpness.
Adjusts picture detail of VIDEO
display.
COLOR ...........Changes the color density.
TINT ................Changes the picture’s tint. Adjust for
natural colored skin, background, etc.
Adjusting the computer image
Only the contrast and brightness can be adjusted when
a computer signal is connected.
Restoring the factory default settings
Select “RESET” under the “PICTURE MODE” settings.
18
Setting the picture mode according to the
brightness of the room
There are four picture modes that can be used effectively
according to the environment in which you are viewing
the display.
Example: Setting the “THEATER” mode
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. To set to “THEATER” ...
Use the
and
buttons to select “THEATER”.
The mode switches as follows when the
and
buttons are pressed:
→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←
PICTURE MODE
THEATER:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen
reappears.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu. To
delete the main menu, press the EXIT button once more.
Information
Types of picture modes
MEMORY ........The last picture adjustments are stored
here.
THEATER ........Set this mode when watching video in
a dark room.
This mode provides darker, finer
pictures, like the screen in movie
theaters.
CONTRAST = 80% for RESET mode
BRIGHTNESS = 95% for RESET
mode
NORMAL .........Set this mode when watching video in
a bright room.
This mode provides dynamic pictures
with distinct differences between light
and dark sections.
CONTRAST = 96% for RESET mode
RESET ............Use this to reset the picture to the
factory default settings.
19
Setting the color temperature
Use this procedure to set color tone produced by the plasma
display.
Example: Setting “1”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “1”.
The mode switches as follows when the
and
buttons are pressed:
→ 1 ↔ 2 ↔ 3 ↔ PRO ←
* See page 20 to set “PRO”.
COLOR TEMP.
1
:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the color temperature
1 ......................High (bluer)
2.........................Middle (Standard)
3 ......................Low (redder)
Restoring the factory default settings
Select “RESET” under the function menu. Note that this
also restores other settings to the factory defaults.
20
Adjusting the color to the desired quality
Use this procedure to adjust the white balance for bright
pictures and dark pictures to achieve the desired color
quality.
Example: Adjusting the “WHITE BALANCE”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “PRO”.
The mode switches as follows when the
and
buttons are pressed:
→ 1 ↔ 2 ↔ 3 ↔ PRO ←
PRO:COLOR TEMP.
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
4. Press the PROCEED button.
The “WHITE BALANCE” screen appears.
5. Use the ▲ and ▼ buttons to select “RED-GAIN”.
WHITE BALANC
E
SEL. ADJ. RETURN
EXIT
GAIN
RED
GREEN
BLUE
BIAS
RED
GREEN
BLUE
6. Adjust the white balance using the
and
buttons.
RED
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen reappears.
7. Once the adjustment is completed...
Press the EXIT button several times to return to the
main menu. To delete the main menu, press the EXIT
button once more.
Information
Adjusting the white balance
RGB-GAIN.......White balance adjustment for signal
level
RGB-BIAS.......White balance adjustment for black
level
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
21
Reducing noise in the picture
Use these settings if the picture has noise due to poor
reception or when playing video tapes on which the picture
quality is poor.
Example: Setting “NR-3”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “NR”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “NR-3”.
The mode switches as follows when the
and
buttons are pressed:
→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←
NR
NR-3
:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen
reappears.
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
NR
* “NR” stands for Noise Reduction.
* This function reduces noise in the picture.
Types of noise reduction
There are three types of noise reduction. Each has a
different level of noise reduction.
The effect becomes stronger as the number increases
(in the order NR-1 → NR-2 → NR-3).
OFF ...............Turns the noise reduction function off.
22
Sound Settings Menu
Adjusting the treble, bass and left/right
balance
The treble, bass and left/right balance can be adjusted to
suit your tastes.
Example: Adjusting the bass
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “SOUND”, then
press the PROCEED button.
The “SOUND” screen appears.
2. To adjust the bass ...
Use the ▲ and ▼ buttons to select “BASS”.
LR
SOUND
SEL. ADJ. RETURN
EXIT
BASS
TREBLE
BALANCE
3. Adjust the bass using the
and
buttons.
LR
SOUND
SEL. ADJ. RETURN
EXIT
BASS
TREBLE
BALANCE
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
To continue adjusting the sound ...
Repeat from step 2.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu. To
delete the main menu, press the EXIT button once more.
Note :
If “CAN NOT ADJUST” appears...
Set “AUDIO INPUT” on the OPTION menu correctly.
Information
Sound settings menu
BASS ..............Controls the level of low frequency
sound.
TREBLE ..........Controls the level of high frequency
sound.
BALANCE .......Controls the balance of the left and
right channels.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
23
3. Adjust using the
and
buttons.
V–POSITION
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen
reappears.
To continue making other computer image
adjustments ...
Repeat from step 2.
4. Once all adjustments are completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
When “AUTO PICTURE” is “OFF”
SCREEN
SEL. ADJ. RETURN
EXIT
: FULL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
When Auto Picture is off, the Fine Picture and the
Picture ADJ. items are displayed so that you can adjust
them.
Screen Settings Menu
Adjusting the Position, Size, Fine Picture, Picture Adj
The position of the image can be adjusted and flickering
of the image can be corrected.
Example: Adjusting the vertical position in the normal
mode
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “SCREEN”, then
press the PROCEED button. The “SCREEN” menu
appears.
Default settings (when RGB/PC is selected)
SCREEN
SEL. ADJ. RETURN
EXIT
: NORMAL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
* The settings on the SCREEN menu are not preset at the
factory.
To select a mode ...
Use the
and
buttons to select a mode.
The mode switches as follows when the
and
buttons are pressed:
→ NORMAL ↔ FULL ←
* The mode can also be switched by pressing the “WIDE”
button on the remote control.
2. To adjust the vertical position ...
Use the ▲ and ▼ buttons to select “V-POSITION”.
SCREEN
SEL. ADJ. RETURN
EXIT
: NORMAL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
24
Information
Adjusting the Auto Picture
ON...................The Picture ADJ and Fine Picture
adjustments are made automatically.
OFF .................The Picture ADJ and Fine Picture
adjustments are made manually.
Adjusting the position of the image
V-POSITION ...Adjusts the vertical position of the
image.
H-POSITION ...Adjusts the horizontal position of the
image.
V-HEIGHT .......Adjusts the vertical size of the image.
(Except for STADIUM mode)
H-WIDTH .........Adjusts the horizontal size of the
image. (Except for STADIUM mode)
FINE PICTURE
*..Adjusts for flickering.
PICTURE ADJ*....
Adjusts for striped patterns on the
image.
* The Picture ADJ and Fine Picture features are available
only when the “Auto Picture” is off.
* The AUTO PICTURE, FINE PICTURE and PICTURE
ADJ. are not available for VIDEO and HD/ DVD source.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults
except for Auto Picture.
Function Settings Menu
Setting the on-screen menu
When using the monitor for presentations, etc., the monitor
can be set so that the input source, screen mode, etc., do
not appear.
Example: Turning the on-screen menu mode off
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “OSM”.
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
3. To turn the on-screen menu mode off ...
Use the
and
buttons to select “OFF”.
The mode switches as follows each time the
or
button is pressed:
ON ↔ OFF
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: OFF
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
OSM modes
ON...................The on-screen menu appears.
OFF .................The on-screen menu does not appear.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
25
Adjusting the position of the menu display
Use these operations to adjust the position of the menus
that appear on the screen.
Example: Adjusting the position of the menu display
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”,
then press the PROCEED button.
The “FUNCTION” menu appears.
2. Use the ▲ and ▼ buttons to select “OSM ADJ.”
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
3. To adjust the position...
Adjust using the
and
buttons.
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 2
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 2
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
4. Once all adjustments are completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Adjusting the position of the menu display
123
456
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
The position can be set
between 1 and 6.
26
Setting the power management for computer images
This energy-saving (power management) function
automatically reduces the monitor’s power consumption
if no operation is performed for a certain amount of time.
Example: Turning the power management function on
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “POWER MGT”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To turn the power management function on ...
Use the
and
buttons to select “ON”.
The mode switches as follows each time the
or
button is pressed:
ON ↔ OFF
FUNCTION
: ON
: 1
: ON
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Power management function
* The power management function automatically reduces
the monitor’s power consumption if the computer’s
keyboard or mouse is not operated for a certain amount
of time. This function can be used when using the
monitor with a computer conforming to the VESA
DPMS format.
* If the computer’s power is not turned on or if the
computer and selector tuner are not properly connected,
the system is set to the off state.
* For instructions on using the computer’s power
management function, refer to the computer’s operating
instructions.
Power management settings
ON...................In this mode the power management
function is turned on.
OFF .................In this mode the power management
function is turned off.
Power management function and POWER/
STANDBY indicator
The POWER/STANDBY indicator indicates the status
of the power management function. See page 27 for
indicator status and description.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
27
POWER/STANDBY indicator
Power management
mode
On
Standby
Suspend
Off
POWER/STANDBY
indicator
Green
Orange
Red
Red
Description
Horizontal and vertical synchronizing
signals are present from the computer.
No horizontal synchronizing signals
are sent from the computer.
No vertical synchronizing signals are
sent from the computer.
No horizontal and vertical
synchronizing signals are sent from the
computer.
Turning the picture back on
Picture already on.
Operate the keyboard or mouse. The
picture reappears immediately.
Operate the keyboard or mouse. The
picture reappears, but more time is
required than from the standby
mode.
Operate the keyboard or mouse. The
picture reappears, but more time is
required than from the standby mode
or suspend mode.
Power management
operating status
Not activated.
Activated.
Activated.
Activated.
28
Setting the gray level for the sides of the screen
Use this procedure to set the gray level for the parts on the
screen on which nothing is displayed when the screen is
set to the 4:3 size.
Example: Adjusting the “GRAY LEVEL”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To adjust the “GRAY LEVEL”...
Use the
and
buttons to adjust the GRAY LEVEL.
FUNCTION
: ON
: 1
: OFF
: 9
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
GRAY LEVEL
This adjusts the brightness of the black (the gray level)
for the sides of the screen.
The standard is 0 (black). The level can be adjusted
from 0 to 15. The factory setting is 3 (dark gray).
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
Setting the picture to suit the movie
The film image is automatically discriminated and
projected in an image mode suited to the picture.
[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I
(50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]
Example: Setting the “CINEMA MODE” to “OFF”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To set the CINEMA MODE to “OFF” ...
Use the
and
buttons to select “OFF”.
The mode switches as follows each time the
or
button is pressed:
→ ON ↔ OFF ←
FUNCTION
: ON
: 1
: OFF
: 3
: OFF
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
CINEMA MODE
ON...................Automatic discrimination of the
image and projection in cinema mode.
OFF...................Cinema mode does not function.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
29
Setting RGB3 ADJ.
When the picture input from the RGB3 input terminal is
distorted, select the most appropriate setting from among
“1”, “2”, and “3”.
Example: Setting “2”
Press the PROCEED button on the remote control to
display MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”,
then press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To select “2”...
Use the
and buttons to select “2”.
The mode switches as follows each time the
or
buton is pressed:
→ 1 ↔ 2 ↔ 3 ←
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 2
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
When you adjust the RGB3 ADJ.
The position of the menu display will change. In such
a case, be sure to adjust the position.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
Reducing burn-in of the screen
The brightness of the screen, the position of the picture,
positive/negative mode and screen wiper are adjusted to
reduce burn-in of the screen.
Example: Setting “PLE” to “LOCK”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then proceed as
follows.
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then
press the PROCEED button.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
SEL.
OK
PROCEED
The “LONG LIFE” screen appears.
3. Use the ▲ and ▼ buttons to select “PLE”.
LONG LIFE
: AUTO
: OFF
: OFF
: OFF
SEL. ADJ. RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
4. Use the
and
buttons to select “LOCK”.
The mode switches as follows each time the
or
button is pressed:
AUTO ↔ LOCK
LONG LIFE
: LOCK
: OFF
: OFF
: OFF
SEL. ADJ. RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
30
Information
PLE
AUTO ..............The brightness of the screen is
adjusted automatically to suit the
picture quality.
LOCK ..............The brightness level is set to
minimum.
ORBITER
OFF .................Orbiter mode does not function.
ON...................The picture moves around the screen
intermittently.
INVERSE
OFF .................Inverse mode does not function.
ON.....................The picture is displayed alternately
between positive image and negative
image.
You can set the time by pressing the
PROCEED button while “ON” is set.
WT ..................The entire screen turns white.
You can set the time by pressing the
PROCEED button while “ON” is set.
SCREEN WIPER
OFF .................Screen wiper mode does not function.
ON...................Repeatedly moves the white vertical
bar from the left end of the screen to
the right end at a constant speed.
You can set the time by pressing the
PROCEED button while “ON” is set.
Restoring the factory default settings
Select “RESET” from the function menu. Note that this
also restores other settings to the factory defaults.
* Only the PLE and ORBITER can be adjusted when a
RGB signal is connected.
Setting the time for “INVERSE”
Set the “INVERSE” or “WHITE” display time and the
“WAITING TIME”.
Example: Setting so that the INVERSE mode starts
in 30 minutes and proceeds for one and a half hours.
Perform Steps 1-2 on Page 29, then
3. Use the ▲ and ▼ buttons to select “INVERSE”, then
use the
and
buttons to select “ON”.
LONG LIFE
: AUTO
: OFF
: ON
: OFF
RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
SEL.
OK
PROCEED
4. Press the PROCEED button.
The “INVERSE/WT” screen appears.
INVERSE/WT
: ON
SEL. ADJ. RETURN
EXIT
WORKING TIME
5. Adjust the time using the
and
buttons and the ▲
and ▼ buttons.
The mode switches as follows each time the
or
button is pressed.
INVERSE/WT
: 1H
: 30M
: 0H
: 30M
SEL. ADJ. RETURN
EXIT
WORKING TIME
WAITING TIME
The 1st line of the “WORKING TIME”:
→
ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
* The “WORKING TIME” (minutes) and “WAITING
TIME” cannot be set when the “WORKING TIME”
is “ON”.
5. Once the setting is completed...
Press the EXIT button to return to the FUNCTION
menu.
To exit the main menu, press the EXIT button twice.
31
The 2nd line of the “WORKING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←
The 1st line of the “WAITING TIME”:
→
0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
The 2nd line of the “WAITING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←
6. Once the setting is completed...
Press the EXIT button several times to return to the
main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the time
WORKING TIME
Set the length of time the “INVERSE/WT” mode lasts.
When the WORKING TIME is set to “ON”, the
“INVERSE/WT” mode stays in the on state.
WAITING TIME
Set the length of time until the “INVERSE/WT” mode
starts.
* The “WORKING TIME” and “WAITING TIME” can
be set for up to 12 hours and 45 minutes in units of 3
minutes.
To select “ON” for the “WORKING TIME”...
Set the hours of the WORKING TIME to 0H and the
minutes to 0M. “ON” will be displayed.
Setting the time for “SCREEN WIPER”
Set the “SCREEN WIPER” operation time, “WAITING
TIME”, and “SPEED”.
Example: Setting so that the SCREEN WIPER mode
starts in 30 minutes and proceeds for one and a half
hours.
Perform Steps 1-2 on Page 29, then:
3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”,
then use the
and
buttons to select “ON”.
LONG LIFE
: AUTO
: OFF
: OFF
: ON
RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
SEL.
OK
PROCEED
4. Press the PROCEED button.
The “SCREEN WIPER” screen appears.
SCREEN WIPER
: ON
: 1
SEL. ADJ. RETURN
EXIT
WORKING TIME
SPEED
5. Adjust the time and speed using the
and
buttons
and the ▲ and ▼ buttons.
The mode switches as follows each time the
and
button is pressed.
SCREEN WIPER
: 1H
: 30M
: 0H
: 30M
: 1
SEL. ADJ. RETURN
EXIT
WORKING TIME
WAITING TIME
SPEED
The 1st line of the “WORKING TIME”:
→
ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
* The “WORKING TIME” (minutes) and “WAITING
TIME” cannot be set when the “WORKING TIME”
is “ON”.
32
Resetting to the default values
Use these operations to restore all the picture adjustments,
audio settings, to the factory default values.
Refer to page 16 for items to be reset.
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “RESET”, then press
the PROCEED button.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
SEL.
OK
PROCEED
The “RESET” screen appears.
3. Use the ▲ and ▼ buttons to select “RESET”, then press
the PROCEED button.
RESET
RETURN
EXIT
RESET
RETURN
OK
PROCEED
RESET
SETTING NOW
When the “SETTING NOW” screen disappears, the
screen will be restored to the previous “RESET” mode,
then all the settings are restored to the default values.
4. Once the setting is completed ...
Press the EXIT button.
To delete the main menu, press the EXIT button once
more.
The 2nd line of the “WORKING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←
The 1st line of the “WAITING TIME”:
→
0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H←
The 2nd line of the “WAITING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←
“SPEED”:
→
1↔ 2 ↔ 3 ↔ 4 ↔ 5←
6. Once the setting is completed...
Press the EXIT button several times to return to the
main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the time
WORKING TIME
Set the length of time the “SCREEN WIPER” mode
lasts.
When the WORKING TIME is set to “ON”, the
“SCREEN WIPER” mode stays in the state.
WAITING TIME
Set the length of time until the “SCREEN WIPER”
mode starts.
SPEED
Set the moving speed for the “SCREEN WIPER”. The
speed decreases as the number increases.
* The “WORKING TIME” and “WAITING TIME” can
be set for up to 12 hours and 45 minutes in units of 3
minutes.
To select “ON” for “WORKING TIME”...
Set the hours of the “WORKING TIME” to 0H and the
minutes to 0M. “ON” will be displayed.
33
Options Settings Menu
Setting the allocation of the audio connectors
Setting the AUDIO 1, 2, and 3 connectors to the desired
input.
Example: Setting “AUDIO 1” to “VIDEO 2”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “AUDIO 1”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the AUDIO1 to “VIDEO2”...
Use the
and
buttons to select “VIDEO2”.
The mode switches as follows each time the
or
button is pressed:
The available sources depend on the setting of “BNC
SELECT”.
RGB:
COMP.:
VIDEO:
OPTIONS
: VIDEO2
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
AUDIO INPUT
A single audio input cannot be selected as the audio
channel for more than one input terminal.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
→ VIDEO1 ↔ VIDEO2 ↔ HD/DVD/DTV←
→RGB/PC3 ↔RGB/PC2 ↔RGB/PC1 ←
→ VIDEO1 ↔ VIDEO2 ↔ HD1/DVD1/DTV1←
→RGB/PC3 ↔RGB/PC1 ↔HD2/DVD2/DTV2 ←
→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3←
→RGB/PC3 ↔RGB/PC1 ↔HD/DVD/DTV ←
34
Setting a computer image to the correct RGB
select screen
With the computer image, select the RGB Select mode
for a moving image such as (video) mode, wide mode or
digital broadcast.
Example: Setting the “RGB SELECT” mode to
“MOTION ”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “RGB SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the RGB select mode to “MOTION” ...
Use the
and
buttons to select “MOTION”.
The mode switches as follows each time the
or
button is pressed:
→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: MOTION
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
BNC SELECT
RGB ................ Use the 5BNC terminal for RGB
input.
COMP..............Use the 3BNC terminal for component
input.
VIDEO.............Use the G/Y/VIDEO 3 terminal for
video input.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
Setting the BNC connectors
Select whether to set the input of the 5 BNC connectors to
RGB, component and video.
Example: Set the BNC SELECT mode to “COMP.”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “BNC SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the BNC SELECT mode to “COMP.”...
Use the
and
buttons to select “COMP.”.
The mode switches as follows each time the
or
button is pressed:
→ RGB ↔ COMP. ↔ VIDEO
←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: COMP.
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
35
Setting high definition images to the suitable
screen size
Use this procedure to set whether the number of vertical
lines of the input high definition image is 1035 or 1080.
Example: Setting the “1080B” mode to “1035I”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “HD SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the HD SELECT mode to “1035I” ...
Use the
and
buttons to select “1035I”.
The mode switches as follows each time the
or
button is pressed:
→1080B ↔ 1035I ↔ 1080A ←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1035I
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
HD SELECT modes
These 3 modes are not displayed in correct image
automatically.
1080B ...............Standard digital broadcasts
1035I ...............Japanese “High Vision” signal format
1080A ...............Special Digital broadcasts (for
example : DTC100)
Information
RGB SELECT modes
One of these 6 modes must be selected in order to
display the following signals correctly.
AUTO ..............Select the suitable mode for the
specifications of input signals as
listed in the table “Computer input
signals supported by this system” on
page 51.
STILL ..............To display VESA standard signals.
(Use this mode for a still image from
a computer.)
MOTION..........The video signal (from a scan
converter) will be converted to RGB
signals to make the picture more
easily viewable. (Use this mode for a
motion image from a computer.)
WIDE1.............When an 852 dot 480 line signal
with a horizontal frequency of
31.7kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE1.
WIDE2.............When an 848 dot 480 line signal
with a horizontal frequency of 31.0
kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE2.
DTV.................Set this mode when watching digital
broadcasting (480P).
See page 51 for the details of the above settings.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
36
Information Menu
Checking the frequencies, polarities of input
signals, and resolution
Use this function to check the frequencies and polarities
of the signals currently being input from a computer, etc.
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button.
The “INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “FREQUENCY”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
3. The frequency is displayed.
FREQUENCY
: 37.5KHZ
: 75.0HZ
: NEG.
: NEG.
: 8
: 640 480
RETURN
EXIT
H. FREQ
V. FREQ
H. POL
V. POL
MODE
RESOLUTION
* Press the EXIT button to return to the previous screen.
4. Once you have checked the frequency ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Setting the language for the menus
The menu display can be set to one of seven languages:
Japanese, English, German, French, Swedish, Italian or
Spanish.
Example: Setting the menu display to “DEUTSCH”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button. The
“INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “LANGUAGE”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
The “LANGUAGE” screen appears.
3. To select “ DEUTSCH ” ...
Use the
and
buttons to select “ DEUTSCH ”.
The mode switches as follows when the
and
buttons are pressed:
→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ←
→
↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←
LANGUAGE
RETURN
EXIT
ADJ.
OK
PROCEED
: DEUTSCH
LANGUAGE
4. Press the PROCEED button.
The display language is switched to Deutsch.
5. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Language settings
ENGLISH ........English
DEUTSCH.......German
FRANÇAIS...... French
ESPAÑOL .......Spanish
ITALIANO ........ Italian
SVENSKA .......Swedish
..............Japanese
37
Setting the video signal format
Use these operations to set the color systems of composite
video signals or Y/C input signals.
Example: Setting the color system to “3.58 NTSC”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button.
The “INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
The “COLOR SYSTEM” screen appears.
COLOR SYSTEM
RETURN
EXIT
: AUTO1
ADJ.
COLOR SYSTEM
3. To select “3.58 NTSC” ...
Use the
and
buttons to select “3.58 NTSC”.
The mode switches as follows when the
and
buttons are pressed:
→ AUTO1 ↔ AUTO2 ↔ 3.58NTSC ↔ 4.43NTSC ←
→ SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PAL ←
COLOR SYSTEM
RETURN
EXIT
:
3.58NTSC
ADJ.
COLOR SYSTEM
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
The color system is set to “3.58 NTSC”.
Information
Video signal formats
Different countries use different formats for video
signals. Set to the color system used in your current
country.
AUTO1/2 .........The color systems are automatically
identified and the format is set
accordingly.
AUTO1: 3.58NTSC, 4.43NTSC, PAL, SECAM,
PAL60
AUTO2: PAL-M, PAL-N, 3.58NTSC
PAL..................This is the standard format used
mainly in the United Kingdom and
Germany.
SECAM.............This is the standard format used
mainly in France and Russia.
4.43 NTSC,
PAL60..............This format is used for videos in
countries using PAL and SECAM
video signals.
3.58 NTSC ......This is the standard format used
mainly in the United States and Japan.
PAL-M .............This is the standard format used
mainly in Brazil.
PAL-N ..............This is the standard format used
mainly in Argentina.
38
External Control
Application
These specifications cover the communications control of
the plasma monitor by external equipment.
Connections
Connections are made as described below.
plasma monitor
External equipment
e.g., Personal computer
1) Connector on the plasma monitor side: EXTERNAL
CONTROL connector.
Type of connector: D-Sub 9-pin male
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
9
6
2
34
7
8
2) Connector on the external equipment side: Serial port
(RS-232C) connector.
See the specifications of the equipment that is to be
connected for the type of connector and the pin
assignment.
3) Wiring
Use a crossed (reverse) cable.
Wire the cable so that each pair of data lines cross
between the two devices. These data line pairs are RXD
(Receive data) and TXD (Transmit data), DTR (DTE
side ready) and DSR (DCE side ready), and RTS (Ready
to send) and CTS (Clear to send).
Communication Parameters
(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex
Communication Format
Command 1
Command 1, along with command 2, is a number used to
distinguish each command.
In the case of ACK, when the lower order 4 bits is FH (as
in 3FH and 7FH), this indicates that the commands and
data of the supported equipment have been received. When
the lower order 4 bits is BH (as in 3BH and 7BH), this
indicates that unsupported commands and data have been
received.
Unit ID 1 and Unit ID 2
Unit ID 1 and unit ID 2 are numbers used to identify the
equipment that is to be connected.
60H is used for the plasma monitor and 80H is used for
external control equipment such as a personal computer.
1) Unit ID 1: Indicates the equipment sending the signal
2) Unit ID 2: Indicates the equipment receiving the signal
Command 2
Command 2, along with command 1, is a number used to
distinguish each command.
Check Sum (CKS), Error Processing, and ACK
1) The check sum described below and RS-232C odd
parity are used together for a check of the received data.
The check sum is the lower order 8 bits of one frame of
sent or received data comprising the sum total of
Command 1, Unit ID 1 and 2, Command 2, Data Length,
and Data.
Check Sum Example
2) Error Processing
• When the communication interval is vacant for more
than 4 ms, thereafter a received Command 1 will be
recognized. If, at this time, meaningful data cannot
be recognized, that data will not be recognized (as
valid data).
• An ACK will not be returned unless the receive data
error, the check sum error, and the receive data are all
taken in.
Command 1
Unit ID 1
Unit ID 2
Command 2
Data length
Data
Check sum
8 bit
8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit
DFH 80H 60H 47H 01H 01H 08H
Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum
Total 208H
▲
39
Command Reference List
CMD1 CMD2 LEN
01. Power ON 9FH 4EH 00H
02. Power OFF 9FH 4FH 00H
03. Input Switch Change DFH 47H 01H
04. VOLUME Gain Data DFH 7FH 03H
05. AUDIO Mute On 9FH 3EH 00H
06. AUDIO Mute Off 9FH 3FH 00H
07. CONTRAST Gain Data DFH 7FH 03H
08. BRIGHT Gain Data DFH 7FH 03H
09. SHARPNESS Gain Data DFH 7FH 03H
10. Color Gain Data DFH 7FH 03H
11. TINT Gain Data DFH 7FH 03H
12. PICTURE MODE Select DFH 0AH 01H
13. COLOR TEMP SELECT DFH 00H 01H
14. RED Gain Data DFH 7FH 04H
15. GREEN Gain Data DFH 7FH 04H
16. BLUE Gain Data DFH 7FH 04H
17. NR MODE Set DFH C0H 01H
18. BASS Gain Data DFH 7FH 03H
19. TREBLE Gain Data DFH 7FH 03H
20. BALANCE Gain Data DFH 7FH 03H
21. SCREEN MODE Select DFH 51H 01H
22. V. POSITION Gain Data DFH 7FH 03H
23. H. POSITION Gain Data DFH 7FH 03H
24. V-HEIGHT Gain Data DFH 7FH 03H
25. H-WIDTH Gain Data DFH 7FH 03H
26. AUTO PICTURE Select DFH 7FH 03H
27. PHASE Gain Data DFH 7FH 03H
28. CLOCK Gain Data DFH 7FH 03H
29. OSM Select DFH 58H 01H
30. OSM ADJ. Gain Data DFH 1AH 02H
31. POWER MGT Select DFH 1AH 02H
32. GRAY LEVEL Set DFH C6H 01H
33. CINEMA MODE Set DFH C1H 01H
34. RGB3 ADJ. Select DFH 1AH 02H
35. LONG LIFE Set DFH 6BH 03H
36. INVERSE Set DFH C7H 03H
37. SCREEN WIPER Set DFH C8H 04H
38. RESET 1FH 54H 00H
39. Audio Select Set DFH 70H 02H
40. BNC SELECT DFH 8CH 01H
41. RGB Select DFH 8BH 01H
42. HD Select DFH 8AH 01H
43. LANGUAGE Select DFH 5BH 01H
44. COLOR SYSTEM Select DFH 5CH 01H
45. FREQUENCY Request 1FH 26H 00H
46. Input MODE Request 1FH 41H 00H
47. VIDEO ADJ Request 1FH 45H 00H
48. Audio Select Request 1FH 6FH 00H
49. Failure Mode Request 1FH 3FH 00H
50. MODEL NAME Request 1FH 17H 00H
01. Power ON
Function
The external control equipment switches on the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4EH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched on.
3FH 60H 80H 4EH 00H CKS
NOTE: Do not set the Power ON or Power OFF command
continuously.
02. Power OFF
Function
The external control equipment switches off the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4FH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched off.
3FH 60H 80H 4FH 00H CKS
NOTE: Do not set the Power ON or Power OFF command
continuously.
03. Input Switch Change
Function
The external control equipment switches the input of the plasma monitor.
Transmission Data
DFH 80H 60H 47H 01H DATA00 CKS
DATA00: Input Select 01H: Video1
02H: Video2
03H: Video3
05H: HD (HD1 or DTV or DTV1)
06H: HD2 (DTV2)
07H: RGB1/PC1
08H: RGB2/PC2
0CH: RGB3/PC3
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 47H 00H CKS
40
04. VOLUME Gain Data
Function
The external control equipment changes the VOLUME gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02 CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
DATA02: VOLUME Gain 00H: Step 0
0AH: Step 10 (Default)
2AH: Step 42
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
05. AUDIO Mute On
Function
The external control equipment switches on AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3EH 00H CKS
ACK
3FH 60H 80H 3EH 00H CKS
06. AUDIO Mute Off
Function
The external control equipment switches off AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3FH 00H CKS
ACK
3FH 60H 80H 3FH 00H CKS
07. CONTRAST Gain Data
Function
The external control equipment changes the CONTRAST gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
DATA02: CONTRAST Gain CCH : -52
FFH: -01
00H: 0
01H: +01
14H: +20
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
08. BRIGHT Gain Data
Function
The external control equipment changes the BRIGHT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
DATA02: BRIGHT Gain E0H: -32
FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
09. SHARPNESS Gain Data
Function
The external control equipment changes the SHARPNESS gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
DATA02: SHARPNESS Gain F0H: -16
FFH: -01
00H: 0
01H: +01
10H:+16
Only when a RGB signal is connected
DATA02: SHARPNESS Gain 01H: 1
02H: 2
03H: 3
04H: 4
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
41
10. COLOR Gain Data
Function
The external control equipment changes the COLOR gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
DATA02: COLOR Gain E0H: -32
* COLOR Gain is from -22 (EAH) to
+22 (16H) only during video. FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
11.TINT Gain Data
Function
The external control equipment changes the TINT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
DATA02: TINT Gain E0H: -32
* TINT Gain is from -22 (EAH) to
+22 (16H) only during video. FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
12. PICTURE MODE Select
Function
The external control equipment sets the picture mode of the plasma monitor.
Transmission Data
DFH 80H 60H 0AH 01H
DATA00
CKS
DATA00: 01H: MEMORY
02H: THEATER
03H: NORMAL
04H: RESET
ACK
7FH 60H 80H 0AH 01H
DATA00
CKS
DATA00: 01H: MEMORY
02H: THEATER
03H: NORMAL
04H: RESET
13. COLOR TEMP SELECT
Function
The external control equipment changes the COLOR TEMP of the plasma
monitor.
Transmission Data
DFH 80H 60H 00H 01H
DATA00
CKS
DATA00: 00H: 1
01H: 2
02H: 3
03H: PRO
ACK
7FH 60H 80H 00H 01H
DATA00
CKS
DATA00: 00H: 1
01H: 2
02H: 3
03H: PRO
NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP
change of the following R/G/B GAIN data cannot be accepted.
14. RED Gain Data
Function
The external control equipment changes the RED Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
DATA02: RED Gain 1 (Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: RED Gain 2 (Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
42
15. GREEN Gain Data
Function
The external control equipment changes the GREEN Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
DATA02: GREEN Gain 1 (Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: GREEN Gain2 (Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
16. BLUE Gain Data
Function
The external control equipment changes the BLUE Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
DATA02: BLUE Gain1(Bias) D8H:-40
FFH:-1
00H: 0
IEH: +30
DATA03: BLUE Gain2(Drive) D8H: -40
FFH:-1
00H: 0
IEH:+30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
17. NR MODE Set
Function
The external control equipment sets the NR (Noise Reduction) mode of the
plasma monitor.
Transmission Data
DFH 80H 60H C0H 01H
DATA00
CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
ACK
7FH 60H 80H C0H 01H
DATA00
CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
18. BASS Gain Data
Function
The external control equipment changes the BASS gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
DATA02: BASS Gain F3H: -13
FFH: -01
00H: 0
01H: +01
0DH: +13
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
19. TREBLE Gain Data
Function
The external control equipment changes the TREBLE gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
DATA02: TREBLE Gain F3H: -13
FFH: -01
00H: 0
01H: +01
0DH: +13
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
43
20. BALANCE Gain Data
Function
The external control equipment changes the BALANCE gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
DATA02: BALANCE Gain EAH: -22
FFH: -01
00H: 0
01H: +01
16H: +22
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
21. SCREEN MODE Select
Function
The external control equipment switches the screen mode of the plasma monitor.
Transmission Data
DFH 80H 60H 51H 01H
DATA00
CKS
DATA00: 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: FULL
ACK
7FH 60H 80H 51H 01H
DATA00
CKS
DATA00: 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: FULL
22. V. POSITION Gain Data
Function
The external control equipment changes the V. POSITION gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V. POSITION Gain Flag 01H
DATA02: V. POSITION Gain C0H: -64
FFH: -01
00H: 0
01H: +01
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V. POSITION Gain Flag 01H
23. H. POSITION Gain Data
Function
The external control equipment changes the H. POSITION gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00
DATA01
DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H. POSITION Gain Flag 02H
DATA02: H. POSITION Gain 80H: -128
FFH: -01
00H: 0
01H: +01
7FH: +127
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H. POSITION Gain Flag 02H
24. V-HEIGHT Gain Data
Function
The external control equipment changes the V-HEIGHT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
DATA02: V-HEIGHT Gain 00H: 0
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
25. H-WIDTH Gain Data
Function
The external control equipment changes the H-WIDTH gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
DATA02: H-WIDTH Gain 00H: 0
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
44
26. AUTO PICTURE Select
Function
The external control equipment switches on or off the AUTO PICTURE of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02: 00H: ON
01H: OFF
ACK
7FH 60H 80H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02: 00H: ON
01H: OFF
27. PHASE Gain Data
Function
The external control equipment changes the PHASE gain data (Phase) of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
DATA02: PHASE Gain 00H: 0
2CH: +44
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
28. CLOCK Gain Data
Function
The external control equipment changes the CLOCK gain data (ratio of frequency
division) of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
DATA02: CLOCK Gain C0H: -64
FFH: -01
00H: 0
01H: +01
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
29. OSM Select
Function
The external control equipment switches on or off the on-screen menu (OSM)
of the plasma monitor.
Transmission Data
DFH 80H 60H 58H 01H
DATA00
CKS
DATA00: 01H: On-Screen menu On
02H: On-Screen menu Off
ACK
7FH 60H 80H 58H 01H
DATA00
CKS
DATA00: 01H: On-Screen menu On
02H: On-Screen menu Off
On-Screen menu On/Off is equivalent to the OSM menu item under
the FUNCTION menu.
*Operation is as described in the table below.
Operation
On-Screen Menu (OSM)
Display of items and adjustments on the menu
When screen menu is ON
Yes Yes Yes No
Volume display, input display, and screen size display
When screen menu is OFF When screen menu is ON When screen menu is OFF
Remote control operation
Personal computer control operation
No No Yes No
45
30. OSM ADJ. Gain Data
Function
The external control equipment sets the position of the OSM menu of the
plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: OSM ADJ. Gain Flag 02H
DATA01: 01H: 1
06H: 6
ACK
7FH 60H 80H 1AH 01H
DATA00
CKS
DATA00: OSM ADJ. Gain Flag 02H
31. POWER MGT Select
Function
The external control equipment switches on or off the POWER MANAGEMENT
of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: POWER MGT Select 03H
DATA01: 01H: ON
02H: OFF
ACK
7FH 60H 80H 1AH 02H
DATA00 DATA01
CKS
DATA00: POWER MGT Select 03H
DATA01: 01H: ON
02H: OFF
32. GRAY LEVEL Set
Function
The external control equipment sets the GRAY LEVEL of the plasma monitor.
Transmission Data
DFH 80H 60H C6H 01H
DATA00
CKS
DATA00: GRAY LEVEL 00H: 0
0FH: 15
ACK
7FH 60H 80H C6H 01H
DATA00
CKS
DATA00: GRAY LEVEL 00H: 0
0FH: 15
33. CINEMA MODE Set
Function
The external control equipment switches on or off the CINEMA MODE of the
plasma monitor.
Transmission Data
DFH 80H 60H C1H 01H
DATA00
CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
ACK
7FH 60H 80H C1H 01H
DATA00
CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
34. RGB3 ADJ. Select
Function
The external control equipment sets the RGB3 ADJUST of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: RGB3 ADJ. Select 06H
DATA01: 01H: 1
02H: 2
03H: 3
ACK
7FH 60H 80H 1AH 02H
DATA00 DATA01
CKS
DATA00: RGB3 ADJ. Select 06H
DATA01: 01H: 1
02H: 2
03H: 3
35. LONG LIFE Set
Function
The external control equipment sets the PLE, ORBITER, and INVERSE (inverse
of image brightness) of the plasma monitor.
Transmission Data
DFH 80H 60H 6BH 03H
DATA00 DATA01 DATA02
CKS
DATA00: PLE 01H: AUTO
02H: LOCK
DATA01: INVERSE 01H: ON
02H: OFF
03H: WHITE
DATA02: ORBITER (PICTURE SHIFT) 01H: ON
02H: OFF
ACK
The plasma monitor returns the following ACK when setting the PLE, ORBITER,
and INVERSE (inverse of image brightness):
3FH 60H 80H 6BH 00H CKS
46
36. INVERSE Set
Function
The external control equipment sets the INVERSE (inverse of image brightness)
and the WHITE of the plasma monitor.
Transmission Data
DFH 80H 60H C7H 03H
DATA00 DATA01 DATA02
CKS
DATA00 : INVERSE/WHITE 00H: No operation
01H: ON(INVERSE)
02H: OFF
03H: WHITE
DATA01 : WORKING TIME 00H: ON
01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA02 : WAITING TIME 01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
ACK
3FH 60H 80H C7H 00H CKS
NOTE: The WORKING TIME and the WAITING TIME can be set in
units of 3 minutes.
Example: 03H=9 minutes
1EH=1 hour and 30 minutes
37. SCREEN WIPER Set
Function
The external control equipment sets the SCREEN WIPER of the plasma monitor.
Transmission Data
DFH 80H 60H C8H 04H
DATA00
to
DATA03
CKS
DATA00 : SCREEN WIPER 00H: No operation
01H: ON
02H: OFF
DATA01 : WORKING TIME 00H: ON
01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA02 : WAITING TIME 01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA03 : SPEED 01H: 1
05H: 5
ACK
3FH 60H 80H C8H 00H CKS
NOTE: The WORKING TIME and the WAITING TIME can be set in
units of 3 minutes.
Example: 03H=9 minutes
1EH=1 hour and 30 minutes
38. RESET
Function
The external control equipment resets the user adjustment of the plasma
monitor.
Transmission Data
1FH 80H 60H 54H 00H CKS
ACK
3FH 60H 80H 54H 00H CKS
39. Audio Select Set
Function
The external control equipment sets combinations of audio and video inputs
for the plasma monitor.
Transmission Data
DFH 80H 60H 70H 02H
DATA00 DATA01
CKS
DATA00: AUDIO INPUT 01H: AUDIO 1
02H: AUDIO 2
03H: AUDIO 3
DATA01: VISUAL INPUT 01H: Video 1
02H: Video 2
03H: Video 3
05H:
HD (HD1 or DTV or DTV1)
06H: HD2 (DTV2)
07H: RGB 1/ PC 1
08H: RGB 2/ PC 2
0CH: RGB 3/ PC 3
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 70H 00H CKS
* The plasma monitor returns “Not Available” when selecting the
video input same as the one set at one of the AUDIO 1 to 3.
Example:
The plasma monitor returns “Not Available” when selecting the
VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to
AUDIO1.
47
40. BNC SELECT
Function
The external control equipment sets the BNC SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8CH 01H
DATA00
CKS
DATA00 : BNC SELECT 01H: RGB
02H: Component
03H: Video
ACK
The plasma monitor returns the following ACK when setting the BNC SELECT:
7FH 60H 80H 8CH 01H
DATA00
CKS
DATA00 : BNC SELECT 01H: RGB
02H: Component
03H: Video
41. RGB Select
Function
The external control equipment sets the RGB SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8BH 01H
DATA00
CKS
DATA00: 01H: AUTO
02H: STILL
03H: MOTION
04H: WIDE1
05H: WIDE2
06H: DTV
ACK
7FH 60H 80H 8BH 01H
DATA00
CKS
DATA00: 01H: AUTO
02H: STILL
03H: MOTION
04H: WIDE1
05H: WIDE2
06H: DTV
42. HD Select
Function
The external control equipment sets the HD SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8AH 01H
DATA00
CKS
DATA00: 01H: 1035I
02H: 1080A
03H: 1080B
ACK
7FH 60H 80H 8AH 01H
DATA00
CKS
DATA00: 01H: 1035I
02H: 1080A
03H: 1080B
43. LANGUAGE Select
Function
The external control equipment sets the LANGUAGE SELECT of the plasma
monitor.
Transmission Data
DFH 80H 60H 5BH 01H
DATA00
CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
07H: JAPANESE
ACK
7FH 60H 80H 5BH 01H
DATA00
CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
07H: JAPANESE
44. COLOR SYSTEM Select
Function
The external control equipment sets the COLOR SYSTEM of the plasma monitor.
Transmission Data
DFH 80H 60H 5CH 01H
DATA00
CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO1
0BH: PAL60
0CH: AUTO2
0DH: PAL- M
0EH: PAL- N
ACK
7FH 60H 80H 5CH 01H
DATA00
CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO1
0BH: PAL60
0CH: AUTO2
0DH: PAL- M
0EH: PAL- N
48
45. FREQUENCY Request
Function
The external control equipment inquires the Horizontal frequency, Vertical
frequency, Horizontal sync polarity, Vertical sync polarity, Mode, and Resolution
of the plasma monitor.
Transmission Data
1FH 80H 60H 26H 00H CKS
ACK
7FH 60H 80H 26H 0BH
DATA00
to
DATA10
CKS
Horizontal frequency
DATA00: Integer part 00H: 0 (No signal: 00H)
FFH: 256
DATA01: One decimal place 00H: 0 (No signal: 00H)
09H: 9
Vertical frequency
DATA02: Integer part 00H: 0 (No signal: 00H)
FFH: 256
DATA03: One decimal place 00H: 0 (No signal: 00H)
09H: 9
Horizontal sync polarity
DATA04: 00H: –
01H: Positive
02H: Negative
Vertical sync polarity
DATA05: 00H: –
01H: Positive
02H: Negative
MODE
DATA06: 00H: No signal –
01H to 80H: RGB signal
Identification number of PC mode
81H: Video signal 3.58NTSC
82H: 4.43NTSC
83H: PAL
84H: PAL- M
85H: PAL- N
86H: PAL60
87H: SECAM
88H: B/W60
89H: B/W50
A0H:
HD/DVD/DTV signal
480I
A1H: 480P
A2H: 576I
A3H: 576P
A4H: 720P
A5H: 1035I
A6H: 1080I
RESOLUTION
DATA07: Dots (Low-order byte) 00H: 0 (No signal: 00H)
FFH: 256
DATA08: Dots (High-order byte) 00H: 257 (No signal: 00H)
FFH
DATA09: Lines (Low-order byte) 00H: 0 (No signal: 00H)
FFH: 256
DATA10: Lines (High-order byte) 00H: 257 (No signal: 00H)
FFH
46. Input MODE Request
Function
The display returns the current input information by the external control
equipment’ s request.
Transmission Data
1FH 80H 60H 41H 00H CKS
ACK
7FH 60H 80H 41H 01H
DATA00
CKS
DATA00: Input Select
01H: Video1 02H: Video2
03H: Video3 04H: HD (HD1 or DTV or DTV1)
05H: RGB1/PC1 06H: RGB2/PC2
0AH: DVD (DVD1) 0CH: HD2 (DTV2)
0DH: DVD2 0EH: RGB3/PC3
49
47. VIDEO ADJ Request
Function
The display returns the video adjustments information by the external control
equipment’s request.
Transmission Data
1FH 80H 60H 45H 00H CKS
ACK
7FH 60H 80H 45H 0CH DATA00 to DATA11 CKS
DATA00: RED Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA01: GREEN Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA02: BLUE Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: COLOR Gain E0H: -32
* COLOR Gain is from -22 (EAH) to FFH: -01
+22 (16H) only during video. 00H: 0
01H: +01
20H: +32
DATA04: TINT Gain E0H: -32
* TINT Gain is from -22 (EAH) to FFH: -01
+22 (16H) only during video. 00H: 0
01H: +01
20H: +32
DATA05: SHARPNESS Gain F0H: -16
FFH: -01
00H: 0
01H: +01
10H: +16
DATA06: CONTRAST Gain CCH: -52
FFH: -01
00H: 0
01H: +01
14H: +20
DATA07: BRIGHT Gain E0H: -32
FFH: -01
00H: 0
01H: +01
20H: +32
DATA08: RED Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA09: GREEN Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA10: BLUE Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA11: COLOR TEMP 00H: 1
01H: 2
02H: 3
03H: PRO
50
48. Audio Select Request
Function
The external control equipment inquires the current combinations of audio
and video inputs for the plasma monitor.
Transmission Data
1FH 80H 60H 6FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 6FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: AUDIO 1
01H – 0CH: VISUAL INPUT DATA
DATA01: AUDIO 2
01H – 0CH: VISUAL INPUT DATA
DATA02: AUDIO 3
01H – 0CH: VISUAL INPUT DATA
VISUAL INPUT DATA
01H: Video 1
02H: Video 2
03H: Video 3
05H: HD (HD1 or DTV or DTV 1)
06H: HD2 (DTV2)
07H: RGB 1 /PC 1
08H: RGB 2 /PC 2
0CH: RGB 3 /PC 3
49. Failure Mode Request
Function
The external control equipment inquires the detection of failures of the plasma
monitor.
Transmission Data
1FH 80H 60H 3FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 3FH 02H
DATA00 DATA01
CKS
42Wide VGA
DATA00: FAILURE MODE 1
Bit 0 : PDP MODULE
0: Abnormal
1: Normal
Bit 1 : 1: fixed (backup)
Bit 2 : TEMPERATURE
0: Abnormal
1: Normal
Bit 3 : 1: fixed (backup)
Bit 4 : TEMPERATURE
SENSOR
0: Abnormal
1: Normal
Bit 5 : 1: fixed (backup)
Bit 6 : 1: fixed (backup)
Bit 7 : 1: fixed (backup)
DATA01: FAILURE MODE 2
Bit 0–7 : 1: fixed (backup)
50. MODEL NAME Request
Function
The external control equipment inquires the product code of the plasma monitor.
Transmission Data
1FH 80H 60H 17H 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 17H 0CH
DATA00
to
DATA11
CKS
DATA00 : 1st character of the product code
DATA01 : 2nd character of the product code
DATA11 : 12th character of the product code
NOTE:
Received data (Hex) Corresponding character
00H 0
01H 1
08H 8
09H 9
10H A
11H B
12H C
28H Y
29H Z
80H - (Hyphen)
96H (Blank)
If there are fewer than 12 characters in the product code, product code would
be padded right with blanks.
Example:
If the product code of your plasma monitor is “42-
WVGA” or “42XGA”, the returned codes would be as follows.
42-WVGA
DATA00: 04H
DATA01: 02H
DATA02: 80H
DATA03: 26H
DATA04: 25H
DATA05: 16H
DATA06: 10H
DATA07: 96H
DATA08: 96H
DATA09: 96H
DATA10: 96H
DATA11: 96H
42XGA
DATA00: FAILURE MODE 1
Bit 0 : PDP MODULE
0: Abnormal
1: Normal
Bit 1 : 1: fixed (backup)
Bit 2 : TEMPERATURE
0: Abnormal
1: Normal
Bit 3 : FAN
0: Abnormal
1: Normal
Bit 4 : 1: fixed (backup)
Bit 5 : 1: fixed (backup)
Bit 6 : 1: fixed (backup)
Bit 7 : 1: fixed (backup)
DATA01:FILURE MODE 2
Bit 0–7 : 1: fixed (backup)
42XGA
DATA00: 04H
DATA01: 02H
DATA02: 27H
DATA03: 16H
DATA04: 10H
DATA05: 96H
DATA06: 96H
DATA07: 96H
DATA08: 96H
DATA09: 96H
DATA10: 96H
DATA11: 96H
51
Screen mode
Table of Signals Supported
Supported resolution
• When the screen mode is NORMAL, each signal is converted to a 640 dots480 lines signal (42Wide VGA) or 768
dots768 lines signal (42XGA). (Except for *
2,
*
5
)
• When the screen mode is FULL, each signal is converted to a 853 dots480 lines signal (42Wide VGA) or 1024
dots768 lines signal (42XGA). (Except for *
3
)
Computer input signals supported by this system
Dots lines
640400
640480
848480
852480*
1
800600
1024768
1152864
1280768
1360765
1360768
1376768
12801024
16001200
640480
832624
1024768
1152870
12801024
12801024
1152900
12801024
1024768
12801024
768576
640480
Vertical
frequency
(Hz)
70.1
59.9
72.8
75.0
85.0
100.4
120.4
60.0
60.0
56.3
60.3
72.2
75.0
85.1
99.8
120.0
60.0
70.1
75.0
85.0
100.6
75.0
56.2
60.0
60.0
59.9
60.0
75.0
85.0
60.0
65.0
70.0
75.0
66.7
74.6
74.9
75.1
60.0
71.2
72.0
66.0
76.0
76.1
60.0
60.0
50.0
59.9
Horizontal
frequency
(kHz)
31.5
31.5
37.9
37.5
43.3
51.1
61.3
31.0
31.7
35.2
37.9
48.1
46.9
53.7
63.0
75.7
48.4
56.5
60.0
68.7
80.5
67.5
45.1
47.7
47.7
48.3
64.0
80.0
91.1
75.0
81.3
87.5
93.8
35.0
49.7
60.2
68.7
64.6
75.1
78.1
61.8
71.7
81.1
49.7
63.9
31.4
31.5
NORMAL
(4:3)
YES*
2
*
3
YES*
3
YES*
3
YES*
3
YES*
3
YES*
3
YES*
3
– –
– –
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES*
5
YES*
5
YES*
5
YES
YES
YES
YES
YES*
3
YES
YES
YES
YES*
5
YES*
5
YES*
5
YES
YES
YES*
5
YES
YES*
5
YES*
8
YES*
8
FULL
(16:9)
YES
YES
YES
YES
YES
YES
YES
YES*
3
YES*
3
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES*
4
YES*
4
YES*
4
YES*
4
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES
YES*
8
YES*
8
RGB
select*
6
– –
STILL
– –
STILL
– –
– –
– –
WIDE2
WIDE1
STILL
STILL
– –
– –
– –
– –
– –
STILL
– –
STILL
– –
– –
STILL
WIDE1
WIDE1
WIDE1
WIDE2
– –
– –
– –
– –
– –
– –
– –
– –
– –
WIDE1
WIDE1
– –
– –
– –
– –
– –
– –
– –
– –
– –
MOTION
*Apple
Macintosh*
7
Horizontal
NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
Sync on G
Sync on G
Sync on G
Sync on G
NEG
NEG
– –
C Sync
C Sync
C Sync
– –
– –
NEG
NEG
Work Station
(EWS4800)
Work Station
(HP)
Work Station
(SUN)
Work Station
(SGI)
IDC-3000G
Signal Type
*IBM PC/AT
compatible
computers
Vertical
NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
Sync on G
Sync on G
Sync on G
Sync on G
NEG
NEG
– –
C Sync
C Sync
C Sync
– –
– –
NEG
NEG
Sync Polarity
Presence
Horizontal
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES
YES
– –
– –
– –
– –
– –
– –
YES
YES
Vertical
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES
YES
– –
– –
– –
– –
– –
– –
YES
YES
PAL625P
NTSC525P
Model
DVI
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
YES
NO
NO
YES
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
NO
YES
YES
NO
NO
52
*1 Only when using a graphic accelerator board that is capable of displaying 852480.
*2 Display only 400 lines (42Wide VGA), 640 lines (42XGA) with the screen center of the vertical orientation located at the
center.
*3 42Wide VGA: The picture is displayed in the original resolution. The picture will be compressed for other signals.
*4 42XGA: The picture is displayed in the original resolution. The picture will be compressed for other signals.
*5 Aspect ratio is 5:4. This signal is converted to the following signal (42Wide VGA: 600 dots480 lines, 42XGA: 720
dots768 lines).
*6 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the
RGB mode prepared for the input signals listed in the table above.
*7 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. If
your computer has a mini D-Sub 15-pin connector, you may have to use the supplied RGB cable.
*8 Other screen modes (ZOOM and STADIUM) are available as well.
NOTE:
• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size
of the picture or the fine picture because of errors in synchronization of your computer.
• This monitor has a resolution of 853 dots
480 lines or 1024 dots768 lines. It is recommended that the input signal
be VGA, wide VGA or equivalent for 42Wide VGA, XGA or equivalent for 42XGA.
• With digital input some signals are not accepted.
• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
• If you are connecting a composite sync signal, use the HD terminal.
* “IBM PC/AT”, “VGA” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.
* “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.
53
Symptom
Picture is disturbed.
Sound is noisy.
Remote control operates erroneously.
The remote control does not work.
Monitor’s power does not turn on
when the remote control’s power
button is pressed.
Monitor does not operate when the
remote control’s buttons are pressed.
No sound or picture is produced.
Picture appears but no sound is
produced.
Poor picture with VIDEO signal input.
Poor picture with RGB signal input.
Tint is poor or colors are weak.
Nothing appears on screen.
Part of picture is cut off or picture is
not centered.
Image is too large or too small.
Picture is unstable.
POWER/STANDBY indicator is
lighted in orange or red.
POWER/STANDBY indicator is
blinking in red.
POWER/STANDBY indicator is
blinking in green and red, or green.
Checks
• Is a connected component set directly in
front or at the side of the display?
• Are the remote control’s batteries worn
out?
• Is the monitor’s power cord plugged into
a power outlet?
• Are all the monitor’s indicators off?
• Are the remote control’s batteries worn
out?
• Is the remote control pointed at the
monitor, or is there an obstacle between
the remote control and the monitor?
• Is direct sunlight or strong artificial light
shining on the monitor’s remote control
sensor?
• Are the remote control’s batteries worn
out?
• The remote cable is plugged into the
REMOTE IN terminal (Wired).
• The front panel buttons of the main unit
do not function.
• Is the monitor’s power cord plugged into a
power outlet?
• Is the volume set at the minimum?
• Is the mute mode set?
• Are the speakers properly connected?
• Is AUDIO INPUT set correctly?
•Improper control setting.
Local interference.
Cable interconnections.
Input impedance is not correct level.
• Improper control setting.
Incorrect 15 PIN connector pin
connections.
• Are the tint and colors properly adjusted?
• Is the computer’s power turned on?
• Is a source connected?
• Is the power management function in the
standby or off mode?
• Is the position adjustment appropriate?
• Is the screen size adjustment
appropriate?
• Is the computer’s resolution setting
appropriate?
• Horizontal and / or vertical sync signal is
not present when the Intelligent Power
Manager control is on.
• The temperature inside the main unit has
become too high and has activated the
protector.
——————
Remedy
• Leave some space between the display and
the connected components.
• Replace both batteries with new ones.
• Plug the monitor’s power cord into a power
outlet.
• Press the power button on the monitor to
turn on the power.
• Replace both batteries with new ones.
• Point the remote control at the monitor’s
remote control sensor when pressing
buttons, or remove the obstacle.
• Eliminate the light by closing curtains,
pointing the light in a different direction, etc.
• Replace both batteries with new ones.
• Unplug the remote cable from the monitor.
• The front panel buttons do not function
during Control Lock.
• Plug the monitor’s power cord into a power
outlet.
• Increase the volume.
•
Press the remote control’s MUTE button.
• Connect the speakers properly.
• Set AUDIO INPUT on the OPTION menu
correctly.
• Adjust picture control as needed.
Try another location for the monitor.
Be sure all connections are secure.
• Adjust picture controls as needed.
Check pin assignments and connections.
• Adjust the tint and color (under “PICTURE”).
• Turn on the computer’s power.
• Connect source to the monitor.
• Operate the computer (move the mouse,
etc.).
• Adjust the “SCREEN” properly.
• Press the “WIDE” button on the remote
control and adjust properly.
• Set to the proper resolution.
• Check the input signal.
• Promptly switch off the power of the main
unit and wait until the internal temperature
drops. See*1.
• Prompty switch off the power of the main
unit. See *2.
*1 Overheat protector
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor
and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor
to cool for 60 minutes. If the problem persists, contact your dealer.
*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.
The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma
display panel, temperature sensor, or one or more fans (42XGA) have been damaged.
If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.
Troubleshooting
54
Screen Size 36.3"(H)20.4"(V) inches
921(H)518(V) mm
diagonal 42"
Aspect Ratio 16 : 9
Resolution 853(H)480(V) pixels
Pixel Pitch 0.04"(H)0.04"(V) inches
1.08(H)1.08(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-I 29-pin1*
3
(Not compatible with analog input)
Video
Visual 1 RCA-pin1
Visual 2 S-Video: DIN 4-pin1
Visual 3 BNC (G/Y/VIDEO3)1*
2
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])1*
1,
*
2
Audio Stereo RCA3(selectable)
External Control D-sub 9-pin1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 3.9A (maximum)
Power Consumption 280W (typical)
Dimensions 41.3 (W)25.5 (H)3.5 (D) inches
1048 (W)648 (H)89(D) mm
Weight 61.8 lbs / 28.5 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast / Brightness / Sharpness/
Color / Tint / Picture mode / Color
temperature/ Noise reductions), Sound (Bass
/ Treble/ Balance),Screen (V-Position / H-
Position/ V-Height / H-Width /Auto Picture
/ Fine picture/ Picture adjustment), Function
(OSM/ OSM adjustment/ Power
management/ Gray level/ Cinema mode/
RGB3 Adjustment, Long Life (PLE, Orbiter,
Inverse, White, Screen Wiper)/ Reset)/Option
(Audio input/ BNC select/ RGBselect/ HD
select), Information (Frequency / Language*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2, HD/
DVD2 and VIDEO3 input. Select one of them
under “BNC SELECT”.
*
3
It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Remote cable, RGB cable (Mini D-Sub
15-pin to Mini D-Sub 15-pin connector),
Power cord, User’s Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands
Regulations UL Approved (UL 60950/ CSA 60950)
DOC Canada requirements
Meets FCC class A requirements
Units are in inch
(mm)
3.5"
(89)
1.18"
(30)
2.32"
(59)
41.3" (1048)
25.5" (648)
36.3" (921)
20.4" (518)
42Wide VGA
Specifications
55
Screen Size 36.1"(H)20.4"(V) inches
918(H)518(V) mm
diagonal 42"
Aspect Ratio 16 : 9
Resolution 1024(H)768(V) pixels
Pixel Pitch 0.04"(H)0.04"(V) inches
0.897(H)0.675(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-I 29-pin1*
3
(Not compatible with analog input)
Video
Visual 1 RCA-pin1
Visual 2 S-Video: DIN 4-pin1
Visual 3 BNC (G/Y/VIDEO3)1*
2
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])1*
1,
*
2
Audio Stereo RCA3(selectable)
External Control D-sub 9-pin1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 5.0A (maximum)
Power Consumption 380W (typical)
Dimensions 41.3 (W)25.5 (H)3.5 (D) inches
1048 (W)648 (H)89(D) mm
Weight 65.0 lbs / 29.5 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast / Brightness / Sharpness/
Color / Tint / Picture mode / Color
temperature/ Noise reductions), Sound (Bass
/ Treble/ Balance),Screen (V-Position / H-
Position/ V-Height / H-Width /Auto Picture
/ Fine picture/ Picture adjustment), Function
(OSM/ OSM adjustment/ Power
management/ Gray level/ Cinema mode/
RGB3 Adjustment, Long Life (PLE, Orbiter,
Inverse, White, Screen Wiper)/ Reset)/Option
(Audio input/ BNC select/ RGBselect/ HD
select), Information (Frequency / Language*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2, HD/
DVD2 and VIDEO3 input. Select one of them
under “BNC SELECT”.
*
3
It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Remote cable, RGB cable (Mini D-Sub
15-pin to Mini D-Sub 15-pin connector),
Power cord, User’s Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands
Regulations UL Approved (UL 60950/ CSA 60950)
DOC Canada requirements
Meets FCC class A requirements
U
nits
a
r
e
in in
ch
(
mm
)
3.5"
(
89
)
1.18"
(30)
2.32"
(59)
41.3" (1048)
25.5" (648)
36.1" (918)
20.4" (518)
42XGA
Copyright © by NEC Corporation
NEC Solutions, Inc. (hereinafter NEC Solutions) warrants
this product to be free from defects in material and
workmanship under the following terms and, subject to
the conditions set forth below, agrees to repair or replace
(at NEC Solutions’ sole option) any part of the enclosed
unit which proves defective. Replacement parts or products
may be new or refurbished and will meet specifications of
the original parts or products.
HOW LONG IS THE WARRANTY?
Parts and labor are warranted for (1) one year from the
date of the first customer purchase.
WHO IS PROTECTED?
This warranty may be enforced only by the first purchaser.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as specified below, this warranty covers all defects
in material or workmanship in this product. The following
are not covered by the warranty:
1. Any product which is not distributed in the U.S.A., Canada or
Mexico by NEC Solutions or which is not purchased in the U.S.A.,
Canada or Mexico from an authorized NEC Solutions dealer.
2. Any product of which the serial number has been defaced,
modified or removed.
3. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightning or other
acts of nature, unauthorized product modification, or failure
to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by NEC
Solutions.
c. Any shipment of the product (claims must be presented to the
carrier).
d. Removal or installation of the product.
e. Any other cause which does not relate to a product defect.
f. Burns or residual images upon the phosphor of the panel.
4. Cartons, carrying cases, batteries, external cabinets, magnetic
tapes, or any accessories used in connection with the product.
5. Service outside of the U.S.A. and Canada.
WHAT WE WILL PAY FOR AND WHAT WE WILL
NOT PAY FOR
We will pay labor and material expenses for covered items,
but we will not pay for the following:
1. Removal or installation charges.
2. Costs of initial technical adjustments (set-up), including
adjustment of user controls. These costs are the
responsibility of the NEC Solutions dealer from whom
the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on your product, consult the dealer from whom
you purchased the product.
2. Whenever warranty service is required, the original dated invoice
(or a copy) must be presented as proof of warranty coverage.
Please also include in any mailing your name, address and a
description of the problem(s).
3. For the name of the nearest NEC Solutions authorized service
center, call NEC Solutions at 800-836-0655.
LIMITATIONS OF LIABILITY
Except for the obligations specifically set forth in this
warranty statement, we will not be liable for any direct,
indirect, special, incidental, consequential, or other types
of damages, whether based on contract, tort, or any other
legal theory, whether or not we have been advised of the
possibility of such damages. This warranty is in lieu of all
other warranties expressed or implied, including, but not
limited to, the implied warranties of merchantability or
fitness for a particular purpose.
EXCLUSION OF DAMAGES
NEC Solutions’ liability for any defective product is
limited to the repair or replacement of the product at our
option. NEC Solutions shall not be liable for:
1.Damage to other property caused by any defects in this
product, damages based upon inconvenience, loss of use of
the product, loss of time, commercial loss; or
2.Any other damages whether incidental, consequential or
otherwise. Some states do not allow limitation on how long
an implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so the
above limitations and exclusions may not apply to you.
HOW STATE LAW RELATES TO THE WARRANTY
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
FOR MORE INFORMATION,
TELEPHONE 800-836-0655
NEC SOLUTIONS, INC.
1250 N. Arlington Heights Road, Suite 500
Itasca, Illinois 60143-1248
Note:
All products returned to NEC Solutions for service
MUST have prior approval. To get approval, call NEC
Solutions at 800-836-0655.
Limited Warranty Plasma Monitors
57
Printed on recycled paper
Printed in Japan
7S800343
NE
C
S
olutions
,
Inc.
1250
N.
Ar
li
n
g
ton
H
e
igh
ts
R
oa
d,
Su
i
te
500
I
tasca
,
Illi
n
ois
60143
-
1248
PlasmaSync 42MP3/42MP4 User's Manual
Printed in Japan
7S800352
Printed on recycled paper
PlasmaSync Plasma Monitor
User's Manual
Bedienungshandbuch
Manuel de l'utilisateur
Manual del Usuario
Manuale d'uso
Bruksanvisning
PlasmaSync
42
MP4 (42XGA)
PX-42XM1G
PlasmaSync
42
MP3 (42Wide VGA)
PX-42VM3G
User’s Manual
Bedienungshandbuch
Manuel de l’utilisateur
Manual del Usuario
Manuale d’uso
Bruksanvisning
Precautions
Please read this manual carefully before using your plasma
monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
Important Information
Warnings and Safety Precaution
This plasma monitor is designed and
manufactured to provide long, trouble-free service.
No maintenance other than cleaning is required. Use
a soft dry cloth to clean the panel. Never use
solvents such as alcohol or thinner to clean the panel
surface.
The plasma display panel consists of fine picture
elements (cells) with more than 99.99 percent active
cells. There may be some cells that do not produce
light or remain lit.
For operating safety and to avoid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal
heat build-up. Do not cover rear vents or install the unit
in a closed cabinet or shelves.
The unit is equipped with cooling fans (42XGA only).
If you install the unit in an enclosure, make sure there
is adequate space at the top of the unit to allow hot air
to rise and escape. If the monitor becomes too hot, the
overheat protector will be activated and the monitor will
be turned off. If this happens, turn off the power to the
monitor and unplug the power cord. If the room where
the monitor is installed is particularly hot, move the
monitor to a cooler location, and wait for 60 minutes to
cool the monitor. If the problem persists, contact your
dealer for service.
2. Do not use this unit polarized plug with extension cords
or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to
modify the power cord.
5. Unplug the power cord during electrical storms or if
the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous
high voltage components inside. If the unit is damaged in
this way the warranty will be void. Moreover, there is a
serious risk of electric shock.
7. Do not attempt to service or repair the unit. This is not
liable for any bodily harm or damage caused if unqualified
persons attempt service or open the back cover. Refer
all service to authorized Service Centers.
NOTE:
When you connect a computer to this monitor, attach
the supplied ferrite cores. If you do not do this, this
monitor will not comform to mandatory CE or C-Tick
standards.
Attaching the ferrite cores:
Set the ferrite cores on both ends of the DVI cable (not
supplied), and both ends of the power cable (supplied).
Close the lid tightly until the clamps click.
Use the band to fasten the ferrite core (supplied) to the
DVI cable.
DVI cable (not supplied)
core (small)
core (small)
Connector
band
band
Power cable (supplied)
core (large)
core (large)
To avoid damage and prolong operating life:
1. Use only with 100-240V 50/60Hz AC power supply.
Continued operation at line voltages greater than 100-
240 Volts AC will shorten the life of the unit, and might
even cause a fire hazard.
2. Handle the unit carefully when installing it and do not
drop.
3. Set the unit away from heat, excessive dust, and direct
sunlight.
4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the power
cord and have it serviced by an authorized Service
Center.
5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.
6. For correct installation and mounting it is strongly
recommended to use a trained,authorized dealer.
7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.
Recommendations to avoid or minimize phosphor burn-in
Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. To protect
your investment in this plasma monitor, please adhere to the
following guidelines and recommendations for minimizing
the occurrence of image burn:
* Always enable and use your computer’s screen saver
function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished
using it.
If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:
* Lower the Brightness and Contrast levels as much as
possible without impairing image readability.
* Display an image with many colors and color gradations
(i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light
and dark areas, for example white characters on black
backgrounds. Use complementary or pastel color whenever
possible.
* Avoid displaying images with few colors and distinct,
sharply defined borders between colors.
* Burn-in is not covered by the warranty.
Contact your dealer for other recommended procedures that
will best suit your particular application needs.
How to Attach Options to the Plasma Monitor .. E-1
Introduction ...................................................E-2
Introduction to the Plasma Monitor .......................... E-2
The features you’ll enjoy include:............................. E-2
Contents of the Package ......................................... E-2
Options ............................................................... E-2
Part Names and Function ................................ E-3
Front View ........................................................... E-3
Rear View / Terminal Board ................................... E-4
Remote Control ..................................................... E-5
Battery Installation and Replacement ....................... E-6
Using the wired remote control mode ...................... E-7
Operating Range .................................................. E-7
Handling the remote control ................................... E-7
Installation .................................................... E-8
Connecting Your PC or Macintosh Computer ............ E-9
Connections with Equipment that has
a Digital Interface .............................................. E-9
Connecting Your Document Camera ........................ E-9
Connecting Your VCR or Laser Disc Player................ E-9
Connecting Your DVD Player .................................. E-9
Attachable Speaker Connections ............................E-10
Pin Assignments and Signal Levels
for 15 pin RGB (Analog) .......................................E-11
Pin Configuration and Signal
of the RGB 3 IN Connector (DVI Connector) ............E-11
Basic Operations........................................... E-12
POWER ..............................................................E-12
To turn the unit ON and OFF: ................................ E-12
VOLUME ............................................................E-12
To adjust the sound volume:................................... E-12
MUTE .................................................................E-12
To cancel the sound:............................................... E-12
DISPLAY ..............................................................E-12
To check the settings: ............................................. E-12
DIGITAL ZOOM ...................................................E-12
OFF TIMER ..........................................................E-13
To set the off timer: ................................................ E-13
To check the remaining time: ................................. E-13
To cancel the off timer ........................................... E-13
WIDE Operations........................................... E-14
Watching with a wide screen (manual) ...................E-14
When watching videos or digital video discs.......... E-14
When watching high definition video source ......... E-14
Watching computer images with a wide screen .......E-15
OSM Controls ................................................ E-16
Menu Operations .................................................E-16
Picture Settings Menu............................................E-18
Adjusting the picture.............................................. E-18
Setting the picture mode according to the
brightness of the room ........................................... E-19
Setting the color temperature ................................. E-20
Adjusting the color to the desired quality ............... E-21
Reducing noise in the picture ................................. E-22
Sound Settings Menu ............................................E-23
Adjusting the treble, bass and left/right balance ..... E-23
Screen Settings Menu ...........................................E-24
Adjusting the Position, Size, Fine Picture,
Picture Adj ............................................................. E-24
Function Settings Menu .........................................E-25
Setting the on-screen menu .................................... E-25
Adjusting the position of the menu display ............ E-26
Setting the power management
for computer images .............................................. E-27
POWER/STANDBY indicator ............................... E-28
Setting the gray level for the sides of the screen ..... E-29
Setting the picture to suit the movie ....................... E-29
Setting RGB3 ADJ................................................. E-30
Reducing burn-in of the screen .............................. E-30
Setting the time for “INVERSE”............................ E-31
Setting the time for “SCREEN WIPER” ................ E-32
Resetting to the default values................................ E-33
Options Settings Menu ..........................................E-34
Setting the allocation of the audio connectors ........ E-34
Setting the BNC connectors ................................... E-35
Setting a computer image to the correct RGB
select screen ......................................................... E-35
Setting high definition images to the suitable
screen size............................................................ E-36
Information Menu ................................................E-37
Checking the frequencies, polarities of input signals,
and resolution ........................................................ E-37
Setting the language for the menus......................... E-37
Setting the video signal format............................... E-38
External Control ........................................... E-39
Table of Signals Supported ............................ E-53
Supported resolution ............................................E-53
Troubleshooting .......................................... E-55
Specifications ............................................... E-56
Contents
E-1
You can attach your optional mounts or stand to the plasma
monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing
B). Lay the protective sheet, which was wrapped around
the monitor when it was packaged, beneath the screen
surface so as not to scratch the screen face.
• This device cannot be installed on its own.
Be sure to use a stand or original mounting
unit. (Wall mount unit, Stand, etc.)
* See page E-2.
• For correct installation and mounting it is
strongly recommended to use a trained,
authorized dealer.
Failure to follow correct mounting
procedures could result in damage to the
equipment or injury to the installer.
Product warranty does not cover damage
caused by improper installation.
Ventilation Requirements for
enclosure mounting
To allow heat to disperse, leave space between
surrounding objects as shown on the diagram
below when installing.
How to Attach Options to the Plasma Monitor
Drawing A
Drawing B
31
mm
(1.22")
1110
mm
(43.7")
748
mm
(29.5")
50
mm
(2") 50
mm
(2")
Wall
Wall
50
mm
(2")
31
mm
(1.22")
E-2
Introduction
Introduction to the Plasma Monitor
This plasma monitor is a seamless blend of cutting-edge
visual technology and sophisticated design. At 42-inches,
with a 16:9 aspect ratio, the plasma monitor certainly
makes a big impression. However, at a mere 89 mm/3.5
inches thin, the monitor’s sleek techno-art lines blend in
well with your environment. Plasma monitor’s crisp, vivid
image quality will transform data from any graphic
medium from PCs to DVD players- into art. And weighing
only 28.5 kg/61.8 lbs (42Wide VGA), 29.5 kg/65 lbs
(42XGA), it actually can be hung almost anywhere. We
have made sure that a host of multimedia resources can
be easily connected and displayed as brilliantly as intended
on the plasma monitor.
The features you’ll enjoy include:
• 42-inch screen
• 16:9 aspect ratio
• Capsulated Color Filter (CCF) and black matrix
• The enhanced display in red uses a two-stage filtering
system where Accucrimson is combined with our special
CCF.
• 89 mm / 3.5 inch thin
• 42Wide VGA: 28.5 kg/ 6 l.8 lbs light, 42XGA: 29.5 kg/
65 lbs light
• High-resolution screen; 42Wide VGA: 853480 pixels,
42XGA: 1024768 pixels
• 160-degrees of off-axis viewing, horizontally and
vertically.
• Flicker - and warp - free display provides excellent
image geometry even in screen corners
• Not affected by magnetic fields, no color drift or edge
distortion.
• VGA, SVGA, XGA, SXGA, UXGA computer signal
compatibility
• NTSC, PAL, SECAM, composite and S-Video signal
compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source
compatibility
• AccuBlend scan conversion automatically converts
SVGA, XGA, SXGA and UXGA signals to the panel’s
native resolution (42XGA: VGA, SVGA, SXGA,
UXGA)
• Advanced Mass Area Sampling Progressive Scan
method is employed.
• RGB input (3*), Video input (3*), DVD/HD input (2*),
Audio input (3), External Control input (1)
• AccuColor control system provides user selectable on-
screen color temperature settings
• New Drive Technology
• Component video input terminal for DVD, 15.75kHz
(Y, CB, CR )
• Digital broadcasting source compatibility
• OSM menu-driven on screen control system that makes
image adjustments a snap
• Seven languages (English, German, French, Italian,
Spanish, Swedish, and Japanese)
* You can select RGB source, Component source or Video
source for the 5BNC terminal. When selecting an RGB
input, the source is switched to the RGB input (3); when
selecting a component input, the source is switched to
the DVD/HD input (2); when selecting a Video source,
the source is switched to the Video input (3).
Contents of the Package
Plasma monitor
Power cord
RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-
pin connector)
Remote control with two AAA Batteries
User’s manual
Remote cable
Safety metal fittings*
Screws for safety metal fitting*
Ferrite core (small2, large2), band
* These are fittings for fastening the unit to a wall to prevent
tipping due to external shock when using the stand (option).
Fasten the safety fittings to the holes in the back of the
monitor using the safety fitting mount screws.
Options
• Wall mount unit
• Ceiling mount unit
• Tilt mount unit
• Stand
• Attachable speakers
• Pole unit
• Horizontal pole mount unit
E-3
Front View
Part Names and Function
POWER/ STANDBY
PROCEED
INPUT SELECT
DOWN UP LEFT/
-
RIGHT/
+
/EXIT
VOLUME
PROCEED
INPUT SELECT
DOWN UP LEFT
/
-
RIGHT
/
+
/
EXIT
VOLUME
POWER
/
STANDBY
7
6
5
4
1
3
2
q Power
Turns the monitor’s power on and off.
w Remote sensor window
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input, in the following order.
The available inputs depend on the setting of “BNC
SELECT”.
RGB:
COMP.:
VIDEO:
SCART:
Functions as the EXIT buttons in the On-Screen
Menu (OSM) mode.
t LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the
CURSOR (
/
) buttons in the On-Screen Menu
(OSM) mode.
y VOLUME DOWN and UP
Adjusts the volume. Functions as the CURSOR (▲/
▼) buttons in the On-Screen Menu (OSM) mode.
u PROCEED
Sets the On-Screen Menu (OSM) mode and displays
the main menu.
→ VIDEO1 → VIDEO2 → HD/DVD/DTV
RGB/PC3 ← RGB/PC2 ← RGB/PC1←
→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1
RGB/PC3 ← RGB/PC1 ← HD2/DVD2/DTV2 ←
→ VIDEO1 → VIDEO2 → VIDEO3
RGB/PC3 ← RGB/PC1 ← HD/DVD/DTV←
→ VIDEO1 → VIDEO2 → HD1/DVD1/DTV1
RGB/PC3 ← RGB/PC1 ← DVD2 ←
E-4
Rear View/ Terminal Board
AC IN
RGB 3
(
Digital RGB
)
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
CONTROL
LOCK
ON / OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
AC IN
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2
AB C
D
E
F
G
K
H
J
I
CONTROL
LOCK
ON /OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers here. Maintain the correct polarity.
C RGB3
(DVI 29pin)
Inputs a digital RGB signal (TMDS).
D VIDEO1, 2
Connect VCR’s, DVD’s or Laser Discs, etc. here.
E AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image to allot
them to on the menu screen.
F DVD1 / HD1
Connect DVD’s, High Definition or Laser Discs, etc.
here.
G RGB1
Inputs the analog RGB signal of personal computer,
etc.
H RGB2/ DVD2/ HD2
RGB2: Inputs the analog RGB signal, and the
syncronization signal.
DVD2/ HD2: Connect DVD’s, High Definition or
Laser Discs, etc. here.
VIDEO3: Connect VCR’s, DVD’s or Laser
Discs, etc. here.
I CONTROL LOCK
When “CONTROL LOCK” is set “ON”, the buttons
on the set’s control panel do not function.
J REMOTE CONTROL
Connect the supplied remote cable here.
K EXTERNAL CONTROL
This terminal is used when power ON/OFF, input
selection and AUDIO MUTE and other controls are
operated externally (by external control). See also page
E-39 for external control.
E-5
Remote Control
q POWER ON/OFF
Switches Power ON/OFF.
(This does not operate when POWER/STANDBY
indicator of the main unit is off.)
→ VIDEO1 → VIDEO2 → VIDEO3
→ VIDEO1 → VIDEO2
w RGB/PC
Press this button to select RGB/PC as the source.
The available sources depend on the setting of “BNC
SELECT”.
RGB:
COMP. or VIDEO or SCART:
RGB/PC can also be selected using the INPUT
SELECT button on the monitor.
e DVD / HD
Press this button to select DVD/HD as the source.
The available sources depend on the setting of “BNC
SELECT”.
RGB or VIDEO:
COMP.:
SCART:
DVD/HD can also be selected using the INPUT
SELECT button on the monitor.
r VIDEO
Press this button to select VIDEO as the source.
The available sources depend on the setting of “BNC
SELECT”.
VIDEO:
RGB or COMP. or SCART:
VIDEO can also be selected using the INPUT SELECT
button on the monitor.
t PROCEED
Press this button to access the OSM controls.
Press this button during the display of the main menu
to go to the sub menu.
y CURSOR (▲ / ▼ /
/
)
Use these buttons to select items or settings and to
adjust settings or switch the display patterns.
u EXIT
Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the main menu.
i POINTER
Press this button to display the pointer.
o ZOOM (+ /–)
Enlarges or reduces the image.
!0 VOLUME (+ /–)
Adjusts the sound volume.
→ RGB/PC1 → RGB/PC2 → RGB/PC3
→ RGB/PC1 → RGB/PC3
HD/DVD/DTV
→ HD1/DVD1/DTV1 → HD2/DVD2/DTV2
→ HD1/DVD1/DTV1 → DVD2
E-6
Battery Installation and Replacement
Insert the 2 “AAA” batteries, making sure to set them in
with the proper polarity.
1.Press and open the cover.
2.Align the batteries according to the (+) and (–) indication
inside the case.
3.Replace the cover.
!1 MUTE
Mutes the sound.
!2 WIDE
The type of broadcast is detected automatically, and
the recommended wide screen is set.
!3 DISPLAY
Displays the source settings on the screen.
!4 OFF TIMER
Activates the off timer for the unit.
!5 Remote control signal transmitter
Transmits the remote control signals.
!6 Remote Jack
Insert the plug of the supplied remote cable here when
using the supplied remote control in the wired
condition.
E-7
Using the wired remote control mode
Connect the supplied remote cable to the remote control’s
remote jack and the “REMOTE CONTROL” terminal on
the monitor.
When the cable is connected, the mode automatically
switches to wired remote control. When the wired remote
control mode is used, the remote control can be operated
even if no batteries are loaded.
Operating Range
* Use the remote control within a distance of about 7 m/
23ft. from the front of the monitor’s remote control sensor
and at horizontal and vertical angles of up to approximately
30°.
* The remote control operation may not function if the
monitor’s remote control sensor is exposed to direct
sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control.
Handling the remote control
• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control
gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period,
remove the batteries.
• Do not use new and old batteries together, or use different
types together.
• Do not take apart the batteries, heat them, or throw them
into a fire.
• When using the remote control in the wireless condition,
be sure to unplug the remote cable from the REMOTE
CONTROL terminal on the monitor.
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
CONTROL
LOCK
ON / OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
R
EXTERNAL
CONTROL
REMOTE
CONTROL
Remote
C
ontro
l
C
abl
e
To Remote
J
ac
k
CONTROL
LOCK
ON /OFF
POWER/STANDBY
PROCEED
INPUT SELECT
DOWN UP LEFT/
-
RIGHT/
+
/EXIT
VOLUME
Approx.
A
ppro
x
7m
m
/
f
t2
3f
E-8
Installation
Note:
This plasma monitor has the capasity to display images when connected to European DVD players with a SCART
output signal, which is RGB with composite sync.
Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal.
To obtain the special cable as well as for further information, please contact your dealer.
Please refer to page E-35 for selection of the correct mode in the on-screen manager.
RGB 3
(
Digital RGB
)
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2
CONTROL
LOCK
ON /OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
IBM VGA or
Compatibles
Monitor adapter for
Macintosh
Macintosh or Compatibles
(Desk top type)
VCR or Laser Disc Player
Document Camera
To video inputs on
the plasma monitor
DVD Player
Signal cable (supplied)
To Mini D-Sub 15 pin connector on the plasma monitor
Personal computer with a
digital RGB output
• For Y/CB/Cr, connect to the DVD1 or DVD2
terminals.
• For RGB + composite sync., connect to the
DVD2 terminals.
For composite sync., connect to the HD
terminals.
E-9
Connecting Your PC or Macintosh
Computer
Connecting your PC or Macintosh computer to your plasma
monitor will enable you to display your computer’s screen
image for an impressive presentation. The plasma monitor
supports the signals described on page E-53.
To connect a PC, Macintosh or compatible graphics adapter,
simply:
1. Turn off the power to your plasma monitor and computer.
2. If your PC does not support SXGA/XGA/SVGA/VGA
you will need to install an SXGA/XGA/SVGA/VGA
graphics board. Consult your computer’s owner’s manual
for your SXGA/XGA/SVGA/VGA configuration. If you
need to install a new board, see the manual that comes
with your new graphics board for installation instructions.
3. This plasma monitor provides signal compatibility up to
VESA 16001200 (UXGA). However, it is not
recommended to use this resolution due to image
readability on the monitor’s native pixel resolution panel
(42Wide VGA: 853480, 42XGA: 1024768).
4. Use the signal cable that’s supplied to connect your PC or
Macintosh computer to the plasma monitor. For Macintosh,
use the monitor adapter to connect to your computer’s
video port.
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity,
it may be caused by a screen saver installed on the computer
you’ve connected to the plasma monitor.
When using a Macintosh with the plasma monitor, the
following four display standards are supported using the
Macintosh adapter :
13" fixed mode
16" fixed mode
19" fixed mode
21" fixed mode
The 13" fixed mode is recommended for your 42Wide VGA,
and the 19" fixed mode is recommended for your 42XGA.
Connections with Equipment that
has a Digital Interface
Connections can be made with equipment that is equipped
with a digital interface compliant with the DVI (Digital
Visual Interface) standard.
* Use a DVI 29-pin signal cable and the ferrite cores
(supplied) when making connections to the RGB3 IN (DVI)
connector of the main unit.
Note that the RGB3 IN(DVI) terminal does not support
analog RGB input source.
Note:
1. Input TMDS signals conforming to DVI standards.
The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality
prescribed by DVI standards that is within 5 meters in length.
Connecting Your Document Camera
You can connect your plasma monitor to a document
camera. To do so, simply:
1. Turn off the power to your plasma monitor and
document camera.
2. Use a standard video cable to connect your document
camera to the Video input on your plasma monitor.
3. Turn on the plasma monitor and the document camera.
Note:
Refer to your document camera owner’s manual
for more information about your camera’s video output
requirements.
Connecting Your VCR or Laser Disc
Player
Use common RCA cables (not provided) to connect your
VCR or laser disc player to your plasma monitor. To make
these connections, simply:
1. Turn off the power to your plasma monitor and VCR
or laser disc player.
2. Connect one end of your RCA cable to the video output
connector on the back of your VCR or laser disc player,
connect the other end to the Video input on your plasma
monitor. Use standard RCA audio patch cords to
connect the audio from your VCR or laser disc player
to your plasma monitor (if your VCR or laser disc player
has this capability). Be careful to keep your right and
left channel connections correct for stereo sound.
3. Turn on the plasma monitor and the VCR or laser disc
player.
Note:
Refer to your VCR or laser disc player owner’s
manual for more information about your equipment’s video
output requirements.
Connecting Your DVD Player
You can connect your plasma monitor to a DVD player.
To do so, simply:
1. Turn off the power to your plasma monitor and DVD
player.
2. Use a standard video cable to connect your DVD player
to the Y, Cb, and Cr inputs on your plasma monitor.
Or use the DVD-player’s S-Video output. Use a
standard S-Video cable to connect to the S-Video input
on the plasma monitor.
3. Turn on the plasma monitor and the DVD player.
E-10
Attachable Speaker Connections
Attachable speakers (option) may be connected to the
plasma monitor to reproduce sound from VIDEO, DVD
or RGB signal sources.
Attachable speakers may be connected directly to the
SPEAKERS terminals or indirectly by connecting a stereo
system amplifier to the audio outputs.
CAUTION:
Unplug the plasma monitor and all
connected components before connecting external
speakers. Use only speakers with 6-ohm impedance and
a power input rating of 7 watts or more.
AC IN
RGB 3
(
Digital RGB
)
SPEAKERS MUST
HAVE MORE THAN
7WATT RATING
IMPEDANCE 6 OHM
RIGHT LEFT
VIDEO 1
VIDEO 2
REMOTE
CONTROL
RGB 1
L
(
MONO
)
L
(
MONO
)
G/Y
/ VIDEO 3
HD
VD
R
R
Y
L
(
MONO
)
R
EXTERNAL
CONTROL
CONTROL
LOCK
ON / OFF
R/C
R
/P
R
B/C
B
/P
B
C
B
/P
B
C
R
/P
R
AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2
RIGHT LEFT
To connect attachable speakers directly to the plasma
monitor:
1. Strip the ends of the speaker wires.
2. Press up the tabs below the SPEAKERS terminals,
insert the speaker wire and release the tab to secure the
speaker wire connection:
[a] Connect the right speaker (located at right side
of the monitor when viewed from the front)
positive (+) wire to RIGHT +.
[b] Connect the right speaker negative (–) wire to
RIGHT –.
[c] Connect the left speaker negative (–) wire to
LEFT–.
[d] Connect the left speaker positive (+) wire to
LEFT+.
E-11
Pin Assignments and Signal Levels for 15 pin RGB (Analog)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
5 4 3 2 1
15 14 13 12 11
10 9 8 7 6
RGB 3
1
9
17
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8 25 26
27 28
16
24
29
Signal (Analog)
Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock
Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)
The unit is equipped with a type of connector commonly
used for both analog and digital.
(Functionally, this cannot be used for an
analog input.)
(TMDS can be used for one link only.)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Signal (Digital)
T.M.D.S Data 2 -
T.M.D.S Data 2 +
T.M.D.S Data 2 Shield
No connection
No connection
DDC Clock
DDC Data
No connection
T.M.D.S Data 1 -
T.M.D.S Data 1 +
T.M.D.S Data 1 Shield
No connection
No connection
+5V Power
Ground
Hot Plug Detect
T.M.D.S Data 0 -
T.M.D.S Data 0 +
T.M.D.S Data 0 Shield
No connection
No connection
T.M.D.S Clock Shield
T.M.D.S Clock +
T.M.D.S Clock -
No connection
No connection
No connection
No connection
No connection
E-12
POWER
To turn the unit ON and OFF:
1. Plug the power cord into an active AC power outlet.
2. Press the POWER ON button (on the remote control)
to turn on the unit.
The monitor’s POWER/STANDBY indicator will light
up (green) when the unit is on.
3. Press the POWER OFF button (on the remote control
or the unit) to turn off the unit.
The monitor’s POWER/STANDBY indicator turns red
and the standby mode is set (only when turning off the
unit with the remote control).
VOLUME
To adjust the sound volume:
1. Press and hold the VOLUME button (on the remote
control or the unit) to increase sound output to the
desired level.
2. Press and hold the VOLUME
button (on the remote
control or the unit) to decrease to the desired level.
MUTE
To cancel the sound:
Press the MUTE button on the remote control to cancel
the sound; press again to restore.
DISPLAY
To check the settings:
1. The screen changes each time the DISPLAY button is
pressed.
2. If the button is not pressed for approximately three
seconds, the indication will disappear.
DIGITAL ZOOM
Digital zoom specifies the picture position and enlarges
the picture.
1. Press the POINTER button to display the pointer. (
)
To change the size of the picture:
Press the ZOOM+ button and enlarge the picture.
The pointer will change to resemble a magnifying
glass. (
)
A press of the ZOOM- button will reduce the picture
and return it to its original size.
To change the picture position:
Select the position with the ▲▼
buttons.
2. Press the POINTER button to delete the pointer.
Basic Operations
E-13
OFF TIMER
To set the off timer:
The off timer can be set to turn the power off after 30, 60,
90 or 120 minutes.
1. Press the OFF TIMER button to start the timer at 30
minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.
→ 30 → 60 → 90 → 120 → 0
OFF TIMER 30
To check the remaining time:
1. Once the off timer has been set, press the OFF TIMER
button once.
2. The remaining time is displayed, then turns off after a
few seconds.
3. When five minutes remain the remaining time appears
until it reaches zero.
OFF TIMER 28
To cancel the off timer:
1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.
OFF TIMER 0
Note:
After the power is turned off with the off timer ...
A slight current is still supplied to the monitor. When you
are leaving the room or do not plan to use the system for a
long period of time, turn off the power of the monitor.
E-14
Watching with a wide screen
(manual)
With this function, you can select one of four screen sizes.
When watching videos or digital video discs
1. Press the WIDE button on the remote control.
2. Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:
→ ZOOM → NORMAL → FULL → STADIUM
ZOOM size screen
The picture is expanded in the horizontal and vertical
direction, maintaining the original proportions.
* Use this for theater size (wide) movies, etc.
NORMAL size screen (4:3)
The normal size screen is displayed.
* The picture has the same size as video pictures with a
4 : 3 aspect ratio.
FULL size screen
The image is expanded in the horizontal direction.
* Images compressed in the horizontal direction (“squeezed
images”) are expanded in the horizontal direction and
displayed on the entire screen. (Normal images are
expanded in the horizontal direction.)
STADIUM size screen
The picture is expanded in the horizontal and vertical
directions at different ratios.
* Use this for watching normal video programs (4:3) with a
wide screen.
When watching high definition video source
1. Press the WIDE button on the remote control.
FULL size screen (16 : 9)
The full size screen is displayed.
* The picture has the same size as video pictures (16 : 9).
WIDE Operations
E-15
Watching computer images with a
wide screen
Switch to the wide screen mode to expand the 4 : 3 image
to fill the entire screen.
1.Press the WIDE button on the remote control.
2.Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:
→ NORMAL → FULL
NORMAL size screen (4:3 or SXGA 5:4)
The picture has the same size as the normal computer
image.
FULL size screen
The image is expanded in the horizontal direction.
When wide signals are input.
FULL size screen
Information
Supported resolution
See page E-53 for details on the display output of the
various VESA signal standards supported by the
monitor.
When 852 (848) dot 480 line wide VGA*
signals with a vertical frequency of 60 Hz and
horizontal frequency of 31.7 (31.0) kHz are in-
put
Select an appropriate setting for RGB SELECT mode
referring to the“Table of Signals Supported” on page
E-53.
* “ IBM PC/AT” and “VGA” are registered trademarks
of IBM, Inc. of the United States.
E-16
Menu Operations
The OSM window is displayed with respect to the
screen as shown on the diagram.
* Depending on the screen’s mode, the OSM may be
displayed differently.
In the explanation, the OSM section is shown close up.
SEL. OK EXIT
EXITPROCEED
MAIN MENU
SOUND
SCREEN
FUNCTION
OPTIONS
INFORMATION
The following describes how to use the menus and the
selected items.
1. Press the PROCEED button on the remote control to
display the MAIN MENU.
MAIN MENU
SOUND
SCREEN
FUNCTION
OPTIONS
INFORMATION
SEL. OK EXIT
EXITPROCEED
2. Press the cursor buttons ▲ ▼ on the remote control to
highlight the menu you wish to enter.
3. Press the PROCEED button on the remote control to
select a submenu or item.
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
4. Adjust the level or change the setting of the selected
item by using the cursor buttons
on the remote
control.
OSM(On Screen Menu) Controls
5. The adjustment or the setting which you stored is
remained.
The change is stored until you change it again.
6. Repeat steps 2 – 5 to adjust an additional item, or press
the EXIT button on the remote control to return to the
main menu.
Note:
The main menu disappears by pressing the EXIT
button.
E-17
Main menu Sub menu Functions Default Reset
PICTURE CONTRAST Adjusts the contrast. Center Yes
BRIGHTNESS Adjusts the brightness. Center Yes
SHARPNESS Adjusts the sharpness. Center/1 Yes
COLOR Adjusts the color. Center Yes
TINT Adjusts the tint. Center Yes
PICTURE MODE Sets the picture mode according to the VIDEO environment and MEMORY Yes
image software.
COLOR TEMP Adjusts the color temperature and white balance. 2 Yes
NR Reduces noise visible in image. OFF Yes
Main menu Sub menu Functions Default Reset
SOUND BASS Sets the bass. Center Yes
TREBLE Sets the treble. Center Yes
BALANCE Sets the left/right balance. Center Yes
Main menu Sub menu Functions Default Reset
SCREEN V-POSITION Adjusts the vertical position. Center Yes
H-POSITION Adjusts the horizontal position. Center Yes
V-HEIGHT Adjusts the vertical size. Min Yes
H-WIDTH Adjusts the horizontal size. Min Yes
AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*
1
No
and “PICTURE ADJ”.
FINE PICTURE Adjusts for flickering on the computer image. Min*
1
Yes
PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*
1
Yes
Main menu Sub menu Functions Default Reset
FUNCTION OSM
Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).
ON Yes
When set to “ON”, the on-screen menu is displayed.
OSM ADJ. Adjusts the vertical and horizontal positions of the menu display. 1 Yes
POWER MGT Sets the monitor for use as an energy-saving display when used with a OFF Yes
computer.
GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. 3 Yes
CINEMA MODE Sets the picture to suit the movie. ON Yes
RGB3 ADJ. Adjusts the picture when the picture input from the RGB3 input 1 Yes
terminal is distorted.
LONG LIFE Sets the picture to reduce burn-in of the display. *
2
Yes
RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, — —
etc.) to the factory default values.
Main menu Sub menu Functions Default Reset
OPTIONS AUDIO INPUT Sets the allocation of the audio connectors. *
3
Yes
BNC SELECT Sets the BNC connectors. RGB Yes
RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes
RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.
HD SELECT
Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).
1080B No
Main menu Sub menu Functions Default Reset
INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal — —
currently being inputted.
LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No
Swedish, Italian or Spanish).
COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No
SECAM, 4.43 NTSC or 3.58 NTSC).
*1 RGB/PC only.
*2 PLE: AUTO ORBITER: OFF INVERSE: OFF SCREEN WIPER: OFF
*3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1
E-18
Picture Settings Menu
Adjusting the picture
The contrast, brightness, sharpness, color and tint can be
adjusted as desired.
Example: Adjusting the contrast
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button. The “PICTURE” screen
appears.
2. Use the ▲ and ▼ buttons to select “CONTRAST”.
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
3. Use the
and
buttons to adjust the contrast.
CONTRAST
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen
reappears.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Note:
If “CAN NOT ADJUST” appears ...
When trying to enter the PICTURE submenu, make sure
PICTURE MODE is set to MEMORY.
Information
Picture adjustment screen
CONTRAST ....Changes the picture’s contrast.
BRIGHTNESS.Changes the picture’s brightness.
SHARPNESS ..Changes the picture’s sharpness.
Adjusts picture detail of VIDEO
display.
COLOR ...........Changes the color density.
TINT ................Changes the picture’s tint. Adjust for
natural colored skin, background, etc.
Adjusting the computer image
Only the contrast and brightness can be adjusted when
a computer signal is connected.
Restoring the factory default settings
Select “RESET” under the “PICTURE MODE” settings.
E-19
Setting the picture mode according to the
brightness of the room
There are four picture modes that can be used effectively
according to the environment in which you are viewing
the display.
Example: Setting the “THEATER” mode
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. To set to “THEATER” ...
Use the
and
buttons to select “THEATER”.
The mode switches as follows when the
and
buttons are pressed:
→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←
PICTURE MODE
THEATER:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen
reappears.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu. To
delete the main menu, press the EXIT button once more.
Information
Types of picture modes
MEMORY ........The last picture adjustments are stored
here.
THEATER ........Set this mode when watching video in
a dark room.
This mode provides darker, finer
pictures, like the screen in movie
theaters.
CONTRAST = 80% for RESET mode
BRIGHTNESS = 95% for RESET
mode
NORMAL .........Set this mode when watching video in
a bright room.
This mode provides dynamic pictures
with distinct differences between light
and dark sections.
CONTRAST = 96% for RESET mode
RESET ............Use this to reset the picture to the
factory default settings.
E-20
Setting the color temperature
Use this procedure to set color tone produced by the plasma
display.
Example: Setting “1”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “1”.
The mode switches as follows when the
and
buttons are pressed:
→ 1 ↔ 2 ↔ 3 ↔ PRO ←
* See page E-21 to set “PRO”.
COLOR TEMP.
1
:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the color temperature
1 ......................High (bluer)
2.........................Middle (Standard)
3 ......................Low (redder)
Restoring the factory default settings
Select “RESET” under the function menu. Note that this
also restores other settings to the factory defaults.
E-21
Adjusting the color to the desired quality
Use this procedure to adjust the white balance for bright
pictures and dark pictures to achieve the desired color
quality.
Example: Adjusting the “WHITE BALANCE”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “PRO”.
The mode switches as follows when the
and
buttons are pressed:
→ 1 ↔ 2 ↔ 3 ↔ PRO ←
PRO:COLOR TEMP.
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
4. Press the PROCEED button.
The “WHITE BALANCE” screen appears.
5. Use the ▲ and ▼ buttons to select “RED-GAIN”.
WHITE BALANC
E
SEL. ADJ. RETURN
EXIT
GAIN
RED
GREEN
BLUE
BIAS
RED
GREEN
BLUE
6. Adjust the white balance using the
and
buttons.
RED
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen reappears.
7. Once the adjustment is completed...
Press the EXIT button several times to return to the
main menu. To delete the main menu, press the EXIT
button once more.
Information
Adjusting the white balance
RGB-GAIN.......White balance adjustment for signal
level
RGB-BIAS.......White balance adjustment for black
level
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-22
Reducing noise in the picture
Use these settings if the picture has noise due to poor
reception or when playing video tapes on which the picture
quality is poor.
Example: Setting “NR-3”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “PICTURE”, then
press the PROCEED button.
The “PICTURE” screen appears.
2. Use the ▲ and ▼ buttons to select “NR”.
: MEMORY
: 2
: OFF
RG
SEL. ADJ. RETURN
EXIT
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
PICTURE MODE
COLOR TEMP.
NR
3. Use the
and
buttons to select “NR-3”.
The mode switches as follows when the
and
buttons are pressed:
→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←
NR
NR-3
:
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen
reappears.
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
NR
* “NR” stands for Noise Reduction.
* This function reduces noise in the picture.
Types of noise reduction
There are three types of noise reduction. Each has a
different level of noise reduction.
The effect becomes stronger as the number increases
(in the order NR-1 → NR-2 → NR-3).
OFF ...............Turns the noise reduction function off.
E-23
Sound Settings Menu
Adjusting the treble, bass and left/right
balance
The treble, bass and left/right balance can be adjusted to
suit your tastes.
Example: Adjusting the bass
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “SOUND”, then
press the PROCEED button.
The “SOUND” screen appears.
2. To adjust the bass ...
Use the ▲ and ▼ buttons to select “BASS”.
LR
SOUND
SEL. ADJ. RETURN
EXIT
BASS
TREBLE
BALANCE
3. Adjust the bass using the
and
buttons.
LR
SOUND
SEL. ADJ. RETURN
EXIT
BASS
TREBLE
BALANCE
* If neither the
or
button is pressed within 5 seconds,
the current selection is set and the previous screen reappears.
To continue adjusting the sound ...
Repeat from step 2.
4. Once the adjustment is completed ...
Press the EXIT button to return to the main menu. To
delete the main menu, press the EXIT button once more.
Note:
If “CAN NOT ADJUST” appears...
Set “AUDIO INPUT” on the OPTION menu correctly.
Information
Sound settings menu
BASS ..............Controls the level of low frequency
sound.
TREBLE ..........Controls the level of high frequency
sound.
BALANCE .......Controls the balance of the left and
right channels.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-24
3. Adjust using the
and
buttons.
V–POSITION
* If neither the
or
button is pressed within 5 seconds,
the current setting is set and the previous screen
reappears.
To continue making other computer image
adjustments ...
Repeat from step 2.
4. Once all adjustments are completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
When “AUTO PICTURE” is “OFF”
SCREEN
SEL. ADJ. RETURN
EXIT
: FULL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
When Auto Picture is off, the Fine Picture and the
Picture ADJ items are displayed so that you can adjust
them.
Screen Settings Menu
Adjusting the Position, Size, Fine Picture, Picture Adj
The position of the image can be adjusted and flickering
of the image can be corrected.
Example: Adjusting the vertical position in the normal
mode
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “SCREEN”, then
press the PROCEED button. The “SCREEN” menu
appears.
Default settings (when RGB/PC is selected)
SCREEN
SEL. ADJ. RETURN
EXIT
: NORMAL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
* The settings on the SCREEN menu are not preset at the
factory.
To select a mode ...
Use the
and
buttons to select a mode.
The mode switches as follows when the
and
buttons are pressed:
→ NORMAL ↔ FULL ←
* The mode can also be switched by pressing the “WIDE”
button on the remote control.
2. To adjust the vertical position ...
Use the ▲ and ▼ buttons to select “V-POSITION”.
SCREEN
SEL. ADJ. RETURN
EXIT
: NORMAL
: OFF
MODE
V–POSITION
H–POSITION
V–HEIGHT
H–WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.
E-25
Information
Adjusting the Auto Picture
ON...................The Picture ADJ and Fine Picture
adjustments are made automatically.
OFF .................The Picture ADJ and Fine Picture
adjustments are made manually.
Adjusting the position of the image
V-POSITION ...Adjusts the vertical position of the
image.
H-POSITION ...Adjusts the horizontal position of the
image.
V-HEIGHT .......Adjusts the vertical size of the image.
(Except for STADIUM mode)
H-WIDTH .........Adjusts the horizontal size of the
image. (Except for STADIUM mode)
FINE PICTURE
*..Adjusts for flickering.
PICTURE ADJ*....
Adjusts for striped patterns on the
image.
* The Picture ADJ and Fine Picture features are available
only when the “Auto Picture” is off.
* The AUTO PICTURE, FINE PICTURE and PICTURE
ADJ. are not available for VIDEO and HD/ DVD source.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults
except for Auto Picture.
Function Settings Menu
Setting the on-screen menu
When using the monitor for presentations, etc., the monitor
can be set so that the input source, screen mode, etc., do
not appear.
Example: Turning the on-screen menu mode off
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “OSM”.
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
3. To turn the on-screen menu mode off ...
Use the
and
buttons to select “OFF”.
The mode switches as follows each time the
or
button is pressed:
ON ↔ OFF
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: OFF
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
OSM modes
ON...................The on-screen menu appears.
OFF .................The on-screen menu does not appear.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-26
Adjusting the position of the menu display
Use these operations to adjust the position of the menus
that appear on the screen.
Example: Adjusting the position of the menu display
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”,
then press the PROCEED button.
The “FUNCTION” menu appears.
2. Use the ▲ and ▼ buttons to select “OSM ADJ.”
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
3. To adjust the position...
Adjust using the
and
buttons.
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 2
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
FUNCTION
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
: ON
: 2
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
4. Once all adjustments are completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Adjusting the position of the menu display
123
456
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
The position can be set
between 1 and 6.
E-27
Setting the power management for computer images
This energy-saving (power management) function
automatically reduces the monitor’s power consumption
if no operation is performed for a certain amount of time.
Example: Turning the power management function on
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “POWER MGT”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To turn the power management function on ...
Use the
and
buttons to select “ON”.
The mode switches as follows each time the
or
button is pressed:
ON ↔ OFF
FUNCTION
: ON
: 1
: ON
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Power management function
* The power management function automatically reduces
the monitor’s power consumption if the computer’s
keyboard or mouse is not operated for a certain amount
of time. This function can be used when using the
monitor with a computer conforming to the VESA
DPMS format.
* If the computer’s power is not turned on or if the
computer and selector tuner are not properly connected,
the system is set to the off state.
* For instructions on using the computer’s power
management function, refer to the computer’s operating
instructions.
Power management settings
ON...................In this mode the power management
function is turned on.
OFF .................In this mode the power management
function is turned off.
Power management function and POWER/
STANDBY indicator
The POWER/STANDBY indicator indicates the status
of the power management function. See page E-28 for
indicator status and description.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-28
POWER/STANDBY indicator
Power management
mode
On
Standby
Suspend
Off
POWER/STANDBY
indicator
Green
Orange
Red
Red
Description
Horizontal and vertical synchronizing
signals are present from the computer.
No horizontal synchronizing signals
are sent from the computer.
No vertical synchronizing signals are
sent from the computer.
No horizontal and vertical
synchronizing signals are sent from the
computer.
Turning the picture back on
Picture already on.
Operate the keyboard or mouse. The
picture reappears immediately.
Operate the keyboard or mouse. The
picture reappears, but more time is
required than from the standby
mode.
Operate the keyboard or mouse. The
picture reappears, but more time is
required than from the standby mode
or suspend mode.
Power management
operating status
Not activated.
Activated.
Activated.
Activated.
E-29
Setting the gray level for the sides of the screen
Use this procedure to set the gray level for the parts on the
screen on which nothing is displayed when the screen is
set to the 4:3 size.
Example: Adjusting the “GRAY LEVEL”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To adjust the “GRAY LEVEL”...
Use the
and
buttons to adjust the GRAY LEVEL.
FUNCTION
: ON
: 1
: OFF
: 9
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
GRAY LEVEL
This adjusts the brightness of the black (the gray level)
for the sides of the screen.
The standard is 0 (black). The level can be adjusted
from 0 to 15. The factory setting is 3 (dark gray).
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
Setting the picture to suit the movie
The film image is automatically discriminated and
projected in an image mode suited to the picture.
[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I
(50Hz), 625I (50Hz), 1035I (50Hz), 1080I (60Hz) only]
Example: Setting the “CINEMA MODE” to “OFF”
Press the PROCEED button on the remote control unit to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To set the CINEMA MODE to “OFF” ...
Use the
and
buttons to select “OFF”.
The mode switches as follows each time the
or
button is pressed:
→ ON ↔ OFF ←
FUNCTION
: ON
: 1
: OFF
: 3
: OFF
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
CINEMA MODE
ON...................Automatic discrimination of the
image and projection in cinema mode.
OFF...................Cinema mode does not function.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-30
Reducing burn-in of the screen
The brightness of the screen, the position of the picture,
positive/negative mode and screen wiper are adjusted to
reduce burn-in of the screen.
Example: Setting “PLE” to “LOCK”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then proceed as
follows.
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then
press the PROCEED button.
The “LONG LIFE” screen appears.
3. Use the ▲ and ▼ buttons to select “PLE”.
LONG LIFE
: AUTO
: OFF
: OFF
: OFF
SEL. ADJ. RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
4. Use the
and
buttons to select “LOCK”.
The mode switches as follows each time the
or
button is pressed:
AUTO ↔ LOCK
LONG LIFE
: LOCK
: OFF
: OFF
: OFF
SEL. ADJ. RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
SEL.
OK
PROCEED
Setting RGB3 ADJ.
When the picture input from the RGB3 input terminal is
distorted, select the most appropriate setting from among
“1”, “2”, and “3”.
Example: Setting “2”
Press the PROCEED button on the remote control to
display MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”,
then press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
3. To select “2”...
Use the
and buttons to select “2”.
The mode switches as follows each time the
or
buton is pressed:
→ 1 ↔ 2 ↔ 3 ←
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 2
SEL. ADJ. RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
When you adjust the RGB3 ADJ.
The position of the menu display will change. In such
a case, be sure to adjust the position.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-31
5. Once the setting is completed...
Press the EXIT button to return to the FUNCTION
menu.
To exit the main menu, press the EXIT button twice.
Information
PLE
AUTO ..............The brightness of the screen is
adjusted automatically to suit the
picture quality.
LOCK ..............The brightness level is set to
minimum.
ORBITER
OFF .................Orbiter mode does not function.
ON...................The picture moves around the screen
intermittently.
INVERSE
OFF .................Inverse mode does not function.
ON.....................The picture is displayed alternately
between positive image and negative
image.
You can set the time by pressing the
PROCEED button while “ON” is set.
WT ..................The entire screen turns white.
You can set the time by pressing the
PROCEED button while “ON” is set.
SCREEN WIPER
OFF .................Screen wiper mode does not function.
ON...................Repeatedly moves the white vertical
bar from the left end of the screen to
the right end at a constant speed.
You can set the time by pressing the
PROCEED button while “ON” is set.
Restoring the factory default settings
Select “RESET” from the function menu. Note that this
also restores other settings to the factory defaults.
* Only the PLE and ORBITER can be adjusted when a
RGB signal is connected.
Setting the time for “INVERSE”
Set the “INVERSE” or “WHITE” display time and the
“WAITING TIME”.
Example: Setting so that the INVERSE mode starts
in 30 minutes and proceeds for one and a half hours.
Perform Steps 1-2 on Page E-30, then
3. Use the ▲ and ▼ buttons to select “INVERSE”, then
use the
and
buttons to select “ON”.
LONG LIFE
: AUTO
: OFF
: ON
: OFF
RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
SEL.
OK
PROCEED
4. Press the PROCEED button.
The “INVERSE/WT” screen appears.
INVERSE/WT
: ON
SEL. ADJ. RETURN
EXIT
WORKING TIME
5. Adjust the time using the
and
buttons and the ▲
and ▼ buttons.
The mode switches as follows each time the
or
button is pressed.
INVERSE/WT
: 1H
: 30M
: 0H
: 30M
SEL. ADJ. RETURN
EXIT
WORKING TIME
WAITING TIME
The 1st line of the “WORKING TIME”:
→
ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
* The “WORKING TIME” (minutes) and “WAITING
TIME” cannot be set when the “WORKING TIME”
is “ON”.
E-32
The 2nd line of the “WORKING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←
The 1st line of the “WAITING TIME”:
→
0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
The 2nd line of the “WAITING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M ←
6. Once the setting is completed...
Press the EXIT button several times to return to the
main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the time
WORKING TIME
Set the length of time the “INVERSE/WT” mode lasts.
When the WORKING TIME is set to “ON”, the
“INVERSE/WT” mode stays in the on state.
WAITING TIME
Set the length of time until the “INVERSE/WT” mode
starts.
* The “WORKING TIME” and “WAITING TIME” can
be set for up to 12 hours and 45 minutes in units of 3
minutes.
To select “ON” for the “WORKING TIME”...
Set the hours of the WORKING TIME to 0H and the
minutes to 0M. “ON” will be displayed.
Setting the time for “SCREEN WIPER”
Set the “SCREEN WIPER” operation time, “WAITING
TIME”, and “SPEED”.
Example: Setting so that the SCREEN WIPER mode
starts in 30 minutes and proceeds for one and a half
hours.
Perform Steps 1-2 on Page E-30, then:
3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”,
then use the
and
buttons to select “ON”.
LONG LIFE
: AUTO
: OFF
: OFF
: ON
RETURN
EXIT
PLE
ORBITER
INVERSE
SCREEN WIPER
SEL.
OK
PROCEED
4. Press the PROCEED button.
The “SCREEN WIPER” screen appears.
SCREEN WIPER
: ON
: 1
SEL. ADJ. RETURN
EXIT
WORKING TIME
SPEED
5. Adjust the time and speed using the
and
buttons
and the ▲ and ▼ buttons.
The mode switches as follows each time the
and
button is pressed.
SCREEN WIPER
: 1H
: 30M
: 0H
: 30M
: 1
SEL. ADJ. RETURN
EXIT
WORKING TIME
WAITING TIME
SPEED
The 1st line of the “WORKING TIME”:
→
ON or 0H ↔ 1H ↔ 2H ↔ 3H ↔ ... ↔ 12H ←
* The “WORKING TIME” (minutes) and “WAITING
TIME” cannot be set when the “WORKING TIME”
is “ON”.
E-33
Resetting to the default values
Use these operations to restore all the picture adjustments,
audio settings, to the factory default values.
Refer to page E-17 for items to be reset.
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “FUNCTION”, then
press the PROCEED button.
The “FUNCTION” screen appears.
2. Use the ▲ and ▼ buttons to select “RESET”, then press
the PROCEED button.
FUNCTION
: ON
: 1
: OFF
: 3
: ON
: 1
RETURN
EXIT
OSM
OSM ADJ.
POWER MGT
GRAY LEVEL
CINEMA MODE
RGB3 ADJ.
LONG LIFE
RESET
SEL.
OK
PROCEED
The “RESET” screen appears.
3. Use the ▲ and ▼ buttons to select “RESET”, then press
the PROCEED button.
RESET
RETURN
EXIT
RESET
RETURN
OK
PROCEED
RESET
SETTING NOW
When the “SETTING NOW” screen disappears, the
screen will be restored to the previous “RESET” mode,
then all the settings are restored to the default values.
4. Once the setting is completed ...
Press the EXIT button.
To delete the main menu, press the EXIT button once
more.
The 2nd line of the “WORKING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←
The 1st line of the “WAITING TIME”:
→
0H ↔1H ↔ 2H ↔ 3H ↔ ... ↔ 12H←
The 2nd line of the “WAITING TIME”:
→
0M ↔ 3M ↔ 6M ↔ 9M ↔ ... ↔ 57M←
“SPEED”:
→
1↔ 2 ↔ 3 ↔ 4 ↔ 5←
6. Once the setting is completed...
Press the EXIT button several times to return to the
main menu.
To delete the main menu, press the EXIT button once
more.
Information
Setting the time
WORKING TIME
Set the length of time the “SCREEN WIPER” mode
lasts.
When the WORKING TIME is set to “ON”, the
“SCREEN WIPER” mode stays in the state.
WAITING TIME
Set the length of time until the “SCREEN WIPER”
mode starts.
SPEED
Set the moving speed for the “SCREEN WIPER”. The
speed decreases as the number increases.
* The “WORKING TIME” and “WAITING TIME” can
be set for up to 12 hours and 45 minutes in units of 3
minutes.
To select “ON” for “WORKING TIME”...
Set the hours of the “WORKING TIME” to 0H and the
minutes to 0M. “ON” will be displayed.
E-34
→ VIDEO1 ↔ VIDEO2 ↔ HD/DVD/DTV←
→RGB/PC3 ↔RGB/PC2 ↔RGB/PC1 ←
→ VIDEO1 ↔ VIDEO2 ↔ HD1/DVD1/DTV1←
→RGB/PC3 ↔RGB/PC1 ↔HD2/DVD2/DTV2 ←
→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3←
→RGB/PC3 ↔RGB/PC1 ↔HD/DVD/DTV ←
→ VIDEO1 ↔ VIDEO2 ↔ HD1/DVD1/DTV1←
→RGB/PC3 ↔RGB/PC1 ↔DVD2 ←
Options Settings Menu
Setting the allocation of the audio connectors
Setting the AUDIO 1, 2, and 3 connectors to the desired
input.
Example: Setting “AUDIO 1” to “VIDEO 2”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “AUDIO 1”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the AUDIO1 to “VIDEO2”...
Use the
and
buttons to select “VIDEO2”.
The mode switches as follows each time the
or
button is pressed:
The available sources depend on the setting of “BNC
SELECT”.
RGB:
COMP.:
VIDEO:
SCART:
OPTIONS
: VIDEO2
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
AUDIO INPUT
A single audio input cannot be selected as the audio
channel for more than one input terminal.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-35
Setting the BNC connectors
Select whether to set the input of the 5 BNC connectors to
RGB, component, video or SCART.
Example: Set the BNC SELECT mode to “COMP.”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “BNC SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the BNC SELECT mode to “COMP.”...
Use the
and
buttons to select “COMP.”.
The mode switches as follows each time the
or
button is pressed:
→
RGB ↔ COMP. ↔ VIDEO
↔ SCART
←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: COMP.
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
BNC SELECT
RGB ................ Use the 5BNC terminal for RGB
input.
COMP..............Use the 3BNC terminal for component
input.
VIDEO.............Use the G/Y/VIDEO 3 terminal for
video input.
SCART............Use the 4BNC terminal for RGB with
composite sync input. See page E-8.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
Setting a computer image to the correct RGB
select screen
With the computer image, select the RGB Select mode
for a moving image such as (video) mode, wide mode or
digital broadcast.
Example: Setting the “RGB SELECT” mode to
“MOTION ”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “RGB SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the RGB select mode to “MOTION” ...
Use the
and
buttons to select “MOTION”.
The mode switches as follows each time the
or
button is pressed:
→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: MOTION
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
E-36
Setting high definition images to the suitable
screen size
Use this procedure to set whether the number of vertical
lines of the input high definition image is 1035 or 1080.
Example: Setting the “1080B” mode to “1035I”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “OPTIONS”, then
press the PROCEED button.
The “OPTIONS” screen appears.
2. Use the ▲ and ▼ buttons to select “HD SELECT”.
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1080B
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
3. To set the HD SELECT mode to “1035I” ...
Use the
and
buttons to select “1035I”.
The mode switches as follows each time the
or
button is pressed:
→1080B ↔ 1035I ↔ 1080A ←
OPTIONS
: VIDEO1
: HD/DVD1
: RGB1
: RGB
: AUTO
: 1035I
SEL. ADJ. RETURN
EXIT
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
HD SELECT modes
These 3 modes are not displayed in correct image
automatically.
1080B ...............Standard digital broadcasts
1035I ...............Japanese “High Vision” signal format
1080A ...............Special Digital broadcasts (for
example : DTC100)
Information
RGB SELECT modes
One of these 6 modes must be selected in order to
display the following signals correctly.
AUTO ..............Select the suitable mode for the
specifications of input signals as
listed in the table “Computer input
signals supported by this system” on
page E-53.
STILL ..............To display VESA standard signals.
(Use this mode for a still image from
a computer.)
MOTION..........The video signal (from a scan
converter) will be converted to RGB
signals to make the picture more
easily viewable. (Use this mode for a
motion image from a computer.)
WIDE1.............When an 852 dot 480 line signal
with a horizontal frequency of
31.7kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE1.
WIDE2.............When an 848 dot 480 line signal
with a horizontal frequency of 31.0
kHz is input, the image may be
compressed horizontally. To prevent
this, set RGB SELECT to WIDE2.
DTV.................Set this mode when watching digital
broadcasting (480P).
See page E-53 for the details of the above settings.
Restoring the factory default settings
Select “RESET” under the function menu. Note that
this also restores other settings to the factory defaults.
E-37
Information Menu
Checking the frequencies, polarities of input
signals, and resolution
Use this function to check the frequencies and polarities
of the signals currently being input from a computer, etc.
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button.
The “INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “FREQUENCY”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
3. The frequency is displayed.
FREQUENCY
: 37.5KHZ
: 75.0HZ
: NEG.
: NEG.
: 8
: 640 480
RETURN
EXIT
H. FREQ
V. FREQ
H. POL
V. POL
MODE
RESOLUTION
* Press the EXIT button to return to the previous screen.
4. Once you have checked the frequency ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Setting the language for the menus
The menu display can be set to one of seven languages:
Japanese, English, German, French, Swedish, Italian or
Spanish.
Example: Setting the menu display to “DEUTSCH”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button. The
“INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “LANGUAGE”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
The “LANGUAGE” screen appears.
3. To select “ DEUTSCH ” ...
Use the
and
buttons to select “ DEUTSCH ”.
The mode switches as follows when the
and
buttons are pressed:
→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ←
→
↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←
LANGUAGE
RETURN
EXIT
ADJ.
OK
PROCEED
: DEUTSCH
LANGUAGE
4. Press the PROCEED button.
The display language is switched to Deutsch.
5. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
Information
Language settings
ENGLISH ........English
DEUTSCH.......German
FRANÇAIS...... French
ESPAÑOL .......Spanish
ITALIANO ........ Italian
SVENSKA .......Swedish
..............Japanese
E-38
Setting the video signal format
Use these operations to set the color systems of composite
video signals or Y/C input signals.
Example: Setting the color system to “3.58 NTSC”
Press the PROCEED button on the remote control to
display the MAIN MENU on the screen, then...
1. Use the ▲ and ▼ buttons to select “INFORMATION”,
then press the PROCEED button.
The “INFORMATION” screen appears.
2. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”,
then press the PROCEED button.
INFORMATION
RETURN
EXIT
FREQUENCY
LANGUAGE
COLOR SYSTEM
SEL.
OK
PROCEED
The “COLOR SYSTEM” screen appears.
COLOR SYSTEM
RETURN
EXIT
: AUTO1
ADJ.
COLOR SYSTEM
3. To select “3.58 NTSC” ...
Use the
and
buttons to select “3.58 NTSC”.
The mode switches as follows when the
and
buttons are pressed:
→ AUTO1 ↔ AUTO2 ↔ 3.58NTSC ↔ 4.43NTSC ←
→ SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PAL ←
COLOR SYSTEM
RETURN
EXIT
:
3.58NTSC
ADJ.
COLOR SYSTEM
4. Once the setting is completed ...
Press the EXIT button to return to the main menu.
To delete the main menu, press the EXIT button once
more.
The color system is set to “3.58 NTSC”.
Information
Video signal formats
Different countries use different formats for video
signals. Set to the color system used in your current
country.
AUTO1/2 .........The color systems are automatically
identified and the format is set
accordingly.
AUTO1: 3.58NTSC, 4.43NTSC, PAL, SECAM,
PAL60
AUTO2: PAL-M, PAL-N, 3.58NTSC
PAL..................This is the standard format used
mainly in the United Kingdom and
Germany.
SECAM.............This is the standard format used
mainly in France and Russia.
4.43 NTSC,
PAL60 .............This format is used for videos in
countries using PAL and SECAM
video signals.
3.58 NTSC ......This is the standard format used
mainly in the United States and Japan.
PAL-M .............This is the standard format used
mainly in Brazil.
PAL-N..............This is the standard format used
mainly in Argentina.
E-39
External Control
Application
These specifications cover the communications control of
the plasma monitor by external equipment.
Connections
Connections are made as described below.
plasma m
o
nit
or
Ext
er
n
a
le
q
uipmen
t
e
.
g
.,
P
e
r
s
on
a
l compute
r
1) Connector on the plasma monitor side: EXTERNAL
CONTROL connector.
Type of connector: D-Sub 9-pin male
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
9
6
2
34
7
8
2) Connector on the external equipment side: Serial port
(RS-232C) connector.
See the specifications of the equipment that is to be
connected for the type of connector and the pin
assignment.
3) Wiring
Use a crossed (reverse) cable.
Wire the cable so that each pair of data lines cross
between the two devices. These data line pairs are RXD
(Receive data) and TXD (Transmit data), DTR (DTE
side ready) and DSR (DCE side ready), and RTS (Ready
to send) and CTS (Clear to send).
Communication Parameters
(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex
E-40
Communication Format
Command 1
Unit ID 1
Unit ID 2
Command 2
Data length
Data
Check sum
8 bit
8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit
Command 1
Command 1, along with command 2, is a number used to
distinguish each command.
In the case of ACK, when the lower order 4 bits is FH (as
in 3FH and 7FH), this indicates that the commands and
data of the supported equipment have been received. When
the lower order 4 bits is BH (as in 3BH and 7BH), this
indicates that unsupported commands and data have been
received.
Unit ID 1 and Unit ID 2
Unit ID 1 and unit ID 2 are numbers used to identify the
equipment that is to be connected.
60H is used for the plasma monitor and 80H is used for
external control equipment such as a personal computer.
1) Unit ID 1: Indicates the equipment sending the signal
2) Unit ID 2: Indicates the equipment receiving the signal
Command 2
Command 2, along with command 1, is a number used to
distinguish each command.
Check Sum (CKS), Error Processing, and ACK
1) The check sum described below and RS-232C odd
parity are used together for a check of the received data.
The check sum is the lower order 8 bits of one frame of
sent or received data comprising the sum total of
Command 1, Unit ID 1 and 2, Command 2, Data Length,
and Data.
Check Sum Example
DFH 80H 60H 47H 01H 01H 08H
Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum
Total 208H
▲
2) Error Processing
• When the communication interval is vacant for more
than 4 ms, thereafter a received Command 1 will be
recognized. If, at this time, meaningful data cannot
be recognized, that data will not be recognized (as
valid data).
• An ACK will not be returned unless the receive data
error, the check sum error, and the receive data are all
taken in.
E-41
Command Reference List
CMD1 CMD2 LEN
01. Power ON 9FH 4EH 00H
02. Power OFF 9FH 4FH 00H
03. Input Switch Change DFH 47H 01H
04. VOLUME Gain Data DFH 7FH 03H
05. AUDIO Mute On 9FH 3EH 00H
06. AUDIO Mute Off 9FH 3FH 00H
07. CONTRAST Gain Data DFH 7FH 03H
08. BRIGHT Gain Data DFH 7FH 03H
09. SHARPNESS Gain Data DFH 7FH 03H
10. Color Gain Data DFH 7FH 03H
11. TINT Gain Data DFH 7FH 03H
12. PICTURE MODE Select DFH 0AH 01H
13. COLOR TEMP SELECT DFH 00H 01H
14. RED Gain Data DFH 7FH 04H
15. GREEN Gain Data DFH 7FH 04H
16. BLUE Gain Data DFH 7FH 04H
17. NR MODE Set DFH C0H 01H
18. BASS Gain Data DFH 7FH 03H
19. TREBLE Gain Data DFH 7FH 03H
20. BALANCE Gain Data DFH 7FH 03H
21. SCREEN MODE Select DFH 51H 01H
22. V. POSITION Gain Data DFH 7FH 03H
23. H. POSITION Gain Data DFH 7FH 03H
24. V-HEIGHT Gain Data DFH 7FH 03H
25. H-WIDTH Gain Data DFH 7FH 03H
26. AUTO PICTURE Select DFH 7FH 03H
27. PHASE Gain Data DFH 7FH 03H
28. CLOCK Gain Data DFH 7FH 03H
29. OSM Select DFH 58H 01H
30. OSM ADJ. Gain Data DFH 1AH 02H
31. POWER MGT Select DFH 1AH 02H
32. GRAY LEVEL Set DFH C6H 01H
33. CINEMA MODE Set DFH C1H 01H
34. RGB3 ADJ. Select DFH 1AH 02H
35. LONG LIFE Set DFH 6BH 03H
36. INVERSE Set DFH C7H 03H
37. SCREEN WIPER Set DFH C8H 04H
38. RESET 1FH 54H 00H
39. Audio Select Set DFH 70H 02H
40. BNC SELECT DFH 8CH 01H
41. RGB Select DFH 8BH 01H
42. HD Select DFH 8AH 01H
43. LANGUAGE Select DFH 5BH 01H
44. COLOR SYSTEM Select DFH 5CH 01H
45. FREQUENCY Request 1FH 26H 00H
46. Input MODE Request 1FH 41H 00H
47. VIDEO ADJ Request 1FH 45H 00H
48. Audio Select Request 1FH 6FH 00H
49. Failure Mode Request 1FH 3FH 00H
50. MODEL NAME Request 1FH 17H 00H
01. Power ON
Function
The external control equipment switches on the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4EH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched on.
3FH 60H 80H 4EH 00H CKS
NOTE: Do not set the Power ON or Power OFF command
continuously.
02. Power OFF
Function
The external control equipment switches off the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4FH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched off.
3FH 60H 80H 4FH 00H CKS
NOTE: Do not set the Power ON or Power OFF command
continuously.
03. Input Switch Change
Function
The external control equipment switches the input of the plasma monitor.
Transmission Data
DFH 80H 60H 47H 01H DATA00 CKS
DATA00: Input Select 01H: Video1
02H: Video2
03H: Video3
05H: HD (HD1 or DTV or DTV1)
06H: HD2 (DTV2)
07H: RGB1/PC1
08H: RGB2/PC2
0CH: RGB3/PC3
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 47H 00H CKS
E-42
04. VOLUME Gain Data
Function
The external control equipment changes the VOLUME gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02 CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
DATA02: VOLUME Gain 00H: Step 0
0AH: Step 10 (Default)
2AH: Step 42
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
05. AUDIO Mute On
Function
The external control equipment switches on AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3EH 00H CKS
ACK
3FH 60H 80H 3EH 00H CKS
06. AUDIO Mute Off
Function
The external control equipment switches off AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3FH 00H CKS
ACK
3FH 60H 80H 3FH 00H CKS
07. CONTRAST Gain Data
Function
The external control equipment changes the CONTRAST gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
DATA02: CONTRAST Gain CCH : -52
FFH: -01
00H: 0
01H: +01
14H: +20
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
08. BRIGHT Gain Data
Function
The external control equipment changes the BRIGHT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
DATA02: BRIGHT Gain E0H: -32
FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
09. SHARPNESS Gain Data
Function
The external control equipment changes the SHARPNESS gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
DATA02: SHARPNESS Gain F0H: -16
FFH: -01
00H: 0
01H: +01
10H:+16
Only when a RGB signal is connected
DATA02: SHARPNESS Gain 01H: 1
02H: 2
03H: 3
04H: 4
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
E-43
10. COLOR Gain Data
Function
The external control equipment changes the COLOR gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
DATA02: COLOR Gain E0H: -32
* COLOR Gain is from -22 (EAH) to
+22 (16H) only during video. FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
11.TINT Gain Data
Function
The external control equipment changes the TINT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
DATA02: TINT Gain E0H: -32
* TINT Gain is from -22 (EAH) to
+22 (16H) only during video. FFH: -01
00H: 0
01H: +01
20H: +32
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
12. PICTURE MODE Select
Function
The external control equipment sets the picture mode of the plasma monitor.
Transmission Data
DFH 80H 60H 0AH 01H
DATA00
CKS
DATA00: 01H: MEMORY
02H: THEATER
03H: NORMAL
04H: RESET
ACK
7FH 60H 80H 0AH 01H
DATA00
CKS
DATA00: 01H: MEMORY
02H: THEATER
03H: NORMAL
04H: RESET
13. COLOR TEMP SELECT
Function
The external control equipment changes the COLOR TEMP of the plasma
monitor.
Transmission Data
DFH 80H 60H 00H 01H
DATA00
CKS
DATA00: 00H: 1
01H: 2
02H: 3
03H: PRO
ACK
7FH 60H 80H 00H 01H
DATA00
CKS
DATA00: 00H: 1
01H: 2
02H: 3
03H: PRO
NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP
change of the following R/G/B GAIN data cannot be accepted.
14. RED Gain Data
Function
The external control equipment changes the RED Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
DATA02: RED Gain 1 (Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: RED Gain 2 (Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
E-44
15. GREEN Gain Data
Function
The external control equipment changes the GREEN Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
DATA02: GREEN Gain 1 (Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: GREEN Gain2 (Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
16. BLUE Gain Data
Function
The external control equipment changes the BLUE Gain Data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
DATA02: BLUE Gain1(Bias) D8H:-40
FFH:-1
00H: 0
IEH: +30
DATA03: BLUE Gain2(Drive) D8H: -40
FFH:-1
00H: 0
IEH:+30
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
17. NR MODE Set
Function
The external control equipment sets the NR (Noise Reduction) mode of the
plasma monitor.
Transmission Data
DFH 80H 60H C0H 01H
DATA00
CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
ACK
7FH 60H 80H C0H 01H
DATA00
CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
18. BASS Gain Data
Function
The external control equipment changes the BASS gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
DATA02: BASS Gain F3H: -13
FFH: -01
00H: 0
01H: +01
0DH: +13
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
19. TREBLE Gain Data
Function
The external control equipment changes the TREBLE gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
DATA02: TREBLE Gain F3H: -13
FFH: -01
00H: 0
01H: +01
0DH: +13
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
E-45
20. BALANCE Gain Data
Function
The external control equipment changes the BALANCE gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
DATA02: BALANCE Gain EAH: -22
FFH: -01
00H: 0
01H: +01
16H: +22
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
21. SCREEN MODE Select
Function
The external control equipment switches the screen mode of the plasma monitor.
Transmission Data
DFH 80H 60H 51H 01H
DATA00
CKS
DATA00: 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: FULL
ACK
7FH 60H 80H 51H 01H
DATA00
CKS
DATA00: 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: FULL
22. V. POSITION Gain Data
Function
The external control equipment changes the V. POSITION gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V. POSITION Gain Flag 01H
DATA02: V. POSITION Gain C0H: -64
FFH: -01
00H: 0
01H: +01
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V. POSITION Gain Flag 01H
23. H. POSITION Gain Data
Function
The external control equipment changes the H. POSITION gain data of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00
DATA01
DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H. POSITION Gain Flag 02H
DATA02: H. POSITION Gain 80H: -128
FFH: -01
00H: 0
01H: +01
7FH: +127
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H. POSITION Gain Flag 02H
24. V-HEIGHT Gain Data
Function
The external control equipment changes the V-HEIGHT gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
DATA02: V-HEIGHT Gain 00H: 0
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
25. H-WIDTH Gain Data
Function
The external control equipment changes the H-WIDTH gain data of the plasma
monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
DATA02: H-WIDTH Gain 00H: 0
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
E-46
26. AUTO PICTURE Select
Function
The external control equipment switches on or off the AUTO PICTURE of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02: 00H: ON
01H: OFF
ACK
7FH 60H 80H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02: 00H: ON
01H: OFF
27. PHASE Gain Data
Function
The external control equipment changes the PHASE gain data (Phase) of the
plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
DATA02: PHASE Gain 00H: 0
2CH: +44
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
28. CLOCK Gain Data
Function
The external control equipment changes the CLOCK gain data (ratio of frequency
division) of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
DATA02: CLOCK Gain C0H: -64
FFH: -01
00H: 0
01H: +01
40H: +64
ACK
7FH 60H 80H 7FH 02H
DATA00 DATA01
CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
29. OSM Select
Function
The external control equipment switches on or off the on-screen menu (OSM)
of the plasma monitor.
Transmission Data
DFH 80H 60H 58H 01H
DATA00
CKS
DATA00: 01H: On-Screen menu On
02H: On-Screen menu Off
ACK
7FH 60H 80H 58H 01H
DATA00
CKS
DATA00: 01H: On-Screen menu On
02H: On-Screen menu Off
On-Screen menu On/Off is equivalent to the OSM menu item under
the FUNCTION menu.
*Operation is as described in the table below.
Operation
On-Screen Menu (OSM)
Display of items and adjustments on the menu
When screen menu is ON
Yes Yes Yes No
Volume display, input display, and screen size display
When screen menu is OFF When screen menu is ON When screen menu is OFF
Remote control operation
Personal computer control operation
No No Yes No
E-47
30. OSM ADJ. Gain Data
Function
The external control equipment sets the position of the OSM menu of the
plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: OSM ADJ. Gain Flag 02H
DATA01: 01H: 1
06H: 6
ACK
7FH 60H 80H 1AH 01H
DATA00
CKS
DATA00: OSM ADJ. Gain Flag 02H
31. POWER MGT Select
Function
The external control equipment switches on or off the POWER MANAGEMENT
of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: POWER MGT Select 03H
DATA01: 01H: ON
02H: OFF
ACK
7FH 60H 80H 1AH 02H
DATA00 DATA01
CKS
DATA00: POWER MGT Select 03H
DATA01: 01H: ON
02H: OFF
32. GRAY LEVEL Set
Function
The external control equipment sets the GRAY LEVEL of the plasma monitor.
Transmission Data
DFH 80H 60H C6H 01H
DATA00
CKS
DATA00: GRAY LEVEL 00H: 0
0FH: 15
ACK
7FH 60H 80H C6H 01H
DATA00
CKS
DATA00: GRAY LEVEL 00H: 0
0FH: 15
33. CINEMA MODE Set
Function
The external control equipment switches on or off the CINEMA MODE of the
plasma monitor.
Transmission Data
DFH 80H 60H C1H 01H
DATA00
CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
ACK
7FH 60H 80H C1H 01H
DATA00
CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
34. RGB3 ADJ. Select
Function
The external control equipment sets the RGB3 ADJUST of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H
DATA00 DATA01
CKS
DATA00: RGB3 ADJ. Select 06H
DATA01: 01H: 1
02H: 2
03H: 3
ACK
7FH 60H 80H 1AH 02H
DATA00 DATA01
CKS
DATA00: RGB3 ADJ. Select 06H
DATA01: 01H: 1
02H: 2
03H: 3
35. LONG LIFE Set
Function
The external control equipment sets the PLE, ORBITER, and INVERSE (inverse
of image brightness) of the plasma monitor.
Transmission Data
DFH 80H 60H 6BH 03H
DATA00 DATA01 DATA02
CKS
DATA00: PLE 01H: AUTO
02H: LOCK
DATA01: INVERSE 01H: ON
02H: OFF
03H: WHITE
DATA02: ORBITER (PICTURE SHIFT) 01H: ON
02H: OFF
ACK
The plasma monitor returns the following ACK when setting the PLE, ORBITER,
and INVERSE (inverse of image brightness):
3FH 60H 80H 6BH 00H CKS
E-48
36. INVERSE Set
Function
The external control equipment sets the INVERSE (inverse of image brightness)
and the WHITE of the plasma monitor.
Transmission Data
DFH 80H 60H C7H 03H
DATA00 DATA01 DATA02
CKS
DATA00 : INVERSE/WHITE 00H: No operation
01H: ON(INVERSE)
02H: OFF
03H: WHITE
DATA01 : WORKING TIME 00H: ON
01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA02 : WAITING TIME 01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
ACK
3FH 60H 80H C7H 00H CKS
NOTE: The WORKING TIME and the WAITING TIME can be set in
units of 3 minutes.
Example: 03H=9 minutes
1EH=1 hour and 30 minutes
37. SCREEN WIPER Set
Function
The external control equipment sets the SCREEN WIPER of the plasma monitor.
Transmission Data
DFH 80H 60H C8H 04H
DATA00
to
DATA03
CKS
DATA00 : SCREEN WIPER 00H: No operation
01H: ON
02H: OFF
DATA01 : WORKING TIME 00H: ON
01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA02 : WAITING TIME 01H: 03M (minutes)
02H: 06M (minutes)
FFH: 12H (hours) and 45M (minutes)
DATA03 : SPEED 01H: 1
05H: 5
ACK
3FH 60H 80H C8H 00H CKS
NOTE: The WORKING TIME and the WAITING TIME can be set in
units of 3 minutes.
Example: 03H=9 minutes
1EH=1 hour and 30 minutes
38. RESET
Function
The external control equipment resets the user adjustment of the plasma
monitor.
Transmission Data
1FH 80H 60H 54H 00H CKS
ACK
3FH 60H 80H 54H 00H CKS
39. Audio Select Set
Function
The external control equipment sets combinations of audio and video inputs
for the plasma monitor.
Transmission Data
DFH 80H 60H 70H 02H
DATA00 DATA01
CKS
DATA00: AUDIO INPUT 01H: AUDIO 1
02H: AUDIO 2
03H: AUDIO 3
DATA01: VISUAL INPUT 01H: Video 1
02H: Video 2
03H: Video 3
05H:
HD (HD1 or DTV or DTV1)
06H: HD2 (DTV2)
07H: RGB 1/ PC 1
08H: RGB 2/ PC 2
0CH: RGB 3/ PC 3
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 70H 00H CKS
* The plasma monitor returns “Not Available” when selecting the
video input same as the one set at one of the AUDIO 1 to 3.
Example:
The plasma monitor returns “Not Available” when selecting the
VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to
AUDIO1.
E-49
40. BNC SELECT
Function
The external control equipment sets the BNC SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8CH 01H
DATA00
CKS
DATA00 : BNC SELECT 01H: RGB
02H: Component
03H: Video
04H: SCART
ACK
The plasma monitor returns the following ACK when setting the BNC SELECT:
7FH 60H 80H 8CH 01H
DATA00
CKS
DATA00 : BNC SELECT 01H: RGB
02H: Component
03H: Video
04H: SCART
41. RGB Select
Function
The external control equipment sets the RGB SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8BH 01H
DATA00
CKS
DATA00: 01H: AUTO
02H: STILL
03H: MOTION
04H: WIDE1
05H: WIDE2
06H: DTV
ACK
7FH 60H 80H 8BH 01H
DATA00
CKS
DATA00: 01H: AUTO
02H: STILL
03H: MOTION
04H: WIDE1
05H: WIDE2
06H: DTV
42. HD Select
Function
The external control equipment sets the HD SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8AH 01H
DATA00
CKS
DATA00: 01H: 1035I
02H: 1080A
03H: 1080B
ACK
7FH 60H 80H 8AH 01H
DATA00
CKS
DATA00: 01H: 1035I
02H: 1080A
03H: 1080B
43. LANGUAGE Select
Function
The external control equipment sets the LANGUAGE SELECT of the plasma
monitor.
Transmission Data
DFH 80H 60H 5BH 01H
DATA00
CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
07H: JAPANESE
ACK
7FH 60H 80H 5BH 01H
DATA00
CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
07H: JAPANESE
44. COLOR SYSTEM Select
Function
The external control equipment sets the COLOR SYSTEM of the plasma monitor.
Transmission Data
DFH 80H 60H 5CH 01H
DATA00
CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO1
0BH: PAL60
0CH: AUTO2
0DH: PAL- M
0EH: PAL- N
ACK
7FH 60H 80H 5CH 01H
DATA00
CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO1
0BH: PAL60
0CH: AUTO2
0DH: PAL- M
0EH: PAL- N
E-50
45. FREQUENCY Request
Function
The external control equipment inquires the Horizontal frequency, Vertical
frequency, Horizontal sync polarity, Vertical sync polarity, Mode, and Resolution
of the plasma monitor.
Transmission Data
1FH 80H 60H 26H 00H CKS
ACK
7FH 60H 80H 26H 0BH
DATA00
to
DATA10
CKS
Horizontal frequency
DATA00: Integer part 00H: 0 (No signal: 00H)
FFH: 256
DATA01: One decimal place 00H: 0 (No signal: 00H)
09H: 9
Vertical frequency
DATA02: Integer part 00H: 0 (No signal: 00H)
FFH: 256
DATA03: One decimal place 00H: 0 (No signal: 00H)
09H: 9
Horizontal sync polarity
DATA04: 00H: –
01H: Positive
02H: Negative
Vertical sync polarity
DATA05: 00H: –
01H: Positive
02H: Negative
MODE
DATA06: 00H: No signal –
01H to 80H: RGB signal
Identification number of PC mode
81H: Video signal 3.58NTSC
82H: 4.43NTSC
83H: PAL
84H: PAL- M
85H: PAL- N
86H: PAL60
87H: SECAM
88H: B/W60
89H: B/W50
A0H:
HD/DVD/DTV signal
480I
A1H: 480P
A2H: 576I
A3H: 576P
A4H: 720P
A5H: 1035I
A6H: 1080I
RESOLUTION
DATA07: Dots (Low-order byte) 00H: 0 (No signal: 00H)
FFH: 256
DATA08: Dots (High-order byte) 00H: 257 (No signal: 00H)
FFH
DATA09: Lines (Low-order byte) 00H: 0 (No signal: 00H)
FFH: 256
DATA10: Lines (High-order byte) 00H: 257 (No signal: 00H)
FFH
46. Input MODE Request
Function
The display returns the current input information by the external control
equipment’ s request.
Transmission Data
1FH 80H 60H 41H 00H CKS
ACK
7FH 60H 80H 41H 01H
DATA00
CKS
DATA00: Input Select
01H: Video1 02H: Video2
03H: Video3 04H: HD (HD1 or DTV or DTV1)
05H: RGB1/PC1 06H: RGB2/PC2
0AH: DVD (DVD1) 0CH: HD2 (DTV2)
0DH: DVD2 0EH: RGB3/PC3
E-51
47. VIDEO ADJ Request
Function
The display returns the video adjustments information by the external control
equipment’s request.
Transmission Data
1FH 80H 60H 45H 00H CKS
ACK
7FH 60H 80H 45H 0CH DATA00 to DATA11 CKS
DATA00: RED Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA01: GREEN Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA02: BLUE Gain(Bias) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA03: COLOR Gain E0H: -32
* COLOR Gain is from -22 (EAH) to FFH: -01
+22 (16H) only during video. 00H: 0
01H: +01
20H: +32
DATA04: TINT Gain E0H: -32
* TINT Gain is from -22 (EAH) to FFH: -01
+22 (16H) only during video. 00H: 0
01H: +01
20H: +32
DATA05: SHARPNESS Gain F0H: -16
FFH: -01
00H: 0
01H: +01
10H: +16
DATA06: CONTRAST Gain CCH: -52
FFH: -01
00H: 0
01H: +01
14H: +20
DATA07: BRIGHT Gain E0H: -32
FFH: -01
00H: 0
01H: +01
20H: +32
DATA08: RED Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA09: GREEN Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA10: BLUE Gain(Drive) D8H: -40
FFH: -1
00H: 0
IEH: +30
DATA11: COLOR TEMP 00H: 1
01H: 2
02H: 3
03H: PRO
E-52
48. Audio Select Request
Function
The external control equipment inquires the current combinations of audio
and video inputs for the plasma monitor.
Transmission Data
1FH 80H 60H 6FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 6FH 03H
DATA00 DATA01 DATA02
CKS
DATA00: AUDIO 1
01H – 0CH: VISUAL INPUT DATA
DATA01: AUDIO 2
01H – 0CH: VISUAL INPUT DATA
DATA02: AUDIO 3
01H – 0CH: VISUAL INPUT DATA
VISUAL INPUT DATA
01H: Video 1
02H: Video 2
03H: Video 3
05H: HD (HD1 or DTV or DTV 1)
06H: HD2 (DTV2)
07H: RGB 1 /PC 1
08H: RGB 2 /PC 2
0CH: RGB 3 /PC 3
49. Failure Mode Request
Function
The external control equipment inquires the detection of failures of the plasma
monitor.
Transmission Data
1FH 80H 60H 3FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 3FH 02H
DATA00 DATA01
CKS
42Wide VGA
DATA00: FAILURE MODE 1
Bit 0 : PDP MODULE
0: Abnormal
1: Normal
Bit 1 : 1: fixed (backup)
Bit 2 : TEMPERATURE
0: Abnormal
1: Normal
Bit 3 : 1: fixed (backup)
Bit 4 : TEMPERATURE SENSOR
0: Abnormal
1: Normal
Bit 5 : 1: fixed (backup)
Bit 6 : 1: fixed (backup)
Bit 7 : 1: fixed (backup)
DATA01: FAILURE MODE 2
Bit 0–7 : 1: fixed (backup)
50. MODEL NAME Request
Function
The external control equipment inquires the product code of the plasma monitor.
Transmission Data
1FH 80H 60H 17H 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 17H 0CH
DATA00
to
DATA11
CKS
DATA00 : 1st character of the product code
DATA01 : 2nd character of the product code
DATA11 : 12th character of the product code
NOTE:
Received data (Hex) Corresponding character
00H 0
01H 1
08H 8
09H 9
10H A
11H B
12H C
28H Y
29H Z
80H - (Hyphen)
96H (Blank)
If there are fewer than 12 characters in the product code, product code would
be padded right with blanks.
Example:
If the product code of your plasma monitor is “42-
WVGA” or “42XGA”, the returned codes would be as follows.
42-WVGA
DATA00: 04H
DATA01: 02H
DATA02: 80H
DATA03: 26H
DATA04: 25H
DATA05: 16H
DATA06: 10H
DATA07: 96H
DATA08: 96H
DATA09: 96H
DATA10: 96H
DATA11: 96H
42XGA
DATA00: FAILURE MODE 1
Bit 0 : PDP MODULE
0: Abnormal
1: Normal
Bit 1 : 1: fixed (backup)
Bit 2 : TEMPERATURE
0: Abnormal
1: Normal
Bit 3 : FAN
0: Abnormal
1: Normal
Bit 4 : 1: fixed (backup)
Bit 5 : 1: fixed (backup)
Bit 6 : 1: fixed (backup)
Bit 7 : 1: fixed (backup)
DATA01:FILURE MODE 2
Bit 0–7 : 1: fixed (backup)
42XGA
DATA00: 04H
DATA01: 02H
DATA02: 27H
DATA03: 16H
DATA04: 10H
DATA05: 96H
DATA06: 96H
DATA07: 96H
DATA08: 96H
DATA09: 96H
DATA10: 96H
DATA11: 96H
E-53
Table of Signals Supported
Supported resolution
• When the screen mode is NORMAL, each signal is converted to a 640 dots480 lines signal(42Wide VGA) or 768
dots768 lines signal (42XGA). (Except for *
2,
*
5
)
• When the screen mode is FULL, each signal is converted to a 853 dots480 lines signal(42Wide VGA) or 1024
dots768 lines signal (42XGA). (Except for *
3
)
Computer input signals supported by this system
Screen mode
Dots lines
640400
640480
848480
852480*
1
800600
1024768
1152864
1280768
1360765
1360768
1376768
12801024
16001200
640480
832624
1024768
1152870
12801024
12801024
1152900
12801024
1024768
12801024
768576
640480
Vertical
frequency
(Hz)
70.1
59.9
72.8
75.0
85.0
100.4
120.4
60.0
60.0
56.3
60.3
72.2
75.0
85.1
99.8
120.0
60.0
70.1
75.0
85.0
100.6
75.0
56.2
60.0
60.0
59.9
60.0
75.0
85.0
60.0
65.0
70.0
75.0
66.7
74.6
74.9
75.1
60.0
71.2
72.0
66.0
76.0
76.1
60.0
60.0
50.0
59.9
Horizontal
frequency
(kHz)
31.5
31.5
37.9
37.5
43.3
51.1
61.3
31.0
31.7
35.2
37.9
48.1
46.9
53.7
63.0
75.7
48.4
56.5
60.0
68.7
80.5
67.5
45.1
47.7
47.7
48.3
64.0
80.0
91.1
75.0
81.3
87.5
93.8
35.0
49.7
60.2
68.7
64.6
75.1
78.1
61.8
71.7
81.1
49.7
63.9
31.4
31.5
NORMAL
(4:3)
YES*
2
*
3
YES*
3
YES*
3
YES*
3
YES*
3
YES*
3
YES*
3
– –
– –
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES*
5
YES*
5
YES*
5
YES
YES
YES
YES
YES*
3
YES
YES
YES
YES*
5
YES*
5
YES*
5
YES
YES
YES*
5
YES
YES*
5
YES*
8
YES*
8
FULL
(16:9)
YES
YES
YES
YES
YES
YES
YES
YES*
3
YES*
3
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES*
4
YES*
4
YES*
4
YES*
4
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES
YES
YES
YES
YES
YES
YES
YES*
4
YES
YES*
8
YES*
8
RGB
select*
6
– –
STILL
– –
STILL
– –
– –
– –
WIDE2
WIDE1
STILL
STILL
– –
– –
– –
– –
– –
STILL
– –
STILL
– –
– –
STILL
WIDE1
WIDE1
WIDE1
WIDE2
– –
– –
– –
– –
– –
– –
– –
– –
– –
WIDE1
WIDE1
– –
– –
– –
– –
– –
– –
– –
– –
– –
MOTION
*Apple
Macintosh*
7
Horizontal
NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
Sync on G
Sync on G
Sync on G
Sync on G
NEG
NEG
– –
C Sync
C Sync
C Sync
– –
– –
NEG
NEG
Work Station
(EWS4800)
Work Station
(HP)
Work Station
(SUN)
Work Station
(SGI)
IDC-3000G
Signal Type
*IBM PC/AT
compatible
computers
Vertical
NEG
NEG
NEG
NEG
NEG
NEG
NEG
POS
NEG
POS
POS
POS
POS
POS
POS
POS
NEG
NEG
POS
POS
NEG
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
POS
Sync on G
Sync on G
Sync on G
Sync on G
NEG
NEG
– –
C Sync
C Sync
C Sync
– –
– –
NEG
NEG
Sync Polarity
Presence
Horizontal
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES
YES
– –
– –
– –
– –
– –
– –
YES
YES
Vertical
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
– –
– –
– –
– –
YES
YES
– –
– –
– –
– –
– –
– –
YES
YES
PAL625P
NTSC525P
Model
DVI
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
YES
NO
NO
NO
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
NO
YES
YES
NO
NO
E-54
*1 Only when using a graphic accelerator board that is capable of displaying 852480.
*2 Display only 400 lines (42Wide VGA), 640 lines (42XGA) with the screen center of the vertical orientation located at the
center.
*3 42Wide VGA: The picture is displayed in the original resolution. The picture will be compressed for other signals.
*4 42XGA: The picture is displayed in the original resolution. The picture will be compressed for other signals.
*5 Aspect ratio is 5:4. This signal is converted to the following signal (42Wide VGA: 600 dots480 lines, 42XGA: 720
dots768 lines).
*6 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the
RGB mode prepared for the input signals listed in the table above.
*7 To connect the monitor to Macintosh computer, use the supplied monitor adapter (D-Sub 15-pin) to your computer's video
port. If your computer has a mini D-Sub 15-pin connector, you may have to use the supplied RGB cable.
*8 Other screen modes (ZOOM and STADIUM) are available as well.
NOTE:
• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size
of the picture or the fine picture because of errors in synchronization of your computer.
• This monitor has a resolution of 853 dots
480 lines or 1024 dots768 lines. It is recommended that the input signal
be VGA, wide VGA, or equivalent for 42Wide VGA, XGA or equivalent for 42XGA.
• With digital input some signals are not accepted.
• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
• If you are connecting a composite sync signal, use the HD terminal.
* “IBM PC/AT”, “VGA” and “XGA”are registered trademarks of International Business MachinesM, Inc. of the United
States.
* “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.
E-55
Symptom
Picture is disturbed.
Sound is noisy.
Remote control operates erroneously.
The remote control does not work.
Monitor’s power does not turn on
when the remote control’s power
button is pressed.
Monitor does not operate when the
remote control’s buttons are pressed.
No sound or picture is produced.
Picture appears but no sound is
produced.
Poor picture with VIDEO signal input.
Poor picture with RGB signal input.
Tint is poor or colors are weak.
Nothing appears on screen.
Part of picture is cut off or picture is
not centered.
Image is too large or too small.
Picture is unstable.
POWER/STANDBY indicator is
lighted in orange or red.
POWER/STANDBY indicator is
blinking in red.
POWER/STANDBY indicator is
blinking in green and red, or green.
Checks
• Is a connected component set directly in
front or at the side of the display?
• Are the remote control’s batteries worn
out?
• Is the monitor’s power cord plugged into
a power outlet?
• Are all the monitor’s indicators off?
• Are the remote control’s batteries worn
out?
• Is the remote control pointed at the
monitor, or is there an obstacle between
the remote control and the monitor?
• Is direct sunlight or strong artificial light
shining on the monitor’s remote control
sensor?
• Are the remote control’s batteries worn
out?
• The remote cable is plugged into the
REMOTE IN terminal (Wired).
• The front panel buttons of the main unit
do not function.
• Is the monitor’s power cord plugged into a
power outlet?
• Is the volume set at the minimum?
• Is the mute mode set?
• Are the speakers properly connected?
• Is AUDIO INPUT set correctly?
•Improper control setting.
Local interference.
Cable interconnections.
Input impedance is not correct level.
• Improper control setting.
Incorrect 15 PIN connector pin
connections.
• Are the tint and colors properly adjusted?
• Is the computer’s power turned on?
• Is a source connected?
• Is the power management function in the
standby or off mode?
• Is the position adjustment appropriate?
• Is the screen size adjustment
appropriate?
• Is the computer’s resolution setting
appropriate?
• Horizontal and / or vertical sync signal is
not present when the Intelligent Power
Manager control is on.
• The temperature inside the main unit has
become too high and has activated the
protector.
——————
Remedy
• Leave some space between the display and
the connected components.
• Replace both batteries with new ones.
• Plug the monitor’s power cord into a power
outlet.
• Press the power button on the monitor to
turn on the power.
• Replace both batteries with new ones.
• Point the remote control at the monitor’s
remote control sensor when pressing
buttons, or remove the obstacle.
• Eliminate the light by closing curtains,
pointing the light in a different direction, etc.
• Replace both batteries with new ones.
• Unplung the remote cable from the monitor.
• The front panel buttons do not function
during Control Lock.
• Plug the monitor’s power cord into a power
outlet.
• Increase the volume.
•
Press the remote control
’s
MUTE button.
• Connect the speakers properly.
• Set AUDIO INPUT on the OPTION menu
correctly.
• Adjust picture control as needed.
Try another location for the monitor.
Be sure all connections are secure.
• Adjust picture controls as needed.
Check pin assignments and connections.
• Adjust the tint and color (under “PICTURE”).
• Turn on the computer’s power.
• Connect source to the monitor.
• Operate the computer (move the mouse,
etc.).
• Adjust the “SCREEN” properly.
• Press the “WIDE” button on the remote
control and adjust properly.
• Set to the proper resolution.
• Check the input signal.
• Promptly switch off the power of the main
unit and wait until the internal temperature
drops. See*1.
• Prompty switch off the power of the main
unit. See *2.
*1 Overheat protector
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor
and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor
to cool for 60 minutes. If the problem persists, contact your dealer.
*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.
The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma
display panel, temperature sensor, or one or more fans (42XGA) have been damaged.
If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.
Troubleshooting
E-56
Screen Size 921(H)518(V) mm
36.3"(H)20.4"(V) inches
diagonal 42"
Aspect Ratio 16 : 9
Resolution 853(H)480(V) pixels
Pixel Pitch 1.08(H)1.08(V) mm
0.04"(H)0.04"(V) inches
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-I 29-pin1*
3
(Not compatible with analog input)
Video
Visual 1 RCA-pin1
Visual 2 S-Video: DIN 4-pin1
Visual 3 BNC (G/Y/VIDEO3)1*
2
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])1*
1,
*
2
Audio Stereo RCA3 (selectable)
External Control D-sub 9-pin1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 4.6A (maximum)
Power Consumption 280W (typical)
Dimensions 1048 (W)648 (H)89(D) mm
41.3 (W)25.5 (H)3.5 (D) inches
Weight 28.5 kg / 61.8 lbs (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless / Wired remote
control
OSM Functions Picture (Contrast / Brightness / Sharpness
/ Color / Tint / Picture mode / Color
temperature / Noise reductions), Sound
(Bass / Treble / Balance), Screen (V-
Position / H-Position / V-Height / H-
Width / Auto Picture / Fine picture /
Picture adjustment), Function (OSM /
OSM adjustment / Power management /
Gray level / Cinema mode / RGB3
adjustment, Long Life (PLE, Orbiter,
Inverse, White
, Screen wiper)/ Reset)
/
Option (Audio input / BNC select / RGB
select / HD select), Information
(Frequency / Language
*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2, HD/
DVD2 and VIDEO3 input. Select one of them
under “BNC SELECT”.
*
3
It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Remote cable, RGB cable (Mini D-Sub
15-pin to Mini D-Sub 15-pin connector),
Power cord, User’s Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands
Regulations
Meets class A requirements (EN55022,
EN61000-3-2, EN61000-3-3, EN55024)
Meets Low Voltage Directive (EN60950,
SEMKO Approved)
Meets AS/NZS 3548 Class A
U
nits are in mm
(
inch
)
89
(
3.5"
)
30
(1.18")
59
(2.32")
1048 (41.3")
648(25.5" )
518(20.4")
921 (36.3")
42Wide VGA
Specifications
E-57
Screen Size 918(H)518(V) mm
36.1"(H)20.4"(V) inches
diagonal 42"
Aspect Ratio 16 : 9
Resolution 1024(H)768(V) pixels
Pixel Pitch 0.897(H)0.675(V) mm
0.04"(H)0.04"(V) inches
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-I 29-pin1*
3
(Not compatible with analog input)
Video
Visual 1 RCA-pin1
Visual 2 S-Video: DIN 4-pin1
Visual 3 BNC (G/Y/VIDEO3)1*
2
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])1*
1,
*
2
Audio Stereo RCA3 (selectable)
External Control D-sub 9-pin1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 5.9A (maximum)
Power Consumption 380W (typical)
Dimensions 1048 (W)648 (H)89(D) mm
41.3 (W)25.5 (H)3.5 (D) inches
Weight 29.5 kg / 65.0 lbs (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless / Wired remote
control
OSM Functions Picture (Contrast / Brightness / Sharpness
/ Color / Tint / Picture mode / Color
temperature / Noise reductions), Sound
(Bass / Treble / Balance), Screen (V-
Position / H-Position / V-Height / H-
Width / Auto Picture / Fine picture /
Picture adjustment), Function (OSM /
OSM adjustment / Power management /
Gray level / Cinema mode / RGB3
adjustment, Long Life (PLE, Orbiter,
Inverse, White
, Screen wiper)/ Reset)
/
Option (Audio input / BNC select / RGB
select / HD select), Information
(Frequency / Language
*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2, HD/
DVD2 and VIDEO3 input. Select one of them
under “BNC SELECT”.
*
3
It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Remote cable, RGB cable (Mini D-Sub
15-pin to Mini D-Sub 15-pin connector),
Power cord, User’s Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands
Regulations
Meets class A requirements (EN55022,
EN61000-3-2, EN61000-3-3, EN55024)
Meets Low Voltage Directive (EN60950,
SEMKO Approved)
Meets AS/NZS 3548 Class A
U
nits are in mm
(
inch
)
89
(
3.5"
)
30
(1.18")
59
(2.32")
1048 (41.3")
648(25.5" )
518(20.4")
918 (36.1")
42XGA
