INSTALLATION &
OWNER’S MANUAL
J1CA7W
7” CAPACITIVE TOUCH SCREEN
2 DIN MEDIA MECHLESS RECEIVER
AM-FM
USB Media Player
Rear Camera Input
Copyright Notes
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
Use of the Apple CarPlay logo means that a verhicle user interface meets Apple performance standards. Apple is not responsible
for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that use of this product with
iPhone, iPod or iPad may affect wireless performance. Apple CarPlay is a trademark of Apple Inc. "Made for iPod" and "Made for
iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been
certified by the developer to meet Apple performance standards. iPhone and iPod are trademarks of Apple, Inc., registered in the
U.S. and other countries.
Availability of Android Auto™ may vary depending upon your country and phone model. Please visit android.com/auto for more
information. Android, Android Auto, Google and other marks are trademarks of Google Inc.
Other trademarks and trade names are those of their respective owners.
Safety Notes
This is a safety feature to prevent driver distraction. In-dash video functions will only
operate when vehicle is in Park and the parking brake is engaged. It is illegal in most
jurisdictions for the driver to view video while the vehicle is in motion.
The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any APP’s that are
compatible with this unit.
It is highly recommended that your JENSEN J1CA7W is installed by a professional installer or an authorized dealer.
This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or th possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse wit the wrong rating may cause the unit to
malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest JENSEN deale .
• If the unit malfunctions, reset the unit as described. If the problem still persists consult your nearest JENSEN dealer or call tech
assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not usea stiff cloth, or solvents such as paint thinner
and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside th screen will become darker than usual. Normal
brightness will return after the unit is in use for a while.
• When extending the ignition, battery or ground wiring, make sure to us automotive-grade wiring with an a minimum AWG 16 or
more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liqui crystal fluid may be hazardous to your health or
fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.
2
J1CA7W
Page
Warning Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation/Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AM/FM Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Media Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

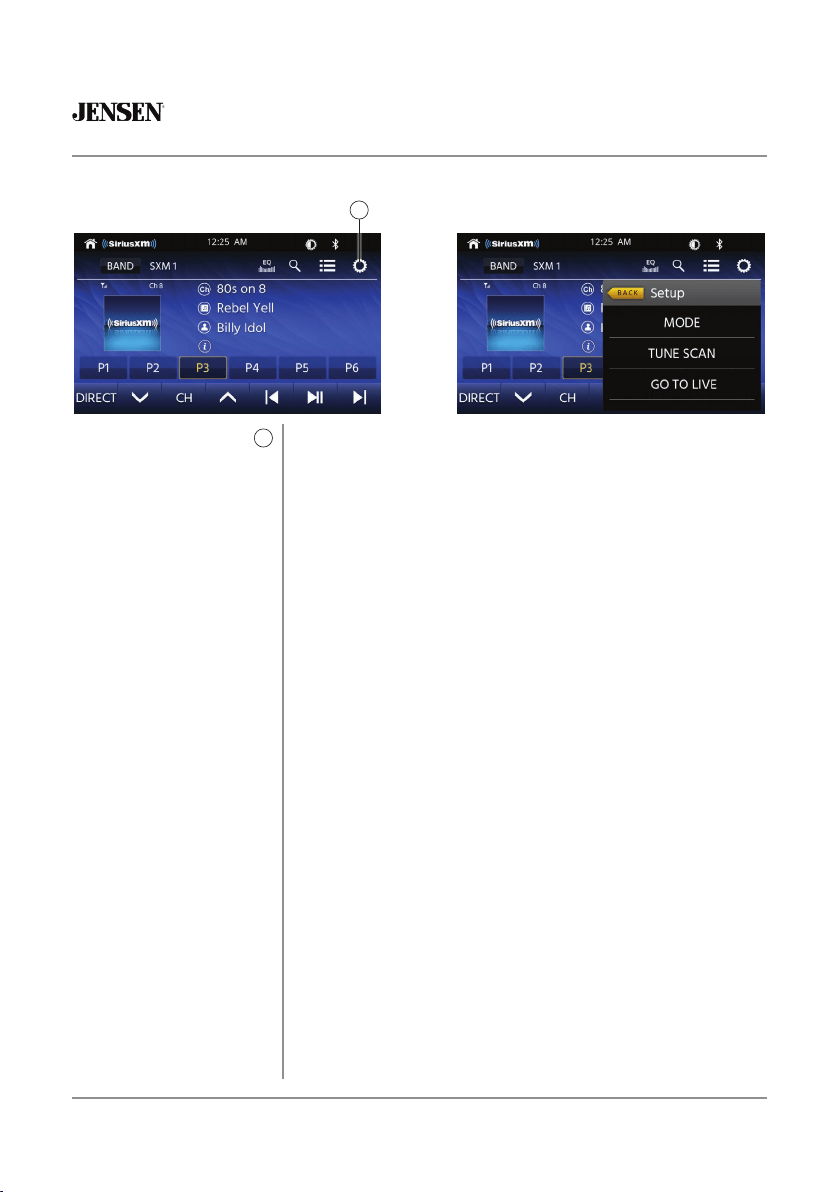

SiriusXM
®
S atellite Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SiriusXM
®
Radio Advisory Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .
Android Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary Inputs/Rear Camera Operation. . . . . . . . . . . . . . . . . . . . . . . . . .
SWC Input Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
3
4
5
6
7
8-9
10
11
12
13-14
17-16
16-20
21
22-23
24-25
26
27
28
29
30
3
J1CA7W
Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle
must not operate this unit by watching videos or playing video games while driving.
Failure to follow this instruction could lead to driver distraction which could result in
serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or
property damage.
Several states prohibit the installation of monitors/media players if the screen is visible
from the driver’s seat. If you reside in a jurisdiction which has enacted such a law, this
unit must not be installed so that the screen is visible from the driver’s seat. When
installing this unit in the front console/dashboard, the unit must be positioned so that it is
facing the front passenger seat only. Failure to follow this instruction could lead to driver
distraction which could result in serious injury or death to the vehicle’s occupants or
persons outside the vehicle and/or property damage.
This unit is designed so that it may be operated only when the vehicle is in “Park” and the
parking brake is fully engaged. To this end, this unit includes a parking brake lock-out
feature which prohibits the unit from operating if the vehicle is not in “Park” and/or the
parking brake is not fully engaged. When installing this unit, the installer must connect
the parking brake detect wire to the parking brake mechanism in order to make the
parking brake lock-out feature operable. DO NOT simply ground the parking brake detect
wire to a metal portion of the vehicle. Failure to properly install the parking brake lock-
out feature could lead to driver distraction which could result in serious injury or death to
the driver’s occupants or persons outside the vehicle and/or property damage.
Once the parking brake lock-out feature is installed, the owner/user must not attempt to
disrupt/neutralize the parking brake lock-out feature by (a) partially engaging the parking
brake and/or (b) purchasing/using any device or unit designed to send necessary brake
signals to the unit. Failure to follow these instructions could lead to driver distraction
which could result in serious injury or death to the driver’s occupants or persons outside
the vehicle and/or property damage.
When operating this unit, keep the unit’s volume level low enough so that the vehicle’s
occupants can hear traffic-related sounds such as police and emergency vehicles.
Failure to follow this instruction could lead to driver distraction which could result in
serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or
property damage.
WARNING
4
J1CA7W
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5
J1CA7W
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it
would be subject to dust, dirt or excessive vibration.
Preparation
MO UNTING SC RE WS
M5.0x6.0mm M5.0x5.0mm
TR IM RING
6
J1CA7W

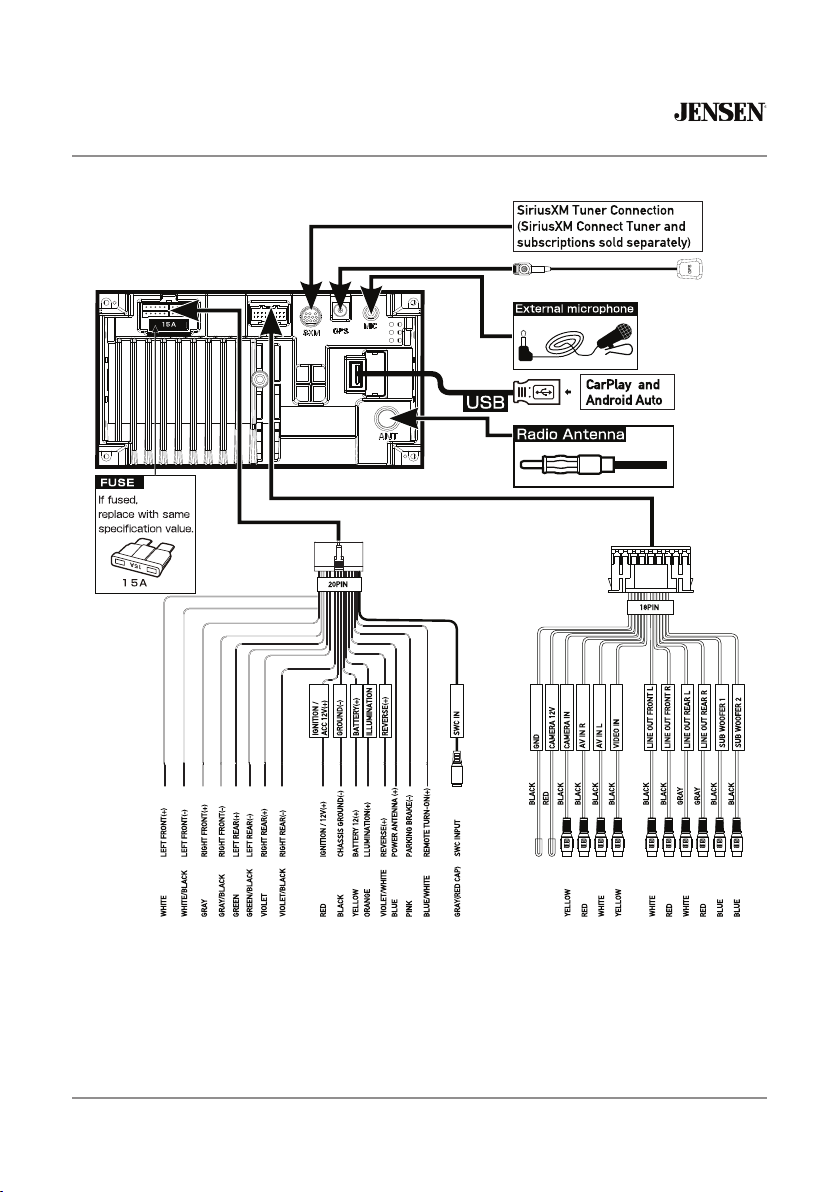

Wiring Diagram - Inputs/Outputs
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (Blue jacket with Black RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
SiriusXM
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included
with the tuner(SiriusXM connect tuner and subscription sold separely).
Note: For CarPlay and Android Auto only
7
J1CA7W

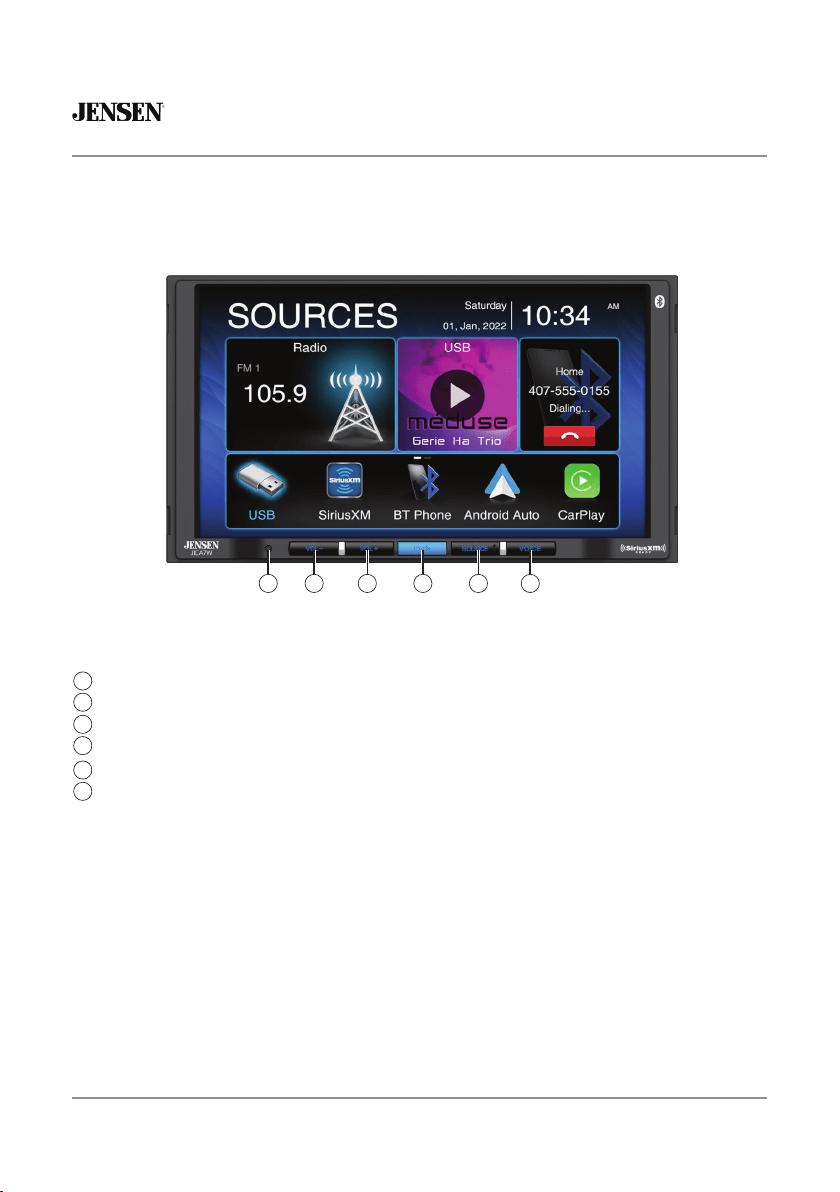

Control Locations
RESET
VOL-
VOL+
POWER/MUTE
SOURCE
VOICE ACTIVATION BUTTON
1
2
3
4
5
6
The radio display features the following functions and displays:
1 2 3 4 5 6
8
J1CA7W

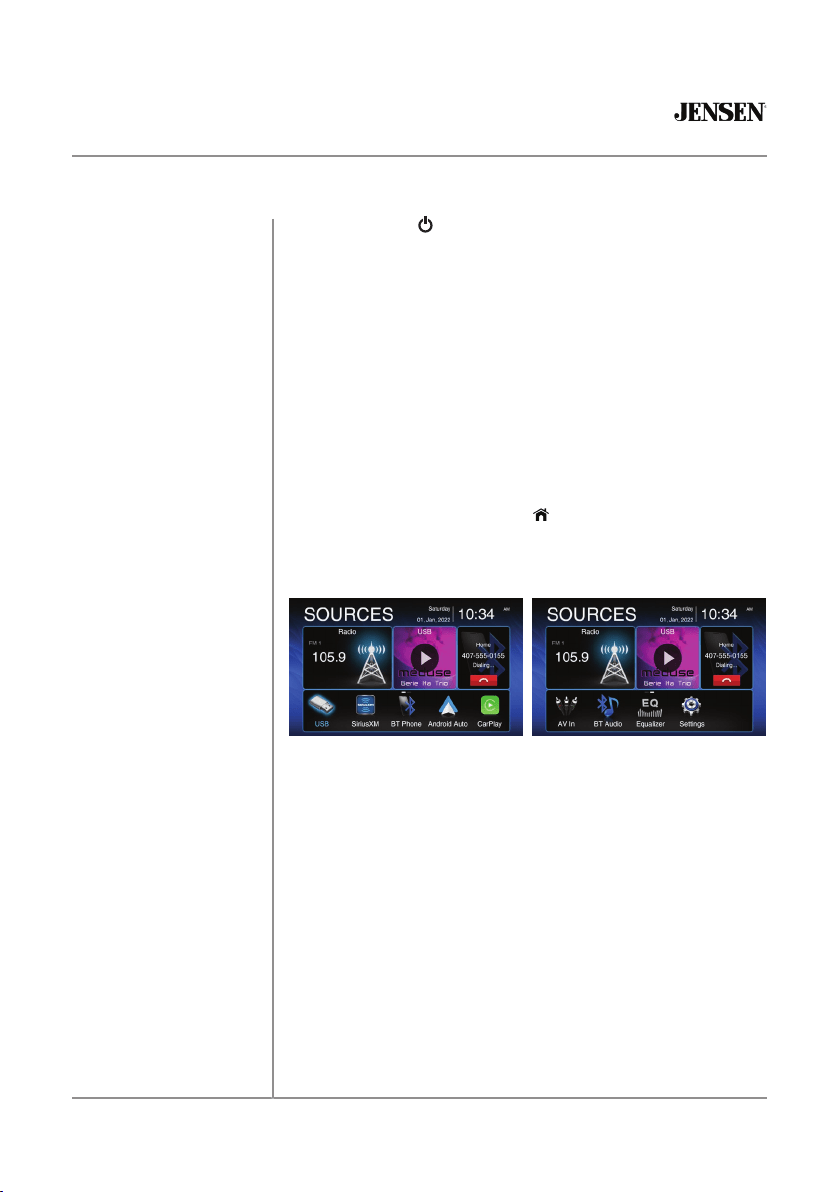

Power On/Off
Volume
Mute
Mode
Main Menu
A/V In
USB
Reset
Momentarily press
to turn the unit on. Press and hold to turn the
unit off.
Press "VOL+" or "VOL-" to increase or decrease the volume level.
Momentarily press MUTE to silence the audio. Momentarily press MUTE
again to return to the previously selected volume. Rotating the volume
knob while the volume is muted will also cancel the mute function.
Press MODE at the top left corner of the screen to display the main
menu.
Radio/USB/SXM/BT Phone/Android Auto/CarPlay/AV In/BT Audio/
Equalizer/Settings
Note: Modes of operation can also be accessed by selecting the
corresponding icon from the main menu.
Operation Mode Selection: Press the icon at the top left corner of the
screen to display the OSD main menu. Press the Radio/USB/SXM/BT
Phone/Android Auto/CarPlay/AV In/BT Audio/Equalizer/Settings in the
Main meu pate to select the desired source.
Connect external audio/video devices to the rear RCA Type A/V Input
Insert a USB flash drive to play MP3/FLAC files.
To resolve abnormal operation or if the unit is inoperable, Press the
RESET button located on the front panel. The unit will reset the main
processor to the default settings,
Note: Use the tip of a pen to access the reset button. To restore the
factory default software settings.
General Operation
9
J1CA7W
From the Main Menu screen, select Setup to access the Settings menu
and select from eight categories represented by the icons on the top of the
screen: General, Audio, Display, Others. Select the category, and adjust any
of the available options using the touch screen.
General:
• Adjust the date and time- Day, Month, Year, Hour, Minute and Format.
• Time Format- Select between 12-Hour and 24-Hour Time Format.
• Beep Tone - Turn the Beep Tone On or Off.
• Radio Region - Select Radio Region.
• Sync GPS Time- Synchronizes the clock time with the GPS.
• Manual- Turn off GPS synchronizes and you can set the time manually.
• Time Zone-Select the time zone.
Audio:
• Equalizer-Select between the following EQ presets: Default, User,
Classic, Rock, Jazz, Electric, Pop, Soft (allows user to enter custom EQ
settings).
• Time Alignment-To adjust time correction settings select“PRESET 1”
”PRESET 2“or“PRESET 3”.
• Loudness - Touch screen button to turn the Loudness function on/off.
• Subwoofer Control - Touch the button to turn the Subwoofer Control
On/Off.
• Subwoofer Gain - Select subwoofer -6 to 6 ( 0 is default ).
Display:
• Brightness- Press > or < to adjust to desired level.
(O Minimum/20 maximum: Day: 20 is default, Night: 6 is default).
• Dimmer Mode- Press > or < to adjust to change the mode
(Auto/Day/Night).
• Color Brightness-Press > or < to adjust to desired level.
(O Minimum/24 maximum).
Others:
• Factory Default-Reset Bluetooth Settings or Reboot System
(Including SiriusXM™ data reset) .
• System Version-Displays soft ware version of unit .
General Operation
Setup Menu
10
J1CA7W
From the Main Menu screen, Press the Equalizer icon on the main menu
screen to adjust Fader and Balance controls, Equalizer
(8-Band Tone Control and 8 Presets EQ Settings).
Audio Operation
Equalizer Menu
Time Alignment Menu
Surround Presets
Time Delay Setting
Speaker Positions
Reset to Default Settings
1
2
3
4
Adjustments:
To properly set the time alignment, you will need measure the distance
from each speaker (in ft) to where you want the “center stage” to be. for
example, if you want the position to be at the divers seat, then meausre
each speaker side (front & rear) to where your head is located and set the
distance accordingly.
Each vehicle will vary in distance, so settings will be different in each case.
1 4
2
3
11
J1CA7W
AM/FM Tuner Operation
1 2 43
9
12 11 10
5
6
7
8
Radio Operation
Main Menu
1
Current Mode Indicator
2
Preset Stations
3
Dimmer
4
Local / Distance
5
AS/PS
6
Keypad
7
EQ
8
Seek Tune Up
9
Seek Tune Down
10
AM
11
FM
12
From the main menu, touch Radio icon on the screen to select AM/
FM tuner mode.
Press icon to return to Main Menu screen.
Display status of various tuning functions including Auto.
To store a station as a preset in the current band, tune to the desired
station, then press the desired preset number from the list. Press
any preset in the list to recall and begin playback of that station.
(Hold this button down for a few seconds and it will switch between
AS and PS)
Press the
icon to adjust the brightness.
Press DX/LOC text to turn on the local or distance.
Auto Store Presets: Press and hold AS/PS to automatically program
the FM(18)/AM(12) available into the presets in the current Band.
Preset Scan: Press AS/PS to scan through all tunable presets in the
current band and play them for 3 seconds each.
Direct Search Keypad.
Press the icon to adjust Equalizer setting.
Press to automatically tune to a higher frequency.
Press to automatically tune to a lower frequency.
Press to toggle between AM1 and AM2.
Press to toggle between FM1, FM2 and FM3.
12
J1CA7W
USB Audio Operation
USB
Main Menu
1
Current Mode Indicator
2
List
3
Repeat
4
Random
5
Search
6
EQ
7
Track Up
8
Play / Pause
9
Track Down
10
From the main menu, touch the USB icon on the main screen.
Press icon to return to Main Menu screen.
Displays source currently playing.
Press icon to access a list of all files and folders on the device.
- Press to access the root directory
- Press a folder name to access that folder, and press to return to
the file list
- Use the letter to retrieve the list of files
- Press the " " arrow to return to the previous screen.
Press icon to repeat current track and adjust to repeat all tracks in
the current folder. Touch RPT again to exit repeat mode.
Press icon to shuffle all tacks in the current folder. and again to
shuffle all tracks. Touch icon again to exit Repeat mode.
Press icon to search a music file.
Press the icon to adjust Equalizer setting.
Press icon to skip ahead to the next song
Press icon to pause or resume playback.
Press icon to return to the beginning of the current track.
1
2
3
4
5
6
7
10 9 8
13
J1CA7W
Media Compatibility
File Type MP3
File System
FAT
FAT 12 X
FAT 16/FAT 32
File
Extension
.mp3/.MP3/.Mp3/.mP3/.flac/ogg
.rmp/.m4a X
MPEG
Format
MPEG 1
MPEG 2
MPEG 2.5
Sampling
Frequency
MPEG 1 32/44.1/48kHz
MPEG 2 12/16/22.05/24kHz
MPEG 2.5 8/11.025/12kHz
Bitrate
MPEG 1 32 ~ 320kbps
MPEG 2 8 ~ 160kbps
MPEG 2.5 8 ~ 160kbps
Other
Information
Directory Depth Unlimited
File Name Length 32 bytes
Total File Number 2000 files
Total Folder Number 200 folders
File Number via Folder 2000 files
MP3 ID3 TAG
ver.1.x
ver.2.x
Title, Artist, Album
Notes:
• Due to ongoing technological advancement, some USB flash drives may be incompatible with this unit.
14
J1CA7W
Media Compatibility
The following types of files are not compatible:
• MP3 PRO format, MP3 playlists
• RMP format
• AAC, protected AAC, M4A format
MP3 playback sequence begins in the root folder of the USB device. Any
empty folders or folders that do not include MP3 files are skipped.
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root folder).
• Valid characters for folder/file names are letters A-Z (all caps), numbers
0-9, and “_” (underscore). Some characters may not be displayed correctly,
depending on the character type.
• This device can play back files in Joliet and other standards that conform to
ISO9660. MP3 written in the formats other than the above may not play and/
or their file names or folder names may not be displayed properly.
Some files may not play or be displayed correctly, depending on sampling
rates and bit rates.
For best results, use the following settings when ripping MP3 files:
128kbps or higher constant bit rate
44.1kHz or higher sampling frequency
Media Compatibility
Playback Order
Compatible Recording Formats
Notes
15
J1CA7W

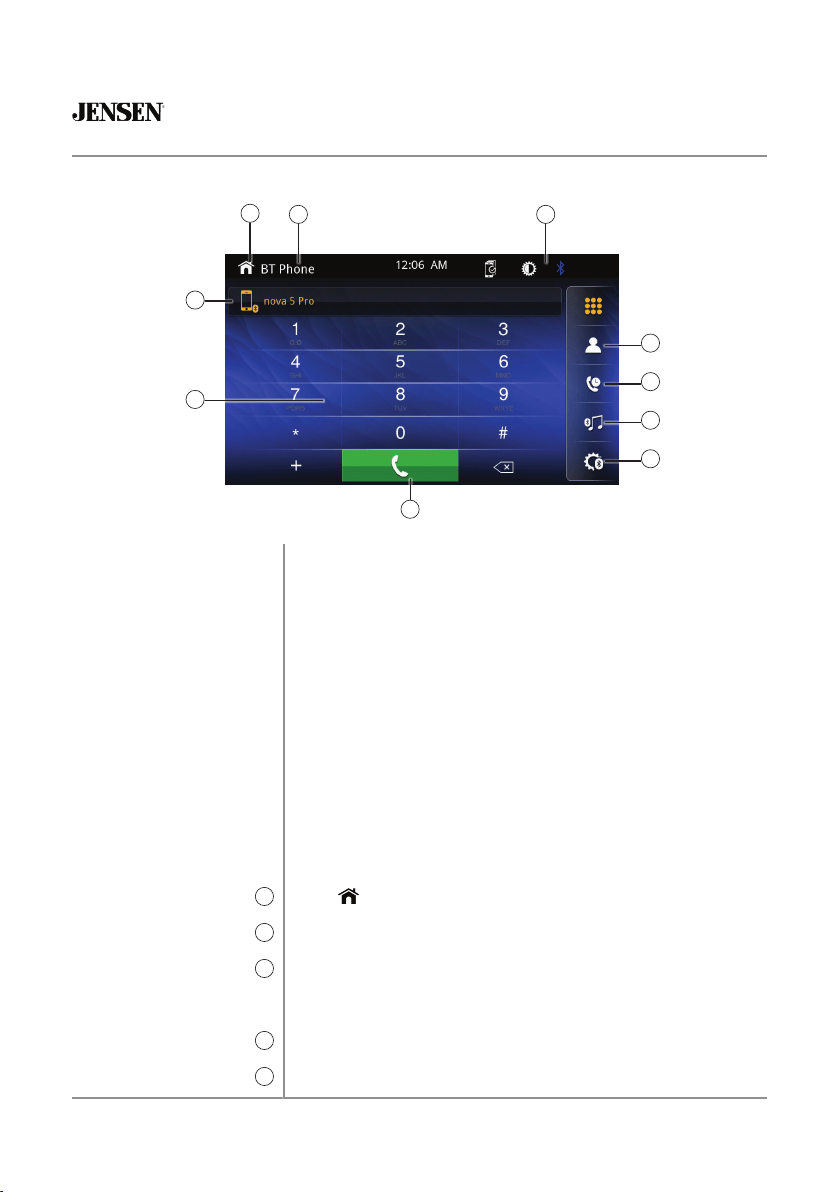

Bluetooth Operation
Before you can use a Bluetooth device to make hands-free calls or
stream audio. it must be authenticated. This is also referred to as
"pairing" a device.
The unit broadcasts the pairing signal constantly when no devices
are currently connected. Complete the pairing sequence from your
Bluetooth device. Refer to the owner's manual for your device for
more details. The device name is "J1CA7W". The unit can be in any
mode of operation when pairing is performed. On certain phones,
pairing may need to be done more than once.
The head unit will automatically connect to the last connected device
when the connect feature is set to Auto connect On. If the connect
feature is set to Auto Connect Off, the head unit will not automatically
connect to any device.
From the main menu. touch the Bluetooth on the screen. Bluetooth
icon will appear anytime a Bluetooth device is connected.
Press icon to return to Main Menu screen.
Displays current mode of operation.
When Bluetooth is On and a Bluetooth device is being paired. the
indicator will flash. When Bluetooth is On and a phone is connected
to the unit. the indicator will illuminate steady.
Press "CONTACTS" to access phone book menu.
Press the Call Log to show( Dialed, Missed and Received Calls ).
Before using Bluetooth
Pairing a New Device
Connect
Bluetooth Phone
Main Menu
1
Current Mode Indicator
2
Bluetooth Status indicator
3
Phone Book
4
Call Log
5
1
2 3
8
9
10
4
5
6
7
16
J1CA7W

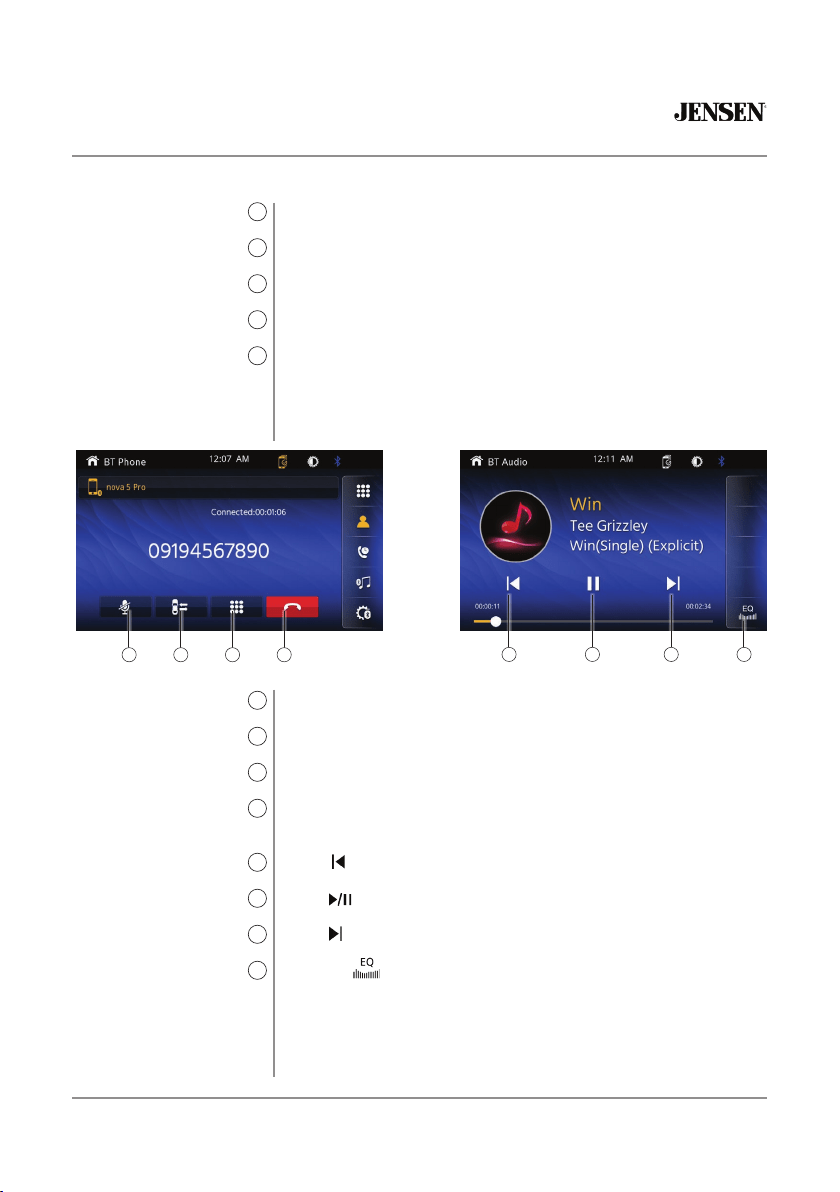

Bluetooth Operation
11 12 13 14
Microphone
11
Audio Transfer Button
12
Keypad
13
End Call
14
Track Down
15
Play / Pause
16
Track Up
17
EQ
18
Bluetooth Music
6
Setup
7
Call
8
Phone Keypad
9
Devices
10
Turn the Microphone voice On or Off.
Press to transfer audio between the unit and mobile phone.
Press to return to the Keypad screen.
Press the End icon on screen or the End button on the front Panel to
end a call in progress or o reject an incoming call.
Press icon to return to the beginning of the current track.
Press icon to pause or resume playback.
Touch icon to skip ahead to the next song.
Press the icon to adjust Equalizer setting.
Press MUSIC to transfer audio between the unit and mobile phone.
Press "SETUP" to access Bluetooth settings.
Dial a number and touch the Phone icon to call.
Use the keypad to dial a phone number.
Press the DEVICES to show the pairing device list. To connect to a
previously connected device. press the current device name. Any
previously connected devices that are in rang will be listed by their
device name. Press the desired device name to disconnect from the
current device and connect to the new device.
16 17 1815
17
J1CA7W

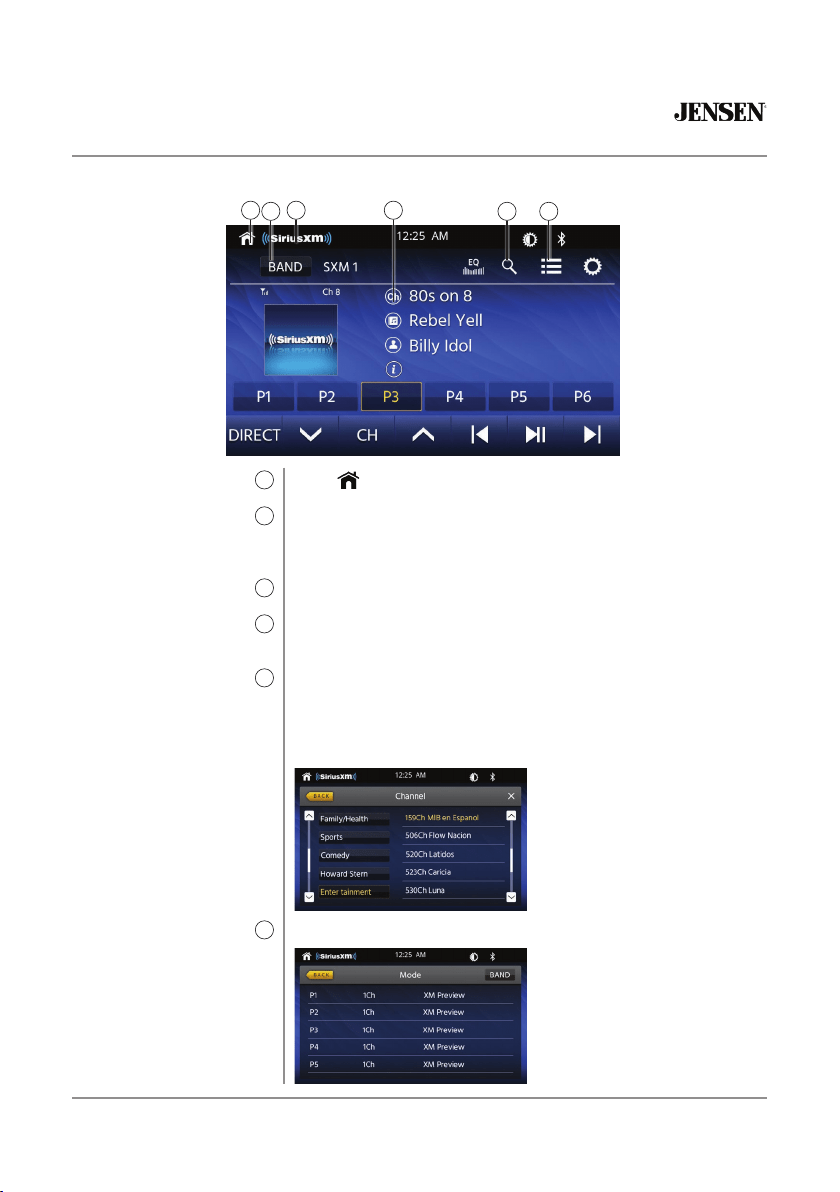

SiriusXM
®
Satellite Radio Operation
Only SiriusXM
®
Satellite Radio brings you more of what you love to
listen to, all in one place. Get over 140 channels, including
commercial-free music plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite radio. A SiriusXM
Vehicle Tuner and Subscription are required. For more information,
visit www.siriusxm.com.
After installing your SiriusXM Connect Vehicle Tuner and antenna,
power on your radio and select SiriusXM mode. You should be able
to hear the SiriusXM preview channel on Channel 1. After you can
hear the Preview channel, tune to Channel 0 to find the Radio ID of
your tuner. The In addition. Radio ID is located on the bottom of the
SiriusXM Connect Vehicle Tuner and its packaging.
Note: SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, activate online or by calling SiriusXM Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
• Visit www.siriusxm.ca/activatexm
• Call XM customer Care at 1-877-438-9677
Activation typically takes 10-15 minutes, but may take up to one hour.
It is recommended to leave your vehicle on until the “Subscription
Updated” message appears. Your radio will need to be powered on
and receiving the SiriusXM signal to receive the activation message.
Once activated, you can tune to channels in your subscription plan.
From the Main Menu, touch the SiriusXM icon to access SiriusXM
mode and begin operation.
SiriusXM
®
Radio
Activating
SiriusXM
®
Radio
Accessing
SiriusXM
®
Radio
18
J1CA7W
SiriusXM
®
Satellite Radio Operation
Press icon to return to Main Menu screen.
Touch to select a band of preset channels. Three bands are
available:SXM1, SXM2, and SXM3. Each band can store up to six pre-
set channels. (Preset channels are accessed from the List icon.)
Displays current mode of operation.
Displays program information such as channel name, artist name
and song title.
Press to enter search mode, then press Channel to choose between
the following search options: Channel, Artist, Song Title or Info. Use
the up/down arrows on the left side to navigate categories, and use
the up/down arrows on the right side to navigate channels, artists,
song titles or info.
Category & Channel
Press to display a list of preset channels in the current band.
Preset Channel List
Main Menu
1
Band
2
Current Mode Indicator
3
Program Information
4
Search
5
Preset Channel List
6
1 3 4
2 65
19
J1CA7W
SiriusXM
®
Satellite Radio Operation
Press to display/adjust the options Mode, Tune Scan and Go to Live:
Mode - Press to access and adjust the following options:
• Parental Code - When enabled, the Parental Control feature
requires you to enter a passcode to tune to the locked channels.
Press "Change" to change the parental code. Follow the prompts
to enter the current code, then enter and confirm the new code.
The default code for the unit is "0000".
• Parental Control - The Parental Control feature allows you to limit
access to any SiriusXM channels, including those with mature
content. Select a Parental Control option: Off (turns Parental
Control off) Mature (locks all mature channels) or User (allows
the user to lock specific channels using the Parental Lock
Channel feature). Enter the Parental Code when prompted to
confirm the change.
• Parental Lock Channel - Press "SET" to select specific specific
channels to lock. Press "All Clear" to clear all locked channels.
• Channel Skipping - Press "SET" to select channels to skip.
• TuneStart™ - Press "ON" or "OFF" to enable or disable TuneStart.
With the TuneStart feature turned ON, you will hear the
beginning of the song when you tune to one of your Preset
channels. It may take a minute or two for the feature to work
after power up or after changing preset bands.
TuneScan™
Press TuneScan button to initiate the TuneScan function. The unit
plays samples from the start of multiple buffered songs from each of
the Preset Channels that predominantly play music selections,. This
gives the user easy access to a large sampling of music content, and
they can enjoy hearing a full song when stopping the scan on a song of
interest. Pressing TuneScan again will stop the TuneScan functionand
continue playing the song currently being scanned.Pressing and
holding the TuneScan button cancels the TuneScan and returns the
user to the original channel that was tuned when TuneScan was first
initiated.
Go to Live- Press to resume play of live broadcast while in Replay
mode.
Additional Options
7
7
Additional Options
20
J1CA7W
SiriusXM
®
Satellite Radio Operation

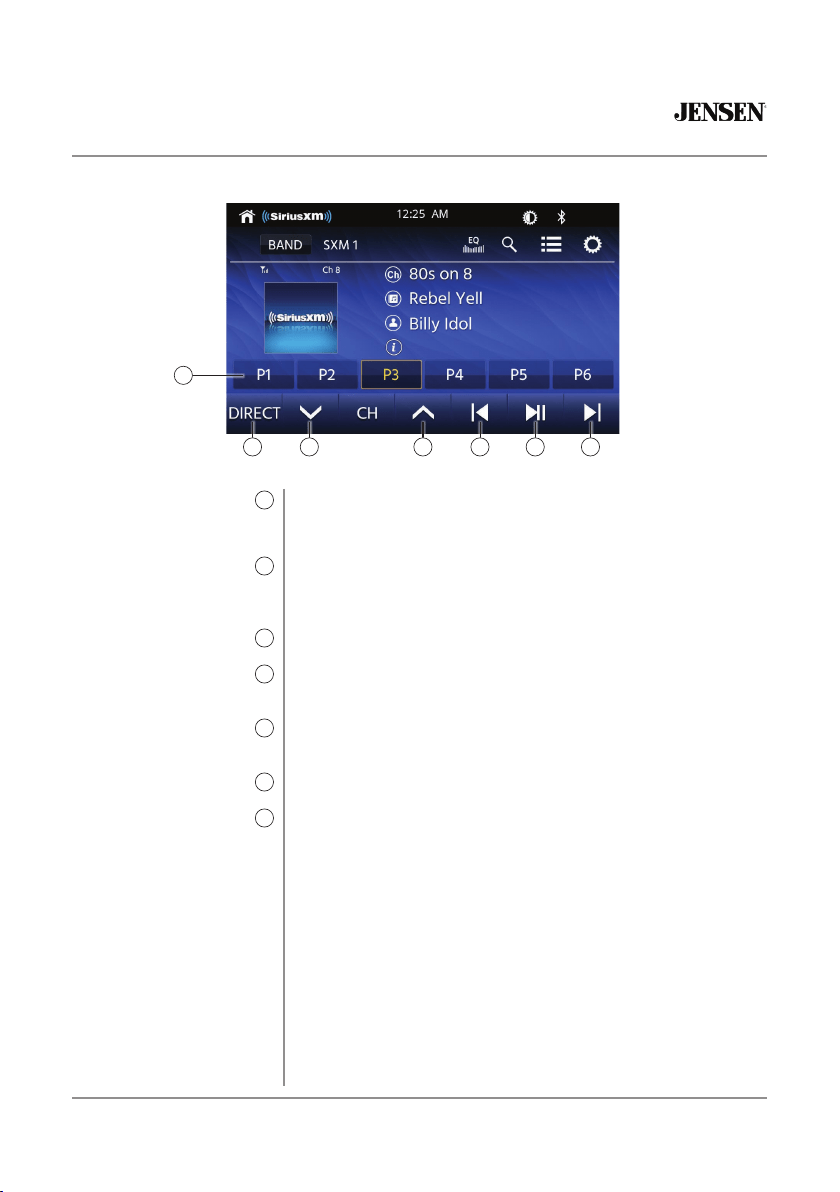

Press and hold any preset button (1-6) to save the current station as
a preset. Press the desired preset button to begin playback of the
corresponding preset channel.
Press to display screen for direct channel access. Press the desired
channel number, then press Enter. Playback of desired channel will
begin.
Press to go back to the previous channel.
Press to advance to the next channel.
Press to enter Replay mode. Once in Replay mode, press to skip to
the previous track or press and hold to fast reverse.
Press to pause and replay contect from the active channel.
Press to skip to the next track. Press and hold to fast forward. Press
repeatedly to "catch up" and resume live play. Selecting Go to Live
under Additional Options will also resume live play.
Preset Buttons
8
Direct
9
Channel Down
10
Channel Up
11
Tune / Track Down
12
Play / Pause
13
Tune / Track Up
14
8
9 10 11 12 13 14
21
J1CA7W
SiriusXM
®
Radio Advisory Messages
SiriusXM
®
Advisory Message
Recommendation
Check Antenna
1. The radio has detected a fault with the SiriusXM
®
antenna. The antenna cable
may be either disconnected or damaged.
2. Verify that the antenna cable is connected to the SiriusXM
®
Connect Vehicle Tuner.
3. Inspect the antenna cable for damage and kinks. Replace the antenna if the cable
is damaged.
4. SiriusXM
®
products are available at your local car audio retailer or online at
www.shop.siriusxm.com.
Check Tuner
1. The radio is having difficulty communicating with the SiriusXM
®
ConnectVehicle
Tuner. The tuner may be disconnected or damaged.
2. Verify that the SiriusXM
®
Connect Vehicle Tuner cable is securely connected to
the radio.
No Signal
1. The SiriusXM
®
Connect Vehicle Tuner is having difficulty receiving the SiriusXM
®
satellite signal.
2. Verify that your vehicle is outdoors with a clear view of the sky.
3. Verify that the SiriusXM
®
magnetic mount antenna is mounted on a metal
surface on the outside of the vehicle.
4. Move the SiriusXM
®
antenna away from any obstructions.
5. Inspect the antenna cable for damages and kinks.
6. Consult the SiriusXM
®
Connect Vehicle tuner installation manual for more
information on antenna installation. Replace the antenna if the cable is damaged.
SiriusXM
®
products are available at your local car audio retailer or online at
www.shop.siriusxm.com.
Subscription Updated
The radio has detected a change in your SiriusXM
®
subscription status. Press
<<
>> to clear the message. In the USA, visit www.siriusxm.com or call
1-866-635-2349 if you have questions about your subscription. In Canada, visit www.
siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription.
Channel Unavailable
The channel that you have requested is not a valid SiriusXM
®
channel or the channel
that you were listening to is no longer available. You may also see this message
briefly when first connecting a new SiriusXM
®
Connect Vehicle tuner. Visit
www.siriusxm.com for more information about the SiriusXM
®
channel lineup.
Channel Unsubscribed
The channel that you have requested is not included in your SiriusXM
®
subscription
package or is no longer included in your SiriusXM
®
subscription package. In the USA,
visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your
subscription. In Canada, visit www.siriusxm.ca or call 1-877-438-9677 if you have
questions about your subscription.
Channel Locked
The channel that you have requested is locked by the radio's Parental Control feature.
Refer to the SiriusXM
®
Satellite Radio Operation section for more information on the
Parental Control feature and how to access locked channels.
No Content
TuneScan is not available. Please allow the tuner some time to buffer new songs to
scan.
Invalid Lock code
If ” Invalid Lock code” message displayed on the screen, it will disappears automati
-
cally after three seconds. And then user can insert the passwordb again.
22
J1CA7W
Apple CarPlay Operation
Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri)
music, navigation, phone and messaging apps - significantly reducing driver distraction.
Phone - Use Siri to make calls, return missed calls, listen to voicemail
messages, and view the caller ID on the receiver’s screen.
Messages - Ask Siri to send, read, and reply to text messages. This hands free
operation minimizes distraction and allows you to keep hands on the wheel and
eyes on the road.
Music - Access music by artist, song, playlist, and more through the receiver’s
touchscreen or via Siri. The receiver will mirror the iPhone screen with artist and
track information.
Maps - Use Siri to request turn-by-turn directions – search by address or
points of interest. Apple Maps will be mirrored on the screen, including traffic
information and estimated time to destination.
Compatible Devices
Made for iPhone models:
iPhone12 mini, iPhone 12 , iPhone 12 Pro, iPhone 12 Pro Max, iPhone 11 Plus, iPhone 11,
iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone
7 Plus, iPhone 6, iPhone 6S
Starting Apple CarPlay™
Wireless CarPlay Connection Descriotion.
1.
Enter the main UI and click BT Phone to enter the Bluetooth interface;
2. Click Refresh to search nearby Bluetooth, click Pair to match Bluetooth;
3. Open the iPhone WLAN to connect to the car, after the connection is successful, the CarPlay icon in
the device list will appear, and the CarPlay connection is successful;
4. Enter the CarPlay interface, click the functions of Phone/ Music/Map/Information/etc.
Note: For safety reasons, CarPlay features are limited while driving and will vary with
each CarPlay-enabled app. Available functions are determined by each individual
app provider. For more information, visit www.apple.com/ios/carplay.
Note: Certain iPhone functions may be illegal while driving in your location. Be sure to
familiarize yourself with local and state laws regarding mobile devices. When in
doubt, stop and park your vehicle before using any devices.
23
J1CA7W

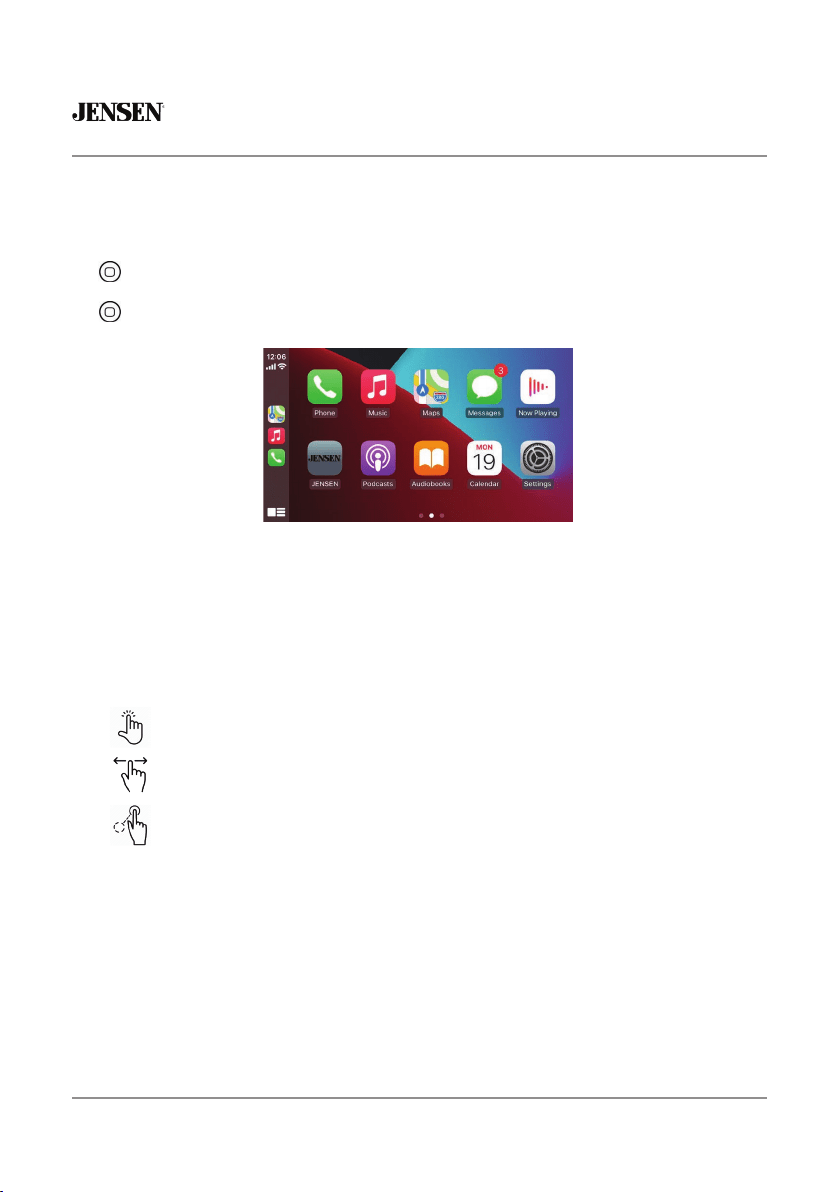

Press any Application button on the main CarPlay menu to access that operation directly.
The toolbar on the left side of the screen displays the time, signal strength and shortcuts
to the most popular applications - Phone, Music and Navigation - so they can be accessed
quickly and easily without returning to the main menu.
Controlling Apple CarPlay™
The following basic controls will operate many standard CarPlay features.
Exiting Apple CarPlay™
Disconnecting your iPhone will automatically exit CarPlay mode. To exit CarPlay mode
while your phone is still connected, press the Power/Volume knob momentarily, and the
unit's main menu will be displayed.
Apple CarPlay Operation
When the CarPlay menu is displayed, the home button in the lower left corner work just
like the home button on your iPhone.
Press and hold it to summon Siri and begin your voice commands.
At any time during CarPlay operation, you can press this button momentarily to
return to the main CarPlay menu screen.
Touch - Briefly press the desired option.
Swipe - Briefly swipe in the desired direction.
Drag - Press, hold and drag to the desired location.
24
J1CA7W
Android Auto™ Operation
Android Auto™ brings the most useful apps to your phone screen or your compatible car
display, in a format that makes it easy for you to keep your main focus on driving. You can
control things like navigation and maps, calls and text messages, and music.
Google Assistant
With your Google Assistant on Android Auto, you can keep your eyes on the road and your
hands on the wheel while using your voice to help you with your day. Simply say, “Ok
Google,” or in compatible cars, long press the voice control button on your steering wheel.
Navigation
Get real-time traffic alerts to avoid hazards, speed traps, and find the fastest route. Or take
a break and find a bite along the way.
Calls & Messages
Your Google Assistant lets you stay connected while you’re driving. Your Assistant can
help you call phone numbers from your contacts, chat with your favorite apps, read your
messages aloud and text back, keeping your hands on the wheel.
Compatible Devices
Android Auto™ requires the Android Auto app from Google Play installed on an Android
smartphone running Android Lollipop 5.0 or higher.
Warning:
Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you
must be aware of and obey any such restrictions. If in doubt as to a particular function,
only perform it while the car is parked. No feature should be used unless it is safe to do so
under the driving conditions you are experiencing.
Starting Android Auto™
Wireless Android Auto Connection Descriotion.
1. Enter the main UI and click BT Phone to enter the Bluetooth interface;
2. Click Refresh to search nearby Bluetooth, You'd better turn on your Phone's WLAN
before you connect to Bluetooth, otherwise the connection will fail;
3. Click Pair to match Bluetooth, then there will be a notification to select settings and select
your mobile Phone, and the Android Auto connection is successful;
4. Enter the Android Auto interface, click the functions of Phone/ Music/Map/Information/
etc.
Note: When the device for Android Auto is connected to this unit, the device is also
connected via Bluetooth at the same time. If five devices are already paired, the message
confirming whether to delete the registered device is displayed. If you want to delete the
device, touch [Agree]. If you want to delete other device, touch [BT Settings] and delete the
devices manually.
Note: If Android Auto is turned on during a call on a cellular phone other than the Android
Auto compatible device, the Bluetooth connection will switch to the Android Auto compatible
device after the call.
25
J1CA7W
Exiting Android Auto™
To exit Android Auto™, press the Exit button. Disconnecting your Android phone will
automatically exit Android Auto™ mode.
Android Auto™ Operation
Using Android Auto™
The Android Auto™ home screen displays personalized information, like time to your
destination, reminders, recent calls incoming messages, the song you're listening to, and
Google Now cards.
When the Android Auto™ menu is displayed, you can say "OK Google" or select the
microphone in the upper right corner to talk to Google.
21
3 4
Android Auto Home Button
Recent Apps
Notification Button
Activate Google Assistant™
1
2
3
4
26
J1CA7W
Rear RCA A/V Input
Rear Camera Operation - (Optional)
Connect an optional audio/video source into the RCA (rear) input.
Adjust volume on the external audio source as needed (if connected to the
headphone output of the device).
Connect an optional rear camera to the Camera Input (Black RCA connector).
Refer to the camera's wiring diagram for installation details.
The unit will automatically select camera mode when connected to the reverse
lamp circuitry.
A/V Input
Rear Camera Input
Auto Selection
27
J1CA7W
SWC Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The
PAC SWI-RC is recommended. A third-party adapter must be used in order for the J1CA7W
to be compatible with any steering wheel controls. The following controls are available for
most vehicles.
Note: Not all OE steering wheel functions may be supported by the J1CA7W.
1. Reset 4. Seek/Track Down (-) 7. Volume Down (-) 10. BT End
2. Mode 5. Mute 8. Band
3. Seek/Track Up (+) 6. Volume Up (+) 9. BT Talk
PAC SWI-RC Installation Hints
1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order for JENSEN units.
3. When programming the SWI-RC, if a function is not supported (or not desired), then the
function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC radio
function mapping order instructions.
Function
Order
Function
Mapping
SWI-RC (3.3VDC Reference)
Center Pin (Ring) Voltage
(Function Select)
Tip Pin Voltage
1 Reset
2 Mode
3 Seek + / Track + H 3.3v 0.6
4 Seek - / Track - H 3.3v 1.81
5 Mute H 3.3v 1.01
6 Volume + H 3.3v 2.07
7 Volume - H 3.3v 2.32
8 Band H 3.3v 2.73
9 BT Talk L 0.0V 0.60
10 BT End L 0.0V 1.01
28
J1CA7W
Troubleshooting
General
Problem Cause Action
Unit will not turn on
(no power)
Yellow wire not connected or incorrect voltage
Red wire not connected or incorrect voltage
Check connections for proper voltage (11~16VDC)
Black wire not connected Check connection to ground
Fuse blown Replace fuse(s)
Unit has power
(but no sound)
Speaker wires not connected Check connections at speakers
One or more speaker wires touching each
other or touching chassis ground
Insulate all bare speaker wires from each other and
chassis ground
Unit blows fuse(s)
Yellow or red wire touching chassis ground Check for pinched wire
Speaker wires touching chassis ground Check for pinched wire
Incorrect fuse rating Use fuses with correct rating
Unit has audio
(but no video)
Parking brake safety circuit not connected
Parking brake not applied
Check connections at parking brake
Apply parking brake as described on page 26
Please keep your original sales receipt and be prepared to provide this receipt in
the event you require service, as your original receipt is considered the best proof of
purchase and indicates the date you purchased your JENSEN product.
Dealer Name
Dealer Phone
Purchase Date
Register your product online at www.jensenmobile.com.
For Your Records
Register Your Product
29
J1CA7W
Specifications
FM Tuner
AM Tuner
Front USB
Monitor
General
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 10dBf
50dB quieting sensitivity: 20dBf
Stereo separation @ 1kHz: 38dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: 24uV
Frequency response: 30Hz-2.3kHz
Compatibility: High Speed USB 2.0
USB Class: Mass storage class
Panel size: 7” diagonal measurement
View angle (up/down/left/right): 50/70/70/70
Resolution: 1024 (H) x 600 (V)
Brightness (cd/m
2
): 500
Contrast ratio: 500:1
Pixels: 1,152,000
Speaker output impedance: 4 ohms
Line output voltage: 2 volt RMS
Line output impedance: 200 ohms
Chassis dimensions: 7" x 5" x 4" (W x D x H)
Design and specifications subject to change without notice.
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1% THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
30
J1CA7W
One-Year Limited Warranty
This warranty gives you specific legal rights. You may
also have other rights which vary from state to state.
Namsung America Inc warrants this product to the
original purchaser to be free from defects in material
and workmanship for a period of one year
(or two
years*)
from the date of the original purchase.
Namsung America Inc agrees, at our option, during
the warranty period, to repair any defect in material
or workmanship or to furnish an equal new, renewed
or comparable product (whichever is deemed
necessary) in exchange without charges, subject to
verification of the defect or malfunction and proof
of the date of purchase. Subsequent replacement
products are warranted for the balance of the original
warranty period.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased from
an authorized JENSEN dealer and used in the U.S.A.
What is covered? This warranty covers all defects
in material and workmanship in this product. The
following are not covered: software, installation/
removal costs, damage resulting from accident,
misuse, abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow instructions
supplied with the product, or damage occurring
during return shipment of the product. Specific
license conditions and copyright notices for the
software can be found via www.jensenmobile.com.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s manual.
A slight adjustment of any custom controls may
save you a service call.
2. If you require service during the warranty period,
you must carefully pack the product (preferably
in the original package) and ship it by prepaid
transportation with a copy of the original receipt
from the retailer to an authorized service center.
3. Please describe your problem in writing and
include your name, a return UPS shipping address
(P.O. Box not acceptable), and a daytime phone
number with your shipment.
4. For more information and for the location of the
nearest authorized service center please contact
us by one of the following methods:
• Call us toll-free at (888) 921-4088
(Monday-Friday, 9:00 a.m. to 5:00 p.m. EST)
• E-mail us at [email protected]
Exclusion of Certain Damages: This warranty is
exclusive and in lieu of any and all other warranties,
expressed or implied, including without limitation
the implied warranties of merchantability and fitness
for a particular purpose and any obligation, liability,
right, claim or remedy in contract or tort, whether or
not arising from the company’s negligence, actual or
imputed. No person or representative is authorized
to assume for the company any other liability in
connection with the sale of this product. In no event
shall the company be liable for indirect, incidental or
consequential damages.
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
Designed and Engineered in USA
NSC0122-V01
Namsung America Inc.
©2022 Namsung America Inc.
All rights reserved.
All rights reserved. No part of this publication may be
reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or
other electronic or mechanical methods, without the
prior written permission of NAMSUNG AMERICA INC.
