CM7MIR
7” TOUCH SCREEN
MULTIMEDIA MECHLESS RECEIVER
AM-FM, Bluetooth
USB Mirroring
Front & Rear Camera Input
INSTALLATION &
OWNER’S MANUAL
W AT T S
Front & Rear
Camera
B-Type
2
INFORMATION
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
microSD Logo is a registered trademark of SD-3C, LLC.
Siri and Apple are registered trademarks owned by Apple, Inc.
Google Assistant and Android are trademarks owned by Google LLC.
Other trademarks and trade names are those of their respective owners.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Copyright and Trademark
3
INFORMATION

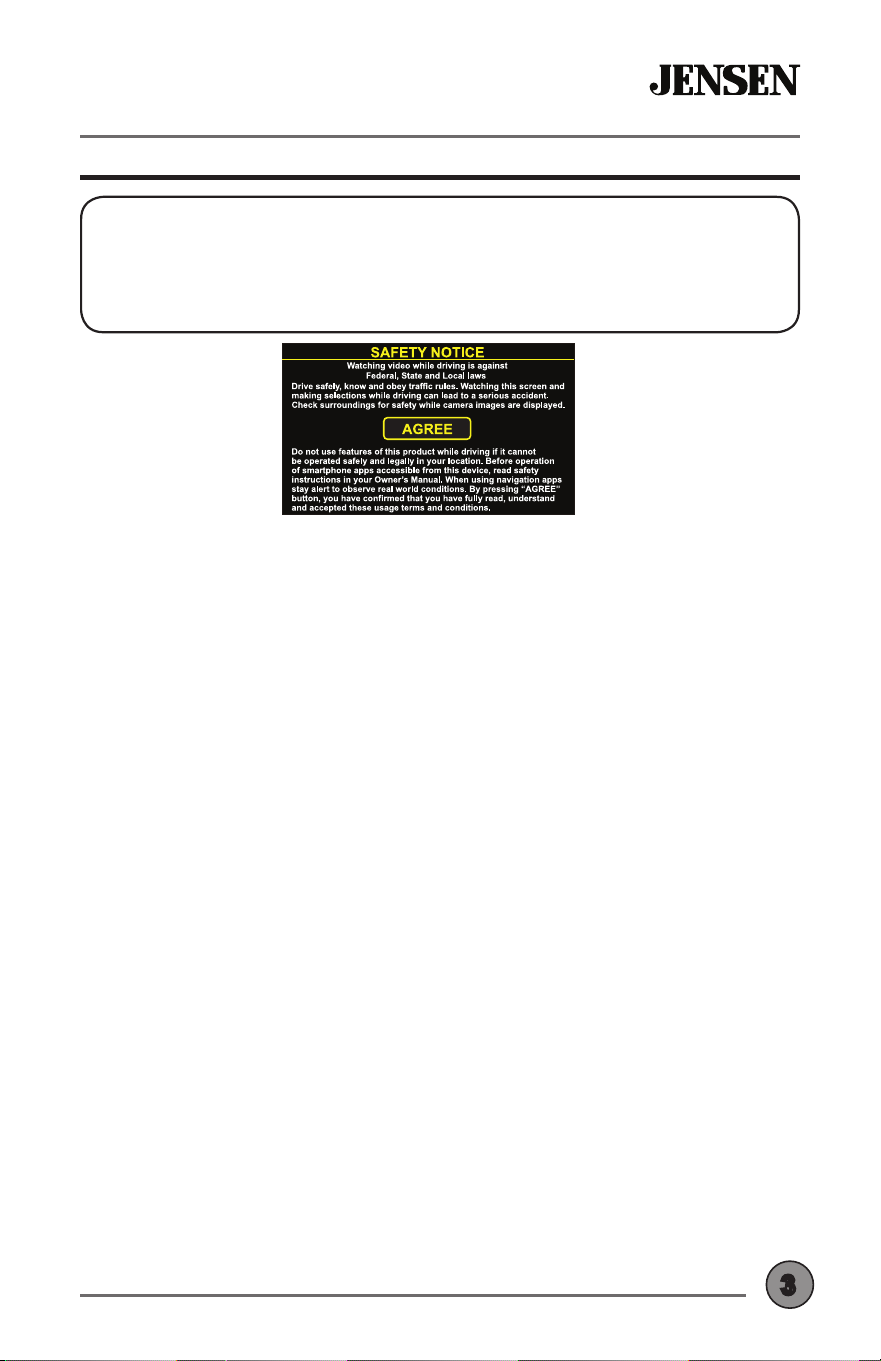

Video / movie playback will not operate while the vehicle is moving.
This is a safety feature to prevent driver distraction. In-dash video / movie
functions will only operate when vehicle is in Park and the parking brake is
engaged. It is illegal in most jurisdictions for the driver to view video while
the vehicle is in motion.
The SAFETY NOTICE is reminder to drive responsibly and safely while using your
mobile phone device, or any APP’s that are compatible with this unit.
it is highly recommended that your JENSEN CM7MIR is installed by a professional
installer or an authorized dealer.
This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the
possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse with
the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness rst.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest JENSEN dealer.
• If the unit malfunctions, reset the unit as described. If the problem still persists,
consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use
a sti cloth, or solvents such as paint thinner and alcohol. They can scratch the
surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the
screen will become darker than usual. Normal brightness will return after the unit is
in use for a while.
• When extending the ignition, battery or ground wiring, make sure to use
automotive-grade wiring with an a minimum AWG 16 or more to prevent voltage
drops.
• Do not touch the liquid crystal uid if the LCD is damaged or broken. The liquid
crystal uid may be hazardous to your health or fatal. If the liquid crystal uid from
the LCD contacts your body or clothing, wash it o with soap immediately.
Safety Notice
INSTALLATION
4
Please read and understand entire manual before
installation.
Consult a qualied technician for detailed instructions or
installation assistance.
Before You Start
• Disconnect negative battery terminal.
• Avoid installing the unit where it would be subject to high
temperatures, such as from direct sunlight, or where it would be
subject to dust, dirt or excessive vibration.
Getting Started
• Unpack unit from its protective packaging.
• Connect vehicle wiring harness and antenna to this receivers
harness. See wiring instructions. Consult a qualied technician if
you are unsure.
• Certain vehicles may require an installation dash kit and/or wiring
harness adapter (sold separately).
• Reconnect battery negative terminal.
• Test for correct operation and secure back into dashboard.
• Snap trim ring into place if needed.
Preparation

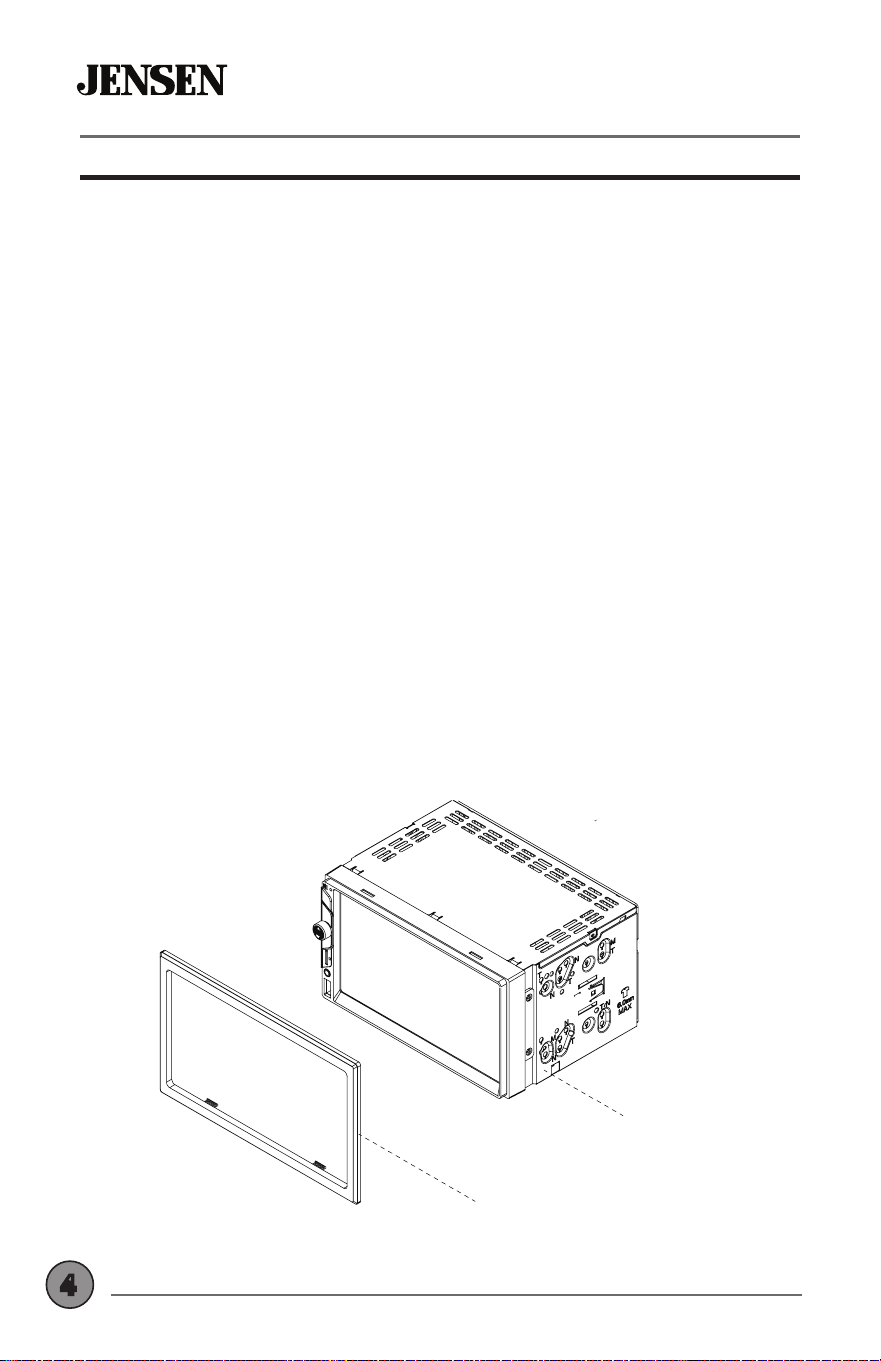

Typical ISO-DIN Installation
Unit
Trim Ring
5
INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and
amperage. Using an incorrect fuse could cause damage. The unit
uses (1) 10 amp ATC blade-type fuse located on the back of the unit.
Front / Rear camera inputs
Up to two cameras (not included) can be used. We recommend
JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or
BUCAM400AJ for rear camera.

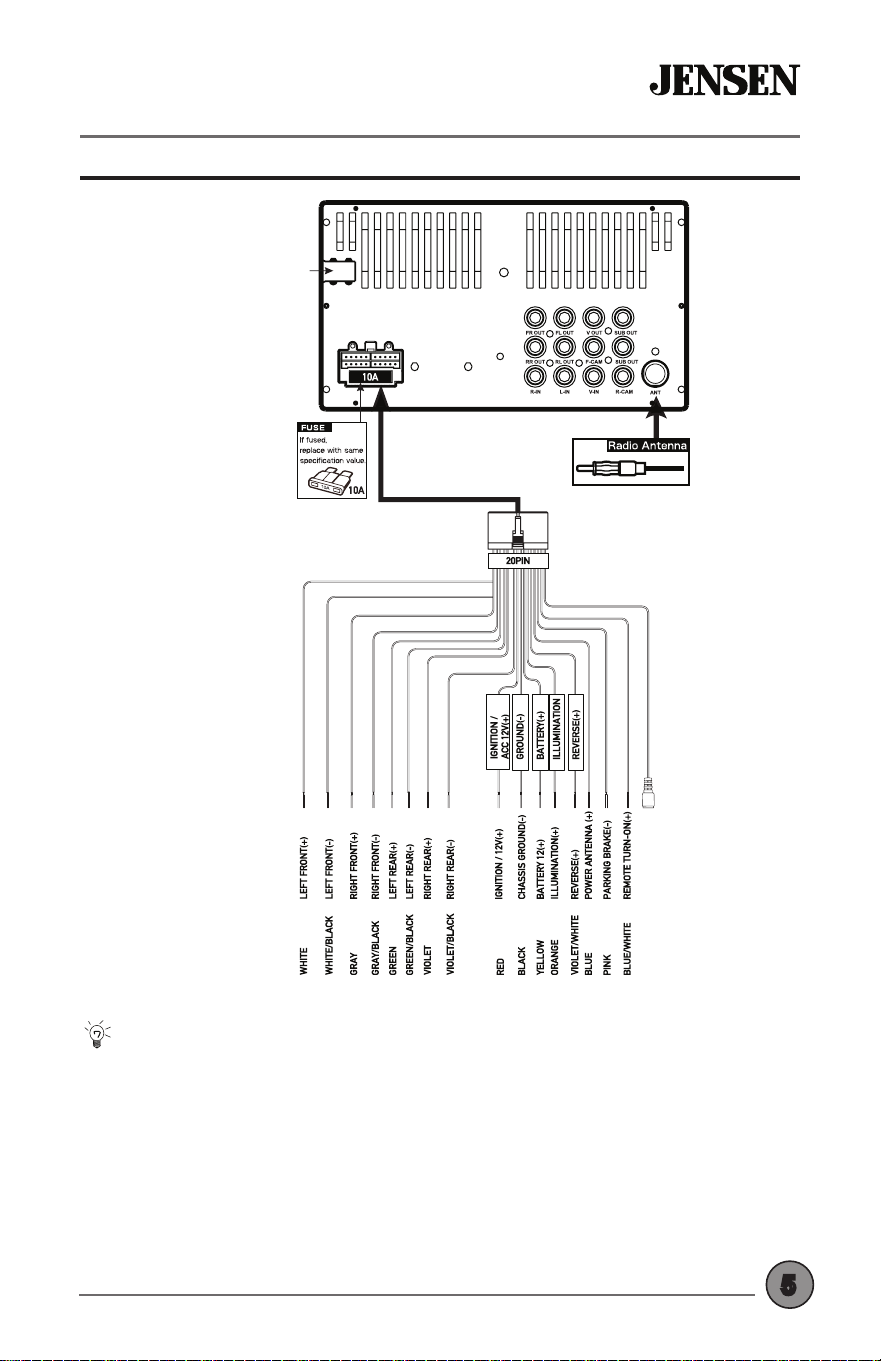

Input / Output Wiring Diagram
SWC INPUTGRAY/RED
External Microphone
(included)
OPERATION
6

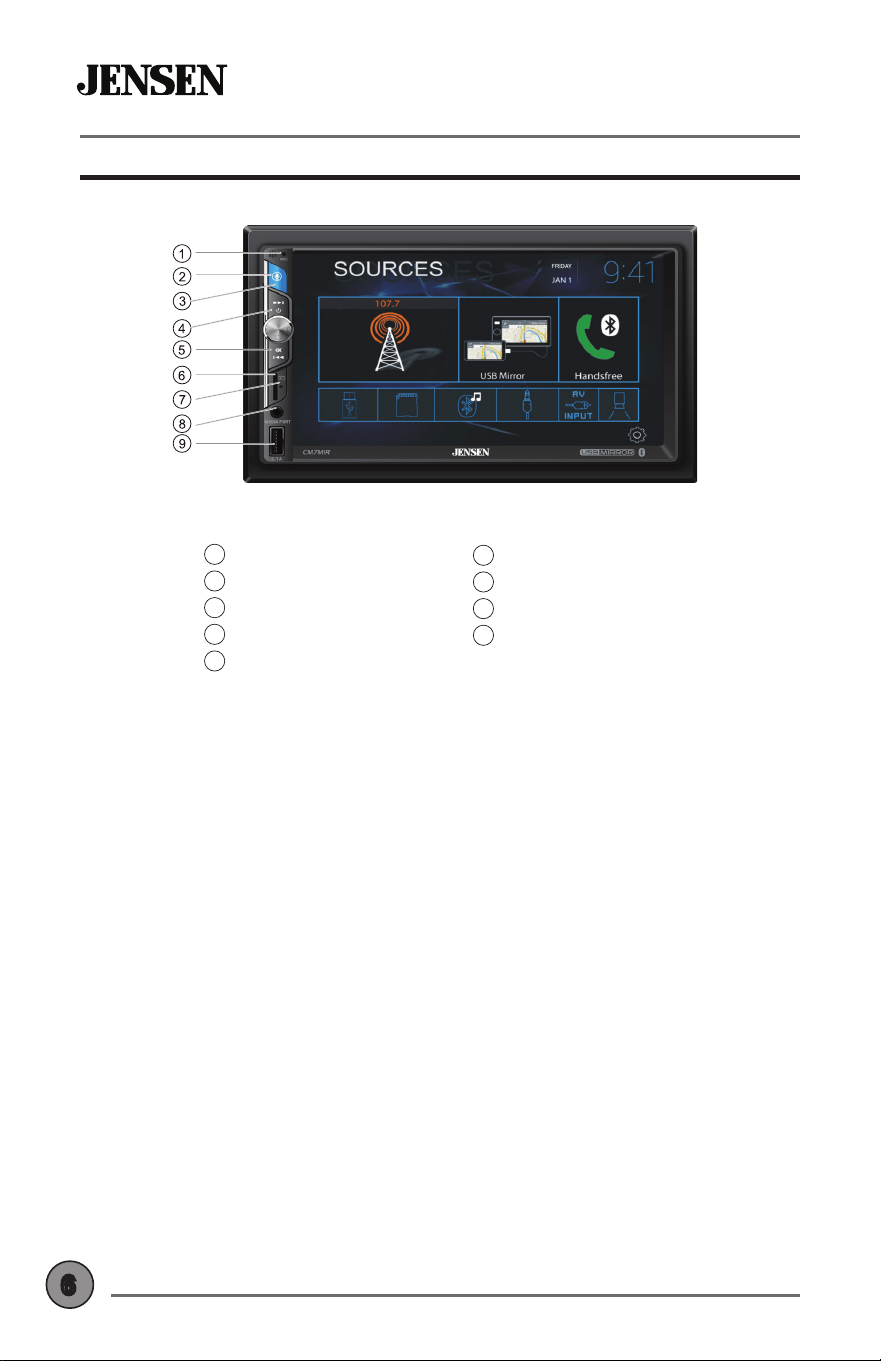

Main Control Locations
1
Microphone
2
Mode / Voice Assistant
3
Tune/Track Up
4
Volume / Power / Mute
5
Tune/Track Down
6
microSD Card Slot
7
Reset
8
Auxiliary Input
9
USB Slot
7
OPERATION

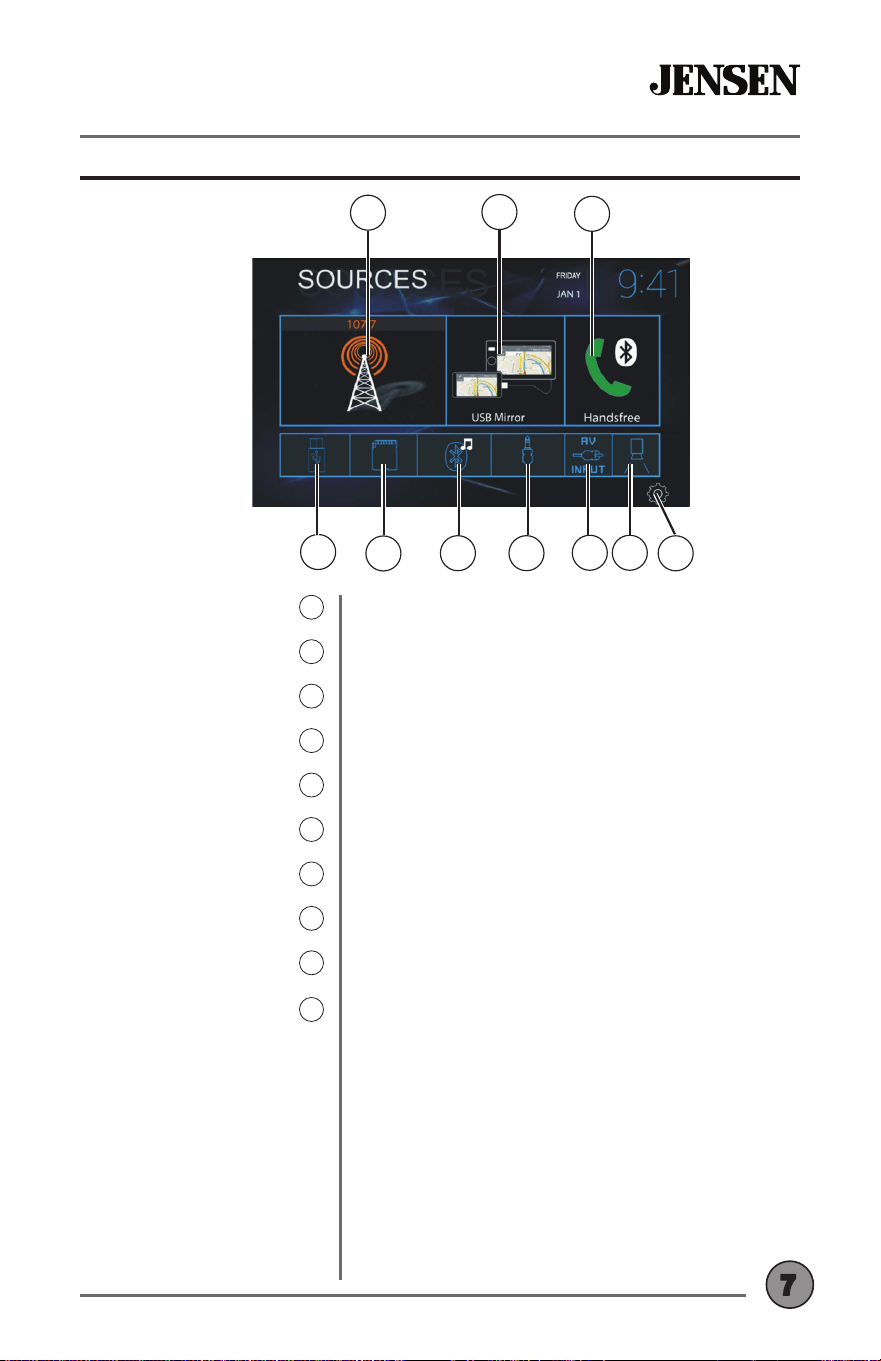

Source Menu Operation
Press to access Radio.
Press to initiate USB mirroring.
Press to access Bluetooth phone.
Press to display and adjust system settings.
Press to display the rear and front cameras.
Press to access AV input.
Press to access auxiliary input.
Press to access the Bluetooth music.
Press to access les on microSD card.
Press to access les on USB device.
Radio
1
USB Mirroring
2
Bluetooth Phone
3
Settings
4
Camera
5
AV Input
6
Auxiliary Input
7
BT Music
8
microSD
9
USB
10
3
1
2
10
6
9
8 7
5
4
OPERATION
8
On Screen Controls
1
2
3 4
Press up to two times to dim the screen. Press
a third time to put the unit in standby mode
(screen will go black). Press anywhere on the
screen to return to normal screen operation.
Press to activate the voice assistant feature.
Press to access and adjust audio settings.
Press to display and adjust system settings.
Screen Brightness
1
Voice Assistant
2
Audio
3
Settings
4
9
OPERATION
Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or
User) or use the touch screen to manually adjust EQ settings.
Select any of the preset Surround settings: Concert, Church, Passive,
Wide, Live or None.
Adjust balance (8L to 8R) and fader (8F to 8R), or use the touch screen to
manually adjust balance and fader settings.

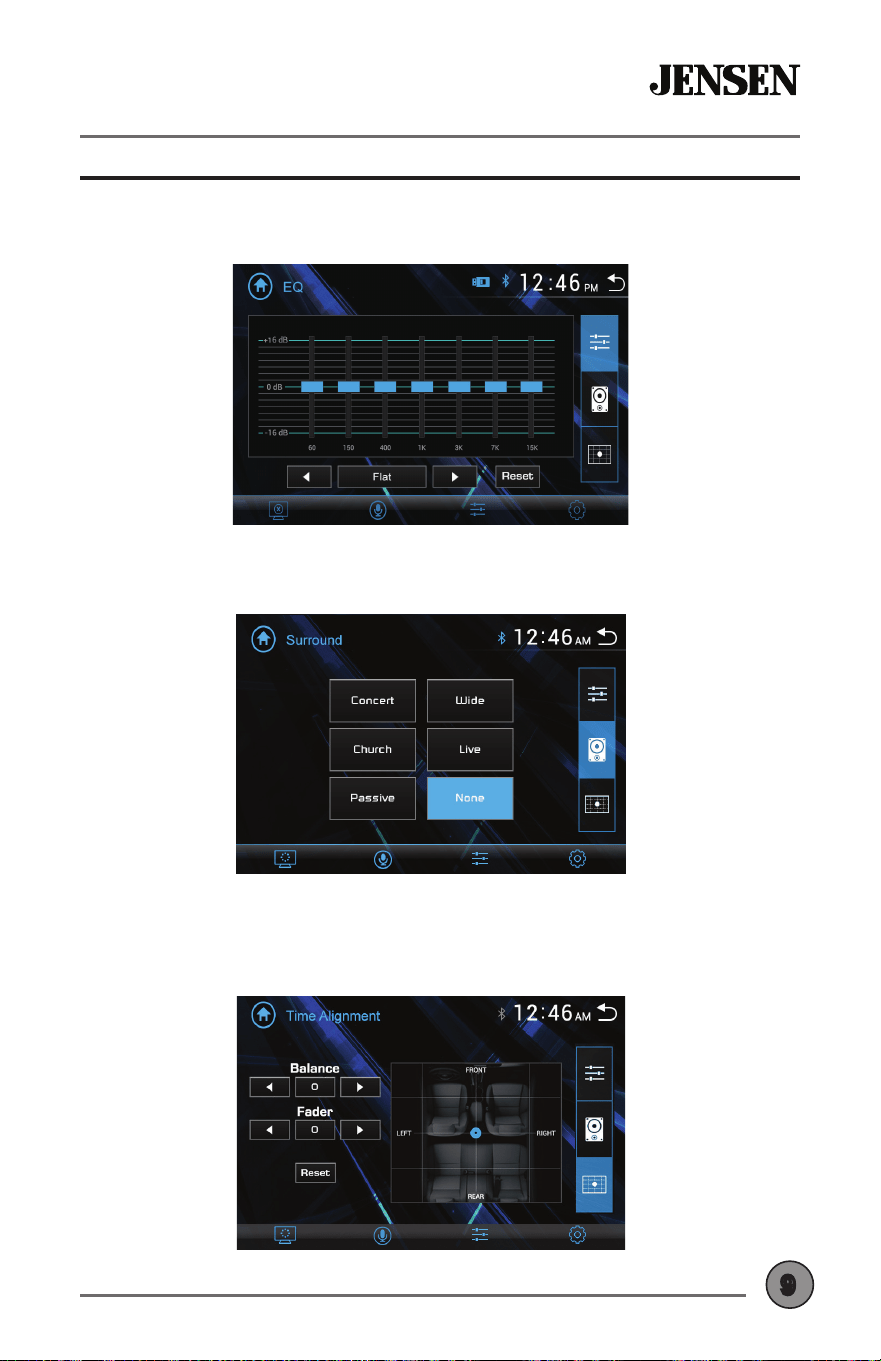

Audio Settings
OPERATION
10

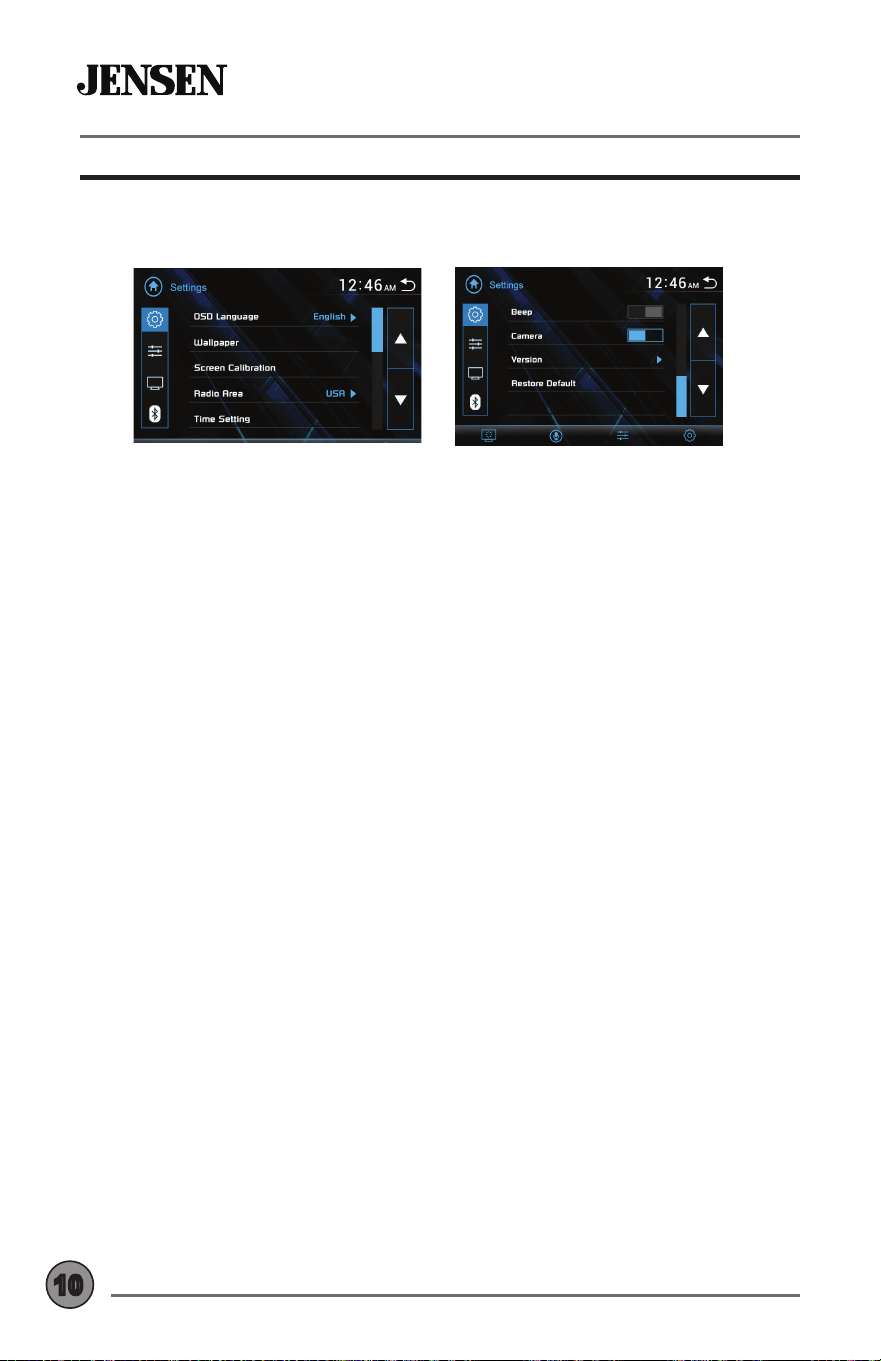

Settings Menu
From the Main Menu, press the gear icon to access the Setup menu and
adjust the following: General, Audio, Display and Bluetooth.
General:
• OSD Language - Select English.
• Wallpaper - Select from three different wallpaper options.
• Screen Calibration - Select to calibrate the touch screen.
• Radio Area - Select Europe, USA, South America or Asia.
• Time Setting - Set the date (month, day, year) and time (hours,
minutes, AM/PM and 12-hour or 24-hour clock).
• Beep - Enable or disable the audible beep.
• Camera - Enable or disable the rear camera input.
• Version - Press to display version numbers.
• Restore Default - Press to restore unit to default factory settings.
Audio:
• Audio Adjustment - Press to access and adjust audio EQ settings.
• Subwoofer- Press to adjust subwoofer frequency and volume.
• Loudness - Enable or disable the loudness feature.
Display:
• Screen Ratio - Select screen ratio (4:3PS 4:3 LB, 16:9).
• Adjust Picture Settings - Press to adjust screen brightness, contrast,
hue, saturation and shaprness.
• Panel - Select from the following Backlight settings: Off, 10 seconds,
20 seconds or 30 seconds.
Bluetooth:
• Bluetooth - Turn Bluetooth signal on or off.
• Auto Answer - Turn auto answer feature on or off.
11
OPERATION

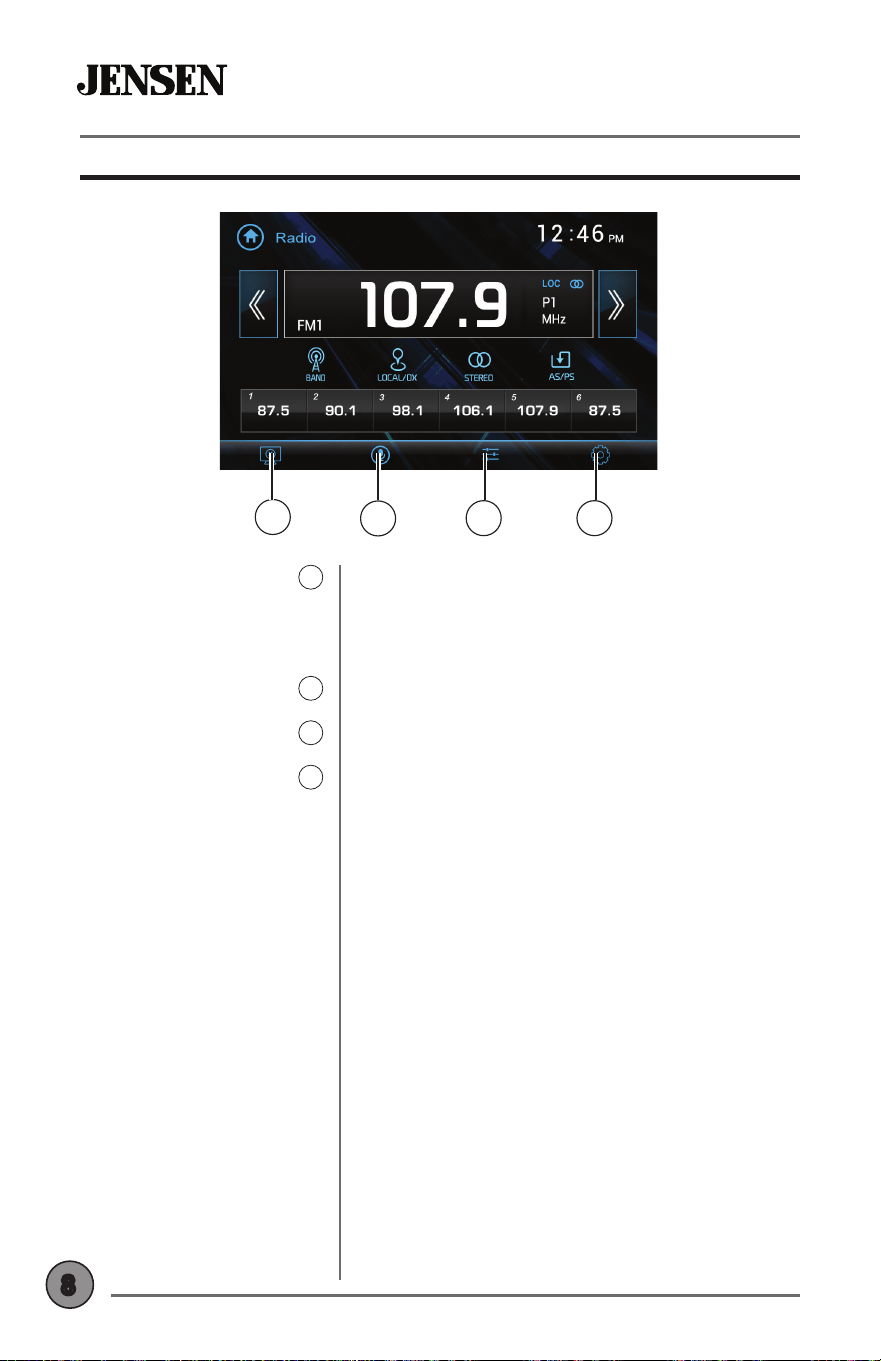

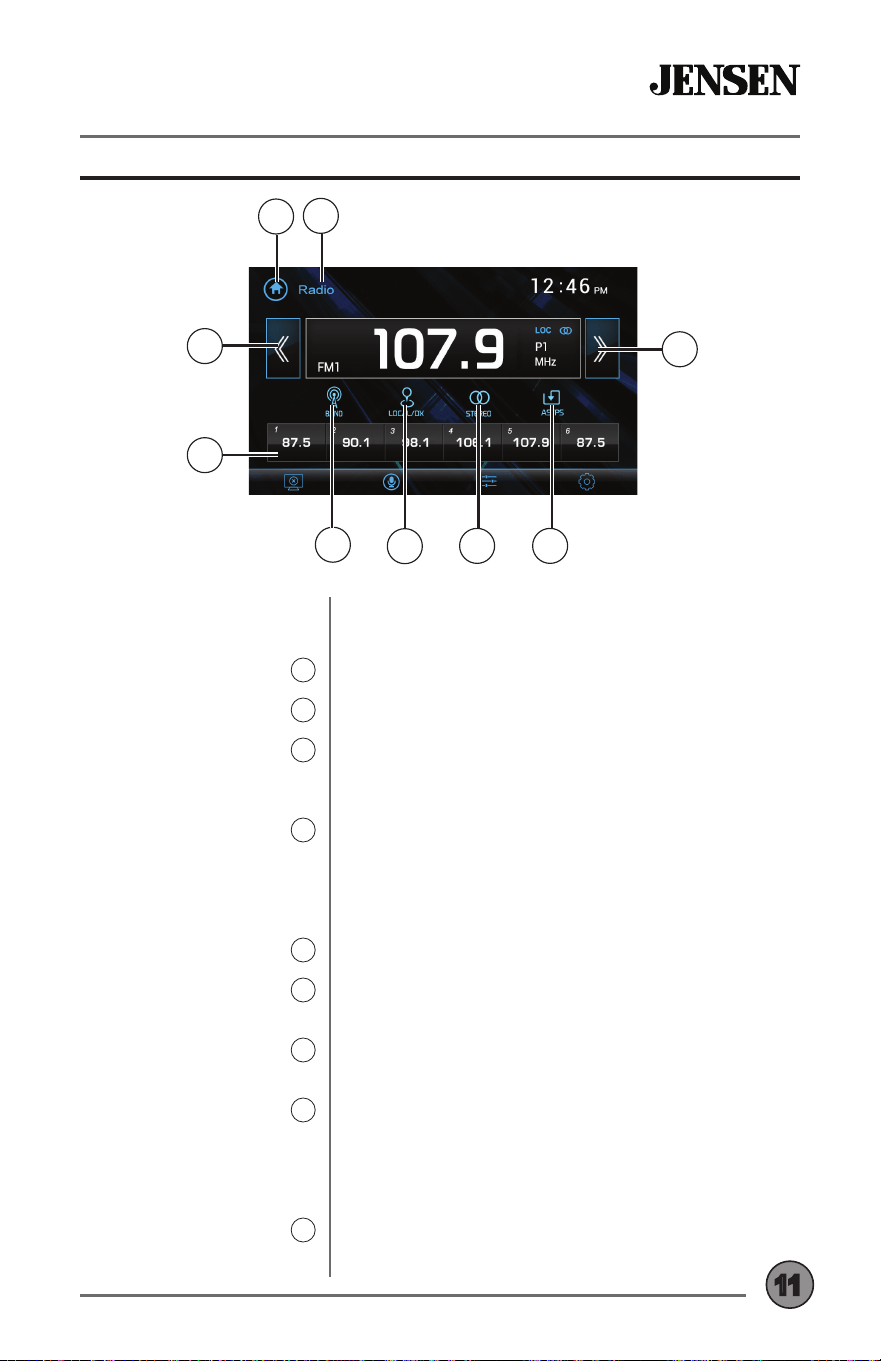

Tuner Operation
Radio Operation
Main Menu
1
Mode Indicator
2
Tune Down
3
Preset Stations
4
Band
5
Local | Distance
6
Stereo | Mono
7
AS | PS
8
Tune Up
9
Select the Radio icon from the Main Menu
screen.
Press to return to Main Menu screen.
Displays the current mode of operation.
Press to tune to a lower frequency one step at
a time. Press and hold to automatically tune to
the last strong station.
Press any preset station stored in the current
band to tune radio to saved frequency. To save
presets, tune the radio to desired station, then
press and hold the desired preset button to
save the station.
Press to select between 2 AM and 3 FM bands.
Press to toggle between local and distance
tuning.
Press to toggle between Stereo and Mono
tuning.
Press to scan presets and listen to the rst 10
seconds of each. Press again to stop scanning
and listen to the station. Press and hold to
automatically nd and store the strongest
stations as presets,
Press to tune to a higher frequency one step at
a time. Press and hold to automatically tune to
the last strong station.
1
2
5
6
7 8
3
4
9
OPERATION
12

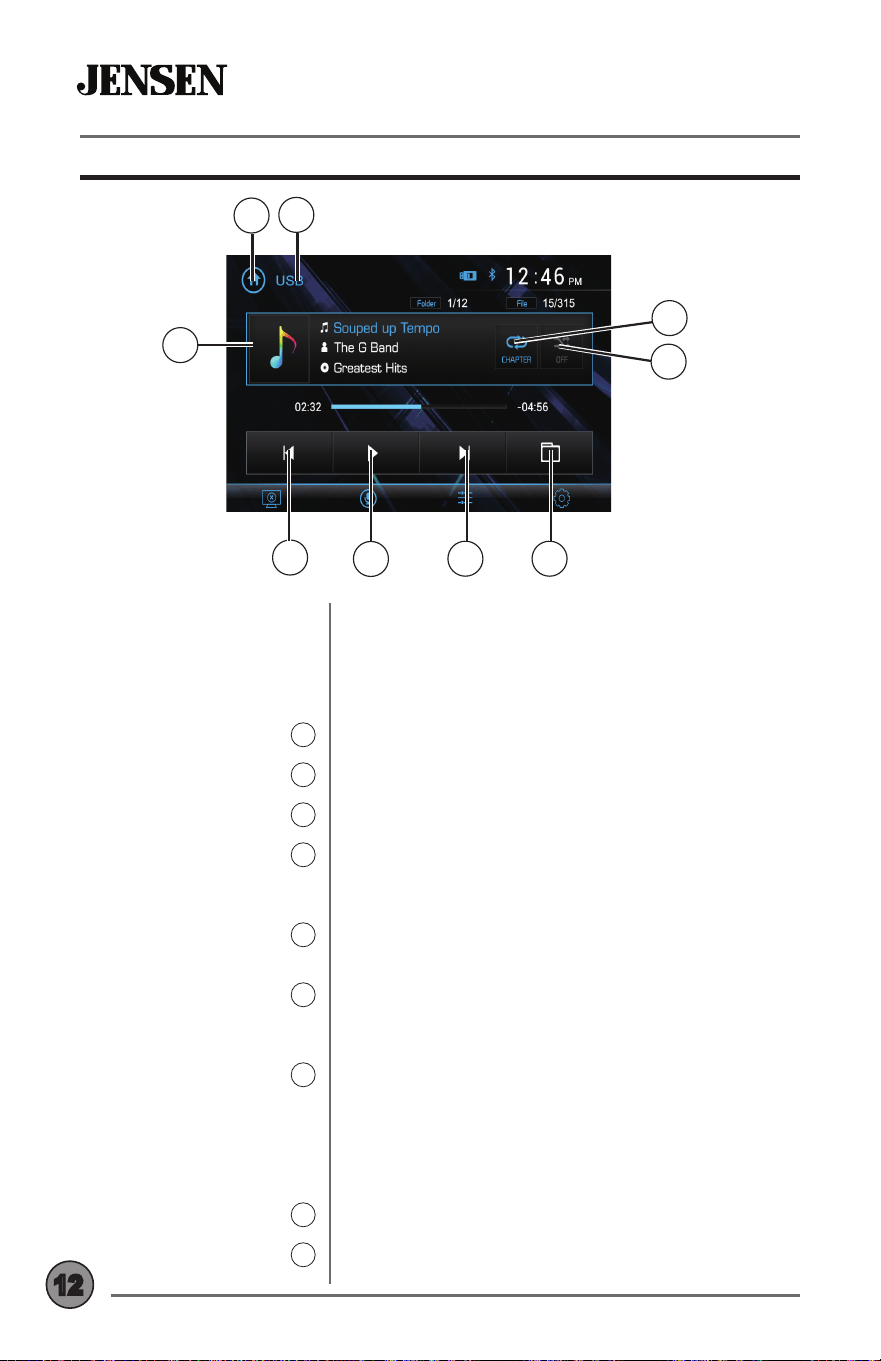

USB/microSD Operation
1
2
4
5
6 7
3
USB/microSD Operation
Main Menu
1
Mode Indicator
2
File Information
3
Previous Track
4
Play / Pause
5
Next Track
6
Folder Search
7
Random
8
Repeat
9
To play MP3 les from a USB device or microSD card,
insert a USB device or microSD card, and playback
will begin automatically. To return to USB or microSD
playback from another mode of operation, select the
corresponding icon from the Main Menu.
Press to return to Main Menu screen.
Displays the current mode of operation.
Displays information about the current le.
Press to go back to the previous track. Press and hold
to fast reverse the current track, then press PLAY /
PAUSE to resume playback.
Press to pause the current track, then press again to
resume playback.
Press to advance to the next track. Press and hold
to fast forward the current track, then press PLAY /
PAUSE to resume playback.
Press to access the directory of folders and les.
Use the up/down arrows to scroll through the folder
list, then press on the name of the desired folder to
access it. Use the up/down arrows to scroll through
the le list, then press on the name of the desired le
to access it.
Press to turn Random feature on or o.
Select a Repeat option: All, One, Folder or O.
8
9
13
OPERATION
Media Compatibility
The following types of files are not compatible:
• MP3 PRO format, MP3 playlists
• RMP format
• WAV format
• WMV format
• AAC, protected AAC, M4A format
MP3 playback sequence begins in the root folder. Any folders
that do not include MP3/JPG files are skipped.
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root folder).
• Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and “_” (underscore). Some characters may not
be displayed correctly, depending on the character type.
Some files may not play, depending on sampling rates and bit
rates. For best results, use the following settings when ripping
MP3 files: 128kbps or higher constant bit rate; 44.1kHz or higher
sampling frequency.
Media
Compatibility
Playback Order
Compatible
Recording
Formats
Notes
File Type MP3
File System FAT
FAT 12 X
FAT 16/FAT 32
File
Extension
.mp3/.MP3/.Mp3/.mP3
.rmp/.m4a X
MPEG
Format
MPEG 1
MPEG 2
MPEG 2.5
Sampling
Frequency
MPEG 1 32/44.1/48kHz
MPEG 2 12/16/22.05/24kHz
MPEG 2.5 8/11.025/12kHz
Bitrate
MPEG 1 32 ~ 320kbps
MPEG 2 8 ~ 160kbps
MPEG 2.5 8 ~ 160kbps
Other
Information
Directory Depth Unlimited
File Name Length 32 bytes
Total File Number 2000 files
Total Folder Number 200 folders
File Number via Folder 2000 files
MP3 ID3 TAG
ver.1.x
ver.2.x
Title, Artist, Album
Notes:
• It is not possible to view JPG files on the in-dash monitor while the vehicle is
moving. This is a safety feature to prevent driver distraction.
• The JPG image viewer function will only operate when vehicle is in park and the
parking brake is engaged.
OPERATION
14
Preparation
Pairing a New
Device
Connecting a
Paired Device

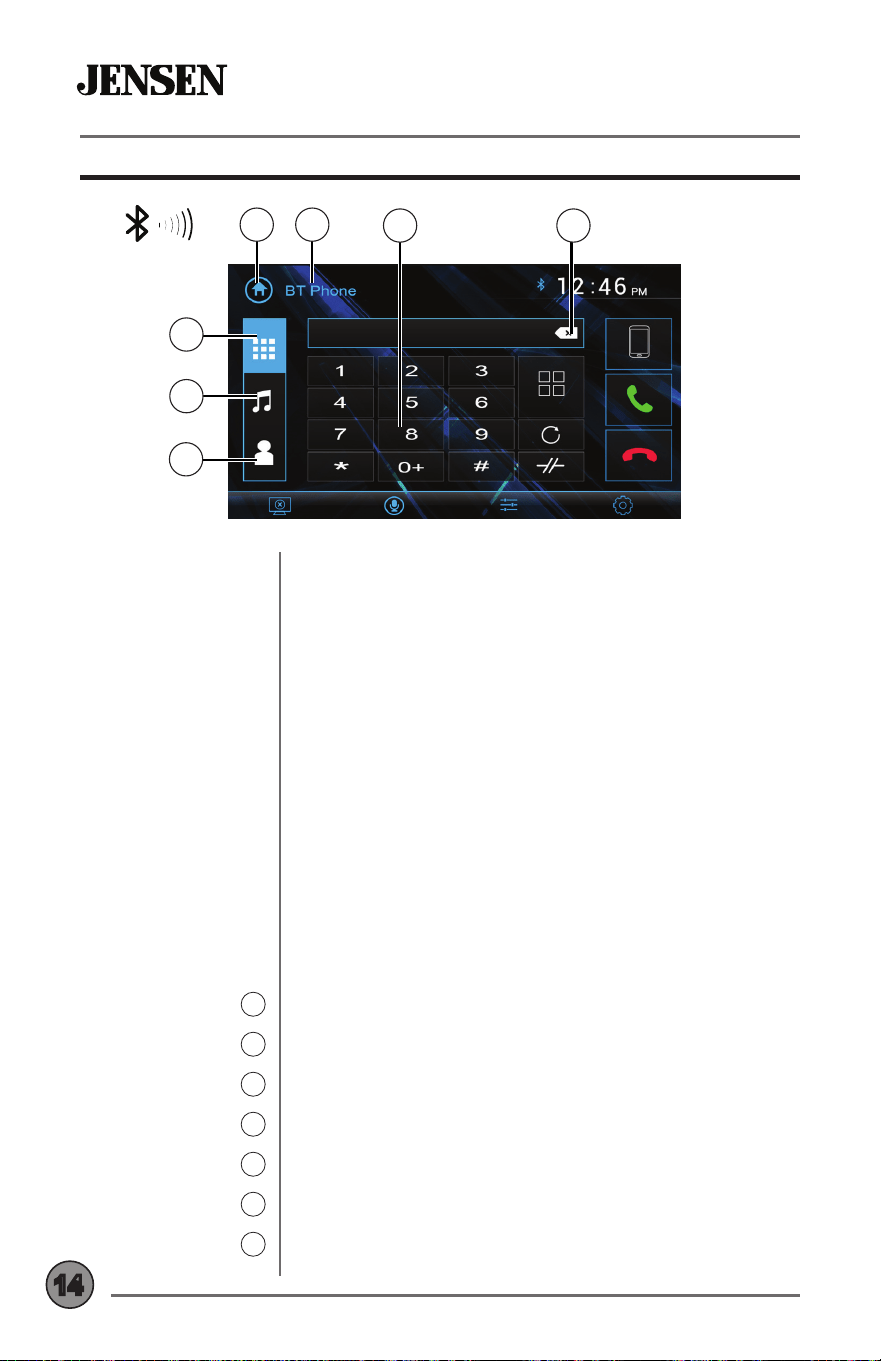

Bluetooth Phone
Main Menu
1
Mode Indicator
2
Keypad
3
Backspace
4
Keypad Display
5
Music Display
6
Contact Display
7
Before using a Bluetooth device, it must be paired
and connected. Make sure that Bluetooth is activated
on your device before you begin the pairing process.
The unit broadcasts the pairing signal constantly
when no devices are currently connected. Complete
the pairing sequence from your Bluetooth device.
Refer to the owner’s manual for your device for
more details. The device name is “CM7MIR”. The
unit can be in any mode of operation when pairing is
performed. On certain phones, pairing may need to
be done more than once.
Most Bluetooth devices support the auto-connect
feature and will connect automatically if the device is
in range when the unit is powered-on. If your device
was previously paired but does not connect, enter
the Bluetooth setup menu and turn Auto Connect on.
To access the phone, select Bluetooth Phone from
the Main Menu or from any operational mode.
Press to return to Main Menu screen.
Displays the current mode of operation.
Use the keypad to dial a phone number.
Press to backspace when using the keypad.
Press to display the keypad.
Press to display Bluetooth music.
Press to display Contact list, then press desired
contact to initiate a call.
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
1 2
Bluetooth Operation
6
7
5
3 4
15
OPERATION
Bluetooth Operation

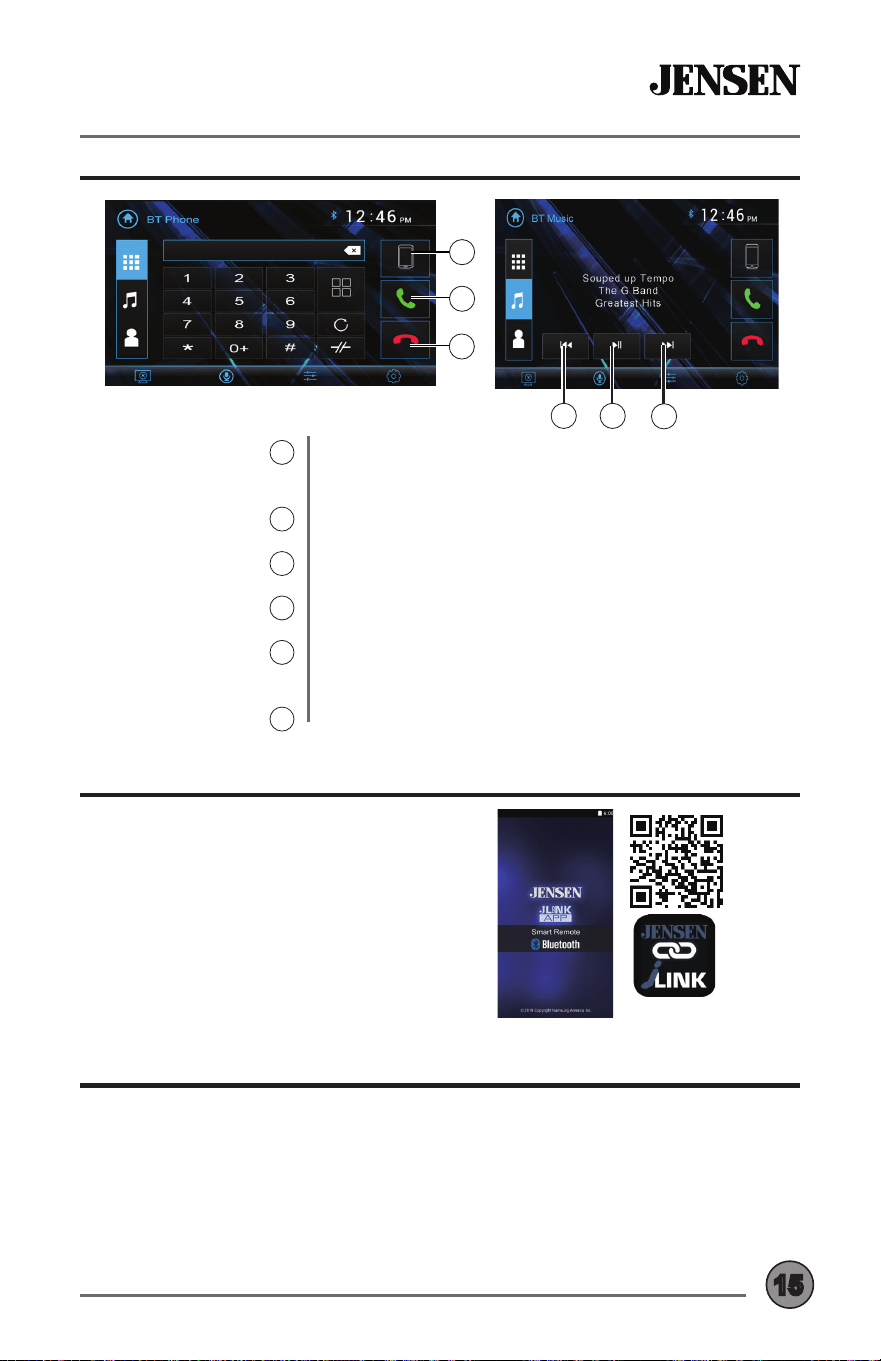

Paired Device List
8
Talk
9
End Call
10
Previous Track
11
Play / Pause
12
Next Track
13
Press to display a list of paired devices, and
select desired device to connect.
Press to connect a call to the number entered.
Press to end a call.
Press to go back to the previous track.
Press to pause the current track, then press again
to resume playback.
Press to advance to the next track.
11 12
13
9
10
8
App Operation
The Jensen Smart app is the ultimate
wireless remote control for your
receiver. You can download the
Jensen Smart app from the Apple App
Store or Google Play Store and install
it on your smartphone or tablet. Scan
the following QR code to download
the Jensen J-Link P1 application on
your smartphone.
Voice Assistant
Your receiver is designed with an easy access voice activation button to
use Siri® or the Google Assistant™ via your car’s Bluetooth. Interact with
your smartphone assistant while you drive with only the push of a button!
Bluetooth should be paired between your smartphone and the receiver.
Press the voice activation button, and the receiver will switch into
Bluetooth mode, This will activate Siri® or Google Assistant™ on your
smartphone. You will need to manually switch back to the previous or
desired mode once this operation is terminated.
OPERATION
16

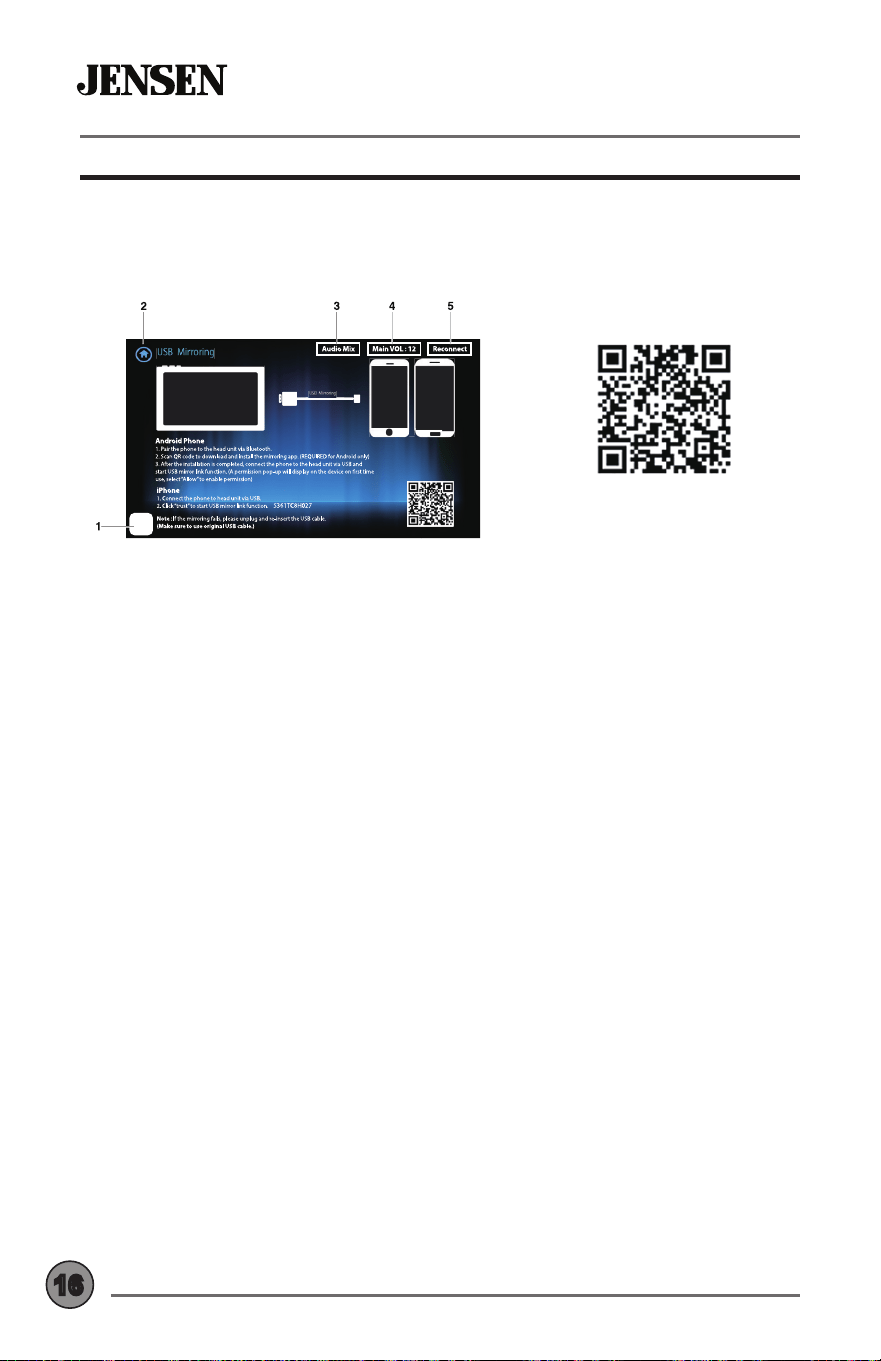

To set up USB Mirroring capabilities, select USB Mirroring from the main
menu and follow the on-screen directions for connecting your Android
phone or Apple iPhone. Once completed, the unit will mirror the phone
display onto the receiver’s display.
USB Mirroring
Drong Screen App’s
QR Code
1. Menu - To return to the main menu from USB Mirroring mode, touch
the screen so that the small square white icon appears on the bottom left
corner of the screen. Pressing the icon will display the Home icon, Audio
Mix, Main Volume and Reconnect buttons on the top of the display.
2. Home - Press to return to the Home screen.
3. Audio Mix - Press to turn the Audio Mix feature on or o. When turned
on, the Audio Mix button will turn blue. The Audio Mix feature is used to
listen to other sources such as AM/FM radio, microSD or auxiliary input in
the background while mirroring your phone to the screen.
4. Main Volume & Mix Volume Level Control - Press the Main VOL button to
choose what source volume you want to control (Main or Mix Volume).
- Main Volume will adjust the volume of the secondary source (AM/FM
radio, microSD or auxiliary input).
- Mix Volume will control the volume on the sound coming from your
mirrored phone.
5. Reconnect - Press to reconnect USB mirroring if the connection is not
working properly or has become disconnected.
17
OPERATION
Rear Camera
Connect an optional rear camera to the Rear Camera inputs (Yellow RCA
connector for video; there is no audio connection for a front camera). Refer
to the wiring diagram for details.
Manual selection - Touch the REAR CAMERA icon from the Main Menu or
from any operational mode (when enabled) to select camera mode. Touch
the top left area on the screen to exit camera mode.
Note: The manual mode is for dedicated cameras that are ALWAYS on while
driving, it is not meant for cameras that are connected to the vehicle’s
reverse light. The unit will automatically select camera mode when
connected to the reverse lamp circuitry.
Note: External video output is not active when using the rear camera input.
Connect an optional audio source into the auxiliary input on the right side
of the front panel.
Select the auxiliary input icon from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the
headphone output of the device).
Auxiliary Input
Connect an optional audio source into the rear A/V input.
Select A/V Input from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the
headphone output of the device).
A/V Input
Front Camera
Connect an optional front camera
to the Front Camera inputs (Yellow
RCA connector for video; there
is no audio connection for a front
camera. Refer to the wiring diagram
for details.
To access the front camera, touch the
CAMERA icon in the Main Menu. The
unit displays rear camera by default.
Press the Front Camera icon in the top right corner to switch to front
camera view.
OPERATION
18
Steering Wheel Controls
We recommend the PAC SWI-RC .
1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order.
3. When programming the SWI-RC, if a function is not supported (or not desired),
then the function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC
radio function mapping order instructions.
A third-party adapter must be used in order for the CM7MIR to be compatible with
any OEM steering wheel controls.

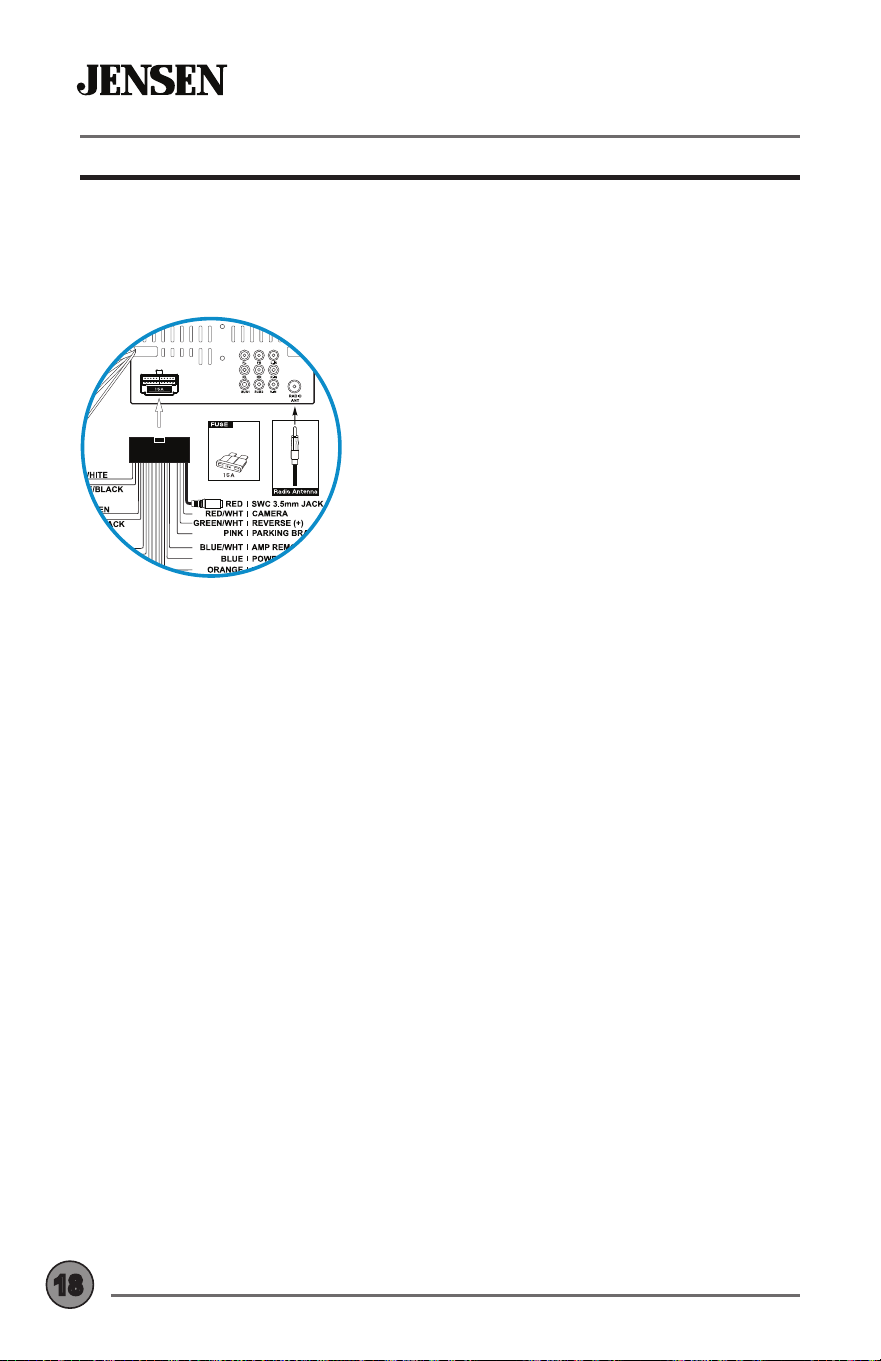

The CM7MIR has a built-in 3.5mm SWC interface that compatible with many popular
3rd party SWC control modules, such as PAC, METRA, and others.
The following controls are available for most vehicles.
Volume +
Volume -
Mute
Seek / Track +
Seek / Track -
Band
Mode
BT Talk
BT End Call
Note: Not all OE steering wheel functions may be supported by the CM7MIR
POWER
MAXIMUM OUTPUT 500mA
YELLOW
YELLOW
BLACK
Replace with
ATO Type fuse
Only
3.5mm SWC port located on the rear of the unit, on the
MAIN POWER I/O Harness
19
OPERATION
Limited One Year (Or Two Year*) Warranty
This warranty gives you specific legal rights. You may also have other rights which vary
from state to state. Namsung America Inc warrants this product to the original purchaser
to be free from defects in material and workmanship for a period of one year from the
date of the original purchase.
Namsung America Inc agrees, at our option, during the warranty period, to repair any
defect in material or workmanship or to furnish an equal new, renewed or comparable
product (whichever is deemed necessary) in exchange without charges, subject to
verification of the defect or malfunction and proof of the date of purchase. Subsequent
replacement products are warranted for the balance of the original warranty period.
Who is covered? This warranty is extended to the original retail purchaser for products
purchased from an authorized JENSEN dealer and used in the U.S.A.
What is covered? This warranty covers all defects in material and workmanship in this
product. The following are not covered: software, installation/removal costs, damage
resulting from accident, misuse, abuse, neglect, product modification, improper
installation, incorrect line voltage, unauthorized repair or failure to follow instructions
supplied with the product, or damage occurring during return shipment of the product.
Specific license conditions and copyright notices for the software can be found via www.
jensenmobile.com.
Warranty Coverage
Limited 1-year warranty when purchased from an authorized Jensen dealer.
or
*Limited 2-year warranty when purchased from and professionally installed by an
authorized Jensen dealer.(Proof of purchase and Installation required)
What to do?
1. Before you call for service, check the troubleshooting guide in your owner’s manual. A
slight adjustment of any custom controls may save you a service call.
2. If you require service during the warranty period, you must carefully pack the product
(preferably in the original package) and ship it by prepaid transportation with a copy of
the original receipt from the retailer to an
authorized service center.
3. Please describe your problem in writing and include your name, a return UPS shipping
address (P.O. Box not acceptable), and a daytime phone number with your shipment.
4. For more information and for the location of the nearest authorized service center
please contact us by one of the following methods:
• Call us toll-free at (888) 921-4088
• E-mail us at [email protected]om
Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other
warranties, expressed or implied, including without limitation the implied warranties
of merchantability and fitness for a particular purpose and any obligation, liability,
right, claim or remedy in contract or tort, whether or not arising from the company’s
negligence, actual or imputed. No person or representative is authorized to assume for
the company any other liability in connection with the sale of this product. In no event
shall the company be liable for indirect, incidental or consequential damages.
20
OPTIONS
General
PROBLEM CAUSE ACTION
Unit will not
turn on
(no power)
Red and/or Yellow wire not connected or
incorrect voltage
Check connections for proper voltage
(11~16VDC)
Black wire not connected Check ground connection
Blown fuse on unit or vehicle Replace fuse(s)
Unit has power
(but no sound)
Speaker wires not connected Check all connections, including speakers
Speakers are blown Replace speakers
One or more speaker wires touching each
other or touching chassis ground
Insulate all bare speaker wires from each
other and chassis ground
Unit blows
fuse(s)
Yellow or red wire touching chassis ground Check for pinched or shorted wires
Speaker wires touching chassis ground Check for pinched or shorted wires
Incorrect fuse rating Use fuse with correct rating
Unit has audio
(but no video)
Parking brake safety circuit not connected
Parking brake not applied
Check connections at parking brake
Apply parking brake as described in
manual
Video Playback Codec is not supported See Media Codec Support section
Please keep your original sales receipt and be
prepared to provide this receipt in the event
you require service, as your original receipt
is considered the best proof of purchase and
indicates the date you purchased your JENSEN
product.
Dealer Name:
Dealer Phone:
Purchase Date:
For Your Records
Dealer Info
Troubleshooting
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
21
WARRANTY
Specications
87.5MHz-107.9MHz
87.50MHz-108.00MHz
8.5dBf
10dBf
30dB
30Hz-13kHz
530kHz-1710kHz
<42dBu
30Hz-2.2kHz
4.1 + EDR
HFP / A2DP / PBAP
Up to 33ft / 10m
500 nit
1024x600
LED
Capacitive
Specications
11~16VDC
2.1A
4~8 ohms
2 Volts RMS
5” x 6.2” x 4” (126D x 157W x 100H mm)
FM Tuner
US Tuning Range:
EU Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Stereo Separation@ 1kHz:
Frequency Response:
AM Tuner
Tuning Range:
Usable Sensitivity:
Frequency Response:
Bluetooth
Version:
Proles:
Range:
Monitor
Brightness:
TFT Resolution:
TFT Backlighting:
Touch Screen Type:
General
Operation Voltage Input:
USB 1 Charge Output:
Speaker Nominal Impedance:
Line Output Voltage:
Dimensions:
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and 1% THD+N
Signal to Noise Ratio: 75dBA (reference: 1 watt into 4 ohms)
Design and specications subject to change without notice.
CM7MIR
INSTALLATION &
OWNER’S MANUAL
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
Designed and Engineered in USA
W AT T S
Front & Rear
Camera
NSA0921-v01
Printed in China
Namsung America Inc.
©2021 Namsung America Inc.
All rights reserved.
All rights reserved. No part of this publication may be
reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or
other electronic or mechanical methods, without the
prior written permission of NAMSUNG AMERICA INC.
