www.schweigen.com.au
RANGEHOOD & INSTALLATION GUIDE
TRI-900
TRI-900B
Revision 2 13/12/22
Page 2
Index
1. Welcome 3
Your State Regulatory Authority 3
2. Your Safety 4
Before Installation 5
Product Use 6
Electrical Cord 6
3. Description 7
Rangehood 7
4. Operation 8
Push Button Control Panel 8
Speed Control 8
5. Cleaning & Maintenance 9
Cleaning the Interior 9
Cleaning the Oil Drip Tray 9
Cleaning the Exterior 9
Filters 10
Replacing the Light 11
6. Installation 12
Rangehood Size vs Cooktop Size 12
Mounting Instructions 13

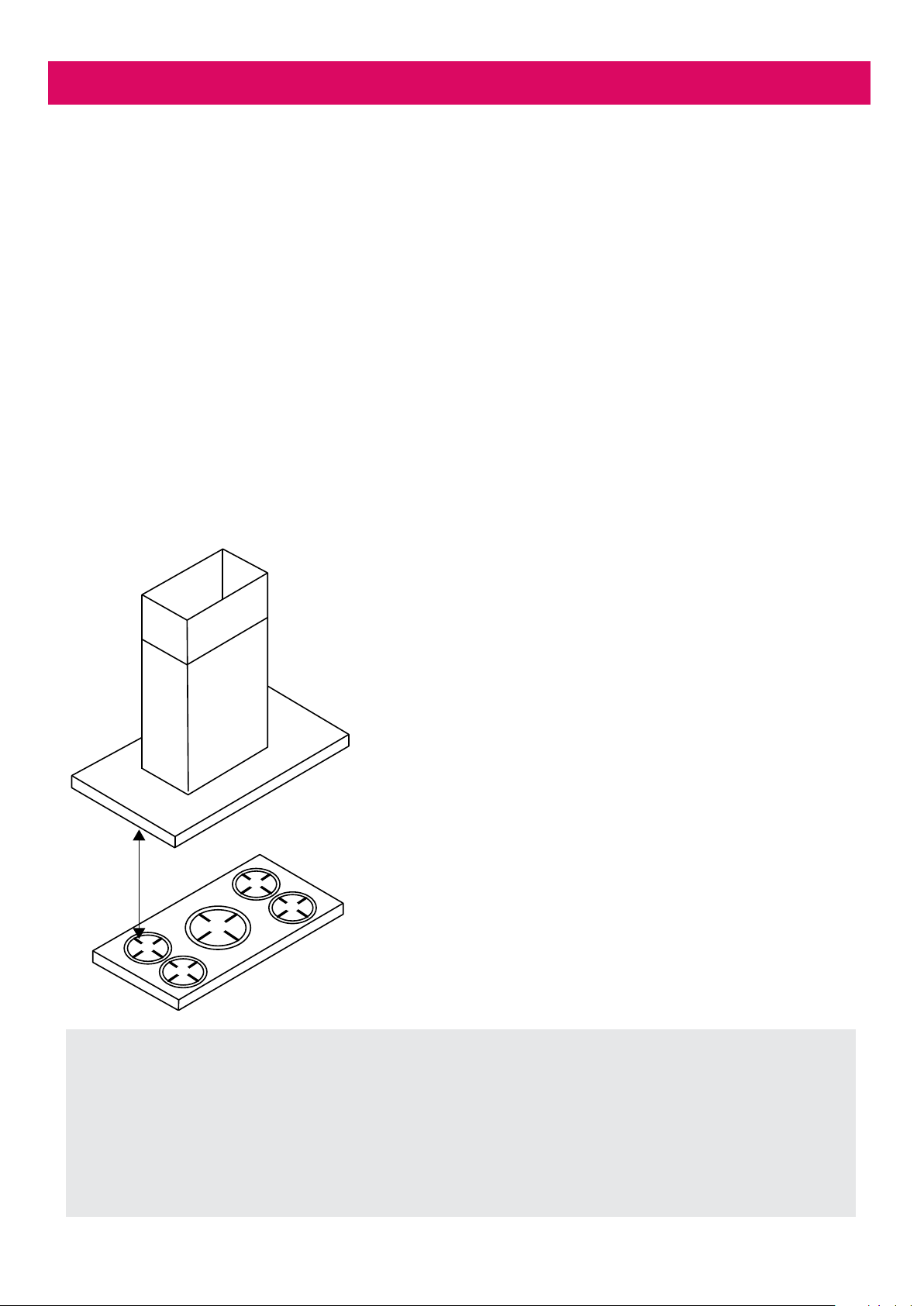

Recommended Installation Height for Induction Cooktop 13

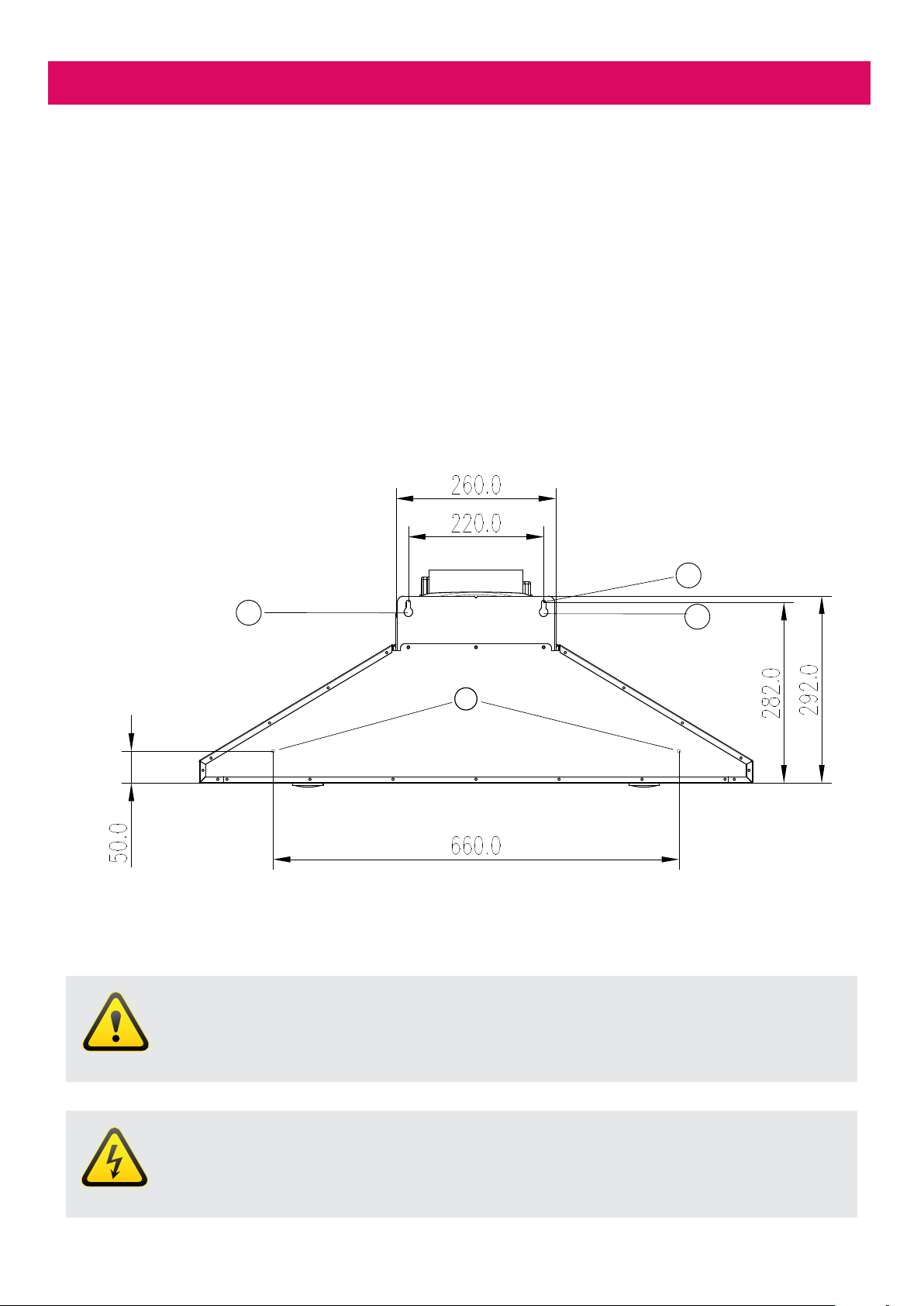

Mounting Points for Body 14

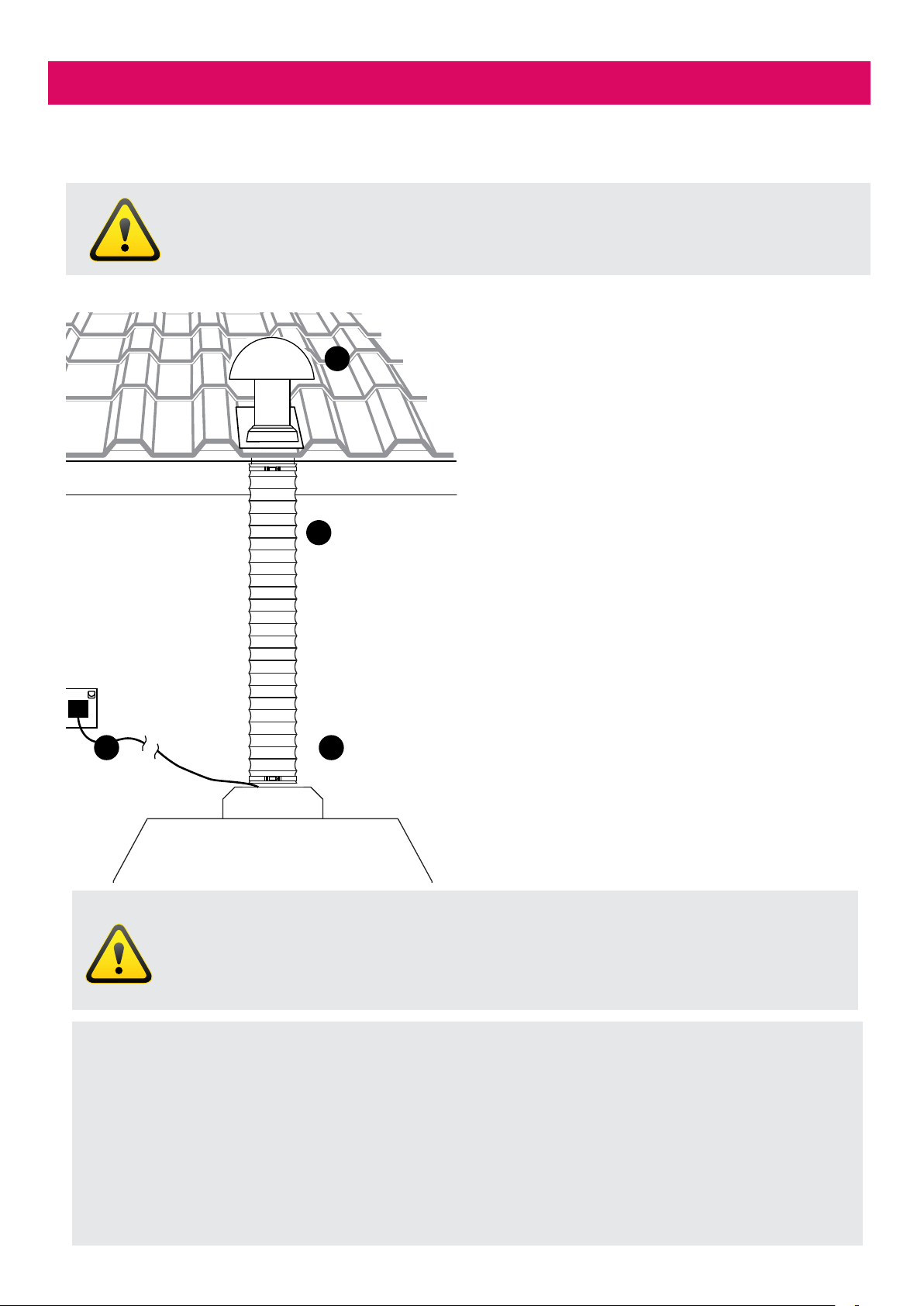

Installation Example 15
Ducting 16

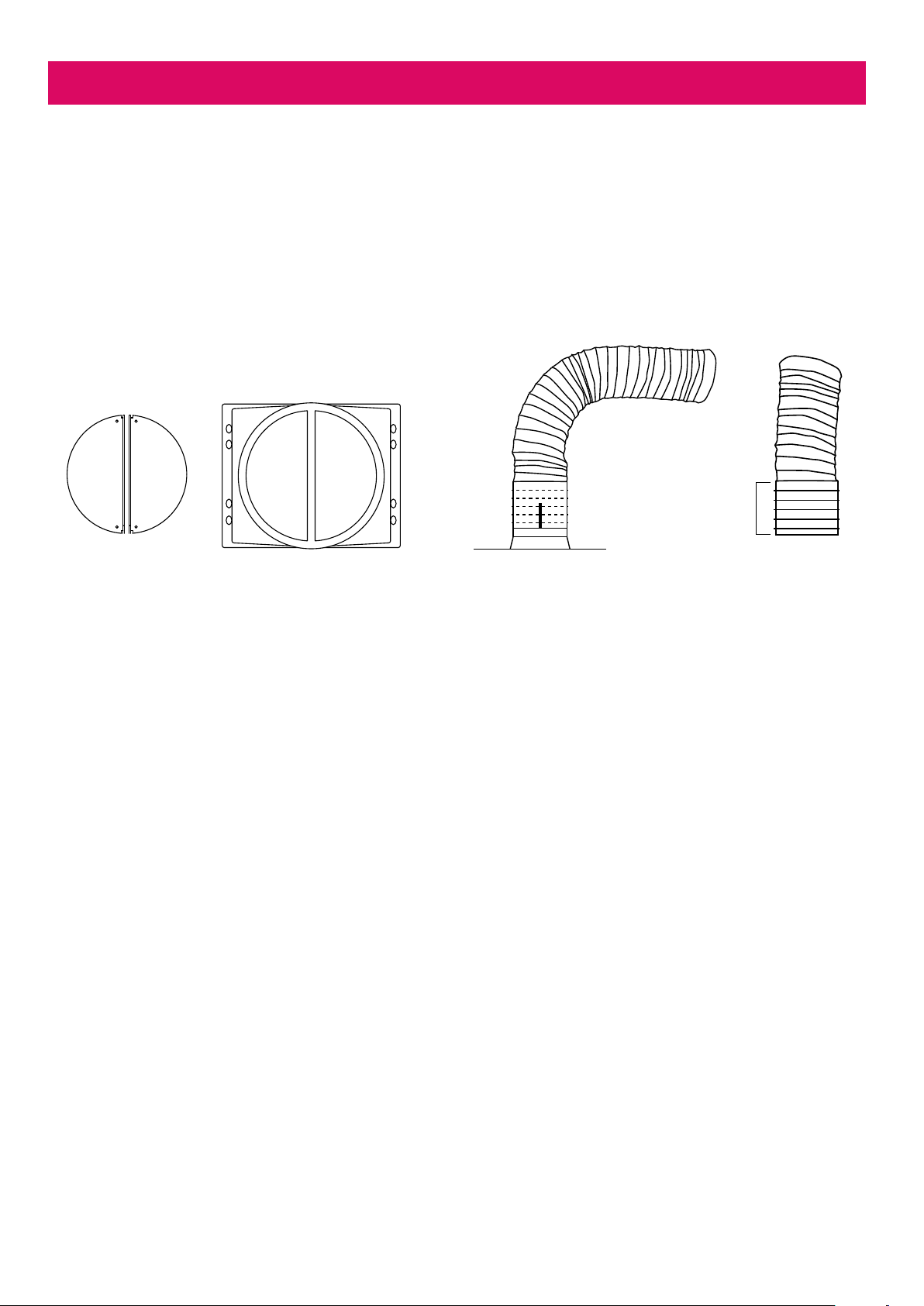

Back Draft Fins (For applicable models) 17
Ducting Advice 18
Roof Cowls / Roof Seal Kit 19
Faulty Installation 19
7. Condensation Information 20
Cooking with Induction Cooktops 20
8. Troubleshooting 21
Troubleshooting 21
Service 21
9. Specications 22

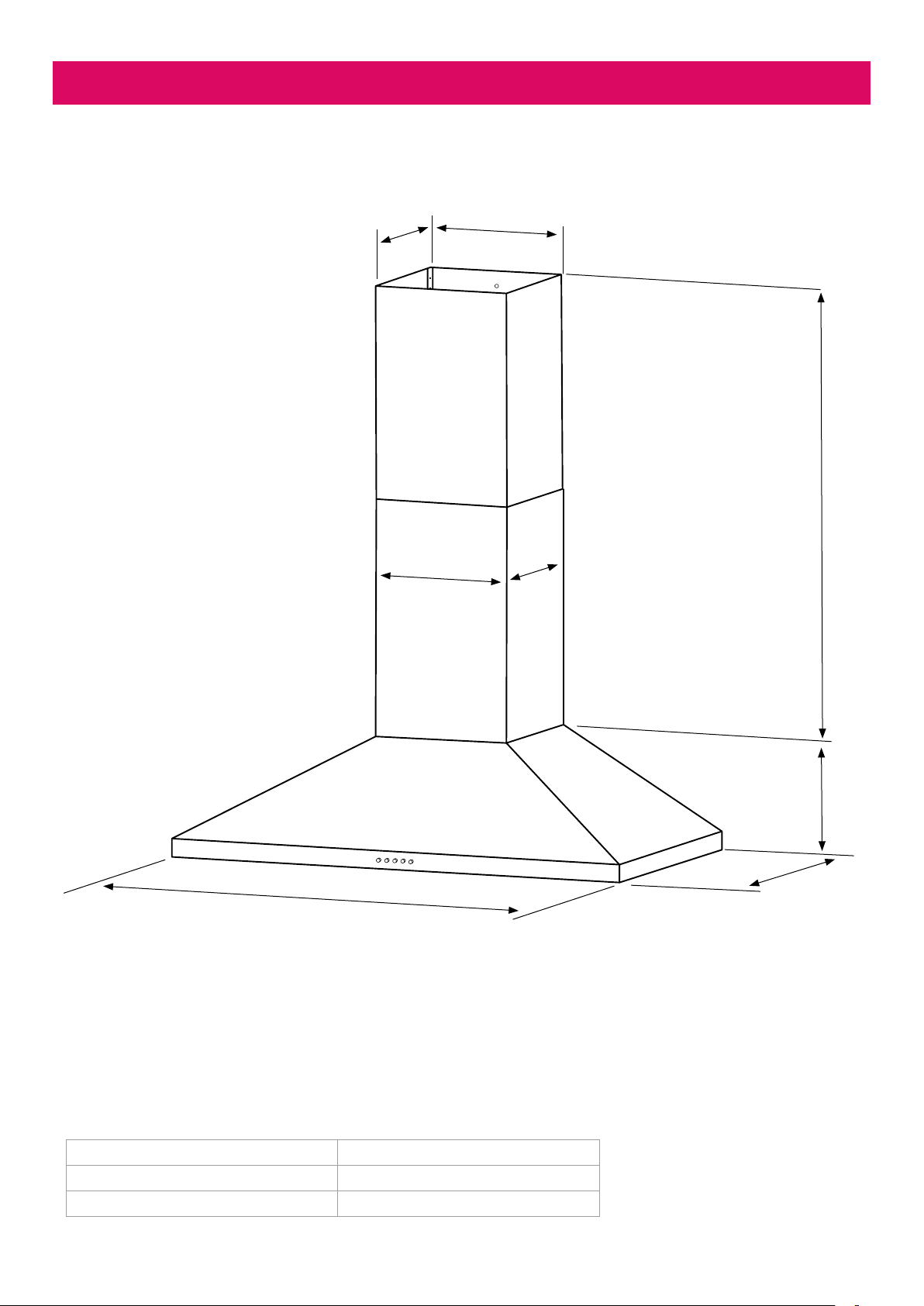

Dimensions 22
Technical Specications 22
10. Disclaimer 23
Page 3
1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website
www.schweigen.com.au.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently
and dispose of the packaging in a responsible manner.
We trust that you will enjoy your new Schweigen rangehood.
Your State Regulatory Authority
Dierent Australian states have varying legislative requirements for the installation of rangehood
ducting. Some will insist on ducting being vented externally (i.e. not in to the ceiling cavity); others
will not. It is imperative that you check with your state building authority and/or private certier
to conrm their position.
Page 4
2. Your Safety
WARNING
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for the costs associated with the repair, replacement, removal or
re-installation of the appliances.
1. There shall be adequate ventilation in the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
2. There is a re risk if cleaning is not carried out in accordance with the instructions.
3. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
4. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
5. Make sure that no ames emerge from the sides of pans.
6. Do not leave packaging materials (bags, corner brackets, etc.) within reach of children.
7. This appliance is not intended for use by person/s (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and/or knowledge. Unless the person has
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance,
it is not a toy.
8. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
9. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge
of air have to be fullled.
10. Accessible parts may become hot when used with cooking appliances.
11. Before performing any cleaning or maintenance operation, disconnect the rangehood from
the mains using the respective mains or sector switch or by unplugging it.
12. Do not use the rangehood without the grease lters.
13. Keep the grease lters clean and respect the recommended cleaning frequencies.
14. Turn the rangehood motor on before starting to cook.
15. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
16. It is forbidden to use the rangehood as an aspirator.
17. Never cook foodstu directly over the ame or have the gas burners on under the rangehood
without using cookware.
Page 5
2. Your Safety
Before Installation
1. We recommend this appliance be installed or repaired by an experienced Home Appliances
technician.
2. Please see our website www.schweigen.com.au for experienced installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately
void the warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with
the applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and
installations that fail to heed the applicable legislation on electrical safety (with regard to both
modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
– Verify that the indicated electrical data coincide with the voltage values and frequency
of the electrical circuit in the house where the rangehood is to be installed;
– Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
– Always switch o the current using the double-pole switch before maintenance and turn
the power on again for normal use only when the operation has been completed.
Page 6
2. Your Safety
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch
re. (Flambé)
Rangehoods and other cooking fume extractors may adversely aect the safe operation of appliances
burning gas or other fuels (including those in other rooms) due to back ow of combustion gases. These
gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other
cooking fume extractor, the operation of ued gas appliances should be tested by a competent person to
ensure that back ow of combustion gases does not occur.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer.
_n_. _RH Section_
Page 7

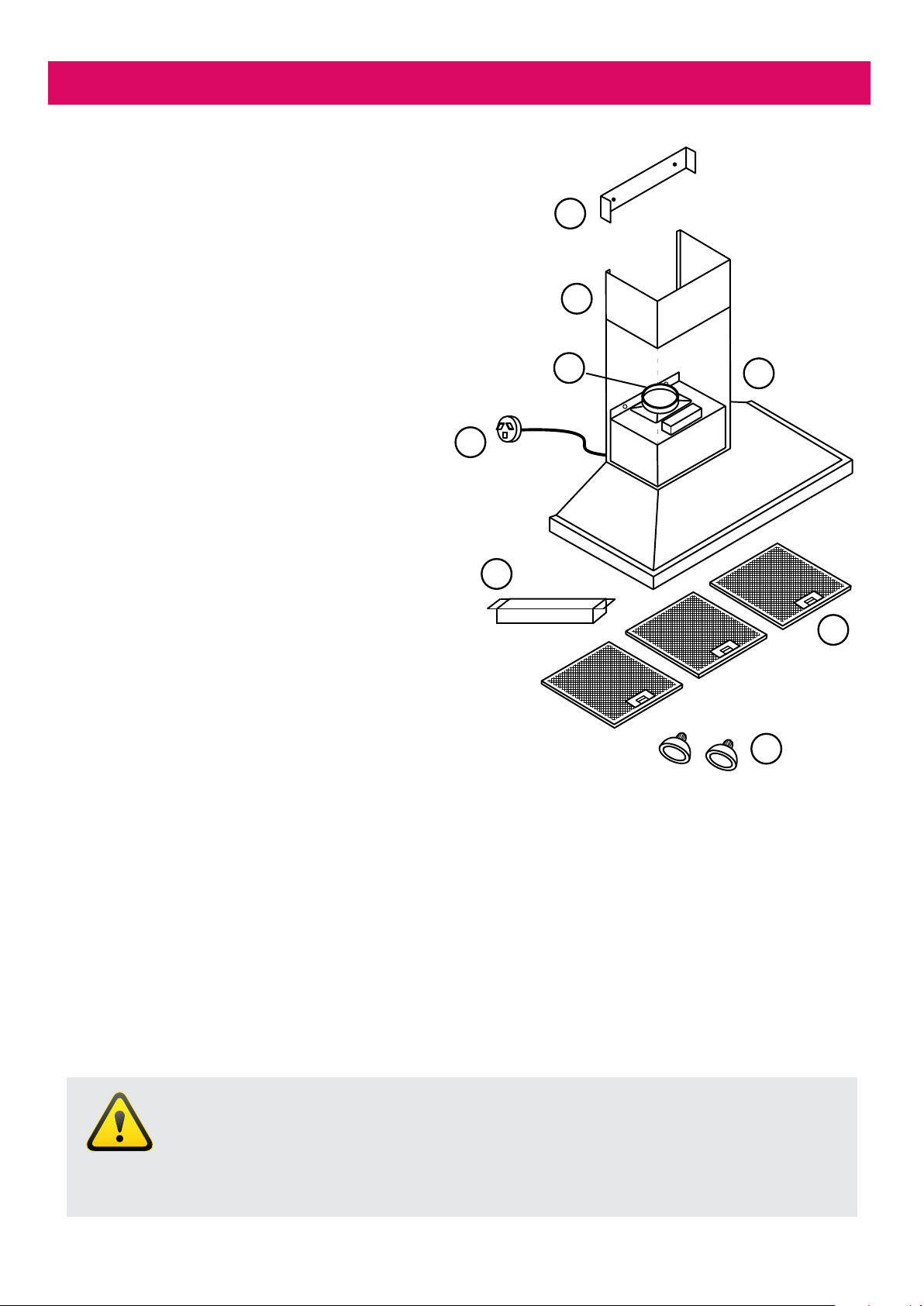

3. Description
Note: Please make sure that all plastic protection on the rangehood and lters are removed before use.
Rangehood
1. Mounting Bracket
2. Extension Flue Piece
3. Main Flue
4. Main Power Cord
5. Single Outlet 150mm
6. Filters
7. Light
8. Oil Drip Tray
NOTE: Filter and light quantity may vary from
model to model.
Important
Electronics MUST be accessible for service and/or maintenance once installed, failure to
do so, will result in any charges involved with accessing the part (removal of cabinetry etc.)
being forwarded to the customer.
1
2
3
4
5
6
7
8
_n_. _LH Section_
Page 8
4. Operation
Push Button Control Panel
Turn on/o the rangehood
Low speed setting
Medium speed setting
High speed setting
Turn on/o the lamp
Speed Control
This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speed for heavy frying or heavy cooking.
1 2 3
1 2 3
Page 9
5. Cleaning & Maintenance
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or
the motor with liquids or solvents

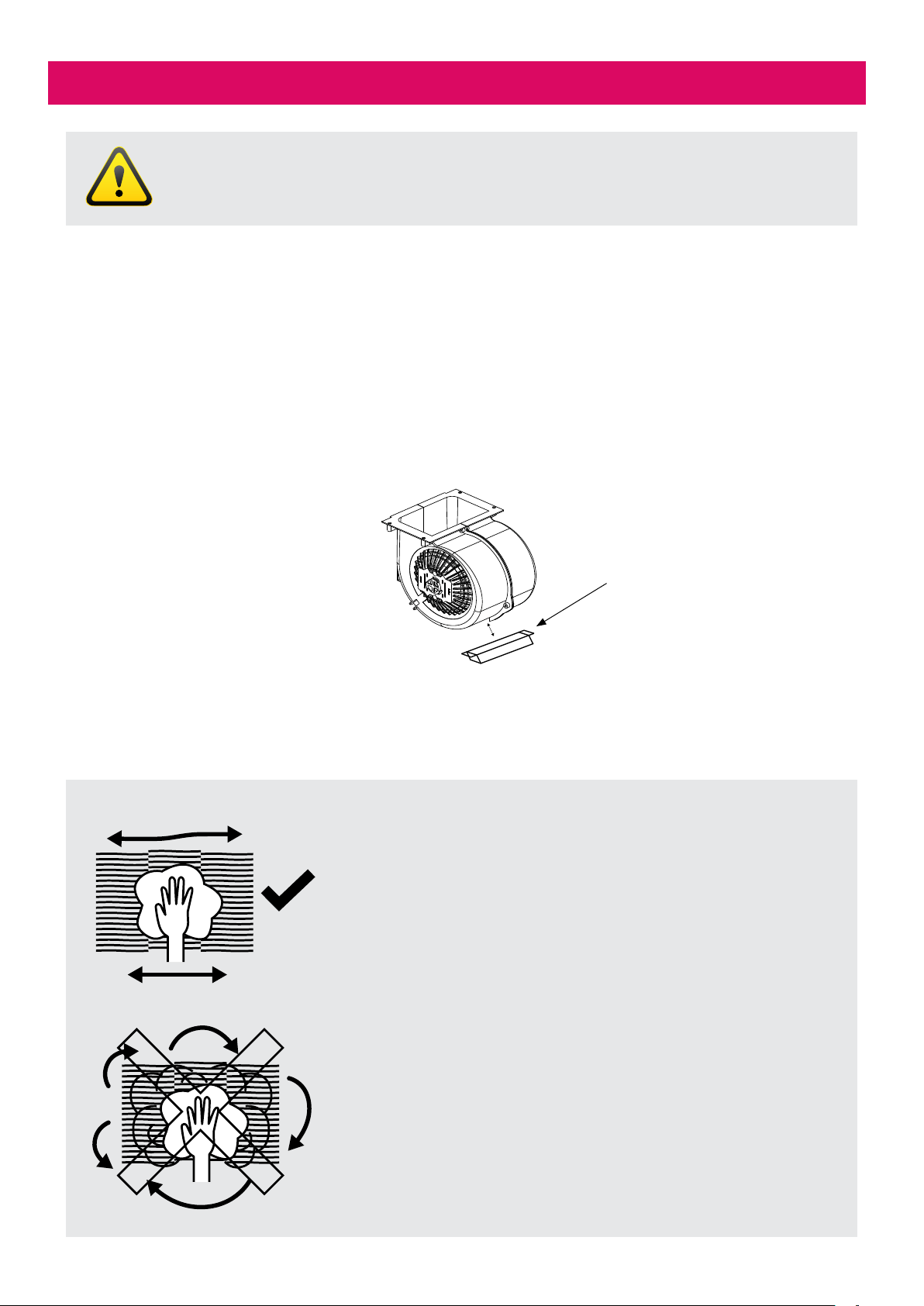

Cleaning the Oil Drip Tray
Clean the oil drip tray regularly, remove lters from the rangehood then remove drip tray from the motor.
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products to clean your rangehood.
• The recommended detergent is a solution of water and a neutral
liquid soap.
• It is very important for the liquid soap to not contain granules
that could scratch the surface.
• First apply the solution to a soft cloth and then rub the cloth
over the rangehood. It is important to follow the direction of the
stained surface with the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could
scratch the surface.
• It is strictly forbidden to use chemical solvents, aggressive,
grainy or abrasive products, naphtha, alcohol or similar products
that could damage the surface of the rangehood.
• The manufacturer will not be held responsible for functional or
aesthetic damage caused by cleaning with products which are
not suitable or using inadequate cleaning methods.
OK
Warning
Always switch o and disconnect power before cleaning.
Oil drip tray
Page 10

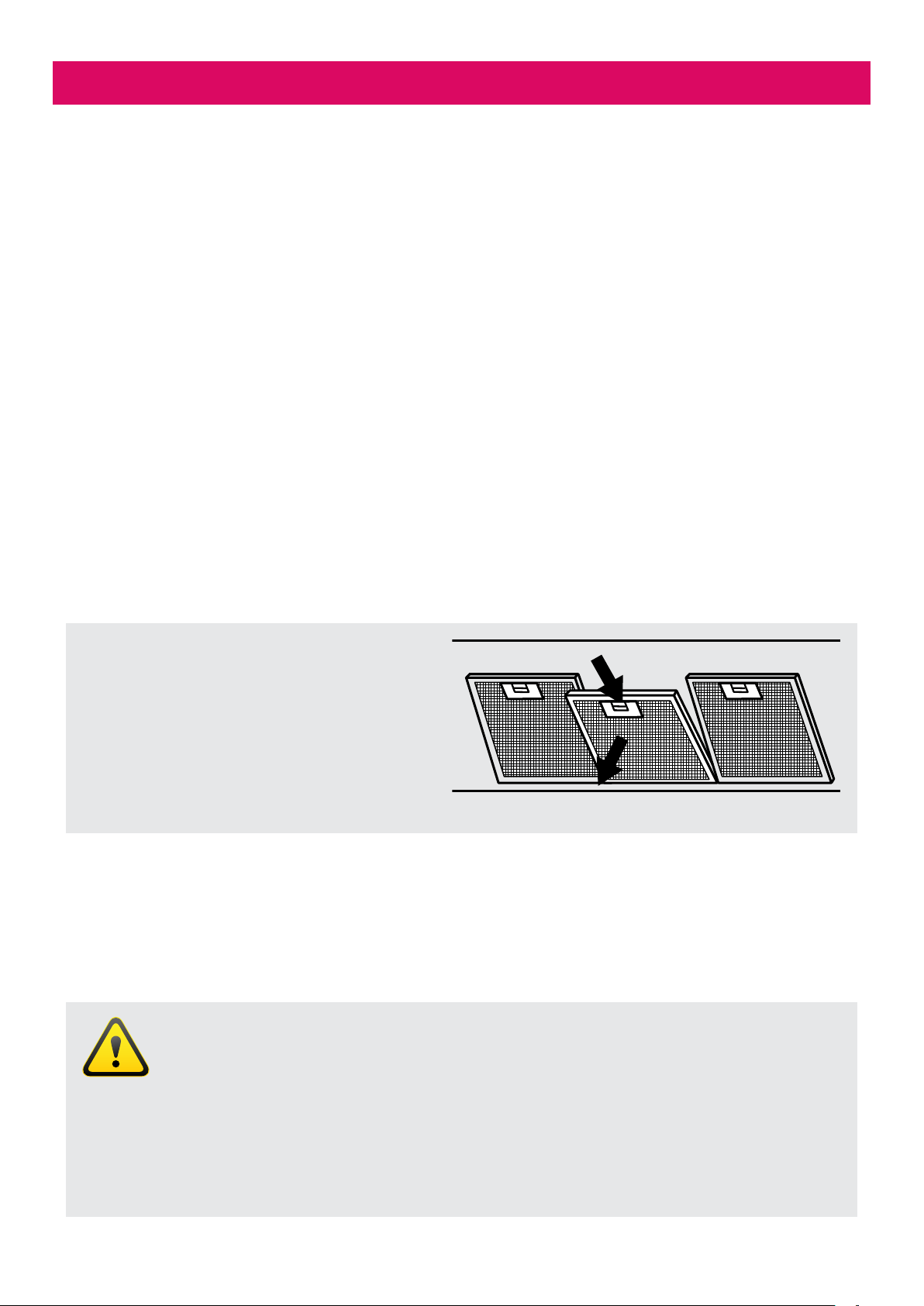

To remove the lter press handle and remove
it through the front guide; bend it slightly and
remove lter. To replace, perform the same
operation but in reverse.
5. Cleaning & Maintenance
Filters
For this appliance to function eectively, regular maintenance is a must.
• The function of the lter is to absorb the grease particles given o during cooking.
• Clogged lters and heavy oil deposits restrict airow and may cause the motor to overheat
and become a re hazard.
• Filters should be cleaned every 3-6 weeks or after 40 hours of use.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The lters can be washed by hand or in the dishwasher.
– Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
– Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and
it is not necessary to change the lters.
Please ensure the lters are completely dry before placing them back in position
and operating the rangehood.
Warning
• If the grease lters are very dirty, the motor will extract only a small quantity of air,
which reduces its eciency;
• The grease deposits that build up on the lter are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the grease lters.
_n_. _RH Section_
Page 11
Danger
Always switch o and disconnect the power cord before replacing any light. Failure to
do so may cause serious injury. Please be aware that the light will retain heat for a short
period of time after being switched o.
5. Cleaning & Maintenance

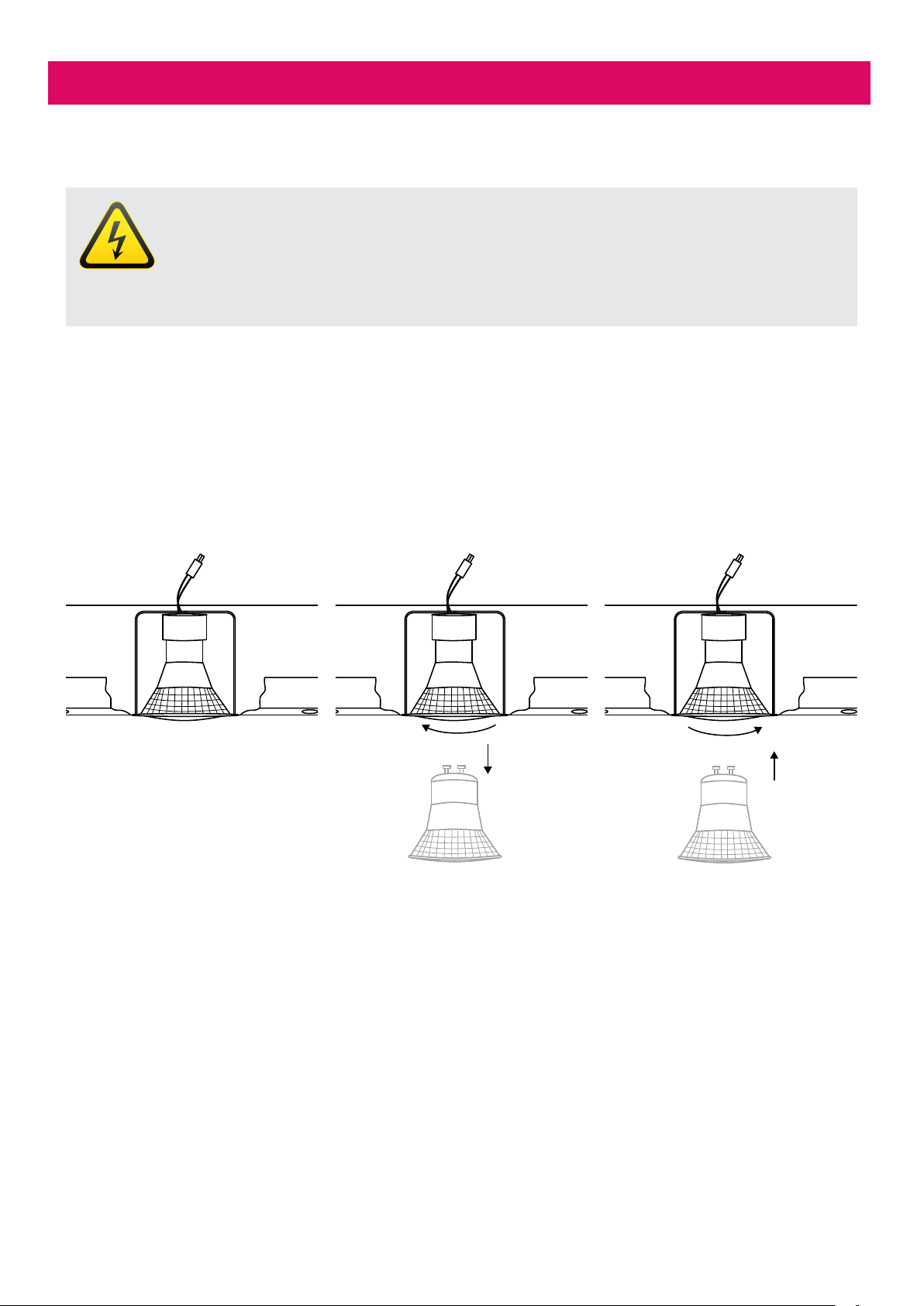

Replacing the Light
Step 2
Gently turn light anti-clockwise,
pull the light bulb down and
remove it from the light holder.
Step 3
Insert a new light by lining up the
pins of the light with the larger
holes inside the light holder.
Once the pins are in place, turn
clockwise to secure the light.
Step 1
Remove the lters from
the rangehood.
_n_. _LH Section_
Page 12
6. Installation

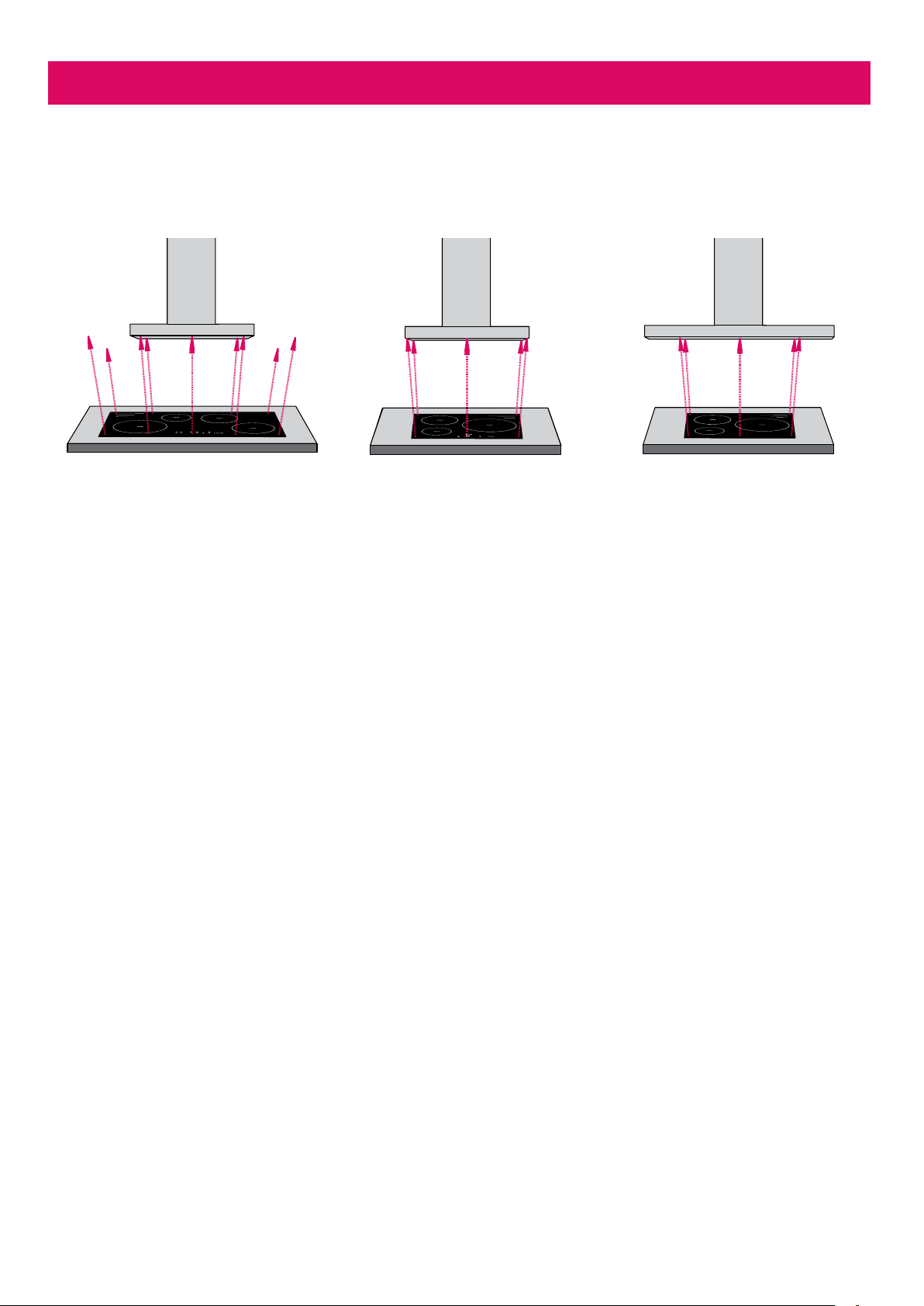

Rangehood Size vs Cooktop Size
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
_n_. _RH Section_
Page 13
6. Installation

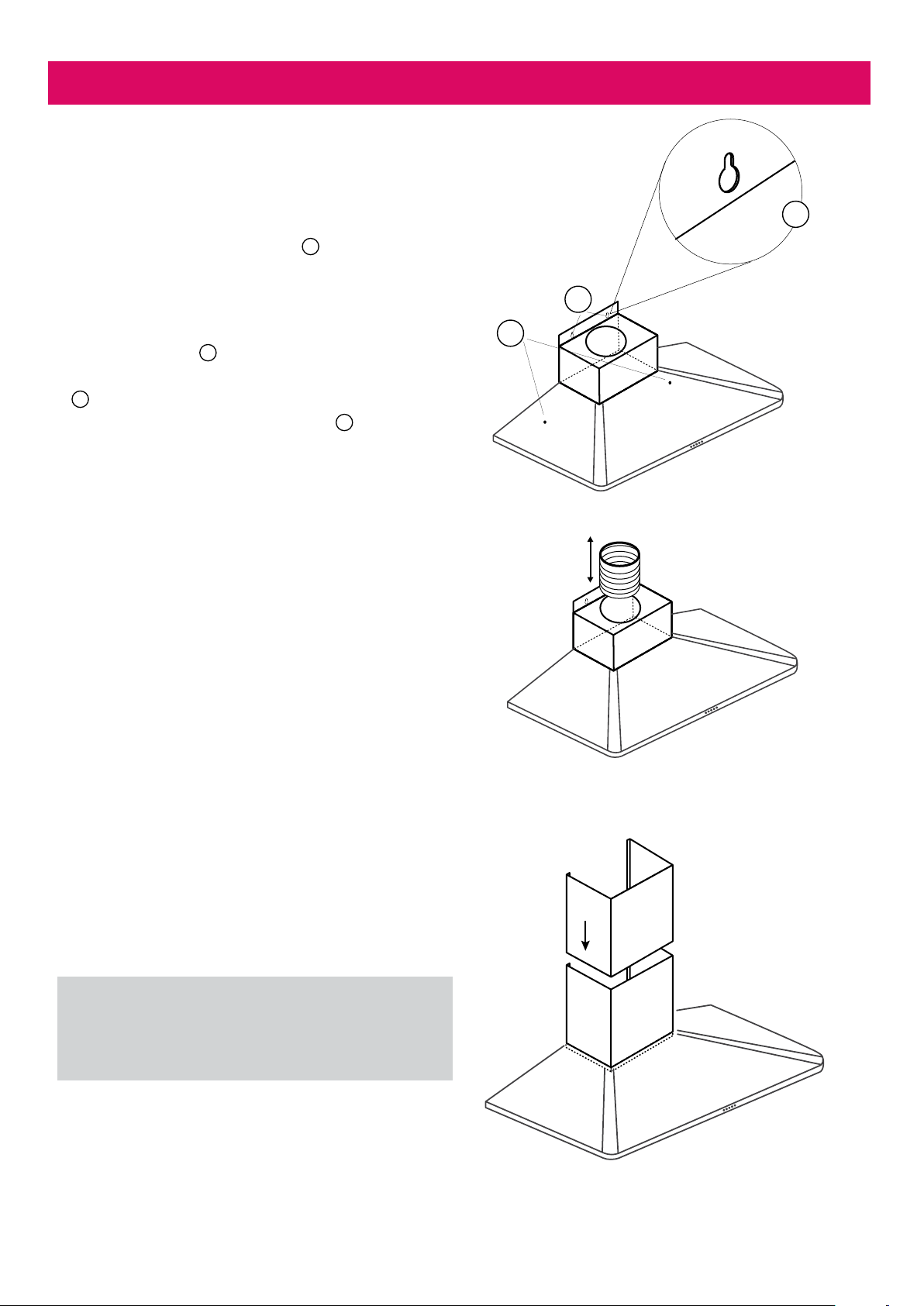

Mounting Instructions
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
Recommended Installation Height for Induction Cooktop
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a height between 700-750mm. Refer to page 20 for further information.
*IMPORTANT: If the user decides to install the rangehood
at a distance of less than minimum height above the cooking
surface, Schweigen declines responsibility for damages
suered by the rangehood due to excess heat or damage
to objects, people and others caused directly or indirectly
by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
* Important: In addition to the information in this manual,
please check all relevant state requirememnts for minimum–
maximum heights, as well as regulations regarding the
expelling of air. Schweigen is not liable if your rangehood is
not installed in accordance with these legal requirements.
_n_. _LH Section_
Page 14
6. Installation
Wall Mount Installation
There are two primary mounting points and several secondary mounting points to rmly x the
rangehood in place.
Suitable xing screws must be used to mount the appliance on a secure surface.
Please ensure that the holes for the two primary mounting points are level before installation.
1. Primary Mounting Points
2. Adjust to Level
3. Secondary Mounting Points
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
1
1
2
3
_n_. _RH Section_
Page 15
6. Installation
Step 1
There are 2 suspension points (
2
) to suspend
the appliance to the wall. These points are
supplied with a screw set for ease of installation.
Secure rangehood to the wall using only primary
mounting points (
1
). Check the level of the
rangehood and adjust accordingly if necessary
(
2
). Once level, continue to secure the rangehood
via the secondary mounting points (
3
).
1
2
3
Installation Example
Step 2
Feed through and secure the ducting from the
rangehood outlet.
1
2
3
Step 3
Place ue covers on the rangehood and extend
to the length required. (Be careful not to scratch
the top of the rangehood).
PLEASE NOTE: Only a standard length of
stainless steel ue is provided. Any additional
length will need to be sourced and manufactured
by a sheet metal fabricator.
1
2
3
Page 16
6. Installation
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.
Step 4
Attach the exterior ue wall mounting bracket to
the wall. Slide the inside extension ue piece up
to the wall mounting bracket and secure.
1
2
3
The ducting diameter MUST be 150mm. The overall length
of the ducting should not be greater than 4 metres.

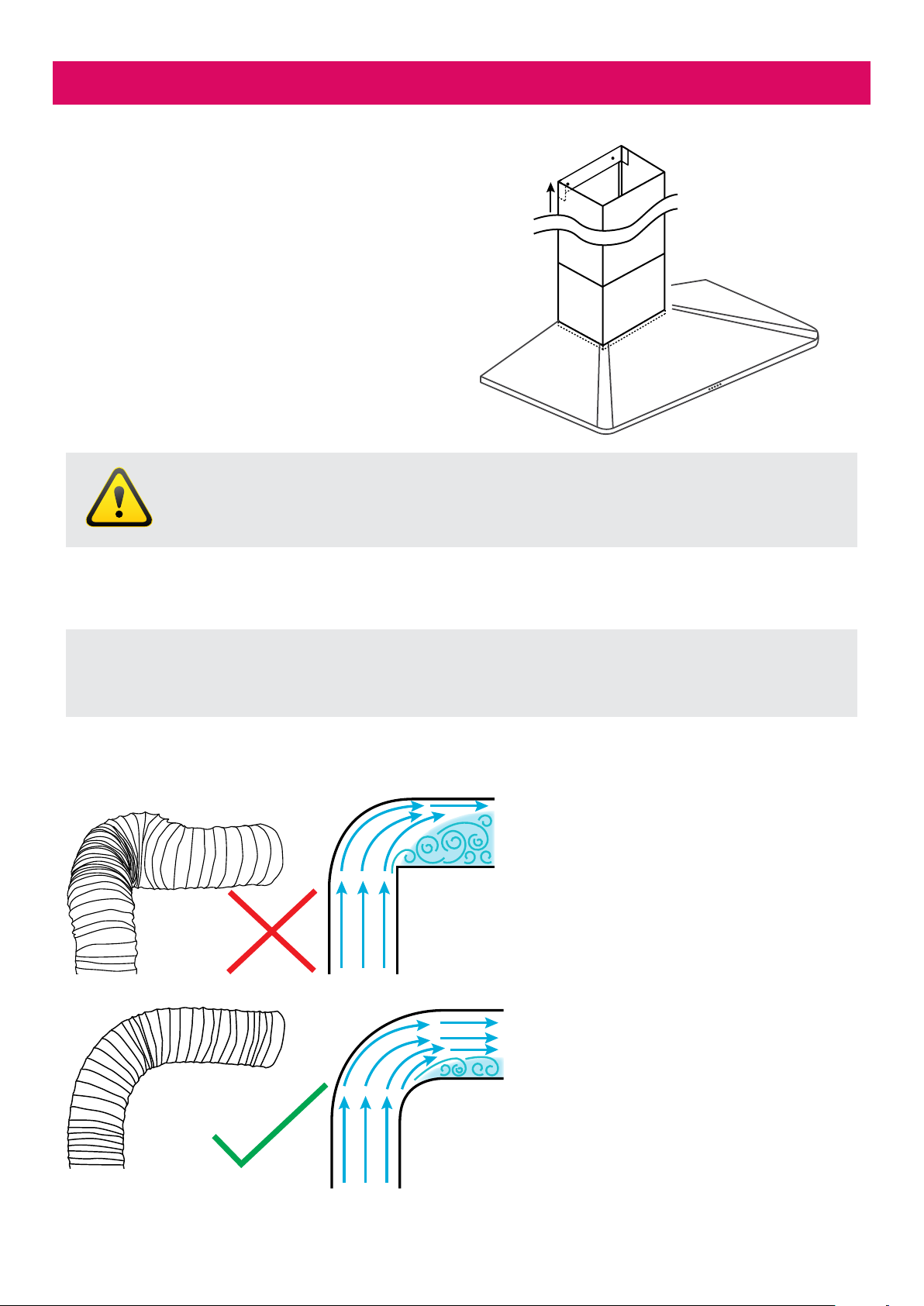

Ducting
Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates
sharp corners that creates turbulence.
This reduces the size and eciency
of the ducting, lowers extraction and
may cause excessive noise.
2. Sweeping curves and taut ducting
reduces resistance and turbulence.
The airow and extraction will be
more ecient and stronger.
Page 17
6. Installation
Back Draft Fins (For applicable models)
The supplied ducting has been manufactured with an allowance for the back draft ns to operate without
hindrance. It is the smooth extended end of the ducting.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation. Then place the smooth extended edge
of the ducting into the back draft base and x securely.
Should your Back Draft Fins get stuck, this is not a warranty issue.
Back Draft Fins Back Draft Fins
open position
Back Draft Fins
ducting
Allowance for
Back Draft Fins
Back Draft Base
Page 18
6. Installation

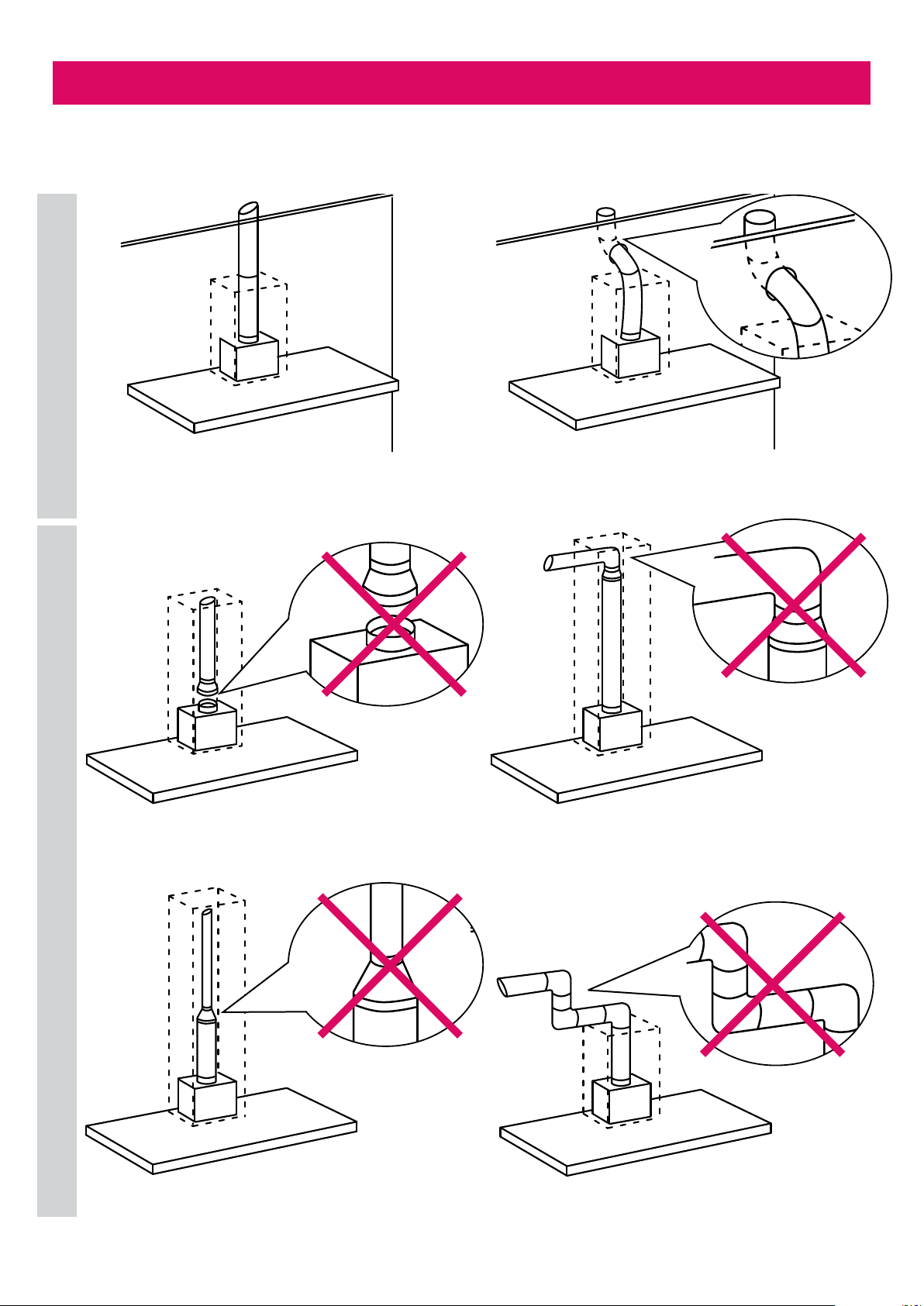

Ducting Advice
Never reduce ue diameter right next
to the rangehood outlet tting.
Avoid excessive reduction of the ue size,
as this drastically reduces extraction capacity.
Keep the curves or bends to a minimum. If they
do exist, try to keep the angles as open as possible.
Straight ducting is the most eective installation
Never t reductions next to curves or bends in
the installations. They must always be in straight
sections and as far as possible from the rangehood.
You should not have more than two bends
in the installation.
1.
2.1.
3.
2.
4.
RECOMMENDEDAVOID
_n_. _RH Section_
Page 19
6. Installation
WARNING
All electrical wiring should be kept inside the roof space.
Roof Cowls / Roof Seal Kit
1
2
34
1. Roof Cowls (Not supplied)*
2. Ducting must be pulled taut.
DO NOT crush or kink the ducting.
3. Connect ducting to the outlet on rangehood
using a ring clamp. Please
DO NOT rip the ducting.
4. Main Power Lead (Plug)
NOTE
* Rangehood does not include the roof seal/roof cowls, ring clamp or support straps.
Do not reduce the ducting diameter, this will reduce airow.
Faulty Installation
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee
will be charged for any Schweigen technician that attends a call, whereby it is established that
the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be
installed in such a way that the service agent is unable to gain access to the appliance, the person/s
who own the premises or the property where the appliance resides — will be responsible to provide
access to the appliance at their expense.
Maximum 4m
of ducting and
straight-line
installation for
best result
_n_. _LH Section_
Page 20
7. Condensation Information
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn,
produces vapours rapidly. Because of this rapid process, the rangehood lters do not have enough
time to warm, which increases the chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but
are not limited to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Installation distance from cooktop to the rangehood
• Speed of food & liquid heating
• Filter size – larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following the installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 10-15 minutes after cooking;
this helps clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to warm up.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact your induction
cooktop manufacturer.
_n_. _RH Section_
Page 21
8. Troubleshooting
Troubleshooting
If the product does not work:
Before you contact the technical service department, make sure that the product is plugged in, and
electric wiring is connected. Weak air suction may be caused by back draft ns remaining closed. Do not
take any action that will damage the product.
Check electric connection. Voltage of the electric
network should be between 220 - 240V, rangehood
should be connected to grounded plug and turned on.
Check motor switch. Please ensure that there is power
to the rangehood and the rangehood is switched on.
Check light switch. Light switch should be at on
position.
Check lter. Filter should be washed regularly, see
lter cleaning.
Check Lights. Lights should be rm.
Check outlet. Outlet should be open.
Check Lights. Make s ure they are not broken or faulty.
Please make sure there is no obstruction in ducting or
back draft ns.
Check the outlet, make sure it is not blocked and you
have the correct diameter ducting installed.
Rangehood does not work
X X
Light does not work
X X X X
Rangehood air suction is weak
X X X X
Rangehood does not direct air out
(through chimney)
X X
Loud noise from the rangehood
X
Service
Lodging an Online Service Request
In the event that the failure is not due to the faults mentioned in the Troubleshooting section, you can
lodge an online Service Request. To lodge an online Service Request, visit our website www.schweigen.
com.au/service-and-warranty and click on the link and complete the service request form.
A service request will require the following information:
• The purchase date
• The rangehood model
• The serial number or batch number (this number is on a sticker inside the rangehood).
• A copy of the purchase receipt (without a receipt your service request cannot be processed).
Alternatively, you can call Customer Service:
Australia 1300 881 693
New Zealand 0800 200 510
Page 22
9. Specications
Technical Specications
Model TRI-900 / TRI-900B
Feeding Voltage 220-240V 50Hz
Lamp Power — LED (W) 2 x 3W
900
500
215
500-950
263
263
Dimensions
265
265
Page 23
10. Disclaimer
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly
describes the products being oered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Schweigen will not be liable for any loss, liability or
damage of whatever kind arising as a result of any reliance upon such information. All pictures used
in the guide are for illustrative purposes only.
Schweigen Home Appliances has presented this information in good faith to all their retailers and
distributors to convey before any/all purchase/s. Information is supplied upon the condition that
the person/s receiving the information will make their own determination as to its suitability for their
purpose/s prior to use. In no event will Schweigen Home Appliances be responsible for damages of
any nature whatsoever resulting from the use of, or reliance upon, information from their website
or the products to which the information refers.
DISPOSAL OF OLD APPLIANCES
Electronic waste (or e-waste) including kitchen appliances are banned from direct disposal
to landll. E-waste contains hazardous materials, which can harm the environment and human
health. Valuable materials contained in e-waste are lost when appliances, computers and other
household electrical goods are sent to landll.
Recycle your e-waste to:
• reduce landll
• protect the air and waterways from harmful materials
• minimise consumption of raw materials to produce electronic products
• reduce greenhouse gases created in the production of new materials.
Kitchen appliances including Rangehoods and Ovens can only be disposed at approved recycling
centres. Visit www.recyclingnearyou.com.au/whitegoods for more information, or contact your
local council or the store you purchased this appliance, for a list of approved recyclers.
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.par[email protected] Web www.parex.co.nz
