Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.
Page 3
Index
1. Welcome _____________________________________________________________________________________ 2
2. Your Safety
Receiving your rangehood ______________________________________________________________________ 4
Before Installation ______________________________________________________________________________ 4
Electrical Cord __________________________________________________________________________________ 4
Motor Features ________________________________________________________________________________ 5
General Notes on Installation and Use ____________________________________________________________ 5
Recommended Installation Distance _____________________________________________________________ 5
Minimum Mounting Height ______________________________________________________________________ 6
Avoidance of Back Flow _________________________________________________________________________ 6
Safety of Children ______________________________________________________________________________ 6
Replacement of Supply Cord _____________________________________________________________________ 6
Why Schweigen SteelFlex
™
Safety Duct __________________________________________________________ 6
3. Description
Isodrive Motor _________________________________________________________________________________ 7
4. Installation
Roof Installation _______________________________________________________________________________ 8
Through Wall Installation ____________________________________________________________10
Twin 200mm Outlet Installation Example (3200 kit required) ________________________________12
Optional Backdraft Shutter Installation Through Roof ______________________________________13
Optional Backdraft Shutter Installation Through Wall _______________________________________14
Optional Weather Shield Installation Guide ______________________________________________15
5. Measurements
Measurements for Isodrive 3200 _____________________________________________________ 16
6. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting Installation _________________________________________________ 17
Assembling SteelFlex
™
Safety Duct ____________________________________________________ 18
Shallow Roof Space _______________________________________________________________ 19
Important Note __________________________________________________________________ 19
Installing SteelFlex
™
Safety Duct _____________________________________________________ 20
7. Parts List
Parts List for Isodrive 320 ___________________________________________________________ 21
8. Maintenance
Roof Restoration or Cleaning ________________________________________________________ 23
9. Warranty/Disclaimer ________________________________________________________________________ 24
Page 4
2. Your Safety
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance to be installed or repaired by an experienced Home Appliances technician.
Please see our website www.schweigen.com.au for experienced installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The power
supply cord connection MUST BE installed in such a way that access is easy in case of emergency.
RECEIVING YOUR RANGEHOOD
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
Page 5
2. Your Safety
This guide is for the installation of the motor used in the Isodrive systems after the canopy/rangehood has
been mounted on the wall or ceiling. (Refer to canopy/rangehood unit installation manual).
NOTE: All PVC pipe and SteelFlex
™
ducting measurements are referring to inside measurements, unless
otherwise mentioned..
Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using a single 250mm SteelFlex
™
duct, you
should attain up to 3200m
3
/hr depending on the ducting installation. The use of a smaller than
250mm ducting would result in a loss of airow.
• Simple installation: The motor mounts onto a 250mm PVC pipe for ultimate strength and allows for easy
Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 150W costing around the same as two 70W light globes
to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does not
cover normal wear and tear, chemical or storm damage etc. (see warranty card for more information).
General Notes on Installation and Use
This fan unit is designed to be installed using 250mm (ISD) PVC pipe as the initial connection duct to the fan
module, and is supplied with a 250mm (ISD) PVC pipe and 250mm (ISD) SteelFlex
™
(see page 17 for installation
details).
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 22,000mm
2
. When
installing, maximum 8 metres of the 250mm SteelFlex
™
ducting MUST be used and no more than 2 to 3 bends in
the ducting. Where possible SteelFlex
™
ducting must be extended suciently to present a smooth air passage
with bends of at least the radius of twice the diameter of the duct. Excessive bends in the ducting will
compromised extraction.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build up of grease
can occur and become a potential re risk. This will void your warranty.
NOTE: Fan module and SteelFlex
™
duct are acoustically matched. Use of semi-rigid or rigid ducting will result
in increased noise and may void warranty. See installation instruction notes ‘Why Schweigen SteelFlex
™
Safety Duct’.
Recommended Installation Distance
Isodrive 3200 motor, recommended 4 to 6 metres of SteelFlex
™
ducting and with at least two bends.
NOTE: Although less than 4 to 5 metres will increase extraction power this may result in a higher air noise
level. Maximum duct length 8 metres (use 250mm ducting), however please be aware that increasing the
duct length above 5 metre will decrease airow. Check with supplier if longer duct length is required. Do
not reduce the duct size at any time and avoid sharp bends.
Page 6
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open re
appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of Supply Cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Schweigen SteelFlex
™
Safety Duct
Schweigen SteelFlex
™
is an ultra-strong and exible high-performance safety ducting made
of Shirikon Firemesh
®
– a tri-layer tear-resistant UV-treated sleeve. Both are developed by
Schweigen – the Silent Rangehood specialists, for quiet and ecient high-volume transfers
of temperature-sensitive air. Engineered to enhance the health and safety of your home,
Schweigen SteelFlex
™
is antimicrobial treated, thermally insulated and acoustically dampened.
It is reproof, pest and crush proof with a treated surface that prevents the build-up of grease
and bacteria.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling air through
the hood and acoustically matched ducting, producing almost silent high volume ow. The use of a complete
rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a noise is
produced at one end of a hollow rigid pipe and the noise is amplied out the other.
The Isodrive system places the noise outside the house.
WARNING: Installation without the use of at least the minimum recommended length of acoustically matched
SteelFlex
™
in the system will void performance expectations. Any installation problem must be reported
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty.
An experienced installer list can be obtained from Schweigen website www.schweigen.com.au or by
calling 1300 881 693.
2. Your Safety
Page 7
3. Description
Isodrive Motor

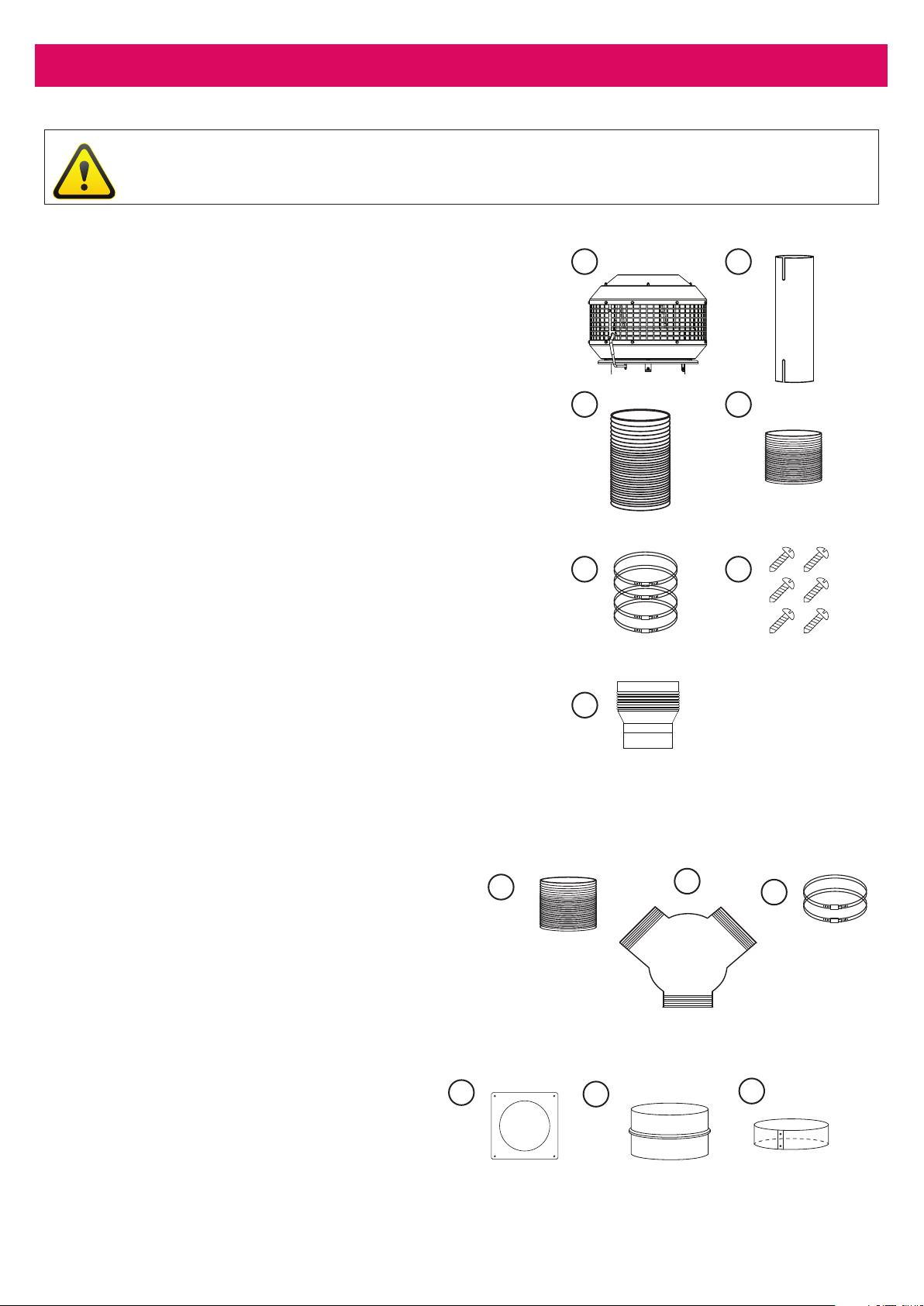

Included in the box:
1. Isodrive 3200 motor
Approx. 3 metre, 10amp cable and standard plug
2. Fire resistant 250mm outside dimension PVC riser pipe
3. SteelFlex
™
safety ducting (250mm). Approx. 4 metres,
250mm (260mm outside dimension) diameter
4. SteelFlex
™
safety ducting (200mm). Approx. 2 metres,
200mm (210mm outside dimension) diameter
5. 4 x Steel ring clamps
6. 6 x 20mm self-drilling button head screws
7. 250-200mm reducer (only use when connecting the
Isodrive 3200 motor to a single 200mm opening on a
rangehood)
Not included in the box:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Aluminium foil tape
• Wall Mounting Kit
1
5
10
2
3 4
6
7
NOTE
For more SteelFlex
™
ducting instructions, refer page 17.
Included with the 3200 Kit
(for rangehoods with twin outlets only)
8. SteelFlex
™
safety ducting. Approx. 2 metres,
200mm (210mm outside dimension) diameter
9. Y joint (250 X 200 X 200mm)
10. 2 x 200mm ring clamps
Optional:
10. Wall plate (P2025)
11. 250mm backdraft shutter (250MMBDSSBUILDASS)
12. Weather shield kit (ISO32000WGBUILDASS)
9
8
11
12
13
Page 8
4. Installation

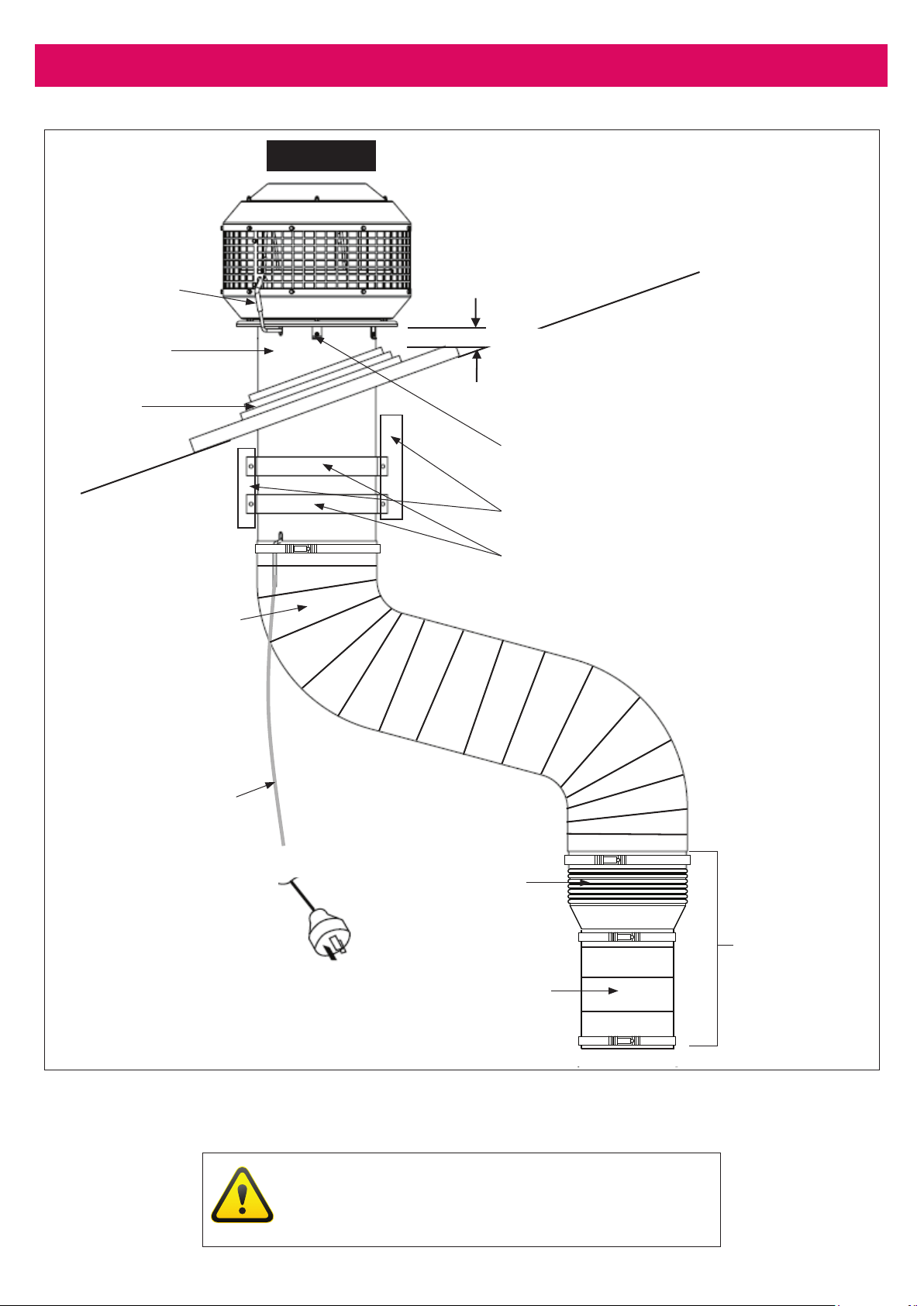

Roof Installation

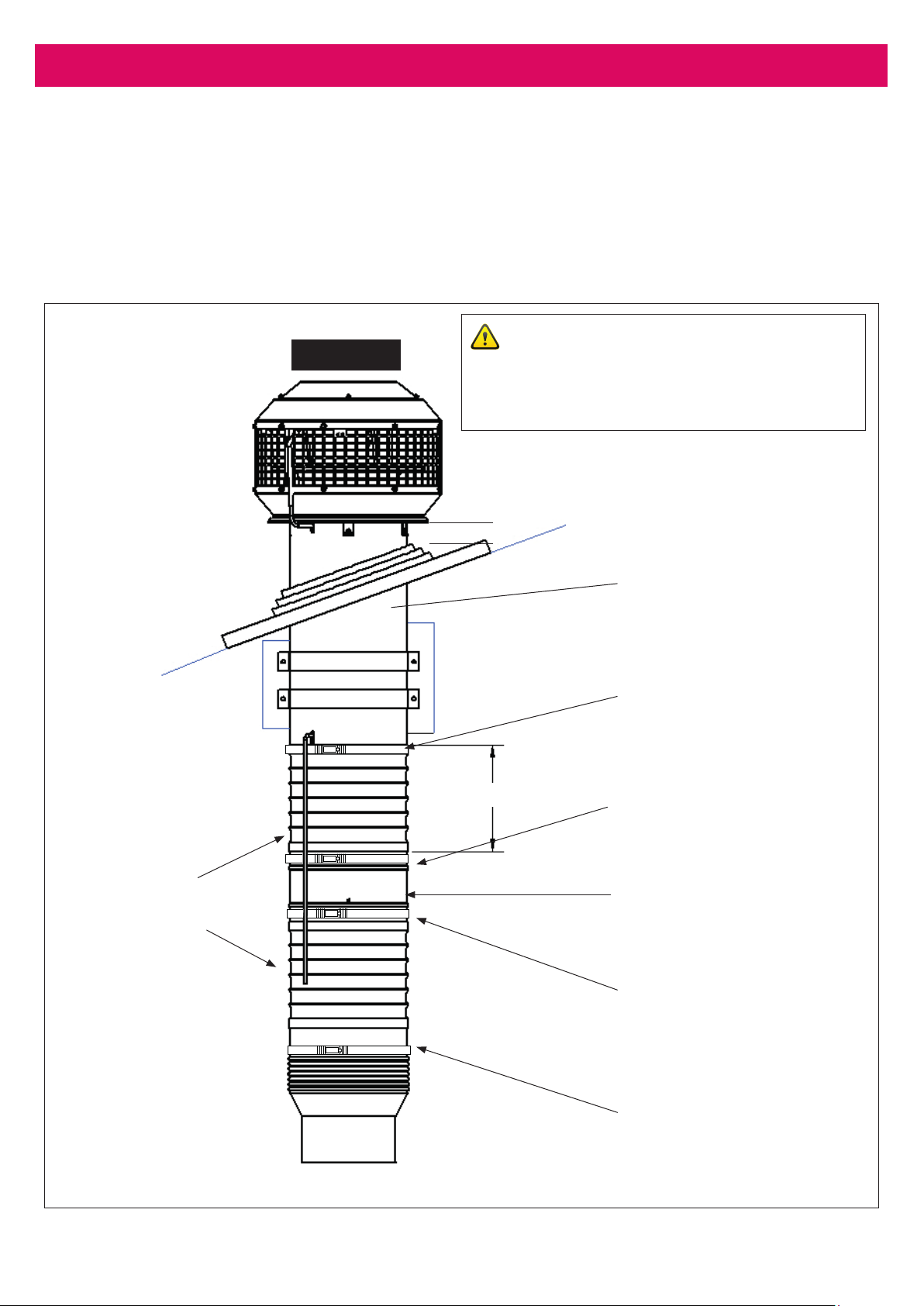

Recommended duct length: 3200 motor — minimum 4 metres, optimal 4-5 metres.
Mount 250mm (ISD) rigid PVC pipe securely to beams, trusses or other appropriate structures: refer gure 1.
The pipe should be mounted vertically with the roof penetration being sealed using a Dektite or other appropriate
sealing membrane or device when installing through a metal nished roof. DO NOT install on a over lapping join.
Ensure that the PVC pipe protrudes a minimum of 50mm past the top of the Dektite, checking that the fan
assembly clears the roof cladding at upper edge as shown in gure 1 — Roof Mount Option.
Pass power cord and plug through mounting ange and pipe, then out the slotted PVC pipe for connection to the
socket coming from the canopy/rangehood. Refer to gure 1.
Do not insert plug into socket outlet or switch on until installation has been completed. Fit fan module to pipe and
x in position using side locking screw.
Certain external installation congurations may cause audible levels of noise to be heard due to the air being
expelled from the motor. To minimize external noise disturbance you can use between 4 to 8 metres of SteelFlex
™
duct to place the Isodrive motor in an appropriate position.
Please be aware that the 3200 motor is capable of expelling air at 3200m
3
/hr.
For more information on environmental noise limit and conditions please contact your local Council. We have a list
of experienced installers available on the Schweigen website.

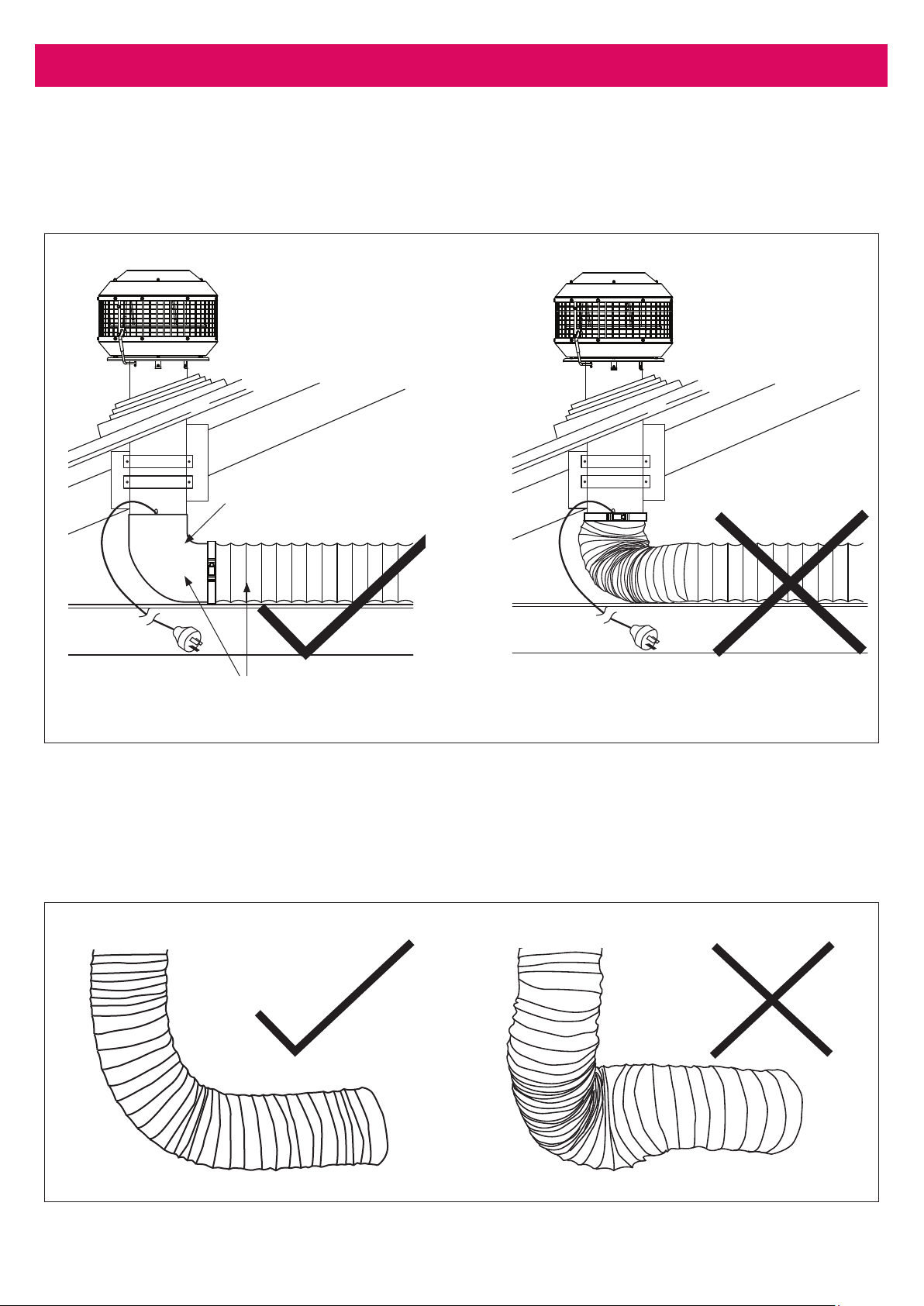

Do not install the SteelFlex
™
in a straight line and minimum of two gentle bends in the ducts is required.
Page 9
4. Installation
dektite
3200 motor
200mm SteelFlex
™
duct
MUST keep taught
250-200mm reducer
Connect to power supply
Only use when
connecting
the motor to a
single 200mm
outlet on the
rangehood.
NOTE: Prevent any
cord bunching by
pulling cord through
from plug top end
250mm SteelFlex
™
duct (minimum 4
metres ducting length
fully extended)
Dektite
250mm
PVC Pipe
Power cord
Fix pipe to fan module with
side locking screws
Fit side supports to locate
Strap to supports
50mm Pipe protrusion above
Figure 1: Roof mount option
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 17.
Page 10
Minimum protrusion
distance from wall
Recommended to x pipe to a
support structure or strapping
bracket (not included in
mounting kit).
Ensure power cable,
pipe and cover plate
slot is at the bottom.
Wall cover plate (Optional - Part Number P2025)
Power cable
Through Wall Installation
Mounting points
Connecting pipe
NOTE: Make sure that the connecting pipe is well supported, at least 2 mounting points recommended.
4. Installation
40mm
Wall
ø 250mm
70mm (End of pipe)

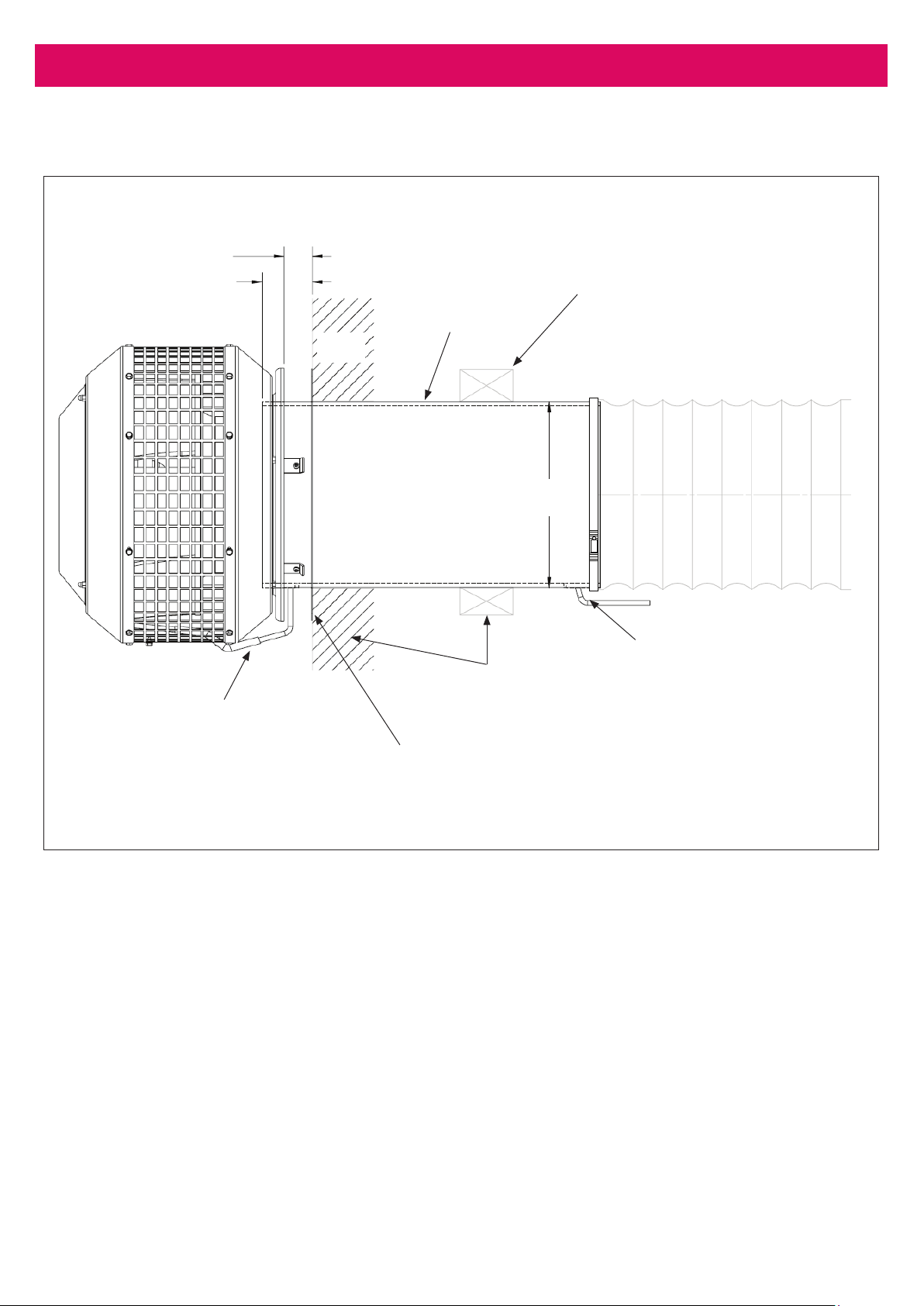

Figure 2: Through wall installation
Page 11
Protrude pipe to distance
(use as reference only)
Marked fastening
holes rst before
installing
Install fan
unit last
Ensure slot cover
plate, power cable
and pipe slot is at
the bottom.
Fix pipe to structure or
with a strapping bracket.
Mounting points
Wall cover plate
(Optional - Part Number P2025)
4. Installation
70mm

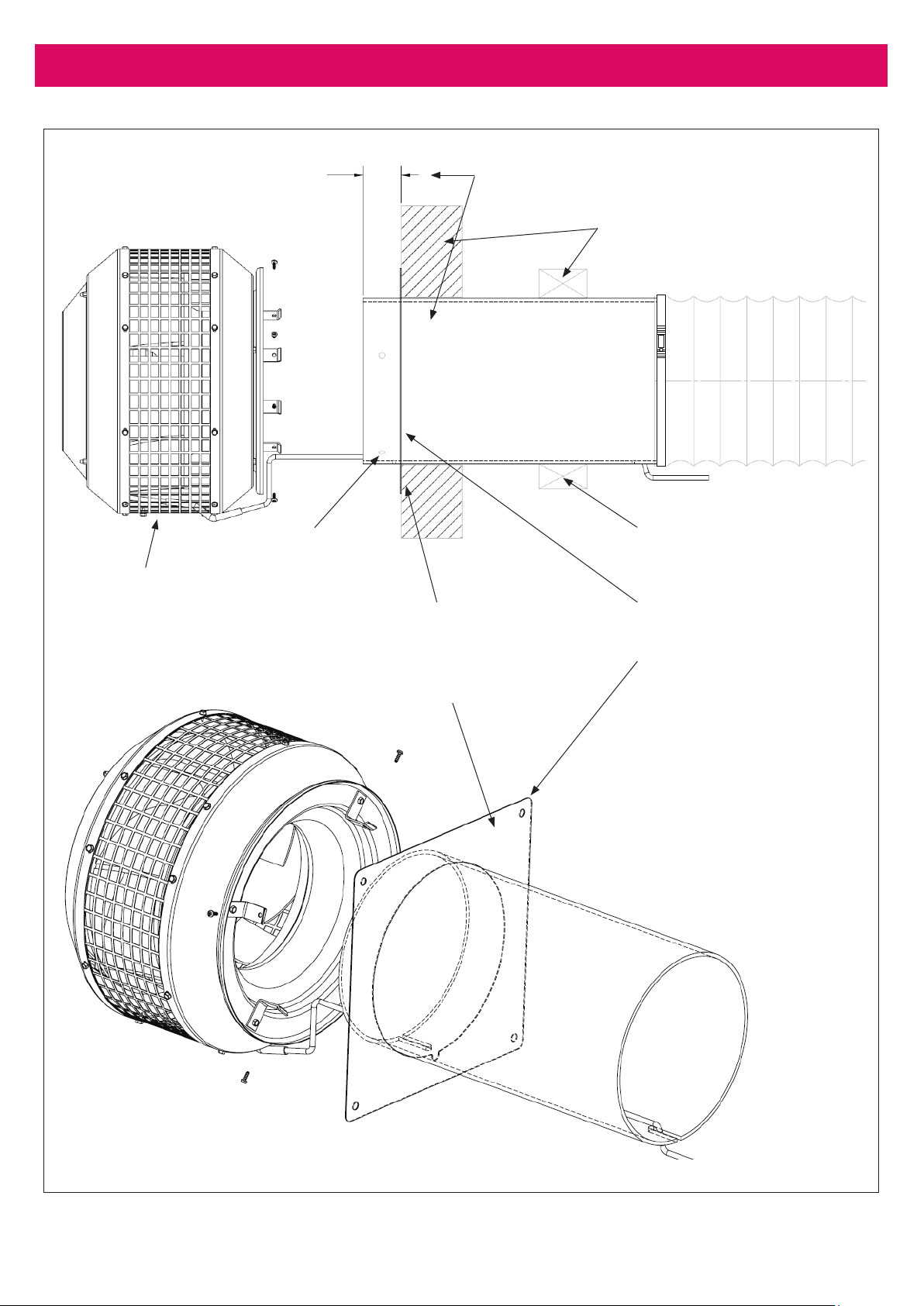

Figure 3: Through wall installation
Page 12
4. Installation

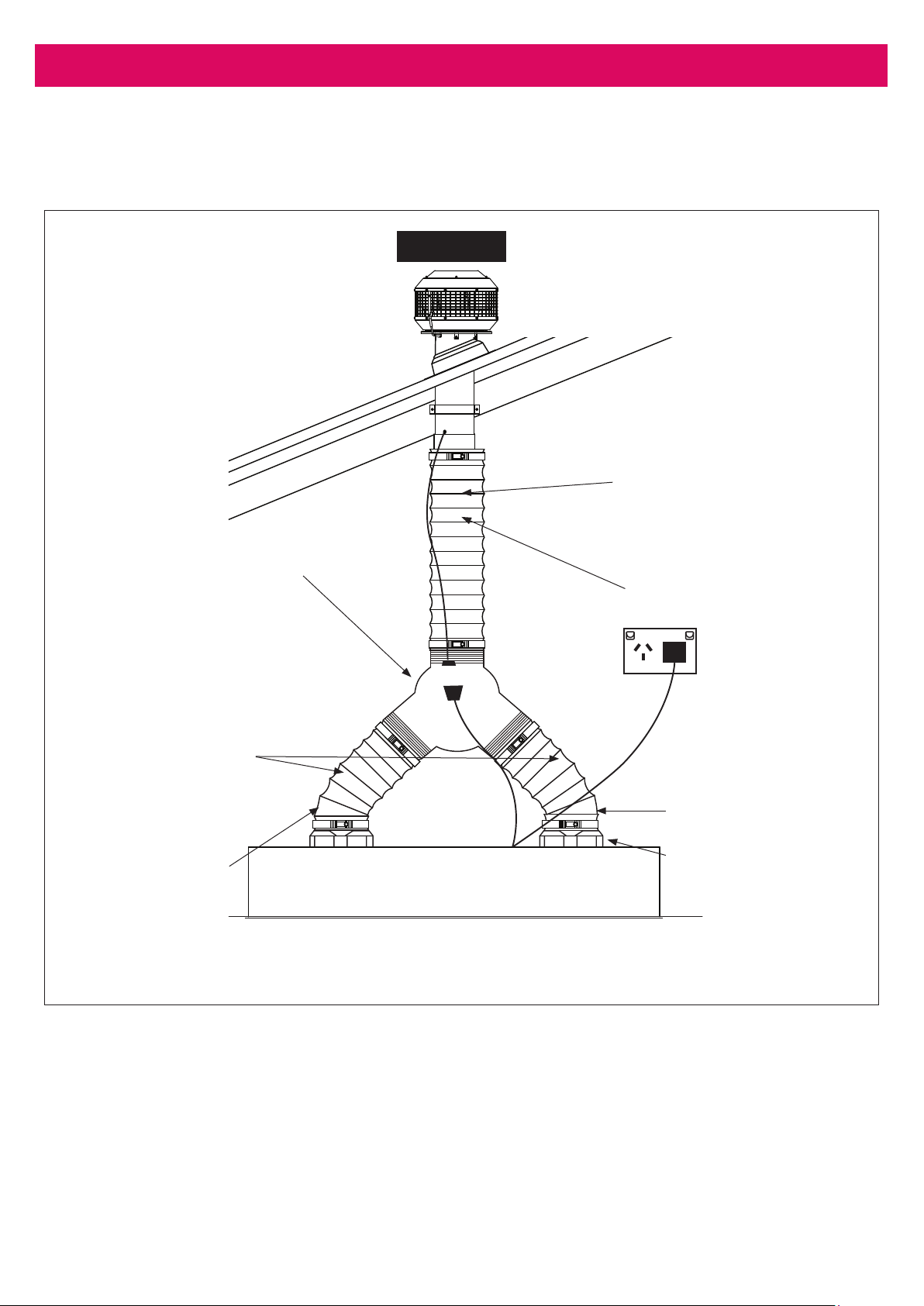

Twin 200mm Outlet Installation Example (3200 kit required)
This is for use where one motor is to be used and there are two 200mm outlets.
Try to keep length of
SteelFlex
™
ducting as
even as possible other
wise motors will draw air
o each other
Ensure SteelFlex
™
ducting
is fully extended and as
short as possible. Use
smooth owing curves for
maximum air ow. Remove
excess ducting by trimming
to length.
250 x 200 x 200mm
If multi-t Y joint supplied you
will need to cut to correct size.
3200 motor
200mm
SteelFlex
™
duct
250mm SteelFlex
™
ducting
200mm SteelFlex
™
ducting
200mm outlet
250
200
200
Figure 4: Roof mount option
Page 13
4. Installation
Optional Backdraft Shutter Installation Through Roof
• Cut 250mm SteelFlex
™
duct length to minimum 400mm.
• Assemble by tting shutter assembly into the ducting.
• Check to ensure the aps close and open freely before assembling the bottom end of the ducting.
3200 motor
PVC Storm pipe
Cut existing ducting to
150mm to 200mm length
Attach ducting to backdraft
shutter and secure with
duct tape and clamp
Shutter System (optional)
part number
2500MMBDSSBUILDASS
Reducer
Assemble ducting to bottom
end of backdraft shutter

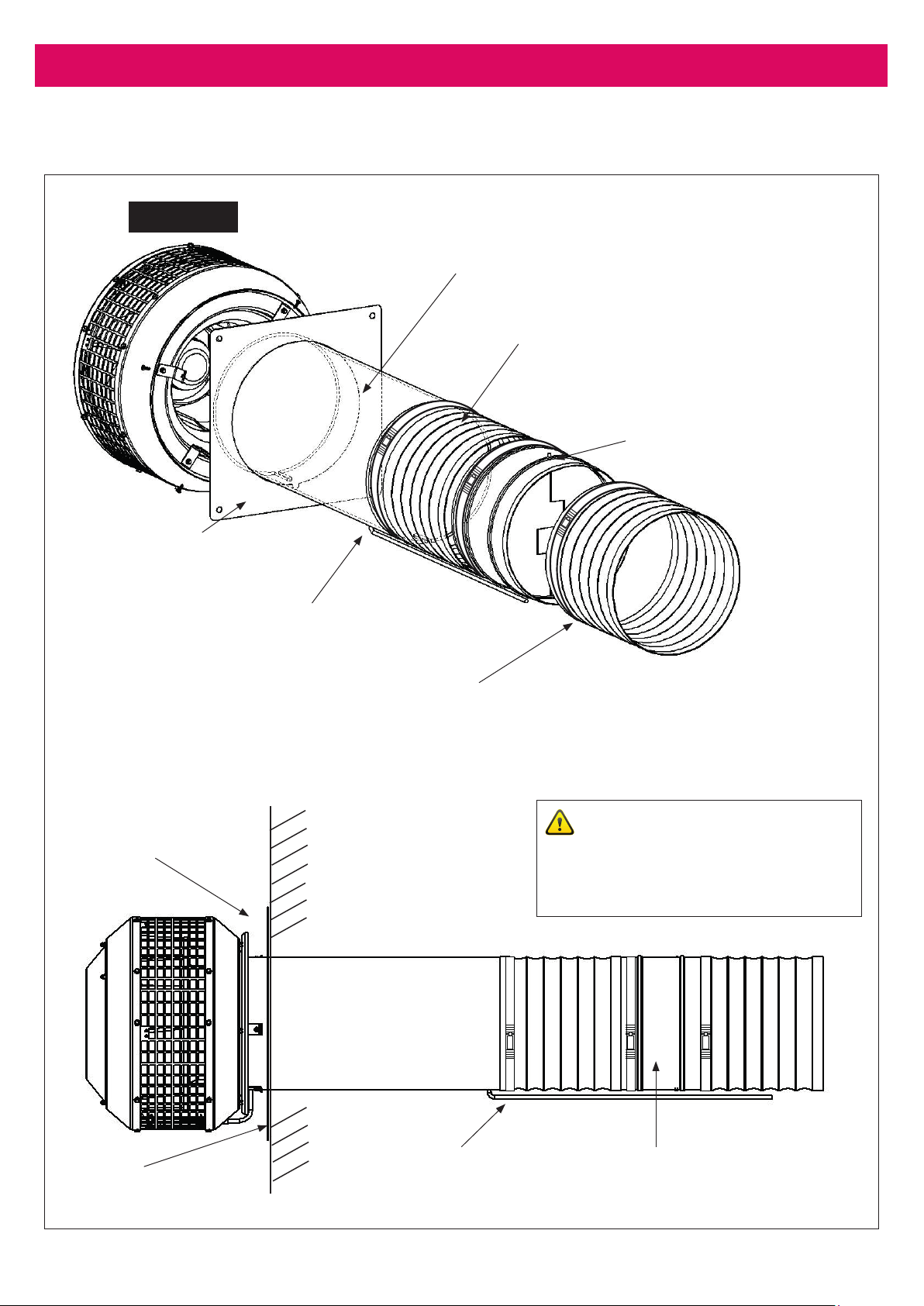

and secure with duct tape
and clap - see NOTE.
minimum 400mm
50mm
250mm SteelFlex
™
ducting
NOTE
Ensure the aps open upwards before assembling
ducting to bottom end of the shutter system. If
aps open downwards, the assembly is incorrect.
Figure 5: Backdraft shutter roof mount
Page 14
4. Installation
Optional Backdraft Shutter Installation Through Wall
3200 motor
PVC storm pipe
Cut existing ducting length to minimum
400mm and assemble to the shutter system.
Secure with duct tape and clamp.
Backdraft shutter system
(optional) Make sure the
aps are vertical
Assemble existing ducting to the end of
shutter system and secure with duct tape
and clamp - see NOTE.
Ensure that power cable passes
through the cover palte notched
recess and is clear of cut edge
Wall cover plate with notch at
bottom (optional part)
part number P2025
NOTE
Through wall installations ap shaft will
be close to vertical and ensure aps open
towards the fan unit.
Minimum pipe
protrusion from
wall surface
Wall
Power cord Backdraft shutter system
(optional) part number
250MMBDSSBUILDASS
Wall cover plate (optional
part) part number P2025
Figure 6: Optional backdraft shutter wall mount
Page 15
4. Installation
Optional Weather Shield Installation Guide

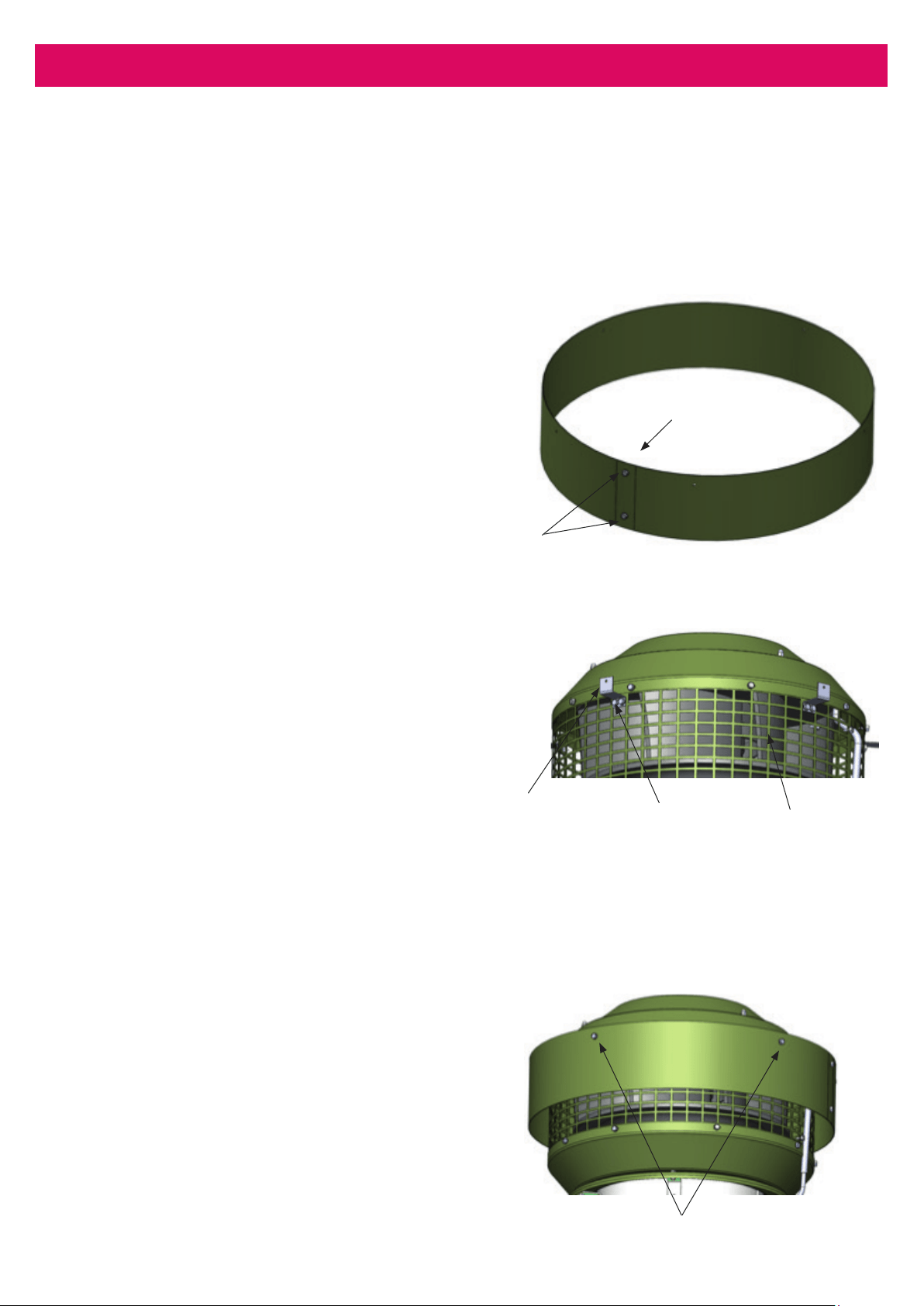

Step 1
Remove Weather Shield (1 pc), P1128 Screws (2pcs) and P1128N Nuts (2pcs), Weather Shield Mounting Bracket
(5 pcs) and P1124 Hex Head Screws (15pcs) from packaging.
P1128N at the back
P1128
Step 2
Remove plastic cover from Weather Shield and bend
to form a circle. Fasten P1128 Screws with P1128N
Nuts at location shown.
Step 3
Place Mounting Brackets on to Fan Guard, and
fasten 2 pieces of P1124 as shown. Ensure
orientation of Bracket is mounted as shown.
Step 4
Repeat Step 3 for the rest of the Brackets.
Step 5
Mount Weather Shield and align mounting holes
with the Brackets, and fasten with P1124 (5 areas).
P1124
Fan guard
Mounting bracket
Align mounting holes with the brackets
Page 16
5. Measurements
Measurements for Isodrive 3200
(Not to Scale)
5. Measurements
400
288
250.5
440
342
15.7
50
Dimensions in mm
Isodrive 3200 weighs
8.3 kg without the PVC
pipe.

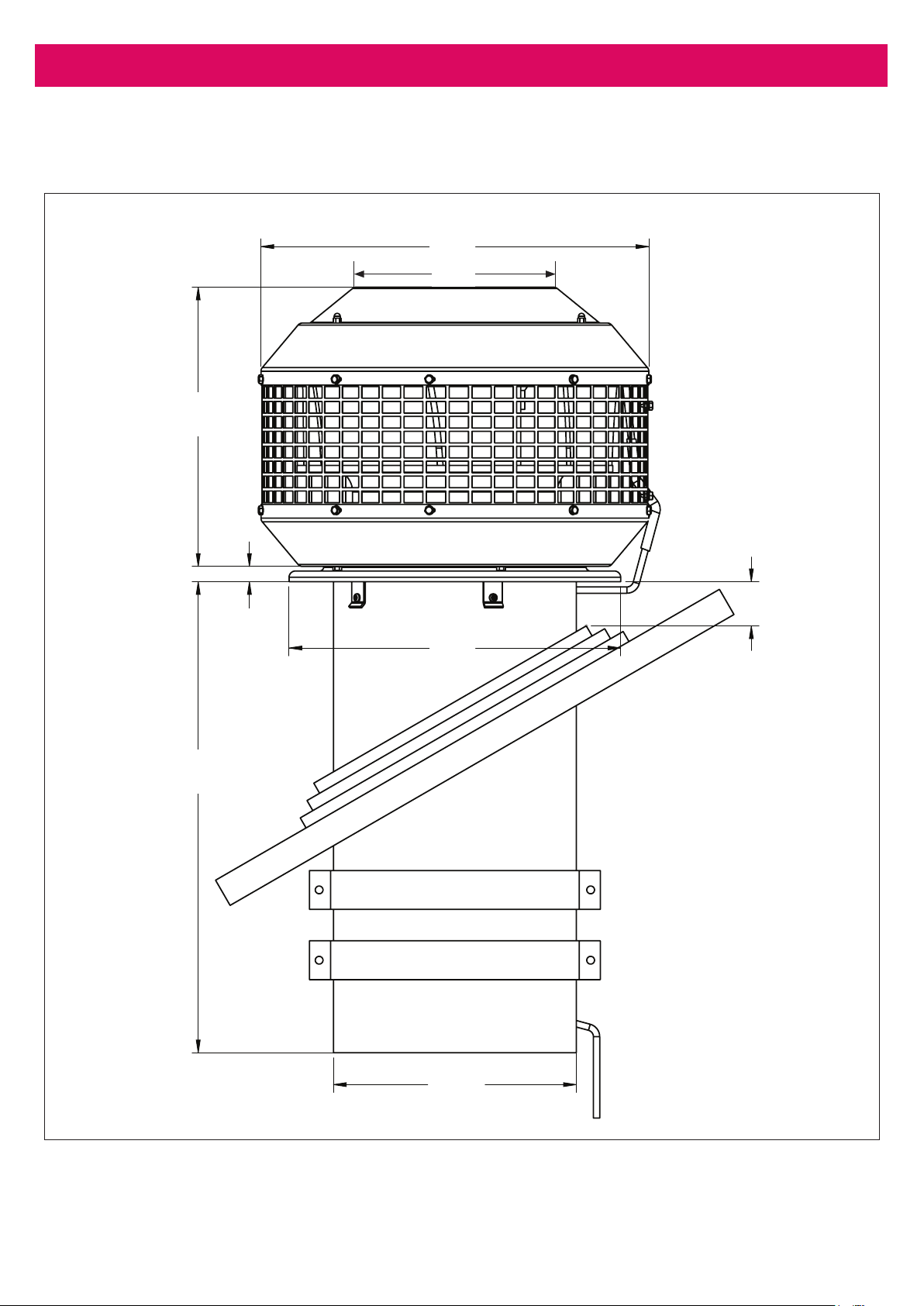

Figure 7: Measurements for Isodrive 3200
420 290
Ø400
Ø340
Ø250
15
50
205
Page 17
6. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting
SteelFlex
™
safety ducting must be fully extended and cut to the required length upon installation. Maximum
fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend ducting
results in a smaller air passage and lower airows. Incorrect installation may reduce airow or increase noise
levels. Call outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen
will take no responsibility for problems caused by faulty installation. A list of preferred installers can be
obtained from the Schweigen website www.schweigen.com.au.
Please keep the SteelFlex
™
ducting
taut, 4 to 5 metres in length is optimal
NOTE: In shallow roof spaces
extend exi ducting horizontally
3200 motor
250mm SteelFlex
™
ducting
DO NOT reduce ducting size.
200mm SteelFlex
™
ducting
Reducer

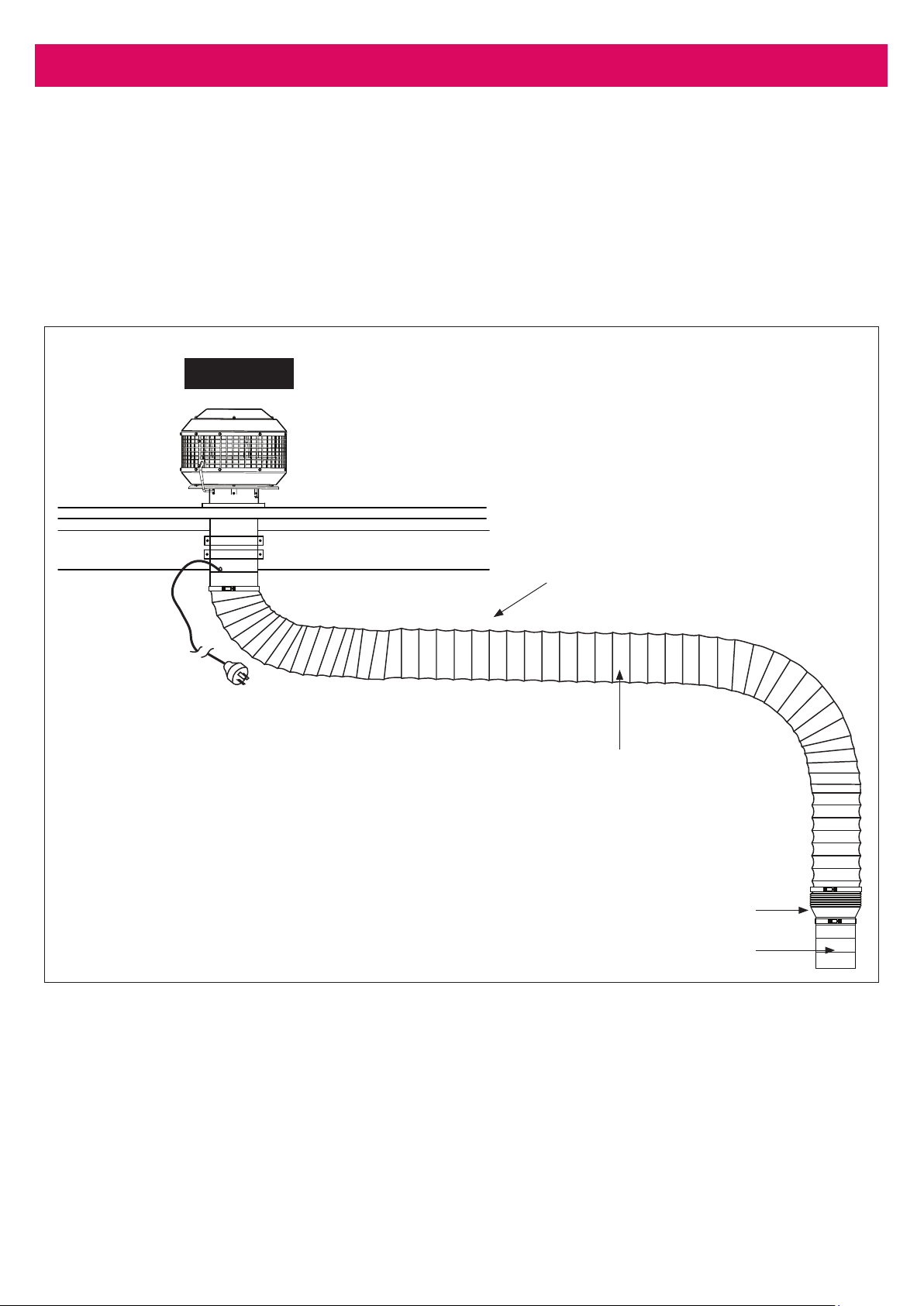

Figure 8: SteelFlex
™
Safety Ducting
Page 18
6. SteelFlex
™
Safety Duct

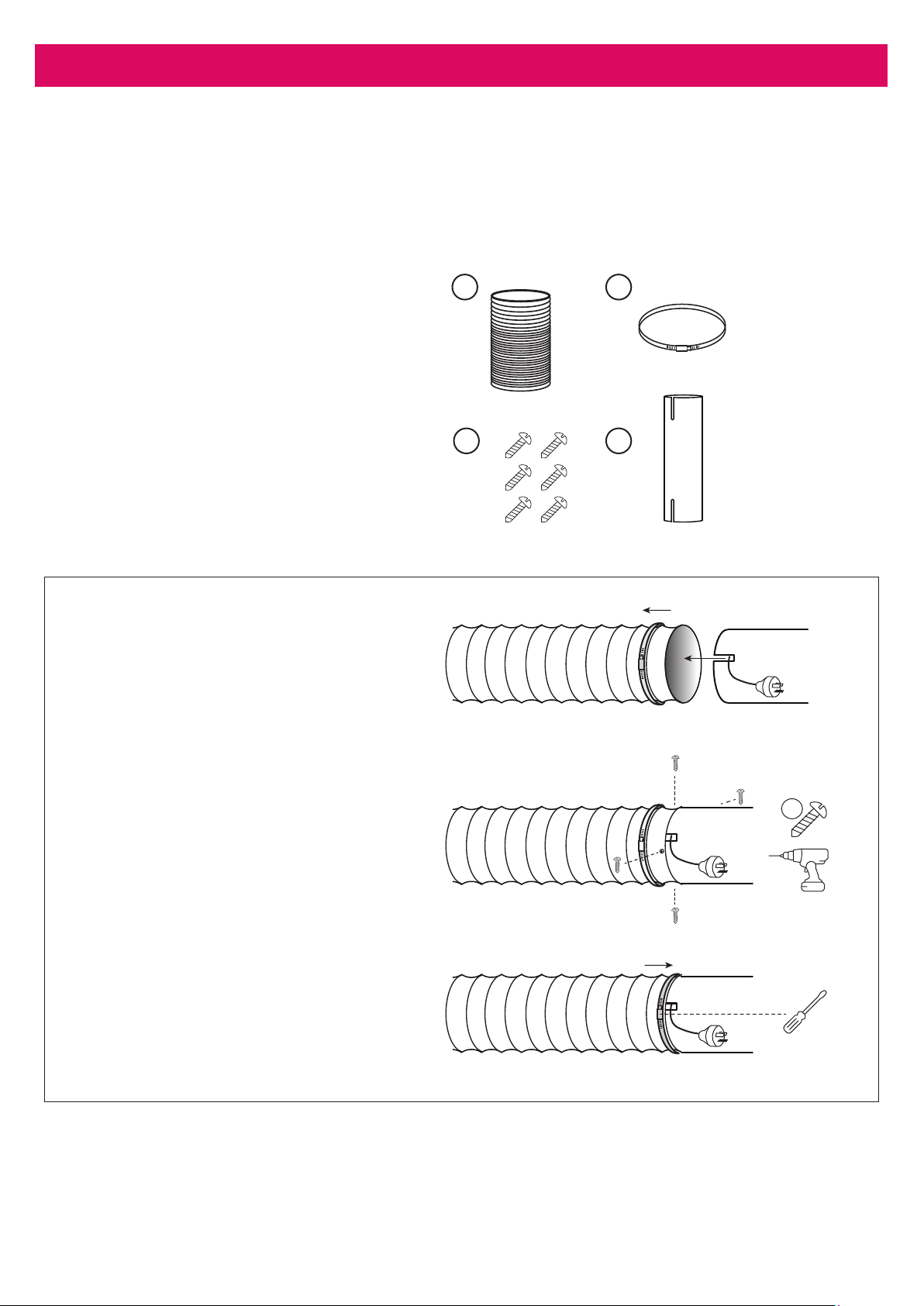

Assembling SteelFlex
™
Safety Duct
SteelFlex
™
safety duct must be secured to a 250mm mounting pipe.
1. Slide the steel ring clamp over the end
of the duct then insert the PVC riser
pipe into the duct end
Parts required:
1. SteelFlex
™
safety ducting
2. Steel ring clamp
3. 20mm self-drilling button head screws
4. 250mm PVC riser pipe
1
2
43
NOTE: Do not use duct tape to fasten the duct – the screws and hose clamp are adequate to secure the duct
to the riser pipe.
2. Secure duct to the riser pipe at regular
intervals with 4 x 20mm button head
screws
3. Slide the steel ring clamp back up and
tighten to secure the riser pipe and the
duct
x4
Figure 9: Duct assembling
Page 19
6. SteelFlex
™
Safety Duct

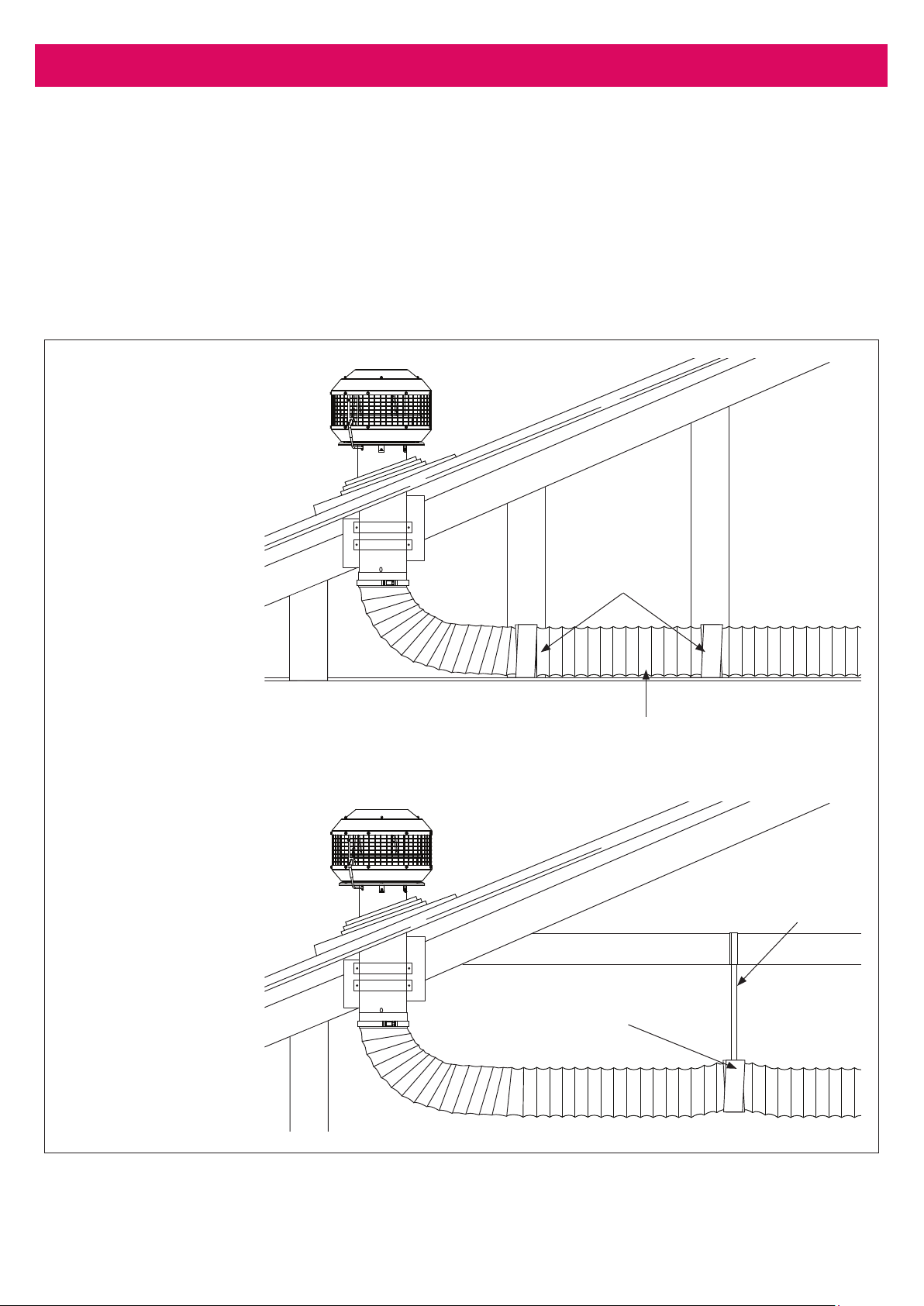

Shallow Roof Space
In shallow roof spaces, do not crush or kink SteelFlex
™
ducting, as it will reduce air ow severely. 90 degree
curve made of PVC or galvanise can be used as a substitute for the bend, refer to gure 10.
Important Note
Please do not crush or kink SteelFlex
™
ducting, as it will reduce air ow and may cause noise to occur through
the system. Ducting needs to be kept taut at all times.
90 degree curve PVC or
galvanise curve
250mm exible ducting
DO NOT reduce ducting size.
Figure 10: Shallow roof space
Figure 11: SteelFlex
™
duct recommended installation
Page 20
6. SteelFlex
™
Safety Duct
Securing SteelFlex
™
Safety Duct
SteelFlex
™
safety duct must be installed with supports at maximum intervals of 1.5 metres. SteelFlex
™
safety
ductwork can be supported by using good quality gaer or aluminium foil tape. Provided that it does not
restrict the internal diameter of the ducting. Ducting installed looped over hanging beams should be installed
in such a manner as to ensure the changes of direction are gradual. Support of the ducting with the use of
hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Option 1
Secure the SteelFlex
™
duct to the beam
Option 2
Support SteelFlex
™
duct by using hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
Aluminium foil
tape
Aluminium foil tape
Hanger
250mm SteelFlex
™
ducting,
DO NOT reduce ducting size.
Figure 12: Securing SteelFlex
™
Safety Duct
Page 21
7. Parts List

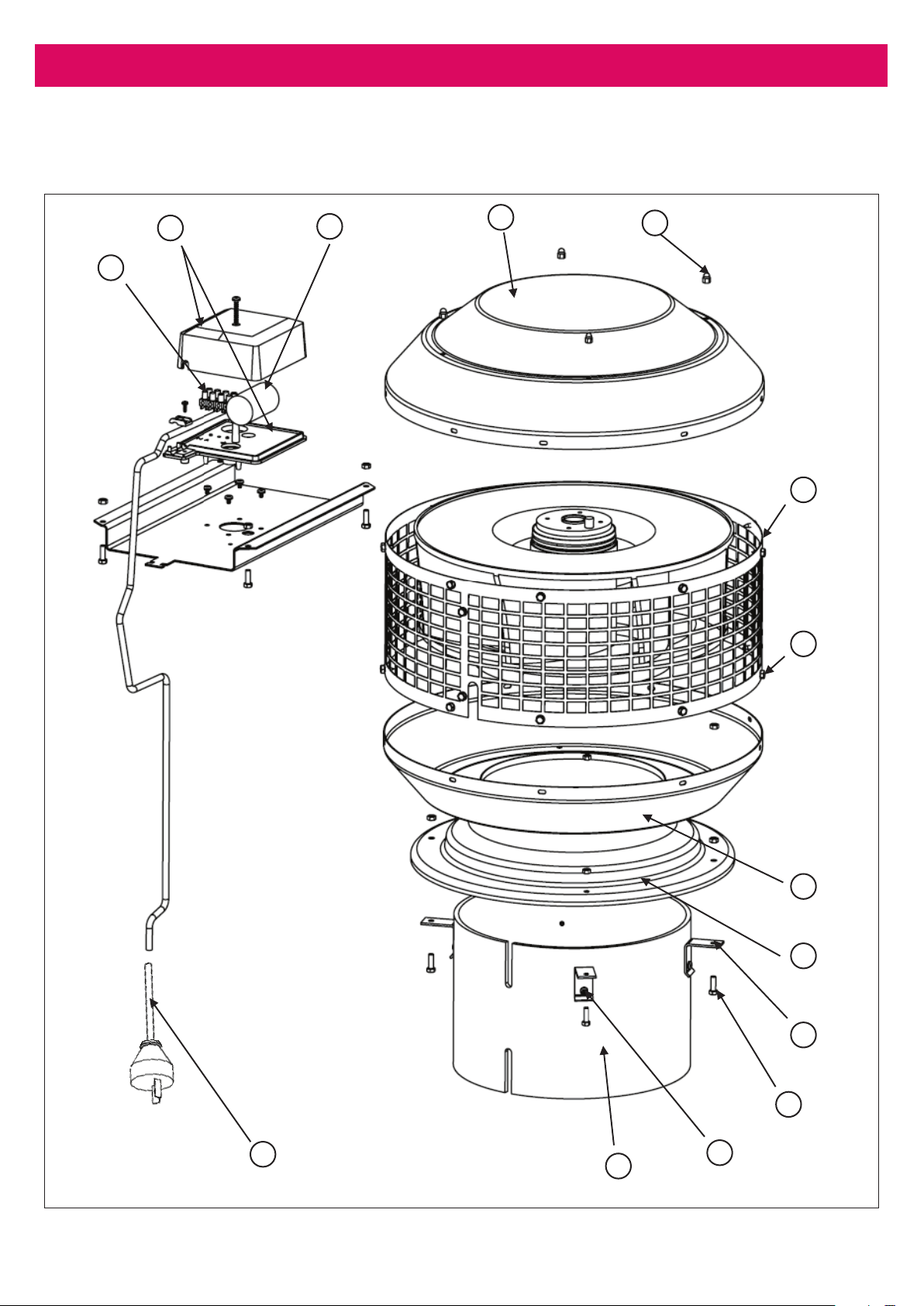

Parts List for Isodrive 3200
14
3
16
21
15
1
17
18
10
19
20
12
11
4
1
3
4
11
12
14
15
16
17
18
10
19
20
21
Page 22
7. Parts List
Parts List for Isodrive 3200
Number Part Number Description Quantity
1 P1114 Capacitor 4µF 1
3 P40112 Terminal Box – Box Base and Lid 1
4 P807 Terminal Block 1
11 P1101 Fan Top Spinning 1
12 P2011 M5X8 SUS Hex Nut Cap 4
14 P2003 Fan Guard 1
15 P1124 M4X12 Hex Washer Head S/S ST 22
16 P2007 Fan Bottom Spinning 1
17 P2004 3200 Inlet Cone 1
18 P2005 Pipe Bracket 4
19 P1125 M4X14 Pan Head S/S TT 4
20 P2006 250mm PVC Pipe 1
21 P301 Power Cable 1
22 P2020 M5X16 Hex Head Machine Screw 4
23 P2023 Cable Protective Grommet (200mm) 1
P2025 Optional Wall Cover Plate
200MM BDSS
BUILD ASS
Optional Backdraft Stopper
ISO3200
WG BUILD ASS
Optional Weather Shield
Page 23
8. Maintenance

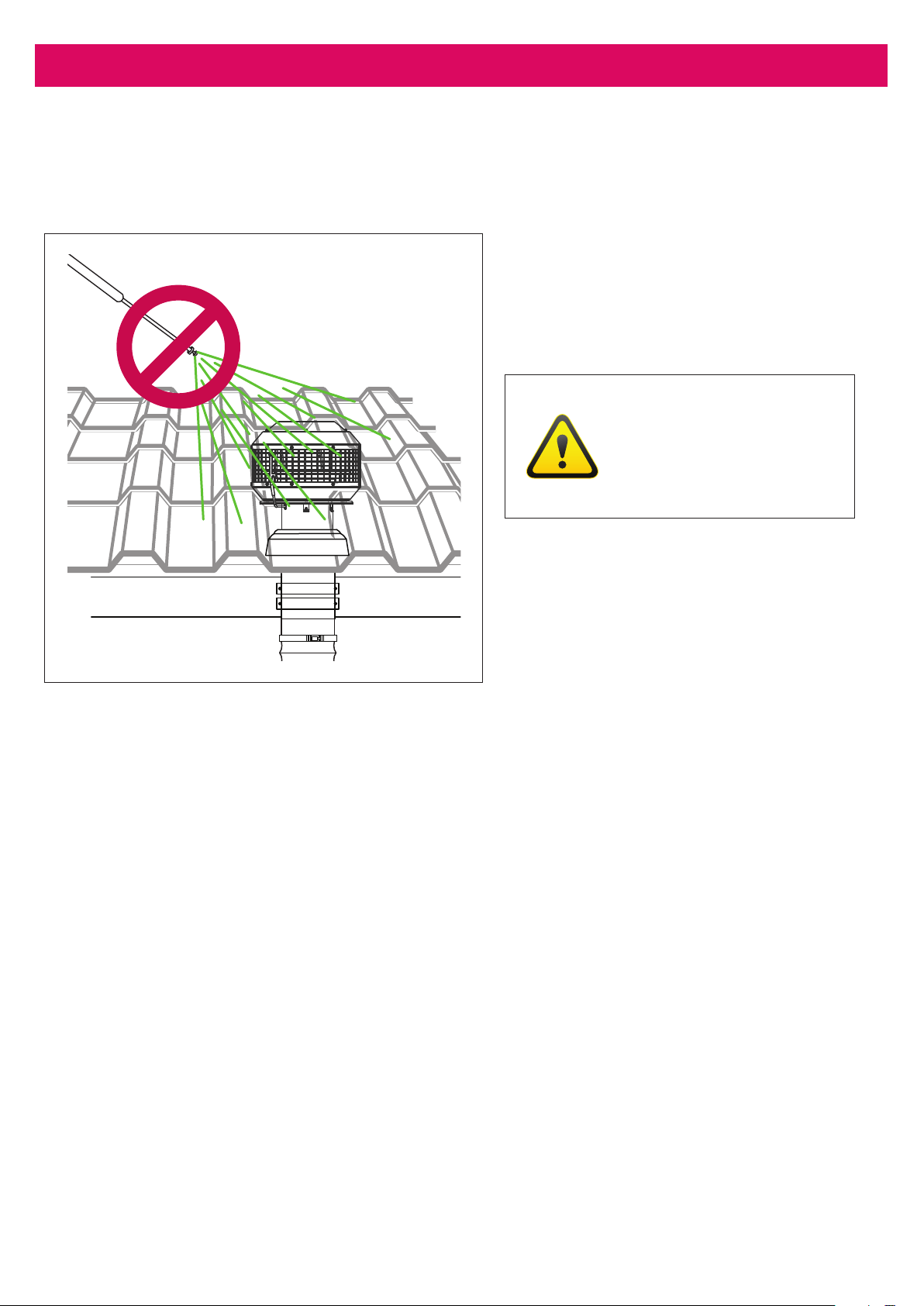

Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all
chemical contact.
IMPORTANT
Any damages caused by the
use of chemical products are
not covered by warranty.
**Images for illustration purposes only.
Applies for all motors.
Figure 13: Avoid chemical contact to motor system
Page 24
9. Warranty / Disclaimer
Warranty
(See warranty for more information)
Isodrive motor has a 10-Year replacement product warranty.* The consumer is responsible for any charges
associated with removal of the faulty unit and installation of the new unit. The customer is also responsible
for any freight charges incurred in this change over process. Schweigen SteelFlex
™
comes with a Lifetime
Warranty*.
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
*Terms and conditions apply.
Page 25
Notes
Page 26
Notes
Page 27
Notes
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.par[email protected] Web www.parex.co.nz
