USER S MANUAL
OE-Level Diagnostic Tablet
i
WELCOME TO THE INNOVA FAMILY!
Hello...
On behalf of everyone at INNOVA, we want to welcome you and thank you for purchasing the
INNOVA
®
SDS50 SDS-Tech tablet! Our tablet includes tons of pro-level features designed
to help maximize your OBD2 diagnostic routine. In this manual, we will guide you on how to
access a comprehensive library of time-saving diagnostic and service tools including:
Plus, gain the benet of having unlimited access to real world solutions on your mobile device:
Enjoy using your INNOVA SDS Tablet!
Yours sincerely,
The Innova Technical Team
P.S.: Connect with us to see what we’re up to...
RepairSolutionsPRO™ increases the power of your INNOVA
OBD2 diagnostic tablet by delivering the most complete
automotive repair database with veried xes from ASE
Certied Master Technicians. Get the right x and the right
parts instantly right on your SDS Tablet or mobile device.
; Check Engine Light Diagnostics
; Full OEM Network Scans
; Smog / Emissions Readiness
; Bi-Directional / Active Tests
; Special Functions
; Workshop Tools (16 service resets
including Oil Maintenance Reset,
Electronic Parking Brake Reset,
ABS Bleeding, DPF Reset, etc.)
; Read OEM ECU Information
; Enhanced Data Stream for All
Systems
; Read Oil Life, Oil Level, Brake Pad
Life, Transmission Temperature,
Odometer
; TPMS/ Tire Pressure Readings
; Battery/Charging System Check
; Hybrid Battery Cell Voltage
Readings
; And Much More...
ii
TABLE OF CONTENTS
LEGAL INFORMATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
California Product Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY PRECAUTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
Safety First!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Alert Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INTRODUCTION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5

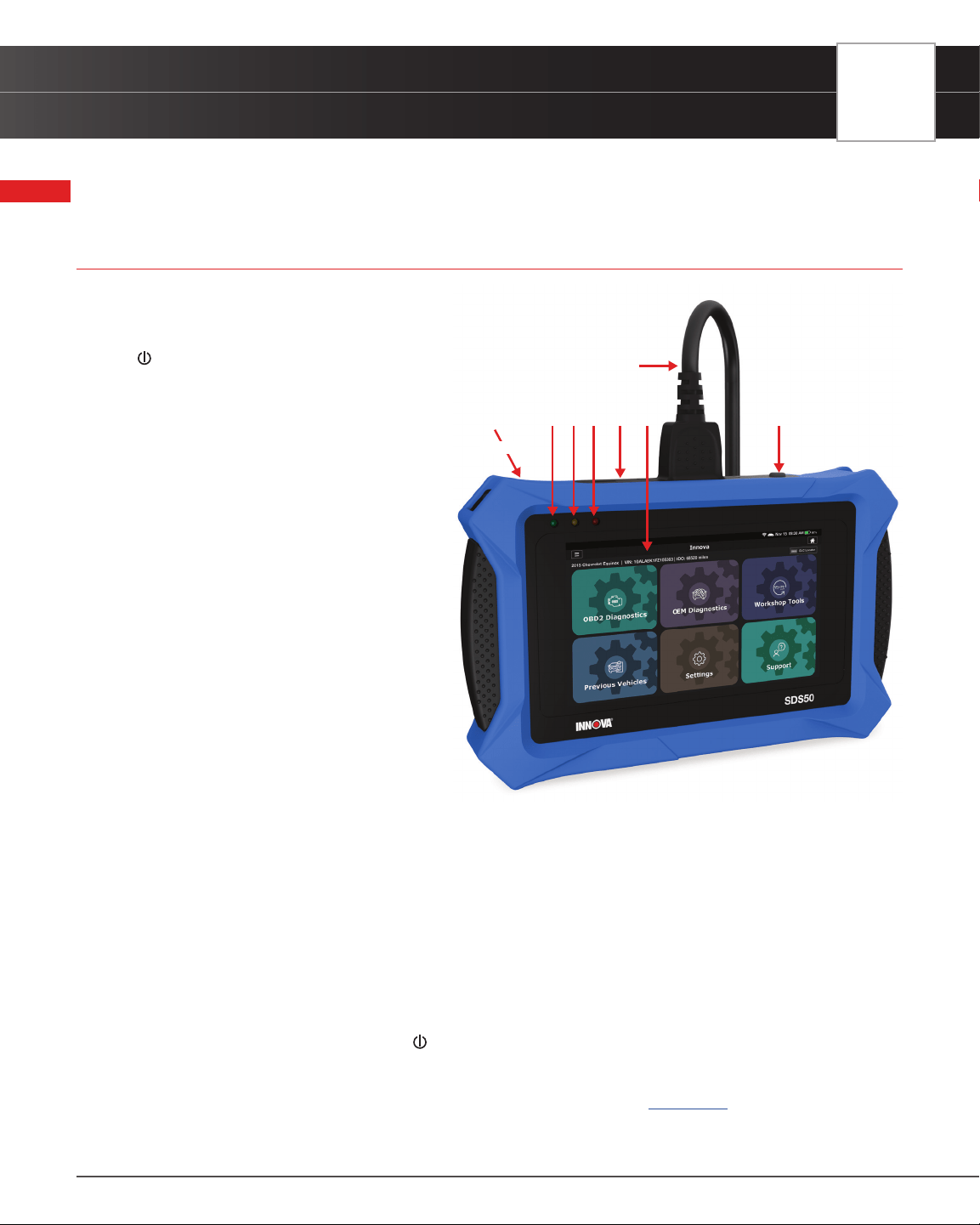

Tablet Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Powering the Tablet ON and OFF � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Initial Tablet Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
The Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
The RepairSolutionsPRO™ App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
The RSPRO APP Offers… � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Hardware Requirements � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Download the RSPRO App � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Using the RepairSolutionsPRO App � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
GETTING STARTED � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Connecting the Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
AutoLink Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Using the AutoLink Function � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10
Providing the Vehicle’s VIN Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10
Providing Vehicle Selection Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
iii
TABLE OF CONTENTS
Scanning A Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
OBD2 DIAGNOSTICS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12

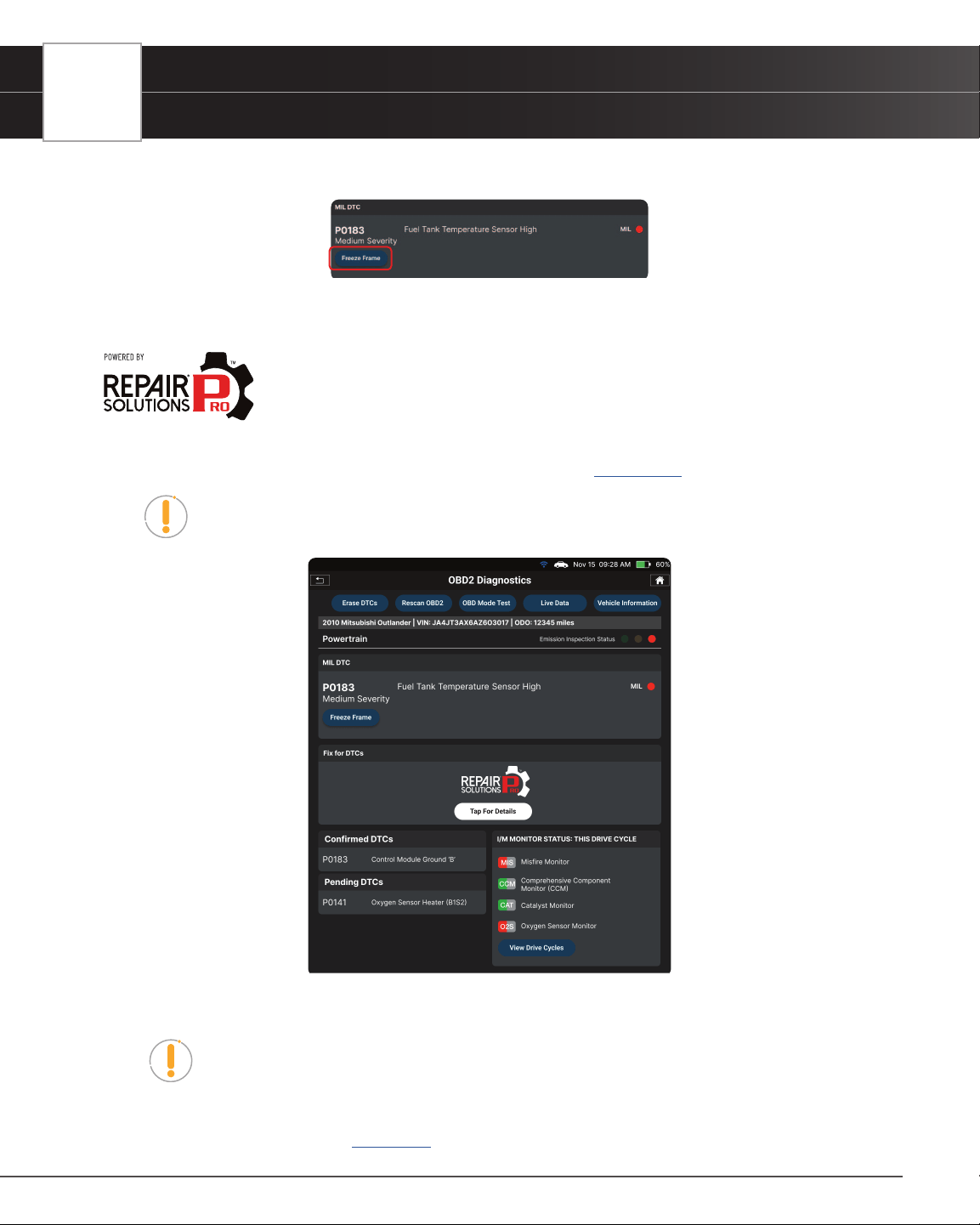

Performing A Scan – OBD2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Viewing Scan Results – OBD2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Emissions Inspection Status – Interpreting Results � � � � � � � � � � � � � � � � � � � � � � � � �13
MIL DTC Code � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13
Viewing Freeze Frame Data ...........................................................13
Fix for DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �14
OBD2 Report � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �16
I/M Monitor Status � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
Drive Cycle Procedures � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
Conrmed DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
Pending DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
Permanent DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
Additional Testing Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Erasing OBD2 DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
OBD Mode Test � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19
O2 Sensor Monitor - $05 ..............................................................20
OBD Monitor Test - $06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Request Control On-Board System - $08................................................. 21

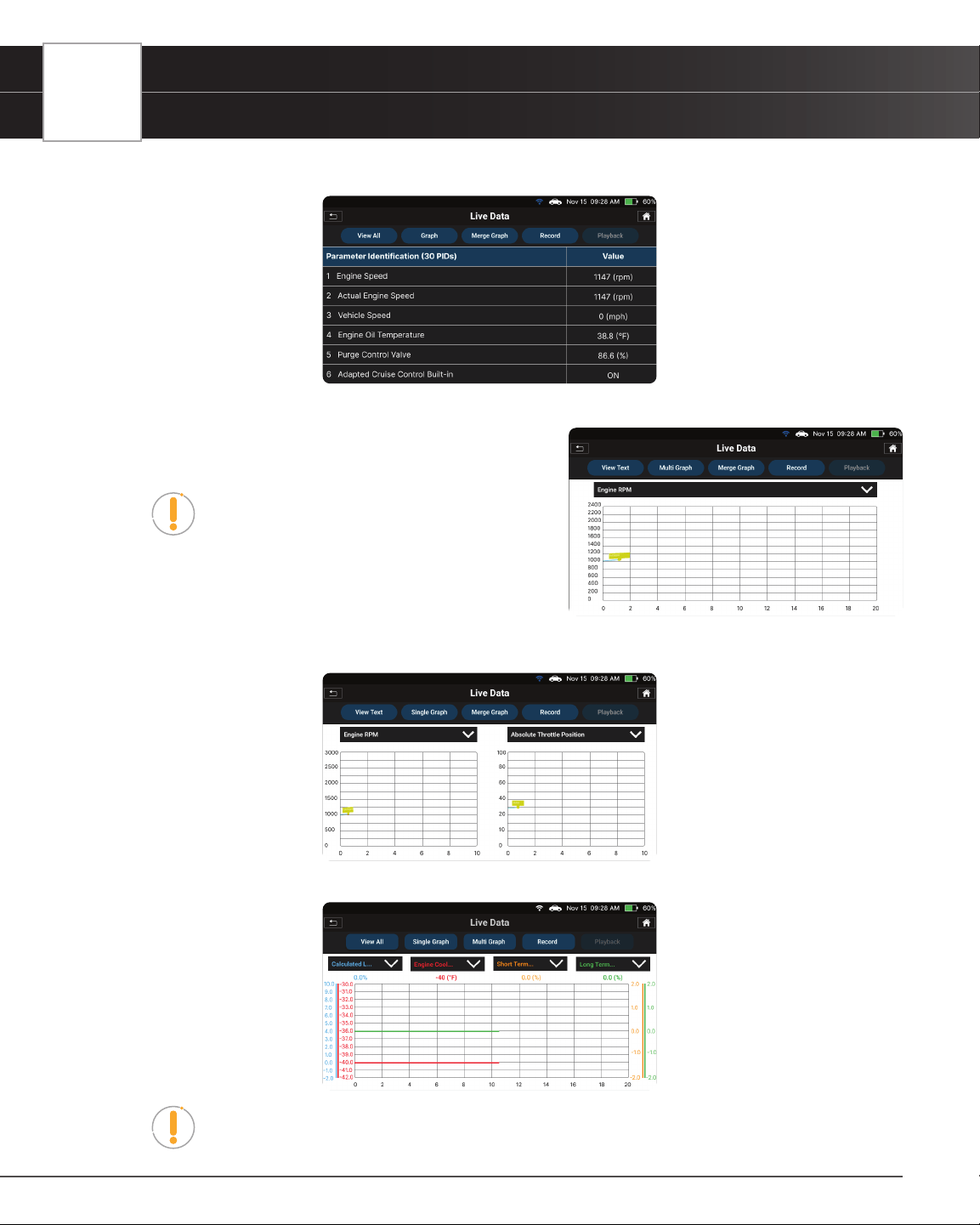

Live Data Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22

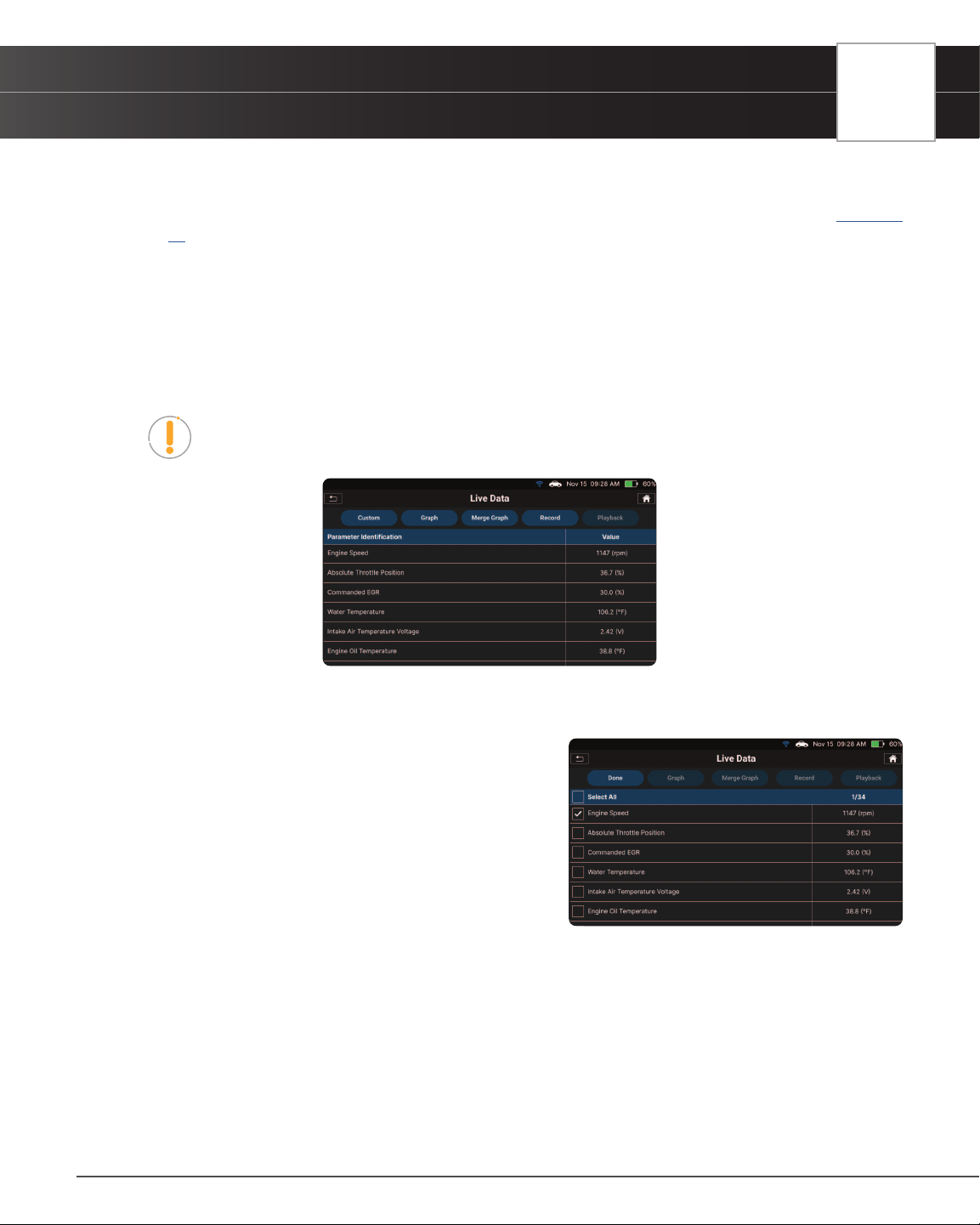

Viewing Live Data ...................................................................23
Custom Live Data ...................................................................23
Graph Live Data Mode ................................................................24
Recording (Capturing) Live Data .......................................................25
Playback Live Data ..................................................................25

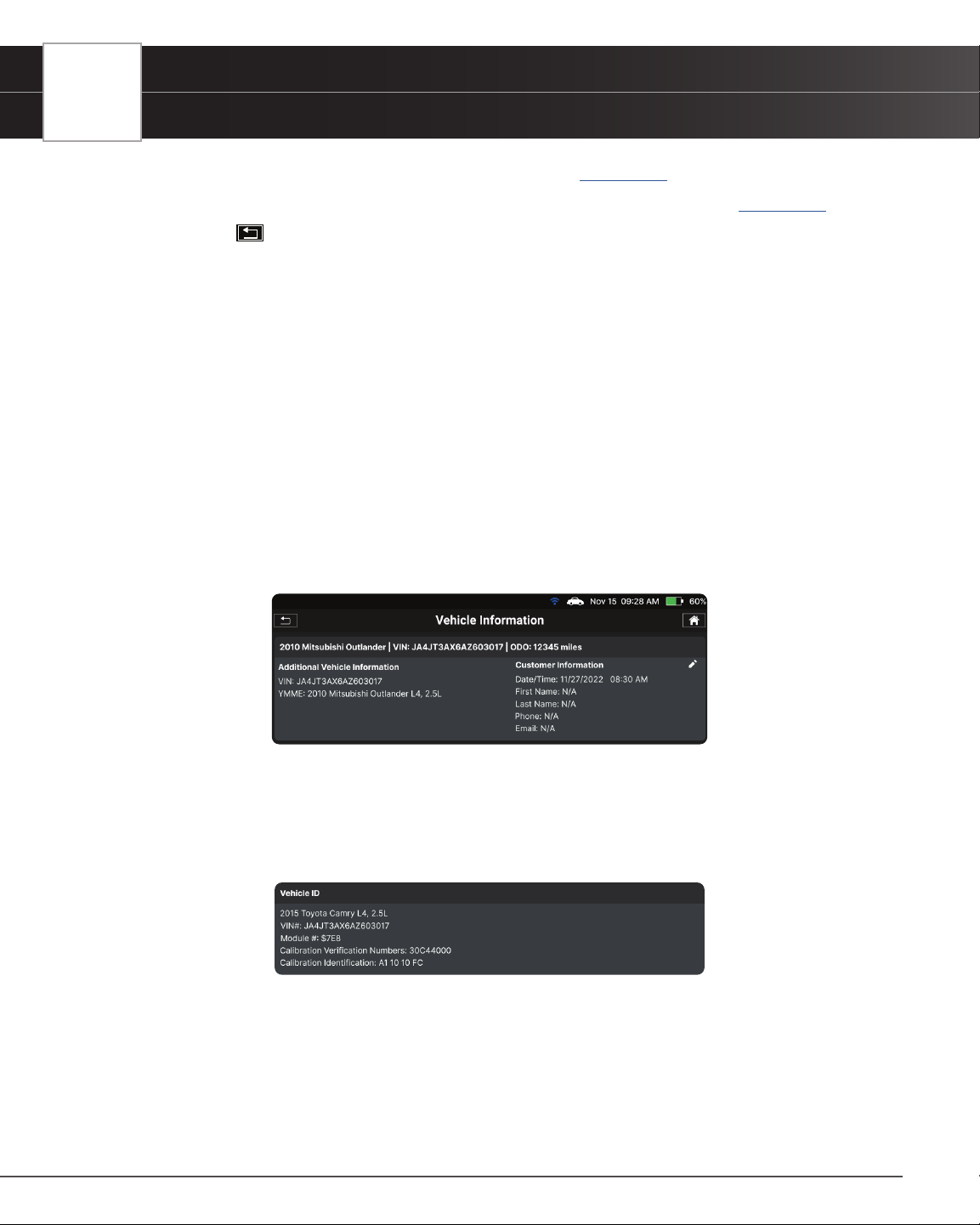

Vehicle Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
Additional Vehicle Information ........................................................26
iv
Vehicle ID ..........................................................................26
In-Use Performance Tracking (IPT) .....................................................27
OEM DIAGNOSTICS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 28
Scan All Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Viewing the “Scan All Systems” Test Results � � � � � � � � � � � � � � � � � � � � � � � � � � � 29
Erase All OEM DTCs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 29
Rescan All Systems � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
Viewing & Scanning An Individual Control Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

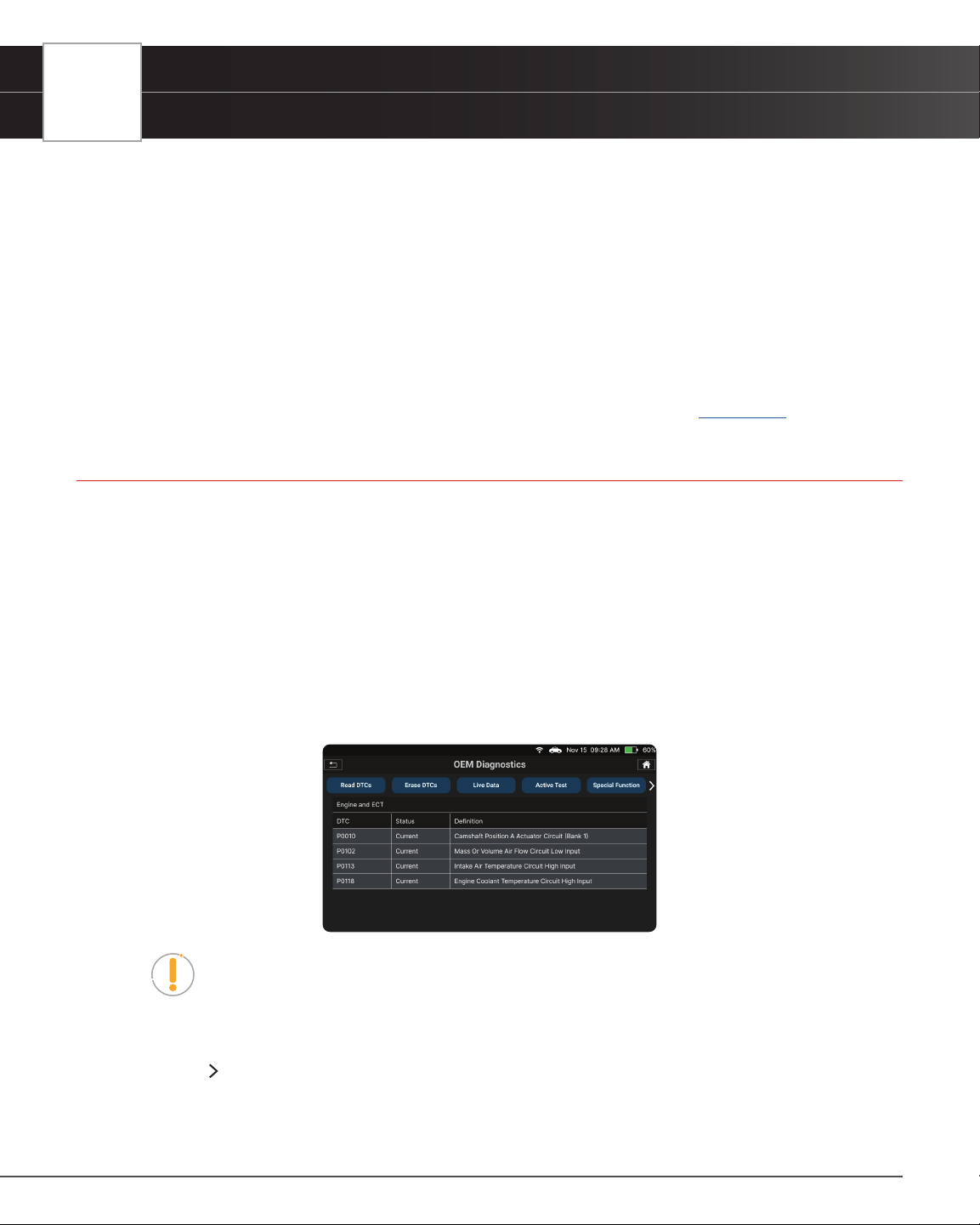

Reading DTCs for A Selected Module � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30

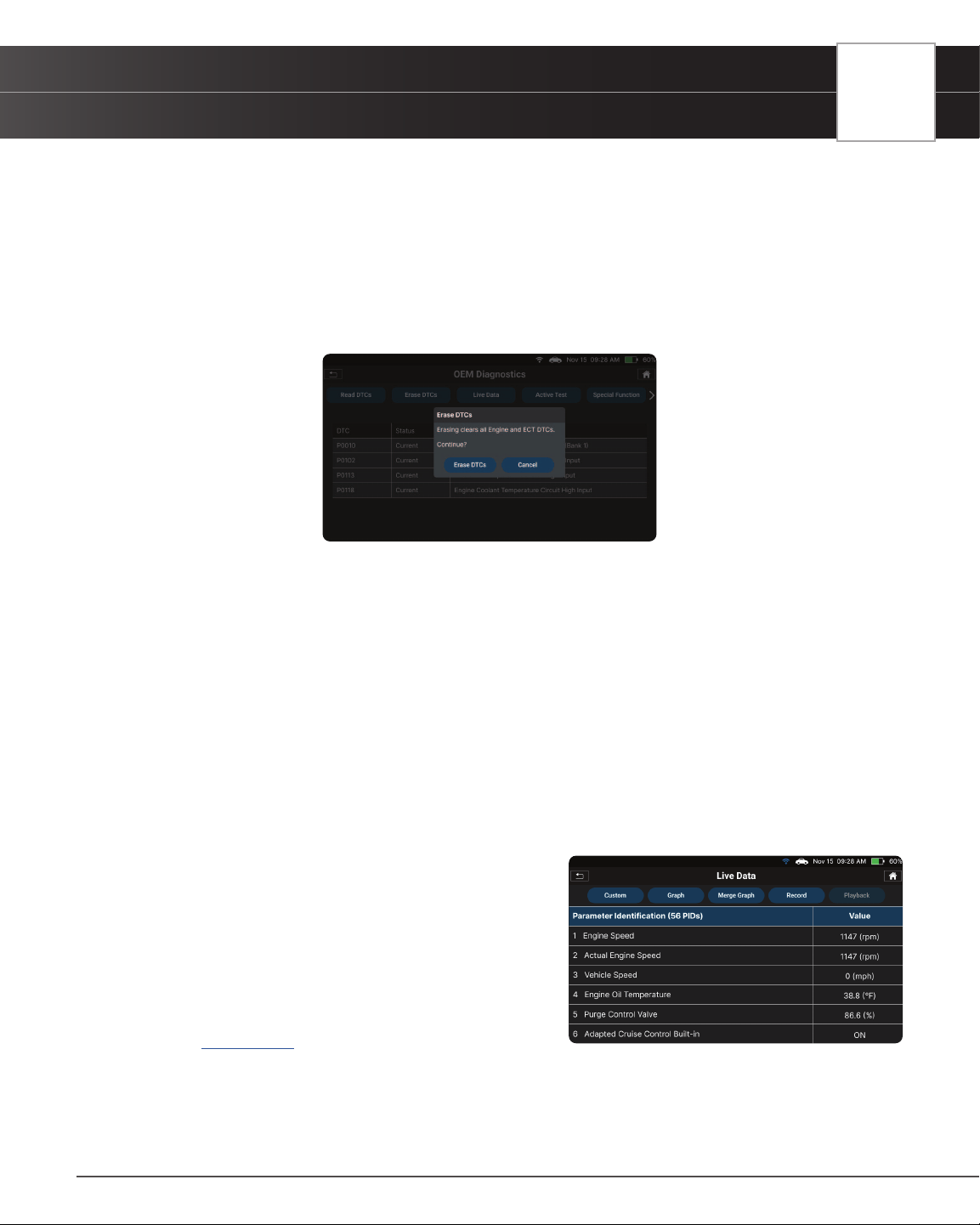

Erasing DTCs for A Selected Module � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �31
Viewing Live Data for A Selected Module � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �31
Performing Active Test for ECM/PCM, TCM Systems � � � � � � � � � � � � � � � � � � � � � � � � �31
Performing Special Function for ECM/PCM, TCM Systems � � � � � � � � � � � � � � � � � � � � � 33

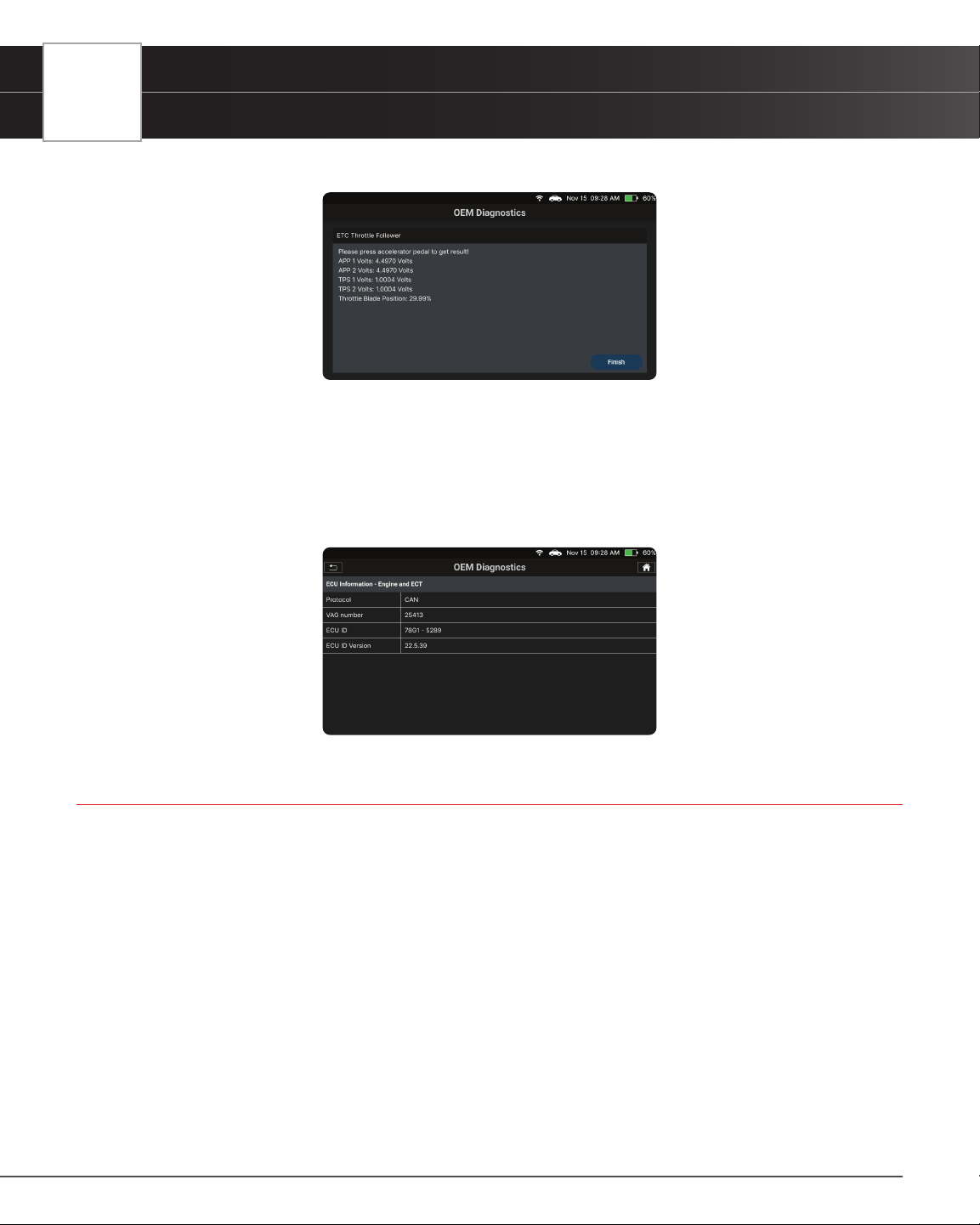

Retrieving ECU Information for A Selected Module � � � � � � � � � � � � � � � � � � � � � � � � 34
Vehicle Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
WORKSHOP TOOLS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 37
Oil Maintenance Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Battery Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
To View Battery Reset Procedures: � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 38
To Perform Battery Reset OBD Service (
BMW / Ford / Volvo): � � � � � � � � � � � � � � � � � � � 38
To Perform Battery Reset OBD Service (
Audi / Volkswagen): � � � � � � � � � � � � � � � � � � � 39
Electronic Parking Brake (EPB) Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Steering Angle Sensor (SAS) Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ABS Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
DPF Reset (
Except Chrysler, GM, Nissan, or Volkswagen)� � � � � � � � � � � � � � � � � � � � � � � � � � � � � �41
DPF Reset (Chrysler)� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 42
DPF Reset (
GM) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 42
TABLE OF CONTENTS
v
DPF Reset (Nissan) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 42
DPF Reset (
Volkswagen)� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 43
Battery / Alternator Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
To Perform A Charging System (Alternator) Check: � � � � � � � � � � � � � � � � � � � � � � � � 43
View Alternator Live Data � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 44
Perform A Battery Check Only � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 44
View Battery Live Data � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
EV/HEV/PHEV Battery Health � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
PREVIOUS VEHICLES � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
Viewing Previous Vehicles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

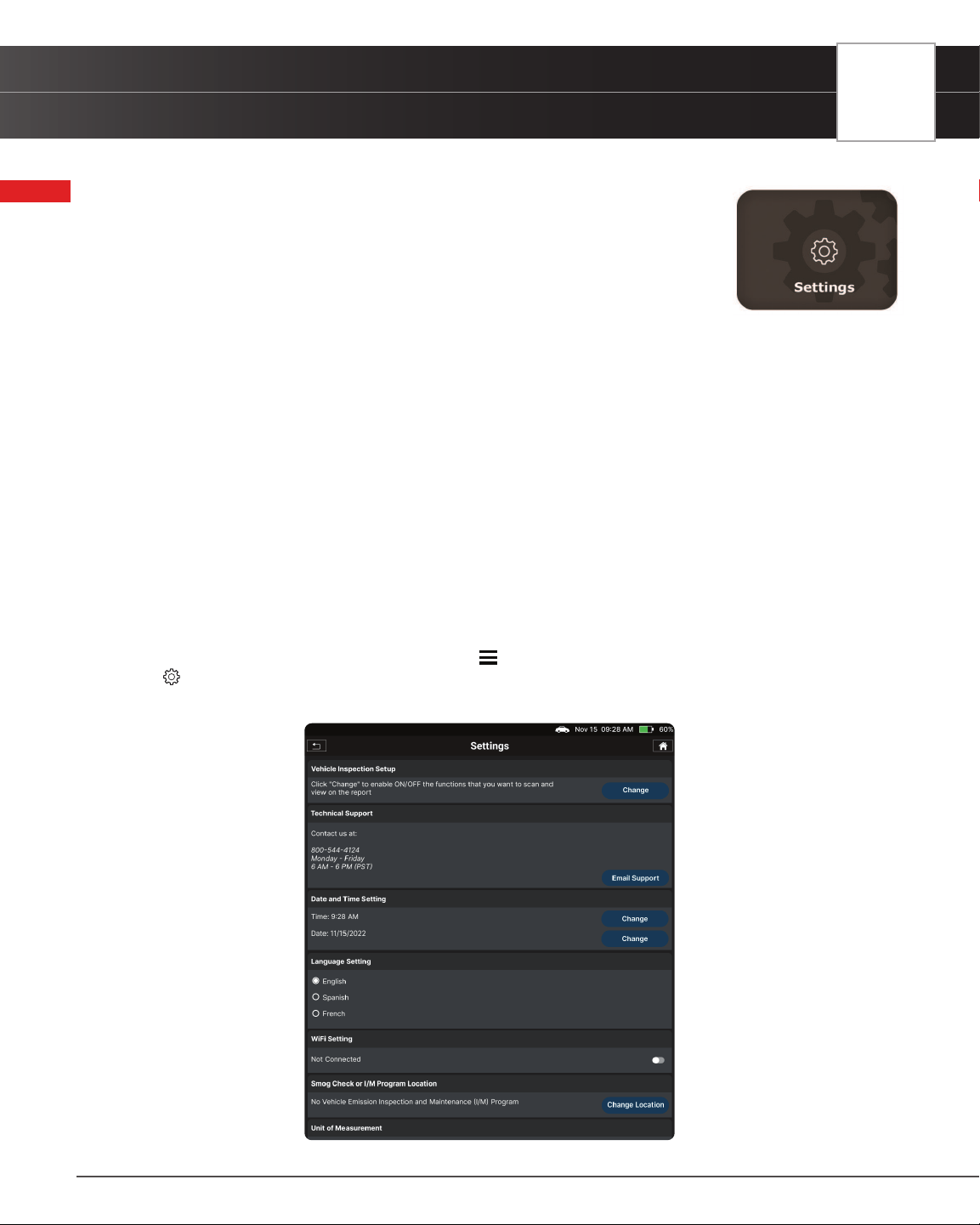

SETTINGS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 49
Vehicle Inspection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical Support (Send an Email) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Date and Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Wi-Fi Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Smog Check or I/M Program Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Unit of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Volume Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Brightness Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
About. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SUPPORT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 58
Tool Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
SMOG CHECK AND I/M PROGRAM LED DEFINITION � � � � � � � � � � � � � � � � � � � � � � � � � 58
Icon Monitor Status � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 59
DTC Library � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 59
TABLE OF CONTENTS
vi
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Email Support � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 60
Report An Issue � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 60
DLC LOCATOR � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 62
Using the DLC Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
WARRANTY+ CUSTOMER SERVICE � � � � � � � � � � � � � � � � � � � � � � � 63
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
GLOSSARY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 64
OBD2 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
OBD2 Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Continuous Monitors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 65
Non-Continuous Monitors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 66
Additional Terminology + Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
TABLE OF CONTENTS
LEGAL INFORMATION
FCC Compliance Statement
LEGAL INFORMATION
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
n Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC ID: 2AWLZ-7111
FCC RF Radiation Exposure Statement
n The transmitters within this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
n This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specic operating instructions for satisfying RF
exposure compliance. To maintain with IC RF exposure compliance requirements please follow
operation instruction as documented in this manual.
TRADEMARKS
Title, ownership rights, and intellectual property rights in the Products and Services shall remain in Innova and/or its
licensors and other suppliers. Licensee and End Users acknowledge such ownership, condential information, and
intellectual property rights and will not take any action to jeopardize, limit or interfere in any manner with Innova’s or
its licensors’ or other suppliers’ ownership of or rights with respect to the Products and Services. The Products and
Services may be protected by Patent, Trademark, Copyright and/or other intellectual property laws and by international
treaties. All trademarks used in connection with the Products and Services are owned by Innova, its afliates or its
licensors and other suppliers, and no license to use any such trademarks is provided hereunder. Licensee and End
Users agree that Innova may use in any manner and without limitation all comments, suggestions, complaints and other
1
2
LEGAL INFORMATION
Patents
feedback Licensee and End Users provide relating to the Products and Services. For more information and current
listing of trademarks, please visit
https://www.innova.com/pages/trademarks.
PATENTS
Innova Electronics Corp. protects its intellectual property with numerous U.S. patents, which were used to research,
design and manufacture this product. Please visit
https://www.innova.com/pages/patents for additional information.

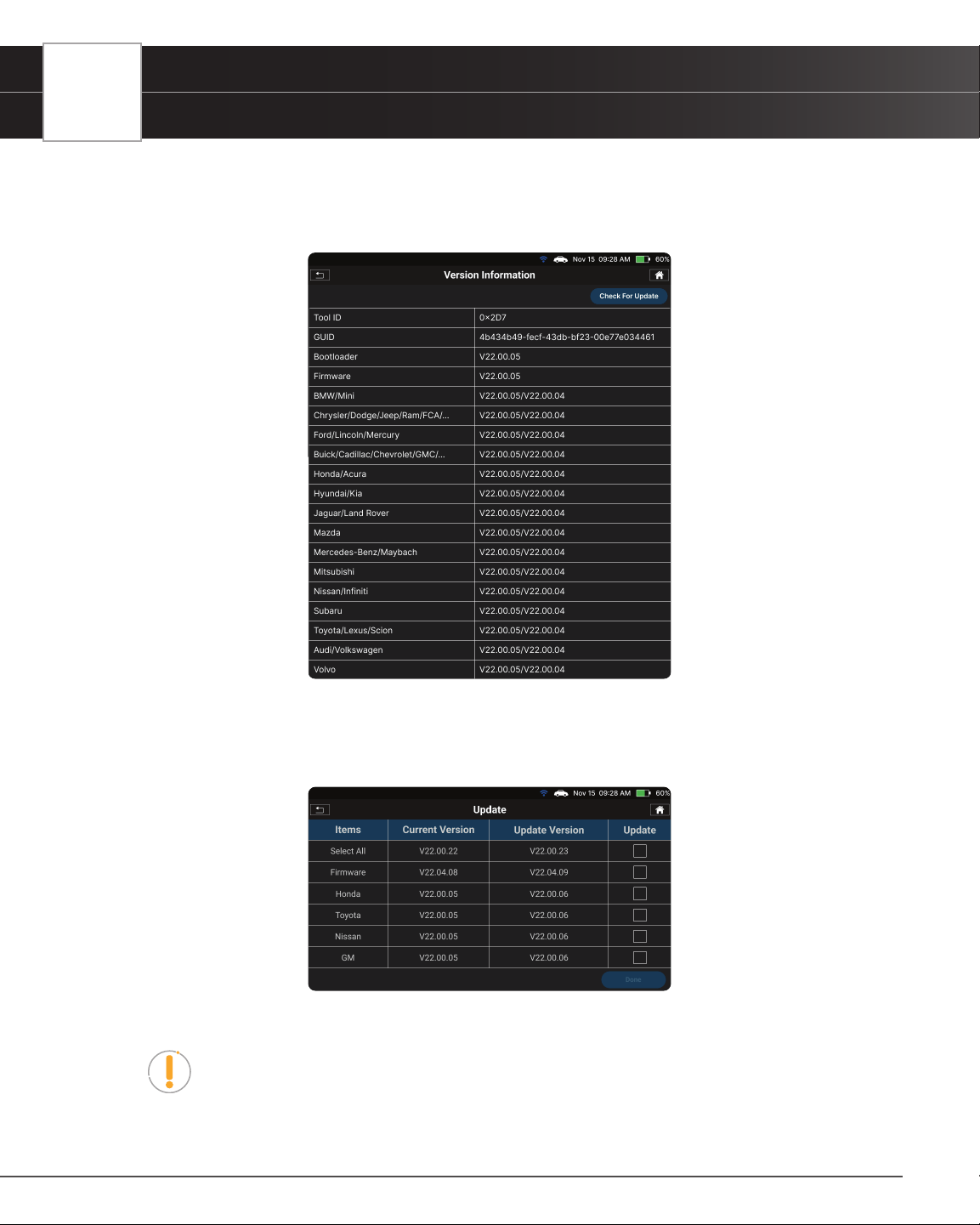

FIRMWARE VERSION
Please note that the images and functions on this manual may differ based on the current Firmware Version you
have. To check your tablet’s current version and to check for updates, please see the SETTINGS tab under the About
section. [
See page 55]
CALIFORNIA PRODUCT WARNINGS
SAFETY PRECAUTIONS
Safety First!
SAFETY PRECAUTIONS
SAFETY FIRST!
It is important that every user utilizing this product read all instructions and warnings included within this manual
to ensure your safety, the safety of others, and to prevent damage to this product & vehicles being diagnosed and
repaired. This manual describes common test procedures used by experienced service technicians. It is inferred that
the user has a good understanding of vehicle systems before using this product.
Many test procedures require precautions to avoid accidents that can result in personal injury, and/or damage to
your vehicle or test equipment. At a minimum, the following safety standards should be followed whenever using this
product, or whenever working on a vehicle.
When an engine is running, it produces carbon monoxide, a toxic and poisonous gas. To
prevent serious injury or death from carbon monoxide poisoning, operate the vehicle ONLY in
a well-ventilated area.
To protect your eyes from propelled objects as well as hot or caustic liquids, always wear
approved safety eye protection.
When an engine is running, many parts (such as the coolant fan, pulleys, fan belt etc.) turn at
high speed. To avoid serious injury, always be aware of moving parts. Keep a safe distance
from these parts as well as other potentially moving objects.
Engine parts become very hot when the engine is running. To prevent severe burns, avoid
contact with hot engine parts.
Before starting an engine for testing or troubleshooting, make sure the parking brake is
engaged. Put the transmission in park (for automatic transmission) or neutral (for manual
transmission). Block the drive wheels with suitable tire blocks.
Connecting or disconnecting test equipment when the ignition is ON can damage test equipment
and the vehicle’s electronic components. Turn the ignition OFF before connecting the tablet
to or disconnecting the tablet from the vehicle’s Data Link Connector (DLC).
To prevent damage to the on-board computer when taking vehicle electrical measurements,
always use a digital multimeter with at least 10 Megohms of impedance.
Fuel and battery vapors are highly ammable. To prevent an explosion, keep all sparks, heated
items, and open ames away from the battery and fuel vapors. DO NOT SMOKE NEAR THE
VEHICLE DURING TESTING.
Don’t wear loose clothing or jewelry when working on an engine. Loose clothing can
become caught in the fan, pulleys, belts, etc. Jewelry is highly conductive and can cause a
severe burn if it makes contact between a power source and ground.
3
4
SAFETY PRECAUTIONS
Safety Alert Icons
SAFETY ALERT ICONS
As you read this manual, color-coded icons are used throughout to identify safety alerts and warnings. These are
provided to help prevent serious injury to you, injury to bystanders, and damage to property or equipment. They are
characterized as follows:
Yellow Icon – Provides a ”NOTE:“ statement to offer special information
or tip on what is being instructed.
Orange Icon – Potential hazardous situation. Provides a “
WARNING:“
statement on how to proceed to avoid serious injury to the user,
bystanders, and/or equipment.
Red Icon – Imminent hazardous situation. Provides an immediate
“
DANGER:“ alert on what must be done to prevent serious injury or death
to the user or bystanders.
INTRODUCTION
Tablet Controls and Indicators
INTRODUCTION
TABLET CONTROLS AND INDICATORS
See Figure 1 for the locations of items 1
through 8, below.
1.
POWER Button - Turns the tablet “On”
and “Off”. When tablet is off, press and
hold for approximately 3 seconds to turn
on. When tablet is on, press and hold for
approximately 3 seconds to display the
“Power Off” button to turn off tablet.
2. USB Type C Charging Port – Supports
charging of the tablet battery using provid-
ed USB cable and power adapter.
3. 5.0-inch LCD Screen - Color LCD display
shows menu and sub-menus, test results,
tablet functions and vehicle status informa-
tion.
4. OBD2 HDMI Cable - Connects the tablet to
the vehicle’s on-board Data Link Connector
(DLC). Cable is detachable from tablet.
5. Rear Kickstand – Lets you freely stand the
tablet on a solid surface.
6. GREEN LED - Indicates that all engine
systems are running normally, and all emis-
sion monitors are active and performing
their diagnostic testing. The Malfunction Indicator “Check Engine” Lamp on the vehicle’s instrument panel is off.
7. YELLOW LED - Indicates there is a possible problem in one or more of the vehicle’s systems. Either a “Pending”
DTC is present and/or some of the vehicle’s emission monitors have not run their diagnostic testing.
8. RED LED - Indicates there is a problem in one or more of the vehicle’s systems. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is on.
POWERING THE TABLET ON AND OFF
To power ON the tablet:
1. With the tablet off, press and hold the POWER button for approximately 3 seconds, then release.
n The screen displays the message “LOADING” while the rmware loads.
n When the rmware has been loaded, the Home Screen displays. [See page 6]
2. If the tablet is connected to a vehicle, the message “Retrieving vehicle information…” automatically shows
Figure 1� Controls and Indicators
123
4
5
678
BACK SIDE
5
6
INTRODUCTION
Initial Tablet Setup
while the tablet establishes communication with the vehicle.
To power OFF the tablet:
1. With the tablet on, press and hold the POWER button for approximately 3 seconds.
NOTE: The tablet can only be turned off when the USB is removed from the tablet
and the DLC cable is removed from the vehicle.
n The screen displays a message “POWER OFF”.
n If POWER OFF is selected, the tablet powers down and turns off.
2. When the tablet is on, press
POWER button once to go into sleep mode. Similarly, press the POWER
button one more time to wake up the tablet.
NOTE: Another way to turn OFF the tool is by pressing and holding the
POWER
button for about 15 seconds - the tool will turn off right away.
INITIAL TABLET SETUP
Follow these steps to setup the tablet for the rst time.
1. Charge Tool – use the included charging cable to completely charge your tool before conducting your rst scan.
2. Setup Wi-Fi Network – The tablet requires a Wi-Fi network connection to activate all its features. [
See page 52]
3. Check for Updates – We’re continuously making free software, data, and rmware updates. It is important to
keep your tablet up to date to ensure its best performance. Please follow the steps to check an automatically
update your tablet under SETTINGS. [
See page 55]
4. Adjust Personal Settings – Further customize your tool experience with several available settings. [
See page
49
]
5. Enjoy your INNOVA
®
Smart Diagnostic System!

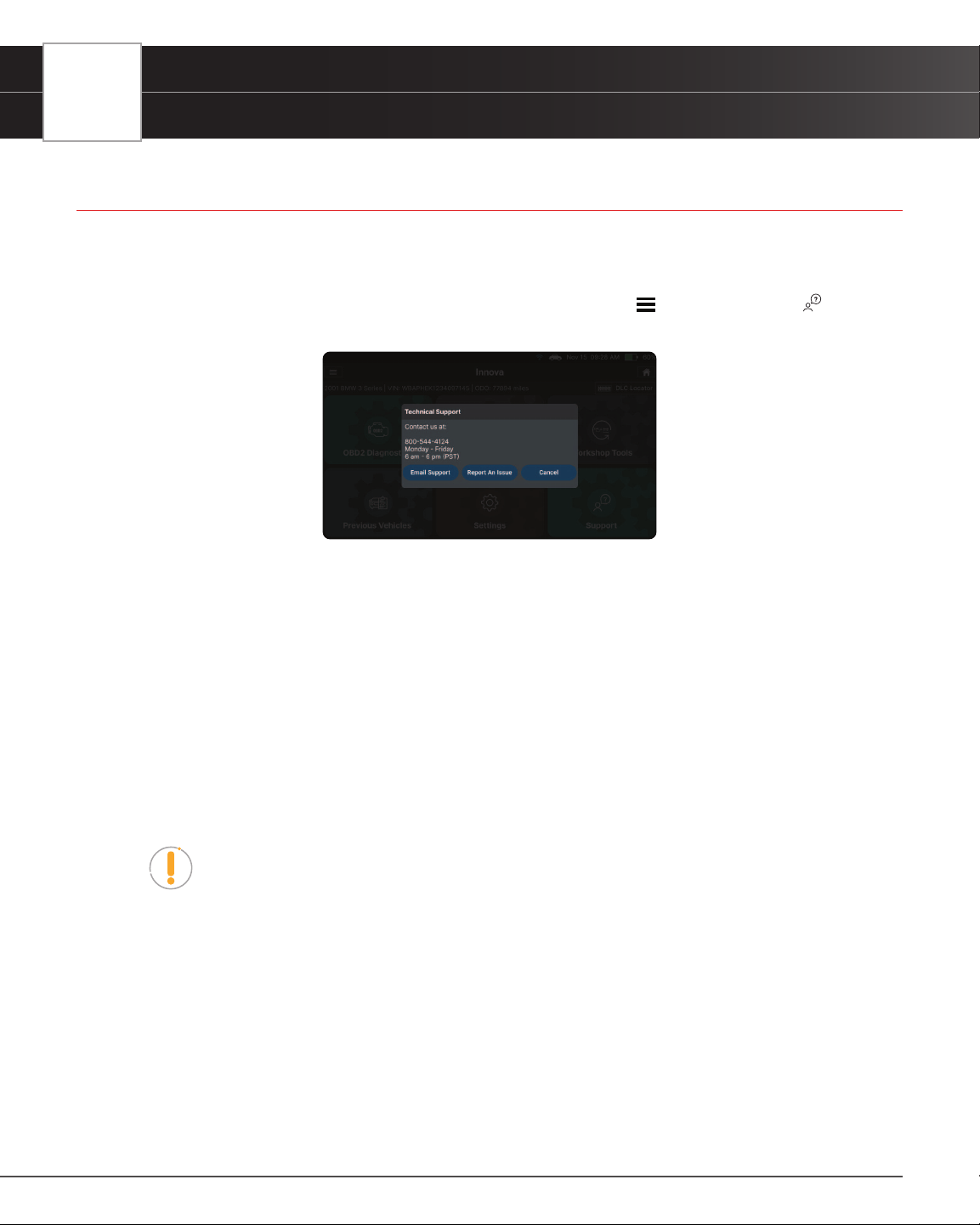

Have questions? We’re here to help:
n Live Chat: www.innova.com
n Email Us: [email protected]
n Call Us: 800-544-4124 (Monday through Friday, 6am - 6pm PST)
THE HOME SCREEN
The Home Screen provides access to all the tablet’s primary functions.
See Figure 2 for the explanation of items 1 through 13, below:
1.
Menu – Quick access to Home, Previous Vehicle, Support, Settings.
INTRODUCTION
Technical Specications
2. Vehicle Info Bar – When connected to a vehicle, dialog displays vehicle’s make, model, year, VIN, and current
mileage (ODO).
3. OBD2 Diagnostics Tab – Use to perform
OBD2 scans, view & record Live Data, create
RepairSolutionsPRO reports, and Erase
OBD2 DTCs and more. [
See page 12]
4. Previous Vehicles Tab – Access and view
reports for all previously tested vehicles,
including pre- recorded Live Data streams.
[
See page 47]

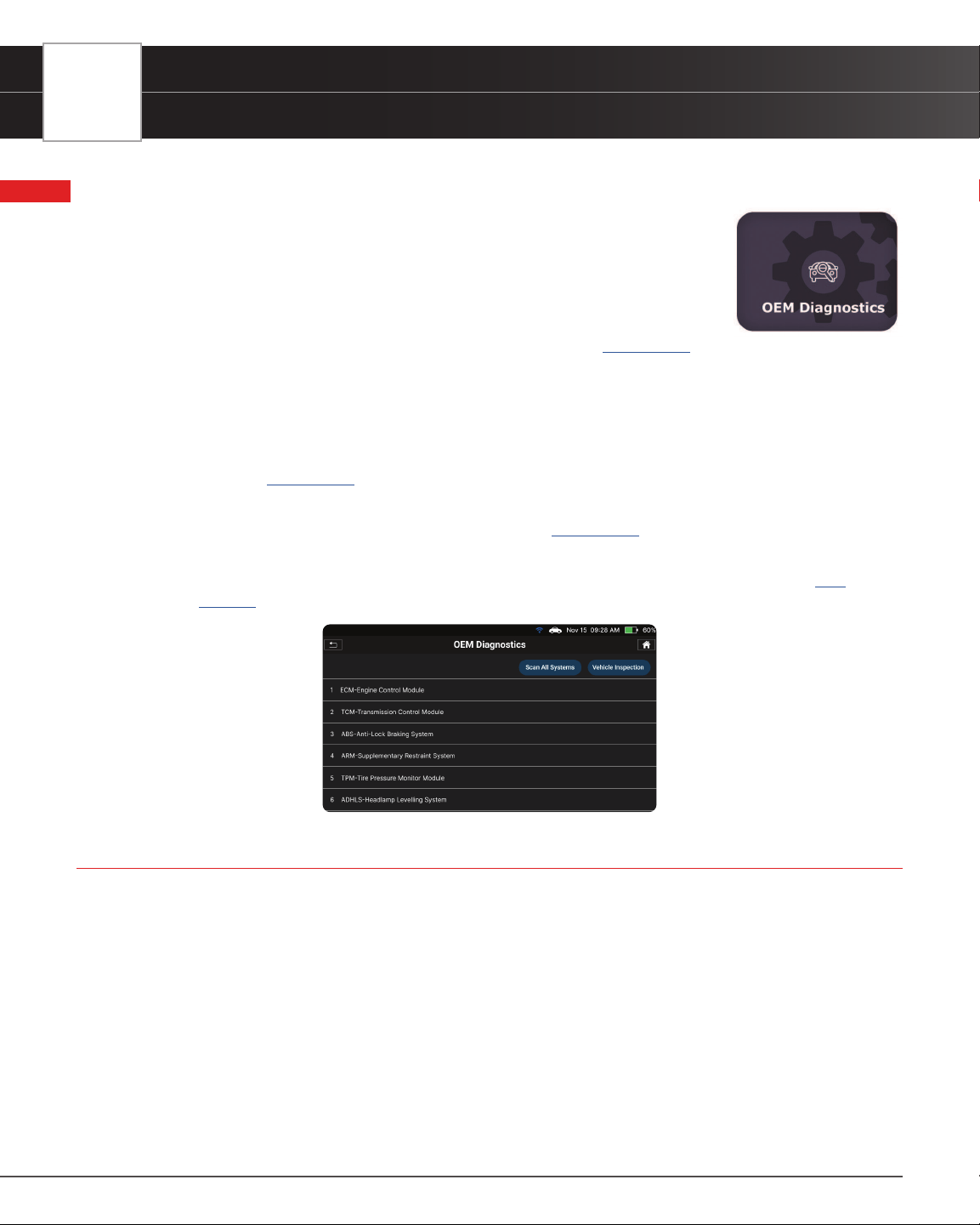

5. OEM Diagnostics Tab – Provides enhanced
OEM level diagnostics that are not available
over generic OBD2. Access all modules to
read & erase DTCs, view live data and get

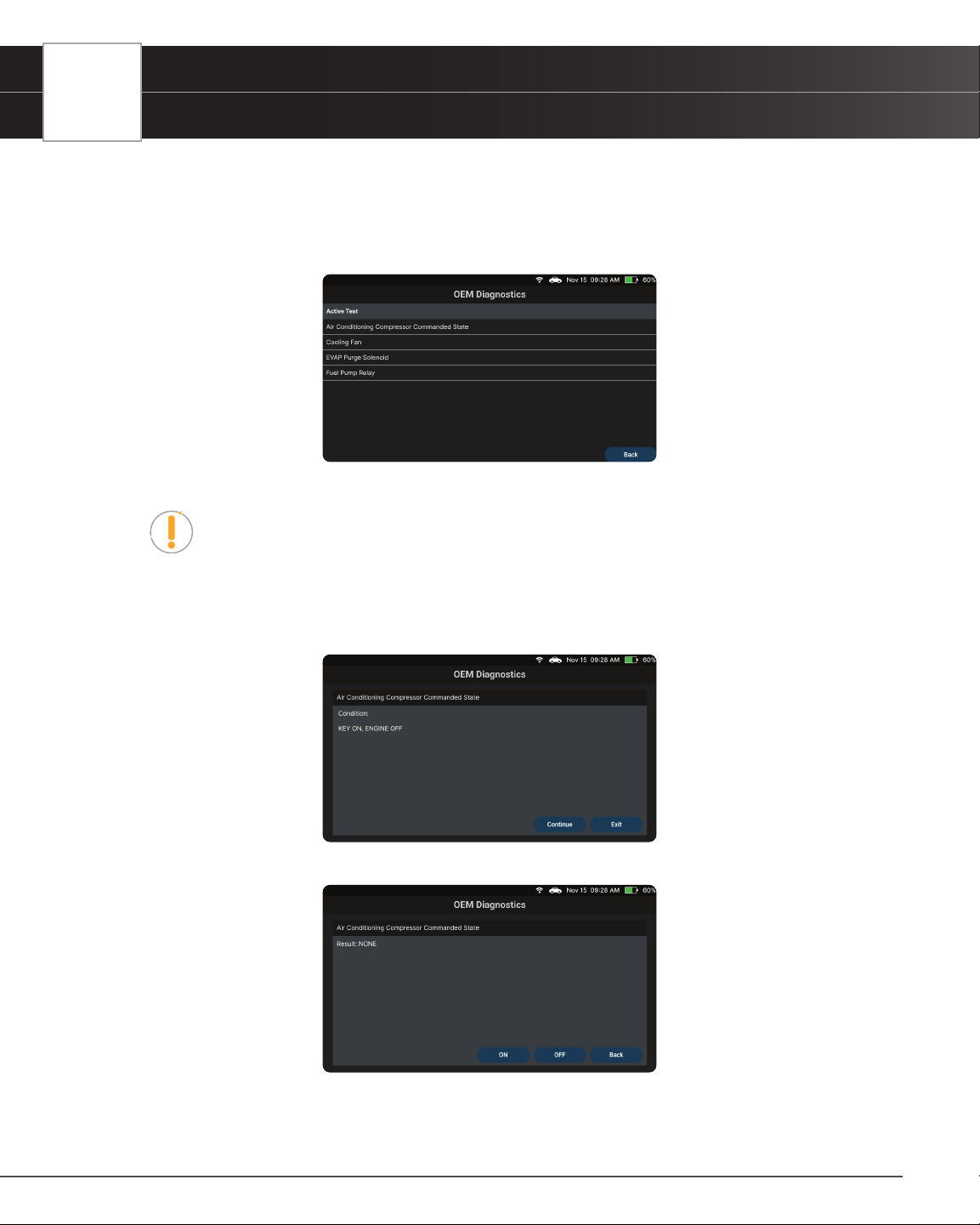

ECU Information. Perform bi-directional
control on fuel pump, injectors, ignition coils,
and much more. Other additional special functions may be available depending on the vehicle being tested. Plus,

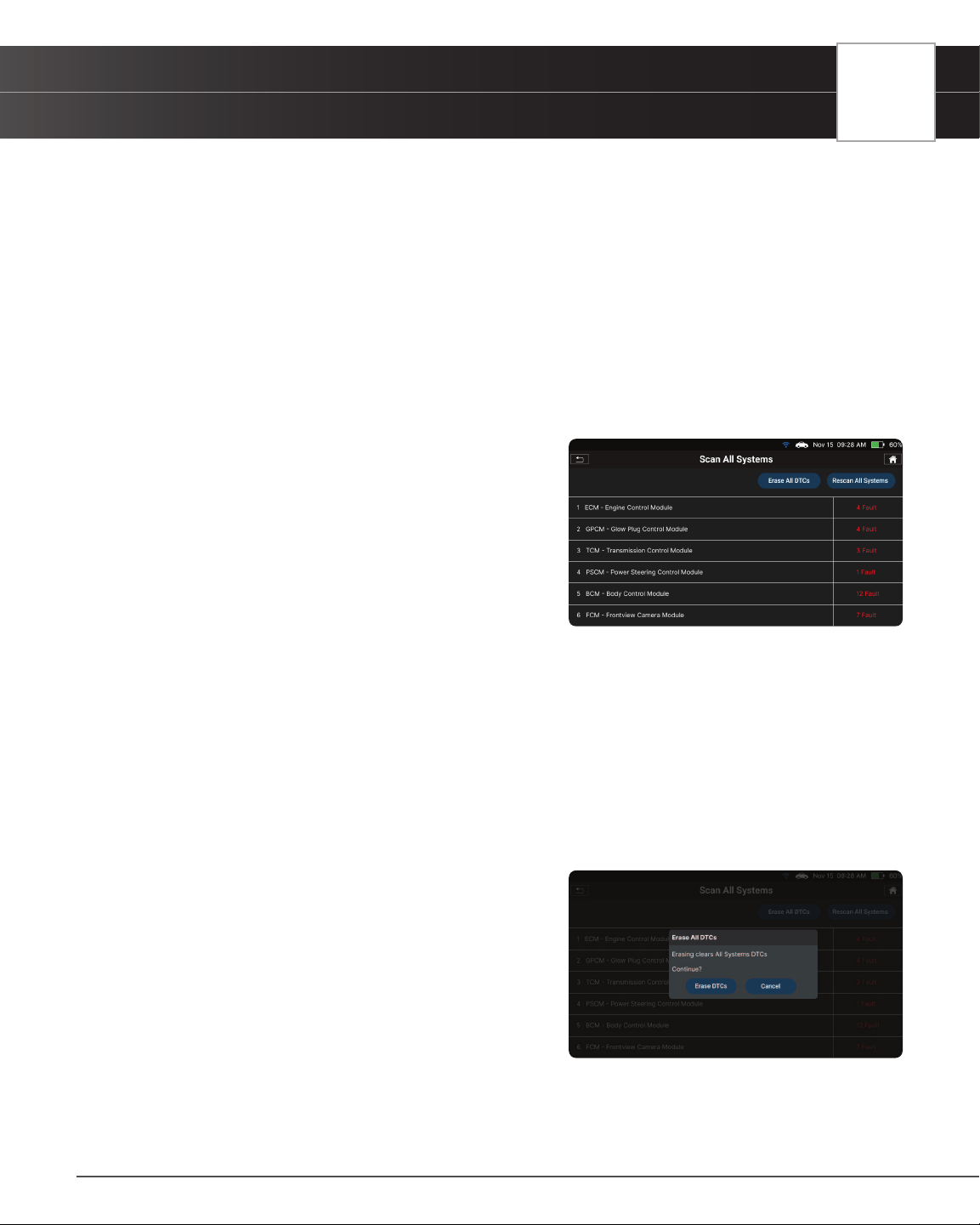

create a Vehicle Inspection report, also considered a full Network Scan, to obtain a comprehensive overview of
the vehicle’s current health status. [
See page 27]
6. Settings Tab – Setup your tablet’s settings (including Wi-Fi), update tablet to latest version, and other personal
settings. [
See page 49]

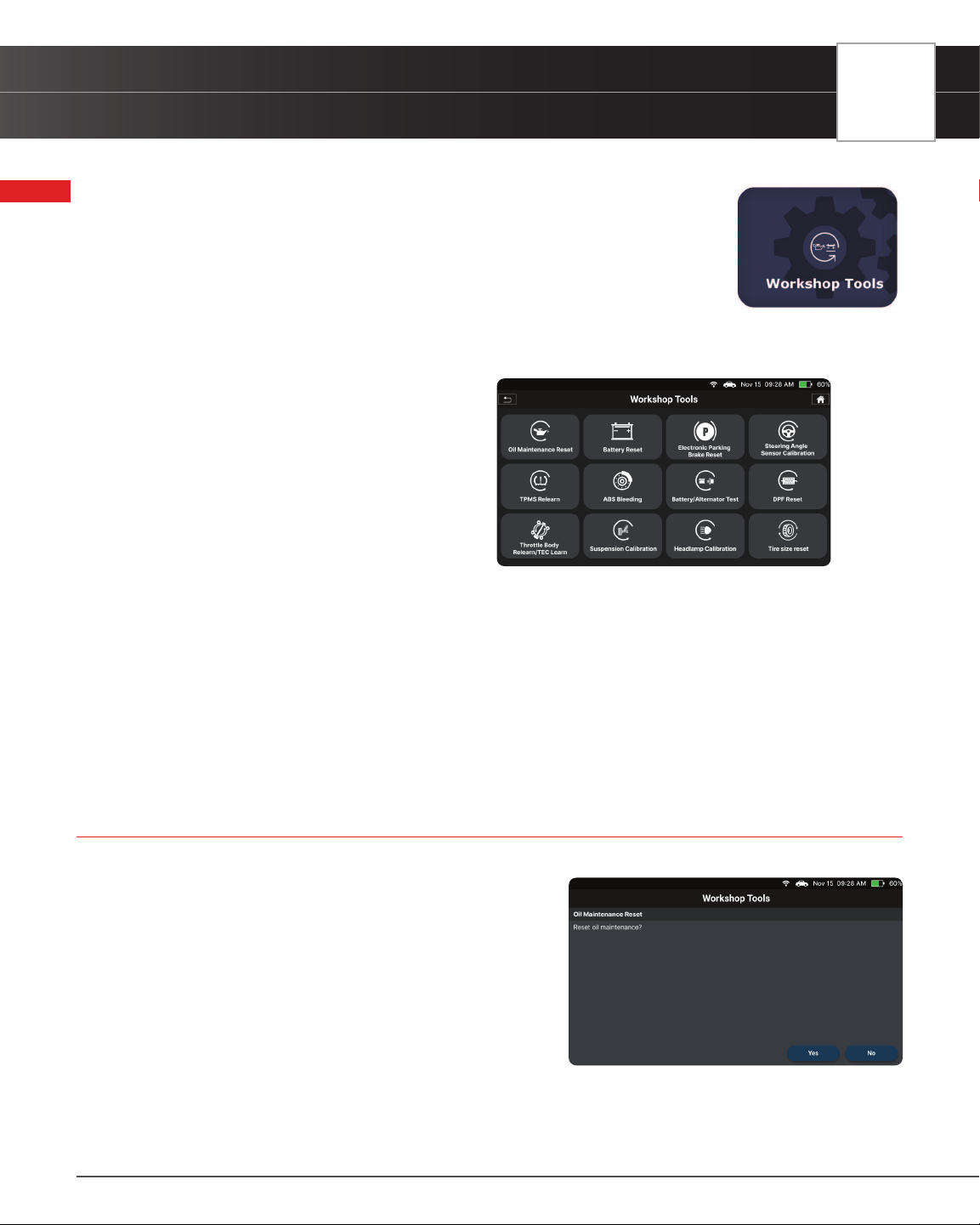

7. Workshop Tools Tab – Perform several OEM service reset procedures, including Oil Maintenance Reset, Battery
Reset, Electronic Parking Brake Reset, Steering Angle Sensor (SAS) Reset, ABS Bleeding, Battery/Alternator
Test, and EV/HEV/PHEV Battery Health. Access dealership level re-learn procedures to complete repairs or
maintenance and much more. [See page 37]

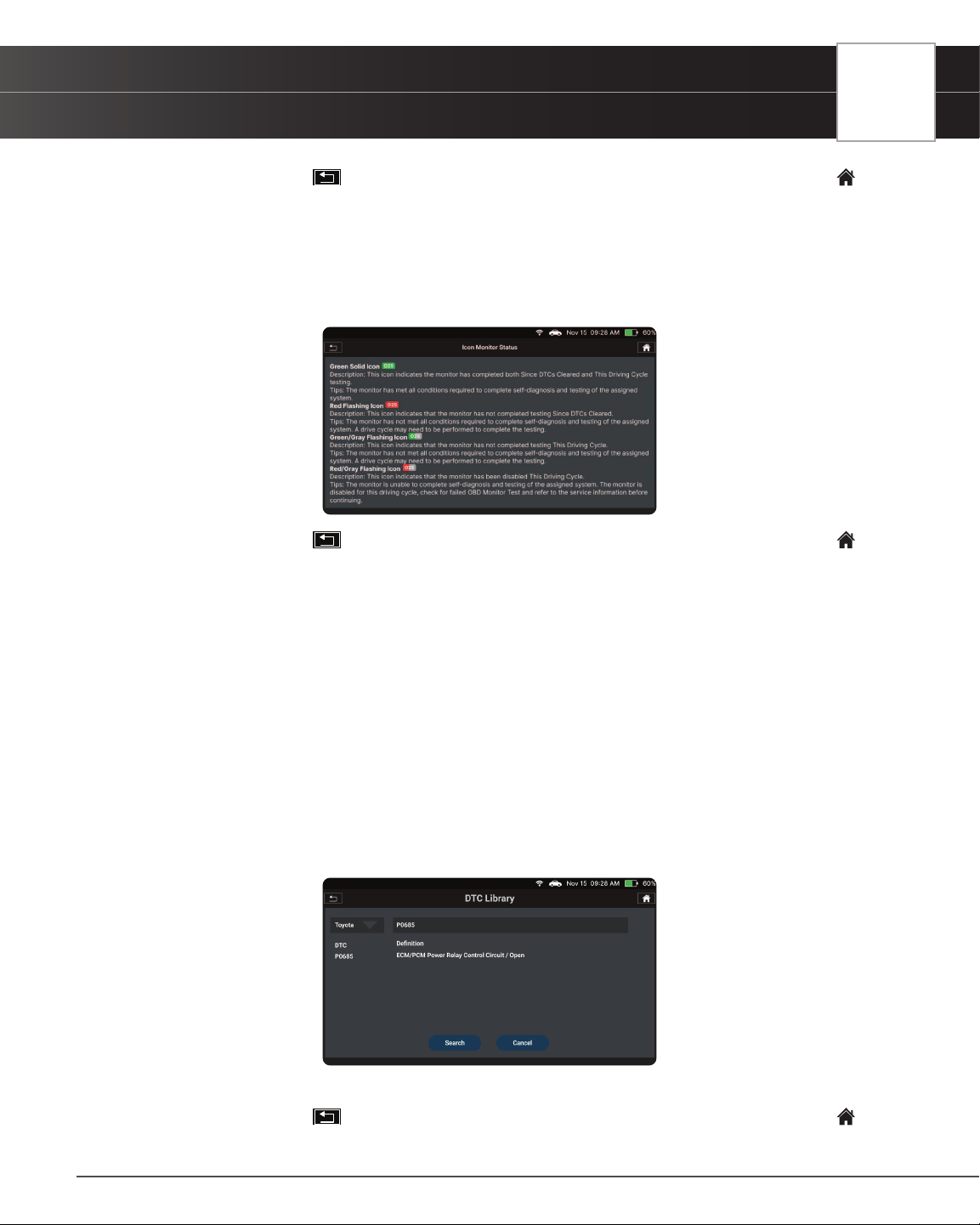

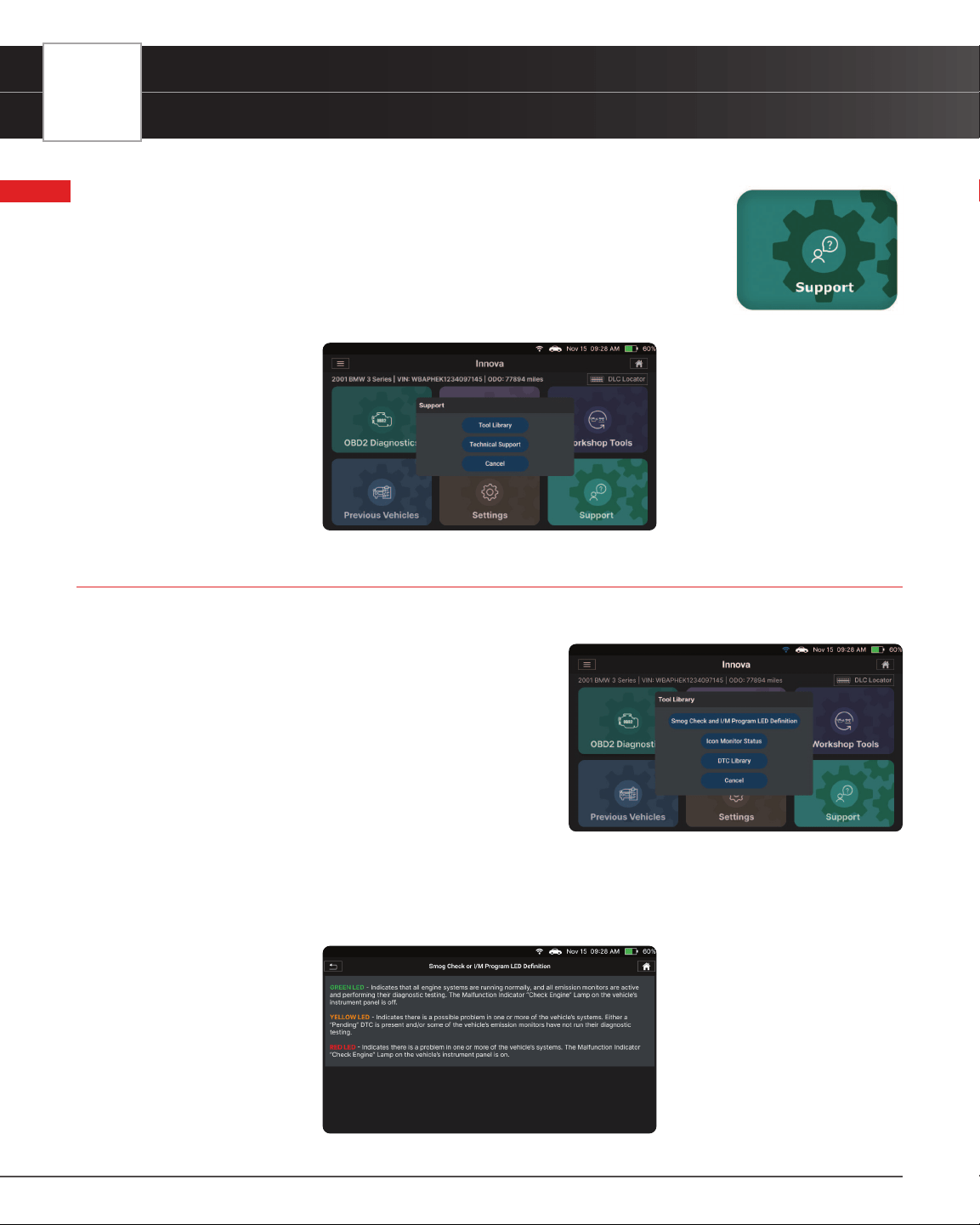

8. Support Tab – Access the tablet’s Tool Library for DTC and tool icon denitions; connect with Innova’s ASE
Certied Technical Team for support. [
See page 58]
9.
Bluetooth Icon: the Bluetooth icon will be ON when the RepairSolutionsPRO™ app is connected to the tablet.
10.
Wi-Fi Icon - Displays ON or OFF depending on the tablet’s Wi-Fi network connection status.
11.
Vehicle Icon – Indicates whether or not the tablet is being properly powered through the vehicle’s Data Link
Connector (DLC). A visible icon indicates that the tablet is being powered through the vehicle’s DLC connector.
12.
Home Icon – Quick access to home screen.
13.
DLC Locator – Quick access to nd the location of the Data Link Connector (DLC) for a specied vehicle.
[See page 62]
TECHNICAL SPECIFICATIONS
The following table provides the tablet’s current technical specications*:
Display Type
5.0 Inch Panel
1
2
3
4
5
6
7
10 11
8
12
9
13
7
8
INTRODUCTION
The RepairSolutionsPRO™ App
J1962 DLC Cable
6-foot Detachable 16-pin OBDII Compliant Connector
Wi-Fi
802.11b/g/n
Operating Temperature
23ºF to 113ºF (-5ºC to 45ºC)
Memory
4GB Memory
Tablet Case
Rugged ABS Shock & Drop Resistant
Included Accessories
Molded Storage Case, Quick Start Guide, USB Cable
*Manufacturer reserves the right to change technical specications at any time.
THE RepairSolutionsPRO™ APP
Innova’s RepairSolutionsPRO™ (RSPRO) app is a web-based service created to assist professional technicians
simplify and augment their vehicle diagnostic process.
In essence, it helps you decode the diagnostic data collected by your
INNOVA
®
OBD2 Tablet to arrive at a most likely x. At its core, the app uses
a database of millions of real-world veried xes–collected over the last 25
years by ASE Master Technicians across the U.S.– that is cross-referenced
to your specic vehicle’s problem to instantly arrive at a veried x. Think of it
as a second opinion from your most trusted peers to help you diagnose and
repair more vehicles.
THE RSPRO APP OFFERS…
n Veried Fixes – Find the most likely xes reported and veried by ASE Technicians for the
retrieved DTCs. Plus, quickly purchase the exact parts you need right from the app.
n Predicted Repairs – With millions of veried repair solutions, get a statistical probability of what
repairs the vehicle may need within the next 12 months.
n TSBs & Recalls – Learn if there are any special NHTSA safety recalls or Technical Service
Bulletins (TSBs) issued by the vehicle’s manufacturer.
n Upcoming Maintenance – View the vehicle manufacturer’s recommended maintenance
intervals. Plus, conveniently order the correct maintenance parts right from the app.
n And much more...
HARDWARE REQUIREMENTS
n Innova OBD2 Tablet with Bluetooth/Wi-Fi connectivity.
INTRODUCTION
The RepairSolutionsPRO™ App
n Android or iOS Mobile Device.
DOWNLOAD THE RSPRO APP
n Available for Apple iOS & Android Devices (Scan QR Code)
USING THE RepairSolutionsPRO APP
1. Retrieve your vehicle’s diagnostic data. [See page 10]
2. Download and install the RSPRO app (see above).
3. Launch the app and log in to your account.
n If you have not yet established an account, you must register for a FREE account before
proceeding.
4. Follow the screen prompts to pair your INNOVA Tablet.
━ Turn On Bluetooth
®
on your mobile device.
━ Turn the tablet On.
━ Be sure your mobile device is connected to an available Wi-Fi network.
n Begin the pairing process by selecting your handheld tablet from the list.
NOTE: The RSPRO app can only store up to two Wi-Fi congurations.
5. Once paired, the data from your tablet is automatically transferred to the app to create a report.
NOTE: If the data does not automatically transfer, simply keep the app and tablet
paired and scan your vehicle again.
NOTE: Once the tablet is paired and registered with the RepairSolutionsPRO App,
the tablet must be connected to a Wi-Fi network by using the RepairSolutionsPRO
App or by going to Settings / Wi-Fi Setting tab on the tablet in order to access
functions such as viewing Fix for DTCs, OBD2 Report, and Vehicle Inspection. [
See
page 52
]
9
10
GETTING STARTED
Connecting the Tablet
GETTING STARTED
CONNECTING THE TABLET
1. Turn the vehicle’s ignition OFF.
2. Locate the vehicle’s 16-pin Data Link Connector (DLC).
NOTE: Some DLCs have a plastic cover that must be removed before connecting
the Scan Tool.
3. Connect the tablet to the vehicle’s DLC. The cable connector is keyed and will
only t one way.
n If you have problems connecting the cable to the DLC, rotate the
connector 180°.
n If you still have problems, check the DLC on the vehicle and on the
tablet.
AUTOLINK CONNECTION
The tablet features an “AutoLink Connection” function, which automatically retrieves vehicle information upon
plugging the tablet into the vehicle’s Data Link Connector (DLC) port.
USING THE AUTOLINK FUNCTION
1. Verify that the tablet is connected as indicated above (Connecting the Tablet).
2. Turn the ignition ON. DO NOT start the engine.
n Tablet begins communicating and displays “Retrieving Vehicle
Information...”.
3. Once complete, tablet displays the vehicle’s Year, Make, Model, VIN, and
mileage on the Vehicle Info Tab.
NOTE: With certain vehicles, you may be required to manually input
some of the vehicle’s information. This may include the vehicle’s
Year, Make, Model, Trim, Body Code, Engine; and the vehicle’s VIN.
PROVIDING THE VEHICLE’S VIN INFORMATION
1. A dialog appears requesting a Vehicle Identication Number (VIN).
2. Tap the dialog window and enter the vehicle’s 17-digit VIN number.
n The Submit button becomes “active” once all 17-digits are entered.
NO Brake Pedal
Tap Button 2 Times
GETTING STARTED
Scanning A Vehicle
3. Tap the Submit button.
n An error dialog will display if the VIN is unable to be decoded. Re-enter VIN.
n If you are still unable to decode the VIN, tap Select Vehicle (see steps below).
PROVIDING VEHICLE SELECTION INFORMATION
1. A dialog appears requesting Vehicle Selection.
2. Tap on each of the available entries (Year, Make, Model, Trim, Body Code, Engine).
n A grayed-out selection means that an entry is not available or not necessary for this vehicle.
3. Make a selection under each option.
4. Tap Continue to save your selections and return to the Home screen.
5. Tap Cancel to exit without selecting and return to the Home screen.
SCANNING A VEHICLE
Never replace a part based only on the DTC denition. Each DTC has a set of
testing procedures, instructions and ow charts that must be followed to conrm
the location of the problem. Always refer to the vehicle’s service manual for
detailed testing instructions.
NOTE: Check your vehicle thoroughly before performing any test.
WARNING: ALWAYS observe safety precautions whenever
working on a vehicle.
Refer to the appropriate diagnostic test you wish to perform:
OBD2 Diagnostics – [See page 12]
OEM Diagnostics – [See page 27]
Workshop Tools – [See page 37]
11
12
OBD2 DIAGNOSTICS
Performing A Scan – OBD2 Diagnostics

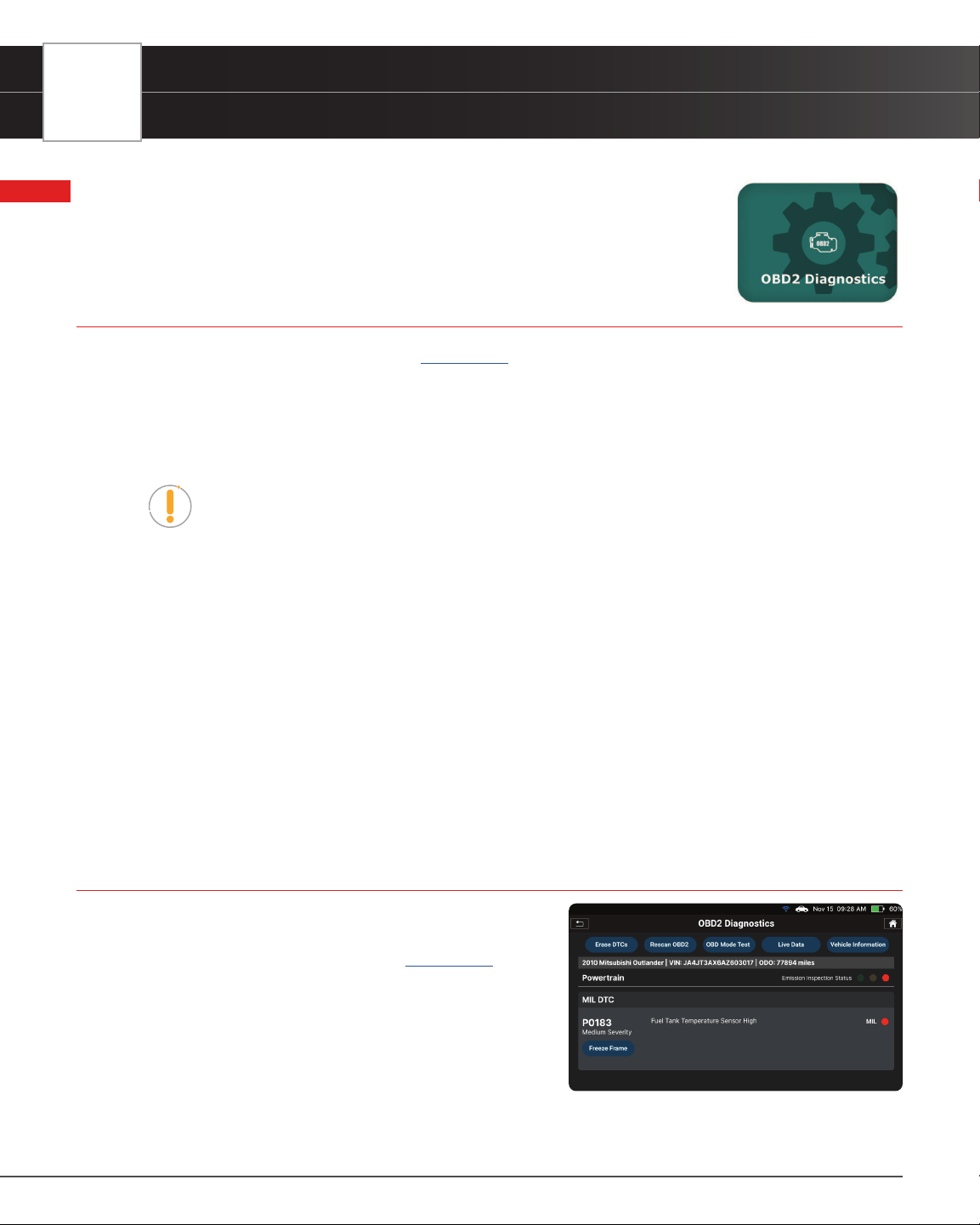

OBD2 DIAGNOSTICS
The OBD2 Diagnostics function allows you to perform OBD2 scans, view & record Live
Data, create RepairSolutionsPRO reports, and Erase OBD2 DTCs.
PERFORMING A SCAN – OBD2 Diagnostics
1. Follow the AutoLink Connection steps. [See page 10].
2. Tap OBD2 Diagnostics.
n The tablet automatically starts a check of the vehicle’s computer to determine which
communication protocol it is using. When the tablet identies the computer’s communication
protocol, a communication link is established.
NOTE: A PROTOCOL is a set of rules and procedures for regulating data
transmission between computers, and between testing equipment and computers.
As of this writing, ve different types of protocols (ISO 9141, Keyword 2000, J1850
PWM, J1850 VPW and CAN) are in use by vehicle manufacturers.
n If the Scan Tool fails to link to the vehicle’s computer, a “Scan Failed” message shows.
━ Ensure the vehicle is OBD2 compliant–check vehicle emission control information (VECI)
label located in the vehicle’s engine compartment.
━ Verify the connection at the DLC, and verify the ignition is ON.
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.
━ Tap Try Again to try again or tap Cancel to return to the Home Page.
3. A progress dialog displays while the tablet retrieves any Diagnostic Trouble Codes, Monitor Status and Freeze
Frame Data from the vehicle’s computer memory.
4. When the retrieval process is complete, the OBD2 Diagnostics screen displays with the scan results.
VIEWING SCAN RESULTS – OBD2 Diagnostics
Scan results are shown immediately following completion of a
scan and can also be viewed later using the Previous Vehicles
functions available through the Home page [
See page 47].
Each report begins with a vehicle information bar that includes the
vehicle’s description (year/make/ model), the Vehicle Identication
Number (VIN) and the odometer reading (ODO) at the time the
scan was performed.
OBD2 DIAGNOSTICS
Viewing Scan Results – OBD2 Diagnostics
EMISSIONS INSPECTION STATUS – Interpreting Results
Indicates whether the vehicle is ready for an Emissions Test (Smog Check) through a “trafc light” type display. When
viewing the Emission Readiness eld, use the following denitions to identify the vehicle’s Emissions Test readiness
status:
● Green - Indicates all engine systems are operating normally. The vehicle is ready for an
Emissions Test (Smog Check), and there is a good possibility it can be certied.
● Yellow - Indicates one of the following two conditions is present:
━ A “Pending” Diagnostic Trouble Code is present. It is possible the vehicle can be tested
for emissions and certied. Many areas (states / countries) allow an Emissions Test to be
performed if the only code present is a “PENDING” code.
━ One or more monitors “Incomplete” their diagnostic testing. The issue of the vehicle being
ready for an Emissions Test will depend on the emissions regulations and laws of your
local area.
━ Some areas require that all Monitors indicate a “Complete” status before an Emissions Test
(Smog Check) can be performed. Other areas only require that some, but not all, Monitors
indicate a “Complete” status before an Emissions Test can be performed.
● Red - Indicates there is a problem with one or more of the vehicle’s systems, and Diagnostic
Trouble Code(s) (DTCs) are present. The vehicle is not ready for an Emissions Test. The
problem(s) that caused the DTCs to set must be repaired before an Emissions Test can be
performed.
MIL DTC CODE
This is the code that has commanded the vehicle’s Malfunction Indicator Lamp (MIL) “on,” and is the code for which
Freeze Frame data stored. This eld includes the DTC number, description, and MIL status (ON or OFF).
n In OBD2 systems, when an emissions-related engine
malfunction occurs that causes a DTC to set, a record
or snapshot of engine conditions at the time that the
malfunction occurred is also saved in the vehicle’s
computer memory. The record saved is called Freeze
Frame data.
Viewing Freeze Frame Data
Under Freeze Frame, saved engine conditions can include, but are not limited to engine speed, open or closed
loop operation, fuel system commands, coolant temperature, calculated load value, fuel pressure, vehicle speed,
air ow rate, and intake manifold pressure. These values are typically used to further diagnose and pinpoint the
issue.
13
14
OBD2 DIAGNOSTICS
Viewing Scan Results – OBD2 Diagnostics
n Tap the Freeze Frame button to view the captured results.
FIX FOR DTCs
Innova’s RepairSolutionsPRO™ reports offer a x, which is cross referenced for accuracy
against a database of millions of veried xes. It is real-world data that has been collected for
over 25 years by Innova’s network of ASE Master Technicians across the U.S.
If available, it includes the most likely x(es) for the MIL DTC and the parts required to repair it. If not, it only shows the
OBD2 Report to upload data to the RepairSolutionsPRO (RSPRO) App. [
See page 16]
NOTE: Certain elds and pages require that you create a RepairSolutionsPRO report
to access, download and display the associated “enhanced” data…

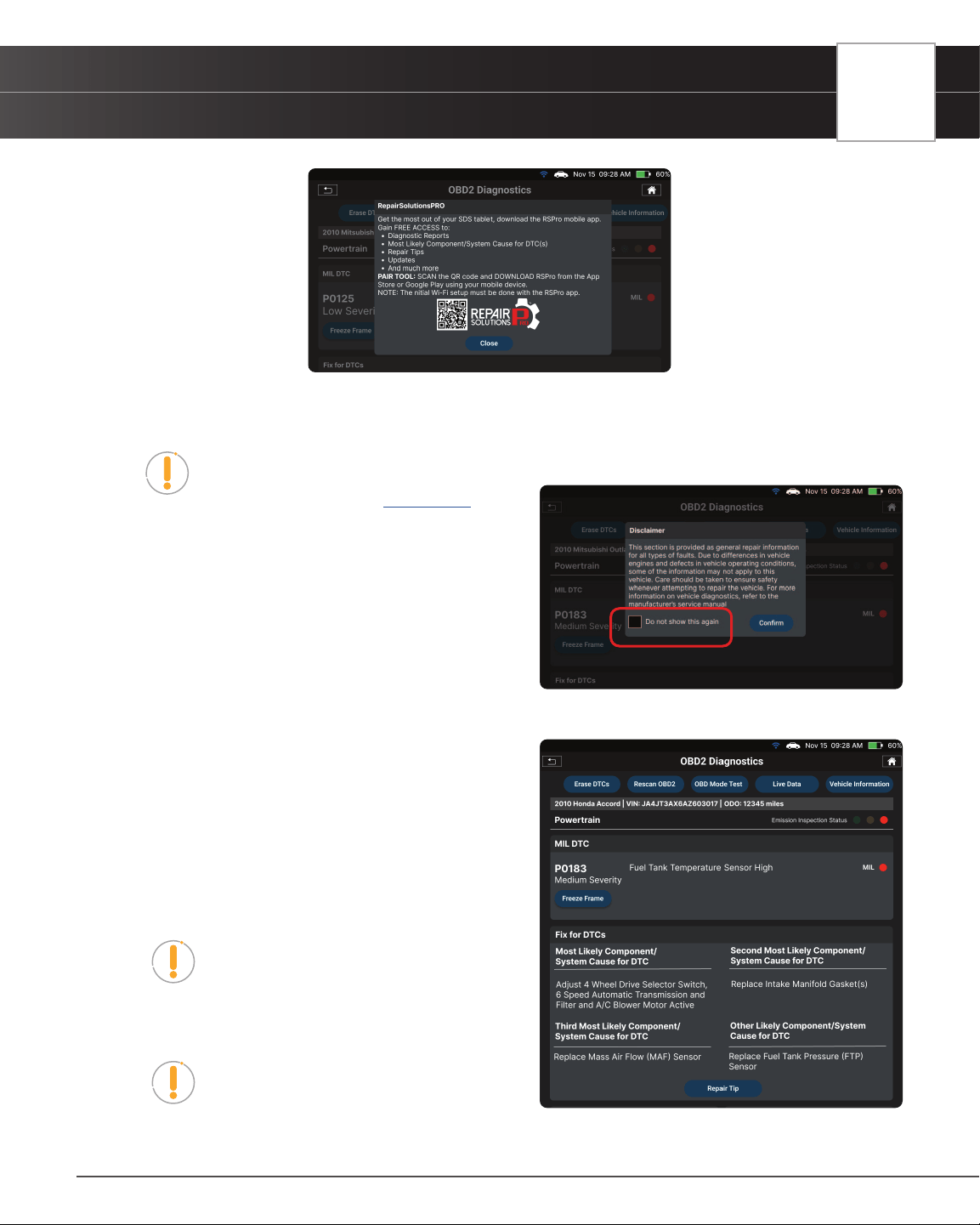

1. Tap the Tap For Details in the OBD2 Diagnostics screen.
NOTE: Verify the tablet is registered to the RepairSolutionsPRO App.
n If you haven’t registered for the RSPRO app yet, the screen displays the app’s QR Code for you
scan it with a mobile device and download it. Continue by pairing and registering your tablet
with the RSPRO app. [
See page 8]
OBD2 DIAGNOSTICS
Viewing Scan Results – OBD2 Diagnostics
2. With the tablet paired and registered with the RepairSolutionsPRO App.
n The tablet also veries if it’s connected to a Wi-Fi network.
NOTE: The tablet can be connected to a Wi-Fi network by using the
RepairSolutionsPRO app, or by using the
Settings tab on the tablet. [
See page 52]
3. A Disclaimer is provided every time a x is requested.
n To stop showing this screen, tap the “Do not
show this again” check-box and tap Conrm
to conrm your selection and get Fix for DTCs.
Alternatively, select Conrm without the
check-mark to not make any changes.
4. The tablet’s screen displays Fix for DTCs, and includes:
━ Most Likely Component/System Cause for
the DTC
━ Second Most Likely Component/System
Cause for the DTC
━ Third Most Likely Component/System
Cause for the DTC
━ Other Most Likely Component/System
Cause for the DTC, etc.
NOTE: If a Fix is not available for DTC, an
advisory message displays.
5. Tap Repair Tip to view the repair tip for the highlighted
item.
NOTE: If a Repair Tip is not available for the
DTC, an advisory message displays. Tap
Close to return to the previous screen.
15
16
OBD2 DIAGNOSTICS
Viewing Scan Results – OBD2 Diagnostics
6. The screen displays Repair Tip for DTCs and includes the initial inspection, the possible cause, the diagnostic
procedure(s), and a repair validation.
7. When you nished viewing the Repair Tip, tap
Back to return to the previous screen or tap Home to return
to the Home Screen.
OBD2 REPORT
The OBD2 Report feature allows you to create an OBD2 diagnostics report, which an be sent and viewed with the
RSPRO app. This function will be removed once you have successfully completed a report and will reappear after each
relink.
1. Tap the Tap For Details in the OBD2 Diagnostics screen.
NOTE: Verify that the tablet is connected to a Wi-Fi network and is registered to the
RepairSolutionsPRO App.
n If you haven’t registered for the RSPRO app yet, the screen displays the app’s QR Code for you
scan it with a mobile device and download it. Continue by pairing and registering your tablet
with the RSPRO app. [
See page 8]
2. With the tablet paired and registered with the RepairSolutionsPRO App.
n A report will begin to generate once the tablet veries it’s connected to a Wi-Fi network.
NOTE: The tablet can be connected to a Wi-Fi network by using the
RepairSolutionsPRO app, or by using the Settings tab on the tablet. [
See page 52]
3. A “One moment please…” message displays.
n If the report was successfully created, a conrmation message displays. Tap Close to return to
the OBD2 Diagnostics screen.
n If the report was not successfully created, a warning message displays. Tap Try Again to re-
perform or tap Close to return to the OBD2 Diagnostics screen.
OBD2 DIAGNOSTICS
Viewing Scan Results – OBD2 Diagnostics

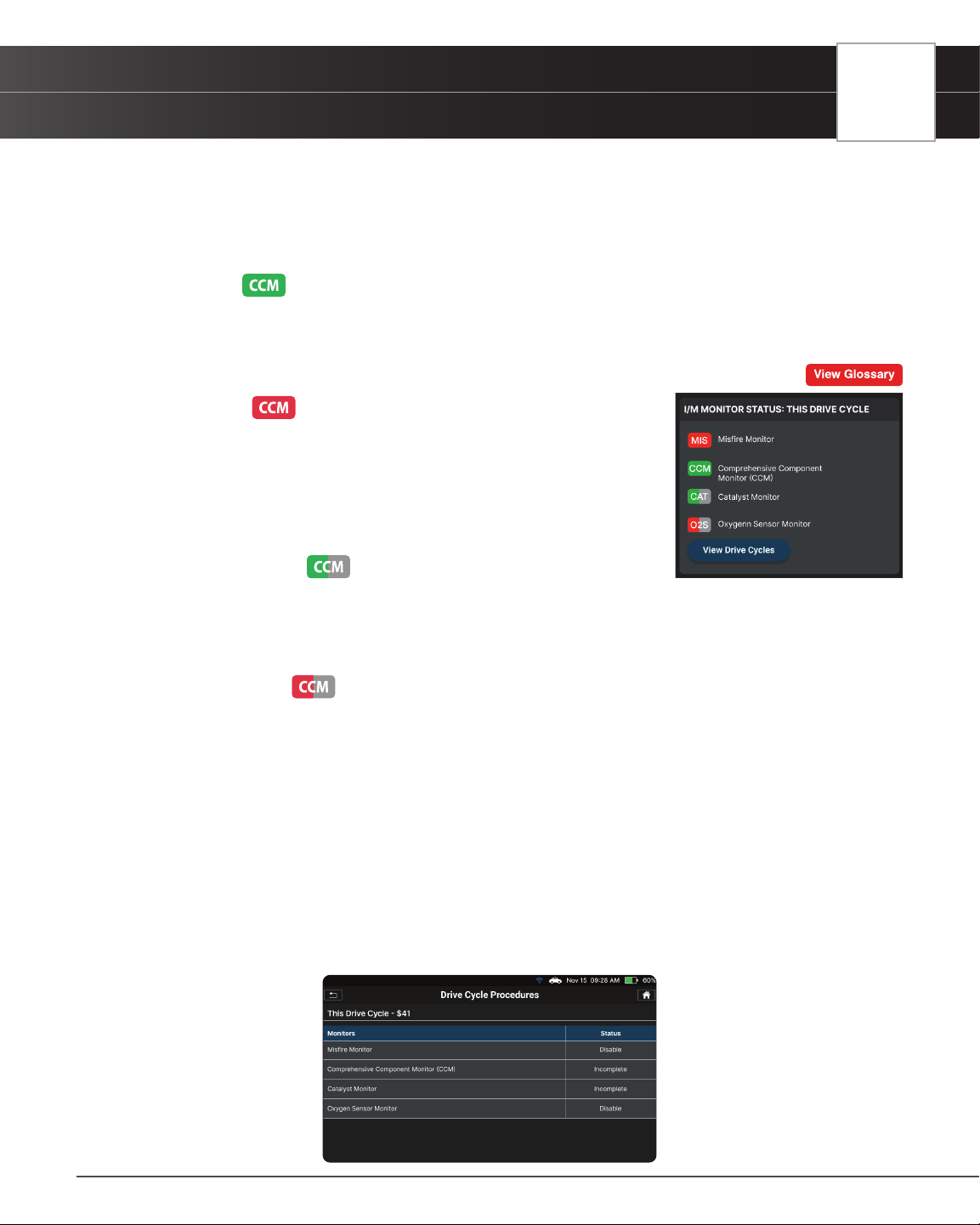

I/M MONITOR STATUS
Shows the current status for all Monitors supported by the vehicle. Available monitors are listed and identied as
follows (The CCM - Comprehensive Component Monitor is being used as an example.):
Green Solid Icon =
Description: This icon indicates the monitor has completed both Since DTCs Cleared and This Drive Cycle testing.
Tips: The monitor has met all conditions required to complete self-diagnosis and testing of the assigned system.
Red Flashing Icon =
Description: This icon indicates that the monitor has not completed testing
Since DTCs Cleared.
Tips: The monitor has not met all conditions required to complete self-diagnosis
and testing of the assigned system. A drive cycle may need to be performed
to complete the testing.
Green/Gray Flashing Icon =
Description: This icon indicates that the monitor has not completed testing This Drive Cycle.
Tips: The monitor has not met all conditions required to complete self-diagnosis and testing of the assigned system.
A drive cycle may need to be performed to complete the testing.
Red/Gray Flashing Icon =
Description: This icon indicates that the monitor has disabled This Drive Cycle.
Tips: The monitor is unable to complete self-diagnosis and testing of the assigned system. The monitor is disabled
for this driving cycle, check for failed OBD Monitor Test and refer to the service information before continuing.
DRIVE CYCLE PROCEDURES
A Drive Cycle for a monitor requires that the vehicle is driven in such a way that all the required “Enabling Criteria”
for the monitor to run and complete its diagnostic testing are met. You can use the tablet to view the Drive Cycle
Procedures for a selected Monitor.
1. From the I/M Monitor Status eld on the OBD2 Diagnostic page, tap the View Drive Cycles button.
n The Drive Cycle Procedures page displays.
17
18
OBD2 DIAGNOSTICS
Additional Testing Utilities
2. Tap a monitor name to view the Drive Cycle Procedures.
n The screen displays the Drive Cycle Procedures for the selected monitor.
3. Follow the provided steps to perform and complete the monitor’s “Enabling Criteria”.
CONFIRMED DTCs
Shows all “stored” powertrain Diagnostic Trouble Codes (DTCs) for the vehicle.
Each entry in the list includes the DTC number and description.
PENDING DTCs
Shows all “pending” powertrain Diagnostic Trouble Codes (DTCs) for the
vehicle. Each entry in the list includes the DTC number and description.
PERMANENT DTCs
Shows all “permanent” powertrain Diagnostic Trouble Codes (DTCs) for the
vehicle. Each entry in the list includes the DTC number and description.
ADDITIONAL TESTING UTILITIES
The following utilities are also included under the OBD2 DIAGNOSTICS scan results.
ERASING OBD2 DTCs
NOTE: When the Erase function is used to erase DTCs from the vehicle’s on-board
computer “Freeze Frame” data and manufacturer-specic-enhanced data are also
erased. “Permanent” DTCs ARE NOT erased by the Erase function.
NOTE: When DTCs are erased, the I/M Readiness Monitor Status program resets the
status of all Monitors to a not run condition. To set all Monitors to a COMPLETE status
an OBD2 Drive Cycle must be performed.
OBD2 DIAGNOSTICS
Additional Testing Utilities
Erase DTCs from the vehicle’s computer memory as follows:
1. Perform the AutoLink Connection steps. [See page 10]
n If the tablet is already connected and linked to the vehicle’s computer, proceed directly to Step
2.
n Ensure that the ignition is in the Key ON, Engine OFF position.
2. Tap the Erase DTCs button at the top of the OBD2 Diagnostic results page.
n Ensure that the vehicle is stopped and place the transmission in Park or Neutral.
n If you want to proceed, tap Erase DTCs to continue.
n If you do not want to proceed, choose Cancel to exit the erase procedure.
3. By selecting to Erase DTCs, a “One moment please…” progress dialog displays during the erase process.
n If the erase was successful, a conrmation message shows. After 3 seconds, the tablet
automatically re-scans the vehicle to conrm DTC deletion.
4. If the erase was not successful, an advisory dialog displays indicating the erase request was sent to the vehicle’s
computer. After 3 seconds, the tablet automatically re-links to the vehicle’s computer.
NOTE: If the erase was not successful and a ECU error code $22 is present, an
advisory message displays. Start the engine and maintain vehicle speed at 0. Tap
Erase DTCs to try again.
OBD MODE TEST
The OBD Mode Test are accessed from the OBD2 Diagnostic results page. [See page 12]
1. Tap the OBD Mode Test button.
2. The OBD Mode Test screen is displayed with the following selections:
n I/M Readiness Status - $01, $41 – Lets you view
the Drive Cycle Procedures for incomplete monitors
supported by the vehicle.
n O2 Sensor Monitor - $05 – Retrieves and displays
O2 sensor monitor test results from your vehicle’s
on-board computer.
n OBD Monitor Test - $06 – Retrieves test results
for emission-related powertrain components and
systems that are not continuously monitored.
n Request Control On-Board System - $08 – Enable the external test equipment to control the
operation of an on-board system, test, or component.
I/M Readiness Status - $01, $41
A Drive Cycle for a monitor requires that the vehicle is driven in such a way that all the required “Enabling Criteria”
for the monitor to run and complete its diagnostic testing are met. You can use the tablet to view the Drive Cycle
19
20
OBD2 DIAGNOSTICS
Additional Testing Utilities
Procedures for a selected Monitor.

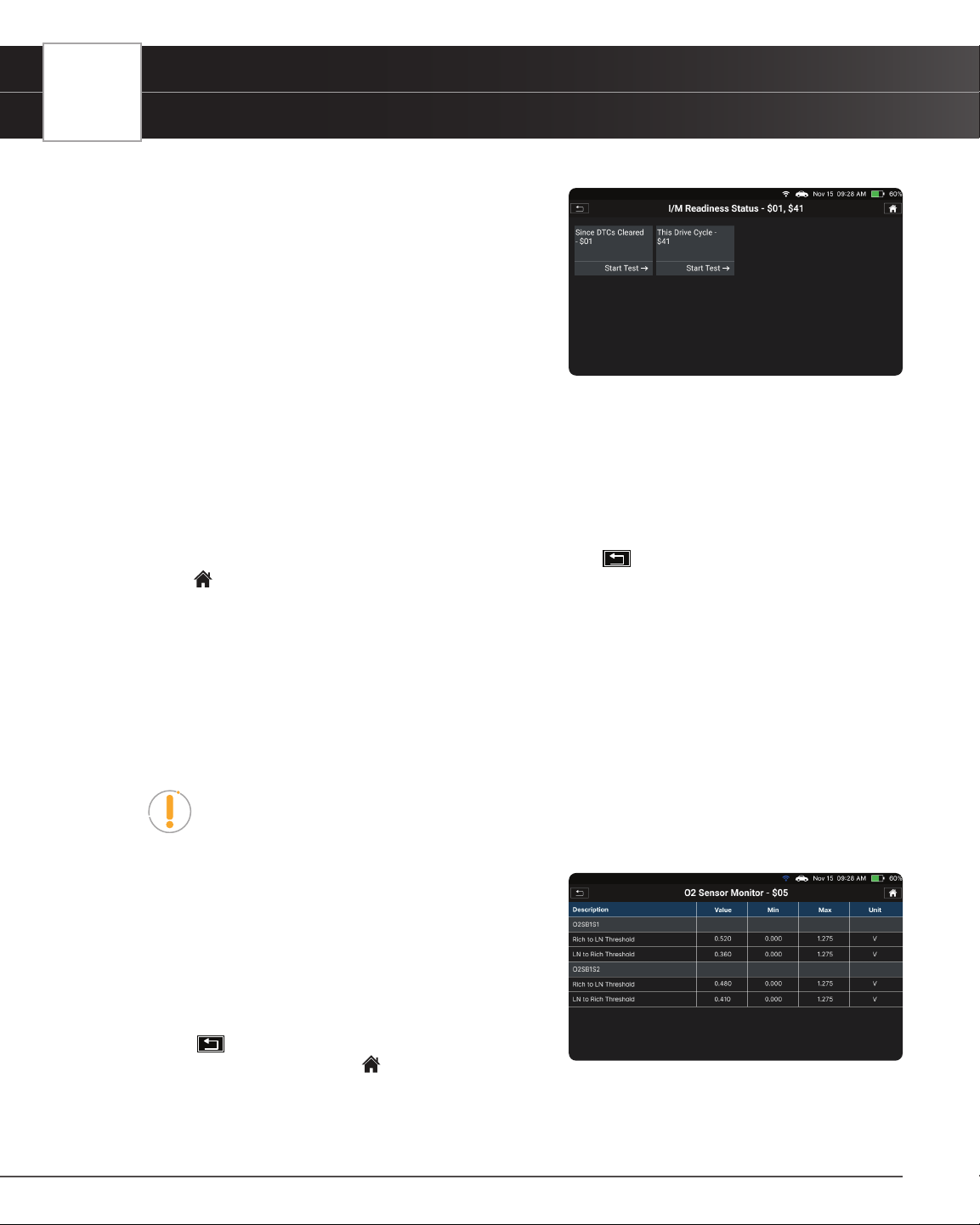

1. From the OBD Mode Test screen, tap I/M Readiness
Status - $01, $41. The I/M Readiness Status page
displays.
n Since DTCs Cleared - $01 – indicates status of the
monitors since the DTCs are erased.
n This Drive Cycle - $41 - indicates status of monitors
since the beginning of the current drive cycle.
2. Select Since DTCs Cleared - $01 or This Drive Cycle
- $41 as appropriate.
n If the vehicle under test does not support Since DTCs Cleared - $01 or This Drive Cycle - $41,
a warning message displays “This vehicle does not support this monitor type.”
3. The Select Monitor screen displays listing all monitors supported by the vehicle.
4. Tap a incomplete monitor name to view its Drive Cycle Procedures.
n The Drive Cycle Procedures screen for the Monitor display.
5. When you nished viewing the Drive Cycle Procedures, tap the
Back icon to view other monitors or tap
the
Home icon to return to the Home Screen.
O2 Sensor Monitor - $05
The O2 Sensor Monitor - $05 lets you view the test results of the vehicle’s two or more O2 sensors. These sensors
are designed to help identify problems that can reduce fuel efciency or increase emissions. Each O2 sensor has
a unique name that identies its location in the exhaust system – cylinder bank location (bank 1 or bank 2) and
its location in relation to the catalytic converter (upstream or downstream). Please reference the vehicle’s service
manual for further information.
NOTE: Service Mode $05 is not supported in ISO 15765-4 (CAN) applications – it
includes the majority of 2008 and older vehicles. For CAN applications, the
functionality of Service Mode $05 was implemented in Service Mode $06.
1. From the OBD Mode Test screen, tap O2 Sensor
Monitor - $05.
n The O2 Sensor Monitor - $05 page displays.
n If the vehicle under test does not support O2
Sensor Monitor, a warning message displays “O2
Sensor Monitor is not supported.”
2. When you nished viewing the O2 Sensor values. Tap
the
Back icon to return to the OBD Mode Test
selection screen or tap the
Home icon to return to
the Home Screen.
OBD2 DIAGNOSTICS
Additional Testing Utilities
OBD Monitor Test - $06
The OBD Monitor Test - $06 retrieves and displays test results for emission-related powertrain components and
systems that are not continuously monitored. The tests available are determined by the vehicle manufacturer.
n If the vehicle under test does not support OBD Monitor Test, a warning message displays
“OBD Monitor Test is not supported.”
NOTE: The tablet does not perform the OBD mode test. Instead, it retrieves results
from the most recently performed tests from the on-board computer’s memory.
1. From the OBD Mode Test screen, tap OBD Monitor Test - $06.
2. When test results have been retrieved, the test results screen displays. The following information is provided
for each available test:
n Description
n Module No.
n Test Value
n Min or Max test limit
NOTE: Only one test limit, either Min or Max, is
shown for any given test.
n Unit
n Status
NOTE: Status is calculated by the tablet by comparing the test Value against the
displayed test limit (either Min or Max). Status is shown as either Low, High, or OK.
3. Tap the
Back icon to return to the OBD Mode Test screen or tap the Home icon to back to the Home
Screen.
Request Control On-Board System - $08
The Request Control On-Board System - $08 allows you perform EVAP Test or Particulate Filter Regeneration and
Inducement System Reinitialization.
n EVAP Test - lets you initiate a fuel vapor leak test for the vehicle’s EVAP system.
n Particulate Filter (PF) Regeneration – this service requests the vehicle to initiate a PF
regeneration. The vehicle manufacturer is responsible to determine the criteria to enable, start
and stop the test, such as engine running, vehicle speed, or engine RPM.
n Inducement System Reinitialization - This service requests the vehicle to initiate a reinitialize
the inducement system. The vehicle manufacturer is responsible to determine the criteria to
enable, start and stop the test, such as engine running, vehicle speed, or engine rpm.
21
22
OBD2 DIAGNOSTICS
Additional Testing Utilities
NOTE: The tablet does not perform the leak test, but sends the command to the
vehicle’s on-board computer to initiate the test. The vehicle manufacturer determines
the criteria and method for stopping the test once it has been started. BEFORE
using the Request Control On-Board System function, refer to the vehicle’s service
manual to determine the procedures necessary to stop the test.
1. From the OBD Mode Test selection screen, tap Request Control On-Board System - $08.
n If the vehicle under test does not support Request Control On-Board System - $08, a warning
message displays “Request Control On-Board System is not supported.”
NOTE: The EVAP Test is used for Spark Ignition, and the Particulate Filter
Regeneration and Inducement System Reinitialization is used for Compression
Ignition.
2. Tap the test you wish to perform (EVAP Test or Particulate Filter Regeneration, Inducement System
Reinitialization).
n A “One moment please…” message displays while the tablet performs the test.
3. When the test has been initiated by the vehicle’s on-
board computer, a conrmation message displays. Tap
Exit to close the message and return to the OBD Mode
Test screen.
NOTE: If the Request Control On-Board System -
$08 is not supported by the vehicle, an advisory
screen shows the message “Request Control On-
Board System is not supported.”
LIVE DATA MODE
The tablet allows you view and/or record “real-time” Live Data for further vehicle analysis. This information includes
values (volts, rpm, temperature, speed, etc.) and system status information (open loop, closed loop, fuel system status,
etc.) generated by the various vehicle sensors, switches, and actuators.
The real time (Live Data) vehicle operating information (values/status) that the computer supplies to the tablet for each
sensor, actuator, switch, etc. is called Parameter Identication Data (PID).
Each PID (sensor, actuator switch, status, etc.) has a set of operating characteristics and features (parameters) that
serve to identify it. The tablet displays this information for each sensor, actuator, switch, or status that is supported by
the vehicle under test.
DANGER: If the vehicle must be driven to perform a troubleshooting procedure,
ALWAYS have a second person help you. One person should drive the vehicle while
the other person observes the tablet data. Trying to drive and operate the tablet at
the same time is dangerous and could cause a serious injury to you and by standers.
OBD2 DIAGNOSTICS
Additional Testing Utilities
Viewing Live Data
1. Connect with the vehicle by following the steps for OBD2 DIAGNOSTICS - Performing A Scan. [See page
12
]
2. While linked to the vehicle, start the engine.
3. Tap the Live Data button to place the tablet in Live Data mode.
n A progress dialog displays while the vehicle is scanned, and Live Data mode is activated.
n Tap Cancel to exit the procedure.
4. The results screen displays all the vehicle’s available PIDs with reported values. Tap the PIDs you wish to
view the PID description for, then the PID Description screen will display.
NOTE: The Playback button remains “disabled” until a live data stream is recorded
and saved.
Custom Live Data
1. From Live Data results screen, tap Custom.
2. Select the PID(s) you wish to investigate further.
n A “check mark” indicates the associated PID is
selected for viewing.
n An “empty check-box” indicates the PID is not
selected for viewing.
n Tapping a check-box repeatedly will toggle it on and
off.
n Tap the check-box again to unselect PIDs.
n Tap the Select All check-box to select all PIDs. Tap it again to unselect all PIDs.
3. Tap Done to view the selected PIDs data in tabular format.
n Each entry in the table shows the name of the PID, and a numerical representation of the
current value for the PID.
23
24
OBD2 DIAGNOSTICS
Additional Testing Utilities
n Tap View All to return to the full PID results list.
Graph Live Data Mode
1. Tap the Graph button to view the selected PIDs in
graph mode.
NOTE: The Graph function button will stay inactive
if the selected PID does not report a numerical
value. An example is the Fuel System Status PID,
which reports either Open Loop (OL) or Closed
Loop (CL).
2. Tap the Multi Graph button to view 2 Graphs in one screen.
3. Tap the Merge Graph button to view more PIDs on a single graph.
NOTE: A maximum of four PIDs can be merged with the Merge Graph mode.
OBD2 DIAGNOSTICS
Additional Testing Utilities
4. Tap Back to return to the OBD2 Diagnostics results page, or tap Home to exit to the Home Screen.
Recording (Capturing) Live Data
The tablet allows you to record and save OBD2 Live Data information for each PID supported by the vehicle. Place
the tablet in Live Data mode as indicated in Live Data Mode [
See page 22].
1. Tap Record to begin recording Live Data. Tap Stop Record to stop the recording.
2. A “Recording Complete” dialog displays the message “Would you like to save the recorded live data?”
n Tap Yes, Save Live Data to save the recorded data to the tablet’s memory for later playback.
n Tap No, Erase Live Data to discard the recorded data.
Playback Live Data
Once Live Data has been recorded, it is automatically saved in the Tablet’s memory. To view Playback Live Data:
1. From the Live Data mode, tap the Playback button.
n A “One moment please...” message displays while
the tablet perform the function.
2. The Playback Live Data screen displays.
n Tap the Rewind / Forward icon, as desired,
to view each single Previous Frame / Next Frame.
n Tap the Play icon to automatically playback each
recorded Frame by Frame.
n Tap Play again to stop the automatic Frame by Frame playback.
25
26
OBD2 DIAGNOSTICS
Additional Testing Utilities
n Custom button: Refer to the Custom Live Data section [See page 23].
n Graph and Merge Graph buttons: Refer to the Graph Live Data Mode section [See page 24].
3. Press the Back button to exit the Playback Live Data mode.
VEHICLE INFORMATION
The OBD2 DIAGNOSTICS test results page includes additional information, which can be accessed by tapping the
Vehicle Information button on the results page. This page allows you to view Additional Vehicle Information, Vehicle
ID, and In-Use Performance Tracking (IPT).
1. Tap on the Vehicle Information button to display the details.
2. A dialog screen shows. Scroll to view each section.
Additional Vehicle Information
Offers basic information such as VIN and Year, Make, Model and more information.
n VIN: The complete Vehicle Identication Number.
n YMME: The vehicle’s year, make, model, engine and option.
Vehicle ID
Offers basic information such as VIN and Year, Make, Model and more information.
n VIN: The complete Vehicle Identication Number.
n YMME: The vehicle’s year, make, model and engine.
n Module #: The control module identication number(s).
n Calibration Verication Numbers: The vehicle’s calibration ID(s). These IDs uniquely identify
the software version(s) for the vehicle’s control module(s).
OEM DIAGNOSTICS
Additional Testing Utilities
n Calibration Identication: The Vehicle’s Calibration Verication Number(s) (CVNs) required
by OBD2 regulations. CVNs are used to determine if emission-related calibrations for the
vehicle under test have be changed.
In-Use Performance Tracking (IPT)
The tablet can retrieve In-use Performance Tracking (IPT) statistics for monitors supported by the vehicle under
test. Two values are returned for each monitor; the number of times that all conditions necessary for a specic
monitor to detect a malfunction have been encountered (XXXCOND), and the number of times that the vehicle has
been operated under the specic conditions for the monitor (XXXCOMP). Statistics are also provided for the number
of times the vehicle has been operated in OBD monitoring conditions (OBDCOND), and the number of times the
vehicle’s engine has been started (IGNCNTR).
27
28
OEM DIAGNOSTICS
Scan All Systems
OEM DIAGNOSTICS
The OEM Diagnostics function allows you to perform enhanced, OEM level diagnostics not
available over generic OBD2. Access ABS, Airbag, Transmission, Tire Pressure, Battery,
and many body control modules to view and erase their DTCs. Perform bi-directional tests
on fuel pumps, injectors, ignition coils, and much more. Plus, get access to hundreds of
additional parameters that you can view in real-time.
1. Follow the AutoLink Connection steps to connect with the vehicle [
See page 10].
2. From the Home Screen, tap the OEM Diagnostics tab.
3. A selection dialog is provided.
4. Select the type of test you wish to perform.
n Tap Scan All Systems to perform a comprehensive vehicle scan of all available network
modules [
See page 28].
n Tap the “individual” listed control module name (for example: ABS - Anti-Lock Braking) to
perform a diagnostic check on that single module. [
See page 30]
n Tap Vehicle Inspection to perform a complete vehicle health status report, including: OBD2
check, all network system scan, service checks, warning lights, tire pressures, and more [
See
page 34
].
SCAN ALL SYSTEMS
1. From the OEM Diagnostics results screen, tap the Scan All Systems button.
2. A progress bar appears, “Scanning All Systems...”, while the tablet scans all the vehicle’s equipped modules.
Please note that it will take a few minutes while it scans all the vehicle’s systems.
n Tap Cancel to stop the scan and return to the previous screen.
n Tap Stop to stop scanning, the tablet will show results that systems were scanned.
n If the vehicle under test is a BMW, the message “Turn ignition Off, then back On” displays. Tap
Continue to complete the scan.
n If the Scan Tool fails to link to the vehicle’s computer, a “Communication Error” message shows.
━ Ensure the vehicle is OBD2 compliant.
OEM DIAGNOSTICS
Scan All Systems
━ Verify the connection at the DLC, and verify the ignition is ON.
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.
━ Tap Try Again to try again; or tap Cancel to return to the OEM Diagnostics menu.
3. The Scan All Systems screen displays the diagnostic test results.
VIEWING THE “SCAN ALL SYSTEMS” TEST RESULTS
Each report begins with a vehicle information bar that includes the vehicle’s description (year/make/model), the
Vehicle Identication Number (VIN) and the odometer reading (ODO) at the time the scan was performed.
The results window lists all tested Control Modules with its corresponding result:
n # Fault – Indicates the number of reported DTCs.
n No Fault – Indicates that no DTCs were found.
n Available – Indicates that the module is part of the
system but does not report DTCs.
The results screen also allows to either:
n Erase All DTCs – Erases all the vehicle’s retrieved
Diagnostic Trouble Codes (DTC).
n Rescan All Systems - Performs to scan all systems again.
ERASE ALL OEM DTCs
Erase all the stored OEM DTCs from the vehicle’s computer memory as follows:
From the Scan All Systems test results screen:
1. If the tablet is already connected and linked to the vehicle’s computer, proceed directly to Step 2.
n Ensure that the ignition in the Key ON, Engine OFF position.
2. Tap the Erase All DTCs button at the top of the Scan All
Systems results page.
n With the vehicle stopped, place the transmission in
Park or in Neutral.
n To proceed, tap Erase DTCs.
n Or, choose Cancel to exit the erase procedure.
3. By selecting to Erase DTCs, a “One moment please…”
progress dialog displays during the erase process.
n If the erase was successful, a conrmation dialog displays.
n After 3 seconds, the tablet automatically re-scans the vehicle to conrm DTC deletion.
29
30
OEM DIAGNOSTICS
Viewing & Scanning An Individual Control Module
4. If the erase was not successful, an advisory dialog displays. Follow the instructions again and perform an
Erase DTCs.
5. Once all DTCs are erased, tap Scan Again to conrm that all DTCs were erased. Or after 3 seconds, the tablet
automatically re-scans the vehicle to conrm DTC deletion..
RESCAN ALL SYSTEMS
Use this function to get the most current diagnostic status for the vehicle under test – particularly as you continue to
troubleshoot each individual control module.
1. From the “Scan All Systems” result page, tap the Rescan All Systems button at the top right of the page.
2. Tool generates a new report and updates the “Scan All Systems” results page. [
See page 28].
VIEWING & SCANNING AN INDIVIDUAL CONTROL MODULE
Perform diagnostics for a single, selected vehicle module. Depending on the module selected, you can Read DTCs,
Erase DTCs, view Live Data, perform Active Test and/or Special Function procedures, and read ECU Information.
READING DTCs FOR A SELECTED MODULE
1. From the OEM Diagnostics page, tap the name of the module you wish to explore further.
n With the vehicle stopped, place the transmission in Park or in Neutral.
n The tablet retrieves and displays DTCs stored in the vehicle’s computer for the currently
selected module.
n Each entry shows the DTC number, status, and denition.
NOTE: If no DTCs for the selected module are currently stored in the vehicle’s
computer, the message “No DTCs are presently stored in the vehicle’s computer”
displays. Or if the selected module does not support reading DTCs, the message
“<Module> is not supported.” displays.
2. Tap the arrow icon at the top right of the screen to view more available functions.
OEM DIAGNOSTICS
Viewing & Scanning An Individual Control Module
ERASING DTCs FOR A SELECTED MODULE
1. Tap the module for which you wish to Erase DTCs.
2. Tap Erase DTCs. A conrmation message shows.
n With the vehicle stopped, place the transmission in Park or in Neutral.
n If you are sure you want to proceed, tap Erase DTCs.
n If you do not want to proceed, tap Cancel to stop the erase procedure.
3. If you chose to Erase DTCs, a “One moment please…” message displays while the erase function is in progress.
n If the erase was successful, a conrmation message shows. Tap Scan Again to re-scan the
currently selected module.
n If the erase was not successful, an advisory message displays. Make sure the tablet is properly
connected to the vehicle’s DLC, then tap Try Again to repeat the erase procedure.
━ Tap Cancel to cancel the erase procedure and close the message.
VIEWING LIVE DATA FOR A SELECTED MODULE
1. While linked to the vehicle, start the engine.
2. Tap the module you wish to view its Live Data.
3. Tap the Live Data button to place the tablet in Live Data mode.
4. The results screen displays all of the vehicle’s available
PIDs with reported values. Each PID is unselected to
offer customization on which component you wish to
select and explore further. A total PID count is provided
at the top left of the screen.
5. Select the PIDs you wish to explore further and continue
as desired.
6. Refer to OBD2 Live Data on how to use the Live Data
mode [
See page 22].
PERFORMING ACTIVE TEST FOR ECM/PCM, TCM SYSTEMS
Active Tests enables you perform active tests for ECM/PCM, TCM systems on various vehicles. It offers the most
31
32
OEM DIAGNOSTICS
Viewing & Scanning An Individual Control Module
popular function tests available for 7 vehicle makes - Chrysler, GM, Ford, Hyundai, Nissan, Toyota and Honda.
1. Tap the module you wish to perform its Active Test.
2. Tap the Active Test button you perform active tests for ECM/TCM systems on various vehicles. The specic
tests available are dependent on the vehicle’s make and model.
n The tablet retrieves and displays a menu of Active Tests available for the vehicle under test.
NOTE: If Active Tests are not supported for the vehicle under test, the message
“Active Test is not supported” displays. Tap Exit to return to the previous page.
n Select the desired test.
n The tablet may display one or more instructional screens to prepare the vehicle for testing.
3. Prepare the vehicle for testing, as necessary, then tap Continue.
n The tablet displays a “control” screen to perform the test.
4. Tap the appropriate control to operate the actuator as desired.
OEM DIAGNOSTICS
Viewing & Scanning An Individual Control Module
n The screen refreshes to show its test results.
5. Repeat step 3 as desired.
6. Tap Back to return to the Active Test menu.
PERFORMING SPECIAL FUNCTION FOR ECM/PCM, TCM SYSTEMS
Special Functions allows you perform diagnostic and calibration procedures for ECM/PCM, TCM systems on various
vehicles. It offers the most popular function tests available for 7 vehicle makes - Chrysler, GM, Ford, Hyundai, Nissan,
Toyota and Honda.
1. Tap the module you wish to perform its Special Functions.
2. Tap the Special Function button.
n The tablet retrieves and displays one or more menus of Special Functions available for the
vehicle under test.
NOTE: If Special Functions are not supported for the vehicle under test, the message
“Special Function is not supported” displays. Tap Exit to return to the previous page.
3. Make the necessary selections to perform the desired test.
n A series of instructional screens display.
4. Follow the on-screen prompts to prepare and perform the
selected test procedure.
33
34
OEM DIAGNOSTICS
Vehicle Inspection
n Upon completion, a “results” screen displays.
5. Tap Finish or Exit to return to the previous menu.
RETRIEVING ECU INFORMATION FOR A SELECTED MODULE
This function retrieves and displays the specic information for the tested control unit, including Protocol, ECU ID,
version number and other specications. The sample ECU Information screen displays as below:
VEHICLE INSPECTION
Performing a full vehicle scan ensures peace of mind for you and your customers. Many systems do not turn on a
warning light or sets a message on the vehicle’s Diagnostic Information Center, so following this process can help
uncover hidden issues.
A good practice is to perform a pre-scan before any work is done to uncover all issues; then a post-scan once
repairs are complete to conrm the repairs were completed properly. Furthermore, several manufacturers mandate
a pre- and post-scan for all warranty work; and insurance carriers require it for pre- and post-collision work.
The Vehicle Inspection report, also considered a full Network Scan, provides a comprehensive overview of the vehicle’s
current health status. It reports the vehicle’s emissions readiness status, system status, service status, dashboard
warning light status, and current odometer reading.
1. From the OEM Diagnostics screen, tap the Vehicle Inspection button.
n With the vehicle stopped, place the transmission in Park or in Neutral.
n If the vehicle under test is a BMW, the message “Turn ignition Off, then back On” displays. Tap
OEM DIAGNOSTICS
Vehicle Inspection
Continue to complete the scan.

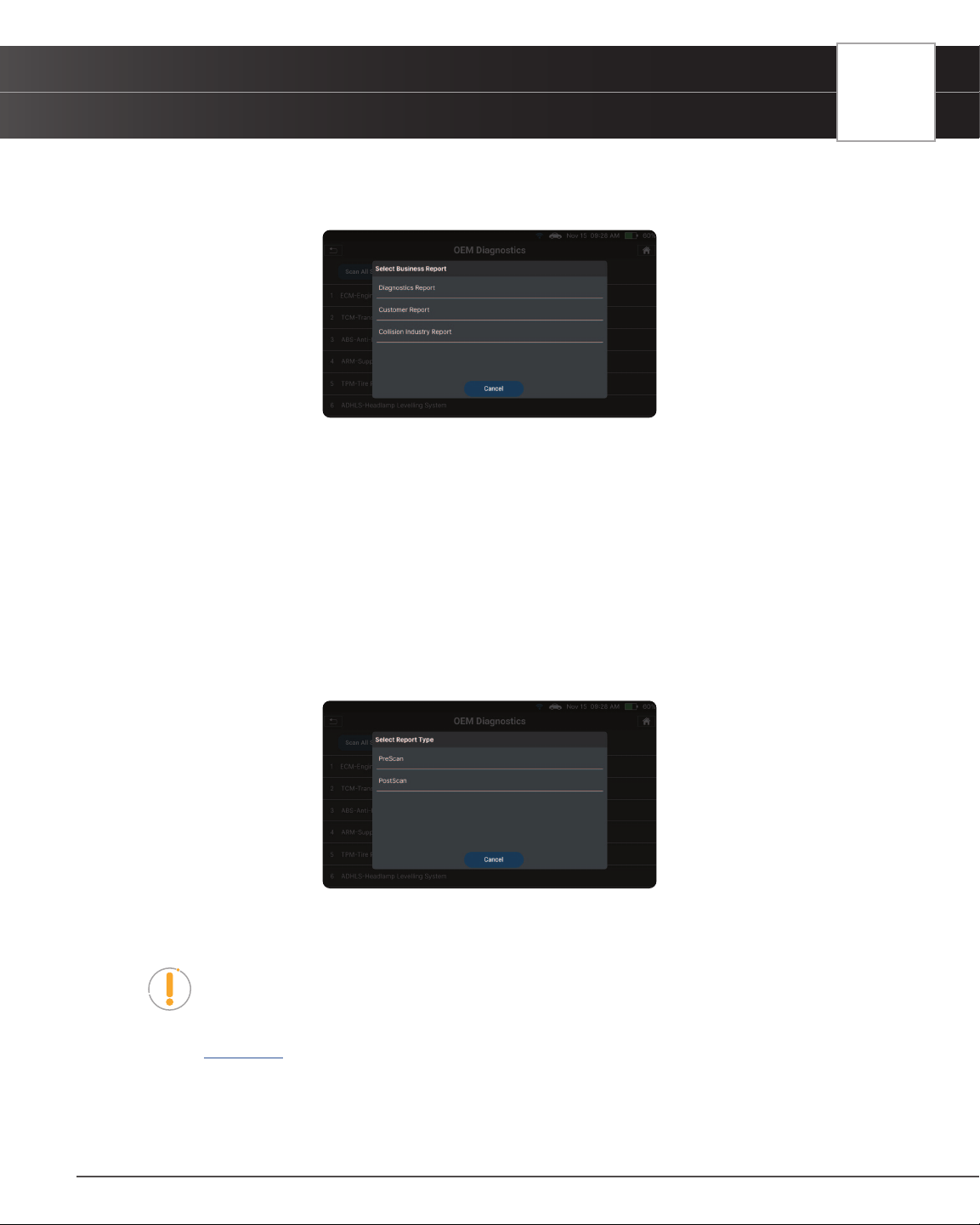

n The Select Business Report screen displays.
2. Tap the Business Report type you wish to complete.
n Diagnostic Report – Provides a report with OBD2 Data, additional MIL DTC Information, Scan
All Systems Data, and Vehicle Care.
n Customer Report – Provides a report with OBD2 Data, Scan All Systems Data, Service Check,
Service Warning Lights, and Vehicle Care.
n Collision Industry Report – Provides a report with OBD2 Data, Scan All Systems Data, and
Service Warning Lights & Service Check.
3. Tap the report type you wish to perform.
n PreScan - A vehicle diagnostic report before making any repairs.
n PostScan - A vehicle diagnostic report after completing the repairs.
4. A progress bar appears, “Retrieving Vehicle Information…”, while the tablet scans all of the vehicle’s equipped
modules.
NOTE: Before creating a report, it is necessary to successfully register the
RepairSolutionsPRO app. If you haven’t registered for the RSPRO app yet, the
screen displays the app’s QR Code for you scan it with a mobile device and
download it. Continue by pairing and registering your tablet with the RSPRO app.
[
See page 8]
5. With the tablet paired and registered with the RepairSolutionsPRO App.
n A report will begin to generate once the tablet veries it’s connected to a Wi-Fi network.
35
36
OEM DIAGNOSTICS
Vehicle Inspection
NOTE: The tablet can be connected to a Wi-Fi network by using the
RepairSolutionsPRO app, or by using the Settings tab on the tablet. [
See page 52]
n It can take several minutes depending on the number of available systems available on the
vehicle being tested. Tap Cancel to abort the scan.
6. Tap Rescan to get the most current diagnostic status for vehicle under test – particularly as you continue to
troubleshoot each individual control module.
n An “instructional” dialog displays to conrm the selection.
n Select Yes to rescan the vehicle. Or, No to cancel.
7. When nished viewing all desired information, tap
Back to return to the OEM Diagnostics menu.
WORKSHOP TOOLS
Oil Maintenance Reset
WORKSHOP TOOLS
The WORKSHOP TOOLS tab allows you to perform several OEM services reset procedures.
Depending on the vehicle being tested, it can offer up to 16 options:
Oil Maintenance Reset
Battery Reset
Electronic Parking Brake (EPB) Reset
Steering Angle Sensor Calibration
TPMS Relearn
ABS Bleeding
Battery/Alternator Test, EV/HEV/PHEV
Battery Health
DPF Reset
Throttle Body Relearn/ TEC Learn
Maintenance Reset
Transmission Reset
Transmission Fluid Change Reset
Transmission Fluid Level Check
Suspension Calibration
Headlamp Calibration
Tire Size Reset
OIL MAINTENANCE RESET
1. Tap Oil Maintenance Reset on the Workshop Tools screen.
n An “instructional” dialog displays to conrm the
selection.
n Tap Yes to continue. Or, No to cancel.
n A “One moment please…” message displays while
the procedure is in process.
2. When the reset process has been completed, a conrmation
message displays. Tap Exit to return to the Workshop Tools
screen.
n If the oil reset was not successful, an advisory message displays.
37
38
WORKSHOP TOOLS
Battery Reset
NOTE: If the Tablet cannot reset the Oil Maintenance Light, an “instructional” dialog
displays, showing the manual procedures for resetting the indicator light. When
nished viewing the instructions, tap Back to return to the Workshop Tools screen.

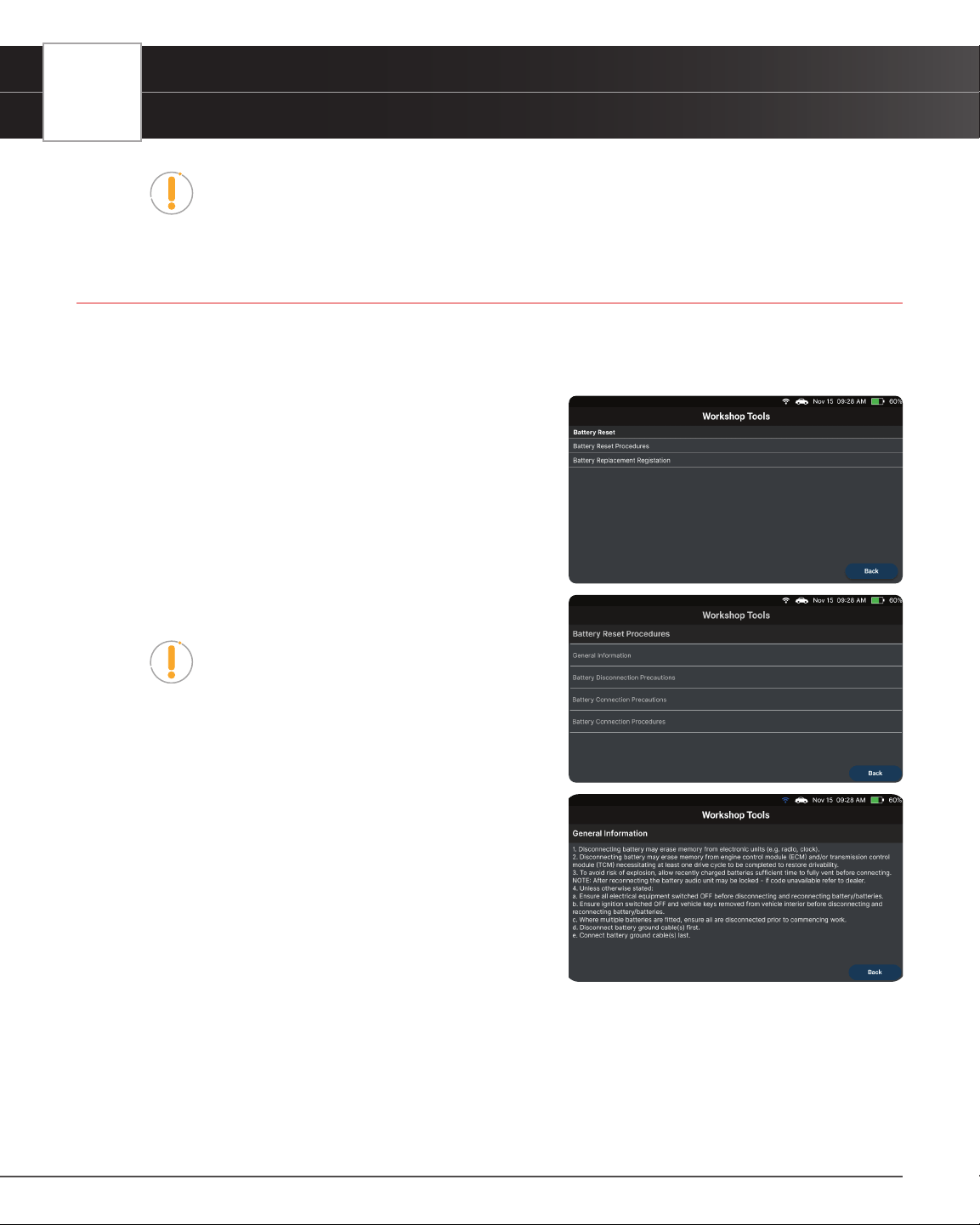

BATTERY RESET
You can use the tablet to view the procedures for resetting the battery monitor system following battery replacement or
perform battery reset OBD service (for Audi, BMW, Ford, Volkswagen, and Volvo models only).
TO VIEW BATTERY RESET PROCEDURES:
1. Tap Battery Reset on the Workshop Tools screen.
n The Battery Reset menu displays.
2. Tap Battery Reset Procedures.
n The Battery Reset Procedures menu displays. The
menu provides access to General Information, and
procedures to be followed Battery Disconnection
Precautions, Battery Connection Precautions,
Battery Connection Procedures.
NOTE: If battery reset procedures are not
available, an advisory message shows. Tap Back
to return to the Workshop Tools screen.
3. Tap the procedure you wish to view.
n The selected procedure displays.
4. When you have nished viewing the retrieved information,
tap Back to return to the Battery Reset Procedures menu.
Repeat step #3 to view additional procedures.
n When you have nished viewing all desired
procedures, tap Back to return to the Workshop
Tools screen.
TO PERFORM BATTERY RESET OBD SERVICE (BMW / Ford / Volvo):
1. Tap Battery Reset on the Workshop Tools screen.
n The Battery Reset menu displays.
2. Tap Battery Reset OBD Service – available selection depends on the vehicle being serviced.
n An “instructional” message displays.
WORKSHOP TOOLS
Electronic Parking Brake (EPB) Reset
3. Follow the instructions provided to prepare the vehicle for battery reset OBD service. When all necessary
procedures have been performed, tap Next to continue.
n A “Live Data” screen displays, if applicable.
4. Tap Next to continue.
n A “One moment please…” message displays
while the battery reset is in process.
5. If the battery reset process is successful, a “Reset
Complete” message displays.
n Tap Exit to return to the Workshop Tools.
n If the battery reset process is not successful, a “Reset Fail” message displays. Tap Back to
return to the Workshop Tools screen.
TO PERFORM BATTERY RESET OBD SERVICE (Audi / Volkswagen):
1. Tap Battery Reset on the Workshop Tools screen.
n The Battery Reset menu displays.
2. Tap Battery Reset OBD Service.
n An “informational” screen display.
3. Tap Next to continue.
n A series of “instructional” screens display, directing you to enter reference information for the
battery (part number, manufacturer, serial number).
4. Tap Next as necessary to scroll the screen and enter the necessary information.
n A “conrmation” screen display.
n The screen shows the previously entered Battery part number, Battery manufacturer and
Battery serial number.
5. Select the desired option:
n To proceed with coding, tap Carry out coding. Proceed to step 6.
n To re-enter battery reference information, tap Repeat input. Repeat steps 3 and 4.
n To cancel the battery reset process, tap Cancel.
6. If battery coding was successful, a “conrmation” screen display. Tap Back to return to the Workshop Tools.
n If battery coding was not successful, an “advisory” screen displays. Tap Exit to return to the
Workshop Tools screen.
ELECTRONIC PARKING BRAKE (EPB) RESET
The Electronic Parking Brake (EPB) reset procedures vary between vehicle makes and models.
NOTE: If an error occurs while performing calibration procedures, an “advisory”
message displays. Tap Back to return to the Workshop Tools screen.
39
40
WORKSHOP TOOLS
Steering Angle Sensor (SAS) Calibration
1. Tap EPB Reset in the Workshop Tools screen.
n A “One moment please…” message displays.
n For some vehicles, one or more sub-menus display. Choose the desired module and/or option,
as appropriate. Proceed to step 2.
NOTE: If EPB reset is not supported by the vehicle under test, an “advisory”
message displays. Tap OK to return to the Workshop Tools screen.
2. One or more “informational/instructional” screens display.
n Perform test procedures as directed. Tap Next, as appropriate, to scroll to the next screen.
3. For some vehicles, “status” screens display as each phase of the calibration procedure is successfully completed.
Tap Next, as appropriate, to scroll to the next screen.
n A “One moment please…” message displays while the procedure is in process.
n A “results” screen displays when the calibration procedure has completed.
NOTE: If the procedure is stopped due to a communication error, an “advisory”
message display. Tap Back to return to the Workshop Tools screen.
4. Tap Back to return to the Workshop Tools screen.
STEERING ANGLE SENSOR (SAS) CALIBRATION
The Steering Angle Sensor Calibration function is available for BMW, Chrysler, Ford, GM, Hyundai, Nissan, Toyota,
Volkswagen, and Volvo vehicles only. Calibration procedures vary between vehicle makes and models.
NOTE: If an error occurs while performing calibration procedures, an “advisory”
message display. Tap Exit to return to the Workshop Tools screen.
1. Tap Steering Angle Sensor Calibration in the Workshop Tools screen.
n For some vehicles, a sub-menu displays. Choose the desired option. Proceed to step 2.
NOTE: If SAS calibration is not supported by the vehicle under test, an “advisory”
message display. Tap OK to return to the Workshop Tools screen.
2. A “One moment please…” message displays, followed by one or more “informational/ instructional” screens.
n Perform test procedures as directed. Tap Next or Continue, as appropriate, to scroll to the next
screen. Or, tap End or Exit to terminate the procedure.
3. For some vehicles, “status” screens display as each phase of the calibration procedure is successfully completed.
Tap Next, as appropriate, to scroll to the next screen.
n A “results” screen displays when the calibration procedure has been completed.
4. Tap End or Exit, as appropriate, to return to the SAS Calibration menu.
5. Tap Back to return to the Workshop Tools screen.
WORKSHOP TOOLS
ABS Bleeding
ABS BLEEDING
The ABS Bleeding function is available for Chrysler, GM, Hyundai/KIA, Mazda, Toyota, Ford, Honda, Nissan,
Mitsubishi, Subaru, Volvo, Mercedes, Volkswagen, BMW, and Jaguar vehicles only. Procedures vary between
vehicle makes and models.
NOTE: If an error occurs while performing ABS Bleeding procedures, an “advisory”
message display. Tap Exit or Back, as necessary, to return to the Workshop Tools.
NOTE: If ABS bleeding is not supported for the vehicle under test, an “advisory”
message display. Tap OK to return to the Workshop Tools.
1. Tap ABS Bleeding on the Workshop Tools screen.
n One or more sub-menus will display. Select the desired options, then proceed to step 2.
2. One or more “informational/ instructional” screens display.
n Perform test procedures as directed. Tap Next to scroll to the next step.
3. For some vehicles, “status” screens display as each phase of the calibration procedure is successfully complete.
Tap Next to scroll to the next step.
n A “results” message displays when the procedure has completed.
4. Tap End to close the results message.
5. Tap Back to return to the Workshop Tools screen.
DPF RESET (
Except Chrysler, GM, Nissan, or Volkswagen)
NOTE: If the vehicle under test is not a diesel vehicle, an “advisory” message
display. Tap Back to return to the Workshop Tools. DPF Reset is not available for
your vehicle.
1. Tap DPF Reset in the Workshop Tools screen.
n A “One moment please…” message displays, followed by the DPF Reset menu.
2. Tap DPF Regeneration Procedure.
n The DPF Regeneration Procedure screen displays.
NOTE: If the vehicle under test does not support DPF Regeneration Procedure, an
“informational” screen displays the procedures for “passive” DPF reset. Tap OK to
return to the DPF Reset Menu.
3. Tap Next to continue.
n An “informational” screen displays the procedures for “passive” or “active” DPF regeneration,
as applicable.
41
42
WORKSHOP TOOLS
DPF Reset (Chrysler)
4. Tap Back to return to the DPF Reset Menu, then tap Back again to return to the Workshop Tools screen.
DPF RESET (Chrysler)
1. Tap DPF Reset in the Workshop Tools screen.
n A “One moment please…” message displays, followed by the DPF Reset menu.
2. Choose the desired option.
n An “instructional” screen displays. Prepare the vehicle for test as directed.
3. Tap Yes to continue.
n A series of “status” screens display while the routine is in process.
n A “conrmation” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message
displays. Tap Close to return to the DPF Reset menu.
4. Tap Finish to return to the DPF Reset menu, then tap Back to return to the Workshop Tools.
DPF RESET (GM)
1. Tap DPF Reset in the Workshop Tools screen.
n A “One moment please…” message displays, followed by the DPF Reset menu.
2. Select the desired option.
n One or more “informational/instructional” screens display.
3. Tap Next, as appropriate, to scroll to the next screen.
n For some vehicles, a “conrmation” screen displays.
4. Tap Reset, as appropriate.
n A “conrmation” or “results” screen displays when the routine is completed.
NOTE: If the routine does not completed successfully, an “advisory” message may
display. Tap End to return to the DPF Reset menu.
5. Tap Exit to return to the DPF Reset menu, then tap Back to return to the Workshop Tools screen.
DPF RESET (
Nissan)
1. Tap DPF Reset in the Workshop Tools screen.
n An “instructional” screen display. Prepare the vehicle for test as directed.
2. Tap Next to continue.
WORKSHOP TOOLS
DPF Reset (Volkswagen)
n A “status” screen displays while the routine is in process.
n A “conrmation” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message
displays. Tap Exit to return to the DPF Reset menu.
3. Tap End to return to the Workshop Tools screen.
DPF RESET (
Volkswagen)
1. Tap DPF Reset in the Workshop Tools.
n A “One moment please…” message displays, followed by the DPF Reset menu.
2. Select the desired option.
n A series of “informational/instructional” screens display. Prepare the vehicle for test as directed.
NOTE: If the selected function is not supported by the vehicle under test, an
“advisory” message may display. Tap End to return to the DPF Reset menu.
3. Tap Next, Continue, or Start, as appropriate, to continue.
n One or more “status” screens may display while the routine is in process.
n A “conrmation” or “results” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message may
display. Tap End to return to the DPF Reset menu.
4. Tap End to return to the DPF Reset menu, then tap Back to return to the Workshop Tools screen.
BATTERY / ALTERNATOR TEST
TO PERFORM A CHARGING SYSTEM (ALTERNATOR) CHECK:
1. Tap Battery / Alternator Test on the Workshop Tools screen.
n The Battery / Alternator Test menu displays.
2. Tap Alternator Test.
n An “instructional” message shows.
3. Start and warm the engine to normal operating temperature. Turn on the headlights. Tap Continue to proceed.
n An “instructional” message shows.
4. Press the accelerator pedal to raise engine speed to 2000 RPM and maintain the engine speed.
n When engine speed is within the required range, the alternator test begins. A progress screen
shows.
43
44
WORKSHOP TOOLS
Battery / Alternator Test
n When the “countdown” timer expires, an “instructional” message shows.
5. Turn the vehicle’s headlights off and return the engine to idle speed.
n A “One moment please…” message displays while the test results are retrieved.
6. When the alternator check is complete, a results screen shows charging system voltage and indicates whether
the charging system is within acceptable limits.
7. Tap Back to return to the Battery/Alternator Test menu.
8. Tap Back again to return to the Workshop Tools screen.
VIEW ALTERNATOR LIVE DATA
1. Tap Battery/Alternator Test on the Workshop Tools screen.
n The Battery/Alternator Test menu displays.
2. Tap Alternator Live Data.
n The Alternator Live Data screen displays.
3. When you are nished viewing the Alternator Live Data, tap Back to return to the Battery/Alternator Test menu.
PERFORM A BATTERY CHECK ONLY
1. Tap Battery/Alternator Test on the Workshop Tools screen.
n The Battery/Alternator Test menu displays.
2. Tap Battery Test.
n An “instructional” message displays, showing the procedures to prepare the vehicle for the
battery check.
3. Prepare the vehicle for the battery check:
n Turn the engine off.
n Place the transmission in PARK or NEUTRAL and set the parking brake.
n Make a visual check of the battery’s condition. If the battery terminals are corroded or other
damage is present, clean or replace the battery as appropriate.
n For “unsealed” batteries, make sure the water level in each cell is above the battery plates.
n Turn the ignition on. DO NOT start the engine.
4. Tap Continue to proceed.
NOTE: If the engine is running, an advisory message shows. Turn the engine off,
then turn the ignition on. DO NOT start the engine. Tap Continue to proceed.
n An “instructional” message displays.
5. Turn the vehicle’s headlights on, then tap Continue to proceed.
n A “countdown” message shows while the battery check is in process.
WORKSHOP TOOLS
Battery / Alternator Test
6. Turn the vehicle’s headlights off, then tap Continue to proceed.
n An “instructional” message shows.
━ If battery voltage is less than 12.1 volts, an advisory message shows. Turn the ignition off
and disconnect the Scan Tool from the vehicle. Fully charge the battery, then repeat the
battery check.
━ If battery voltage is between 11.8 and 12.1 volts, a “Battery voltage is low, this may affect
the accuracy of the test results.” message displays.
━ If battery voltage is greater than 11.8 volts, an “instructional” message shows.
7. Start the vehicle’s engine. Allow the engine to run for several seconds, then turn the engine off. Repeat for a
total of three “start/stop” cycles.
NOTE: If the Scan Tool did not detect “cranking status” for the vehicle’s engine, an
advisory message shows. Tap Retest to repeat the battery check or tap Back to
return to the Battery/Alternator Test menu.
8. When the battery check is complete, a results screen displays with the battery’s status.
9. Tap Back to return to the Battery/Alternator Test menu.
10. Tap Back again to return to the Workshop Tools screen.
VIEW BATTERY LIVE DATA
1. Tap Battery/Alternator Test.
n The Battery/Alternator Test menu displays.
2. Tap Battery Live Data (12 Volt).
n The Battery Live Data (12 Volt) screen displays.
3. When you are nished viewing the Battery Live Data (12 Volt), tap Back to return to the Battery/Alternator Test
menu.
EV/HEV/PHEV BATTERY HEALTH
The Tablet can perform a check of the vehicle’s battery and
alternator system (or hybrid/EV battery system) to ensure the
system is operating within acceptable limits.
1. Tap EV/HEV/PHEV Battery Health in the Workshop
Tools screen.
n The EV/HEV/PHEV Battery Health menu displays.
NOTE: If the Hybrid/EV Battery Test is not supported by the vehicle under test, an
“advisory” message displays. Tap Exit to return to the Workshop Tools screen.
n If the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Test menu displays.
45
46
WORKSHOP TOOLS
Battery / Alternator Test
2. Tap EV/HEV/PHEV Battery Health to display a graphical representation of the current state of charge for all
the cells within the battery pack.
3. Tap Battery Live Data (12 Volt) in the menu to view real time values of the battery (i.e., battery current, battery
temperature, battery state of charge, battery state of health, etc.).
4. When nished, tap Back to return to the Battery/Alternator Test menu.
5. Tap Back again to return to the Workshop Tools screen.
PREVIOUS VEHICLES
Viewing Previous Vehicles
PREVIOUS VEHICLES
The Tablet has a built-in memory that stores OBD2 Diagnostic reports and Workshop Tools
reports whenever you conduct a test.
VIEWING PREVIOUS VEHICLES
1. Tap the Previous Vehicle tab on the Home Screen.
2. The Previous Vehicles menu displays, entries on the Previous Vehicles tab are listed in reverse chronological
order (most recent scan rst). Each entry in the list provides the following information:
NOTE: If there are no vehicles currently stored in the Tablet, an advisory message
displays. Tap
Home to return to the Home Screen.
n Search Bar – Tap the search bar to enter a search criterion – Date and Vehicle.
n Date – The date on which the scan was performed.
n Time – The time at which the scan was performed.
n Vehicle – The year, make, model, trim and engine size of the tested vehicle.
n DTCs – The total number of Diagnostic Trouble Codes retrieved by the scan.
n Report Type – Identies whether the Vehicle Inspection was saved as a Diagnostic Report, a
Customer Report, or a Collision Industry Report, as well as whether it was saved as a PreScan
or PostScan report.
n Cloud Icon
– This status indicates that all scanned items have been successfully
uploaded to the server.
n Cloud Icon w/ X
- This status indicates that there is at least 1 system that was not uploaded
or failed to upload to the server.
3. The report view differs based on the Scan Type previously performed:
n OBD2 Diagnostics – the OBD2 Diagnostic test result screen displays. [See page 12]
n Scan All Systems – the test result of all systems displays. [See page 28]
n Vehicle Inspection – the Vehicle Inspection Health report displays [See page 34].
47
48
PREVIOUS VEHICLES
Viewing Previous Vehicles
n Navigate as usual to view the report.
4. When nished, tap Back to return to the Previous Vehicles screen.
SETTINGS
Viewing Previous Vehicles
SETTINGS
The Tablet offers several adjustments and settings to congure the tool to your particular
needs. The following functions can be performed:
Vehicle Inspection Setup
Technical Support
Date and Time Setting
Language Setting
Wi-Fi Setting
Smog Check or I/M Program Location
Unit of Measurement
Volume Setting
Brightness Setting
About (Version Information)
To enter the Settings mode:
1. Tap the Settings tab on the Home Screen.
2. You can also access this page by tapping on the
Menu icon in the upper left corner of the page and tapping
on
Settings.
n The Settings screen displays.
49
50
SETTINGS
Vehicle Inspection Setup
3. Swipe up or down to scroll to the desired option.
4. Make adjustments and settings as outlined in the next pages.
5. To return back to the Home screen, either tap the
Back icon on the top left, or tap the Home icon on the
top right.
VEHICLE INSPECTION SETUP
1. Tap Change in the Vehicle Inspection Setup tab.
n The Vehicle Inspection Setup screen displays.
2. Select or unselect functions you wish to show on reports, and the tablet will automatically save your changes
when you make a change.
NOTE: The OBD2 Diagnostics (DTCs, Monitor, Freeze Frame Data), MIL DTC
Diagnostic Information and vehicle Care (Schedual Maintenance, Predicted, etc.) are
always turned ON, this item cannot be turned OFF.
NOTE: When you turn ON/OFF main item, the tablet will turn ON/OFF all button of
sub-item below (except OBD2 Diagnostics). In case of, you do not turn all buttons of
sub-item, the button in main item is OFF.
3. Tap the
Home icon on the top right to return to the Home Screen.
SETTINGS
Technical Support (Send an Email)
TECHNICAL SUPPORT (Send an Email)
The Innova Electronics technical team is here to help if you encounter any issues or if you have any questions. You can
reach them directly with the tablet from Monday through Friday, 6:00AM to 6:00PM, Pacic Time.
To connect with Technical Support:
1. Tap Technical Support in the Settings menu. (You can also access it from the Menu by tapping on
Settings).
2. Tap Email Support.
n The Support by Email dialog displays.
n The Email eld shows the most recently entered email address for the tablet. If no address was
previous entered, the Email eld shows an empty text box.
NOTE: You MUST provide a valid email address to receive support from Innova’s
Technical Support team.
3. Enter an Email address:
n Tap the Email text box, then enter a valid email address.
4. Tap Send to submit your email to Innova’s Technical Support.
n To cancel your message without sending, tap Cancel to return to the Settings screen.
5. Tap the
Back icon on the top left to return to the Settings menu. Or tap the Home icon on the top right to
return to the Home Screen.
DATE AND TIME SETTING
Here you can set the tablet’s current date and time.
Setting Date and Time Formats
1. Tap the Settings tab on the Home Screen and scroll to the Date and Time Setting eld.
51
52
SETTINGS
Language Setting
n The Date and Time Setting eld shows the currently set date and time for the tablet.
2. To specify the current date:
n Tap Change the date format eld.
━ The Set Date dialog displays.
n Scroll the “month,” “day,” and “year” elds to set the current calendar date, then tap OK to
save.
━ Tap Cancel to close the Set Date dialog and retain the previous date.
3. To specify the current time:
n Tap Change the time format eld.
━ The Set Time dialog displays.
n Scroll the “hour,” “minute,” and “am/pm” elds to set the current time, then tap OK to save.
━ Tap Cancel to close the Set Time dialog and retain the previous time.
LANGUAGE SETTING
Let you set the display language for the tablet to English, Spanish or French.
Setting the Display Language
1. On the Settings page, scroll to the Language Setting eld.
2. Select the desired language, then the tablet will automatically save your changes and return to the Settings eld.
WI-FI SETTING
To access all the features provided in your diagnostic tablet, a local Wi-Fi network connection is necessary.
Connecting to a Wi-Fi Network
NOTE: Before making a Wi-Fi connection, you need to successfully register to the
RepairSolutionsPRO App. [
See page 8]
SETTINGS
Wi-Fi Setting
1. On the Settings page scroll to the Wi-Fi Setting eld.
n If it is the rst time doing a Wi-Fi setup, the network name is shown as “Not Connected.”
n If you are currently connected to a Wi-Fi network, the network name is shown.
2. Tap the Connect Wi-Fi icon.
n If you haven’t registered for the RSPRO App yet, the screen will show “The QR Code of the
RSPRO App” for you to download it. To pair and register your tablet with the RSPRO app [
See
page 8
].
3. With the tablet registered the RepairSolutionsPRO App, tap OK to perform the Wi-Fi connection.
n The Sign in To Your Wi-Fi Network dialog displays.
n The dialog lists all of the available Wi-Fi networks within the tablet’s range.
4. Swipe up or down to scroll to the desired Wi-Fi network, then tap your network name.
n To cancel changes and retain your current network connection, tap Cancel to return to the
Settings eld.
n The Enter Password dialog displays.
5. Tap the Password text box, then enter the Wi-Fi network password using the keyboard.
n As you type, the password displays as a series of bullets by default. Tap show to show the
password as you type. Tap hide to display the password as bullets.
6. When the password has been entered, tap Connect to save your changes and connect to the selected Wi-Fi
network.
n Tap Cancel to cancel your changes and return to the Sign in To Your Wi-Fi Network dialog to
select a different network.
53
54
SETTINGS
Smog Check or I/M Program Location
7. Tap the Back icon on the top left to return to the Settings menu. Or tap the Home icon on the top right to
return to the Home Screen.
SMOG CHECK OR I/M PROGRAM LOCATION
Use this function to select the state where the smog (emissions) inspection will be performed.
Specifying the State:
1. On the Settings page, scroll to the Smog check or I/M Program Location eld.
n If you previously specied a location, the name of the retailer is shown in the upper left corner
of the Location eld.
2. Tap Change Location.
n The Smog check or I/M Program Location dialog displays.
3. When the desired location has been selected, the tablet will automatically save your changes and return to the
Settings eld.
4. Tap the
Back icon on the top left to return to the Settings menu. Or tap the Home icon on the top right to
return to the Home Screen.
UNIT OF MEASUREMENT
Sets the tablet’s numerical unit of measurement – US (Imperial) or Metric.
1. On the Settings page, scroll to the Unit of Measurement eld.
2. Tap the desired unit of measurement; the tool automatically saves your changes.
SETTINGS
Volume Setting
VOLUME SETTING
Sets the volume level of the tablet’s audio speakers.
Adjusting Speaker Volume:
1. On the Settings page, scroll to the Volume Setting eld.
2. Use the Volume “slider” to increase or decrease speaker volume:
n Touch and slide right to make the volume louder.
n Touch and slide left to make the volume softer.
━ The current Volume setting shows above the slider as you adjust the slider position.
BRIGHTNESS SETTING
Sets the tablet’s LCD screen display brightness.
Adjusting Display Brightness:
1. On the Settings page, scroll to the Brightness Setting eld.
2. Use the Brightness “slider” to increase or decrease display brightness:
n Touch and slide right to make the display brighter.
n Touch and slide left to make the display darker.
━ The current Brightness setting shows above the slider as you adjust the slider position.
ABOUT
The About eld shows the tablet’s Tool Version. This screen also lets you check for software updates or report an issue
with the tablet.
1. On the Settings page, scroll to the About eld.
n The eld shows the tablet’s current rmware
55
56
SETTINGS
About
version (FW), bootloader version (BL), Tool ID, and GUID for the tablet.
2. Tap View Details for more information about the tablet’s version.
n The Version Information screen displays.
3. Tap Check for Update to check for software updates.
n The tablet veries an Internet connection and checks for any updates. If an update is available,
the screen will list the available update versions on the server.
4. Select the item on the tick box that you want to update. Tap Done to start the update process.
NOTE: Avoid any power or Wi-Fi interruptions during the update process. Make sure
the tablet is plugged in with the provided power supply charger and the tablet has a
good Wi-Fi connection.
SETTINGS
About
5. When the process is successfully updated, the status will change from percent (%) to Completed.
6. Tap
Back to return to Settings screen or tap Home to return Homescreen.
57
58
SUPPORT
Tool Library
SUPPORT
The SUPPORT tab includes various support resources, including:
Tool Library – access tool denitions and terminology.
Technical Support – directly connect with Innova’s Technical Support team
via the tablet’s email function.
TOOL LIBRARY
The Tool Library contains valuable reference information and includes:
n Smog Check or I/M Program LED Denition
- Denes and provides more information on the
Tablet’s red/yellow/green SYSTEM STATUS LEDs.
n Icon Monitor Status - Denes the icon monitor
status’ color coding and provides tips on how to
proceed.
n DTC Library – Provides quick access to OBD2
DTC denitions.
SMOG CHECK AND I/M PROGRAM LED DEFINITION
1. Tap the Smog Check and I/M Program LED Denition in the Tool Library menu.
n The Smog Check and I/M Program LED Denition dialog displays.
SUPPORT
Tool Library
2. When nished, tap the Back icon on the top left to return to the Tool Library menu. Or tap the Home
icon on the top right to return to the Home Screen.
ICON MONITOR STATUS
1. Tap the Icon Monitor Status button in the Tool Library menu.
n The Icon Monitor Status dialog displays.
2. When nished, tap the
Back icon on the top left to return to the Tool Library menu. Or tap the Home
icon on the top right to return to the Home Screen.
DTC LIBRARY
Search for the Diagnostic Trouble Code (DTC) denitions for most 1996 and newer vehicles.
1. Tap the DTC Library in the Tool Library menu.
n The DTC Library dialog displays.
2. Tap on Make and scroll to select the vehicle’s make from the pull-down menu.
3. Tap on Enter DTC Code box, enter the numeric DTC you want to dene using the keyboard.
n Be sure to include all characters – letters and numbers.
4. Tap Search to begin the search.
n Search dialog appears with the retrieved denition.
5. Tap Cancel to return to the Tool Library menu screen.
6. When nished, tap the
Back icon on the top left to return to the Tool Library menu. Or tap the Home
icon on the top right to return to the Home Screen.
59
60
SUPPORT
Technical Support
TECHNICAL SUPPORT
The Innova Electronics technical team is based in Irvine, California and is always ready to help!
To connect with Technical Support:
1. From the Home Screen, tap SUPPORT. (You can also access it from the
Menu by tapping on Support).
n The Support selection dialog displays.
2. Tap the Technical Support button.
n The Technical Support dialog appears.
3. Tap the option you wish to view, Email Support or Report An Issue.
n Tap Cancel to return to the Support dialog.
EMAIL SUPPORT
1. Tap Email Support in the Technical Support dialog.
n The Support by Email dialog displays.
n The Email eld shows the most recently entered email address for the tablet. If no address was
previous entered, the Email eld shows an empty text box.
NOTE: You MUST provide a valid email address to receive a reply from Innova
Technical Support via email.
2. To enter an Email address for the rst time:
n Tap the Email text box, then enter a valid email address.
3. Tap the Send button to send your email to Innova Technical Support.
n To cancel your message without sending, tap Cancel to return to the Technical Support dialog.
n A conrmation message displays. Tap Close to close the message.

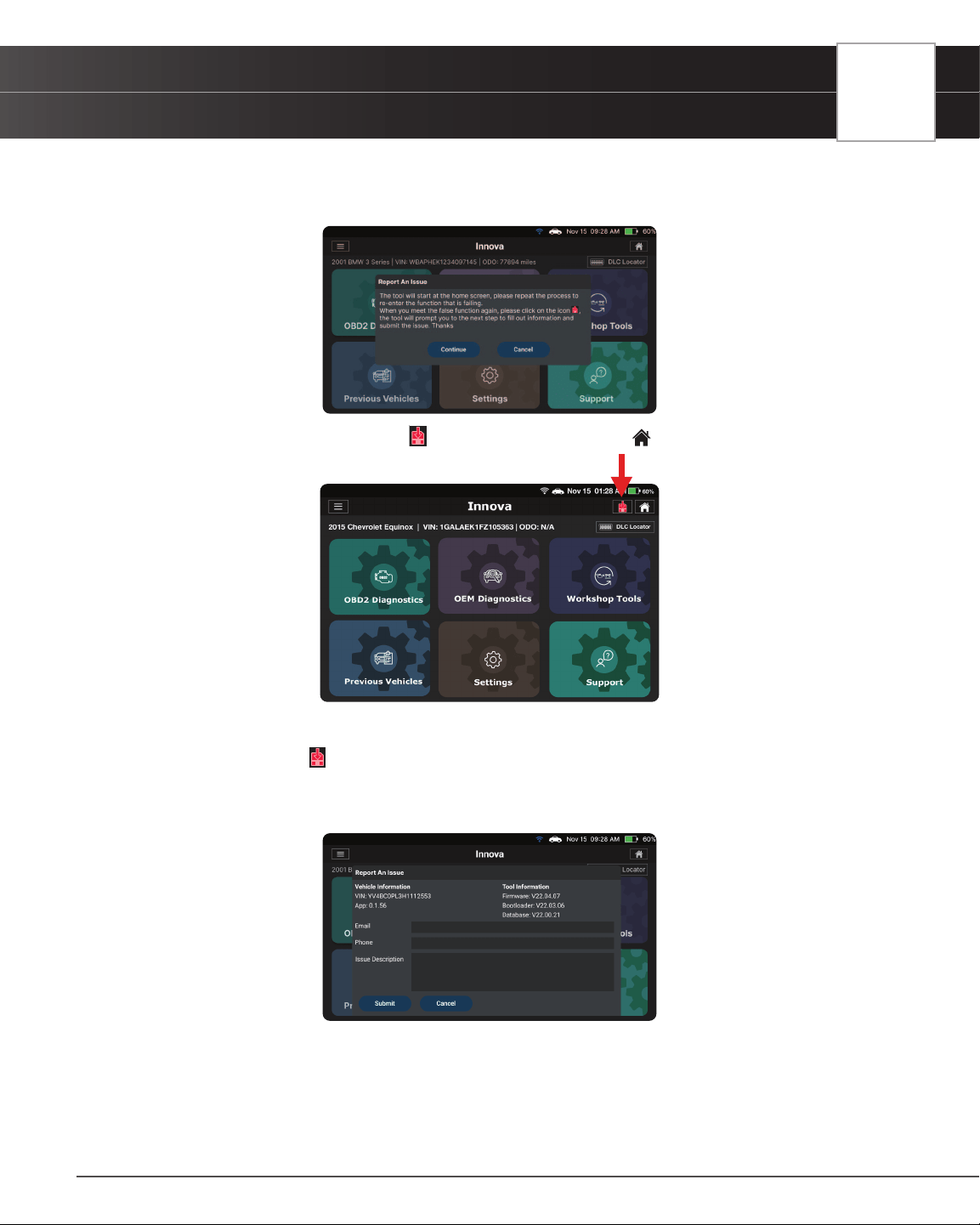

REPORT AN ISSUE
If you ever encounter an uncommon problem while using the Tablet, use this feature to record a “Data Log” of the issue
and send it directly to Innova’s Technical Team for further support.
SUPPORT
Technical Support
1. Tap Report An Issue.
n An “instructional” screen displays. Tap Continue to proceed.
2. The Home Screen is displayed with a
Data Log On icon next to the Home icon on the top right signaling
that the recording has begun.
3. Proceed to perform all the steps you did in sequence, which resulted with the issue.
4. Once nished, tap the
Data Log On icon at the top right to stop recording.
n The Report Issue screen is displayed with the vehicle’s and tool information. Enter any comments
under the Issue Description box, then tap Submit to send your recorded Data Log.
n A conrmation message displays if the report was sent successfully.
━ If not, an advisory message displays. Tap Close to return to the Support menu and try
again.
5. To exit without sending, tap Cancel to return to the Support menu.
61
62

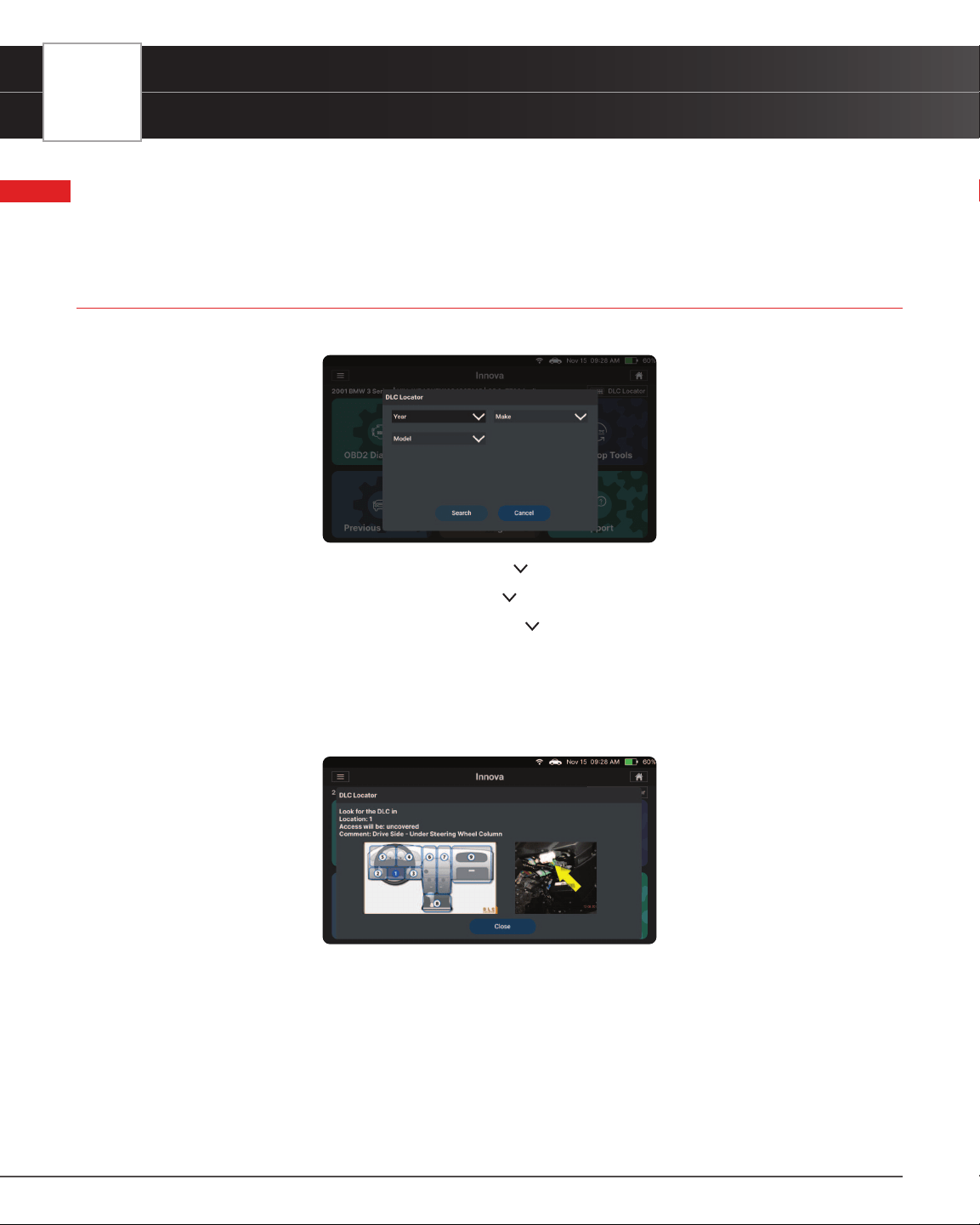

DLC LOCATOR
Using the DLC Locator
DLC LOCATOR
Use this search function to quickly nd the location of the Data Link Connector (DLC) for a specied vehicle.
USING THE DLC LOCATOR
1. Tap the DLC Locator icon on the Home Screen.
2. Tap Make to display the Select Make menu. Select the arrow button for the desired vehicle manufacturer.
3. Tap Year to display the Select Year menu. Select the arrow button for the vehicle model year.
4. Tap Model to display the Select Model menu. Select the arrow button for the desired vehicle model.
5. Tap the Search button.
n The DLC Locator screen for the selected vehicle displays.
n The DLC Location screen shows a description of the DLC location and whether the DLC is
“covered” or “uncovered,” and includes a picture of the DLC location.
6. Tap the Close button to exit the DLC Locator screen and return to the Home page.
WARRANTY+ CUSTOMER SERVICE
Limited Warranty
WARRANTY+ CUSTOMER SERVICE
LIMITED WARRANTY
The Manufacturer warrants to the original purchaser that this unit is free of defects in materials and workmanship under
normal use and maintenance for a period of one (1) year from the date of original purchase.
If the unit fails within the one (1) year period, it will be repaired or replaced, at the Manufacturer’s option, at no charge,
when returned prepaid to the Service Center with Proof of Purchase. The sales receipt may be used for this purpose.
Installation labor is not covered under this warranty. All replacement parts, whether new or remanufactured, assume
as their warranty period only the remaining time of this warranty.
This warranty does not apply to damage caused by improper use, accident, abuse, improper voltage, service, re,
ood, lightning, or other acts of God, or if the product was altered or repaired by anyone other than the Manufacturer’s
Service Center.
The Manufacturer, under no circumstances shall be liable for any consequential damages for breach of any written
warranty of this unit. This warranty gives you specic legal rights, and you may also have rights, which vary from state
to state. This manual is copyrighted with all rights reserved. No portion of this document may be copied or reproduced
by any means without the express written permission of the Manufacturer. THIS WARRANTY IS NOT TRANSFERABLE.
For service, send via U.P.S. (if possible) prepaid to Manufacturer. Allow 3-4 weeks for service/repair.
CUSTOMER SERVICE
Our ASE Certied technical staff is here to help if you have any questions or require service. For information on
UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or Innova’s Service Center.
USA & Canada: (800) 544-4124
Monday through Friday: 6:00 AM to 6:00 PM PST
All others: (714) 241-6802
Monday through Friday: 6:00 AM to 6:00 PM PST
FAX: (714) 241-3979 (24 Hr.)
Web:
www.innova.com
63
64
GLOSSARY
OBD2 Terminology
GLOSSARY
OBD2 TERMINOLOGY
The following terms and their denitions are related to OBD2 systems.
n Powertrain Control Module (PCM) - The PCM is the OBD2 accepted term for the vehicle’s “on-board
computer.” In addition to controlling the engine management and emissions systems, the PCM also
participates in controlling the powertrain (transmission) operation. Most PCMs also have the ability to
communicate with other computers on the vehicle (ABS, ride control, body, etc.).
n Monitor - Monitors are “diagnostic routines” programmed into the PCM. The PCM utilizes these programs
to run diagnostic tests, and to monitor operation of the vehicle’s emissions-related components or
systems to ensure they are operating correctly and within the vehicle’s manufacturer specications.
Currently, up to fteen Monitors are used in OBD2 systems. Additional Monitors will be added as the
OBD2 system is further developed.
NOTE: Not all vehicles support all fteen Monitors
n Enabling Criteria - Each Monitor is designed to test and monitor the operation of a specic part of the
vehicle’s emissions system (EGR system, oxygen sensor, catalytic converter, etc.). A specic set of
“conditions” or “driving procedures” must be met before the computer can command a Monitor to run
tests on its related system. These “conditions” are known as “Enabling Criteria.” The requirements and
procedures vary for each Monitor. Some Monitors only require the ignition key to be turned “On” for them
to run and complete their diagnostic testing. Others may require a set of complex procedures, such
as, starting the vehicle when cold, bringing it to operating temperature, and driving the vehicle under
specic conditions before the Monitor can run and complete its diagnostic testing.
n Complete / Incomplete - The terms “Complete” or “Incomplete” are used throughout this manual.
“Complete,” means the PCM has commanded a particular Monitor to perform the required diagnostic
testing on a system to ensure the system is operating correctly (within factory specications). The term
“Incomplete” means the PCM has not yet commanded a particular Monitor to perform diagnostic testing
on its associated part of the emissions system.
n Trip - A Trip for a particular Monitor requires that the vehicle is being driven in such a way that all the
required “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met. The
“Trip Drive Cycle” for a particular Monitor begins when the ignition key is turned “On.” It is successfully
completed when all the “Enabling Criteria” for the Monitor to run and complete its diagnostic testing
are met by the time the ignition key is turned “Off.” Since each of the fteen monitors is designed to
run diagnostics and testing on a different part of the engine or emissions system, the “Trip Drive Cycle”
needed for each individual Monitor to run and complete varies.
n OBD2 Drive Cycle - An OBD2 Drive Cycle is an extended set of driving procedures that takes into
consideration the various types of driving conditions encountered in real life. These conditions may
include starting the vehicle when it is cold, driving the vehicle at a steady speed (cruising), accelerating,
etc. An OBD2 Drive Cycle begins when the ignition key is turned “On” (when cold) and ends when the
vehicle has been driven in such a way as to have all the “Enabling Criteria” met for all its applicable
Monitors. Only those trips that provide the Enabling Criteria for all Monitors applicable to the vehicle to
GLOSSARY
OBD2 Monitors
run and complete their individual diagnostic tests qualify as an OBD2 Drive Cycle. OBD2 Drive Cycle
requirements vary from one model of vehicle to another. Vehicle manufacturers set these procedures.
Consult your vehicle’s service manual for OBD2 Drive Cycle procedures.
NOTE: Do not confuse a “Trip” Drive Cycle with an OBD2 Drive Cycle. A “Trip” Drive
Cycle provides the “Enabling Criteria” for one specic Monitor to run and complete
its diagnostic testing. An OBD2 Drive Cycle must meet the “Enabling Criteria” for all
Monitors on a particular vehicle to run and complete their diagnostic testing.
n Warm-up Cycle - Vehicle operation after an engine off period where engine temperature rises at least
40°F (22°C) from its temperature before starting, and reaches at least 160°F (70°C). The PCM uses
warm-up cycles as a counter to automatically erase a specic code and related data from its memory.
When no faults related to the original problem are detected within a specied number of warm-up cycles,
the code is erased automatically.
OBD2 MONITORS
To ensure the correct operation of the various emissions-related components and systems, a diagnostic program was
developed and installed in the vehicle’s on-board computer. The program has several procedures and diagnostic
strategies. Each procedure or diagnostic strategy is made to monitor the operation of, and run diagnostic tests on, a
specic emissions-related component or system. These tests ensure the system is running correctly and is within the
manufacturer’s specications. On OBD2 systems, these procedures and diagnostic strategies are called “Monitors.”
Currently, fteen Monitors are supported by OBD2 systems. Additional monitors may be added because of Government
regulations as the OBD2 system grows and matures. Not all vehicles support all fteen Monitors. Additionally, some
Monitors are supported by “spark ignition” vehicles only, while others are supported by “compression ignition” vehicles
only.
Monitor operation is either “Continuous” or “Non-Continuous,” depending on the specic monitor.
CONTINUOUS MONITORS
Three of these Monitors are designed to constantly monitor their associated components and/or systems for proper
operation. Continuous Monitors run constantly when the engine is running.
= Comprehensive Component Monitor
= Misre Monitor
= Fuel System Monitor
65
66
GLOSSARY
Additional Terminology + Acronyms
NON-CONTINUOUS MONITORS
The other twelve Monitors are “non-continuous” Monitors. “Non-continuous” Monitors perform and complete their
testing once per trip.
= Oxygen Sensor Monitor
= Oxygen Sensor Heater Monitor
= Catalyst Monitor
= Heated Catalyst Monitor
= EGR (Exhaust Gas Recirculation) System Monitor
= EVAP System Monitor
= Secondary Air System Monitor
NOTE: The following Monitors became standard beginning in 2010. The majority of
vehicles produced before this time will not support these Monitors.
= NMHC (Non-Methane Hydrocarbon Converting) Catalyst Monitor
= NOx/SCR Aftertreatment Monitor
= Boost Pressure System Monitor
= Exhaust Gas Sensor Monitor
= PM (Particulate Matter) Filter Monitor
ADDITIONAL TERMINOLOGY + ACRONYMS
n ABS = Anti-Lock Brakes
n DLC = Data Link Connector (vehicle’s data port)
n DTC = Diagnostic Trouble Codes
n KOEO = Key On, Engine Off
n KOER = Key On, Engine Running
n MIL = Malfunction Indicator Lamp (Check Engine Light)
GLOSSARY
Additional Terminology + Acronyms
n OBD = On Board Diagnostics
n OBD2 / OBD II = On Board Diagnostics, Second Generation
n OEM = Original Equipment Manufacturer
n PID = Parameter Identication Data
n SRS = Safety Restraint System
n TPMS = Tire Pressure Monitoring System
n TSBs = Technical Service Bulletins
67
