Instruction Manual and Installation Instructions
Washing machine
WAW24440IN
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WAW24440IN/12:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
Y Main points in brief 8
3
* Getting to know the appliance 9
3
Z Laundry 12
3
C Detergent 13
3
/ Overview of programmes 14
3
0 Programme default settings 18
3
\ Additional programme settings 19
3
1 Operating the appliance 20
3
Q Appliance settings 25
3
H Sensors 26
3
2 Cleaning and maintenance 27
4
3 Faults and what to do about them. 30
4
4 After-sales service 34
4
[ Consumption rates 35
4
J Technical data 36
4
5 Positioning and connecting 37
4
r Aqua-Stop warranty 47
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Risk of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
6
: Warning
6
Danger of death!
6
: Warning
6
Danger of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
Note:
7
Do’s
7
Don’ts
7
Tips on economical use
7
Y Main points in brief
8
Main points in brief
8

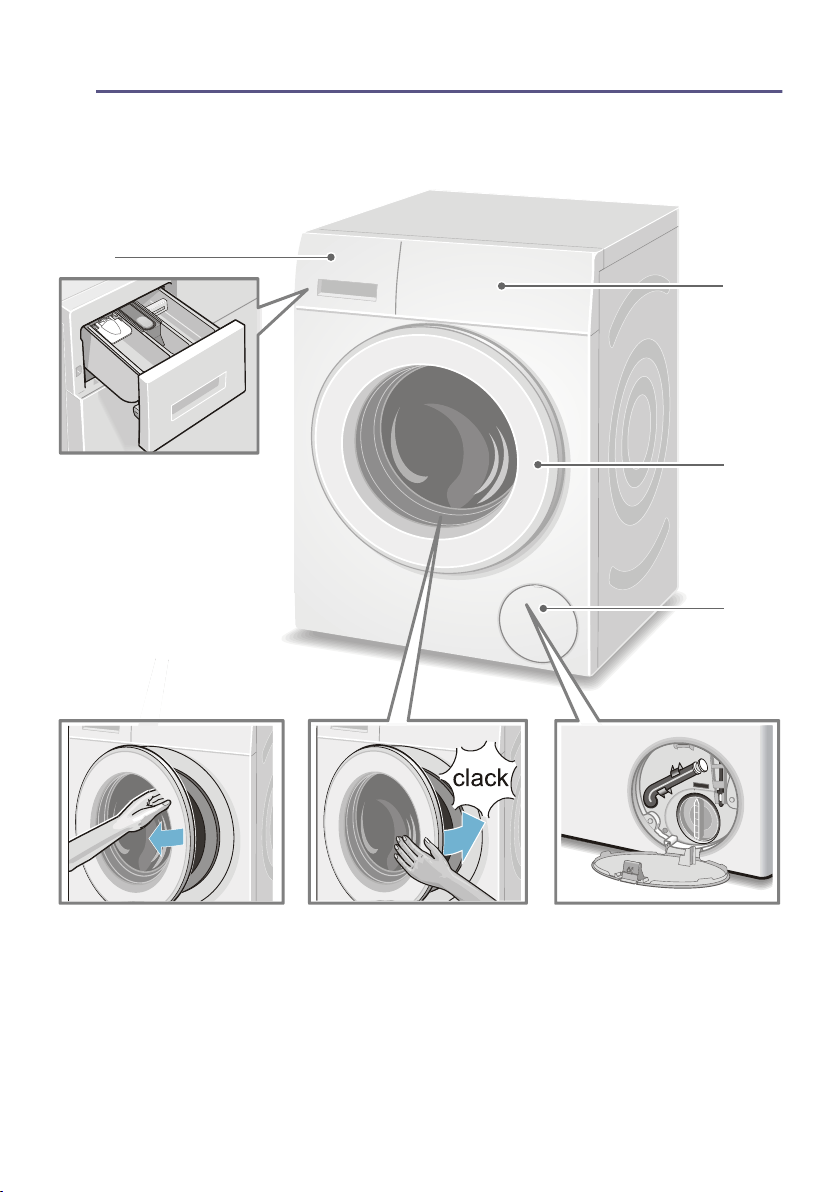

* Getting to know the appliance
9
Getting to know the appliance
9
Washing machine
9

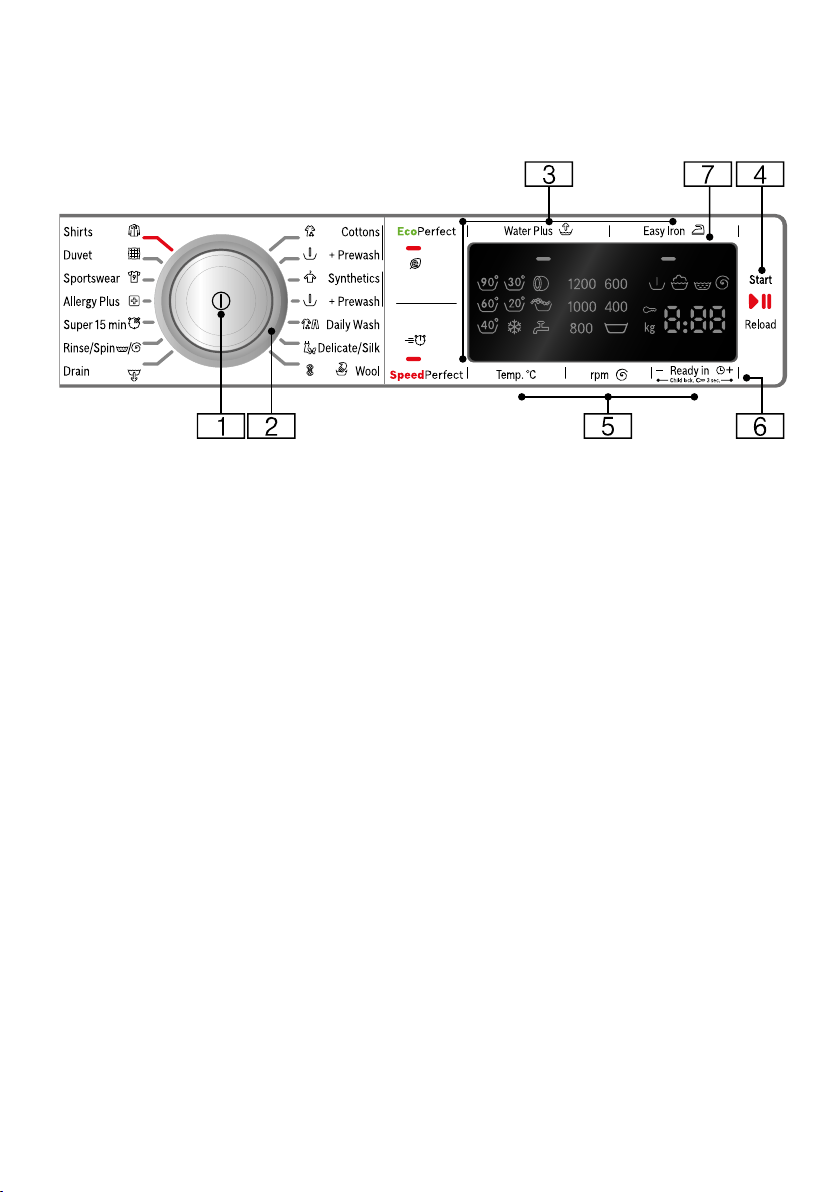

Control panel
10
Note:
10
Additional programme settings: ~ Page 19
10
A button for:
10
Changing the default programme settings: ~ Page 18
10
Display panel
11
Default programme settings:
11
Further information
11
Z Laundry
12
Laundry
12
Prepare the laundry
12
Caution!
12
Damage to the appliance/fabrics
12
Sorting laundry
12
Note:
12
Note:
12
C Detergent
13
Detergent
13
Correct selection of detergent
13
Saving energy and detergent
13
Saving
13
Soiling/note
13
Note:
13
/ Overview of programmes
14
Overview of programmes
14
Programmes on the programme selector
14
Programme/type of laundry/information
14
Settings
14
Notes
14
Note:
15
Notes
15
Note:
15
Note:
16
1. Select a programme.
16
2. Add special detergent for outdoor clothing to compartment II.
16
3. Add waterproofing agent (max. 170 ml) to compartment i.
16
4. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
16
Notes
16
Notes
16
Notes
16
Note:
17
Notes
17
Starching
17
Note:
17
Dyeing/bleaching
17
Soaking
17
1. Switch on the appliance.
17
2. Select the Cottons 30 °C programme.
17
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
17
4. Press the A button. The programme starts.
17
5. After approx. 10 minutes, press the A button to pause the programme.
17
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
17
Notes
17
0 Programme default settings
18
Programme default settings
18
Temperature
18
Spin speed
18
Ready in ñ
18
1. Select a programme.
18
2. Press the Ready in ñ button repeatedly until the required number of hours is displayed.
18
Note:
18
3. Press the A button.
18
Note:
18
1. Press the A button.
18
2. Use the Ready in ñ - or + button to change the number of hours.
18
3. Press the A button.
18
\ Additional programme settings
19
Additional programme settings
19
EcoPerfect F
19
SpeedPerfect (
19
Note:
19
Easy Iron p
19
Note:
19
Water Plus Z
19
1 Operating the appliance
20
Operating the appliance
20

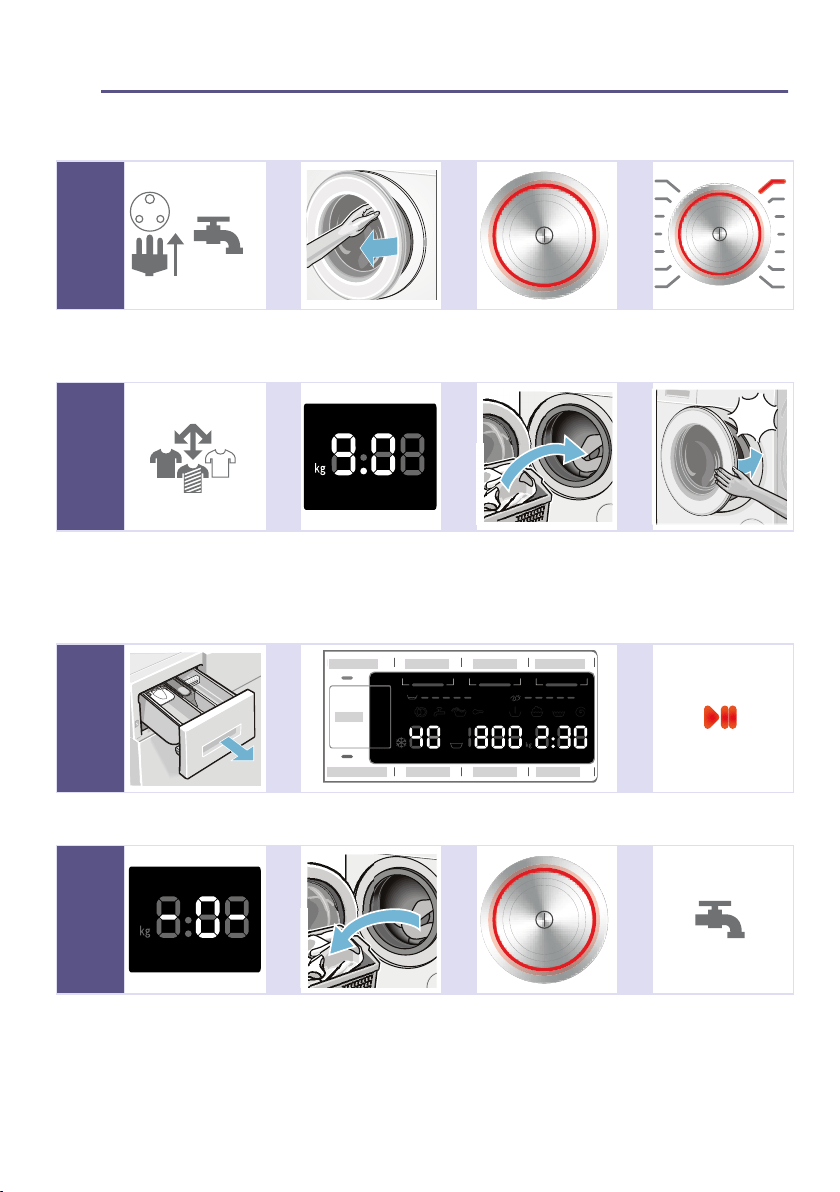

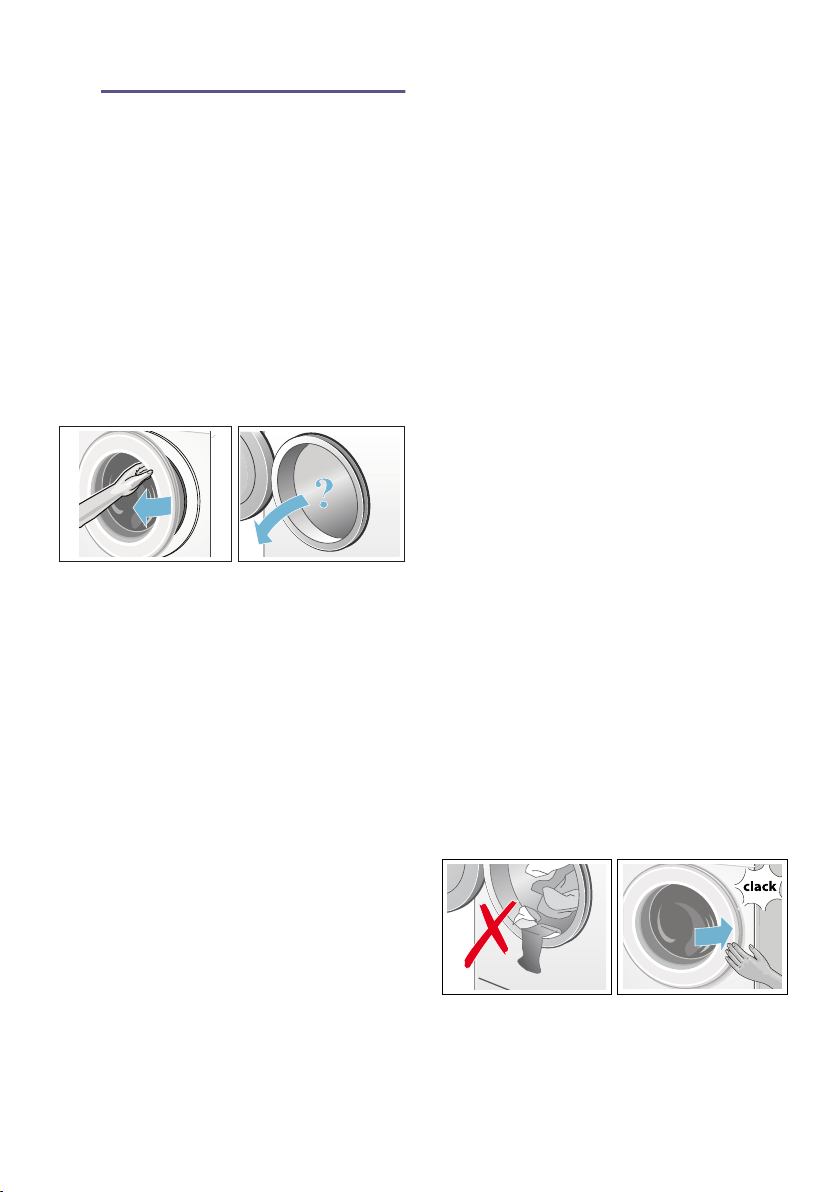

Preparing the washing machine
20
Note:
20
1. Connect the mains plug.
20
2. Turn on the tap.
20
3. Open the door.
20
4. Check that the drum is completely drained. Drain if necessary.
20
Switching on the appliance/ selecting a programme
20
Note:
20
Placing laundry into the drum
20
: Warning
20
Danger of death!
20
Notes
20
1. Unfold presorted laundry items and place them in the drum.
20
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
20

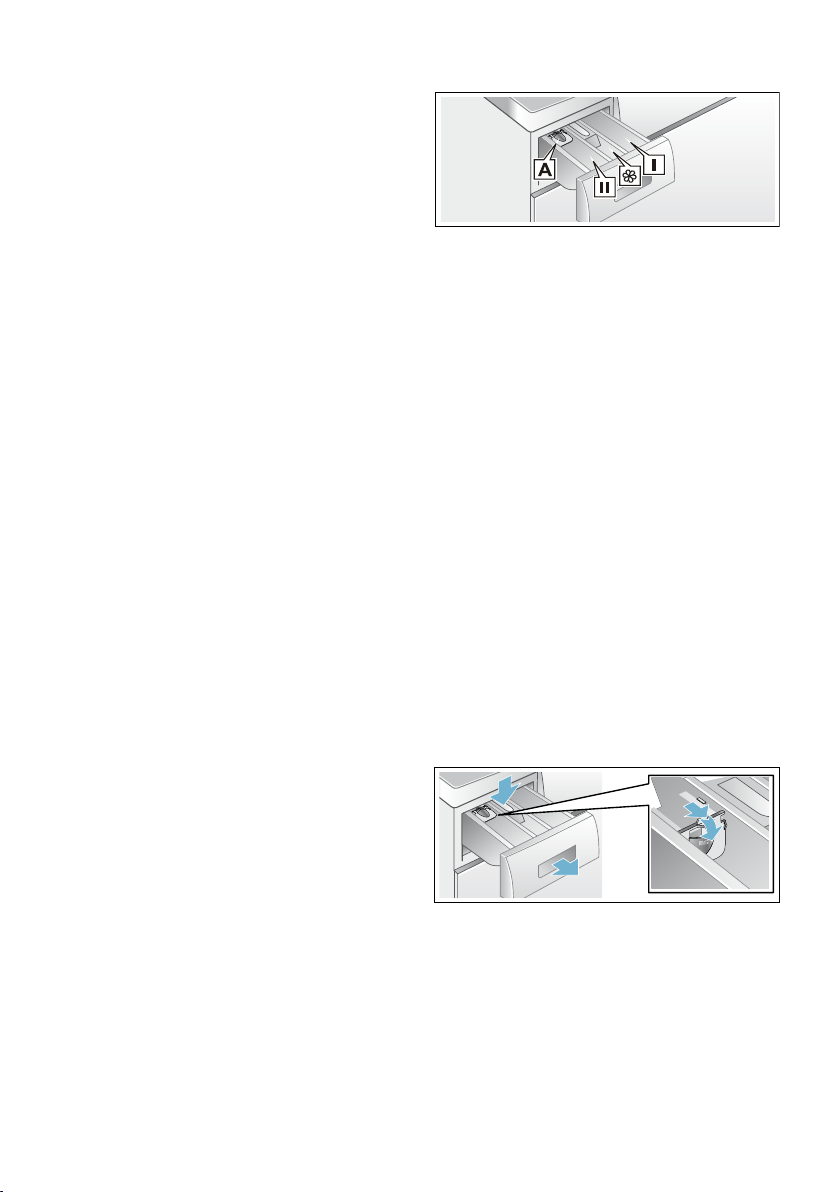

Measure and add detergent and care products
21
Caution!
21
Damage to the appliance
21
Dosing
21
Filling
21
: Warning
21
Eye/skin irritation!
21
Note:
21
1. Pull out the detergent drawer as far as possible.
21
2. Add detergent and/or care products.
21
3. Close the detergent drawer.
21
Measuring aid* for liquid detergent
21
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
21
2. Slide the measuring aid forwards, fold it down and click it into place.
21
3. Reinsert the drawer.
21
Note:
21
Change the programme default settings
22
Note:
22
Select additional programme settings
22
Start the programme
22
Note:
22
Note:
22
Child lock. E 3 sec.
22
Note:
22
Adding laundry
23
Notes
23
Changing the programme
23
1. Press the A button.
23
2. Select another programme.
23
3. Press the A button. The new programme starts from the beginning.
23
Cancel the programme
23
1. Press the A button.
23
2. To cool down laundry: Select Rinse.
23
3. Press the A button.
23
1. Press the A button.
23
2. Select Spin or Drain.
23
3. Press the A button.
23
Programme end during rinse hold
23
Programme end
23

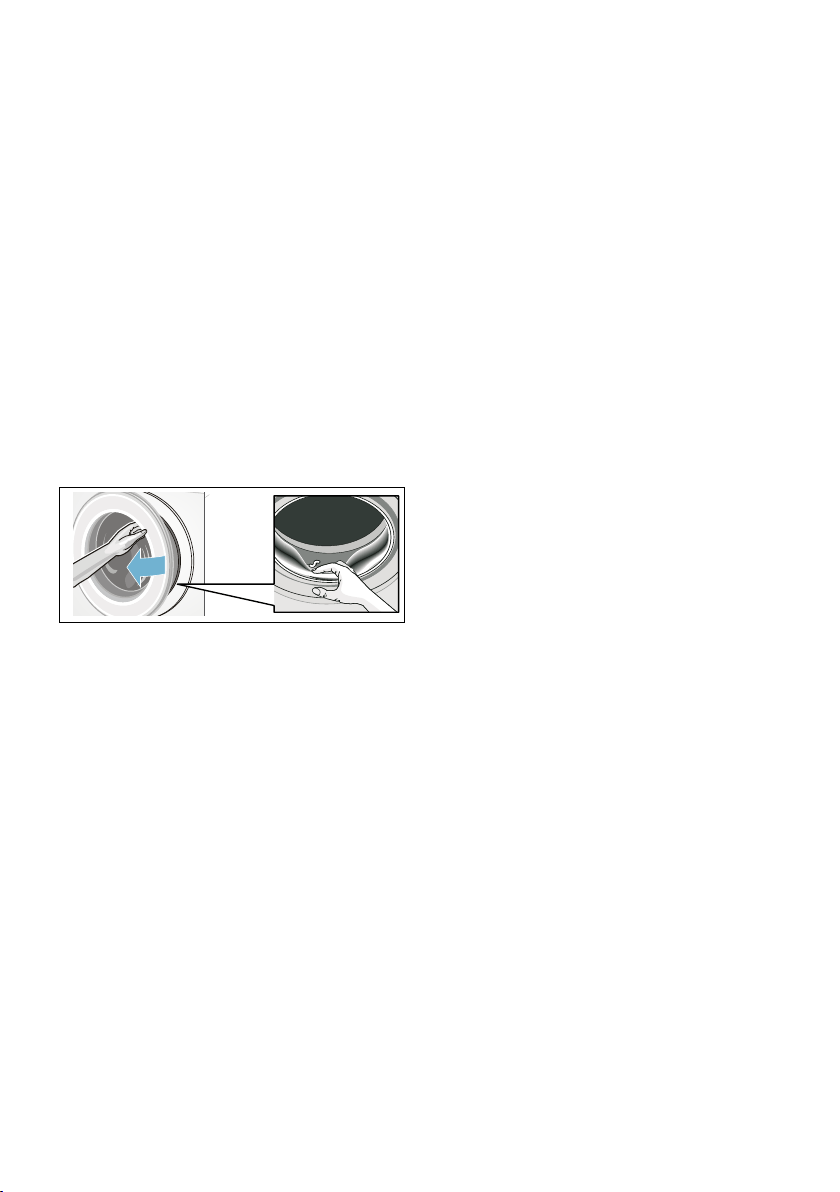

Removing laundry/switching off the appliance
24
1. Open the door and remove the laundry.
24
2. Press the # button. The appliance is switched off.
24
3. Turn off the tap.
24
Note:
24
Notes
24
Q Appliance settings
25
Appliance settings
25
Activating the setting mode
25
1. Press the # button.
25
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
25
Changing the signal volume
25
Selecting/deselecting the appliance automatic switch- off
25
Exiting setting mode
25
H Sensors
26
Sensors
26
Automatic load sensing
26
Unbalanced load detection system
26
Note:
26
AquaSensor
26
2 Cleaning and maintenance
27
Cleaning and maintenance
27
: Warning
27
Danger of death!
27
: Warning
27
Risk of poisoning!
27
Caution!
27
Damage to the appliance
27
Notes
27
Machine housing/control panel
27
Drum
27
Descaling
27

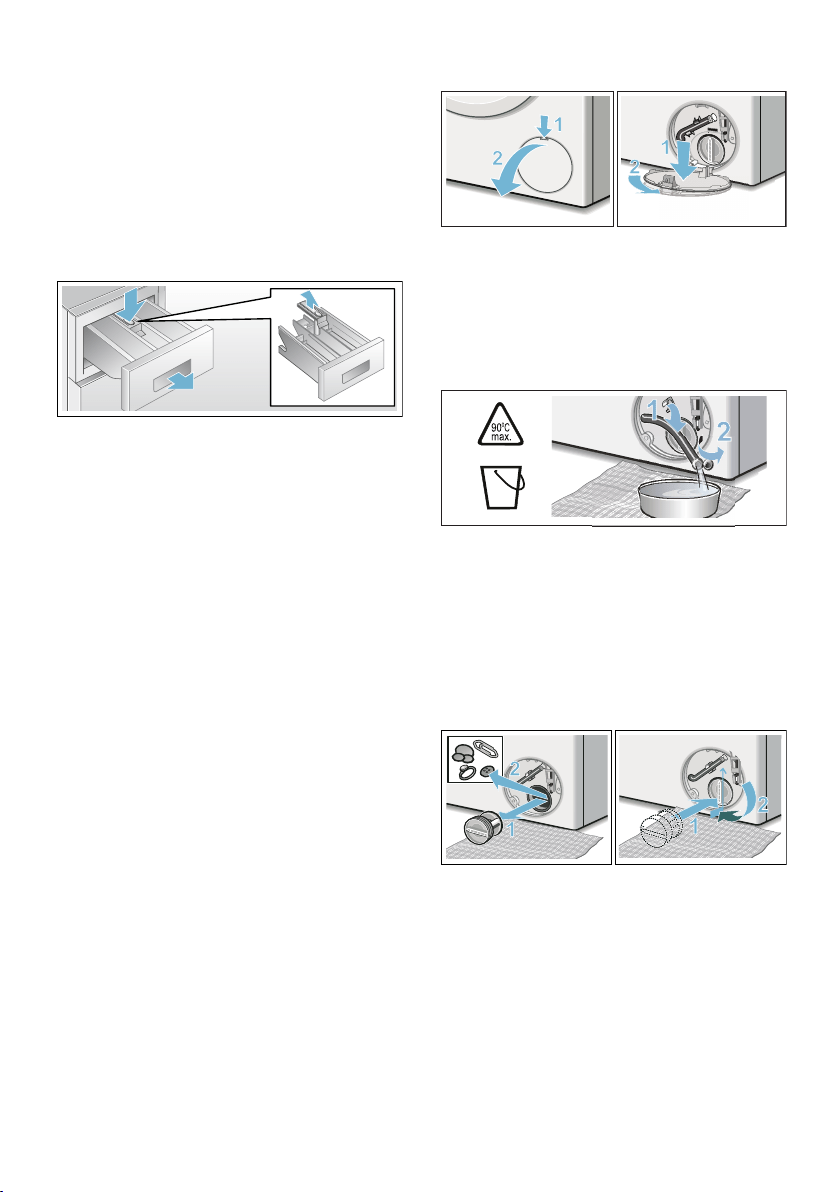

Detergent drawer and housing
28
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
28
2. To remove the insert: Push the insert upwards from below with your finger.
28
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
28
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
28
5. Push in the detergent drawer.
28
Note:
28

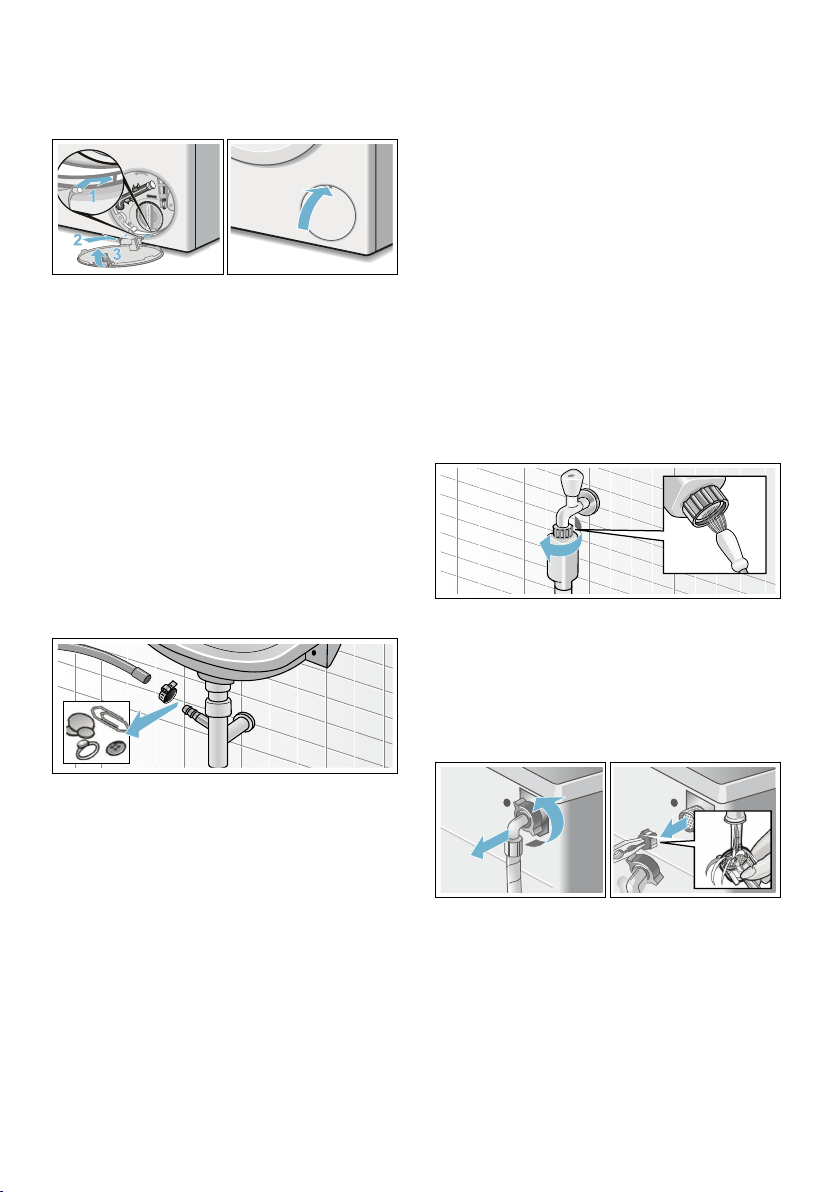

The drain pump is blocked, emergency draining
28
: Warning
28
Risk of scalding!
28
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
28
2. Switch off the appliance. Pull out the mains plug.
28
3. Open and remove the service flap.
28
4. Take the drain hose out of the retainer.
28
5. Carefully unscrew the pump cover; residual water may leak out.
28
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
The drain hose at the siphon is blocked
29
1. Switch off the appliance. Pull out the mains plug.
29
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
29
3. Clean the drain hose and siphon connecting piece.
29
4. Re-attach the drain hose and secure the connection point using the hose clamp.
29
Filter in the water supply blocked
29
First, reduce the water pressure in the supply hose:
29
1. Turn off the tap.
29
2. Select any programme (except Rinse/Spin/Empty).
29
3. Press the A button. Allow the programme to run for approximately 40 seconds.
29
4. Press the # button. The appliance is switched off.
29
5. Pull out the mains plug.
29
Then clean the filter:
29
1. Disconnect the hose from the tap.
29
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
29
3. Connect the hose and check for leaks.
29
3 Faults and what to do about them.
30
Faults and what to do about them.
30
Emergency release
30
: Warning
30
Risk of scalding!
30
: Warning
30
Risk of injury!
30
Caution!
30
Water damage
30
1. Switch off the appliance. Pull out the mains plug.
30
2. Drain the water. ~ Page 28
30
3. Pull the emergency release downwards with a tool and release.
30
Information on the display panel
31
Display
31
Cause/Remedy
31
Faults and what to do about them.
32
Faults
32
Cause/Remedy
32
Note:
33
4 After-sales service
34
After-sales service
34
[ Consumption rates
35
Consumption rates
35
Energy and water consumption, programme duration and residual moisture for the main washing programmes
35
Programme
35
Load
35
Energy consumption**
35
Water consumption**
35
Programme duration**
35
Programme
35
Approximate information on the residual moisture***
35
WAW32...
35
WAW28...
35
WAW24...
35
WAW20...
35
Max. 1600 rpm
35
Max. 1400 rpm
35
Max. 1200 rpm
35
Max. 1000 rpm
35
J Technical data
36
Technical data
36

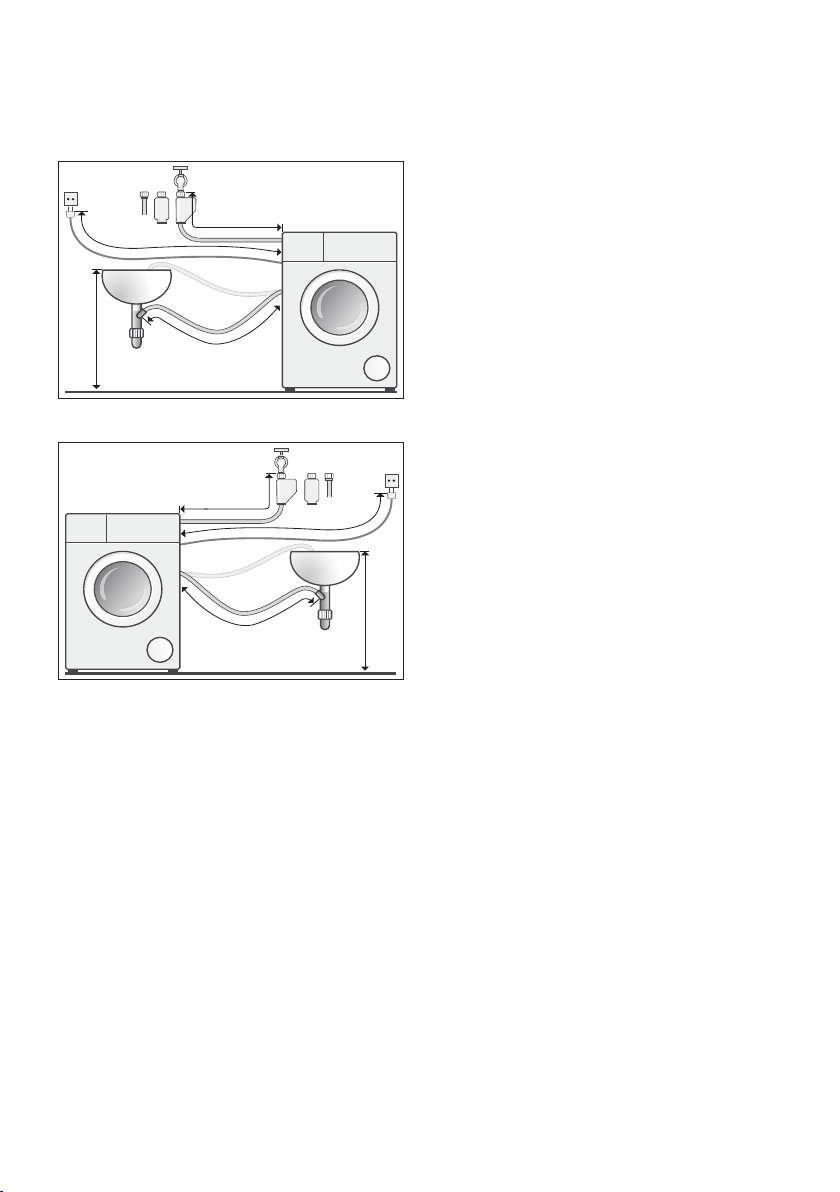

5 Positioning and connecting
37
Positioning and connecting
37
Included with the appliance
37
Note:
37
Useful tools
37
Safety instructions
38
: Warning
38
Risk of injury!
38
Caution!
38
Damage to the appliance
38
Caution!
38
Water damage
38
Notes
38
Installation surface
38
Note:
38
Installation on a base or a wooden joist floor
38
Caution!
38
Damage to the appliance
38
Note:
38
Installation on a platform with drawer
38
Installing the appliance in a kitchenette
39
: Warning
39
Danger of death!
39
Notes
39
Removing the transport locks
39
Caution!
39
Damage to the appliance
39
Note:
39

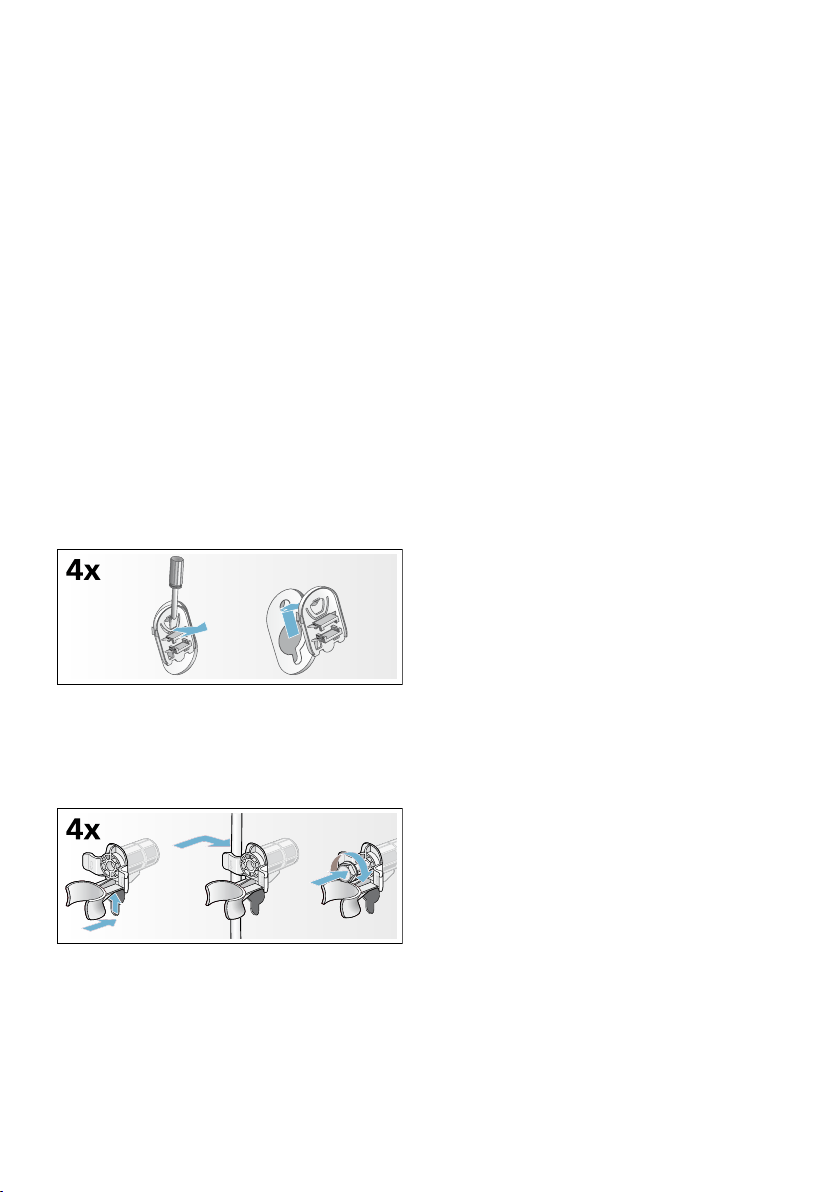

1. Take the hoses out of the holders.
39
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
39
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
39

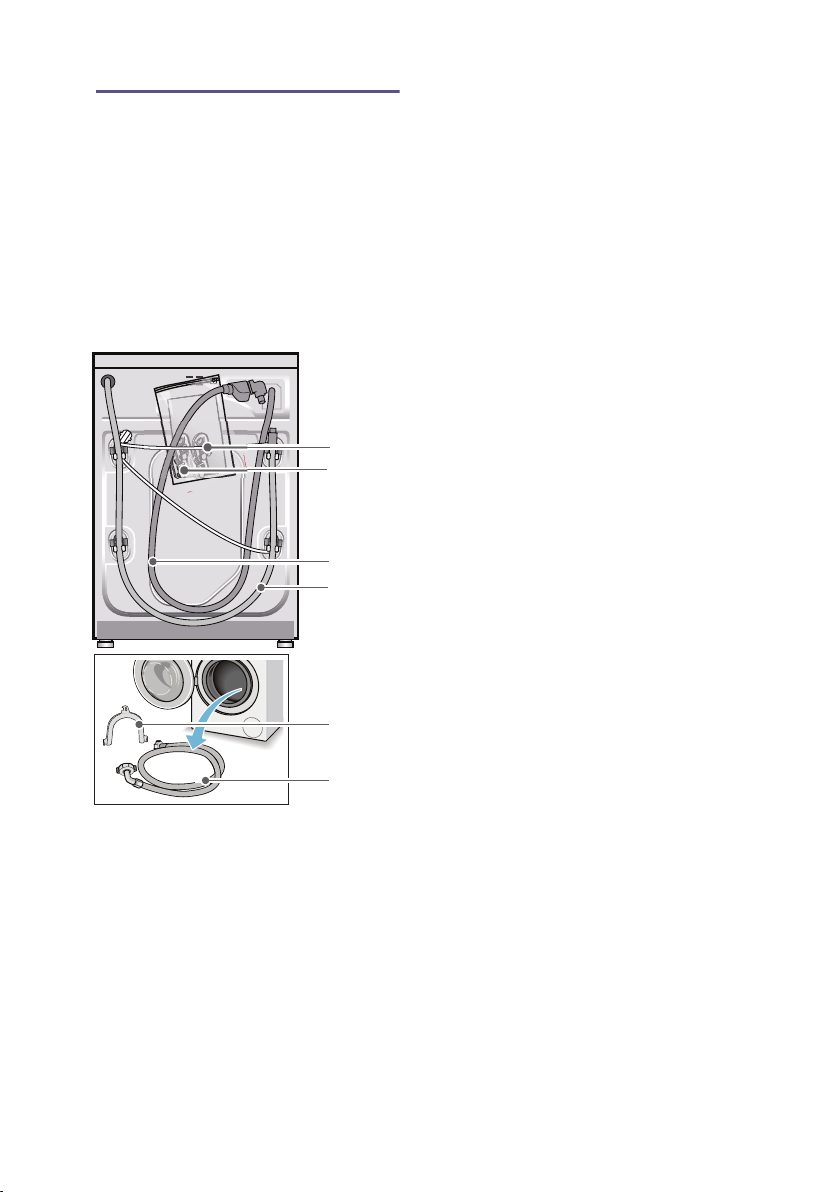

Hose and cable lengths
40
Tip:
40

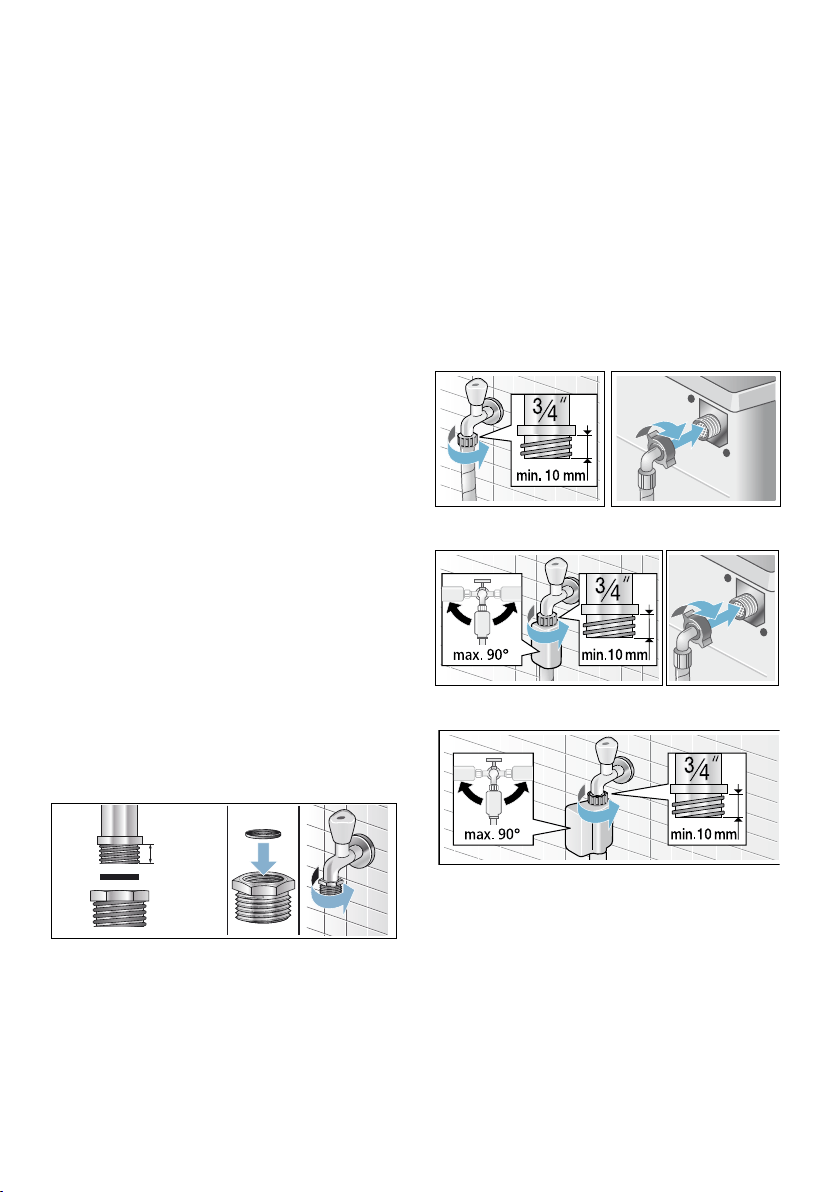

Water inlet
41
: Warning
41
Danger of death!
41
Notes
41
Connection
41
Note:
41

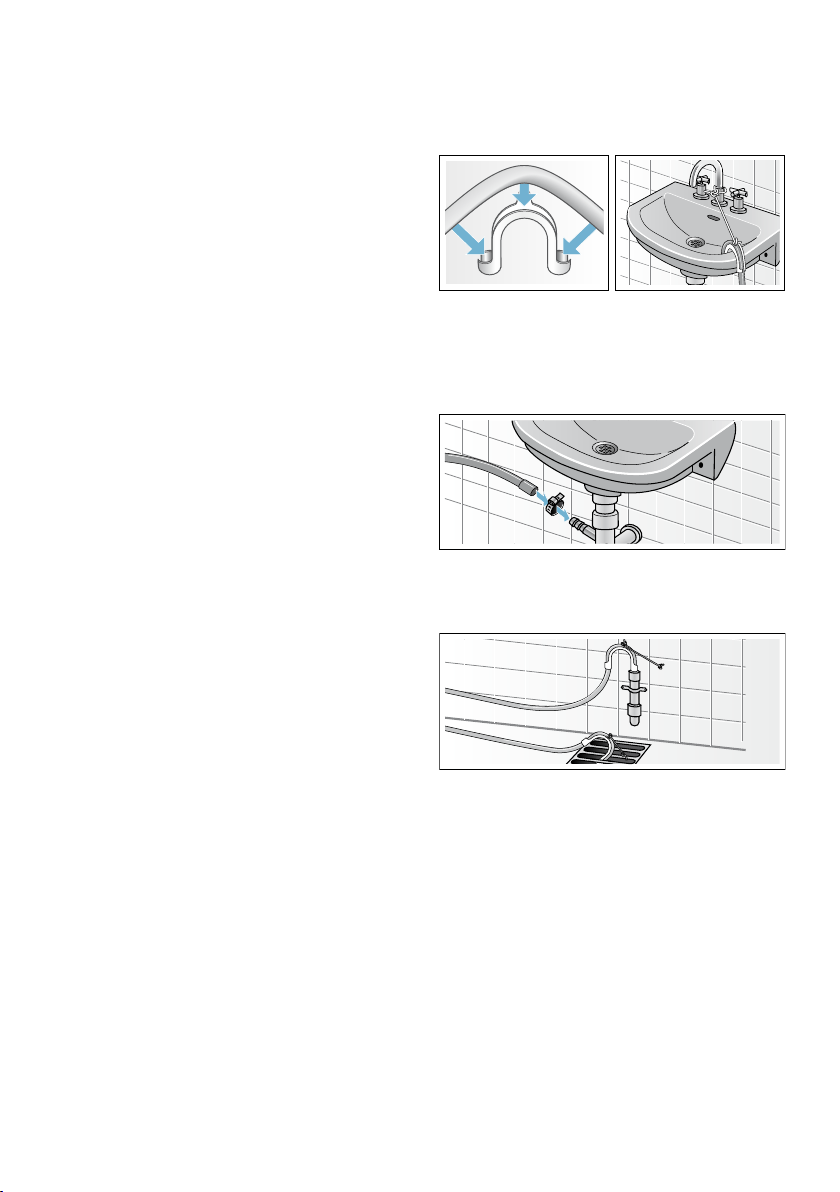

Water outlet
42
: Warning
42
Risk of scalding!
42
Caution!
42
Water damage
42
Caution!
42
Damage to the appliance/fabrics
42
Note:
42
Connection
42
Levelling
43
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
43
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
43
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
43
Electrical connection
44
: Warning
44
Danger of death!
44
Notes
44
: Warning
44
Danger of death!
44
Notes
44
Before washing for the first time
45
Notes
45
Preparatory work:
45
1. Check the machine.
45
2. Remove the protective film from the control panel.
45
3. Plug in the mains plug.
45
4. Turn on the tap.
45
Running the programme without laundry:
45
1. Switch on the appliance.
45
2. Close the door (do not load any laundry).
45
3. Set the Cottons 90 °C programme.
45
4. Open the detergent drawer.
45
5. Pour approximately 1 litre of water into compartment II.
45
6. Pour standard washing powder into compartment II.
45
Note:
45
7. Close the detergent drawer.
45
8. Press the A button.
45
9. Switch off the appliance at the end of the programme.
45
Transportation
46
Preparatory work:
46
1. Turn off the tap.
46
2. Reduce the water pressure in the supply hose: ~ Page 29; Cleaning and maintenance – filter in the water supply blocked
46
3. Disconnect the washing machine from the mains.
46
4. Drain the remaining water: ~ Page 28; cleaning and maintenance – the drain pump is blocked, emergency draining
46
5. Remove the hoses.
46

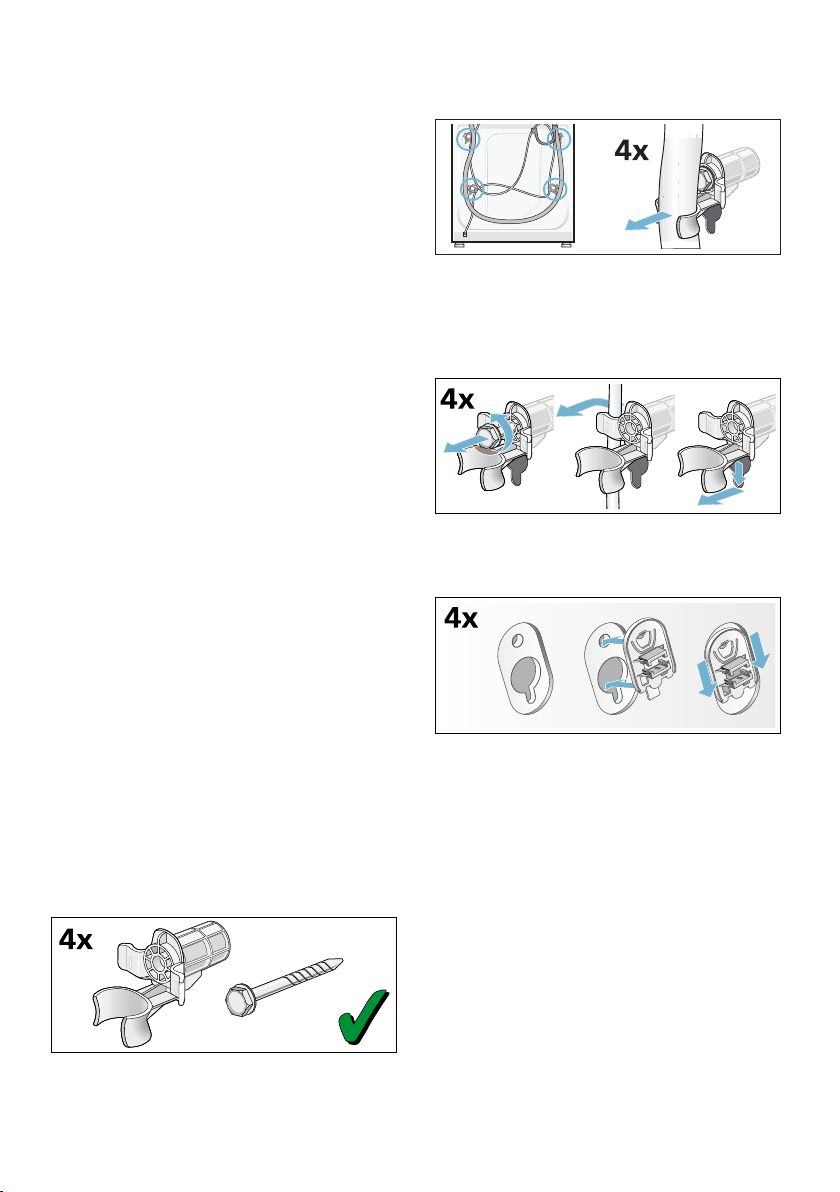

Fitting the transportation securing means:
46
1. Remove the covers and keep them in a safe place.
46
2. Insert all four sleeves.
46
Notes
46
r Aqua-Stop warranty
47
Aqua-Stop warranty
47
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
47
2. The liability guarantee is valid for the service life of the appliance.
47
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
47
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
47
File type: PDF
File name: 30922359_waw24440in-12.pdf
File size: 5.01 MB
File Language: English
Pages: 48
Author: Bosch
File created: 2023-09-12
Published: 2023-12-17
Updated: 2023-12-16
Download File
Specifications
Brand:
Bosch
Model: WAW24440IN/12
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
HEN201W2/09
SHI3315/41
WIW24300ES/18
KFW18A40/03
PKQ612V01E/01
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAW24420GR/12
Bosch WAW24420GR/17
Bosch WAW24420GR/14
Bosch WAW20460IL/12
Bosch WAW24420GR/19
Bosch WAW28640AU
Bosch WAT24440AU
Bosch WAW28440AU
Bosch WAW28740EU
Bosch WAG14060IN/03
Bosch WAW20468IL/17
Bosch WAS24460UC/18
Bosch WAW285H2UC/14
Bosch WAW24420GR/01
Bosch WAU28440SG/02
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
Y Main points in brief 8
3
* Getting to know the appliance 9
3
Z Laundry 12
3
C Detergent 13
3
/ Overview of programmes 14
3
0 Programme default settings 18
3
\ Additional programme settings 19
3
1 Operating the appliance 20
3
Q Appliance settings 25
3
H Sensors 26
3
2 Cleaning and maintenance 27
4
3 Faults and what to do about them. 30
4
4 After-sales service 34
4
[ Consumption rates 35
4
J Technical data 36
4
5 Positioning and connecting 37
4
r Aqua-Stop warranty 47
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Risk of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
6
: Warning
6
Danger of death!
6
: Warning
6
Danger of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
Note:
7
Do’s
7
Don’ts
7
Tips on economical use
7
Y Main points in brief
8
Main points in brief
8
* Getting to know the appliance
9
Getting to know the appliance
9
Washing machine
9
Control panel
10
Note:
10
Additional programme settings: ~ Page 19
10
A button for:
10
Changing the default programme settings: ~ Page 18
10
Display panel
11
Default programme settings:
11
Further information
11
Z Laundry
12
Laundry
12
Prepare the laundry
12
Caution!
12
Damage to the appliance/fabrics
12
Sorting laundry
12
Note:
12
Note:
12
C Detergent
13
Detergent
13
Correct selection of detergent
13
Saving energy and detergent
13
Saving
13
Soiling/note
13
Note:
13
/ Overview of programmes
14
Overview of programmes
14
Programmes on the programme selector
14
Programme/type of laundry/information
14
Settings
14
Notes
14
Note:
15
Notes
15
Note:
15
Note:
16
1. Select a programme.
16
2. Add special detergent for outdoor clothing to compartment II.
16
3. Add waterproofing agent (max. 170 ml) to compartment i.
16
4. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
16
Notes
16
Notes
16
Notes
16
Note:
17
Notes
17
Starching
17
Note:
17
Dyeing/bleaching
17
Soaking
17
1. Switch on the appliance.
17
2. Select the Cottons 30 °C programme.
17
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
17
4. Press the A button. The programme starts.
17
5. After approx. 10 minutes, press the A button to pause the programme.
17
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
17
Notes
17
0 Programme default settings
18
Programme default settings
18
Temperature
18
Spin speed
18
Ready in ñ
18
1. Select a programme.
18
2. Press the Ready in ñ button repeatedly until the required number of hours is displayed.
18
Note:
18
3. Press the A button.
18
Note:
18
1. Press the A button.
18
2. Use the Ready in ñ - or + button to change the number of hours.
18
3. Press the A button.
18
\ Additional programme settings
19
Additional programme settings
19
EcoPerfect F
19
SpeedPerfect (
19
Note:
19
Easy Iron p
19
Note:
19
Water Plus Z
19
1 Operating the appliance
20
Operating the appliance
20
Preparing the washing machine
20
Note:
20
1. Connect the mains plug.
20
2. Turn on the tap.
20
3. Open the door.
20
4. Check that the drum is completely drained. Drain if necessary.
20
Switching on the appliance/ selecting a programme
20
Note:
20
Placing laundry into the drum
20
: Warning
20
Danger of death!
20
Notes
20
1. Unfold presorted laundry items and place them in the drum.
20
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
20
Measure and add detergent and care products
21
Caution!
21
Damage to the appliance
21
Dosing
21
Filling
21
: Warning
21
Eye/skin irritation!
21
Note:
21
1. Pull out the detergent drawer as far as possible.
21
2. Add detergent and/or care products.
21
3. Close the detergent drawer.
21
Measuring aid* for liquid detergent
21
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
21
2. Slide the measuring aid forwards, fold it down and click it into place.
21
3. Reinsert the drawer.
21
Note:
21
Change the programme default settings
22
Note:
22
Select additional programme settings
22
Start the programme
22
Note:
22
Note:
22
Child lock. E 3 sec.
22
Note:
22
Adding laundry
23
Notes
23
Changing the programme
23
1. Press the A button.
23
2. Select another programme.
23
3. Press the A button. The new programme starts from the beginning.
23
Cancel the programme
23
1. Press the A button.
23
2. To cool down laundry: Select Rinse.
23
3. Press the A button.
23
1. Press the A button.
23
2. Select Spin or Drain.
23
3. Press the A button.
23
Programme end during rinse hold
23
Programme end
23
Removing laundry/switching off the appliance
24
1. Open the door and remove the laundry.
24
2. Press the # button. The appliance is switched off.
24
3. Turn off the tap.
24
Note:
24
Notes
24
Q Appliance settings
25
Appliance settings
25
Activating the setting mode
25
1. Press the # button.
25
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
25
Changing the signal volume
25
Selecting/deselecting the appliance automatic switch- off
25
Exiting setting mode
25
H Sensors
26
Sensors
26
Automatic load sensing
26
Unbalanced load detection system
26
Note:
26
AquaSensor
26
2 Cleaning and maintenance
27
Cleaning and maintenance
27
: Warning
27
Danger of death!
27
: Warning
27
Risk of poisoning!
27
Caution!
27
Damage to the appliance
27
Notes
27
Machine housing/control panel
27
Drum
27
Descaling
27
Detergent drawer and housing
28
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
28
2. To remove the insert: Push the insert upwards from below with your finger.
28
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
28
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
28
5. Push in the detergent drawer.
28
Note:
28
The drain pump is blocked, emergency draining
28
: Warning
28
Risk of scalding!
28
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
28
2. Switch off the appliance. Pull out the mains plug.
28
3. Open and remove the service flap.
28
4. Take the drain hose out of the retainer.
28
5. Carefully unscrew the pump cover; residual water may leak out.
28
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
The drain hose at the siphon is blocked
29
1. Switch off the appliance. Pull out the mains plug.
29
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
29
3. Clean the drain hose and siphon connecting piece.
29
4. Re-attach the drain hose and secure the connection point using the hose clamp.
29
Filter in the water supply blocked
29
First, reduce the water pressure in the supply hose:
29
1. Turn off the tap.
29
2. Select any programme (except Rinse/Spin/Empty).
29
3. Press the A button. Allow the programme to run for approximately 40 seconds.
29
4. Press the # button. The appliance is switched off.
29
5. Pull out the mains plug.
29
Then clean the filter:
29
1. Disconnect the hose from the tap.
29
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
29
3. Connect the hose and check for leaks.
29
3 Faults and what to do about them.
30
Faults and what to do about them.
30
Emergency release
30
: Warning
30
Risk of scalding!
30
: Warning
30
Risk of injury!
30
Caution!
30
Water damage
30
1. Switch off the appliance. Pull out the mains plug.
30
2. Drain the water. ~ Page 28
30
3. Pull the emergency release downwards with a tool and release.
30
Information on the display panel
31
Display
31
Cause/Remedy
31
Faults and what to do about them.
32
Faults
32
Cause/Remedy
32
Note:
33
4 After-sales service
34
After-sales service
34
[ Consumption rates
35
Consumption rates
35
Energy and water consumption, programme duration and residual moisture for the main washing programmes
35
Programme
35
Load
35
Energy consumption**
35
Water consumption**
35
Programme duration**
35
Programme
35
Approximate information on the residual moisture***
35
WAW32...
35
WAW28...
35
WAW24...
35
WAW20...
35
Max. 1600 rpm
35
Max. 1400 rpm
35
Max. 1200 rpm
35
Max. 1000 rpm
35
J Technical data
36
Technical data
36
5 Positioning and connecting
37
Positioning and connecting
37
Included with the appliance
37
Note:
37
Useful tools
37
Safety instructions
38
: Warning
38
Risk of injury!
38
Caution!
38
Damage to the appliance
38
Caution!
38
Water damage
38
Notes
38
Installation surface
38
Note:
38
Installation on a base or a wooden joist floor
38
Caution!
38
Damage to the appliance
38
Note:
38
Installation on a platform with drawer
38
Installing the appliance in a kitchenette
39
: Warning
39
Danger of death!
39
Notes
39
Removing the transport locks
39
Caution!
39
Damage to the appliance
39
Note:
39
1. Take the hoses out of the holders.
39
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
39
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
39
Hose and cable lengths
40
Tip:
40
Water inlet
41
: Warning
41
Danger of death!
41
Notes
41
Connection
41
Note:
41
Water outlet
42
: Warning
42
Risk of scalding!
42
Caution!
42
Water damage
42
Caution!
42
Damage to the appliance/fabrics
42
Note:
42
Connection
42
Levelling
43
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
43
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
43
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
43
Electrical connection
44
: Warning
44
Danger of death!
44
Notes
44
: Warning
44
Danger of death!
44
Notes
44
Before washing for the first time
45
Notes
45
Preparatory work:
45
1. Check the machine.
45
2. Remove the protective film from the control panel.
45
3. Plug in the mains plug.
45
4. Turn on the tap.
45
Running the programme without laundry:
45
1. Switch on the appliance.
45
2. Close the door (do not load any laundry).
45
3. Set the Cottons 90 °C programme.
45
4. Open the detergent drawer.
45
5. Pour approximately 1 litre of water into compartment II.
45
6. Pour standard washing powder into compartment II.
45
Note:
45
7. Close the detergent drawer.
45
8. Press the A button.
45
9. Switch off the appliance at the end of the programme.
45
Transportation
46
Preparatory work:
46
1. Turn off the tap.
46
2. Reduce the water pressure in the supply hose: ~ Page 29; Cleaning and maintenance – filter in the water supply blocked
46
3. Disconnect the washing machine from the mains.
46
4. Drain the remaining water: ~ Page 28; cleaning and maintenance – the drain pump is blocked, emergency draining
46
5. Remove the hoses.
46
Fitting the transportation securing means:
46
1. Remove the covers and keep them in a safe place.
46
2. Insert all four sleeves.
46
Notes
46
r Aqua-Stop warranty
47
Aqua-Stop warranty
47
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
47
2. The liability guarantee is valid for the service life of the appliance.
47
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
47
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
47
Search:
×
Search
