Craftsman 917273764 lawn tractor User Manual

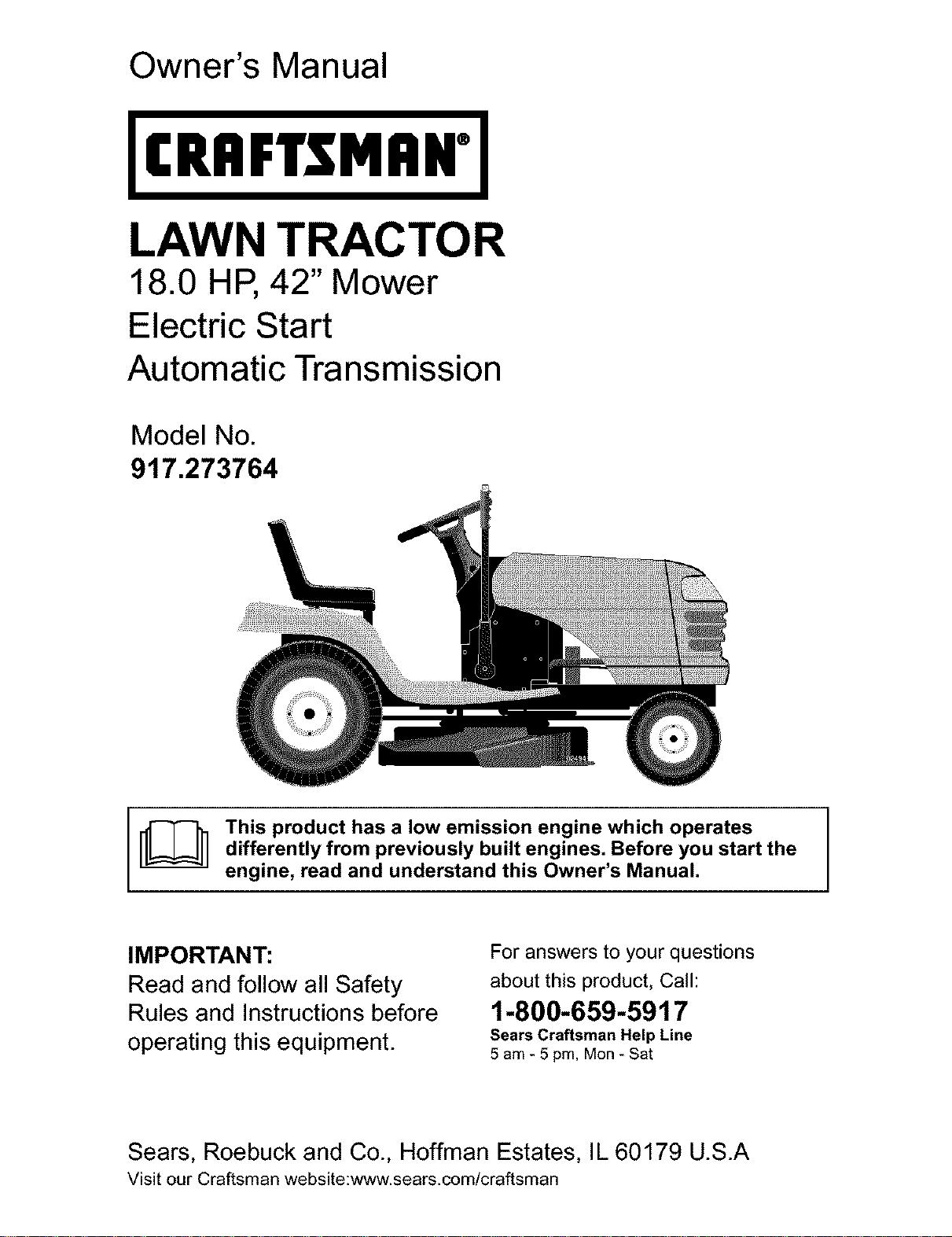

Owner's Manual

JCRAFTSMAWJ

LAWN TRACTOR

18.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273764

This product has a low emission engine which operatesdifferently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com!craftsman

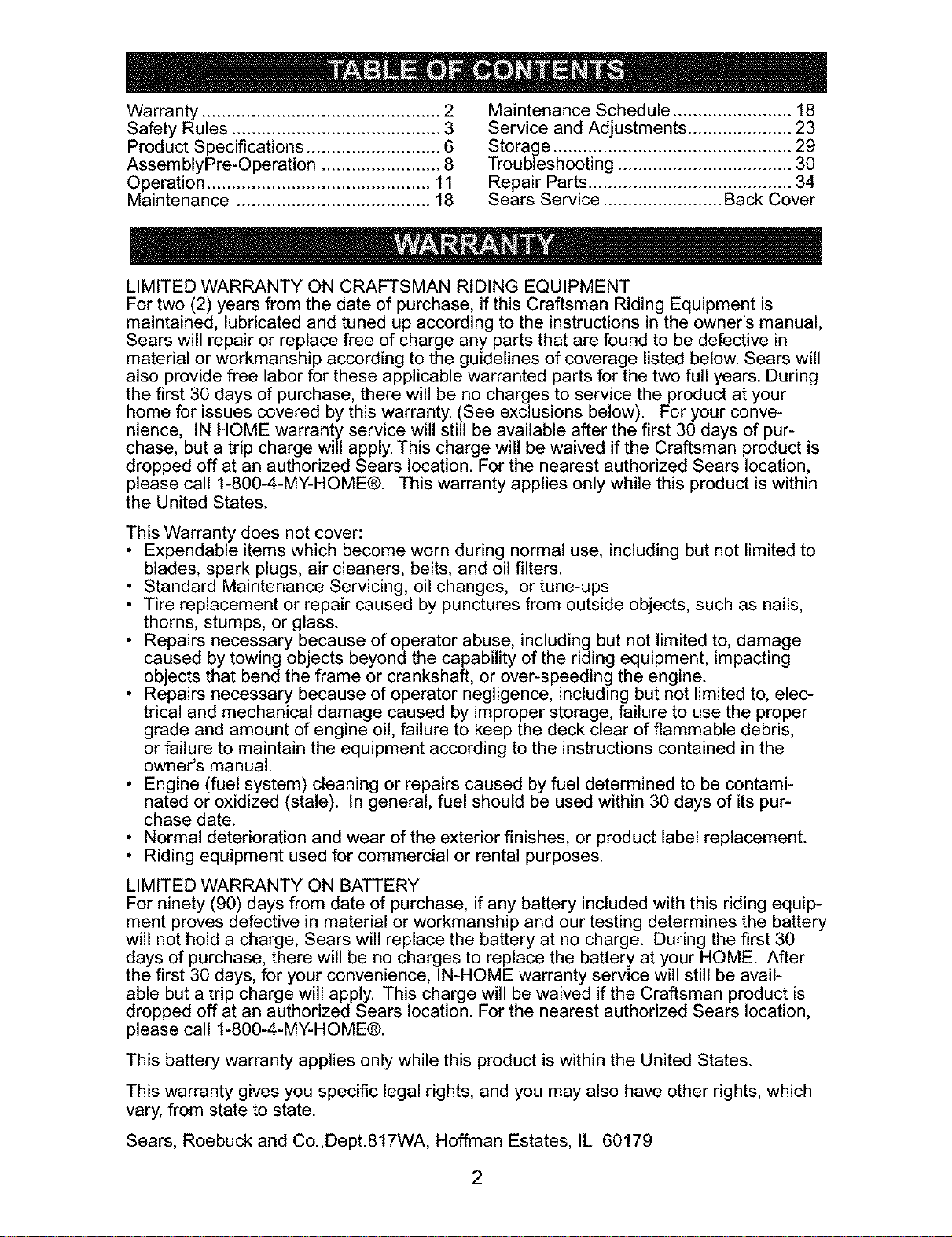

Warranty ................................................ 2

Safety Rules .......................................... 3

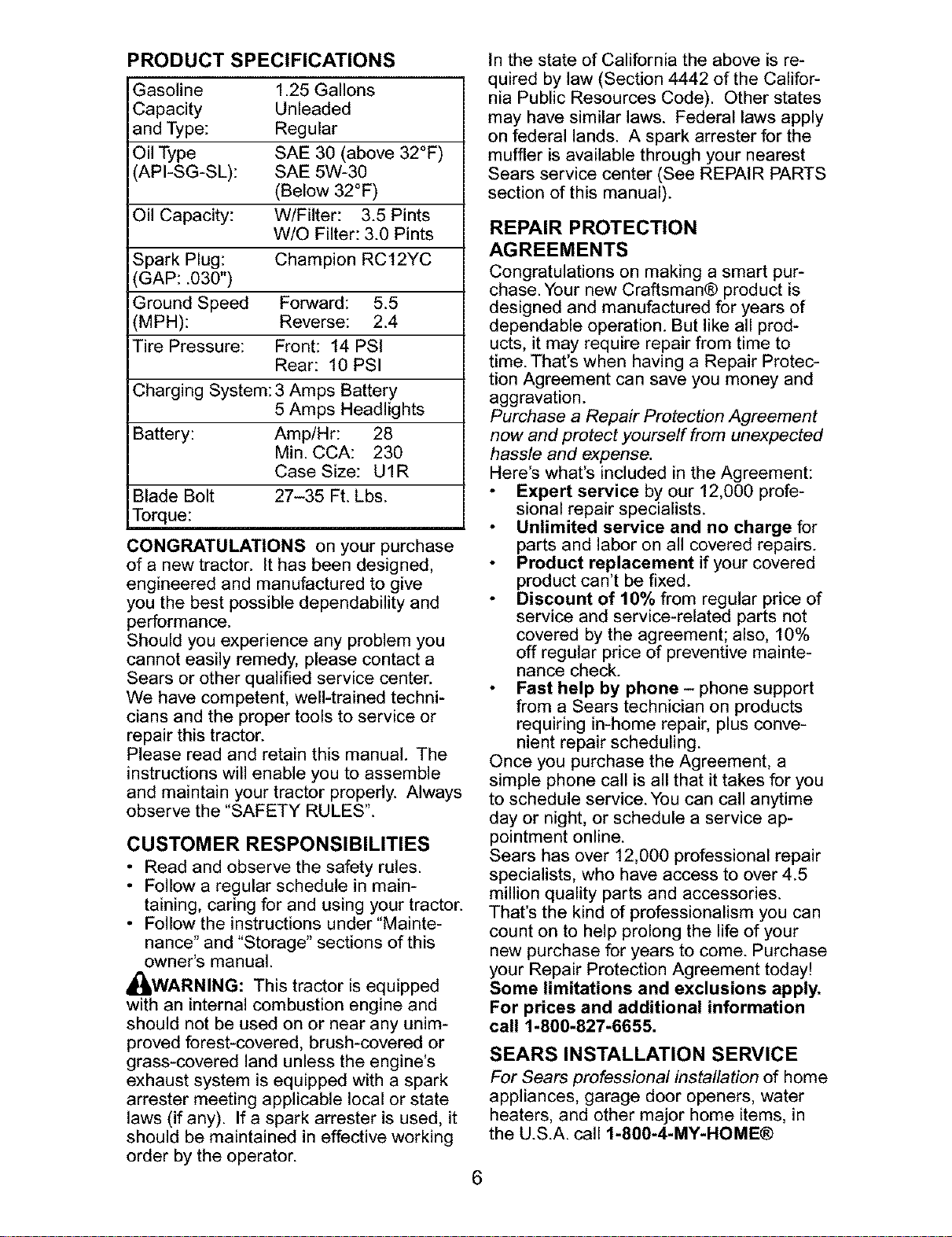

Product Specifications ........................... 6

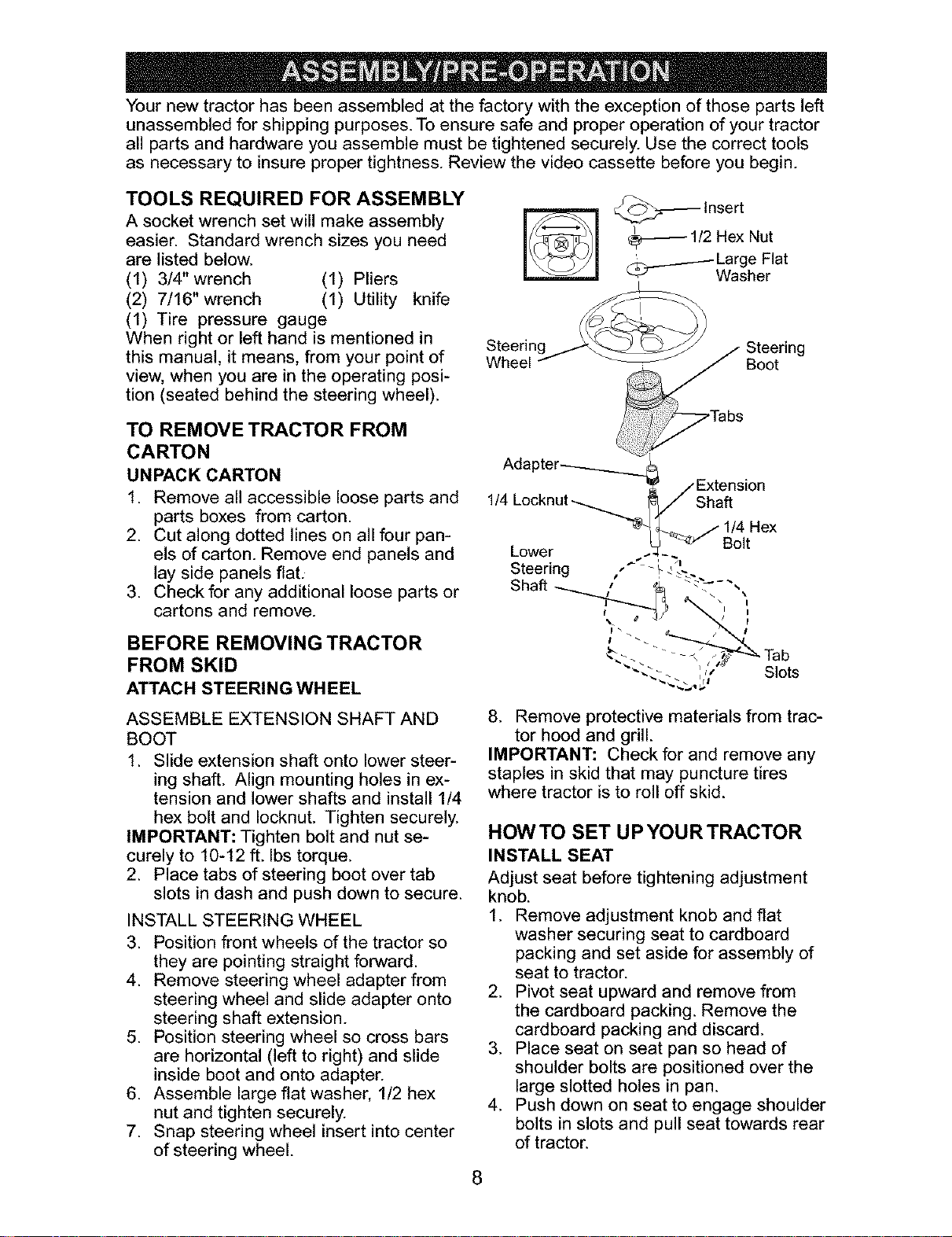

Assem blyPre-Operation ........................ 8

Operation ............................................. 11

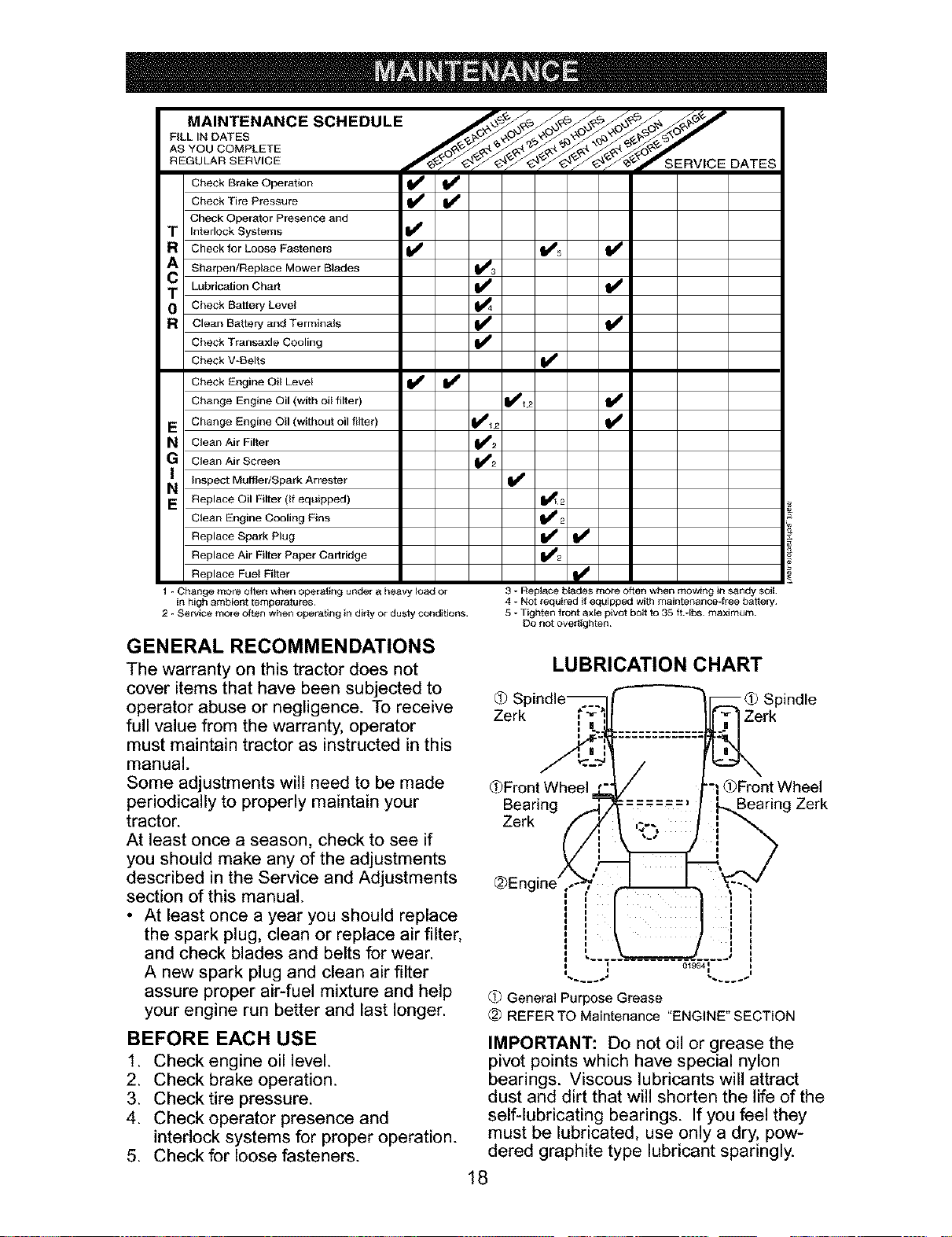

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

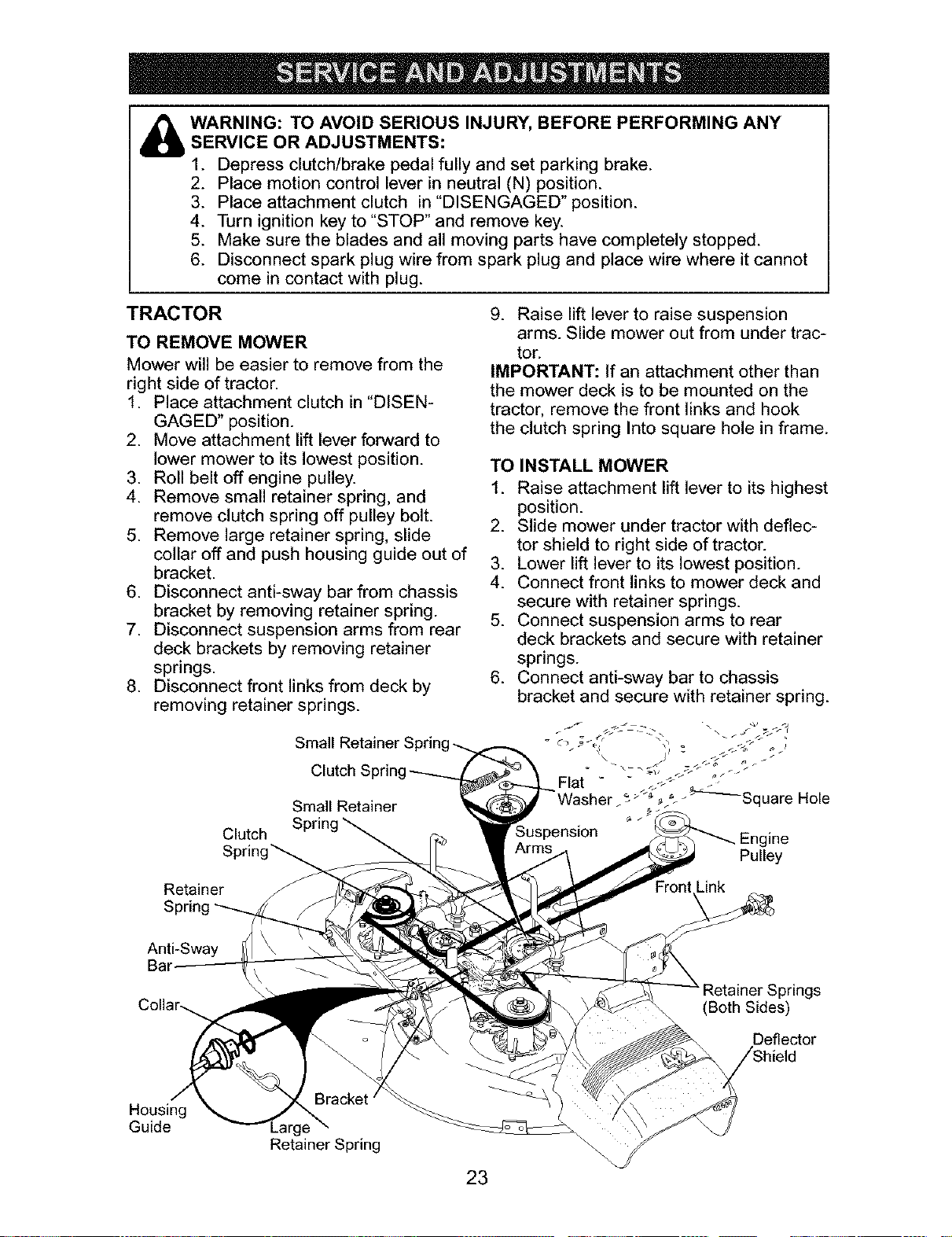

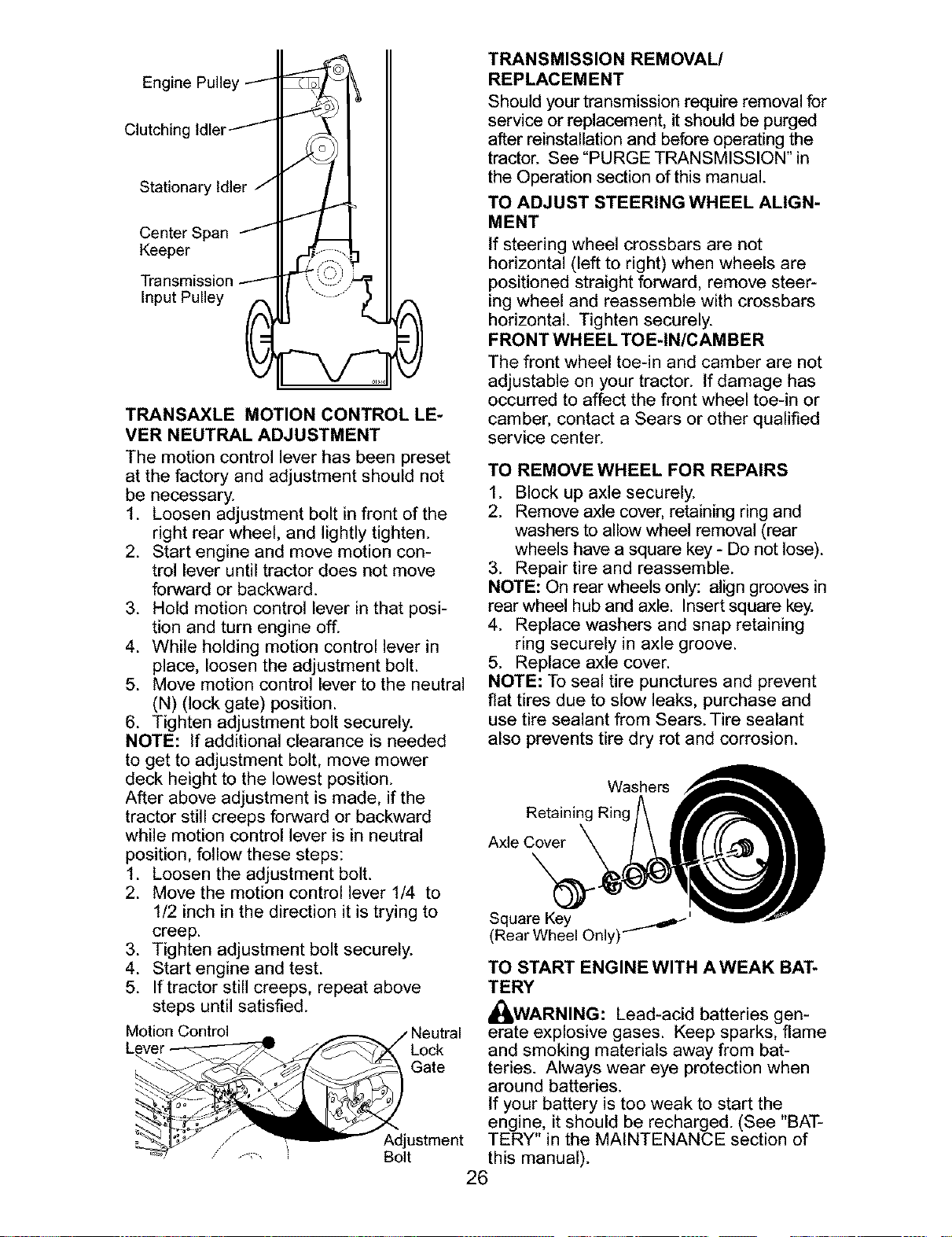

Service and Adjustments ..................... 23

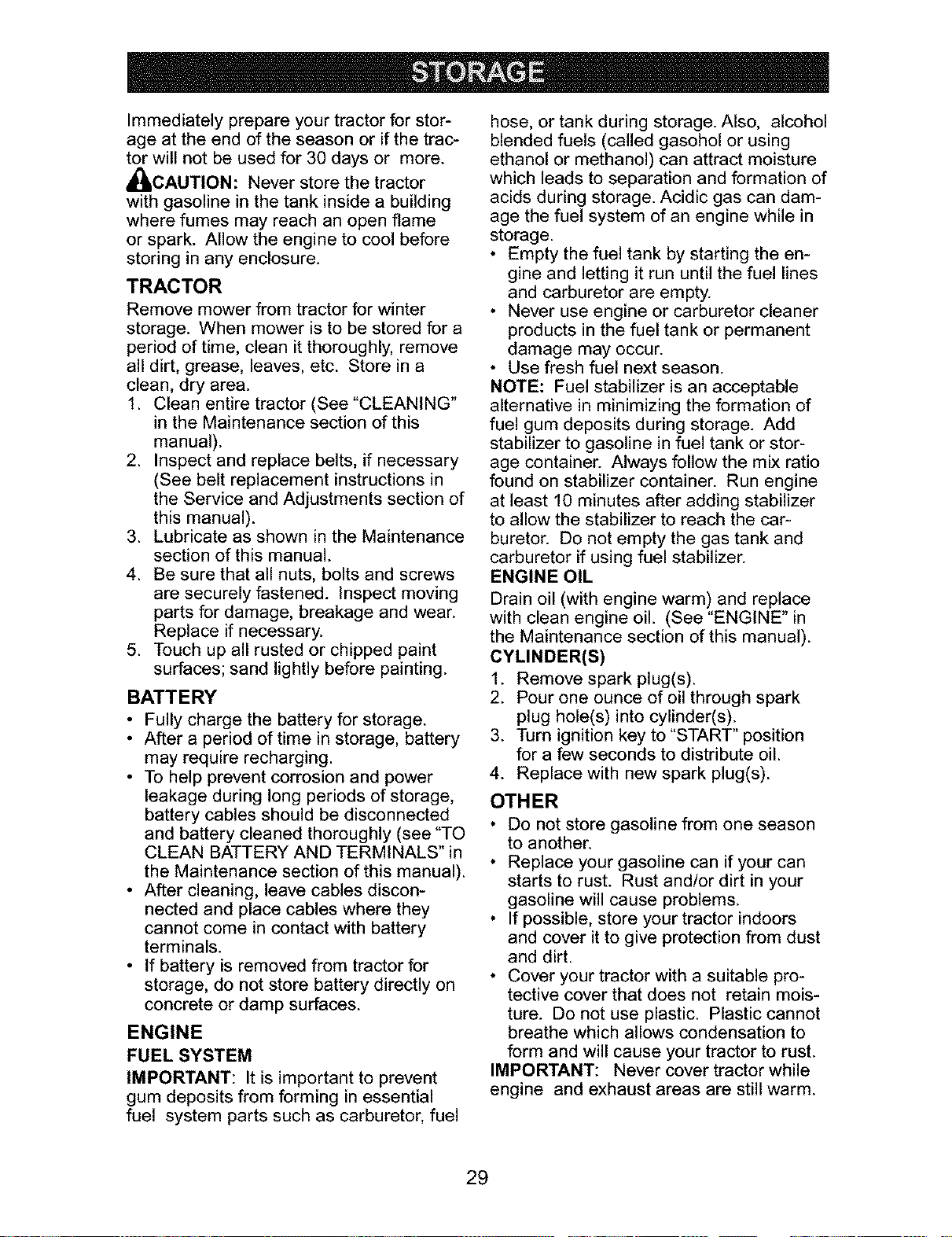

Storage ................................................ 29

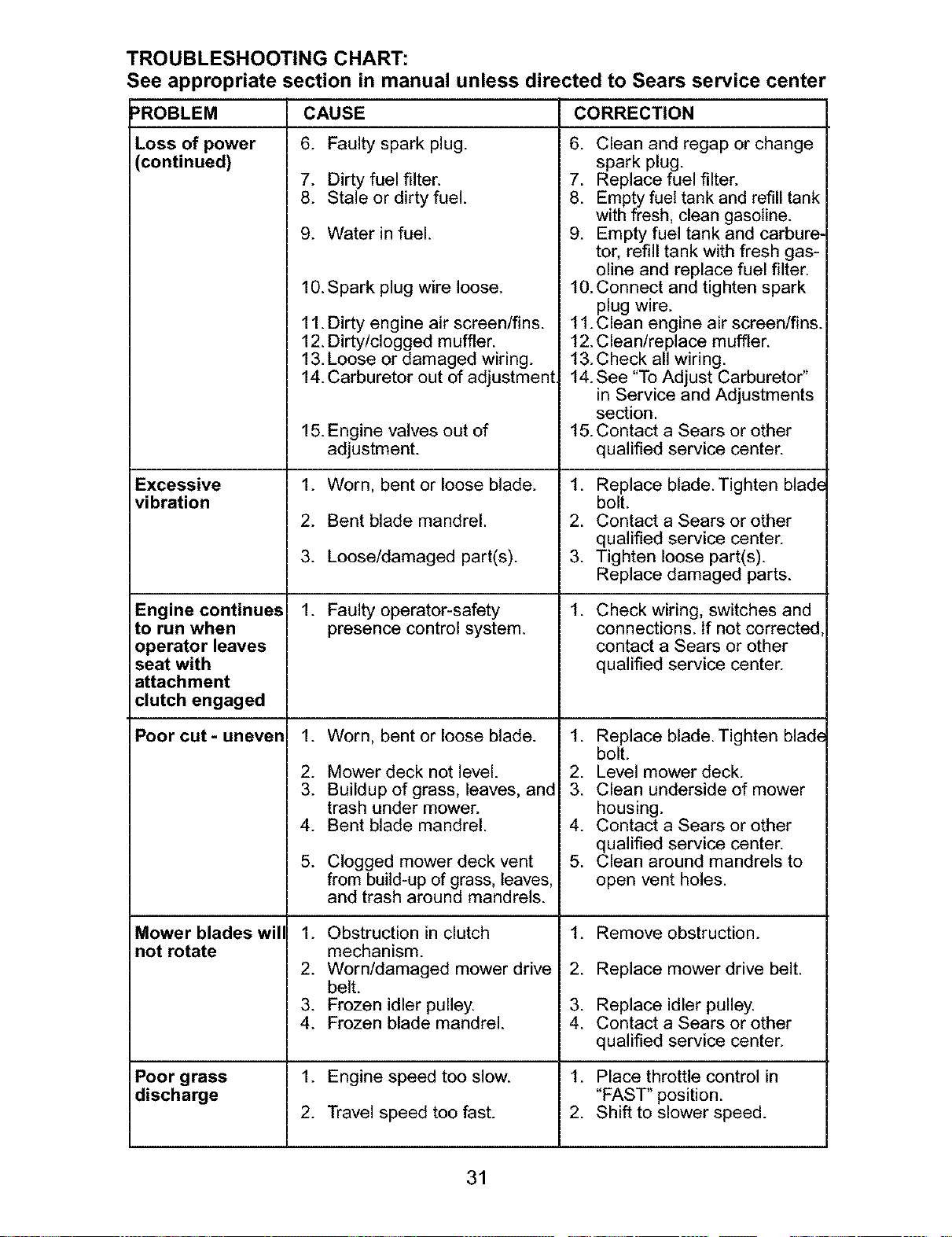

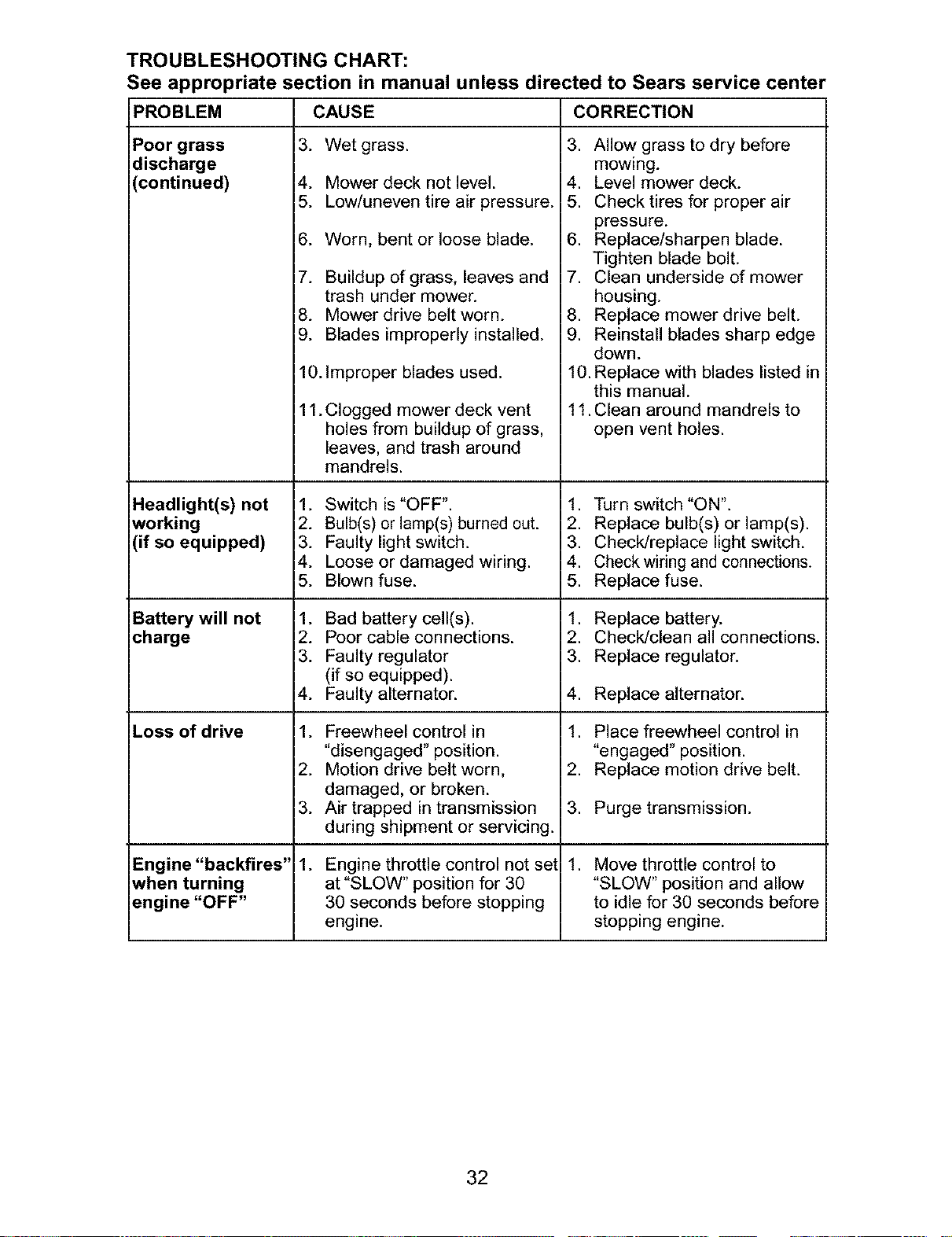

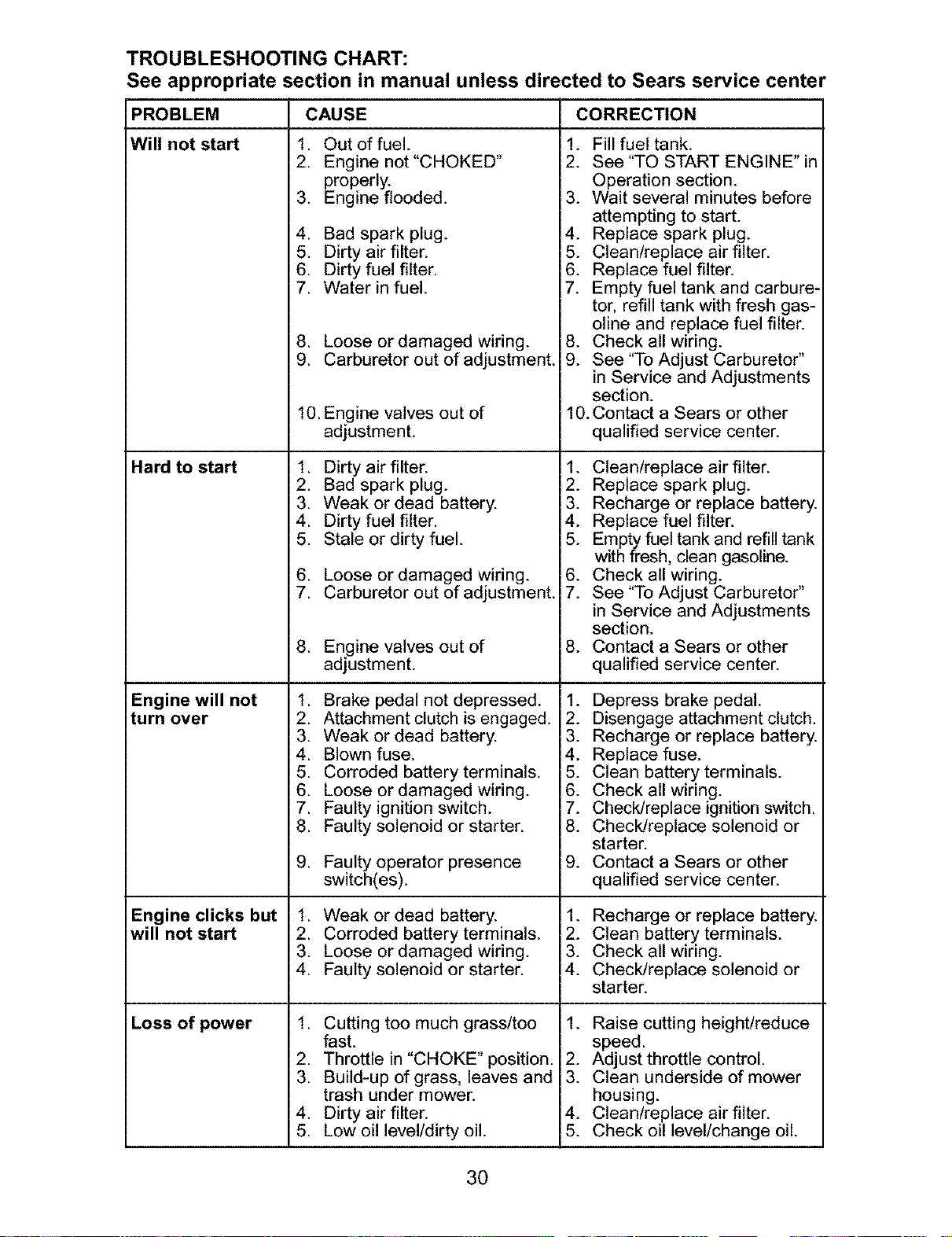

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

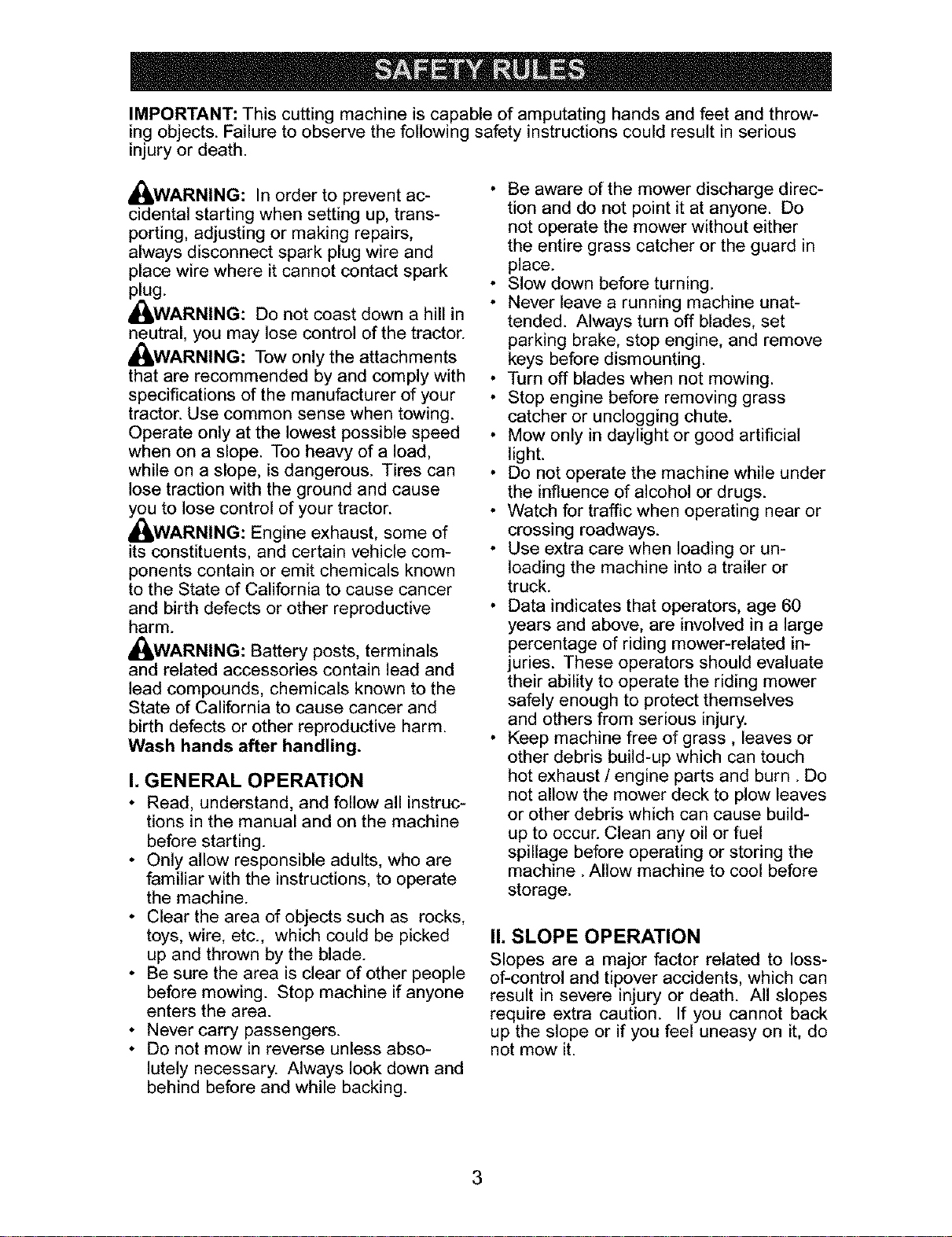

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_,wAoUto lose control of your tractor.

RNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

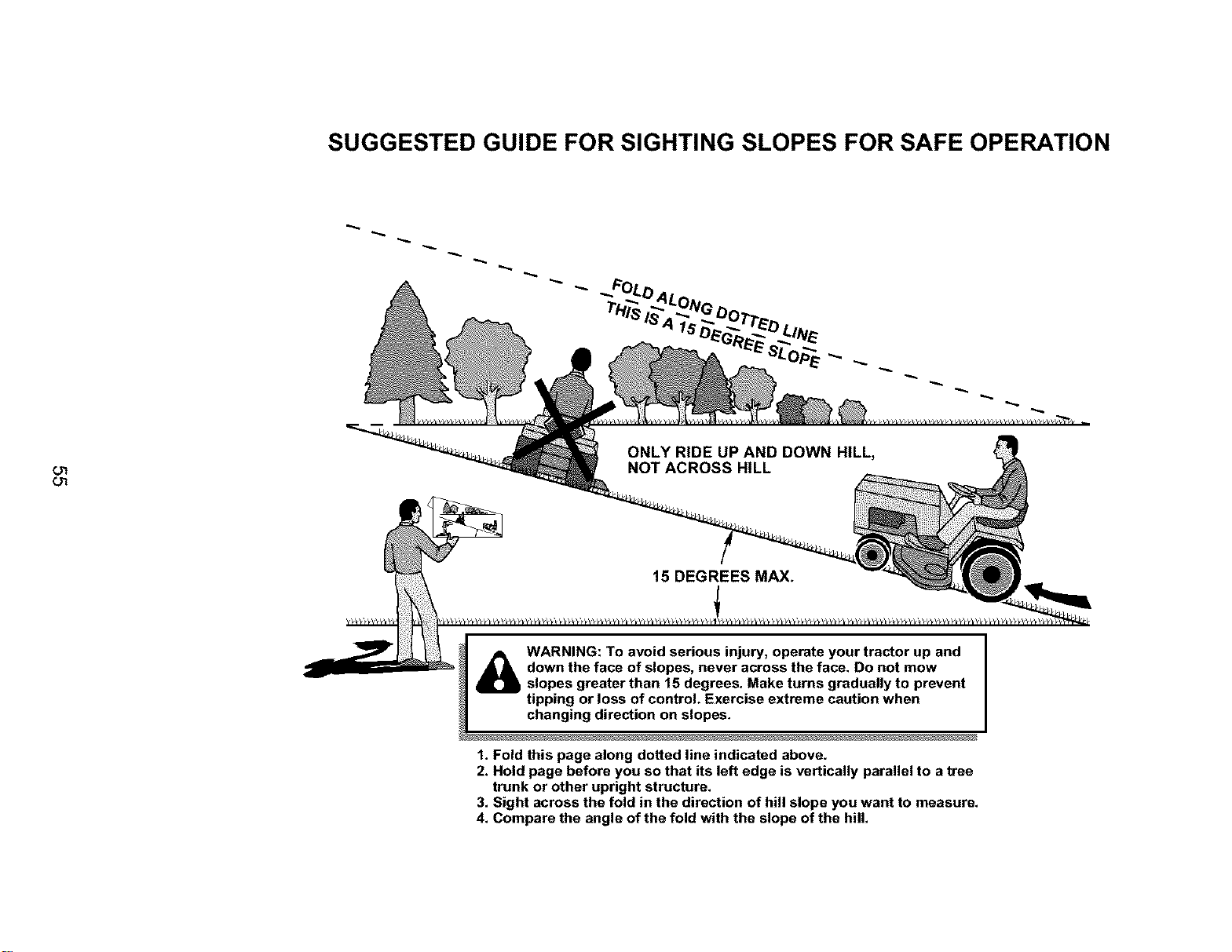

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

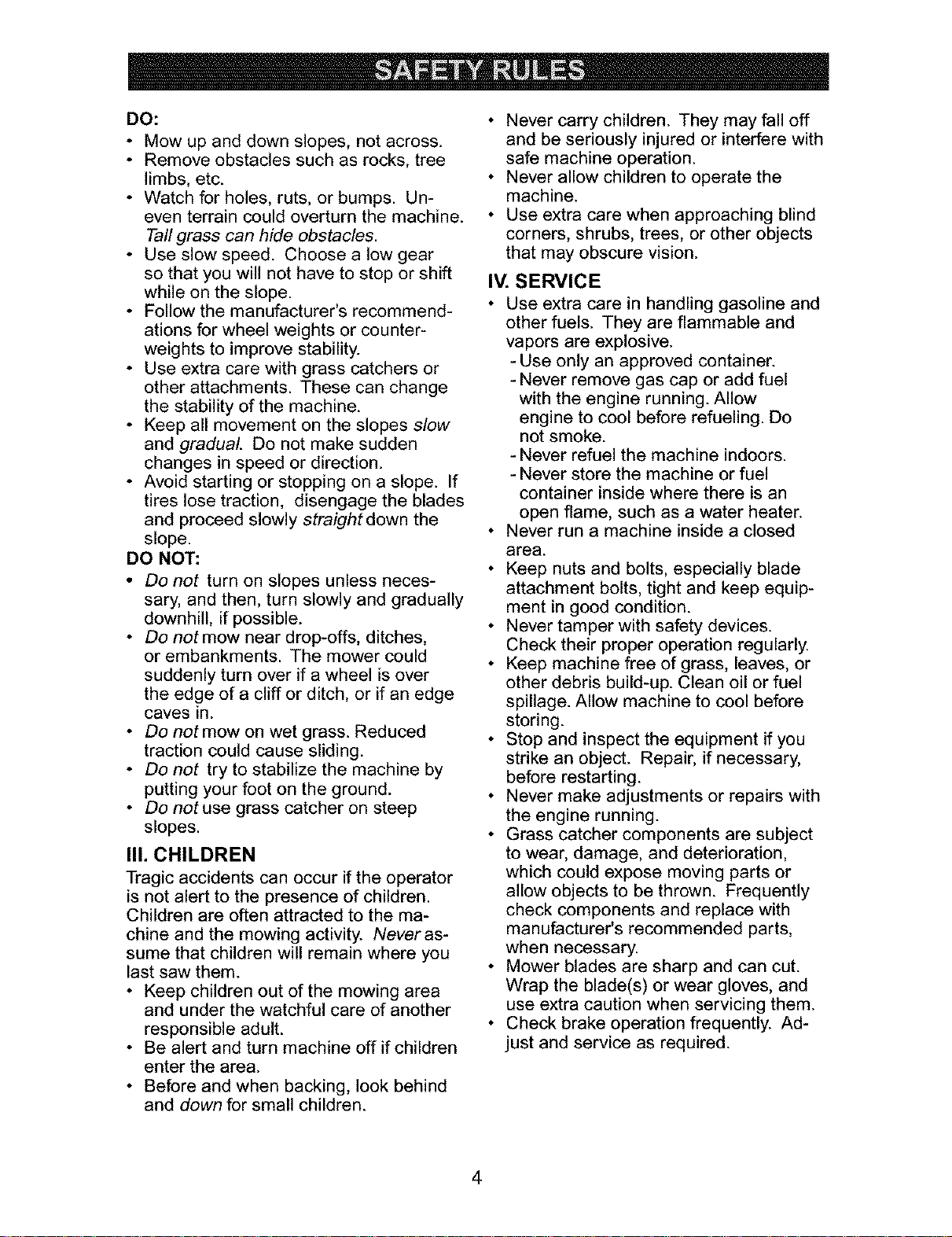

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do notmow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III, CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

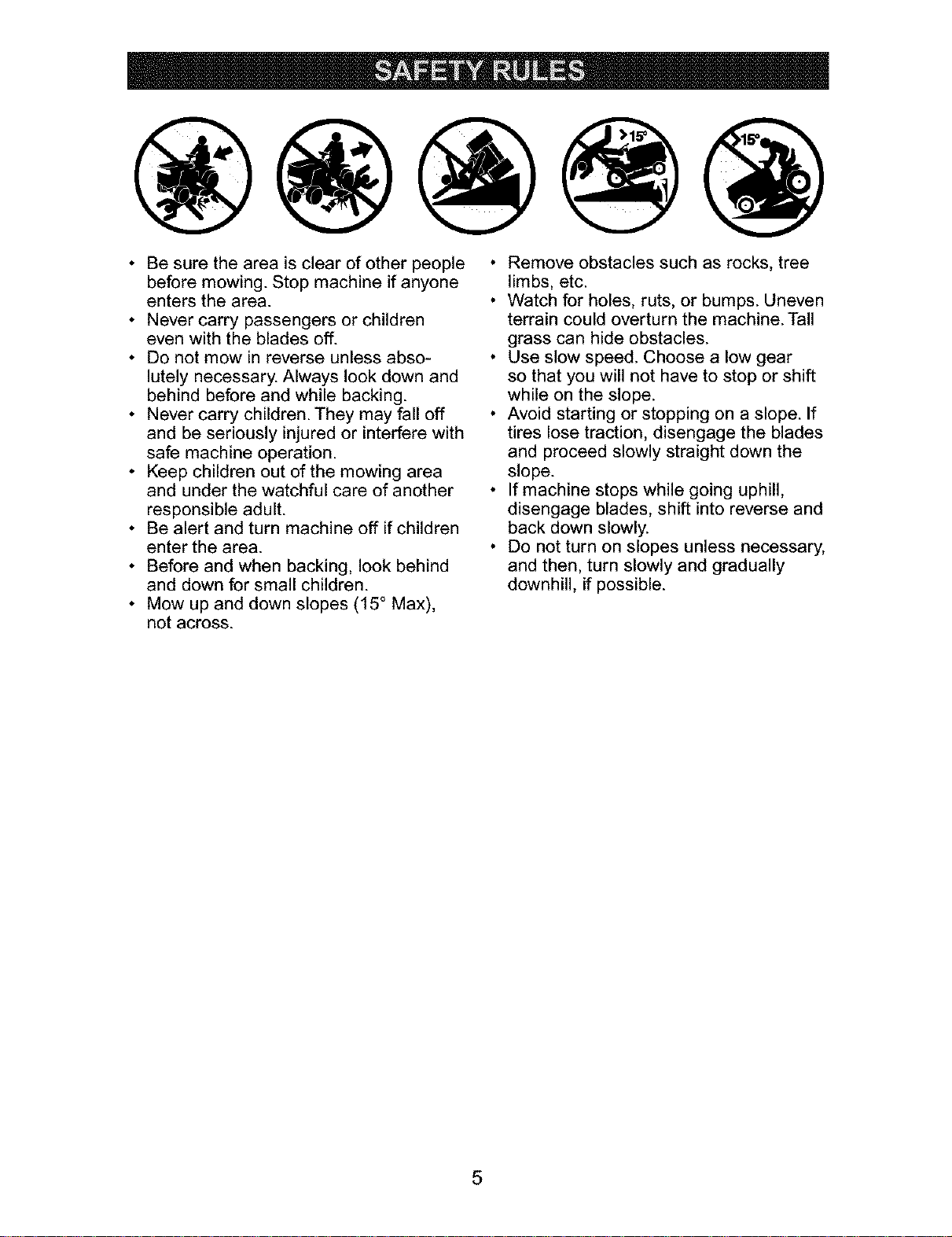

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

'API-SG-SL): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

'GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System:3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

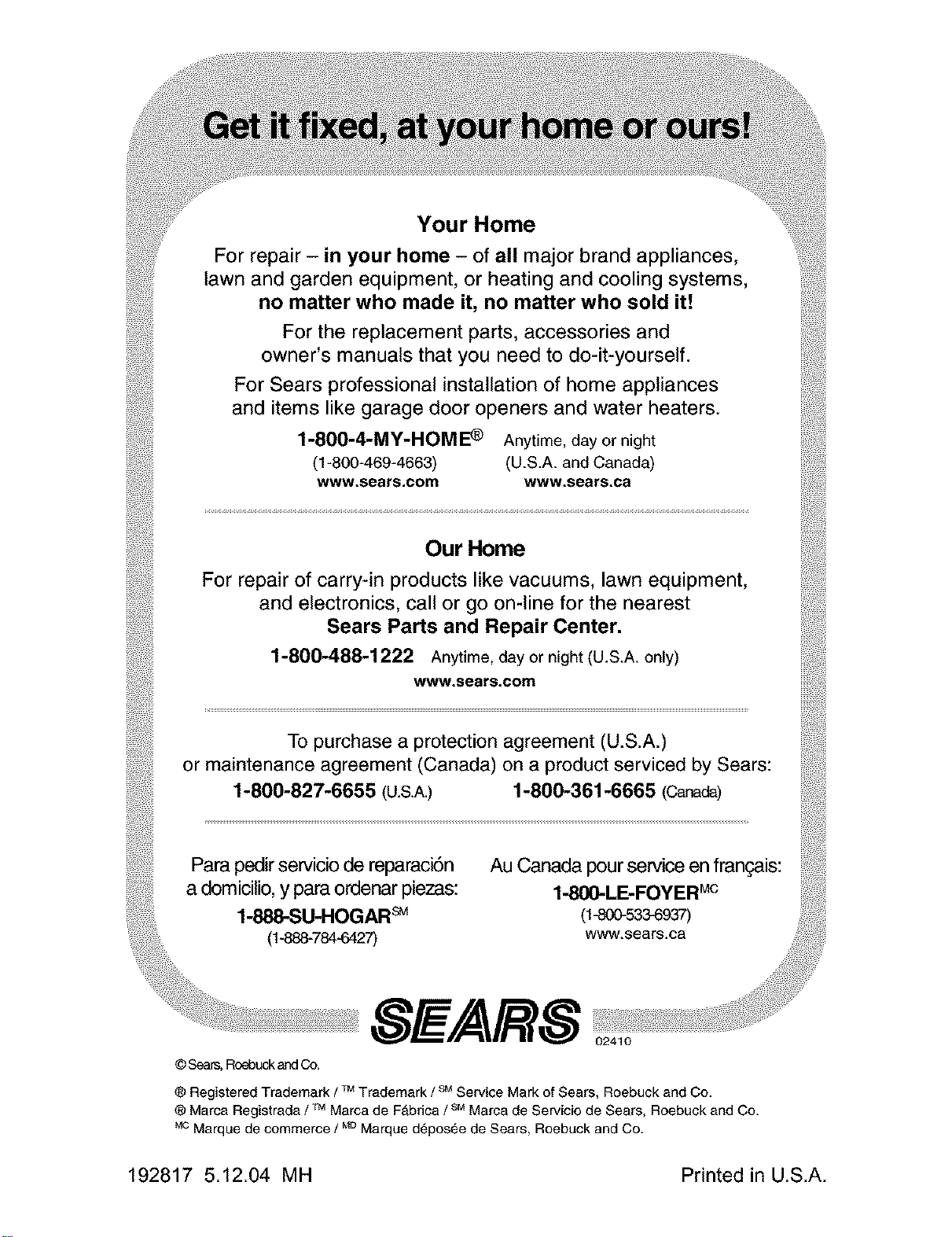

SEARS INSTALLATION SERVICE

For Sears professional insta//ation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

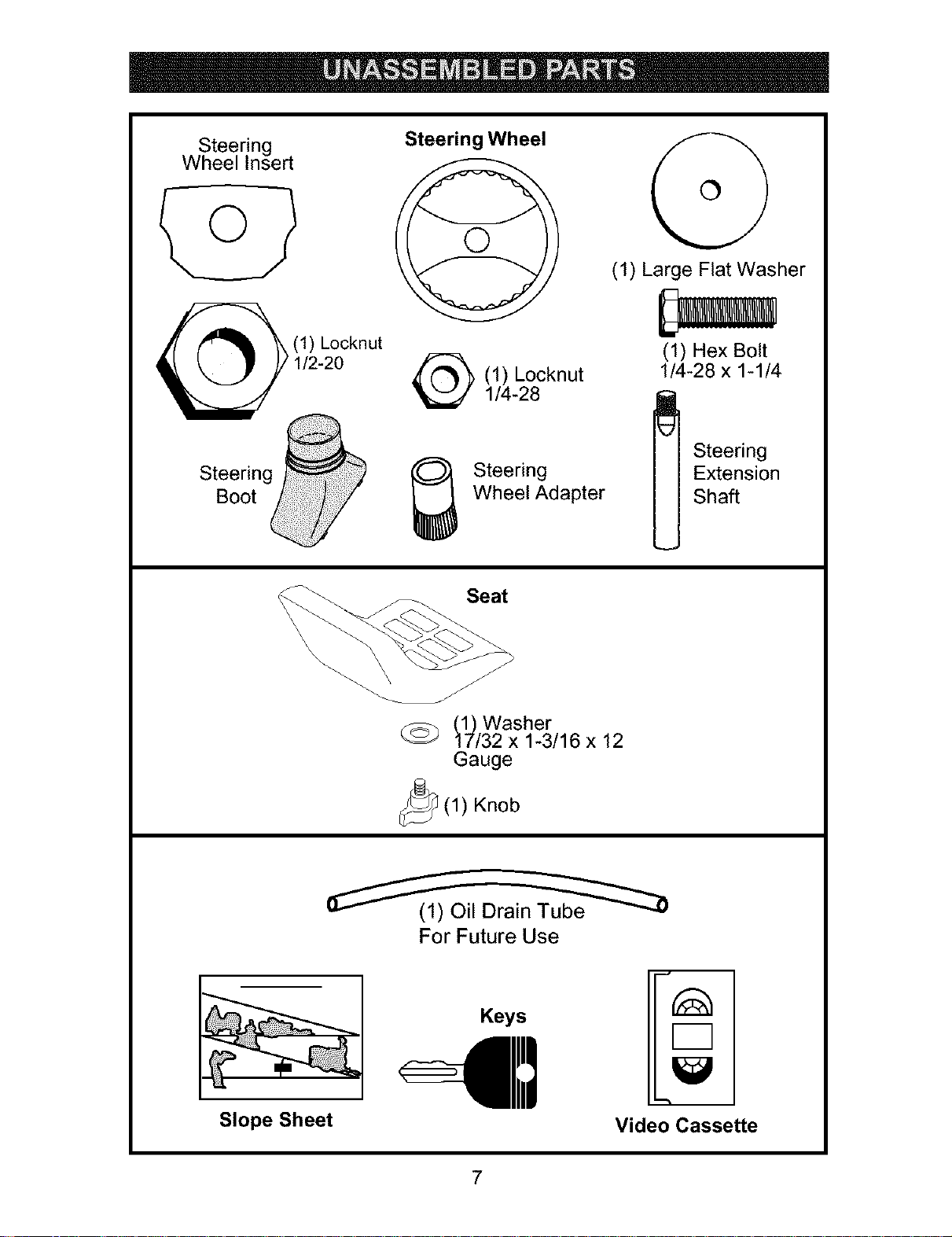

Steering

Wheel Insert

(1) Locknut

1/2-20

Steedn_

Boot

Steering Wheel

(1) Locknut

1/4-28

Steering

Wheel Adapter

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

=,,,,,d

Steering

Extension

Shaft

Seat

(1) Washer

17/32 x 1-3/16 x 12

Gauge

_(1) Knob

Slope Sheet

For Future Use

Keys

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7!16"wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

_lnsert

_-_ 1!2 Hex Nut

_Large Flat

Washer

Steering Steering

Whee Boot

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat_

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

1/4 Shaft

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET U P YOUR TRACTOR

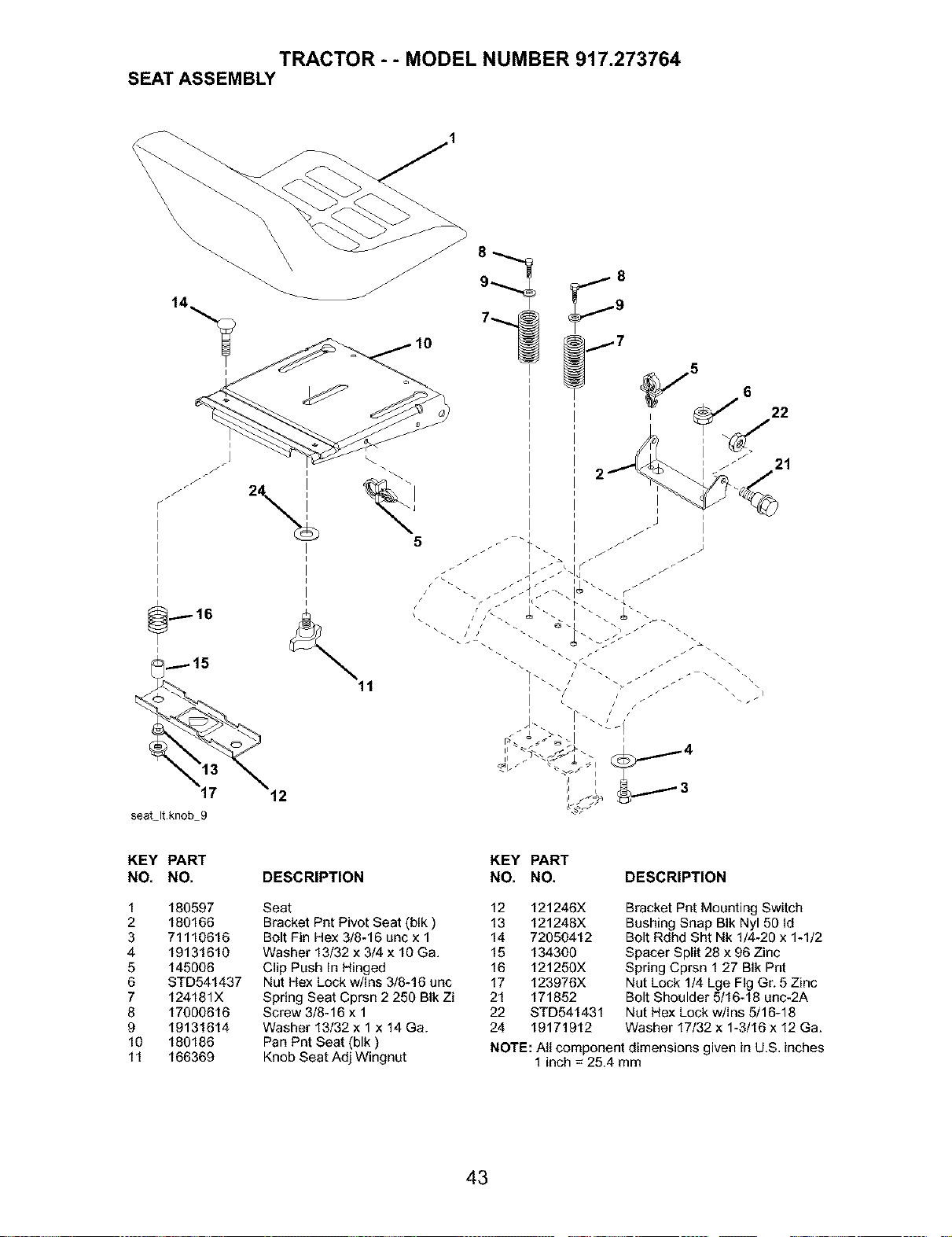

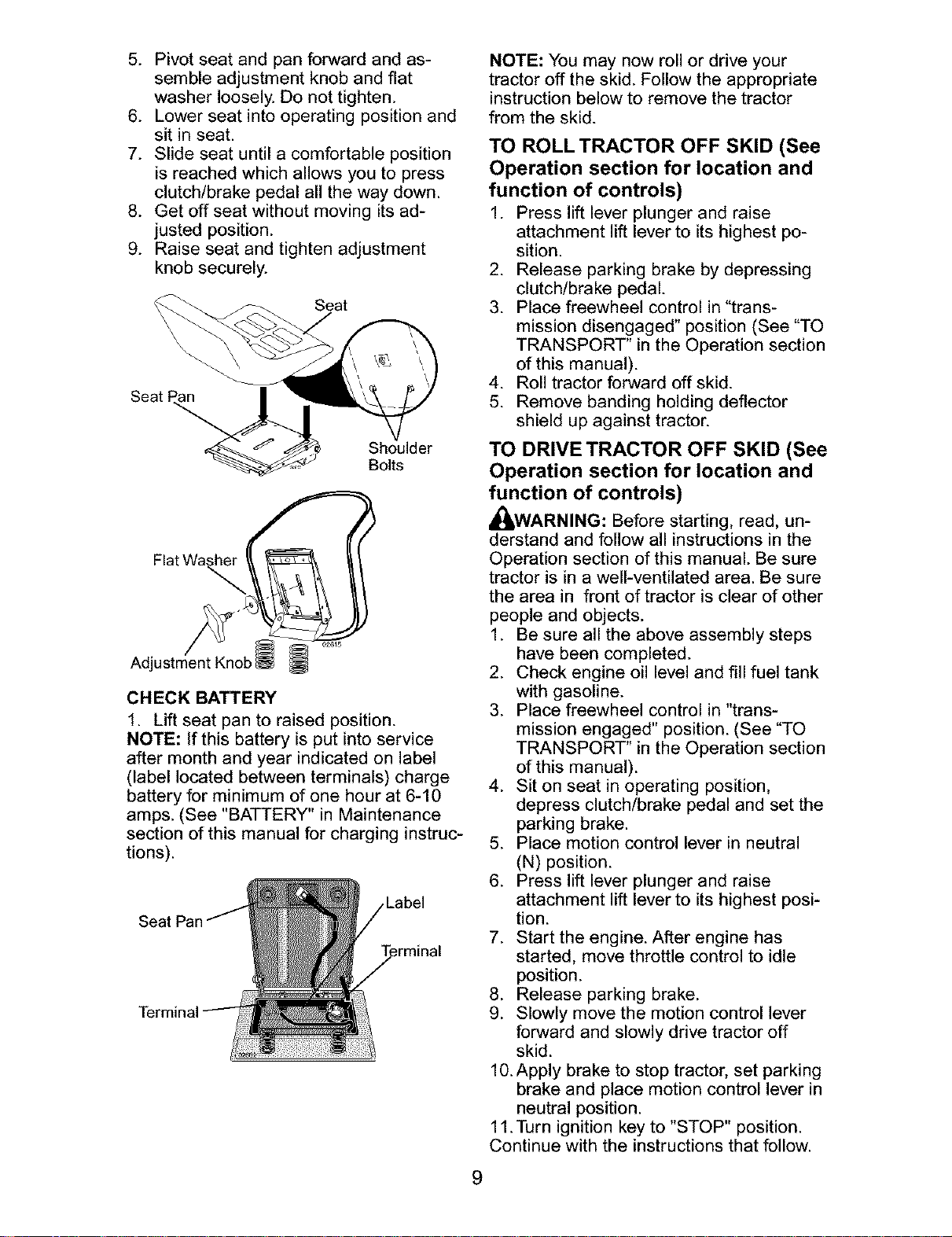

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat ftn

Shoulder

Bolts

Adjl

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

Label

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

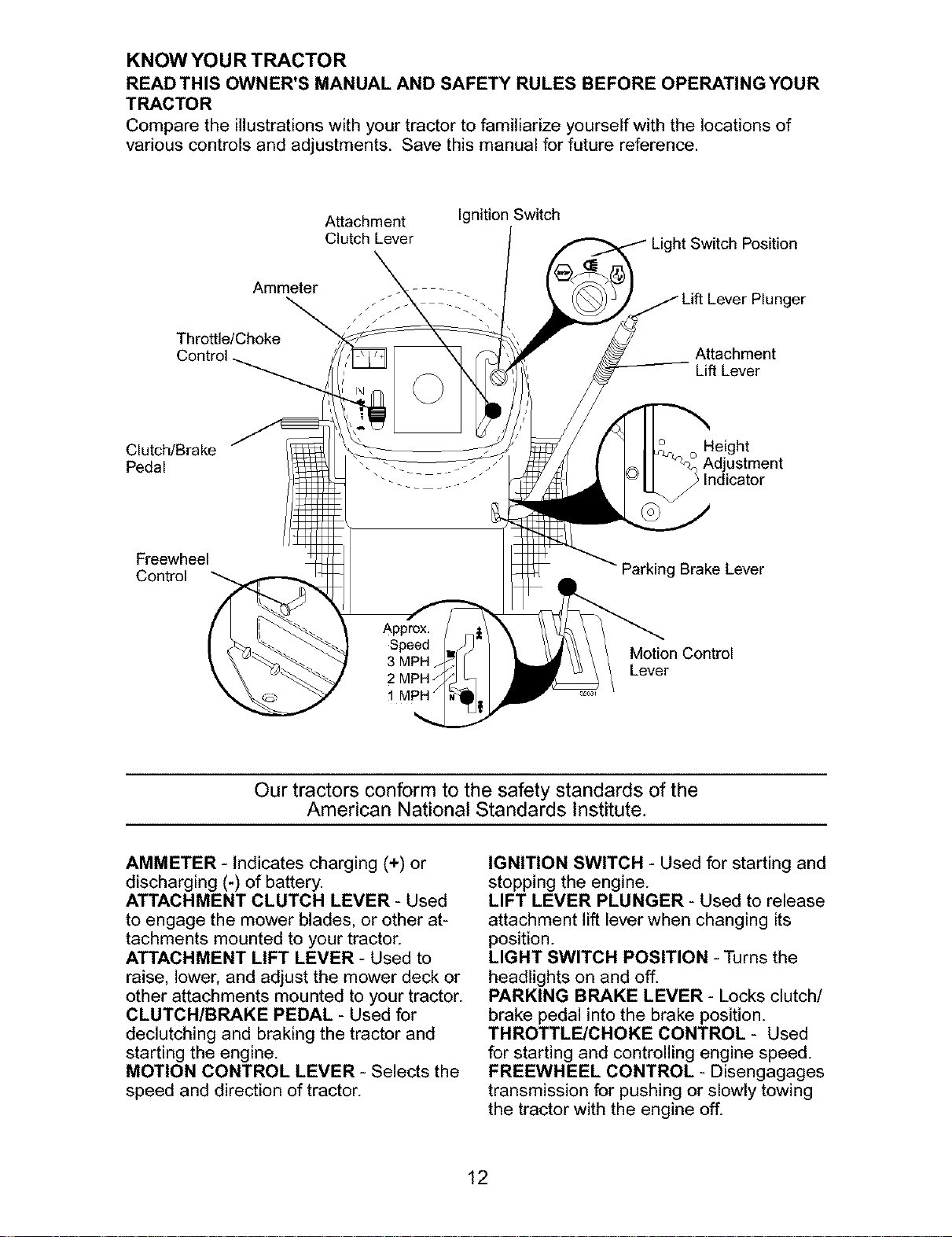

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10. Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

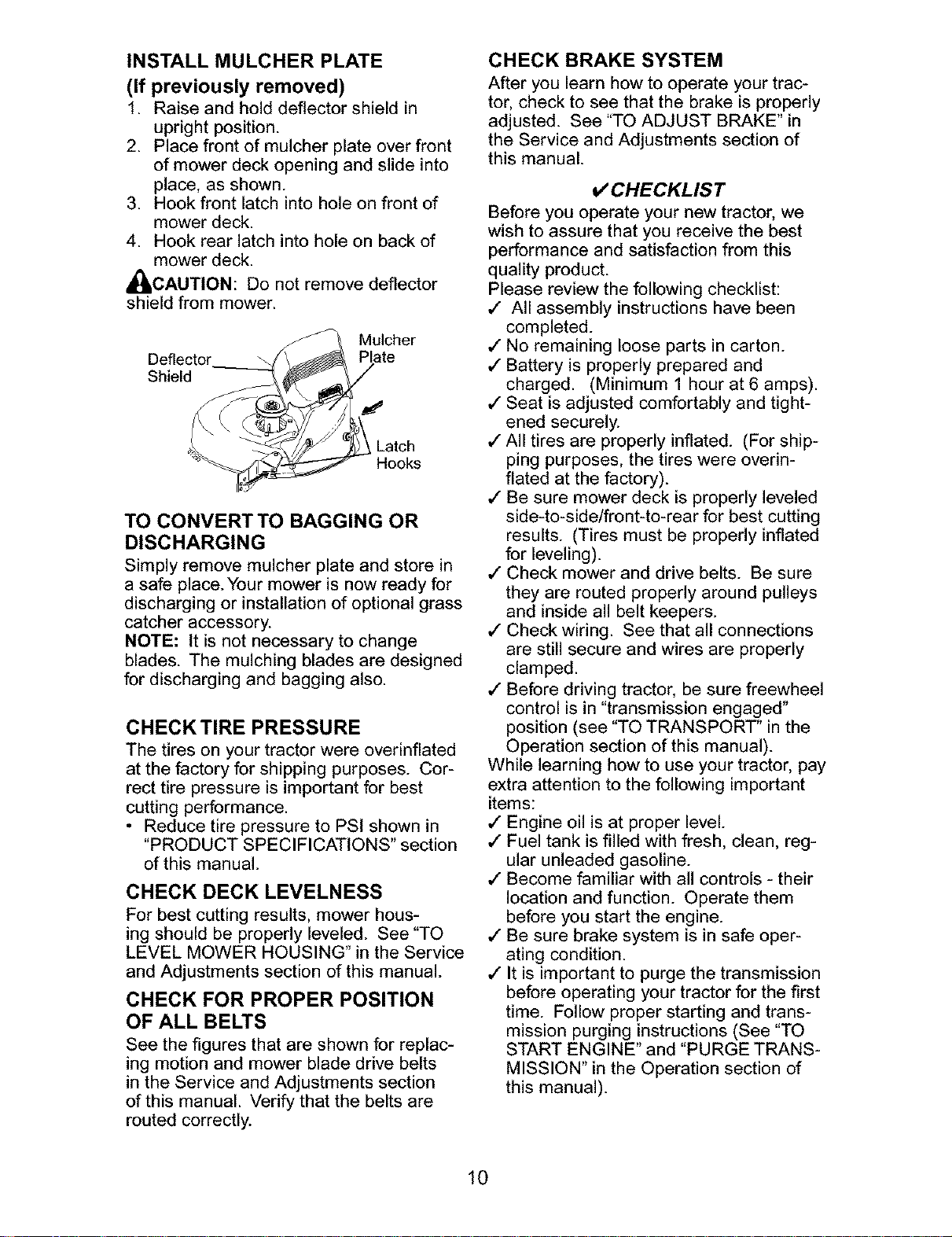

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

,_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

V' CHECKL IS T

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

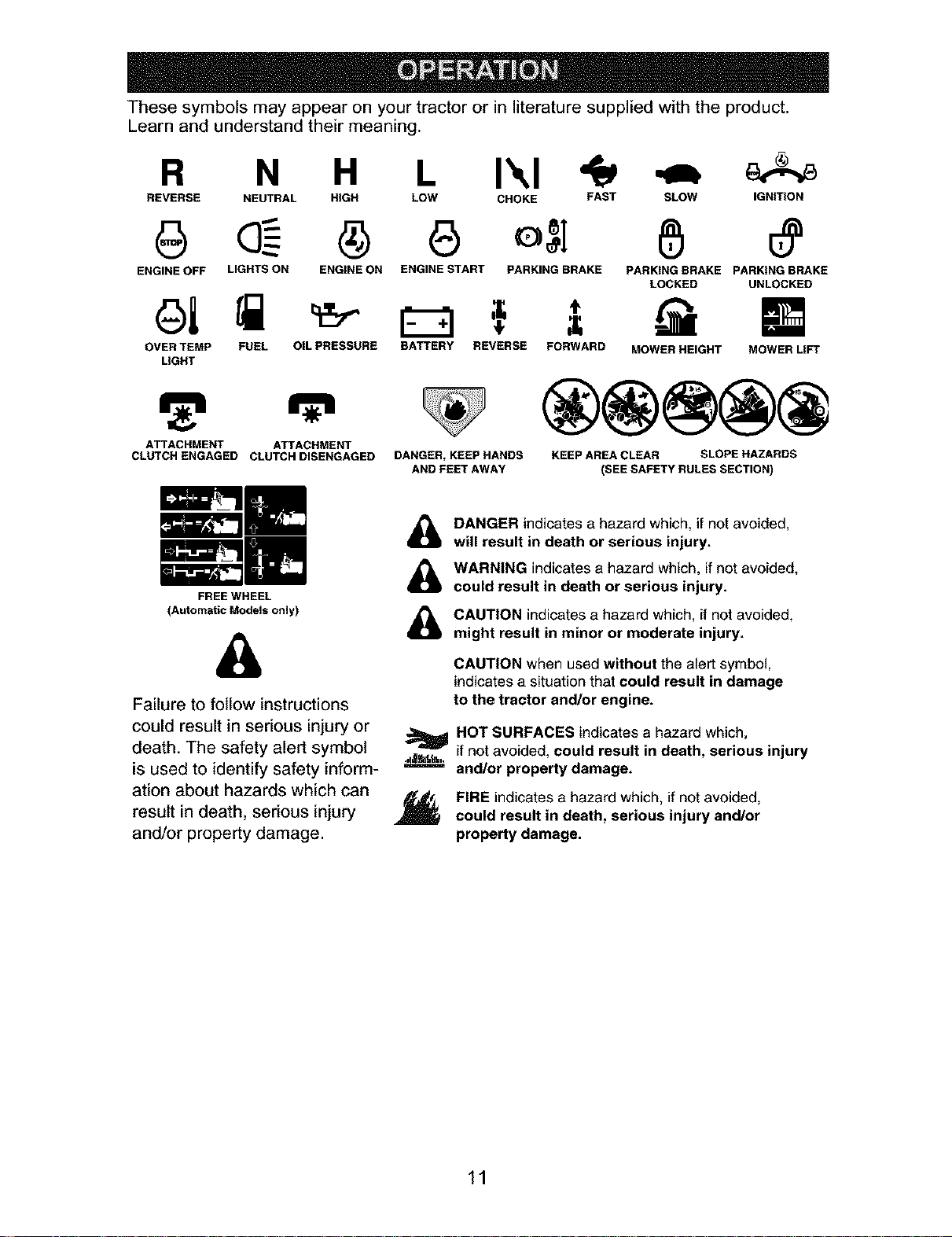

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'.,I

REVERSE NEUTRAL NIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

===E

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER, KEEP HANDS

AND FEET AWAY

MOWER HEIGHT MOWER LIFT

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

,,a_£v.,, if not avoided, could result in death, serious injury

and/or property damage.

j_ FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOWYOUR TRACTOR

READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment Ignition Switch

Clutch Lever

Ammeter

Throttle/Choke

Control

Clutch/Brake

Pedal

_ger

Attachment

Lift Lever

o Height

_-___ Adjustment

_ Indicator

Freewheel

Control

Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch!

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into the I

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments I

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectac es.

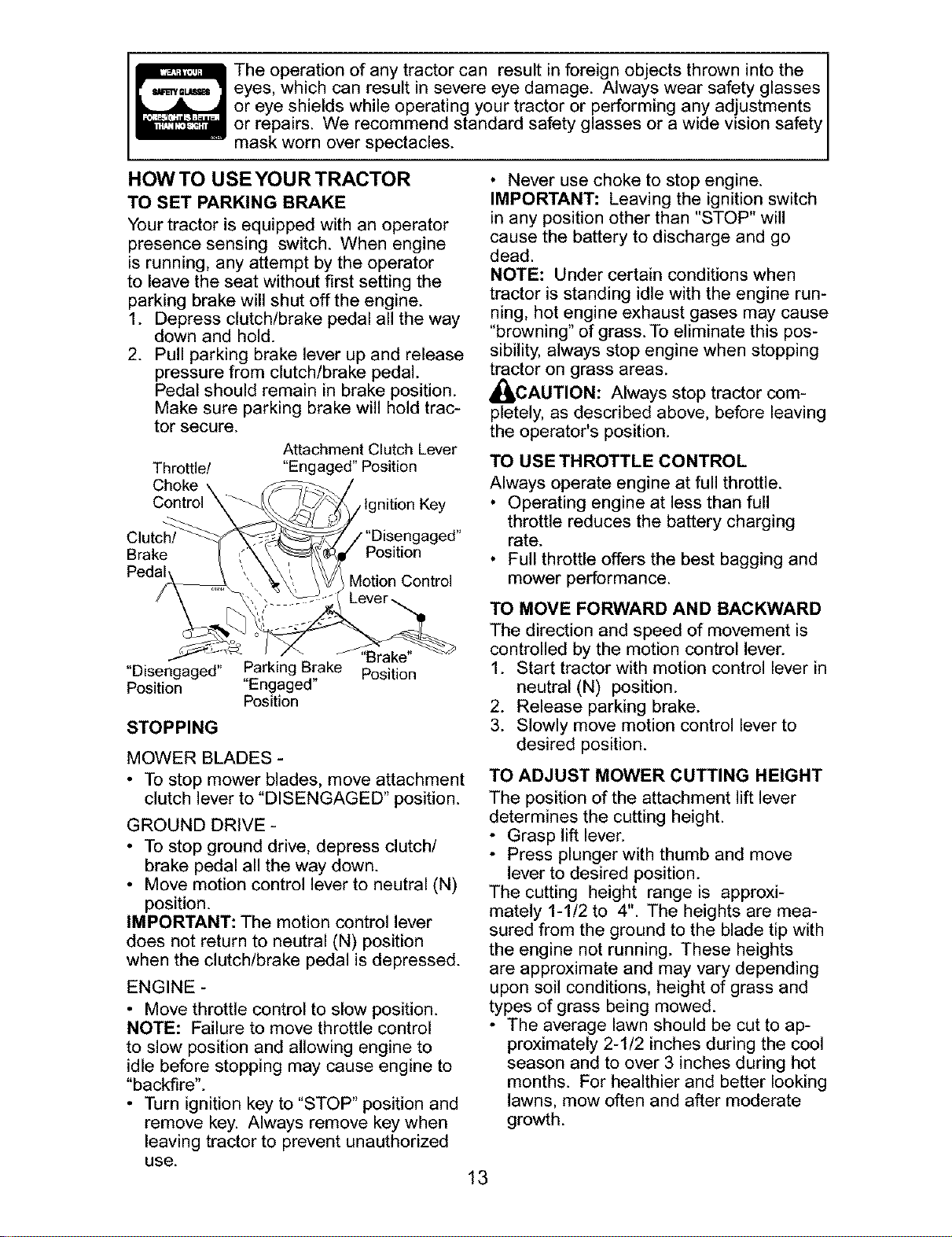

HOWTO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch!brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/

Choke

Attachment Clutch Lever

"Engaged" Position

,Ignition Key

Brake

Pedal

"Disengaged"

Position

vlotion Control

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may cause

"browning" of grass. To eliminate this pos-

sibility, always stop engine when stopping

tractor on grass areas.

_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USETHROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

"Brake"

"Disengaged" Parking Brake Position

Position "Engaged"

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

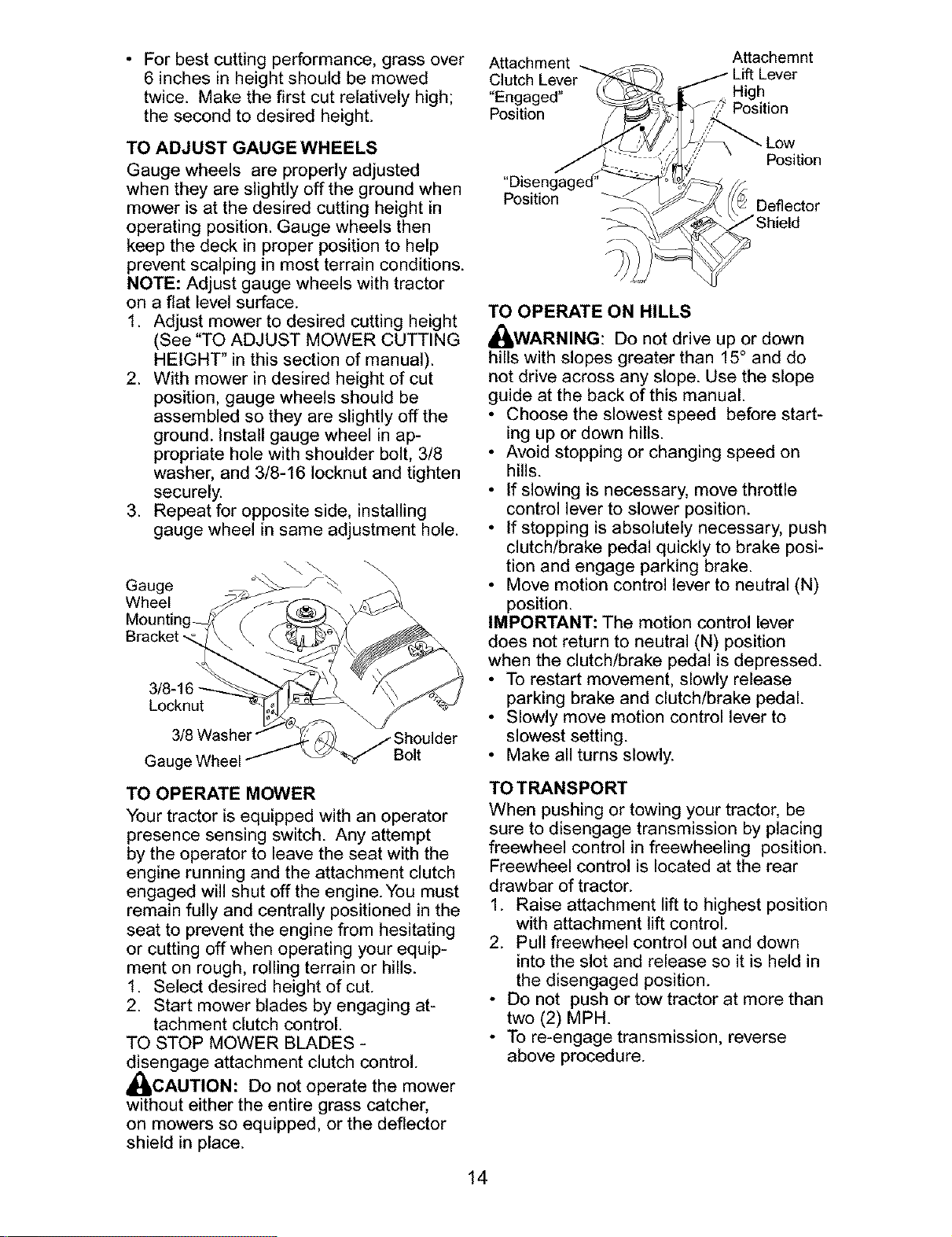

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mounting _

Bracket -.

Locknut

Gauge Whee

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Attachemnt

Clutch Lever""'i_ _ / Lift Lever

"En "4 /t _ _ it'- High

Posigiageu _-_ '..._._:_ f-";_ Position

//_-_ _i _;_'"/_*J"' ' Position

7oS, , Oe,,ector

Sh,e,.

TO OPERATE ON HILLS

,_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch!brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

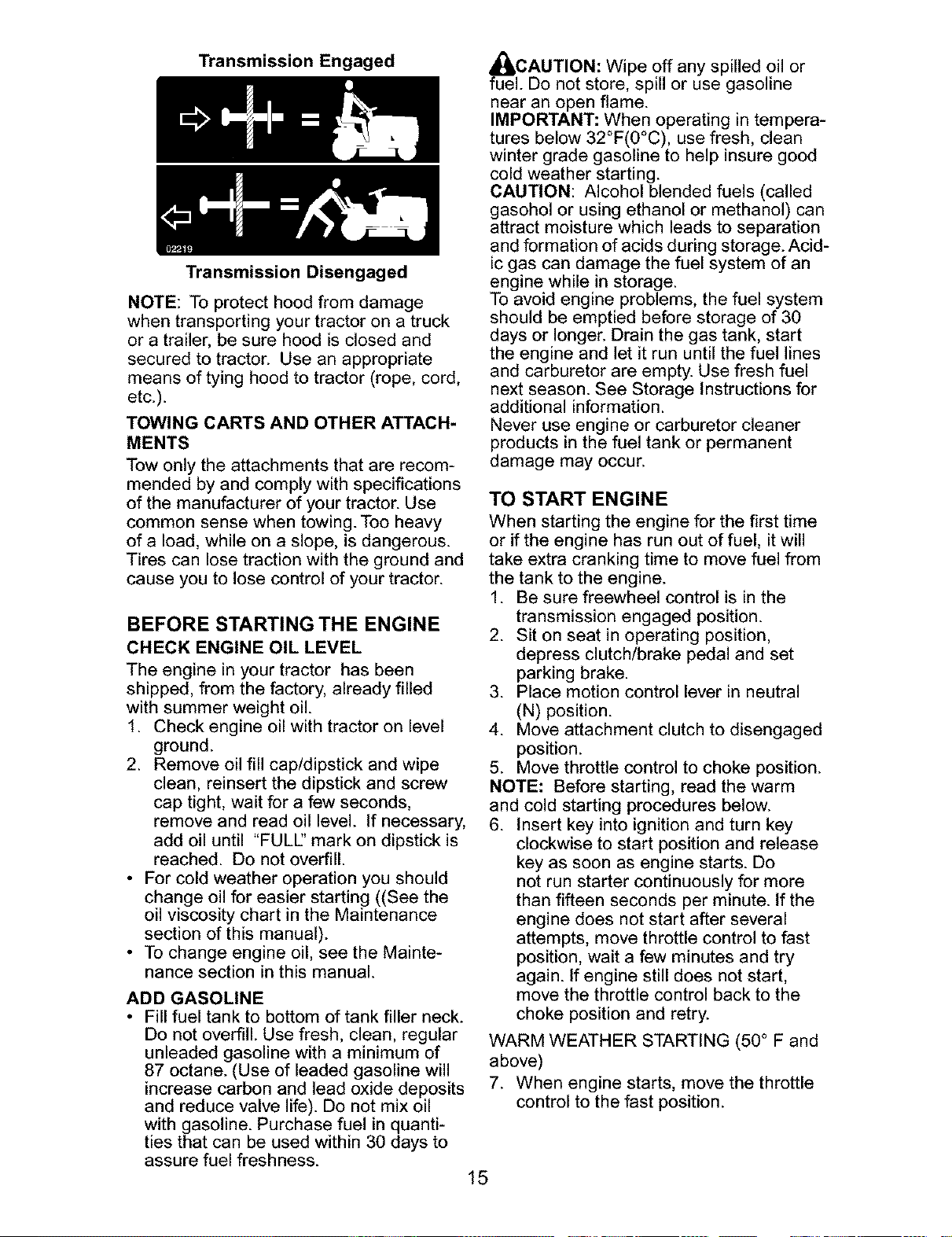

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acid-

ic gas can damage the fuel system of an

engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

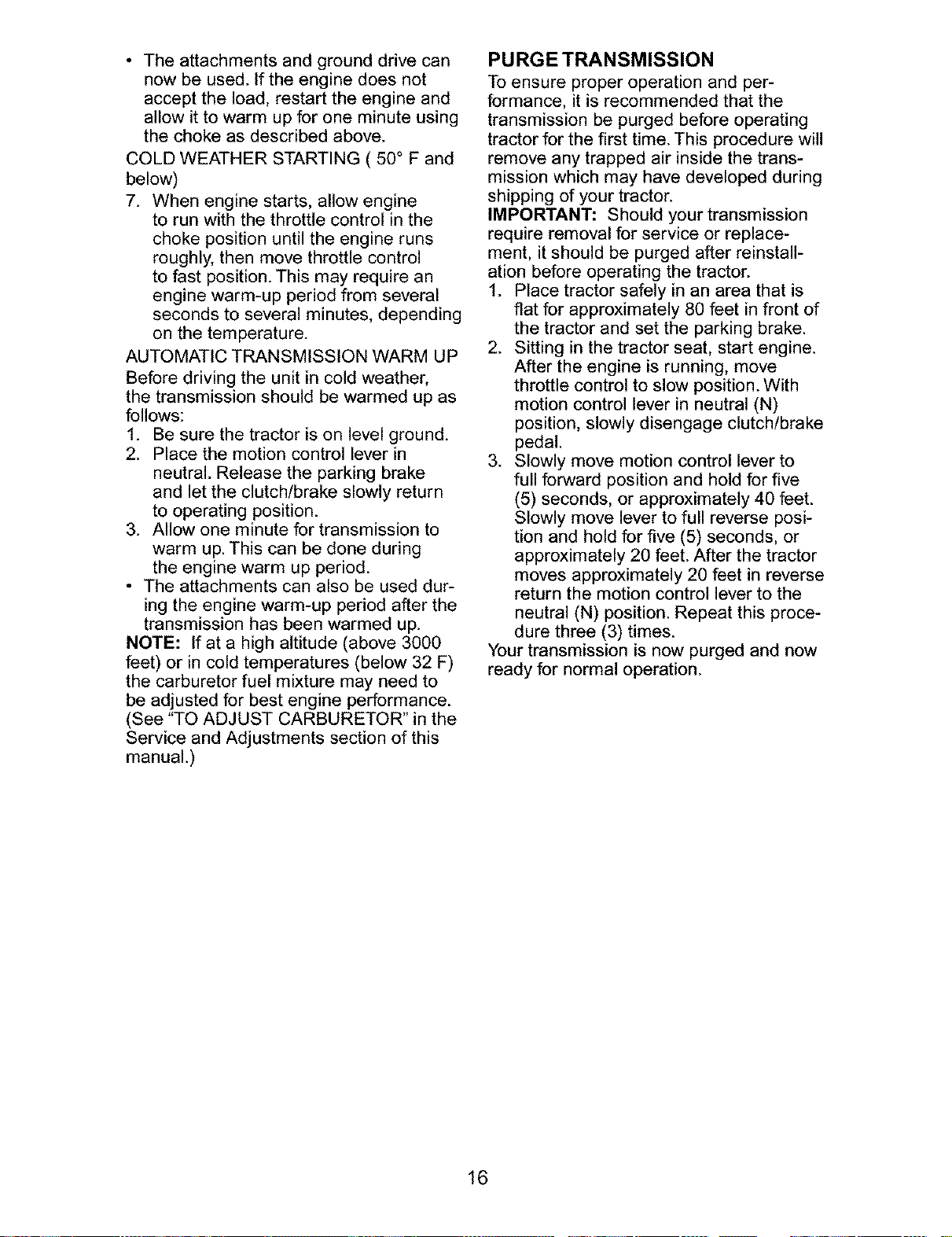

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely in an area that is

flat for approximately 80 feet in front of

the tractor and set the parking brake.

2. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch!brake

pedal.

3. Slowly move motion control lever to

full forward position and hold for five

(5) seconds, or approximately 40 feet.

Slowly move lever to full reverse posi-

tion and hold for five (5) seconds, or

approximately 20 feet. After the tractor

moves approximately 20 feet in reverse

return the motion control lever to the

neutral (N) position. Repeat this proce-

dure three (3) times.

Your transmission is now purged and now

ready for normal operation.

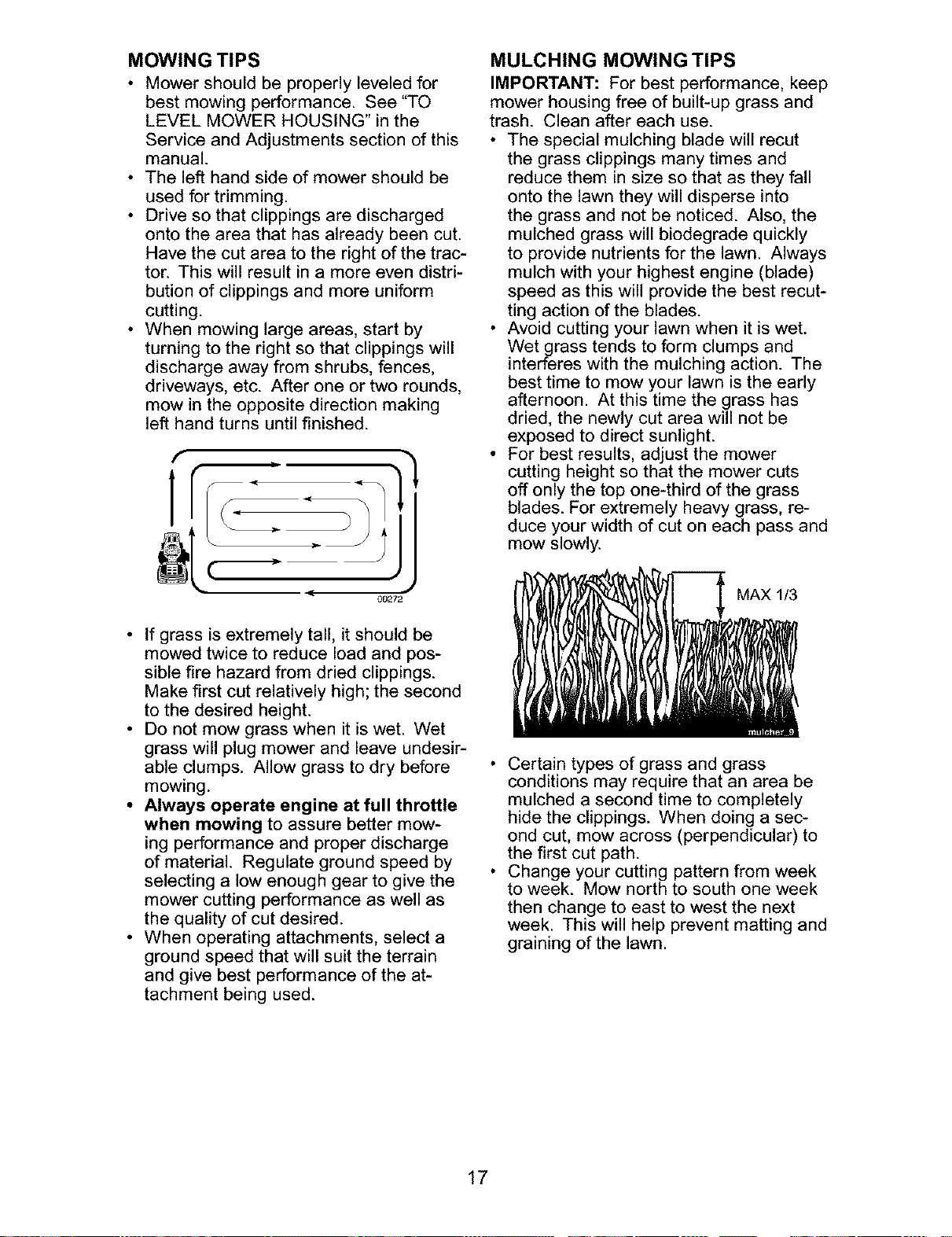

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave undesir-

able clumps. Allow grass to dry before

mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

MAINTENANCE SCHEDULE _÷_ _ ,_,_ _ o_ d_ o_

AS YOU COMPLETE

REGULAR SERVICE /__ERVICE DATES

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners

Sharpen/Replace Mower Blades

T Lubrication Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine OiJ Level

Change Engine Oil (with oil filter)

E Change Engine Oil (without oil rifLer)

N Clean Air Filter

G C_ean Air Screen

Inspect Muffler/Spark

Arrester

E Replace Oil Filter (if equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Fitter

1 - Change more often when operating under a heavy load or

in high ambient temperatures

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3 - Replace blades more often when mowing in sandy soil

4 - Not required if equipped with mainter_nce-free battery

5 - Tighten front axle pivot bo_t to 35 ft.-Ibs maximum¸

Do not ove_ghten

LUBRICATION CHART

(_ Spindle_

Zer. Fd

€Front Wheel _

Bearing M /

Zerk _,ll, -

@Engine/.-"_I '

i I

I 01964 _ I

General Purpose Grease

@ REFER TO Maintenance "ENGINE" SECTION

"--"--'_ _ (_ Spindle

:======' ,_Bea ring Zerk

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

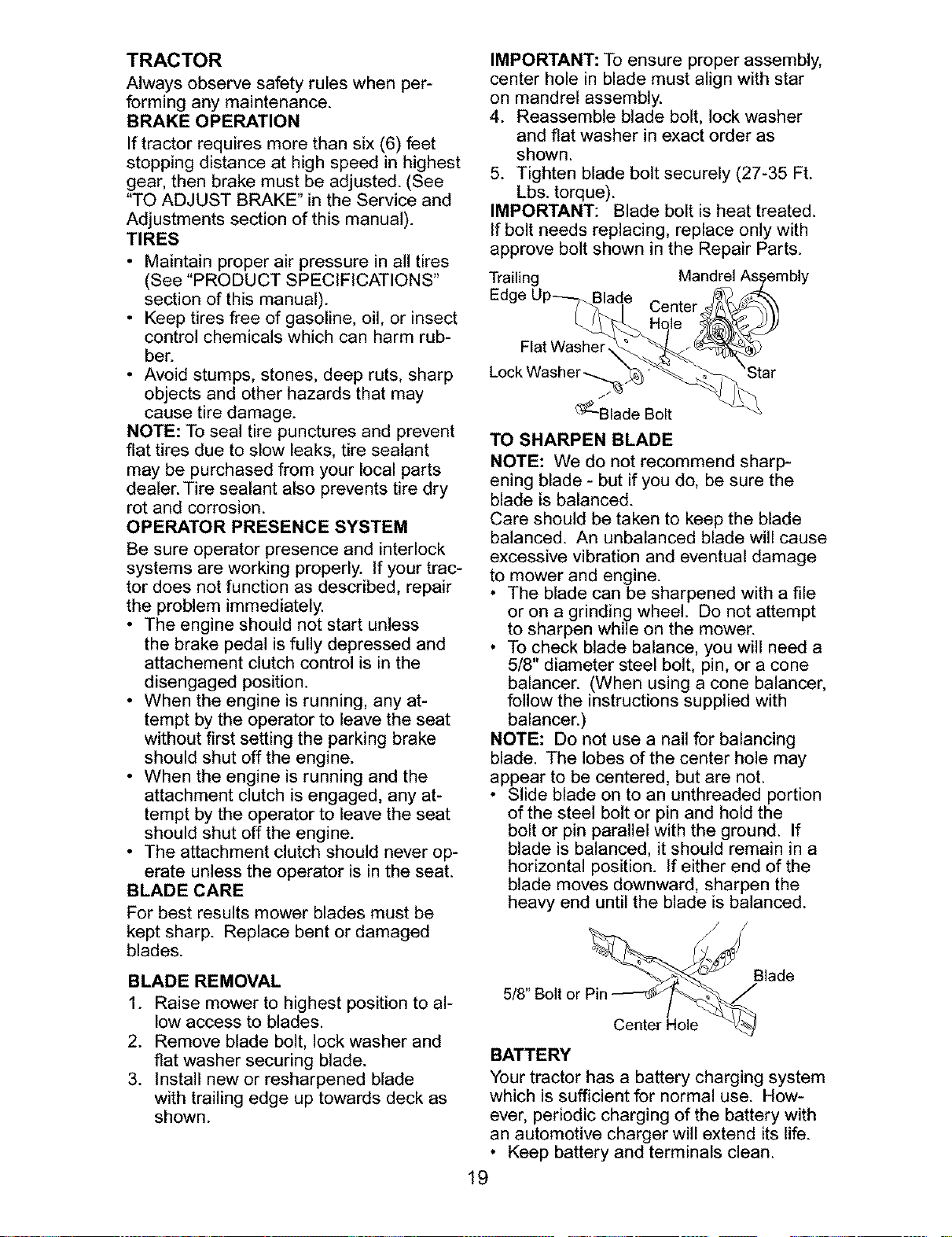

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Mandrel

Edge UP_adl e Center

Flat Washer _ _

L'_-Blade Bolt

bly

_Star

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

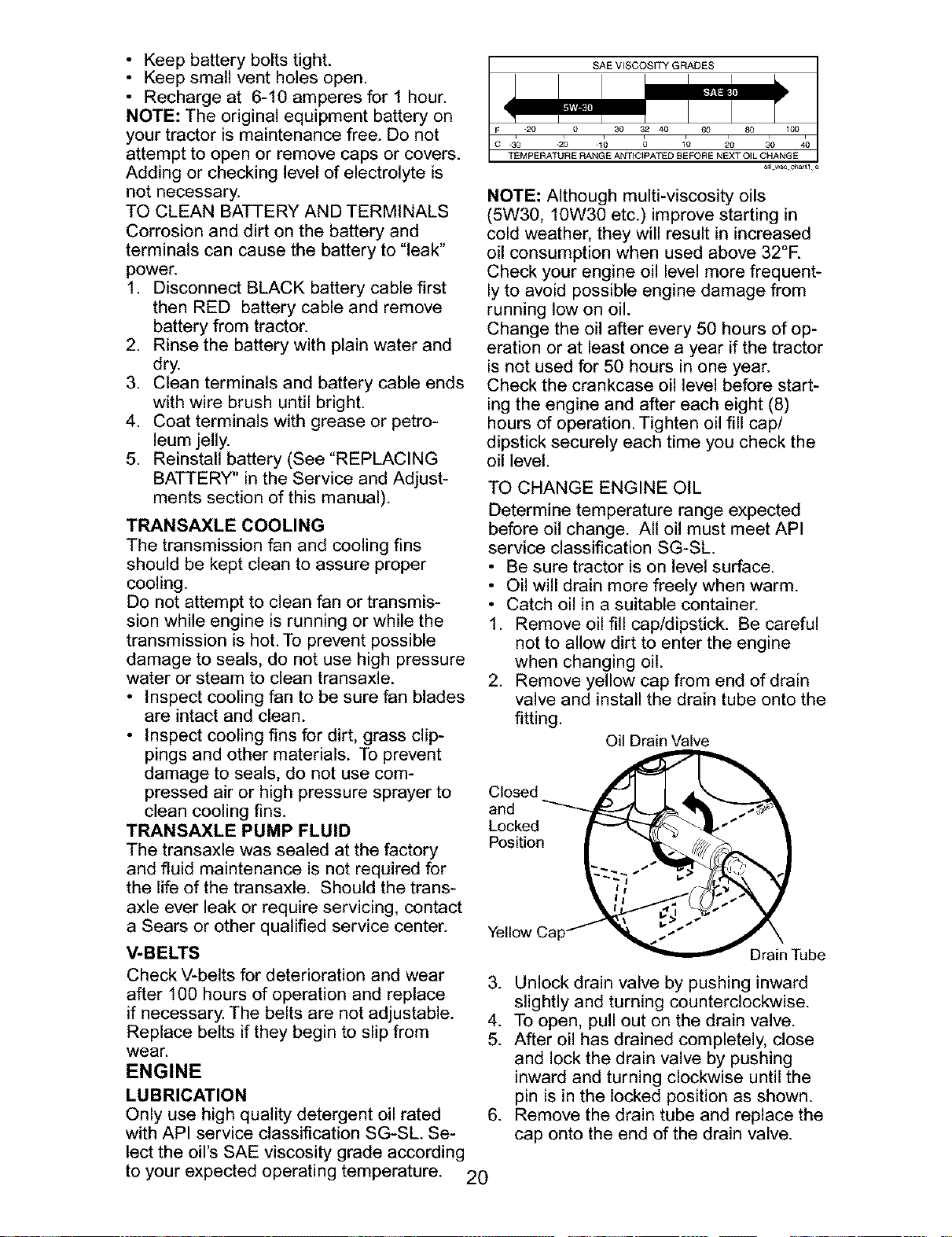

• Keepbatteryboltstight.

• Keepsmallventholesopen.

• Rechargeat 6-10amperesfor I hour.

NOTE:Theoriginalequipmentbatteryon

yourtractorismaintenancefree.Donot

attemptto openor removecapsorcovers.

Addingor checkinglevelofelectrolyteis

notnecessary.

TOCLEANBATTERYANDTERMINALS

Corrosionanddirt on thebatteryand

terminalscancausethe batteryto"leak"

power.

1. DisconnectBLACKbatterycablefirst

then RED batterycableand remove

batteryfromtractor.

2. Rinsethe batterywith plainwaterand

dry.

3. Cleanterminalsandbatterycableends

withwire brushuntilbright.

4. Coatterminalswithgreaseor petro-

leumjelly.

5. Reinstallbattery(See"REPLACING

BATTERY"inthe ServiceandAdjust-

mentssectionof thismanual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear 3.

after 100 hours of operation and replace

if necessary. The belts are not adjustable. 4.

Replace belts if they begin to slip from 5.

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated 6.

with API service classification SG-SL. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature. 20

SAE VISCOSITY GRADES

-30 -20 10 o 2o 30 40

TEMPERATURE RANGE ANTIC_PATED BEFORE NEXT OiL CHANGE

elfj_ £h_tl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed

and

Locked

Position

Drain Tube

Unlock drain valve by pushing inward

slightly and turning counterclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the

cap onto the end of the drain valve.

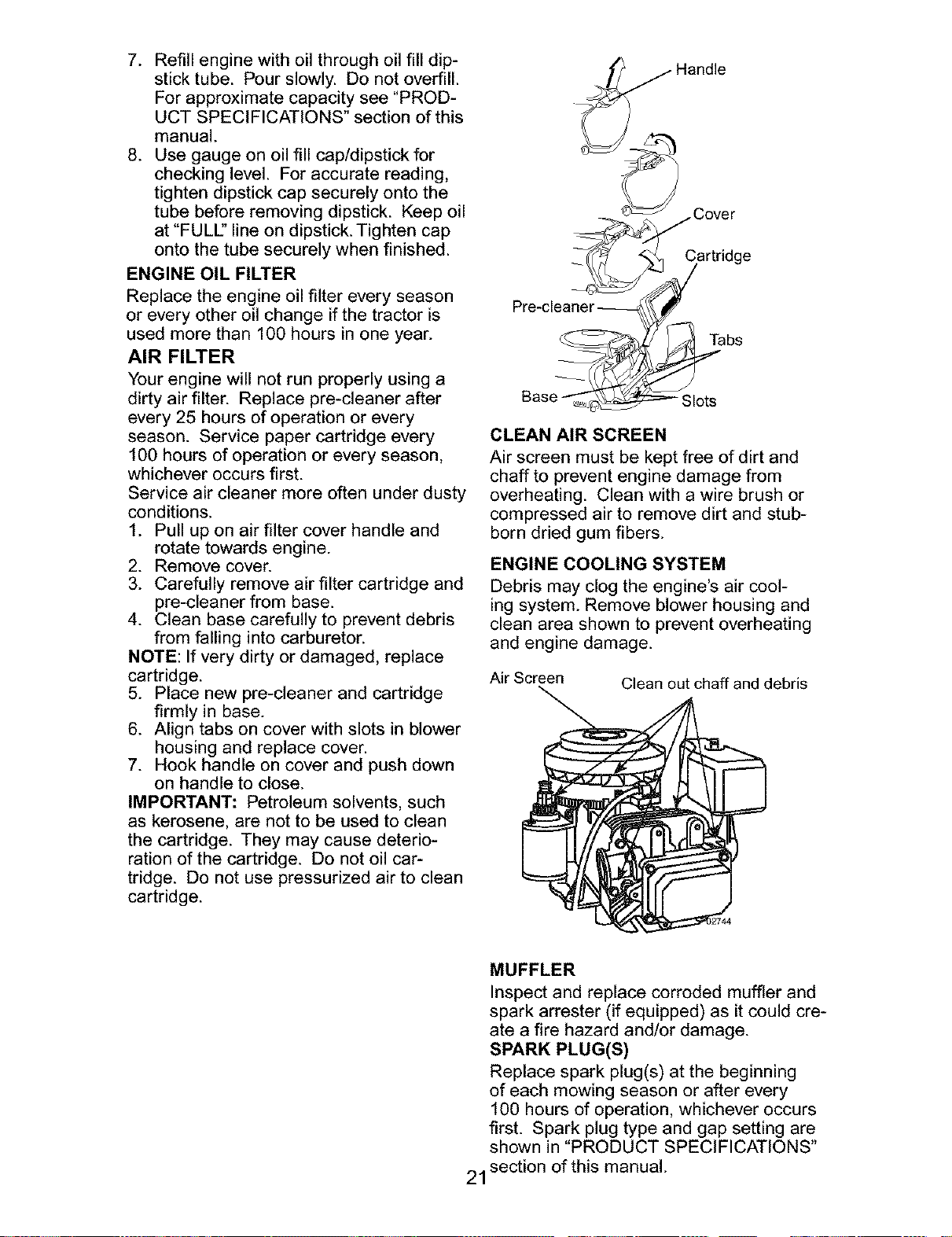

7. Refillenginewithoil throughoilfill dip-

sticktube. Pourslowly. Donotoverfill.

Forapproximatecapacitysee "PROD-

UCTSPECIFICATIONS"sectionofthis

manual.

8. Usegaugeon oilfill cap/dipstickfor

checkinglevel. Foraccuratereading,

tightendipstickcap securelyontothe

tube beforeremovingdipstick. Keepoil

at"FULl" lineon dipstick.Tightencap

ontothetube securelywhenfinished.

ENGINEOIL FILTER

Replacetheengineoil filtereveryseason

oreveryotheroil changeifthetractoris

usedmorethan 100hoursinoneyear.

AIR FILTER

Yourenginewillnotrun properlyusinga

dirtyairfilter. Replacepre-cleanerafter

every25 hoursof operationor every

season. Servicepapercartridgeevery

100hoursofoperationoreveryseason,

whicheveroccursfirst.

Serviceair cleanermoreoftenunderdusty

conditions.

1. Pullup onairfiltercoverhandleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveairfiltercartridgeand

pre-cleanerfrom base.

4. Cleanbasecarefullyto preventdebris

fromfallingintocarburetor.

NOTE:Ifverydirtyordamaged,replace

cartridge.

5. Placenewpre-cleanerandcartridge

firmlyin base.

6. Aligntabson coverwith slotsin blower

housingandreplacecover.

7. Hookhandleon coverandpushdown

on handleto close.

IMPORTANT:Petroleumsolvents,such

askerosene,are notto be usedtoclean

thecartridge. Theymaycausedeterio-

rationof thecartridge. Do notoil car-

tridge. Do notuse pressurizedair to clean

cartridge.

Tabs

Slots

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and!or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

21 section of this manual.

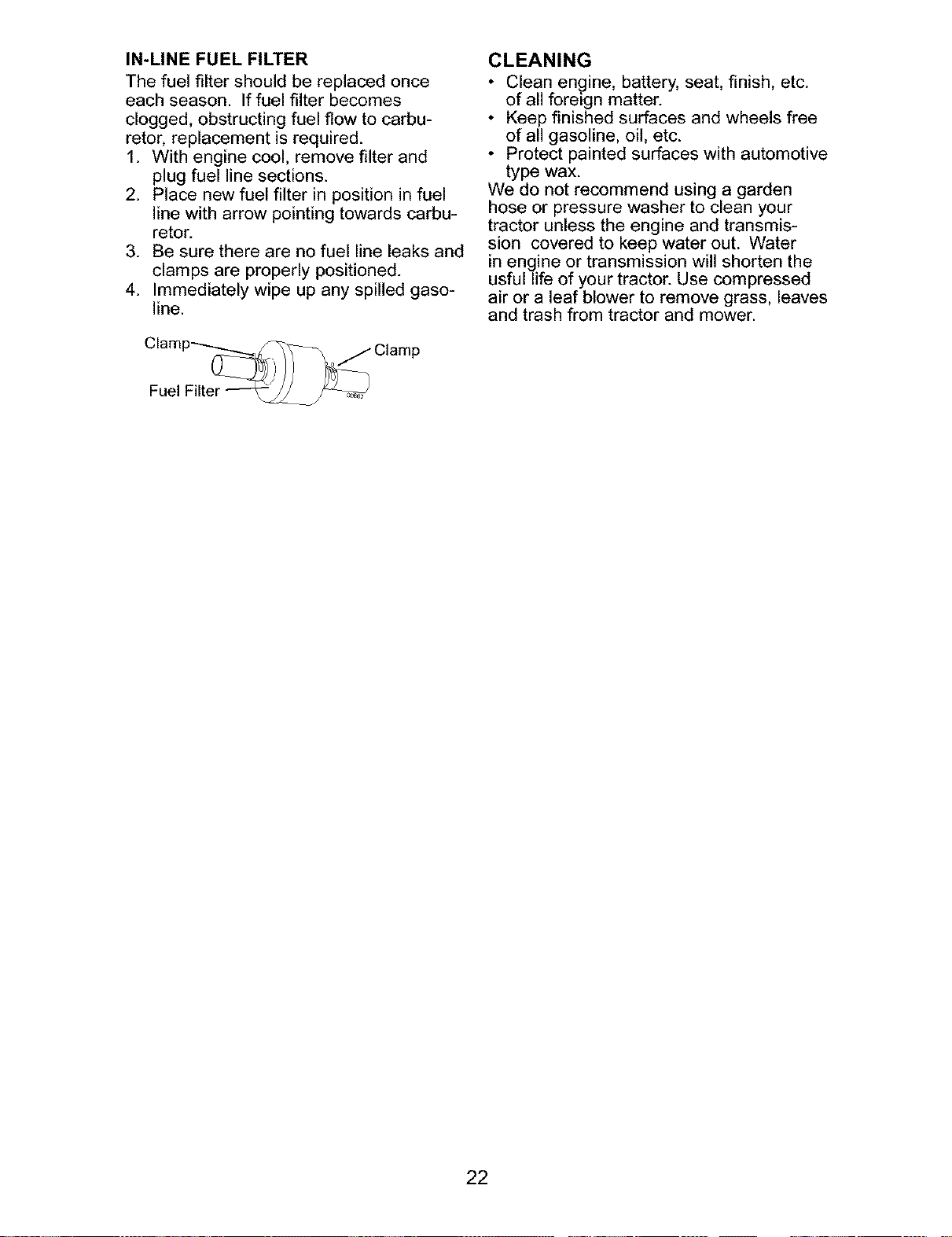

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion covered to keep water out. Water

in engine or transmission will shorten the

usful life of your tractor. Use compressed

air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANYSERVICE OR ADJUSTMENTS:

1. Depress clutch!brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out of

bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

Small Retainer Sprin!

Clutch Sprin

Small Retainer

Clutch Spring

Sprin!

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

Engine

Pulley

Retainer

Sprin

Anti-Sway

Collar_

Housing

Guide

Retainer Spring

(Both Sides)

Deflector

Shield

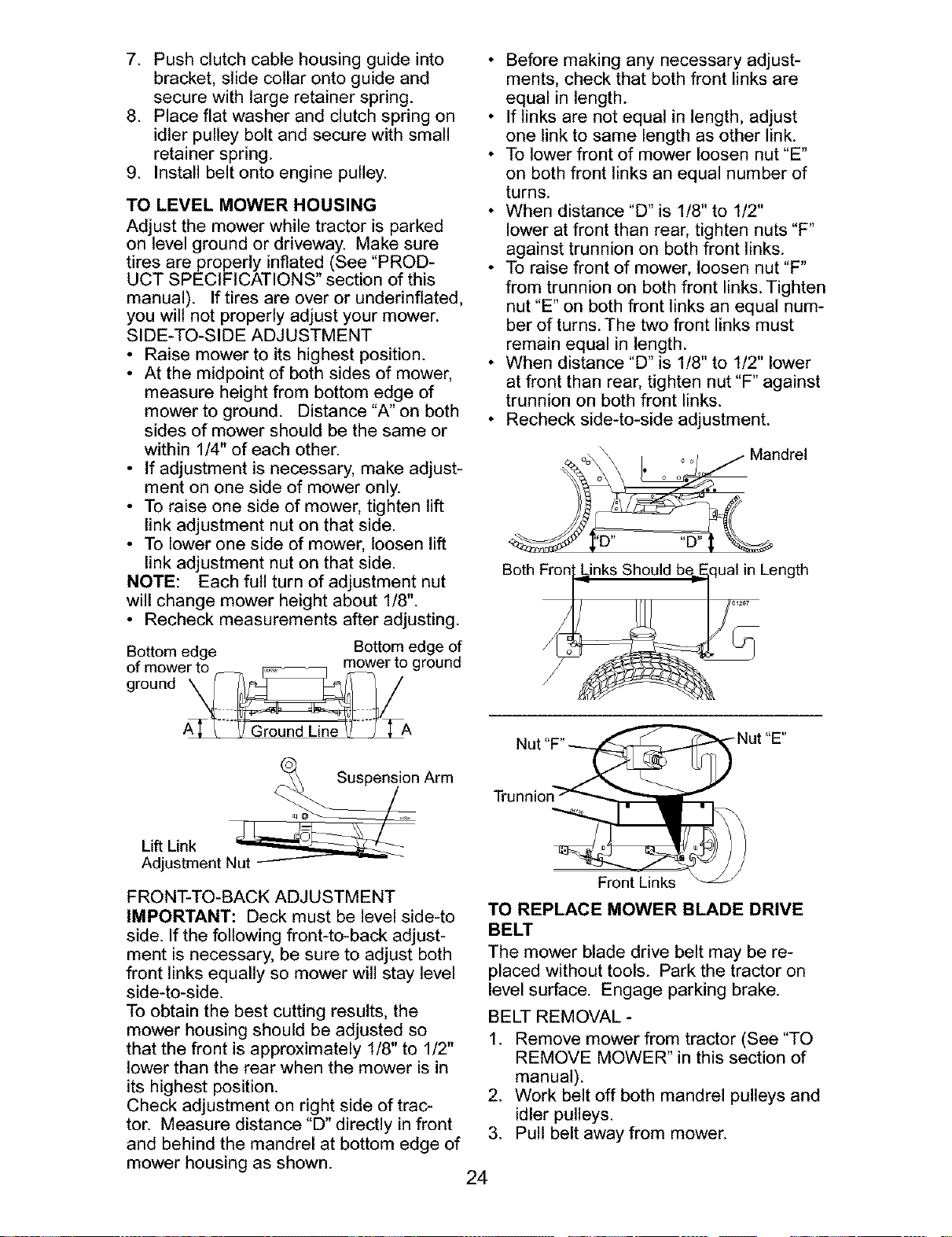

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

of mower to _,_ mower to ground

ground k___/

A_ ] -_" Ground U,ne __ -J _A

ension Arm

Lift Link

Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be._Equalin Length

Front

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

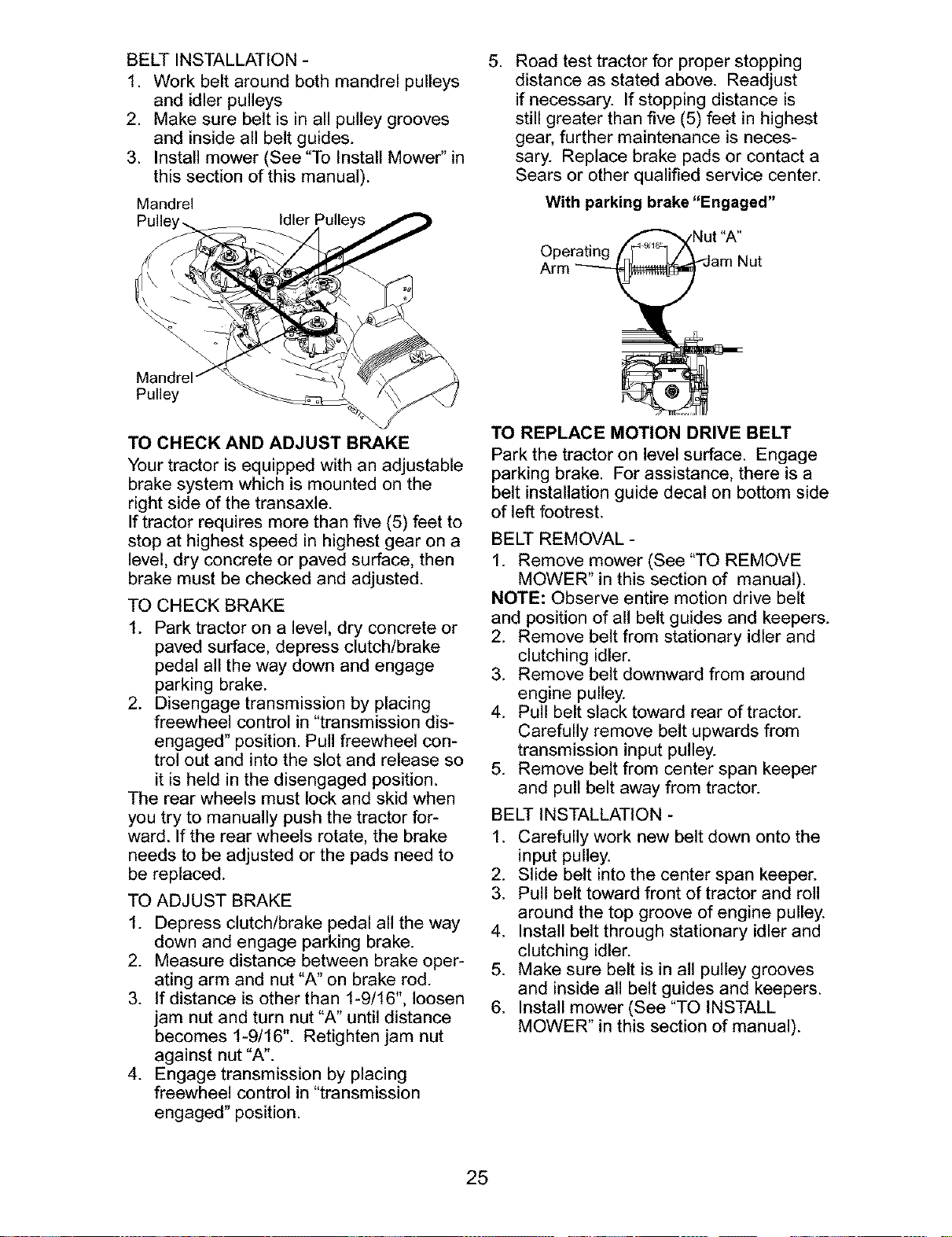

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch!brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retightenjam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

_Nut "A"

Operating /F''_l ,,_

Arm _Nut

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley

Clutching Idler _

Stationary Idler /

Center Span /

Keeper

Transmission

Input Pulley

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neutral

(N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

Lock

Gate

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONTWHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVEWHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - De not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves in

rear wheel hub and axle. Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining Ring

Axle Cover

Square Key ._'

(Rear Wheel Only)

TO START ENGINEWITH AWEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

Adjustment TERY" in the MAINTENANCE section of

Bolt this manual).

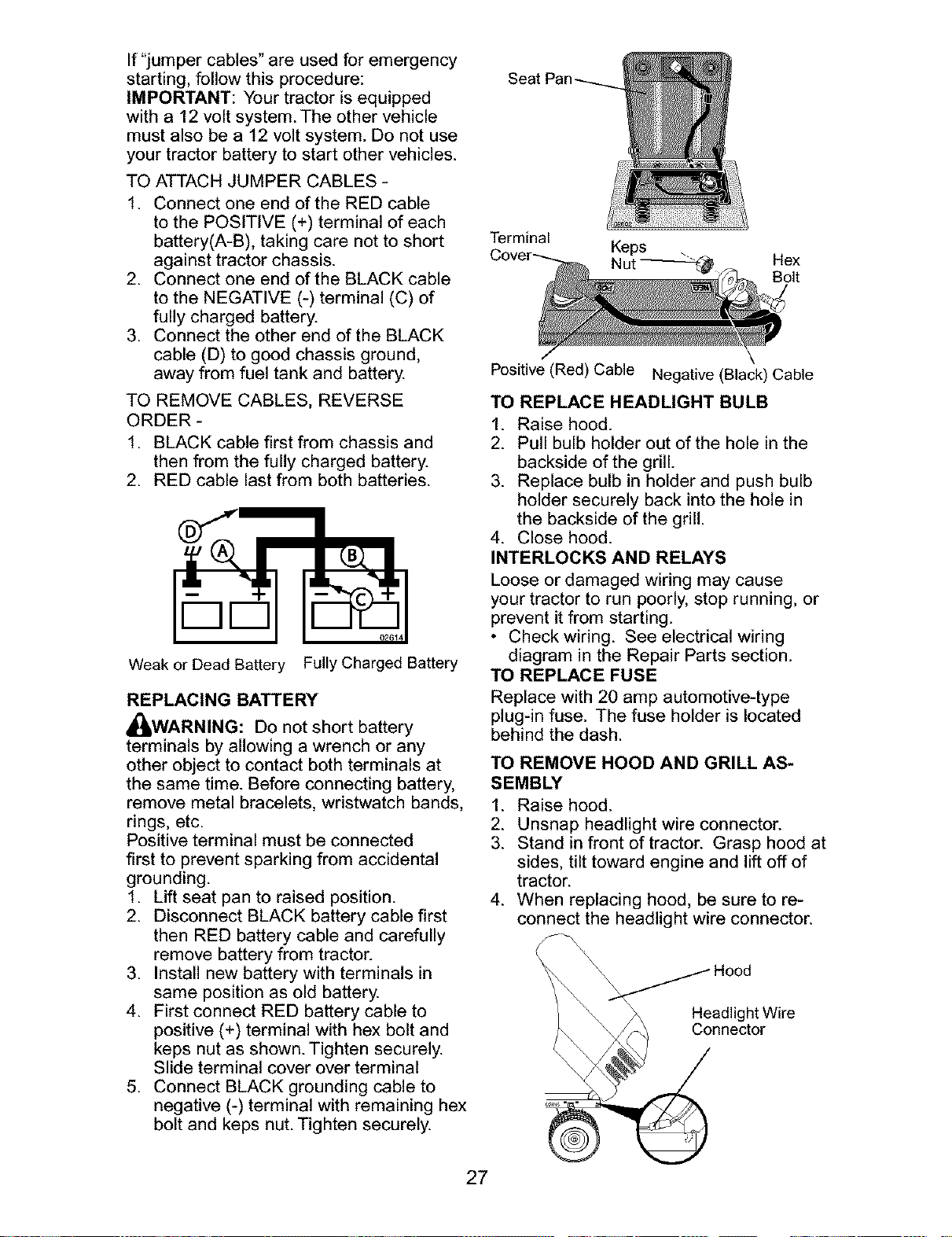

If"jumpercables"are usedforemergency

starting,followthis procedure:

IMPORTANT:Yourtractorisequipped

with a 12voltsystem.The othervehicle

mustalsobe a 12volt system.Do notuse

yourtractorbatteryto start othervehicles.

TOATTACHJUMPERCABLES-

1. Connectoneendof theREDcable

to thePOSITIVE(+)terminalof each

battery(A-B),takingcare notto short

againsttractorchassis.

2. Connectoneendof theBLACKcable

to theNEGATIVE(-)terminal(C)of

fully chargedbattery.

3. Connecttheotherendof theBLACK

cable(D)to goodchassisground,

awayfromfuel tankand battery.

TOREMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirst fromchassisand

thenfromthefully chargedbattery.

2. REDcablelastfrom bothbatteries.

Weak or Dead Battery Fully Charged Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining hex

bolt and keps nut. Tighten securely.

Terminal

Keps

Nut _ Hex

Bolt

Positive (Red) Cable Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

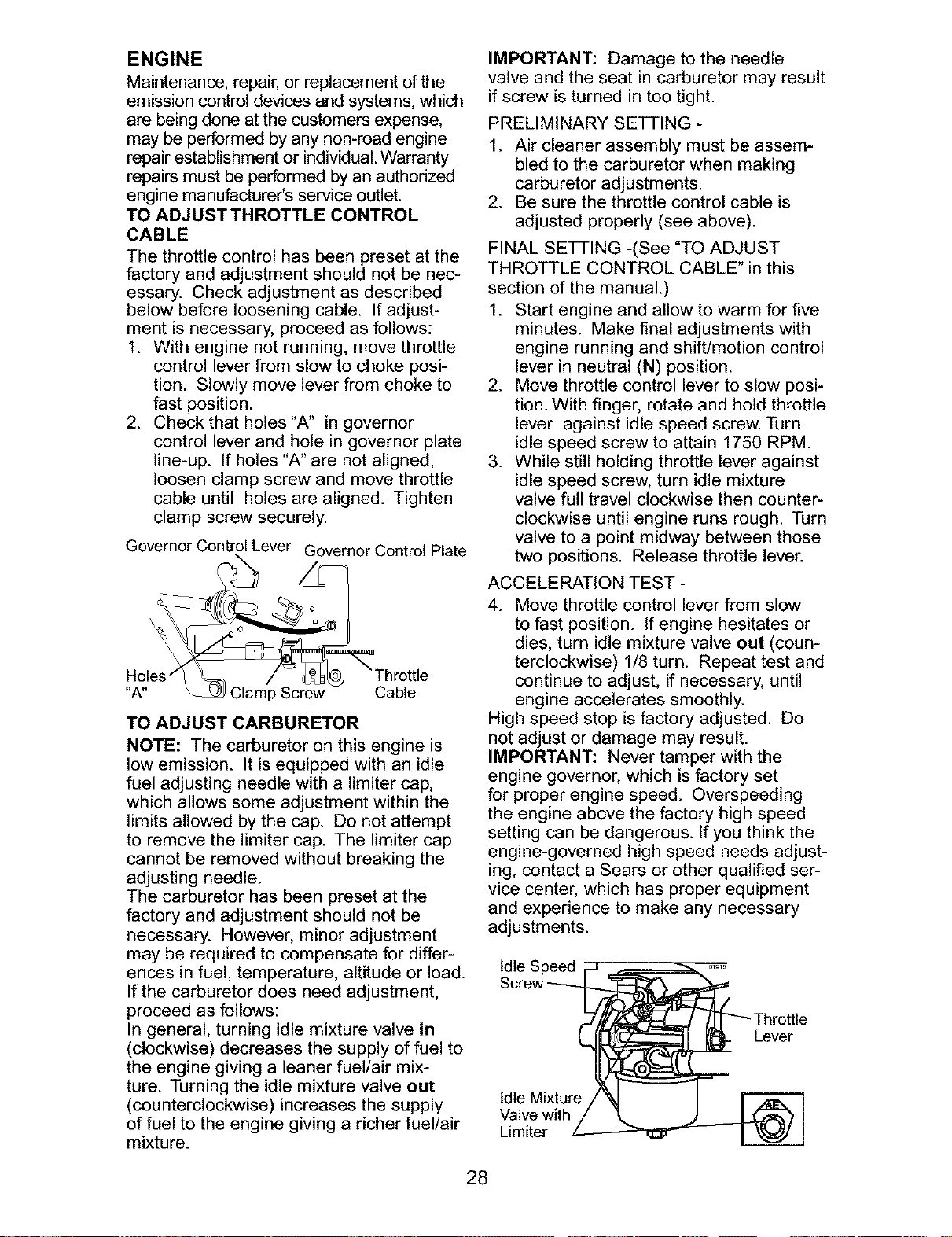

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control Lever Governor Control Plate

Holes

"A" Clamp Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for differ-

ences in fuel, temperature, altitude or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel!air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -(See "TO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then counter-

clockwise until engine runs rough. Turn

valve to a point midway between those

two positions. Release throttle lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs adjust-

ing, contact a Sears or other qualified ser-

vice center, which has proper equipment

and experience to make any necessary

adjustments.

Idle Speed

Lever

Idle Mixture

Valve with

Limiter

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and!or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut- uneven

Mower blades wil

notrotate

CAUSE

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen!fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and

trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

CORRECTION

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen!fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

Poor grass 1. Engine speed too slow. 1. Place throttle control in

discharge "FAST" position.

2. Travel speed too fast. 2. Shift to slower speed.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Poor grass

CAUSE

3. Wet grass.

discharge

(continued) 4.

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

when turning

engine "OFF"

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

CORRECTION

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace!sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

Bad battery cell(s). 1.

Poor cable connections. 2.

Faulty regulator 3.

(if so equipped).

Faulty alternator.

Replace battery.

Check/clean all connections.

Replace regulator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

Engine throttle control not set

at "SLOW" position for 30

30 seconds before stopping

engine.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

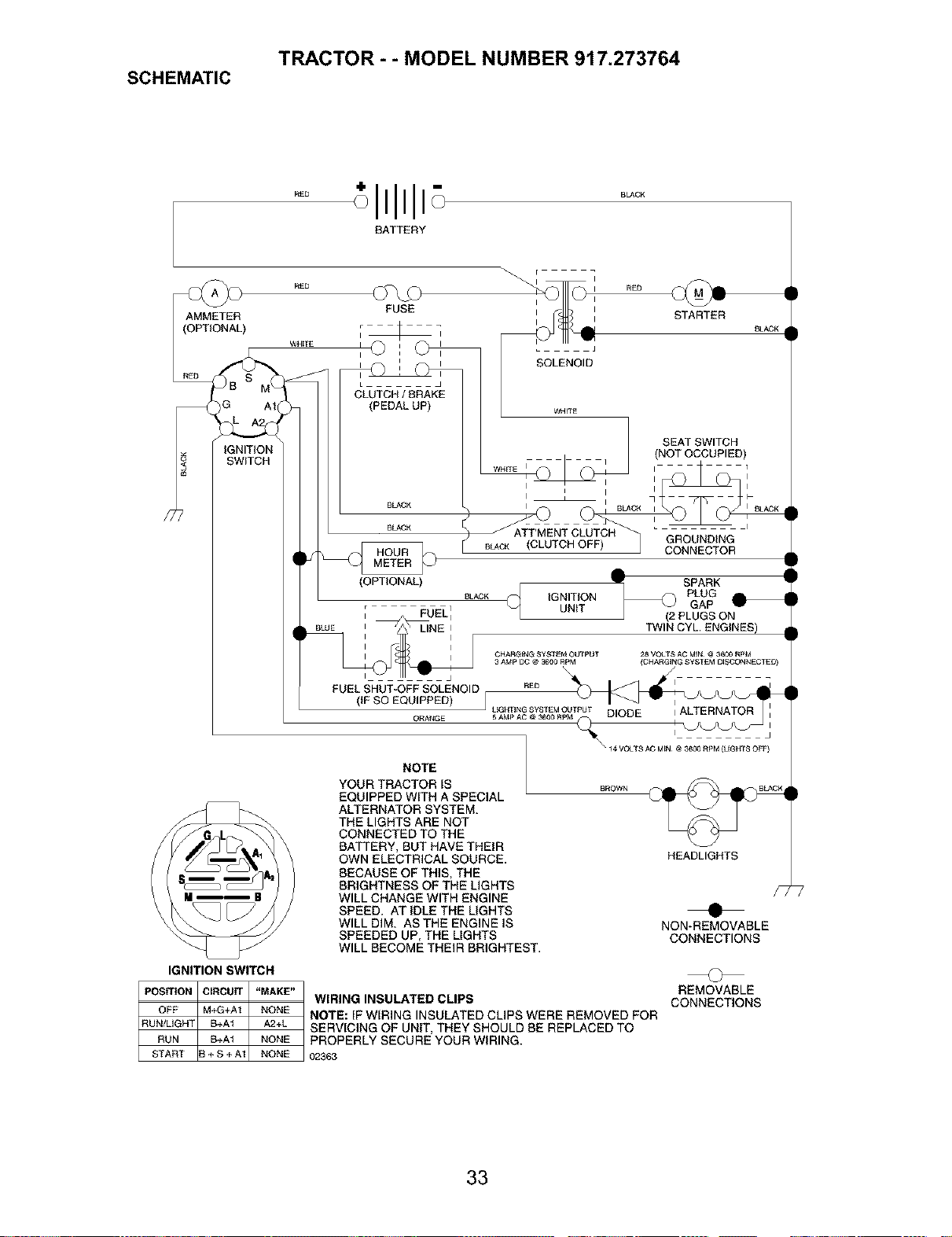

TRACTOR - - MODEL NUMBER 917.273764

SCHEMATIC

R£D

BATTERY

BLACK

R£D

I AMMETER

(OPTIONAL) WHERE

_)G AI(

_GNIT_ON

SW_TCH

IGNITION SWITCH

PosmoN CIRCUIT "MAKE"

OFF M÷G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START ] + S ÷ A1 NONE

FUSE

r I

i I

'© (2)

k J

CLUTCH/BRAKE

{PEDAL UP)

SOLENOID

WHETE

SEATSWITCH

NOT OCCUPIED)

_LACK

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

WIRING INSULATED CLIPS

HEADLIGHTS

NON*REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

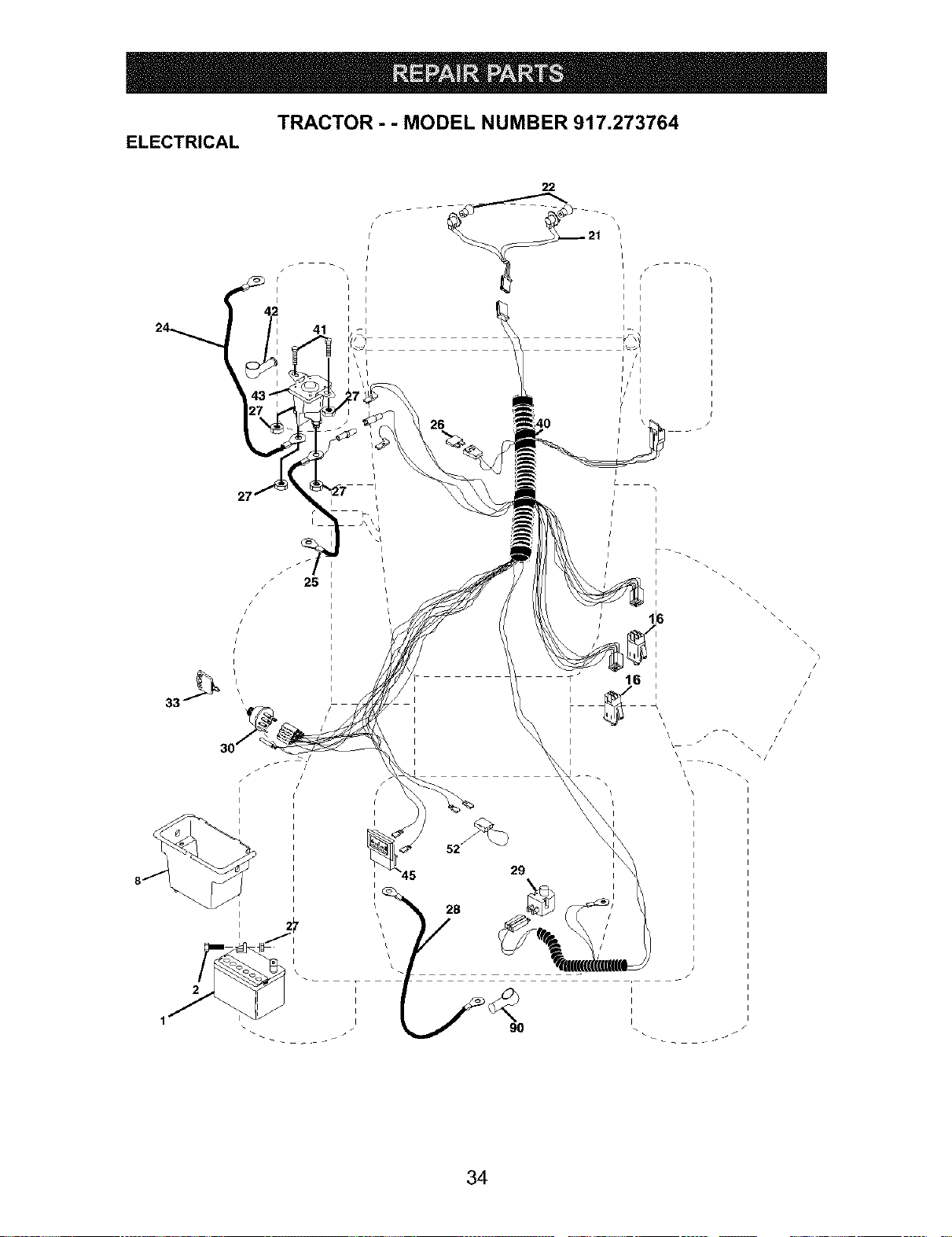

TRACTOR - - MODEL NUMBER 917.273764

ELECTRICAL

1 _ I

I i

52"

90 i

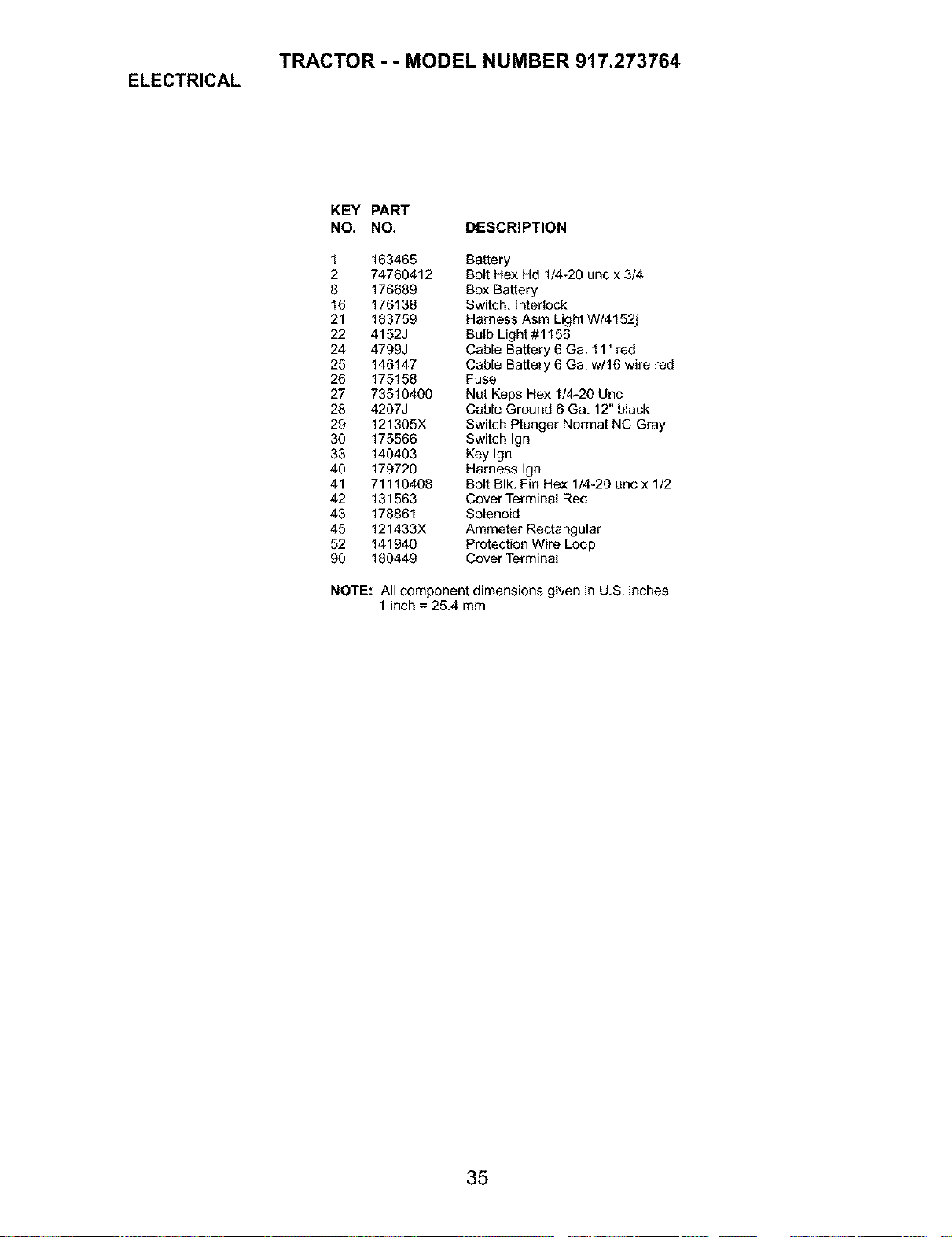

TRACTOR - - MODEL NUMBER 917.273764

ELECTRICAL

KEY PART

NO, NO, DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8 176689 Box Battery

16 176138 Switch, Interlock

21 183759 Harness Asm Light W/4152j

22 4152J Bulb Light #1156

24 4799J Cable Battery 6 Ga. 11" red

28 146147 Cable Battery 6 Ga. w/16 wire red

26 175158 Fuse

27 73510400 Nat Keps Hex 1/4-20 Unc

28 4207J Cable Ground 6 Ga. 12" black

29 121305X Switch Plunger Normal NC Gray

30 175566 Switch Ign

33 140403 Key Ign

40 179720 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 anc x 1/2

42 131563 Cover Terminal Red

43 178861 Solenoid

48 121433X Ammeter Rectangular

52 141940 Protection Wire Loop

90 180449 Cover Terminal

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

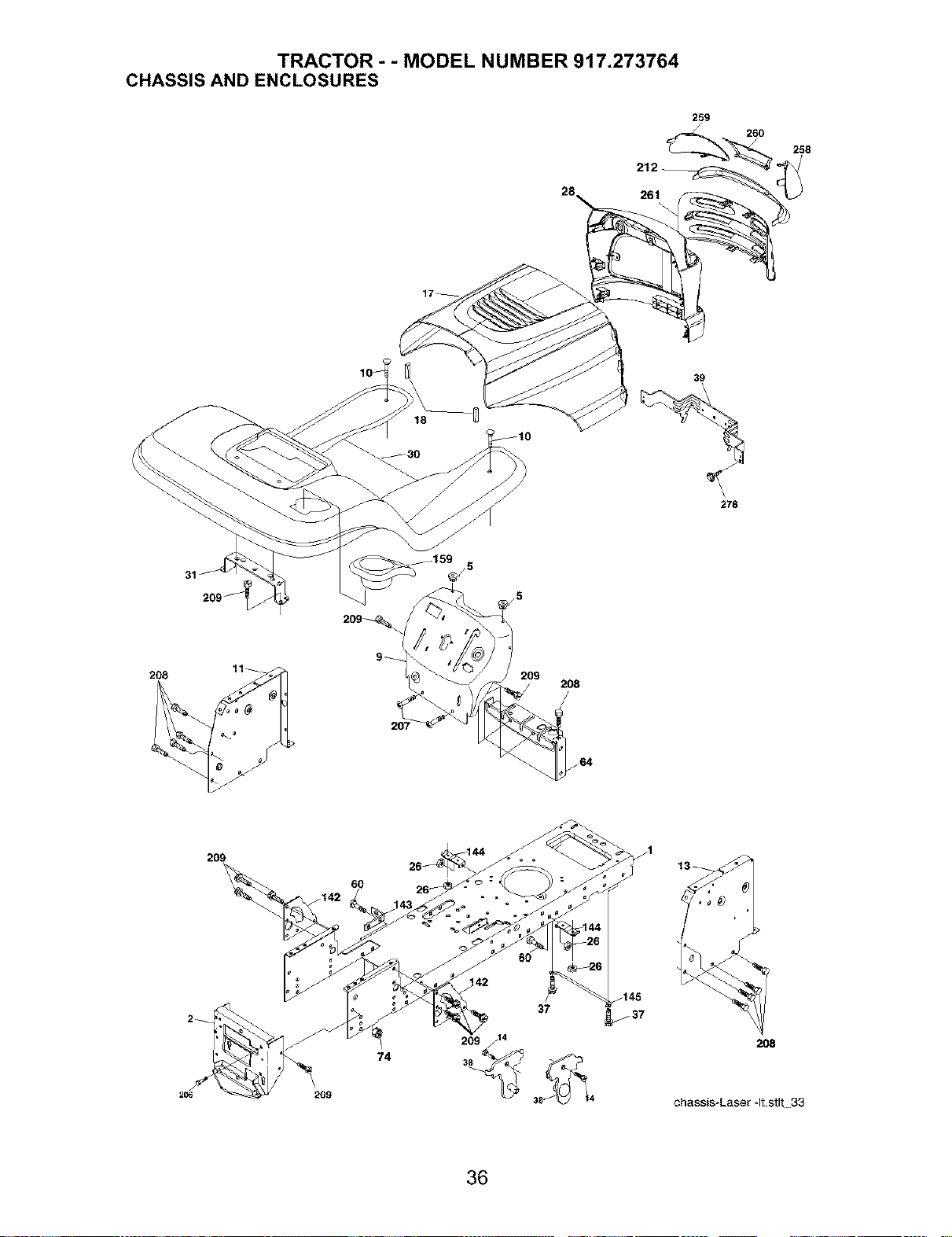

TRACTOR - - MODEL NUMBER 917.273764

CHASSIS AND ENCLOSURES

259

26O

258

278

2O8 209

208

./64

209

2 209 14

74 3

_145

208

chassis-Laser 4t.stlt. 33

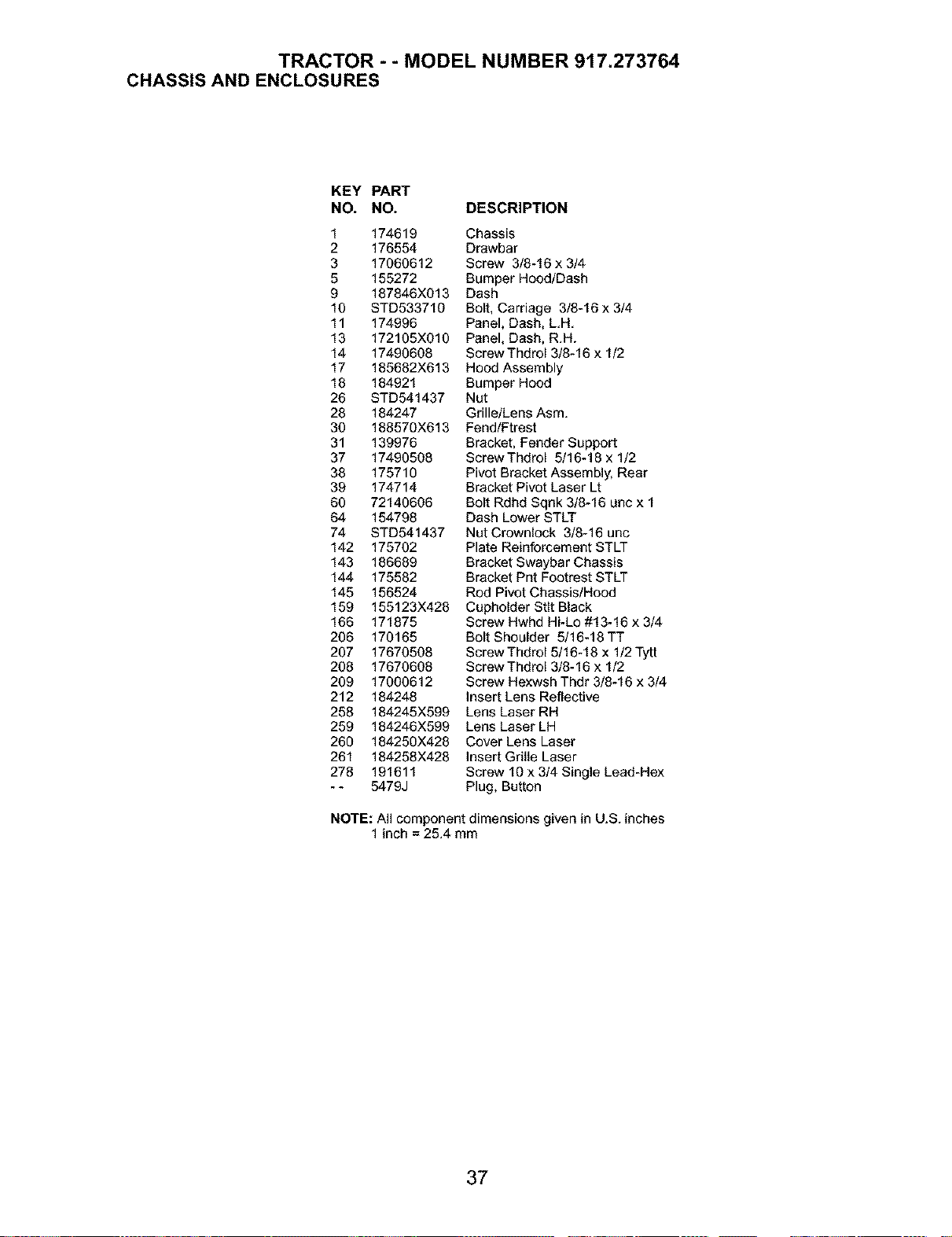

TRACTOR - - MODEL NUMBER 917.273764

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood/Dash

9 187846X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 3/4

11 174996 Panel, Dash, L.H.

13 172105X010 Panel, Dash, R.H.

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 185682X613 Hood Assembly

18 184921 Bumper Hood

26 STD541437 Nut

28 184247 Grille/Lens Asm.

30 188570X613 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 Pivot Bracket Assembly, Rear

39 174714 Bracket Pivot Laser Lt

60 72140606 Bolt Rdhd Sqnk 3/8-16 uric x 1

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 unc

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 CapholderStltBlack

166 171875 Screw Hwhd Hi-Lo #13-16 x 3/4

206 170165 Bolt Shoulder 5/16-18TT

207 17670508 ScrewThdrol 5/16-18 x 1/2Tytt

208 17670608 ScrewThdrol 3/8-16 x 1/2

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

212 184248 Insert Lens Reflective

258 184245X599 Lens Laser RH

259 184246X599 Lens Laser LH

260 184250X428 Cover Lens Laser

261 184258X428 Insert Grille Laser

278 191611 Screw 10 x 3/4 Single Lead-Hex

- - 5479J Plug, Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

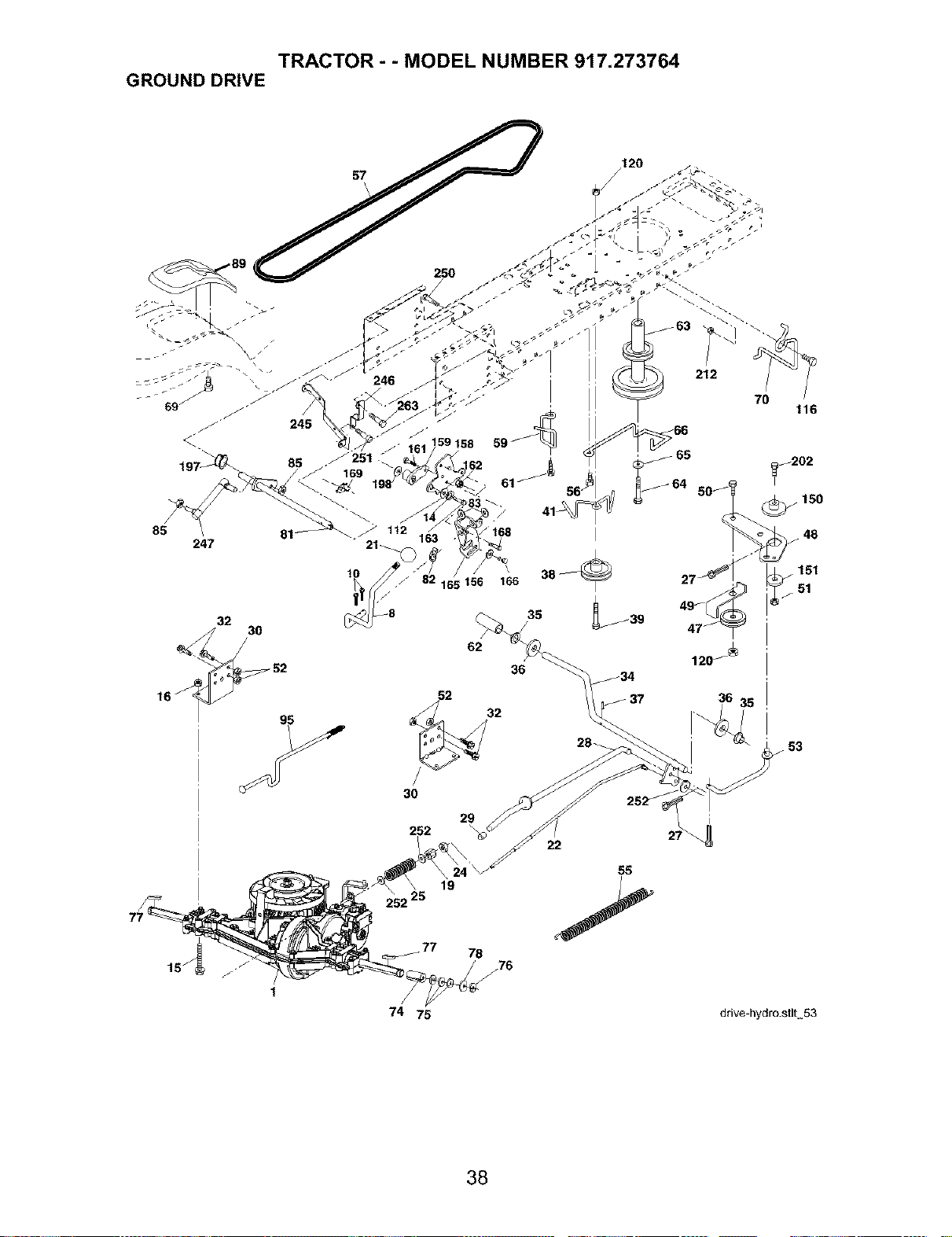

TRACTOR - - MODEL NUMBER 917.273764

GROUND DRIVE

15j

29 i

2p2 27_

74 75

drive-hydro.stlt 53

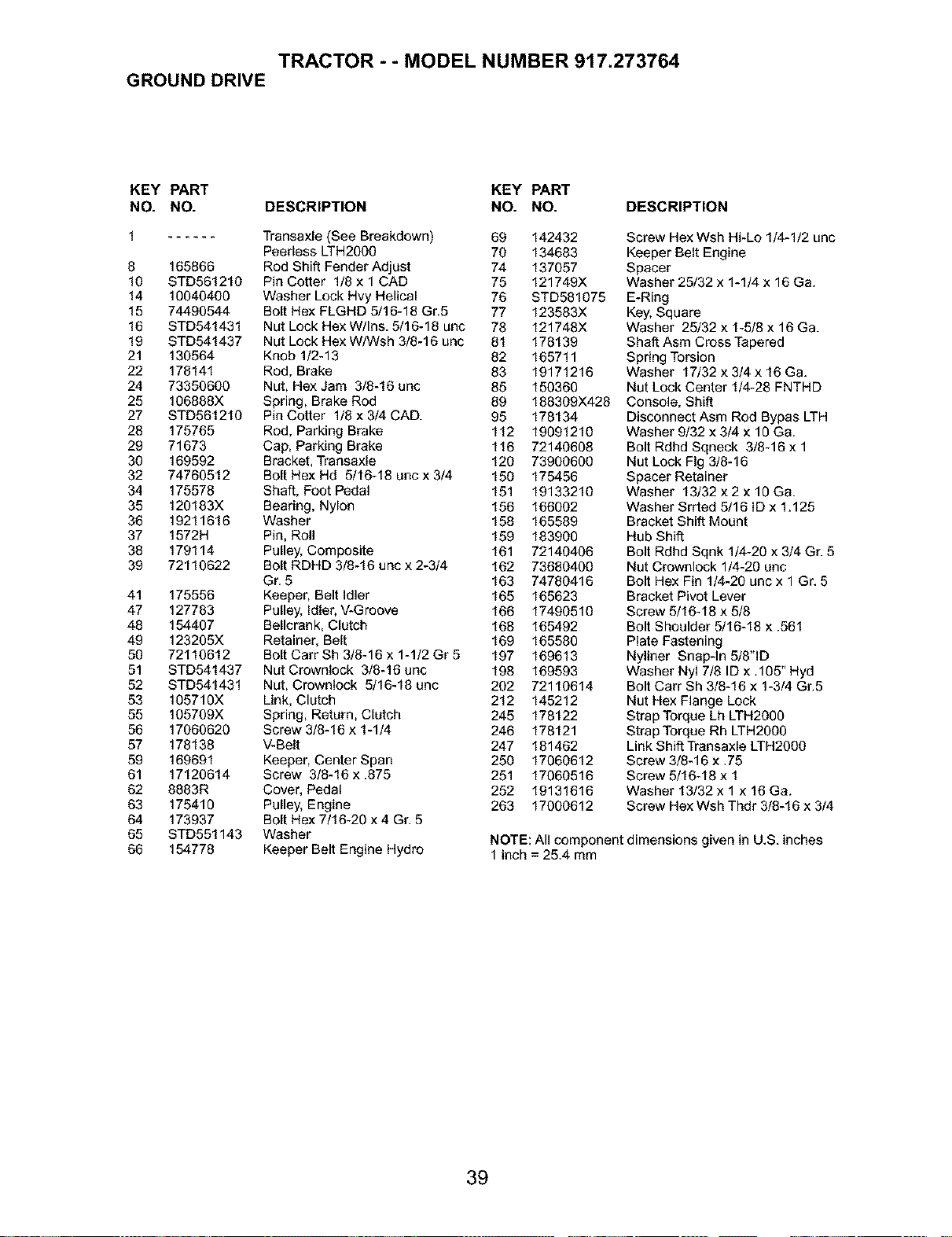

TRACTOR - - MODEL NUMBER 917.273764

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle (See Breakdown) 69 142432

Peerless LTH200O 70 134683

8 165866 Rod Shift Fender Adjust 74 137057

10 STD561210 Pin Cotter 1/8 x 1CAD 75 121749X

14 10040400 Washer Lock Hvy Helical 76 STD581075

15 74490544 Bolt Hex FLGHD 5/16-18 Gr.5 77 123583X

16 STD541431 NutLockHexW/Ins. 5/16-18unc 78 121748X

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 unc 81 178139

21 130564 Knob 1/2-13 82 165711

22 178141 Rod, Brake 83 19171216

24 73350600 Nut, Hex Jam 3/8-16 unc 85 150360

25 106888X Spring, Brake Rod 89

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 95 178134

28 175765 Rod, Parking Brake 112 19091210

29 71673 Cap, Parking Brake 116 72140608

30 169592 Bracket, Transaxle 120 73900600

32 74760512 Bolt Hex Hd 5/16-18 uric x 3/4 150 175456

34 175578 Shaft, Foot Pedal 151 19133210

35 120183X Bearing, Nylon 156 166002

36 19211616 Washer 158 165589

37 1572H Pin, Roll 159 183900

38 179114 Pulley, Composite 161 72140406

39 72110622 Bolt RDHD 3/8-16 unc x 2-3/4 162 73680400

Gr. 5 163 74780416

41 175556 Keeper, Belt Idler 165 165623

47 127783 Pulley, Idler, V-Groove 166 17490510

48 154407 Bellcrank, Clutch 168 165492

49 123205X Retainer, Belt 169 165580

50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 197 169613

51 STD541437 Nut Crewnleck 3/6-16 unc 198 169593

52 STD541431 Nut, Crewnlock 5/16-18 unc 202 72110614

53 105710X Link, Clutch 212 145212

55 105709X Spring, Return, Clutch 245 178122

56 17060620 Screw 3/8-16 x 1-1/4 246 178121

57 178138 V-Belt 247 181462

59 169691 Keeper, Center Span 250 17060612

61 17120614 Screw 3/8-16 x.875 251 17060516

62 8883R Cover, Pedal 252 19131616

63 175410 Pulley, Engine 263 17000612

64 173937 Bolt Hex 7/16-20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper Belt Engine Hydro

Screw Hex Wsh Hi-Lo 1/4-1/2 unc

Keeper Belt Engine

Spacer

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross Tapered

Spring Torsion

Washer 17/32 x 3/4 x 16 Ga.

Nut Lock Center 1/4-28 FNTHD

188309X428 Console, Shift

Disconnect Asm Rod Bypas LTH

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32x2x 10Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Nyliner Snap-in 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Cart Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

Strap Torque Lh LTH2000

Strap Torque Rh LTH2000

Link Shift Transaxle LTH2O00

Screw 3/8-16 x .75

Screw 5/16-18 x 1

Washer 13/32 x 1 x 16 Ga.

Screw Hex Wsh Thdr 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

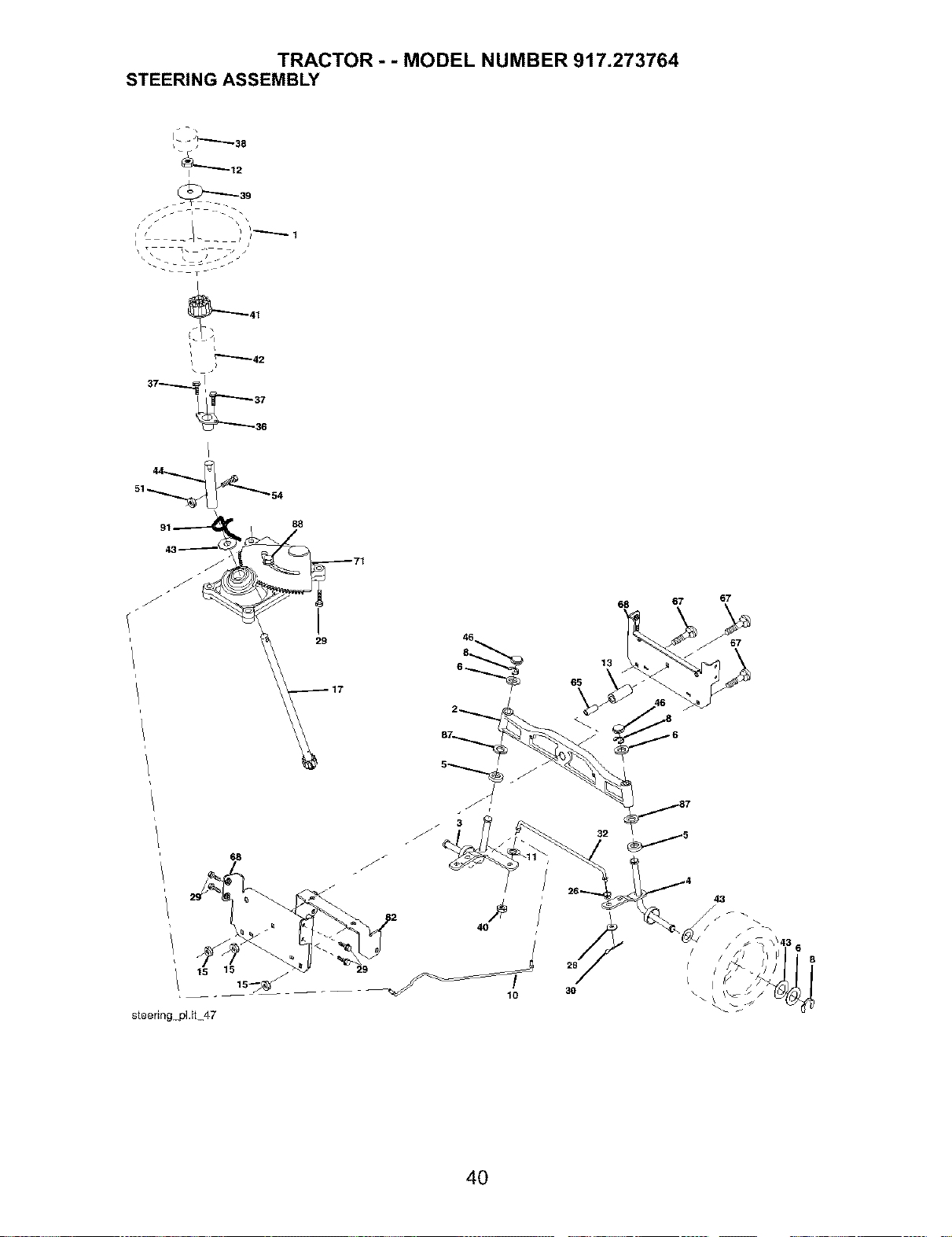

TRACTOR - - MODEL NUMBER 917.273764

STEERING ASSEMBLY

_-'--'-'42

J 67

steering_pl.II47

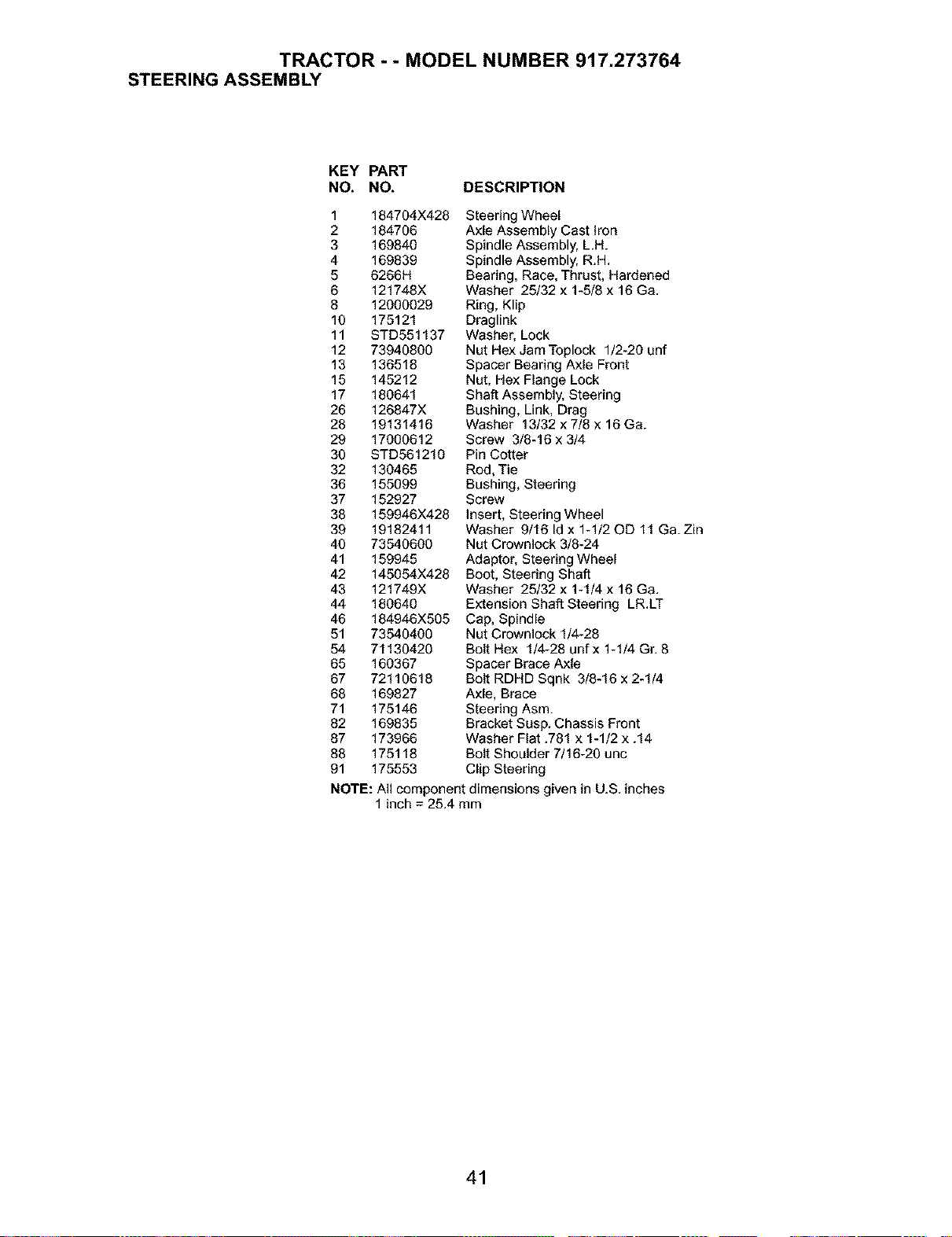

TRACTOR - - MODEL NUMBER 917.273764

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 184704X428

2 184706

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 STD551137

12 73940800

13 136518

15 145212

17 180641

26 126847X

28 19131416

29 17000612

30 STD561210

32 130465

36 155099

37 152927

38 159946X428

39 19182411

40 73540600

41 159945

42 145054X428

43 121749X

44 180640

46 184946X505

51 73540400

54 71130420

65 160367

67 72110618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

Steering Wheel

Axle Assembly Cast Iron

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip

Draglink

Washer, Lock

Nut Hex Jam Toplock 1/2-20 unf

Spacer Bearing Axle Front

Nut, Hex Flange Lock

Shaft Assembly, Steering

Bushing, Link, Drag

Washer 13/32 x 7/8 x 16 Ga.

Screw 3/8-16 x 3/4

Pin Cotter

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 9/16 Id x 1-1/20D 11 Ga. Zin

Nut Crownlock 3/8-24

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Ga.

Extension Shaft Steering LR.LT

Cap, Spindle

Nut Crownlock 1/4-28

Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8

Spacer Brace Axle

Bolt RDHD Sqnk 3/8-16 x 2-1/4

Axle, Brace

Steering Asm.

Bracket Susp. Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20 unc

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

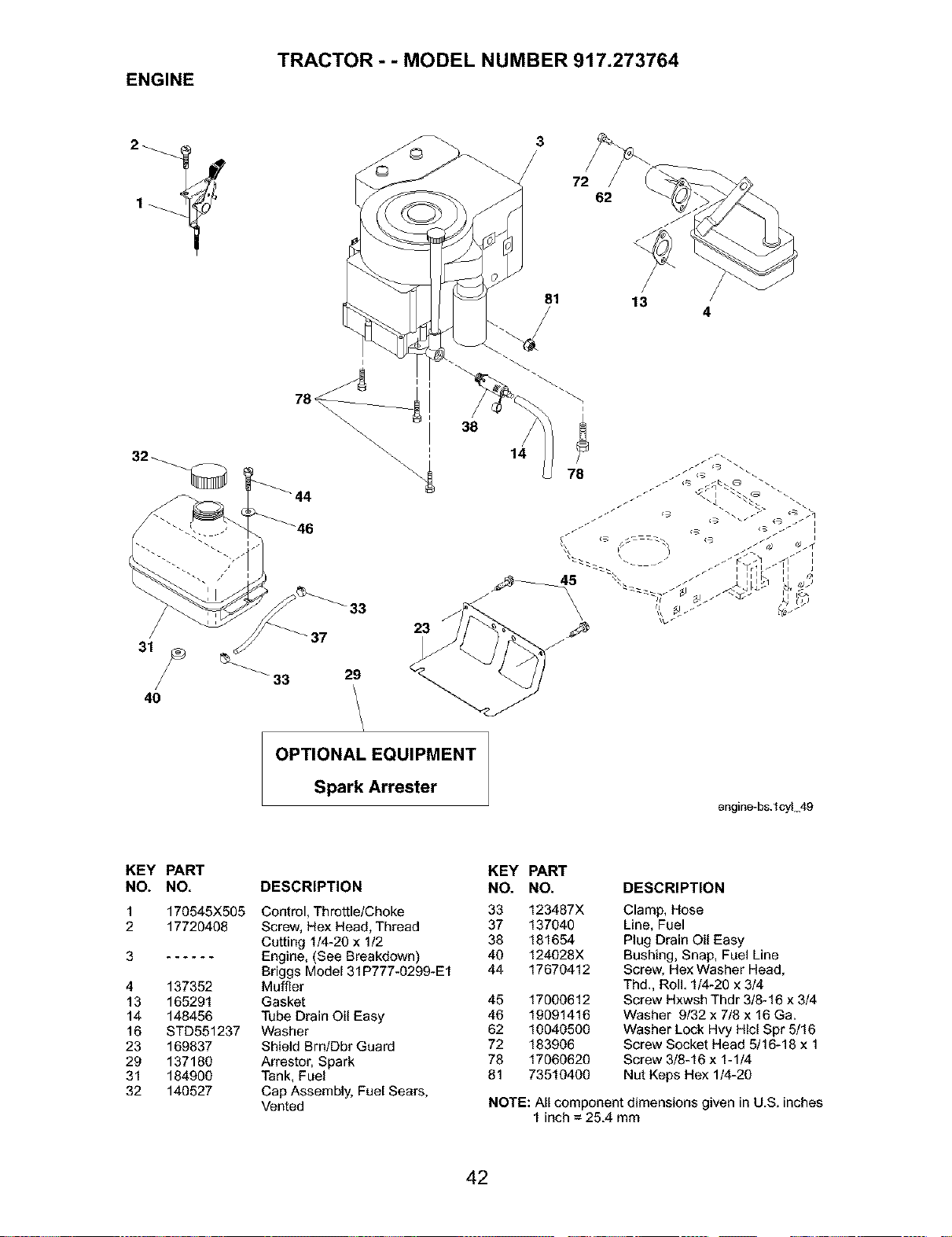

TRACTOR - - MODEL NUMBER 917.273764

ENGINE

32_

\\\

_" 33 29

81 13

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs.lcyl 49

KEY PART

NO. NO.

1 170545X505

2 17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

DESCRIPTION

Control, Throttle/Choke

Screw, Hex Head, Thread

Cutting 1/4-20 x 1/2

Engine, (See Breakdown)

Briggs Model 31P777-O299-E1

Muffler

Gasket

Tube Drain Oil Easy

Washer

Shield Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Sears,

Vented

KEY PART

NO. NO.

33 123487X

37 137040

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

62 10040500

72 183906

78 17060620

81 73510400

DESCRIPTION

Clamp, Hose

Line, Fuel

Plug Drain Oil Easy

Bushing, Snap, Fuel Line

Screw, Hex Washer Head,

Thd. Roll. 1/4-20 x 3/4

Screw Hxwsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Washer Lock Hvy Hlcl Spr 8/16

Screw Socket Head 5/16_18 x 1

Screw 3/8-16 x %1/4

Nut Keps Hex 1/4-20

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273764

SEAT ASSEMBLY

\\\

seat Itknob 9

KEY PART

NO. NO.

1 180597

2 180166

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

Seat 12 121246X

Bracket Pnt Pivot Seat (blk) 13 121248X

Bolt Fin Hex 3/8-16 unc x 1 14 72050412

Washer 13/32 x 3/4 x 10 Ga. 15 134300

Clip Push In Hinged 16 121250X

Nut Hex Lock w/Ins 3/8-16 unc 17 123976X

Spring Seat Cpran 2 250 BIk Zi 21 171852

Screw 3/8-16 x 1 22 STD541431

Washer 13/32 x 1x 14 Ga. 24 19171912

Pan Pnt Seat (blk)

Knob Seat Adj Wingnut

Bracket Pnt Mounting Switch

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

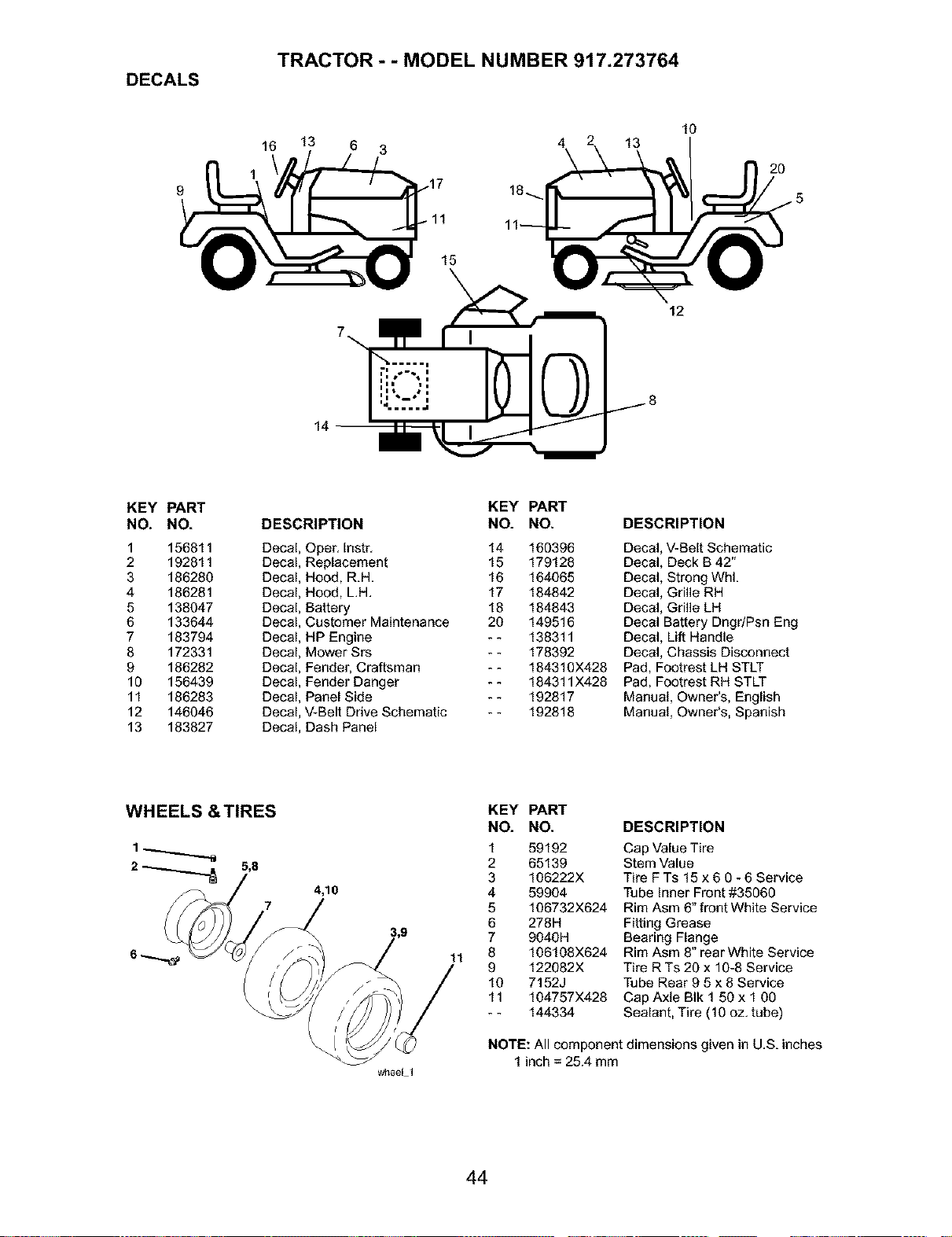

TRACTOR - - MODEL NUMBER 917.273764

DECALS

KEY PART

NO. NO.

1 156811

2 192811

3 186280

4 186281

5 138047

6 133644

7 183794

8 172331

9 186282

10 156439

11 186283

12 146046

13 183827

KEY PART

DESCRIPTION NO. NO.

Decal, Oper. Instr. 14 160396

Decal, Replacement 15 179128

Decal, Hood, R.H. 16 164065

Decal, Hood, L.H. 17 184842

Decal, Battery 18 184843

Decal, Customer Maintenance 20 149516

Decal, HP Engine - - 138311

Decal, Mower Srs - - 178392

Decal, Fender, Craftsman - - 184310X428

Decal, Fender Danger - - 184311X428

Decal, Panel Side - - 192817

Decal, V-Belt Drive Schematic - - 192818

Decal, Dash Panel

DESCRIPTION

Decal, M-Belt Schematic

Decal, Deck B 42"

Decal, Strong WhL

Decal, Grille RH

Decal, Grille LH

Decal Battery Dngr/Psn Eng

Decal, Lift Handle

Decal, Chassis Disconnect

Pad, Footrest LH STLT

Pad, Footrest RH STLT

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS &TIRES

2 _ 5,8

4,10

wh_l I

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X624

6 278H

7 9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Value Tire

Stem Value

Tire F Ts 15 x 6 O - 6 Service

Tube Inner Front #35060

Rim Asm 6" front White Service

Fitting Grease

Bearing Flange

Rim Asm 8" rear White Service

Tire R Ts 20 x 10-8 Service

Tube Rear 9 5 x 8 Service

Cap Axle BIk 1 50 x 1 0O

Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

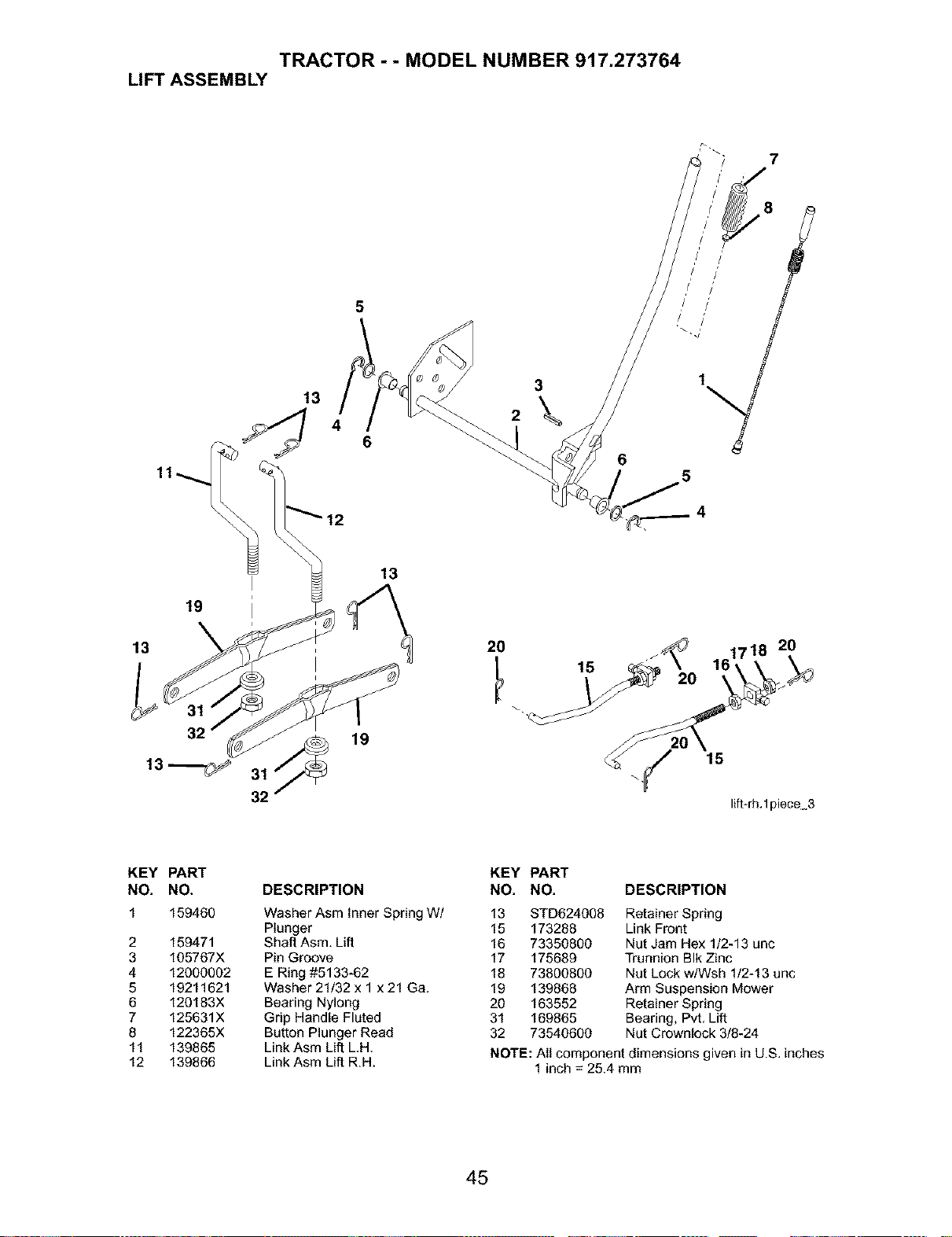

TRACTOR - - MODEL NUMBER 917.273764

LIFT ASSEMBLY

lift*rh, 1piece 3

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

DESCRIPTION

Washer Asm inner Spring W/

Plunger

Shaft Asm. Lift

Pin Groove

E Ring #5133-62

Washer 21/32 x 1 x21 Ga.

Bearing Nylong

Grip Handle Fluted

Button Plunger Read

Link Asm Lift L.H.

Link Asm Lift R.H.

KEY PART

NO. NO. DESCRIPTION

13 STD624008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 unc

17 175689 Trunnion BIk Zinc

18 73800800 Nut Lock w/Wsh 1/2-13 unc

19 139868 Arm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Lift

32 73540600 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

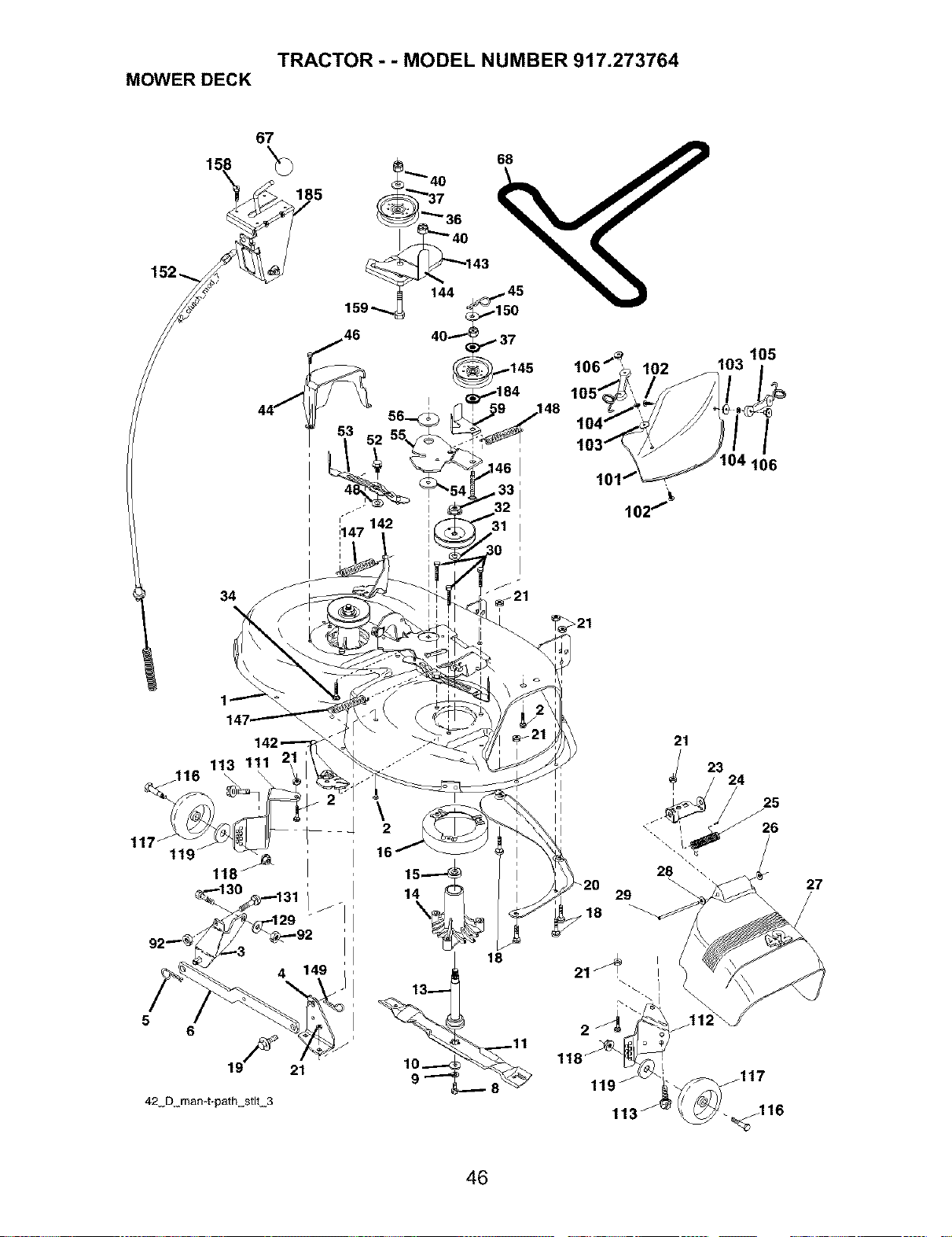

TRACTOR - - MODEL NUMBER 917.273764

MOWER DECK

i147 142

_148

_116

119 118_

_13o

19F 21

42 D man-t-path stlt3

13_

× 11

10_

Fl16

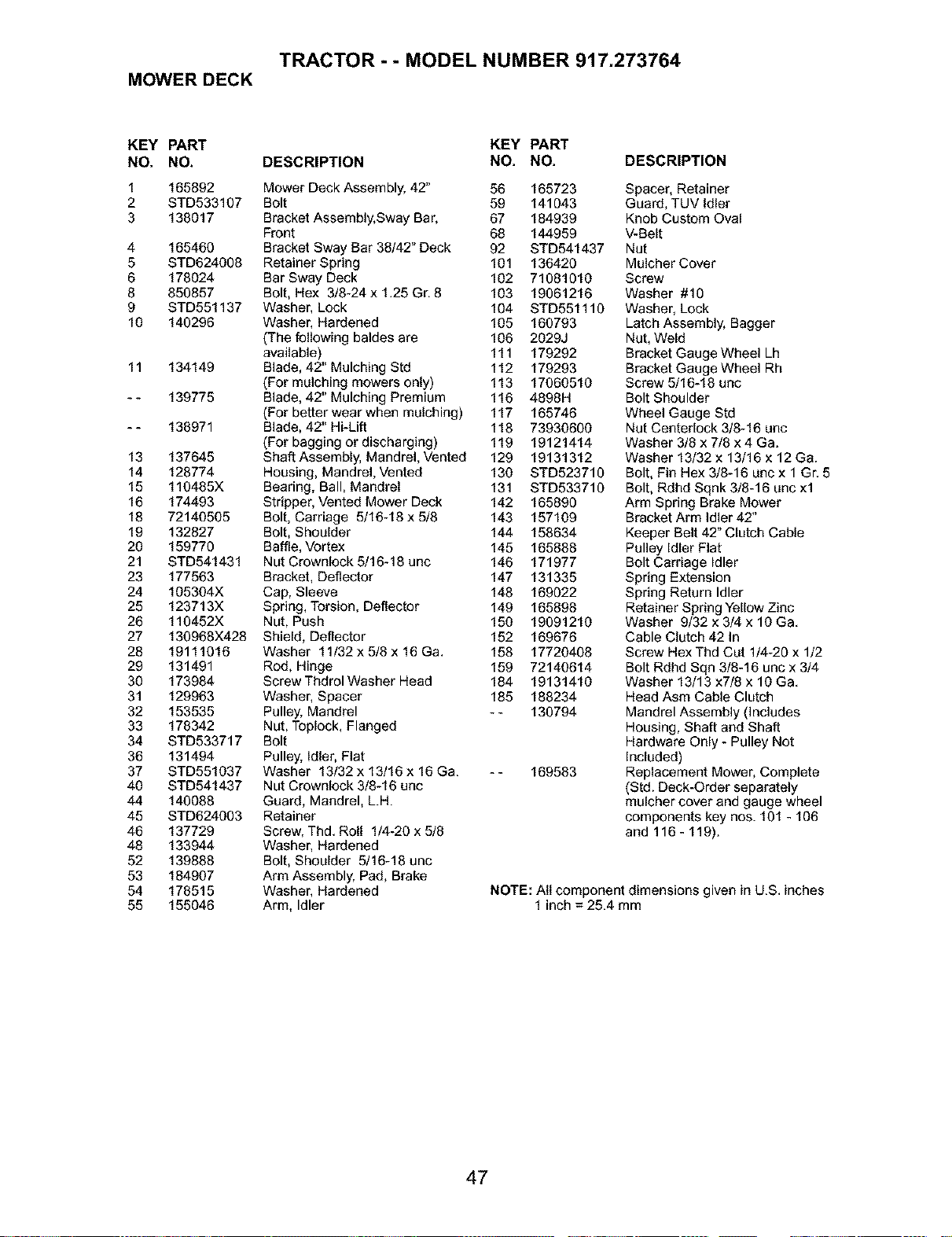

TRACTOR - - MODEL NUMBER 917.273764

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 56 165723

2 STD533107 Bolt 59 141043

3 138017 Bracket Assembly, Sway Bar, 67 184939

Front 68 144959

4 165460 Bracket Sway Bar 38/42" Deck 92 STD541437

5 STD624008 Retainer Spring 101 136420

6 178024 Bar Sway Deck 102 71081010

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

(The following baldes are 106 2029J

available) 111 179292

11 134149 Blade, 42" Mulching Std 112 179293

(For mulching mowers only) 113 17060510

** 139775 Blade, 42" Mulching Premium 116 4898H

(For better wear when mulching) 117 165746

** 138971 Blade, 42" Hi-Lift 118 73930600

(For bagging or discharging) 119 19121414

13 137645 Shaft Assembly, Mandrel, Vented 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110465X Bearing, Ball, Mandrel 131 STD533710

16 174493 Stripper, Vented Mower Deck 142 165890

18 72140505 Bolt, Carriage 5/16-18 x 5/6 143 157109

19 132827 Bolt, Shoulder 144 158634

20 159770 Baffle, Vortex 145 165888

21 STD541431 Nut Crownleck 5/16-18 unc 146 171977

23 177563 Bracket, Deflector 147 131335

24 105304X Cap, Sleeve 148 169022

25 123713X Spring, Torsion, Deflector 149 165898

26 110452X Nut, Push 150 19091210

27 130968X428 Shield, Deflector 152 169676

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 158 17720408

29 131491 Rod, Hinge 159 72140614

30 173984 Screw Thdrel Washer Head 184 19131410

31 129963 Washer, Spacer 185 188234

32 153535 Pulley, Mandrel * - 130794

33 178342 Nut, Toplock, Flanged

34 STD533717 Bolt

36 131494 Pulley, Idler, Flat

37 STD551037 Washer 13/32 x 13/16 x 16 Ga. * - 169583

40 STD541437 Nut Crownleck 3/8-16 uric

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4_20 x 5/8

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket Gauge Wheel Lh

Bracket Gauge Wheel Rh

Screw 5/16-18 uric

Bolt Shoulder

Wheel Gauge Std

Nut Centedock 3/8-16 uric

Washer 3/8 x 7/8 x 4 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc xl

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 3/4

Washer 13/13 x7/8 x 10 Ga.

Head Asm Cable Clutch

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only * Pulley Not

Included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover and gauge wheel

components key nos. 101 - 106

and 116- 119).

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

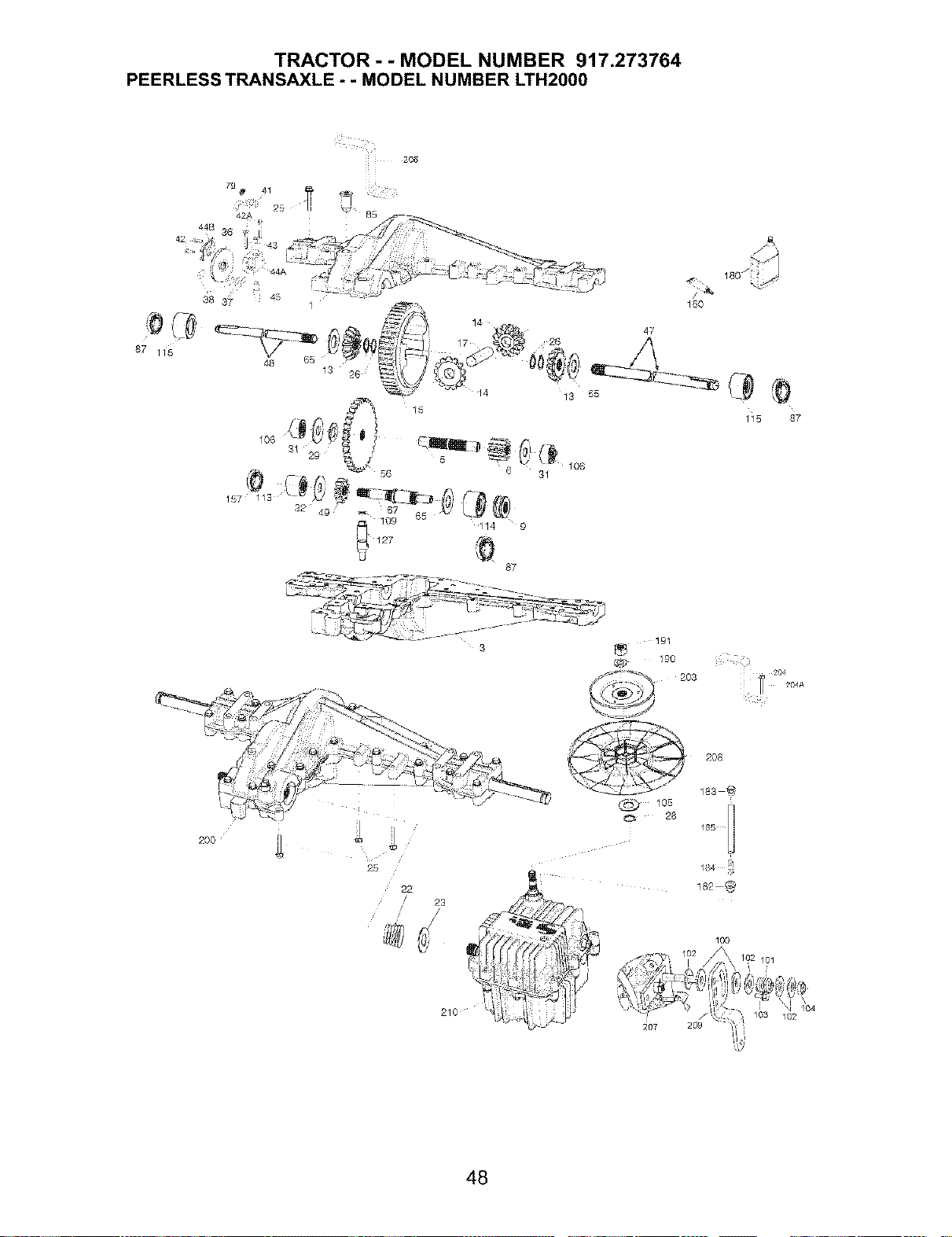

TRACTOR - - MODEL NUMBER 917.273764

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

87 115

180 /

150

115

32 49 _,_ 67 65

114 9

108

g_p 190

208

/85

la2 9

-",,i!i!.._J '°°

!_i,vr_ ..;-,_, /o2 _\ o2 o

=' = /_-::_ 103 182

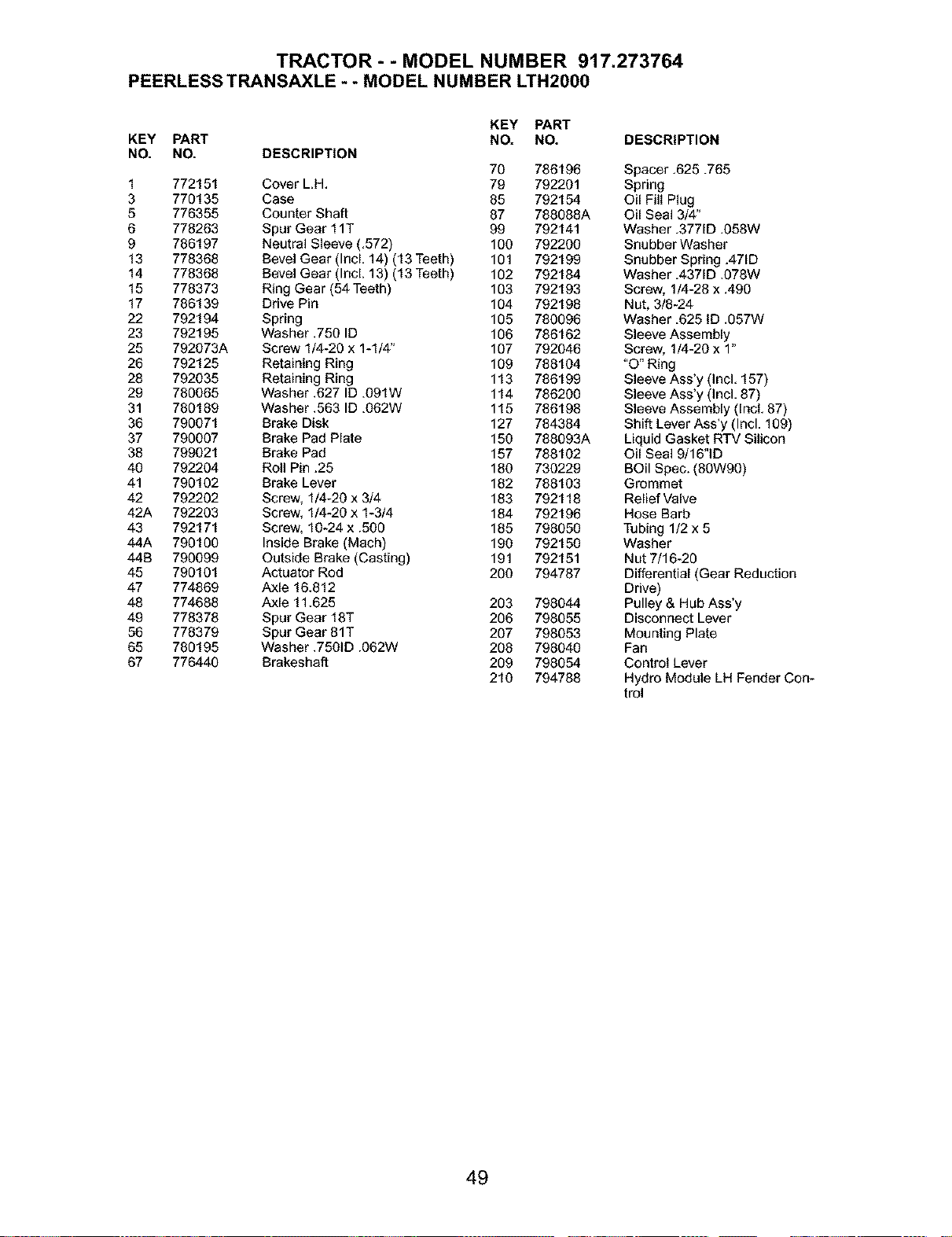

TRACTOR - - MODEL NUMBER 917.273764

PEERLESS TRANSAXLE -- MODEL NUMBER LTH2000

KEY PART

KEY PART NO. NO. DESCRIPTION

NO. NO. DESCRIPTION

70 786196 Spacer .625.765

1 772151 Cover L.H. 79 792201 Spring

3 770135 Case 85 792154 Oil Fill Plug

5 776355 Counter Shaft 87 788088A Oil Seal 3/4"

6 778263 Spur Gear 11T 99 792141 Washer .3771D .058W

9 786197 Neutral Sleeve (.572) 100 792200 Snubber Washer

13 778368 Bevel Gear (IncL 14) (13 Teeth) 101 792199 Snubber Spring .471D

14 778368 Bevel Gear (IncL 13) (13 Teeth) 102 792184 Washer .4371D .078W

15 778373 Ring Gear (54 Teeth) 103 792193 Screw, 1/4-28 x .490

17 786139 Drive Pin 104 792198 Nut, 3/8-24

22 792194 Spring 105 780096 Washer .625 ID .057W

23 792195 Washer .750 ID 106 786162 Sleeve Assembly

25 792073A Screw 1/4-20 x 1-1/4" 107 792046 Screw, 1/4-20 x 1"

26 792125 Retaining Ring 109 788104 "0" Ring

28 792035 Retaining Ring 113 786199 Sleeve Ass'y (Inck 157)

29 780065 Washer .627 ID .091W 114 786200 Sleeve Ass'y (Inck 87)

31 780189 Washer .563 ID .062W 115 786198 Sleeve Assembly (IncL 87)

36 790071 Brake Disk 127 784384 Shift Lever Ass'y (Incl. 109)

37 790007 Brake Pad Plate 150 788093A Liquid Gasket RTV Silicon

38 799021 Brake Pad 157 788102 Oil Seal 9/16"1D

40 792204 Roll Pin .25 180 730229 BOil Spec. (80W90)

41 790102 Brake Lever 182 788103 Grommet

42 792202 Screw, 1/4-20 x 3/4 183 792118 Relief Valve

42A 792203 Screw, 1/4-20 x 1-3/4 184 792196 Hose Barb

43 792171 Screw, 10-24 x .500 185 798050 Tubing 1/2 x 5

44A 790100 Inside Brake (Mach) 190 792150 Washer

44B 790099 Outside Brake (Casting) 191 792151 Nut 7/16-20

45 790101 Actuator Rod 200 794787 Differential (Gear Reduction

47 774869 Axle 16.812 Drive)

48 774688 Axle 11.625 203 798044 Pulley & Hub Ass'y

49 778378 Spur Gear 18T 206 798055 Disconnect Lever

56 778379 Spur Gear 81T 207 798053 Mounting Plate

65 780195 Washer .7501D .062W 208 798040 Fan

67 776440 Brakeshaff 209 798054 Control Lever

210 794788 Hydro Module LH Fender Con-

trol

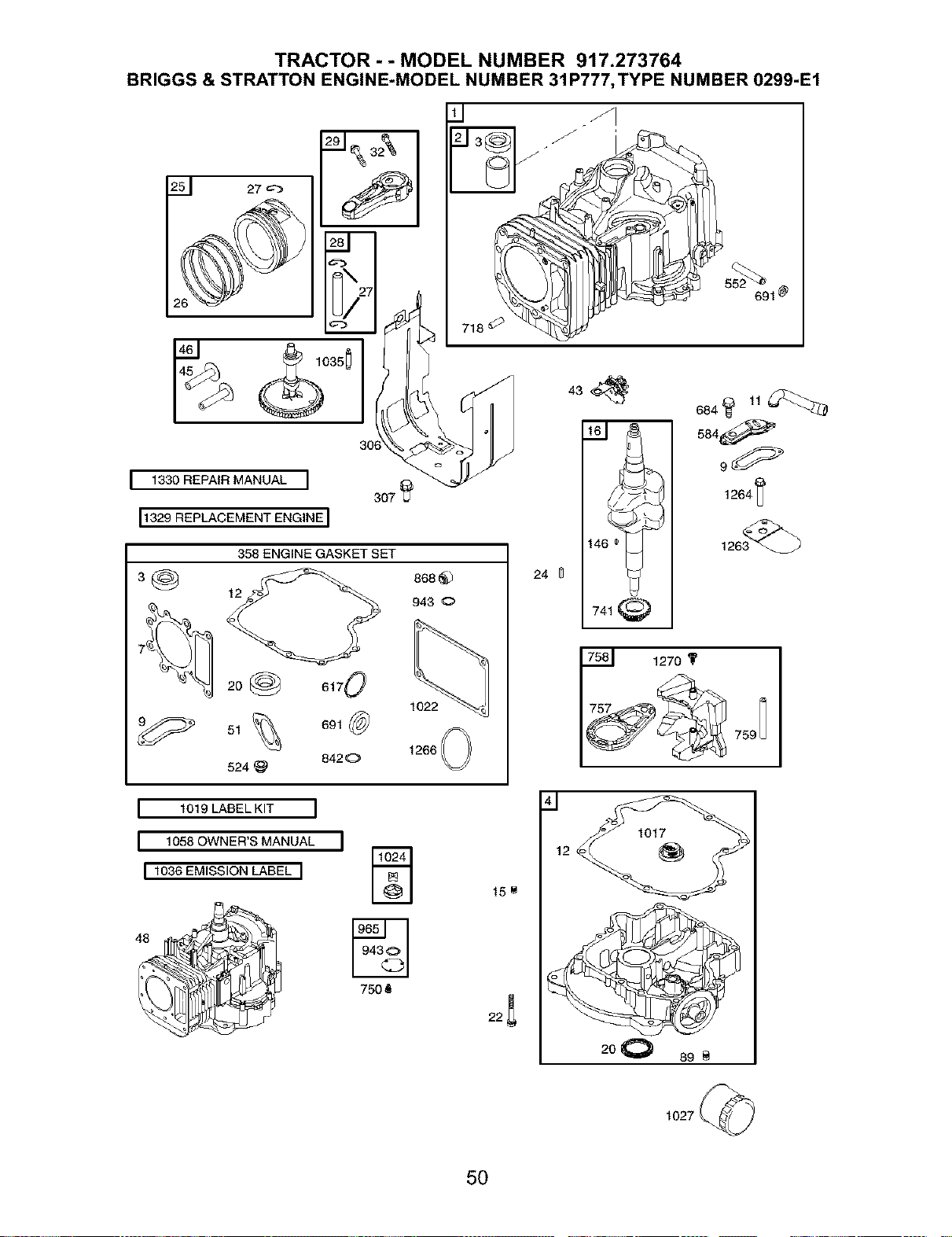

TRACTOR - - MODEL NUMBER 917.273764

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777,TYPE NUMBER 0299-E1

718 _

I 1330 REPAIR MANUAL I 307_

11329REPLACEMENT ENGINE I

358 ENGINE GASKET SET

868

943 o

1022

20@ 617O

51 691 (_

8420

524_

741@

6o4_11_

584_

1264_

758_ 1270

[ 1919 LABEL KIT ]

I 1058 OWNER'S MANUAL

I 1036 EMISSION LABEL I

750 &

15_

290 89

1027

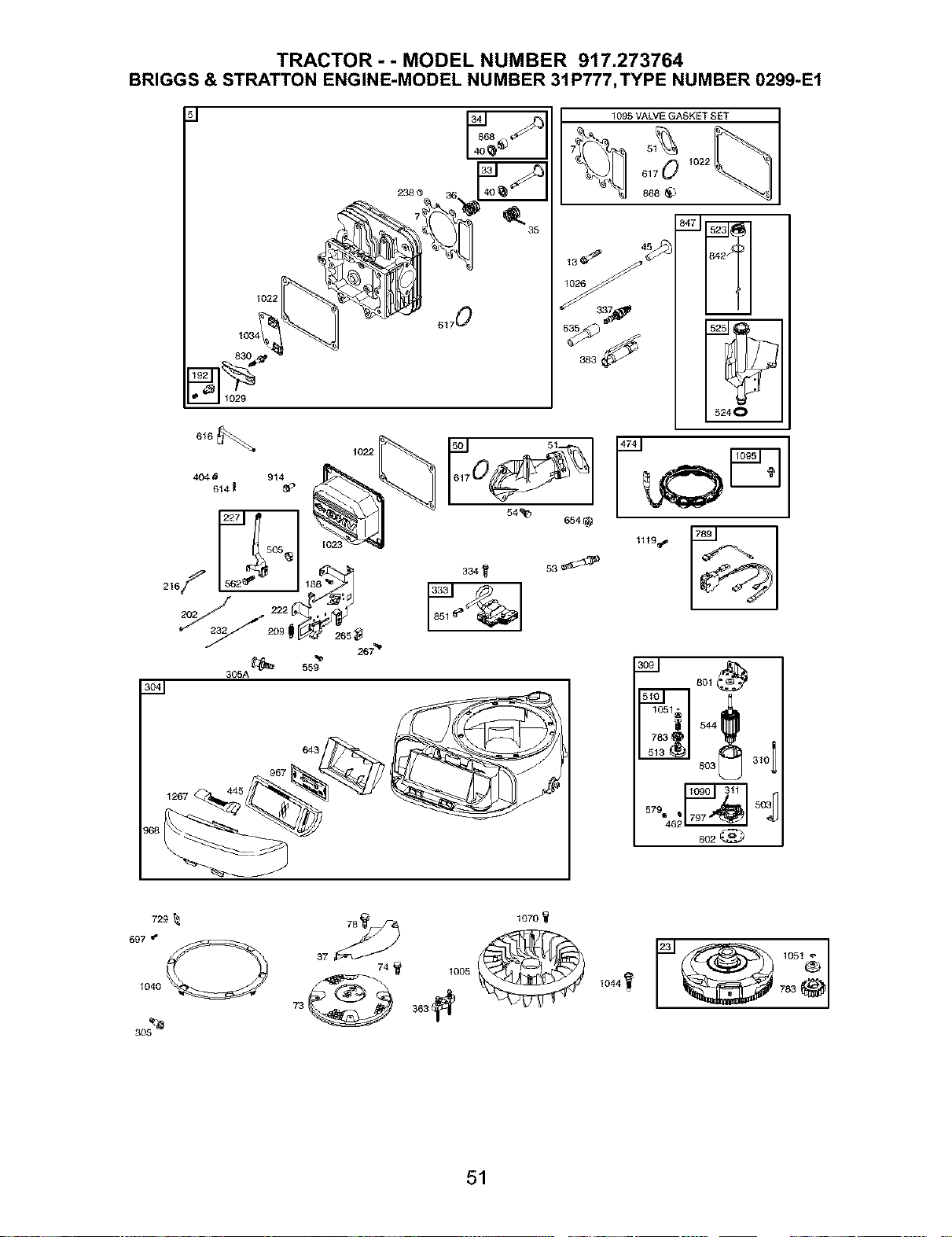

TRACTOR - - MODEL NUMBER 917.273764

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777,TYPE NUMBER 0299-E1

1022

646

404 # 914

614_

1022

265#

267'_

559

305A

643

238

/J31

I40_-_

\W_I61701022_,=ql/

54'_

654_

334 _ 53

801

803 _ 340_

802

729 _ _ 1070

697 _ _ 37 74_

3o5_

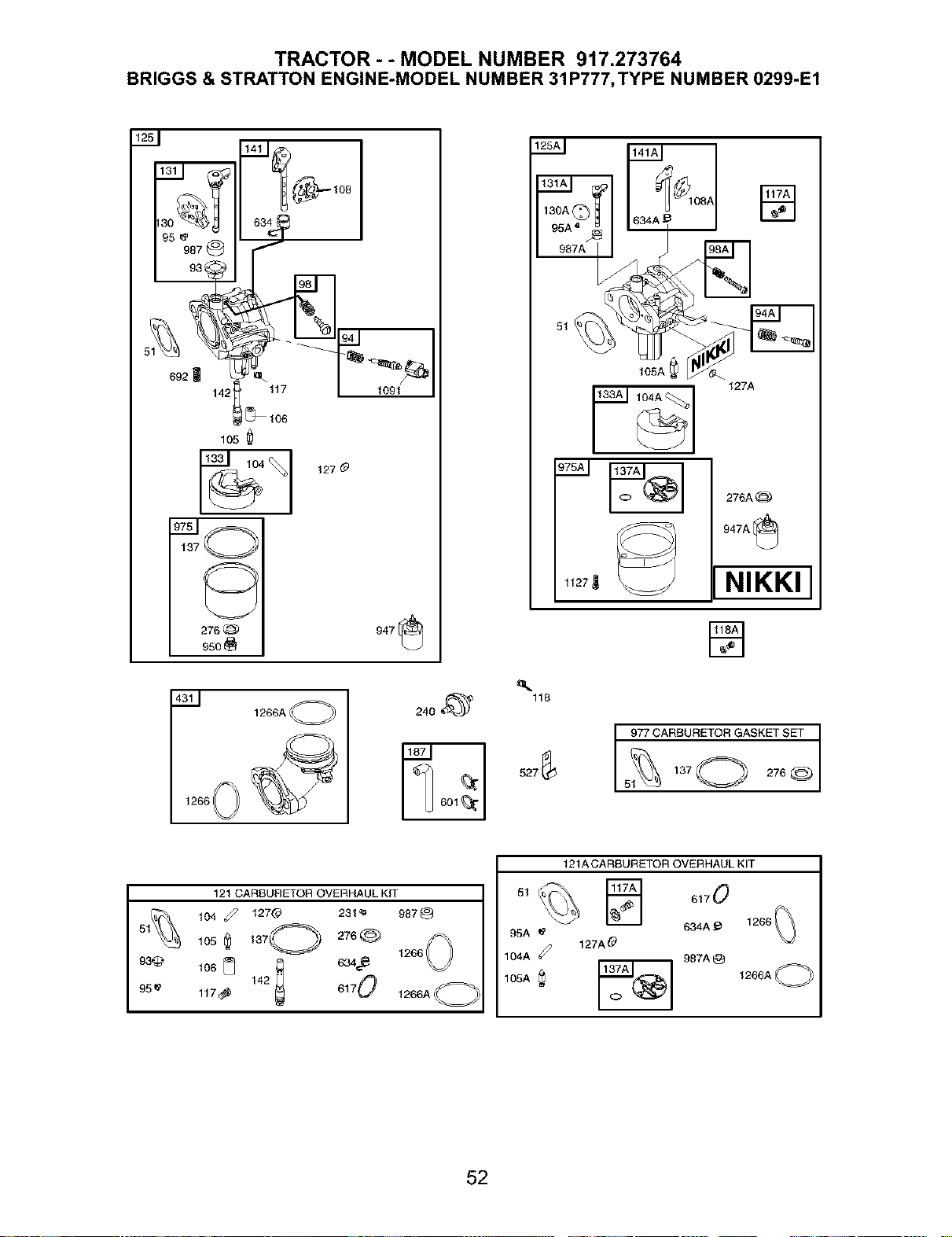

TRACTOR - - MODEL NUMBER 917.273764

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777,TYPE NUMBER 0299-E1

93_

692 m

142 117 1091

[_106

105 _1

276 @

950 _

127 O

o47_

1266A@

12660

105A

F 104A_

97SAI

1127 J[

118

627_

127A

276A@

947A[_

NIKKI]

[]

977 CARBURETOR GASKET SET

'370 276®

121 CARBURETOR OVERHAUL K_T

104 _ 127_ 231_ 987_

105 [_ 137 0 276@

634__8

1068 ,42 6,70

95A

104A

105A

1266A_

121A CARBURETOR OVERHAUL KIT

o_70

634A

127AO

987A_

1266A_

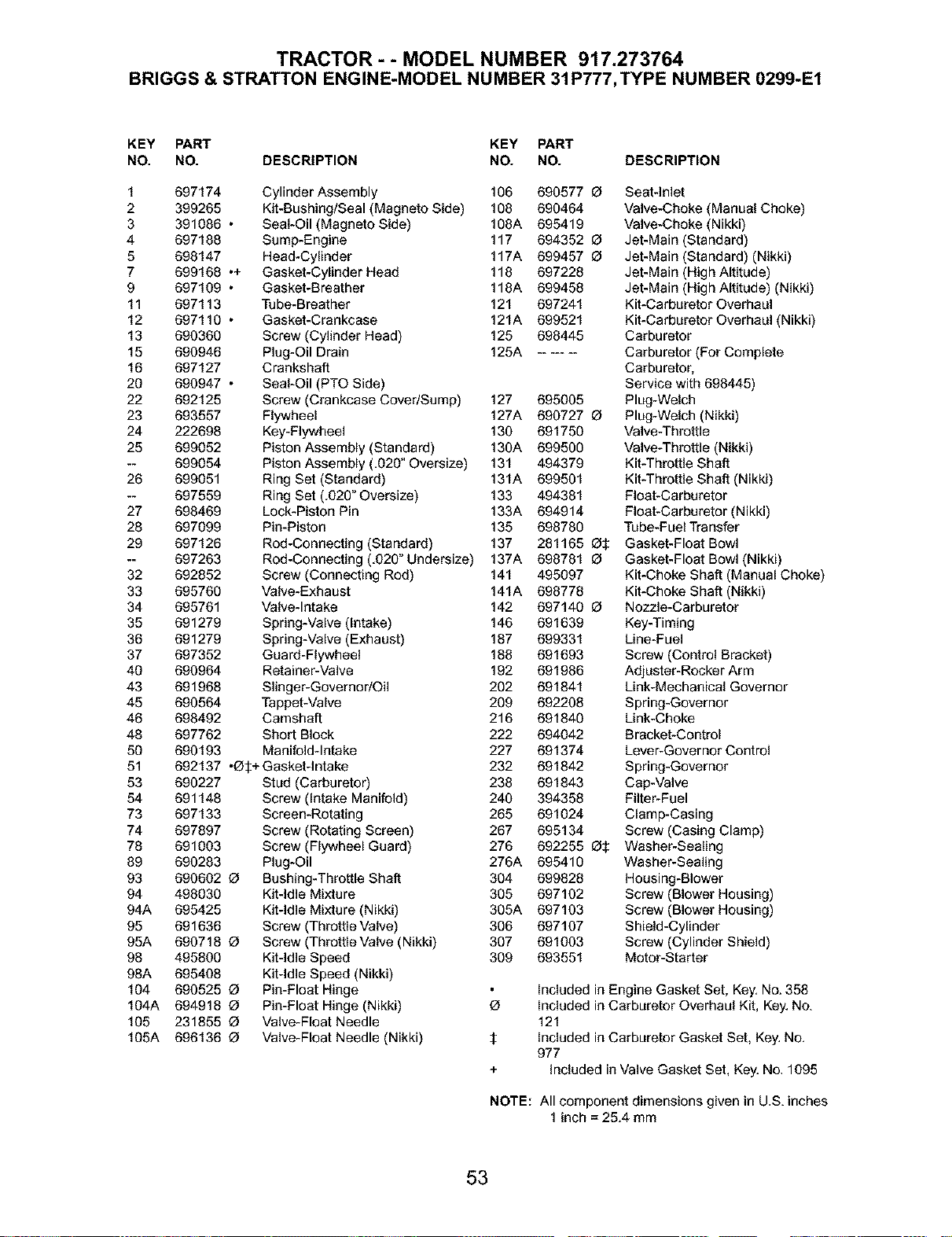

TRACTOR - - MODEL NUMBER 917.273764

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777,TYPE NUMBER 0299-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 106 690577 O Seat-Inlet

2 399265 Kit-Bushing/Seal (Magneto Side) 108 690464 Valve-Choke (Manual Choke)

3 391086 • Seal-Oil (Magneto Side) 108A 695419 Valve-Choke (Nikki)

4 697188 Sump-Engine 117 694352 O Jet-Main(Standard)

5 698147 Head-Cylinder 117A 699457 O Jet-Main (Standard) (Nikki)

7 699168 o+ Gasket-Cylinder Head 118 697228 Jet-Main (High Altitude)

9 697109 • Gasket-Breather 118A 699458 Jet-Main (High Altitude) (Nikki)

11 697113 Tube-Breather 121 697241 Kit-Carburetor Overbaul

12 697110 • Gasket-Crankcase 121A 699521 Kit-Carburetor Overhaul (Nikki)

13 690360 Screw (Cylinder Head) 125 698445 Carburetor

15 690946 Plug-Oil Drain 125A ....... Carburetor (For Complete

16 697127 Crankshaft Carburetor,

20 690947 • Seal-Oil (PTO Side) Service with 698445)

22 692125 Screw (Crankcase CovedSump) 127 695005 Plug-Welch

23 693557 Flywheel 127A 690727 O Plug-Welch (Nikki)

24 222698 Key-Flywheel 130 691750 Valve-Throttle

25 699052 Piston Assembly (Standard) 130A 699500 Valve-Throttle (Nikki)

- 699054 Piston Assembly (.020" Oversize) 131 494379 Kit-Throttle Shaft

26 699051 Ring Set (Standard) 131A 699501 Kit-Throttle Shaft (Nikki)

- 697559 Ring Set (.020" Oversize) 133 494381 Float-Carburetor

27 698469 Lock-Piston Pin 133A 694914 Float-Carburetor (Nikki)

28 697099 Pin-Piston 135 698780 Tube-Fuel Transfer

29 697126 Rod-Connecting (Standard) 137 281165 O_ Gasket-Float Bowl

- 697263 Rod-Connecting (.020"Undersize) 137A 698781 O Gasket-Float Bowl (Nikki)

32 692852 Screw (Connecting Rod) 141 495097 Kit-Choke Shaft (Manual Choke)

33 695760 Valve-Exhaust 141A 698778 Kit-Choke Shaft (Nikki)

34 695761 Valve-Intake 142 697140 O Nozzle-Carburetor

35 691279 Spring-Valve (Intake) 146 691639 Key-Timing

36 691279 Spring-Valve (Exhaust) 187 699331 Line-Fuel

37 697352 Guard-Flywheel 188 691693 Screw (Control Bracket)

40 690964 Retainer-Valve 192 691986 Adjuster-Rocker Arm

43 691968 Slinger-Governor/Oil 202 691841 Link-Mechanical Governor

45 690564 Tappet-Valve 209 692208 Spring-Governor

46 698492 Camshaft 216 691840 Link-Choke

48 697762 Short Block 222 694042 Bracket-Control

50 690193 Manifold-Intake 227 691374 Lever-Gover nor Control

51 692137 .O1:+Gasketqntake 232 691842 Spring-Governor

53 690227 Stud (Carburetor) 238 691843 Cap-Valve

54 691148 Screw (Intake Manifold) 240 394358 Filter-Fuel

73 697133 Screen-Rotating 265 691024 Clamp-Casing

74 697897 Screw (Rotating Screen) 267 695134 Screw (Casing Clamp)

78 691003 Screw (FlywheeIGuard) 276 692255 O$ Washer-Sealing

89 690283 Plug-Oil 276A 695410 Washer-Sealing

93 690602 O Bushing-Throttle Shaft 304 699828 Housing-Blower

94 498030 Kit-Idle Mixture 305 697102 Screw (Blower Housing)

94A 695425 Kit-Idle Mixture (Nikk 0 305A 697103 Screw (Blower Housing)

95 691636 Screw (Throttle Valve) 306 697107 Shield-Cylinder

95A 690718 O Screw (Throttle Valve (Nikki) 307 691003 Screw (Cylinder Shield)

98 495800 Kit-Idle Speed 309 693551 Motor-Starter

98A 695408 Kit-Idle Speed (Nikki)

104 690525 O Pin-Float Hinge • Included in Engine Gasket Set, Key. No. 358

104A 694918 O Pin-Float Hinge (Nikki) O Included in Carburetor Overhaul Kit, Key. No.

105 231855 O Valve-Float Needle 121

105A 696136 O Valve-Float Needle (Nikki) _: Included in Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

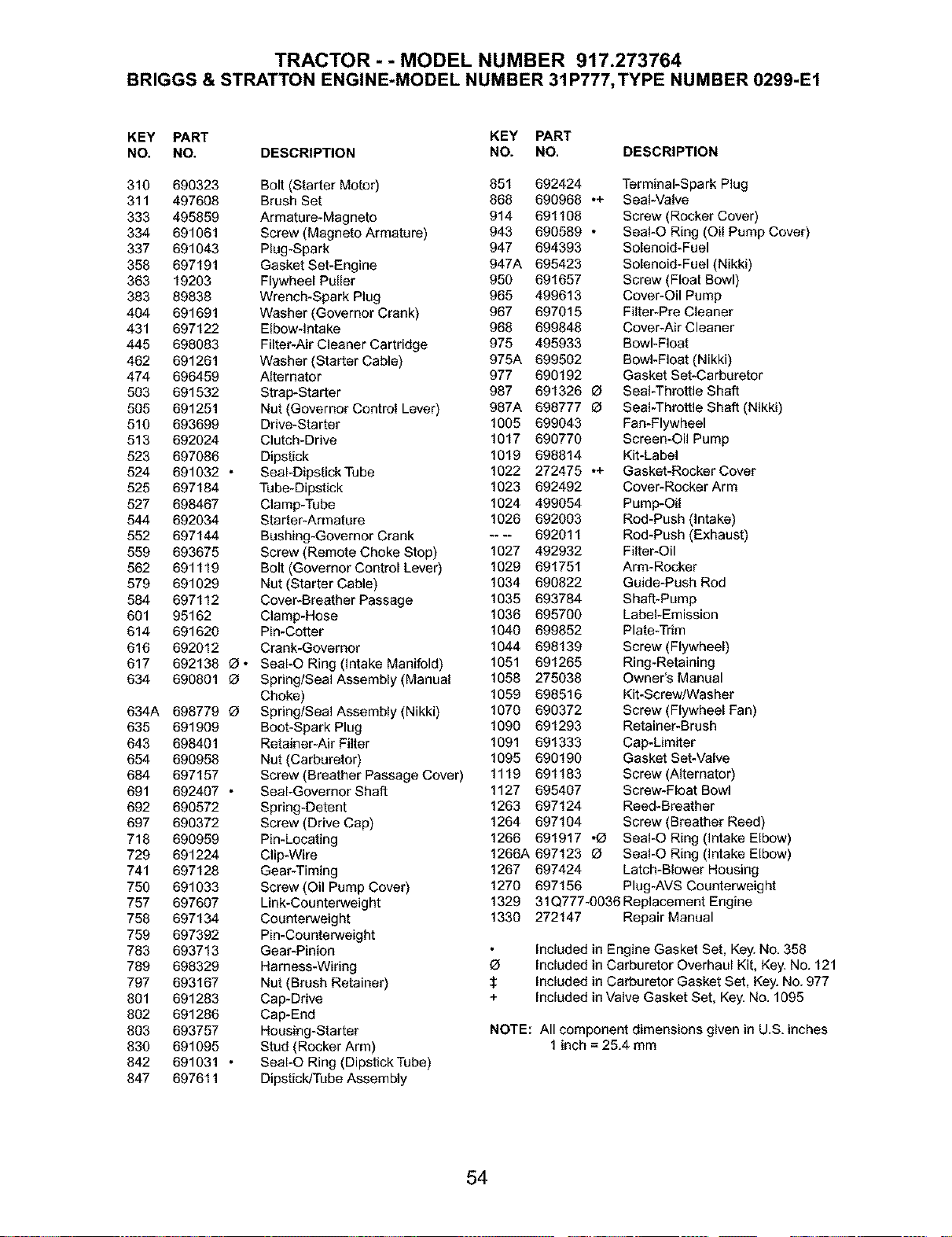

TRACTOR - - MODEL NUMBER 917.273764

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777,TYPE NUMBER 0299-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

310 690323 Bolt (Starter Motor) 851 692424 Terminal-Spark Plug

311 497608 Brush Set 868 690968 *+ Seal-Valve

333 495859 Armature-Magneto 914 691108 Screw (Rocker Cover)

334 691061 Screw (Magneto Armature) 943 690589 * SeaI-O Ring (Oil Pump Cover)

337 691043 Plug-Spark 947 694393 Solenoid-Fuel

358 697191 Gasket Set-Engine 947A 695423 Solenoid-Fuel (Nikki)

363 19203 Flywheel Puller 950 691657 Screw (Float Bowl)

383 89838 Wrench-Spark Plug 965 499613 Cover-Oil Pump

404 691691 Washer (Governor Crank) 967 697015 Filter-Pre Cleaner

431 697122 Elbow-Intake 968 699848 Cover-Air Cleaner

445 698083 Filter-Air Cleaner Cartridge 975 495933 Bowl-Float

462 691261 Washer (Starter Cable) 975A 699502 Bowl-Float (Nikki)

474 696459 Alternator 977 690192 Gasket Set-Carburetor

503 691532 Strap-Starter 987 691326 O Seal-Throttle Shaft

505 691251 Nut (Governer Control Lever) 987A 698777 O SeaI-ThrottleShaft(Nikki)

510 693699 Drive-Starter 1005 699043 Fan-Flywheel

513 692024 Clutch-Drive 1017 690770 Screen-Oil Pump

523 697086 Dipstick 1019 698814 Kit-Label

524 691032 • SeaI-DipstickTube 1022 272475 *+ Gasket-ReckerCover

525 697184 Tube-Dipstick 1023 692492 Cover-Rocker Arm

527 698467 Clamp-Tube 1024 499054 Pump-Oil

544 692034 Starter-Armature 1026 692003 Rod-Push (Intake)

552 697144 Bushing-Governor Crank .... 692011 Rod-Push (Exhaust)

559 693675 Screw (Remote Choke Stop) 1027 492932 Filter-Oil

562 691119 Bolt (Governor Control Lever) 1029 691751 Arm-Rocker

579 691029 Nut (Starter Cable) 1034 690822 Guide-Push Rod

584 697112 Cover-Breather Passage 1035 693784 Shaft-Pump

601 95162 Clamp-Hose 1036 695700 Label-Emission

614 691620 Pin-Cotter 1040 699852 Plate-Trim

616 692012 Crank-Governor 1044 698139 Screw (Flywheel)

617 692138 O* SeaI-O Ring (intake Manifold) 1051 691265 Ring-Retaining

634 690801 O Spring/Seal Assembly (Manual 1058 275038 Owner's Manual

Choke) 1059 698516 Kit-Screw/Washer

634A 698779 O Spring/Seal Assembly (Nikki) 1070 690372 Screw (Flywheel Fan)

635 691909 Boot-Spark Plug 1090 691293 Retainer-Brush

643 698401 Retainer-Air Filter 1091 691333 Cap-Limiter

654 690958 Nut (Carburetor) 1095 690190 Gasket Set-Valve

684 697157 Screw (Breather Passage Cover) 1119 691183 Screw (Alternator)

691 692407 • Seal-Governor Shaft 1127 695407 Screw-Float Bowl

692 690572 Spring-Detent 1263 697124 Reed-Breather

697 690372 Screw (Drive Cap) 1264 697104 Screw (Breather Reed)

718 690959 Pin-Locating 1266 691917 *0 SeaI-O Ring (intake Elbow)

729 691224 Clip-Wire 1266A 697123 O SeaI-O Ring (Intake Elbow)

741 697128 Gear-Timing 1267 697424 Latch-Blower Housing

750 691033 Screw (Oil Pump Cover) 1270 697156 Plug-AVS Counterweight

757 697607 Link-Counterweight 1329 31Q777-0036 Replacement Engine

758 697134 Counterweight 1330 272147 Repair Manual

759 697392 Pin-Counterweight

783 693713 Gear-Pinion • Included in Engine Gasket Set, Key. No. 358

789 698329 Harness-Wiring O Included in Carburetor Overhaul Kit, Key. No. 121

797 693167 Nut (Brush Retainer) $ Included in Carburetor Gasket Set, Key. No. 977

801 691283 Cap-Drive + Included in Valve Gasket Set, Key. No. 1095

802 691286 Cap-End

803 693757 Housing-Starter NOTE: All component dimensions given in U.S. inches

830 691095 Stud (Rocker Arm) 1inch = 25.4 mm

842 691031 • SeaI-O Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_ WARNING: To avoid serious injury, operate your tractor up and I

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime,dayornight(U.S.A.only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedirservicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR _

(1-888-784-6427)

Au Canada pour service en fran_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

$E -/AtlR, o ,,o

TM $M

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TM Marca de Fabrica / SMMarca de Servicio de Sears, Roebuck and Co.

MC MD

Marque de commerce / Marque d_pos_e de Sears, Roebuck and Co.

192817 5.12.04 MH Printed in U.S.A.

Craftsman 917273764 lawn tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917273764 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
