CAR REPAIR STOOL
User Manual
01
This is the original instruction, please read all manual instructions carefully before operating.
VEVOR resees clear interpretation of our user manual. The appearance of the product shall
be subject to the product you received. Please forgive us that we won't inform you again if
there is any technology or software updates on our product.
CAR REPAIR STOOL
User Manual
02
PRODUCT DESCRIPTION
Technical Parameters
Brand
420*360*90MM
3.3KG
3.66KG
Package Size
Net Weight
Gross Weight
Standard Accessories
Serial Number
4
Quantity
2
4
4
1
Icon
1
2
3
4
5
6
7
Project
8*25 Splint Nut
Screw M6*45
Screw M8*65
Lock Nut M8
M6 Wrench
4M8 Flat Pad
4M6 Wrench
Note: The pictures are for reference only, the specic product appearance and color are subject
to the actual product!
INSTALLATION AND USE INSTRUCTIONS

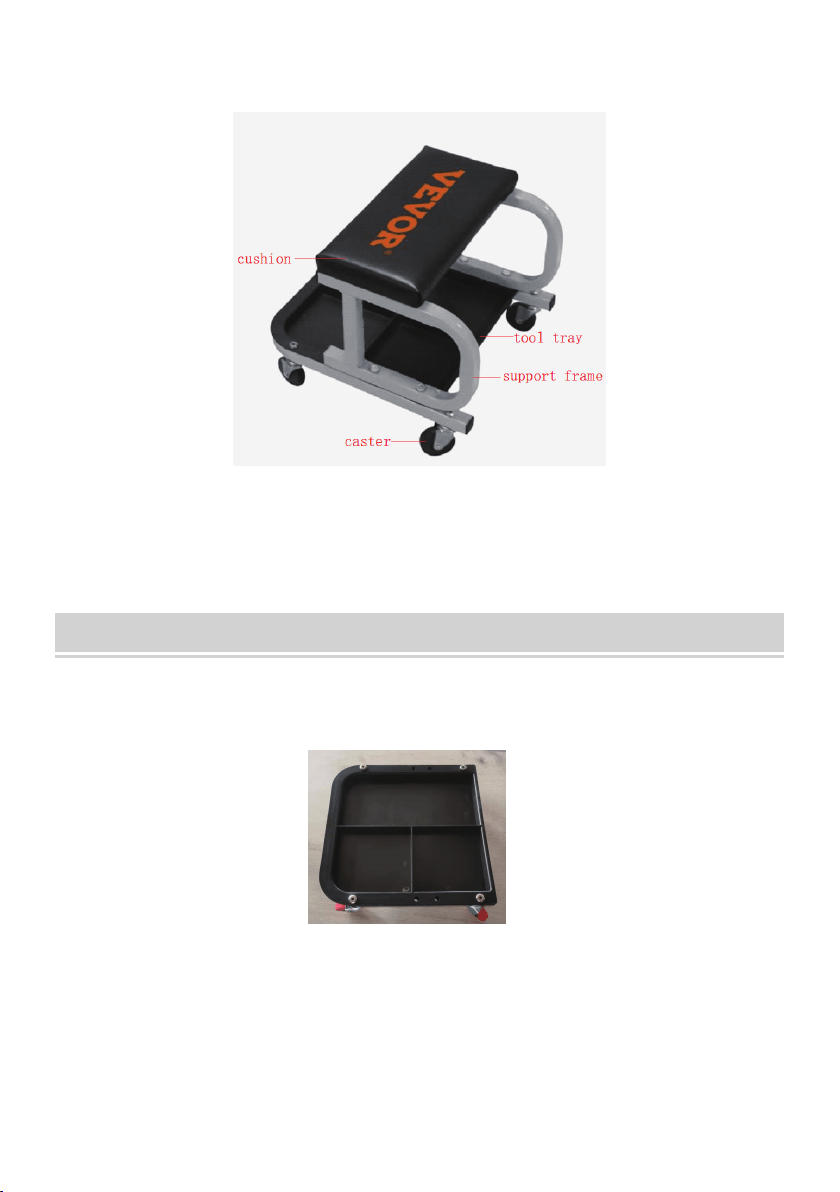

1. Install the caster, as shown in the product structure diagram, use 8*25 splint nuts (4 pieces) and
M10 spring washers (4 pieces) to x the wheel on the tool plate.
2. As shown in the product structure diagram, use screws M8*65 (4 pieces) M8 at washers (4 pieces),
and M8 lock nuts (4 pieces) to connect the tool tray and the suppo frame together.
Standard Accessories
04
04
3. Prepare an M6 wrench, use screws M6*45 (2 pieces) to suppo the frame and connect
the cushions together.
COMMON FAULT ANALYSIS
Fault Phenomenon
Loose screw
Cause of Issue Solution
Re-tighten with Phillips screwsWheel o
