Manufanctured from precision-ground graded
casts iron
Worm gear is harderned and ground
Work table is graduated to a full 360°
Collar is graduated in 15 minute increments
Gear radio:36:1
Table tilt:0-90°
Table height in horizontal position:2
1
/
8
"
T-slot size:
5
/
16
"
Mounting hole size:
5
/
16
"
This is the perfect rotary table for all you model makers
and those doing smaller. precision work. It features a whole
degree scale on the dial, worm gear drive. lash adjustment
screw. reference lines, and ball bearing rotary support.
Coes supplied with 2 each : 6mm clamping studs-2
3
/
8
"
long, T-nuts, clamping straps, and steps. Table height in
horizortal position is 2
1
/
8
" ,table height in vertical position is
4
1
/
8
". This remarkable little rotary table is priced affordably,
too!
Horizontal or vertical use
Table height in horizontal position:1
5
/
8
"
Table height in vertical position:3
1
/
4
"
3" Diameter table rotates 360°
Low profile,only 1.67" tall
5
/
16
" T-slots
5
/
16
" Mounting holes
1:36 Ratio or 10° per handwheel revolution
Scale reads to 15°
Brass lock knob
This 4" Rotary Table offers the added
benefit and flexibility of a 90° tilting base.
Great for precision model making applications
where table angel setting is important. Features
360° table rotation, four
5
/
16
" T-slots, 1:36
handwheel ratio, 5 Minute scale resolution, and
ball-bearing rotary support. Table measures
2
5
/
8
" high in the horizontal position.
5
/
16
"
Mounting holes.

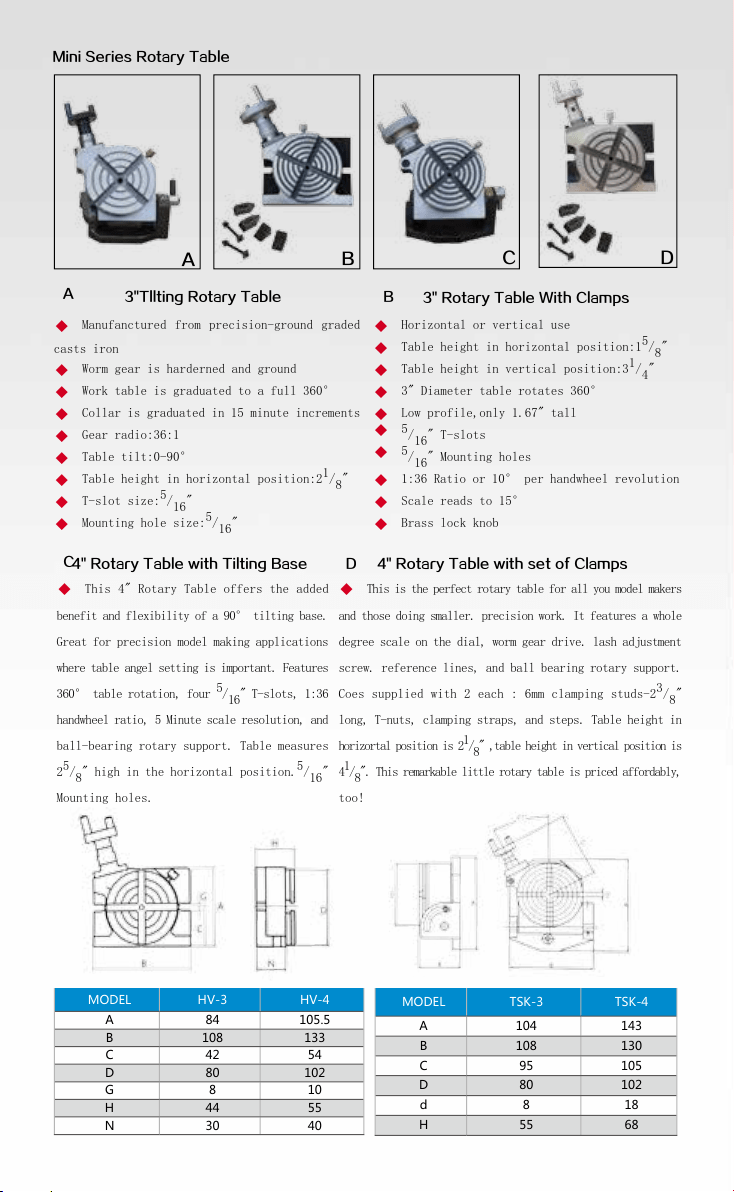

3"Tllting Rotary Table
Mini Series Rotary Table
4" Rotary Table with set of Clamps
3" Rotary Table With Clamps
4" Rotary Table with Tilting Base
MODEL HV-3 HV-4
A 84 105.5
B 108 133
C 42 54
D 80 102
G 8 10
H 44 55
N 30 40
MODEL TSK-3 TSK-4
A 104 143
B 108 130
C 95 105
D 80 102
d 8 18
H 55 68
