FOOD DEHYDRATOR
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
- 1 -
DH805
<Picture Only For Reference>
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FOOD DEHYDRATOR
DH805
- 2 -
Thank you for purchasing the Food Dehydrator. Please read the User Manual
carefully before use and keep it in a convenient place for future reference.
SPECIFICATION
1.MODEL NO.: DH805
2.POWER: 120VAC 60Hz 300W
3.PRODUCT SIZE: 320x250x260mm
4.TEMPERATURE RANGE: 95°F-158°F
5.TIME RANGE: 0.5Hour ~ 48Hour
IMPORTANT SAFEGUARDS
WARNING：Fire and electric shock are present in all electrical appliances and
may cause personal injury. Read this manual and follow the safety precautions
below.
1. Check whether the voltage you use is in line with the rated voltage of the product.
2. Do not touch hot surfaces, usually using heat-resistant pads or other supports until the
appliance cools.
3. Please do not use components from non-designated manufacturers. This will cause
harm to the user or pose a potential hazard.
4. To prevent electric shock, do not immerse the main unit, power cord or plug in water or
other liquids.
5. Please unplug the plug when it is clean and not in use. Before installing the removal
parts and cleaning tools, make sure that the tools are completely cool.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
7. During the operation of the appliance, certain components are very hot and should not
be in direct contact. Contact is limited to the handle or knob only.
- 3 -
8. When removing the plug, grasp the plug and pull out the power cord, and do not pull the
cord.
9. Don't let the power cord hang on the table or place it on a hot surface.
10. Do not approach inflammable gases or electric furnaces or put them in hot oven.
11. Do not use a metal cleaning brush to clean.
12. Take good care of this appliance, do not allow the child under 8 years of age to take the
appliance and its power cord.
13. Do not move the appliance when there is hot oil or other hot liquids in the appliance.
14. Do not use it outdoors. Do not use appliances for other purposes.
15. Do not cover appliances with towels or other articles to ensure the flow of heat and
steam. When appliances are covered or in contact with flammable materials, they are
prone to fire.
16. Appliances can not be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way.
17. Children should be supervised to ensure that they do not play with the appliance.
18. Cleaning and maintenance should not be done by children without supervision.
19. The main machine of utensils should not be washed in water. When using the cloth to
clean, attention should be paid to preventing water from entering the main machine, so as
to avoid short circuit, damage or leakage danger in the second use.
20. Pay attention to hot steam. When the appliance is in operation, it generates heat and
emits steam. Take appropriate measures to prevent injury and burns.
- 4 -
21. The appliance cannot be operated in the form of an external timer or a separate remote
control system.
22. This appliance is suitable for household and similar purposes.
23. The use of accessory attachments not recommended by theappliance manufacturer
may cause injuries.
24. Always attach plug to appliance first , then plug cord into the waloutlet To disconnect ,
rum any control to " off " , then remove plug fromwall outlet .
25. This appliance has a polarized plug ( one blade is wider than theother ) . To reduce the
risk of electric shock , this plug is intended to fitinto a polarized outlet only one way . If the
plug does not fit fully intothe outlet , reverse the plug . If it still does not fit , contact a
qualifiedelectrician . Do not attempt to modify the plug in any way .
26. A short power-supply cord is provided to reduce the risk resultingrom becoming
entangled in or tripping over a longer cord , Extensioncords are available and may be used
if care is exercised in their use . Ifan extension cord is used : The marked electrical rating of
the extensioncord should be at least as great as the electrical rating of the appliance ;he
cord should be arranged so that it will not drape over thecountertop or tabletop where it can
be pulled on by children or trippedover unintentionally .
PLEASE SAVE THE INSTRUCTIONS
FIRST USE
1. When using this product for the first time, the product may have a little smoke or other
smell, this is normal and will soon disappear, please ensure that the product is well
ventilated.
2.Please check that all parts and accessories of the product are intact and undamaged.
3.Clean all parts of the product according to the section of "Cleaning and Maintenance".
4. Thoroughly dry the parts and assemble them inside the product. The product can be put
into use.
- 5 -
OPERATION INSTRUCTIONS
Operation instructions:
1. Pug in the power supply, the product sound “dr”, and the play screen shows “OFF”.
2. Press the " " button,and the screen displays.
Note: There is no operation within 10 seconds, and the product starts to work according to
the default temperature and time.
3. Press the “SET” button, the screen show the temperature, then press the “-” or “+” button
to select temperature, temperature range from 95°F-158°F.
4. Press the “SET” button, the screen show the Time, then press the “-” or “+” button to
select time, time range from 0.5 hour to 48 hour.
5. After setting the time and temperature, in the state of time flashing, no operation for 10
seconds, the time becomes constant bright. The product works according to the set time
and temperature and the time starts to count down. When the time returns to "00", the
product will emit a "di" sound and the product will stop heating. At the same time, the
screen displays "OFF". After stopping, the fan continues to work for 2 minutes.

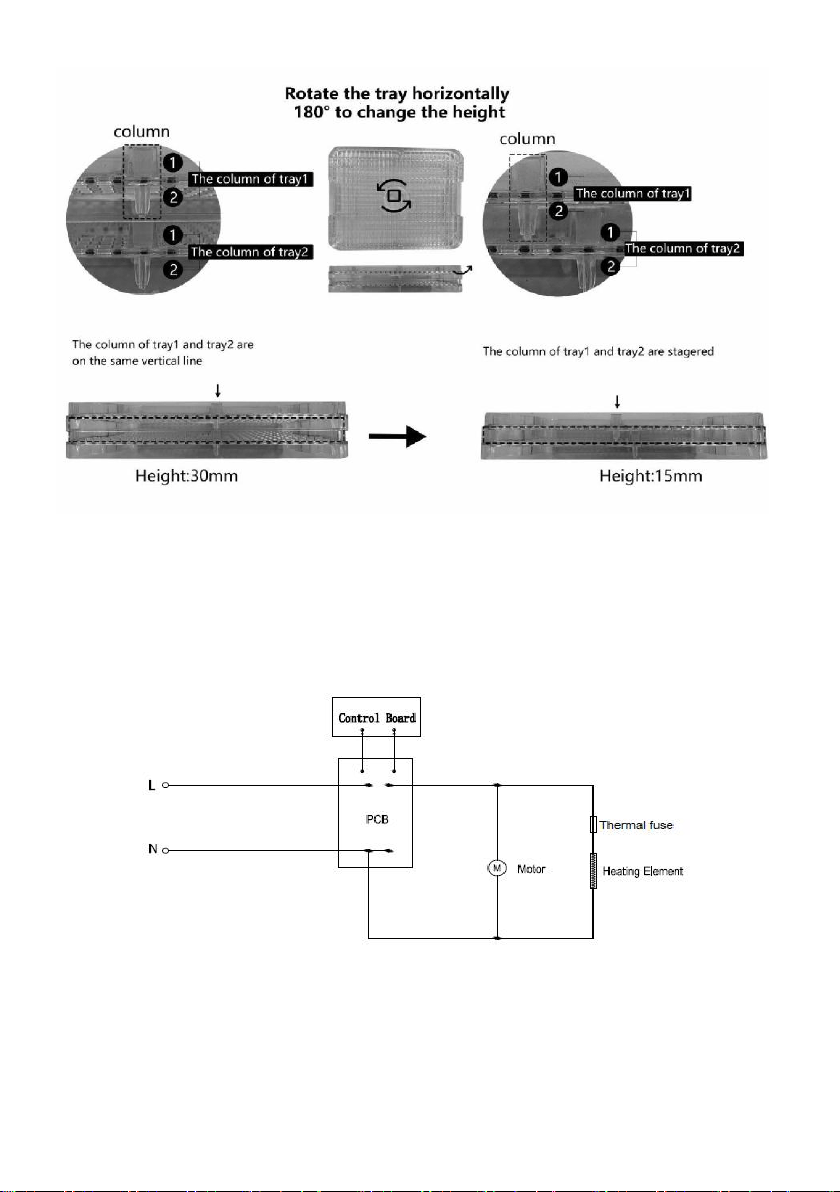

HOW TO ADJUST THE LAYER HEIGHT
The sharp corner column2 is placed facingdown
- 6 -
1.When the column of tray 1 and tray 2 are stacked on top of each other, layer height
30mm.
2.When the column of tray 1 and tray 2 are side by side, layer height 15mm.
Wiring Diagram
CLEANING AND MAINTENANCE
1.Before cleaning,the product must be disconnected from the power supply and cooled
thoroughly.
- 7 -
2.Please use soft dry cloth to wipe the inner cavity of the product. Do not use sharp or
frictional materials to wipe the inner cavity of the product to protect the metal coating of the
inner cavity.
3. The plates can be washed directly with water, and the water stains can be wiped with dry
cloth. Do not soak with detergent or similar detergent.
4. Before packaging and storing the product, make sure that the product is completely
cooled, clean and dry.
ATTENTION ENVIRONMENT PROTECTION
Please obey local law: put wasted electric products and devices into proper waste
recycling station.

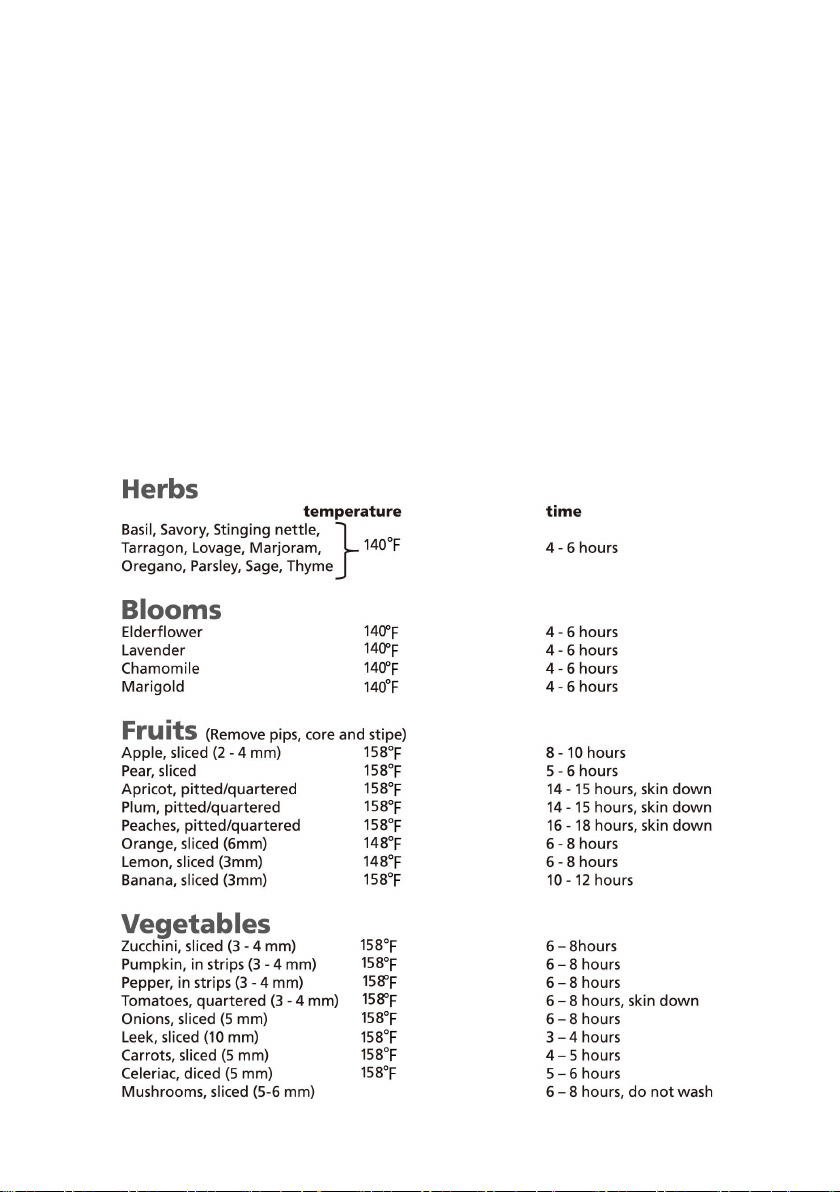

Recipe Reference:
- 8 -
Manufacturer: Foshan GaoMing JiaHuaDa Electric Appliance Co.,Ltd
Address: No.1 Lizhong Road, HeCheng Street, GaoMing District, Foshan City,
Guangdong Province, China
MADE IN CHINA
