NIKKOR Z 28-75mm f/2.8
©
2022 Nikon Corporation
En
Reference Guide
C T1L01(11)
7MMA9011-01
• Read this document thoroughly before using the product.
• To ensure proper use of the product, be sure to read “For Your Safety”
(page 3).
• After reading this document, keep it readily accessible for future
reference.
2
Before using this product, please read these instructions carefully. You
will also need to consult the documentation provided with the camera.
• This lens is intended exclusively for use with mirrorless cameras featur-
ing a Nikon Z mount.
• Update the camera firmware to the latest version. With earlier versions,
the camera may fail to detect the lens correctly and some features
may not be available. The latest version of the camera firmware can
be downloaded from the Nikon Download Center at the URL below.
https://downloadcenter.nikonimglib.com/
No reproduction in any form of this document, in whole or in part
(except for brief quotation in critical articles or reviews), may be made
without written authorization from NIKON CORPORATION.
3
For Your SafetyFor Your Safety
To prevent damage to property or injury to yourself or to others, read
“For Your Safety” in its entirety before using this product.
After reading these safety instructions, keep them readily accessible for
future reference.
A WARNING: Failure to observe the precautions marked with this
icon could result in death or severe injury.
A CAUTION: Failure to observe the precautions marked with this
icon could result in injury or property damage.
AA WARNINGWARNING
• • Do not disassemble or modify this product. Do not disassemble or modify this product.
Do not touch internal parts that become exposed as the result Do not touch internal parts that become exposed as the result
of a fall or other accident.of a fall or other accident.
Failure to observe these precautions could result in electric shock or
other injury.
• • Should you notice any abnormalities such as the product Should you notice any abnormalities such as the product
producing smoke, heat, or unusual odors, immediately producing smoke, heat, or unusual odors, immediately
disconnect the camera power source.disconnect the camera power source.
Continued operation could result in fire, burns or other injury.
• • Keep dry. Keep dry.
Do not handle with wet hands. Do not handle with wet hands.
Failure to observe these precautions could result in fire or electric shock.
• • Do not use this product in the presence of ammable dust or Do not use this product in the presence of ammable dust or
gas such as propane, gasoline or aerosols.gas such as propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
• • Do not directly view the sun or other bright light source Do not directly view the sun or other bright light source
through the lens.through the lens.
Failure to observe this precaution could result in visual impairment.
4
AA WARNINGWARNING
• • Keep this product out of reach of children.Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product
malfunction. In addition, note that small parts constitute a choking
hazard. Should a child swallow any part of this product, seek
immediate medical attention.
• • Do not entangle, wrap or twist the straps around your neck.Do not entangle, wrap or twist the straps around your neck.
Failure to observe this precaution could result in accidents.
• • Do not handle with bare hands in locations exposed to Do not handle with bare hands in locations exposed to
extremely high or low temperatures.extremely high or low temperatures.
Failure to observe this precaution could result in burns or frostbite.
AA CAUTIONCAUTION
• • Do not leave the lens pointed at the sun or other strong light Do not leave the lens pointed at the sun or other strong light
sources.sources.
Light focused by the lens could cause fire or damage to product’s
internal parts. When shooting backlit subjects, keep the sun well out
of the frame. Sunlight focused into the camera when the sun is close
to the frame could cause fire.
• • Do not leave the product where it will be exposed to extremely Do not leave the product where it will be exposed to extremely
high temperatures, for an extended period such as in an high temperatures, for an extended period such as in an
enclosed automobile or in direct sunlight.enclosed automobile or in direct sunlight.
Failure to observe this precaution could result in fire or product
malfunction.
• • Do not transport cameras or lenses with tripods or similar Do not transport cameras or lenses with tripods or similar
accessories attached.accessories attached.
Failure to observe this precaution could result in injury or product
malfunction.
5
Notices for Customers in the U.S.A.Notices for Customers in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Federal Communications Commission (FCC) Radio Frequency Federal Communications Commission (FCC) Radio Frequency
Interference StatementInterference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for
help.
6
CAUTIONSCAUTIONS
Modications
The FCC requires the user to be notified that any changes or modifi-
cations made to this device that are not expressly approved by Nikon
Corporation may void the user’s authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road,
Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
Notice for Customers in CanadaNotice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notice for Customers in EuropeNotice for Customers in Europe
This symbol indicates that electrical and electronic equip-
ment is to be collected separately.
The following apply only to users in European countries:
• This product is designated for separate collection at an ap-
propriate collection point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources
and prevent negative consequences for human health and the envi-
ronment that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in
charge of waste management.
7
Using the LensUsing the Lens
Parts of the Lens: Names and FunctionsParts of the Lens: Names and Functions

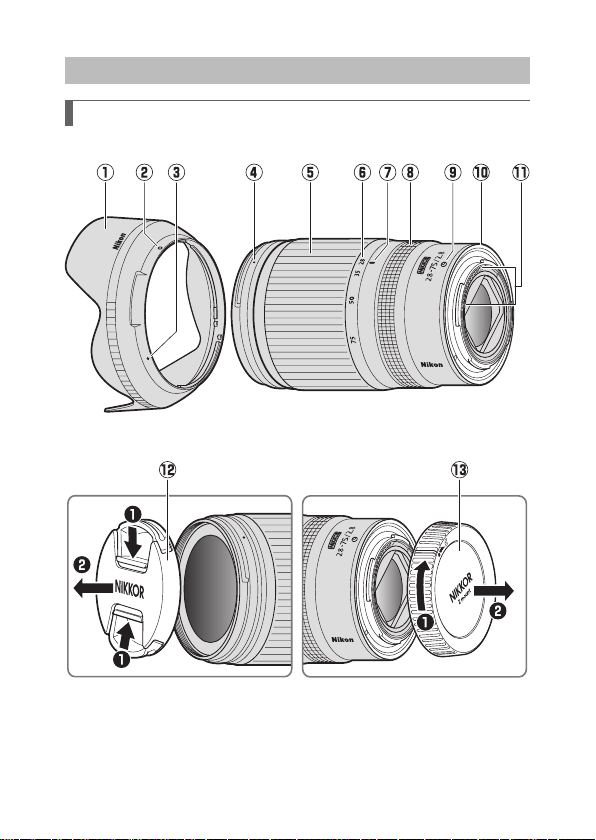

See below for the names and functions of the parts of the lens.
8
q
Lens hood
Lens hoods block stray light that
would otherwise cause flare or
ghosting. They also serve to protect
the lens.
See
B
(011)
w
Lens hood lock
mark
Use when attaching the lens hood.
e
Lens hood align-
ment mark
r
Lens hood
mounting mark
t
Zoom ring Rotate to zoom in or out.
—
y
Focal length scale
Determine the approximate focal
length when zooming the lens in or
out.
—
u
Focal length mark
i
Control ring
Autofocus mode selected:
Rotate the ring to adjust a setting
such as [Focus (M/A)] or [Aperture]
assigned using the camera. For more
information, see the description of
[Custom control assignment], [Custom
controls], or [Custom controls (shooting)]
in the documentation provided with
the camera.
—
Manual focus mode selected:
Rotate the ring to focus.
o
Lens mounting
mark
Use when mounting the lens on the
camera.
See
A
(010)
9
!0
Rubber lens-
mount gasket
Helps prevent the ingress of water
droplets or dust along the surfaces
where the lens and camera meet
when the lens is mounted on the
camera.*
* There is no guarantee that the
gasket is completely proof against
the ingress of water droplets or dust
in all circumstances.
—
!1
CPU contacts
Used to transfer data to and from the
camera.
—
!2
Lens cap (front
cap)
—
—
!3
Lens cap (rear cap) —
—
10
A
Attachment and Removal Attachment and Removal
Attaching the Lens
z
Turn the camera o, remove the body cap, and detach the
rear lens cap.
x
Position the lens on the camera body, keeping the mount-
ing mark on the lens aligned with the mounting mark on
the camera body, and then rotate the lens counterclockwise
until it clicks into place.
Removing the Lens
z
Turn the camera o.
x
Press and hold the lens release button while turning the
lens clockwise.
11
B
Attaching and Removing the Lens Hood Attaching and Removing the Lens Hood

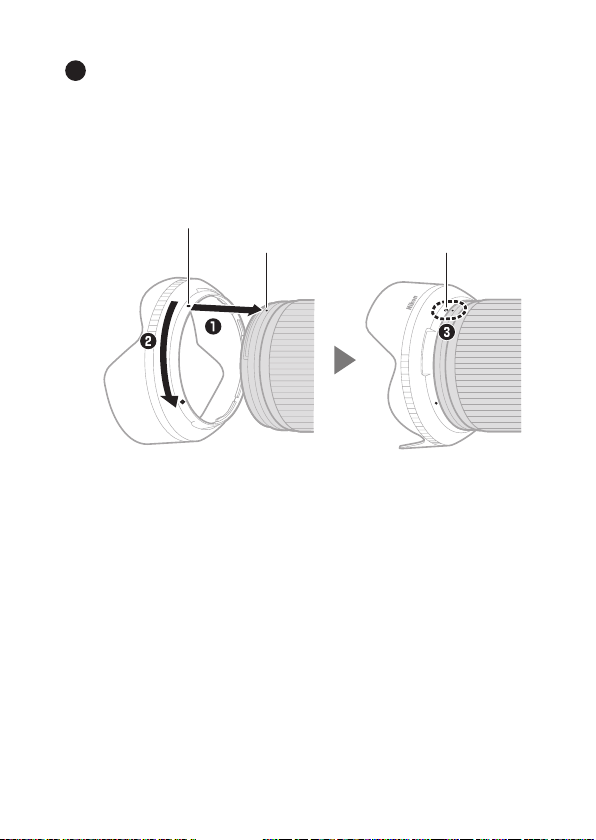

Align the lens hood mounting mark with the lens hood alignment
mark (q) and then rotate the hood (w) until the mounting mark is
aligned with the lens hood lock mark (e).
To remove the hood, reverse the above steps.
Lens hood alignment mark
Lens hood mounting mark Lens hood lock mark
When attaching or removing the hood, hold it near the lens hood
alignment mark (●) and avoid gripping the front of the hood too
tightly. The hood can be reversed and mounted on the lens when
not in use.
12
Cameras with AF-Assist IlluminatorsCameras with AF-Assist Illuminators
The lens or lens hood may block the light from the camera AF-assist
illuminator.
• For the information on using the lens with cameras that have built-in
AF-assist illuminators, visit the site below.
https://downloadcenter.nikonimglib.com/
Using the Lens on Cameras with a Built-in FlashUsing the Lens on Cameras with a Built-in Flash
Shadows will be visible in photos where light from the built-in flash is
obscured by the lens or lens hood. Remove the lens hood before shoot-
ing. Note, however, that depending on the distance to the subject, and
in the case of zoom lenses also on the lens focal length, shadows may
appear even when the lens hood is removed.
• For the information on focal lengths and subject distances at which
shadows will not appear in photos taken with a built-in flash, visit the
site below.
https://downloadcenter.nikonimglib.com/
13
Precautions for UsePrecautions for Use
• Do not pick up or hold the lens or camera using only the lens caps or
lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immedi-
ately and take the lens to a Nikon-authorized service center for repair.
• Reattach the lens caps when the lens is not in use.
• Do not leave the lens in humid locations or in locations in which it may
be exposed to moisture. Rusting of the internal mechanism can cause
irreparable damage.
• Do not leave the lens next to open flames or in other extremely hot
locations. Extreme heat could damage or warp the lens.
• Taking the lens from a warm to a cold environment or vice versa may
cause damaging condensation inside and outside the lens. Place the
lens in a sealed bag or plastic case before taking it across a tempera-
ture boundary. The lens can be taken from the bag or case once it has
had time to adjust to the new temperature.
• We recommend that you place the lens in its case to protect it from
scratches during transport.
14
Lens MaintenanceLens Maintenance
• Removing dust is normally sufficient to clean the glass surfaces of the
lens.
• Smudges, fingerprints, and other oily stains can be removed using
a soft, clean cotton cloth or third-party lens cleaning tissue lightly
dampened with a small amount of ethanol or third-party lens cleaner;
clean from the center outwards in a circular motion. Be sure to clean
evenly and thoroughly without leaving smears.
• Never use organic solvents such as paint thinner or benzene to clean
the lens.
• Neutral Color (NC) filters (available separately) and the like can be used
to protect the front lens element.
• Do not store the lens in direct sunlight or with naphtha or camphor
moth balls. If the lens will not be used for an extended period, store it
in a cool, dry location to prevent mold and rust.
15
Accessories Accessories
Supplied AccessoriesSupplied Accessories
• LC-67B Lens Cap (front cap)
• LF-N1 Lens Cap (rear cap)
• HB-93A Lens Hood
• CL-C2 Lens Case
D
Using the Lens Case
• The case is intended to protect the lens from scratches, not from falls or other physical
shocks.
• The case is not water resistant.
• The material used in the case may fade, bleed, stretch, shrink, or change color when
rubbed or wet.
• Remove dust with a soft brush.
• Water and stains can be removed from the surface with a soft, dry cloth. Do not use alco-
hol, benzene, thinner, or other volatile chemicals.
• Do not store in locations exposed to direct sunlight or high temperatures or humidity.
• Do not use the case to clean the monitor or lens elements.
• Be careful that the lens does not fall from the case during transport.
Material: Polyester
Other Compatible AccessoriesOther Compatible Accessories
• 67 mm filters
D
Filters
• Use only one lter at a time.
• Remove the lens hood before attaching lters or rotating circular polarizing lters.
16
SpecicationsSpecications
MountMount Nikon Z mount
Focal lengthFocal length 28 – 75 mm
Maximum apertureMaximum aperture f/2.8
Lens constructionLens construction 15 elements in 12 groups (including 1 ED element,
1super-ED element, 3 aspherical elements)
Angle of viewAngle of view • FX format: 75° – 32°10’
• DX format: 53° – 21°20’
Focal length scaleFocal length scale Graduated in millimeters (28, 35, 50, 75)
Focusing systemFocusing system Internal focusing system
Minimum focus Minimum focus
distance (measured distance (measured
from focal plane)from focal plane)
• 28 mm zoom position: 0.19 m (0.63 ft)
• 35 mm zoom position: 0.22 m (0.73 ft)
• 50 mm zoom position: 0.3 m (0.99 ft)
• 75 mm zoom position: 0.39 m (1.28 ft)
Maximum reproduc-Maximum reproduc-
tion ratiotion ratio
0.34×
Diaphragm bladesDiaphragm blades 9 (rounded diaphragm opening)
Aperture rangeAperture range f/2.8 – 22
Filter-attachment sizeFilter-attachment size 67 mm (P = 0.75 mm)
Dimensions Dimensions (maximum (maximum
diameter × distance to diameter × distance to
end of lens from camera end of lens from camera
lens mount ange)lens mount ange)
Approx. 75 mm × 120.5 mm (3 in. × 4.8 in.)
WeightWeight Approx. 565 g (1 lb 4 oz)
Nikon reserves the right to change the appearance, specifications, and
performance of this product at any time and without prior notice.
