Craftsman 917273600 lawn tractor User Manual

Owner's Manual

CRI FTSMIIN°

18.5 H R 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273600

i]_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow alJ Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1°800°659°5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

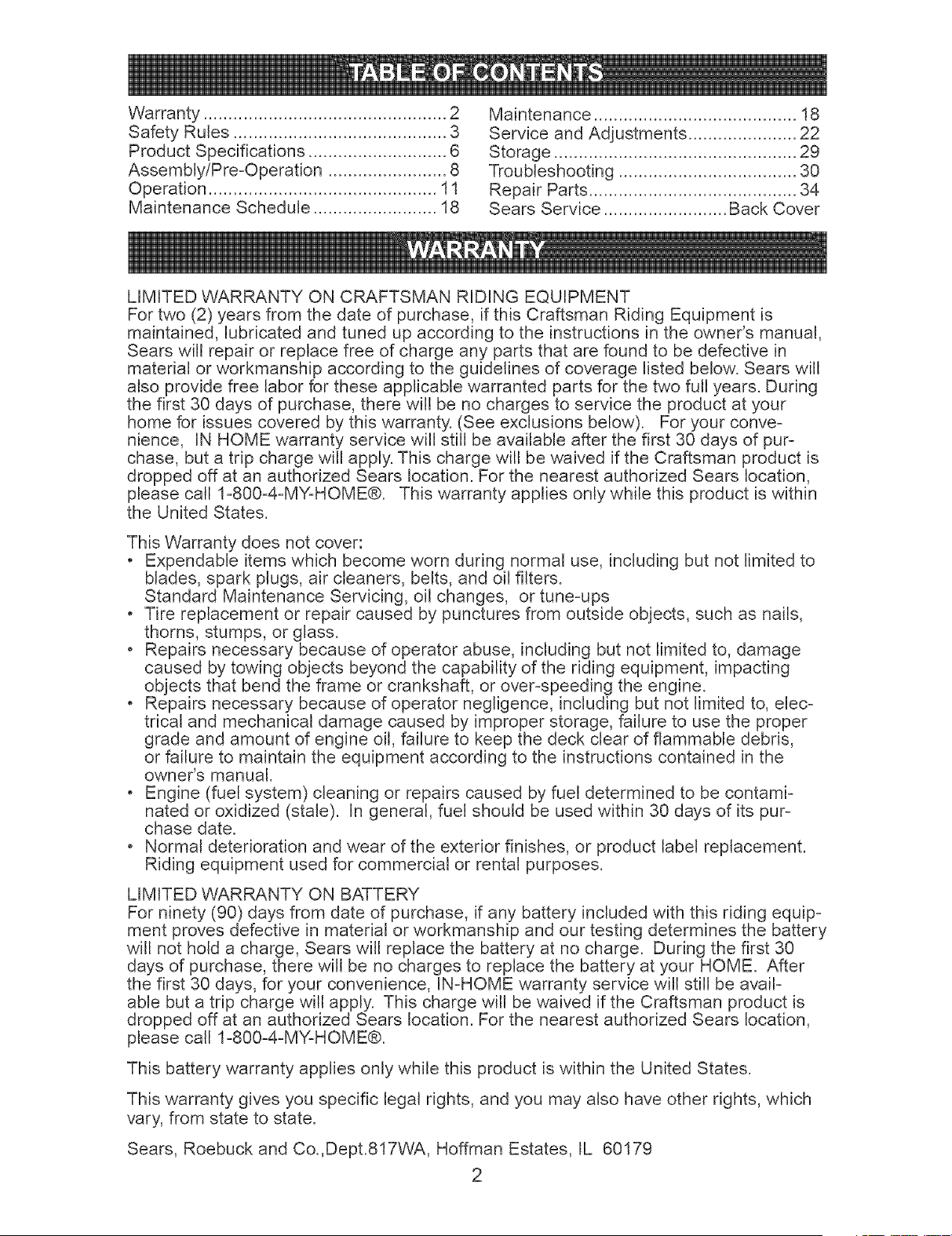

Warranty ................................................. 2

Safety Rules ........................................... 3

Product Specifications ............................ 6

Assembly/Pre-Operation ........................ 8

Operation .............................................. 11

Maintenance Schedule ......................... 18

Maintenance ......................................... 18

Service and Adjustments ...................... 22

Storage ................................................. 29

Troubleshooting .................................... 30

Repair Parts .......................................... 34

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of puF

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover;

o Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

o Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

o Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

o Normal deterioration and wear of the exterior finishes, or product label replacement.

Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

IMPORTANT:This cuttingmachineis capableof amputatinghandsandfeet and throw-

ing objects.Failureto observethe followingsafetyinstructionscould resultin serious

injuryor death.

_IWARNING: In order to preventac- °

cidentatstarting when settingup, trans-

porting,adjustingor makingrepairs,

alwaysdisconnectspark plugwire and

placewire where it cannot contactspark

plug.

_I_WARNING: Do notcoastdown a hill in

neutral,you may losecontrol of the tractor.

_IWARNING: Towonly the attachments

that are recommendedby and complywith o

specificationsof the manufacturerof your o

tractor.Use commonsensewhen towing.

Operateonly at the lowestpossiblespeed o

when on a slope. Tooheavyof a load,

while on a slope, is dangerous. Tirescan o

losetraction with the ground and cause

you to lose controlof your tractor, o

_IWARNmNG:Engineexhaust,some of

its constituents,and certainvehicle com- °

ponentscontainor emit chemicals known

to the State of Californiato causecancer

and birth defectsor other reproductive °

harm.

_:_IWARNING:Batteryposts,terminals

and relatedaccessoriescontain leadand

leadcompounds,chemicals knownto the

Stateof Californiato cause cancerand

birth defects or other reproductiveharm.

Wash hands after handling.

L GENERAL OPERATION

o Read, understand,and followall instruc-

tions in the manualand on the machine

beforestarting.

o Only allow responsibleadults,who are

familiarwith the instructions,to operate

the machine.

o Clearthe areaof objectssuch as rocks,

toys,wire, etc., which couldbe picked

up and thrownby the blade.

o Be sure the area is clear of other people

before mowing. Stop machineif anyone

enters the area.

o Nevercarry passengers.

o Do not mow in reverseunlessabso-

lutely necessary.Always lookdown and

behind beforeandwhile backing.

Be awareof the mowerdischargedirec-

tion and do not point it at anyone. Do

notoperatethe mowerwithout either

the entiregrass catcheror the guard in

place.

Slowdown beforeturning.

Neverleavea runningmachine unat-

tended. Alwaysturn off blades,set

parkingbrake, stop engine, and remove

keysbeforedismounting.

Turnoff bladeswhen not mowing.

Stopengine beforeremovinggrass

catcheror uncloggingchute.

Mowonly in daylightor good artificial

light.

Do not operatethe machinewhile under

the influenceof alcoholor drugs.

Watchfor traffic when operatingnearor

crossingroadways.

Use extra care when loadingor un-

loadingthe machineinto a traileror

truck.

Data indicatesthat operators,age 60

years and above,are involvedin a large

percentageof riding mower-relatedin-

juries. These operatorsshould evaluate

their abilityto operatethe riding mower

safelyenoughto protectthemselvesand

others from seriousinjury.

Keepmachinefree of grass, leavesor

other debrisbuild-upwhich can touch

hot exhaust/ engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATmON

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

o Mow up and downslopes, notacross.

o Removeobstaclessuch as rocks,tree

limbs, etc.

o Watchfor holes,ruts, or bumps. Un-

eventerrain couldoverturnthe machine.

Taft grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

o Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

o Do not mow on wet grass. Reduced

traction could cause sliding.

o Do not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

o Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SERVmCE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

o Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

o Never tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

o Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o Never make adjustments or repairs with

the engine running.

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

o Check brake operation frequently. Ad-

just and service as required.

o Be sure the area is clear of other people

before mowing.Stop machineif anyone

enters the area.

o Nevercarry passengersor children

evenwith the bladesoff.

o Do not mow in reverseunlessabsom

lutely necessary.Always lookdown and

behind beforeandwhile backing.

o Nevercarry children.Theymay fall off

and be seriously injuredor interferewith

safe machineoperation.

o Keepchildrenout of the mowingarea

and underthe watchfulcare of another

responsibleadult.

o Be alert and turn machineoff if children

enter the area.

o Beforeand when backing, look behind

and downfor smallchildren.

o Mow up and downslopes (15° Max), not

across.

o Remove obstacles such as rocks, tree

limbs, etc.

o Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

o If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

o Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECiFiCATiONS

Gasoline 4.0

Capacityand Unleaded

Type: Regular

OilType SAE 30 (above32°F)

'APFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

t st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: t0 PSI

Charging System: 9 Amps @3600 RPM

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you the

best possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSJBJLmES

o Read and observe the safety rules.

o Follow a regular schedule in main-

taining, caring for and using your tractor.

o Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_IWARNJNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

attester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code), Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual),

REPAIR PROTECTION

Congratulations on making a smart pup

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

o Expert service by our 12,000 profe-

sional repair specialists.

o Unlimited service and no charge for

parts and labor on alJ covered repairs.

o Product replacement if your covered

product can't be fixed.

o Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, t0%

off regular price of preventive mainte-

nance check.

o Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS iNSTALLATiON SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Mower Leveling Wrench

Bubble Level

)

Keys

(2) Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

Video Cassette

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan=

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac=

tor hood and grille.

iMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af=

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6=10 amps.

(See "BATTERY" in Maintenance section

of this manual for charging instructions).

',_iii: !i ....

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad=

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms}

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRmVE TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

_,WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutrat position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

REPOSITmON RmGHT REAR GAUGE

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

mNSTALL MULCHER PLATE

(ff previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_IOAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mutcher blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

o Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual,

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKL IS T

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that atl connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G G

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KN OW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Hourmeter

Ignition Switch

ht Switch

Position

Attachment

Clutch Lever

Lift Lever

Plunger

Throttle/Choke

Control

Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Lever

Freewheel

Control -_

Motion Control

Lever

Parking Brake Lever

28O7

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LmFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTmON CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

IGNmTmON SWITCH - Used for starting and

stopping the engine.

MFT LEVER PLUNGER _ Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSmTION - Turns the

headlights on and off.

PARKmNG BRAKE LEVER _ Locks clutch/

brake pedal into the brake position,

THROTTLE/CHOKE CONTROL _ Used

for starting and controlling engine speed,

HOURMETER - Indicates hours of op_

eration,

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

"Engage" Position

Throttle/Choke

"Disengage"

Position

Clut_

Pedal

Ignition

"Disengaged"

Position "Brake"

Position

STOPPING

Motion

Control

Lever

Parking Brake

"Engaged" Position

MOWER BLADES -

o To stop mower blades, move attachment

clutch lever to disengaged position.

GROUND DRWE -

o To stop ground drive, depress clutch/

brake pedal all the way down.

o Move motion control lever to neutral (N)

position.

iMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch!brake pedal is depressed.

ENGINE -

o Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

o Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use,

o Never use choke to stop engine.

iMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

o Operating engine at less than full

throttle reduces the battery charging

rate.

o Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

o Grasp lift lever.

o Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

o The average lawn should be cut to approxi-

mately 2q/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

o For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions,

NOTE: Be sure tractor is on a flat level

surface.

1, Lower mower and adjust mower to de m

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual),

2, Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3, Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin, Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equipm

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at_

tachment clutch control.

TO STOP MOWER BLADES

disengage attachment clutch control.

_/ICAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place,

Attachment Clutch Lever

"Engage" Position

"Disengag

Position

Deflector

Shield

TO OPERATE ON HmLLS

_,WARNmNG: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

o Choose the slowest speed before starb

ing up or down hills.

. Avoid stopping or changing speed on

hills,

. If slowing is necessary, move throttle

control lever to slower position,

. If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi_

tion and engage parking brake.

* Move motion control lever to neutral (N)

position,

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed,

. To restart movement, slowly release

parking brake and clutch/brake pedal,

. Slowly move motion control lever to

slowest setting.

. Make all turns slowly,

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position,

Freewheel control is located at the rear

drawbar of tractor.

1, Raise attachment lift to highest position

with attachment lift control,

2, Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position,

. Do not push or tow tractor at more than

two (2) MPH.

. To remengage transmission, reverse

above procedure,

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWmNG CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGmNE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL:' mark on dipstick is

reached. Do not overfill.

o For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

o To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOUNE

o Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_,CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

o The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to severat

minutes (the colder the temperature,

the longer the warm-up).

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

o The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see '{TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_ICAUTiON: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

iMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstatl-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged posi-

tion (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

With motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

MOWING TIPS

o Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual,

o The left hand side of mower should be

used for trimming.

o Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

o When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished,

..........S

00272

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings,

Make first cut relatively high; the second

to the desired height,

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps, Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used,

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades,

o Avoid cutting your lawn when it is wet,

Wet grass tends to form clumps and

interferes with the mulching action, The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight,

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades, For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly,

MAX 1/3

o Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path,

o Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn,

F,LL,,DATES

AS COMPLETE ......

REGULARSERV,OE f y4 TSERV'OE DATES

Check Brake Operation _ _.0

Check Tire Pressure

Check Operator Presence and

T Interlock Systems If

R Check for Loose Fasteners If I_s If

A Sharpen/Replace Mower Blades _3

C Lubrication Chart tf

0 Check Battery Level _4

a Clean Battery and Terminals If

Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level _

Change Engine Oil (with oil filter) _$1, 2

E Change Engine Oil (without oil filter) 1_1,2

N Clean Air Filter _1_ 2

G Clean Air Screen If 2

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) 1_,2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter _#_

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operatinq in dirty or dustv conditions.

GENERAL RECOMMENDATmONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor,

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

o At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer,

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation,

3, Check tire pressure.

4. Check operator presence and

interlock systems for proper operation,

5, Check for loose fasteners,

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

LUBRmCATmON CHART

(i} Spindle

Zerk

_i} Front ",.-"_}

Wheel -[.

Bearing 4_

zerk (_

___a Spindle

erk

Front

Wheel

ring zerk

':,L"

i_"(2) Engine

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

iMPORTANT: Do not oil or grease the

pivot points which have special nylon bear-

ings, Viscous lubricants will attract dust

and dirt that will shorten the life of the self-

lubricating bearings. If you feel they must

be lubricated, use only a dry, powdered

graphite type lubricant sparingly,

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

o Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

o Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

o Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

o The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

o When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

o When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

o The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

iMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly,

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel As._

Trailing Blade

Edge Up Center

Lock

_f--Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

o The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

o Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

o Keep battery and terminals clean.

o Keep battery bolts tight.

o Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE:The originalequipmentbattery on

your tractoris maintenancefree.Do not

attemptto open or removecaps or covers.

Adding or checkinglevelof electrolyteis

not necessary.

TO CLEAN BATTERYAND TERMINALS

Corrosionand dirt on the battery and

terminalscan causethe batteryto "leak"

power.

1. Removeterminalguard.

2. DisconnectBLACKbattery cablefirst

then RED batterycableand remove

batteryfrom tractor.

3. Rinsethe batterywith plain water and

dry.

4. Cleanterminals and batterycable ends

with wire brushuntil bright.

5. Coat terminalswith greaseor petrom

leumjelly.

6. Reinstallbattery(See "REPLACING

BATTERY"in the SERVICEAND ADm

JUSTMENTSsectionof this manual).

TRANSAXLE COOLING

Keeptransaxlefree from build_upof dirt

and chaffwhich can restrict cooling.

V-BELTS

CheckV_beltsfor deteriorationand wear

after 100 hoursof operationand replace

if necessary.The belts are not adjustable.

Replacebelts if they beginto slip from

wear.

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL.

Select the oil's SAE viscosity grade

according to your expected operating

temperature,

SAE VISCOSITY GRADES 4'0 1

oil vk_ochartl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequentm

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG=SL.

o Be sure tractor is on level surface.

o Oil will drain more freely when warm.

o Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

oiJ Drain VaJve

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PRODm

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL:' line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre_cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

premcleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new premcleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

cartridge.

_Handle

--_5._ _ Cover

__b Cartridge

Prezc'eane4:_ _ f.___,

"" --_Slots bs

CLEAN AmRSCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub_

born dried gum fibers,

ENGmNE COOUNG SYSTEM

Debris may clog the engine's air cooF

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could crem

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

_ Clamp

Clamp f _Fuk"-_ _el

Filter

CLEANING

o Clean engine, battery, seat, finish, etc.

of all foreign matter.

o Keep finished surfaces and wheels free

of all gasoline, oil, etc.

o Protect painted surfaces with auto_

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmism

sion are covered to keep water out. Water

in engine or transmission will shorten the

usefut life of your tractor. Use compressed

air or a leaf blower to remove grass,

21leaves and trash from tractor and mower.

WARNmNG:TOAVOmDSERIOUSiNJURY,BEFORE PERFORMmNGANY SER-

VmCEOR ADJUSTMENTS:

1. Depressclutch/brakepedalfully and set parkingbrake.

2. Place motioncontrolleverin neutral (N) position.

3. Placeattachmentclutch in "DISENGAGED"position.

4. Turnignition keyto "STOP"and removekey.

5. Makesure the bladesand all movingparts havecompletelystopped.

6. Disconnectspark plug wire from spark plugand placewire where it cannot

come in contactwith plug.

TO REMOVEMOWER

Mowerwill be easierto removefrom the

right side of tractor.

1. Place attachmentclutchin "DISENm

GAGED"position.

2. Moveattachmentlift leverforwardto

lowermowerto its lowestposition.

3. Roll belt off engine pulley.

4. Removesmall retainerspring, and

removeclutch springoff pulley bolt.

5. Removelarge retainerspring, slide

collaroff and push housingguide out

of bracket.

6. Disconnectantimswaybar from chassis

bracketby removingretainerspring.

7. Disconnectsuspensionarms from rear

deck bracketsby removingretainer

springs.

8. Disconnectfront links from deck by

removingretainersprings.

9. Raiselift leverto raisesuspension

arms.Slide mowerout from undertrac_

tor.

SmallRetainerS

ClutchSpring

Small Retainer

Clutch Spring

Spring '_.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO iNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec_

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

" - Square Hole

Engine

Pulley

Retainer

Spring

Anti-Sway

Bar

Springs

(Both Sides)

Deflector

Housing

Guide

Large Retainer

Spring Bracket

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSmNG

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

Bottom Edge of Bottom Edge of

Mower to_ _ _ Mower to

Suspension Arm

SIDEmTOmSIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side4o_side

surface below tractor for levelness with a

long board and the bubble level.

o Using the lift lever, place mower in position

where no part of the mower, including

gauge wheels, is touching the ground.

o From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

o Mower is level side4o_side when bubble is

between the two lines in the bubble level.

o If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap)in appropriate

direction to bring bubble between the

lines in the bubble level.

o Remove bubble level from mower and

store in a safe place.

Brake

Pedal/ S_._ he_nd Footrest

o o_ ....... Link

_Adjustment

Nut

ALTERNATE SIDE_TOmSIDE

ADJUSTMENT METHOD

o Raise mower to its highest position.

o At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

o If adjustment is necessary, make adjusb

ment on one side of mower only.

o To raise one side of mower, tighten lift

link adjustment nut on that side.

o To lower one side of mower, loosen lift °

link adjustment nut on that side,

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

o Recheck measurements after adjusting,23

Lift Link Adjustment Nut

FRONT_TO_BACK ADJUSTMENT

IMPORTANT: Deck must be level side-tom

side. If the following front4o_back adjust_

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side4omside.

To obtain the best cutting results, the mower

housing should be adjusted so that the front

is approximately 1/8" to 1/2" lower than the

rear when the mower is in its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjust_

merits, check that both front links are

equal in length.

o If links are not equal in length, adjust

one link to same length as other link.

o To lower front of mower loosen nut "E" on

both front links an equal number of turns.

o When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

o To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num_

ber of turns. The two front links must

remain equal in length.

o When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

o Recheck side4o_side adjustment.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjusb

merits, check that both front links are

equal in length.

o If links are not equal in length, adjust

one link to same length as other link.

o To lower front of mower loosen nut "E" on

both front links an equal number of turns.

When distance "D" is I/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

° To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

° When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

° Recheck side4o-side adjustment.

BOTH FRONT LINKS MUST BE EQUAL IN

LENGTH

Nut "F"

Trunnion

Front Links

TO REPLACE MOWER BLADE DRmVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxie.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch!brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A'.

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake"Engaged"

t "A"

am Nut

perating

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTmON DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley J

Clutching idler// ._ I

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxie is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu_

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral Lock Gate

if"

..... Adjustment Bolt

TO ADJUST STEERmNG WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheets are

positioned straight forward, remove steeF

ing wheel and reassemble with crossbars

horizontal. Tighten securely'.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key- Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Axle

Cover

Square Key Only)./_j_ S

(Rear Wheel

TO START ENGmNE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

iMPORTANT: Your tractor is equipped

with a t2 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATWE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

PqD

02614

Weak or Dead Fully Charged

Battery Battery

REPLACmNG BATTERY

n_asWARNmNG: Do not short battery termi-

by allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wds_,atch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Ke_

Terminal

Access .--

Terminal _

Guard ....

Hex

Bolt

Positive (Red)

Cable

Negative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

hoJder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

o Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

Maintenance, repair, or replacJement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor

Control Plate

Governor Control Lever

(

Holes Throttle

Clamp Cable

Screw

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel!air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

iMPORTANT: Damageto the needle

valve and the seat in carburetormayresult

if screw is turned in too tight,

PREMMINARYSETTING-

1. Air cleanerassembly mustbe assem-

bledto the carburetorwhen making

carburetoradjustments.

2. Be sure the throttle control cable is

adjustedproperly (see above).

FINALSETTING-

1. Start engine and allow to warm for five

minutes. Make final adjustmentswith

enginerunningand shift/motioncontrol

leverin neutral(N) position.

2. Movethrottle control leverto slow posi-

tion.With finger, rotateand holdthrottle

lever againstidle speedscrew.Turn

idle speedscrewto attain 1750 RPM.

3. While still holdingthrottleleveragainst

idle speedscrew,turn idle mixture

valve full travel clockwisethen coun-

terclockwiseuntil engineruns rough.

Turnvalveto a point midwaybetween

those two positions. Releasethrottle

lever.

ACCELERATIONTEST-

4. Movethrottle control leverfrom slow

to fast position. If engine hesitatesor

dies,turn idle mixturevalve out (coun-

terclockwise)1/8turn. Repeattest and

continueto adjust, if necessary,until

engineacceleratessmoothly.

Highspeedstop is factory adjusted. Do

not adjust- damage may result.

iMPORTANT: Nevertamperwith the

enginegovernor,which is factory set

for properenginespeed, Overspeed-

ing the engineabovethe factory high

speedsetting can be dangerous,If you

think the engine-governedhigh speed

needsadjusting,contacta Sears or other

qualifiedservice center,which has proper

equipmentand experienceto make any

necessaryadjustments,

IdleSpeed [- _ Z_.._.... Throttle

Screw _ Lever

With Limiter

Immediately prepare your tractor for stop

age at the end of the season or if the trac-

tor will not be used for 30 days or more,

_IOAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure,

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc, Store in a

clean, dry area.

1, Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual),

2, Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3, Lubricate as shown in the Maintenance

section of this manual.

4, Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear,

Replace if necessary.

5, Touch up all rusted or chipped paint

surfaces; sand lightly before painting,

BATTERY

o Fully charge the battery for storage,

o After a period of time in storage, battery

may require recharging.

o To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual),

o After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

o If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces,

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage, Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

o Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

o Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur,

o Use fresh fuel next season,

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container, Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor, Do not empty the gas tank and

carburetor if using fuel stabilizer,

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual),

CYLINDER(S)

1. Remove spark plug(s).

2, Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3, Turn ignition key to "START" position

for a few seconds to distribute oil,

4, Replace with new spark plug(s),

OTHER

o Do not store gasoline from one season

to another.

o Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems,

o If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

o Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm,

TROUBLESHOOTING CHART:

See appropriate section in manua[ unless directed to Sears service center

PROBLEM

WJI[ not start

Hard to start

Engine wJ[[ not

turn over

Engine clicks but

wJ[[ not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment,

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

OORRECTiON

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

t0. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Checklreplace ignition switch.

8. Check!replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check!replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Poor cut - uneven

Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manuam unless directed to Sears service center

Mower Mades will

not rotate

PROBLEM CAUSE CORRECTION

1. Remove obstruction.

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.273600

BATTERY

WHITE

.............( )G AI(

IGNITION

SWITCH

FUSE

I I

'© C_

SOLENOID

RED )

STARTER

BLACK •

CONNECTOR

A &k

qlW SPARK • w

|f-_ PLUG u

\J GAP w • •

J (2 PLUGS ON

TWIN CYL ENGINES)

28 VOLTS AC @ 3600 RPM

CLUTCH / BRAKE

(PEDAL UP) WHITE

SEAT SWITCH

(NOT OCCUPIED)

WHITE

BLACK i I BLACK_ T _q_ _LACK

...............................................................................................................BLACK _ _AT_TSM)ENT _LU'T_CH__) I I _ ....................

X___ 2 BLACK (CLUTCH OFF) GROUNDING

(OPTIONAL)

BLACK IGNITION

UNIT

CHARGING SYSTEM OUTPUT

• 9 AMP DC @ 3600 RPM / (REGULATOR DISCONNECTED

FUEL SHUT-OFF _ F

SOLENOID F_A-( _ | REGULATOR _JLJ\JLJ_

(IFSO EQUIPPED) _ / ALTERNATOR

..................................................................................................................... 0

NON-REMOVABLE /7 7

CONNECTIONS HEADLIGHTS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START + S + A1 NONE

02731

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRmCAL

TRACTOR - - MODEL NUMBER 917.273600

/ \

I \\1

1875

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.273600

KEY PART

NO. NO, DESCRiPTiON

1 163465 Battery

2 74760412 Bolt, Hex 1/4o20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Battery, Front 1/4o20 x 7ol/2

11 150109 Holddown, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, Interlock

21 175688 Harness, Light

22 4152J Bulb Light #1156

24 8860R Cable Starter

25 146148 Cable

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4o20 unc

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key

40 192500 Harness, Ignition

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover Terminal

43 178861 Solinoid w/brass plunger

45 122822X Ammeter

46 169635 Hourmeter

55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2

79 175242 Socket Asm Bulb Twistlock

89 169639 Bracket Snapqn Hourmeter

NOTE: All component dimensions given in U. S,

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273600

CHASSmS AND ENCLOSURES

278

209

_209

J 59

209

chassis-stealth,stlt 30

209

TRACTOR - - MODEL NUMBER 917.273600

CHASSmS AND ENCLOSURES

KEY PART

NO. NO. DESCRMPTION

1 174619 Chassis

2 176554 Drawbar

9 192289X428 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 167203 Panel, Dash, LH

13 188702X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 175260X615 Hood Assembly

20 162026 Plate Battery

26 STD541437 Locknut, Hex, with Insert 3/8-16 uric

28 174515X615 Grille

29 161840 Lens Bar

30 188572X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/!6-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

54 161464 Screw 8-18 x 7/8

58 175351 Duct Hood

59 187495 Bushing

60 STD533707 Bait Rdhd Sqnk 3/8-16 unc x 3/4

64 191973 Dash Lower

67 106932X Knob

74 STD541437 Nut Crownlock 3/8-16 unc

90 124346X Nut Self Thrd Wshd 1/4 Zinc

142 175702 Plate Reinforcement

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

152 189676 Cable Clutch

154 192861 Clutch Asm Manual/Bracket

155 161900 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 191120X428 Cupholder

161 164655 Bumper

206 170165 Bolt Shoulder 5/16-18

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

217 179132X428 Console Fue! Window

278 191611 Screw 10 x 3/4 Single Lead-Hex

NOTE: AI! component dimensions given in U.S, inches

1 inch = 25.4 mm

GROUND DRIVE TRACTOR . . MODEL NUMBER 917.273600

263

drive-hydro,stlL 60

TRACTOR ° ° MODEL NUMBER 917.273600

GROUND DRmVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO, DESCRIPTION

1 Transmission (See Breakdown) 69 142432

Hydro Gear Model 314-0510 70 134683

8 165866 Rod, Shift 71 169183

10 STD561210 Pin, Cotter 1/8 x 1 73 169182

14 STD551125 WasherLock 1/4 74 137057

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 75 121749X

16 73800500 Nut, Lock Hex w/Ins 5/16-18 uric 76 12000001

19 73800600 Nut Lock Hex w/Ins 3/8-16 77 123583X

21 130564 Knob 78 121748X

22 169498 Rod, Brake 81 165596

24 73350600 Nut 82 165711

25 106888X Spring, Rod, Brake 83 19171216

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 84 169594

27 STD561210 Pin, Cotter 1/8 x 3/4 89

28 175765 Rod, Parking Brake 90

29 124236X Cap, Parking Brake 95

30 169592 Bracket, Transmission 96

32 74760512 Bolt Hex 5/16-!8 unc x 3/4 112 19091210

34 175578 Shaft, Foot Pedal 116 72140608

35 120183X Bearing, Nylon 120 73900600

36 19211616 Washer 150 175456

37 1572H Pin, Roll 151 19133210

38 179114 Pulley, Composite 156 166002

39 72110622 Bolt 158 165589

41 175556 Keeper, Belt, Idler 159 183900

47 127783 Pulley, Idler, V-Belt 161 72140406

48 154407 Bellcrank Clutch Grnd Drustl 162 73680400

49 123205X Retainer, Belt 163 74780416

50 72110612 Bolt Cam Sh 3/8-16 x 1-1/2 Gr. 5 165 165623

51 STD54!437 Nut 166 17490510

52 STD541431 Nut Crown!ock 5/16-18 168 165492

53 105710X Link, Clutch 169 165580

55 105709X Spring, Return, Clutch 197 169613

56 17060620 Screw 3/8-16 x 1-1/4 198 169593

57 140294 V-Belt, Drive 199 169612

59 169691 Keeper, Belt, Center 200 72140508

61 17120614 Screw 3/8-16 x .875 202 72110614

62 123533X Cover, Pedal 212 145212

63 175410 Pulley, Engine 263 17000612

64 173937 Bolt Hex 7/16 x 4 Gr. 5

65 10040700 Washer

66 154778 Keeper, Belt Engine Hydro

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

Guide, Belt, Mower Drive RH

Strap, Torque, Lh

Strap, Torque, Rh

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

Ring, E

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

188309X428 Console, Shift

124346X Nut Self-thd Wsh-Hd 1/4

170201 Control Asm Bypass Hydro

STD624003 Spring, Retainer 1"

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10

Washer 5/16 x 1.0 x 1.25

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 x 1

Bracket Pivot Lever

Screw 5/16 x 18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastener Cross Shaft

Nyliner Snap-In

Washer Nyliner

Bolt Shoulder 5/16-18 uric

Bolt RdHd Sqnk 5/16-18 unc x 1

Bolt Cam Sh 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U.S, inches

1 inch = 25,4 mm

STEERING

TRACTOR - - MODEL NUMBER 917.273600

1,5

32 _37

/ /

/ / 8

I /

steering stealth_prem 3

STEERING

TRACTOR - - MODEL NUMBER 917.273600

KEY PART

NO. NO, DESCRIPTION

1 159944X428 Wheel Steering

2 184706 Axle Asm

3 169840 Spindle Asm LH

4 169839 Spindle Asm RH

5 6266H Bearing Race Thrust Harden

6 121748X Washer 25/32 x !-5/8 x 16 Ga.

8 12000029 Ring Klip #t5304°75

10 175121 Link Drag

11 STD55! 137 Washer Lock Hvy HIcl Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm. Steering

29 17000612 Screw 3/8-16 x 3/4

32 171888 Rod Tie

33 19111216 Washer 11/32 x 3/4 x 16 Ga.

34 10040500 Washer Lock 5/16

35 73540500 Nut Crown!ock 5/16=24 unf

36 155105 Bushing Strg

37 152927 Screw

38 159946X428 insert Cap Strg Wh

39 19182411 Washer 9/16 x 1-1/2 x 11 Ga.

40 73540600 Nut Crown!ock 3/8=24

41 159945 Adaptor Wheel Strg

42 163888X428 Boot Steering

43 121749X Washer 25/32 1 1/4 x 16 Ga.

46 184946X505 Cap Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sqnk 3/8=16 x 2=1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

73 160135X428 Extension Steering

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .15

88 175118 Bolt Shoulder 7/16=20 unc

91 175553 Clip Steering

95 188967 Washer Hardened

NOTE: AI! component dimensions given in U.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR ° ° MODEL NUMBER 917.273600

112

72 /

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs=lcy[ 51

KEY PART KEY PART

NO, NO, DESCRIPTMON NO, NO,

1 176636X505 Control Throttle/Choke 37 8543R

2 191611 Screw 10 x 3/4 Single Lead-Hex 38 181654

3 Engine, Briggs Model 41 139277

31P777-0348-E1 (See Breakdown) 45 17000612

4 137352 Muffler 62 10010500

13 165291 Muffler Gasket 72 71070512

14 148456 Tube Drain oil 78 17060620

23 169837 Shield Heat 81 73510400

29 137180 Kit Spark Arrestor (Flat Scrn) 112 3645J

31 179022 Tank Fue! 4_0 Rear

32 179124X428 Cap Asm Fue!

33 123487X Clamp Hose Black

DESCRIPTION

Line Fuel

Plug Drain Oil Easy

Stem Tank Fue!

Screw Hexwsh Thdr 3/8-16 x 3/4

Washer Split

Screw Hex Hd Cap 5/16-18 x 3/4

Screw 3/8-16 x 1=1/4

Nut Keps Hex 1/4-20 unc

Bushing

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

TRACTOR - - MODEL NUMBER 917.273600

SEAT ASSEMBLY

17 12

seat if,knob 14

KEY PART

NO, NO,

1 180598

2 180166

3 STD523710

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pivot Seat

Bolt Fin Hex 3/8=16 unc x 1

Washer 13/32 x 1 x 10 Ga.

Clip Push-In

Nut Hex w/Ins. 3/8=16 unc

Spring Seat Cprsn

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Ga.

Pan Seat

Knob Seat Adj, Wingnut

Bracket Mounting Switch

KEY PART

NO, NO, DESCRIPTION

13 121248X Bushing Snap BIk Nyl 50 Id

14 72050412 Bolt Rdhd Sqnk 1/4=20 x 1-1/2

15 121249X Spacer Split 28x .88 Zinc

16 123740X Spring Cprsn Plate 1.310 Ga.

17 123976X Nut Lock 1/4 Lge Fig Gr. 5 Zinc

18 124238X Cap Spring Seat

21 171852 Bolt Shoulder 5/16=18 unc

22 STD541431 Nut Hex Lock W/Ins 5/16=18

24 19171912 Washer 17/32 x 1=3/16 x 12 Ga.

25 127018X Bolt Shoulder 5/16=18 x 62

NOTI=: All component dimensions given in U,S. inches

1 inch = 25,4 mm

DECALS

KEY PART

NO, NO,

1 187407

2 138047

3 186242 Decal

4 186243 Decal

5 186572 Decal

6 146046 Decal

7 192059 Decal

8 179128 Decal

9 189081 Decal

10 156439 Decal

11 189088 Decal

12 172331 Decal

13 133644 Decal

TRACTOR - - MODEL NUMBER 917.273600

16 3 13 2!

DESCRIPTION

Reflector, LH

Decal Battery, Diehard, Sears

KEY PART

NO, NO,

14 160396

15 187408

Hood RH 16 164065

Hood LH 18 156811

Fender Craftsman 20 149516

\!:Belt, Drive Schematic 21 186331

Dash 23 189020

Deck, Caution 26 181470

Replacement oo 138311

Fender, Danger oo 184310X428

Panel, Dash oo 18431 lX428

Mower, HeavyoDuty oo 192842

Maint. Cust. oo 192843

11 10

DESCRiPTiON

Decal \!_Belt, Schematic

Decal Reflector, RH

Decal Steering Wheel

Decal Fender Opr.

Decal Battery

Decal Hood, Side Panel

Decal Engine

Decal Deck level

Decal Handre Lift

Pad, Footrest, ST/LT, LH

Pad, Footrest, ST/LT, RH

Manual, Owner's, English

Manua!, Owner's, Spanish

WHEELS &TIRES

5,8

4,10

3,9

wheel 1

KEY PART

NO, NO, DESCRIPTION

59192

65139

106222X

59904

106732X624

278H

9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

oo 144334

Cap Valve Tire

Stem Valve

Tire FTs 15 x 6 0 o 6 Service

Tube Front (Service item Only)

Rim Asm 6" front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel

Only)

Rim Asm 8" rear Service

Tire RTs 20 x 10-8 C Service

Tube Rear (Service Item Only)

Cap Axle

Sealant, Tire (10 oz. Tube)

NOTE: Al! component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273600

LiFT ASSEMBLY

Iift-rh.lpc.stlt 9

KEY PART

NO, NO,

1 179504

2 159476

3 188822

4 12000002

5 19211621

6 120183X

7 175830

11 139865

12 139866

13 STD624008

15 173288

16 73350800

17 175689

18 73800800

19 139868

20 163552

31 169865

32 73540600

36 155097

37 123935X

38 17060516

40 19112410

41 155098

NOTE:

DESCRiPTiON

Plunger Assembly

Shaft Assembly, Lift

Pin, Groove

E-Ring

Washer 21/32 x 1 x 21 Ga.

Bearing, Nylon

Grip, Handle, Fluted

Link, Lift, L.H.

Link, Lift, R.H.

Retainer Spring

Link, Front

Nut, Hex, Jam 1/2-13 uric

Trunnion

Locknut, Hex, with Washer insert 1/2-13 unc

Arm> Suspension, Rear

Retainer Spring

Bearing, Pvt, Lift

Nut, Crownlock 3/8-24

Pointer Height Indicator

Plug Hole

Screw 5/16-18 x 1

Washer 11/32 x 1-1/2 10 Ga.

Indicator Height

AI! component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273600

MOWER DECK

148

105

134

119

11_ 1,

19 21

F 142

1147

102j

-134

42 D man-t-path stEt 4,

TRACTOR - - MODEL NUMBER 917.273600

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRMPTION NO. NO. DESCRIPTION

1 182032 Mower Housing 94 132264

2 STD533107 Bolt 95 180533

3 138017 Bracket Assembly, Sway Bar, Front 101 136420

4 165460 Bracket Sway Bar 38/42" 102 71081010

5 STD624008 Retainer Spring 103 19061216

6 178024 Bar Sway Deck 104 STD551110

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

9 STD551137 Washer, Lock 106 2029J

10 140296 Washer, Hardened 113 17060512

(The following blades are 116 4898H

available) 117 165746

11 134149 Blade, 42" Mulching STD 118 73930600

(For mulching mowers only) 119 19121414

- - 139775 Blade, 42" Mulching Premium 129 19131312

(For better wear when mulching) 130 STD523710

- - 138971 Blade, 42" Hi-Lift 131 STD533710

(For bagging or discharge) 132 17000612

13 137645 Shaft Assembly, Mandrel, Vented 134 156941

14 128774 Housing, Mandrel, Vented 135 159765

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck 136 155986

18 72140505 Bolt, Carriage 5/16-18 x 5/8 138 159763

19 132827 Bolt, Shoulder

20 159770 Baffle, Vortex 139 159767

21 STD541431 Nut, Crownlock 5/16-18 unc

23 177563 Bracket, Deflector 140 159768

24 105304X Cap, Sleeve

25 123713X Spring, Torsion, Deflector 142 165890

26 110452X Nut, Push 143 157109

27 130968X428 Shield, Deflector 144 158634

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 145 165888

29 131491 Rod, Hinge 146 171977

30 173984 ScrewThdrol Rolling Wsh Hd 147 131335

31 187690 Washer, Spacer 148 169022

32 153535 Pulley, Mandrel 149 165898

33 178342 Nut, Top!ock, Flanged 150 19091210

34 STD533717 Bolt 159 STD533717

36 131494 Pulley, Idler, Flat 182 179126

40 73900600 Nut, Lock Fig. 3/8-16 unc 183 163552

44 140088 Guard, Mandrel, LH. 184 19131410

45 STD624003 Retainer -- 130794

46 137729 Screw, Thd. Ro!l 1/4-20 x 5/8

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 unc - - 186917

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, Tuv Idler (94)

68 144959 V-Belt

91 180532 Bracket Roller Nose LH

92 STD541437 Nut

Roller Nose

Bracket Roller Nose RH

Cover Mulching 42" Black

Screw Truss Hd Phil 10-24 x 5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Screw 5/16-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 uncx 1Gr. 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

Screw 3/8-16 x 3/4

Pin Head Rivet

Bracket Asm. Wheel Gauge

Rear LH

Bar Adj. Gauge Wheel

Bracket Asm. Wheel Gauge

Rear RH

Bracket Asm. Wheel Gauge

Front RH

Bracket Asm. Wheel Gauge

Front LH

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carraige Idler

Spring Extension

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Rod Roller Nose

Retainer Spring

Washer 3/8

Mandrel Assembly (Includes hous-

ing, shaft and shaft hardware only-

pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately mulch

cover and guage wheel compo-

nents key nos. 101 - 106 and 5,

116 - 119, 134, 136).

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

12,

_69

L108 L125

128

-46

f124

_47

-107

6 - SEALANT

57 20W50 OIL - 78.8 OZ

127- SEAL AND 0 R}NG KiT

m©

m O

crrl

rnc

Ill

-M

TRACTOR - - MODEL NUMBER 9t7.273600

HYDRO GEAR TRANSAXLEHMODEL NUMBER 3t4-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Kit, Main Housing 71 170417

Main Housing, Machined Bushing .865 X 72 170418

.985 X .790 73 142884

2 170352 Kit, Side Housing 74 170419

Side Housing, Machined Bushing .865 X 75 170420

.985 X .790 Bushing .624 X .719 X .582 76 170421

3 170353 Kit, Center Section 77 170422

Center Section, Machined 78 142969

Bushing .707 X .788 X .591 79 142980

4 170354 Swashptate, Trunnion Machined 80 150778

5 169898 Kit, Cytinder Block (10cc) 81 170423

Btock- Cylinder 82 170424

Piston 83 161168

Spring, Compression 84 170425

Washer Thrust 85 170426

6 178322 Sealant Tube 87 173160

7 170356 Hexfiange Screw 1/4=20 X t.25 88 178334

8 170357 Stud, 5/16-24 Hex Doubte End 90 170430

9 170358 Shaft, Input 93 170431

10 170359 Retaining Ring 107 170432

11 170360 Spacer 108 170433

12 169870 Retaining Ring

13 170361 Seal, Lip .67 X 1.58 X .276 109 170434

14 173158 Bearing, Bali 6203 (BDR) 111 170435

16 170362 Hex Range Head Screw 1/4-20 X 1.25 113 170437

17 170363 SeaI, Lip18X32X7 119 191031

18 170364 Arm, Control

19 173159 Bearing, Thrust (10cc)

23 170365 Check Plug Assembly

24 170366 Shaft Motor 120 188312

27 170367 Gear, Pinion, 13t 123 178800

28 170368 10t/48tGear 124 170444

29 170369 Gear, 10t Jackshaft

30 170370 60t Bullgear

31 170371 Sleeve Bearing .75 X 1.75 X .625

32 170389 Sleeve Bearing (Outboard) .75 X 1.575 X

.625

33 142991 Washer

34 170390 Lip Seal, Axle Shaft

35 170391 Shaft, Axle (Keyed, R.h.)

36 170392 Shaft, Axle (Keyed, Lh. )

37 150792 Gear, Sptined Diff. (210-1000 & 3t0-0750) 125 170445

38 150793 Gear, Miter Diff. (210-1000 & 310-0750)

39 150809 Differential Shaft (310-0750)

40 170393 Retaining Ring

41 170394 Pin, Jackshaft

42 170395 Magnet, Ring

43 170396 Spring, Bypass 126 191028

44 150797 Bolt 3/8-24 X 2-1/2

45 170397 Filter

46 170398 Base, Rlter

47 170399 Actuator, Bypass

48 170400 Rod, Bypass Actuator 127 170447

49 17040t Arm, Bypass

50 170402 Retaining Ring .25 External

51 170403 Seal, Lip .741 X .25 X .25

52 170404 Washer, Fiat 0.050" (2t0-1000)

53 170405 Retaining Ring

54 170406 Bearing, Center Block

55 142977 Spring, Helical Compression 128 173165

56 142978 Washer, Block Thrust

57 20W-50 Oil

58 142929 Kit, BrakeYoke

59 170408 Rotor, Brake

60 142883 Brake Puck

61 142882 Brake Puck Plate 129 191032

62 170409 Pin, Brake Actuating 130 186352

63 170410 Hfhcs 1/4-20 X 2 W/patch, Speciat Flange

64 142892 Bott, Nytok

65 170411 Spacer, Brake Torsion Spring

67 170413 Boit, Square Head - Brake 900 166768

69 170415 Nut, Castte 5/16-24

70 170416 Pin, Cotter 3/32x3/4

Brake Spring

Washer (310-0750)

Washer, Flat

Seal, Oit

Ass'y Check Plug

Bolt, Stud 5/16-24

Puck, Friction

Spring

Spacer

Nut, Nylon insert Hex Lock 5/16-24

Wedge, Friction

Clip, Washer

Fitting, 5/16 X Sae 5/32 Tube

Hose, Expansion Tank

Cap, Vent

Bolt, Self Tapping (BDR)

Puck, Inner Wedge

Spring Ctip, Housing

Deflector

Washer, Motor Shaft .71 ID X 1.15OD X

.03 Thick

Plug, Straight Thread 9/16-18

O-ring .7 X .301 ID

Bracket, Support Expansion Tank

Kit, Fan - Washer - Nut

Fan, 7 tn

Hex Lock Nut 1/2-20 (Nylon Insert)

Washer, Or Slotted, .53 X 1.63 X .06

Pulley

Belt Keeper

Kit, Center Section Filter Bypass

Center Section Machining

Base Rlter W/Poppet

Check Plug Assembly, .027 Washer

Check Piug Assembly, Washer

Spring, Bypass

Actuator, Bypass

Deflector

Bottom, Filter

Bushing, .707 X .788 X .591

Kit, Filter

Bottom, Filter

Spring, Bypass

Actuator, Bypass

Deflector

Base, Filter W/Poppet

Kit, Fan/pulley

Hex Jam 1/20-20 (Nyion Inset)

Washer, OD SIotted, .53 X 1.63 X .06

Fan, 7 In

Pulley

Kit, Seal

Lip Seal .67 X 1.58 X .276

Lip Seal 18 X 32 X 7

Lip Seat .706 X 1.584 X .25

Lip Seat .741 X .250 X .250 Tc

Oil Seat .625 X 1.0 X .25

O-ring .07 X .301 ID

Kit, Expansion Tank

Tank, Expansion

Cap, Vent

Bolt, Self Tapping 10-32 X 1/2

Bracket, Support Expansion Tank

Silicon Sponge 1/2 X 1/2 X 3/16

Cap, Expansion Tank Shipping

Kit, Brake Arm And Spring

Arm, Brake

Spring, Brake Arm Bias

Instruction Sheet

Transaxle

NOTE: Atl component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273600

BRIGGS & STRATTON ENGiNE-MODEL NUMBER 31 P777, TYPE NUMBER 0348-E1

718

358 ENGINE GASKET SET

8680

146 '_ I

741_

524

617 0

842O

943 O

1270

_7591

1027 /

I 1019LABELKIT II

I 1330 REPAIR MANUAL

305A _

1058 OWNER'S MANUAL I I 1036 EMISSION LABEL I _ _

I [ 1329 REPLACEMENT ENGINE ]

750&

884_ 11_

584_

9_ 15

12641_

126_

24 _ 22

200 89

48 SHORT BLOCK

1040

3o8'_

643

729

697 _

729A_

801

803_ 310 I

802

388_<_>'%

1070

1008 1°44I

783@J

TRACTOR - - MODEL NUMBER 917.273600

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0348-E1

238

1022

1034

6170

914

1095 VALVE GASKET SET

868 _'_ 1022 _]

131

--10_

•_ _-1o6 lo91

105

276@

1127L4_

127 (_

601

1119_

947

918

977 CARBURETOR1370GASKET276_._SET 16011

93_

95 _

104%-CA R B URE TO R6_4A_KIT-087

105 _ 137_ 276@ f-_ I

106 _ _'_ 634_ 1266 L] I

117_ 142_ 6170 1266A< _

TRACTOR ° ° MODEL NUMBER 917.273600

BRIGGS & STRATTON ENGINE-MODEL NUMBER. 31P777, TYPE NUMBER. 0348-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108 690464 Valve-Choke (Manual Choke)

2 399265 Kit-Bushing/Seal 108A 692344 Valve-Choke (Choke A Mat!c)

(MagnetoS!de) 117 694352 O Jet-Main (Standard)

3 391086 • Seal-Oi! (Magneto Side) 118 697228 Jet-Main (High Altitude)

4 697188 Sump-Engine 121 697241 Kit-Carburetor Overhaul

5 698147 Head-Cylinder 125 698445 Carburetor

7 699168 ,+ Gasket-Cylinder Head 127 695005 Plug-Welch

9 697109 • Gasket-Breather 130 691750 Valve-Throttle

11 697113 Tube-Breather 131 494379 Kit-Throttle Shaft

12 697110 • Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 O_: Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual

16 697127 Crankshaft Choke)

20 690947 • Seal-Oil (PTO Side) 141A 495931 Kit-Choke Shaft (Choke A

22 692125 Screw (Crankcase Mat!c)

CoverSump) 142 697140 O Nozzle-Carburetor

23 693556 Flywhee! 146 691639 Key-Timing

24 222698 Key-Flywheel 186 698174 Connector-Hose

25 699052 Piston Assembly (Standard) 187 697098 Line-Fuel

699054 Piston Assembly (.020" 187A 698417 Line-Fuel

Oversize) 188 691693 Screw (Contro! Bracket)

26 699051 Ring Set (Standard) 192 691986 Adjuster-Rocker Arm

697559 Ring Set (.020" Oversize) 202 691841 Link-Mechanical Governor

27 698469 Lock-Piston Pin 209 692208 Spring-Governor

28 697099 Pin-Piston 216 691840 Link-Choke

29 697126 Rod-Connecting (Standard) 222 694042 Bracket-Control

697263 Rod-Connecting (.020" 227 691374 Lever-Governor Control

Undersize) 232 691842 Spring-Governor

32 692852 Screw (Connecting Rod) 238 691843 Cap-Valve

33 695760 Valve-Exhaust 240 691035 Filter-Fuel

34 695761 Valveqntake 265 691024 Clamp-Casing

35 691279 SpringWalve (Intake) 267 695134 Screw (Casing Clamp)

36 691279 SpringWalve (Exhaust) 276 692255 O:!t: Washer-Sealing

37 697352 Guard-Flywhee! 304 699829 Housing-Blower

42 691752 Keeper-Valve 305 697102 Screw (Blower Housing)

43 691968 Slinger-Governor/Oil 305A 697103 Screw (Blower Housing)

45 690564 TappetWalve 306 697107 Shield-Cylinder

46 698492 Camshaft 307 691003 Screw (Cylinder Shield)

48 697762 Short Block 309 693551 Motor-Starter

50 690193 Manifoldqntake 310 690323 Bolt (Starter Motor)

51 692137 ,_+ Gasketqntake 311 497608 Brush Set

53 690227 Stud (Carburetor) 333 492341 Armature-Magneto

54 691148 Screw (Intake Manifold) 334 691061 Screw (Magneto Armature)

73 697133 Screen-Rotating 337 691043 Plug-Spark

74 697897 Screw (Rotating Screen) 356 697089 Wire-Stop

78 691003 Screw (Flywheel Guard) 358 697191 Gasket Set-Engine

89 690283 Plug-Oil 363 19203 Flywheel Puller

93 690602 O Bushing-Throttle Shaft

94 498030 Kit-Idle Mixture included in Engine Gasket Set, Key. No. 358

95 691636 Screw (Throttle Valve) O included in Carburetor Overhaul Kit, Key. No.

98 495800 Kitqdle Speed 121

104 690525 O Pin-Float Hinge _: included in Carburetor Gasket Set, Key. No.

105 231855 O Valve-Float Needle 977

106 691780 O Seatqnlet + included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U,S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273600

BRmGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0348-E1

KEY PART KEY PART

NO. NO. DESCRmPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 868 690968 *+ Seal-Valve

385 694476 Screw (Fuel Pump) 914 690960 Screw (Rocker Cover)

385A 690297 Screw (Fue! Pump) 918 697091 Line-Vacuum

387 697090 Pump-Fuel 943 690589 • SeaI-O Ring (Oil Pump Cover)

404 691691 Washer (Governor Crank) 947 694393 Solenoid-Fuel

431 697122 Elbow-intake 965 499613 Cover-Oil Pump

445 697153 Filter-Air Cleaner Cartridge 967 697015 Filter-Pre Cleaner

462 691261 Washer (Starter Cable) 968 699848 Cover-Air Cleaner

474 696459 Alternator 975 495933 Bowl-Float

501 691188 Regulator 977 690192 Gasket Set-Carburetor

503 691532 Strap-Starter 987 691326 O Seal-Throttle Shaft

505 691251 Nut (Governor Control Lever) 1005 699043 Fan-Flywhee!

510 693699 Drive-Starter 1017 690770 Screen-Oil Pump

513 692024 Clutch-Drive 1019 697143 Kit-Label

523 697086 Dipstick 1022 272475 *+ Gasket-Rocker Cover

524 691032 • Seal-Dipstick Tube 1023 692492 Cover-Rocker Arm

525 697085 Tube-Dipstick 1024 499054 Pump-Oi!

526 697088 Screw (Regulator) 1026 692003 Rod-Push (Intake)

544 692034 Starter-Armature -- 692011 Rod-Push (Exhaust)

552 697144 Bushing-Governor Crank 1027 696854 Filter-Oil

562 691119 Bolt (Governor Control Lever) 1029 691751 Arm-Rocker

579 691029 Nut (Starter Cable) 1034 690822 Guide-Push Rod

584 697112 Cover-Breather Passage 1035 693784 Shaft-Pump

601 95162 Clamp-Hose 1036 695700 Labe!-Emission

614 691620 Pin-Cotter 1040 699852 Plate-Trim

616 692012 Crank-Governor 1044 698139 Screw (Flywheel)

617 692138 _] * SeaI-O Ring (intake Manifold) 1051 691265 Ring-Retaining

634 690801 O Spring/Seal Assembly 1058 275038 Owner's Manual

(Manual Choke) 1059 698516 Kit-Screw/Washer

634A 690802 O Spring/Seal Assembly (Choke 1070 690372 Screw (Flywhee! Fan)

A Matic) 1090 691293 Retainer-Brush

635 691909 Boot-Spark Plug 1091 691333 Cap-Limiter

643 698401 Retainer-Air Filter 1095 690190 Gasket Set-Valve

654 690958 Nut (Carburetor) 1119 691183 Screw (Alternator)

684 697157 Screw (Breather Passage 1127 691657 Screw (Float Bow!)

Cover) 1263 697124 Reed-Breather

691 692407 • Seal-Governor Shaft 1264 697104 Screw (Breather Reed)

697 690372 Screw (Drive Cap) 1266 691917 *0 SeaI-O Ring (Intake Elbow)

718 690959 Pin-Locating 1266A 697123 O SeaI-O Ring (Intake Elbow)

729 691224 Clip-Wire 1267 697424 Latch-Blower Housing

729A 694123 Clip-Wire 1270 697156 Plug-AVS Counterweight

741 697128 Gear-Timing 1329 31Q777-0036 Replacement Engine

750 691033 Screw (Oil Pump Cover) 1330 272147 Repair Manual

757 697607 Link-Counterweight

758 697134 Counterweight included in Engine Gasket Set, Key. No. 358

759 697392 Pin-Counterweight O included in Carburetor Overhaul Kit, Key', No.

783 693713 Gear-Pinion 121

789 698329 Harness-Wiring _: included in Carburetor Gasket Set, Key. No.

797 693167 Nut (Brush Retainer) 977

801 691283 Cap-Drive + included in Valve Gasket Set, Key. No. 1095

802 691286 Cap-End

803 693757 Housing-Starter NOTE: All component dimensions given in U.S. inches

830 691095 Stud (Rocker Arm) 1 inch = 25.4 mm

842 691031 • Seai-O Ring (Dipstick Tube)

847 697087 Dipstick/Tube Assembly

851 692424 Terminal-Spark Plug

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

//VE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1, Fotd this page a_ong dotted Iine indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fotd in the direction of hiti stope you want to measure.

4. Compare the angte of the fotd with the slope of the hitl.

iiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiii_

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ¢ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.seats.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

, E/.4RS ........

02410

® Registered Trademark / TM Trademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TM Marca de Fabrica / SM Marca de Servicio de Sears, Roebuck and Co.

Mc Marque de commerce / MDMarque deposee de Sears, Roebuck and Co.

192842 Rev. 1 5.20.04 MH Printed in U.S.A.
