DLP
®
Projector
User manual
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Laser Radiation Safety Information ........................................................................................... 5
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 7
Declaration of Conformity for EU countries ............................................................................... 8

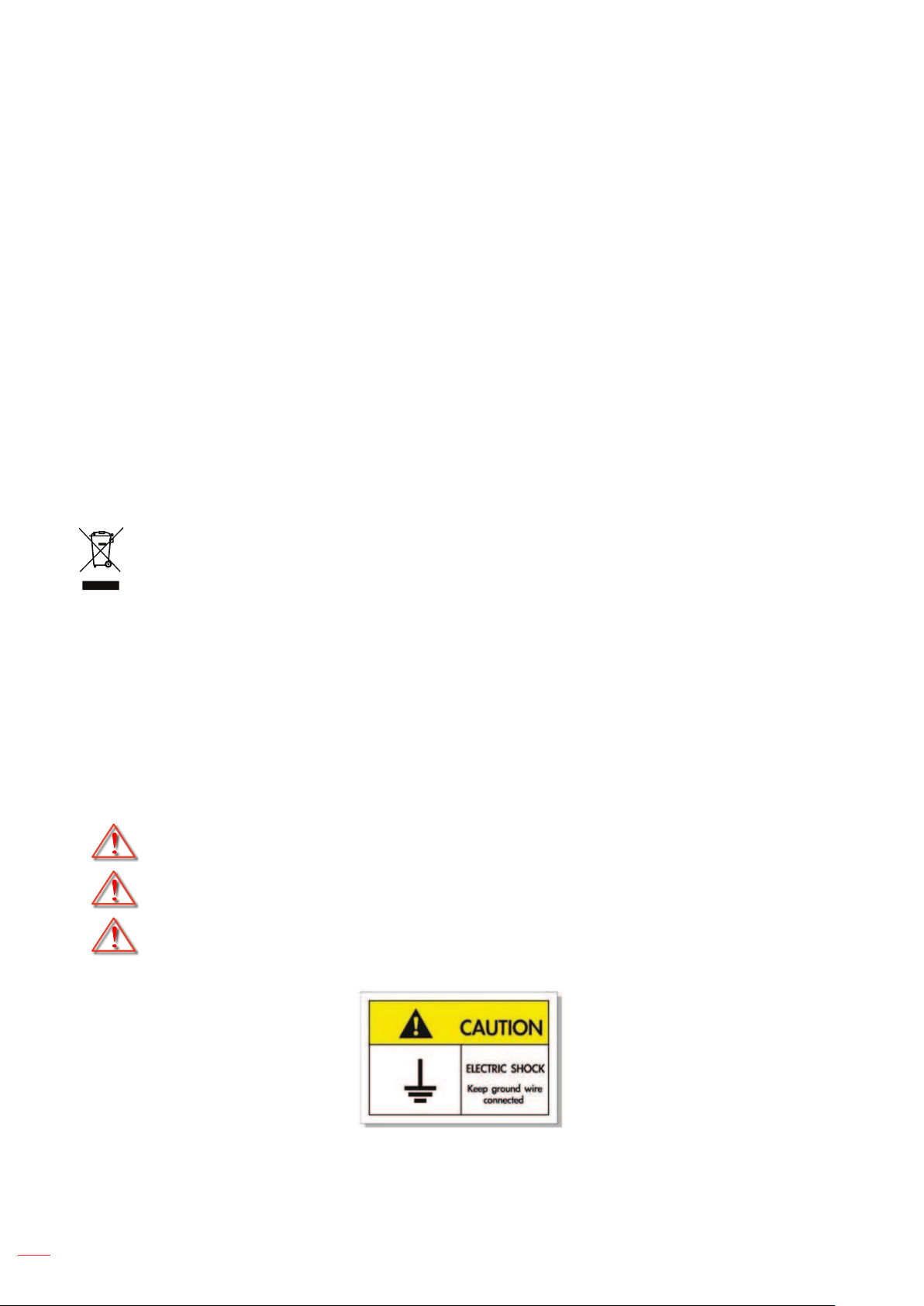

WEEE ........................................................................................................................................ 8
Cleaning the Lens...................................................................................................................... 8
INTRODUCTION ................................................................................ 9
Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9

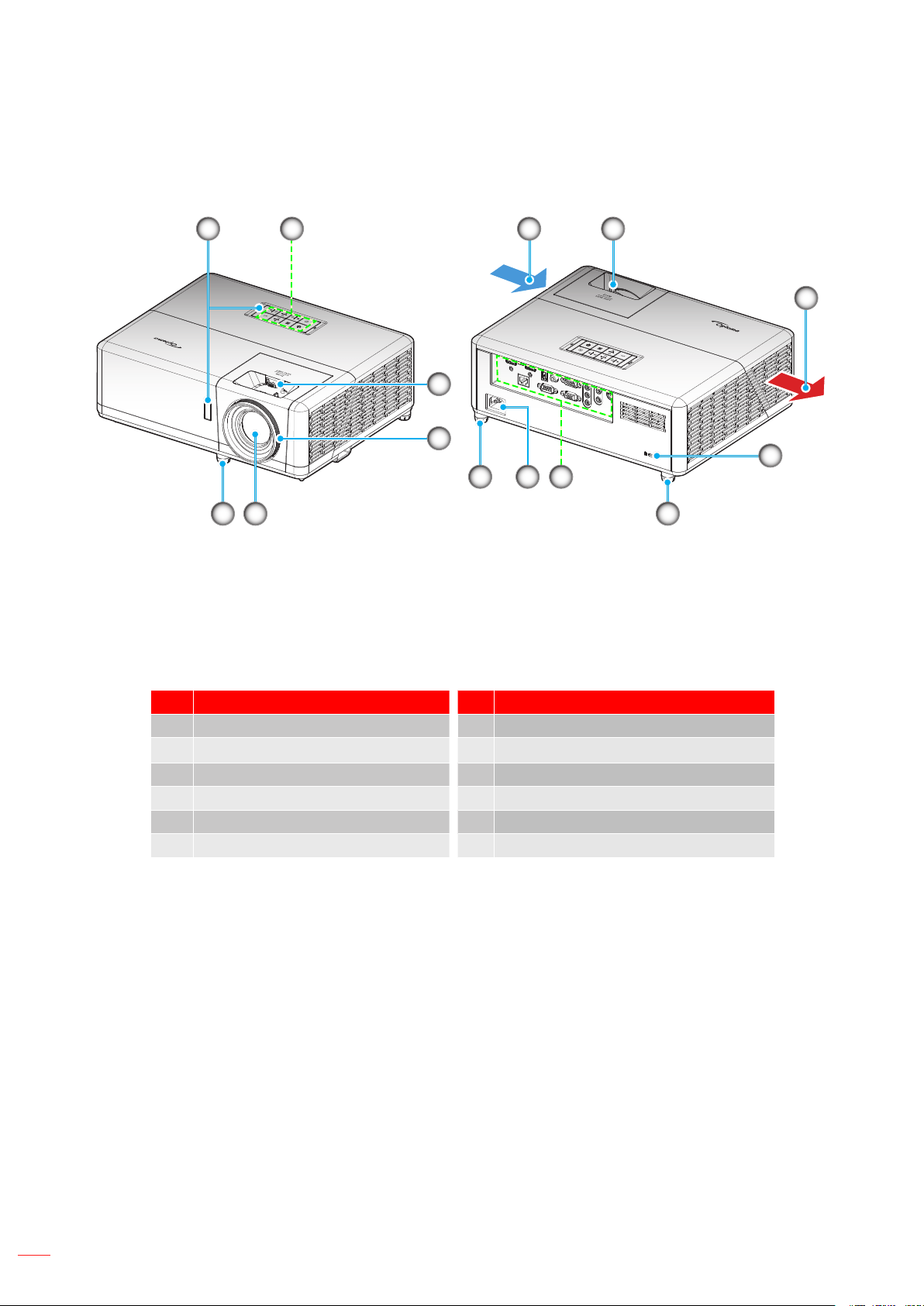

Product Overview ..................................................................................................................... 10
Connections.............................................................................................................................. 11

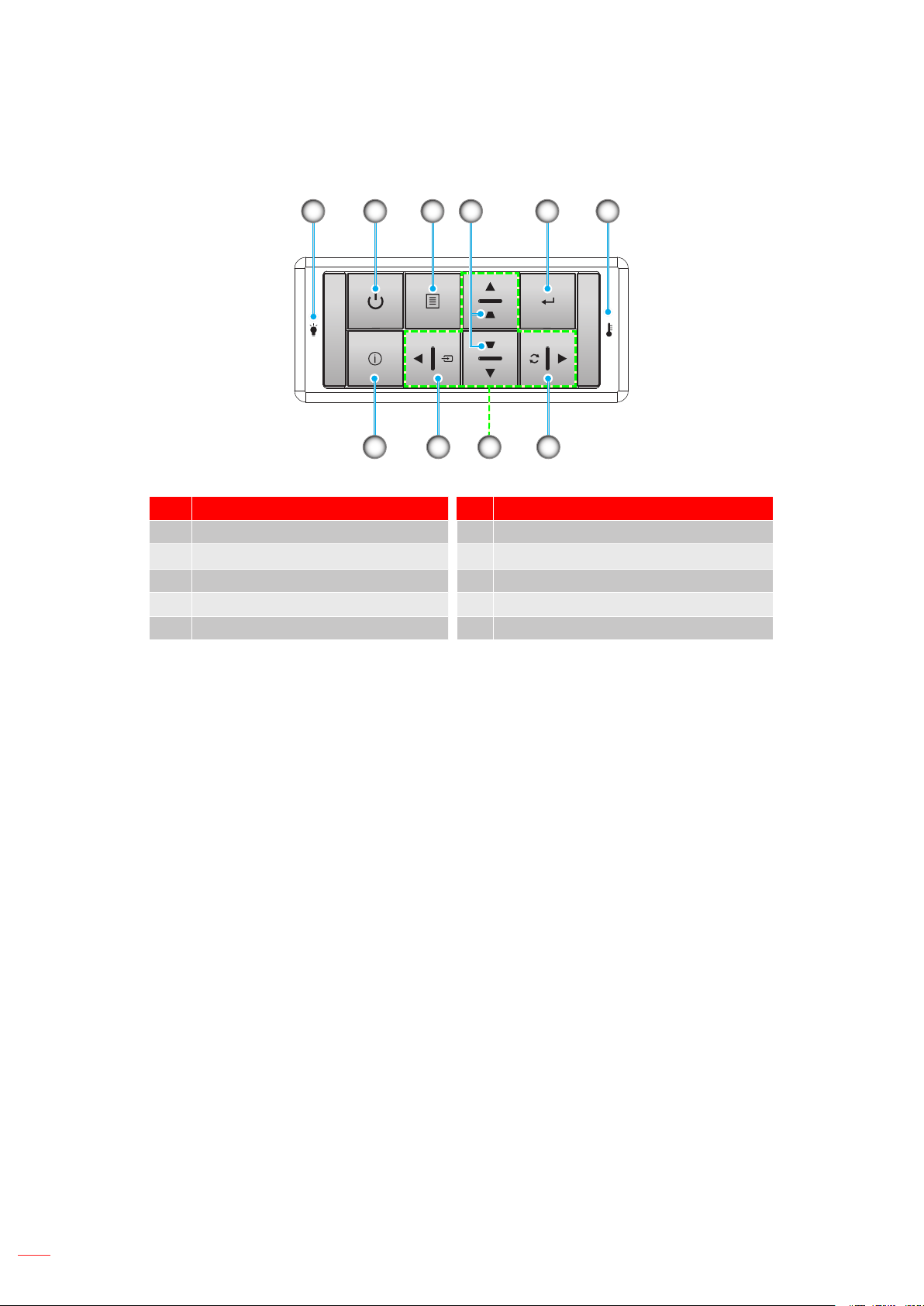

Keypad ..................................................................................................................................... 12

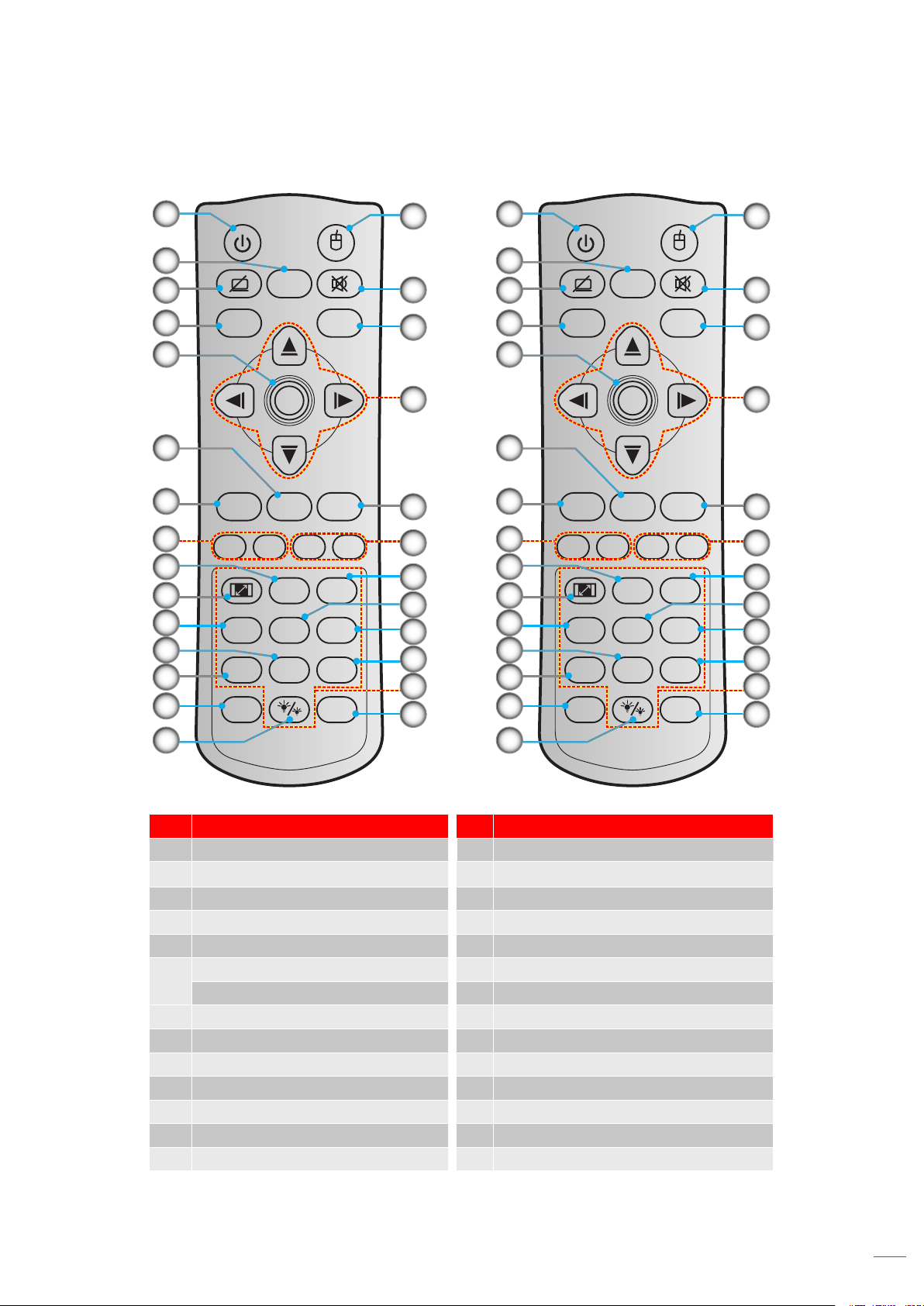

Remote control 1 ...................................................................................................................... 13
Remote control 2 ...................................................................................................................... 14
SETUP AND INSTALLATION ........................................................... 15
Installing the projector .............................................................................................................. 15

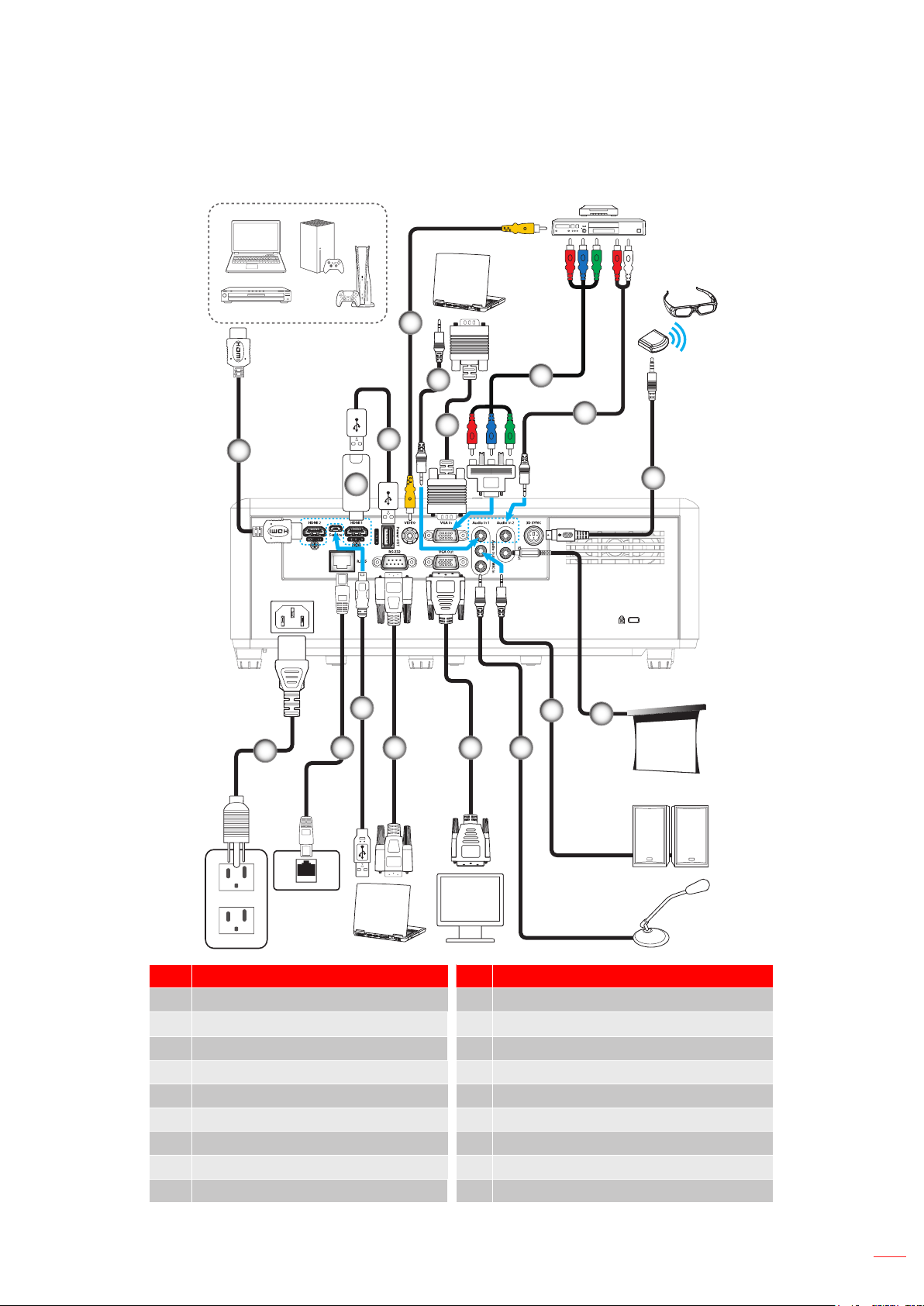

Connecting sources to the projector ......................................................................................... 17
Adjusting the projector image ................................................................................................... 18
Remote setup ........................................................................................................................... 19
USING THE PROJECTOR ............................................................... 21

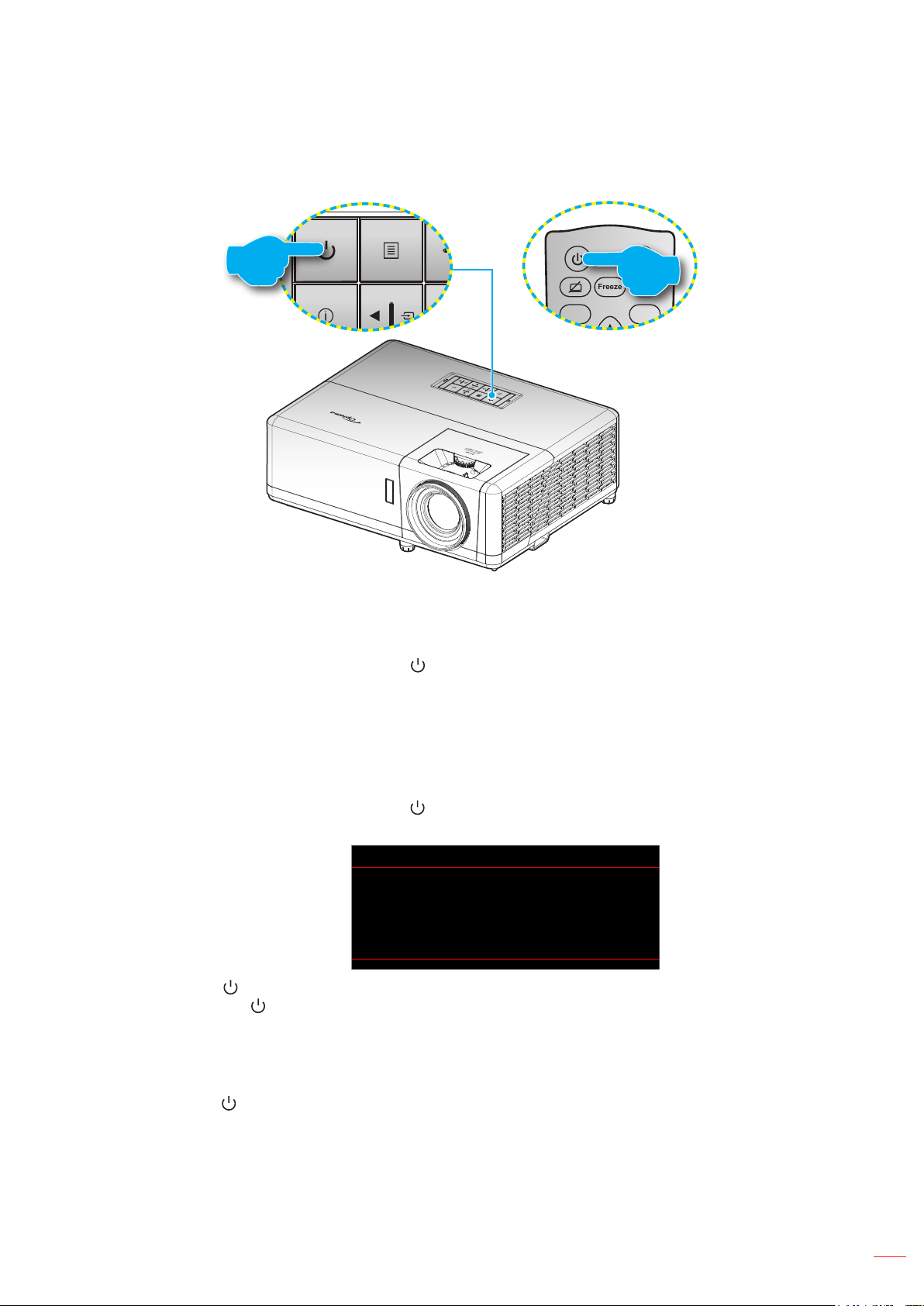

Powering on / o the projector .................................................................................................. 21
Selecting an input source ......................................................................................................... 22
Menu navigation and features .................................................................................................. 23
OSD Menu tree......................................................................................................................... 24
Display image settings menu.................................................................................................... 32
Display enhanced gaming menu .............................................................................................. 35
Display 3D menu ...................................................................................................................... 36
Display aspect ratio menu ........................................................................................................ 37
Display digital zoom menu........................................................................................................ 38
Display image shift menu ......................................................................................................... 38
Display geometric correction menu .......................................................................................... 38
Audio mute menu ..................................................................................................................... 39
Audio volume menu .................................................................................................................. 39
Audio audio input menu ............................................................................................................ 39
Setup projection menu.............................................................................................................. 40
Setup power settings menu ...................................................................................................... 40
English
3
Setup security menu ................................................................................................................. 41
Setup HDMI link settings menu ................................................................................................ 41
Setup test pattern menu ........................................................................................................... 42
Setup remote settings menu..................................................................................................... 42
Setup projector ID menu........................................................................................................... 42
Setup 12V trigger menu............................................................................................................ 42
Setup options menu.................................................................................................................. 43
Setup reset OSD menu ............................................................................................................ 44
Setup auto upgrade FW menu ................................................................................................. 44
Network LAN menu .................................................................................................................. 45
Network control menu............................................................................................................... 46
Setup network control settings menu ....................................................................................... 47
Info menu.................................................................................................................................. 53
MAINTENANCE ................................................................................. 54
Installing and cleaning the dust lter ........................................................................................ 54
ADDITIONAL INFORMATION .......................................................... 55
Compatible resolutions ............................................................................................................. 55

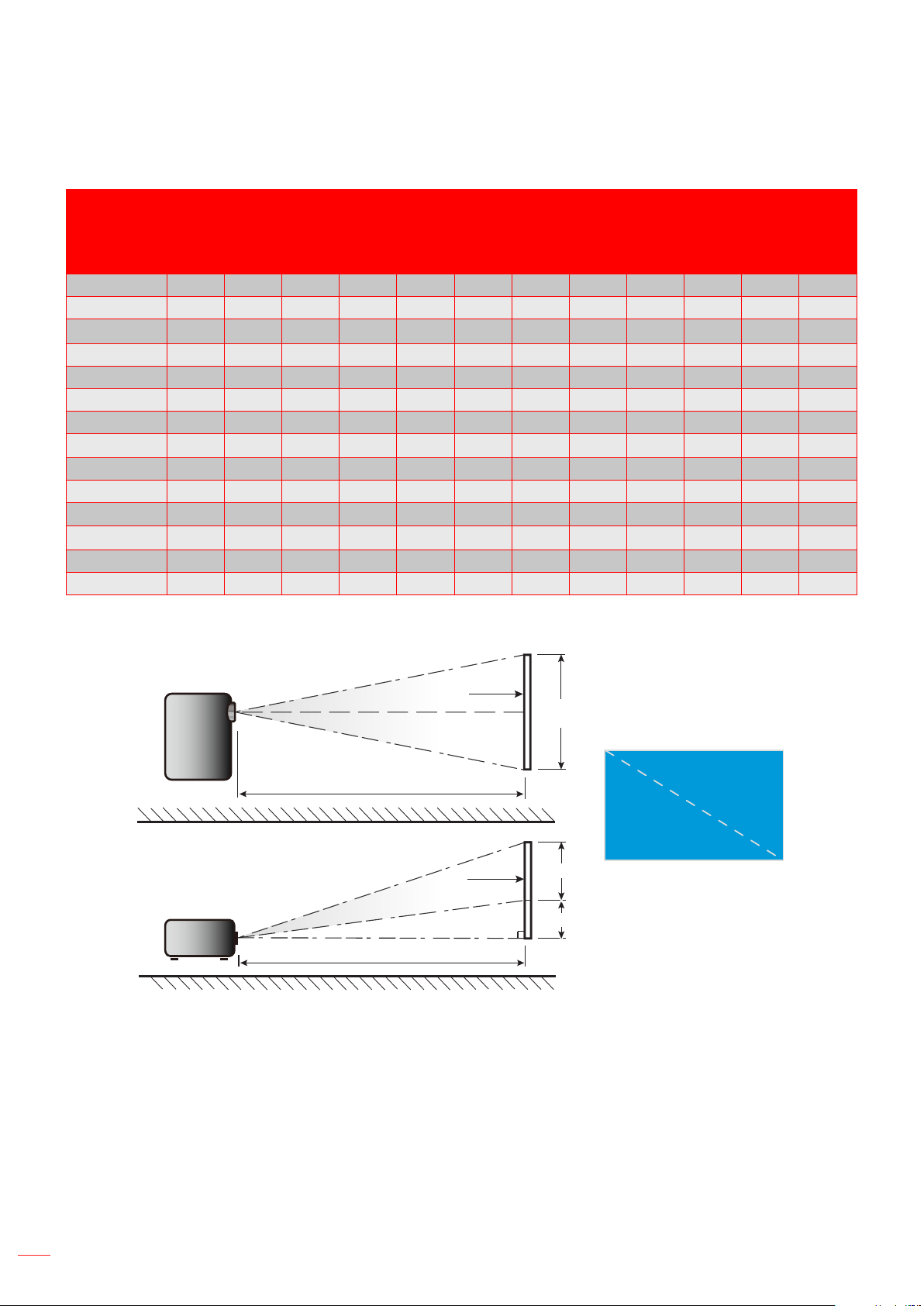

Image size and projection distance .......................................................................................... 58

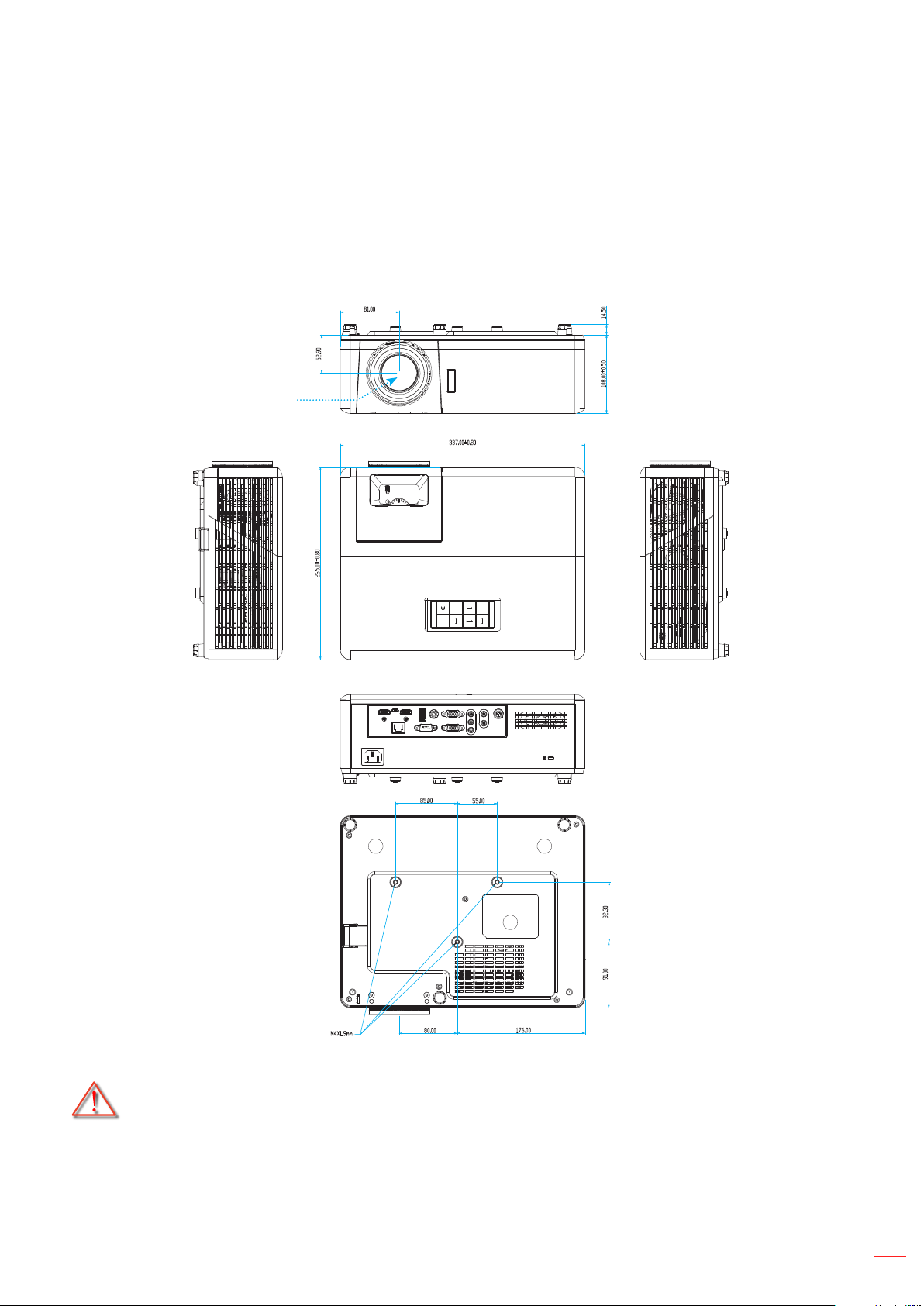

Projector dimensions and ceiling mount installation ................................................................. 59
IR remote control 1 codes ........................................................................................................ 60
IR remote control 2 codes ........................................................................................................ 62
Troubleshooting ........................................................................................................................ 64
Warning indicators .................................................................................................................... 66
Specications ........................................................................................................................... 67
Optoma global oces ............................................................................................................... 68
English
4
SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Important Safety Instruction

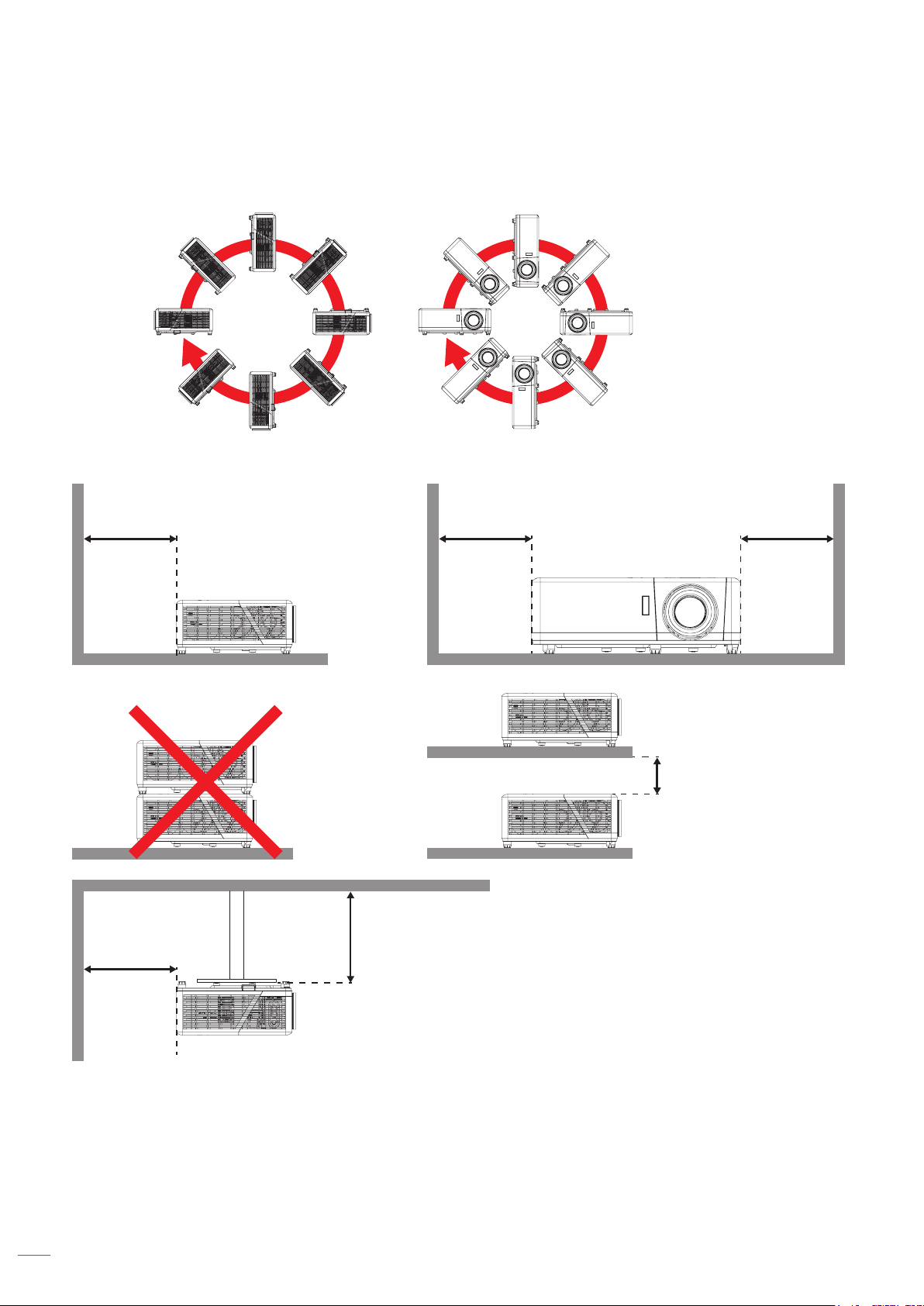

Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by authorized service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
This projector will detect the life of the light source itself.
English
5
When switching the projector o, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn o and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely aect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may aect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements
of IEC 62471-5:2015.
Additional instructions to supervise children, no staring, and not use optical aids.
Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
English
6
When turning on the projector, make sure no one within projection range is looking at the lens.
Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Without following the control, adjustment or operation procedure may cause damage by the exposure of
laser radiation
English
7
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2021
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
English
8
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EU (including amendments)
Low Voltage Directive 2014/35/EU
RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
Cleaning the Lens
Before cleaning the lens, be sure to turn o the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel o.
Warning: Do not wipe or tap the lens with a hard object.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
English
9
INTRODUCTION
Thank you for purchasing an Optoma laser projector. For full list of features please visit the product page on our
website, where you will also nd additional information and documentation such as FAQs.
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Projector Remote control Power lead Documentation
Warranty Card*
Quick start user manual
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Mode
Enter
Note:
The remote control is shipped with batteries.
* For warranty Information, please visit www.optoma.com.
Accessories vary depending on model, specication and region. Some optional accessories may be
available to purchase in select regions. Please visit our website to see more details regarding the
accessories included.
English
10
INTRODUCTION
Product Overview
2
1
3
5 6
9
9
9
12
1011
7
8
4
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. IR Receivers 7. Ventilation (outlet)
2.
Keypad
8.
Kensington™ Lock Port
3. Lens Shift Dial 9. Tilt-Adjustment Feet
4. Focus Ring 10. Input / Output
5. Ventilation (inlet) 11. Power Socket
6. Zoom Lever 12. Lens
English
11
INTRODUCTION

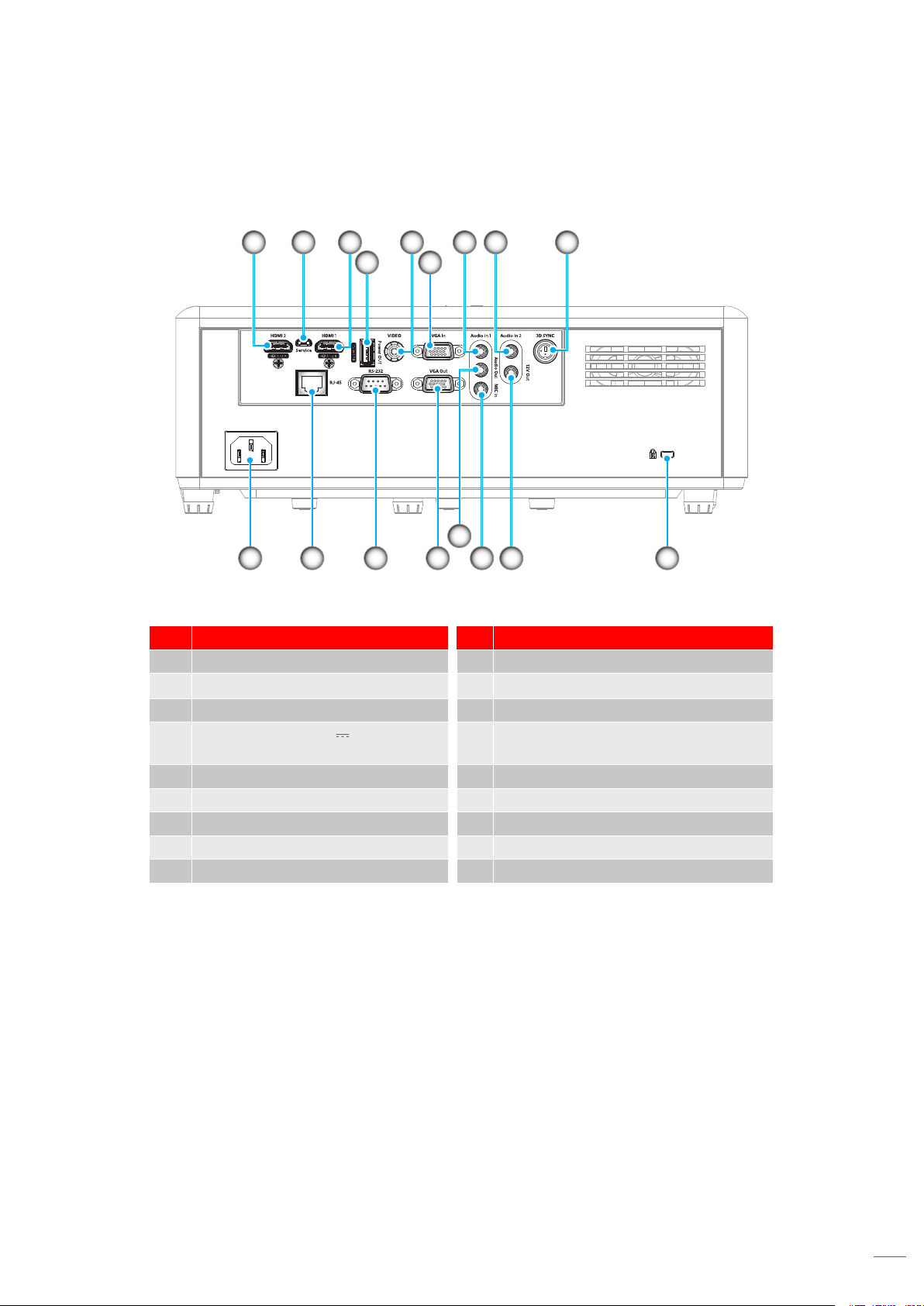

Connections
10
6
1
11141617
13
92 3 5
4
7 8
1215
No Item No Item
1. HDMI 2 Connector 10. Kensington
TM
Lock Port
2.
Micro USB Connector
11.
12V Out Connector
3. HDMI 1 Connector 12. MIC In Connector
4.
USB Power Out (5V
1.5A)
Connector
13. Audio Out Connector
5. Video Connector 14. VGA Out Connector
6. VGA In Connector 15. RS-232 Connector
7. Audio In 1 Connector 16. RJ-45 Connector
8. Audio In 2 Connector 17. Power Socket
9. 3D Sync Connector
English
12
INTRODUCTION
Keypad
10
21 3 5 6
9 78
4
No Item No Item
1. Lamp LED 6. Temp LED
2.
Power and Power LED
7.
Re-Sync
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source
5. Enter 10. Information
English
13
INTRODUCTION
Remote control 1
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Laser
Enter
4
1
2
3
5
6
13
10
8
7
9
11
12
14
15
27
20
16
17
18
22
23
24
21
26
19
25
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Mode
Enter
4
1
2
3
5
6
13
10
8
7
9
11
12
14
15
27
20
16
17
18
22
23
24
21
26
19
25
No Item No Item
1. Power On / O 14. Source
2.
Freeze 15. Brightness Mode
3.
Display Blank / Audio Mute 16. Mouse On / O
4. Mouse Left Click 17. Mute
5. Enter 18. Mouse Right Click
6.
Laser 19. Four Directional Select Keys
Mode 20. Page +
7. Page - 21. Volume - / +
8. Keystone - / + 22.
3D Menu On / O
9. Menu 23. VGA
10. Aspect Ratio 24. Video (not supported)
11. HDMI 25.
User 3 (Assignable)
12. User 2 (Assignable) 26.
Numeric Keypad (0-9)
13. User 1 (Assignable) 27. Resync
Note:
The actual remote control may vary depending on the region.
Some keys may have no function for models that do not support these features.
English
14
INTRODUCTION
Remote control 2
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
1
3
2
4
5
6
7
8
11
12
13
14
15
16
17
18
19
20
21
23
22
24
25
27
26
9
10
No Item No Item
1. Power On 15. User 3 (Assignable)
2.
User 2 (Assignable) 16. Contrast
3. User 1 (Assignable) 17. Display Mode
4. Brightness 18. Aspect Ratio
5. Keystone 19.
3D Menu On / O
6. Mute 20. Sleep Timer
7. DB (Dynamic Black) 21. Volume +
8. Source 22. Re-Sync
9. Enter 23. Four Directional Select Keys
10. Menu 24. Volume -
11. HDMI1 25. HDMI2
12. VGA1 26. YPbPr (not supported)
13. VGA2 (not supported) 27.
Video (not supported)
14. Power O
Note:
The actual remote control may vary depending on the region.
Some keys may have no function for models that do not support these features.
English
15
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size,
please refer to distance table on page
58.
How to determine screen size for a given distance, please refer to distance table on page 58.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
English
16
SETUP AND INSTALLATION
Projector installation notice
360° free orientation operation
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
17
SETUP AND INSTALLATION
Connecting sources to the projector
1
2
3
4
5
6
7
8
10
11
121314
15
16
17
9
No Item No Item
1. HDMI Cable 10. 12V DC Jack
2.
HDMI Dongle
11.
Audio Out Cable
3. USB Power Cable 12. Microphone Cable
4. Video Cable 13. VGA Out Cable
5. Audio In Cable 14. RS232 Cable
6. VGA In Cable 15. USB Cable
7. RCA Component Cable 16. RJ-45 Cable
8. Audio In Cable 17. Power Cord
9. 3D Emitter Cable
Note: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or
Premium Certied HDMI cables up to 5 meters.
English
18
SETUP AND INSTALLATION

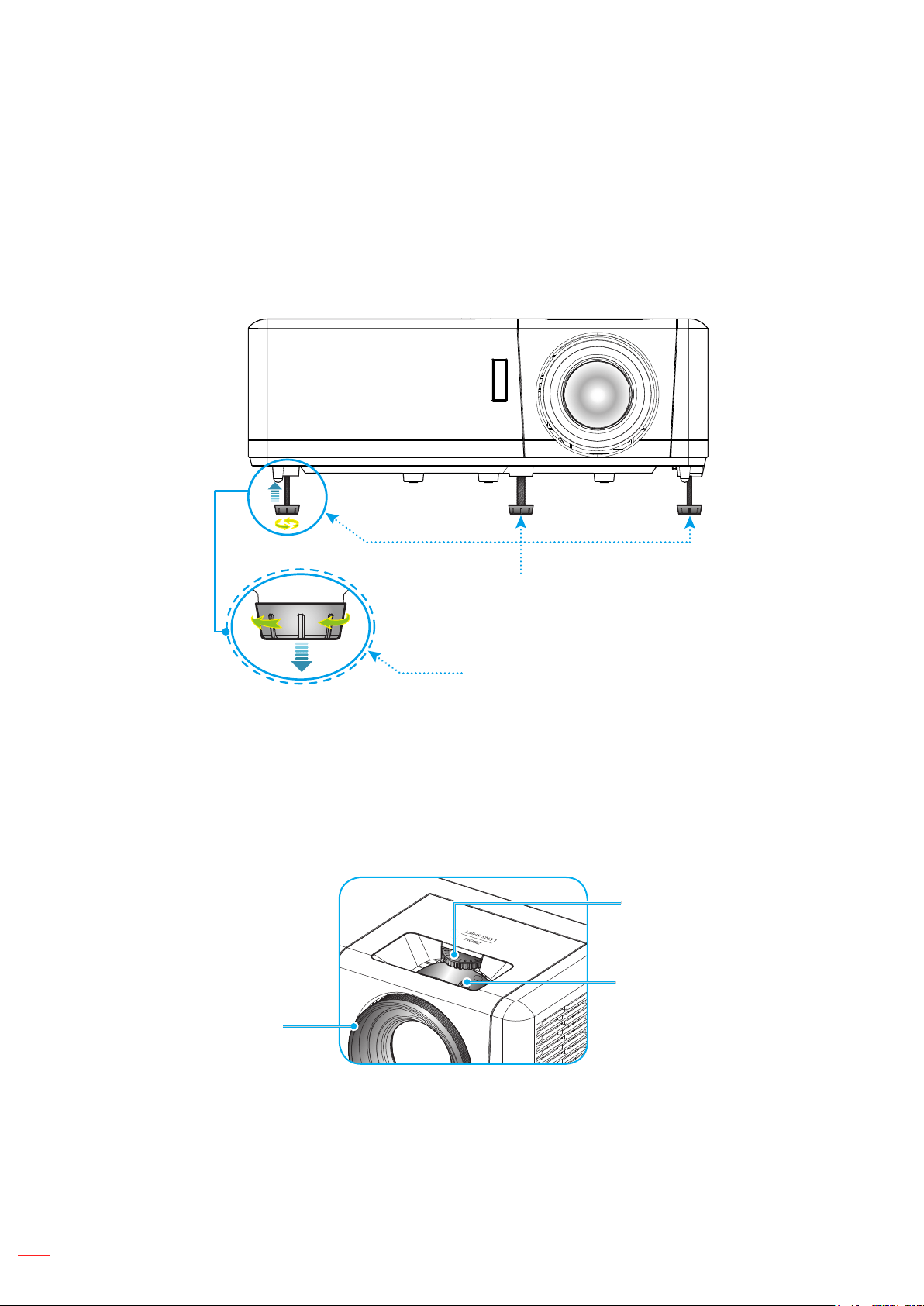

Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Zoom Lever
Lens Shift Dial
Focus Ring
English
19
SETUP AND INSTALLATION
Remote setup

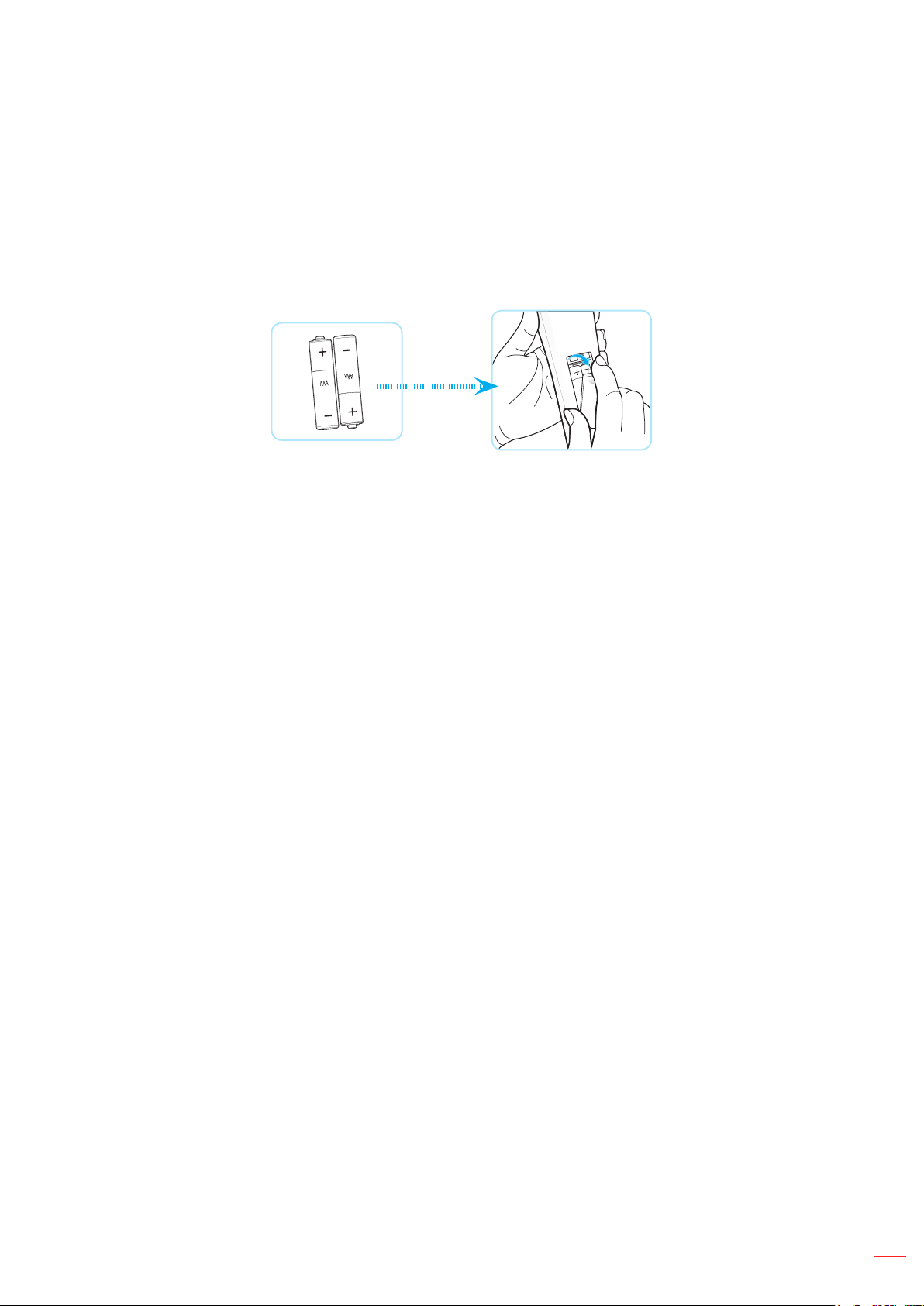

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of dierent types. Dierent types of batteries have dierent characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
20
SETUP AND INSTALLATION

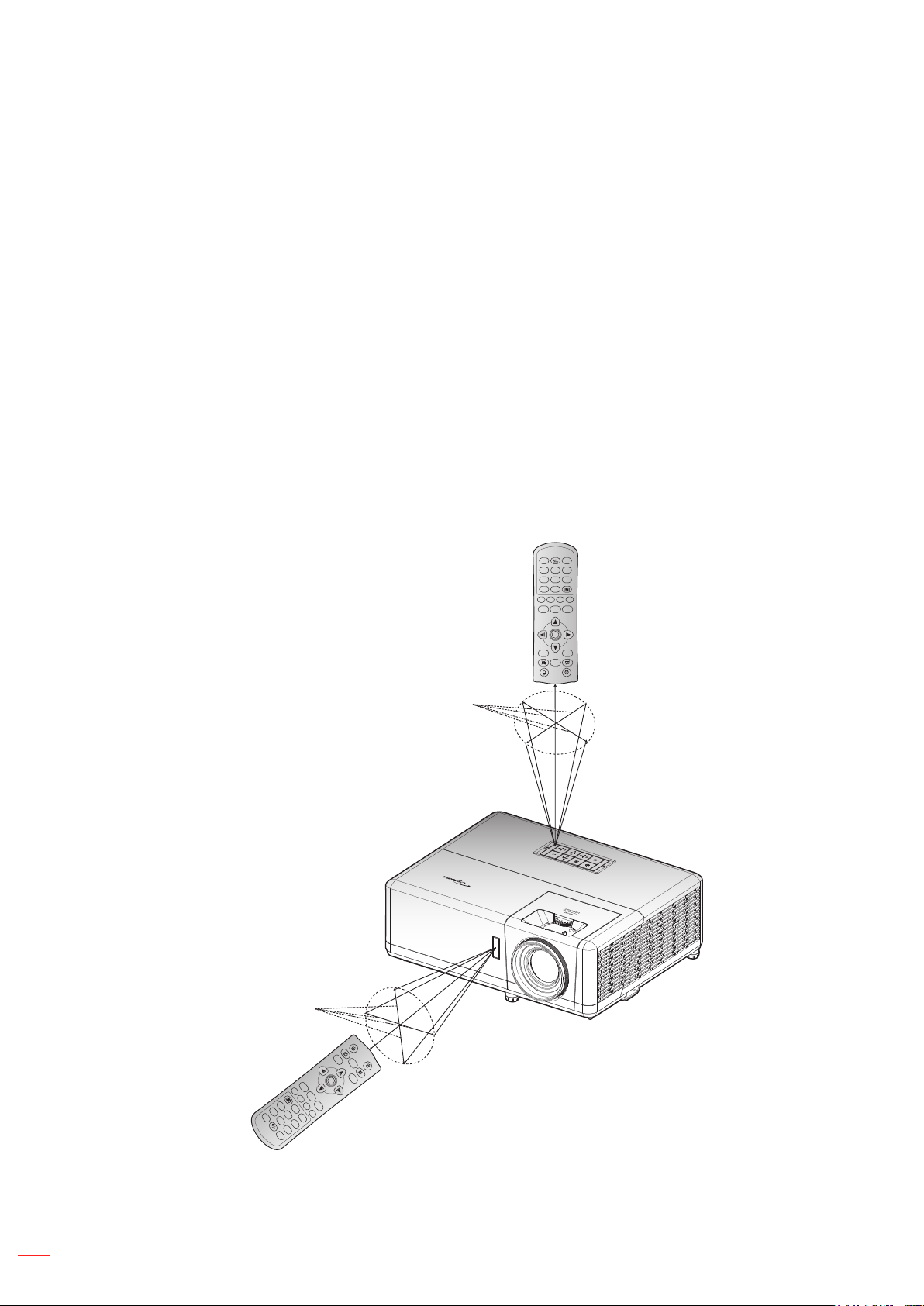

Eective range
Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the
remote control at an angle within 60 degrees perpendicular to the projector’s IR remote control sensor to function
correctly. The distance between the remote control and the sensor should not be longer than
12 meters (39.4 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineective.
When you aim at the screen, the eective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the eective range might change
according to screens.
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Mode
Enter
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1
2
Menu
3
3D
4
HDMI
5
VGA
6
Vide o
7
User 1
8
User 2
9
User 3
Source
0
Resync
Page+
Mode
Enter
Approx. ±30°
Approx. ±30°
English
21
USING THE PROJECTOR
Powering on / o the projector
Freeze
Power Switch
L R
or
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn
red.
2. Turn on the projector by pressing the
button on the projector keypad or remote control.
3. A start up screen will display in approximately 10 seconds and the Power LED will be ashing blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
Powering o
1. Turn o the projector by pressing the
button on the projector keypad or remote control.
2. The following message will be displayed:
Power O
Press power key again.
3. Press the button again to conrm, otherwise the message will disappear after 15 seconds. When
you press the button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power
LED will ash blue. When the Power LED turns solid red, this indicates the projector has entered
standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has
nished and the projector has entered standby mode. When the projector is in standby mode, simply
press the
button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power o procedure.
English
22
USING THE PROJECTOR

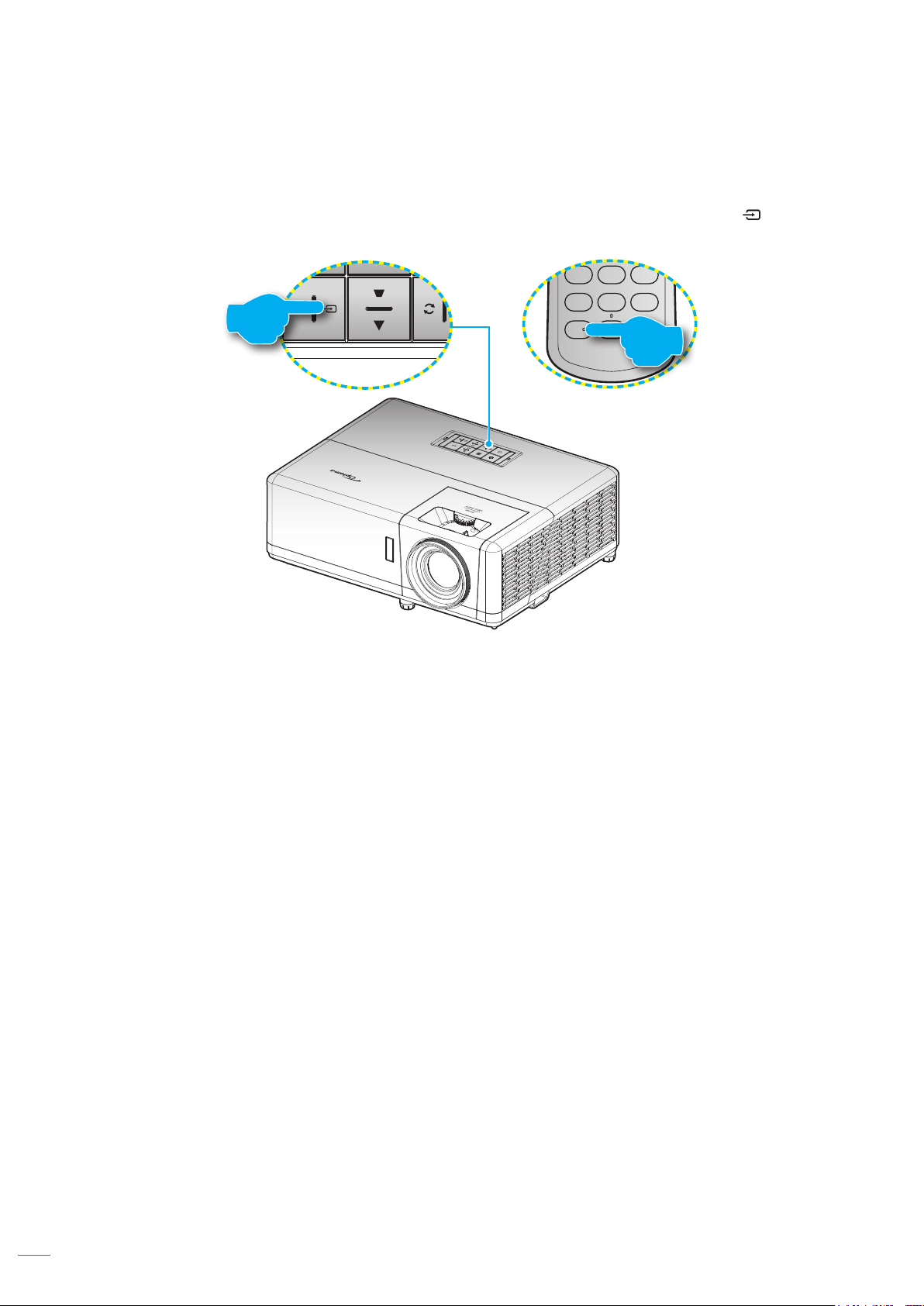

Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the
button on the
projector keypad or the Source button on the remote control to select the desired input.
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
or
English
23
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press the
button on the projector keypad or the Menu button on the remote
control.
2. When OSD is displayed, use pq keys to select any item in the main menu. While making a selection
on a particular page, press the
button on the projector keypad or the Enter button on the remote
control to enter sub menu.
3. Use tu keys to select the desired item in the sub menu and then press the
or Enter button to
view further settings. Adjust the settings by using tu keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press press the
or Enter button to conrm, and the screen will return to the main menu.
6. To exit, press the
or Menu button again. The OSD menu will close and the projector will
automatically save the new settings.
Sub Menu
Main Menu
Settings
Navigation guide
Display
Image Settings
Enhanced Gaming
3D
Aspect Ratio
Edge Mask
Digital Zoom
Image Shift
Geometric Correction
Select Exit Enter
Off
English
24
USING THE PROJECTOR
OSD Menu tree
Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add
or remove items to improve product performance without notice.
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode
Presentation
Bright
HDR
HLG
Cinema
Game
Reference
DICOM SIM.
User
3D
Wall Color
O [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Dynamic Range
HDR / HLG
O
Auto [Default]
HDR Picture
Mode
Bright
Standard [Default]
Film
Detail
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
2.6
HDR
3D
Blackboard
DICOM SIM.
English
25
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Color Settings
BrilliantColor
TM
1 ~ 10
Color
Temperature
Warm
Standard
Cool
Cold
Color Matching
Color
Red [Default]
Green
Blue
Cyan
Yellow
Magenta
White(*)
Hue / R(*) -50 ~ 50 [Default: 0]
Saturation / G(*) -50 ~ 50 [Default: 0]
Gain / B(*) -50 ~ 50 [Default: 0]
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
Cancel [Default]
Yes
Exit
Color Space [Not
HDMI Input]
Auto [Default]
RGB
YUV
Color Space
[HDMI Input]
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
White Level 0 ~ 31
Black Level -5 ~ 5
IRE
0
7.5
Signal
Automatic
O
On [Default]
Frequency
-10 ~ 10 (depends on signal)
[Default: 0]
Phase
0~31 (depends on signal)
[Default: 0]
English
26
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Image Settings
Signal
H. Position
-5 ~ 5 (depends on signal)
[Default: 0]
V. Position
-5 ~ 5 (depends on signal)
[Default: 0]
Brightness Mode
DynamicBlack
Eco.
Constant Power
(Power = 100%/ 95%/ 90%/ 85%/
80%/ 75%/ 70%/ 65%/ 60%/ 55%/
50%)
Constant Luminance
(Power =85%/80%/75%/70%)
Reset
Enhanced
Gaming
O [Default]
On
3D
3D Mode
O
On [Default]
3D Tech
DLP-Link [Default]
3D Sync
3D
2D
3D [Default]
L
R
3D Format
Auto [Default]
SBS
Top and Bottom
Frame Sequential
Frame Packing
3D Sync Invert
On
O [Default]
Reset
Cancel
Yes
Aspect Ratio
4:3
16:9
LBX
Native
Auto
Edge Mask 0 ~ 10 [Default: 0]
Digital Zoom -5 ~ 25 [Default: 0]
Image Shift
H
-100 ~ 100 [Default: 0]
V
-100 ~ 100 [Default: 0]
Geometric
Correction
Four Corners
H Keystone
LT:-30 ~ 30 ST:-15~15
[Default: 0]
V Keystone
LT:-30 ~ 30 ST:-15~15
[Default: 0]
Auto Keystone
O
On [Default]
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Audio
Mute
O [Default]
On
Volume 0 ~ 10 [Default: 5]
Audio Input
HDMI1
Default [Default]
Audio 1
Audio 2
Mic
HDMI2
Default [Default]
Audio 1
Audio 2
Mic
VGA
Audio 1 [Default]
Audio 2
Mic
Video
Audio 1
Audio 2 [Default]
Mic
Setup
Projection
Front [Default]
Rear
Ceiling-top
Rear-top
Power Settings
Direct Power On
O [Default]
On
Signal Power On
O [Default]
On
Auto Power O
(min.)
0 ~ 180 (5 min increments)
[Default: 20]
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
[Default: 0]
Always On
No [Default]
Yes
Power Mode
(Standby)
Active
Eco [Default]
USB Power
(Standby)
O [Default]
On
Security
Security
O
On
Security Timer
Month
Day
Hour
Change
Password
[Default: 1234]
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup

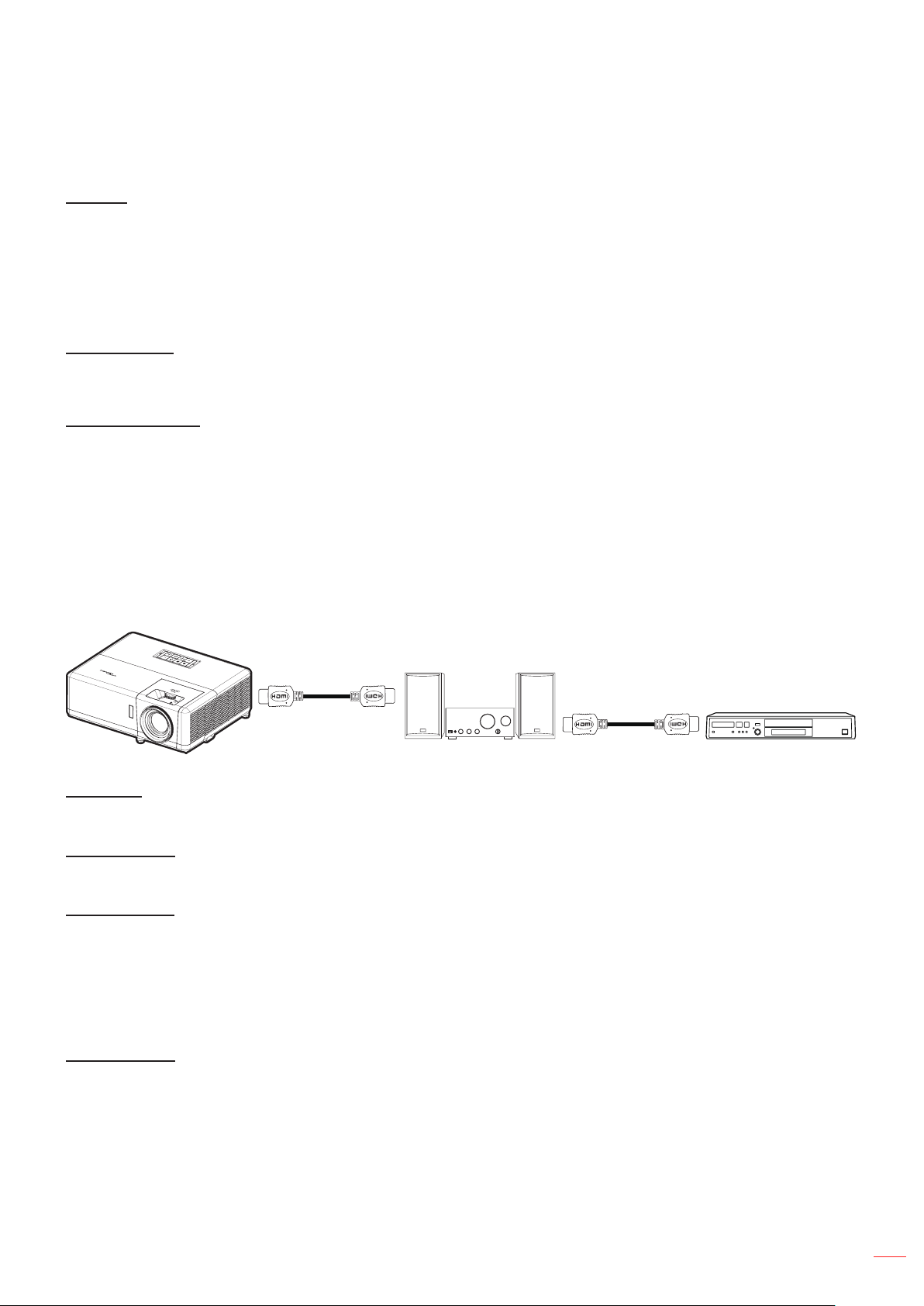

HDMI Link
Settings
HDMI Link
O
[Default]
On
Inclusive of TV
No
[Default]
Yes
Power On Link
Mutual
[Default]
PJ → Device
Device → PJ
Power O Link
O
[Default]
On
Test Pattern
Green Grid
Magenta Grid
White Grid
White
O
Remote
Settings
[depends on
remote]
IR Function
On
[Default]
O
F1
Test Pattern
Brightness
Contrast
Sleep Timer
Color Matching
Color Temp
Gamma
Projection
F2
Test Pattern
Brightness
Contrast
Sleep Timer
Color Matching
Color Temp
Gamma
Projection
F3
Test Pattern [Default]
Brightness
Contrast
Sleep Timer
Color Matching
Color Temp
Gamma
Projection
12V Trigger
O
On
English
29
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup Options
Language
English [Default]
Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk/Dansk
Suomi
ελληνικά
繁體中文
簡体中文
日本語
한국어
Русский
Magyar
Čeština
ไทย
Türkçe
Tiếng Việt
Bahasa Indonesia
Română
Slovenčina
Closed
Captioning
CC1
CC2
O
[Default]
Menu Settings
Menu Location
Top left
Top right
Center [Default]
Bottom left
Bottom right
Menu Timer
O
5sec
10sec [Default]
Auto Source
O [Default]
On
English
30
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options
Input Source
HDMI1
HDMI2
VGA
Video
Input Name
HDMI1
Default [Default]
Custom
HDMI2
Default [Default]
Custom
VGA
Default [Default]
Custom
Video
Default [Default]
Custom
High Altitude
O [Default]
On
Display Mode
Lock
O [Default]
On
Keypad Lock
O [Default]
On
Information Hide
O [Default]
On
Logo
Default [Default]
Neutral
User
Background
Color
None
Blue [Default]
Red
Green
Gray
Logo
Reset
Reset OSD
Cancel [Default]
Yes
Reset to Default
Cancel [Default]
Yes
Auto upgrade
FW
O [Default]
On
English
31
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Network
LAN
Network Status (read only)
MAC Address (read only)
DHCP
O [Default]
On
IP Address 192.168.0.100 [Default]
Subnet Mask 255.255.255.0 [Default]
Gateway 192.168.0.254 [Default]
DNS 192.168.0.51 [Default]
Reset
Control
Crestron
O
On [Default]
Note: Port 41794
Extron
O
On [Default]
Note: Port 2023
PJ Link
O
On [Default]
Note: Port 4352
AMX Device
Discovery
O
On [Default]
Note: Port 9131
Telnet
O
On [Default]
Note: Port 23
HTTP
O
On [Default]
Note: Port 80
Info
Regulatory
Serial Number
Source
Resolution 00x00
Refresh Rate 0.00Hz
Display Mode
Power Mode
(Standby)
Light Source
Hours
0 hr
Network Status
IP Address
Projector ID 00~99
Brightness
Mode
FW Version
System
LAN
MCU
English
32
USING THE PROJECTOR
Display menu
Display image settings menu
Display Mode
There are several predened display modes that you can choose from to suit your viewing preference. Each mode
has been ne-tuned by our expert colour team to ensure superior colour performance for wide range of content.
Presentation: This mode is suitable for most presenting needs for business and education
environments.
Bright: This mode is suitable for environments where extra-high brightness is required, such as using
the projector in well-lit rooms.
HDR / HLG: Decodes and displays High Dynamic Range (HDR) / Hybrid Log Gamma (HLG) content
for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut.
This mode will be automatically enabled if HDR/HLG is set to Auto (and HDR/HLG Content is sent
to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR/HLG Games, 4K UHD Streaming Video). While
HDR/HLG mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as
HDR/HLG delivers color that is highly accurate, exceeding the color performance of the other display
modes.
Cinema: Provides the best balance of detail and colors for watching movies.
Game: Optimises your projector for maximum contrast and vivid colours allowing you to see shadow
detail when playing video games.
Reference: This mode reproduces colours as close as possible the image the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all congured to
Rec.709 color gamut. Select this mode for the most accurate colour reproduction when watching
movies.
DICOM SIM.: This mode has been created for viewing greyscale images, perfect for viewing X-rays
and scans during medical training*.
Note: *This projector is not suitable for use in medical diagnosis.
User: Memorizes user dened setting, tailor your own display mode settings.
3D: Optimized settings for watching 3D content.
Note: To experience the 3D eect, you will need to have compatible DLP Link 3D glasses. See 3D
section for more information.
Wall Color
Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode has
been ne-tuned by our expert colour team to ensure superior color performance.
There are several predened modes that you can choose from to suit the colour of your wall. Select between o,
blackboard, light yellow, light green, light blue, pink, and gray.
Note: For accurate color reproduction, we recommend using a screen.
English
33
USING THE PROJECTOR
Dynamic Range
Congure the High Dynamic Range (HDR) / Hybrid Log Gamma(HLG) setting and its eect when displaying
videofrom 4K Blu-ray players and streaming devices.
Note: Only HDMI supports the Dynamic Range function.
HDR / HLG
O: Turn o HDR/HLG Processing. When set to O, the projector will NOT decode HDR/HLG content.
Auto: Auto detect HDR/HLG signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of dierence between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4 / 2.6: For specic PC / Photo source.
Note:
These options are only available if the 3D mode function is disabled, the Wall Color setting is not set
to Blackboard, and the Display Mode setting is not set to DICOM SIM. or HDR.
In 3D mode, user can only select 3D for Gamma setting.
If the Wall Color setting is set to Blackboard, user can only select Blackboard for Gamma setting.
If the Display Mode setting is set to HDR, user can only select HDR for Gamma setting.
If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma
setting.
English
34
USING THE PROJECTOR
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.
Color Matching: Select the following options:
± Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image.
± Hue / R(red)*: Adjust the color balance of red and green.
Note: *If the Color setting is set to White, you can adjust the red color setting.
± Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.
Note: *If the Color setting is set to White, you can adjust the green color setting.
± Gain / B(blue)*: Adjust the image brightness.
Note: *If the Color setting is set to White, you can adjust the blue color setting.
± Reset: Return the factory default settings for color matching.
± Exit: Exit the “Color Matching” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: Auto,
RGB, or YUV.
Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
White Level: Allow user to adjust White Level when inputting Video signals.
Note: White level can only be adjusted for Video/S-Video input sources.
Black Level: Allow user to adjust Black Level when inputting Video signals.
Note: Black level can only be adjusted for Video/S-Video input sources.
IRE: Allow user to adjust IRE value when inputting Video signals.
Note:
IRE is only available with NTSC video format.
IRE can only be adjusted for Video/S-Video input sources.
Signal
Adjust the signal options.
Automatic: Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
Frequency: Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.
Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.
H. Position: Adjust the horizontal positioning of the image.
V. Position: Adjust the vertical positioning of the image.
Note: This menu is only available if the input source is RGB/Component.
English
35
USING THE PROJECTOR
Brightness Mode
Adjust the brightness mode settings.
DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast
performance.
Eco.: Choose “Eco.” to dim the projector laser diode which will lower power consumption and extend
the laser diode life.
Constant Power: Choose the power percentage for brightness mode.
Constant Luminance: Constant Luminance varies the strength of LD luminance such that the
brightness maintains consistent with time.
Reset
Return the factory default settings for color settings.
Display enhanced gaming menu
Enhanced Gaming
Enable this feature to reduce response times (input latency) during gaming to 8.2ms (1080p@120Hz). All geometry
settings (example: Keystone, Four Corners) will be disabled when Enhanced Gaming Mode is enabled. For more
information is below.
Note:
The input lag by signals is described in the following table:
The values in the table can vary slightly.
Source Timing
(HDMI1)
Enhanced
Gaming
Output Output Resolution Input Lag
1080p60 On 1080p60Hz 1080p 16.2ms
1080p120 On 1080p120Hz 1080p 8.2ms
4K60 On 1080p60Hz 1080p 16.8ms
1080p60 O 1080p60Hz 1080p 49.5ms
1080p120 O 1080p120Hz 1080p 24.8ms
4K60 O 1080p60Hz 1080p 49.9ms
Source Timing
(HDMI2)
Enhanced
Gaming
Output Output Resolution Input Lag
1080p60 On 1080p60Hz 1080p 16.2ms
1080p120 On 1080p120Hz 1080p 8.2ms
1080p60 O 1080p60Hz 1080p 49.5ms
1080p120 O 1080p120Hz 1080p 24.8ms
Please note that if “Enhanced Gaming” mode is enabled, the 3D, Aspect Ratio, Edge Mask, Digital
Zoom, Image Shift, and Geometric Correction functions are disabled automatically. These functions
and settings will be restored when “Enhanced Gaming Mode” is disabled.
English
36
USING THE PROJECTOR
Display 3D menu
Note:
This projector is a 3D ready projector with DLP-Link 3D solution.
Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
This projector supports frame sequential (page-ip) 3D via HDMI1/HDMI2/VGA ports.
To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.
To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K
(3840x2160) resolution is not supported in 3D mode.
3D Mode
Use this option to disable or enable the 3D function.
O:
Select “O” to turn o 3D mode.
On: Select “On” to turn on 3D mode.
3D Tech
Use this option to select 3D technology.
DLP-Link: Select to use optimized settings for DLP 3D Glasses.
3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.
3D → 2D
Use this option to specify how the 3D content should appear on the screen.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
3D Format
Use this option to select the appropriate 3D format content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential” format.
Frame Packing: Display 3D signal in “Frame Packing” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Reset
Return the factory default setting for 3D settings.
Cancel: Select to cancel Reset.
Yes: Select to return the factory default settings for 3D.
English
37
USING THE PROJECTOR
Display aspect ratio menu
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
4:3:
This format is for 4:3 input sources.
16:9:
This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
LBX:
This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Native:
This format displays the original image without any scaling.
Auto: Automatically selects the appropriate display format.
Note: Detailed informations about LBX mode:
Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not
look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view
the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this
type of content, you can use LBX mode to ll the image on the 16:9 display.
If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content
(include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is enhanced for 16x9
Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical
resolution are fully utilized.
1080p scaling table:
16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
Native mode - 1:1 mapping centered.
- No scaling will be made; the image is displayed with the resolution based on input source.
1080p auto mapping rule:
Auto
Input resolution Auto/Scale
H-resolution V-resolution 1920 1080
4:3
640 480 1440 1080
800 600 1440 1080
1024 768 1440 1080
1280 1024 1440 1080
1400 1050 1440 1080
1600 1200 1440 1080
Wide Laptop
1280 720 1920 1080
1280 768 1800 1080
1280 800 1728 1080
SDTV
720 576 1350 1080
720 480 1620 1080
HDTV
1280 720 1920 1080
1920 1080 1920 1080
English
38
USING THE PROJECTOR
Display edge mask menu
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Display digital zoom menu
Digital Zoom
Use to reduce or magnify an image on the projection screen. Digital Zoom is not the same as optical zoom and an
result in degradation of image quality.
Note: Zoom settings are retained on power cycle of the projector.
Display image shift menu
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
Display geometric correction menu
Four Corners
This setting allows the projected image to be adjusted from each corner to make a square image when the
projection surface is not level.
Note: While adjusting the Four Corners, the Digital Zoom, Aspect Ratio, and Image Shift menus are disabled. To
enable Digital Zoom, Aspect Ratio, and Image Shift, reset the Four Corners settings to the factory defaults.
H Keystone
Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned
image shape in which the left and right borders of the image are unequal in length. This is intended for use with
horizontally on-axis applications.
V Keystone
Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned
image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with
vertically on-axis applications.
Auto Keystone
Correct keystone digitally to t the projected image on the area on which you are projecting.
Note:
The image size will reduce slightly when adjusting the horizontal and vertical keystone.
When the Auto Keystone is used, the Four Corner Adjustment function will be disabled.
English
39
USING THE PROJECTOR
Audio menu
Audio mute menu
Mute
Use this option to temporarily turn o the sound.
On: Choose “On” to turn mute on.
O: Choose “O” to turn mute o.
Note: “Mute” function aects both internal and external speaker volume.
Audio volume menu
Volume
Adjust the volume level.
Audio audio input menu
Audio Input
Select the audio input port for the video sources as follows:
HDMI1: Default, Audio 1, Audio 2, or Mic.
HDMI2: Default, Audio 1, Audio 2, or Mic.
VGA: Audio 1, Audio 2, or Mic.
Video: Audio 1, Audio 2, or Mic.
English
40
USING THE PROJECTOR
Setup menu
Setup projection menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.
Note:
If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby
mode will be over 3W.
This function is applicable with VGA and HDMI sources.
Auto Power O (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power o when the countdown has nished (in minutes).
Sleep Timer (min.)
Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power o when the countdown has
nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered o.
Always On: Check to set the sleep timer always on.
Power Mode (Standby)
Set the power mode setting.
Active: Choose “Active” to return to normal standby.
Eco: Choose “Eco.” to save power dissipation further < 0.5W.
USB Power (Standby)
Enable or disable the USB power function when the projector is in standby mode.
English
41
USING THE PROJECTOR
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
On: Choose “On” to use security verication when the turning on the projector.
O: Choose “O” to be able to switch on the projector without password verication.
Note: The default password is 1234.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Setup HDMI link settings menu
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power o status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI Link
Enable/disable the HDMI Link function.
Inclusive of TV
If the settings is set to “Yes” then the power on and power o link options are available.
Power On Link
CEC power on command.
Mutual: Both projector and CEC device will be turned on simultaneously.
PJ
Device: The CEC device will be turned on only after the projector is switched on.
Device
PJ: The projector will be switched on only after the CEC device is turned on.
Power O Link
Enable this function to let both HDMI Link and projector to be automatically turned o at the same time.
English
42
USING THE PROJECTOR
Setup test pattern menu
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o).
Setup remote settings menu
IR Function
Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from the top and front IR
receivers.
O: Choose “O”, the projector can’t be operated by the remote control. By selecting “O”, you will be
able to use the Keypad keys.
F1/F2/F3
Assign the default function for F1, F2, or F3 between Test Pattern, Brightness, Contrast, Sleep Timer, Color
Matching, Color Temp, Gamma, or Projection.
Setup projector ID menu
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232
command.
Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website.
Setup 12V trigger menu
12V Trigger
Use this function to enable or disable the trigger.
Reserved
IR_IN & detect
GND
O: Choose “O” to disable the trigger.
On: Choose “On” to enable the trigger.
English
43
USING THE PROJECTOR
Setup options menu
Language
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch,
Swedish, Norwegian, Danish, Finnish, Greek, Traditional Chinese, Simplied Chinese, Japanese, Korean, Russian,
Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.
Closed Captioning
Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input
signal contains closed captions, you can turn on the feature and watch the channels. The available options include
“O”, “CC1”, and “CC2”.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
Choose this option to let the projector automatically nd an available input source.
Input Source
Select the input source between HDMI1, HDMI2, VGA, and Video.
Input Name
Use to rename the input function for easier identication. The available options include HDMI1, HDMI2, VGA, and
Video.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Display Mode Lock
Choose “On” or “O” to lock or unlock adjusting display mode settings.
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “O”, you will be able to reuse the Keypad.
Information Hide
Enable this function to hide the information message.
O: Choose “O” to show the “searching” message.
On: Choose “On” to hide the info message.
Logo
Use this function to set the desired startup screen. If changes are made, they will take eect the next time the
projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
User: Logo capture tool required.
Note: Please visit the website to download the logo capture tool.
The supported le format: png/bmp/jpg.
English
44
USING THE PROJECTOR
Background Color
Use this function to display a blue, red, green, gray color, none, or logo screen when no signal is available.
Note: If the background color is set to “None”, then the background color is black.
Setup reset OSD menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset to Default
Return the factory default settings for all settings.
Setup auto upgrade FW menu
Auto upgrade FW
Automatically upgrade the projector rmware.
English
45
USING THE PROJECTOR
Network menu
Network LAN menu
Network Status
Display the network connection status (read-only).
MAC Address
Display the MAC address (read-only).
DHCP
Use this option to enable or disable the DHCP function.
O: To assign IP, subnet mask, gateway, and DNS conguration manually.
On: Projector will obtain an IP address automatically from your network.
Note: Exiting OSD will automatically apply the entered values.
IP Address
Display the IP address.
Subnet Mask
Display subnet mask number.
Gateway
Display the default gateway of the network connected to the projector.
DNS
Display the DNS number.

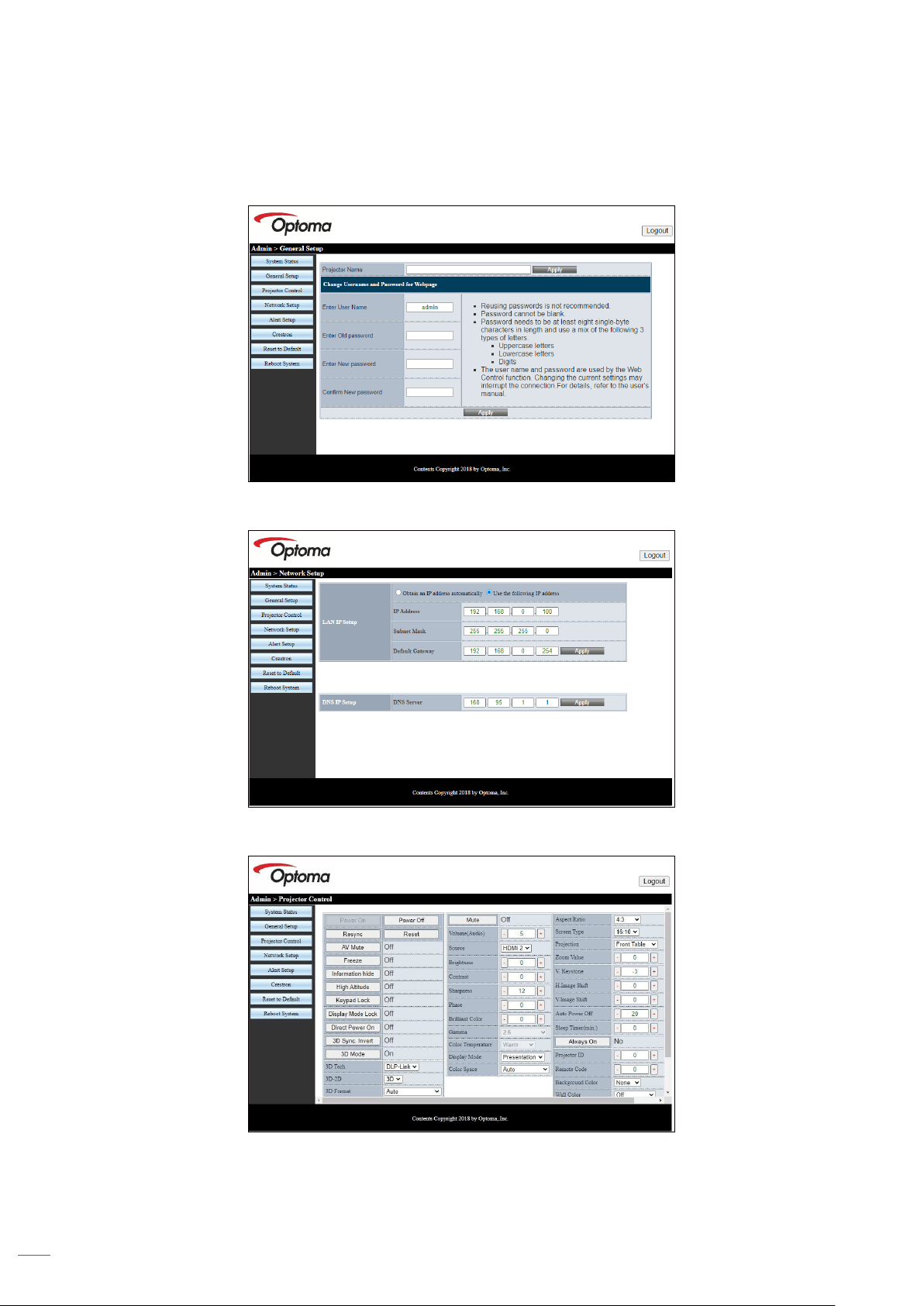

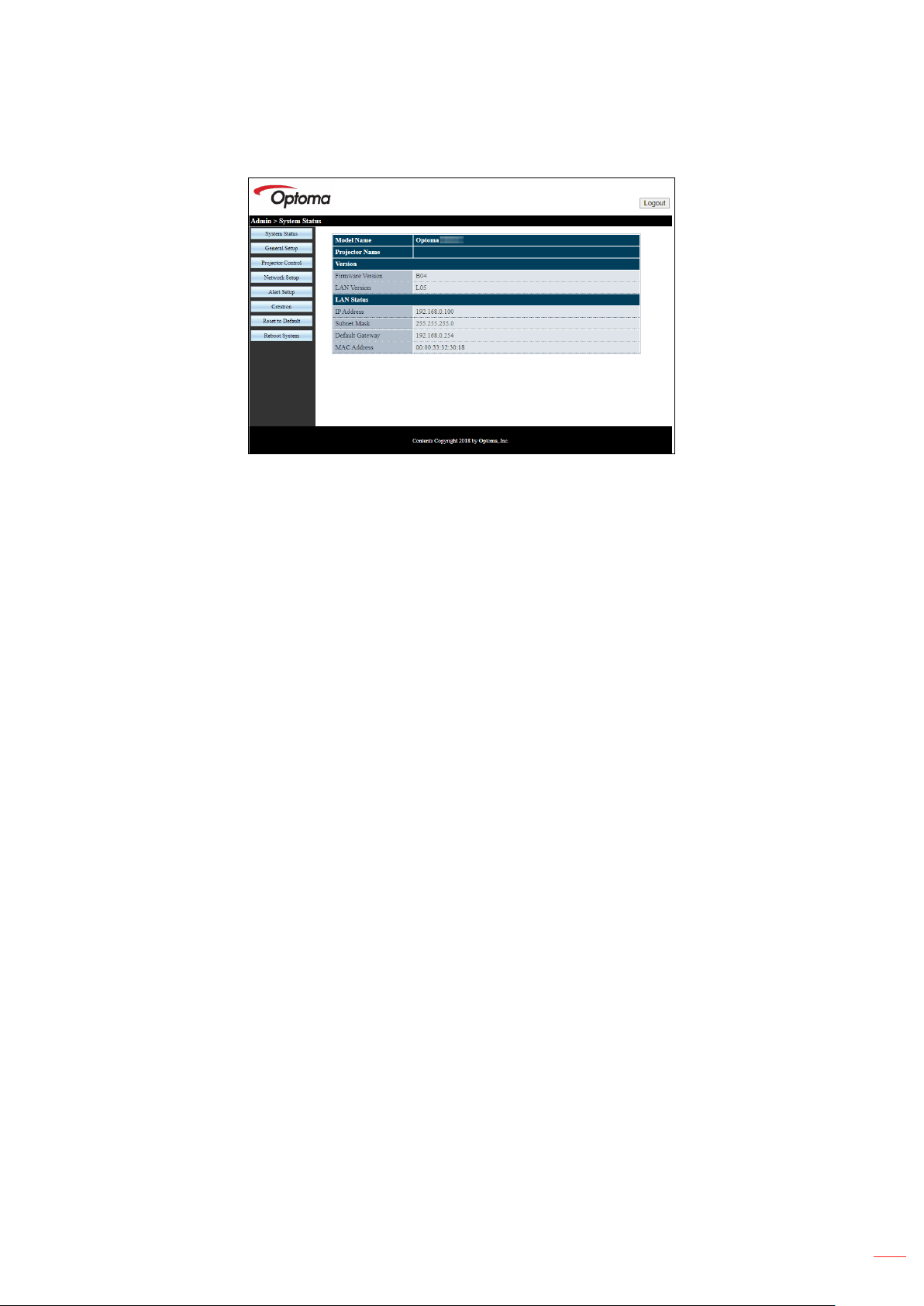

How to use web browser to control your projector
1. Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector’s IP address (“Network > LAN > IP
Address”).
3. Enter the user name and password, and click “Login”.
The projector’s conguration web interface opens.
Note:
The default user name and password is “admin”.
The steps in this section is based on Windows 7 operating system.
Upon rst accessing the admin webpage, you MUST change the default admin password.
English
46
USING THE PROJECTOR

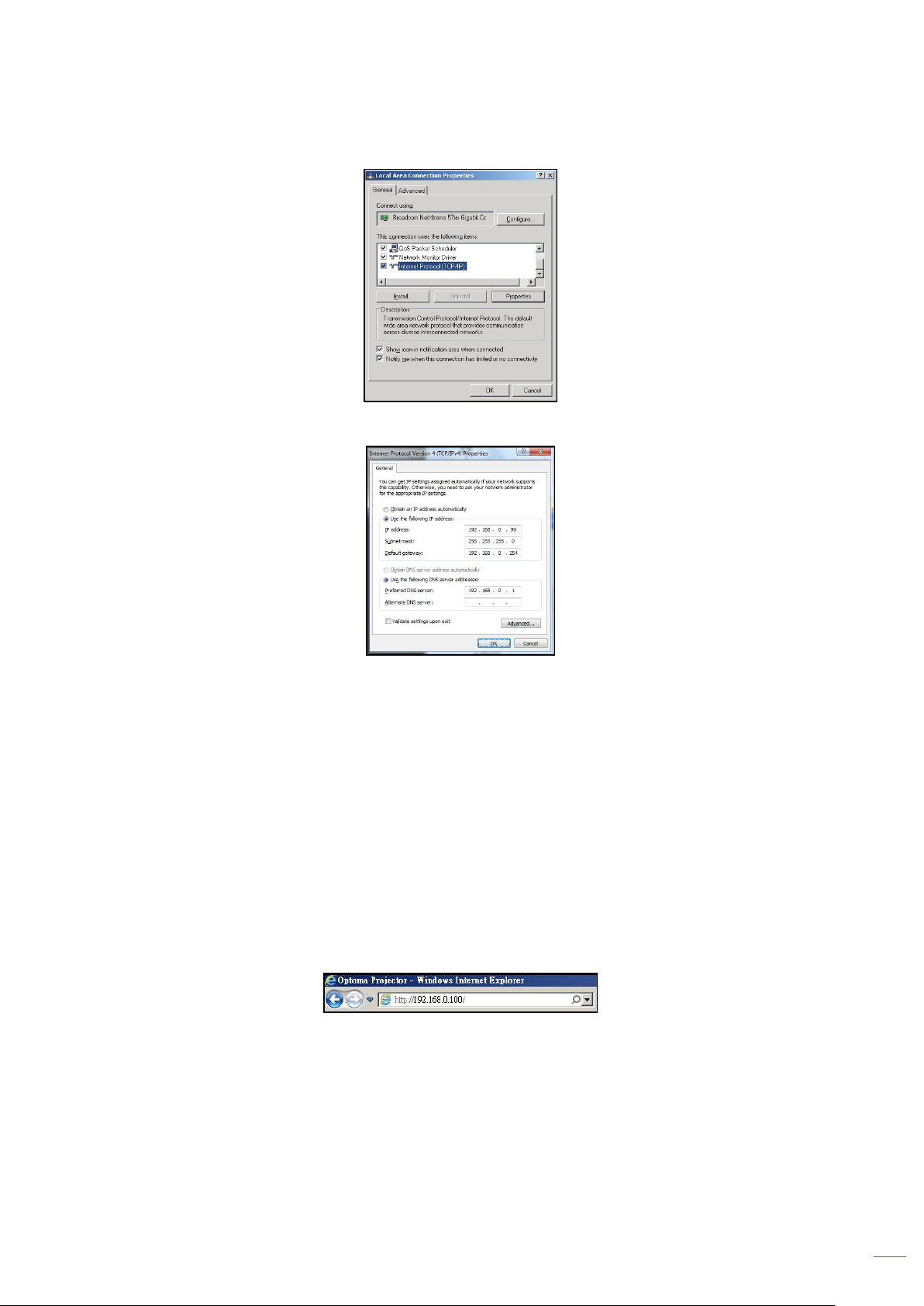

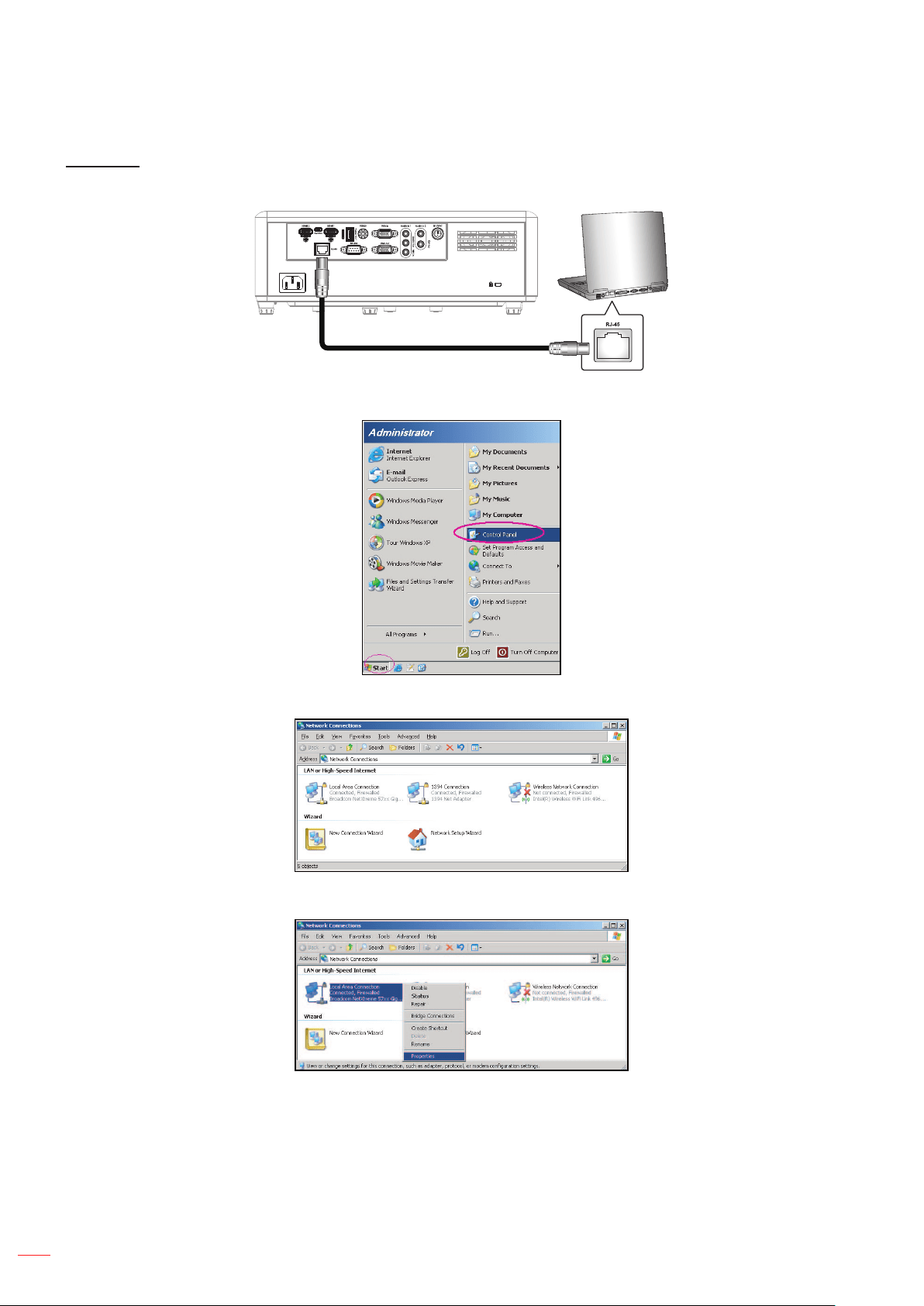

Making a direct connection from your computer to the projector*
1. Turn “O” the DHCP option on the projector.
2. Congure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”).
3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to
your PC as set on projector. Click “OK” to save the parameters.
4. Open the web browser on your PC and type in to the URL eld the IP address, assigned in step 3.
Then press “Enter” key.
Reset
Reset all values for LAN parameters.
Network control menu
Crestron
Use this function to select the network function (port: 41794).
For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.
Extron
Use this function to select the network function (port: 2023).
PJ Link
Use this function to select the network function (port: 4352).
AMX Device Discovery
Use this function to select the network function (port: 9131).
Telnet
Use this function to select the network function (port: 23).
HTTP
Use this function to select the network function (port: 80).
English
47
USING THE PROJECTOR
Setup network control settings menu

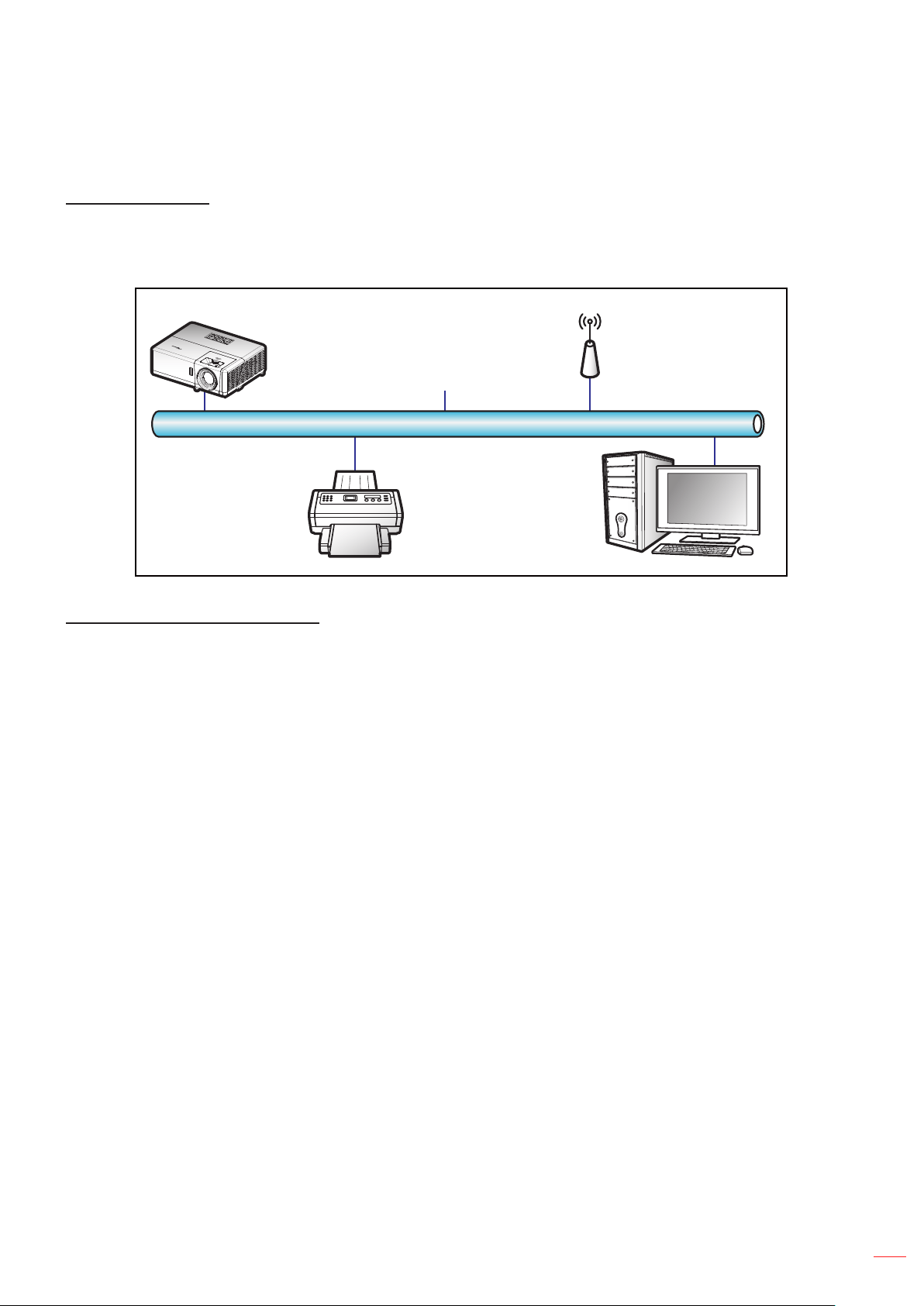

LAN_RJ45 function
For simplicity and ease of operation, the projector provides diverse networking and remote management features.
The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / O, brightness,
and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.
(Ethernet)
Projector
Wired LAN terminal functionalities
This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible
with Crestron / Extron / AMX (Device -Discovery) / PJLink.
Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
Extron is a registered trademark of Extron Electronics, Inc. of the United States.
AMX is a registered trademark of AMX LLC of the United States.
PJLink applied for trademark and logo registration in Japan, the United States of America, and other
countries by JBMIA.
The projector is supported by the specied commands of the Crestron Electronics controller and related software,
for example RoomView®.
http://www.crestron.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detailed information about the various types of external devices which can be connected to the LAN /
RJ45 port and remote control the projector, as well as the supported commands for these external devices, please
contact the Support-Service directly.
English
48
USING THE PROJECTOR
LAN RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).
2. On the PC (Laptop), select Start > Control Panel > Network Connections.
3. Right-click on the Local Area Connection, and select Property.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
English
49
USING THE PROJECTOR
5. Click “Properties”.
6. Type in the IP address and Subnet mask, then press “OK”.
7. Press the “Menu” button on the projector.
8. Open on projector Network > LAN.
9. Enter the following connection parameters:
± DHCP: O
± IP Address: 192.168.0.100
± Subnet Mask: 255.255.255.0
± Gateway: 192.168.0.254
± DNS: 192.168.0.51
10. Press “Enter” to conrm settings.
11. Open a web browser, for example Microsoft Internet Explorer or Google Chrome.
12. In the Address bar, input the projector’s IP address: 192.168.0.100.
13. Press “Enter”.
English
50
USING THE PROJECTOR
The projector is setup for remote management. The LAN / RJ45 function displays as follows:
General Setup
Network Setup
Projector Control
English
51
USING THE PROJECTOR
System Status
English
52
USING THE PROJECTOR
RS232 by Telnet Function
There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45
interface.
Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website.
Quick Start-Guide for “RS232 by Telnet”
Check and get the IP address on OSD of the projector.
Make sure that the PC / laptop can access the web-page of the projector.
Make sure that “Windows Firewall” setting is set disabled in case of “TELNET” function ltering out by
PC / laptop.
1. Select Start > All Programs.> Accessories > Command Prompt.
2. Input the command format as follows:
± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
± (ttt.xxx.yyy.zzz: IP-Address of the projector)
3. If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the
RS232 command will be workable.
Specication for “RS232 by TELNET”:
1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows “TELNET.exe” (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close
5. Windows Telnet utility directly after TELNET connection ready.
± Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for
Telnet-Control application.
± Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for
Telnet-Control.
± Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).
English
53
USING THE PROJECTOR
Info menu
Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Power Mode (Standby)
Light Source Hours
Network Status
IP Address
Projector ID
Brightness Mode
FW Version
English
54
MAINTENANCE
Installing and cleaning the dust lter
Installing the dust lter
2
1
Note:
Dust lters are only supplied with some models in select region with excessive dust.
Not available in North America or Europe.
You may be available to purchase this in select regions. Please visit our website to see more details
regarding the accessories included.
Cleaning the dust lter
We recommend you to clean the dust lter every three months. Clean it more often if the projector is used in a
dusty environment.
Procedure:
1. Switch o the power to the projector by pressing the
button on the projector keypad or remote
control.
2. Disconnect the power cord.
3. Pull the dust lter compartment downwards to remove it out from the bottom of the projector.
1
4. Carefully remove the air lter. Then clean or replace the dust lter.
2
5. To install the dust lter, reverse the previous steps.
2
1
English
55
ADDITIONAL INFORMATION
Compatible resolutions
Analog
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Detail Timing
720 x 400 @ 70Hz 800 x 600 @ 120Hz 1920 x 1080 @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 1024 x 768 @ 120Hz 1280 x 800 @ 120Hz
640 x 480 @ 66.6(67)Hz 1280 x 800 @ 60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 1280 x 1024 @ 60Hz
640 x 480 @ 75Hz 1280 x 720 @ 60Hz
800 x 600 @ 56Hz 640 x 480 @ 120Hz
800 x 600 @ 60Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
HDMI 1.4
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Video Mode
B1 /
Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 640 x 480p 4:3 @ 60Hz 1920 x 1080 @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480p 4:3 @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 66.6(67)Hz 1280 x 1024 @ 60Hz 720 x 480p 16:9 @ 60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 640 x 480 @ 120Hz 1280 x 720p 16:9 @ 60Hz
640 x 480 @ 75Hz 800 x 600 @ 120Hz 1920 x 1080i 16:9 @ 60Hz
800 x 600 @ 56Hz 1024 x 768 @ 120Hz 720(1440) x 480i 4:3 @ 60Hz
800 x 600 @ 60Hz 1280 x 800 @ 120Hz 720(1440) x 480i 16:9 @ 60Hz
800 x 600 @ 72Hz 1920 x 1200 @ 60Hz 1920 x 1080p 16:9 @ 60Hz
800 x 600 @ 75Hz 720 x 576p 4:3 @ 50Hz
832 x 624 @ 75Hz 720 x 576p 16:9 @ 50Hz
1024 x 768 @ 60Hz 1280 x 720p 16:9 @ 50Hz
1024 x 768 @ 70Hz 1920 x 1080i 16:9 @ 50Hz
1024 x 768 @ 75Hz 720(1440) x 576i 4:3 @ 50Hz
1280 x 1024 @ 75Hz 720(1440) x 576i 16:9 @ 50Hz
1152 x 870 @ 75Hz 1920 x 1080p 16:9 @ 50Hz
1920 x 1080p 16:9 @ 24Hz
1920 x 1080p 16:9 @ 30Hz
3840 x 2160p 16:9 @ 24Hz
3840 x 2160p 16:9 @ 25Hz
3840 x 2160p 16:9 @ 30Hz
4096 x 2160p 256:135 @ 24Hz
4096 x 2160p 256:135 @ 25Hz
4096 x 2160p 256:135 @ 30Hz
English
56
ADDITIONAL INFORMATION
HDMI 2.0
B0 /
Established Timing
B0 /
Standard Timing
B0 /
Detail Timing
B1 /
Video Mode
B1 /
Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 640 x 480p 4:3 @ 60Hz 1920 x 1080 @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480p 4:3 @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 66.6(67)Hz 1280 x 1024 @ 60Hz 720 x 480p 16:9 @ 60Hz
640 x 480 @ 72Hz 640 x 480 @ 120Hz 1280 x 720p 16:9 @ 60Hz
640 x 480 @ 75Hz 800 x 600 @ 120Hz 1920 x 1080i 16:9 @ 60Hz
800 x 600 @ 56Hz 1024 x 768 @ 120Hz 720(1440) x 480i 4:3 @ 60Hz
800 x 600 @ 60Hz 1280 x 800 @ 120Hz 720(1440) x 480i 16:9 @ 60Hz
800 x 600 @ 72Hz 1920 x 1200 @ 60Hz 1920 x 1080p 16:9 @ 60Hz
800 x 600 @ 75Hz 720 x 576p 4:3 @ 50Hz
832 x 624 @ 75Hz 720 x 576p 16:9 @ 50Hz
1024 x 768 @ 60Hz 1280 x 720p 16:9 @ 50Hz
1024 x 768 @ 70Hz 1920 x 1080i 16:9 @ 50Hz
1024 x 768 @ 75Hz 720(1440) x 576i 4:3 @ 50Hz
1280 x 1024 @ 75Hz 720(1440) x 576i 16:9 @ 50Hz
1152 x 870 @ 75Hz 1920 x 1080p 16:9 @ 50Hz
1920 x 1080p 16:9 @ 24Hz
1920 x 1080p 16:9 @ 30Hz
3840 x 2160p 16:9 @ 24Hz
3840 x 2160p 16:9 @ 25Hz
3840 x 2160p 16:9 @ 30Hz
3840 x 2160p 16:9 @ 50Hz
3840 x 2160p 16:9 @ 60Hz
4096 x 2160p 256:135 @ 24Hz
4096 x 2160p 256:135 @ 25Hz
4096 x 2160p 256:135 @ 30Hz
4096 x 2160p 256:135 @ 50Hz
4096 x 2160p 256:135 @ 60Hz
Note: 4K Input and HDMI 2.0 Port – 4K Input feature allows the projector to “accept” 4K and 4K HDR signals,
then output as 1080p HDR, the native resolution of the projector. During a signal sync, 3840x2160 will
be displayed when viewing 4K or 4K HDR content . While the maximum resolution of the projector is
3840x2160, the NATIVE resolution is 1920x1080 (1080p).
English
57
ADDITIONAL INFORMATION
True 3D video compatibility
Input
resolutions
HDMI 1.4a
3D Input
Input timing
1280 x 720P @ 50Hz Top-and-Bottom
1280 x 720P @ 60Hz Top-and-Bottom
1280 x 720P @ 50Hz Frame packing
1280 x 720P @ 60Hz Frame packing
1920 x 1080i @ 50Hz Side-by-Side(Half)
1920 x 1080i @ 60Hz Side-by-Side(Half)
1920 x 1080P @ 24Hz Top-and-Bottom
1920 x 1080P @ 24Hz Frame packing
HDMI 1.3
1920 x 1080i @ 50Hz
Side-by-Side(Half) SBS mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom TAB mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
480i HQFS 3D format is Frame sequential
Note:
If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
Support NVIDIA 3DTV Play if there is no patent fee from Optoma.
1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will
run in 120Hz.
English
58
ADDITIONAL INFORMATION
Image size and projection distance
Diagonal
Length Size
of (16:9)
Screen
Screen Size (W x H) Projection Distance ( D )
Oset (Hd) Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele
(m)
max.
(inch)
max.
(m)
min.
(inch)
min.
20.2 0.45 0.25 17.61 9.9 NA 1.0 NA 3.28 0.04 1.57 0.00 0.00
40 0.89 0.5 34.86 19.6 1.2 2.0 3.94 6.56 0.08 3.15 0.00 0.00
50 1.11 0.62 43.58 24.5 1.6 2.5 5.25 8.20 0.10 3.94 0.00 0.00
60 1.33 0.75 52.29 29.4 1.9 3.0 6.23 9.84 0.12 4.72 0.00 0.00
70 1.55 0.87 61.01 34.3 2.2 3.5 7.22 11.48 0.14 5.51 0.00 0.00
80 1.77 1 69.73 39.2 2.5 4.0 8.20 13.12 0.16 6.30 0.00 0.00
90 1.99 1.12 78.44 44.1 2.8 4.5 9.19 14.76 0.18 7.09 0.00 0.00
100 2.21 1.25 87.16 49 3.1 5.0 10.17 16.40 0.19 7.48 0.00 0.00
120 2.66 1.49 104.59 58.8 3.7 6.0 12.14 19.69 0.24 9.45 0.00 0.00
150 3.32 1.87 130.74 73.5 4.7 7.4 15.42 24.28 0.30 11.81 0.00 0.00
180 3.98 2.24 156.88 88.2 5.6 8.9 18.37 29.20 0.36 14.17 0.00 0.00
200 4.43 2.49 174.32 98.1 6.2 9.9 20.34 32.48 0.40 15.75 0.00 0.00
250 5.53 3.11 217.89 122.6 7.8 NA 25.59 NA 0.50 19.69 0.00 0.00
320.4 7.09 3.99 279.25 157.1 10.0 NA 32.81 NA 0.64 25.20 0.00 0.00
Note: Zoom Ratio: 1.6x
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
59
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
Screw type: M4*0.7P*10mm
Minimum screw length: 10mm
Unit: mm
Lens
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
60
ADDITIONAL INFORMATION

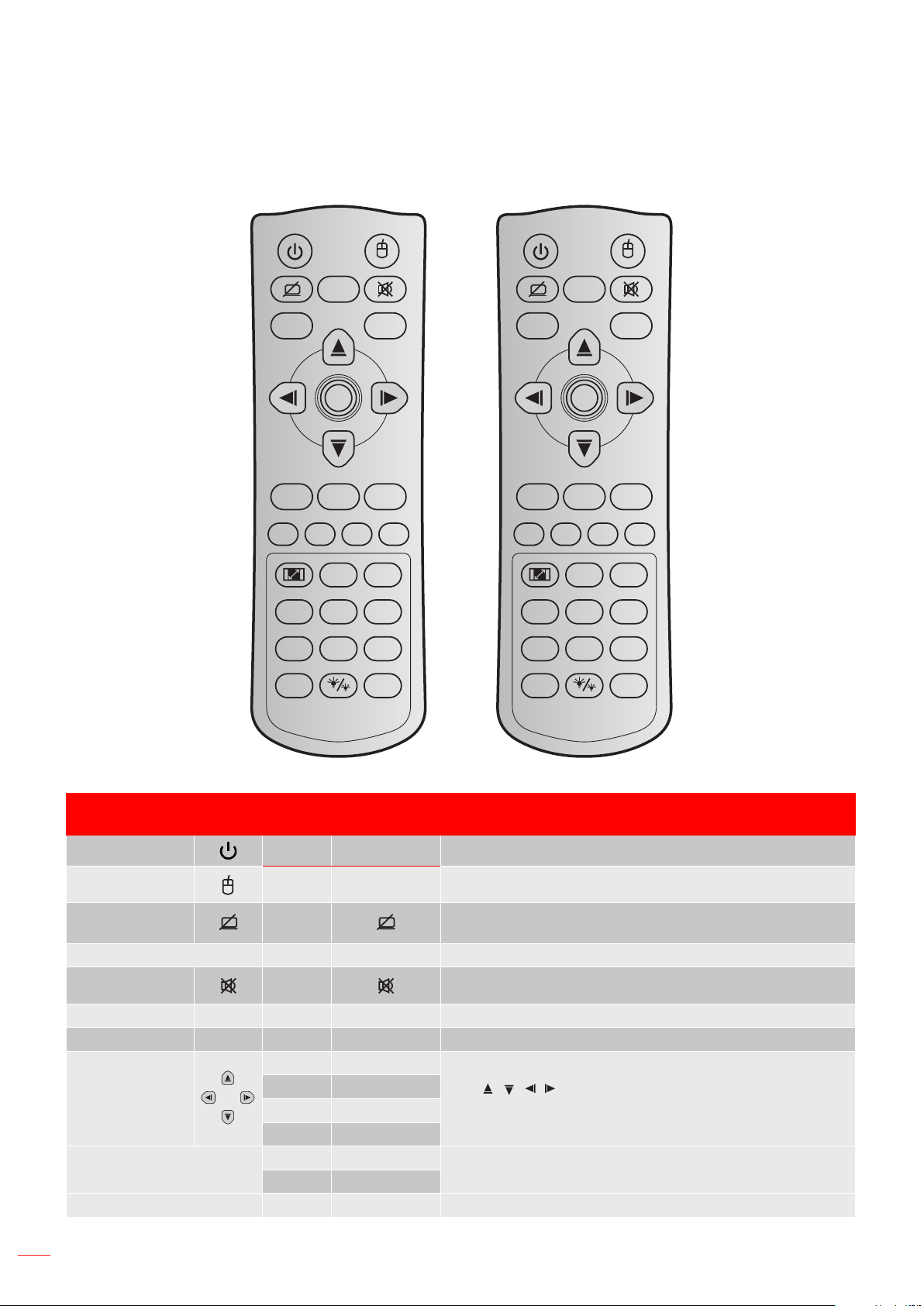

IR remote control 1 codes
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Laser
Enter
Freeze
Power Switch
L
R
Keystone Volume
Page
-
-
+
-
+
1 2
Menu
3
3D
4
HDMI
5
VGA
6
Video
7
User1
8
User2
9
User3
Source
0
Resync
Page+Mode
Enter
Key
Key
code
Printing-key
denition
Description
Power 81 Power on/o Press to turn on / o the projector.
Switch 3E Switch Press to switch the USB mouse on / o.
Display blank /
audio mute
8A
Press to hide / unhide the screen picture and turn o / on
audio.
Freeze 8B Freeze Press to freeze the projector image.
Mute 92 Press to momentarily turn o / on the audio.
Mouse left click L CB L Use as mouse left click.
Mouse right click R CC R Use as mouse right click.
Four directional
select keys
C6 Up arrow
Use to select items or make adjustments to
your selection.
C8 Left arrow
C9 Right arrow
C7 Down arrow
Enter
C5 Enter
Conrm your item selection.
CA Enter
Page - C2 Page- Press to page down.
English
61
ADDITIONAL INFORMATION
Key
Key
code
Printing-key
denition
Description
Laser N/A Laser Use as laser pointer.
Mode 95 Mode Press to switch Display mode on or o.
Page +
C1 Page+ Press to page up.
Keystone
-
+
85 Keystone+
Press to adjust image distortion caused by tilting the
projector.
84 Keystone-
Volume
-
+
8C Volume +
Press to adjust to increase / decrease the volume.
8F Volume -
Aspect ratio / 1 98
/ 1
Press to change aspect ratio of a displayed image.
Use as numeric keypad number "1".
Menu / 2
88 Menu/2
Press to display or exit the on-screen display menus
for projector.
Use as numeric keypad number "2".
3D / 3
93 3D/3
Press to manually select a 3D mode that matches
your 3D content.
Use as numeric keypad number "3".
HDMI / 4
86 HDMI/4
Press to choose HDMI source.
Use as numeric keypad number "4".
VGA / 5
D0 VGA/5
Press to choose VGA source.
Use as numeric keypad number "5".
Video / 6
D1 Video/6 Use as numeric keypad number "6".
User1 / 7; User2 / 8;
User3 / 9
D2 User 1/7
User dened keys. Please see page 42 to setup.
Use as numeric keypad numbers "7", "8", and "9"
accordingly.
D3 User 2/8
D4 User 3/9
Source C3 Source Press to select an input signal.
Brightness
mode / 0
96
/ 0
Press to automatically adjust the picture brightness
to give an optimum contrast performance.
Use as numeric keypad number "0".
Re-sync
C4 Re-Sync
Press to automatically synchronize the projector to the
input source.
English
62
ADDITIONAL INFORMATION

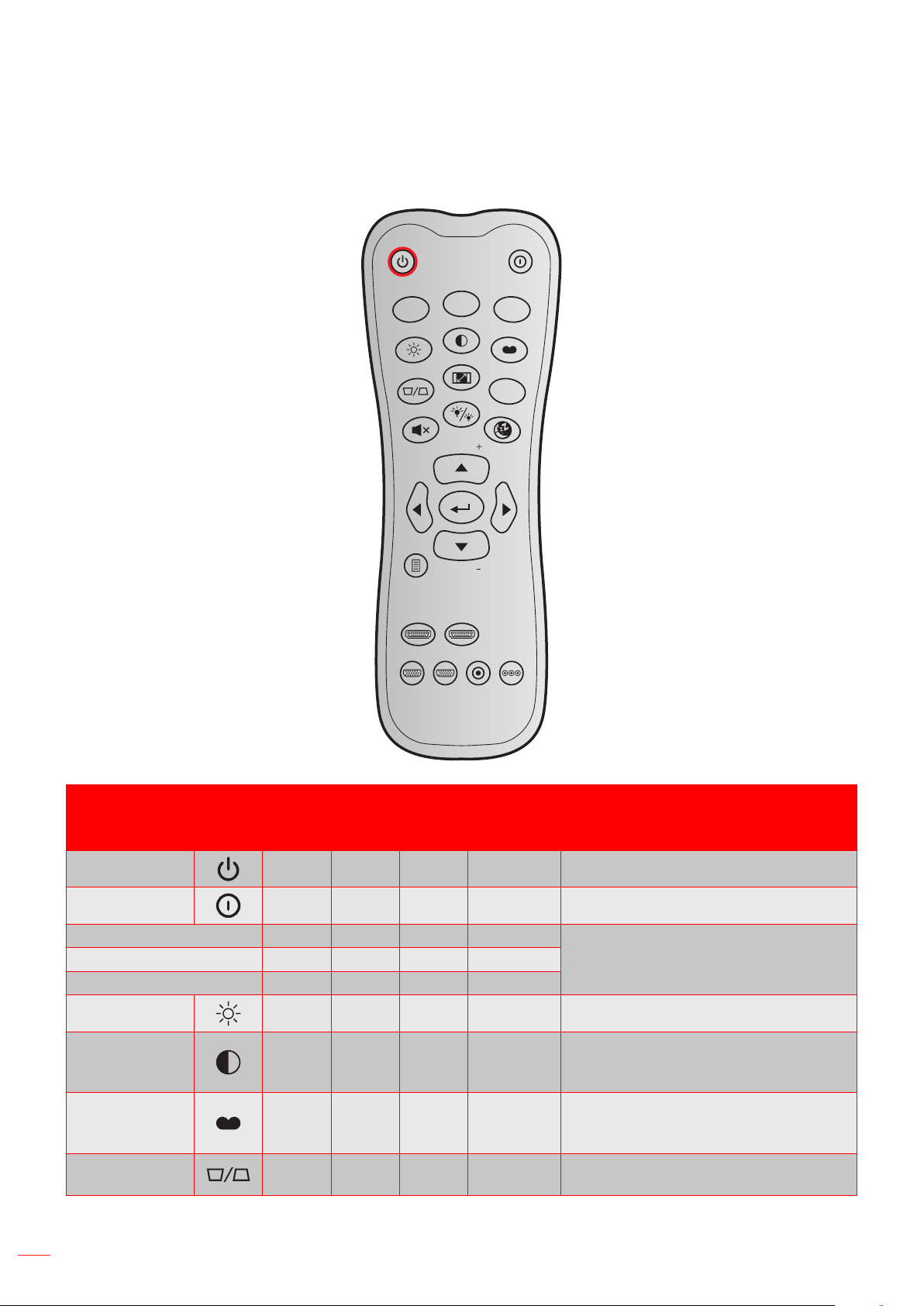

IR remote control 2 codes
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Key
Custom code
Data
code
Printing-
key
denition
Description
Byte 1 Byte 2 Byte 3
Power on 32 CD 02 ON Press to turn on the projector.
Power o 32 CD 2E OFF Press to turn o the projector.
User 1 32 CD 36 User1
User dened keys. Please see page
42 to setup.
User 2 32 CD 65 User2
User 3 32 CD 66 User3
Brightness 32 CD 41 Brightness Adjust the brightness of the image.
Contrast 32 CD 42 Contrast
Control the degree of dierence between
the lightest and darkest parts of the
picture.
Display mode
32 CD 05 Mode
Select a display mode for optimized
settings for dierent applications. Please
see page 32.
Keystone 32 CD 07 Keystone
Adjust image distortion caused by tilting
the projector.
English
63
ADDITIONAL INFORMATION
Key
Custom code
Data
code
Printing-
key
denition
Description
Byte 1 Byte 2 Byte 3
Aspect ratio 32 CD 64
Aspect
ratio
Press to change aspect ratio of a
displayed image.
3D
32 CD 89 3D
Manually select a 3D mode that matches
your 3D content.
Volume +
32 CD 09 Volume + Adjust to increase volume.
Four direction
keys
32 CD 11 ▲
Use ▲, ◄, ►, or ▼ to select items or
make adjustments to your selection.
32 CD 10 ◄
32 CD 12 ►
32 CD 14 ▼
Source
32 CD 18 Source Press “Source” to select an input signal.
Enter key 32 CD 0F Conrm your item selection.
Re-sync
32 CD 04 Re-sync
Automatically synchronizes the projector
to the input source.
Volume -
32 CD 0C Volume - Adjust to decrease volume.
Menu
32 CD 0E Menu
Display or exit the on-screen display
menus for projector.
HDMI 1
32 CD 16 HDMI1
Press “HDMI1” to choose source from
HDMI 1 connector.
HDMI 2
32 CD 30 HDMI2
Press “HDMI2” to choose source from
HDMI 2 connector.
VGA 1
32 CD 1B VGA1
Press “VGA1” to choose source from
VGA In connector.
VGA 2
32 CD 1E VGA2 No function
Video
32 CD 1C Video No function
YPbPr
32 CD 17 YPbPr No function
English
64
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Turn the focus ring clockwise or counterclockwise until the image is sharp and legible. (Please see
page 18).
Make sure the projection screen is between the required distance from the projector. (Please refer to
page
58).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the V-Stretch format DVD title, please change the format as V-Stretch in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
(Please see page 18).
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the dierent settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup → Projection" from the OSD and adjust the projection direction.
English
65
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn o the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±30° to the IR receiver on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
12 m (39.4 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
English
66
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
“Lamp” LED indicator is lit red and if “Power” indicator ashes red.
“Temp” LED indicator is lit red and if “Power” indicator ashes red. This indicates the projector has
overheated. Under normal conditions, the project can be switched back on.
“Temp” LED indicator ashes red and if “Power” indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Power LED Temp LED Lamp LED
(Red)
(Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec o / 0.5 sec
on)
Power on and Lamp lighting Steady light
Power o (Cooling)
Flashing
(0.5 sec o / 0.5
sec on). Back to red
steady light when
cooling fan turns o.
Quick Resume(100 secs)
Flashing
(0.25 sec o / 0.25
sec on)
Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Power o:
Power O
Press power key again.
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
67
ADDITIONAL INFORMATION
Specications
Item Description
Technology Texas Instrument DMD, 0.65”/1080p DMD X1
Native Resolution 1920x1080
Lens
Throw ratio: 1.4~2.24
F-stop: 2.5~3.26
Focal length: 20.911~32.62 mm
Zoom range: 1.6x
Oset 100%~116% ±5%
Image size 20.2”~320.4” (optimized@60’’)
Projection distance 1m to 10m ([email protected])
I/Os
HDMI-1 V2.0 (HDCP2.2)
HDMI-2 V1.4 (HDCP1.4)
VGA In
VGA Out
Video
USB Type-A for Power USB 5V/1.5A
Micro USB (for service)
Audio In 3.5mm (x2)
Audio Out 3.5mm
MIC In
12V Out
3D SYNC
RS232
RJ-45 (support web control)
Colour 1073.4 Million color
Scan rate
Horizontal
scan rate: 15.375~91.146 KHz
Vertical scan rate: 50~85 Hz (120Hz for 3D feature projector)
Speaker 10W x2
Power consumption
Minimum (ECO mode):
220W (typical), 235W(max)@110VAC
197W (typical), 227W(max)@220VAC
Maximum (Bright mode):
230W (typical), 292W(max)@110VAC
245W (typical), 282W(max)@220VAC
Input current 3.2A
Installation orientations
Front, Rear, Ceiling, Rear-top
Dimensions
(W x D x H)
Without feet: 337 x 265 x 108 mm (13.27 x 10.43 x 4.25 inches)
With feet:
337 x 265 x 122.5 mm (13.27 x 10.43 x 4.82 inches)
Weight < 5.0 kg (11.02 lbs)
Environmental
Operating in 5~40°C, 10% to 85% humidity (non-condensing)
Note: All specications are subject to change without notice.
