Experience Our Innovation
Hot Water
CONTENTS
RANGE OVERVIEW
There are many types of hot water
systems available for Australian
homes. Whether relating to safety,
convenience, available space,
environmental needs or ongoing
running costs, Rinnai will have a
system that suits.
04 Range Overview - Hot Water
05 Important Considerations
CONTINUOUS FLOW
06 INFINITY Continuous Flow
08 INFINITY Smartstart®
09 INFINITY Enviro
10 Water Controllers
SOLAR
Solar Hot Water is not only
environmentally responsible
but is now very aordable.

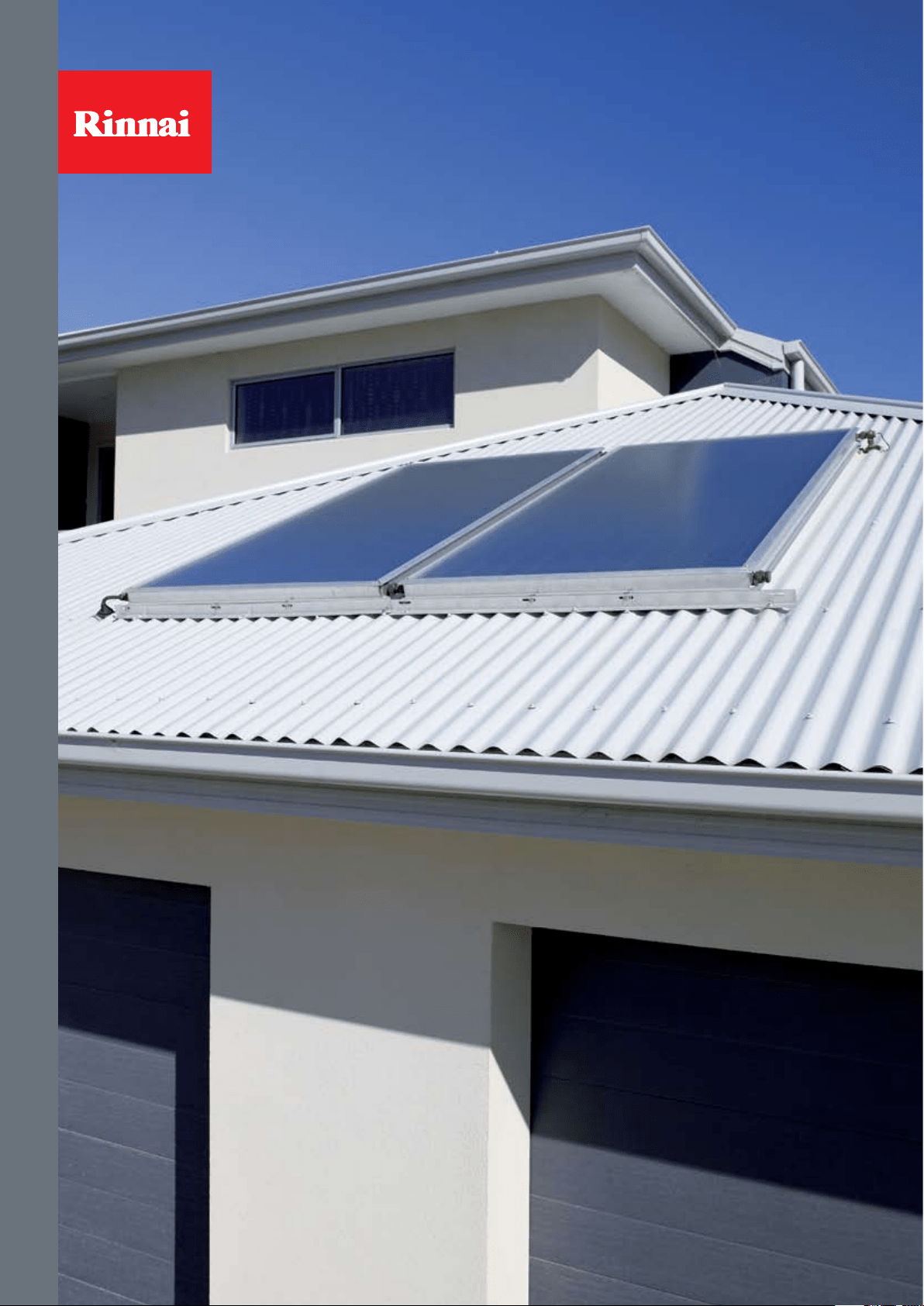

12 Solar Hot Water
14 Range Overview - Solar
15 The Range at a glance
16 Accessories
17 Specications
18 Warranty
19 Additional Rinnai Appliances
For over 35 years Australians have been enjoying the comfort, convenience
and reliability of Rinnai gas appliances. Our innovative products are designed
with the environment in mind, with low emission technology and high
eciencies, as well as a host of other great features.
Rinnai is committed to ongoing innovation - delivering ecient, well
designed and engineered lifestyle solutions oering a host of benets
including versatility, safety, control, water conservation as well as guaranteed
reliability. Backed with extensive warranty’s and after sales service teams,
Rinnai is proud to be the No.1 choice for Continuous Flow Hot water in
Australia. In addition, our innovative range of Solar Hot Water Systems boast
market leading eciencies that ultimately enjoy higher Government rebates.
Through innovation, we will endeavour to continue oering superior ranges
of home appliances that provide a clear insight into what the future holds for
Australian homes.
The Environment
Gas is one of the most greenhouse friendly fuel sources available. By choosing
a Rinnai Gas Hot Water System or Gas Boosted Solar System you can make a
dierence. Even Electric Boosted Solar hot water has substantial benets and
assists with the reduction of our carbon footprint.
Independent tests are used to give Energy Star Ratings to all gas Hot Water Systems
– the more stars the better. The Rinnai Continuous Flow INFINITY ranges are
highly ecient - all tested to 5+ Stars out of a maximum of 6. In addition, our
most ecient INFINITY 26 Enviro model has been awarded the equivalent of 7
Stars! Solar systems are not measured with stars but are awarded Renewable
Energy Certicates (RECs) based on measured environmental savings. Again
Rinnai systems lead the way being amongst the highest in the industry.
Water Wastage
Water conservation is top of mind in almost every city, town & community
in Australia today. Hot water and more specically showering & bathing,
contributes the highest proportion of water used in most households. Gas
Continuous Flow systems such as the popular Rinnai INFINITY have been
designed to minimise wastage with faster start-ups and the ability to operate
at lower ow rates, and are more compatible with water ecient xtures such
as shower roses and basin outlets.
The physical design of the home can also have an inuence over the type of
hot water system best for that application and where it should be installed.
The length of pipe run from the hot water system to any hot water tap
directly inuences how much water is potentially wasted prior to use. Where
possible, have your installer locate your hot water system as close as practical
to the most frequently used hot water tap – most likely the kitchen, but with
consideration to supplying the bathrooms as well.
If using a Continuous Flow System such as the Rinnai INFINITY, their small
compact size allows more exibility that traditional storage cylinders. In
addition, Rinnai have the Smartstart® pre-heat system that pre-heats the
water in the pipes before you turn on the tap, literally saving thousands of
litres of precious water. See page 8 and 16 for further details.
Experience Our Innovation
04
Range Overview - Hot Water
Range Overview - Hot Water
Correct Sizing
Number of occupants
The number of users in any installation is extremely important as it directly aects the size of unit that is required. Nobody likes a
cold shower so it is vital that any system is correctly sized for an application. Please talk to your Rinnai Hot Water Specialist about
the best model to suit your needs.
Below we have outlined some of the considerations for various Rinnai Hot Water Systems:
Gas Continuous Flow – Rinnai INFINITY
• Sizing Parameter – Number of shower outlets operating together
• Will not run out of Hot Water
• Size of the unit selected needs to consider how many showers/outlets may be operating at once
• An undersized unit may restrict the ow rate if multiple outlets are operated at once
Gas Boosted Solar – Rinnai Prestige & Rinnai Sunmaster
• Sizing Parameter – Number of Bedrooms in the home
• The storage Cylinder capacity determines the available solar heated hot water
• Gas booster is always available as a backup, therefore hot water will never run out
• Undersized system could mean the system is relying on the gas booster more often – increasing running costs
• Insucient solar panels would also reduce the solar gain causing reliance on the gas booster
Electric Boosted Solar - Rinnai Prestige & Rinnai Sunmaster
• Sizing Parameter – Number of Bedrooms in the home
• The tank size determines the amount of hot water available regardless of whether solar generated or electric boosted
• Hot water can run out if not correctly sized
• Choice of electricity tari aects availability of re-heated water:
- Normal (Peak) tari continually re-heats
- O-peak will generally not re-heat until overnight
There are many types of hot water systems available for Australian homes. Rinnai hot water systems bring you the latest advanced
technologies that provide you with choices that can meet individual needs. Whether relating to safety, convenience, available
space, environmental needs or ongoing running costs, Rinnai will have a system that suits.
Temperature Controlled Gas Continuous Flow
The Rinnai INFINITY - a unit that only heats the water when you need it. As a tap is turned on, the unit senses the ow and begins
to heat the water instantaneously. Highly ecient and compact, these units can also be temperature controlled for added safety &
convenience. In addition they are literally ‘continuous ow’ and will never run out of hot water – even if you are last in the shower!
Solar Boosted Gas Continuous Flow
These systems are designed to utilise the energy from the sun via Solar Collectors (panels) mounted on the roof. Cold water passes
through pipes and is heated by the sun and returned to a storage cylinder located either on the roof or situated on the ground.
Utilising the same technology as the Rinnai INFINITY, a Continuous Flow gas boost system is incorporated for days that have low
solar gain. Rinnai Gas Boosted Solar Systems are highly ecient with substantial Government rebates applying for most domestic
installations.
Electric Boosted Solar Mains Pressure
Similar to the gas boosted unit, an electric boosted system has an element in the cylinder to provide boosting on lower solar gain
days. Whilst not as ecient as a gas boosted system, they are still an environmentally friendly alternative to a standard electric
storage cylinder. They are often the system of choice where gas is not available. Rinnai Electric Boosted Solar Systems also enjoy
substantial Government rebates applying for most domestic installations.
05
Important Considerations
Kitchen
Appliances
10%
Comparison of Energy use
around the home
Source: Department of Environmental
& Climate Change NSW
Fridge Other
Heating
& Cooling
Hot
Water
12%
18%
23%
37%
Important Considerations
Household Energy Use
Hot Water systems in general are the largest users
of energy in most Australian homes, so it’s important
to consider all the factors before selecting a hot
water system. High eciency, correctly sized hot
water systems can directly lower the running costs
of a family.
The table opposite indicates where energy is
typically used in an average household. Naturally
this varies from State to State and even house to
house, but the common factoris that hot water will
nearly always be the largest consumer of energy.
Greenhouse Gas Emissions
Increased levels of greenhouse gases have been
identied as one of the major contributors to the
problem of global warming, so anything that can
help reduce our carbon footprint, is benecial to
the environment.
When purchasing a new hot water system, many
people simply put in what was there before without
considering the environmental impact of their
decision. The charts clearly shows that if you
make an informed decision and think about the
consequences to the environment, you in fact have
the opportunity to make a dierence. The purchase
and installation of Rinnai hot water systems and in
particular Gas Boosted Solar are a clear a step in the
right direction.
Running Costs
Running Costs for Hot Water vary depending on the
type of system installed (Continuous Flow or Storage
Cylinder) and the fuel used (Electricity, Gas or Solar).
The Table (opposite) gives an indication of the
annual running costs of various common hot
water systems used in Australia. As hot water use
varies between households and climates, this graph
will change accordingly. We have calculated these
gures using a family of four, having one ve minute
shower a day each and using cold water for clothes
washing. It is a comparative guideline only, based
on various government websites.
Running Costs Per Year
O
Peak
Peak NG LPG
NG LPG NG LPG
Peak
Elec
O
Peak
Elec
O
Peak
Peak
$1000
$500
Electric
Storage
Gas
Storage
(5 Star)
Gas
Continuous
Flow
Solar
Heat
Pump
Solar
Gas Boost
0.4
Tonnes of Greenhouse
Gas Per Year
Source: Energy Strategies 2007 yourhome.gov.au
Based on Sydney
Gas 5 Star
Rinnai
INFINITY
1.2
Gas 5 Star
Storage
1.4
Solar
Electric
Boost
1.5
Electric
Storage
4.2
Heat
Pump
1.1
06
Continuous Flow Hot Water
INFINITY 26Plus
Rinnai INFINITY Continuous Flow
the original and still No.1
INFINITY 16
Models
• INFINITY External
16, 20, 26, 26Plus and 32 Litre
• INFINITY Internal (26 Litres only)
• INFINITY 26 Smartstart®
• INFINITY 26 and 32 Enviro
Colours
White - INFINITY 16, 20, 26, 26i,
26 Smartstart and 32
Silver Metallic - INFINTY 26Plus
and Enviro Models
INFINITY 26
INFINITY 26 Internal
More Copy
Rinnai revolutionised the Australian water heating market in the early 90’s when it
launched the rst fully electronic Gas Continuous Flow Hot Water System. Appropriately
named the Rinnai INFINITY because it never ran out of hot water, today systems are even
more sophisticated – designed with the environment in mind with low emission burners,
high eciencies and low ow rates compatible with water saving (WELS) outlets and
showers.
How Continuous Flow Works
The Rinnai INFINITY heats water as it passes through the unit, which means you are only
using energy when you turn the tap on. It is an extremely energy ecient choice as
the water is only heated when required, lowering running costs and greenhouse gas
emissions substantially. Add to this the convenience of precise water and temperature
control with the installation of Water Controllers and it’s compact size, which allows it
to be installed almost anywhere, and you have the most technologically advanced hot
water system available today!
Superior Technology
• Quality Japanese design and manufacturing
• Precise temperature control for safety & convenience
• Compact design allowing installation exibility
• Suitable for higher incoming (ambient) water temperatures
• Compatible with low ow rated shower xtures (3 Star - 7.0 to 9.0 l/min)
• Ability to operate 2 showers at once
• Ability to install up to 4 Water Controllers
(see page 11 for further information)
• The comfort that Antifrost is standard on all external models
• Up to 12 years warranty
The choice is yours…
Rinnai has the largest selection of models to suit both new & existing Australian homes.
Fundamentally there are 3 types of Rinnai INFINITY continuous ow hot water systems,
each with innovative features allowing choice based on your personal preferences:
1. High Eciency Models
- Our base range of models (see below)
2. High Eciency Water Saver Model
- Includes a pre-heat system
to reduce water wastage
(see page 8)
3. Highest Eciency Models
- Lowest running costs and environmental
impact
(see page 9)
High Eciency Models
The Rinnai INFINITY standard models boast a host of fantastic features:
• Proudly Australia’s rst Continuous Flow Hot Water System
• High eciency 5.0+ Star ratings
• Full range of sizes from 16 to 32 litres including an Internal 26 model
• Fully accessorised with multiple installation options (see page 16 for details)
• 10 year warranty on the Heat Exchanger
Rinnai INFINITY 26Plus
• High eciency 5.2 Star rating
• Slimline casing with a stylish silver metallic nish
• Increased maximum ow rate of 30 litres
• Inbuilt Status Monitor (maintenance)
• Increased 12 year warranty on the Heat Exchanger
08
New Product Release - INFINITY Smartstart®
High Eciency Water Saver Model
Rinnai INFINITY 26 Smartstart®
Introducing Australia’s rst dedicated ‘Water Saving’ hot water system. It has
all the great features of the standard Rinnai INFINITY Continuous Flow, with
the addition of a circulating pump to pre-heat the water in the pipes. This
may take a minute or two depending on the size of your home, but will help
you save literally tens of thousands of litres of water over the life of your hot
water system.
• High eciency hot water with an inbuilt hot water circulation system
• Pre-heats the water in the pipes before you turn on the hot tap
• The Smartstart® is an ‘on-demand’ pump system that only operates when
required and automatically shuts o, further saving energy
• It is activated in any room that has a Water Controller installed
• Saves literally thousands of litres of water often ushed down the drain
• 12 year warranty on the Heat Exchanger
For further information on the operation of the Smartstart®, please see page 16
09
New Product Release - INFINITY Enviro
Highest Eciency Models
Rinnai INFINITY Enviro
Introducing the most energy ecient systems on the Australian market - the
Rinnai INFINITY Enviro. Technically they are known as “condensing units”, but
what is important is that they use considerably less gas to produce the same
quantity of hot water as standard systems.
• Australia’s rst
7 Star equivalent Hot Water System – 26 Litre
• Uses less gas, substantially reducing running costs
• Around 1/6th of the Greenhouse Emissions of a standard
electric hot water
• Also available as a 32 Litre –
6.8 Star equivalent
• 12 year warranty on the Heat Exchanger
10
Water Controllers
Deluxe Bathroom Controller
To experience all the benets of Continuous Flow hot water systems, Rinnai strongly
recommend installing Water Controllers with all models. Rinnai’s Controllers enable
you to simply set your desired temperature, turn on the hot tap and enjoy… no more
juggling the hot and cold taps and of course this also saves water.
Temperature Fluctuations
Continuous Flow water heaters like all types of water heaters can experience
temperature uctuations when other taps are turned on. Water controllers avoid this
by maintaining an exact temperature even when other taps are used or a toilet is
ushed.
Safety
The installation of Water Controllers allow you to select the exact temperature you
need, reducing the chance of scalds. Our Deluxe Controllers have the added feature of
an automatic bath ll which stops the water ow at your desired level. This also means
that young children can no longer play with the hot tap because no water will come
from it!
Ease of Use
Simply select the temperature you want and turn on the hot tap. Not only can you
experience total control in the bathroom, but unlike other Continuous Flow hot water
systems, you can have up to four controllers… a controller for the Bathroom, Kitchen,
Ensuite and even the Laundry.
Extended Warranty
Rinnai INFINITY installations with 2 or more Water Controllers receive an extended
parts & labour warranty.
Types of Rinnai Water Controllers
From a functionality point of view, Rinnai have 2 types of Controllers
Universal Controllers
(Both Wireless & Hard-wired versions) with the following functions:
• Precise temperature control
• Room (priority) transfer
• Smartstart® preheat system functions
• Child Lock (Wireless only).
Deluxe Controllers
(Hard-wired only) with all of the functions of the Universal model with addition of:
• Master Controller usually installed in the Kitchen
• Separate Bathroom Controllers
• Automatic Bath ll function
• Shower saver feature – preset your desired litres
• Digital Clock, Speaker & Volume Controls
Wireless vs Hard-wired Controllers
Up to 4 Water Controllers can be installed throughout a home for all Rinnai INFINITY
models in almost combination - Wired, Wireless & Deluxe. It is not always possible
to run wires in all installations so we have introduced both options for the Universal
model catering for dierent situations.
Get the most out of your Rinnai INFINITY with
Water Controllers
Deluxe Bathroom Controller
Deluxe Kitchen Controller
Universal Controller
Wireless Controller
Handy Tip
Wireless Universal Controllers are
the easiest and quickest to install
and are particularly suitable for
retrotting into existing homes
Hard wired Universal Controllers
are usually cheaper to purchase
and wiring can often be run
through the roof and walls by a
handy person
12
Solar Hot Water
Solar water heating aords us a clean, inexhaustible supply of energy that helps to
reduce our dependence on fossil fuels. Rinnai draws from the expertise of over 70
years experience in designing and manufacturing Hot Water Systems. This allows us to
give you a rened range of the most highly ecient quality choices available.
How Solar Systems work
Solar systems are actually very simple in operation. Solar Collectors mounted on the
roof absorb the energy from the sun and heat cooler water that ows through pipes
just beneath the surface. This hot water is then transferred to a storage cylinder ready
for use. As you use the hot water, cold water is pushed back into the cylinder and then
through the Collector for heating.
To ensure that there is always hot water for those days that are cloudy or raining, the
addition of either an electric or gas booster completes the system.
Government Rebates
The Australian Greenhouse Oce awards Renewable Energy Certicates (RECs)
according to how much energy each Rinnai Solar system saves compared with a
conventional electric water heater. The Federal Government legislation states that
RECs are applicable when a solar system is installed in a new home or replaces an
existing hot water system. In addition, substantial Federal & State Government rebates
are often available for installations that upgrade from electric hot water systems to a
solar system.
How much can I get?
For the purposes of RECs assessment, Australia is divided into 4 solar zones as shown
in the map below. The actual number of RECs is dependant on many factors including
the booster type, the solar zone, the system & number of Collectors installed and in a
changeover, the type of system replaced. Rinnai Solar systems are typically awarded
between 20 to 42 RECs. Each REC has a $ value that uctuates according to market
demand, which needs to be checked at the time of purchase. If a REC was valued
at (say) $30, your rebate for Rinnai systems would be anywhere between $600 and
$1260.
At the time of printing this brochure, the Federal Government is also oering an
additional $1000 to switch from an electric system to Solar. In some States there
are additional rebates on top of this again!
Solar Hot Water is not only environmentally
responsible but is now very aordable
Enduro Collectors
Close Coupled System with Excelsior Collectors
Excelsior Collectors
Equinox Collectors
Handy Tip
Solar Rebate Estimator
To assist with understanding all
the rebates available, Rinnai has
introduced an on-line Solar Rebate
Estimator which has the latest up
to date rebates and values.
See www.rinnai.com.au for details
14
Range Overview - Solar
Range Overview - Solar Hot Water
Close Coupled Systems
Where the Storage Cylinder and the Solar Collectors (panels) are coupled
together and the installation is on the roof. A choice of an electric boost
element in the cylinder or a gas booster installed usually on the side of the
house completes the system.
Benets:
• Technically very ecient, economical to install and low maintenance
• No recirculating pumps and pipe runs – reducing heat losses and
improving running eciencies
• No electricity required to operate pumps to recirculate the water
through the panels
• Space saving in that it eliminates the need for a storage tank at ground
level – ideal for courtyard homes or small blocks
• Supplied standard in NEW Titanium colour
• Wide range of Colorbond® colours available. Ask your Rinnai Solar
consultant for selection
Split Systems
Where the Storage Cylinder and the Solar Collectors are literally split and
installed separately. A choice of an electric boost element in the cylinder or
an in-line gas booster which can be installed on the side of the cylinder, or
remote mounted on a wall.
Benets:
• Easy installation on roofs
• Streamlined appearance - minimal impact on the aesthetics of your
roof line with only the Collectors visible
• Split Systems do not require reinforcement of the roof structure, as the
weight associated with water storage is at ground level
• Split System cylinder can be installed internally or externally
• Collectors and the tank do not need to be installed at the same time
– ideal during construction of new homes and major renovations
What is the Booster?
The booster is simply a backstop to make sure you always have hot water available, such as during
cloudy or rainy weather or during the winter months. It also operates should you exhaust the stored
water on those occasions when an extra family stays for a weekend!
Solar naturally heats during the day, so if the majority of hot water is used in the morning then the
water stored in the cylinder will begin re-heating via the solar collectors during that day. If you have
an electric boosted system, maximum hot water availability will not be achieved until after the sun
has had a chance to do its work, or on very low solar gain days, until the electric element begins the
heating process later that evening. With a gas boosted system, hot water is always available with the
booster only operating if the water is not already hot and even then, only if a tap is turned on.
If the majority of your hot water is used in the evening (i.e. for running baths & spas etc) then
re-heating will occur as follows depending on the type of booster:
Electric Boost – the thermostat will turn on the element overnight to bring the water back to temperature. This means that if no
hot water is used in the morning the suns energy is wasted the next day as the water is already hot.
Gas Boost – the booster will not activate until the hot water is required. If that is early morning then the gas booster will be
required, but if later in the day, some solar reheating will have occurred.
Regardless of whether your hot water is used in the mornings or evenings, gas boosting is the most ecient, convenient and cost
eective boost option.
Gas boosters operate only on demand and have the additional benet of never running out of hot water
15
Solar Range
The Rinnai Solar Hot water Systems are separated into 2 ranges:
Rinnai Prestige
• Highest quality Stainless Steel cylinders
• Supplied with high eciency Excelsior Solar Collectors
• Available in both Close Coupled and Split Systems
• Available in both Gas or Electric Boost
Storage Cylinders
• Long lasting commercial grade Stainless Steel construction
• Specically designed for solar ensuring maximum heat retention
thus reducing the need for boosting
• Do not require a sacricial anode saving on maintenance costs
Excelsior Solar Collectors
• Highly ecient all copper Collector with a Tinox surface maximising
energy from the sun
• 10 Riser tubes per panel for eective transfer of the solar energy
to heat the water
• Full aluminium casing for corrosion resistance
• Fully replaceable glass
• Available in both standard and frost tolerant versions (see below)
The Solar range at a glance
Frost Protection
If you live in a frost prone area, it is important that you specify when ordering Frost Tolerant Collectors (FTCs). In Victoria and NSW
for example, it is mandatory to install FTCs in certain areas as determined by listed post codes. For further information, please talk
to you solar specialist or refer to the full warranty conditions on-line at www.rinnai.com.au
Rinnai have two Collectors that are frost tolerant to -6ºC – the Excelsior FTC and the Equinox.
Standard Collectors are not covered by warranty for any damage due to freezing or frost.
Rinnai Sunmaster
• High quality Vitreous Enamel lined steel cylinders
• Supplied with high eciency Enduro and Equinox (frost tolerant)
Solar Collectors
• Available as Split Systems only
• Available in both Gas or Electric Boost
Modular System
• Components supplied separately allowing you to design your own system
• Collectors and cylinder can be installed at separate times which is ideal
for working around construction plans
Storage Cylinders
• Cost eective glass lined (Vitreous Enamel) tanks
• Tall slimline design with a smaller footprint for minimal aesthetic impact
Enduro & Equinox Solar Collectors
• Highly ecient aluminium n solar absorber to maximise eciency
• 8 Riser tubes per panel for eective transfer of solar energy to the water
• Full aluminium casing for corrosion resistance
• Equinox Collector has added feature of Frost Protection (see below)
Electric Boost Shown
Gas Boost Shown
16
Accessories
Pipe Covers Wall Cavity Recess Box Security Bracket Flue DIverter
Accessories
The following accessories are available for the Rinnai
Continuous Flow Models.
Save Water with your Rinnai INFINITY
In addition to the new Rinnai INFINITY 26 Smartstart (fully
integrated unit on page 8), Rinnai also oer the Smartstart®
as an optional feature for any Rinnai INFINITY Continuous
Flow hot water system, including the highest eciency
Enviro range.
All Smartstart® water saver systems pre-heat the water in
the pipes before you turn on the hot tap - reducing water
wastage whenever a hot tap is turned on. It is usually
plumbed as a ‘ring-main’ or loop around the house. The system
is best suited to new homes, renovations or retrotting into
houses where access can be gained to run additional piping.
We recommend discussing suitability with your plumber.
Operation is enabled via any of Rinnai’s Water Controllers.
It’s a worthwhile investment to save the most precious of
our natural resources – water!
Pipe Cover
Easily attached to the Rinnai INFINITY hot water systems to
provide a clean and smooth nish to the installation, hiding
unsightly pipe work and sheltering the power point.
Wall Cavity Recess Box
Allows you to hide the Rinnai INFINITY inside the wall
cavity, saving you precious space, and giving a neat and
tidy nish. UV Stabilised and fully paintable to blend
with any colour scheme. Optional wall frame available to
suit weatherboard walls.
Security Bracket
Secure your investment with Rinnai’s quick and easy to
install security bracket.
Flue Diverter
The sideways ue diverter directs the ue gases
sideways. This may allow installation into areas with
restricted ventilation, such as balconies.
Smartstart® Water Saver
Gas Supply
Cold Wate
r
Typical Smartstart® Installation
Continuous Flow Specications
Solar Specications
Brand System Boost Mount Size
No of
Collectors
Construction Boost Size
Sunmaster
1
Gas
Split
175 Litre 1 Vitreous Enamel
S20
2 Split S26
Sunmaster
3 Split
215 Litre 2 Vitreous Enamel
S20
4 Split S26
Prestige
B Split
250 Litre 2 Stainless Steel
S20
C Split S26
Sunmaster 5 Split 270 Litre 2 Vitreous Enamel S26
Prestige
D Split
315 Litre
2
Stainless Steel S26
E Split 3
Sunmaster 6
Electric
Split 200 Litre 2 Vitreous Enamel 3.6kW
Prestige F Split 250 Litre 2 Stainless Steel 3.6kW
Sunmaster
7 Split
315 Litre
2
Vitreous Enamel 3.6kW
8 Split 3
Prestige
G Split
315 Litre
2
Stainless Steel 3.6kW
H Split 3
Prestige L
Gas
Close Coupled 180 Litre 1 Stainless Steel S20
Prestige M Close Coupled 330 Litre 2 Stainless Steel S26
Prestige i
Electric
Close Coupled 180 Litre 1 Stainless Steel 2.4kW
Prestige
J Close Coupled
330 Litre 2 Stainless Steel
2.4kW
K Close Coupled 3.6kW
Please note: Other combinations are available on request
17
Specications
INFINITY Model
16 20 26 26Plus 26i
26
Smartstart®
26 Enviro 32 32 Enviro
Installation External External External External Internal External External External External
Hot Water Capacity
raised at 25
o
C (unmixed)
16 L/min 20 L/min 26 L/min 26 L/min 26 L/min 26 L/min 26 L/min 32 L/min 32 L/min
Hot Water Capacity
raised at 20
o
C (unmixed)
20 L/min 24 L/min 26 L/min 30 L/min 32 L/min 26 L/min 35 L/min 37 L/min 37 L/min
Gas Rate MJ/h (Max) 125 160 199 199 195 199 172 250 211
AS4553 Eciency
Star Rating
5.4 5.6 5.1 5.2 5.0 5.1
7.0
Equivalent
5.3
6.8
Equivalent
Pre-set temperature (
o
C) 55º 50º or 55º 50º or 55º 55º 55º 50º 55º 55º
55º
Warranty
Solar hot water
systems
Solar Compatible
Continuous Flow Water Heaters
- models S20 and S26 and other
models converted by Rinnai for
Solar applications
(1) (3)
Solar Storage Cylinders Solar Collectors
Components
(2)
Heat
Exchanger
All other
components
Vitreous
Enamel
(Glass) Lined
Sunmaster
Range
Stainless
Steel
Rinnai
Prestige
Range
Enduro
Equinox
Excelsior
Domestic
Use
Parts 10 Years 3 Years
(4)
5 Years 10 Years 7 Years 1 Year
(4)
Labour 3 Years 3 Years 3 Years 3 Years 1 Year 1 Year
(1) The continuous ow models in this column are suitable only for solar hot water applications. Any failure or service issue
when installed in a non solar hot water application is not covered by warranty.
(2) Components include pumps, system controllers, sensors, thermostats, valves, electric heating elements and anodes where
applicable.
(3) Rinnai Innity 26 Internal model can be converted for solar applications by Rinnai by order request.
(4) For Victorian installations only - 5 year warranty on the solar circulating pump, solar controller and components within the
Continuous ow water heater in order to comply with State legislation.
Continuous Flow
Water Heaters
(2)
All Standard
INFINITY Models
INFINITY 26Plus
INFINITY 26 Smartstart®
and Enviro Models
SmartStart®
Water Saver
Water
Controllers
Accessories
(3)
Heat
Exchanger
All other
components
Heat
Exchanger
All other
components
Domestic
Use
Parts 10 Years 3 Years
(1)
12 Years 3 Years
(1)
3 Years
(1)
3 Years
(1)
1 Year
Labour 3 Years
(1)
3 Years
(1)
3 Years
(1)
3 Years
(1)
3 Years
(1)
3 Years
(1)
1 Year
(1) 5 Years if two or more controllers are installed in domestic applications.
(2) The models in this table are unsuitable for solar hot water applications. Any failure or service issue when installed in a solar
hot water application is not covered by warranty.
(3) Accessories include pipe covers, recess boxes, security brackets and ue diverters.
Please note:
For full denitions of Domestic and Commercial use, along with the full conditions and exclusions, please refer to www.rinnai.com.au
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty Ltd reserves the right to make modications and change specications without notice.
18
Warranty
Additional Rinnai Gas Appliances
Energysaver® Flued Gas Space Heating
Outdoor Kitchens
Gas Clothes Dryer
In addition to the hot water products in this brochure, Rinnai have many other
great appliances to compliment both indoor and outdoor lifestyle solutions.
Portable Gas Space Heating
The Rinnai range of Portable Heaters are a highly ecient and exible home
heating alternative. They require no installation and can be stored away when
not used. There are 3 forms of heating available - Radiant heat, Convection
heat gently circulated with a fan and a combination of both Radiant and
Convection heat.
Flued Gas Space Heating
The Rinnai range of Flued Heaters are permanently installed in a home utilising
xed uing to ensure there are no indoor emissions. They oer powerful heat
in a wide range of designs and styles. They are perfect for homes undergoing
renovations and in particular extensions where an additional ecient heating
source is required.
Gas Log Flame Fires
Rinnai has an extensive range of Gas Log Flame Fires that have the ambience
of a real re without the hassle or mess. Not only do they look great for those
formal or romantic occasions, they are also a powerful source of heating.
Additionally, Rinnai have a range of purely decorative Flame Fires including a
model that is designed to compliment outdoor entertaining areas.
Gas Dryers
Relatively new to Australia, Gas Dryers have revolutionised clothes drying as
we know it. High eciency gas is used to gently dry clothes in around half
the time, half the running cost and half the environmental impact. Truly
innovative!
Outdoor Kitchens
The versatile range of Rinnai Outdoor Kitchens makes indoor cooking a thing
of the past. With extra large hooded cooking areas as well as side burners
and back infrared burners, you will have everything you need to achieve any
culinary creation
Request a brochure
If you would like a brochure from any of product ranges you can call 13 14 19
or view and download online at www.rinnai.com.au
RINNAI AUSTRALIA PTY. LTD.
ABN 74 005 138 769
10-11 Walker Street Braeside VIC 3195
For further information visit
www.rinnai.com.au
or call 1300 555 545
19.10_APR
At Rinnai Australia
we are committed to
ongoing innovation to deliver
ecient, well engineered
and designed products.
We aim to oer a superior
range of home appliances that
provide a clear insight into
what the future holds for
Australian homes.
The simple pleasures of
unlimited hot water, with
precise temperature control,
ecient and stylish heating
solutions and the superb
quality of a Rinnai Outdoor
Kitchen - all designed to
enhance your lifestyle with
the environment in mind.
