STAINLESS STEEL WALL SHELF
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
Thanks for purchasing one of our products, please read carefully the assembly
instructions before the installation.
This installation is for stainless steel wall shelf with 2 lower supports and 3 lower
supports
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
STAINLESS STEEL WALL SHELF
2
PRODUCT PARAMETERS
ASSEMBLY PRECAUTIONS
1. Assemble needs to follow these instructions. Incorrect assembly can be
a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol,
Model
Product Size/inch
Loading Capacity/Max
WMS1224
12*24
230 lb
WMS1236
12*36
250 lb
WMS1248
12*48
280 lb
WMS1260
12*60
315 lb
WMS1436
14*36
300 lb
WMS1448
14*48
350 lb
WMS1460
14*60
400 lb
WMS1824
18*24
300 lb
WMS1848
18*48
400 lb
WMS1860
18*60
450 lb
WMS1872
18*72
500 lb
3
drugs or medication.
4. Weight capacity and other product capabilities apply to a properly and
completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. Requires two people for assembly.
USE PRECAUTIONS
WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM
TIPPING:
1. This product is not a toy. Do not allow children to play with or approach
this item.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4.
Use on flat, level, and hard surfaces only
.
5. Do not exceed the listed weight capacity. Tighten all knobs securely
before applying load. Be aware of dynamic loading! The sudden load
movement may briefly create an excess load, causing product failure.
4
TOOLS REQUIRED
PARTS LIST(2 lower supports)
NOTE: Part not shown to actual size.
Allen Wrench( not Included)
Allen Wrench( not Included)
X1
A
X1
X1
X4
C
D
E
B
F
X4
X4
5
PARTS LIST(3 lower supports)
X1
A
X1
C
H
D
E
B
F
X4
X6
X1
X1
X4
G
X3
6
ASSEMBLY STEPS

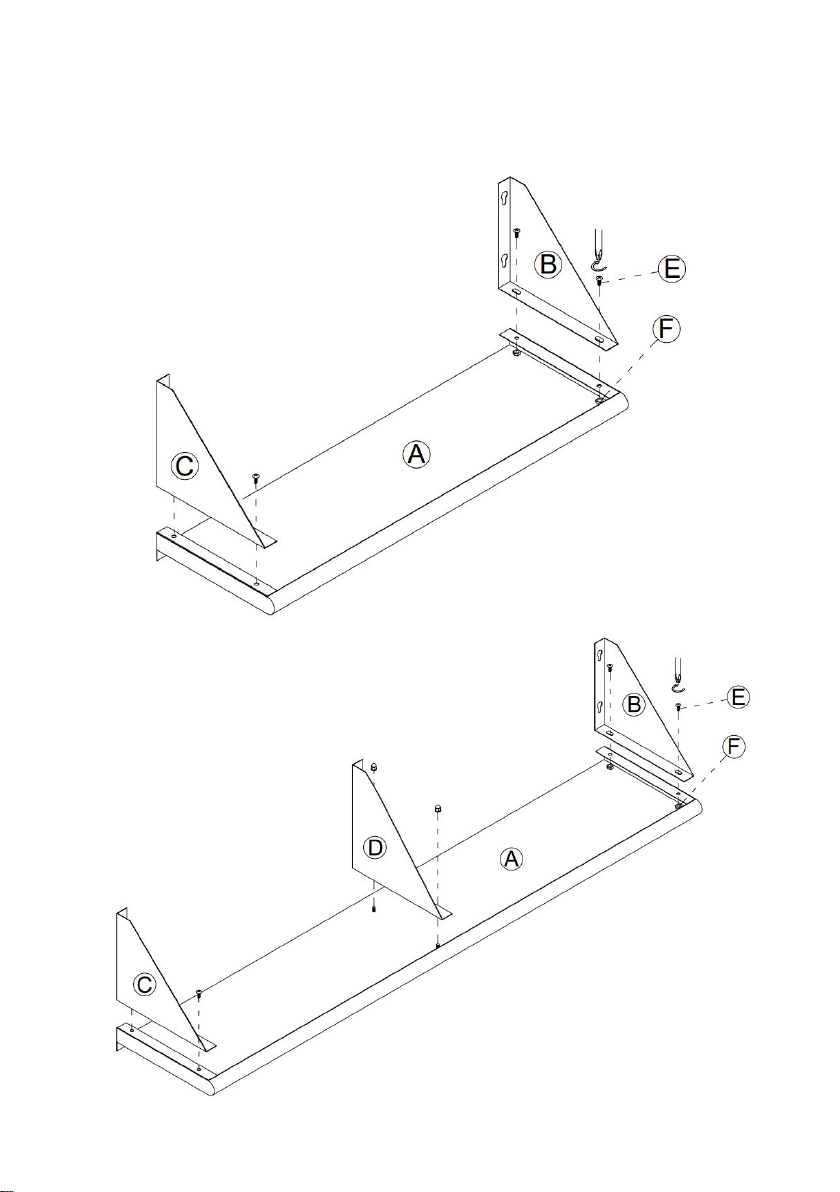

1、Lock the support frames on Top
Ⓖ
7

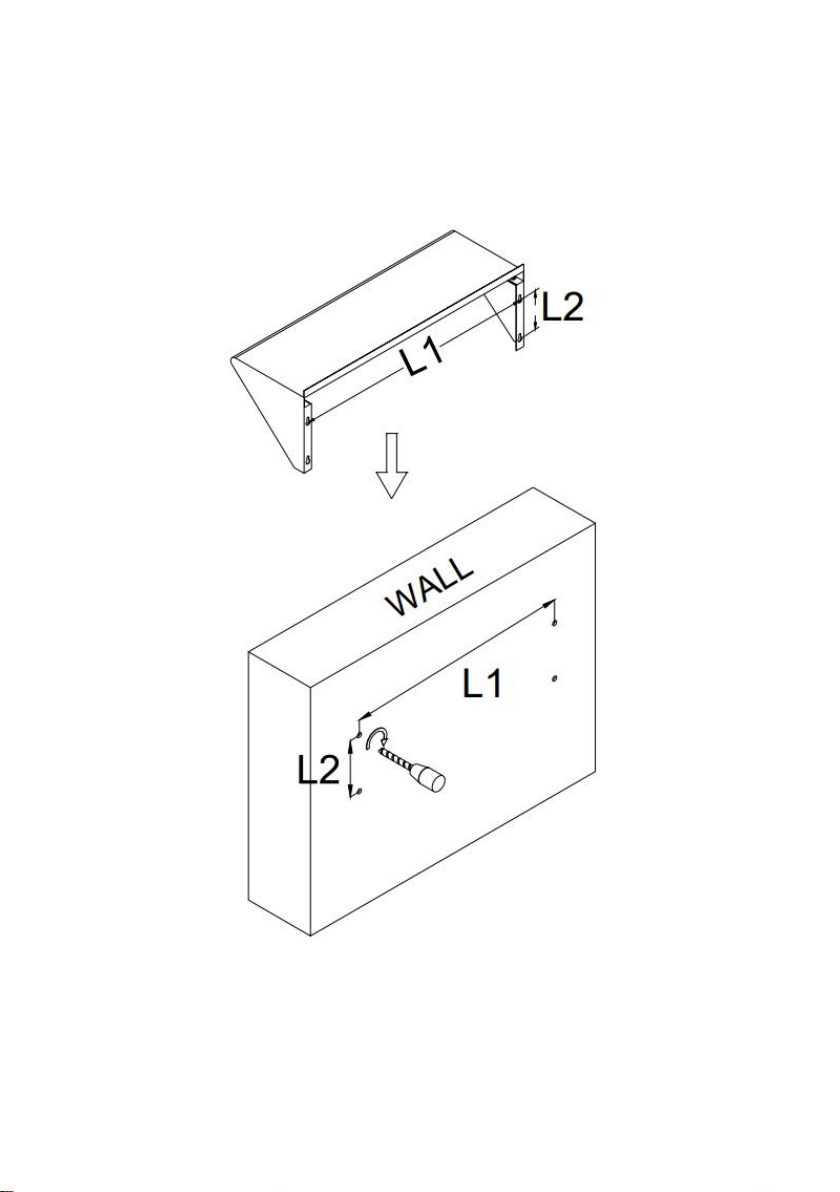

2. Measure the distance between the support frame holes
3、Punch on the wall,the distance is L1and L2
8

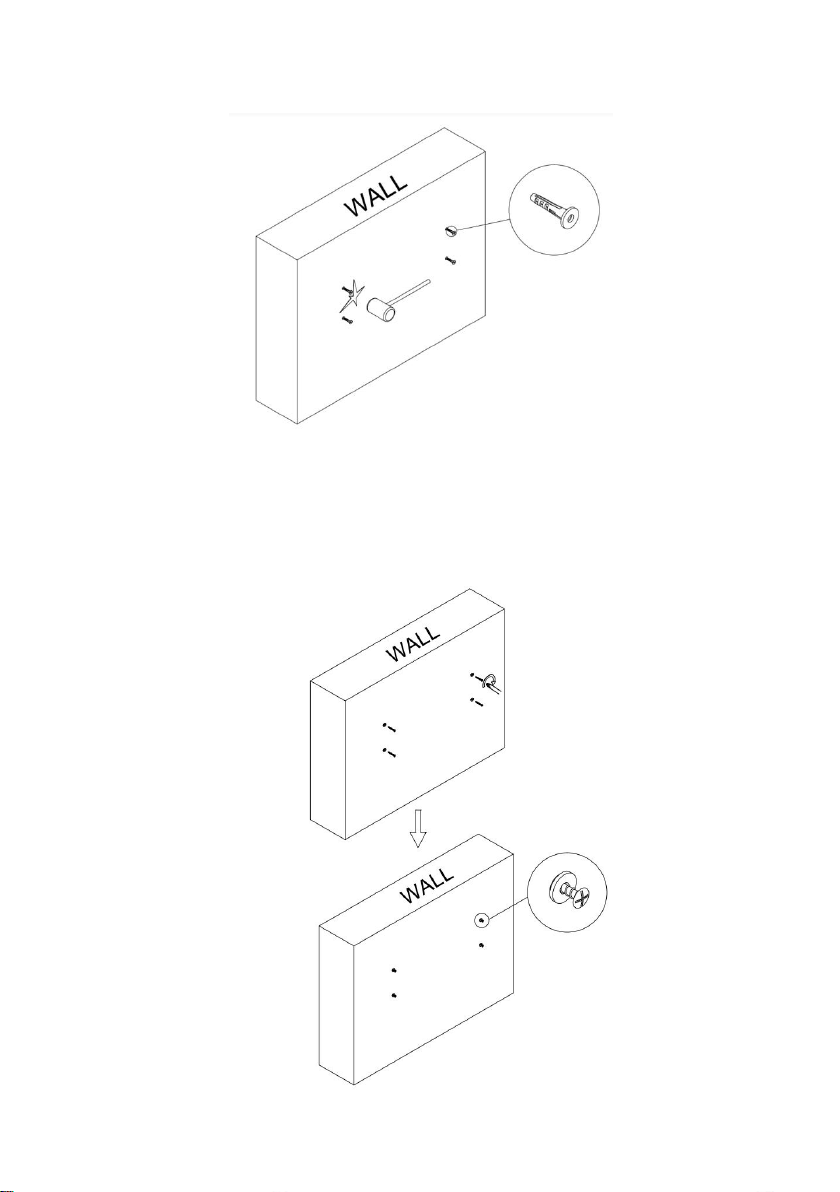

4、Knock the plastic parts into the hole on the wall
5、Screw the screw into the plastic parts, do not screw it to
the bottom of the 10mm distance
9

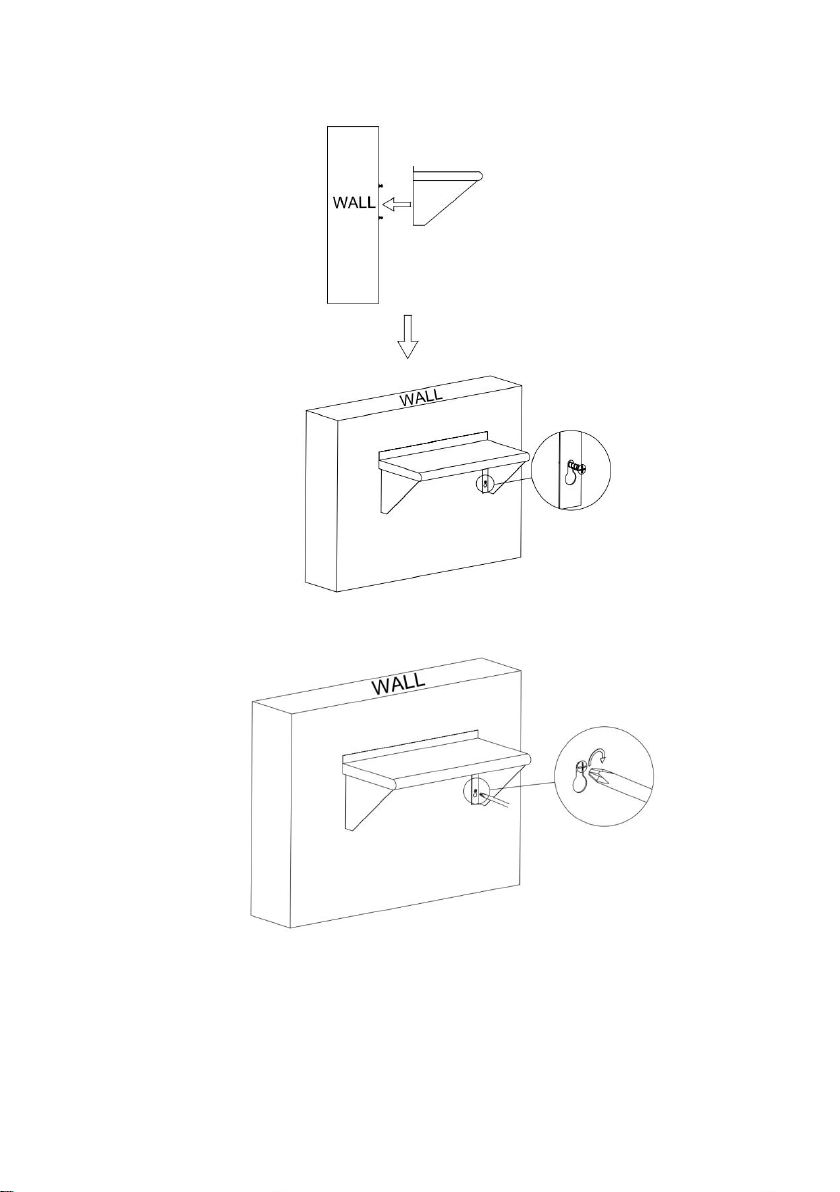

6、Hang the Top on the screw
7、Tighten the screw
Cleaning
-For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry
with a clean lint free cotton cloth.
