User Guide
Kasa Smart Light Bulb
KL110 / KL110B / KL130 / KL130B / KL125 / KL135
1910013016 REV3.0.0
© 2021 TP-Link
Contents
About This Guide ·····························································1
Introduction ········································································2
Set Up Your Smart Bulb ················································ 4
Setup Using Amazon Frustration-Free Setup ··5
Main Device Control ·······················································8
Congure Your Smart Bulb ·········································9
Create Scenes································································14
Schedule A Scene ························································16
Auto-O Timer ·······························································17
Reset Your Smart Bulb ···············································18
Works with Kasa ····························································19
Authentication ································································20
1
About This Guide
This guide provides a brief introduction to smart bulb and the Kasa Smart app, as well as regulatory information.
Features available in smart bulb may vary by model and software version. Smart bulb availability may also vary by region or ISP. All images, steps, and
descriptions in this guide are only examples and may not reect your actual smart bulb experience.
Conventions
In this guide, the following convention is used:
Convention Description
Teal
Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in teal and underlined. You can click to redirect to a website.
Support
• Specic product information can be found on the product page at https://www.tp-link.com.
• A Technical Community is provided for you to discuss our products at https://community.tp-link.com.
• Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page
at https://www.tp-link.com/support.
• Videos about how to congure the smart bulb features can be found on the Setup Videos page at
https://www.tp-link.com/support/setup-video/#smart-bulbs.
2
Introduction
The Smart Bulb is part of the Kasa smart home family of products, including plugs, switches, cameras and more. You can adjust brightness, track
energy consumption, set schedules and timers and set an alarm that wakes you naturally by simulating the sunrise. Group lights together to control
your smart bulbs more easily and create your own scenes.
Turn your home into a true smart home with Kasa Smart. You can also control multiple smart home devices with the Kasa Smart app or use your voice
for added convenience. With Kasa, your home is never more than a few taps away.
• No Hub Required - The smart bulb screws in just like an ordinary bulb. Simply download the Kasa Smart app, connect to Wi-Fi and enjoy. No need for
a hub or extra equipment.
• Scheduling - Set your smart bulb to turn on or o while you are home or away.
• Energy Saving - Reduce power usage without compromising on light quality.
• Voice Control - Use simple voice commands with Alexa, Google Assistant or SmartThings.
• Remote Control - Set up the smart bulb easily and control from anywhere with the free Kasa Smart app.
KL110 (Dimmable ) KL130 (Multicolor) KL125 (Multicolor)
A dimming range from 1%-100%, lighting for
any occasion
A wide range of colors and adjustable
brightness (2500K~9000K)
A wide range of colors and adjustable
brightness (2500K~6500K)
3
KL110B (Dimmable ) KL130B (Multicolor) KL135 (Multicolor)
A dimming range from 1%-100%, lighting for
any occasion
A wide range of colors and adjustable
brightness (2500K~9000K)
A wide range of colors and adjustable
brightness (2500K~9000K)
FFS (Frustration-Free Setup) supported
4

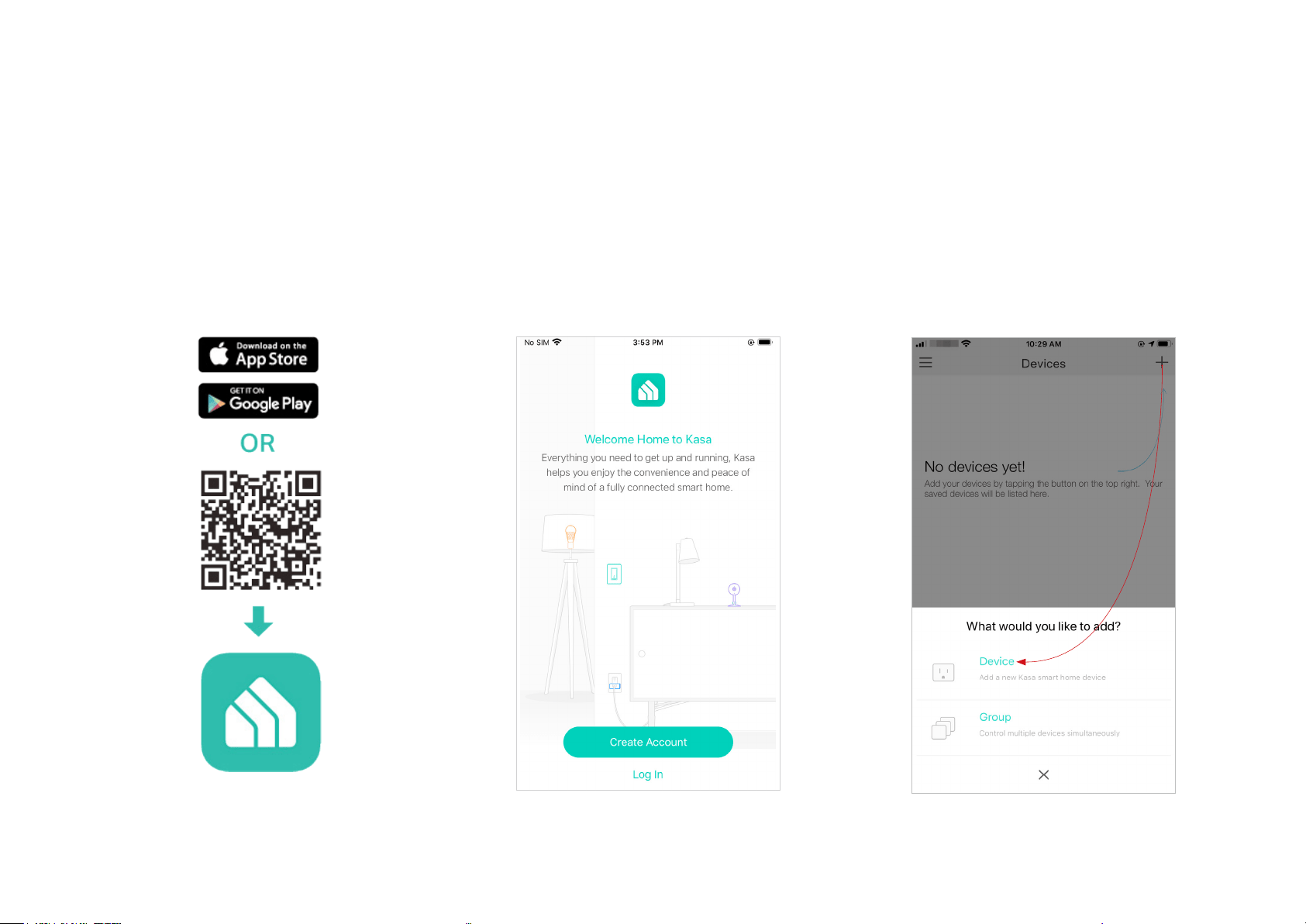

Set Up Your Smart Bulb
Follow the steps below to set up your smart bulb via the Kasa Smart app.
1. Download Kasa Smart App
Go to Google Play or the App Store or scan
the QR code below to download and install the
Kasa Smart app.
2. Log In to Kasa Smart App
Open the app and use your TP-Link ID to log in. If
you don’t have a TP-Link ID, tap Create Account
and the app will guide you through the rest.
3. Add Your Devices
Tap the + button in the app and select Device
to add your new Kasa smart bulb. Follow app
instructions to complete the setup.
5
Setup Using Amazon Frustration-Free Setup
What is Amazon Frustration-Free Setup (FFS)?
Amazon Frustration-Free Setup can help connect and set up your Kasa smart bulb in fewer steps, without having to remember and re-enter your Wi-Fi
password on each device.
To use this feature, conrm the following:
● The new Kasa smart bulb supports Amazon FFS (Currently only model KL135 supports Amazon FFS).
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Kasa smart bulb and router are on the same network as your Alexa echo.
LED Indications during Amazon Frustration-Free Setup
LED Status
Solid white Ready for setup or working properly
Blinking red, green and blue once in
sequence and then remain solid white
FFS setup in progress
Blinking white three times
FFS setup failed and you can set up the
bulb from app manually
6

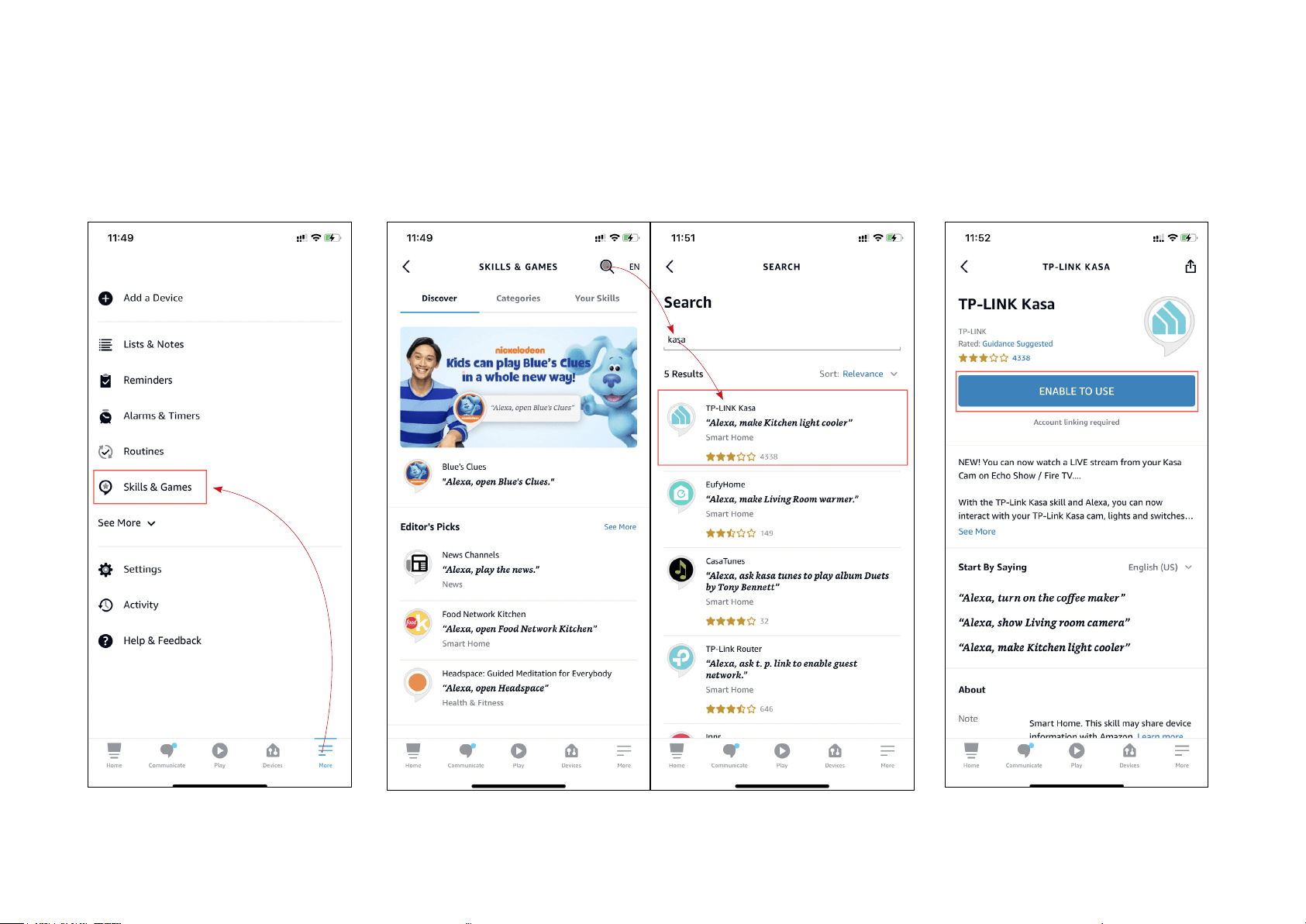

1. Open the Amazon Alexa app.
Then go to More > Skills & Games.
How to use Amazon Frustration-Free Setup with Kasa bulbs
2. Enter Kasa in the search bar and choose TP-LINK Kasa. 3. Tap the ENABLE TO USE button.
7
4. Log in with your TP-Link ID that has bound to your Kasa smart bulb,
and then tap Authorize. After authorized successfully, the message TP-
LINK Kasa has been successfully linked will come up.
5. Plug in your Kasa smart bulb and the setup will complete automatically
in two minutes.
For setting up more Kasa smart bulbs, just plug in and enjoy!
Done!
If this new smart bulb displays on the Home page in the Kasa Smart app,
it indicates this bulb has been successfully associated with your Amazon
account and joined your Wi-Fi network automatically.
If this new smart bulb does not display on the Home page in the Kasa
Smart app, try setting it up manually via the Kasa Smart app by following
Set Up Your Smart Bulb.
8

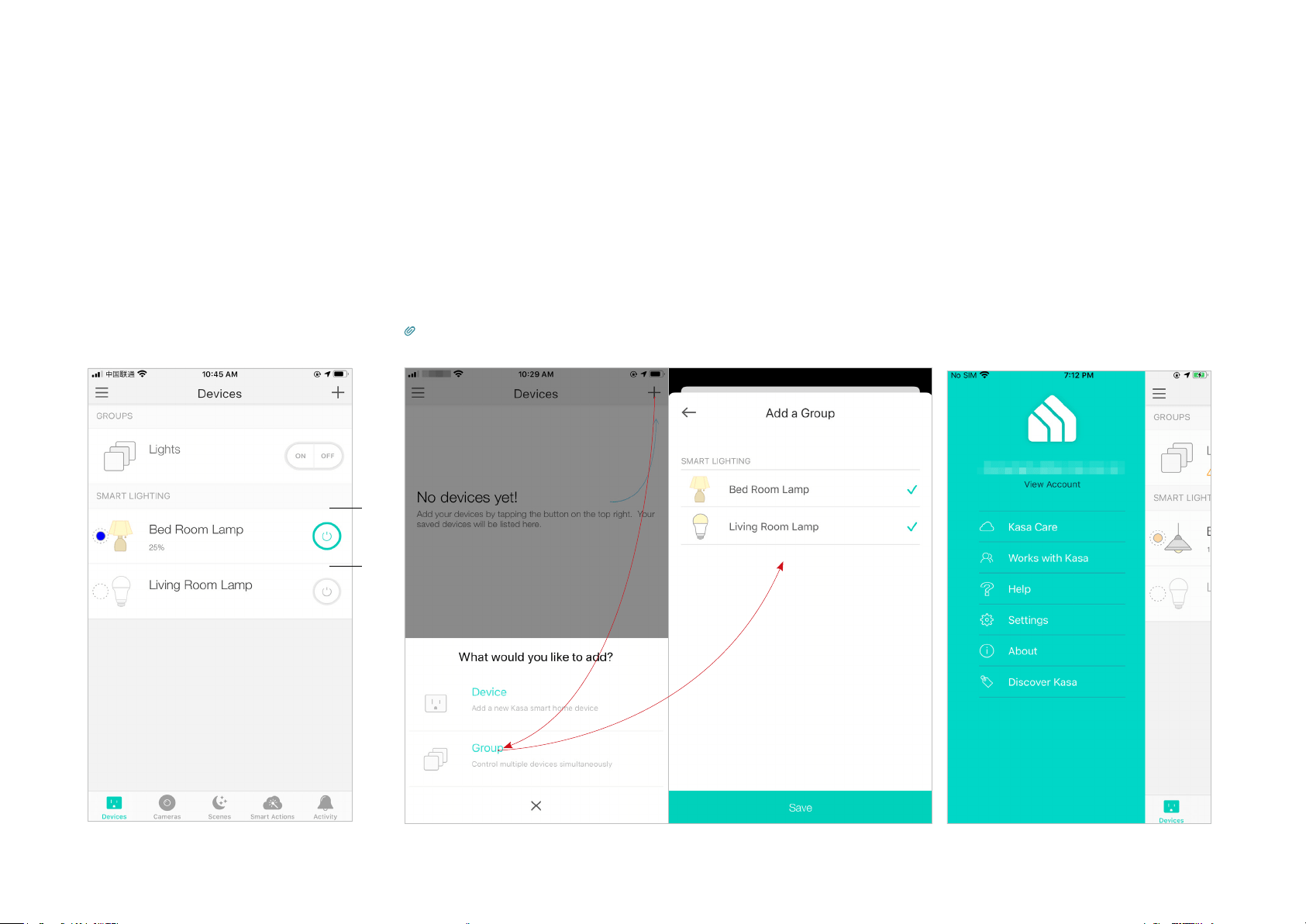

Main Device Control
After you successfully set up your smart bulb, you will see the Devices page in the Kasa app. You can add new devices, control multiple devices
simultaneously in a group, congure account settings, and more.
Add a Group
Tap + > Group to add a group for controlling multiple devices
simultaneously.
Tip: You need to add some devices before you group them together.
Congure Kasa Settings
Swipe right and you can congure
settings for your Kasa account or
get more information about Kasa.
Devices Page
Tap the ON/OFF button to instantly
turn on/o the bulb.
ON
OFF
9
Congure Your Smart Bulb
On the Devices page, tap a smart bulb and enter the Smart Bulb page. You can adjust the light temperature or color (only for KL130 / KL125 / KL135),
power on or o your bulb at one tap, set brightness, schedules, shortcuts, track energy consumption and congure the bulb settings.
*Here we take KL130 as an example.

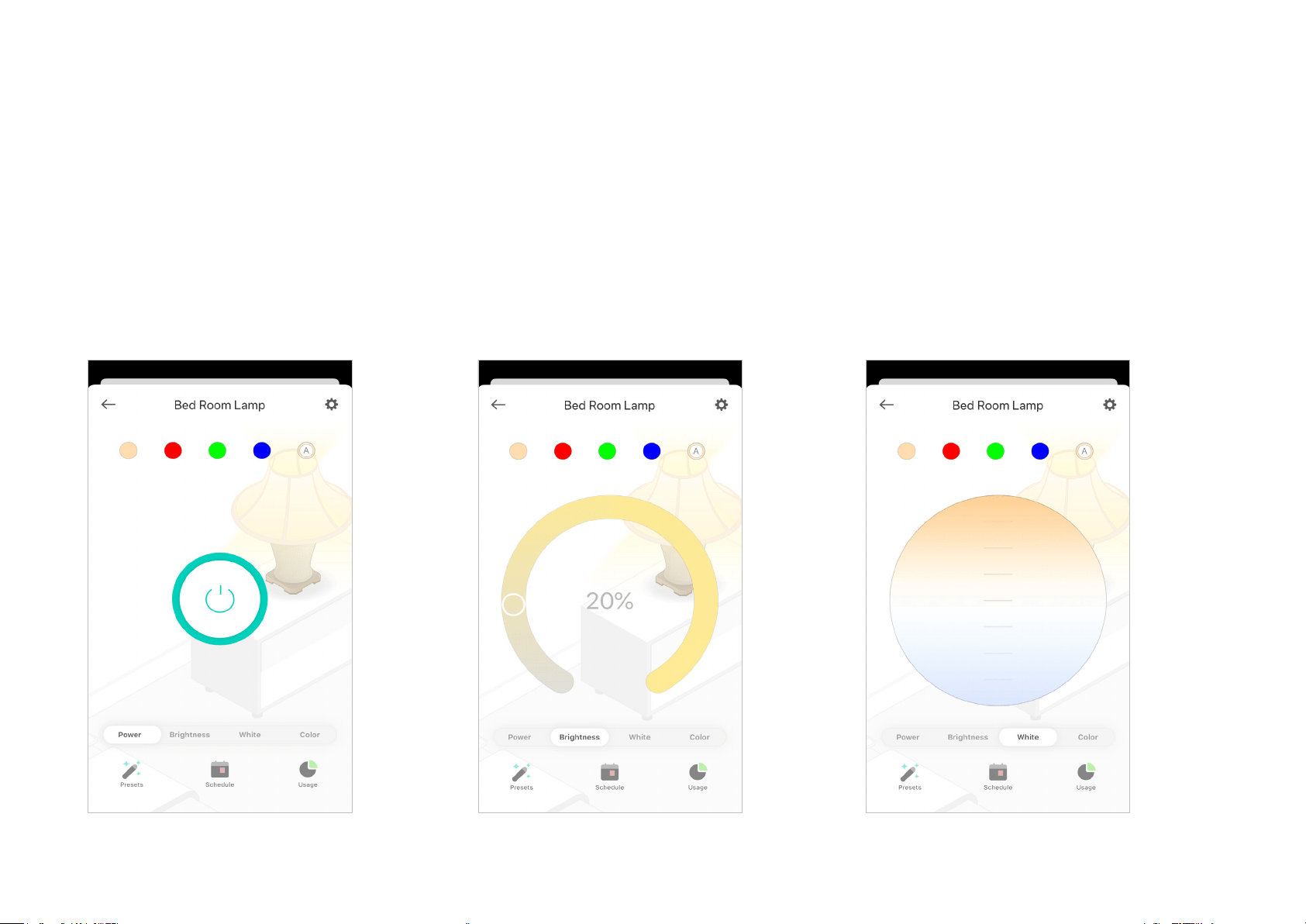

Power On/O At One Tap
On the Smart Bulb page, you can quickly power
on or o your smart bulb with a single button.
Adjust Brightness
Dim your smart bulb with a range from 1% to
100%.
Adjust Light Temperature
Adjust the light temperature for your smart
bulb easily (Only for KL130 / KL125 / KL135).
10

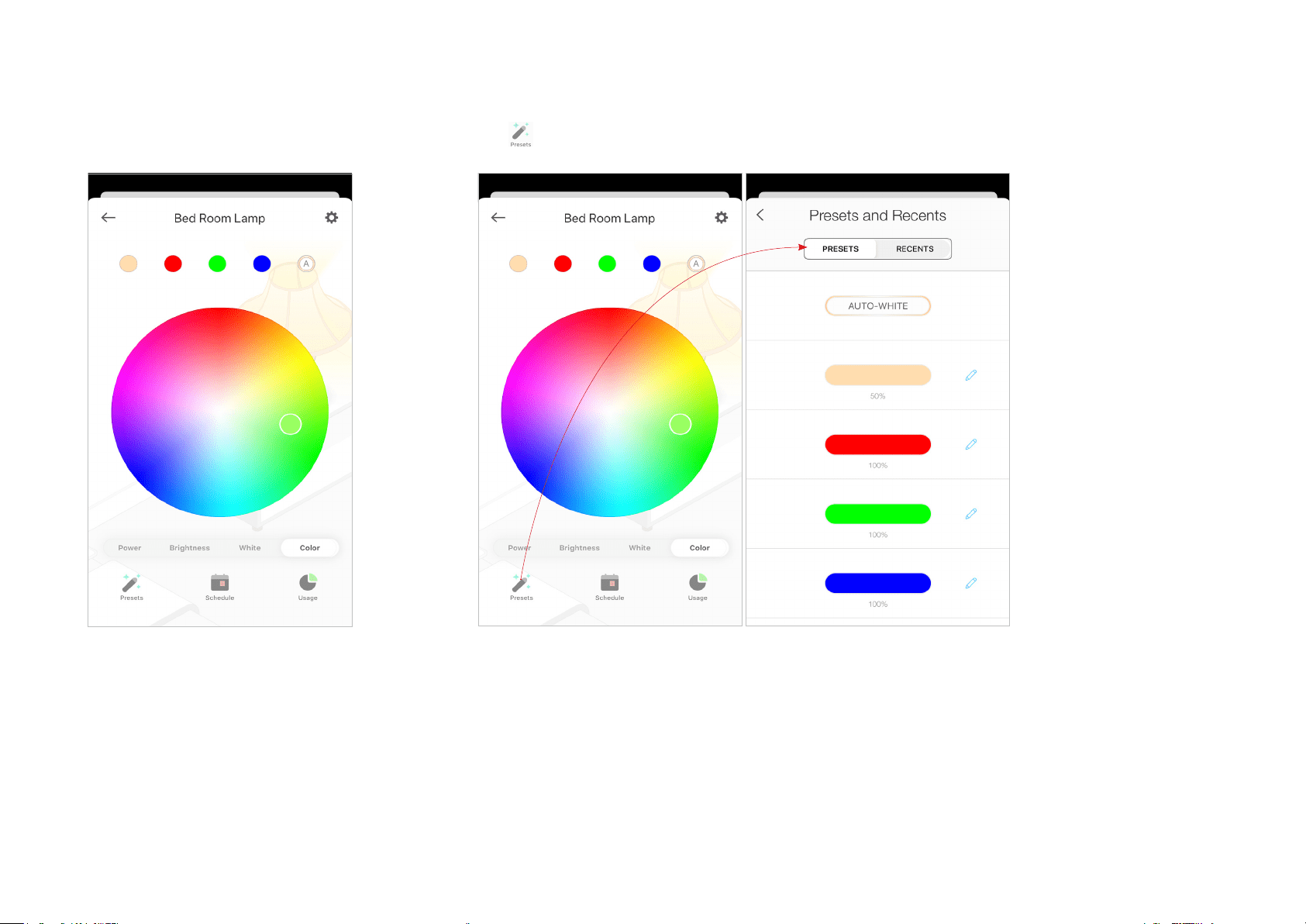

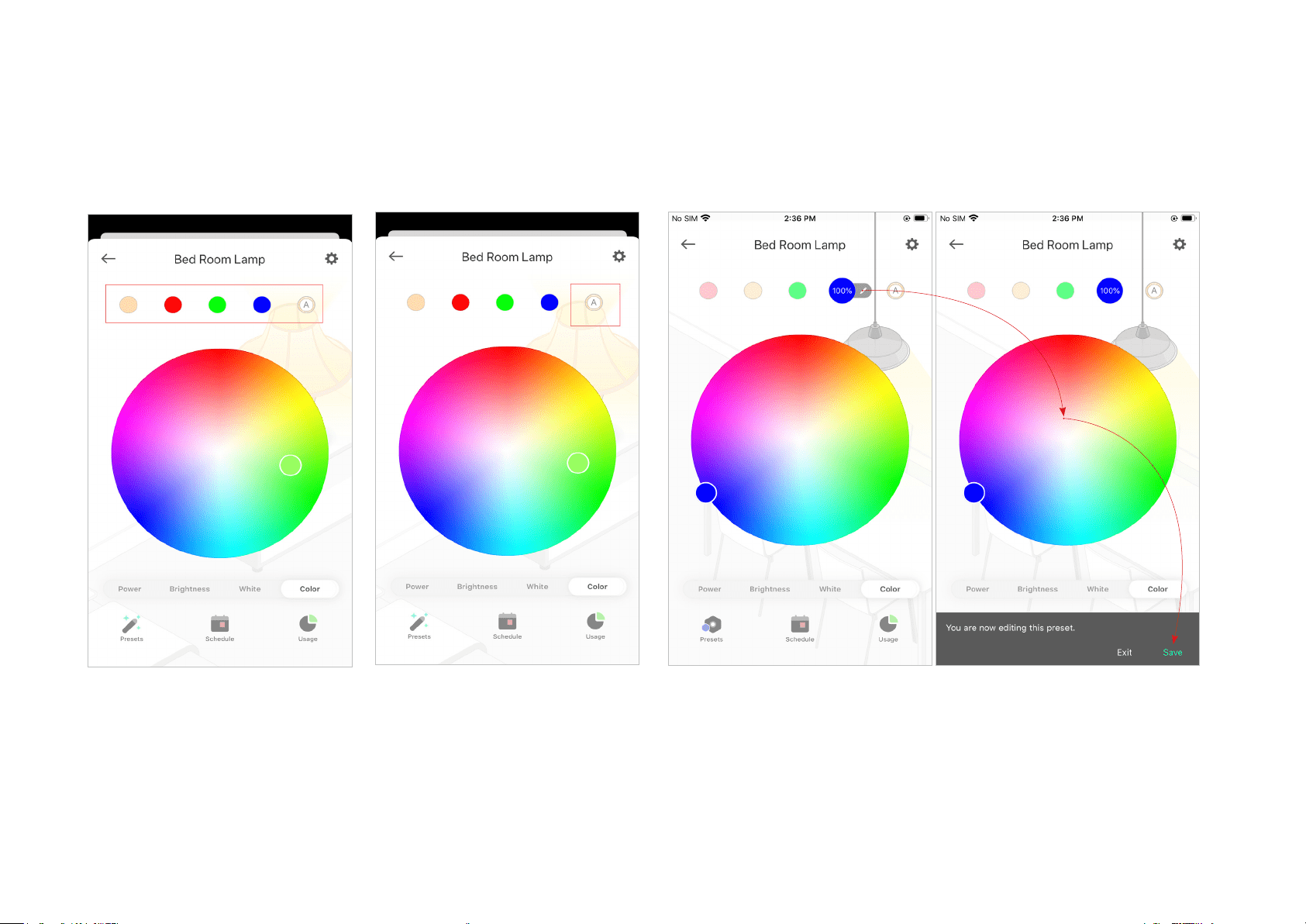

Adjust Color
Choose a preferred color for your smart bulb
(Only for KL130 / KL125 / KL135).
Presets and Recents
Tap to customize presets and apply what you have set recently to your smart bulb.
11
Edit Shortcuts
To edit shortcuts, just select one and tap edit. Choose the preferred color
eects and then save the settings.
Shortcuts
With shortcuts, you can quickly
apply your favourite presets at one
tap.
Auto-White
Tap the Auto-White shortcut and
your smart bulb will follow the
color and brightness of the sun
throughout the day.
12

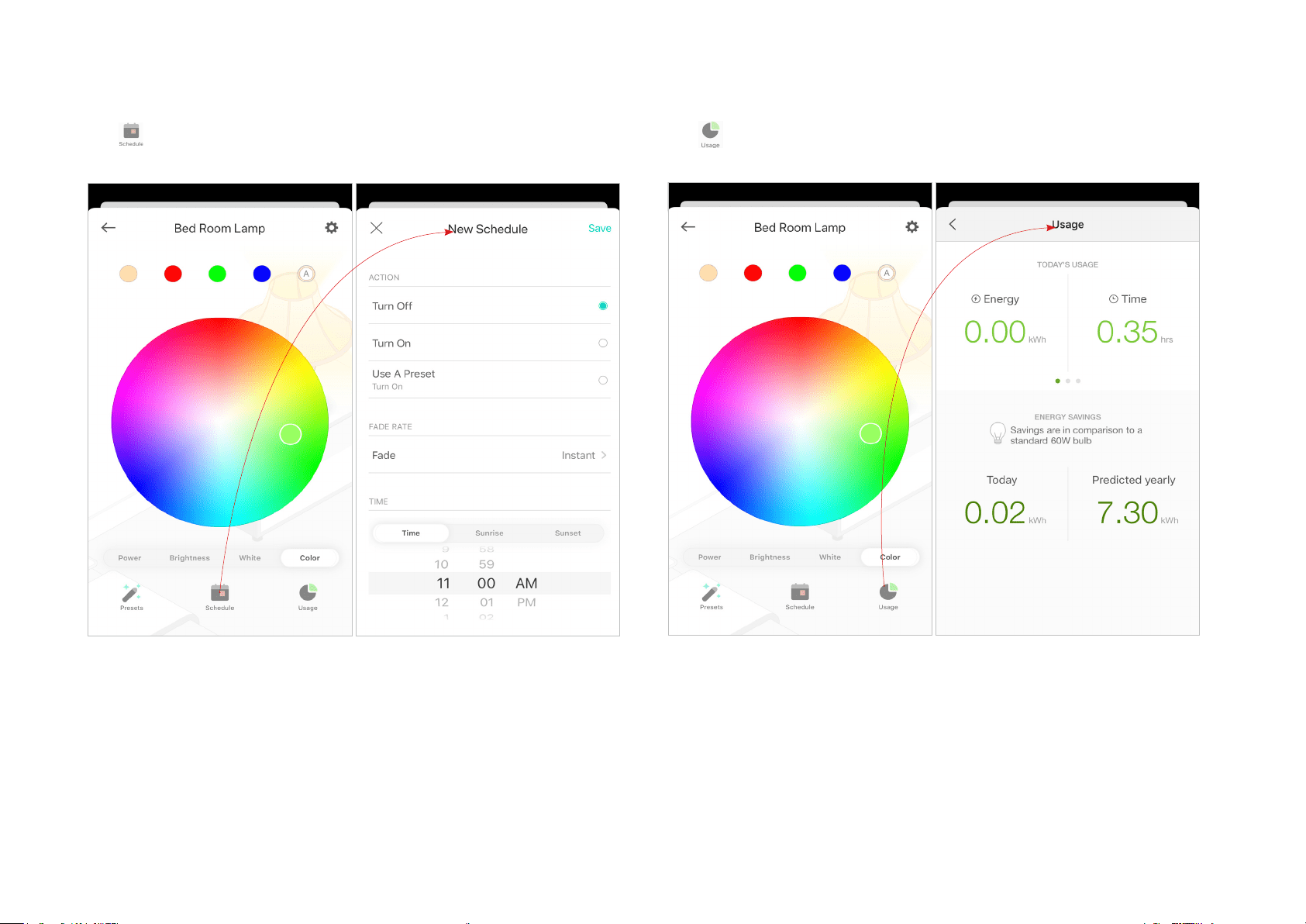

Add Schedules
Tap to add schedules for your smart bulb to simplify your daily routine
by creating automatic On/O actions.
Track Energy Usage
Tap to view and track energy consumption of your smart bulb.
13

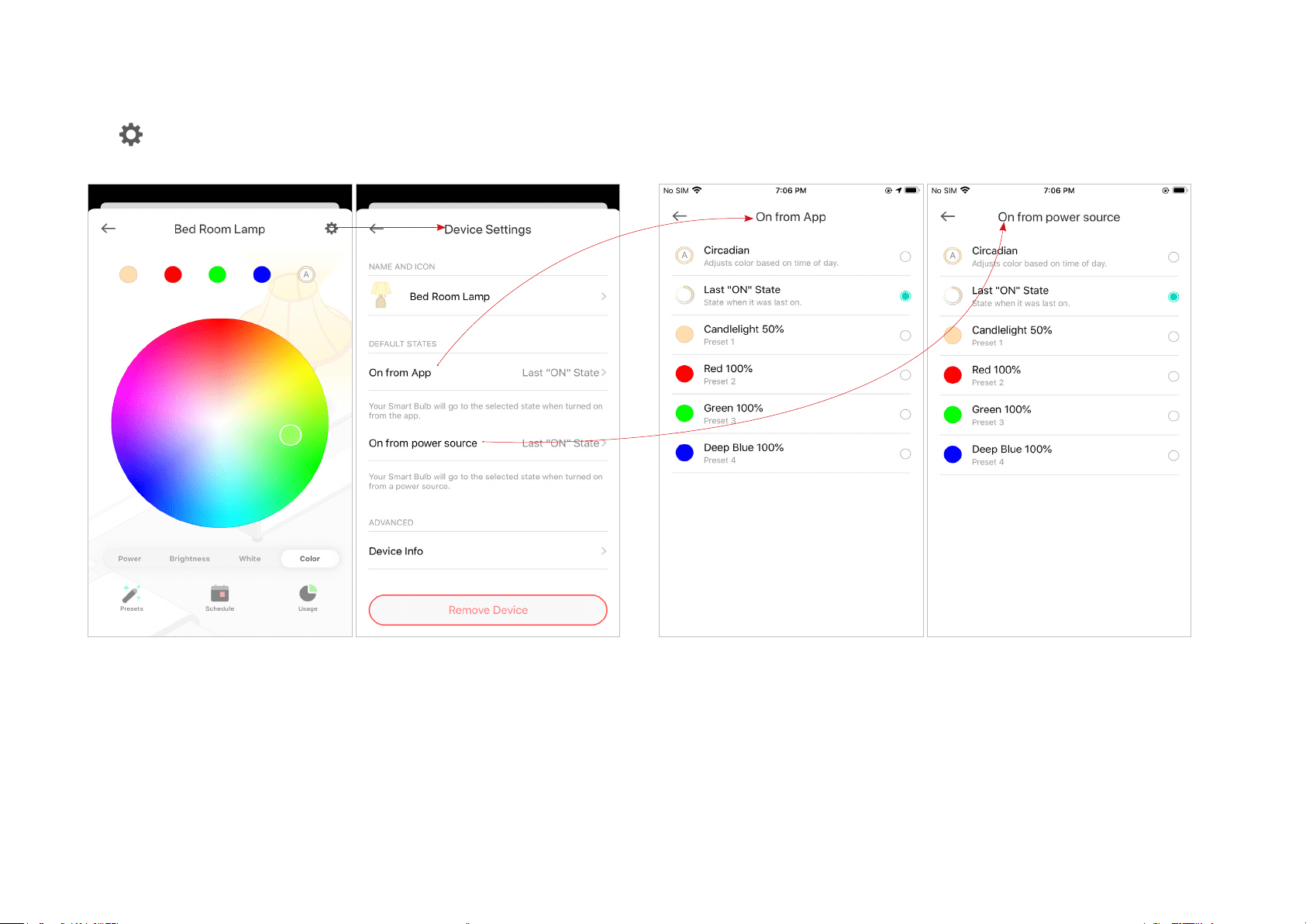

Device Settings
Tap to congure device settings and check device information.
Device States
Set the default state when your smart bulb is turned on from the app and
the power source.
14
Create Scenes
A scene is a preset group of smart devices that can be customized and activated simultaneously at the touch of a button from your smartphone or
tablet, allowing you to easily set your mood, activity or t any special occasion. This page allows you to preset how your smart home devices should act
automatically at special occasions.

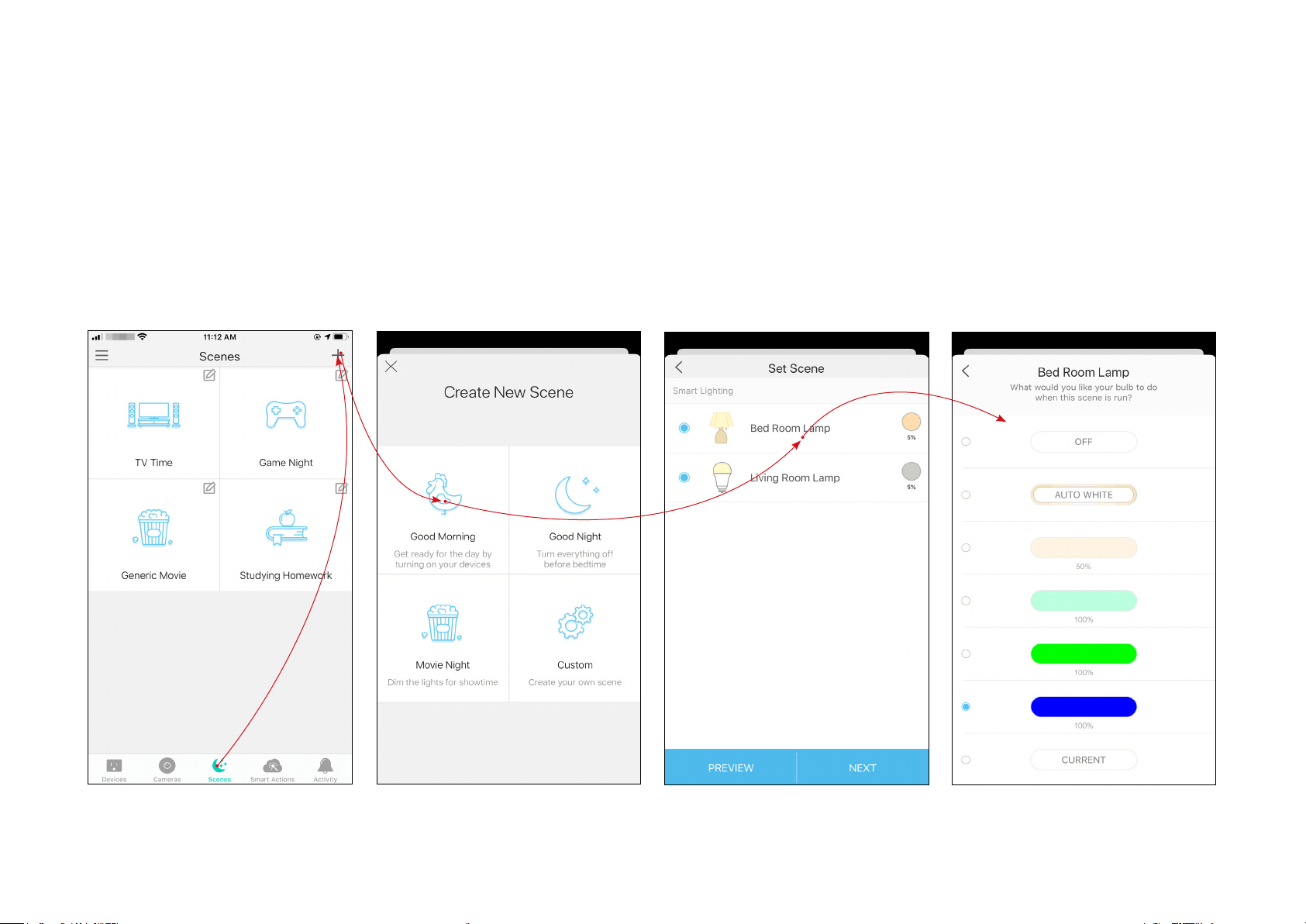

1. On the Scenes page, tap
+
.
2. Choose a default one or
customize a new scene.
3. Tap the light bulb and set what to do when the scene is run.
15

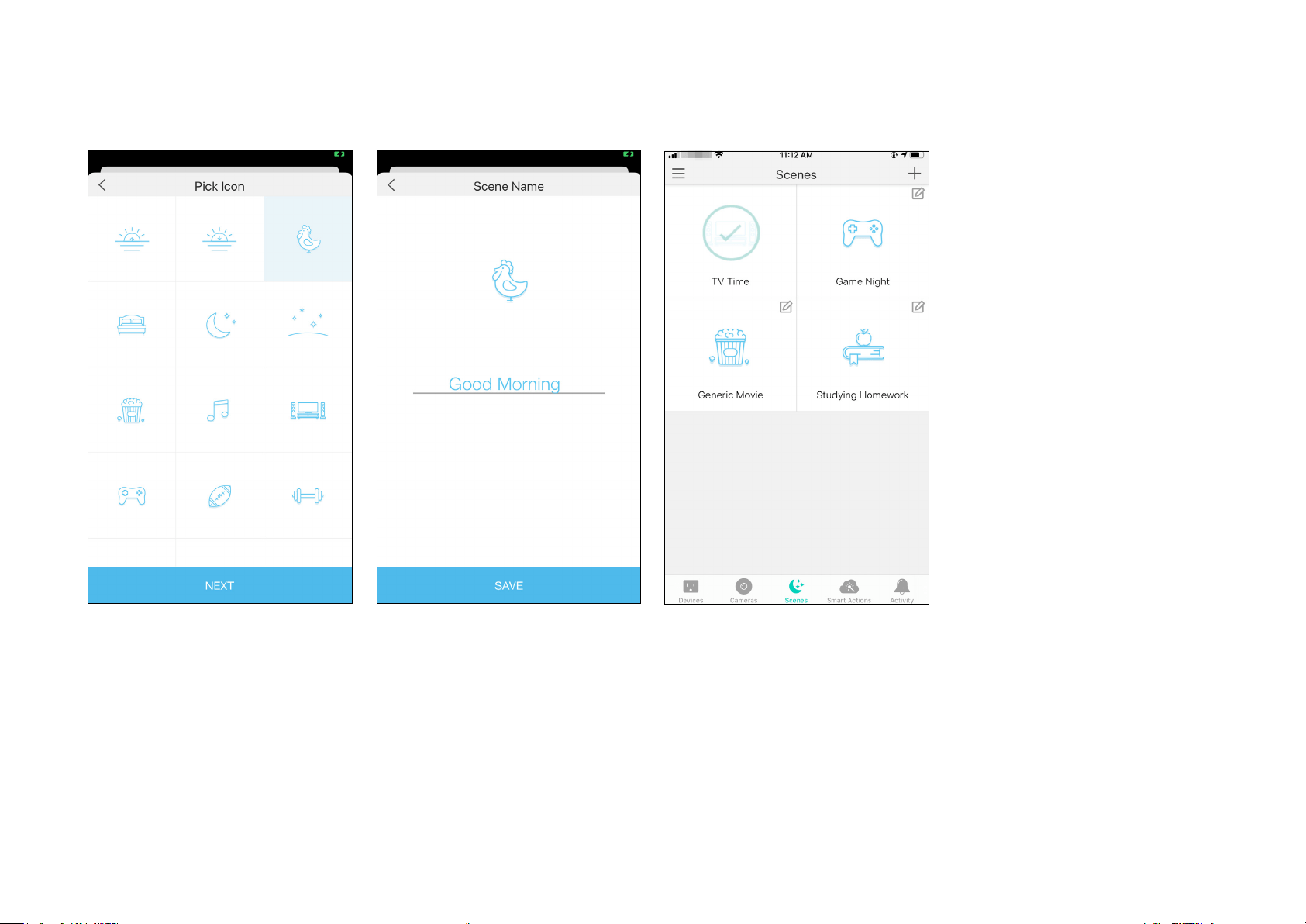

5. Set a name for the scene.4. Pick an icon for your bulb. 6. After created the new scene, tap
the scene to apply it.
16
Schedule A Scene
After you created a scene, you can schedule it to be applied automatically at the time specied. For example, if you want to automatically apply your
scene "TV Time" at 7:33 PM every weekday, follow the steps below.

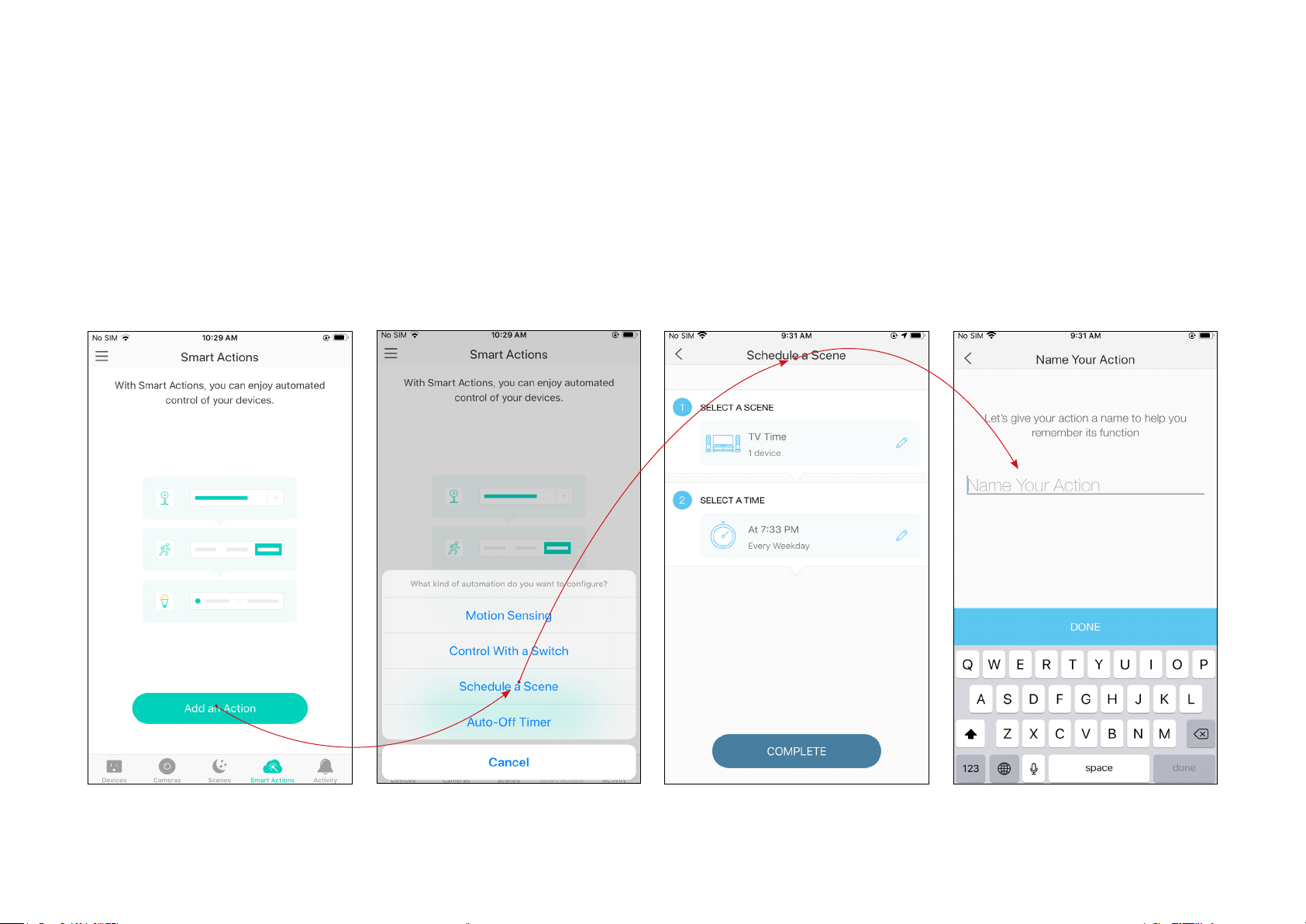

1. Go to Smart Actions page and
tap Add an Action.
2. Select Schedule a Scene. 3. Select a scene and set a time
schedule for the scene.
4. Give this schedule a name to
help you remember.
17

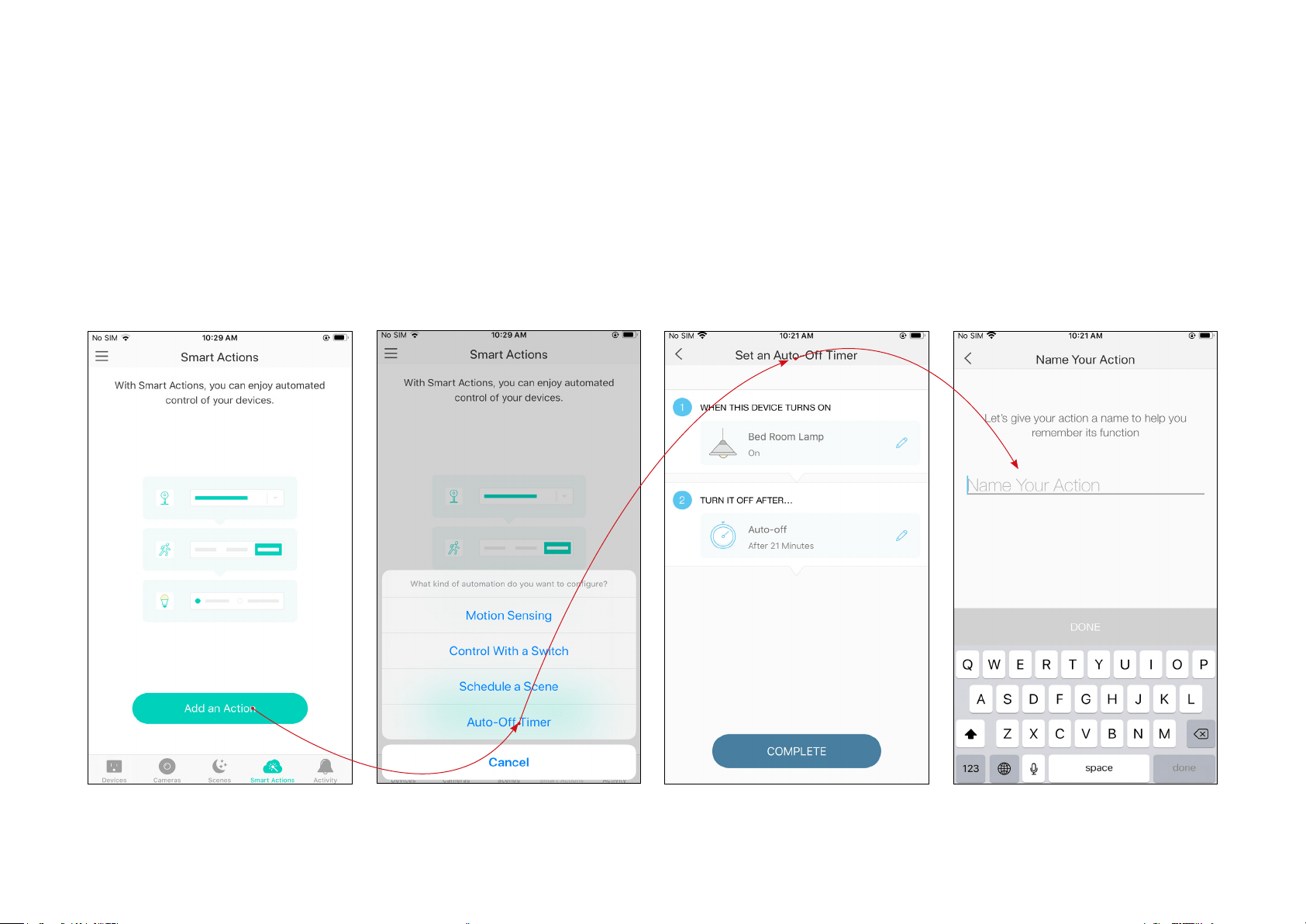

Auto-O Timer
Whenever your smart bulb is turned on, you can turn it o after the designated amount of time by setting an auto-o timer for the device. For example,
if you want your bedroom lamp to turn o automatically after being turned on for 21 minutes, follow the steps below:
1. Go to Smart Actions page and
tap Add an Action.
2. Select Auto-O Timer. 3. Select a device and set the auto-
o timer for the device.
4. Give this timer a name to help
you remember.
18
Reset Your Smart Bulb
There are two types of reset available: a soft reset which resets the Wi-Fi settings only, and a factory reset that erases all of your custom settings and
restore them to factory defaults.

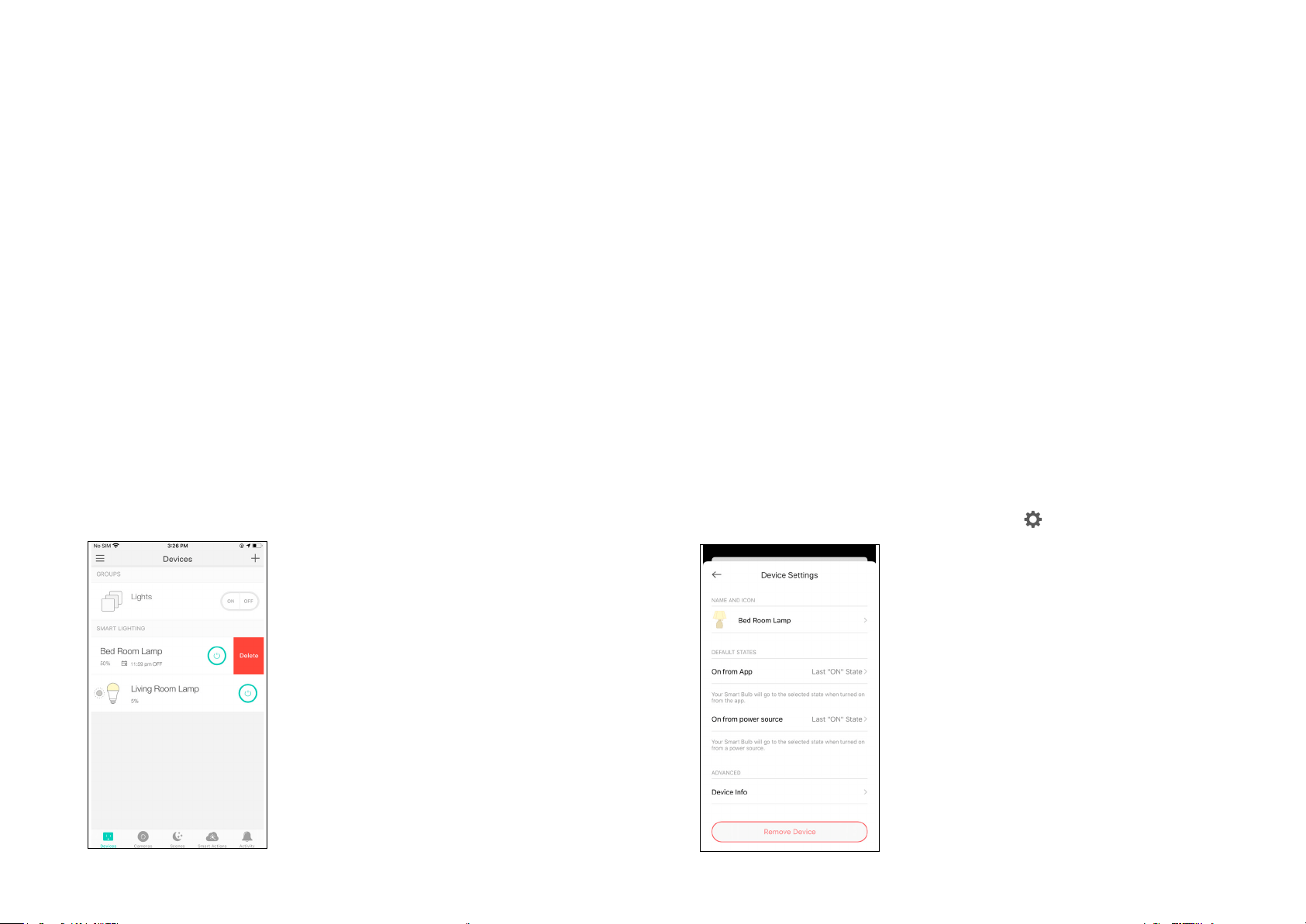

On the Devices page in Kasa app, swipe left the bulb and tap Delete.
In the Kasa app, tap the smart bulb and tap > Remoce Device.
Soft Reset
1. Turn the light switch controlling the bulb to the OFF position.
2. Flip the light switch on and o 5 times (the time duration is around 1 second), and stop when the light is on for the fth time. 3 times blinking after that
indicates a successful soft reset.
Factory Reset
Method 1:
1. Turn the light switch controlling the bulb to the OFF position.
2. Flip the light switch on and o 10 times (the time duration is around 1 second), and stop when the light is on for the tenth time. 3 times blinking after
that indicates a successful factory reset.
Method 2
OR
19
Works with Kasa
Use the Kasa app to pair your smart bulb with Amazon Alexa, Google Home Assistant, SmartThings, and other third-party services to enjoy a full
hands-free experience. Kasa helps manage the rest of your smart home too, working with Nest to trigger changes when you arrive home or leave for
the day.

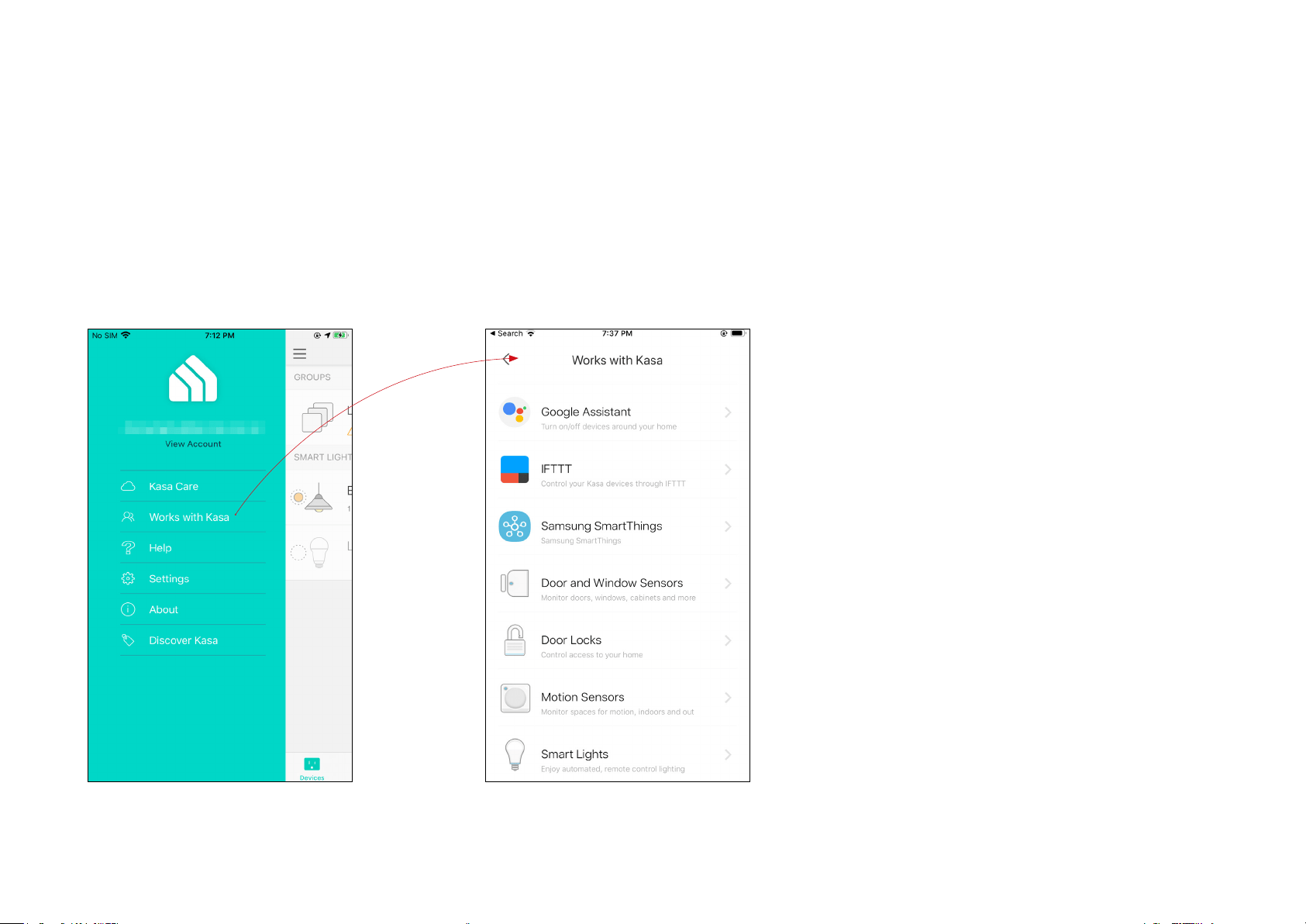

1. Launch the Kasa Smart app and swipe right,
then tap Works with Kasa.
2. Select one and follow app instructions to
complete the settings.
Authentication
FCC Compliance Information Statement
Product Name: Kasa Smart Light Bulb, Dimmable / Kasa Smart Light Bulb, Multicolor / Kasa Smart Wi-Fi Light Bulb, Multicolor / Kasa Smart Wi-Fi
Light Bulb, Multicolor
Model Number: KL110 / KL130 / KL125 / KL135
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021-07-16
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2412 MHz -2472 MHz (20dBm)
No restrictions exist in the use of radio frequencies or frequency bands in all EU member states and EFTA countries.
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011 /65/EU and (EU) 2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way
of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment
Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
CAN ICES-005(B)/NMB-005(B)
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
BSMI Notice
安全諮詢及注意事項
• 請按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先切斷電源。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱 :
Equipment name:
Kasa Smart Light Bulb, Dimmable
Kasa Smart Light Bulb, Multicolor
Kasa Smart Wi-Fi Light Bulb, Multicolor
型號（型式）:
Type designation (Type):
KL110 / KL110B
KL130 / KL130B
KL125 / KL135
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr
+6
)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB
○ ○ ○ ○ ○ ○
外殼
○ ○ ○ ○ ○ ○
電源供應板
— ○ ○ ○ ○ ○
其他及其配件
— ○ ○ ○ ○ ○
備考 1. 超出 0.1 wt %” 及 “超出 0.01 wt %” 系指限用物質之百分比含量超出百分比含量基準值。
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds
the reference percentage value of presence condition.
備考 2.“○”系指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of
presence.
備考 3.“ − ”系指該項限用物質為排除項目。
Note 3：The “ − ” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• Only use the control provided with or specified by these instructions to control this device.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
WARNING:
• Operating Temperature: -15℃~40℃(5℉~104℉)
• Storage Temperature: -20℃~70℃(-4℉-158℉)
• Operating Humidity: 10%~90%RH, Non-condensing
• Storage Humidity: 10%~90%RH, Non-condensing
• NOT FOR EMERGENCY LIGHTING.
• Do not install the Smart Bulb with wet hands or when standing on wet or damp surfaces.
• NOT for use in totally enclosed or recessed luminaires. Suitable for damp locations.
• The increased weight may reduce the mechanical stability of certain luminaires and lampholders and may impair contact making and lamp retention.
• RISK OF ELECTRIC SHOCK OR BURNS. Switch OFF the light switch controlling the bulb and WAIT for the bulb to cool down before attempting to
change it.
• Compatible with regular light switches. Not suitable for use with standard in-wall dimmers. Not compatible with photosensors, motion sensors, or
timers. Dimmable via the app only.
• Only use the control provided with or specified by these instructions to control this lamp. This lamp will not operate properly when connected to a
standard (incandescent) dimmer or dimming control.
Explanation of the symbols on the product label
Symbol Explanation
Indoor use only
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
