Craftsman 917270814 19.5-hp lawn tractor User Manual

Owner's Manual

[RAFTXMI:IN"

19.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.270814

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to yourquestions

about thisproduct,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pro, Mort -:Sat

Seam, Roebuck and Co., Hoffman Estates, tL 60179

VisitourCraftsmanwebsitetwww.sears.com/craftsman

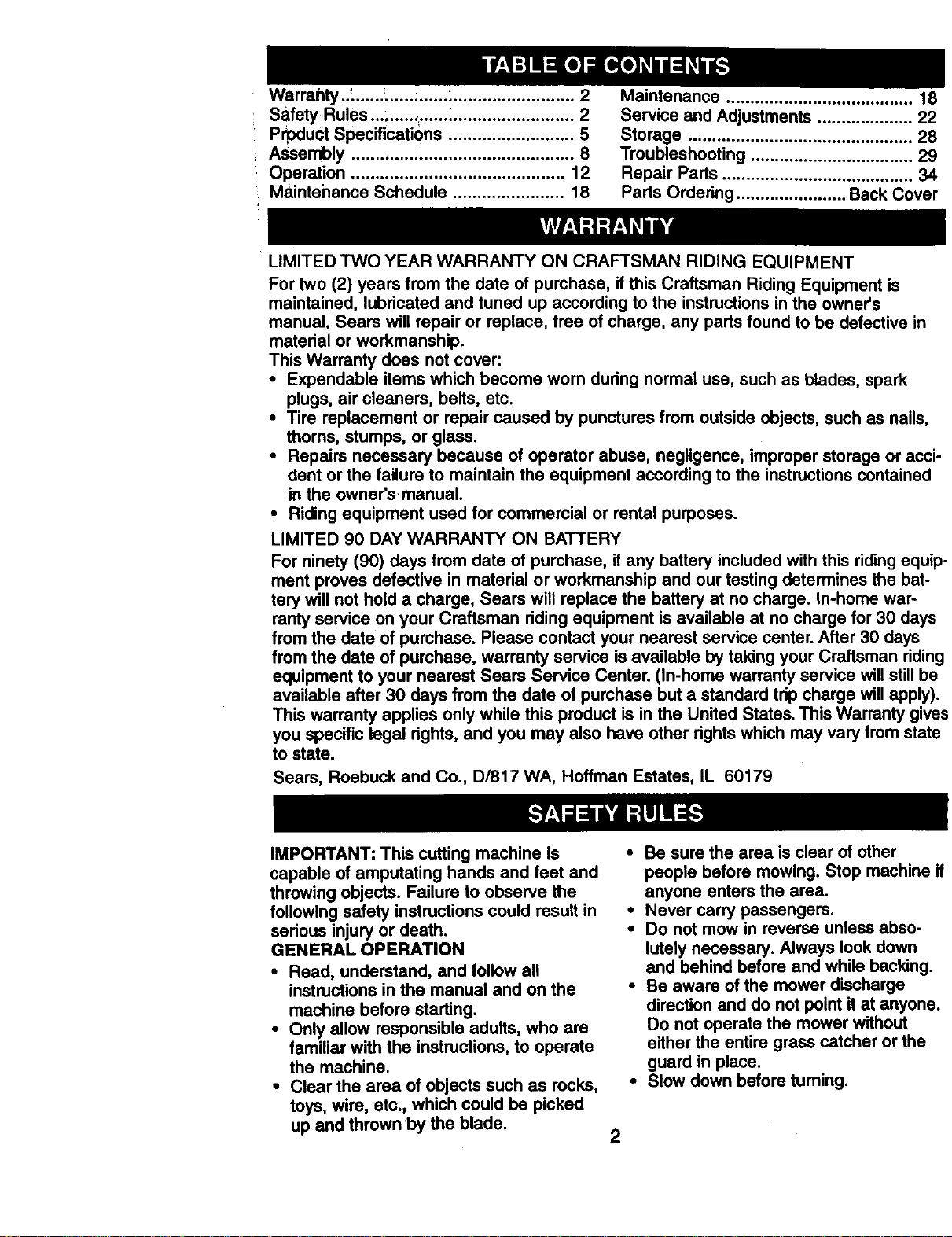

Warrahty.J......._......:................................ 2

Safety:Rules ...:...... ...... _......................... 2

Prpduct Specifications .......................... 5

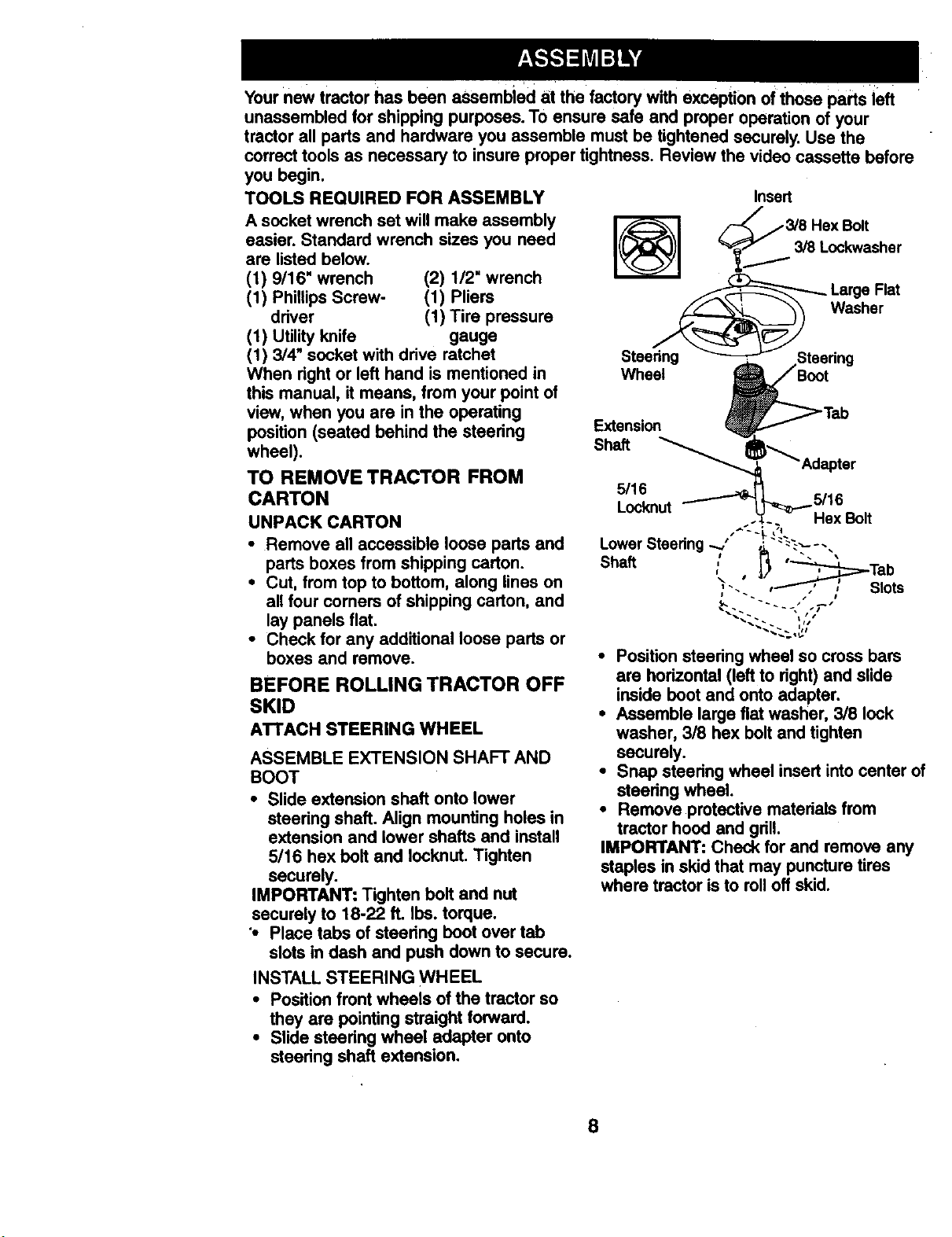

Assembly .............................................. 8

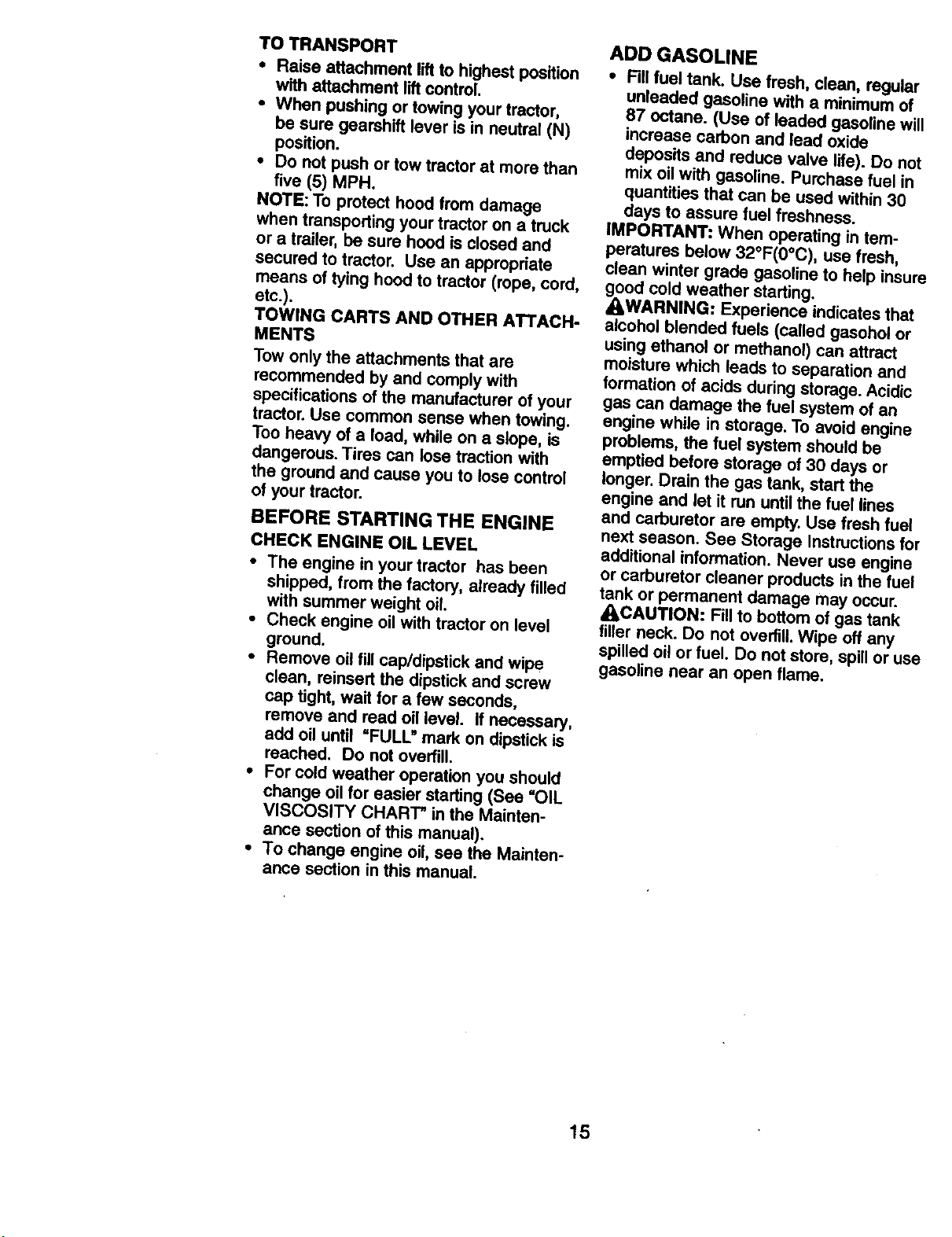

Operation ............................................ 12

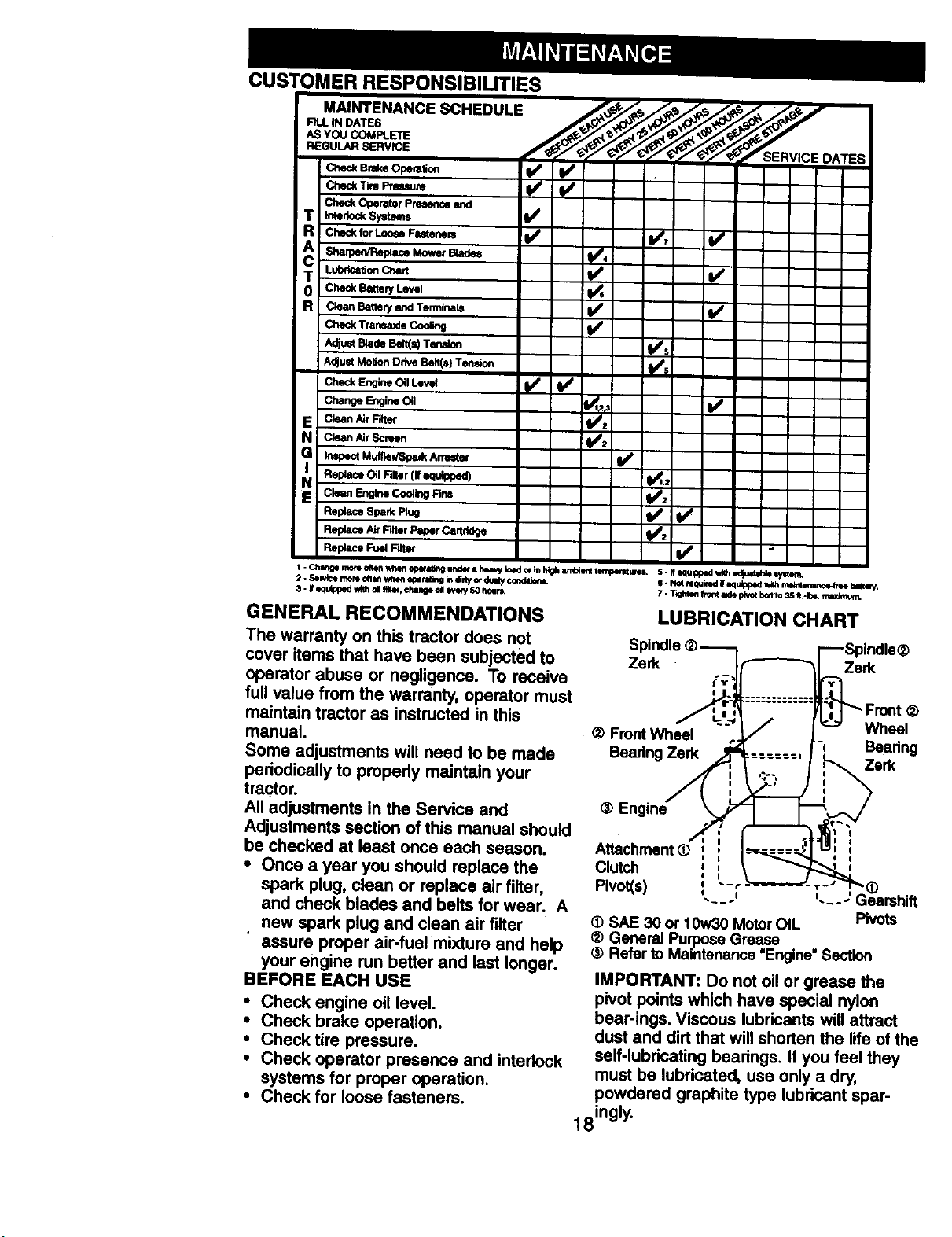

Maintenance Schedule ....................... 18

Maintenance ....................................... 18

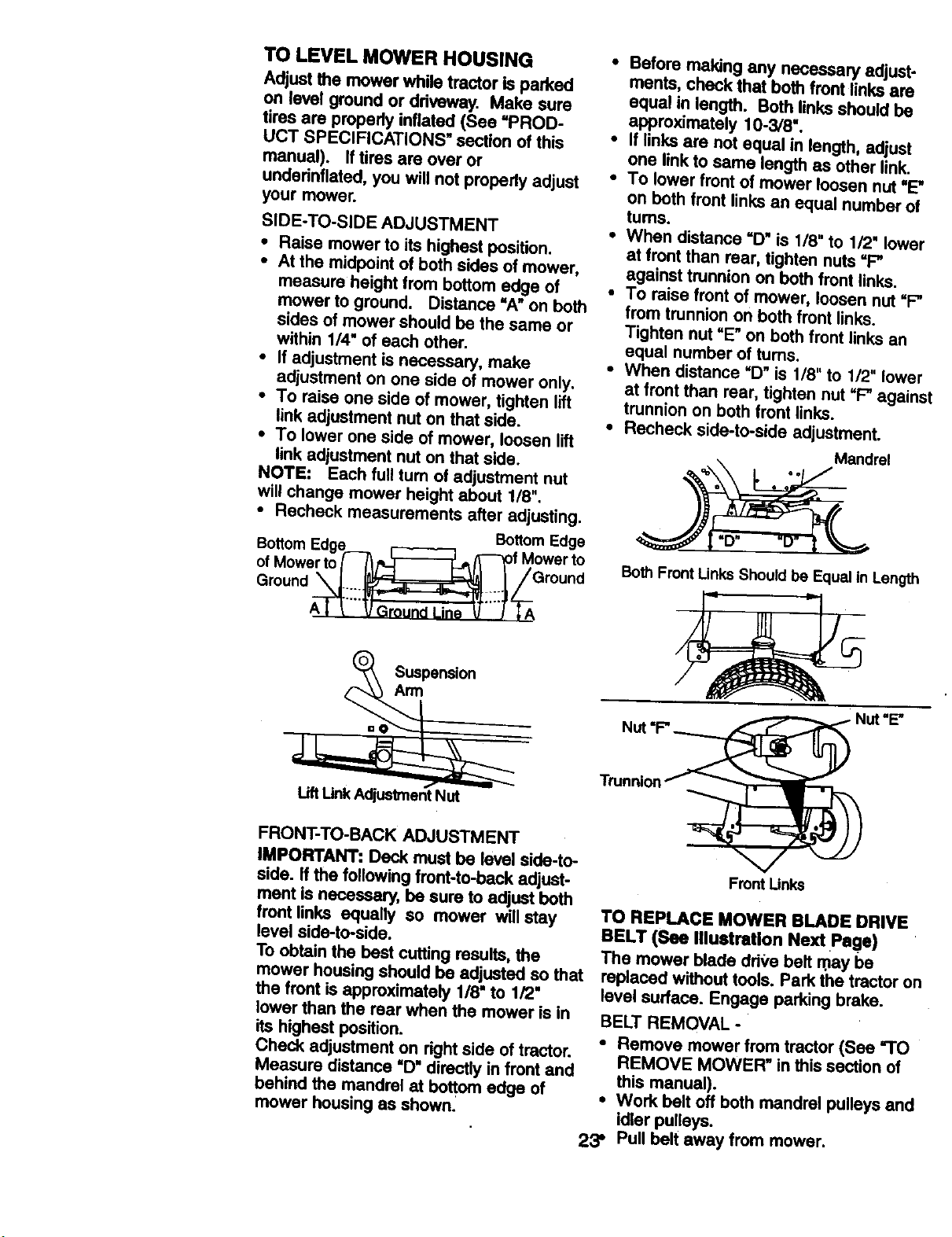

Service and Adjustments .................... 22

Storage ............................................... 28

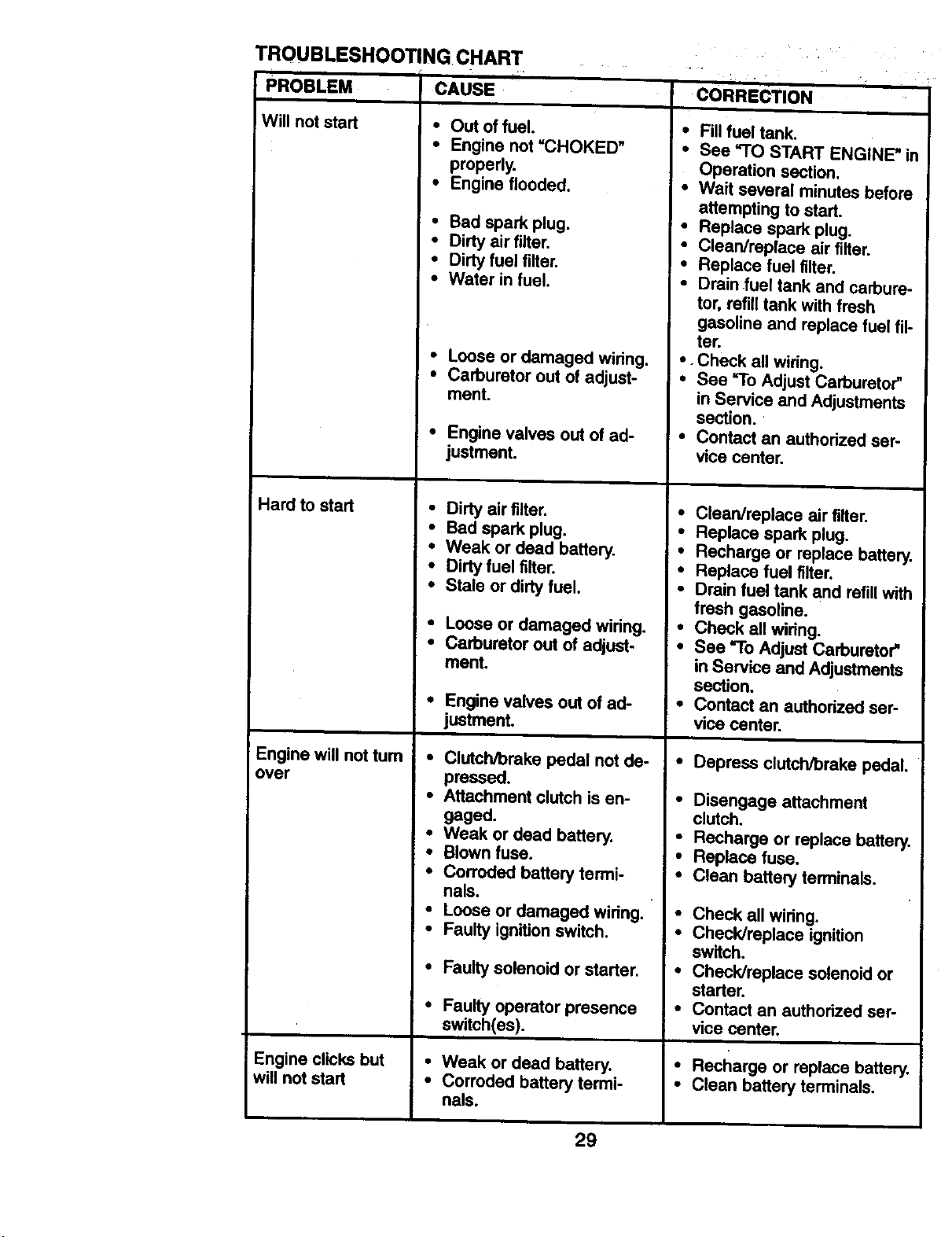

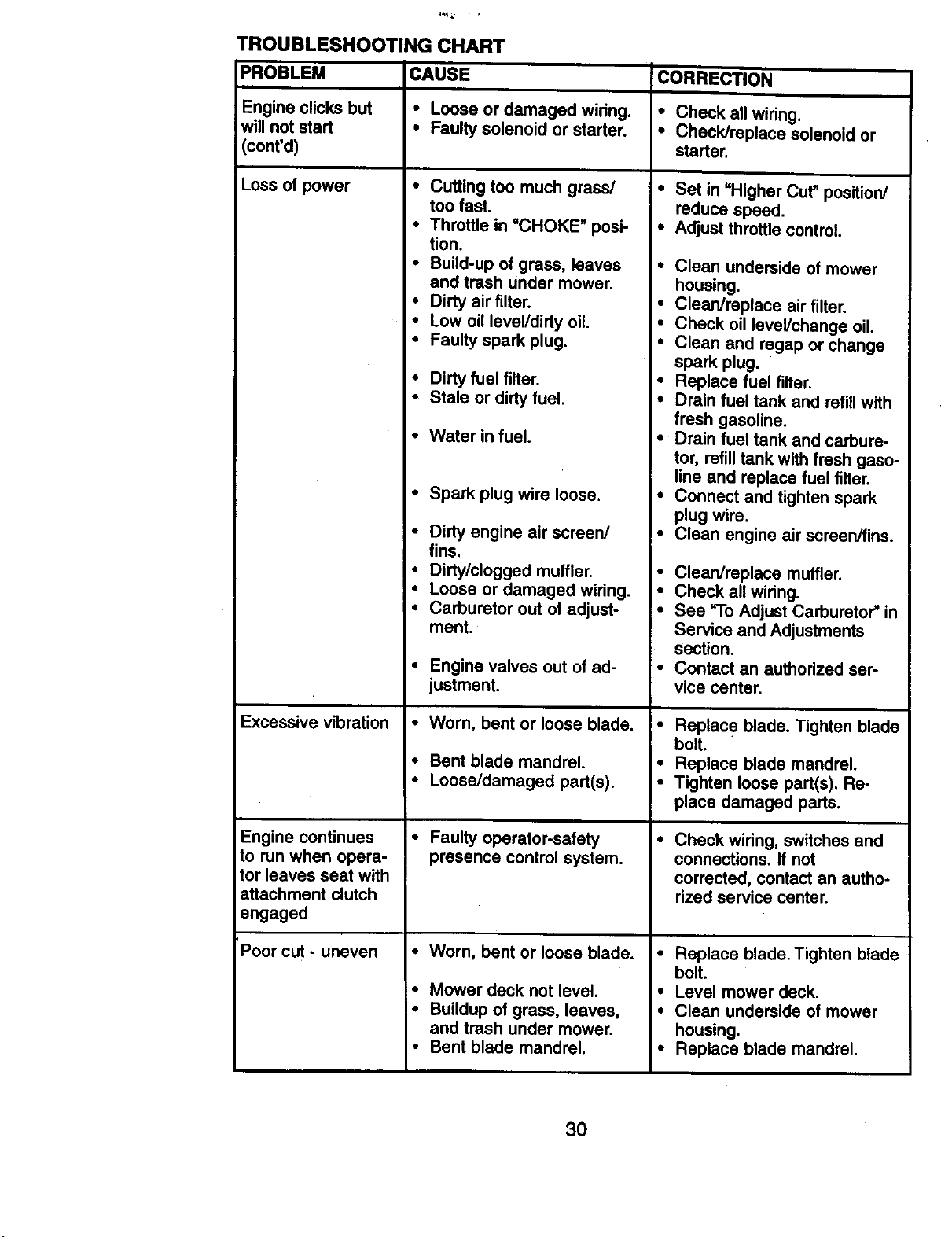

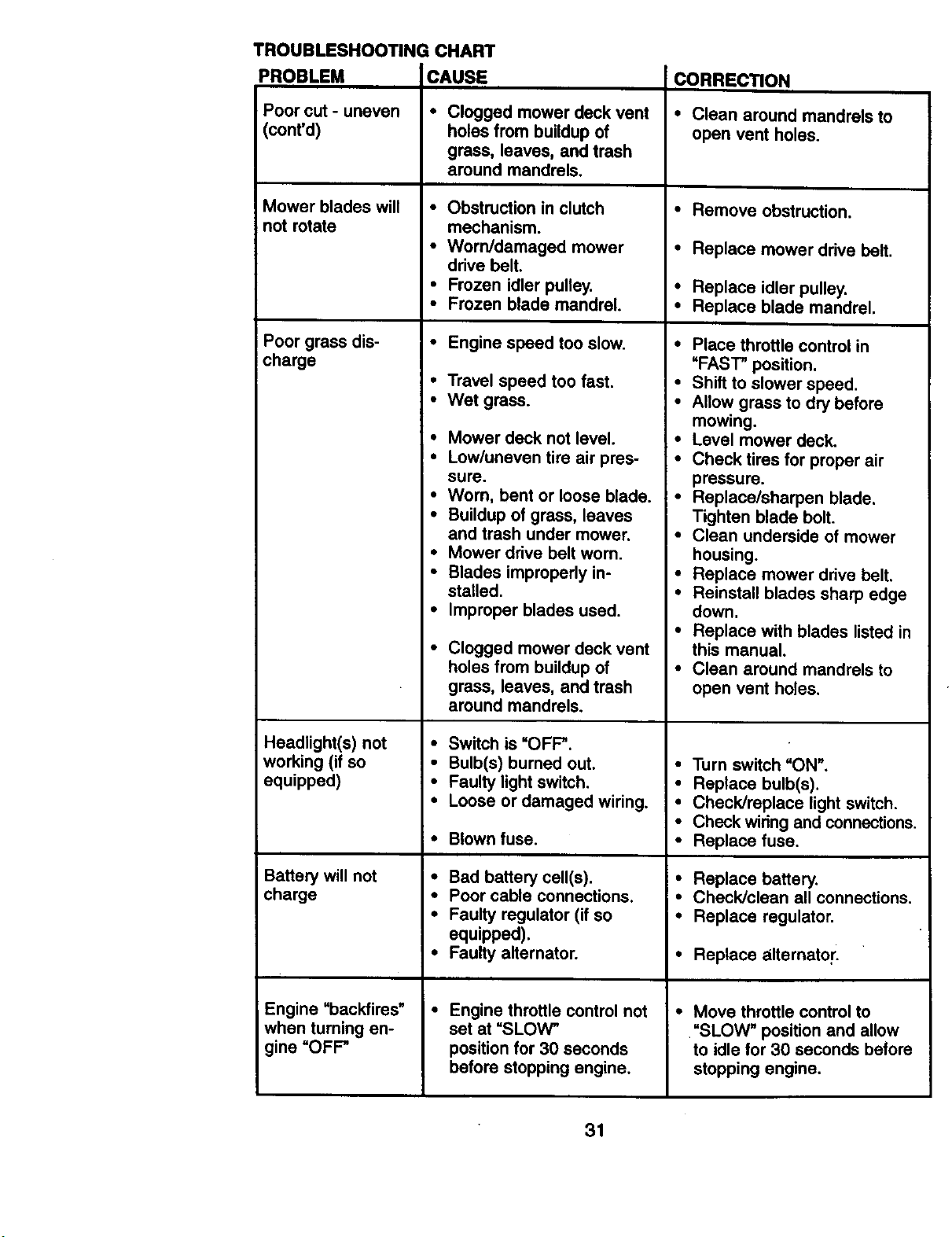

Troubleshooting .................................. 29

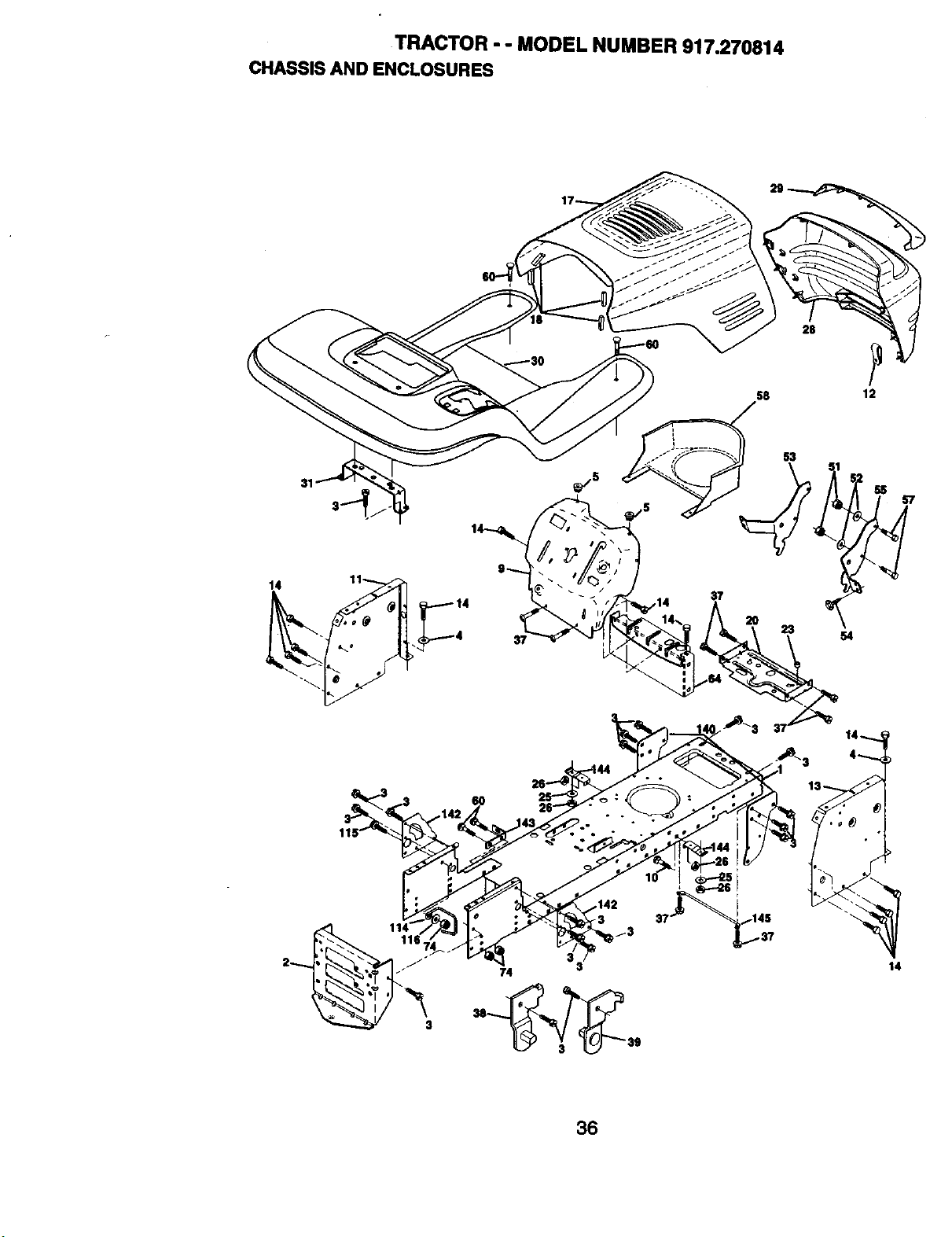

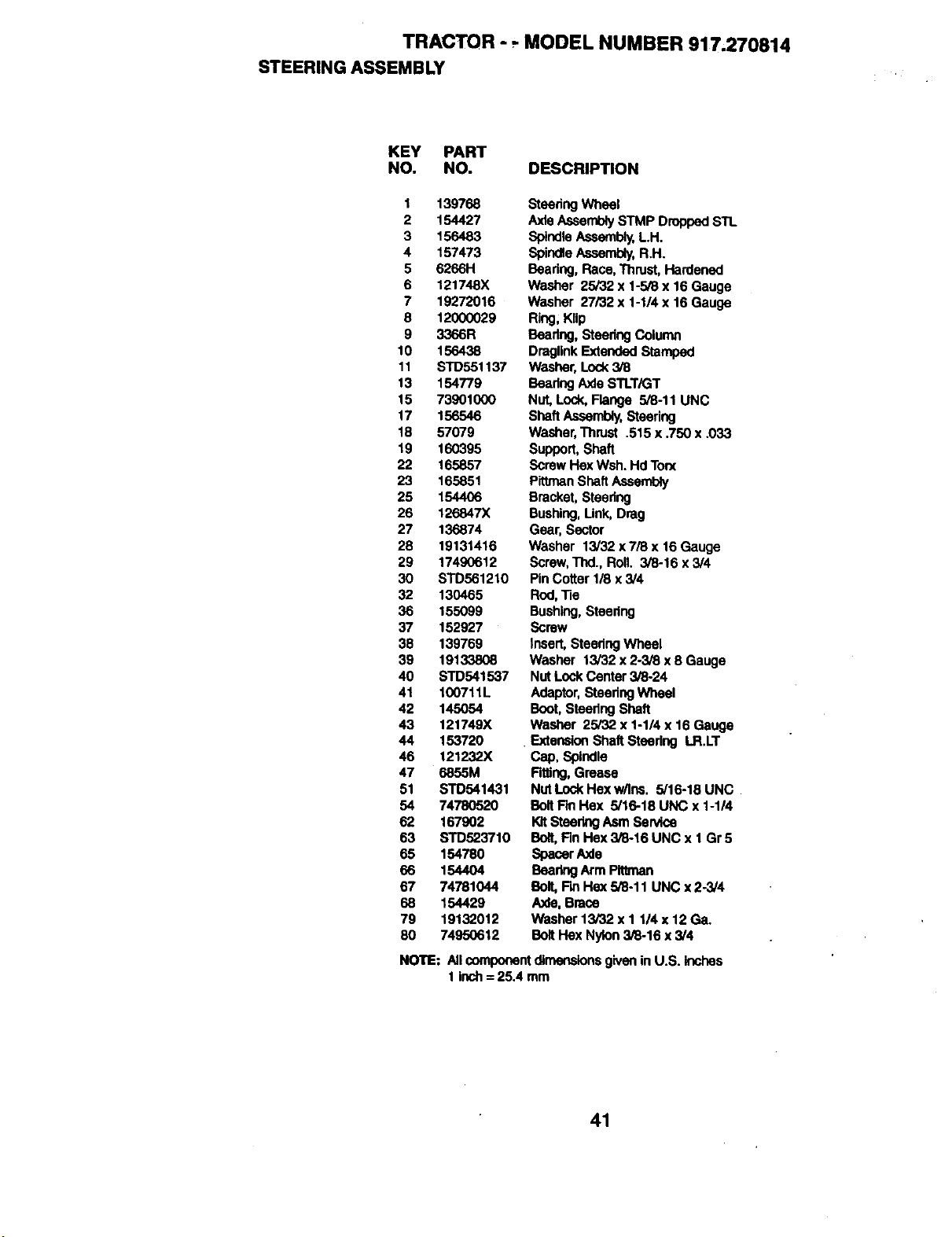

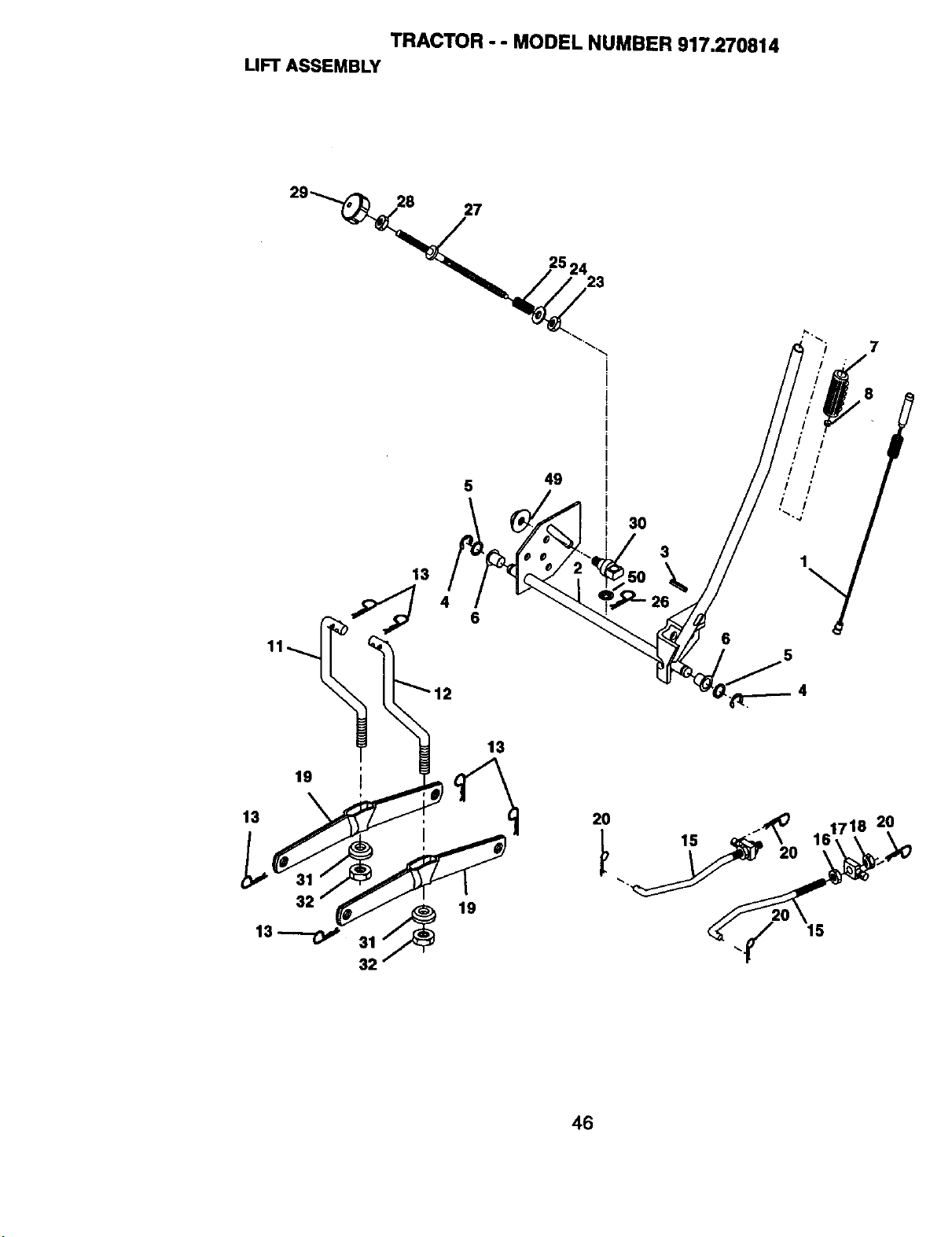

Repair Parts ........................................ 34

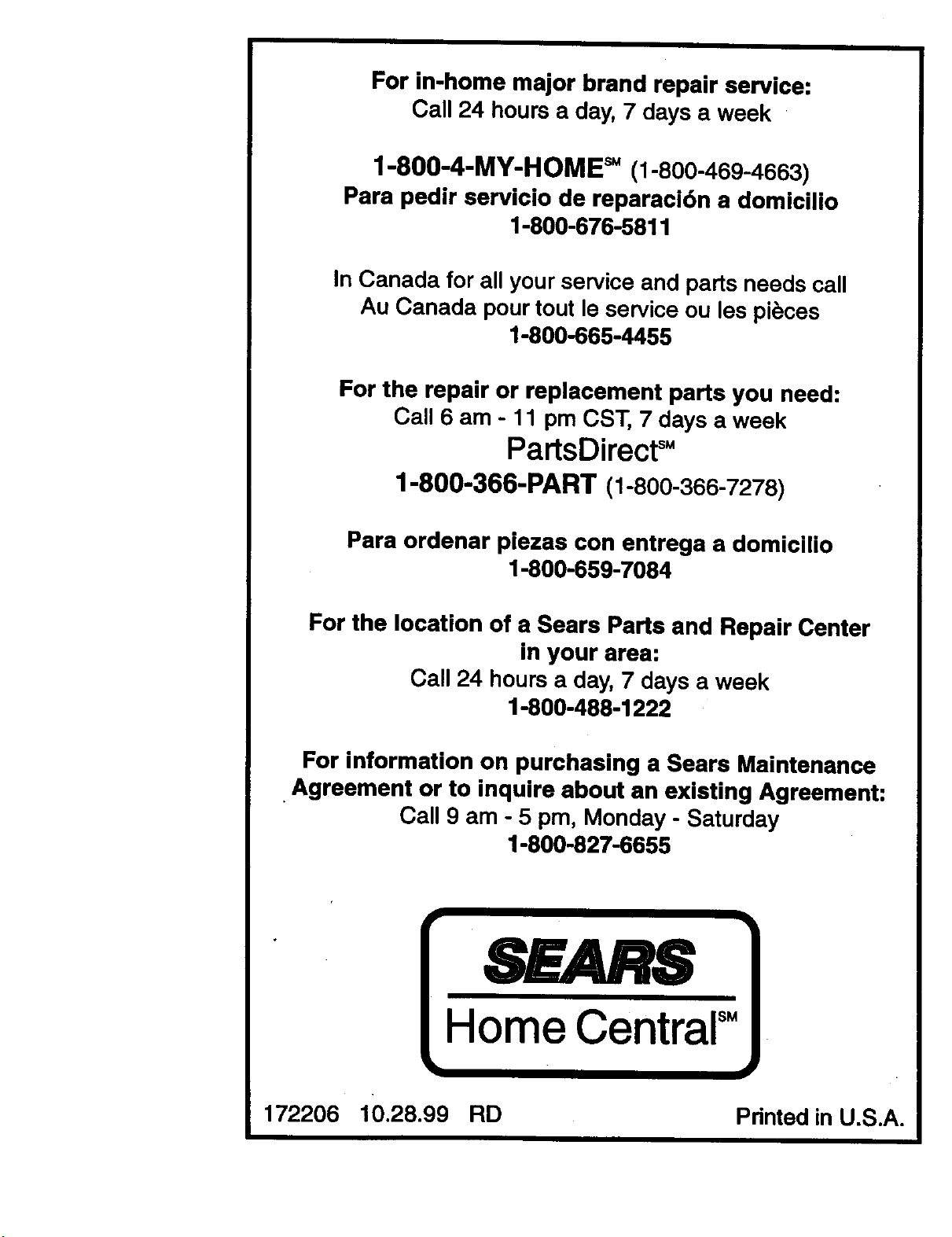

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, ifthis Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsinthe owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructionscontained

in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this ridingequip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge. In-home war-

ranty service on your Craftsman ridingequipment is available at no charge for 30 days

from the date of purchase. Please contact your nearest service center. After 30 days

from the date of purchase, warranty service is available by taking your Craftsman dding

equipment to your nearest Sears Service Center. (In-home warranty service will stillbe

available after 30 days from the date of purchase but a standard trip charge will apply).

This warranty applies only while this product is inthe United States. This Warranty gives

you specific legal dghts, and you may also have other rightswhich may vary from state

to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet and

throwing objects. Failure to observe the

following safety instructions could result in

serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as recks,

toys, wire, etc., which could be picked

up and thrown =bythe blade.

Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

Never carry passengers.

Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

Slow down before turning.

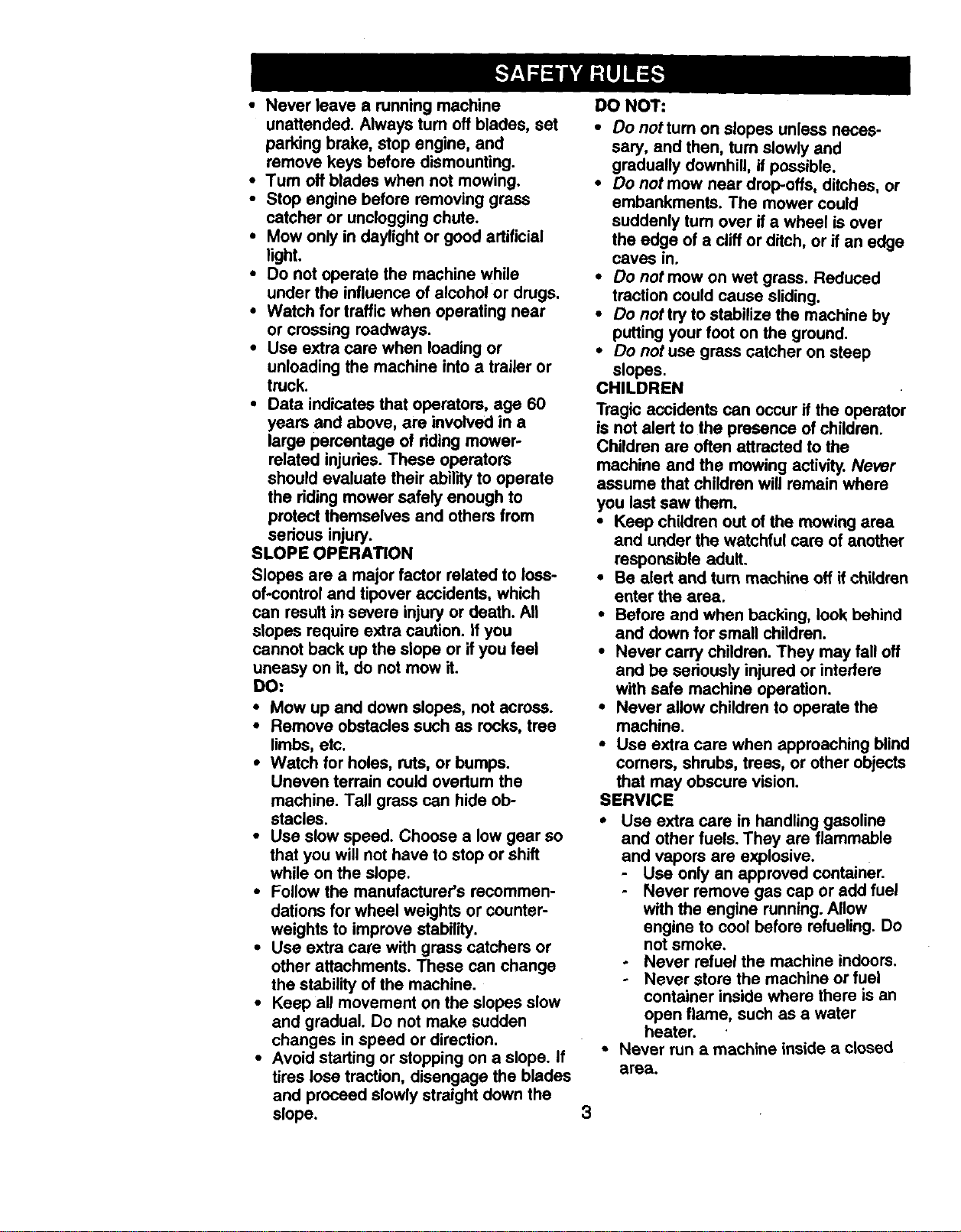

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injudes. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

sedous injury.

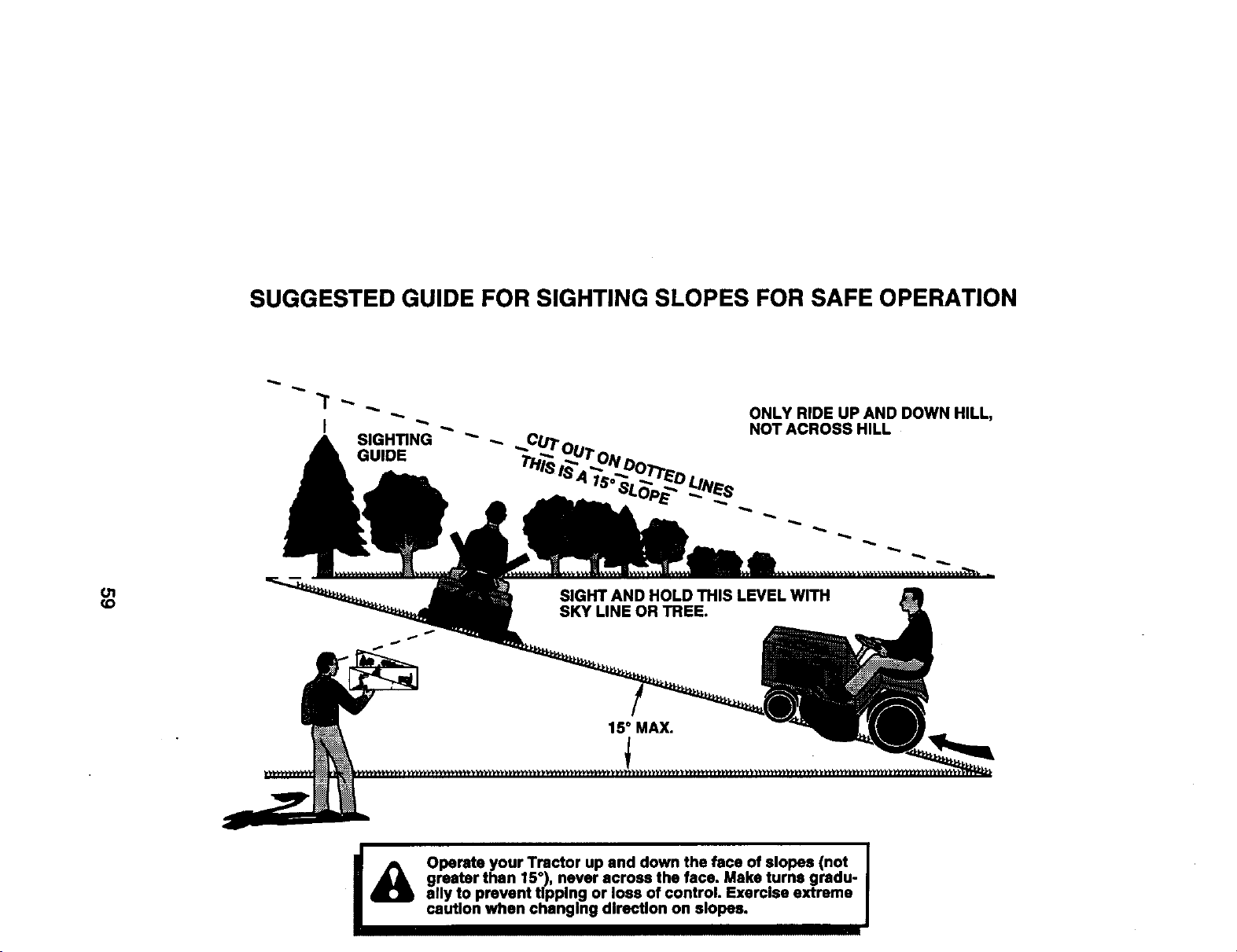

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do nottum on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly tum over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be aled and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water

heater.

• Never run a machine inside a closed

area.

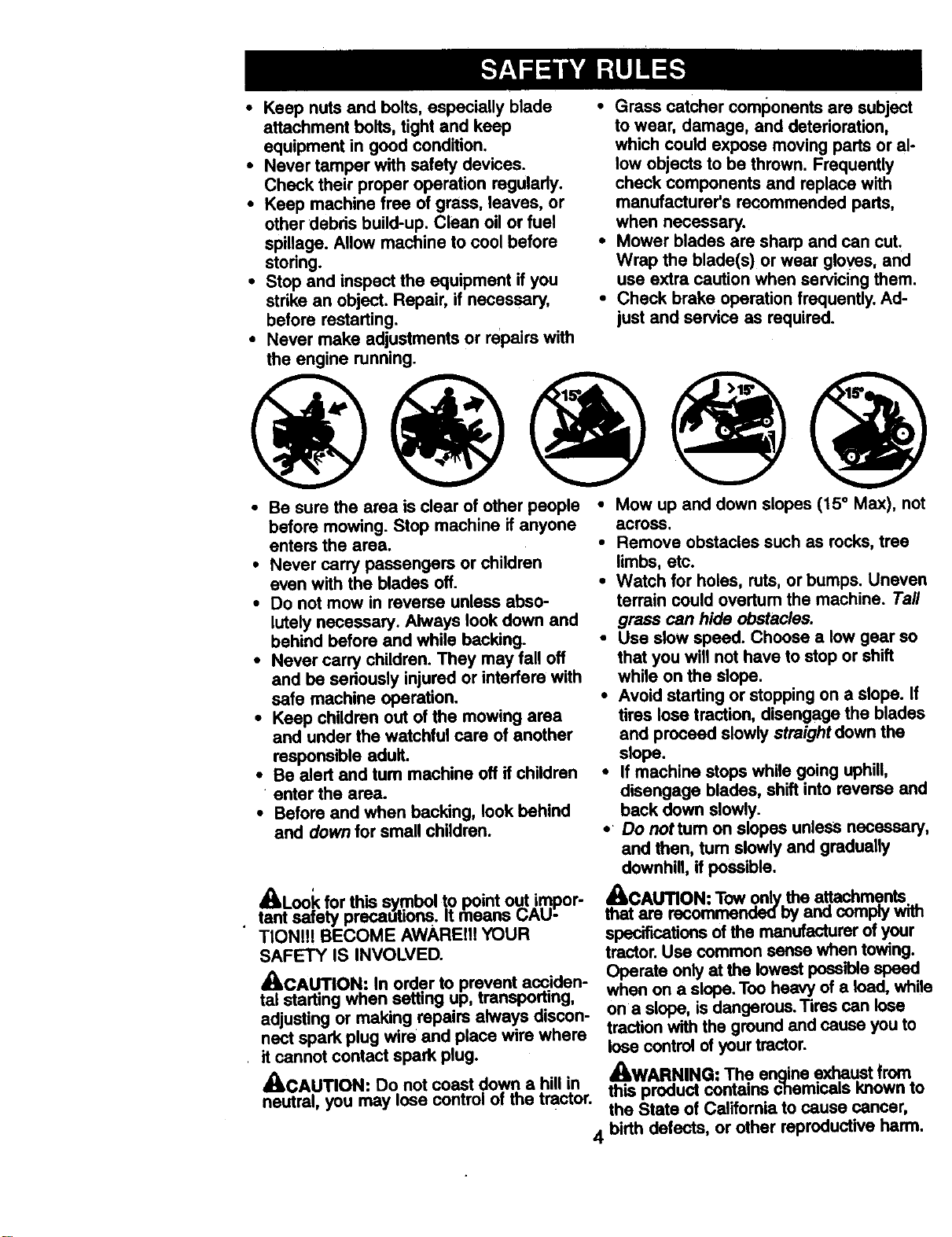

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment ifyou

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or al-

low objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people • Mow up and down slopes (15 ° Max), not

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful cars of another

responsible adult.

• Be alert and tum machine off if children

• enter the area.

• Before and when backing, look behind

and down for small children.

_LLook for this sy.mbolto point out impor.

• tant safety pracadtions. It means CAU-

TIONt!! BECOME AWAREt!! YOUR

SAFETY IS INVOLVED.

_LCAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

itcannot contact spark plug.

_CAUTION: Do not coast down a hill in

neutral, you may lose control of the tractor.

across.

• Remove obstacles such as rocks,tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stoppingon a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not tum on slopes unless necessary,

and then, tum slowly and gradually

downhill, if possible.

_CAUTION: Tow onlythe attachments

that are recommended by and comply with

spocif'mationsof the manufacturer of your

tractor.Use common sense when towing.

Operate only at the lowestpossiblespeed

when on a slope.Tooheavy of a load, while

on a slope, is dangerous.Tires can lose

traction with the ground and cause you to

lose controlof your tractor.

_WARNING: The anqine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

4 birth defects, or other reproductive harm.

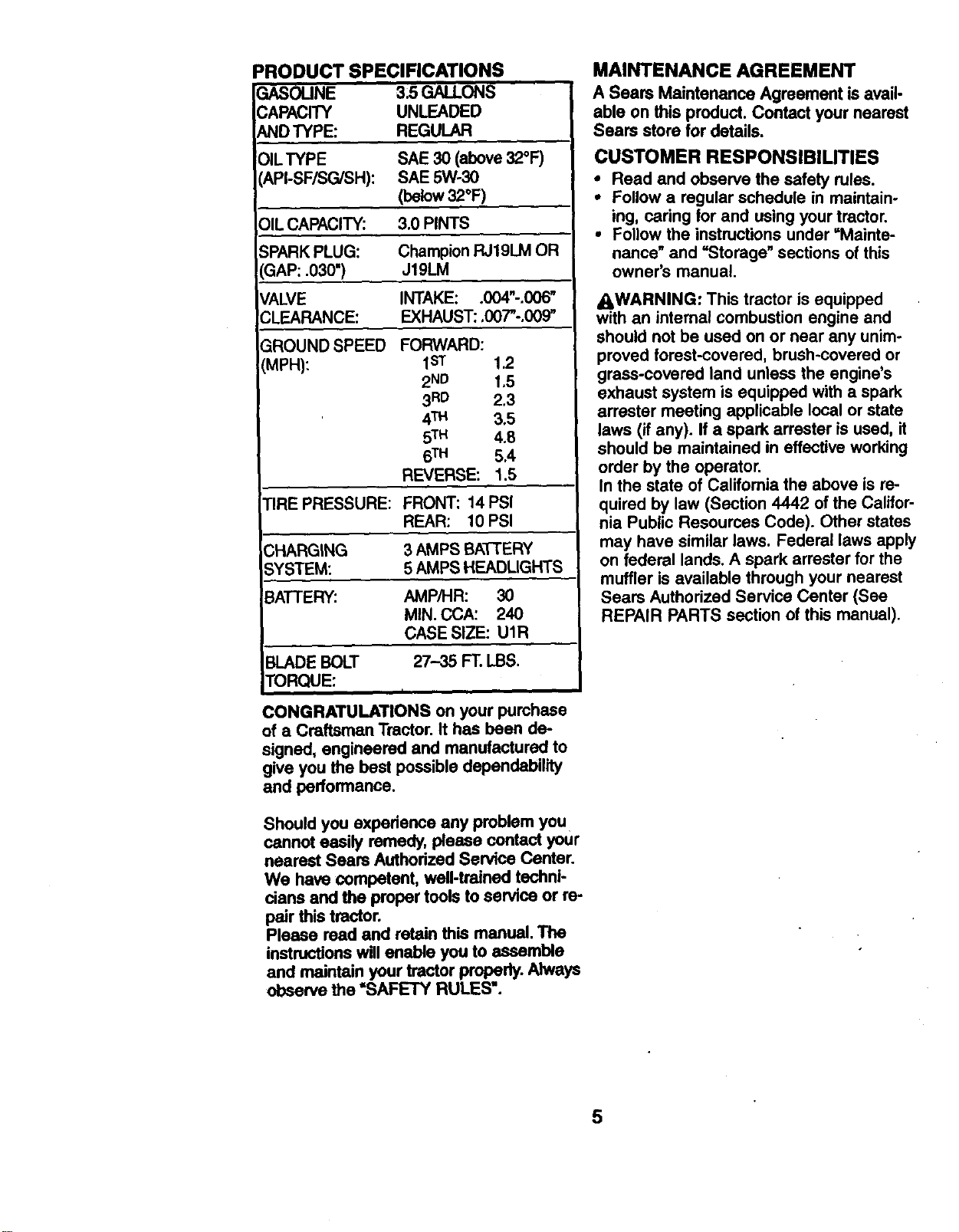

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE 30 (above 32°F)

_PI-SF/SG/SH): SAE 5W-30

(below32°1=)

01LCAPACITY: 3.0 PINTS

SPARKPLUG: ChampionRJ19LM OR

GAP: .030") J19LM

VALVE INTAKE: .004"-,006"

CLEARANCE: EXHAUST:.007"-.009"

GROUND SPEED

(MPH):

FORWARD:

1sT 1.2

2ND 1.5

3RD 2.3

4TM 3.5

5TM 4.8

6TM 5A

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

ARTERY.' AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADEBOLT 27--35 FT.LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor.It has been de-

signed, engineered and manufactured to

give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cians and the proper tools to service or re-

pair this tractor.

Please read and retain this manual. The

instructionswillenable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under =Mainte-

nance" and =Storage" sections of this

owner's manual.

AWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of Califomia the above is re-

quired by law (Section 4442 ofthe Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears Authorized Service Center (See

REPAIR PARTS section of this manual).

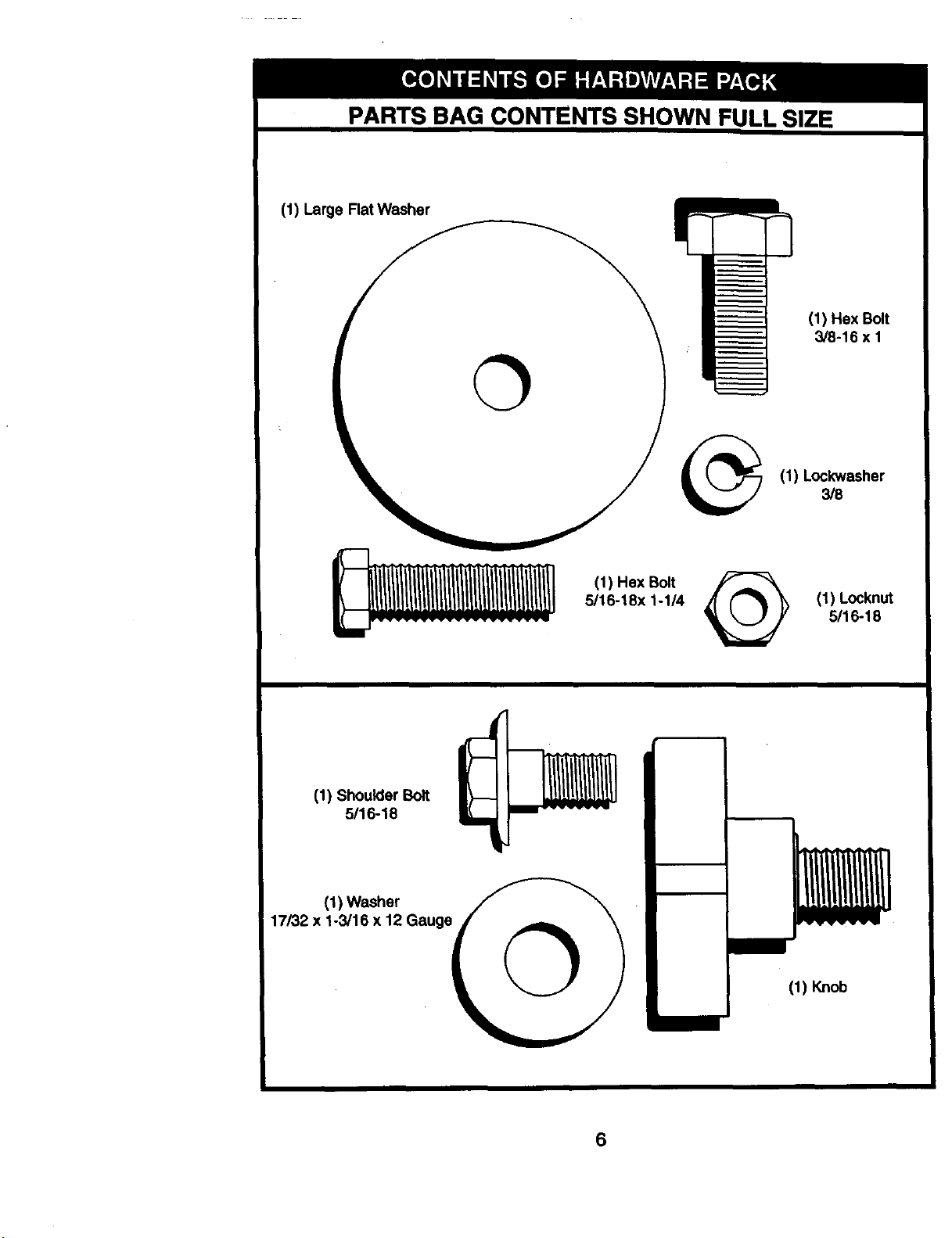

PARTS BAG CONTENTS SHOWN FULL SIZE

(1) Large FlatWasher

(1) Hex Bolt

3/8-16 x 1

(1) Lockwasher

(1) Hex Bolt

5/16-18x 1-1/4

(1) Locknut

5/16-18

(1) Shoulder Bolt

5/16-18

(I) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

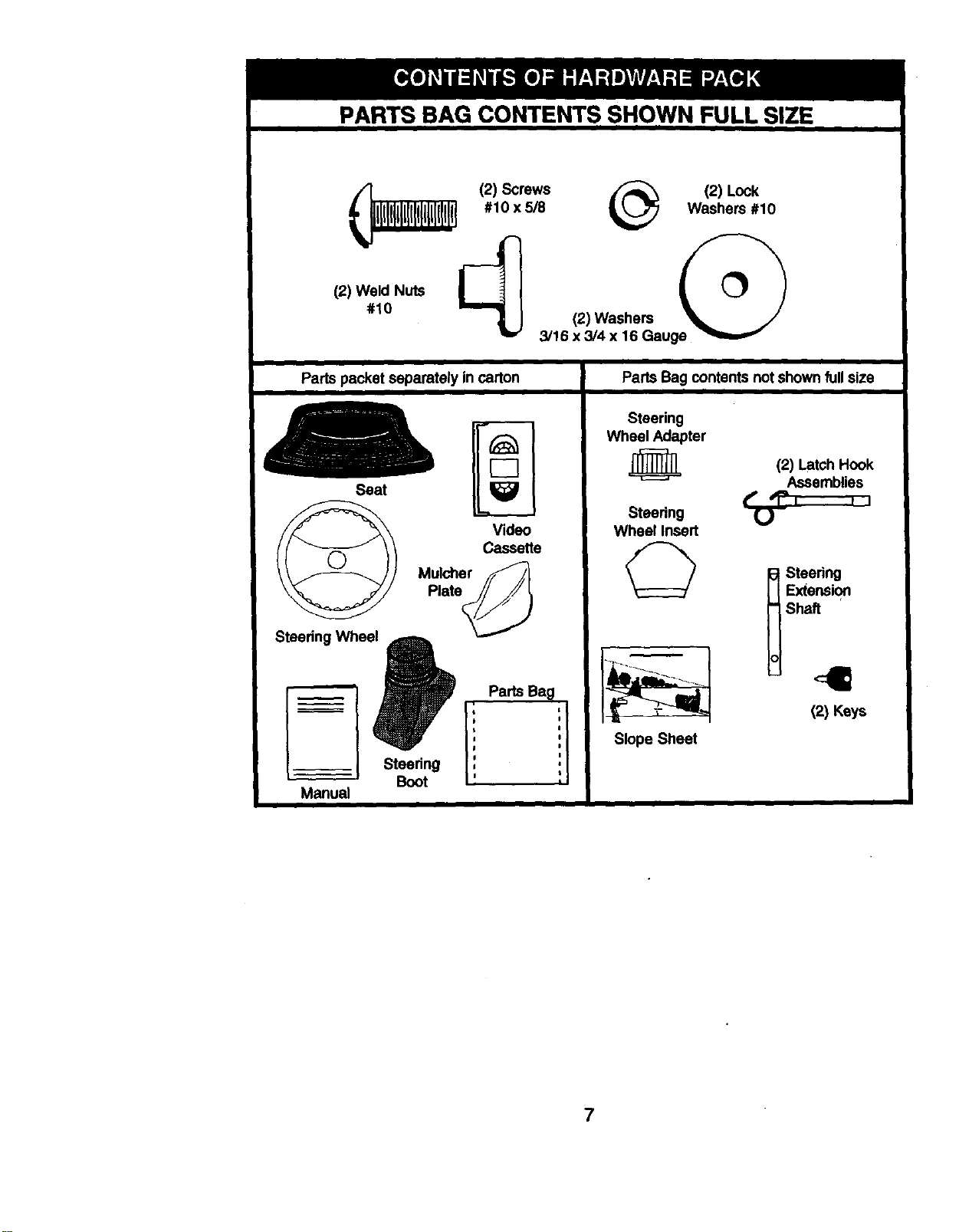

PARTS BAG CONTENTS SHOWN FULL SIZE

(2) Weld Nuts

#10

( (2) Screws _ (2) Lock

_, _ #10 x 5/8 _1_ Washers #10

I (2) Washers

=, 3/16 x 3/4 x 16 Gauge v

Pads packet separately in carton

Seat

Pads Bag contents not shownfullsize

Video

Cassette

Mulcher iF_

Plata_

Steering Whlae_

Pads Bag

i I

s I

i I

Steedng ',

Boot ' 1

Manual

Steering

Wheel Adapter

Latch Hook

(2)

Assemblies

Steedng C{,_I' _ , i

Wheel Insert

I Steedng

Extension

Shaft

= (2) Keys

Slope Sheet

Yournew tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (2) 1/2" wrench

(1) Phillips Screw- (1) Pliers

driver (1) Tire pressure

(1) Utility knife gauge

(1) 3/4" socket with drive ratchet

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

• Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes in

extension and lower shafts and install

5/16 hex belt and Iocknut. Tighten

securely.

IMPORTANT: Tighten belt and nut

securely to 18-22 ft. Ibs. torque.

'• Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

• Positionfront wheels of the tractor so

they are pointing straight forward.

• Slide steering wheel adapter onto

steedng shaft extension.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center of

steering wheel.

• Remove protective materials from

tractor hoed and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

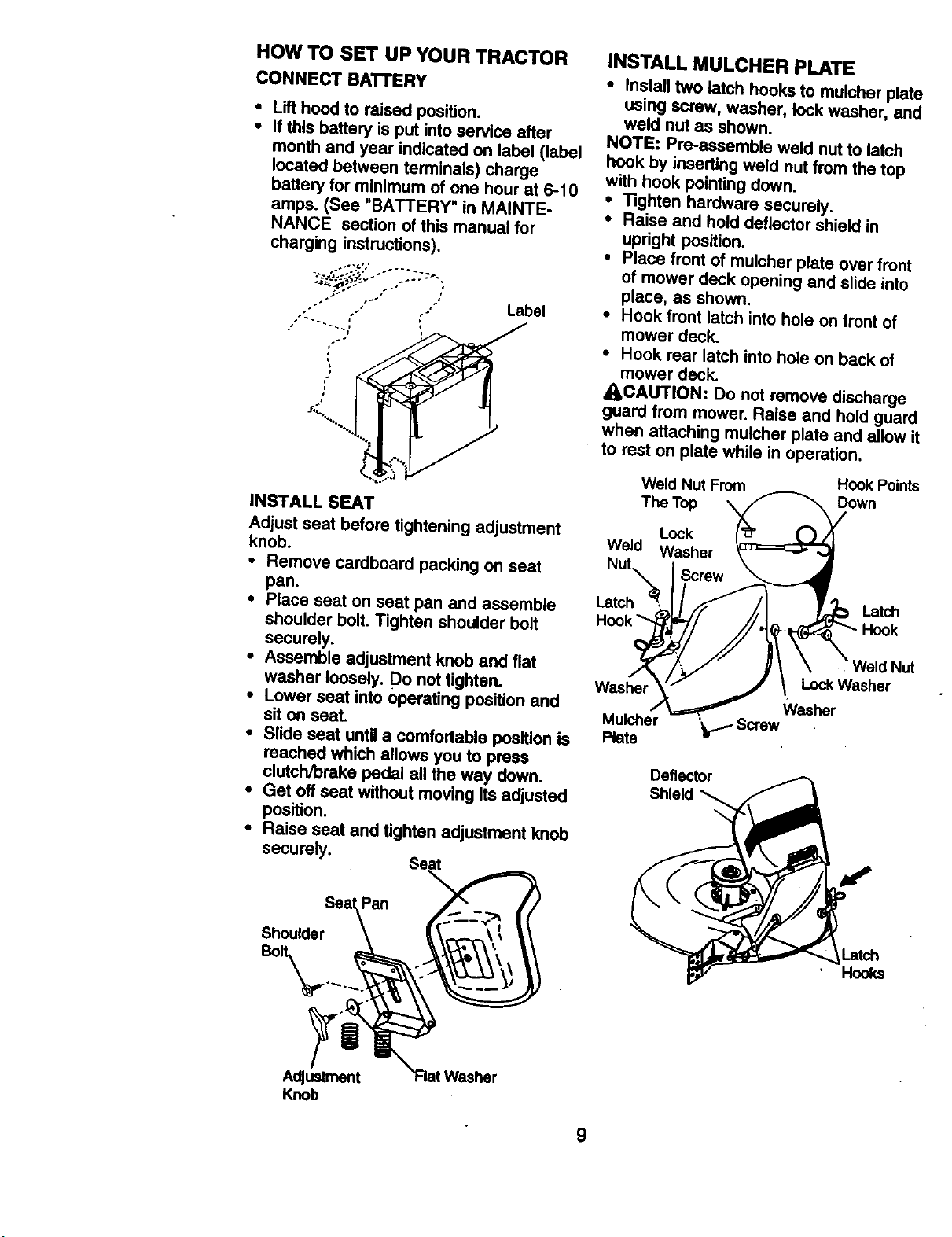

HOW TO SET UP YOURTRACTOR

CONNECTBATTERY

• Lift hood to raised position.

• If this battery is put into service after

month and year indicated on label (label

located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in MAINTE-

NANCE section of this manual for

charging instructions).

÷÷- ,_// _...~

,- , ., Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove cardboard packing on seat

pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. D° not tighten.

• Lower seat into operating position and

sit on seal

• Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment knob

securely.

Seat

s ,0or\

}r-i

A_ustmen_t__=t Washer

Knob

INSTALL MULCHER PLATE

• Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down,

• Tighten hardware securely.

• Raise and hold deflector shield in

upright position.

• Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when atlaching muicher plate and allow it

to rest on plate white in operation.

Weld Nut From Hook Points

The Top Down

Look

Weld Washer

Latch Latch

JNut

LockWasher

Washer

Mulcher '_.._ Screw

Plate

Deflector

Shield

Latch

Hooks

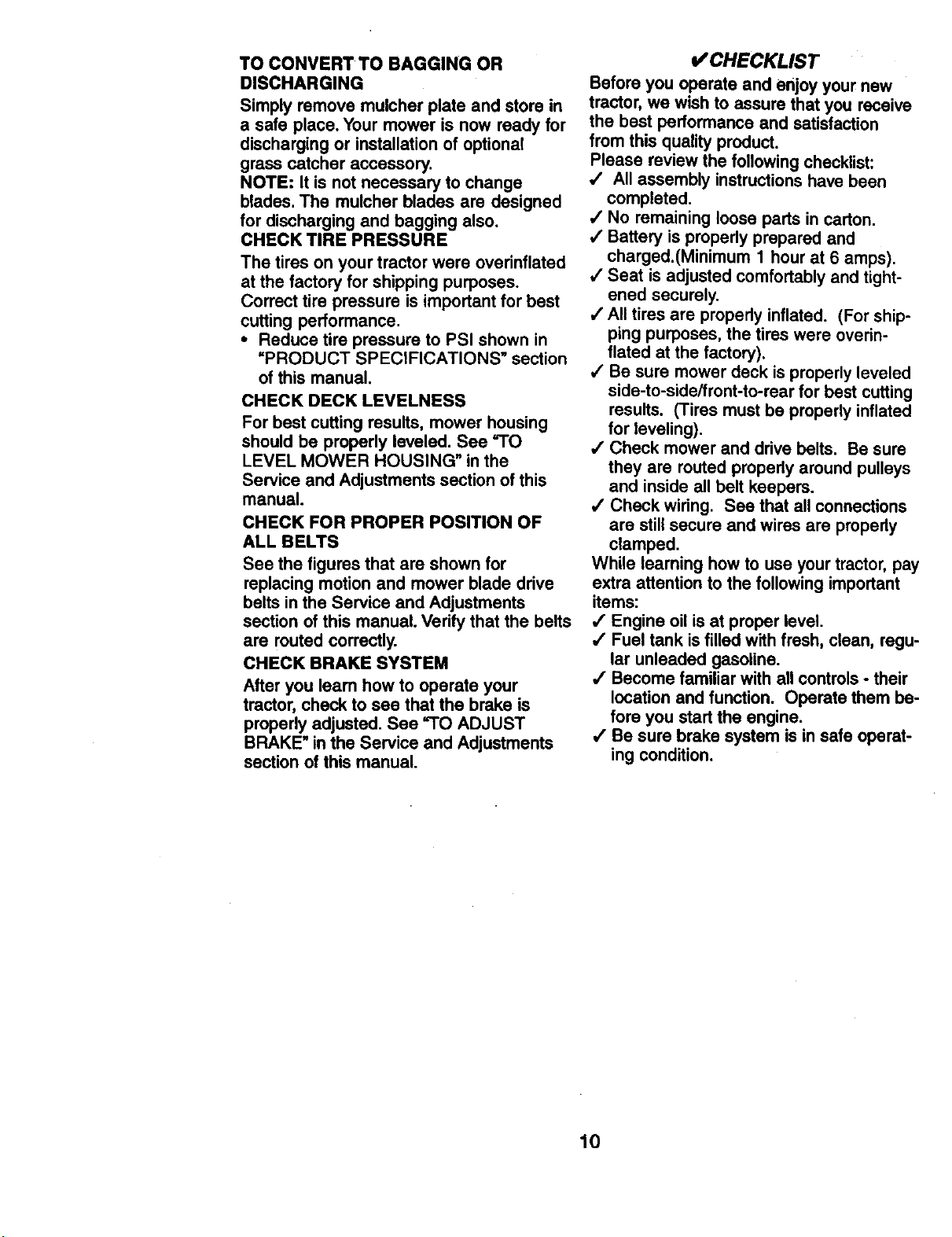

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tiros on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the belts

are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" inthe Service and Adjustments

section of this manual.

V"CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged.(Minimum 1 hour at 6 amps).

4' Seat is adjusted comfortably and tight-

ened securely.

,/All tires are propedy inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

•/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. Sea that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

/ Engine oil is at proper level.

•/ Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

•/ Become familiar with all controls - their

location and function. Operate them be-

fore you start the engine.

/ Be sure brake system is in safe operat-

ing condition.

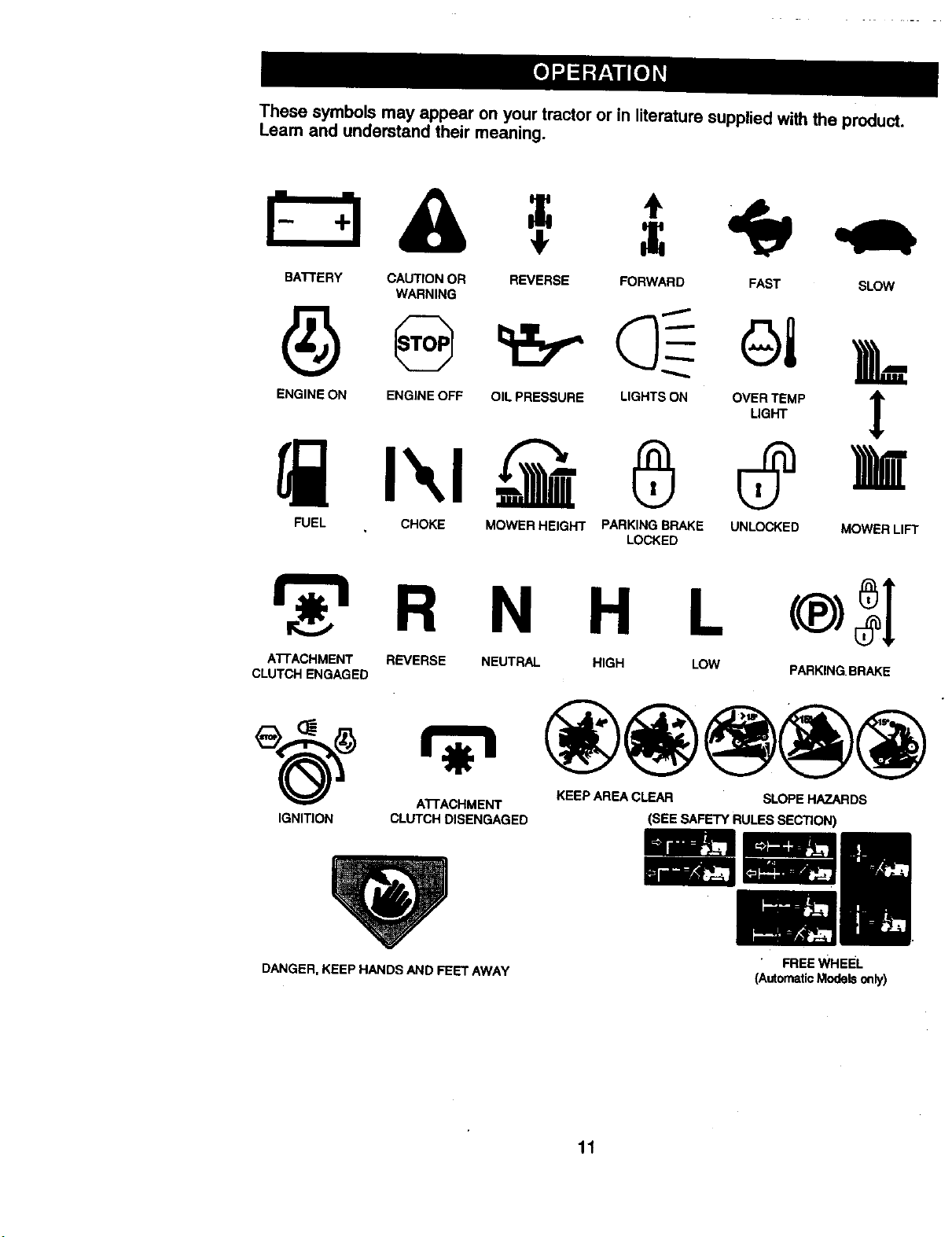

These symbols may appear on your tractor or in literature suppliedwith the product.

Leam and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

H L

ATrACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED PARKING. BRAKE

__) ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

(SEE SAFETY RULES SECTION)

Ei=

FREE WHEEL

(AutomaticModelsonly)

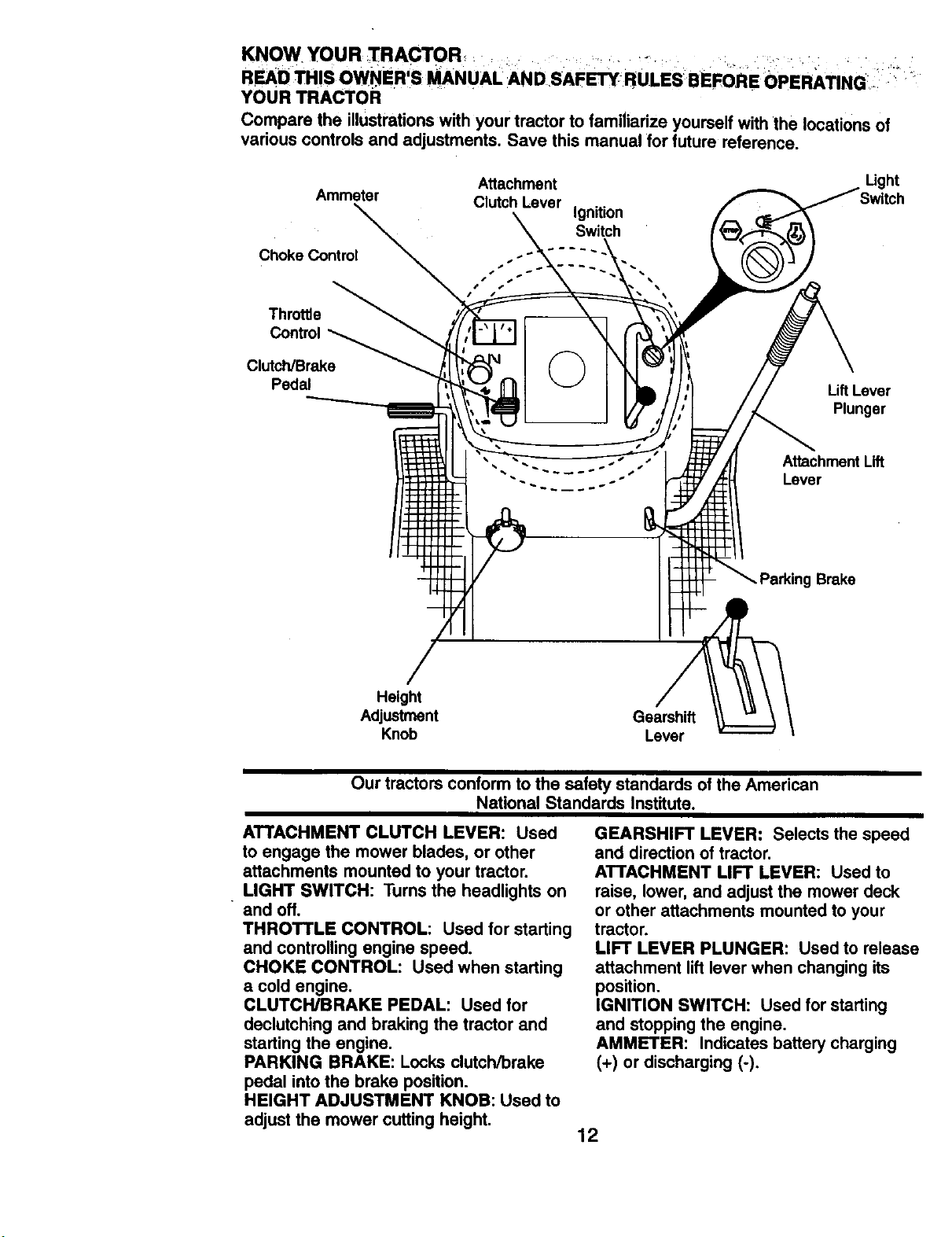

KNOW YOUR TRACTOR , .... _...... _. : _..... , _ , ,

R_DTHIS OWNER'S MANUAL AND.SAF_ RULES BEFORE OPERATING i_ _

YOUR TRACTOR ....

Compare the illustrationswith your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Choke Control

Throttle

Control

Clutch/Brake

Pedal

Attachment

Clutch Lever .

\ ignmon

• •_ _Switch

Light

Lift Lever

Plunger

Attachment Lift

Lever

Brake

Height

Adjustment Gearshift

Knob Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL: Used for starting

and controlling engine speed.

CHOKE CONTROL: Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine,

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting

and stopping the engine.

AMMETER: Indicates battery charging

(+) or discharging (-).

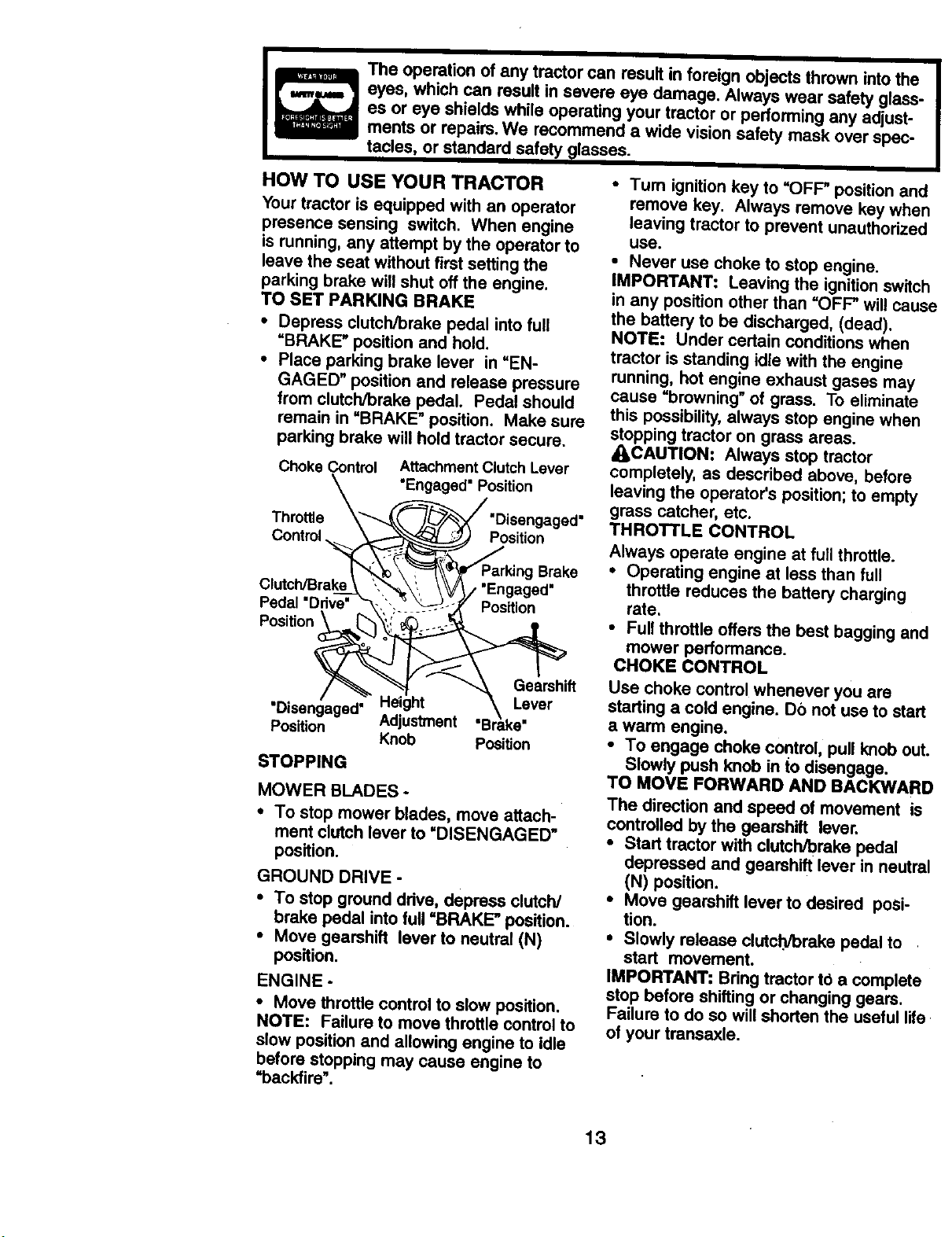

The operation of any tractor can result in foreign objects thrown intothe

eyes, which can result in severe eye damage. Always wear safety glass-

es or eye shields while operating your tractor or performing any adjust-

ments or repairs.We recommend a wide vision safety mask over spec-

tacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

TO SET PARKING BRAKE

• Depress clutch/brake pedal into full

=BRAKE" position and hold.

• Place parking brake lever in =EN-

GAGED" position and release pressure

from clutch/brake pedal. Pedal should

remain in =BRAKE"position. Make sure

parking brake will hold tractor secure.

Choke Control Attachment Clutch Lever

"Engaged" Position

Throttle

Control Position

Position

Brake

/ "Engaged"

Position

• Turn ignitionkey to =OFF" positionand

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignitionswitch

in any position other than =OFF" will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause =browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

A, CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position;to empty

grass catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

CHOKE CONTROL

"Disengaged"

Position

STOPPING

Gearshift

Lever

Adjustment

Knob Position

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to =DISENGAGED"

position.

GROUND DRIVE -

• To stop ground ddve, depress clutch/

brake pedal intofull =BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

Use choke control whenever you are

starting a cold engine. DOnot use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position.

• Move gearshift lever to desired posi-

tion.

* Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor tOa complete

stop before shifting or changing gears.

Fa'dursto do so willshorten the useful life

of your transaxle.

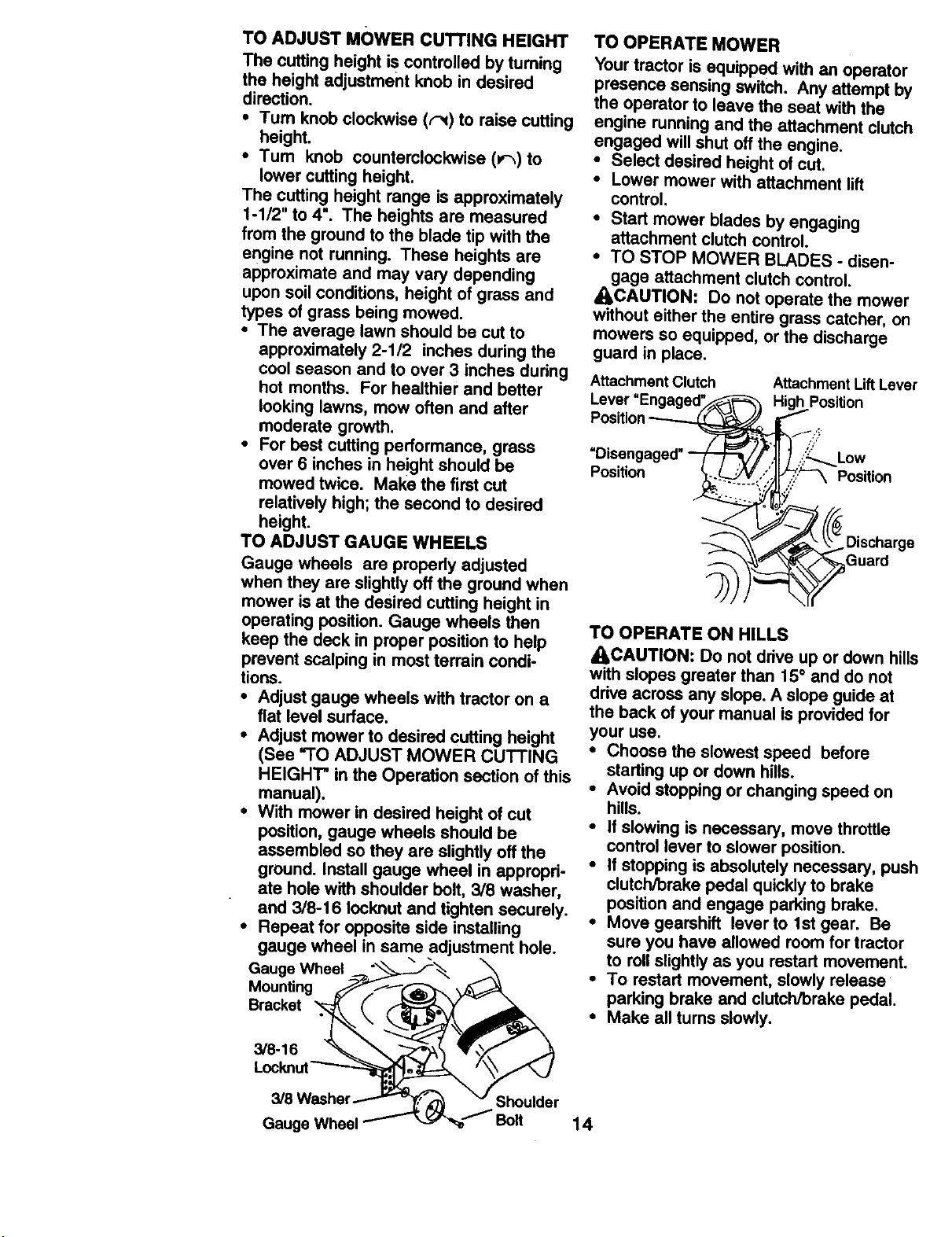

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by tuming

the height adjustment knob in desired

direction.

• Turn knob clockwise (r_) to raise cutting

height.

• Tum knob countemlockwise (_,_)to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4=. The heights are measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass

over 6 inches in he!ght should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain condi-

tions.

• Adjust gauge wheels with tractor on a

fiat level surface.

• Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of this

manual).

• With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in appropri-

ate hole with shoulder bolt, 3/8 washer,

and 3/8-16 Iocknut and tighten securely.

• Repeat tot opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel

Mounting

Bracket

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

• Select desired height of cut.

• Lower mower with attachment lift

control.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

Attachment Clutch Attachment Lift Lever

Lever "Engaged"F_-_-- _ High Position

Positi_n_. _ .

=Disengaged"____Low

Position __.__4"--N Position

TO OPERATE ON HILLS

_CAUTION: DO not drive up or down hills

with slopes greater than 15 ° and do not

drive across any slope. A slope guide at

the back of your manual is provided for

your use.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• It slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake

position and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

3/8-16

Locknu

3/8 Washel Shoulder

Gauge Wheel 14

TO TRANSPORT

• Raise attachment liftto highest position

with attachment liftcontrol.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

• Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If necessary,

add oil until =FULL" mark on dipstick is

reached. Do not overfill

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainten-

ance section of this manual).

• To change engine oil, see the Mainten-

ance section in this manual.

ADD GASOLINE

• RII fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help insure

good cold weather starting.

_I_WARNING: Experience indicates that

alcohol blended fuels (called gssohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

• I_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

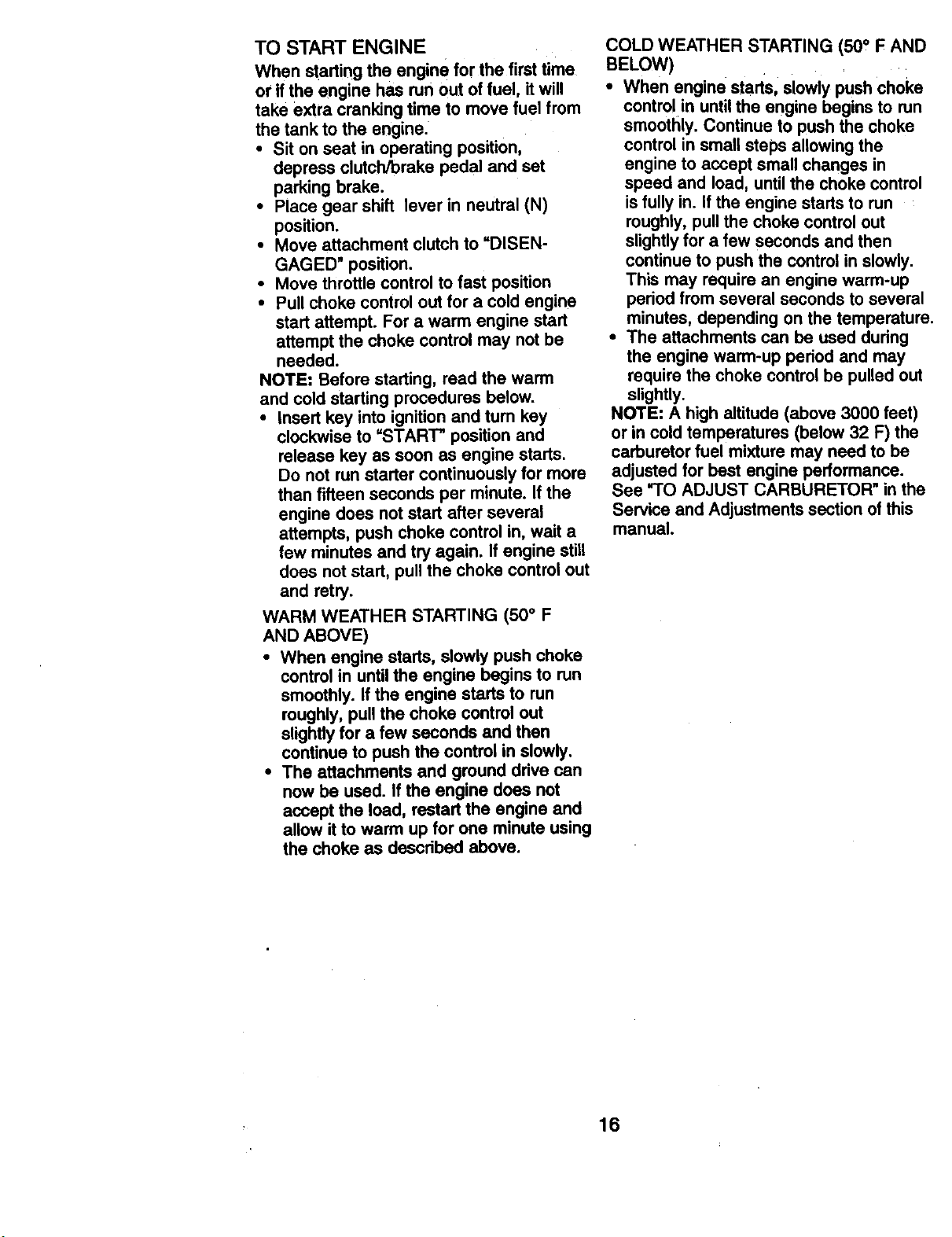

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutral (N)

position.

• Move attachment clutch to =DISEN-

GAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm

and cold starting procedures below.

• Insert key intoignition and turn key

clockwise to =START" positionand

release key as soon as engine starts.

Do not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine still

does not start, pull the choke control out

and retry.

WARM WEATHER STARTING (50 ° F

AND ABOVE)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. If the engine starts to run

roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as descdbed above.

COLD WEATHER STARTING (50° F AND

BELOW)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the

engine to accept small changes in

speed and load, untilthe choke control

is fully in. If the engine starts to run

roughly, pull the choke control out

slightlyfor a few seconds and then

continue to push the control in slowly.

This may require an engine warm-up

period from several seconds to several

minutes, depending on the temperature.

• The attachments can be used dudng

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: A high altitude (above 3000 feet)

or in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be

adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

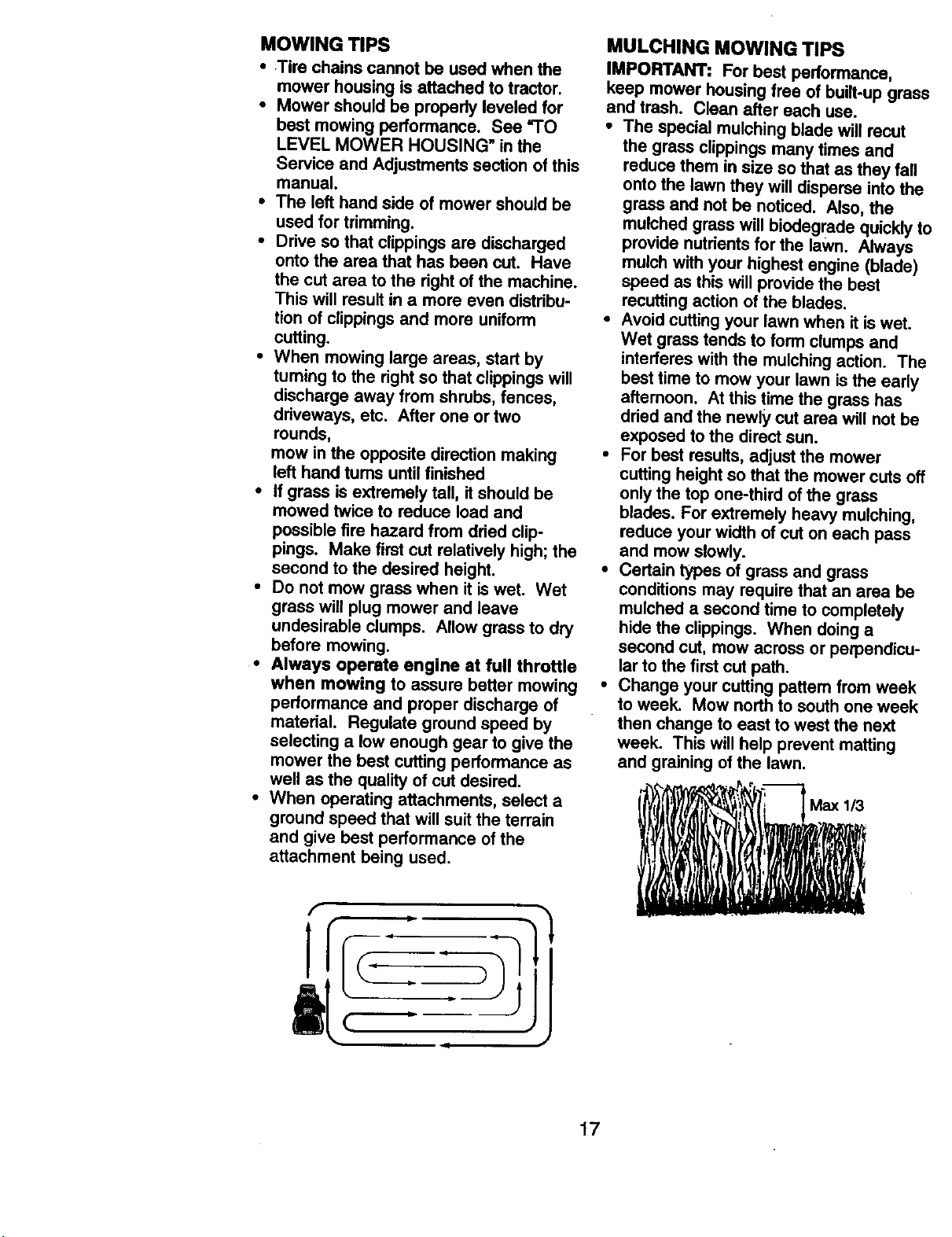

MOWING TiPS

• .Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the machine.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the rightso that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds,

mow in the opposite direction making

left hand turns until finished

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it iswet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

• When operating attachments, select a

ground speed that wilt suit the terrain

and give best performance ofthe

attachment being used.

MULCHING MOWING TIPS

IMPORTANT. For best performance,

keep mower housing free of built-up gras.=

and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse intothe

grass and not be noticed. Also, the

mulched grass will biodegrade quickly t_

provide nutrientsfor the lawn. Always

mulch withyour highest engine (blade)

speed as this will provide the best

recutting action of the blades.

Avoid cuttingyour lawn when it iswet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn isthe early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heaW mulching,

reduce your width of cuton each pass

and mow slowly.

Certain types of grass and grass

conditionsmay require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

Change your cutting pattem from week

to week. Mow northto south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE =.._./_._j_

o.__o__.

Check'nm _m

iT Inmrlo_Systems I/

R Chock_ L=o_F==o,_m _ _, V'

Lubd_on Chart _

R Clean Batteryand Terminals !I_

CheckTransaxleCooling I_

Adjust Motion D_ve Belt(s) Tewsion _s

Ch_ _,_ C_Lo_ _

E CleanAirFilter

N c_=n_UrS¢r=m I_

ReplaceOil Filter(Ifequipped) l_.i

EN CleanEngineCoolk_gFins

Replace Spark Plug _i

ReplaceAft FilterPiper Cllrtddge II_=

1. Clwlge nlonl oitlll idllm opitilig ulidw ii Ilelvy load or in htgtl _lnl tlil_1_rldu_lil. S - ffequipped _h _p_ble =y_er_

2. Semite mor_ ofl_ whe. _)r_lng b _ln'y o* du_y cotillions, il - Noi tequiiid II liqulpplid tilh n_illilimm_e-hlie bii_y,

3. _ equlpp_ with ol _, ch_m_e ol _ SOhounk 7 - T_llt_m fro_ _le picot boltto _ ft,-Ib_ mmdmum.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to propedy maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

• assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and interlock

systems for proper operation.

• Check for loose tasteners.

LUBRICATION CHART

Zerk Zerk

Wheel

_) Front Wheel Besdng

Bearing Zerk Zerk

® Engine

Attachment_ : l

Clutch I ' I

Pivot(s)

I i

(I) SAE 30 or 10w30 Motor OIL Pivots

@GeneralPurposeGrease

Referto Maintenance"Engine"Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bear-ings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry,

powdered graphite type lubricant spar-

18 ingly"

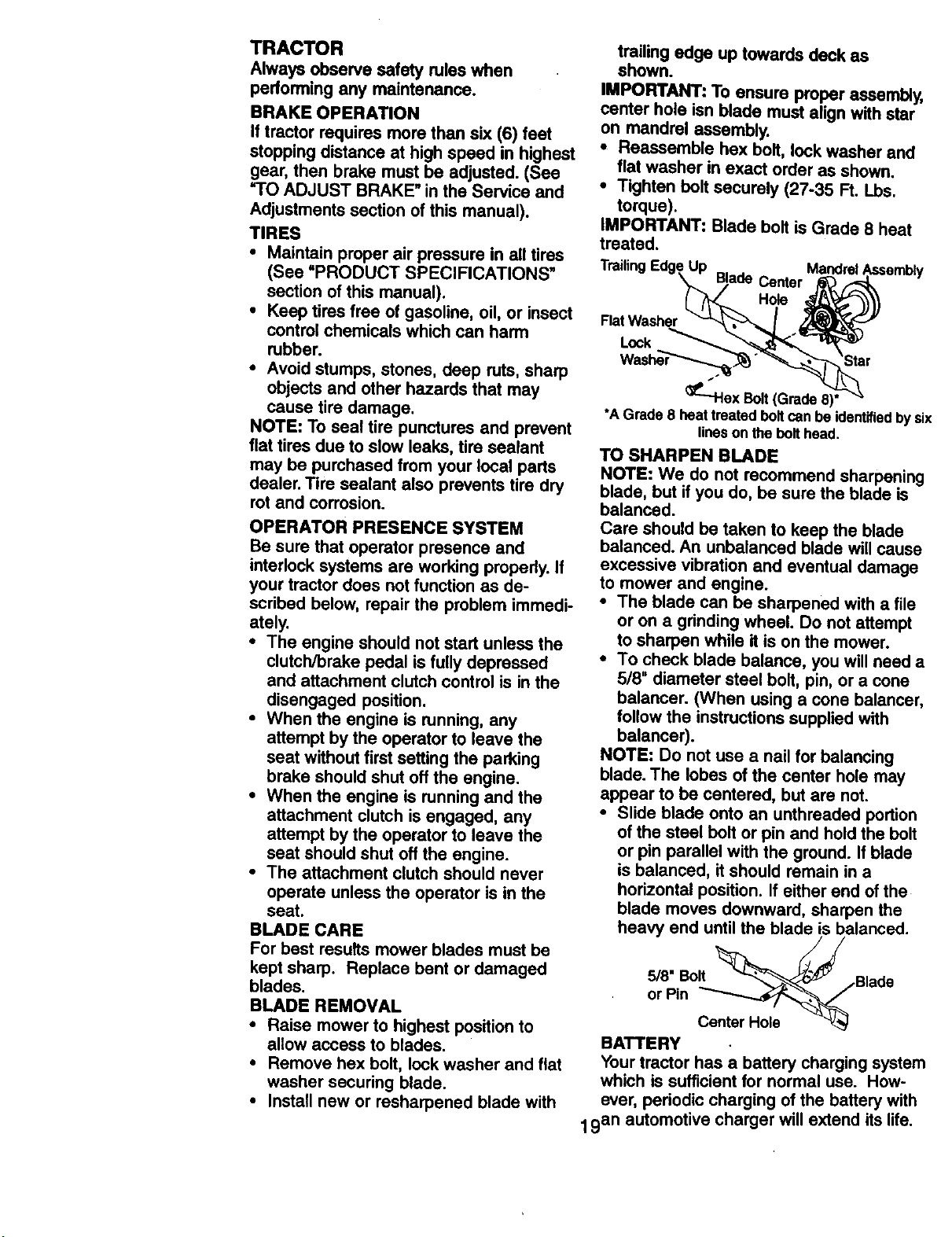

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

=TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in aU tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working propedy. If

your tractor does not function as de-

scribed below, repair the problem immedi-

ately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

• Raise mower to highest position to

allow access to blades.

• Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole isn blade must align with star

on mandrel assembly.

• Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt isGrade 8 heat

treated.

TrailingEdge, MandrelAssembly

Center

Hole

Flat Washer

Lock

_-Hex Bolt(Grade 8)

*A Grade 8 heattreatedboltcan be identifiedbysix

lineson thebolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer).

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the belt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt _ Blade

or Pin _

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

19 an automotive charger will extend its life.

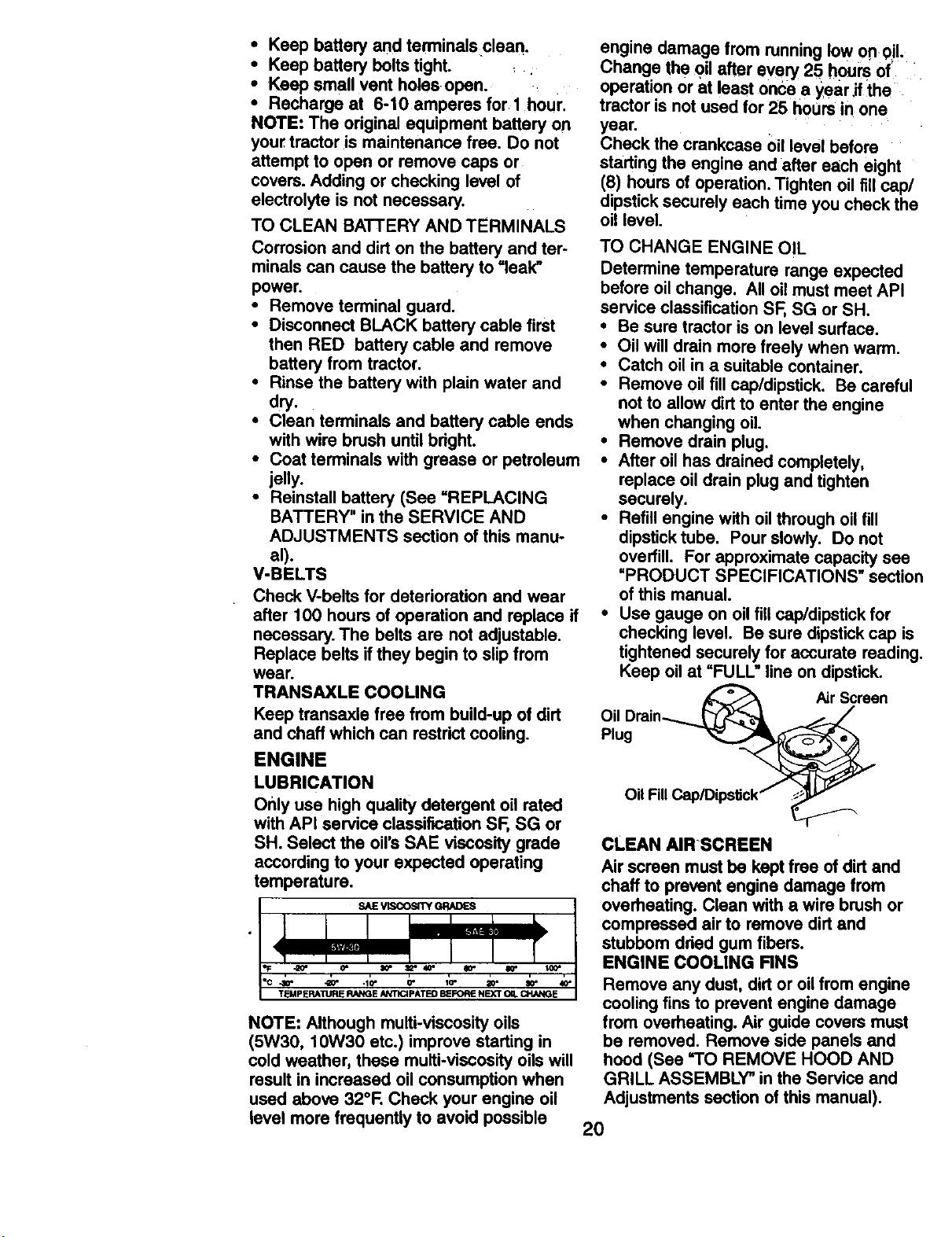

• Keep battery and terminalsclea n.

• Keep battery bolts tight. _

• Keep small vent holes open.

• Recharge at 6-10 amperes for1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or

covers. Adding or checking level of

electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and ter-

minals can cause the battery to =leak"

power.

• Remove terminal guard.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

• Rinse the battery with plain water and

dry.

• Clean terminals and battery cable ends

with wire brush until bright.

• Coat terminals with grease or petroleum

jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this manu-

al).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from runninglow on 0il.

Change the oil after every 25 hours of :

operation or at least once a year Jfthe

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation.Tighten oil fillcap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change, All oil must meet API

service classification SF, SG or SH.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

• Remove drain plug.

• After oil has drained completely,

replace oil drain plug and tighten

securely.

• Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS" section

of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick.

Air Screen

Oil

Plug

Oil

CLEAN AIR-SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING RNS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See =TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

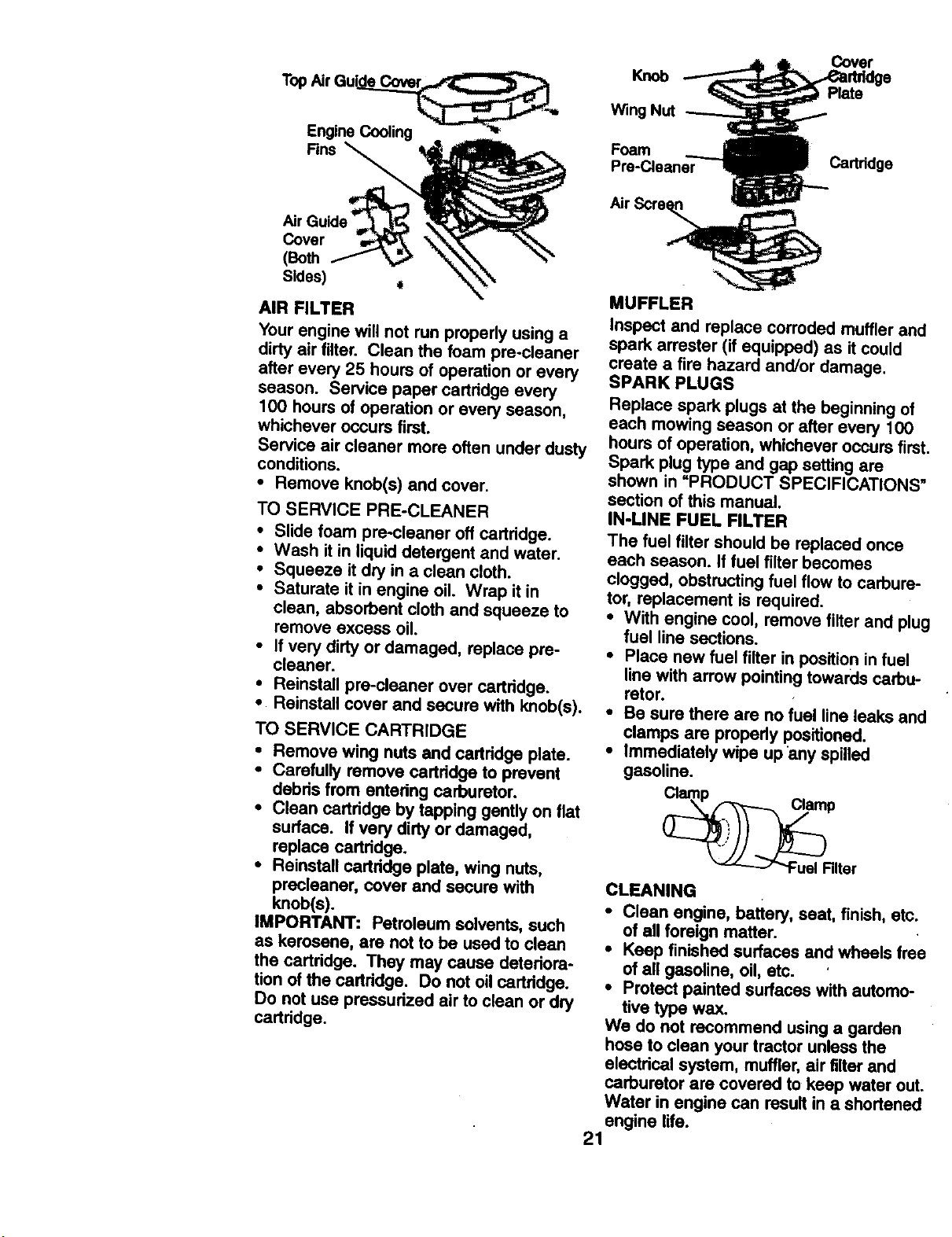

Knob

Wing Nut

Foam

Pre-Cleaner

Cover

Plate

Cartddge

Air q

Cover

(Both

Sides)

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquiddetergent and water.

• Squeeze itdry in a clean cloth.

• Saturate itin engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

• If very dirty or damaged, replace pre-

cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

• Remove wing nuts and cartridge plate.

• Carefully remove cartridge to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on flat

surface. If very dirty or damaged,

replace cartridge.

• Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge,

Air Scre_

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS _

section of this manual,

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season, if fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and plug

fuel line sections.

• Place new fuel filter in positio n in fuel

line with arrow pointing towards carbu-

retor.

• Be sure there are no fuel line leaks and

clamps are properly positioned.

• Immediately wipe up any spilled

gasoline.

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasotine, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

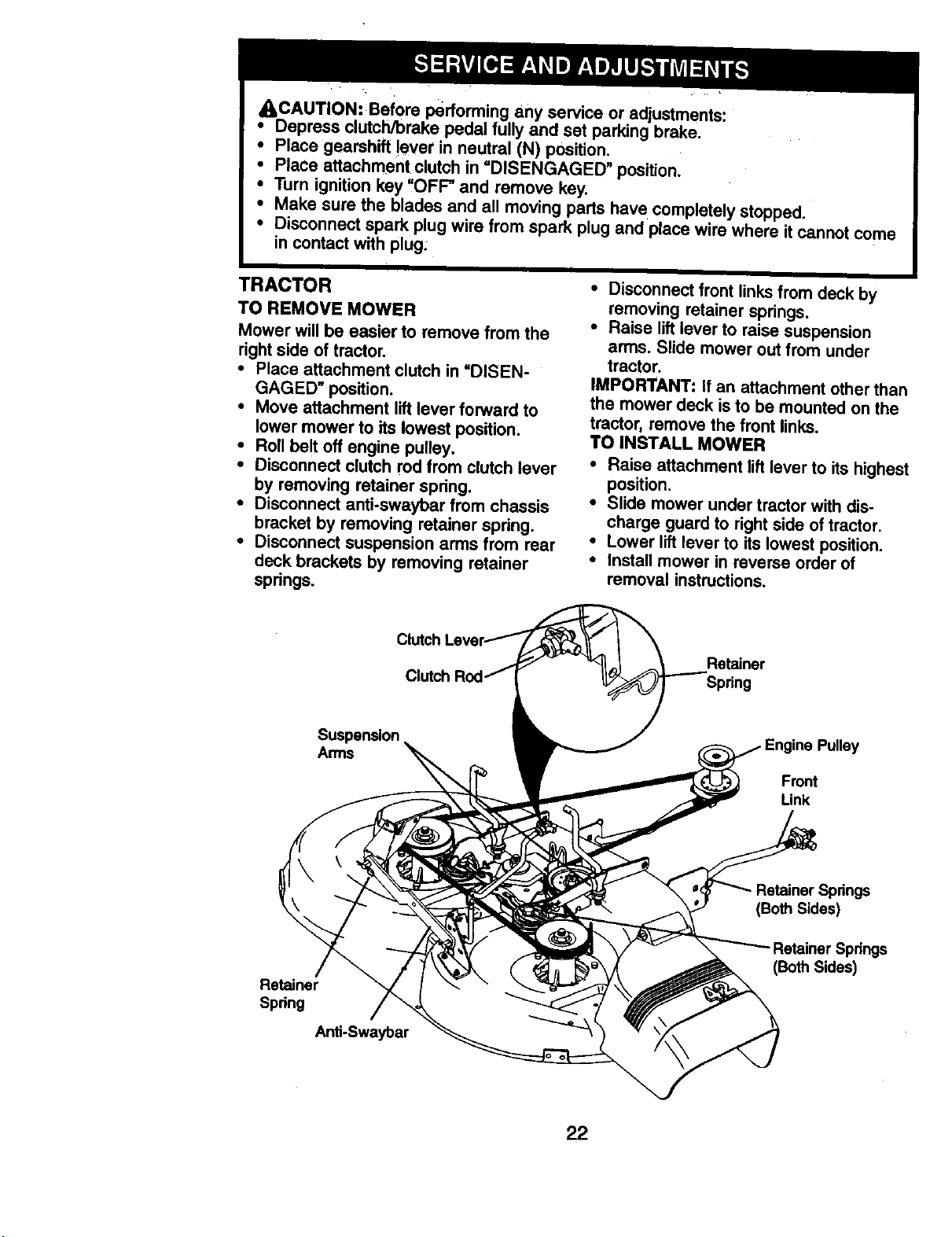

AqI_CAUTION: Before performing any service or adjustments:

• Depress clutch/brake pedal fully and set parking brake.

• Place gearshift lever in neutral (N) position.

• Place attachment clutch in =DISENGAGED" position.

• Turn ignition key *OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plugand place wire where it cannot come

in contact with plug:

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

• Place attachment clutch in =DISEN-

GAGED _ position.

• Move attachment liftlever forward to

lower mower to its lowest position.

• Roll belt off engine pulley.

• Disconnect clutch rod from clutch lever

by removing retainer spring.

• Disconnect anti-swaybar from chassis

bracket by removing retainer spdng,

• Disconnect suspension arms from rear

deck brackets by removing retainer

spdngs.

• Disconnect front linksfrom deck by

removing retainer springs.

• Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

• Raise attachment lift lever to its highest

position,

• Slide mower under tractor with dis-

charge guard to rightside of tractor.

• Lower liftlever to its lowest position.

• Install mower in reverse order of

removal instructions.

Retainer

Arms

Pulley

Front

Link

Retainer

Spring

AnU-Swaybar

Retainer Springs

(Both Sides)

Retainer Spdngs

(Both Sides)

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See =PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

willchange mower height about 1/8".

• Recheck measurements after adjusting.

Bottom Edge _ Bottom Edge

of Mower to _ _/_-_t Mower to

A| / UGround Line U ! ;_A

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust

one linkto same length as other link.

• To tower front of mower loosen nut =E"

on both front linksan equal number of

tums.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts =P'

against trunnion on both front links.

• To raise front of mower, loosen nut =F"

from trunnion on both front links.

Tighten nut =E" on both front links an

equal number of tums.

• When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nut =F"against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

(_ Suspension

Lift Unk Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. Ifthe following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so that

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on rightside of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

Front Unks

t=E•

TO REPLACE MOWER BLADE DRIVE

BELT (See Illustration Next Page)

The mower blade dri';'ebelt rpay be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

mower housing as shown.

idler pulleys.

23" Pull belt away from mower.

BELT REMOVAL -

• Remove mower from tractor (See =TO

REMOVE MOWER" in this section of

this manual).

• Work belt off both mandrel pulleys and

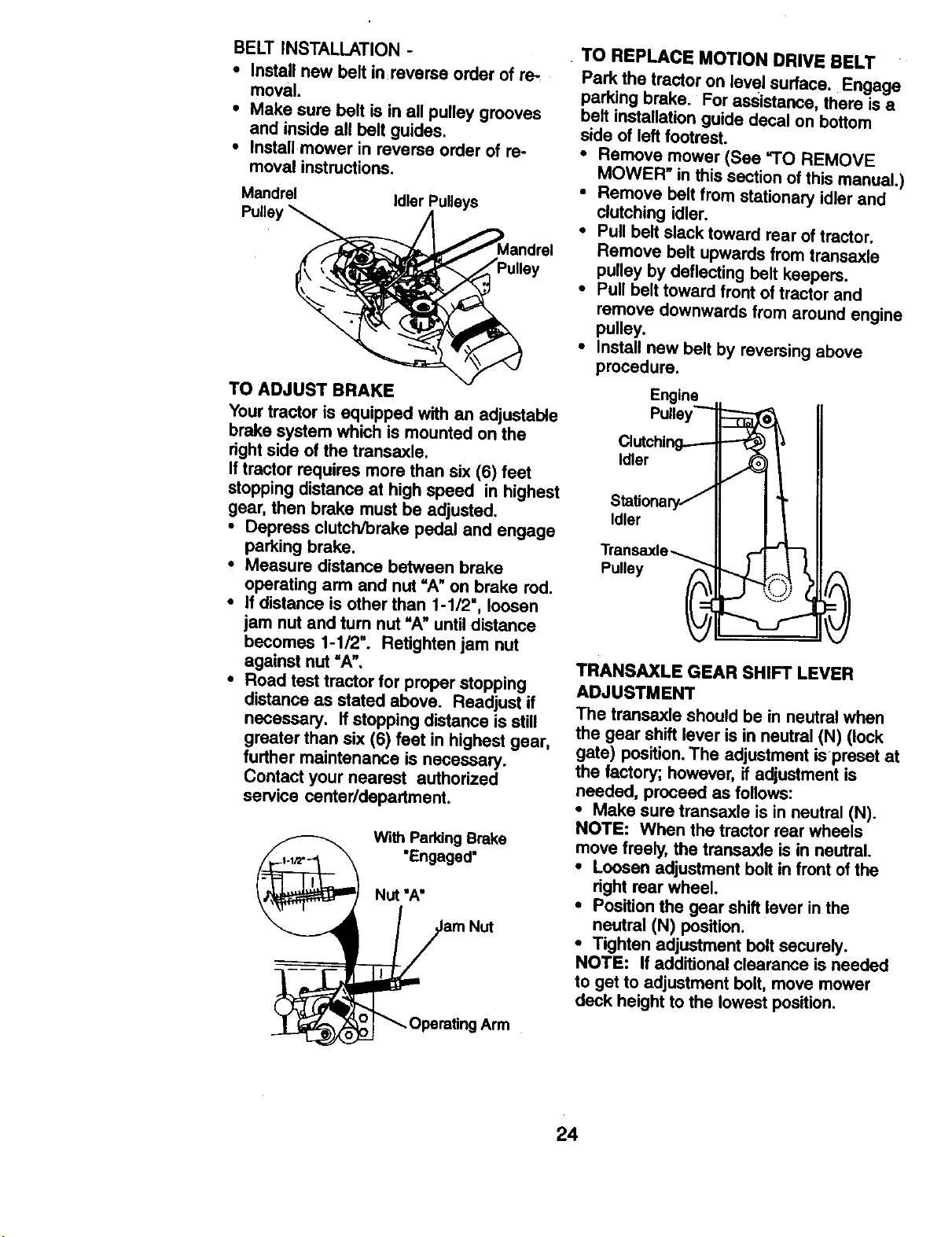

BELT INSTALLATION -

• Install new belt in reverse order of re-

moval.

• Make sure belt is inall pulley grooves

and inside all belt guides.

• Instaflmower in reverse order of re-

moval instructions.

Mandrel

Idler Pulleys

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

rightside of the transaxle.

Iftractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage

parking brake.

• Measure distance between brake

operating arm and nut =A" on brake rod.

• If distance is other than 1-1/2", loosen

jam nut and turn nut "A"until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance isstill

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact your nearest authorized

service center/department.

With parking Brake

.=17°°°"

i/j

_perating Arm

• TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

• Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

• Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

• Pull belt toward front of tractor and

remove downwards from around engine

pulley.

• Install new belt by reversingabove

procedure.

Engine

Pulley_

Clutching.----

Idler

Stationary/

Idler

Transaxle

Pulley ___

TRANSAXLE GEAR SHIFT LEVER

ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

• Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

• Loosen adjustment belt in front of the

right rear wheel.

• Position the gear shift lever in the

neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment belt, move mower

deck height to the lowest position.

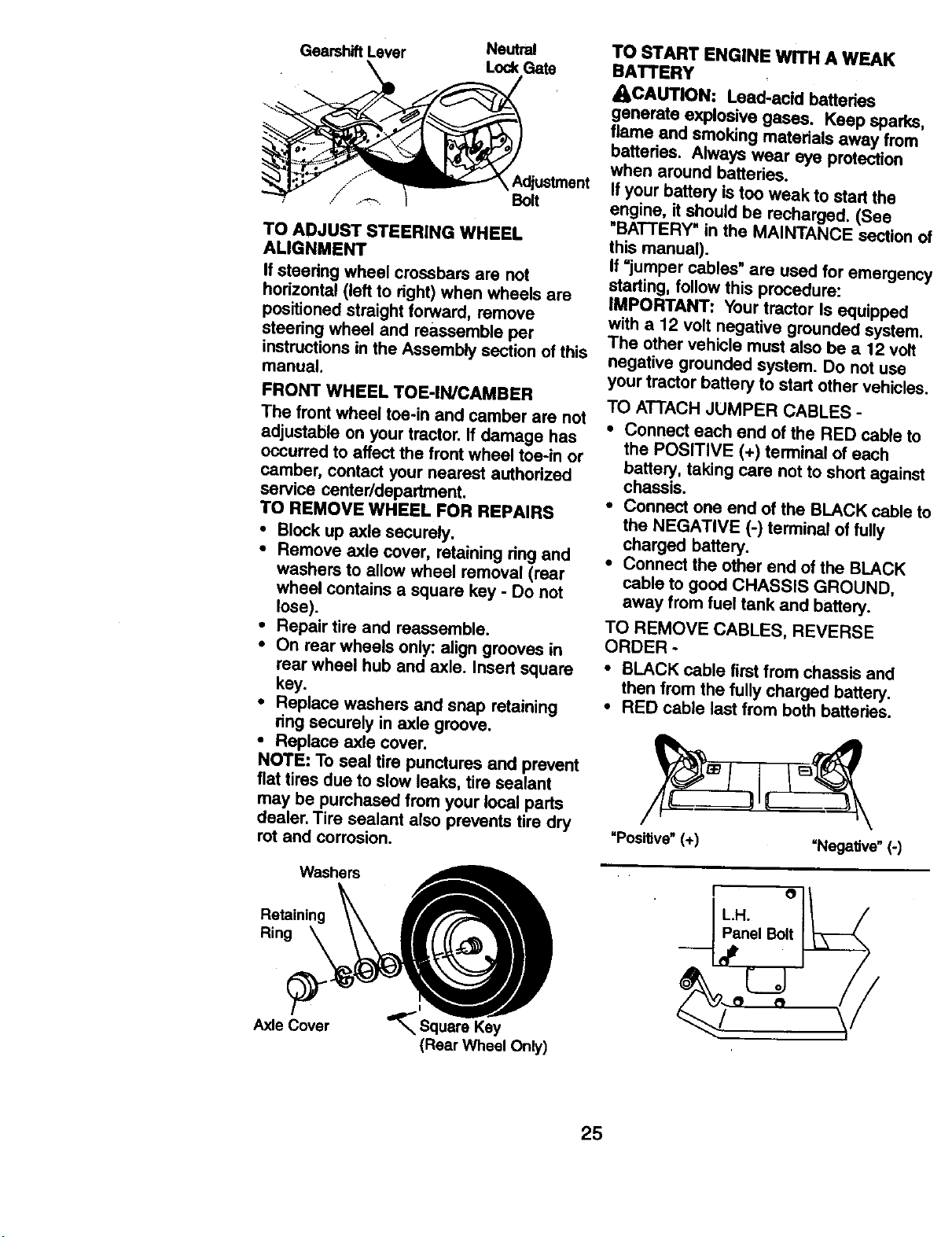

Gearshift Lever Neutral

Lock Gate

Adiustment

/.,"

/ ._'. I Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

If steedng wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steedng wheel end reassemble per

instructionsin the Assembly section of this

manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor, if damage has

occurred to affect the front wheel toe-in or

camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

• Block up axle securely.

• Remove axle cover, retaining dng and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On roar wheels only: align grooves in

rear wheel hub and axle. Insert square

key.

• Replace washers and snap retaining

ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring

Axle Cover

Square Key

(RearWheelOnly)

TO START ENGINE WITH A WEAK

BATTERY

_CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

I! your battery istoo weak to start the

engine, it should be recharged. (See

'BATTERY" in the MAINTANCE section o

this manual).

11"jumper cables" are used for emergenc,

starting, follow this procedure:

IMPORTANT: Your tractor Is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable t_

the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both battedes.

=Positive" (+) "Negative" (-}

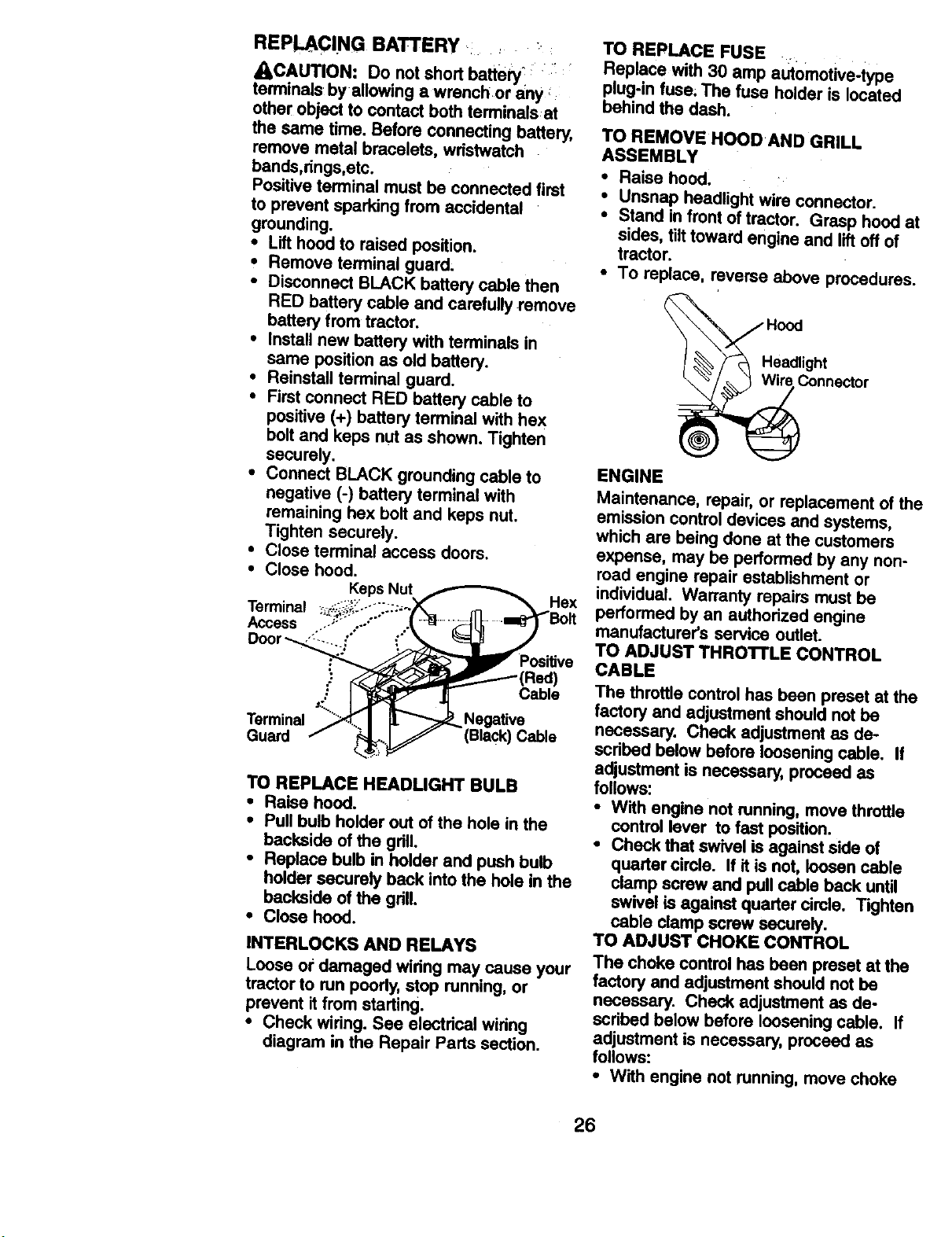

REPLACING BATTERY , _

_CAUTION: Do not short battery' : :

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift hood to raised position.

• Remove terminal guard:

• Disconnect BLACK battery cable then

RED battery cable and carefully remove

battery from tractor.

• install new battery with terminals in

same position as old battery.

• Reinstall terminal guard.

• First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

• Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely.

• Close terminal access doors.

• Close hood.

Positive

Cable

Terminal

Guard Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the

backside of the gdll.

• Replace bulb in holder and push bulb

holder securely back into the hole in the

backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to runpoorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse; The fuse holder is located

behind the dash.

TO REMOVE HOODAND GRILL

ASSEMBLY

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilttoward engine and liftoff of

tractor.

• To replace, reverse above procedures.

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THRO't'rLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move throttle

control lever to fast position.

• Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle. Tighten

cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move choke

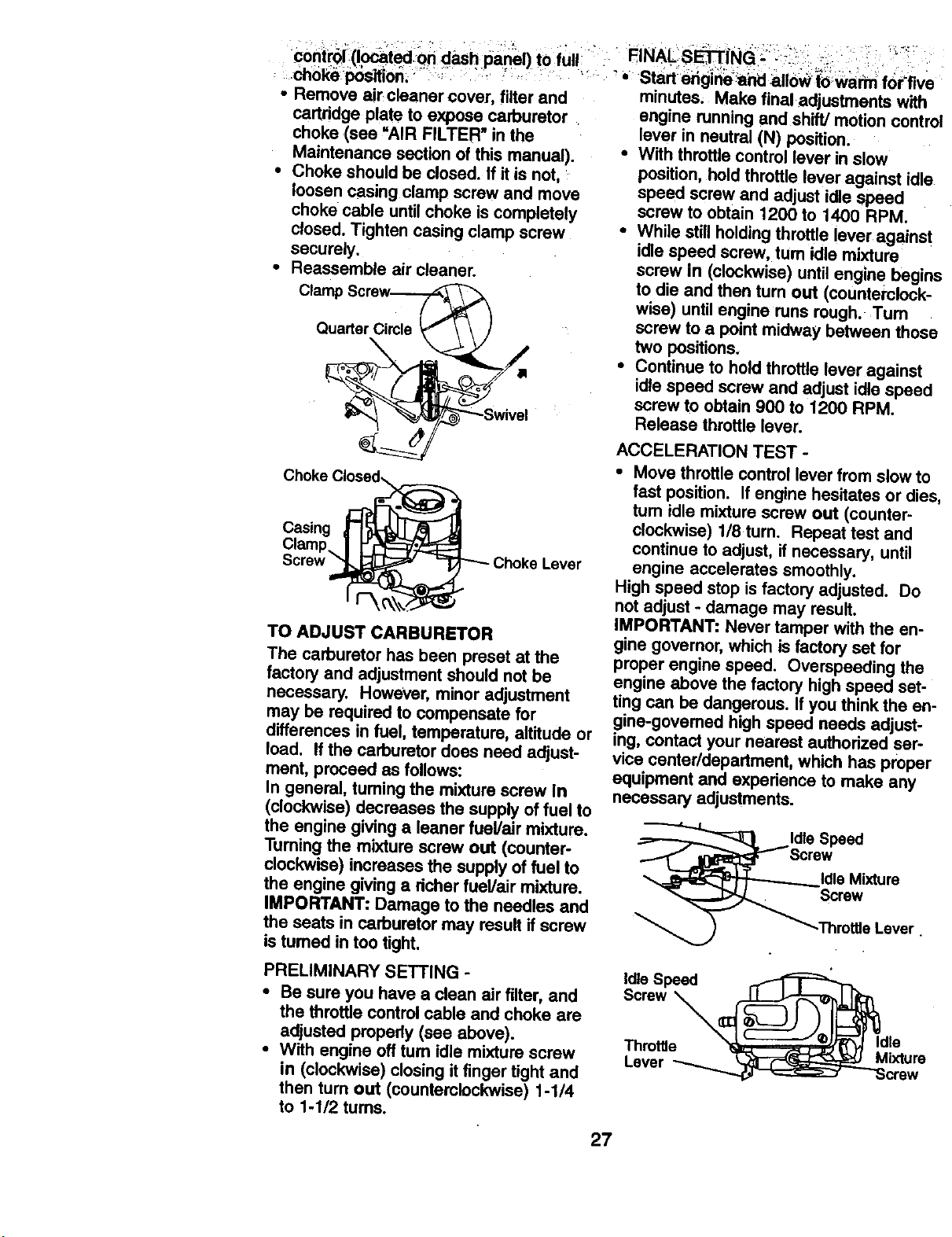

•€0niroi (l_tecI-Qri €!ashpanel) to full_' FINA_:S_ING _:::::!;i _ _, _''!-_

.Chokeposition. " - " - - "• Start erigi_e_:a_l alloWtO'warhl f<_rfivi

o Remove air cleaner cover, filter and

cartddge plate to expose carburetor

choke (see =AIR FILTER" in the

Maintenance section of this manual).

• Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable untilchoke is completely

closed. Tighten casing clamp screw

securely.

• Reassemble air cleaner.

Choke CI_

Screw "L _ _q"A-'-_ Choke Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude or

load. If the carburetor does need adjust-

ment, proceed as follows:

In general, tuming the mixture screw In

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Turning the mixture screw out (counter-

clockwise) increases the supplyof fuel to

the engine giving a dcher fuel/air mixture.

IMPORTANT: Damage to the needles and

the seats in carburetor may result if screw

is tumed in too tight.

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and

the throttle control cable and choke are

adjusted properly (see above).

• With engine off tum idle mixture screw

in (clockwise) closing it finger tight and

then turn out (counterclockwise) 1-1/4

to 1-1/2 turns.

minutes. Make final adjustments with

engine running and shift/motion contl

lever in neutral (N) position.

• With throttle control lever in slow

position, hold throttle lever against idh

speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM.

• While still holding throttle lever agains

idle speed screw, tum idle mixture

screw in (clockwise) until engin e begil

to die and then tum out (counterclock

wise) until engine runs rough. Turn

screw to a point midway between tho._

two positions.

• Continue to hold throttle lever against

idle speed screw and adjust idle spee(

screw to obtain 900 to 1200 RPM.

Release throttle lever.

ACCELERATION TEST -

• Move throttlecontrol lever from slow t¢

fast position. Ifengine hesitates or die

turn idle mixture screw out (counter-

clockwise) 1/8 turn. Repeat test and

continue to adjust, ifnecessary, until

engine accelerates smoothly.

High speed stop isfactory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the en-

gine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed set-

ting can be dangerous. Ifyou think the er

gine-govemed high speed needs adjust-

ing, contact your nearest authorized ser-

vice canter/department, which has propeJ

equipment and experience to make any

necessary adjustments.

ldle Speed

rew

Idle Mixture

Screw

rottle Lever

IdleSpeed

Screw __

ThrotUe Idle

Lev r " Mixture

e crew

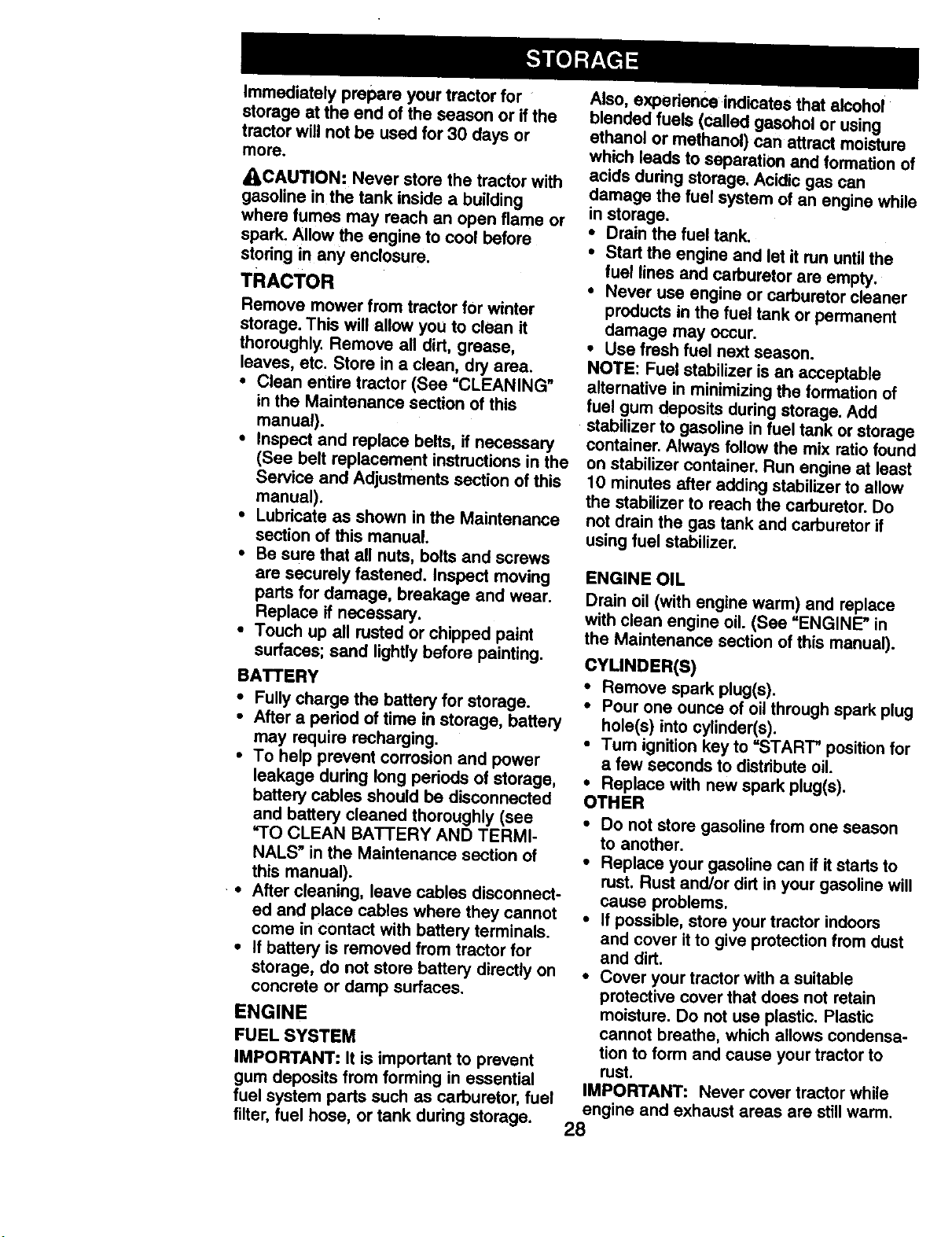

Immediatelyprepareyourtractorfor

storage at the end of the season or ifthe

tractor will not be used for 30 days or

more,

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure,

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it

thoroughly. Remove all dirt, grease,

leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See =CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, botts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand tightlybefore painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables disconnect-

ed and place cables where they cannot

come in contact with battery terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system pads such as carburetor, fuel

filter,fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids dudng storage. Acidic gas can

damage the fuel system of an engine while

in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratiofound

on stabilizer container. Run engine at least

10 minutes after adding stabilizer to allow

the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if

using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug

hole(s) into cylinder(s).

•Tum ignition key to =START" position for

a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if it starts to

rust. Rust and/or dirt in your gasoline will

cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe, which allows condensa-

tion to form and cause your tractor to

rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are stilt warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Will not start

Hard to start

Engine will nottum

over

• Out of fuel.

• Engine not =CHOKED"

properly.

• Engine flooded.

• Bad spark plug.

• Dirty air filter.

• Dirty fuel filter.

• Water in fuel.

Engine clicks but

will not start

• Loose or damaged wiring.

• Carburetor out of adjust-

ment.

• Engine valves out of ad-

justment.

• Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

• Loose or damaged wiring.

• Carburetor out of adjust-

ment,

• Engine valves out of ad-

justment.

• Clutch/brake pedal not de-

pressed.

• Attachment clutch is en-

gaged.

. Weak or dead battery.

• Blown fuse.

• Corroded battery termi-

nals.

• Loose or damaged wiring.

• Faulty ignitionswitch.

• Faulty solenoid or starter,

• Faulty operator presence

switch(es).

• Weak or dead battery.

• Corroded battery termi-

nals.

CORRECTION •

• Fill fuel tank.

• See "TO START ENGINE" in

Operation section.

• Wait several minutes before

attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel fil-

ter.

• .Check all wiring.

• See "To Adjust Carburetor"

in Service and Adjustments

section.

• Contact an authorized ser-

vice center.

• Clean/replace air filter.

• Replace spark plug.

• Recharge or replace battery.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Check all wiring.

• See =To Adjust Carburetor"

in Service and Adjustments

section.

• Contact an authorized ser-

vice center.

• Depress clutch/brake pedal.

• Disengage attachment

clutch.

• Recharge or replace battery.

• Replace fuse.

• Clean battery terminals.

• Check all wiring.

• Check/replace ignition

switch.

• Check/replace solenoid or

starter.

• Contact an authorized ser-

vice center.

• Recharge or replace battery.

• Clean battery terminals.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

i ii

Engine clicks but • Loose or damaged widng. • Check all wiring.

will not start • Faulty solenoid or starter. I• Check/replace solenoid or

(cont'd) starter.

Loss of power • Set in _Higher Cut" position/

reduce speed.

• Adjust throttle control.

• Cutting too much grass/

too fast.

• Throttle in "CHOKE" posi-

tion.

• Build-up of grass, leaves

and trash under mower.

• Dirty air filter.

• Low oil level/dirty oil.

• Faulty spark plug.

• Dirty fuel filter,

• Stale or dirty fuel.

• Water in fuel.

• Spark plug wire loose.

• Dirty engine air screen/

fins.

• Dirty/clogged muffler.

• Loose or damaged wiring.

• Carburetor out of adjust-

ment.

• Engine valves out of ad-

justment.

Excessive vibration • Worn, bent or loose blade.

• Bent blade mandrel.

• Loose/damaged part(s).

Engine continues

to run when opera-

tor leaves seat with

attachment clutch

engaged

I. Faulty operator-safety

presence control system.

Poor cut - uneven

• Worn, bent or loose blade.

• Mower deck not level.

• Buildup of grass, leaves,

and trash under mower.

• Bent blade mandrel.

• Clean underside of mower

housing.

• Clean/replace air filter.

• Check oil level/change oil.

• Clean and regap or change

spark plug.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Drain fuel tank and carbure-

tor, refill tank with fresh gaso-

line and replace fuel filter.

• Connect and tighten spark

j. plug wire.

Clean engine air screen/fins.

• Clean/replace muffler.

• Check all wiring.

• See "To Adjust Carburetor" in

Service and Adjustments

section.

• Contact an authorized ser-

vice center.

• Replace blade. Tighten blade

bolt.

• Replace blade mandrel.

• Tighten loose part(s). Re-

place damaged parts.

• Check wiring, switches and

connections. If not

corrected, contact an autho-

rized service center.

• Replace blade. Tighten blade

bolt.

• Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor cut - uneven

€ont'd)

Mower blades will

not rotate

I Poor grass dis-

charge

Headlight(s) not

working (if so

equipped)

Battery will not

charge

Engine "backfires"

when turning en-

gine "OFP

• Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

• Obstruction in clutch

mechanism.

• Worn/damaged mower

drive belt.

• Frozen idler pulley.

• Frozen blade mandrel.

• Engine speed too slow.

• Travel speed too fast.

• Wet grass.

• Mower deck not level.

• Low/uneven tire air pres-

sure.

• Worn, bent or loose blade.

• Buildup of grass, leaves

and trash under mower.

• Mower drive belt worn.

• Blades improperly in-

stalled.

• Improper blades used.

• Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

• Switch is =OFP.

• Bulb(s) burned out.

• Faulty light switch.

• Loose or damaged wiring.

• Blown fuse.

• Bad battery cell(s).

• Poor cable connections.

• Faulty regulator (if so

equipped).

• Faulty alternator.

• Engine throttle control not

set at =SLOW"

position for 30 seconds

before stopping engine.

CORRECTION

• Clean around mandrels to

open vent holes.

• Remove obstruction.

• Replace mower drive belt.

• Replace idler pulley.

• Replace blade mandrel.

• Place throttle control in

=FAST" position.

• Shift to slower speed.

• Allow grass to dry before

mowing.

• Level mower dect_

• Check tires for proper air

pressure.

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

• Replace mower drive belt.

• Reinstall blades sharp edge

down,

• Replace with blades listed in

this manual.

• Clean around mandrels to

open vent holes.

• Turn switch =ON".

• Replace bulb(s).

• Check/replace light switch.

• Check wiring and connections,

• Replace fuse.

• Replace battery.

• Check/clean all connections.

• Replace regulator,

• Replace _llternato,r.

• Move throttle control to

=SLOW" position and allow

to idle for 30 seconds before

stopping engine.

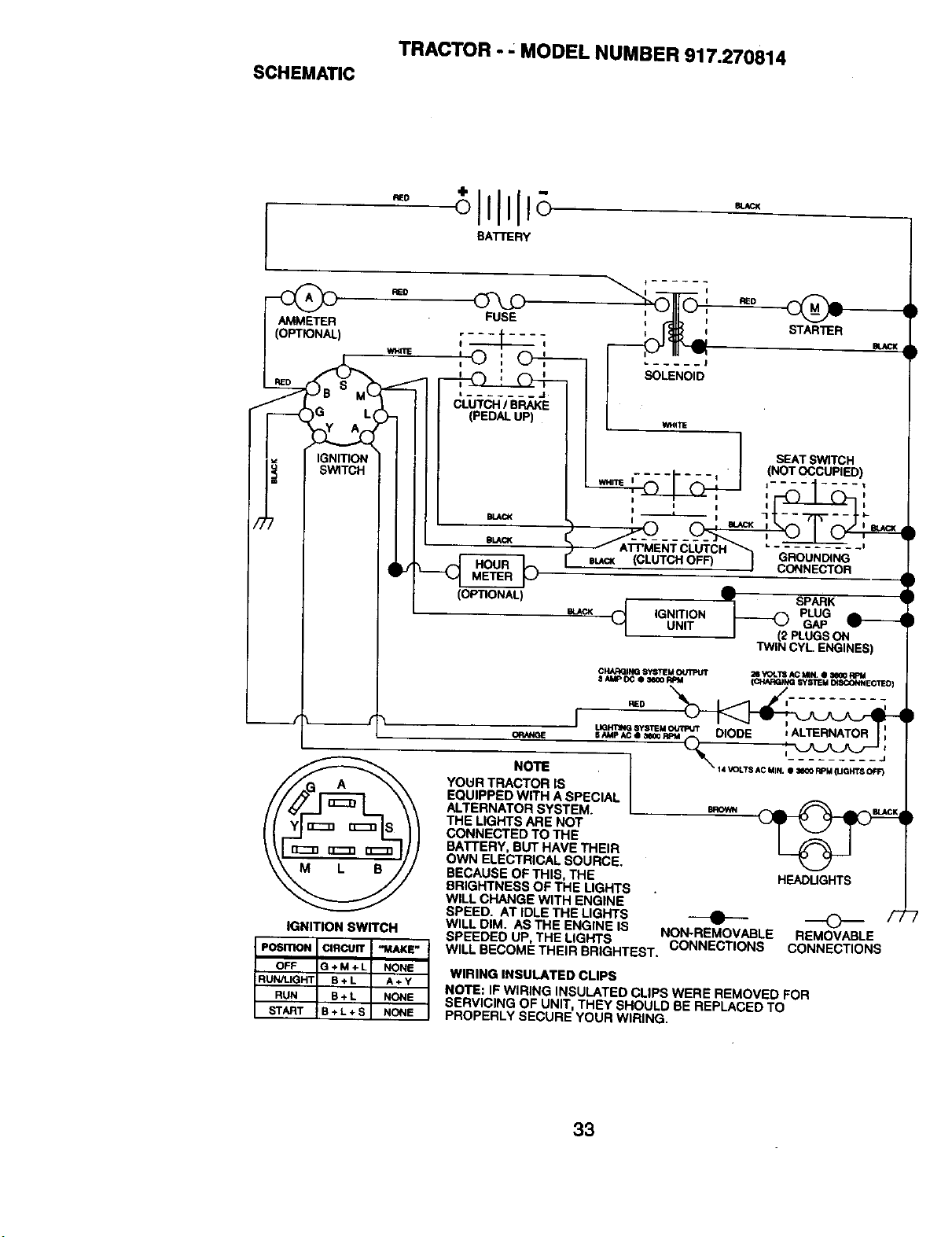

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.270814

BATTERY

AMMETER

(OPTIONAL)

IGNYnON

SWITCH

L ......... I

GROUNDING

CONNECTOR

(OPTIONAL) 'v SPARK

eL_K (_ IGNITIONuNIT _ PLUGGAp

1(2 PLUGS ON

TWIN CYL, ENGINES)

IGNITION SWITCH

NOTE

YOUR TRACTOR IS

EQUIPPED WITH ASPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILLCHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

HEADUGHTS

--e-- O F,

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

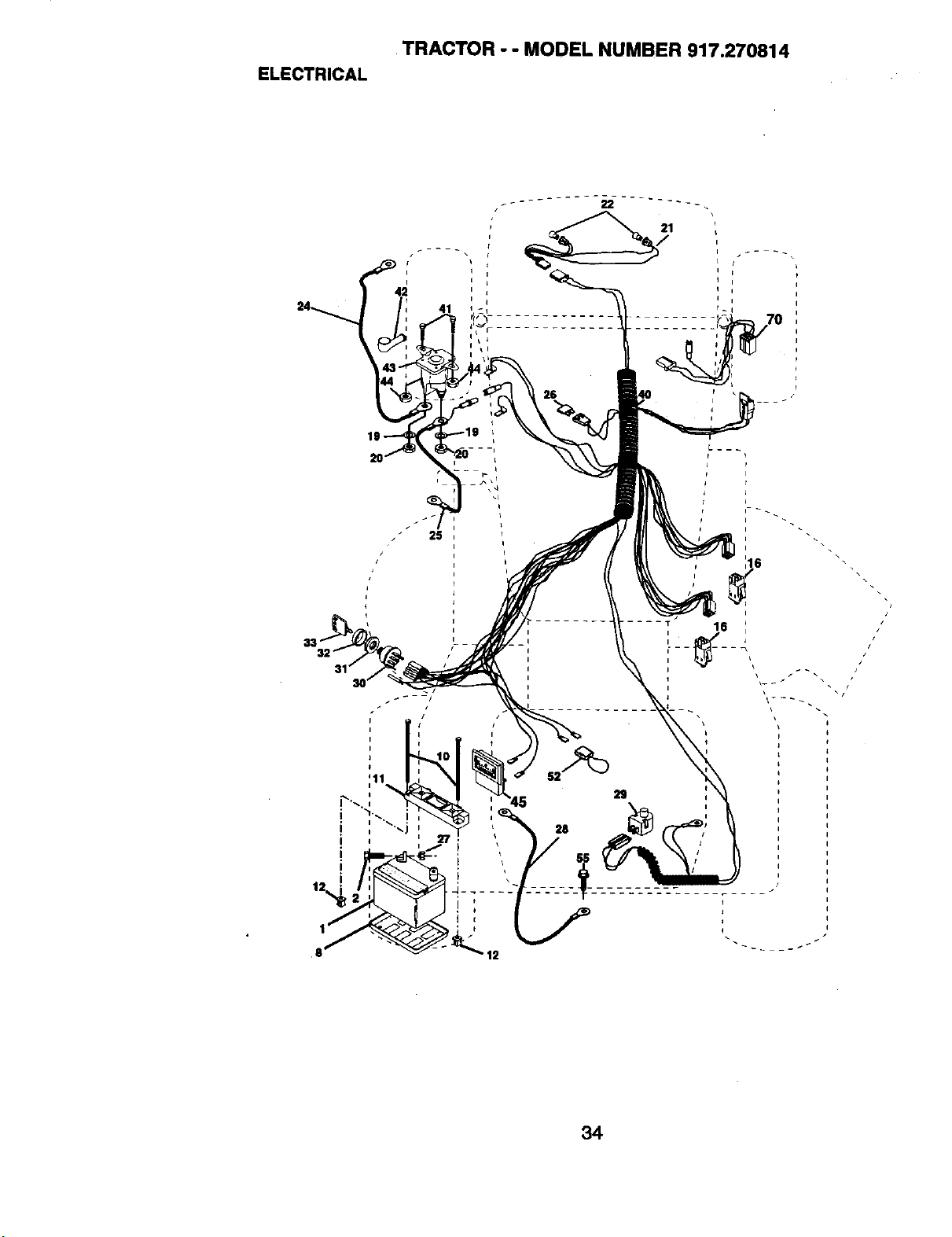

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.270814

24_

I /

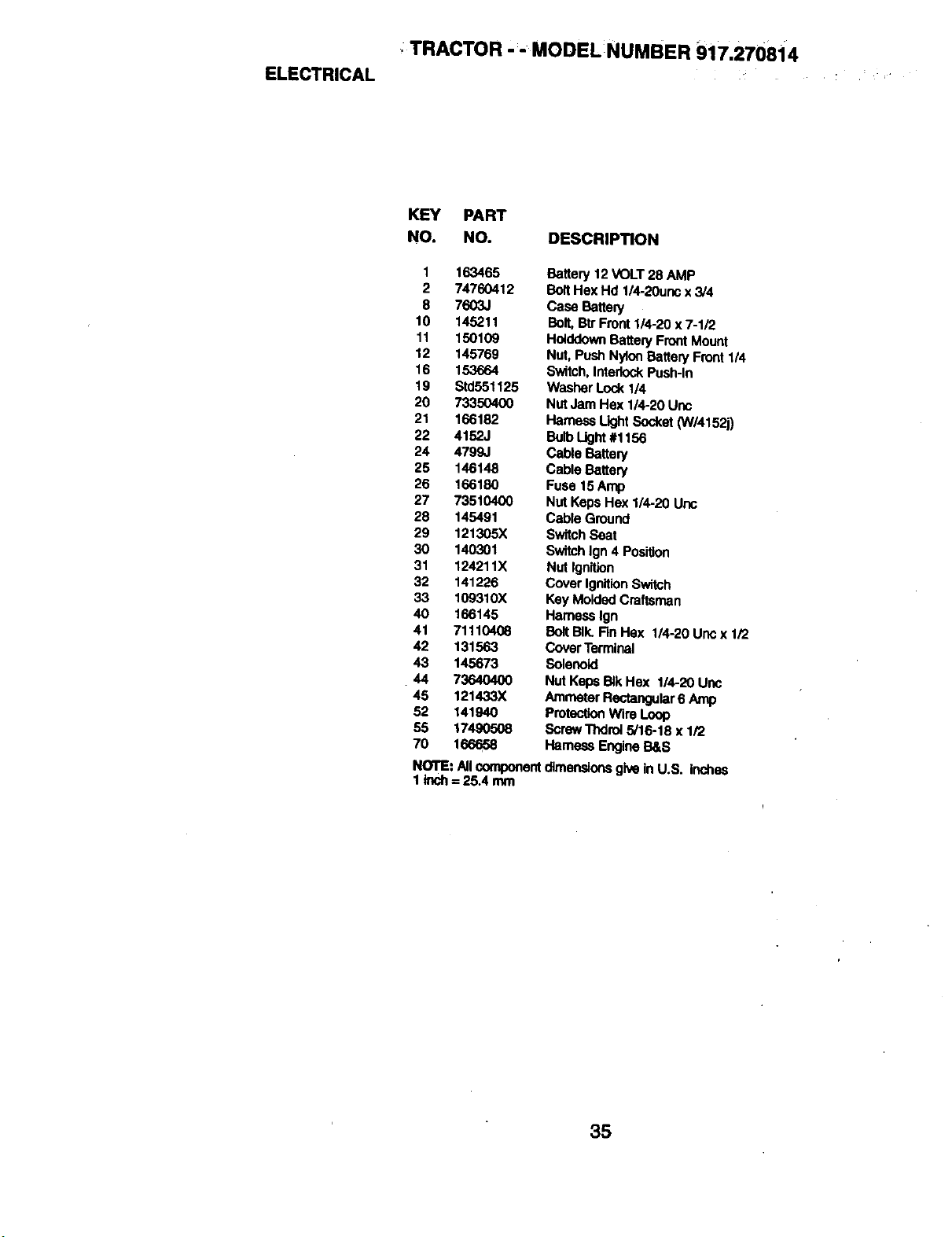

, TRACTOR -- MODELNUMBER 917.2708i4

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery 12 VOLT28 AMP

2 74760412 BoltHex Hd 1/4-20unc x 3/4

8 7603J Case Battery

10 145211 Boit,BtrFront 1/4-20 x 7-1/2

11 150109 HoiddownBattery Front Mount

12 145769 Nut, Push Nylon BatteryFront 1/4

16 153664 Switch, InterlockPush-In

19 Std551125 Washer Lock1/4

20 73350400 Nut Jam Hex 1/4-20 Unc

21 166182 Harness L!ghtSocket 0N/4152j)

22 4152J BulbLight #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 166180 Fuse 15.amp

27 73510400 Nut KepsHex 1/4-20 Unc

28 145491 CId_leGround

29 121305X SwitchSeat

30 140301 Switch Ign 4 Position

31 12421IX Nut Ignition

32 141226 Cover IgnitionSwitch

33 109310X Key Molded Craftsman

40 166145 Hamses Ign

41 71110408 BoltBIk. Rn Hex 1/4-20 Unc x 1/2

42 131563 Cover Terminal

43 145673 Solenoid

.44 73640400 Nut KepsBIk Hex 114-20Unc

45 121433X Ammeter Rectangular 6 Amp

52 141940 ProtectionWire Loop

55 17490508 Screw'rbdroi 5/16-18 x 1/2

70 166658 Harness EngineB&S

NOTE: All componentdimensionsgive in U.S. inches

1lbch = 25A mm

TRACTOR -- MODEL NUMBER 917.270814

CHASSISAND ENCLOSURES

58 12

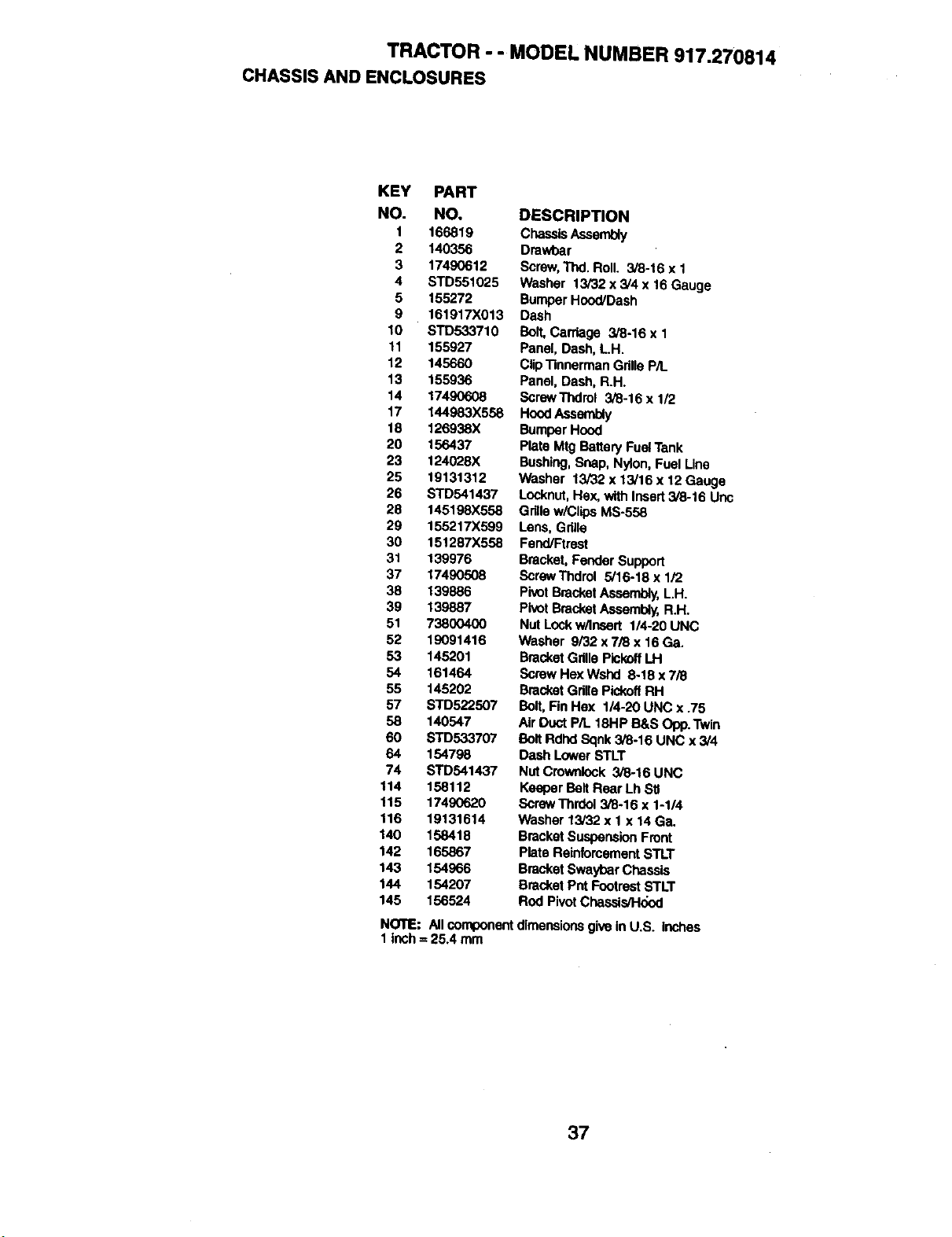

TRACTOR - - MODEL NUMBER 917.270814

CHASSISANDENCLOSURES

KEY PART

NO. NO.

I 166819

2 140356

3 17490612

4 STD551025

5 155272

9 161917X013

10 STD533710

11 155927

12 145660

13 155936

14 17490608

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 145198)(558

29 155217X599

30 151287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD522507

58 140547

60 STD533707

64 154798

74 STD541437

114 158112

115 17490620

116 19131614

140 158418

142 165867

143 154966

144 154207

145 156524

DESCRIPTION

ChassisAssembly

Drawbar

Screw,Thd. Roll 3/8-16 x 1

Washer 13/32 x3/4 x 16 Gauge

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH.

ClipTinnerman Grillep/t_

Panel, Dash, R.H.

ScrewThdrol 3/8-16 x 1/2

HoodAssembly

Bumper Hood

Plate Mtg BatteryFuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hax, with Insert 3/8-16 Unc

Gdlla w/Clips MS-558

Lens, Grille

Fend/Ftrest

Bracket, Fender Support

ScrewThdrol 5/16-18x 1/2

PivotBracket Assembly,L.H.

Pivot Brecht Assembly,R.H.

NUt Lockw/Insert 114-20UNC

Washer 9/32 x 7/8 x 16 Ga.

BracketGrille PickoffLH

Screw HexWshd 8-16 x 7/8

Bracket GrillePickoffRH

Bolt,Fin Hex 114-20UNC x .75

Air Duct P/L 18HP B&S Opp.Twin

BoltRdnd Sqnk3/8-16 UNC x 3/4

Dash Lower STLT

Nut Cmwnlock 3/8-16 UNC

Keeper Belt Rear Lh Stl

Scrow Thrdel 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga.

Bracket Suspension Front

Plate Reinfomement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/H(xxI

NOTE: All componentdimensionsgive in U.S. inches

1k_.,h= 25.4 mm

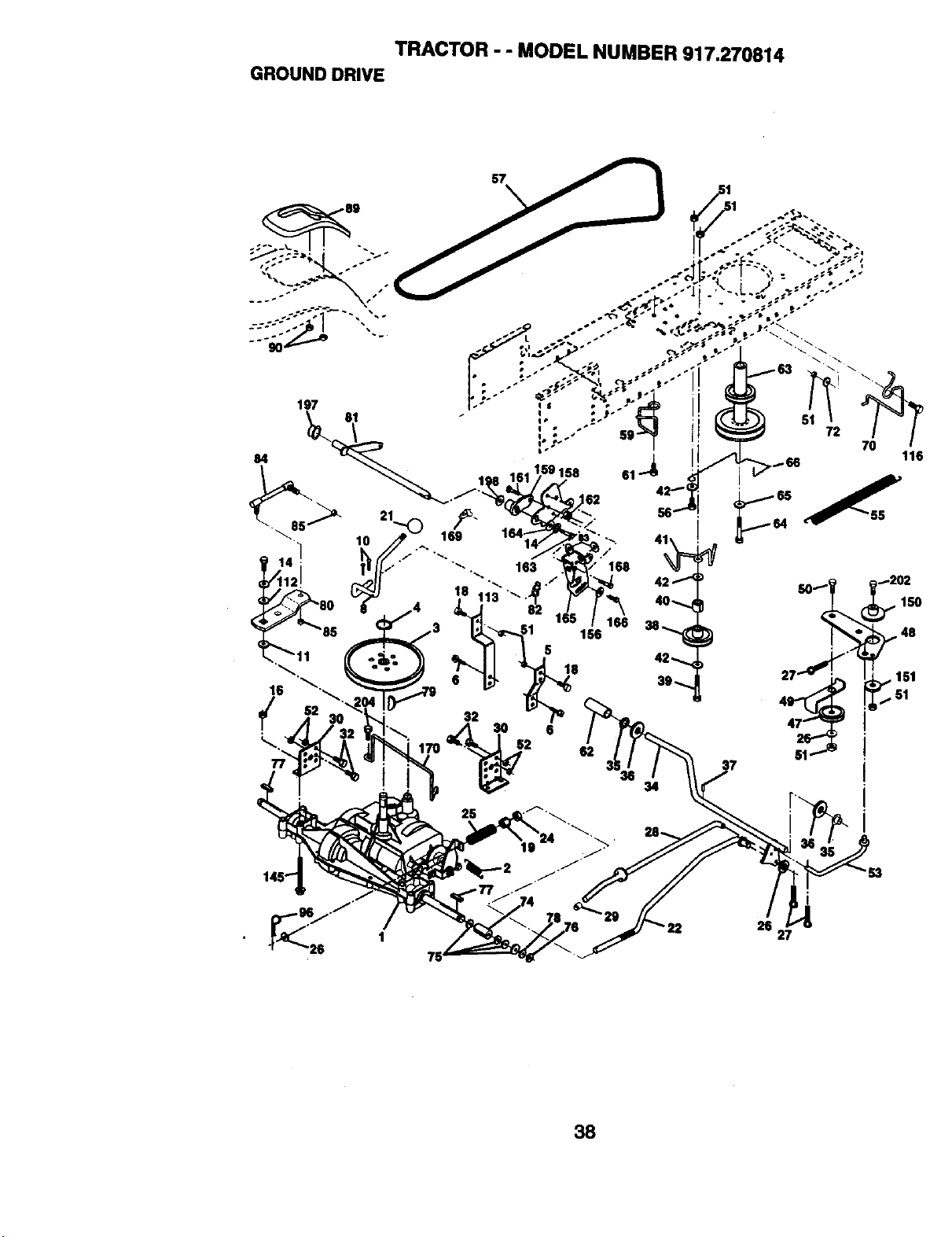

TRACTOR - - MODEL NUMBER 917.270814

GROUNDDRIVE

197

,, 151

4 ,. 51

32 30

170 2 62

26 27

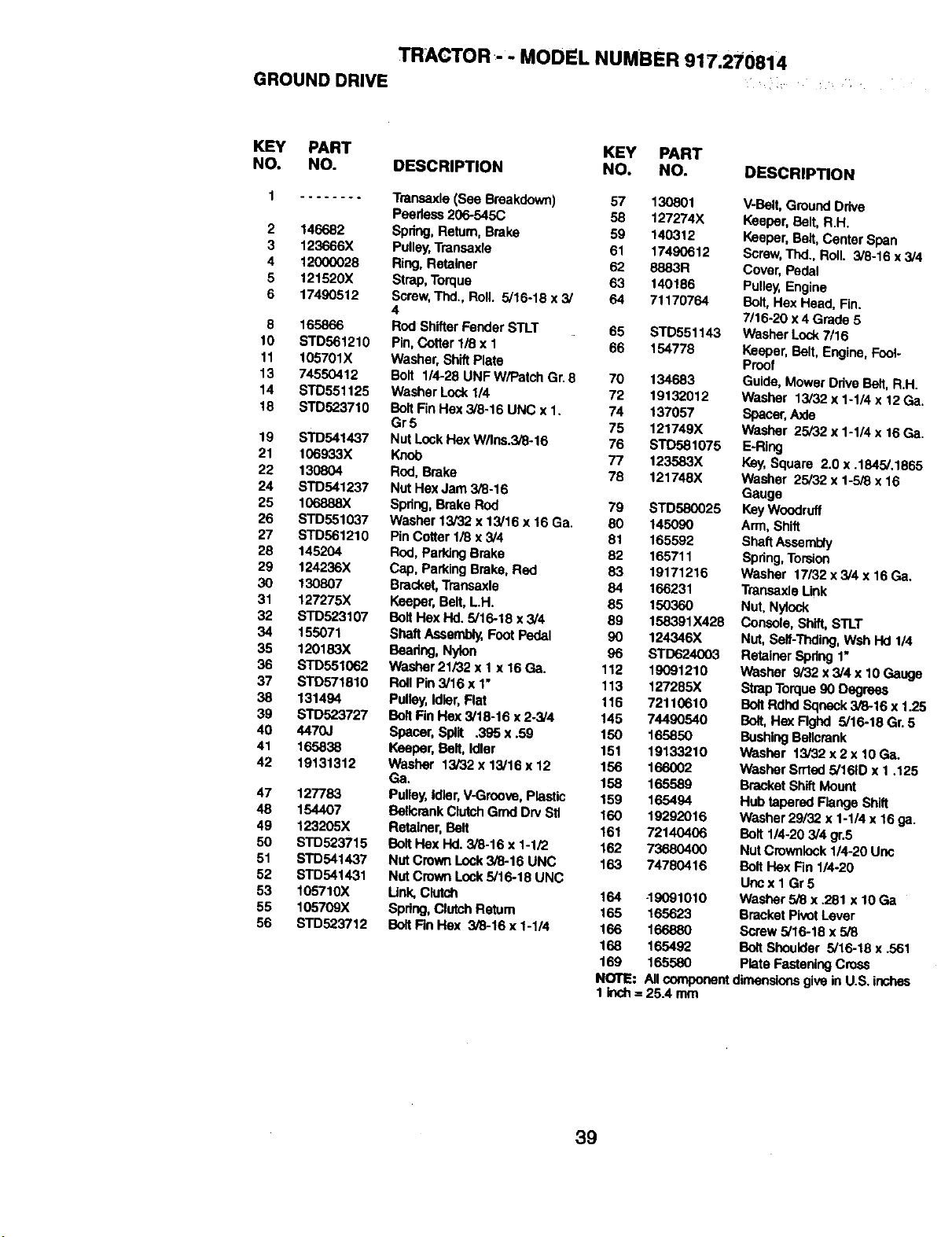

TRACTOR- - MODEL NUMBER 917:270814

GROUND DRIVE ' + +

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Transaxle (See Breakdown) 57 130801 V-Belt,Ground Drive

Peerless 206-545C 58 127274X Keeper, Belt, R.H.

2 146682 Spdng, Return, Brake 59 140312 Keeper, Belt, Center Span

3 123666X Putiey,Tmnsaxle 61 17490612 Screw,"Thd.,Rolt. 3/6-16 x 3/4

4 12000028 Ring, Retainer 62 8883R Cover, Pedal

5 121520X Strap,Torque 63 140186 Pulley,Engine

6 17490512 Screw,Thd., Roll. 5/16-18 x3/ 64 71170764 Bolt,Hex Heed, F{n.

4 7/16-20 x4 Grade 5

8 165866 Rod Shitter Fender STLT 65 STD551143 Washer Lock7/16

10 STD561210 Pin, Cotter 1/8 x 1 66 154778 Keeper, Belt, Engine, Fool-

11 105701X Washer, ShiftPlate Proof

13 74550412 Be_t 1/4-28 UNF W/Patch Gr.8 70 134683 Guide, Mower Ddve Belt, R.H.

14 STD551125 Washer Lock 1/4 72 19132012 Washer 13/32 x 1-1/4 x 12 Ga.

18 STD523710 BoltFin Hex 3/8-16 UNC x 1. 74 137057 Spacer,Axle

Gr 5 75 121749X Washer 25/32 x 1-1/4 x 16Ga.

19 STD541437 Nut LockHex W/Ins.3/8-16 76 STD581075 E-Ring

21 106933X Knob 77 123583X Key, Square 2.0 x .1845/.1865

22 130804 Rod, Brake 78 121748X Washer 25/32 x 1-5/8 x 16

24 STD541237 Nut Hex Jam 3/8-16 Gauge

25 106888X Spdng, Brake Rod 79 STD580025 Key Woodruff

26 STD551037 Washer 13/32 x 13/16 x 18 Ga. 80 145090 Arm, Shift

27 $3"D561210 PinCotter 1/8 x 3/4 81 165592 ShaftAssembly

28 145204 Rod, ParldngBrake 82 165711 Spdng,Torsion

29 124236X Cap, ParkingBrake, Red 83 19171216 Washer 17/32 x 3/4 x 16 Ga.

30 130807 Bracket, Trar_saxle 84 166231 TransaxleLink

31 127275X Keeper,Belt, LH+ 85 150360 Nut, Nylock

32 STD523107 Bolt Flex lid. 5/16-18 x 3/4 89 158391)(428 Conso|e, Shift, STLT

34 155071 Shaft Assembly,Foot Pedal 90 124346X Nut, Selt-Thding,Wsh Hd 114

35 120183X Boadng, Nylon 96 BTD624003 Retainer Spdng 1"

36 BTD551062 Washer 21/82 x 1 x16Ga. 112 19091210 Washer 9/32 x3/4 x 10 Gauge

37 STD571810 Roll Pin3/16 x 1" 113 127285X StrapTorque90 Degrees

38 131494 Pulley, Idler,Rat 116 72110610 BoltRdhd Sqneck3/8-16 x 1.25

39 STO523727 Bolt Fin Hex 3/18-16 x 2-3/4 145 74490540 Bolt,He= Rghd 5/16-18 Gr. 5

40 4470J Spacer, Split .395 x ,59 150 165850 BushingBellcrank

41 165838 Keeper, Bolt, idler 151 19133210 Washer 13/32 x2 x 10 Ge.

42 19131312 Washer 13/32 x 13/16 x 12 156 166002 Washer Brrtad 5/161Dx 1.125

Ga. 158 165589 Bracket ShiftMount

47 127783 Pulley,Idler,V-Groove, Plastic 159 165494 Hub tapered Flange Shift

48 154407 BellcrankClutchGrnd Dry Stl 160 19292016 Washer 29/32 x 1-1/4 x 16 ga.

49 123205X Retainer, Belt 161 72140406 Bolt 1/4-20 3/4 gr.5

50 STD523715 BoltHex Hd. 3/6-16 x 1-1/2 162 73680400 Nut Crownlock1/4-20 Uoc

51 STD541437 Nut Crown Lock3/8-16 UNC 163 74780416 Belt FlexFin 1/4-20

52 STD541431 Nut Crown Lock5/16-18 UNC Lk_xl Gr5

53 105710X Unk, Clutch 164 -19091010 Washer 518x .281 x 10 Ga

65 105709X Spring, ClutchRetum 165 165623 Bracket PivotLever

56 STD523712 BoltFin Hex 3/8-16 x 1-1/4 166 166880 Screw 5/16-18 x 5/8

168 165492 BoltShoulder 5/16-18 x .561

169 165580 PtateFaster_ Cross

NOTE: All componentdimensionsgive in U.S. inches

1 ioch= 25.4 mm

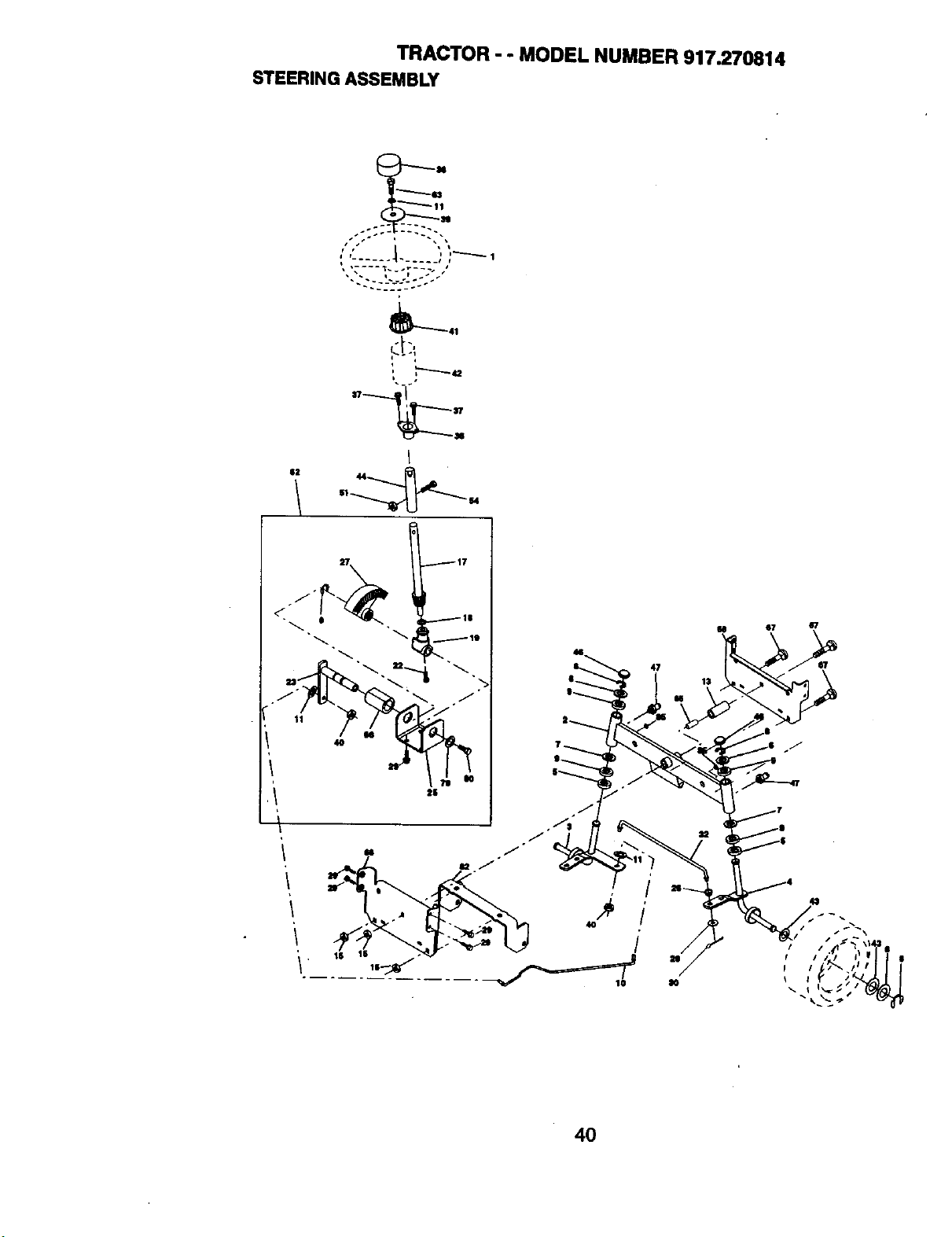

TRACTOR - - MODEL NUMBER 917.270814

STEERINGASSEMBLY

_41

$i Sl_s4

TRACTOR - ,' MODEL NUMBER 917,270814

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

26 126847X

27 136874

28 19131416

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD541537

41 100711L

42 145054

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 7478O520

62 167902

63 STD523710

65 154780

66 154404

67 74781044

68 154429

79 19132012

80 74950612

Steedng Wheel

Axle AssemblySTMP DroppedSTL

Spindle Assembly,L.H.

SpindleAssembly,R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-114x 16 Gauge

Ring;KIIp

Beerlng, steedng Column

DraglinkExtended Stamped

Washer, Lock3/8

Beadng Axle STLT/GT

Nut, Lock, Flange 5_-11 UNC

Shaft Assembly,Steering

Washer,Thrust .515 x .750 x .033

Support,Shaft

Screw Hex Wsh. Hd Ton(

Pittman ShaftAssembly

Bracket, Steedng

Bushing,Link, Drag

Gear, Sector

Washer 13/32 x7/3 x 16 Gauge

Screw, Thd., Roll. 3/8-16 x 3/4

Pin Cotter 1/8 x 3/4

Rod,Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Nut LockCenter 3/8-24

Adaptor,Steedng Wheel

Boot,Steedng Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

• ExtensionShaft steedng LR.LT

Cap, Spindle

Fitting, Grease

Nut LockHex w/Ins. 5/16-18 UNC

BoltFin Hex 5/16-18 UNC x 1-1/4

KitSteering AemService

Bolt,Rn Hex 3/8-16 UNC x 1 Gr 5

SpacerAxle

BearingArm PIttman

Bolt, FinHex 5/6.11 UNC x 2-3/4

Axle, Brace

Washer 13/32 x 1 1/4 x 12 Ga.

BoltHax Nylon 3/8-16 x 3/4

NOTE: Allcomponentdimensionsgiven in U.S. inches

1inch= 25.4 mm

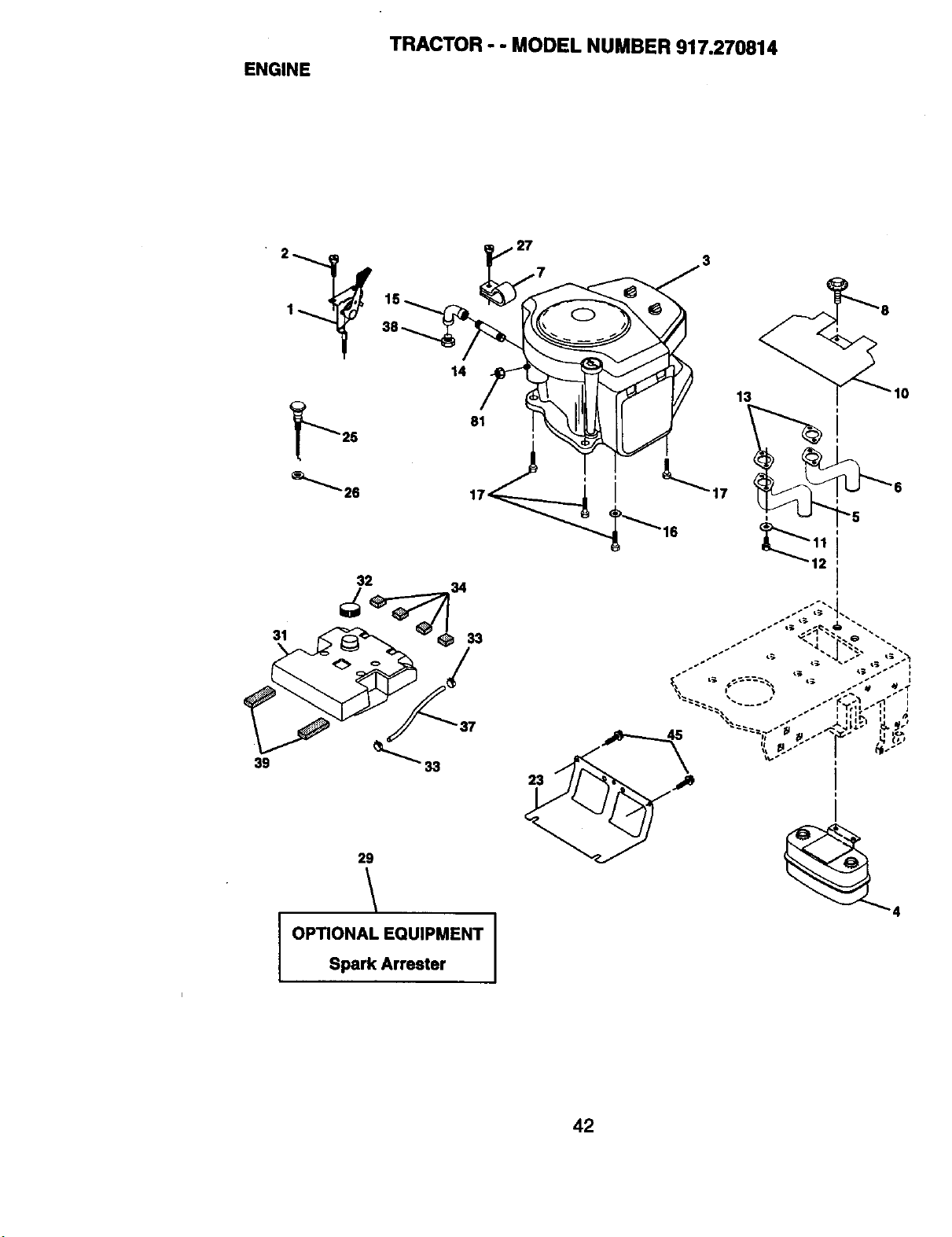

ENGINE

TRACTOR - - MODEL NUMBER 917.270814

OPTIONAL EQUIPMENT

Spark Arrester

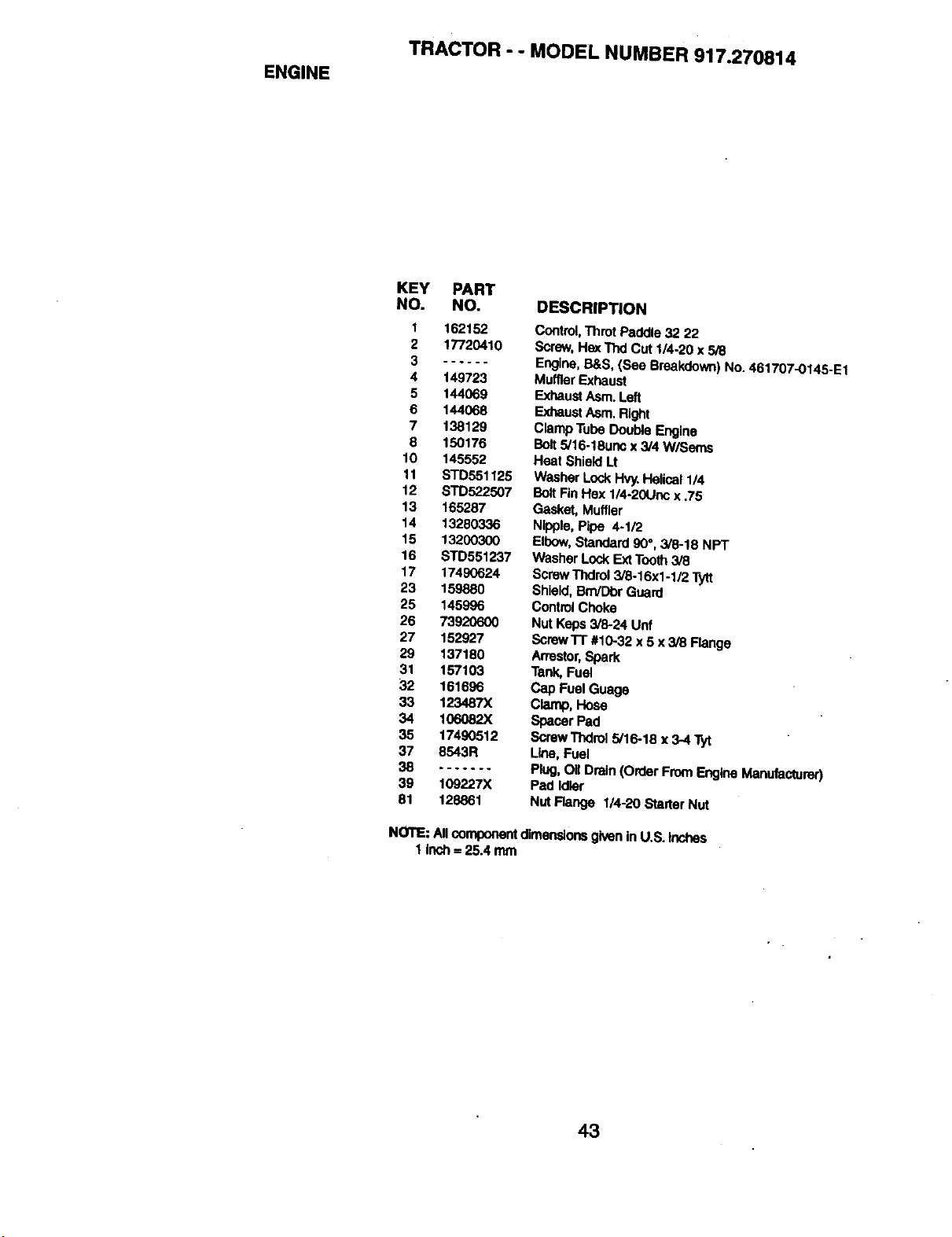

ENGINE

TRACTOR - - MODEL NUMBER 917.270814

KEY PART

NO. NO.

1 162152

2 17720410

3 ......

4 149723

5 144069

6 144063

7 138129

8 150176

10 145552

11 STD551125

12 STD522507

13 165287

14 1328O336

15 13200300

16 STD551237

17 17490624

23 159880

25 145996

26 73920600

27 152927

29 137180

31 157103

32 161696

33 123487X

34 106082X

35 17490512

37 8543R

38 .... =..

39 109227X

81 128861

DESCRIPTION

Control,Throt Paddle 32 22

Screw,He_ Thd Cut 114-20x 5i8

Engine,B&S, (See Breakdown) No. 461707-0145-E1

MufflerExhaust

Exhauet _.sm.Le_

ExhaustAsm.Righl

ClampTube Double Engine

Bolt5/16-18unc x 3/4 W/Seres

Heat Shield Lt

Washer Lock Hvy.Helical 114

BoltRn He)( 1/4-20Unc x .75

Gasket, Muffler

Nipple, Pipe 4-1/2

Elbow,Standard 90°, 3/8-18 NPT

Washer Lock ExtTooth3/8

ScrewThdml 3/6.16x1-1/2 Tytt

Shlald, BnVDbr Guard

ControlChoke

Nut Keps 3/8-24 Unf

ScrewTT #10-32 x 5 x 3/8 Flange

Arrestor,Spark

Tank, Fuel

Cap Fuel Guage

c_np, Hose

Spacer Pad

Screw Thdrol5/16-18 x 3-4 Tyt

Line, Fuel

Plug,Oil Drain (Order From Engine Manufacturer)

Pad Idter

Nut Flange 1/4-20 Stmter Nut

NOTE: Allcomponentdimensionsgivenin U,S. inches

I Inch = 25.4 mm

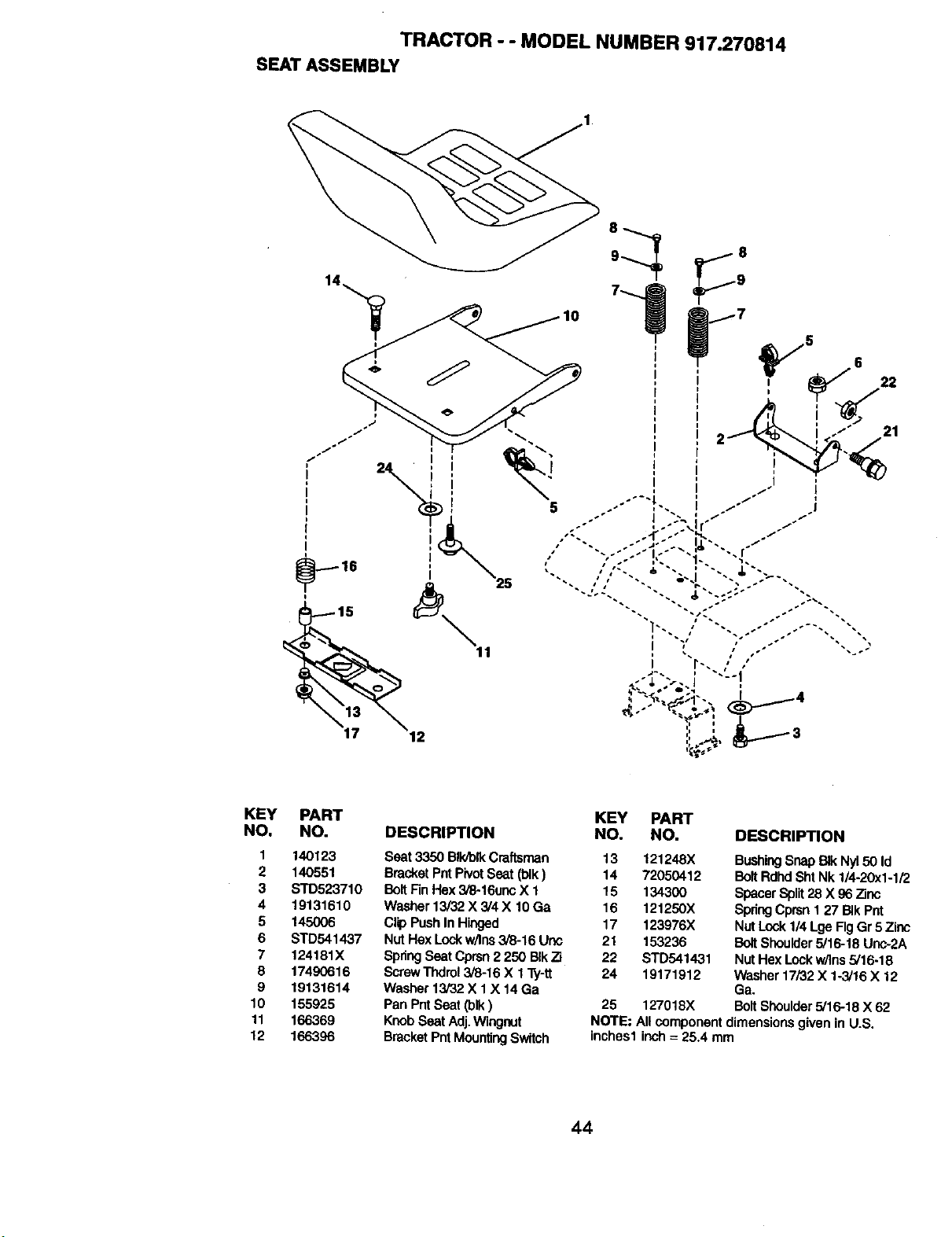

TRACTOR - - MODEL NUMBER 917.270814

SEATASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 140123

2 140551

3 STD523710

4 19131610

5 145006

6 STD541437

7 124181X

8 17490616

9 19131614

10 155925

11 166369

12 166396

Seat 3350 BIk/blkCraftsman 13 121248X

Bracket PntPivotSeat (folk) 14 72050412

BoltFinHex 3/8-16uric X 1 15 134300

Washer 13/32 X 3/4 X 10 Ga 16 121250X

Clip Push In Hinged 17 123976)(

Nut Hex Lockw/ins3/8-16 Unc 21 153236

SpringSeat Cprsn2 250 BIk Zi 22 STD541431

ScrewThdrol3/8-16 X 1 Ty-tt 24 19171912

Washer 13/32 X 1X 14 Ga

Pan PntSeat (blk) 25 127016X

KnobSeat Adj.Wingnct

BracketPntMountingSwitch

BushingSnap BIk Ny150 Id

BoltRdhd Sht Nk 1/4-20x1-1/2

Spacer Split28 X 86 Zinc

SpringCprsn 127 BIk Pnt

Nut Lock1/4 Lge FigGr 5 Zinc

BoltShoulder5/16-18 Unc-2A

Nut HexLockw/Ins5/16-18

Washer 17/'32X 1-3/16 X 12

Ga.

BoltShoulder5/16-18 X 62

NOTE: All component dimensionsgiven in U.S.

inches1 inch= 25.4 mm

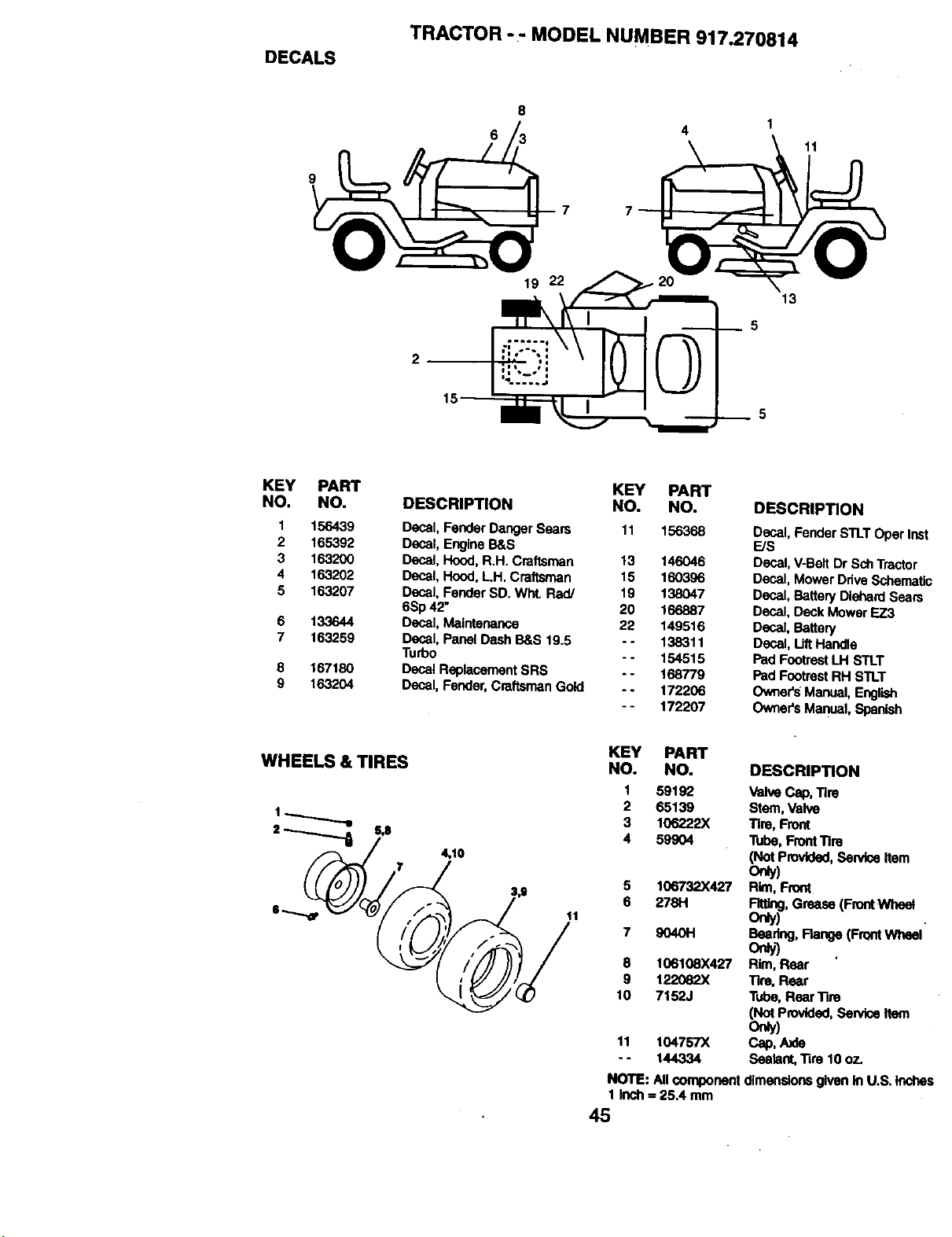

DECALS

TRACTOR -- MODEL NUMBER 917.270814

6 4 1

15'

KEY PART

NO. NO.

I 156439

2 165392

3 163200

4 163202

5 163207

133644

163259

167180

163204

DESCRIPTION

KEY PART

NO. NO.

Decal, Fender Danger Sears 11 156368

Decal, Engine B&S

Decal, Hood, R.H. Craftsman 13 146046

Decal, Hood, L.H. Craftsman 15 160396

Decal, Fender SD. WhL Rad/ 19 138047

6Sp 42" 20 166887

Decal, Maintenance 22 149516

Decal, Panel Dash B&S 19,5 - - 138311

Turbo - - 154515

Decal Replacement SRS - - 168779

Decal, Fender, CrsftsmanGold - - 172206

- - 172207

DESCRIPTION

Decal, Fender STL'r Oper Inst

E/S

Decal, V-Beit Dr SchTractor

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Mower EZ3

Decal, Battery

Oecat,Ult Hand_

PadFootrest LH STLT

PadFootrest RH STLT

Owner's Manual, English

Owners Manual, Spanish

WHEELS & TIRES

= _ s,8

4,10

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 90401"1

8 106108X427

9 122082X

10 7152J

11 104757X

-- 144334

NOTE: All component

1 Inch = 25A mm

DESCRIPTION

ValveCap, Tire

Stem, Valve

Tire, Front

Tube, FrontTire

(Not Provided,Seneca Item

Only)

Rim, Front

Fitting,Grease(FrontWheel

Only)

Bearing,F_n_ (FrontWhe_

Only3

Rim, Rear

Tire, Rear

Tube, Rear "rke

(No_Provided, Sen,tca Item

Only)

Cep,A_de

Sealant,Tire 10 oz.

dimensionsgiven In U.S. Inches

TRACTOR - - MODEL NUMBER 917.270814

LIFT ASSEMBLY

5 49

/ /

/ i

/ /

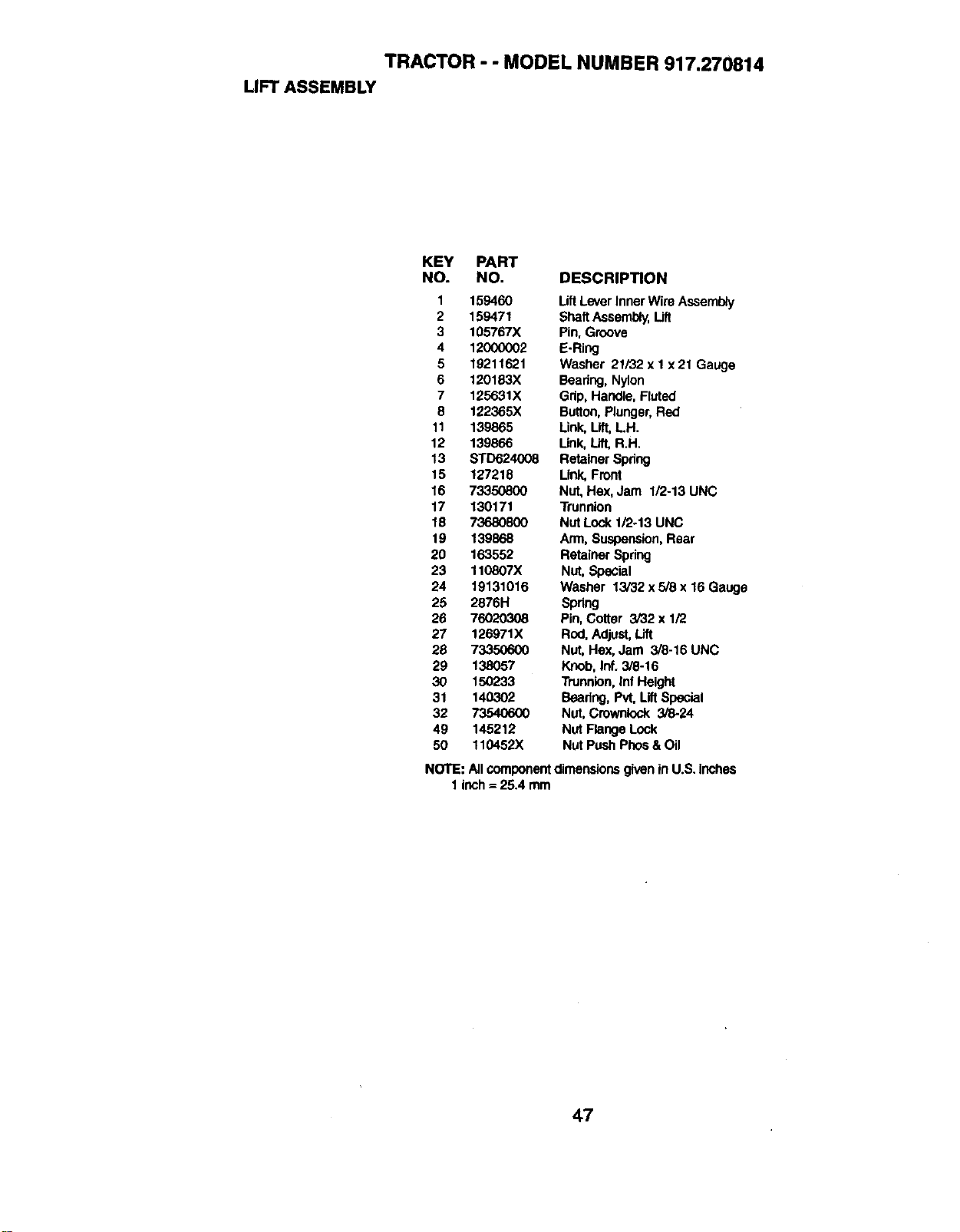

TRACTOR - - MODEL NUMBER 917.270814

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever InnerWire Assemio_y

2 159471 ShaftAssembly,Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Gauge

6 120183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365)( Button, Plunger,Red

11 139865 Link, Lift,LH.

12 139866 Link,_ R.H.

13 STD624008 Retainer Spdng

15 127218 Link,Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73680800 Nut Lock 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spdng

23 110807X Nut, Special

24 19131016 Washer 13/32 x 5/8 x 16 Gauge

25 2876H Spring

28 76020308 Pin,Cotter 3/32 x 1/2

27 126971X Rod, Adjust, Lift

29 73350600 Nut, Hex, Jam 3/8-18 UNC

29 138057 Knob,Inf. 3/8-16

30 150233 Trunnion,Inf Height

31 140302 Beadng, Pvt, Lift Special

32 73540600 Nut,Crownlock 3/8-24

49 145212 Nut Flange Lock

50 110452X Nut Push Phos & Oil

NOTE: All componentdimensionsgiven in U.S.inches

I inch = 25.4 mm

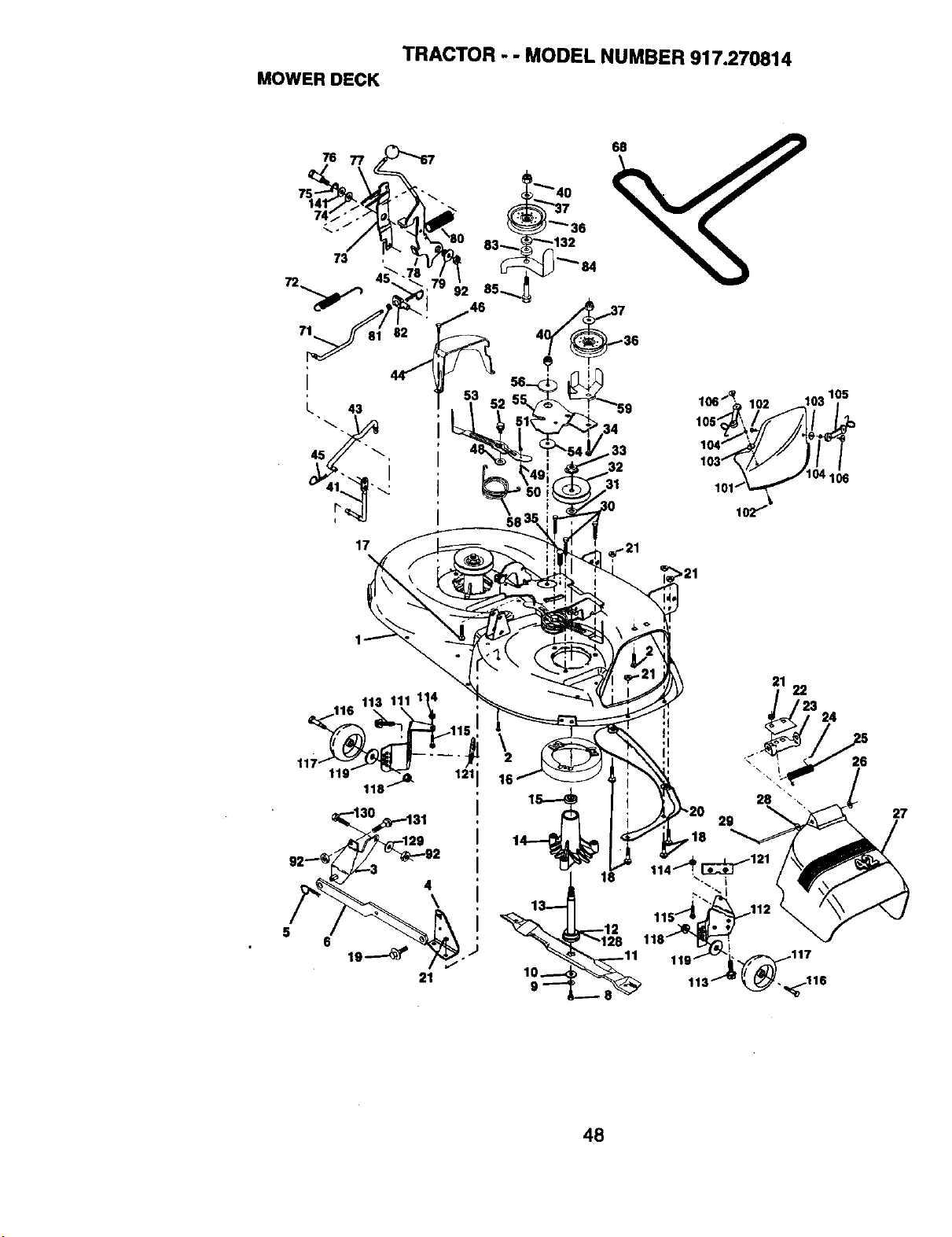

TRACTOR - - MODEL NUMBER 917.270814

MOWER DECK

,_21

>21

21 22

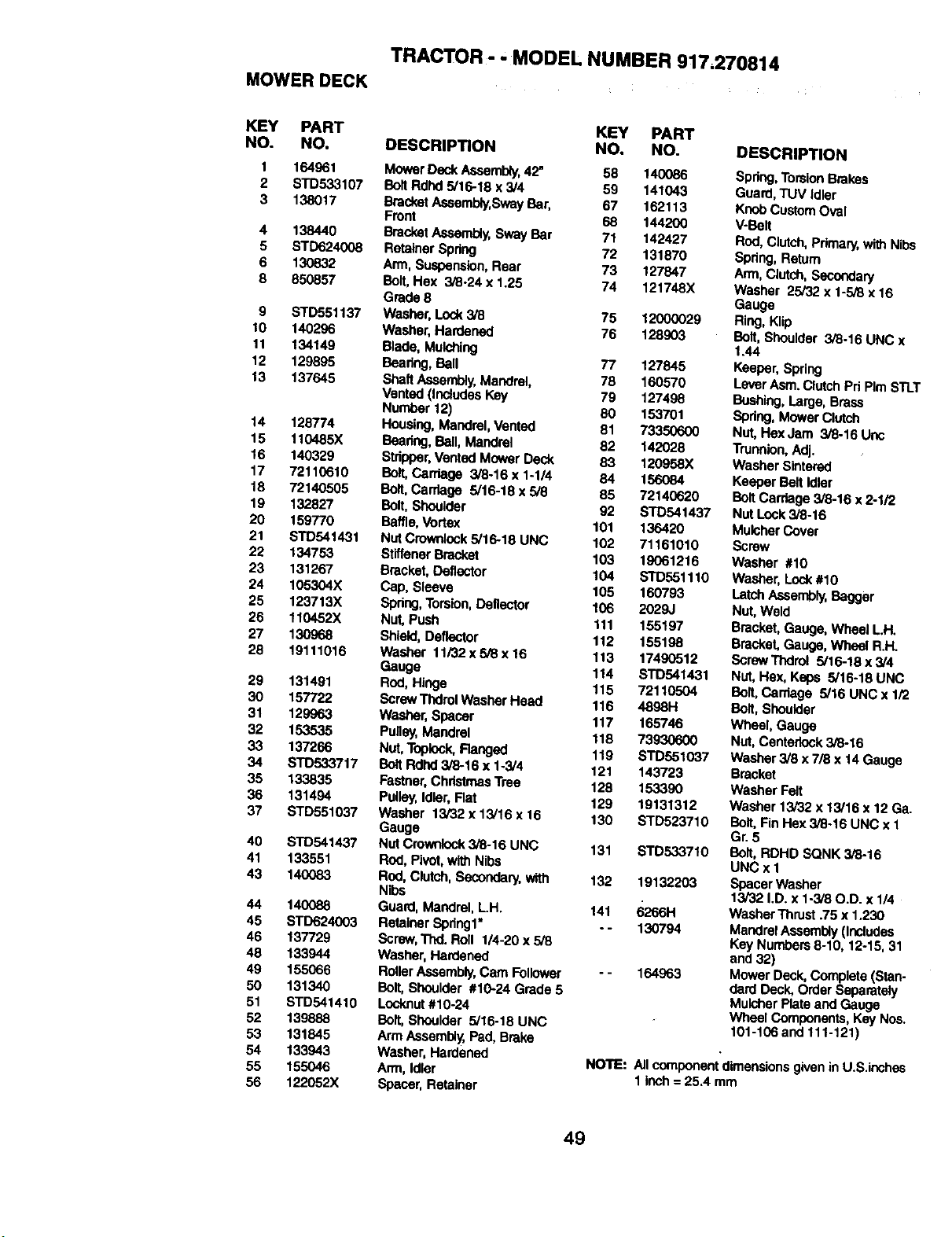

TRACTOR - ' MODEL NUMBER 917,270814

MOWERDECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 164961 Mower Deck Asseml_y,42" 58 140086

2 STD533107 BoltRdhd 5/16-18 x 3/4 59 141043

3 138017 Bracket Assembly,SwayBar, 67 162113

Front 68 144200

4 138440 Bracket Assembly,Sway Bar 71 142427

5 STD624008 Retainer Spdng 72 131870

6 130832 Arm, Suspension,Rear 73 127847

8 850857 Bolt,Hex 3/8-24 x 1.25 74 121748X

Grade 8

9 STD551137 Washer, Lock3/8 75 12000029

10 140296 Washer, Hardened 76 128903

11 134149 Blade, Mulching

12 129895 Bearing, Bali 77 127845

13 137645 Shaft Assembly,Mandrel, 78 160570

Vented (Includes Key 79 127498

Number 12) 80 153701

14 128774 Housing, MendreJI,Vented 91 73350600

15 110485X Beadng, Ball, Mandrel 82 142028

16 140329 Stripper,Vented Mower Deck 83 120958X

17 72110610 Bolt,Cardage 3/8-16 x 1-1/4 84 156084

18 72140505 Bolt,Cardage 5/16-16 x 5/8 85 72140620

19 132827 Bolt. Shoulder 92 STD541437

20 159770 Baffle, Vortex 101 136420

21 STD541431 Nut Crownleck 5/16-18 UNC 102 71161010

22 134753 Stiffener Bracket 103 19061216

23 131267 Bracket, Deflector 104 STD551110

24 105304X Cap, Sleeve 105 160793

25 123713X Spdng, Torsion,Deflector 106 2029,,I

26 110452X Hut, Push 111 155197

27 130968 Shield, Deflen_r 112 155198

28 19111016 Washer 11/32 x 5/8 x 16 113 17490512

Gauge 114 STD541431

29 131491 Red, Hinge 115 72110504

30 157722 ScrewThdrol Washer Head 116 4898H

31 129963 Washer, Spacer 117 165746

32 153535 Pulley,Mandrel 118 739306(X)

33 137266 Hut, Topiock,Flanged 119 STD551037

34 STD533717 BoltRdhd 3/8-16 x 1-3/4 121 143723

35 133835 Fastner,Chflstmas Tree 128 153390

36 131494 Pulley,Idler, Rat 129 19131312

37 STD551G'37 Washer 13/32 x 13/16 x 16 130 STD523710

Gauge

40 STD541437 Nut CrOwniock3/8-16 UNC 131 STD533710

41 133551 Rod, Pivot,with Nibs

43 140083 Rod, CkJtch,Seconded/, with 132 19132203

Nibs

44 140088 Guard, Mandrel, L.H. 141 6266H

45 STD624003 Retainer Spdngl" - - 130794

46 137729 Screw,Thd. RoKI1/4-20 x 5/8

48 133944 Washer, Hardened

49 155066 RotterAssembly,Cam Folk_er - - 164963

50 131340 Bolt,Shoulder #10-24 Grade 5

51 STD541410 Locknut#10-24

52 139888 Bolt, Shoulder 5/16-18 UNC

53 131845 Arm Assembly,Pad, Brake

54 133943 Washer, Hardened

55 155046 Ann, k:Uer

56 122052X Spacer, Retainer

DESCRIPTION

Spring,TorsionBrakes

Guard,TUV Idler

KnobCustomOval

V-Belt

Rod, Clutch,Primary,with Nibs

Spring,Return

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x 16

Gauge

Ring, Klip

Bolt,Shoulder 3/8-16 UNC x

1.44

Keeper, Spring

LeverAsm. ClutchPri PImSTLT

Bushing, Large, Brass

Spdng, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion,Adj.

Washer Sioterad

Keeper Belt Idler

Bolt Carriage 3,'8-16 x 2ol/2

Nut Lock3/8-16

MulcherCover

Screw

Washer #10

Washer, Lock#10

Latch Assembly,Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket,Gauge, Wheel R.H.

ScrewThdrol5/16-18 x 3/4

NUt,Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut,Centarlock 3/8-16

Washer 3/8 x7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga.

Bolt, FinHex 3/8-16 UNC x 1

Gr. 5

BOY(,RDHD SQNK 3/8-16

UNC x 1

Spacer Washer

13/32 I.D. x 1-3/80.D. x 1/4

Washer Thrust .75 x 1.230

MandrelAssembly(Includes

Key Numbera8-10, 12-15, 31

and 32)

Mower Deck, Complete(Stan-

(lard Deck, Order Separately

MulcherPlate and Gauge

Wheel Components, Key Nos.

101-106 and 111-121)

NOTE: All component dimensionsgivenin U.S,inshes

1inch= 25.4 mm

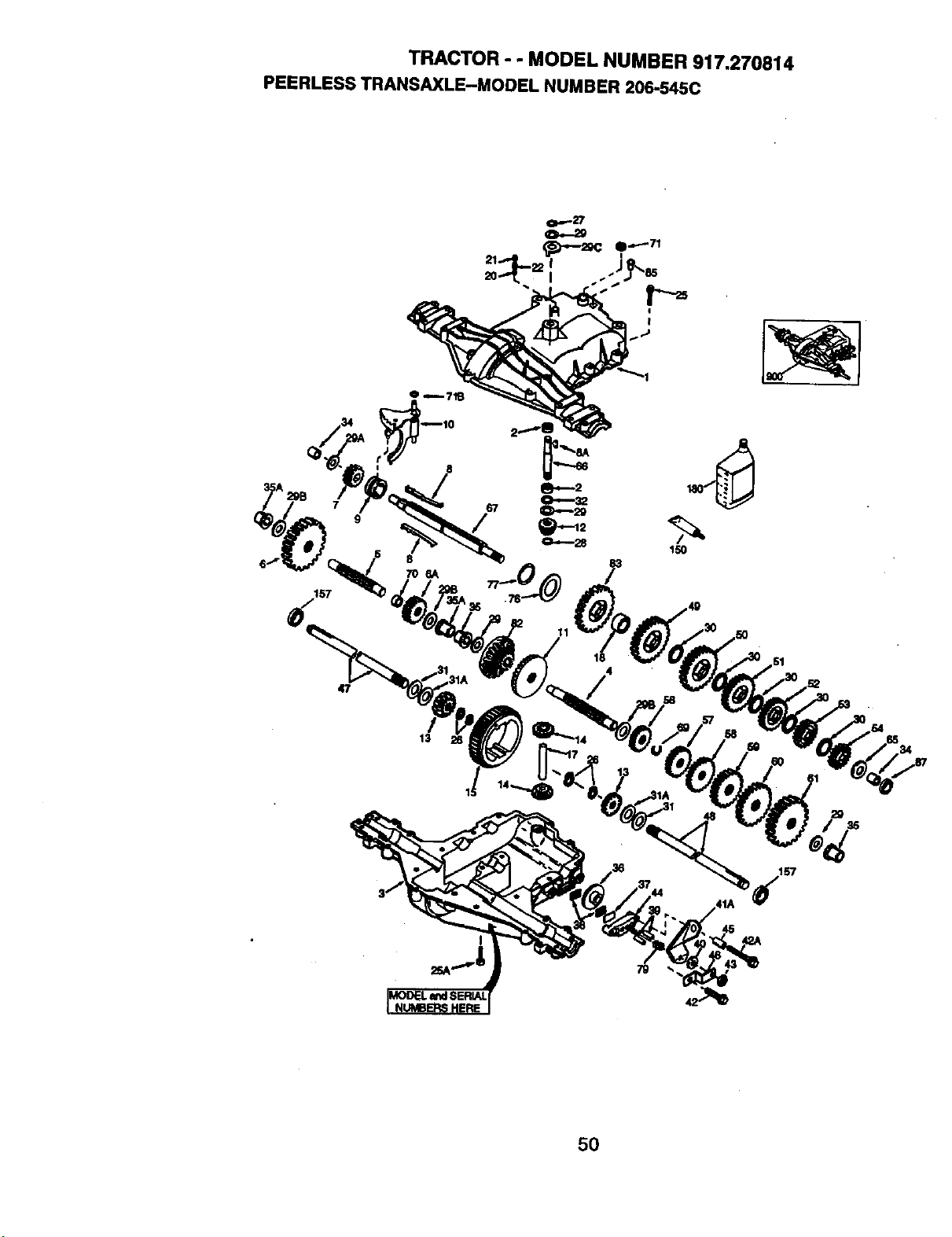

TRACTOR - - MODEL NUMBER 917.270814

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

Cw.-27

O.--29

706A

150

41A

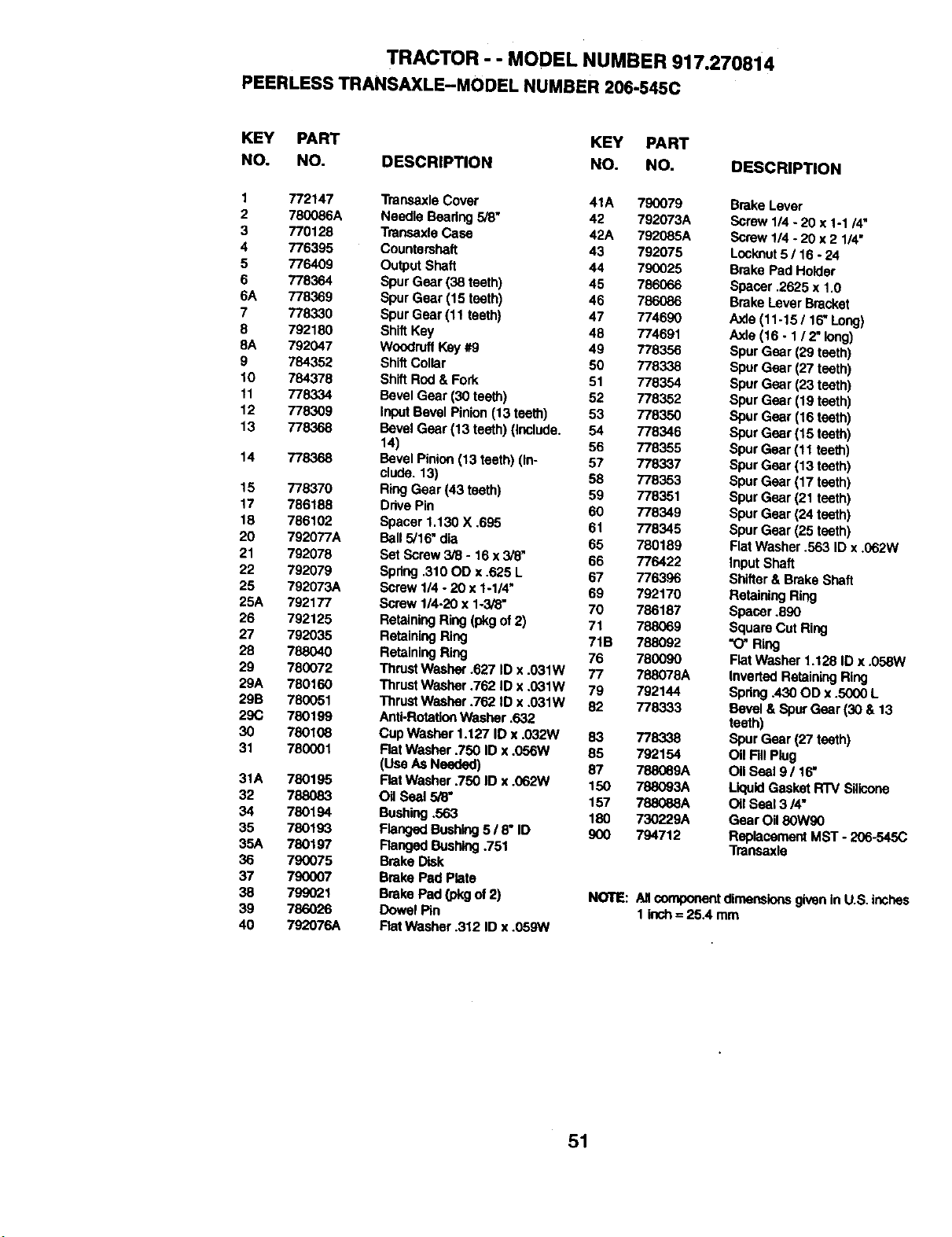

TRACTOR - - MODEL NUMBER 917.270814

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 772147 Tmnsaxle Cover 41A 790079

2 780086A Need|e Bearing5J8" 42 792073A

3 770128 Transaxle Case 42A 792086A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (15 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 ShiftKey 48 774691

8A 792047 Woodruff Key#9 49 778356

9 784352 ShiftCollar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 InputBevel Pinion (13 teeth) 53 778350

13 778368 Bevet Gear (13 teeth) (include. 54 778346

14) 56 778355

14 778368 Bevel Pinion(13 teeth) (In- 57 778337

clude. 13) 58 778353

15 778370 RingGear (43 teeth) 59 776351

17 786188 Drive Pin 60 778349

18 786102 Spacer 1.130 X .695 61 776345

20 792077A Ball 5/16` dia 65 780189

21 792078 Set Screw 3/8 - 16 x 3/8" 66 776422

22 792079 Spring.310 OD x .625 L 67 7763,96

25 792073A Screw 1/4 - 20 x 1-1/4* 69 792170

25A 792177 Screw 1/4-20 x 1-3/8" 70 786187

26 792125 Retaining Ring (pkgof 2) 71 788069

27 792035 Rata'l_ng Ring 71B 788092

28 788040 Retaining Ring 76 780090

29 780072 Thrust Washer .627 ID x .031W 77 788078A

29A 780160 Thrust Washer .762 ID x .031W 79 792144

29B 780051 ThrustWasher .762 ID x .031W 82 778333

29<3 780199 Anti-RotationWasher .632

30 780108 Cup Washer 1.127 ID x .032W 83 778338

31 780001 Flat Washer .750 ID x .056W 85 792154

(Use As Needed) 87 788069A

31A 780195 Flat Washer .750 ID x .062W 150 788093A

32 788083 Oil Seat 5/8" 157 788088A

34 780194 Bushing .563 180 730229A

35 780193 Flanged Bushing5 / 8" ID 900 794712

35A 780197 F_nged Bushing.751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkgof 2) NOTE:

39 786026 Dowel Pin

40 792076A Rat Washer .312 ID x,059W

DESCRIPTION

Brake Lever

Screw 1/4 - 20 x 1-1 14"

Screw 1/4 - 20 x 2 1/4"

Locknut5 / 16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 / 16"Long)

Axle (16 - 1/2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

F!atWasher .563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spaeer ,890

Square Cut Ring

"O"Ring

Flat Washer 1.128 ID x .058W

Inverted Retaining Ring

Spring .43OOD x .SO00L

Bevel & Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

Oil FdlPlug

Oil Seal 9/16`

LiquidGasket RI"VSilicone

OilSeal 3/4"

Gear Oil80W90

Replacement MST - 206-545C

Transax|a

All component dimensionsgivenin U.S. inches

1 inch= 25A mm

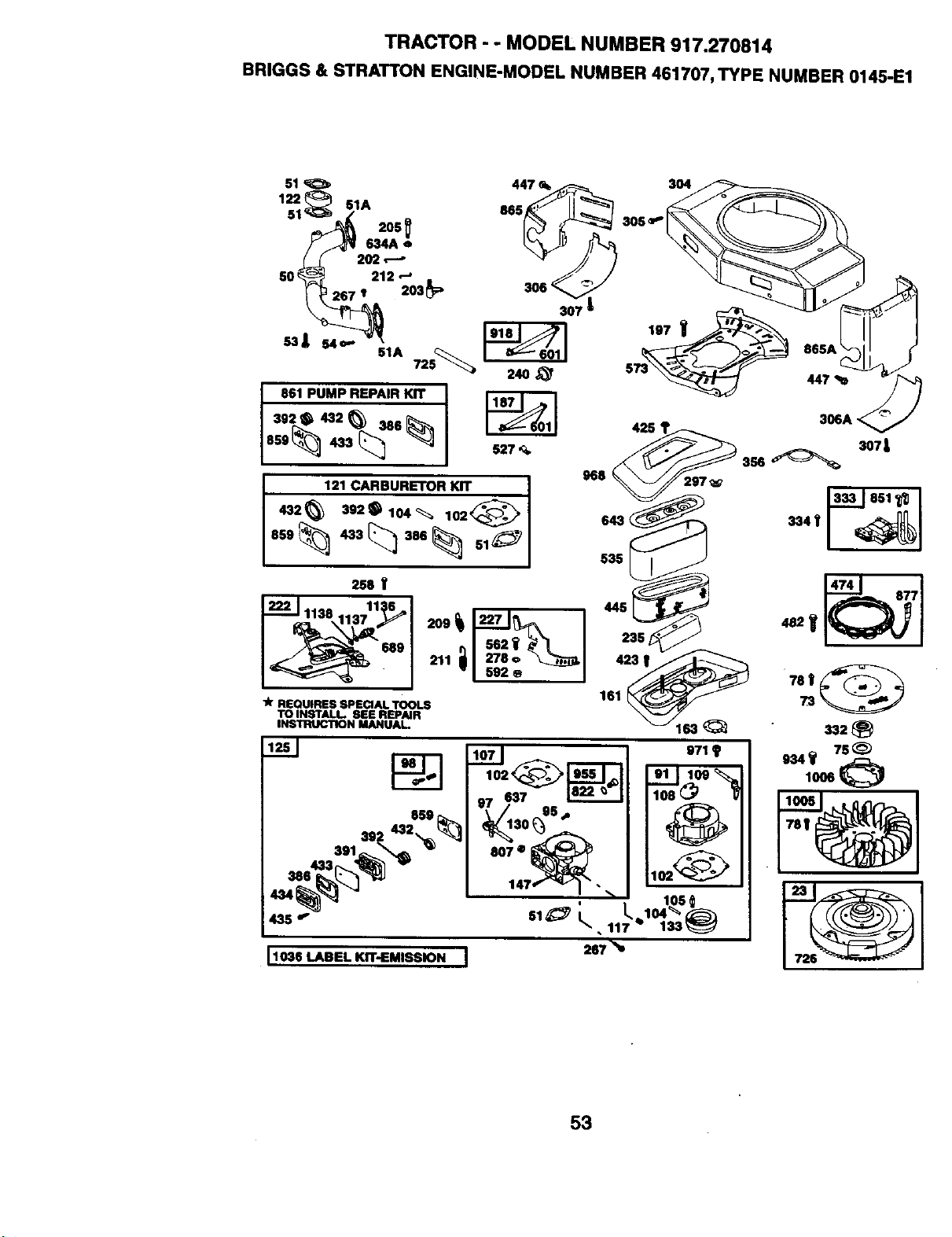

TRACTOR - - MODEL NUMBER 917.270814

BRIGGS& STRATTONENGINE-MODELNUMBER461707,TYPENUMBER0145-E1

TRACTOR - - MODEL NUMBER 917.270814

BRIGGS& STRATTONENGINE-MODELNUMBER461707,TYPENUMBER0145-E1

51 _ 447

122 51A

861 PUMP REPAIR KIT

392• 402_ 306_-

121 CARBURETOR KIT I

402_ 3020 104_, 102<_

30a Y

1138 11:_8_,,I

"A"REQUIRESSPE_AL _LS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

278o

592

8ss

30_ 402_,__._

391

425

968 !97

643_

1036 LABEL KIT-EMISSION I

535

161

_133

971

807 •

267

14741 877

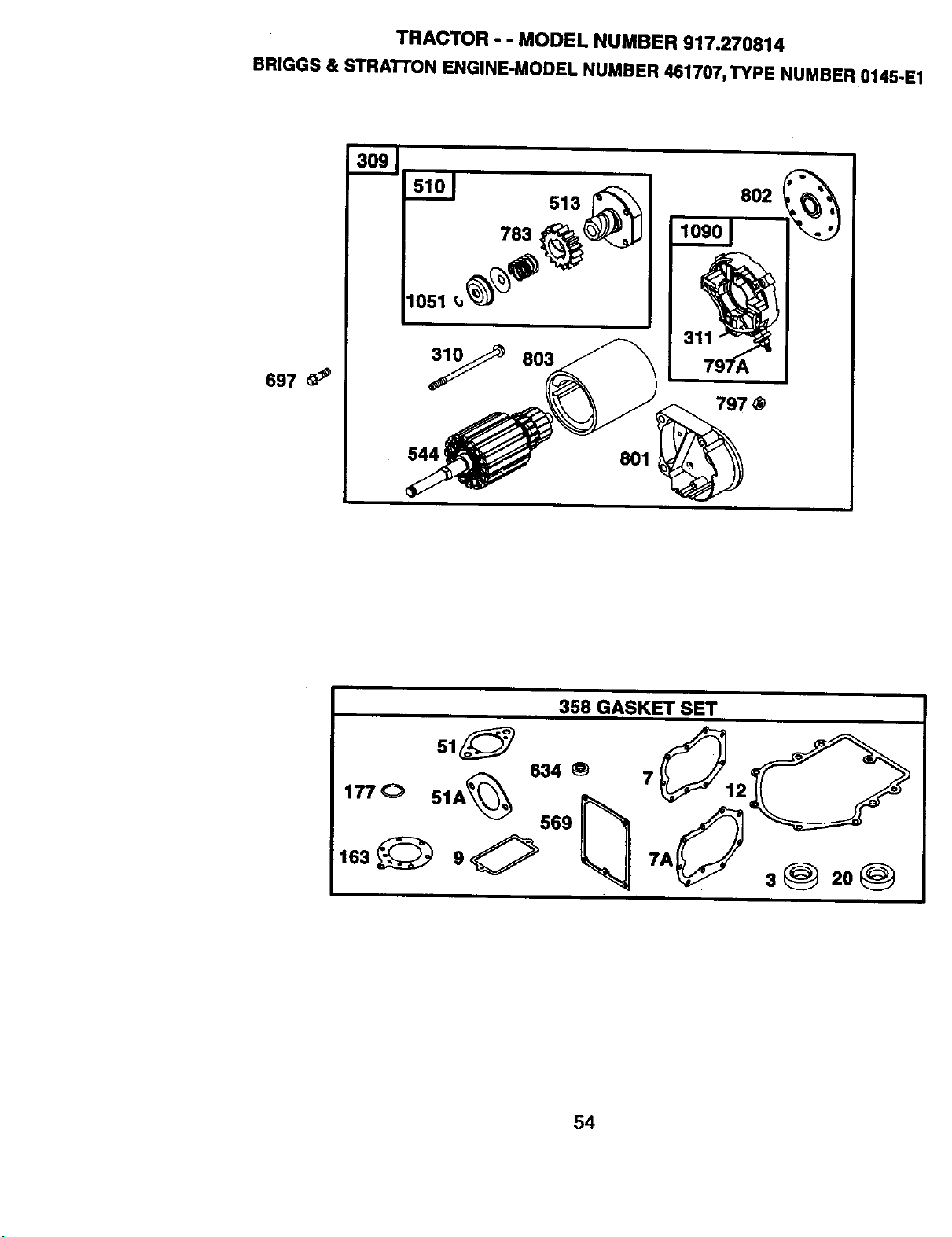

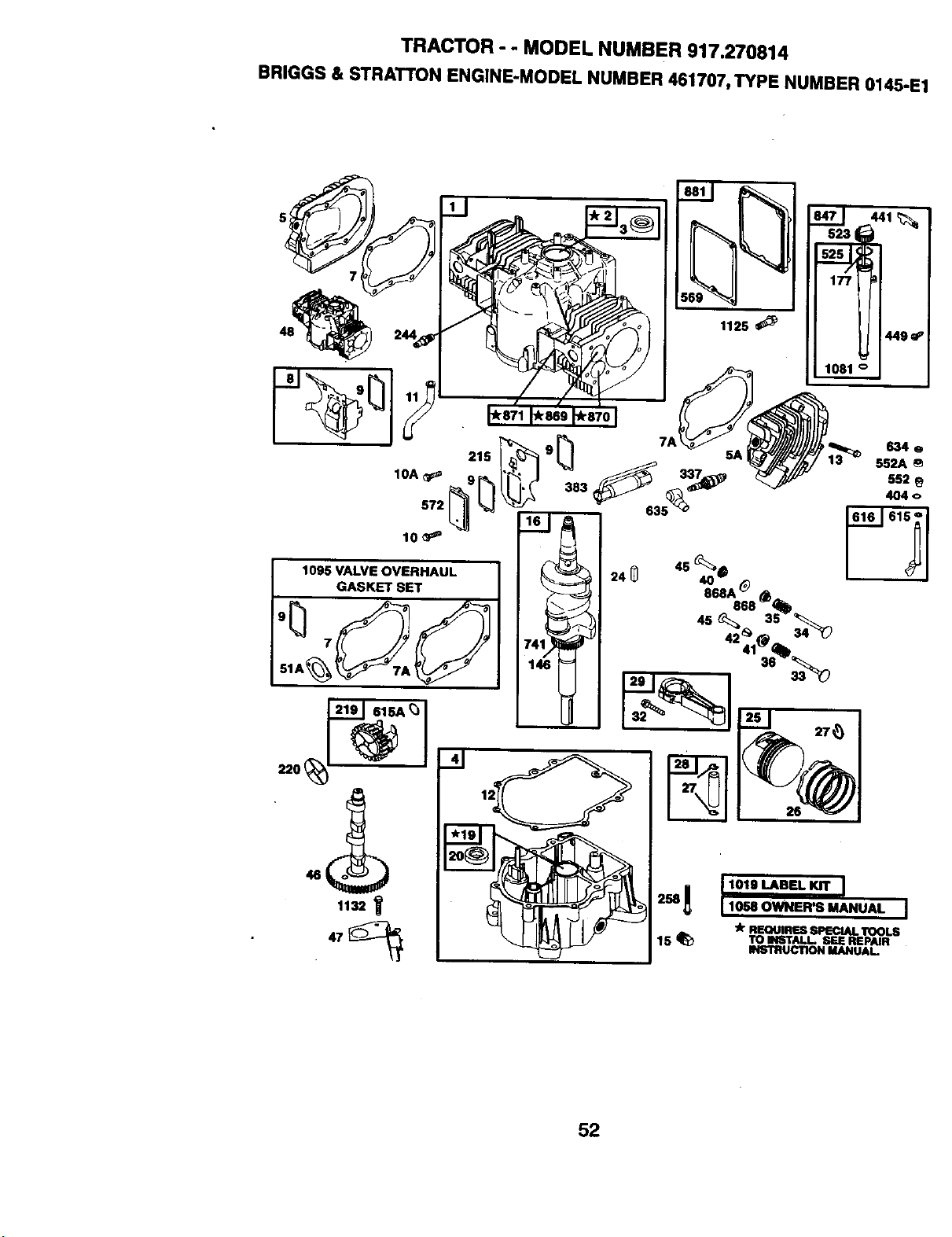

TRACTOR - - MODEL NUMBER 917.270814

BRIGGS& STRA'I-rONENGINE-MODELNUMBER461707,TYPENUMBER0145-EI

697 _#'

309]

5101 513

783 __

lO61_

y 803

544'

797 @

801

358 GASKET SET

1770 51A__ 634 _ 7

569 _

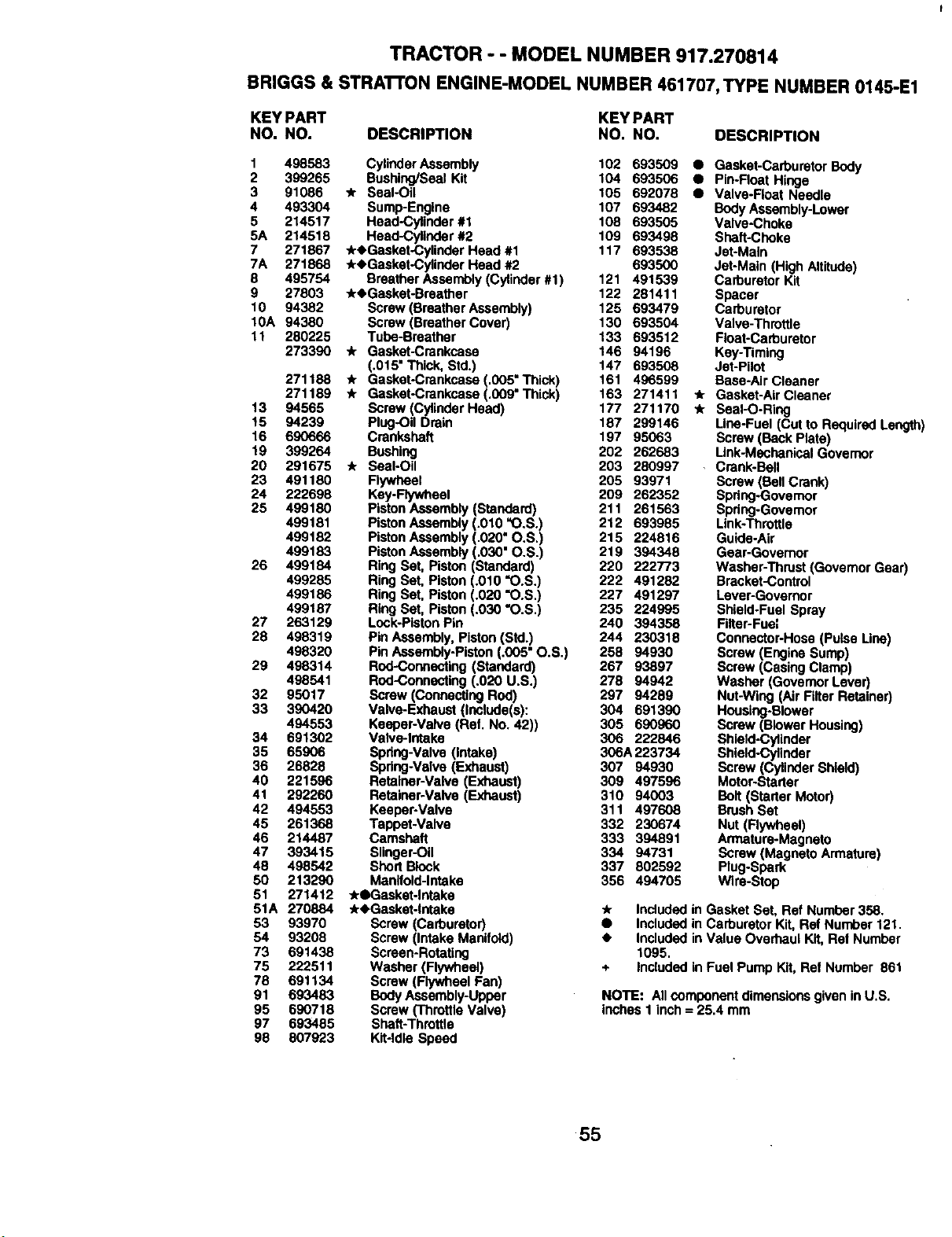

TRACTOR - - MODEL NUMBER 917.270814

BRIGGS & STRA'I-rONENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 498583 Cylinder Assembly 102 693509 • Gasket-Carburetor Body

2 399265 Bushing/Seal Kit 104 693506 Q P_n-P,oat H_nge

3 91086 '/r Seal-Oil 105 692078 • Valve-Float Needle

4 493304 Sump-Eng_ne 107 693482 Body Assembly-Lower

5 214517 Head-Cylinder #1 108 693505 Valve-Choke

5A 214518 Head-CyUnder #12 109 693498 Shaft-Choke

7 271867 *oGasket-Cylinder Head #1 117 693538 Jet-Main

7A 271868 *,Gasket-Cylinder Head #2 693500 Jet-Main (High Altitude)

8 496754 Breather Assembly (Cylinder # 1) 121 491539 Carburetor Kit

9 27803 4r,Gasket-Breather 122 281411 Spacer

10 94382 Scraw (Breather Assembly) 125 693479 Carburetor

10A 94380 Screw (Breather Cover) 130 693504 Valve.Throttle

11 280225 Tube-Breather 133 693512 Float-Carburetor

273390 * Gasket-Crankcase 146 94196 Key-Timing

(.015" Thick, Std.) 147 693508 Jet-Pilot

271188 , Gasket-Crankcase (.005" Thick) 161 496599 Base-Air Cleaner

271189 , Gasket-Crankcase (.009" Thick) 163 271411 * Gasket-AirCleaner

13 94565 Screw (Cyllnder Head) 177 271170 * Seal-O-Ring

t5 94239 Plug-Oil Drain 187 299146 Line-Fuel (Cut to Required Length)

16 690666 Crankshaft 197 96063 Screw (Back Ptata)

19 399264 Bushing 202 262683 Link-Mechenical Governor

20 291675 "t- Seat-Oit 203 280997 Crank-Ball

23 491180 Flywheel 205 93971 Screw (Bell Crank)

209 262352 Spring-Governor

24 222699 Kay-Ft_eet

25 499180 PistonAssembly (Standard) 211 261563 Spdng-Govemor

499181 Piston Assembly (.010 "O.S.) 212 693985 Link-Throttle

499182 Piston Assembly (.020" O.S.) 215 224816 Guide-Air

499183 Piston Assembly (.030" O.S.) 219 394348 Gear-Govemor

220 222773 Washer-Throst (Governor Gear)

26 499184 Ring Set, Piston (Standard)

499285 Ring Sat, Piston (.010 "O.S.) 222 491282 Bracket-Control

499186 Ring Set, Piston (.020 "O.S.} 227 491297 Lever-Governor

499187 Ring Set, Piston (.030 "O.S.) 235 224995 Shield-Fuel Spray

27 263129 Lock-Piston Pin 240 394358 Filter-Fuel

28 498319 Pin Assembly, Piston(Std.! 244 230318 Connector-Hose (Pulse Line)

498320 Pin Assembly-Piston(.005 O.S.) 258 94930 Screw (Engine Sump)

29 498314 Rod-Connecting (Standard) 267 93897 Screw (Casing Clamp)

498541 Rod-Connecting (.020 U.S.) 276 94942 Washer (Governor Lever)

32 95017 Screw (Connecting Rod) 297 94289 Nut-Wing _Air Fiite_Retainer)

33 390420 Valve-Exhaust (Include(a): 304 691390 Housing-Blower

494553 Keeper-Valve (Rat. No. 42)) 308 690960 Screw (Blower Housing)

34 891302 Valve-Intake 306 222846 Shield-Cylinder

35 65906 Spring-Valve (intake) 306A 223734 Shield-Cylinder

36 26828 Spring-Valve (Exhaust) 307 94930 Screw (Cylinder Shield)

40 221596 Retainer-Valve (Exhaust) 309 497596 Motor-Starter

41 292260 Retainer-Valve (Exhaust) 310 94003 Bolt (Starter Motor)

42 494553 Keeper-Valve 311 497608 Brush Set

45 261368 Tappet-Valve 332 230674 Nut (Flywheel)

46 214487 Camshaft 333 394891 Armature-Magneto

47 393415 Stinger-Oil 334 94731 Screw (Magneto Armature)

48 498542 Short Block 337 802592 Plug-Spark

50 213290 Manitold-intake 356 494705 Wire-Stop

61 271412 *•Gasket-Intake

81A 270884 4r_l.Gaskst-lntake ir Included in Gasket Set, Ref Number 358.

• Included in Carburetor Kit, Re| Number 121.

53 93970 Screw (Carburetor)

54 93208 Screw (Intake Manifold) , Included in Value Overhaul Kit, Rat Number

73 691438 Screen-Rotating 1095.

75 222511 Washer (Flywheel) + Included in Fuel Pump Kit, Ref Number 861

78 691134 Screw (Flywheel Fan)

91 693483 Body Assembly-Upper NOTE: All component dimensionsgiven in U.S.

95 690718 Screw (Throttle Valve) inches 1 inch = 25.4 mra

97 693465 Shaft-Throttle

98 807923 Kit-idle Speed

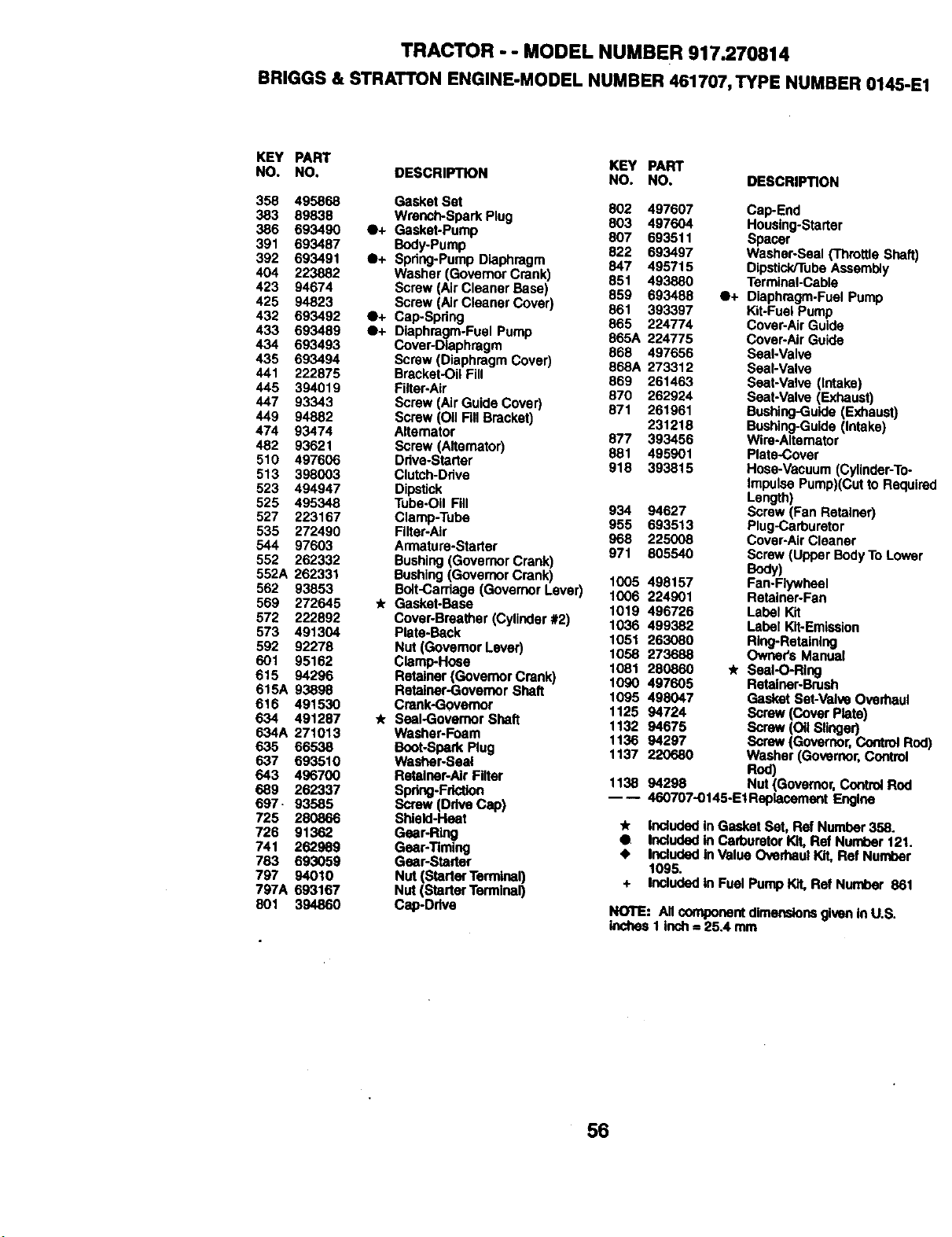

TRACTOR - - MODEL NUMBER 917.270814

BRIGGS& STRATTONENGINE-MODELNUMBER461707,TYPENUMBER0145-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

358 495868 Gasket Set 802 497607 Cap-End

383 89838 Wrench-Spark Plug 803 497604 Housing-Starter

386 693490 e+ Gasket-Pump 807 693511 Spacer

391 693487 Body-Pump 622 693497 Washer-Seal (Throttle Shaft)

392 693491 e+ Spring-Pump Diaphragm 847 495715 Dipstick/TubeAssembly

404 223882 Washer (Governor Crank) 851 493880 Terminal-Cable

423 94674 Screw (Air Cleaner Base) 859 693488 e+ Diaphragm-Fuel Pump

425 94823 Screw (Air Cleaner Cover) 861 393397 Kit-Fuel Pump

432 693492 e+ Cap-Spring 865 224774 Cover-Air Guide

433 693489 e+ Diaphragm-Fuel Pump 865A 224775 Cover-Air Guide

434 693493 Cover-Diaphragm 868 497656 Seal-Valve

435 693494 Screw (Diaphragm Cover) 868A 273312 Seal-Valve

441 222875 Bracket-Oil Flit 869 261463 Seat-Valve (intake)

445 394019 Filter-Air 870 262924 Seat-Valve (Exhaust)

447 93343 Screw (Air Guide Cover) 871 261961 Bushing-Guide (Exhaust)

449 94882 Screw (oil Fill Bracket) 231218 Bushing-Guide (Intake)

474 93474 Altamator 877 393456 Wire-Aitemator

482 93621 Screw (Alternator) 881 495901 Plate-Cover

510 497606 Ddve-Starter 918 393815 Hose-Vacuum (Cylinder-To-

513 398003 Clutch-Odve trnpu|sePump)(Cut to Require

523 494947 Dipstick Length)

525 495348 Tube-Oil Fill 934 94627 Screw (Fan Retainer)

527 223167 Clamp-Tube 955 693513 Plug-Carburetor

535 272490 Filter-Air 968 225008 Cover-Air Cleaner

544 97603 Armature-Starter 971 805540 Screw (Upper BodyTo Lower

552 262332 Bushing (Governor Crank) Body)

552A 262331 Bushing (Governor Crank) 1005 498157 Fan-Flywheel

562 93853 Bolt-Carriage (Governor Lever) 1006 224901 Retainer-Fan

569 272645 .A- Gasket-Baea 1019 496726 Label Kit

572 222892 Cover-Breather (Cylinder #2) 1036 499382 Label Kit-Emission

573 491304 Plate-Back 1051 263080 Ring-Retaining

592 92278 Nut (Govemor Lever) 1058 273688 Owne¢s Manual

601 95162 Clamp-Hose 1081 280860 _r Seal-O-Ring

615 94296 Retainer (Govemor Crank) 1090 497605 Retainer-Brush

615A 93898 Retainer-Governor Shaft 1095 498047 Gasket Set-Valve Overhaul

616 491530 Crank-Governor 1125 94724 S_ew (Cover Plate)

634 491287 tk Seal-Governor Shaft 1132 94675 Screw (Oil Slinger)

634A 271013 Washer-Foam 1136 94297 Screw(Governor, Control Roc

635 66538 Boot-Spark Plug 1137 220680 Washer (Governor,Control

637 693510 Washer-Seal Rod)

643 496700 Retainer-Air Filter 1138 94298 Nut (Governor, ControlRod

689 262337 Spdng-Fdction ---- 460707-0145-EIRep_oamant Engk_e

697. 93585 Screw (Ddve Cap)

725 280866 Shield-Heat _r Included in Gasket Set, Ref Number 358.

726 91362 Gear-Ring • Included in Carburetor Kit, Ref Number 121.

741 262989 Gear-Th_ng • Included InValue Ovethaut Kit, Ref Number

783 693059 Gear-StaRer 1095.

797 94010 Nut (StarterTerminal) + Included in Fuel Pump Kit, Ref Number 861

797A 693167 Nut (Starter Termlnel)

801 394860 Cap-Ddve NOTE: All component dimensionsgiven in U.S.

inches I inch= 25.4 ram

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15° MAX.

I_ Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gredu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For in-home major brand repair service:

Call 24 hoursa day, 7 days a week

1-800-4-MY-HOME =' (1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pibces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect s"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domiciUo

1-600-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

•Agreement or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday - Saturday

1-800-627-6655

172206

10.28.99 RD Pdntad in U.S.A.

Craftsman 917270814 19.5-hp lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917270814 Questions and Answers
