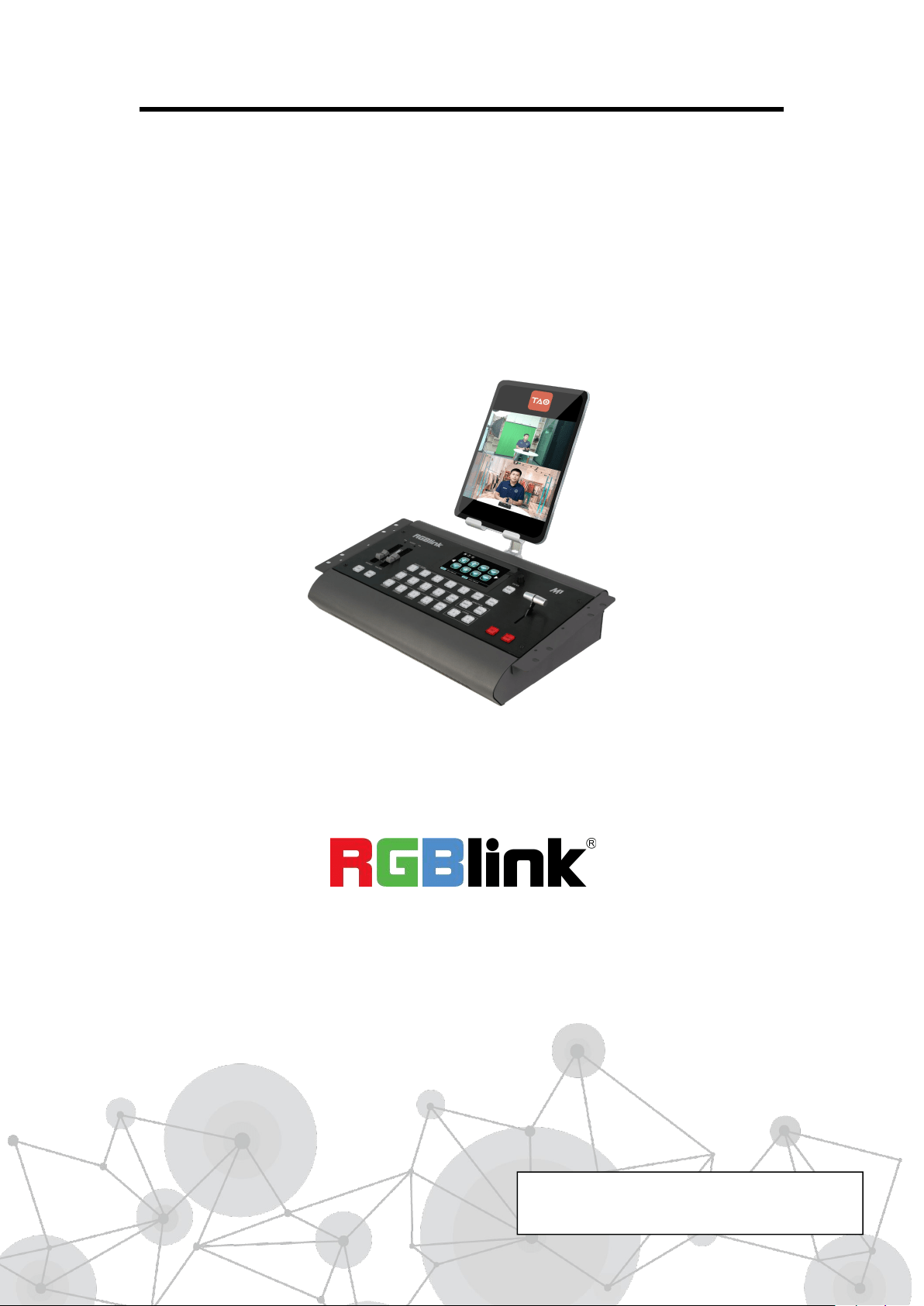

M1
User Manual
Article No: RGB-RD-UM-M1 E003
Revision No: V1.3
*Pad not included
M1 User Manual
1
CONTENTS
Declarations ........................................................................................................................................ 3
FCC/Warranty ..............................................................................................................................3
Operators Safety Summary .........................................................................................................4
Installation Safety Summary .......................................................................................................4
Chapter 1 Your Product ....................................................................................................................... 6
1.1 In the Box .............................................................................................................................. 6
1.2 Product Overview ................................................................................................................. 7
1.2.1 Front Panel .................................................................................................................8

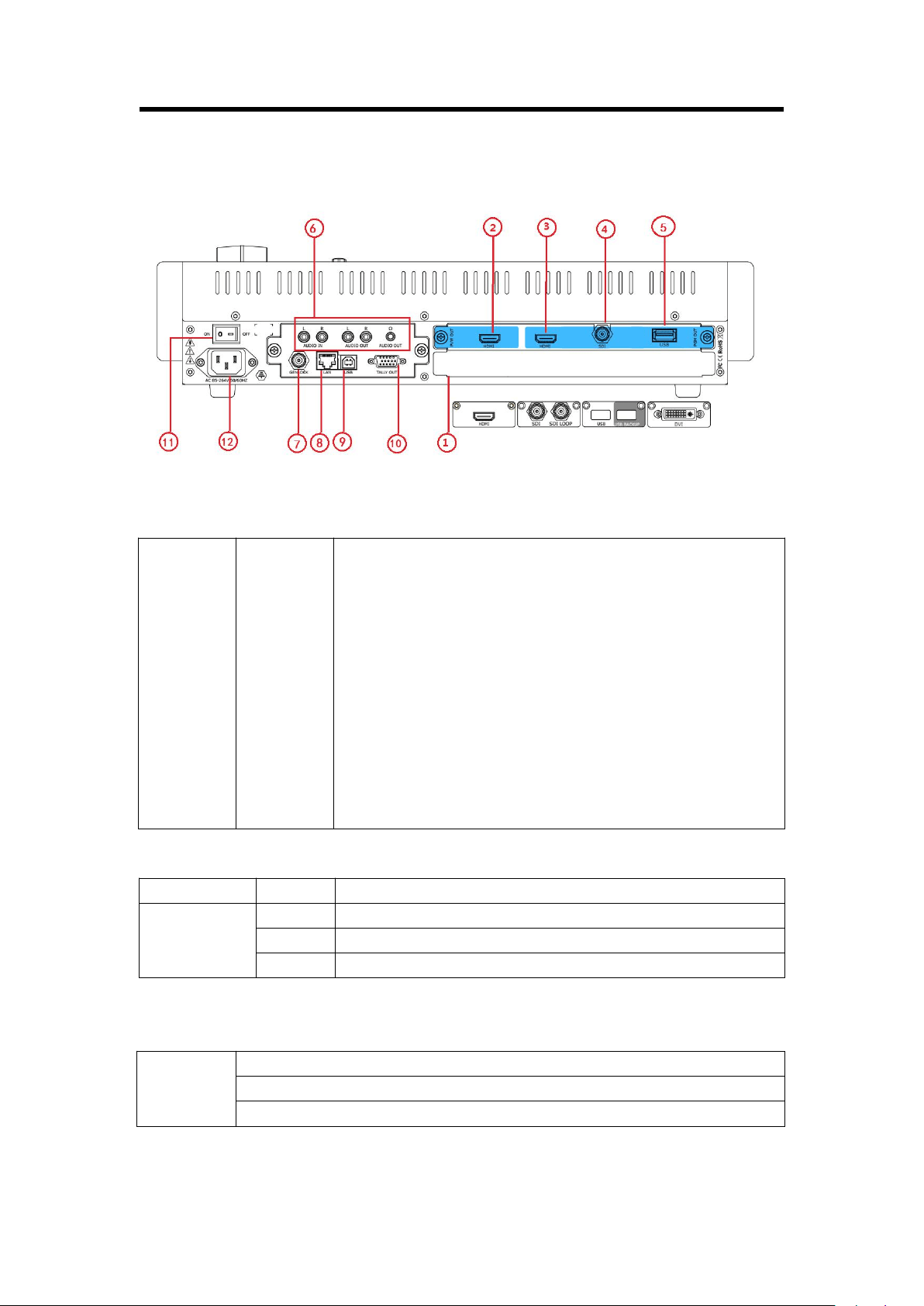

1.2.2 Rear Panel ................................................................................................................ 11

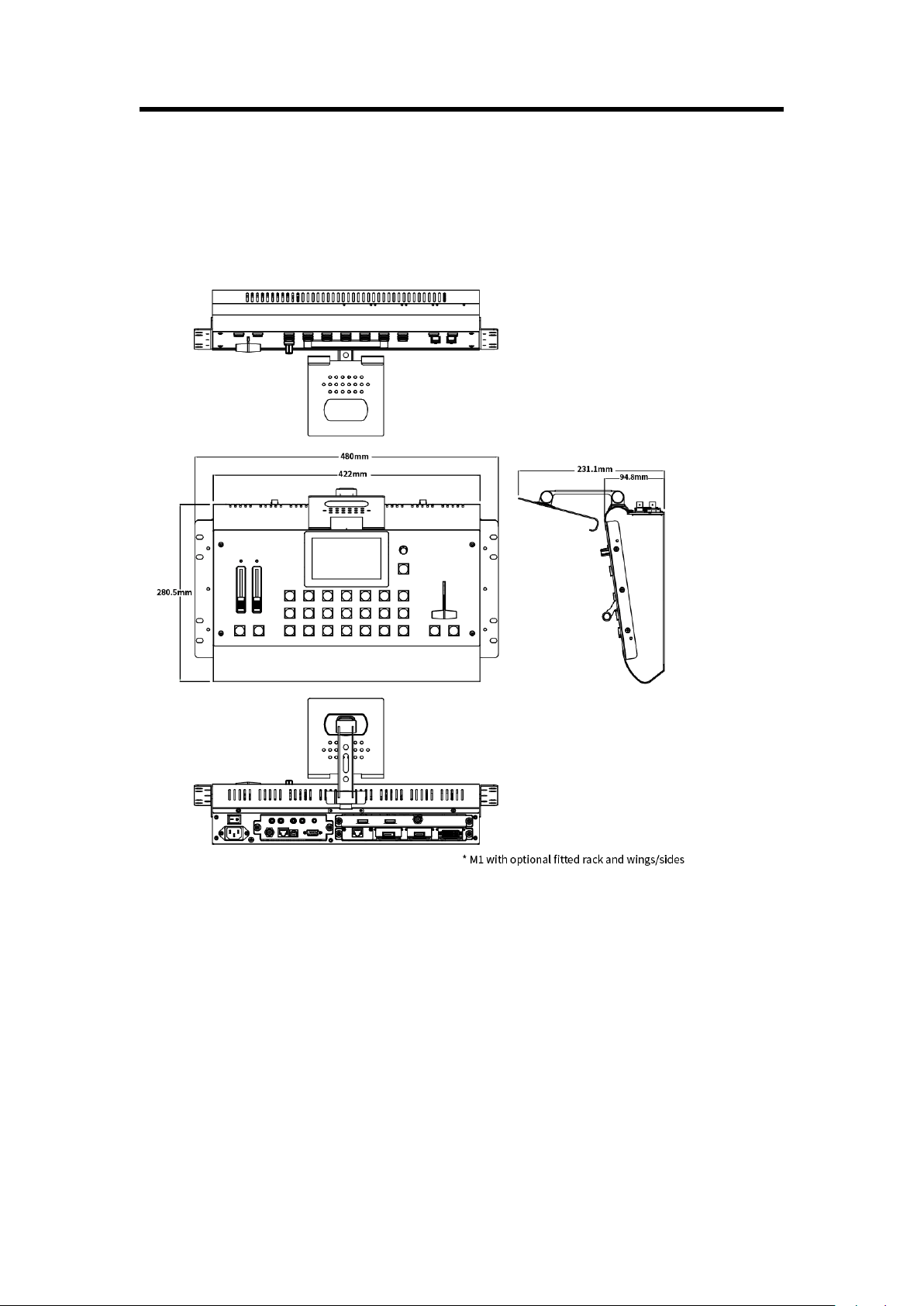

1.2.3 Dimension ................................................................................................................13
Chapter 2 Installing Your Product ..................................................................................................... 14
2.1 Plugging in Signals ...............................................................................................................14
2.2 Plugging in Main Power ...................................................................................................... 14
2.3 Turning on Your Product .....................................................................................................14
Chapter 3 Using Your Product ...........................................................................................................15

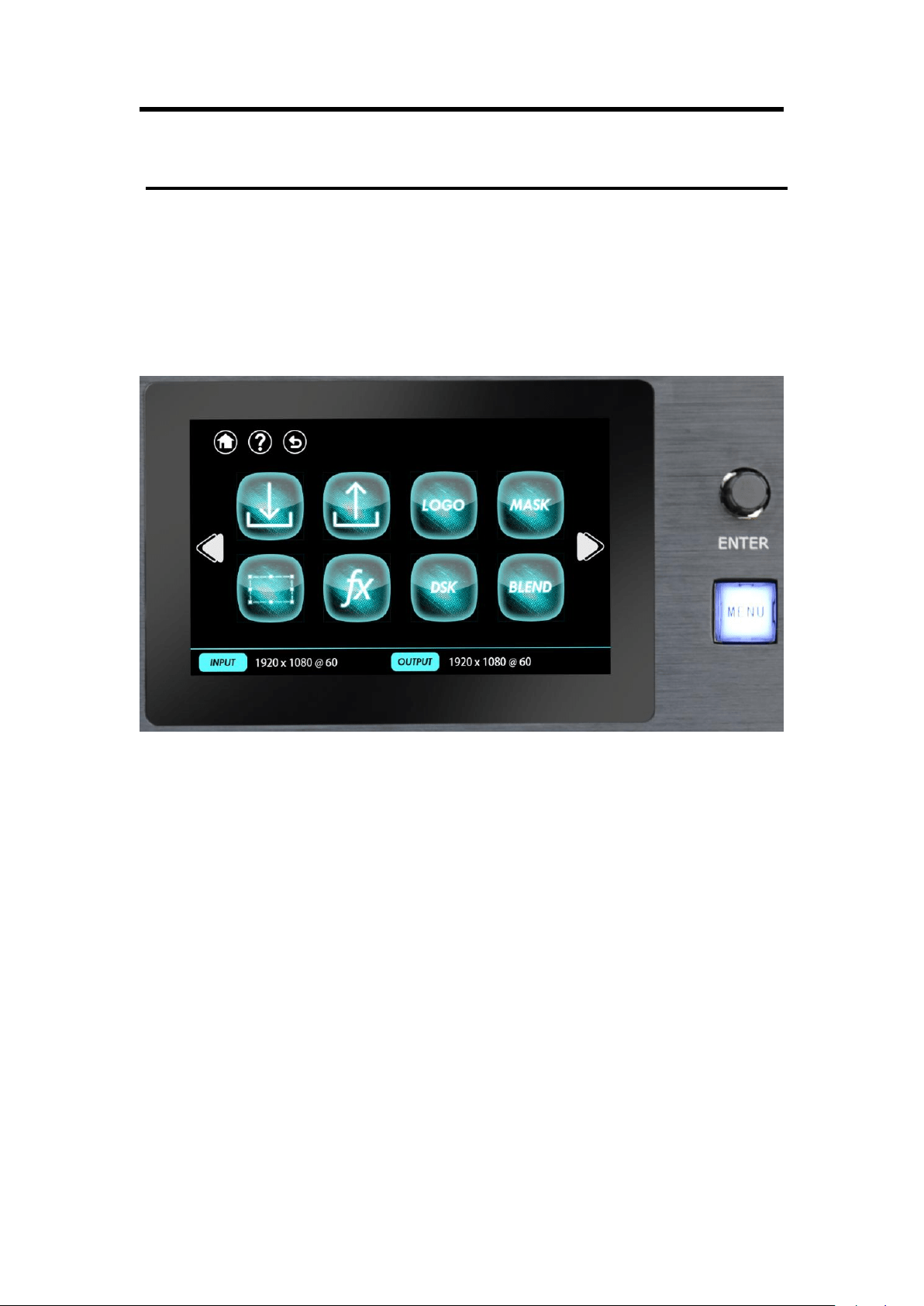

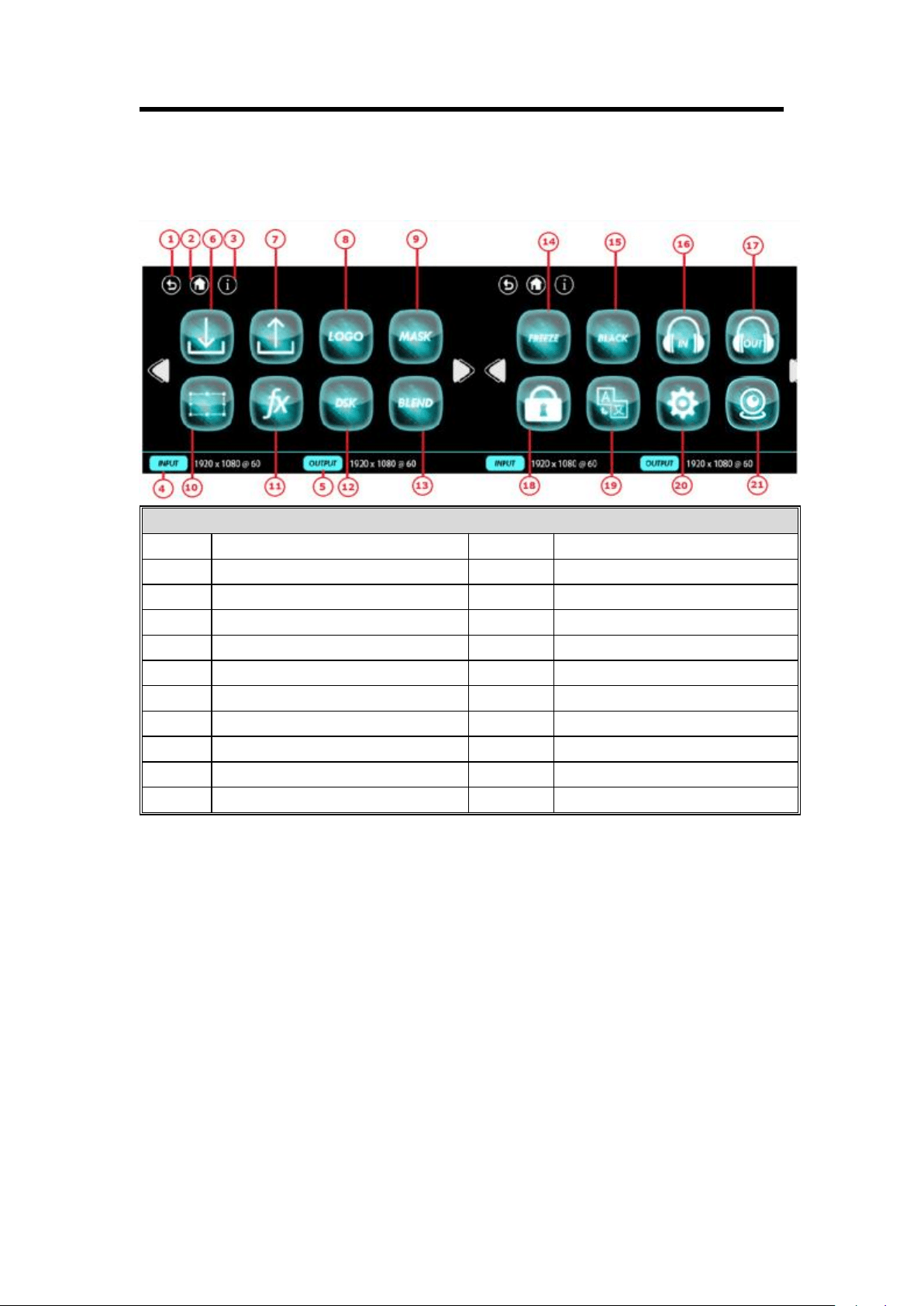

3.1 Using the MENU Button ......................................................................................................15

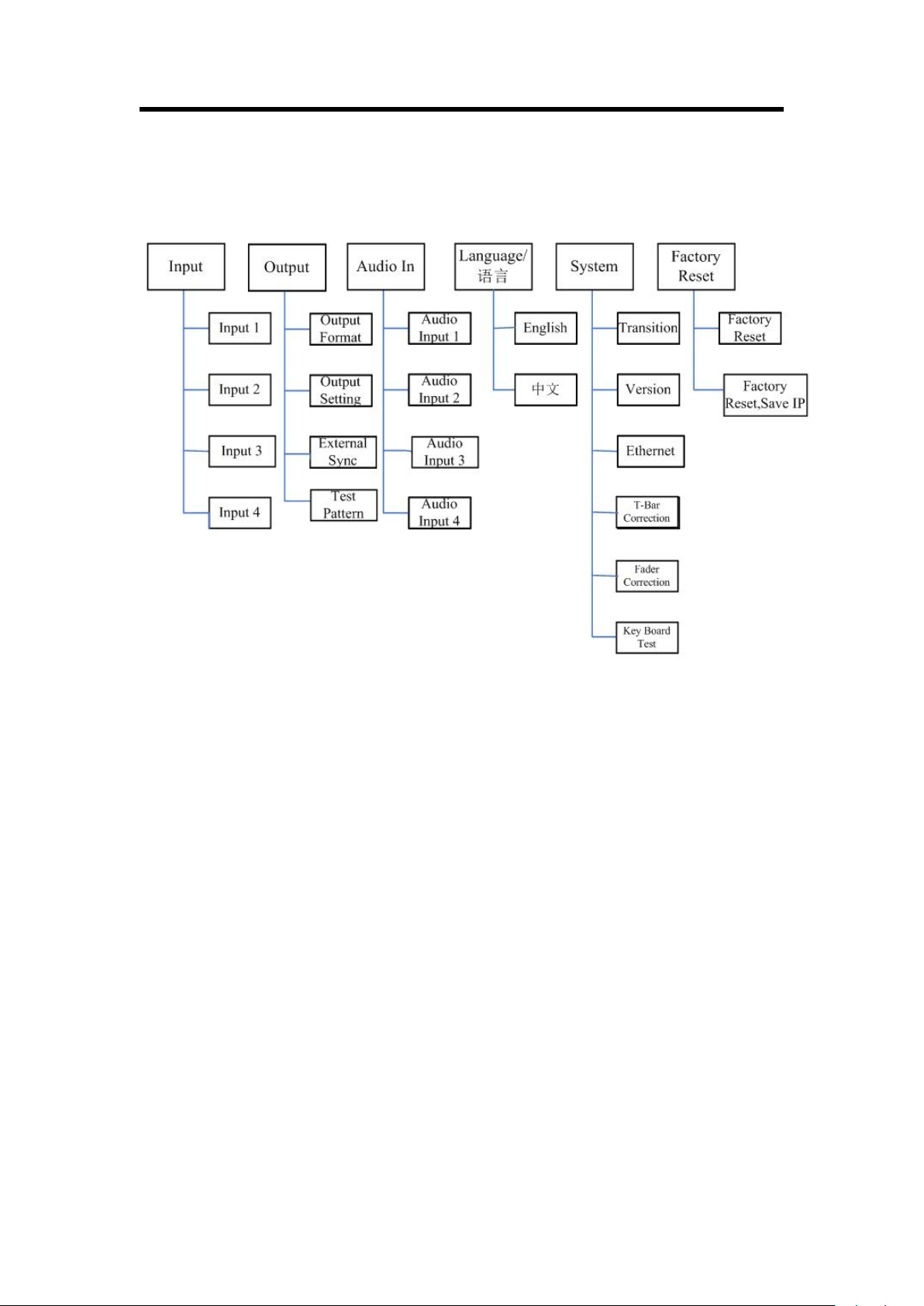

3.2 Understanding the MENU Structure .................................................................................. 16
3.3 Using the MENU Button ......................................................................................................17

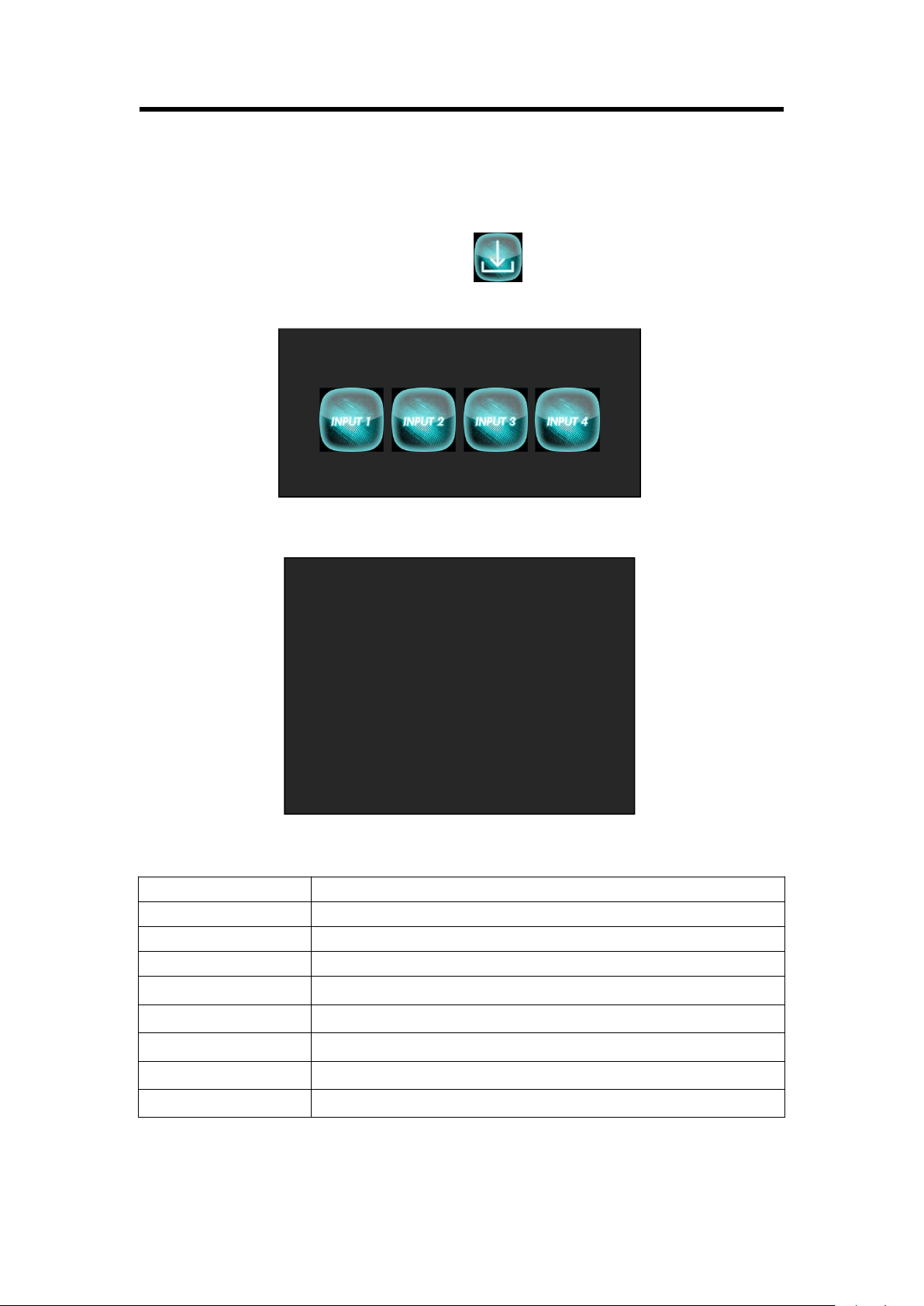

3.3.1 Input Menu .............................................................................................................. 18
3.3.2 Output Menu ........................................................................................................... 20

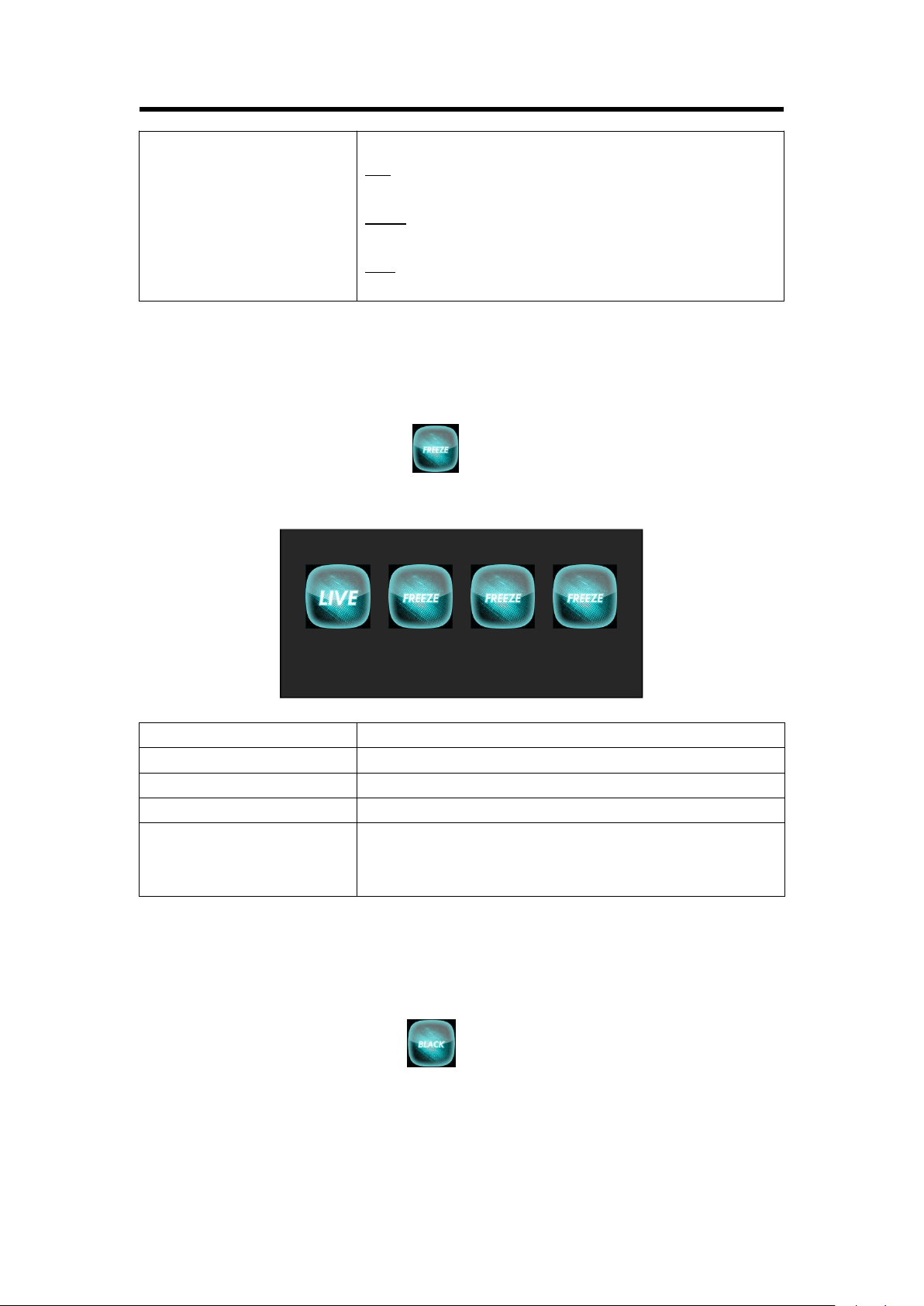

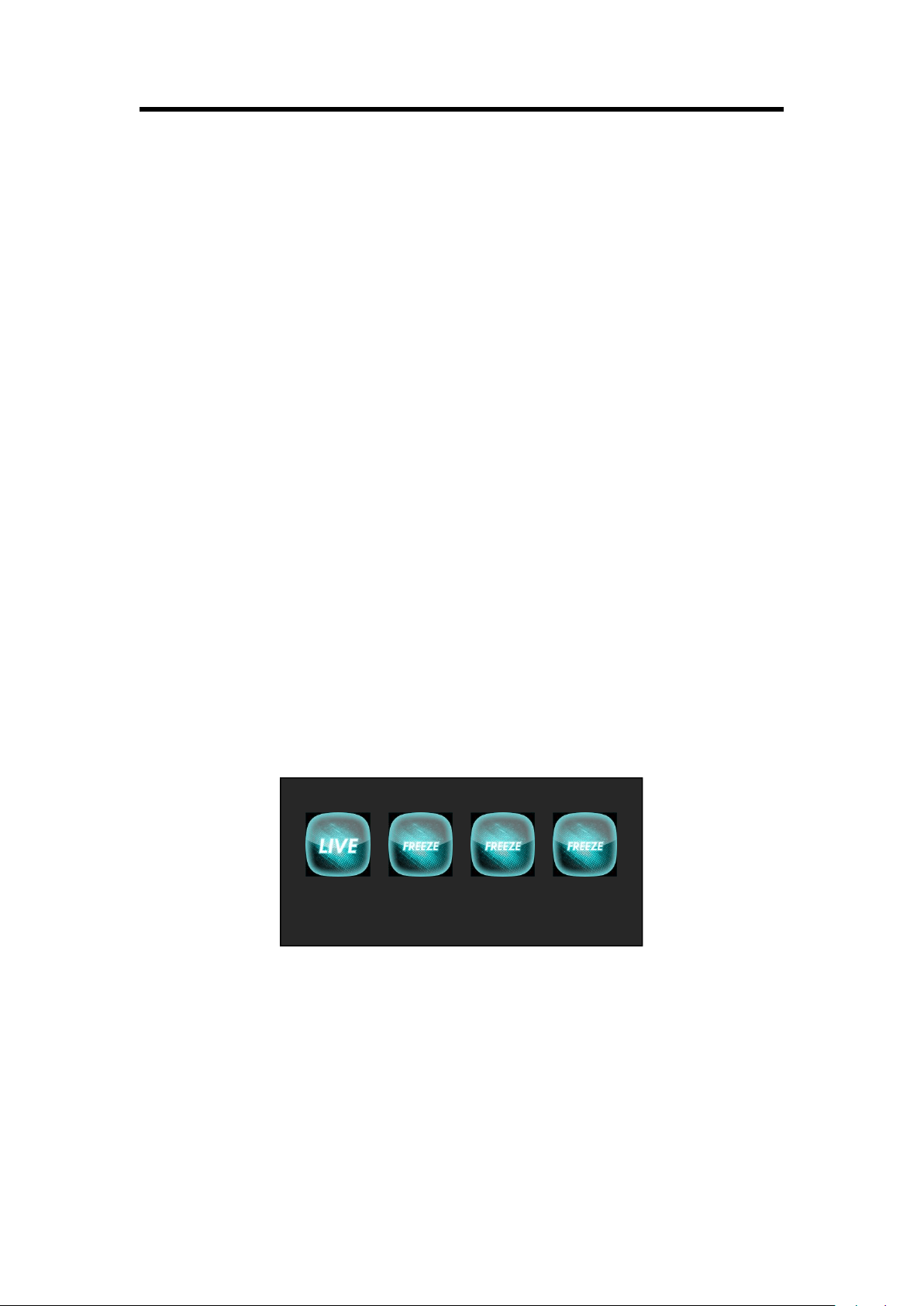

3.3.3 FREEZE ......................................................................................................................23
3.3.4 BLACK ....................................................................................................................... 23
3.3.5 SCALE ........................................................................................................................24

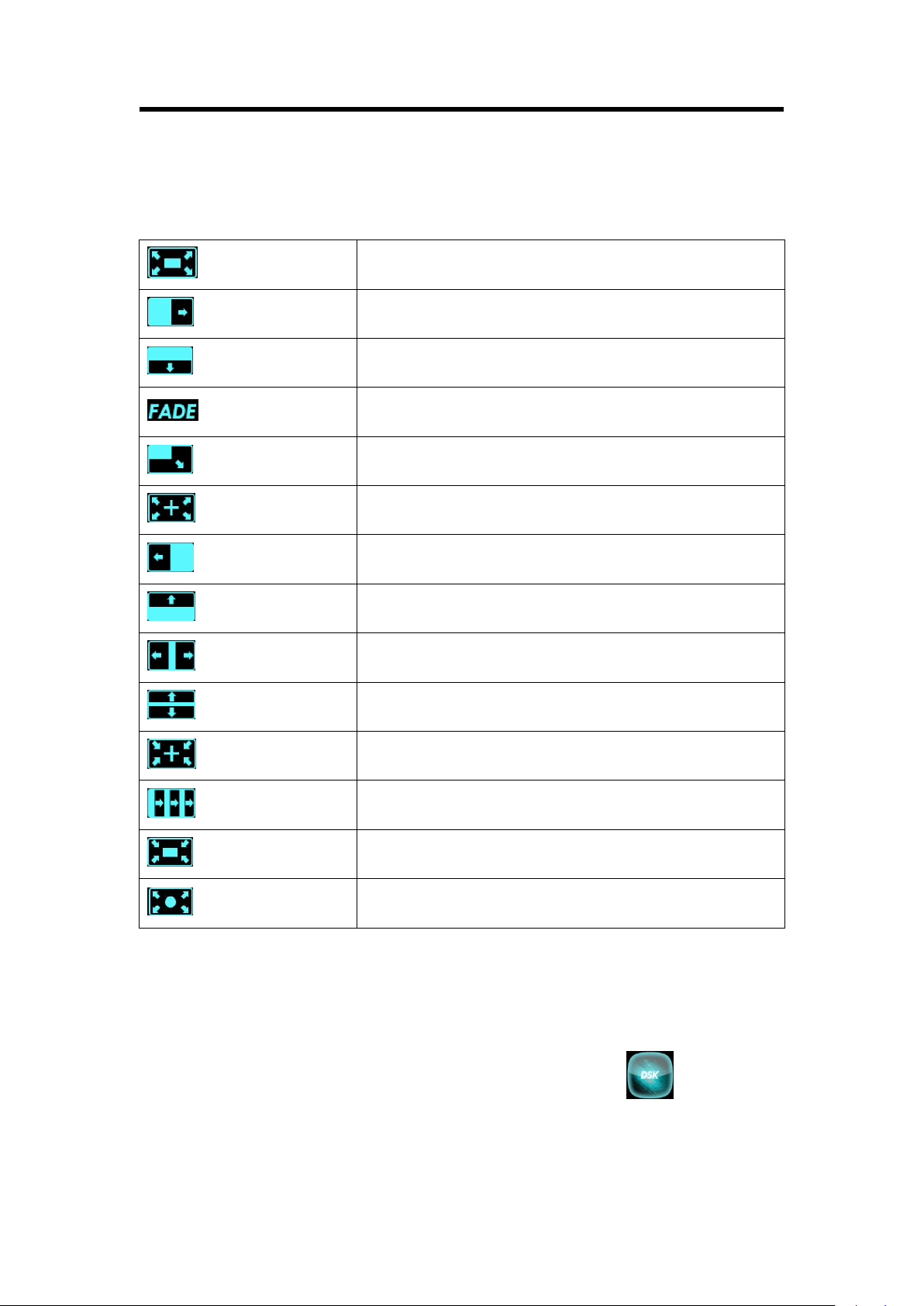

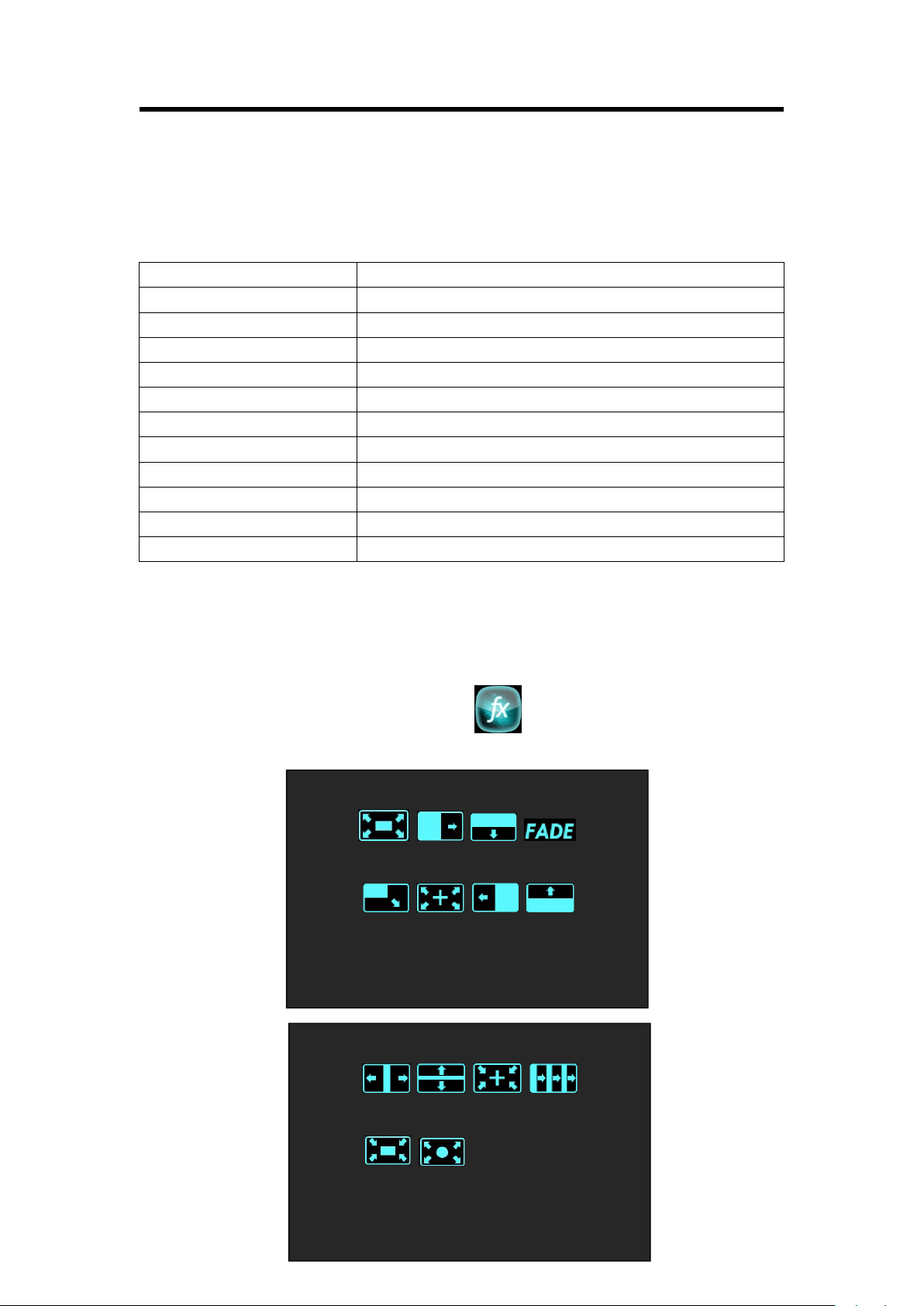

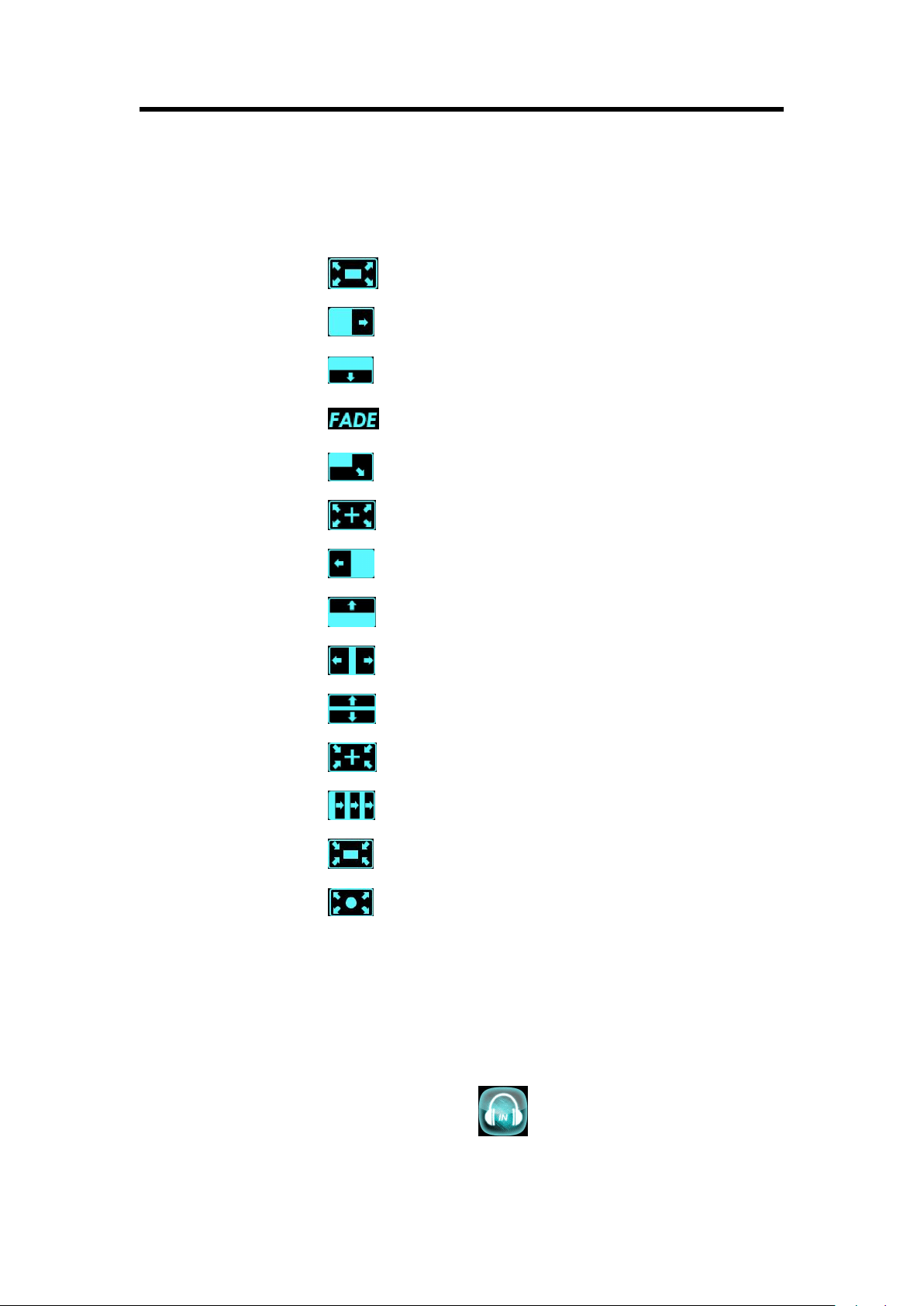

3.3.6 Transition Effect ....................................................................................................... 25
3.3.7 DSK ........................................................................................................................... 26
3.3.8 BLEND .......................................................................................................................27

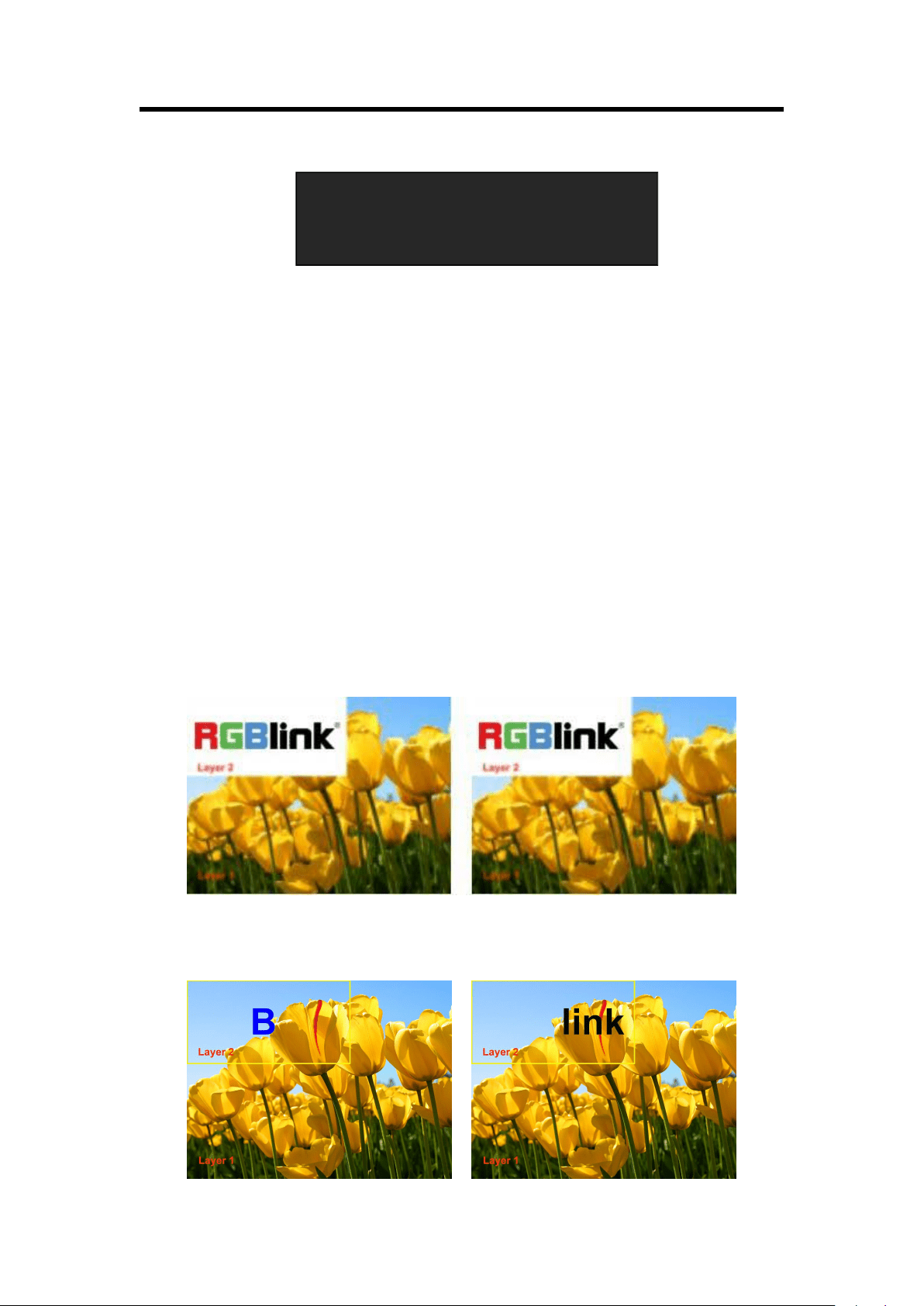

3.3.9 LOGO ........................................................................................................................ 28

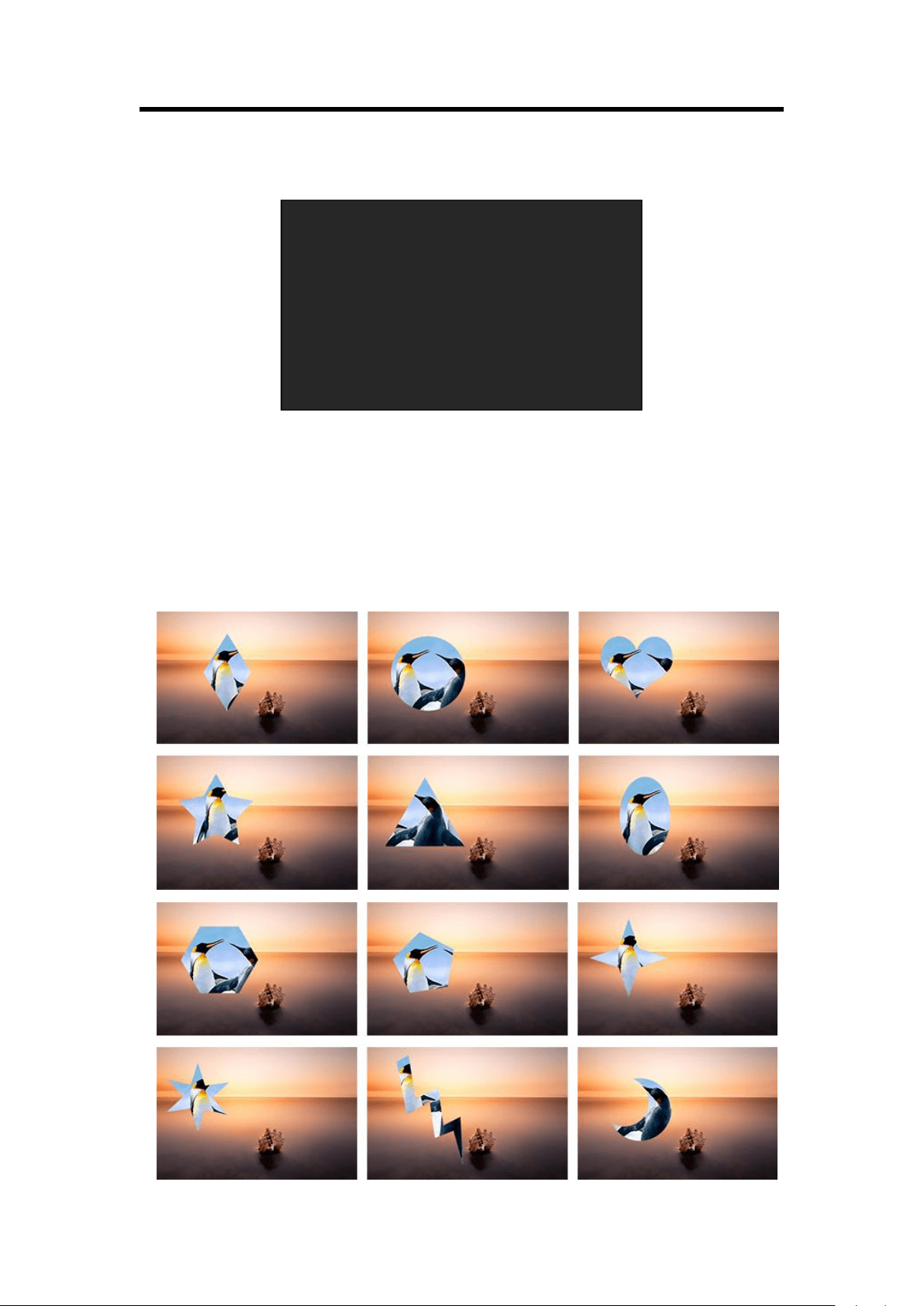

3.3.10 MASK ......................................................................................................................29
3.3.11 Audio In ..................................................................................................................30
3.3.12 Audio Out ...............................................................................................................30
3.3.13 Lock Front Panel .....................................................................................................31
3.3.14 Language/语言 ...................................................................................................... 31
3.3.15 System....................................................................................................................32

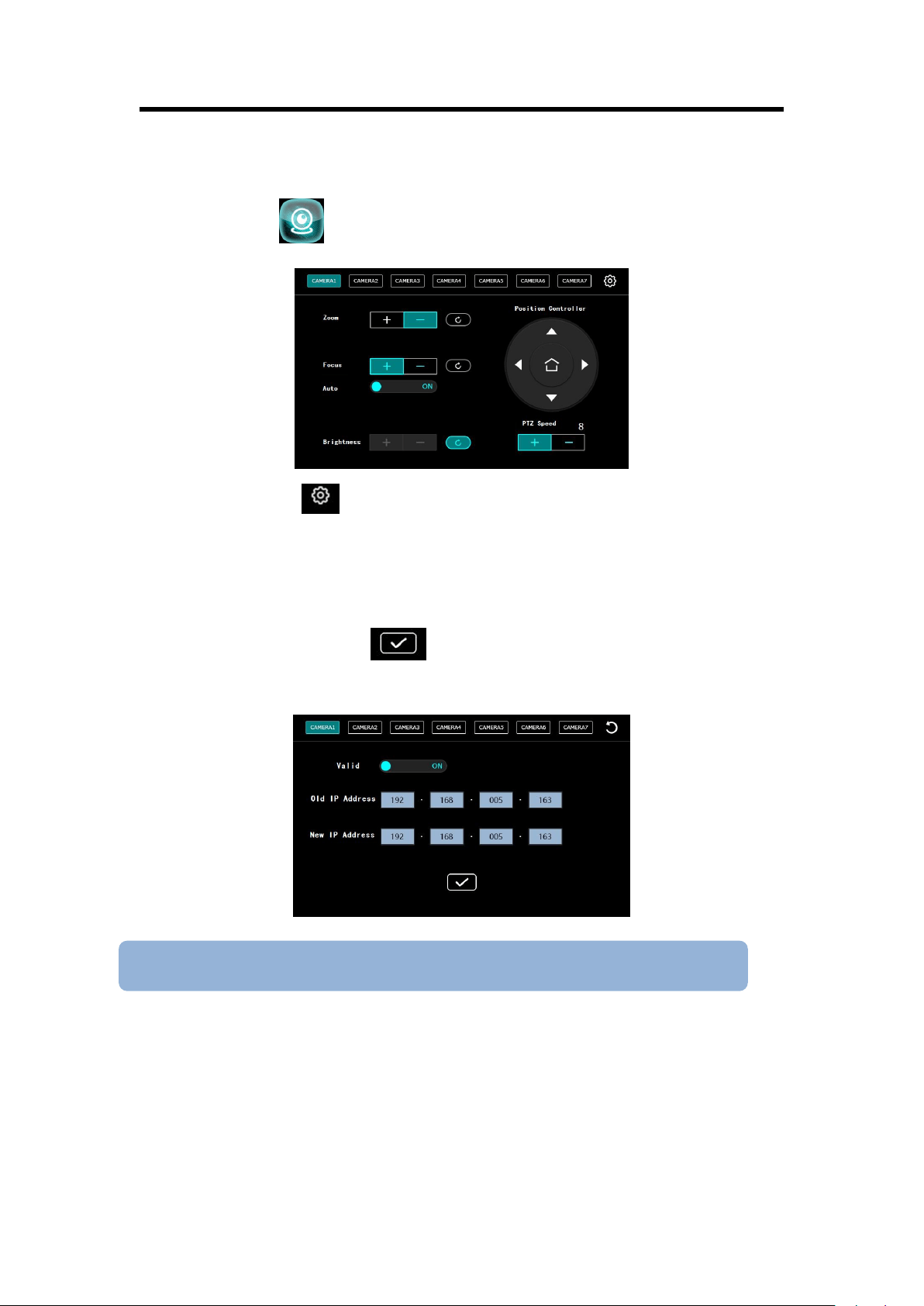

3.3.16 PTZ Control .............................................................................................................33
3.4 PST Mode ............................................................................................................................ 34
3.5 PGM Mode ..........................................................................................................................41
3.6 Switching Mode .................................................................................................................. 41
3.7 Set the Output Parameter .................................................................................................. 42
3.8 Using Black Out ...................................................................................................................44
3.9 Saving Views ........................................................................................................................45
3.10 Recall Saved Settings .........................................................................................................46

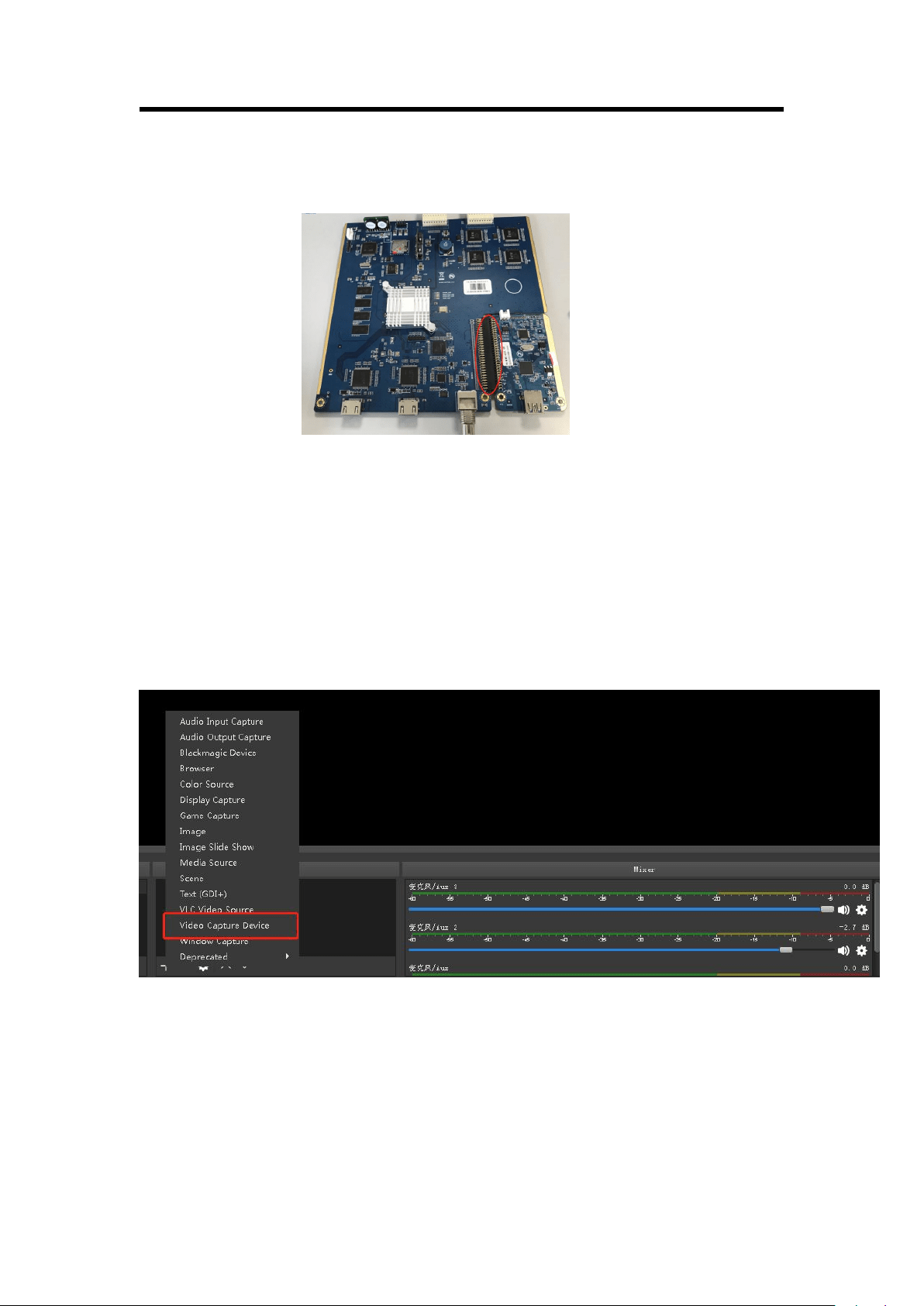

3.11 USB3.0 Streaming Module ................................................................................................47
3.11.1 USB 3.0 Streaming ................................................................................................. 47
M1 User Manual
2

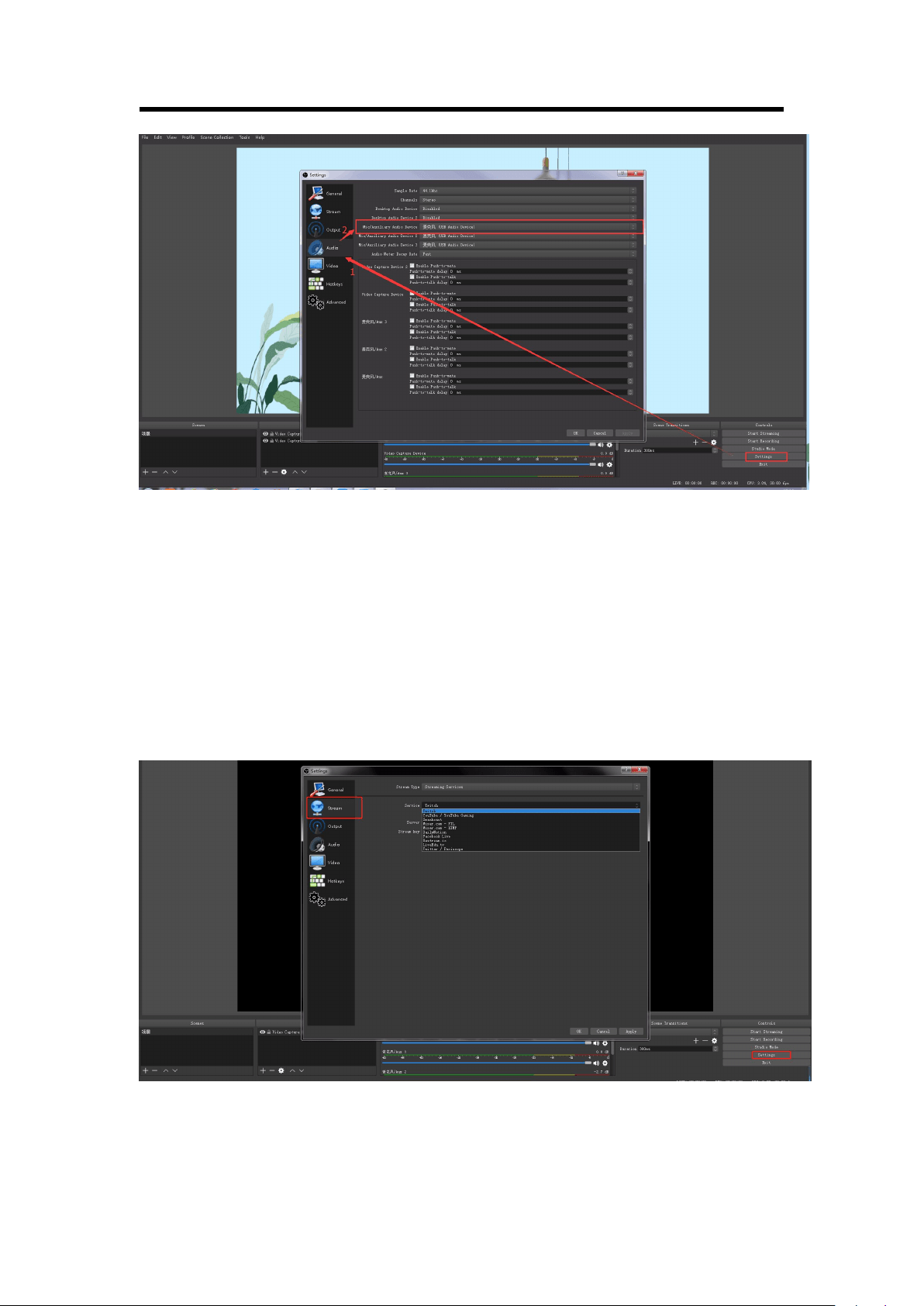

3.11.2 Streaming Setting .................................................................................................. 49
Chapter 4 Remote Control Setting .................................................................................................... 51
4.1 COM Port Connecting ......................................................................................................... 51

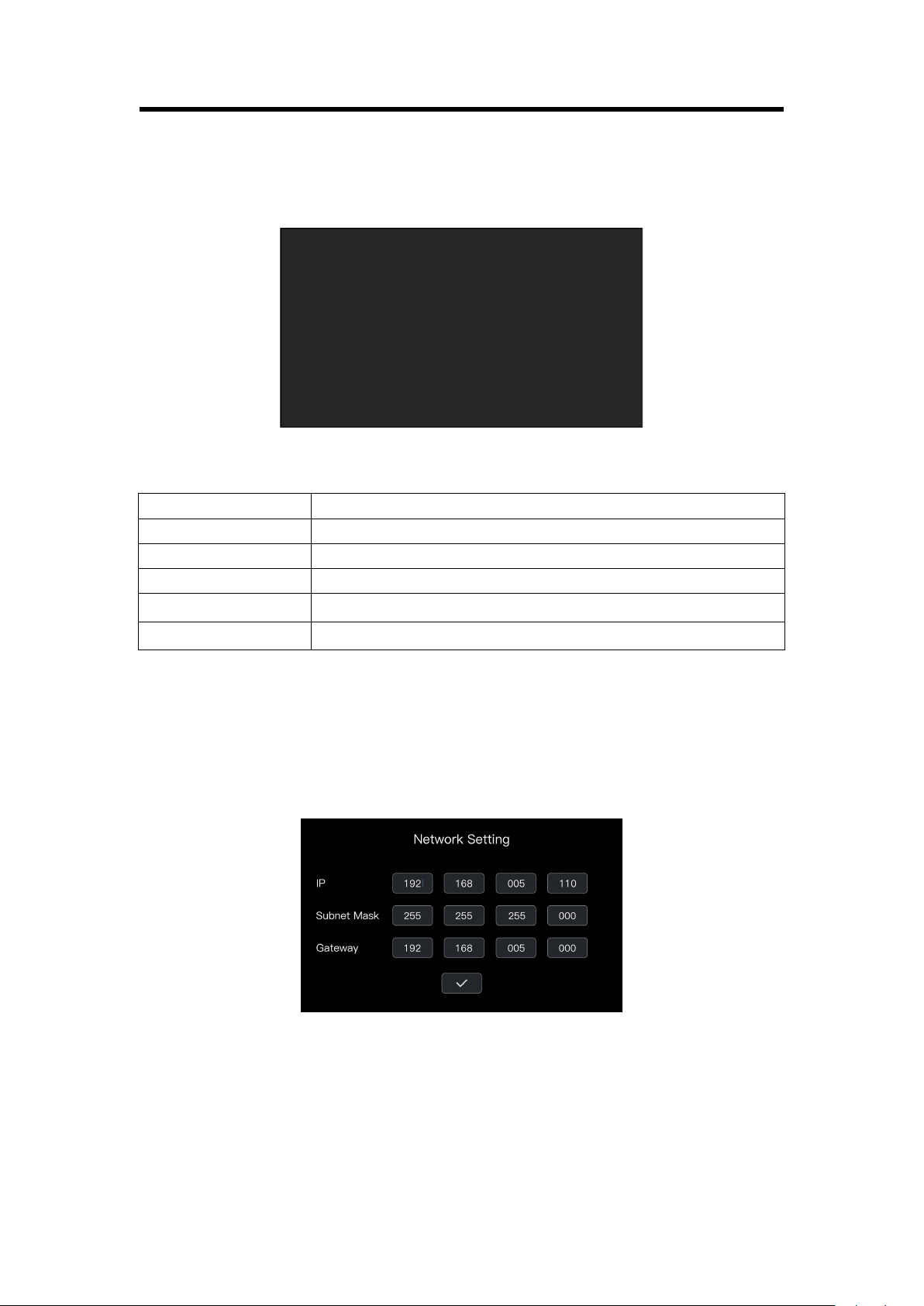

4.2 Network Connecting ........................................................................................................... 52
Chapter 5 Ordering Codes .................................................................................................................53
5.1 Product ................................................................................................................................53

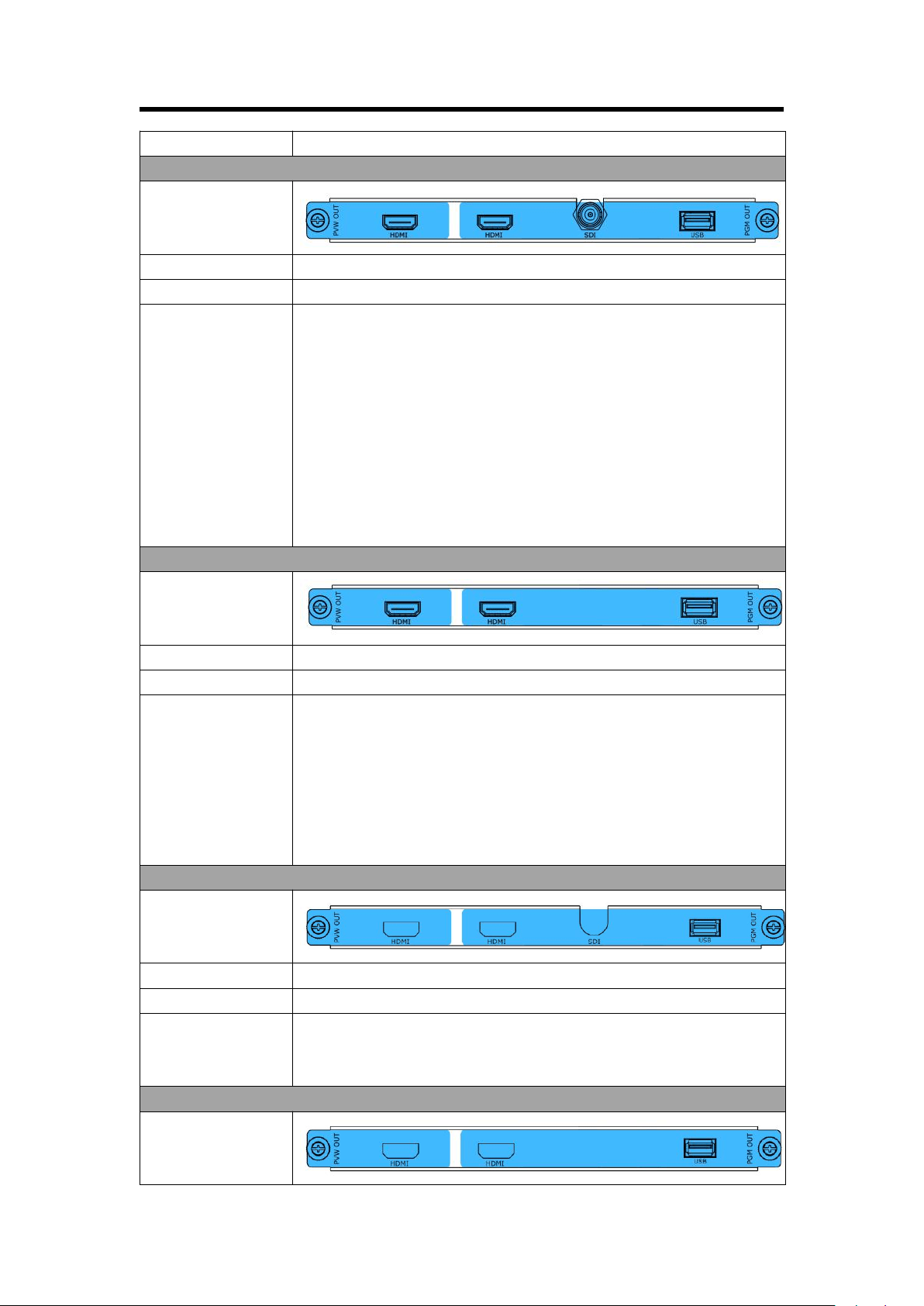

5.2 Options ................................................................................................................................53
Chapter 6 Contact Us ........................................................................................................................ 54
6.1 Contact Us ...........................................................................................................................54
Chapter 7 Appendix ...........................................................................................................................55

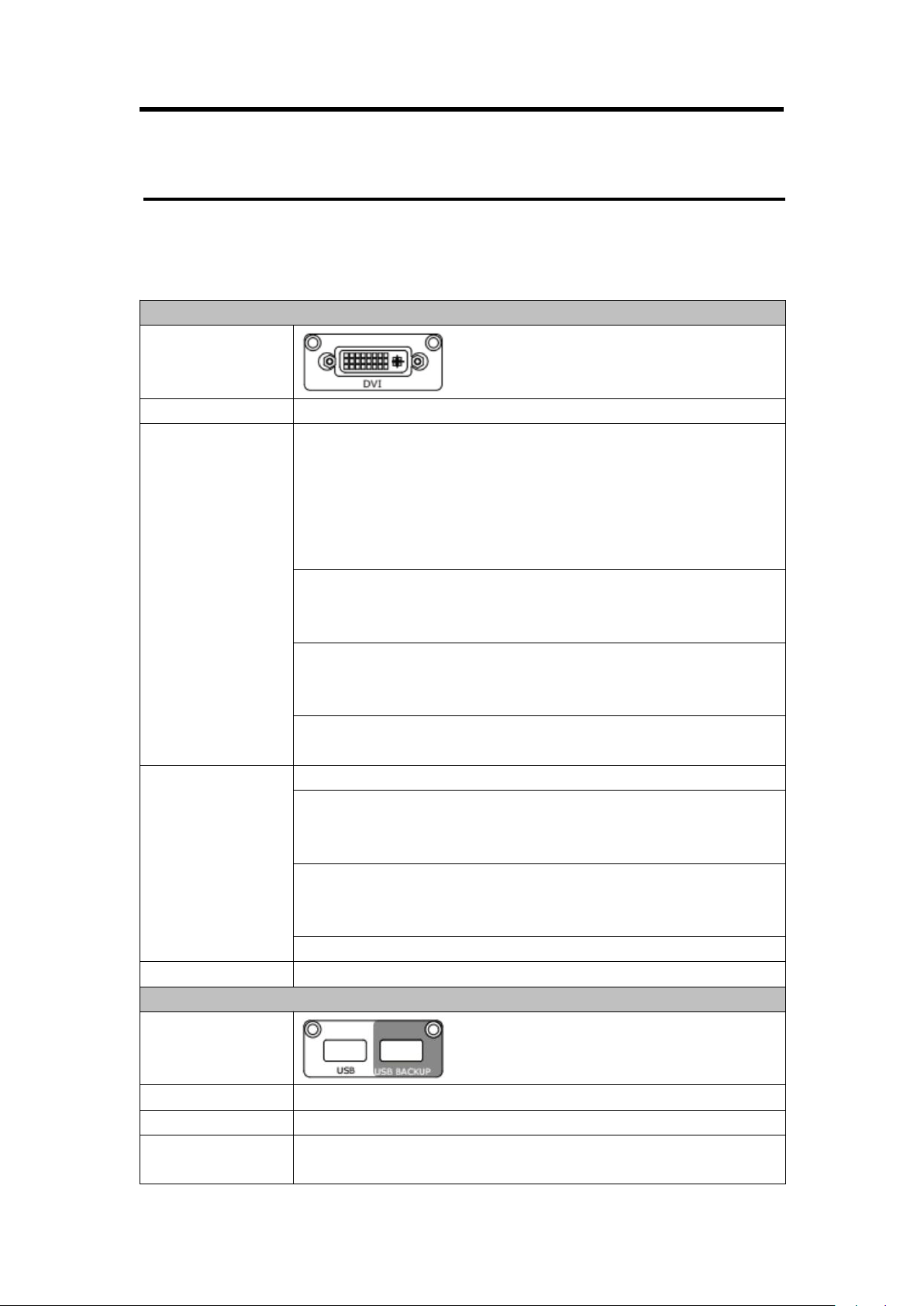

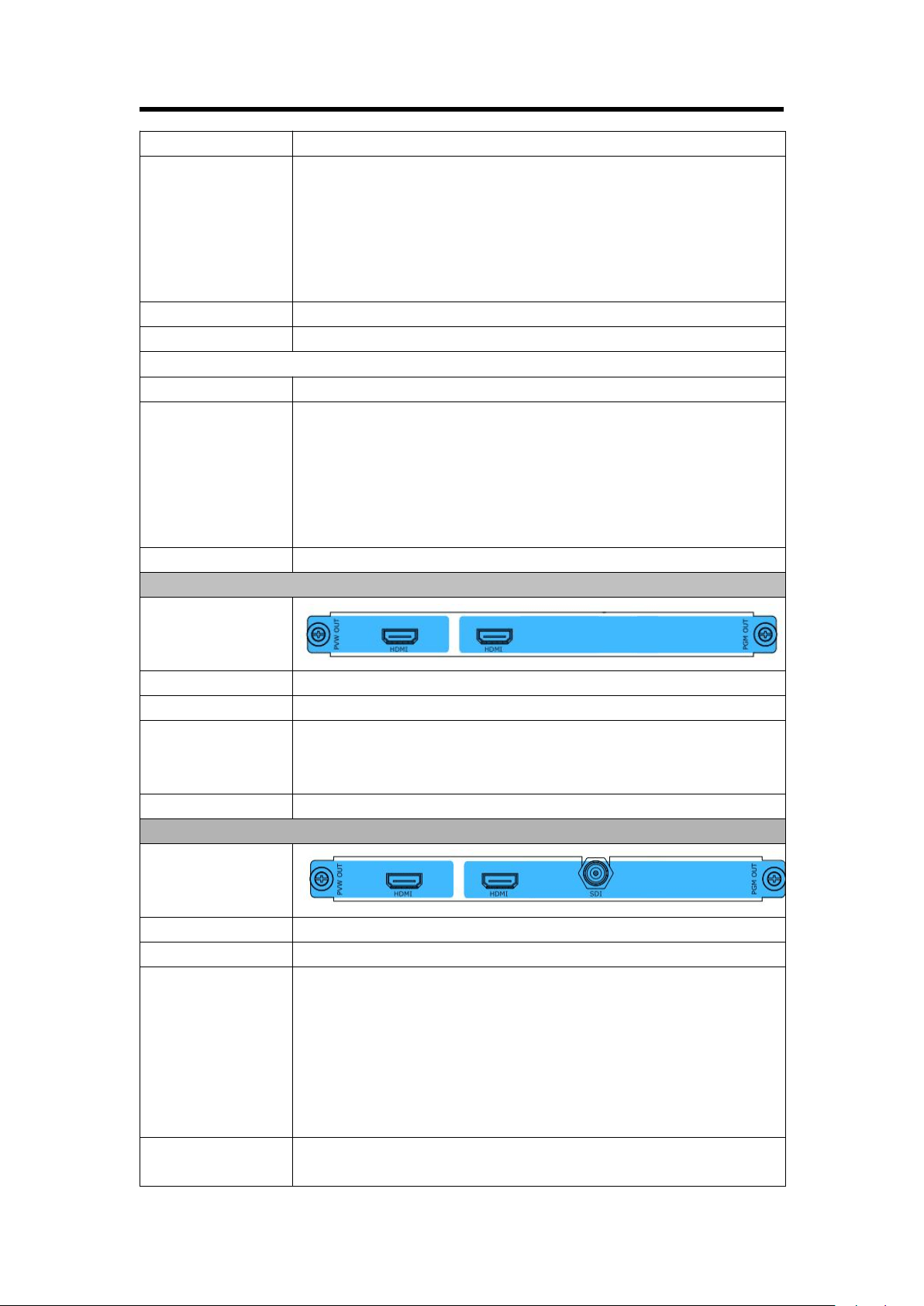

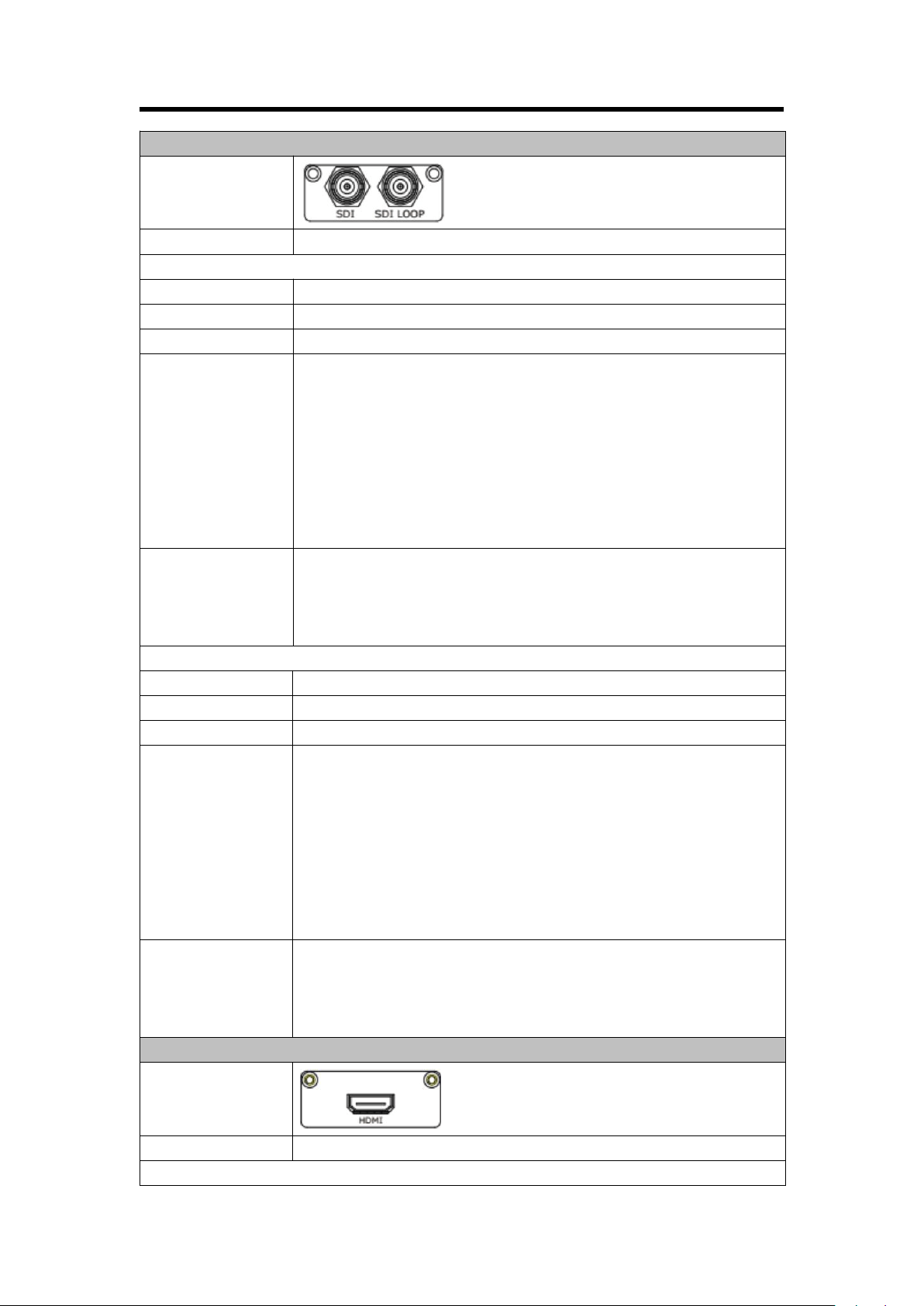

7.1 Specification ........................................................................................................................55
7.2 Terms & Definitions ............................................................................................................ 60
7.3 Revision History .................................................................................................................. 64
M1 User Manual
3
Thank you for choosing our product!
This User Manual is designed to show you how to use this video processor quickly and make
use of all the features. Please read all directions and instructions carefully before using this
product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the user will be responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally
stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all
delivered goods for damage incurred during transport, as well as for material and
manufacturing faults. RGBlink must be informed immediately in writing of any complains.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and
software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of
justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own
discretion within an appropriate period. If this measure proves to be impossible or unsuccessful,
the purchaser can demand a reduction in the purchase price or cancellation of the contract. All
other claims, in particular those relating to compensation for direct or indirect damage, and also
damage attributed to the operation of software as well as to other service provided by RGBlink,
being a component of the system or independent service, will be deemed invalid provided the
damage is not proven to be attributed to the absence of properties guaranteed in writing or due
to the intent or gross negligence or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by
RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned
operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not
included in the guarantee coverage are system failures which are attributed to programs or
special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as
normal maintenance are not subject to the guarantee provided by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations specified in
M1 User Manual
4
this manual must be complied with by the customer.
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the
unit without the cover installed.
Power Source
This product is intended to operate from a power source that will not apply more than 230 volts
rms between the supply conductors or between both supply conductor and ground. A protective
ground connection by way of grounding conductor in the power cord is essential for safe
operation.
Grounding the Product
This product is grounded through the grounding conductor of the power cord. To avoid electrical
shock, plug the power cord into a properly wired receptacle before connecting to the product
input or output terminals. A protective-ground connection by way of the grounding conductor in
the power cord is essential for safe operation.
Use the Proper Power Cord
Use only the power cord and connector specified for your product. Use only a power cord that is
in good condition. Refer cord and connector changes to qualified service personnel.
Use the Proper Fuse
To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating
characteristics. Refer fuse replacement to qualified service personnel.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For M1 installation procedures, please observe the following important safety and handling rules
to avoid damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the ground
M1 User Manual
5
wire provided in the AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.
Unpacking and Inspection
Before opening M1 shipping box, inspect it for damage. If you find any damage, notify the
shipping carrier immediately for all claims adjustments. As you open the box, compare its
contents against the packing slip. If you find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed
components are present, visually inspect the system to ensure there was no damage during
shipping. If there is damage, notify the shipping carrier immediately for all claims adjustments.
Site Preparation
The environment in which you install your M1 should be clean, properly lit, free from static, and
have adequate power, ventilation, and space for all components.
M1 User Manual
6
Chapter 1 Your Product

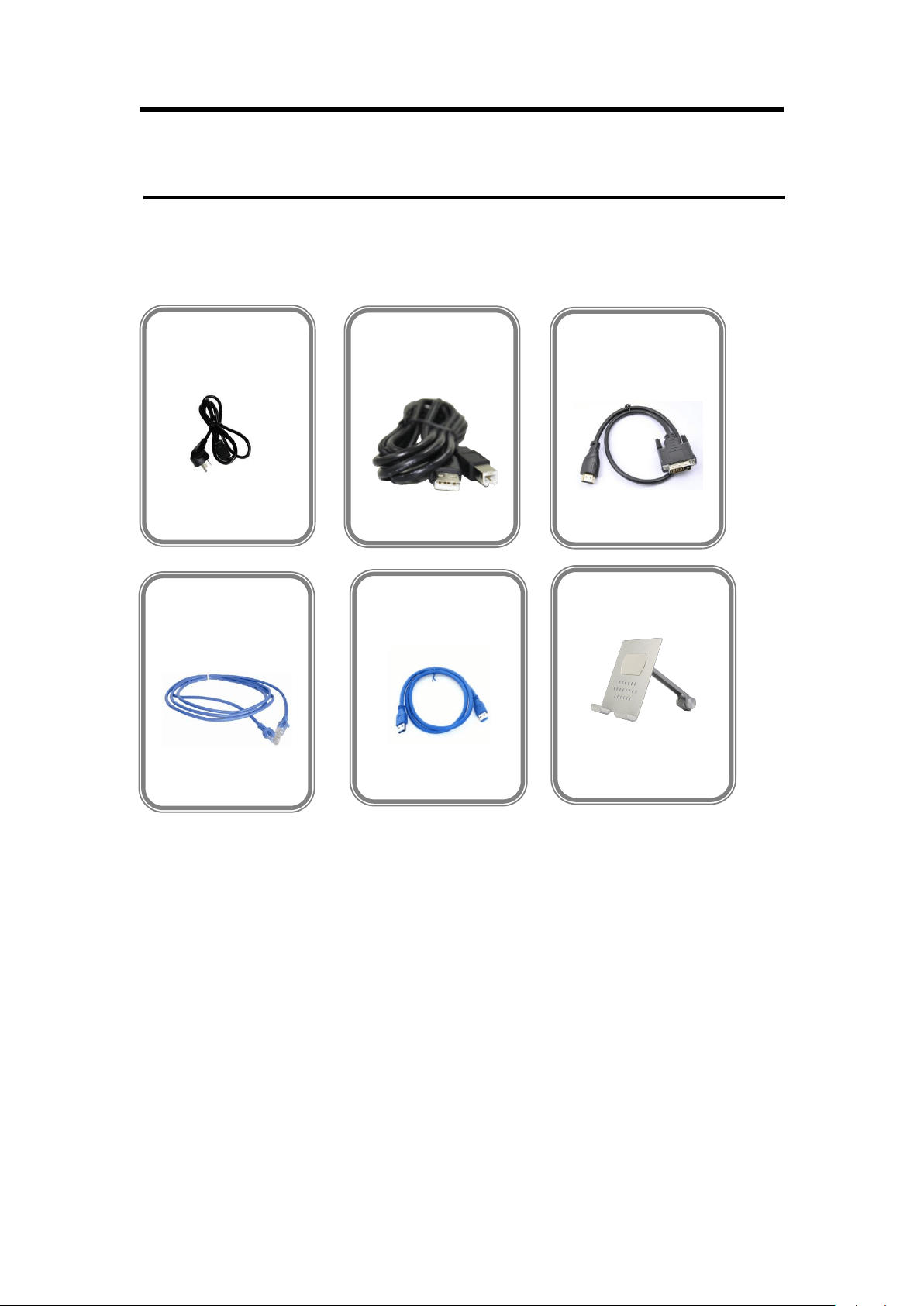

1.1 In the Box
Note:
AC Power Cable supplied as standard according to destination market.
Network Cable
USB Cable
HDMI to DVI
Cable
AC Power Cable
USB 3.0 Cable
Rack for M1
M1 User Manual
7

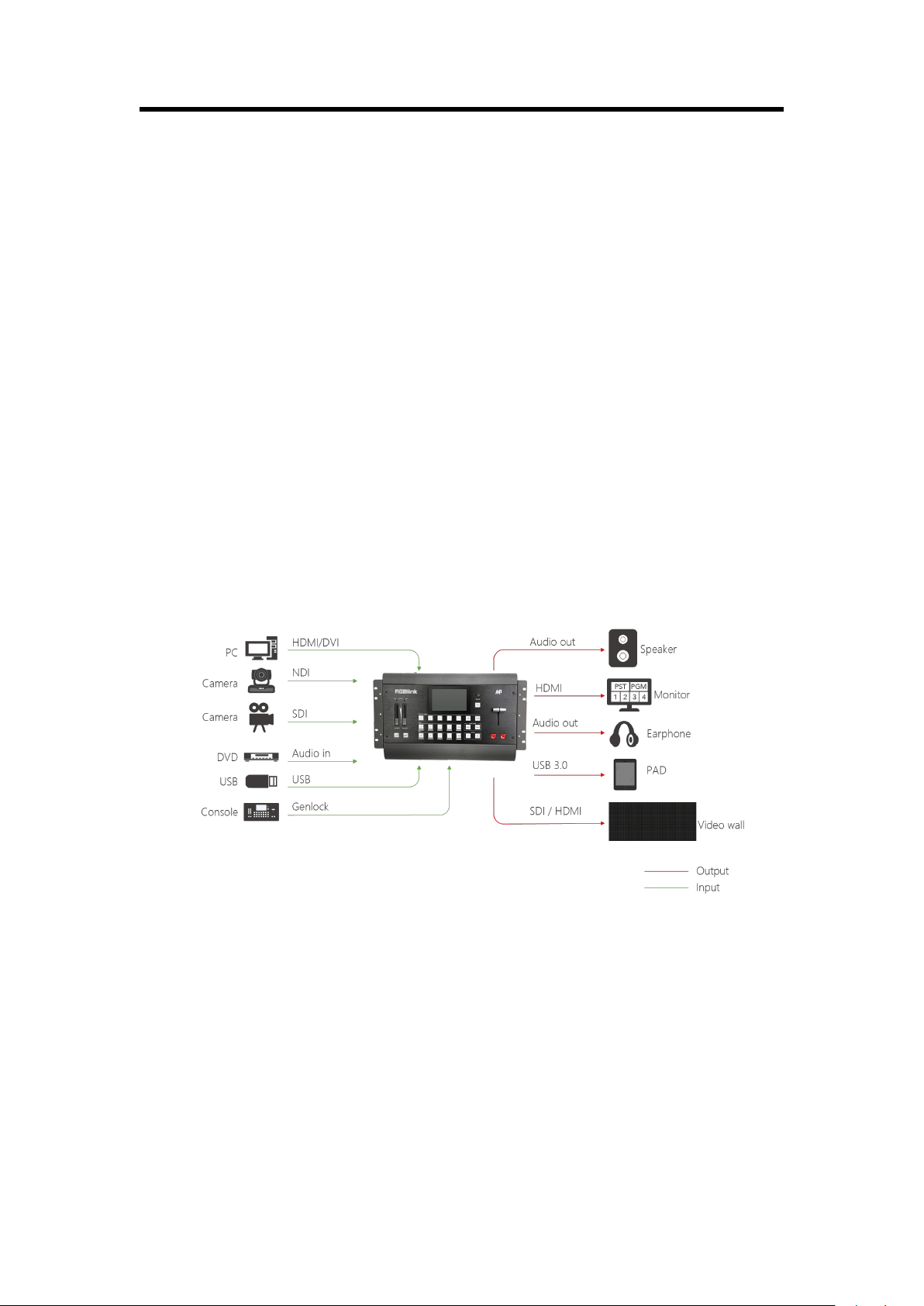

1.2 Product Overview
M1 is all-in-one scaling and vision mixing processor.
M1 can up-down cross-covert any input signal to output, which supports 2 layers switching
from PVW to PGM. M1 supports Integrated audio. Both LCD touch screen and Menu rotation can
be operated. Four input channels are provided in M1. A standard M1 module board with four DVI
input signals is fitted. And streaming PGM output via optional USB 3.0 output module is
Provided.A wide range of configurable options for users is available.
M1 is also equipped with NDI decoding module, which supports up to 4 Gigabit NDI network
ports, which can realize high-quality, low-latency, long-distance transmission applications up to
NDI | HX2.
M1 redefines modern hands on scaling and mixing for any environment.
Totally modular and flexible in configuration, M1 is packed with standard features to impress
and present with ease.
M1 User Manual
8

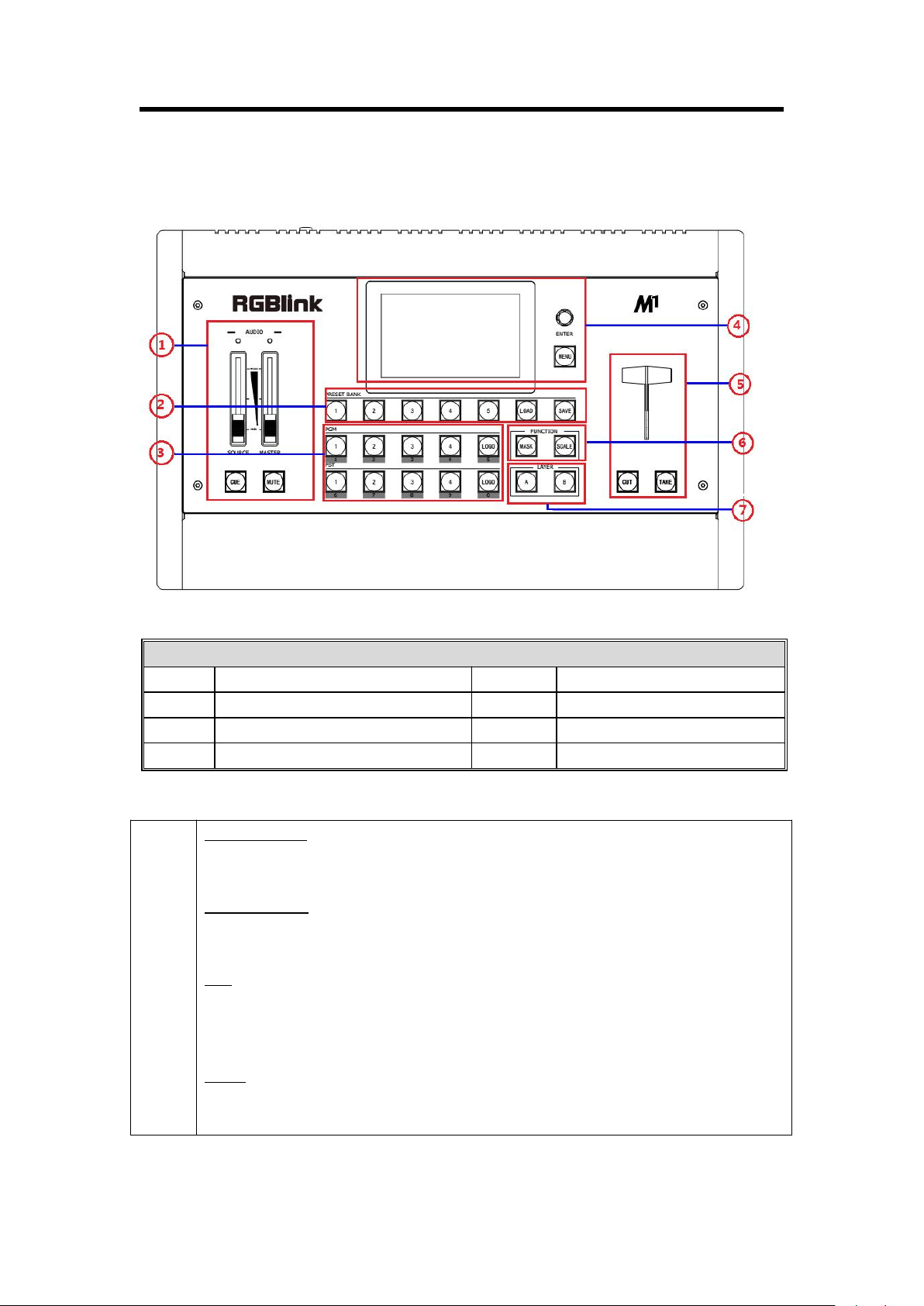

1.2.1 Front Panel
Audio Adjustment Area
1
SOURCE FADER
SOURCE FADER adjusts 4 input signals’ voice separately to same volume, ranging from
0~20.
MASTER FADER
MASTER FADER is an amplification-factor of all channel, ranging from 0~10; the volume
of four input signals is the number of multiplying SOURCE by MASTER.
CUE
The button of selecting Audio output channel. If the button turns to red color, the
current audio output is a layer audio of main output channel. If the button turns to
green color, the current audio output is a layer audio of preview channel.
MUTE
MUTE button for audio output, If the button turns to red color, audio is muting on. If
the button is white, audio is muting off.
Panel Instruction
1
Audio adjustment area
5
Switching modes area
2
Presets operation area
6
Layer function area
3
Input sources area
7
Layer selection area
4
Menu and LCD display area
M1 User Manual
9
Note: Users can use CUE button and MUTE button for zoom in and out of PTZ.
Presets Operation Area
Input Sources Area
3
PGM Area
For indicating, user can not change the channel or set the size or position in PGM
area. Button turns to red when programming.
LOGO
Enable or disable the LOGO function. If select “ON”, user can set the X and Y, or load
file from U Disk.
1/2/3/4/5/6/7/8/9/0
Each button is numbered and can be used as direct number. These buttons turn to
blue color when used as number key.
PST Area
For indicating, the button turns to yellow color when output the signal in PST channel.
For selecting, push any button to switch the PST signal.
For editing, button turns to yellow color -- the channel is used and can be edited;
button light is off -- the channel is not selected.
Menu and LCD Display Area
4
MENU
Menu and back/exit button.
SELECT/ENTER
Selection and confirmation button. ENTER button can also be used for controlling
rotation angle of PTZ.
LCD Display
This displays current status of the product, and for feature selections providing
interactive choices in conjunction with buttons on the Rear Panel.
Switch Mode Area
2
SAVE
Save all current settings supporting 20 savings.
LOAD
Load saving views from 1 to 20.
PAGE
PAGE button is used for save or load, total 5 pages, and 5 banks for each page.
1/2/3/4/5
The button is lit when select PAGE or BANK.
M1 User Manual
10
5
CUT
Zero delay switching. PST can be switched to PGM seamlessly when push this button.
TAKE
Seamless switching with transition effects.
T-BAR
WIPE and mix switching.
Layer Function Area
6
Mask
Key the video into special shape including diamond, round, heart, star, triangle and so
forth.
SCALE
This button used for size and crop adjusting. If image quality distorts by improper
operation, it can be recover by reset.
Layer Selection Area
7
A/B
These buttons are used for adding or deleting the layer. The button turns to yellow
when selecting the layer, green when the layer has been opened, white when deleting
the layer.
M1 User Manual
11
1.2.2 Rear Panel
Input Interface
Input
Module
1
*Note: Standard with 2 NDI input modules; *With 2 input
modules optional.
Optional input modules include NDI, DVI, HDMI, USB, SDI.
Each DVI module supports 1 DVI-I input and compatible CVBS,
VGA,YPbPr.
Each HDMI module supports 1 HDMI-A input.
Each USB module supports 1 USB-B input and 1 USB backup.
Each SDI module supports 1 SDI input and 1 SDI loop out.
Each NDI module supports 1 RJ45 input.
Output Interface
PVW Output
2
HDMI output
PGM Output
3
HDMI output
4
SDI output (optional, not standard)
5
USB3.0 Output(optional,not standard)
Audio Area
6
Audio In
Audio Out
Audio Out( Earphone)
Control Interface
M1 User Manual
12
7
Genlock input BNC port
8
LAN port RJ-45
9
USB port USB-A
10
TALLY Light
Power Connection
11
Power Switch
12
AC: 85-264V Power: Max 65W Power Supply Interface: IEC-3
M1 User Manual
13
1.2.3 Dimension
Following is the dimension of M1 for your reference:
480mm×280.5mm×231.1mm
M1 User Manual
14
Chapter 2 Installing Your Product
2.1 Plugging in Signals
Connect signals to the product (ensure all devices are powered off first). Tighten connector
screws/locks where provided.
2.2 Plugging in Main Power
Connect IEC cable to device and plug into wall socket. Turn on power at wall socket.
2.3 Turning on Your Product
Turn on the power switch on the rear panel.
OLED display will show as below, completing initialization before loading the latest settings and
input/output configuration.
M1 User Manual
15
Chapter 3 Using Your Product
3.1 Using the MENU Button
Push the [MENU] button to enter the menu display.
Turn the [ENTER] rotary knob to navigate to the menu item required or touch the icon of LCD
screen directly.
M1 User Manual
16
3.2 Understanding the MENU Structure
The MENU structure is shown in the figure below:
M1 User Manual
17
3.3 Using the MENU Button

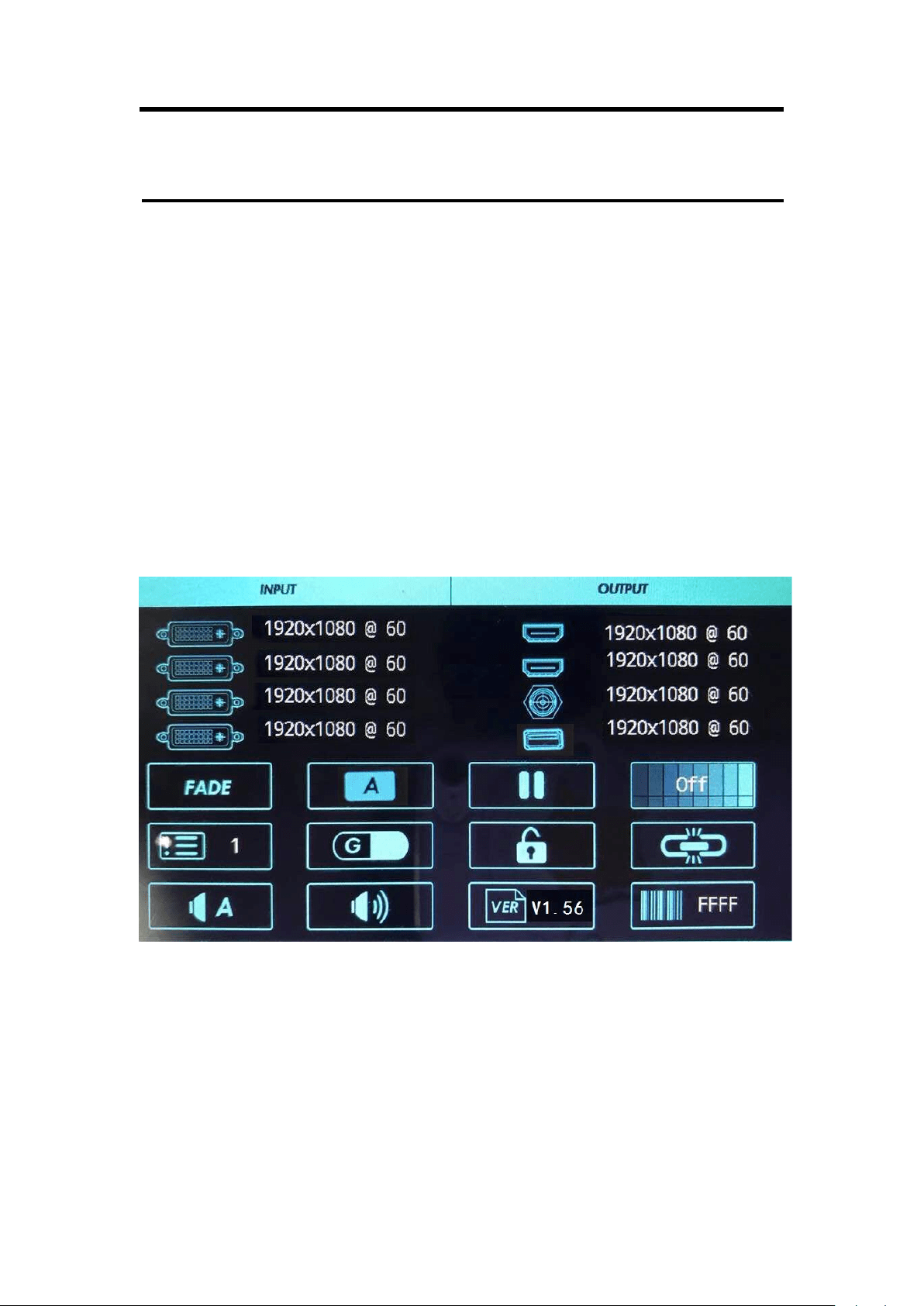

The menu structure is shown on the LCD Screen and in the figure below:
LCD Touch Screen Menu Instruction
1
Return Button
12
DSK
2
Homepage
13
BLEND
3
Information Page
14
FREEZE
4
Input Resolution Display
15
BLACK
5
output Resolution Display
16
Audio In
6
Input Menu
17
Audio Out
7
Output Menu
18
Lock Front Panel
8
LOGO
19
Language/语言
9
MASK
20
System
10
Scale
21
PTZ Control
11
Transition Effect
M1 User Manual
18
Input
Input 1 Input 2 Input 3 Input 4
Input 1
Input Port 1
Brightness 100
Contrast 50
Saturation 50
Brightness 100
Temperature RED 128
Temperature GREEN 50
Temperature BLUE 50
Reset Config > >
3.3.1 Input Menu
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Input Menu]
option in LCD screen, push the knob or touch the icon directly to confirm, and enter the
menu as follows:
Select any input and enter the menu:
Input Port
Users can select 0 or 1.
Brightness
The adjustment range is from 0 to 100.
Contrast
The adjustment range is from 0 to 100.
Saturation
The adjustment range is from 0 to 100.
Sharpness
The adjustment range is from 0 to 100.
Temperature RED
The adjustment range is from 0 to 128.
Temperature GREEN
The adjustment range is from 0 to 128.
Temperature BLUE
The adjustment range is from 0 to 128.
Reset Config
Reset input parameter.
M1 User Manual
19
NDI
Network Setting >>
NDI list >>
Data type NDI | HX
Input format 1920X1080@60
Audio sample rate 48000Hz
Version V1.0
3.3.1.1 NDI Input Setting
Network Setting
Touch the knob to enter the network settings menu.
NDI list
Show list of NDI resources
Data type
NDI | HX
Input format
1920X1080@60 (frame rate optional)
Audio sample rate
48000Hz
Version
Show version of module.
Network settings of NDI input module：
Click network settings to enter network settings of NDI input module
IP：Type in IP address of NDI input module.
Subnet Mask：Type in subnet mask of NDI input module.
Gateway：Type in gateway of NDI input module.
Selection of NDI input signal source:
Click the NDI list to enter the interface:
M1 User Manual
20
Output
Output Format Output Setting External Sync Test Pattern
3.3.2 Output Menu
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Output Menu]
option in LCD screen, push the knob or touch the icon directly to confirm, and enter the
menu as follows:
Turn the knob or touch [Output Format] to enter the menu as follows:
1
Signal source
2
IP address of signal source
3
Serial number of signal source
Note: IP address of NDI signal source and NDI input module need to be in the same network segment.
M1 User Manual
21
Output Format
Standard 1920×1080@50i
Output Setting
Output Port PST
DVI/HDMI DVI
Bits Depth 8 Bits
Color Space Image
DE ADJUST >>
DE ADJUST
On/Off On
H Pos 1440
V Pos 0
H Size 1440
V Size 240
H POLARATY Off
V POLARATY Off
External Sync
External On
Input No Input
Format 1280×720@59.94
Turn the knob or touch [Output Setting] to enter the menu as follows:
Turn the knob or touch [External Sync] to enter the menu as follows:
M1 User Manual
22
Test Pattern
Output PST
Test Pattern Off
Red 0
Green 0
Blue 0
Turn the knob or touch [Test Pattern] to enter the menu as follows:
Output Format
Standard
Users can select standard resolution as actual.
Output Setting
Output Port
Select PST OR PGM.
DVI/HDMI
Select DVI or HDMI.
Bit Depth
When select DVI, the default bit depth is 8 Bits; when select
HDMI, the bit depth can be 8 Bits or 10 Bits.
Color Space
Select Image or Video.
DE ADJUST
Select On or Off to enable or disable DE adjust.
Set the horizontal position of output signal.
Set the vertical position of output signal.
Set the horizontal size of output signal.
Set the vertical size of output signal.
Enable or disable horizontal polarity.
Enable or disable vertical polarity.
External Sync
External
Select On or Off to enable or disable external sync.
Input
Show the input signal.
Format
Show the resolution of input signal.
Test Pattern
Output
Select PST or PGM.
Test Pattern
M1 User Manual
23
Freeze
Live Freeze A Freeze B Freeze All
PGM Freeze On/Off
3.3.3 FREEZE
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [FREEZE] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
3.3.4 BLACK
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [BLACK] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
Select Color Bar, Solid Color or disable the function.
Red
The adjustment range is from 0 to 255.
Green
The adjustment range is from 0 to 255.
Blue
The adjustment range is from 0 to 255.
Live
When freeze the layer, users can select this icon to live.
Freeze A
Freeze layer A.
Freeze B
Freeze layer B.
Freeze All
Freeze layer A and layer B.
PGM Freeze
Select PST Freeze or PGM Freeze. Touch “ON” on LCD screen,
then PGM Freeze enable; Touch “OFF”, then PST Freeze
enable.
M1 User Manual
24
BLACK SCREEN
Off On
Scale
Full Screen Off
H Pos 1920
V Pos 1080
H Size 3840
V Size 2160
H/V Size 3840
Reset >>
Crop H Pos 0
Scale
Crop V Pos 0
Crop H Size 1920
Crop V Size 1080
Reset >>
3.3.5 SCALE
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [SCALE] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
Off
Select [Off] and push the knob to confirm or touch [Off] to
disable BLACK function.
On
Select [On] and push the knob to confirm or touch [On] to
enable BLACK function.
M1 User Manual
25
Transition
←[]→ L→R T→B FADE
LT→RB ←＋→ L←R B→T
Transition
L←M→R T←M→B →+← III→
→[]← ←O→
3.3.6 Transition Effect
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Transition Effect]
option in LCD screen, push the knob or touch the icon directly to confirm, and enter the
menu as follows:
Full Screen
Select On/Off to enable or disable full screen.
H Pos
Set horizontal position.
V Pos
Set vertical position.
H Size
Set horizontal size.
V Size
Set vertical size.
H/V Size
the parameter is equal to H Size.
Reset
If improper operation occurs, it can be restored by reset.
Crop H Pos
Crop the horizontal position.
Crop V Pos
Crop the vertical position.
Crop H Size
Crop the horizontal size.
Crop V Size
Crop the vertical size.
Reset
If improper operation occurs, it can be restored by reset.
M1 User Manual
26
3.3.7 DSK
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [DSK] (DSK function
only acts on Layer B) option in LCD screen, push the knob or touch the icon directly to
confirm, and enter the menu as follows:
←[]→
Iris Box
L→R
Wipe to Right
T→B
Wipe to Bottom
FADE
Fade In and Fade Out
LT→RB
Wipe to Bottom Right
←
＋
→
Iris Cross
L←R
Wipe to Left
B→T
Wipe to Top
L←M→R
Center Split Horizontal
T←M→B
Center Split Vertical
→+←
Cross Inwards
III→
Blinds Vertical
→[]←
Box Inwards
←O→
Iris Round
M1 User Manual
27
DSK
This function only act on Layer B!
DSK On
Preset Black Background
Mode Key In
Alpha 128
Red Min 0
Red Max 15
Green Min 0
Green Max 15
Blue Min 0
Blue Max 15
3.3.8 BLEND
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [BLEND] (BLEND
function only acts on Layer B) option in LCD screen, push the knob or touch the icon
directly to confirm, and enter the menu as follows:
DSK
Select On/Off to enable or disable DSK.
Preset
Select background color from black, white, red, green, blue or
“user” to .
Mode
Key In or Key Out can be selected.
Alpha
Set the Alpha parameter. The adjustment range is from 0 to
128.
Red Min
The adjustment range is from 0 to 255.
Red Max
The adjustment range is from 0 to 255.
Green Min
The adjustment range is from 0 to 255.
Green Max
The adjustment range is from 0 to 255.
Blue Min
The adjustment range is from 0 to 255.
Blue MAX
The adjustment range is from 0 to 255.
M1 User Manual
28

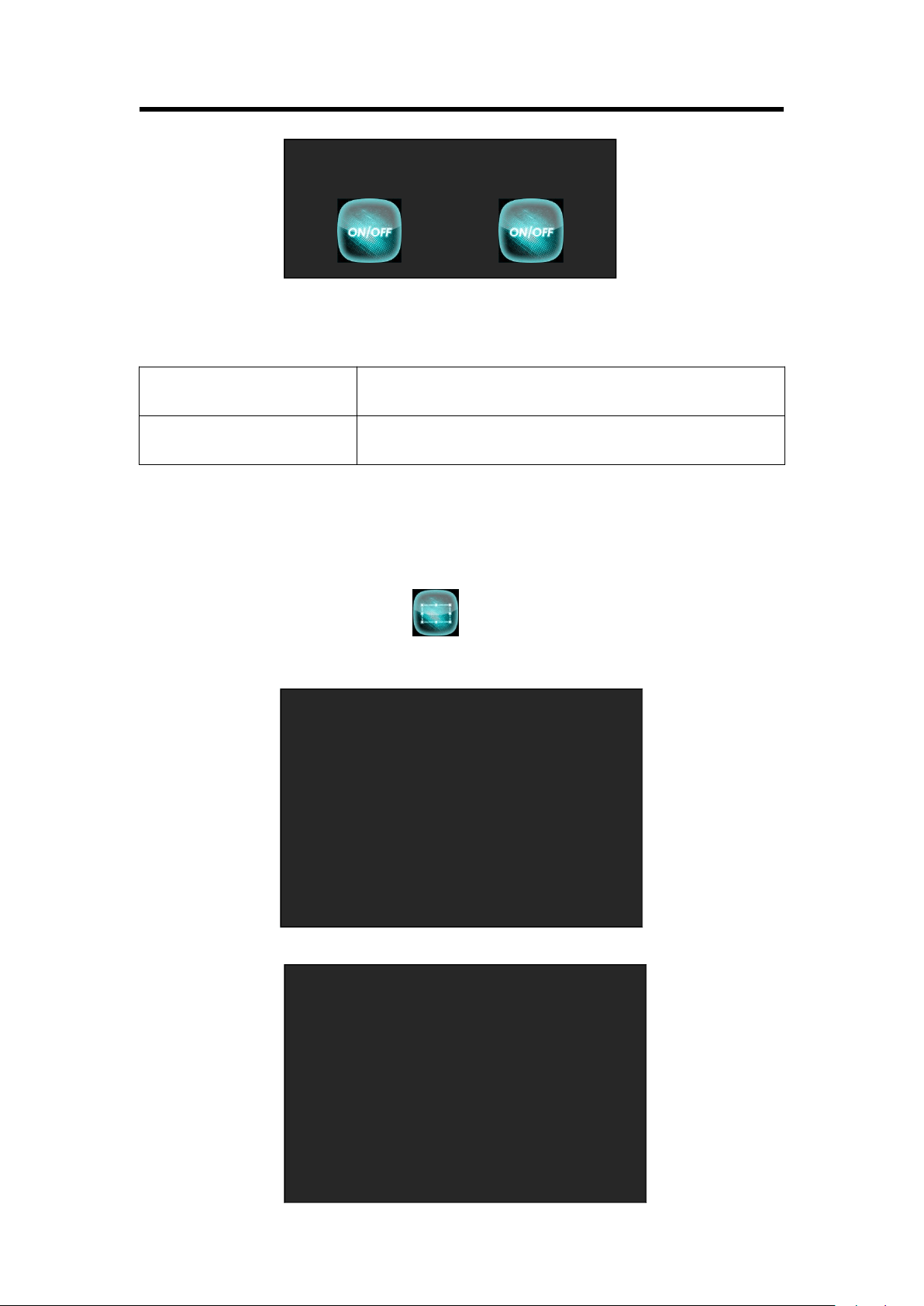

Blending Mode
This function only act on Layer B!
On/Off On
Blending Width 50
Logo/Still
Logo Present M1
On/Off Off
H Pos 1664
V Pos 952
Delete Logo 1
Still Present M1
On/Off Off
Logo/Still
H Pos 0
V Pos 0
Delete Still M1
3.3.9 LOGO
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [LOGO] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
On/Off
Select On/Off to enable or disable blending mode.
Blending Width
Users can adjust blending width ranging from 0 to 90.
M1 User Manual
29
Mask
Mask Heart6
Mask Size 6
On/Off On
Mask&PIC Pos X 0
Mask&PIC Pos Y 0
Mask Pos X 0
Mask Pos Y 0
PIC Pos X 480
PIC Pos Y 270

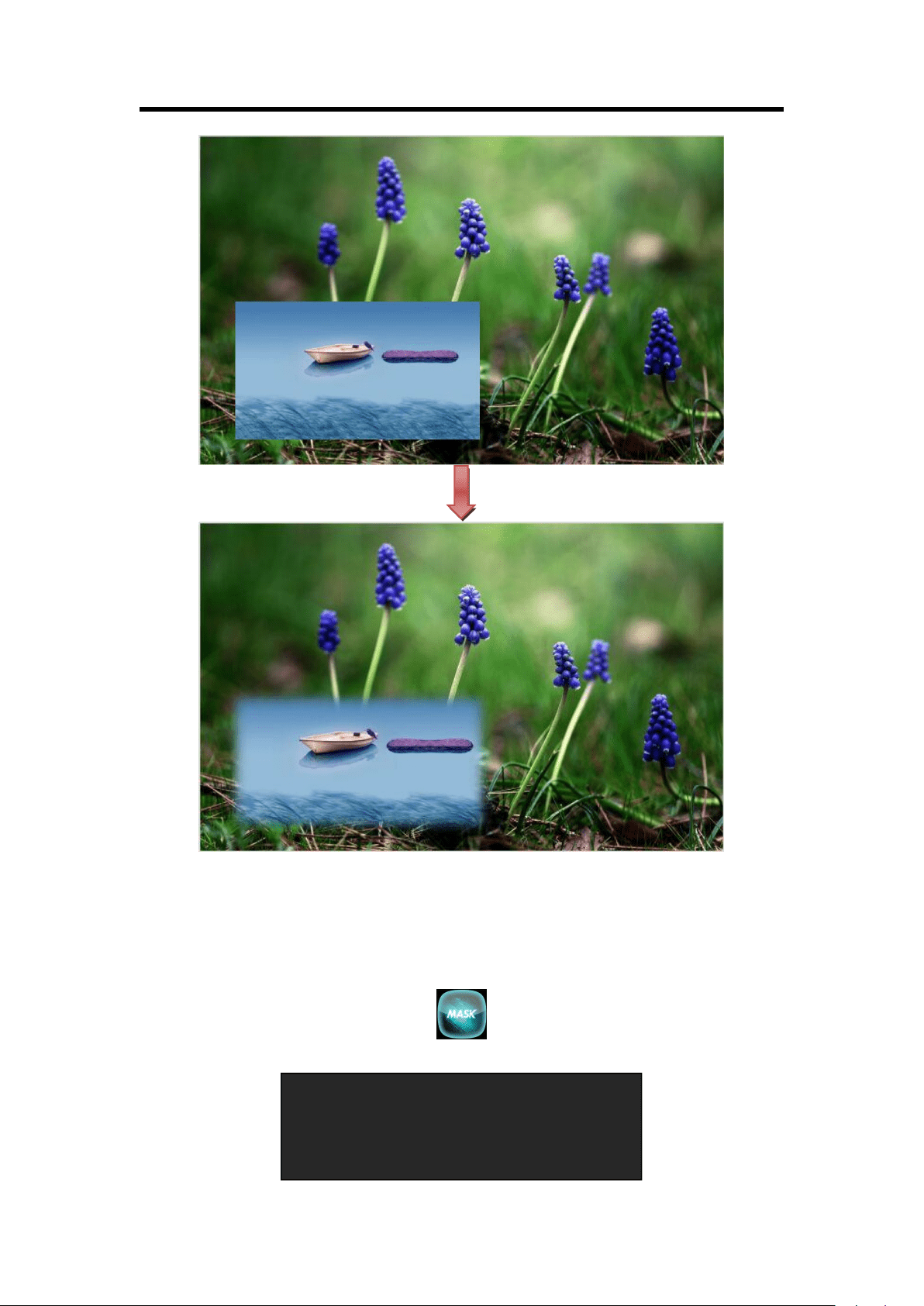

3.3.10 MASK
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [MASK] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
Logo Present
Select the present logo.
On/Off
Select On/Off to enable or disable Logo.
H Pos
Set the horizontal position of logo.
V Pos
Set the vertical position of logo.
Delete Logo
Users can select any saved logo to delete.
Still Present
Select the present still.
On/Off
Select On/Off to enable or disable Still.
H Pos
Set the horizontal position of still.
V Pos
Set the vertical position of still.
Delete Still
Users can select any saved still to delete.
Mask
13 kinds of mode: diamond, round, heart, star, triangle,
oval, hexagons, pentagon, 4 point star, 6 point star,
lighting, crescent left and crescent right.
Mask Size
Set the mask size.
On/Off
Select On/Off to enable or disable mask.
Mask&PIC Pos X
Set the horizontal position of mask and picture.
Mask&PIC Pos Y
Set the vertical position of mask and picture.
Mask Pos X
Set the horizontal position of mask.
M1 User Manual
30

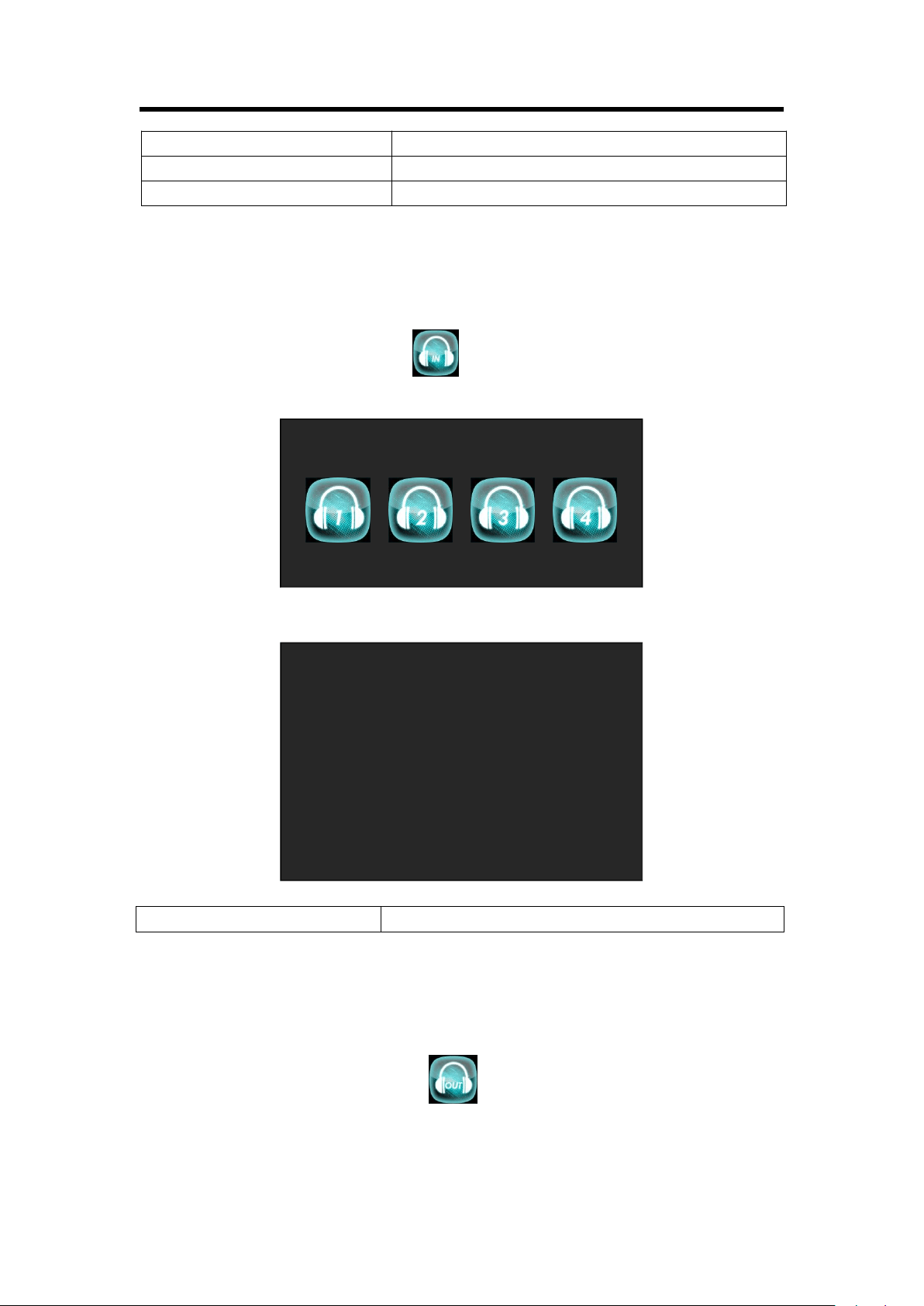

Audio Input
Input1 Audio Input2 Audio Input3 Audio Input4 Audio
Audio Input
Audio Source Sel Embedded
3.3.11 Audio In
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Audio In] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
Select a input audio from Input1 Audio to Input4 Audio, and enter the menu as follows:
3.3.12 Audio Out
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Audio Out] option
in LCD screen, push the knob or touch the icon directly to confirm, and enter the menu
as follows:
Mask Pos Y
Set the vertical position of mask.
PIC Pos X
Set the horizontal position of picture.
PIC Pos Y
Set the vertical position of picture.
Audio Source Sel
The Audio Source Selection is embedded or External.
M1 User Manual
31
Lock Front Panel
Off On
Language/语言
English 中文
Audio Output
Audio Source Sel Layer A
Audio Monitor PST

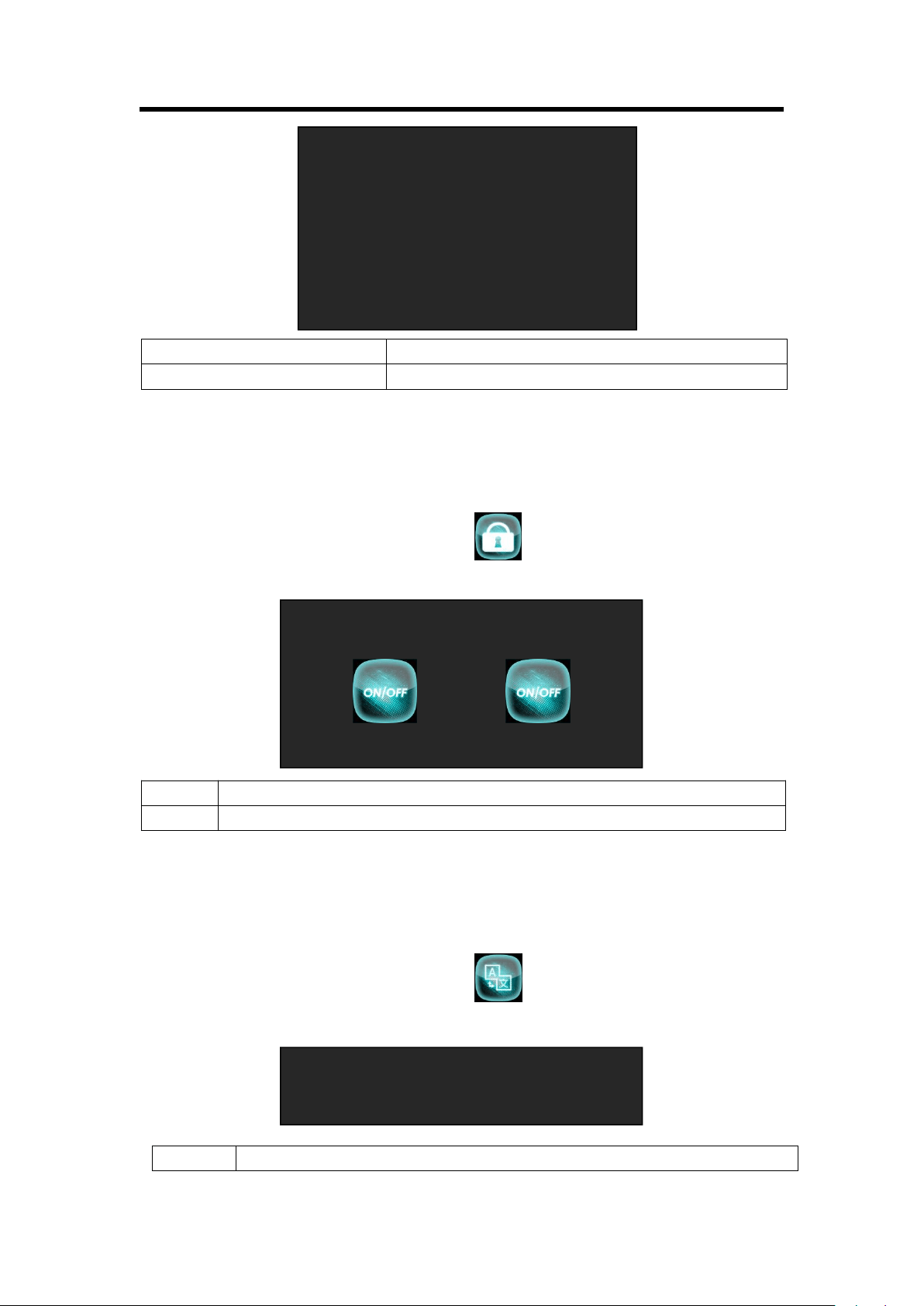

3.3.13 Lock Front Panel
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Lock Front Panel]
option in LCD screen, push the knob or touch the icon directly to confirm, and enter the
menu as follows:
3.3.14 Language/语言
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [Language/语言]
option in LCD screen, push the knob or touch the icon directly to confirm, and enter the
menu as follows:
Audio Source Sel
Users can select Layer A or Layer B as audio source.
Audio Monitor
Users can select PST or PGM as andio monitor.
Off
Select [Off] and push the knob to confirm or touch [Off] to revive the Front Panel.
On
Select [On] and push the knob to confirm or touch [On] to lock the Front Panel.
English
Select [English] and push the knob to confirm or touch [English] to choose English.
M1 User Manual
32
System
Transition Version Ethernet T-Bar Correction
Fader Correction Key Board
3.3.15 System
Push [MENU] button, and enter the menu items. Turn the rotary knob, select [System] option in
LCD screen, push the knob or touch the icon directly to confirm, and enter the menu as
follows:
中文
Select [中文] and push the knob to confirm or touch [中文] to choose Chinese.
Transition
Trans Time
The adjustment range is from 1.0S to 9.9S.
Version
Show the version of COM MCU, EXT MB MCU, PGM MCU, PGM
Core, KEY MCU.
Ethernet
DHCP
Enable or disable the network function. If select [ON], user can set
the IP address, subnet mask and gateway.
State
Show the present state of DHCP, IP, Subnet Mask, Gateway.
T-Bar Correction
Step 1: Press the T-BAR to the top
Step 2: Choose On or Off
Step 3: Press the T-BAR to the bottom
Step 4: Choose On or Off
T-Bar Calibration::0~1024
Fader Correction
Step 1: Push Fader 1&2 to top
Step 2: Choose On or Off
Step 3:Push Fader 1&2 to the bottom
Step 4: Choose On or Off
Fader Calibration: 0:0
Key Board
MASK
Users can custom Self, Black or FS.
PGM LOGO
Users can custom Self or PGM Freeze.
PST LOGO
Users can custom Self or PST Freeze.
M1 User Manual
33
3.3.16 PTZ Control
Click the camera icon
Click the Settings menu to enter the interface of M1 Camera IP Settings.
Turn on the IP setting switch: "valid" is ON,
Old IP address: Input the current IP address of the camera.
New IP address: Input the actual new IP address according to the actual demand.
Note: M1 IP address and PTZ camera need to be in a network segment.
Set the camera IP address and click . After successful setting, the M1 interface will
prompt "Camera setting is successful".
Set camera parameters such as zoom, focus, position adjustment, preset save, screen brightness
adjustment and speed adjustment.
Zoom: Click [+] on the touch panel to zoom in the partial picture of the camera, and click [-] to
zoom out
Note: IP Settings can only be modified on M1 using the PTZ camera specified by RGBlink.
M1 User Manual
34
Freeze
Live Freeze A Freeze B Freeze All
PGM Freeze On/Off
Focus: The system defaults to auto focus. If manual focus is needed, the auto focus function can
be turned off
Brightness: Adjust the brightness of the camera
PTZ Speed: Controls the direction key induction speed of the position controller. The range is
1-13
Position controller: Click up, down, left and right to adjust the camera view Angle.
3.4 PST Mode
M1 supports 1 HDMI preview output, and it supports the functions as below:
3.4.1 Signal Selection
Push any button in Input Sources Area, for example, push the button [3], the border of signal 3
will turn to yellow, and the signal in PGM monitor will turn to signal 3.
3.4.2 Add or Delete Layer
Push any button of [A] to [B] in Layer Selection Area to add or delete the layer.
Add layer: The light is lit.
Select layer: The light is flashing.
Delete layer: The light is off.
3.4.3 Freeze the Layer
Push the [FREEZE] button in LCD screen, Select as needed to freeze layer A, layer B or 2 layers,
push the button<Live> , the layer is live.
3.4.4 2 Layers Presets
(1) Push A or B button in Layer selection Area to select 1 or 2 layouts, including 1P, PIP.
(2) User can adjust the position, size for the selected layer, and set DSK, BLEND and MASK, some
function coming soon.
3.4.5 Scale and Crop the Layer
(1) Push any button of [A] to [B] in Layer Selection Area, the light is red lit when the layer is
selected.
M1 User Manual
35
DSK On
Preset Black
Background
Mode Key In
Alpha 128
Red Min 0
Red Max 15
Green Min 0
(2) Push the [SCALE] button in Layer Adjustment Area or on the LCD screen, and enter
the scale menu as follows:
Use the rotary knob to adjust the scale of the layer.
H Pos: Set horizontal position.
V Pos: Set vertical position.
H Size: Set horizontal size.
V Size: Set vertical size.
Reset: If improper operation occurs, it can be restored by reset
(3) Push the [SCALE] button in Layer Adjustment Area or on the LCD screen, and enter
the scale menu as follows:
Use the rotary knob to adjust the crop of the layer.
Crop H Pos: Crop the horizontal position.
Crop V Pos: Crop the vertical position.
Crop H Size: Crop the horizontal size.
Crop V Size: Crop the vertical size.
Reset: Reset crop if image quality i distorted by improper operation.
3.4.6 DSK Setting
(1) Firstly, enable the 2 layers function.
(2) Push [MENU] button, and enter to the menu items. Turn the rotary knob, and select <DSK>
option in LCD screen, rotary the knob or touch the <DSK> to confirm.
-> H Pos 465
V Pos 1248
H Size 956
V Size 540
Reset >>
-> Crop H Pos 0
Crop V Pos 0
Crop H Size 1920
Crop V Size 1080
Reset >>
M1 User Manual
36
Green Max 15
Blue Min 0
Blue Max 15
DSK: Can select enable or disable the DSK function.
Preset: Users can select black background, white background, red background, green background
and blue background.
Mode: Select Key In or Key Out.
Alpha: The adjustment range is between 0~128.
Red Min: The adjustment range is between 0~255.
Red max: The adjustment range is between 0~255.
Green Min: The adjustment range is between 0~255.
Green Max: The adjustment range is between 0~255.
Blue Min: The adjustment range is between 0~255.
Blue Max: The adjustment range is between 0~255.
3.4.6.1 Key In and Key Out
(1) Key In
To cut out the color selected in [Preset] and other colors remain unchanged. Take Black
Background and Blue Background for example, see the effect below:
(2) Key Out
The color selected in [Preset] remains unchanged and other colors are cut out. Take Black
Background and Blue Background for example, see the effect below:
M1 User Manual
37
3.4.7 Transitions Setting
(1) Touch the transition buttons in LCD screen, M1 supports 14 kinds of wipe modes:
Touch the transition button , user can select ←[]→.
Touch the transition button , can select L→R.
Touch the transition button , user can select T→B.
Touch the transition button , can select fade.
Touch the transition button , user can select LT→RB.
Touch the transition button , user can select ←＋→.
Touch the transition button , user can select L←R.
Touch the transition button , user can select B→T.
Touch the transition button , user can select L←M→R.
Touch the transition button , user can select T←M→B.
Touch the transition button , user can select →+←.
Touch the transition button , user can select III→.
Touch the transition button , user can select →[]←.
Touch the transition button , user can select ←O→.
(2) Push the [TAKE] button, or use T-bar switcher to switch the image to program with selected
wipe.
3.4.8 Audio In Setting
(1) Push [MENU] button, and enter the menu items. Turn the rotary knob, select <Audio In>
option in LCD screen, rotary the knob or touch the directly to confirm.
(2) Select the Audio input 1-4 for setting:
M1 User Manual
38
Audio Source Sel Layer A
Audio Gain 0
Monitor Select 0
Mute On
Audio Source Sel: The default is Embedded.
Audio Gain: The adjustment range is between 0~100
Audio Delay: The adjustment range is between 0~20ms
3.4.9 Audio Out Setting
(1) Push [MENU] button, and enter the menu items. Turn the rotary knob, select <Audio Out>
option in LCD screen, rotary the knob or touch the icon directly to confirm.
(2) Select the Audio Output for setting:
Audio Source Sel: Select Layer A or Layer B
Audio Gain: The adjustment range is between 0~100
Monitor Select: Select PST or PGM
Mute: Select On or Off
3.4.10 BLEND Setting
Push [MENU] button, and enter the menu items. Turn the rotary knob, select <BLEND> option in
LCD screen, rotary the knob or touch the icon directly to confirm.
Layer Select: Select Layer A or Layer B
Blending Mode: Including 3D Frame, Pure Color Frame, Outside, Inline 4 modes
Blending Width: The adjustment range is between 1~90
On/Off: Select On or Off
For example, set the Blending Width as 50, see the effect below:
Audio Source Sel Embedded
Audio Gain 0
Audio Delay 0 ms
Layer Select Layer A
Blending Mode 3D Frame
Blending Width 0
On/off On
M1 User Manual
39
Mask
Mask Mask Layer Mask & PIC POS
3.4.11 Mask Setting
(1) Push [MENU] button, and enter the menu items. Turn the rotary knob, select <Mask> option
on LCD screen, rotary the knob or touch the directly to confirm.
M1 User Manual
40
Mask
Heart 0
Oval 0
Round 0
Crescent Left 0
Star 0
Diamond 0
Custom 1 0

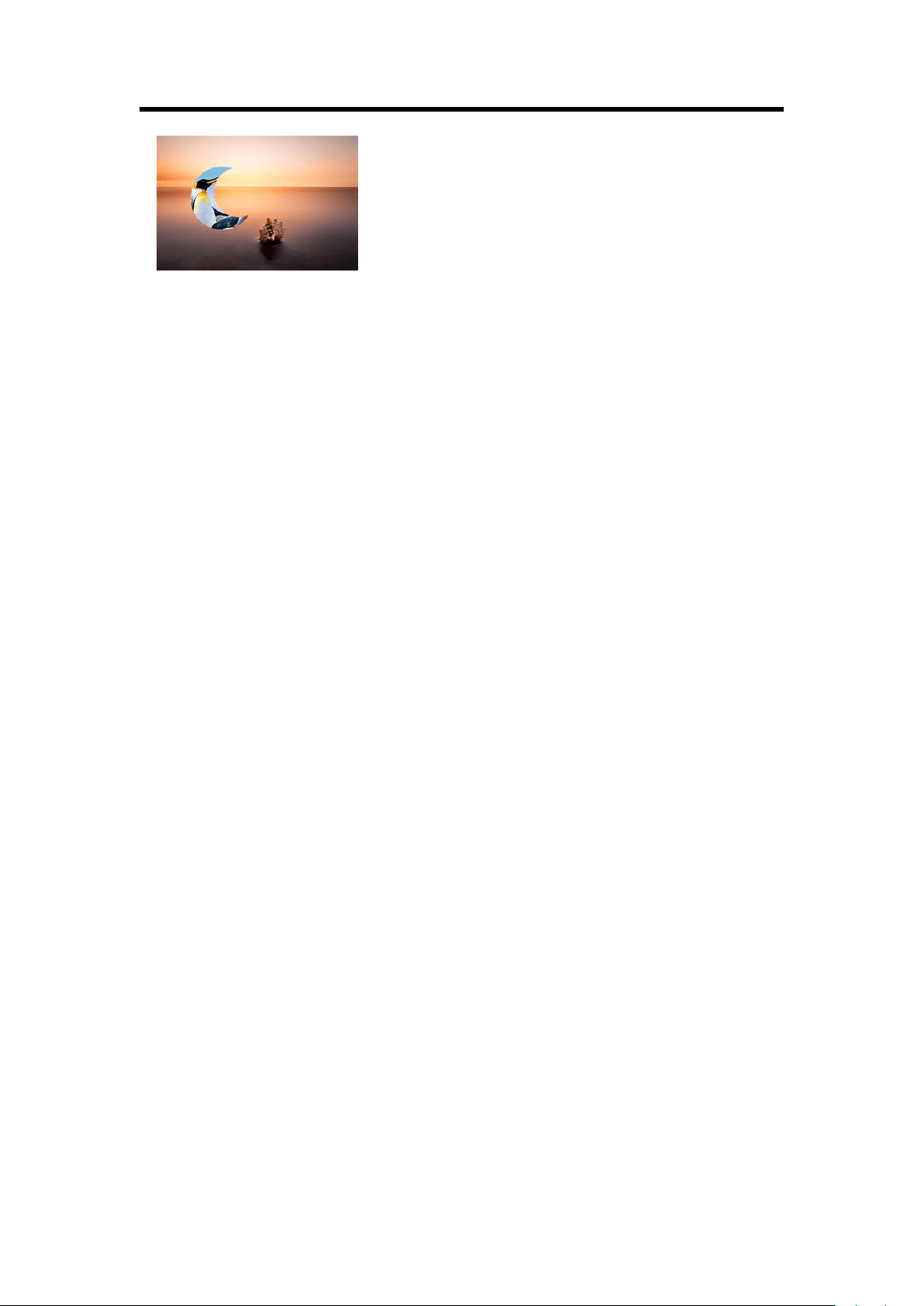

(2) Select the Mask for setting :
Customs: Coming soon
Turn the rotary knob, and select <Mask>, Press the knob to confirm. Turn the rotary knob, and
select the effects. There are 13 masks: diamond, round, heart, star, triangle, oval, hexagons,
pentagon, 4 point star, 6 point star, lighting, crescent left and crescent right.
User can also Press the layer mask selection button in Layer Mask Area to select a mask.
The 13 masks are as follows:
M1 User Manual
41
3.5 PGM Mode
1. Switch the edited PST image to program by pushing the [CUT], [TAKE] button or T-bar, and then
the PGM image will return to PST state, which can be edited.
2. There are 1 HDMI output and 1SDI output for program, and up to support 1920x1080 output
resolution.
3.6 Switching Mode
1. T-BAR switch: Switch the PST image to program with wipe and fade by T-bar.
2. CUT switch: Seamless switch the PST image to program by pushing [CUT] button.
3. TAKE switch: Switch the PST image to program with wipe and fade by pushing [TAKE] button.
4. CUE switch: EARPHONE voice via CUE transfer PST to PGM.
5. MUTE switch: MUTE only for PGM voice.
M1 User Manual
42
Standard C_1024×768@60
Custom Format On
HActive 1024
VActive 768
Freq 60
Set >>
3.7 Set the Output Parameter
Select the Output Resolution
Push the [MENU] button, and enter the menu items, turn the rotary knob and select <Output> or
:
Push the rotary knob to confirm, and enter to the menus as below:
<Output Format> is the default option, push the rotary to confirm. Turn the rotary knob, select
the output resolution according to actual need.
Customs Output Resolution
Continue the above operation, setting the HActive, VActive, Freq, and select <Set>, confirm the
Set setting to Yes.Then the LCD screen shown as below:
Output Setting
Push the rotary knob or touch the button <Output setting> to confirm, and enter the menus as
below:
DVI or HDMI output format can be chosen for PST and PGM output port, SDI Level choose Level A
or Level B.
External Sync
External Including option Off and On, Input will shown as actual input resolution.
Output Format
Output Setting
External Sync
Test Pattern
PST DVI
PGM DVI
SDI Level Level A
M1 User Manual
43
External Sync
External Off
Input No Input
Format 1920x1080 @60
Format support choose 2 default resolution: 1280x720 @60 & 1920x1080 @60.
Test Pattern
Output: Select PST or PGM
Test Pattern: Select Off, Color Bar, Solid Color
Red: The adjustment range is between 0~255
Green: The adjustment range is between 0~255
Blue: The adjustment range is between 0~255
Test Pattern
Output PST
Test Pattern Off
Red 0
Green 0
Blue 0
M1 User Manual
44
3.8 Using Black Out
Black out description:
Black signal realizes one-key-touch to a black screen.
M1 provides black effect processing for program output and preview output, with cut black effect.
Operation is as below:
Touch the [BLACK] button or touch key and then touch “On”, then the program output is
cut to black.
The effect is shown as below:
M1 User Manual
45
SAVE TO
->PAGE: 1
BANK: 1
SAVE TO
PAGE: 2
->BANK: 2
3.9 Saving Views
M1 provides 20 positions for saving or recording parameters. To save current parameters and
settings:
(1) Push the [SAVE] button in Presets operation area, the button [SAVE] and [PAGE] lights are
lit,and some of buttons 1~5 are lit and some are flashing. The button lit can be saved and flash
will be overwrite, push the button lit to save.
(2) Select PAGE, for example, the button [2] is lit, push the button [2].
(3) After set the PAGE, it will jump to BANK option, or example, the button [2] is lit, push the
button [2]:
(4) Push the [SAVE] button again, the button light is off, and exit the save function.
SAVE TO
->PAGE: 2
BANK: 1
M1 User Manual
46
LOAD FROM
->PAGE: 1
BANK: 1
LOAD FROM
->PAGE: 2
BANK: 1
LOAD FROM
PAGE: 2
->BANK: 2
3.10 Recall Saved Settings
M1 provides 20 positions for saving or recording parameters. To recall saved settings:
(1) Push the [LOAD] button in Presets operation area, the button [LOAD] and [PAGE] lights are lit,
and some of buttons 1~5 are lit and some are flashing. The button lit is ready for recall and
flash means just recall, push the button lit to recall.
(2) Select PAGE, for example, the button [2] is lit, push the button [2].
(3) After set the PAGE, it will jump to BANK option, or example, the button [2] is lit, push the
button [2]:
(4) Push the [LOAD] button again, the button light is off, and exit the load function.
M1 User Manual
47
3.11 USB3.0 Streaming Module
A single USB3.0 module is suitable for modules with built-in bus sockets.
USB3.0 with built-in bus sockets.
3.11.1 USB 3.0 Streaming
OBS Setting
M1 is compatible with many third party steaming software, we recommend OBS, which is
available to download on https://obsproject.com/download. Download the software and
update to the latest version.
(1) Click”+”icon
(2) choose video capture device
(3)Click video capture device to open up setting page
(4) Choose :RGBlink USB 3.0 Capture
(5) Choose Video Format YUY2

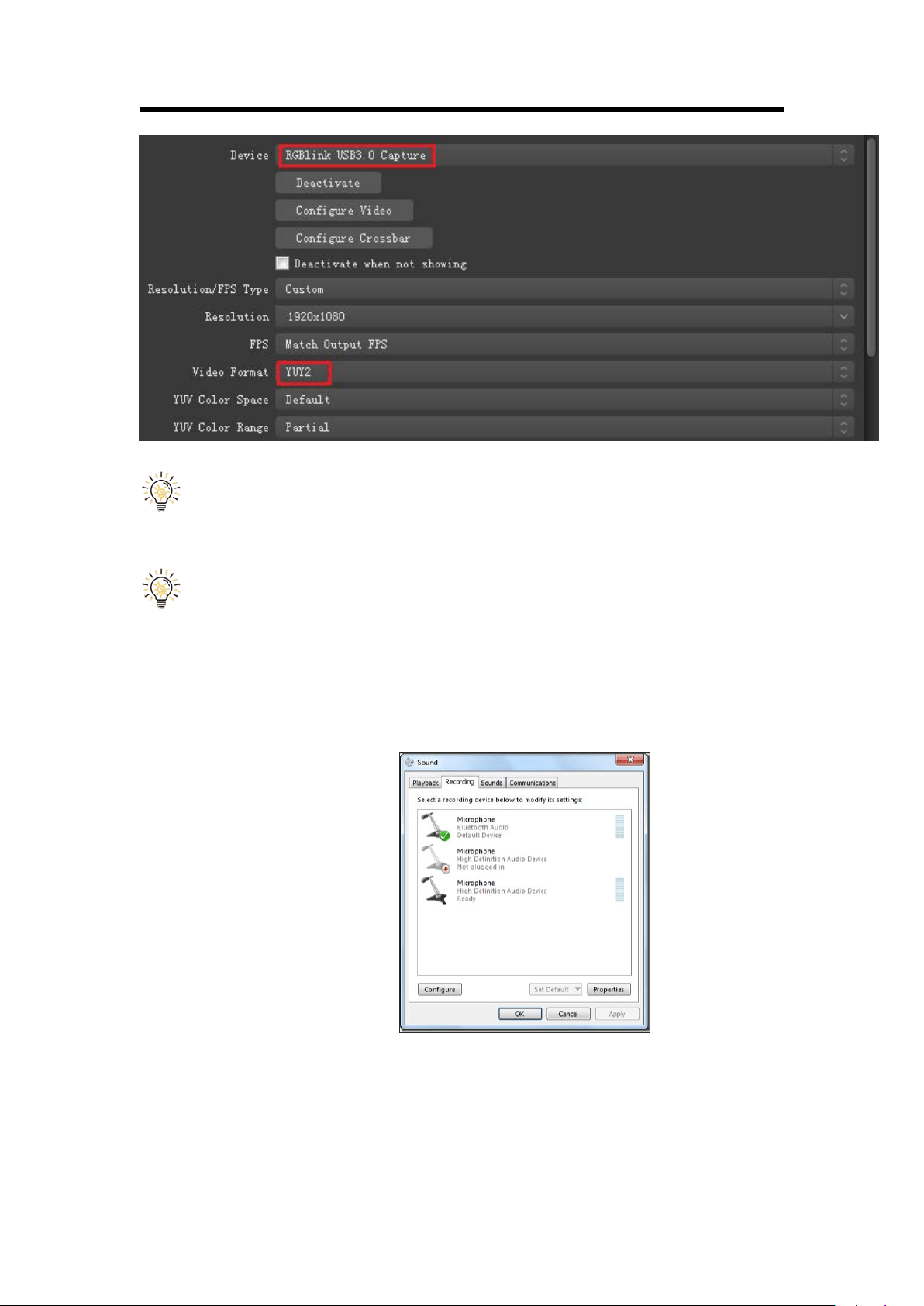

M1 User Manual
48
If there is no video format YUY 2 after setting above, check the USB 3.0 port connection.
Make sure it is linked to USB 3.0port on PC by USB 3.0 cable. (USB 3.0 cable or port is standard in
blue while USB 2.0 is in black
If the captured video is showing mosaic, change the video format to YUY2.
Audio Setting
When there is no audio playing first check the video source see if the it is set in default value and
then check the audio setting on OBS.
(2) Audio setting on OBS.
Choose Audio, click Setting and choose audio device (Mic/Auxiliary Audio Device)
(1) Set Default for the audio source.
M1 User Manual
49
3.11.2 Streaming Setting
(1) Find the RTMP URL and Stream Key provided by streaming broadcast website.
(2) Copy URL and Stream Key

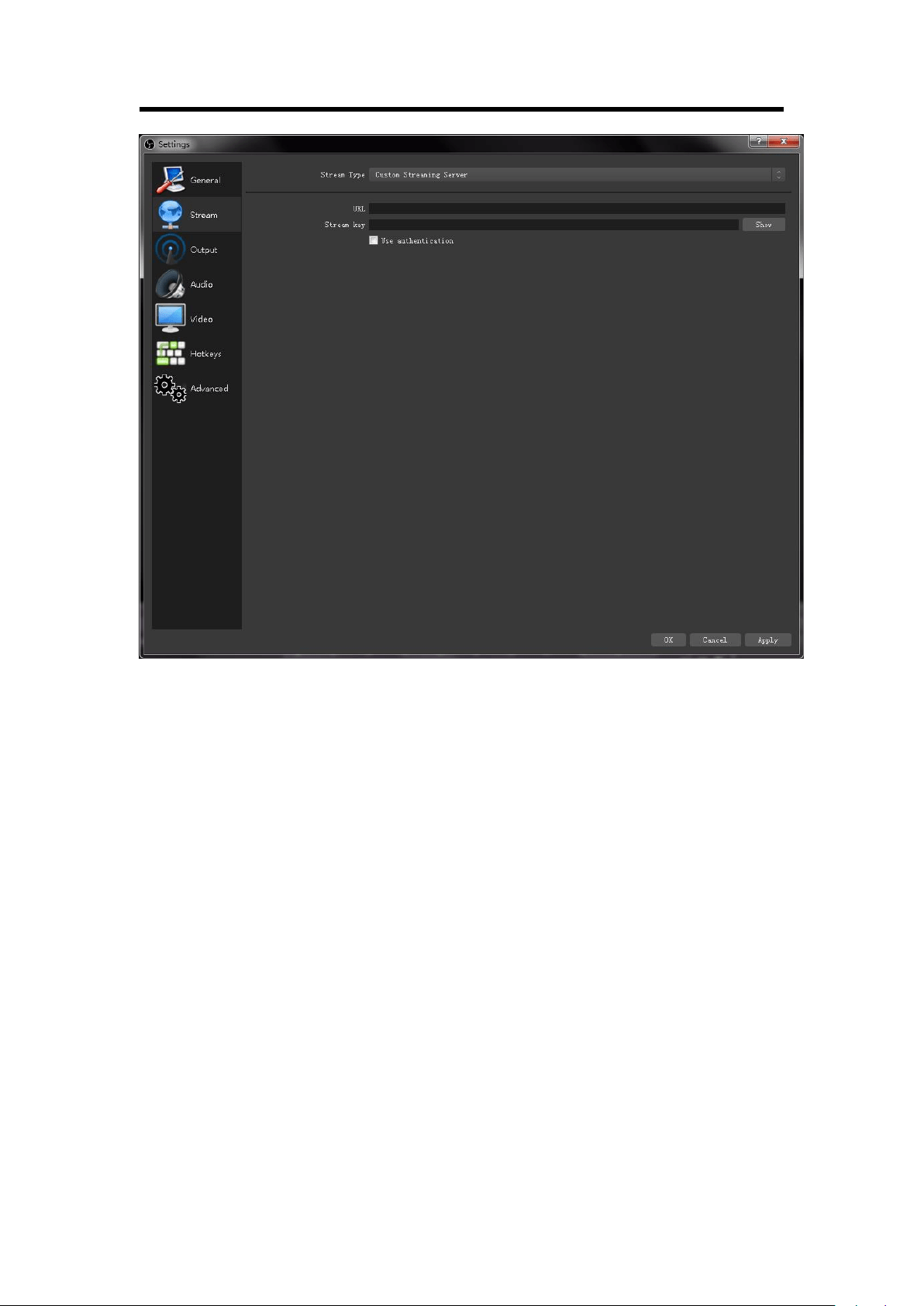

(3) Back to OBS, click Setting in the lower right corner and click “Stream”. Choose Stream Type as
“Streaming Service” or “Custom Streaming Server” . If choose “Streaming Service”, there is a list
of streaming service name available in the drop down list of Service. If the streaming service is in
the list, choose it from the list.
If choose Custom Service, just fill in URL and Stream Key.
M1 User Manual
50
(4) Paste the RMTP URL to Server or URL and Stream Key to Stream Key.
(5) Click “Start Streaming”.
(6) Go back to live broadcast website and check the broadcasting.
M1 User Manual
51
Chapter 4 Remote Control Setting
There are two ways to come true remote control for M1. One is by COM Ports, another is by
Network.
4.1 COM Port Connecting
(1) Connecting the computer USB B port with USB A port of M1.
(2) Get the computer COM ports number by following ways:
Computer/attribute/setting administrate/communication port: COM1.
(3) Open the “RS 232 to Ethernet Convert Tester”.
Setting as left window “connect by RS232”:Select “PortNum” as actual, click “Open”, then stick
the protocol order to left dialog box of “Send”, then click “Send” , once “Com port Data Receive”
shown the receive data, the remote control is been setting succeed.
M1 User Manual
52
4.2 Network Connecting
(1) Setting as right windows as follows:
<Remote IP >and <Local Host IP> setting the same network segment: e.g.192.168.0
<Protocol> select “UDP”
Remote< port>: default “1000”, <Local host port>: default “8082”
(2) Click “Open”, stick the protocol order to left dialog box of “Send”, then click “Send”, Once
“Network Data Receive ”shown the receive data, the remote control is been setting succeed.
M1 User Manual
53
Chapter 5 Ordering Codes
5.1 Product
220-0001-01-0 M1
220-0001-04-0 M1-NDI
5.2 Options
290-0001-03-0 Output Module PGM HDMI/SDI/USB 3.0 | PVW HDMI
290-0001-05-0 Output Module PGM HDMI/USB 3.0| PVW HDMI
190-0001-04-2 Single DVI Input(CVBS,VGA,YPbPr with adapter)
190-0001-07-2 SIngle 3G-SDI Input/Loop Module
290-0001-08-0 Single NDI Input Module
190-0001-10-2 Single USB2.0 In/Backup
190-0001-13-2 Single HDMI Input
930-0002-01-0 Wings/Sides for M1 (Pair)
930-0002-02-0 Rack for M1
M1 User Manual
54
Chapter 6 Contact Us
6.1 Contact Us
M1 User Manual
55
Chapter 7 Appendix
7.1 Specification
DVI Input (DVI optional module)
Interface
Appearance
Connector
Standard DVI-I socket (Supported DVI, VGA, YPbPr, CVBS 4 in 1)
Supported
Resolutions
DVI Resolution:
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60, 1080i50/59.94/60, 720P50/59.94/60
VESA: 800×600@60Hz | 1024×768@60Hz | 1280×1024@60Hz |
1600×1200@60Hz | 1920×1080@60Hz | 1920×1200@60Hz
| 2048×1152@60Hz
VGA Resolution：
VGA-UXGA (800×600@60 | 1024×768@60 |
1280×1024@60 | 1440×900@60 | 1600×1200@60 | 1920×1080@60)
YPbPr Resolution:
800
×
600@60 | 1024
×
768@60 |
1280
×
1024@60 | 1440
×
900@60 | 1600
×
1200@60 | 1920×1080@60
CVBS Resolution:
480i | 576i
Signal Level
DVI: TMDS pwl, single pixel input,165MHz bandwidth
VGA: R, G, B, Hsync, Vsync: 0 to1Vpp
±
3dB (0.7V Video+0.3v Sync ) 75
ohm
black level: 300mV Sync-tip: 0V
YPbPr: R, G, B, Hsync, Vsync: 0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75
ohm
black level: 300mV Sync-tip: 0V
CVBS: 1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm
Format Standard
DVI: DVI 1.0 /HDMI 1.3
USB Input (USB optional module)
Interface
Appearance
Board Size
52(L)×19.5(W) (mm)
Connector
Standard USB port: USB-A
Supported Standard
Support general Image and video formats
M1 User Manual
56
3G-SDI Input (SDI optional module)
Interface
Appearance
Board Size
52(L)×19.5(W) (mm)
3G-SDI Input
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A and Level B
Supported
Resolutions
SMPTE 425M (3G Level A) 4:2:2: 1920×1080@60Hz (1:1) |
1920×1080@50Hz (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2: 1920×1080@60Hz (2:1) |
1920×1080@50Hz (2:1)
SMPTE 296M (HD): 1280×720@50Hz (1:1) | 1280×720@50Hz (1:1)
SMPTE 125M (SD): 1440×487@60Hz (2:1) | 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576@50Hz (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
SDI Loop Out
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A and Level B
Supported
Resolutions
SMPTE 425M (3G Level A) 4:2:2: 1920×1080@60 (1:1) |
1920×1080@50 (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2: 1920×1080@60 (2:1) |
1920×1080@50 (2:1)
SMPTE 296M (HD): 1280×720@50 (1:1) | 1280×720@50 (1:1)
SMPTE 125M (SD): 1440×487@60 (2:1), 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576@50 (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
HDMI Input (HDMI optional module)
Interface
Appearance
Board Size
52(L)×19.5(W) (mm)
HDMI Input
M1 User Manual
57
Connector
Standard HDMI-A socket
Supported
Resolutions
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 | 1080i50/59.94/60,
720p50/59.94/60
VESA: 800×600@60 | 1024×768@60 | 1280×720@60 | 1280×800@60
| 1280×960@60 | 1280×1024@60 | 1400×1050@60 | 1600×1200@60
| 1920×1080@60 | 1920×1200@60
Signal Level
TMDS pwl, single pixel input, 165MHz bandwidth
Format Standard
HDMI 1.3
HDMI Loop Out
Connector
HDMI standard type A interface
Supported
Resolutions
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 | 1080i50/59.94/60,
720p50/59.94/60
VESA: 800×600@60 | 1024×768@60 | 1280×720@60 | 1280×800@60
| 1280×960@60 | 1280×1024@60 | 1400×1050@60 | 1600×1200@60
| 1920×1080@60 | 1920×1200@60
Format Standard
HDMI 1.3
HDMI PVW&PGM Output Module
（
Optional
）
Interface
Appearance
Connector
HDMI- A
Number of Outputs
1
Supported
Resolutions
SMPTE:720p@50/59.94/60 | 1080p@50/59.94/60
VESA: 1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×
768@60 | 1920×1080@60
Format Standard
HDMI 1.3
SDI Output Module
（
Optional
）
Connector
HDMI-A；BNC
Number of Outputs
3
Supported
Resolutions
HDMI
SMPTE:720p@50/59.94/60 | 1080p@50/59.94/60
VESA: 1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×
768@60 | 1920×1080@60
SDI
SMPTE: 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 |
1080p@50/59.94/60
Supported Standard
HDMI 1.3
SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M |
M1 User Manual
58
SMPTE 259M-C | DVB-ASI
USB3.0 Output Module
（
Optional
，
with SDI installed
）
Interface
Appearance
Connector
HDMI-A；BNC；USB
Number of Outputs
4
Supported
Resolutions
HDMI
SMPTE:720p@50/59.94/60 | 1080p@50/59.94/60
VESA: 1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×
768@60 | 1920×1080@60
SDI
SMPTE: 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 |
1080p@50/59.94/60
USB3.0
1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@60
USB 3.0 Output Module（Optional，without SDI installed）
Interface
Appearance
Connector
HDMI
；
USB
Number of Outputs
3
Supported
Resolutions
HDMI
SMPTE:720p@50/59.94/60 | 1080p@50/59.94/60
VESA: 1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×
768@60 | 1920×1080@60
USB3.0
1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@60
USB 3.0 Output Module with blade (Optional,with SDI installed)
Interface
Appearance
Connector
USB -A
Number of Outputs
1
Supported
Resolutions
USB3.0
1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@60
USB 3.0 Output Module withblade (Optional,without SDI installed)
Interface
Appearance
M1 User Manual
59
Connector
USB -A
Number of Outputs
1
Supported
Resolutions
USB3.0
1024×768@60 | 1280×720@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@60
Genlock Interface
Connector
BNC
Number of Inputs
1
Supported
Resolution
480I,576I,1080I/59.94,1080i/50,720p/59.94,720p/50,1080P50/1080P5
9, 94/1080P60,1080psf/23.98,1080psf/24
Audio Codes
SNR
114db
ADC/DAC
Resolution
24 bits
Connector
RCA,3.5mm PHONE
Conversion
Efficiency
216ksps
Extras
Power Supply
AC 85-264V 50/60Hz
Working
Environment
-25
°
C - 55
°
C
Stored Environment
10 - 90% RH
Product Warranty
3 years parts and labor warranty
M1 User Manual
60
7.2 Terms & Definitions
The following terms and definitions are used throughout this guide.
“ASCII”: American Standard for Information Interchange. The standard code consisting of
7-bit coded characters (8 bits including parity check) used to exchange information
between data processing systems, data communication systems, and associated equipment.
The ASCII set contains control characters and graphic characters.
“Aspect ratio”: The relationship of the horizontal dimension to the vertical dimension of an
image. In viewing screens, standard TV is 4:3, or 1.33:1; HDTV is 16:9, or 1.78:1. Sometimes
the “:1” is implicit, making TV = 1.33 and HDTV = 1.78.
“AV”: Audio visual, or audio video.
A “Background” is an unscaled source, typically originating from a computer. A background
source appears at the system’s lowest priority — visually in back of all other sources.
“Baudrate”: Named of J.M.E. Baudot, the inventor of the Baudot telegraph code. The
number of the electrical oscillations per second, called baud rate. Related to, but not the
same as, transfer rate in bits per second (bps).
“Blackburst”: The video waveform without the video elements. It includes the vertical sync,
horizontal sync, and the chroma burst information. Blackburst is used to synchronize video
equipment to align the video output. One signal is normally used to set up an entire video
system or facility. Sometimes it is called House sync.
“BNC”: Bayonet Neill-Concelman. A cable connector used extensively in television and
named for its inventors. A cylindrical bayonet connector that operates with a twist-locking
motion. To make the connection, align the two curved grooves in the collar of the male
connector with the two projections on the outside of the female collar, push, and twist.
This allows the connector to lock into place without tools.
“Brightness”: Usually refers to the amount or intensity of video light produced on a screen
without regard to color. Sometimes called “black level.
“CAT 5”: Category 5. Describes the network cabling standard that consists of four
unshielded twisted pairs of copper wire terminated by RJ-45 connectors. CAT 5 cabling
supports data rates up to 100 Mbps. CAT 5 is based on the EIA/TIA 568 Commercial
Building Telecommunications Wiring Standard.
“Color bars”: A standard test pattern of several basic colors (white, yellow, cyan, green,
magenta, red, blue, and black) as a reference for system alignment and testing. In NTSC
video, the most commonly used color bars are the SMPTE standard color bars. In PAL video,
the most commonly used color bars are eight full field bars. In the computer, the most
commonly used color bars are two rows of reversed color bars.
“Color burst”: In color TV systems, a burst of subcarrier frequency located on the back
porch of the composite video signal. This serves as a color synchronizing signal to establish
a frequency and phase reference for the chroma signal. Color burst is 3.58 MHz for NTSC
and 4.43 MHz for PAL.
“Color temperature”: The color quality, expressed in degrees Kelvin(K), of a light source.
The higher the color temperature, the bluer the light. The lower the temperature, the
redder the light. Benchmark color temperature for the A/V industry include 5000°K, 6500°K,
M1 User Manual
61
and 9000°K.
“Contrast ratio”: The radio of the high light output level divided by the low light output level.
In theory, the contrast radio of the television system should be at least 100:1, if not 300:1.
In reality, there are several limitations. In the CRT, light from adjacent elements
contaminate the area of each element. Room ambient light will contaminate the light
emitted from the CRT. Well-controlled viewing conditions should yield a practical contrast
ratio of 30:1 to 50:1.
“DVI”: Digital Visual Interface. The digital video connectivity standard that was developed by
DDWG (Digital Display Work Group). This connection standard offers two different
connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that handles both digital and analog video.
“EDID”: Extended Display Identification Data – EDID is a data structure used to communicate
video display information, including native resolution and vertical interval refresh rate
requirements, to a source device. The source device will then output the optimal video
format for the display based on the provided EDID data, ensuring proper video image
quality. This communication takes place over the DDC – Display Data Channel.
“Ethernet”: A Local Area Network (LAN) standard officially known as IEEE 802.3. Ethernet
and other LAN technologies are used for interconnecting computers, printers, workstations,
terminals, servers, etc. within the same building or campus. Ethernet operates over twisted
pair and over coaxial cable at speeds starting at 10Mbps. For LAN interconnectivity,
Ethernet is physical link and data link protocol reflecting the two lowest layers of the OSI
Reference Model.
“Frame”: In interlaced video, a frame is one complete picture. A video frame is made up of
two fields, or two sets of interlaced lines. In a film, a frame is one still picture of a series
that makes up a motion picture.
“Gamma”: The light output of a CRT is not linear with respect to the voltage input. The
difference between what you should have and what is actually output is known as gamma.
“HDMI” - High – Definition Multimedia Interface: An interface used primarily in consumer
electronics for the transmission of uncompressed high definition video, up to 8 channels of
audio, and control signals, over a single cable. HDMI is the de facto standard for HDTV
displays, Blu-ray Disc players, and other HDTV electronics. Introduced in 2003, the HDMI
specification has gone through several revisions.
“HDSDI”: The high-definition version of SDI specified in SMPTE-292M. This signal standard
transmits audio and video with 10 bit depth and 4:2:2 color quantization over a single
coaxial cable with a data rate of 1.485 Gbit/second. Multiple video resolutions exists
including progressive 1280x720 and interlaced 1920x1080 resolution. Up to 32 audio
signals are carried in the ancillary data.
“JPEG” (Joint photographic Expects Group): Commonly used method of lossy compression
for photographic images using a discreet cosine transfer function. The degree of
compression can be adjusted, allowing a selectable tradeoff between storage size and
image quality. JPEG typically achieves 10:1 compression with little perceptible loss in image
quality. Produces blocking artifacts.
“MPEG”: Motion Picture Expect Group. A standard committee under the auspices of the
International Standards Organization working on algorithm standards that allow digital
M1 User Manual
62
compression, storage and transmission of moving image information such as motion video,
CD-quality audio, and control data at CD-ROM bandwidth. The MPEG algorithm provides
inter-frame compression of video images and can have an effective compression rate of
100:1 to 200:1.
“NTSC”: The color video standard used in North America and some other parts of the world
created by the National Television Standards Committee in the 1950s. A color signal must
be compatible with black-and-white TV sets. NTSC utilizes an interlaced video signals, 525
lines of resolution with a refresh rate of 60 fields per second (60 Hz). Each frame is
comprised of two fields of 262.5 lines each, running at an effective rate of 30 frames per
second.
“Operator”: Refers to the person who uses the system.
“PAL”: Phase Alternate Line. A television standard in which the phase of the color carrier is
alternated from line to line. It takes four full pictures (8 fields) for the color-to-horizontal
phase relationship to return to the reference point. This alternation helps cancel out phase
errors. For this reason, the hue control is not needed on a PAL TV set. PAL, in many
transmission forms, is widely used in Western Europe, Australia, Africa, the Middle East,
and Micronesia. PAL uses 625-line, 50-filed (25 fps) composite color transmission system.
“PIP”: Picture-in-Picture. A small picture within a larger picture created by scaling down one
of the images to make it smaller. Each picture requires a separate video source such as a
camera, VCR, or computer. Other forms of PIP displays include Picture-by-Picture (PBP)
and Picture-with-Picture (PWP), which are commonly used with 16:9 aspect display devices.
PBP and PWP image formats require a separate scaler for each video window.
“Polarity”: The positive and negative orientation of a signal. Polarity usually refers to the
direction or a level with respect to a reference (e.g. positive sync polarity means that sync
occurs when the signal is going in the positive direction).
“RJ-45”: Registered Jack-45. A connector similar to a telephone connector that holds up to
eight wires, used for connecting Ethernet devices.
“RS-232”: An Electronic Industries Association (EIA) serial digital interface standard
specifying the characteristics of the communication path between two devices using either
DB-9 or DB-25 connectors. This standard is used for relatively short-range communication
and does not specify balanced control lines. RS-232 is a serial control standard with a set
number of conductors, data rate, word length, and type of connector to be used. The
standard specifies component connection standards with regard to the computer interface.
It is also called RS-232-C, which is the third version of the RS-232 standard, and is
functionally identical to the CCITT V.24 standard.
“Saturation”: Chroma, chroma gain. The intensity of the color, or the extent to which a given
color in any image is free from white. The less white in a color, the truer the color or the
greater its saturation. On a display device, the color control adjusts the saturation. Not to
be confused with the brightness, saturation is the amount of pigment in a color, and not
the intensity. Low saturation is like adding white to the color. For example, a low-saturated
red looks pink.
“Scaling”: A conversion of a video or computer graphic signal from a starting resolution to a
new resolution. Scaling from one resolution to another is typically done to optimize the
signal for input to an image processor, transmission path or to improve its quality when
M1 User Manual
63
presented on a particular display.
“SDI”: Serial Digital Interface. The standard based on a 270 Mbps transfer rate. This is a
10-bit, scrambled, polarity independent interface with common scrambling for both
component ITU-R 601 and composite digital video and four channels of (embedded) digital
audio.
“Seamless Switching”: A feature found on many video switchers. This feature causes the
switcher to wait until the vertical interval to switch. This avoid a glitch (temporary
scrambling) which normally is seen when switching between sources.
“SMPTE”: Society of Motion Picture and Television Engineers. A global organization, based in
the United States, that sets standards for baseband visual communications. This includes
film as well as video and television standards.
“S-Video”: A composite video signal separated into the luma (“Y” is for luma, or black and
white information; brightness) and the chroma (“C” is an abbreviation for chroma, or color
information).
“Sync”: Synchronization. In video, sync is a means of controlling the timing of an event with
respect to other events. This is accomplished with timing pulses to insure that each step in
a process occurs at the correct time. For example, horizontal sync determines exactly when
to begin each horizontal scan line. Vertical sync determines when the image is to be
refreshed to start a new field or frame. There are many other types of sync in video
system.(Also known as “sync signal” or “sync pulse.”)
“TCP/IP”: Transmission Control Protocol/Internet Protocol. The communication protocol of
the Internet. Computers and devices with direct access to the Internet are provided with a
copy of the TCP/IP program to allow them to send and receive information in an
understandable form.
“USB”: Universal Serial Bus. USB was developed by seven PC and telecom industry leaders
(Compaq, DEC, IBM, Intel, Microsoft, NEC, and Northern Telecom). The goal was easy
plug-and-play expansion outside the box, requiring no additional circuit cards. Up to 127
external computer devices may be added through a USB hub, which may be conveniently
located in a keyboard or monitor. USB devices can be attached or detached without
removing computer power. The number of devices being designed for USB continues to
grow, from keyboards, mice, and printers to scanners, digital cameras, and ZIP drives.
“VESA”: Video Electronics Standards Association. A nonprofit number organization
dedicated to facilitating and promoting personal computer graphics through improved
standards for the benefit of the end-user. www.vesa.org
“VGA”: Video Graphics Array. Introduced by IBM in 1987, VGA is an analog signal with TTL
level separate horizontal and vertical sync. The video outputs to a 15-pin HD connector and
has a horizontal scan frequency of 31.5 kHz and vertical frequency of 70 Hz (Mode 1, 2)
and 60 Hz (Mode 3). The signal is non-interlaced in modes 1, 2, and 3 and interlaced when
using the 8514/A card (35.5 kHz, 86 Hz) in mode 4. It has a pixel by line resolution of
640×480 with a color palette of 16 bits and 256,000 colors.
“YCrCb”: Used to describe the color space for interlaced component video.
“YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component
video.
M1 User Manual
64
7.3 Revision History
The table below lists the changes to the M1 User Manual.
Format
Time
ECO#
Description
Principal
V1.0
2018-07-09
0000#
Release
Lydia
V1.1
2020-12-07
0001#
Revise
Sylvia
V1.2
2022-08-09
0002#
Add NDI module
Aster
V1.3
2022-08-25
0003#
Add NDI Input Setting
Aster
All information herein is © Xiamen RGBlink Science & Technology Co Ltd. excepting where noted.
RGBlink®is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all effo
rts are made for accuracy at time of printing, we reserve the right to alter, vary or otherwise mak
e change without notice. E&OM excepted.
