Model# 048-OPAC-9H
Read all instructions before use this device.
Product appearance and color may vary from pictures.
Keep the manual properly for future reference.
PORTABLE AIR CONDITIONER
3
1. BEFORE YOU BEGIN
1.1 PRODUCT DESCRIPTION
Our powerful portable air conditioners are great cooling solutions for
single rooms, creating a comfortable atmosphere in your space. It also
has ventilation and dehumidifying function for circulating air and removal
of moisture. They're self-contained systems that do not require any
permanent installation allowing you to move to the space in which it is
most needed. They're commonly used in kitchen, temporary-resided,
computer rooms, garages, and many other places where installation of
Air-conditioner Outdoor Unit is limited.
The environmentally friendly R32 is used as the refrigerant. R32 has no
damaging influence on the ozone layer (ODP), a negligible greenhouse
effect (GWP) and is available worldwide. Because of its efficient energy
properties, R32 is highly suitable as a coolant for this application. Special
precautions must be taken into consideration due to the coolant's high
flammability.
1.2 SYMBOLS FROM THE UNIT AND USER MANUAL
warning
This unit uses a flammable refrigerant.
If refrigerant leaks and comes in contact with fire or heating
part, it will create harmful gas and there is risk of fire.
Read the USER MANUAL carefully before operation.
4
Fu
rther information is available in the USER MANUAL,
SERVICE MANUAL, and the like.
Service personnel are required to carefully read the USER
MANUAL and SERVICE MANUAL before operation.
5
THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
This appliance is intended to be used by expert or trained users in
shops, in light industry and on farms, or for commercial use by lay
persons.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a
s
afe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
The unit is designed only for use with R32 gas as the
designated refrigerant.
The refrigerant loop is sealed. Only a qualified technician
should attempt to service!
Do not discharge the refrigerant into the atmosphere.
R32 gas is flammable and heavier than air.
It collects first in low areas but can be circulated by the fans.
If R32 gas is present or even suspected, do not allow
untrained personnel to attempt to find the cause.
The R32 gas used in the unit has no odor.
The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from
the store, ventilate the room and contact the local fire
department to advise them that a R32 gas leak has occurred.
Do not let any persons back into the room until the qualified
service technician has arrived, and that technician advises
that it is safe to return to the room.
No open flames, cigarettes or other possible sources of
ignition should be used inside or in the vicinity of the units.
Component parts are designed for R32 gas and non-flammable and
6
non-sparking. Component parts shall only be replaced with identical
repair parts.
FAILURE TO ABIDE BY THESE WARNING COULD RESULT IN AN
EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.
Model Number
Cooling Capacity (Ashrae)(BTU/h)
Heating Capacity (BTU/h)
Power supply source
Overall Dimension(inch)
NW(lbs)
Recommended Room Size (Up To)(Sq. Ft.)
Dehumidification (Per Day)(Pint)
Noise Level (Hi/Mi/Lo)(dBa)
Refrigerant/Charge
048-OPAC-9H
14,000
11500
115V~60Hz/1PH
550
68
56/55/54
R32/15.16oz
17.3
x 13.2 x 26.2
63.9
Technical Specification
7
2. FOR YOUR SAFETY
Your safety is the most important thing we concerned!
2.1 OPERATIONAL PRECAUTIONS
WARNING- to reduce the risk of fire, electric shock or injury to
persons or property:
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
The appliance shall be disconnected from its power source during
service.
Always operate the unit from a power source of equal voltage,
frequency and rating as indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the
unit.
Do not immerse or expose the unit to rain, moisture or any other
liquid.
Do not leave the unit running unattended. Do not tilt or turn over the
unit.
Do not unplug while the unit is operating.
WARNING
Please read this manual carefully and fully
understand it before operating your appliance.
8
Do not unplug by pulling on the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or showing signs of
product malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive
objects.
The unit shall be installed in accordance with national wiring
regulations.
Do not use means to accelerate the defrosting process or to clean,
other than those recommended by the manufacture.
The appliance shall be stored in a room without continuously operation
sources (for example: open flames, an operating gas appliance or an
operating electric heater).
The appliance shall be stored so as to prevent mechanical damage
from occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odor.
Pipe-work shall be protected from physical damage and shall not be
installed in an unventilated space, if that space is smaller than 4 m².
Compliance with national gas regulations shall be observed.
9
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room
s
ize corresponds to the room area as specified for operation.
W
ARNING
Any person who is involved with working on or breaking
into a refrigerant circuit should hold a current valid
certificate from an industry-accredited assessment
authority, which authorizes their competence to handle
refrigerants safely in accordance with an industry,
recognized assessment specification.
W
ARNING
Servicing shall only be performed as recommended by
the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel shall
be carried out under the supervision of the person
competent in the use of flammable refrigerants.
If you don't understand something or need help, please contact the dealer
services.
10
2.2 SAFETY PRECAUTIONS ON SERVICING
Please follow these warnings when to undertake the following when
servicing an appliance with R32.
2.2.1 Checks to the area
Prior to beginning work on systems containing flammable refrigerants,
safety checks are necessary to ensure that the risk of ignition is
minimized. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the
system.
2.2.2 Work procedure
Work shall be undertaken under a controlled procedure so as to minimize
the risk of a flammable gas or vapor being present while the work is being
performed.
2.2.3 General work area
All maintenance staff and others working in the local area shall be
instructed on the nature of work being carried out. Work in confined
spaces shall be avoided. The area around the work space shall be
sectioned off. Ensure that the conditions within the area have been made
safe by control of flammable material.
2.2.4 Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to
and during work, to ensure the technician is aware of potentially
flammable atmospheres. Ensure that the leak detection equipment being
used is suitable for use with flammable refrigerants, i.e. no sparking,
adequately sealed or intrinsically safe.
2.2.5 Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be
available to hand. Have a dry powder or CO2 fire extinguisher adjacent to
the charging area.
11
2.2.6 No ignition sources
No person carrying out work concerning a refrigeration system that
involves exposing any pipe work that contains or has contained flammable
refrigerant shall use any sources of ignition in such a manner that it may
lead to the risk of fire or explosion. All possible ignition sources, including
cigarette smoking, should be kept sufficiently far away from the site of
installation, repairing, removing and disposal, during which flammable
refrigerant can possibly be released to the surrounding space. Prior to
work taking place, the area around the equipment is to be surveyed to
make sure that there are no flammable hazards or ignition risks. “No
Smoking” signs shall be displayed.
2.2.7 Ventilated area
Ensure that the area is in the open or that it is adequately ventilated
before breaking into the system or conducting any hot work. A degree of
ventilation shall continue during the period that the work is carried out.
The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
2.2.8 Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the
purpose and to the correct specification. At all times the manufacturer’s
maintenance and service guidelines shall be followed. If in doubt, consult
the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable
refrigerants:
– The charge size is in accordance with the room size within which the
refrigerant containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are
not obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit
shall be checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings
and signs that are illegible shall be corrected;
12
– refrigeration pipe or components are installed in a position where they
are unlikely to be exposed to any substance which may corrode
refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded
or are suitably protected against being so corroded.
2.2.9 Checks to electrical devices
Repair and maintenance to electrical components shall include initial
safety checks and component inspection procedures. If a fault exists that
could compromise safety, then no electrical supply shall be connected to
the circuit until it is satisfactorily dealt with. If the fault cannot be
corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the
owner of the equipment so all parties are advised.
Initial safety checks shall include:
-those capacitors are discharged: this shall be done in a safe manner to
avoid possibility of sparking;
-that there no live electrical components and wiring are exposed while
charging, recovering or purging the system;
-that there is continuity of earth bonding.
WARNING!
Install the unit in rooms which exceed 4 m².
Do not install the unit in a place where inflammable gas
may leak.
NOTE!
The manufacture may provide other suitable example or
may provide additional information about the refrigerant
odour.
13
3. PRODUCT OVERVIEW
3.1 PRODUCT DIAGRAM
1
Control panel
4
Air inlet with
air filter
7
Drain opening
with sealing plug
2
Air outlet with
adjustable
louver
5
Recessed
handle
8
Castor
3
Front Panel
6
Air Exhaust
Note: The appearance is only for reference. Please see the real product
for detailed information.
14
3.2
FEATURES
High Capacity in a compact size with cooling, dehumidifying
and fan function.
Temperature setting and display
LED Digital display
Electronic control with built-in timer, sleep mode
Self-evaporating system for better efficient
Auto shut off when tank full
Automatic restart in the event of power outage
Auto defrosting function
at low ambient temperatures
Remote control
3- speed fan
Casters for easy mobility
15
4. INSTALLATION
4.1 UNPACKING
Unpack the carton and take the appliance and accessories out.
Check the device after unpacking for any damage or scratches on
it.
Accessories:
1. Exhaust hose
2. Hose connector
3. Window kit adapter
4. Remote control
5. Drainage pipe
6.
Window Kit
16
4.2 Choose your location
If tipped more than 45°, allow the
unit to set upright for at least 24
hours before starting up.
Place the unit on a firm, level surface
in an area with at least 50cm of free
space around it to allow for proper air
circulation.
Do not operate near to walls,
curtains, or other objects that may
block air inlet and outlet. Keep the air
inlet and outlet free of obstacles.
Never install the unit where it could be subject to：
H
eat sources such as radiators, heat registers, stoves or other
products that products that produce heat.
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinet or bookcase
Uneven surface
WARNING!
Install the unit in rooms which exceed 4 m².
Do not install the unit in a place where inflammable gas
may leak.
NOTE!
The manufacture may provide other suitable example or
may provide additional information about the refrigerant
odor.
17
4.3 ATTACH THE EXHAUST HOSE
The air conditioner requires being vented outside so that the exhaust air
can escape the room which coming from the appliance contains waste heat
and moisture.
Do not replace or extend exhaust hose which will result in decreased
efficiency, even worse shut down the unit due to low back pressure.
Step 1: Connect the hose connector to one end of the exhaust hose.
St
ep 2: Connect the windows kit adapter to the other end of the
exhaust hose.
Step 3: Extend the adjustable window kit the length of your window.
Connect the exhaust hose to the window kit.
18

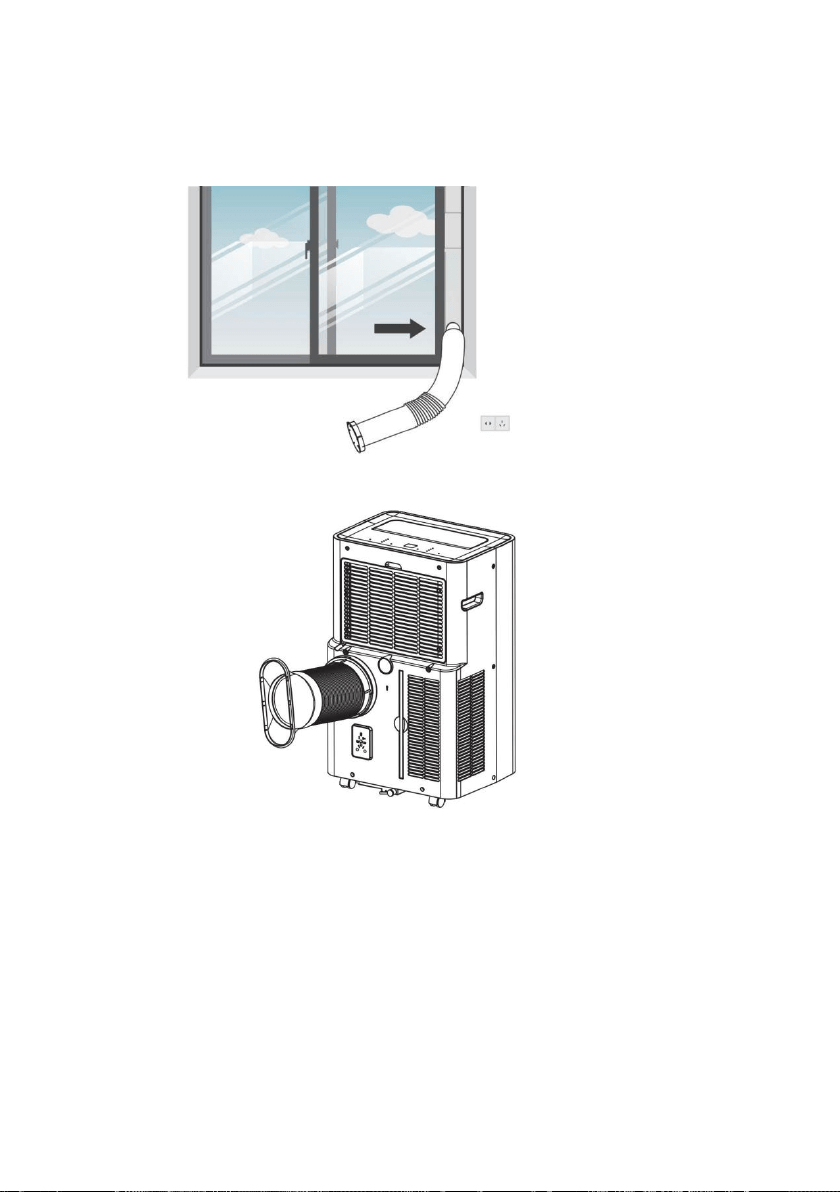

Step 4: Close your window to secure the kit in place. It needs to hold the
windows kit firmly in place, secure the window kit with duct tape if required.
It is
recommended that t
he gap between the adapter and the sides of the window
should be sealed off for maximum efficiency.
Step 5: Attach the hose connector to the exhaust air outlet of unit.
Step 6: Adjusting the length of the flexible exhaust hose, to make sure the
distance between the unit and the window will be more than 70cm, height from
exhaust hose to the floor will be more than 90cm. And avoid bends in the hose.
Then place AC near an electrical outlet.
19

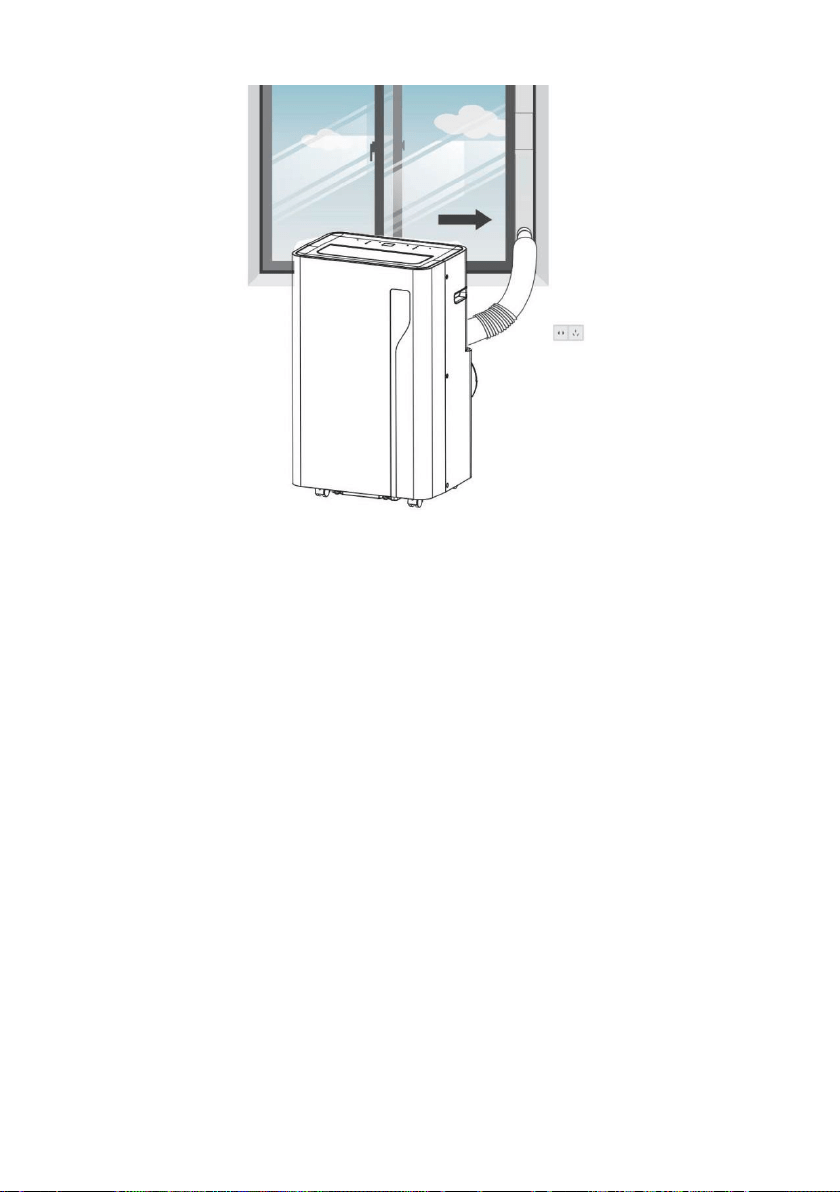

Step 7: Adjust the louver at the air outlet, and then switch on the
unit.
20
This product must be grounded.lf it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to
reduce the risk of electric shock.
The circuit breaker should be tested periodically by pressing the TEST
button. lf it does not cause the circuit breaker to trip, or if the RESET
button will not stay engaged, unplug the unit immediately and contact
your service technician.
For additional safety, the power cord features an integrated circuit
breaker, Test and reset the buttons are provided on the plug case.
Installation Guide
Grounding
CAUTION! WARNING: lmproper connection of the equipment
grounding conductor can result in a risk of electric shock. Check with
a qualifed electrician or serviceman if you are in doubt as to whether
the product is properly grounded.
CAUTION! WARNING: DO NOT modify the plug provided with
the product if it does not fit the outlet. Have a proper outlet installed
by a qualified electrician.
21
5. OPERATION
5.1 CONTROL PANEL AND DISPLAY
1. POWER Press to switch the machine on or off.
2. MODE
Press to switch the operation mode between cool,
dry, fan and heat.
3.
MODE
Indicator
This display the Mode Setting between cool, dry, fan
and heat.
4.
SLEEP
Press to turn sleep mode on or off.
5. DOWN Decreasing the desired temperature or timer setting.
6.
SWING
Adjust the air flow direction vertically.
7. SPEED
Press to switch the fan speed in HIGH
、
middle and
LOW.
8. Indicators LED for fan speed and WIFI.
9. TIMER Sets a time for the unit to automatically start or stop.
10. UP
Increasing the desired temperature or timer
setting.
11.
Digital
Display
Displays timer setting and temperature.
22
Information on the App “DELLA+”
The “DELLA+” app is available for android and iOS.
Scan the corresponding QR code to get directly to the download.
Information on How to Use the App
This appliance allows you to operate the appliance via your home
network. A prerequisite is a permanent WIFI connection to your
router and the free app “DELLA+”.
1. Install the “DELLA+” app. Create a user account.
2. Activate the WIFI function in the settings of your appliance.
3. Place the appliance at a distance of about 5 meters to your
router.
4. Long press the “timer” button to start the network configuration,
when the WIFI indicator flashes, you can connect the WIFI. After 3
minutes, the status will be canceled if there is no network
configuration, and the indicator light is off. If you need to re-
connect the WIFI, long press the “timer” button for 5 Second to
start the network configuration, the WIFI indicator flashes again.
WIFI Connected
● Method 1
Connected via Bluetooth
Open the Bluetooth of your mobile phone or other device.
When WIFI indicator flashes, open “DELLA+” APP, the unit will
connect via Bluetooth automatically.
23
● Method 2
When WIFI indicator flashes, select “Add Device”-“Large Home
Appliances”-“Portable Air Conditioner”, and follow the
instructions on the display.
Check the status of the WIFI indicator and choose the correct status.
If the WIFI indicator flash rapidly, it can connect directly.
If the WIFI indicator flash slowly, press “Go to Connect” to
connect the WIFI named “SmartLife-XXXX”, then back to the
APP, the WIFI will connect ok.
Remarks:
Once the appliance has been successfully connected, the WIFI lamp
lights up. Now you can operate the appliance using the app.
Press and hold the Timer button for about 5 seconds, the appliance
disconnects, the WIFI lamp lights off.
24
5.2 REMOTE CONTROL
25
5.3 SETTINGS
5.3.1 Start-up and Shutdown
Press POWER to turn on the unit.
Press MODE button to select the desired operation mode.
Press POWER again to turn off the power.
5.3.2 Operation mode
The unit has four operation modes: Cool, dehumidifier, fan, sleep.
The unit working temperature under cooling mode is 61℉-95℉.
The unit working temperature under heating mode is 41℉-81℉.
A. Cooling your room
Select the cool mode to lower the temperature in your room.
Press MODE button repeatedly until the COOL indicator lights up.
Press Up/Down button to adjust the temperature which is displayed on
the screen. The temperature can be set between 61℉ and 90℉.
Press SPEED button repeatedly until the desired fan speed indicator lights
up.
To control the direction of the air flow horizontally, please adjust the
inner louver by hand.
Note： The air conditioner stops if the room temperature is lower than
selected temperature.
B. Heating your room (Optional for Heating Function
Unit only)
Press MODE button repeatedly until the HEAT indicator lights up.
Press Up/Down button to set the temperature higher than the room
temperature. The fan speed can also be set.
Note: The drainage hose should be attached to the unit for continuous
operating.
C. Ventilating your room
Press MODE button repeatedly until the FAN indicator lights up.
In ventilation mode the room air is circulated, but not cooled.
Press SPEED button repeatedly to select the fan speed as desired.
26
D. Drying your room
Press MODE button on the control panel or remote control, the dry
indicator lights up. The fan speed is unable to select. User should
connect the hose to the drain outlet at the bottom of the unit.
Note: In this mode, the fan speed switches over to low speed and cannot
be selected.
E. Sleep mode（this function can only be used with a
remote control）
The sleep mode can be activated when in cool mode.
In cool mode:
After 1 hour the preset temperature is increased by 2℉, after another
hour the preset temperature will again be increased by 2℉.
In heat mode（Optional for Heating Function Unit only):
After 1 hour the preset temperature is decreased by 2℉, after another
hour the preset temperature will again be decreased by 2℉.
Then the temperature is kept constant for 10 hours. And all the indicators dim
to dark. The fan speed may switch over to low speed for silent operating and
cannot be selected.
27
5.3.3 TIMER SETTING（1hour-24hours）:
The timer has two ways of operation:
To turn off
(When power on)
To turn on
(When power off)
Cancel timer
5.3.4 Automatic Defrost
At low room temperatures, frost may build up at the evaporator during operation.
The unit will automatically start defrosting and the POWER LED blinking. The
defrost control sequence is as follows:
A. When the unit operates in the cooling and drying operation, and the ambient
temperature sensor senses the evaporator coil temperature is below 30℉,
after the compressor will stop operating for 10 minutes or the co
il
t
emperature up to 44℉, the unit restart to cool operating mode.
B. When the unit operates in the drying operation, once the coil temperatur
e
s
ensor senses the temperature of the evaporator is below 104℉ and the
differential temperature between coil temperature and room temperature is
below 66℉ after the compressor operation for 20minutes, the unit star
t
d
efrosting for 5 minutes and the power indicator blinking.
5.3.5 Overload Protection
In the event of a power loss, there is a 3-minute delay to protect the compressor
before it restarts.
Press Timer key to
turn on the timer
function.
Press Timer key to
turn on the timer
function.
Press Up /Down
repeatedly to set the
delay OFF time.
Press Up /Down
repeatedly to set the
delay ON time.
Press Up /Down repeatedly until the LED shows ‘00’.
Note: when press POWER will also exit the timer setting.
28
5.4 DRAINAGE
Manual drainage:
1）When the machine stops after the water is full, please unplug the power
plug.
Notes: Please move the machine carefully, so as not to spill the water in the
water pan at the bottom of the body.
2）
Place the water container below the side water outlet behind the body.
3）
Unplug the water plug, the water will automatically flow into the water
container.
N
otes:
1. Keep the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water before the water container is
full, stuff the water outlet with the water plug as soon as possible to prevent
water from flowing to the floor or the carpet.
4）
When the water is discharged, stuff the water plug.
Notes: 1. Restart the machine after the water plug and drainage cover are
in
stalled, otherwise the water inside the machine will flow to the floor or the
carpet.
29
Continuous drainage
The self-evaporating system uses the collected water to cool the
condenser coils for better efficient performance. It is no need to empty
the drainage tank in cooling operation except in drying operation and
high humidity conditions. The condensate water evaporates at the
condenser and evacuated through the exhaust hose.
For continuous operation or unattended operating in drying operation,
please connect the attached drain hose to the unit. Condensate water
can automatically flow into a bucket or drain by gravity.
Switch off the unit before
operating.
Remove the plug of the water
outlet opening, and keep it in
safe area.
Securely and properly connect
the drain hose and make sure it
is not kinked and clear o
f
obstruction.
Place the outlet of hose over a
drain or bucket and ensure that
water could freely flow out of the
unit.
Do not submerge the end of hose
into water; otherwise, it can
cause "Air Lock" in the hose.
To avoid water spillage:
• As the negative pressure of condensation drain pan is large, tilt the
drain hose downward toward the floor. It is appropriate that the
degree of inclination should exceed 20 degrees.
• Straighten the hose to avoid a trap existing in the hose.
30
6. CLEANING AND CARE
6.1. CLEANING THE AIR FILTER (every two weeks)
Dust collects on the filter and restricts the airflow. The restricted airflow
r
educes the efficiency of the system and if it becomes blocked it can
cause damage to the unit.
The air filter requires regular cleaning. The air filter is removable for
easy cleaning. Do not operate the unit without an air filter, or the
evaporator may be contaminated.
1.
Press POWER button to switch off the unit and unplug the power cord.
2.
Remove the filter mesh from the unit.
3.
Use a vacuum cleaner to suck dust from the filter.
4.
Turn the filter over and rinse the air filter under running water. Let the
water run through the filter in the opposite direction of air flow. Set aside
and allow the filter to air dry completely before reinstalling.
Switch off the unit and remove the air filters.
Rinse the air filter under running water.
Warning!!!
Do not touch the evaporator surface with bare-hand, or could cause
injury of your fingers.
31
6.2. CLEANING UP OF REFRIGERANT
General Measures:
1. Gas/vapor heavier than air. May accumulate in confined spaces,
particularly at or below ground level.
2. Eliminate every possible source of ignition.
3. Use appropriate personal protection equipment (PPE).
4. Evacuate unnecessary personnel, isolate, and ventilate area.
5. Do not get in eyes, on skin, or on clothing. Do not breathe vapors or
gas.
6. Prevent entry to sewers and public waters.
7. Stop the source of the release, if safe to do so. Consider the use o
f
water spray to disperse vapors.
8. Isolate the area until gas has dispersed. Ventilate and gas test are
a
b
efore entering. Contact competent authorities after a spill.
32
7. TROUBLESHOOTING
Symptom Inspection Solution
The unit is not
operating.
Check the power
connection in securely.
Insert the power cord
securely into the wall Outlet.
Check if the water level
indicator lights up?
Empty the drain pan by
remove the rubber plug.
Check the room
temperature.
The range of operating
temperature is 41−95
℉
.
The unit
works with
reduced
capacity.
Check the air filter for dirt.
Clean the air filter as
necessary.
Check if the air duct is
blocked.
To clear the obstacle.
Check if the room door or
window is open.
Keep the door and windows
closed.
Check if the desired
operating mode is selected
and the temperature is
properly set.
Set the mode and
temperature at proper set-
point according the manual.
The exhaust hose is
detached.
Make sure the exhaust hose is
securely attached.
Water
Leakage
Overflow while moving the
unit.
Empty the water tank before
transport.
Check if the drain hose is
kinked or bends.
Straighten the hose to avoid a
trap existing.
Excessive
Noise
Check if the unit is
securely positioned.
Place the unit on horizontal
and firm ground.
Check if any loose,
vibrating parts.
Secure and tight the parts.
Noise sounds like water
flowing.
Noise comes from flowing
refrigerant. This is normal.
Error
Codes
00/E0
Communication faults
between main PCB and
display PCB.
Check the wire harness of the
display PCB for damage.
E1
Ambient temperature
sensor failure
Check connection or replace
it. To clean or replace the
temperature sensor.
E2
Coil temperature sensor
failures.
Check connection or replace
it. To clean or replace the
temperature sensor.
Ft
Condensate water high
level alarm.
Empty the drain pan by
removal the rubber plug.
33
8. DECOMMISSIONING
8.1. STORAGE
Long-Term Storage - If you will not be using the unit for an extended
period of time (more than a few weeks) it is best to clean the unit
and dry it out completely. Please store the unit per the following
steps:
8.2. DISPOSAL
WARNING!!!
Releasing refrigerant into atmosphere is strictly
forbidden!
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities. Contact your local
government for information regarding the
collection systems available. If electrical
appliances are disposed of in landfills or
dumps, hazardous substances can leak into
the groundwater and get into the food
chain, damaging your health and well-being.
1. Unplug the unit and remove exhaust hose and window kit store with the
unit.
2. Drain the remaining water from the unit.
3. Clean the filter and let the filter dry completely in a shaded area.
4. Re-install the filter at its position.
5. The unit must be kept in upright position when in storage.
6. Preserving the machine in ventilating, dry, and safe place indoor.
ATTENTION:
The evaporator inside the machine must
be dried out before the unit is packed to
avoid component damage and molds. Unplug the unit and place it in a dry open
area for days to dry it out. Another way to dry the unit is turn on the machine,
adjust it to low-wind ventilation mode, and maintain th
is state until the drainage
pipe becomes dry, to
keep the inside of the body in a dry state and prevent it from
mildewing.
