Two Handle Roman Tub Bathroom Faucet
STANDARDS

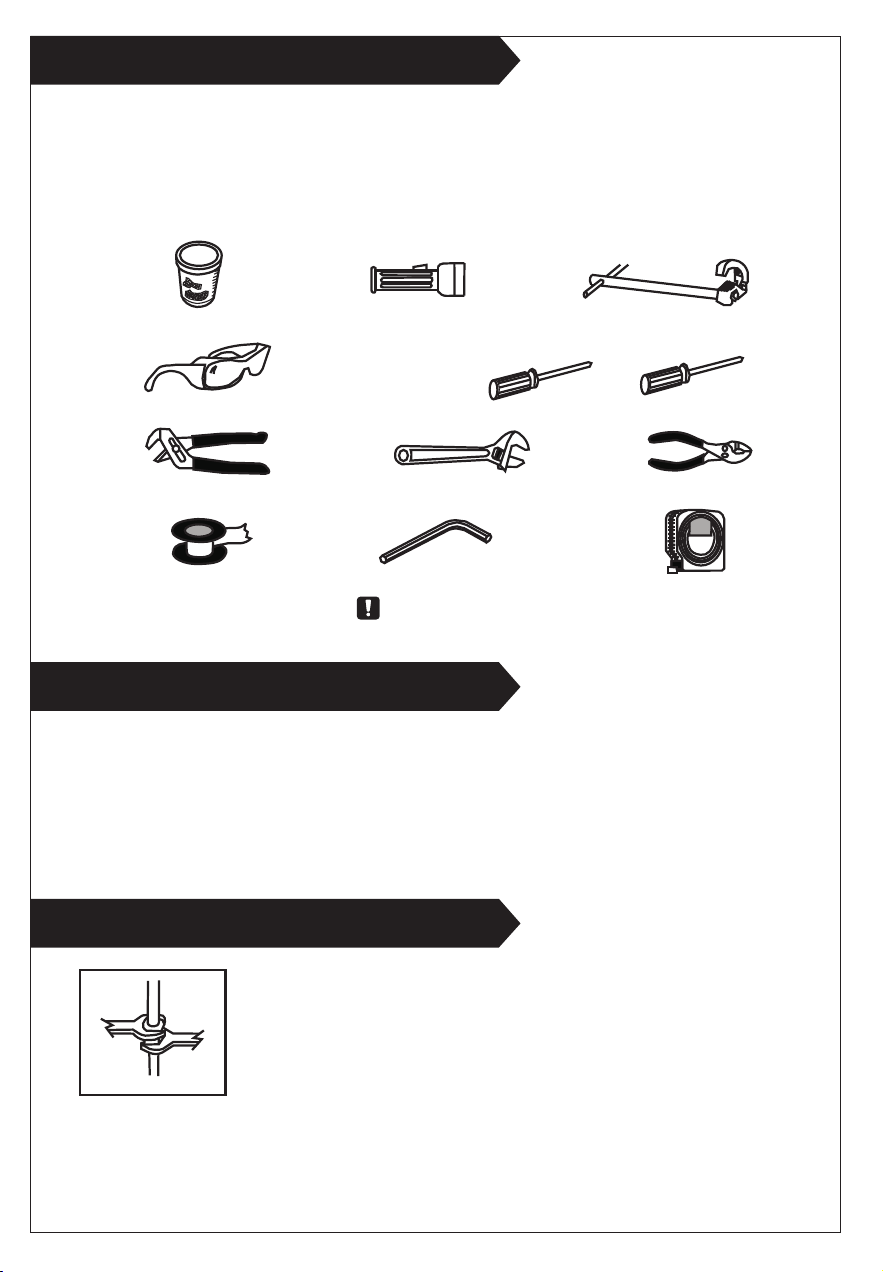

Tools:
PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH
SAFETY GLASSES SCREWDRIVER
PLIERSCHANNELLOCKS ADJUSTABLE WRENCH
HEX-KEY TAPE
Attention:
Helpful Information
Important
Arezzo
2020-02-12 MAAN4529-1
SEALED-TUBE
Please keep the tools for future use!
ASME A112.18.1/CSA B125.1
ASME A112.18.2/CSA B125.2
LISTED IAPMO/cUPC
Gather the necessary tools as shown below to complete the installation of
this faucet. Some may not be needed depending on the model of faucet you
are installing. Check with your local hardware store on the requirements of
your installation situation.
WARNING:
For easy installation, you will need:
- To read all the installation instructions completely before beginning.
- To read all the warning, attention and maintenance information.
- To purchase the proper supply lines.

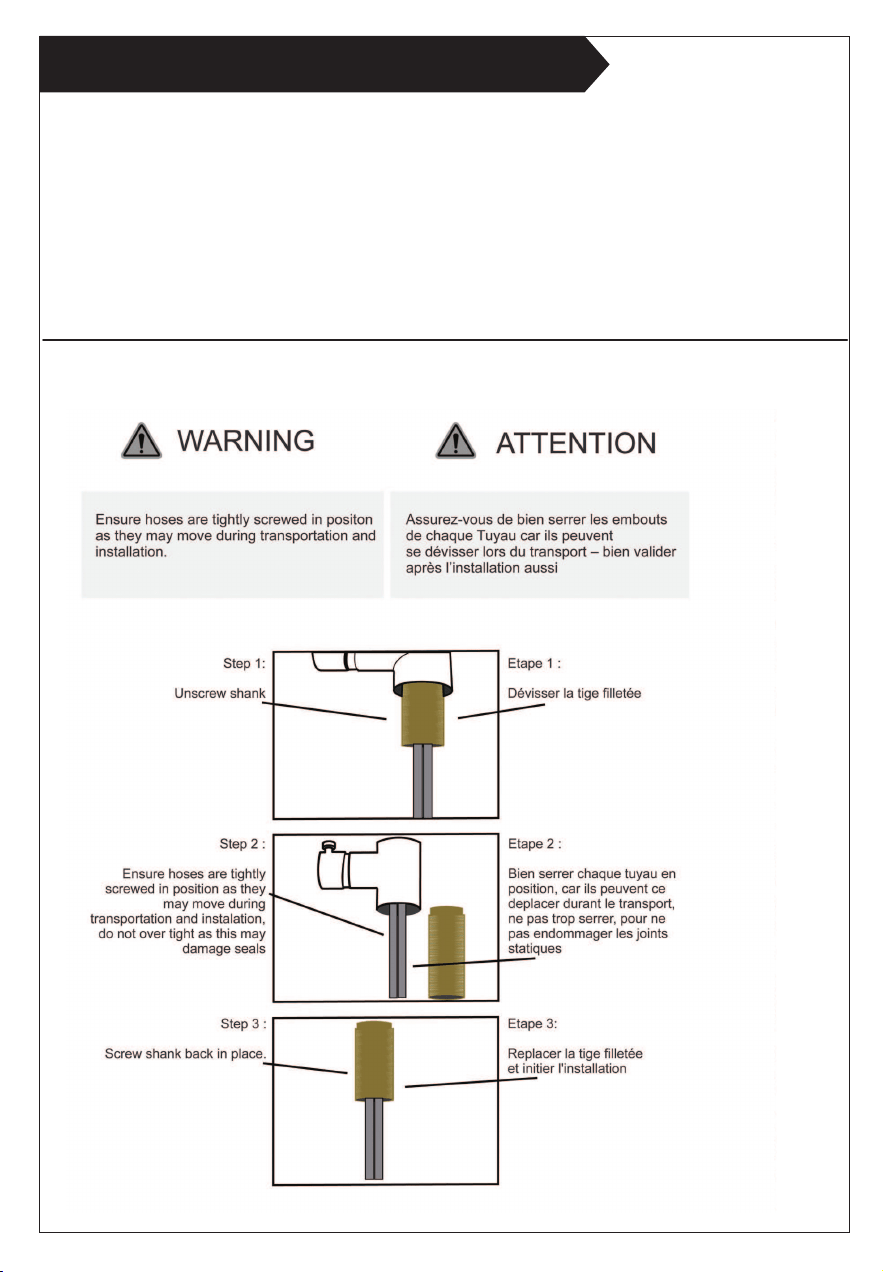

Tighten connection with two wrenches to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
1.8 gpm/6.8 L/min
© ®
Two Handle Roman Tub Bathroom Faucet
STANDARDS
Tools:
PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH
SAFETY GLASSES SCREWDRIVER
PLIERSCHANNELLOCKS ADJUSTABLE WRENCH
HEX-KEY TAPE
Attention:
Helpful Information
Important
Arezzo
2020-02-12 MAAN4529-1
SEALED-TUBE
Please keep the tools for future use!
ASME A112.18.1/CSA B125.1
ASME A112.18.2/CSA B125.2
LISTED IAPMO/cUPC
Gather the necessary tools as shown below to complete the installation of
this faucet. Some may not be needed depending on the model of faucet you
are installing. Check with your local hardware store on the requirements of
your installation situation.
WARNING:
For easy installation, you will need:
- To read all the installation instructions completely before beginning.
- To read all the warning, attention and maintenance information.
- To purchase the proper supply lines.
Tighten connection with two wrenches to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
1.8 gpm/6.8 L/min

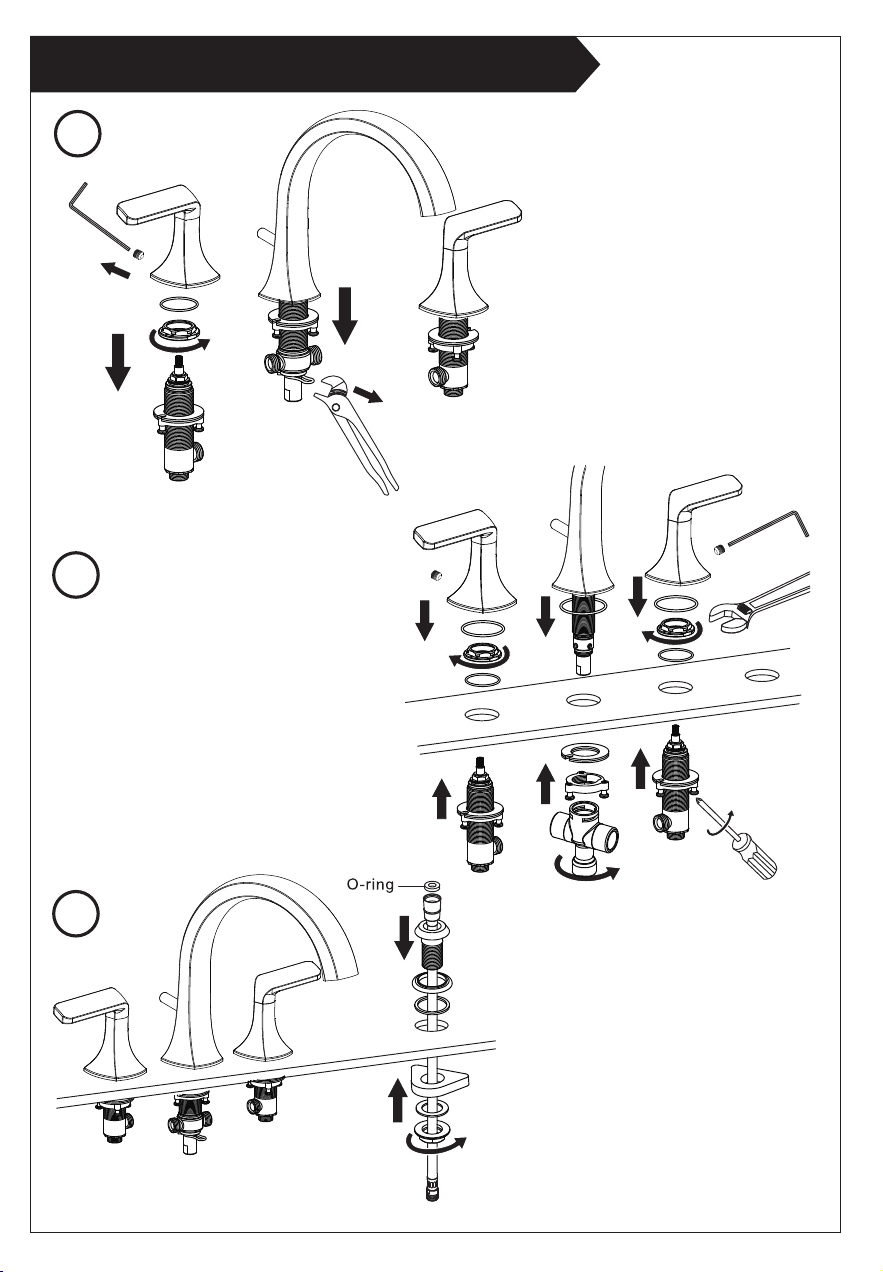

Faucet Installation

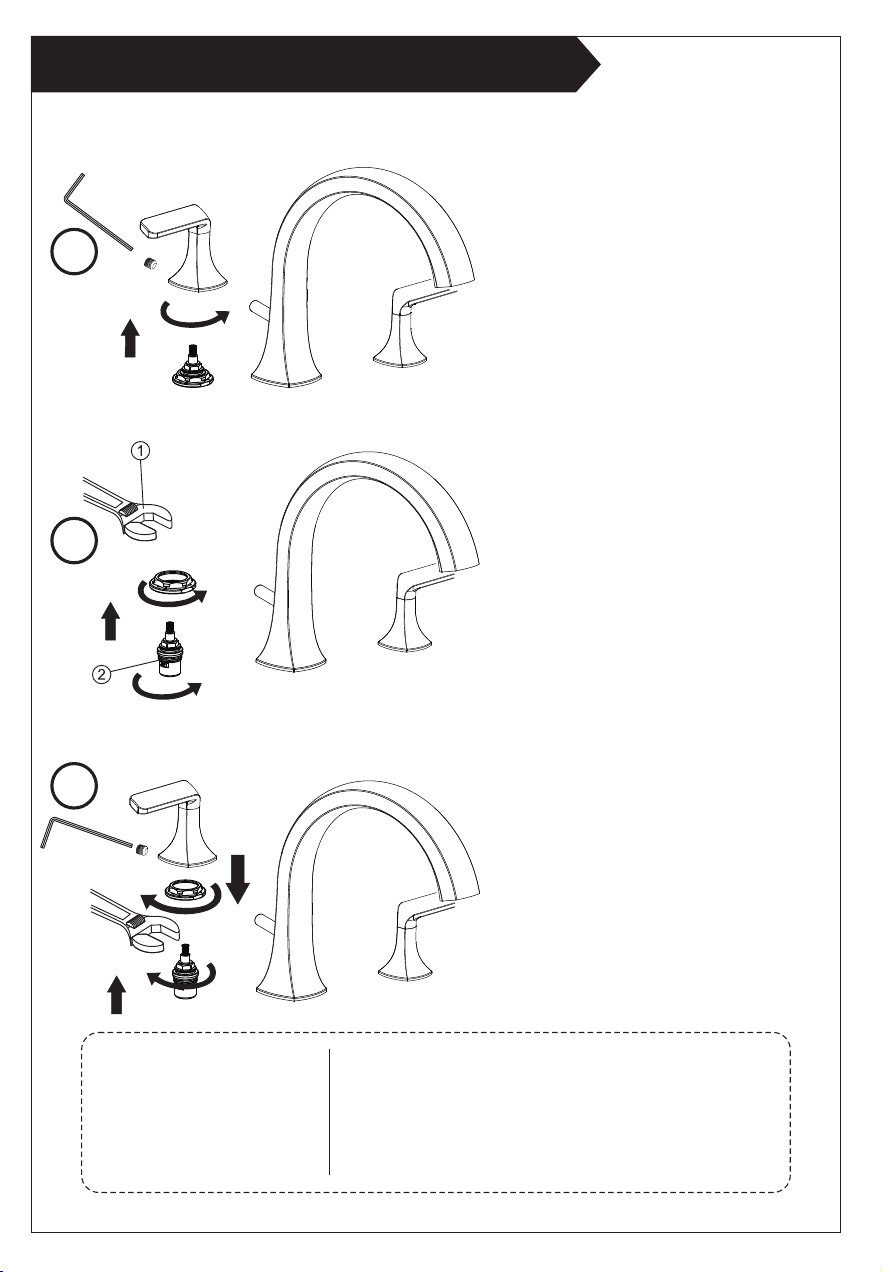

1
2

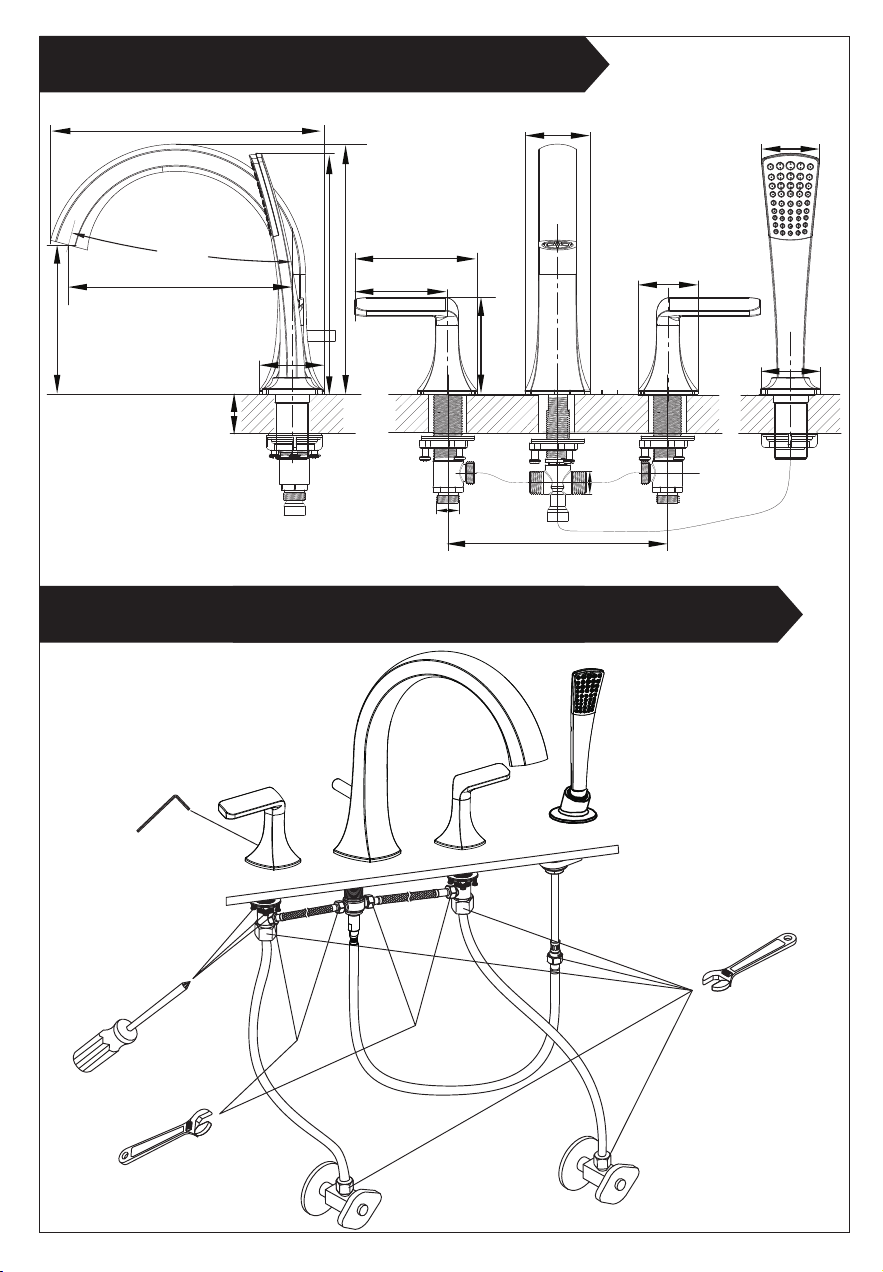

Tools might be applied to the following places:
Installation size map
Disassemble the parts as shown.
Position the parts as shown and
secure each part with respective tools.
3
Position the hand shower and secure it
with fixing kit.
Caution: DON'T FORGET THE
O-RING BETWEEN THE HAND
SHOWER AND HOSE.
6 cm (2.3 in.)
5.5 cm (2.1 in.)
8.9 cm
(3.5 in.)
Max 3.5 cm
(1.3 in.)
8.5 cm (3.3 in.)
11.3 cm (4.4 in.)
22.2 cm
(8.7 in.)
23 cm
(9 in.)
13.7 cm
(5.4 in.)
25.2 cm (9.9 in.)
20.6 cm (8.1 in.)
25.4 - 30.4 cm (10 - 12 in.)
5.3 cm (2 in.)
G1/2 in.
G1/2 in.
6 cm (2.3 in.)
5.5 cm
(2.1 in.)
15° in.
Faucet Installation
1
2
Tools might be applied to the following places:
Installation size map
Disassemble the parts as shown.
Position the parts as shown and
secure each part with respective tools.
3
Position the hand shower and secure it
with fixing kit.
Caution: DON'T FORGET THE
O-RING BETWEEN THE HAND
SHOWER AND HOSE.
6 cm (2.3 in.)
5.5 cm (2.1 in.)
8.9 cm
(3.5 in.)
Max 3.5 cm
(1.3 in.)
8.5 cm (3.3 in.)
11.3 cm (4.4 in.)
22.2 cm
(8.7 in.)
23 cm
(9 in.)
13.7 cm
(5.4 in.)
25.2 cm (9.9 in.)
20.6 cm (8.1 in.)
25.4 - 30.4 cm (10 - 12 in.)
5.3 cm (2 in.)
G1/2 in.
G1/2 in.
6 cm (2.3 in.)
5.5 cm
(2.1 in.)
15° in.

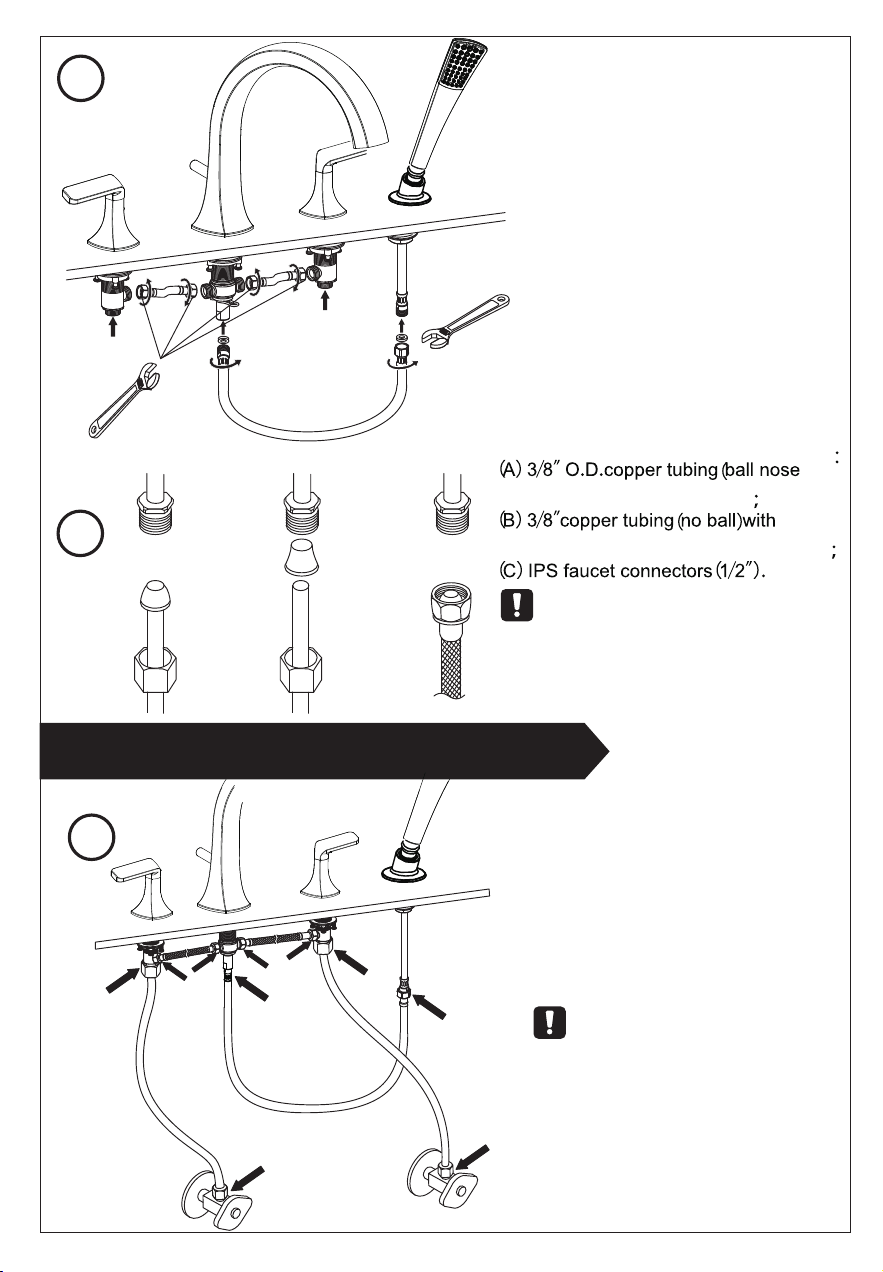

Checking and Testing
Maintenance:
4
Connect to water supply lines with either
risers with the coupling nuts or
supplied tube head interior connector or
5
6
Connect the parts with supply lines
as shown and tighten them with
wrench.
Simply rinse the surface with clear water or
mild liquid detergents (if necessary). Dry the
faucet with a clean soft cotton cloth. Do not
use any cleaning agents containing acids
polish abrasives or harsh cleaners.
Maintenance
Check all connections at arrows for
leaks, retighten if necessary.
BUT DON’T OVERTIGHTEN
1
2
3
Remove the handle counter
clockwise, as shown.
If faucet leaks from the handle or drips from spout, please replace cartridge following the steps:
Unscrew the old cartridge② with
Adjustable Wrench①, then take it
out.
Place a new cartridge in the
cartridge seat, then screw the base
and assemble the handle by
securing the screws. Repeat the
above steps for the other cartridge
if necessary.
Warning: The supply valves are
not included, please purchase
them at your local hardware store.
Hot water
Cold water
A. B. C.
Checking and Testing
Maintenance:
4
Connect to water supply lines with either
risers with the coupling nuts or
supplied tube head interior connector or
5
6
Connect the parts with supply lines
as shown and tighten them with
wrench.
Simply rinse the surface with clear water or
mild liquid detergents (if necessary). Dry the
faucet with a clean soft cotton cloth. Do not
use any cleaning agents containing acids
polish abrasives or harsh cleaners.
Maintenance
Check all connections at arrows for
leaks, retighten if necessary.
BUT DON’T OVERTIGHTEN
1
2
3
Remove the handle counter
clockwise, as shown.
If faucet leaks from the handle or drips from spout, please replace cartridge following the steps:
Unscrew the old cartridge② with
Adjustable Wrench①, then take it
out.
Place a new cartridge in the
cartridge seat, then screw the base
and assemble the handle by
securing the screws. Repeat the
above steps for the other cartridge
if necessary.
Warning: The supply valves are
not included, please purchase
them at your local hardware store.
Hot water
Cold water
A. B. C.
1. Clean it with water and dry it with soft cloth.
2. Clean the product with gentle liquid or glass cleaner.
3. Don't use acid cleaner.
4. Don't clean with abrasive material, abrasive paper or knife.

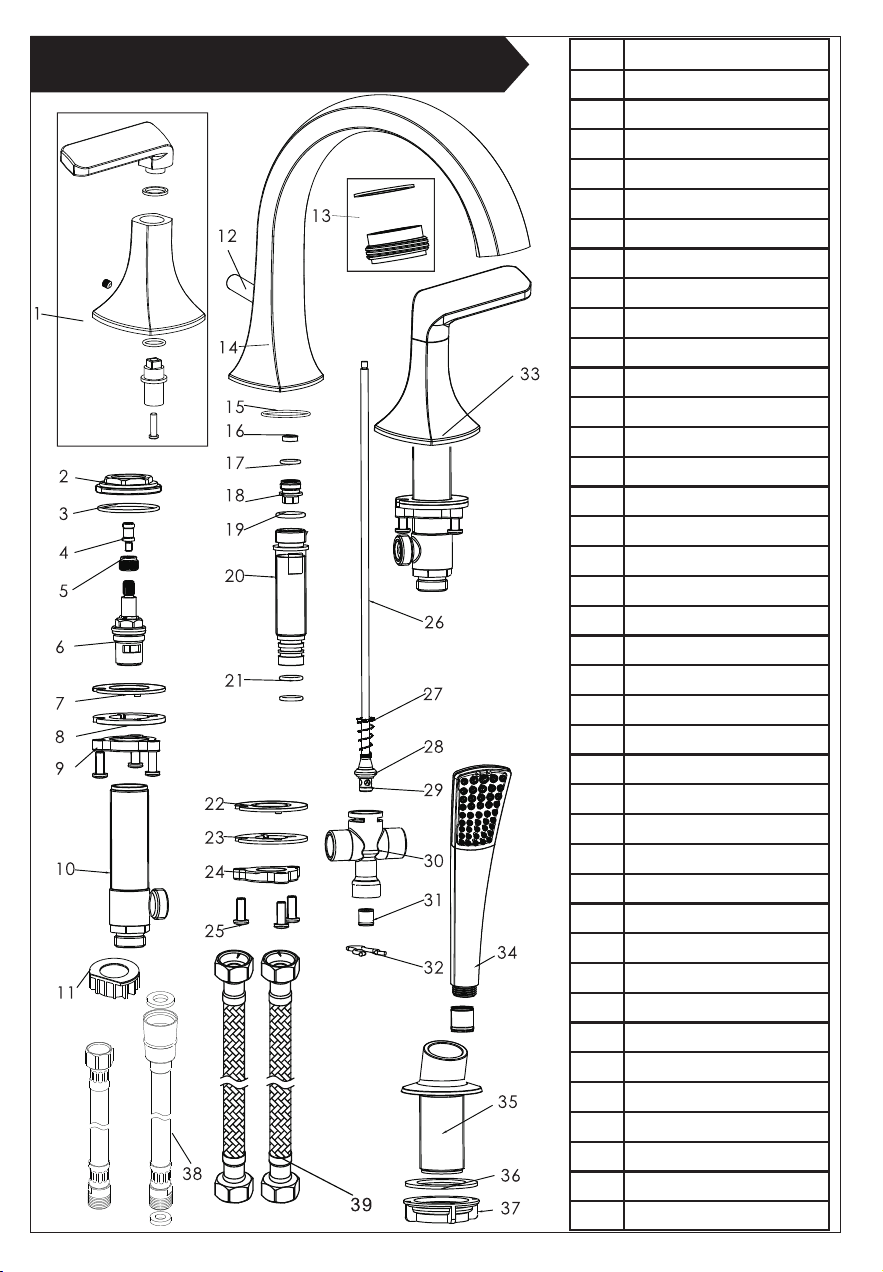

Parts listCleaning and care
Daily cleaning and care are required in order to keep the product shining and working properly.
NO. PART NAME
Handle1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Lock nut
O-ring
Screw
Adapter
Cartridge
Rubber Washer
Metal Washer
Lock Nut
Brass Valve Body
Plastic Base
Knob
Aerator
Spout
O-ring
Sealing Washer
O-ring
Adapter
O-ring
20
Diverter Tube
21
22
23
24
25
26
27
28
29
O-ring
Rubber Washer
Metal Washer
Lock Nut
Screw
Lift Rod
Diverter Spring
Diverter Core
Washer
30
Brass Valve Body
31
32
33
34
35
36
37
38
39
Check Valve
Clip
Cartridge
Shower
Shower Seat
Washer
Lock Nut
Pull-out Hose
Connect Hose
