Features:
• 3 Powerful Fan Speeds
• Powerful Ventilation for Large Areas
• High Velocity Aluminum Fan Blades
• All Metal Construction
• Adjustable Height
• Adjustable Tilt Angle
• Meets OSHA Standards
• 120V A.C. / 60Hz
CZHVP20S Series
20" Industrial Slim Drum
Pedestal Fan
Save These Instructions
2
2
www.comfortzoneproducts.com
INTENDED USE:
This product is intended for indoor residential, ofce, industrial,
or other commercial applications. Use only with electrical wiring
that is in good working order and that meets applicable codes
and ordinances. If you have any questions whether your wiring is
adequate, consult a qualied electrician.
While using your fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we
have used the word "WARNING" to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result
in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should
always be followed to reduce the risk of electric shock, re, or
injury to persons, including the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not
recommended by the manufacturer may cause electrical shock,
re or injury to persons.
• Do not operate the fan with a damaged power cord or after the
fan malfunctions or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or
near children, disabled persons or pets and whenever the fan is
left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any surface
which might allow fan to tip or fall.
• For proper operation, fan should be placed on a smooth,
non‑combustible, level surface.
• Always unplug fan when not in use, when moving from place
to place, when assembling or disassembling parts, and before
cleaning.
• The use of attachments, not recommended or sold by the
manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause electrical hazard
(for non‑window models).
• Do not operate the fan with blade guards or any safety device
removed.
• Avoid the use of extension cords due to risk of re. If an
extension cord must be used, the cord must be minimum
14 AWG and rated not less then 1875 watts.
• Do not run power cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from trafc
area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the
fan. Doing so may cause electric shock and/or re hazard.
Avoid contact with moving parts.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with
the appliance.
READ & SAVE THESE
INSTRUCTIONS !
WARNING: SHOCK HAZARD
Use your fan only in dry environments. This fan is not intended
for use in a bathroom, laundry area, or similar locations, or near
sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other
water receptacle. Do not use in damp environments such as
ooded basements.
WARNING: HOT SURFACES
Do not touch fan motor when in use. This motor is hot when in
use, to avoid burns, do not let bare skin touch hot surfaces.
WARNING: FIRE HAZARD
Fans have arcing or sparking parts inside. Do not use near
combustible materials or ammable gases or sources of heat. Do
not use in areas where gasoline, paint or ammable materials are
used or stored. To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not insert or allow foreign objects
to enter any ventilation or exhaust opening as this may cause an
electric shock, re, or damage the fan.
WARNING: ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with adequate
electrical system that is up to code.
CAUTION: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, do not use this product with any
solid‑state speed control device.
WARNING:
PREVENT ELECTRIC SHOCK

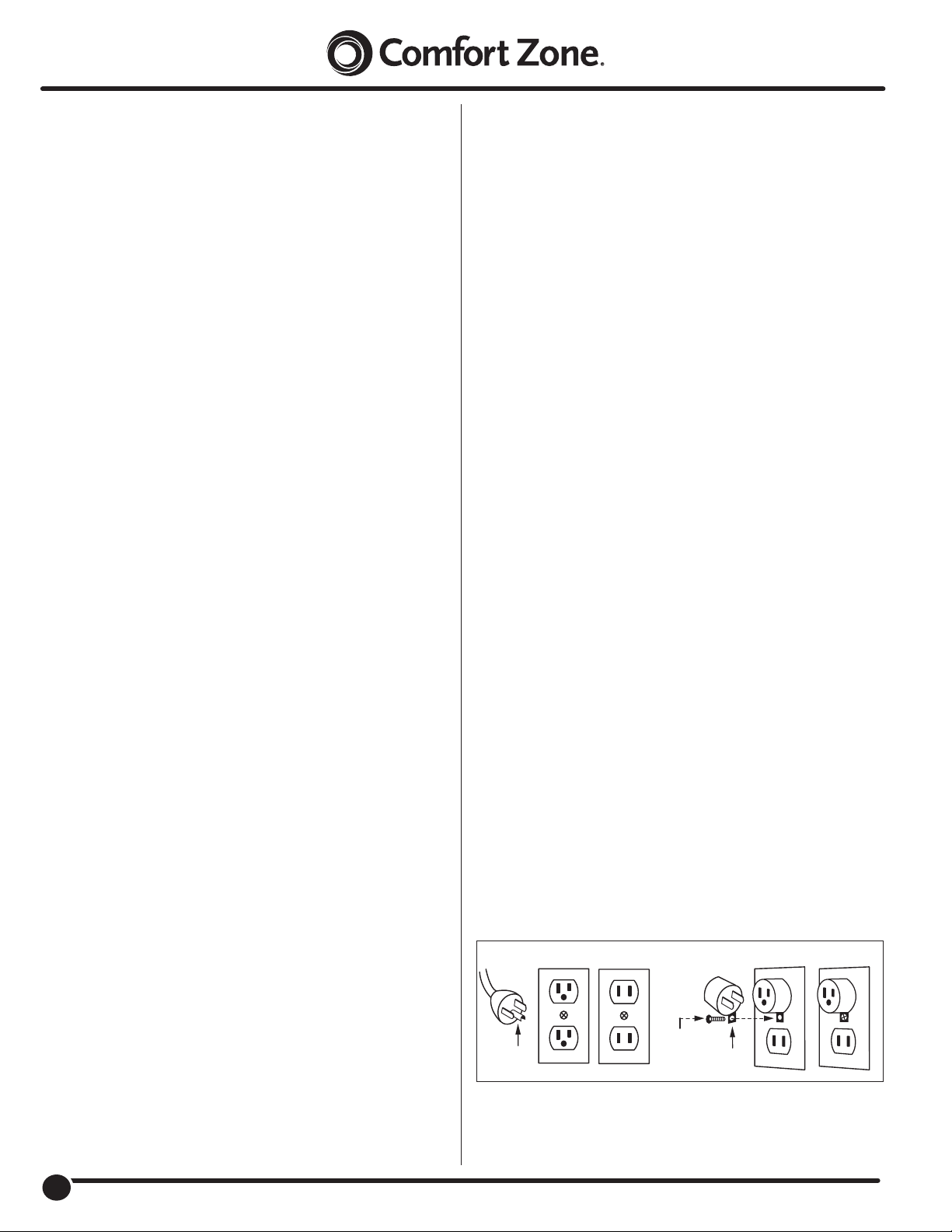

This product has a cord with 3‑prong grounding‑type plug
(A) which ts the 3‑slot grounded receptacle (A2). DO NOT
remove the grounding prong (A1) if only a 2‑slot receptacle (B)
is available.
For connecting 3‑prong grounding‑type plug to 2‑slot
receptacle, use an ADAPTER (C). The grounding lug (C1)
extending from the adapter must be connected to a permanent
ground with the Metal Screw (D) such as a properly grounded
outlet box (E).
The adapter should not be used if a 3‑slot grounded receptacle
is available.
DO NOT DEFEAT THE SAFETY PURPOSE OF EITHER
A GROUNDED PRONG OR A GROUNDING LUG.
Adapter is not included
(A)
(A1)
(A)2
(B)
(D)
(C1)
(C)
(E)
3
3
www.comfortzoneproducts.com

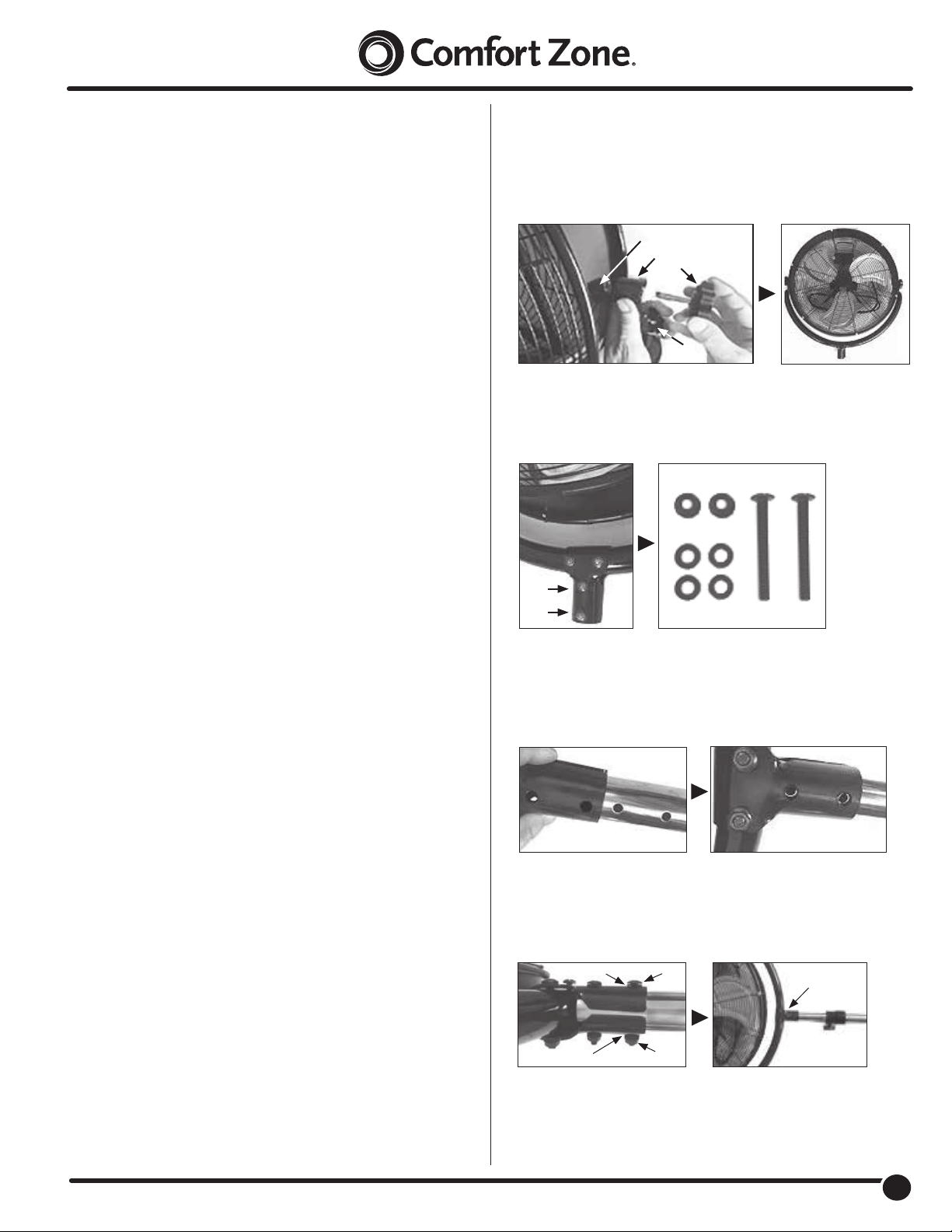

ASSEMBLY INSTRUCTIONS
1. Align the screw hole on the side of the fan head with the
rubber ring and the hole on the support frame, then insert the
screw knob to tighten them up. Repeat the same operation on
the other side of the fan head (g.1, 2).
2. Loosen the screw bolts, nuts and washers on A and B on the
clamping support (g. 3, 4).
3. Insert the end with screw holes of the inner pole into the
clamping support. Align the holes on the clamping support and
the inner pole (g. 5, 6).
4. Insert the screw through the holes on the clamping support
and inner pole with washers. Tighten up with the nut (g.7).
After step 4, you can get the fan head assembled (g. 8).
DO NOT operate any fan with a damaged cord or plug or after
fan malfunctions, has been dropped or damaged in any manner.
Do not operate fan with a broken blade, safety cage or any visual
imperfections. Disconnect power before servicing. For repairs
covered under warranty, see warranty statement. For all other
repairs contact Comfort Zone
®
Customer Service by telephone or
mail for information and assistance.
DO NOT run power cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from trafc
area where it will not be tripped over. Avoid the use of extension
cords due to risk of re. If an extension cord must be used,
the cord must be minimum 14 AWG and rated not less than
1875 watts. Do not use an extension cord unless the plug can be
completely inserted into its receptacle. Unplug the fan when not
in use. Do not operate fan with its ventilation obstructed.
Fig. 2
Fig. 1
screw hole
rubber ring
support frame
screw knob
A
B
Fig. 3
screwsnuts
washers
Fig. 4
inner pole
clamping support
Fig. 5 Fig. 6
OPERATING INSTRUCTIONS
1. Adjust the desired speed by rotating the switch:
0 —Stop, 1—Low, 2—Medium, 3—High.
2. Adjust the tilt angle by rotating the guard. Loosen the
knobs before rotating and tighten after rotation is set.
CAUTION:
Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.
WARNING:
1. To reduce the risk of re or electric shock, do not use this fan
with any solid state speed control device.
2. This appliance has a ground plug which is intended to t
in an outlet only one way. If this does not t outlet contact
a qualied electrician. Do not attempt to by‑pass this
procedure.
3. The product is for indoor use.
4. Unplug from electrical supply source before cleaning.
5. If the power cord is damaged, contact your local service
center or a qualied electrician to install an appropriate
replacement cord to prevent any injury or damage.
6. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play
with the appliance.
Rules for Safe Operation:
1. Never insert ngers, pencils, or any other object through the
guard when fan is running.
2. Disconnect the fan when moving from one location to another.
3. Disconnect the fan when removing grilles for cleaning.
4. Be sure fan is on a stable surface when operating to avoid
overturning.
5. DO NOT use fan in window. Rain may create electrical hazard.
6. The fan is for commercial use only.
7. Do not leave the fan running unattended.
Fig. 7
screw
washer
washer
nut
Fig. 8
head
assembled
4
4
www.comfortzoneproducts.com
CARE AND MAINTENANCE
Cleaning: CAUTION‑Before cleaning the fan be sure to
disconnect power cord from the plug. Clean the grille surface
with a clean damp cloth. Do not use harsh chemical or abrasive
cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Allow fan to dry completely before use. Periodic grille
cleaning with a vacuum will prevent dust build up. The motor is
sealed and does not require any interior maintenance, cleaning
or lubrication.
Maintenance: The Internal motor bearings are permanently
lubricated at the factory and do not require any additional
lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN
PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR
BECOME DAMAGED IN ANY WAY.
Storage: Keep original carton for storage of the fan. Coil and tie
the power cord to avoid damage during storage.
ASSEMBLY INSTRUCTIONS (cont.)
To Clean Fan Blade or Grille:
Unplug from electrical supply source before cleaning.
1. Clean the blade by using a soft, damp cloth then wipe
with dry cloth. Please be cautious around the motor
housing area.
2. Do not allow the motor or other electrical components
to be exposed to water. Reassemble after cleaning by
reversing above procedure.
3. Do not bend the blades.
4. Recommendation: every 3 months with 24 hour use or
every 6 month with regular use
Lubrication: The motor is pre‑lubricated at the factory and
requires no additional oil.

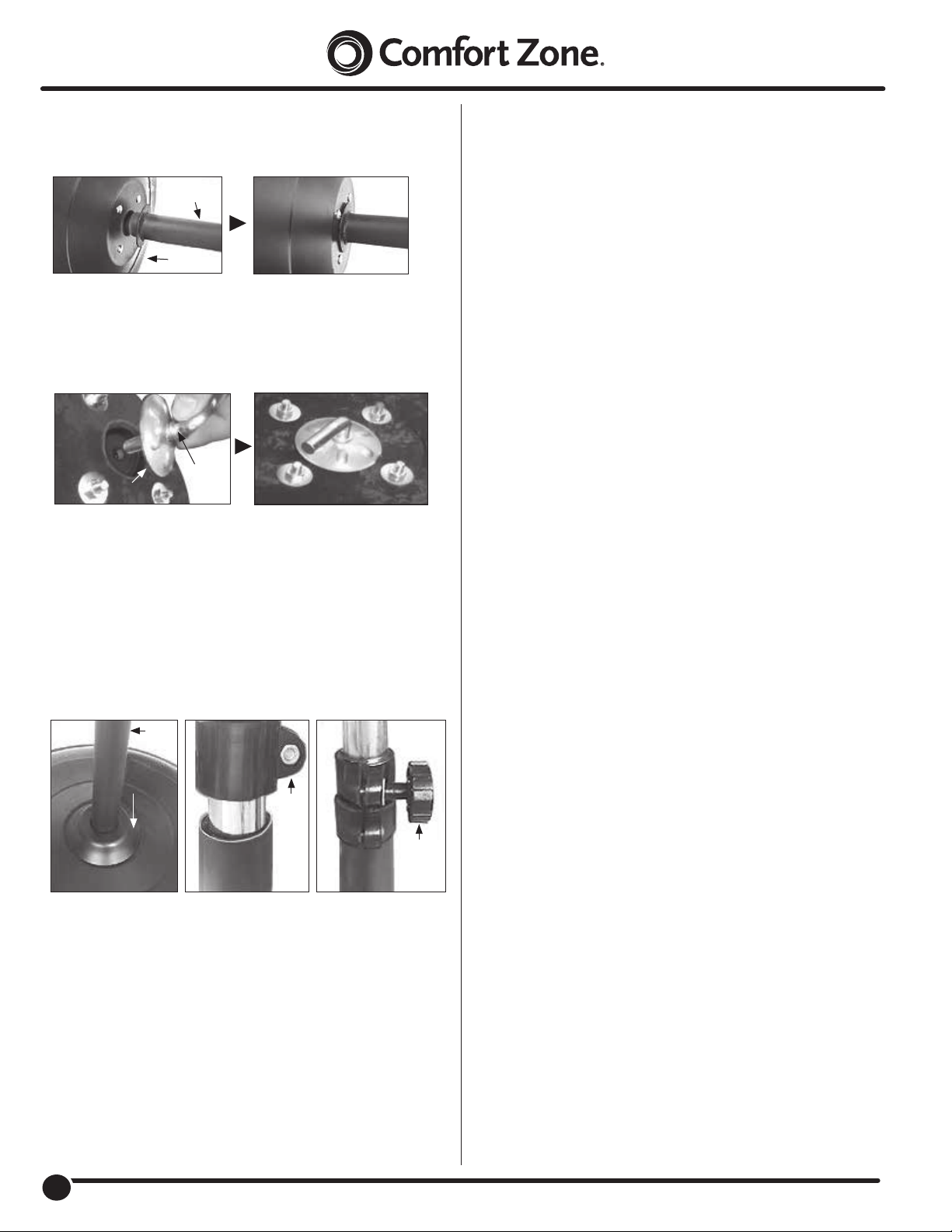

5. Insert the end of the outer pole into the base hole (g. 9, 10).
6. Align the hole on the base with the one on the clump weight.
Then insert the L‑shape screw bolt through the holes with the
big washer (g. 11, 12).
7. Insert the decorating cap through the outer pole (g.13).
8. Insert the inner pole into the outer pole. Tighten up the screw
on the plastic holder (g.14).
IMPORTANT: THERE IS A SPRING COIL INSIDE THE OUTER
HOLE. DO NOT TAKE IT OUT DURING ASSEMBLING.
9. Loosen the screw knob on the inner pole and adjust the fan to
the height you want, then tighten up the screw knob (g.15).
Fig. 10
Fig. 9
base
outer pole
L-shape
screw
bolt
big
washer
clump
weight
Fig. 11 Fig. 12
Fig. 14
outer pole
inner pole
screw
plastic holder
Fig. 13
outer
pole
decorative
cap
fan base
Fig. 15
inner
pole
screw
knob
outer pole
5
5
www.comfortzoneproducts.com
LIMITED WARRANTY
This unit is guaranteed to the original retail purchaser
against defects in quality or workmanship for a period
of one year from the date of original purchase. If this unit
fails because of a manufacturing defect within 30 days of
purchase, return the unit, with your receipt, to the retailer.
After 30 days, but within the warranty period, if the unit
was purchased within the continental United States,
return it, freight prepaid, to World and Main for repair
or replacement. If the unit was purchased outside the
continental United States, return the unit to the place of
purchase. This warranty does not cover damage caused
by misuse, abuse, overheating or alteration. Repairs made
by anyone other than World and Main are not covered in
this warranty. World and Main will not be held liable for any
losses due to neglectful operation. All implied warranties,
including the warranties of merchantability and of tness
of purpose, if applicable, are hereby limited in duration
to the period of one year from the date of original retail
purchase. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitations
may not apply to you. Incidental or consequential
damages arising from a breach of either express or implied
warranties are hereby disclaimed and excluded. Some
states do not allow the exclusion of limitation of incidental
or consequential damages, so this limitation or exclusion
may not apply to you. Upon the expiration of this warranty
all such liability will terminate. No other warranties are
expressed or implied.
This warranty gives you specic legal rights, and you
may also have other rights which vary from state to state.
No informal dispute settlement mechanisms are available.
This limited warranty is given in lieu of all other warranties.
Manufactured for:
World and Main (Cranbury), LLC
324A Half Acre Rd.
Cranbury, NJ 08512 USA
800‑221‑6895
www.comfortzoneproducts.com
Note: Some models come with a plug where you can
replace a fuse. If your model has this, please read and
follow the below instructions to replace the fuse.
This product employs overload protection (fuse). A blown fuse
indicates an overload or short‑circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the
user servicing instructions (follow product marking for proper
fuse rating) and check the product. If the replacement fuse
blows, a short‑circuit may be present and the product should
be discarded or returned to an authorized service facility for
examination and/or repair.
Fuse Replacement:
1. Grasp plug and remove from the receptacle or other outlet
device. Do not unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of
attachment plug towards blades. See Fig. 2
3. Remove fuse carefully. Use a small tool to pry the end of the
fuse from holder cavity. Be careful not to break glass window.
4. Replace fuse.
WARNING: Risk of re. Replace fuse only with identical 2.5
or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm). Be sure fuse is
properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed
position.

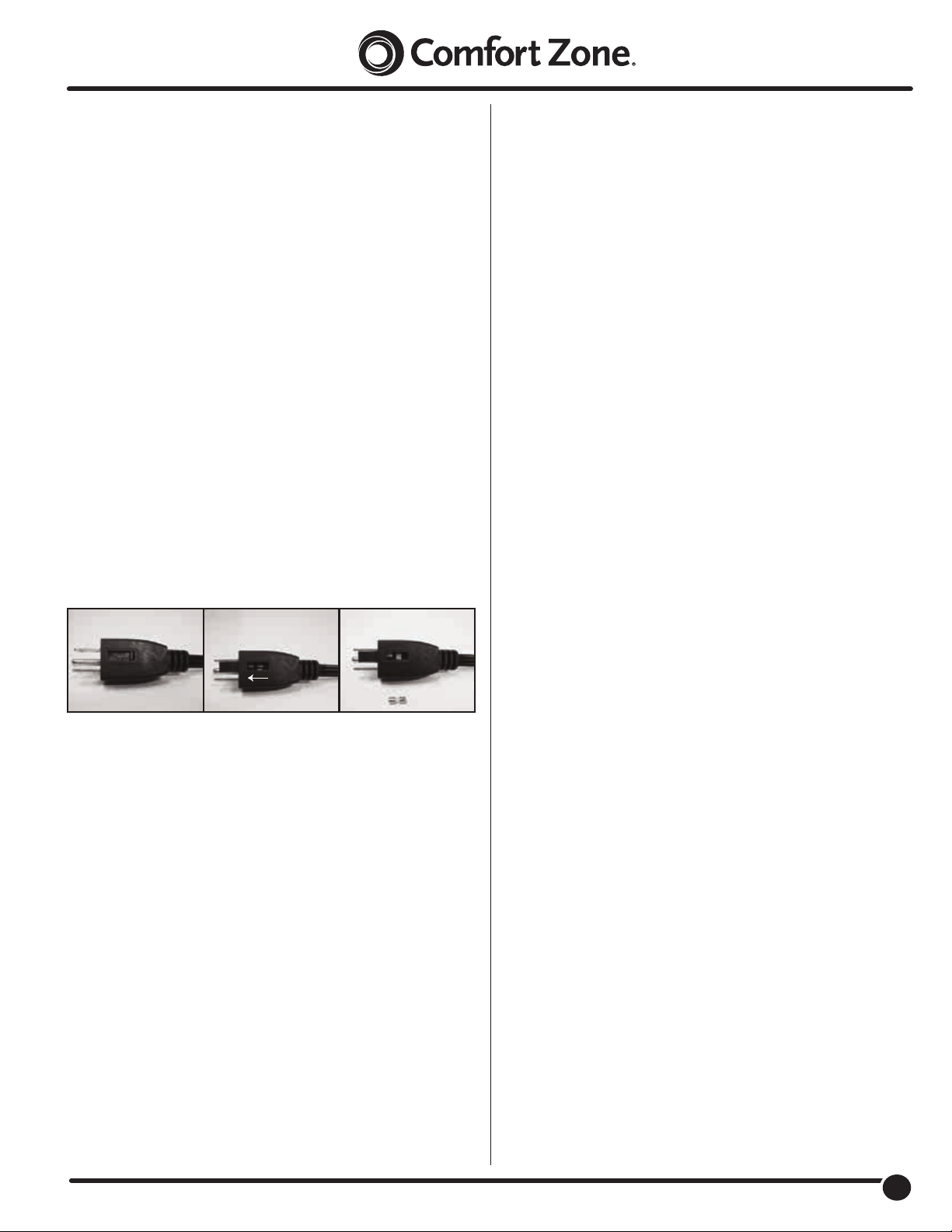

Fig 1 Fig 2 Fig 3
Slide Cover
to Open
Rev. 09/20/21
