Dovetail
Mount
Fastening
Screws

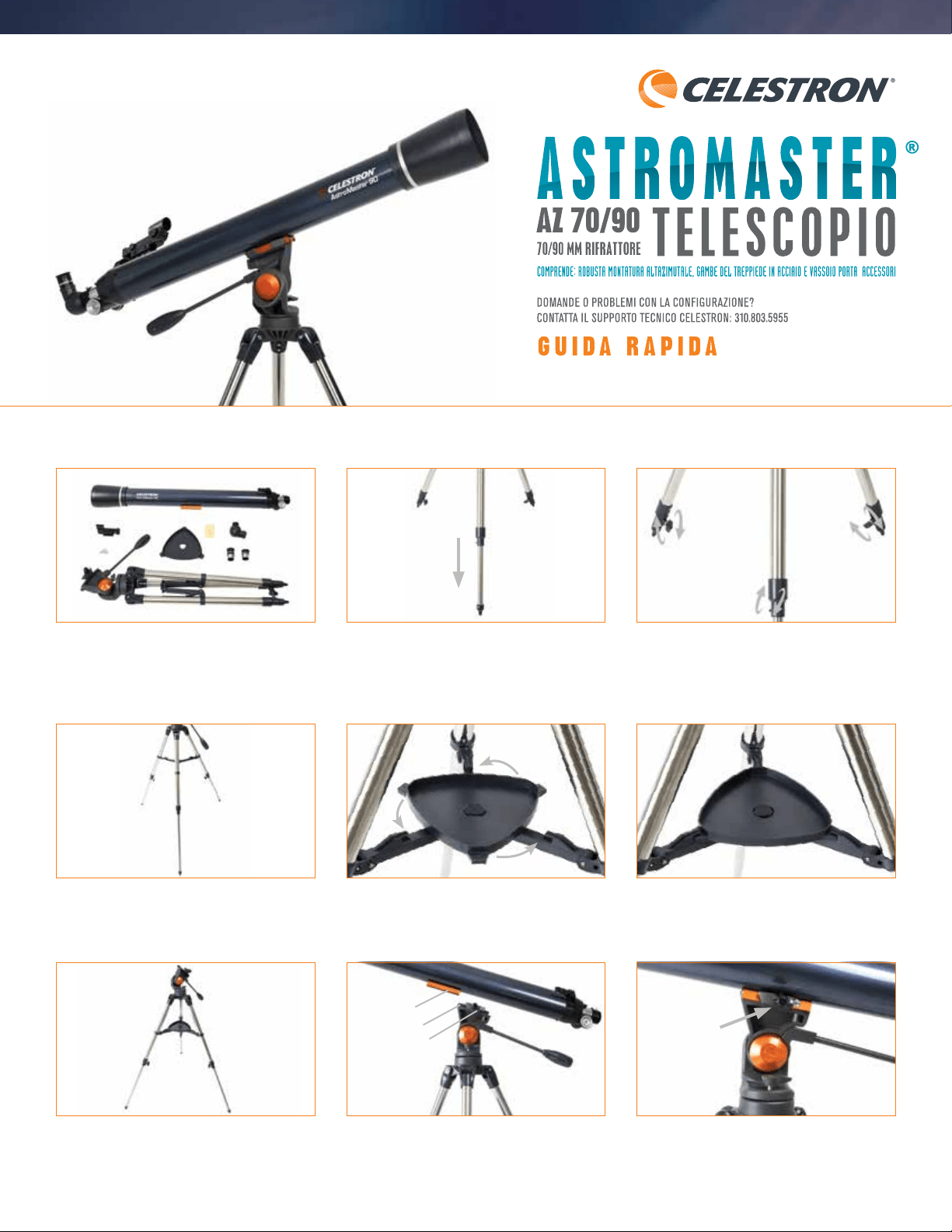

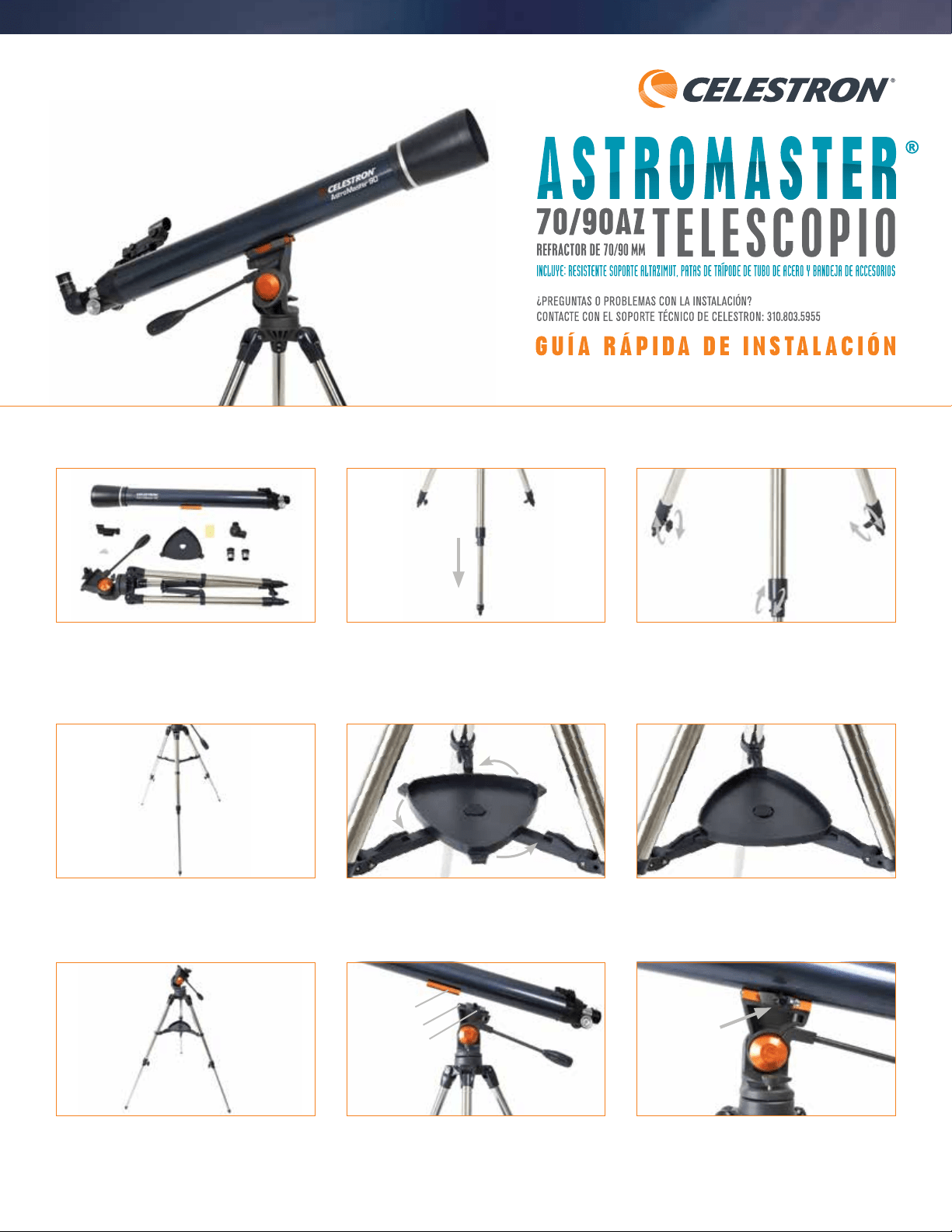

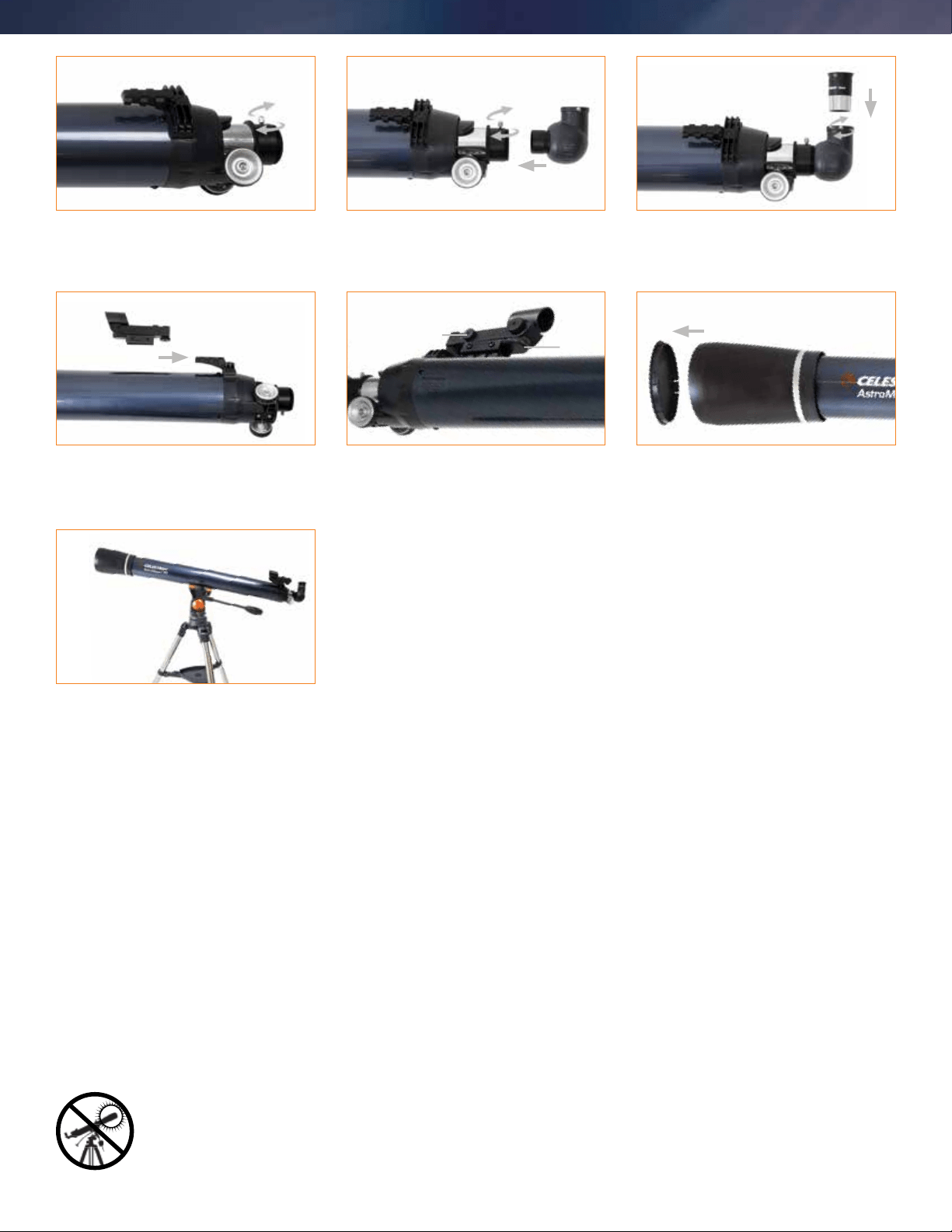

Your AstroMaster 70/90AZ includes: optical tube, StarPointer
finderscope, pre-assembled tripod with center leg brace and
altazimuth mount attached, two eyepieces, erect image diagonal,
accessory tray, lens cloth, battery, owner’s manual, and a bonus
Astronomy software.
All three legs should be the same length to provide a level platform
for the telescope.
Here is how the fully assembled tripod and mount should appear.
To set up the tripod, spread the legs outward until they are fully
extended. Extend each of the three tripod legs down 6-12”.
To attach the accessory tray, line up notches and turn clockwise
until tray tabs lock into place with the tripod brackets.
Next slide telescope tube into the mount. Be sure to back out
fastening screws to allow enough clearance for the dovetail.
Use the three tightening screws located at the bottom of each leg
to secure the extended legs in place.
Properly assembled, the accessory tray should appear as
pictured above.
Center dovetail in the mount and tighten fastening screw. For
added security tighten the angled lock down screw next to the
fastening screw.
1
4
7
2
5
8
3
6
9
ITEM #21061/21063
ENGLISH
