NEC NC2402ML 24,000-lumen 2K RB Laser Projector User Manual

Installation Manual

DLP Cinema

Projector Head

NP-02HD

Light Module

NP-24LU01/NP-20LU01/NP-18LU01

DLP Cinema

Projector

Model No.

NP-02HD

NP-24LU01 / NP-20LU01 / NP-18LU01

DLP Cinema Projector Installation and Adjustment NEC Display Solutions, Ltd. Manual (This document) describes the procedures

to install, adjust and maintain the projector (NP-02HD). For safe and correct installation, adjustment and use of this projector, care-

fully read this document before location assessment and installation.

Refer to the operation manuals of the applicable products for basic operation and remarks of the projector. This document expects

the readers who have basic knowledge about projector installation. After reading, please keep this document under care of the

company which installed or adjusted the projector.

The product name used in this manual

In this manual, the device name is written as listed below. If the function has difference by devices, the product name is written in

the text.

• NP-02HD

..............................................Projector

• NP-90MS01/NP-90MS02

......................Media block or IMB

• Digital Cinema Communicator v2

........... DCC

Introduction

Precautions

Please read this manual carefully before using your NP-

02HD and keep the manual handy for future reference. The

NP-02HD (projector unit) is called the “projector”, and the

NP-90MS01/NP-90MS02 (integrated media server) is called

the “media block” or “IMB” in this manual.

• DLP (Digital Light Processing), DLP Cinema, DLP Cinema

logo and CineLink are trademarks of Texas Instruments.

• CineLink is a trademark of Texas Instruments.

• Other product names and logos mentioned in the user’s

manual may be the trademarks or registered trademarks of

their respective holders.

• The display screens and illustrations shown in this manual

may differ slightly from the actual ones.

• GPL/LGPL Software Licenses

The product includes software licensed under GNU General

Public License (GPL), GNU Lesser General Public License

(LGPL), and others.

For more information on each software, see “readme.pdf”

inside the “about GPL&LGPL” folder on the supplied

CD-ROM.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT OPEN TOP

COVER. NO USER SERVICEABLE PARTS INSIDE.

This symbol warns the user that uninsulated volt-

age within the unit may have sufficient magnitude

to cause electric shock. Therefore, it is dangerous

to make any kind of contact with any part inside of

this unit.

This symbol alerts the user that important literature

concerning the operation and maintenance of this

unit has been included. Therefore, it should be

read carefully in order to avoid any problems.

Laser Safety Caution

This product is classified as Class 1 of IEC60825-1 Third edition

2014. This product is classified as RG3 of IEC62471-5 First

edition 2015. This product is classified as RG3 of IEC62471:2006

(for USA). Obey the laws and regulations of your country in rela-

tion to the installation and management of the device.

CAUTION

Use of controls or adjustments of procedures other than

those specified herein may lead to hazardous laser radiation

exposure.

• Hazardous optical radiation is emitted from this product, RG3

IEC 62471: 2006 (for USA).

• No direct exposure to the beam shall be permitted, RG3 IEC

62471-5: 2015.

• Do not look into the lens while the projector is on. Serious

damage to your eyes could result.

• Keep any items such as magnifying glass out of the light path

of the projector. The light being projected from the lens is

extensive, therefore any kind of abnormal objects that can

redirect light coming out of the lens, can cause unpredictable

outcome such as fire or injury to the eyes.

• When turning on the projector, ensure that nobody is facing

towards the lens in the path of the light emitted from the laser.

• This product can only be operated in theaters by specified

personnel. Customers should not operate this product.

DOC Compliance Notice (for Canada only)

This Class A digital apparatus meets all requirements of the

Canadian ICES-003 Standards.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accor-

dance with EN ISO 7779.

Important Information

WARNING

This equipment is compliant with Class A of CISPR 32. In a

residential environment this equipment may cause radio

interference.

CAUTION

• In order to reduce any interference with radio and televi-

sion reception use a signal cable with ferrite core

attached. Use of signal cables without a ferrite core

attached may cause interference with radio and television

reception.

• This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accor-

dance with the installation manual, may cause harmful

interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to

correct the interference at his own expense.

WARNING

THE END USER IS NOT ALLOWED TO OPEN OR MODIFY

THE PRODUCT.

NO USER SERVICEABLE PARTS.

MAINTENANCE AND SERVICE OF THE PRODUCT IS ONLY

TO BE HANDLED BY NEC AUTHORIZED TECHNICIANS.

Important Safeguards

These safety instructions are to ensure the long life of your pro-

jector and to prevent fire and shock. Please read them carefully

and heed all warnings.

Installation

1. Do not point the projection beam toward other people or

reflective objects.

2. Consult your dealer for information about transporting and

installing the projector. Do not attempt to transport and

install the projector yourself. The projector must be installed

by qualified technicians in order to ensure proper operation

and reduce the risk of bodily injury.

3. Place the projector on a flat, level surface in a dry area away

from dust and moisture. Do not put the projector on its side

when the laser is on. Doing so may cause damage to the

projector.

4. Do not place the projector in direct sunlight, near heaters or

heat radiating appliances.

5. Exposure to direct sunlight, smoke or steam could harm

internal components.

6. Handle your projector carefully. Dropping or jarring your

projector could damage internal components.

7. To carry the projector, a minimum of six persons are

required.

8. Do not hold the lens part with your hand. Otherwise the

projector may tumble or drop, causing personal injury.

9. Do not place heavy objects on top of the projector.

10. Turn off the projector, and disconnect the power cable

before moving the projector.

For C2 connection, turn off the projector, shut down the AC

power to the projector and the light using a circuit breaker.

Disconnect the cables between devices and the light

before moving the projector.

11. Do not install and store the projector in the below circum-

stances. Failure to do so may cause of malfunction.

• In powerful magnetic fields

• In corrosive gas environment

• Outdoors

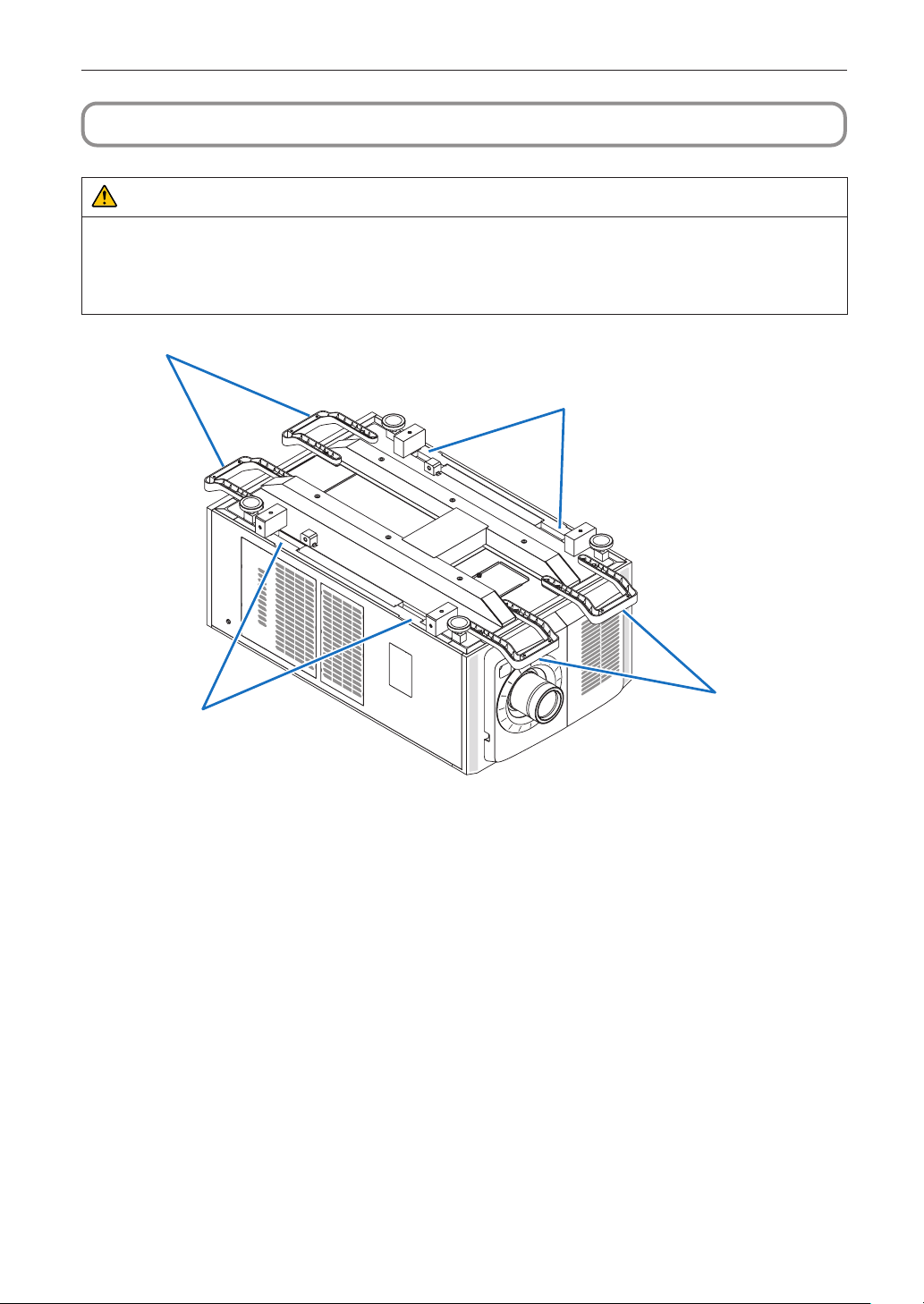

12. If you wish to have the projector installed on the ceiling;

• Do not attempt to install the projector yourself.

• The projector must be installed by qualified technicians

in order to ensure proper operation and reduce the risk

of bodily injury.

• Install the breaker in a location that is easy to reach by

hand.

• To prevent ceiling collapse, the ceiling should be able to

support the combined weight (158 kg*

) of the projector

(150 kg*

) and lens (8 kg) for an extended period of time,

and the installation must be in accordance with any local

building codes.

When the light module NP-18LU01is installed, the

weight is about 149 kg.

When the light module NP-18LU01is installed, the

weight is about 141 kg.

• Please consult your dealer for more information.

Refer to “2-2-1. Installing the Projector on the Ceiling”

(page 55) for details on the attachment positions when

installing on the ceiling.

WARNING

1. Do not use the projector with the supplied lens cap or

equivalent while the projector is operating. This may

cause the lens cap to heat up and deform or melt.

2. Do not place any objects, which are easily affected by

heat, in front of the projector lens. Doing so could lead to

the object melting from the heat that is emitted from the

light output.

Important Information

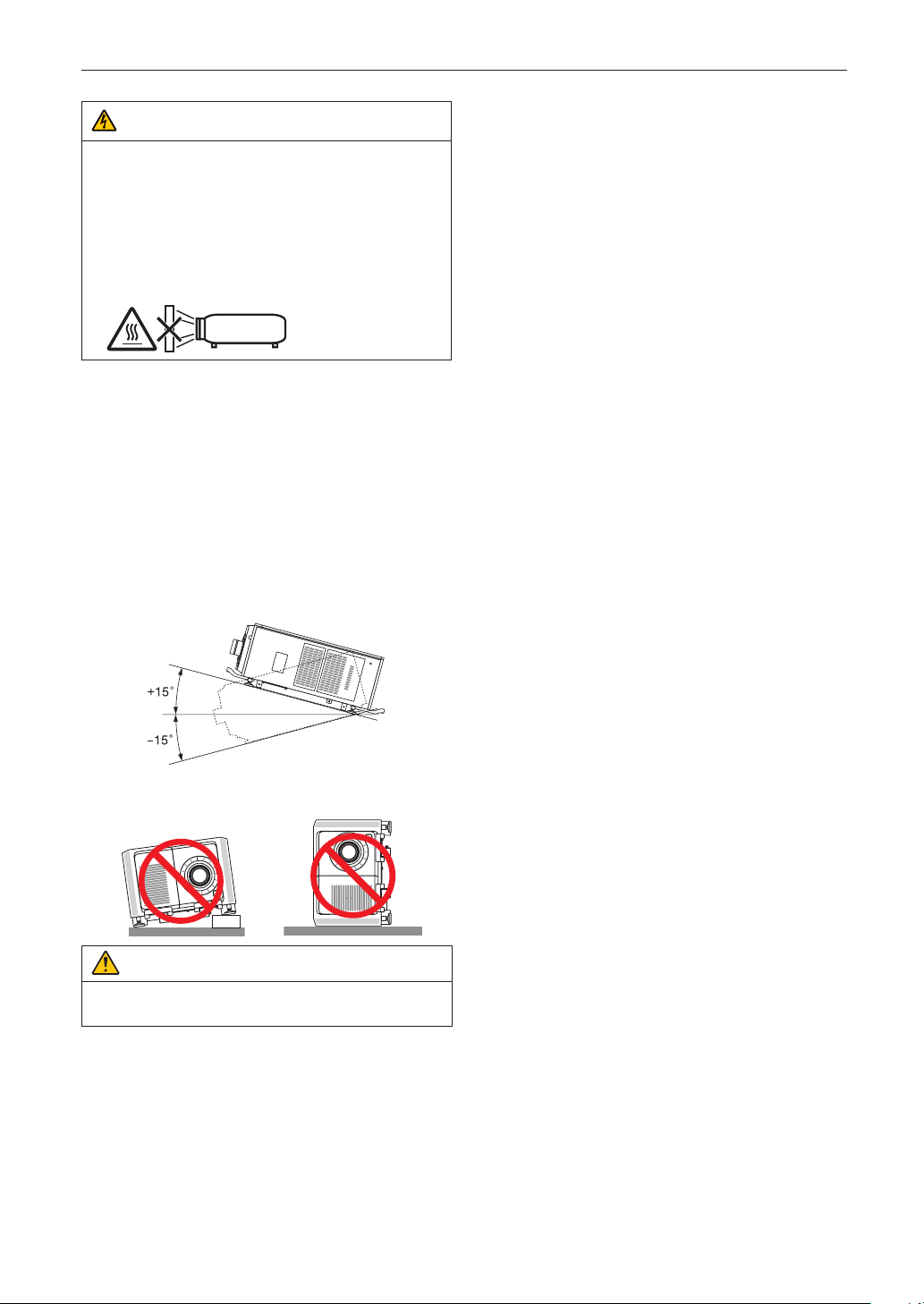

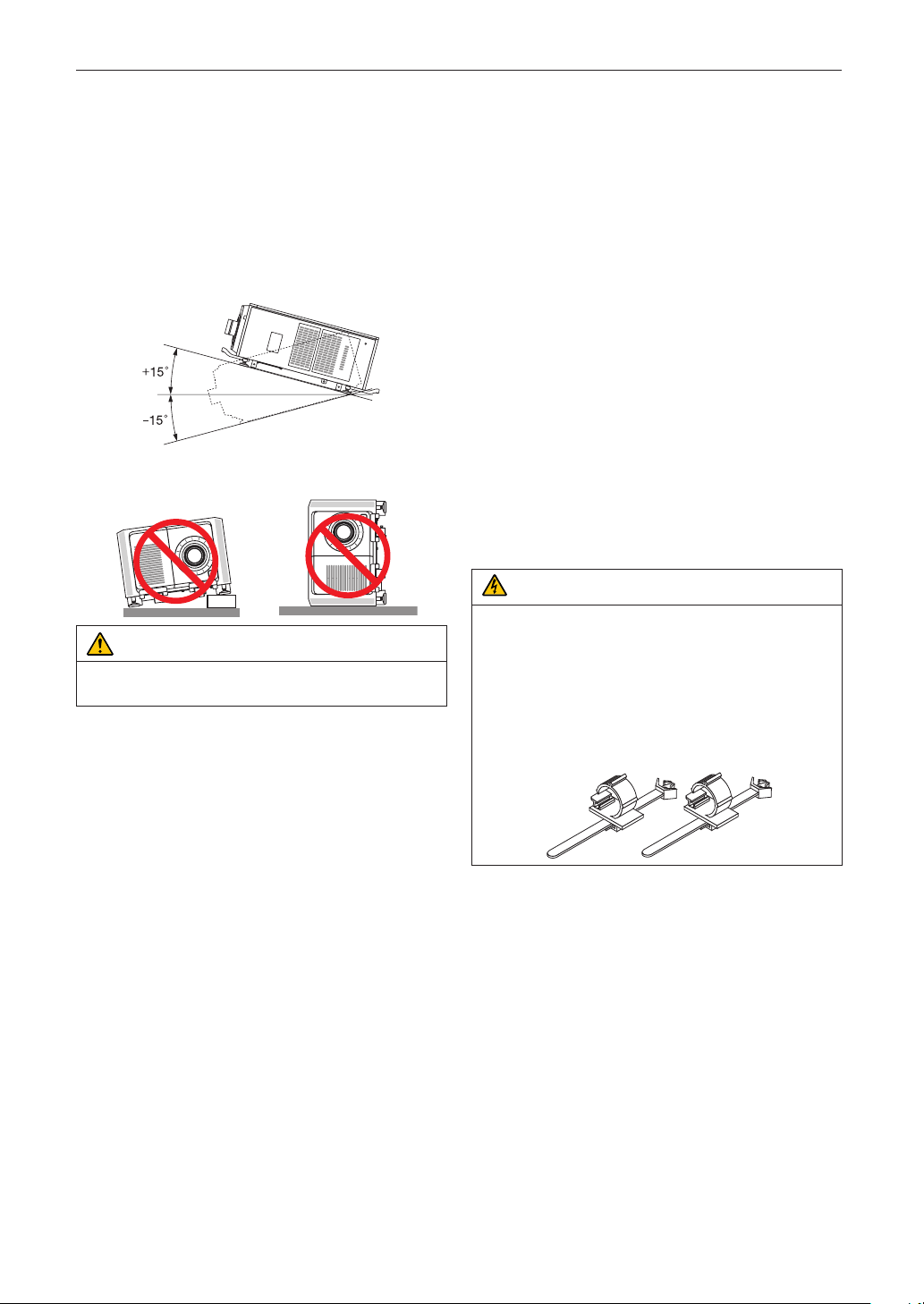

When using the projector tilted in the forward or backward

direction, use it in the range of (+15° to -15°) from horizontal. If

you tilt it outside of this range or tilt it to the left or right, it may

become damaged.

If the projector is tilted outside of this range when used tilted in

the forward or backward direction, “TiltDegreeOver” is dis-

played on the LCD screen. If this message appears, change the

installation of the projector so that the angle is within the given

range from horizontal.

When installed on a floor or a desktop

CAUTION

This equipment is not suitable for use in locations where

children are likely to be present

Power Supply

1. Consult your dealer for installing the power cable to the

projector. DO NOT install the power cable by yourself.

Doing so may cause a fire or electric shock.

The projector is so designed that it operates with the power

supply voltage described below.

For C1 connection

(When the AC power to the projector power supply and the

light power supply is provided by a single cable)

• AC 200V-240V single phase 50/60Hz

For C2 connection

(When the AC power to the projector power supply and the

light power supply is provided by separate cables)

• AC 100V-240V single phase 50/60Hz (projector power

supply)

• AC 200V-240V single phase 50/60Hz (light power

supply)

Ensure that your power supply fits this requirement before

attempting to use your projector.

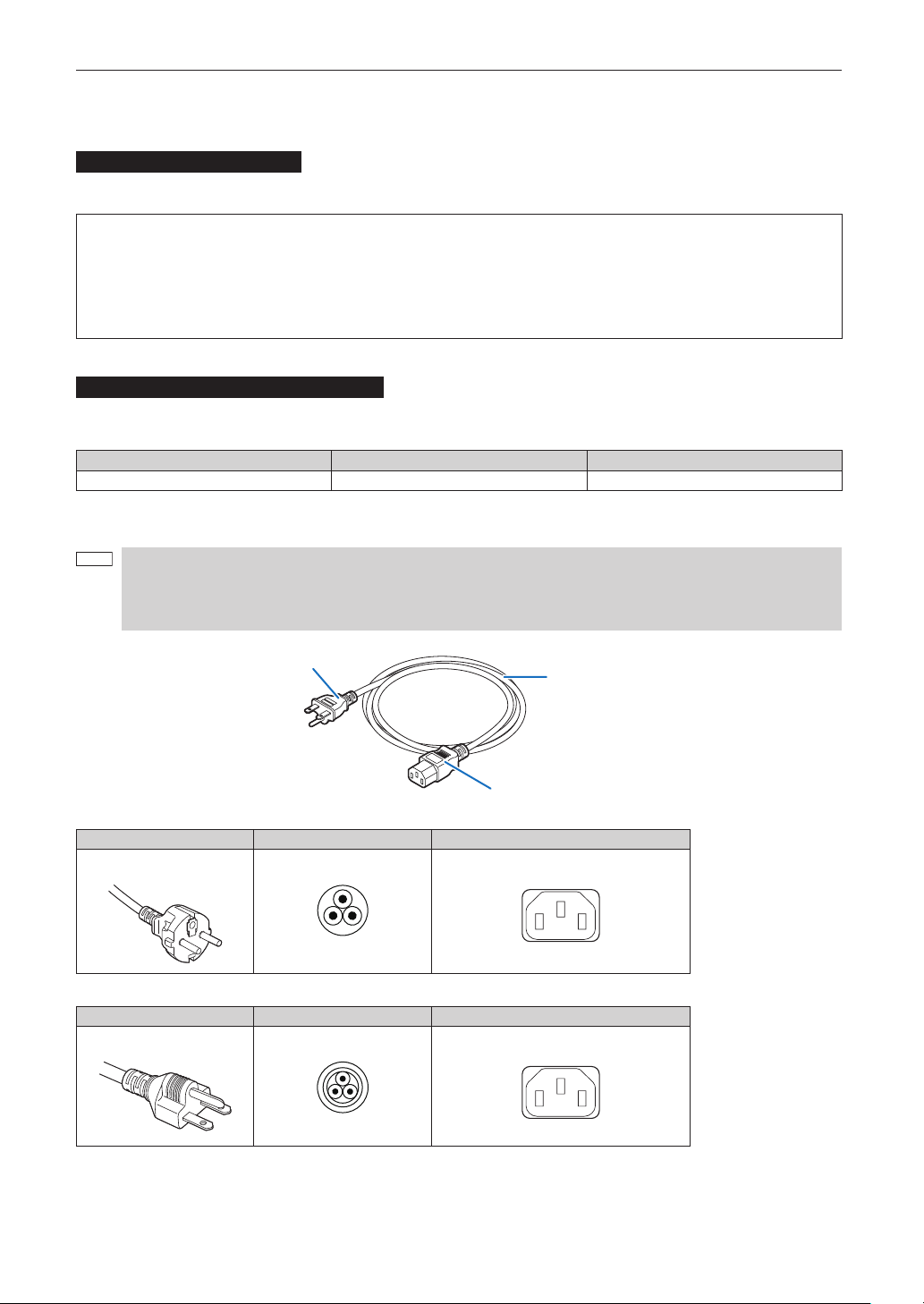

2. The power cable is not included with the projector. Use a

power cable that meets the standards and power supply

voltage of the country where you are using the projector.

Refer to “2-3. Selecting the Power Cable for C2 Connection

(English)” for details.

3. Handle the power cable carefully. A damaged or frayed

power cable can cause electric shock or fire.

• Do not bend or tug the power cable excessively.

• Do not place the power cable under the projector, or any

heavy object.

• Do not cover the power cable with other soft materials

such as rugs.

• Do not heat the power cable.

4. Placing the power cable and the signal cable closely to

each other can cause beat noise. If this happens, keep the

two separated so that beat noise is not generated.

Beat noise is corruption of the picture often seen as a rolling

band moving through the image.

5. Do not touch the projector during a thunder storm. Doing

so can cause electrical shock or fire.

6. When installed on the ceiling, install the breaker in a loca-

tion that is easy to reach by hand.

CAUTION

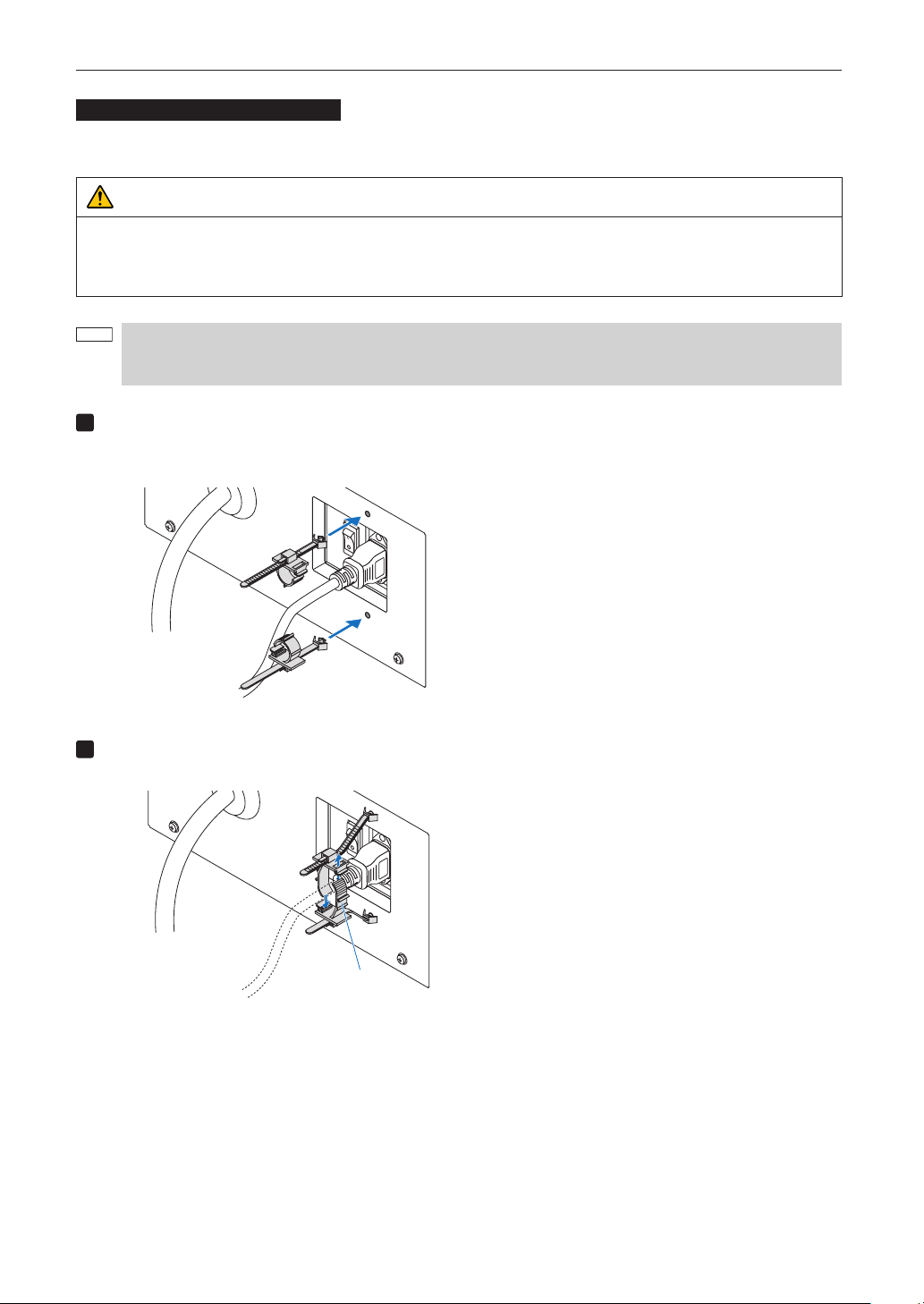

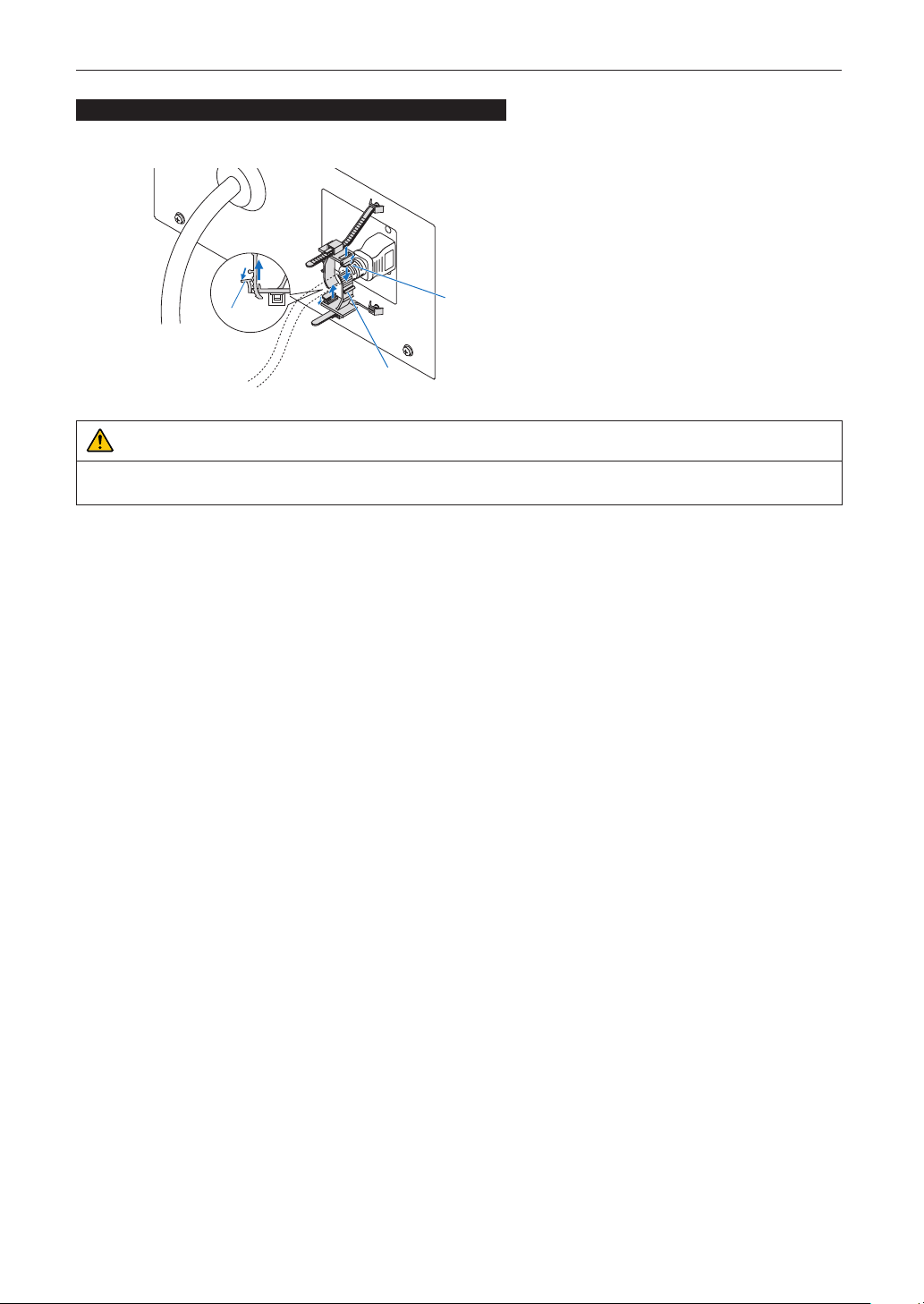

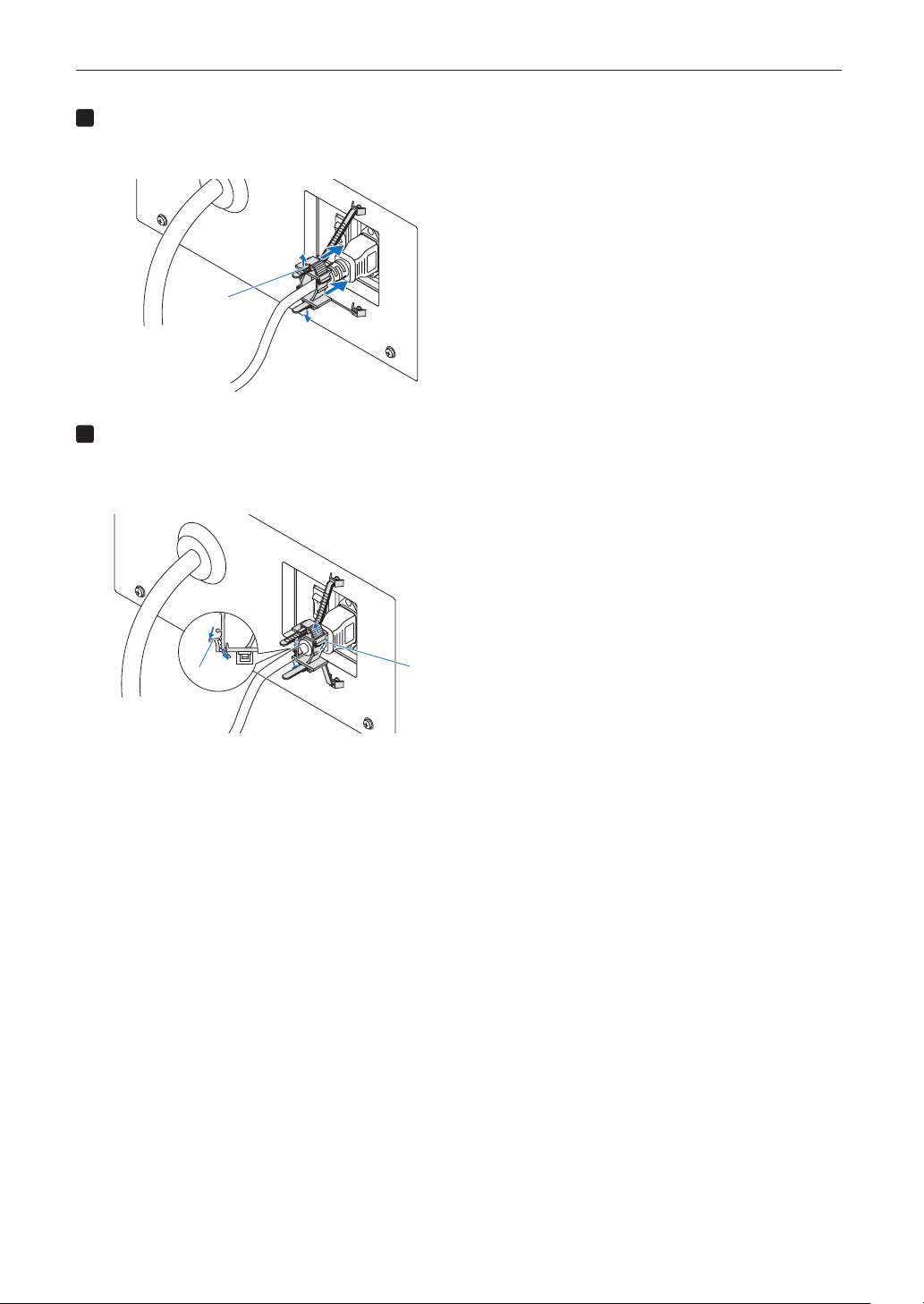

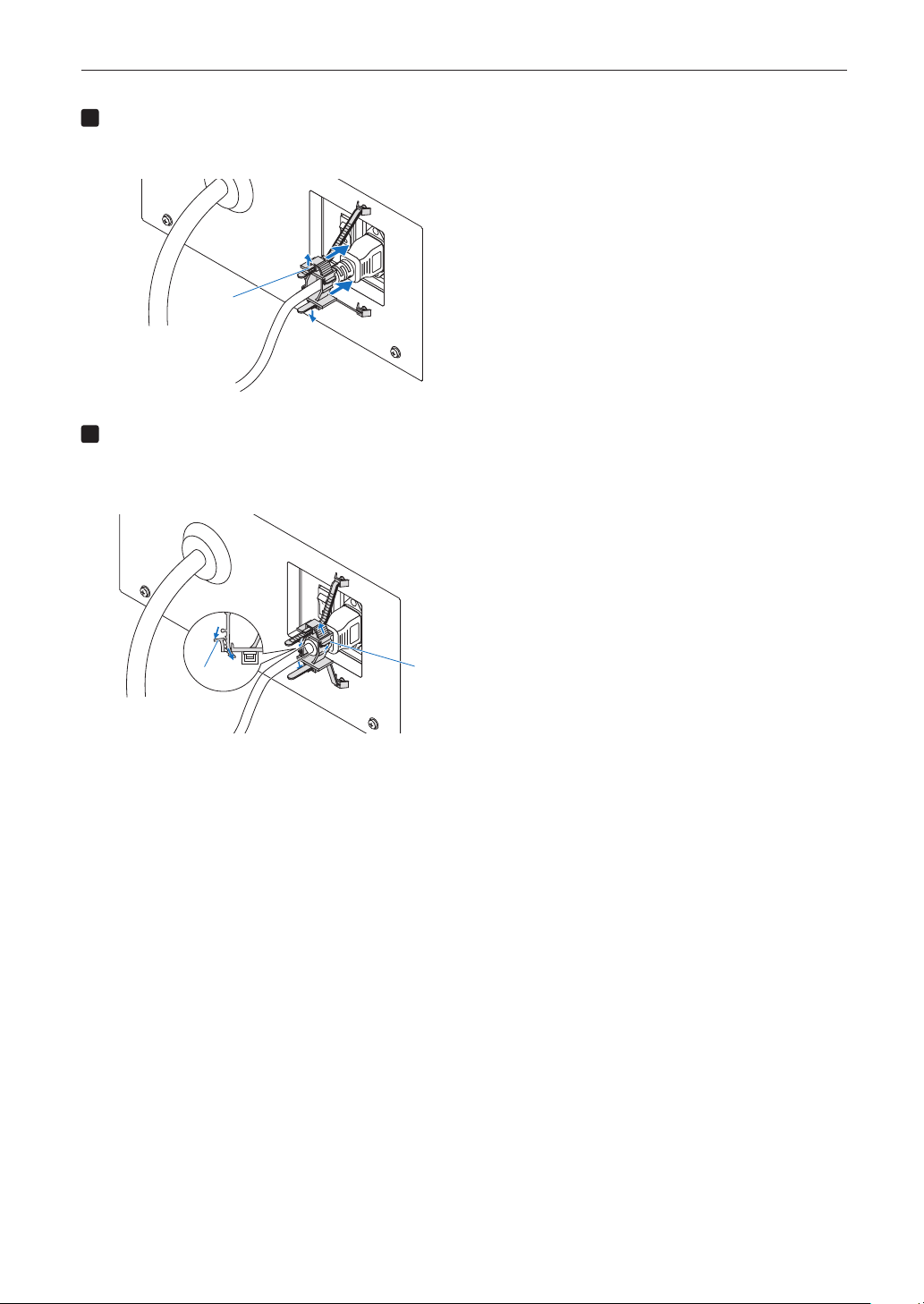

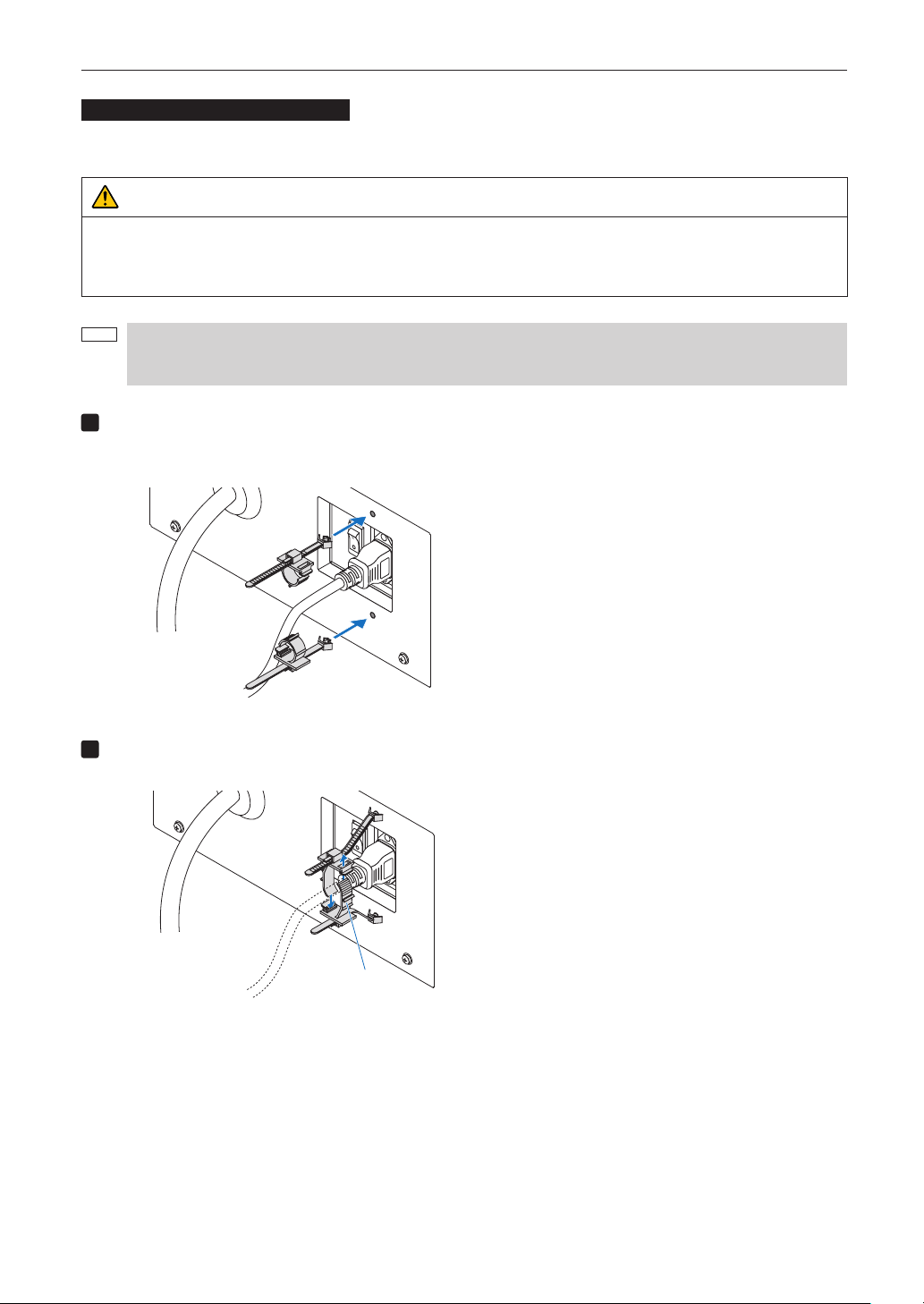

The power cable stopper (shown in below) is supplied with

this projector.

To prevent the power cable from coming loose, make sure

that all the prongs of the power cable are fully inserted into the

AC IN terminal of the projector before using the power cable

stopper to fix the power cable. A loose contact of the power

cable may cause a fire or electric shock. For using the power

cable stopper, refer to the user’s manual.

Fire and Shock Precautions

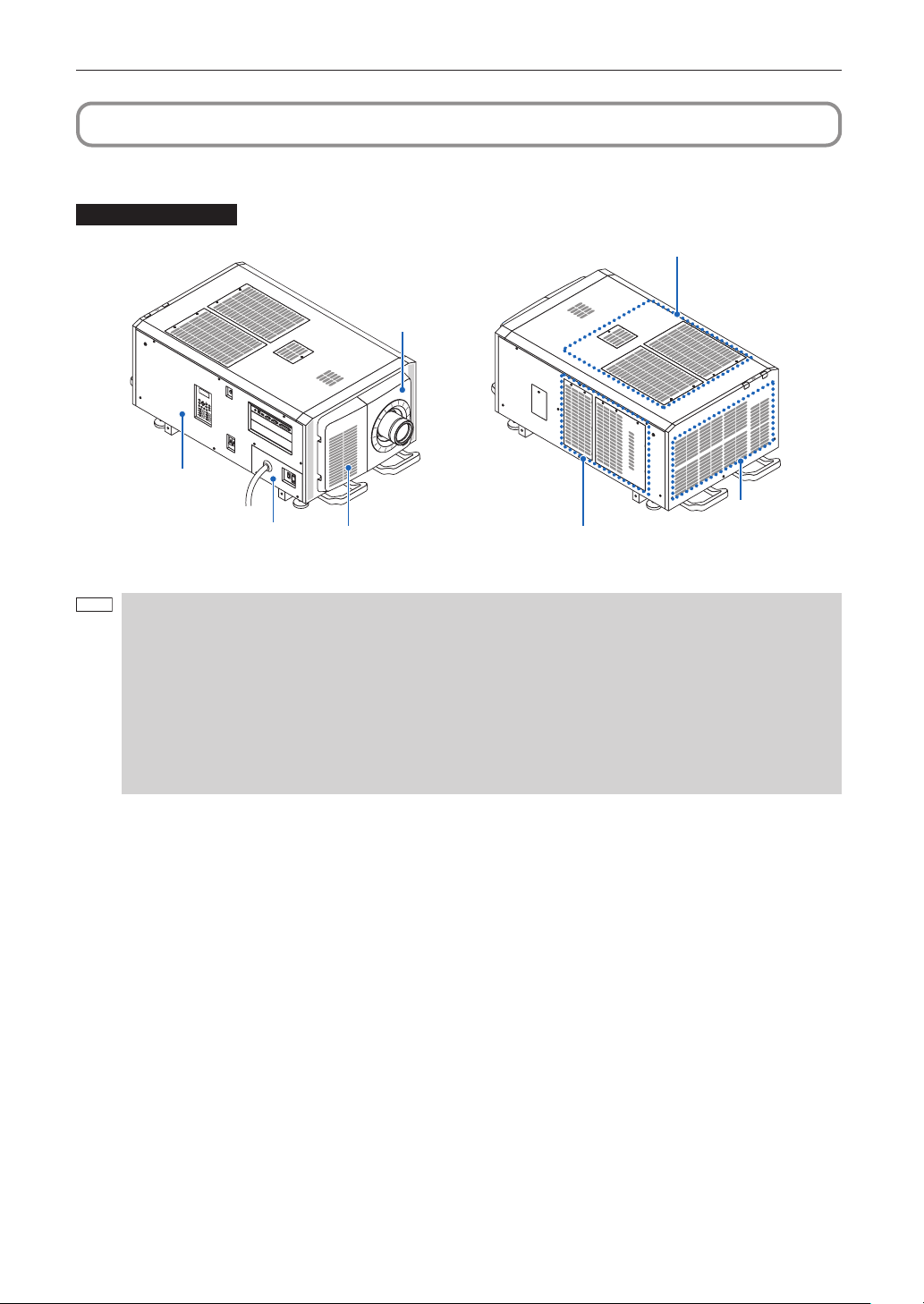

1. Ensure that there is sufficient ventilation and that vents are

unobstructed to prevent potentially dangerous concentra-

tions of ozone and the build-up of heat inside your projec-

tor. Allow at least 24 inches (60 cm) of space between your

projector and a wall. In particular, clear a space of 26.7

inches (70 cm) or more in front of the air outlet on the rear

surface and 12 inches (30 cm) or more on the upper part of

the projecter body. (See page 39)

Important Information

2. Prevent foreign objects such as paper clips and bits of

paper from falling into your projector. Do not attempt to

retrieve any objects that might fall into your projector. Do

not insert any metal objects such as a wire or screwdriver

into your projector. If something should fall into your projec-

tor, shut down the AC power to the projector immediately

and have the object removed by a qualified service

person.

For C2 connection, turn off the projector, shut down the AC

power to the projector and the light using a circuit breaker,

and contact your dealer/distributor.

3. Turn off the projector, shut down AC power by using a cir-

cuit breaker and contact qualified service personnel under

the following conditions. For C2 connection, turn off the

projector, shut down the AC power to the projector and the

light using a circuit breaker, and contact your dealer/dis-

tributor for a repair.

• When the power cable or plug is damaged or frayed.

• If liquid has been spilled into the projector, or if it has

been exposed to rain or water.

• If the projector does not operate normally when you follow

the instructions described in this user’s manual.

• If the projector has been dropped or the cabinet has

been damaged.

• If the projector exhibits a distinct change in performance,

indicating a need for service.

4. When using a LAN cable:

For safety, do not connect to the connector for peripheral

device wiring that might have excessive voltage.

Cleaning

1. Shut down AC power by using a circuit breaker before

cleaning.

For C2 connection, turn off the projector, shut down the AC

power to the projector and the light using a circuit breaker.

2. Clean the cabinet periodically with a cloth. If heavily soiled,

use a mild detergent. Never use strong detergents or sol-

vents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful

not to scratch or mar the lens.

4. Do not handle the projector and the power cable with wet

hands. Doing so can cause electrical shock or fire.

CAUTION

1. Do not shut down AC power to the projector under the

following conditions.

Doing so can damage the projector.

• While projecting images

• While cooling after the power is turned off.

(The STATUS indicator LED blinks in orange while the

fan is rotating, and “cooling...” is displayed on the LCD

screen. )

- When using the NP-90MS01/NP-90MS02: 100

seconds

• During IMB Operation (if the projector is not in standby

state)

2. Do not turn off the AC power for 90 seconds after the

laser is turned on and while the POWER indicator is blink-

ing green. Doing so could cause premature laser failure.

3. Keep hands away from the lens mounting portion while

the lens shift is in operation. Failure to do so could result

in fingers being pinched between the cabinet and lens

cover.

4. When main body is damaged, cooling fluids may come

out of internal part. DO NOT touch and drink the cooling

fluid.

When the cooling fluids are swallowed or contacted with

your eyes, please consult with doctors immediately.

Caution on Carrying the Projector/Handling the Optional

Lens

When installing/removing a lens, shut down the AC power to

the projector.

When shipping the projector with the lens, remove the lens

before shipping the projector. Always attach the dust

cap to the lens whenever it is not mounted on the projector. The

lens and the lens shift mechanism may encounter damage

caused by improper handling during transportation.

Important Information

Handling the Battery

• Take care when handling the battery, as it could cause fire,

injury, or damage to surrounding objects.

- Do not short out, dismantle, or place batteries in a fire.

• Dispose of used batteries according to your local

regulations.

• There is a battery mounted on the electronic circuit board

within the main unit. When disposing of the main unit, do not

dismantle the device or remove the internal circuit board, and

contact the shop where you purchased the product or your

local government agency.

Peripheral Devices and Connecting Cables

Use shielded cables for the cables connecting the IMB with

peripheral devices (GPI, GPO, AES cables). If you use a non-

shielded cable, there is a risk that radio interference may occur.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose

you to lead, a chemical known to the State of California to

cause birth defects or other reproductive harm. WASH

HANDS AFTER HANDLING

Light Module

1. A light module containing multiple laser diodes is included

in the product as the light source.

2. These laser diodes are sealed in the light module. No main-

tenance or service is required for the performance of the

light module.

3. End user is not allowed to replace the light module.

4. Contact qualified distributor for light module replacement

and further information.

Important Information

Disposing of your used product

EU-wide legislation as implemented in each Mem-

ber State requires that used electrical and elec-

tronic products carrying the mark (left) must be

disposed of separately from normal household

waste.

This includes projectors and their electrical acces-

sories. When you dispose of such products,

please follow the guidance of your local authority

and/or ask the shop where you purchased the

product.

After collecting the used products, they are reused

and recycled in a proper way. This effort will help

us reduce the wastes as well as the negative

impact to the human health and the environment

at the minimum level.

The mark on the electrical and electronic products

only applies to the current European Union Mem-

ber States.

For EU: The crossed-out wheeled bin implies that

used batteries should not be put to the general

household waste! There is a separate collection

system for used batteries, to allow proper treat-

ment and recycling in accordance with legislation.

According the EU directive 2006/66/EC, the

battery can’t be disposed improperly. The bat-

tery shall be separated to collect by local

service.

For questions relating to unclear points or repairs

Contact your dealer or the following support branch for ques-

tions relating to unclear points, malfunctions and repairs of the

product.

In Europe

Company Name: NEC Display Solutions Europe GmbH

Address: Landshuter Allee 12-14, D-80637 Munichi, Germany

Telephone: +49 89 99699 0

Fax Line: +49 89 99699 500

Email Address: [email protected]

WEB Address: https://www.nec-display-solutions.com

In North America

Company Name: NEC Display Solutions of America, Inc.

Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois

60143, U.S.A.

Telephone: +1 800 836 0655

Fax Line: +1 800 356 2415

Email Address: pjtechsupport@necdisplay.com

WEB Address: https://www.necdisplay.com/

In China

Company Name: NEC Solutions (China) Co., Ltd.

Address: Rm 1903, Shining Building, 35 Xueyuan Rd,

Haidian District Beijing 100191, P.R.C.

Telephone: +8610-4008-900-678

Email Address: [email protected]

In Hong Kong and Taiwan

Company Name: Strong Westrex, Inc.

Address: Room 4108 China Resources Building, No. 26

Harbour Road, Wanchai, Hong Kong

Telephone: +852 2827 8289

Fax Line: +852 2827 5993

Email Address: [email protected]

In South Korea

Company Name: Hyosung ITX Co., Ltd.

Address: 1F, Ire Building, 2, Yangpyeong-dong 4-ga,

Yeongdeungpo-gu, Seoul, Korea 150-967

Telephone: +82-2-2102-8591

Fax Line: +82-2-2102-8600

Email Address: [email protected]

WEB Address: http://www.hyosungitx.com

In Australia and New Zealand

Company Name: NEC Australia Pty Ltd

Address: 26 Rodborough Road Frenchs Forest NSW 2086

Telephone: 131 632 (from anywhere in Australia)

Email Address: [email protected]

WEB Address: http://www.nec.com.au

In Thailand, Singapore, Malaysia, Indonesia and

Philippines

Company Name: Goldenduck International Co., Ltd.

Address: 65 Soi Phutthamothon Sai 1, 21 Bangramad,

Talingchan, Bangkok, Thailand 10170

Telephone: +66-2887-8807

Fax Line: +66-2887-8808

Email Address: contact@goldenduckgroup.com

Important Information

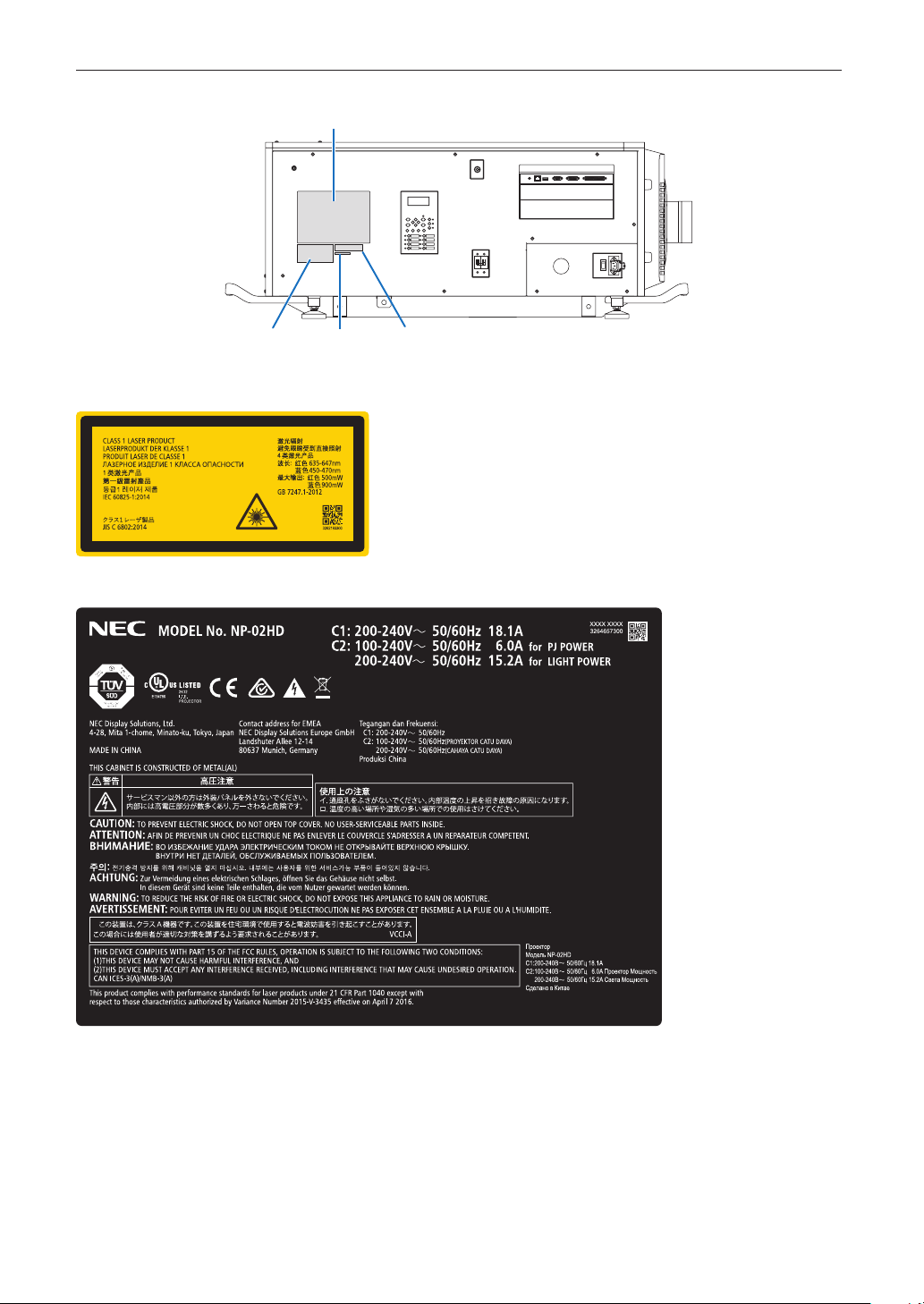

Label Information

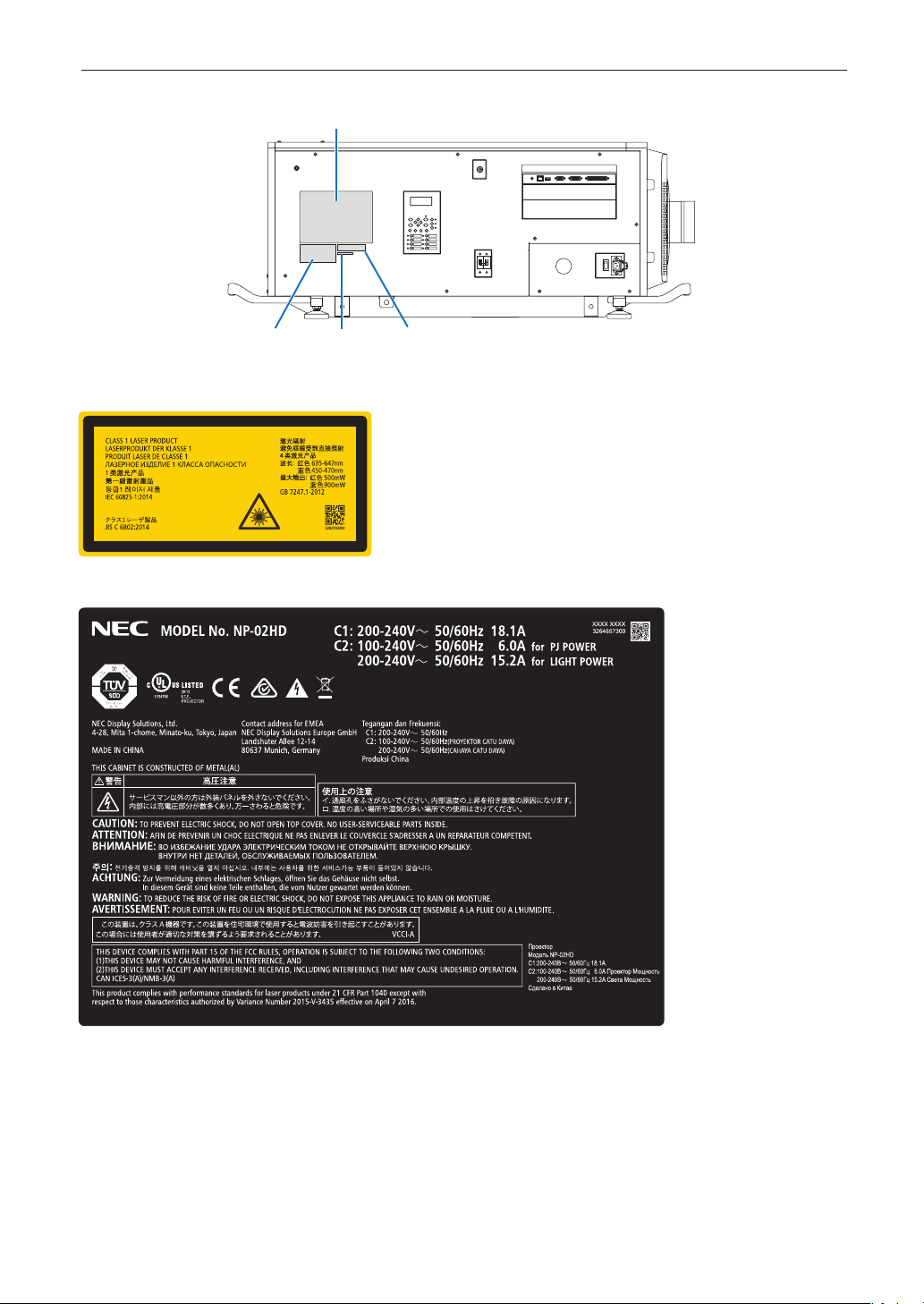

Label A

Label A: Lamp Warning Label

Important Information

Label C

Label D

Label E

Label B

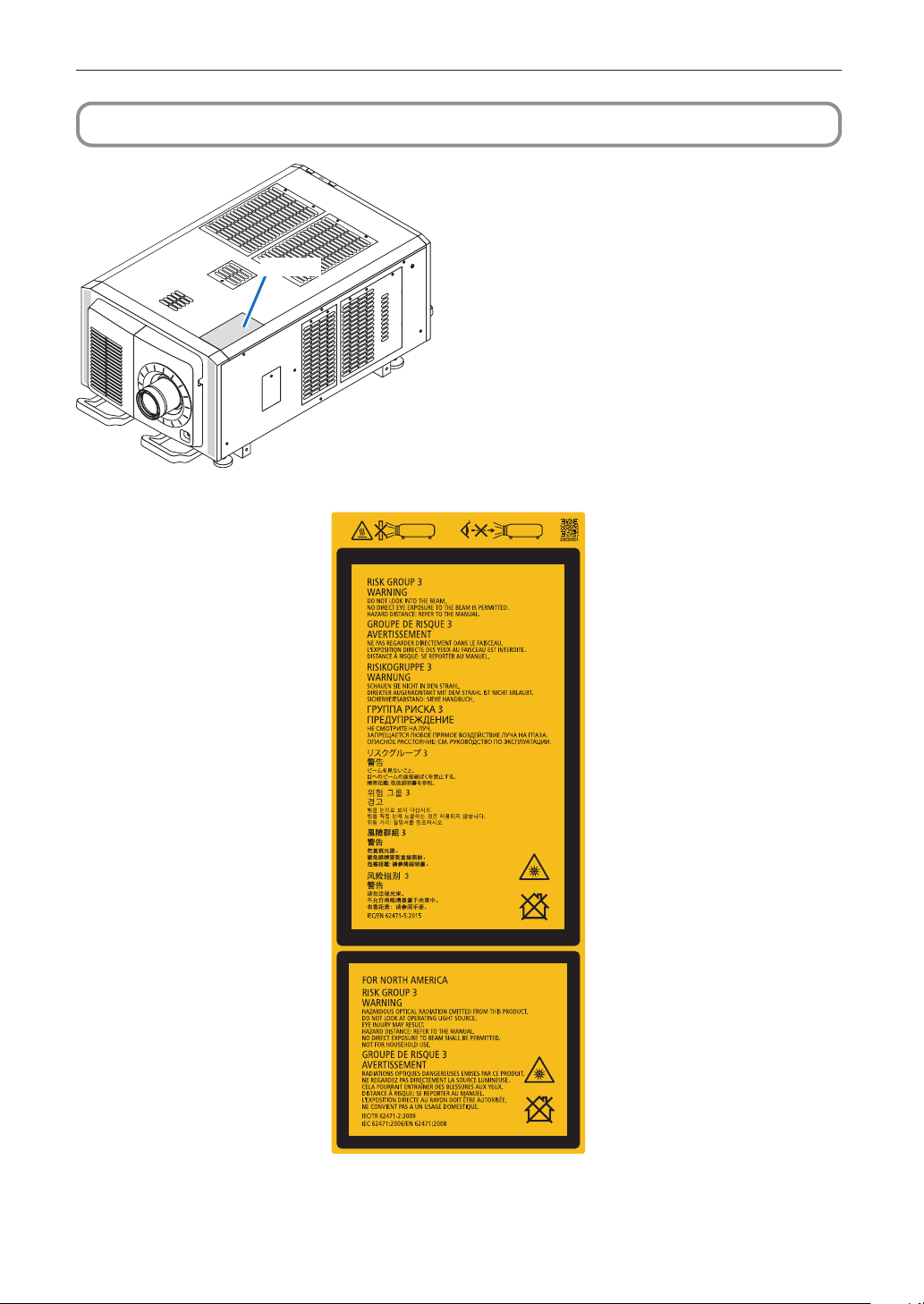

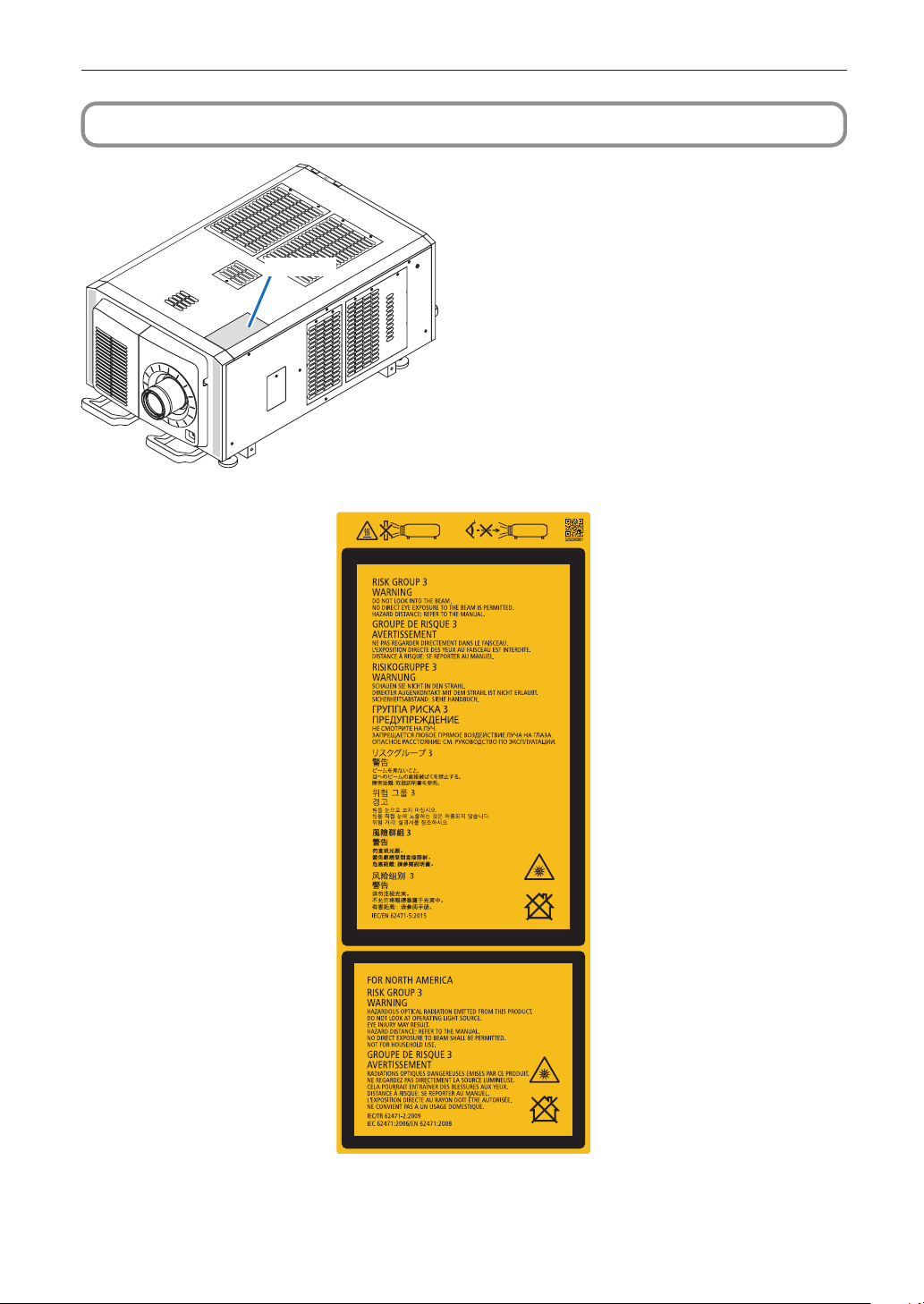

• Label B

Laser Explanatory Label

• Label C

Important Information

• Label D

• Label E

Important Information

Radiation Range of Emitted Light by the Projector (HD: Hazard Distance)

• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3) of

IEC62471-5 First edition 2015.

• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3) of

IEC62471:2006.(for USA).

• Please keep within bounds for installing the projector.

Install a barrier for preventing human eyes from entering the RG3 area.For the barrier installation position, keep horizontal safety

zone over 1.5m from the RG3 area.In case to install the projector over head, keep over 3m distance at least between the floor

surface and the RG3 area.

Operators shall control access to the beam within the hazard distance or install the product at the height that will prevent expo-

sures of spectators’ eyes within the hazard distance.

(IEC62471-5 First edition 2015) (IEC62471:2006 (for USA))

Lens

RG3

HD(m)

Screen size(m)

Lens

RG3

HD(m)

Screen size(m)

EHv

H V H V

NC-60LS12Z

Wide 5.0 4.2 2.2

NC-60LS12Z

Wide 5.0 4.2 2.2 2.8

Tele 7.5 4.1 2.2 Tele 7.5 4.1 2.2 6.3

NC-60LS14Z

Wide 5.5 3.9 2.1

NC-60LS14Z

Wide 5.5 3.9 2.1 3.4

Tele 8.0 3.9 2.1 Tele 8.0 3.9 2.1 7.2

NC-60LS16Z

Wide 6.0 3.8 2.0

NC-60LS16Z

Wide 6.0 3.8 2.0 3.1

Tele 9.5 3.8 2.0 Tele 9.5 3.8 2.0 7.9

NC-60LS19Z

Wide 6.5 3.4 1.8

NC-60LS19Z

Wide 6.5 3.4 1.8 3.2

Tele 11.0 3.4 1.8 Tele 11.0 3.4 1.8 9.4

NC-60LS24Z

Wide 9.0 3.8 2.0

NC-60LS24Z

Wide 9.0 3.8 2.0 5.9

Tele 15.5 3.7 2.0 Tele 15.5 3.7 2.0 15.7

NC-60LS39Z

Wide 12.9 3.3 1.7

NC-60LS39Z

Wide 12.9 3.3 1.7 7.7

Tele 21.5 3.3 1.7 Tele 21.5 3.3 1.7

21.4

[Plan view]

[Side view]

RG3 range

* If lens shift is utilized, please consider the shift of projected image according to the volume of lens shift.

Important Information

CAUTION

Please heed all precaution for safety.

To install the projector

• For planning the layout of the projector, make sure to take safety measures instructed on the installation manual.

• In order to refuse danger, install either a wall outlet within easy reach for pulling out the power plug in emergency or a device

as a breaker to shut down the power supply to the projector.

• Take safety measures preventing human eyes from entering the RG3 area.

• Considering the installation place, select an appropriate lens and secure safety zone that is determined for each lens. For

operation on the powered projector as light adjustment, make sure appropriate safety measures have been taken.

• Check the validity of taken security measures if appropriate safety zone based on the installed lens is secured. Periodically

check the validity and keep these results.

• Educate the administrator of the projector (operators) about safety before starting to operate the projector.

To use the projector

• Instruct the administrator of the projector (operators) to perform inspections before powering on the projector. (Including the

safety check against emitted light by the projector)

• Instruct the administrator of the projector (operators) to be in circumstances able to control the projector whenever the projec-

tor is powered on for an emergency.

• Instruct the administrator of the projector (operators) to keep the installation manual, user’s manual and inspection records to

a place where they can take these documents out easily.

• Instruct them to clarify if the projector is conformed to standards of each country and region.

Wichtige Informationen

Vorsichtsmaßnahmen:

Lesen Sie sich dieses Handbuch bitte sorgfaltig durch,

bevor Sie den NP-02HD benutzen, und bewahren Sie das

Bedienungshandbuch in reifbarer Nahe als spatere Referenz

auf. In diesem Handbuch wird der NP-02HD (Projektorein-

heit) „Projektor“ und das NP-90MS01/NP-90MS02 (integri-

eter Media-Server) „Media Block“ oder „IMB“ genannt.

• DLP (Digital Light Processing), DLP Cinema, DLP Cinema logo

und CineLink sind Warenzeichen von Texas Instruments.

• CineLink ist ein Warenzeichen von Texas Instruments.

• Die anderen in diesem Bedienungshandbuch verwendeten

Produktnamen und Logos können Warenzeichen oder ein-

getragene Warenzeichen der jeweiligen Inhaber sein.

• Die Bildschirmanzeigen und Abbildungen in diesen Handbuch

können leicht von den tatsächlichen Anzeigen abweichen.

• GPL/LGPL Softwarelizenzen

Das Produkt beinhaltet Software, die unter GNU General

Public License (GPL), GNU Lesser General Public License

(LGPL) und anderen lizenziert ist.

Für weitere Informationen zu jeder Software lesen Sie bitte

die „readme.pdf“ im Ordner „about GPL&LGPL“ auf der mit-

gelieferten CD-ROM.

WARNUNG

ZUR VERRINGERUNG DES RISIKOS VON FEUER ODER

EINES ELEKTRISCHEN SCHLAGS DARF DAS GERÄT

WEDER REGEN NOCH FEUCHTIGKEIT AUSGESETZT

WERDEN.

ACHTUNG

ZUR VERMEIDUNG EINES ELEKTRISCHEN SCHLAGS

ÖFFNEN SIE NICHT DIE OBERE ABDECKUNG, IM INNE-

REN GIBT ES KEINE ZU WARTENDEN TEILE.

Dieses symbol warnt den bediener, dass innerhalb

des gerätes unisolierte teile vorhanden sind, die

hochspannung führen und deren berührung einen

elektrischen schlag verursachen kann.

Dieses symbol macht den bëdiener darauf aufmerk-

sam, dass wichtige, den betrieb und die wartung des

gerätes betreffende schriften beigefügt sind. um

irgendwelche probleme zu vermeiden, sollten diese

beschreibungen sorgfältig gelesen werden.

Vorsichtsmaßnahmen zur Lasersicherheit

Dieses Produkt ist gemas IEC60825-1 Dritte Auflage 2014 als

Klasse 1 klassifiziert. Dieses Produkt ist als RG3 von IEC62471-5

Erste Ausgabe 2015 eingestuft. Beachten Sie bei der Installa-

tion und Verwaltung des Geräts die Gesetze und Bestimmun-

gen Ihres Landes.

ACHTUNG

Die Verwendung von Bedienelementen oder die Änderung

von Prozeduren in Abweichung von den in diesem Hand-

buch beschriebenen könnte zu gefährlichem Kontakt mit

Laserstrahlung führen.

• Keine direkte Exposition gegenüber dem Strahl ist zulässig,

RG3 IEC 62471-5: 2015.

• Schauen Sie nicht in die Linse, wenn der Projektor einge-

schaltet ist. Dies könnte schwere Augenverletzungen zur

Folge haben.

• Lichtkegel des Projektors fern. Da das von der Linse proji-

zierte Licht umfassend ist, können alle abnormalen Gegen-

stände, die in der Lage sind, das aus der Linse austretende

Licht umzulenken, unvorhersehbare Ereignisse wie z.B.

einen Brand oder Augenverletzungen verursachen.

• Wenn Sie den Projektor einschalten, stellen Sie sicher, dass

sich keine Personen in dem vom Laser abgegebenen Licht-

strahl zur Linse hingewandt befinden.

• Dieses Produkt darf in Vorführsälen nur durch festgelegtes

Personal betrieben werden. Endkunden dürfen dieses

Produkt nicht bedienen.

Maschinenlärminformations-Verordnung – 3. GPSGV,

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger

gemäß EN ISO 7779.

WARNUNG

Dieses Gerät entspricht Klasse A von CISPR 32. Dieses

Produkt kann Funkstörungen in der häuslichen Umgebung

verursachen.

Wichtige Informationen

ACHTUNG

• Verwenden Sie ein Signalkabel mit Ferritkern, um Störungen

beim Radio- und Fernsehempfang zu reduzieren. Die Ver-

wendung eines Signalkabels ohne Ferritkern kann Störun-

gen beim Radio- und Fernsehempfang verursachen.

• Durch Prüfung dieses Gerätes nach FCC, Part 15 wurde

die Einhaltung der Grenzwerte für digitale „Class A“-

Geräte bestätigt. Diese Grenzwerte gelten für einen wirk-

samen Schutz gegen Störungen in Gewerbegebieten.

Dieses Gerät erzeugt und verwendet Funkfrequenzener-

gie und kann diese ausstrahlen und kann, wenn es nicht

entsprechend dem Bedienungshandbuch aufgestellt und

betrieben wird, Störungen beim Radio- und Fernseh-

empfang verursachen. Die Verwendung dieses Gerätes in

Wohngebieten verursacht wahrscheinlich Störungen,

die der Benutzer in eigener Verantwortung zu beseitigen

hat.

WARNUNG

DER ENDBENUTZER DARF DAS PRODUKT NICHT ÖFF-

NEN ODER MODIFIZIEREN.

ES GIBT KEINE VOM BENUTZER ZU WARTENDEN TEILE.

DIE WARTUNG DES PRODUKTS DARF NUR VON NEC-

AUTORISIERTEN TECHNIKERN DURCHGEFÜHRT

WERDEN.

Wichtige Sicherheitshinweise

Diese Sicherheitshinweise sollen eine lange Lebensdauer Ihres

Projektors sicherstellen und vor Feuer und elektrischen Schlä-

gen schützen. Lesen Sie diese Hinweise sorgfältig durch und

beachten Sie alle Warnungen.

Installation

1. Richten Sie den Projektionsstrahl nicht auf Personen oder

reflektierende Gegenstände.

2. Wenn Sie Informationen zum Transport und zur Installation

des Projektors wünschen, wenden Sie sich an Ihren Händ-

ler. Versuchen Sie nicht, den Projektor selbst zu transpor-

tieren oder zu installieren. Zur Gewährleistung eines ord-

nungsgemäßen Betriebs des Projektors und zur

Minimierung des Risikos von Verletzungen von Personen

muss der Projektor von qualifizierten Technikern installiert

werden.

3. Stellen Sie den Projektor auf eine flache, waagerechte Flä-

che in einer trockenen Umgebung; frei von Staub und

Feuchtigkeit. Drehen Sie den Projektor nicht auf die Seite,

wenn der Laser eingeschaltet ist. Anderenfalls kann es zur

Beschädigung des Projektors kommen.

4. Stellen Sie den Projektor weder in direktes Sonnenlicht

noch in die Nähe einer Heizung oder sonstiger Hitze

abstrahlender Einrichtungen.

5. Wenn das Gerät direktem Sonnenlicht, Rauch oder Dampf

ausgesetzt wird, können interne Komponenten beschadigt

werden.

6. Behandeln Sie Ihren Projektor vorsichtig. Fallenlassen oder

starkes Schutteln kann interne Komponenten

beschädigen.

7. Zum Tragen des Projektors werden mindestens sechs Per-

sonen benotigt.

8. Halten Sie den Projektor nicht mit der Hand am Linsenbe-

reich fest. Anderenfalls kann der Projektor umkippen oder

herunterfallen und Verletzungen verursachen.

9. Legen Sie keine schweren Gegenstände auf den

Projektor.

10. Schalten Sie den Projektor aus, und ziehen Sie das Netz-

kabel ab, bevor Sie den Projektor umsetzen.

Für Anschluss C2 schalten Sie den Projektor aus, und tren-

nen Sie die Netzspannung zur Spannungsversorgung des

Projektors und der Lichtquelle mithilfe eines Ausschalters.

Trennen Sie die Kabel zwischen Geräten und der Lampe,

bevor Sie den Projektor bewegen.

11. Installieren und bewahren Sie den Projektor nicht unter den

nachfolgend aufgeführten Umständen auf. Nichtbeachtung

kann eine Fehlfunktion verursachen.

• In starken Magnetfeldern

• In einer Umgebung mit Schadgas

• Im Freien

12. Wenn der Projektor an der Decke installiert werden soll:

• Versuchen Sie nicht, den Projektor selbst zu installieren.

• Der Projektor muss von qualifiziertem Servicepersonal

installiert werden, um einen ordnungsgemäßen Betrieb

sicherzustellen und die Verletzungsgefahr zu

reduzieren.

• Installieren Sie den Leistungsschalter an einer Stelle, die

von Hand leicht erreichbar ist.

• To prevent ceiling collapse, the ceiling should be able to

support the combined weight (158 kg*

) of the projector

(150 kg*

) and lens (8 kg) for an extended period of time,

and the installation must be in accordance with any local

building codes.

When the light module NP-18LU01is installed, the

weight is about 149 kg.

When the light module NP-18LU01is installed, the

weight is about 141 kg.

• Weitere Informationen erhalten Sie von Ihrem

Fachhändler.

Einzelheiten zu den Befestigungspositionen bei Decken-

montage finden Sie unter „2-2-1. Installing the Projector on

the Ceiling“ (Seite 55).

Wichtige Informationen

WARNUNG

1. Verwenden Sie den Projektor nicht, während die mitgelie-

ferte Linsenkappe oder Ähnliches angebracht ist, und der

Projektor in Betrieb ist. Andernfalls kann sich die Linsen-

kappe oder Glasschutzkappe erhitzen und sich verfor-

men oder schmelzen.

2. Platzieren Sie keine hitzeempfi ndlichen Objekte vor der

Projektorlinse. Dies könnte zum Schmelzen des Objekts

durch die Hitze am Lichtausgang führen.

Wenn Sie den Projektor nach vorne oder hinten gekippt ver-

wenden wollen, kippen Sie ihn in einem Bereich von +15° bis

-15° von der Horizontalen. Wenn Sie ihn außerhalb dieses

Bereichs oder nach links oder rechts kippen, kann es zu einer

Beschädigung des Projektors kommen.

Wenn Sie den Projektor nach vorne oder hinten gekippt verwen-

den und der Projektor außerhalb dieses Bereichs gekippt wird,

wird auf dem LCD-Bildschirm „TiltDegreeOver“ angezeigt. Wenn

diese Meldung angezeigt wird, ändern Sie die Installation des

Projektors, sodass der Winkel innerhalb des angegebenen

Bereichs von der Horizontalen liegt.

Bei einer Boden- oder Tischmontage

ACHTUNG

Dieses Gerät ist nicht für den Einsatz an Orten geeignet, an

denen wahrscheinlich Kinder zugegen sind

Spannungsversorgung

1. Zum Installieren des Netzkabels am Projektor wenden Sie

sich bitte an Ihren Fachhändler. UNTER KEINEN UMSTÄN-

DEN versuchen, das Netzkabel selbst zu installieren.

Brand- und Schlaggefahr.

Der Projektor wurde so konzipiert, dass er mit der unten

aufgeführten Netzspannung läuft.

Für Anschluss C1

(Wenn die Netzspannung zur Spannungsversorgung des

Projektors und der Lichtquelle über ein einzelnes Kabel

zugeführt wird)

• AC 200 V-240 V einphasig 50/60 Hz

Für Anschluss C2

(Wenn die Netzspannung zur Spannungsversorgung des

Projektors und der Lichtquelle über getrennte Kabel zuge-

führt wird)

• AC 100 V-240 V einphasig 50/60 Hz (Spannungsversor-

gung zum Projektor)

• AC 200 V-240 V einphasig 50/60 Hz (Spannungsversor-

gung zur Lichtquelle)

Stellen Sie sicher, dass die vorhandene Spannungsversor-

gung diesen Vorgaben entspricht, bevor Sie versuchen,

Ihren Projektor zu betreiben.

2. Es wird kein Netzkabel mit dem Projektor geliefert. Verwen-

den Sie ein Netzkabel, das die Normen und Netzspannung

des Landes, in dem der Projektor verwendet wird, erfüllt.

Siehe „2-4. Auswahl des Netzkabels für Anschluss C2

(Deutsch)“ betreffend den Einzelheiten.

3. Behandeln Sie das Netzkabel vorsichtig. Ein beschädigtes

oder durchgescheuertes Netzkabel kann elektrische

Schläge oder einen Brand verursachen.

• Biegen oder ziehen Sie das Netzkabel nicht übermäßig.

• Legen Sie das Netzkabel nicht unter den Projektor oder

unter einen anderen schweren Gegenstand.

• Bedecken Sie das Netzkabel auch nicht mit weichen

Materialien, z. B. mit Teppichen.

• Erhitzen Sie das Netzkabel nicht.

4. Wenn Sie das Netzkabel und das Signalkabel in unmittel-

barer Nähe zueinander platzieren, kann Überlagerungsrau-

schen auftreten. Vergrößern Sie in einem derartigen Fall

den Abstand zwischen diesen beiden Kabeln.

5. Berühren Sie den Projektor auf keinen Fall während eines

Gewitters. Wenn Sie dies nicht beachten, kann dies zu

einem elektrischen Schlag oder einem Feuer führen.

6. Wenn der Projektor an der Decke montiert wird, installieren

Sie den Leistungsschalter an einer Stelle, die von Hand

leicht erreichbar ist.

Wichtige Informationen

ACHTUNG

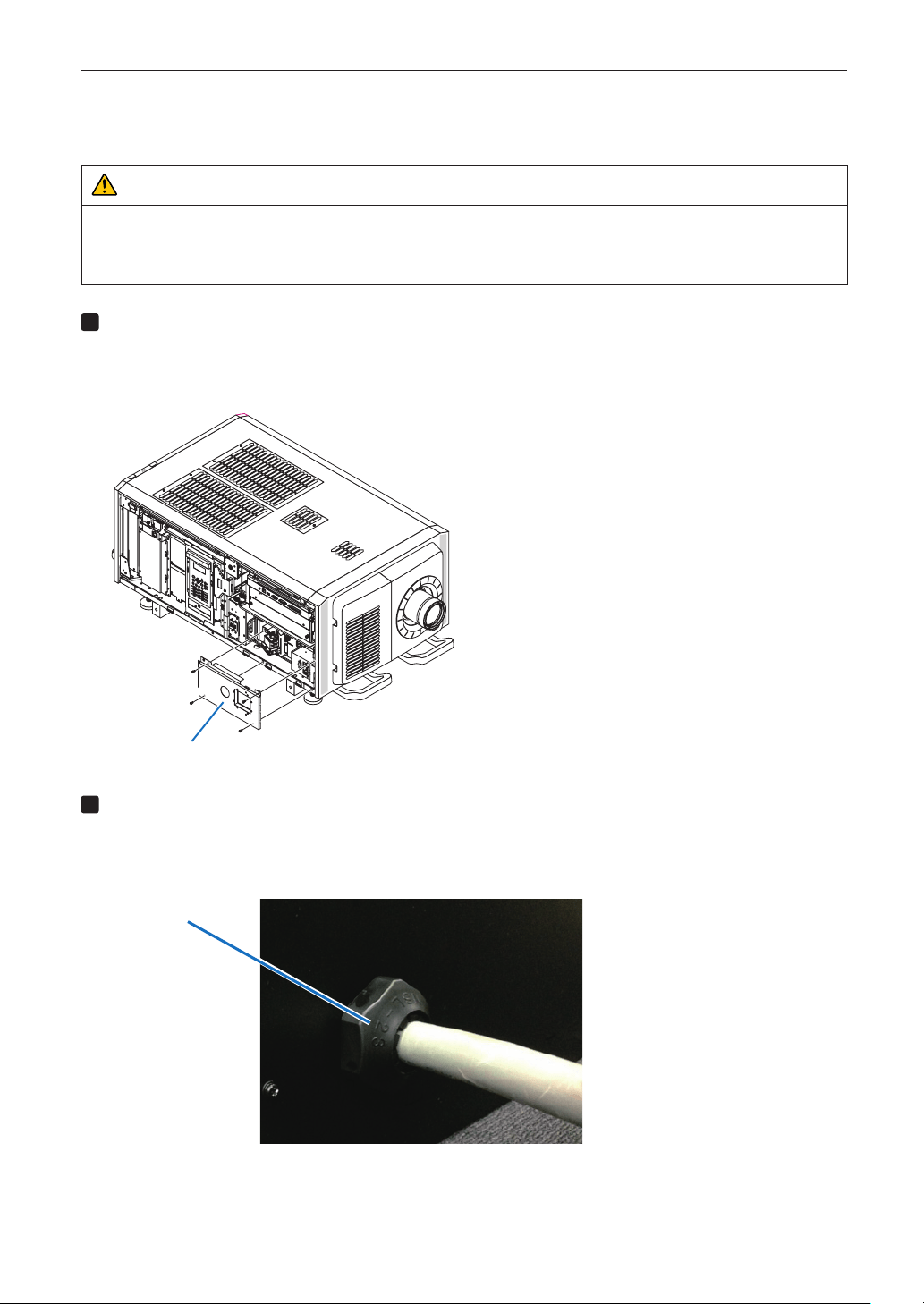

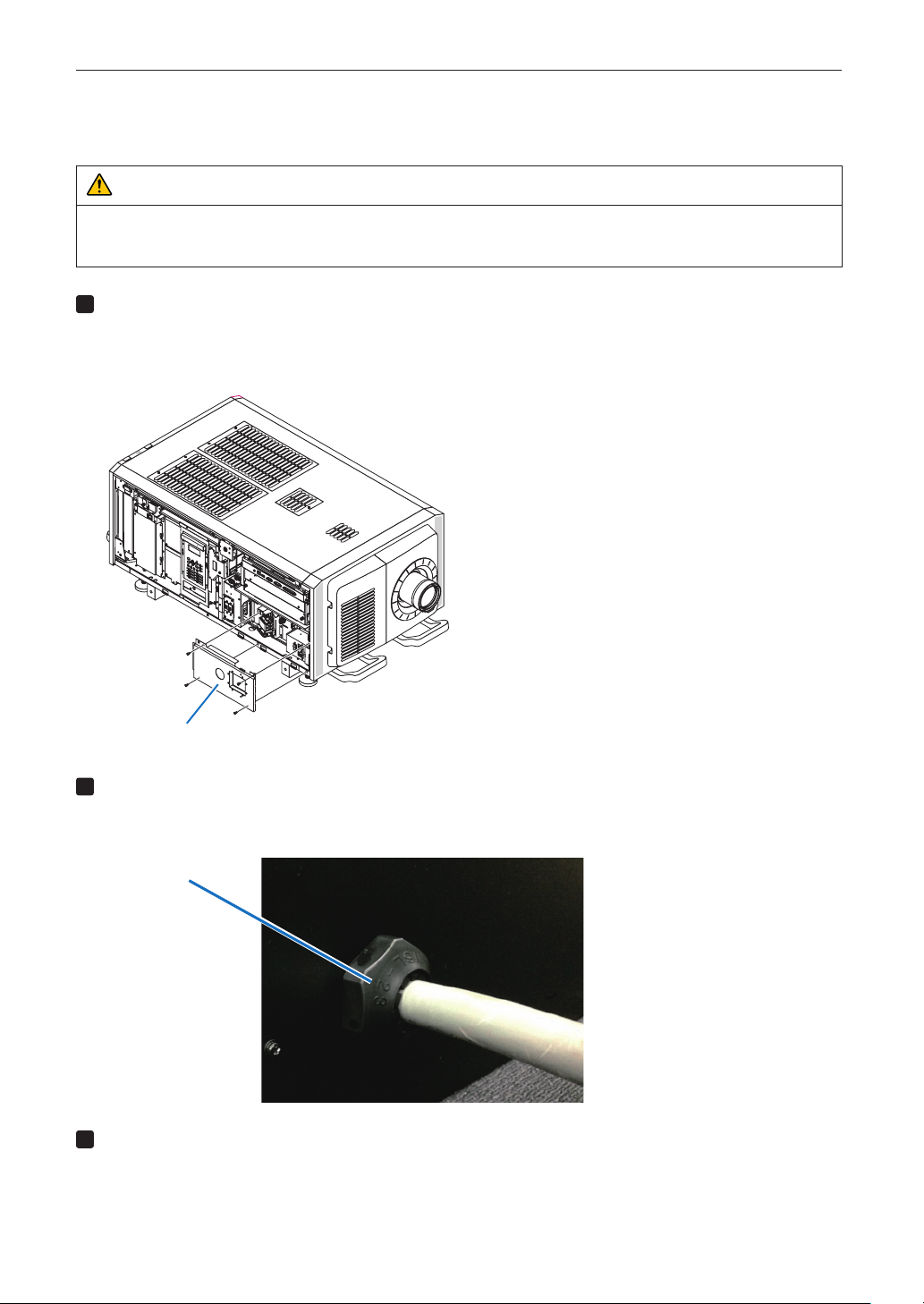

Der nachfolgend abgebildete Netzkabelstopper wird mit

diesem Projektor mitgeliefert.

Um zu verhindern, dass sich das Netzkabel löst, stellen Sie

sicher, dass alle Stifte des Netzkabels vollständig in den

Wechselstromeingangsanschluss des Projektors ein-

gesteckt sind, bevor Sie den Netzkabelstopper verwenden,

um das Netzkabel zu fixieren. Ein lockerer Kontakt des

Netzkabels kann einen Brand oder Stromschlag verursa-

chen. Informationen zur Verwendung des Netzkabelstop-

pers finden Sie im Benutzerhandbuch.

Vorsichtsmasnahmen zur Vermeidung von Bränden und

elektrischen Schlägen

1. Sorgen Sie für ausreichende Belüftung und stellen Sie

außerdem sicher, dass die Lüftungsschlitze frei bleiben,

damit sich innerhalb des Projektors kein Hitzestau bilden

kann. Lassen Sie mindestens 60 cm Abstand zwischen

Ihrem Projektor und der Wand. Halten Sie insbesondere

einen Freiraum von mindestens 70 cm vor dem Luftauslass

auf der Rückseite und von mindestens 30 cm oberhalb des

Projektorgehäuses. (Seite 41)

2. Vermeiden Sie, dass Fremdgegenstande wie Büroklam-

mern und Papierschnipsel in den Projektor fallen. Versu-

chen Sie nicht, in den Projektor gefallene Gegenstände

selbst zu entfernen. Stecken Sie keine Metallgegenstande

wie einen Draht oder Schraubendreher in Ihren Projektor.

Wenn etwas in den Projektor gefallen ist, schalten Sie sofort

die Stromversorgung des Projektors ab, und lassen Sie den

Gegenstand von qualifiziertem Servicepersonal entfernen.

Für Anschluss C2 schalten Sie den Projektor aus, trennen

Sie die Netzspannung zur Spannungsversorgung des Pro-

jektors und der Lichtquelle mithilfe eines Ausschalters und

wenden Sie sich an Ihren Handler/Lieferanten.

3. Schalten Sie den Projektor aus, ziehen Sie den Netzstecker

und kontaktieren Sie unter den folgenden Bedingungen

qualifiziertes Service-Personal.

Für Anschluss C2 schalten Sie den Projektor aus, trennen

Sie die Netzspannung zur Spannungsversorgung des Pro-

jektors und der Lichtquelle mithilfe eines Ausschalters und

wenden Sie sich für Reparaturarbeiten an Ihren Handler/

Lieferanten.

• Wenn das Netzkabel oder der Netzstecker beschädigt

oder ausgefranst ist.

• Falls Flüssigkeit in den Projektor gelangt ist, oder wenn

er Regen oder Wasser ausgesetzt war.

• Falls der Projektor nicht normal arbeitet, obwohl Sie die

in diesem Bedienungshandbuch beschriebenen Anlei-

tungen befolgen.

• Wenn der Projektor fallengelassen oder das Gehäuse

beschädigt wurde.

• Wenn der Projektor eine eindeutige Leistungsverände-

rung aufweist, die einer Wartung bedarf.

4. Wenn ein LAN-Kabel verwendet wird:

Schließen Sie es aus Sicherheitsgründen nicht an den

Anschluss der Peripheriegeräte-Verbindung an, das sie

eine zu hohe Spannung führen könnte.

Reinigung

1. Schalten Sie vor der Reinigung die Stromversorgung durch

Herausdrehen der Sicherung ab.

Für Anschluss C2 schalten Sie den Projektor aus und tren-

nen Sie die Netzspannung zur Spannungsversorgung des

Projektors und der Lichtquelle mithilfe eines Ausschalters.

2. Reinigen Sie das Gehäuse regelmäßig mit einem Tuch. Bei

starker Verschmutzung verwenden Sie ein mildes Reini-

gungsmittel. Reinigen Sie das Gerät niemals mit starken

Reinigungsoder Lösungs-mitteln wiez.B. Alkohol oder

Verdünner.

3. Reinigen Sie die Linse mit einer Blaseinrichtung oder einem

Linsentuch. Beachten Sie dabei, dass die Linsenoberfläche

weder zerkratzt noch auf andere Weise beschädigt wird.

4. Berühren Sie den Projektor oder das Netzkabel nicht mit

nassen Handen. Andernfalls kann es zu elektrischen Schla-

gen oder zu einem Brand kommen.

Wichtige Informationen

ACHTUNG

1. In den folgenden Situationen darf die Netzspannung nicht

getrennt werden. Der Projektor konnte sonst beschadigt

werden.

Anderenfalls kann der Projektor beschadigt werden.

• Während der Projizierung von Bildern

• Während des Abkühlens nach Ausschalten der

Stromzufuhr.

(Die STATUS-Anzeige blinkt orange, wahrend das

Geblase in Betrieb ist, und auf der LCD-Anzeige wird

„cooling…“ angezeigt.)

- Bei Verwendung des NP-90MS01/NP-90MS02:

90 Sekunden

• Während des IMB-Betriebs (wenn sich der Projektor

nicht im Standby-Modus befindet)

2. Schalten Sie den Wechselstrom 90 Sekunden lang nicht

aus, nachdem der Laser eingeschaltet wurde und wäh-

rend die POWER-Anzeige grün blinkt. Anderenfalls

könnte der Laser vorzeitig ausfallen.

3. Halten Sie die Hände fern vom Linsenmontageteil, wäh-

rend der Linsenversatz in Betrieb ist. Anderenfalls könn-

ten Finger zwischen Gehäuse und Linsendeckel einge-

klemmt werden.

4. Wenn das Hauptteil beschädigt ist, kann Kühlungsflüs-

sigkeit aus dem Inneren austreten. Berühren Sie die Flüs-

sigkeit NICHT, und trinken Sie sie NICHT.

Wenn die Kühlungsflüssigkeit geschluckt wurde oder in

Augenkontakt kam, rufen Sie bitte sofort einen Arzt.

Vorsicht beim Transportieren des Projektors/Umgang mit

der optischen Linse

Wenn Sie ein Objektiv installieren/entfernen, schalten Sie die

Stromversorgung des Projektors ab.

Wenn Sie den Projektor mit der Linse verschicken, entfernen

Sie die Linse vor dem Versand. Bringen Sie immer die Staub-

schutzkappe an der Linse an, wenn diese nicht am Projektor

angebracht ist. Die Linse und der Lens Shift Mechanismus kön-

nen durch unsachgemäße Handhabung während des Trans-

ports beschädigt werden.

Umgang mit der Batterie

• Seien Sie äusserst vorsichtig beim Hantieren der Batterie, um

jedes Risiko von Brand, Verletzungen oder Beschädigungen

anderer Objekte.

- Die Batterien nicht kurzschliessen, demontieren oder ins

Feuer werfen.

• Entsorgen Sie verbrauchte Batterien entsprechend den in

Ihrem Land geltenden Bestimmungen.

• Auf der Leiterplatte der Haupteinheit ist eine Batterie mon-

tiert. Zerlegen Sie die Haupteinheit beim Entsorgen nicht,

und entfernen Sie nicht die interne Leiterplatte. Wenden Sie

sich stattdessen an den Händler, bei dem Sie das Gerät

erworben haben, oder an die zuständige Behörde.

Peripheriegeräte und Verbindungskabel

Verwenden Sie abgeschirmte Kabel für die Verbindungskabel

zwischen dem IMB mit Peripheriegeräten (GPI-, GPO-, AES-

Kabel). Wenn Sie ein nicht abgeschirmtes Kabel verwenden,

besteht die Gefahr, dass Funkstörungen auftreten.

Lichtmodul

1. Als Lichtquelle dient dem Produkt ein Lichtmodul beste-

hend aus mehreren Laserdioden.

2. Diese Laserdioden sind im Lichtmodul eingeschlossen. Für

die Leistung des Lichtmoduls ist keine Wartung erforderlich.

3. Der Endbenutzer darf das Lichtmodul nicht austauschen.

4. Wenden Sie sich an einen qualifizierten Händler, wenn Sie

das Lichtmodul austauschen wollen oder weitere Informa-

tionen benötigen.

Entsorgung Ihres benutzten Gerätes

Die EU-weite Gesetzgebung, wie sie in jedem

einzelnen Mitgliedstaat gilt, bestimmt, dass

benutzte elektrische und elektronische Geräte mit

dieser Markierung (links) getrennt vom normalen

Haushaltsabfall entsorgt werden müssen.

Dies schließt Projektoren und deren elektrisches

Zubehör mit ein. Folgen Sie beim Entsorgen eines

solchen Gerätes bitte den Anweisungen Ihrer örtli-

chen Behörde und/oder konsultieren Sie den Hän-

dler, bei dem Sie das Gerät erworben haben.

Nach der Sammlung benutzter Geräte werden

diese erneut verwendet und entsprechend den

Umweltbestimmungen recycelt. Das trägt dazu

bei, die Abfallmenge sowie die negativen Aus-

wirkungen auf die menschliche Gesundheit und

die Umwelt auf ein Minimum zu reduzieren.

Die Markierung auf elektrischen und elektronischen

Geräten gilt nur für die gegenwärtigen Mitgliedsta-

aten der Europäischen Union.

Für die EU: Der durchgestrichene Abfallbehälter

bedeutet, dass verbrauchte Batterien nicht über

den allgemeinen Hausmüll entsorgt werden dür-

fen. Es gibt ein getrenntes Sammelsystem für Alt-

batterien, um die ordnungsgemäße Behandlung

und Wiederverwertung entsprechend den gelten-

den Vorschriften zu ermöglichen.

Gemäß der Richtlinie 2006/66/EG dürfen Bat-

terien nicht auf ungeeignete Weise entsorgt

werden. Die Batterie muss getrennt durch

einen örtlichen Entsorger gesammelt werden.

Wichtige Informationen

Bei Fragen, die sich aus unklaren Punkten oder

Reparaturarbeiten ergeben

Bei Fragen, die sich aus unklaren Punkten, Fehlfunktionen

oder Reparaturarbeiten am Produkt ergeben, wenden Sie sich

an Ihren Händler oder an die folgende Niederlassung.

In Europa

Firmenname: NEC Display Solutions Europe GmbH

Adresse: Landshuter Allee 12-14, D-80637 Munichi, Germany

Telefon: +49 89 99699 0

Fax-Nummer: +49 89 99699 500

E-Mail-Adresse: [email protected]

Web-Adresse: http://www.nec-display-solutions.com

In Nordamerika

Firmenname: NEC Display Solutions of America, Inc.

Adresse: 500 Park Boulevard, Suite 1100 Itasca, Illinois

60143, U.S.A.

Telefon: +1 800 836 0655

Fax-Nummer: +1 800 356 2415

E-Mail-Adresse: pjtechsupport@necdisplay.com

Web-Adresse: http://www.necdisplay.com/

In China

Firmenname: NEC Solutions (China) Co., Ltd.

Addresse: Rm 1903, Shining Building, 35 Xueyuan Rd,

Haidian District Beijing 100191, P.R.C.

Telefon: +8610-4008-900-678

E-Mail-Adresse: [email protected]

In Hongkong und Taiwan

Firmenname: Strong Westrex, Inc.

Adresse: Room 4108 China Resources Building, No. 26

Harbour Road, Wanchai, Hong Kong

Telefon: +852 2827 8289

Fax-Nummer: +852 2827 5993

E-Mail-Adresse: [email protected]

In Südkorea

Firmenname: Hyosung ITX Co., Ltd.

Adresse: 1F, Ire Building, 2, Yangpyeong-dong 4-ga,

Yeongdeungpo-gu, Seoul, Korea 150-967

Telefon: +82-2-2102-8591

Fax-Nummer: +82-2-2102-8600

E-Mail-Adresse: [email protected]

Web-Adresse: http://www.hyosungitx.com

In Australien und Neuseeland

Firmenname: NEC Australia Pty Ltd

Adresse: 26 Rodborough Road Frenchs Forest NSW 2086

Telefon: 131 632 (von überall in Australien)

E-Mail-Adresse: [email protected]

Web-Adresse: http://www.nec.com.au

In Thailand, Singapur, Malaysia, Indonesien und

Philippinen

Firmenname: Goldenduck International Co., Ltd.

Adresse:

65 Soi Phutthamothon Sai 1, 21 Bangramad,

Talingchan, Bangkok, Thailand 10170

Telefon: +66-2887-8807

Fax-Nummer: +66-2887-8808

E-Mail-Adresse: contact@goldenduckgroup.com

Wichtige Informationen

Laseraustrittsmodule

Aufkleber A

Aufkleber A: Lampenwarnschild

Wichtige Informationen

Aufkleber C

Aufkleber D

Aufkleber E

Aufkleber B

• Aufkleber B

Laser-Hinweisschild

• Aufkleber C

Wichtige Informationen

• Aufkleber D

• Aufkleber E

Wichtige Informationen

Strahlungsbereich des abgegebenen Lichts durch den Projektor(Sicherheitsabstand – HD: Hazard distance)

• Die nachfolgend abgebildete Tabelle gibt den Strahlungsbereich des abgegebenen Lichts durch den Projektor an, das als Risik-

ogruppe 3 (RG3) nach IEC62471-5 Erste Ausgabe 2015 eingestuft.

• Bitte bei der Installation des Projektors die Einschränkungen beachten.

Installieren Sie zum Schutz der menschlichen Augen vor dem RG3-Bereich eine Abdeckung.

Achten Sie darauf, dass sich bei der Installation der Abdeckung die horizontale Sicherheitszone mindestens 1,5 m vom RG3-

Bereich entfernt befindet.

Falls der Projektor über Kopf installiert wird, halten Sie einen Abstand von mindestens 3 m zwischen der Bodenfläche und dem

RG3-Bereich ein.

Bediener müssen den Zugang zum Strahl innerhalb des Gefahrenabstands kontrollieren oder das Produkt so hoch installieren,

dass die Augen der Zuschauer innerhalb des Gefahrenabstands nicht dem Strahl ausgesetzt werden können.

(IEC62471-5 First edition 2015)

Linse

RG3

HD(m)

Bildschirmgröße(m)

H V

NC-60LS12Z

Breit 5,0 4,2 2,2

Tele

7,5 4,1 2,2

NC-60LS14Z

Breit 5,5 3,9 2,1

Tele 8,0 3,9 2,1

NC-60LS16Z

Breit 6,0 3,8 2,0

Tele 9,5 3,8 2,0

NC-60LS19Z

Breit 6,5 3,4 1,8

Tele 11,0 3,4 1,8

NC-60LS24Z

Breit 9,0 3,8 2,0

Tele 15,5 3,7 2,0

NC-60LS39Z

Breit 12,9 3,3 1,7

Tele 21,5 3,3 1,7

[Draufsicht]

[Seitenansicht]

RG3-Bereich

* Falls der Linsenversatz verwendet wird, berücksichtigen Sie bitte die Verschiebung des projizierten Bildes je nach Umfang des

Linsenversatzes.

Wichtige Informationen

ACHTUNG:

Bitte beachten Sie alle Sicherheitshinweise.

Installation des Projektors

• Beachten Sie bei der Planung des Aufbaus des Projektors die Sicherheitsmaßnahmen im Installationshandbuch.

• Installieren Sie zur Gefahrenverringerung eine Wandsteckdose in Reichweite, damit der Netzstecker im Notfall herausgezogen

werden kann, oder einen Trennschalter, um die Stromversorgung zum Projektor unterbrechen zu können.

• Beachten Sie zum Schutz der menschlichen Augen vor dem RG3-Bereich die Sicherheitsmaßnahmen.

• Wählen Sie eine geeignete Linse für den Installationsort aus, und halten Sie die Sicherheitszone, die für die jeweilige Linse

vorgesehen ist, ein. Beachten Sie die entsprechenden Sicherheitsmaßnahmen, wenn Sie Einstellungen am Licht des einge-

schalteten Projektors vornehmen.

• Prüfen Sie, ob die Sicherheitsmaßnahmen eingehalten wurden, wenn die entsprechende Sicherheitszone gemäß der installi-

erten Linse eingestellt wird. Prüfen Sie dies in regelmäßigen Abständen und dokumentieren Sie die Ergebnisse.

• Weisen Sie den Administrator des Projektors (Bediener) in die Sicherheitsbestimmungen ein, bevor dieser mit dem Betrieb

des Projektors beginnt.

Verwendung des Projektors

• Weisen Sie den Administrator des Projektors (Bediener) an, den Projektor vor dem Einschalten zu überprüfen (einschließlich

der Sicherheitsprüfung des abgegebenen Lichts durch den Projektor).

• Unterrichten Sie den Administrator des Projektors (Bediener) über die erforderlichen Maßnahmen zur Kontrolle des einge-

schalteten Projektors, falls ein Notfall eintritt.

• Weisen Sie den Administrator des Projektors (Bediener) an, das Installationshandbuch, das Benutzerhandbuch und die Ins-

pektionsdokumente an einem Ort zu verwahren, an dem leicht auf diese Dokumente zugegriffen werden kann.

• Weisen Sie ihn an, zu prüfen, ob der Projektor den Standards des entsprechenden Landes und der jeweiligen Region

entspricht.

Introduction ......................................................................................................................................................................... 2

Important Information ........................................................................................................................................................ 3

Wichtige Informationen .................................................................................................................................................... 14

Installation of the light module ....................................................................................................................................... 27

1. Before Setting Up Your Projector ............................................... 40

1-1. Clearance for Installing the Projector (English) ................................................................................................... 40

1-2. Freiraum bei der Projektorinstallation (Deutsch) ................................................................................................. 42

1-3. Selecting the lens unit ............................................................................................................................................ 44

1-3-1. Screen Type .................................................................................................................................................. 44

1-3-2. Calculating the lens zoom magnication to use ....................................................................................... 46

1-4. Carrying the projector ............................................................................................................................................ 48

1-5. Removing the Projector Covers ............................................................................................................................. 49

1-5-1. Removing and Mounting the Lens Cover .................................................................................................. 51

1-5-2. Removing and Mounting the Side Panel ....................................................................................................53

1-5-3. Removing and Mounting the Filter Cover .................................................................................................. 53

2. Setting Up Your Projector .......................................................... 54

2-1. Setup Procedure ..................................................................................................................................................... 54

2-2. Projector Installation ..............................................................................................................................................55

2-2-1. Installing the Projector on the Ceiling .......................................................................................................56

2-2-2. Terms for Preparation of Frames and Ceiling Hanging Brackets ............................................................57

2-3. Selecting the Power Cable for C2 Connection (English) ..................................................................................... 58

2-3-1. AC Power Work Specications .................................................................................................................... 59

2-4. Auswahl des Netzkabels für Anschluss C2 (Deutsch) ........................................................................................ 61

2-4-1. Netzstrom-Spezikationen .......................................................................................................................... 62

2-5. Connecting the power cable (English) .................................................................................................................. 64

2-5-1. Power supply construction specications ................................................................................................ 64

2-5-2. Procedure for connecting the power cable (C1 connection) ...................................................................71

2-5-3. Procedure for connecting the power cable (C2 connection) ................................................................... 74

2-6. Anschließen des Netzkabels (Deutsch) ................................................................................................................ 79

2-6-1. Technische Daten zum Netzanschluss .....................................................................................................79

2-6-2. Anschluss des Stromkabels (Anschluss C1) ............................................................................................ 86

2-6-3. Anschluss des Stromkabels (Anschluss C2) ............................................................................................ 89

2-7. Mounting the Lens Unit .......................................................................................................................................... 94

2-7-1. Part names of Lens Mount .......................................................................................................................... 95

2-8. Mounting the Option Board ...................................................................................................................................98

2-8-1. Make the option board usable .................................................................................................................. 100

3. Projector Adjustment and Connecting ..................................... 102

3-1. Flow of Adjustment and Connecting ................................................................................................................... 102

3-2. Recovering from Tamper Errors ........................................................................................................................... 103

3-2-1. Clearing tamper events ............................................................................................................................. 104

3-3. Turning your Projector On.................................................................................................................................... 106

3-4. Setting the Date and Time in the Projector ......................................................................................................... 107

3-5. Setting the Projector Projection Method............................................................................................................. 108

3-6. Adjusting the Lens ............................................................................................................................................... 109

3-6-1. Display the Test Pattern ............................................................................................................................. 109

3-6-2. Adjusting the Screen Angle ......................................................................................................................110

3-7. Connecting with the Image Input Port .................................................................................................................111

3-8. Connecting the Various Control Terminal ........................................................................................................... 112

3-9. CG adjustments .................................................................................................................................................... 113

Table of Contents

Installation of the light module

4. LCD Menu ................................................................................ 118

4-1. List of Menu ........................................................................................................................................................... 118

4-1-1. When You Use the Service Personnel Menu ............................................................................................ 121

4-2. Title Select ............................................................................................................................................................. 122

4-2-1. Title select (Title Memory) ......................................................................................................................... 122

4-2-2. Test Pattern ................................................................................................................................................. 122

4-3. Conguration ........................................................................................................................................................ 123

4-3-1. Light Setup ................................................................................................................................................. 123

4-3-2. Lens Control ............................................................................................................................................... 123

4-3-3. Reset ........................................................................................................................................................... 124

4-3-4. Setup ........................................................................................................................................................... 126

4-3-5. Installation .................................................................................................................................................. 128

4-3-6. Memory ....................................................................................................................................................... 133

4-4. Title Setup ............................................................................................................................................................. 134

4-4-1. Preset Button .............................................................................................................................................. 134

4-5. Information ............................................................................................................................................................ 135

4-5-1. Light ............................................................................................................................................................ 135

4-5-2. Lens Type .................................................................................................................................................... 135

4-5-3. Preset Button .............................................................................................................................................. 135

4-5-4. Usage .......................................................................................................................................................... 136

4-5-5. Error Code .................................................................................................................................................. 136

4-5-6. Version ........................................................................................................................................................ 137

4-5-7. IP Address................................................................................................................................................... 137

4-5-8. Setup Date .................................................................................................................................................. 138

4-5-9. Option Status ............................................................................................................................................. 138

5. Appendix .................................................................................. 139

5-1. List of Registered Titles (when shipped from the factory) ................................................................................ 139

5-2. Error Code List ...................................................................................................................................................... 140

5-3. Remote Interlock Connector ................................................................................................................................ 146

5-4. Outline Drawing .................................................................................................................................................... 148

Installation of the light module

The NP-24LU01, NP-20LU01 and NP-18LU01 light modules can be used in combination with the projector head (NP-02HD). Other

light modules cannot be used in combination with the projector head.

The explanation on how to install the light module assumes the projector is as it was when shipped from the factory. In addition, in

this explanation the projector head is referred to as the “main unit”. To remove the light module, follow the procedure in reverse order.

NOTE

- No one other than a specialized service person should install the light module. Otherwise the equipment could

be damaged or accidents could occur.

The main unit weighs approximately 86 kg, the light module (NP-24LU01 and NP-20LU01)* approximately 65

kg. When moving the unit, use a cart or a simple crane and be careful not to bang the unit against other ob-

jects. The unit should only be lifted by multiple persons, being very careful not to get their fingers crushed. At-

tempting to lift the unit alone could cause injury or lower back pain.

* The NP-18LU01 weighs approximately 56 kg.

- Install the light module in a place with little dust. If not, dust may enter the optical unit and decrease image qual-

ity.

- Do not loosen any screws other than those specified, and do not disconnect any connectors other than those

specified.

Preparation: Tools required for installation of the light module

Long Phillips screwdriver (500 mm or longer, magnetized)

Dedicated positioning bars: 2 (Please contact NEC Display Solutions.)

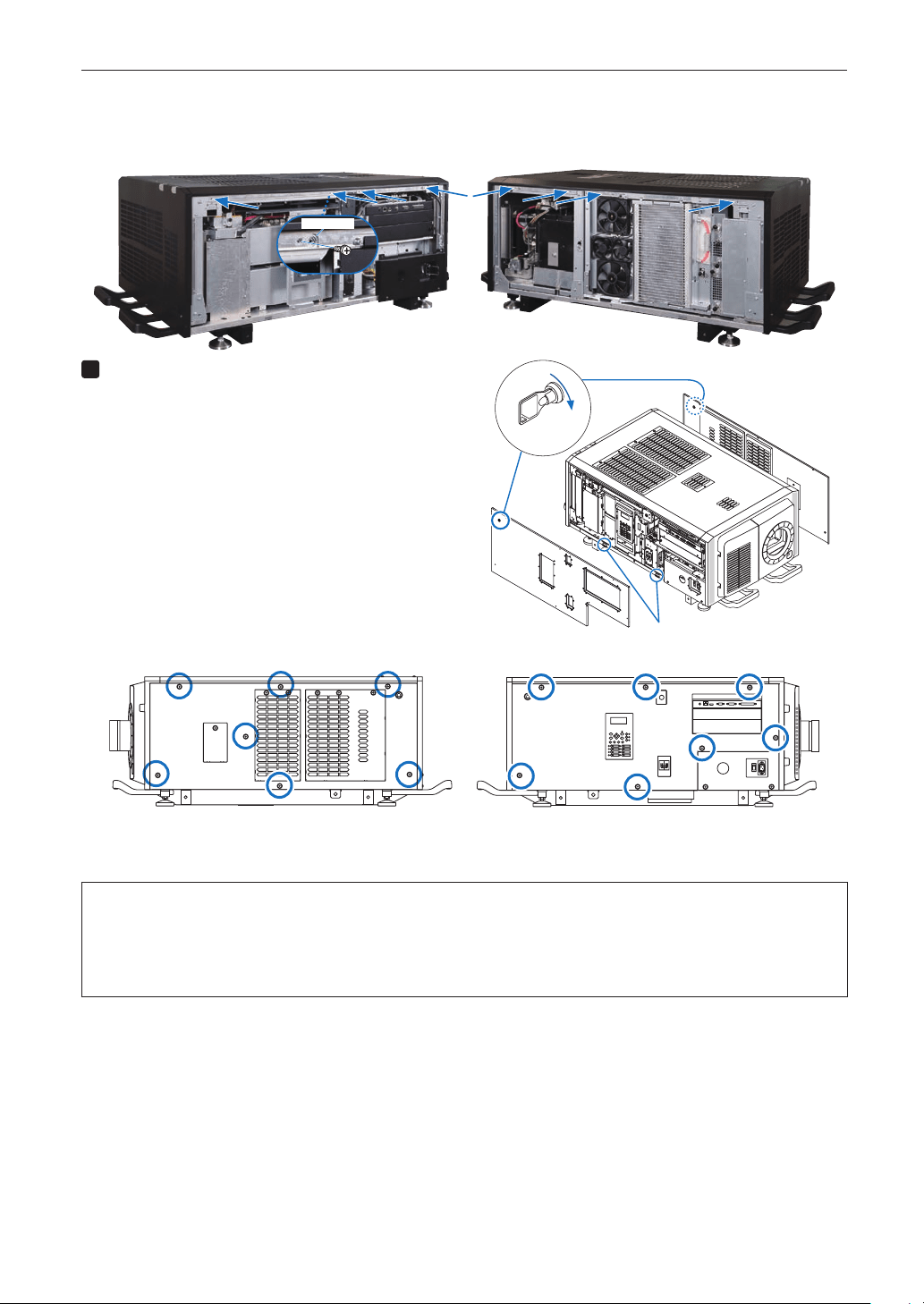

Remove the shipping reinforcement brack-

ets that are built into the main unit.

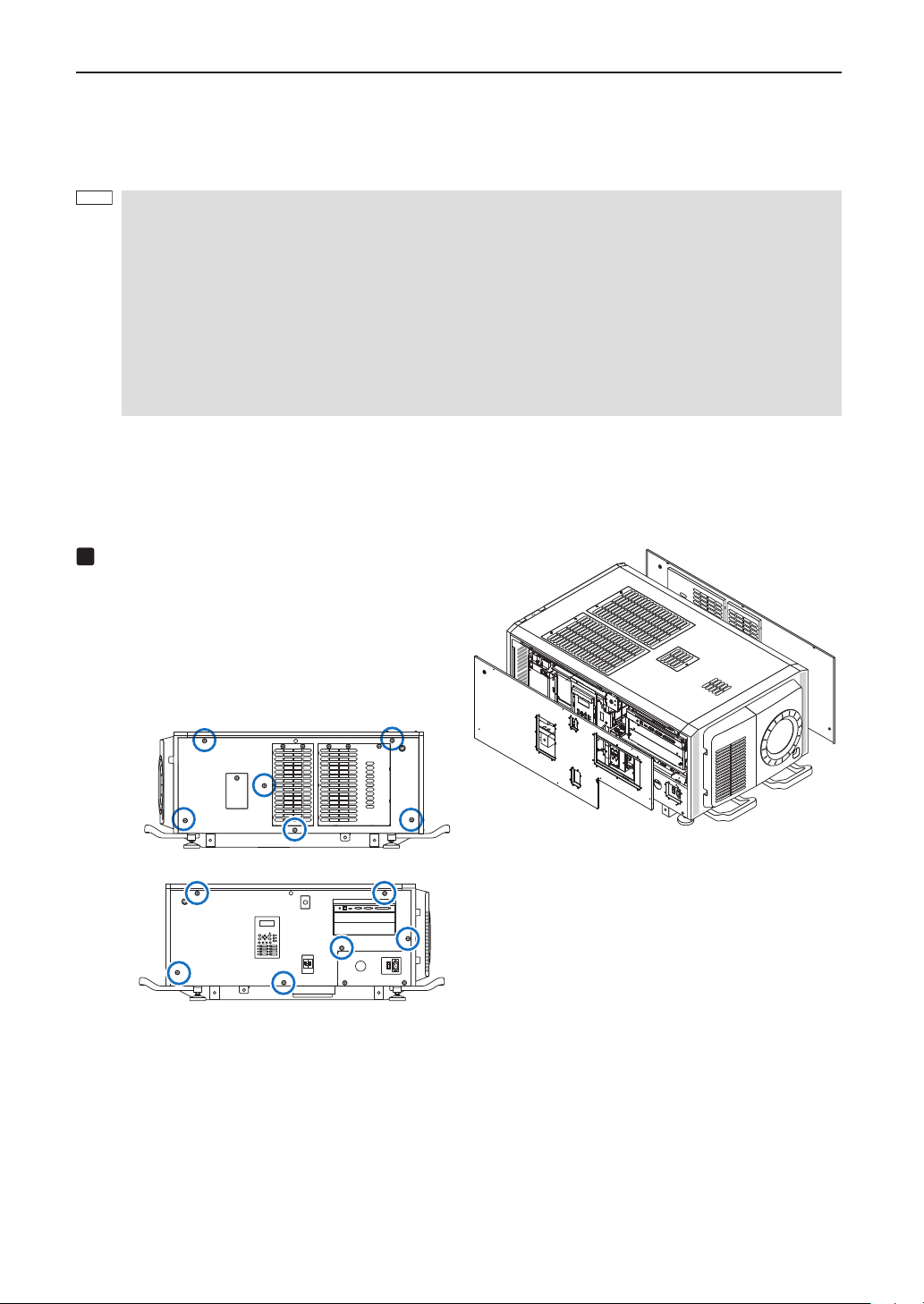

(1) Remove the left and right side panels.

Turn each of the six M4 screws counterclockwise

until they turn freely (they do not come off), open

the panel a little, then lift the panel (to detach it

from the hooks) and remove it.

Installation of the light module

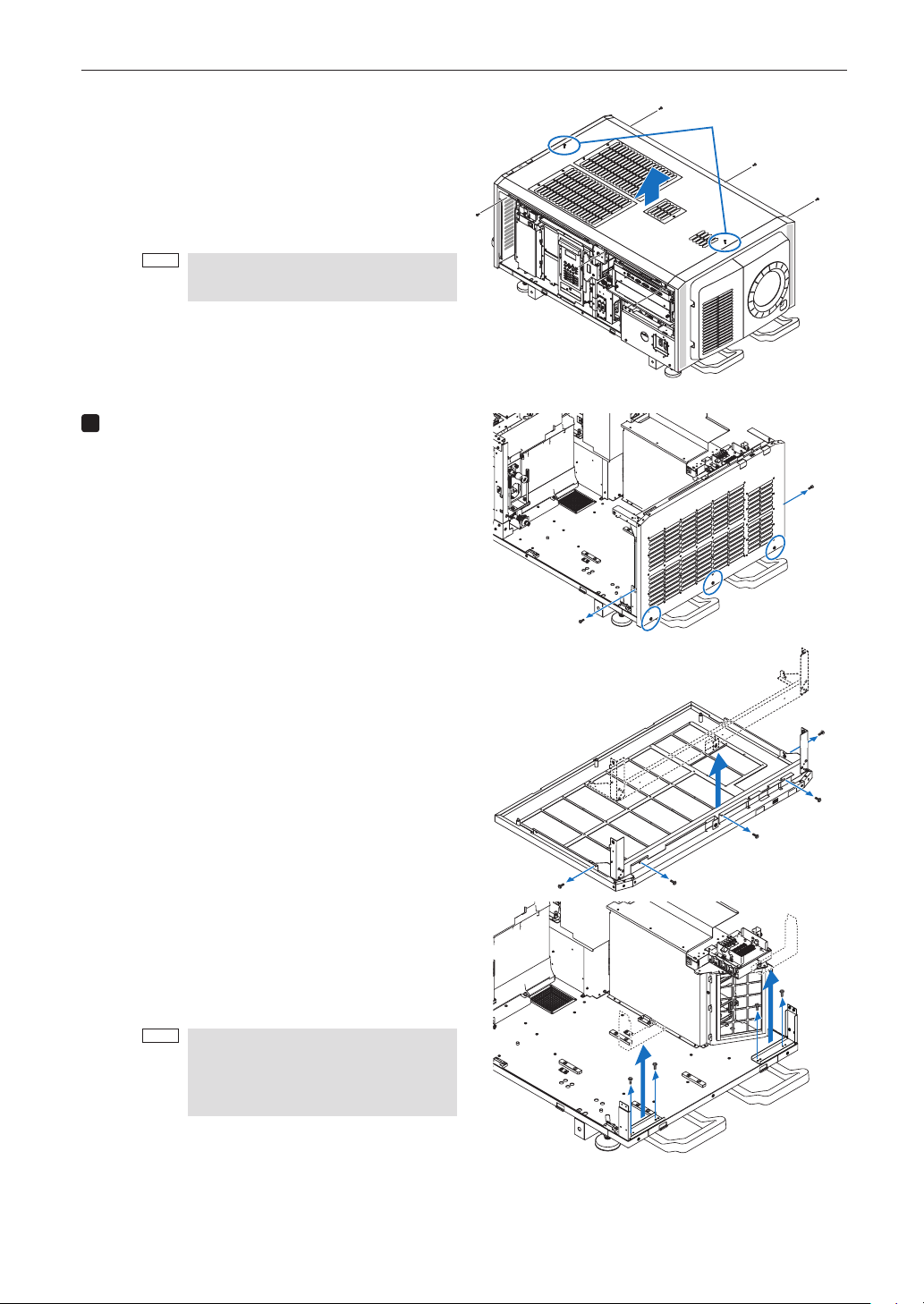

(2) Remove the top panel.



Remove the three M4 screws (silver) on the left

and right sides respectively.



Turn the two M4 screws (black) at the front and

back centers of the top panel until they turn

freely (they do not come off), then lift the panel

and remove it.

NOTE

The six screws removed in (2)

①

will be

used in step 8 (4). Do not discard them.

These screws do not come off.

Remove the shipping reinforcement brack-

ets that are built into the main unit.

(1) Turn the M4 screws at the left and right sides near

the bottom of the rear panel counterclockwise and

remove them.

Next, turn the three screws along the bottom edge

counterclockwise until they turn freely (they do not

come off) and remove.

The rear panel detaches from the base.

(2) Remove the five M4 screws from the rear panel

and remove the shipping reinforcement brackets.

(3) Remove the M4 screws (two each) from the left

and right shipping reinforcement brackets on the

base, then remove the shipping reinforcement

brackets.

The removed rear panel will be mounted on the

light module later.

NOTE

The nine M4 screws removed in (2)

and (3) will be used in step 8 (1) (seven

screws) and step 8 (4) (two screws). Do

not discard them.

Installation of the light module

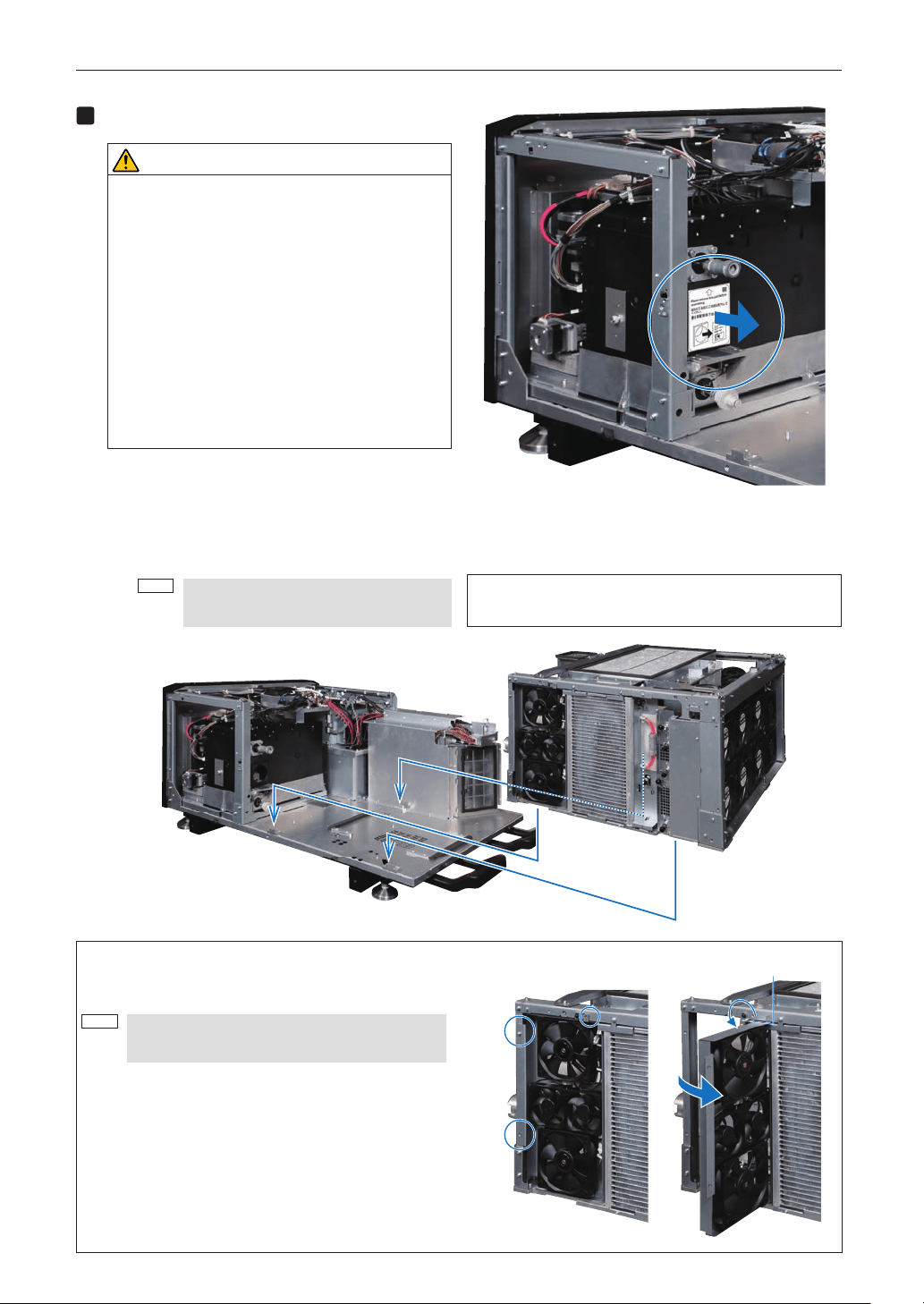

Place the light module on the main unit.

CAUTION

・

The light module (NP-24LU01 and NP-

20LU01)* weighs approximately 65 kg. To

avoid lower back pain, it should only be in-

stalled by multiple people.

* The NP-18LU01 weighs approximately

56 kg.

・

When placing it on the main body, be care-

ful not to crush your fingers.

・

There are four mounting screw holes for eye

bolts in the light module.

Do not use them for anything other than

suspending the light module. Otherwise the

projector may be damaged.

(1) Remove the dustproofing section of the light

source socket.

(2) Line up the notches in the light module's base with

the three stoppers and place them over the inside

of the stoppers.

NOTE

Make sure that the light module's base is

flush against the main unit.

If placing the light module on the main unit by hand, open the

fan bracket and hold the upper part of the frame.

[Light module]

[Main unit]

Opening the fan bracket

Remove the three M4 screws, open the fan bracket, then turn

the stopper downward.

NOTE

Be sure to apply the stopper to prevent crushing

your fingers.

When closing the fan bracket, set the stopper back in its origi-

nal position and tighten it together with the frame.

Stopper

Installation of the light module

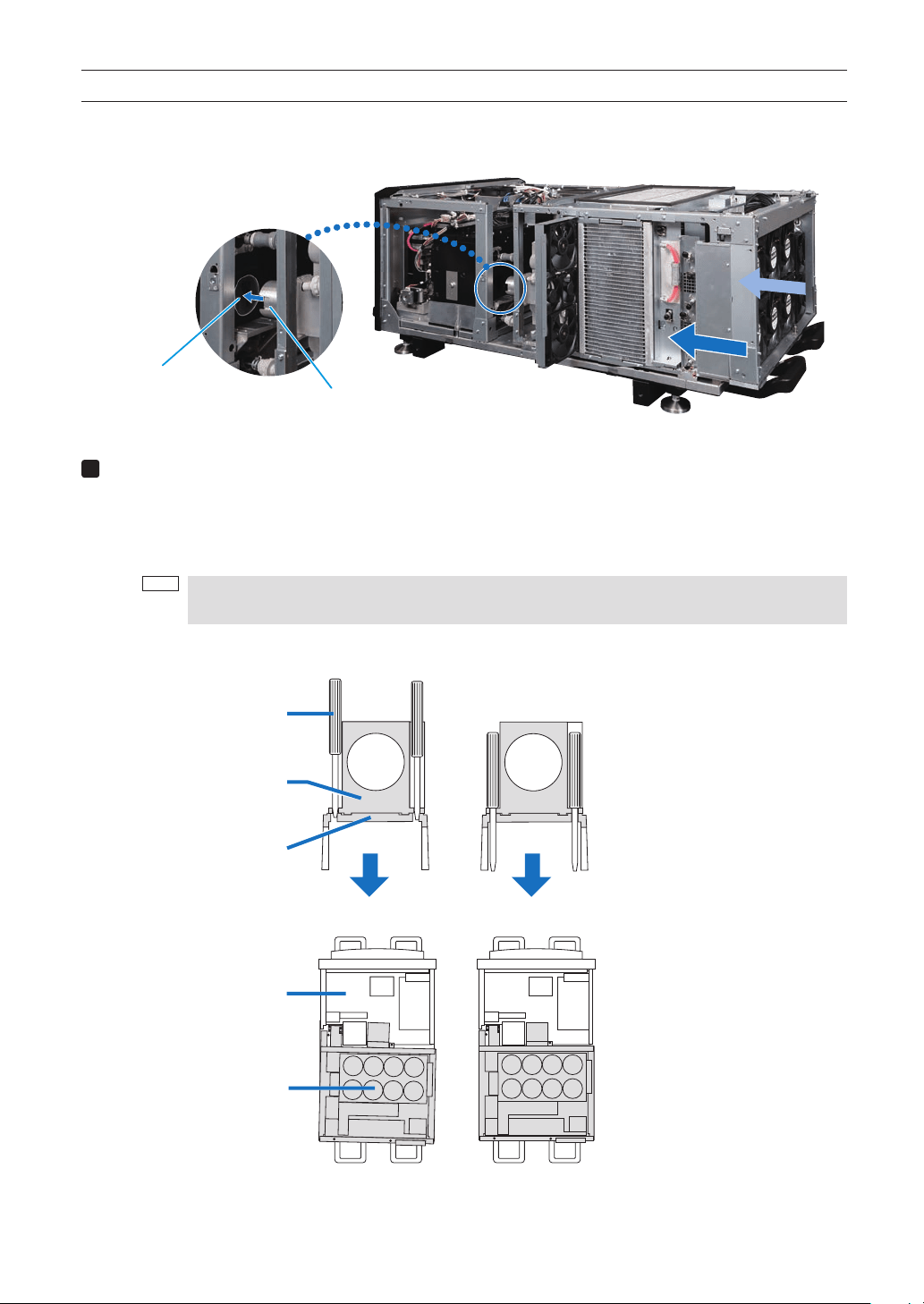

(3) Slide the light module forward.

When this is done, the tip of the light module's light flux pipe is inserted into the light source socket of the main

unit.

Light source socket

Light flux pipe

Fine-adjust the light module's mounting position.

(1) Insert the two dedicated positioning bars into the light module (see the figure).

If they enter up to the base, there is no need for the adjustment.

If the dedicated positioning bars do not fit into the bracket, move the light module a little and find the position at

which they can be inserted.

NOTE

To avoid bending the dedicated positioning bars, do not shake the light module left and right when lining

up the bars with the holes.

Light flux pipe of light module

Positioning bracket

Dedicated positioning bar

Projector

[Cross-section image view]

[Top image view]

Light module

If the dedicated positioning bars do not fit into the bracket,

the alignment of positions is not correct.

If the dedicated positioning bars insert

into the bracket smoothly,

the alignment of positions is correct.

Installation of the light module

(2) Once the position is set, tighten with the four M6 cross-slot upset screws (temporarily fixed to the light module

base) and the two M5 cross-slot upset screws (included with the main unit).

(3) Remove the dedicated positioning bars.

Use the M5 screws included

with the main unit for these two

screws.

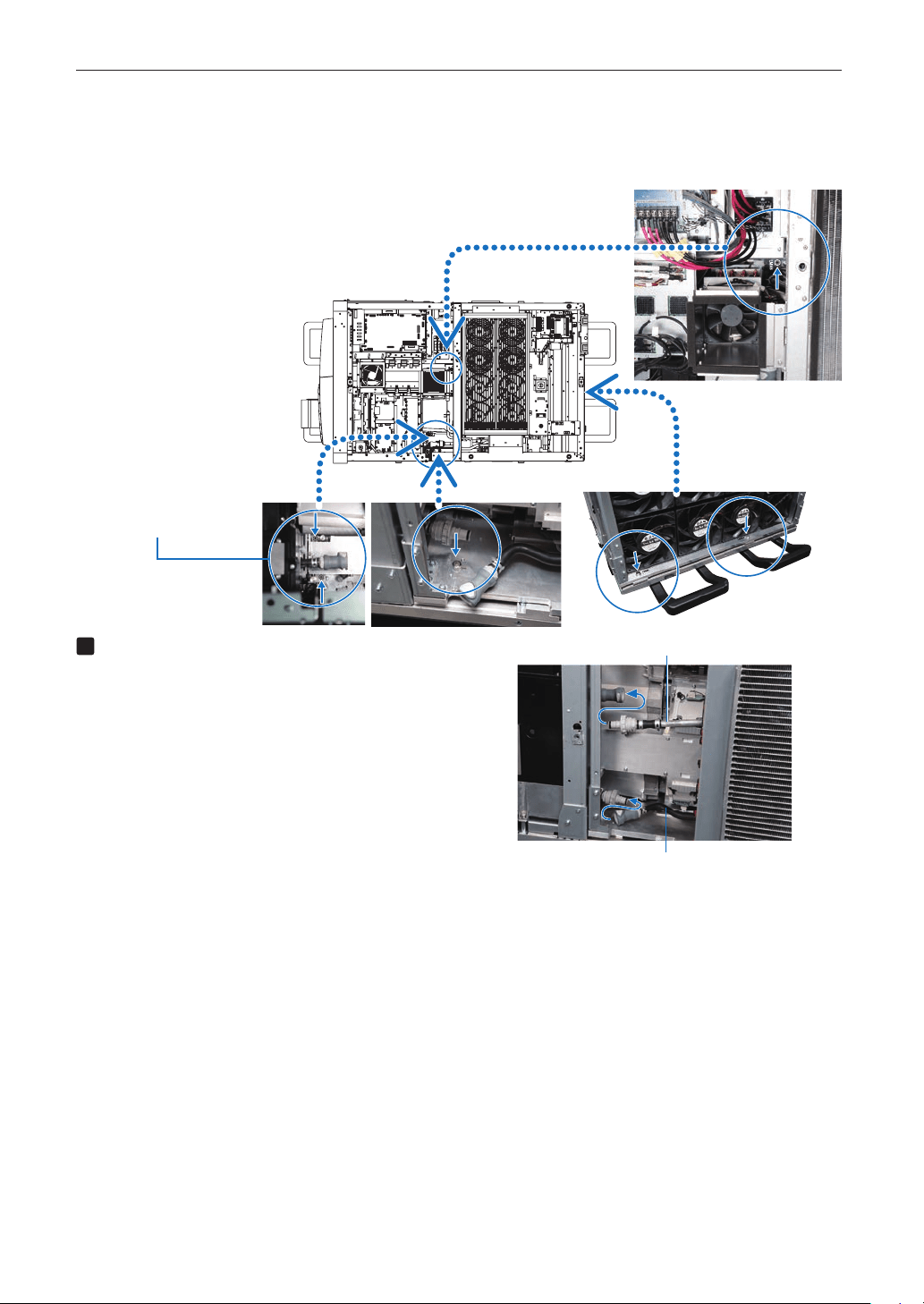

Connect the cooling hoses.

Press the joints of the two cooling hoses on the main

unit and the light module in until they click into place.

The joint locks when it is pressed in.

Pull to check that the hoses do not disconnect.

- To disconnect, press in the white button and pull out.

Cooling hose

Installation of the light module

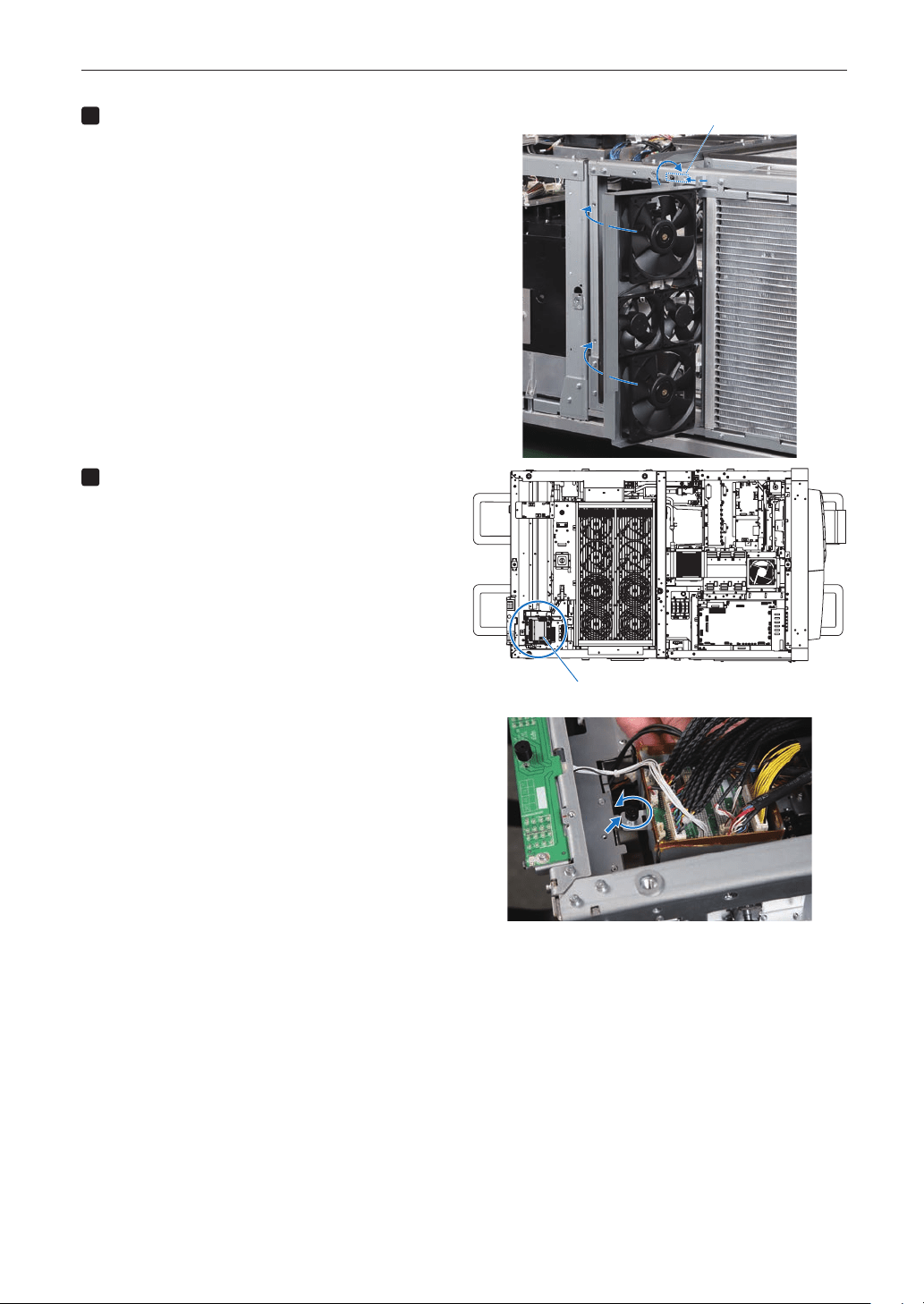

Close the fan bracket and fasten it.

(1) Rotate the stopper clockwise and line it up with the

screw hole.

(2) Close the fan bracket and tighten it with the three

M4 screws.

Stopper

Mount the quick release board onto the

light module's connector holder.

(1) Turn the knobs of the quick release board that is

temporarily fixed to the main unit's frame until they

turn freely and remove the quick release board.

Quick release board

Installation of the light module

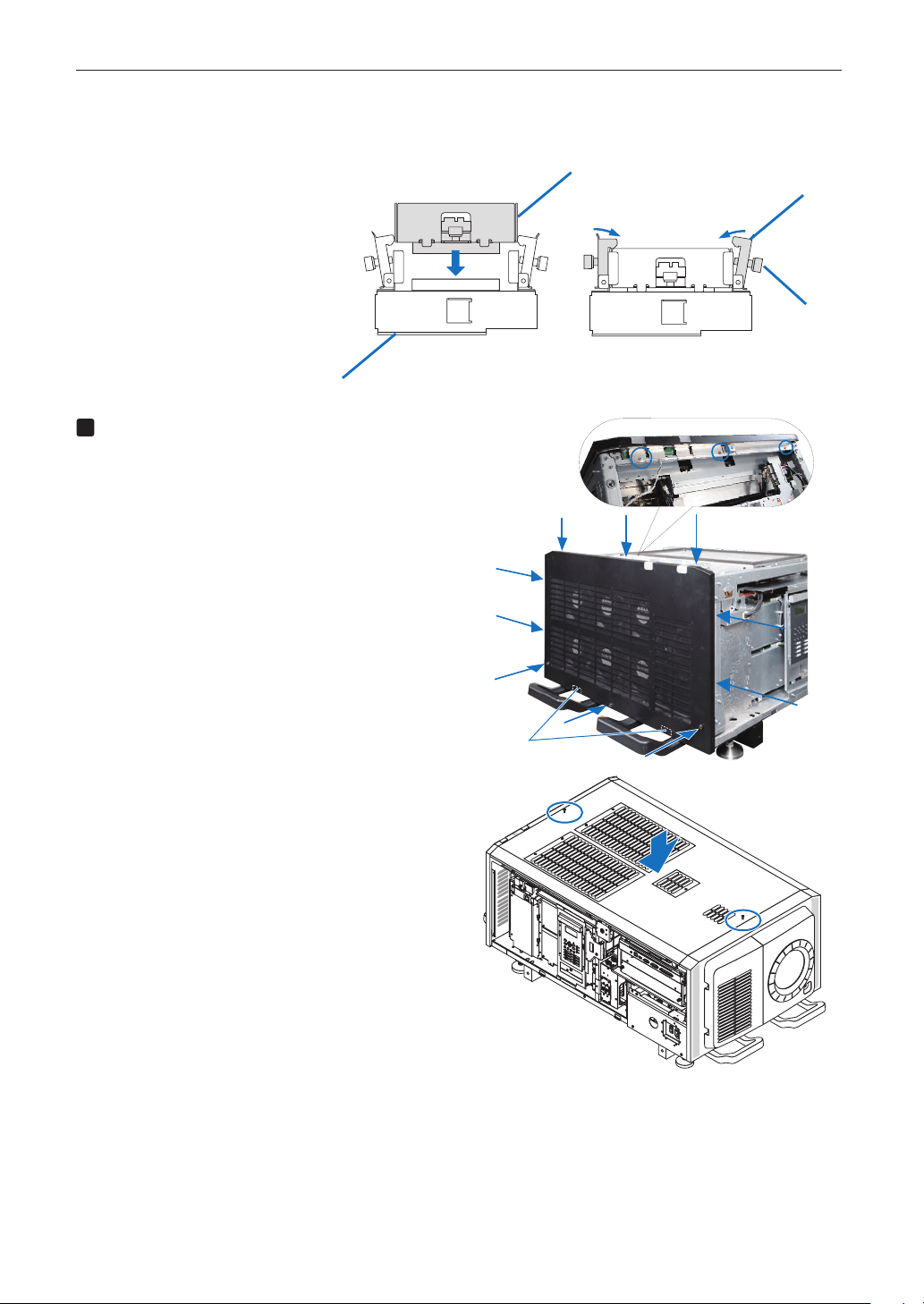

(2) Now carefully insert the quick release board into light module's connector holder, attach the left and right hooks to

the ends of the quick release board, then turn the knobs to fasten.

Quick release board

Hook

Knob

Connector holder

Mount the rear panel and the top panel.

(1) Attach the two hooks on the main unit's base to

the rear panel, then use the seven M4 screws re-

moved in step 2 (three at the top, two at the right

and two at the left) to fasten.

(2) Tighten the three screws at the bottom of the rear

panel.

Hook

(3) Place the top panel on the main unit, then tighten

the two screws at the front and back centers of the

top panel.

Installation of the light module

(4) Use the six M4 screws (silver) removed in step 1 (2) and the two M4 screws removed in step 2 to fasten at four po-

sitions respectively on the left and right sides.

When doing this, tighten the screws in the notch-less screw holes on left and right sides.

Notch

Mount the left and right side panels.

(1) Insert the service key into the key in the panel and

turn it clockwise to unlock.

When unlocked, the key cannot be removed.

(2) Place the lower edges of the panel onto the two

hooks on the main unit and close the panel.

Service key

Hook

(3) Tighten the side panel's seven fixing screws.

(4) Turn the service key counterclockwise to lock it.

Upon shipment from the factory, the notch filter kit (NFK-G24) for the NP-24LU01 and NP-20LU01 is installed on the

main unit.

When using the main unit in combination with the NP-18LU01 light module, replace the notch filter kit with the NFK-G18

that is included with the main unit. For instructions on replacing the notch filter, see “Replacing the Notch Filter” on

page 00.

Installation of the light module

Replacing the notch filter kit

(for the NP-18LU01 light module)

Upon shipment from the factory, the notch filter kit (NFK-G24) for the NP-24LU01 and NP-20LU01 light modules is installed on the

main unit. When using the main unit in combination with the NP-18LU01 light module, replace the notch filter kit with the NFK-G18

that is included with the main unit.

CAUTION

• Before replacing the notch filter, turn off the power, wait for the cooling fans to come to a complete stop, turn off the projector's

power switch and the light source's power switch, shut off the AC power, then check to make sure that the main unit has cooled

down sufficiently. Removing the notch filter kit while the unit is operating may cause burns or electric shock when inside parts

are touched.

• Replace the notch filter kit in a place with little dust. Also be careful not to touch the filter or to get dust or the like on it.

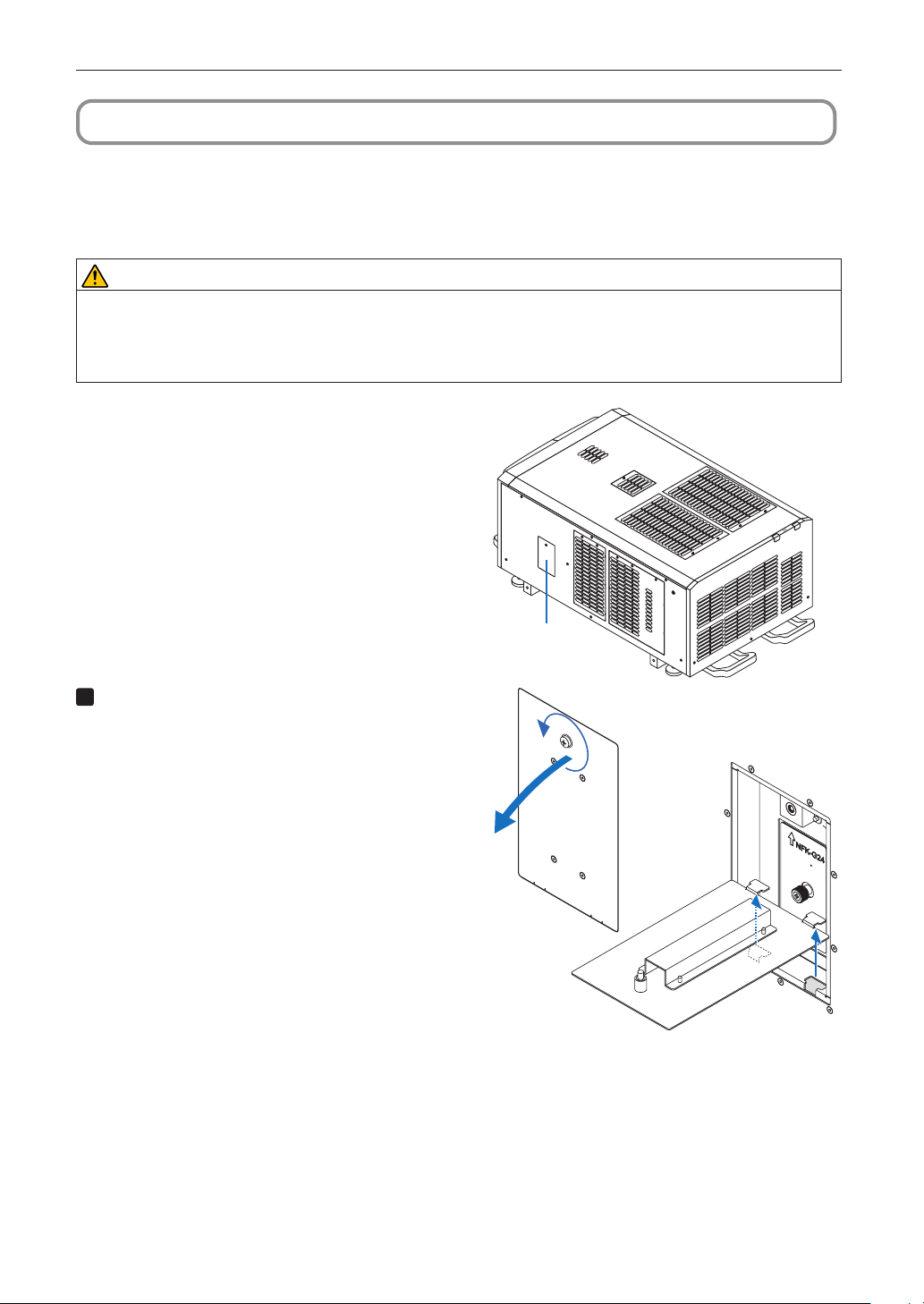

Notch filter cover

Remove the notch filter cover.

(1) Turn the screw counterclockwise until it turns freely,

then pull and open.

The screw does not come off.

(2) Lift the notch filter cover upward and remove it.

(1)

(2)

Installation of the light module

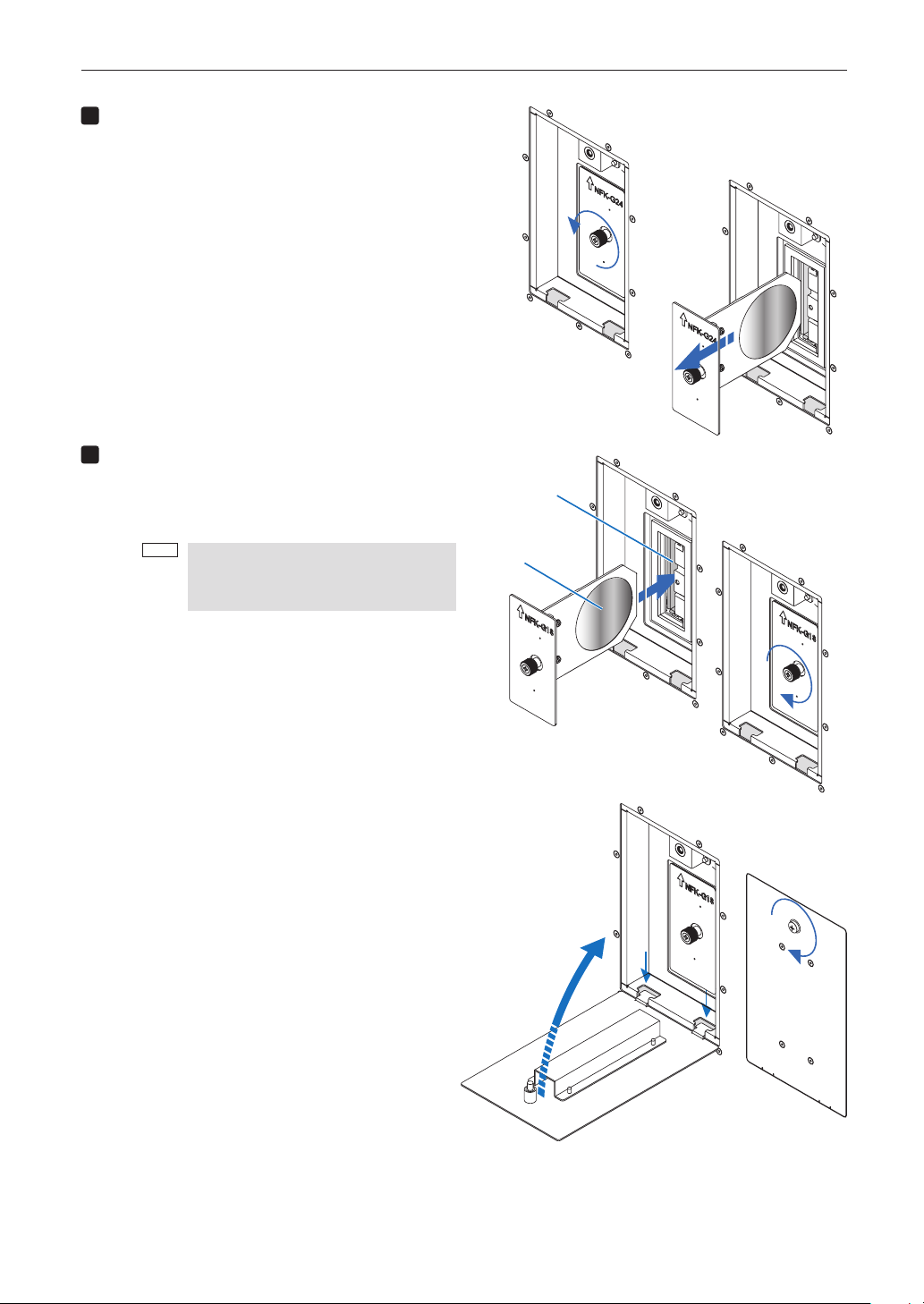

Take out the notch filter kit.

(1) Turn the knob counterclockwise until it turns freely.

The knob does not come off.

(2) Pull the notch filter kit straight out to remove it.

(1)

(2)

Install the new notch filter kit (NFK-G18).

(1) Point the arrow upwards and slowly insert the

notch filter kit into the insertion slot in the main unit,

being careful not to hit the filter section.

NOTE

- Check the notch filter kit's model

name.

- Do not touch or hit the filter section.

(2) Turn the knob clockwise to tighten it.

Filter section

(1)

(2)

Insertion slot

4. Mount the notch filter cover.

(1) Insert the two tabs on the notch filter cover into the

grooves in the main unit, then close the cover.

(2) Turn the screw clockwise to tighten it.

Store the notch filter kit that was removed in a safe

place.

(1)

(2)

Installation of the light module

Maintaining the information of light module

Store the various information and the initial adjustment data of the light module to the projector head.

To execute the following steps, first you need to log in the projector main unit as a serviceman.

To use the menu for Serviceman, refer to “4-1-1. Using the Menu for Serviceman” (page 121)

Store the various information of the light module.

(1) Press the MENU operation button to display the adjustment menu on

the LCD panel.

(2) Select Configuration

→

Installation

→

Service

→

LU Replace and ex-

ecute it.

Measure the adjustment data on the light source of the

light module and store them.

(1) Press the MENU operation button to display the adjustment menu on

the LCD panel.

(2) Select Configuration

→

Installation

→

Service

→

LD Calibration and ex-

ecute it.

Measure the initial brightness value of the light source of

the light module and store them.

(1) Press the MENU operation button to display the adjustment menu on

the LCD panel.

(2) Select Configuration

→

Installation

→

Service

→

Sensor Calibration and

execute it.

Installation of the light module

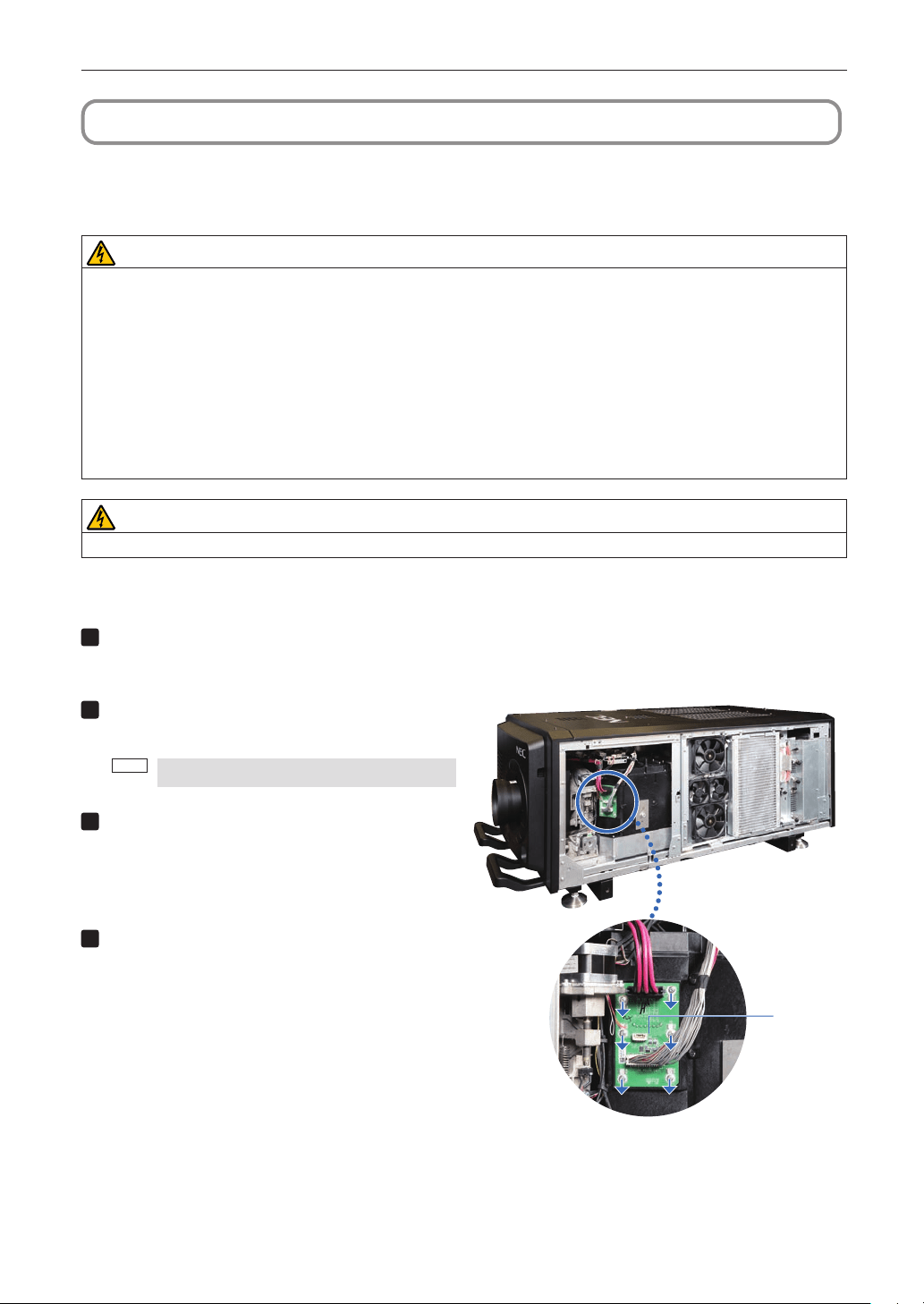

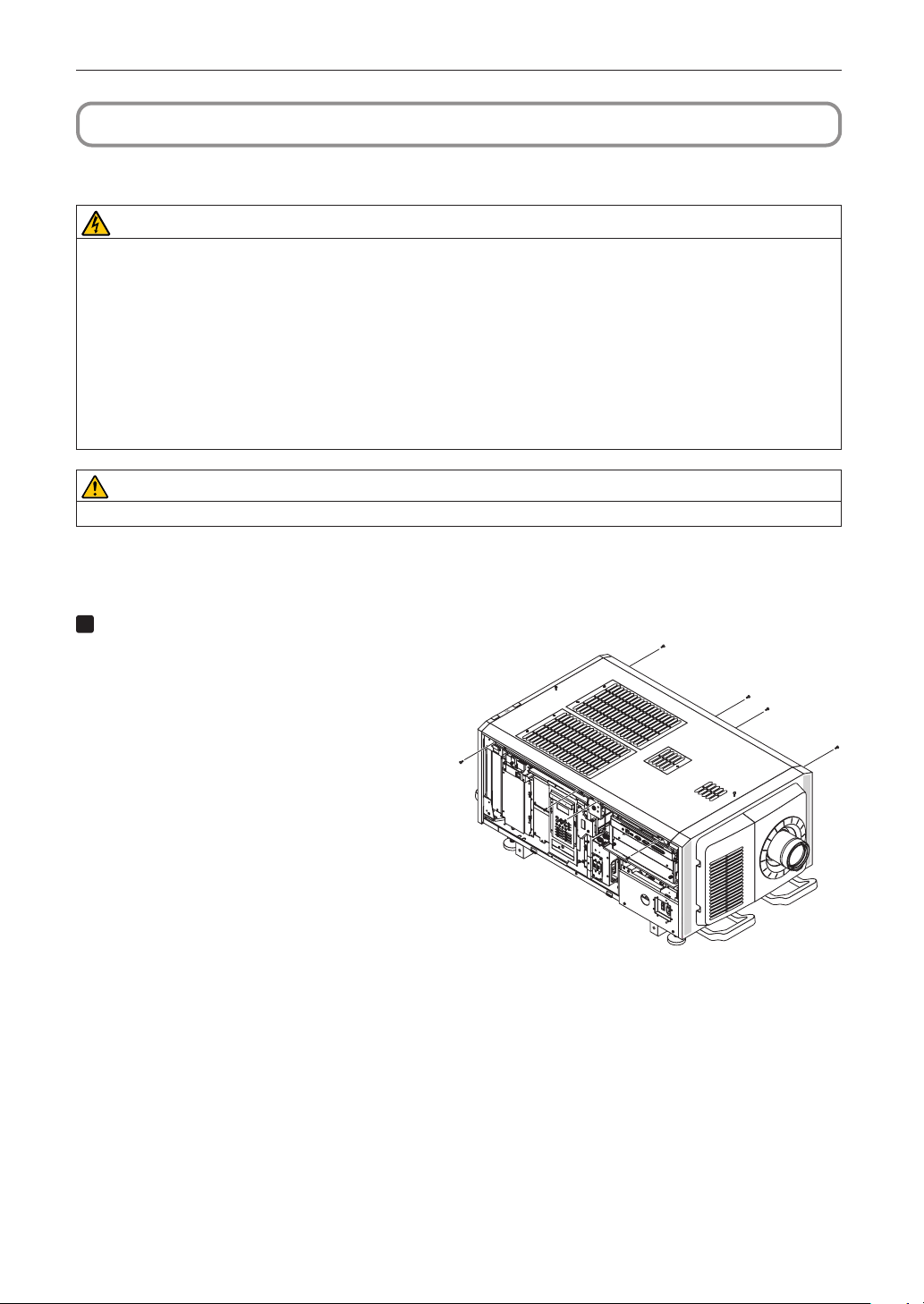

Shadow adjustment

If the illumination position of the light source deviates, shadows will appear around the projection screen. Shadow adjustment

consists of adjusting for this deviation. Perform shadow adjustment when replacing the light module.

WARNING

・

No one other than a specialized service person should perform this adjustment. Doing so may result in

electric shock or short circuits.

・

Do not drop any screws, etc. Doing so may cause short circuits.

・

Shadow adjustment is performed with the power turned on. Do not short-circuit the circuit boards with

the tools.

・

Before removing or mounting external panels and circuit boards, turn off the main unit's power, wait for

the cooling fans to come to a complete stop, then shut off the supply of AC power to the projector and

the light source with a circuit breaker, etc. After this, check that the main unit has cooled down suffi-

ciently before performing the adjustment.

WARNING

・

Do not look at the lens during projection. Doing so may damage your eyes.

Required tools: #2 Phillips screwdriver

5.5 mm nut driver

Remove the right side panel.

See page 53

Remove the IF board.

Remove the six M3 screws, then remove the IF board.

NOTE

- Do not disconnect the board connector.

Turn on the projector's power.

Turn on the power of the projector and the light source

and warm up for about 15 minutes.

Refer to page 106 for instructions on turning on the

power.

Select the shadow adjustment mode from

the adjustment menu.

(1) Press the MENU operation button to display the

adjustment menu on the LCD panel.

(2) Select Installation

→

Service Adj.

→

Shadow Adj.

Note that you must log in to the projector with Ad-

vanced User privileges or higher in order to access

“Service Adj.”.

IF board

Installation of the light module

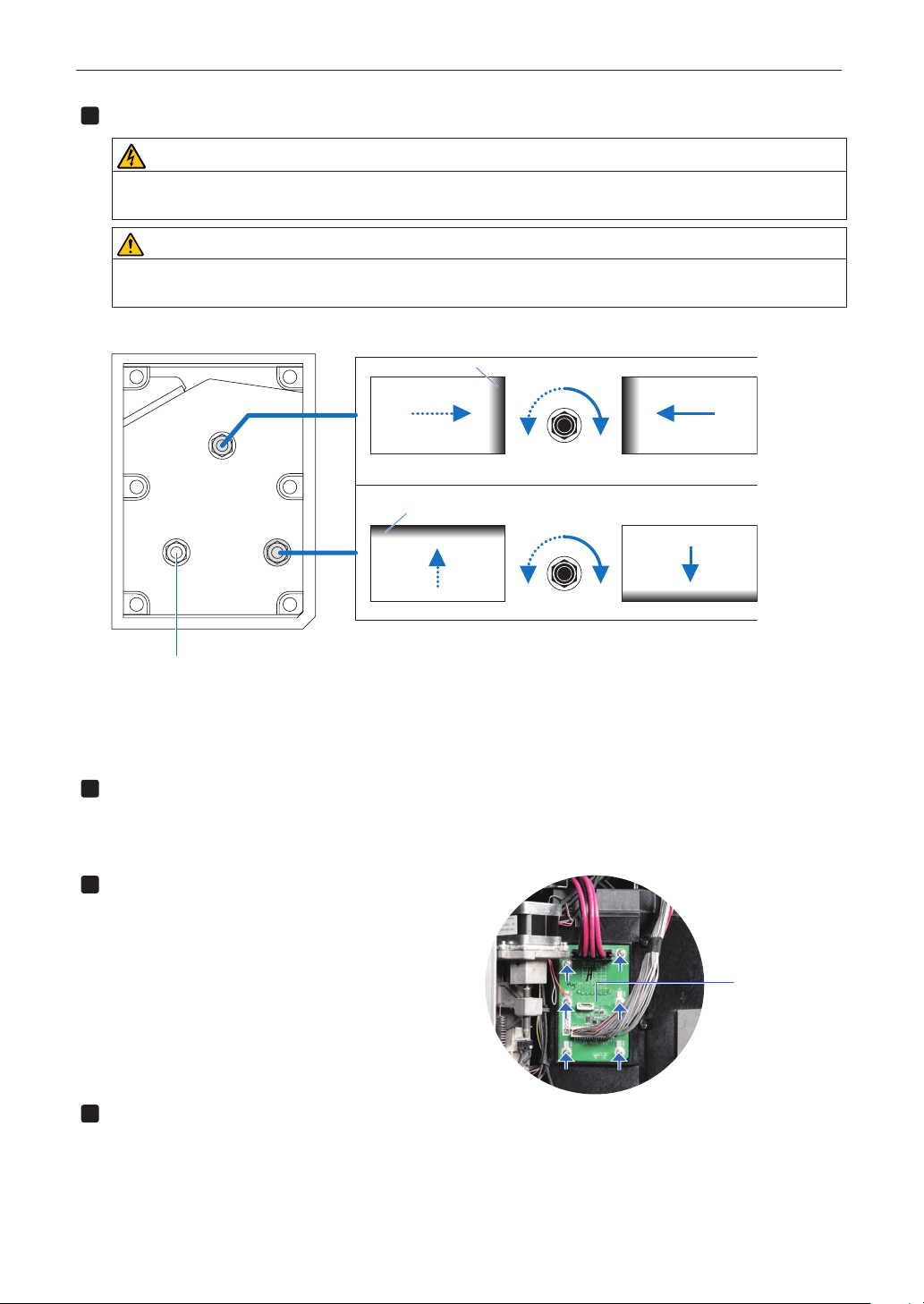

Adjust the illumination position of the light source.

CAUTION

・

Do not short-circuit the circuit boards with the tools.

・

Do not touch anything other than the shadow adjustment nut.

CAUTION

・

Strong light is projected during operation, so do not look into the lens. Doing so may cause dam-

age to the eyes.

(1) Turn the nut to adjust so that no shadows are displayed on the projection screen.

Adjusting horizontally

ClockwiseCounterclockwise

Shadow

Adjusting vertically

Do not touch this nut.

(2) Cancel the Shadow Adj menu.

Turn off the projector main unit.

Turn off the projector's power.

Turn off all power to the projector and shut off the AC

power supply.

Mount the IF board.

Mount the IF board with the six M3 screws.

IF board

Mount the right side panel.

See page 52

This completes shadow adjustment.

1. Before Setting Up Your Projector

1-1. Clearance for Installing the Projector (English)

Allow ample clearance between the projector and its surroundings as shown below.

Avoid installing the projector in a place where air movement from the HVAC is directed at the projector.

Heated air from the HVAC can be taken in by the projector’s intake vent. If this happens, the temperature inside the projector will

rise too high causing the over-temperature protector to automatically turn off the projectors power.

Example 1 – If there are walls on both sides of the projector.

60cm/23.6"

or greater

60cm/23.6"

or greater

NOTE

The drawing shows the proper clearance required for the front, back and top of the projector.

Example 2 – If there is a wall behind the projector.

(1) For floor installation:

70cm/27.6"

or greater

Lens

NOTE

The drawing shows the proper clearance required for the front, sides and top of the projector.

Before Setting Up Your Projector

(2) For ceiling mounting:

Lens

70cm/27.6"

or greater

30cm/12"

or greater

NOTE

• The drawing shows the proper clearance required for the front, sides, back and bottom of the projector.

• If suspending the projector 30 cm/12 inches away from the ceiling, allow ample clearance for all four sides and the

under the projector.

Before Setting Up Your Projector

1-2. Freiraum bei der Projektorinstallation (Deutsch)

Achten Sie auf ausreichenden Freiraum zwischen dem Projektor und seiner Umgebung, wie unten gezeigt.

Vermeiden Sie es, den Projektor an einer Stelle zu installieren, an der er den Luftströmungen von Klimaanlagen ausgesetzt ist.

Die aufgeheizte Luft aus einer Klimaanlage kann vom Lüftungseinlass des Projektors aufgenommen werden. Dadurch wird die

Innentemperatur des Projektors zu stark erhöht, was dazu führt, dass der Überhitzungsschutz des Projektors diesen automatisch

ausschaltet.

Beispiel 1 - Wenn sich Wände auf beiden Seiten des Projektors befinden.

60 cm

oder mehr

60 cm

oder mehr

HINWEIS

Die Abbildung zeigt den ordnungsgemäßen Abstand für die Vorder-, Rück- und Oberseite des Projektors.

Beispiel 2 - Wenn sich eine Wand hinter dem Projektor befindet.

(1) Bei Installation auf einem fl achen Untergrund:

70 cm

oder mehr

Linse

HINWEIS

Die Abbildung zeigt den ordnungsgemäßen Abstand für die linke, rechte, Vorder- und Oberseite des Projektors.

Before Setting Up Your Projector

(2) Bei der Deckenmontage:

Linse

70 cm

oder mehr

30 cm

oder mehr

HINWEIS

• Die Abbildung zeigt den ordnungsgemäßen Abstand für die linke, rechte, Vorder-, Rück- und Unterseite des

Projektors.

• Wenn Sie den Projektor 30 cm von der Decke entfernt installieren, achten Sie auf ausreichende Freiräume auf allen

vier Seiten und unter dem Projektor.

Before Setting Up Your Projector

1-3. Selecting the lens unit

This section provides guideline information on how to select the screen size, the projector mounting position, and the type of lens

unit that is appropriate for your presentation purposes. Multiple lens units are sold separately as options for this projector. Select

an appropriate lens unit according to the environment in which your projector is installed. Note that all descriptions given in this

manual assume the angle of projection is zero degree. In the case of projection from an upper position or from the left or right, it is

necessary to calculate the width for the minimum projected image at a size larger than the screen size.

Width of minimum

Screen

Projected image

1-3-1. Screen Type

The following two types of screen masks can be used for the DLP Cinema Projector. Check the screen mask for your projector for

its type before selecting lens units, because types of lens units to be used on the projector and its settings depend upon the type

of screen mask you use.

Horizontal moving screen mask

Screen masks move horizontally to adjust the screen.

ScreenScreen mask Screen mask

Before Setting Up Your Projector

Vertical moving screen mask

Screen masks move vertically to adjust the screen.

Screen

Screen mask

Before Setting Up Your Projector

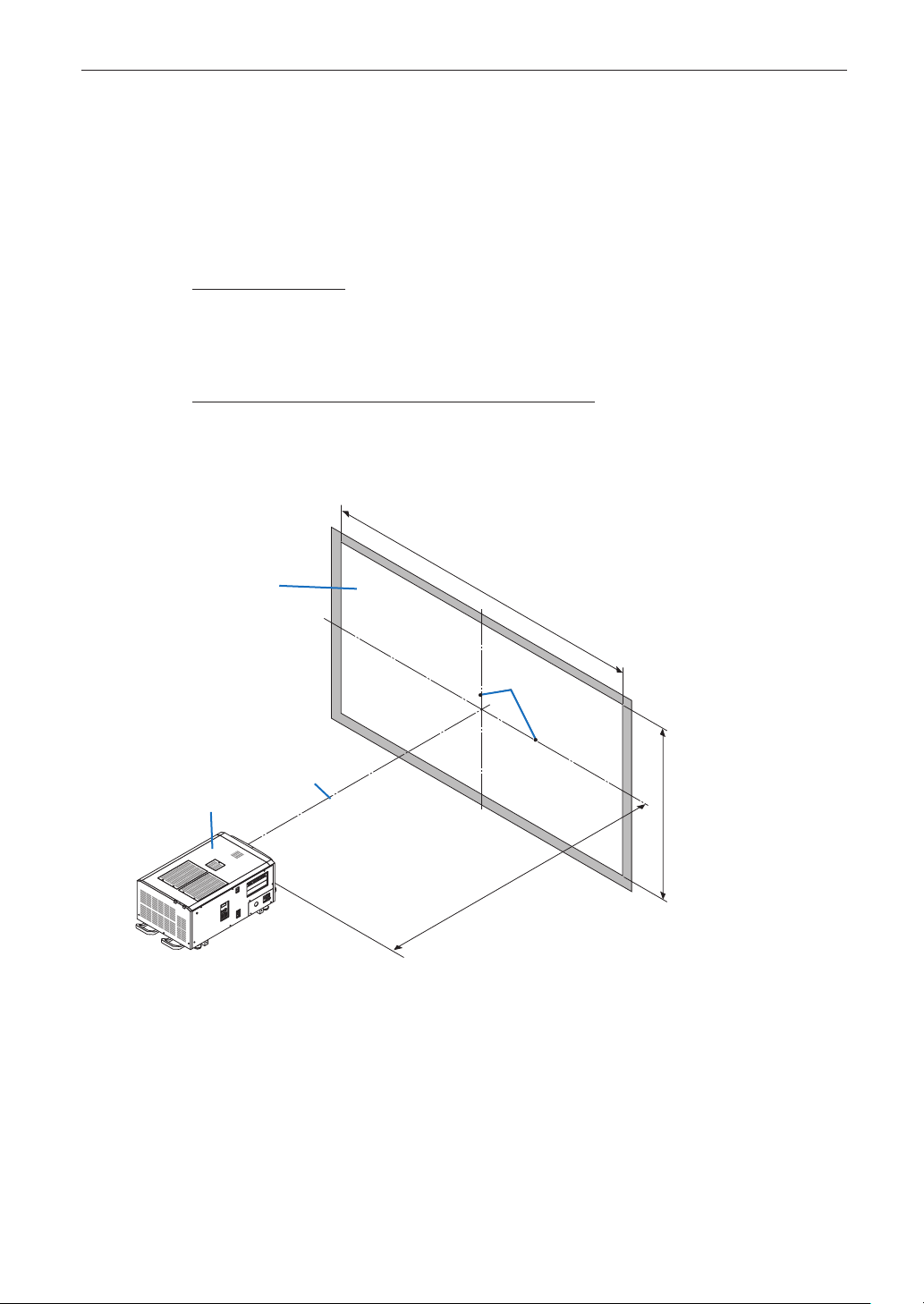

1-3-2. Calculating the lens zoom magnication to use

The lens zoom magnification required when installing the projector is calculated using the following method.

(1) Calculate the lens zoom magnification for SCOPE projection.

(2) Calculate the lens zoom magnification for VISTA (FLAT) and HDTV projection.

(3) Select the lens that satisfies the zoom magnification calculated in (1) and (2).

SCOPE projection:

Lens

magnification

Length of projection (L)

Screen width (W)

VISTA (FLAT)/HDTV projection:

Lens

magnification

Length of projection (L)

Screen width (W) × (2048 ÷ (Number of pixels per horizontal line × 2))

Note: Number of pixels per horizontal line: 1998 for VISTA (FLAT); 1920 for HDTV

Select a lens that meets the magnification requirement for SCOPE, VISTA (FLAT), and HDTV screen types.

Screen width (W)

Screen height (H)

Projector

Length of projection (L)

Screen

Length centerline

Centerlines

Before Setting Up Your Projector

Option lenses

The lens units that can be attached to this projector are shown in the following table.

MODEL Magnifying

NC-60LS12Z

1.20 - 1.81

NC-60LS14Z

1.40 - 2.05

NC-60LS16Z

1.59 - 2.53

NC-60LS19Z

1.90 - 3.25

NC-60LS24Z

2.40 - 3.90

NC-60LS39Z

3.90 - 6.52

Examples of selecting the lens unit

If the “projection distance (L) = 30 m, the screen width (W) = 15 m”:

SCOPE projection =

30m

= 2.0x

15m

VISTA (FLAT) projection =

30m

= 1.95x

15m × (2048 ÷ 1998)

HDTV projection =

30m

= 1.88x

15m × (2048 ÷ 1920)

Therefore, the following lens units, which satisfy the magnifications in all of the above projections, are selected.

• NC-60LS16Z

Before Setting Up Your Projector

1-4. Carrying the projector

WARNING

• When moving the projector, it should be carried by holding the handles or hook on the base of the unit by 6 or more people.

• When moving the projector, first turn off the power and always disconnect the power plug from the electrical outlet, and check

that all of the connecting cables between equipment and the lenses have been removed.

• For C1 connection, turn off the projector, shut down AC power by using a circuit breaker.

• For C2 connection, turn off the projector, shut down the AC power to the projector and the light using a circuit breaker.

Hook

Handles

Before Setting Up Your Projector

1-5. Removing the Projector Covers

This section provides guideline information on how to remove and mount covers on the projector.

Name of the cover

Plate inlet

Air inlet (Filter cover / Filter)

Lens cover

Side panel

Air outlet

Air inlet (Filter cover / Filter) Air inlet (Filter cover / Filter)

NOTE

• “Side panel” and “Lens cover” are equipped with key locks. Special keys (service key) are required to remove or

mount them. Refer to “Position of the key locks on the covers” (page 50) for details.

• If you remove the lens cover or side panel, a tamper event is detected by the tamper detection circuit. When you

start the projector after attaching the cover, the following error message is displayed on the LCD screen of the

projector main unit.

- “IMB: Service Door Tamper”

• Encrypted contents cannot be displayed while an error message is being displayed. Refer to “3-2. Recovering from

Tamper Errors” (page 103) for details on how to clear the error message.

• Do not turn on the power when the lens cover and the side panel are removed.

• When removing the lens cover, return the lens shift to the center position before turning off the power.

Before Setting Up Your Projector

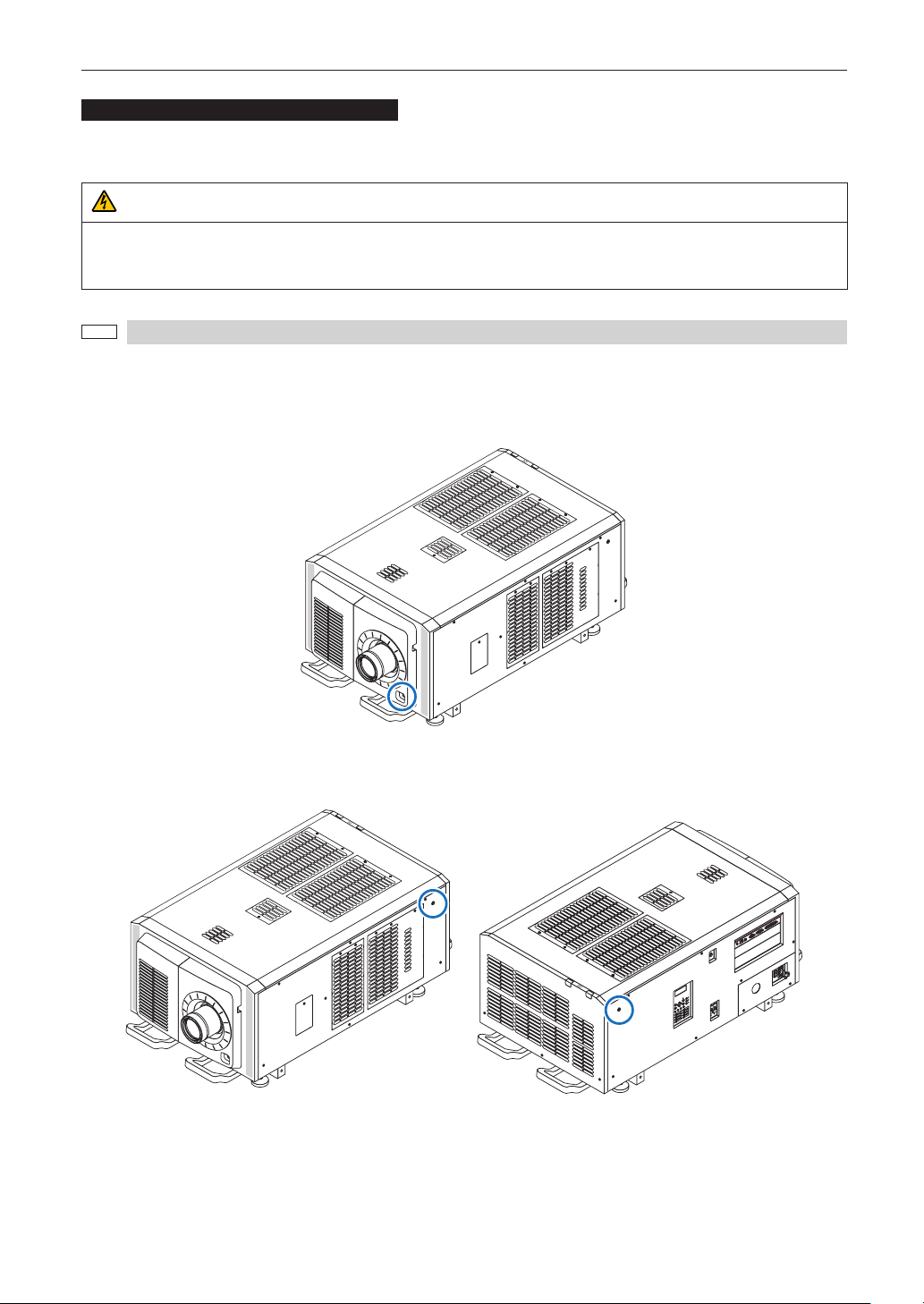

Position of the key locks on the covers

When removing or attaching a cover of the projector main unit, the lock needs to be unlocked using the included service key. The

positions of the locks on each of the covers are as follows.

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK AND LASER RADIATION, DO NOT OPEN COVER. NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING AND INSTALLATION TO QUALIFIED SERVICE PERSONNEL AND INSTALLATION

PERSONNEL.

NOTE

When a cover is removed, the power to the unit is automatically turned off by the safety protection system.

Lens Cover

The lock is unlocked when attaching or removing lenses (page 51, 94).

Just canceling the lock will not allow you to remove the service key.

Side Panel

The lock is unlocked when attaching or removing the option board (page 98).

Just canceling the lock will not allow you to remove the service key.

Before Setting Up Your Projector

1-5-1. Removing and Mounting the Lens Cover

Preparation: Service key (attached goods)

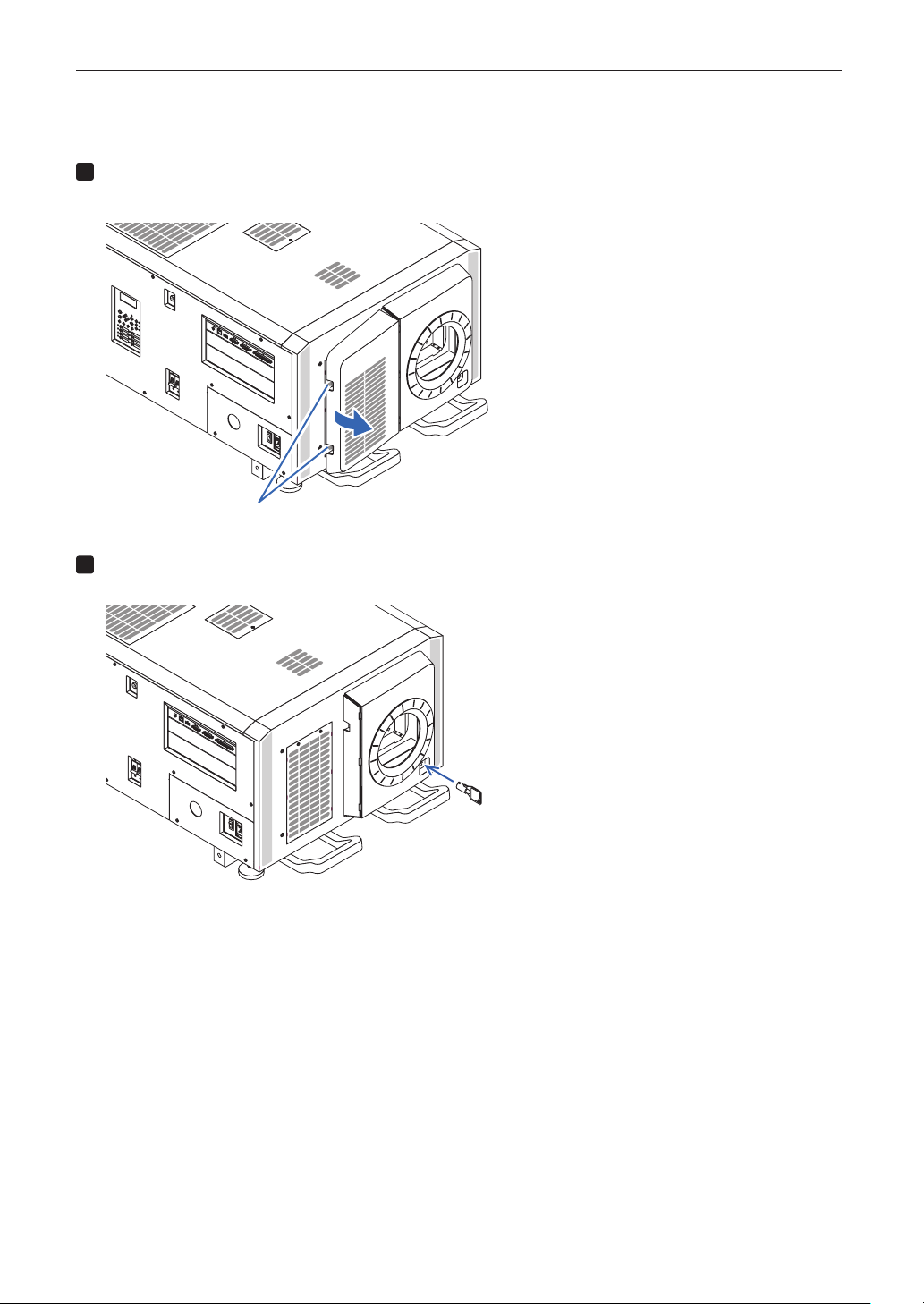

Remove the front lter cover.

Pull the filter cover in the direction of the arrow to remove it.

Handle

Unlock the lens cover.

Unlock the cover using the service key.

Before Setting Up Your Projector

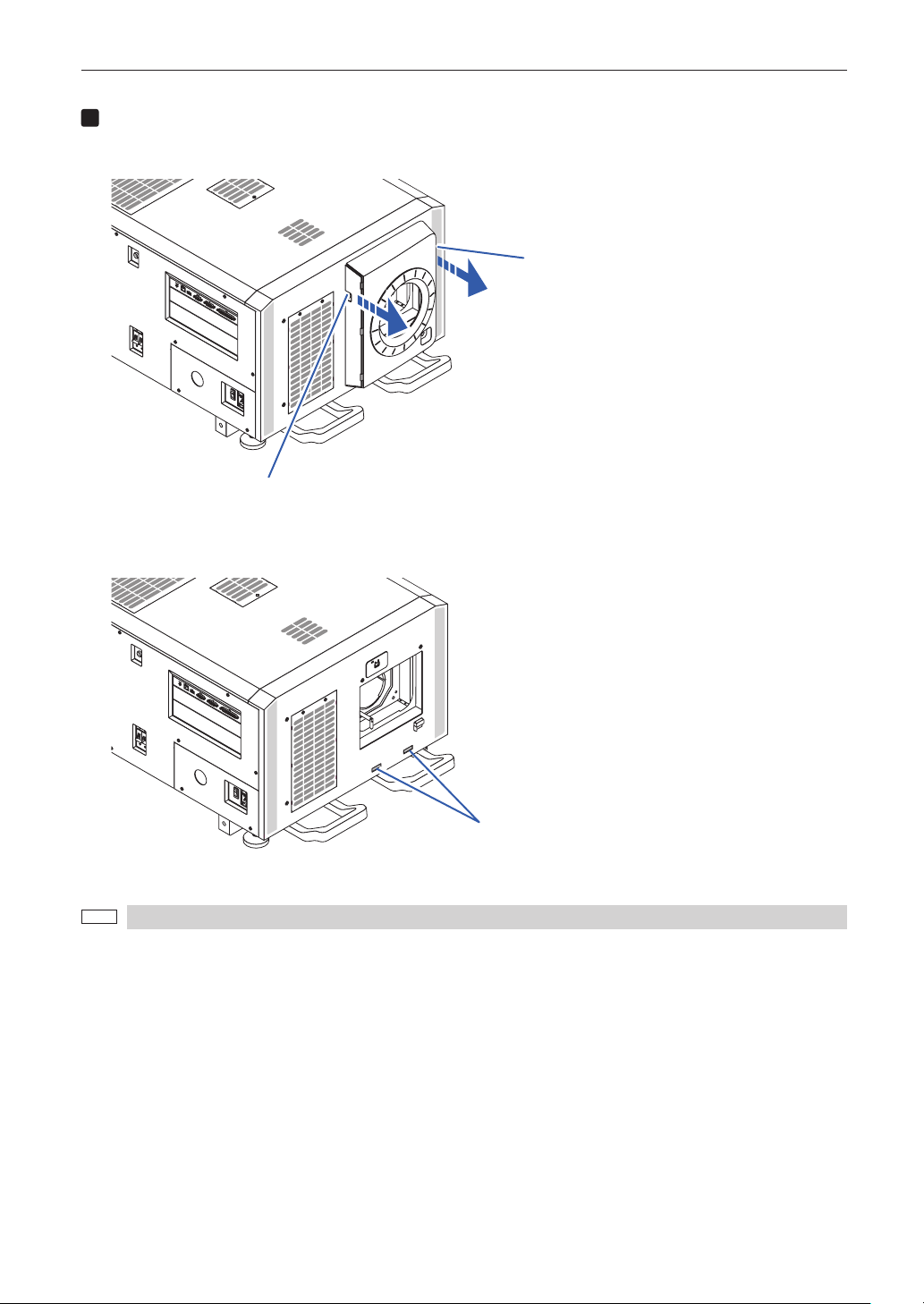

Remove the lens cover.

The lens cover is secured to the projector body by two claws each at the cover top and bottom.

Hold the cover sides and pull toward you.

Handle

• This completes removing the lens cover. To mount the cover, perform the removal procedure in reverse. Make sure to lock the

key.

Hook

* Lens cover removed condition

NOTE

If the cover is not properly mounted, an error may occur. Securely push all claws into the position.

Before Setting Up Your Projector

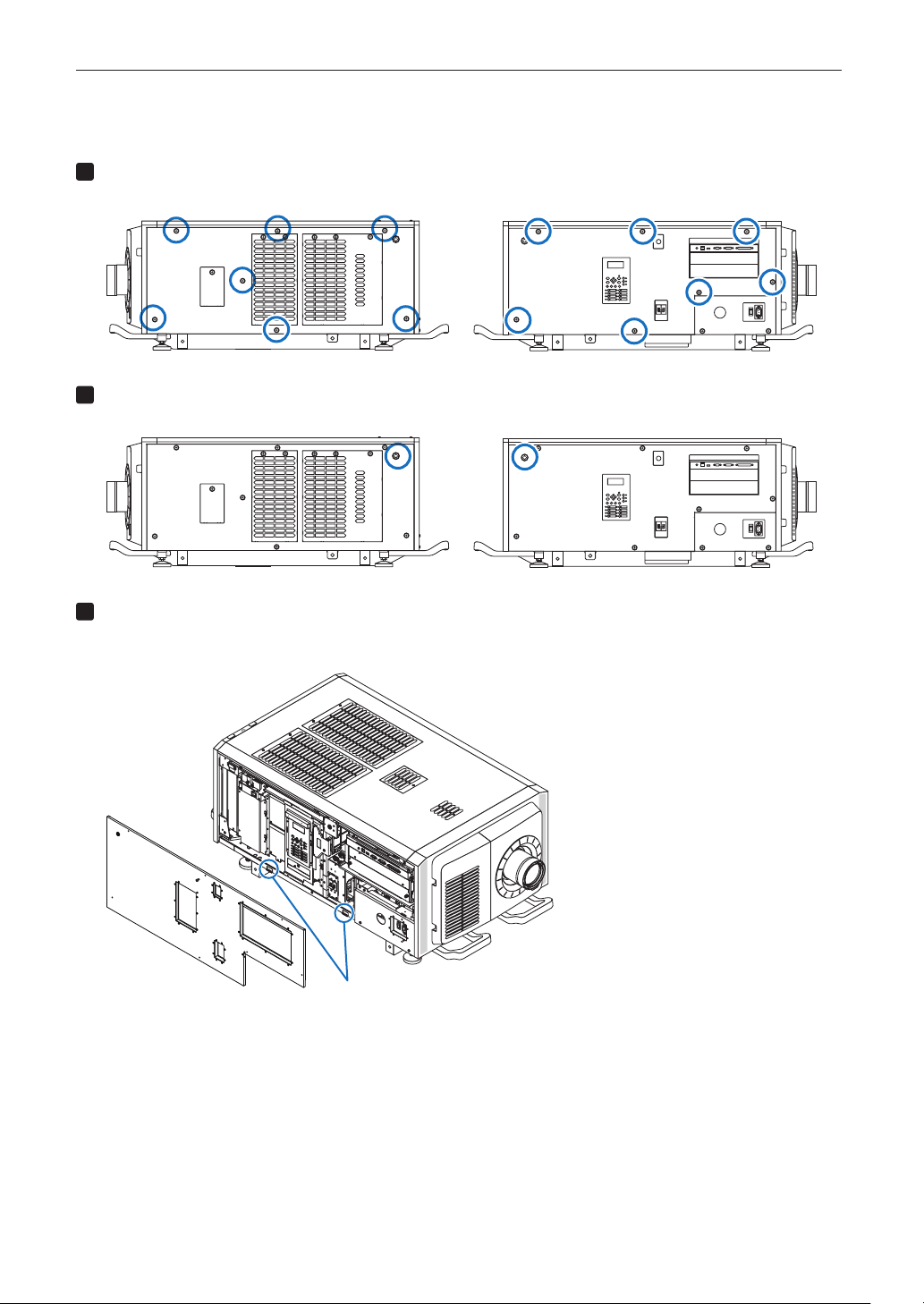

1-5-2. Removing and Mounting the Side Panel

Preparation: Phillips-head screwdriver (No.2), service key (attached goods)

Loosen the seven xing screws on the side panel.

Loosen four screws on the side panel until they are free to spin. The screws do not detach from the panel.

Unlock the lock on the side panel.

Use the service key to unlock the lock.

Remove the side panel.

The side panel is fixed in place by hooks at the bottom (in 2 locations). Tilt the side panel toward you and pull up to remove

it. Do not use force when tilting the side panel.

Hook (2 locations)

This completes removing the side panel. To mount the side panel, perform the removal procedure in reverse. Make sure that you

do not forget to tighten the screws or to lock the key lock.

1-5-3. Removing and Mounting the Filter Cover

Refer to the user’s manual for details on how to remove and attach the filter cover.

2. Setting Up Your Projector

2-1. Setup Procedure

Set up the projector according to the procedure below. This chapter describes the installation of procedure until turning on of the

power.

• Step1

Projector Installation (See page 55).

• Step2

Selecting the Power Cable (See page 58).

Connecting the Power Cable (See page 64).

• Step3

Mounting the Lens Unit (See page 94).

• Step4

Mounting the following optional parts as required.

- Installing the Media Block (NP-90MS01/NP-90MS02) (See page 98).

Setting Up Your Projector

2-2. Projector Installation

Move the projector to the projection position and install it corresponding to the screen and projection conditions.

To correct the inclination to the right or left of the projector, use the level adjusters at 4 positions. You can extend the level adjuster

to 10 mm at the maximum (Rotate it counterclockwise for extension).

CAUTION

• Do not extend the adjuster by more than 10 mm. Rotating it forcefully may cause the adjuster to come off or be damaged.

• To adjust the level adjusters of the projector, extend the two level adjusters at the front and the back at the same time so that

the weight is imposed to them equally. If you adjust only one adjuster, the weight is not imposed equally, which may result in

level adjuster failure.

Level adjusters (in four positions)

Setting Up Your Projector

2-2-1. Installing the Projector on the Ceiling

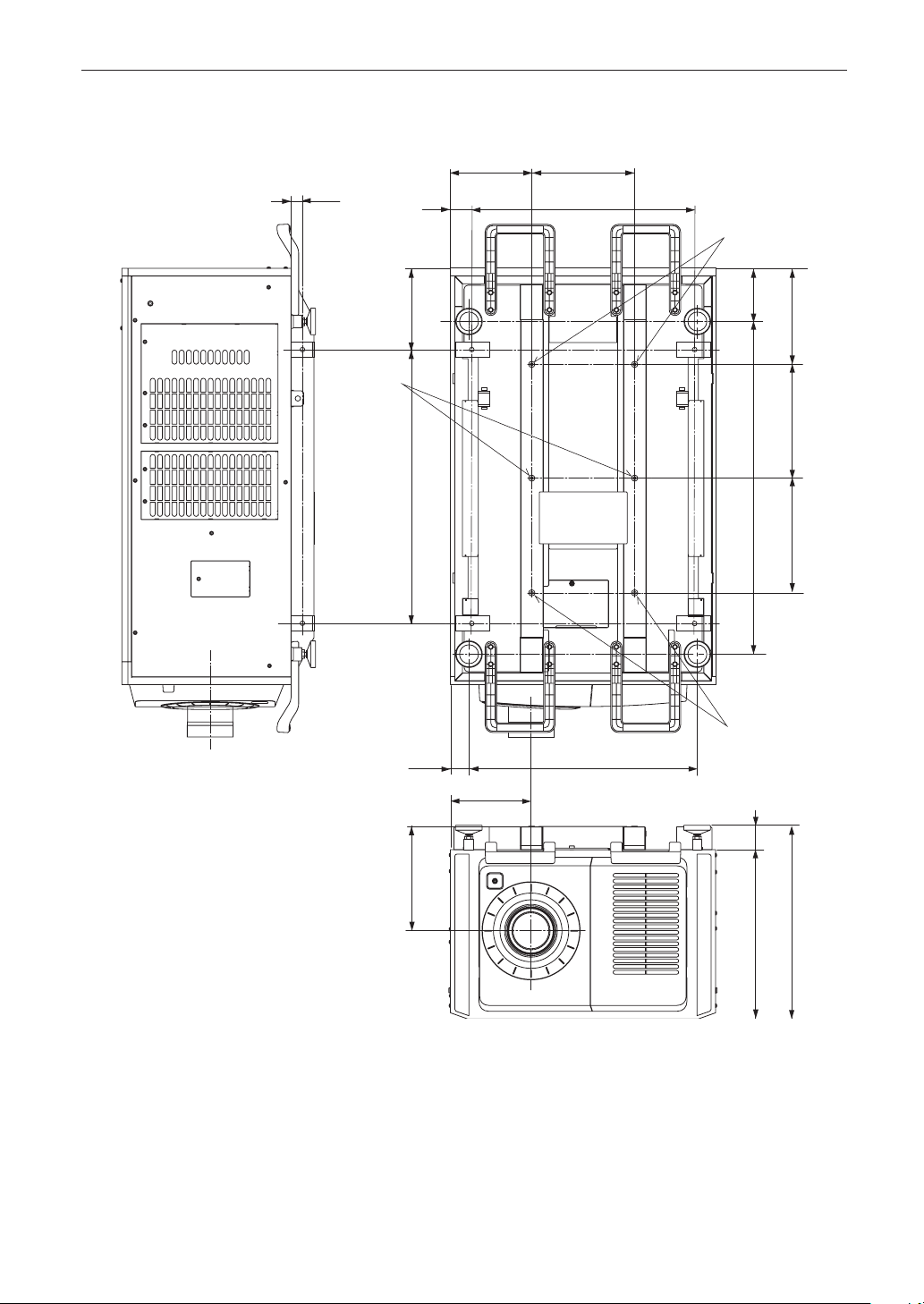

To install the projector on the ceiling, install it by referring to the following specifications.

270

586

55.5

600

211

48.5

213.5

214

720

275

874

445

509

140

300 253300

Lens center

(Lens shift 0)

Lens center

(Lens shift 0)

The ceiling mounting surface

Max M8x20

Unit : mm

Setting Up Your Projector

2-2-2. Terms for Preparation of Frames and Ceiling Hanging Brackets

Ask whoever is installing the projector to prepare a specifically designed frame and ceiling hanging brackets (Charged Service).

Take note of the following upon its design.

- There are intake openings and exhaust openings on the side of the main unit, exhaust openings on the rear, intake openings

on the front, intake openings on the top side. Make sure that the design does not obstruct these openings. Also make sure to

secure enough space to allow easy removal of the filter cover for cleaning the filter.

- Remove the adjusters on the main unit if they will interfere with the frame. The adjusters can be removed by turning them.

- Attach the frame and ceiling hanging brackets to the screw holes (in four positions) provided on the bottom surface of the main

unit for ceiling hanging installation.

Refer to the specification sheet for dimensions between the centers of the screw holes. Note that the screw holes on the main

unit have the dimensions of an M8 thread and a maximum depth of 20 mm (the lengths of the bolts are to be calculated accord-

ing to the design).

- Horizontal adjustment mechanism (for example, bolts and nuts in four positions)

- Design the frame so that it will not easily collapse.

- To prevent ceiling collapse, the ceiling should be able to support the combined weight (158 kg*

) of the projector (150 kg*

) and

lens (8 kg) for an extended period of time, and the installation must be in accordance with any local building codes.

When the light module NP-18LU01is installed, the weight is about 149 kg.

When the light module NP-18LU01is installed, the weight is about 141 kg.

NOTE

Make sure there are at least six people taking part when lifting this unit.

Attempting to lift this unit alone may lead to injury or cause pain in the lower back.

Setting Up Your Projector

2-3. Selecting the Power Cable for C2 Connection (English)

The power cable for C2 Connection is not included with the projector. Refer to “2-3-1. AC Power Work Specifications” (page 59)

and provide the necessary power cable.

WARNING

Carefully read the contents described in this section before connection and connect the cables according to the proper proce-

dure. Inappropriate handling may cause fatal, serious or other bodily injuries due to fire or electric shock.

CAUTION

• Before connecting the power cables, check that the main power switch of the projector is turned off. Implement the connec-

tion with AC power shut off.

• Be sure to ground the equipment to ensure safety. Use a power cable that meets the standards and power supply voltage of

the country where you are using the projector (page 59), and always connect the equipment to the ground. If the ground is

not connected, it may cause electrical shocks.

• When connecting the power cable plugs to the AC IN and the electrical outlet, securely insert the plugs all the way in. If the

connection between the power cable plug and the electrical outlet is loose, the plug area may generate heat, causing burns

and accidents.

• In order to prevent the power plug from being disconnected from the projector, fix the power cable by using the power cable

stopper supplied with this unit. For how to use the power cable stopper, refer to “Attaching the power cable stopper” (page

59).

NOTE

• Install the electric outlet nearby the projector main unit so that the power supply can be cut by unplugging the AC

power cable.

• When plugging in or unplugging the AC power cable, make sure that the main power switch is pushed to the [O]

position. Failure to do so may cause damage to the projector.

• Do not use a three-phase power supply. Doing so may cause malfunction.

Setting Up Your Projector

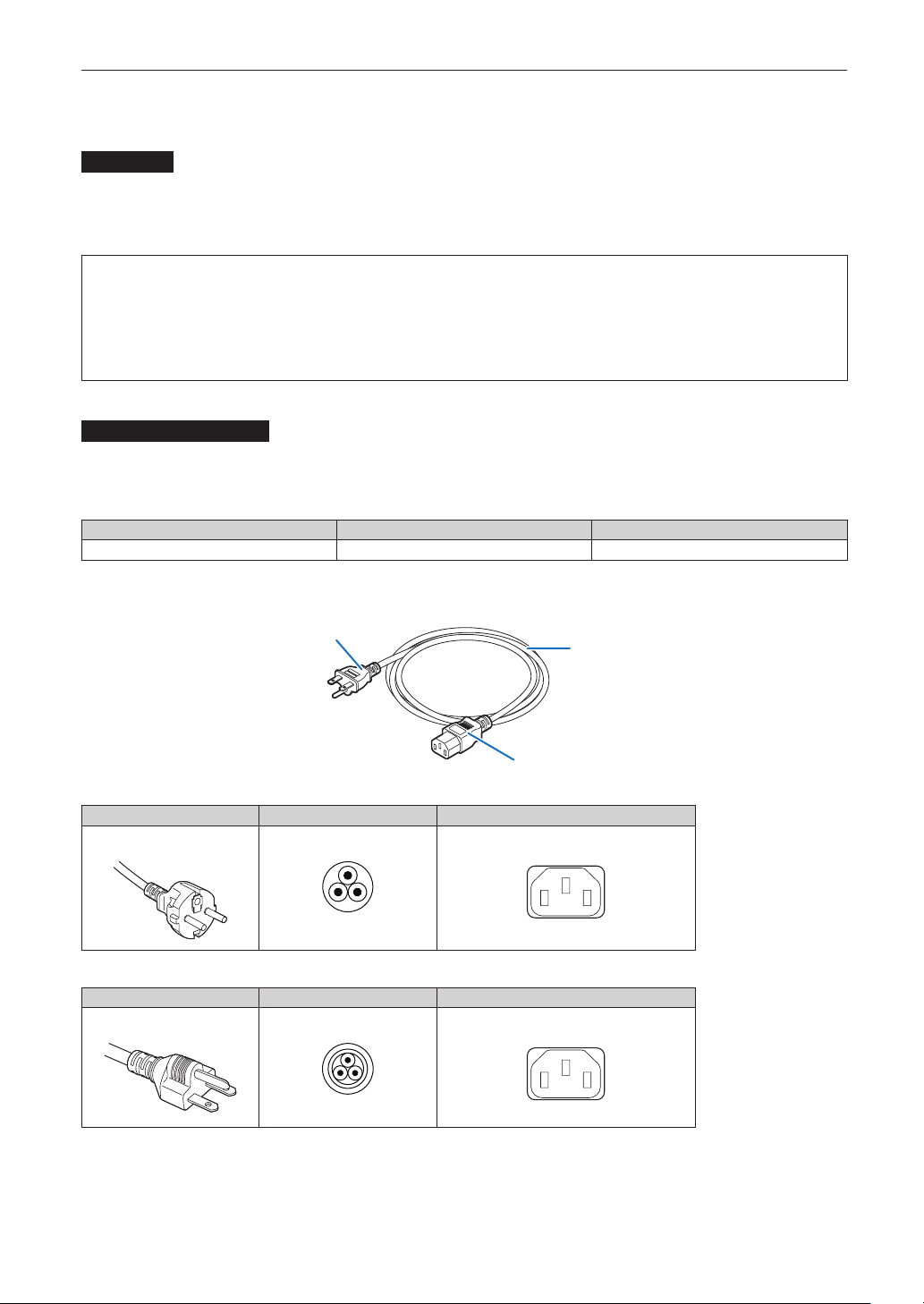

2-3-1. AC Power Work Specications

ACpowersupplyequipment

Do not use any voltage other than those shown below for the AC power supply connected to the projector.

For C2 connection (when using two different power cables to supply the AC power to the projector and the light source

separately)

- AC100– 240 V single phase, 50/60Hz

(Power supply to the projector)

- AC200– 240 V single phase, 50/60Hz

(Power supply to the light source)

ACpowersupplycablefortheprojector

The projector is equipped with an IEC60320-C14 inlet to connect an AC power supply cable. Use an IEC60320-C13 compliant AC

power cable connector and ensure that the connector meets the following current capacity specifications.

Power supply voltage Projector input current Power cable current capacity

AC 100V-240V 4.9 A 10A or higher

Furthermore, use plugs, cables, and connectors that are suitable for the regulations of the country of installation, as shown in the

following table.

NOTE

• For users in North America

Use a power cable no longer than 4.5m/14.76 ft according to National Electrical Code.

• For UK only: In UK, a BS approved power cable with moulded plug has a black (10 Amps) fuse installed for use

with this equipment. If a power cable is not supplied with this equipment, please contact your supplier.

Cable

Plug

Connector

Germany

Plug Cable Connector

CEE 7

H05VV-F 3x1mm

IEC60320 C13

USA

Plug Cable Connector

NEMA 6-15P

SJT 3 x AWG 16 IEC60320 C13

Setting Up Your Projector

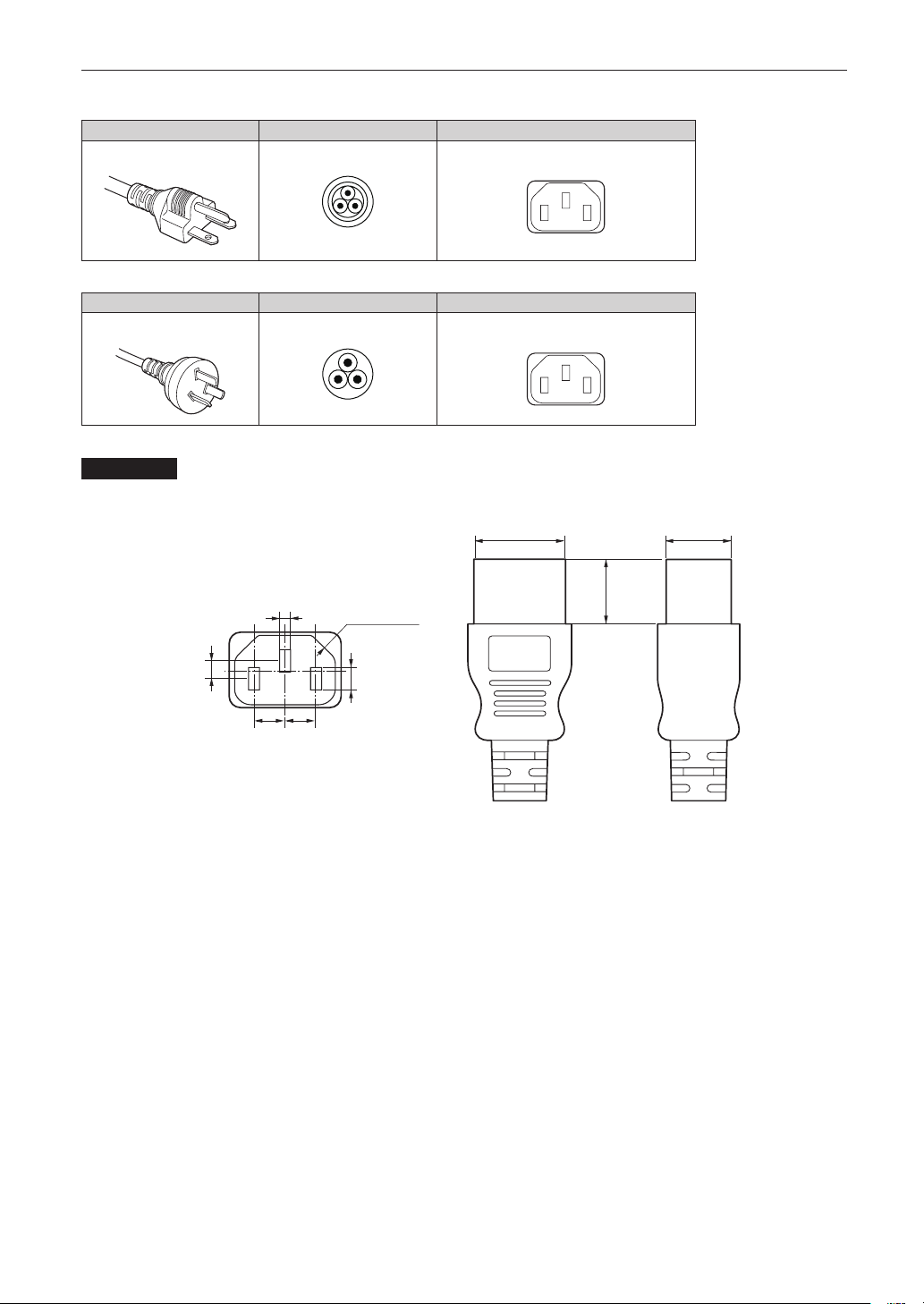

Japan

Plug Cable Connector

JIS C 8303

HVCTF 3 x 1.25mm

IEC60320 C13

China

Plug Cable Connector

GB2099

RVV 300/500 GB17465.1

Connector

Dimensions of the connector of the power cable are shown below.

0.9

0.7

+0.5

2.5

+0.5

4-R3.5

+0.5

Unit: mm

(Min)

Setting Up Your Projector

2-4.

Auswahl des Netzkabels für Anschluss C2 (Deutsch)

Es wird kein Netzkabel für Anschluss C2 mit dem Projektor geliefert. Nehmen Sie auf „2-4-1. Netzstrom-Spezifikationen“ (Seite 62)

Bezug, und beschaffen Sie das notwendige Netzkabel.

WARNUNG

Lesen Sie diesen Abschnitt vor dem Herstellen der Verbindungen sorgfältig durch, und schließen Sie die Kabel anhand der

ordnungsgemäßen Verfahren an. Falsche Handhabung kann zu schweren oder sogar tödlichen Verletzungen durch Brand oder

einen elektrischen Schlag führen.

ACHTUNG

• Bevor Sie das Netzkabel anschließen, prüfen Sie, ob die Hauptstromschalter des Projektors ausgeschaltet ist. Stellen Sie die

Verbindungen bei ausgeschaltetem Netzstrom her.

• Erden Sie das Gerät, um die Sicherheit zu gewährleisten. Verwenden Sie ein Netzkabel, das die Normen und Netzspannung

des Landes, in dem der Projektor verwendet wird, erfüllt (Seite 62), und schließen Sie das Gerät stets an Erde an. Wenn keine

Erde angeschlossen wird, kann es zu elektrischen Schlägen kommen.

• Führen Sie die Netzkabelstecker beim Anschließen bis zum Anschlag in den Netzeingang und die Netzsteckdose ein. Sitzt

der Netzstecker nicht fest in der Netzsteckdose, kann Wärme im Steckerbereich erzeugt werden, die zu Verbrennungen und

Unfällen führen kann.

• Um eine Trennung des Netzsteckers vom Projektor zu verhindern, fixieren Sie das Netzkabel, indem Sie den mit diesem Gerät

gelieferten Netzkabelstopper verwenden. Die Verwendung des Netzkabelstoppers siehe 62.

HINWEIS

• Installieren Sie die Steckdose nahe beim Projektor, so dass Sie die Stromzufuhr unterbrechen konnen, indem Sie

das Netzkabel abtrennen.

• Vergewissern Sie sich, dass der Hauptstromschalter auf der Position [O] steht, bevor Sie das Netzkabel anschliesen

oder abziehen. Anderenfalls kann es zu einer Beschadigung des Projektors kommen.

• Verwenden Sie keine Dreiphasen-Stromversorgung. Anderenfalls kann es zu einer Funktionsstorung kommen.

Setting Up Your Projector

2-4-1. Netzstrom-Spezikationen

Netzkabel

Der Projektor ist mit einem C19-Steckverbinder gemäß IEC60320 zum Anschließen des Netzkabels ausgestattet. Sorgen Sie dafür,

dass die Netzkabel, die von den Steckverbindern am Projektor zum Netzanschluss führen, über die unten angegebenen Stromka-

pazitäten verfügen.

For C2 connection (when using two different power cables to supply the AC power to the projector and the light source

separately)

- AC100– 240 V single phase, 50/60Hz

(Power supply to the projector)

- AC200– 240 V single phase, 50/60Hz

(Power supply to the light source)

NetzkabelfürdenProjektor

Der Projektor ist mit einem C14-Eingang gemäß IEC60320 zum Anschließen des Netzkabels ausgestattet.Verwenden Sie einen

IEC60320 C13-kompatiblen Netzkabelanschluss und sorgen Sie dafür, dass der Anschluss über die unten angegebene Stromka-

pazität verfügt.

Netzspannung Projektor-Eingangsstrom Netzkabel-Stromkapazität

100 - 240V Wechselstrom 4,9 A

10 A oder höher

Furthermore, use plugs, cables, and connectors that are suitable for the regulations of the country of installation, as shown in the

following table.

Kabel

Stecker

Steckverbinder

Deutschland

Stecker Kabel Steckverbinder

CEE 7

H05VV-F 3x1mm

IEC60320 C13

USA

Stecker Kabel Steckverbinder

NEMA 6-15P

SJT 3 x AWG 16 IEC60320 C13

Setting Up Your Projector

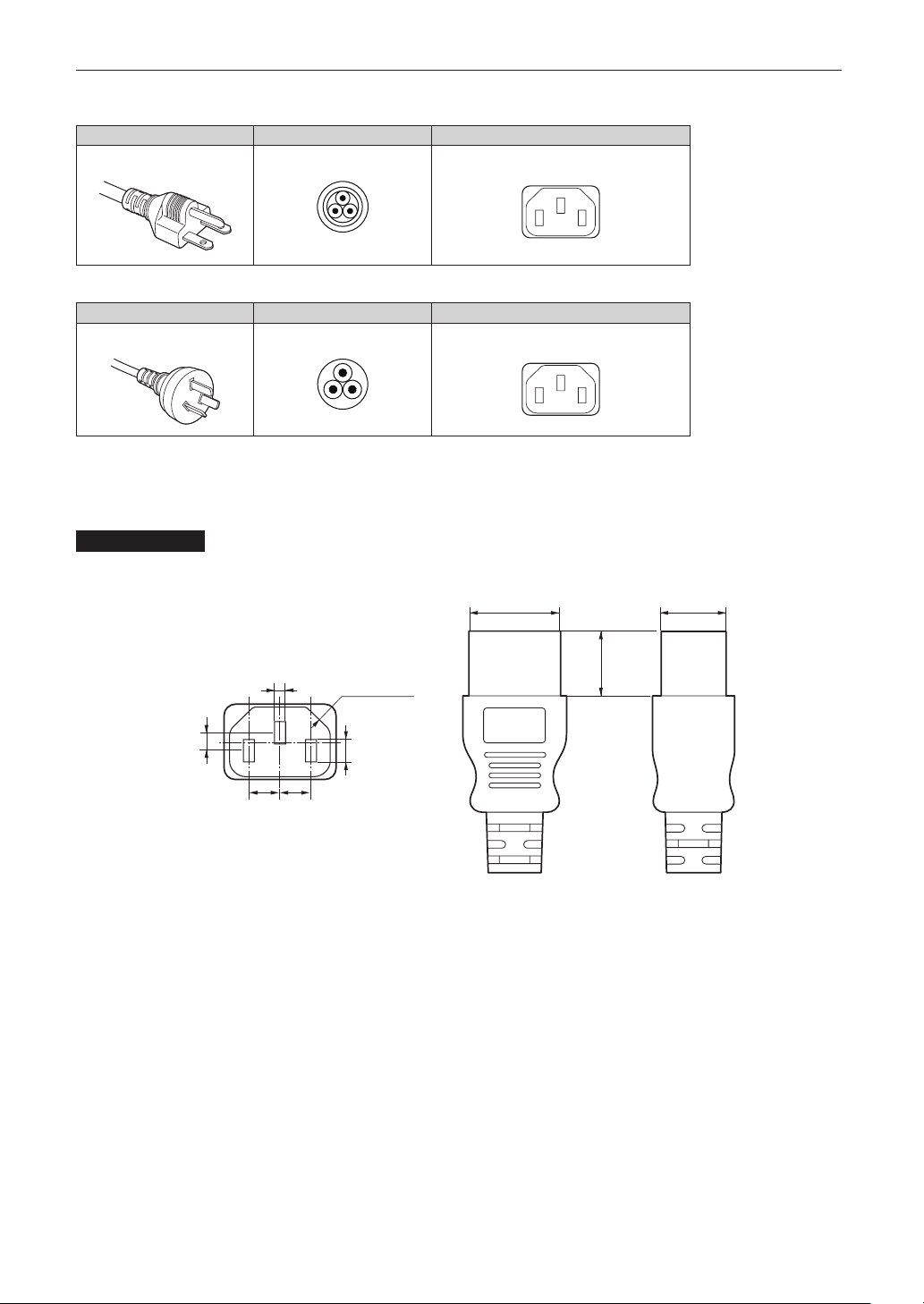

Japan

Stecker Kabel Steckverbinder

JIS C 8303

HVCTF 3 x 1.25mm

IEC60320 C13

China

Stecker Kabel Steckverbinder

GB2099

RVV 300/500 GB17465.1

Für Benutzer in UK

Verwenden Sie ein Netzteil mit BS-Zulassung und 10A-Sicherung.

Steckverbinder

Die Abmessungen des Netzkabels sind unten angegeben.

0.9

0.7

+0.5

2.5

+0.5

4-R3.5

+0.5

Einheit: mm

(Min)

Setting Up Your Projector

2-5. Connecting the power cable (English)

Connect the power cable of the projector. The AC power cable is not attached as an accessory. Be sure to have professional

technicians do any power supply construction.

WARNING

Carefully read the contents described in this section before connection and connect the cables according to the proper proce-

dure. Inappropriate handling may cause fatal, serious or other bodily injuries due to fire or electric shock.

CAUTION

• Make sure that the AC power supply is disconnected before carrying out the work of connecting the power supply cable.

• Be sure to follow the contents described in this section.

• Entrust a specialist to carry out the power supply work from the power supply equipment of the building to the place of projec-

tor installation.

• Be sure to ground the equipment to ensure safety. To avoid electric shock, request a professional to carry out the grounding

and related works. Make sure to ground the equipment before supply of the AC power.

2-5-1. Power supply construction specications

There are two different ways to connect the power cables, the C1 connection and the C2 connection.

•C1connection

AC power is provided to the projector power supply and the light power supply by a single cable.

AC power supply cable

Input Selection

C1 connection

Projector

(Main unit)

Light power

supply unit

AC power supply

equipment

Breaker

Setting Up Your Projector

•C2connection

AC power is provided to the projector power supply and the light power supply by separate cables.

AC power supply cable

AC power supply

cable

Electric outlet

Input Selection

C2 connection

Projector

(Main unit)

Light power

supply unit

AC power supply

equipment

AC power supply

equipment

Breaker

ACpowersupplyequipment

Do not connect AC power supply voltages to the projector other than those indicated below.

When using with a C1 connection

•200 - 240 V AC, single phase, 50/60 Hz

When using with a C2 connection

•100 - 240 V AC, single phase, 50/60 Hz (projector power supply)

•200 - 240 V AC, single phase, 50/60 Hz (light power supply)

Breakers

When connecting the AC power supply from the power supply equipment of the building to the projector, be sure to connect it

through a breaker. The capacity of the breaker must be as indicated below.

When using with a C1 connection

•Power supply for projector + power supply for light

200V-240 V AC: Input current 40A

Inrush current 150A or higher @10msec

When using with a C2 connection

•Power supply for projector

100V-240 V AC: Input current 10A

Inrush current 60A or higher @10msec

•Power supply for light

200V-240 V AC: Input current 40A

Inrush current 150A or higher @10msec

Setting Up Your Projector

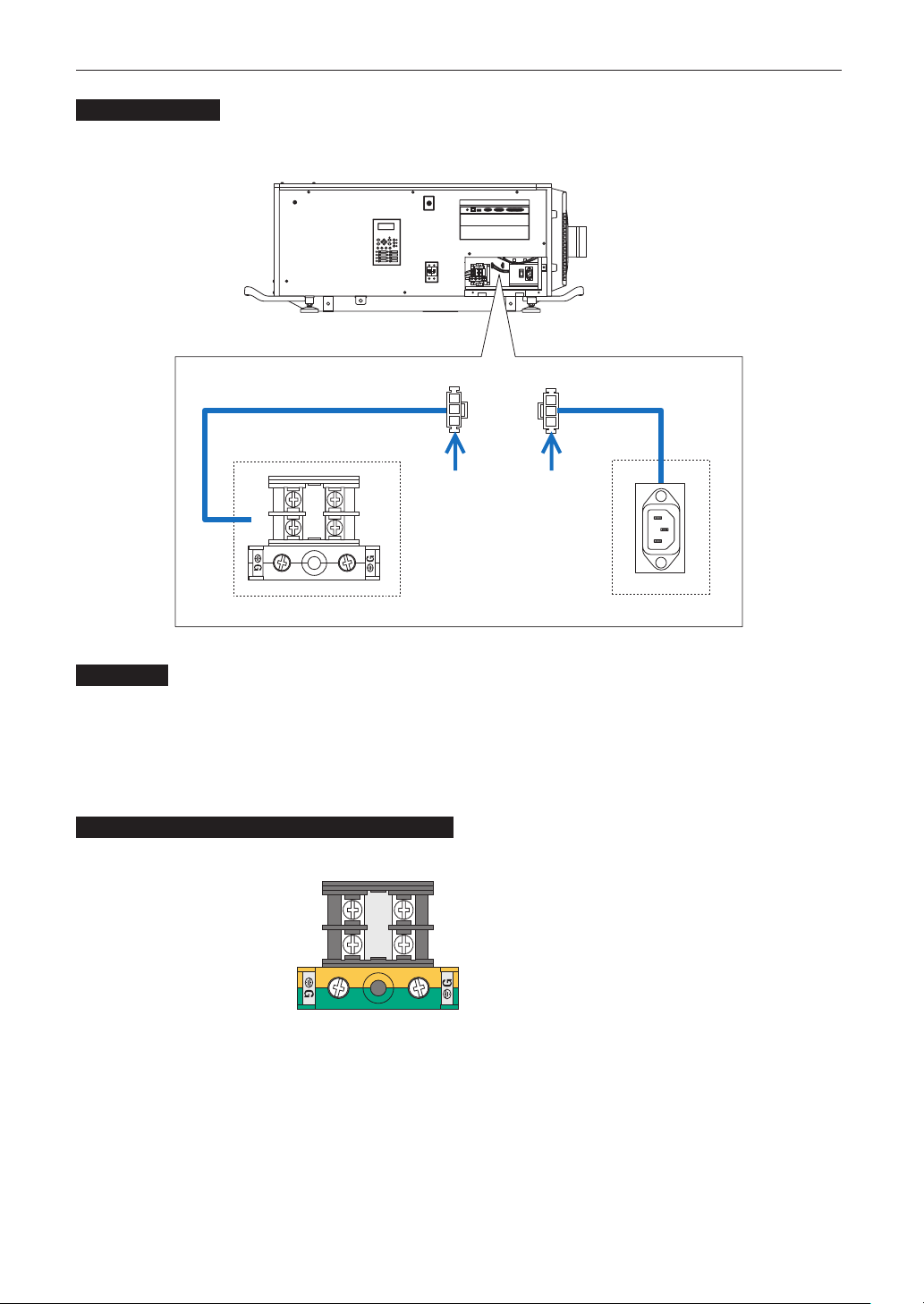

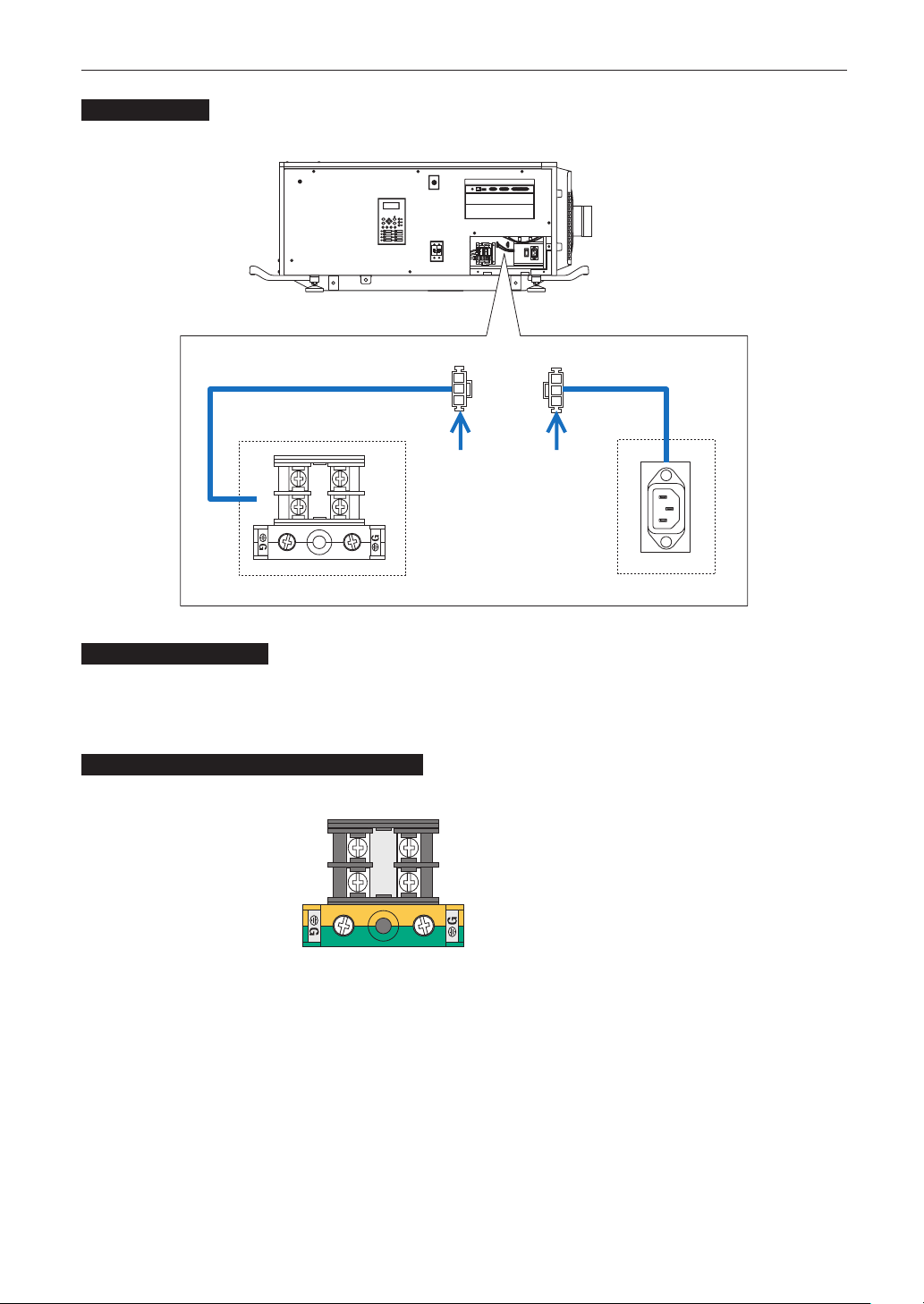

InputSelection

The power supply connection method is configured by the wiring to the input selection. The configurations are as follows.

Connection

ACpowersupplycable

• For the AC power cable, use a cable of thickness as appropriate for the installation country and made of copper as shown below.

• Use a round type UL-listed solderless terminal for the section connected to the main unit. In addition, when clamping this terminal

with the cable, use an UL listed tool.

CompatibleCablesandSolderlessTerminals

The specifications of the terminals for attaching the power cables are as follows.

L N

Power supply terminal L, N

Grounding terminal G

The size of the solderless terminal to use and the fastening torque of the screws varies depending on the type of terminal block.

Use the cable and solderless terminal that is suitable for the specific type of terminal block as shown in the following table. This

specifies the model name of the recommended solderless terminals. Use these parts or equivalent parts. If you are unable to use

the recommended solderless terminals, ensure that you use terminals of the dimensions shown in the following diagram.

Setting Up Your Projector

WARNING

• The power supply unit handles large electrical currents. To maintain safety, use wires with the specifications as shown in the

following table, and affix to the terminals at the designated attachment torque.

• Always use solderless terminals with the dimensions as shown in the following diagram.

• The use of parts with dimensions other than as designated creates a risk of the AC power supply unit short circuiting due to

the terminal block generating heat and melting because the terminal block of the light power supply unit cannot be attached

correctly.

•PowersupplyterminalL,N(Black)

JIS IEC/EN UL CSA

Thickness of compatible wiring

(using solderless terminal)

14mm

AWG6 or

AWG8

AWG6 or

AWG8

Solderless terminal dimensions M5 x 10

Tightening torque 2.0 to 2.5N·m

Solderless terminal dimensions

Min 1.0

-Max 2.0

Max 5.8

Min φ6.1

Max 12.2

Min 4.5

Unit: mm

Solderless terminal recommended

part (J.S.T parts)

Model R8-5 When using AWG6: Model R14-5

When using AWG8: Model R8-5

J.S.T: J.S.T. Manufacturing Co. Ltd.

Setting Up Your Projector

•GroundterminalG(Green/Yellow)

JIS IEC/EN UL CSA

Thickness of compatible wiring

(using solderless terminal)

14mm

AWG6 or

AWG8

AWG6 or

AWG8

Solderless terminal dimensions M6 x 15

Tightening torque 3.5 to 5.0N·m

Solderless terminal dimensions

Min 1.0

-Max 2.0

Max 11

Min φ6.1

Max 13

Min 7.5

Unit: mm

Solderless terminal recommended

part (J.S.T parts)

Model 8-8NS When using AWG6: Model R14-6

When using AWG8: Model 8-8NS

J.S.T: J.S.T. Manufacturing Co. Ltd.

Setting Up Your Projector

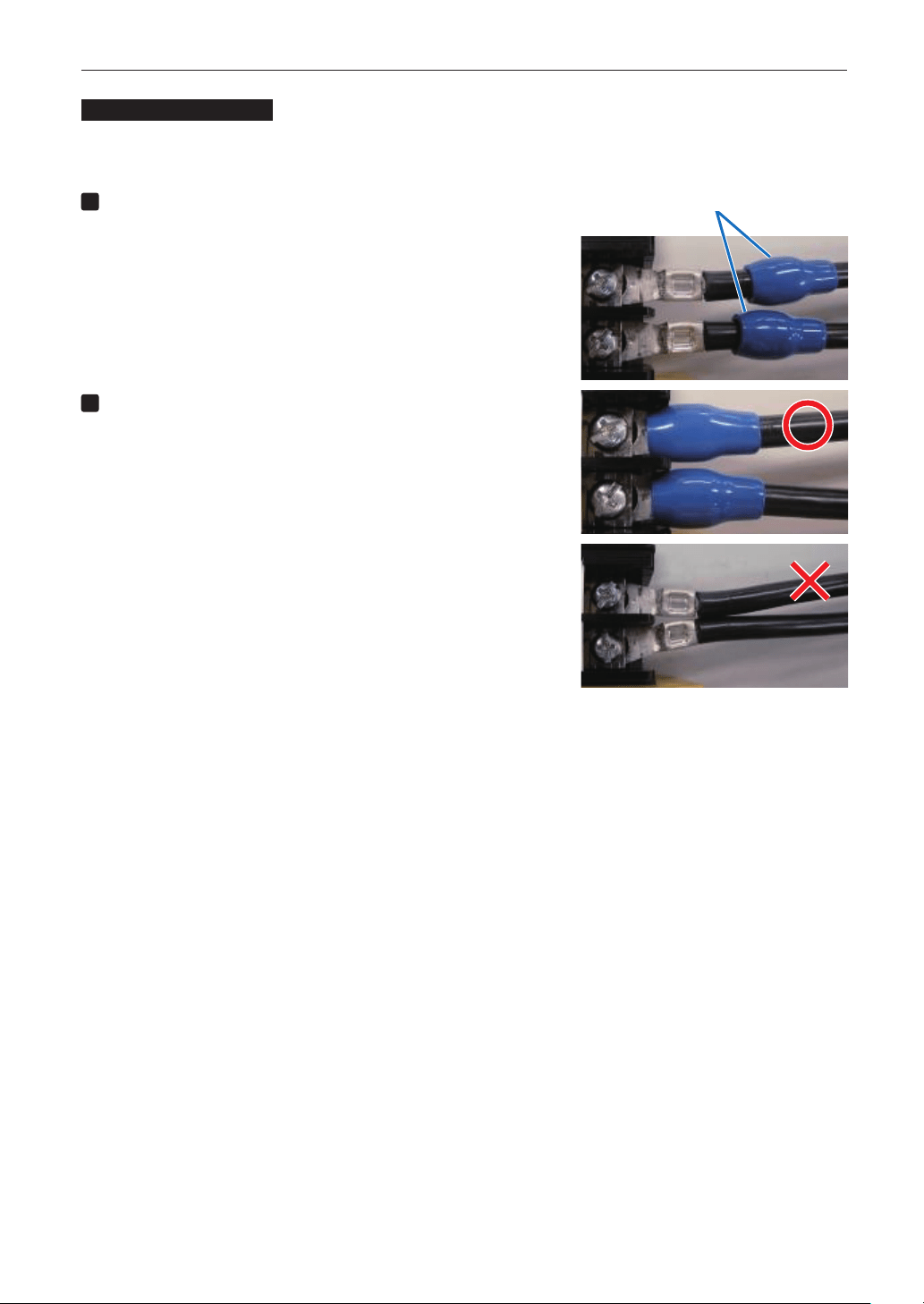

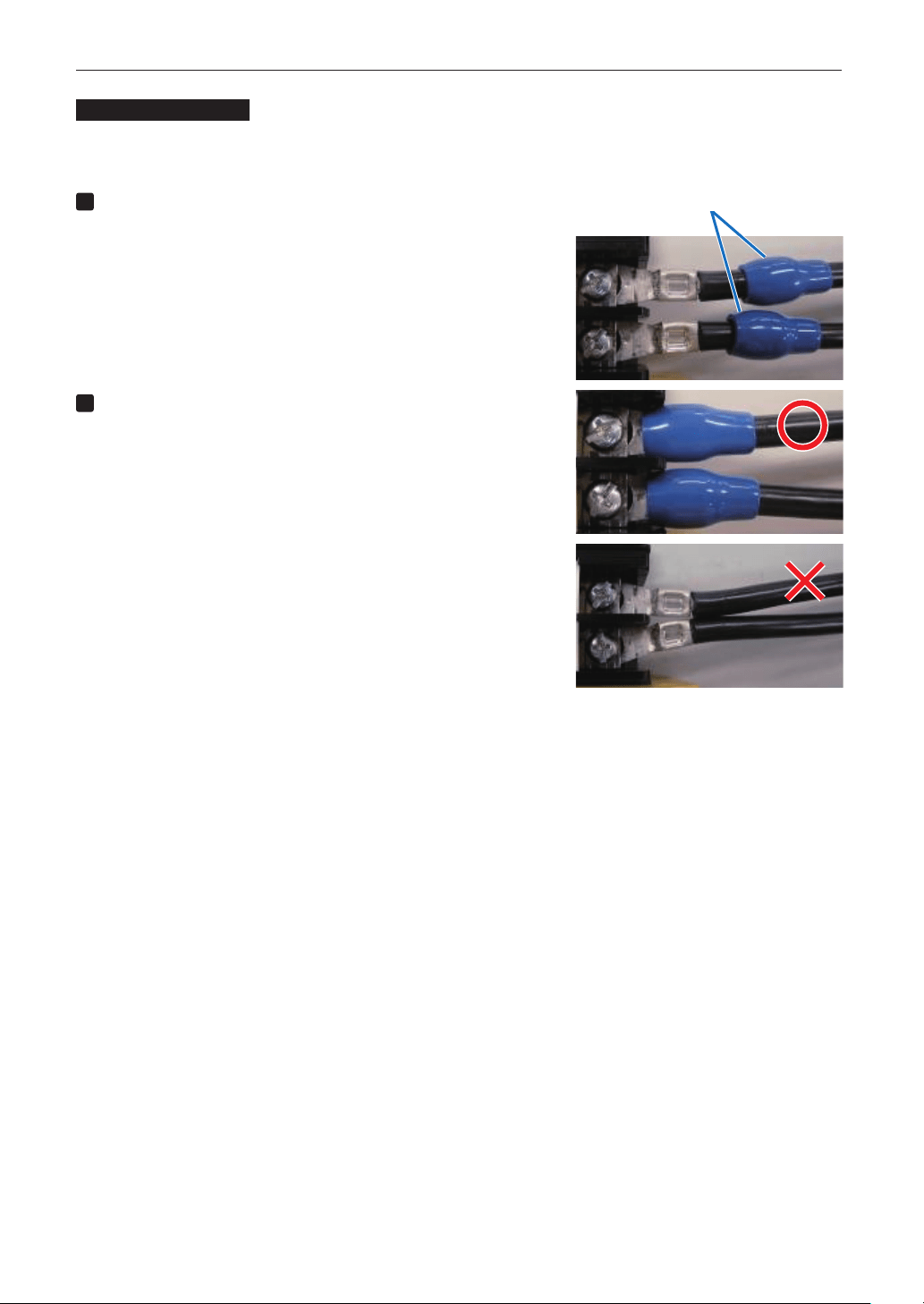

Connectingthecable

In order to attach the power cable to the connector block, connect the wires using the following procedure such that the individual

wires cannot directly touch each other.

Remove the power cable sleeves from the terminals

to ensure that the sleeves are not pinched by the ter-

minal attachment screw.

Pull back the sleeves from the terminal area before fastening the screw

to prevent the sleeves from being pinched.

Sleeves

Attach the sleeves after tightening the screw.

Tighten the fixing screw to the designated torque.

Use sleeves and secure the insulation to ensure that terminals do not touch

each other. If the cables are attached to the power supply terminal without

using sleeves, there is a risk of the terminals touching each other as shown

in the photograph on the right.

Setting Up Your Projector

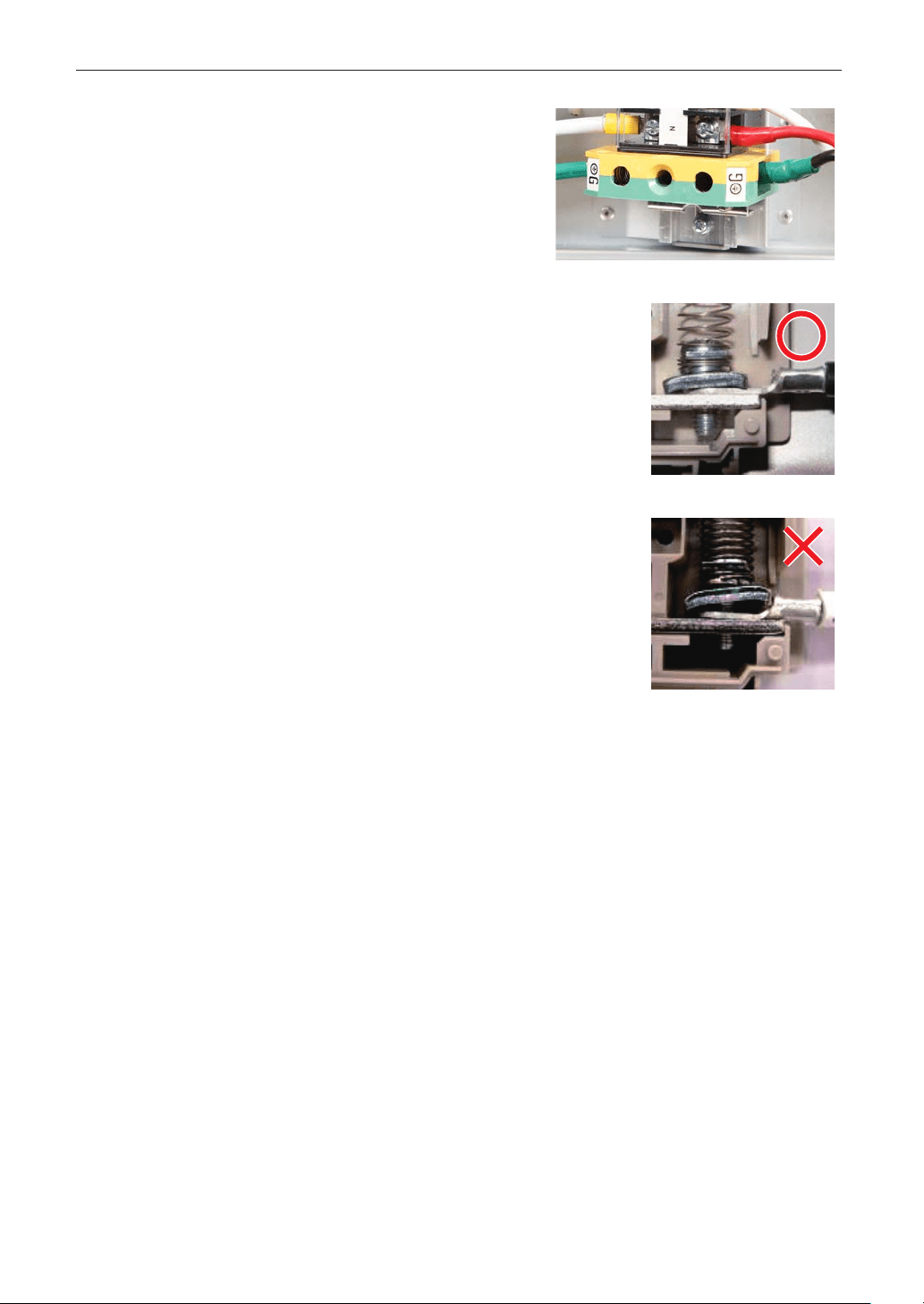

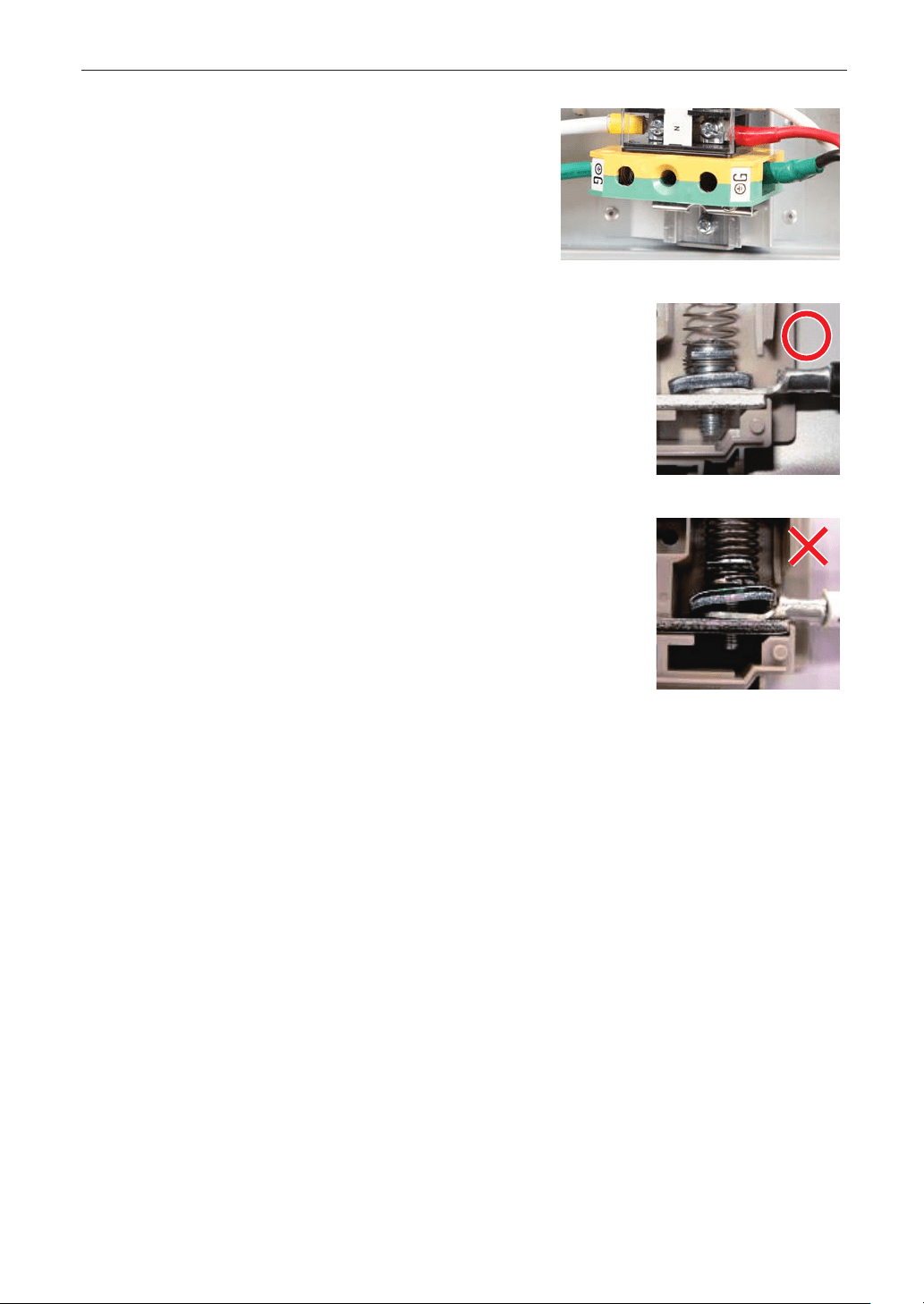

When connecting the cables to the ground terminal block, ensure that

parts other than the solderless terminal (such as cable wires and fittings)

are not pinched within the terminal fastening area.

When correctly fastened.

When the cable wire has become pinched due to using a solderless termi-

nal with dimensions other than as designated.

Setting Up Your Projector

2-5-2. Procedure for connecting the power cable (C1 connection)

Preparation: Phillips-head screwdriver (No. 2), service key (projector accessory)

WARNING

• Before connecting the power cable, make sure that the AC power supply is disconnected. Otherwise a fire or electric shock

may occur.

• High leakage current flows. Do NOT connect the power supply before grounding connection.

Remove the plate inlet.

Remove the plate inlet by loosening the fixing screws (at four points).

In Europe, replace it with the supplied φ35 plate inlet. Use the fixing screws that were used before the replacement of the

plate inlet.

Plate Inlet

Pass the power cable through the cable hole of the plate.

If you use the supplied φ35 plate inlet, pass the power cable through a commercially available cable stopper and then

insert it into the cable hole.

Cable stopper

Remove the terminal cover of the power supply terminals.

Remove the terminal cover by pulling it upward.

Setting Up Your Projector

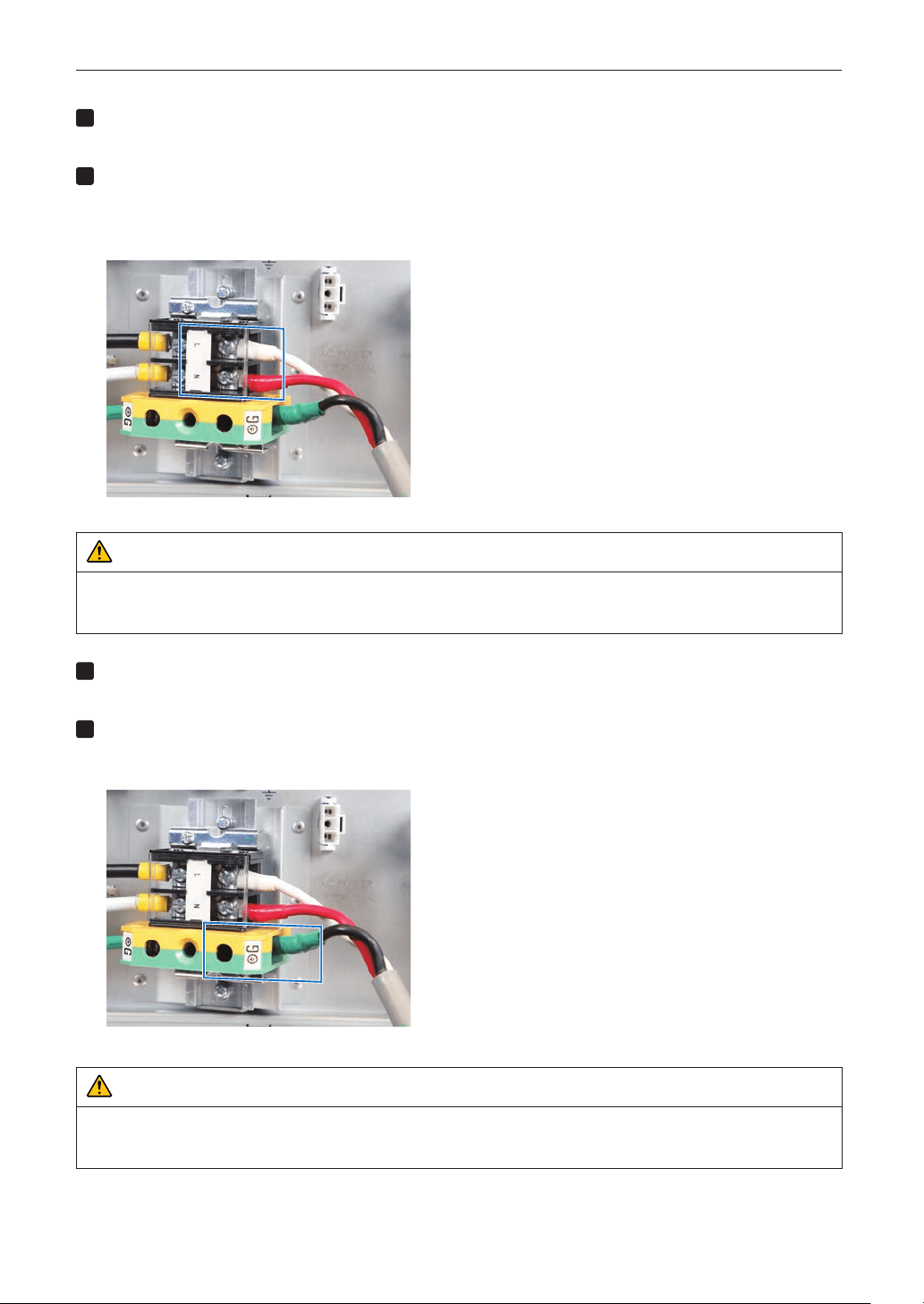

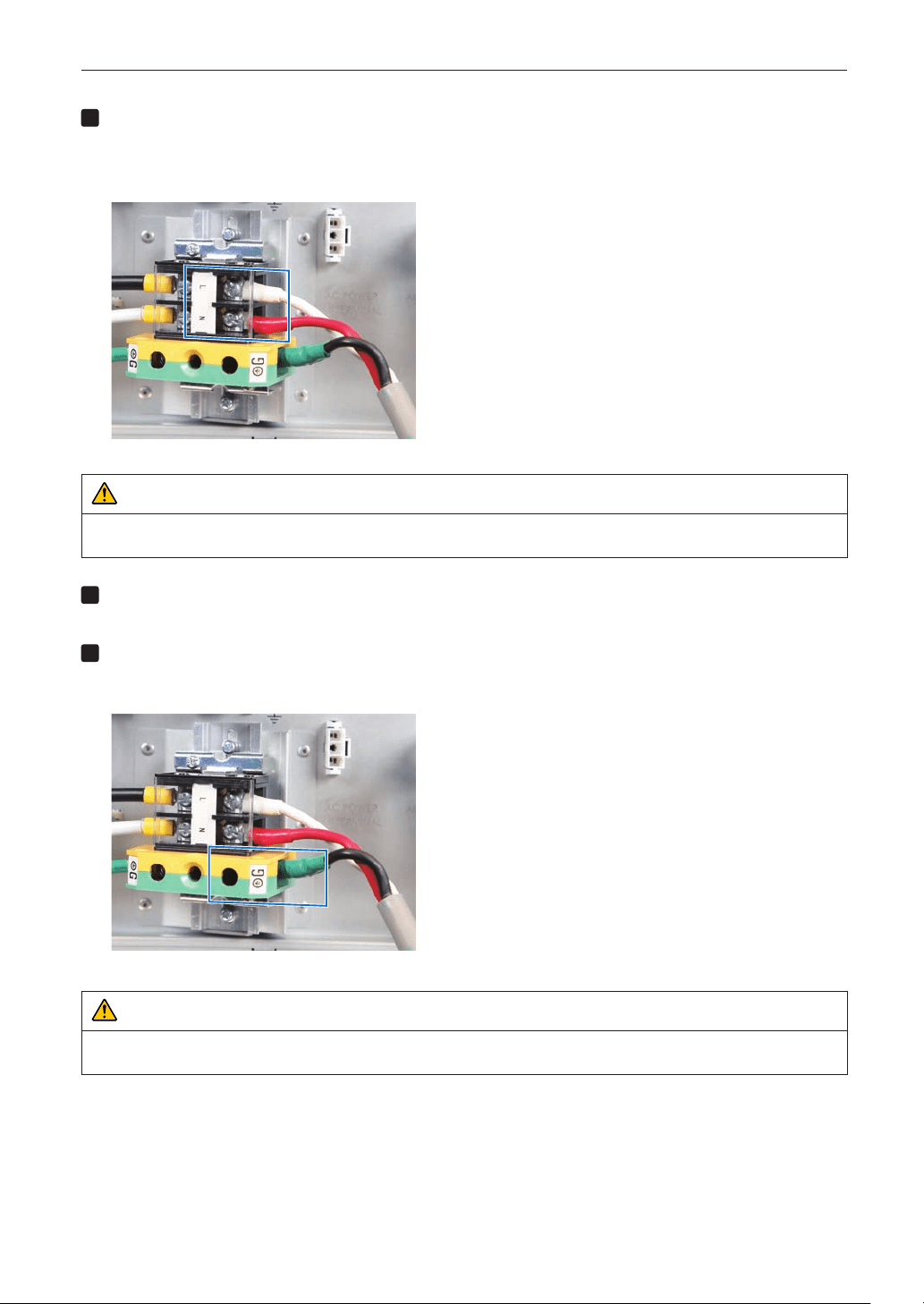

Insert the L/N lines of the AC power cable into the connection terminals, and tighten the

screws.

Insert the crimping terminals of the AC power cable into the retaining holes of the connection terminals, and tighten the

screws with the Phillips-head screwdriver.

WARNING

Securely screw the AC power cable to the connection terminals. Also, after tightening the screws, make sure that all the power

cable lines are securely screwed. A failure to do this could result in an accident causing death, injury, etc.

Put the terminal cover on the power supply terminals.

Follow the reverse procedure to removal of the terminal cover.

Insert the grounding cable into the grounding terminal, and screw it.

Insert the crimping terminal of the grounding cable into the retaining hole of the connection terminal, and tighten the screw

with the Phillips-head screwdriver.

WARNING

Securely screw the grounding cable to the connection terminal. Also, after tightening the screw, make sure that the screw is

securely tightened. A failure to do this could result in an accident causing death, injury, etc.

Setting Up Your Projector

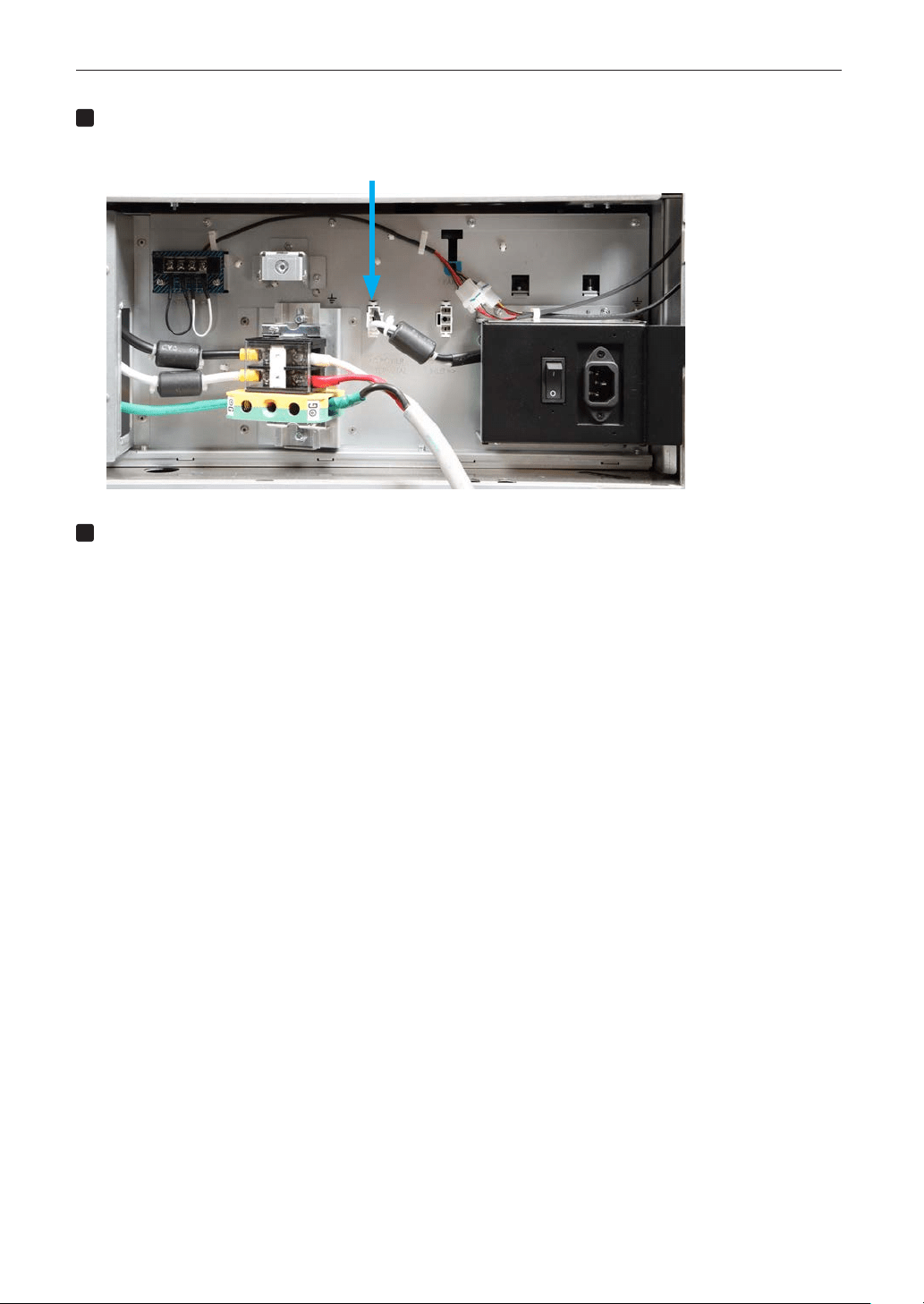

Configure the power supply for C1 connection.

For C1 connection, connect the left-side connector.

Connect the C1 connector.

Fix the plate inlet with the xing screws (at four points).

In Europe, fix the supplied φ35 plate inlet.

Setting Up Your Projector

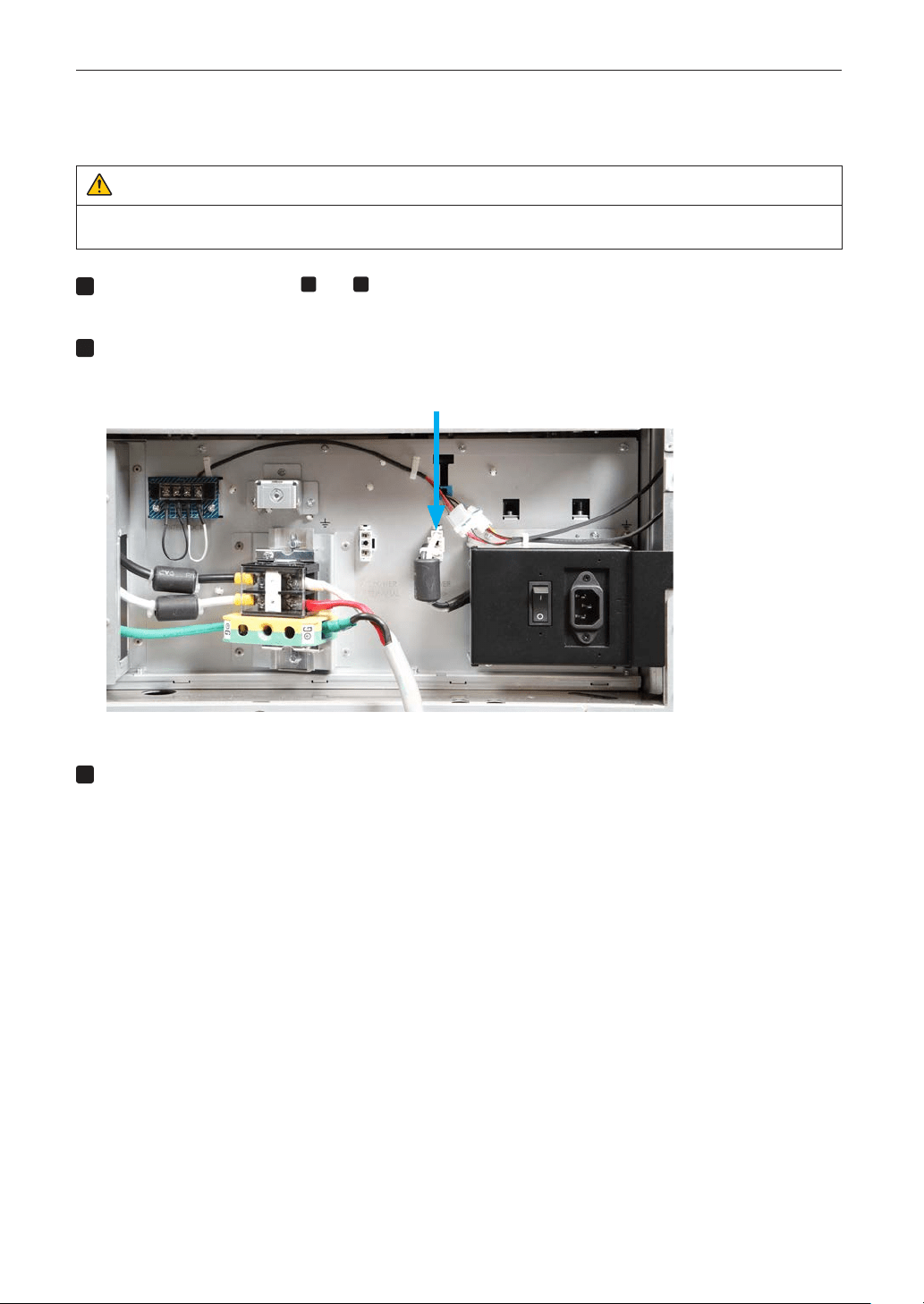

2-5-3. Procedure for connecting the power cable (C2 connection)

Preparation: Phillips-head screwdriver (No. 2), service key (projector accessory)

WARNING

Before connecting the power cable, make sure that the AC power supply is disconnected. Otherwise a fire or electric shock may

occur.

Follow steps

in “2-5-2. Procedure for connecting the power cable (C1 connection)”

(page 71).

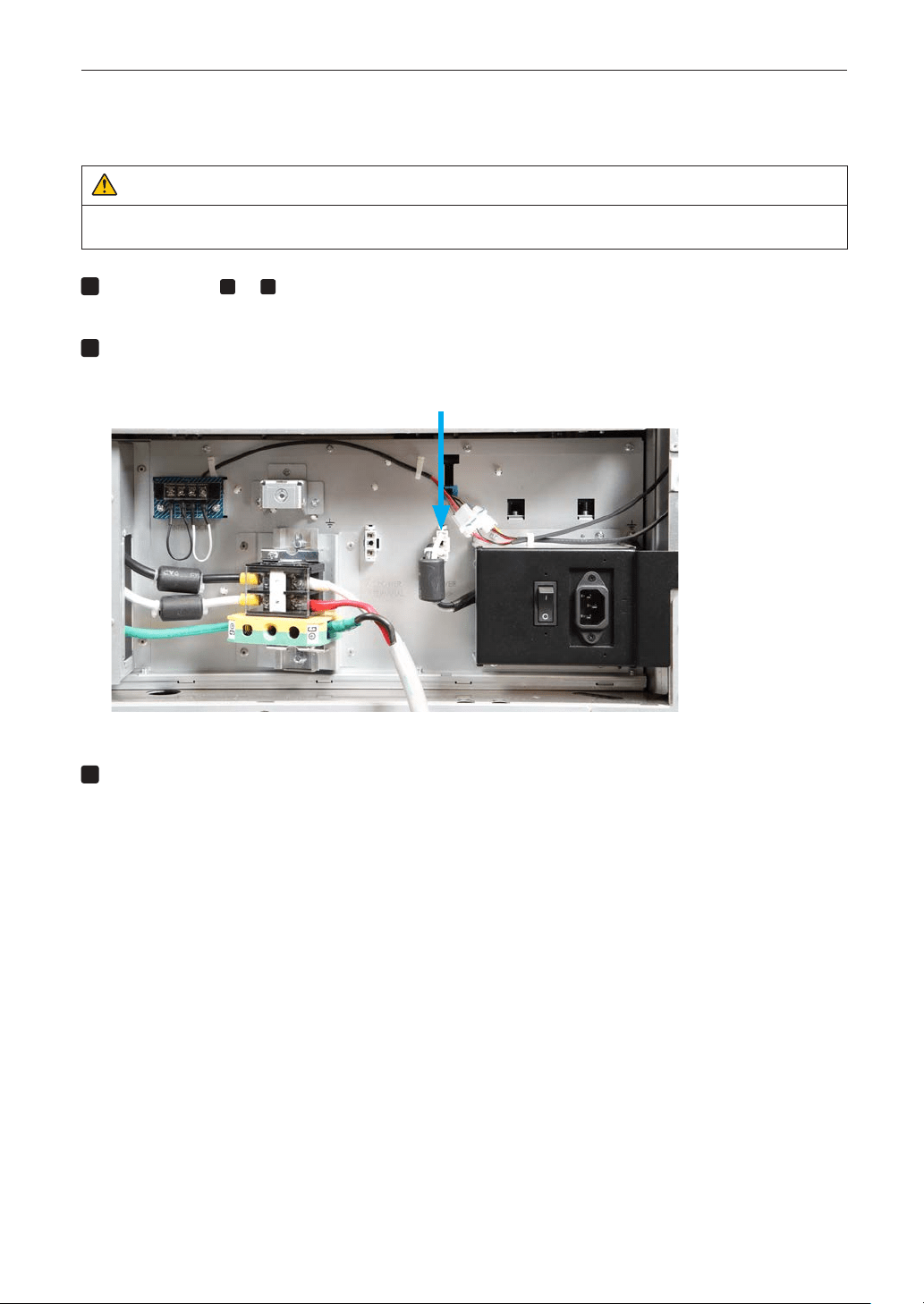

Configure the power supply for C2 connection.

For C2 connection, connect the right-side connector.

Connect the C2 connector.

Fix the plate inlet with the fixing screws (at four points).

Setting Up Your Projector

Connect the AC power supply cable to the AC input of the projector.

Insert the plug firmly all the way into the AC input.

AC input

Make sure you insert the plug rmly.

Connect the power plug to the electrical outlet.

This completes the connection of the AC power supply cable.

Setting Up Your Projector

Attachingthepowercablestopper

To prevent the power cable from accidently removing from the AC IN of the projector, attach the supplied power cable stopper to

clamp the power cable.

CAUTION

• To prevent the power cable from coming loose, make sure that all the prongs of the power cable are fully inserted into the AC

IN terminal of the projector before using the power cable stopper to fix the power cable. A loose contact of the power cable

may cause a fire or electric shock.

• Do not bundle the power cable. Doing this could cause heat or a fire.

NOTE

• Do not clamp the power cable with other cables. Doing so can generate noise, which can affect adversely the signal

cable.

• Once the power cable stopper is attached, it cannot be removed.

Set the clamper band to the power cable side, and insert the end of band of the power cable

stopper into the slot next to the AC IN on the terminal panel.

Attach the power cable stopper to the other side in the same way.

Pass each band through the slits in the power cable stopper.

Pass the bands through them so that the power cable will be sandwiched from left and right.

band

Setting Up Your Projector

Slide the clamper to the hilt of the power cable.

Pulling the knob in the arrow direction allows you to adjust the clamper position.

Once the clamper position is adjusted, release the knob to lock the clamper.

knob

Pull the band to hold the power cable.

Pulling the knob in the arrow direction allows you to adjust the band position.

Pull the top and bottom bands by keeping their balance.

Once the band position is adjusted, release the knob to lock.

knob

This completes the attachment of the power cable stopper.

Setting Up Your Projector

Removingthepowercablefromthepowercablestopper

Pull the knob of the clamper and loosen the band.

knob

band

CAUTION

The projector may become hot temporarily when the power is turned off or if the AC power is disconnected while the projector

is projecting. Take care when handling the projector.

Setting Up Your Projector

2-6. Anschließen des Netzkabels (Deutsch)

Schließen Sie das Netzkabel des Projektors an. Das Netzkabel ist nicht abziehbar sondern fest mit dem Gerät verbunden. Lassen

Sie die Installation einer Netzstromversorgung unbedingt nur von professionellen Elektrikern durchführen.

WARNUNG

Lesen Sie diesen Abschnitt sorgfältig durch, bevor Sie die Kabel anschließen, und befolgen Sie beim Anschließen der Kabel die

entsprechenden Anweisungen. Durch unsachgemäße Handhabung kann es infolge von Bränden oder elektrischen Schlägen zu

tödlichen, schweren oder anderen Verletzungen kommen.

ACHTUNG

• Vergewissern Sie sich, dass das Gerät von der Stromversorgung getrennt ist, bevor Sie das Netzkabel anschließen.

• Befolgen Sie auf jeden Fall die Anweisungen in diesem Abschnitt.

• Beauftragen Sie einen Fachmann mit der Installation die Stromzufuhr von der Stromversorgungsanlage des Gebäudes zum

Aufstellort des Projektors.

• Erden Sie das Gerät, um die Sicherheit zu gewährleisten. Um elektrische Schläge zu vermeiden beauftragen Sie einen Fach-

mann mit der Erdung und den damit verbundenen Arbeiten. Stellen Sie sicher, dass das Gerät geerdet ist, bevor Sie Strom

zuführen.

2-6-1. Technische Daten zum Netzanschluss

Die Netzkabel können auf zweierlei Weise angeschlossen werden: zum einen über Anschluss C1 und zum anderen über Anschluss

C2.

•AnschlussC1

Die Stromversorgung zu den Netzteilen des Projektors und der Lichtquelle wird über ein einzelnes Kabel zugeführt.

Netzstromkabel

Eingabe Auswahl

Anschluss C1

Projektor

(Grundgerät)

Licht Netzteil

Netzstrom-

versorgung

Sicherung

Setting Up Your Projector

•AnschlussC2

Die Stromversorgung zu den Netzteilen des Projektors und der Lichtquelle wird über getrennte Kabel zugeführt.

Netzstromkabel

Elektrosteckdos

Eingabe Auswahl

Anschluss C2

Projektor

(Grundgerät)

Licht Netzteil

Netzstrom-

versorgung

Netzstrom-

versorgung

Sicherung

Wechselstromversorgung

Betreiben Sie den Projektor nur mit den unten angegebenen Netzspannungen.

Bei Verwendung von Anschluss C1

•200 – 240 V AC, einphasig, 50/60 Hz

Bei Verwendung von Anschluss C2

•100 – 240 V AC, einphasig, 50/60 Hz (Stromversorgung des Projektors)

•200 – 240 V AC, einphasig, 50/60 Hz (Stromversorgung der Lichtquelle)

Sicherungen

When connecting the AC power supply from the power supply equipment of the building to the projector, be sure to connect it

through a breaker. The capacity of the breaker must be as indicated below.

Bei Verwendung von Anschluss C1

•Stromversorgung des Projektors + Stromversorgung der

Lichtquelle

200V-240 V AC: Eingangsstrom 40A

Einschaltstrom 150A oder höher @10msec

Bei Verwendung von Anschluss C2

•Stromversorgung des Projektors

100V-240 V AC: Eingangsstrom 10A

Einschaltstrom 60A oder höher @10msec

•Stromversorgung der Lichtquelle

200V-240 V AC: Eingangsstrom 40A

Einschaltstrom 150A oder höher @10msec

Setting Up Your Projector

EingabeAuswahl

Die Netzanschluss Methode wird durch die Schaltung der Eingabe Auswahl festgelegt. Die Konfigurationsmöglichkeiten sind im

Folgenden aufgeführt.

Connection

Anschluss C1 Anschluss C2

Netzkabel

• Verwenden Sie als Netzkabel ein Kabel mit einer Kabelader aus Kupfer und einem Leiterquerschnitt, der den Vorgaben des

jeweiligen Landes entspricht (siehe folgende Abbildung).

• Verwenden Sie eine runde lötfreie Anschlussklemme mit dem UL Listing-Prüfzeichen für den an der Haupteinheit angeschlosse-

nen Kabelabschnitt. Verwenden Sie darüber hinaus bei der Klemmung dieser Anschlussklemme ein Werkzeug mit dem UL

Listing-Prüfzeichen.

KompatibleKabelundlötfreieAnschlussklemmen

Die technischen Daten für die Anschlussklemmen zum Befestigen der Netzkabel sind im Folgenden aufgeführt.

L N

Netzklemme L, N

Erdklemme G

Die Größe der zu verwendenden lötfreien Anschlussklemme und das Anzugsmoment der Schrauben hängen von der Art des Klem-

menblocks ab. Verwenden Sie das Kabel und die lötfreie Anschlussklemme, die jeweils für den entsprechenden Klemmenblock

geeignet sind (siehe folgende Tabelle). In dieser Tabelle sind die Modellnamen der empfohlenen lötfreien Anschlussklemmen ange-

geben. Verwenden Sie die angegebenen oder gleichwertige Bauteile. Wenn Sie die empfohlenen lötfreien Anschlussklemmen nicht

verwenden können, stellen Sie sicher, dass Sie Anschlussklemmen verwenden, deren Abmessungen den Angaben in der folgenden

Tabelle entsprechen.

Setting Up Your Projector

WARNUNG

• Das Netzteil verarbeitet hohe elektrische Ströme. Verwenden Sie zur Gewährleistung der Sicherheit Kabeladern entsprechend

den in der folgenden Tabelle aufgeführten Vorgaben, und befestigen Sie die Anschlussklemmen am angegebenen

Klemmenblock.

• Verwenden Sie immer lötfreie Anschlussklemmen, deren Abmessungen den Angaben in der folgenden Abbildung

entsprechen.

• Die Verwendung von Bauteilen mit abweichenden Abmessungen birgt die Gefahr eines Kurzschlusses des Netzteils aufgrund

von Hitzeentwicklung und Schmelzen des Klemmenblocks, da der Klemmenblock für die Stromversorgung der Lichtquelle

nicht ordnungsgemäß angebracht werden kann.

•NetzklemmeL,N(Schwarz)

JIS IEC/EN UL CSA

Leiterquerschnitt kompatibler

Kabel (bei Verwendung lötfreier

Anschlussklemmen)

14mm

AWG6 oder

AWG8

AWG6 oder

AWG8

Abmessungen lötfreier

Anschlussklemmen

M5 x 10

Anzugsmoment 2,0 bis 2,5 N·m

Abmessungen lötfreier

Anschlussklemmen

Min 1.0

-Max 2.0

Max 5.8

Min φ6.1

Max 12.2

Min 4.5

Unit: mm

Empfohlene Modelle für lötfreie

Anschlussklemmen (J.S.T-Teile)

Modell R8-5 Bei AWG6: Modell R14-5

Bei AWG8: Modell R8-5

J.S.T: J.S.T. Manufacturing Co. Ltd.

Setting Up Your Projector

•ErdungsklemmeG(Grün/Gelb)

JIS IEC/EN UL CSA

Leiterquerschnitt kompatibler

Kabel (bei Verwendung lötfreier

Anschlussklemmen)

14mm

AWG6 bis

AWG8

AWG6 oder

AWG8

Abmessungen lötfreier

Anschlussklemmen

M6 x 15

Anzugsmoment 3,5 bis 5,0 N·m

Abmessungen lötfreier

Anschlussklemmen

Min 1.0

-Max 2.0

Max 11

Min φ6.1

Max 13

Min 7.5

Unit: mm

Empfohlene Modelle für lötfreie

Anschlussklemmen (J.S.T-Teile)

Modell 8-8NS Bei AWG6: Modell R14-6

Bei AWG8: Modell 8-8NS

J.S.T: J.S.T. Manufacturing Co. Ltd.

Setting Up Your Projector

AnschließendesKabels

Schließen Sie zum Befestigen des Netzkabels am Klemmenblock die Drähte entsprechend den folgenden Anweisungen an, sodass

sich die einzelnen Drähte nicht direkt berühren können.

Ziehen Sie die Kabelmanschetten der Netzkabel von

den Anschlussklemmen zurück, um sicherzustellen,

dass diese nicht von der Schraube der Anschluss-

klemme eingeklemmt werden.

Ziehen Sie die Kabelmanschette von der Anschlussklemme zurück,

bevor Sie die Schraube anziehen, damit die Kabelmanschette nicht ein-

geklemmt wird.

Manschetten

Schieben Sie die Manschetten nach dem Anziehen der

Schraube wieder an ihre richtige Position.

Ziehen Sie die Befestigungsschraube mit dem angegebenen Drehmo-

ment an.

Verwenden Sie Kabelmanschetten und fixieren Sie das Isolationsmaterial,

damit sich die Anschlussklemmen nicht berühren. Wenn die Kabel ohne

Kabelmanschetten an der Netzklemme befestigt werden, besteht die Gefahr,

dass sich die Anschlussklemmen wie in der Abbildung rechts berühren.

Setting Up Your Projector

Achten Sie beim Anschließen der Kabel an die Masseanschlussklemme

darauf, dass keine anderen Teile als der Quetschkabelschuh (z. B. Kabe-

ladern undVerschraubungen) in der Klemmenbefestigung eingeklemmt

werden.

Richtig befestigt.

Kabeldraht ist verkantet, da eine lötfreie Anschlussklemme mit Abmessun-

gen verwendet wurde, die nicht den Vorgaben entsprechen.

Setting Up Your Projector

2-6-2. Anschluss des Stromkabels (Anschluss C1)

Vorbereitung: Kreuzschraubenzieher (Nr. 2), Serviceschlüssel (Projektorzubehör)

WARNUNG

• Stellen Sie sicher, dass die Stromversorgung unterbrochen ist, bevor Sie das Stromkabel anschließen. Es besteht Brand- und

Stromschlaggefahr.

• Es entsteht viel Kriechstrom. Stellen Sie unbedingt sicher, die Stromversorgung nur anzuschließen, nachdem die Erdung

angeschlossen ist.

Entfernen Sie die Platte Inlet.

Remove the plate inlet by loosening the fixing screws (at four points).

In Europe, replace it with the supplied φ35 plate inlet. Use the fixing screws that were used before the replacement of the

plate inlet.

Platte Inlet

Vergewissern Sie sich, dass das Stromkabel durch die Kabelöffnung passieren kann, und zie-

hen Sie das Stromkabel durch die Kabelöffnung der Platte Inlet.

Wenn Sie die beigefügte 35mm-Platte Inlet benutzen, sichern Sie das Stromkabel mit einem handelsüblichen Kabelfixierer

in der Kabelöffnung.

Kabelxierer

Setting Up Your Projector

Entfernen Sie den Deckel der Strombuchse.

Ziehen Sie dazu den Deckel zu sich hin und heben Sie ihn nach oben.

Stecken Sie die L-Leitung und N-Leitung des Stromkabels in die Anschlussbuchse und schrau-

ben Sie sie fest.

Stecken Sie den Crimpanschluss des Stromkabels in die Öffnung der Anschlussbuchse und schließen Sie die Schrauben

mit einem Kreuzschraubenzieher.

WARNUNG

Verschrauben Sie das Stromkabel gut in der Anschlussbuchse. Vergewissern Sie sich nach dem Schließen der Schrauben, dass

alle Stromkabel gut verschraubt sind. Wenn die Schrauben nicht richtig geschlossen sind, können Tod und schwere Verletzun-

gen die Folge sein.

Befestigen Sie den Deckel der Strombuchse.

Gehen Sie dabei in umgekehrter Reihenfolge zum Entfernen vor.

Stecken Sie das Erdungskabel in die Anschlussbuchse und schrauben Sie es fest.

Stecken Sie den Crimpanschluss des Erdungskabels in die Öffnung der Anschlussbuchse, und schließen Sie die Schrau-

ben mit einem Kreuzschraubenzieher.

WARNUNG

Verschrauben Sie das Erdungskabel gut in der Anschlussbuchse. Vergewissern Sie sich nach dem Schließen der Schrauben,

dass das Erdungskabel gut verschraubt ist. Wenn die Schrauben nicht richtig geschlossen sind, können Tod und schwere

Verletzungen die Folge sein.

Setting Up Your Projector

Configure the power supply for C1 connection.

For C1 connection, connect the left-side connector.

Connect the C1 connector.

Fix the plate inlet with the xing screws (at four points).

EU-Region: Befestigen Sie die als Zubehör beigefügte 35mm-Platte Inlet.

Setting Up Your Projector

2-6-3. Anschluss des Stromkabels (Anschluss C2)

Vorbereitung: Kreuzschraubenzieher (Nr. 2), Serviceschlüssel (Projektorzubehör)

WARNUNG

Stellen Sie sicher, dass die Stromversorgung unterbrochen ist, bevor Sie das Stromkabel anschließen. Es besteht Brand- und

Stromschlaggefahr.

Führen Sie die Schritte

bis

unter „2-6-2. Anschluss des Stromkabels (Anschluss C1)“

(Seite 86) aus.

Configure the power supply for C2 connection.

For C2 connection, connect the right-side connector.

Connect the C2 connector.

Fix the plate inlet with the fixing screws (at four points).

Setting Up Your Projector

Connect the AC power supply cable to the AC input of the projector.

Insert the plug firmly all the way into the AC input.

AC input

Make sure you insert the plug rmly.

Connect the power plug to the electrical outlet.

Dadurch ist der Anschluss des Netzkabels abgeschlossen.

Setting Up Your Projector

AnbringendesNetzkabelstoppers

To prevent the power cable from accidently removing from the AC IN of the projector, attach the supplied power cable stopper to

clamp the power cable.

CAUTION

• To prevent the power cable from coming loose, make sure that all the prongs of the power cable are fully inserted into the AC

IN terminal of the projector before using the power cable stopper to fix the power cable. A loose contact of the power cable

may cause a fire or electric shock.

• Do not bundle the power cable. Doing this could cause heat or a fire.

NOTE

• Do not clamp the power cable with other cables. Doing so can generate noise, which can affect adversely the signal

cable.

• Once the power cable stopper is attached, it cannot be removed.

Set the clamper band to the power cable side, and insert the end of band of the power cable

stopper into the slot next to the AC IN on the terminal panel.

Attach the power cable stopper to the other side in the same way.

Pass each band through the slits in the power cable stopper.

Pass the bands through them so that the power cable will be sandwiched from left and right.

band

Setting Up Your Projector

Slide the clamper to the hilt of the power cable.

Pulling the knob in the arrow direction allows you to adjust the clamper position.

Once the clamper position is adjusted, release the knob to lock the clamper.

knob

Pull the band to hold the power cable.

Pulling the knob in the arrow direction allows you to adjust the band position.

Pull the top and bottom bands by keeping their balance.

Once the band position is adjusted, release the knob to lock.

knob

This completes the attachment of the power cable stopper.

Setting Up Your Projector

Removingthepowercablefromthepowercablestopper

Pull the knob of the clamper and loosen the band.

knob

band

CAUTION

The projector may become hot temporarily when the power is turned off or if the AC power is disconnected while the projector

is projecting. Take care when handling the projector.

Setting Up Your Projector

2-7. Mounting the Lens Unit

The lens units that can be attached to this projector are shown in the following table.

MODEL Magnifying

NC-60LS12Z 1.20 - 1.81

NC-60LS14Z 1.40 - 2.05

NC-60LS16Z 1.59 - 2.53

NC-60LS19Z 1.90 - 3.25

NC-60LS24Z 2.40 - 3.90

NC-60LS39Z 3.90 - 6.52

NOTE

• The other NEC optional lenses are not available on this model.

• The projector and lenses are made of precision parts. Do not subject them to shock or excessive forces.

• Remove the lens unit when moving the projector. If not, the lens could be subject to shock while the projector is

being moved, damaging the lens and the lens shift mechanism.

• When removing or installing the lens unit, return the position of the lens to the center before turning off the power

to the projector. If the position of the lens is not returned to center, the front cover will interfere with the lens and the

cover cannot be removed or installed.

• When installing or removing the lens unit, first confirm that the main power switch to the projector is off, and then

disconnect the AC power supply. After the AC power supply has been disconnected, allow the projector to suffi-

ciently cool before starting this work.

• Never touch the lens surface while the projector is operating.

• Be very careful not to let dirt, grease, etc., on the lens surface and not to scratch the lens surface.

• Perform these operations on a flat surface over a piece of cloth, etc., to prevent the lens from getting scratched.

• When leaving the lens off the projector for long periods of time, mount the lens mount cap on the projector to

prevent dust or dirt from getting inside.

NOTE

• If you remove the lens cover, a tamper event is detected by the tamper detection circuit. When you start the projec-

tor after attaching the cover, the following error message is displayed on the LCD screen of the projector main unit.

- “IMB: Service Door Tamper” (When NP-90MS01 mounted)

• Encrypted contents cannot be displayed while an error message is being displayed. Refer to “3-2. Recovering from

Tamper Errors” (page 103) for details on how to clear the error message.

Setting Up Your Projector

Thischapterillustratesthefactorydefaultsettings.

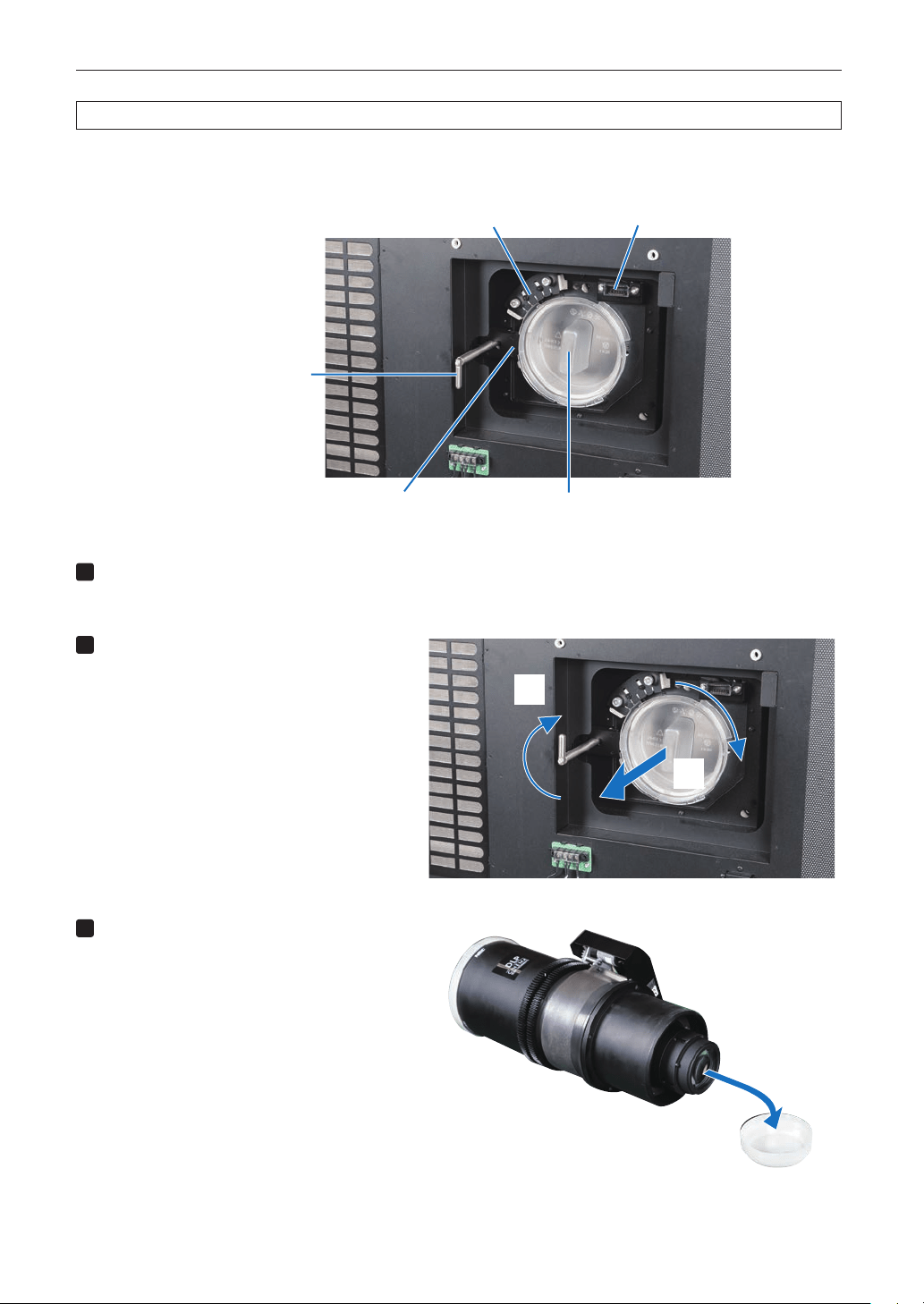

2-7-1. Part names of Lens Mount

Release lever

Lens unit fall prevention metal tting Lens control connector

Lens mount capLens stopper

Remove the lens cover.

Forremovingthelenscover,referto“1-5-1.RemovingandMountingtheLensCover”onpage51.

Remove the lens mount cap.

(1) Rotate the release lever clockwise in the upward

direction.

The lens stopper will be released.

(2) Rotate the lens mount cap counterclockwise

and remove it.

Keep the lens mount cap in a safe place for later

use.

（1）

（2）

Remove the lens cap from the rear end

of the lens unit.

Keepthelenscapinasafeplaceforlateruse.

Setting Up Your Projector

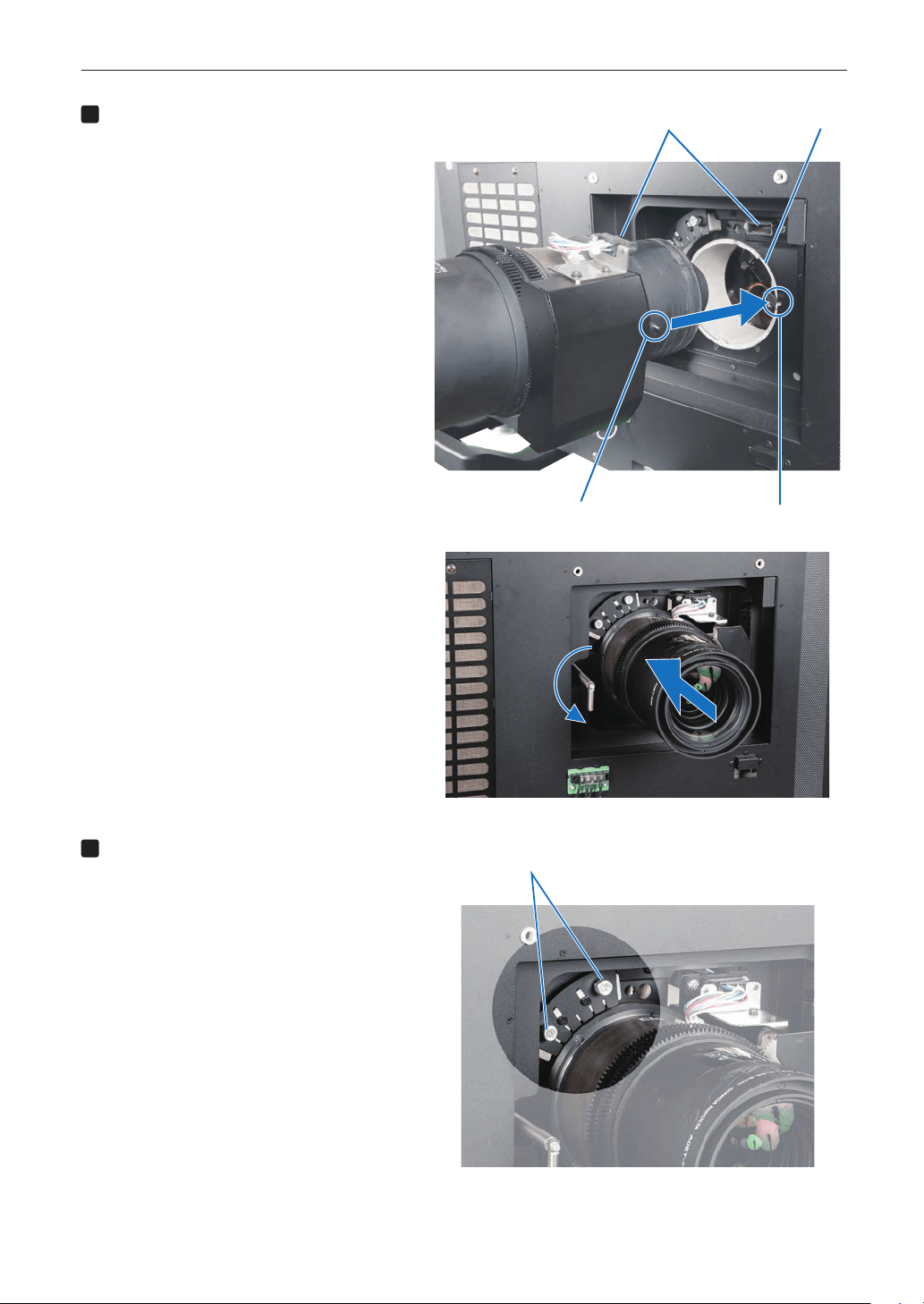

Mount the lens unit to the lens mount

of the projector.

(1) Align the guide slit of the lens mount with the

position of the pin on the lens unit.

Guide slit

Lens control connector

Lens mount

(2) Slowly insert the lens unit into the lens mount.

While doing this, try to connect the lens unit’s

connector with the lens mount’s lens control

connector.

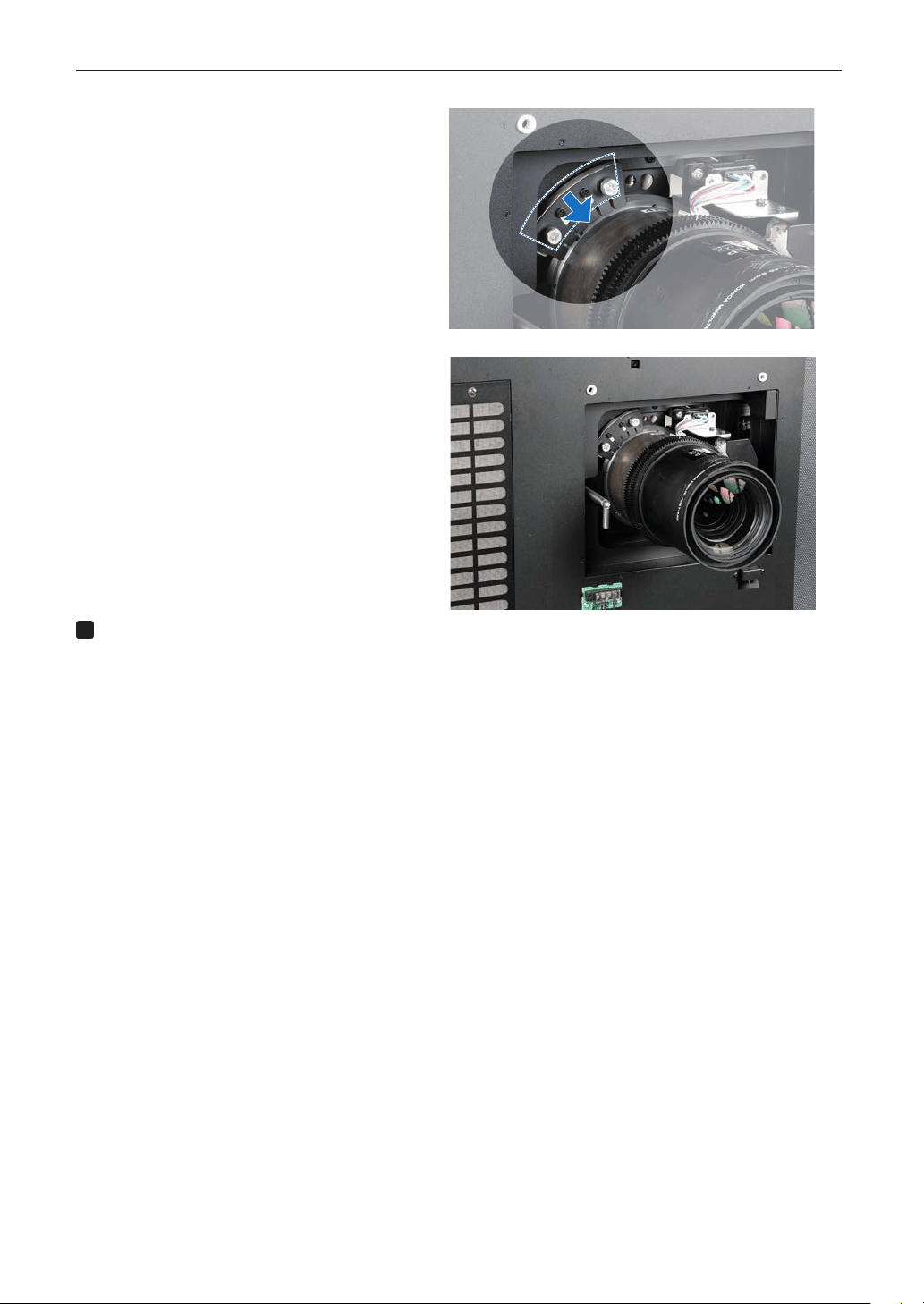

(3) Rotate the release lever counterclockwise in the

downward direction to lock the lens unit.

Use the fall prevention metal fitting to

fix the lens unit.

(1) Tighten the screws (at two points).

Loosen these screws.

Setting Up Your Projector

(2) Slide the fall prevention metal fitting downward.

(3) Tighten the two screws that were loosened.

Attach the lens cover.

For details on attaching the lens cover, refer to

“1-4-1.RemovingandMountingtheLensCover”.

Makesurethereleaseleverissetinthedownward

direction.If it is set in the upward direction, the

lenscovercannotbeattached.

This completes the installation of the lens unit.

Removalisdoneinreverseorderofinstallation.

Setting Up Your Projector

2-8. Mounting the Option Board

This section describes the procedure of mounting the media block. The following option board can be mounted to the slot of the

projector.

Name Slot

IMB NP-90MS01

NP-90MS02

Preparation:

Phillips-head screwdriver (No.2), service key (attached goods).

• Step1

Remove Side Panel from the Projector (See page 53)

• Step2

Mount the Option Board to the Projector (See this page)

• Step3

Mount the Side Panel to the Projector (See page 53)

• Step4

Clear the Tamper Error (See page 103)

Setting up the Projector (See page 100)

NOTE

• If you remove the side panel, a tamper event is detected by the tamper detection circuit. When you start the projec-

tor after attaching the cover, the following error message is displayed on the LCD screen of the projector main unit.

- “IMB: Service Door Tamper”

• If you remove the blocking panel or option board from a slot, a tamper event is detected by the tamper detection

circuit. When you start the projector after attaching the option board, the following error message is displayed on

the LCD screen of the projector main unit. Since the marriage is also cleared at the same time, re-marriage is

necessary.

- “IMB: Physical Marriage Tamper”, “IMB: Marriage NOT Active”

• Encrypted contents cannot be displayed while an error message is being displayed. Refer to “3-2. Recovering from

Tamper Errors” (page 103) for details on how to clear the error message.

Setting Up Your Projector

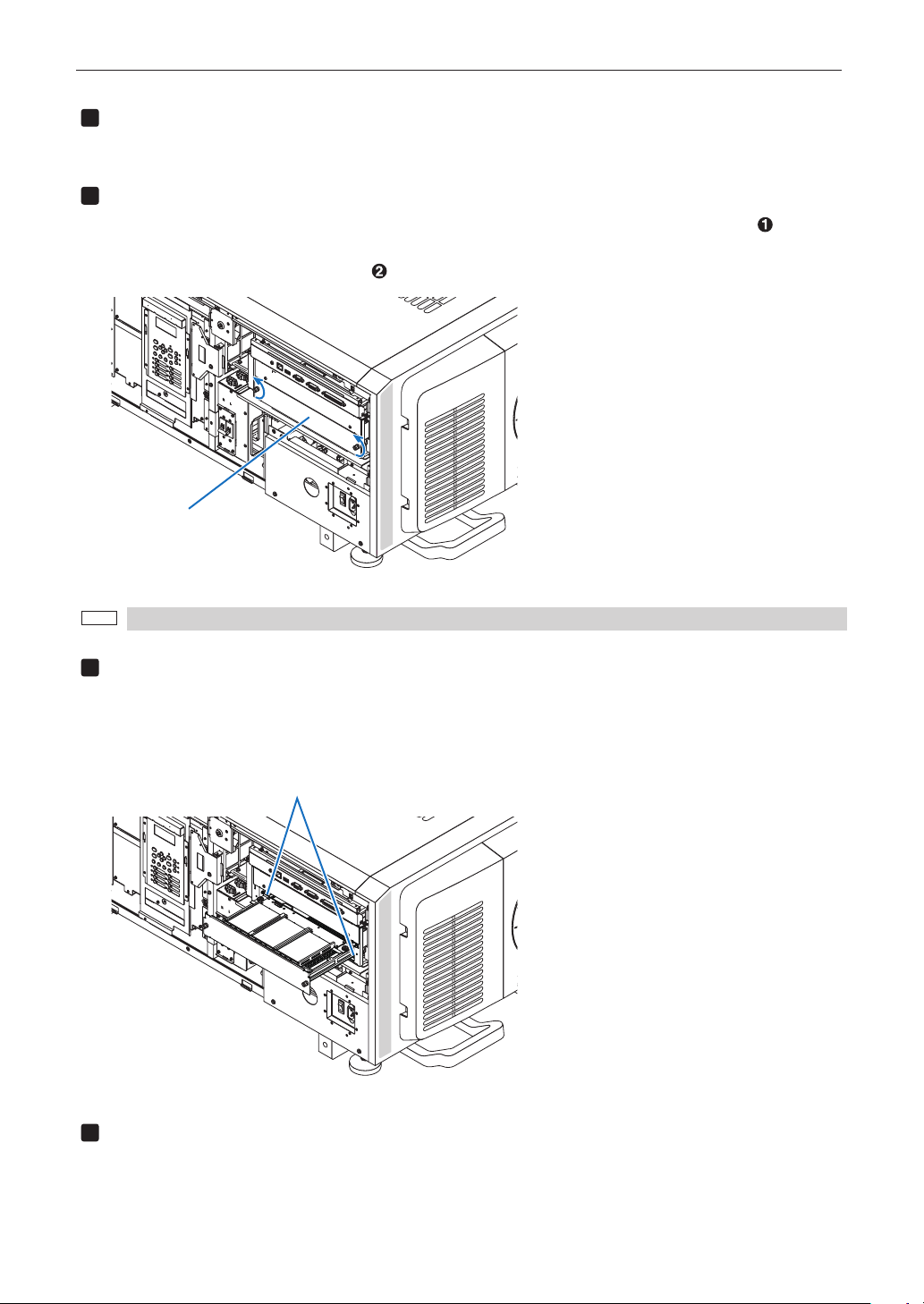

Remove the side panel.

Side panel of the projector should be removed to mount the option board. For the procedure of removing the side panel,

refer to “1-5-2. Removing and Mounting the Side Panel” (page 53).

Remove the blocking panel from slot.

1. Loosen the knurled screws (2 places) of slot until their rotations become idle ( ). Screws

cannot be removed.

2. Remove the blocking panel ( ).

Slot

NOTE

Carefully store the blocking panel and screws that you removed.

Mount the option board to the projector.

1. Insert the board by following the guide on either side of the slot.

2. While pushing up and holding the board, tighten up the knurled screws (2 places) until

it fix.

guide (left/right)

Mount the side panel to the projector.

This completes the mounting of option board. Next, clear any tamper events. For details on how to clear tamper events, refer to

“3-2. Recovering from Tamper Errors” (page 103). A setting to use option board is needed, after recovering from tamper error. For

the procedure, refer to “2-8-1. Make the option board usable” (page 100).

100

Setting Up Your Projector

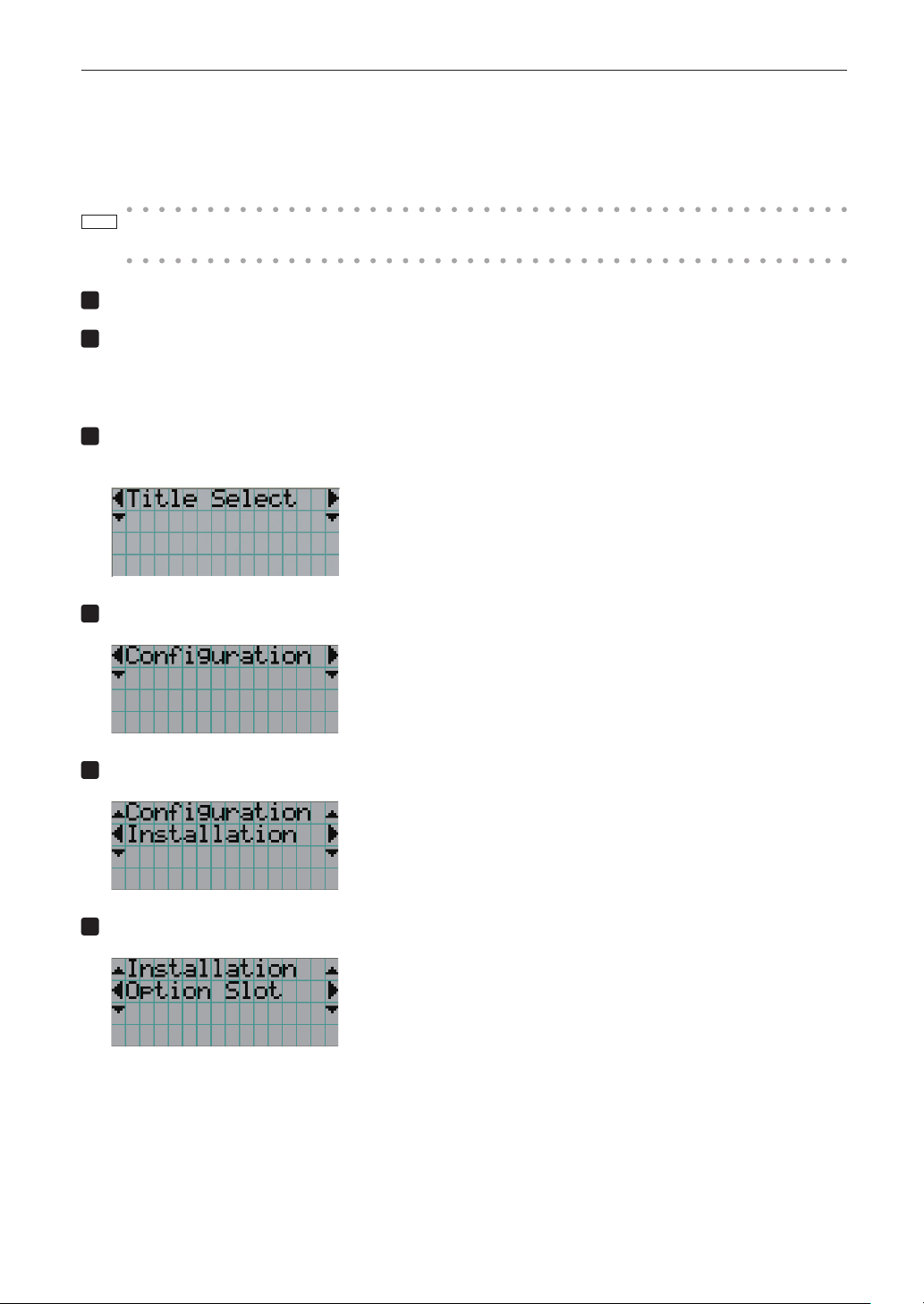

2-8-1. Make the option board usable

By registering the mounted option board to the slot, you can use option board by setting up the projector. This procedure is

described for the example, when IMB (NP-90MS02) is mounted to slot. For the operation of the projector, refer to projector’s “User’s

Manual”.

TIP

DCC can be used to set up.

For the procedure by using DCC, refer to “Digital Cinema Communicator v2 Installation Manual”.

Set the projector in standby mode.

Enable the service personnel menu.

These settings are for our service personnel and cannot normally (user mode) be used. You need to enter a passcode to

enable the service personnel menu. Refer to the “4-1-1. When You Use the Service Personnel Menu” (page 121) for the

procedure.

Press the MENU button on the control panel.

“Title Select” is displayed in the menu. From this procedure on, control panel of the projector will be used.

Press the LEFT/RIGHT button to display “Configuration” and press the DOWN button.

Press the LEFT/RIGHT button to display “Installation” and press the DOWN button.

Press the LEFT/RIGHT button to display “Option Slot” and press the DOWN button.

101

Setting Up Your Projector

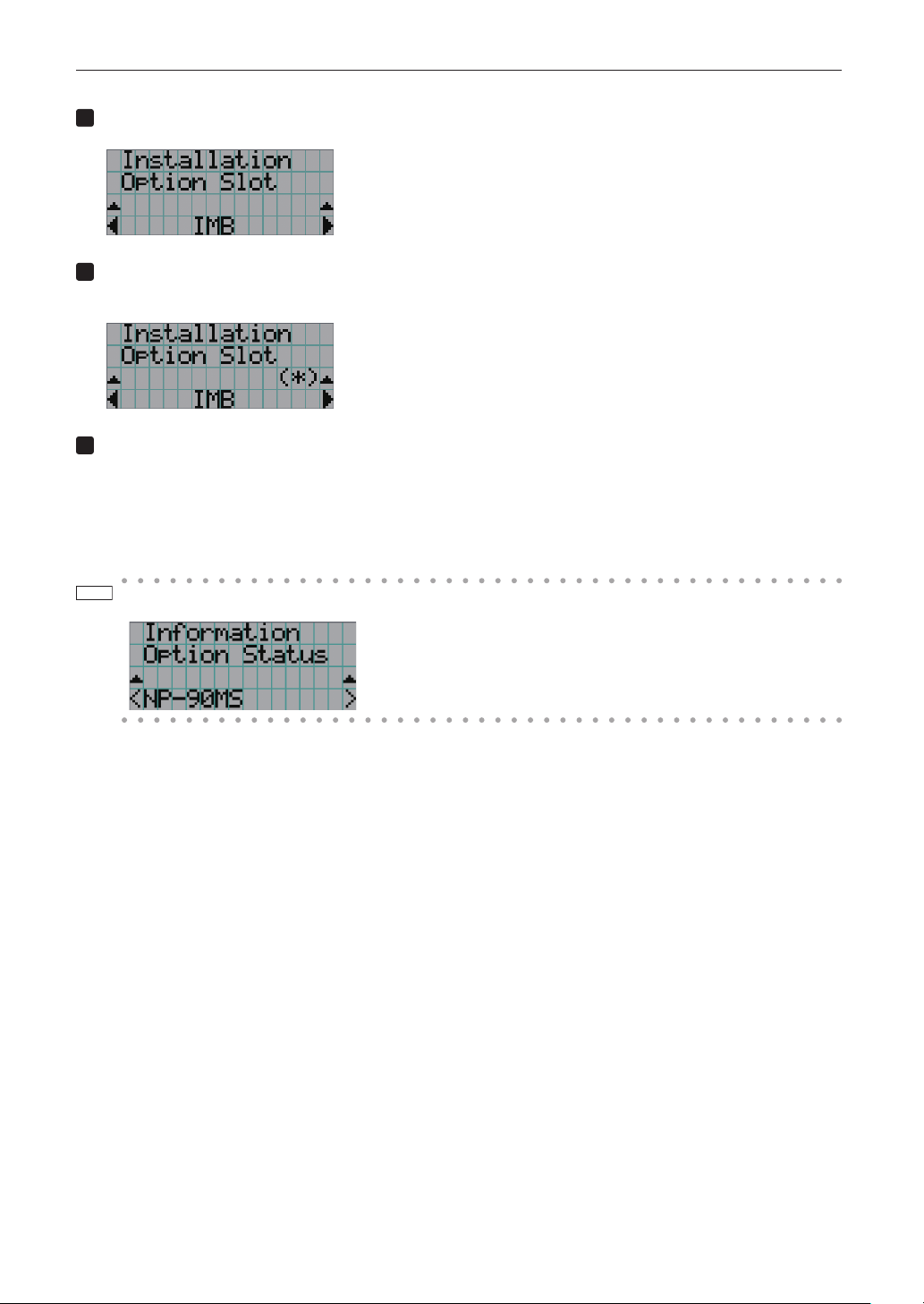

Press the LEFT/RIGHT button to display “IMB”.

Press the ENTER button.

(*) is displayed to the selected item.

Press the EXIT button several times.

The projector exits the menu and goes back to the regular screen.

If you press the EXIT button and then select “Yes” and press the ENTER button on a regular screen, you will returned to

user mode.

This completes the setting of the projector.

TIP

Settings of slot can be confirmed at projector’s [Information] - [Option Status] (page 138)

102

3. Projector Adjustment and Connecting

3-1. Flow of Adjustment and Connecting

Adjustment and Connecting of the projector accord to the procedure below.

• Step1

Turning Your Projector On (See page 106)

• Step2

Setting The Date and Time in the Projector (See page 107)

Setting the date of installation of the projector (See page 107)

• Step3

Setting the Projector Projection Method (See page 108)

• Step4

Adjusting the Lens (See page 109)

Display the test pattern to adjust the screen size, screen angle and focus.

• Step5

Connecting with the Image Input Port (See page 111)

• Step6

Connecting the Various Control Terminal (See page 112)

This chapter explains the adjustment and connection of the projector with Steps 1 to 6.

Steps 1 to 6 complete the adjustment and connection of the projector. Next, carry out various settings such as color adjustment

using DCC. Refer to the “Digital Cinema Communicator v2 Installation Manual” for the procedure.

103

Projector Adjustment and Connecting

3-2. Recovering from Tamper Errors

The projector is fitted with a tamper detection circuit. If the cover or a slot device is removed, a tamper event is detected by

the tamper detection circuit. When the projector is started after a tamper event has been detected, an error message is

displayed on the LCD screen of the projector. The actions that are detected as tamper events and the error messages that are

displayed on the LCD screen are as follows.

Action Error code Error message

Cover removed

•Lens cover

•Side panel (left/right)

586 IMB: Service Door Tamper

Slot device or blocking panel removed

•Blocking panel

•Media block

582

584

IMB: Physical Marriage Tamper

IMB: Marriage NOT Active

TIP

Error codes can be checked when using the DCC.

While the above error messages are being displayed, encrypted contents cannot be displayed. Refer to “3-2-1. Clearing

tamper events” (page 104) for details on how to clear the error message.

104

Projector Adjustment and Connecting

3-2-1. Clearing tamper events

Be sure to do this while the power of the projector is on (when Power-ON).

If any tamper events have been detected by the tamper detection circuit of the projector main unit, clear the tamper events

using the following procedure.

Start clearing the tamper events

Finish clearing the tamper events

Error codes 582 and 584 have

occurred

Error code 586 has occurred

Have the tamper events been

cleared?

Step 2

Perform re-marriage using the Digital Cinema

Communicator v2.

Step 1

Clear the “Service Door Tamper” by using the buttons

on the Control Panel.

Turn off the projector main unit, disconnect the AC

power supply, and check the “Check” items.

Ye s

105

Projector Adjustment and Connecting

• Step1

“Clear the “Service Door Tamper” by using the buttons on the Control Panel.”

Refer to “4-1-1. When You Use the Service Personnel Menu” (page 121) for details on logging into the projector with

Advanced User or higher privileges using the buttons on the control panel.

Press and hold the LEFT/RIGHT buttons simultaneously for 3 seconds or more to display the passcode entry screen. Enter

your passcode and press the ENTER button. If the right passcode is entered, the Clear SDT menu will be displayed. Press

the ENTER button to delete the “IMB:Service Door Tamper”.

If you are logged in to the projector with serviceman privileges, you can display the password entry screen from the Service

Personnel Menu (page 121).

NOTE

When you enter the password, pay enough attention to people around for the password abuse prevention.

Before entering the password, inspect the password entry device (such as remote controller and/or keypad on the

projector) for any evidence of physical tampering. In the event that any suspicious markings are present (such as

gouges, extraneous wiring, adhesive materials, etc.), “DO NOT” enter the password and consult with the distributor.

Always store the password, remote controller, and projector in a safe place and never divulge the password to

unauthorized entities.

Entered password is indicated with * on the LCD.

In case entered password characters are indicated on the LCD, it is machine trouble. Consult with the distributor.

• Step2

“Perform Re-Marriage using the Digital Cinema Communicator v2”

DCC is used to perform re-marriage. Refer to “Digital Cinema Communicator v2 Installation Manual” for details.

• Check

“Attach the lens cover, side panel (left/right)”

If you have removed a cover, then attach the cover. Furthermore, if the covers are attached, check that they are attached

correctly.

After attaching the cover, turn the main power switch of the projector on (with the AC power supply turned on), and check

that “Tamper Fail” is not displayed on the LCD screen.

“Check that the equipment is correctly attached to slot”

If there are no devices mounted in slot, attach the blocking panel. Also, if a device is mounted in slot, check that it is securely

pushed all the way into the slot.

After correctly mounting a device in the slot, turn the main power switch of the projector on (with the AC power supply

turned on), and check that “Marriage Tamper Fail” is not displayed on the LCD screen.

106

Projector Adjustment and Connecting

3-3. Turning your Projector On

NOTE

• Do not use the projector with the lens cap left attached, and do not attach the lens cap while the projector is

operating. The lens cap may become hot, causing them to deform or melt.

• In the following instances, the power to your projector cannot be turned on even if you press the POWER button.

- When the inside temperature is abnormally high. The protective function prevents power from turning on. Wait

some time (until the projector inside cools down) and then turn on the power.

- When the SYSTEM status indicator is blinking red without the light source lighting up after power-on. Your

projector may be in trouble. Check the error display on the LCD screen and contact your dealer/distributor for

instructions.

Preparation:

• Connect the power cable to the projector.

• Supply AC power to the projector.

Insert the administrator key into the administrator switch horizontally and turn it clockwise

to the vertical direction.

The administrator key can no longer be removed. The projector will not function unless the administrator key is inserted.

Turn on the light power switch then the projector power switch on the side of the

projector.

A buzzer sounds and the software begins to start. While the software is starting, the POWER indicator is changed from

lighting in blue to blinking in blue. After software startup is complete, the projector goes to a standby state. While the

projector is in a standby state, the POWER, STATUS, SYSTEM status indicators light in orange. KEY LOCK becomes

automatically on if no control panel operation takes place in the standby state for 30 seconds by default. Buttons on the

control panel do not function while KEY LOCK is on.

If KEY LOCK is on, press the KEY LOCK button for one second or longer.

KEY LOCK becomes off. The KEY LOCK button indicator turns off and buttons on the control panel become operable.

Press the POWER button on the control panel of your projector three seconds or longer.

Projector turns on.

The POWER indicator lights up green after the completion of activation.

Press the LIGHT ON/OFF button on the control panel for three seconds or longer.

The light source is turned on and the screen glows light about 15 seconds later. The douser is closed until the screen

glows light (the DOUSER indicator lights green). When the douser is open, the DOUSER indicator turns off.

107

Projector Adjustment and Connecting

3-4. Setting the Date and Time in the Projector

The internal clock in the projector operates on coordinated universal time (UTC). You can set the internal projector time to the

time in your region by setting the time difference between the standard time in your region and UTC.

When IMB is used, the date and time of IMB are automatically used as the date and time of the projector (UTC).

When IMB is not used, the use of DCC allows you to easily set the date and time of the projector by reading the date and time

of the computer where DCC is installed.

To set the local time after selecting the Coordinated Universal Time as the date and time of the projector, use [Date/Time] (Page

130), or use DCC. Refer to “Digital Cinema Communicator v2 Installation Manual” for details.

Settingthedateofinstallationoftheprojector

Set the date of installation of the projector (year/month/day). To set the date of installation, use DCC. Refer to “Digital Cinema

Communicator v2 Installation Manual” for details.

108

Projector Adjustment and Connecting

3-5. Setting the Projector Projection Method

The projection method can be changed in the projector menu. In the factory default settings, it is set to front (installed on a

stand and projecting from the front of the screen).

Press the LEFT/RIGHT button to display “Configuration” and press the DOWN button.

Press the LEFT/RIGHT button to display “Installation” and press the DOWN button.

Press the LEFT/RIGHT button to display “Orientation” and press the DOWN button.

Press the LEFT/RIGHT buttons to select the projection method.

When shipped from the factory, it is set to [Normal-F].

Normal-F Front projection. With the projector installed on the pedestal, projection is executed

from the front of the screen.

Normal-R Rear projection. With the projector installed on the pedestal, projection is executed

from the back of the screen.

UpsideDown-F Ceiling front projection. With the projector installed on the ceiling, projection is

executed from the front of the screen.

UpsideDown-R Ceiling rear projection. With the projector installed on the ceiling, projection is executed

from the back of the screen.

Press the ENTER button.

An (*) will be put on the selected projection method.

Press the EXIT button several times.

The projector exits the menu and goes back to the regular screen.

If you press the EXIT button and then select “Yes” and press the ENTER button on a regular screen, you are returned to

user mode.

109

Projector Adjustment and Connecting

3-6. Adjusting the Lens

Display the test pattern and adjust the screen size, focus and screen position with the lens unit.

3-6-1. Display the Test Pattern

Press the MENU button.

“Title Select” is displayed on the LCD screen at the projector’s control panel.

Press the DOWN button.

Press the LEFT/RIGHT buttons to select “TEST Pattern”.

Press the DOWN button.

Press the LEFT/RIGHT buttons to select “Cross Hatch”.

Press the ENTER button.

An (*) will be put on the selected test pattern.

110

Projector Adjustment and Connecting

3-6-2. Adjusting the Screen Angle

Preparation: Display the zoom/focus adjustment screen by using the following procedure.

[1] Press the MENU button on the projector’s control panel.

“Title Select” appears on the projector’s LC display.

[2] Select “Configuration” menu using the LEFT/RIGHT buttons.

[3] Press the DOWN button.

[4] Select “Lens Control” using the LEFT/RIGHT buttons.

[5] Press the DOWN button.

[6] Press the ENTER button.

“Focus Zoom” is displayed and you can adjust the focus/zoom.

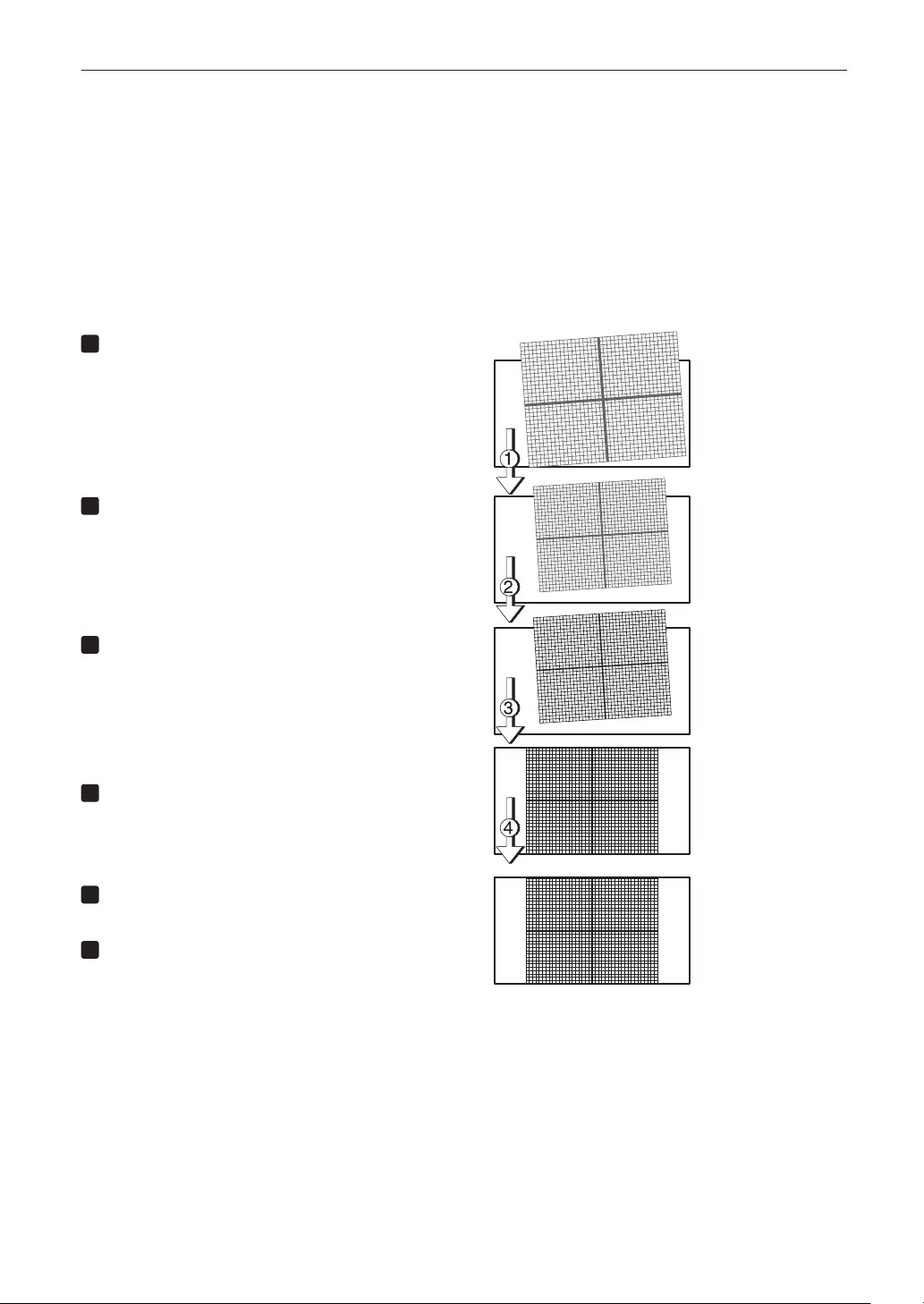

Press the LEFT/RIGHT buttons to roughly

adjust the screen size so that the screen

height and the image height are the same.

Press the UP/DOWN buttons to roughly

adjust the focus.

Adjust the surface on which the projector is

set up and the level adjuster of the projec-

tor to adjust the setup position, height, and

tile (front-back and left right) of the projec-

tor so that the projected image is level at

the screen center.

Use the LEFT/RIGHT buttons again to

adjust the screen size so that the projected

image is kept 0.5 to 1 crosshatch cell por-

tions higher than the top edge of the screen.

Finally adjust the focus using the UP/

DOWN buttons.

Press the EXIT button several times.

The projector exits the menu and goes back to the regular

screen.

111

Projector Adjustment and Connecting

3-7. Connecting with the Image Input Port

By installing option board to projector, you can add input port. Input port which can add to option board is listed below. For

the connection diagram of projector and peripheral equipment, refer to Installation manual of option board.

Option Board Image Input Port

NP-90MS01/NP-90MS02 (Note) HDMI input port x1

SDI input port x2

(Note) The NP-90MS01/NP-90MS02 video input ports do not support CineLink 2. The NP-90MS01/NP-90MS02 video input ports cannot

display the encrypted contents.

112

Projector Adjustment and Connecting

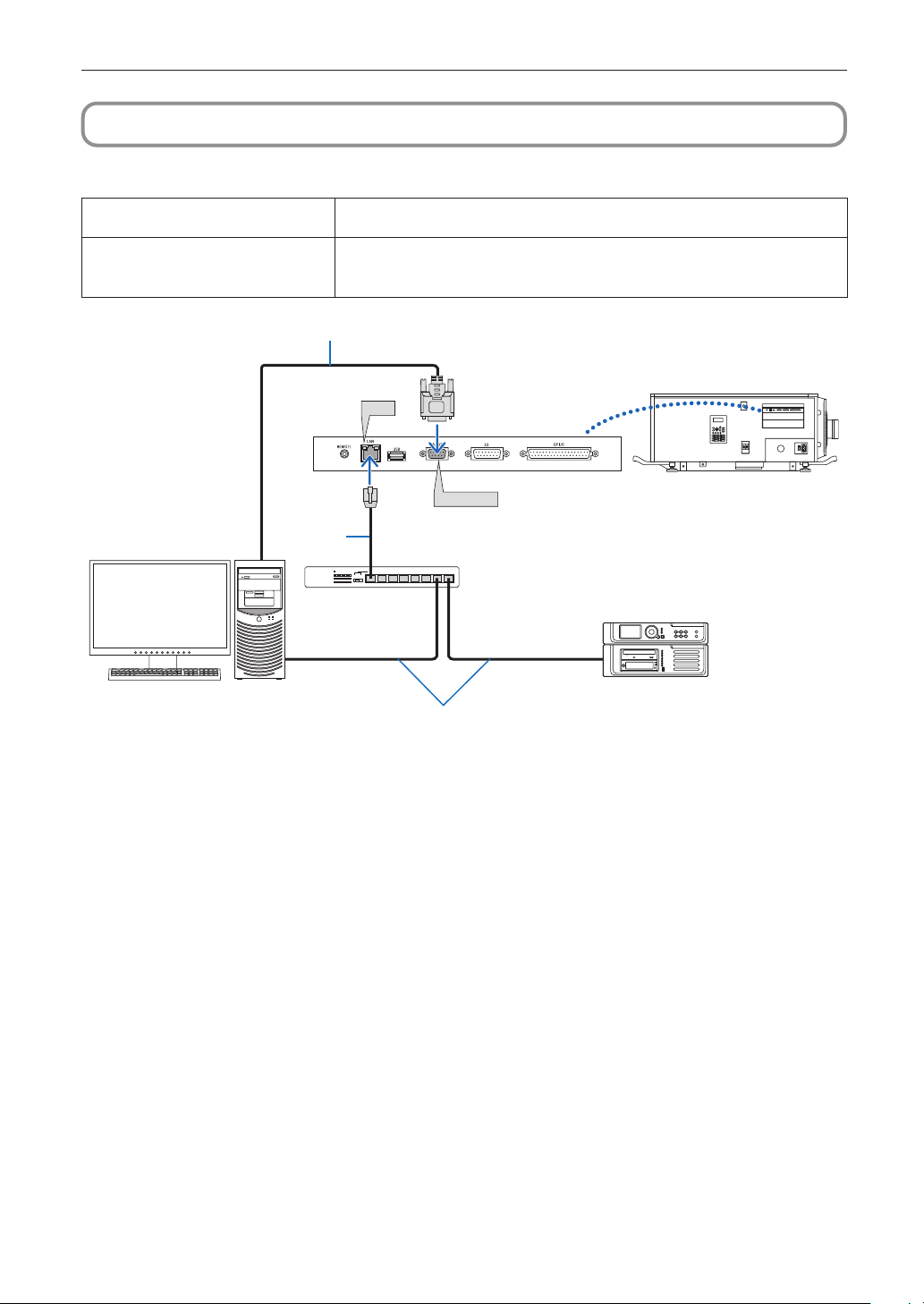

3-8. Connecting the Various Control Terminal

For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).

PC control terminal (RS-232) Use this terminal when controlling the projector in serial connection from a PC. Use a retail

RS-232C straight cable for the connection between the projector and the computer.

Ethernet port (LAN) Use this port when controlling the projector in LAN connection from a PC or a cinema

server. Use a retail LAN cable (10/100Base-T) for the connection between the projector and

the computer after checking with your network administrator.

LAN cable

Network hub/Router

LAN cable

Cinema server

RS-232C

LAN

RS-232C

This completes the adjustment and connection of the projector. Next, set up the projector from the DCC. Refer to the “Digital

Cinema Communicator v2 Installation Manual” for the procedure.

113

Projector Adjustment and Connecting

3-9. CG adjustments

Adjust for physical color shifting of the R, G and B colors.

WARNING

・

No one other than a specialized service person should perform this adjustment. Doing so may result in

electric shock or short circuits.

・

Do not drop any screws, etc. Doing so may cause short circuits.

・

CG adjustment is performed with the power turned on. Do not short-circuit the circuit boards with the

tools.

・

Before removing or mounting external panels and circuit boards, turn off the main unit's power, wait for

the cooling fans to come to a complete stop, then shut off the supply of AC power to the projector and

the light source with a circuit breaker, etc. After this, check that the main unit has cooled down suffi-

ciently before performing the adjustment.

WARNING

・

Do not look at the lens during projection. Doing so may damage your eyes.

Required tools: Ballpoint drivers: 3 (length 80 to 90 mm, not including the grip), 2 mm across)

Phillips screwdriver No. 2

Preparations for adjustment

1-1. Remove the top panel.

(1) Turn off all power to the projector and shut off

the AC power supply.

(2) Remove the left and right side panels.

(

→

page 53)

(3) Remove the top panel.

①

Remove the four M4 screws (silver) on the

right and left sides respectively.

②

Turn the two M4 screws (black) at the front

and back centers of the top panel until they

turn freely (they do not come off), then lift the

panel and remove it.

(3) Reinstall the left and right side panels.

(

→

page 53)

- For safety, adjust with the left and right side

panels mounted.

①

②

114

Projector Adjustment and Connecting

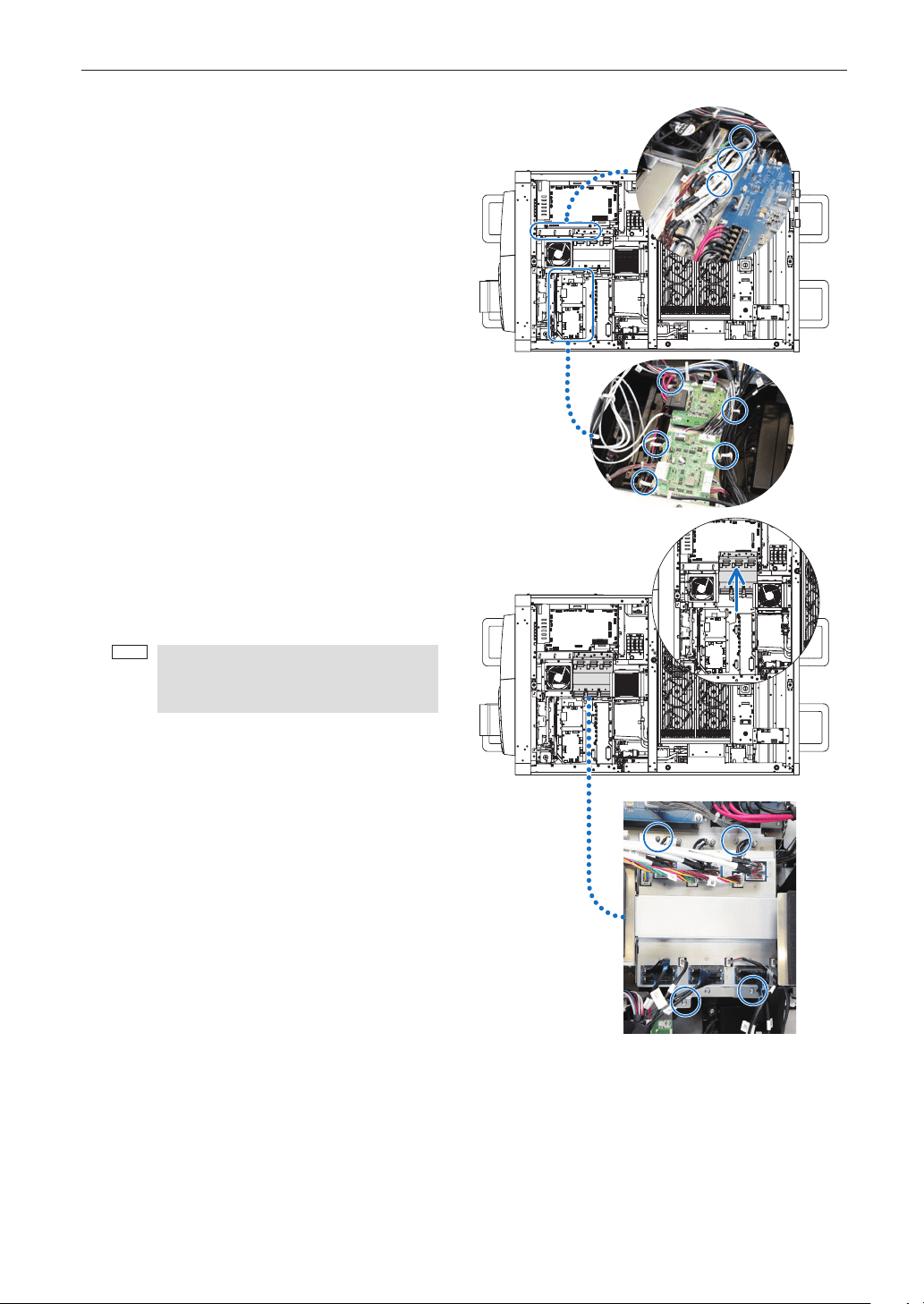

1-2. Remove the FMT board.

(1) Remove the three clampers shown in the upper

figure and the five clampers shown in the lower

figure.

(2) Remove the four M3 screws from the FMT

board.

(3) If the FMT board is lifted, it will hit the fan flange,

so slide it first then remove it.

Place the removed board on top of the fan.

NOTE

- Do not disconnect the connector.

Do not place the board on the circuit

board.

(2)

(3)

115

Projector Adjustment and Connecting

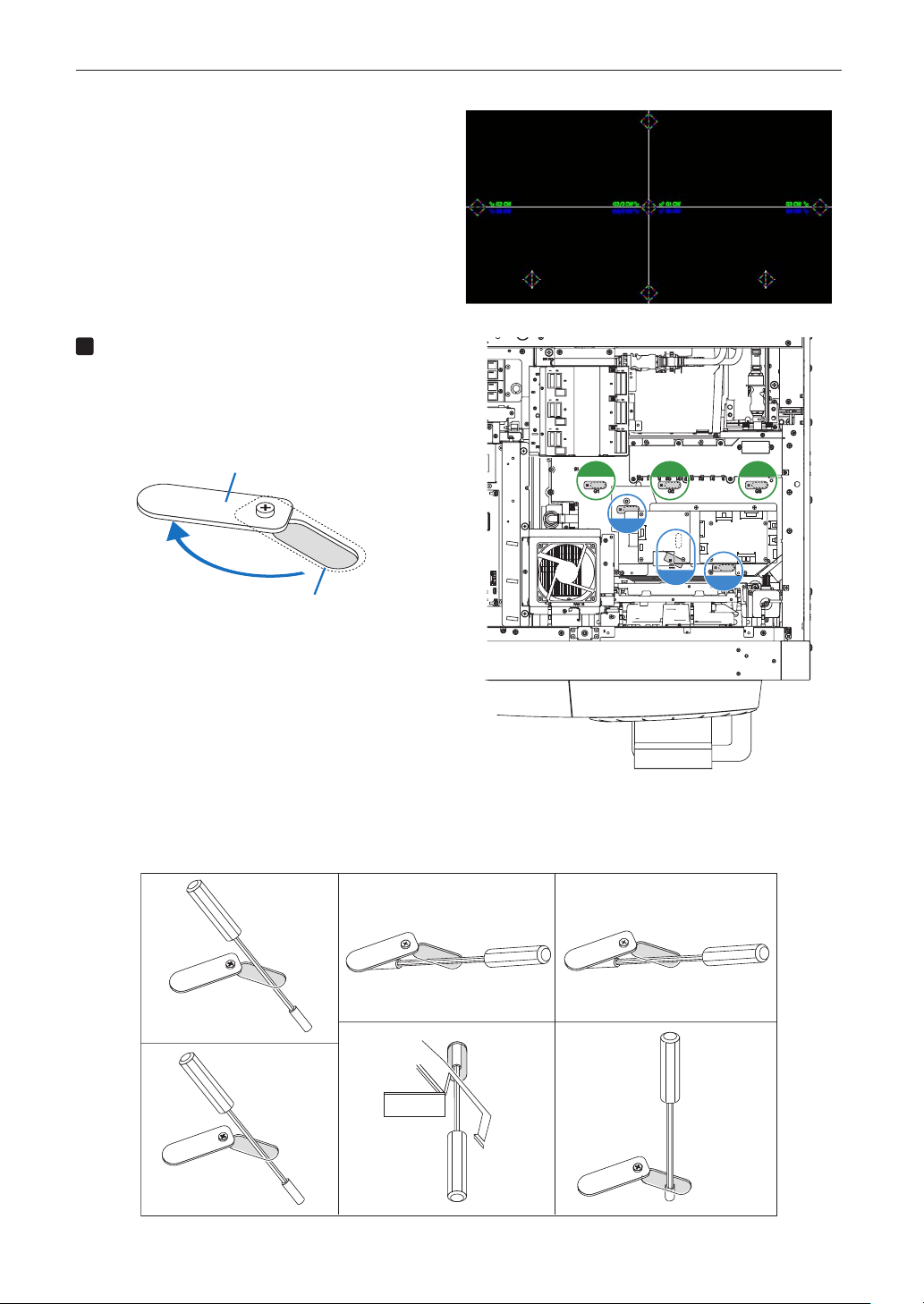

1-3. Project a test pattern.

(1) Turn on the power of the projector and the light

source and warm up for about 30 minutes.

Refer to page 106 for instructions on turning on

the power.

(2) Operate the adjustment menu to set the Native

Color mode.

(3) Display the “MCG CG-TEST(2K)” test pattern.

Refer to “4-2-2. Test Pattern” on page 122.

Make the CG adjustments.

Lens direction

G1 G2 G3

(1) Turn the G1/G2/G3 and B1/B2/B3 rubber seals

respectively to reveal the adjustment windows.

* B2 is L-shaped. The adjustment window is

underneath.

Rubber seal

Adjustment window

(2) Use the ballpoint drivers to adjust by turning the

adjustment screws clockwise or counterclock-

wise.

• For example, toadjust Green,it iseasier to

adjust from the right side by inserting the

three ballpoint drivers into the G1, G2 and

G3 adjustment screws beforehand.

• The positions and directionsof theadjust-

ment screws differ, as shown in the figures

below.

Locations and directions of the G1/G2/G3 and B1/B2/B3 adjustment screws

116

Projector Adjustment and Connecting

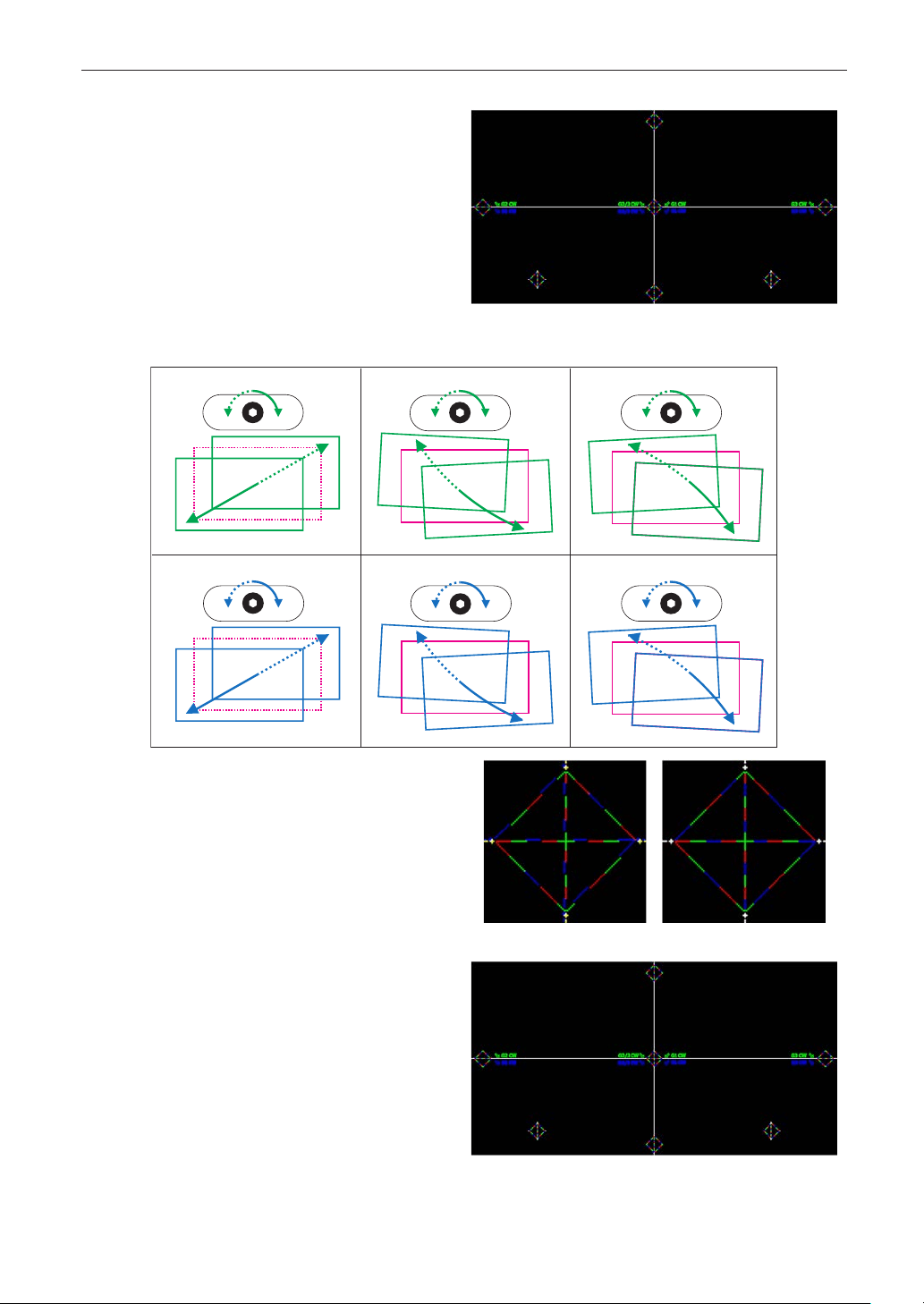

(3) Turn the adjustment screw of the shifted color

to match it to the red pattern.

The pattern moves in an arc for the G2/G3 and

B2/B3 adjustment screws.

The pattern moves in a straight line for the G1

and B1 adjustment screws.

B3B2B1

Clockwise

Counterclockwise

Clockwise

Counterclockwise

Clockwise

Counterclockwise

Clockwise

Counterclockwise

Clockwise

Counterclockwise

Clockwise

Counterclockwise

Movement of the adjustment screws and the green and blue screens

The rotation of the dotted and solid lines when the adjustment screws are turned corresponds to

the direction of movement of the dotted and solid lines in the figures.

Adjustment example: In the figure to the right, the

blue pattern is shifted to the upper left.

Turn the B2 or B3 adjustment screw clockwise to

move the blue lines to the lower right and line them

up with the red lines.

* The inclination is the opposite when B2 and B3

are adjusted.

Adjustment completedBlue color shift

Check the pixel gap.

Check the pixel gap at A to E.

D E

117

Projector Adjustment and Connecting

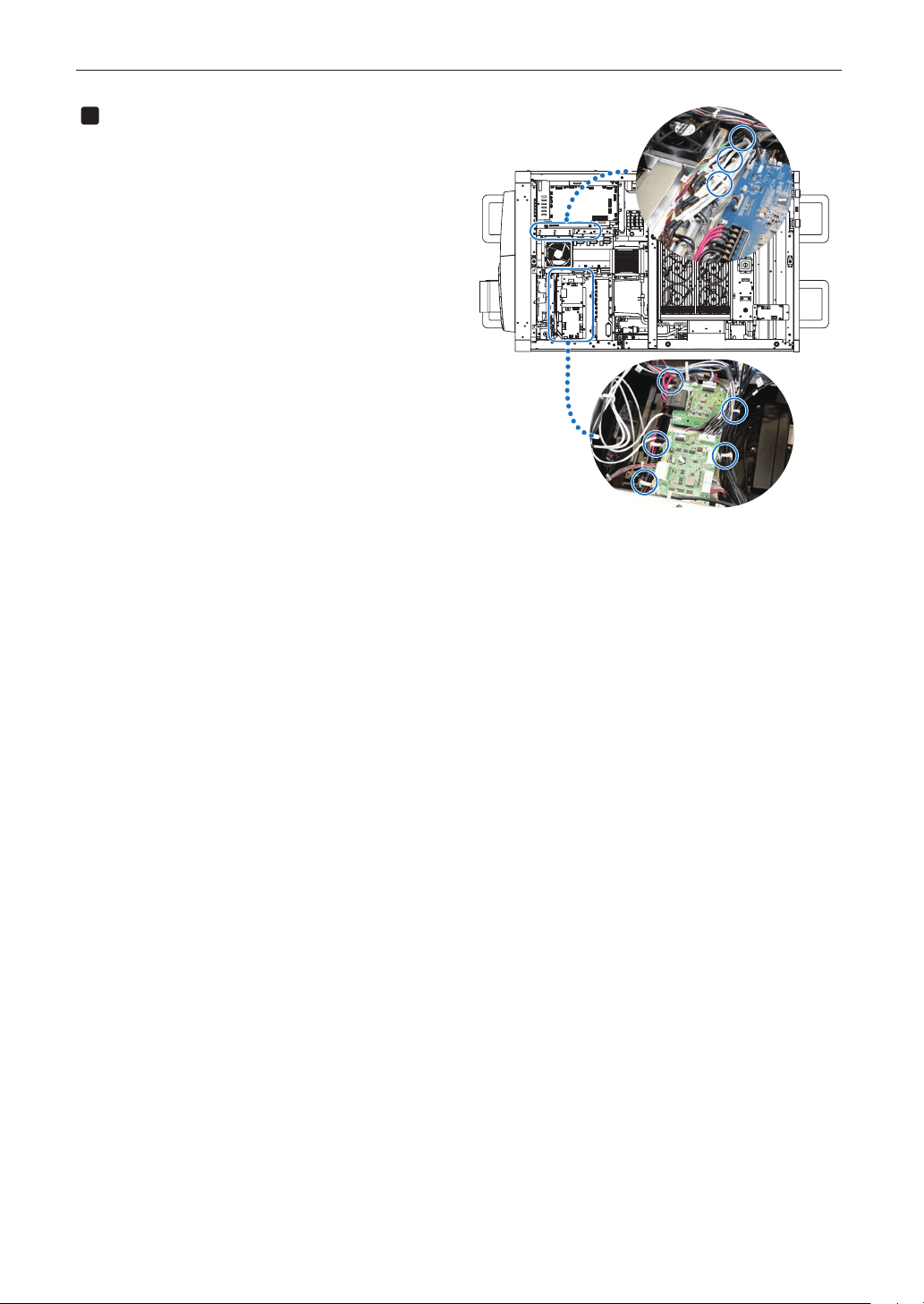

Mount the top panel.

(1) Turn off all power to the projector and shut off

the AC power supply.

(2) Close the rubber seals that were opened.

(3) Put the FMT board back in its original position

and attach the four M3 screws.

(4) Fix the FMT board's cables to their original posi-

tions with the clampers.

(5) Remove the left and right side panels.

(

→

page 53)

(6) After mounting the top panel, mount the left and

right side panels.

Refer to “2. Installation of the light module” step

8 (3) and (4) (

→

page 34) and step 9 (

→

page

35).

This completes the CG adjustments.

118

4. LCD Menu

This chapter describes the menus displayed in the LCD screen on the projector’s control panel and their functions. For basic opera-

tions of menus, refer to the projector’s operation manual.

4-1. List of Menu

Menus in parentheses are menus for our service personnel. Normally, these menus cannot be used.

Main menu Submenu Description

Reference

page

Title Select “Title Memory Name” Selects the title of the signal to be projected. 122

TEST Pattern Selects the test pattern to be projected. 122

Configuration Light Setup Adjust Adjusts light source brightness. 123

Lens Control Lens Position Adjusts the position of the projected screen. 123

Focus Zoom Adjusts the size and focus of the projected screen. 123

Reset (FactoryDefault) Returns the settings to their default values. Selects between preset

buttons and titles only, LAN settings only and all settings.

124

Filter Cleaning Initializes the air filter usage time (for confirming the filter cleaning

time).

124

(Fan Usage) Initializes the usage time of the fan. 125

(Light Usage) Initializes the usage time of the light source. 125

(Phosphor) Initializes the usage time of the Phosphor. 125

(Diffuser) Initializes the usage time of the Diffuser. 125

(Pump) Resets the pump usage time. 125

(Douser Count) Resets the number of times the douser has been used. 125

(Setup) Douser Setup Sets the douser open/close state. 126

Panel Key Lock Locks the buttons on the projector’s control panel so that they

cannot be operated.

126

Auto Key Lock Enables or disables Auto Key Lock. 127

3D Reference Sets the input terminal for 3D video system. 127

Off Timer Sets the time until the projector power is turned off automatically. 127

Message Sets the time to display the message indicating the air filter cleaning

cycle.

127

Silent Mode Sets whether the rear (SYSTEM/LIGHT) status indicator, buzzer,

indicators on the projector’s control panel, illumination, and

LCD screen backlight are enabled or disabled.

128

Installation

(Note)

(Option Slot) Configures the device installed in slot (only when the projector is in

standby mode).

128

(Orientation) Sets the projection method and cooling fan operating mode. 129

Lens Type (Note) Sets the type of lens (supports or does not support the lens

memory function) attached to the projector.

129

Lens Calibrate

(Note)

Performs calibration on lens that support the lens memory function

(only when the projector power is turned on).

129

Lens Center (Note) Moves the lens shift position to the center (only when the projector

power is turned on).

129

(Baudrate) Sets the PC control terminal (RS-232) data transmission speed

(bps).

129

(Date/Time) Sets the date and time on the projector. 130

(Fan Speed Mode) Sets the cooling fan operating mode. 130

(Service) Displays the Service man Menu. 131

(Memory)

Light

The content of the selected light memory (light output power value)

can be overwritten with the current settings.

133

Lens The content of the selected lens memory can be overwritten with

the current settings.

(Title Setup) Preset Button Preset Button 1–16 Sets the title to be assigned to the preset buttons (<1> to <10>

buttons).

135

119

LCD Menu

Main menu Submenu Description

Reference

page

Information Light Light Output Displays the light module's brightness (output) setting value. 135

Model Displays the light module's model name. 135

S/N Displays the serial number of the light module. 135

Lens Type Displays the light source output setting. 135

Preset Button Preset Button 1–16 Displays the titles which are assigned to the preset buttons (<1> to

<8> buttons).

135

Usage Displays information related to projector usage. 136

Error Code Displays the currently occurring error. 136

Version System Displays the model name and various version information about the

projector.

137

IMB Displays the vendor name and version information about the media

block (IMB).

137

IP Address System Displays the IP address of the projector. 137

Setup Date Displays the date when the projector was set up (starting date of

the warranty period).

138

Option Status Displays the link status of the device mounted in slot and projector. 138

(Note) Requires logging into the projector with Advanced User or higher privileges.

TIP

If you are logged in to the projector with Installation privileges, you cannot use the following items.

• [Factory Default]-[LAN] (Page 124)

• [Reset]-[Fan Usage] (Page 125)

• [Reset]-[Light Usage] (Page 125)

• [Reset]-[Phosphor] (Page 125)

• [Reset]-[Diffuser] (Page 125)

• [Configuration]-[Installation]-[Service] (Page 132)

120

LCD Menu

Othermenufunctions

[LANResettoManualIP]

Change the projector IP address assignment setting to “Manual”.

Press the MENU and EXIT buttons simultaneously for three seconds. When the following screen appears, press the ENTER button

for execution.

← Pressing the ENTER button executes this function.

[SavePJLog]

Save a log of the projector into a USB flash drive. Press the UP and ENTER buttons simultaneously. When the following screen

appears, specify the duration of the log to save using the LEFT/RIGHT buttons. Pressing the ENTER button displays the duration

of the log to save. Check the duration and press the ENTER button to save the log into the USB flash drive. The log is saved into a

file with the following name on the USB flash drive:

<projector-model-name> + <projector-serial-number> + <saving-date (year/month/day)>.txt

Example: Save PJ Log was executed on May 17, 2019, with a serial number of 012345:

NP-02HD_012345_20190507.txt

← Use the LEFT/RIGHT buttons to specify the duration of the log to save.

[OverDrive]

Switch to the Over Drive mode which allows you to turn on the light at higher power output than normal.

Press and hold the LIGHT button for 5 seconds. When the following screen appears, press the ENTER button to switch the modes.

If the function is used, the light source may not be able to maintain stable brightness.

If you wish to use the function, consult your dealer.

← Pressing the ENTER button executes this function.

121

LCD Menu

4-1-1. When You Use the Service Personnel Menu

To use the menu for service personnel, you need to input the passcode. This section describes how to display the passcode entry

screen and how to enter the passcode. Refer to the Service manual for details on how to enter text.

Press the MENU button for three seconds or longer.

The passcode input screen will be displayed on the LCD screen at the projector’s control panel.

Press the EXIT button to return to the original screen.

Enter the passcode and press the ENTER button.

If you make a mistake during input, you can move the cursor by pressing the LEFT/RIGHT buttons and overwrite the

passcode.

If the passcode is correct, you can use the menu for service personnel.

NOTE

When you enter the password, pay enough attention to people around for the password abuse prevention.

If you have anxiety the password is cheated, change the password immediately.

Before entering the password, inspect the password entry device (such as remote controller and/or keypad on the

projector) for any evidence of physical tampering. In the event that any suspicious markings are present (such as

gouges, extraneous wiring, adhesive materials, etc.), “DO NOT” enter the password and consult with the distributor.

Always store the password, remote controller, and projector in a safe place and never divulge the password to unau-

thorized entities.

Entered password is indicated with * on the LCD.

In case entered password characters are indicated on the LCD, it is machine trouble. Consult with the distributor.

122

LCD Menu

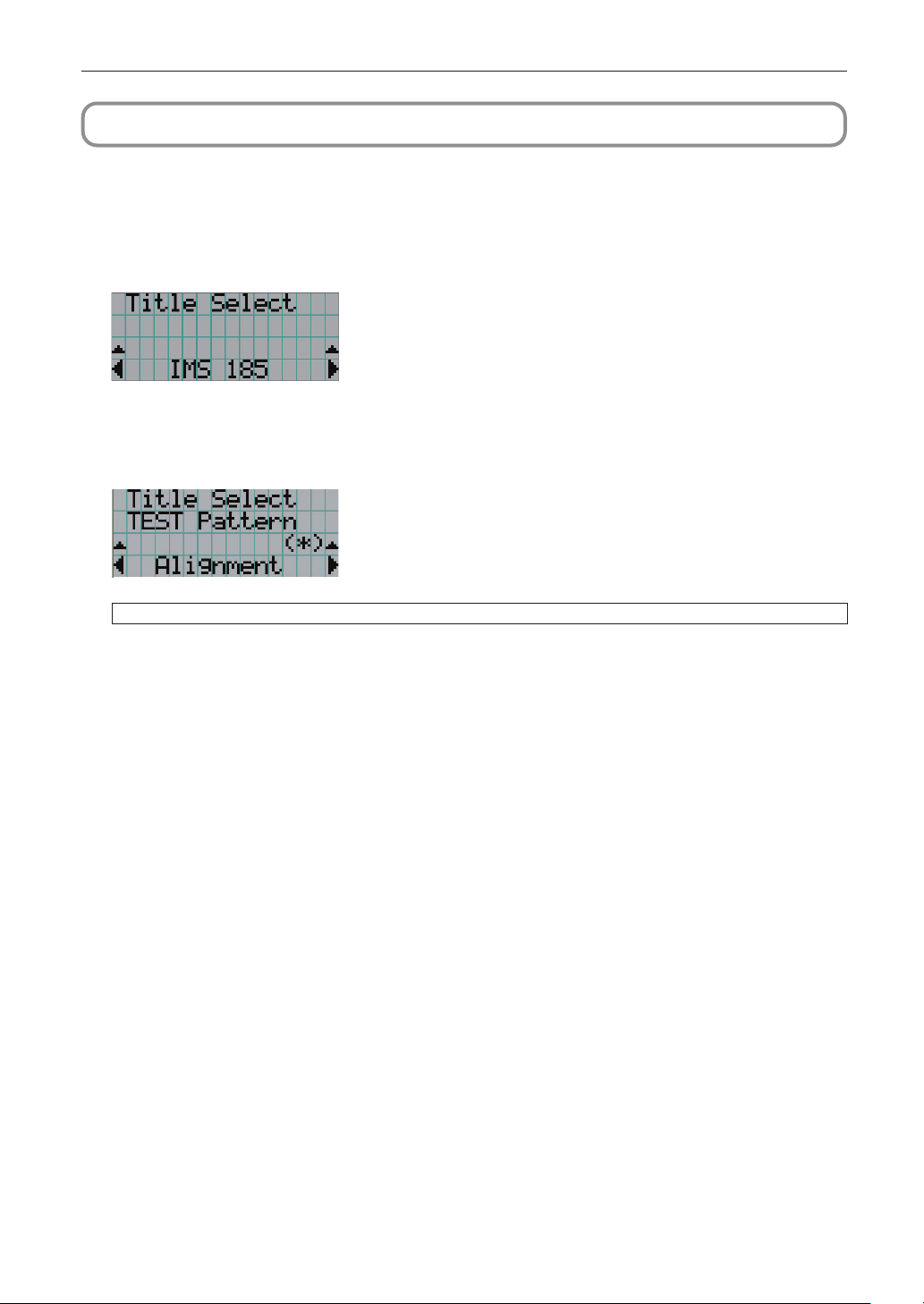

4-2. Title Select

4-2-1. Title select (Title Memory)

Select the title of the signal to be projected.

You can register up to 100 titles. You can also assign registered titles to the preset buttons <1> to <8> on the projector’s control

panel and call them up directly using those buttons. (See page 135)

← Displays the currently selected item with asterisk (*).

← Selects the title to be projected.

4-2-2. Test Pattern

Selects the test pattern to be projected.

← Displays the currently selected item with asterisk (*).

← Selects the test pattern to be projected.

OFF, Alignment, Cross Hatch, Convergence, Red, Green, Blue, White, Black, White 50% [IRE], H-Ramp, Logo, MCG CG-TES

123

LCD Menu

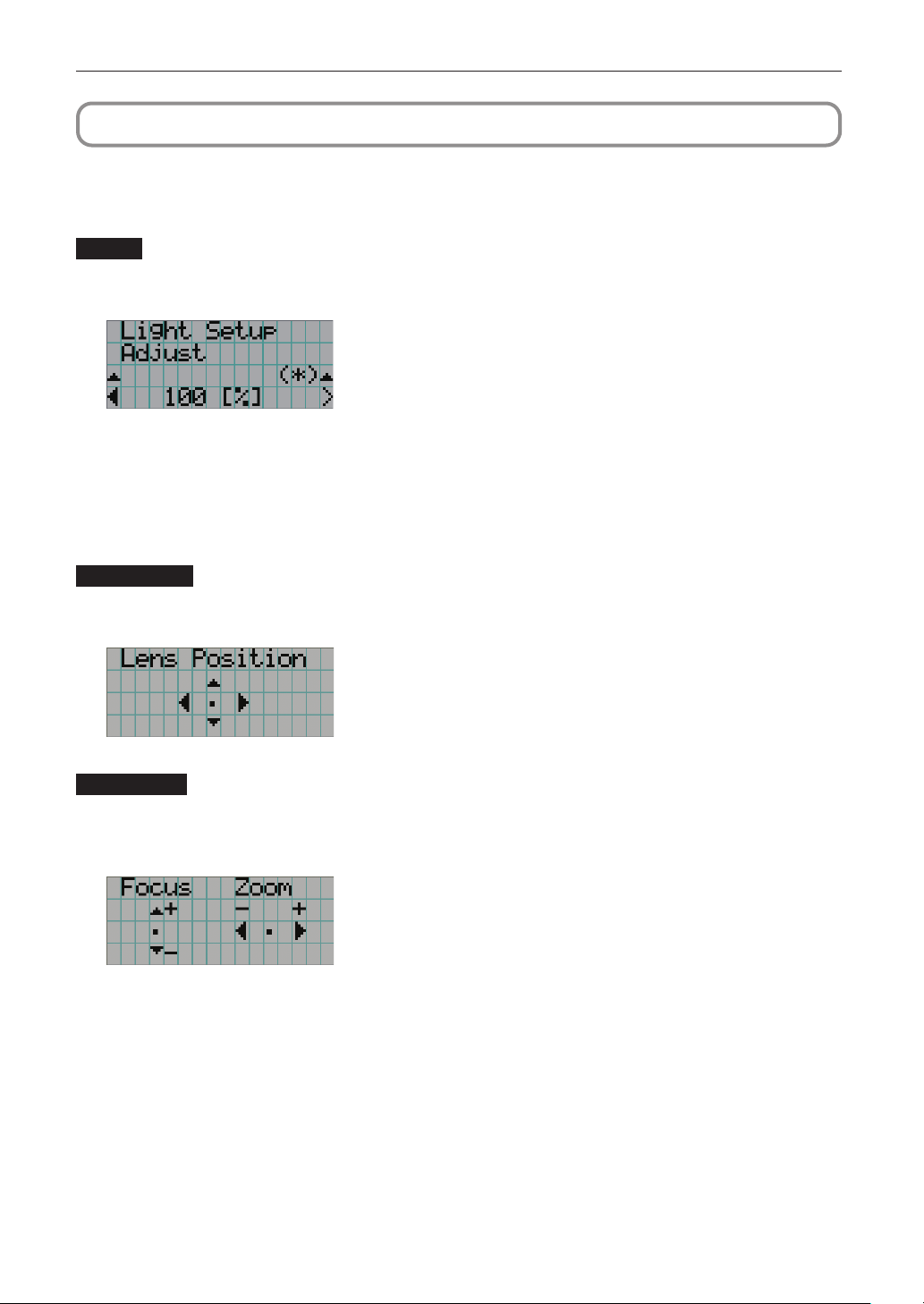

4-3. Conguration

4-3-1. Light Setup

Adjust

Adjusts the light source brightness (output). This setting is the fraction based on taking the maximum value of light source brightness

as 100%.

← Adjusts the output power value (%).

4-3-2. Lens Control

Adjust the position, size, and focus of the projected screen.

Press the ENTER button to switch the display between “Lens Position” and “Focus Zoom” adjustments. Press the EXIT button to

return to a menu one level above.

LensPosition

Adjusts the position of the projected screen.

The projected screen moves in the selected direction as you press the UP/DOWN/LEFT/RIGHT buttons.

FocusZoom

Adjusts the size (Zoom) and focus (Focus) of the projected screen.

Press the UP/DOWN buttons to adjust the focus.

Press the LEFT/RIGHT buttons to adjust the size of the projected screen.

124

LCD Menu

4-3-3. Reset

Used when initializing settings and usage times. Some of the items are in the service personnel menu. Refer to “4-1-1. When You

Use the Service Personnel Menu” (page 121) for details on how to use these.

Item Service Personnel User

FactoryDefault



—

Filter Cleaning

 

Fan Usage



—

Light Usage



—

Phosphor



—

Diffuser



—

Pump



—

Douser Court



—

NOTE

When “Light Usage” is reset, “Phosphor” and “Diffuser” are also reset.

FactoryDefault

Returns the projector main unit settings to the factory default state. You can choose from the following three types of methods.

• Registered preset buttons and title settings

• Network settings

• All adjustment and setting values

← Select the item to be reset.

← Press the ENTER button to execute resetting.

P Button & Title Resets the allocation of preset buttons and all registered titles.

LAN Resets the network settings.

All Resets all adjustment and setting values.

LUT-SCC Resets the LUT-SCC settings.

NOTE

If you are logged in to the projector with Installation privileges, you cannot reset the network settings (LAN).

FilterCleaning

Resets the air filter usage time (for confirming the filter cleaning time). Select the filter. Press the ENTER button, then select “Yes” in

the displayed confirmation screen, and then press the ENTER button to reset the air filter usage time (for confirming the filter cleaning

time).

← Press the ENTER button to display the confirmation screen.

125

LCD Menu

FanUsage

Resets the fan usage time. Select the fan. Press the ENTER button, then select “Yes” in the displayed confirmation screen, and then

press the ENTER button to reset the fan usage time.

← Press the ENTER button to display the confirmation screen.

LightUsage

Resets the light source usage time. Select the corresponding light source. Press the ENTER button, then select “Yes” in the dis-

played confirmation screen, and then press the ENTER button to reset the light source usage time.

← Press the ENTER button to display the confirmation screen.

NOTE

Resetting Light Usage resets the usage time (Phosphor and Diffuser) of the phosphors and diffusers included in the

corresponding light source.

Phosphor

Resets the Phosphor usage time. Select the corresponding phosphor. Press the ENTER button, then select “Yes” in the displayed

confirmation screen, and then press the ENTER button to reset the Phosphor usage time.

← Press the ENTER button to display the confirmation screen.

Diuser

Resets the Diffuser usage time. Select the corresponding diffuser. Press the ENTER button, then select “Yes” in the displayed con-

firmation screen, and then press the ENTER button to reset the Diffuser usage time.

← Press the ENTER button to display the confirmation screen.

Pump

Resets the pump usage hours. Select the appropriate pump. Press the ENTER button, then select “Yes” in the displayed confirma-

tion screen, and then press the ENTER button to reset the pump usage hours.

← Press the ENTER button to display the confirmation screen.

126

LCD Menu

DouserCount

Resets the number of times the douser has been used. Press the ENTER button, then select “Yes” in the displayed confirmation

screen, and then press the ENTER button to reset the number of times the douser has been used.

← Press the ENTER button to display the confirmation screen.

4-3-4. Setup

This menu is for service personnel. For the procedure to use it, refer to “4-1-1. When You Use the Service Personnel Menu” (page

121).

DouserSetup

Sets the douser open/close state.

← Selects the item.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Open(Power On) When set to Enable, the douser opens after the projector starts up.

Light On When set to Enable, the douser opens when the light source is turned on.

Title Select When set to Enable, the douser opens when a title is selected.

PanelKeyLock

The control buttons on your projector are locked to be inoperative.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Lock Enable a lock on the control buttons on your projector.

Unlock Disable the lock on the control buttons.

NOTE

When the buttons on the projector’s control panel are locked, press the EXIT button on the projector for about 10 sec.

to unlock them (The key lock setting on the projector becomes Unlock).

127

LCD Menu

AutoKeyLock

Enables or disables Auto Key Lock.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Enable Enables the auto key lock function.

This applies the key lock automatically if you do not perform any operations from the main unit

control panel for 30 seconds after entering the standby state. If you do not perform any operations

for 30 seconds after releasing the key lock, the key lock is applied again.

Disable Disables the auto key lock function.

Although the key lock becomes active after entering the standby state, once you release the key lock

it is not automatically applied.

3DReference

Sets the input terminal for 3D video system.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

OTimer

Automatically turns off the projector power once the configured time has elapsed. The time until the power is turned off can be set

in steps of 1 hour (up to a maximum of 24 hours). The timer starts from when the setting is applied by pressing the ENTER button.

While the timer is running, the remaining time is displayed in the format “Left **.* H”. Set to “No Preset” to stop the timer.

← Displays the remaining time until the power is turned off.

← Sets the time until the power is turned off. (No Preset: Timer off)

Message

Sets the time until the air filter cleaning cycle (units: hours). Once the usage time of the air filter exceeds the configured time, the

message (“Filter Time Over”) is displayed on the LCD screen. The default setting is set to “0 (-----) [H]”. In this setting, “Message

informing the air filter cleaning time” is not displayed.

← The current setting value is displayed with an asterisk (*).

← Sets the time until the cleaning cycle (units: hours).

128

LCD Menu

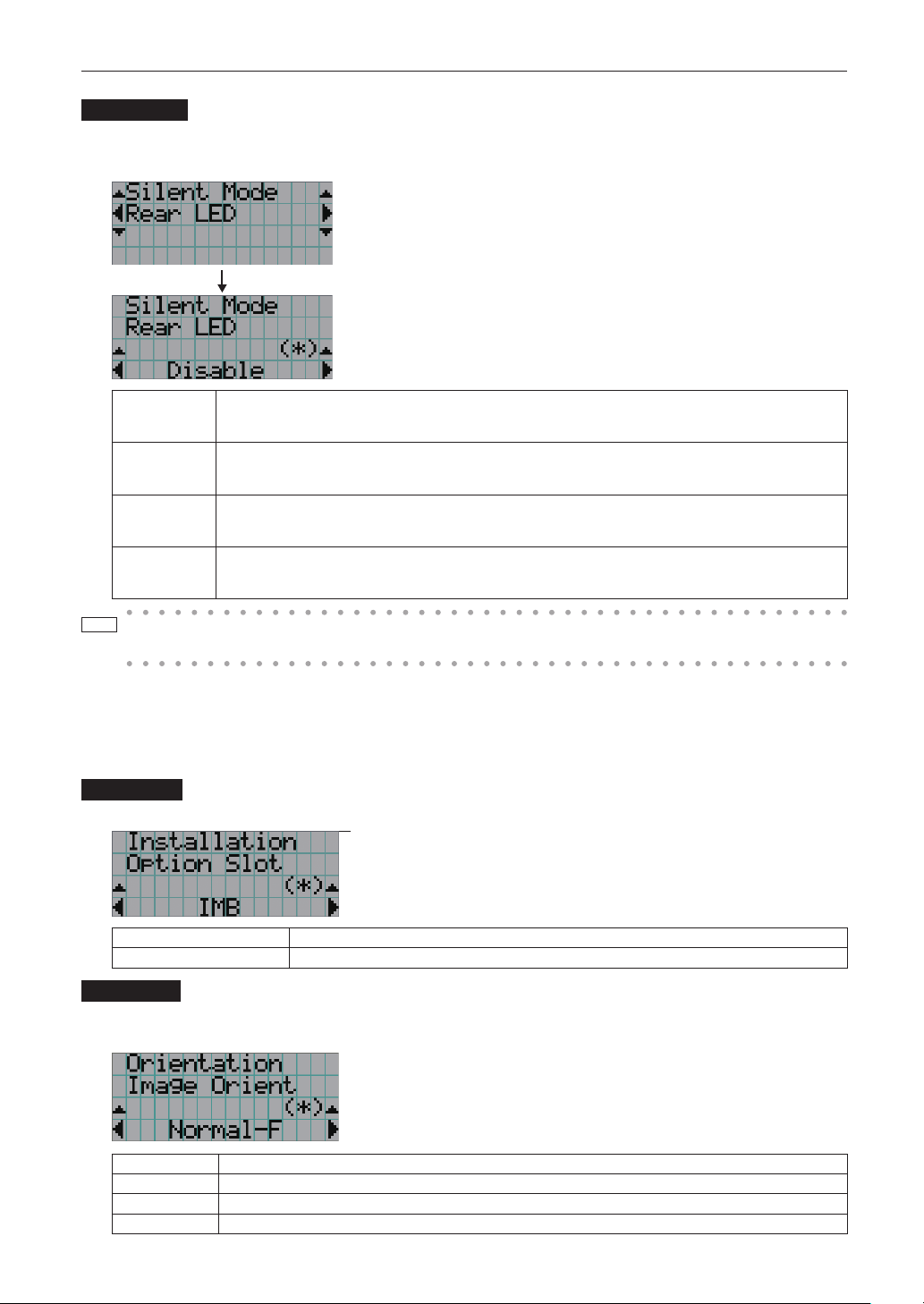

SilentMode

Sets whether the rear (SYSTEM/LIGHT) status indicator, buzzer, indicators on the projector’s control panel, illumination, and LCD

screen backlight are enabled or disabled.

← Selects the item.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Rear LED Sets whether to use or not use the rear (SYSTEM/LIGHT) status indicator.

Enable: Use

Disable: Not use (the rear (SYSTEM/LIGHT) status indicator does not light up)

Buzzer Sets whether to use or not use the buzzer.

Enable: Use

Disable: Not use (the buzzer does not sound)

Control Button Sets whether to use or not use the indicators on the projector’s control panel.

Enable: Use

Disable: Not use (the LED next to the buttons do not light up)

LCD-Backlight Sets whether to use or not use the illumination and LCD screen backlight on the projector’s control panel.

Enable: Use

Disable: Not use (turns off the illumination and LCD screen backlight on the projector’s control panel)

TIP

When LCD Backlight is set to Disable, you can change the setting to Enable by long-pressing (3 seconds or more)

the EXIT button and UP button.

4-3-5. Installation

This menu is the service personnel menu. For the using service personnel menu, refer to “4-1-1. When You Use the Service Person-

nel Menu” (page 121).

OptionSlot

Configures the devices mounted in slot. This menu is active in standby mode only.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

IMB Media block (NP-90MS01/NP-90MS02)

No Board No device mounted

Orientation

Set the projection method (Image Orient) to match the installation conditions of the projector and screen. Furthermore, set the cool-

ing fan operation (Fan Tilt Setting) to match the installation conditions of the projector.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Normal-F Front projection. With the projector installed on the pedestal, projection is executed from the front of the screen.

Normal-R Rear projection. With the projector installed on the pedestal, projection is executed from the back of the screen.

UpsideDown-F Ceiling front projection. With the projector installed on the ceiling, projection is executed from the front of the screen.

UpsideDown-R Ceiling rear projection. With the projector installed on the ceiling, projection is executed from the back of the screen.

129

LCD Menu

LensType

Sets the type of lens (supports or does not support the lens memory function) attached to the projector.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

With Sensor

Selected when using a lens unit that supports the lens memory function (default value).

Without Sensor Selected when using a lens unit that does not support the lens memory function.

LensCalibrate

Performs calibration on lenses that support the lens memory function. Once you have attached a lens that supports the lens memory

function, always execute calibration. This menu item is available only when the projector power is turned on.

← Press the ENTER button to execute calibration.

All Calibrates the Zoom, the Focus, and the Lens Shift.

Zoom&Focus Calibrates the Zoom and the Focus.

Shift(H&V)

Calibrates the Lens Shift.

LensCenter

Shifts the lens position at the center. The center position may slightly shift depending upon mounting conditions of the lens. This

menu item is available only when the projector power is turned on and you are logged into the projector with Advanced User or

higher privileges.

← Press the ENTER button to execute moving.

Baudrate

To select the transmission speed (bps) for your projector (SYSTEM) and a PC when they are connected by a commercially available

RS-232C straight cable. Select one from 4800, 9600, 19200, 38400, 57600 and 115200. Select the transfer speed corresponding

to the speed of the connected devices.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

130

LCD Menu

Date/Time

Use this to set the date and time on the projector.

The internal clock in the projector uses coordinated universal time (UTC). This sets the time difference between the standard time

in your region and UTC.

← Displays the currently setting with asterisk (*).

← Sets the time difference between the standard time in your region and UTC.

Press the ENTER button to check the time difference between the built-in projector clock

and UTC.

TIP

When IMB is used, the date and time of IMB are automatically used as the date and time of the projector (UTC).

When IMB is not used, the use of DCC allows you to easily set the date and time of the projector by reading the date

and time of the computer where DCC is installed.

To set the local time after selecting the Coordinated Universal Time as the date and time of the projector, use [Date/

Time], or use DCC. Refer to “Digital Cinema Communicator v2 Installation Manual” for details.

FanSpeedMode

It adjusts the rotation speed of the internal cooling fan.

← Displays the currently selected item with asterisk (*).

← Displays the setting.

Auto The fan rotates at the optimal speed according to the temperature sensor inside the projector.

High Speed The fan always rotates at high speed.

Hight Altitude Select the function when using the projector at an altitude of 1600 m (5250 ft.) or higher such as a

place where atmospheric pressure is low. The fan always rotates at high speed.

NOTE

It is recommended that you select “High Speed” if you use the projector non-stop for consecutive days.

Service

Use buttons on the control panel of the projector to display the serviceman menu, which you can use after logging in with Service

privilege.

[SDTClear]

The password input screen to clear Service Door Tamper is displayed.

← Pressing the ENTER button displays the password input screen.

← Enter the password.

131

LCD Menu

[SensorCalibration]

When installing the projector, measure the initial brightness of the light source and save the measured value into the projector.

Once it is saved, it is used as reference to display the current brightness as a percentage.

This function can be used when the projector is on standby.

Use this function only if necessary.

*The screen is an example of the screen of NC3541L.

← Pressing the ENTER button executes this function.

[S/NMaintenance]

Use the function to maintain the projector serial number when replacing a board in the projector during maintenance, etc.

This menu can be used only during standby.

← Pressing the ENTER button executes this function.

[PWBReplace]

Use the function to maintain the data of the projector after replacing a board in the projector during maintenance, etc.

This menu can be used only during standby.

For details, refer to the service manual.

OPT MCU Use the function when replacing the OPT MCU board.

LD IF Use the function when replacing the LD IF board.

LU Info Use the function when replacing the LU Info board.

[LUReplace]

Use the function to maintain various data of the projector and the light module after replacing the light module.

This menu can be used only during standby. For details, refer to the service manual.

[LDCalibration]

Calibrate the light source to save light source adjustment data into the projector.

This function can be used only when the projector is on standby.

Use this function only if necessary.

← Pressing the ENTER button executes this function.

132

LCD Menu

[CGAdj.]

Use the function to adjust CG.

This menu can be used only during standby

On the confirmation screen shown by pressing the ENTER button, selecting “Yes” and pressing the ENTER button automatically

starts up the projector to project an image for the CG adjustment. During the use of this function, the pattern cannot be changed.

[ShadowAdj.]

Use the function to adjust shadow. This menu can be used only during standby.

On the confirmation screen shown by pressing the ENTER button, selecting “Yes” and pressing the ENTER button automatically

starts up the projector to project an entirely white image. During the use of this function, the output of the light source cannot be

adjusted (Light Setup).

← Pressing the ENTER button executes this function.

[LensMountAdj.]

Use the function to adjust the lens mount (focus balance adjustment).

This menu can be used only during standby.

On the confirmation screen shown by pressing the ENTER button, selecting “Yes” and pressing the ENTER button automatically

starts up the projector to project a green cross-hatching image. During the use of this function, the output of the light source cannot

be adjusted (Light Setup).

← Pressing the ENTER button executes this function.

[Demo]

Use the function to switch to the special mode to increase the contrast ratio.

If you wish to use the function, consult your dealer.

[USBMaint]

Use the function to install software or data for the projector by using the USB flash drive in which a release package for updating

the projector or a backup file for the projector is saved. For details, refer to the service manual.

← Pressing the ENTER button executes this function.

133

LCD Menu

4-3-6. Memory

This menu is the service personnel menu. For the using service personnel menu, refer to “4-1-1. When You Use the Service Person-

nel Menu” (page 121).

The selected lens memory (lens adjustment value) and the content of the light memory (light output power value) can be overwritten

with the current settings. Press the LEFT/RIGHT buttons to select the light memory or the lens memory then press the “ENTER”

button to display the confirmation screen. Select “Yes” in the confirmation screen, and then press the ENTER button. The selected

memory (light memory or lens memory) is overwritten with the current settings.

NOTE

Lens memory and light memory cannot be newly registered. Use DCC to register the lens memory and light memory

in advance. Refer to “Digital Cinema Communicator v2 Installation Manual” for details registering the lens memory and

light memory.

←

Select the light memory or lens memory.

←

Select the memory name of the setting to overwrite and press the ENTER button to display

the confirmation screen.

Light Select to change the values of the light memory settings.

Lens Select to change the values of the lens memory settings.

134

LCD Menu

4-4. Title Setup

This menu is the service personnel menu. For the using service personnel menu, refer to “4-1-1. When You Use the Service Person-

nel Menu” (page 121).

4-4-1. Preset Button

Use this button to set the titles to be assigned to the preset buttons (<1> to <8> buttons).

You cannot assign the same title to several preset buttons. If you want to assign any title to another number, cancel the assignment

once and then set it to any button again.

The “Preset Button 1 to Preset Button 8” settings correspond to buttons <1> to <8> on the control panel. To select the titles allo-

cated to “Preset Button 9 to Preset Button 16”, press the <1> to <8> button while holding down the <Up> button on the control

panel.

← Select the preset button number (1 to 16).

← Display the selected number of the title.

←

Select the titles to be assigned to the preset buttons.

Select the titles from those registered in advance.

To clear assignment to preset buttons, select “---”.

135

LCD Menu

4-5. Information

Displays information relating to the light source, the usage time of the projector, the version information and error codes.

4-5-1. Light

Displays the light source information.

← Displays the current setting (%).

Output Displays the output setting value (%).

Models Displays the model name of the light module

S/N Displays the serial number of the light module.

4-5-2. Lens Type

Displays the specified lens type.

4-5-3. Preset Button

Displays the titles assigned to the preset buttons (<1> to <8> buttons) on the projector’s control panel.

← Selects the preset button number whose contents you want to display.

← Displays the assigned title numbers.

← Displays the registered names of the assigned titles.

TIP

To select a title allocated to one of “Preset Button 9” to “Preset Button 16”, press the preset button while holding

down the UP button. For example, to select the title allocated to “Preset Button9”, press the <1> button while holding

down the UP button.

136

LCD Menu

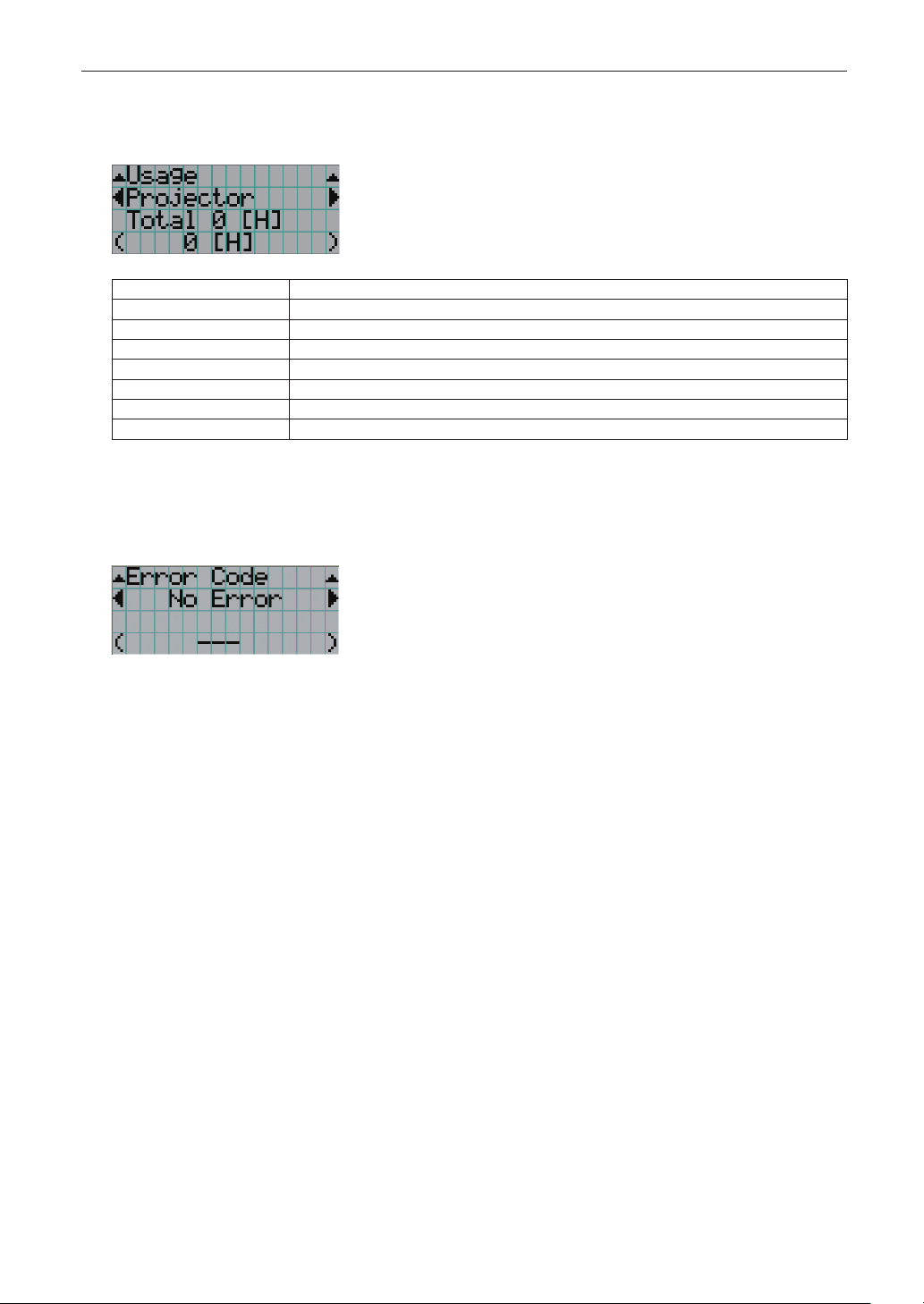

4-5-4. Usage

Displays information related to the projector usage, such as the usage time of the projector, light source, air filters, and fan.

← Selects the item to display.

← Displays information about the selected item.

Projector Displays the usage time of the projector.

Filter Cleaning Displays the usage time of the air filters (for confirming the filter cleaning time).

Fan Usage Displays the usage time of the fan.

Light Usage Displays the usage time of the light source.

Phosphor Displays the usage time of the phosphor.

Diffuser Displays the usage time of the diffuser.

Pump Displays the usage time of the pump.

Douser count Resets the number of times the douser has been used.

4-5-5. Error Code

Displays the error code when an error occurs. See the “Error Code List” in the Appendix for details on error codes. When multiple

errors occur, you can display them by pressing the LEFT/RIGHT buttons.

← Displays the code of the error currently occurring.

← Displays the name of the error currently occurring.

137

LCD Menu

4-5-6. Version

Displays the version information about the projector, optional boards and IMB.

System

Displays the version information of the projector.

← Selects the item to display.

← Displays the version information.

Display items are as follows.

・Model ・Slave Firmware

・Serial No. ・Opt MCUFirmware

・Release Package ・LD Interface

・Kernel ・LD Driver1

・U-Boot ・LD Driver2

・System Files ・LD Driver3

・CinemaFirmware ・LD Driver4

・Cinema Data ・LD Driver5

・ICP Firmware ・LD Driver6

・ICP ConfigFile ・LD Driver7

・FMT FPGA ・LD Driver8

・Secure Processor ・Lens Firmware

・Slave BIOS

IMB

Displays the vendor name and version information about the media block (IMB). When the projector is in standby mode, the vendor

name is blank and the version information displays “---”. Displays “Not Use” when IMB is not mounted to the projector.

← Displays the vendor name.

← Displays the version information.

* When the NP-90MS01/NP-90MS02 is mounted, the vendor name displays “IMS”.

4-5-7. IP Address

Displays the IP address set in the projector.

← Displays the IP address.

System Displays the IP address set for the projector (System).

138

LCD Menu

4-5-8. Setup Date

Displays the date when the projector was setup (starting date of the warranty period).

The setup date is configured by using DCC. Refer to “Digital Cinema Communicator v2 Installation Manual” for details.

← Displays the date when the projector was set up (starting date of the warranty period).

4-5-9. Option Status

Displays the link status of the device mounted in slot on the projector. The device name is displayed in ( ) when the projector is in

standby or when connection to the device cannot be confirmed.

← Displays the link status of the device in slot.

 •NP-90MS:NP-90MS01/NP-90MS02

 •<VendorName>IMB:Mediablock

 •NoBoard:Nodevicemounted

139

5. Appendix

5-1.

List of Registered Titles (when shipped from the factory)

Preset

Button

Title

Number

TITLE NAME INPUT

FILES

PCF

3D File SCREEN MCGD

FILE NAME

SOURCE TCGD

Input Size

(HxV)

Aspect

Ratio

SAME FILE NAME

Tolerance

Box

White

Clip

1 001 IMS Auto IMB DCDM_XYZ_Auto 0x0 0 DC28_DCI_XYZE_314_351 Not Use Use Disable 2048x1080 No Crop M10I

2 002 IMS 185 IMB DCDM_XYZ_185 1998x1080 0 DC28_DCI_XYZE_314_351 Not Use Use Disable 2048x1080 No Crop M10I

3 003 IMS 239 IMB DCDM_XYZ_239 2048x858 0 DC28_DCI_XYZE_314_351 Not Use Use Disable 2048x1080 No Crop M10I

140

Appendix

5-2. Error Code List

Please inquire your dealer/distributor about action to be taken for each error code.

Error Code Error message Description

4 GPSU Fail Power supply is abnormal.

5 Light Unlit The light source is not on.

12 EEPROM R Fail E2PROM data read error.

13 Interlock Interlock is activated.

15 EEPROM W Fail E2PROM data write error.

120 DLP Ack Fail Cinema circuit operation fail.

121 Lens Fail Lens unit control error.

125 LPS Fail Light Power Supply Switch is turned off.

Light Power Supply Voltage is abnormal.

139 ICP PowerOn Fail Cinema circuit system startup fail.

141 DLP CommE Fail Communication errror with cinema circuit.

165 GPI MACRO(n) Selection Invalid Selection of preset button (n) through GPI is invalid because metadata is

enabled.

* This message would be shown on Log, not on LCD.

166 GPI Control Invalid Projector control through GPI is invalid because projector is busy.

* This message would be shown on Log, not on LCD.

174 LU Not Found Light unit install switch is open

177 Tamper Fail Projector service door tamper switch is open.

178 Marriage Tamper Fail Projector marriage tamper switch is open.

190 The Validity has expired. The time limit for use of the projector has expired.

* In cases when the validity setting has been configured with the projector.

191 Different SN There is a mismtach in the serial number of the main unit internally saved on

the projector.

192 Model Code Mismatch There is a mismtach in the model code of the main unit internally saved on

the projector.

195 Exec LD CAL Need to execute LD Calibration.

196 Exec SENS CAL Need to execute Sensor Calibration.

271 IMB:SD Tamper Terminate IMB service door tamper termination is executed.

* This message will not show on LCD.

305 Key Error Projector private key error.

306 Certificate Error Projector certificate error.

329 Sequence Data File Mismatch Cinema circuit status error.

330 FMT DMD Data File Mismatch Cinema circuit status error.

331 Flash Checksum Error - Sequence Data Cinema circuit status error.

332 FMT Flash Checksum Error - DMD Data Cinema circuit status error.

333 Satellite Hardware Mismatch Cinema circuit status error.

335 Red Satellite Reports Reset Cinema circuit status error.

336 Red Satellite Serial Link Error Cinema circuit status error.

337 Red Satellite Firmware Configuration Error Cinema circuit status error.

338 Red DAD1000 Bias Under Voltage Error Cinema circuit status error.

339 Red DAD1000 Reset Under Voltage Error Cinema circuit status error.

340 Red DAD1000 Offset Under Voltage Error Cinema circuit status error.

341 Red DAD1000 Thermal Shutdown Error Cinema circuit status error.

342 Green Satellite Reports Reset Cinema circuit status error.

343 Green Satellite Serial Link Error Cinema circuit status error.

344 Green Satellite Firmware Configuration Error Cinema circuit status error.

345 Green DAD1000 Bias Under Voltage Error Cinema circuit status error.

346 Green DAD1000 Reset Under Voltage Error Cinema circuit status error.

141

Appendix

Error Code Error message Description

347 Green DAD1000 Offset Under Voltage Error Cinema circuit status error.

348 Green DAD1000 Thermal Shutdown Error Cinema circuit status error.

349 Blue Satellite Reports Reset Cinema circuit status error.

350 Blue Satellite Serial Link Error Cinema circuit status error.

351 Blue Satellite Firmware Configuration Error Cinema circuit status error.

352 Blue DAD1000 Bias Under Voltage Error Cinema circuit status error.

353 Blue DAD1000 Reset Under Voltage Error Cinema circuit status error.

354 Blue DAD1000 Offset Under Voltage Error Cinema circuit status error.

355 Blue DAD1000 Thermal Shutdown Error Cinema circuit status error.

370 ICP Frame Memory Test Result Fail Cinema circuit status error.

372 ICP Data Path Signature Test Result Fail Cinema circuit status error.

380 DRS Error(Low Battery) Projector battery is low.

* When this error has occurred, IMB can not Marriage with the projector.

* After this error has occurred, Integrity Error will occur when you turn on

the power again.

381 SEC No Battery Cinema circuit status error.

* When this error has occurred, IMB can not Marriage with the projector.

* After this error has occurred, Integrity Error may occur when you turn on

the power again.

500 IMB Comm Fail Communication error with the IMB.

510 IMB:System Error IMB Status error.

511 IMB:Self Test Error IMB Status error.

519 IMB:Certificate or Key Error IMB certificate or private key error.

520 IMB:ICP Communications Status IMB can not connect the projector for logical marriage.

537 IMB:RTC Error IMB Status error.

542 IMB:FPGA Configuration Error IMB Status error.

543 IMB:FPGA Temperature out of range IMB Status error.

550 IMB:Supply voltage out of range IMB Status error.

574 IMB:Security Tamper Security tamper event exists in IMB.

577 IMB:Security Battery Event Battery tamper event exists in IMB.

581 IMB:Security Enclosure Not Armed IMB security not armed.

582 IMB:Physical Marriage Tamper Physical marriage tamper event exists in IMB.

583 IMB:Logical Marriage Tamper Logical marriage tamper event exists in IMB.

584 IMB:Marriage NOT Active IMB does not marriage with the projector yet.

586 IMB:Service Door Tamper Service door tamper event exists in IMB.

588 IMB:Security Battery Low Warning Reaching to “(577) IMB: Security Battery Event”.

700 OPT Comm Fail Communication error with the OPT CPU.

701 OPT Status Fail OPT MCU is in unexpected status.

703 OPT Comm Ack Fail OPT MCU fails to execute the command.

783 OPT-EEPROM Fail OPT-E2PROM access error.

786 PreCooling Fail Failed to precool during light on process.

791 FanInitError Failed to initialize fans.

792 ExGpio Fail Failed to control GPIO expander.

793 Notch Kit Error Notch Kit installed switch is opend.

913 TiltDegreeOver Projector tilt degree is abnormal.

914 LowerTemp Projector ambient temperature is low. ( < -10degC )

982 ColorSensorFail Color sensor in projector head is failed.

984 GSensorError Failed to control G-sensor.

985 LD CommError Failed to communicate with LD IF MCU.

994 LD IF Reports Reset LD IF MCU has been reset.

1000 Slave Comm Fail Communication error with the Slave CPU.

1003 Slave Ack Fail Slave CPU command executioon fail.

1004 Slave Not Ready Slave CPU is not ready.

142

Appendix

Error Code Error message Description

1005 Slave No Notify No message from Slave CPU to notify the command completion.

1111 Filter-Side(L) Cleaning Time The time to clean air filter.

1112 Filter-Side(R) Cleaning Time The time to clean air filter.

1113 Filter-Top(L) Cleaning Time The time to clean air filter.

1114 Filter-Top(R) Cleaning Time The time to clean air filter.

1115 Filter-Top(F) Cleaning Time The time to clean air filter.

1200 Fan-ENG-IN1 Stop Fan stop.

1201 Fan-ENG-IN2 Stop Fan stop.

1202 Fan-RAD(PRSM)1 Stop Fan stop.

1203 Fan-RAD(PRSM)2 Stop Fan stop.

1204 Fan-RAD(BANK)1 Stop Fan stop.

1205 Fan-RAD(BANK)2 Stop Fan stop.

1206 Fan-RAD(BANK)3 Stop Fan stop.

1207 Fan-RAD(BANK)4 Stop Fan stop.

1208 Fan-RAD(BANK)5 Stop Fan stop.

1209 Fan-RAD(BANK)6 Stop Fan stop.

1210 Fan-PRISM3 Fan stop.

1212 Fan-OFFLIGHT(PRISM) Stop Fan stop.

1213 Fan-PRISM1 Stop Fan stop.

1214 Fan-PRISM2 Stop Fan stop.

1215 Fan-PW-OUT1 Stop Fan stop.

1216 Fan-PW-OUT2 Stop Fan stop.

1217 Fan-PW-IN1 Stop Fan stop.

1218 Fan-PW-IN2 Stop Fan stop.

1219 Fan-PW-IN3 Stop Fan stop.

1220 Fan-PW-IN4 Stop Fan stop.

1221 Fan-LD-EX1 Stop Fan stop.

1222 Fan-LD-EX2 Stop Fan stop.

1223 Fan-LD-MID1 Stop Fan stop.

1224 Fan-LD-MID2 Stop Fan stop.

1225 Fan-LD-IN1 Stop Fan stop.

1226 Fan-LD-IN2 Stop Fan stop.

1227 Fan-PWR Stop Fan stop.

1228 Fan-ELE1 Stop Fan stop.

1229 Fan-ELE2 Stop Fan stop.

1230 Fan-ELE3 Stop Fan stop.

1231 Fan-ELE4 Stop Fan stop.

1232 Fan-RAD(R)1 Stop Fan stop.

1233 Fan-RAD(R)2 Stop Fan stop.

1234 Fan-RAD(R)3 Stop Fan stop.

1235 Fan-RAD(R)4 Stop Fan stop.

1236 Fan-RAD(R)5 Stop Fan stop.

1237 Fan-RAD(R)6 Stop Fan stop.

1238 Fan-RAD(R)7 Stop

Fan stop.

1239 Fan-RAD(R)8 Stop Fan stop.

1240 Fan-ENG-IN3 Stop Fan stop.

1241 Fan-ENG-IN4 Stop Fan stop.

1242 Fan-RAD(PRISM)3 Stop Fan stop.

1243 Fan-RAD(PRISM)4 Stop Fan stop.

1244 Fan-ELE-FR Stop Fan stop.

1250 PW1 Stop Phosphor Wheel has stopped.

1251 DF1 Motor Stop Diffuser Motor has stopped.

143

Appendix

Error Code Error message Description

1252 PW2 Stop Phosphor Wheel has stopped.

1253 DF2 Motor Stop Diffuser Motor has stopped.

1262 Pump-PRISM Stop Pump error.

1263 Pump-BANK-U Stop Pump error.

1264 Pump-BANK-D Stop Pump error.

1265 Pump-RLCS Stop Pump error.

1300 OverTemp.INTAKE Set inside temperature is abnormal.

1301 OverTemp.LD1-B Set inside temperature is abnormal.

1302 OverTemp.LD1-Y1 Set inside temperature is abnormal.

1303 OverTemp.LD1-Y2 Set inside temperature is abnormal.

1304 OverTemp.LD1-Y3 Set inside temperature is abnormal.

1305 OverTemp.LD1-Y4 Set inside temperature is abnormal.

1306 OverTemp.LD2-B Set inside temperature is abnormal.

1307 OverTemp.LD2-Y1 Set inside temperature is abnormal.

1308 OverTemp.LD2-Y2 Set inside temperature is abnormal.

1309 OverTemp.LD2-Y3 Set inside temperature is abnormal.

1310 OverTemp.LD2-Y4 Set inside temperature is abnormal.

1311 OverTemp.PW1 Set inside temperature is abnormal.

1312 OverTemp.LD1-R Set inside temperature is abnormal.

1313 OverTemp.LD2-R Set inside temperature is abnormal.

1314 OverTemp.PW2 Set inside temperature is abnormal.

1319 OverTemp.DMD-R Set inside temperature is abnormal.

1320 OverTemp.DMD-G Set inside temperature is abnormal.

1321 OverTemp.DMD-B Set inside temperature is abnormal.

1322 OverTemp.FIP AIR Set inside temperature is abnormal.

1400 OverTemp.INTAKE Precaution Set inside temperature is close to over temperature.

1401 OverTemp.LD1-B Precaution Set inside temperature is close to over temperature.

1402 OverTemp.LD1-Y1 Precaution Set inside temperature is close to over temperature.

1403 OverTemp.LD1-Y2 Precaution Set inside temperature is close to over temperature.

1404 OverTemp.LD1-Y3 Precaution Set inside temperature is close to over temperature.

1405 OverTemp.LD1-Y4 Precaution Set inside temperature is close to over temperature.

1406 OverTemp.LD2-B Precaution Set inside temperature is close to over temperature.

1407 OverTemp.LD2-Y1 Precaution Set inside temperature is close to over temperature.

1408 OverTemp.LD2-Y2 Precaution Set inside temperature is close to over temperature.

1409 OverTemp.LD2-Y3 Precaution Set inside temperature is close to over temperature.

1410 OverTemp.LD2-Y4 Precaution Set inside temperature is close to over temperature.

1411 OverTemp.PW1 Precaution Set inside temperature is close to over temperature.

1412 OverTemp.LD1-R Precaution Set inside temperature is close to over temperature.

1413 OverTemp.LD2-R Precaution Set inside temperature is close to over temperature.

1414 OverTemp.PW2 Precaution Set inside temperature is close to over temperature.

1419 OverTemp.DMD-R Precaution Set inside temperature is close to over temperature.

1420 OverTemp.DMD-G Precaution Set inside temperature is close to over temperature.

1421 OverTemp.DMD-B Precaution Set inside temperature is close to over temperature.

1422 OverTemp.FIP AIR Precaution

Set inside temperature is close to over temperature.

1500 P3P3V SAT PGOOD Fail Abnormal voltage.

1501 P2P5V SAT PGOOD Fail Abnormal voltage.

1502 XVT PGOOD Fail Abnormal voltage.

1503 P2P5V X PGOOD Fail Abnormal voltage.

1504 P1P8V X PGOOD Fail Abnormal voltage.

1505 P1V X PGOOD Fail Abnormal voltage.

1506 FMT FPGA DONE Fail Abnormal voltage.

1528 Lens Install SW Activation Lens Install Switch is open.

144

Appendix

Error Code Error message Description

1600 Fan-ENG-IN1 Precaution Fan Stop Precaution.

1601 Fan-ENG-IN2 Precaution Fan Stop Precaution.

1602 Fan-RAD(PRSM)1 Precaution Fan Stop Precaution.

1603 Fan-RAD(PRSM)2 Precaution Fan Stop Precaution.

1604 Fan-RAD(BANK)1 Precaution Fan Stop Precaution.

1605 Fan-RAD(BANK)2 Precaution Fan Stop Precaution.

1606 Fan-RAD(BANK)3 Precaution Fan Stop Precaution.

1607 Fan-RAD(BANK)4 Precaution Fan Stop Precaution.

1608 Fan-RAD(BANK)5 Precaution Fan Stop Precaution.

1609 Fan-RAD(BANK)6 Precaution Fan Stop Precaution.

1610 Fan-PRISM3 Precaution Fan Stop Precaution.

1612 Fan-OFFLIGHT(PRISM) Precaution Fan Stop Precaution.

1613 Fan-PRISM1 Precaution Fan Stop Precaution.

1614 Fan-PRISM2 Precaution Fan Stop Precaution.

1615 Fan-PW-OUT1 Precaution Fan Stop Precaution.

1616 Fan-PW-OUT2 Precaution Fan Stop Precaution.

1617 Fan-PW-IN1 Precaution Fan Stop Precaution.

1618 Fan-PW-IN2 Precaution Fan Stop Precaution.

1619 Fan-PW-IN3 Precaution Fan Stop Precaution.

1620 Fan-PW-IN4 Precaution Fan Stop Precaution.

1621 Fan-LD-EX1 Precaution Fan Stop Precaution.

1622 Fan-LD-EX2 Precaution Fan Stop Precaution.

1623 Fan-LD-MID1 Precaution Fan Stop Precaution.

1624 Fan-LD-MID2 Precaution Fan Stop Precaution.

1625 Fan-LD-IN1 Precaution Fan Stop Precaution.

1626 Fan-LD-IN2 Precaution Fan Stop Precaution.

1627 Fan-PWR Precaution Fan Stop Precaution.

1628 Fan-ELE1 Precaution Fan Stop Precaution.

1629 Fan-ELE2 Precaution Fan Stop Precaution.

1630 Fan-ELE3 Precaution Fan Stop Precaution.

1631 Fan-ELE4 Precaution Fan Stop Precaution.

1632 Fan-RAD(R)1 Precaution Fan Stop Precaution.

1633 Fan-RAD(R)2 Precaution Fan Stop Precaution.

1634 Fan-RAD(R)3 Precaution Fan Stop Precaution.

1635 Fan-RAD(R)4 Precaution Fan Stop Precaution.

1636 Fan-RAD(R)5 Precaution Fan Stop Precaution.

1637 Fan-RAD(R)6 Precaution Fan Stop Precaution.

1638 Fan-RAD(R)7 Precaution Fan Stop Precaution.

1639 Fan-RAD(R)8 Precaution Fan Stop Precaution.

1640 Fan-ENG-IN3 Precaution Fan Stop Precaution.

1641 Fan-ENG-IN4 Precaution Fan Stop Precaution.

1642 Fan-RAD(PRISM)3 Precaution Fan Stop Precaution.

1643 Fan-RAD(PRISM)4 Precaution Fan Stop Precaution.

1644 Fan-ELE-FR Precaution

Fan Stop Precaution.

1650 PW1 Precaution Phosphor Wheel Stop Precaution.

1652 PW2 Precaution Phosphor Wheel Stop Precaution.

1662 Pump-PRISM Precaution Pump Stop Precaution.

1663 Pump-BANK-U Precaution Pump Stop Precaution.

1664 Pump-BANK-D Precaution Pump Stop Precaution.

1665 Pump-RLCS Precaution Pump Stop Precaution.

1700 SensorFail INTAKE Temperature sensor read error.

1701 SensorFail LD1-B Temperature sensor read error.

145

Appendix

Error Code Error message Description

1702 SensorFail LD1-Y1 Temperature sensor read error.

1703 SensorFail LD1-Y2 Temperature sensor read error.

1704 SensorFail LD1-Y3 Temperature sensor read error.

1705 SensorFail LD1-Y4 Temperature sensor read error.

1706 SensorFail LD2-B Temperature sensor read error.

1707 SensorFail LD2-Y1 Temperature sensor read error.

1708 SensorFail LD2-Y2 Temperature sensor read error.

1709 SensorFail LD2-Y3 Temperature sensor read error.

1710 SensorFail LD2-Y4 Temperature sensor read error.

1711 SensorFail PW1 Temperature sensor read error.

1712 SensorFail LD1-R Temperature sensor read error.

1713 SensorFail LD2-R Temperature sensor read error.

1714 SensorFail PW2 Temperature sensor read error.

1719 SensorFail DMD-R Temperature sensor read error.

1720 SensorFail DMD-G Temperature sensor read error.

1721 SensorFail DMD-B Temperature sensor read error.

1722 SensorFail FIP AIR Temperature sensor read error.

2000 IntegrityFail Integrity error with the internal software code of the projector.

* When this error has occurred, the projector will not accept any external

demands. Communication with external devices will not be performed

either.

2001 LD Y Stop The light source(Yellow) is not on.

2002 LD B Stop The light source(Blue) is not on.

2004 LD R Stop The light source(Red) is not on.

2010 Incorrect power-off PowerOff was not performed correctly last time.

2015 Douser Open Fail Douser open fail.

2017 Douser Close Fail Douser close fail.

2217 TEC-R Fail TEC(Thermoelectric Cooler) for Red is failed.

2219 TEC-G Fail TEC(Thermoelectric Cooler) for Green is failed.

2221 TEC-B Fail TEC(Thermoelectric Cooler) for Blue is failed.

2280 PW1 OverTemp Light unit over temperature.

2281 PW2 OverTemp Light unit over temperature.

2282 Admin. Key Off The administrator key is turned off.

2283 BANK-U OverTemp Light unit over temperature.

2284 BANK-D OverTemp Light unit over temperature.

2285 RED-U OverTemp Light unit over temperature.

2286 RED-D OverTemp Light unit over temperature.

2301 LU Hardware Mismatch Installed Light Unit id verification is failed.

2302 LU ColorSensor Fail Color sensor in light unit is failed.

2304 OPT-EEPROM Warning PWB maintenance data in EEPROM is precaution.

2305 OPT-EEPROM Comp.Fail PWB maintenance data in EEPROM is mismatch.

2306 OPT-EEPROM Fail PWB maintenance data in EEPROM is critical error.

2400 LU warranty temp over Projector ambient temperature is beyond limitation for LU extend warranty

plan.

2500 LU License has expired LU License is expired.

2501 LU License will expire soon LU License expirired soon.

2502 LU License Auth Error Installed LU License Authentication failed.

2503 LU License Brightness Warning Brightness by guaranteed by LU License is precaution.

2504 LU License Brightness Low Brightness is out of LU License guarantee.

146

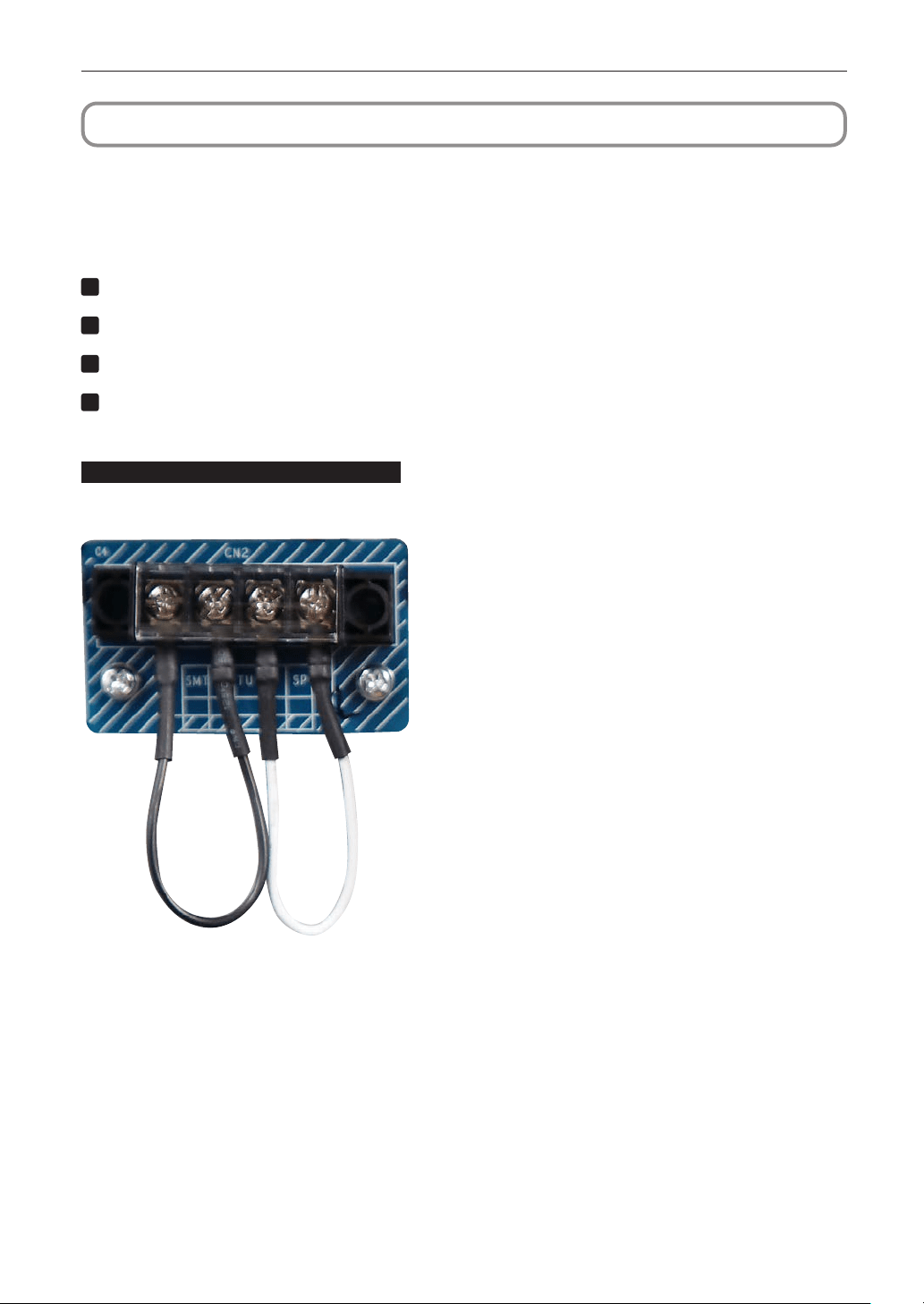

Appendix

5-3.

Remote Interlock Connector

This connector functions as safety device for the projector. The contacts are normally closed. When an abnormality occurs, the

contacts open to immediately stop the projector (interlock state) (shipped with a shorting wire installed). By replacing the shorting

wire with wiring and attaching it to the contacts, the projector can be immediately stopped remotely when an abnormality occurs in

the projector.

Follow the following procedure to recover from the interlock state.

Disconnect the AC power supply to the projector body.

Remove the plate inlet or side panel (page 53).

Connect the contacts to the remote interlock connector and attach the plate inlet or side panel.

Connect the AC power supply to the projector body.

Remote interlock connector (exterior view)

#2 #3 #4

Shorting wire 2

Shorting wire 1

• The remote interlock terminal is equipped on inside of the side cover.

Remove the plate inlet or side panel for connection.

• Securely reinstall the plate inlet or side panel.

147

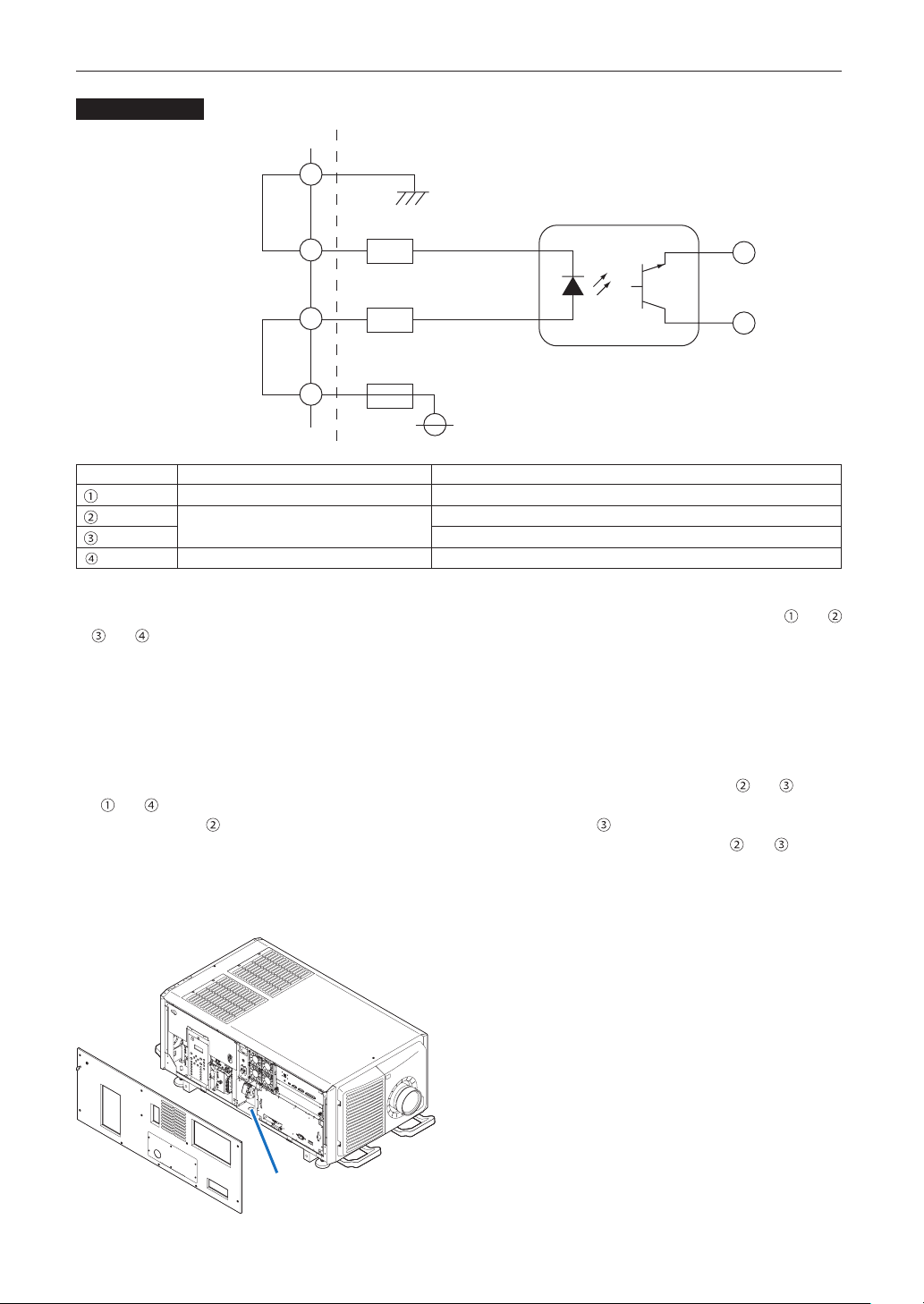

Appendix

Circuit diagram

Shorting wire 1

Shorting wire 2

Interlock connector Inside projector

390Ω/0.5W resistor

GND

1A fuse

VCC +5V

Photocoupler

Connector no. Photocoupler ON/OFF Description

— +5V supply

ON/OFF Connects to the photocoupler anode inside the projector

Connects to the photocoupler cathode inside the projector

— Ground

• Whenthelengthofthewiringislessthan5m(approximate)

Remove shorting wire 1 or shorting wire 2 and connect the external contacts (switch) to the projector interlock terminal ( and

or and ) by cable.

- The projector operates normally when the contacts are closed and the system shuts off when the contacts are open.

- A power supply external from the projector is not necessary.

- A maximum of 2 sets of external contacts can be connected. If you are only using a single set of external contacts, connecting

the shorting wire to the interlock terminal you are not using.

- The minimum rating required of the external contacts is 2mA.

• Whenthelengthofthewiringisatleast5m(approximate)

Remove shorting wire 1 and shorting wire 2 and connect the external device to the projector interlock terminals ( and ) (do not

use and ).

- Connect terminal to the positive side of the external device and connect terminal to the negative side.

- The projector operates normally when a voltage in the range of DC5 to 16V is applied between terminals and , and the

system shuts off when the voltage is 0V.

- The minimum rated current required of the external device varies depending on the voltage applied between the terminals by

the external device.

- When feeding the cable out from the projector, feed it so that it passes through the hole on the side face of the projector.

Pull the cable through

here.

148

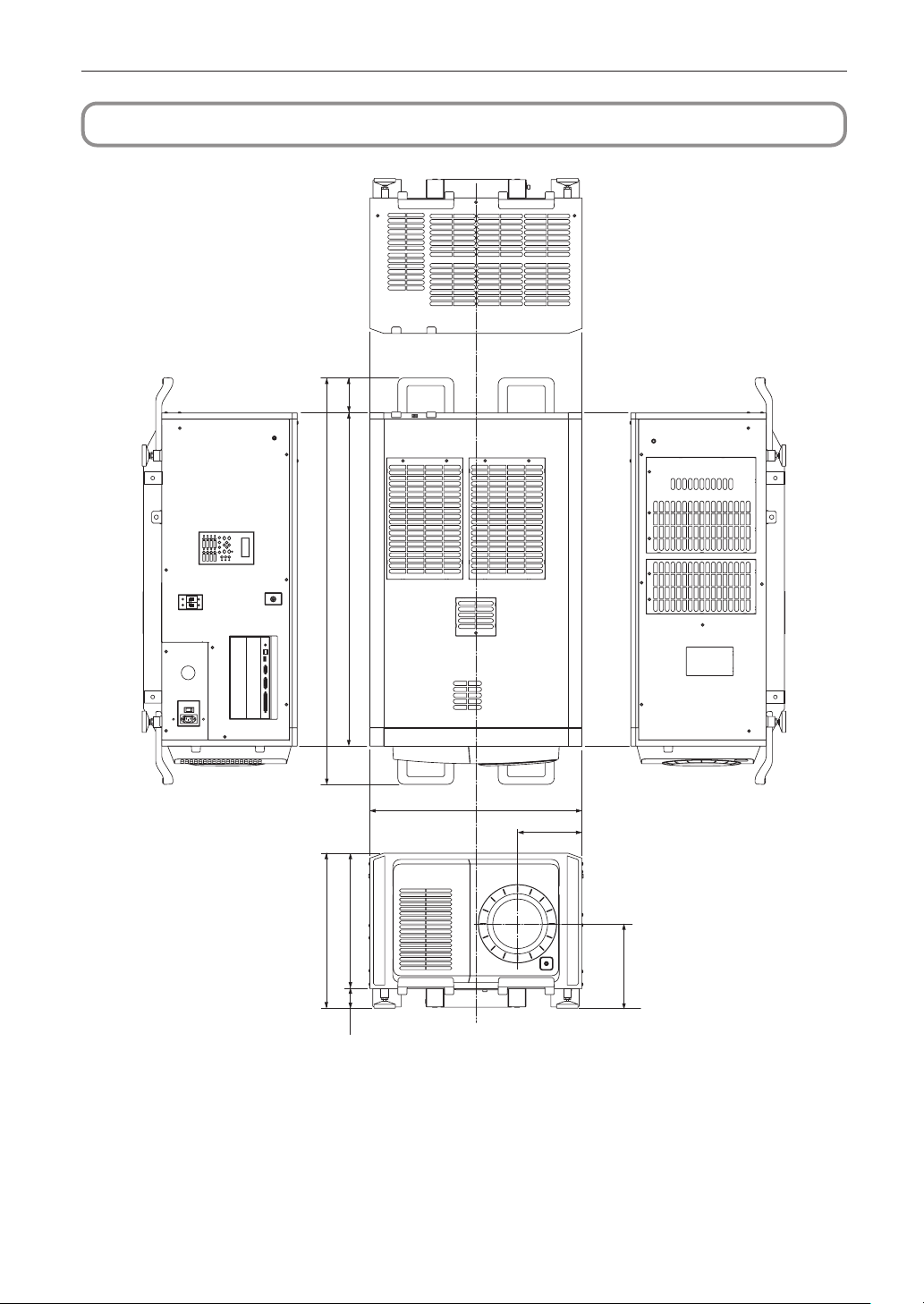

Appendix

5-4. Outline Drawing

NP-02HD

Lens center

697

212

1095

1337

445

509.5

277.4

116

64.5

Units: mm

Ver. 1.0 06/19

NEC NC2402ML 24,000-lumen 2K RB Laser Projector

Product's Documents

Installation Manual

Specifications

NEC NC2402ML Questions and Answers
