PWA201
GPW2000-1
EN
FR
OPERATOR MANUAL
MANUEL DE L’UTILISATEUR
PRESSURE WASHER
LAVEUSE À PRESSION
1 Description......................................... 4
1.1 Purpose.............................................................. 4
1.2 Product overview...............................................4
2 General power tool safety
warnings............................................. 4
2.1 General power tool safety warnings.................. 4
2.2 Ground fault circuit interrupter protection........ 4
2.3 Electrical safety warnings..................................4
2.4 Pressure washer safety warnings....................... 5
2.5 Servicing of a double-insulated appliance.........5
2.6 Extension cords..................................................5
2.7 Child safety........................................................5
3 Symbols on the product.................... 5
4 Risk levels...........................................6
5 Proposition 65.................................... 6
6 Installation......................................... 6
6.1 Electrical connection......................................... 6
6.2 Unpack the machine.......................................... 7
6.3 Install the spray wand........................................ 7
6.4 Install the wheels............................................... 7
6.5 Install the upper handle......................................7
6.6 Install the gun holder......................................... 7
6.7 Install the power cord storage arm.................... 8
6.8 Install the high pressure hose.............................8
7 Operation........................................... 8
7.1 Connect the water supply to the machine..........8
7.2 Use the gun........................................................ 8
7.3 Change the nozzle..............................................9
7.4 Add detergent.....................................................9
7.5 Start the machine............................................. 10
7.6 Stop the machine............................................. 10
8 Maintenance.....................................10
8.1 Nozzle maintenance.........................................10
9 Transportation and storage............ 11
9.1 Move the machine............................................11
9.2 Store the machine.............................................11
10 Troubleshooting............................... 11
11 Technical data..................................12
12 Limited warranty............................ 13

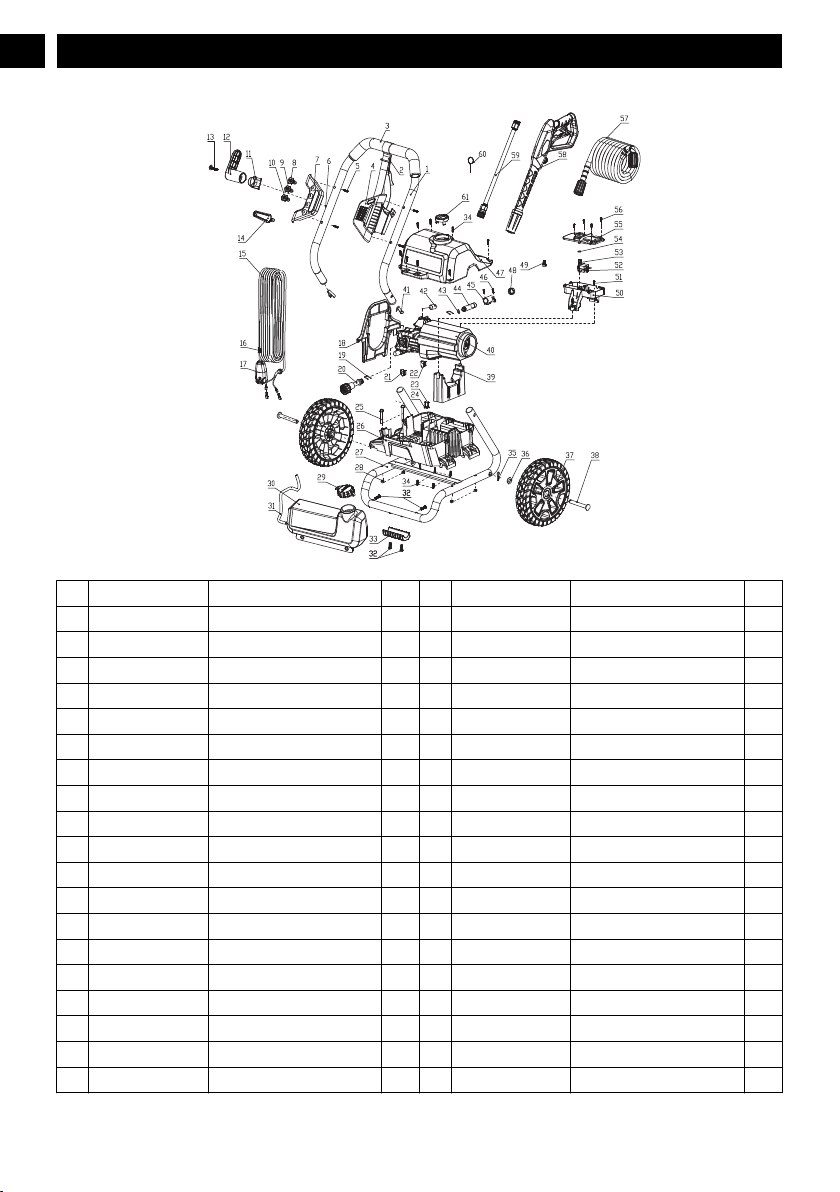

13 Exploded view..................................14
3
English
EN
1 DESCRIPTION
1.1 PURPOSE
The machine is used to used to clean vehicles, boats,
buildings, porches, decks, patios, and driveways.
For domestic use only, not for professional use, and for
operation at temperature above 32°F (0°C).

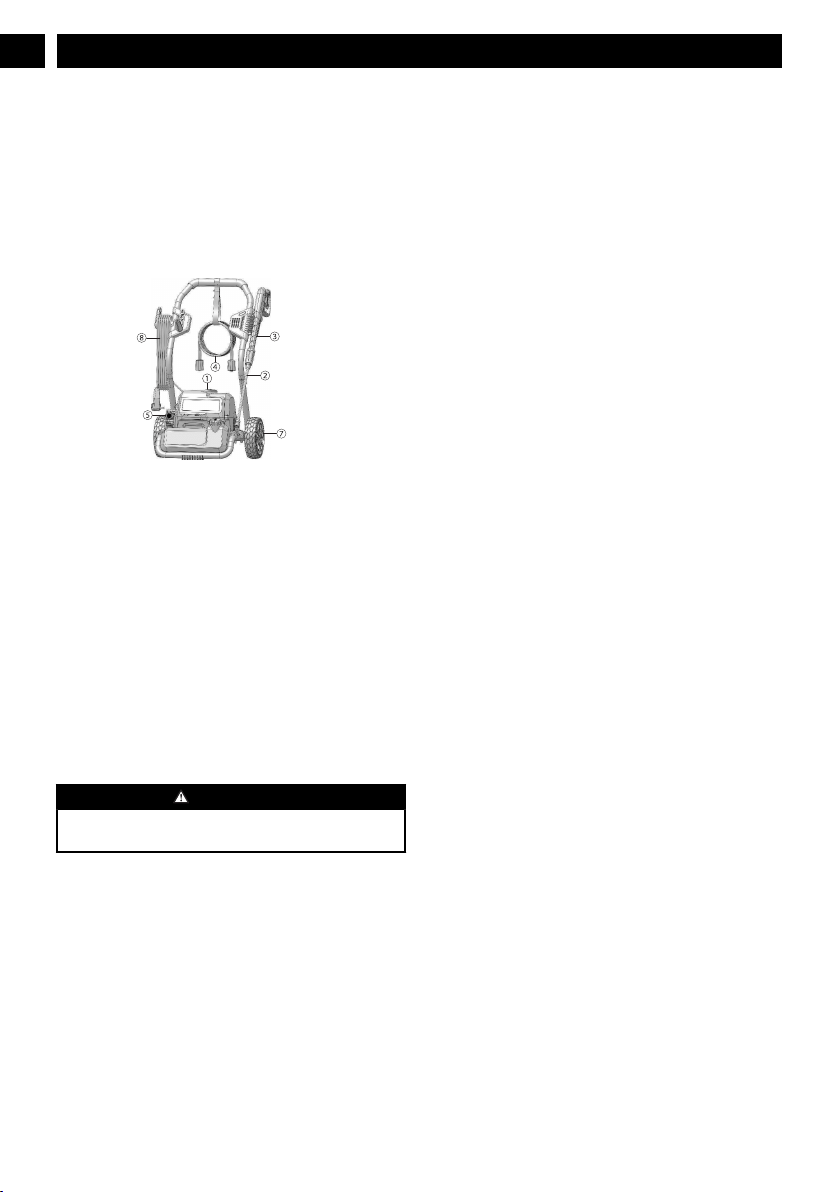

1.2 PRODUCT OVERVIEW
1
Power switch
2
Gun wand
3
Gun
4
High pressure hose
5
Water inlet
6
Water outlet
7
Wheel
8
Power cord
9
Cord retainer
10
Front panel
11
Gun holder
12
Handle lock button
13
Detergent tank
14
Garden hose
15
Inlet coupler
16
High pressure hose
17
Washer
18
Pin
19
Gun trigger
20
Spray tip
21
Spray tip cleaning
tool
22
Drip loop
2 GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
When using this product basic precautions should always be
followed, including the following:
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool.
2.1 GENERAL POWER TOOL SAFETY
WARNINGS
• The machine is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Learn the machine's applications and limitations as well
as the specified potential hazards related to this tool by
studying this manual.
• Never operate the machine with any guard or cover
removed or damaged.
• Do not operate the product while under the influence of
drugs, alcohol, or any medication.
• Do not wear loose clothing, gloves, neckties, or jewelry.
They can get caught and draw you into moving parts.
• Rubber gloves and non-skid footwear are recommended
when working outdoors. Also wear protective hair
covering to contain long hair. Wear footwear that will
protect your feet and improve your grip on slippery
surfaces.
• Don't overreach or stand on unstable support. Keep
proper footing and balance at all times.
• Check the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which
can be thrown or become entangled in the machine.
• Avoid dangerous environments. Don’t expose to rain.
Keep work area well lit.
• Before starting any cleaning operation, close doors and
windows. Clear the area to be cleaned of debris, toys,
outdoor furniture, or other objects that could create a
hazard.
• Don’t use the appliance within range of persons unless
they wear protective clothing.
2.2 GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
This pressure washer is provided with a ground-fault circuit-
interrupter (GFCI) built into the plug of the power-supply
cord. This device provides additional protection from the risk
of electric shock. Should replacement of the plug or cord
become necessary, use only identical replacement parts that
include GFCI protection.
2.3 ELECTRICAL SAFETY
WARNINGS
• Disconnect from the electrical power supply before
carrying out user maintenance.
• Use only extension cords that have watertight
connections and are intended for outdoor use. Use only
extension cords having an electrical rating not less than
the rating of the product. Examine extension cord before
using and replace if damaged. Do not abuse extension
cord and do not pull on any cord to disconnect. Keep cord
away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnecting
the product from the extension cord.
• Do not use the appliance if a supply cord or important
parts of the appliance are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
• Inadequate extension cords can be dangerous.
4
English
EN
• To reduce the risk of electrocution, keep all connections
dry and off the ground. Do not touch plug with wet hands.
• Do not abuse the cord. Never use the cord to carry the
product or to disconnect the plug from an outlet. Keep
cord away from heat, oil, sharp edges, or moving parts.
Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
• Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil or
grease.
2.4 PRESSURE WASHER SAFETY
WARNINGS
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is
necessary when a product is used near children.
• Know how to stop the product and bleed unit pressure
quickly. Be thoroughly familiar with the controls.
• Stay alert – watch what you are doing.
• Do not operate the product when fatigued or under the
influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
• Follow the maintenance instructions specified in the
manual.
• This product is provided with a ground fault circuit
interrupter built into the power cord plug. if replacement
of the plug or cord is needed, use only identical
replacement parts.
• Risk of injection or injury– Do not direct discharge
stream at persons.
• Keep the motor away from flammables and other
hazardous materials.
• Keep product dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake
fluids, gasoline, petroleum-based products, or any
solvents to clean product.
WARNING
To reduce the risk of electrocution, keep all connections dry
and off the ground. Do not touch plug with wet hands.
2.5 SERVICING OF A DOUBLE-
INSULATED APPLIANCE
• In a double-insulated product, two systems of insulation
are provided instead of grounding. No grounding means
is provided on a double-insulated product, nor should a
means for grounding be added to the product. Servicing a
double-insulated product requires extreme care and
knowledge of the system, and should be done only by
qualified service personnel. Replacement parts for a
double-insulated product must be identical to the parts
they replace. A doubleinsulated product is marked with
the words “DOUBLE INSULATION” or “DOUBLE
INSULATED.”
2.6 EXTENSION CORDS
• Use only extension cords that are intended for outdoor
use. These extension cords are identified by a marking
“Acceptable for use with outdoor appliances; store
indoors while not in use.” Use only extension cords
having an electrical rating not less than the rating of the
product. Do not use damaged extension cords. Examine
extension cord before using and replace if damaged. Do
not abuse extension cord and do not yank on any cord to
disconnect. Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the receptacle
before disconnecting the product from the extension cord.
2.7 CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the
presence of children.
• Keep children out of the working area and under the
watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this
machine. Children who are 14 years of age and older
must read and understand the operating instructions and
safety rules in this manual and must be trained and
supervised by a parent.
• Stay alert, and turn the machine off if a child or any other
person enters the working area.
• Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your view of a child who may run into the path of the
machine.

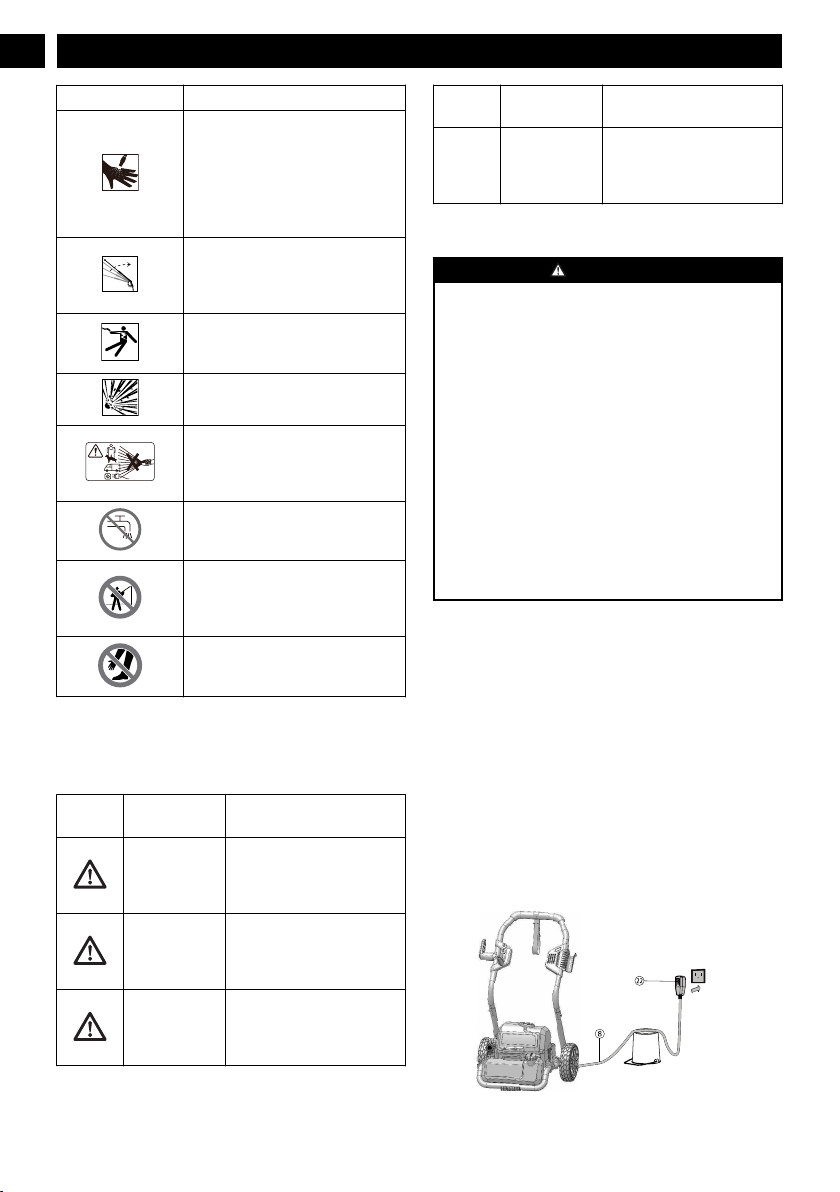

3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Explanation
To reduce the risk of injury, user must
read and understand operator’s man-
ual before using this product.
Do not expose the product to rain or
moist conditions.
Always wear safety goggles or safety
glasses with side shields and, as nec-
essary, a full face shield when operat-
ing this product.
5
English
EN
Symbol Explanation
To reduce the risk of injection or in-
jury, never direct a water stream to-
wards people or pets or place any
body part in the stream. Leak ing ho-
ses and fittings are also capable of
causing injection injury. Do not hold
hoses or fittings.
To reduce the risk of injury from
kickback, hold the spray lance se-
curely with both hands when the ma-
chine is on.
Failure to use in dry conditions and to
observe safe practices can result in
electric shock.
Fuel and its vapors are explosive and
can cause severe burns or death.
Warning! Never point the gun to hu-
man, animals, the machine body,
power supply or any electric applian-
ces.
Appliance not suitable for connection
to the drinking water mains without
backflow preventer.
Only use cleaning deck on flat, hori-
zontal surfaces. Never lift cleaning
deck from the cleaning surface while
operating the pressure washer.
Keep hands and feet away from the
cleaning deck while the pressure
washer is running.
4 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation,which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation,which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
SYM-
BOL
SIGNAL MEANING
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
5 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
Save these instructions.
6 INSTALLATION
6.1 ELECTRICAL CONNECTION
This machine has a precisely built electrical motor. It should
be connected to a power supply that is 120V, 60 Hz, AC only
(household). Do not operate this machine on direct current
(DC). A considerable voltage drop will cause a loss of power
and the motor will be overheated.
6.1.1 PREPARE A DRIP LOOP
Recommend the use of a drip loop as below so the water can
not run along the power cord even possibly reach the
electrical outlet and plug.
6
English
EN
WARNING
Keep the extension cord clear of the working area. Position
the cord so that it will not get caught on lumber, tools, or
other obstructions while you are working with a power tool.
Failure to do so can result in serious personal injury.
6.2 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine before
use.
WARNING
• If the parts are damaged, do not use the machine.
• If you do not have all the parts, do not operate the
machine.
• If the parts are damaged or missing, speak to the service
center.
1. Open the package.
2. Read the documentation in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and package in compliance with local
regulations.
6.3 INSTALL THE SPRAY WAND
1. Push the end of the spray wand into the gun handle.
2. Turn the spray wand clockwise until the tabs lock into
position.
WARNING
Make sure that the connection has no leakage.
6.4 INSTALL THE WHEELS
1. Put an axle through the wheel and handle frame.
2. Attach a washer to the axle.
3. Put a cotter pin through the hole of the axle.

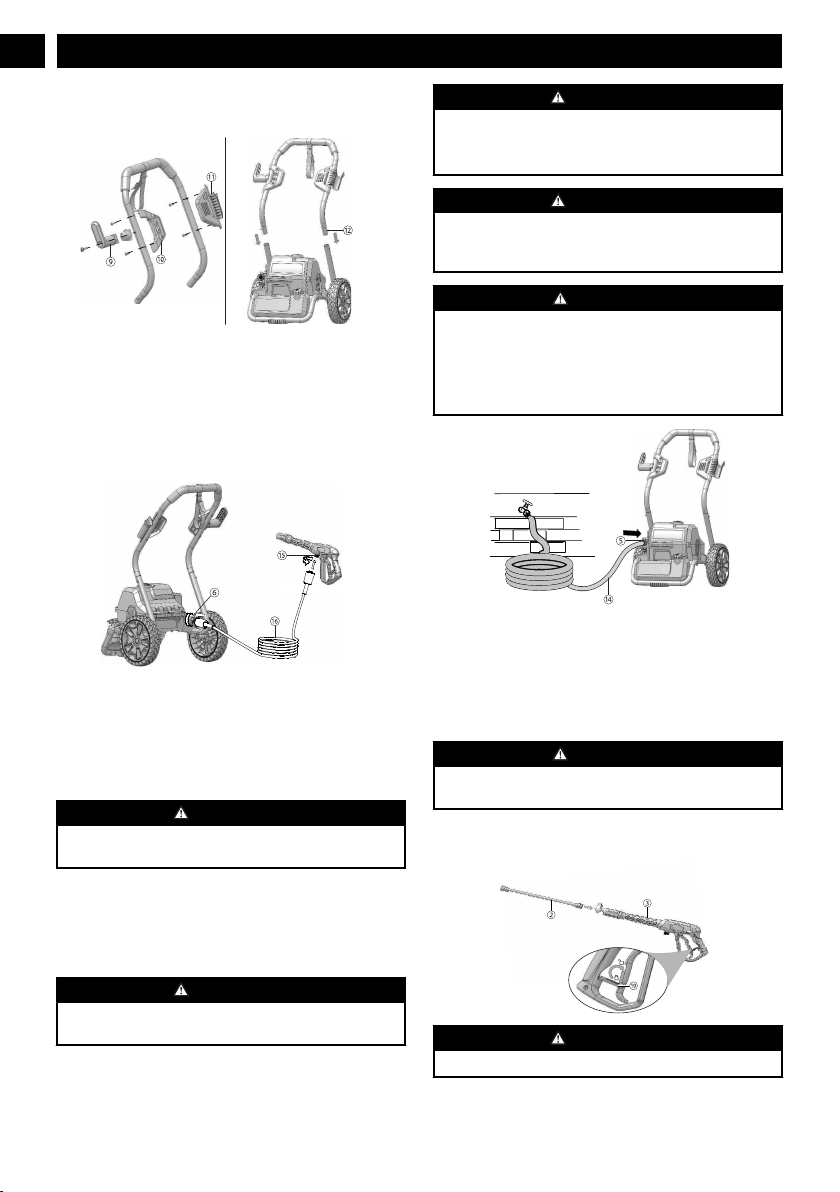

6.5 INSTALL THE UPPER HANDLE
1. Push and hold the handle lock button on the upper handle.
2. Move the upper handle into the lower handle until the
handle lock button clicks through the slot.
6.6 INSTALL THE GUN HOLDER
1. Aligh the screw sleeves of the gun holder with the screw
holes on the upper handle.
2. Push the screws through the screw sleeves and tighten
them.
7
English
EN
6.7 INSTALL THE POWER CORD
STORAGE ARM
1. Attach the power cord storage arm onto the fixture.
2. Align the screw with the hole in the power cord storage
arm.
3. Push the screw through and tighten it.
6.8 INSTALL THE HIGH PRESSURE
HOSE
1. Push and turn clockwise one end of the high pressure
hose into the inlet coupler.
2. Install and tighten the other end of the high pressure hose
onto the water outlet coupler.
7 OPERATION
WARNING
Make sure that all the connections are tight and have no
leakage before operation.
7.1 CONNECT THE WATER SUPPLY
TO THE MACHINE
For easy operation, please use a self-coiling garden hose (not
provided).
WARNING
When you operate the self-coiling hose, make sure that the
hose has no blockage.
WARNING
• The water supply must come from the water main
• Do not use hot water
• Do not use water from ponds or lakes
WARNING
Do the local regulations when you connect the garden hose
to the water supply. Direct connection through a receiver
tank or backflow preventer is usually permitted.
CAUTION
Inspect the filter in the water inlet connector before you
connect the garden hose
• If the filter is damaged, do not use the machine until the
filter is replaced.
• If the filter is dirty, clean the filter.
1. Uncoil the garden hose.
2. Let the water flow through the garden hose for 30
seconds.
3. Turn the water supply off.
4. Install and tighten the end of the garden hose to the water
inlet connector.
CAUTION
There must be a minimum of 3 m of free hose between the
water inlet and the water supply.
7.2 USE THE GUN
WARNING
For safe control, keep your hands on the gun at all times.
8
English
EN
• Pull and hold the gun trigger to start the machine.
• Release the gun trigger to stop water flow through the
nozzle.
7.2.1 UNLOCK THE GUN TRIGGER
• Push backward the trigger safety button.
7.2.2 LOCK THE GUN TRIGGER
• Push forward the trigger safety button.

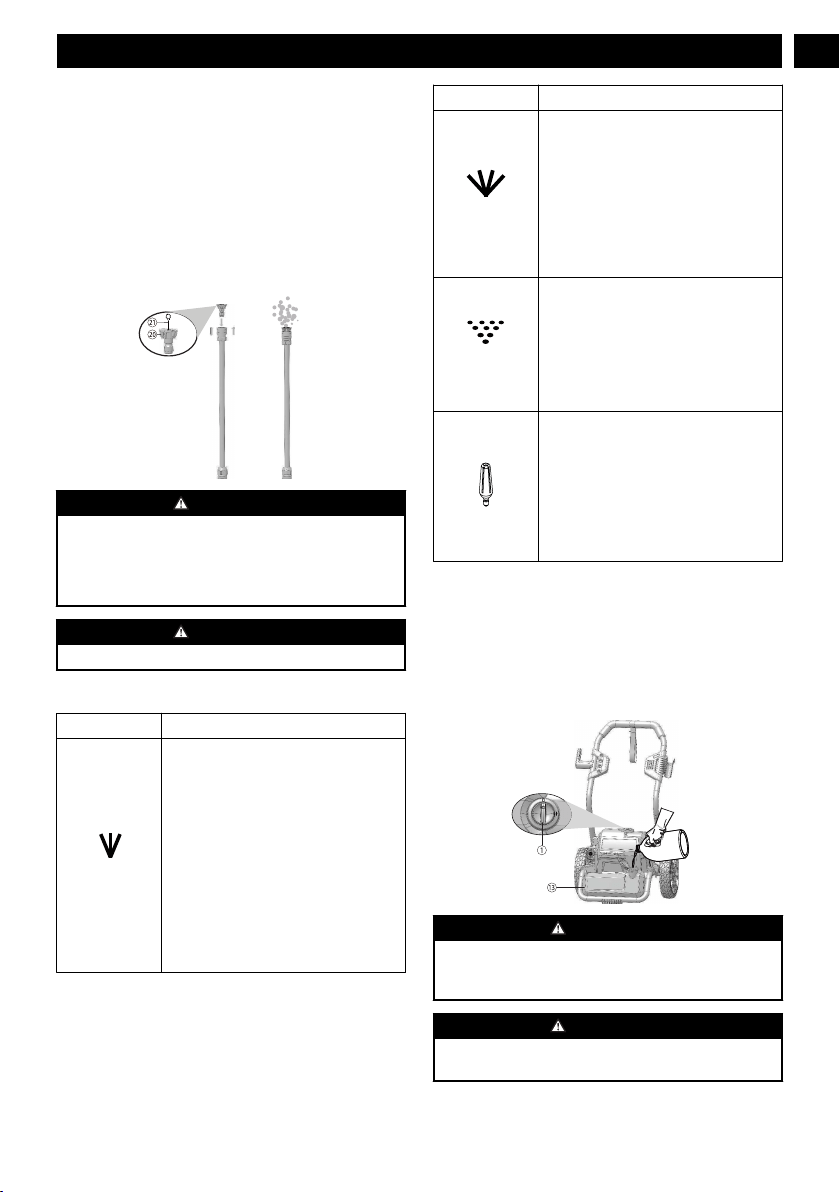

7.3 CHANGE THE NOZZLE
WARNING
Before you change the nozzle:
1. Pull the gun trigger to release water pressure.
2. Lock the trigger safety button on the gun.
3. Stop the mahcine.
WARNING
Do not point the spray wand at your face or others'.
7.3.1 NOZZLE TYPE
SPRAY TIP APPLICATION
25
O
Green - Narrow fan tip (25° )
• The green pressure washer tip pro-
vides high versatility with its 25 de-
gree angle tip. Referred to as the
washing tip, because it provides ade-
quate pressure to remove dirt from
surfaces, but is designed to not dam-
age many surfaces. This pressure
washer tip is designed for “sweep-
ing” foliage or debris given its wide
angle. This tip is versatile due to its
wide area of cleaning and strong
pressure application.
SPRAY TIP APPLICATION
40
O
White - Wide fan tip (40° )
• The white 40 degree tip, referred to
as the “fan” tip creates the widest
area of cleaning with relatively low
pressure. This pressure washer tip is
best used for light or delicate clean-
ing applications. It is recommended
for light cleaning on wood decks and
other soft or delicate surfaces.
SOAP
Black - Soap spray tip
• The black soap spray tip, is used for
soap application. Soap is applied un-
der low pressure high volume for op-
timum performance. Soap cannot be
applied under high pressure with this
machine.
Turbo Nozzle Tip
• The nozzle rotates in a zero to 15 de-
gree spray pattern in a circular mo-
tion to break down tough dirt and
grime. The spray pattern can cover
area of 4 to 8 inches wide, depending
on a distance between the tip and the
surface being cleaned.
7.3.2 INSTALL THE NOZZLE
1. Pull back the quick-connect collar on the spray wand.
2. Install the nozzle onto the spray wand.
3. Release the quick-connect collar to attach the nozzle.
7.4 ADD DETERGENT
WARNING
Do not use household detergents, acids, alkalines, bleaches,
solvents, flammable material, or industrial grade solutions,
which can do damage to the pump.
WARNING
Do the instructions on the solution bottle to prepare
detergent.
9
English
EN

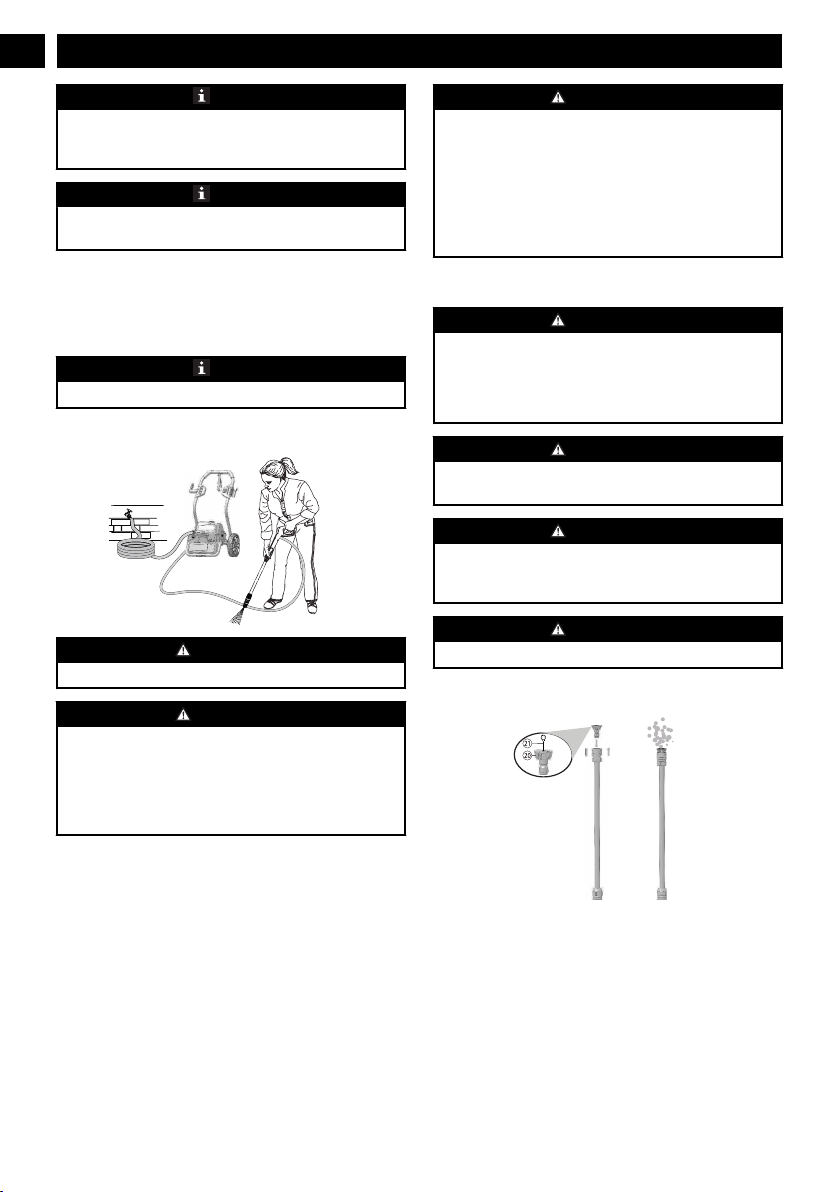

NOTE
If it is necessary, use a funnel to prevent the spill of
detergent. Clean and dry the spilled detergent when you fill
it.
NOTE
Soap/detergent can only be applied with this machine when
the black nozzle(75 degree) is installed.
1. Put the machine vertically on a flat surface..
2. Open the cap on the deterfent tank.
3. Put the detergent into the detergent tank.
4. Close the cap.
NOTE
Do not let detergent dry on the surface to prevent streaks.
7.5 START THE MACHINE
CAUTION
Do not operate without the water supply connected.
CAUTION
Before you start the machine:
1. Turn the water supply on.
2. Pull the gun trigger to release air pressure.
3. If a stable stream of water comes out from the gun,
release the gun trigger.
1. Connect the machine to the power supply.
2. Set the power switch to the “ON” ( | ) position.
3. Turn the water supply on.
4. Pull the gun trigger.
7.6 STOP THE MACHINE
1. Release the spray gun trigger.
2. Press down on the ON/OFF switch, once again, to set the
power switch to the "OFF" (O) position.
WARNING
If you do not use the machine：
• Stop the machine.
• Turn the water supply off.
• Disconnect the power cord from the outlet.
• Pull the spray gun trigger to release the remaining
pressure from the machine.
• Engage the trigger safety lock-out on the spray gun.
8 MAINTENANCE
WARNING
Before maintenance, make sure that you
• Stop the machine.
• Wait until all the moving parts stop.
• Disconnect the plug from the power source.
WARNING
Do not use strong solvents or detergents on the plastic
housing or components.
WARNING
Do not let brake fluids, gasoline, petroleum-based materials
touch the plastic parts. Chemicals can cause damage to the
plastic, and make the plastic unserviceable.
WARNING
Replace the power cord by an approved service center.
8.1 NOZZLE MAINTENANCE
If there is too much pump pressure, the nozzle can become
clogged, you can feel a pulsing sensation while you pull the
gun trigger.
8.1.1 REMOVE THE NOZZLE
1. Pull back the quick-connect collar on the spray wand.
2. Remove the nozzle from the spary wand.
10
English
EN
8.1.2 CLEAN THE NOZZLE
1. Use a straight paper clip or cleaning tool to clean the
spray tip.
2. Flush and clean the unwanted materials out of the nozzle
with the garden hose.
3. Install the clean nozzle to the spray wand.
9 TRANSPORTATION AND
STORAGE
WARNING
Disconnect the power cord and watter supply hose before
transportation and storage.
9.1 MOVE THE MACHINE
• Point the spray wand in a safe direction.
• Only hold the machine with the handgrip.
9.2 STORE THE MACHINE
WARNING
Make sure that the spray gun, the high pressure hose and the
pump are dry.
WARNING
Make sure the machine is out of the reach of children.
NOTE
Use a recommended pump protector to prevent cold
weather damage during storage in winter.
• Disconnect the garden hose from machine.
• Wind the power cord and the high pressure hose.
• Clean housing and the plastic components with a moist
and soft cloth.
• Make sure that the machine does not have loose or
damaged parts. If it is necessary, follow these steps/
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• If needed, call the customer service phone number
(enter number here) for servicing instructions.
• Store the machine in a dry, isolated and frost-free area.
10 TROUBLESHOOTING
PROBLEM POSSIBLE
CAUSE
SOLUTION
The motor does
not start.
The power button
is in the "OFF"
(O) position.
Set the power
switch to the
“ON” ( | ) posi-
tion.
The power cord is
not plugged in.
Connect the power
cord to the power
supply.
Electrical outlet
does not supply
sufficient power.
Try another elec-
trical outlet.
The circuit breaker
is tripped.
Let it cool, and
start the machine
again.
The power switch
is on, but you do
not pull the spray
gun trigger.
Pull the spray gun
trigger.
The machine does
not reach high
pressure.
The diameter of
garden hose is too
small.
Replace with a 1”
(25 mm) or 5/8”
(16 mm) garden
hose.
Water supply is re-
stricted.
Check garden hose
for kinks, leaks,
and blockage.
The water supply
is not sufficient.
Open the water
supply fully.
Spray tip has not
be installed onto
the spray wand
properly.
Install desired
spray tip to end of
wand.
The water intake
filter is clogged.
Remove filter and
rinse in warm wa-
ter.
11
English
EN
PROBLEM POSSIBLE
CAUSE
SOLUTION
The output pres-
sure varies high
and low.
The water supply
is not sufficient.
Open water supply
fully. Check gar-
den hose for kinks,
leaks, or blockage.
The pump is draw-
ing in air.
1. Make sure that
the hoses and
fitting are air-
tight.
2. Turn "OFF"
machine.
3. Purge pump
by squeezing
trigger gun un-
til a stead flow
of water
comes out the
spray tip.
The water intake
filter is clogged.
Remove the filter
and Rinse in warm
water.
The supply volt-
age is low.
Make sure that on-
ly the pressure
washer is running
on the circuit.
The gun, hose or
nozzle are calci-
fied.
Run distilled vine-
gar through deter-
gent tank.
PROBLEM POSSIBLE
CAUSE
SOLUTION
The motor buzzes,
but the machine
does not start.
The supply volt-
age is low.
Make sure that on-
ly the pressure
washer is running
on the circuit.
The pump system
has residual pres-
sure.
1. Turn "OFF"
the machine.
2. Pull the spray
gun trigger on
spray wand to
release pres-
sure.
3. Turn the ma-
chine "ON".
Voltage loss due to
use of an improper
extension cord.
Disconnect the ex-
tension cord, and
connect the ma-
chine directly into
the outlet.
Pressure washer
not used for long
periods.
Call customer
service.
Residual friction
among compo-
nents. Unit might
emit a humming
noise.
1. Disconnect the
water supply.
2. Power "ON"
the machine
for 2 to 3 sec-
onds.
3. Repeat the
above step a
couple of
times or until
the motor
starts.
There is no water. The water supply
is off.
Turn the water
supply on.
The garden hose is
kinked..
Remove kink in
garden hose.
11 TECHNICAL DATA
Universal Motor 120V~ 60 Hz, 14 Amps
Max. Pounds Per Square Inch
Pressure
2000 PSI
Max Gallon Per Minute 1.2 GPM
Maximum Inlet Water Temper-
ature
104 °F (40 °C)
Cleaning Units 2400 C.U.
Weight 31 lbs. (14 kg)
12
English
EN
Double-insulated construc-
tion.
12 LIMITED WARRANTY
YEAR
ANS
AÑOS
LIMITED WARRANTY
GARANTIE LIMITÉE
GARANTÍA
LIMITADA
3
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, for a period of three (3)
years against defects in materials, parts or workmanship.
Greenworks, at its own discretion will repair or replace any
and all parts found to be defective, through normal use, free
of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not
been hired or rented for industrial/commercial use, and that
have been maintained in accordance with the instructions in
the owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse,
commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade
sharpening;
5. Normal deterioration of the exterior finish due to use or
exposure.
HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-888-909-6757.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA address: Canadian address:
Greenworks Tools Greenworks Tools Canada Inc.
P.O. Box 1238 1110 Stellar Drive Unit 102
Mooresville, NC 28115 Newmarket, ON, L3Y 7B7
13
English
EN
13 EXPLODED VIEW
1 331031635AB Upper handle 1 32 322011635 Screw 4
2 349011824 Strap 1 33 341161635A Foot pad 1
3 349011635 Foam 1 34 322031635 Screw 12
4 311251635 Gun holder 1 35 3320643 Pin 2
5 322011628 Screw 4 36 32908301A Flat washer 2
6 322021822 Nut 5 37 341083613 Wheel 2
7 311381635 Spray tip panel assembly 1 38 33210301A Axle 2
8 312253614 25 degree spray tip 1 39 341042583 Motor bracket 1
9 312403613 40 degree spray tip 1 40 C1100387-00 Pump assembly 1
10 34139319 40 degree spray tip 1 41 33306847 Spring button 2
11 341111635 Pipe connector 1 42 34203365 Shock absorbing bushing 2
12 341013231 Cord retainer 1 43 34202368 O-ring 1
13 322351635 Screw 1 44 332021635 Water outlet connector 1
14 31208363 Turbo Nozzle 1 45 341201635AB Press board 1
15 364012583 Power cord 1 46 32202368 Screw 2
16 34146363 Power cord clip 1 47 341011635AB Upper housing 1
17 363003239 GFCI plug 1 48 34125304 Dust cap 1
18 341003231 Wind screen 1 49 36511154 Wire cap 1
19 33302365 U pin 2 50 341022583 Switch box 1
20 311231635 Water inlet connector 1 51 32209302A Screw 2
14
English
EN
21 341062583 Foot pad 1 52 363021628 Power switch 1
22 341072583 Foot pad 1 53 341023231 Switch lever 1
23 3320303 Screw 2 54 34216301A O-ring 1
24 3410801 Press board 1 55 341033231 Switch box cover 1
25 322021923 Screw 4 56 32223301A Screw 4
26 341021635AB Lower housing 1 57 R1100012-00 High pressure hose 1
27 C3200278-00 Lower handle 1 58 31140363AB Gun assembly 1
28 32222301A Nut 4 59 31145363 Gun wand 1
29 342011635 Cap 1 60 33201671 Spray cleaner 1
30 341031635B Detergent tank 1 61 341091639B Switch knob 1
31 34900365 Suction hose 30
CM
15
English
EN
