User Manual
60CM FREESTANDING DISHWASHER
MODEL: TRDWFS6012; TRDWFS6014
Please read this manual carefully before using, and keep it for future reference.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 2
INSTRUCTION MANUAL
60 cm Freestanding Dishwasher
Models: TRDWFS6012；TRDWFS6014
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 3
CONTENTS
1 PACKAGE .............................................................................................................................................. 5
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS .............................................................. 5
1.2 HANDLING ...................................................................................................................................... 5
1.3 BEFORE USING YOUR NEW APPLIANCE ...................................................................................... 5
2 SAFETY WARNINGS ............................................................................................................................... 6
2.1 IMPORTANT INFORMATION........................................................................................................... 6
2.2 EARTHING INSTRUCTIONS ...................................................................................................... 7
3 INSTALLATION INSTRUCTION ................................................................................................................ 8
3.1 ELECTRICAL SHOCK HAZARD ..................................................................................................... 8
3.2 ABOUT POWER CONNECTION
ARNING
....................................................................................... 8
3.3 WATER SUPPLY AND DRAIN .......................................................................................................... 8
3.4 CONNECTION OF DRAIN HOSES ................................................................................................. 9
3.5 POSITION THE APPLIANCE ............................................................................................................. 9
3.6 FREE STANDING INSTALLATION ................................................................................................... 10
3.7 BUILT-IN INSTALLATION(FOR THE INTEGRATED MODEL) ........................................................... 11
4 USING INSTRUCTION ........................................................................................................................... 16
4.1 YOUR NEW APPLIANCE .............................................................................................................. 16
4.2 BEFORE USING YOUR DISHWASHER ........................................................................................... 17
4.3 BASKET USED TIPS ......................................................................................................................... 17
5 MAINTENANCE AND CLEANING ...................................................................................................... 19
5.1 EXTERNAL CARE ........................................................................................................................... 19
5.2 INTERNAL CARE ............................................................................................................................ 19
5.3 CARING FOR THE DISHWASHER ................................................................................................. 21
6 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1 .............................................................. 22
6.1 UPPER BASKET FOR TRDWFS6012 : .............................................................................................. 22
6.2 LOWER BASKET FOR TRDWFS6012: ............................................................................................. 22
6.3 CUTLERY BASKET FOR TRDWFS6012: .......................................................................................... 23
6.4 UPPER BASKET FOR TRDWFS6014: ............................................................................................... 23
6.5 LOWER BASKET FOR TRDWFS6014: ............................................................................................. 24
6.6 CUTLERY BASKET FOR TRDWFS6014: .......................................................................................... 24
7 SPECIAL VERSION ............................................................................................................................... 26
7.1 QUICK USER GUIDE ...................................................................................................................... 26
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 4
7.2
CONTROL PANEL
FOR TRDWFS6014 ..................................................................................... 27
7.3
CONTROL PANEL
FOR TRDWFS6012 ..................................................................................... 28
7.4 PREPARING AND LOADING DISHES
................................................................................. 30
7.5 REMOVING THE DISHES
........................................................................................................ 31
7.6 LOADING THE UPPER BASKET
............................................................................................. 31
7.7 LOADING THE LOWER BASKET
........................................................................................... 31
7.8
LOADING THE CUTLERY BASKET
......................................................................................... 31
7.9 FUNCTION OF THE RINSE AID AND DETERGENT
........................................................... 32
7.10 FILLING THE RINSE AID RESERVOIR
................................................................................. 33
7.11 FILLING THE DETERGENT DISPENSER
............................................................................... 33
7.12
PROGRAMMING THE DISHWASHER
................................................................................ 34
7.13 STARTING A CYCLE WASH
................................................................................................ 35
7.14 CHANGING THE PROGRAM MID-CYCLE
FOR TRDWFS6014 ..................................... 35
7.15
FORGET TO ADD A DISH?
FOR TRDWFS6014 ................................................................... 35
7.16 CHANGING THE PROGRAM MID-CYCLE
TRDWFS6012 ............................................ 36
7.17
FORGET TO ADD A DISH?
TRDWFS6012 ........................................................................... 36
7.18
ERROR CODES
........................................................................................................................ 37
8 TECHNICAL DATA ............................................................................................................................... 38
8.1 TECHNICAL DATA SHEET ............................................................................................................. 38
8.2 PRODUCT SPECIFICATION FOR TRDWFS6014 ........................................................................... 38
8.3 PRODUCT SPECIFICATION FOR TRDWFS6012 ........................................................................... 39
9 PROBLEM SOLVER .............................................................................................................................. 40
9.1 BEFORE CALLING FOR SERVICE ................................................................................................. 40
10 DISPOSAL ........................................................................................................................................... 44
11 CUSTOMER CARE ............................................................................................................................. 45
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 5
1 PACKAGE
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
Please thoroughly inspect your goods at the delivery time, if you notice any damage to
your goods:
Please notify the delivery team at the time of delivery and do NOT accept damaged
product.
Please notify us immediately as the problem can be instantly solved and damaged
product return to the courier office.
When you open the package and find the appliance is damaged or marked, you must
report it within 24 hours. Do not install or connect the item, keep the package as original, if
you wish to claim for damage/marks under the manufacturer’s warranty. This does not
affect your statutory rights.
Evidence of damage will be required.
1.2 HANDLING
Do not use the door and/or handle to carry or move the appliance.
Carry out the movement and transportation in the original packaging.
Pay maximum attention to the appliance while loading/unloading and handling.
Make sure that the packaging is securely closed during handling and transportation.
Protect from external factors (such as humidity, water, etc.) that may damage the
packaging.
Be careful not to damage the appliance due to bumps, crashes, drops, etc. while
handling and transporting and not to break or deform it during operation.
1.3 BEFORE USING YOUR NEW APPLIANCE
Read this guide, taking special note of the ‘Safety Warnings’ section.
Remove any protective film that may still be on your appliance.
This instruction manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may not be included in your appliance. Pay
attention to the explanations with illustrations while reading the manual.
NOTE:
This instruction manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may be slightly different or not be included in your
appliance. Pay attention to the explanations with illustrations while reading the manual.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 6
2 SAFETY WARNINGS
2.1 IMPORTANT INFORMATION
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY, PLEASE READ
THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE To maintain the EFFICIENCY
and SAFETY of this appliance, we recommend:
Installation and repair can only be carried out by a qualified technician
This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not
be done by children without supervision. (For EN60335-1)
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. (For IEC60335-1) Packaging material could be
dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug
in water or other liquid. Please unplug before cleaning and performing maintenance
on the appliance.
Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
Safety reminding
Caution: possibility of tilting
Anti-tip restraints
WARNING: In order to prevent tipping of the appliance, this
stabilising means must be installed.
Refer to the instructions for installation.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 7
2.2 EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with an earthing conductor
plug.
The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of
an electric shock. Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out. Do not place any heavy objects on or stand on the door when it is
open. The appliance could tip forward.
When loading items to be washed:
1)Locate sharp items so that they are not likely to damage the door seal;
2)Warning: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
Some dishwasher detergents are strongly alkaline. They can be extremely dangerous
if swallowed.
Avoid contact with the skin and eyes and keep children away from the dishwasher
when the door is open.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked “dishwasher safe” or the
equivalent.
For unmarked plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse agents recommended for use in an automatic
dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously bent or
flattened.
Do not tamper with controls.
The appliance needs to be connected to the main water valve using new hose sets.
Old sets should not be reused.
To save energy, in stand by mode, the appliance will switch off automatically while
there is no any operation in 30 minutes.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 8
3 INSTALLATION INSTRUCTION
3.1 ELECTRICAL SHOCK HAZARD
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
Attention: The installation of the pipes and electrical equipment should be done by
professionals.
3.2 ABOUT POWER CONNECTION
ARNING
Warnings, For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection from the power
cord.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A,
time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using an adaptor or the like as they
could cause overheating and burns.
Ensure that proper earthing exists before use
3.3 WATER SUPPLY AND DRAIN
Cold water connection
Connect the cold water supply hose to a threaded 3/4-inch connector and make
sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let
the water run to make sure that the water is clear. This precaution is needed to avoid
the risk of the water inlet to be blocked and damage the appliance.
Ordinary supply hose
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 9
How to connect the safety supply hose
Pull The safety supply hoses completely out from storage compartment located at
rear of dishwasher.
Tighter the screws of the safety supply hose to the faucet with thread 3/4 inch.
Turn water fully on before starting the dishwasher.
How to disconnect the safety supply hose
Turn off the water.
Unscrew the safety supply hose from the faucet.
3.4 CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000mm. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Please securely fix the drain hose in either position A or position
How to drain excess water from hoses
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl
or suitable container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher
could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm (maximum) from the
bottom of the dish. The water drain hose should be fixed.
3.5 POSITION THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 10
Leveling the appliance

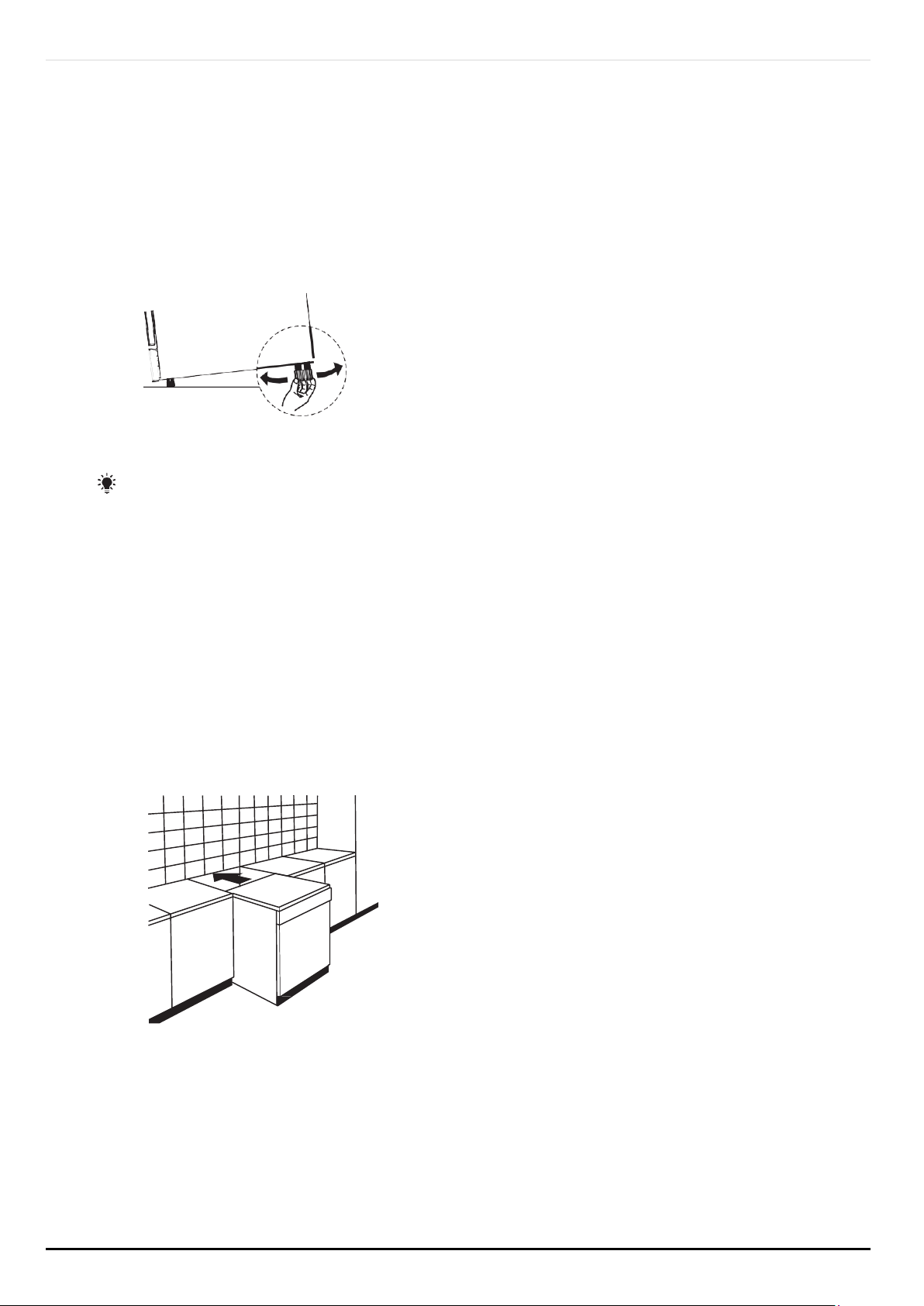

Once the appliance is positioned for leveling, the height of the dishwasher may be
altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined more than 2°.
NOTE:
Only apply to the free standing dishwasher.
3.6 FREE STANDING INSTALLATION
Fitting between existing cabinets
The height of the dishwasher, 845 mm, has been designed in order to allow the
machine to be fitted between existing cabinets of the same height in modern fitted
kitchens. The feet can be adjusted so that correct height is reached.
The laminated top of the machine does not require any particular care since it is
heatproof, scratch-proof and stain-proof.
Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one single work top under which cabinets
and electrical appliances are fitted. In this case remove the work top of the

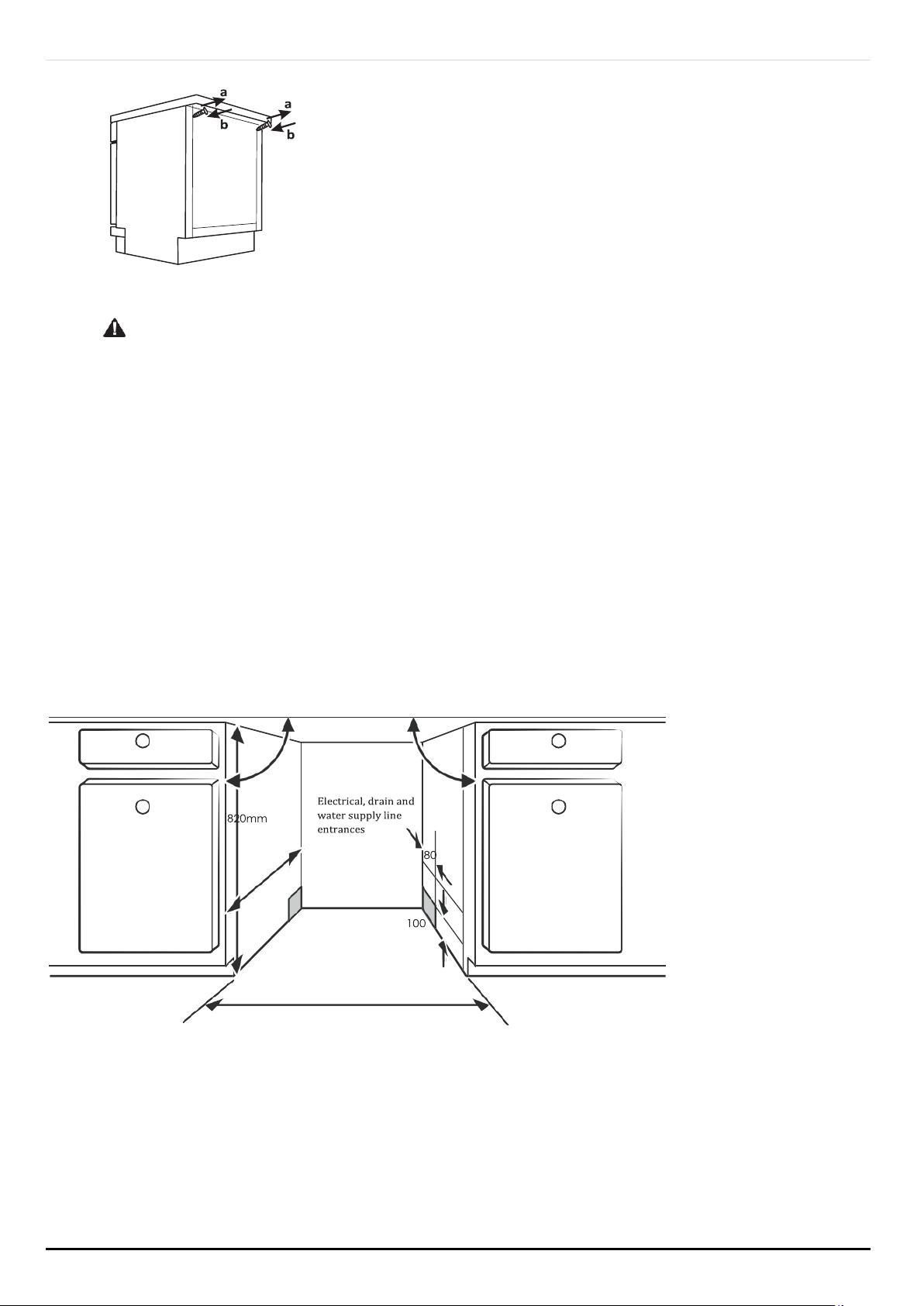

dishwasher by unscrewing the screws under the rear edge of the top (a).
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 11
Attention
After removing the work top, the screws must be screwed again under the rear edge
of the top (b).
The height will then be reduced to 815 mm, as scheduled by the International
Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top.
3.7 BUILT-IN INSTALLATION (FOR THE INTEGRATED MODEL)
Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord.
Illustrations of cabinet dimensions and installation position of the dishwasher.
Less than 5 mm between the top of dishwasher and cabinet and the outer door
aligned to cabinet.
If dishwasher is installed at the corner of the cabinet, there should be some space
when the door is opened.
90 °
90 °
580mm
Space between cabinet
bottom and floor
600 mm(
for 60cm model) 450
mm(for 45cm model)
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 12
The aesthetic wooden panel could be processed according to the
installation drawings.
Magical
paster
Magical
paster

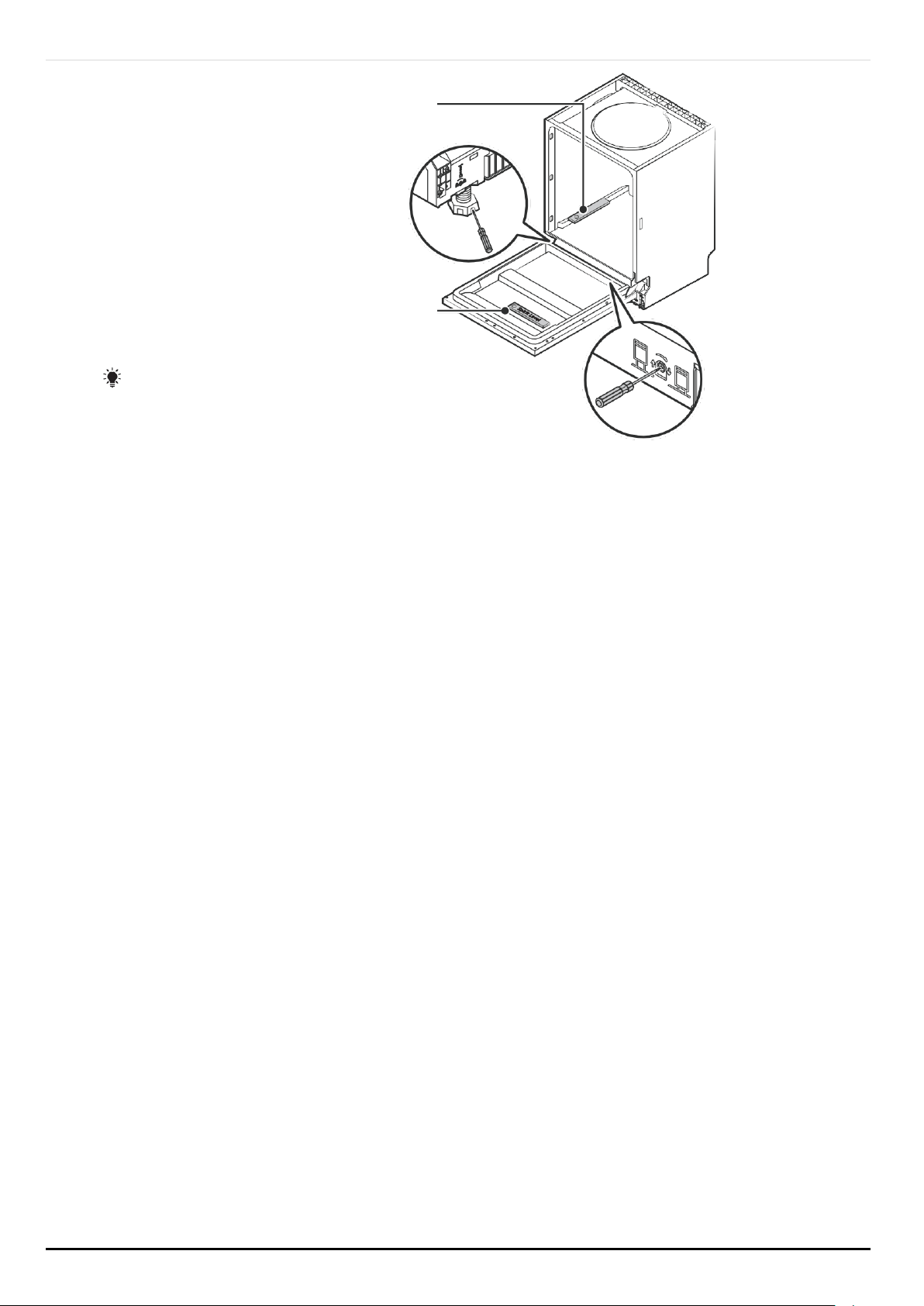

1.Take away the four short screws
2.Pin up the four long screws
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
Step 2. Aesthetic panel's dimensions and installation
Semi-integrated model

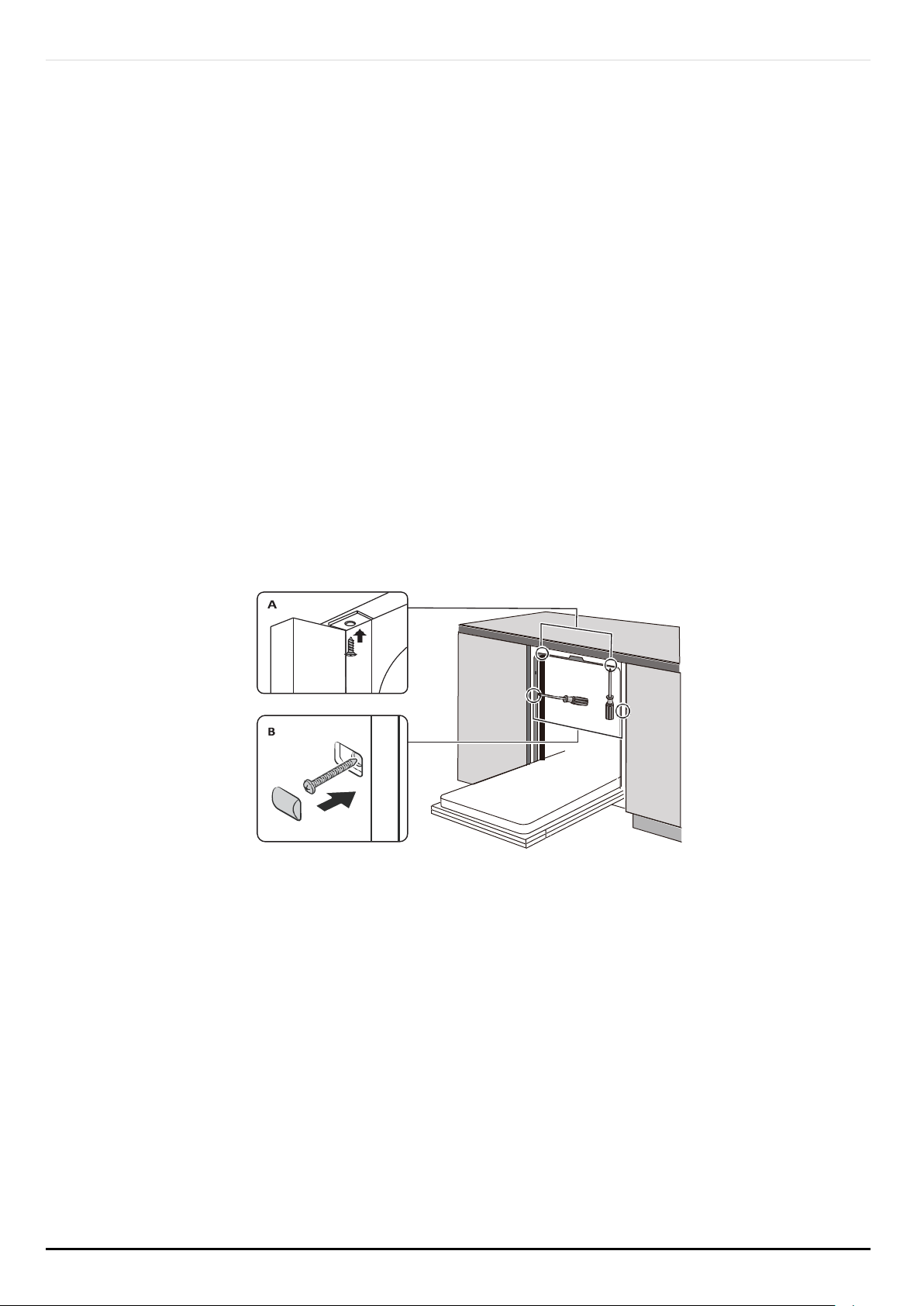

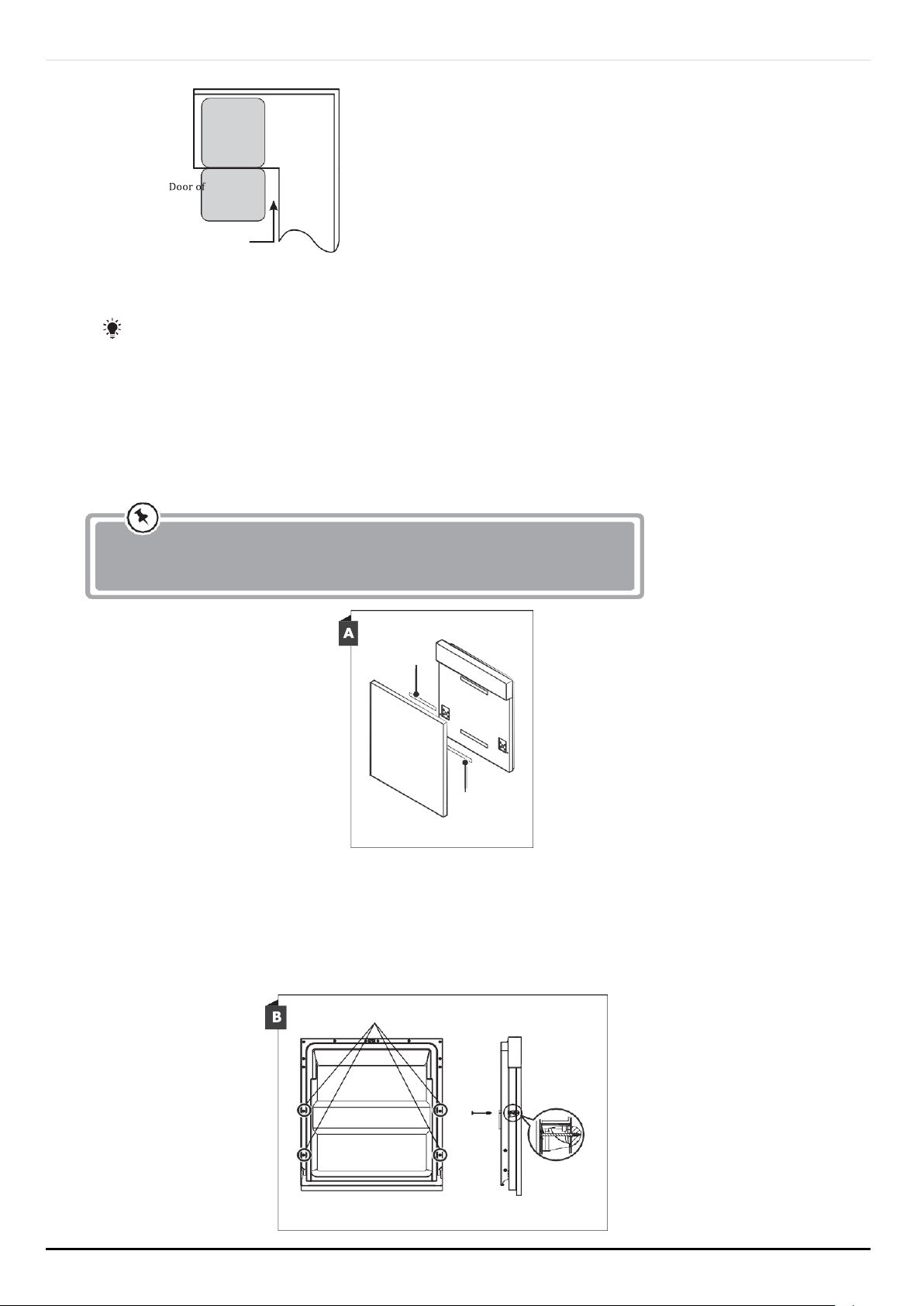

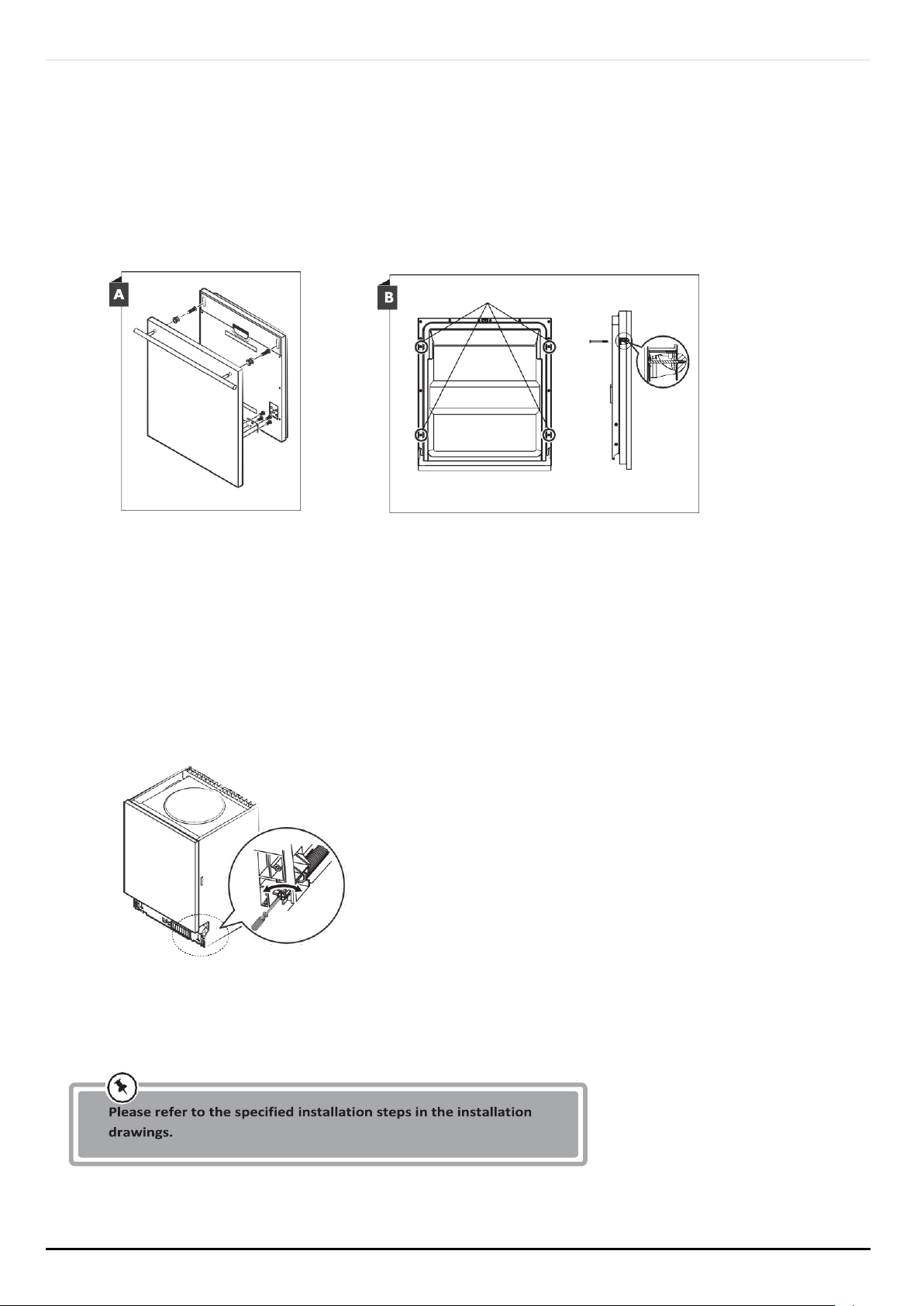

Magical paster A and magical paster B be dis-joined, magical paster A on the
aesthetic wooden panel and felted magical paster B of the outer door of dishwasher
(see figure A). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure B).
Dishwasher Cabinet
dishwasher
Minimum space
of 50mm
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 13
1.Take away the four short
screws
2.Pin up the four long
screws
Full-integrated model
Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel, fix the panel
onto the outer door by screws and bolts (See figure B).
Step 3. Tension adjustment of the door spring
The door springs are set at the factory to the proper tension for the outer door. If
aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjuster to strain or relax the steel cable.
Door spring tension is correct when the door remains horizontal in the fully opened
position, yet rises to a close with the slight lift of a finger.
Step 4. Dishwasher installation steps
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 14
1.
Affix the condensation strip under the work surface of cabinet. Please ensure the
condensation strip is flush with edge of work surface. (Step 2)
2.
Connect the inlet hose to the cold water supply.
3.
Connect the drain hose.
4.
Connect the power cord.
5.
Place the dishwasher into position. (Step 4)
6.
Level the dishwasher. The rear food can be adjusted from the front of the
dishwasher by turning the Philips screw in the middle of the base of dishwasher use an
Philips screw. To adjust the front feet, use a flat screw driver and turn the front feet until
the dishwasher is level. (Step 5 to Step 6)
7.
Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 10)
8.
Adjust the tension of the door springs by using an Allen key turning in a clockwise
motion to tighten the left and right door springs. Failure to do this could cause
damage to your dishwasher. (Step 11)
9.
The dishwasher must be secured in place. There are two ways to do this:
A.
Normal work surface: Put the installation hook into the slot of the side plane and
secure it to the work surface with the wood screws.
B.
Marble or granite work top: Fix the side with Screw.
Step 5. Leveling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on door and rack track inside the tub as shown to check that the
dishwasher is level.
2. Level the dishwasher by adjusting the three leveling legs individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 15
Check level front to back
Check level side to side
NOTE:
The maximum adjustment height of the feet is 50 mm.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 16
4 USING INSTRUCTION

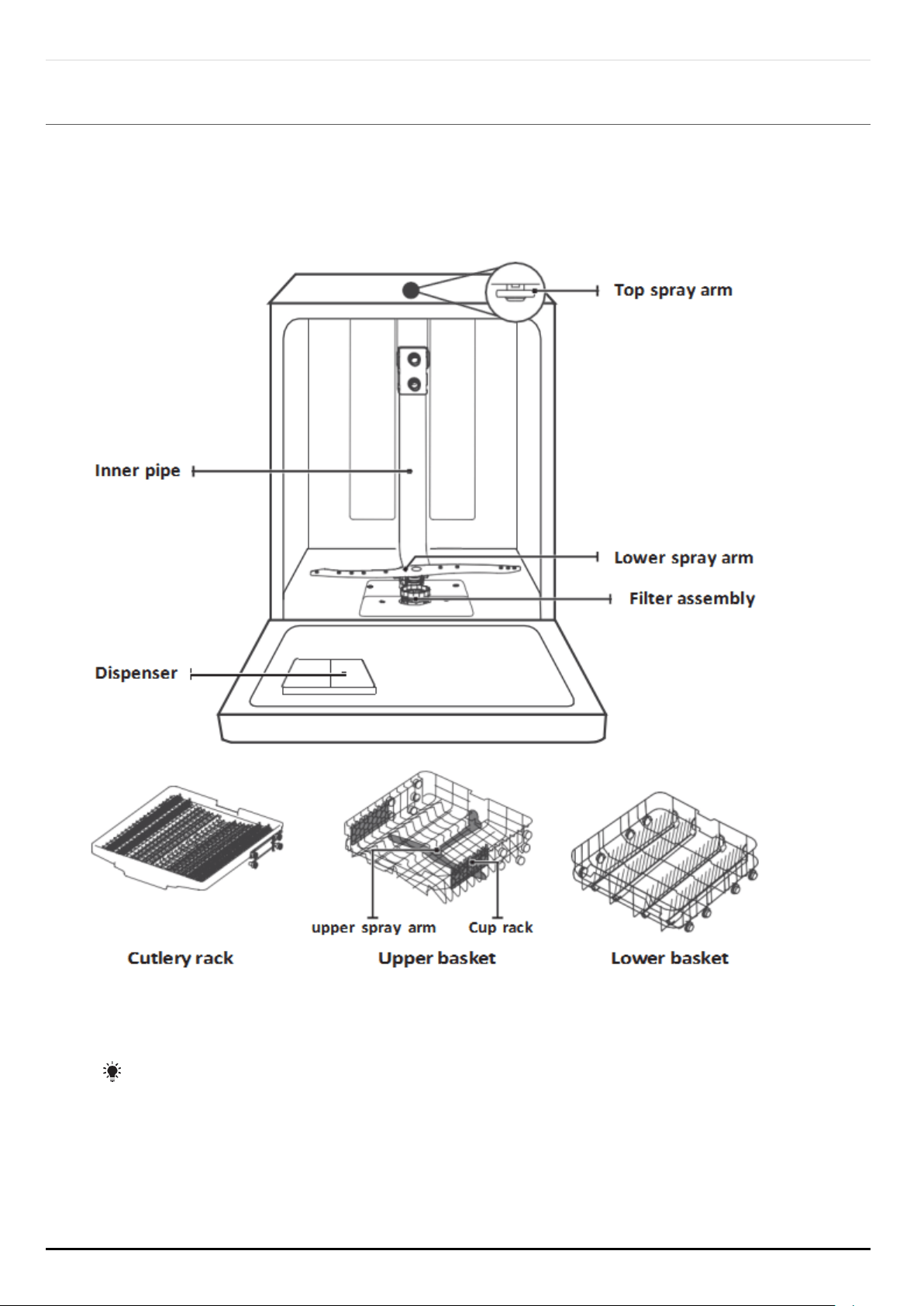

4.1 YOUR NEW APPLIANCE
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
NOTE:
Pictures are only for reference, different models may be different. Please prevail in
kind.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 17
1. Pull out the upper basket.
2.Remove the upper basket.

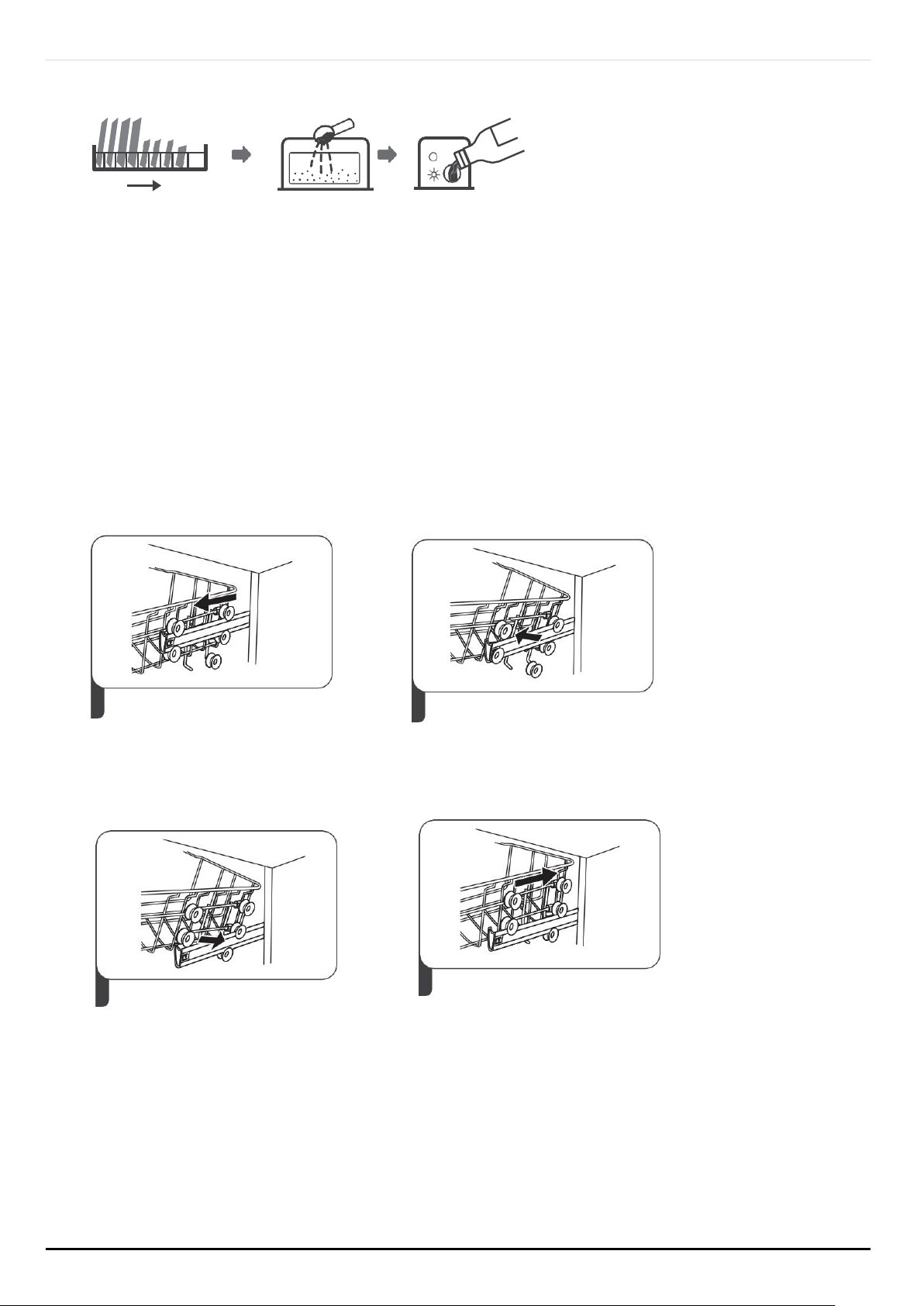

4.2 BEFORE USING YOUR DISHWASHER
Inside
Outside
1.
Loading the basket
2.
Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version)
3.
Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version)

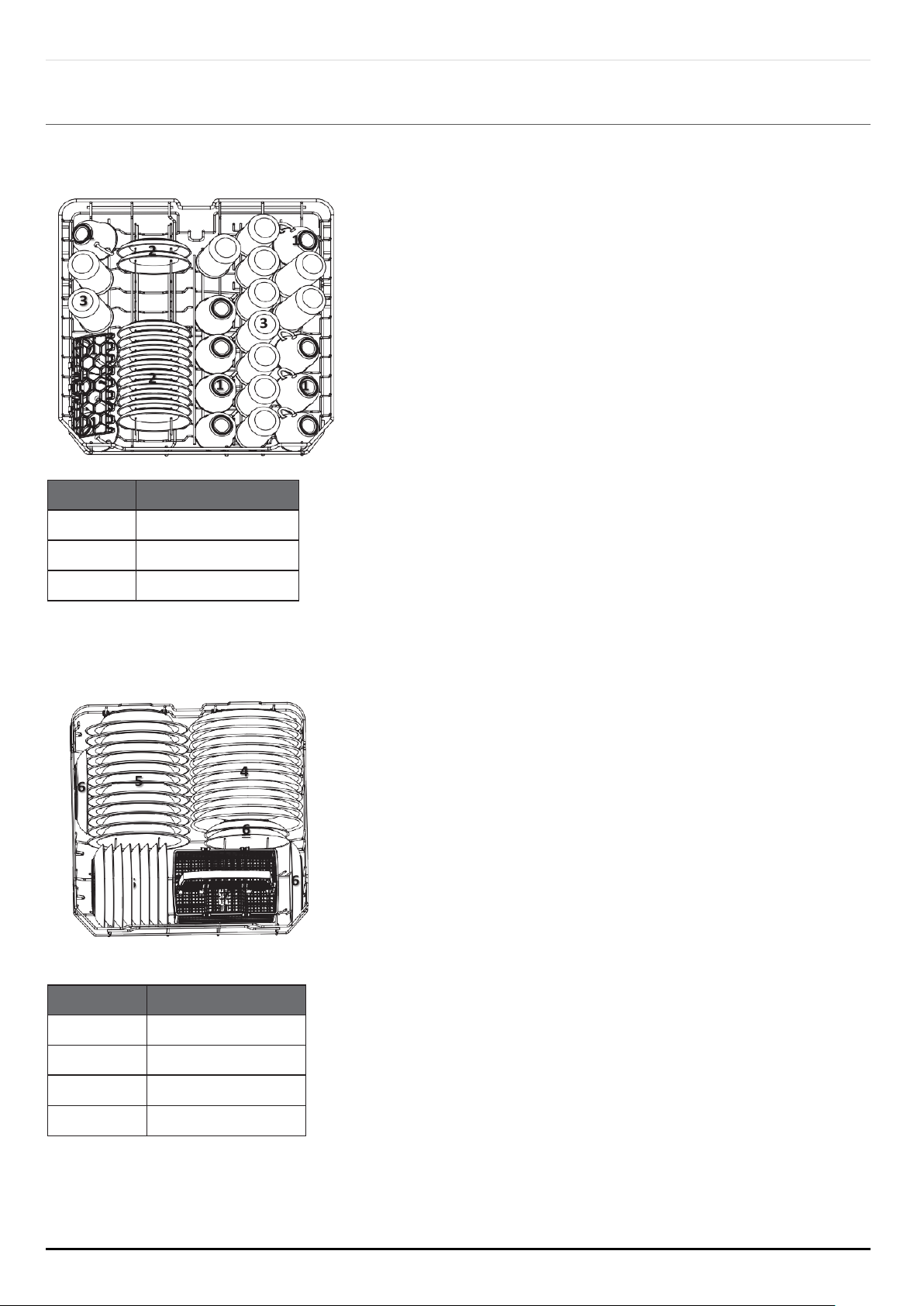

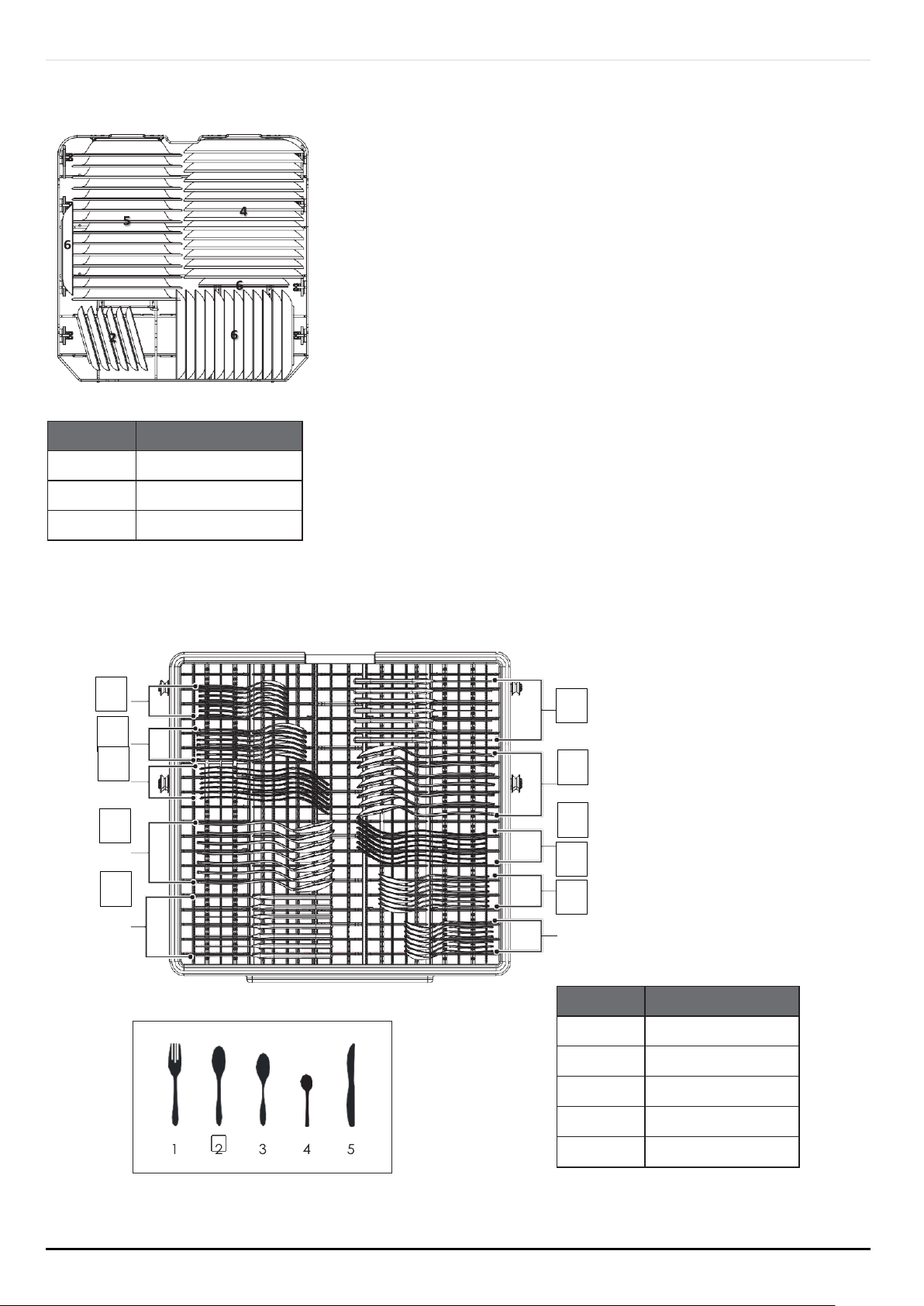

4.3 BASKET USED TIPS

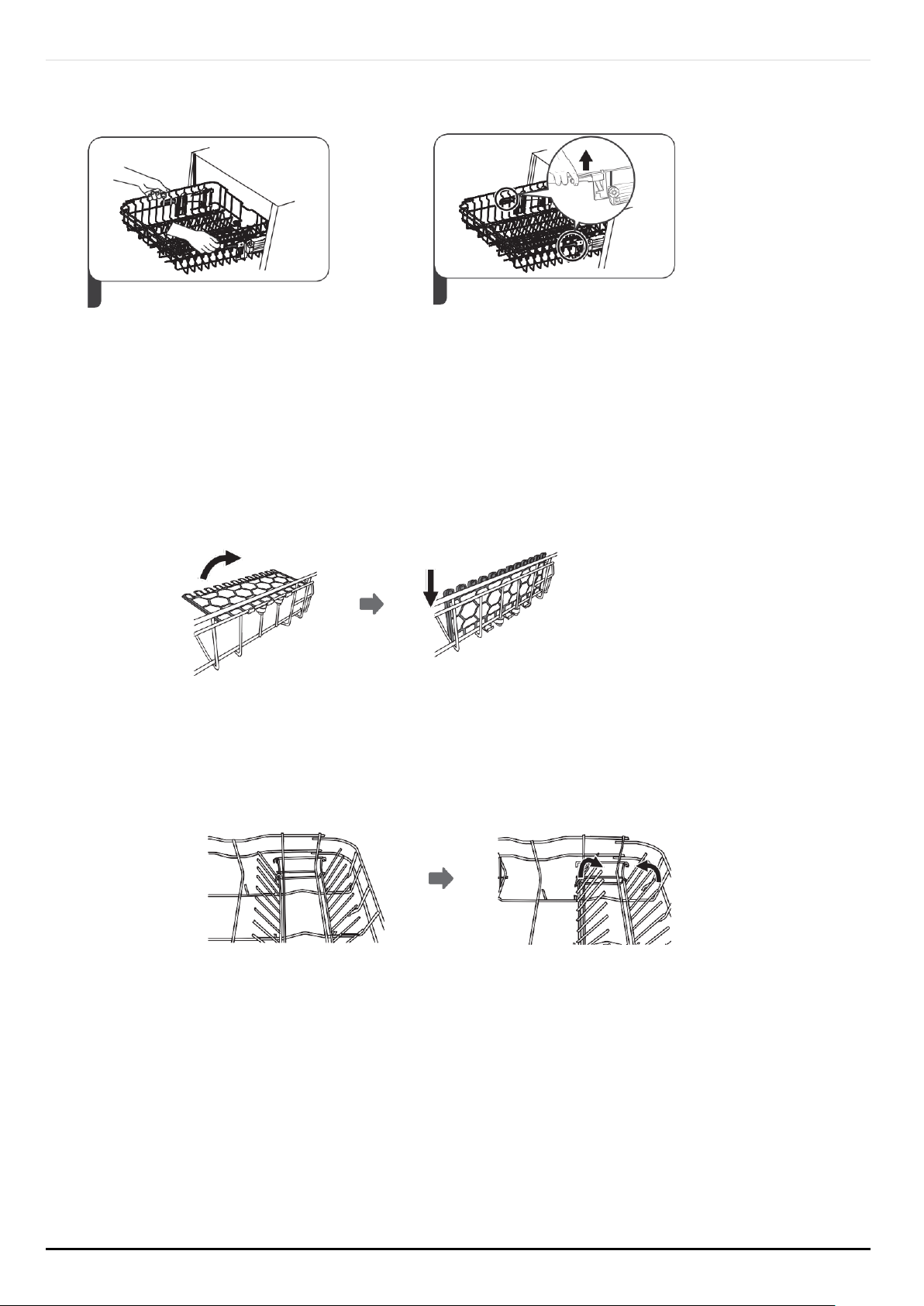

Adjusting the upper basket
Type 1:

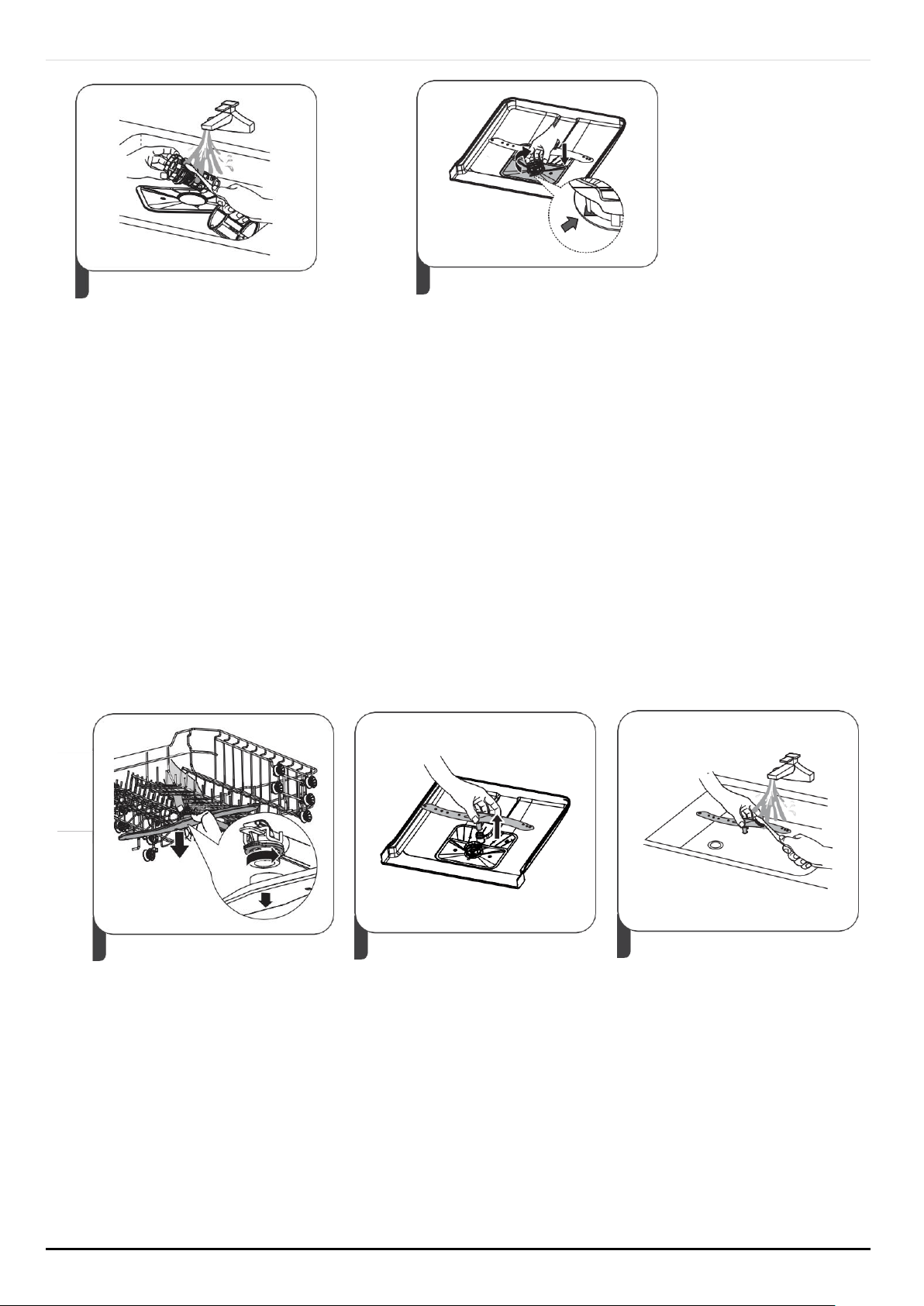

The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
4. Push in the upper basket.
3.Re-attach the upper basket to
Upper or lower rollers.
lower position
1
Pull out the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 18
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards. You
can then lean the tall glasses against it. You can also remove it when it is not required
for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter. They can be
lowered to make more room for large items.
1.To raise the upper basket, just lift
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
lower position
1
Pull out the upper basket.
2.To lower the upper basket, lift the
adjust handles on each side to release
the basket and lower it to the lower
position.
lower position
1
Pull out the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 19
5 MAINTENANCE AND CLEANING
5.1 EXTERNAL CARE
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door. These surfaces are outside the wash cabinet and are
not accessed by water from the spray arms. Any deposits should be wiped off before
the door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth only.
Warnings:
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because they
may scratch the finish. Some paper towels may also scratch or leave marks on the
surface.

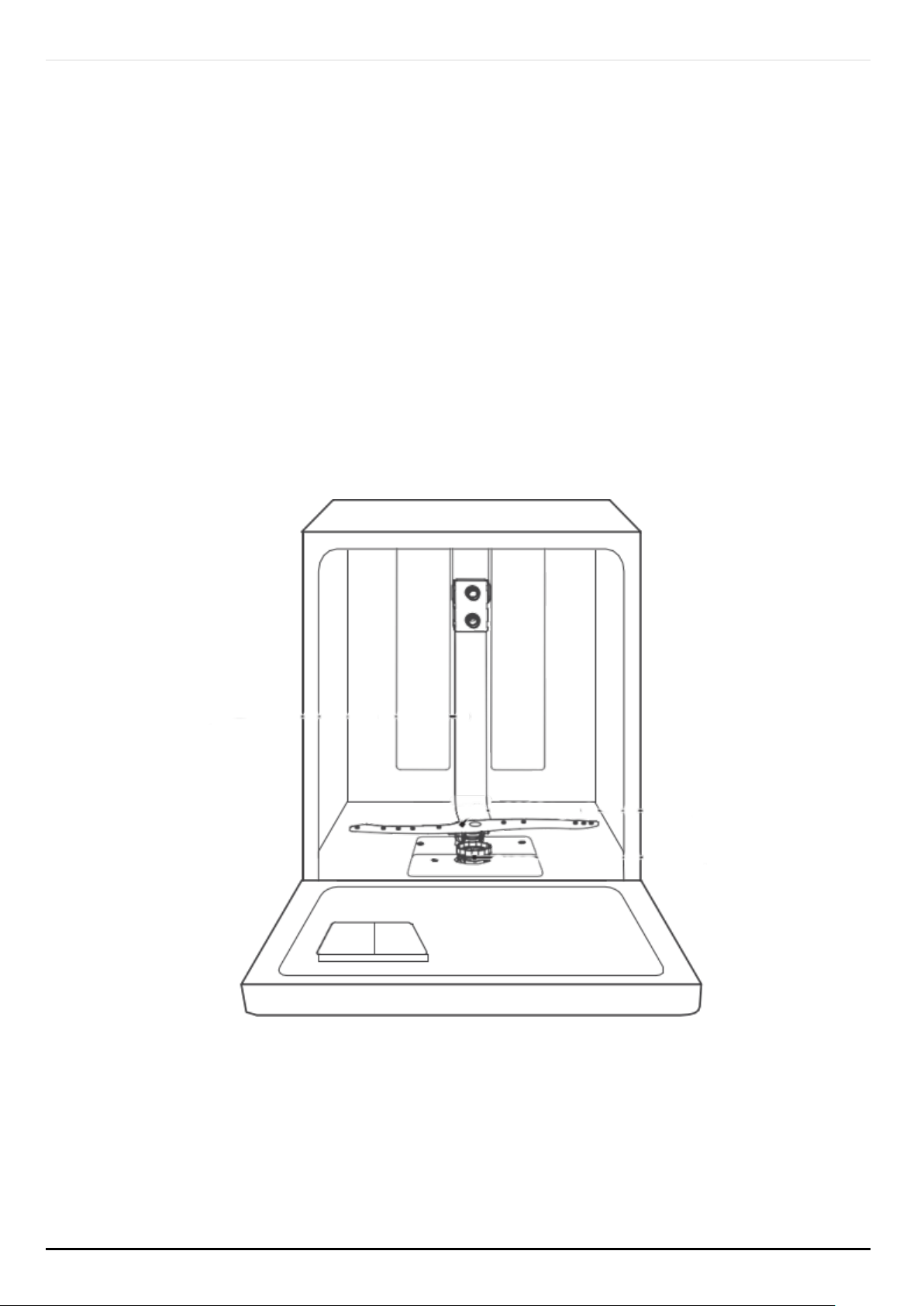

5.2 INTERNAL CARE
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters in the wash cabinet.
NOTE:
Pictures are only for reference, different models of the filtering system and spray arms
may be different.

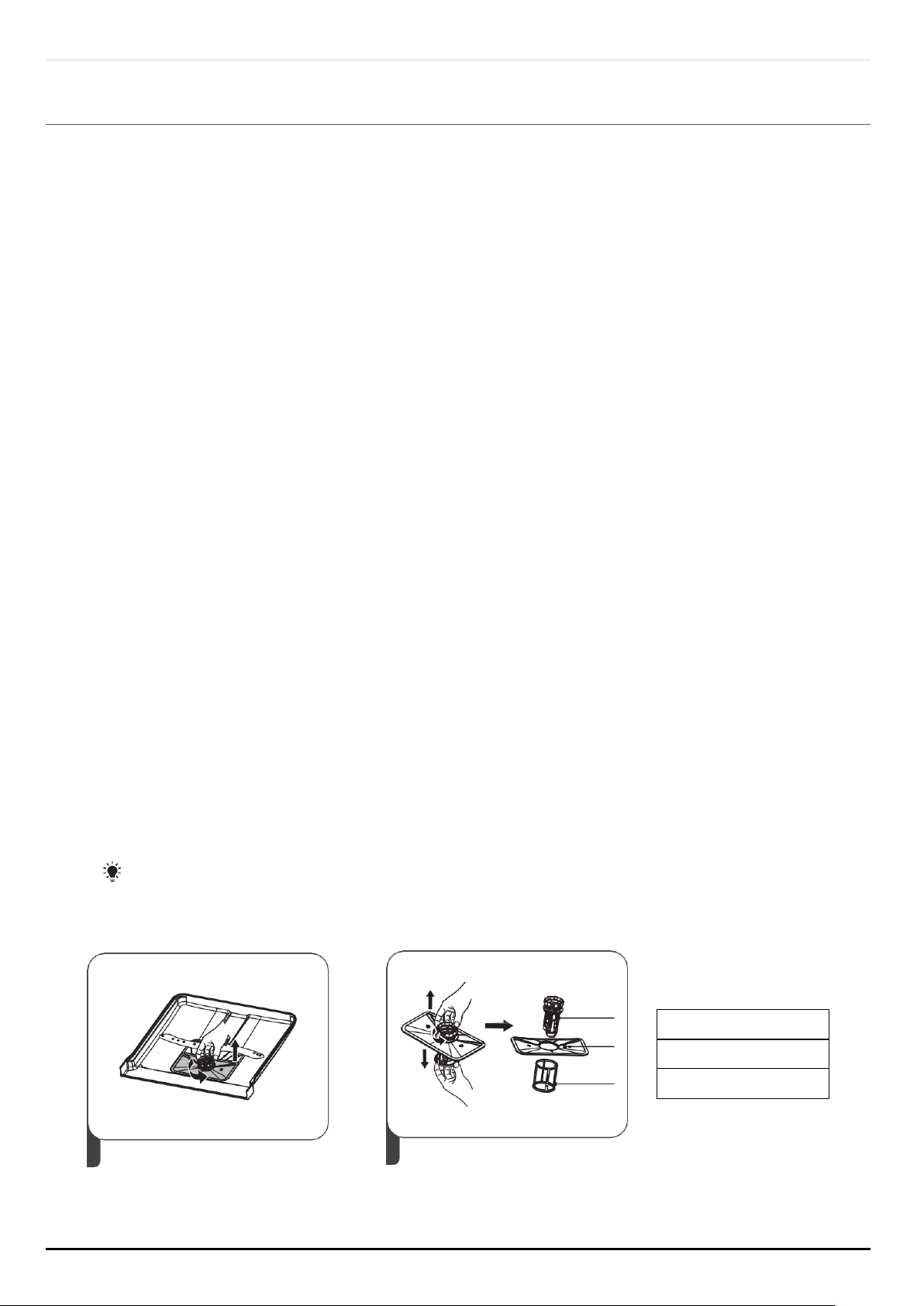

1.Hold the coarse filter and rotate it
anticlockwise to unlock the filter. Lift
the filter upwards and out of the
dishwasher.
2.The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
Coarse filter
Main filter
Fine filter
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 20
Warnings:
Do not over tighten the filters. Put the filters back in sequence securely, otherwise
coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of the filter
may reduce the performance level of the appliance and damage dishes and
utensils.
Spray arms
It is necessary to clean the spray arms regularly for hard water chemicals will clog
the spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
3.Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
lower position
1
Pull out the upper basket.
3.Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
lower position
1
Pull out the upper basket.
4.Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
lower position
1
Pull out the upper basket.
1.To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm
counterclockwise to remove it.
lower position
1
Pull out the upper basket.
2.To remove the lower spray arm,
pull out the spray arm upward.
lower position
1
Pull out the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 21
5.3 CARING FOR THE DISHWASHER
Frost precaution
Please take frost protection measures on the dishwasher in winter. Every time after
washing cycles, please operate as follows:
1.
Cut off the electrical power to the dishwasher at the supply source.
2.
Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.
Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.
Reconnect the water inlet pipe to the water valve.
5.
Remove the filter at the bottom of the tub and use a sponge to soak up water in the
sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door
slightly open so that moisture and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the
socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with
water an a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a long time
It is recommending that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, turn off the water supply and leave the door of the
appliance slightly open. This will help the door seals to last longer and prevent odors
from forming within the appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with a damp sponge will prevent this from
occurring.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 22
6 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1
6.1 UPPER BASKET FOR TRDWFS6012:
Number
Item
1
Cups
2
Saucers
3
Glasses
6.2 LOWER BASKET FOR TRDWFS6012:
Number
Item
4
Dinner plates
5
Soup plates
6
Dessert dishes
7
Cutlery basket
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 23
6.3 CUTLERY BASKET FOR TRDWFS6012:
I
n
f
o
r
m
a
t
i
o
n
f
o
r
c
o
m
p
a
r
a
b
i
l
i
t
y
t
e
s
t
s
i
n
a
cc
o
r
d
a
n
c
e
w
i
t
h
(
*
A
S
/
N
Z
S
2007
.
1
)
Capacity: 12 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
D
e
t
e
r
g
e
n
t
(
P
r
e
/
m
a
i
n
):
5
/
25
g
Door is open at the end of the drying cycle for the drying performance test (Door
position: Open 50 mm)
6.4 UPPER BASKET FOR TRDWFS6014:
2
1
2
4
4
4
4
4
4
2
1
2
1
1
1
1
5
2
1
2
4
4
4
4
4
4
2
5
2
2
1
2
3
3
3
3
3
3
5
5
5
1
1
1
5
5
5
5
5
2
1
2
3
3
3
3
3
3
5
5
Number
Item
1
Forks
2
Soup spoons
3
Dessert spoons
4
Teaspoons
5
Knives
Number
Item
1
Cups
2
Saucers
3
Glasses
1 2 3 4 5
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 24

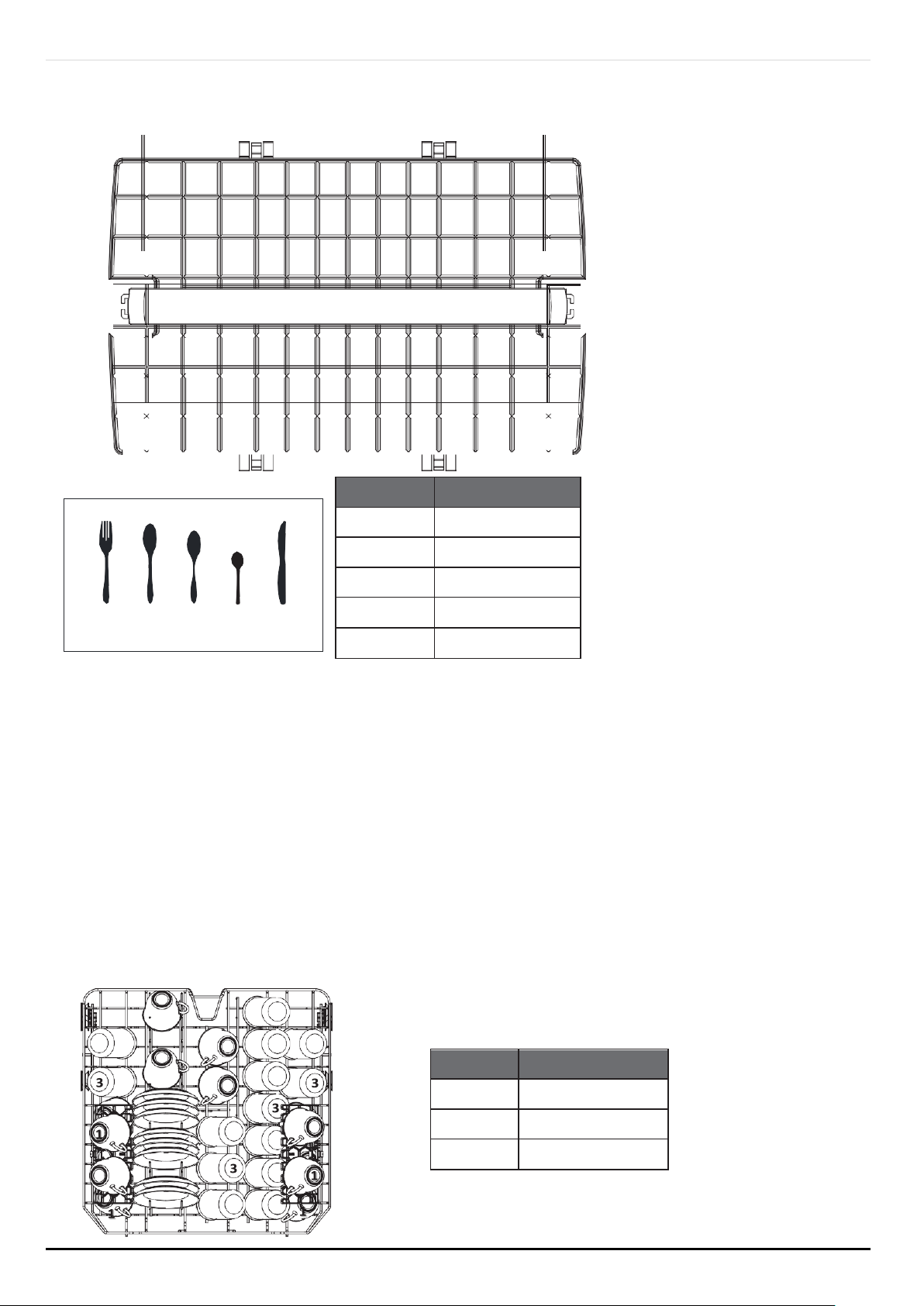

6.5 LOWER BASKET FOR TRDWFS6014:
Number
Item
4
Dinner plates
5
Soup plates
6
Dessert dishes
6.6 CUTLERY BASKET FOR TRDWFS6014:
Number
Item
1
Forks
2
Soup spoons
3
Dessert spoons
4
Teaspoons
5
Knives
2
4
3
5
1
1
5
3
4
2
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 25
I
n
f
o
r
m
a
t
i
o
n
f
o
r
c
o
m
p
a
r
a
b
i
l
i
t
y
t
e
s
t
s
i
n
a
cc
o
r
d
a
n
c
e
w
i
t
h
(
*
A
S
/
N
Z
S
2007
.
1
)
Capacity: 14 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
D
e
t
e
r
g
e
n
t
(
P
r
e
/
m
a
i
n
):
5
/
27.5
g
Door is open at the end of the drying cycle for the drying performance test (Door
position: Open 50 mm)
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 26
Outsid
e
7 SPECIAL VERSION

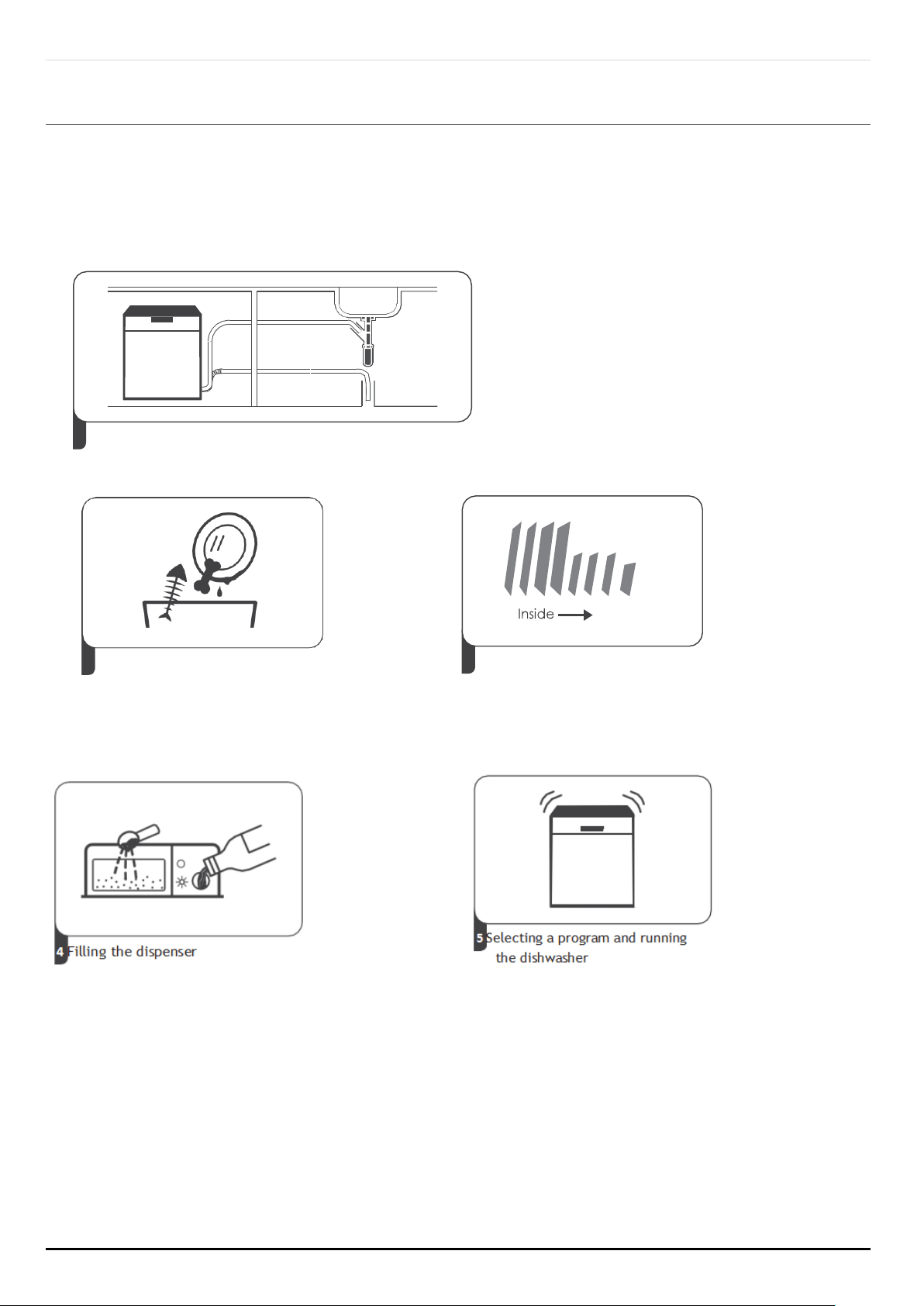

7.1 QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.

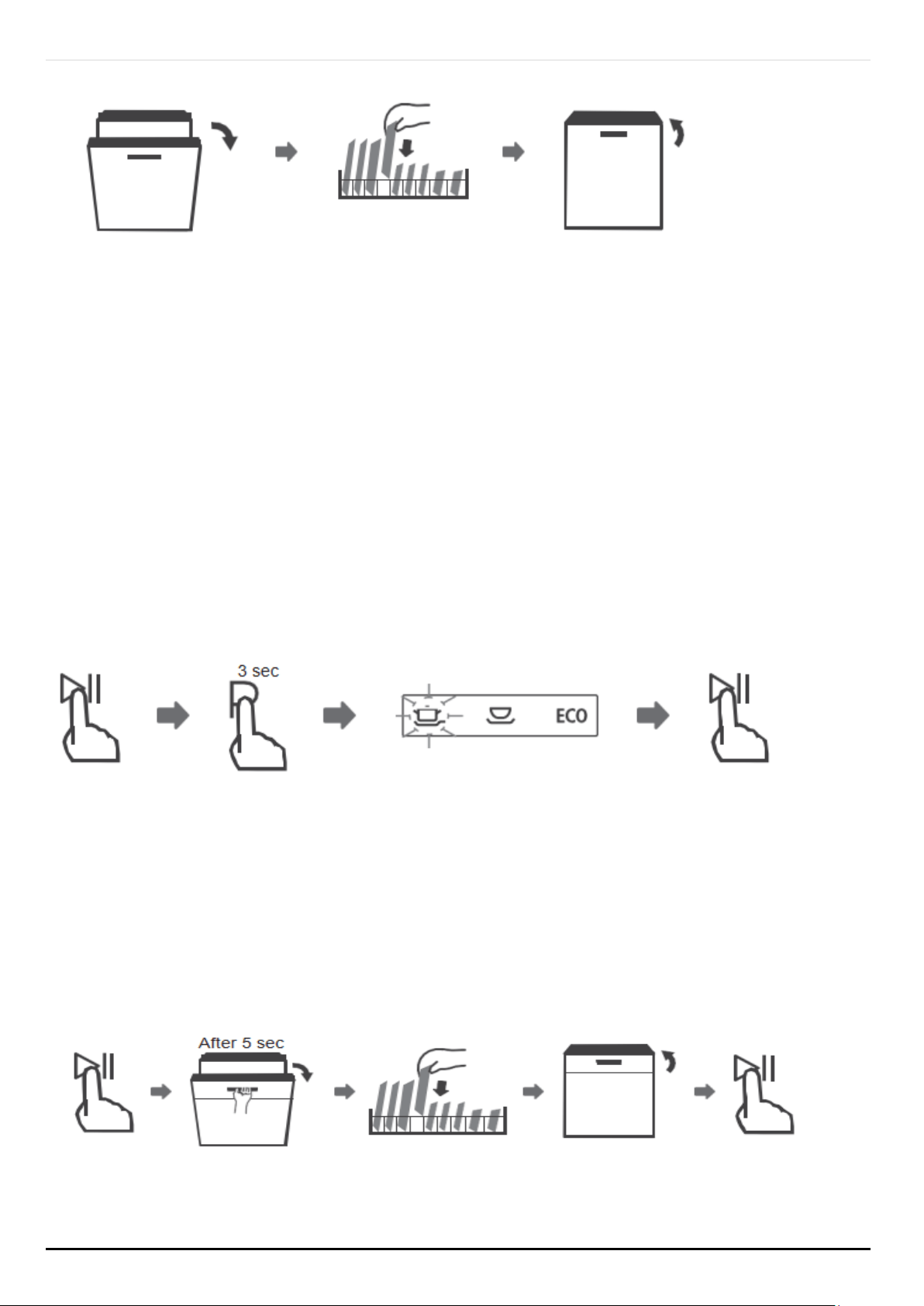

3.Loading the baskets
lower position
1
Pull out the upper basket.
1.Install the dishwasher
(Please check the section 3 “INSTALLATION INSTRUCTION”
2.Removing the larger residue on the
cutlery
lower position
1
Pull out the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 27

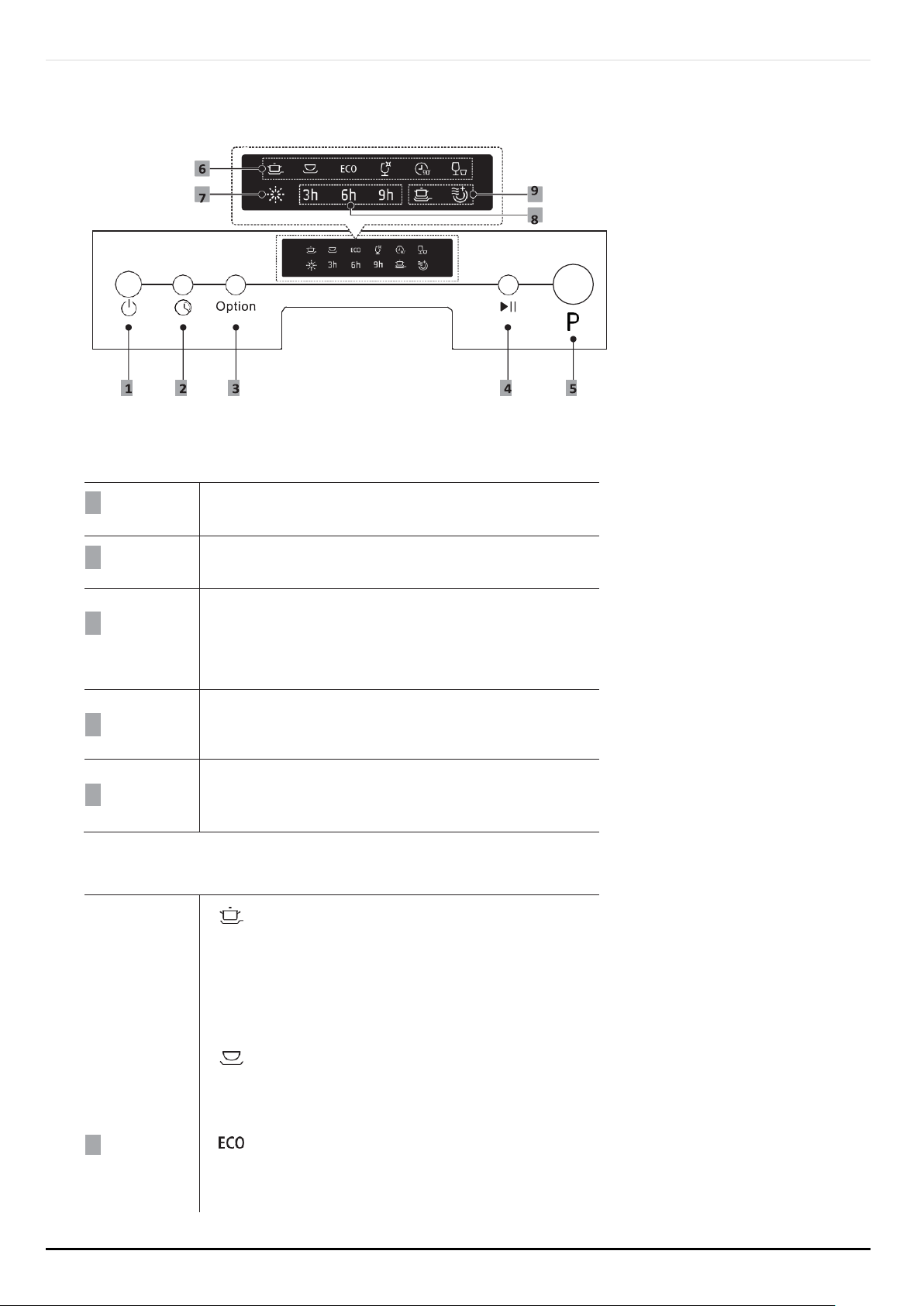

7.2

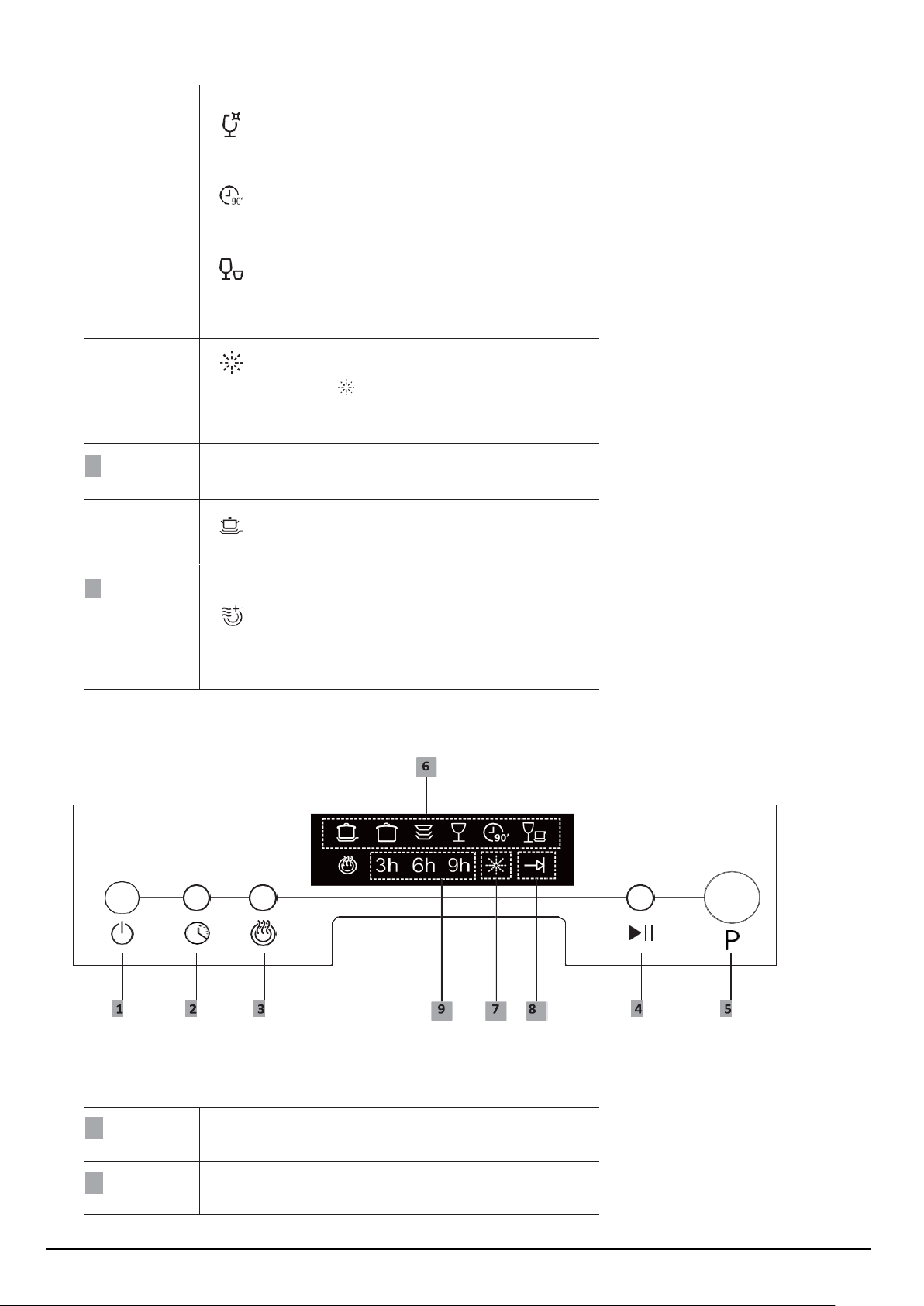

CONTROL
PANEL
FOR TRDWFS6014
Operation (Button)
1
Power
Press this button to turn on your
dishwasher, the screen lights up.
2
Delay
Press the button to set the delay time.
corresponding indicator will be lit.
3
Extra dry
If you want to dry your dishes more
completely, please select this function.
When pressing this button,
corresponding indicator will be lit.
4
Start /
Pause
To start the selected washing program or
pause it when the dishwasher is working.
5
Program
Press this button to select the appropriate
washing program, corresponding
indicator will be lit.
Display
Intensive
For heaviest soiled crockery, such
as pots, pans,
casserole dishes and dishes that
have been sitting
with dried food on them for a
while.
Heavy
For heavily soiled loads, such as
pots, plates,
glasses and lightly soiled pans.
6
Program
ECO
indicator
For normally soiled loads, such as
pots, plates,
glasses and lightly soiled pans,
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 28
standard daily cycle.
Glass
For lightly soiled crockery and
glass.
90 Min
For normally soiled loads that need
quick wash.
Rapid
A shorter wash for lightly soiled
loads that do not
need drying.
7
Warning
indicator
Rinse Aid
If the “ ” indicator is lit, it means
the dishwasher is low on dishwasher
rinse aid and requires a refill.
8
Delay
time
To show the delay time(3h/6h/9h)
Extra Cleaning
If you want to wash very dirty,
hard to clean dishes,
9
Function
please select this function.
indicator
Extra Drying
If you want to dry your dishes more
completely, please
select this function.
7.3
CONTROL
PANEL
FOR TRDWFS6012
Operation (Button)
1
Power
Press this button to turn on your dishwasher,
the screen lights up.
2
Delay
Press the button to set the delay time.
(3h/6h/9h)
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 29
3
Extra
dry
If you want to dry your dishes more
completely, please select this function.
When pressing this button, corresponding
indicator will be lit.
4
Start /
Pause
To start the selected washing program or
pause it when the dishwasher is working.
5
Program
Press this button to select the appropriate
washing program, corresponding indicator
will be lit.
Display
6
Program
indicator
6
Program
indicator
Intensive
Heavily soiled items include pots and
pans. With dried on food.
Heavy
For heavily soiled loads, such as pots,
plates, glasses and
lightly soiled pans.
Normal
For normally soiled loads, such as pots,
plates, glasses
and lightly soiled pans.
Glass
For lightly soiled crockery and glass.
90 Min
For normally soiled loads that need
quick wash.
Rapid
A shorter wash for lightly soiled loads
that do not
need drying.
7
Warning
indicator
Rinse Aid
If the “ ” indicator is lit, it means the
dishwasher is low on dishwasher rinse
aid and requires a refill.
8
Progress
indicator
Program end
when the program is end, the
indicator will be lit.
9
Delay
time
To show the delay time. (3h/6h/9h)
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 30
7.4
PREPARING
AND
LOADING
DISHES
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
For washing the following cutlery/dishes
Are not suitable
1.
Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are
not heat resistant
2.
Older cutlery with glued parts that are not temperature resistant Bonded cutlery
items or dishes
3.
Pewter or cooper items Crystal glass
4.
Steel items subject to rusting Wooden platters
5.
Items made from synthetic fibers
Are of limited suitability
1.
Some types of glasses can become dull after a large number of washes
2.
Silver and aluminum parts have a tendency to discolour during washing
3.
Glazed patterns may fade if machine washed frequently

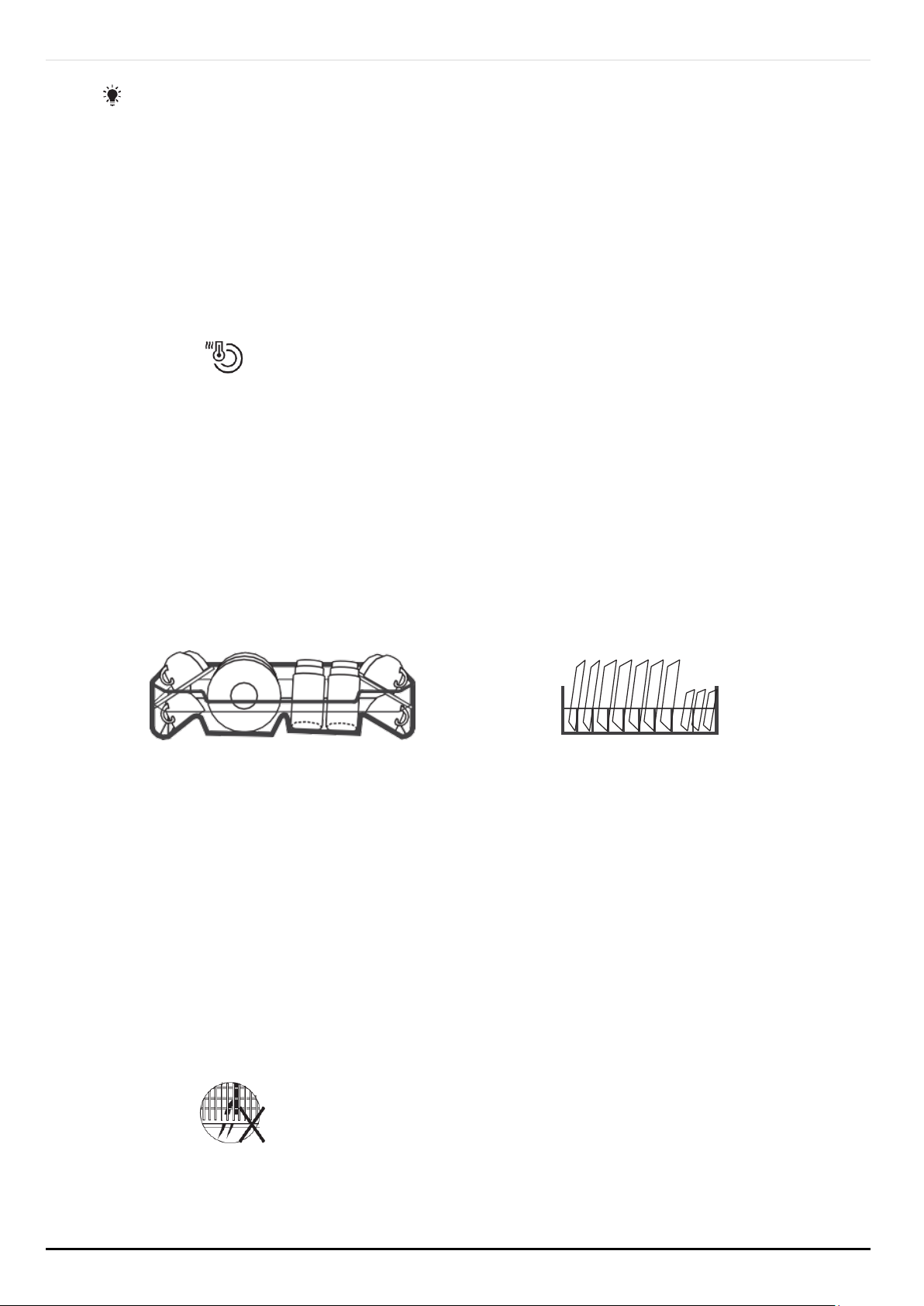

Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It
is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines. (Features
and appearance of baskets and cutlery baskets may vary from your model.)
Place objects in the dishwasher in following way:
1.
Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
3.
All utensils are stacked securely and can not tip over.
4.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
5.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
6.
Dishes and items of cutlery must not lie inside one another, or cover each other. To
avoid damage, glasses should not touch one another.
7.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
8.
Long bladed knives stored in an upright position are a potential hazard!
9.
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
10.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 31
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out
of the basket.
7.5
REMOVING
THE
DISHES
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Warnings:
Items will be hot! To prevent damage, do not take glass and cutlery out of the
dishwasher for around 15 minutes after the program has ended.
7.6
LOADING
THE
UPPER
BASKET
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the dishes and cookware so that
they will not get moved by the spray of water.
7.7
LOADING
THE
LOWER
BASKET
We suggest that you place large items and the most difficult to clean items are to be
placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as
shown in the figure below. It is preferable to place serving dishes and lids on the side
of the racks in order to avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the detergent dispenser is of 19
cm, this not to hamper the opening of it.
7.8
LOADING
THE
CUTLERY
BASKET
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
Warnings:
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 32
For the best washing effect, please load the baskets refer to standard loading options
on last section 6.
7.9
FUNCTION
OF
THE
RINSE
AID
AND
DETERGENT
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
Warnings:
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any
other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would
damage the appliance.
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can always
estimate the amount from the color of the optical level indicator located next to the
cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the
dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid
level be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Full
3/4 full
1/2 full
1/4 full
Empty
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove,
crush and dispense all dirt out of the dishwasher. Most of the commercial quality
detergents are suitable for this purpose.
Warnings:
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh
and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.
Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of
children.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 33
7.10
FILLING
THE
RINSE
AID
RESERVOIR
NOTE:
Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming
during the next wash.
Adjusting the rinse aid reservoir

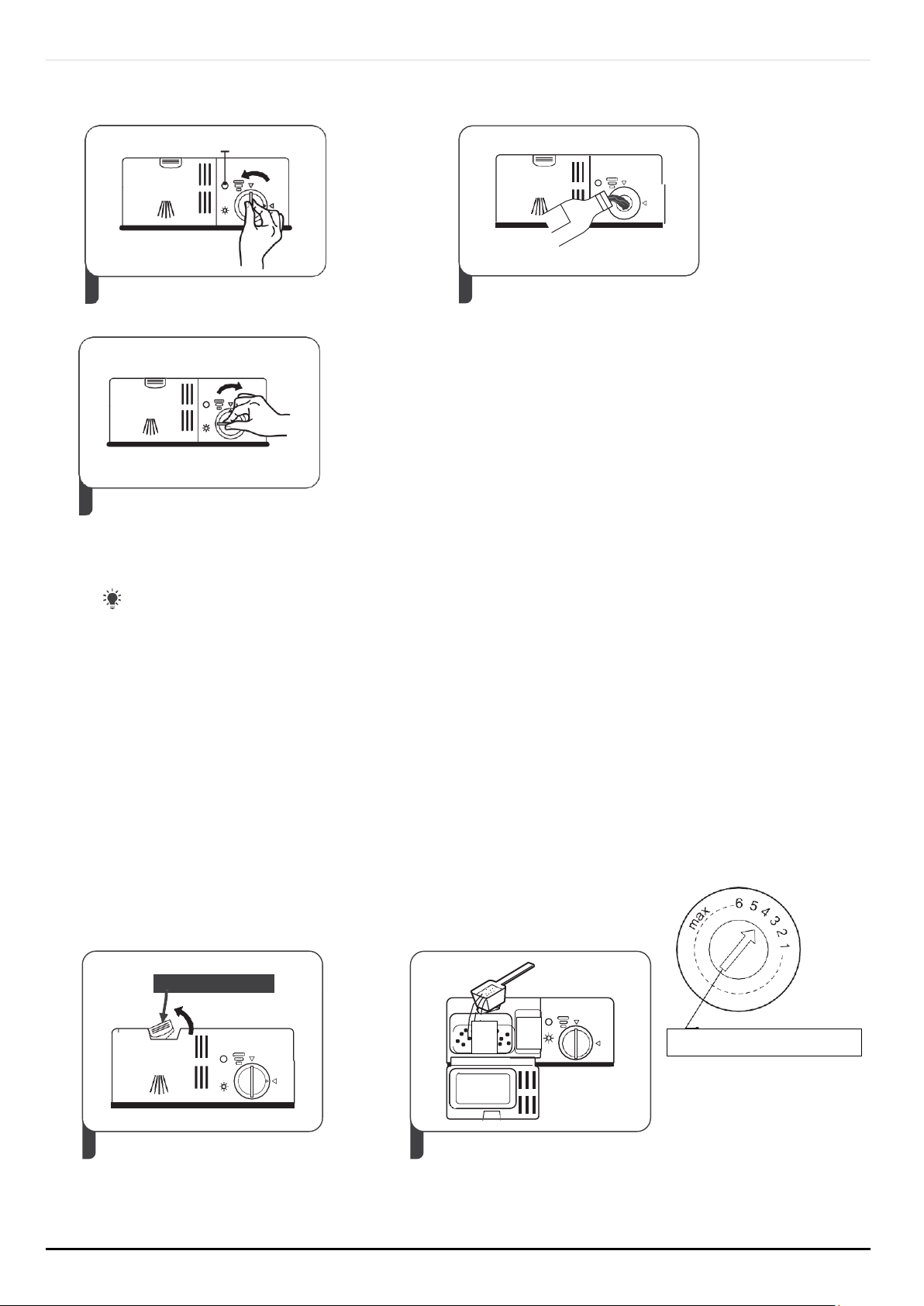

The rinse aid reservoir has six settings. Both the recommended setting and the factory
setting is “4”. If the dishes are not drying properly or are spotted, adjust the dial to the
next higher number until your dishes are spot-free. Reduce it if there are sticky whitish
stains on your dishes or a bluish film on glassware or knife blades.
7.11
FILLING
THE
DETERGENT
DISPENSER
Push latch to open
2.Carefully pour in the rinse-aid into its
dispenser, whilst avoiding it to
overflow.
lower position
1
Pull out the upper basket.
3.Replace the cap by inserting it
aligned with "open" arrow and
turning it to the closed (right) arrow.
lower position
1
Pull out the upper basket.
1.To open the dispenser, turn the
cap to the "open" (left) arrow and lift
it out.
lower position
1
Pull out the upper basket.
Adjust lever(Rinse)
B
A
2.Add detergent into the larger cavity
(A)for the main wash cycle.
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle.
lower position
1.Press the release catch on the
detergent dispenser to open the
cover.
lower position
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 34
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
7.12
PROGRAMMING
THE
DISHWASHER

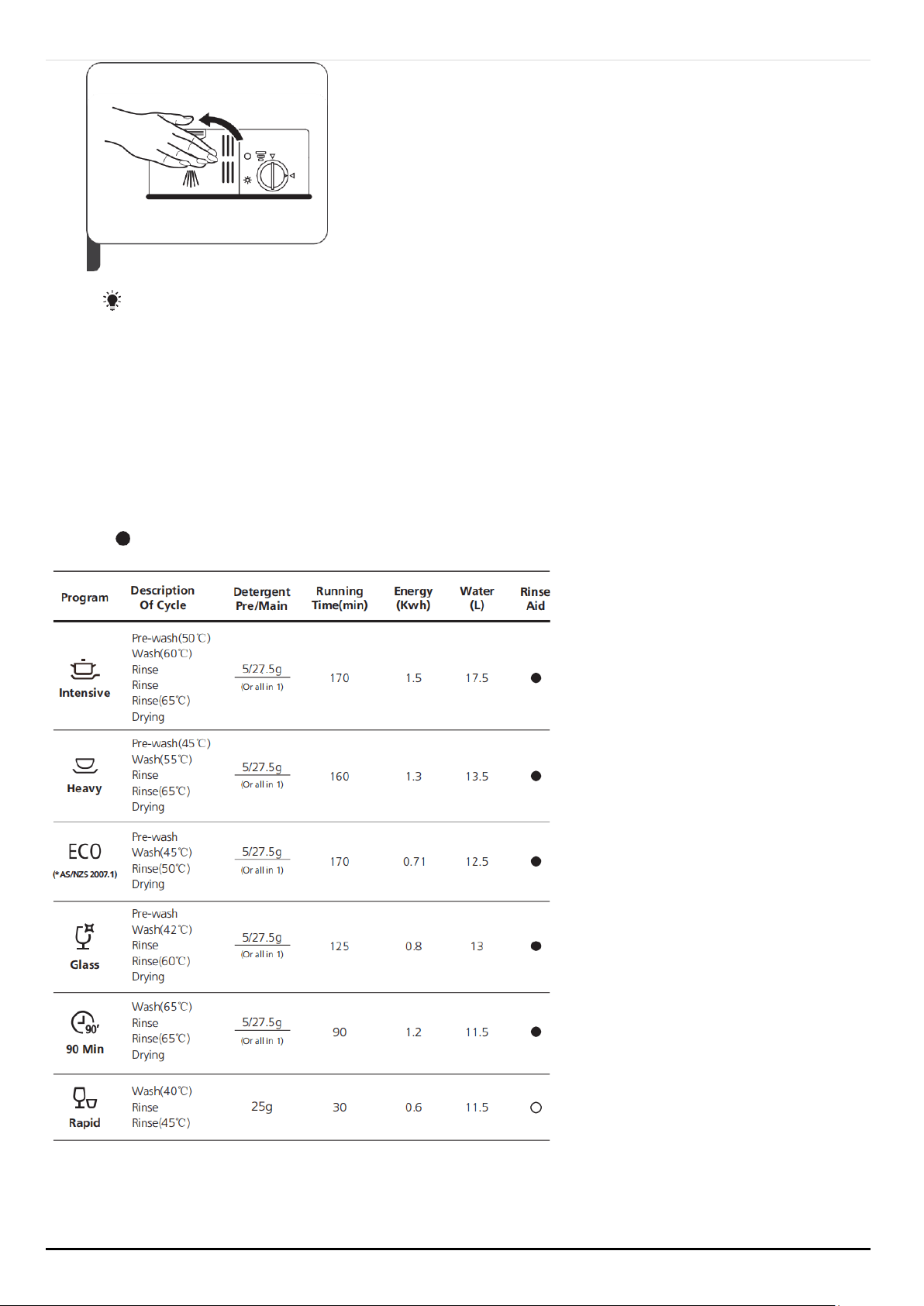

Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also shows various information
about the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
3.Close the cover and press on it until it
locks into place.
lower position
1
Pull out the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 35
NOTE:
*AS/NZS 2007.1: This program is the test cycle. The information for comparability test
in accordance with *AS/NZS 2007.1.
7.13
STARTING
A
CYCLE
WASH
Draw out the lower and upper basket, load the dishes and push them back. It is
commended to load the lower basket first, then the upper one.
Pour in the detergent.
Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
Close the door, press the Power button, to switch on the machine.
Choose a program, the response light will turn on. Then press the Start/Pause button,
the dishwasher will start its cycle.
7.14
CHANGING
THE
PROGRAM
MID-CYCLE
FOR TRDWFS6014

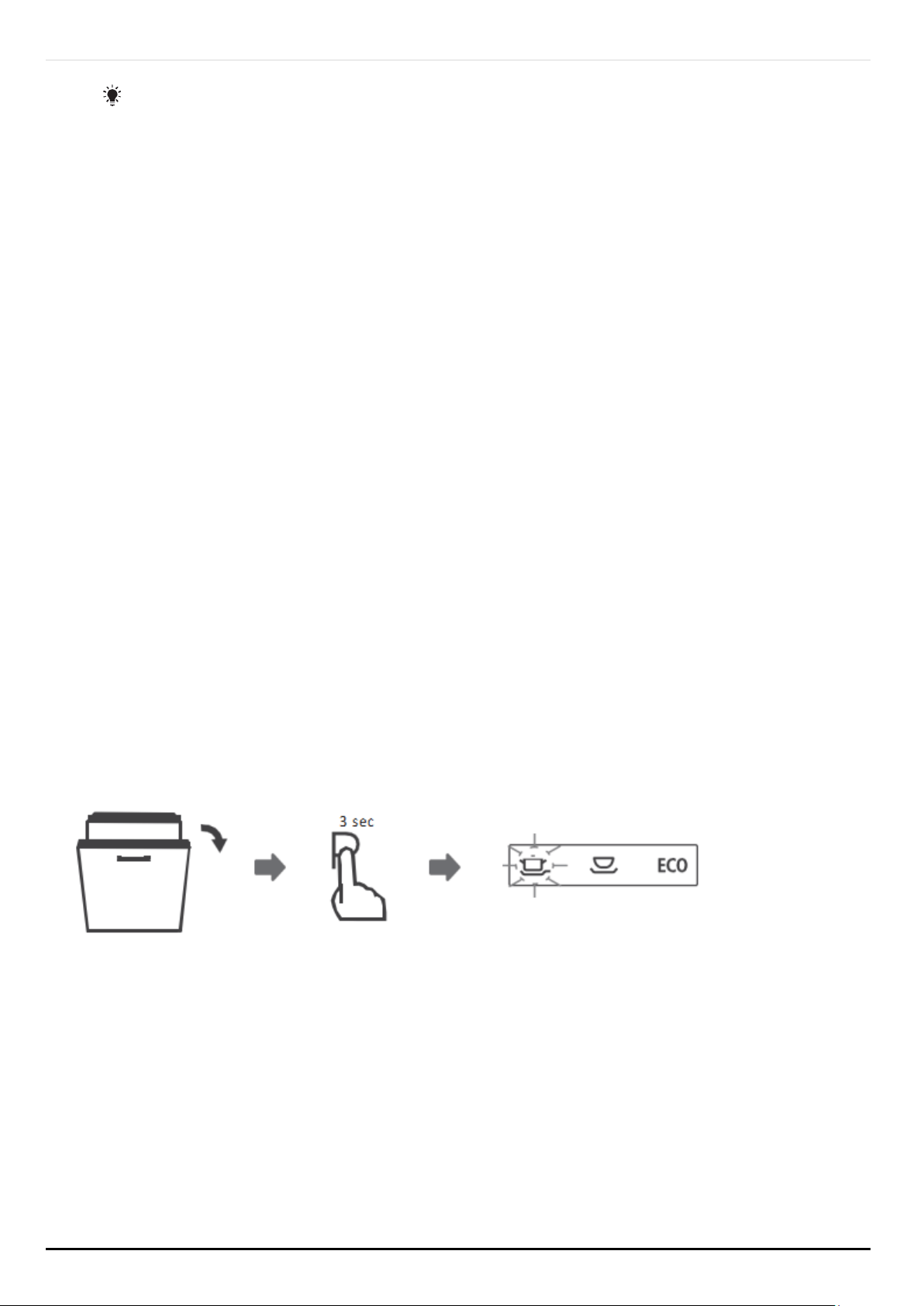

A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have
already drained the wash water. If this is the case, the dishwasher needs to be reset
and the detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
Open the door a little to stop the dishwasher, after the spray arm stop working, you
can open the door completely.
Press Program button more than three seconds the machine will be in stand by state.
You can change the program to the desired cycle setting.
7.15
FORGET
TO
ADD
A
DISH?
FOR TRDWFS6014
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door completely.
Add the forgotten dishes.
Close the door.
The dishwasher will run after 10 seconds.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 36
Warnings:
It is dangerous to open the door mid-cycle, as hot steam may scald you.
7.16
CHANGING
THE
PROGRAM
MID-CYCLE
TRDWFS6012
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have
already drained the wash water. If this is the case, the dishwasher needs to be reset
and the detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
Press the Start/Pause button to pause the washing.
Press program button for more than 3 seconds - the program will cancel.
Press the program button to select the desired program.
Press the Start/Pause button, after 10 seconds, the dishwasher will start.
7.17
FORGET
TO
ADD
A
DISH?
TRDWFS6012
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
Press the Start/Pause button to pause the washing.
Wait 5 seconds then open the door.
Add the forgotten dishes.
Close the door.
Press the Start/Pause button after 10 seconds, the dishwasher will start.
Warnings:
It is dangerous to open the door mid-cycle, as hot steam may scald you.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 37
7.18
ERROR
CODES

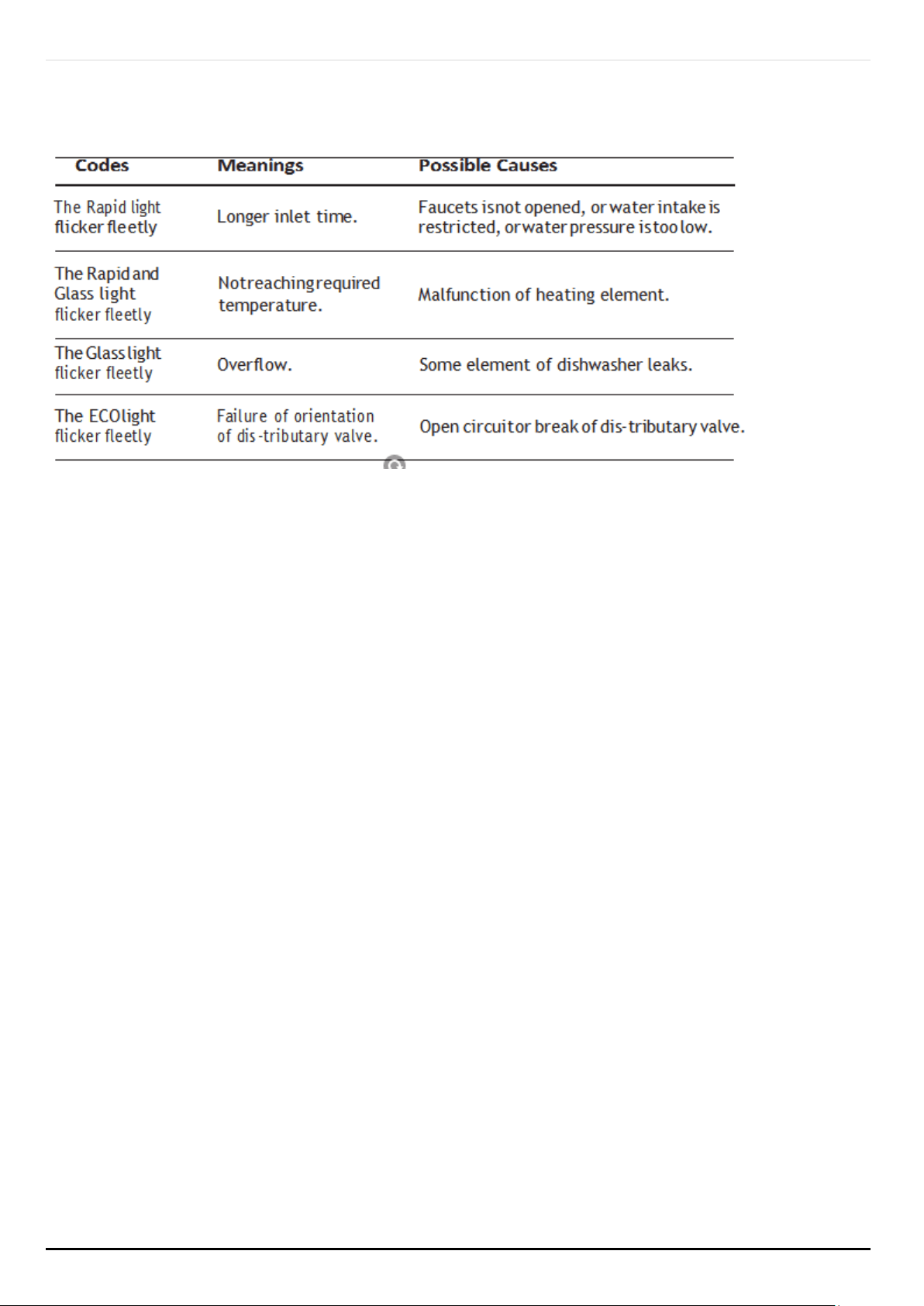

If there is a malfunction, the dishwasher will display error codes to identify these:
Warnings:
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should
be removed before restarting the dishwasher.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 38
8 TECHNICAL DATA

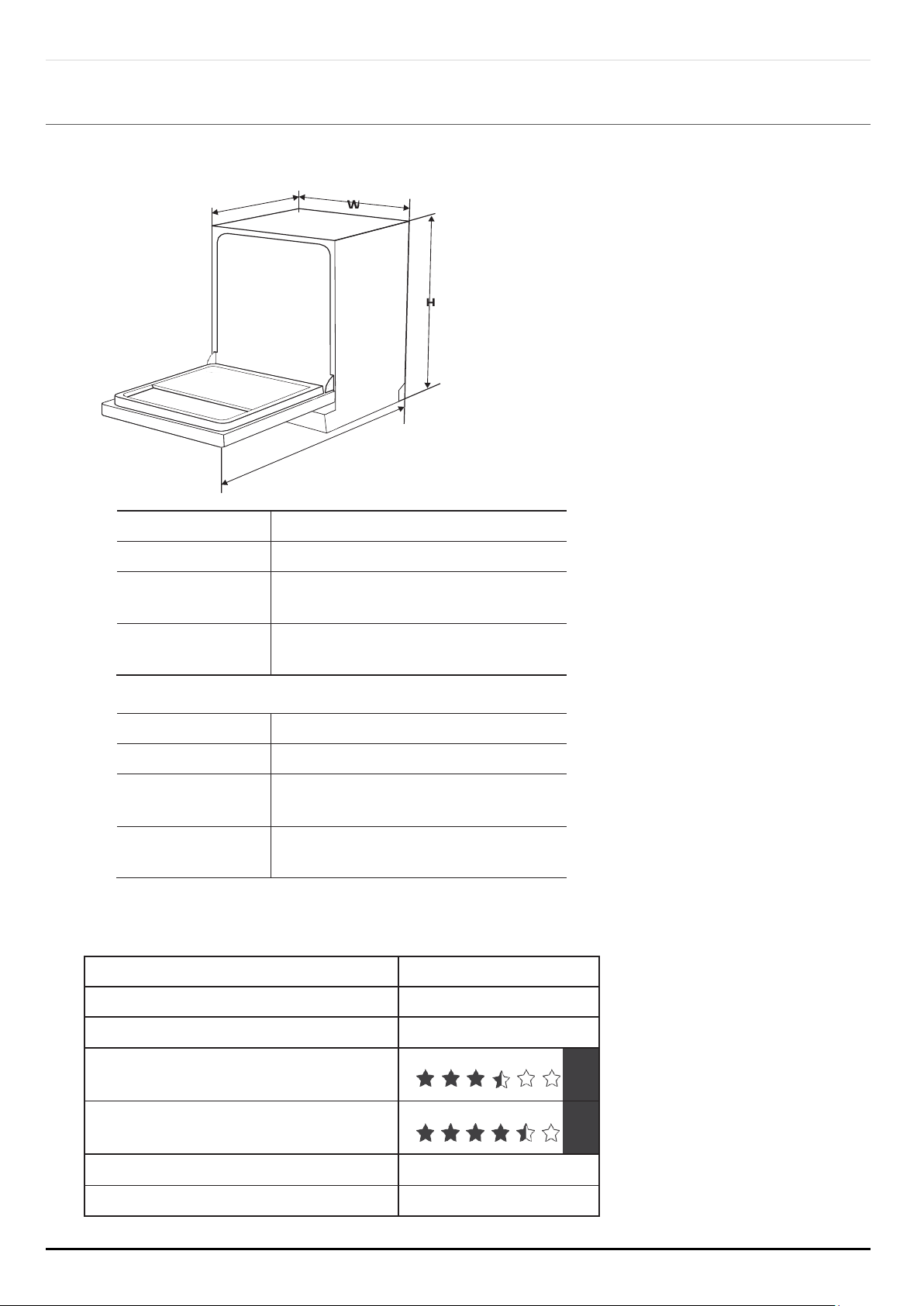

8.1 TECHNICAL DATA SHEET
TRDWFS6014
Height (H)
815mm
Width (W)
598mm
Depth (D1)
570mm (with the door
closed)
Depth (D2)
1175mm (with the door
opened 90°)
TRDWFS6012
Height (H)
845mm
Width (W)
598mm
Depth (D1)
600mm (with the door
closed)
Depth (D2)
1175mm (with the door
opened 90°)
8.2 PRODUCT SPECIFICATION FOR TRDWFS6014
Manufacturer
Trinity
Model
TRDWFS6014
Standard place settings
TRDWFS6014 -
14
Energy efficiency class
3.
5
Water consumption class
4.
5
Standard cleaning cycle
ECO
Energy consumption of the
0.71 kWh
D1
D2
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 39
standard cleaning cycle
Water consumption of the
standard cleaning cycle
12.5 liter
Program duration of the
standard cleaning cycle
170 min
Noise level
49 dB(A) re 1 pW
Mounting
Freestanding
Could be built-in
YES
Power consumption
1760-2100W
Rated voltage / frequency
AC 220-
240V/50Hz
Water pressure (flow pressure)
0.04-1.0MPa=0.4-
10 bar
8.3 PRODUCT SPECIFICATION FOR TRDWFS6012
Manufacturer
Trinity
Type / Description
TRDWFS6012
Standard place settings
12
Energy efficiency class
3
Water consumption class
4.
5
Standard cleaning cycle
Normal
Energy consumption of the
standard cleaning cycle
0.71 kWh
Water consumption of the
standard cleaning cycle
10.5 liter
Program duration of the
standard cleaning cycle
170 min
Noise level
49 dB(A) re 1 pW
Mounting
Free standing
Could be built-in
YES
Power consumption
1760-2100W
Rated voltage / frequency
AC 220-
240V/50Hz
Water pressure (flow pressure)
0.04-1.0MPa=0.4-
10 bar
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 40
9 PROBLEM SOLVER
9.1 BEFORE CALLING FOR SERVICE
Reviewing the charts on the following pages may save you from calling for service.
Problem
Possible Causes
What To Do
D
i
s
h
w
a
s
h
e
r
d
o
e
s
n
'
t
start
Fuse blown, or
the
circuit break
tripped.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Power supply is
not turned on.
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Water pressure is
low
Check that the water supply is connected properly and
the water is turned on.
Door of
dishwasher
not
properly closed.
Make sure to close the door properly and latch it.
Water not
pumped
form
dishwasher
Twisted or
trapped drain
hose.
Check the drain hose.
Filter clogged.
Check coarse the filter.
Kitchen sink
clogged.
Check the kitchen sink to make sure it is draining well. If the
problem is the kitchen sink that is not draining, you may
need a plumber rather than a serviceman for dishwashers.
Suds in the
tub
Wrong detergent.
Use only the special dishwasher detergent to avoid suds. If
this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the bottom of the
dishwasher.
Close the dishwasher door, then select
any cycle. Initially,
the dishwasher will
drain out the water. Open the door
after draining stage is complete and check if the suds
have disappeared.
Repeat if necessary.
Problem
Possible
Causes
What To Do
Spilled rinse-aid.
Always wipe up rinse-aid spills immediately.
Stained tub
interior
Detergent with
colourant may
have been
used.
Make sure that the detergent has no colourant.
White film on
inside surface
Hard water
minerals.
To clean the interior, use a damp sponge with dishwasher
detergent and wear rubber gloves. Never use any other
cleaner than dishwasher detergent otherwise, it may cause
foaming or suds.
There are rust
stains on
cutlery
The affected
items
are not
corrosion
resistant.
The items should be corrosion resistant.
Knocking
noise in the
dishwasher
A spray arm is
knocking
against an item
in a basket
Interrupt the program and rearrange the items which are
obstructing the spray arm.
Rattling noise
in the
dishwasher
Items of
crockery are
loose in the
dishwasher.
Interrupt the program and
rearrange the items of crockery.
Knocking
noise in the
water pipes
This may be
caused
by on-
site installation
or
the cross-
section of the
piping.
This has no influence on the dishwasher function. If in
doubt, contact a qualified plumber.
The dishes
are not clean
The dishes were
not loaded
correctly.
See notes in “Loading & unloading your dishwasher”.
The program
was
not powerful
enough.
Select a more intensive program.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 42
Problem
Possible
Causes
What To Do
The dishes
are not clean.
Not enough
detergent was
dispensed.
Use more detergent, or change your detergent.
Items are
blocking the
movement of
the spray arms.
Rearrange the items so that the spray can rotate freely.
The filter
combination
is
not clean or is
not correctly
fitted in the base
of wash cabinet.
This may cause
the spray arm jets
to get blocked.
Clean and/or fit the filter correctly.
Clean the spray arm jets.
Cloudiness on
glassware.
Combination of
soft water and
too much
detergent.
Use less detergent if you have soft water and select a
shorter cycle to wash the glassware and to get them
clean.
Black or grey
marks on
dishes
Aluminium
utensils have
rubbed against
dishes
Use a mild abrasive cleaner to eliminate those marks.
Detergent left
in
dispenser
Dishes block
detergent
dispenser
Re-loading the dishes properly.
The dishes
aren't drying
Improper
loading
Load the dishwasher as suggested in the directions.
Too little rinse-
aid
Increase the amount of rinse-aid/refill
the rinse-aid
dispenser.
Dishes are
removed too
soon
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
come out. Take out the dishes
until the inside temperature
is safe
to touch. Unload the lower basket first to prevent
the dropping water from the upper basket.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 43
Problem
Possible
Causes
What To Do
The dishes
aren't drying
Wrong program
has been
selected.
With a short program, the washing temperature is lower,
decreasing cleaning performance.
Choose a program with a long washing time.
Use of cutlery
with a
low-quality
coating.
Water drainage is more difficult with these items. Cutlery or
dishes of this type are not suitable for washing in the
dishwasher.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 44
10 DISPOSAL
This appliance requires special waste disposal. For further
information regarding the treatment, recovery and recycling of
this product please contact your local council, household waste
disposal service or the store where you purchased it.
The packaging materials are recyclable.
ONLINE: TRINITYAPPLIANCES.COM.AU
Page | 45
11 CUSTOMER CARE
Please be advised that without the proof of purchase, your warranty may not
be valid, keep the receipt.
For your convenience, please record:
STORE NAME/CONTACT DETAILS: ...............................................
PURCHASE DATE: ..........................................................................
PRODUCT MODEL N: ….................................................................
PRODUCT SERIAL N: .......................................................................
The warranty will be voided, if not installed by a licensed professional.
For your own protection, please record installer’s details:
Installer’s Trade Name:..................................................................
Trade Licence N: ............................................................................
Date of Installation: …....................................................................
Installation Receipt:.......................................................................
For further information on the appliance, service, spare parts or to obtain dimension
and installation information, please contact our customer service or visit website.
Please have above information and documents on hands before contacting customer
service
Phone: 1300 380 088
Email: [email protected]
Web: trinityappliances.com.au
