INSTRUCTION MANUAL
45 cm Freestanding Dishwasher
Models: TRDWFS4510
2
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
CONTENTS
1 PACKAGE
.......................................................................................................................................................
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
.................................................................
1.2 HANDLING
...............................................................................................................................................
1.3 BEFORE USING YOUR NEW APPLIANCE
............................................................................................
2 SAFETY WARNINGS
.......................................................................................................................................
2.1 IMPORTANT INFORMATION
.................................................................................................................
2.2 EARTHING INSTRUCTIONS
.............................................................................................................
3 INSTALLATION INSTRUCTION
.......................................................................................................................
3.1 ELECTRICAL SHOCK HAZARD
...........................................................................................................
3.2 ABOUT POWER CONNECTION
ARNING
............................................................................................
3.3 WATER SUPPLY AND DRAIN
.................................................................................................................
3.4 CONNECTION OF DRAIN HOSES
........................................................................................................
3.5 POSITION THE APPLIANCE
....................................................................................................................
3.6 FREE STANDING INSTALLATION
...........................................................................................................
3.7 BUILT-IN INSTALLATION(FOR THE INTEGRATED MODEL)
................................................................
4 USING INSTRUCTION
.....................................................................................................................................
4.1 YOUR NEW APPLIANCE
.......................................................................................................................
4.2 BEFORE USING YOUR DISHWASHER
...................................................................................................
4.3 BASKET USED TIPS
....................................................................................................................................
5 MAINTENANCE AND CLEANING
...............................................................................................................
5.1 EXTERNAL CARE
.....................................................................................................................................
5.2 INTERNAL CARE
......................................................................................................................................
5.3 CARING FOR THE DISHWASHER
..........................................................................................................

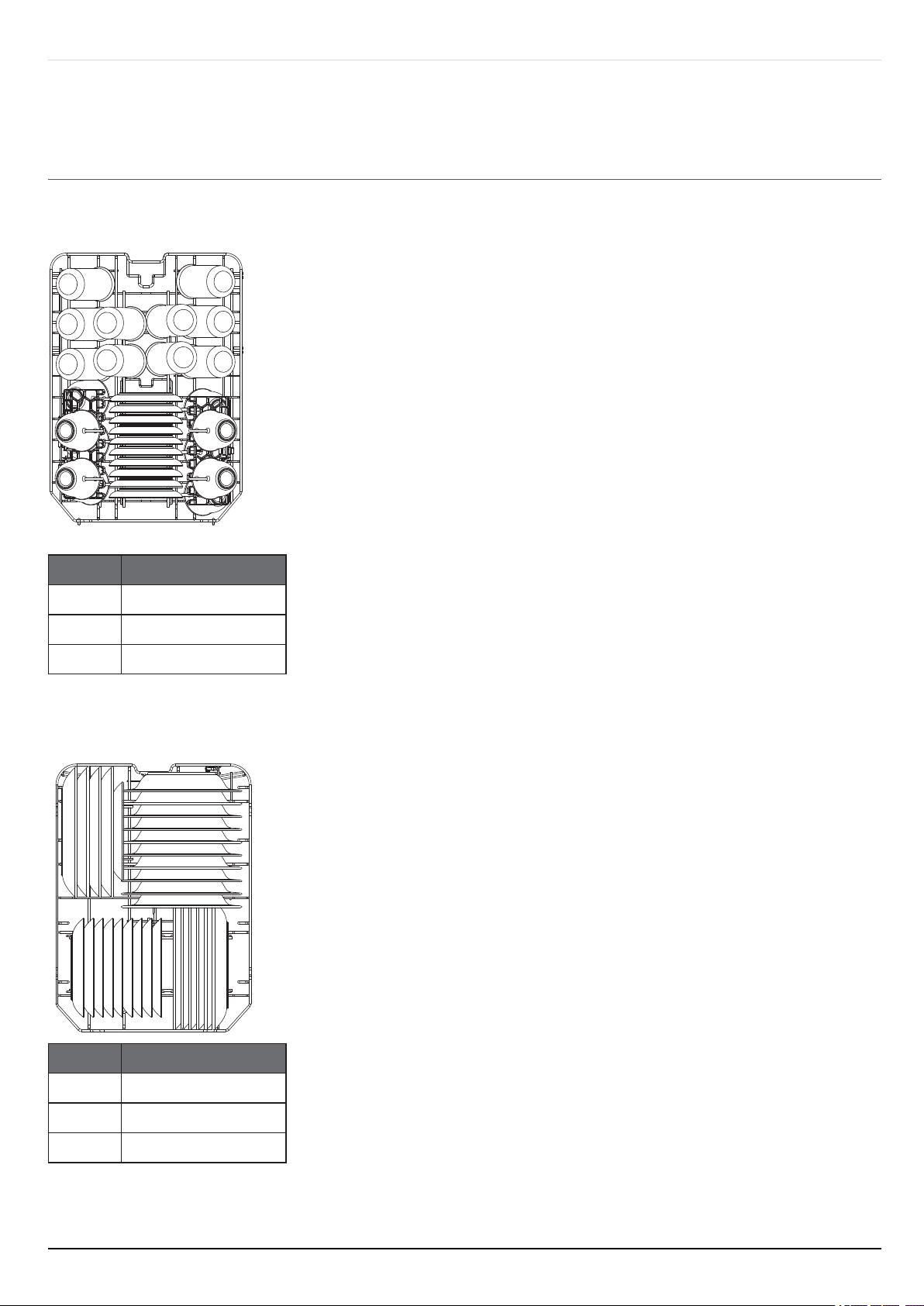

6 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1
...................................................................
6.1 UPPER BASKET:
........................................................................................................................................
6.2 LOWER BASKET:
.......................................................................................................................................
6.3 CUTLERY BASKET:
....................................................................................................................................
7 SPECIAL VERSION
..........................................................................................................................................
7.1 QUICK USER GUIDE
................................................................................................................................
7.2
CONTROL PANEL
...............................................................................................................................
7.3 PREPARING AND LOADING DISHES
........................................................................................
7.4 REMOVING THE DISHES
.................................................................................................................
5
5
5
5
6
6
7
8
8
8
9
9
10
11
12
17
17
18
18
20
20
20
22
24
24
24
25
26
26
27
28
29
3
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
7.5 LOADING THE UPPER BASKET
.....................................................................................................
30
7.6 LOADING THE LOWER BASKET
...................................................................................................
30
7.7
LOADING THE CUTLERY BASKET
.................................................................................................
30
7.8 FUNCTION OF THE RINSE AID AND DETERGENT
................................................................
31
7.9 FILLING THE RINSE AID RESERVOIR
...........................................................................................
7.10 FILLING THE DETERGENT DISPENSER
.....................................................................................
7.11
PROGRAMMING THE DISHWASHER
.......................................................................................
7.12 STARTING A CYCLE WASH
........................................................................................................
7.13 CHANGING THE PROGRAM MID-CYCLE
..........................................................................
7.14
FORGET TO ADD A DISH?
...........................................................................................................
7.15
ERROR CODES
..................................................................................................................................

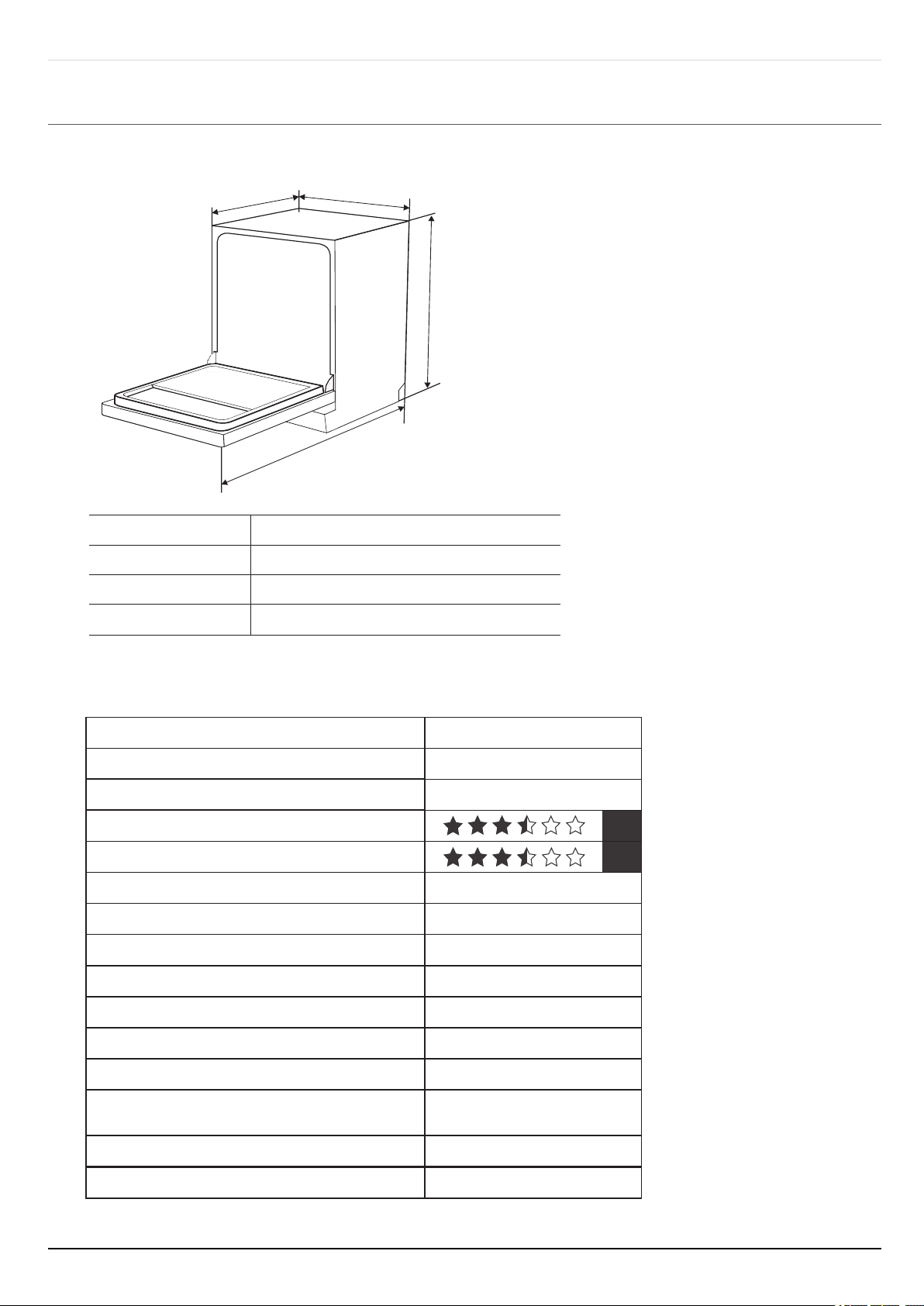

8 TECHNICAL DATA
..........................................................................................................................................
8.1 TECHNICAL DATA SHEET
.......................................................................................................................
8.2 PRODUCT FICHE
.....................................................................................................................................
9 PROBLEM SOLVER
.........................................................................................................................................
9.1 BEFORE CALLING FOR SERVICE
.........................................................................................................
10 DISPOSAL
......................................................................................................................................................
11 CUSTOMER CARE
........................................................................................................................................
4
32
33
34
35
35
35
36
37
37
37
38
38
41
42
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
1
PACKAGE
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
Please thoroughly inspect your goods
at the delivery time
, if you notice any damage to your
goods:
Please notify the delivery team at the time of delivery and
do NOT accept damaged
product
.
Please notify us immediately as the problem can be instantly solved and damaged
product return to the courier office.
When you open the package and find the appliance is damaged or marked, you must
report it within 24 hours. Do not install or connect the item, keep the package as original, if
you wish to claim for damage/marks under the manufacturer’s warranty. This does not
affect your statutory rights.
Evidence of damage will be required.
1.2 HANDLING
Do not use the door and/or handle to carry or move the appliance.
Carry out the movement and transportation in the original packaging.
Pay maximum attention to the appliance while loading/unloading and handling.
Make sure that the packaging is securely closed during handling and transportation.
Protect from external factors (such as humidity, water, etc.) that may damage the
packaging.
Be careful not to damage the appliance due to bumps, crashes, drops, etc. while
handling and transporting and not to break or deform it during operation.
1.3 BEFORE USING YOUR NEW APPLIANCE
Read this guide, taking special note of the ‘Safety Warnings’ section.
Remove any protective film that may still be on your appliance.
This instruction manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may not be included in your appliance. Pay
attention to the explanations with illustrations while reading the manual.
NOTE:
This instruction manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may be slightly different or not be included in your
appliance. Pay attention to the explanations with illustrations while reading the manual.
5
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
2 SAFETY WARNINGS
2.1 IMPORTANT INFORMATION
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY, PLEASE READ
THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE
To maintain
the EFFICIENCY and SAFETY of this appliance, we recommend:
Installation and repair can only be carried out by a qualified technician
This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not
be done by children without supervision. (For EN60335-1)
This appliance is not intended for use by persons (including children ) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1 ) Packaging material could be
dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug
in water or other liquid. Please unplug before cleaning and performing maintenance
on the appliance.
Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
Safety reminding
Caution: possibility of tilting
Anti-tip restraints
WARNING: In order to prevent tipping of the
appliance, this stabilising means must be installed.
Refer to the instructions for installation.
6
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
2.2 EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance of
electric current. This appliance is equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of an
electric shock. Check with a qualified electrician or service representative if you are in
doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out. Do not place any heavy objects on or stand on the door when it is open.
The appliance could tip forward.
When loading items to be washed:
1)Locate sharp items so that they are not likely to damage the door seal;
2)Warning: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if
swallowed.
Avoid contact with the skin and eyes and keep children away from the dishwasher
when the door is open.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse agents recommended for use in an automatic
dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously bent or
flattened.
Do not tamper with controls.
The appliance needs to be connected to the main water valve using new hose sets.
Old sets should not be reused.
To save energy, in stand by mode , the appliance will switch off automatically while
there is no any operation in 30 minutes .
7
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
3 INSTALLATION INSTRUCTION
3.1 ELECTRICAL SHOCK HAZARD
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
Attention: The installation of the pipes and electrical equipments should be done by
professionals.
3.2
ABOUT POWER CONNECTION
ARNING
Warnings, For personal safety:
Do not use an extension cord or an adapter plug with thisappliance.
Donot,underanycircumstances,cutorremove the earthingconnection
from the powercord.
Electrical requirements
Please look at the rating label to know the rating voltage and
connect the dishwasher to the appropriate power supply. Use the
required fuse 10A/13A/16A, time delay fuse or circuit breaker
recommended and provide separate circuit serving only this
appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds
to those on the rating plate. Only insert the plug into an electrical
socket which is earthed properly. If the electrical socket to which
the appliance must be connected is not appropriate for the plug,
replace the socket, rather than using a adaptors or the like as they
could cause overheating and burns.
Ensure that proper earthing exists before use
8
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
3.3 WATER SUPPLY AND DRAIN
Cold water connection

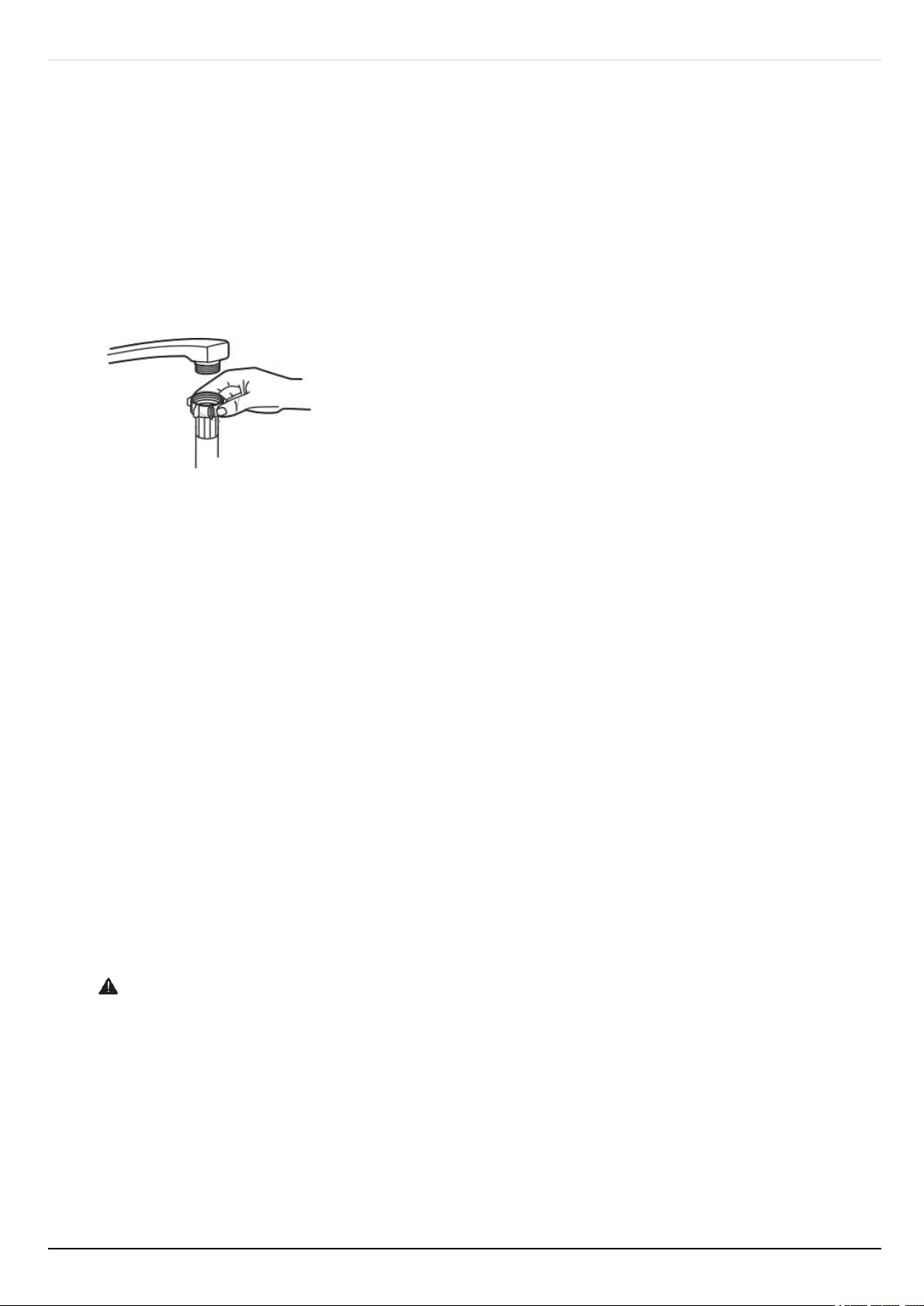

Connect the cold water supply hose to a threaded 3/4 inch
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is clear.
This precaution is needed to avoid the risk of the water inlet to be
blocked and damage the appliance.
Ordinary supply hose
How to connect the safety supply hose
Pull The safety supply hoses completely out from storage compartment located at
rear of dishwasher.
Tighter the screws of the safety supply hose to the faucet with thread 3/4 inch.
Turn water fully on before starting the dishwasher.
How to disconnect the safety supply hose
Turn off the water.
Unscrew the safety supply hose from the faucet.
3.4 CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000mm. The free end of the hose must not be immersed in water to
avoid the back flow of it.
Please securely fix the drain hose in either position A or position B
9
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
10
How to drain excess water from hoses
If the sink is 1000 higher from the floor, the excess water in hoses
cannot be drained directly into the sink. It will be necessary to drain
excess water from hoses into a bowl or suitable container that is
held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly
fitted to avoid water leaks. Ensure that the water drain hose is not
kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain
hose.
It must be no longer than 4 meters; otherwise the cleaning effect of
the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm
(maximum) from the bottom of the dish. The water drain hose should
be fixed .
3.5 POSITION THE APPLIANCE
Position the appliance in the desired location. The back should rest
against the wall behind it, and the sides, along the adjacent
cabinets or walls. The dishwasher is equipped with water supply and
drain hoses that can be positioned either to the right or the left sides
to facilitate proper installation.
Counter
Back of machine
A
B
Water Inlet
Drain Pipe
Mains Cable
Drain hose
MAX1000mm
m
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
1

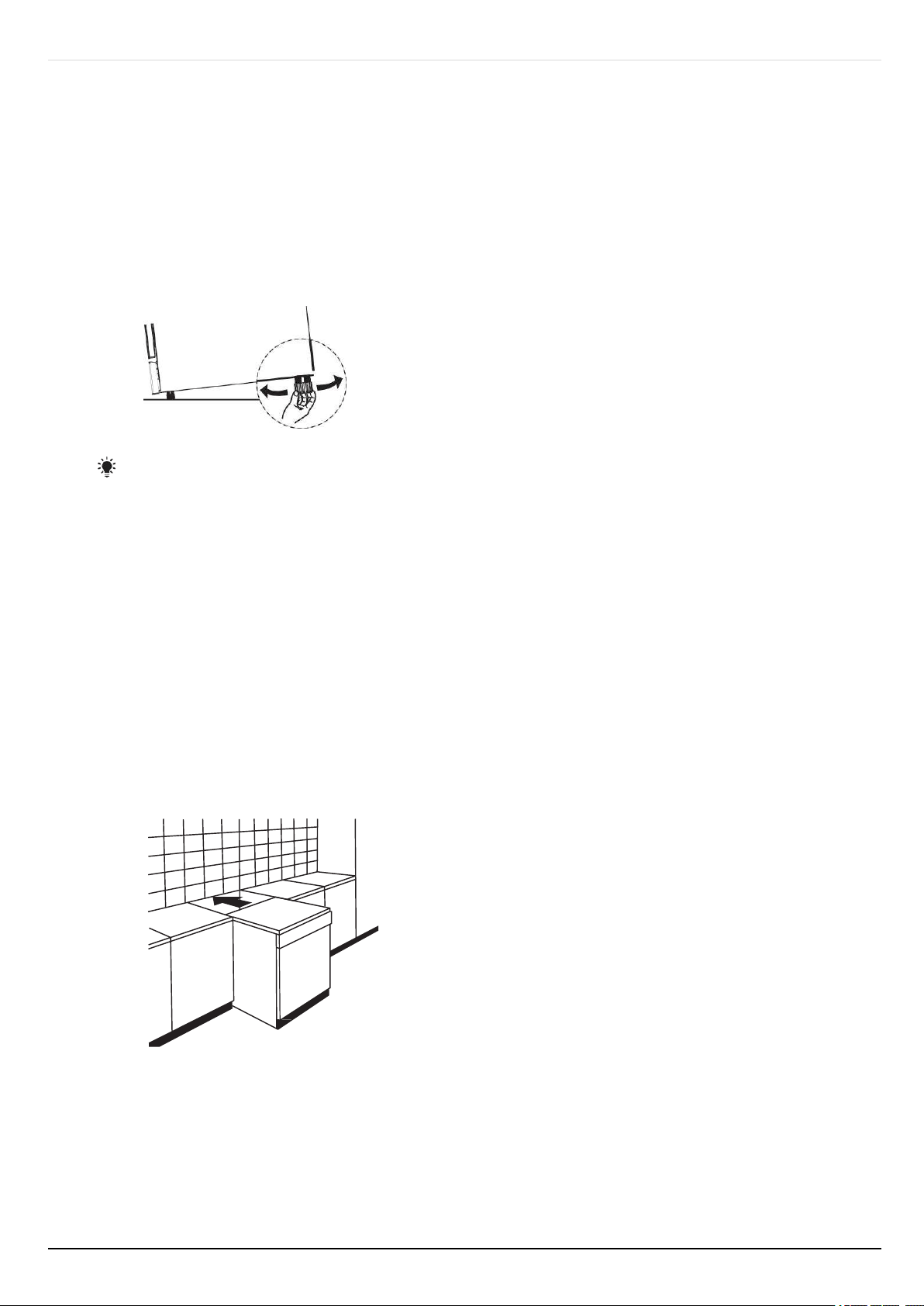

Levelling the appliance
Once the appliance is positioned for levelling, the height of the
dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined more than 2°.
NOTE:
Only apply to the free standing dishwasher.
3.6 FREE STANDING INSTALLATION
Fitting between existing carbinets
The height of the dishwasher, 845 mm, has been designed in order
to allow the machine to be fitted between existing cabinets of the
same height in modern fitted kitchens. The feet can be adjusted so
that correct height is reached.
The laminated top of the machine does not require any particular
care since it is heatproof, scratchproof and stainproof.
Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one single work top
under which cabinets and electrical appliances are fitted. In this
1
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
case remove the work top of the dishwasher by unscrewing the
screws under the rear edge of the top (a).
Attention
After removing the work top, the screws must be screwed again under
the rear edge of the top (b).
The height will then be reduced to 815 mm, as scheduled by the
International Regulations (ISO) and the dishwasher will fit perfectly
under the kitchen working top.
3.7 BUILT-IN INSTALLATION(FOR THE INTEGRATED MODEL)
Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet
and drain hoses and power cord.

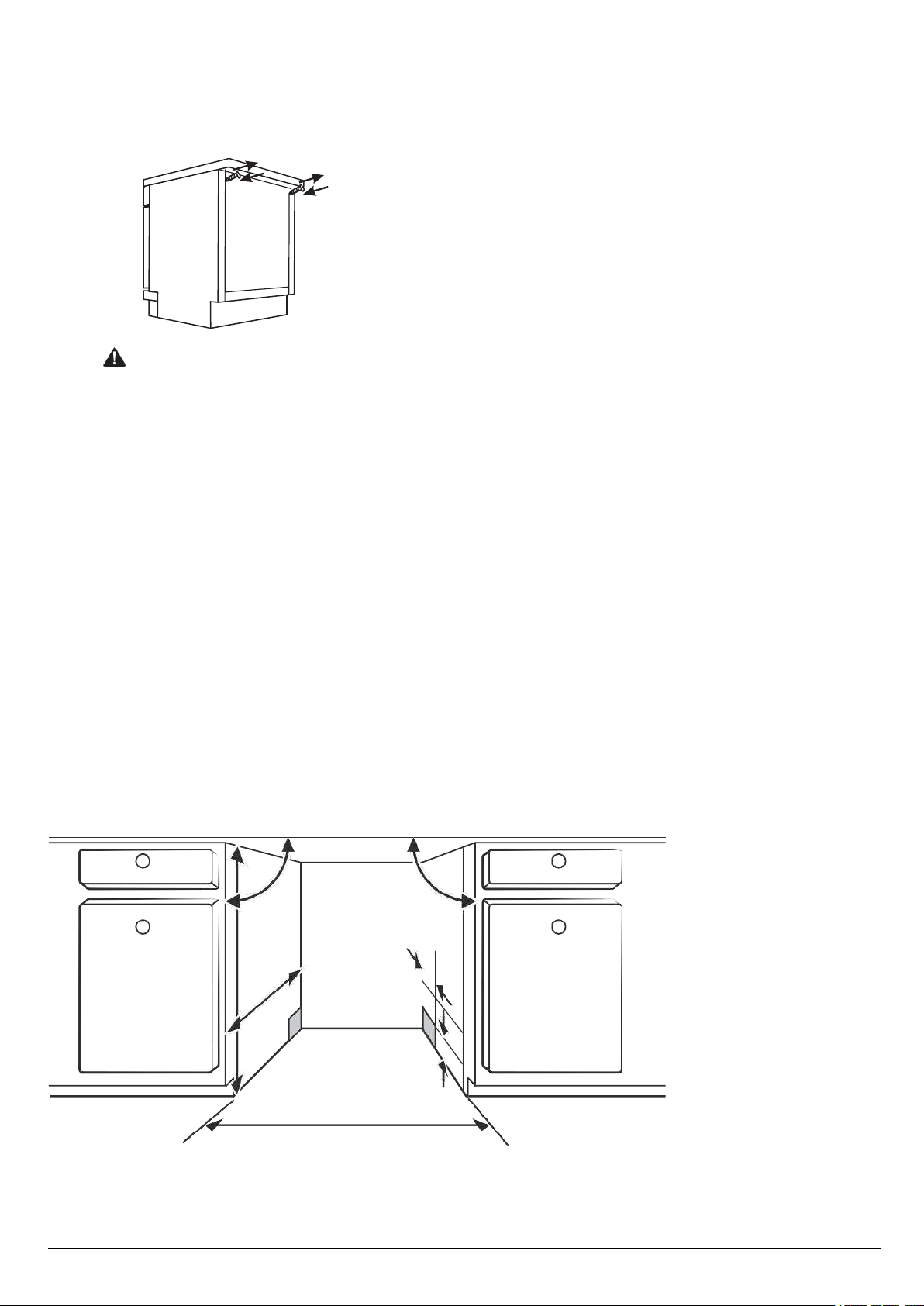

Illustrations of cabinet dimensions and installation position of the
dishwasher.
Less than 5 mm between the top of dishwasher and cabinet and the
outer door aligned to cabinet.
90 °
90 °
820mm
Electrical, drain and
water supply line
entrances
580mm
80
100
Space between cabinet
bottom and floor
600 mm(for 60cm model) 450
mm(for 45cm model)
a
a
b
b
12
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |

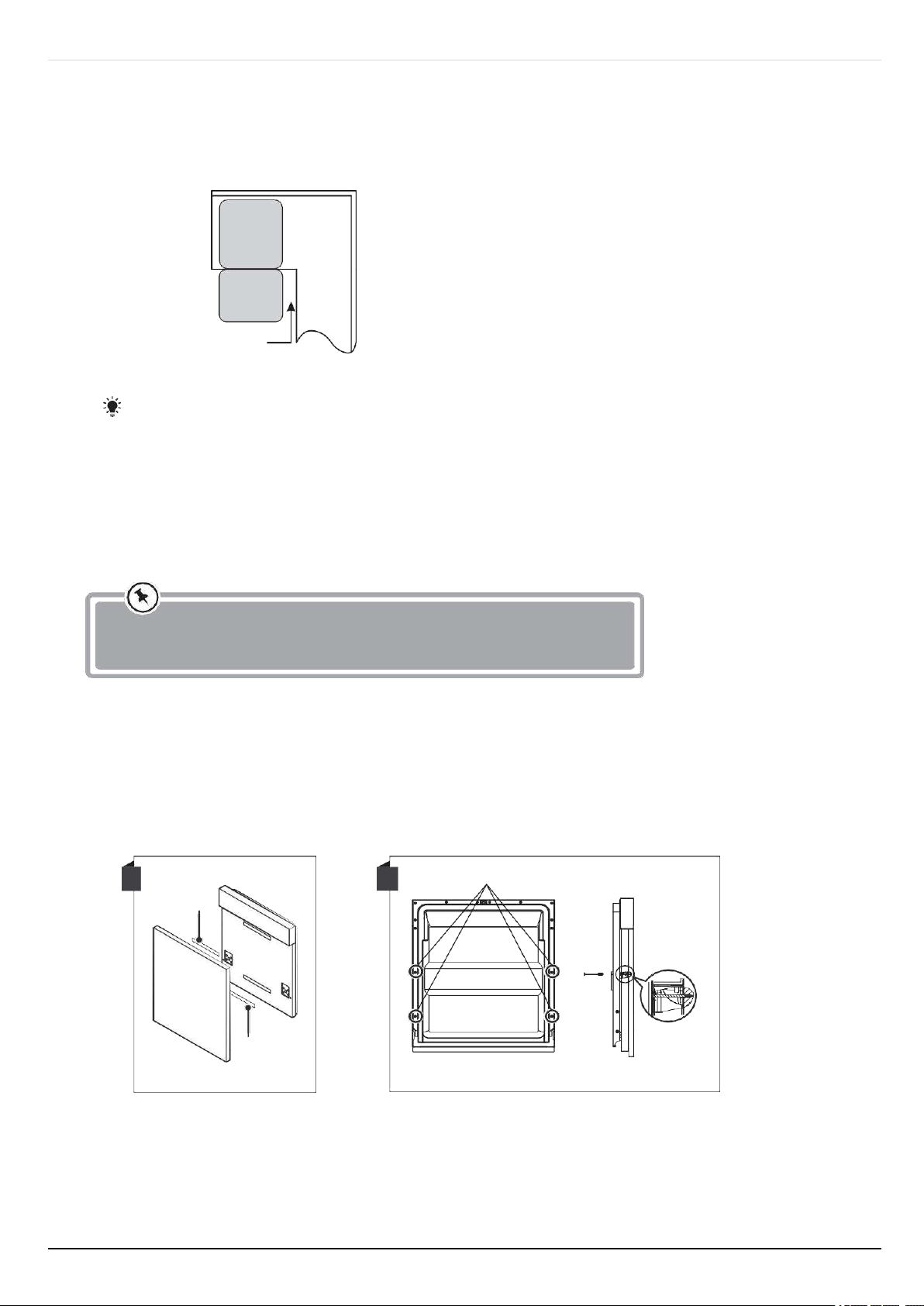

The aesthetic wooden panel could be processed according to the
installation drawings.
A
Magical
paster
Magical
paster
B
1.Takeawaythe four shortscrews
2
.
Pin up the four long screws
If dishwasher is in stalled at the corner of the cabinet, there should be
some space when the door is opened.
NOTE:
Depending on where your electrical outlet is, you may need to cut a
hole in the opposite cabinet side.
Step 2. Aesthetic panel's dimensions and installation
Semi-integrated model
Magical paster A and magical paster B be disjoinedon, magical paster
A on the aesthetic wooden panel and felted magical paster B of the
outer door of dishwasher (see figure A). After positioning of the panel,
fix the panel onto the outer door by screws and bolts (See figure B).
Dishwasher Cabinet
Door of
dishwasher
Minimum space
of 50mm
13
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
A
B

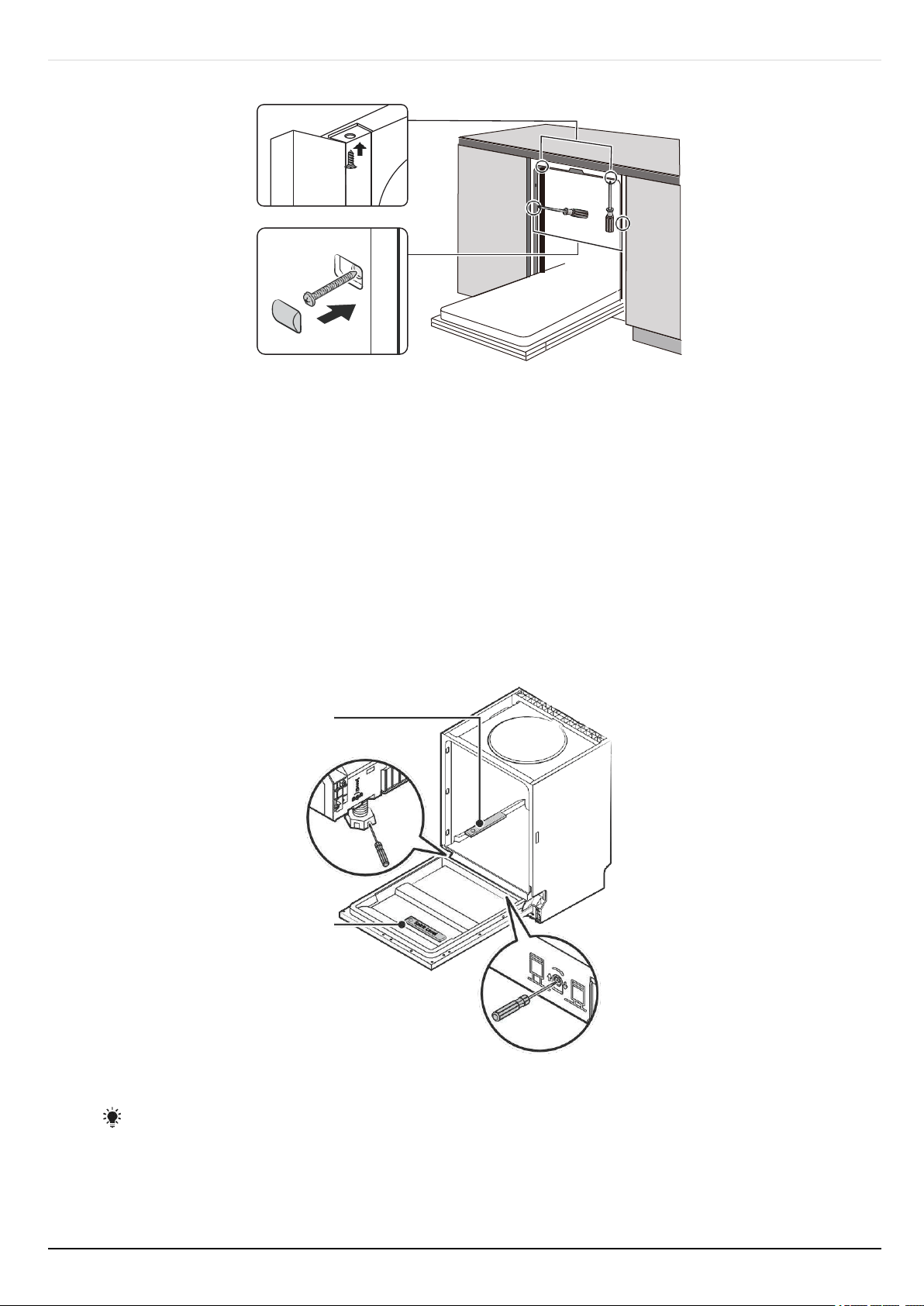

1.Takeawaythe four short
screws
2.Pin up the four long
screws
Full-integrated model
Install the hook on the aesthetic wooden panel and put the hook into
the slot of the outer door of dishwasher (see figure A). After positioning
of the panel, fix the panel onto the outer door by screws and bolts (See
figure B).
Step 3. Tension adjustment of the door spring
The door springs are set at the factory to the proper tension for the
outer door. If aesthetic wooden panel are installed, you will have to
adjust the door spring tension. Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
Door spring tension is correct when the door remains horizontal in the
fully opened position, yet rises to a close with the slight lift of a finger.
14
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Please refer to the specified installation steps in the
installation drawings.
Step 4. Dishwasher installation steps
1.
Affix the condensation strip under the work surface of cabinet. Please
ensure the condensation strip is flush with edge of work surface. (Step
2)
2.
Connect the inlet hose to the cold water supply.
3.
Connect the drain hose.
4.
Connect the power cord.
5.
Place the dishwasher into position. (Step 4)
6.
Level the dishwasher. The rear food can be adjusted from the front of
the dishwasher by turning the Philips screw in the middle of the base of
dishwasher use an Philips screw. To adjust the front feet, use a flat screw
driver and turn the front feet until the dishwasher is level. (Step 5 to
Step 6)
7.
Install the furniture door to the outer door of the dishwasher. (Step 7 to
Step 10)
8.
Adjust the tension of the door springs by using an Allen key turning in a
clockwise motion to tighten the left and right door springs. Failure to do
this could cause damage to your dishwasher. (Step 11)
9.
The dishwasher must be secured in place. There are two ways to do this:
A.
Normal work surface: Put the installation hook into the slot of the side
plane and secure it to the work surface with the wood screws.
B.
Marble or granite work top: Fix the side with Screw.
15
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
A
B
Step 5. Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash
performance.
1.
Place a spirit level on door and rack track inside the tub as shown to
check that the dishwasher is level.
2.
Level the dishwasher by adjusting the three levelling legs individually.
3.
When level the dishwasher, please pay attention not to let the dishwasher
tip over.
Check level front to back
Check level side to side
UP
NOTE:
The maximum adjustment height of the feet is 50 mm.
16
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
4 USING INSTRUCTION
4.1 YOUR NEW APPLIANCE
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
NOTE:
Pictures are only for reference, different models may be different. Please
prevail in kind.
Top spray arm
Dispenser
Filter assembly
Lower spray arm
Inner pipe
upper spray arm
Upper basketLower basket
Cup rack
Cutlery rack
17
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
1. Pull out the upper basket.
2.Remove the upper basket.
4.2 BEFORE USING YOUR DISHWASHER
Inside
Outside
1.
Loading the basket
2.
Fill the rinse aid dispenser (Please check the section 1 of PART
Ⅱ
: Special
Version)
3.
Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version)
4.3 BASKET USED TIPS
Adjusting the upper basket
Type 1:
The height of the upper basket can be easily adjusted to
accommodate taller dishes in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
4. Push in the upper basket.
3.Re-attach the upper basket to
Upper or lower rollers.
18
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |

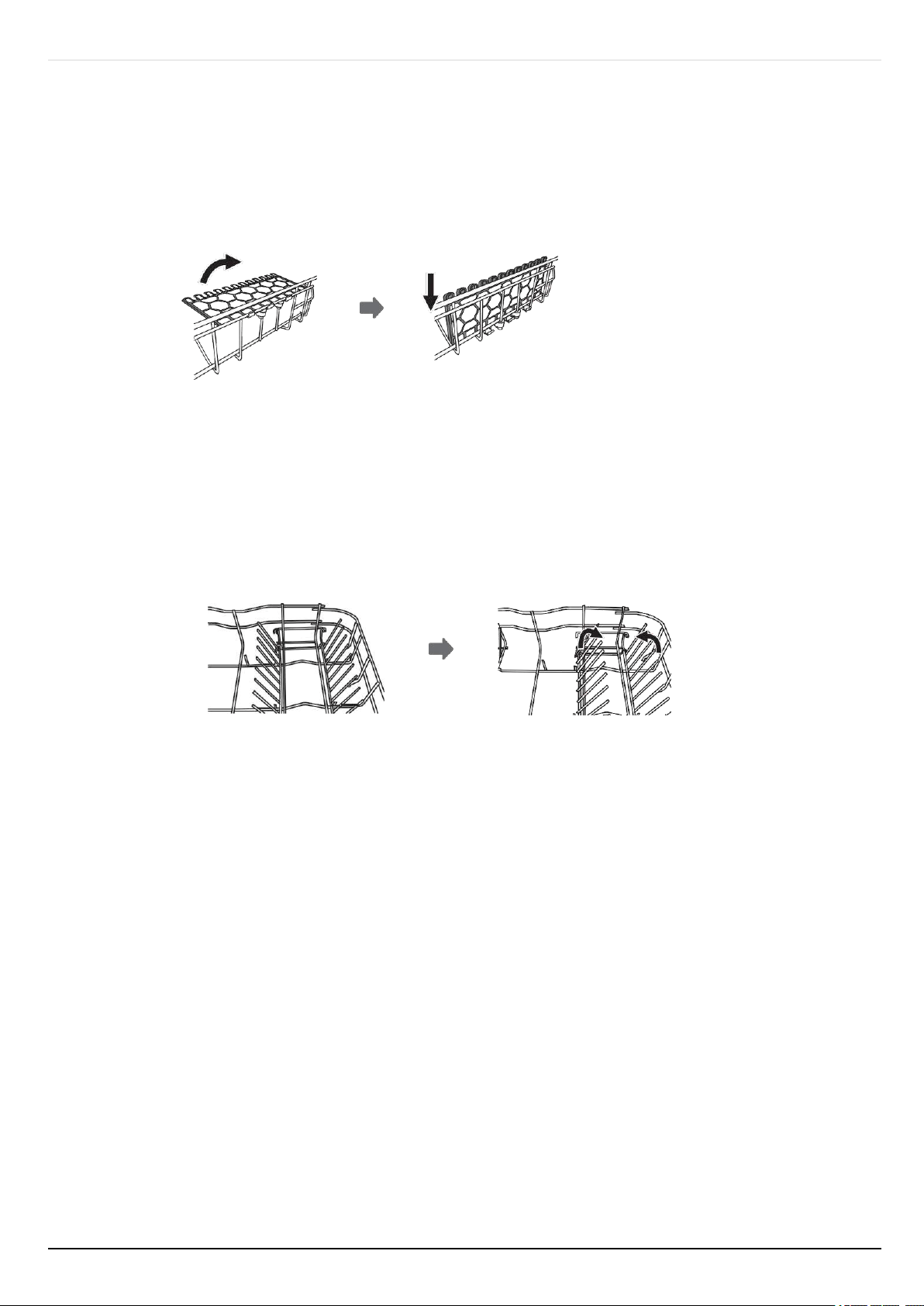

Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack
upwards. You can then lean the tall glasses against it. You can also
remove it when it is not required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
19
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
2
5 MAINTENANCE AND CLEANING
5.1 EXTERNAL CARE
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food
deposits.
When the dishwasher is being loaded, food and drink residues may drip
onto the sides of the dishwasher door. These surfaces are outside the
wash cabinet and are not accessed by water from the spray arms. Any
deposits should be wiped off before the door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft
damp cloth only.
Warnings:
To avoid penetration of water into the door lock and electrical
components, do not use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces
because they may scratch the finish. Some paper towels may also
scratch or leave marks on the surface.
5.2 INTERNAL CARE
Filtering system
The filtering system in the base of the wash cabinet retains coarse
debris from the washing cycle. The collected coarse debris may cause
the filters to clog. Check the condition of the filters regularly and clean
them if necessary under running water. Follow the steps below to clean
the filters in the wash cabinet.
NOTE:
Pictures are only for reference, different models of the filtering system
and spray arms may be different.
0
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
2
Warnings:
Do not over tighten the filters. Put the filters back in sequence securely, otherwise
coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of the filter
may reduce the performance level of the appliance and damage dishes and utensils.

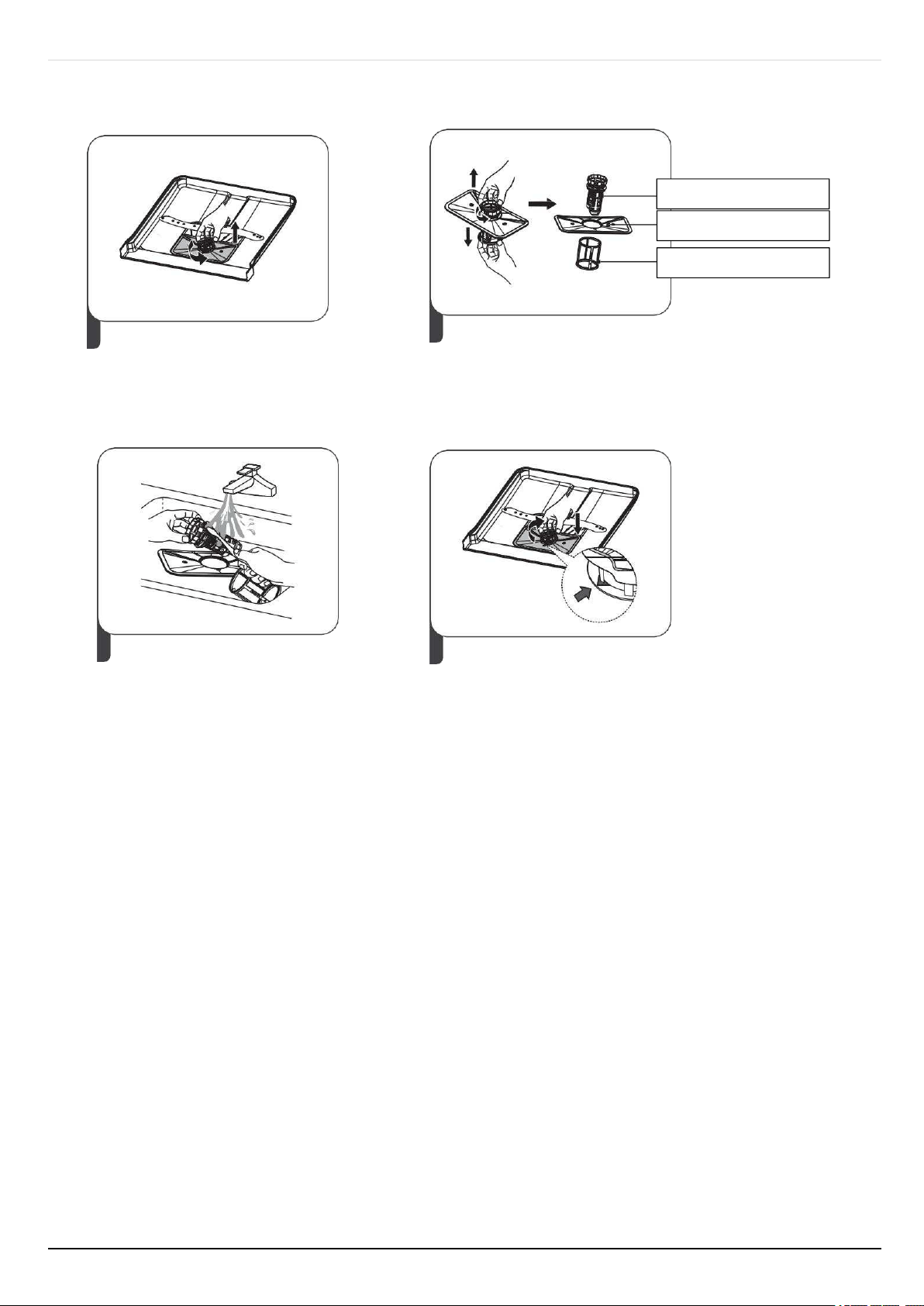

1.Hold the coarse filter and rotate it
anticlockwise to unlock the filter. Lift
the filter upwards and out of the
dishwasher.
2.The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
Coarse filter
Main filter
Fine filter
3.Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
4.Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
1
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |

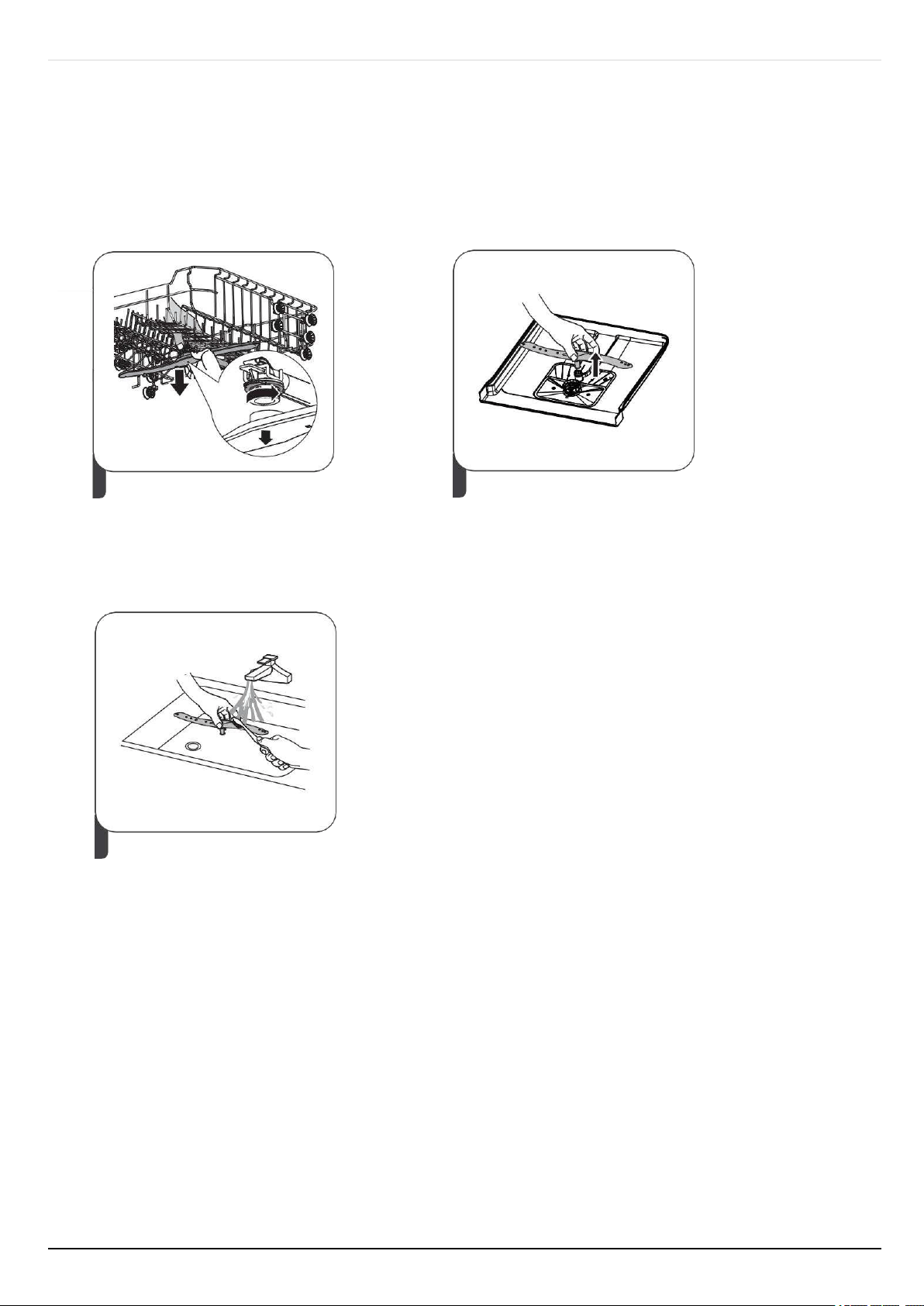

Spray arms
It is necessary to clean the spray arms regularly for hard water chemicals
will clog the spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
5.3 CARING FOR THE DISHWASHER
Frost precaution
Pleasetake frost protection measures on the dishwasherin winter. Every
timeafter washing cycles, please operate asfollows:
1.
Cut off the electrical power to the dishwasher at the supply source.
2.
Turn off the water supply and disconnect the water inlet pipe from the
water valve.
3.
Drain the water from the inlet pipe and water valve. (Use a pan to gather
the water)
3.Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
1.To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm
counterclockwise to remove it.
2.To remove the lower spray arm,
pull out the spray arm upward.
22
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
4.
Reconnect the water inlet pipe to the water valve.
5.
Remove the filter at the bottom of the tub and use a sponge to soak
up water in the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave
the door slightly open so that moisture and odors are not trapped
inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug
from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use
solvents or abrasive cleaning products. Only use a cloth with warm
soapy water.
To remove spots or stains from the surface of the interior, use a cloth
dampened with water an a little vinegar, or a cleaning product made
specifically for dishwashers.
When not in use for a longtime
It is recommend that you run a wash cycle with the dishwasher empty
and then remove the plug from the socket, turn off the water supply
and leave the door of the appliance slightly open. This will help the
door seals to last longer and prevent odors from forming within the
appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position.
If absolutely necessary, it can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food
that remains trapped in the seals. Periodic cleaning with a damp
sponge will prevent this from occurring.
23
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
6 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1
6.1 UPPER BASKET:
Number
Item
1
Cups
2
Saucers
3
Glasses
6.2 LOWER BASKET:
Number
Item
4
Dessert dishes
5
Dinner plates
6
Soup plates
33
33
11
11
22
55
4466
44
55
24
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Number
Item
1
Soup spoons
2
Forks
3
Knives
4
Teaspoons
5
Dessert spoons
I
n
f
o
r
m
a
t
i
o
n
f
o
r
c
o
m
p
a
r
a
b
ili
t
y
t
e
s
t
s
i
n
a
cc
o
r
d
a
n
ce
w
i
t
h
(
*
A
S
/
N
Z
S
2007
.
1
)
Capacity: 10 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
D
e
t
e
r
g
e
n
t
(
P
r
e
/
m
a
i
n
):
5
g
/
22
.
5
g
Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
1 32 444 5
3
4
5
3
2
1
25
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Inside
Outsid
e
7 SPECIAL VERSION
7.1 QUICK USER GUIDE
Please read the corresponding content on the instruction manual for
detailed operating method.
3.Loading the baskets
2.Removing the larger residue on the
cutlery
1.Install the dishwasher
(Please check the section 3 “INSTALLATION INSTRUCTION ”
26
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
7.2
C
ONTROL
P
ANEL

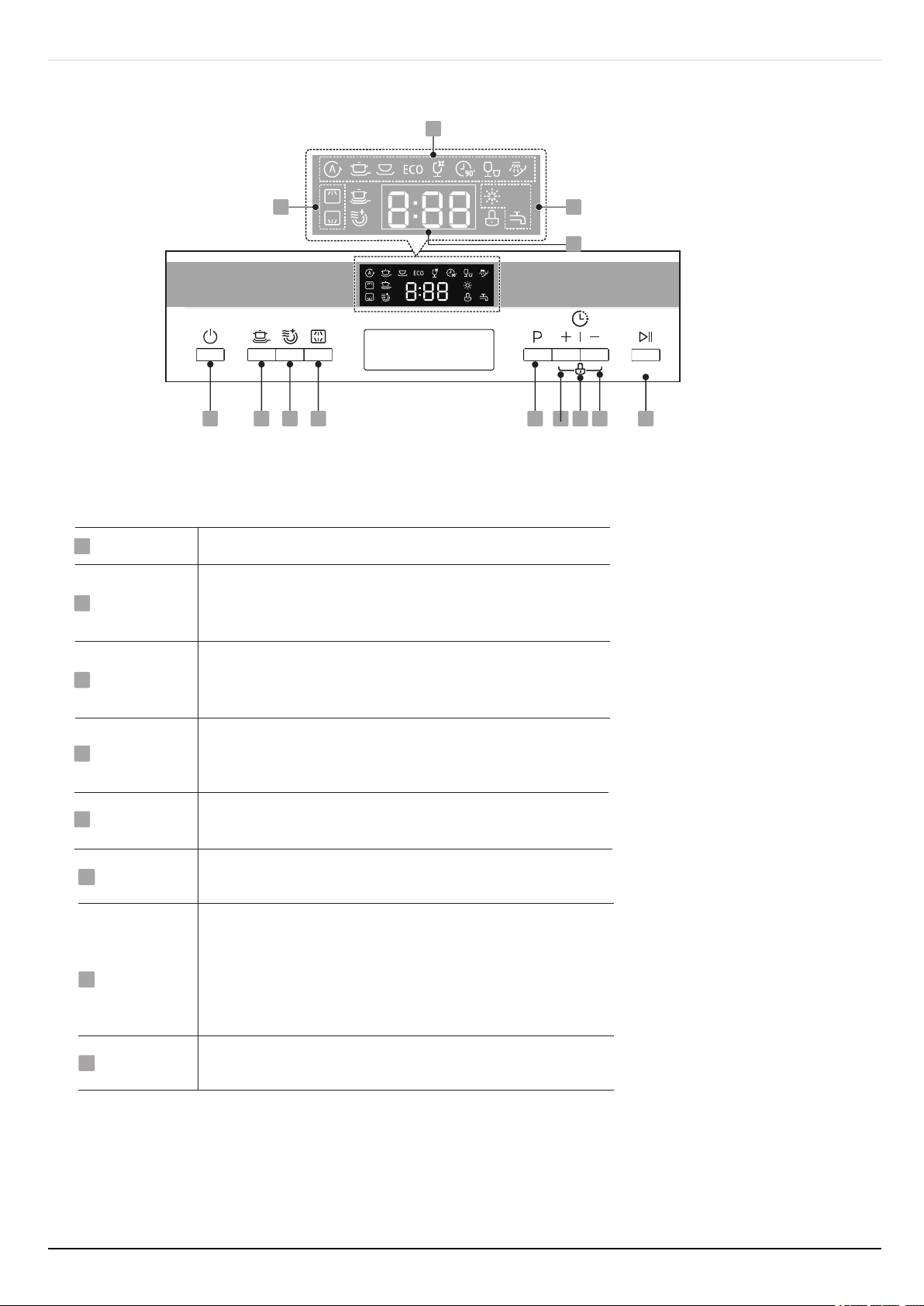

Operation (Button)
1
2
3456768
11
10
12
9
Power
Alt
Press this button to turn on your dishwasher, the screen lights up.
1
4
press the button to select either upper basket or lower basket
loaded. And the response indicator will light. (only Auto,
Intensive, Normal, ECO, Glass and 90 min can be used.)
Extra
Cleaning
2
Press this button to improve the cleaning efficiency. (only
Intensive, Normal, ECO, Glass and 90 min have this function)
When pressing this button, corresponding indicator will be lit.
Extra Drying
3
Press this button to improve the drying efficiency. (only Intensive,
Normal, ECO, Glass and 90 min have this function.) When
pressing this button, corresponding indicator will be lit.
Select the appropriate washing program, the selected program
indicator will be lit.
Program
5
Delay -/+
6
To start the selected washing program or pause it when the
dishwasher is working.
Start / Pause8
666
Press the button to add or decrease the delay time, maximum
24 hours delay can be defined.
7
Child lock
This option allows you to lock the buttons on the control panel -
except the Power button - so children cannot accidently start the
dishwasher by pressing the buttons on the panel.
To lock or unlock the buttons on the control panel, press and hold
the Delay + button + Delay - button for 3 seconds simultaneously.
When pressing this button, corresponding indicator will be lit.
27
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
7.3 P
REPARING
A
ND
L
OADING
D
ISHES
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
For washing the following cutlery/dishes
Are not suitable
1.
Cutlery with wooden, horn china or mother-of-pearl handles Plastic
items that are not heat resistant
2.
Older cutlery with glued parts that are not temperature resistant Bonded
cutlery items or dishes
3.
Pewter or cooper items Crystal glass
4.
Steel items subject to rusting Wooden platters
5.
Items made from synthetic fibres
Auto
Auto sensing wash, lightly, or heavily soiled crockery,
with or with out dried-on food
To rinse dishes that you plan to wash later that day.
Soak
Program
indicator
9
Intensive
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food
on them for a while.
Glass
For lightly soiled crockery and glass.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 Min
For lightly soiled plates and pans that need quick wash.
Heavy
For heavily soiled loads, such as pots, plates, glasses
and lightly soiled pans.
ECO
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans, standard daily cycle.
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
Water Faucet
If the “ ” indicator is lit, it means the water faucet closed.
Upper Faucet
If only the “ ” indicator is lit, it means only the upper
rack nozzle is activated. The lower nozzle will not operate
lower Faucet
If only the “ ” indicator is lit, it means only the lower
rack nozzle is activated. The upper nozzle will not operate
To show the reminding time, delay time, error code etc.
Warning
indicator
10
Alt indicator
11
Screen
12
Display
28
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Scrape off any large amounts of leftover food. Soften remnants of burnt
food in pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading
guidelines.
(Features and appearance of baskets and cutlery
baskets may vary from your model.)
Place objects in the dishwasher in following way:
1.
Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.
Curved items, or ones with recesses, should be loaded aslant so that
water can run off.
3.
All utensils are stacked securely and can not tip over.
4.
All utensils are placed in the way that the spray arms can rotate freely
during washing.
5.
Load hollow items such as cups, glasses, pans etc. With the opening
facing downwards so that water cannot collect in the container or a
deep base.
6.
Dishes and items of cutlery must not lie inside one another, or cover
each other. To avoid damage, glasses should not touch one another.
7.
The upper basket is designed to hold more delicate and lighter dishware
such as glasses, coffee and tea cups.
8.
Long bladed knives stored in an upright position are a potential hazard!
9.
Long and / or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
10.
Please do not overload your dishwasher. This is important for good results
and for reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
7.4 R
EMOVING THE DISHES
To prevent water dripping from the upper basket into the lower basket,
we recommend that you empty the lower basket first, followed by the
upper basket.
Are of limited suitability
1.
Some types of glasses can become dull after a large number of washes
2.
Silver and aluminum parts have a tendency to discolour during washing
3.
Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
29
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Warnings:
Items will be hot! To prevent damage, do not take glass and cutlery
out of the dishwasher for around 15 minutes after the program has
ended.
7.5 L
OADING THE UPPER BASKET
The upper basket is designed to hold more delicate and lighter
dishware such as glasses, coffee and tea cups and saucers, as well as
plates, small bowls and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will not get moved by
the spray of water.
7.6 L
OADING THE LOWER BASKET
We suggest that you place large items and the most difficult to clean
items are to be placed into the lower basket: such as pots, pans, lids,
serving dishes and bowls, as shown in the figure below. It is preferable
to place serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the detergent
dispenser is of 19 cm, this not to hamper the opening of it.
7.7
L
OADING THE CUTLERY BASKET
Cutlery should be placed in the cutlery rack separately from each
30
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
3
other in the appropriate positions, and do make sure the utensils do
not nest together, this may cause bad performance.
Warnings:
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
For the best washing effect, please load the baskets refer to standard loading options
on last section 6.
7.8 F
UNCTION
O
F
T
HE
R
INSE
A
ID
A
ND
D
ETERGENT
The rinse aid is released during the final rinse to prevent water from
forming droplets on your dishes, which can leave spots and streaks. It
also improves drying by allowing water to roll off the dishes. Your
dishwasher is designed to use liquid rinse aids.
Warnings:
Only use branded rinse aid for dishwasher. Never fill the rinse aid
dispenser with any other substances (e.g. Dishwasher cleaning agent,
liquid detergent). This would damage the appliance.

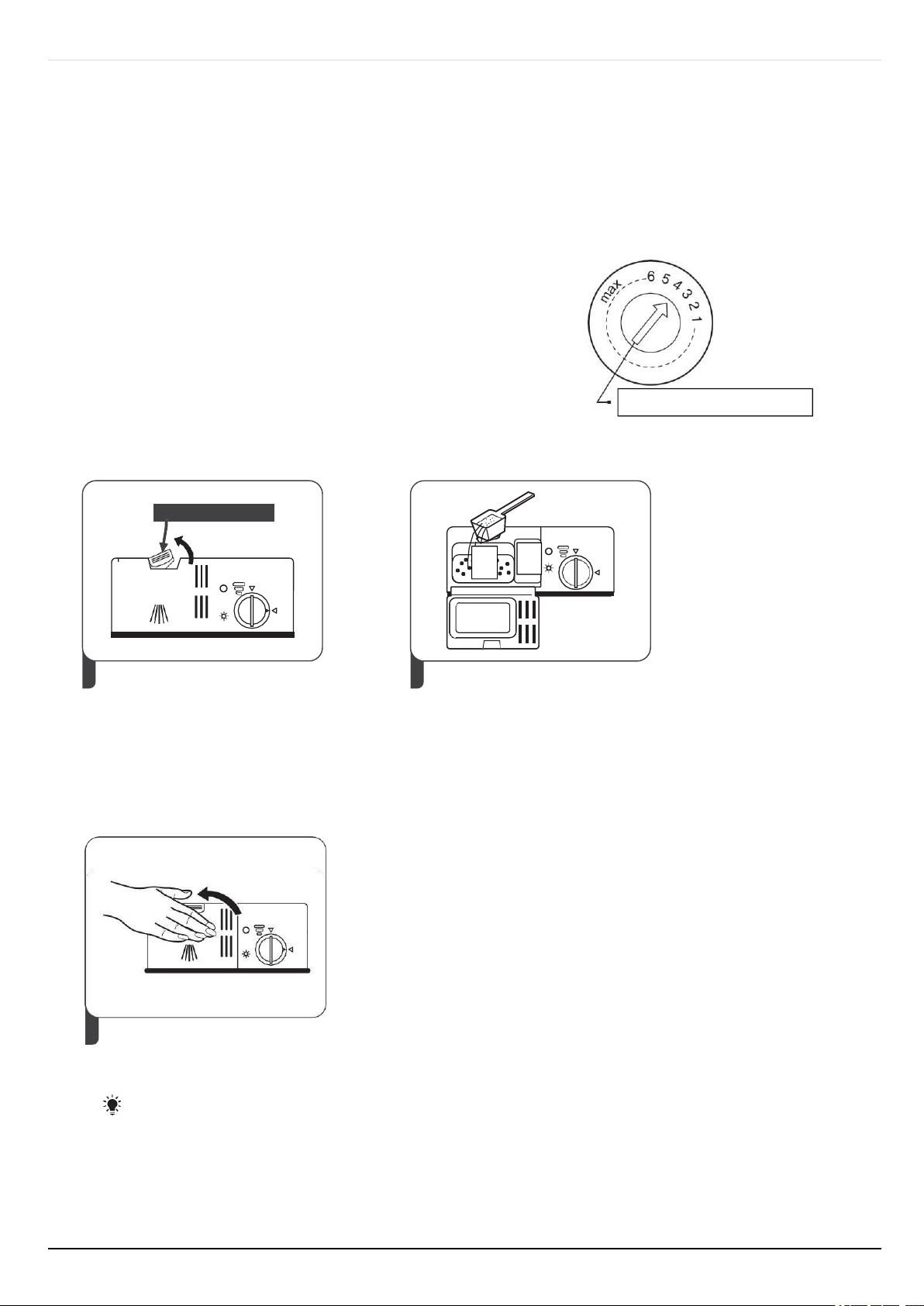

When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on,
you can always estimate the amount from the color of the optical
level indicator located next to the cap. When the rinse-aid container is
full, the indicator will be fully dark. The size of the dark dot decreases as
the rinse-aid diminishes. You should never let the rinse aid level be less
than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid
level indicator changes, as illustrated below.
Full
3/4full 1/2full 1/4full
Empty
Function of detergent
The chemical ingredients that compose the detergent are necessary
1
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
to remove, crush and dispense all dirt out of the dishwasher. Most of
the commercial quality detergents are suitable for this purpose.
Warnings:
Proper Use of Detergent
Use only detergent specifically madefor dishwashersuse.Keepyourdetergent fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.
Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.
7.9 F
ILLING
T
HE
R
INSE
A
ID
R
ESERVOIR
NOTE:
Clean up any spilled rinse aid with an absorbent cloth to avoid
excessive foaming during the next wash.
Adjusting the rinse aid reservoir
2.Carefullypourintherinse-aidinto its
dispenser,whilstavoiding itto
overflow.
3.Replace the cap by inserting it
aligned with "open" arrow and
turning it to the closed (right) arrow.
1.To open the dispenser, turn the
cap to the "open" (left) arrow and lift
it out.
32
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
The rinse aid reservoir has six settings. Both the recommended setting
and the factory setting is “4”. If the dishes are not drying properly or
are spotted, adjust the dial to the next higher number until your dishes
are spot-free. Reduce it if there are sticky whitish stains on your dishes
or a bluish film on glassware or knife blades.
7.10 F
ILLING
T
HE
D
ETERGENT
D
ISPENSER
Push latch to open
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
3.Close the cover and press on it until it
locks into place.
Adjust lever(Rinse)
Adjust lever(Rinse)
B
A
2.Add detergent into the larger cavity
(A)for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
1.Press the release catch on the
detergent dispenser to open the
cover.
33
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
7.11
PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
(
)Means: need to fill rinse into the Rinse-Aid Dispenser.
NOTE:
*AS/NZS 2007.1: This program is the test cycle. The information for comparability test in
accordance with *AS/NZS 2007.1.
(1 piece)
5/22.5g
Program
Running
Time(min)
Energy
(kWh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
90
1.1511.5
Wash(65℃)
Rinse
Rinse(65℃)
Drying
170
180
125
180
1.4
1.1
0.75
0.51
15.5
12.0
12
11.2
Pre-wash(50℃)
Wash(60℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash(45℃)
Wash(55℃)
Rinse
Rinse(65℃)
Drying
Pre-wash
Wash(45℃)
Rinse(45℃)
Drying
Pre-wash
Wash(40℃)
Rinse
Rinse(60℃)
Drying
1500.9 -1.39.5-13.0
Pre-wash(45℃)
Autowash
(45-55℃)
Rinse
Rinse(65℃)
Drying.
Auto
90 Min
Heavy
Intensive
Glass
(1 piece)
5/22.5g
(1 piece)
5/22.5g
(1 piece)
5/22.5g
(1 piece)
5/22.5g
(1 piece)
27g
(*AS/NZS2007.1)
Wash(45℃)
Rinse(50℃)
Rinse(55℃)
300.710
20g
Prewash
15
0.023.5
Soak
Rapid
34
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
7.12S
TARTING
A C
YCLE
W
ASH
Draw out the lower and upper basket, load the dishes and push them back. It is
commended to load the lower basket first, then the upper one.
Pour in the detergent.
Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
Close the door, press the Power button, to switch on the machine.
Choose a program, the response light will turn on. Then press the Start/Pause button,
the dishwasher will start its cycle.
7.13C
HANGING
T
HE
P
ROGRAM
M
ID
-
CYCLE

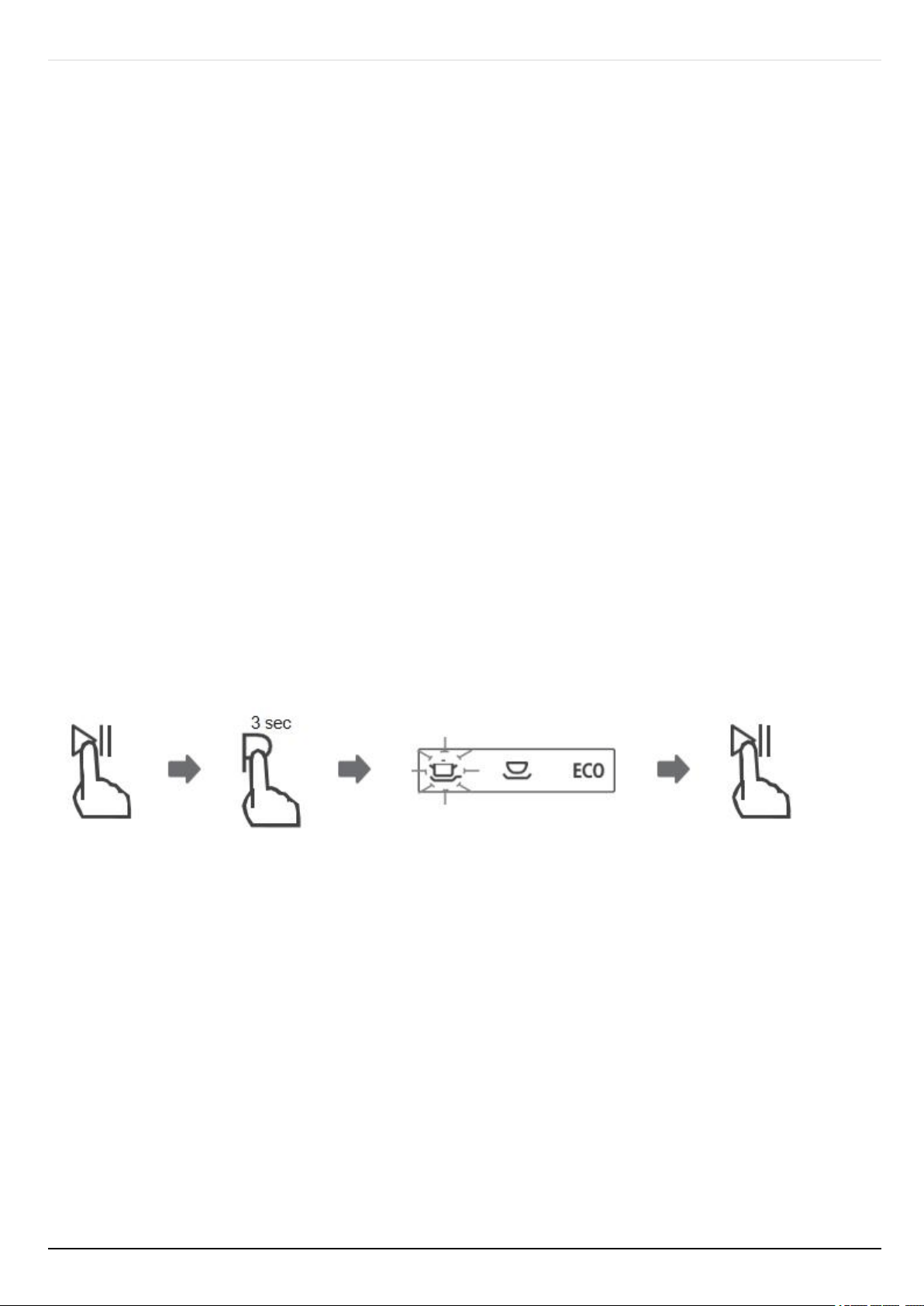

A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have
already drained the wash water. If this is the case, the dishwasher needs to be reset
and the detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
Press the Start/Pause button to pause the washing.
Press program button for more than 3 seconds - the program will cancel.
Press the program button to select the desired program.
Press the Start/Pause button, after 10 seconds, the dishwasher will start.
7.14
F
ORGET
T
O
A
DD
A D
ISH
?

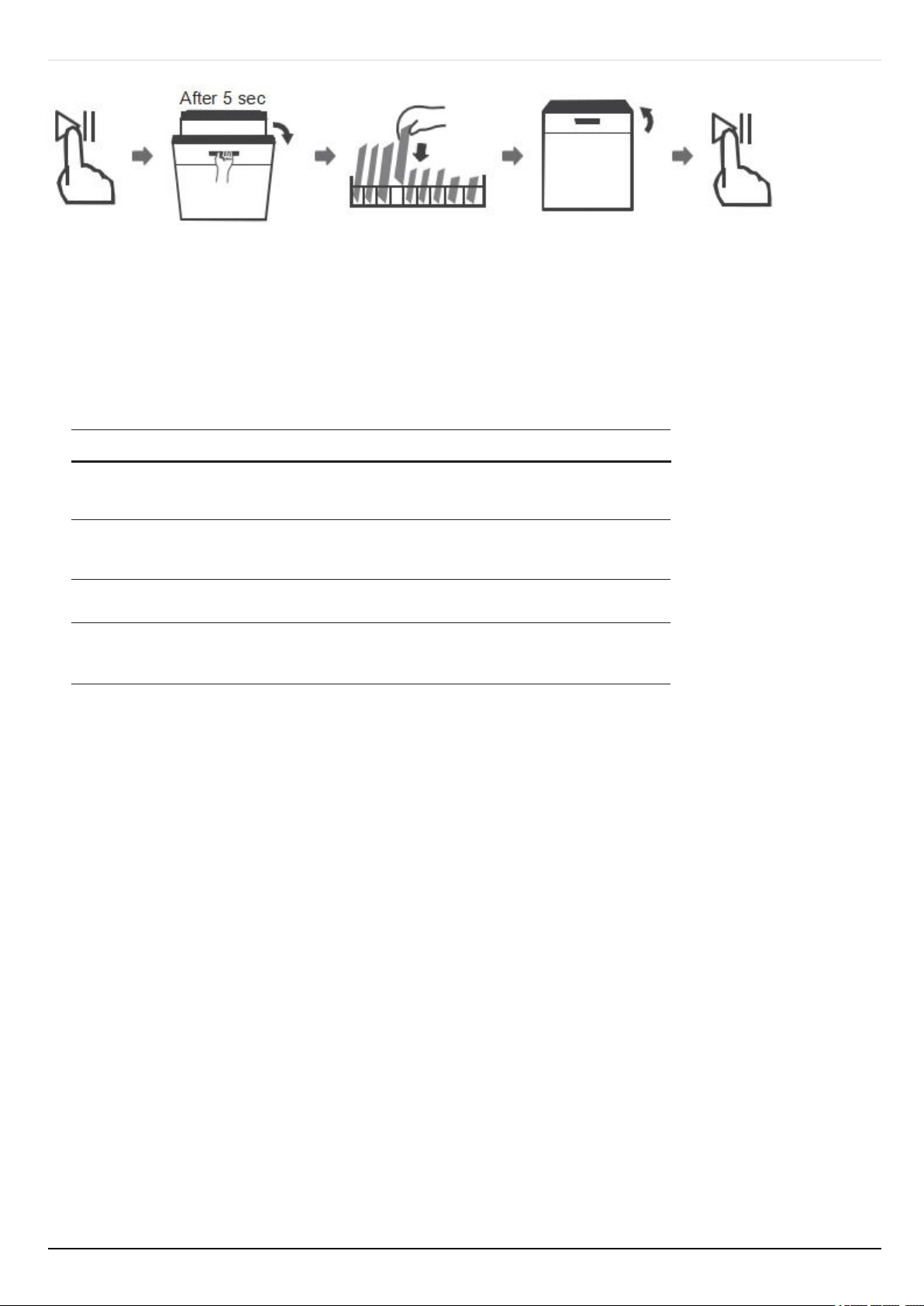

A forgotten dish can be added any time before the detergent dispenser opens. If this
is the case, follow the instructions below:
Press the Start/Pause button to pause the washing.
Wait 5 seconds then open the door.
Add the forgotten dishes.
Close the door.
Press the Start/Pause button after 10 seconds, the dishwasher will start.
35
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
Warnings:
It is dangerous to open the door mid-cycle, as hot steam may scald you.
7.15
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
Warnings:
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should
be removed before restarting the dishwasher.
E8
Open circuit or break of distributary valve.
Failure of orientation
of distributary valve.
Codes
Meanings
Possible Causes
Longer inlet time.
Not reaching required
temperature.
Overflow.
Malfunction of heating element.
Some element of dishwasher leaks.
E1
E3
E4
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
36
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
8 TECHNICAL DATA
8.1 TECHNICAL DATA SHEET
8.2 PRODUCT FICHE
W
H
D1
D2
Height (H)
Width (W)
Depth (D1)
Depth (D2)
845mm
448mm
600mm (with the door closed)
1175mm (with the door opened 90°)
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Energy consumption of the standard cleaning cycle
Water consumption of the standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Power consumption
Water pressure (flow pressure)
Could be built-in
Trinity
TRDWFS4510
10
0.51 kWh
11.2 liter
180 min
1760-2100W
49 dB(A) re 1 pW
Free standing
0.04-1.0MPa=0.4-10 bar
YES
Water consumption class
Standard cleaning cycle
ECO
3.5
3.5
Rated voltage / frequency
AC 220-240V/50Hz
37
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
9 PROBLEM SOLVER
9.1 BEFORE CALLING FOR SERVICE
Reviewing the charts on the following pages may save you from calling for service.
Problem
Possible Causes
What To Do
D
i
s
h
w
as
h
e
r
d
o
e
s
n
'
t
start
Fuse blown, or the
circuit break
tripped.
Replace fuse or reset circuit
breaker. Remove any other
appliances sharing the same
circuit with the dishwasher.
Power supply is
not turned on.
Make sure the dishwasher is
turned on and the door is closed
securely. Make sure the power
cord is properly plugged into the
wall socket.
Water pressure is low
Check that the water supply
is connectedproperlyandthe
water is turned on.
Door of dishwasher
not properly closed.
Make sure to close the
door properly and latch
it.
Water not pumped
form dishwasher
Twisted or
trapped drain
hose.
Check the drain hose.
Filter clogged.
Check coarse the filter.
Kitchen sink clogged.
Check the kitchen sink to make
sure it is draining well. If the
problem is thekitchen sinkthat is
notdraining, you may need a
plumber rather than a
serviceman fordishwashers.
Suds in the tub
Wrong detergent.
Use only the special dishwasher
detergenttoavoidsuds.If this
occurs, open the dishwasher and
let suds evaporate. Add 1 gallon
of cold water to the bottom of the
dishwasher.
Closethe dishwasherdoor,then
select
any cycle. Initially, the
dishwasher will
drain out the water.
Open the door after draining
stage is complete and check if
the suds have disappeared.
Repeat if necessary.
38
Problem
Possible Causes
What To Do
Spilled rinse-aid.
Alwayswipeuprinse-aid
spills immediately.
Stained tub interior
Detergent with
colourant may
have been
used.
Make sure that the detergent
has no colourant.
White film
on
inside
surface
Hard water minerals.
To clean the interior, use a
damp spongewithdishwasher
detergent andwear rubber
gloves. Neveruse anyother
cleanerthandishwasher
detergentotherwise,itmay
cause foaming or suds.
There are rust
stains on cutlery
The affected items
are not corrosion
resistant.
Theitemsshouldbe
corrosion resistant.
Knocking noise in
the dishwasher
A spray arm is
knocking against an
item in a basket
Interrupt the program and
rearrangetheitemswhich
are obstructing the spray
arm.
Rattling noise
in the
dishwasher
Items of
crockery are
loose in the
dishwasher.
Interrupt the program and
rearrange the items of
crockery.
Knocking noise in
the water pipes
This may be caused
by on-site installation
or the cross-section
of the piping.
This has no influence on the
dishwasherfunction.Ifin
doubt, contact a qualified
plumber.
The dishes
are not clean
The dishes were not
loaded correctly.
See notes in “Loading &
unloading your dishwasher”.
The program was
not powerful enough.
Select a more intensive
program.
Problem
Possible Causes
What To Do
The dishes
arenot
clean.
Not enough
detergent was
dispensed.
Usemore detergent, or
change your detergent.
Items are
blocking the
movement of
the spray arms.
Rearrangetheitems sothatthe
spray can rotate freely.
The filter combination
is not clean or is not
correctly fitted in
the base of wash
cabinet.
This may cause the
spray arm jets to get
blocked.
Clean and/or fitthe filter
correctly.
Clean the spray arm
jets.
Cloudiness on
glassware.
Combination of
soft water and
too much
detergent.
Useless detergent if you have
soft waterandselectashorter
cycleto wash the glassware
and to get them clean.
P a g e |
39
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e | 40
Black or grey
marks on dishes
Aluminium utensils
have rubbed
against dishes
Useamildabrasivecleaner
toeliminate those marks.
Detergent left in
dispenser
Dishes block
detergent dispenser
Re-loading the dishes properly.
The dishes
aren't drying
Improper loading
Load the dishwasher as
suggested inthe directions.
Too little rinse-aid
Increase the amount of rinse-
aid/refill
the rinse-aid dispenser.
Dishes are
removed too
soon
Do not empty your dishwasher
immediatelyafterwashing.
Open thedoor slightly so that
the steam can come out. Take
out the dishes
until the inside
temperature is safe
to touch.
Unload the lower basket firstto
preventthedroppingwater
from the upper basket.
Problem
Possible Causes
What To Do
The dishes
aren't drying
Wrong program
has been
selected.
With a short program, the
washing temperature is lower,
decreasing cleaning
performance.
Choose a program with a long
washing time.
Use of cutlery with
a
low-quality
coating.
Waterdrainageismoredifficult
with theseitems.Cutleryor dishes
ofthis type are not suitable for
washing in the dishwasher.
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e | 4
10DISPOSAL
This appliance requires special waste disposal. For further information
regarding the treatment, recovery and recycling of this product please
contact your local council, household waste disposal service or the store
where you purchased it.
The packaging materials are recyclable.
1
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e |
11CUSTOMER CARE
Please be advised that without the proof of purchase, your warranty may not
be valid,
keep the receipt.
For your convenience, please record:
STORE NAME/CONTACT DETAILS: ...............................................
PURCHASE DATE: ..........................................................................
PRODUCT MODEL N: ….................................................................
PRODUCT SERIAL N: .......................................................................
The warranty will be voided, if not installed by a licensed professional.
For your own protection, please record installer’s details:
Installer’s Trade Name:..................................................................
Trade Licence N: ............................................................................
Date of Installation: …....................................................................
Installation Receipt:.......................................................................
For further information on the appliance, service, spare parts or to obtain dimension
and installation information, please contact our customer service or visit website.
Please have above information and documents on hands before contacting
customer service
Phone: 1300 615 001
Email: info@trinityappliances.com.au
Web: trinityappliances.com.au
4 2
