INSTRUCTION MANUAL
WALLMOUNTED RANGEHOODS
Installation / Operation / Maintenance
(10.2021 / V3)
WMLIN9S
KLSALBW9S
KLSALBB9S
Page 2
Welcome 3
Important Safety Information 4
Description 7
Operation 8
Cleaning and Maintenance 10
Installation 14
Condensation Information 28
Troubleshooting 29
Technical Specications 31
Disclaimer 34
INDEX
YOUR STATE REGULATORY AUTHORITY
Dierent Australian states have varying legislative requirements for the installation of
rangehood ducting. Some will insist on ducting being vented externally (i.e. not in to the
ceiling cavity); others will not. It is imperative that you check with your state building
authority and/or private certier to conrm their position.
Page 3
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
installation and rst time use.
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is deemed improper
and can be dangerous.
Installation and maintenance of
electrical appliances must only
be carried out by qualied and
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order
to recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
which do not aect the operation of
the appliance.
WELCOME
Page 4
IMPORTANT SAFETY INFORMATION
Please read the instructions carefully. Only then
will you be able to operate your appliance safely
and correctly. Retain the instruction manual for
future use or for subsequent owners.
Check the appliance for damage after unpacking it.
Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48
hours.
There must be adequate ventilation in the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.
The air must not be discharged into a ue that
is used for exhausting fumes from appliances
burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
There is a re risk if regular cleaning is not carried
out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the
rangehood. This will damage the rangehood and
will void warranty.
Do not ignite burners that give o intense
uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all
times and cannot exceed the width of the pan in
use.
Do not leave any packaging material (bags,
corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or
knowledge. Unless, the person is given supervision
or instruction concerning the safe usage of the
appliance by person/s responsible for their safety.
Children must be supervised to ensure that they do
not play with the appliance, it is not a toy.
Accessible parts may become hot when used with
cooking appliances.
Before performing any cleaning or maintenance,
disconnect the rangehood from the mains power,
using the respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the grease
lters.
Keep the grease lters clean and respect the
recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.
IMPORTANT SAFETY INFORMATION
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed or
repaired by a qualied Schweigen Home Appliances
technician.
Please see our website www.schweigen.com.au
for a list of our recommended installers.
It is dangerous to modify any part of this appliance.
Modication of any kind will immediately void the
warranty.
The manufacturer declines all responsibility in case
of failure to adopt proper safety measures.
Ensure the location in which this appliance is
installed, has good and permanent ventilation.
Please consult local laws and regulations and install
in accordance.
Please use an earthed electrical connector that
coincides with relevant local laws and regulations.
Check that the power voltage in your area
corresponds to the appliance voltage indicated on
the rating label.
This appliance must be connected to an electrical
supply that has a grounded connection.
Check that the indicated instructions and local
regulations are met and carried out by a qualied
technician, using materials that are compliant with
the applicable legislation.
Schweigen will not be responsible for any
installations executed by non-qualied technicians
that fail to heed the applicable legislation on
electrical safety.
The electrical technical data can be found inside
the rangehood, after removing the grease lters.
The power cables supplied are already connected
internally and emerge from the rangehood near
the air outlet.
Before installing the electrical connections,
you should:
Verify that the indicated electrical data coincides
with the voltage values and frequency of the
electrical circuit in the house where the rangehood
is to be installed.
Check that the premises has electrical protection
against short circuits and electrocution.
Before commencing maintenance the current must
be turned o using the double-pole switch (mains
power switch). The power can only be turned
on for normal use, once the operation has been
completed.
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid a hazard.
IMPORTANT SAFETY INFORMATION
Page 6
PRODUCT USE
This product is designed for household use and
should not be used for commercial applications.
After use, always ensure that all controls are in
the “OFF” position.
When frying with a gas ame, take particular care
not to allow the oil or grease in the pan to catch
re. (Flambé)
DUCTED OR RECIRCULATING?
Ducted rangehoods (or extractor rangehoods)
extract the cooking fumes from the kitchen and
expel them from the space via ducting. Good design
practice would always see a re-rated ducting
system extend to the house exterior, rather than to
the ceiling cavity. When a rangehood is ducted only
into the ceiling space, the collection of humidity
and grease can present very real health issues and
re hazards.
Recirculating (or non-ducted or ltered) rangehoods
extract cooking fumes and pass them through
lters. As the name would suggest, they recirculate
this air back into the room. Recirculating rangehoods
are not as eective as removing fumes from a
kitchen space, but they are sometimes the only
option due to budgetary or building constraints.
Your client should be made aware of the requirement
to change and clean lters on a regular basis for the
optimum eciency of air ltering.
MAINTENANCE AND SERVICE
The rangehood surface should be cleaned with soft
cloth and non-corrosive detergent. Do not leave
the rangehood wet after cleaning or use, please
keep rangehood dry.
Important: Never attempt to repair this appliance
by yourself. Always refer to a qualied
Service Technician.
Always switch o the electricity and unplug the
connection before conducting maintenance
or cleaning.
ELECTRICAL CORD
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid
a hazard.
Page 7
DESCRIPTION

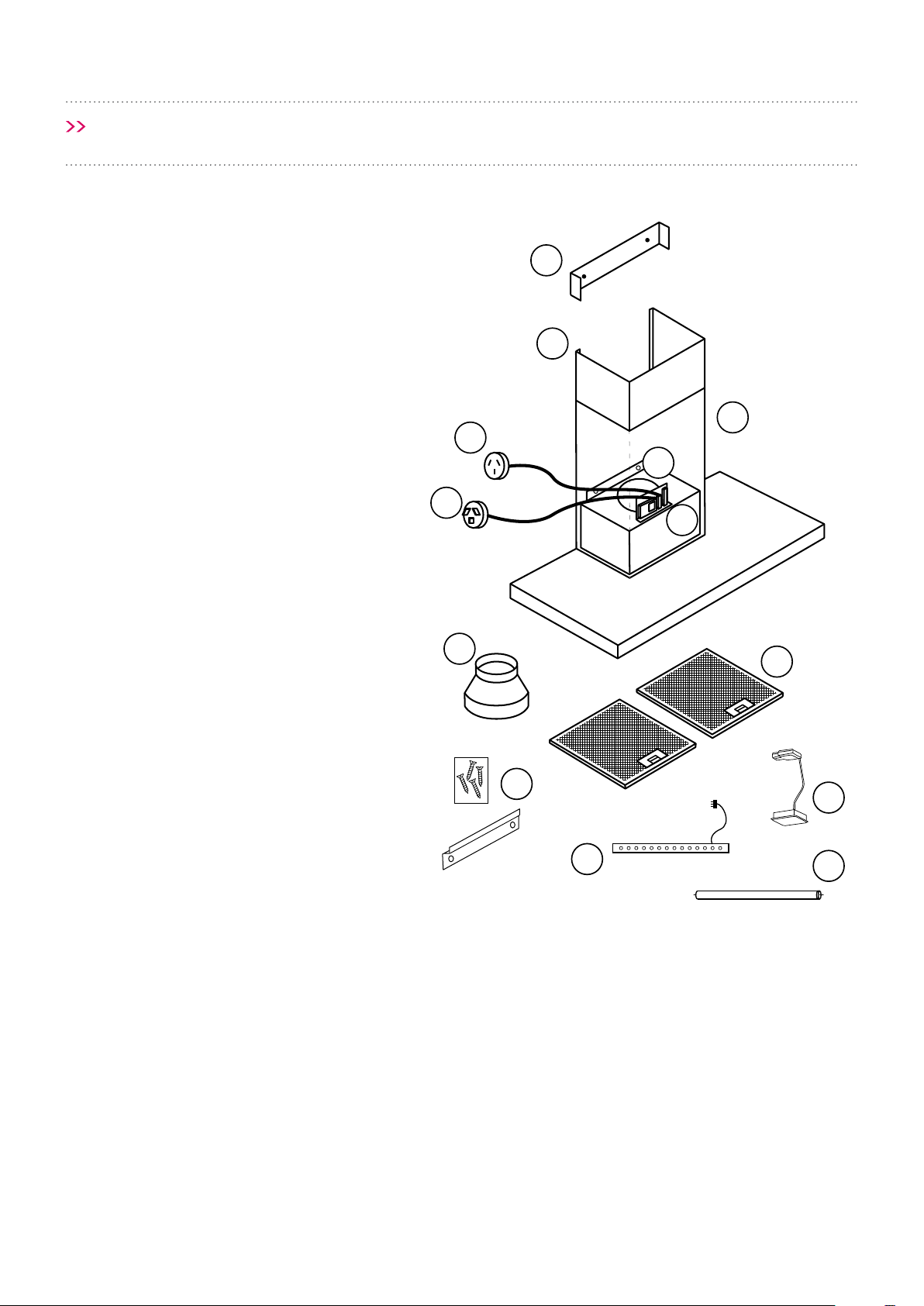

Rangehood
1. Flue Wall Mounting Bracket
2. Extension Flue
3. Main Flue
4. Single Outlet 200mm
5. PCB (computer) Board
6. Connect to the Isodrive
®
motor system
7. Male Plug (Connect to Mains Power
240V 10 Amp)
8. Reducer (For Isodrive
®
650 motor only)
9. Filters
10. Screw Pack and bracket
11. LED light globe
12. LED strip
13. Fluorescent tube
NOTE: Filter and light type quantity may vary from
model to model.
1
2
3
4
5
7
6
8
9
10
11
12
13
Page 8
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave it running for at least 10 minutes after you
have nished cooking.

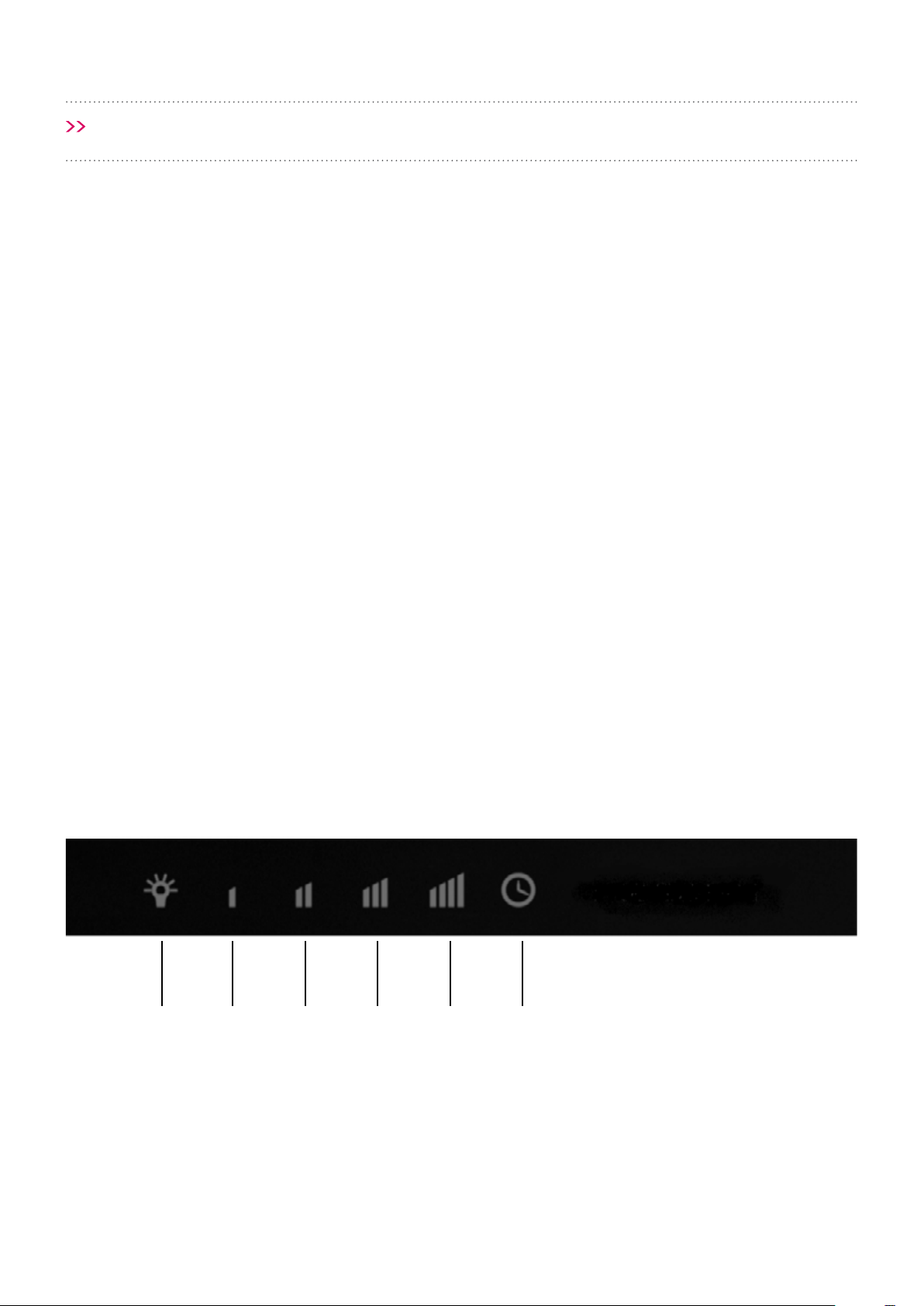

The buttons have the following functions:
A.- Timer: When this function is activated, the
blue light will ash on the timer button. The
rangehood continues to operate for 10-15 minutes
at the required speed and then automatically
switches the motor o.
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
blue light will ash.
C.- ON / OFF: This button turns the rangehood on
and o. The rangehood will always turn on at the
same speed at which is was turned o.
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low speed
button will be blue.
E.- Light: Press this button to turn the lights on
and o. When the lights are operating, the light
button is blue.
This rangehood has a device that lets you know
when the grease lters must be cleaned.
When the light button (E) ashes, this means the
lters must be washed (usually after 40 hours of
operation).
When the lters have been washed and re-mounted,
hold the light button (E) down for a few seconds to
reset it and return the counter down to zero.

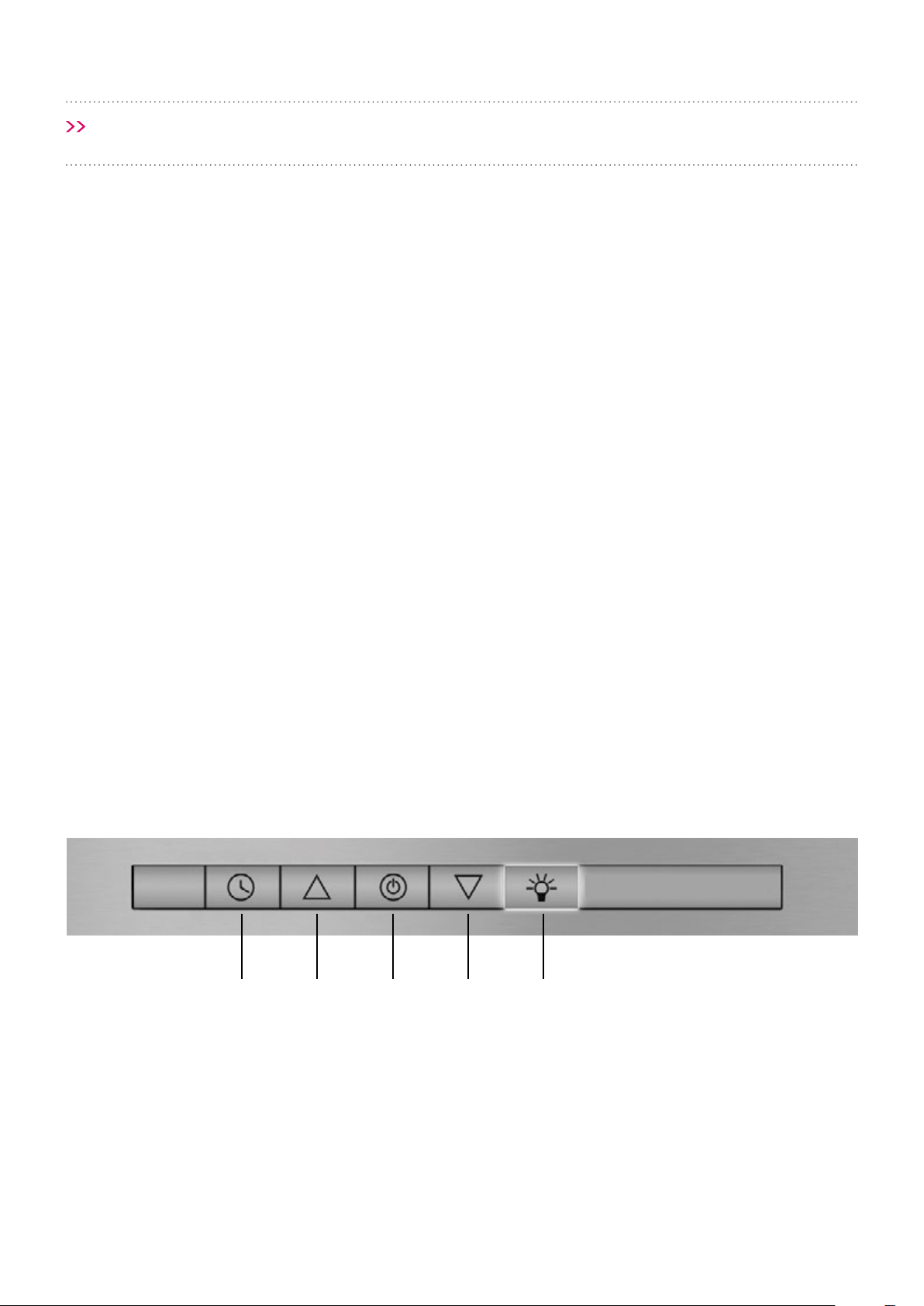

A B C D E
Electronic Controls
Model WM-LIN9S.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds for heavy frying or heavy cooking.
OPERATION
OPERATION
Page 9
Electronic Touch Controls
Models KLS-ALBW9S and KLS-ALBB9S.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds for heavy frying or heavy cooking.
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave it running for at least 10 minutes after you
have nished cooking.
The buttons have the following functions:
A.- Light switch: Press this switch to turn the
lights on and o.
B.- ON / OFF / button – speed one: This button
turns the rangehood on and o. The rangehood
starts to operate at speed one.
C. D. E.- Speeds 2, 3 and 4, respectively.
F.- Timer: When the timer mode is in operation,
the timer button light will remain on. When this
button is pressed, the rangehood will continue to
operate for 10-15 minutes at the required speed,
and then switch o automatically.
This rangehood has a device that lets you know
when the grease lters must be cleaned. When
the timer button (F) ashes, this means the
lters must be washed (usually after 40 hours of
operation).
When the lters have been washed and re-mounted,
hold the timer button (F) down for a few seconds
to reset it and return the counter down to zero.
A B C D E F
Page 10
CLEANING AND MAINTENANCE
WARNING
Always switch o and disconnect power to the rangehood before cleaning. The
manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the lters and rangehood.
Cleaning and user maintenance shall not be made by children without supervision.
FILTERS
• For this appliance to function eectively, regular
maintenance is a must.
• The function of the lter is to absorb the grease
particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict
airow and may cause the motor to overheat and
become a re hazard.
• Filters should be cleaned every 3-6 weeks or
after 40 hours of use.
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
lters.

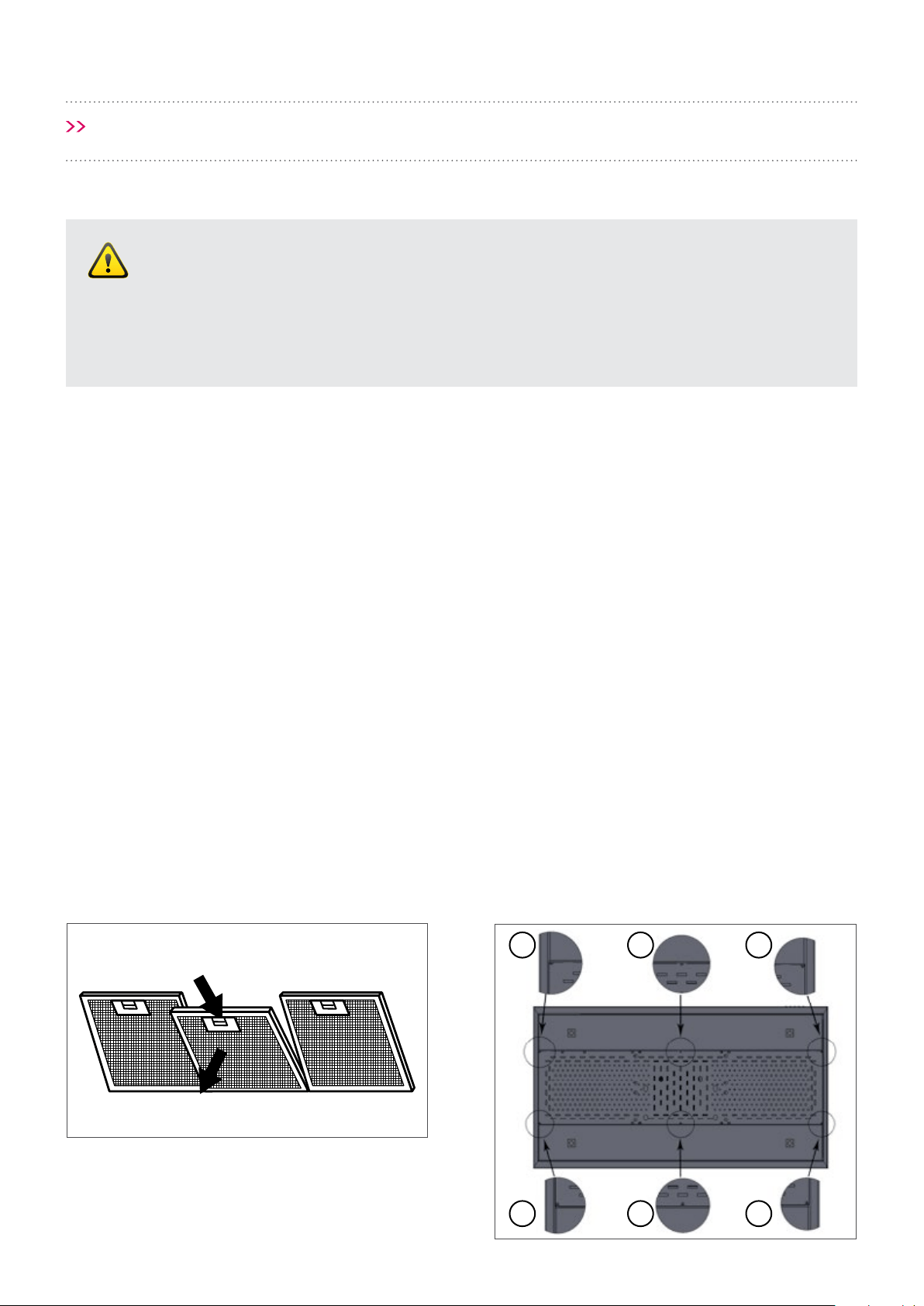

• To remove the lter, press ‘Catch A’ towards the
rear of the rangehood (removing the pins from
the front guide), ease down slightly and remove.
To replace, perform the same operation but in
reverse, see gure 1.
• If your model is equipped with the Balanced
Aspiration System periodical cleaning is
required. The Balanced Aspiration plate can be
removed by taking out the 6 screws shown in
gure 2. Please make sure it is fully dry before
installing back to the rangehood.
• For an induction cooktop, please aim to clean
the lters at least every 10 days, depending on
frequency of use.
• The lters can be washed by hand or in the
dishwasher
Washing by hand - Immerse the lter in hot
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher - Put the lter in the dishwasher
and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may
change after several washes. This is normal and
it is not necessary to replace the lters.
Latch A
Catch A
Figure 1 Figure 2 Balanced Aspiration Plate
1
4
2
5
3
6
CLEANING AND MAINTENANCE
Page 11
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
• For better results, you can use high quality
cleaning and protection products (eg. Steel
Kleen) to clean your rangehood.
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.

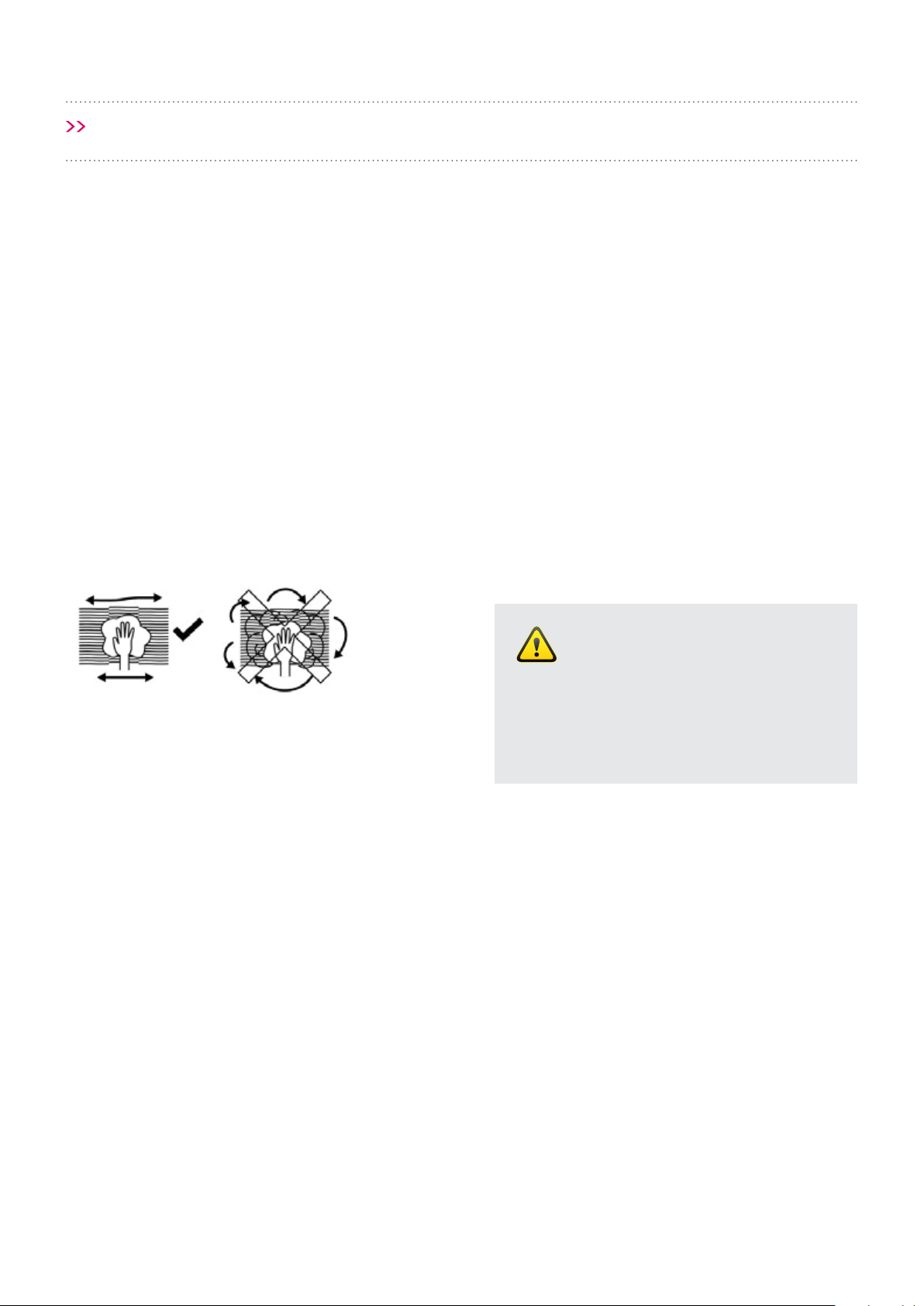

It is important to follow the direction of the surface
grain with the cloth (refer to gure below).
Do not pour any liquid directly onto the rangehood,
apply to a soft cloth rst.
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
WARNING
Do not use denatured
alcohol on the exterior of the
rangehood. Do not clean the
electric parts or the motor with
liquids or solvents.
CLEANING AND MAINTENANCE
Page 12
Your rangehood may have multiple light types, please refer to the pictures below for light replacement
instructions.
TYPE 1 (LED Spot) & 2 (GLED Square):
REPLACING THE LED BULB
The life span of an LED bulb is at least 10 times that
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:

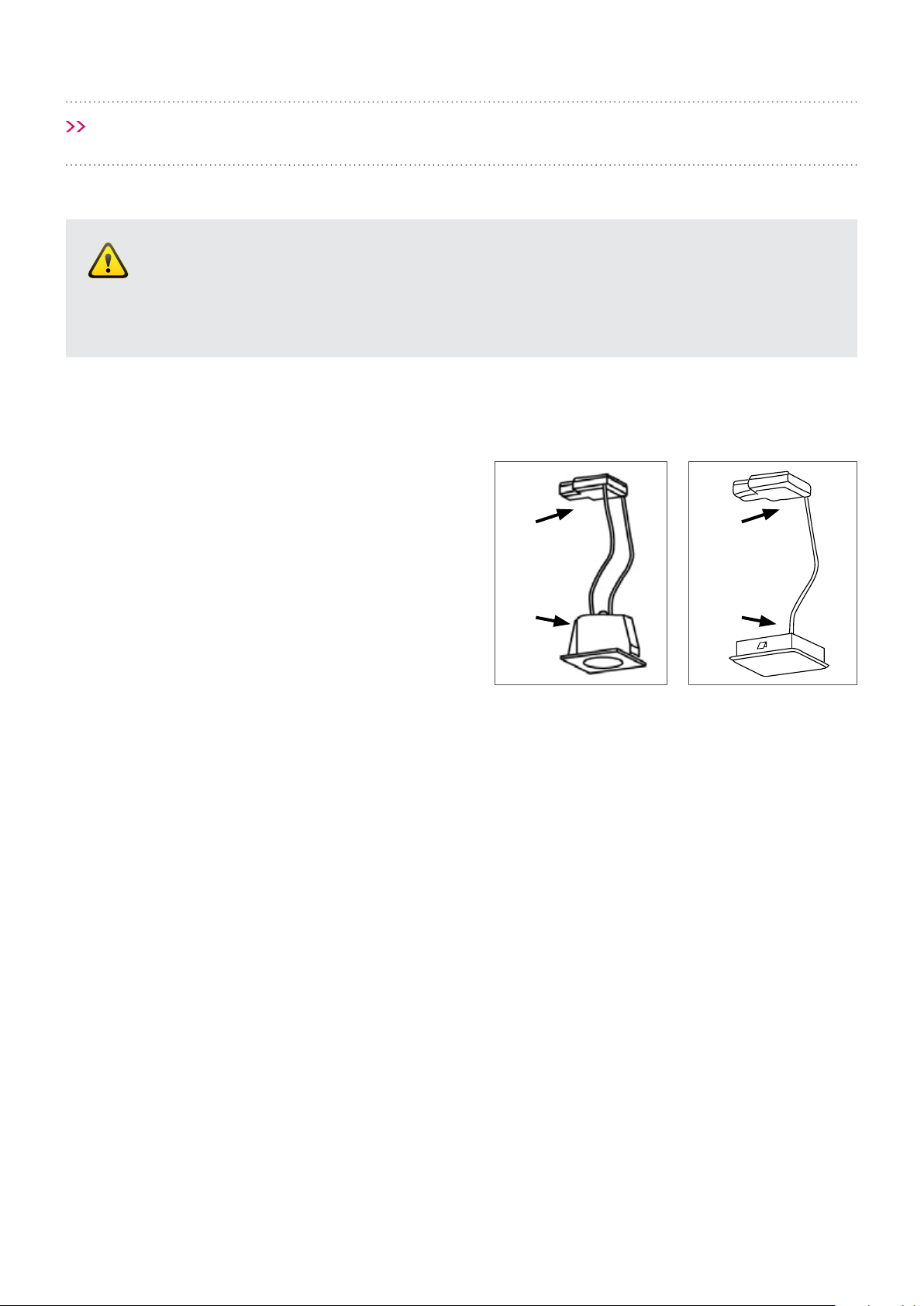

1. Unplug the respective connector (A).
2. Press the tabs (B) inside the rangehood.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A A
B B
Type 1 — LED Spot Type 2 — GLED Square
WARNING
Always switch o and disconnect the power cord before replacing any light bulbs.
Failure to do so may cause serious injury. Please be aware that the light bulb will retain
heat for a short period of time after being switched o.
CLEANING AND MAINTENANCE
Page 13

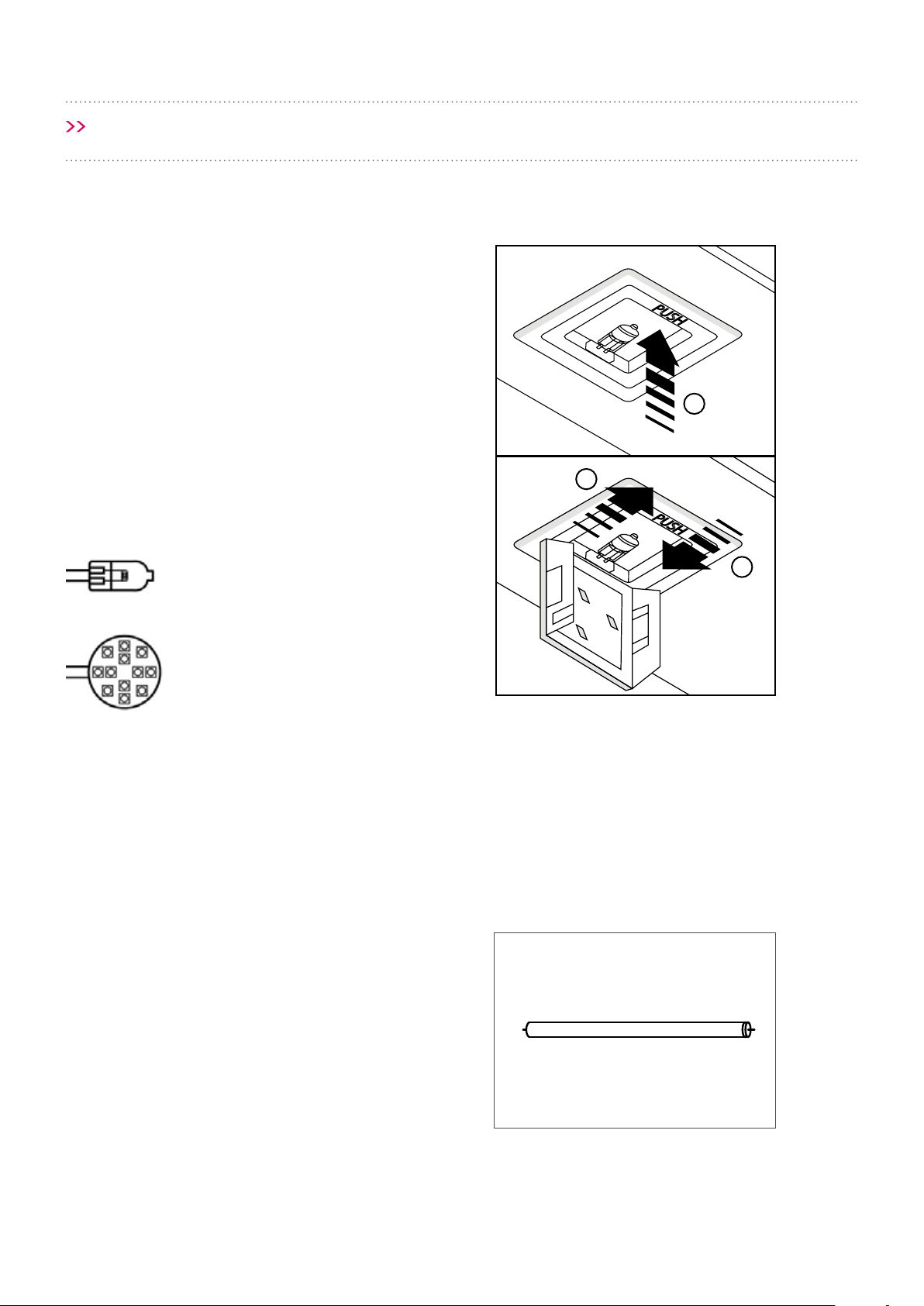

Halogen Bulb
LED Bulb [Optional]
1
2
3
TYPE 3 (Halogen G4HD, LED G4):
REPLACING THE HALOGEN OR LED
BULB MAX 20W, 12V
1. Press on the indicated zone “push” (1)
2. Open the light cover to an angle of 90º, DO NOT
force past 90º.
3. Insert a new 12V halogen bulb as indicated (2)
and (3), 50W maximum.
4. Close the light cover by pressing the part where
it says “push” (1), until it clicks shut.
NOTE: Never handle the glass of the lamp with
bare hands. Use a cloth or wear gloves when
handling the bulb to avoid contact with skin.
TYPE 4 (Fluorescent TLS FBT):
REPLACING THE FLUORESCENT TUBE
1. Remove the lters and the Balanced Aspiration
plate by taking out the 6 screws, see page 17.
2. Remove the top section by removing the 4 screws
at the front and loosening the 3 inner screws.
3. Remove the uorescent tube.
4. Insert the new tube as explained above but in
reverse order.
Type 4 — Fluorescent TLS FBT
Type 3 — Halogen G4 HD, LED G4
1
2
3
4
5
7
6
8
9
10
11
12
13
Page 14
INSTALLATION
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone

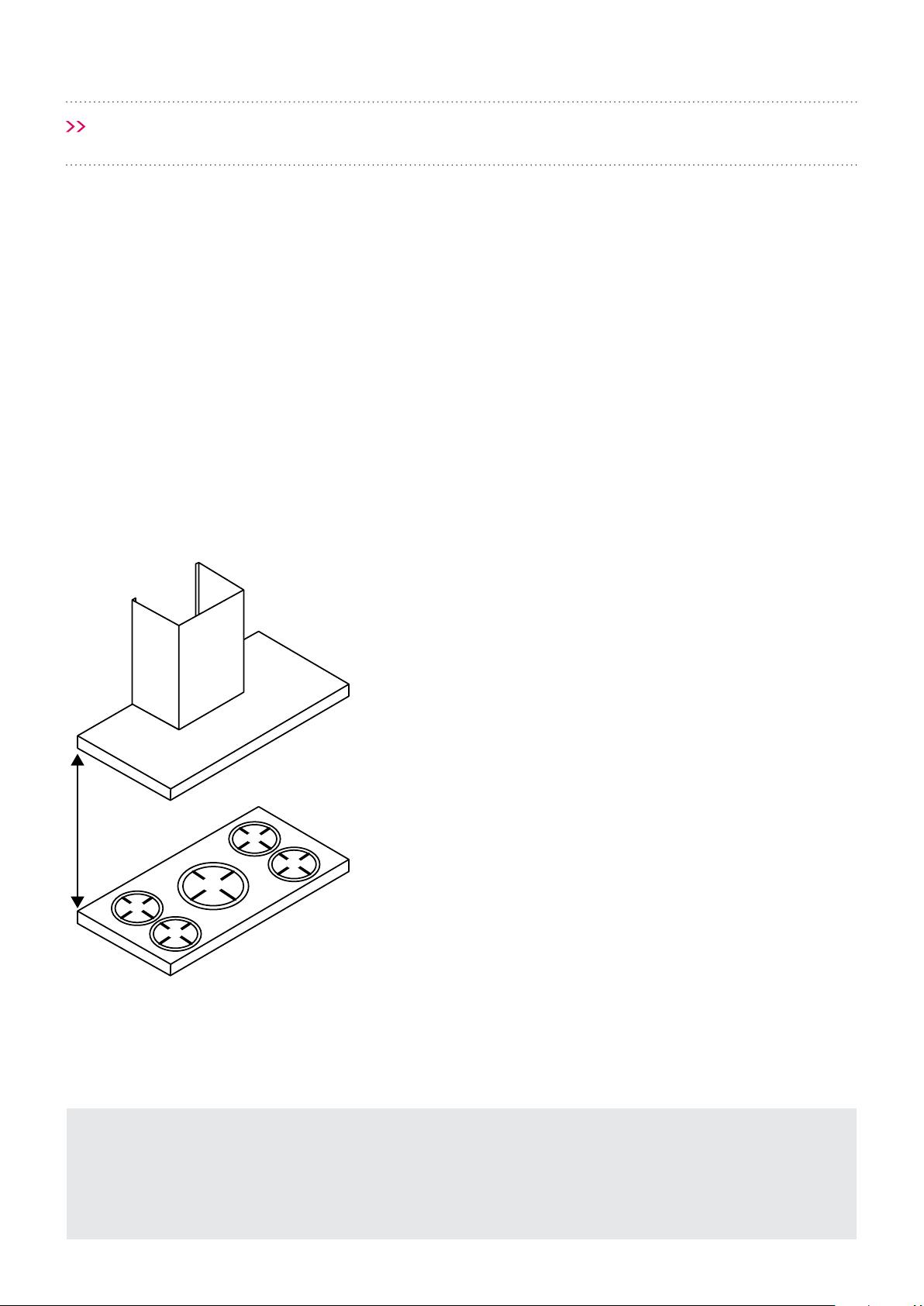

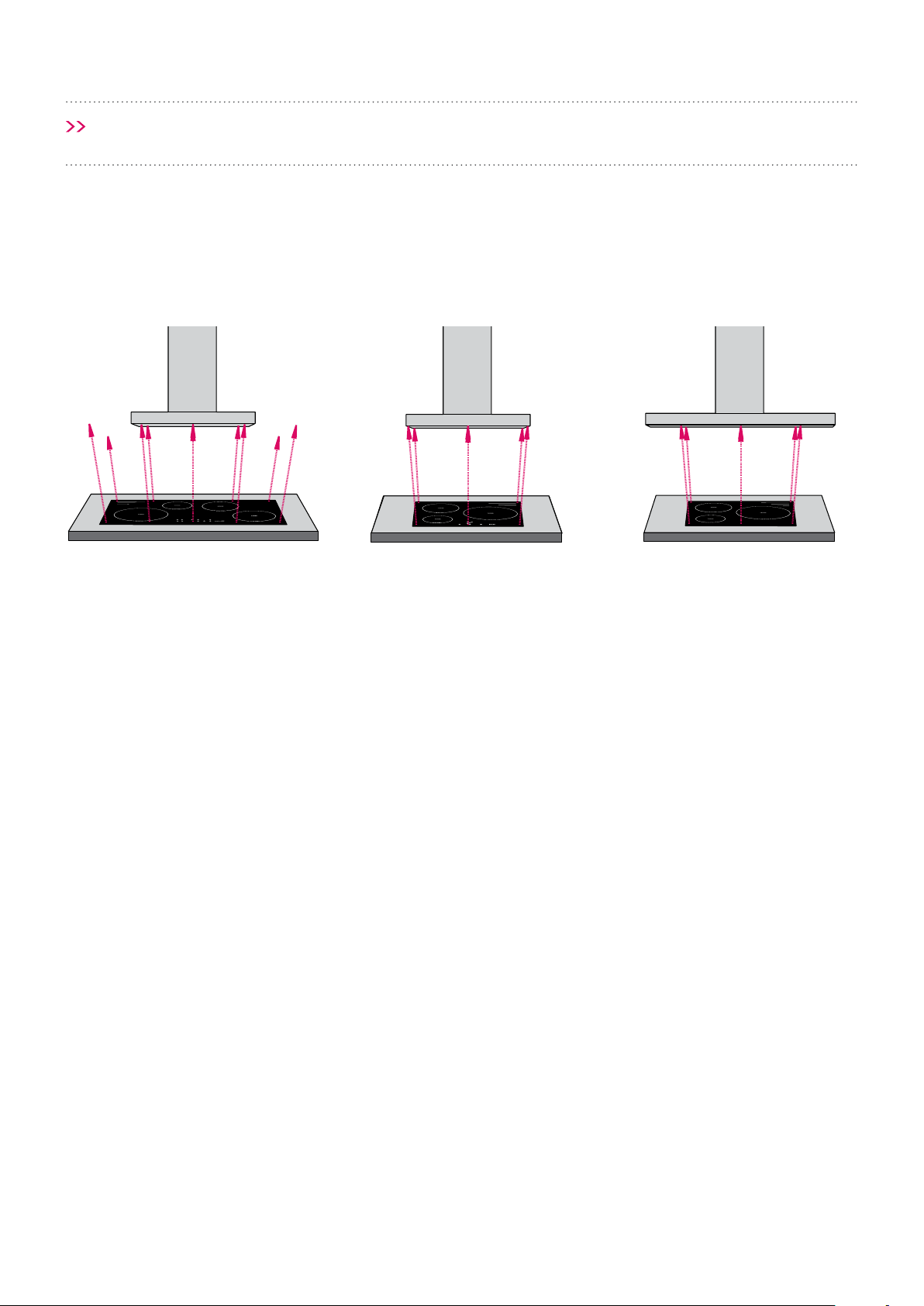

RANGEHOOD SIZE VS COOKTOP SIZE
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
Page 15
INSTALLATION
MOUNTING INSTRUCTIONS
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
RECOMMENDED INSTALLATION HEIGHT FOR INDUCTION COOKTOP
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a height of 700-750mm. Refer to page 22 for further information.
*IMPORTANT: If the user decides to install the rangehood at a
distance of less than minimum height above the cooking surface,
Schweigen declines responsibility for damages suered by the
rangehood due to excess heat or damage
to objects, people and others caused directly or indirectly
by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
See Mounting Laws
and Regulations
IMPORTANT
Please check all State and Federal Laws in relation to the minimum–maximum heights,
regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.
INSTALLATION
Page 16

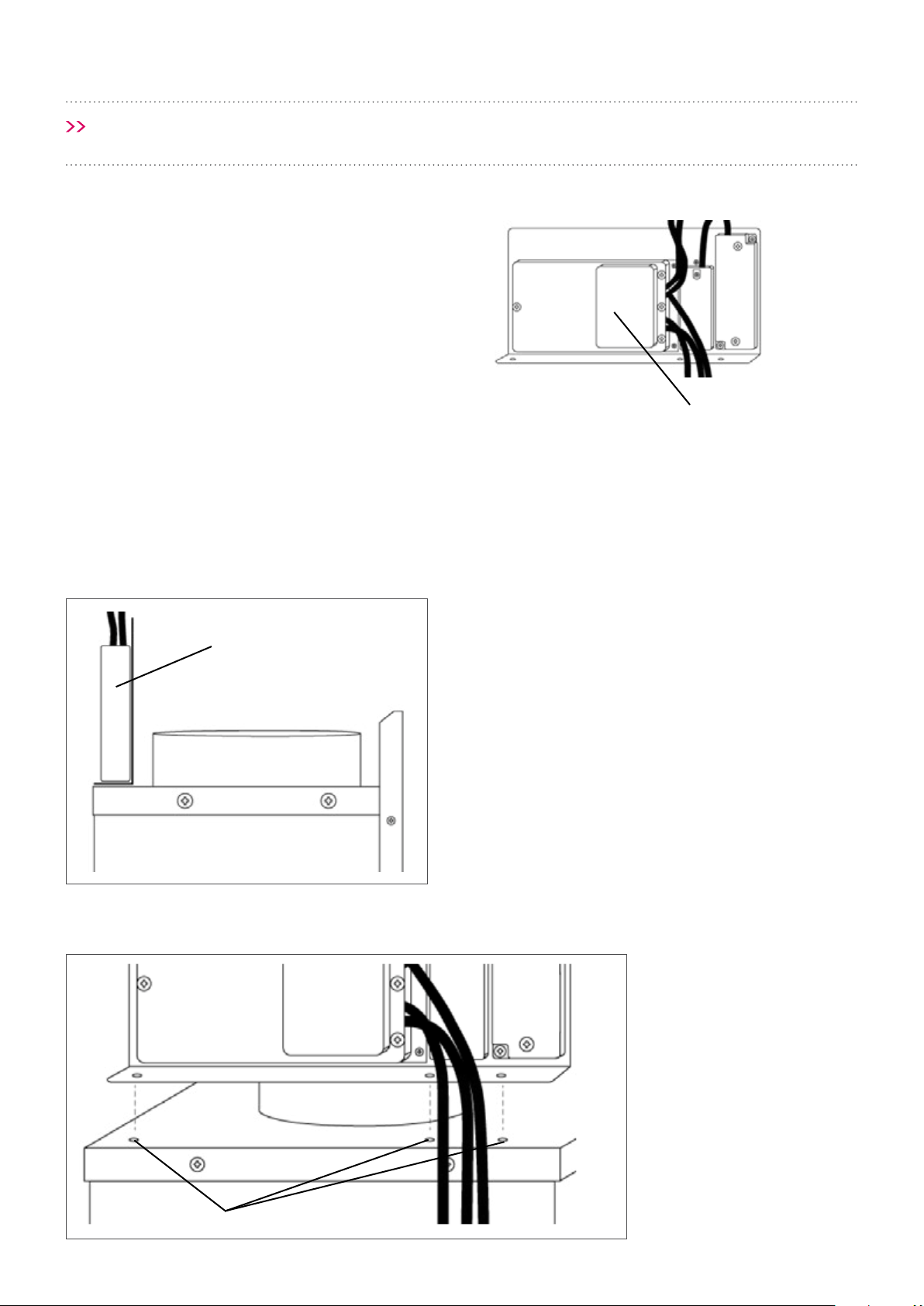

ATTACHING THE COMPUTER BOARD
AND WIRING BRACKET CERTAIN
MODELS ONLY
Before you install the rangehood, you may need to
connect the computer board and wiring bracket to
the main body of the rangehood.
1. Attach the computer board to the outlet box
using the screws provided.
2. Position the computer board facing out from
the outlet (see gure A), align the holes when
attaching the computer board (gure B) and
secure using screws provided.
NOTE: Some of the models only have two
screw holes.
Computer Board
Figure A
Figure B
Computer Board
Outlet Box
Align all the screw holes
INSTALLATION
Page 17
INSTALLING THE RANGEHOOD
A — Rangehood levelling screw points
B — Main support bracket, wall screw points
C — Second rangehood screw points
D — Main support bracket
NOTE: Some models might need the
computer board and wiring bracket
to be attached, see page 10 .
B
A
D
C

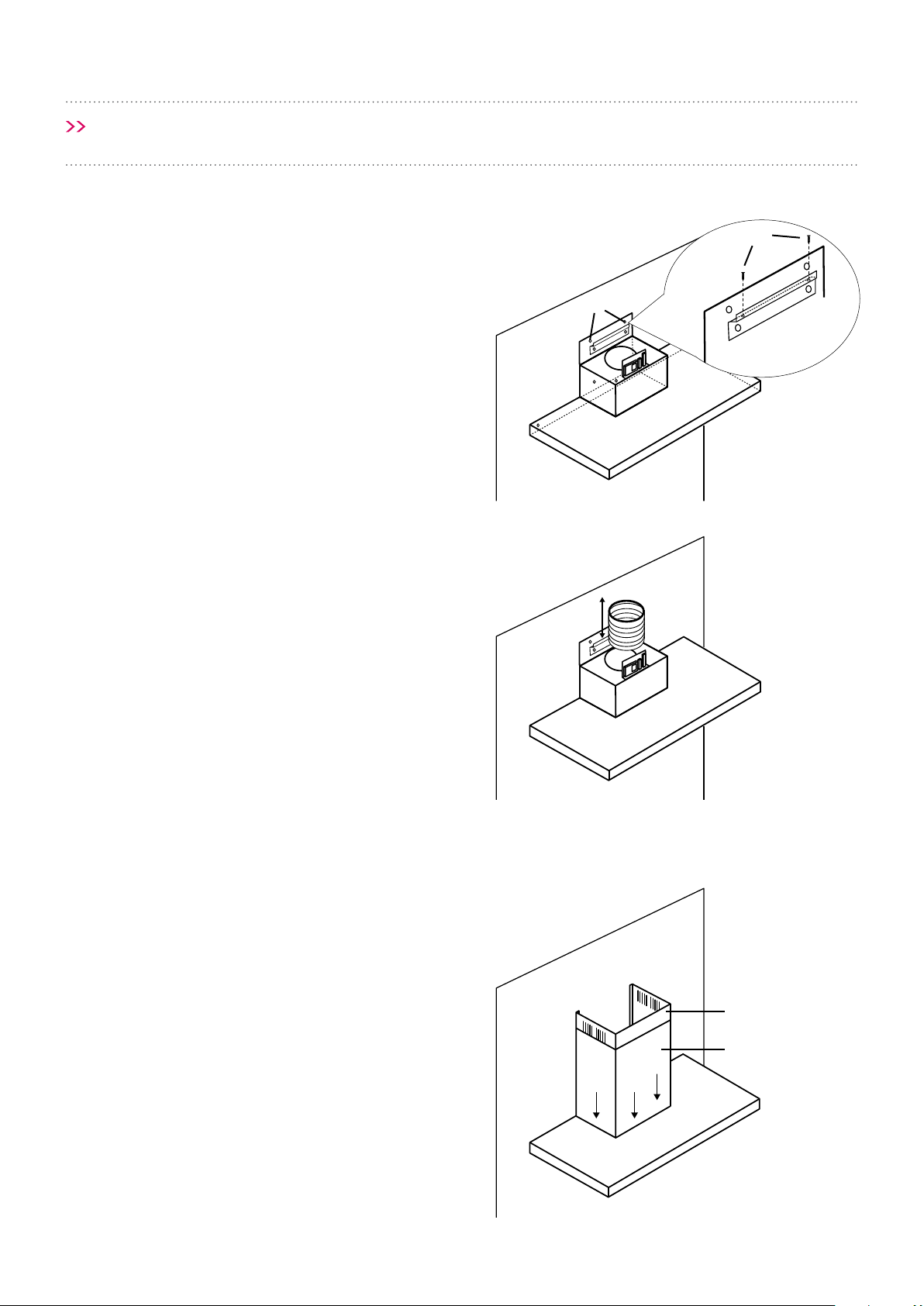

Step 1

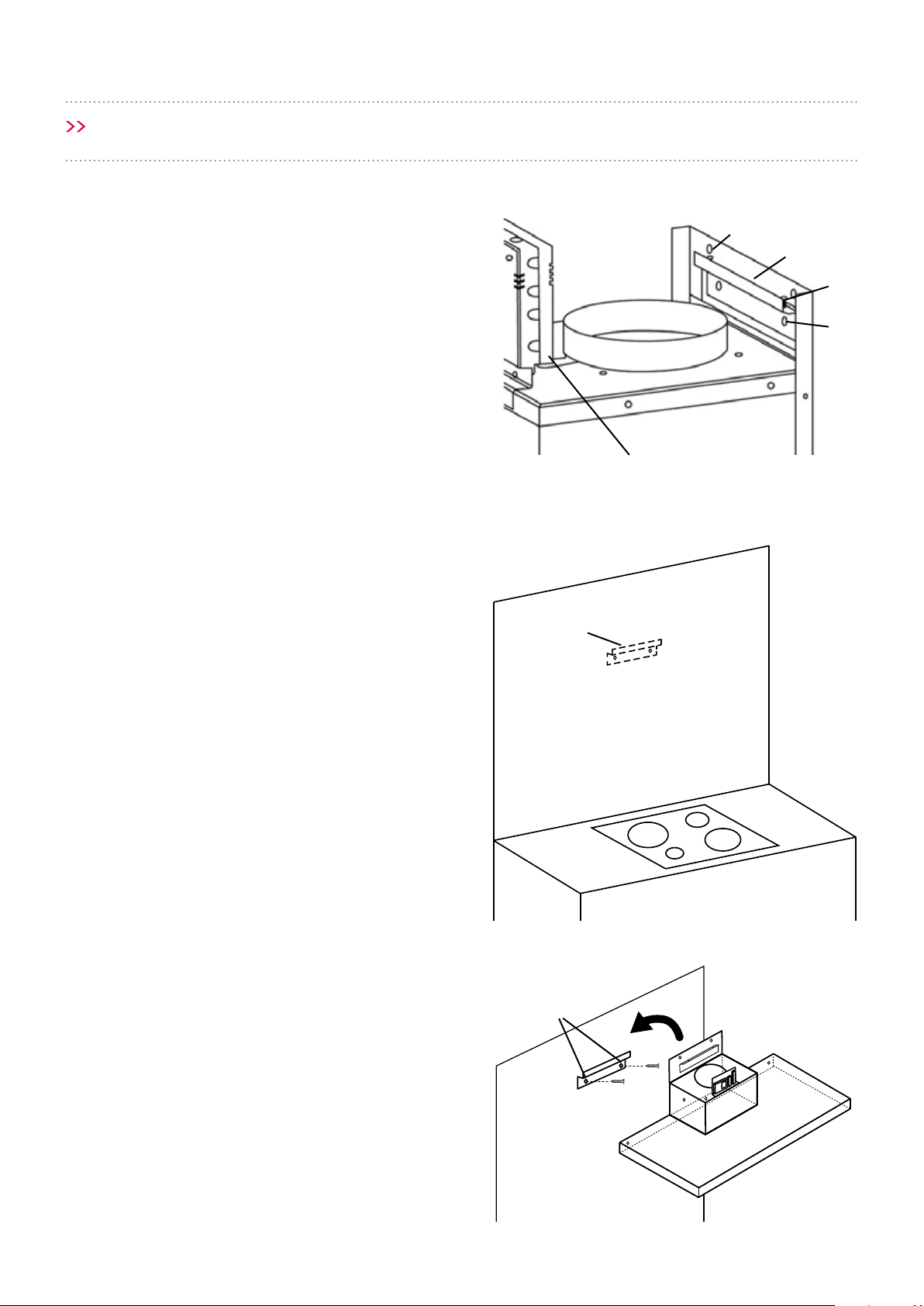

Measure the position on the wall where the
bracket is to be inserted following the height
recommendations indicated in the mounting laws
and regulations section.
Draw a line and mark the position of the holes that
must be made, make sure it is level and xed (D) to
a supporting beam.
Step 2
Once secured using the screws (B), hang the
rangehood onto the main support bracket.
D
B
INSTALLATION
Page 18
Step 3
Using a leveller, level the rangehood using
screws (A).
Once levelled, secure it rmly to the wall (C) using
the appropriate screws.
Step 4
Feed through and secure the exi ducting from the
rangehood outlet to the Isodrive motor.
Step 5
Place ue covers onto the rangehood and adjust
the height of the ue covers by sliding the outer
ue cover down.
NOTE: The outer ue cover section alone will
not cover the entirety of the control box and PCB
computer board.
A
C
Inner ue cover
Outer ue cover
INSTALLATION
Page 19
Figure 1
Figure 2
Figure 3
Step 6

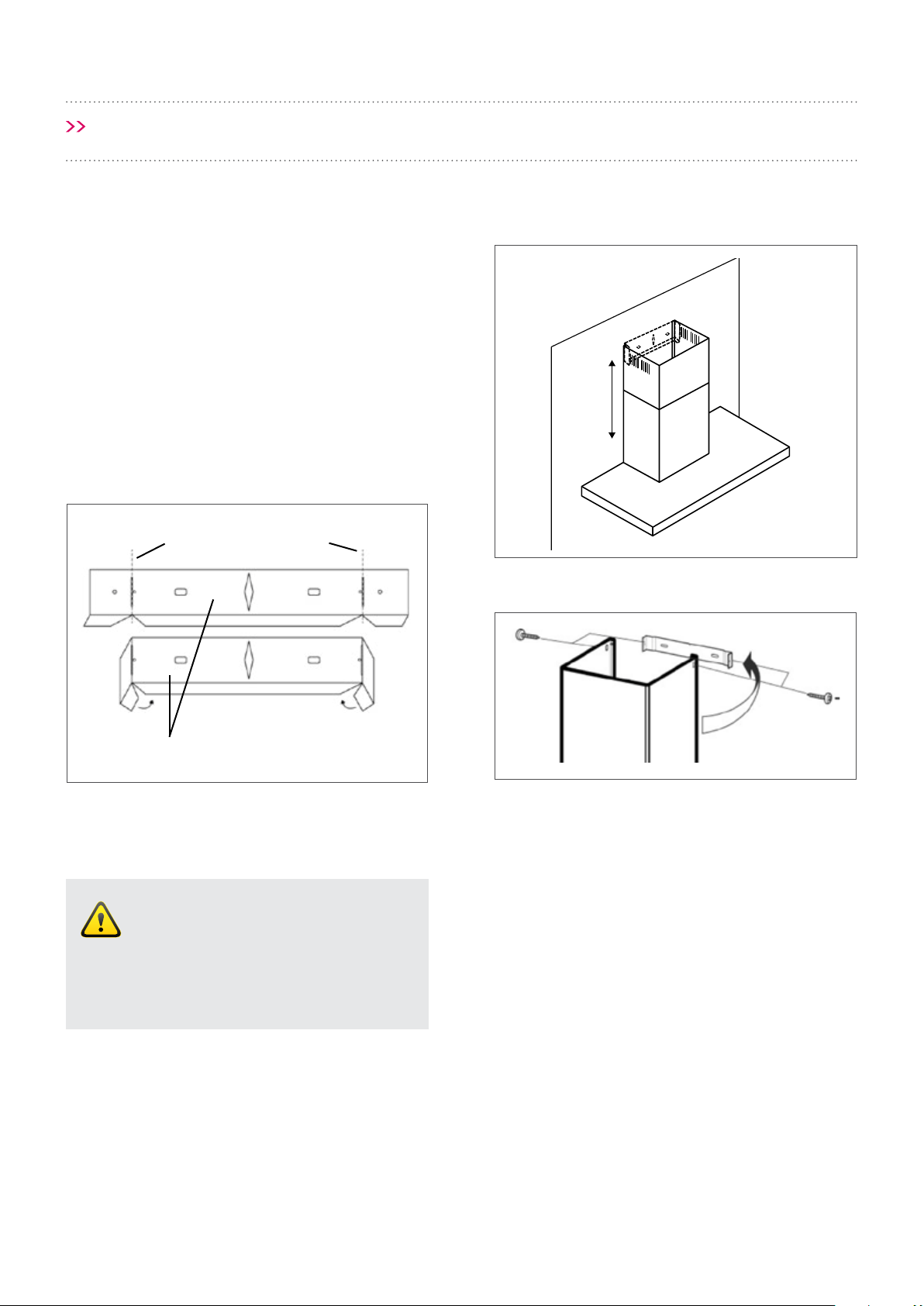

Install the wall ue bracket.
1. Fold both ends to 90° as shown gure 1.
2. Install the bracket to the wall at the correct
height, see gure 2.
3. Attach ue cover to the bracket, see gure 3.
Fold along these lines
Fold in 90º
Wall Mount Bracket for Flue
IMPORTANT
Please ensure all plastic
protection on the rangehood and
lters are removed before use.
INSTALLATION
Page 20
For technical support, please contact 1300 881 693.

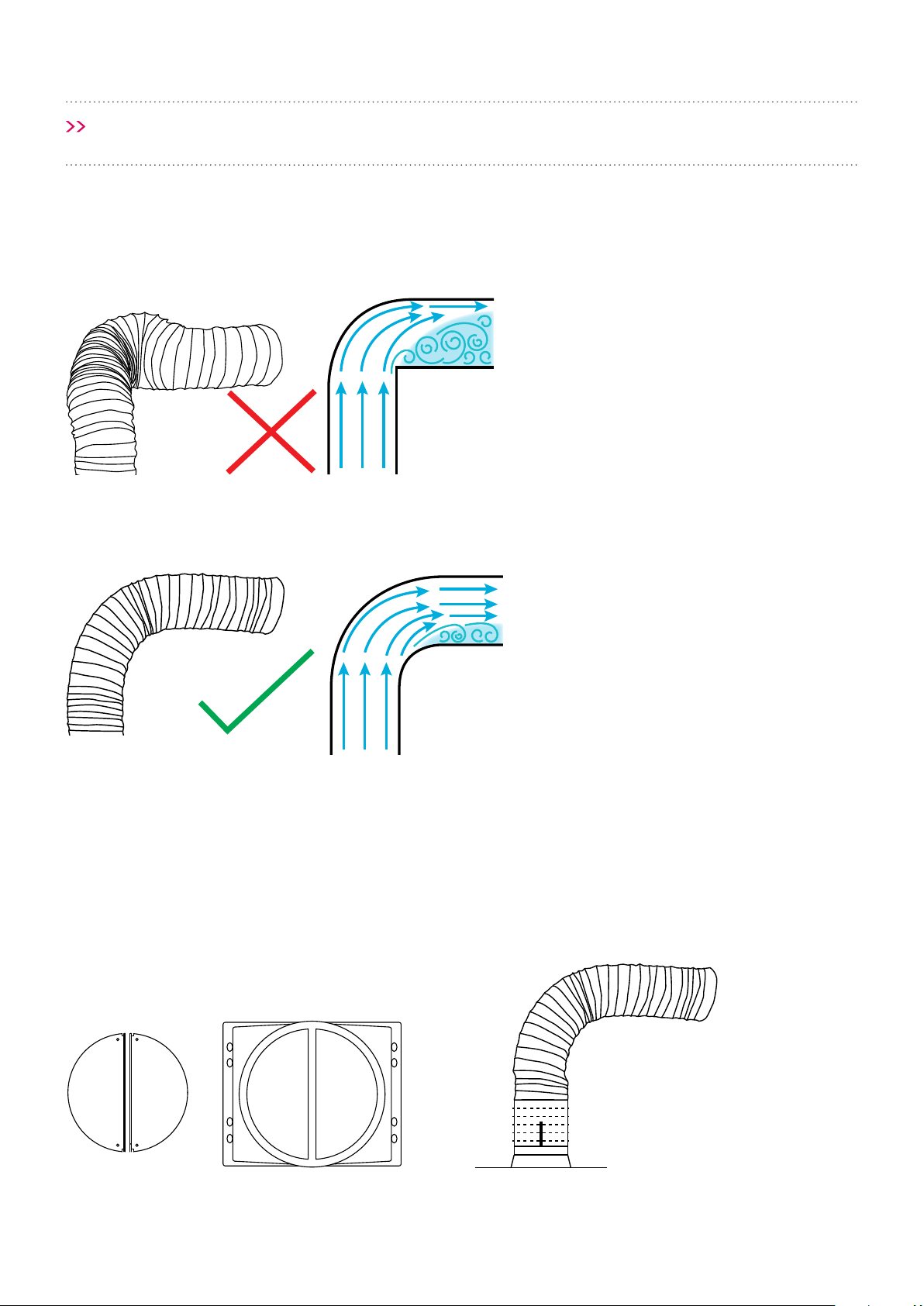

Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates sharp
corners that creates turbulence. This
reduces the size and eciency of the
ducting, lowers extraction and may
cause excessive noise.
BACK DRAFT FINS FOR APPLICABLE MODELS
Should your Back Draft Fins get stuck, this is not a warranty issue.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation.
NOTE: Please make sure when ducting is installed, that it does not impede the Back Draft Fins
from operation.
Back Draft Fins Back Draft Fins
open position
Back Draft Base
2. Sweeping curves and taut ducting reduces
resistance and turbulence. The airow
and extraction will be more ecient
and stronger.
Page 21
INSTALLATION

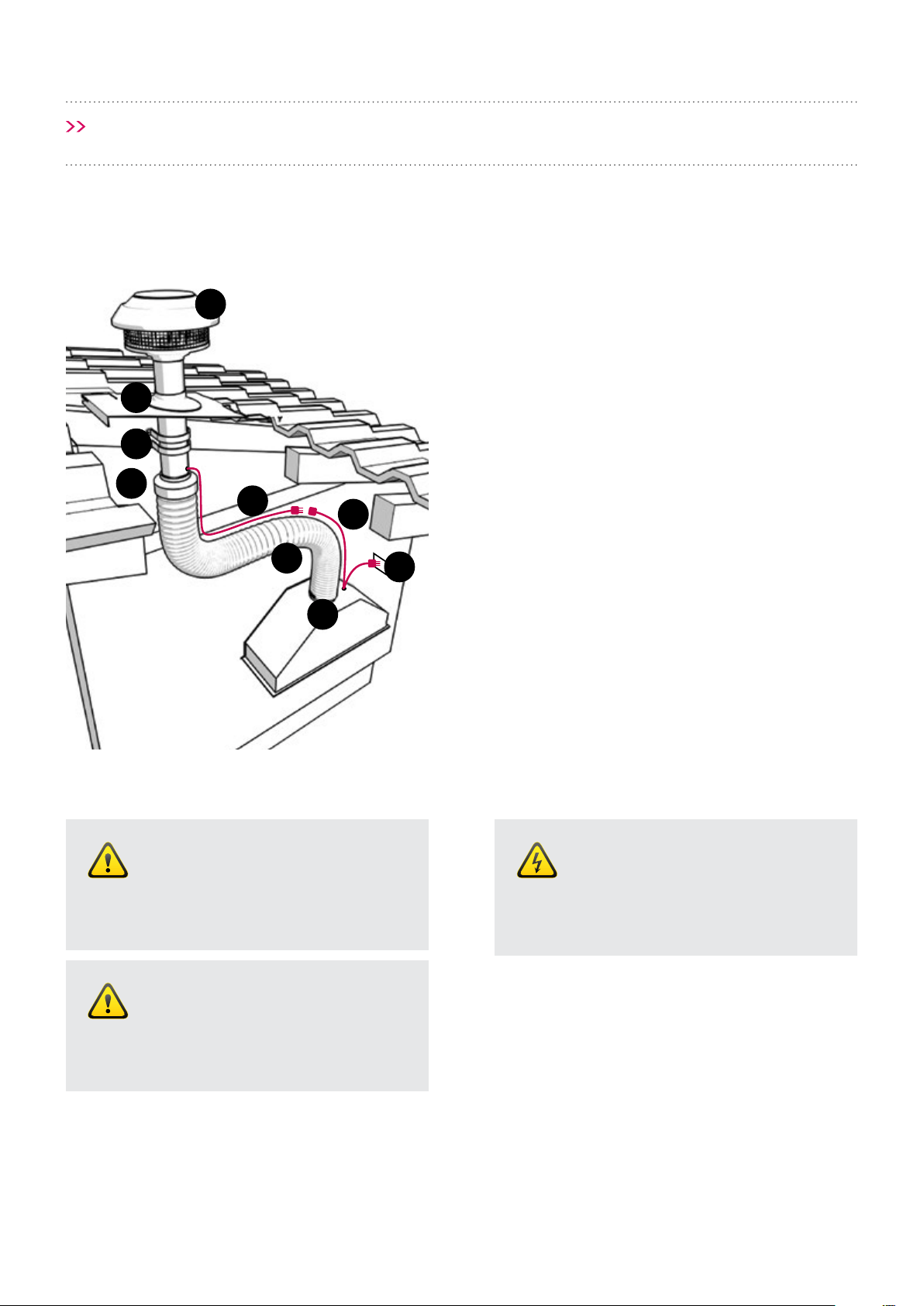

SYSTEM OVERVIEW
1. Isodrive
®
Motor
2. Roof Seal Kit (Dektite) (Not Supplied)*
3. Support Straps (Not Supplied)*
4. Attach Flexi Duct to Bell-Mouth Adaptor using
ring clamp. Please DO NOT rip the ducting.
5. Isodrive
®
Motor Power Lead (Male Plug)
6. Rangehood to Isodrive
®
Motor Lead
(Female Plug)
7. Main Power Lead (Male Plug, 10 Amp)
8. Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect exi ducting to the outlet
on rangehood using ring clamp.
Please DO NOT rip the ducting.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
5
6
7
8
9
Danger
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.
Note
* The Isodrive
®
motor system does not
include the roof seal kit, ring clamp
or the support straps.
Note
Please see Isodrive
®
installation guide
for motor installation information.
Page 22
TROUBLESHOOTING
COOKING WITH INDUCTION
COOKTOPS
Cooking with an induction (or similar) cooktop,
may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction
cooktops heat food and liquid instantly, which in
turn, produces vapours rapidly. Because of the
accelerated process, the rangehood lters do not
have enough time to warm up, which increases the
chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include
but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/
afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
• Angle of ducting – an ‘S’ bend is preferred.
• Filter size – larger rangehood preferred,
as it will have a larger lter extraction area.
• Quality of pots or cookware you are using –
high quality is recommended.
How to reduce the possibility of condensation
forming:
• Ensure the rangehood is installed by a qualied
professional, carefully following the installation
guide.
• Turn on the rangehood 5-10 minutes prior to
cooking, and leave on for 5-10 minutes after
cooking; this helps clear remaining vapours
from the ue.
• Start the cooking process at a low-to-medium
setting and allow time for the rangehood to
become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this
helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer’s
advice.
• Install at recommended height above induction
cooktop.
For further tips or information regarding cooking
with induction, please contact the induction
cooktop manufacturer.
TROUBLESHOOTING
Page 23
Before you contact the technical service
department, make sure that the product
is plugged in and power is supplied.
• Do not take any action that will damage
the product.
Check electric connection. Voltage of the electric
network should be between 220 - 240V, rangehood
should be connected to grounded plug and turned on.
Check motor switch. Please ensure that there is power
to the rangehood and the rangehood is switched on.
Check lamp switch. Lamp switch should be at on
position.
Check lters. The lters should be washed regularly,
see lter cleaning, page 14.
Light bulbs should be rmly in position.
Check light bulbs.
Make sure they are not broken or faulty.
Please make sure there is no obstruction in ducting or
with the back draft ns.
Check the outlet, make sure it is not blocked and you
have the correct diameter ducting installed.
Check Isodrive
®
installation manual, make sure the exi
ducting is installed correctly, eg. Length of ducting
used, keep the ducting taut.
Check the ducting has not come unattached from
rangehood outlet or has been eaten through by
rodents.
Rangehood does
not work
X X
Light does not work X X X X
Rangehood air
exaction is weak
X X X X
Rangehood does
not direct air out
(through chimney)
X X
Loud noise from
the rangehood
X X
IMPORTANT
Never attempt to repair this
appliance by yourself. Always
refer to a qualied Service
Technician.
TROUBLESHOOTING
Page 24
SERVICE
Lodging an Online Service Request
In the event that the failure is not due to the faults
mentioned in the Troubleshooting section, you
can lodge an online Service Request. To lodge
an online Service Request, visit our website
www.schweigen.com.au/service-and-warranty
and click on the link and complete the service
request form.
A service request will require the following
information:
• The purchase date
• The model number
• The rangehood model and motor type (eg.
Isodrive
®
650)
• The serial number or batch number (this number
is on a sticker inside the rangehood).
• A copy of the purchase receipt (without a receipt
your service request cannot be processed).
Alternatively, you can call Customer Service:
Australia 1300 881 693
New Zealand 0800 200 510
FAULTY INSTALLATION
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be
charged for any Schweigen technician that attends a call, whereby it is established that the fault is due
to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way
that the service agent is unable to gain access to the appliance, the person/s who own the premises
or the property where the appliance resides — will be responsible to provide access to the appliance at
their expense.
Page 25
TECHNICAL SPECIFICATIONS

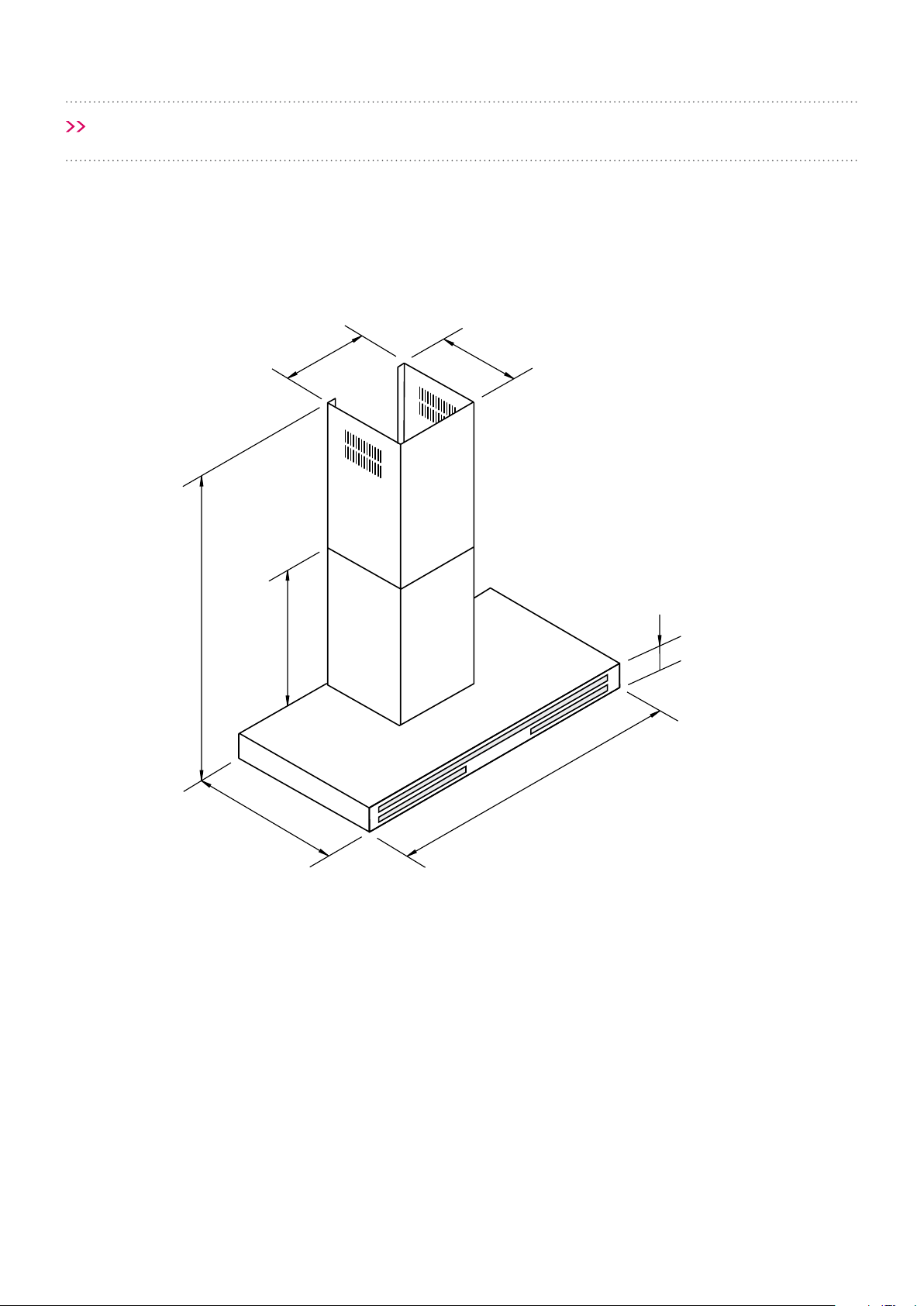

Model: KLS-ALBW9S,
KLS-ALBB9S
Feeding Voltage: 220-240V 50Hz
Max Lamp Power: 2 x GLED Square 55 x 55mm
2.1 Watts 12V 4000k
1 x Fluorescent Tube Double
860mm Capped 21W 12V
KLSALBW9S, KLSALBB9S
300
525
900
80
300
440
Min 620 - Max 1050
TECHNICAL SPECIFICATIONS
Page 26

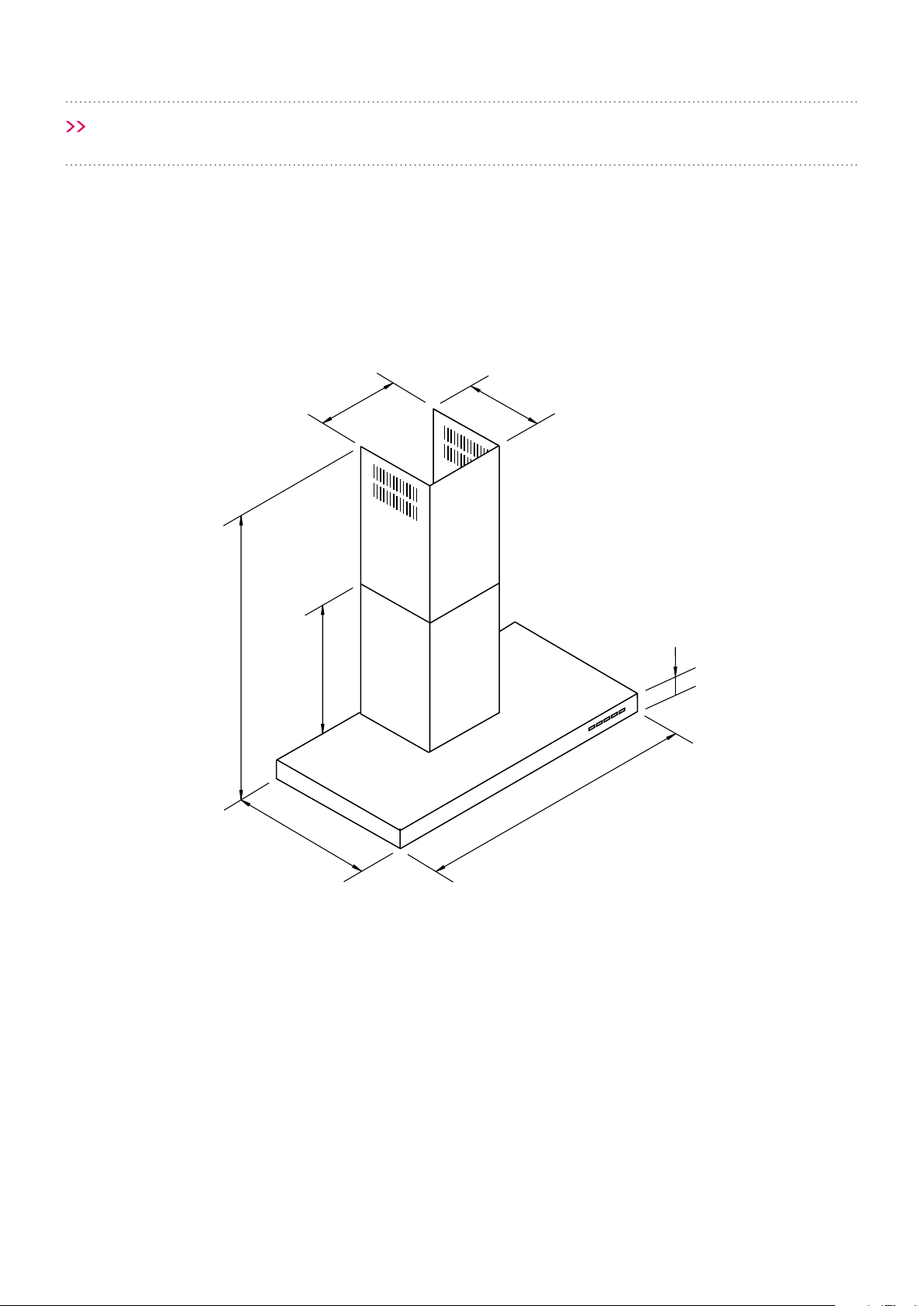

Model: WM-LIN9S
Feeding Voltage: 220-240V 50Hz
Max Lamp Power: 2 x GLED Square 55 x 55mm
2.1W 12V 4000k
WM-LIN9S
300
450
520
60
900
300
Min 600 - Max 1030
Page 27
DISCLAIMER
Under our policy of continuous product
development, product specications may change
without notice. Prospective purchasers should
therefore check with the retailer to ensure this
publication correctly describes the products being
oered for sale. All information supplied is to be
used for general reference purposes only and
is on the understanding that Schweigen Home
Appliances will not be liable for any loss, liability or
damage of whatever kind arising as a result of any
reliance upon such information. All pictures used in
the guide are for illustrative purposes only.
Although our information and marketing states
the term ‘Silent’ for certain models, the following
applies to various models that are sold with
certain Isodrive
®
Systems and bae lters. When a
model with the larger motored Isodrive
®
System is
operated at the higher speed/s air movement may
be heard. For example, while operating on speed
4 & 5 (For 5 speed models) the rangehood may be
audible due to the large amount of air movement
moving through the lters.
*Please make sure that the rangehood and motor
have been installed as per the corresponding
instruction guides in order for optimal performance
(the Isodrive
®
Motor Manual can be found with the
Isodrive
®
Motor, or online at schweigen.com.au).
Schweigen Home Appliances has presented this
information in good faith to all their retailers and
distributors to convey before any/all purchase/s.
Information is supplied upon the condition that the
person/s receiving the information will make their
own determination as to its suitability for their
purpose/s prior to use. In no event will Schweigen
Home Appliances be responsible for damages of
any nature whatsoever resulting from the use of,
or reliance upon, information from their website or
the products to which the information refers.
DISPOSAL OF OLD APPLIANCES
Electronic waste (or e-waste) including kitchen appliances are banned from direct disposal
to landll. E-waste contains hazardous materials, which can harm the environment and human health.
Valuable materials contained in e-waste are lost when appliances, computers and other household
electrical goods are sent to landll.
Recycle your e-waste to:
• reduce landll
• protect the air and waterways from harmful materials
• minimise consumption of raw materials to produce electronic products
• reduce greenhouse gases created in the production of new materials.
Kitchen appliances including Rangehoods and Ovens can only be disposed at approved recycling centres.
Visit www.recyclingnearyou.com.au/whitegoods for more information, or contact your local council or the
store you purchased this appliance, for a list of approved recyclers.
www.schweigen.com.au
© Schweigen Home Appliances Pty Ltd. 2021.
Australia
Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172
Phone: 1300 881 693
Email: sales@schweigen.com.au
New Zealand
5 Tolich Place, Henderson, Auckland 0610
Phone: 0800 200 510
Email: inf[email protected]om
