12.2016 / V2.0
INSTALLATION GUIDE
Isodrive 650
www.schweigen.com.au
Page 2
Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.
Page 3
1. Welcome _____________________________________________________________________________________ 2
2. Your Safety
Before Installation ______________________________________________________________________________ 4
Electrical Cord __________________________________________________________________________________ 4
Motor Features ________________________________________________________________________________ 5
General Notes on Installation and Use ____________________________________________________________ 5
Recommended Installation Distance _____________________________________________________________ 5
Minimum Mounting Height ______________________________________________________________________ 6
Avoidance of Back Flow _________________________________________________________________________ 6
Safety of Children ______________________________________________________________________________ 6
Replacement of Supply Cord _____________________________________________________________________ 6
Why Flexi-duct _________________________________________________________________________________ 6
3. Description
Isodrive Motor _________________________________________________________________________________ 7
4. Installation
Roof Installation _______________________________________________________________________________ 9
Eaves Installation ______________________________________________________________________________ 11
Wall Installation ________________________________________________________________________________ 12
5. Back Draft Shutter System

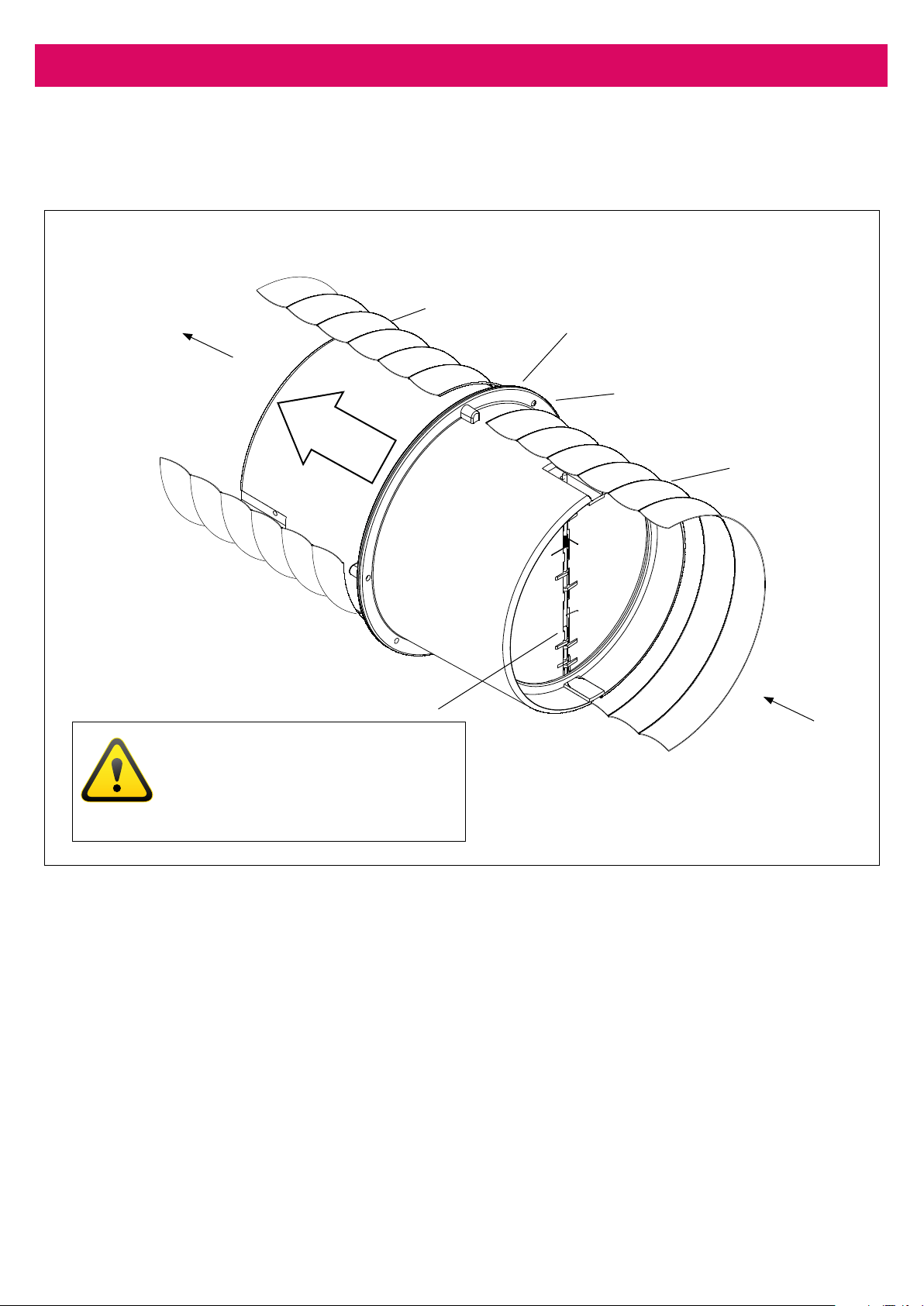

Back Draft Shutter System for 150mm Ducting ____________________________________________________ 13
Installation for Back Draft Shutter System (150mm Ducting) _________________________________ 14
Back Draft Shutter System Fitment to Bell-mouth Adaptor __________________________________ 15
6. Installation Examples
Single Motor Installation Example ________________________________________________________________ 16
Twin Motor Installation Example _________________________________________________________________ 17
7. Measurements
Measurements for Isodrive 650 __________________________________________________________________ 18
8. Flexible Duct
Shallow Roof Space _______________________________________________________________ 20
Important Note __________________________________________________________________ 20
Securing Flexible Duct _____________________________________________________________ 21
9. Maintenance
Roof Restoration or Cleaning ________________________________________________________ 22
10. Warranty/Disclaimer ________________________________________________________________________ 23
Index
Page 4
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Before Installation
We recommend this appliance to be installed or repaired by a qualied Schweigen Home Appliances technician.
Please see our website www.schweigen.com.au for recommended installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must
be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The
power supply cord connection MUST BE installed in such a way that access is easy in case of emergency.
2. Your Safety
RECEIVING YOUR RANGEHOOD
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
Page 5
This guide is for the installation of the motor used in the Isodrive systems after the canopy/rangehood or
bathroom extraction grill has been mounted on the wall or ceiling. (Refer to canopy/rangehood or bathroom
extraction unit installation manual).
NOTE: All PVC pipe and exi ducting measurements are referring to inside measurements, unless otherwise
mentioned.
Motor Features
• Universal mounting, all position with IPX4 degree of weather protection
• Patented anti water intrusion system.
• Acoustic dome with super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used.
• Using a single 150mm exi duct run you should attain 650m
3
/hr depending on the ducting installation.
• The use of a smaller 125 pipe would result in a loss of airow.
• Simple installation: - Mounts onto a 100mm PVC pipe for ultimate strength and allows for easy Dektite roof
sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 62W, costing around the same as a 60W light globe to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does not cover
normal wear and tear, chemical or storm damage, etc.
General Notes on Installation and Use
This fan unit is designed to be installed using 100mm PVC pipe as the initial connection duct to the fan module,
and is supplied with a 100mm PVC pipe to 150mm exible duct bell-mouth adaptor.
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 11000 mm². Ducting runs
should be more than 2 metres away from the unit and no more than 4 - 5 metres (check with supplier if longer
duct length required). Flexible ducting must be extended suciently to present a smooth air passage with
bends of at least the radius of twice the diameter of the duct.
WARNING: The Isodrive motor system must not be ducted into a wall cavity or a ceiling space, where a build
up of grease can occur and become a potential re risk. This will void your warranty.
NOTE: Fan module and dual foil exi-duct are acoustically matched. Use of semi-rigid or rigid ducting will result
in increased noise and void warranty. See installation instruction notes ‘Why exi-duct’.
Recommended Installation Distance
For Isodrive 650 motor, a minimum of 3 metres (approx.) is recommended.
NOTE: Installation closer than these distances may result in higher air noise level. Maximum duct length 4 - 5
metres. Check with supplier if longer length is required. Do not reduce the duct size at any time and avoid sharp
bends.
2. Your Safety
Page 6
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open re
appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of supply cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Flexi-duct
Some internet sites strongly recommend the use of rigid ducting over fully exible ducting. This
may well be the case with conventional rangehoods with internal motor rangehood.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling air through
the hood and acoustically matched ducting producing almost silent high volume ow. The use of a complete
rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a noise is
produced at one end of a hollow rigid pipe and the noise is amplied out the other.
The Isodrive system puts the noise outside the house and it needs to be kept there.
Warning: Installation without the use of at least the minimum recommended length of acoustically matched
exi-ducting in the system will void performance expectations. Any installation problem must be reported
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation and may void warranty. A
preferred installer list can be obtained from Schweigen website www.schweigen.com.au or
call 1300 881 693.
2. Your Safety
Page 7
Isodrive Motor
Included in the box:
1. Isodrive 650 motor (280W x 200H mm approx.)
Approx. 3 metre, 10amp cable and standard male plug
2. Fire resistant 100mm (110mm OD
1
) PVC riser pipe
Note: Cable cut-out at the bottom end only
3. Flexible ducting
Approx. 4 metres, 150mm (160mm OD
1
) diameter
4. Bell-mouth adoptor ring
150mm duct to 100mm riser
Not included in the box:
A. (Optional) Back draft shutter for 150mm ducting
Refer to page 13 for more information.
B. (Optional) Back draft shutter tment to bell mouth
adaptor Refer to page 14 for more information.
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Gaer tape / electrical tape
• Zip ties
Additional S2 kit for twin 650 Isodrive motor:
i. One 150mm x 150mm x 200mm Y joint
ii. Flexible ducting
Approx. 3 metre, 200mm (210mm OD
1
) diameter
1
OD refers to outside dimension.
1
2
3
ii
A
i
4
B
3. Description
Page 8
Roof Mount Option
Eaves Mount Option
Wall Mount Option
Mounting Flange
100mm PVC Pipe
Dektite
Connect to
rangehoood
Bell-mouth adaptor
Slot option
20
min
20
min
Bell-mouth adaptor
Min 90mm long PVC pipe
Connect
to rangehood
To fan
Cover
Rangehood
Electrical connection
between rangehood and
remote fan module
Connect to main power
Figure 1 The three options for mounting the unit.
IMPORANT
For more exible ducting instructions, refer page 19.
100 — 400
Ensure
clearance
4. Installation
Page 9
Roof Installation (Recommended duct length: 3 metre)
Mount the 100mm rigid PVC pipe securely to the beams, trusses or other appropriate structures, refer gure 1.
The pipe should be mounted either vertical or perpendicular to the roof cladding with the roof penetration
being sealed using a Dektite or other sealing device.
Ensure that the pipe protrudes a minimum of 80mm past the top of the Dektite, checking that the
mounting ange clears the roof cladding at upper edge as shown in gure 1 — Roof Mount Option.
Maximum recommended protrusion is 400mm. Fit mounting ange, refer gure 2, to pipe using silicon sealant,
then tape in position until sealant has set.
Pass power cord and plug through mounting ange and pipe, then out the slotted end of the PVC pipe for
connection to the female plug coming from the canopy/rangehood or authorized switching mechanism in
bathroom application, refer gure 2.
Fit fan module to mounting ange by placing in position, rotating clockwise to engage bayonet ngers then
secure by screwing in locking screw (while holding fan module rmly in the fully clockwise position), refer gure 2.
4. Installation
Page 10
Figure 2
Locking Screw
Fan Module
Roof Clading
Mounting Flange
Dektite
Roof Frame
100mm PVC Pipe
Secure pipe to structure
150mm exible ducting
5 metre max
Connect to
rangehood
Power cord
Bell-mouth adaptor
Slot pipe for power cord
exit. Cover with ducting
tape if required
Optional
bend
Slot option
Roof Installation
IMPORANT
For more exible ducting instructions, refer page 19.
NOTE: Ensure that power cord is feed
through exit slot and is not allowed to
double back restricting fan inlet.
4. Installation
Page 11
Eaves Installation
After ensuring sucient clearance exists for the mounting ange and ducting, refer gure 1, cut a circular hole
165mm Ø, maintaining adequate clearances. The eaves sheeting should be reinforced.
Pre-drill mounting ange recess. Refer gure 3.
If access to the eaves space is restricted, before xing mounting ange to eaves, preassemble mounting ange,
PVC pipe, bell-mouth adaptor and exi-duct then feed up into roof space. Remember to run power cord through
the assembly and out the slotted PVC pipe wall, refer gure 3.
Fit fan module to mounting ange by placing in position, rotating clockwise to engage bayonet ngers then
secure by screwing in locking screw (while holding fan module rmly in the fully clockwise position).
Ensure that one of the three
bayonet ngers is accessible
for securing locking screw
Bell-mouth Adaptor
Roof Cladding
Locking Screw
Pre-drill mounting
ange recess and secure
to reinforced eaves
sheet using #8 self
tapping screws
Wall
Eaves
Top Plate
150mm Ducting
Roof Frame/Truss
Figure 3
IMPORANT
For more exible ducting instructions, refer page 19.
NOTE: Ensure that power cord is
feed through exit slot and is not
allowed to double back restricting
fan inlet.
4. Installation
Page 12
4. Installation
Figure 4
Wall Installation
The installation should be similar to eaves mounting if access to the inside is limited, but if unrestricted. Refer
to EAVES INSTALLATION and gure 4.
Min 20mm
NOTE: Ensure that power cord is feed
through exit slot and is not allowed to
double back restricting fan inlet.
Flexible 150mm ducting
Bell-mouth Adaptor
Min 90mm long PVC pipe
IMPORANT
For more exible ducting instructions, refer page 19.
Page 13
5. Back Draft Shutter System
Figure 5
Mount shutter system as close to
Isodrive fan as practicable
Direction of
airow
Direction of
airow
To fan
Flexi duct
Flexi duct
Use duct tape to secure exi
duct to shutter system
In line shutter system
Back Draft Shutter System for 150mm Ducting
This back draft shutter suitable for Isodrive 650 motor only.
Air ow
IMPORANT
If shutter system is mounted in the
horizontal position, shutter shaft
should be vertical.
Part number: 150mm in line BDSS.
Page 14
5. Back Draft Shutter System
Installation Example for Back Draft Shutter System
(150mm Ducting, refer to gure 5)
This back draft shutter suitable for Isodrive 650 motor only.
Vertical Installation
Figure 6 shows an example of vertical
installation. If space is allowed, it could be
installed near the ranghood outlet.
Horizontal Installation
If you have a narrow roof space, you can install
the back draft shutter horizontally, refer to
gure 7.
Figure 6 Figure 7
Back draft shutter
Back draft shutter
Air ow
Air ow
NOTE: Shutter
shaft should be
placed vertically.
Page 15
5. Back Draft Shutter System
Vertical Installation
Figure 9 shows an example of vertical installation.
Back Draft Shutter System Fitment to Bell-mouth Adaptor
This back draft shutter suitable for Isodrive 650 motor only. This back draft shutter system cannot be installed
in eave type installation.
Figure 8
Figure 9
Back draft shutter system
Bell-mouth adaptor
Fit exi-duct over shutter assembly
Tape over anges
100mm pipe
to fan
Direction of
airow
To fan
IMPORANT
If shutter system
is mounted in the
horizontal position,
shutter shaft should
be vertical.
Part number: 150 MMBDSS
Back draft shutter system
Tape over anges
Air ow
Page 16
6. Installation Examples
Single Motor Installation Example
Connect to rangehood
Connect to motor
Cover
Connect to
main power
Use reducer 150mm to 200mm
Use smooth owing curves for
maximum airow. Remove excess
ducting by trimming to length. DO
NOT install motor in straight line
to rangehood.
Figure 10
Page 17
6. Installation Examples
Figure 11
Twin Motor Installation Example
Where two motors are to be used, follow the below methods for each motor then join into the “Y” piece prior to
joining ducting to the canopy / rangehood. Refer gure 11.
The two motors can be wired by one of the following methods:
• Wired into one plug by an electrician
• A double adaptor plugged into the lead from the canopy / rangehood
Flue cover
Try to keep length of
exible ducting as even
as possible other wise
motors will draw air o
each other
Roof mount option Roof mount option
Ensure exible ducting is
fully extended and as short
as possible. Use smooth
owing curves for maximum
air ow. Remove excess
ducting by trimming to
length. Always keep ducting
taut.
Flexi ducting 200mm
‘Y’ Junction for Twin 650 Motor
Installation
150 x 150 x 200mm
For current models with 200mm
opening (S2 Kit available)
Page 18
7. Measurements
Measurements for Isodrive 650
Figure 12
157mm
110mm
195mm
278mm
28mm
35mm minimum
35mm
29mm
370mm
Page 19
8. Flexible Duct
Flexible Duct
Flexible ducting must be fully extended and cut to the required length upon installation, refer to gure 13.
Maximum fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend
ducting results in a smaller air passage and lower airows. Incorrect installation may reduce airow or increase
noise levels. Call outs relating to incorrect installation will result in a service fee directed to the customer.
Schweigen will take no responsibility for problems caused by faulty installation. Installation should be done by a
qualied technician. A preferred installer list can be obtained from Schweigen website www.schweigen.com.au.
Please keep the exible duct taut,
3 metres in length (optional)
NOTE: In shallow roof spaces
extend exible duct horizontally
Figure 13
Page 20
8. Flexible Duct
Shallow Roof Space
In shallow roof spaces, do not crush or kink exible ducting, as it will reduce air ow severely. 90 degree curve
PVC or galvanise curve can be used as a substitute for the bend, refer to gure 14.
Figure 14
Figure 15
90 degree curve PVC or
galvanise curve
Important Note
Please do not crush or kink exible ducting, as it will reduce air ow and may cause noise to occur through the
system. Ducting needs to be kept taut at all times.
Page 21
Securing Flexible Duct
Flexible duct must be installed with supports at maximum intervals of 1.5 metres. Flexible ductwork can be
supported by using gaer or electrical tape. Provided that it does not restrict the internal diameter of the
ducting. Ducting installed looped over hanging beams should be installed in such a manner as to ensure the
changes of direction are gradual. Support of the ducting with the use of hangers may be require, see option 2.
NOTE: Ducting should be kept taut at all times.
Figure 16 Examples of securing ducting
Option 1
Secure the exible duct
to the beam
Option 2
Support exible duct
by using hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
Gaer or
electrical tape
Gaer or electrical tape
Hanger
8. Flexible Duct
Page 22
9. Maintenance
Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all
chemical contact.
IMPORANT
Any damages caused by the
use of chemical products are
not covered by warranty.
Figure 17 Avoid chemical contacted to motor system
Page 23
10. Warranty/Disclaimer
Warranty
(See warranty for more information)
Isodrive motor has a 10-Year replacement product warranty. This is a change over warranty. The consumer is
responsible for any charges associated with removal of the faulty unit and installation
of the new unit. The customer is also responsible for any freight charges incurred in this change
over process.
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
8/3-4 Anzed Court,
Mulgrave 3170 Victoria.
1300 881 693 (EST)
www.schweigen.com.au
