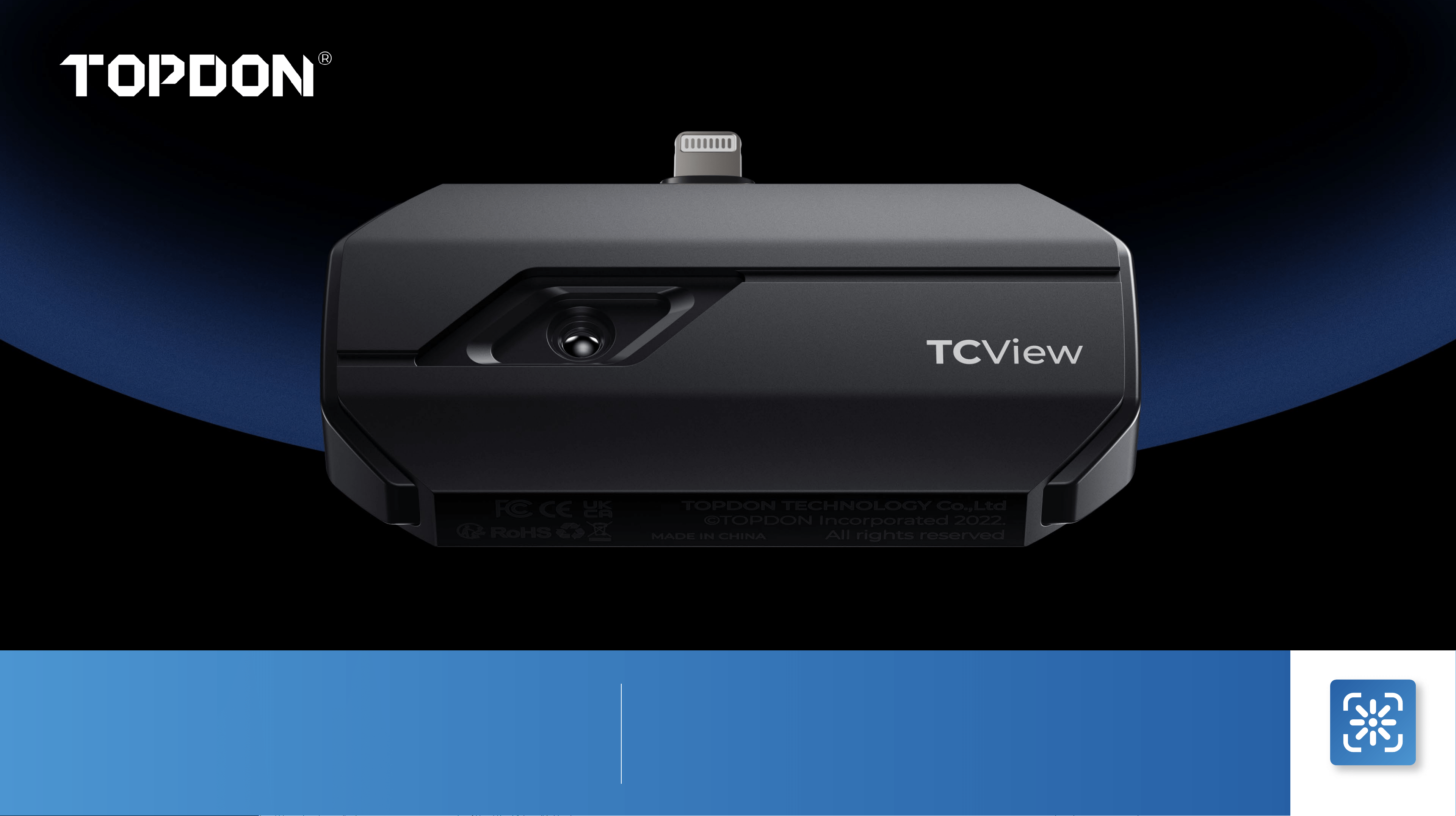

TCView TC002
Thermal Imager
See More Than The Human Eye
Contents
Brief
01
Specs
02
Features
03
Functions
04
FAQs
07
Comparison
06
What's
In The Box?
05
TCView TC002
22
The TC002 thermal imaging camera for smartphones provides top-notch accuracy for
temperature detection, insulation inspection, and circuit board inspection. With an ultra-high
resolution of 256x192, the TC002 delivers clear and detailed thermal images. It offers a
temperature detection range of ±3.6°F(2°C), with an accuracy of 0.1°C; and with its low power
consumption of 0.35W, you can use it for extended periods of time without worrying about
running out of battery. The high heat sensitivity of 40mk allows for precise temperature
changes to be sensed.
3
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
Temperature Parameters
Specification
Weight: 30g
Dimension:
71*42*14mm (2.80*1.65*0.55 inch)
Cable Length:
50cm (19.69 inch)
Spectral Range: 8~14μm
Resolution: 256×192 Pixels
Pixel Size: 12μm
NETD: ＜40mK @25°C,
Frame Rate: 25Hz
Object Temperature Range:
-20~150°C (-4~302°F),
150°C~550°C (302~1022°F)
Accuracy:
Maximum Temperature Variance of 2°C,
right down to the 0.1°C
Operating Systems
Compatible with iPhone & iPad
Specs
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
The TC002 boasts a high-resolution of 256 x 192 pixels, providing clear and
detailed thermal images of your target. Its high accuracy and clarity make it
perfect for objects where surface temperature is difficult to distinguish.
UNLIMITED ACCURACY, UNLIMITED CLARITY
256x192
Pixels
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs

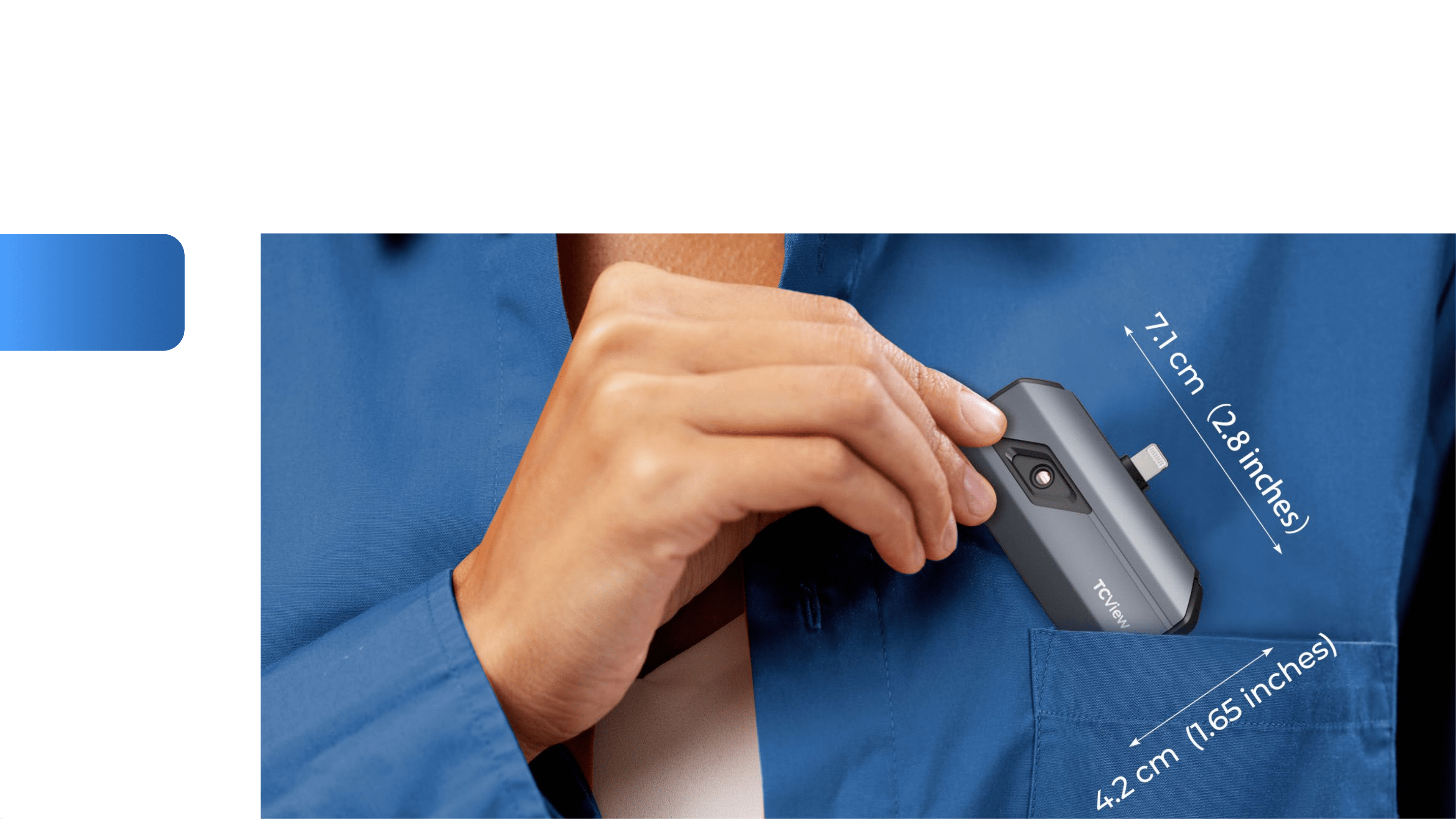

The TC002 is compact and lightweight, measuring 2.8 inches by 1.65 inches by 0.55
inches, and weighing just 30 grams. Its portable design makes it easy to pair with
iPhones and iPads, and the rugged aluminum case provides protection against
drops, ensuring you can monitor temperature anywhere, anytime.
BUILT FOR MOBILITY
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
The TC002 connects to your iPhone or
iPad and is powered by the device;
eliminating the need for a separate
power source.

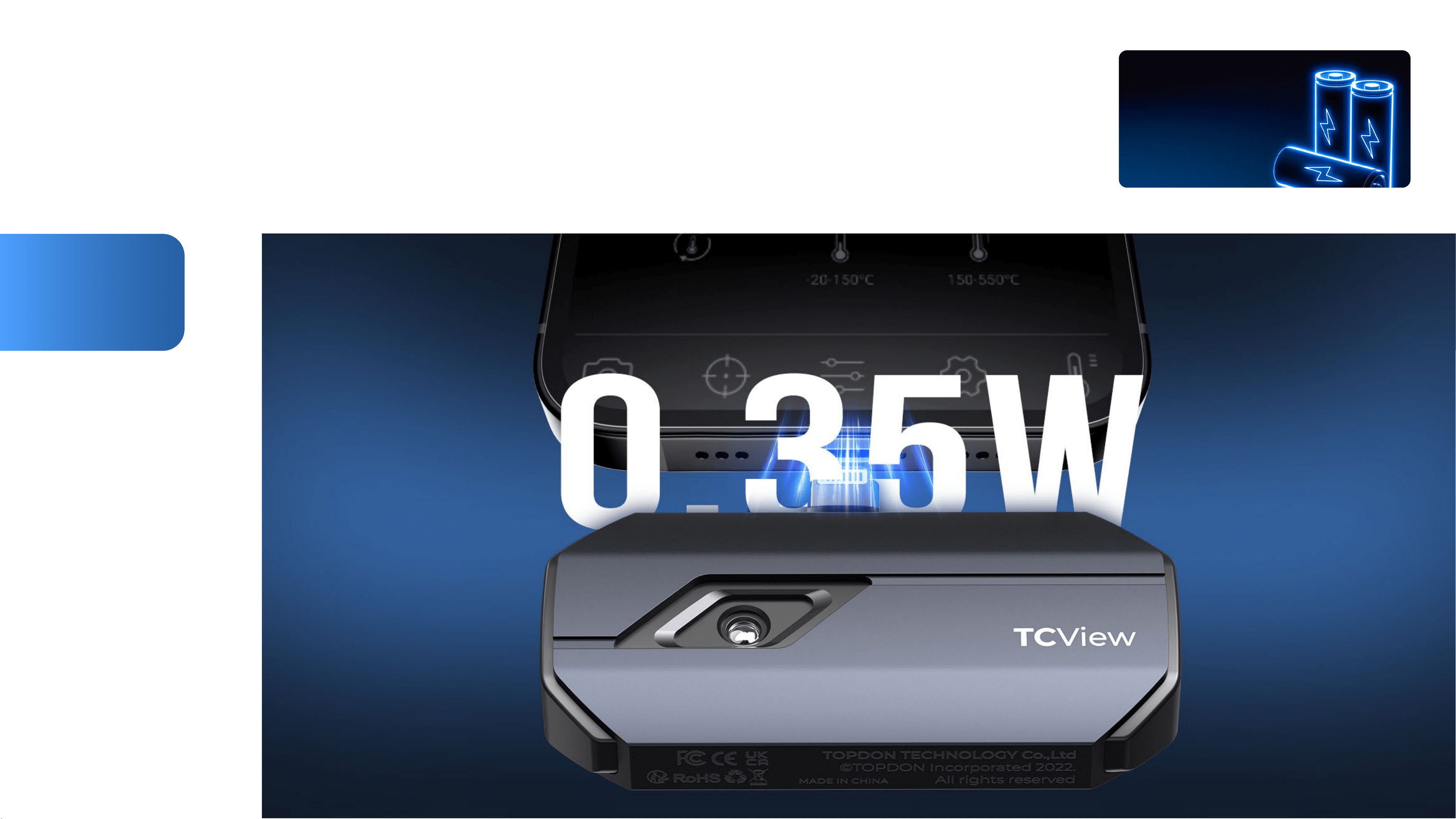

LOWER CONSUMPTION, LONGER BATTERY LIFE
Its low power consumption of 0.35W
ensures longer battery life, with 4-7 hours of
usage on devices with a 3000-5000mAh
battery.
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
0.35W
power
consumption
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs

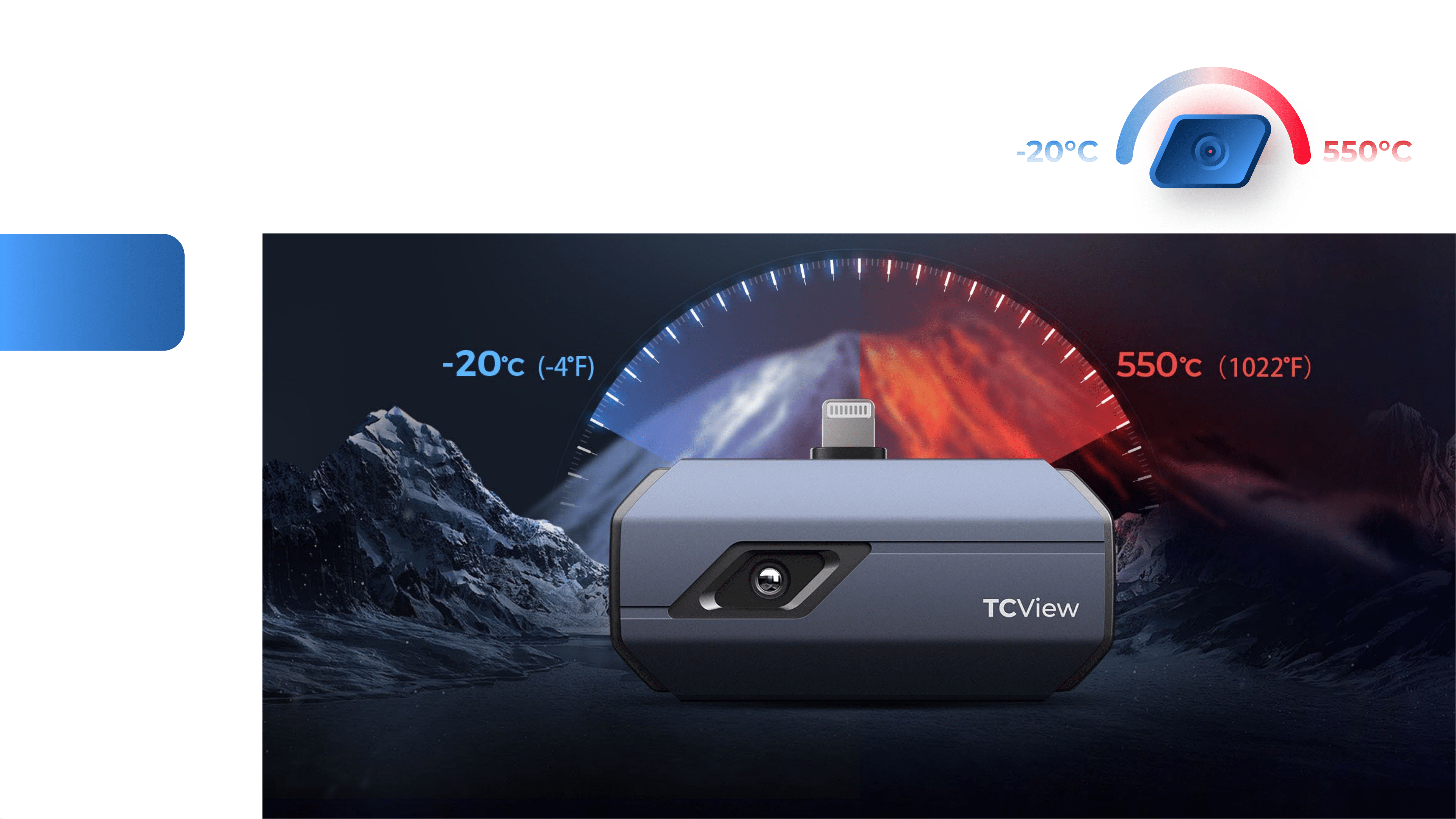

The TC002 boasts a wide temperature range of -4°F to 1022°F (-20°C to 550°C), making it
suitable for temperature readings on a variety of objects. It also boasts improved
accuracy, with a variance of ±3.6°F (2°C) or 2% of the maximum temperature, and a
temperature measurement accuracy of 0.1°F (0.1°C).
IMPROVED TEMPERATURE RANGE AND ACCURACY

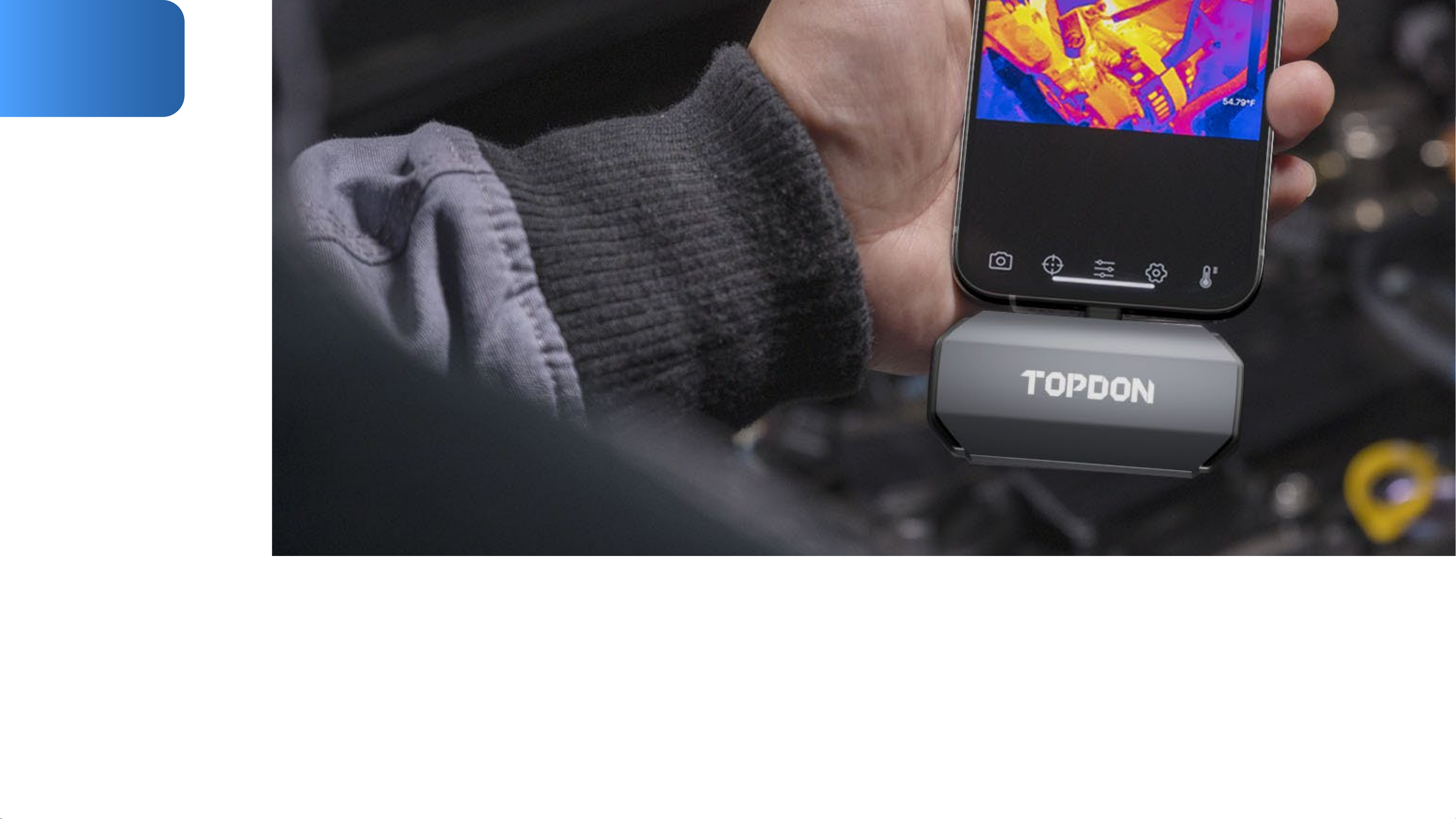

The TC002's precise temperature measurement capabilities make it an
ideal tool for a variety of industries and applications. It allows for safe
temperature readings from a distance; making it suitable for home
inspectors, HVAC technicians, electricians, automotive technicians, and
even farmers looking to monitor crops and livestock.
EXTENSIVE APPLICATIONS
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs

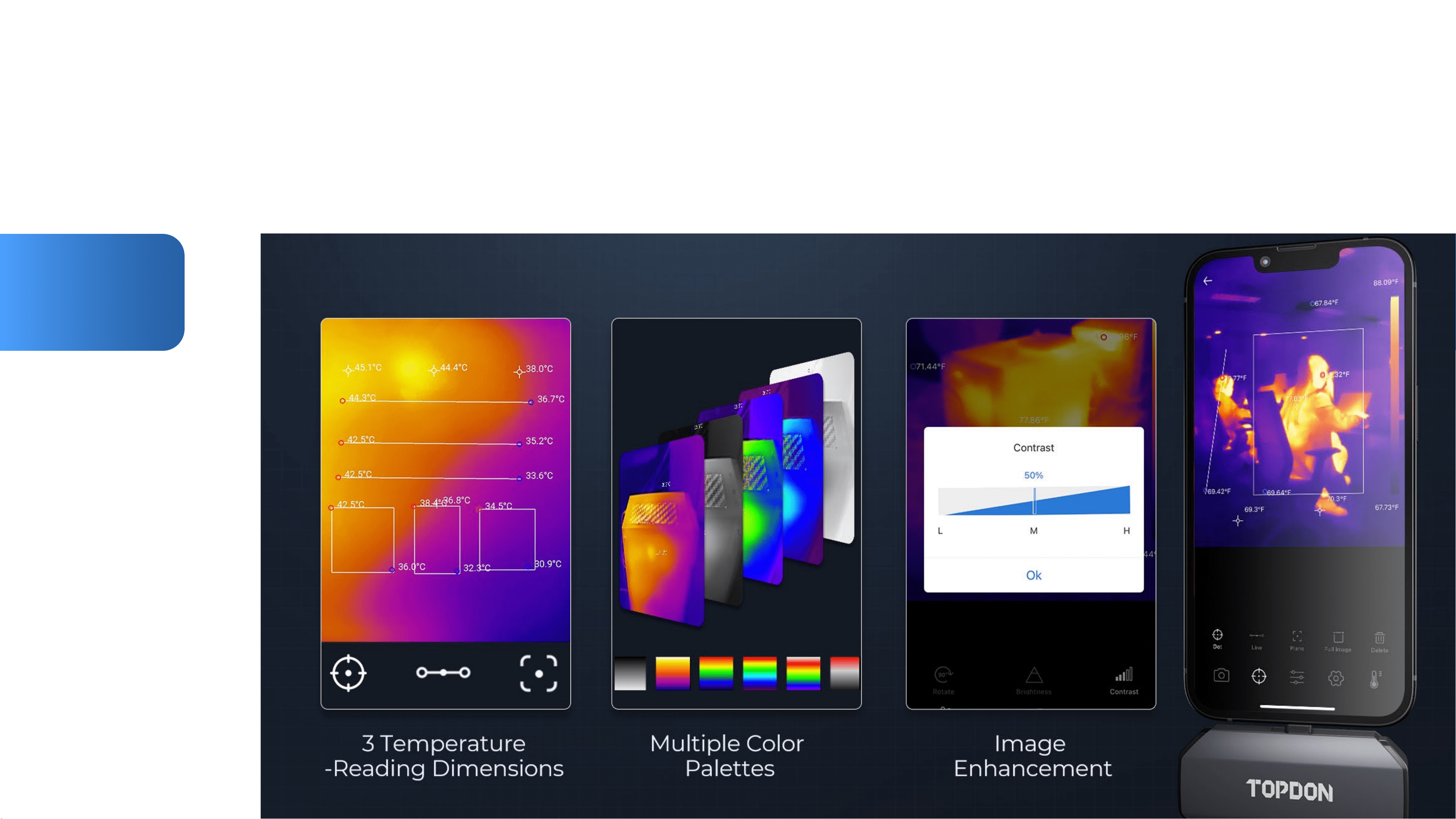

THERMAL IMAGE WITH MORE DETAILS
Three Temperature-Reading Dimensions:
With the TC002 App, users can manually select from
three different dimensions to check temperature:
Point, Line (with highest and lowest readings), and
Surface (with highest and lowest readings).
Multiple Color Palettes:
The TC002 offers 11 unique color palettes, allowing
users to customize their temperature display to their
preferred gradient colors.
Image Enhancement:
Users can adjust the sharpness and contrast of
the thermal image to achieve a customized
view.
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs

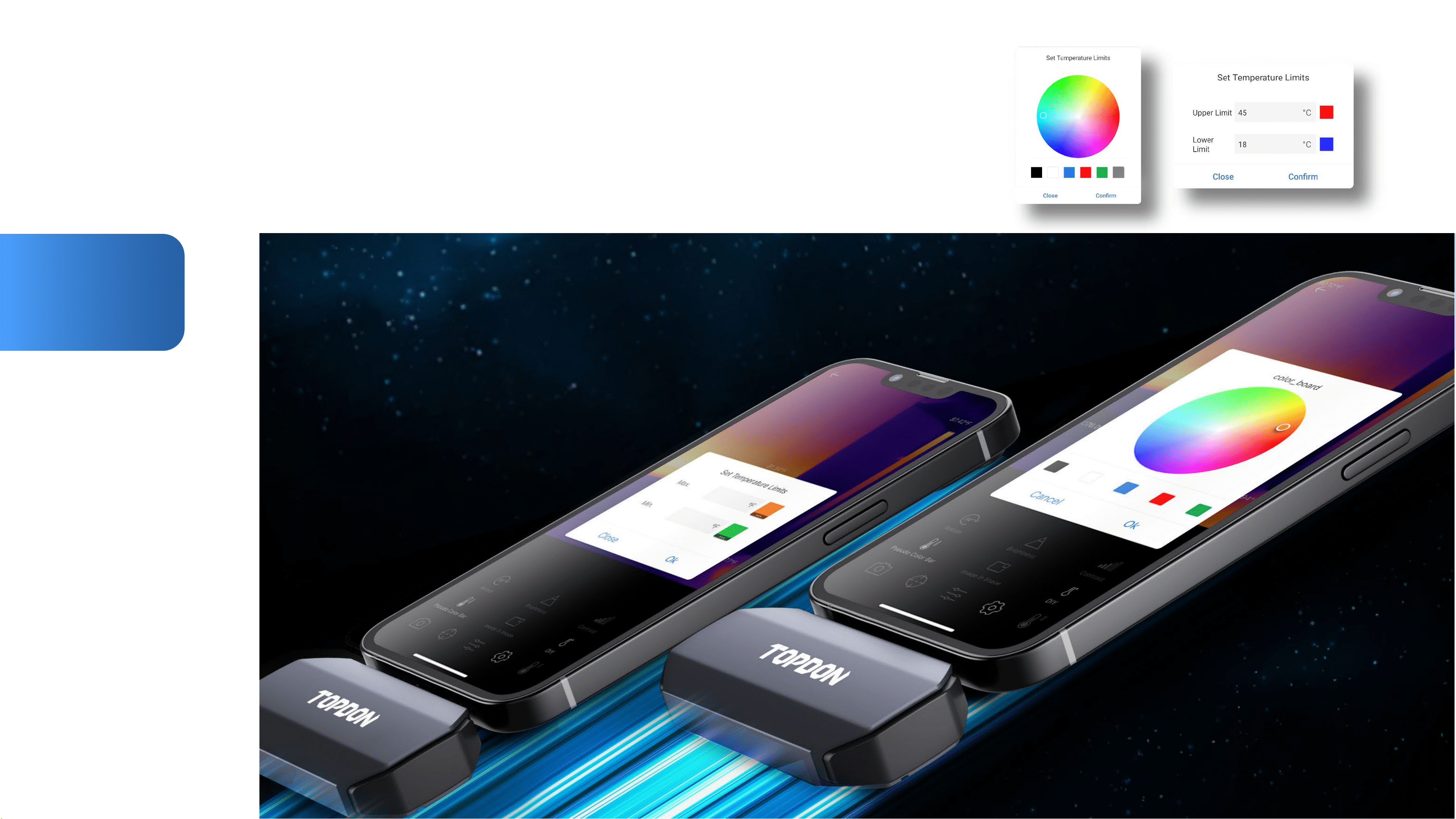

Featuring a DIY temperature range feature, the TC002 allows users to set maximum and
minimum temperature limits. If the object temperature exceeds these limits, the camera will
display corresponding color images, making it easier for users to understand and visualize the
temperature of the target area.
ADJUSTABLE TEMPERATURE RANGE
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs

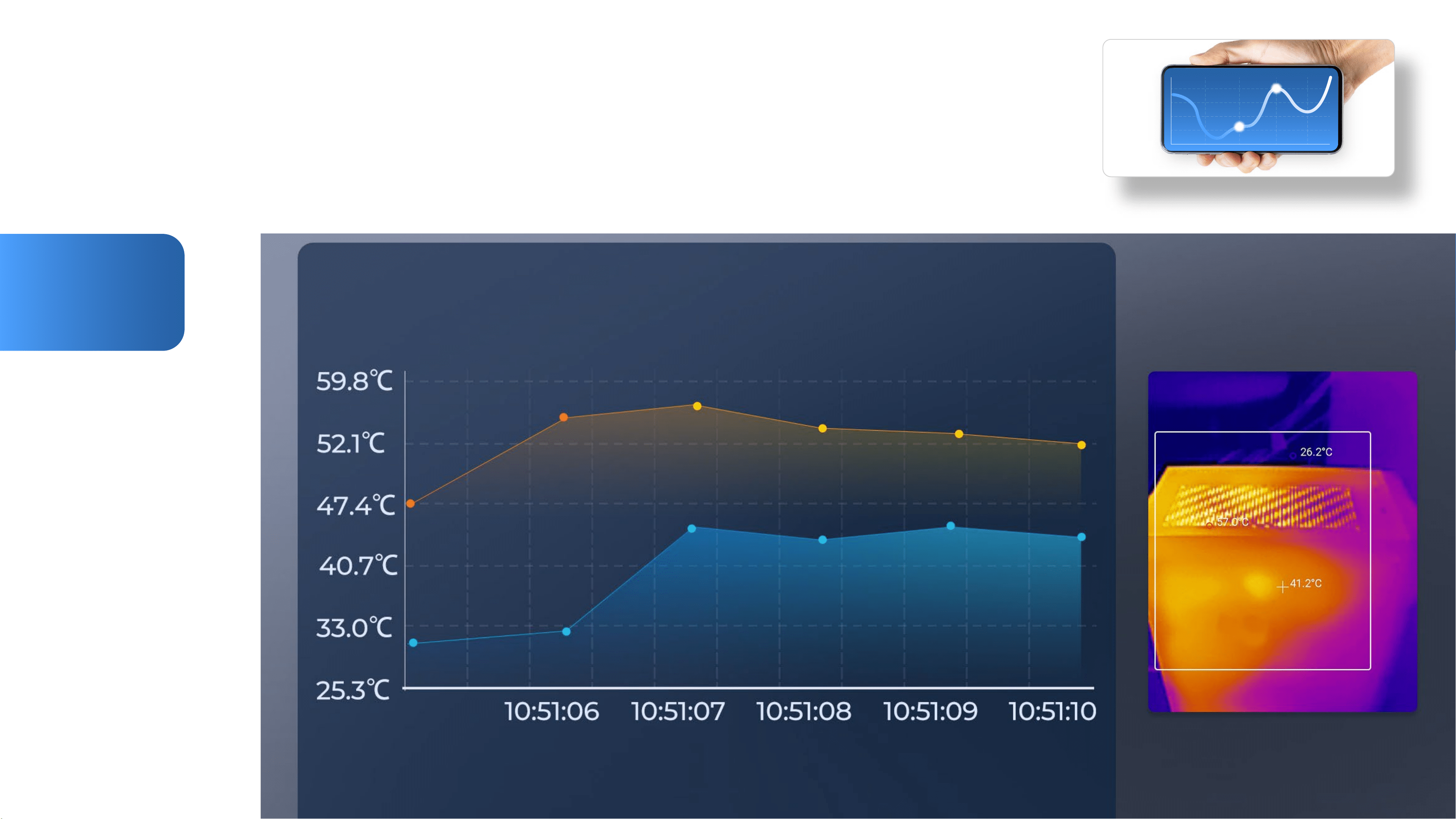

The TC002 thermal camera can take continuous temperature readings and store the data
in its accompanying app. This data can then be used to calculate the high, low, and
average temperatures of objects within its field of view over a certain period of time;
allowing users to visualize the data in the form of a waveform graph.
INTUITIVE AND GRAPHICAL WAVEFORM
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
Turns Your iPhone Into An Infrared Thermal Camera.
Read temperature of more
objects ranging of -4ºF to
1022ºF(-20ºC to 550ºC).
Monitor Temperature
Change by Waveform
Graph
Manually select 3 dimensions to
check temperature: Point,
Line(Highest and Lowest),
Surface(Highest and Lowest).
Choose from a variety of color
palettes for more creative
possibility.
Display a clear thermal image
with ultra-high IR resolution of
256x192.
Manipulate images with rotation
and Picture-in-Picture options.
DIY max and min limits, and
corresponding colors to view
temperature intuitively.
Adjust image sharpness and
contrast to make the field of
view clearer.
TC002 Functions
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
Package Box
Carrying CaseTC002 Thermal Imaging Camera Multifunctional Adapter Cable
What’s In The Box?
Quick User Guide Cleaning Cloth
X 1 X 1 X 1
X 1X 1X 1
( Front ) ( Inner )
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
LED flashlight
Visible light camera
Infrared light resolution
Frame rate
NETD
SPECIFICATIONS
MODEL
Operating voltage
Package Sizes (mm)
Measuring range
Temperature resolution
Temperature units
Measuring modes
Measuring accuracy
Gross weight（g）
Device weight（g）
Pseudo color bar
Image modes
Waterproof
High/low temperature alarms
Video recording
Auto shutdown
Languages
Drop, impact, and vibration
Spectral range
FOV
Focal range
Tripod screw hole
PC-based analysis software
Video transfer via USB
Operating temperature
Standby time
Charging time
Battery type
Storage
Compatible systems
Operating system
Display screen
TC001 TC003 TC004 TC005
NA
NA
Android/Windows devices
-10°C~+50°C
5V
-20～550°C (-4 ~ 1022°F)
Celsius, Fahrenheit
Dot, line, plane
±2°Cor±2%
220
30
140*102*46
NA
NA
256*192
Thermal Imaging, PIP,
9 colors
25Hz
<40mK
8–14μm
56.0°×42.2°×71.3°
3.2mm(0.25m)
/
2m
Available soon
Yes
Yes
Yes
English, Chinese, Japanese,
French, Spanish, Italian,
Portuguese, German,
Polish, Russian, Dutch,
Czech, Ukrainian
/
/
0.1°C
NA
NA
/
/
5-inch,
854*480 touchscreen
Android
Android/Windows devices
-10°C~+50°C
5V
-20～550°C (-4 ~ 1022°F)
Celsius, Fahrenheit
Dot, line, plane
±2°Cor±2%
900
367
221*140*186
Yes
2-megapixel low-light
night vision camera
256*192
Thermal Imaging,
Visible, Dual Light, PIP
9 colors
25Hz
<40mK
8–14μm
56.0°×42.2°×71.3°
3.2mm(0.25m)
Yes
1.5m
Available soon
Yes
Yes
Yes
English, Chinese, Japanese,
French, Spanish, Italian,
Portuguese, German,
Polish, Russian, Dutch,
Czech, Ukrainian
IP54
Yes
0.1°C
2GB RAM+32GB storage
Built-in 5000 mAh battery
3h
4h
2.8 inch, 320*240 screen
Linux
Standalone use/
Windows devices
-10°C~+50°C
5V
-20-350°C (-4 ~ 662°F)
Celsius, Fahrenheit, Kelvin
Center spot/hot spot/
cold spot
Center spot/hot spot/
cold spot
±2°Cor±2%
1100
520
280*165*120
Yes
NA
256*192
Thermal Imaging
4 colors (white hot,
black hot, iron, rainbow)
20Hz
<40mK
8–14μm
52.5°x39.5°
3.2mm(0.25m)
Yes
2m, impact 25g (IEC60068-2-27),
vibration 2.5g (IEC60068-2-6)
Yes
Yes
Yes
Supports imagery analysis with PC
13 languages (English, Traditional Chinese,
Korean, Japanese, French, Spanish,
Italian, Portuguese, German, Polish,
Russian, Hungarian, Turkish)
IP54
5 mins, 10 mins, 20 mins, Off
0.1°C
2GB RAM+16GB TF card
Built-in 5000 mAh battery
4h
12h
Linux
Standalone use/
Windows devices
5V
-20～550°C (-4 ~ 1022°F)
1100
520
280*165*120
2 megapixels
Thermal Imaging,
Dual Light, Visible,
Picture-in-Picture
7 colors (white hot,
black hot, lava, iron, rainbow,
rainbowHC, RdGy)
Built-in 5000 mAh battery
TC002
NA
iOS devices
-10°C~+50°C
5V
-20～550°C (-4 ~ 1022°F)
Celsius, Fahrenheit
Dot, line, plane
±2°Cor±2%
220
30
140*102*46
NA
NA
256*192
Thermal Imaging, PIP,
11 colors
25Hz
<40mK
8–14μm
56.0°×42.2°×71.3°
3.2mm(0.25m)
/
2m
Available soon
Yes
No
No
English, Chinese, Japanese,
French, Spanish, Italian,
Portuguese, German,
Polish, Russian, Dutch,
Czech, Ukrainian
/
/
0.1°C
NA
NA
/
/
NA
FAQs
Please follow these steps to troubleshoot the issue:
a) Verify that your iOS device has iOS 11 or later, and is an iPhone 7 or newer.
b) Confirm that you have downloaded the TC002 app and granted necessary permissions.
c) Try unplugging and reconnecting the TC002. If the issue persists, please contact after-sales personnel.
Why isn't the TC002 responding after being connected to my iOS device?
Question
Answer
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
FAQs
Make sure to connect the female end of the cable to the TC002 before connecting the male end to your iOS device.
Failure to do so may result in the TC002 not being recognized.
Why isn't the TC002 working after using the extension cable to connect to my iOS device?
Question
Answer
No, the TC002 uses infrared detection in the 8-14 μm wavelength range and can only measure surface
temperatures.
Can the TC002 detect objects through walls, glass, or water?
Question
Answer
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
FAQs
Infrared radiation attenuates when passing through the atmosphere. The longer the distance, the greater the
attenuation. Thus, the accuracy of temperature measurement at a distance will decrease. To ensure accuracy of
measurement, please go to Personal Information- Settings - Temperature Correction - Distance to Spot, and input
the actual distance (max: 5m) to get the corrected temperature.
Why does the temperature reading increase when the device gets closer to the object?
Question
Answer
No. The TC002 is ONLY compatible with iOS mobile devices.
Is the TC002 compatible with Android devices?
Question
Answer
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
FAQs
To ensure measurement accuracy, the TC002 performs periodic internal temperature calibration every few dozen seconds. This
process is controlled by a micro-motor and causes a clicking sound and a brief screen freeze. To disable the internal calibration
function, go to the TC002 app's Personal Information section and turn off Auto Shutter.
While I'm using the thermal imaging function, why is there a clicking sound with a frozen screen,
once every few dozens of seconds?
Question
Answer
The factors are as follows:
a) Emissivity of the target object surface.
b) Ambient temperature: the object will reflect the infrared rays emitted by surrounding objects, which affects the
temperature measurement of the object itself.
c) Atmospheric temperature: the atmosphere also emits infrared rays.
d) Atmospheric transmittance: the infrared rays emitted by the object are attenuated in the atmosphere.
e) Distance: the longer the distance, the greater the attenuation of the infrared rays emitted by the object in the atmosphere.
What external factors will affect the infrared temperature measurement?
Question
Answer
Features
Functions
What's In
The Box?
FAQs
Comparison
Brief
Specs
sales@topdon.com
support@topdon.com
+86-755-21612590 (Global HQ)
+1-833-629-4832 (North America)
@topdonofficial
Unit 2005 20/F, No. 3040 Xinghai Avenue,
Qianhai Shimao Tower, Qianhai Shenzhen-Hong Kong
Cooperation Zone, Shenzhen, PR, China 518000
CHINA
TOPDON HQ
USA
TOPDON
topdon.com topdon.us
400 Commons Way, Suite A
Rockaway, NJ 07866
