Levoit VeSync Core™ 600S
Smart True HEPA Air Purifier
Product Series: Core 600S
Model: LAP-C601S-WUS
Questions or Concerns?
Please contact us MonFri, 9:00 am5:00 pm PST/PDT
at [email protected] or at 888 7268520.
USER MANUAL
2
Table of Contents
Package Contents
Specifications
Safety Information
Getting to Know Your Smart Air Purifier
Controls & Display
Getting Started
Using Your Smart Air Purifier
About the Filter
Care & Maintenance
Troubleshooting
VeSync App Troubleshooting
Warranty Information
Customer Support
2
2
3
4
5
7
9
14
16
18
20
22
23
Package Contents
1 × Smart Air Purifier
1 × True HEPA 3-Stage Original Filter
(Pre-Installed)
1 × User Manual
1 × Quick Start Guide
Specifications
Power Supply AC 120V, 60Hz
Rated Power 49W
Ideal Room Size 635 ft / 59 m
• This Ideal Room Size
is based on 5 air
changes per hour
(ACH).
1588 ft / 147 m
• This Ideal Room Size
is based on 2 air
changes per hour
(ACH).
Note: Eective for
larger rooms but purifi-
cation will take longer.
CADR (CFM) 410 CFM / 697 m
3
/h
Operating
Conditions
Temperature:
14°104°F / 10°40°C
Humidity: < 85% RH
Noise Level 2655dB
Dimensions 12.3 x 12.3 x 23.6 in /
31.3 x 31.3 x 60 cm
Weight 13.7 lb / 6.2 kg
Note: To access additional smart functions,
download the free VeSync app (see page 8).
3
SAFETY INFORMATION
• Only use your air purifier as described in
this manual.
• Do not use without removing the plastic wrap
from the filter. The air purifier will not filter air,
and may overheat, causing a fire hazard.
• Do not use the air purifier outdoors.
• Keep the air purifier away from water, and wet
or damp areas. Never place in water or liquid.
• Do not use in excessively humid areas.
• Keep the air purifier away from heat sources.
• Do not use where combustible gases, vapors,
metallic dust, aerosol (spray) products, or
fumes from industrial oil are present.
• Keep 5 ft / 1.5 m away from where oxygen is
being administered.
• Supervise children when they are near the air
purifier. Do not allow children to play with the
air purifier.
• Do not place anything into any opening in the
air purifier.
• Do not sit on or place heavy objects on the
air purifier.
• Keep the inside of the air purifier dry. To
prevent moisture buildup, avoid placing in
rooms with major temperature changes or
underneath air conditioners.
• Always unplug the air purifier before
servicing (such as changing the filter).
• Do not use the air purifier if it is damaged or
not working correctly, or if the cord or plug
is damaged. Do not try to repair it yourself.
Contact Customer Support (see page 23).
• WARNING: To reduce the risk of fire or electric
shock, do not use this air purifier with any solid-
state speed controls (such as a dimmer switch).
• Children should not clean or perform maintenance
on the air purifier without supervision.
To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.
General Safety
• Keep the air purifier near the outlet it is plugged into.
• Never place the cord near any heat source.
• Do not cover the cord with a rug, carpet, or other
covering. Do not place the cord under furniture
or appliances.
• Keep the cord out of areas where people walk often.
Place the cord where it will not be tripped over.
• This appliance has a polarized plug (one blade is
wider than the other). To reduce the risk of electric
shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Do not attempt to
defeat this safety feature.
• This air purifier uses standard North American
120V, 60Hz outlets. If using outside the US or
Canada, check for compatibility.
• If the power supply cord is damaged, it must be
replaced by Arovast Corporation or similarly qualified
persons in order to avoid an electric or fire hazard.
Please contact Customer Support (see page 23).
Electromagnetic Fields (EMF)
Your Levoit air purifier complies with all standards
regarding electromagnetic fields (EMF). If handled
properly and according to the instructions in this
user manual, the appliance is safe to use based on
scientific evidence available today.
Power & Cord
READ AND SAVE THESE
INSTRUCTIONS
• This air purifier is not to be used by persons
(including children) with reduced physical,
sensory, or mental capacities, or lack of
experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the appliance by a
person responsible for their safety.
• Not for commercial use. Household use only.
4
GETTING TO KNOW YOUR SMART AIR PURIFIER
A. Fan Speed Indicators
B. Fan Speed Button
C. Sleep Mode Button
D. Air Quality Indicator Rings
E. Check Filter Indicator Reset Button
F. Light Sensor
G. Timer Button
H. On/O Button
I. Check Filter Indicator
J. Wi-Fi® Indicator
K. Auto Mode Button
L. Display Lock Indicator
M. Display O Button
N. PM2.5/Timer Display
O. Display Lock Button
P. Air Outlets
Q. AirSight Plus™ Laser Dust Sensor
R. Air Inlets
S. Air Purifier Top
T. True HEPA 3-Stage Original Filter
U. Air Purifier Bottom
V. Anti-Skid Pads
B
J
V
T
U
L
N
O
M
I
K
F
H
P
Q
R
S
C
G
E
D
A
5
CONTROLS & DISPLAY
On/O Button
• Turns the air purifier on/o.
• Press and hold for 5
seconds to configure the
air purifier. See the VeSync
in-app instructions for more
information.
• Press and hold for 15
seconds to reset the air
purifier and disconnect from
Wi-Fi (see page 8).
Wi-Fi Indicator
• Turns on, o, or blinks to
indicate pairing status.
See the VeSync in-app
instructions for more
information.
Fan Speed Button
• Cycles through fan speeds:
low (1 indicator will light up),
medium (2 indicators), high
(3 indicators), and turbo
(4 indicators).
• Tapping the Fan Speed
Button while the air purifier
is in Auto Mode or Sleep
Mode (if the display is on)
will exit that mode.
Sleep Mode Button
• Turns Sleep Mode on/o
(see page 9).
Light Sensor
• When Light Detection is
turned on in the VeSync
app, this sensor detects the
amount of light in the room
to automatically adjust air
purifier settings (see page 12).
Timer Button
• Cycles through timer
options (see page 11).
• Press and hold for 2
seconds to begin cycling
through the timer options
in 1-hour increments.
Auto Mode Button
• Turns Auto Mode on/o
(see page 10).
Air Quality Indicator Rings
• These indicators use an
automatic sensor to display
the air quality: Blue (Very
Good), Green (Good),
Orange (Moderate), and
Red (Bad).
Note: You can also use the VeSync app to control these functions, as well as additional app-only features
(see page 13).
6
Display Lock Button
• Prevents current settings
from being changed (see
page 11). Press and hold for
3 seconds to turn Display
Lock on/o.
• The Display Lock Indicator
( ) will blink when any
other button is tapped to
indicate that Display Lock
is on.
Check Filter Indicator Reset
Button
• Press and hold for 3
seconds to reset the
Check Filter Indicator.
• The Check Filter Indicator
( ) lights up when the
filter should be checked
(see page 16).
Display O Button
• Turns the display o
(see page 11).
• Tap any button (except )
to turn the display back on.
USING YOUR PURIFIER (CONT.)
7
3. Place the top half of the air purifier
directly back onto the bottom half of the
air purifier, aligning each corner. Press
down to snap the top into place.
[Figure 1.3]
a. The top of the air purifier can face in
any direction, as long as the corners
align.
Figure 1.4
15 in /
38 cm
15 in /
38 cm
GETTING STARTED

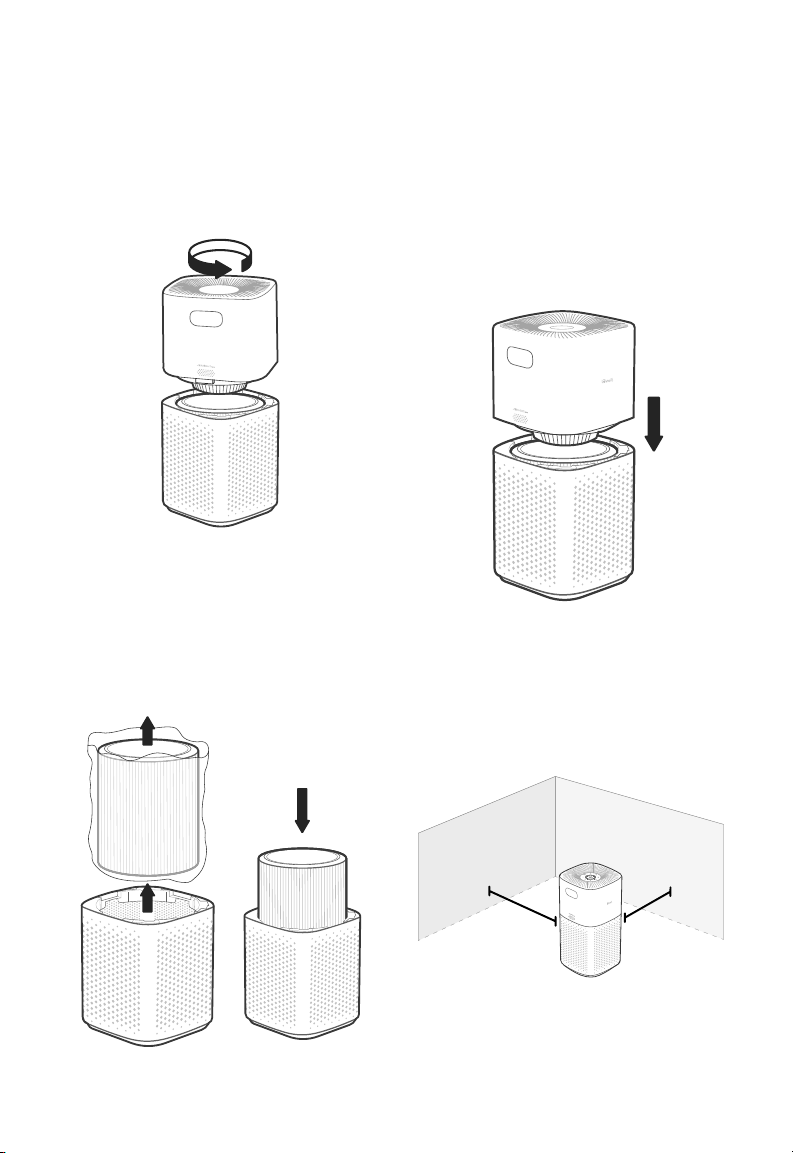

1. Place the air purifier on a flat, stable
surface with the display facing up.
Twist the top half of the air purifier
counterclockwise and lift up to remove it.
[Figure 1.1]
Figure 1.1
Figure 1.2
2. Remove the filter from inside the
bottom half of the air purifier. Remove
the plastic packaging from the filter
and place the filter back into the air
purifier. [Figure 1.2]
4. When using the air purifier, allow at
least 15 inches / 38 cm of clearance on
all sides. Keep away from anything that
would block airflow, such as curtains.
[Figure 1.4]
Figure 1.3
8
Note: You must create your own VeSync account
to access voice assistants.
• To disconnect Wi-Fi, press and hold the
On/O button for 15 seconds until the
Wi-Fi indicator turns o. This will restore
the smart air purifier’s default settings and
disconnect it from the VeSync app.
• To reconnect, please follow the
instructions in the VeSync app for adding
a device.
You can use the VeSync app to connect
your smart air purifier to Amazon Alexa or
Google Assistant™. Please follow the in-app
instructions to set up your voice assistant.
Wi-Fi Connection:
Connect with Amazon Alexa or
Google Assistant™
Note: Due to ongoing updates and
improvements, the VeSync app may be slightly
dierent than shown in the manual. In case of
any dierences, follow the in-app instructions.
Note: For Android™ users, choose “Allow” to
use VeSync.
Note: You must create your own VeSync
account to use third-party services and
products. These will not work with a guest
account. With a VeSync account, you can
also allow your family and friends to control
your smart air purifier.
Note: Your phone must have Location
turned on while your phone is connecting to
your smart air purifier. This is required to
establish the Bluetooth® connection. You
can turn Location o after your smart
air purifier is finished connecting to
the VeSync app.
1. To download the VeSync app, scan the
QR code or search “VeSync” in the Apple
App Store® or Google Play Store.
VeSync App Setup
2. Open the VeSync app. Log In or
Sign Up.
3. Follow the in-app instructions to set up
your smart air purifier.
GETTING STARTED (CONT.)
9
USING YOUR SMART
AIR PURIFIER
1. Plug in and tap to turn on the air
purifier. [Figure 2.1]
2. Optionally, tap to change fan speed
between low, medium, high, and turbo.
Note:
• The fan speed indicators will light up
when active. 1 indicator will light up for
low, 2 for medium, 3 for high, and 4 for
turbo.
• Turbo speed is the loudest, but cleans
air the quickest.
• For best results, or to address a specific
air quality issue such as smoke, run the
air purifier at turbo speed for 15–20
minutes before using a lower speed.
• To eectively clean air, keep windows
and doors closed while the air purifier
is on.
3. Tap to turn o the air purifier.
Figure 2.1
Note: Using the VeSync app allows you to control
your air purifier remotely and access additional
functions and features (see page 13).
Sleep Mode operates quietly by using a fan
speed lower than low speed.
1. Tap to turn Sleep Mode on/o.
2. Sleep Mode will turn o the display after
6 seconds if no other buttons are tapped.
Note:
• When the display is turned o, tap any
button (except ) to turn the display
back on. If you don’t tap another
button, the display will turn o again
after 6 seconds.
• The Check Filter Indicator will still turn
on and stay on if it’s time to check your
filter (see page 16).
Sleep Mode
10
Auto Mode uses AirSight Plus™, a smart
laser dust sensor inside the air purifier, to
adjust the fan speed automatically based
on air quality. For example, if the air quality
is bad, the fan will automatically be set to
high speed.
The PM2.5 value on the display shows the
amount of airborne particles (g) that are
detected per 1 cubic meter (m) of air volume.
PM2.5 refers to particulate matter (PM) that
is less than or equal to 2.5 microns (m) in
diameter. These particles, also known as
“fine particles”, are so small that they can only
be detected with an electron microscope,
and they stay in the air longer than heavier
particles such as dust and mold.
Your air purifier’s AirSight Plus Laser Dust
Sensor detects the amount of PM2.5 particles
that are in a given space (g/m). Generally, the
lower the number, the better your air quality.
A number above 115 indicates that there is an
unhealthy amount of fine particles in the air.
Note:
• The air purifier will take 5 seconds
to detect the air quality each time it
is turned on. During this time, the air
quality indicator rings will be blue. After
5 seconds, the air quality indicator
rings will change color based on the
detected air quality.
• Auto Mode does not use the turbo fan
speed.
• The VeSync app also supports
additional auto modes: Quiet Auto
Mode, Ecient Auto Mode, and ECO
Auto Mode (see page 13).
USING YOUR PURIFIER (CONT.)
Air Quality Indicator Chart
Indicator Color Air Quality Auto Mode Fan Speed PM 2.5 Range
Blue Very Good Sleep Mode 035 ug/m
3
Green Good Low 3675 ug/m
3
Orange Moderate Medium 76115 ug/m
3
Red Bad High > 115 ug/m
3
Auto Mode
PM2.5 Display
11
You can set a timer for 112 hours.
1. Tap . The display will switch from
showing the PM2.5 reading to the time
you’ve selected.
2. Tap repeatedly to select a time in
1-hour increments. If you don’t touch any
buttons for 5 seconds, the display will
switch to showing the PM2.5 reading and
the timer will start automatically.
Note:
• While a timer is active, tapping will
show the remaining time, rounded up to
the nearest hour. Tap again within
5 seconds to add more time in 1-hour
increments.
• You can see the exact remaining time in
the VeSync app.
Note:
• You can change the fan speed at any
time while the timer is on.
• The timer will restart if the time is
changed.
• The air purifier will remember the last
timer setting while turned o, but the
timer will be cancelled and need to be
restarted.
• You can set a timer for 1–24 hours in
the VeSync app.
3. The timer will count down from your
selected time.
Note: Press and hold for 2 seconds to
cycle through timer options automatically in
1-hour increments.
USING YOUR PURIFIER (CONT.)
Timer
4. When the timer is finished, the air purifier
will turn o.
5. To cancel a timer, tap repeatedly until
the display reads “--H”.
When the air purifier is on, you can lock
the display to prevent settings from being
accidentally changed. Buttons will not
respond to being tapped.
1. Press and hold for 3 seconds to lock
the display. The indicator will light up
in the center of the display.
This turns o the display lights on the air
purifier, including button lights and indicator
lights (except the Check Filter Indicator).
1. Tap to turn o the display.
2. Tap any button (except or ) to
temporarily turn the display back on. If
you don’t tap another button, the display
will turn back o after 6 seconds.
3. Tap to turn the display back on. The
display will stay on.
Note: The Check Filter Indicator will still
turn on and stay on if it’s time to check
your filter (see page 16).
Note: If the display is turned o, the
indicator will flash 3 times to show that the
display has been locked, then turn o.
Note:
• If the display is turned o, the
indicator will flash 3 times to show
that the display has been unlocked.
• Display Lock can still be used when
the air purifier is in Standby Mode.
Display Off
Display Lock
2. The indicator will blink when any
other button is tapped to indicate that
Display Lock is on.
3. Tap and hold again for 3 seconds
to unlock the display. The indicator
will turn o.
12
You can turn on Light Detection in the VeSync
app. When this mode is turned on, the Light
Sensor will automatically adjust air purifier
settings based on the amount of light in the
room.
1. The display will automatically turn o
when the room gets dark. If the air
purifier is in Auto Mode, it will not use the
high or turbo fan speeds, even when the
air quality is poor, to avoid making too
much noise.
2. When the room becomes light again,
the air purifier will return to its previous
settings. The display will automatically
turn back on, and Auto Mode will no
longer be limited.
Light Detection
USING YOUR PURIFIER (CONT.)
The air purifier is in Standby Mode when it is
turned o, but plugged in.
Note: Display Lock can be used while the
air purifier is in Standby Mode to keep
the air purifier from being turned back
on. The laser dust sensor will still detect
the surrounding air quality and give you
updates in the VeSync app.
When the air purifier is plugged in and turned
o, it will remember its previous fan speed,
Sleep Mode, Auto Mode, Display Lock,
Display O, and Light Detection settings.
When the air purifier is unplugged and turned
o, it will only remember its previous fan
speed, Sleep Mode, Auto Mode, and Light
Detection settings.
Note: The air purifier will remember the last
timer setting chosen (1–12 hours), but it will
not automatically resume the timer. You will
need to restart the timer after the air purifier
is turned back on.
Memory Function
Standby Mode
13
The VeSync app allows you to access
additional smart air purifier functions, including
those listed below. As the app develops, more
features may become available.
Remote Control
• Change any air purifier settings
through the app, even while
Display Lock is on.
Air Quality Updates
• View real-time PM2.5 updates in the app.
• See your air quality history for the last
four weeks.
Light Detection
• Access Light Detection, which uses
the light sensor to detect the amount
of light in the room and automatically
adjust air purifier settings (see
page 12).
VeSync App Functions
USING YOUR PURIFIER (CONT.)
Timer Function
• Set a timer between 1–24 hours.
• Easily view the exact time remaining
on a timer.
Filter Replacement Info
• Keep tabs on the remaining filter life
by checking the filter life percentage
in the app.
• Shop for replacement filters.
Schedules
• Create and customize schedules for
your air purifier to match your routines.
• ECO Auto Mode allows the fan speed
to turn on/o intermittently when
air quality is Very Good, to save
electricity. When air quality is poor,
the fan speed will be increased like
standard Auto Mode.
Auto Mode
• Access additional auto modes: Quiet
Auto Mode, Ecient Auto Mode, and
ECO Auto Mode.
• Quiet Auto Mode only uses the low
and medium fan speeds, even when
the air quality is poor, to avoid making
too much noise.
• Ecient Auto Mode lets you choose
the size of the area you want to purify.
The air purifier will use the highest
fan speed (turbo) to clean the air for a
designated amount of time. This time
is based on 1 ACH and the size of
the room, meaning how long it takes
for the air purifier to clean all the air
in your room one time, regardless of
the air quality. After this, the mode will
adjust the fan speed according to the
actual detected air quality in the room.
Note: Ecient Auto Mode is useful for
purifying odors from the air. The air
purifier’s sensor can only detect particles
in the air, not smells. Ecient Auto Mode
does not rely only on the sensor, but also
the room size.
14
ABOUT THE FILTER
The air purifier uses a 3-stage filtration
system to purify air.
A. Pre-Filter
• Captures large particles such as
dust, lint, fibers, hair, and pet fur.
• Maximizes the filter’s life by
protecting it.
B. H13 True HEPA Filter
• Captures at least 99.97% of airborne
particles 0.3 microns (m) in size.
• Traps small particles such as fine
dust, smoke particles, and allergens
such as pollen and pet dander.
A
B
C
Note: Levoit air purifiers filter airborne particles 0.3 microns in size. Arovast Corporation makes no
claims that this air purifier helps reduce the COVID-19 virus.
C. Custom HighEciency Activated
Carbon Filter
• Physically adsorbs smoke, odors,
and fumes.
• Customized using Levoit’s exclusive
ARC Formula™ to be especially
eective for cooking smells and pet
odors in a multi-pet household.
• The ARC Formula extends the life of
the filter by chemically decomposing
molecules trapped within the
Activated Carbon Filter, which
prevents oversaturation and second-
hand pollution.
• Filters compounds such as
formaldehyde, benzene, ammonia,
hydrogen sulfide, and volatile
organic compounds (VOCs).
15
Moisture may damage the filter. This air
purifier should be used in an area with a
humidity level below 85% RH. If you use
the air purifier in excessively humid areas,
the surface of the filter may become moldy.
Do not add essential oils to the air purifier
or filter. The filter will become damaged
by the oil and will eventually release an
unpleasant smell. Do not use diusers
near the air purifier.
The air change rate is how many times
all of the air in a room can be purified (or
“changed”) by the air purifier in 1 hour. Air
changes per hour (ACH) are calculated with the
recommended room size assuming 8 ft / 2.4 m
ceilings. For smaller rooms, the air change
per hour will increase. This air purifier can
change air 5 times per hour at the max speed
in a single, closed room up to 635 ft / 59 m.
This is measured at 5 ACH. The air purifier is
eective for larger rooms, but air purification
will take longer, with fewer air changes per
hour. For example, the air purifier’s eective
range is 1588 ft / 147 m based on 2 ACH, or
purifying the air in the room 2 times per hour.
This air purifier has a Clean Air Delivery Rate of
410 cubic feet per minute (CFM), or 697 m/h.
Clean Air Delivery Rate (CADR) measures the
eciency of an air purifier by indicating the
volume of clean air that an air purifier produces
per minute. This is based on removal of dust,
pollen, and smoke, which are the 3 most
common indoor air pollutants. The higher the
CADR, the more particles the air purifier will
remove and the larger the area it can clean.
The rating is measured at the air purifier’s
highest speed.
Humidity
Essential Oils
Air Change Per Hour
Clean Air Delivery Rate
Note: Water or moisture will allow mold
to grow. To solve a mold problem, get
rid of the source of the moisture and
clean up the mold.
Note: To eectively clean air, keep windows
and doors closed while the air purifier is on.
ABOUT THE FILTER (CONT.)
16
Resetting the Check
Filter Indicator
Reset the Check Filter Indicator when:
A. lights up red.
1. Replace the filter (see page 17).
2. Turn on the air purifier.
3. Press and hold the button for
3 seconds.
4. will turn o when successfully
reset.
B. The filter was changed before
lit up.
1. Press and hold the button for
3 seconds.
2. The will flash for 3 seconds.
3. will turn o when successfully
reset.
CARE & MAINTENANCE
will light up as a reminder to check the
filter. If you use your air purifier consistently
(24 hours of daily use), the indicator should
turn on after about 6–12 months. You may
not need to change your filter yet, but you
should check it when turns on.
When your air purifier is set up with the
VeSync app, you can also check the app to
see your remaining filter life. You will also
receive a notification from VeSync when it’s
time to check your filter.
The VeSync app uses a scientific algorithm
to determine your filter life based on air
quality, amount of use, and other factors.
Check Filter Indicator
Cleaning the Smart Air Purifier
• Unplug before cleaning.
• Wipe the outside of the air purifier
with a soft, dry cloth. If necessary,
wipe the housing with a damp cloth,
then immediately dry.
• Vacuum the inside of the air purifier.
• Do not clean with abrasive chemicals
or flammable cleaning agents.
Filter When to Clean How to Clean When to Replace
Pre-Filter
Every 24
weeks
Use a soft brush or
vacuum hose
6–12 months
True HEPA
& Activated
Carbon Filter
Do not clean
The outer pre-filter should be cleaned every
2–4 weeks to increase eciency and extend
the life of your filter. Clean the pre-filter using
a soft brush or vacuum hose to remove hair,
dust, and large particles. Do not clean the
filter with water or other liquids.
Cleaning the Filter
17
1. Unplug the air purifier. Flip the air purifier
over or turn it on its side. Remove the filter
cover (see Getting Started, page 7).
2. Remove the old filter.
3. Clean out any remaining dust or hair inside
the air purifier using a vacuum hose.
The AirSight Plus Laser Dust Sensor can be
blocked by dust, which aects the sensor’s
accuracy. Clean the sensor every 3 months.
Using your air purifier in an environment with
more dust may mean you will need to clean
the sensor more often.
1. Unplug the air purifier.
2. Place the end of a vacuum cleaner over
the sensor openings. [Figure 3.2]
3. Turn the vacuum on for at least 10
seconds to clean out dust.
Replacing the Filter
Cleaning the AirSight Plus
Laser Dust Sensor
Figure 3.2
Figure 3.3
If not using the air purifier for an extended
period of time, wrap both the air purifier and
the filter in plastic packaging and store in a
dry place to avoid moisture damage.
Storage
CARE & MAINTENANCE (CONT.)
The filter should be replaced every 6–12
months. You may need to replace your filter
earlier or later depending on how often you
use your air purifier. Using your air purifier in
an environment with relatively high pollution
may mean you will need to replace the filter
more often, even if is o.
You may need to replace your filter if
you notice:
• Increased noise when the air
purifier is on
• Decreased airflow
• Unusual odors
• A visibly clogged filter
When Should I Replace the
Filter?
Note:
• To maintain the performance of your air
purifier, only use ocial Levoit filters. For
more information, contact Customer
Support (see page 23).
• Remember to reset after changing
the filter (see page 16).
Note: If you remove and set aside the top
half of the air purifier, you can use water to
clean the bottom half of the air purifier.
Do not use water or liquids to clean the top
half of the air purifier. [Figure 3.3]
4. Unwrap the new filter and place it into the
housing (see Getting Started, page 7).
5. Replace the cover. Plug in the air purifier.
6. Reset the Check Filter Indicator
(see page 16).
18
Problem Possible Solution
Air purifier will not
turn on or respond to
button controls.
Plug in the air purifier.
Check to see if the power cord is damaged. If it is, stop using the air
purifier and contact Customer Support (see page 23).
Plug the air purifier into a dierent outlet.
The air purifier may be malfunctioning. Contact Customer Support
(see page 23).
Airflow is significantly
reduced.
Make sure the filter is removed from its packaging and properly in
place (see page 7).
Tap to increase the fan speed.
Leave 15 inches / 38 cm of clearance on all sides of the air purifier.
The pre-filter may be clogged by large particles, such as hair or
lint, blocking airflow. Clean the pre-filter (see page 16).
Replace the filter (see page 17).
Air purifier makes an
unusual noise while
the fan is on.
Make sure the filter is properly in place with plastic packaging
removed (see page 7).
Make sure the air purifier is operating on a hard, flat, level surface.
Replace the filter (see page 17).
The air purifier may be damaged, or a foreign object may be
inside. Stop using the air purifier and contact Customer Support
(see page 23). Do not try to repair the air purifier.
Strange smell coming
from the air purifier.
Clean the filter, or replace if necessary.
Contact Customer Support (see page 23).
Make sure not to use your air purifier in an area with high
humidity or while diusing essential oils.
TROUBLESHOOTING
19
If your problem is not listed, please contact Customer Support (see page 23).
TROUBLESHOOTING (CONT.)
Problem Possible Solution
Poor air purification
quality.
Tap to increase the fan speed.
Make sure no objects are blocking the sides or top of the air purifier
(the inlet or outlet).
Make sure the filter is removed from its packaging and properly in
place (see page 7).
Close doors and windows while using the air purifier.
If the room is larger than 635 ft / 59 m, air purification will take
longer.
Replace the filter (see page 17).
is still on after
replacing the filter.
Reset the Check Filter Indicator (see page 16).
has not turned on
after 6–12 months.
is a reminder for you to check the filter and will light up based
on how much the air purifier has been used, as well as other factors
(see page 16). If you don’t use your air purifier often, will take
longer to turn on.
Air Quality Indicator
always stays red.
The AirSight Plus Laser Dust Sensor may need to be cleaned
(see page 17).
If you’re using an ultrasonic humidifier near the air purifier, the mist
may aect the accuracy of the AirSight Plus Laser Dust Sensor.
The sensor will detect the large mist particles, and the Air Quality
Indicator may turn red. Avoid using an ultrasonic humidifier near
the air purifier, or avoid using Auto Mode.
Air Quality Indicator
always stays blue,
even when the air
quality is poor.
The AirSight Plus Laser Dust Sensor detects airborne particles, but
it cannot detect gas. Make sure there isn’t gas polluting the air.
Display shows Error
Code “E1”.
The motor has malfunctioned. Please contact Customer Support
(see page 23).
20
If your problem is not listed, please contact Customer Support (see page 23).
VESYNC APP TROUBLESHOOTING
My smart air purifier isn’t connecting to the VeSync app.
• Make sure your phone has Bluetooth® turned on and is not currently connected to
another Bluetooth device.
• During the setup process, you must be on a secure 2.4GHz WiFi® network. Confirm
that the network is working correctly.
• Make sure the WiFi password you entered is correct.
• There should be no spaces at the beginning or end of the password.
• Test the password by connecting a dierent electronic device to the router.
• If you’re manually typing in the SSID and password, double check that both
are entered correctly.
• Try moving your air purifier closer to the router. Your phone should be as close as
possible to your air purifier.
• Your router may need to be at a higher location, away from obstructions.
• Make sure your air purifier and router are away from appliances (such as microwave
ovens, refrigerators, electronic devices, etc.) to avoid signal interference.
• If you’re using a VPN, make sure it’s turned o while setting up your air purifier.
• Disable portal authentication for your Wi-Fi network. If portal authentication is enabled,
the air purifier will not be able to access your Wi-Fi network, and setup will fail.
My air purifier is oine.
• Make sure the air purifier is plugged in and has power, then refresh the VeSync
menu by swiping down on the screen.
• Make sure your router is connected to the internet and your phone’s network
connection is working.
• Delete the oine air purifier from the VeSync app. Swipe left (iOS®) or press and
hold (Android™), then tap Delete. Reconfigure the air purifier with the VeSync app.
Note: Portal authentication means that you need to sign in to your Wi-Fi network through
a web page before you can use the Internet.
Note: Power outages, internet outages, or changing WiFi routers may cause the air
purifier to go oine.
21
FEDERAL COMMUNICATION COMMISSION
INTERFERENCE STATEMENT
FCC RADIATION EXPOSURE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying
RF exposure compliance. To maintain compliance with FCC RF exposure compliance
requirements, please follow operation instructions as documented in this manual. This
transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of
20 cm between the radiator and your body. The availability of some specific channels and/
or operational frequency bands are country dependent and are firmware programmed at the
factory to match the intended destination. The firmware setting is not accessible by the end
user.
22
Product Name Levoit VeSync Core™ 600S
Smart True HEPA Air Purifier
Model LAP-C601S-WUS
For your own reference, we strongly recommend
that you record your order ID and date of purchase.
Date of Purchase
Order ID
WARRANTY INFORMATION
Terms & Policy
Arovast Corporation (“Arovast”) warrants this
product to the original purchaser to be free
from defects in material and workmanship,
under normal use and conditions, for a
period of 2 years from the date of original
purchase.
Arovast agrees, at our option during the
warranty period, to repair any defect in
material or workmanship or furnish an equal
product in exchange without charge, subject
to verification of the defect or malfunction
and proof of the date of purchase.
There is no other express warranty. This
warranty does not apply:
• If the product has been modified
from its original condition;
• If the product has not been used
in accordance with directions and
instructions in the user manual;
• To damages or defects caused by
accident, abuse, misuse or improper
or inadequate maintenance;
• To damages or defects caused by
service or repair of the product
performed by an unauthorized
service provider or by anyone other
than Arovast;
• To damages or defects occurring
during commercial use, rental use,
or any use for which the product is
not intended;
• To damages or defects exceeding
the cost of the product.
Arovast will not be liable for indirect,
incidental, or consequential damages in
connection with the use of the product
covered by this warranty.
This warranty extends only to the original
consumer purchaser of the product and is
not transferable to any subsequent owner
of the product regardless of whether the
product is transferred during the specified
term of the warranty.
This warranty does not extend to products
purchased from unauthorized sellers.
Arovast’s warranty extends only to products
purchased from authorized sellers that are
subject to Arovast’s quality controls and
have agreed to follow its quality controls.
All implied warranties are limited to the
period of this limited warranty.
This warranty gives you specific legal rights
and you may also have other rights which
vary from state to state. Some states do not
allow the exclusion or limitation of incidental
or consequential damages, so the above
limitation or exclusion may not apply to you.
If you discover that your product is
defective within the specified warranty
period, please contact Customer Support
via [email protected]. DO NOT dispose
of your product before contacting us. Once
our Customer Support Team has approved
your request, please return the product with
a copy of the invoice and order ID.
Every Levoit product automatically
includes a 2-year warranty. To make the
customer support process quick and
easy, register your product online at
www.levoit.com/warranty.
This warranty is made by:
Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
23
CUSTOMER SUPPORT
If you have any questions or concerns about
your new product, please contact our helpful
Customer Support Team.
Distributed by Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
Email: [email protected]
TollFree: 888 7268520
MonFri, 9:00 am5:00 pm PST/PDT
Support Hours
*Please have your order invoice and order ID
ready before contacting Customer Support.
ATTRIBUTIONS
Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its aliates.
Google, Android, and Google Play are trademarks of Google LLC.
App Store® is a trademark of Apple Inc.
WiFi® is a registered trademark of WiFi Alliance®.
iOS is a registered trademark of Cisco Systems, Inc. and/or its aliates in the United States and
certain other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Arovast Corporation is under license. Other trademarks and trade
names are those of their respective owners.
The energy eciency of this ENERGY STAR
certified model is measured based on a ratio
between the model’s CADR for Smoke and the
electrical energy it consumes, or CADR/Watt.
A0-01.00_S_21H13 US
/LEVOITLIFESTYLE
/LEVOIT
/LEVOIT
/LEVOITLIFESTYLE
/LEVOITLIFESTYLE
LEVOIT.COM
