16030EDAMZ

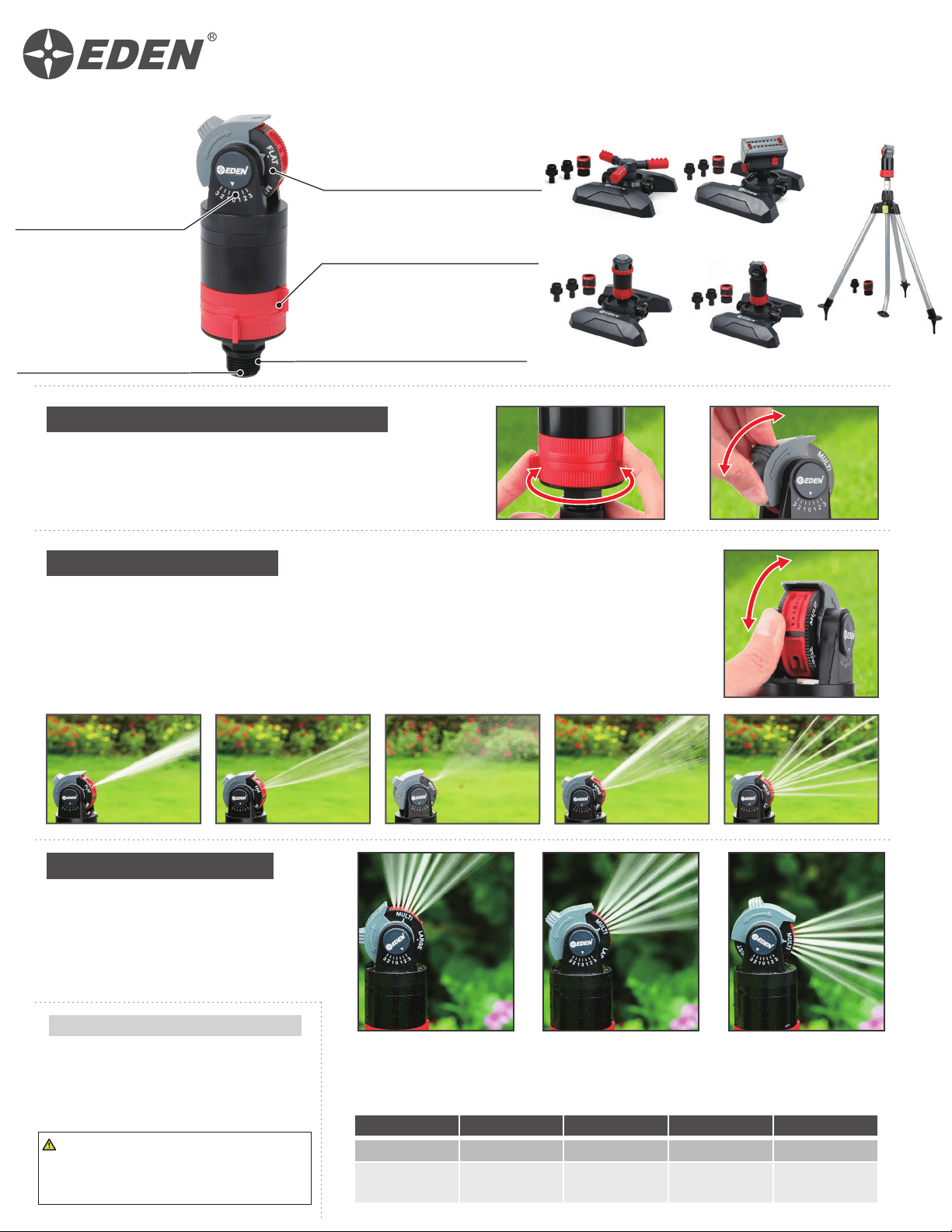

5 Pattern Rotary Sprinkler Head
96123EDAMZ
95124EDAMZ
94120-EDAMZ
94124-EDAMZ
11530-EDAMZ&
94150EDAMZ
5 spray patterns -
Flat, Fan, Large, Multi and Mist
Level adjustment indicator-
Move the angle cap
to control the distance
of your watering area
Spray Angle - adjust the tabs
to change the spray angle
from 5° to 360°
Added lter to prevent
water sediment
Connects to any Eden sprinkler base
with "H" shape or tripod base
Move the angle cap to control the distance
of your watering area. The higher level will
create a higher arc for greater water
coverage. The lower level will reduce the
watering area. Convenient indicators help
you remember your settings for next time.
Level Adjustment Indicator
HIGHER LEVEL (1-3):
Adjust the spray upwards for
maximum distance.
LEVEL (0)
Adjust the spray in between a
dispersed and concentrated
watering area.
40 PSI Large Multi Flat Fan
Radius of Spray 39 ft (12 m ) 37 ft (11.5 m) 29 ft (9 m) 27 ft (8.5 m)
Coverage Area
up to
4860 sq ft
(452 m²)
4470 sq ft
(415 m²)
2730 sq ft
(250 m²)
2440 sq ft
(226 m²)
LOWER LEVEL (3-1)
Adjust the spray downwards
to reduce the watering area.
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water
to remove most of the dirt, dry your tool,
and store indoors
WARNING: This product can expose you to
chemicals including styrene, which is known to
the State of California to cause cancer. For more
information go to www.P65Warnings.ca.gov
Adjust the range tabs and angle cap to change the spray
coverage (from 5° up to 360°) and spraying angle to water
just where you need without wasting water.
Spray Coverage and Distance Adjustment
Depending on your watering needs, you can manually select from the various pattern settings:
FLAT - The at pattern will provide a at wave of water.
FAN - The fan pattern disperses water in a wide fan shape.
MIST - This pattern is useful to cool down a small area.
LARGE - This pattern covers the maximum area.
MULTI - This is a combination of the Flat, Fan and Large patterns.
Spray Pattern Adjustments
FLAT
FAN
MIST
LARGE
MULTI
CAUTION
Made in Taiwan www.edengarden.com
