Operating Instructions and Parts Manual
16ga. x 52-inch Pneumatic Shear
Model PS-1652T
For models with serial no. 11120022 and higher
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-756203
Ph.: 800-274-6848 Revision B 01/2012
www.waltermeier.com Copyright © 2012 Walter Meier (Manufacturing) Inc.
2
1.0 Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of
our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any
of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or
perform routine maintenance and major repair on your JET
®
tools. For the name of an Authorized Service Center in
your area call 1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with
your local Walter Meier distributor, or visit waltermeier.com.
WARRANTY

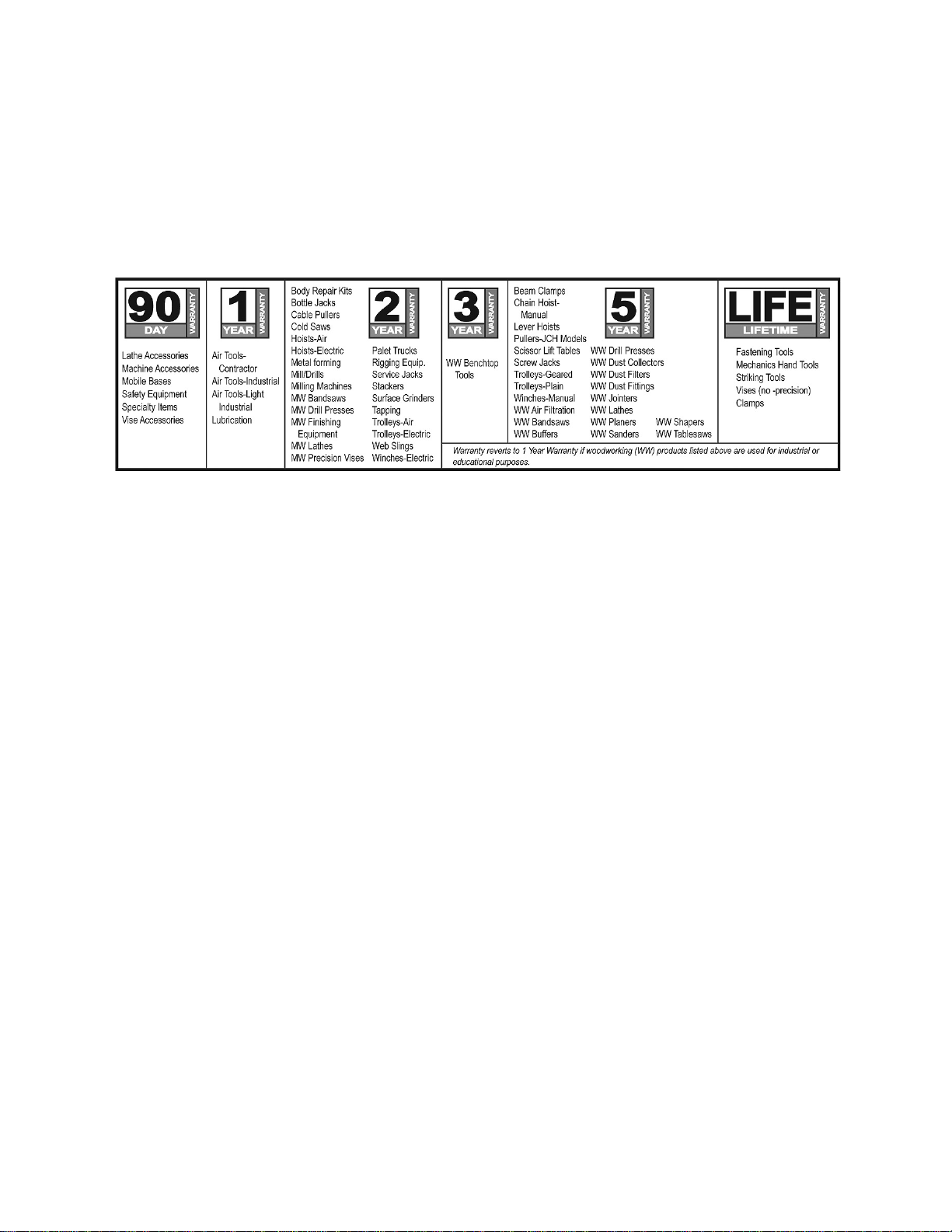

JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational
purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education
purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse,
abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name
of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price,
at our option. We will return the repaired product or replacement at our expense unless it is determined by us that
there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will,
at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be
responsible for the shipping and handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE
LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general
information and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET
®
branded products are not sold in Canada by Walter Meier.
3
2.0 Table of Contents
Section Page
1.0 Warranty and Service ....................................................................................................................... 2
2.0 Table of Contents ............................................................................................................................. 3
3.0 Safety Warnings ............................................................................................................................... 4
4.0 About this manual ............................................................................................................................. 5
5.0 General Features and Terminology ................................................................................................... 6
6.0 Specifications ................................................................................................................................... 7
7.0 Set-Up and Assembly ....................................................................................................................... 8

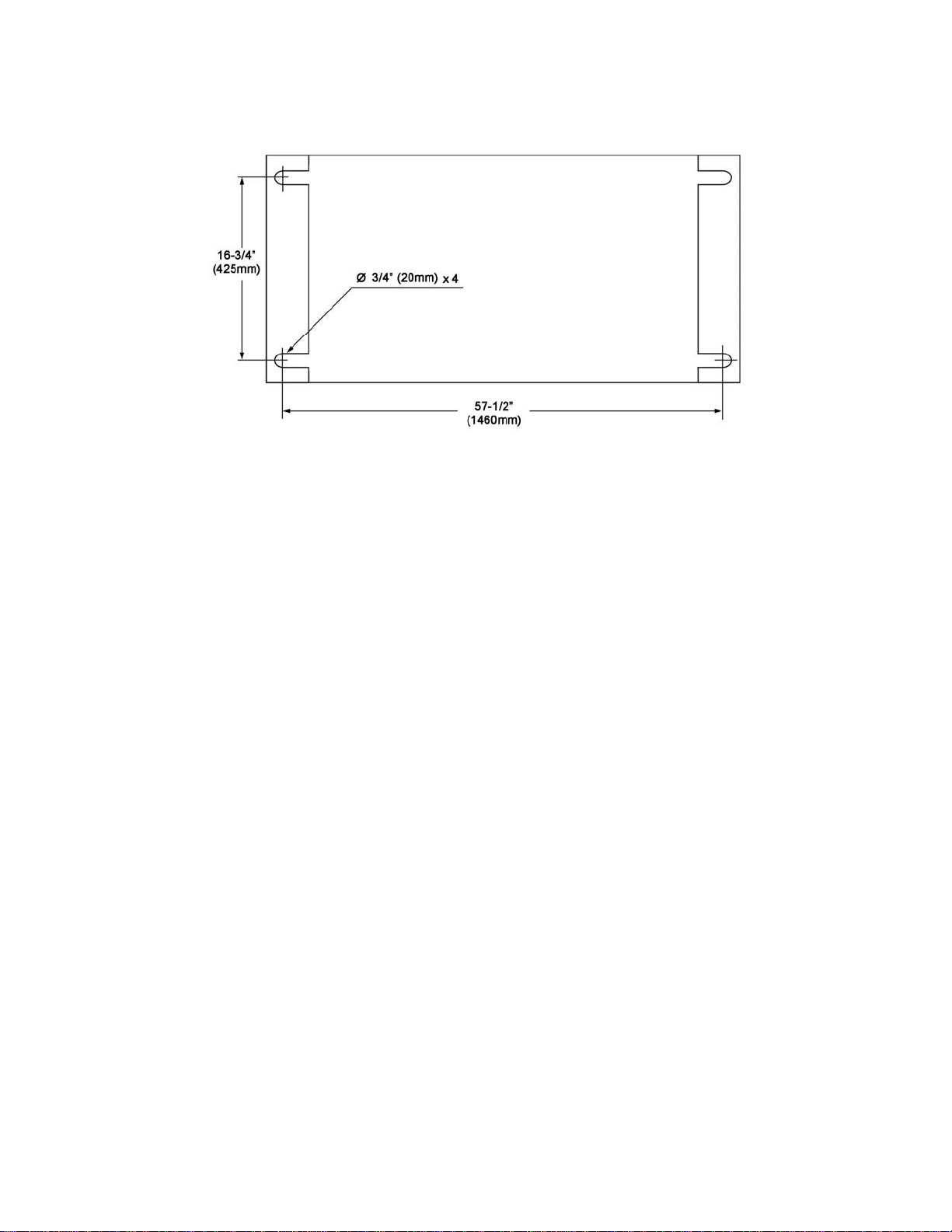

7.1 Hole center dimensions.....................................................................................................8
7.2 Unpacking .........................................................................................................................8
7.3 Stop assemblies................................................................................................................8
7.4 Electrical connections .......................................................................................................9
8.0 Adjustments .................................................................................................................................... 10
8.1 Table and blades ............................................................................................................10
8.2 Air regulator ....................................................................................................................10
8.3 Rear stop micro adjust ....................................................................................................10
8.4 Hold-down tension ..........................................................................................................10
8.5 Gibs ................................................................................................................................10
9.0 Maintenance ................................................................................................................................... 11
10.0 Troubleshooting ............................................................................................................................ 11
11.0 Replacement Parts ....................................................................................................................... 11
11.1.1 PS-1652T Assembly – Exploded View .......................................................................12
11.1.2 PS-1652T Assembly – Parts List ................................................................................13
12.0 Electrical connections ................................................................................................................... 16
4
3.0 Safety Warnings
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury. Replace warning labels if they become obscured or
removed.
3. This pneumatic shear is designed and intended for use by properly trained and experienced
personnel only. If you are not familiar with the proper and safe operation of a shear, do not use until
proper training and knowledge have been obtained.
4. Do not use this machine for other than its intended use. If used for other purposes, Walter Meier
(Manufacturing), Inc. disclaims any real or implied warranty and holds itself harmless from any injury
that may result from that use.
5. Always wear ANSI approved safety glasses/face shields while using this shear. Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
6. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught
in moving parts. Wear protective hair covering to contain long hair. Non-slip footwear or anti-skid floor
strips are recommended.
7. Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead based paint.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area and work with approved safety
equipment, such as face or dust masks that are specifically designed to filter out microscopic
particles.
8. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
9. Do not exceed the rated capacity of this shear; use hand tools for small or narrow parts. Do not
attempt to shear hardened materials.
10. Sheet metal stock has sharp edges. To prevent cuts, use leather work gloves when handling.
11. Keep hands and fingers clear of the area in front and rear of the shear.
12. Do not place your hands between material being sheared and the shear table.
13. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes, use extreme caution and replace the guards immediately after maintenance is complete.
14. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting
and any other conditions that may affect its operation. A guard or other part that is damaged should
be properly repaired or replaced.
15. Provide for adequate space surrounding work area and non-glare, overhead lighting.
16. Keep the floor around the machine clean and free of scrap material, oil and grease.
17. Keep visitors a safe distance from the work area. Keep children away.
18. Make your workshop child proof with padlocks, master switches or by removing starter keys.
19. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
5
20. Maintain a balanced stance at all times so that you do not fall or lean against moving parts. Do not
overreach or use excessive force to perform any machine operation.
21. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and more safely.
22. Use recommended accessories; improper accessories may be hazardous.
23. Maintain tools with care. Keep tools sharp and clean for the best and safest performance. Follow
instructions for lubricating and changing accessories.
24. Do not stand on the machine. Serious injury could occur if the machine tips over.
25. Unplug or lock out power to the machine when not in use.
Familiarize yourself with the following safety notices used in this manual.
This means that if precautions are not heeded, it may result in minor injury
and/or possible machine damage.
This means that if precautions are not heeded, it may result in serious or even
fatal injury.
4.0 About this manual
This manual is provided by Walter Meier (Manufacturing) Inc. covering the safe operation and
maintenance procedures for a JET Model PS-1652T Pneumatic Shear. This manual contains instructions
on installation, safety precautions, general operating procedures, maintenance instructions and parts
breakdown. Your machine has been designed and constructed to provide years of trouble-free operation
if used in accordance with the instructions as set forth in this document.
If there are questions or comments, please contact your local supplier or Walter Meier. Walter Meier can
also be reached at our web site: www.waltermeier.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should
accompany it.
6
5.0 General Features and Terminology
Numbers refer to corresponding index numbers in parts list.

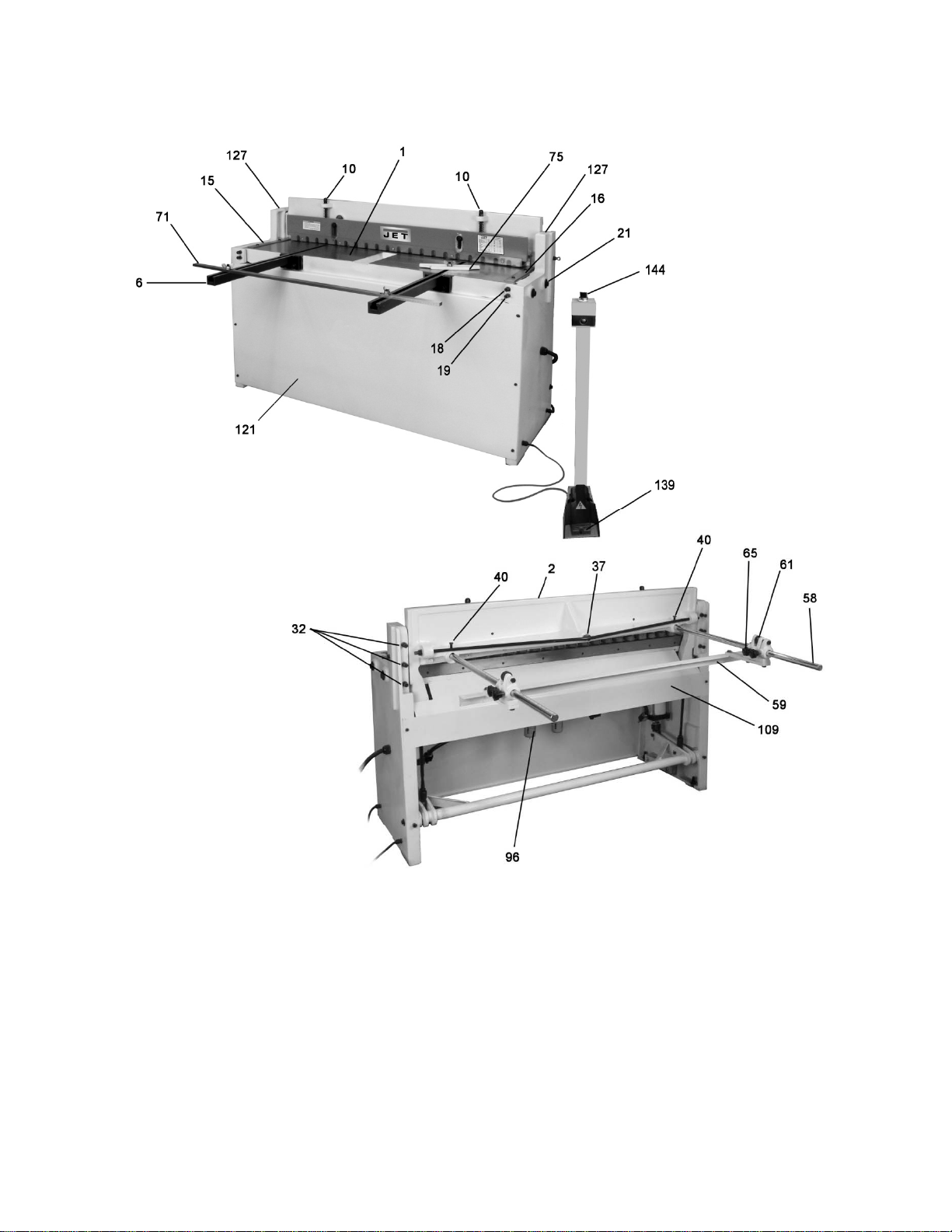

Figure 1
1 Table
2 Cutter Bar
3 Hold Down
6 Front Arm Extension
10 Spring Tension Adjusting Nuts
15 Left Scale
16 Right Scale
18/19 Table Adjustment Screws
21 Table Bolts
32 Gib Screws
37 Tie-Rod Adjustment Screw
40 Screws for securing Scale Rods
59 Rear Stop
61 Adjusting Block
65 Adjusting Block knobs
71 Front Stop
75 Bevel Gauge
96 Filter Regulator Assembly
109 Rear Cover
119 Foot Pedal
121 Front Cover
127 Oil Fitting
139 Foot Pedal
144 On/Off Switch
7
6.0 Specifications
Model Number ......................................................................................................................................... PS-1652T
Stock Number ............................................................................................................................................. 756203
Materials:
Frame ................................................................................................................................................... cast iron
Table .................................................................................................................................................... cast iron
Blades ............................................................................................................................ ground hardened steel
Hold-down ............................................................................................................................................ cast iron
Front Stop .................................................................................................................................................. steel
Rear Stop ................................................................................................................................. cast iron & steel
Capacities:
Material thickness capacity – mild steel .............................................................................................. 16 gauge
Material thickness capacity – aluminum and copper alloys ....................................................... 12 to 14 gauge
Shearing length capacity ............................................................................................................. 52” (1320mm)
Back stop capacity .................................................................................................................. 29-1/2” (750mm)
Front stop capacity .................................................................................................................. 35-1/4” (895mm)
Motor and Electrical:
Foot control ..................................................................................................................................... 110V, 60Hz
On/Off switch............................................................................................................................................. rotary
Power cable length......................................................................................................................... 7 ft. (213cm)
Foot pedal cable length .................................................................................................................. 5 ft. (152cm)
Noise emission .................................................................................................................................... 40-60 dB
Air System:
Air hose length ............................................................................................................................... 7 ft. (213cm)
Operating/maximum air pressure (psi) ............................................................................. 85-100 (0.6-0.7 Mpa)
Air consumption (approx. cfm) .................................................................................................................... 25.4
Air consumption per stroke (approx. cfm) ..................................................................................................... 1.4
Strokes per minute ................................................................................................ 40 without load; 20 with load
Recommended air hose diameter ................................................................................................................ 1/2"
Air hose inlet (NPT) ...................................................................................................................................... 3/8”
Dimensions:
Shipping dimensions (LxWxH) ............................................................. 30” x 67” x 46” (760 x 1702 x 1168mm)
Overall dimensions, fully assembled (LxWxH) ................................... 73” x 60” x 41” (1855 x 1525 x 1045mm)
Footprint (LxW) ......................................................................................................... 21” x 60” (533 x 1525mm)
Weights:
Net weight, approximate ....................................................................................................... 1312 lbs. (550 kg)
Shipping weight, approximate ............................................................................................... 1344 lbs. (610 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, Walter Meier reserves the right to change specifications at any time and without prior notice,
without incurring obligations.
Read and understand the entire contents of this manual before attempting set-up or operation!
Failure to comply may cause serious injury.
8
7.0 Set-Up and Assembly
7.1 Hole center dimensions
Figure 2
7.2 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to
your distributor and shipping agent. Do not
discard any shipping material until the Shear is
assembled and running properly.
Compare the contents of your container with the
following list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual
thoroughly for assembly, maintenance and
safety instructions.
Contents of the Shipping Container
1 Pneumatic Shear with Foot Pedal
2 Front Arm Extensions
1 Front Stop, with hardware
1 Rear Stop, with hardware
2 Scale Rods
2 Adjusting Block Assemblies
1 Bevel Gauge, with hardware
1 Instructions and Parts Manual
1 Warranty Card
1. Remove the crating material from around
the machine.
2. Clean the protectant from all exposed metal
surfaces with a mild solvent or kerosene,
and a soft rag. Do not use lacquer thinner,
paint thinner, or gasoline, as these may
damage painted surfaces.
3. Coat all machined surfaces with a light coat
of oil to inhibit rust.
4. Remove the bolts holding the machine to the
skid.
5. Place straps below the table (you may have
to remove front cover), and use propery
rated lifting equipment to move the machine
to a level foundation. Machine location must
allow access to all sides. Use shims at floor
if needed.
Assembly Note: Prior to shipment, the
pneumatic shear is adjusted at the factory for
proper alignments and operation. If the machine
does not operate properly or the stand does not
sit squarely on the floor, proceed to Set-Up
Adjustments.
6. When the machine sits evenly, secure it to
the floor using proper fasteners. Refer to
Figure 2.
7.3 Stop assemblies
Refer to Figure 1. (Numbers in parentheses
refer to corresponding part in exploded view.)
1. Attach the two front arm extensions (6) to
the bed with four hex cap screws (7) and
four washers (76). Level arm extension
surfaces with the table before tightening.
2. Attach front stop (71) to front arm extensions
with T-screws (72) and wing nuts (74).
9
3. Attach rear stop (59) to the adjusting block
assemblies (61) with six hex cap screws
(68) and six flat washers (77).
4. Insert a scale rod (58) through each
adjusting block assembly and into cutter bar.
The scales must face up.
5. Secure the scale rods in the cutter bar by
tightening the two hex cap screws (40).
Tighten the rods in the adjusting blocks with
the four knobs (65).
7.4 Electrical connections
Electrical connections must
be made by a qualified electrician in
compliance with all relevant codes. This
machine must be properly grounded to help
prevent electrical shock and possible fatal
injury.
7.4.1 Grounding instructions
This machine must be grounded. In the event of
a malfunction or breakdown, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock.
The Pneumatic Shear is equipped with a 15 amp
cord and plug set, with a grounding prong. The
plug must be plugged into a matching outlet that
is properly installed and grounded in accordance
with all local codes and ordinances. Do not
modify the plug provided – if it will not fit the
outlet, have the proper outlet installed by a
qualified electrician.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. The conductor with insulation
having an outer surface that is green with or
without yellow stripes, is the equipment-
grounding conductor. If repair or replacement of
the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a
live terminal.
Check with a qualified electrician or service
personnel if the grounding instructions are not
completely understood, or if in doubt as to
whether the tool is properly grounded. Repair or
replace a damaged or worn cord immediately.
Use only 3-wire extension cords that have 3-
prong grounding plugs and 3-pole receptacles
that accept the machine’s plug. As received from
the factory, your shear is ready to operate at
115-volt operation. This shear, when wired for
115 volt, is intended for use on a circuit that has

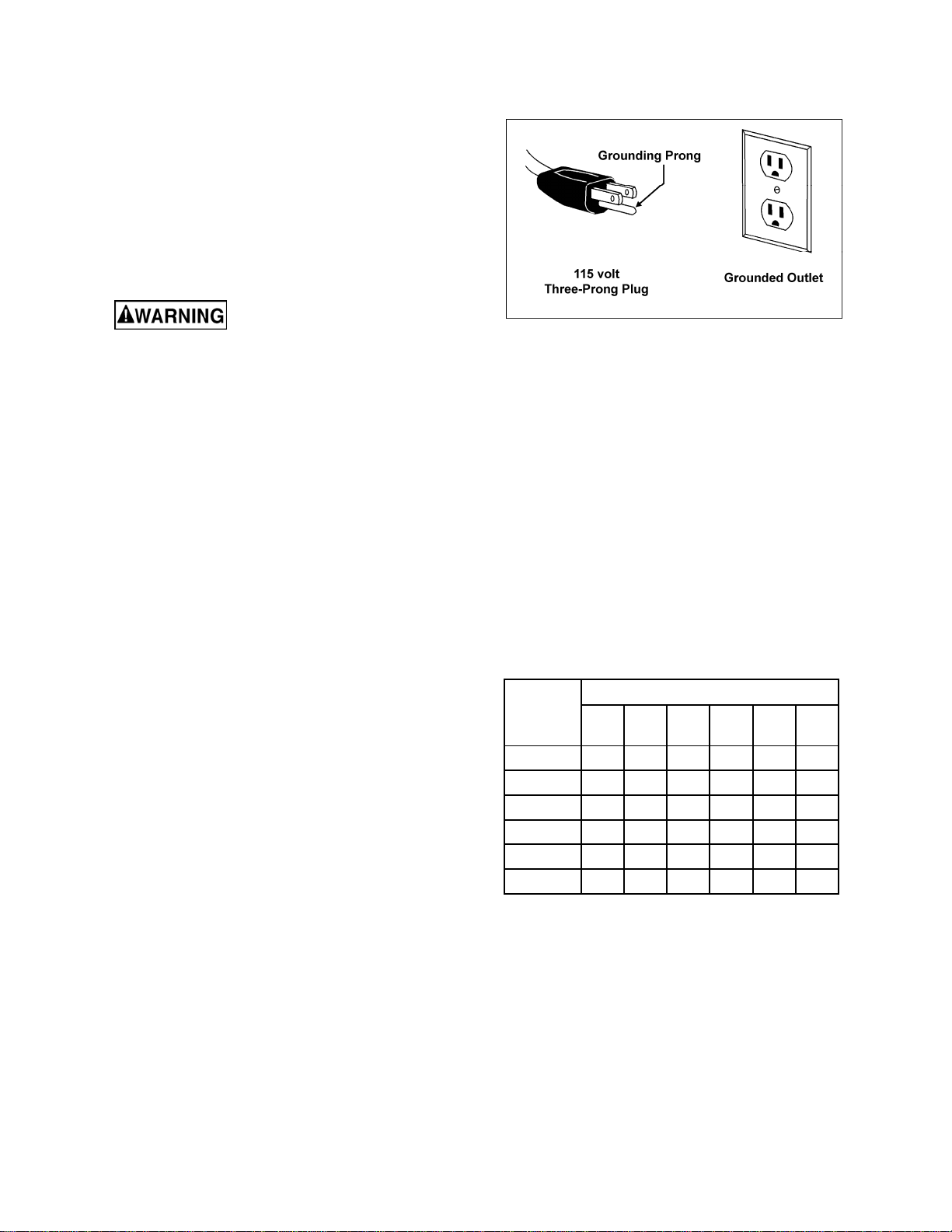

an outlet that looks like the one illustrated in
Figure 3. The tool has a grounding plug that
looks like the plug illustrated in Figure 3.
Make sure your power supply matches the
information on the specification plate of the
machine.
Figure 3
7.4.2 Extension cords
The use of an extension cord is not
recommended. Try to place shop equipment
within reach of the power source. If an extension
cord becomes necessary, make sure the cord
rating is suitable for the amperage listed on the
machine’s motor plate. An undersized cord will
cause a drop in line voltage resulting in loss of
power and overheating.
Use the chart in Figure 17 as a general guide in
choosing the correct size cord. If in doubt, use
the next heavier gauge. The smaller the gauge
number, the heavier the cord.
Recommended Gauges (AWG) of Extension
Cords
Amps
Extension Cord Length *
25
feet
50
feet
75
feet
100
feet
150
feet
200
feet
< 5 1
6
1
6
1
6
14 1
2
1
2
5 to 8 1
6
1
6
14 1
2
10 N
R
8 to 1
2
14 14 1
2
10 N
R
N
R
12 to 15 1
2
1
2
10 10 N
R
N
R
15 to 20 10 10 10 N
R
N
R
N
R
21 to 30 10 N
R
N
R
N
R
N
R
N
R
*based on limiting the line voltage drop to 5V at 150% of the
rated amperes.
NR: Not Recommended.
Table 1
10
8.0 Adjustments
8.1 Table and blades
1. If the table requires adjustment, loosen four
bolts (21); do not remove. Loosen nuts on
the adjusting screws (18,19). The bed must
rest squarely on the right and left hand side
panels at all four corners while screws are
loose. Shim legs at floor if necessary.
Tighten hardware.
2. Use set screw (18) and hex cap screw (19),
to adjust the lower blade toward or away
from the upper blade. The distance between
the upper and lower blades should be 0.002-
0.005”. Do not let the blades overlap.
3. Connect machine to electrical supply, and
adjust the air pressure until the gauge reads
approximately 90 psi.
4. Place a heavy sheet of paper
(~0.005”/0.13mm) in the cutting position,
along the entire length of the bed.
5. Turn switch to ON and press the foot pedal.
6. If the shear does not cut the paper, move
the lower blade toward the upper blade.
7. If the shear cuts the paper on the ends, but
not the center, turn the tie-rod adjusting
screw (37), clockwise until the paper is cut
the entire length.
8. If the shear cuts the paper in the center, but
not the ends, turn the tie-rod adjusting screw
(37) counter-clockwise until the paper is cut
the entire length.
9. Make sure the scales (15,16) on top of the
table are square to the blade, and also show
the correct distance from the blade.
10. Make test cuts to verify that the scales are
correct.
8.2 Air regulator

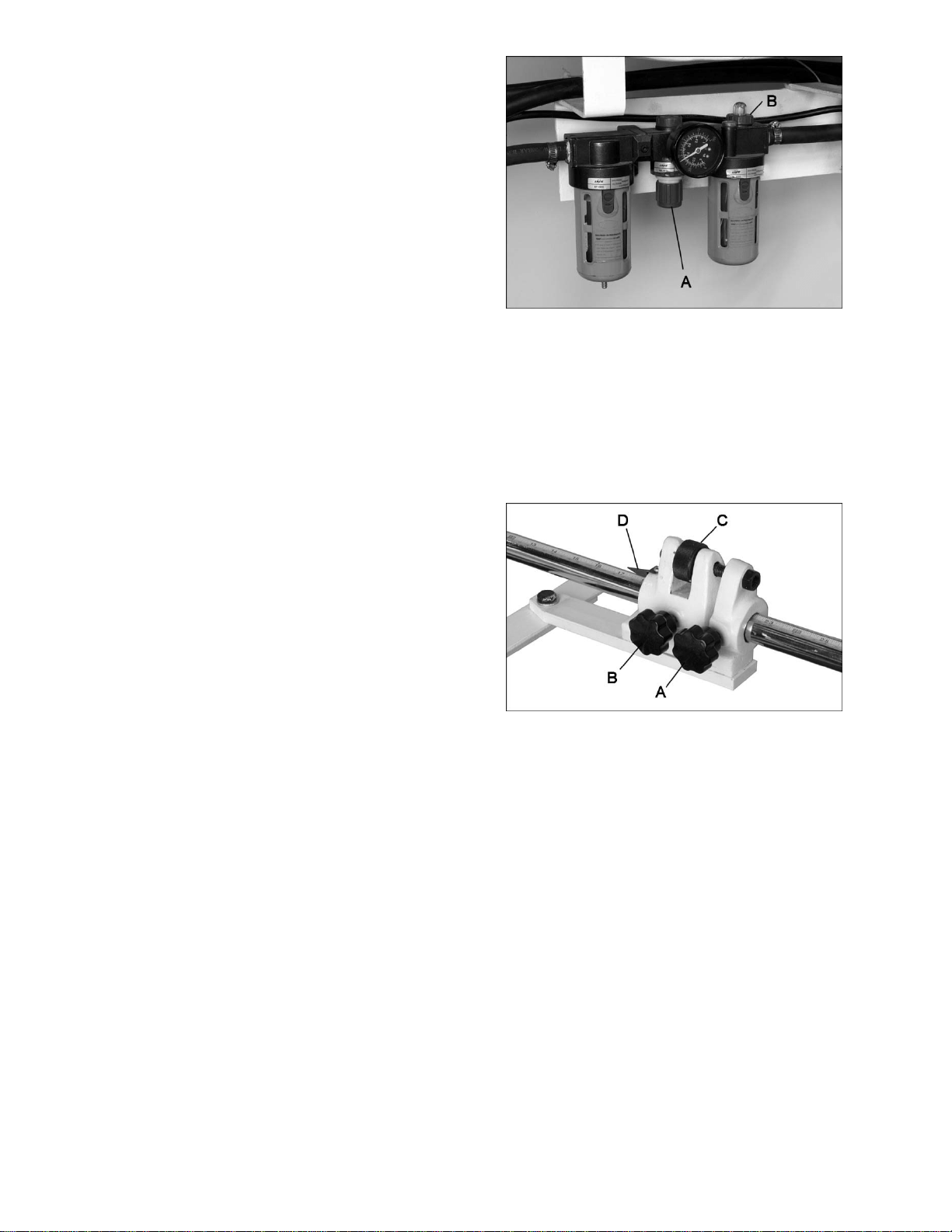

Refer to Figure 4.
1. Connect air source to quick connector.
2. Set the desired air pressure between 90-120
PSI using the pressure dial (A) on the
filter/regulator (clockwise to increase). Lock
the setting by pushing down the pressure
dial. Pull up on the dial to readjust a setting.
3. Adjust oil flow using dial (B) at top of
lubricator. A setting of 2 drips per minute is
sufficient for regular operation.
Figure 4
8.3 Rear stop micro adjust
Refer to Figure 5.
The knurled dial on the adjusting block can be
used for micro positioning of the rear stop.
Tighten knob (A) and make knob (B) snug.
Rotate dial (C) until pointer (D) is at desired
position. Tighten knob (B).
Figure 5
8.4 Hold-down tension
The spring return can be adjusted on the hold
down (3) by tightening the lower hex nuts (10).
8.5 Gibs
There are three hex cap screws (32) that can be
adjusted for play in each shim (31). Loosen the
jam nuts (33) to turn the screws. Adjust for
smooth travel. Retighten jam nuts.
11
9.0 Maintenance
Use care when working with
or around the knives.
The 2-way upper knife can be removed and
flipped 180°, for a new edge before having to be
sharpened.
Periodically insert oil through the two oil fittings
(127) atop the side panels. Use ISO VG32 or
equivalent.
Wipe the knives lightly with oil.
Lubricate all pivot points on the machine daily.
Empty the condensation cups on the air
regulator as needed.
10.0 Troubleshooting
Trouble Probable Cause Remedy
Blades will not cut
material.
Incorrect gap between blades. Increase gap for thicker gauge metals.
Material exceeds machine capacity. Stay within capacity.
Blades are dull. Replace or sharpen blades.
Unsatisfactory cuts.
Blades dull. Replace or sharpen blades.
Incorrect gap between blades. Correct gap.
Loose gibs. Remove backlash from gibs.
Cuts not square.
Inadequate hold-down pressure. Adjust pressure of hold-down.
Blade gap unequal. Adjust gap equally across length of blade.
Uneven guide contact. Place work against guide consistently.
Blade is bowed. Adjust blade bow at the tie-rod.
11.0 Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call
1-800-274-6848, Monday through Friday (see our website for business hours, www.waltermeier.com).
Having the Model Number and Serial Number of your machine available when you call will allow us to
serve you quickly and accurately.
12

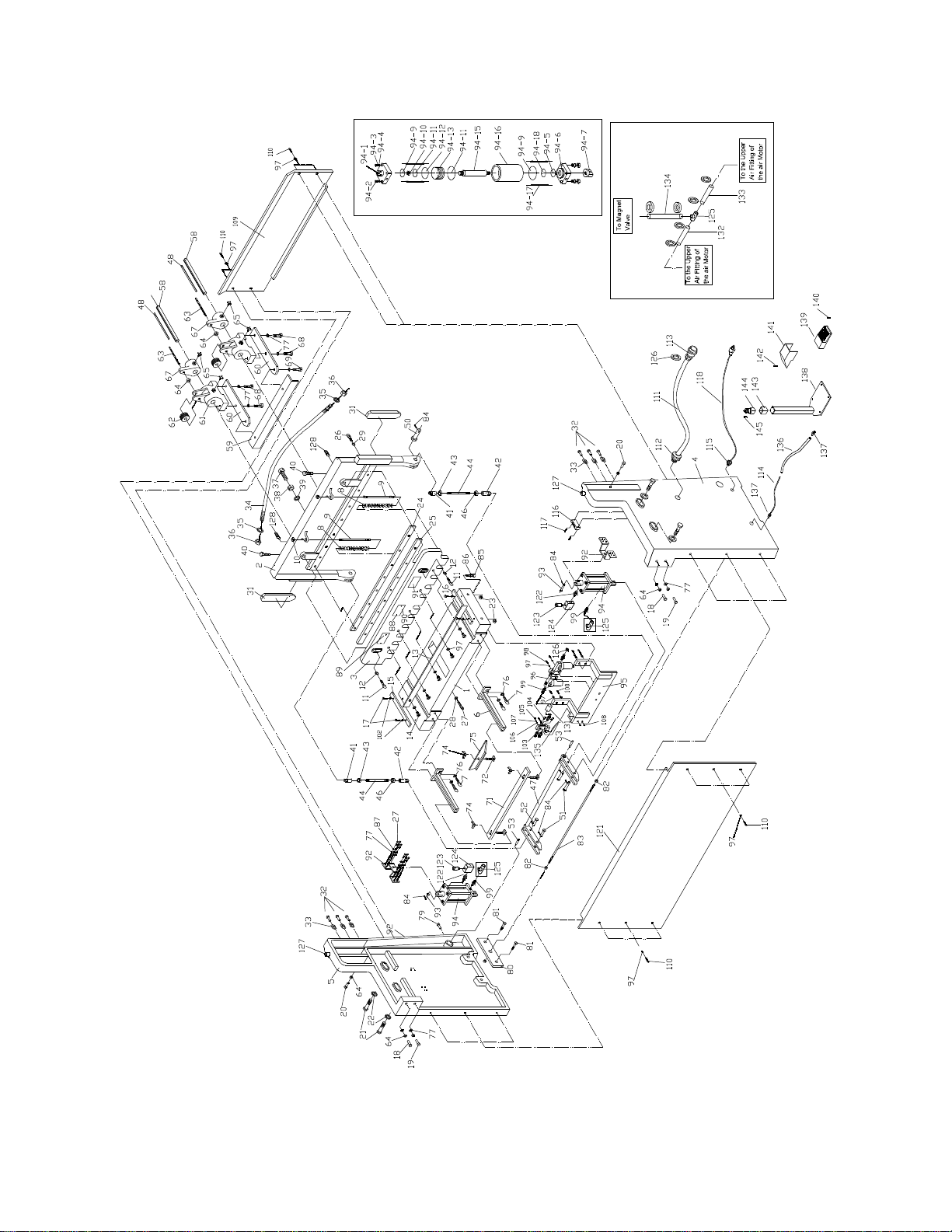

11.1.1 PS-1652T Assembly – Exploded View
13
11.1.2 PS-1652T Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... PS1652T-1 ..............Table .......................................................... .......................................... 1
2 ............... PS1652T-2 ..............Cutter Bar ................................................... .......................................... 1
3 ............... PS1652T-3 ..............Hold Down.................................................. .......................................... 1
4 ............... PS1652T-4 ..............R.H. Side Panel .......................................... .......................................... 1
5 ............... PS1652T-5 ..............L.H. Side Panel .......................................... .......................................... 1
6 ............... PS1652T-6 ..............Front Arm Extension ................................... .......................................... 2
7 ............... FS1636N-7 ..............Hex Cap Screw .......................................... M12x45 .............................. 4
8 ............... PS1652T-8 ..............Spring......................................................... 3.5d x 18.5D x 180mm ....... 2
9 ............... PS1652T-9 ..............Stud ........................................................... .......................................... 2
10 ............. FS1636N-10 ............Nylon Lock Hex Nut .................................... M12 .................................... 2
11 ............. FS1636N-11 ............Hex Cap Screw .......................................... M12x80 .............................. 2
12 ............. FS1636N-12 ............Washer....................................................... .......................................... 2
13 ............. PS1652T-13.............Finger Guard .............................................. .......................................... 1
14 ............. FS1636N-14 ............Phillips Pan Head Machine Screw .............. M6x12 ................................ 5
15 ............. PS1652T-15.............Table Scale (L.H.)....................................... .......................................... 1
16 ............. PS1652T-16.............Table Scale (R.H.) ...................................... .......................................... 1
17 ............. FS1636N-17 ............Hex Cap Screw .......................................... M8x 25 ................................ 4
18 ............. TS-2210451 .............Hex Cap Screw .......................................... M10x45 .............................. 2
19 ............. TS-1491101 .............Hex Cap Screw .......................................... M10x60 ............................ 18
20 ............. PS1652T-20.............Hex Cap Screw .......................................... M10x50 .............................. 2
21 ............. PS1652T-21.............Hex Cap Screw .......................................... M16x120 ............................ 4
22 ............. FS1636N-22 ............Washer....................................................... .......................................... 4
23 ............. PS1652T-23.............Nut ............................................................. M16 .................................... 4
24 ............. PS
1652T-24.............Upper Knife ................................................ .......................................... 1
25 ............. PS1652T-25.............Lower Knife ................................................ .......................................... 1
26 ............. FS1636N-27 ............Cap Screw.................................................. M10x45 .............................. 9
27 ............. PS1652T-27.............Cap Screw.................................................. M10x 50 ............................ 24
28 ............. FS1636N-28 ............Washer....................................................... .......................................... 9
29 ............. FS1636N-29 ............Washer....................................................... 10mm ............................... 17
31 ............. PS1652T-31.............Gib ............................................................. .......................................... 2
32 ............. TS-1505071 .............Socket Head Cap Screw ............................. M10x 45 .............................. 6
33 ............. FS1636N-33 ............Nut ............................................................. M10 .................................... 6
34 ............. FS1636N-34 ............Rod ............................................................ .......................................... 1
35 ............. TS-155009 ...............Plain Washer .............................................. 14mm ................................. 2
36 ............. PS1652T-36.............Nut ............................................................. M14 .................................... 2
37 ............. PS1652T-37.............Screw ......................................................... M16x 70 .............................. 1
38 ............. FS1636N-38 ............Nut ............................................................. M16 .................................... 1
39 ............. FS1636N-39 ............Washer....................................................... 16mm ................................. 1
40 ............. FS1636N-40 ............Hex Cap Screw .......................................... M10x35 .............................. 2
41 ............. PS1652T-41.............Swiv el......................................................... .......................................... 2
42 ............. PS1652T-42.............Swiv el......................................................... .......................................... 2
43 ............. FS1636N-46 ............Hex Nut (Right Hand Thread) ..................... M16 .................................... 2
44 ............. PS1652T-44.............Stud ........................................................... .......................................... 2
46 ............. PS1652T-46.............Hex Nut (Left Hand Thread) ........................ M16 .................................... 2
47 ............. PS1652T-47.............Cylinder Link Bar Assembly ........................ .......................................... 1
48 ............. PS1652T-48.............Scale .......................................................... .......................................... 2
49 ............. FS1636N-49 ............Cross Head Pan Screw .............................. M4x8 .................................. 2
50 ............. PS1652T-50.............Pin.............................................................. Ø12 x 85mm....................... 2
51 ............. PS1652T-51.............Pin.............................................................. Ø16 x 65mm....................... 2
52 ............. PS1652T-52.............Pin.............................................................. Ø12 x 65mm....................... 4
53 ............. PS1652T-53.............Brake Pin ................................................... .......................................... 2
58 ............. PS1652T-58.............Scale Rod................................................... .......................................... 2
59 ............. PS1652T-59.............Rear Stop ................................................... .......................................... 1
60 ............. PS1652T-60.............Extension Bar ............................................. .......................................... 2
61 ............. PS1652T-61.............Adjusting Block ........................................... .......................................... 2
62 ............. PS1652T-62.............Adjusting Dial ............................................. .......................................... 2
14
Index No. Part No. Description Size Qty
63 ............. FS1636N-63 ............Adjusting Screw .......................................... .......................................... 2
64 ............. FS1636N-64 ............Hex Nut ...................................................... M10 .................................... 4
65 ............. PS1652T-65.............Knob .......................................................... .......................................... 4
67 ............. PS1652T-66.............Adjusting Bracket........................................ .......................................... 2
68 ............. TS-1491031 .............Hex Cap Screw .......................................... M10x25 .............................. 4
69 ............. TS-1491021 .............Hex Cap Screw .......................................... M10x20 .............................. 2
71 ............. PS1652T-71.............Front Stop .................................................. .......................................... 1
72 ............. FS1636N-72 ............“T” Screw ................................................... .......................................... 3
74 ............. TS-2321121 .............Wing Nut .................................................... M12 .................................... 3
75 ............. PS1652T-75.............Bevel Gauge .............................................. .......................................... 1
76 ............. FS1636N-76 ............Washer....................................................... 12mm ................................. 4
77 ............. FS1636N-77 ............Plain W asher .............................................. 10mm ............................... 27
79 ............. TS-1505071 .............Socket Head Cap Screw ............................. M10x 45 .............................. 2
80 ............. PS1652T-80.............Plate ........................................................... .......................................... 2
81 ............. TS-1492021 .............Hex Cap Screw .......................................... M12x30 .............................. 4
82 ............. TS-2310201 .............Hex Nut ...................................................... M20 .................................... 4
83 ............. PS1652T-83.............Connection Bar ........................................... Ø20x1480mm..................... 1
84 ............. PS1652E-84 ............Cotter Pin ................................................... Ø4x30mm .......................... 8
85 ............. PS1652E-85 ............Socket Head Cap Screw ............................. M8x45 ................................ 8
86 ............. PS1652E-86 ............Hex Nut ...................................................... M8...................................... 8
87 ............. TS-2361101 .............Helical Spring Lock W asher ........................ 10mm ............................... 16
88 ............. PS1652E-88 ............Rivet ........................................................... Ø2x6mm ............................ 4
89 ............. PS1652E-W .............Warning Label ............................................ .......................................... 1
90 ............. PS1652E-J ..............JET Pl
aque ................................................. .......................................... 1
91 ............. PS1652E-S ..............Specification Label ..................................... .......................................... 1
92 ............. PS1652T-92.............Bracket ....................................................... .......................................... 2
93 ............. PS1652T-93.............Shaft .......................................................... Ø16x65mm ........................ 2
94 ............. PS1652T-94.............Air Motor Assembly .................................... .......................................... 2
94-1 ...... PS1652T-94-1 .........Top Cover with Hinge ................................. .......................................... 1
94-2 ...... PS1652E-94-2 .........Hex Nut ...................................................... M10 .................................... 8
94-3 ...... PS1652E-94-3 .........Helical Spring Lock W asher ........................ 10mm ................................. 8
94-4 ...... PS1652E-94-4 .........Plain W asher .............................................. 10mm ................................. 8
94-5 ...... PS1652E-94-5 .........Dust Seal ................................................... D43xd35xh12 mm .............. 1
94-6 ...... PS1652T-94-6 .........Bottom Cover ............................................. .......................................... 1
94-7 ...... PS1652T-94-7 .........Hinge ......................................................... .......................................... 1
94-9 ...... PS1652E-94-9 .........O-Ring........................................................ 100 x 1.9mm ...................... 2
94-10 .... PS1652E-94-10 .......Hex Nut ...................................................... M16 .................................... 1
94-11 .... PS1652E-94-11 .......U-Seal ........................................................ D100xd90xh8 mm .............. 2
94-12 .... PS1652E-94-12 .......Piston Ring ................................................. 2x5mm ............................... 1
94-13 .... PS1652T-94-13........Piston Head ................................................ .......................................... 1
94-14 .... PS1652E-94-14 .......O-Ring........................................................ 25x2.4mm .......................... 1
94-15 .... PS1652T-94-15........Piston ......................................................... .......................................... 1
94-16 .... PS1652T-94-16........Body ........................................................... .......................................... 1
94-17 .... PS1652T-94-17........Bolt............................................................. .......................................... 4
94-18 .... PS1652E-94-18 .......O-Ring........................................................ 39x2mm ............................. 1
95 ............. PS1652T-95.............Bracket ....................................................... .......................................... 1
96 ............. PS1652E-96 ............Air Regulator Assembly .............................. BC3000 .............................. 1
97 ............. TS-1550041 .............Plain Washer .............................................. 6mm ................................. 17
98 ............. TS-1503051 .............Socket H
ead Cap Screw ............................. M6x20 ................................ 2
99 ............. PS1652E-99 ............Air Fitting .................................................... PT3/8” .............................. 15
100 ........... TS-1504041 .............Socket Head Cap Screw ............................. M8x20 ................................ 4
102 ........... TS-1550061 .............Plain Washer .............................................. 8mm ................................... 8
103 ........... PS1652E-103 ..........Magnetic Valve ........................................... 4V310-10-AC110V ............. 1
104 ........... PS1652E-104 ..........Muffler ........................................................ PT1/4” ................................ 2
105 ........... PS1652T-105 ...........Pan Head Machine Screw .......................... M4x40 ................................ 2
106 ........... TS-1550021 .............Plain Washer .............................................. 4mm ................................... 2
107 ........... TS-2361041 .............Helical Spring Lock Washer ........................ 4mm ................................... 2
108 ........... TS-1540021 .............Hex Nut ...................................................... M4...................................... 2
15
Index No. Part No. Description Size Qty
109 ........... PS1652T-109 ...........Rear Cover ................................................. .......................................... 1
110 ........... TS-1503031 .............Socket Head Cap Screw ............................. M6x12 .............................. 14
111 ........... PS1652T-111 ...........Air Hose ..................................................... 1/2" x 700psi x 2m .............. 1
112 ........... PS1652E-112 ..........Air Hose Holder .......................................... M30x1.5 ............................. 1
113 ........... PS1652E-113 ..........Quick Fitting ............................................... Ø10mm .............................. 1
114 ........... PS1652E-114 ..........Cable ......................................................... 18AWGx3C,3m .................. 1
115 ........... PS1652E-115 ..........Plastic Cable Holder ................................... M16x1.5 ............................. 1
116 ........... PS1652T-116 ...........Wiring Block ............................................... TB-1504 ............................. 1
117 ........... TS-1532052 .............Phillips Pan Head Machine Screw .............. M4x15 ................................ 2
118 ........... PS1652E-118 ..........Power Cable with Plug ................................ 16AW G, 4M ....................... 1
121 ........... PS1652T-121 ...........Front Cover ................................................ .......................................... 1
122 ........... PS1652E-122 ..........Air Fitting .................................................... .......................................... 2
123 ........... PS1652E-123 ..........Muffler ........................................................ PT3/8” ................................ 2
124 ........... PS1652E-124 ..........Air Exhaust Valve ....................................... QE-03 ................................ 2
125 ........... PS1652E-125 ..........3-Way Connection ...................................... PT3/8” ................................ 2
126 ........... PS1652E-126 ..........Holding Ring ............................................... Ø16-25mm ....................... 16
127 ........... PS1652E-127 ..........Oil Fitting .................................................... Ø10mm .............................. 2
128 ........... PS1652T-128 ...........Set Screw ................................................... M12x25 .............................. 2
129 ........... TS-1501041 .............Socket Head Cap Screw ............................. M4x12 ................................ 3
130 ........... PS1652E-130 ..........Rubber Grommet ........................................ Ø15 .................................... 1
131 ........... PS1652E-131 ..........Air Hose ..................................................... 1/2" x 700psi x 0.12m ......... 1
132 ........... PS1652E-132 ..........Air Hose ..................................................... 1/2" x 700psi x 1m .............. 2
133 ........... PS1652E-133 ..........Air Hose ..................................................... 1/2" x 700psi x 0.5m ........... 2
134 ........... PS1652E-134
..........Air Hose ..................................................... 1/2" x 700psi x 0.6m ........... 2
135 ........... PS1652E-135 ..........Cable ......................................................... 18AWGx3C,1.2m ............... 1
136 ........... PS1652T-136 ...........Cable, Foot Pedal ....................................... Ø 18x2mm ......................... 1
137 ........... PS1652T-137 ...........Strain Relief ................................................ M20x1.5 ............................. 4
138 ........... PS1652T-138 ...........Post
(s/n 11120022 and higher)
...................... .......................................... 1
139 ........... PS1652T-119 ...........Foot Control Pedal ...................................... SFMS-1 .............................. 1
140 ........... TS-1533052 .............Phillips Pan Head Machine Screw .............. M5x16 ................................ 4
141 ........... PS1652T-120 ...........Foot Pedal Guard ....................................... SFMS-1 .............................. 1
142 ........... 5712561...................Phillips Pan Head Machine Screw .............. M5x8 .................................. 4
143 ........... PS1652T-143 ...........Switch Box
(s/n 11120022 and higher)
............ BX1-22 ............................... 1
144 ........... PS1652T-144 ...........Select Switch
(s/n 11120022 and higher)
........ SGB2-BD25 2NO ............... 1
145 ........... TS-2284082 .............Phillips Pan Head Machine Screw .............. M4x8 .................................. 4
................. STRIPE-1-3/4 ..........Stripe (not shown) ...................................... 1-3/4” .......................... per ft.
NOTE: Non-proprietary fasteners (part numbers beginning with TS-) are standard sizes, and can usually
be found at local tool stores.
16
12.0 Electrical connections
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Phone: 800-274-6848
www.jettools.com
www.waltermeier.com
N
L
PE
N1
L1
XT
JK
YV
L2
L1 N1
PE
