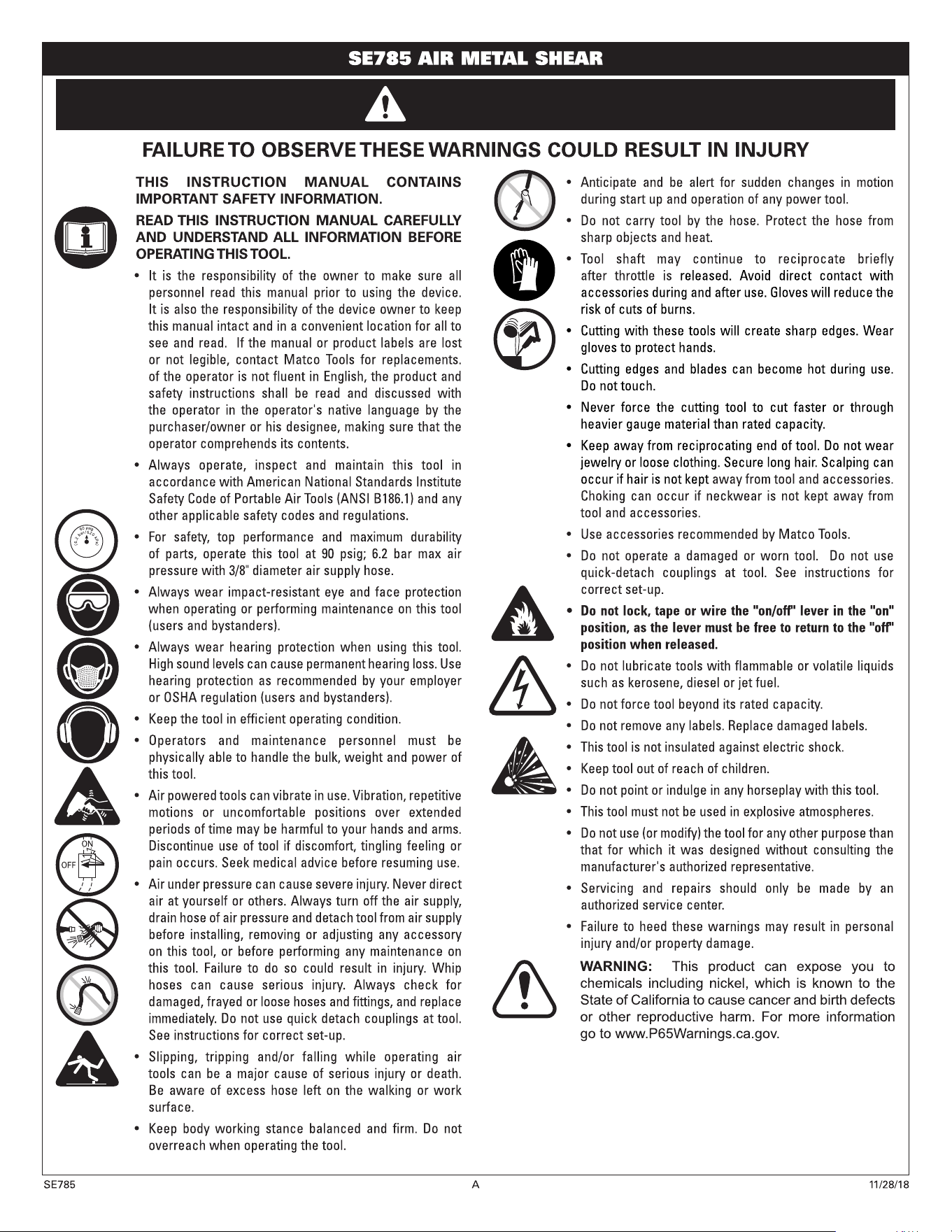

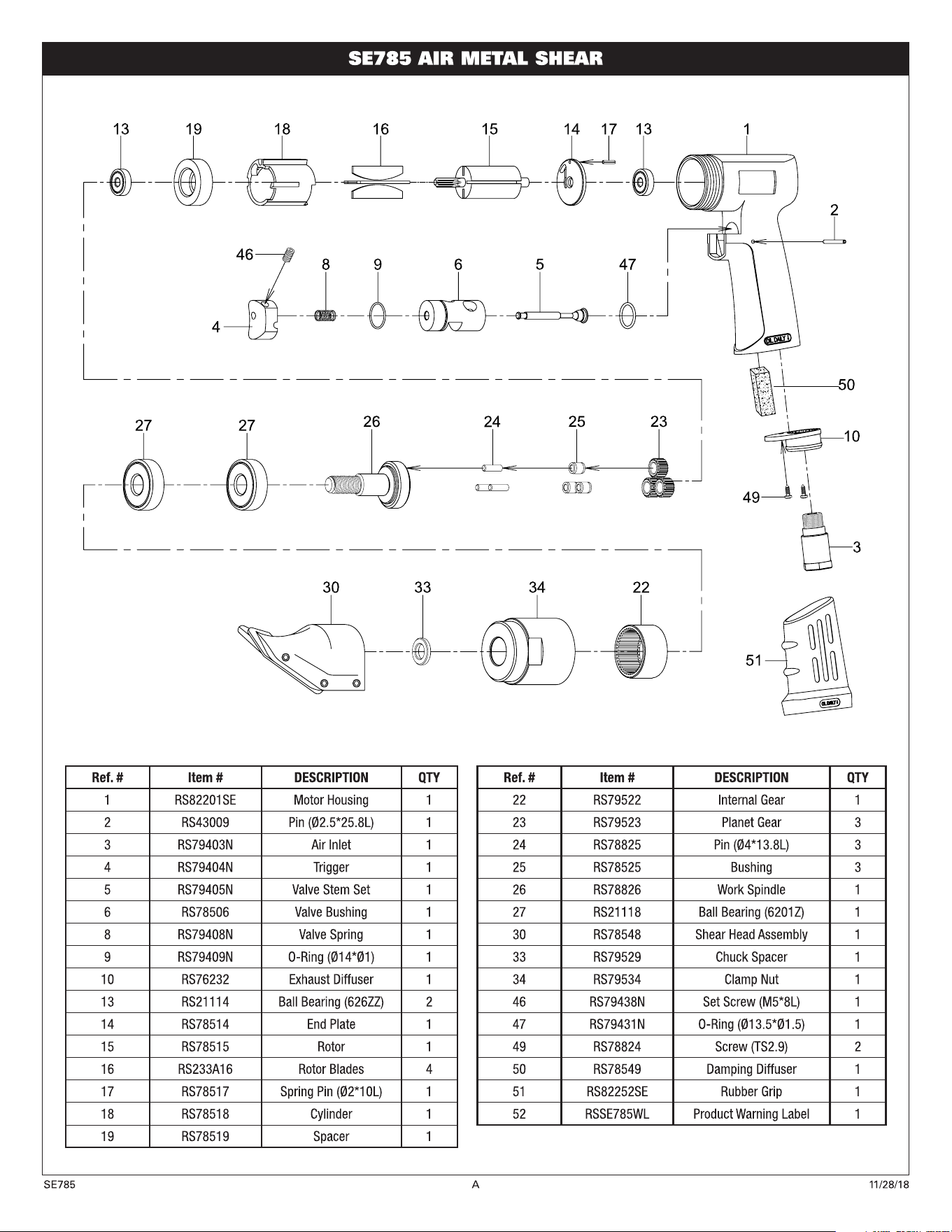

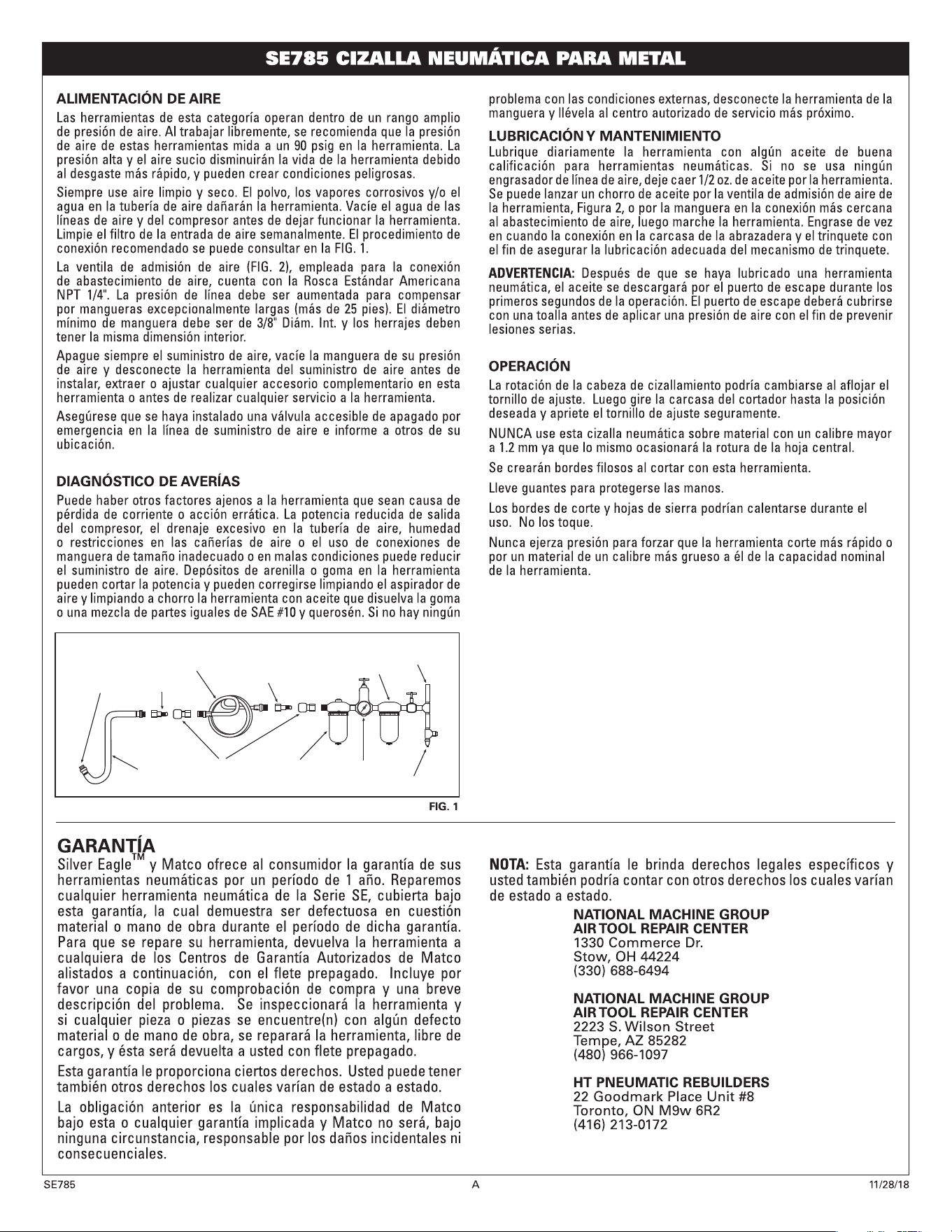

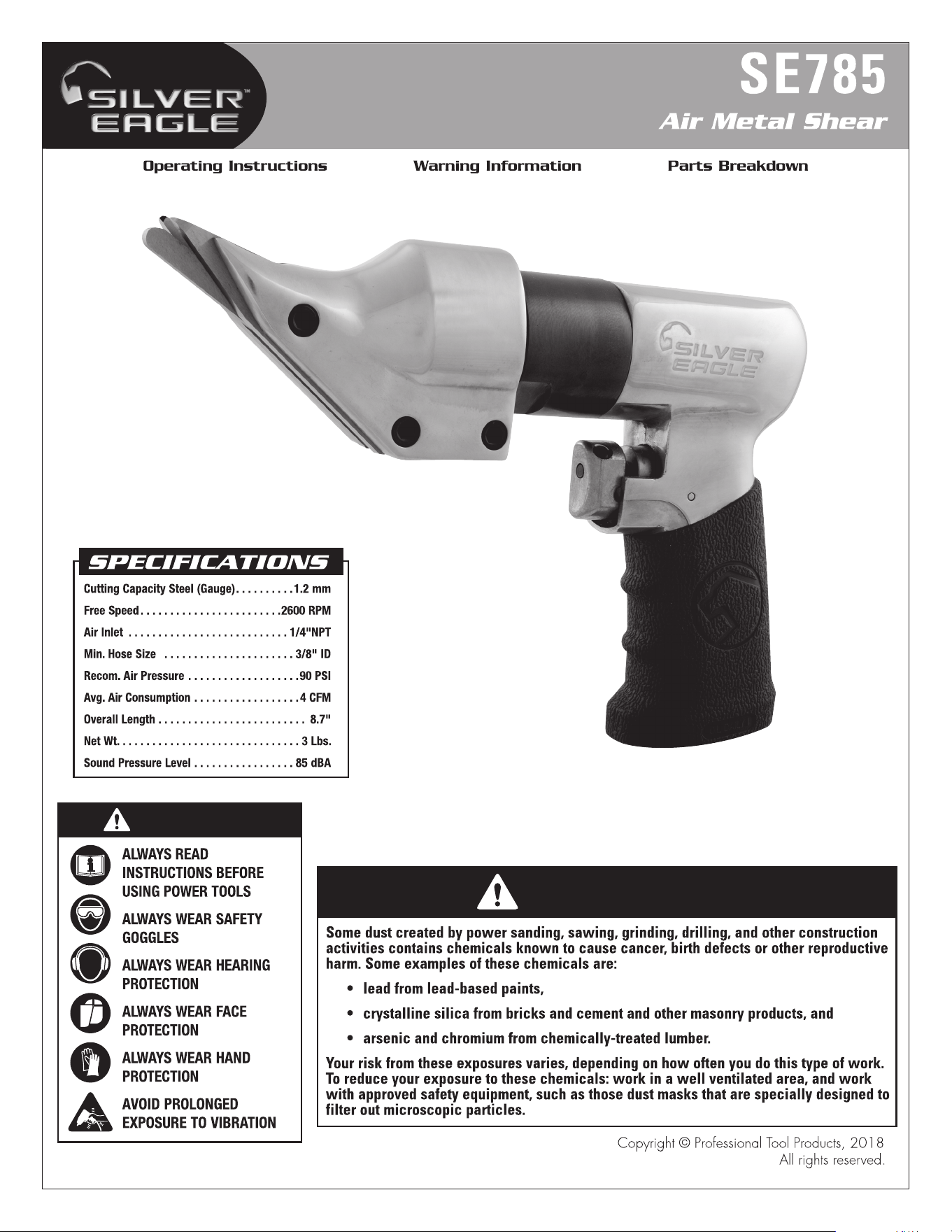

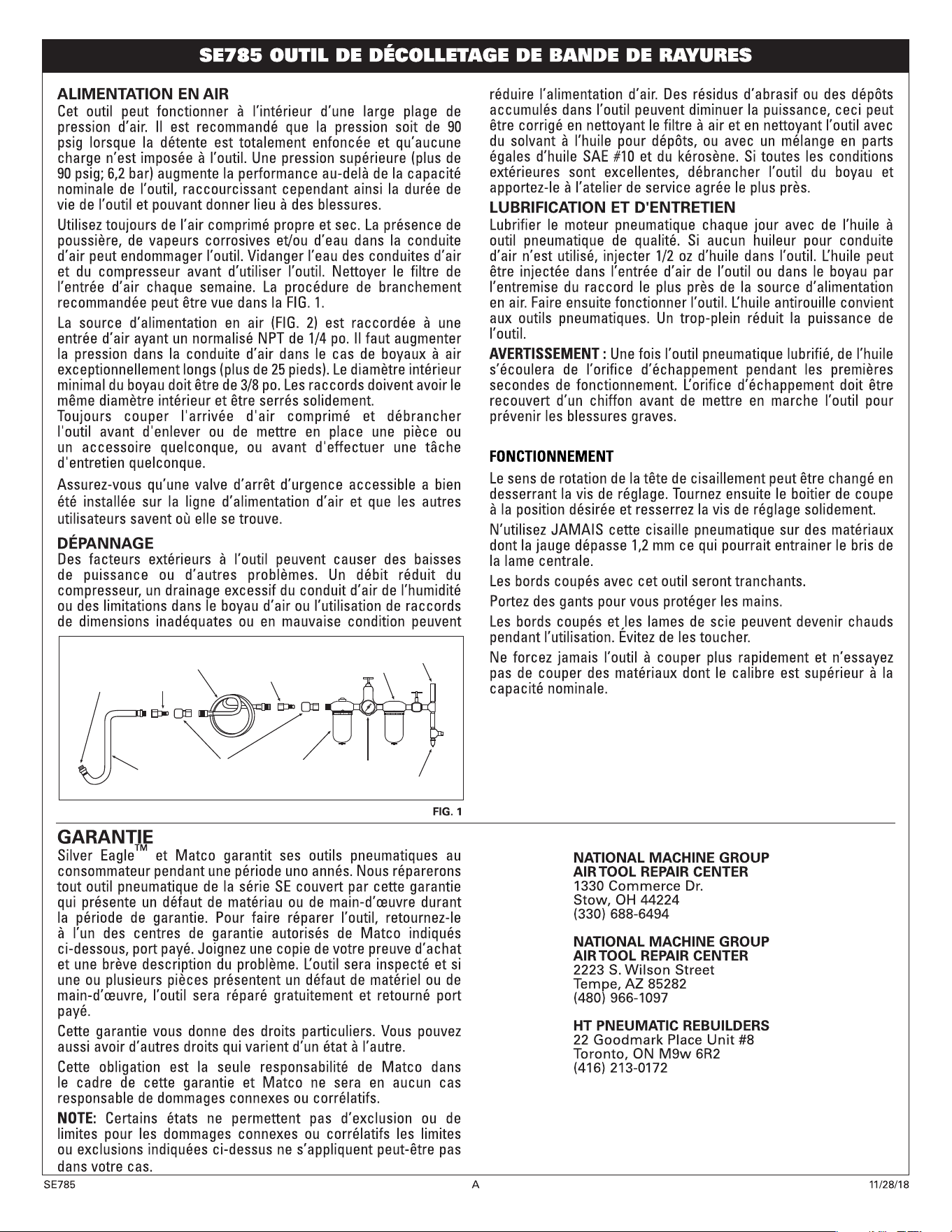

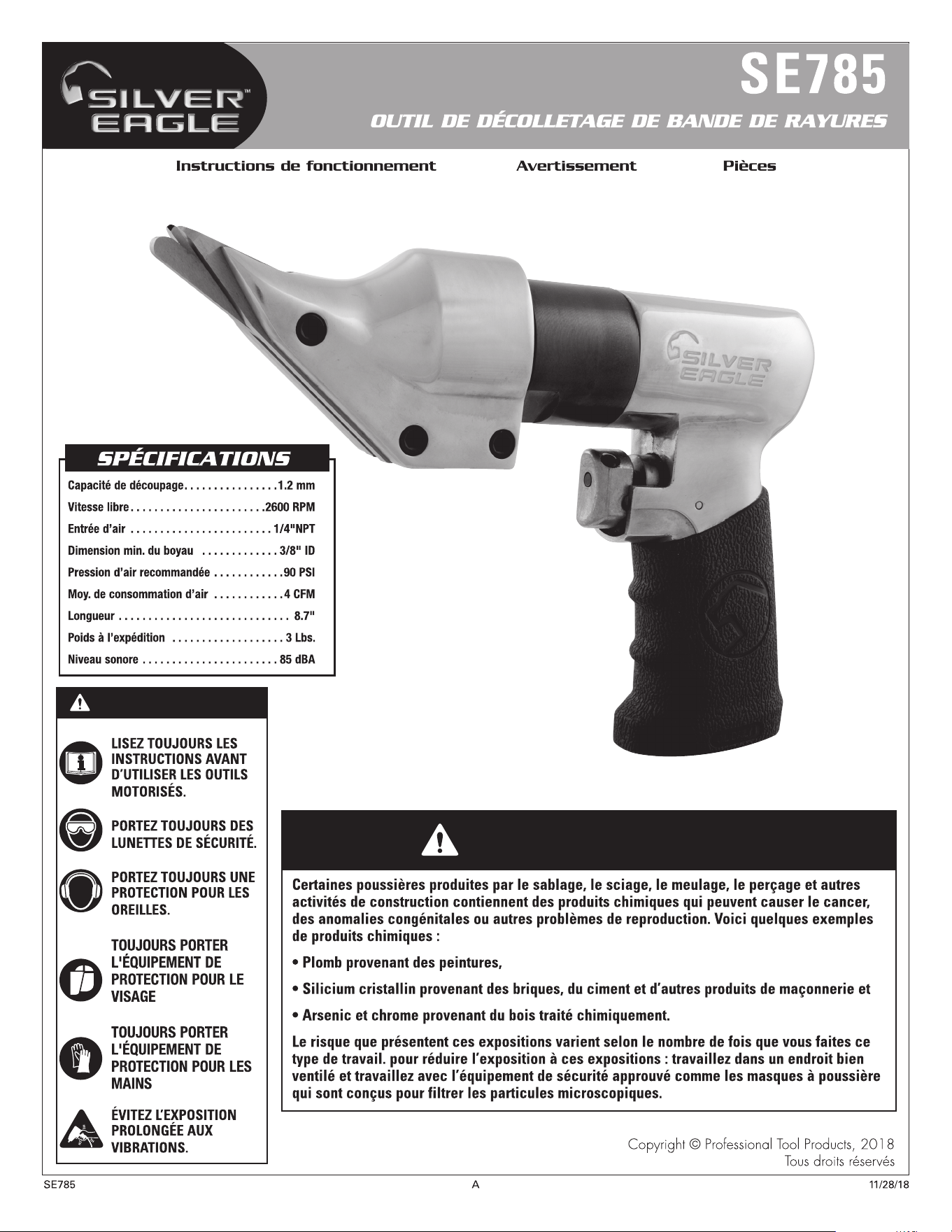

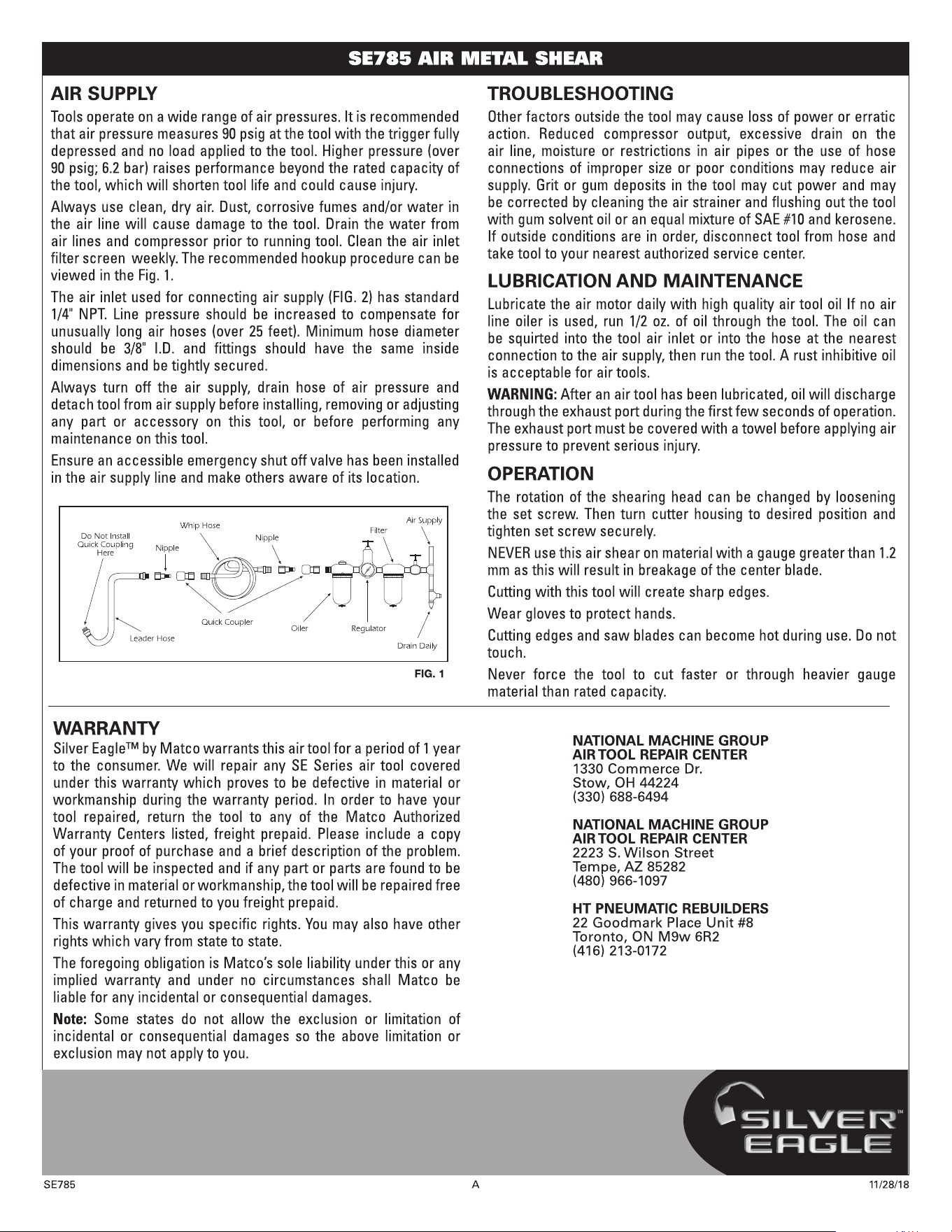

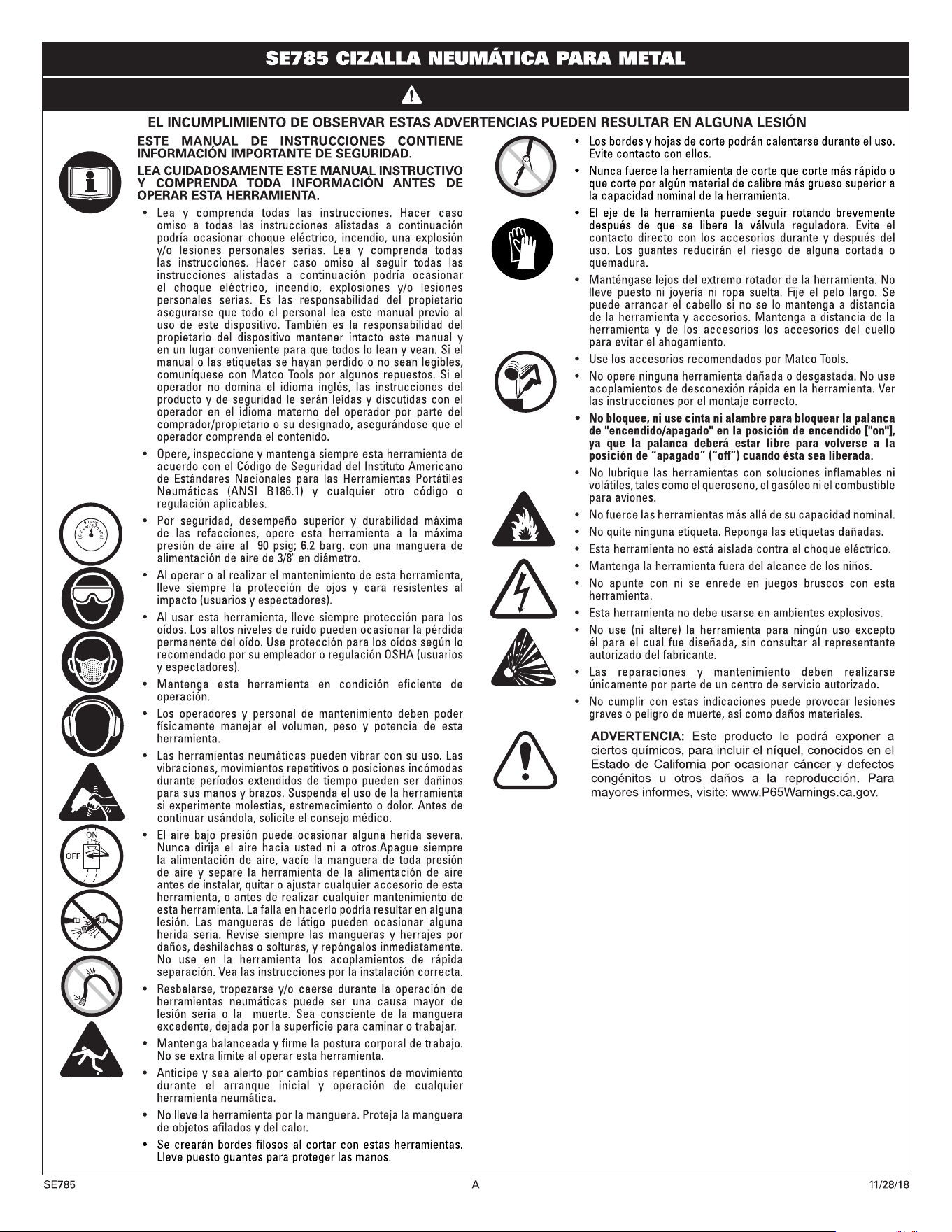

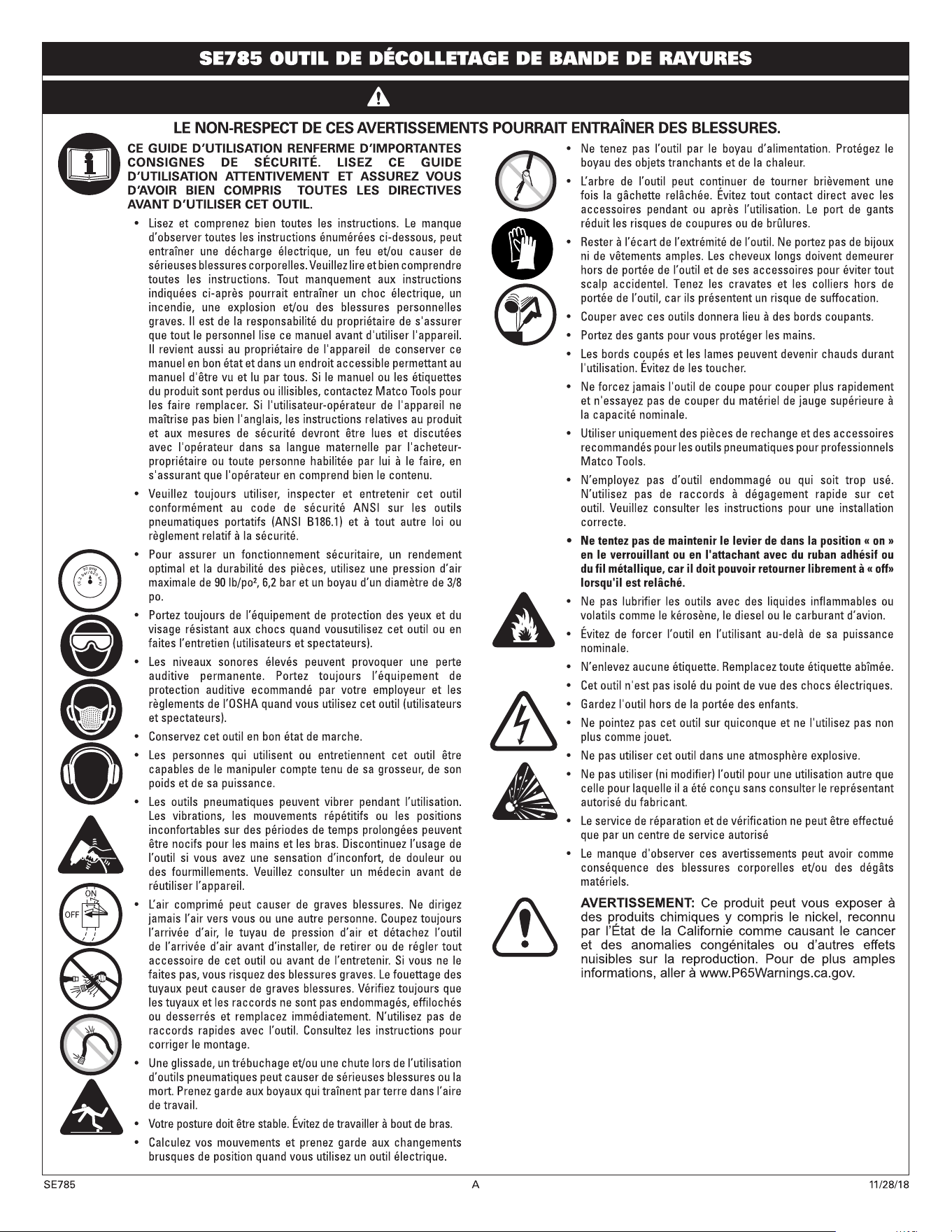

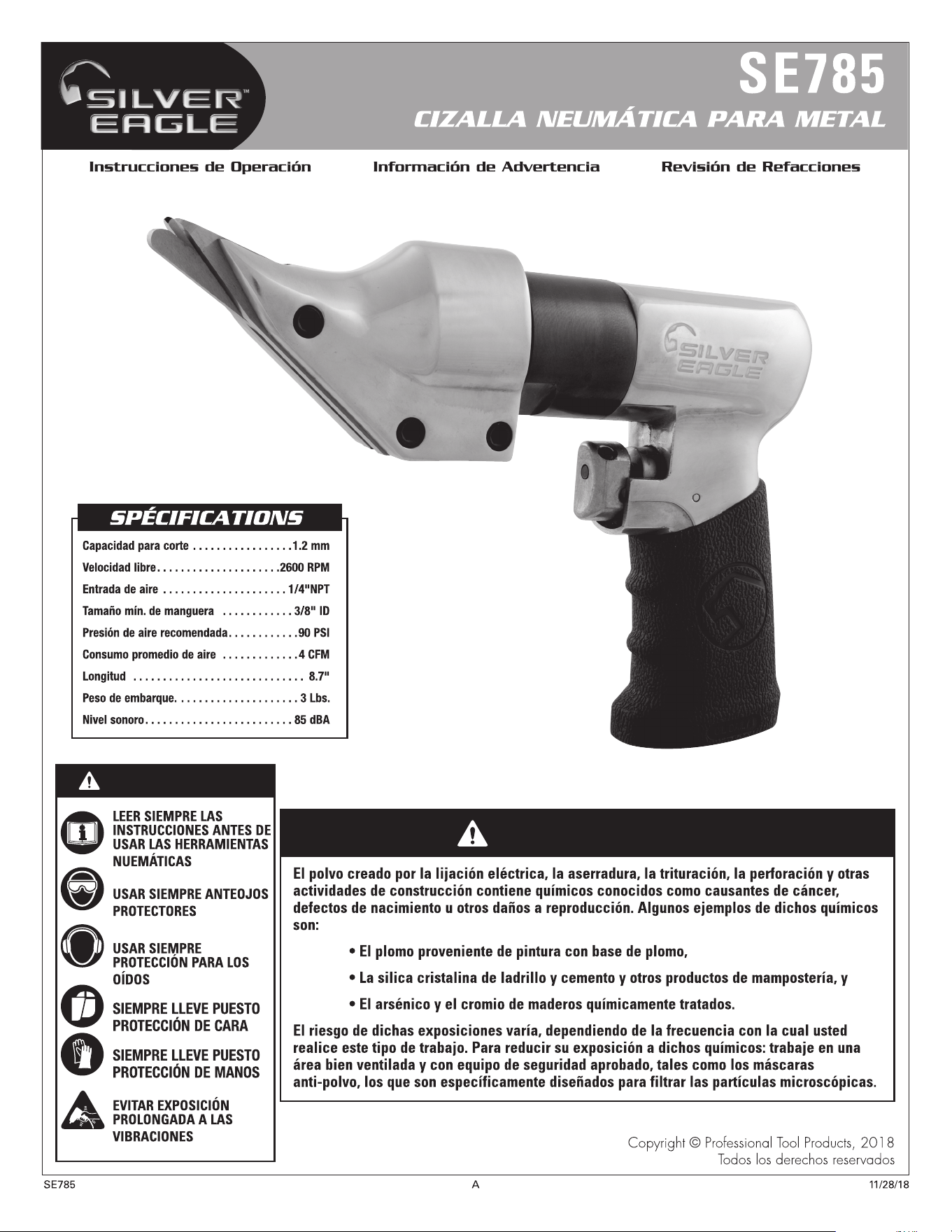

Ref. # Item # DESCRIPTION QTY
1 RS82201SE Motor Housing 1
2 RS43009 Pin (Ø2.5*25.8L) 1
3 RS79403N Air Inlet 1
4 RS79404N Trigger 1
5 RS79405N Valve Stem Set 1
6 RS78506 Valve Bushing 1
8 RS79408N Valve Spring 1
9 RS79409N O-Ring (Ø14*Ø1) 1
10 RS76232 Exhaust Diffuser 1
13 RS21114 Ball Bearing (626ZZ) 2
14 RS78514 End Plate 1
15 RS78515 Rotor 1
16 RS233A16 Rotor Blades 4
17 RS78517 Spring Pin (Ø2*10L) 1
18 RS78518 Cylinder 1
19 RS78519 Spacer 1
Ref. # Item # DESCRIPTION QTY
22 RS79522 Internal Gear 1
23 RS79523 Planet Gear 3
24 RS78825 Pin (Ø4*13.8L) 3
25 RS78525 Bushing 3
26 RS78826 Work Spindle 1
27 RS21118 Ball Bearing (6201Z) 1
30 RS78548 Shear Head Assembly 1
33 RS79529 Chuck Spacer 1
34 RS79534 Clamp Nut 1
46 RS79438N Set Screw (M5*8L) 1
47 RS79431N O-Ring (Ø13.5*Ø1.5) 1
49 RS78824 Screw (TS2.9) 2
50 RS78549 Damping Diffuser 1
51 RS82252SE Rubber Grip 1
52 RSSE785WL Product Warning Label 1
