en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 12
5 Positioning and connecting 13
Y Main points in brief 22
* Getting to know the appliance 23
Z Laundry 26
C Detergent 27
/ Overview of programmes 28
0 Programme default settings 32
\ Additional programme settings 33
1 Operating the appliance 34
Q Appliance settings 39
H Sensors 40
2 Cleaning and maintenance 41
3 Faults and what to do about them. 44
4 After-sales service 48
[ Consumption rates 49
J Technical data 50
r Aqua-Stop warranty 51
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
5 Positioning and connecting
Positioning and connecting
Included with the appliance
Note:
Useful tools
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
Installation on a platform with drawer
Installing the appliance in a kitchenette
: Warning
Danger of death!
Notes

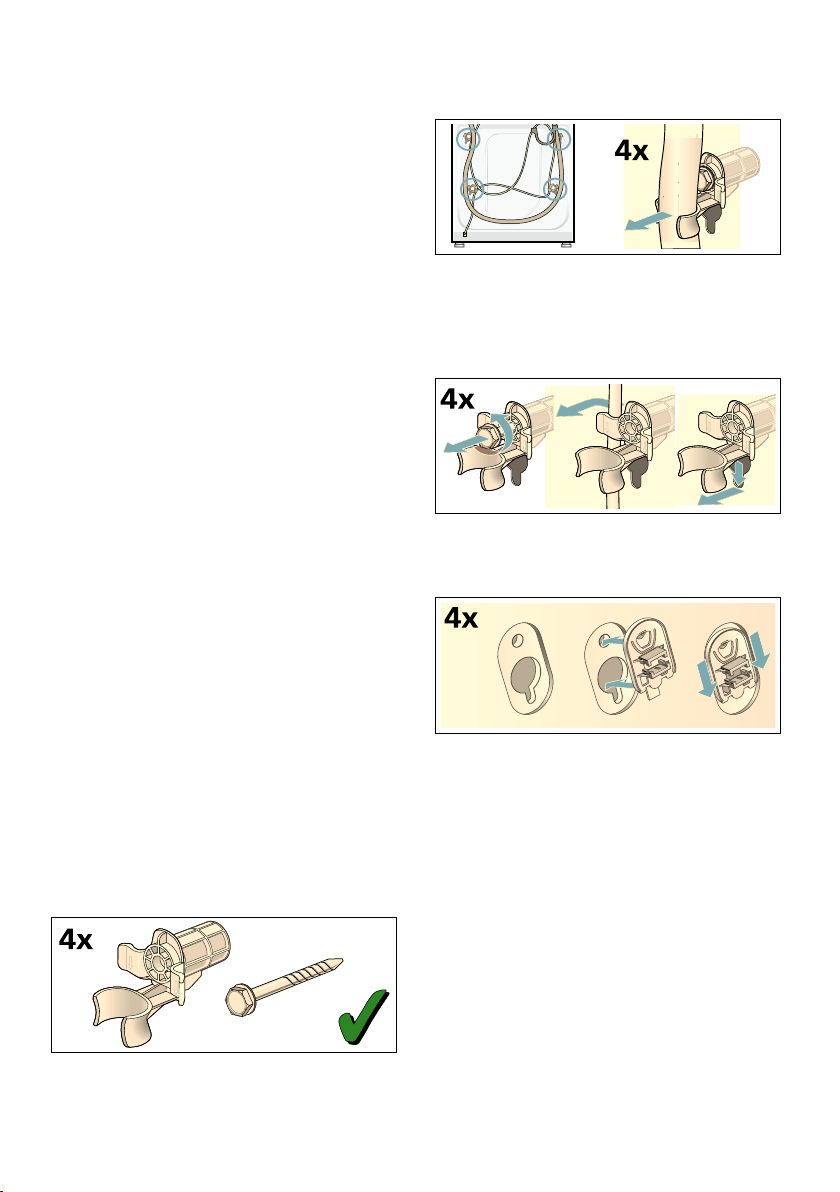

Removing the transport locks
Caution!
Damage to the appliance
Note:
1. Take the hoses out of the holders.

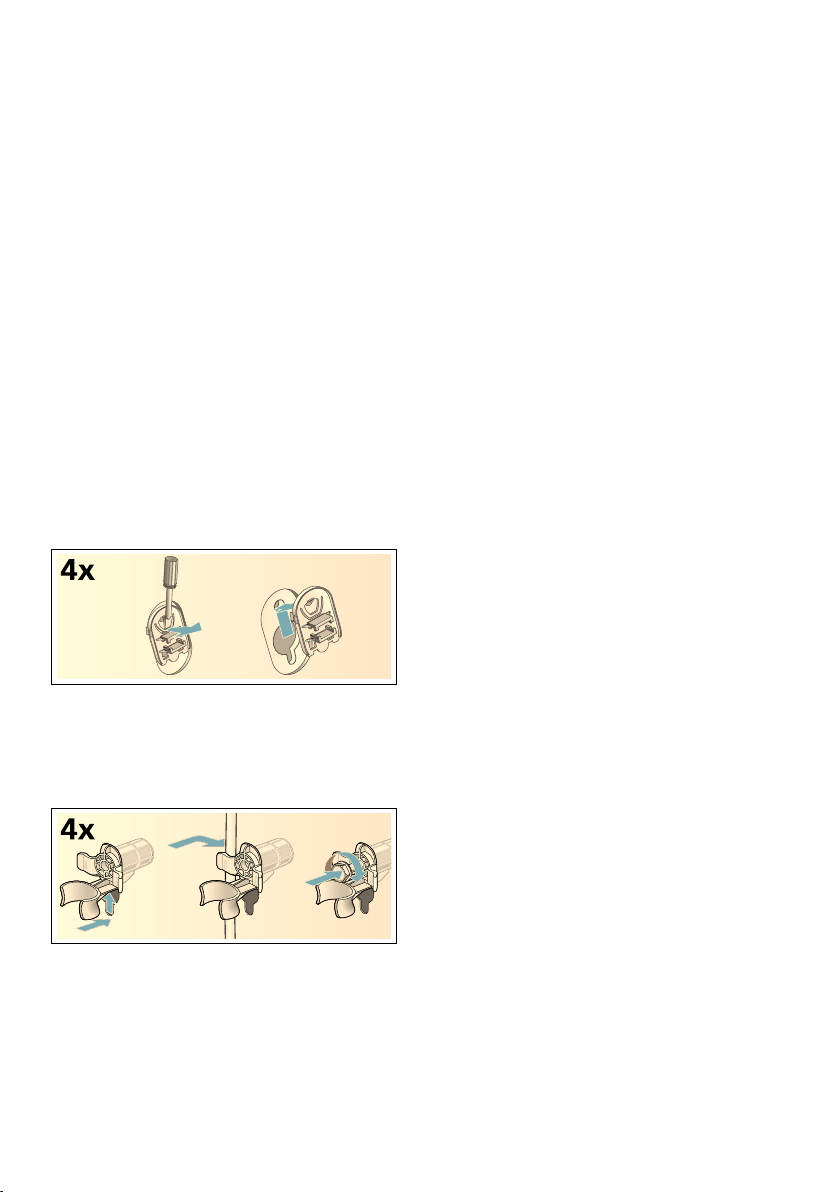

2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.

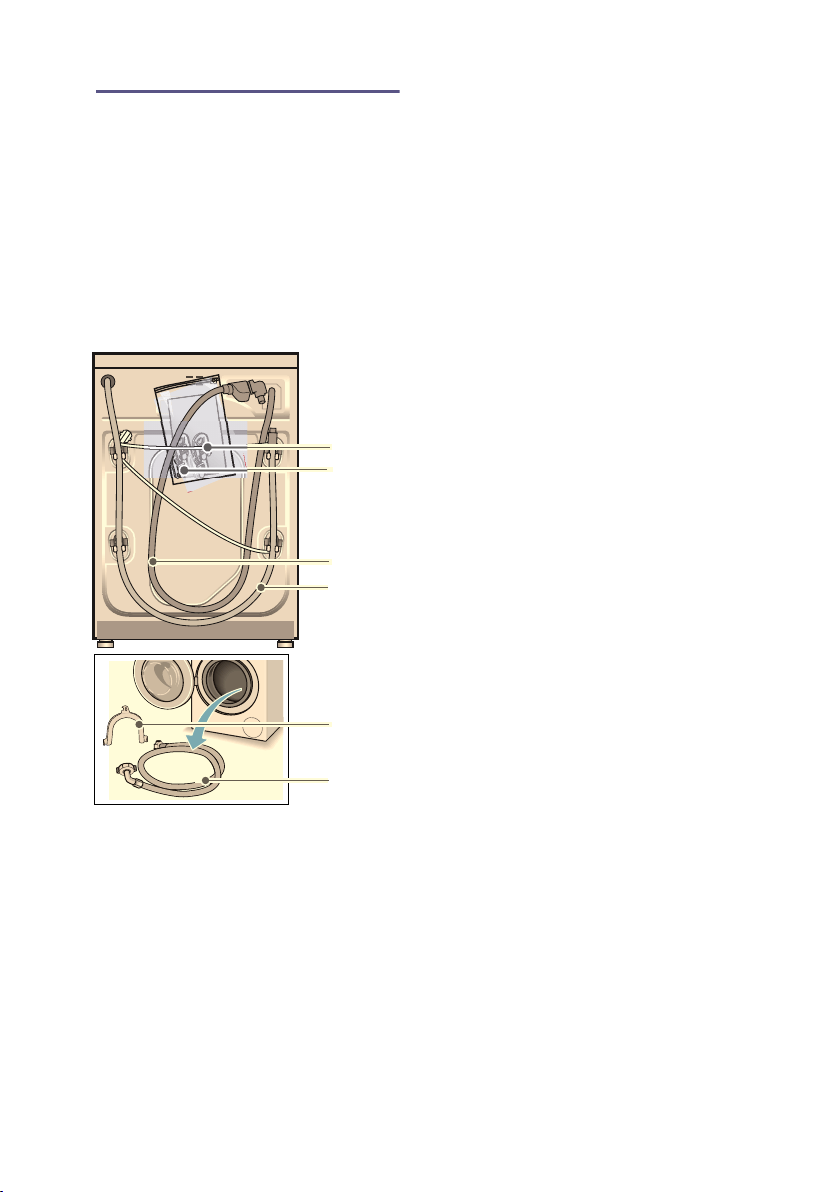

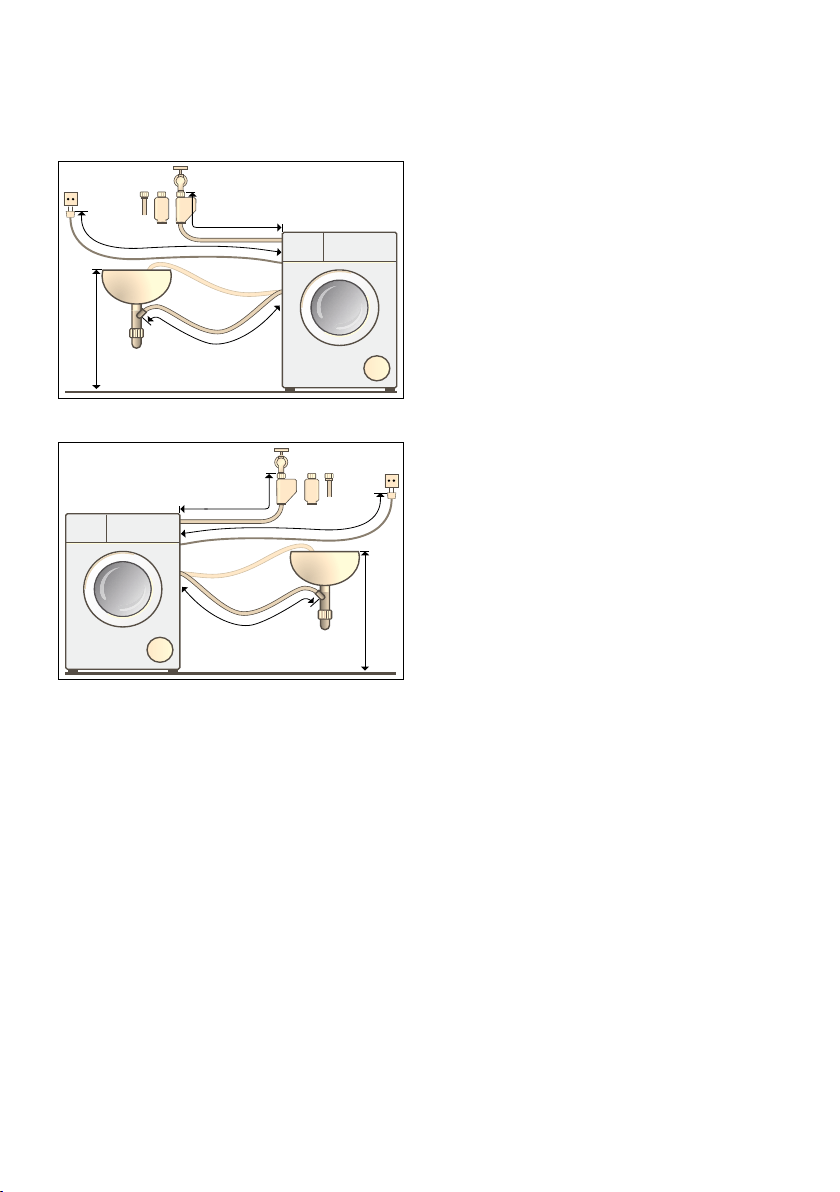

Hose and cable lengths
Tip:

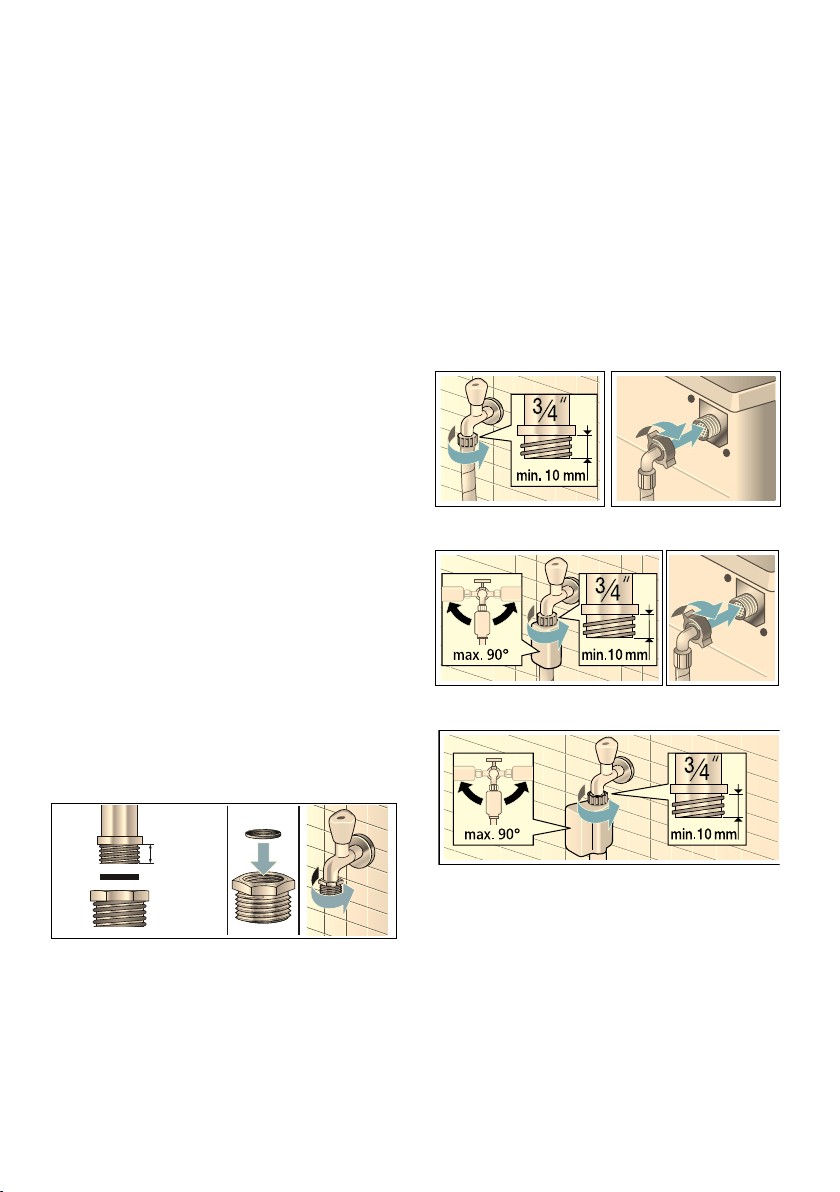

Water inlet
: Warning
Danger of death!
Notes
Connection
Note:

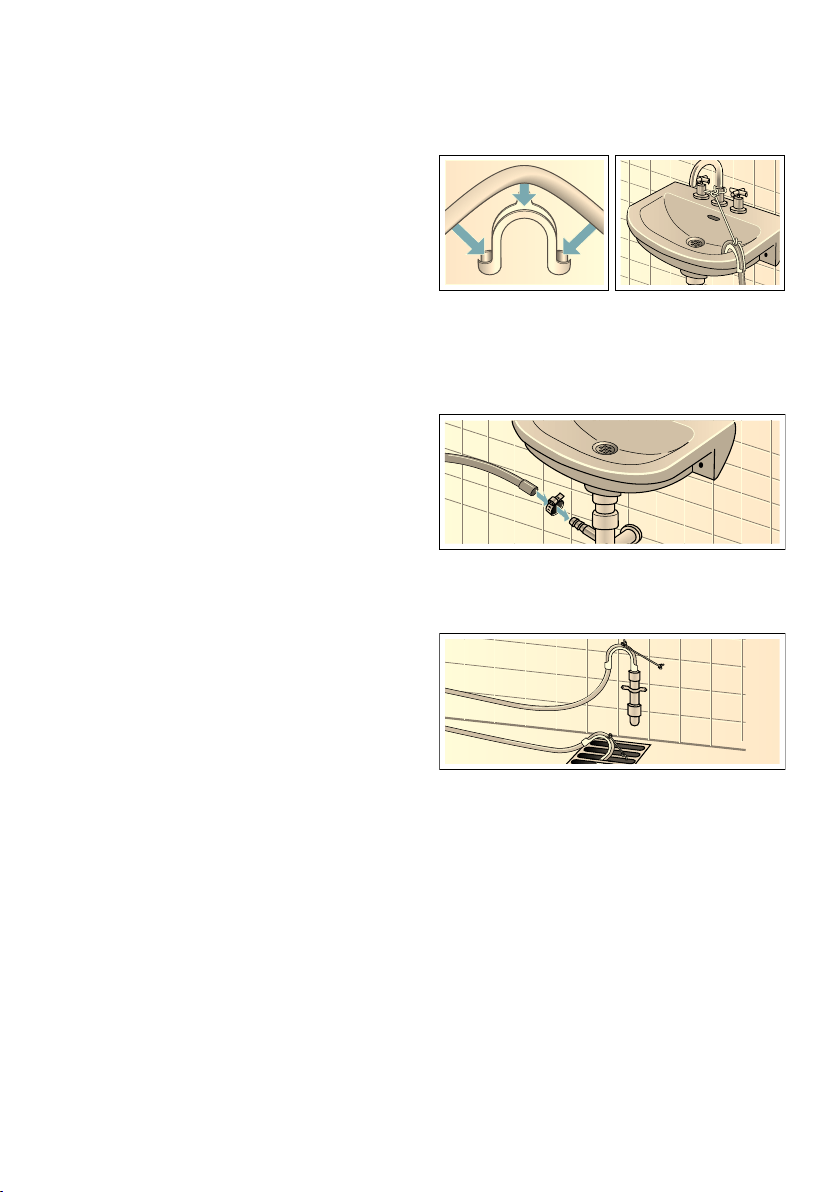

Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Note:
Connection
Levelling
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
Electrical connection
: Warning
Danger of death!
Notes
Before washing for the first time
Notes
Preparatory work:
1. Check the machine.
2. Remove the protective film from the control panel.
3. Plug in the mains plug.
4. Turn on the tap.
Running the programme without laundry:
1. Switch on the appliance.
2. Close the door (do not load any laundry).
3. Set the i Cottons 90 °C programme.
4. Open the detergent drawer.
5. Pour approximately 1 litre of water into compartment II.
6. Pour standard washing powder into compartment II.
Note:
7. Close the detergent drawer.
8. Press the A button.
9. Switch off the appliance at the end of the programme.
Transportation
Preparatory work:
1. Turn off the tap.
2. Reduce the water pressure in the supply hose: ~ Page 43; Cleaning and maintenance – filter in the water supply blocked
3. Disconnect the washing machine from the mains.
4. Drain the remaining water: ~ Page 42; cleaning and maintenance – the drain pump is blocked, emergency draining
5. Remove the hoses.
Fitting the transportation securing means:
1. Remove the covers and keep them in a safe place.
2. Insert all four sleeves.
Notes

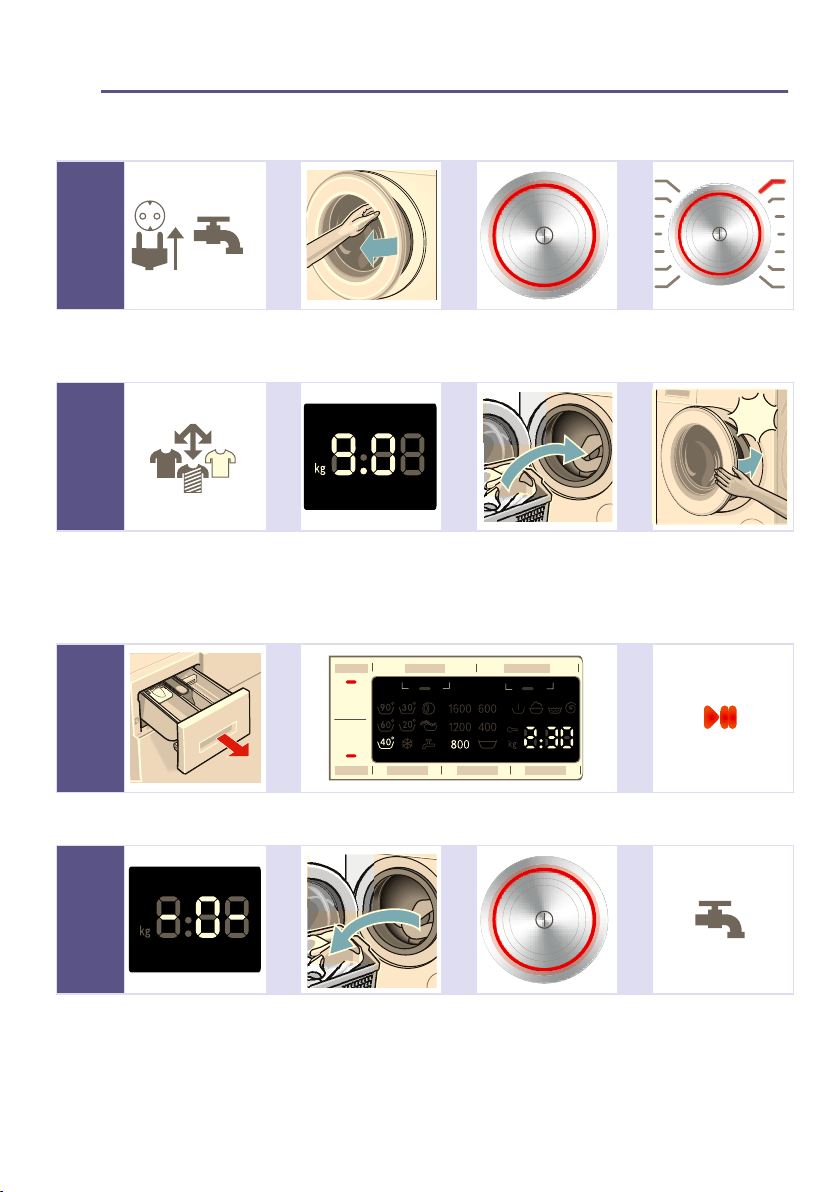

Y Main points in brief
Main points in brief
* Getting to know the appliance

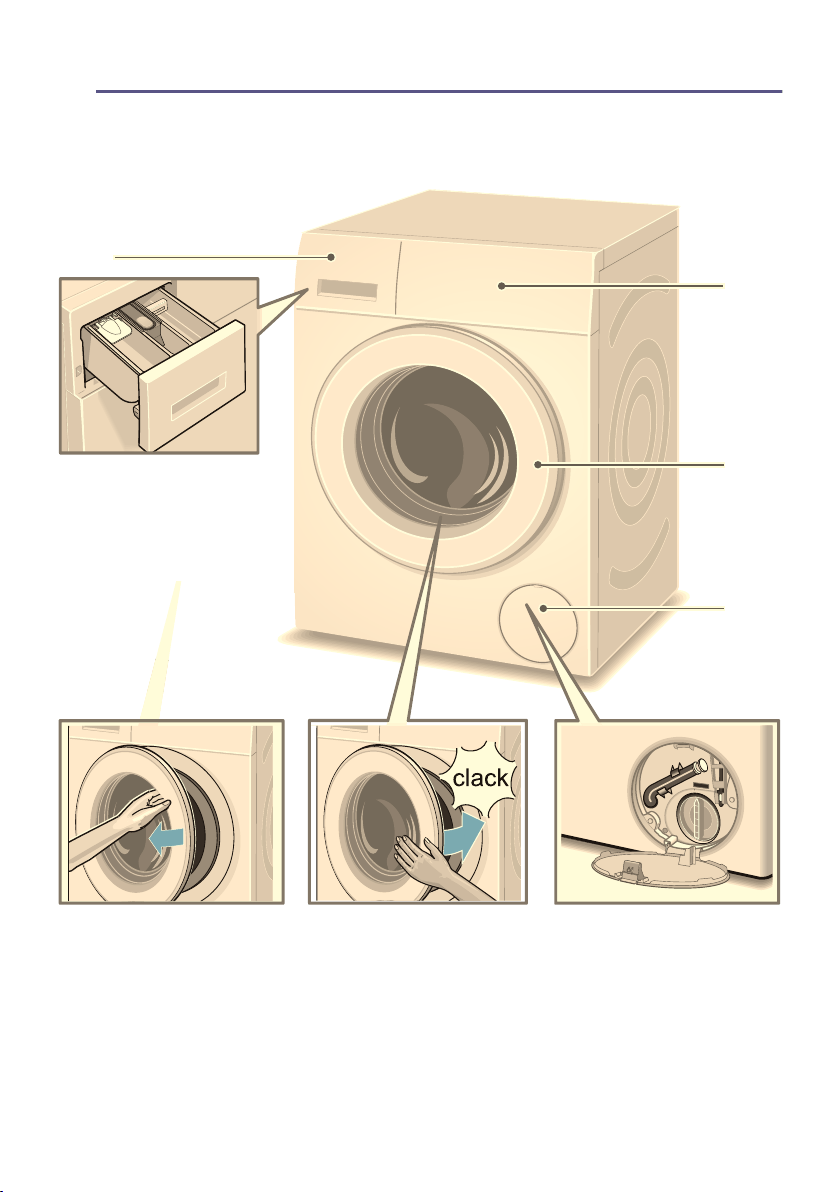

Getting to know the appliance
Washing machine

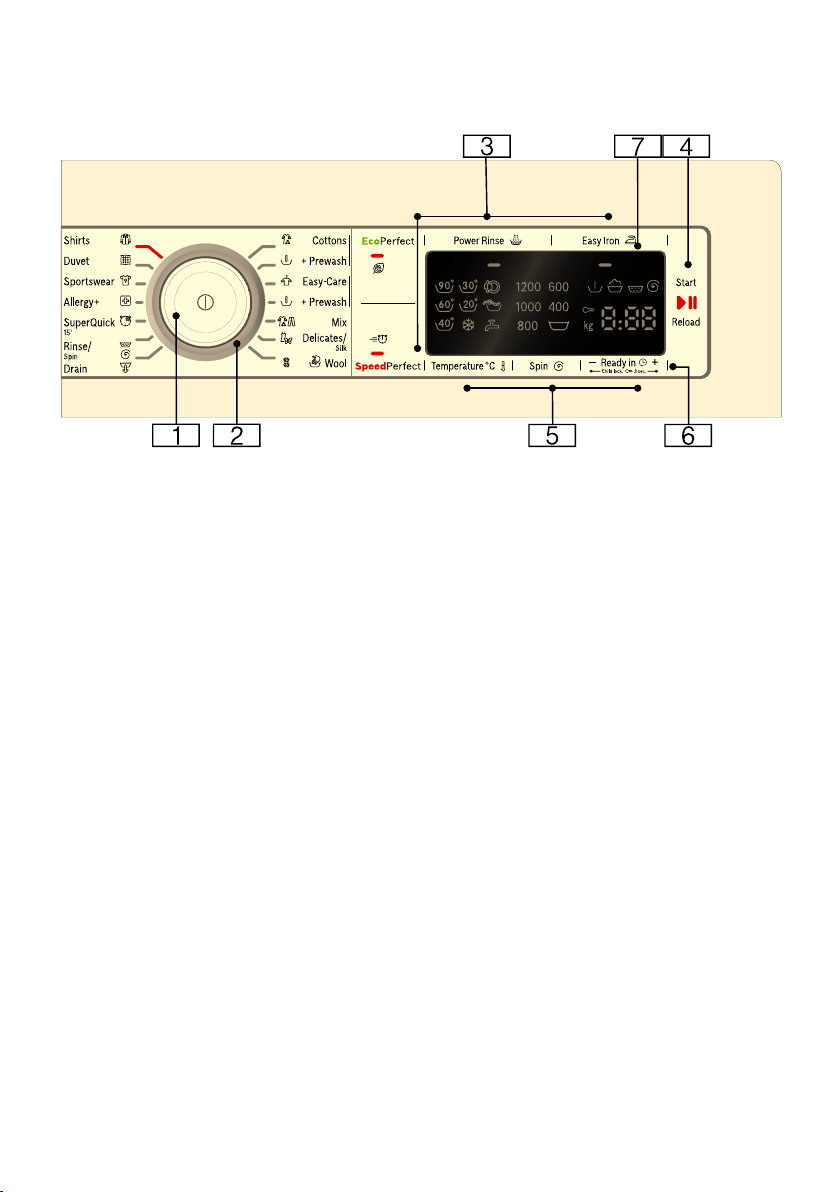

Control panel
Note:
Additional programme settings: ~ Page 33
A button for:
Changing the default programme settings: ~ Page 32
Display panel
Default programme settings:
Further information
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/fabrics
Sorting laundry
Note:
Note:
C Detergent
Detergent
Correct selection of detergent
Saving energy and detergent
Saving
Soiling/note
Note:
/ Overview of programmes
Overview of programmes
Programmes on the programme selector
Programme/type of laundry/information
Settings
Notes
Note:
Notes
Note:
Note:
1. Select a programme.
2. Add special detergent for outdoor clothing to compartment II.
3. Add waterproofing agent (max. 170 ml) to compartment i.
4. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
Notes
Notes
Notes
Note:
Notes
Starching
Note:
Dyeing/bleaching
Soaking
1. Switch on the appliance.
2. Select the i Cottons 30 °C programme.
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
4. Press the A button. The programme starts.
5. After approx. 10 minutes, press the A button to pause the programme.
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
Notes
0 Programme default settings
Programme default settings
Temperature
Spin speed
Ready in
1. Select a programme.
2. Press the Ready in button repeatedly until the required number of hours is displayed.
Note:
3. Press the A button.
Note:
1. Press the A button.
2. Use the Ready in - or + button to change the number of hours.
3. Press the A button.
\ Additional programme settings
Additional programme settings
EcoPerfect F
SpeedPerfect (
Note:
Easy Iron p
Note:
Power Rinse ò

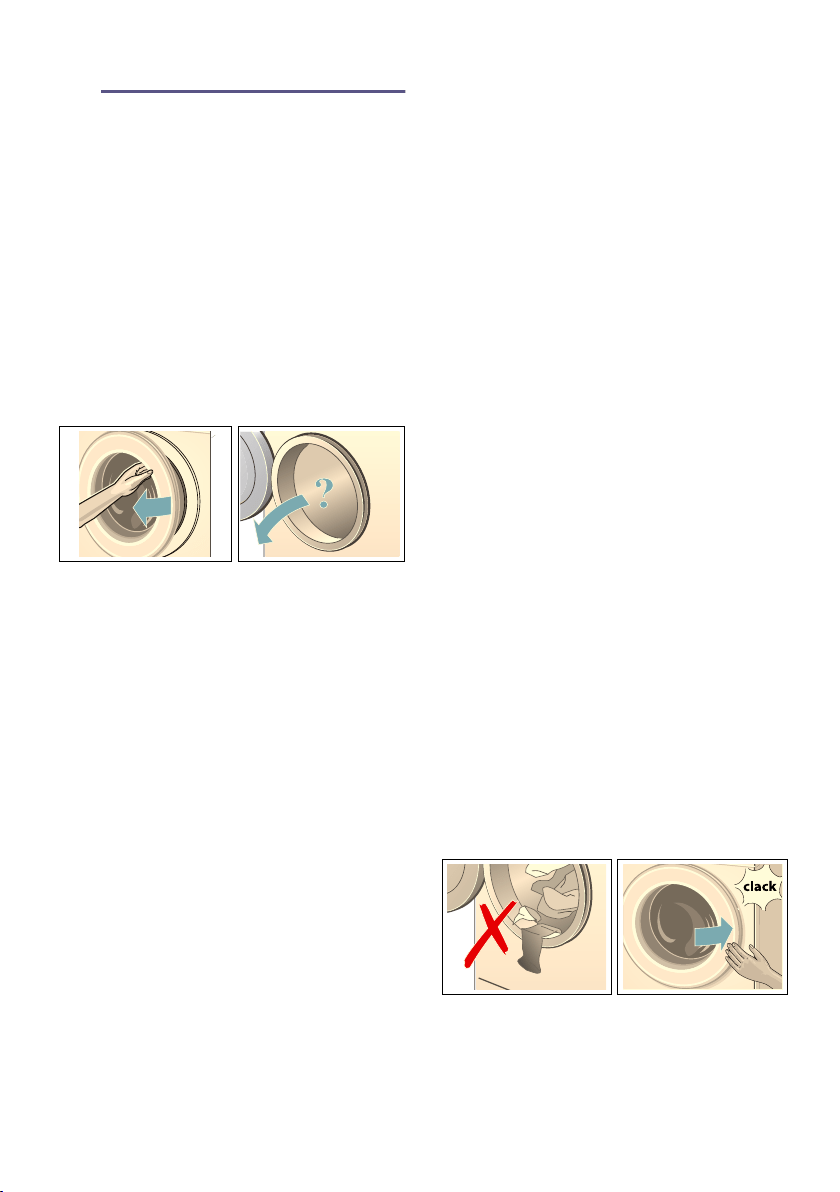

1 Operating the appliance
Operating the appliance
Preparing the washing machine
Note:
1. Connect the mains plug.
2. Turn on the tap.
3. Open the door.
4. Check that the drum is completely drained. Drain if necessary.
Switching on the appliance/ selecting a programme
Note:
Placing laundry into the drum
: Warning
Danger of death!
Notes
1. Unfold presorted laundry items and place them in the drum.
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
Measure and add detergent and care products
Caution!
Damage to the appliance
Dosing
Filling
: Warning
Eye/skin irritation!
Note:
1. Pull out the detergent drawer as far as possible.
2. Add detergent and/or care products.
3. Close the detergent drawer.
Measuring aid* for liquid detergent
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. Slide the measuring aid forwards, fold it down and click it into place.
3. Reinsert the drawer.
Note:
Change the programme default settings
Note:
Select additional programme settings
Start the programme
Note:
Child lock. E 3 sec.
Note:
Adding laundry
Notes
Changing the programme
1. Press the A button.
2. Select another programme.
3. Press the A button. The new programme starts from the beginning.
Cancel the programme
1. Press the A button.
2. To cool down laundry: Select O Rinse.
3. Press the A button.
1. Press the A button.
2. Select 0 Spin or [ Drain.
3. Press the A button.
Programme end during rinse hold
Programme end

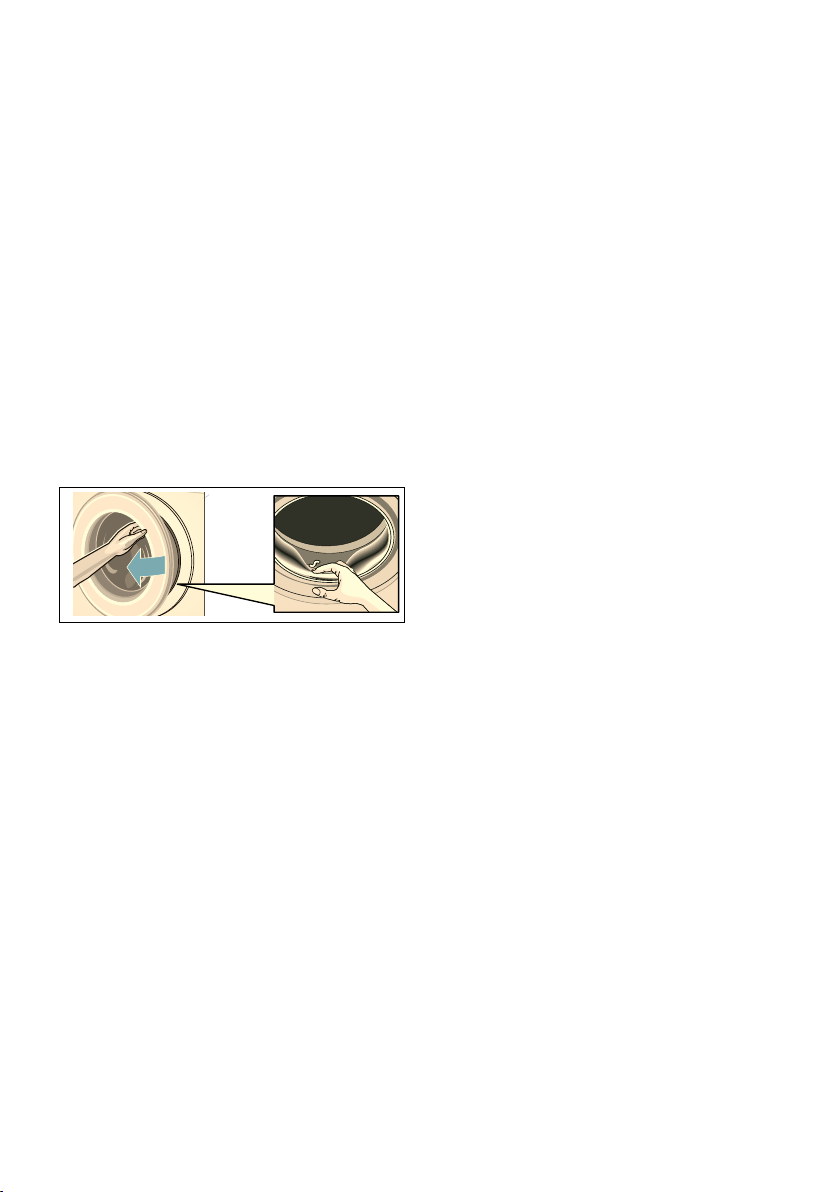

Removing laundry/switching off the appliance
1. Open the door and remove the laundry.
2. Press the # button. The appliance is switched off.
3. Turn off the tap.
Note:
Notes
Q Appliance settings
Appliance settings
Activating the setting mode
1. Press the # button.
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
Changing the signal volume
Selecting/deselecting the appliance automatic switch-off
Exiting setting mode
H Sensors
Sensors
Automatic load sensing
Unbalanced load detection system
Note:
AquaSensor
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Danger of death!
: Warning
Risk of poisoning!
Caution!
Damage to the appliance
Notes
Machine housing/control panel
Drum
Descaling

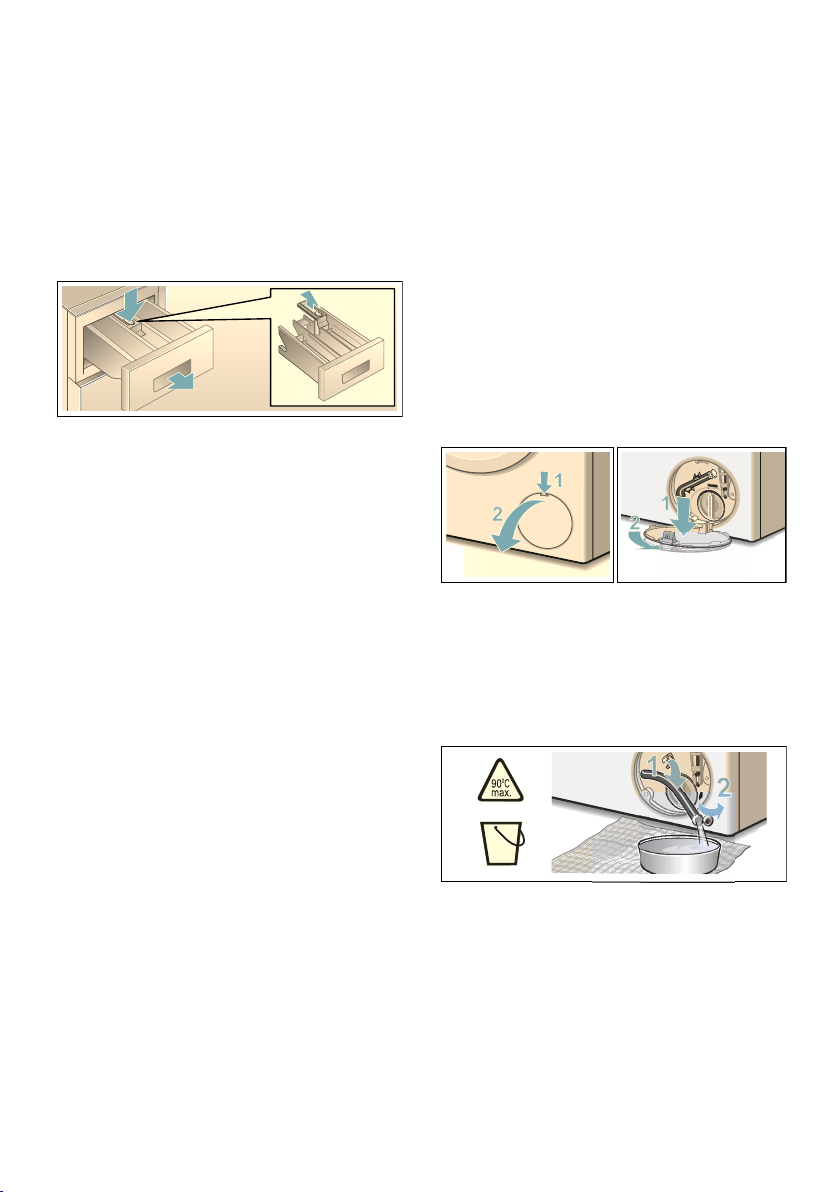

Detergent drawer and housing
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
The drain pump is blocked, emergency draining
: Warning
Risk of scalding!
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
2. Switch off the appliance. Pull out the mains plug.
3. Open and remove the service flap.
4. Take the drain hose out of the retainer.
5. Carefully unscrew the pump cover; residual water may leak out.
6. Place the service flap back on, lock it into place, and close it.
Note:
The drain hose at the siphon is blocked
1. Switch off the appliance. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply blocked
First, reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except Rinse/Spin/Empty).
3. Press the A button. Allow the programme to run for approximately 40 seconds.
4. Press the # button. The appliance is switched off.
5. Pull out the mains plug.
Then clean the filter:
1. Disconnect the hose from the tap.
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
3. Connect the hose and check for leaks.
3 Faults and what to do about them.
Faults and what to do about them.
Emergency release
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage
1. Switch off the appliance. Pull out the mains plug.
2. Drain the water. ~ Page 42
3. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Faults and what to do about them.
Faults
Cause/Remedy
Note:
4 After-sales service
After-sales service
[ Consumption rates
Consumption rates
Energy and water consumption, programme duration and residual moisture for the main washing programmes
Programme
Load
Energy consumption**
Water consumption**
Programme duration**
Programme
Approximate information on the residual moisture***
WAW32...
WAW28...
WAW24...
WAW20...
Max. 1600 rpm
Max. 1400 rpm
Max. 1200 rpm
Max. 1000 rpm
J Technical data
Technical data
r Aqua-Stop warranty
Aqua-Stop warranty
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
*9001401856*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/52
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
\RXU
QHZGH
YLFHRQ
0\%RVFKQR
ZDQG
JHWIU
HHEHQHILWV
CPTDIIPNFDPN
XFMDPNF
en
Instruction Manual and Installation Instructions
Washing machine
WAW20468IL, WAW24468IL, WAW28468IL
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 40493084_waw20468il-19.pdf
File size: 4.63 MB
File Language: English
Pages: 52
Author: Bosch
File created: 2018-09-12
Published: 2023-11-01
Updated: 2023-11-01
Download File
Other documents for Bosch WAW20468IL/20
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WAW20468IL/20
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
HBA574ES0/01
SBA46IX00E/29
KGM36390/12
SMI85M85DE/D3
MKKR41AD4A(00)
Related Products
Bosch SHV2ITX22E
Bosch FFL023MS2
Bosch FFL020MS2
Bosch BGBS2RD1H
Bosch BGLS2BA1H
Bosch BBH3ALL23
Bosch KGN36IJEB-B
Bosch WAW20468IL/17
Bosch WAW20468IL/19
Bosch WAW20460IL/14
Bosch WAW20460IL/12
Bosch WAW20460IL/01
Bosch WAS20160UC/20
Bosch WAN20050IL/29
Bosch WAN20050IL/25
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 13
3
Y Main points in brief 22
3
* Getting to know the appliance 23
3
Z Laundry 26
3
C Detergent 27
3
/ Overview of programmes 28
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 34
3
Q Appliance settings 39
4
H Sensors 40
4
2 Cleaning and maintenance 41
4
3 Faults and what to do about them. 44
4
4 After-sales service 48
4
[ Consumption rates 49
4
J Technical data 50
4
r Aqua-Stop warranty 51
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Caution!
8
Material damage/damage to the appliance
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Tips on economical use
12
5 Positioning and connecting
13
Positioning and connecting
13
Included with the appliance
13
Note:
13
Useful tools
13
Safety instructions
14
: Warning
14
Risk of injury!
14
Caution!
14
Damage to the appliance
14
Caution!
14
Water damage
14
Notes
14
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installation on a platform with drawer
14
Installing the appliance in a kitchenette
15
: Warning
15
Danger of death!
15
Notes
15
Removing the transport locks
15
Caution!
15
Damage to the appliance
15
Note:
15
1. Take the hoses out of the holders.
15
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
15
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Hose and cable lengths
16
Tip:
16
Water inlet
17
: Warning
17
Danger of death!
17
Notes
17
Connection
17
Note:
17
Water outlet
18
: Warning
18
Risk of scalding!
18
Caution!
18
Water damage
18
Caution!
18
Damage to the appliance/fabrics
18
Note:
18
Connection
18
Levelling
19
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
19
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
19
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
19
Electrical connection
19
: Warning
19
Danger of death!
19
Notes
19
Before washing for the first time
20
Notes
20
Preparatory work:
20
1. Check the machine.
20
2. Remove the protective film from the control panel.
20
3. Plug in the mains plug.
20
4. Turn on the tap.
20
Running the programme without laundry:
20
1. Switch on the appliance.
20
2. Close the door (do not load any laundry).
20
3. Set the i Cottons 90 °C programme.
20
4. Open the detergent drawer.
20
5. Pour approximately 1 litre of water into compartment II.
20
6. Pour standard washing powder into compartment II.
20
Note:
20
7. Close the detergent drawer.
20
8. Press the A button.
20
9. Switch off the appliance at the end of the programme.
20
Transportation
21
Preparatory work:
21
1. Turn off the tap.
21
2. Reduce the water pressure in the supply hose: ~ Page 43; Cleaning and maintenance – filter in the water supply blocked
21
3. Disconnect the washing machine from the mains.
21
4. Drain the remaining water: ~ Page 42; cleaning and maintenance – the drain pump is blocked, emergency draining
21
5. Remove the hoses.
21
Fitting the transportation securing means:
21
1. Remove the covers and keep them in a safe place.
21
2. Insert all four sleeves.
21
Notes
21
Y Main points in brief
22
Main points in brief
22
* Getting to know the appliance
23
Getting to know the appliance
23
Washing machine
23
Control panel
24
Note:
24
Additional programme settings: ~ Page 33
24
A button for:
24
Changing the default programme settings: ~ Page 32
24
Display panel
25
Default programme settings:
25
Further information
25
Z Laundry
26
Laundry
26
Prepare the laundry
26
Caution!
26
Damage to the appliance/fabrics
26
Sorting laundry
26
Note:
26
Note:
26
C Detergent
27
Detergent
27
Correct selection of detergent
27
Saving energy and detergent
27
Saving
27
Soiling/note
27
Note:
27
/ Overview of programmes
28
Overview of programmes
28
Programmes on the programme selector
28
Programme/type of laundry/information
28
Settings
28
Notes
28
Note:
29
Notes
29
Note:
29
Note:
30
1. Select a programme.
30
2. Add special detergent for outdoor clothing to compartment II.
30
3. Add waterproofing agent (max. 170 ml) to compartment i.
30
4. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
30
Notes
30
Notes
30
Notes
30
Note:
31
Notes
31
Starching
31
Note:
31
Dyeing/bleaching
31
Soaking
31
1. Switch on the appliance.
31
2. Select the i Cottons 30 °C programme.
31
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
31
4. Press the A button. The programme starts.
31
5. After approx. 10 minutes, press the A button to pause the programme.
31
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
31
Notes
31
0 Programme default settings
32
Programme default settings
32
Temperature
32
Spin speed
32
Ready in
32
1. Select a programme.
32
2. Press the Ready in button repeatedly until the required number of hours is displayed.
32
Note:
32
3. Press the A button.
32
Note:
32
1. Press the A button.
32
2. Use the Ready in - or + button to change the number of hours.
32
3. Press the A button.
32
\ Additional programme settings
33
Additional programme settings
33
EcoPerfect F
33
SpeedPerfect (
33
Note:
33
Easy Iron p
33
Note:
33
Power Rinse ò
33
1 Operating the appliance
34
Operating the appliance
34
Preparing the washing machine
34
Note:
34
1. Connect the mains plug.
34
2. Turn on the tap.
34
3. Open the door.
34
4. Check that the drum is completely drained. Drain if necessary.
34
Switching on the appliance/ selecting a programme
34
Note:
34
Placing laundry into the drum
34
: Warning
34
Danger of death!
34
Notes
34
1. Unfold presorted laundry items and place them in the drum.
34
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
34
Measure and add detergent and care products
35
Caution!
35
Damage to the appliance
35
Dosing
35
Filling
35
: Warning
35
Eye/skin irritation!
35
Note:
35
1. Pull out the detergent drawer as far as possible.
35
2. Add detergent and/or care products.
35
3. Close the detergent drawer.
35
Measuring aid* for liquid detergent
35

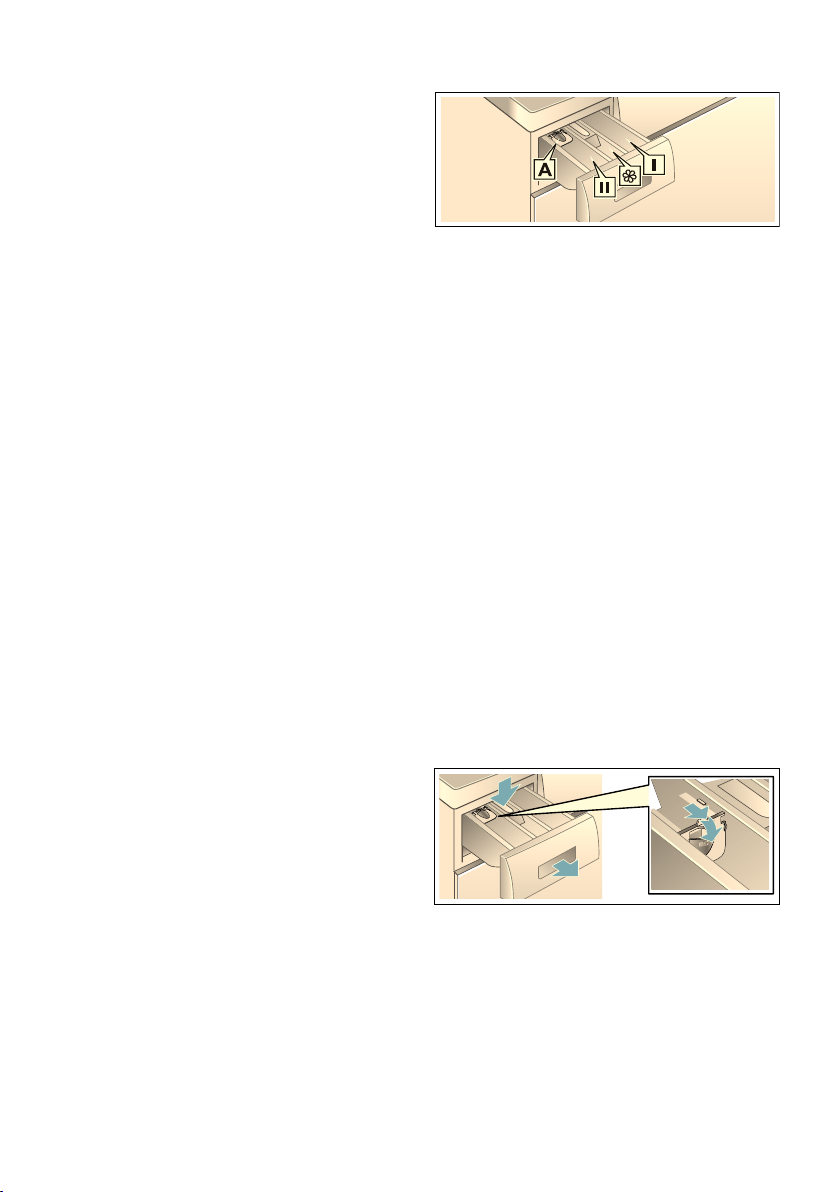

1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
35
2. Slide the measuring aid forwards, fold it down and click it into place.
35
3. Reinsert the drawer.
35
Note:
35
Change the programme default settings
36
Note:
36
Select additional programme settings
36
Start the programme
36
Note:
36
Child lock. E 3 sec.
36
Note:
36
Adding laundry
37
Notes
37
Changing the programme
37
1. Press the A button.
37
2. Select another programme.
37
3. Press the A button. The new programme starts from the beginning.
37
Cancel the programme
37
1. Press the A button.
37
2. To cool down laundry: Select O Rinse.
37
3. Press the A button.
37
1. Press the A button.
37
2. Select 0 Spin or [ Drain.
37
3. Press the A button.
37
Programme end during rinse hold
37
Programme end
37
Removing laundry/switching off the appliance
38
1. Open the door and remove the laundry.
38
2. Press the # button. The appliance is switched off.
38
3. Turn off the tap.
38
Note:
38
Notes
38
Q Appliance settings
39
Appliance settings
39
Activating the setting mode
39
1. Press the # button.
39
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
39
Changing the signal volume
39
Selecting/deselecting the appliance automatic switch-off
39
Exiting setting mode
39
H Sensors
40
Sensors
40
Automatic load sensing
40
Unbalanced load detection system
40
Note:
40
AquaSensor
40
2 Cleaning and maintenance
41
Cleaning and maintenance
41
: Warning
41
Danger of death!
41
: Warning
41
Risk of poisoning!
41
Caution!
41
Damage to the appliance
41
Notes
41
Machine housing/control panel
41
Drum
41
Descaling
41
Detergent drawer and housing
42
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
42
2. To remove the insert: Push the insert upwards from below with your finger.
42
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
42
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
42
5. Push in the detergent drawer.
42
Note:
42
The drain pump is blocked, emergency draining
42
: Warning
42
Risk of scalding!
42
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
42
2. Switch off the appliance. Pull out the mains plug.
42
3. Open and remove the service flap.
42
4. Take the drain hose out of the retainer.
42
5. Carefully unscrew the pump cover; residual water may leak out.
42
6. Place the service flap back on, lock it into place, and close it.
43
Note:
43
The drain hose at the siphon is blocked
43
1. Switch off the appliance. Pull out the mains plug.
43
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
43
3. Clean the drain hose and siphon connecting piece.
43
4. Re-attach the drain hose and secure the connection point using the hose clamp.
43
Filter in the water supply blocked
43
First, reduce the water pressure in the supply hose:
43
1. Turn off the tap.
43
2. Select any programme (except Rinse/Spin/Empty).
43
3. Press the A button. Allow the programme to run for approximately 40 seconds.
43
4. Press the # button. The appliance is switched off.
43
5. Pull out the mains plug.
43
Then clean the filter:
43

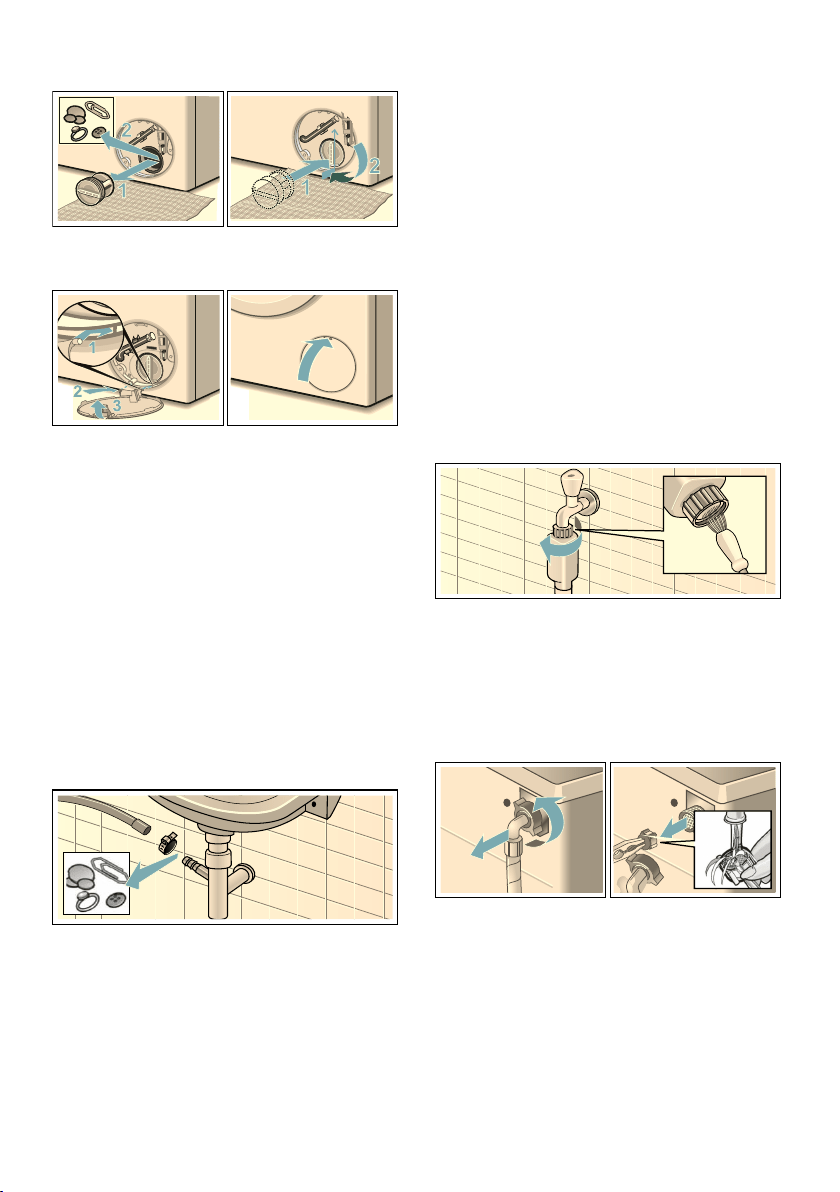

1. Disconnect the hose from the tap.
43
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
43
3. Connect the hose and check for leaks.
43
3 Faults and what to do about them.
44
Faults and what to do about them.
44
Emergency release
44
: Warning
44
Risk of scalding!
44
: Warning
44
Risk of injury!
44
Caution!
44
Water damage
44
1. Switch off the appliance. Pull out the mains plug.
44
2. Drain the water. ~ Page 42
44
3. Pull the emergency release downwards with a tool and release.
44
Information on the display panel
45
Display
45
Cause/Remedy
45
Faults and what to do about them.
46
Faults
46
Cause/Remedy
46
Note:
47
4 After-sales service
48
After-sales service
48
[ Consumption rates
49
Consumption rates
49
Energy and water consumption, programme duration and residual moisture for the main washing programmes
49
Programme
49
Load
49
Energy consumption**
49
Water consumption**
49
Programme duration**
49
Programme
49
Approximate information on the residual moisture***
49
WAW32...
49
WAW28...
49
WAW24...
49
WAW20...
49
Max. 1600 rpm
49
Max. 1400 rpm
49
Max. 1200 rpm
49
Max. 1000 rpm
49
J Technical data
50
Technical data
50
r Aqua-Stop warranty
51
Aqua-Stop warranty
51
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
51
2. The liability guarantee is valid for the service life of the appliance.
51
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
51
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
51
*9001401856*
52
Thank you for buying a Bosch Home Appliance!
52
Looking for help? You´ll find it here.
52
Search:
×
Search
