LCD Monitor User's Manual
-
2
-
Copyright
© 2020 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective
owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of
GIGABYTE.
Changes to the specications and features in this manual may be made by
GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE’s prior written
permission.
•
In order to assist in the use of this monitor, carefully read the User Guide.
•
For more information, check on our website at:
https://www.gigabyte.com
LCD Monitor User's Manual
-
3
-
SAFETY INFORMATION
Regulatory Notices
United States of America, Federal Communications Commission Statement
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Product Name: LCD monitor
Trade Name: GIGABYTE
Model Number: G27QC
Responsible Party – U.S. Contact Information: G.B.T. Inc.
Address: 17358 Railroad street, City Of Industry, CA91748
Tel.: 1-626-854-9338
Internet contact information: https://www.gigabyte.com
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional
Radiators.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with manufacturer’s instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit dierent from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
LCD Monitor User's Manual
-
4
-
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications. This class B digital apparatus complies with
Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
European Union (EU) CE Declaration of Conformity
This device complies with the following directives: Electromagnetic Compatibility
Directive 2014/30/EU, Low-voltage Directive 2014/35/EU, ErP Directive 2009/125/EC,
RoHS directive (recast) 2011/65/EU & the 2015/863 Statement.
This product has been tested and found to comply with all essential requirements of
the Directives.
European Union (EU) RoHS (recast) Directive 2011/65/EU & the European
Commission Delegated Directive (EU) 2015/863 Statement
GIGABYTE products have not intended to add and safe from hazardous substances
(Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components
have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE
are continuing our eorts to develop products that do not use internationally banned
toxic chemicals.
European Union (EU) Community Waste Electrical & Electronic Equipment
(WEEE) Directive Statement
GIGABYTE will fulll the national laws as interpreted from the 2012/19/EU WEEE (Waste
Electrical and Electronic Equipment) (recast) directive. The WEEE Directive species
the treatment, collection, recycling and disposal of electric and electronic devices and
their components. Under the Directive, used equipment must be marked, collected
separately, and disposed of properly.
WEEE Symbol Statement
The symbol shown below is on the product or on its packaging, which
indicates that this product must not be disposed of with other waste.
Instead, the device should be taken to the waste collection centers for
activation of the treatment, collection, recycling and disposal procedure.
.
For more information about where you can drop o your waste equipment for
recycling, please contact your local government oce, your household waste
disposal service or where you purchased the product for details of environmentally
safe recycling.
LCD Monitor User's Manual
-
5
-
End of Life Directives-Recycling
The symbol shown below is on the product or on its packaging, which
indicates that this product must not be disposed of with other waste.
Instead, the device should be taken to the waste collection centers
for activation of the treatment, collection, recycling and disposal
procedure.
Déclaration de Conformité aux Directives de l’Union européenne (UE)
Cet appareil portant la marque CE est conforme aux directives de l’UE suivantes:
directive Compatibilité Electromagnétique 2014/30/UE, directive Basse Tension
2014/35/UE, directive 2009/125/CE en matière d’écoconception, la directive RoHS II
2011/65/UE & la déclaration 2015/863.
La conformité à ces directives est évaluée sur la base des normes européennes
harmonisées applicables.
European Union (EU) CE-Konformitätserklärung
Dieses Produkte mit CE-Kennzeichnung erfüllen folgenden EU-Richtlinien: EMV-
Richtlinie 2014/30/EU, Niederspannungsrichtlinie 2014/30/EU, Ökodesign-Richtlinie
2009/125/EC, RoHS-Richtlinie 2011/65/EU erfüllt und die 2015/863 Erklärung.
Die Konformität mit diesen Richtlinien wird unter Verwendung der entsprechenden
Standards zurEuropäischen Normierung beurteilt.
CE declaração de conformidade
Este produto com a marcação CE estão em conformidade com das seguintes Diretivas
UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção
Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863.
A conformidade com estas diretivas é verificada utilizando as normas europeias
harmonizadas.
CE Declaración de conformidad
Este producto que llevan la marca CE cumplen con las siguientes Directivas de la
Unión Europea: Directiva EMC 2014/30/EU, Directiva de bajo voltaje 2014/35/EU,
Directiva de Ecodiseño 2009/125/EC, Directiva RoHS 2011/65/EU y la Declaración
2015/863.
El cumplimiento de estas directivas se evalúa mediante las normas europeas
armonizadas.
Deklaracja zgodności UE Unii Europejskiej
Urządzenie jest zgodne z następującymi dyrektywami: Dyrektywa kompatybilności
elektromagnetycznej 2014/30/UE, Dyrektywa niskonapięciowej 2014/35/UE,
Dyrektywa ErP 2009/125/WE, Dyrektywa RoHS 2011/65/UE i dyrektywa2015/863.
LCD Monitor User's Manual
-
6
-
Niniejsze urządzenie zostało poddane testom i stwierdzono jego zgodność z
wymaganiami dyrektywy.
ES Prohlášení o shodě
Toto zařízení splňuje požadavky Směrnice o Elektromagnetické kompatibilitě
2014/30/EU, Směrnice o Nízkém napětí 2014/35/EU, Směrnice ErP 2009/125/ES,
Směrnice RoHS 2011/65/EU a 2015/863.
Tento produkt byl testován a bylo shledáno, že splňuje všechny základní požadavky
směrnic.
EK megfelelőségi nyilatkozata
A termék megfelelnek az alábbi irányelvek és szabványok követelményeinek, azok
a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/
EU, Kisfeszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU,
Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és
2015/863.
Δήλωση συμμόρφωσης ΕΕ
Είναι σε συμμόρφωση με τις διατάξεις των παρακάτω Οδηγιών της Ευρωπαϊκής
Κοινότητας: Οδηγία 2014/30/ΕΕ σχετικά με την ηλεκτρομαγνητική συμβατότητα,
Οοδηγία χαμηλή τάση 2014/35/EU, Οδηγία 2009/125/ΕΚ σχετικά με τον οικολογικό
σχεδιασμό, Οδηγία RoHS 2011/65/ΕΕ και 2015/863.
Η συμμόρφωση με αυτές τις οδηγίες αξιολογείται χρησιμοποιώντας τα ισχύοντα
εναρμονισμένα ευρωπαϊκά πρότυπα.
Japan Class 01 Equipment Statement
安全にご使用いただくために
接地接続は必ず電源プラグを電源につなぐ前に行って下さい。
また、接地接続を外す場合は、必ず電源プラグを電源から切り離してから行って下さい。
Japan VCCI Class B Statement
クラス
B VCCI
基準について
この装置は、クラス B 情報技術装置です。この装置は、家庭環境で使用することを目的として
いますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き
起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい。
VCCI-B
LCD Monitor User's Manual
-
7
-
China RoHS Compliance Statement
中国《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守
国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有国家认可的回
收处理资质的厂商进行回收处理。
环保使用期限
Environment-friendly use period
10
此标识指期限（十年），电子电气产品中含有的有害物质在正常使
用的条件下不会发生外泄或突变，电子电气产品用户使用该电子电
气产品不会对环境造成严重污染或对其人身、财产造成严重损害的
期限。
产品中有害物质名称及含量 :
部件名称
有害物质
铅
(Pb)
汞
(Hg)
汞
(Hg)
六价铬
(Cr
+6
)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板及其电子组件X○○○○○
液晶面板X○○○○○
外壳○○○○○○
外部信号连接头及线材X○○○○○
本表格依据 SJ/T 11364 的规定编制。
This table is prepared in compliance with the requirements of SJ/T 11364
○ : 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以
下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要
求。
LCD Monitor User's Manual
-
8
-
限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances
Marking
設備名稱：液晶顯示器 型號（型式）：G27QC
Equipment name Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr
+6
)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyls ethers
(PBDE)
塑料外框○○○○○○
後殼○○○○○○
液晶面板－○○○○○
電路板組件－○○○○○
底座○○○○○○
電源線－○○○○○
其他線材－○○○○○
備考1.〝超出 0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量
基準值。
Note 1：〝Exceeding 0.1 wt %〞 and 〝exceeding 0.01 wt %〞 indicate that the percentage content
of the restricted substance exceeds the reference percentage value of presence condition.
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：〝○〞 indicates that the percentage content of the restricted substance does not exceed
the percentage of reference value of presence.
備考3.〝－〞係指該項限用物質為排除項目。
Note 3：The 〝－〞 indicates that the restricted substance corresponds to the exemption
LCD Monitor User's Manual
-
9
-
Safety Precautions
Read through the following Safety Precautions before using the monitor.
•
Only use the accessories that are provided with the monitor or that which are
recommended by the manufacturer.
•
Keep the plastic packaging bag for the product in a place that cannot be
reached by children.
•
Before connecting the monitor to the power outlet, make sure that the voltage
rating of the power cable is compatible with the power specification in the
country where you are located.
•
The power cord plug must be connected to a properly wired and grounded
power outlet.
•
Do not touch the plug with wet hands, otherwise easily cause electric
shock.
•
Place the monitor in a stable and well-ventilated place.
•
Do not place the monitor near any heat sources such as electric radiators or
direct sunlight.
•
The holes or openings on the monitor are for ventilation. Do not cover or
block the ventilation holes with any objects.
•
Do not use the monitor near water, drinks, or all types of liquids. Failure to do
so may result in electric shock or damage to the monitor.
•
Make sure to unplug the monitor from the power outlet before cleaning.
•
As the screen surface is easy to be scratched, avoid touching the surface with
any hard or sharp object.
•
Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a
glass cleaner to clean the monitor if required. However, never spray the cleaner
directly onto the screen.
•
Disconnect the power cable if the monitor is not being used for a long period
of time.
•
Do not attempt to disassemble or repair the monitor yourself.
LCD Monitor User's Manual
-
10
-
Contents
SAFETY INFORMATION ................................................................................. 3
Regulatory Notices .........................................................................................................3
Safety Precautions ..........................................................................................................7
INTRODUCTION ............................................................................................. 10
Unpacking ..........................................................................................................................10
Package Contents ...........................................................................................................12
Product Overview ...........................................................................................................13
GETTING STARTED ........................................................................................ 15
Installing the Stand Base ..............................................................................................15
Lift the monitor ................................................................................................................17
Adjusting the Viewing Angle ......................................................................................18
Installing a Wall-Mount Bracket (Optional) ............................................................20
Making Connections ......................................................................................................22
USING THE DEVICE ........................................................................................ 23
Turning the Power On/O ............................................................................................23
User Comfort Recommendations ..............................................................................24
Selecting the Input Source ..........................................................................................25
OPERATIONS .................................................................................................. 26
Quick Menu ................................................................................................... 26
Function Key Guide ........................................................................................................28
Congure the Device Settings ....................................................................................31
APPENDICES .................................................................................................. 40
Specications ....................................................................................................................40
Supported Timing List ...................................................................................................41
Troubleshooting ..............................................................................................................43
Basic Care ...........................................................................................................................44
Notes on USB Charging .................................................................................................44
LCD Monitor User's Manual
-
12
-
INTRODUCTION
Unpacking
1. Open the upper cover of the packaging box. Then observe the unpacking
instruction attached on the inner cover. Making sure the box is in the
correct orientation, carefully lay the box on the stable surfacepen.
2. Open the inner cover. Grab the EPS foam assembly (through the openings) to
pull it out of the box.
LCD Monitor User's Manual
-
13
-

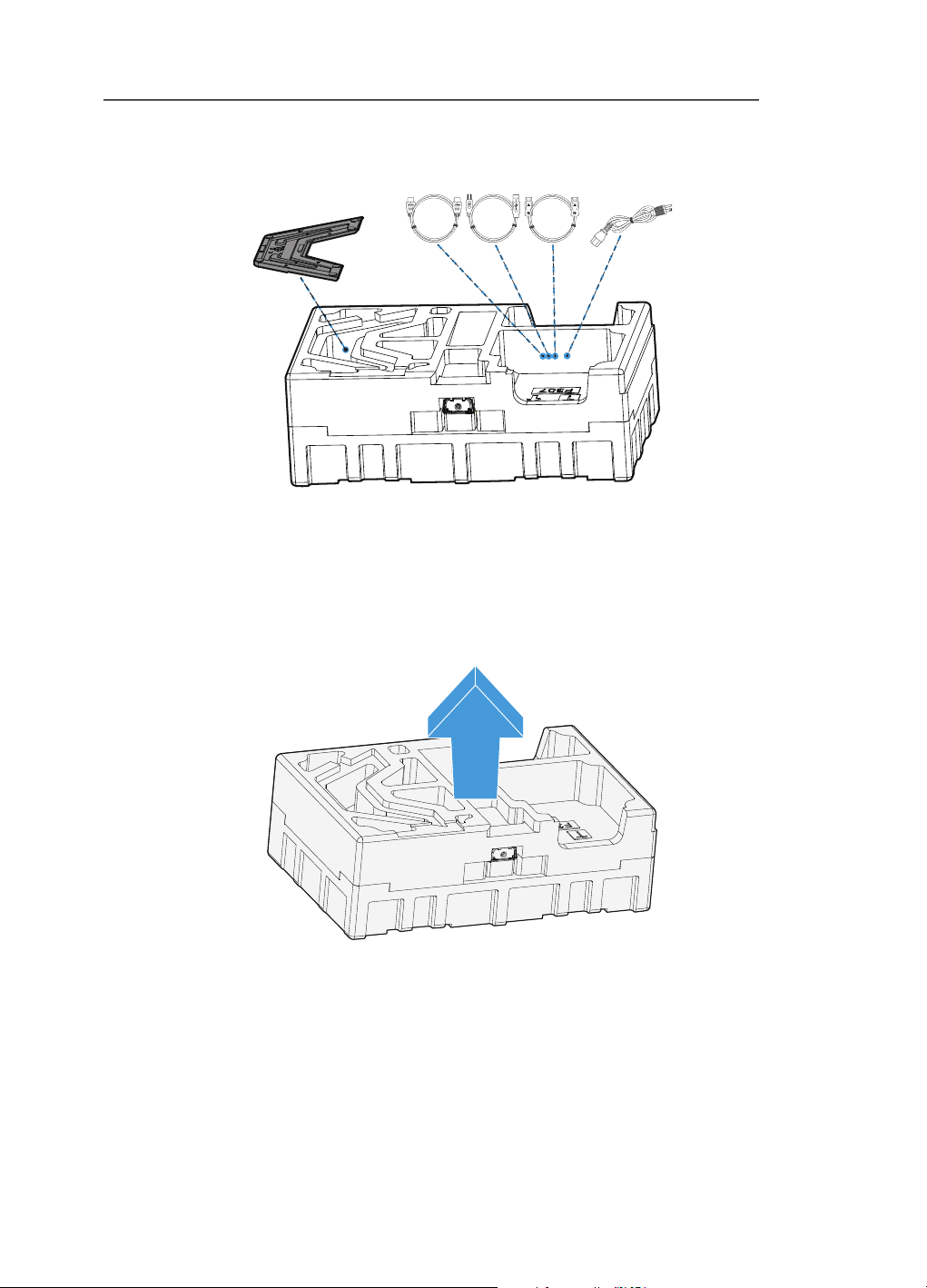

3. Remove the items from the upper EPS foam.
4. Remove the upper EPS foam. Then you can remove the stand from the lower EPS
foam.
LCD Monitor User's Manual
-
14
-

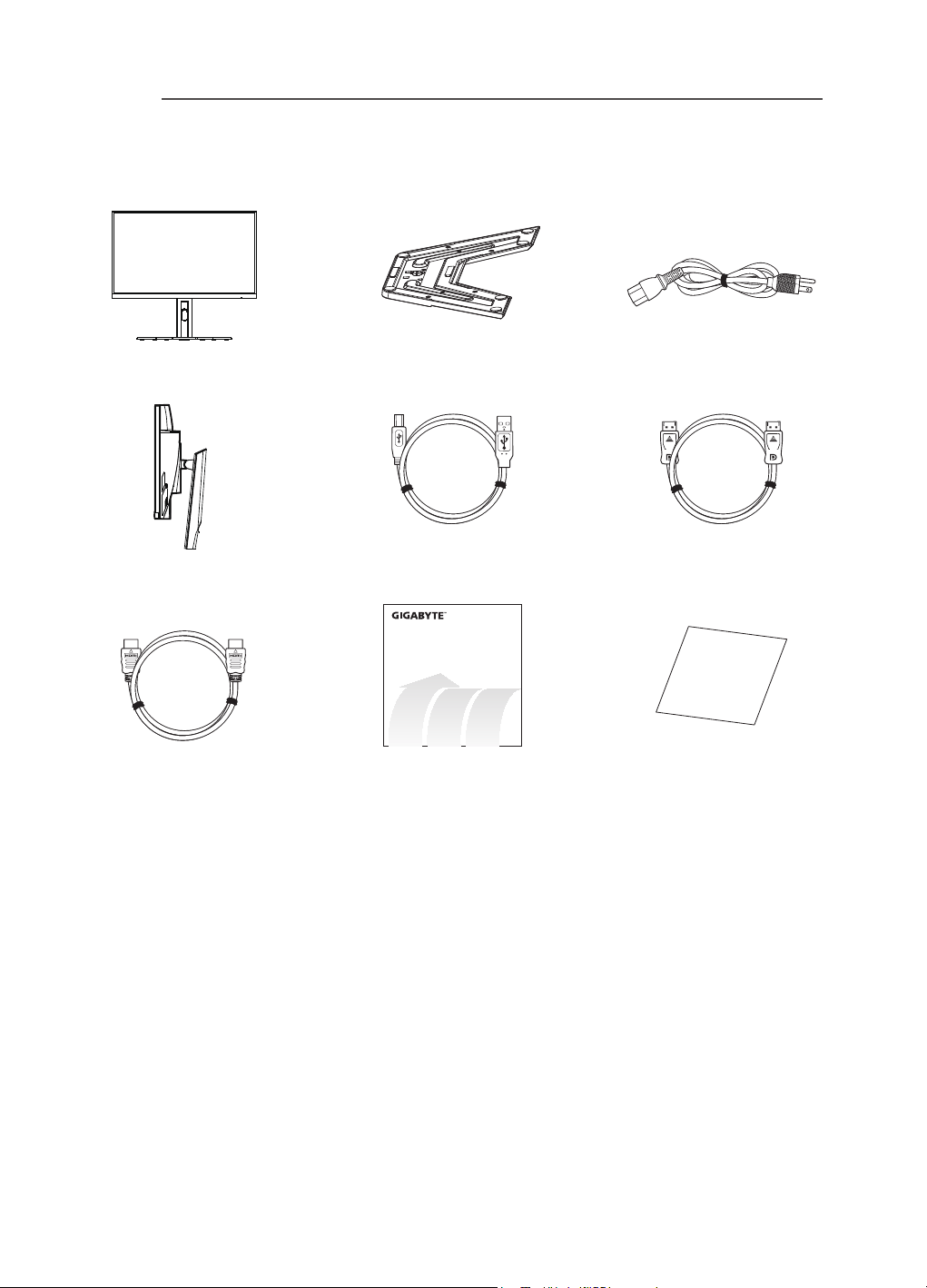

Package Contents
The following items come with your packaging box. If any of them is missing, please
contact your local dealer.
Monitor Monitor Base Power Cable
HDMI Cable
USB CableStand DP Cable
Multilingual
Installation
Guide
Warranty Card
Quick Start Guide Warranty Card
Note: Please keep the packaging box and packing materials for future transporta-
tion of the monitor.
LCD Monitor User's Manual
-
15
-
Product Overview
Front View
1
2
1 Power LED 2 Control button
LCD Monitor User's Manual
-
16
-

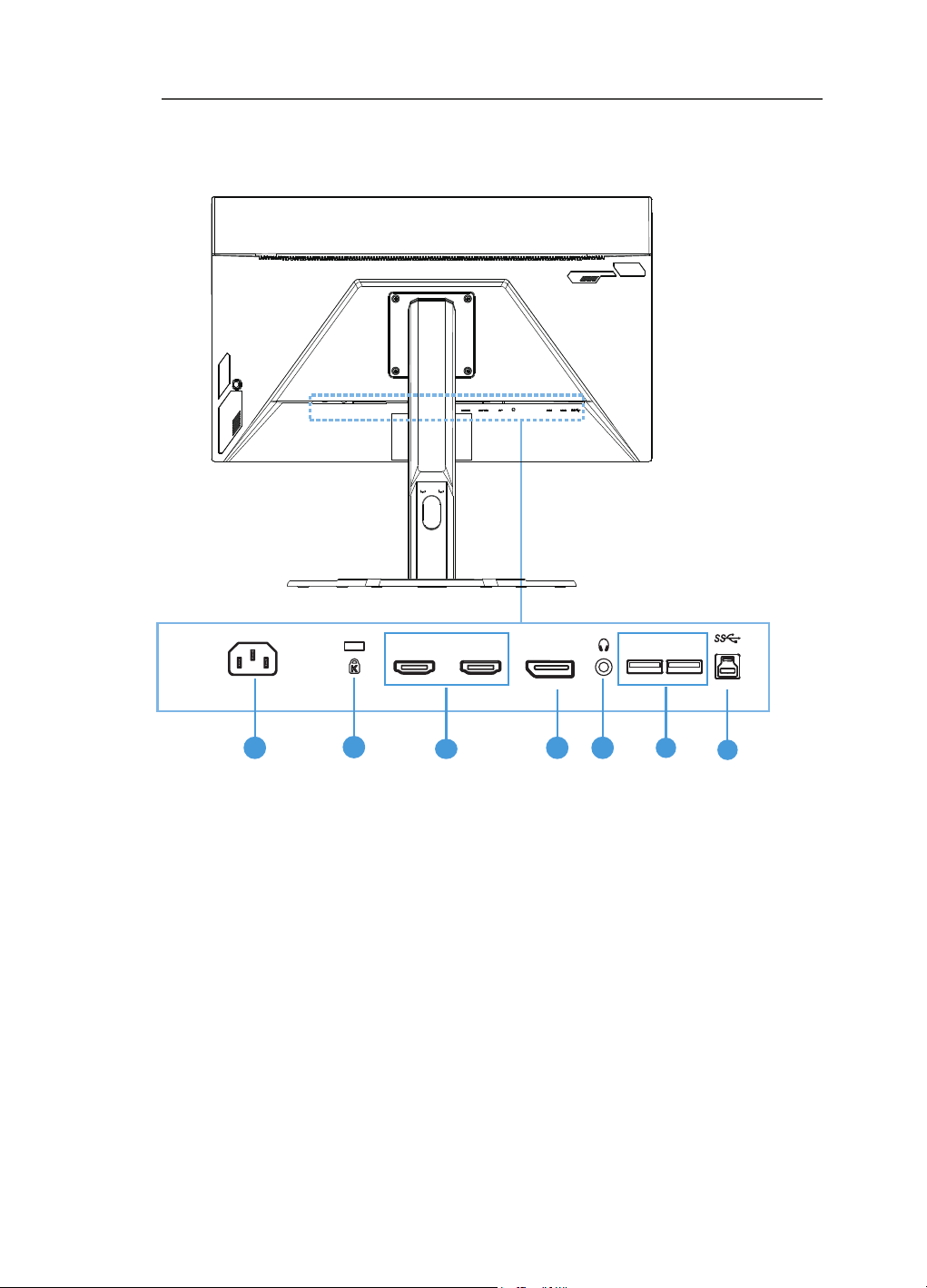

Rear View
USB 3.0PDHDMI-1 HDMI-2
1 53 4 6
7
2
1 AC IN jack
2 Kensington lock
3 HDMI ports (x2)
4 DisplayPort
5 Headphone jack
6 USB 3.0 ports (x2)
7 USB upstream port
LCD Monitor User's Manual
-
17
-
GETTING STARTED
Installing the Stand Base
1.
Align the Stand base with the stand o underneath the stand. Then attach the
base onto the stand. Tighten the screw to secure the monitor base in place.
Note: You can either use a coin or a small athead screwdriver to tighten the screw.
LCD Monitor User's Manual
-
18
-

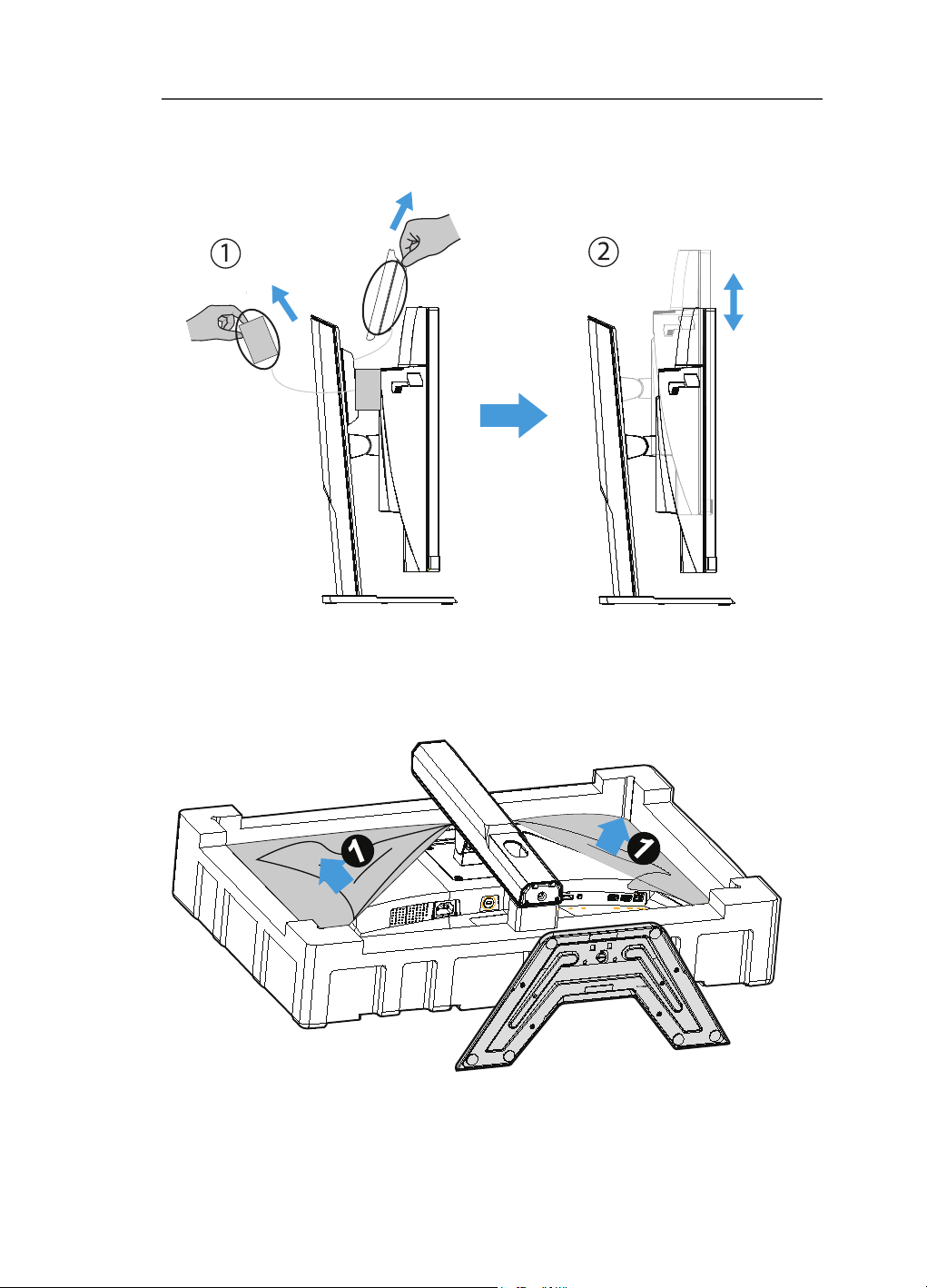

2.
Lift the assembled Stand & Base to an upright position and place it on a table.
Then lower the stand plate to allow the safety plate to automatically release
from its slot.

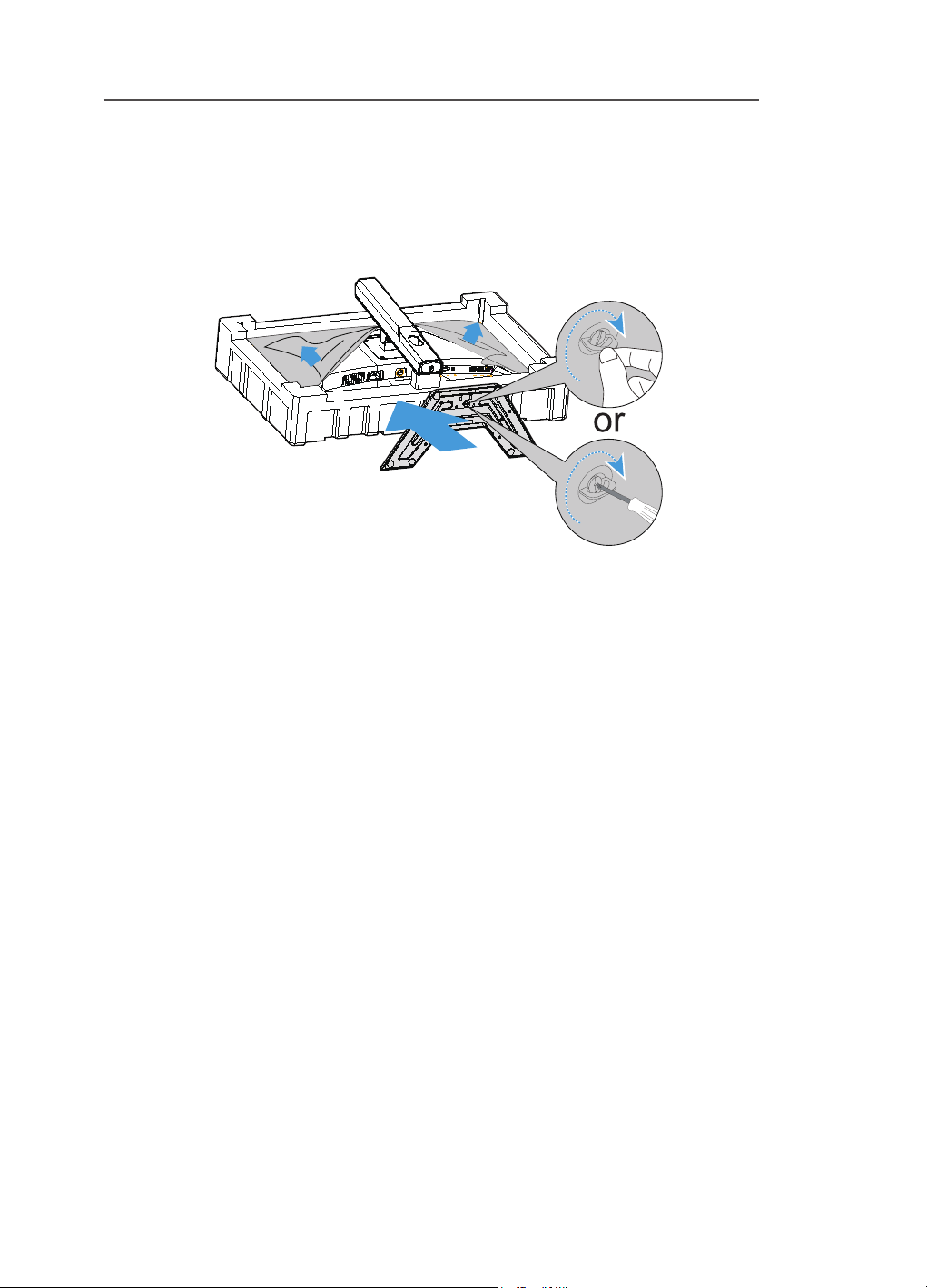

3.
Place the monitor on the package cushion or a at surface, with screen facing
down. Tear apart the EPE bag, install the stand on the rear side of the monitor.
Then you can take the monitor from the lower EPS foam by holding the stand
arm. Carefully lift the monitor. Place it upright on a table.
LCD Monitor User's Manual
-
19
-
Lift the monitor
Take the monitor out of the box by holding the stand arm. Carefully lift the
monitor, turn it over and place it upright on its stand on a at even surface.
Remove the foam wrap from the monitor.
Note: Consider keeping the box and packaging in storage for use in the future when you may
need to transport the monitor. The tted foam packing is ideal for protecting the monitor
during transport.
LCD Monitor User's Manual
-
20
-
Adjusting the Viewing Angle
Note: Hold the monitor base so that the screen does not topple when you make the
adjustment.
Adjusting the Tilt Angle
Tilt the screen forward or backward to the desired viewing angle (-5˚ to 20˚).
5°
20°
LCD Monitor User's Manual
-
21
-

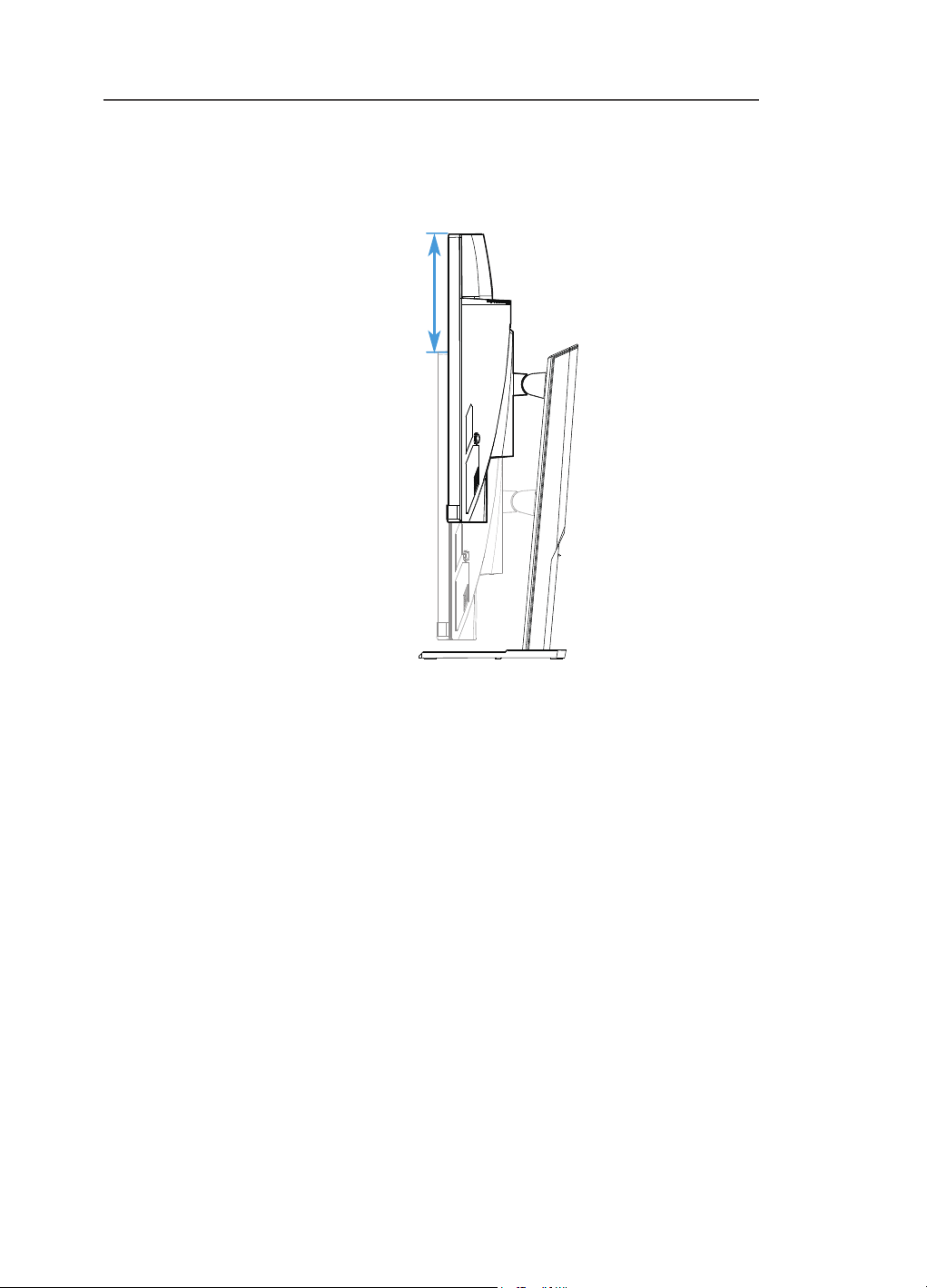

Changing the Screen Orientation
Raise the screen to the highest position (130mm).
130 mm
Note: Before making the height adjustment, make sure you have removed the safety plate
from the stand.
LCD Monitor User's Manual
-
22
-
Installing a Wall-Mount Bracket (Optional)
Use only the 100 x 100 mm wall mount kit recommended by the
manufacturer.
1.
Place the monitor on a at surface, with the screen facing down.
Note: We recommend that you cover the table surface with soft cloth to prevent damage
to the monitor.
2.
Push the locking clips inward to detach the stand from the monitor.
3.
Pull down the stand slightly to disengage the hooks. Then remove the stand.
LCD Monitor User's Manual
-
23
-

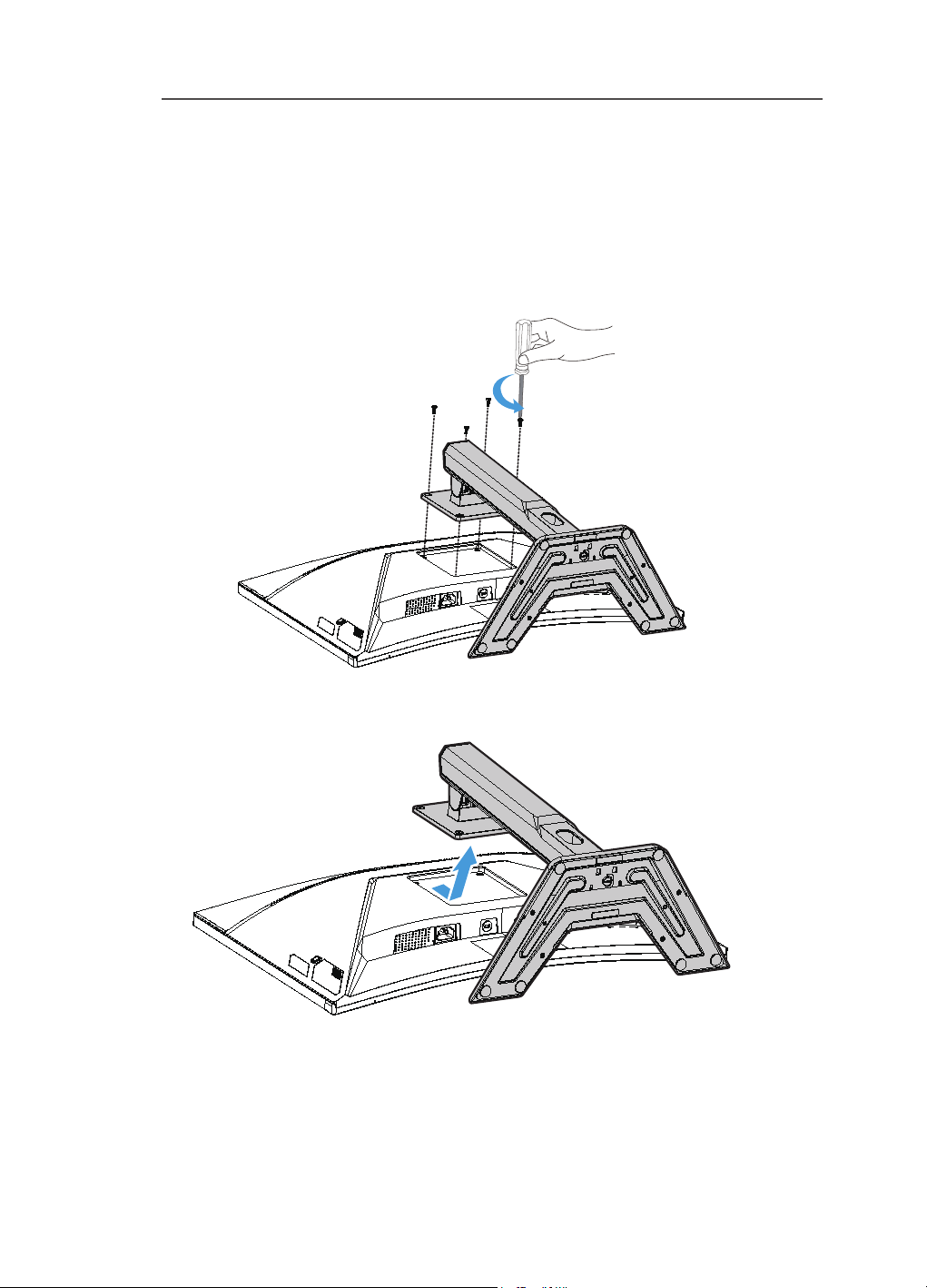

4.
Attach the mounting bracket to the mounting holes at the rear of the monitor.
Then use the screws to secure the bracket in place.
100 mm
100 mm
Note: To mount the monitor on the wall, refer to the installation guide that is included in the
wall-mount bracket kit.
LCD Monitor User's Manual
-
24
-
Making Connections
1
1
42
3
5
Keyboard
Mouse & USB disk
drive
Computer
Computer
Headphone
Power outlet
USB 3.0PDHDMI-1 HDMI-2
6
1 Power cable
2 HDMI cable
3 DisplayPort cable
4 Headphone cable
5 USB cable
6 USB (A-Male to B-Male) cable
LCD Monitor User's Manual
-
25
-
USING THE DEVICE
Turning the Power On/O
Make sure the power switch next to the AC power input jack is switched to ON.
Power On
1. Connect one end of the power cable to the AC IN jack at the rear of the monitor.
2. Connect other end of the the power cable to a power outlet.
3. Press the Control button to turn on the monitor. The Power LED will light in
white, indicating the monitor is ready to use.
Power O
Press the
Control button for 2 seconds to turn o the monitor.
Note: When the Main menu appears on the screen, you can also turn o the monitor by
moving the
Control button down ( ). Refer to page 28.
LCD Monitor User's Manual
-
26
-
User Comfort Recommendations
The following are some tips for comfortable viewing of your monitor:
•
Optimal viewing distances for monitors range from approximately 510 mm to
760 mm (20” to 30”).
•
A general guideline is to position the monitor such that the top of the screen
is at or slightly below your eye-height when you are comfortably seated.
•
Use adequate lighting for the type of work you are performing.
•
Take regular and frequent breaks (at least for 10 minutes) every half- hour.
•
Be sure to periodically look away from your monitor screen and focus on a far
object for at least 20 seconds during the breaks.
•
Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1)
look up and down (2) slowly roll your eye (3) move your eyes diagonally.
LCD Monitor User's Manual
-
27
-
Selecting the Input Source
1.
2.
Move the Control button right
( ) to enter the Input menu.
Select Exit
Input
DisplayPort
HDMI 1
HDMI 2
Move the Control button center
( ) to select the desired
input source. Then press the
Control
LCD Monitor User's Manual
-
28
-
OPERATIONS
Quick Menu
Hot Key
By default, the
Control button has been assigned with the specic function.
Note: To change the preset hot key function, refer to the “Quick Switch” section on page 36.
To access the hot key function, do the following:
•
Move the
Control button up ( ) to enter the Black Equalizer
menu.
Adjust Exit
Black Equalizer
10
Move the Control button up/down
(
) to adjust the setting and press
the
Control
LCD Monitor User's Manual
-
29
-
•
Move the
Control button down ( ) to enter the Picture Mode
menu.
Move the Control button center
(
) to select the desired option
and press the
Control
Select Exit
Picture Mode
Standard
FPS
RTS/RPG
Movie
Reader
•
Move the
Control button left ( ) to enter the Volume menu.
Move the Control button up/down
(
) to adjust the headphone
volume level and press the
Control
Adjust Exit
Volume
50
•
Move the
Control button right ( ) to enter the the Input menu. Refer to the
“Selecting the Input Source” section.
Note: To close the menu, move the
Control button left
(
)
.
LCD Monitor User's Manual
-
30
-
Function Key Guide
•
Press the
Control button to display the Main menu.
EXIT
SETTING
POWER OFF
GAME ASSISTDASHBOARD
Game Assist
Power Off
Settings
Dashboard
Exit
Then use the Control button to select the desired function and congure
the related settings.
Dashboard
When the Main menu appears on the screen, move the
Control button left ( ) to
enter the Dashboard menu.
Select Exit
Dashboard
Function
Dashboard
Location
ON
OFF
CPU Temperature
CPU Frequency
CPU Fan Speed
CPU Fan Speed
CPU Usage Rate
GPU Temperature
GPU Frequency
•
Function: Enable/Disable the function. When enabled, you can select the
desired option(s) to be shown on the screen.
•
Dashboard Location: Specify the location of the Dashboard information
to be shown on the screen.
LCD Monitor User's Manual
-
31
-

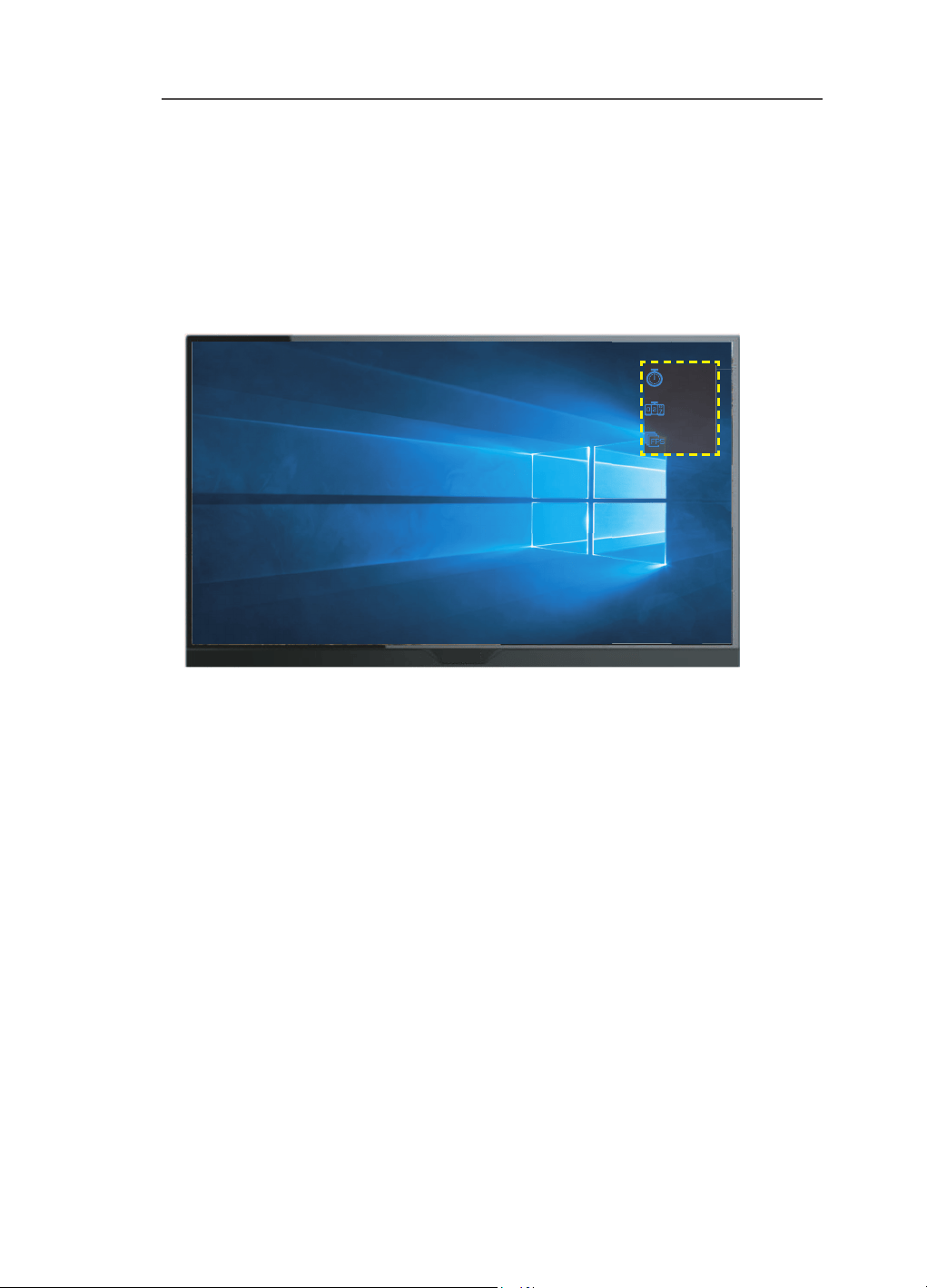

Once the Dashboard conguration is complete, it will transfer the system
data to the SOC through the USB port and display the value of the selected
function(s) on the screen.
AORUS Mouse DPI
CPU temperature
CPU frequency
CPU fan Speed
CPU usage Rate
GPU temperature
GPU frequency
GPU fan speed
GPU usage rate
Note: Make sure the USB cable is properly connected to the USB upstream port of the moni-
tor and the USB port of your computer.
Note: “OSD Sidekick” software installation and execution required.
Game Assist
•
When the Main menu appears on the screen, move the
Control button right ( )
to enter the Game Assist menu.
Select Exit
GameAssist
Game Info
Display
Alignment
Gaming Timer
Crosshair
Gaming Counter
Refresh Rate
OFF
Count Up
Count Down
Info Location
LCD Monitor User's Manual
-
32
-
•
Game INFO: Congure the FPS (First Person Shooting) game related
settings.
√ Select Gaming Timer to select countdown timer mode. To disable this
function, set the setting to OFF.
√ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter
or real-time refresh rate setting.
√ Select Info Location to specify the location of the information to be
shown on the screen.
60
05:00
0
60
•
Crosshair: Select the desired crosshair type to suit your gaming
environment. It makes aiming much easier.
•
Display Alignment: When the function is enabled, it displays the alignment lines
on the four sides of the screen, providing handy tool for you to line up multiple
monitors perfectly.
LCD Monitor User's Manual
-
33
-
Congure the Device Settings
When the Main menu appears on the screen, move the
Control button up ( ) to
enter the Settings menu.
Note: Use the
Control button to navigate through the menu and make adjustments.
Exit
Move/Adjust
Enter/Confirm
Button Guide
Gaming
Congure the game related settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Resolution Black Equalizer Aim Stabilizer Overdrive Refresh Rate FreeSync
2560x1440 10 OFF Balance 60 HZ ON
Gaming
Display
System
PIP/PBP
Language
Reset All
Aim Stabilizer
Black Equalizer
Super Resolution
Display Mode
Overdrive
FreeSync
Save Settings
10
LCD Monitor User's Manual
-
34
-
Item Description
Aim Stabilizer When this function is enabled, it reduces the motion blur in a fast
moving games.
Note: This function is not available under the following conditions:
- when the frequency setting is lower than 100Hz.
- when the FreeSync function is activated.
Black
Equalizer
Adjust the brightness of the black areas.
Super
Resolution
Sharpen the low resolution images.
Display Mode Select the aspect ratio of the screen.
•
Full: Scale the input image to ll the screen. Ideal for 16:9
aspect images.
•
Aspect: Display the input image without geometric distortion
lling as much of the screen as possible.
•
1:1: Display the input image in its native resolution without
scaling.
•
22”W (16:10): Display the input image as if on a 22”W monitor
of 16:10 aspect ratio.
•
23”W (16:9): Display the input image as if on a 23”W monitor
of 16:9 aspect ratio.
•
23.6”W (16:9): Display the input image as if on a 23.6”W
monitor of 16:9 aspect ratio.
•
24”W (16:9): Display the input image as if on a 24”W monitor
of 16:9 aspect ratio
Note: This option is not compatible with FreeSync and PIP/ PBP functions.
Overdrive Improve the response time of the LCD monitor.
FreeSync When this function is enabled, it eliminates the screen lag and
tearing while playing games.
LCD Monitor User's Manual
-
35
-
Congure the image related settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
HDR Brightness Contrast Sharpness Gamma Color Temperature
OFF 85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
85
Brightness
Contrast
Color Vibrance
Sharpness
Gamma
Color Temperature
Low Blue Light
FPS
Standard
RTS/RPG
Movie
Reader
sRGB
Custon 1
Item Description
Standard For editing documents or browsing websites.
FPS For playing FPS (First Person Shooting) games.
RTS/RPG For playing RTS (Real-Time Strategy) or RPG (Role-Playing Game)
games.
Movie For watching movies.
Reader For viewing documents.
sRGB For viewing photos and graphics on the computer
.
Custom 1 Customized picture mode settings.
Custom 2 Customized picture mode settings.
Custom 3 Customized picture mode settings.
Note: Picture mode “Standard”, Low blue light “Level 10” is the optimized setting in compli-
ance with TUV Low Blue Light Certication”.
LCD Monitor User's Manual
-
36
-
Display
Congure the display screen related settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
HDMI 1
HDMI 2
DisplayPort
HDMI RGB PC Range
Input
Overscan
HDR
OFF
Item Description
Input Select the input source.
HDMI RGB PC
Range
Select an appropriate RGB range setting or let the monitor to
detect it automatically.
Note: This option is only available for HDMI input.
Overscan When this function is enabled, it slightly enlarges the input
image to hide the outermost edges of the image.
LCD Monitor User's Manual
-
37
-
PIP/PBP
Congure the multi-picture related settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
PIP
OFF
PBP
HDR
OFF
Item Description
OFF Disable the PIP/PBP function.
PIP Split the screen into 2 parts (main window and inset window).
•Source: Change the input source for the inset window.
•PIP Size: Adjust the inset window size.
•Location: Move the inset window position.
•Display Switch: Swap the two windows.
•Audio Switch: Select which audio source you want to hear the
sound from.
PBP Display 1x1 split screen (left and right windows).
•Source: Change the input source for the right window.
•Display Switch: Swap the two windows.
•Audio Switch: Select which audio source you want to hear the
sound from.
LCD Monitor User's Manual
-
38
-
System
Congure the system related settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
Volume
Mute
OSD Setting
Audio
Quick Switch
Other Settings
HDR
OFF
Item Description
Audio Congure the headphone settings.
•Volume: Adjust the volume level.
•Mute: Enable/Disable the mute function.
OSD Settings Congure the on-screen display (OSD) menu related settings.
•Display Time: Set the length of time the OSD menu remains
on the screen.
•OSD Transparency: Adjust the OSD menu transparency.
OSD Settings
(continue)
•OSD Lock: When this function is enabled, no OSD adjustment is
allowed.
Note: To disable the OSD lock function, press the
Control key. When the
message appears on the screen, select Yes to conrm.
The button is locked,
confirm to unlock OSD.
No Yes
LCD Monitor User's Manual
-
39
-
Item Description
Quick Switc
h Assign the function of the hot keys.
Available options: Aim Stabilizer, Black Equalizer, Low Blue Light,
Volume, Input, Contrast, Brightness, and Picture Mode.
The default setting of the hot keys as below:
Up
( )
: Black Equalizer
Down ( ): Picture Mode
Right
( )
: Input
Left
( ): Volume
Other Setting
s •Resolution Notice: When this function is enabled, the current
resolution message will appear on the screen when the monitor
switches to another input source.
•Input Auto Switch: When this function is enabled, it
automatically switches to an available input source.
•Auto Power O: When this function is enabled, the monitor
will automatically turn o after a certain amount of time.
Other Settings
(continue
)
•DisplayPort Ver.: Set the DisplayPort version to 1.1, 1.2, 1.2+HDR
Note:
•
Make sure to configure this option based on the DisplayPort
version supported by your graphics card.
LCD Monitor User's Manual
-
40
-
Language
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
繁中
English
简中
Deutsch
Français
日本語
한국어
HDR
OFF
Item Description
Language Select an available language for the OSD menu.
LCD Monitor User's Manual
-
41
-
Save Settings
Save all data.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/PBP
Language
Reset All
Save Settings
Save
Load
Setting2
Setting1
Setting3
HDR
OFF
Item Description
Setting1 After selecting, the Save and Load menu will appear for the player
to choose.
Setting2 After selecting, the Save and Load menu will appear for the player
to choose.
Setting3 After selecting, the Save and Load menu will appear for the player
to choose.
LCD Monitor User's Manual
-
42
-
Reset All
Restore the monitor to its factory default settings.
Exit
Move/Adjust
Enter/Confirm
Picture Mode Standard
Brightness Contrast Sharpness Gamma Color Temperature
85 50 5 OFF Normal
Gaming
Display
System
PIP/BPB
Language
Reset All
Save Settings
HDR
OFF
LCD Monitor User's Manual
-
43
-
APPENDICES
Specications
Item Specications
Panel Size 27-inch
Aspect Ratio 16:9
Resolution 2560 x 1440
Refresh Rate 165Hz
LED Life 30000 hours (min.)
Pixel Pitch 0.2331(H) x 0.2331(V)
Response Time 1ms MPRT
Brightness 250 nits (typ.) / 200 nits (min.)
Contrast Ratio 3000:1 (typ.)
Color Depth 16.7M ( 8Bit)
Active Display area 596.736(H) x 335.664(V)
Viewing Angle 178°(H)/178°(V)
Frequency 48~165Hz
Input/Output Terminals •2x HDMI 2.0
•1xDP1.2
•1x Headphone
•2x USB 3.0 (downstream)
with BC 1.2 charging
capability 5V/1.5A
•1x USB upstream
Power Supply AC 100 ~ 240V at 50/60Hz
Power Consumptions •On: 70W (Max.)
•Standby: 0.3W
•O: 0.2W
Dimensions (W x H x D) 700 X 481 X 248 mm (with Stand)
Weight 6.33 kg (Net)
Temperature Range
(operation)
0°C to 40°C
Note: Specications subject to change without notice.
LCD Monitor User's Manual
-
44
-
Supported Timing List
Port QHD Port QHD
HDMI
640x480@60Hz DP 640x480@60Hz
640x480@75Hz 640x480@75Hz
720x480@60Hz 720x480@60Hz
800x600@60Hz 800x600@60Hz
800x600@75Hz 800x600@75Hz
1024x768@60Hz 1024x768@60Hz
1024x768@75Hz 1024x768@75Hz
1280x720@60Hz 1280x720@60Hz
1280x720@120Hz 1280x720@120Hz
1280x720@144Hz 1280x720@144Hz
1920x1080@60Hz 1920x1080@60Hz
1920x1080@120Hz 1920x1080@120Hz
1920x1080@144Hz
1920x1080@165Hz
2560x1440@60Hz
2560x1440@60Hz
2560x1440@120Hz
2560x1440@120Hz
2560x1440@144Hz 2560x1440@165Hz
LCD Monitor User's Manual
-
45
-
Troubleshooting
Problem Possible Solution(s)
No power •Make sure the power cable is properly connected
to the power source and the monitor.
•Check the cable and plug to make sure they are not
broken.
•Make sure the monitor is turned on.
No image appears
on the screen
•Make sure the monitor and the computer are properly
connected and both devices are turned on.
•Make sure you have selected the correct input
source. Refer to page 25 or 34.
The image
does not ll the
entire screen
•
Try dierent Display Mode (aspect ratio) setting.
Refer to page 32.
The colors are
distorted
•Make sure the input signal cable is properly connected.
•Congure the image related settings. Refer to the “Picture”
section.
No sound or
volume is low
•Make sure the headphone cable is properly connected.
•Adjust the volume level. Refer to page 27 or 36.
•Check the Audio Source setting.
•Adjust your computer sound related settings.
Note: If the problem persists, please contact our customer service for further assistance.
LCD Monitor User's Manual
-
46
-
Basic Care
When the screen becomes dirty, do the following to clean the screen:
•
Wipe the screen with your soft, lint-free cloth to remove any residual dust.
•
Spray or apply the cleaning uid onto a soft cloth. Then wipe the screen
gently with the damp cloth.
Note:
•
Make sure that the cloth is damp, but not wet.
•
When wiping, avoid applying excessive pressure on the screen.
•
Acidic or abrasive cleaners can damage the screen.
Notes on USB Charging
The following devices are not compatible with BC 1.2 of CDP mode. When the Hub
is connected to a PC, these devices cannot be charged using the USB cable.
Vendor Device PID/VID
Apple IPad PID_129A/VID_05AC
Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8
Samsung GALAXY TabPro PID_6860/VID_04E8
GIGABYTE Service Information
More service information, please visit GIGABYTE ocial website:
https://www.gigabyte.com/
