GAMING MONITOR
GS SERIES USER GUIDE
GS27FC / GS27QC / GS32QC
Copyright
© 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective
owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of
GIGABYTE.
Changes to the specifications and features in this manual may be made by
GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE’s prior written
permission.
• In order to assist in the use of this monitor, carefully read the User Guide
• For more information, check on our website at:
https://www.gigabyte.com
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress
and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
CONTENTS
INTRODUCTION..................................................4
Package Contents ...............................................4
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
GETTINGSTARTED6
Installing the Stand Base ........................................6
Adjusting the Viewing Angle.....................................7
Removing the monitor stand.....................................8
Installing a Wall-Mount Bracket (Optional)........................9
USINGTHEDEVICE 10
Turning the Power On/O ..................................... 10
Selecting the Input Source..................................... 11
OPERATIONS 11
Quick Menu ................................................... 11
Function Key Guide ........................................... 13
APPENDICES................................................... 21
Specications ................................................. 21
Supported Timing List ......................................... 22
Troubleshooting .............................................. 24
Basic Care..................................................... 24
GIGABYTE Service Information ................................. 24
SAFETYINFORMATION 25
Safety Precautions ............................................ 25
Stability Hazard Precautions ................................... 26
User Comfort Recommendations............................... 26
REGULATORYINFORMATION.................................... 27
- 4 -
INTRODUCTION

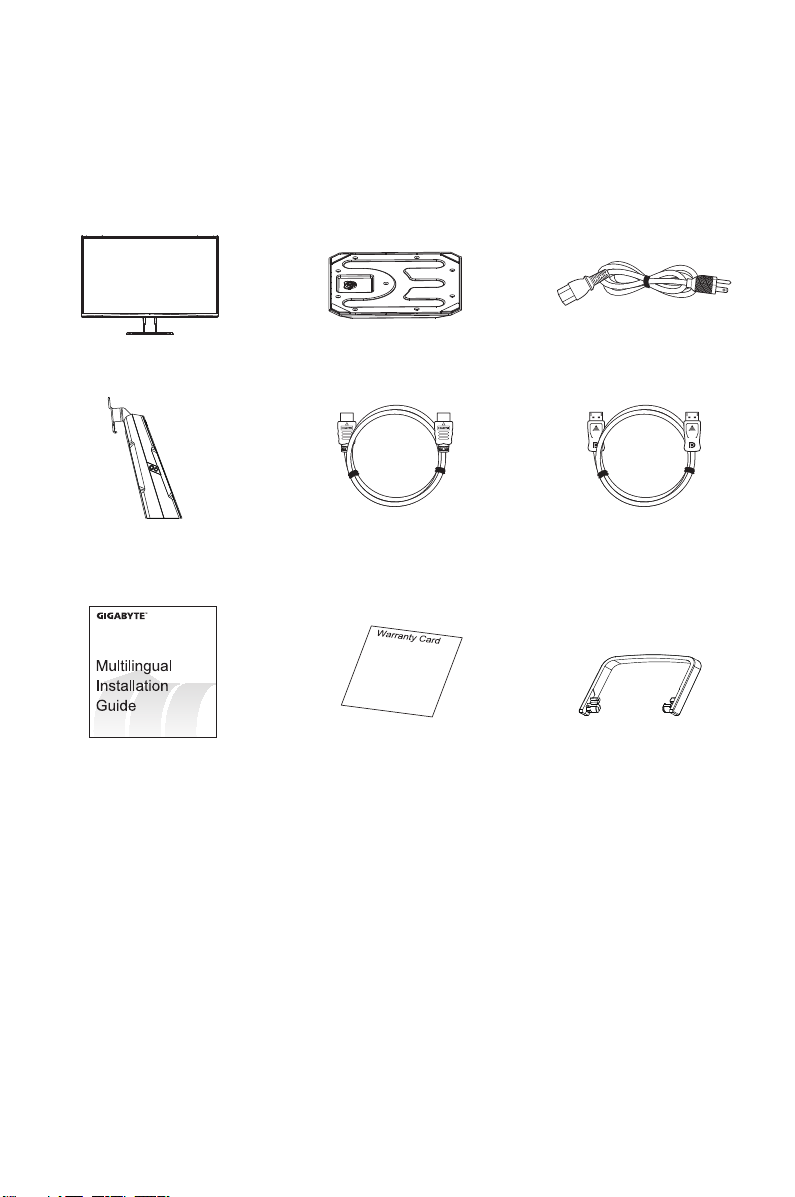

PackageContents
The following items come with your packaging box. If any of them is missing,
please contact your local dealer.
Note: Please keep the packaging box and packing materials for possible
transportation of the monitor.
Monitor
Quick Start Guide
Stand
Monitor Base
Warranty Card
HDMI Cable
(GS27FC)
DP Cable
(GS27QC/GS32QC)
Power Cable
Cable clip
- 5 -

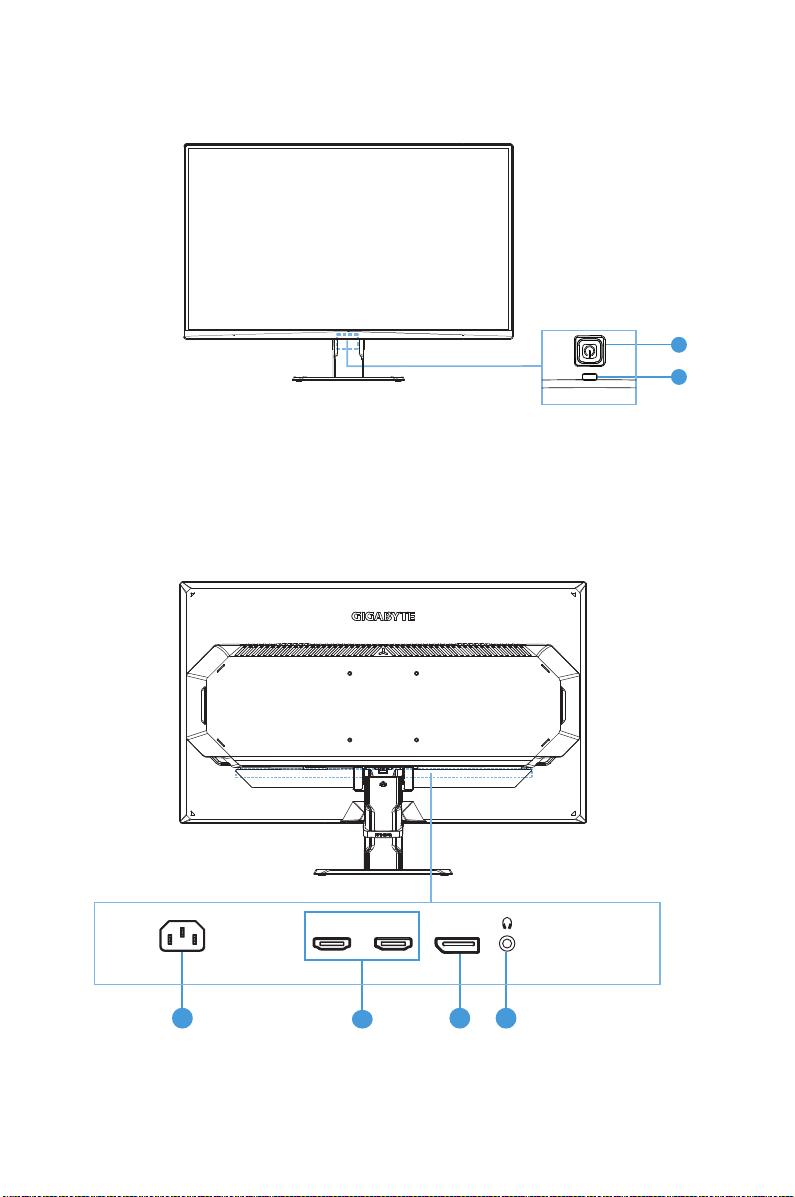

ProductOverview
FrontView
RearView(GS27QC/GS32QC/GS27FC)
1 Control button 2 Power LED
1 AC IN jack 2 HDMI ports (x2)
3 DisplayPort 4 Headphone jack
1
2
1
2
HDMI-1 HDMI-2 DP
42 31
1
2
1
2
HDMI-1 HDMI-2 DP
42 31
- 6 -
GETTING STARTED
InstallingtheStandBase
1. Position the monitor face down on a flat surface with its protective foam
underneath and with its Styrofoam bag covered.
2. Fit the stand riser and stand base together with a coin, a screwdriver, or the
pull ring attached on the stand base.
3. Tear apart the Styrofoam bag. Fit the stand riser to the groove on the back of
the monitor. Push the stand until it snaps into place.
4. Take the monitor from the protective foam by holding its stand riser. Place it
upright on a table.
- 7 -

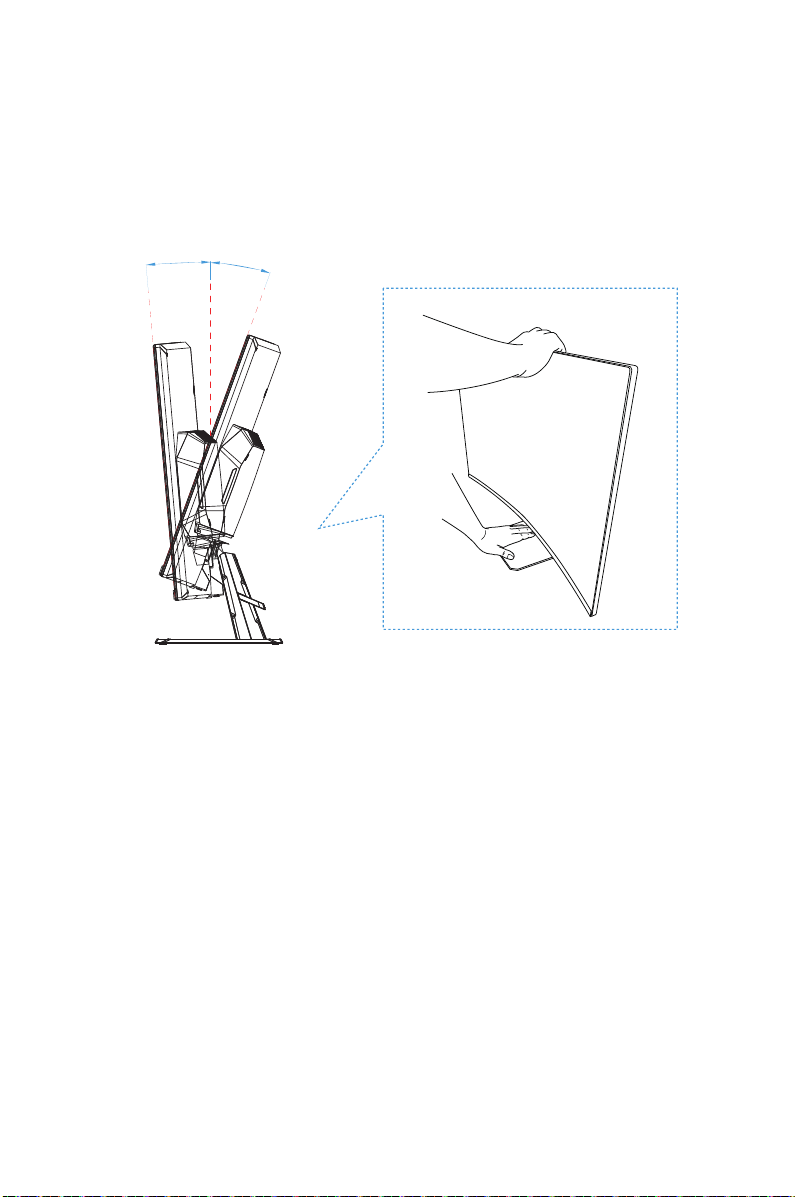

AdjustingtheViewingAngle
1. Place one hand on the base to prevent the monitor from tipping over during
the adjustment.
2. Place the other hand on the top-center of the screen and apply forward or
backward pressure to adjust the angle to the desired viewing angle (-5° to 20°).
5°
20°
- 8 -
Removingthemonitorstand
1. Position the monitor face down with its protective foam or with a nonabrasive
cloth underneath.
2. Push the locking clips inward to detach the stand from the monitor.
- 9 -
InstallingaWall-MountBracket(Optional)
Use only 100 x 100 mm compliant wall mount kit. Install the wall mount according
to the manufacturer’s instructions.
1. Position the monitor face down with its protective foam or with a nonabrasive
cloth underneath.
2. Align the wall-mount bracket installation holes with the screw holes on the
back of the monitor.
3. Use the screws to secure the bracket in place.
Note: To mount the monitor on the wall, refer to the installation guide that is
included in the wall-mount bracket kit. Required VESA mounting screw quantity: 4,
screw size: M4 x 10mm minimum.
100 mm
100 mm
- 10 -
USING THE DEVICE
TurningthePowerOn/Off
PowerOn
1. Connect one end of the power cable to the AC IN jack at the rear of the monitor.
2. Connect other end of the power cable to a power outlet.
3. Press the Control button to turn on the monitor. The Power LED will light in
white, indicating the monitor is ready to use.
PowerOff
Press the Control button for 2 seconds to turn off the monitor.
Note: When the Main menu appears on the screen, you can also turn off the monitor
by pressing the Control button ( ) and select “power off”. Refer to page 13.
- 11 -
SelectingtheInputSource
1. Move the Control button right ( ) to
enter the Input menu.
2. Move the Control button center ( ) to
select the desired input source. Then
press the Control button to confirm.
OPERATIONS
QuickMenu
HotKey
By default, the Control button has been assigned with the specific function.
Note: To change the preset hot key function, refer to the “Quick Switch” section on
page 19.
To access the hot key function, do the following:
• Move the Control button up ( ) to enter the BlackEqualizer menu.
Move the Control button up/down
( ) to adjust the setting and press the
Control button to confirm.
Select Exit
Input
DisplayPort
HDMI 1
HDMI 2
Adjust Exit
Black Equalizer
10
Select Exit
Input
DisplayPort
HDMI 1
HDMI 2
Adjust Exit
Black Equalizer
10
- 12 -
• Move the Control button down ( ) to enter the PictureMode menu.
Move the Control button center ( ) to
select the desired option and press the
Control button to confirm.
• Move the Control button left ( ) to enter the Crosshair menu.
Move the Control button center ( ) to
select the desired option and press the
Control button to confirm.
• Move the Control button right ( ) to enter the Input menu. Refer to the
“Selecting the Input Source” section.
Note: To close the menu, move the Control button left ( ).
Select Exit
Picture Mode
Standard
Gaming
Movie
Reader
sRGB
Custom
ECO
Select Exit
Crosshair
OFF
Style 1
Style 2
Style 3
Style 4
Select Exit
Picture Mode
Standard
Gaming
Movie
Reader
sRGB
Custom
ECO
Select Exit
Crosshair
OFF
Style 1
Style 2
Style 3
Style 4
- 13 -
FunctionKeyGuide
• Press the Control button to display the Main menu.
GameAssist
• When the Main menu appears on the screen, move the Control button right
( ) to enter the GameAssist menu.
EXIT
SETTING
POWER OFF
GAME ASSISTCROSSHAIR
Game Assist
Power O
Settings
Crosshair
Exit
Select Exit
GameAssist
GAME INFO
Display
Alignment
Gaming Timer
Refresh Rate
Info Location
Then use the Control button to select the desired function and configure the
related settings.
EXIT
SETTING
POWER OFF
GAME ASSIST
CROSSHAIR
Game Assist
Power O
Settings
Crosshair
Exit
Select Exit
GameAssist
GAME INFO
Display
Alignment
Gaming Timer
Refresh Rate
Info Location
- 14 -
• GameINFO: Configure the FPS (First Person Shooting) game related settings.
√ Select GamingTimer to select countdown timer mode. To disable this
function, set the setting to OFF.
√ Select RefreshRate to enable/disable real-time refresh rate setting.
√ Select InfoLocation to specify the location of the information to be shown
on the screen.
• DisplayAlignment: When the function is enabled, it displays the alignment
lines on the four sides of the screen, providing handy tool for you to line up
multiple monitors perfectly.
ConfiguretheDeviceSettings
When the Main menu appears on the screen, move the Control button up ( )
to enter the Settings menu.
Note: Use the Control button to navigate through the menu and make
adjustments.
60
Exit
Move/Adjust
Enter/Conrm
Button Guide
60
Exit
Move/Adjust
Enter/Conrm
Button Guide
- 15 -
Gaming
Configure the game related settings.
Item Description
Aim Stabilizer When this function is enabled, it reduces the motion blur
in a fast moving games.
Note: This function is not available under the following conditions:
- when the frequency setting is lower than 100Hz.
- when the FreeSync function is activated.
Black Equalizer Adjust the brightness of the black areas.
Super Resolution Sharpen the low resolution images.
Display Mode Select the aspect ratio of the screen.
• Full: Scale the input image to fill the screen. Ideal for 16:9
aspect images.
Note: This option is not compatible with FreeSync and PIP/PBP
functions.
Overdrive Improve the response time of the LCD monitor.
FreeSync
Premium
When this function is enabled, it eliminates the screen lag
and tearing while playing games.
Exit
Move/Adjust
Enter/Conrm
Picture Mode: Standard
Resolution Black Equalizer Aim Stabilizer Overdrive Refresh Rate FreeSync Premium
1920x1080 10 OFF ON 60 HZ OFF
Gaming
Display
System
Language
Reset all
Aim Stabilizer
Black Equalizer
Super Resolution
Display Mode
Overdrive
FreeSync Premium
10
- 16 -
Configure the image related settings.
Item Description
Standard For editing documents or browsing websites.
Gaming For playing games.
Movie For watching movies.
Reader For viewing documents.
sRGB For viewing photos and graphics on the computer.
Custom Customized picture mode settings.
ECO For Energy saving mode.
Note: Picture mode “Standard”, Low blue light “Level 10” is the optimized setting in
compliance with TÜV Low Blue Light Certification.
Exit
Move/Adjust
Picture Mode: Standard
SDR Brightness Contrast Sharpness Gamma Color Temperature
80 50 5 Gamma 3 Normal
80
Brightness
Contrast
Color Vibrance
Sharpness
Gamma
Color Temperature
Low Blue Light
Gaming
Standard
Movie
Reader
sRGB
Custom
ECO
Enter/Conrm
Gaming
Display
System
Language
Reset all
- 17 -
Display
Configure the display screen related settings.
Item Description
Input Select the input source.
Overclock Select ON/OFF (GS27QC/GS32QC)
RGB Range Select an appropriate RGB range setting or let the monitor
to detect it automatically.
Note: This option is only available for HDMI input.
Overscan When this function is enabled, it slightly enlarges the input
image to hide the outermost edges of the image.
Exit
Move/Adjust
Picture Mode: Standard
SDR Brightness Contrast Sharpness Gamma Color Temperature
80 50 5 Gamma 3 Normal
Overclock
Input
RGB Range
Overscan
Enter/Conrm
HDMI 1
HDMI 2
DisplayPort
Gaming
Display
System
Language
Reset all
- 18 -
System
Configure the system related settings.
Item Description
Audio Configure the headphone settings.
• Volume: Adjust the volume level.
• Mute: Enable/Disable the mute function.
OSD Settings Configure the on-screen display (OSD) menu related settings.
• Display Time: Set the length of time the OSD menu remains on
the screen.
• OSD Transparency: Adjust the OSD menu transparency.
• OSD Lock: When this function is enabled, no OSD adjustment
is allowed.
Note: To disable the OSD lock function, press the Control key.
When the message appears on the screen, select Yes to confirm.
The button is locked
confirm to unlock OSD
No Yes
Exit
Move/Adjust
Picture Mode: Standard
SDR Brightness Contrast Sharpness Gamma Color Temperature
80 50 5 Gamma 3 Normal
OSD Setting
Audio
Quick Switch
Other Setting
Enter/Conrm
Volume
Mute
Gaming
Display
System
Language
Reset all
- 19 -
Item Description
Quick Switch Assign the function of the hot keys.
Available options: Aim Stabilizer, Black Equalizer, Crosshair,
Low Blue Light, Volume, Input, Contrast, Brightness, and
Picture Mode.
The default setting of the hot keys as below:
Ö Up ( ): Black Equalizer
Ö Down ( ): Picture Mode
Ö Right ( ): Input
Ö Left ( ): Crosshair
Other Settings
• Resolution Notice: When this function is enabled, the current
resolution message will appear on the screen when the monitor
switches to another input source.
• Input Auto Switch: When this function is enabled, it automatically
switches to an available input source.
• Auto Power Off: When this function is enabled, the monitor
will automatically turn off after a certain amount of time.
• LED Indicator: By default, the LED indicator is set to AlwaysON.
Ö Always ON: The Power LED lights white during operation and
lights interval every 1 sec. in standby mode.
Ö Always OFF: Turn off the Power LED.
Ö Standby ON: The Power LED turns off during operation and
lights interval every 1 sec. in standby mode.
Ö When the power supply is switched off, the Power LED will
remain off.
- 20 -
Language
ResetAll
Restore the monitor to its factory default settings.
Item Description
Language Select an available language for the OSD menu.
Exit
Move/Adjust
Picture Mode: Standard
SDR Brightness Contrast Sharpness Gamma Color Temperature
80 50 5 Gamma 3 Normal
繁中
English
简中
Deutsch
Français
Enter/Conrm
Gaming
Display
System
Language
Reset all 日本語
한국어
Exit
Move/Adjust
Picture Mode: Standard
SDR Brightness Contrast Sharpness Gamma Color Temperature
80 50 5 Gamma 3 Normal
Enter/Conrm
Gaming
Display
System
Language
Reset all
- 21 -
APPENDICES
Specifications
Item Specifications
Model GS27FC GS27QC GS32QC
Panel Size 27-inch 32-inch
Aspect Ratio 16:9
Resolution 1920 x 1080 2560 x 1440
LED Life 30,000 hours (min.)
Pixel Pitch 0.3114 (H) x 0.3114 (V) 0.2331 (H) x 0.2331 (V) 0.2724 (H) x 0.2724 (V)
Brightness 250 nits (typ.) / 200 nits (min.)
300 nits (typ.) / 250 nits (min.)
Contrast Ratio 3000:1 (typ.) 4000:1 (typ.) 3500:1 (typ.)
Color Depth 16.7M (8Bit)
Active Display Area 597.888(H) x 336.312(V) 596.736(H) x 335.664(V) 697.344(H) x 392.256(V)
Viewing Angle 178° (H)/178° (V)
Input/Output
Terminals
2 x HDMI 2.0
1 x DP 1.4 (HBR2)
1 x Headphone
Power Supply AC100~240V, 50/60Hz
Power
Consumptions
• On Mode: 18W
• Standby: 0.5W
• Off Mode: 0.3W
• On Mode: 26W
• Standby: 0.5W
• Off Mode: 0.3W
• On Mode: 26W
• Standby: 0.5W
• Off Mode: 0.3W
Note: The test conditions follow the CEC standards.
Dimensions
(W x H x D)
611 x 440 x 172 mm (with Stand)
709 x 497 x 238 mm
(with Stand)
Weight 4.53 kg (Net) 5.86 kg (Net)
Temperature
Range (operation)
0°C to 40°C
Note: Specifications subject to change without notice.
- 22 -
SupportedTimingList
GS27FC FHD
Timing List HDMI 1 HDMI 2 DP
720X400 / 70Hz V V V
640X480 / 60Hz V V V
640X480 / 67Hz V V V
640X480 / 72Hz V V V
640X480 / 75Hz V V V
800X600 / 56Hz V V V
800X600 / 60Hz V V V
800X600 / 72Hz V V V
800X600 / 75Hz V V V
832X624 / 75Hz V V V
1024X768 / 60Hz V V V
1024X768 / 70Hz V V V
1024X768 / 75Hz V V V
1280X1024 / 75Hz V V V
1152X870 / 75Hz V V V
1152X864 / 75Hz V V V
1280X720 / 60Hz V V V
1280X800 / 60Hz V V V
1280X960 / 60Hz V V V
1280X1024 / 60Hz V V V
1440X900 / 60Hz V V V
1600X900 / 60Hz V V V
1680X1050 / 60Hz V V V
720X480 / 60Hz V V V
1280X720 / 50Hz V V V
1280X720 / 60Hz V V V
1280X720 / 100Hz V V V
1440X480 / 60Hz V V V
1920X1080 / 50Hz V V V
1920X1080 / 60Hz V V V
1920X1080 / 100Hz V V V
1920X1080 / 120Hz V V V
1920X1080 / 144Hz V V V
1920X1080 / 165Hz V V V
1920X1080 / 180Hz V V V
- 23 -
GS27QC/GS32QC QHD
Timing List HDMI 1 HDMI 2 DP
720X400 / 70Hz V V V
640X480 / 60Hz V V V
640X480 / 67Hz V V V
640X480 / 72Hz V V V
640X480 / 75Hz V V V
800X600 / 56Hz V V V
800X600 / 60Hz V V V
800X600 / 72Hz V V V
800X600 / 75Hz V V V
832X624 / 75Hz V V V
1024X768 / 60Hz V V V
1024X768 / 70Hz V V V
1024X768 / 75Hz V V V
1280X1024 / 75Hz V V V
1152X870 / 75Hz V V V
1152X864 / 75Hz V V V
1280X720 / 60Hz V V V
1280X800 / 60Hz V V V
1280X960 / 60Hz V V V
1280X1024 / 60Hz V V V
1440X900 / 60Hz V V V
1600X900 / 60Hz V V V
1680X1050 / 60Hz V V V
720X480 / 60Hz V V V
1280X720 / 50Hz V V V
1280X720 / 60Hz V V V
1280X720 / 100Hz V V V
1440X480 / 60Hz V V V
1920X1080 / 50Hz V V V
1920X1080 / 60Hz V V V
1920X1080 / 100Hz V V V
1920X1080 / 120Hz V V V
1920X1080 / 144Hz V V V
1920X1080 / 165Hz V
2560X1440 / 60Hz V V V
2560X1440 / 120Hz V V V
2560X1440 / 144Hz V V
2560X1440 / 165Hz V
- 24 -
Troubleshooting
BasicCare
• Wipe the screen with a soft, lint-free cloth to remove any residual dust.
• Spray or apply the cleaning fluid onto a soft cloth. Then wipe the screen
gently with the damp cloth.
Note:
• Make sure that the cloth is damp, but not wet.
• When wiping, avoid applying excessive pressure on the screen.
• Acidic or abrasive cleaners can damage the screen.
GIGABYTEServiceInformation
More service information, please visit GIGABYTE official website.
https://www.gigabyte.com/
Problem Possible Solution(s)
No power • Make sure the power cable is properly connected to the
power source and the monitor.
• Check the cable and plug to make sure they are not broken.
• Make sure the monitor is turned on.
No image appears
on the screen
• Make sure the monitor and the computer are properly
connected and both devices are turned on.
• Make sure you have selected the correct input source. Refer to
page 11 or 17.
The image does
not fill the entire
screen
• Try different DisplayMode (aspect ratio) setting. Refer to
page 15.
The colors are
distorted
• Make sure the input signal cable is properly connected.
• Configure the image related settings. Refer to the “Picture”
section.
No sound or
volume is low
• Make sure the headphone cable is properly connected.
• Adjust the volume level. Refer to page 18.
• Check the AudioSource setting.
• Adjust your computer sound related settings.
Note: If the problem persists, please contact our customer service for further assistance.
- 25 -
SAFETY INFORMATION
SafetyPrecautions
Read through the following Safety Precautions before using the monitor.
• Only use the accessories that are provided with the monitor or that which are
recommended by the manufacturer.
• Keep the plastic packaging bag for the product in a place that cannot be
reached by children.
• Before connecting the monitor to the power outlet, make sure that the
voltage rating of the power cable is compatible with the power specification
in the country where you are located.
• The power cord plug must be connected to a properly wired and grounded
power outlet.
• Do not touch the plug with wet hands, otherwise easily cause electric shock.
• Place the monitor in a stable and well-ventilated place.
• Do not place the monitor near any heat sources such as electric radiators or
direct sunlight.
• The holes or openings on the monitor are for ventilation. Do not cover or
block the ventilation holes with any objects.
• Do not use the monitor near water, drinks, or all types of liquids. Failure to do
so may result in electric shock or damage to the monitor.
• Make sure to unplug the monitor from the power outlet before cleaning.
• As the screen surface is easy to be scratched, avoid touching the surface with
any hard or sharp object.
• Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use
a glass cleaner to clean the monitor if required. However, never spray the
cleaner directly onto the screen.
• Disconnect the power cable if the monitor is not being used for a long period
of time.
• Do not attempt to disassemble or repair the monitor yourself.
- 26 -
StabilityHazardPrecautions
The product may fall, causing serious personal injury or death. To prevent injury, this product
must be securely attached to the floor/wall in accordance with the installation instructions.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• ALWAYS use stands or installation methods recommended by the manufacturer of the
product set.
• ALWAYS use furniture that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the
product or its controls.
• ALWAYS route cords and cables connected to your product so they cannot be tripped
over, pulled or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the product to a suitable support.
• NEVER place the product on cloth or other materials that may be located between the
product and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote
controls, on the top of the product or furniture on which the product is placed.
• If the existing product is going to be retained and relocated, the same considerations
as above should be applied.
• To prevent personal injury or damage to the product caused by tipping over due to
earthquakes or other shocks, make sure to install the product in a stable location and
take measures to prevent falling.
UserComfortRecommendations
The monitor adopts Flicker-Free technology which clears the eye visible monitor flicker and
prevents users from suffering eye strain and fatigue.
The following are some tips for comfortable viewing of your monitor:
• Optimal viewing distances for monitors range from approximately 510 mm to 760 mm
(20” to 30”).
• A general guideline is to position the monitor such that the top of the screen is at or
slightly below your eye-height when you are comfortably seated.
• Use adequate lighting for the type of work you are performing.
• Take regular and frequent breaks (at least for 10 minutes) every half-hour.
• Be sure to periodically look away from your monitor screen and focus on a far object for
at least 20 seconds during the breaks.
• Eye exercise can help reduce eye strain. Repeat these exercises frequently:
(1) look up and down (2) slowly roll your eye (3) move your eyes diagonally.
This model has passed Flicker Free and Low Blue Light verification by TÜV Rheinland.
To learn more:
https://www.gigabyte.com/tw/Support/FAQ/4310
- 27 -
REGULATORY INFORMATION
UnitedStatesofAmerica,FederalCommunicationsCommissionStatement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CanadianDepartmentofCommunicationsStatement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications. This class B digital apparatus complies with Canadian ICES-003.
Avisdeconformitéàlaréglementationd’IndustrieCanada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
EuropeanUnion(EU)CEDeclarationofConformity
This device complies with the following directives: Electromagnetic Compatibility Directive
2014/30/EU, Low-voltage Directive 2014/35/EU, ErP Directive 2009/125/EC, RoHS directive
(recast) 2011/65/EU & the Directive (EU) 2015/863 amendment of Annex II.
Compliance with these directives is assessed using applicable European Harmonised
Standards.
EuropeanUnion(EU)RoHS(recast)Directive2011/65/EU&theEuropeanCommission
DelegatedDirective(EU)2015/863Statement
GIGABYTE products have not intended to add and safe from hazardous substances (Cd,
Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been
carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing
our efforts to develop products that do not use internationally banned toxic chemicals.
- 28 -
EuropeanUnion(EU)CommunityWasteElectrical&ElectronicEquipment(WEEE)
DirectiveStatement
GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste
Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the
treatment, collection, recycling and disposal of electric and electronic devices and their
components. Under the Directive, used equipment must be marked, collected separately,
and disposed of properly.
WEEESymbolStatement
The symbol shown below is on the product or on its packaging, which indicates
that this product must not be disposed of with other waste. Instead, the device
should be taken to the waste collection centers for activation of the treatment,
collection, recycling and disposal procedure.
For more information about where you can drop off your waste equipment for recycling,
please contact your local government office, your household waste disposal service or
where you purchased the product for details of environmentally safe recycling.
EndofLifeDirectives-Recycling
The symbol shown below is on the product or on its packaging, which indicates
that this product must not be disposed of with other waste. Instead, the device
should be taken to the waste collection centers for activation of the treatment,
collection, recycling and disposal procedure.
CEDéclarationdeConformité
Cet appareil est conforme aux Directives de l’UE suivantes: Directive Compatibilité
Electromagnétique 2014/30/UE, Directive Basse Tension 2014/35/UE, Directive 2009/125/
CE en matière d’écoconception, la Directive RoHS II 2011/65/UE & Directive (UE) 2015/863
modifiant l’Annexe II.
La conformité à ces directives est évaluée sur la base des normes européennes
harmonisées applicables.
CE-Konformitätserklärung
Dieses Produkte erfüllen folgenden EU-Richtlinien: EMV-Richtlinie 2014/30/EU,
Niederspannungsrichtlinie 2014/30/EU, Ökodesign-Richtlinie 2009/125/EC, RoHS-Richtlinie
2011/65/EG erfüllt und die Richtlinie (EU) 2015/863 zur Änderung von Anhang II.
Die Konformität mit diesen Richtlinien wird anhand der anwendbaren harmonisierten
Europäischen Normen bewertet.
CEDeclaracióndeconformidad
Este producto cumplen con las siguientes Directivas de la Unión Europea: Directiva EMC
2014/30/EU, Directiva de bajo voltaje 2014/35/EU, Directiva de Ecodiseño 2009/125/CE,
Directiva RoHS 2011/65/EU y la Directiva (EU) 2015/863 por la que se modifica el Anexo II.
El cumplimiento de estas directivas se evalúa mediante las normas europeas armonizadas.
- 29 -
CEdeclaraçãodeconformidade
Este produto estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão
2014/35/UE; Diretiva CEM 2014/30/UE; Diretiva Conceção Ecológica 2009/125/CE; Diretiva
RSP 2011/65/CE e a Diretiva (UE) 2015/863 que altera o Anexo II.
A conformidade com estas diretivas é verificada utilizando as normas europeias
harmonizadas.
CEDichiarazionediconformità
I prodotti sono conformi con una o più delle seguenti Direttive UE, come applicabile:
Direttiva EMC 2014/30/UE, Direttiva sulla bassa tensione 2014/35/UE, Direttiva Ecodesign
EMC 2009/125/CE, Direttiva RoHS 2011/65/UE e Direttiva (UE) 2015/863 recante modifica
dell’Allegato II.
La conformità con tali direttive viene valutata utilizzando gli Standard europei armonizzati
applicabili.
CEDeklaracjazgodności
Urządzenie jest zgodne z następującymi dyrektywami: Dyrektywa kompatybilności
elektromagnetycznej 2014/30/UE, Dyrektywa niskonapięciowej 2014/35/UE, Dyrektywa
ErP 2009/125/WE, Dyrektywa RoHS 2011/65/UE i Dyrektywa (UE) 2015/863 zmieniająca
Załącznik II. Zgodność z tymi dyrektywami oceniono za pomocą mających zastosowanie
zharmonizowanych norm europejskich.
CEProhlášeníoshodě
Toto zařízení splňuje požadavky Směrnice o Elektromagnetické kompatibilitě 2014/30/
EU, Směrnice o Nízkém napětí 2014/35/EU, Směrnice ErP 2009/125/ES, Směrnice RoHS
2011/65/EU a Směrnice (EU) 2015/863 kterou se mění Příloha II.
Shoda s těmito směrnicemi je posuzována v souladu s příslušnými evropskými
harmonizačními standardy.
CEMegfelelőséginyilatkozata
A termék megfelelnek a következőrájuk vonatkozó egy vagy több Európai Uniós
irányelvnek: EMC irányelv 2014/30/EU, Kisfeszültségű villamos berendezésekre vonatkozó
irányelv2014/35/EU, Környezetbarát tervezésről szóló irányelv 2009/125/EZ, Direktivi RoHS
irányelv 2011/65/EU és Direktivi (EU) 2015/863 o izmjeni Priloga II.
A fenti irányelveknek történőmegfelelés megállapítása a vonatkozó harmonizált európai
szabványok segítségével történik.
CEΔήλωσησυμμόρφωσης
Είναι σε συμμόρφωση με τις διατάξεις των παρακάτω Οδηγιών της Ευρωπαϊκής Κοινότητας:
Οδηγία 2014/30/ΕΕ σχετικά με την ηλεκτρομαγνητική συμβατότητα, Οοδηγία χαμηλή τάση
2014/35/EU, Οδηγία 2009/125/ΕΚ σχετικά με τον οικολογικό σχεδιασμό, Οδηγία RoHS
2011/65/ΕΕ και Οδηγία (EE) 2015/863 για την τροποποίηση του παραρτήματος II.
Η συμμόρφωση με αυτές τις οδηγίες αξιολογείται χρησιμοποιώντας τα ισχύοντα
εναρμονισμένα ευρωπαϊκά πρότυπα.
- 30 -
CEDeclaraţiedeconformitate
Acest aparat este conform cu: Compatibilitatea electromagnetică Directiva 2014/30/
UE, Directiva privind echipamentele de joasă tensiune 2014/35/UE, Directiva privind
proiectarea ecologică 2009/125/CE, Directiva RoHS 2011/65/UE & Directiva (UE) 2015/863
de modificare a Anexei II.
Conformitatea cu aceste directive este evaluatăutilizând Standardele europene armonizate
aplicabile.
CEOverensstemmelseserklæring
Denne enhed overholder stk.: elektromagnetisk kompatibilitet Direktivet 2014/30/EC,
LVD Direktivet 2014/35/EC, miljøvenligt design Direktivet 2009/125/EF, RoHS Direktivet
2011/65/EU & Direktivet (UE ) 2015/863 om ændring af Bilag II.
Overholdelse af disse direktiver vurderes med gældende europæiske harmoniserede
standarder.
CEVyhlásenieozhode
Tento produkt spĺňajú najmenej jednu z nasledujúcich platných smerníc EÚ: Smernica
2014/30/ES pre elektromagnetickú kompatibilitu, Smernica 2014/35/ES o Nízkom Napätí
(LVD), Smernica 2009/125/ES pre ekodizajn, Smernica RoHS 2011/65/EÚ & Smernica (EÚ)
2015/863 ktorou sa mení Príloha II.
Zhoda s týmito smernicami sa hodnotí použitím príslušných európskych harmonizovaných
štandardov.
CEVaatimustenmukaisuusvakuutus
Tämä tuote on näiden EU-direktiivien mukainen: EMC Direktiivi 2014/30/EY, LVD Direktiivi
2014/35/EY, Ekologista suunnittelua koskeva Direktiivi 2009/125/EY, RoHS Direktiivi
2011/65/EU & Direktiivi (EU) 2015/863 Liitteen II muuttamisesta.
Yhdenmukaisuus näiden direktiivien kanssa on arvioitu käyttäen soveltuvia eurooppalaisia
harmonisoituja standardeja.
CEFörsäkranomöverensstämmelse
Denna produkt uppfyller följande direktiv: Direktivet om Eelektromagnetisk kompatibilitet
2014/30/EU, Lågspänningsdirektivet 2014/35/EU, Ekodesigndirektiv 2009/125/EG, Direktiv
RoHS 2011/65/EU mid Direktiv (EU) 2015/863 om ändring av Bilaga II.
Överensstämmelse med dessa direktiv bedöms med hjälp av tillämpliga europeiska
harmoniserade standarder.
CEConformiteitsverklaring
Dit product voldoet aan de volgende van toepassing zijnde EU-richtlijnen: EMC Richtlijn
2014/30/EG, Laagspanningsrichtlijn 2014/35/EU, Ecodesign-richtlijn 2009/125/EG, G RoHS
Richtlijn 2011/65/EG & Richtlijn (EU) 2015/863 tot wijziging van Bijlage II.
Het voldoen aan deze richtlijnen is beoordeeld met de van toepassing zijnde Europese
geharmoniseerde normen.
- 31 -
CEVyhlásenieozhode
Toto zariadenie vyhovuje nasledujúcim smerniciam: Smernica elektromagnetickej
kompatibility 2014/30/EÚ, Smernica o nízkom napätí 2014/35/EÚ, Smernica o výrobkoch
týkajúcich sa energie 2009/125/ES, Smernica RoHS 2011/65/EÚ & Smernica (EÚ) 2015/863
ktorou sa mení príloha II.
Zhoda s týmito smernicami sa hodnotí použitím príslušných európskych harmonizovaných
štandardov.
IndiaRoHS
This product complies with the “India E-waste (Management and Handling) Rule 2011”
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01
weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
JapanClass01EquipmentStatement
安全にご使用いただくために
接地接続は必ず電源プラグを電源につなぐ前に行って下さい。
また、接地接続を外す場合は、必ず電源プラグを電源から切り離してから行って下さい。
JapanVCCIClassBStatement
クラスBVCCI基準について
この装置は、クラス B 情報技術装置です。この装置は、家庭環境で使用することを
目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用され
ると、受信障害を引き起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい。
VCCI-B
- 32 -
ChinaRoHSComplianceStatement
中国《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电
器电子产品回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进
行回收处理。
环保使用期限
Environment-friendlyuseperiod
此标识指期限（十年），电子电气产品中含有的有害物质不会发生外泄或突
变、电子电气产品用户正常使用该电子电气产品不会对环境造成严重污染或
对其人身、财产造成严重损害的期限。
产品中有害物质的名称及含量:
部件名称
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr
+6
)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板及其电子组件 × ○ ○ ○ ○ ○
液晶面板 × ○ ○ ○ ○ ○
外壳 ○ ○ ○ ○ ○ ○
外部信号连接头及线材 × ○ ○ ○ ○ ○
本表格依据 SJ/T 11364 的规定编制。
○
：
表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
×
：
表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
