EN
Original Instructions
Version 1
04742, 04744
2.0KW/2.8 KW
ELECTRIC
SPACE HEATER
1.1 Product Reference
User Manual for: 2.0kW/2.8kW Electric Space Heater
Stock No: 04742, 04744
Part No: ESH2000F, ESH2800F
1.2 Revisions
Version 1: June 2022
First release
As our manuals are continually updated, always ensure
that the latest version is used.
Download the latest version from:
drapertools.com/manuals
1.3 Understanding the Safety Content
WARNING!
– Situations or actions that may result in
personal injury or death.
CAUTION! – Situations or actions that may result in
damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring, or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
– 2 –
These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate, or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the
information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.
2. Contents
– 3 –
EN
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content 2
1.4 Copyright © Notice 2
2. Contents 3
3. Warranty 4
4. Product Introduction 5
4.1 Scope 5
4.2 Specication 5
5. Health and Safety Information 6
5.1 General Health and Safety Precautions
For This Heater 6
5.2 Connection to the Power Supply 7
6. Identication and Unpacking 8
6.1 Product Overview 8
6.2 Packaging 8
7. Operating Instructions 9
7.1 Positioning the Heater 9

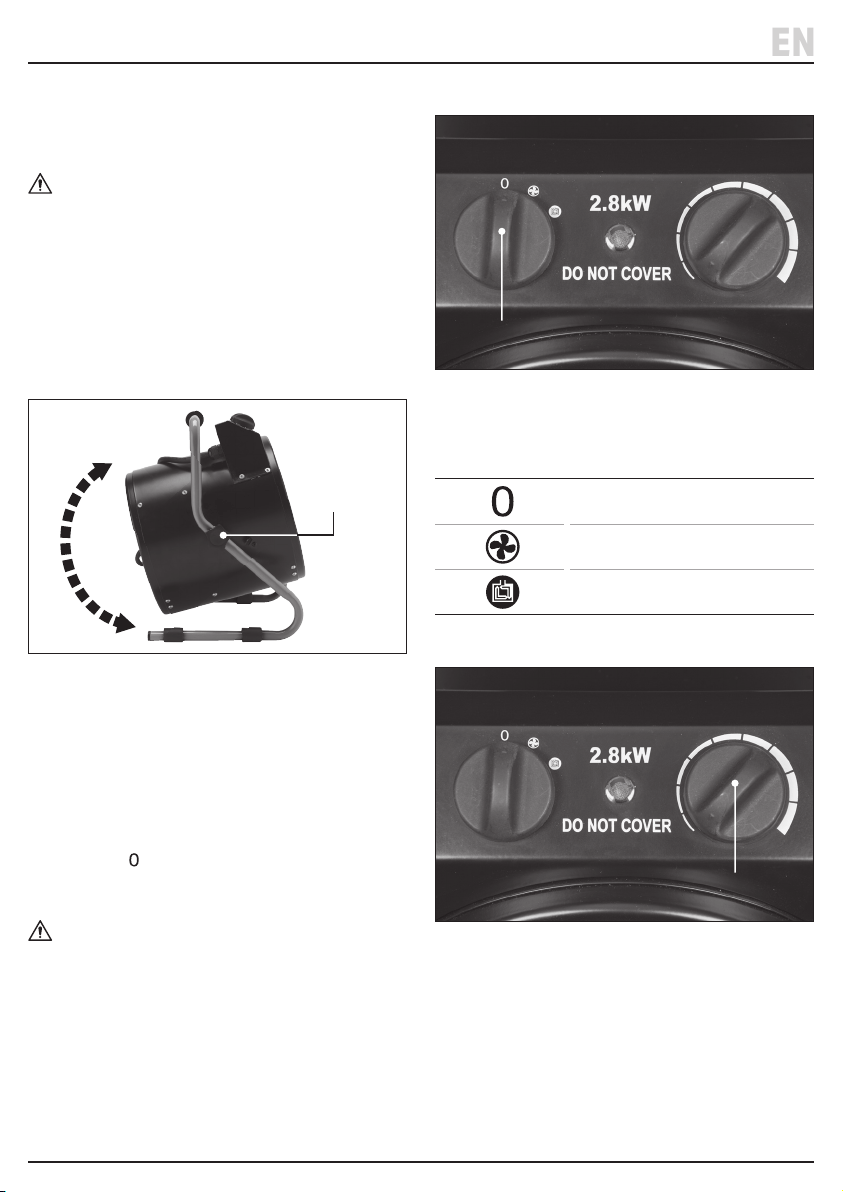

7.2 The Operation Control Dial 9
7.3 The Thermostat Control Dial 9

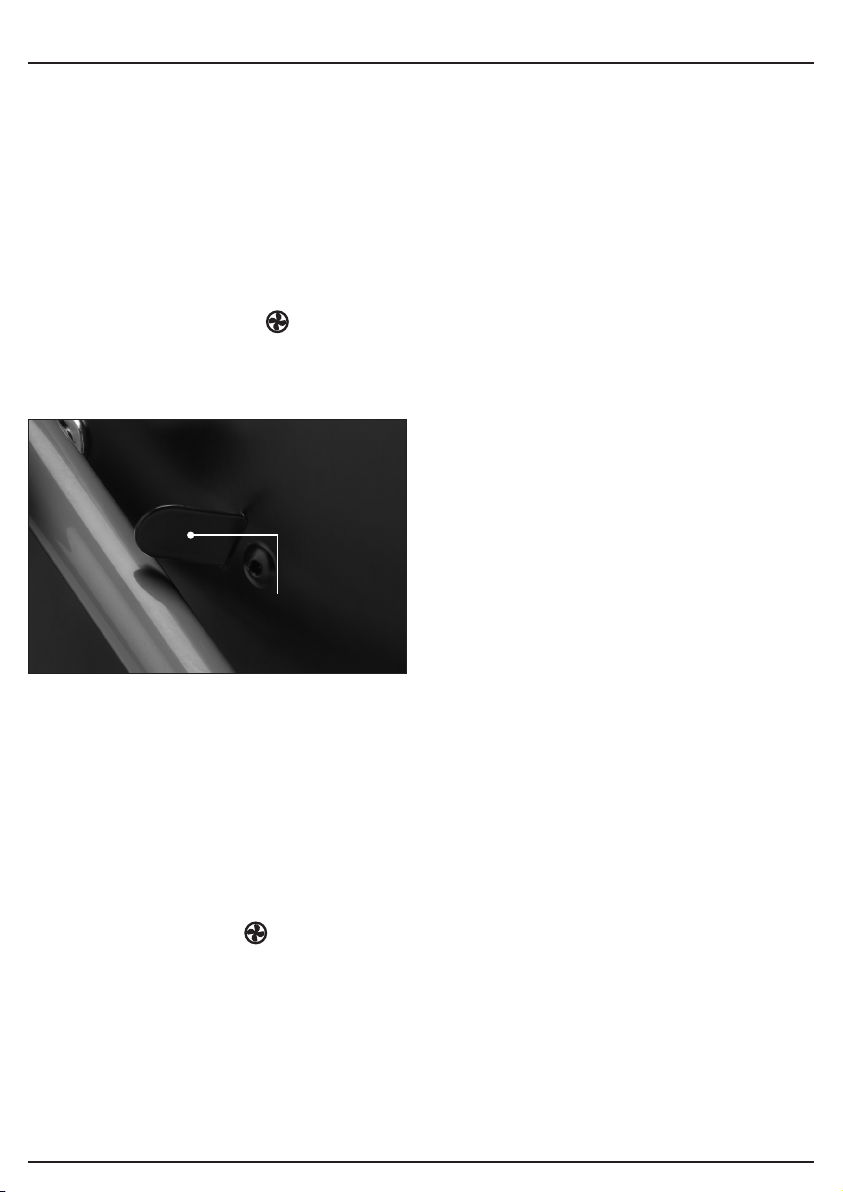

7.4 The Safety Tab 10
7.5 Switching O the Heater After Use 10
7.6 Thermal Cut-Out 10
8. Maintenance and Troubleshooting 11
8.1 General Maintenance and Storage 11
8.2 Troubleshooting 11
9. Returns and Disposal 12
10. Explanation of Symbols 13
3. Warranty
Draper Tools products are carefully tested and inspected
before shipment and are guaranteed to be free from
defective materials and workmanship.
Should the tool develop a fault, return the complete tool
to your nearest distributor or contact Draper Tools
directly. Contact information can be found at the back of
this manual.
Proof of purchase must be provided.
If, upon inspection, it is found that the fault occurring is
due to defective materials or workmanship, repairs will
be carried out free of charge. This warranty period covers
parts and labour for 12 months from the date of
purchase. Where tools have been hired out, the warranty
period covers 90 days from the date of purchase.
This warranty does not apply to any consumable parts,
batteries or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling,
alterations, accidents, or repairs attempted or made by
any personnel other than the authorised Draper Tools
repair agent.
In all cases, to make a claim for faulty workmanship or
materials within the standard warranty period, please
contact or return the product to the place of purchase.
Proof of purchase may be required.
If the place of purchase is no longer trading or if you
experience any diculties with your warranty, please
contact Customer Services with the product details and
your proof of purchase. Contact details can be found at
the back of this manual.
If the tool is not covered by the terms of this warranty,
repairs and carriage charges will be quoted and charged
accordingly.
This warranty supersedes any other guarantees
expressed or implied and variations of its terms are not
authorised.
Your Draper Tools guarantee is not eective until you can
produce, upon request, a dated receipt or invoice to
verify your purchase within the guarantee period.
Please note that this warranty is an additional benet
and does not aect your statutory rights.
Draper Tools Limited
– 4 –
4. Product Introduction
Stock No.: 04742 04744
Part No.: ESH2000F ESH2800F
Rated voltage: 230V 230V
Rated input: 2,000W 2,800W
Rated frequency: 50Hz 50Hz
Position settings:
O: 0W 0W
Fan mode: 25W 30W
Heat mode: 2,000W 2,800W
Dimensions: W 230 x H 340 x D 285mm W 250 x H 370 x D 315mm
Heating area: 20m³ 32m³
Air output: 293m³/h 312m³/h
IP rating: IPX4 IPX4
Net weight: 3.8kg 4.7kg
– 5 –
EN
4.2 Specication
4.1 Scope
This heater is intended to raise the ambient temperature
in indoor environments and is suitable for domestic and
light commercial use only. Any other application beyond
the conditions established for use will be considered
misuse. Draper Tools accepts no responsibility for
improper use of this product.
Part of our core range, this product is suitable for
enthusiasts and tradespersons alike.
WARNING!
This product is not a toy and must be
respected.
Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later use.
5. Health and Safety Information
Important: Read all the Health and Safety instructions
before attempting to operate, maintain or repair this
product. Non-compliance with these instructions may
result in injury or damage to the user or the product.
5.1 General Health and Safety
Precautions For This Heater
• Observe all standard safety precautions and good
practices when working with electrical equipment.
• Take extra care when using this product around
children.
− Children of less than three years should be kept
away unless continuously supervised.
− Children aged between three years and eight
years shall only switch on/o the appliance if it
has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.
− Children aged between three years and eight
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
• Keep your work environment clear and well-lit, with
bystanders at a safe distance.
• Before every use, inspect the heater for broken,
cracked, loose or corroded parts.
• Important: DO NOT use this product if it is damaged
in any way. Contact Draper Tools to discuss repair and
replacement options.
• Use the product only in the manner instructed in this
manual and DO NOT modify it in any way.
• This heater is for indoor use ONLY.
• DO NOT expose this product to temperatures greater
than 50°C.
• DO NOT use this heater in small rooms that are
occupied by individuals that are not capable of
leaving the room on their own, unless constant
supervision is provided.
• DO NOT use the heater in dusty environments.
• Position the heater on a rm and level surface during
use and ensure that the adjustable screws are tightly
secured.
• The heater must ONLY be used in its upright position.
• DO NOT position the heater in close proximity to
curtains or other combustible materials that may
move and come into contact with the heater.
• Allow a minimum of 2m clearance between the
reguard and any nearby objects.
• DO NOT position this heater in the vicinity of
combustible materials, in explosive environments or
in the presence of ammable or combustible gases
and vapours.
• DO NOT position this heater below or pointing
towards a power socket or outlet.
• Lock the wheels when the heater is stationary.
• Ensure that the power switch is in the “OFF” (
)
position before connecting the heater to the power
supply.
• ONLY use this product with power supplies that match
the rated voltage of the heater.
− NEVER use this heater with an extension lead,
multi-socket or plug adaptor; it must be plugged
directly into the power supply.
− NEVER plug more than one heater into the same
power outlet.
• NEVER abuse the power cord.
− Untangle the power cord fully before connecting
it to the power supply.
− NEVER remove the plug from the power supply by
pulling on the cord.
− DO NOT pull the product using the cable or plug.
− Keep the power cord away from sources of heat,
liquids, sharp edges and moving parts.
− The power cord attached to this product is not
suitable for use on building sites.
• NEVER allow the power cord to come into contact
with other heated objects or direct the heater at the
power cord or supply.
• This is a Class I appliance.
− This product requires an earth connection to
protect against electric shock from accessible
conductive parts in the event of a failure of the
basic insulation.
− To reduce the risk of electric shock, avoid body
contact with earthed or grounded surfaces, such
as pipes, radiators, ranges and refrigerators
during use.
• ALWAYS check that the heater is positioned safely
before turning it on.
• NEVER leave the heater unattended while it is on.
– 6 –
5. Health and Safety Information
• DO NOT use this heater with a programmer, timer,
separate remote-control system or any other device
that switches the heater on automatically as it may be
covered or positioned incorrectly when activated and
pose a re risk.
• NEVER cover any part of the heater as this may cause
the heater to overheat or the covering item to ignite or
burn.
• NEVER insert foreign objects through the grilles.
• DO NOT operate the heater without both of the grilles
installed.
WARNING! Risk of shock!
− DO NOT allow the heater to come into contact
with water or any other liquid.
− DO NOT use this heater in the vicinity of a bath,
shower, swimming pool or other body of water.
− DO NOT touch the heater with wet hands.
WARNING! Some parts of the product become very
hot during use and may cause burns. The heating
element DOES NOT glow when heated.
− DO NOT touch any metal part of the heater other
than the handle or wheels during or immediately
after use.
− ALWAYS switch o the heater, disconnect it from
the power supply and allow it to cool for at least
20 minutes before attempting to move or
reposition it.
− Particular attention MUST be given when children
and vulnerable people are present.
5.2 Connection to the Power Supply
This appliance is supplied with an approved plug and
cable for your safety. The value of the fuse tted is
marked on the pin face of the plug. Should the fuse need
replacing, ensure the substitute is of the correct rating,
approved to BS 1363/A and ASTA or BS Kite marked.
ASTA
BSI
The fuse can be replaced by removing the cover of the
plug using a cross-headed screwdriver and removing the
broken fuse from its holder. This should only be
performed by suitably qualied personnel.
If the power supply cord is damaged, it must be replaced
by Draper Tools, an authorised service agent or similarly
qualied personnel in order to avoid a hazard.
– 7 –
EN
The damaged or incomplete plug, when cut from the
cable, shall be disabled to prevent connection to a live
electrical outlet.
This product is Class I
†
and is designed for connection to
a power supply matching that detailed on the rating label
and compatible with the plug tted.
CAUTION! DO NOT use this product with an
extension lead or multi-socket.
†
Earthed: This product requires an earth connection to
protect against electric shock from accessible
conductive parts in the event of a failure of the basic
insulation.
6. Identication and Unpacking
6.1 Product Overview
Carefully remove the product from the packaging and examine it for any signs of damage that may have occurred
during shipment.
If any part is damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact
details can be found at the back of this manual.
(1) Inlet grille
(2) Operation control dial
(3) Outlet grille
(4) Position adjustment screws
(5) Power LED
(6) PTC heater element
(7) Safety tab
(8) Stand
(9) Thermostat control dial
(10) Transport handle
– 8 –
Please visit drapertools.com for our full range of accessories and consumables.
6.2 Packaging
Keep the product packaging for the duration of the warranty period in case the product needs to be returned for repair.
WARNING!
Keep packaging materials out of reach of children. Dispose of packaging correctly and responsibly
and in accordance with local regulations.
(2)
(10)
(9)
(5)
(4)(4)
(1)
(6) (3)
(8)
(7)
7. Operating Instructions
Important: Before use, read and understand all the
safety instructions listed in this manual. The heater may
emit an odour during rst use. This is normal and will
pass shortly after switching on.
WARNING! DO NOT leave the heater unattended
while it is connected to the power supply or switched
on.
7.1 Positioning the Heater
This heater is intended for use in small, enclosed spaces
such as oces, home garages, workshops, etc.
Position the fan so that it stands upright unaided on a
rm, level and re-resistant surface and is located a safe
distance away from ammable objects and wet
environments.
1 Fig.
(4)
Set the angle of the heater by loosening the position
adjustment screws (4), tilting the heater as required and
then tightening the screws to secure it.
Important: ALWAYS ensure that the position adjustment
screws are tightly secured before switching on the
heater.
Ensure that the operation control dial (2) is set to the
‘OFF’ position (
) and the thermostat control dial (9) is
set to the lowest position, then connect the plug directly
to a power outlet.
WARNING! DO NOT attempt to adjust the angle of
the heater during or immediately after use. ALWAYS
switch o the heater, disconnect the power supply and
allow it to cool before loosening the position
adjustment screws.
7.2 The Operation Control Dial
2 Fig.
(2)
The operation control dial (2) has three operating
positions:
Position Function
O (disconnect the power supply
when not in use)
Fan mode (no heat)
Heat mode
7.3 The Thermostat Control Dial
3 Fig.
(9)
The thermostat control dial (9) can be used to set the
desired room temperature. The heater will then maintain
the chosen temperature automatically.
1. After connecting the heater to the power supply, turn
the operation control dial (2) to the heat mode
position.
– 9 –
EN
7. Operating Instructions
2. Turn the thermostat control dial clockwise to the
maximum position and allow the heater to heat the
space in order to set the desired ambient
temperature. The power LED (5) will illuminate when
the heater element begins to heat up.
3. When the desired temperature is reached, turn the
thermostat control dial anticlockwise until it “clicks”
and the power LED goes out.
4. The heater will automatically switch on and begin
heating when the ambient temperature drops below
the current setting.
Important: If the fan mode setting ( ) is selected on
the operation control dial (2), the thermostat control dial
must be set to its maximum position.
7.4 The Safety Tab
4 Fig.
(7)
The heater is equipped with a safety tab (7) for safe
adjustment when the heater is in use and to prevent the
heater from being directed towards the ground.
Important: The safety tab MUST NOT be removed or
bent out of position under any circumstances. DO NOT
use the heater if the safety tab has been compromised in
any way and contact Draper Tools for support.
7.5 Switching O the Heater After Use
Before switching o the heater, turn the operation
control dial (2) to the fan mode ( ) setting and turn
the thermostat control dial to its maximum position.
Allow the fan to blow for a few minutes to cool the heater
element before turning the thermostat control dial to its
lowest position, turning the operation control to the o
position and disconnecting the power supply.
7.6 Thermal Cut-Out
The heater is equipped with a safety device that cuts the
power to the heating element, which is activated when
the heater overheats. When this occurs, the heater must
be switched o, disconnected from the power supply and
left to cool for at least ten minutes.
Important: If overheating causes the heater to switch o
automatically, the cause of overheating MUST be
rectied before the product is used again. Possible
causes include covering of the inlet (1) and outlet (3)
grilles or the fan being positioned too close to a wall or
other object.
Once the heater has fully cooled and the problem has
been rectied, reconnect it to the power supply and
switch it back on again.
– 10 –
8. Maintenance and Troubleshooting
– 11 –
EN
Important: Read all the Health and Safety information in this manual before attempting to maintain this product. All
maintenance should be carried out ONLY by authorised and suitably qualied personnel.
WARNING!
ALWAYS ensure that the heater is switched o, disconnected from the power supply and has fully
cooled before attempting to maintain this product.
8.1 General Maintenance and Storage
• Keep the heater clean and dry.
− Clean the heater body using a dry cloth ONLY.
− Clean the heater grilles using a dry cloth or brush, ensuring that all dust and debris is collected and removed
from the heater.
• Any maintenance to the plug and power cable MUST be carried out by suitably qualied personnel.
• Any repairs to the heater must be carried out by suitably qualied personnel.
• The heater should be inspected at least once a year by suitably qualied personnel.
• Store the heater in its original bag and box, in a clean and dry location, out of reach of children.
8.2 Troubleshooting
Problem Possible cause Remedy
The heater does not
operate when
switched on.
The power supply is not
active.
Ensure that the power supply to which the heater is connected is
switched on.
The plug or cable
connection is loose or
damaged.
Remove the plug from the power supply and check it for damage
or loose parts.
The heating element
is glowing.
The input voltage is
incorrect.
Disconnect the heater IMMEDIATELY and allow it to cool before
reconnecting to a power supply matching the rating plate on the
product.
The input grille is
blocked.
Disconnect the heater and check that the input grille is not
obstructed by external objects. Allow the heater to cool, then
clean the grille with a brush or dry cloth.
The heater does not
emit any heat.
The ambient temperature
is too high.
Increase the thermostat control setting or move the heater to a
cooler environment.
The thermostat is
damaged.
Check that the power LED illuminates when the thermostat control
dial is turned to its maximum position. Contact Draper Tools to
discuss repair and replacement options.
The thermal cut-out has
been activated.
Switch o the heater, disconnect it from the power supply and
allow it to cool for at least ten minutes. Check for and clear any
blockages and obstructions. Reconnect the power and switch on
the heater.
The heater emits an
unusual noise.
The fan is obstructed. Switch o the heater, disconnect the power supply and allow it to
cool. Look through the inlet grille to check for any obstructions.
Clean both grilles thoroughly. Contact Draper Tools for support.
The heater is not level. Ensure that the heater is positioned on a at and level surface.
– 12 –
9. Returns and Disposal
For servicing, repair and replacement options, please
contact the Draper Tools Product Helpline for details of
your nearest authorised agent. Any servicing or repairs
carried out by unauthorised personnel will invalidate
your warranty.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
DO NOT dispose of this product with domestic waste;
most local authorities provide appropriate recycling
facilities.
– 13 –
10. Explanation of Symbols
Read the instruction manual
Keep out of the reach of children
230
V
Rated voltage
2.8
kW
Rated input (example)
9554
BTU
Rated heat output (example)
DO NOT cover
WARNING!/CAUTION
WARNING! Heated surfaces
WARNING! Risk of shock
For indoor use only;
DO NOT expose to rain
Earthed
WEEE –
Waste Electrical & Electronic Equipment
Do not dispose of Waste Electrical & Electronic Equipment
in with domestic rubbish
UK Conformity Assessed
European conformity
EN
Notes
– 14 –
Notes
– 15 –
EN
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
General Fax: +44 (0) 23 8026 0784
Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
© Published by Draper Tools Limited
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
