This is the original instruction, please read all manual instructions carefully before operating.
VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be
subject to the product you received. Please forgive us that we won't inform you again if there is
any technology or software updates on our product.
Have product questions? Need technical support? Please feel free to contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
MODEL:JY-MY-YXL-480-120
JY-MY-YXL-480-220
JY-MY-YXL-480-240
HORIZONTAL PELLET
GRILL SMOKER
Note:The quantity of parts shown in the manual is the actual usage and the
unused parts are spare parts.
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
6

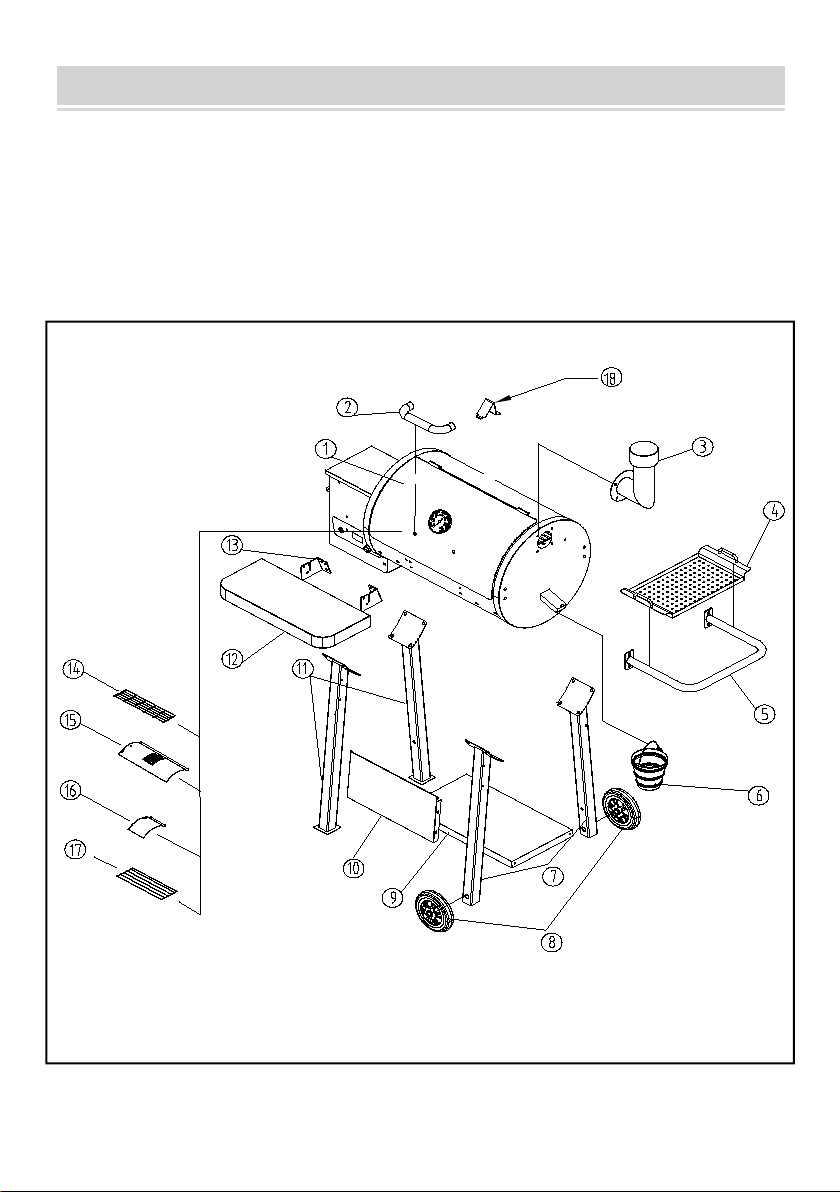

PRODUCT COMPONENTS
ATTENTION!
1. Check all parts for completeness before beginning assembly.
2.
To avoid accidents or sharp edges injuries please assemble and use
carefully. For assembly you need a Phillips screwdriver and different screw
wrenches. 2 persons are needed to assemble the product.
Loading page 8...
8

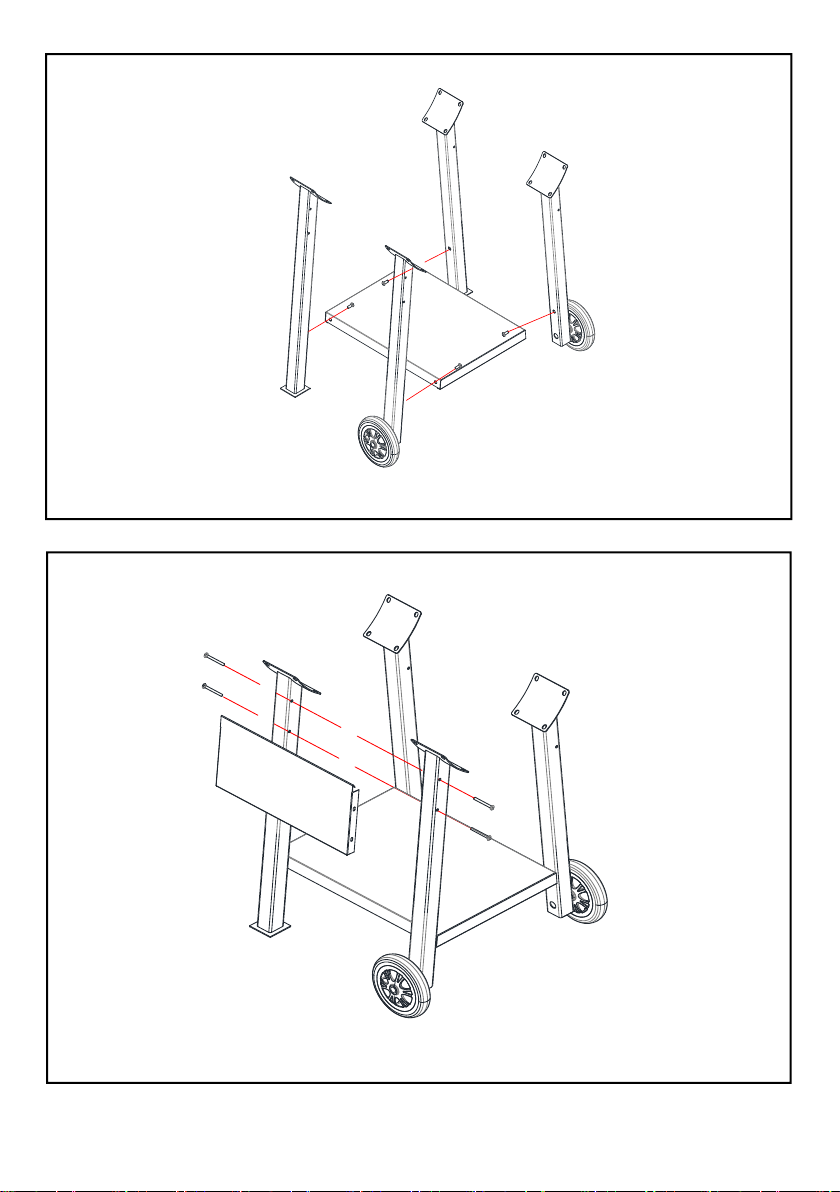

STEP2
D: M6x16-4PCS
STEP3 C: M5x50-4PCS
3. Fix the front trim panel with M5x50 screws.
2. Use M6x16 screws to install the frame chassis on the foot 1/2.
Loading page 10...
10
STEP6
B:M5x16-4PCS
STEP7
D:M6x16-16PCS

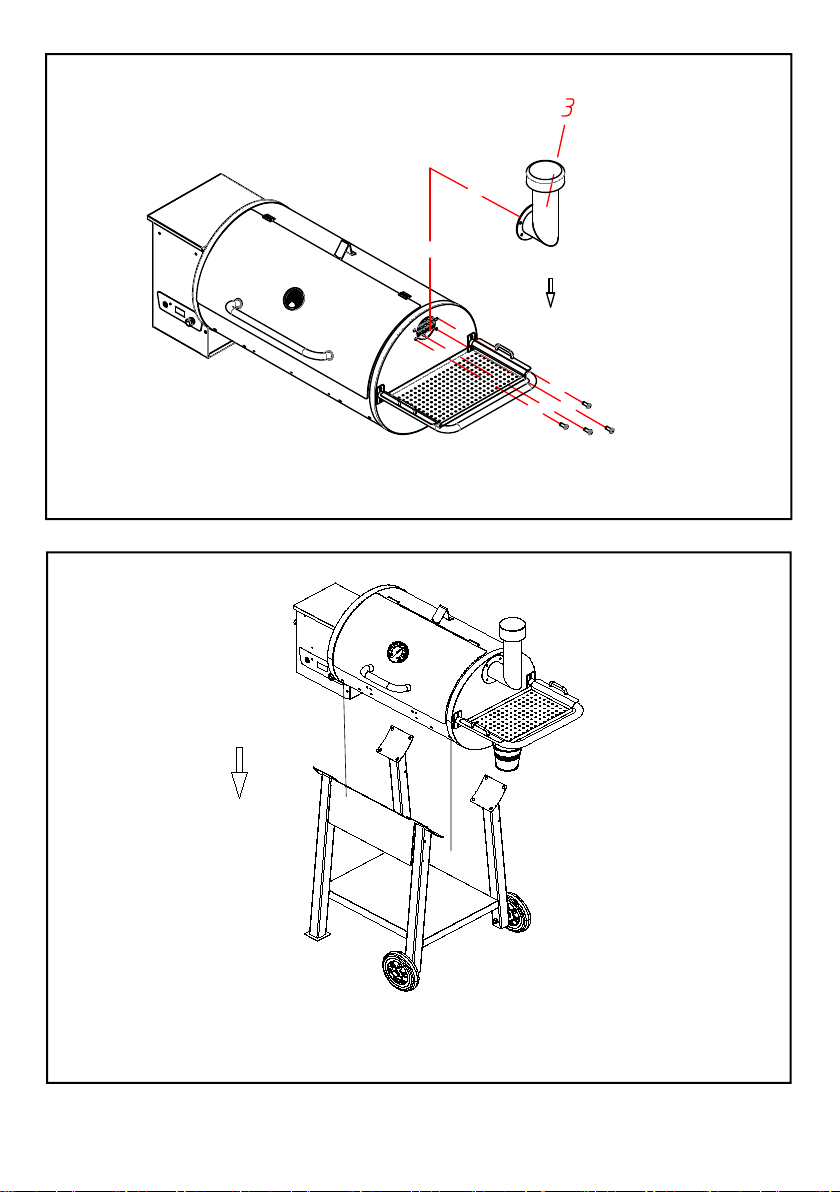

6. Fix the chimney on the side of the barbecue barrel with M5x16 screws.
7.Fix the grill barrel on the proper position of the frame as shown in the figure
above, and use M6x16 screws to lock it from the outside of the grill barrel.
Loading page 12...
12
STEP10
STEP11

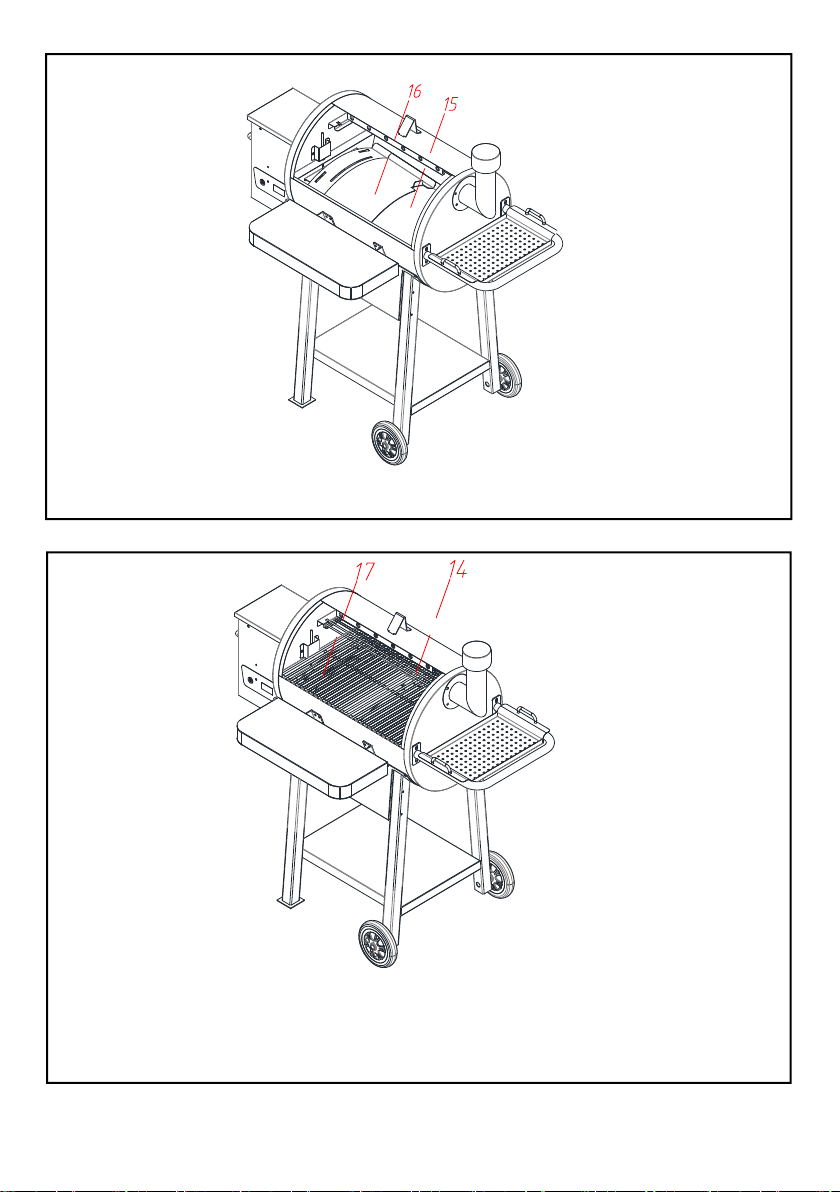

10. Put on the ignition plate and the cover of the ignition plate.
11. Put on the grill and insulation net, and the installation is completed. Turn on the power supply,
place the pellet fuel in the feeder, start the feeding controller, adjust to the appropriate temperature,
and smoke the food when the temperature of the cylinder rises to the set temperature.
13
OPERATING INSTRUCTIONS
Before using the appliance for the first time, peel off any promotional
materials and packaging materials, and check that the cooking plates are
clean and free of dust. If necessary, wipe them over with a damp cloth.
Spread over with an absorbent kitchen towel and wipe off any excess oil.
When your product is heated for the first time, it may emit slight smoke or
odor, which is normal for many heating appliances, and will not affect the
safety of your appliance.
1. Place the machine on a clean, dry, level surface near a plug base outlet.
2. Distribute the solid firelighters in the center of the fire box.
3. Stack up the charcoal in a pyramid above the firelighters.
4. Light the solid firelighters with a match.
5. Grease the grill with some vegetable oil and start grilling.
6. Only place food on the grill after the fuel is covered with an ash layer.
7. Plug the cord into the wall outlet.
8. Use the ventilation slider to control the amount of air supplied to fuel
from the bottom.(Only applicable for appliance with ventilation slider)
ATTENTION!
1. Do not move while the appliance is hot.
2. Due to safety reasons do not use this appliance with liquid fuels.
3. We strongly recommend that the bbq rotisserie grill shall be heated up
and the fuel kept red-hot for at least 30 min prior to the first cooking;
4. Do not leave the appliance unattended during use.
5. Do not use the appliance near flammable objects (keep at a safe
distance, at least 3 meters).
6. Do not leave the appliance unattended during use.
7. Do not cook before the fuel has a coating of ash.
8. If the motor is suddenly stuck, abnormal noise, smoke and other
undesirable phenomena are found during the barbecue process,
immediately cut off the power supply, and restart it after the maintenance is
completed.
9. Always turn the rotisserie motor to “OFF” before opening the grill.
14
WARNING! This product rotisserie grill will become very hot, do
not move it during operation.
WARNING! Keep children and pets away.
WARNING! In case of the danger of carbon monoxide poisoning, do not
use the product rotisserie grill indoors.
WARNING! Do not use the barbecue in a confined and/or habitable space
e.g. houses, tents, caravans, motor homes, boats.
WARNING! Remove all packaging materials and keep them for future
use.Packaging materials are not a toy.
WARNING! Don't let children play with the packaging materials. If they
swallow the packaging materials, they will suffocate!
ATTENTION! Always wear gloves when adjusting the grill, the handles of
the grill can become very hot during the grilling process.
IMPORTANT! Do not pour water into the appliance while it is still hot.
IMPORTANT! Close the ventilation slider to extinguish the appliance.
(Only applicable for appliance with ventilation slider)
COOKING TIPS & HINTS
1. Always wash your hands before and after handling uncooked meat and
before eating.
2. Always keep raw meat away from cooked meat and other foods.
3. Before cooking, ensure grill surfaces and tools are clean and free of old
food residues.
4. DO NOT use the same utensils to handle cooked and uncooked foods.
5. Ensure all meat is cooked thoroughly before eating.
CAUTION:
1. Eating raw or under cooked meat will cause food poisoning (e.g.
bacteria strains such as Escherichia coli).
2. To reduce the risk of under cooked meat, cut the meat to ensure it is
fully cooked.
3. If the meat is fully cooked, its juice should be clear and there should be
