OIL FILTER MACHINE
MODEL:SF-808
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the
major top brands and dose not necessarily mean to cover all categories of tools offered by
us. You are kindly reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
MODEL:# LF5-JYD,#LF5-JYF1,#LF5-JY
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
OIL FILTER MACHINE
Congratulations on your purchase of the VEVOR Oil Filter Machine.
VEVOR takes pride in the design and quality of our products. When
used as intended and with proper care and maintenance, you will
experience years of reliable operation from this equipment. To ensure best
results, it is important that you read and follow the instructions in this
manual carefully.
Specifications
··············································
1
Safety
..........................................................................
2
Packaging
...................................................................
3
Setup
............................................................................
3
Operation
....................................................................
4
Cleaning & Maintenance
.........................................
6
Electrical Diagram
.....................................................
6
Compliance ................................................................. 6
Troubleshooting
.........................................................
7
SPECIFICATIONS
MODE
L
VOLTAG
E
POWE
R
WEIGH
T
WIDT
H
DEPT
H
HEIGH
T
LF5-
JYD
110V •
60Hz
250W
49.2
lb.
340m
m
385m
m
385m
m
LF5-
JYF1
110V •
60Hz
250W
57.0
lb.
385m
m
670m
m
385m
m
LF5-
JYF2
110V •
60Hz
250W
61.1
lb.
400m
m
820m
m
385m
m
SAFETY
As is the case with most cooking equipment, your shortening filter
should be used with caution. Please read the following warnings to
avoid potential injuries.
WARNING
CAN CAUSE SERIOUS INJURY OR DEATH.
DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT
UNLESS YOU ARE A LICENSED ELECTRICIAN OR
TRAINED SERVICER.
• Because this equipment utilizes high voltage, it
should only be installed and serviced by a licensed
electrician or trained servicer. Attempting to install
or service the equipment yourself could result in
serious, potentially fatal injuries.
• If an electrical shock is felt when touching
equipment, shut off power immediately (pull cord
or turn off circuit breaker) and call a trained servicer
for repair. Failure to do so could result in serious,
potentially fatal injuries.
• Always turn power switch off any time the equipment is
not in use.
!
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury, or death. Read the installation,
operating, and maintenance instructions
thoroughly before installing or servicing this
equipment.
CAUTION This equipment is not intended for use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the equipment by a
person responsible for their safety.
CAUTION CAUTION
CAUTION
Children should be supervised to ensure that they do not play with the
equipment.
This equipment is intended to be used for commercial applications, for
example in kitchens of restaurants, canteens, hospitals and in
commercial enterprises such as bakeries, butcheries, etc., but not for
continuous mass production of food.
These models are designed, built, and sold for commercial use only.
If these models are positioned so the general public can use the
equipment, make sure that cautions, warnings, and operating
instructions are clearly posted near each unit so that anyone using
the equipment will use it correctly and not injure themselves or harm
the equipment.
VEVOR will not accept liability for product failures
in the event that:
• The instructions in this manual have not been followed correctly.
• Unqualified personnel have adjusted the Fryer Frame.
• Non-original spare parts are used.
PACKAGING
All VEVOR products are inspected and tested prior to packing.
If any of the following parts are found to be missing or damaged after
transit,you must contact your supplier immediately.
SETUP
Remove the Oil Filter from the packaging, ensuring that all protective
packaging, plastic and residues are cleaned from its surfaces. Lay out
DESCRIPTION
#
Power Cord
1
Filter Net
1
Filter Paper Cover
1
Fixed Pole
4
Silicon Seal Ring
1
Filter Paper
1
Handle for moving(LF5-JYD is fixed to the main housing
1
Oil pipe
7
Manual
1
Net Removal hook
1
all components of the Oil Filter on the floor to ready for assembly. You
will need an Allen key to assist in the assembly process.

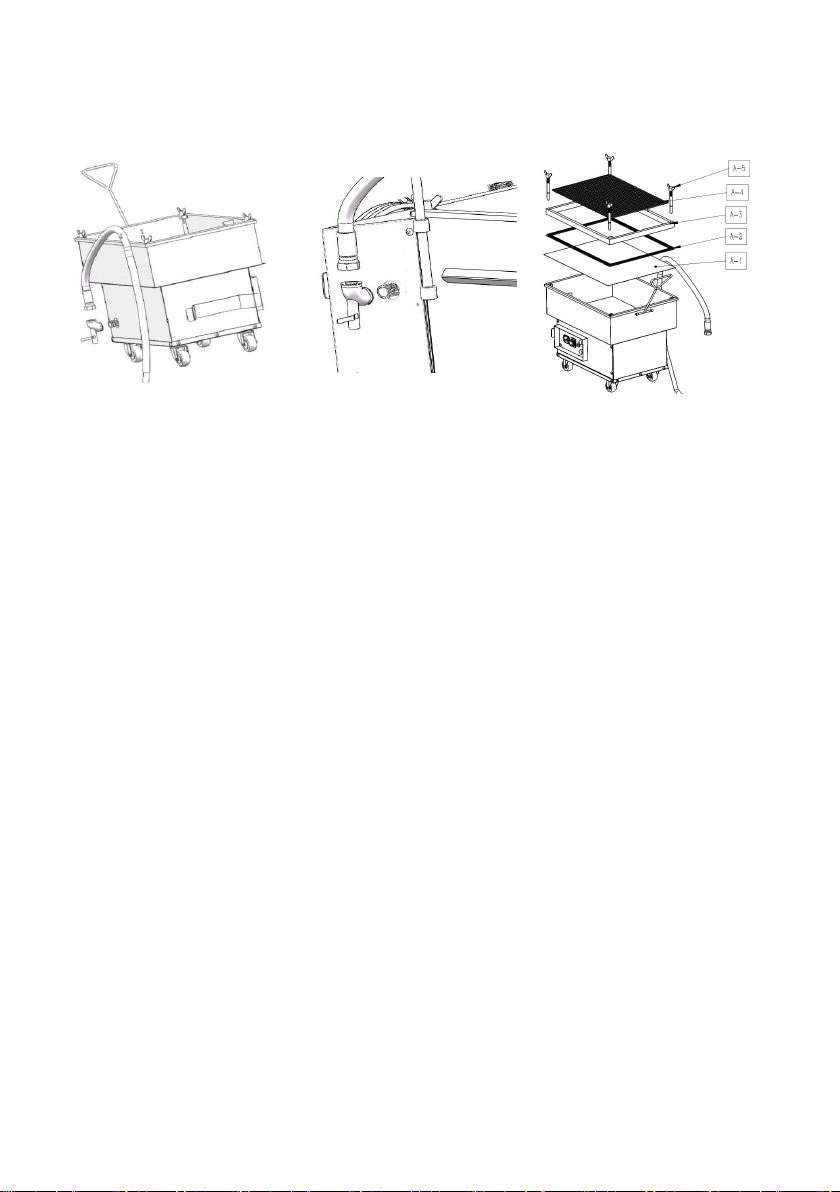

For Model LF5-JYD:
STEP 1
Assemble the oil gun to the main housing correctly as shown on the
picture above.
STEP 2
Follow the steps below and assemble the components correspondingly to
the picture above.
A-1:Filter Paper
A-2:Silicon seal Ring
A-3:Filter Paper Cover
A-4:Filter Net
A-5:Fixed pole

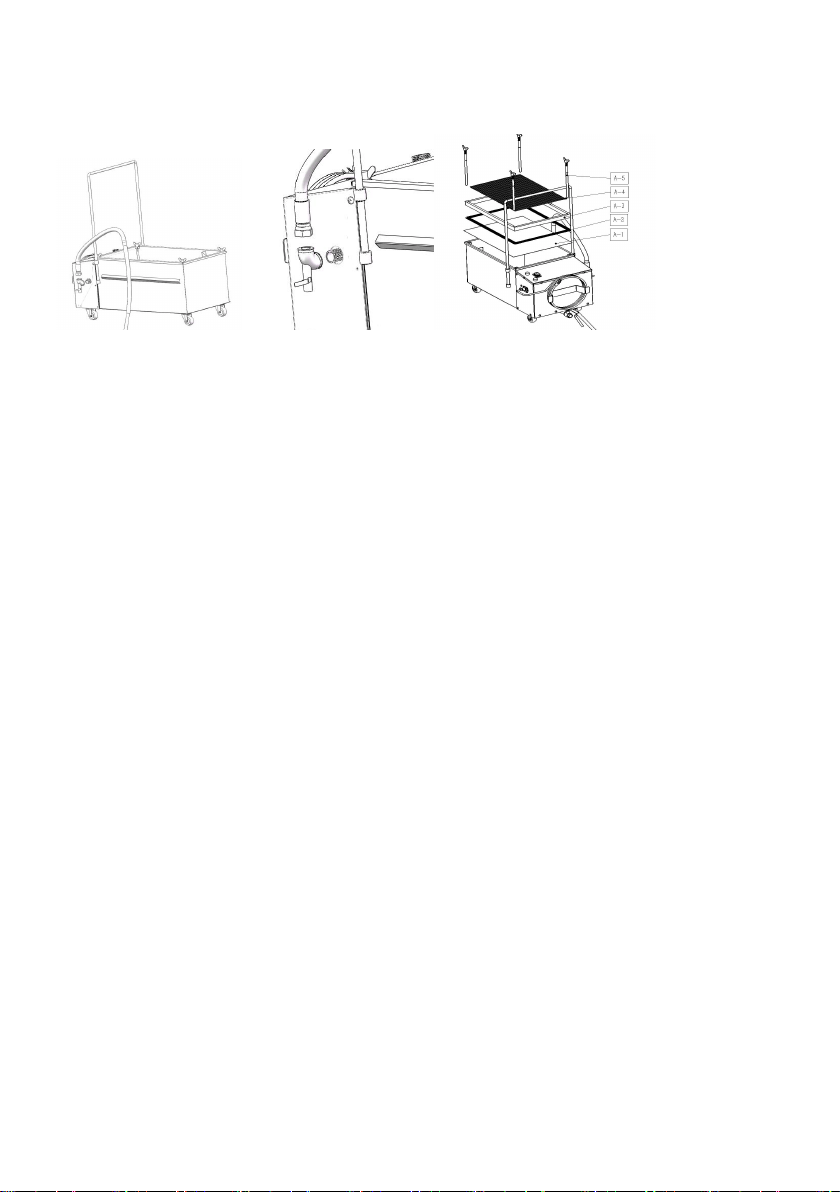

For Model #LF5-JYF1,#LF5-JYF2
STEP 1
Assemble the oil gun to the main housing correctly as shown on the
picture above.
STEP 2
Follow the steps below assemble the components accordingly to the
pictures above:
A-1:Filter Paper
A-2:Silicon Seal Ring
A-3:Filter Paper Cover
A-4:Filter Net
A-5:Fixed pole
OPERATION
This appliance is intended for professional use only and should be
operated by fully trained
and qualified personnel.
This appliance is intended for indoor use only.
CAUTION
Prior to using this equipment for the first time, perform the
daily cleaning
procedure on page 7.
!
1. Ensure that the filter paper is fresh and in place properly. Refer to
instructions on page 6 if you need to replace or install the filter
paper.
2. Ensure that you have the filter machine plugged in and turned OFF,oil
draining valve on the oil gun and main housing(Model LF5-JYF1,#LF5-
JYF2) is in “OFF” position.
3. Open your fryer and attach the drain valve extension.
4. Position the front of the filter machine under the fryer drain valve extension.
5. Turn the fryer power switch OFF.
WARNING
SERIOUSINJURYOR PROPERTY DAMAGE CAN OCCUR
IFPROPER PRECAUTIONS ARE NOT FOLLOWED
• DO NOT USE if the filter pan is not completely dry and free of water droplets.
• DO NOT overfill the filter pan. The maximum capacity is 50 lb. of oil.
• DO NOT use water jets to clean this equipment. Doing so will damage
the unit and void the warranty.
• DO NOT use the electrical cord as a leash to move the appliance.
• DO NOT attempt to move this appliance or transfer hot liquids from one
container to another when the unit is at operating temperature or filled
with hot liquids.
• DO NOT leave appliance unattended while draining or
refilling with oil/ shortening.
6. Open the drain valve on the fryer and allow the frypot oil to drain into the
filter machine.
7. With the filter machine hose positioned in its holster on the machine,
turn the filter machine ON as the oil drains into the machine.
8. Allow the machine to pump the oil through the paper and cycle it back
into the machine until the oil has been filtered
9. Once all of the oil has drained from the Fryer and has been filtered
through the machine, turn the machine OFF and close the drain valve
on the fryer.
10. Move the filter machine hose from the machine and into the frypot and turn
the machine back on.
11. Return the oil to the fryer and allow the filter machine to run for 10-15
seconds after no more oil is coming through the hose.
12.For added safety of the filter pipe,please lift the pipe to vertical position
and open the draining valve on the bottom of the pipe to filter
thoroughly the residue oil,or it’ll become solid and blocked the pipe.
CLEANING & MAINTENANCE
!
NOTE: Follow these cleaning instructions before using
machine for the first time. NOTE: Shortening Filter must
be cleaned DAILY. Failure to do so will void warranty.
NOTE:
The contents of crumb catch and/or filter pan of any filter
system must be emptied into
a fireproof container at the end of each
day. Some food particles can spontaneously combust if left soaking
in certain types of oil or shortening.
WARNING
SERIOUS INJURY OR PROPERTY
DAMAGE CAN OCCUR IF PROPER
PRECAUTIONS ARE NOT FOLLOWED
• The power supply must be disconnected before
servicing, maintaining, or cleaning this machine.
• DO NOT pump water through the filter pump
system. The pump functions using the lubrication of
oil and using water will damage the pump.
• DO NOT attempt to lift filter
machine off floor for cleaning.
Bodily injury may occur.
• DO NOT attempt to circulate water through pump.
Internal rusting in pump will occur.
• DO NOT use the appliance as a step for cleaning or
accessing the ventilation hood. Serious injury could
result from slips, trips, or contact of hot liquids.
• If the supplied power cord or receptacle is damaged,
it MUST be replaced by an authorized service and
parts company technician in order to avoid a hazard.
NOTE: It is recommended that this appliance be inspected by a
qualified service technician
for proper performance and operation on a
yearly basis.
DAILY CLEANING
1. Disconnect filter hose wand and drain.
2. Disconnect filter tube and turn pump on for 3-5 seconds to
force shortening from pump. Failure to do this will cause pump
or hose to clog with shortening.
3. Unplug shortening filter.
4. Remove filter tube and clamp assembly.
5. Unscrew wing nuts on filter clamp assembly to remove filter paper
from filter plate.
6. Discard used paper; wash filter plate and thoroughly rinse with hot
water; dry well.
7. Remove and wash tank. Rinse and dry thoroughly.
8. Replace tank onto filter.
9. Wash clamp assembly, rinse with hot water, and dry well.For Model
LF5-JYF1,#LF5-JYF2,there’s a draining valve on the bottom of the main
housing to release the residue.Close the drain valve while filtering and open
it after rinsing hot water.
10. Replace filter paper on tube and clamp assembly and install in tank.
CLEANING & MAINTENANCE
REPLACING FILTER PAPER
1. Ensure that the machine is OFF and oil has been returned to the Fryer
2. Unscrew the 4 clamps pressing the filter paper frame down.
3. Remove the metal frame and, if necessary, the used filter paper.
4. Place a new sheet of filter paper into the filter pan.
5. Measure 8 ounces of filter powder and distribute evenly over the paper
surface.
6. Place the metal frame over the gasket and filter paper.
7. Reinstall the 4 clamps and ensure the filter
paper is securely in place.

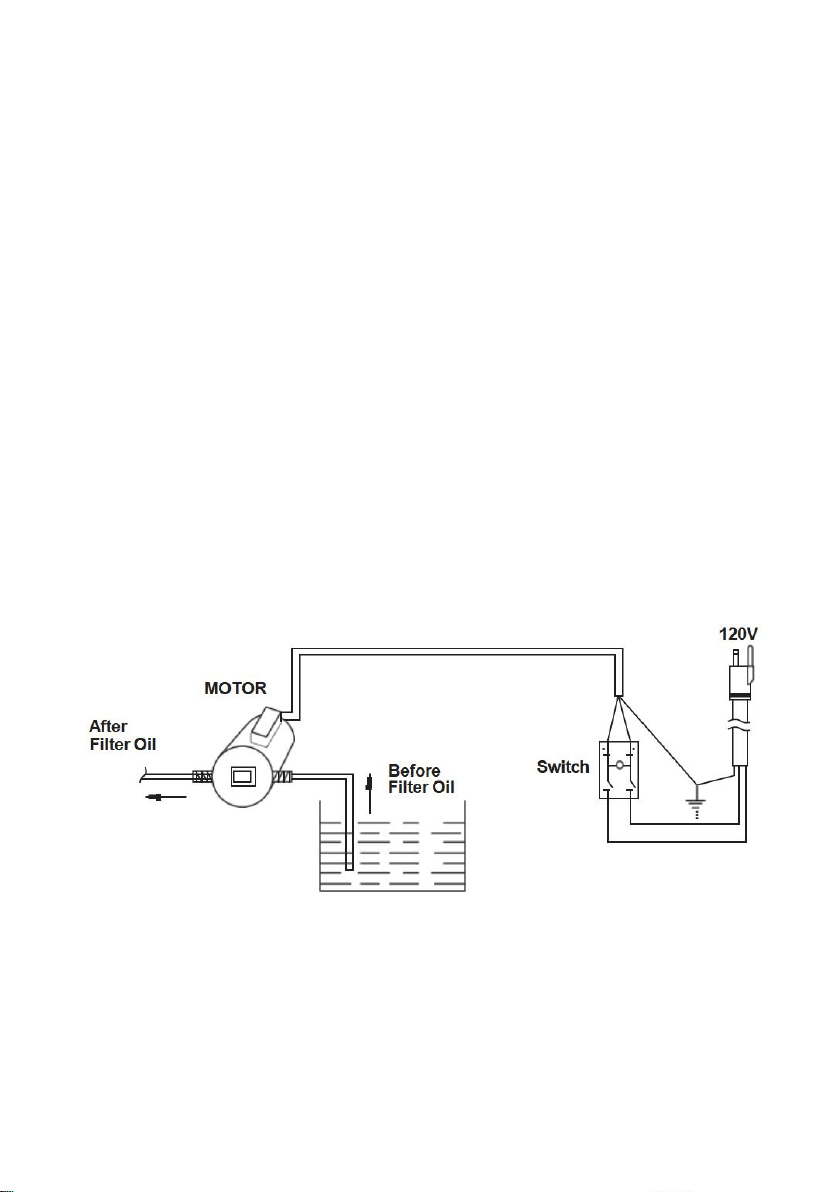

ELECTRICAL DIAGRAM
TROUBLESHOOTING
!
WARNING
SERIOUS INJURY OR PROPERTY
DAMAGE CAN OCCUR IF PROPER
PRECAUTIONS ARE NOT FOLLOWED
• The power supply must be disconnected before
servicing, maintaining, or cleaning this machine.
• If the supplied power cord or receptacle is
damaged, it MUST be replaced by an authorized
service and parts company technician in order to
avoid a hazard.
PROBLEM
CAUSE
REMEDY
Pump
won’t
start
Insufficient
power
supplied
Check that main power supply is
plugged in and supplying
required current
Power switch
has not been
turned on
Check that the unit is plugged in and
turned on
Plug and/or
lead are
damaged
Call service agent or qualified technician
to replace
On/Off switch is
faulty
Call service agent or qualified technician
to replace
Faulty internal
wiring
Call service agent or qualified technician
to replace
Tripped thermal
overload switch
Allow filter unit to cool for at
least 45 minutes, then reset
the thermal overload switch
Pump
stops
during
filtering
process
Tripped thermal
overload switch
Allow filter unit to cool for at
least 45 minutes, then reset
the thermal overload switch
Filter paper is
dirty or
incorrectly
installed
Turn filter pump off. Allow oil to cool,
then empty pan. Verify filter paper is
clean and properly installed. Refill
pan and restart process.
Pump
starts
and
abruptly
stops
Tripped thermal
overload switch
Allow filter unit to cool for at
least 45 minutes, then reset
the thermal overload switch
Pump is
blocked or
wiring is
loose
Call service agent or qualified technician
to replace
Motor has failed
Call service agent or qualified technician
to replace
Pumping
is
erratic
Filter paper
is
incorrectly
installed
Verify that the filter paper is properly
installed under hold-down ring
Filter hose
connection is
incorrectly
installed
Verify that the filter hose
connection is tight and secure
Oil is not
being
returned
to
fry pot
The filter
hose is
clogged with
debris
Clear hose
Clogged filter
paper
Scrape off excess sediment or replace
filter paper
Filter pan
suction tube is
blocked
Use a thin, flexible wire to unclog
