INSTRUCTION MANUAL
40lb, 75lb, & 110lb
PORTABLE OIL FILTER
This manual contains important information regarding your Adcraft unit. Please read this manual
thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular
maintenance guidelines outlined in this manual may void the warranty.
July 2018
WARNINGS
• Do not touch any hot surfaces
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Plug only into a 3-hole grounded electrical outlet of appropriate voltage
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Always use on a firm, dry and level surface
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any
manner
• Keep children and animals away from unit
• Keep machine away from any flammable or explosive liquids or gases
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and
injury. All repairs should be done by authorized professionals only.
• Ensure that the designated power supply is adequate for continual usage
TO USE:
1. Place the unit in front of the fryer being emptied.
2. Plug the power cord of the unit into an outlet of appropriate voltage and turn on the unit.
3. Connect the oil hose to the oil drain valve on the unit
4. Make sure filtration system is put together correctly (See filtration system diagram) and is secure in place in the
filtering chamber.
5. With the extension drain tube tightened securely on the fryer’s oil spout, empty the fryer’s oil into the filtering
chamber of the oil filter.
6. Once the fryer has been fully emptied of oil, push the filtering button on the filter unit and aim the filtering hose into
the new or cleaned out fryer to fill with oil.
7. You can control the flow of oil back into the fryer by tightening or loosening the oil drain valve.
8. Once fryer has been filled up to desired/max capacity, turn off the oil filter to stop the pump from flowing.
9. Put the oil hose back into it’s holder.
10. Once cooled down fully, remove the filtration system from the chamber.
11. Discard the used the filtering sheet and any debris on the filtering mesh, and clean the inside of the chamber.
12. Unscrew the oil tube from the drain valve. The oil tube can be rolled up and stored inside the chamber.
NOTE: To ensure proper filtering of the oil, the oil temperature should be cycled through the filter at a range of
250° - 375°F. If the oil is not hot enough, it will clog up the machine and not filter properly.

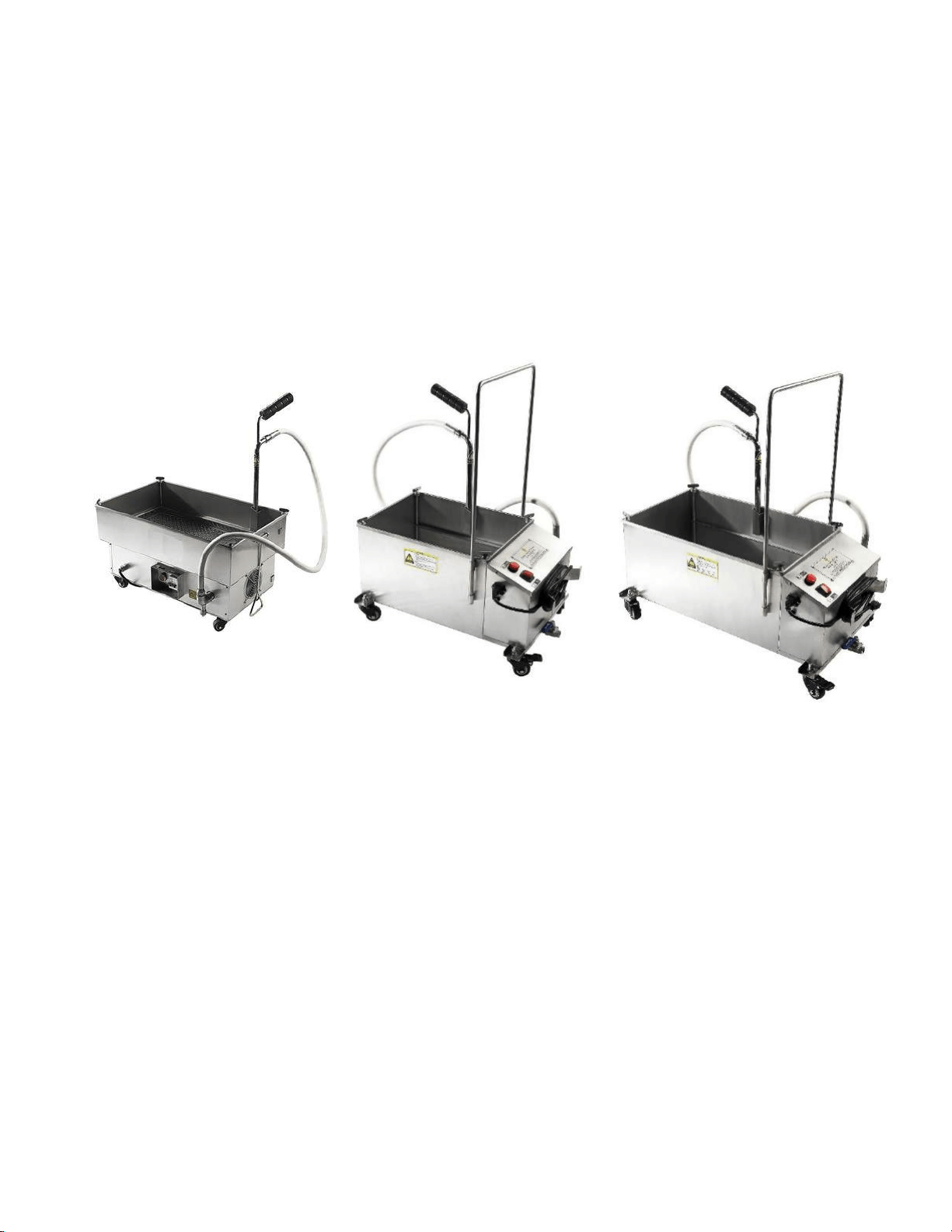

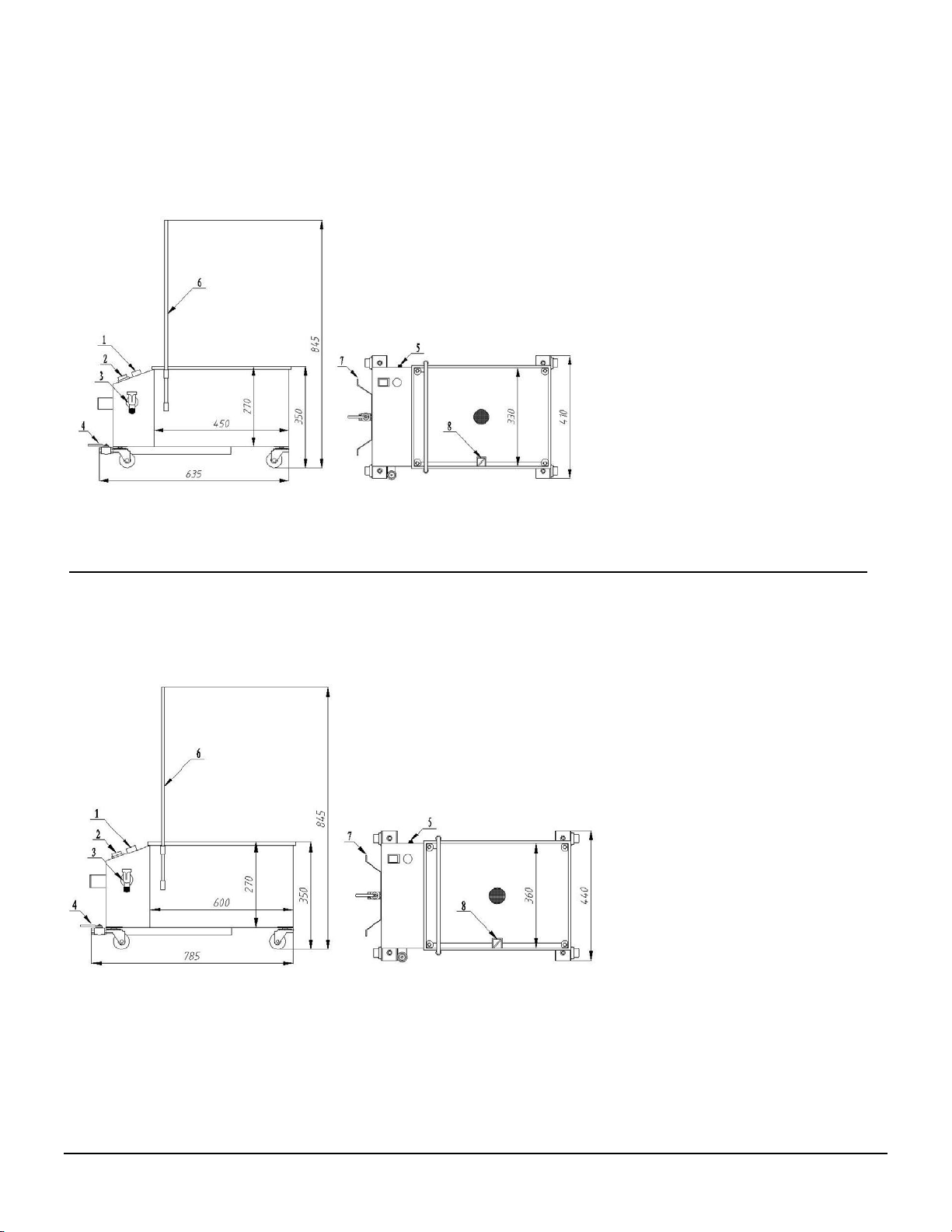

40lb Fryer
1. Power Switch
2. Filtering Button
3. Oil Drain Valve
4. Handle
July 2018
75lb Fryer
1. Power Indicator
2. On/Off Button
3. Tube Release Valve
4. Machine Release Valve
5. Current Protector
6. Handle
7. Cord Holder
8. Nozzle Holder
110lb Fryer
1. Power Indicator
2. On/Off Button
3. Tube Release Valve
4. Machine Release Valve
5. Current Protector
6. Handle
7. Cord Holder
8. Nozzle Holder
July 2018

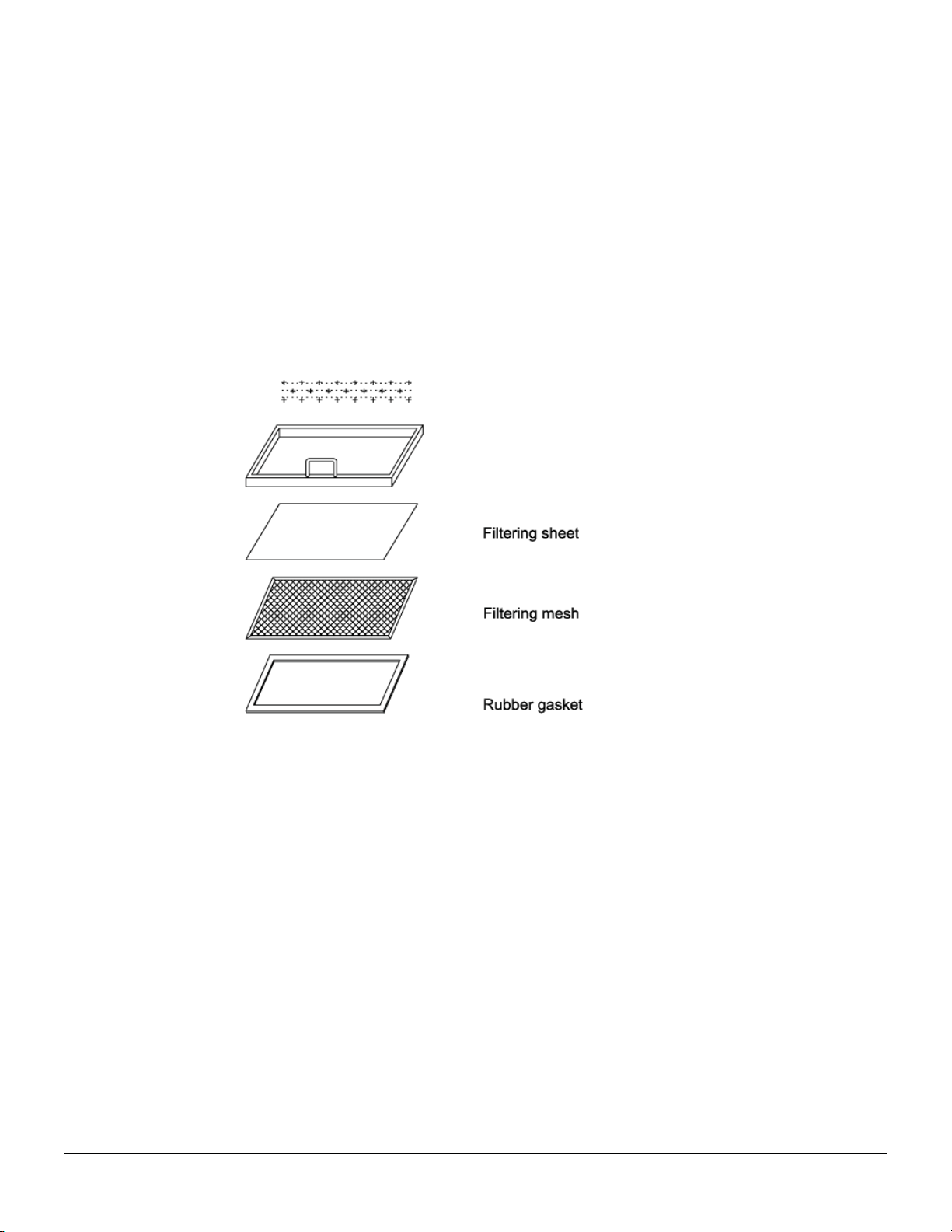

OIL FILTRATION SYSTEM
To assemble the filtration system, follow the below instructions and diagram.
Always use a new filtering sheet (sold separately) every time. The filter paper size for this unit measures 17.75” x 13”.
1. Place the square rubber gasket at the bottom of the filtering chamber.
2. Put the stainless steel filtering mesh inside the gasket.
3. Place filtering sheet evenly on top of the filtering mesh and gasket.
4. Place the stainless steel gasket on top of the filtering sheet.
5. For an added filtering boost, sprinkle filter powder (sold separately) on top of the mesh and paper.
CLEANING - NOTE:
To maintain cleanliness and increase service life, this item should be cleaned daily.
Do not immerse the unit in water or any other liquid. If liquid enters the electrical compartment,
it may cause a short circuit or electrical shock.
1. Before cleaning or attempting to move this item, turn off, unplug, and let the unit cool completely.
2. Wipe the entire unit with a clean soft cloth until it is completely dry.
3. To avoid damage to the unit, do not use abrasive cleaners or scouring pads.
4. If soap or chemical cleaners are used, be sure they are completely rinsed away with clean water immediately after
cleaning. Chemical residue could damage or corrode the surfaces of the unit.
To avoid serious injury or damage, never attempt to repair or replace a damaged power cord yourself.
Contact a professional repair service
.
Filter powder
Stainless steel gasket
July 2018
TROUBLESHOOTING
Problem: The power indicator does not light up, and the motor doesn’t start after pressing the button.
Possible Causes: Check the connection between the power cord and outlet. If connection is good, then check breaker.
Action: Plug power cord into outlet fully, or switch on the breaker, if off.
Problem: The power indicator lights up, but the motor is not working when the button is pressed.
Possible Causes: The motor is defective.
Action: Replace or fix the motor.
Problem: The oil is not flowing out.
Possible Causes: Either the filtering layer is blocked, the oil tube is leaking, or the pump is defective.
Action: Replace the filtering sheet, reinstall the oil tube, or replace the pump and other needed parts.
July 2018

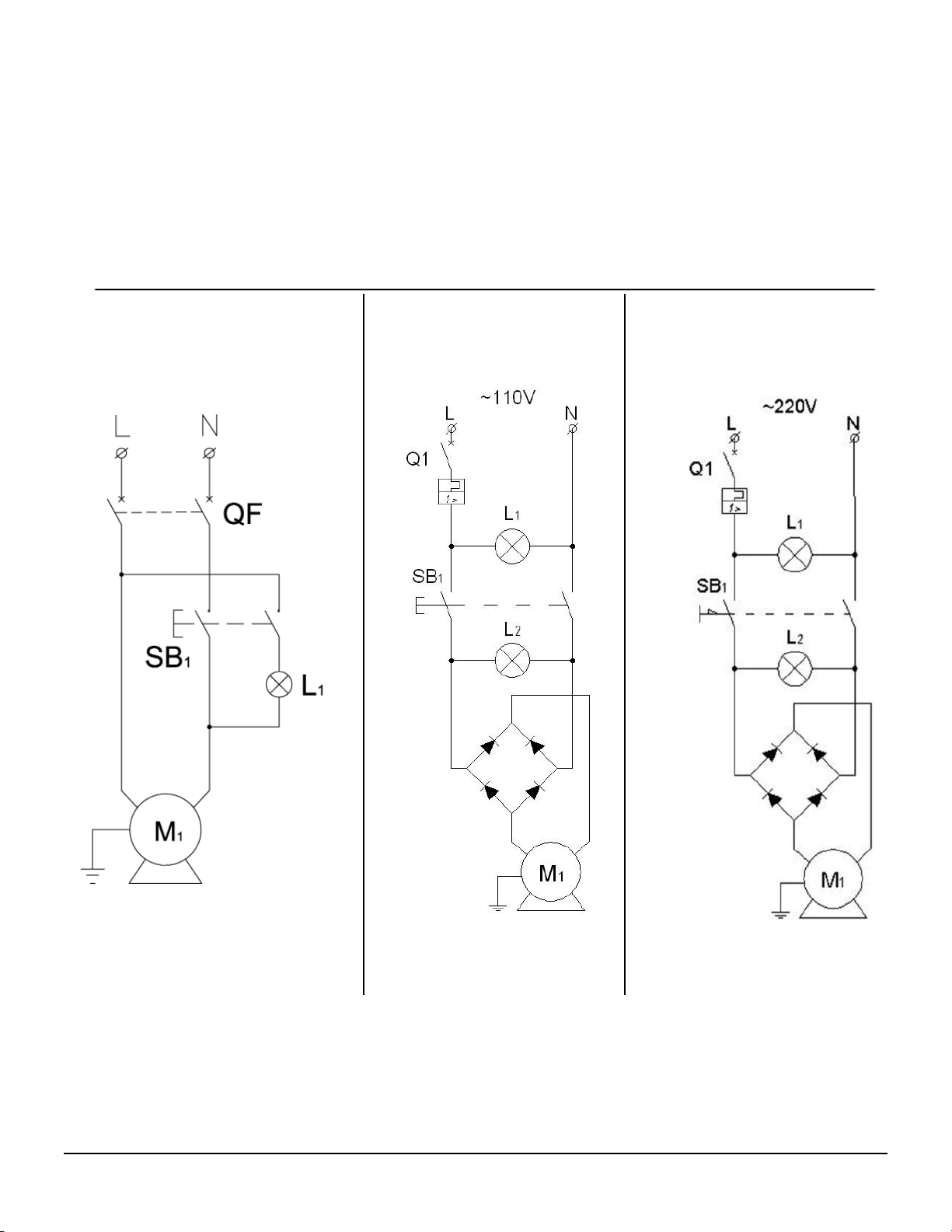

Wiring Diagrams
40lb Fryer 75lb Fryer 110lb Fryer
ACE Equipment One Year Limited Warranty
ACE warrants its equipment against defects in materials and workmanship, subject to the following conditions:
ACE Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the
original receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original
owner only, and is not assignable.
S
hould any product fail to function in its intended manner under normal use within the limits defined in this warranty, at
ACE’s discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by ACE,
after defective unit has been inspected and defect has been confirmed. ACE does not assume any liability for extended
delays in replacing any item beyond its control. This warranty does not apply to rubber and non-metallic synthetic parts
that may need to be replaced due to normal usage, wear or lack of preventative maintenance.
This warranty covers products shipped into the 48 contiguous United States. Warranty coverage on products used outside
the 48 contiguous United States, Hawaii, Alaska, Puerto Rico, and Canada, cover parts only.
The following conditions are not covered by warranty:
•
Equipment failure relating to improper installation, improper utility connection or supply and problems due to
improper ventilation.
•
Equipment that has not properly been maintained, damage from improper cleaning, and water damage to
controls.
•
Equipment that has not been used in an appropriate manner, or has been subject to misuse, neglect, abuse,
accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot, or act of God.
•
Equipment that has the model number or serial number removed or altered.
•
Equipment on which the security seal has been broken.
If the equipment has been changed, altered, modified, or repaired without express written permission from ACE, then the
manufacturer shall not be liable for any damages to any person or to any property, which may result from the use of this
equipment thereafter.
This equipment is intended for commercial use only and this warranty is void if equipment is used in other than a
commercial application.
For warranty and non-warranty related issues, technical support, please contact NSA at 1-877-672-7740. To purchase
replacement parts and warranty registration visit www.admiralcraft.com.
Please have your model number, serial number
and proof of purchase ready. It is not necessary to contact the place where you originally purchased your product from.
