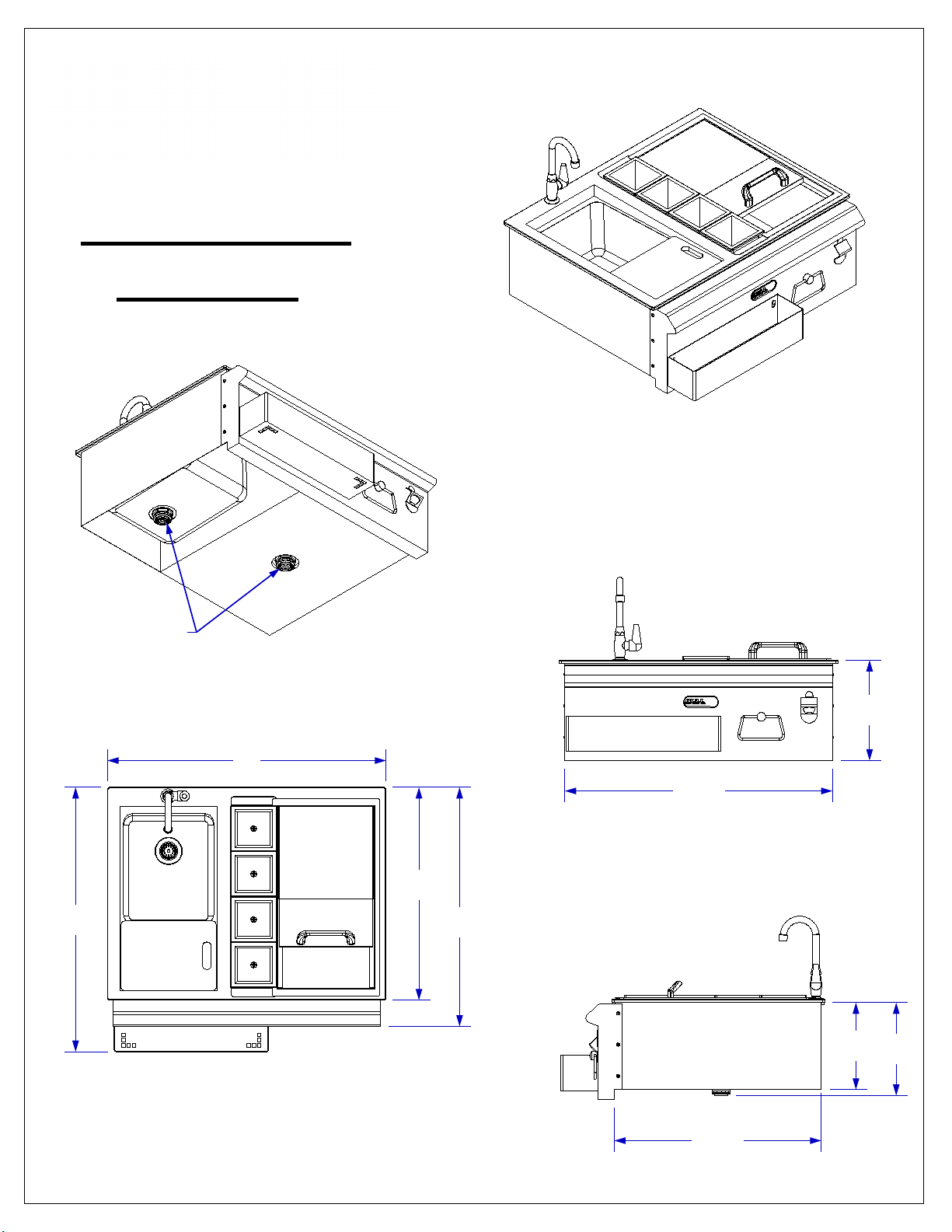

30" BAR CENTER
SPEC SHEET
NOTES:
1. CUTOUT DIMENSIONS: 29"W X 22 3/4"D X 9 3/4"H
2. 1 1/2" DRAIN LINE.
3. SCALE: 1" = 1'-0"
4. REVISION: 10/2014
ISOMETRIC VIEW
TOP VIEW
30
22 7/8
25 3/4
28 3/8
FRONT VIEW
28 3/4
10 3/4
RIGHT SIDE VIEW
22 1/4
9 3/8
10
BOTTOM ISOMETRIC VIEW
SEE NOTE #2
