AUTOMATIC ICE MAKER
HZB-160F

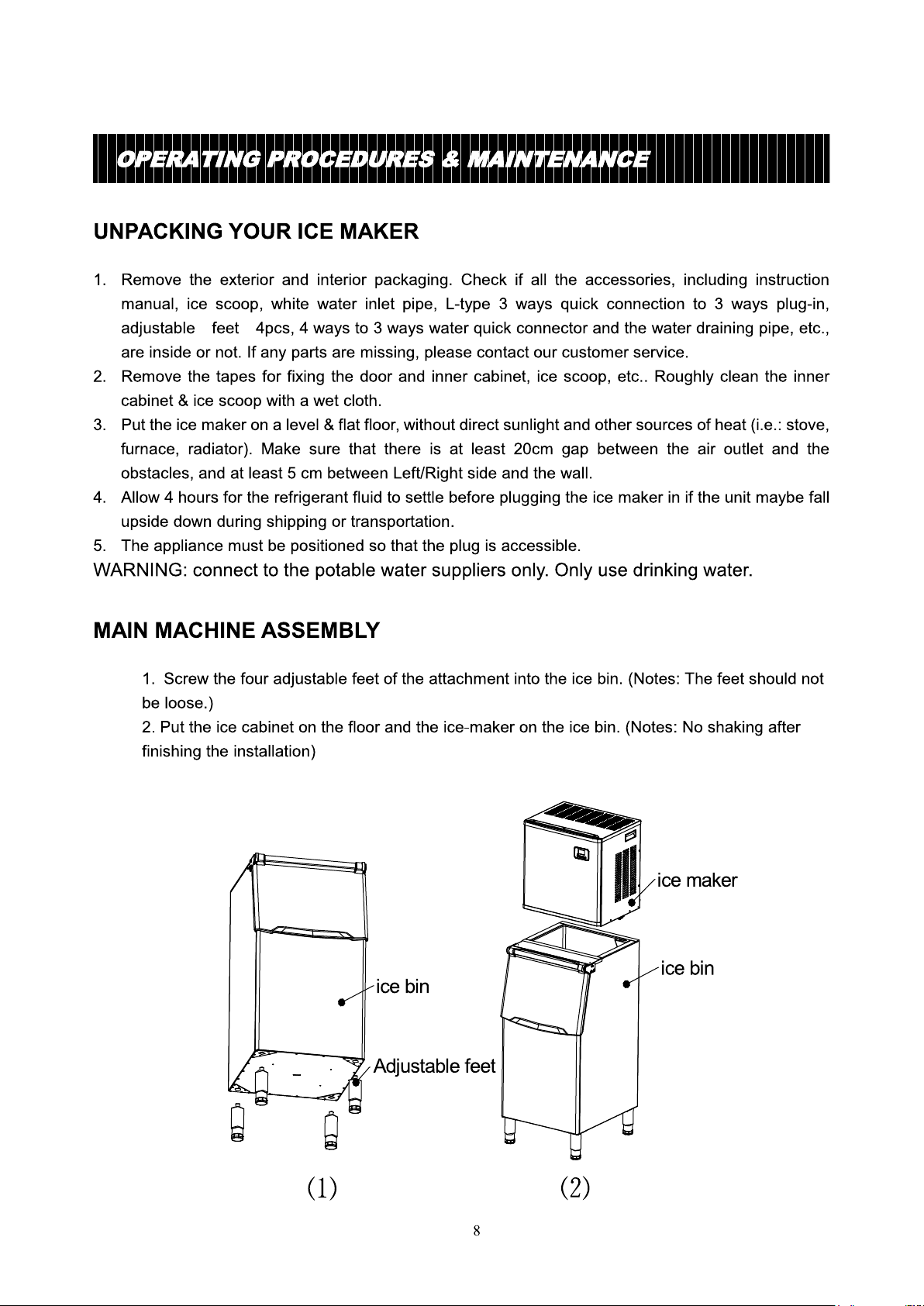

ADJUSTABLE FEET
rotates, and the machine is
flashes.
INSLLATION LOCATION REQUIREMENT

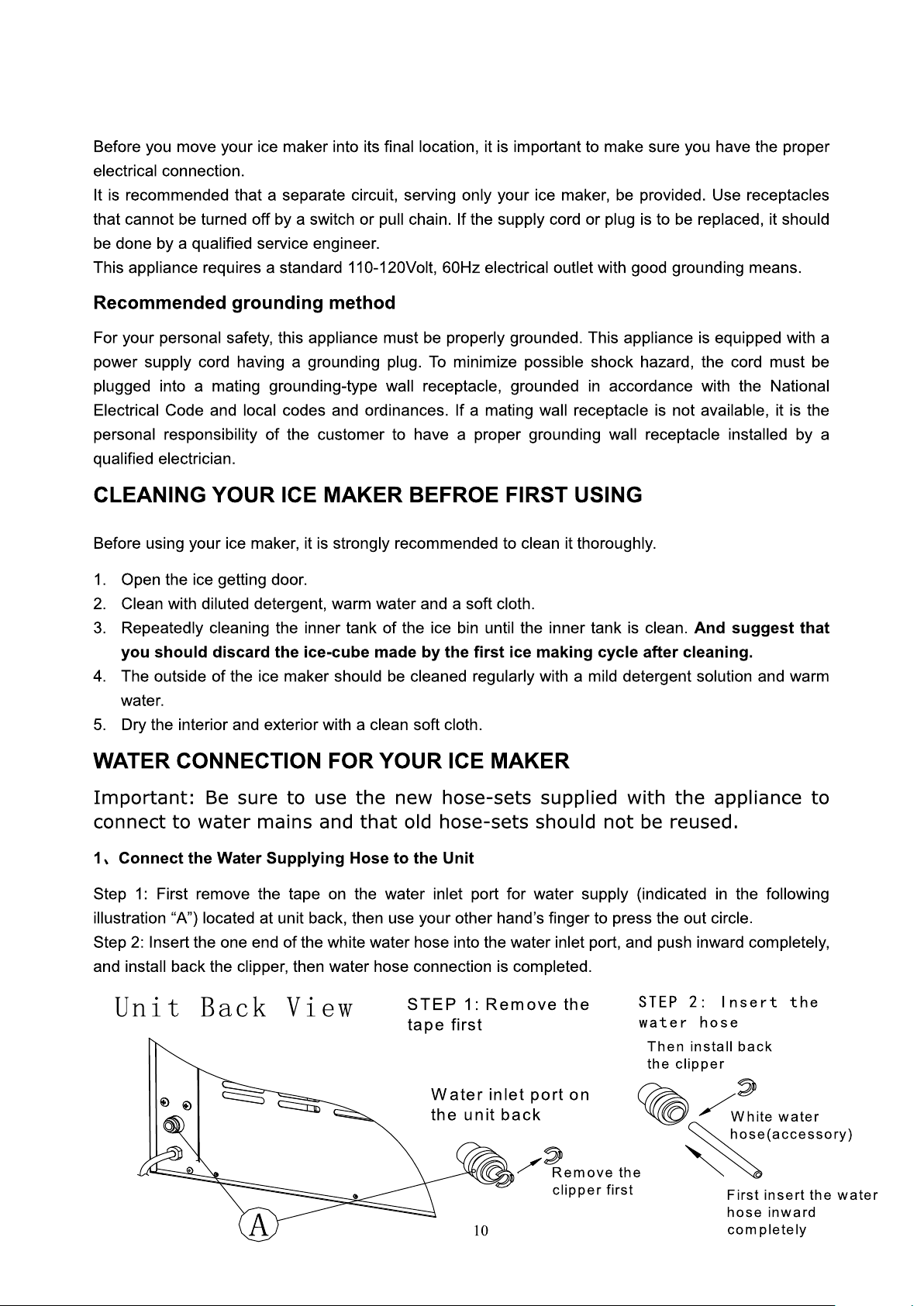

ELECTRICAL REQUIREMENT & CONNECTIONS
WARNING: THIS UNIT MUST BE EARTHED.
j

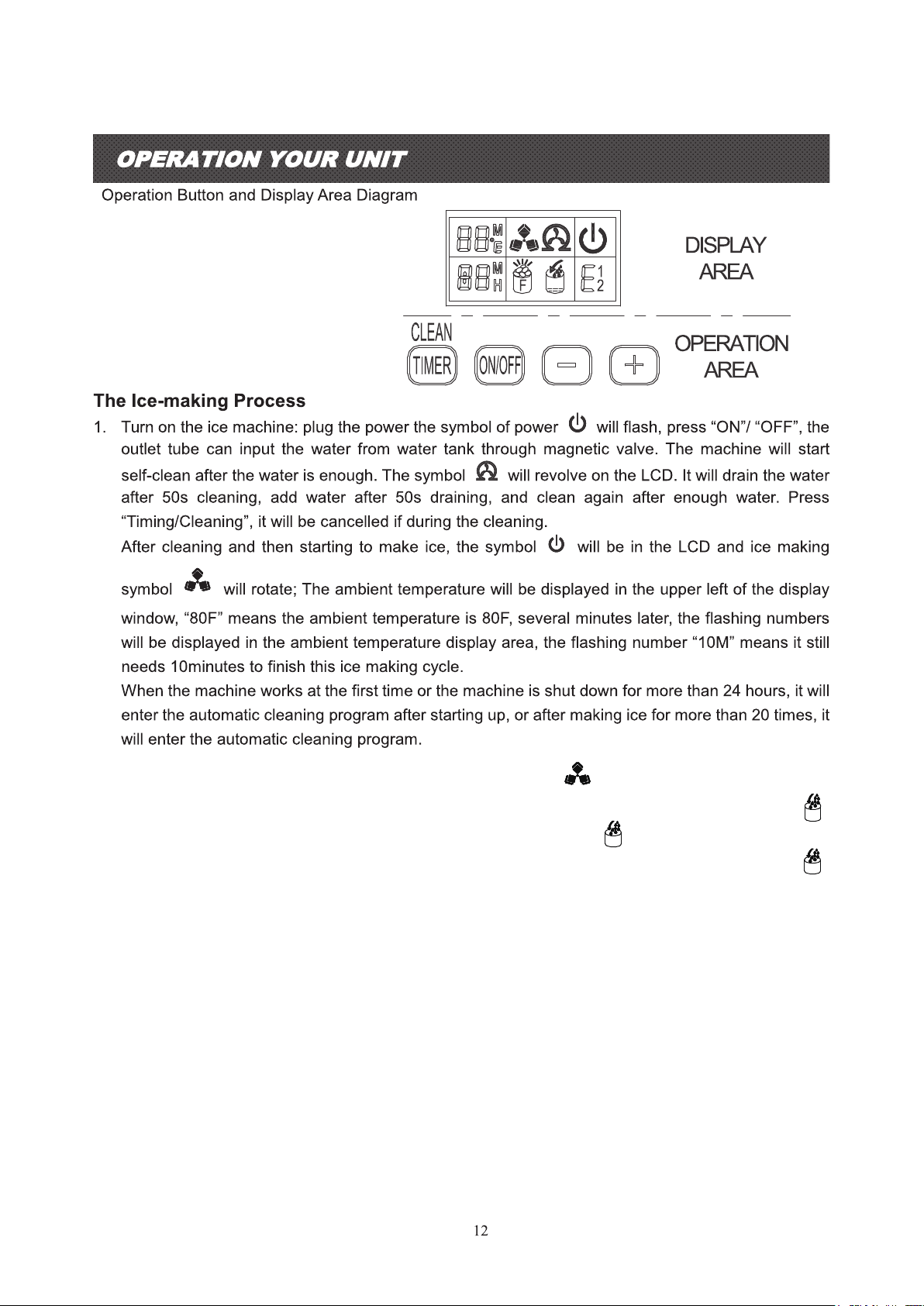

2. Every ice making cycle finished, enter deicing process, the
symbol will flash, the external
pipe can add water to the water tank through the electromagnetic valve, and the arrow on the
symbol will flash until the water reach the standard level, then the symbol will be extinguished,
the unit enter the next ice making cycle; When the water can not reach the standard level, the
symbol is always bright, the unit stop working. When water shortage, the unit needs to be restarted,
otherwise it will start up automatically after 15 minutes.
Note: Each ice making cycle is around 11-20minutes, the ice making time will be changed
according to the ambient temperature and the water temperature. Especially at the first time,
the ice making cycle will be longer because of the high water temperature in the water tank.
But the ice-making cycle will not be over 35m
inutes.

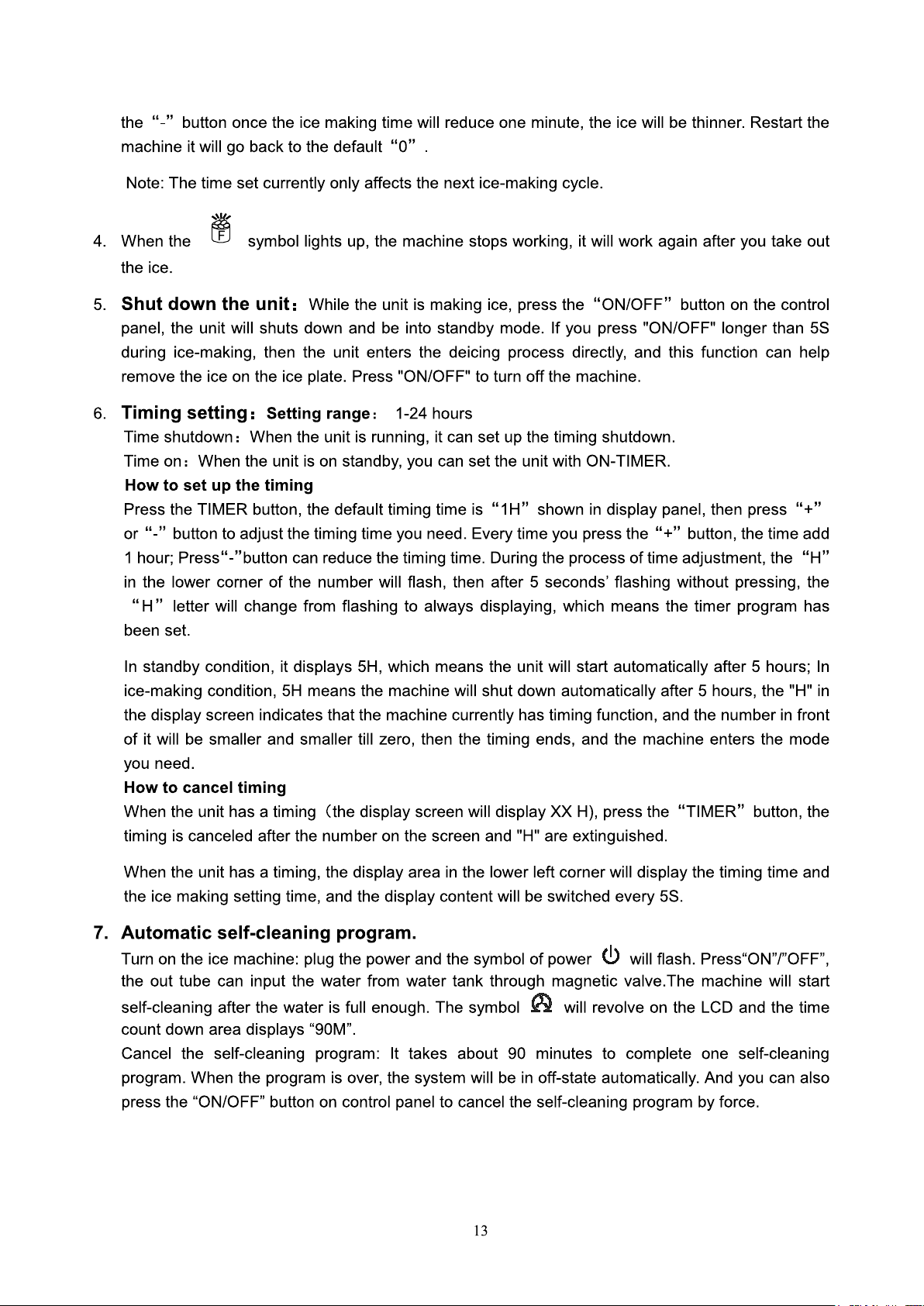

3. Adjust the ice thickness; Press the “+”, “-” button on the control panel to adjust the ice thickness;
The number in the left bottom of the display scree
n is the setting of the ice making time, default is
“0”, press “+” button one time the ice making time will add one minute, the ice will be thicker; Press
