R
IMPORTANT SAFETY
INSTRUCTIONS
To reduce the risk of fire, explosion, electric shock, or injury when
using your ice maker, follow these impoant safety instructions:
1. Before using check that the voltage power corresponds to the one
shown on the appliance nameplate.
2. Do not remove any safety, warning, or product information labels
from your ice maker.
3. Plug the ice maker into an exclusive grounded power outlet. No
other appliance should be plugged into the same outlet. Be sure that
the plug is fully inseed into the receptacle.
4. This appliance must be grounded. It is equipped with a power
cord having a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
5. Avoid the use of an extension cord because it may overheat and
cause a risk of fire. However, if it is necessary to use an extension
cord:
1) U
se only extension cords with grounding plug.
2) The marked rating of an extension cord must be equal to or
greater than the rating of this appliance.
3) It should be positioned such that it does not drape over the
counter or tabletop where it can be pulled on by children
intentionally.
6. Do not operate any appliance with a damaged cord or plug or after
the appliance malfunction or has been damaged in any manner.
Return the appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
2
8. Do not let cord hang over edge of table or counter.
9. Do not place on or near a hot gas or electric burner, or in a heated
oven.
10. Place power cord in such a way it cannot be pulled on by
children or cause a tripping hazard.
11. Place power cord in such a way that it is not in contact with hot
surfaces.
12. The use of attachment not recommended or sold by
manufacturer may cause fire, electric shock or injury.
13. Do not touch the evaporator when using the ice maker or making
ice to avoid suering from frostbite.
14. Do not immerse any part of the product in water.
15. To disconnect, turn any control to "OFF", then remove plug from
wall outlet.
16. Do not plug or unplug product with wet hands.
17. Unplug the product before cleaning.maintaining and when not in
use.
18. Do not use with water that is microbiologically unsafe or of
unknown quality.
19. Do not clean your ice maker with any flammable fluids. The
fumes may create a fire hazard or explosion.
20. Do not overturn the ice maker. If the ice maker is overturned
accidentally, make it stand steadily for 2 hours before power it on
again.
21. If the ice maker is brought in from outside in winteime, do not
use for a few hours, allowing the unit to warm up to the room
temperature before operating.
22. Never put flammable, explosive and corrosive aicles into the
ice maker.
23. Never use the ice maker when there is flammable gas leakage.
24. Never store or use gas and other flammable aicles near the
ice maker to avoid any fire.
25. Unplug the ice maker before moving it to avoid damaging the
refrigerating system.
26. Do not attempt to disassemble, repair, modify, or replace any
part of your product.
27. This appliance is not intended for used by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliances by a
person responsible for their safety.
28. Children should be supervised to ensure that they do not play
with the appliance.
29. Close supervision is necessary when any appliance is used by
or near children.
30. Do not leave the appliance unattended while in use.
31. Do not use outdoors.
32. Do not use the appliance for other than intended use.
33. Please abandon the ice maker according to local regulators as
it uses flammable blowing gas and refrigerant.
34. Please according to local regulations regarding disposal of the
appliance for its flammable refrigerant and blowing gas.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
4
16

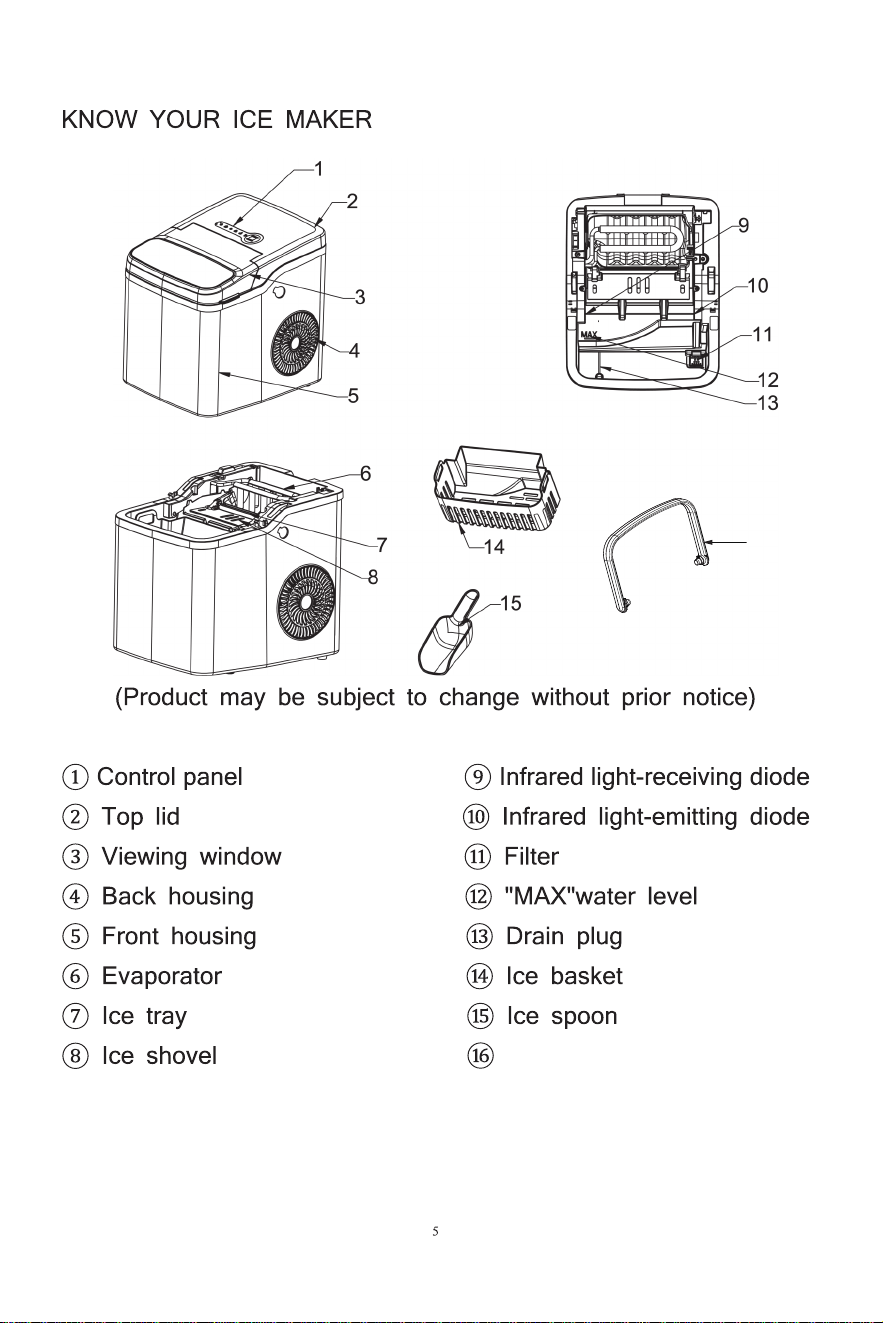

Handle
BEFORE FIRST USE
1. Unpack the appliance, then check and make sure that all the
accessories including ice basket and ice scoop etc. are complete.
Please contact with the client service depament if some
accessories are missing.
2. Please ensure the ice maker is level and on a stable table or
platform to avoid malfunction.
3. The incline angle of the ice maker cabinet should not exceed 45
°
during transpoation or use. Do not turn the ice maker upside down.
Doing so could cause the compressor or refrigerating system to
operate incorrectly. Please allow time for the fluids in the
compressor to settle after the ice maker is moved or transported.
Before using the ice maker for the first time, please wait for 2 hours
aer the unit has been leveled and positioned in the proper place.
4. The appliance must be placed on a dry and level surface with
suicient ventilation, far from heat sources such as ovens, heaters
and corrosive gases.Leave about a 6-inch (15cm) clearance on all
sides of the ice maker for proper ventilation.
5. Do not fill the water reservoir with hot water. This may damage
the ice maker. It is best to fill the water reservoir with water of room
temperature or lower.
6.
°
Do not use the appliance in a very cold environment (lower than
41 F
).
7. Clean the appliance by following the operation of "CLEANING
AND MAINTENANCE" before operating.
USING YOUR ICE MAKER
1. Ensure that the drain plug at the bottom of water reservoir is
closed well.
2. Plug the ice maker into the wall outlet, the " " indicator blinks.
NOTE: Please make the ice maker be rested for 30 minutes
before plugging if it has been moved.
3. Open the top lid and remove the ice basket.
4. Fill the water reservoir with drinking water.
NOTE: Do not fill water above the MAX water level mark.
5. Replace the ice basket and close the top lid.

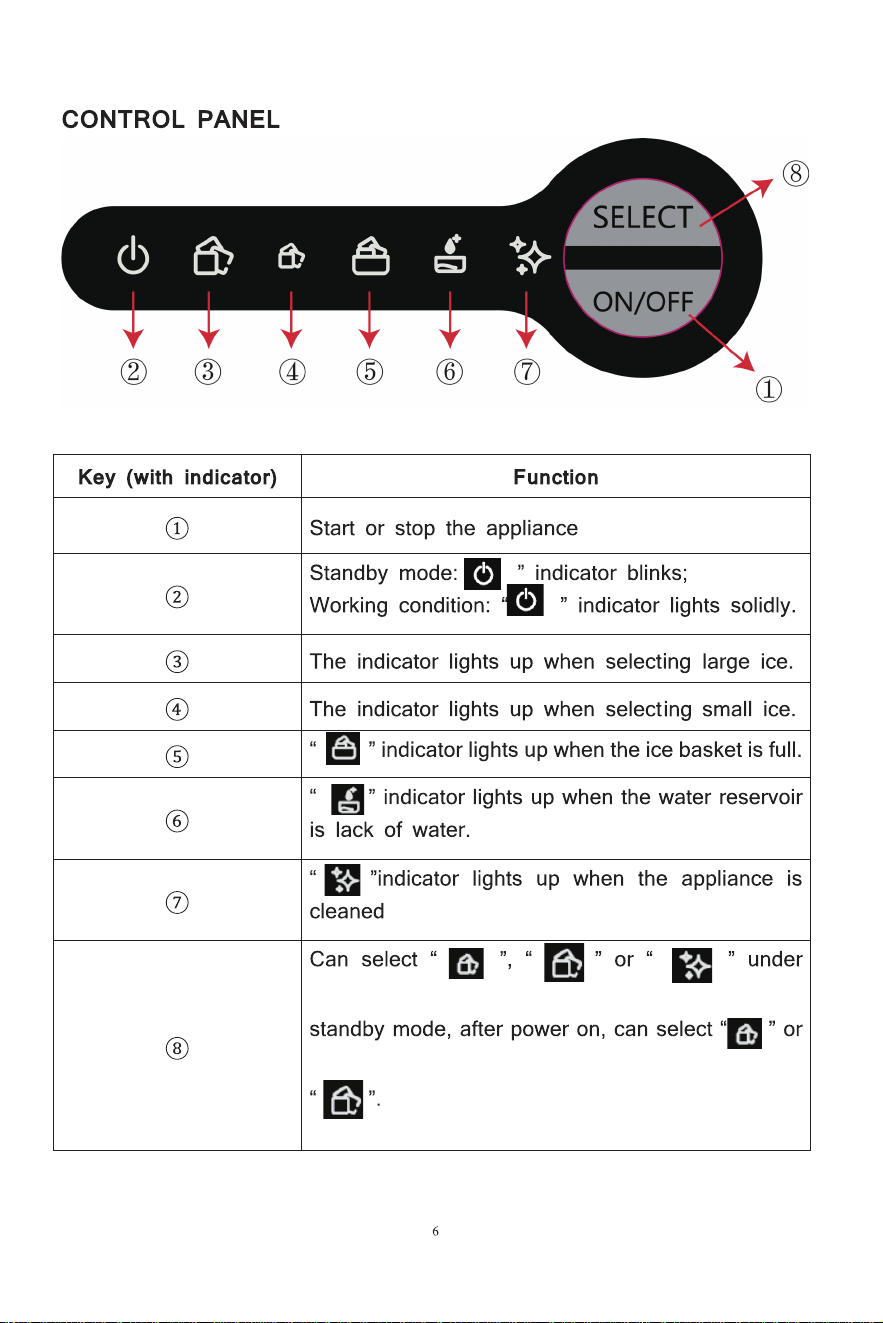

6. Press II ON/OFF " key, and the II " indicator lights solidly. At
that time, press II SELECT " key to select the ice size. If need to
clean the appliance, press" SELECT" key to select
II
m
"function
under standby mode.
7. The ice-making cycle will last approximately 7-15 minutes,
depending on the ambient temperature and water temperature.
8. The ice-making cycle stas with water being pumped into the ice
tray situated below the evaporator. Over the next 7-15 minutes ice
forms on the evaporator. Once this has been completed, the ice tray
wit lilt backwards and the remaining water in the ice tray is drained
back into the water reservoir. The ice cubes are then dropped from
the evaporator and pushed forward into the ice basket by the ice
shovel. The ice tray will automatically move back into position
under the evaporator and sta the next cycle.
9. The
II
r
�
,
"indicator will light up when the ice basket is full and
then the ice maker will stop the ice-making cycle automatically.
Gently remove the ice from the ice basket with the ice scoop. About
7.5 seconds later, the ice maker will resta its ice making function
automatically.
10. The II " indicator will light up when the water reservoir is
lack of water and the ice-making cycle will stop automatically. At that
time, remove the ice basket and add water to the water reservoir,
and then press II ON/OFF" key again to restart the ice-making cycle.
The appliance will sta working automatically aer about 20 minutes
if the operator forgets to resta the appliance aer refill.
11. When you have got your desired amount of ice, stop the ice
making cycle by pressing the " ON/OFF " key and unplug the unit
from the wall outlet.
12. Open the top lid and transfer the ice to a freezer.
13. Allow the ice maker to reach room temperature.
14. Suggest replacing the water every week. Please empty the
water reservoir if the ice maker is not used for long time.
CLEANING AND MAINTENANCE
To keep your ice fresh and your ice maker looking great, we
recommend cleaning your ice maker once per week.
1. Stop the ice-making cycle by pressing the " ON/OFF" key, unplug
the ice maker from the wall outlet and allow it to warm up to room
temperature.
2. If residual water is found in the ice tray, gently push the ice tray
back so that all water drains into the water reservoir.

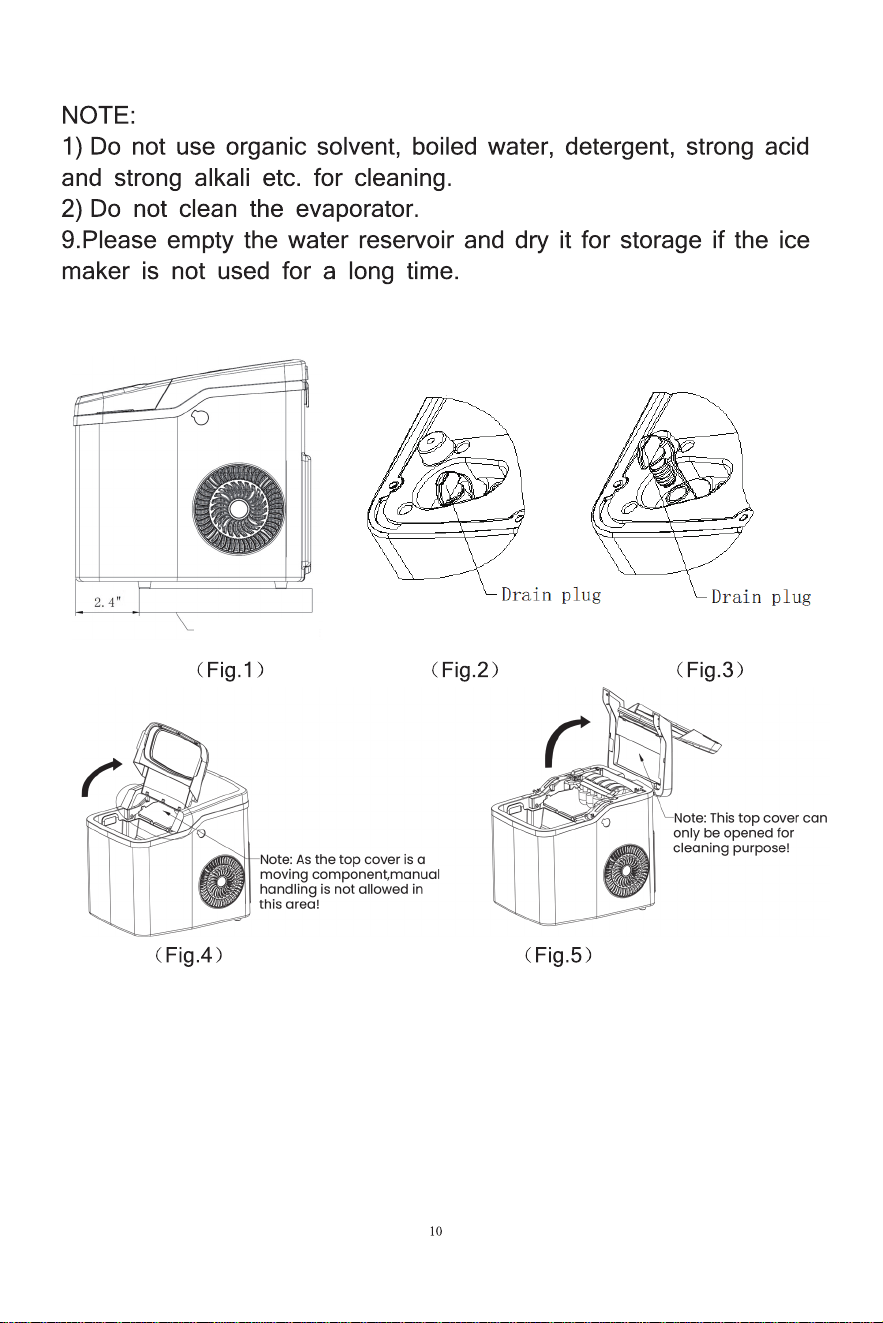

3. Move the appliance foard to a place 60mm away from the
working table and open the drain plug to drain out excess water (see
Fig.1, Fig.2 and Fig.3).
4. Check and make sure the drain plug must be closed well. Fill the
water reservoir with clean water, press" SELECT "until the " "
indicator flashes,then press the " ON/OFF " key , the pump will sta
to pump water and keep running for 6 minutes, and it will enter into
standby condition aer running for 6 minutes, finally, open the drain
plug and empty the water.
5. Remove the ice basket.
6. Clean the ice maker interior with a so cloth soaked with warm
water and vinegar, then rinse with clean water and then drain all
the water.
7. Replace the drain plug well in position. Wash the ice basket and
ice scoop in warm soapy water. Rinse and dry.
8. Clean the exterior of the ice maker with a so damp cloth. Use
a mild dishwashing soap, if necessary.
Working
TROUBLESHOOTING
Problem
Possible causes
Solution
1.Stop making ice, refill
1 . Low water level or lack of
water and then press
"
"
water
" ON/OFF
"
key to restart
indicator 2.The water screen at the
ice-making cycle.
turns on
bottom of water reservoir is
2.Do cleaning
blocked.
3.Send it to the authorized
3.Pump malfunction.
depament for repair.
1 . Remove the ice from ice
basket.
2. Wipe up the foreign
objects on the infrared
"
"
1.lce basket is full and the
light-emitting diode &
indicator
infrared light is blocked by the
light-receiving diode and
lights up
ice.
resta the ice maker.
2. lnfrared light-emitting diode &
3. Call Customer Service if
light-receiving diode do not work
the infrared light-emitting
diode & light-receiving diode
still can not work aer wiping
up the foreign objects on
them and restaing the ice
maker.
The ice
Making ice takes too much time.
Stop making ice and resta
collects
the ice-making cycle aer
together.
the ice melts.
The water in the water reservoir
Fill the water reservoir with
is of too low temperature.
water ranges between 46.4
°
F
and 77
°
F (8
°
c and 25
°
C}.
Start the ice-making cycle at
The
The ambient temperature or
an environment with an
ice-making
water temperature is too high.
ambient temperature less
cycle seems
than 89.6
°
F (32
°
C} and fill the
11
normal but no water reservoir with some
ice is cold water.
produced.
Refrigerating system leaks Call customer service
Refrigerating system
blocks Call customer service
1. Leave a 6-inch clearance
on all sides of the ice maker
for proper ventilation.
Poor
1.Poor heat dissipation.
2. Fill the water reservoir
ice-making
with water ranges between
2.The water temperature is too
result
high.
46.4
°
F and 82.4
°
F (8
°
C and
3.The ambient temperature is
28
°
C).
too high.
3. Operate the ice maker at
an environment with an
ambient temperature
between 50
°
F and 89.6
°
F
(10
°
c and 32
°
c).
1. Water pump is damaged.
1. Contact the aer-sales
2. The appliance has not been
department for replacing the
cleaned for a long time,which
water pump.
Water pump
has resulted in the formation of 2. The appliance should be
does not
mucoid substance at the water
cleaned in one to two weeks,
work or
inlet of the water pump, so that
and some neutral cleaning
produces
the water-pumping is not
agents (such as detergent
noise.
smooth. There is air in the water
and soapy water etc.) can be
pipe, so there will be resonance
added if necessary.
noise produced when
pumping
water.
12
