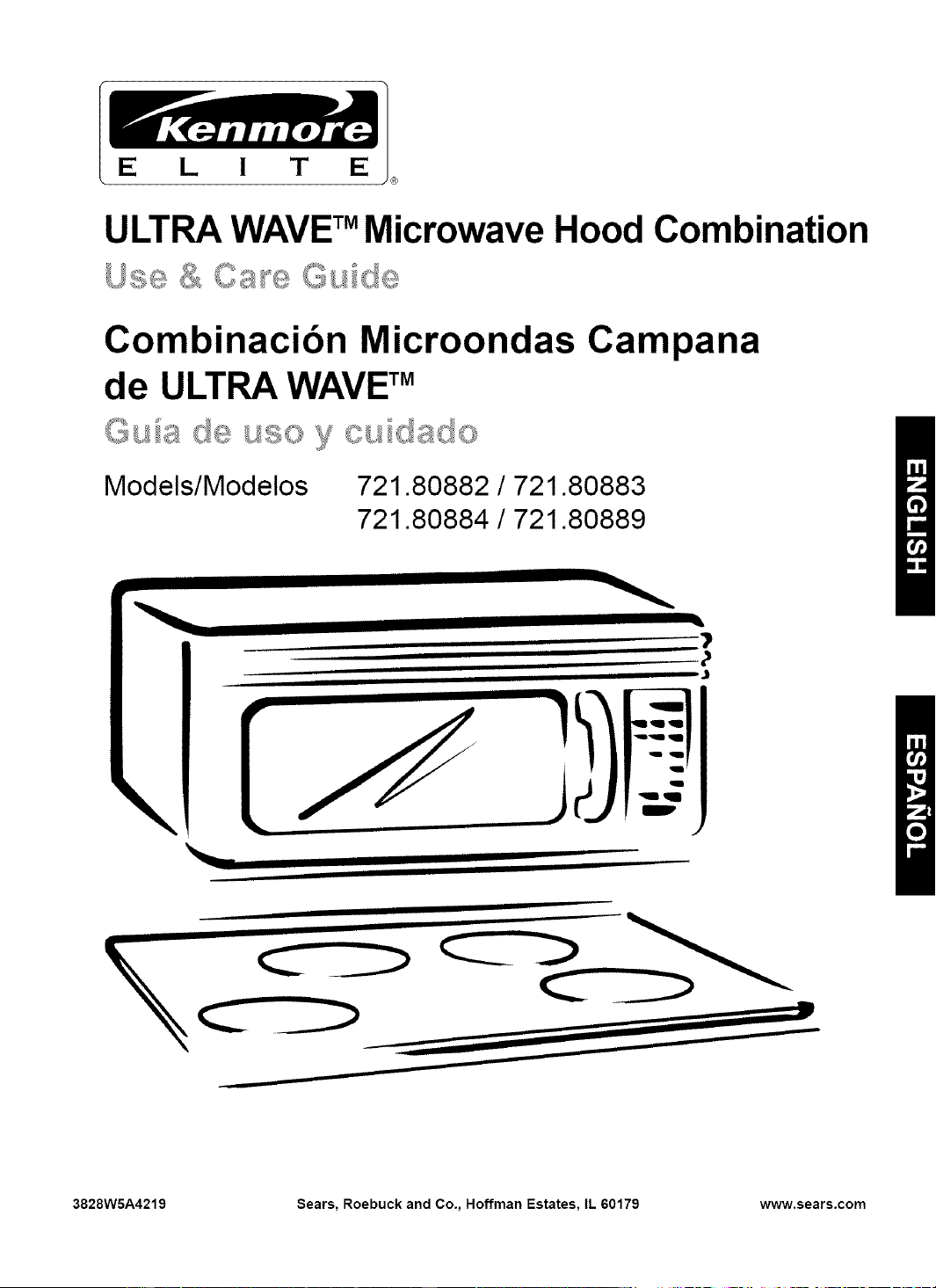

E L ! T E
ULTRA WAVETMMicrowave Hood Combination
S.,oL_ld@
Combinacibn Microondas Campana
de ULTRA WAVETM
Models/Modelos 721.80882/721.80883
721.80884/721.80889
\
3828WSA4219 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

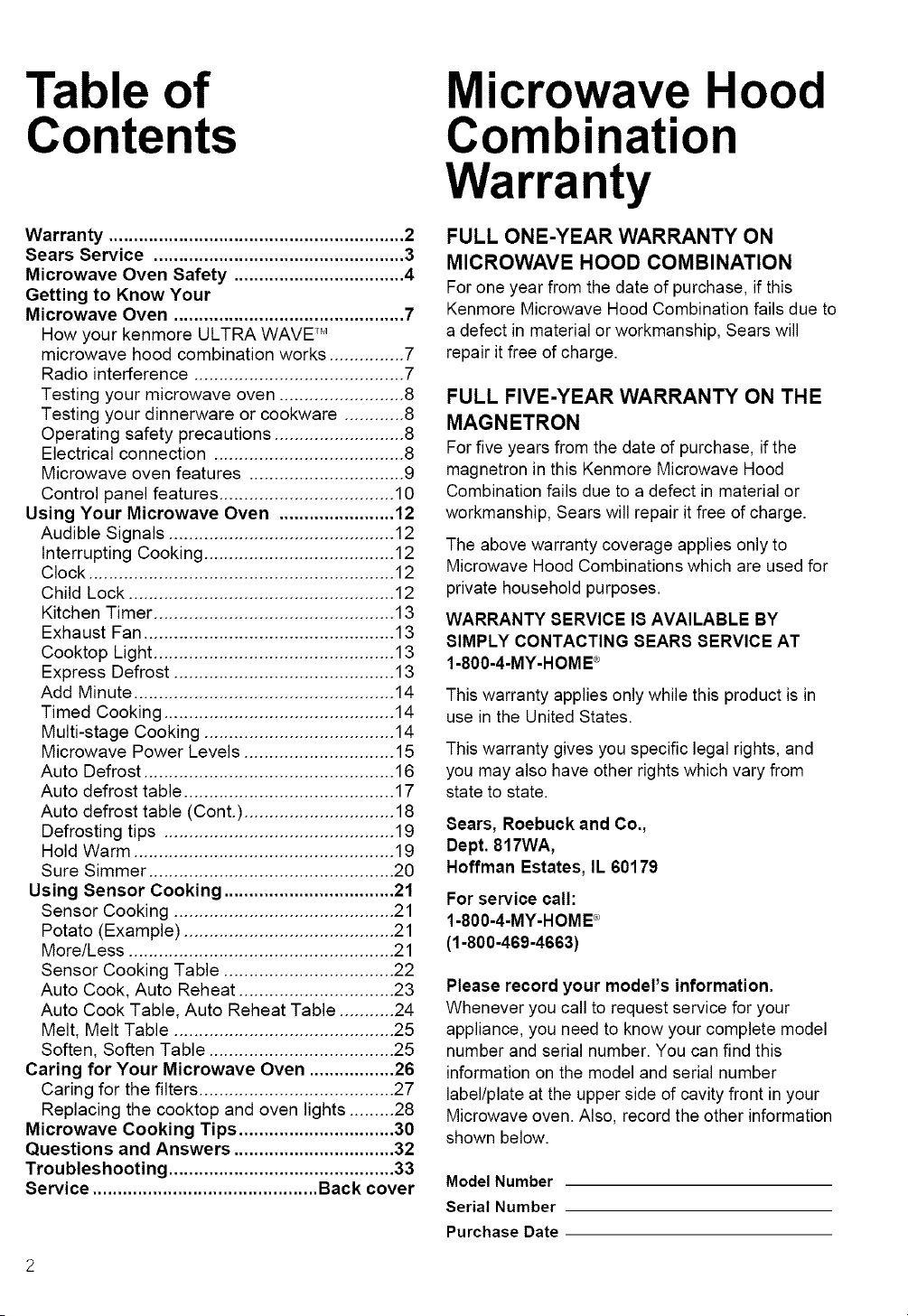

Table of
Contents Microwave Hood
Combination
Warranty
Warranty ........................................................... 2
Sears Service .................................................. 3
Microwave Oven Safety .................................. 4

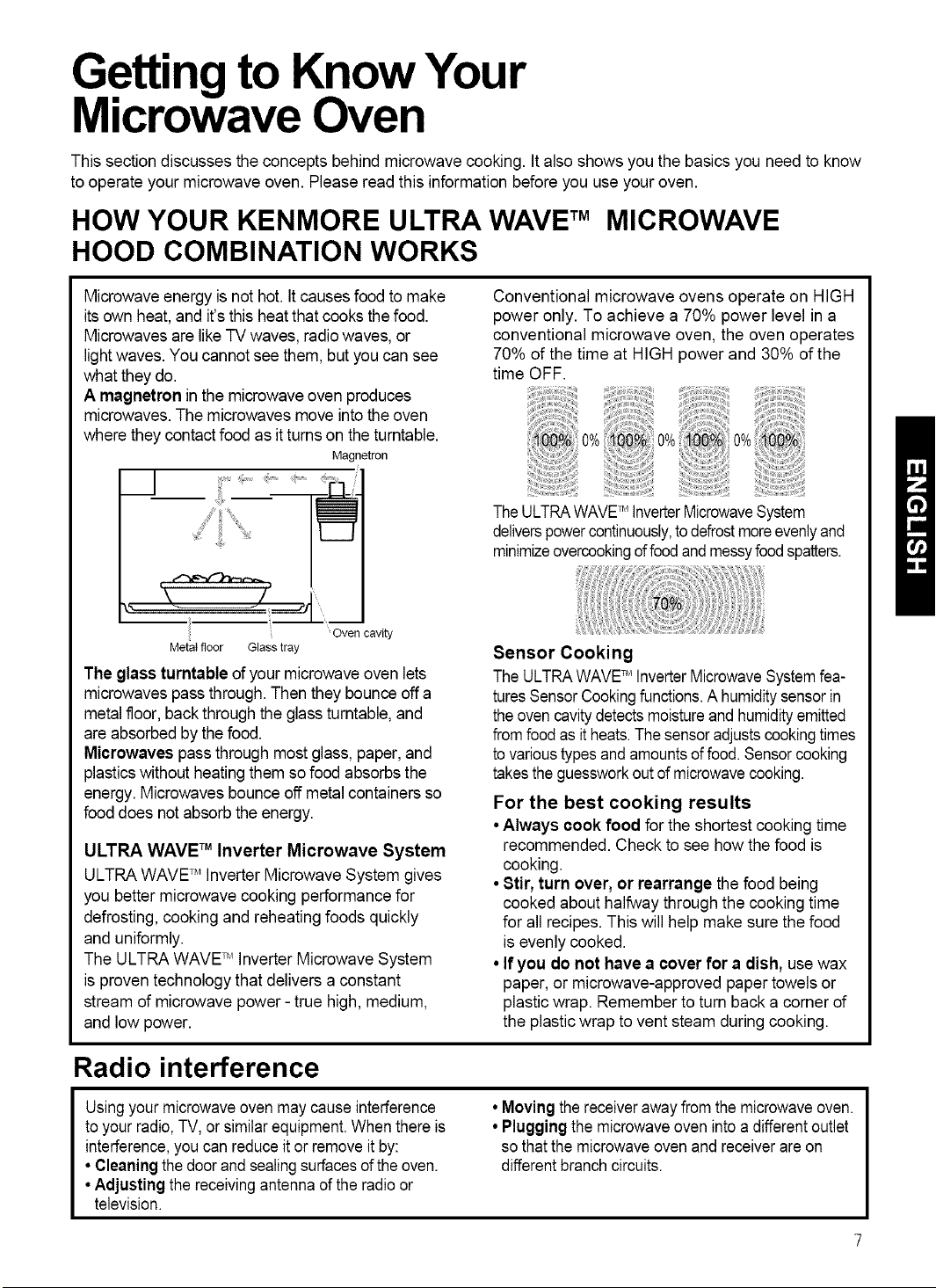

Getting to Know Your
Microwave Oven .............................................. 7
How your kenmore ULTRA WAVE TM
microwave hood combination works ............... 7
Radio interference .......................................... 7

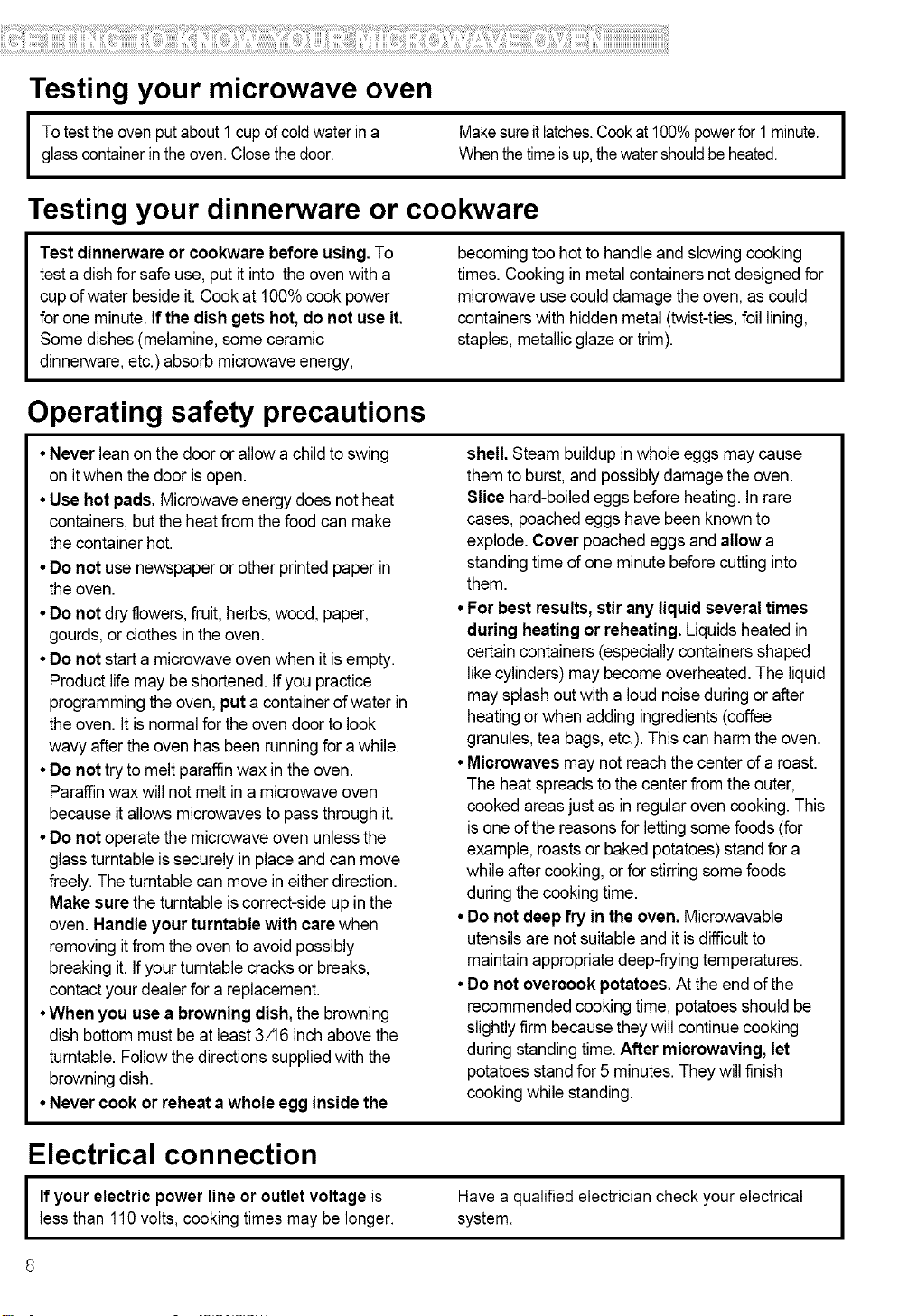

Testing your microwave oven ......................... 8
Testing your dinnerware or cookware ............ 8
Operating safety precautions .......................... 8
Electrical connection ...................................... 8

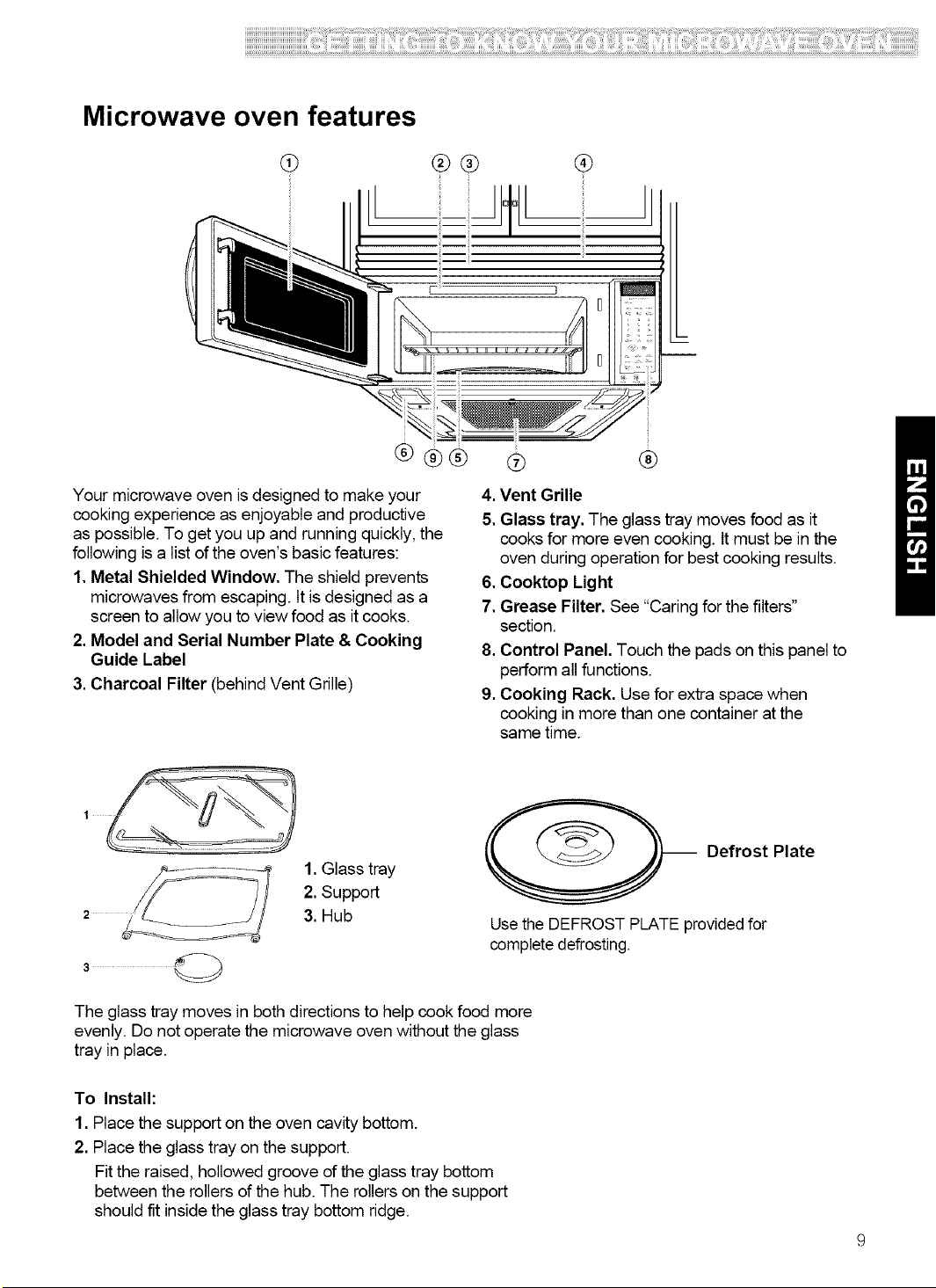

Microwave oven features ............................... 9

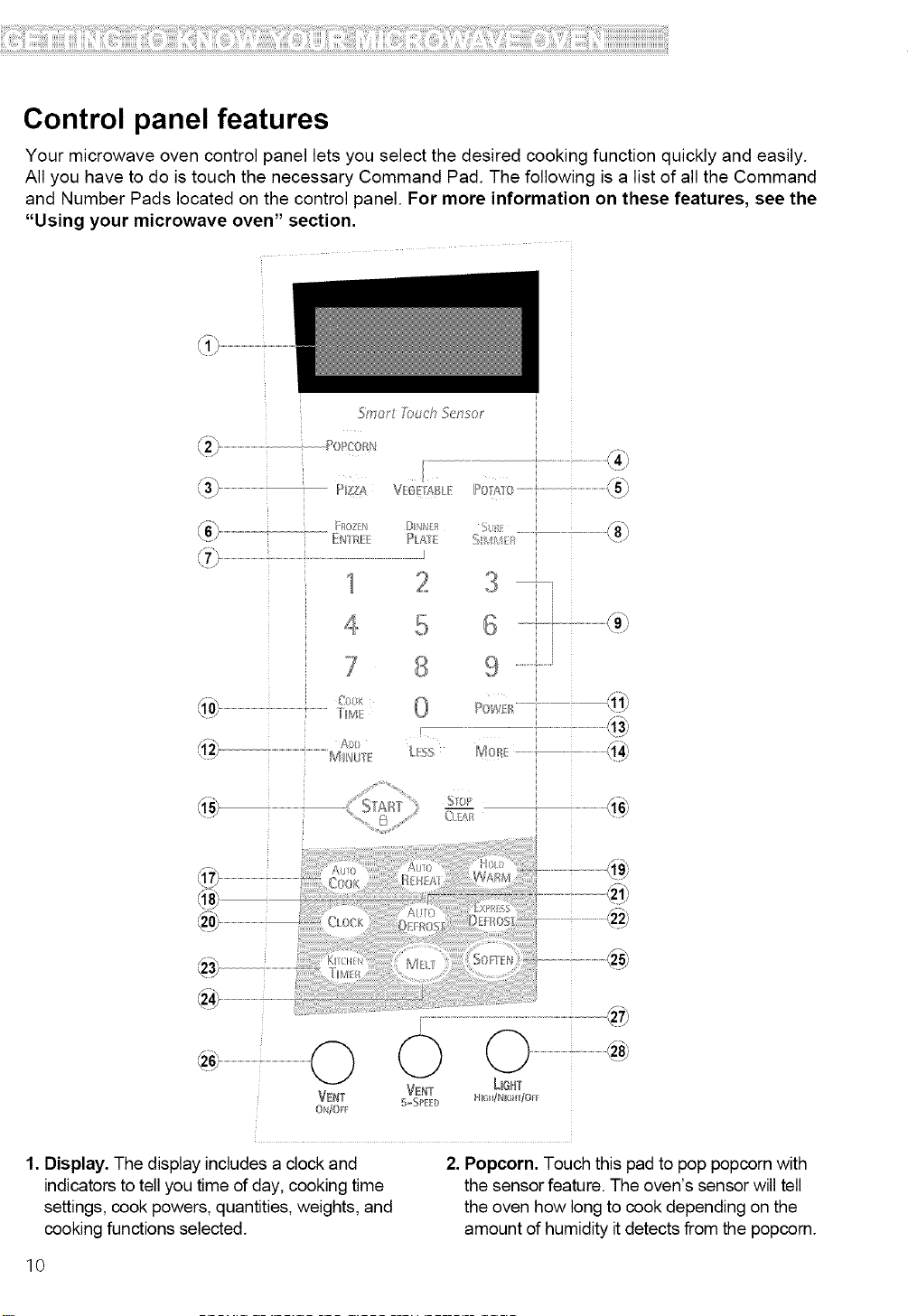

Control panel features ................................... 10

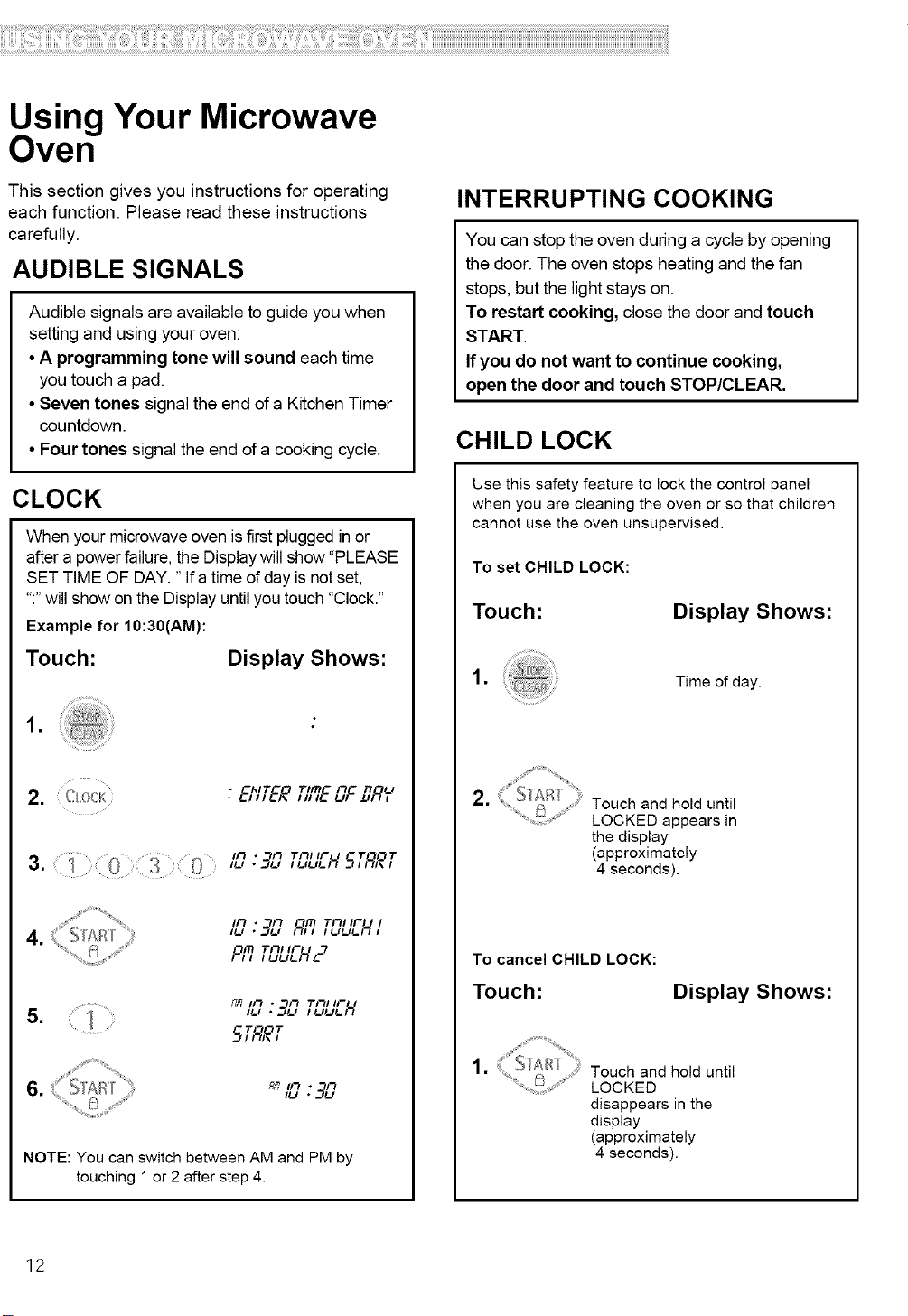

Using Your Microwave Oven ....................... 12
Audible Signals ............................................. 12
Interrupting Cooking ...................................... 12
Clock ............................................................. 12
Child Lock ..................................................... 12

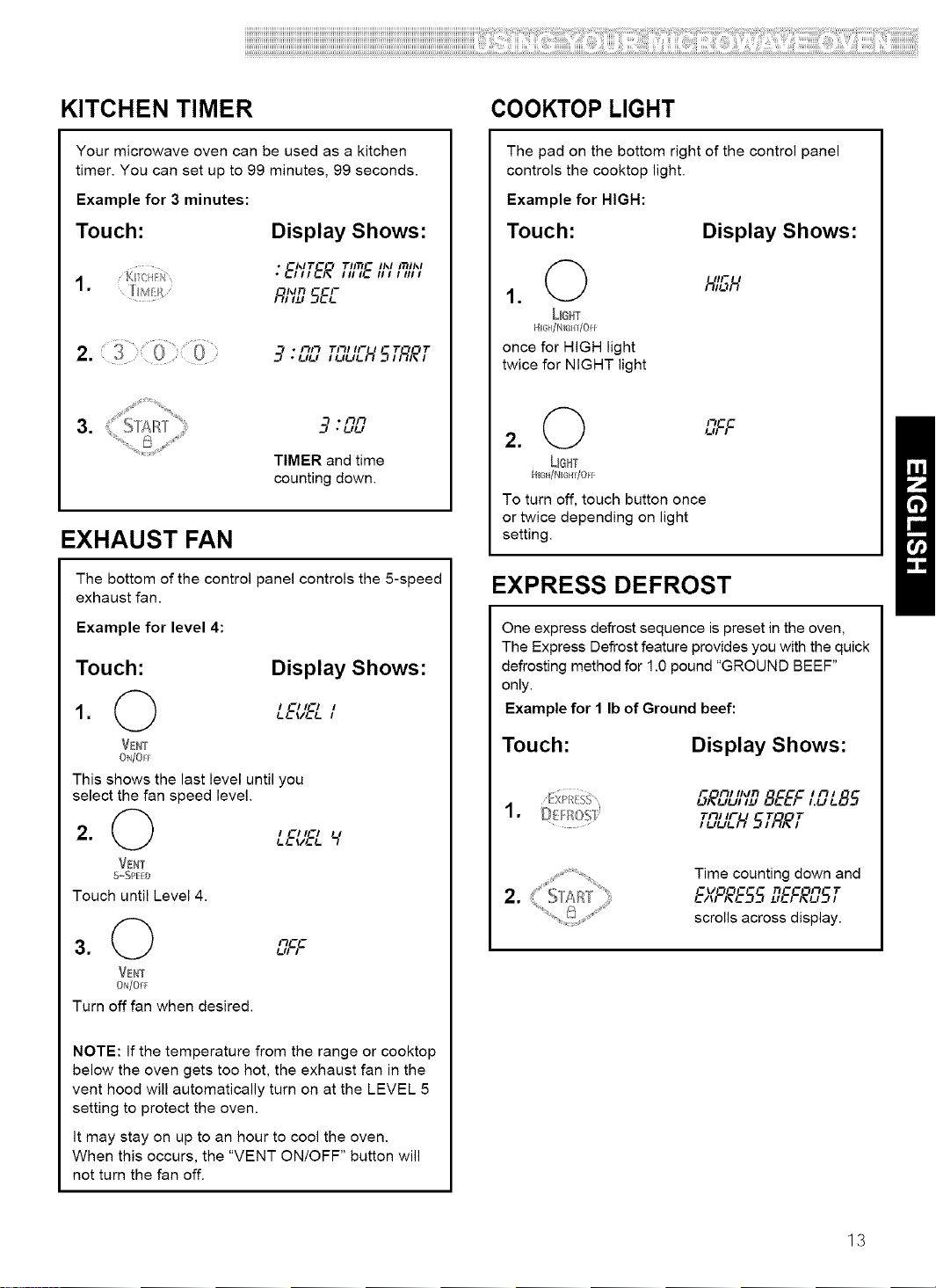

Kitchen Timer ................................................ 13
Exhaust Fan .................................................. 13
Cooktop Light ................................................ 13
Express Defrost ............................................ 13

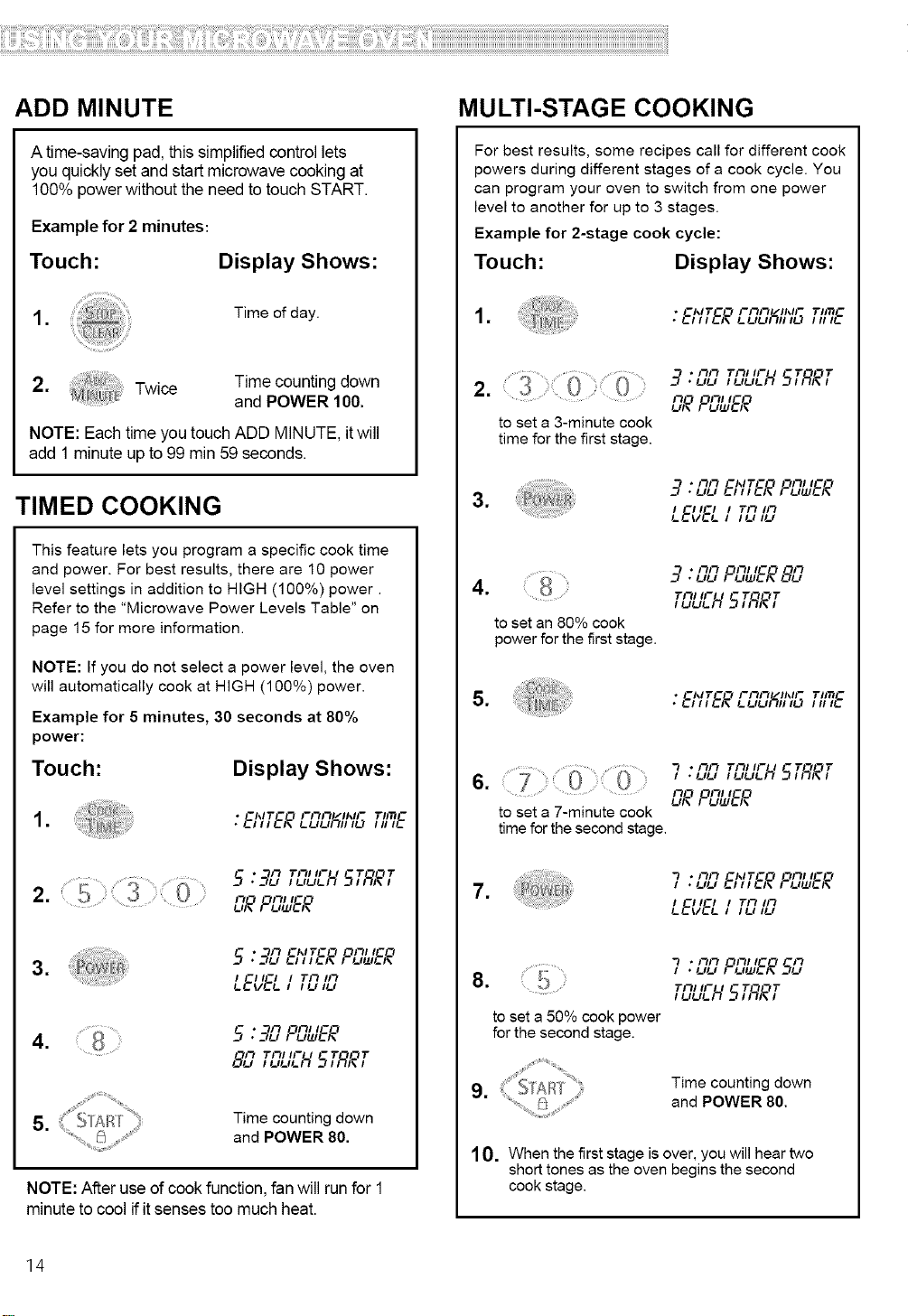

Add Minute .................................................... 14
Timed Cooking .............................................. 14
Multi-stage Cooking ...................................... 14

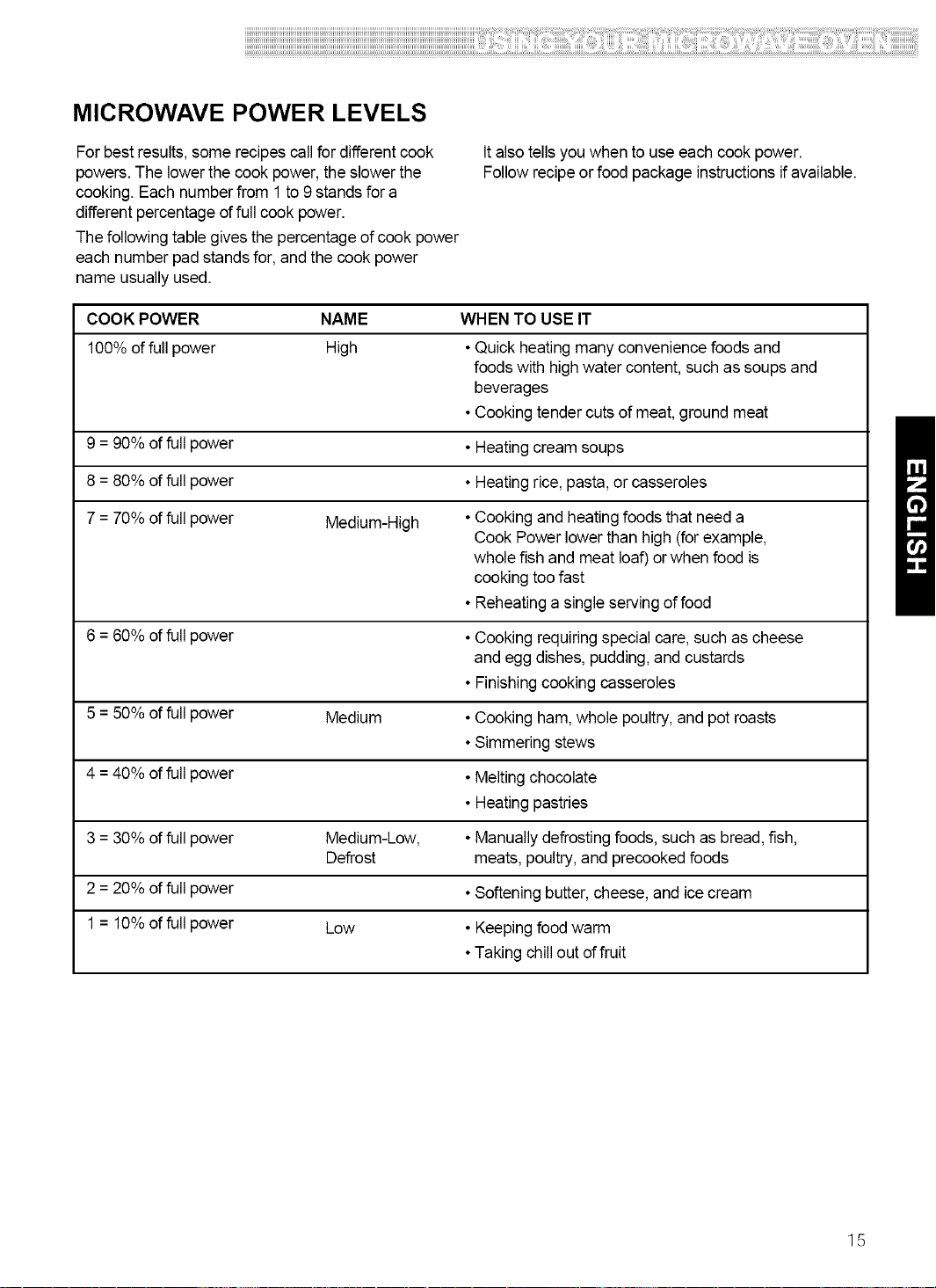

Microwave Power Levels .............................. 15

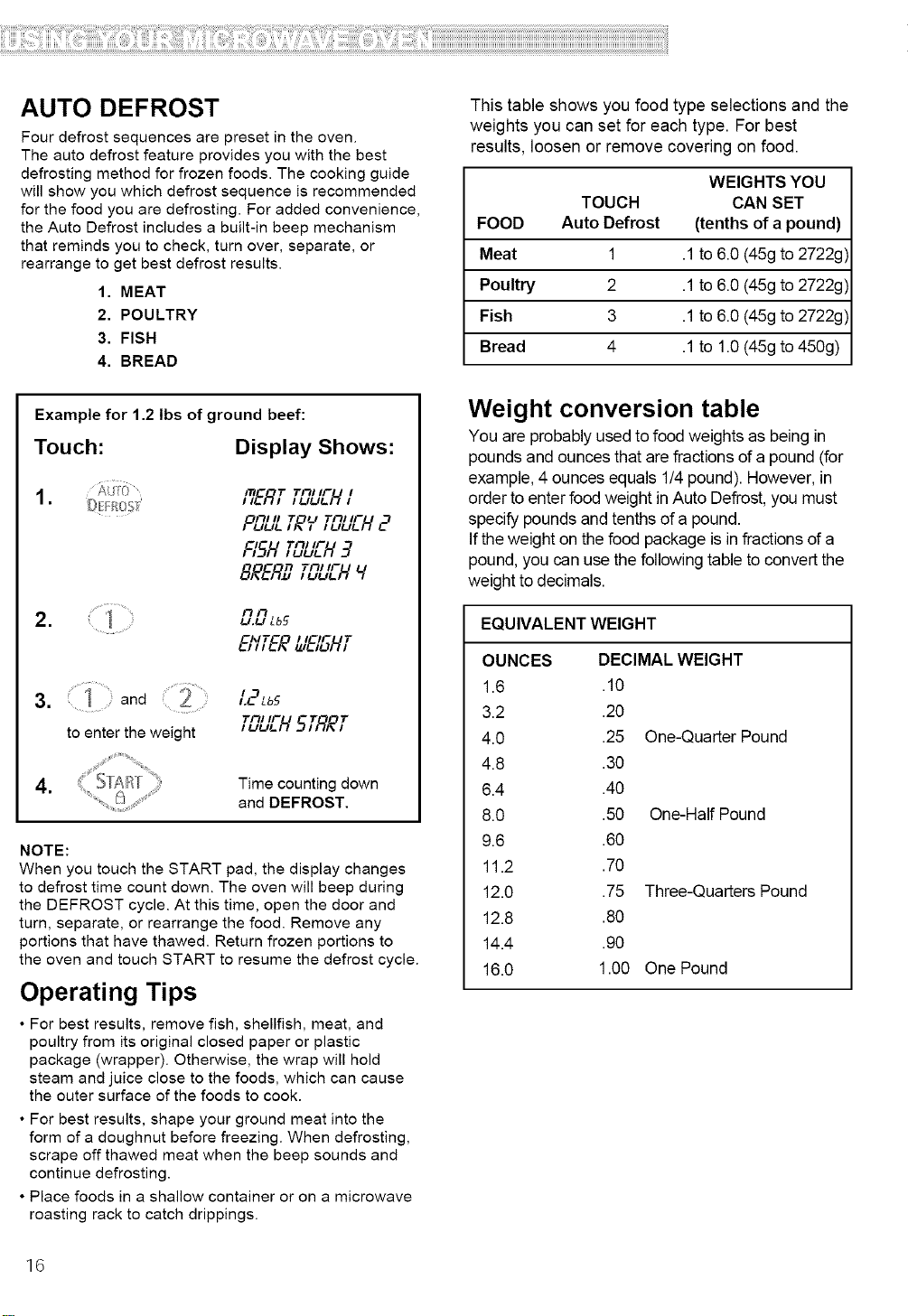

Auto Defrost .................................................. 16

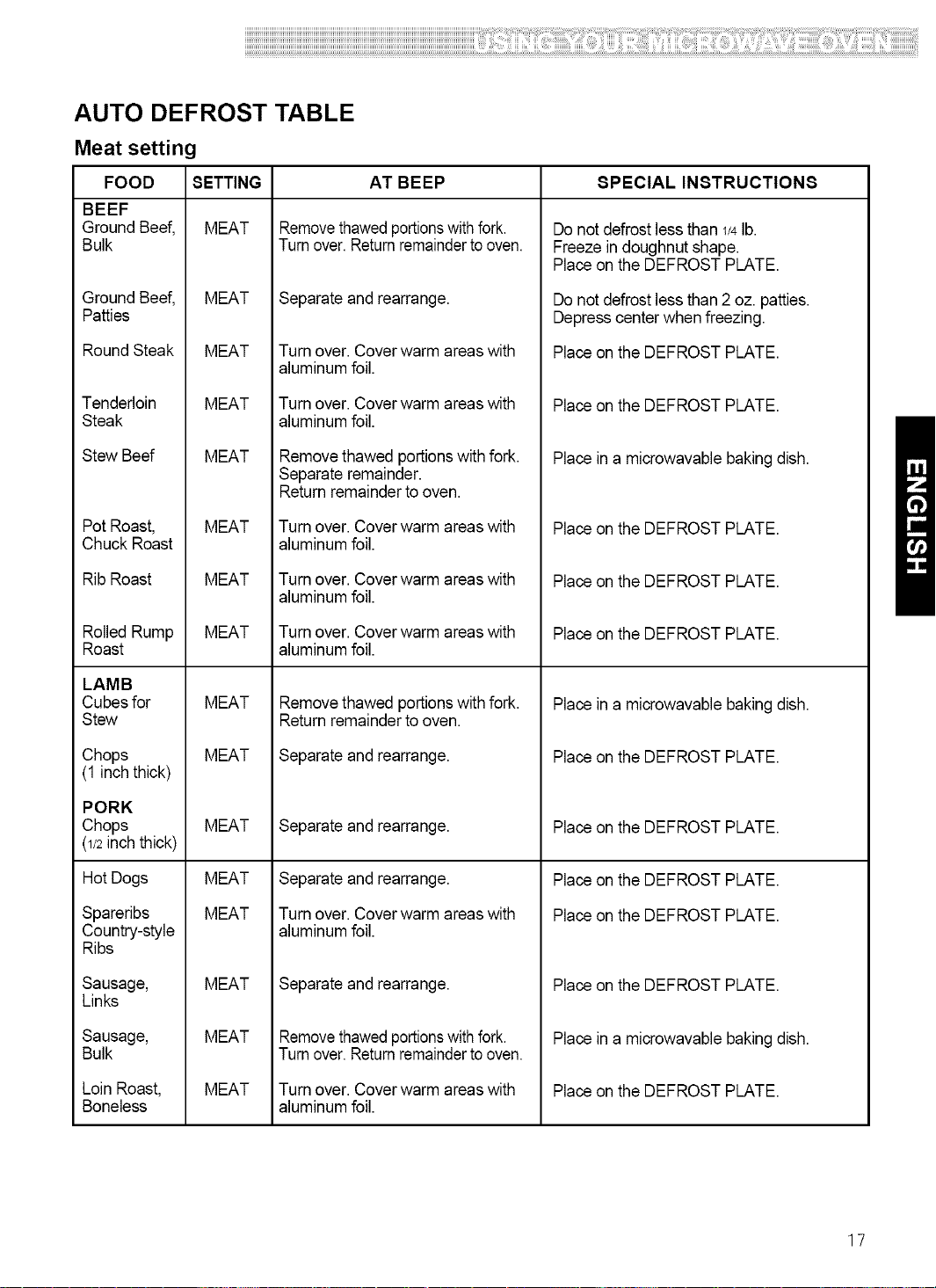

Auto defrost table .......................................... 17

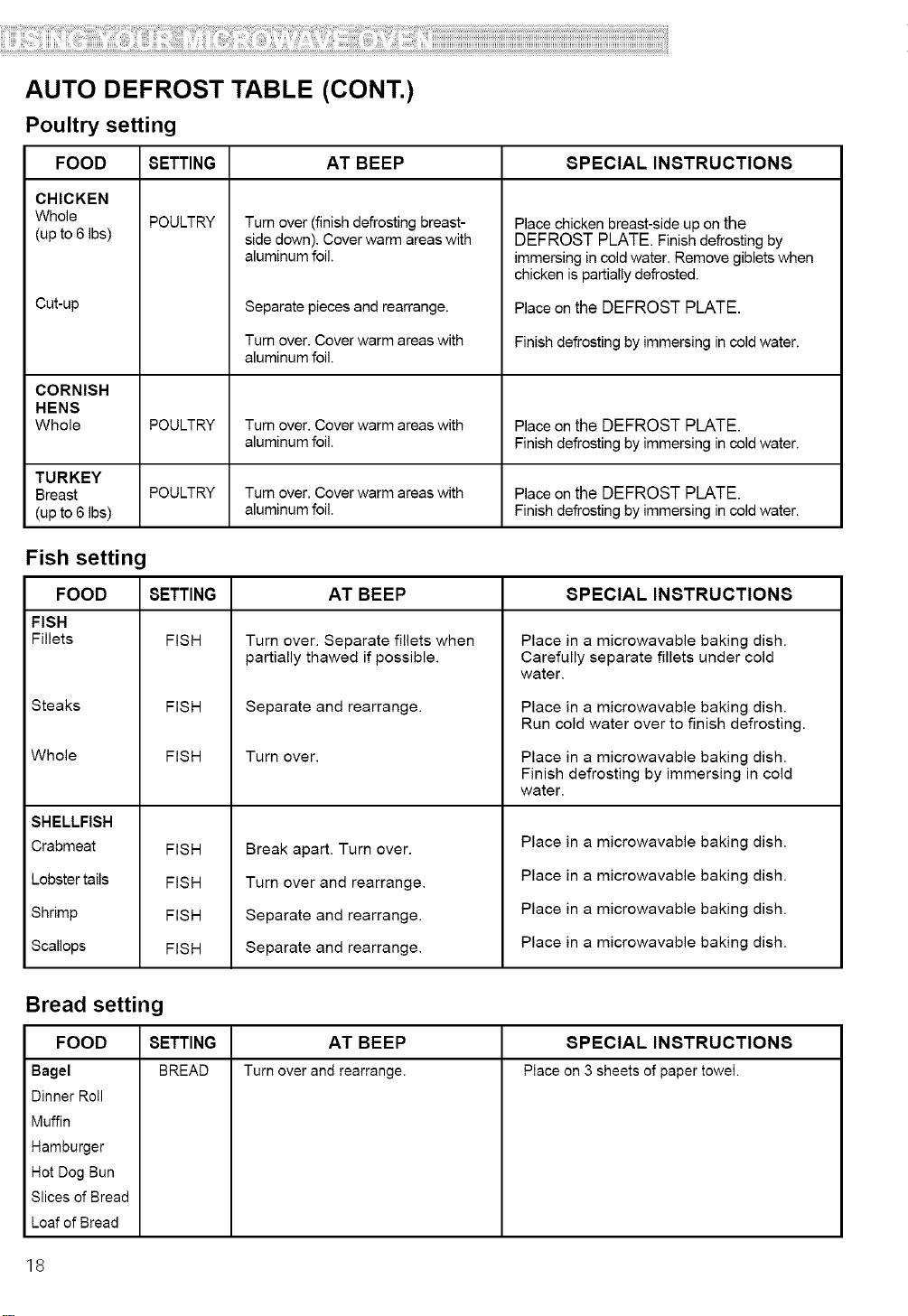

Auto defrost table (Cont.) .............................. 18

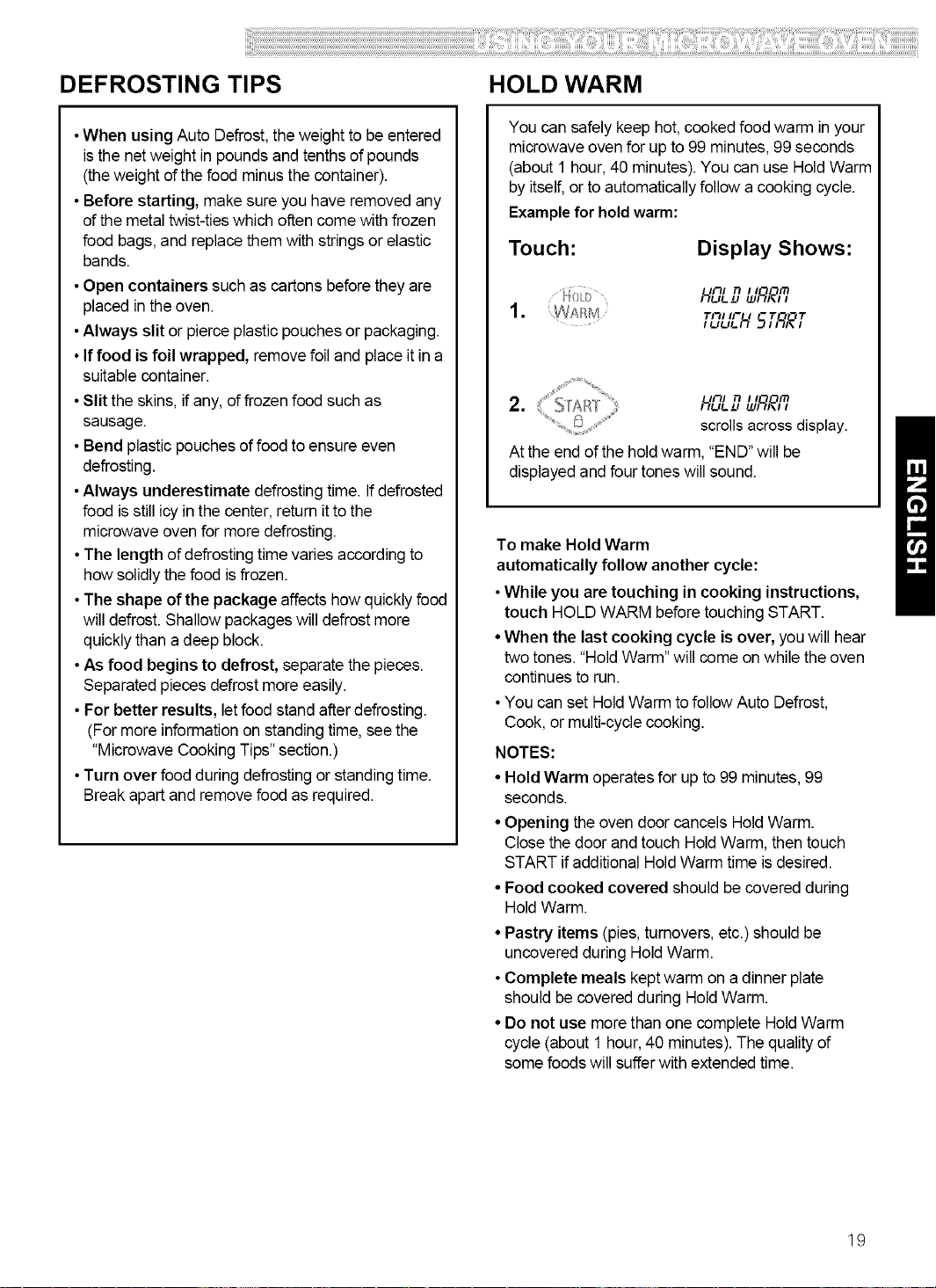

Defrosting tips .............................................. 19
Hold Warm .................................................... 19

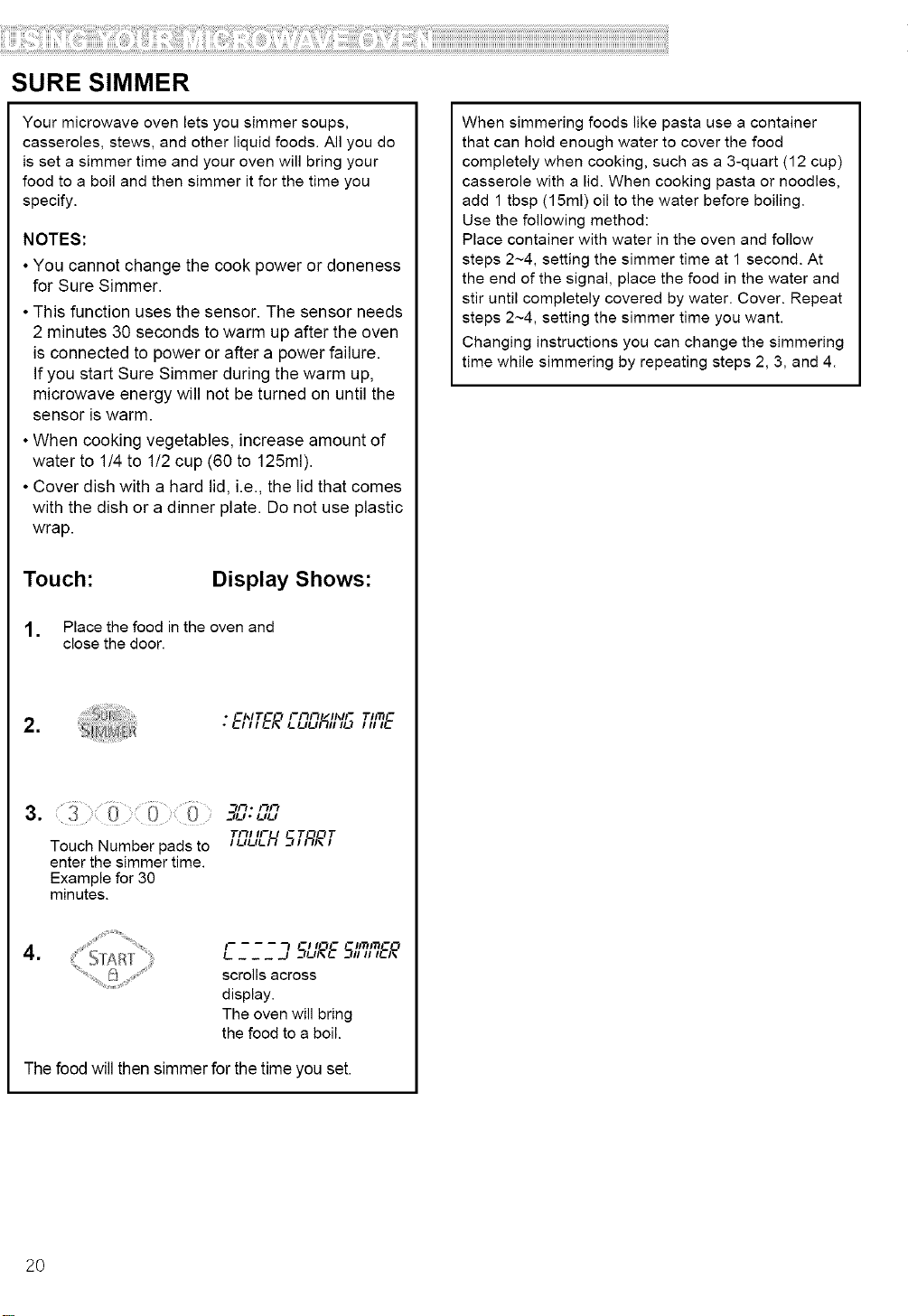

Sure Simmer ................................................. 20

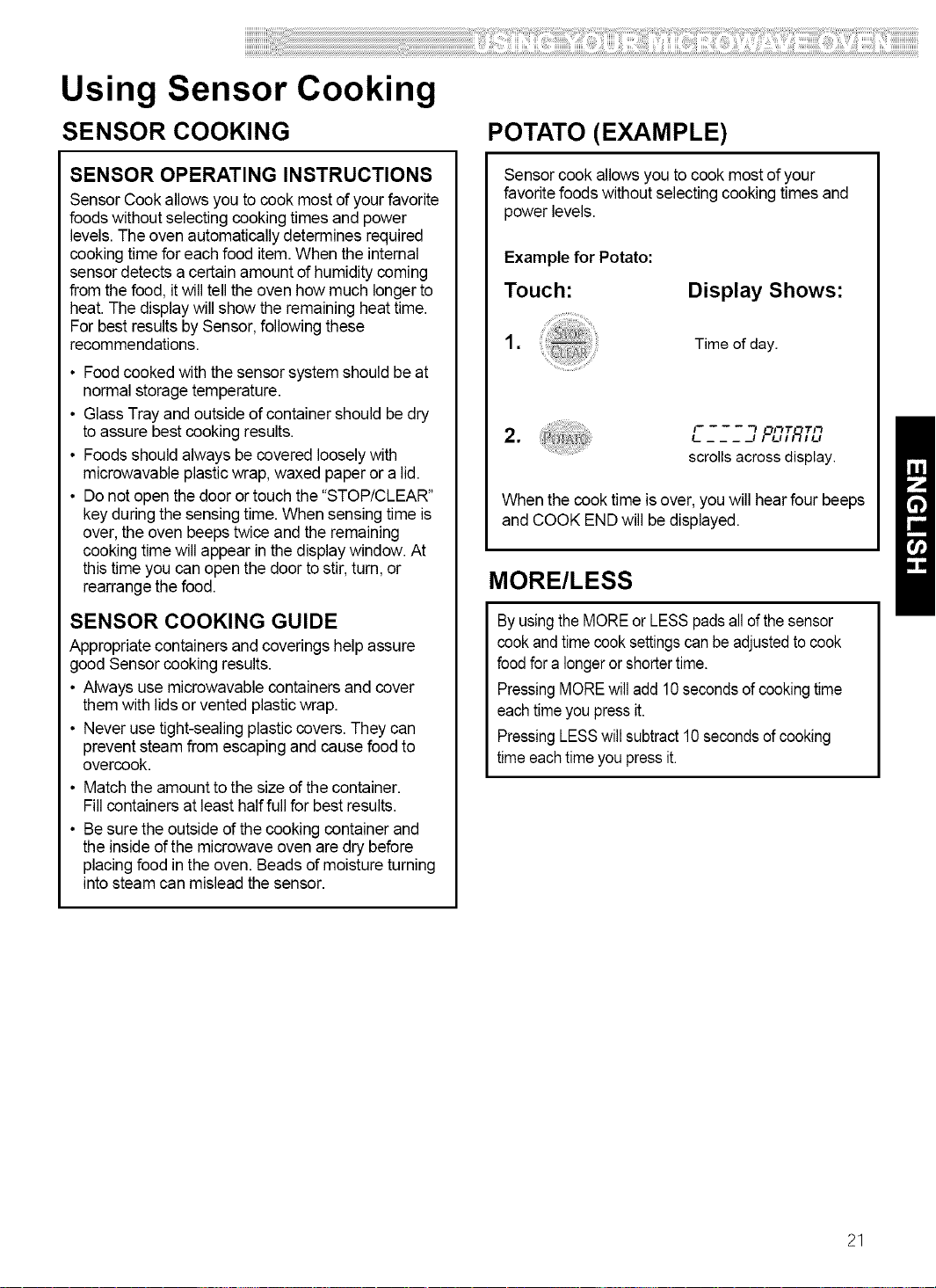

Using Sensor Cooking .................................. 21
Sensor Cooking ............................................ 21
Potato (Example) .......................................... 21
More/Less ..................................................... 21

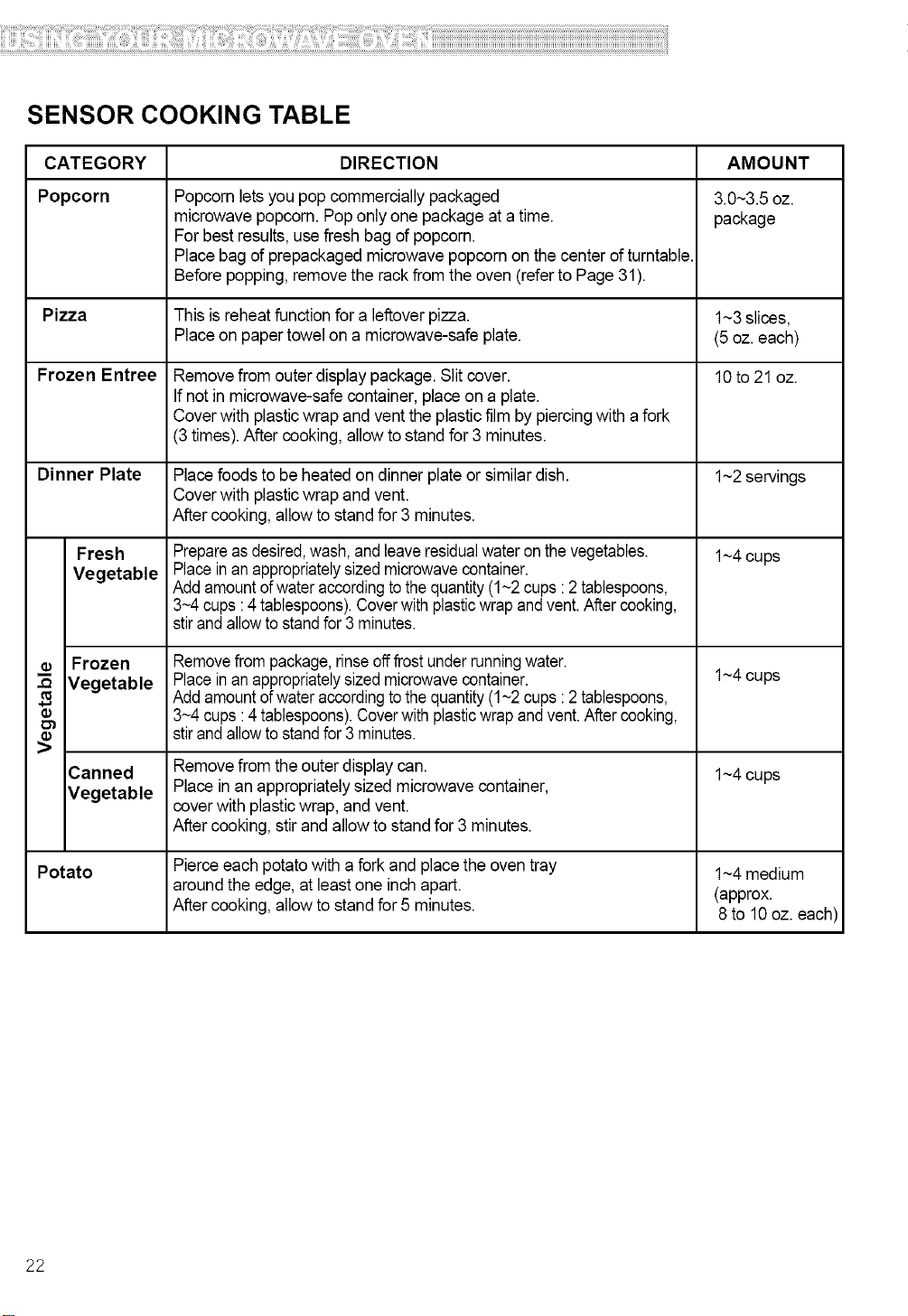

Sensor Cooking Table .................................. 22

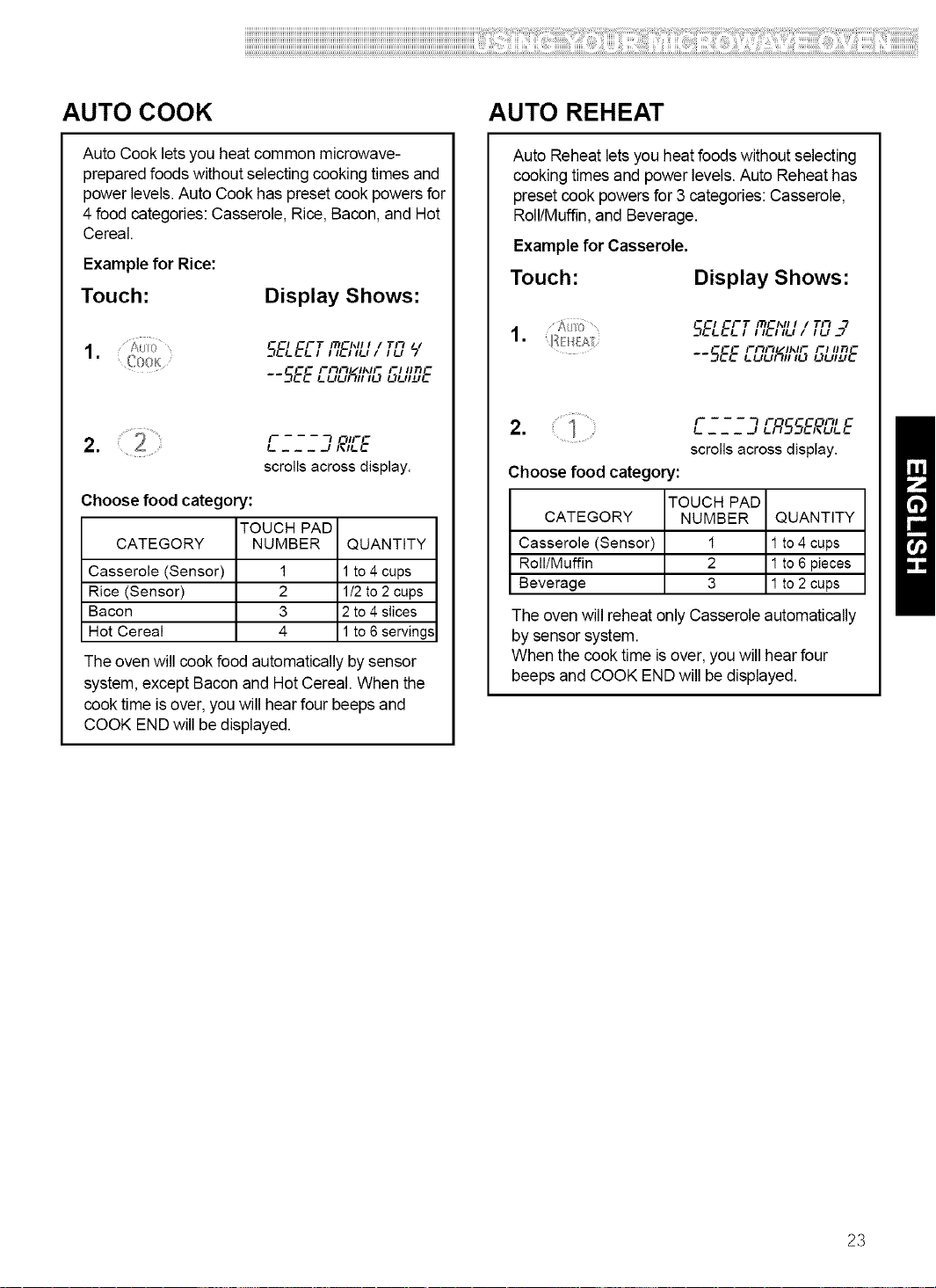

Auto Cook, Auto Reheat ............................... 23

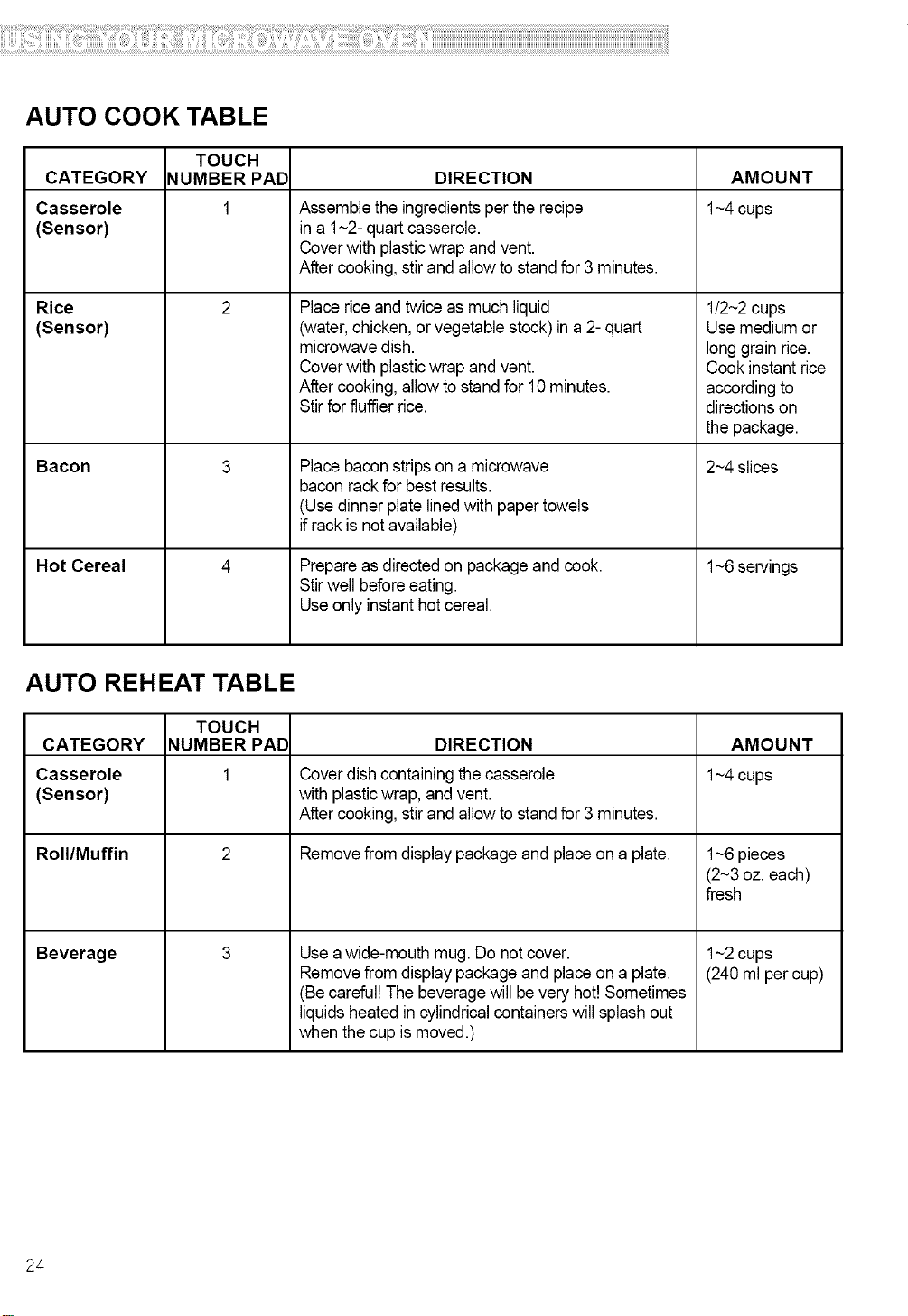

Auto Cook Table, Auto Reheat Table ........... 24

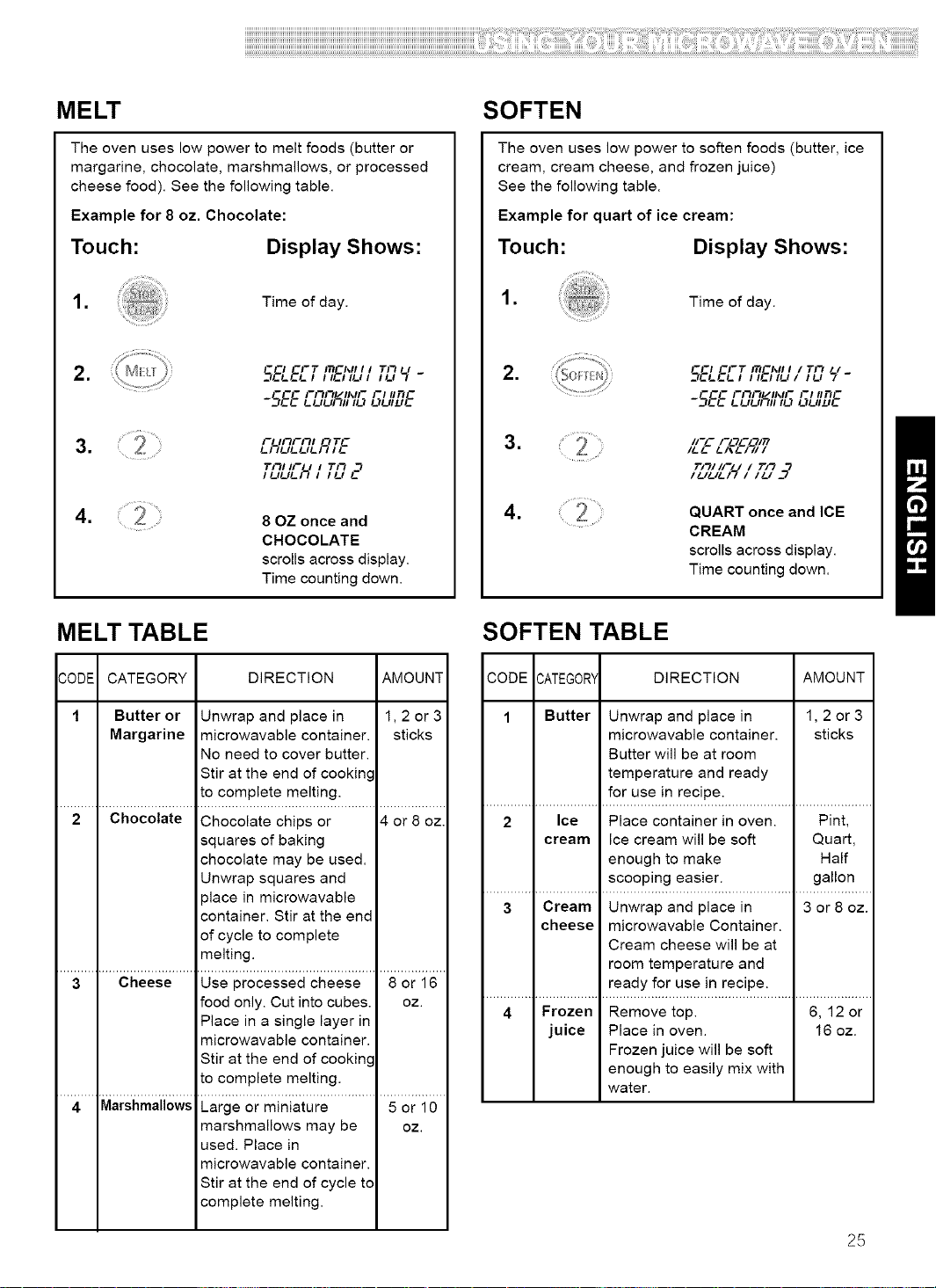

Melt, Melt Table ............................................ 25
Soften, Soften Table ..................................... 25

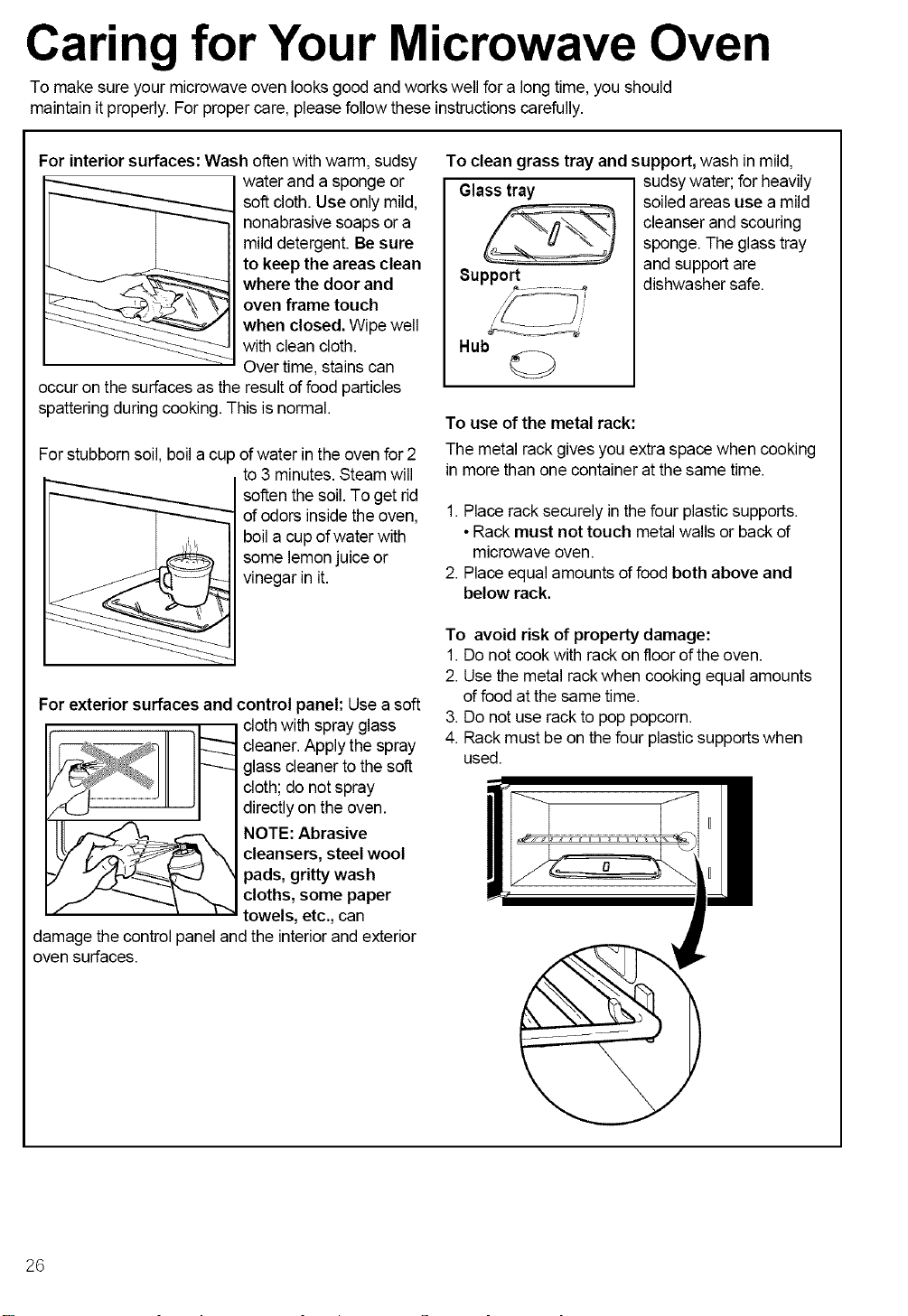

Caring for Your Microwave Oven ................. 26

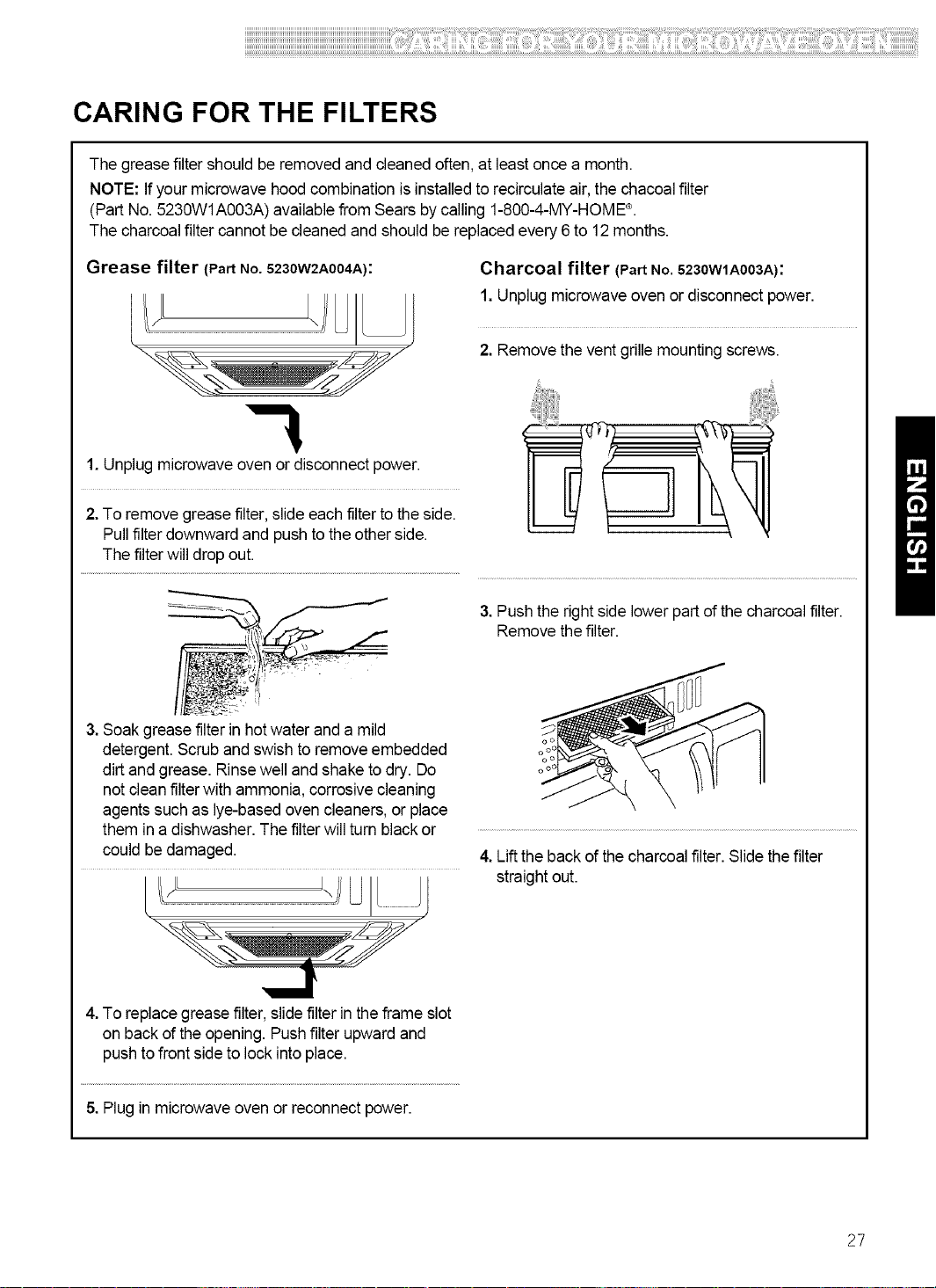

Caring for the filters ....................................... 27

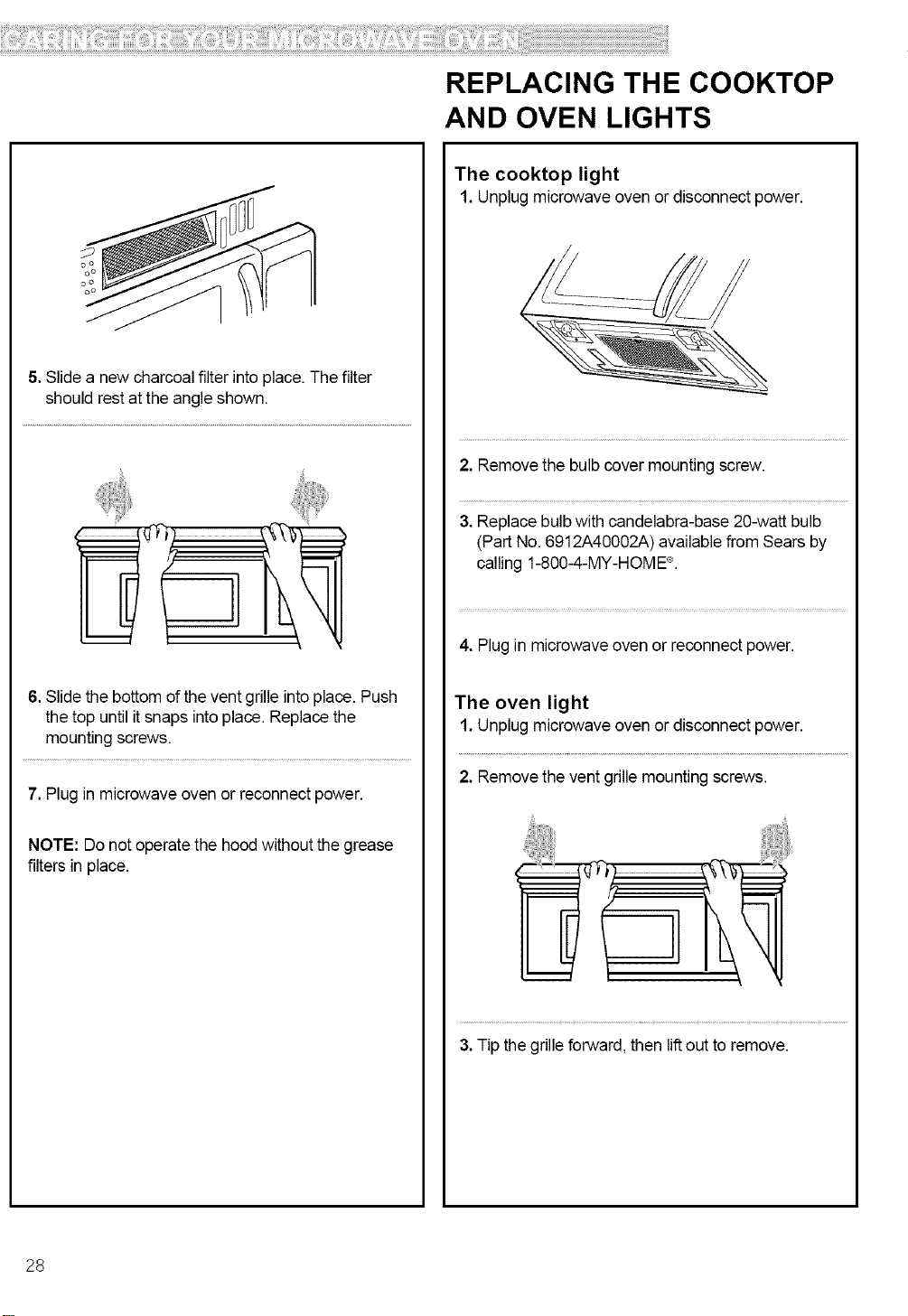

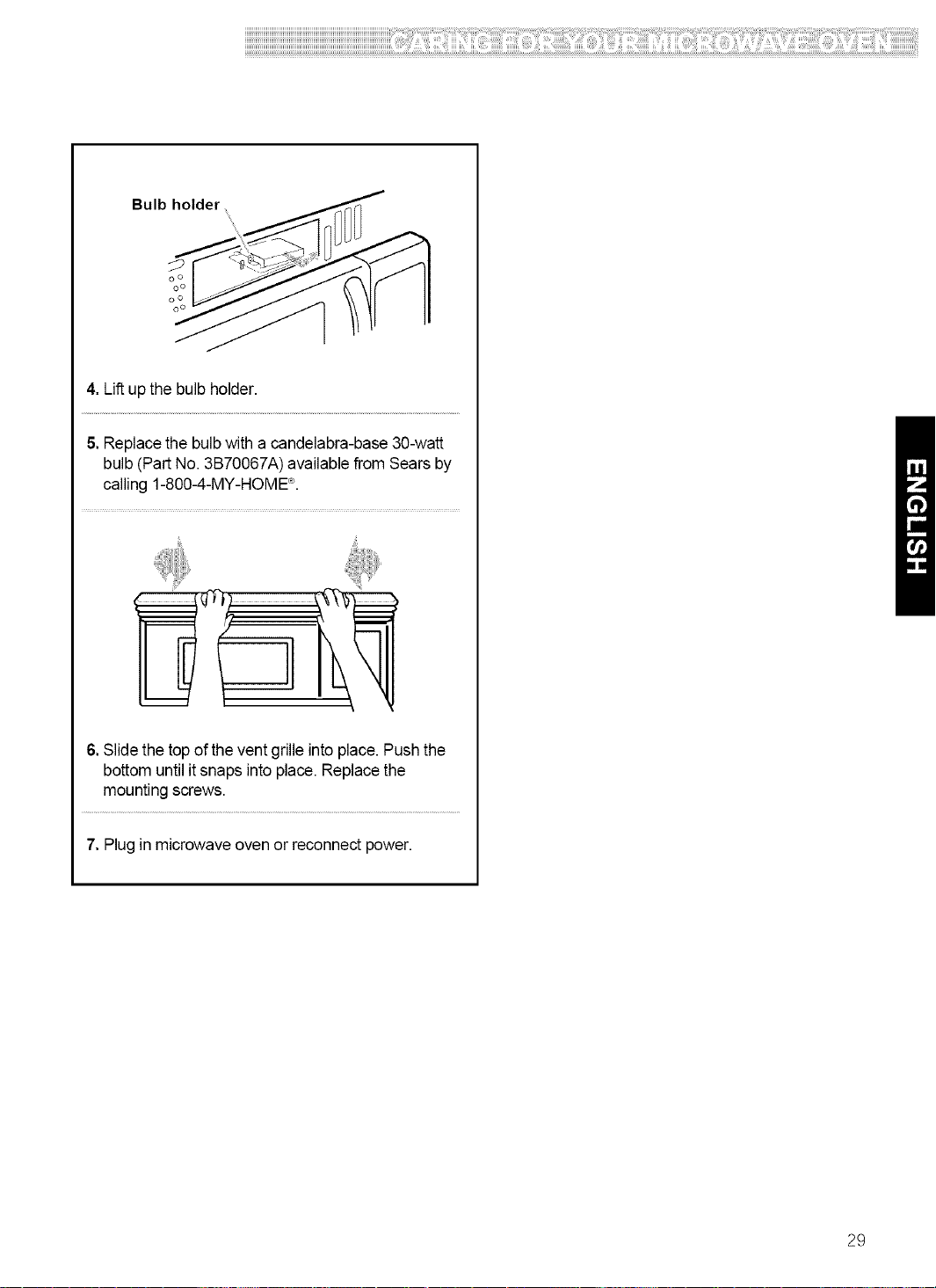

Replacing the cooktop and oven lights .........28

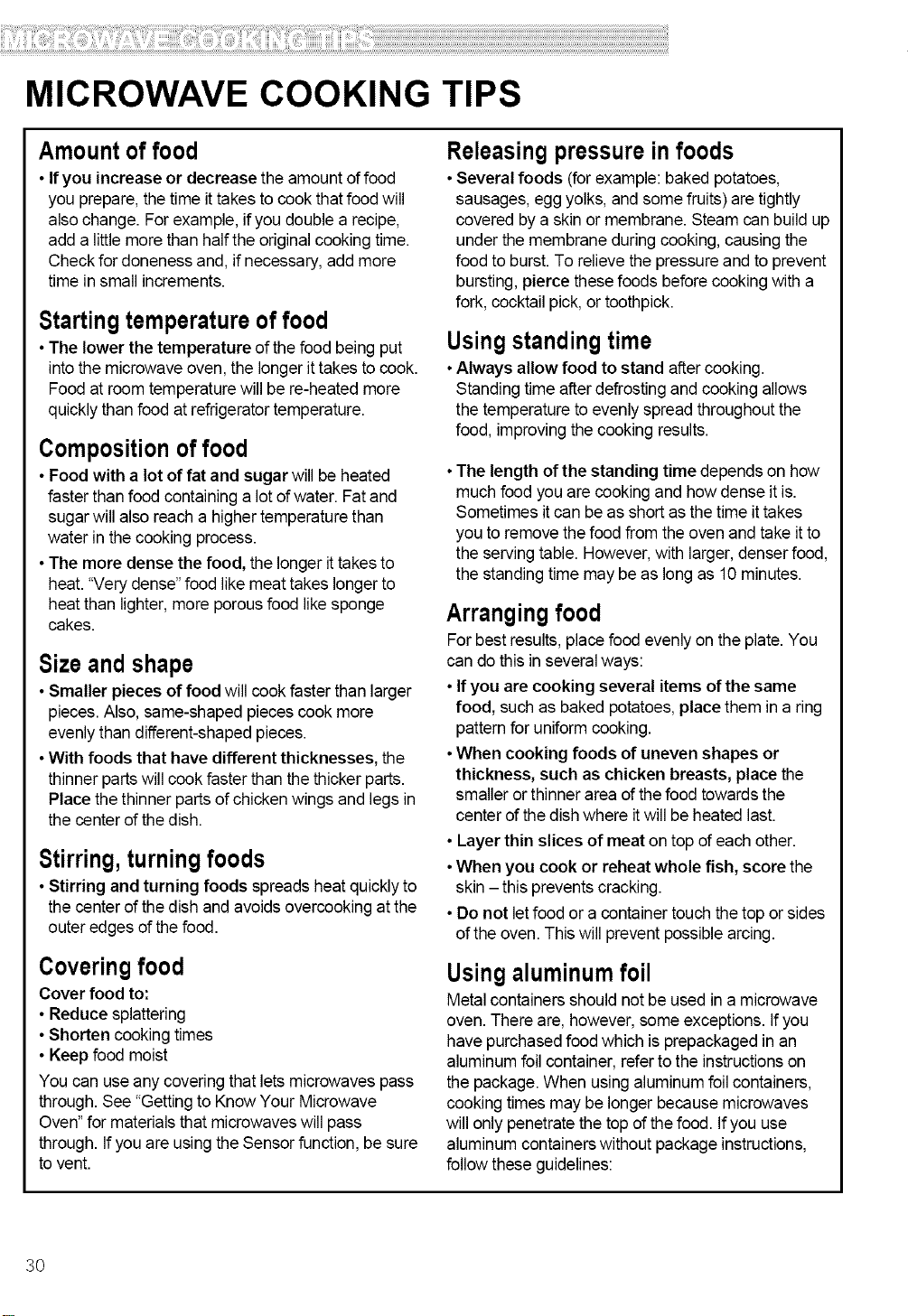

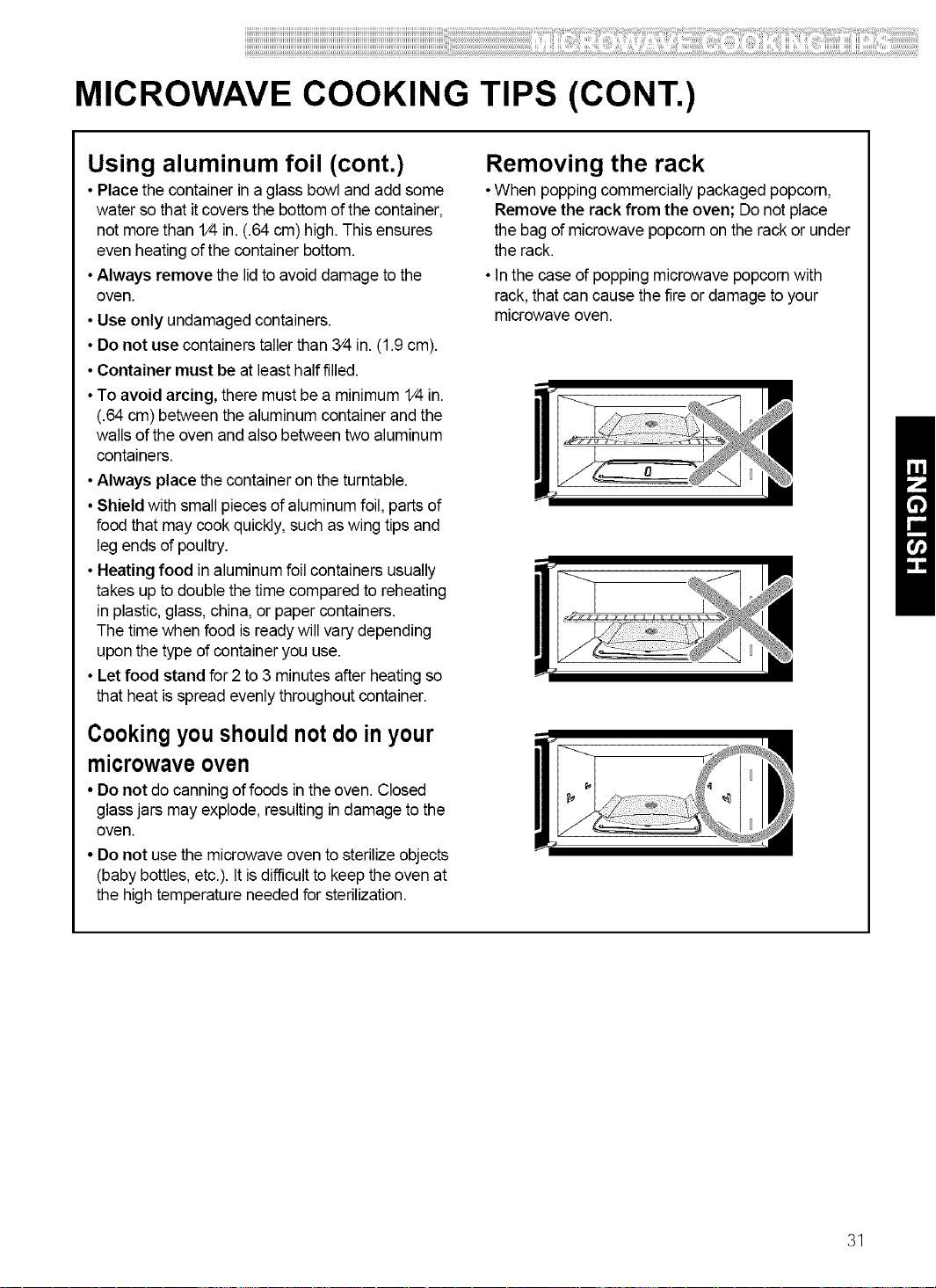

Microwave Cooking Tips ............................... 30

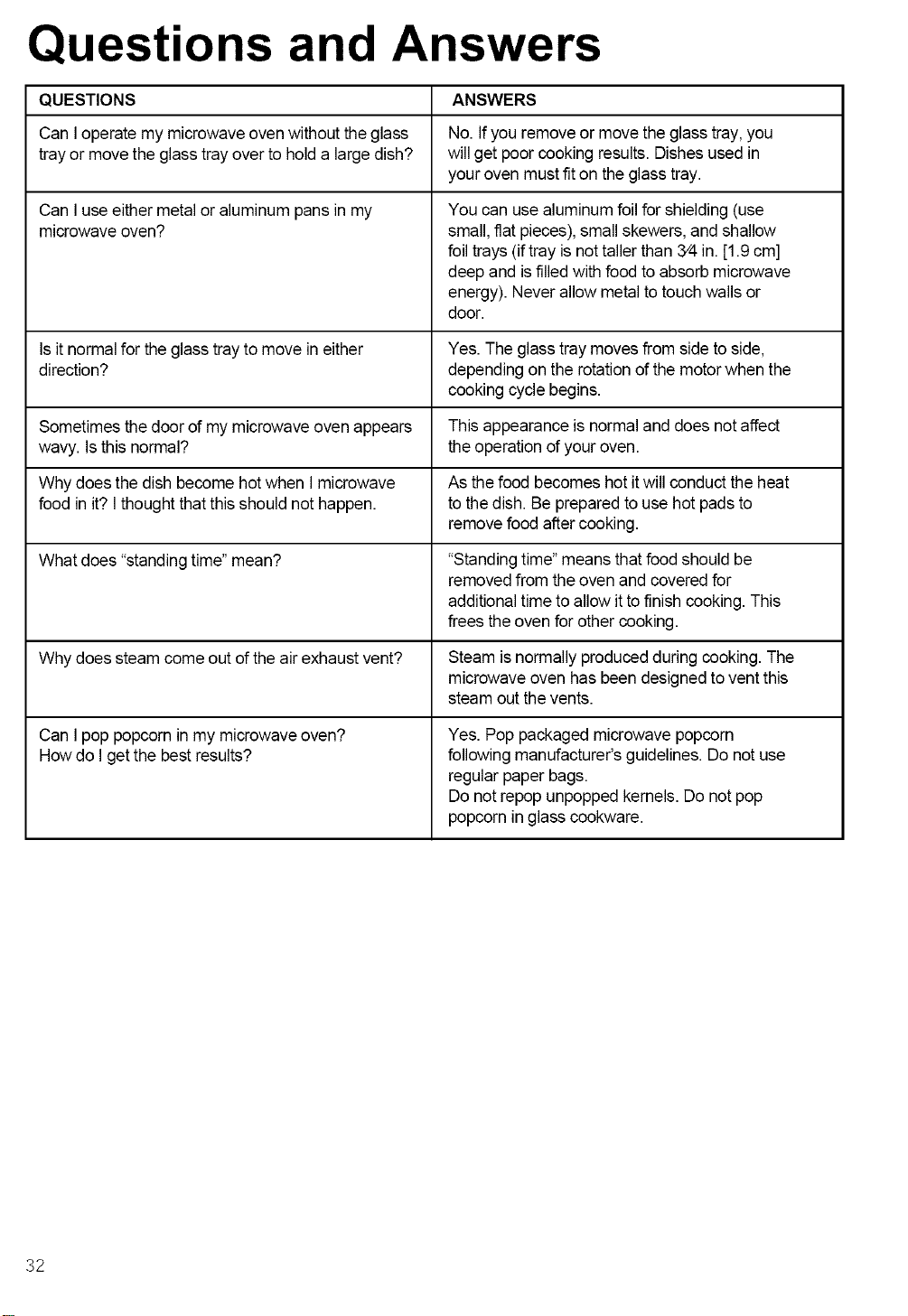

Questions and Answers ................................ 32

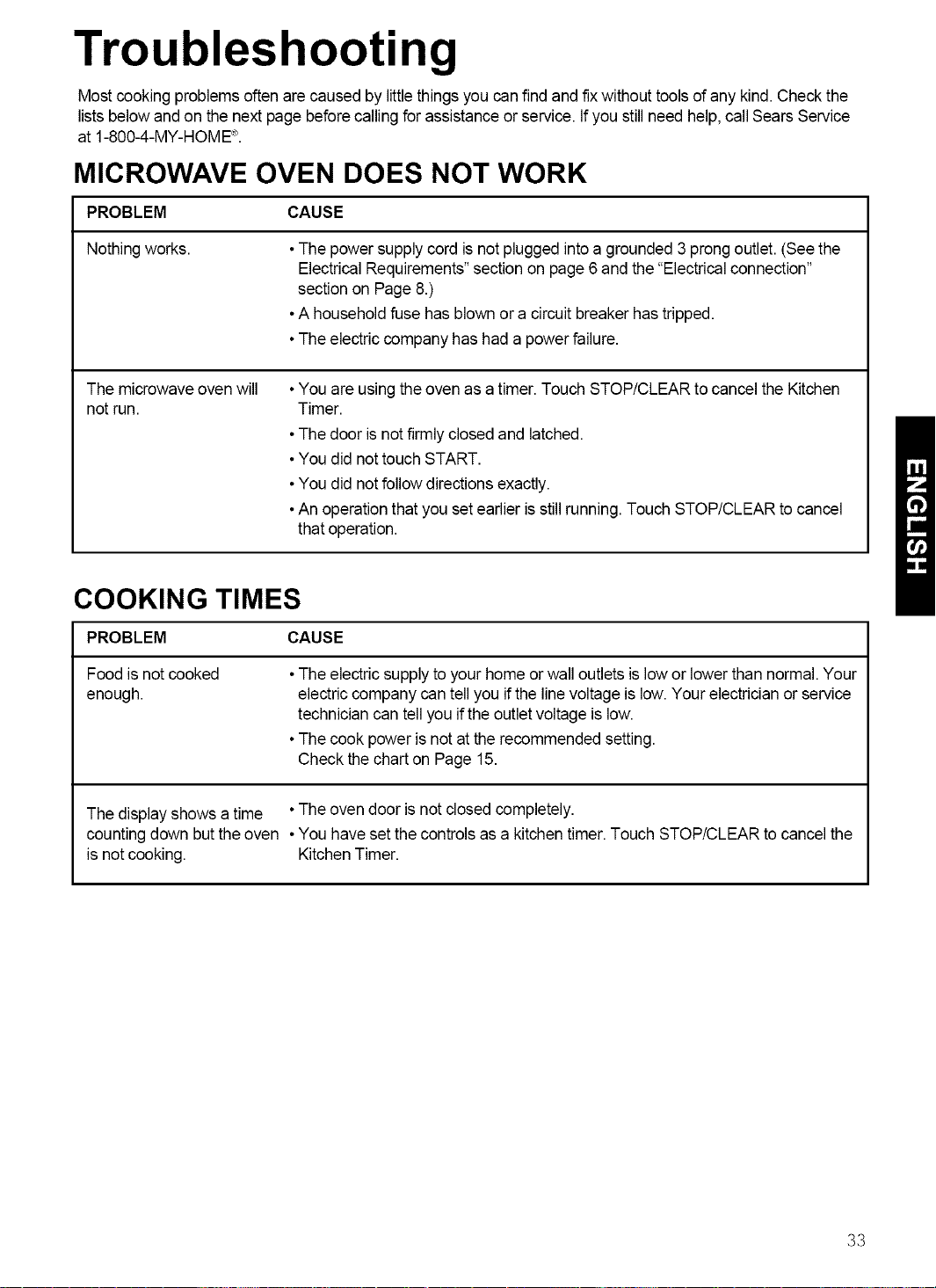

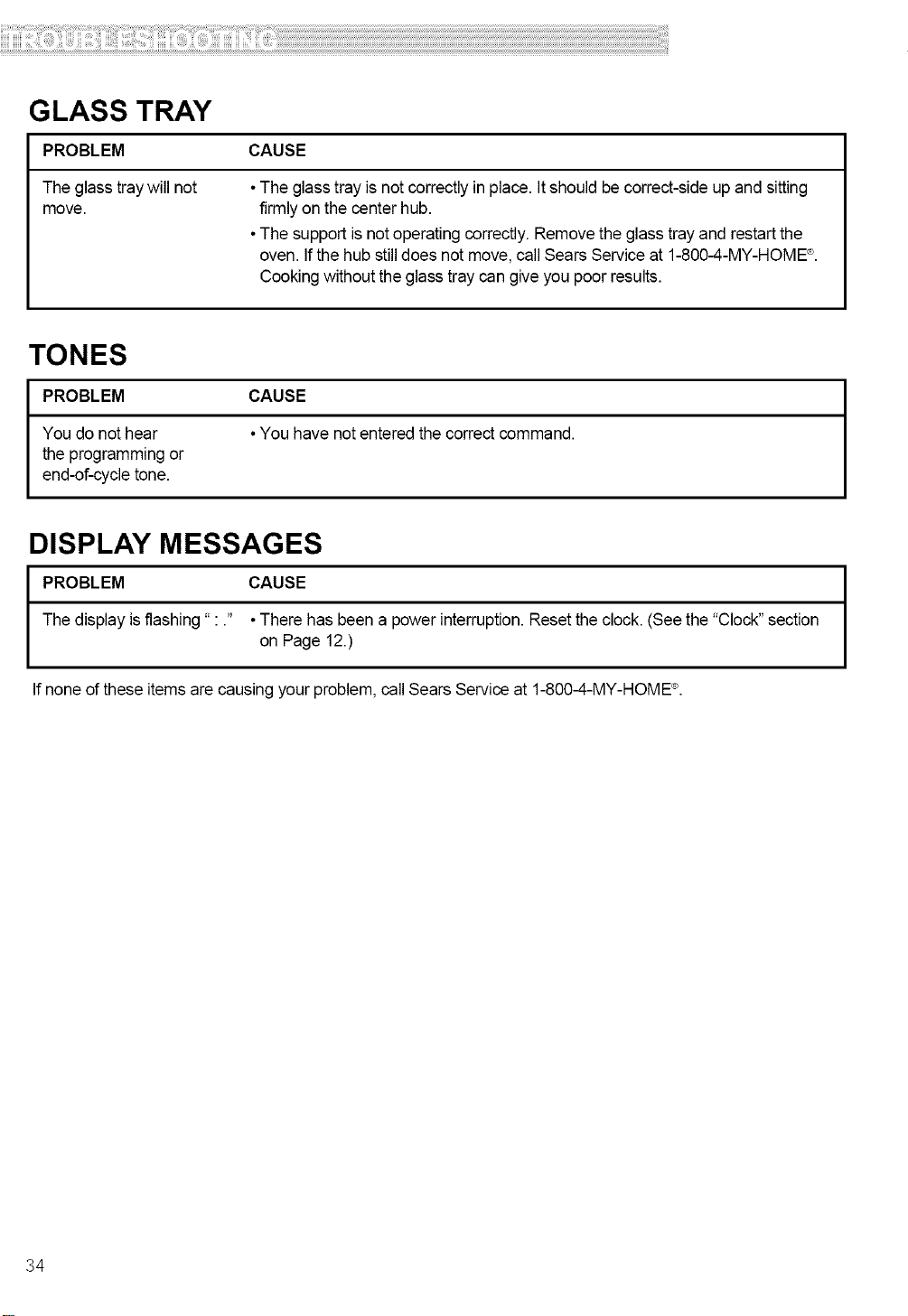

Troubleshooting ............................................. 33
Service ............................................. Back cover
FULL ONE-YEAR WARRANTY ON
MICROWAVE HOOD COMBINATION
For one year from the date of purchase, if this
Kenmore Microwave Hood Combination fails due to
a defect in material or workmanship, Sears will
repair it free of charge.
FULL FIVE-YEAR WARRANTY ON THE
MAGNETRON
For five years from the date of purchase, ifthe
magnetron in this Kenmore Microwave Hood
Combination fails due to a defect in material or
workmanship, Sears will repair it free of charge.
The above warranty coverage applies only to
Microwave Hood Combinations which are used for
private household purposes.
WARRANTY SERVICE 18AVAILABLE BY
SIMPLY CONTACTING SEARS SERVICE AT
1-800-4-MY-HOME ®
This warranty applies only while this product is in
use in the United States.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state.
Sears, Roebuck and Co.,
Dept. 817WA,
Hoffman Estates, IL 60179
For service call:
1-800-4-MY-HOME _
(1-800-469-4663)
Please record your model's information.
Whenever you call to request service for your
appliance, you need to know your complete model
number and serial number. You can find this
information on the model and serial number
label/plate at the upper side of cavity front in your
Microwave oven. Also, record the other information
shown below.
Model Number
Serial Number
Purchase Date

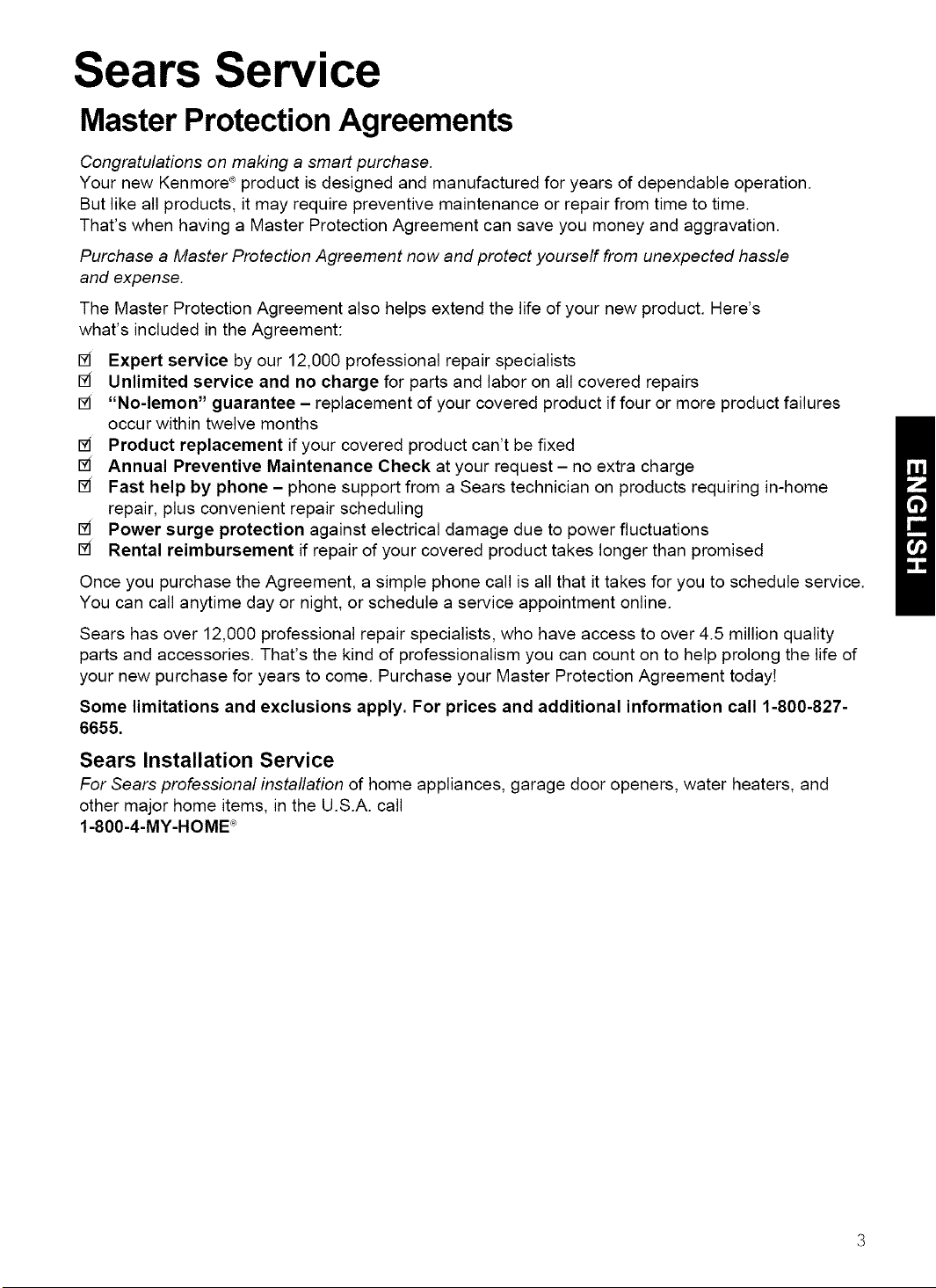

Sears Service
Master Protection Agreements
Congratulations on making a smart purchase.
Your new Kenmore ®product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can save you money and aggravation.
Purchase a Master Protection Agreement now and protect yourself from unexpected hassle
and expense.
The Master Protection Agreement also helps extend the life of your new product. Here's
what's included in the Agreement:
Expert service by our 12,000 professional repair specialists
[_ Unlimited service and no charge for parts and labor on all covered repairs
"No-lemon" guarantee - replacement of your covered product if four or more product failures
occur within twelve months
I_ Product replacement if your covered product can't be fixed
Annual Preventive Maintenance Check at your request - no extra charge
[_ Fast help by phone - phone support from a Sears technician on products requiring in-home
repair, plus convenient repair scheduling
1_ Power surge protection against electrical damage due to power fluctuations
1_ Rental reimbursement if repair of your covered product takes longer than promised
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality
parts and accessories. That's the kind of professionalism you can count on to help prolong the life of
your new purchase for years to come. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information call 1-800-827-
6655.
Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water heaters, and
other major home items, in the U.S.A. call
1-800-4-MY-HOME _

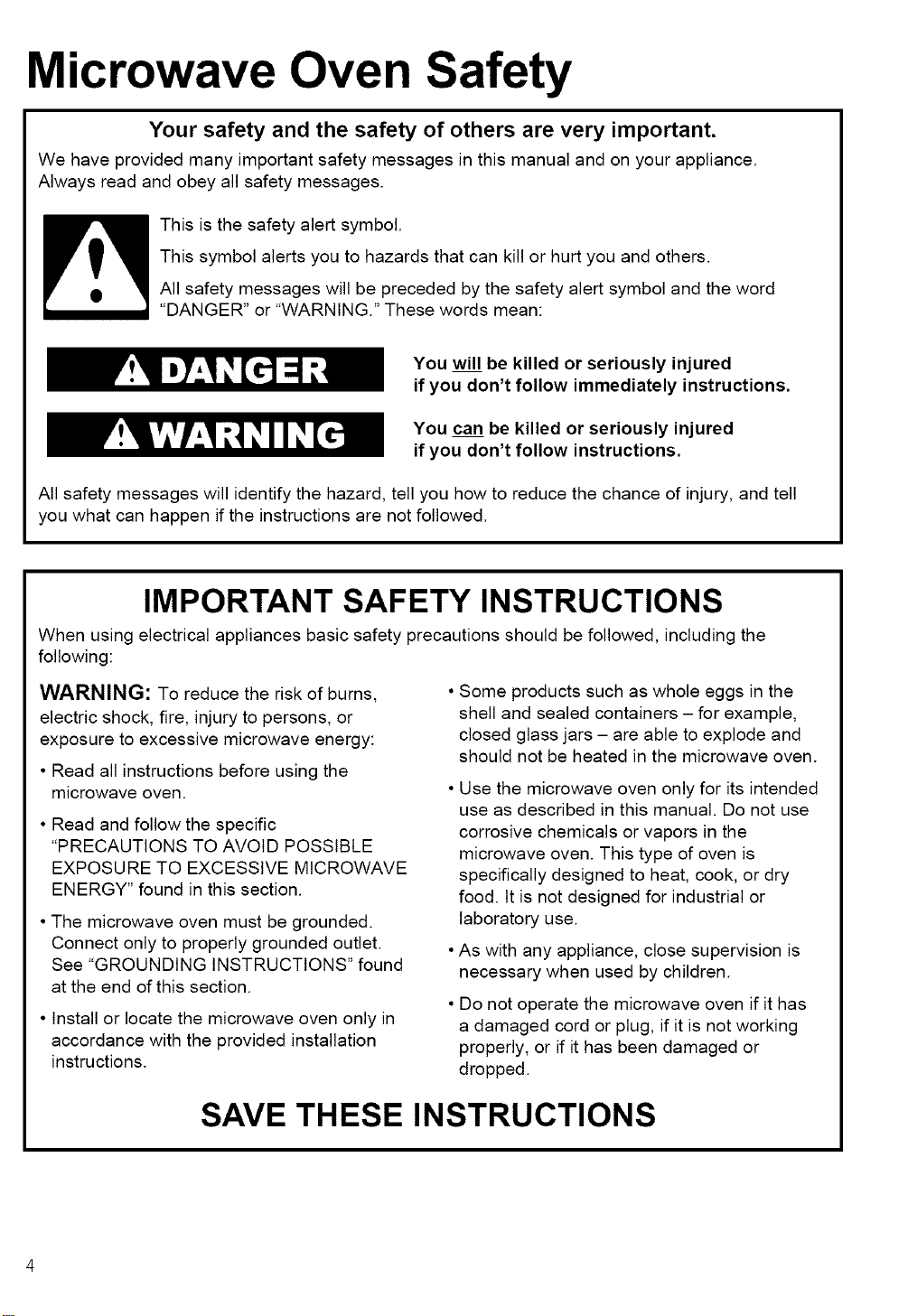

Microwave Oven Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word
"DANGER" or "WARNING." These words mean:
You will be killed or seriously injured
if you don't follow immediately instructions.
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the
following:
WARNING: To reduce the risk of burns,
electric shock, fire, injury to persons, or
exposure to excessive microwave energy:
• Read all instructions before using the
microwave oven.
• Read and follow the specific

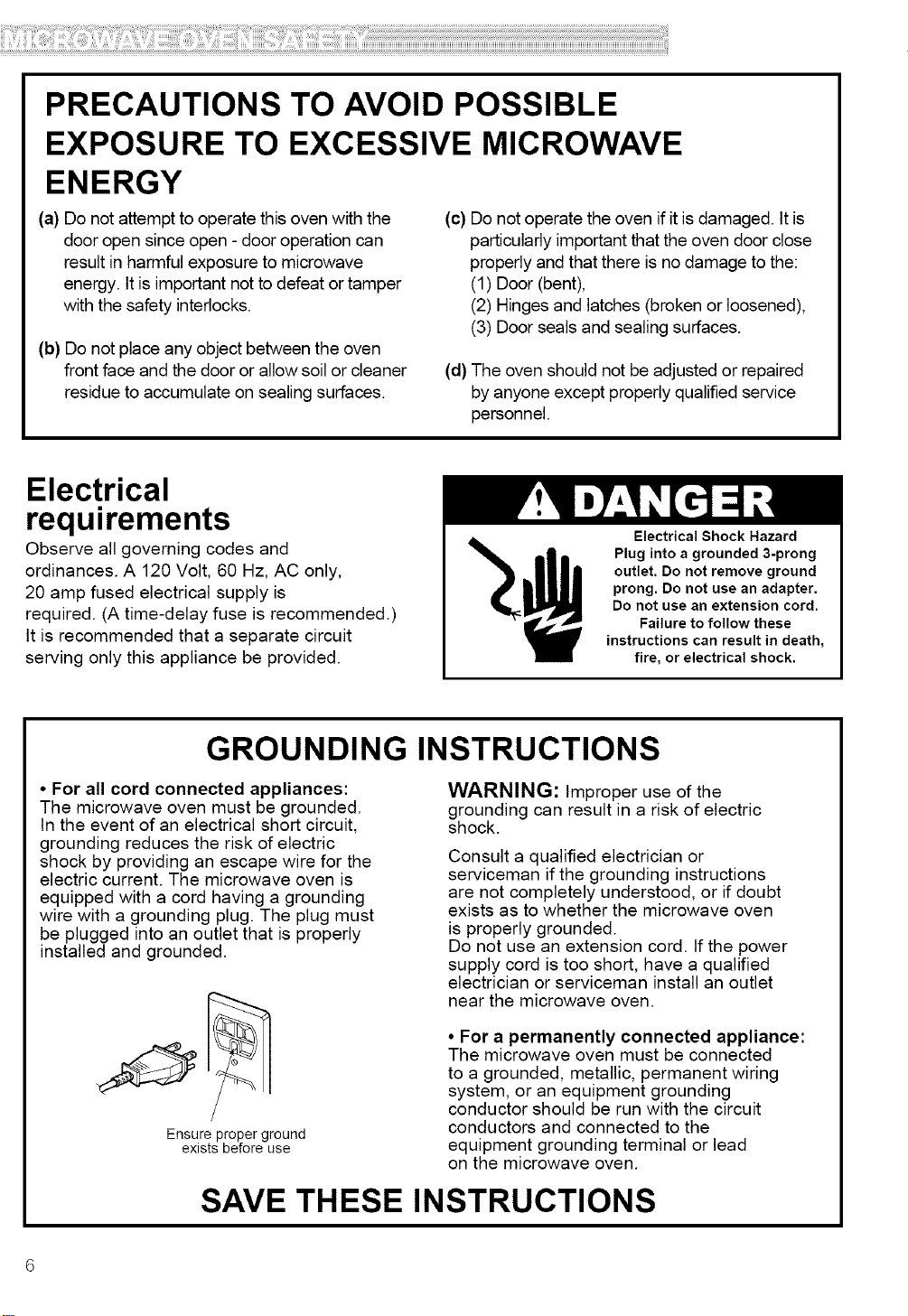

"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found in this section.
• The microwave oven must be grounded.
Connect only to properly grounded outlet.
See "GROUNDING INSTRUCTIONS" found
at the end of this section.
• Install or locate the microwave oven only in
accordance with the provided installation
instructions.
Some products such as whole eggs in the
shell and sealed containers - for example,
closed glass jars - are able to explode and
should not be heated in the microwave oven.
• Use the microwave oven only for its intended
use as described in this manual. Do not use
corrosive chemicals or vapors in the
microwave oven. This type of oven is
specifically designed to heat, cook, or dry
food. tt is not designed for industrial or
laboratory use.
• As with any appliance, close supervision is
necessary when used by children.
• Do not operate the microwave oven if it has
a damaged cord or plug, if it is not working
properly, or if it has been damaged or
dropped.
SAVE THESE INSTRUCTIONS

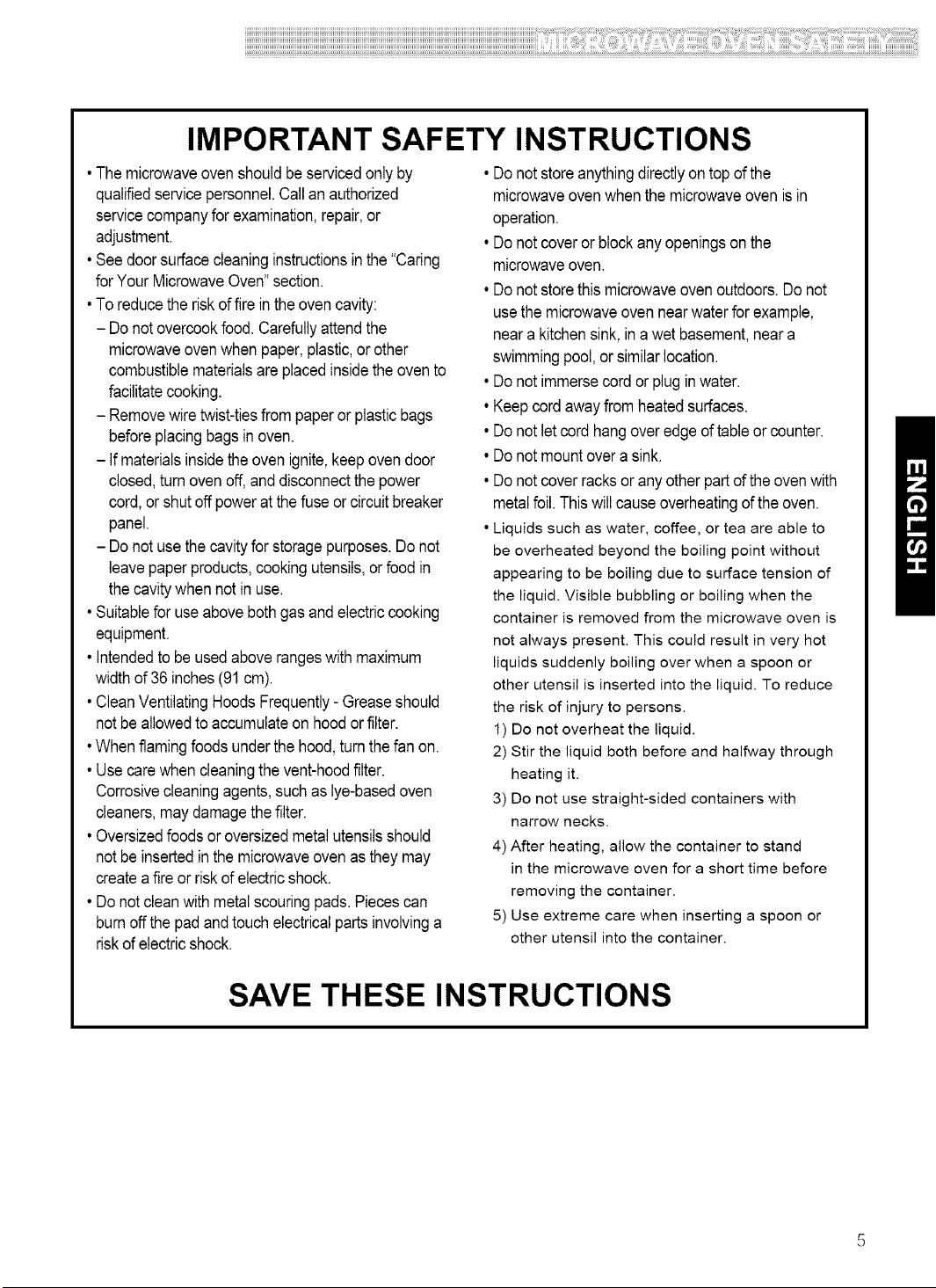

IMPORTANT SAFETY INSTRUCTIONS
• Themicrowaveovenshouldbe servicedonly by
qualifiedservicepersonnel.Callan authorized
servicecompanyforexamination,repair,or
adjustment.
• See doorsurfacecleaninginstructionsinthe"Caring
forYour MicrowaveOven"section.
• To reducetheriskoffirein theovencavity:
- Donotovercookfood. Carefullyattendthe
microwaveovenwhenpaper,plastic,orother
combustiblematerialsareplacedinsidethe ovento
facilitatecooking.
- Removewiretwist-tiesfrom paperor plasticbags
beforeplacingbagsinoven.
- If materialsinsidetheovenignite,keepovendoor
closed,turnovenoff,anddisconnectthepower
cord,or shutoffpoweratthefuseor circuitbreaker
panel.
- Donotusethecavityfor storagepurposes.Donot
leavepaperproducts,cookingutensils,orfood in
the cavitywhennotin use.
• Suitableforuseabovebothgasand electriccooking
equipment.
• Intendedto be usedaboverangeswithmaximum
widthof 36inches(91cm).
• CleanVentilatingHoods Frequently- Greaseshould
notbe allowedtoaccumulateon hoodorfilter.
•Whenflamingfoods underthe hood,turnthefan on.
• Usecarewhencleaningthevent-hoodfilter.
Corrosivecleaningagents,such aslye-basedoven
cleaners,maydamagethefilter.
• Oversizedfoods oroversizedmetalutensilsshould
notbe insertedin themicrowaveovenastheymay
createafire or riskof electricshock.
• Donotcleanwithmetalscouringpads.Piecescan
burnoff thepad andtouchelectricalpartsinvolvinga
riskof electricshock.
• Do not store anything directly on top of the
microwave oven when the microwave oven is in
operation.
• Do notcover or block any openings on the
microwave oven.
• Do not store this microwave oven outdoors. Do not
use the microwave oven near water for example,
near a kitchen sink, in awet basement, near a
swimming pool, or similar location.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• Do not mount over a sink.
• Do notcover racks or any other part of the oven with
metal foil. This will cause overheating of the oven.
• Liquids such as water, coffee, or tea are able to
be overheated beyond the boiling point without
appearing to be boiling due to surface tension of
the liquid. Visible bubbling or boiling when the
container is removed from the microwave oven is
not always present. This could result in very hot
liquids suddenly boiling over when a spoon or
other utensil is inserted into the liquid. To reduce
the risk of injury to persons.
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through
heating it.
3) Do not use straight-sided containers with
narrow necks.
4) After heating, allow the container to stand
in the microwave oven for a short time before
removing the container.
5) Use extreme care when inserting a spoon or
other utensil into the container.
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the
door open since open -door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven
front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c)
(d)
Do not operate the oven ifit is damaged, tt is
particularly important that the oven door close
properly and that there is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
The oven should not be adjusted or repaired
by anyone except properly qualified service
personnel.
Electrical
requirements
Observe all governing codes and
ordinances. A 120 Volt, 60 Hz, AC only,
20 amp fused electrical supply is
required. (A time-delay fuse is recommended.)
It is recommended that a separate circuit
serving only this appliance be provided.
Electrical Shock Hazard
Plug into a grounded 3-prong
outlet. Do not remove ground
prong. Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in death,
fire, or electrical shock,
GROUNDING INSTRUCTIONS
• For all cord connected appliances:
The microwave oven must be grounded.
In the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for the
electric current. The microwave oven is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Ensure proper ground
exists before use
WARNING: Improper use of the
grounding can result in a risk of electric
shock.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood, or if doubt
exists as to whether the microwave oven
is properly grounded.
Do not use an extension cord. tf the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet
near the microwave oven.
• For a permanently connected appliance:
The microwave oven must be connected
to a grounded, metallic, permanent wiring
system, or an equipment grounding
conductor should be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the microwave oven.
SAVE THESE INSTRUCTIONS
Gettingto KnowYour
MicrowaveOven
This section discusses the concepts behind microwave cooking. It also shows you the basics you need to know
to operate your microwave oven. Please read this information before you use your oven.
HOW YOUR KENMORE ULTRA WAVE TM MICROWAVE
HOOD COMBINATION WORKS
Microwave energy isnot hot. Itcauses food to make
itsown heat,and it's this heat that cooks thefood.
Microwavesare likeTV waves, radiowaves, or
lightwaves. You cannot see them, but youcan see
what they do.
A magnetron in the microwave oven produces
microwaves.The microwaves move into theoven
where they contact food as it turns on theturntable.
Magnetron
_J
Conventional microwave ovens operate on HIGH
power only. To achieve a 70% power level in a
conventional microwave oven, the oven operates
70% of the time at HIGH power and 30% of the
time OFF.
TheULTRAWAVETM InverterMicrowaveSystem
deliverspowercontinuously,todefrostmoreevenlyand
minimizeovercookingoffoodand messyfoodspatters.
Oven cavity
Metal floor Glass tray
The glass turntable ofyour microwave oven lets
microwavespass through. Then they bounce off a
metalfloor, back through the glass turntable,and
are absorbed bythe food.
Microwaves pass through most glass, paper,and
plasticswithout heatingthem sofood absorbs the
energy. Microwaves bounceoff metal containersso
food does not absorb theenergy.
ULTRA WAVE TM Inverter Microwave System
ULTRA WAVETM Inverter Microwave System gives
you better microwave cooking performance for
defrosting, cooking and reheating foods quickly
and uniformly.
The ULTRA WAVETM Inverter Microwave System
is proven technology that delivers a constant
stream of microwave power - true high, medium,
and low power.
Sensor Cooking
TheULTRAWAVETM InverterMicrowaveSystemfea-
turesSensorCookingfunctions.A humiditysensorin
theovencavitydetectsmoistureandhumidityemitted
fromfoodas itheats.Thesensoradjustscookingtimes
tovarioustypesand amountsoffood.Sensorcooking
takesthe guessworkoutofmicrowavecooking.
For the best cooking results
•Always cook food for the shortest cooking time
recommended. Check to see how the food is
cooking.
• Stir, turn over, or rearrange the food being
cooked about halfway through the cooking time
for all recipes. This will help make sure the food
is evenly cooked.
• If you do not have acover for adish, use wax
paper, or microwave-approved paper towels or
plastic wrap. Remember to turn back a corner of
the plastic wrap to vent steam during cooking.
Radio interference
Using yourmicrowaveoven maycause interference
to yourradio,TV, or similarequipment.When thereis
interference,youcan reduceit or remove itby:
• Cleaning thedoorand sealingsurfacesoftheoven.
• Adjusting the receivingantennaof theradio or
television.
•Movingthe receiverawayfromthe microwaveoven.
•Plugging themicrowaveoven intoa differentoutlet
sothat the microwaveovenand receiverare on
differentbranchcircuits.
!i!i!iiiiilli!i!iiiiii!i!iii!iii!ii!!i!i!ii!iiiiiiii!iiiiili!iiiii!iiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiliiiiiiiiiiilliiliiiiiiiil!i!iiii!f!filliiiiiiiiiiii!!!!iiiii!!!i!!iiiiii!!i!!i!ii!if!!!iil!!!i!i!!i!ii!ii!ii!iiili!iliiliililliliiiiiiii!i!i!!i!;iii!i!!i!!i!!i!i!i!iiiiiiiiiiiiiliiliilillilliiliiiii!iii;ilii;ii!!i!ii!!i!i!i!iiiiiliiii!i!!i!iiiii!ii!i!iiiiiii!ii!i!ii!ii!iiiiii!iiiilliiii!iiiiiiiiii!!i!iilliiii!iiiiiiii!!!!!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiii!iiiii!!i!!i!ii!!i!!;!iiiiii!!!i!ii!ii!i!i!i!!iiiiiiiiiii!i!iiiiii!ii!ii!i!ii!iiiiiiii!i!iiilliiiiiiiiiiiiiiiiiiiiii!iiiiiiii!ii!ii!Ci!ili!iiiilliliiiiiiii!!iii!!i!ii!ili!i!iiii!iiiii!iiiiiiiiiiiiiiiiiiiillii!ii!ii!iiilli!iiiiii!ii!ii!i!iiiiiiiiiii!iiiiiiiiiii!!i!iiiiiiiiiiiiiiiiii!!!!iiiiiiiii!i!!!!iiiiiiiiiiiiiiiillii!!ii!ii!ii!iiiiiii!!!!!ii!iiiiiiiiiiiii!i!iliiii!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!illiiiiiii!!i!iii!i!iiiiii!_i!_i_i_i_!_!_!!!_!!_i_iii!i_!!!_!_!_!_!_!_!_!_!i_!_!_iii!i!!!!iiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!ii!i!!ii!i!iiii!
Testing your microwave oven
I Totesttheovenputabout1cupofcoldwaterin a
glasscontainerin theoven.Closethedoor.
Testing your dinnerware or cookware
I
Makesureitlatches.Cookat100%powerfor 1minute.
Whenthetimeisup,thewatershouldbeheated. I
Testdinnerware or cookware beforeusing. To
testa dishfor safe use, put itinto the ovenwith a
cupofwaterbeside it.Cook at 100% cook power
for one minute. Ifthe dish gets hot,do not use it.
Some dishes (melamine, some ceramic
dinnerware, etc.)absorb microwave energy,
becoming toohot to handle and slowing cooking
times. Cooking in metal containers notdesigned for
microwave usecould damage the oven, as could
containerswith hidden metal (twist-ties,foil lining,
staples, metallicglaze or trim).
Operating safety precautions
•Never lean on the door or allow a childto swing
on itwhen the door is open.
•Use hot pads.Microwave energy does notheat
containers, but the heatfromthe food can make
the container hot.
•Do not use newspaper or other printed paper in
the oven.
•Do not dryflowers, fruit, herbs, wood, paper,
gourds, or clothes in the oven.
•Do not starta microwave oven when it isempty.
Product lifemay be shortened. Ifyou practice
programming the oven, put a container of water in
the oven. It isnormal forthe oven door to look
wavy after the oven has been running for a while.
•Do nottry to melt paraffin wax in theoven.
Paraffin wax will not melt in a microwave oven
because itallows microwaves to pass through it.
•Do not operate themicrowave oven unless the
glass turntable is securely in place and can move
freely.The turntable can move in either direction.
Make sure the turntable is correct-side up in the
oven. Handle your turntable with carewhen
removing itfrom theovento avoidpossibly
breaking it. If yourturntable cracks or breaks,
contact your dealer for a replacement.
•When you use abrowning dish, the browning
dish bottom must be at least3/16 inch above the
turntable. Follow thedirections suppliedwith the
browning dish.
•Never cook or reheat awhole egg inside the
shell, Steam buildup in whole eggs may cause
them to burst,and possiblydamage the oven.
81ice hard-boiledeggs before heating. Inrare
cases, poached eggs have been knownto
explode. Cover poached eggsand allow a
standing time of one minute before cutting into
them.
•For best results, stir any liquid several times
during heating or reheating. Liquidsheatedin
certain containers (especiallycontainers shaped
like cylinders) may become overheated. The liquid
may splash out with a loud noiseduring or after
heating or when adding ingredients (coffee
granules, tea bags,etc.). This can harmthe oven.
•Microwaves may not reachthe center of a roast.
The heatspreads to the center from the outer,
cooked areasjust as in regular oven cooking. This
is one of the reasons for letting some foods (for
example, roasts or baked potatoes) stand for a
while after cooking, or for stirring some foods
during the cooking time.
•Do not deep fry in the oven. Microwavable
utensils are not suitableand itis difficultto
maintain appropriate deep-frying temperatures.
• Do not overcook potatoes. At the end of the
recommended cooking time, potatoesshould be
slightlyfirm because they will continue cooking
during standing time. After microwaving, let
potatoes stand for 5 minutes. They willfinish
cooking while standing.
Electrical connection
IIf your electric power line or outlet voltage is
less than 110 volts, cooking times may be longer. Have a qualified electrician check your electrical
system.
Microwave oven features
®®® ®
m
®®® ® ®
Your microwave oven isdesigned to make your
cooking experience as enjoyable and productive
as possible. To get you up and running quickly, the
following is a list of the oven's basic features:
1.Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
2. Model and Serial Number Plate & Cooking
Guide Label
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
5. Glass tray. The glass tray moves food as it
cooks for more even cooking. It must be in the
oven during operation for best cooking results.
6. Cooktop Light
7. Grease Filter. See "Caring for the filters"
section.
8. Control Panel. Touch the pads on this panel to
perform all functions.
9. Cooking Rack. Use for extra space when
cooking in more than one container at the
same time.
1. Glass tray
2. Support
3. Hub
Defrost Plate
Use the DEFROST PLATE providedfor
complete defrosting.
The glass tray moves in both directions to help cook food more
evenly. Do not operate the microwave oven without the glass
tray in place.
To Install:
1. Place the support on the oven cavity bottom.
2. Place the glass tray on the support.
Fit the raised, hollowed groove of the glass tray bottom
between the rollers of the hub. The rollers on the support
should fit inside the glass tray bottom ridge.
Control panel features
Your microwave oven control panel lets you select the desired cooking function quickly and easily.
All you have to do is touch the necessary Command Pad. The following is a list of all the Command
and Number Pads located on the control panel. For more information on these features, see the
"Using your microwave oven" section.
_ ATE S_4Y _
....... ]........... l
]
_^, COOK
@ ..............................................(S)
o
_t;SS
CIE£1/ ,!6;
VENT
ON/O_
....... t2_
VENT LIGHT
£_SPEED _I_6H/N_GHT/OFF
1. Display. The display includes a clock and 2. Popcorn. Touch this pad to pop popcorn with
indicators to tell you time of day, cooking time the sensor feature. The oven's sensor will tell
settings, cook powers, quantities, weights, and the oven how long to cook depending on the
cooking functions selected, amount of humidity it detects from the popcorn.
10
3.Pizza.Touchthispadtoreheatoneorseveral
slicesofpizzawithoutenteringacooktimeor
power,
4.Vegetable.TouchthispadtocookVegetable
withoutenteringacooktimeorpower,
5. Potato. Touch this pad to cook potatoes without
entering a cook time or power,
6. Frozen Entree. Touch this pad to cook a 10- to
21- ounce frozen entree without entering a cook
time or power,
7. Dinner Plate. Touch this pad to cook without
entering a cook time or power,
8. Sure Simmer. Touch this pad to simmer soups,
casseroles, stews, and other liquid foods,
9. Number Pads. Touch number pads to enter
cooking times, cook powers, quantities, weights,
or food categories.
10. Cook Time. Touch this pad followed by
Number Pads to set a cooking time,
11. Power. Touch this pad after the cook time has
been set, followed by a Number Pad to set the
amount of microwave energy released to cook
the food, The higher the number, the higher the
microwave power or "cooking speed."
12. Add Minute. Touch this pad to cook for 1
minute at 100% cook power, or to add extra
minutes at the set cook power to your cooking
cycle,
13. Less. Touch this pad to subtract 10 seconds of
cook time each time you press it,
14. More. Touch this pad to add 10 seconds of
cook time each time you press it,
15. Start. Touch this pad to start a function, tfyou
open the door after the oven begins to cook,
retouch Start,
16. Stop/Clear. Touch this pad to erase an
incorrect command, cancel a program during
cooking, or to clear the Display.
17. Auto Cook. Touch this pad to cook
microwavable foods without entering a cook
time or power,
18. Auto Reheat. Touch this pad to reheat
microwavable foods without entering a cook
time or power.
19. Hold Warm. Touch this pad to keep hot,
cooked foods safely warm in your oven for up
to 99 minutes, 99 seconds, Hold Warm can be
used by itself, or it can automatically follow a
cooking cycle.
20. Clock. Touch this pad to enter the time of day.
21. Auto Defrost. Touch this pad followed by
Number Pads to thaw frozen meat by weight,
22. Express Defrost. Touch this pad to express
defrost, "GROUND BEEF 1,0 LBS TOUCH
START" will appear in the display,
23. Kitchen Timer. Touch this pad to set the
Kitchen Timer,
24. Melt. Touch this pad to melt chocolate, cheese,
butter, or marshmallows,
25. Solten. Touch this pad to soften ice cream,
cream cheese, butter, or frozen juice.
26. Vent On/Off. Touch this button to turn the fan
on or off,
27. Vent 5Speed. Touch this button to choose
one of 5 fan speeds,
28. Light High/Night/Off. Touch this button to turn
the light on high, night, or off.
NOTE: If you try to enter incorrect instructions,
you will not hear any tones, Touch STOP/CLEAR
and re-enter the instructions.
11
!i:ii!ii::::!i!ii!i!!::i::i:ii!iliiiiiiiii:iiiii!!i!iii:!:i!:i!ii!ii::::::!::!::!:i:ii:iiiii!ii!i!!::::!i:!i!iiiili!ii!i!i!!ili!!iii!!:i:!ii!ii!ii!ii!ii!ii!ii!iiii:!::i:i:ii!iiii!iilii!ii!i!!!i::i:i::!iii!ii!i!!i!i!i!!ii::iii!!iiii:i:::i!!i!!i!!i!!ii!:i::i!ii!ii:::iiiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ilil:i::!iii:i!i!!i!:i:iii:::::!i!i!:::::!:!ii:i:::i!i!i!ii!!i!i!i!!!ii!ii!iiili::i:i:ii:ii:ii:ii:iliiiilii!ii!ii::::::i!i!!i!!i!!i!i!i!!!:::i::iii!iiilli:i!i!!i!:ii:iiiiiii:::!:!!:!!:iliii!i!!i!iii:iii:iiiiiii:if:if!i!!!!i!iliiiiilli:!!i!!!!i:iiiiiiillii!i!:::i!!:i!i!!:i!ii!:i!i!!ii!ii!ii!ii!ii!iiiiil:::::!!i!ii!ii!ii!i!i!ii:i:ii:ililiiiiiill::i:i!i!!:!!:i:::iliiiili!i!::::i!iii!iii:i!:ii!!i!illiliii:::ii:iiiiiii!!i!::::i!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilili:iiiii
Using Your Microwave
Oven
This section gives you instructions for operating
each function. Please read these instructions
carefully.
AUDIBLE SIGNALS
Audible signals are available to guide you when
setting and using your oven:
•A programming tone will sound each time
you toucha pad.
•Seven tones signal theend ofa Kitchen Timer
countdown.
•Four tones signal theend ofa cooking cycle.
CLOCK
When your microwaveoven isfirst plugged in or
after a powerfailure, the Display willshow "PLEASE
SET TIME OF DAY. "If a time of day is not set,
":" willshow on the Display untilyou touch "Clock."
Example for 10:30(AM):
Touch: Display Shows:
,
2. Coc_< • /'If# /-t n Ij
EHTER,, ,EJF _,_,
I/') */') -T-_0 T
IUUL _// 5l l_l\ I
3. 1030,u._#[., Tn,,,-
,n • ,_ _,_,,,-,,
,_,•_qbRR ,_,_1_,
4. ,, PR,m'_,_,_,,-_L-7
_"' "",_.,_.,_.H
5. ,.,•_-?b"""-
5TRP,T
,
NOTE: You can switch between AM and PM by
touching 1 or 2 after step 4.
INTERRUPTING COOKING
You can stop the oven during a cycle by opening
the door. The oven stops heating and the fan
stops, but the light stays on.
To restart cooking, close the door and touch
START.
If you do not want to continue cooking,
open the door and touch STOP/CLEAR.
CHILD LOCK
Use this safety feature to lock the control panel
when you are cleaning the oven or so that children
cannot use the oven unsupervised.
To set CHILD LOCK:
Touch: Display Shows:
,Time of day.
,Touch and hold until
LOCKED appears in
the display
(approximately
4 seconds).
To cancel CHILD LOCK:
Touch: Display Shows:
1. Touch and hold until
LOCKED
disappears in the
display
(approximately
4 seconds).
12
KITCHEN TIMER COOKTOP LIGHT
Your microwave oven can be used as a kitchen
timer. You can set up to 99 minutes, 99 seconds.
Example for 3minutes:
Touch: Display Shows:
:EI;'TEP,_"_-#;'m,,,I II Ir_ IIII I
F;,,. 5E.
2. __-7.uu ,r"_'"-, -r'_'_ruu_.B5, l'_,
=-7" UU
TIMER and time
counting down.
EXHAUST FAN
The bottom ofthe controlpanelcontrolsthe 5-speed
exhaustfan.
Example for level 4:
Touch: Display Shows:
/ o/,.T/1. j/_t// j/
VmT
o,4/o
This shows the last level until you
select the fan speed level.
2. <_.) ,c,/o
L/- t//- L_1
VENT
5-SPE[[]
Touch until Level 4.
30
VE_T
ON/OFF
Turn off fan when desired.
ncc
I..II I
NOTE: If the temperature from the range or cooktop
below the oven gets too hot, the exhaust fan in the
vent hood will automatically turn on at the LEVEL 5
setting to protect the oven.
It may stay on up to an hour to cool the oven.
When this occurs, the "VENT ON/OFF" button will
not turn the fan off.
The pad on the bottom right of the control panel
controls the cooktop light.
Example for HIGH:
Touch: Display Shows:
,©bG_fT
HmH/NmI_ /OH:
once for HIGH light
twice for NIGHT light
_H
2.0 OFF
LIGHT
Hl_H/m6,flO_
TO turn off, touch button once
or twice depending on light
setting.
EXPRESS DEFROST
One express defrost sequence is preset in the oven,
The Express Defrost feature provides you with the quick
defrosting method for 1.0 pound "GROUND BEEF"
only.
Example for I Ib of Ground beef:
Touch: Display Shows:
i- nl Ikln I nl
oF/_1,.BEEF ,.uLB5
I. T_II If" T T
,51RP,,
=
Time counting down and
-t/,30 -- - _3--L,31,3- T
E,_F,,E55.EF,.uS,
scrolls across display.
13
!ilii!iiiiiii!i!ii!i!!iiiiiiiii!iliiiiiiiiiiiiiii!!i!iiil!ii!ii!ii!iiiiiii!ii!ii!iiiiiiiiiiii!ii!i!!iiiii!ii!i!iiiili!ii!i!i!!ili!!iii!!iii!ii!ii!ii!ii!ii!ii!ii!iiiii!iiiiilli!iiii!iilii!ii!i!!!i:ii:iii!iii!ii!i!!i!i!i!!iiiillii!!iiiiiiiiii!!i!!i!!i!!ii!iiiili!ii!illiiliiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ililiiii!iiiii!i!!i!iilifilliii!i!i!iliii!i!iiiiiiif!i!i!ii!!i!i!i!!!ii!ii!iiililliiiililfillililliliiiilii!ii!iiilliili!i!!i!!i!!i!i!i!!!iiiiiiiii!iiilliiiii!i!!i!iiiiiiiiiillii!i!!i!!iiliii!i!!i!iiiiiiiiiiiiiiiliiiii!i!!!!i!iliiiiillii!!i!!!!iiiiiiiiillii!i!iiii!!ii!i!!ii!ii!ii!i!!ii!ii!ii!ii!ii!iiiiiliiiiii!!i!ii!ii!ii!i!i!iiilliiiiililiiiiiilliiiii!i!!i!!iiiiiiliiiili!i!iiiii!iii!iiiii!iii!!i!illiliiiiiiiiiiiiiiii!!i!iiiii!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilililiiiii
ADD MINUTE
A time-saving pad,this simplified control lets
you quicklyset and start microwave cooking at
100% powerwithout the need to touch START.
Example for 2 minutes:
Touch: Display Shows:
1, Time of day.
2, Time counting down
_ji_,_u_rn_Twice and POWER 100.
NOTE: Eachtime you touch ADD MINUTE, itwill
add 1 minute up to 99 min 59 seconds.
TIMED COOKING
This feature lets you program a specific cook time
and power. For best results, there are 10 power
level settings in addition to HIGH (100%) power.
Refer to the "Microwave Power Levels Table" on
page 15 for more information.
NOTE: If you do not select a power level, the oven
will automatically cook at HIGH (100%) power.
Example for 5 minutes, 30 seconds at 80%
power:
Touch: Display Shows:
,:EIYTEE'-'_'_'"-LUUr_IIII I1"1 ITIIT)I115-
*/"t
'__•3£, Tn,,- ,-T_0TIt-tt_lt_}'_ _1/L_I\ I
2. 5,_ _,_,,-
• I"1 -I_J T-- "_ '-II'-II I--0
5. _qL,E,,,E_Fu,,_,,
3. ,-,,-, , _,_._
t-Ev_t-, ,u ,t-,
,
,
5. _qL,Ft-,.,E_
_f7 TI"_I II- ' -T'_t-'lT,uut-H5,_,.,
Time counting down
and POWER 80.
NOTE: After use of cook function, fanwill runfor 1
minute to cool if itsenses too much heat.
MULTI-STAGE COOKING
For best results, some recipes call for different cook
powers during different stages of a cook cycle. You
can program your oven to switch from one power
level to another for up to 3 stages.
Example for 2-stage cook cycle:
Touch: Display Shows:
,* -I_IT --0 I--I--I1--1 /11_11--
•E,,, E,_t-uu/_, ,t-_,r'm,rE-
.........0 ......0 .nn Tn,.-
•t-lt-I It-tt-u-IL/
2. -q 5TRP,T
..... £30 "h_l 1-0
t_,l, Fu.,EI,
to set a 3-minute cook
time for the first stage.
3. i-h-I -hlT-'l _1"_11 -'l•t-,t-,E,,, E_Fu_.,E_
3. ,-,,-, Tn,n
t-E_,'Et-I,u ,u
,
to set an 80% cook
power for the first stage.
_q•,-_,-__,_,,-_ -_,-_•t-,t-,Fu.,_F.St-,
,uut-H5, F;_,
,•-I_IT -- "1 I--I--I1--1/11_11--
•Gill E_ t-UU'_IIII 't-_ ITIIT)III_-
6. i :0
to set a 7-minute cook
time for the second stage.
7"'_'__'_"- '-_
•t-,t-,,t-,t-,t-_5,/_,
I"_ "l _1"_11 -- "1
,•t-,t-,&. EF.FudEF.
,-,,-, m ._
,
o
to set a 50 Vocook power
for the second stage.
7",'_I'__,_,,-_ -n•t-,t-,Fu_E_ St-,
T,_,,- ,-T_
,t-,t-,t-H5,/'_,
,Time counting down
and POWER 80.
10. When the first stage is over, you will hear two
short tones as the oven begins the second
cook stage.
14
MICROWAVE POWER LEVELS
For best results, some recipes callfor differentcook
powers.The lowerthe cook power, the slower the
cooking. Each numberfrom 1 to 9 stands for a
differentpercentage of full cook power.
Thefollowing table gives the percentage ofcook power
each number pad stands for, and the cook power
name usually used.
Italso tells you when to use each cookpower.
Follow recipeor food package instructionsif available.
COOK POWER NAME
100%of full power High
9 = 90% of full power
8 = 80% of full power
7 = 70% of full power Medium-High
6 = 60% of full power
5 = 50% of full power Medium
4 =40% of full power
3 = 30% of full power Medium-Low,
Defrost
2 = 20% of full power
1= 10%of full power Low
WHEN TO USE IT
• Quick heating many convenience foods and
foods with high water content, such as soups and
beverages
• Cooking tender cutsof meat,ground meat
• Heating cream soups
• Heating rice, pasta, or casseroles
• Cooking and heatingfoods that need a
Cook Power lower than high (for example,
whole fish and meat loaf)or when food is
cooking too fast
• Reheating a single serving of food
• Cooking requiring special care, such ascheese
and egg dishes, pudding, and custards
• Finishing cooking casseroles
• Cooking ham, whole poultry,and pot roasts
• Simmering stews
• Melting chocolate
• Heating pastries
• Manually defrostingfoods, such as bread,fish,
meats, poultry,and precooked foods
• Softening butter,cheese, and icecream
• Keeping food warm
• Taking chillout offruit
15
!ilii!iiiiiii!i!ii!i!!iiiiiiiii!iliiiiiiiiiiiiiii!!i!iiil!ii!ii!ii!iiiiiii!ii!ii!iiiiiiiiiiii!ii!i!!iiiii!ii!i!iiiili!ii!i!i!!ili!!iii!!iii!ii!ii!ii!ii!ii!ii!ii!iiiii!iiiiilli!iiii!iilii!ii!i!!!i:ii:iii!iii!ii!i!!i!i!i!!iiiillii!!iiiiiiiiii!!i!!i!!i!!ii!iiiili!ii!illiiliiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ililiiii!iiiii!i!!i!iilifilliii!i!i!iliii!i!iiiiiiif!i!i!ii!!i!i!i!!!ii!ii!iiililliiiililfillililliliiiilii!ii!iiilliili!i!!i!!i!!i!i!i!!!iiiiiiiii!iiilliiiii!i!!i!iiiiiiiiiillii!:!!i!!iiliii!i!!i!iiiiiiiiiiiiiiiliiiii!i!!!!i!iliiiiillii!!i!!!!iiiiiiiiillii!i!iiii!!ii!i!!ii!ii!ii!i!!ii!ii!ii!ii!ii!iiiiiliiiiii!!i!ii!ii!ii!i!i!iiilliiiiililiiiiiilliiiii!i!!i!!:iiiiiliiiili!i!iiiii!iii!iiiii!iii!!i!illiliiiiiiiiiiiiiiii!!i!iiiii!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilililiiiii
AUTO DEFROST
Four defrost sequences are preset in the oven.
The auto defrost feature provides you with the best
defrosting method for frozen foods. The cooking guide
will show you which defrost sequence is recommended
for the food you are defrosting. For added convenience,
the Auto Defrost includes a built-in beep mechanism
that reminds you to check, turn over, separate, or
rearrange to get best defrost results.
1. MEAT
2. POULTRY
3. FISH
4. BREAD
This table shows you food type selections and the
weights you can set for each type. For best
results, loosen or remove covering on food.
WEIGHTS YOU
TOUCH CAN SET
FOOD Auto Defrost (tenths ofa pound)
Meat 1 .1to 6.0 (45gto 2722g)
Poultry 2 .1to 6.0 (45gto 2722g)
Fish 3 .1to 6.0 (45gto 2722g)
Bread 4 .1to 1.0(45gto 450g)
Example for 1.2 Ibs of ground beef:
Touch: Display Shows:
,Till IF I
RERT,uuLH ,
POLILTB'r'TnLIEH2
F/SHTOL,;EH3
8BERDTOLIEH
nn,
2. u.u_b5
1_4T ! I IF T
Eh,ER w_oHi
3. 1and 2 [_P'b_;
TFII IF
to enter the weight Juu_.H5TflRT
4. Time counting down
and DEFROST.
NOTE:
When you touch the START pad, the display changes
to defrost time count down. The oven will beep during
the DEFROST cycle. At this time, open the door and
turn, separate, or rearrange the food. Remove any
portions that have thawed. Return frozen portions to
the oven and touch START to resume the defrost cycle.
Operating Tips
• For best results, remove fish, shellfish, meat, and
poultry from its original closed paper or plastic
package (wrapper). Otherwise, the wrap will hold
steam and juice close to the foods, which can cause
the outer surface of the foods to cook.
• For best results, shape your ground meat into the
form of a doughnut before freezing. When defrosting,
scrape off thawed meat when the beep sounds and
continue defrosting.
• Place foods in a shallow container or on a microwave
roasting rack to catch drippings.
Weight conversion table
You are probably usedto food weights as being in
pounds and ounces that are fractions of a pound (for
example, 4 ounces equals 1/4 pound). However, in
order to enter foodweight in Auto Defrost, you must
specify poundsand tenths of a pound.
Ifthe weight on thefood package is infractions of a
pound, you can use thefollowing table to convert the
weight to decimals.
EQUIVALENT WEIGHT
OUNCES DECIMAL WEIGHT
1.6 .10
3.2 .20
4.0 .25
4.8 .30
6.4 .40
8.0 .50
9.6 .60
11.2 .70
12.0 .75
12.8 .80
14.4 .90
16.0 1.00
One-Quarter Pound
One-Half Pound
Three-Quarters Pound
One Pound
16
AUTO DEFROST TABLE
Meat setting
FOOD
BEEF
Ground Beef,
Bulk
Ground Beef,
Patties
Round Steak
Tenderloin
Steak
Stew Beef
Pot Roast,
Chuck Roast
Rib Roast
Rolled Rump
Roast
LAMB
Cubes for
Stew
Chops
(1 inchthick)
PORK
Chops
(1/2inchthick)
Hot Dogs
Spareribs
Country-style
Ribs
Sausage,
Links
Sausage,
Bulk
Loin Roast,
Boneless
SETTING
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
MEAT
AT BEEP
Removethawedportionswithfork.
Turnover.Returnremainderto oven.
Separate and rearrange.
Turn over. Cover warm areas with
aluminum foil.
Turn over. Cover warm areas with
aluminum foil.
Removethawed portions with fork.
Separate remainder.
Return remainderto oven.
Turn over. Cover warm areas with
aluminum foil.
Turn over. Cover warm areas with
aluminum foil.
Turn over. Cover warm areas with
aluminum foil.
Removethawed portions with fork.
Return remainderto oven.
Separate and rearrange.
Separate and rearrange.
Separate and rearrange.
Turn over. Cover warm areas with
aluminum foil.
Separate and rearrange.
Removethawedportionswithfork.
Turnover.Returnremainderto oven.
Turn over. Cover warm areas with
aluminum foil.
SPECIAL INSTRUCTION8
Donot defrostless than 1/4lb.
Freeze indoughnut shape.
Placeon the DEFROST PLATE.
Donot defrostless than2 oz. patties.
Depresscenter when freezing.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placein a microwavable baking dish.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placein a microwavable baking dish.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placeon the DEFROST PLATE.
Placein a microwavable baking dish.
Placeon the DEFROST PLATE.
17
!ilii!iiiiiii!i!ii!i!!iiiiiiiii!iliiiiiiiiiiiiiii!!i!iiil!ii!ii!ii!iiiiiii!ii!ii!iiiiiiiiiiii!ii!i!!iiiii!ii!i!iiiili!ii!i!i!!ili!!iii!!iii!ii!ii!ii!ii!ii!ii!ii!iiiii!iiiiilli!iiii!iilii!ii!i!!!i:ii:iii!iii!ii!i!!i!i!i!!iiiillii!!iiiiiiiiii!!i!!i!!i!!ii!iiiili!ii!illiiliiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ililiiii!iiiii!i!!i!iilifilliii!i!i!iliii!i!iiiiiiif!i!i!ii!!i!i!i!!!ii!ii!iiililliiiililfillililliliiiilii!ii!iiilliili!i!!i!!i!!i!i!i!!!iiiiiiiii!iiilliiiii!i!!i!iiiiiiiiiillii!i!!i!!iiliii!i!!i!iiiiiiiiiiiiiiiliiiii!i!!!!i!iliiiiillii!!i!!!!iiiiiiiiillii!i!iiii!!ii!i!!ii!ii!ii!i!!ii!ii!ii!ii!ii!iiiiiliiiiii!!i!ii!ii!ii!i!i!iiilliiiiililiiiiiilliiiii!i!!i!!iiiiiiliiiili!i!iiiii!iii!iiiii!iii!!i!illiliiiiiiiiiiiiiiii!!i!iiiii!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilililiiiii
AUTO DEFROST TABLE (CONT.)
Poultry setting
FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS
CHICKEN
Whole
(up to 6 Ibs)
Cut-up
POULTRY Turn over (finish defrosting breast-
side down). Cover warm areas with
aluminum foil.
Separate pieces and rearrange.
Turn over. Cover warm areas with
aluminum foil.
Place chicken breast-side up on the
DEFROST PLATE. Finish defrosting by
immersing in cold water. Remove giblets when
chicken is partially defrosted.
Placeonthe DEFROST PLATE.
Finish defrosting by immersing in cold water.
CORNISH
HENS
Whole POULTRY Turn over. Cover warm areas with Place on the DEFROST PLATE.
aluminum foil. Finish defrosting by immersing in cold water.
TURKEY
Breast POULTRY Turn over. Cover warm areas with Place on the DEFROST PLATE.
(up to 6 Ibs) aluminum foil. Finish defrosting by immersing in cold water.
Fish setting
FOOD SETTING SPECIAL INSTRUCTIONS
FISH
Fillets FISH
Steaks
Whole
SHELLFISH
Crabmeat
Lobster tails
Shrimp
Scallops
FISH
FISH
FISH
FISH
FISH
FISH
AT BEEP
Turn over. Separate fillets when
partially thawed if possible.
Separate and rearrange.
Turn over.
Break apart. Turn over.
Turn over and rearrange.
Separate and rearrange.
Separate and rearrange.
Place in a microwavable baking dish.
Carefully separate fillets under cold
water.
Place in a microwavable baking dish.
Run cold water over to finish defrosting.
Place in a microwavable baking dish.
Finish defrosting by immersing in cold
water.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Bread setting
FOOD
Bagel
Dinner Roll
Muffin
Hamburger
Hot Dog Bun
Slices of Bread
Loaf of Bread
SETTING AT BEEP SPECIAL INSTRUCTIONS
BREAD Turn over and rearrange. Place on 3 sheets of paper towel.
18
DEFROSTING TIPS HOLD WARM
•When using Auto Defrost,theweight to be entered
isthe netweight in poundsand tenths of pounds
(theweight ofthe food minus the container).
• Before starting, make sure you have removed any
of the metal twist-tieswhich often come with frozen
food bags, and replacethem with stringsor elastic
bands.
•Open containers such as cartons beforethey are
placed in theoven.
•Always slit or pierce plasticpouches or packaging.
• If food is foil wrapped, remove foil and place it in a
suitable container.
• Slit the skins, if any, offrozen food such as
sausage.
•Bend plastic pouches offood to ensure even
defrosting.
• Always underestimate defrosting time. If defrosted
food isstill icy in the center, return itto the
microwave oven for more defrosting.
• The length of defrostingtime varies accordingto
how solidly thefood isfrozen.
•The shape of the package affects how quicklyfood
will defrost. Shallow packageswill defrost more
quickly than a deep block.
•As food begins to defrost, separate the pieces.
Separated pieces defrost more easily.
• For better results, letfood stand after defrosting.
(Formore information on standing time, see the
"Microwave Cooking Tips"section.)
• Turn over food during defrosting or standing time.
Break apart and remove food as required.
You can safely keep hot, cooked food warm in your
microwave oven for up to 99 minutes, 99 seconds
(about 1 hour, 40 minutes). You can use Hold Warm
by itself, or to automatically follow a cooking cycle.
Example for hold warm:
Touch: Display Shows:
t£3/ 13
/_Ut_£1 I I/_'30fD
U.II II\I I
1•T£311r I-T'30T
I/_t/J/__ _- II_1\ I
/'_I_II_ Ll I I _ "hT_2. ,1_,n_,RF,,,
scrolls across display.
At the end of the holdwarm, "END"will be
displayed and fourtones willsound.
To make Hold Warm
automatically follow another cycle:
• While you are touching in cooking instructions,
touch HOLD WARM beforetouching START.
•When the last cooking cycle is over, youwill hear
two tones. "HoldWarm" will come on while the oven
continuesto run.
• You can set HoldWarm tofollow Auto Defrost,
Cook, or multi-cyclecooking.
NOTES:
• Hold Warm operates for up to 99 minutes,99
seconds.
• Opening theoven door cancels HoldWarm.
Close the door and touch Hold Warm, then touch
START ifadditional Hold Warm time isdesired.
• Food cooked covered should be covered during
HoldWarm.
• Pastry items (pies,turnovers, etc.) should be
uncovered during HoldWarm.
• Complete meals kept warm on a dinner plate
should be covered during HoldWarm.
• Do not use morethan one complete HoldWarm
cycle (about 1 hour,40 minutes). The quality of
some foods will sufferwith extended time.
19
}iiii!iiiiii!i!i!i!!iiiiiiii!!i!iiiiiiiill_i_i_i_'_:_!!_i_i_i!iiiiiii!!i!!!!iii_ii_i!_i!iii!i_ii_i_i_i,_i_!_i_!_!!_!!_!!_!!_!!_!!_!_!!i!i_ii_;i_i!_!i_!i_iii!!i!!i!!i_iiiii!_'i_i_!_i!_i_iKii!ii!ili!!!iiiii_!i_!i!i_i!_i!i!!i!iiiii!ii:i!i_!i'i:ii:iiii!i!iii_ii:iii,!_!_!_!,_!i_i!:!i_!i_!i_il_iiiiiiiiii_iiiii!iiiii_!ii!i_ii_ili_i!_ii_!i_i_!i!!iiiiiiii!i!iiiiii!!!!!!!iii_ii_i_iiii!!_!!!iiiiiiii!i!!i_!!iiiiiiiiiiiiiiiiiii!i!!!ii!iliiiiiii!ii!i!!!!!;iiiiiii_i!@_ii_ii_iiiiiii_iiiiii!_!i_ii_ii_ii_i_iiiiii!ii!ii{i_iiii!!:!!{!illi_iiiii_i_iiii!_ii_ii_ii_ii_i_i!Ci!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!iii
SURE SIMMER
Your microwave oven lets you simmer soups,
casseroles, stews, and other liquid foods. All you do
is set a simmer time and your oven will bring your
food to a boil and then simmer it for the time you
specify.
NOTES:
• You cannot change the cook power or doneness
for Sure Simmer.
• This function uses the sensor. The sensor needs
2 minutes 30 seconds to warm up after the oven
is connected to power or after a power failure.
If you start Sure Simmer during the warm up,
microwave energy will not be turned on until the
sensor is warm.
• When cooking vegetables, increase amount of
water to 1/4 to 1/2 cup (60 to 125ml).
• Cover dish with a hard lid, i.e., the lid that comes
with the dish or a dinner plate. Do not use plastic
wrap.
Touch: Display Shows:
1. Place the food in the oven and
close the door.
,: B;'TEP,'-'='=''"-I-UUI_III II- "1 ITIIT'I-III_
,0 0 0 £,._,_,
TF_I IF I -T'_OT
Touch Numberpadsto luuc_ _-I ]_1,,I
enter the simmer time.
Example for 30
minutes.
,-I I"1 -- - IITI ITI -"I
_£.,_E 5,,, ,_
scrolls across
display.
The oven will bring
the food to a boil.
Thefood will then simmerfor the time you set.
When simmering foods like pasta use a container
that can hold enough water to cover the food
completely when cooking, such as a 3-quart (12 cup)
casserole with a lid. When cooking pasta or noodles,
add 1 tbsp (15ml) oil to the water before boiling.
Use the following method:
Place container with water in the oven and follow
steps 2~4, setting the simmer time at 1 second. At
the end of the signal, place the food in the water and
stir until completely covered by water. Cover. Repeat
steps 2~4, setting the simmer time you want.
Changing instructions you can change the simmering
time while simmering by repeating steps 2, 3, and 4.
2O
Using Sensor Cooking
SENSOR COOKING
SENSOR OPERATING INSTRUCTIONS
SensorCook allows you to cook most of yourfavorite
foods without selecting cooking times and power
levels.Theoven automatically determines required
cooking time for each food item.When the internal
sensor detects a certain amount of humiditycoming
from the food, itwill tellthe oven how much longer to
heat.The display will show the remainingheat time.
Forbest resultsby Sensor, following these
recommendations.
• Foodcooked with thesensor systemshould be at
normal storage temperature.
• Glass Tray and outside of container should be dry
to assure best cooking results.
• Foodsshould always be covered loosely with
microwavable plasticwrap, waxed paper or a lid.
• Donot openthe door or touch the "STOP/CLEAR"
key during the sensing time. When sensing time is
over, the oven beeps twiceand the remaining
cooking time will appear in thedisplay window. At
this timeyou can open the door tostir, turn, or
rearrange the food.
SENSOR COOKING GUIDE
Appropriate containersand coverings help assure
good Sensor cooking results.
• Always use microwavable containers and cover
them with lidsor vented plasticwrap.
• Never usetight-sealing plasticcovers. They can
prevent steam from escaping and cause food to
overcook.
• Match the amountto the size of thecontainer.
Fillcontainers at least halffull for best results.
• Besure the outside of the cooking container and
the insideof the microwave oven aredry before
placingfood in the oven. Beads of moistureturning
intosteam can mislead thesensor.
POTATO (EXAMPLE)
Sensorcook allows you to cook most of your
favoritefoods without selectingcooking times and
power levels.
Example for Potato:
Touch: Display Shows:
1. Time of day.
"3£3T "3T£3
2. E___JFu,13,u
scrollsacrossdisplay.
When the cook time isover, youwill hear four beeps
and COOK END will be displayed.
MORE/LESS
Byusingthe MOREor LESSpadsall ofthesensor
cookandtime cooksettingscanbe adjustedtocook
foodfora longeror shortertime.
PressingMOREwilladd 10secondsofcookingtime
eachtimeyou pressit.
PressingLESSwillsubtract10secondsofcooking
time eachtime youpressit.
21
!ilii!iiiiiii!i!ii!i!!iiiiiiiii!iliiiiiiiiiiiiiii!!i!iiil!ii!ii!ii!iiiiiii!ii!ii!iiiiiiiiiiii!ii!i!!iiiii!ii!i!iiiili!ii!i!i!!ili!!iii!!iii!ii!ii!ii!ii!ii!ii!ii!iiiii!iiiiilli!iiii!iilii!ii!i!!!i:ii:iii!iii!ii!i!!i!i!i!!iiiillii!!iiiiiiiiii!!i!!i!!i!!ii!iiiili!ii!illiiliiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ililiiii!iiiii!i!!i!iilifilliii!i!i!iliii!i!iiiiiiif!i!i!ii!!i!i!i!!!ii!ii!iiililliiiililfillililliliiiilii!ii!iiilliili!i!!i!!i!!i!i!i!!!iiiiiiiii!iiilliiiii!i!!i!iiiiiiiiiillii!i!!i!!iiliii!i!!i!iiiiiiiiiiiiiiiliiiii!i!!!!i!iliiiiillii!!i!!!!iiiiiiiiillii!i!iiii!!ii!i!!ii!ii!ii!i!!ii!ii!ii!ii!ii!iiiiiliiiiii!!i!ii!ii!ii!i!i!iiilliiiiililiiiiiilliiiii!i!!i!!iiiiiiliiiili!i!iiiii!iii!iiiii!iii!!i!illiliiiiiiiiiiiiiiii!!i!iiiii!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilililiiiii
SENSOR COOKING TABLE
CATEGORY
Popcorn
Pizza
Frozen Entree
Dinner Plate
Fresh
Vegetable
__ Frozen
-Q Vegetable
Canned
Vegetable
Potato
DIRECTION
Popcornlets you pop commercially packaged
microwave popcorn. Poponly one package at a time.
Forbest results, use fresh bag of popcorn.
Placebag of prepackaged microwave popcorn on the center of turntable.
Before popping, remove the rackfrom the oven (refer to Page 31).
This isreheat functionfor a leftoverpizza.
Placeon paper towel on a microwave-safe plate.
Removefrom outer display package. Slitcover.
If not in microwave-safe container, placeon a plate.
Coverwith plasticwrap and vent the plasticfilm by piercingwith a fork
(3 times).After cooking, allowto stand for 3 minutes.
Placefoods to be heatedon dinner plateor similardish.
Coverwith plasticwrap and vent.
After cooking, allow to stand for 3 minutes.
Prepareasdesired,wash,and leaveresidualwater onthevegetables.
Placein anappropriatelysized microwavecontainer.
Add amountofwater accordingtothequantity(1~2cups :2tablespoons,
3~4cups :4 tablespoons).Coverwithplasticwrapandvent.Aftercooking,
stir andallowto standfor3 minutes.
Removefrom package,rinseoff frostunderrunningwater.
Placein anappropriatelysized microwavecontainer.
Add amountofwater accordingtothequantity(1~2cups :2tablespoons,
3~4cups :4 tablespoons).Coverwith plasticwrapandvent.Aftercooking,
stir andallowto standfor3 minutes.
Removefrom the outerdisplay can.
Placein an appropriately sized microwave container,
cover with plasticwrap, and vent.
After cooking, stir and allowto stand for 3 minutes.
Pierceeach potato witha fork and placethe oven tray
around the edge,at least one inchapart.
After cooking, allow to stand for 5 minutes.
AMOUNT
3.0~3.5oz.
package
1~3slices,
(5 oz. each)
10to 21 oz.
1~2servings
1~4cups
1~4cups
1~4cups
1~4medium
(approx.
8 to 10 oz. each)
22
AUTO COOK
Auto Cook lets you heat common microwave-
prepared foods without selectingcooking times and
power levels.Auto Cook has preset cook powers for
4 food categories: Casserole, Rice,Bacon, and Hot
Cereal.
Example for Rice:
Touch: Display Shows:
.- -I -I-T ITI -hi! I/T[_
I I_1 IIJ /IIJ5&.E_.,5'
-- -- -- I--I--II--I/ll_.ll-- I--I lift -
..... I,.."lll--
2. L.... J,,,_E
scrolls across display.
Choose food category:
TOUCH PAD
CATEGORY NUMBER QUANTITY
Casserole (Sensor) 1 1to 4 cups
Rice (Sensor) 2 1/2 to 2 cups
Bacon 3 2 to 4 slices
Hot Cereal 4 1to 6 servings
The oven will cook food automatically by sensor
system, except Bacon and Hot Cereal. When the
cook time is over, you will hear four beeps and
COOK END will be displayed.
AUTO REHEAT
Auto Reheat lets you heatfoods without selecting
cooking times and power levels.Auto Reheat has
preset cook powers for 3 categories: Casserole,
Roll/Muffin,and Beverage.
Example for Casserole.
Touch: Display Shows:
1, _;i:o.... -- -I -I-T In-I_ll I / TI'_ 7
5E_.EL.,,,rE,,u_,us
-- -- -- I--I"ll"l/II_.II--
--SEE _.uu_,,_.__._u,,E'-''_ -
.<i ), F- -- - "3 FOCCCOJDI C
!!-FIJJCI\IJ!-C
scrolls across display.
Choose food category:
TOUCH PAD
CATEGORY NUMBER QUANTITY
Casserole (Sensor) 1 1to 4 cups
Roll/Muffin 2 1 to 6 pieces
Beverage 3 1to 2 cups
The oven will reheat only Casserole automatically
by sensor system.
When the cook time is over, you will hear four
beeps and COOK END will be displayed.
23
!ilii!iiiiiii!i!ii!i!!iiiiiiiii!iliiiiiiiiiiiiiii!!i!iiil!ii!ii!ii!iiiiiii!ii!ii!iiiiiiiiiiii!ii!i!!iiiii!ii!i!iiiili!ii!i!i!!ili!!iii!!iii!ii!ii!ii!ii!ii!ii!ii!iiiii!iiiiilli!iiii!iilii!ii!i!!!illiiiii!iii!ii!i!!i!i!i!!iiiillii!!iiiiiiiiii!!i!!i!!i!!ii!iiiili!ii!illiiliiiii!!i!!ililli!ii!ii!i!!ii!ii!i!!ililiiii!iiiii!i!!i!iilifilliii!i!i!iliii!i!iiiiiiif!i!i!ii!!i!i!i!!!ii!ii!iiililliiiililfillililliliiiilii!ii!iiilliili!i!!i!!i!!i!i!i!!!iiiiiiiii!iiilliiiii!i!!i!iiiiiiiiiillii!i!!i!!iiliii!i!!i!iiiiiiiiiiiiiiiliiiii!i!!!!i!iliiiiillii!!i!!!!iiiiiiiiillii!i!iiii!!ii!i!!ii!ii!ii!i!!ii!ii!ii!ii!ii!iiiiiliiiiii!!i!ii!ii!ii!i!i!iiilliiiiililiiiiiilliiiii!i!!i!!iiiiiiliiiili!i!iiiii!iii!iiiii!iii!!i!illiliiiiiiiiiiiiiiii!!i!iiiii!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!il!if!ii!ii!ii!if!if!ii!ilililiiiii
AUTO COOK TABLE
TOUCH
CATEGORY NUMBER PAD DIRECTION AMOUNT
Casserole 1 Assemble the ingredients perthe recipe 1~4cups
(Sensor) in a 1~2- quartcasserole.
Coverwith plasticwrap and vent.
After cooking, stir and allowto stand for 3 minutes.
Rice 2
(Sensor)
Bacon
Placerice and twice as much liquid
(water,chicken, or vegetable stock) in a 2- quart
microwave dish.
Coverwith plasticwrap and vent.
After cooking, allow to stand for 10 minutes.
Stirforfluffier rice.
Placebacon strips on a microwave
baconrack for best results.
(Use dinner plate linedwith paper towels
ifrack is not available)
1/2~2 cups
Use medium or
long grain rice.
Cook instant rice
accordingto
directionson
the package.
2~4slices
Hot Cereal 4 Prepare asdirected on package and cook. 1~6servings
Stirwell beforeeating.
Use only instanthot cereal.
AUTO REHEAT TABLE
TOUCH
CATEGORY NUMBER PAD DIRECTION AMOUNT
Casserole 1 Cover dishcontaining the casserole 1~4 cups
(Sensor) with plasticwrap, and vent.
After cooking, stir and allowto stand for 3 minutes.
Roll/Muffin 2 Removefrom display package and place on a plate. 1~6pieces
(2~3oz. each)
fresh
Beverage 3 Use a wide-mouth mug. Do notcover.
Removefrom display package and place on a plate.
(Be careful!The beverage will be very hot! Sometimes
liquidsheated in cylindricalcontainerswill splash out
when the cup is moved.)
1~2cups
(240 ml per cup)
24
MELT SOFTEN
The oven uses low power to melt foods (butter or
margarine, chocolate, marshmallows, or processed
cheese food). See the following table.
Example for 8 oz. Chocolate:
Touch: Display Shows:
1, Time of day.
=-- --I -I-T ITi-I_.II I ITI-I I
5&.&., ,,_,,.,, .., _-
__ m'_r_..,_,- m ,n -
3. 2 _;%,__,U:.'-"_'-'_' _Tcc
TI-_I II- I / TI'_ "_
I I_#_#_I_ 1 11_I C
=80Z once and
CHOCOLATE
scrolls across display.
Time counting down.
The oven uses low power to soften foods (butter, ice
cream, cream cheese, and frozen juice)
See the following table.
Example for quart of ice cream:
Touch: Display Shows:
=Time of day.
=
=
=
-- --I -I-T I_ -I_11 I/TI_ I
5&.&., ,,_,,u_ ,u _-
-- -- -- I--f'lf'l _11_,11--
I/-L- /-/_?L'_ ?/7"I
IL.L. L.i_L._/77/ I
TI?/ (I- IITI?-I ?
IL./L./L./? I I L./ _?
,_ QUART once and ICE
CREAM
scrolls across display.
Time counting down.
MELT TABLE
3ODE CATEGORY DIRECTION AMOUNT
1 Butter or Unwrap and place in 1, 2 or 3
Margarine microwavable container, sticks
No need to cover butter.
Stir at the end of cooking
to complete melting.
2 Chocolate Chocolate chips or 4 or 8 oz.
squares of baking
chocolate may be used.
Unwrap squares and
_lace in microwavable
container. Stir at the end
of cycle to complete
melting.
3 Cheese Use processed cheese 8 or 16
food only. Cut into cubes, oz.
Place in a single layer in
microwavable container.
Stir at the end of cooking
to complete melting.
4Marshmallows Large or miniature 5 or 10
marshmallows may be oz.
used. Place in
microwavable container.
Stir at the end of cycle to
complete melting.
SOFTEN TABLE
CODE CATEGOR'_ DIRECTION AMOUNT
1 Butter Unwrap and place in 1,2 or 3
microwavable container, sticks
Butter will be at room
temperature and ready
for use in recipe.
2 Ice Place container in oven. Pint,
cream Ice cream will be soft Quart,
enough to make Half
scooping easier, gallon
3 Cream Unwrap and place in 3 or 8 oz.
cheese microwavable Container.
Cream cheese will be at
room temperature and
ready for use in recipe.
4 Frozen Remove top. 6, 12 or
juice Place in oven. 16 oz.
Frozen juice will be soft
enough to easily mix with
water.
25
Caring for Your Microwave Oven
To make sure your microwave oven looksgood and workswell for a long time,you should
maintain it properly. Forproper care, pleasefollow these instructionscarefully.
For interior surfaces: Wash often with warm, sudsy
water and a spongeor
soft cloth. Use only mild,
nonabrasive soaps or a
milddetergent. Be sure
to keep the areas clean
where the door and
oven frame touch
when closed. Wipe well
with clean cloth.
Overtime, stainscan
occur on the surfaces as the result of food particles
spatteringduring cooking. This isnormal.
For stubborn soil, boil a cup of water inthe oven for 2
to 3 minutes. Steam will
soften the soil. To get rid
of odors insidethe oven,
boila cup ofwater with
some lemonjuice or
vinegar in it.
For exterior surfaces and control panel: Use a soft
cloth with spray glass
cleaner. Apply the spray
glass cleanerto the soft
cloth; do notspray
directly on the oven.
NOTE: Abrasive
cleansers, steel wool
pads, gritty wash
cloths, some paper
towels, etc., can
damage the control paneland the interiorand exterior
oven surfaces.
To clean grass tray and support, wash in mild,
Glass tray
Support
Hub
sudsywater; for heavily
soiledareas use a mild
cleanser and scouring
sponge. The glass tray
and support are
dishwasher safe.
To use of the metal rack:
The metal rack gives you extra space when cooking
in more thanone container at thesame time.
1. Place rack securely in the four plastic supports.
•Rack must not touch metal walls or back of
microwave oven.
2. Place equal amounts of food both above and
below rack.
To avoid risk of property damage:
1.Do not cook with rack on floor ofthe oven.
2. Use the metal rackwhen cooking equal amounts
of foodat the same time.
3.Do notuse rack to pop popcorn.
4. Rackmust be on thefour plasticsupportswhen
used.
26
CARING FOR THE FILTERS
The grease filter should be removed and cleaned often, at least once a month.
NOTE: Ifyour microwave hood combination is installed to recirculate air, the chacoal filter
(Part No. 5230W1A003A) available from Sears by calling 1-800-4-MY-HOME ®.
The charcoal filter cannot be cleaned and should be replaced every 6 to 12 months.
Grease filter (Part No. 5230W2A004A);
............................................................................................./
1. Unplugmicrowave ovenor disconnect power.
2. To remove grease filter,slide each filterto theside.
Pullfilter downward and push to theother side.
The filter willdrop out.
Charcoal filter (Part No. 5230W1A003A):
1. Unplugmicrowave oven or disconnect power.
2. Removethe vent grille mounting screws.
3. Pushthe right side lowerpart of thecharcoal filter.
Removethe filter.
o _
oo ¢
4.Lift the backof the charcoal filter. Slidethe filter
straight out.
4. To replace greasefilter, slidefilter in the frame slot
on back of theopening. Pushfilter upward and
push tofront side to lock intoplace.
5. Plug in microwave oven or reconnectpower.
27
REPLACING THE COOKTOP
AND OVEN LIGHTS
o o
o o
o o
o o
5. Slide a new charcoalfilter intoplace. The filter
should rest atthe angle shown.
6. Slide the bottom ofthe ventgrille intoplace. Push
the top untilit snaps into place. Replace the
mounting screws.
7. Plug in microwave oven or reconnectpower.
NOTE: Do not operatethe hood without the grease
filters in place.
The cooktop light
1.Unplug microwave oven ordisconnect power.
2. Remove the bulb cover mounting screw.
3. Replace bulb with candelabra-base 20-watt bulb
(Part No. 6912A40002A) available from Sears by
calling 1-800-4-MY-HOMEL
4. Plug in microwave oven or reconnect power.
The oven light
1.Unplug microwave ovenordisconnect power.
2. Remove the vent grille mounting screws.
3. Tip the grille forward, then lift out to remove.
28
Bulb holder
o o
o o
o o
o o
4. Lift up the bulb holder.
5. Replace the bulb with a candelabra-base 30-watt
bulb (PartNo. 3B70067A) available from Sears by
calling 1-800-4-MY-HOME_.
6. Slidethe top of the vent grilleinto place. Push the
bottomuntil itsnaps into place. Replace the
mounting screws.
7. Plug in microwave oven or reconnect power.
29
MICROWAVE COOKING TIPS
Amount of food
•Ifyou increaseor decrease the amountoffood
you prepare,the time it takes tocook thatfood will
also change. Forexample, if you double a recipe,
add a little more than halfthe original cooking time.
Checkfor doneness and, if necessary, add more
time in small increments.
Starting temperature of food
•The lower the temperature ofthefood beingput
intothe microwave oven,the longer ittakes to cook.
Foodat room temperature will be re-heated more
quickly than food atrefrigerator temperature.
Composition of food
•Food with a lot of fat and sugar will be heated
faster thanfood containing a lot ofwater. Fatand
sugar will also reacha higher temperaturethan
water in the cooking process.
• The more dense the food, the longer it takesto
heat."Very dense" food like meat takes longer to
heatthan lighter, more porousfood likesponge
cakes.
Size and shape
• Smaller pieces offood will cook faster than larger
pieces.Also, same-shaped pieces cook more
evenly thandifferent-shaped pieces.
•With foods that have different thicknesses, the
thinner parts will cook faster thanthe thicker parts.
Place the thinner parts of chickenwings and legs in
the center of the dish.
Stirring, turning foods
•Stirring and turning foods spreads heatquicklyto
the center of the dish andavoids overcooking at the
outer edges of thefood.
Covering food
Cover food to:
•Reduce splattering
• Shorten cooking times
• Keep food moist
You can useany covering that lets microwaves pass
through. See "Gettingto Know Your Microwave
Oven" for materialsthat microwaveswill pass
through. Ifyou are usingthe Sensor function, be sure
to vent.
Releasing pressure infoods
•Several foods (forexample:baked potatoes,
sausages, egg yolks, and some fruits)are tightly
covered bya skin or membrane. Steam can build up
under the membrane during cooking, causing the
food to burst. To relievethe pressure andto prevent
bursting, pierce these foods before cooking with a
fork, cocktail pick,or toothpick.
Using standing time
•Always allow food to stand after cooking.
Standing time after defrosting and cooking allows
the temperature to evenly spread throughout the
food, improvingthe cooking results.
•The length of the standing time depends on how
much food youare cooking and how dense itis.
Sometimes itcan be as shortas thetime ittakes
you to remove the food fromthe oven and take itto
the serving table. However,with larger,denser food,
the standing time may be as long as 10 minutes.
Arranging food
For best results, placefood evenly on the plate. You
can do this in severalways:
• If you are cooking several items of the same
food, such as baked potatoes, place them in a ring
pattern for uniform cooking.
•When cooking foods of uneven shapes or
thickness, such as chicken breasts, place the
smaller or thinnerarea ofthe food towards the
center of the dishwhere it will be heated last.
• Layer thin slices of meat on top of each other.
•When you cook or reheat whole fish, score the
skin - this prevents cracking.
• Do not letfood or a container touch thetop or sides
of the oven. This will prevent possiblearcing.
Using aluminum foil
Metal containers should not be used in a microwave
oven. There are, however, some exceptions. If you
have purchased food which is prepackaged in an
aluminum foil container, referto the instructionson
the package.When using aluminum foilcontainers,
cooking times may be longer because microwaves
will only penetratethe top of thefood. If you use
aluminum containers without package instructions,
follow these guidelines:
30
MICROWAVE COOKING TIPS (CONT.)
Using aluminum foil (cont.)
•Placethe container in a glass bowland add some
water so that itcovers the bottom of the container,
not morethan 1/4in. (.64cm) high.This ensures
even heatingof the container bottom.
•Always remove the lid toavoid damage tothe
oven.
•Use only undamaged containers.
•Do not use containers taller than 3/4in. (1.9cm).
•Container must be at least halffilled.
•To avoid arcing, there must be a minimum 1/4in.
(.64cm) between the aluminum container and the
walls ofthe oven and also between two aluminum
containers.
• Always place thecontainer on the turntable.
• Shield with small pieces ofaluminum foil, parts of
food that may cook quickly, such aswing tips and
leg ends of poultry.
• Heating food in aluminum foil containers usually
takes up to doublethe time compared to reheating
in plastic, glass,china, or paper containers.
The time when food is readywill vary depending
upon the type of container you use.
• Let food stand for 2 to 3 minutes after heating so
that heat isspread evenly throughout container.
Cookingyou should not do inyour
microwaveoven
•Do not do canning offoods inthe oven.Closed
glassjars may explode, resulting in damage to the
oven.
• Do not use the microwave oven tosterilize objects
(baby bottles,etc.). It isdifficult to keepthe oven at
the high temperature needed for sterilization.
Removing the rack
• When popping commercially packaged popcorn,
Remove the rack from the oven; Donot place
the bag of microwave popcornon the rack or under
the rack.
•In the case of popping microwave popcornwith
rack,that cancause the fireor damage to your
microwave oven.
31
Questions and Answers
QUESTIONS ANSWERS
Can Ioperate my microwaveoven without the glass No. Ifyou remove ormove the glass tray,you
tray or move the glass tray over to hold a large dish? will get poor cooking results. Dishes used in
your oven mustfit on the glass tray.
Can Iuse eithermetal or aluminum pans in my
microwave oven? You can use aluminumfoil for shielding (use
small,fiat pieces),small skewers, and shallow
foil trays (iftray is nottaller than 3/4in. [1.9 cm]
deep and isfilled with food to absorb microwave
energy). Never allow metal to touch walls or
door.
Is itnormalfor theglass tray to move in either Yes. The glass tray movesfrom side toside,
direction? depending on the rotationof the motor when the
cooking cycle begins.
Sometimes thedoor of my microwave oven appears This appearance is normaland does not affect
wavy. Is this normal? theoperation of your oven.
Why doesthe dish become hotwhen I microwave As thefood becomes hotitwill conduct the heat
food in it? I thoughtthat this should not happen, to thedish. Be prepared to use hot pads to
remove food after cooking.
What does "standingtime" mean? "Standingtime" means that food should be
removed from the oven and covered for
additionaltime to allow it tofinish cooking. This
frees the oven forother cooking.
Why doessteam come out of theair exhaust vent? Steam isnormally produced during cooking. The
microwave oven has been designedto vent this
steam out thevents.
Can Ipop popcornin my microwave oven?
How do Iget the best results? Yes. Pop packaged microwave popcorn
following manufacturer's guidelines. Do notuse
regular paper bags.
Do not repop unpopped kernels.Do not pop
popcorn in glass cookware.
32
Troubleshooting
Most cooking problems often are caused by littlethings you canfind and fix without tools of any kind. Check the
listsbelow and on the next page beforecallingfor assistance or service. Ifyou still need help,call Sears Service
at 1-800-4-MY-HOME®.
MICROWAVE OVEN DOES NOT WORK
PROBLEM CAUSE
Nothing works. • The powersupply cord isnot plugged intoa grounded 3 prong outlet. (See the
ElectricalRequirements" section on page 6 and the "Electricalconnection"
section on Page 8.)
•A household fuse has blown or a circuitbreaker hastripped.
• The electric company has had a powerfailure.
The microwave oven will
not run. •You are using the oven as a timer. Touch STOP/CLEAR tocancel the Kitchen
Timer.
• The door is notfirmly closed and latched.
• You did nottouch START.
• You did notfollow directions exactly.
• An operationthat you set earlier is stillrunning. Touch STOP/CLEAR to cancel
that operation.
COOKING TIMES
PROBLEM CAUSE
Food is notcooked
enough. • The electric supply to your home or wall outletsis low or lower than normal. Your
electric company can tellyou if the line voltageis low. Your electricianor service
technician can tellyou if the outletvoltage is low.
•The cook power is notat the recommended setting.
Check the chart on Page 15.
The display shows atime • The oven door is notclosed completely.
counting down butthe oven • You have setthe controls asa kitchentimer. Touch STOP/CLEAR to cancelthe
is notcooking. KitchenTimer.
33
GLASS TRAY
PROBLEM CAUSE
The glass tray will not
move. • The glass tray is not correctly in place. It should be correct-side up and sitting
firmly on the center hub.
• The support is notoperating correctly. Removethe glass tray and restartthe
oven. Ifthe hub still does not move,call Sears Service at 1-800-4-MY-HOME®.
Cooking withoutthe glasstray can giveyou poor results.
TONES
PROBLEM CAUSE
You do not hear • You have not entered thecorrect command.
the programming or
end-of-cycle tone.
DISPLAY MESSAGES
PROBLEM CAUSE
The display isflashing" :." • There has been a powerinterruption. Resetthe clock. (Seethe "Clock" section
on Page 12.)
If none of these items are causing yourproblem, callSears Service at 1-800-4-MY-HOME®.
34
35
