Your new washing machine
You have chosen a Bosch washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Bosch, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Environmental protection . . . . .11
Packaging/used appliance . . . . . . . . 11
Tips on economical use . . . . . . . . . . 11
5 Positioning and connecting . . .12
Standard accessories . . . . . . . . . . . . 12
Safety instructions. . . . . . . . . . . . . . . 13
Installation surface . . . . . . . . . . . . . . 13
Installation on a base or a wooden
joist floor. . . . . . . . . . . . . . . . . . . . . . 13
Installing the appliance in a
kitchenette . . . . . . . . . . . . . . . . . . . . 13
Removing the transport locks . . . . . . 14
Removing the support struts. . . . . . . 14
Hose and cable lengths . . . . . . . . . . 15
Water inlet. . . . . . . . . . . . . . . . . . . . . 15
Water outlet . . . . . . . . . . . . . . . . . . . 16
Levelling . . . . . . . . . . . . . . . . . . . . . . 17
Electrical connection. . . . . . . . . . . . . 18
Before washing for the first time . . . . 18
Transportation. . . . . . . . . . . . . . . . . . 19
* Getting to know the appliance 20
Appliance . . . . . . . . . . . . . . . . . . . . . 20
Control panel . . . . . . . . . . . . . . . . . . 21
Display panel . . . . . . . . . . . . . . . . . . 22
Z Laundry. . . . . . . . . . . . . . . . . . . .23
Prepare the laundry . . . . . . . . . . . . . 23
Sorting laundry . . . . . . . . . . . . . . . . . 23
Starching . . . . . . . . . . . . . . . . . . . . . 24
Dyeing/bleaching . . . . . . . . . . . . . . . 24
C Detergent . . . . . . . . . . . . . . . . . .24
Correct selection of detergent . . . . . 24
Saving energy and detergent . . . . . .25
/ Overview of programmes . . . . . 26
0 Programme default settings. . . 30
Temperature . . . . . . . . . . . . . . . . . . .30
Spin Speed . . . . . . . . . . . . . . . . . . . .30
Finish in time . . . . . . . . . . . . . . . . . . .30
\ Additional programme settings31
Speed/Eco . . . . . . . . . . . . . . . . . . . .31
Aqua Plus . . . . . . . . . . . . . . . . . . . . .32
Soak . . . . . . . . . . . . . . . . . . . . . . . . .32
1 Operating the appliance . . . . . . 32
Preparing the washing machine . . . .32
Select programme/switch on the
appliance. . . . . . . . . . . . . . . . . . . . . .32
Change the programme default
settings . . . . . . . . . . . . . . . . . . . . . . .33
Select additional programme
settings . . . . . . . . . . . . . . . . . . . . . . .33
Placing laundry into the drum . . . . . .33
Measure and add detergent and
care products . . . . . . . . . . . . . . . . . .34
Starting the programme . . . . . . . . . .34
Childproof lock . . . . . . . . . . . . . . . . .35
Adding/removing laundry . . . . . . . . .35
Changing the programme . . . . . . . . .35
Cancel the programme . . . . . . . . . . .36
Programme end during rinse hold. . .36
Programme end . . . . . . . . . . . . . . . .36
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .36
M Setting the signal . . . . . . . . . . . 37
H Sensors . . . . . . . . . . . . . . . . . . . 37
Unbalanced load detection system . .37
2 Cleaning and maintenance. . . . 38
Machine housing/control panel . . . . .38
Drum . . . . . . . . . . . . . . . . . . . . . . . . .38
Descaling . . . . . . . . . . . . . . . . . . . . .38
en Intended use
4
Detergent drawer and housing . . . . 38
Detergent solution pump blocked . . 39
The drain hose at the siphon is
blocked . . . . . . . . . . . . . . . . . . . . . . 40
Filter in the water supply is blocked 40
3 Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . 41
Emergency release . . . . . . . . . . . . . 41
Information on the display panel . . . 42
Faults and what to do about them . . 43
4 After-sales service . . . . . . . . . . 45
[ Consumption values table. . . . 46
J Technical data. . . . . . . . . . . . . . 47
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■ This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructi ons
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
en Safety instructions
6
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Risk of burns!
When washing at high
temperatures, the glass in the
appliance door becomes hot.
Stop children from touching the
appliance door when it is hot.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
Safety instructions en
7
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
en Safety instructions
8
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance
■ If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has been
pretreated with cleaning agents
that contain solvents, e.g. stain
remover/cleaning solvent, may
cause an explosion in the drum.
Rinse the laundry thoroughly
with water before washing it in
the machine.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
Safety instructions en
9
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
en Safety instructions
10
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
Environmental protection en
11
7 Environmental
protection
Environmental protection
Packaging/used appliance
Do’s
■ Hand over the old/discarded
electronic equipment only to
authorized collection centers for
disposal
■ Consult the authorized service
center as to whether the Electronic
Equipment can be repaired or not,
before discarding
■ Consult the retailer about appliance
take back schemes
Don’ts
■ Don’t dump the discarded Electronic
Equipment in the open or in any land
fill site, as this will result in
contamination of the soil and the
ground water
■ Don’t dispose of the discarded
Electronic Equipment in household
bins or Municipal bins
■ The product is not meant for re-sale
to any unauthorized agencies/scrap
dealers
■ Don't keep any replaced spare
part(s) from the product in an
exposed area
Tips on economical use
■ Always fill the appliance with the
maximum amount of laundry for
each programme.
■ Wash normally soiled laundry
without a prewash.
■ Save energy and detergent when
washing lightly and normally soiled
laundry.
~ "Detergent" on page 24
■ The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■ Information about the energy
consumption
*
:
The display provides information
about the relative energy
consumption in the selected
program.
The more indicator lights light up,
the higher the program's
consumption.
This enables you to compare the
consumption levels of the different
programs when choosing your
program settings and to decide on
an energy- and water-saving
program setting for the selected
program.
■ Low power mode: If the appliance is
not operated for a prolonged period
(approx. 5 minutes), the display
panel lighting goes out before the
programme starts and after the
programme has ended, A flashes.
Select any button to activate the
display backlighting.
Low power mode is not be activated
when the programme is running.
■ If the laundry is subsequently dried
in a tumble dryer, select the spin
speed according to the tumble dryer
manufacturer's instructions.
)
Dispose of packaging in an
environmentally-responsible
manner.
The following Do’s and Don’ts
provide a framework for the
return and recycling of used
products when available in
your area.
* depending on the model
en Positioning and connecting
12
5 Positioning and
connecting
Positioning and connecti ng
Standard accessories
Note: Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
Customer Service.
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
retailers) is required to connect the
water outlet hose to a siphon.
Useful tool
■ Spirit level for aligning
■ Wrench with:
– WAF13 for loosening the
transport braces and
– WAF17 for aligning the appliance
feet ~ Page 17

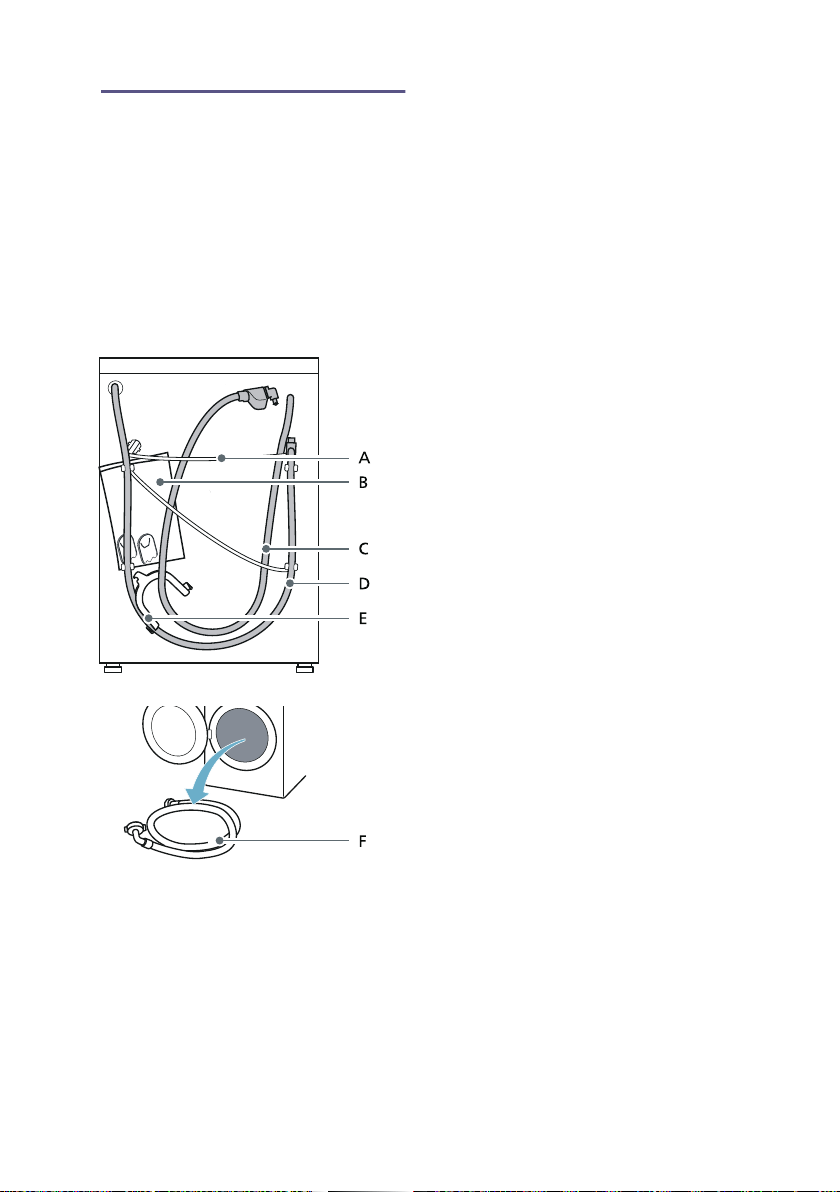

A Mains lead
B Bag:
■ Installation and operating
instructions
■ Customer Service location
directory*
■ Warranty*
■ Supplementary sheet for the
installation and operating
instructions*
■ Cover caps for openings after
the transport braces have
been removed
■ Home Connect Installation
Guides*
C Water inlet hose on aquaStop
models
D Water outlet hose
E Elbow for securing the water
outlet hose*
F Cold water inlet hose on
Standard/Aqua-Secure models
* Depending on the model
Positioning and connecting en
13
Safety instructions
:Warning
Risk of injury!
■ The washing machine is very heavy.
Be careful when lifting/transporting
the washing machine.
■ When the washing machine is lifted
by its protruding parts (e.g. the
washing machine door), the
components may break off and
cause injuries.
Do not lift the washing machine by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the washing machine in
areas exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The washing machine must be
aligned in a stable manner so that it
does not move around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may "wander" and tip/
topple from the base when spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 975600,
CZ 110600, Z 7080X0.
Note: On wooden joist floors, install the
appliance:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installing the appliance in a
kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■ Recess width of 60 cm required.
■ Only install the washing machine
underneath a continuous worktop
that is securely connected to
adjacent cabinets.
en Positioning and connecting
14
Removing the transport locks
Caution!
Damage to the appliance
■ The machine is secured for
transportation using transport locks.
If the transport locks are not
removed, the machine may become
damaged when it is operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.

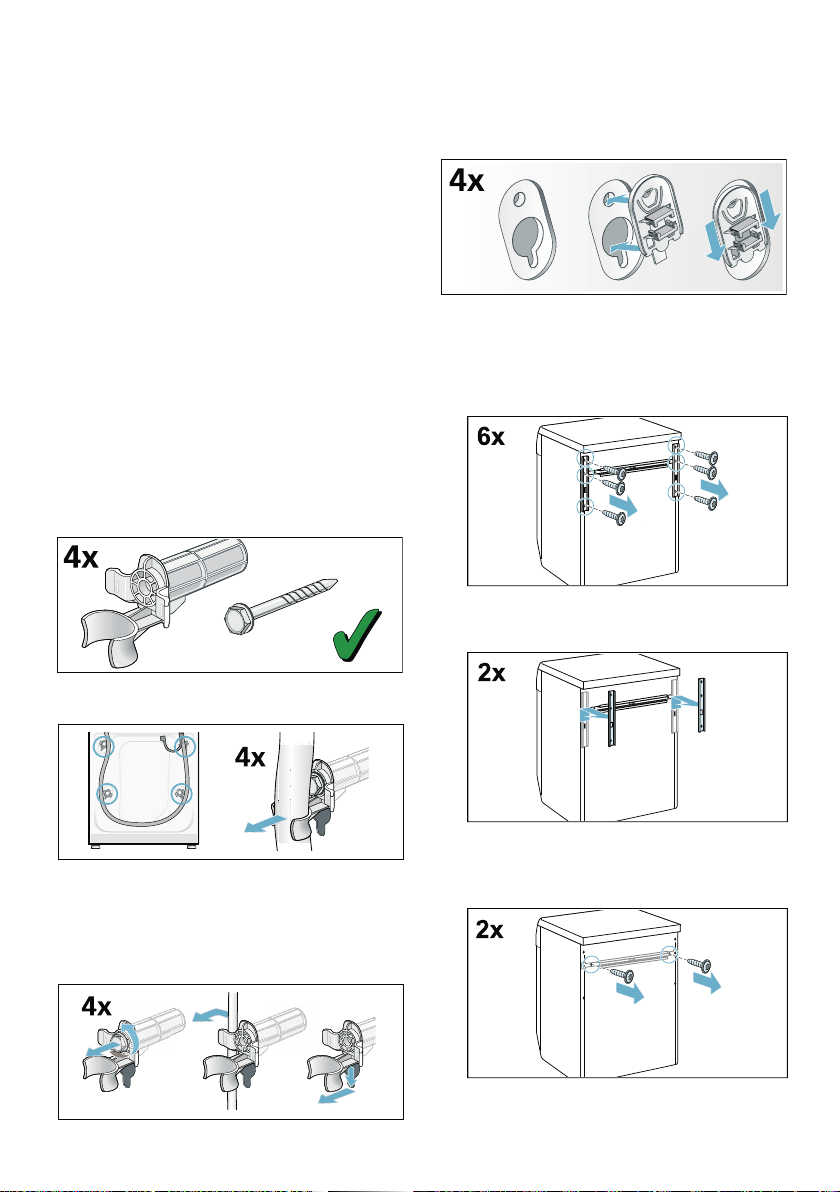

1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
Remove the sleeves. To do this,
remove the mains cable from the
holders.

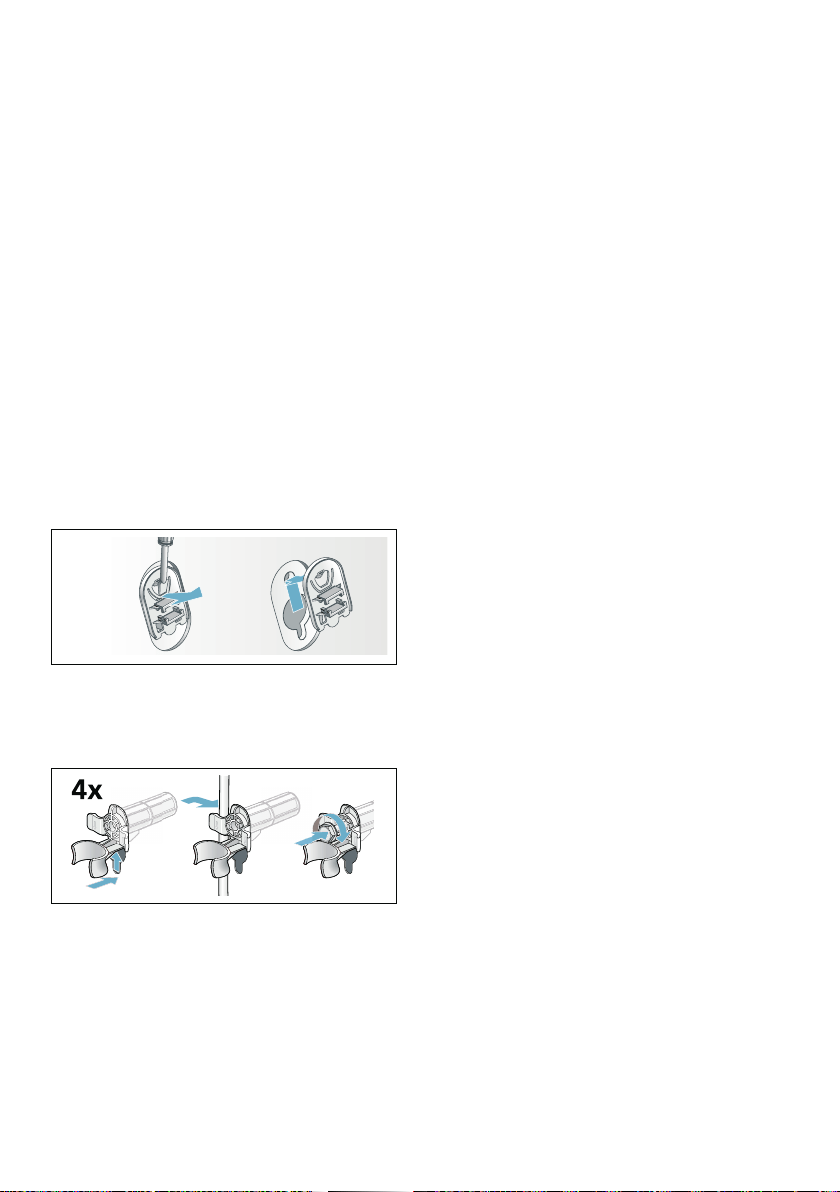

3. Fit the covers. Lock the covers firmly
in place by applying pressure to the
snap-in hooks.
Removing the support struts
1. Unscrew and remove all screws in
the vertical transport struts.
2. Remove the transport struts.
3. Undo and remove the screws on the
horizontal transport strut.
7
7
Positioning and connecting en
15
4. Remove the transport strut.

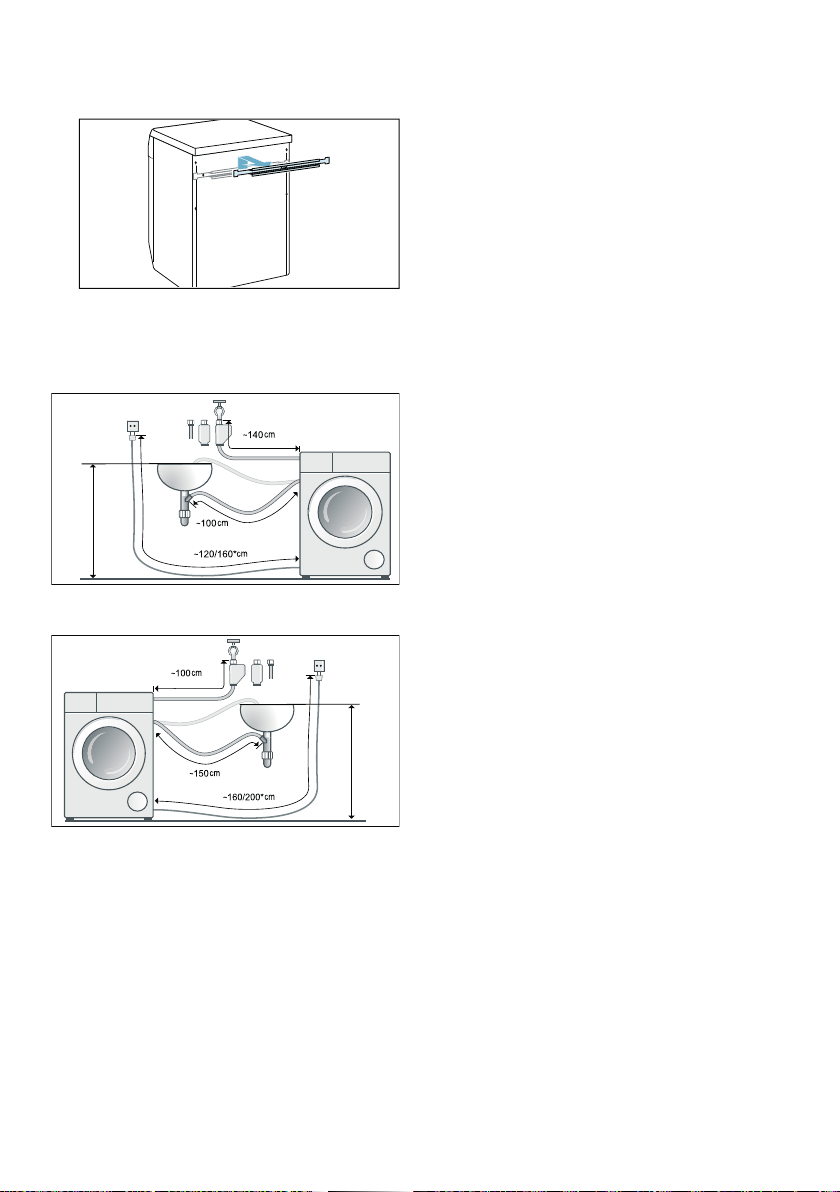

Hose and cable lengths
■ Left-hand connection
■ Right-hand connection
*depending on the model
Tip: If the supply hose is too short for
your connection, you can order an
extension from the after-sales service.
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Observe the following when connecting
the machine:
Notes
■ Only operate the washing machine
using cold mains water.
■ Do not connect the machine to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied with
the machine or one that was
purchased from an authorised
retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 0.1 MPa (1 bar)
Maximum 1 MPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
PD[FP
PD[FP
en Positioning and connecting
16
Connection

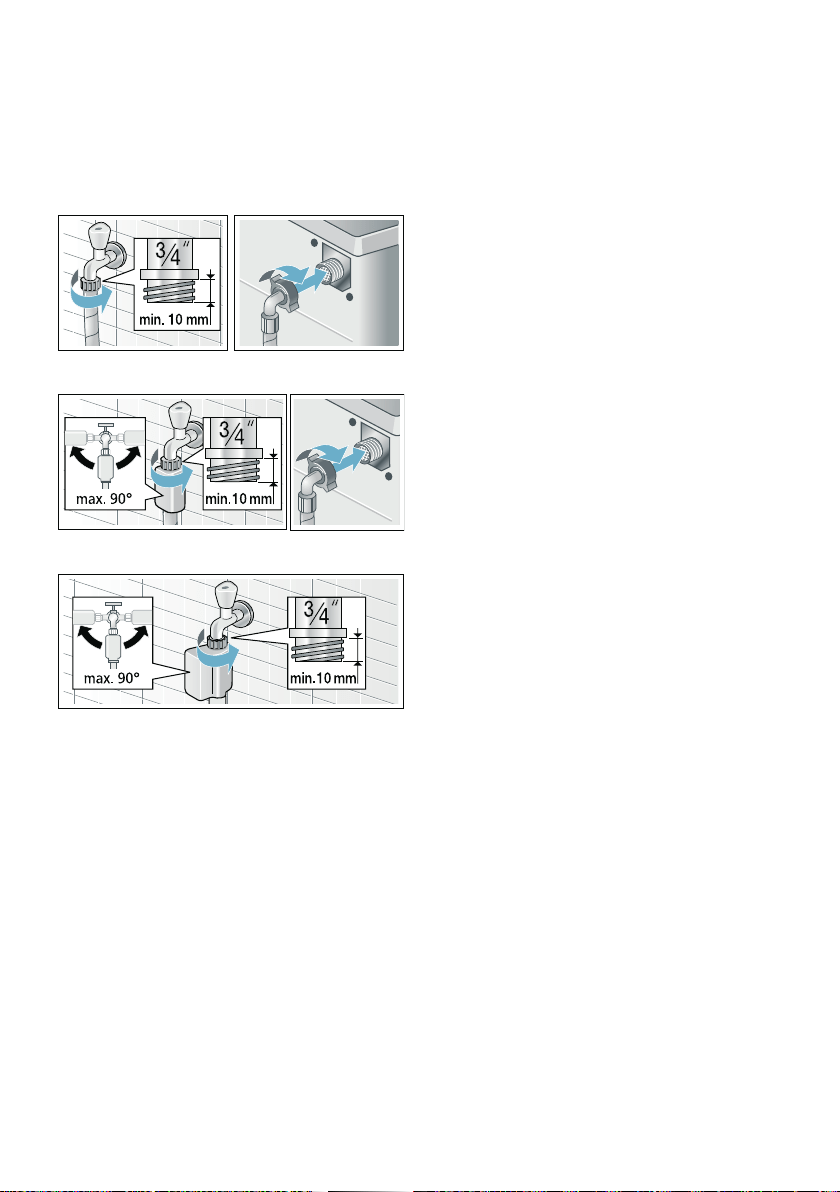

1. Connect the water supply hose to
the water tap (¾" = 26.4 mm) and to
the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.
2. Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point.
Secure the outlet hose so that it cannot
slip out.
Note: Do not kink the water drain hose
or put strain on it lengthways.
You can lay the water drain hose as
follows:

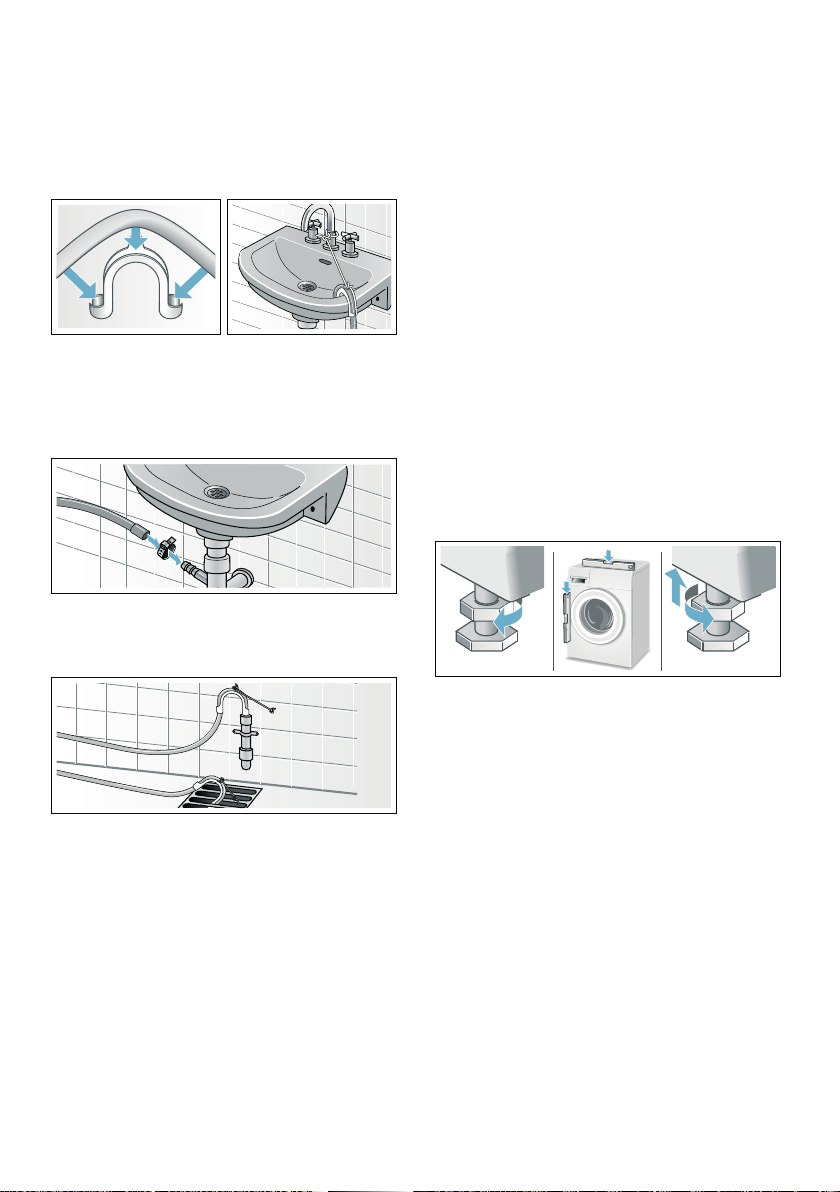

■ Outlet in a sink
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of
scalding if you come into contact
with hot water e.g. if hot water is
being drained into a wash basin.
Do not reach into the hot water.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is
immersed in the drained water, water
may be sucked back into the
appliance and may damage the
appliance/fabrics.
Make sure that:
– The plug does not block drainage
from the sink.
– The end of the drain hose is not
immersed in the drained water.
– The water drains away quickly
enough.
Positioning and connecting en
17
Secure the outlet hose so that it
cannot slip out.
Elbow available from after-sales
service:
Individual part number 00655300
■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24-40 mm (available
from specialist dealers).
■ Outlet into a plastic pipe with
rubber bushing or into a drainage
pit
Levelling
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a
wrench, by turning it in a clockwise
direction.
2. Check the alignment of the washing
machine with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
en Positioning and connecting
18
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The appliance is only connected to
an alternating current via a properly
installed earthed socket.
■ The mains plug fits the socket.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug can be accessed at
all times.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
Before washing for the first
time
The washing machine was thoroughly
tested before leaving the factory. To
remove any water that may be left over
from the test, run the first wash cycle
without any laundry.
Notes
■ The washing machine must be
correctly installed and connected
~ Page 12
■ Never use a damaged machine.
Inform customer services.
1. Check the machine.
2. Remove the protective film from the
control panel.
3. Connect the mains plug.
4. Turn on the tap.
5. Close the door (do not load any
laundry).
6. Depending on the model, run the
Drum Clean Û 90 °C or
i Cottons 90 °C program. For AU
variant, two cycles of i Cottons
90 °C programme without laundry
are required to be run at initial setup,
and this operation only needs to be
completed once.
7. Open the detergent drawer.
8. Pour approximately 1 litre of water
into compartment II.
9. Pour standard detergent into
compartment II.
Note: To prevent foaming, only use
half the amount of detergent
recommended by the detergent
manufacturer. Do not use detergent
designed for wool or delicates.
10.Close the detergent drawer.
11.Press the A Start/Reload button.
12.When the program ends, switch off
the appliance.
Your washing machine is now ready to
use.
Positioning and connecting en
19
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose.
Maintenance – filter in the water
supply ~ Page 40
3. Disconnect the washing machine
from the main plug.
4. Drain the remaining detergent
solution.
Maintenance – detergent solution
pump blocked ~ Page 39
5. Remove the hoses.
Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Use a screwdriver if necessary.
2. Insert all four sleeves.
Clip the mains cable securely in the
holders. Insert and tighten the
screws.
Before switching on the appliance
again:
Notes
■ The support struts must be
removed.
■ The transport locks must be
removed. ~ "Removing the
transport locks" on page 14
■ To prevent unused detergent from
flowing straight into the drain during
the next wash: Pour approx. 1 litre of
water into compartment II and start
the 0 Spin program.
en Getting to know the appliance
20
* Getting to know the appliance
Getting to know the appliance
Appliance
6 7
#

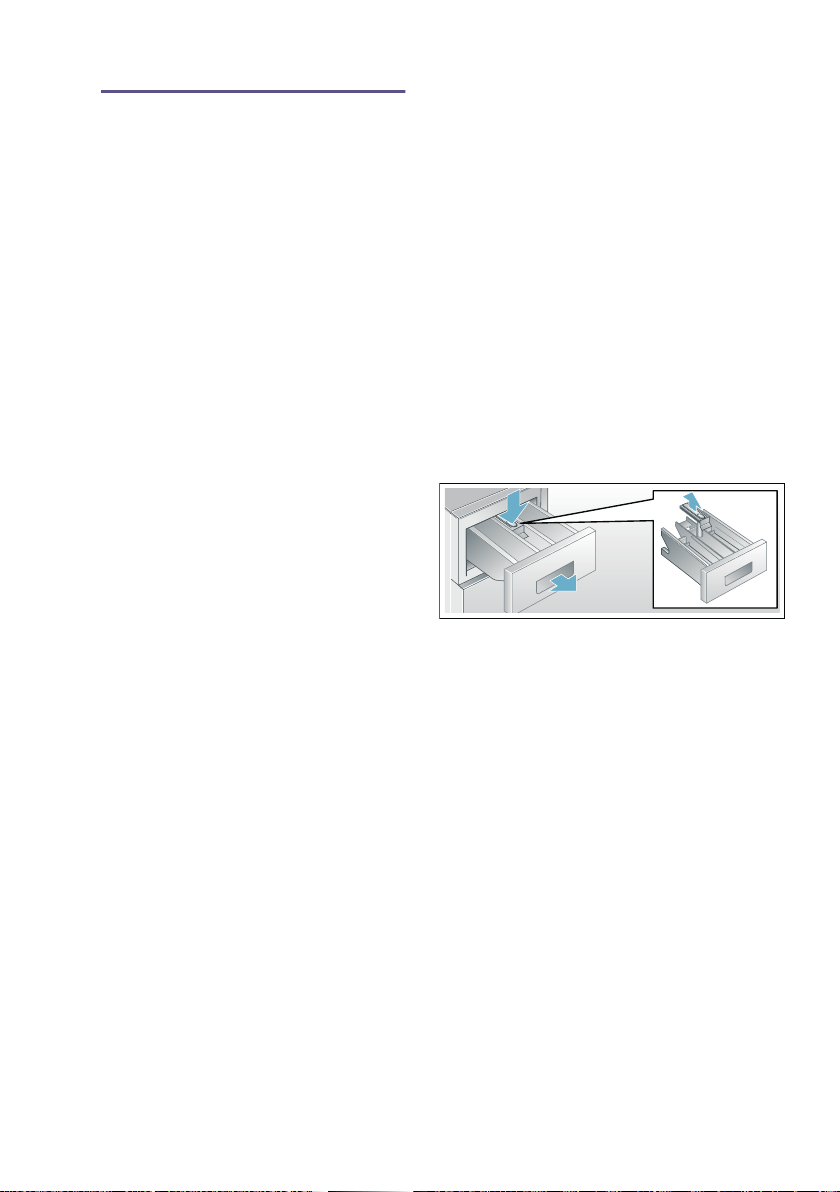

( Detergent dispenser
0 Control panel
8 Door

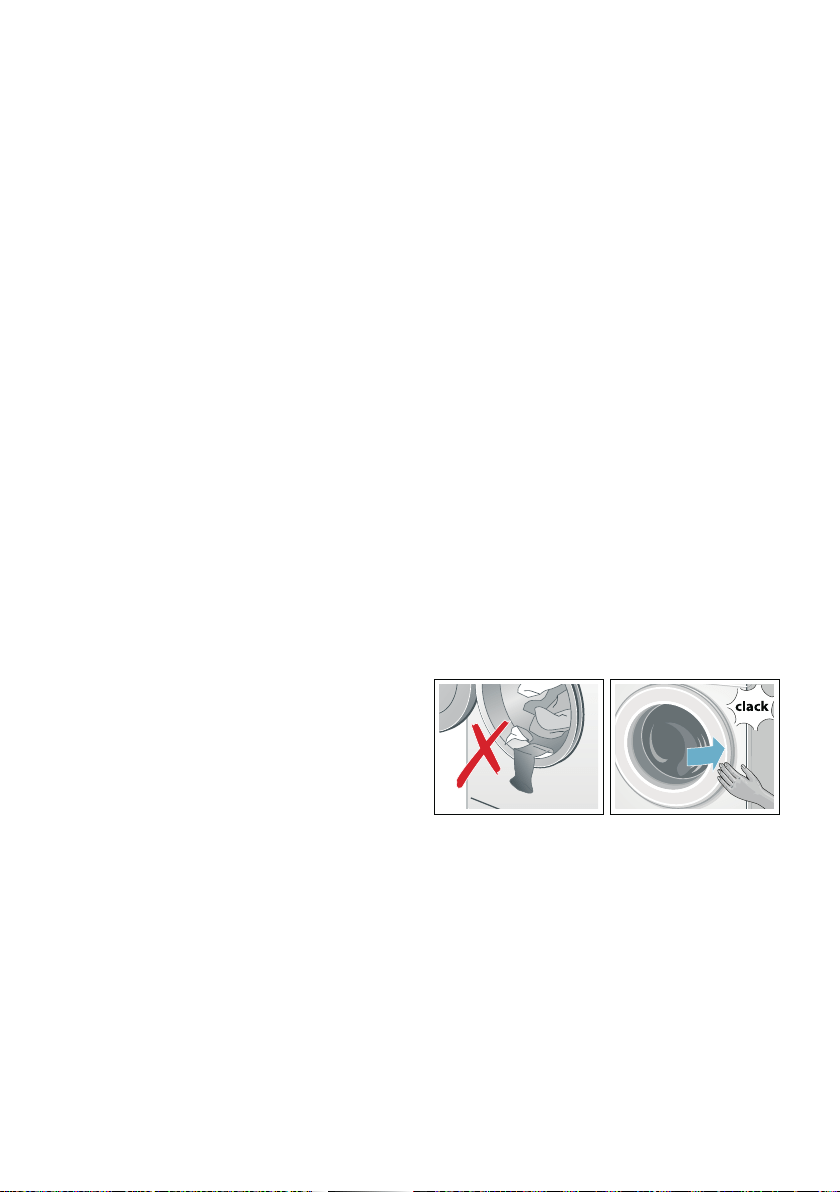

9S Open the door
9T Close the door
@ Service flap
Getting to know the appliance en
21

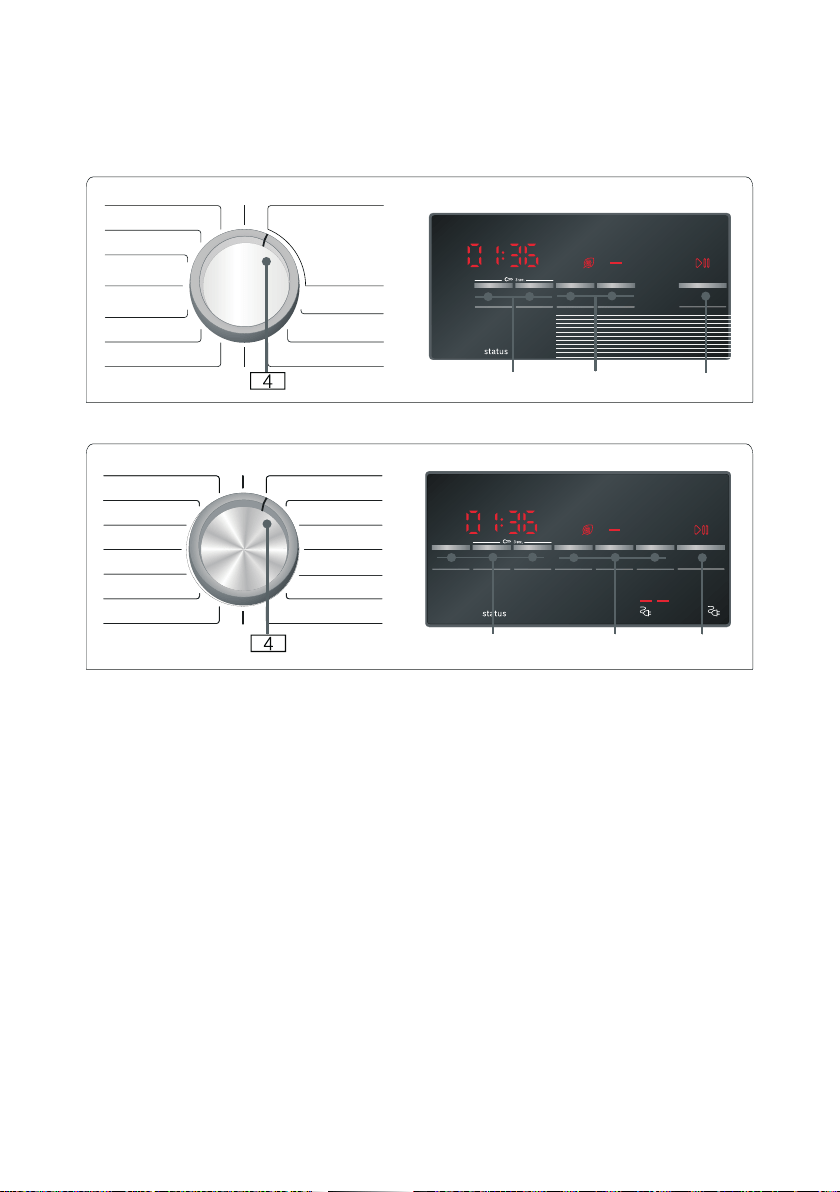

Control panel
You can find possible programme default settings and additional programme
settings in the overview; these differ depending on the model.
( Programme default settings can
be changed.
Overview of all programme default
settings ~ Page 30
0 additional programme settings
can be selected.
Overview of all additional
programme settings ~ Page 31
8 Start button for starting,
interrupting, (e.g. adding laundry)
and cancelling a programme.
@ Programme selector for selecting
the programme and for switching
the washing machine on and off.
en Getting to know the appliance
22
Display panel
In the table you can find possible settings and information in the display panel; these
differ depending on the model.
Settings for the selected programme
— - 90* Temperature in °C Temperature
- - - -, 0 - 1400* Spin speed in rpm
(revolutions per minute)
Maximum spin speed or - - - - (Rinse stop = no final drain,
washing remains in the water after the last rinse)
1:30 Programme length Depends on the programme selection in h: min
(hours: minutes)
1 - 24 Finish in h (hours) End of programme after ... Hours
10 kg Load in kg Maximum load
* Depending on the model
Status indicators for the programme progress (programme sequence)
N, à, 0, End Wash, rinse, spin/drain, programme end.
E Childproof lock Lights up: The childproof lock is activated.
Flashes: The childproof lock is activated, and if the pro-
gramme selector has been adjusted or the buttons have
been pressed.
Õ Door lock Lights up: When the door can not be opened.
r Tap Lights up: Water pressure is too low. This extends the pro-
gramme duration.
Flashes: The tap has not been turned on or there is no water
supply.
Å Overdosage On if too much foam detected, one additional rinse cycle
switched on.
- - - - é* Power consumption.
* Depending on the model
Laundry en
23
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/fabrics
Foreign objects (e.g. coins, paperclips,
needles, nails) may damage the laundry
or components in the washing machine.
You should therefore note the following
tips when preparing your laundry:
■ Empty any pockets.
■ Look out for metal items (paperclips,
etc.) and remove them.
■ Wash delicates in a laundry bag
(tights, underwired bras, etc.).
■ Close any zips; button up any cover
buttons.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or place
curtains in a laundry bag.
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry may discolour. Wash
white and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
Some examples of soiling levels can
be found in the chapter
– Light: Do not need to pretreat,
select the G Speed setting if
necessary.
– Normal
– Heavy: Load less laundry, need
to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains
while they are fresh. First dab
with soapy water; do not rub.
Then wash the items of laundry
with the appropriate programme.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
■ Symbols on the care labels
M Suitable for normal washing
process;
e.g. i Cottons programme
N A gentle washing process is
required;
e.g. \ Synthetics programme
O An especially gentle washing
process is required;
e.g. “ Delicates/
Silk programme
W Suitable for washing by hand;
e.g. l W Wool programme
Ž Do not machine wash.
en Detergent
24
Starching
Note: Laundry should not be treated
with fabric softener.
Liquid starch can be used to stiffen
fabrics particularly in the Rinse and
Cottons programmes. Measure starch
into compartment M in accordance with
the manufacturer's instructions (clean
first if necessary).
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the washing machine to
bleach clothes.
C Detergent
Detergent
Correct selection of detergent
The care label is crucial to ensure
correct detergent selection, temperature
and laundry treatment.
■ Standard detergent with optical
brighteners
suitable for heat-resistant white
washing made from linen or cotton
Programme: i Cottons/
cold – max. 90 °C
■ Detergent for colours without
bleach or optical brighteners
suitable for coloured washing made
from linen or cotton
Programme: i Cottons/
cold – max. 60 °C
■ Detergent for colours/delicates
without optical brighteners
suitable for coloured laundry made
from easy-care fibres, synthetic
fibres
Programme: \ Synthetics/
cold – max. 60 °C
■ Detergent for delicates
suitable for delicate, fine fabrics, silk
or viscose
Programme: “ Delicates/Silk/
cold – max. 40 °C
■ Detergent for woollens
suitable for woollen fabrics
Programme: l W Wool/
cold – max. 40 °C
Detergent en
25
Saving energy and detergent
For light and normal soiling, you can
save energy (lower washing
temperature) and detergent.
Note: When measuring the amount of
all detergents/additives/care products
and cleaning agents, please always
check the manufacturer's instructions
and information.
Saving Soiling/note
Reduced temper-
ature and deter-
gent quantity as
per the recom-
mended dosage
Light
No visible dirt or stains. Cloth-
ing has taken on some body
odour, e.g.:
■ Light summer/sports
clothing (worn for a few
hours)
■ T-shirts, shirts, blouses
(worn for up to one day)
■ Guest bed linen and hand
towels (used for one day)
Normal
Visible dirt or a few light
stains, e.g.:
■ T-shirts, shirts, blouses
(sweat soaked, worn a
few times)
■ Towels, bedding (used for
up to one week)
Temperature as
per the care label
and detergent
quantity as per
the recom-
mended dosage
for heavy soiling
Heavy
Dirt and/or stains clearly visi-
ble, e.g. tea towels, baby
items, work clothing
en Overview of programmes
26
/ Overview of programmes
Overview of programmes
Programme/Type of washing Options/Information
Name of the programme
Brief explanation of the programme and for which fabrics it is
suitable.
Max. load * as kg
depending on the model and the pro-
gramme
selectable temperature as °C
depending on the model and the pro-
gramme
selectable spin speed in rpm, depending
on the model and the programme
possible additional programme settings,
depending on the model and the pro-
gramme
softener
i Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or
linen.
Max. 10.0 kg/5.0** kg
— - 90 °C
- - - -, 400 - 1400 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
o Mix Load
Mixed load of cottons and synthetic fabrics.
Max. 4.0 kg
— - 40 °C
- - - -, 400 - 1400 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
\ Synthetics
Textiles made of synthetic materials or blended fabrics.
Max. 4.0 kg
— - 60 °C
- - - -, 400 - 1200 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
* Max load according to the model and programme.
** Reduced load with G Speed programme additional setting
Overview of programmes en
27
“ Delicates/Silk
For delicate, washable textiles, e.g. made of silk, satin, synthetic
fibres or blended fabrics (e.g. silk blouses, silk scarf).
Note: Use a detergent suitable for appliance-washing delicates
or silk.
Max. 2.0 kg
— - 40 °C
- - - -, 0 - 800 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
l W Wool
Hand or appliance-washable wool or rich-wool textiles. Espe-
cially gentle wash program to prevent shrinkage, longer pro-
gram pauses (textiles rest in wash liquor).
Notes
■ Wool is of animal origin, e.g.: Angora, alpaca, llama, sheep.
■ Use a detergent that is suitable for appliance-washing wool.
Max. 2.0 kg
— - 40 °C
- - - -, 0 - 800 rpm
-
possible
” Jeans
Program suitable for washing Jeans and other dark color tex-
tiles made of cotton or synthetic textiles.
Max. 3.5kg
— - 40 °C
- - - -, 400 - 1200 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
à Rinse
For rinsing with a subsequent spin cycle.
-
-
- - - -, 0 - 1400 rpm
Z Aqua Plus
possible
0 Spin
For spinning with a selectable spin speed and subsequent
draining. Only to be emptied, set spin speed to 0.
-
-
0 - 1400 rpm
-
not possible
Programme/Type of washing Options/Information
* Max load according to the model and programme.
** Reduced load with G Speed programme additional setting
en Overview of programmes
28
Drum Clean Û
Special program for drum hygiene or fluff removal. Do not load
any laundry.
90°C = antibacterial program.
40°C = antibacterial program, special drum cleaning detergent
can be used.
— = no antibacterial programme, to remove hair or fluff from
the tub.
Notes
■ Switching the drum-clean information signal on/off.
■ Select 90°C antibacterial program, always follow
the manufacturer's instructions when dosing the detergent.
■ This programme can not be interrupted.
Max. 0.0 kg
—, 40°C, 90 °C
1200 rpm
-
not possible
Night Wash S
Program special designed for washing at night with lower
machine noises. Suitable for mixed textiles..
Max. 4.0 kg
— - 40 °C
- - - -, 400- 1400 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
Bedsheets r
Appliance-washable items stuffed with synthetic fibres, such as
pillows, quilts and bedspreads; also suitable for items stuffed
with down.
Note: Wash large items separately. Use a detergent designed
for delicates and follow the instructions on the item's care label.
Use detergent sparingly.
Max. 2.0 kg
— - 60 °C
- - - -, 400 - 1200 rpm
G Speed, F Eco, Z Aqua Plus
not possible
Allergy Plus ;
Special programme for using clothing disinfectant, suitable for
mixed load consisting of textiles made of cotton and synthetics.
Notes
■ Please don’t use ñ Finished In When you select this pro-
gramme, and start the programme immediately after you
add disinfectant.
■ Please use antibacterial detergent/disinfectant in dis-
penser I and add regular front load detergent powder in dis-
penser II.
Max. 4.0 kg
— - 40 °C
- - - -, 400 - 1400 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
Programme/Type of washing Options/Information
* Max load according to the model and programme.
** Reduced load with G Speed programme additional setting
Overview of programmes en
29
Kidswear ¢
Suitable for washing soiled babies / kids clothes made of cot-
ton, effectively removing bacteria.
Max. 6.5 kg
— - 60 °C
- - - -, 400 - 1400 rpm
G Speed, F Eco, % Soaking,
Z Aqua Plus
possible
Sportswear ]
Weatherproof and outdoor clothing with membrane coating
and water-resistant textiles.
Max. 1.0 kg
— - 40 °C
400 - 800 rpm
G Speed, F Eco, Z Aqua Plus
not possible
Super 15 min …
For less soiling and low load capacity, e.g., daily changing laun-
dry or new laundry.
Max. 2.0 kg
— - 40 °C
- - - -, 400 - 1200 rpm
-
possible
Programme/Type of washing Options/Information
* Max load according to the model and programme.
** Reduced load with G Speed programme additional setting
en Programme default settings
30
0 Programme default
settings
Programme default settings
Note: You can find possible
programme default settings in the
overview; these differ depending on the
model.
The programme default settings for all
programmes are preset at the factory
and are displayed in the display panel
after the programme is selected.
Temperature
(6 Temperature)
Setting depending on the model
Depending on what stage the program
is in, you can change the set
temperature before and at the
beginning of the program.
The maximum temperature that can be
set depends on the program that has
been selected.
Spin Speed
(0 rpm)
Depending on what stage the program
is in, you can change the spin speed (in
rpm; revolutions per minute) before and
during the program.
Setting 0: The rinsing water is drained
but there is no final spin. The laundry
stays wet inside the drum, e.g. for items
that should not be spun.
Setting - - - -: (Rinse Stop) = no final
spin. The laundry stays in the water after
the final rinse.
You can select "Rinse Stop" to prevent
creasing if the laundry will not be taken
out of the washing machine immediately
after the program has ended.
To continue/end the program
~ Page 36
The maximum speed that can be set
depends on the model and program
that has been selected.
Finish in time
(ñ Finished In)
Before starting the program, you can
preselect the program end ("Ready in"
time) in hourly increments (h = hour) up
to a maximum of 24 hours.
To do this:
1. Select a program.
The program duration is displayed
for the selected program, e.g. 2:30
(hours:minutes).
2. Press the ñ Finished In button
repeatedly until the required number
of hours is displayed.
3. Press the A Start/Reload button.
The door will be locked.
The selected number of hours (e.g. 8
h) is shown in the display panel and
counts down until the wash program
starts. The duration of the program is
then displayed.
During the timer count-down, you can
change the preselected number of
hours as follows:
1. Press the A Start/Reload button.
2. Use the ñ Finished In button to
change the number of hours.
3. Press the A Start/Reload button.
During the timer count-down, you can
add or remove laundry as required:
1. Press the A Start/Reload button.
2. Open the door and add or remove
laundry.
3. Close the door.
4. Press the A Start/Reload button.
Additional programme settings en
31
Note: The length of the program is
automatically adjusted when the
program is running.
Certain factors can affect the program
length, e.g.:
■ Program settings,
■ Detergent dosage (additional rinse
cycles if required due to foaming),
■ Load size/type of textiles (longer
washing for higher load and for
textiles which absorb more water),
■ Imbalances (e. g. due to fitted
sheets) are offset with several start-
ups of spin cycles,
■ Fluctuations in power supply,
■ Water pressure (infeeding speed).
\ Additional programme
settings
Additi onal programme settings
Note: You can find possible additional
programme settings in the overview;
these differ depending on the model.
Speed/Eco
(G/F Speed/Eco)
Button with two possible settings for
adapting the selected programme:
■ G Speed
Washing in a shorter time while
achieving a washing result that is
consistent with, but uses more
energy than, the selected
programme, without the Speed/Eco
setting.
Note: Do not exceed the maximum
load.
■ F Eco
Energy-optimised washing by
reducing the temperature while
achieving a washing result that is
consistent with the selected
programme, without the Speed/Eco
setting.
Select the button to do this. First of all,
you can select the G Speed setting. If
you select the button again, the F Eco
setting is active. The respective symbol
is shown in the display when the setting
is activated.
If you select the button again, no setting
is active.
en Operating the appliance
32
Aqua Plus
(Z Aqua Plus)
Additional rinse cycle depending on the
programme; longer programme length
for particularly sensitive skin and/or for
areas with very soft water.
Soak
(% Soaking)
Before the main wash cycle starts, the
washing remains for longer in the water
to partially dissolve intensive soiling.
Notes
■ Put detergent in dispenser I before
starting the appliance.
■ Load laundry of the same colour.
■ If your appliance does not have this
additional programme setting, you
can soak as follows:
1. Put detergent in dispenser II before
starting the appliance.
2. Select the i Cottons 40 °C
programme and the A Start/
Reload button.
3. Select the A Start/Reload button
after approx. 10 minutes. The
laundry remains in the soaking
solution.
4. Leave the laundry to soak for as long
as required, then either select the
A Start/Reload button again to
continue the programme or change
the programme.
1 Operating the
appliance
Operati ng the appliance
Note: Install and connect washing
machine properly.
Before the 1st wash ~ Page 18
Preparing the washing
machine
Notes
■ Never switch on a damaged
washing machine!
■ Inform customer service!
1. Connect the mains plug.
2. Turn on the tap.
3. Open the door.
4. Check that the drum is completely
emptied. Empty if necessary.
Select programme/switch on
the appliance
Note: If you have activated the
childproof lock, you must first deactivate
it before you can set a program.
Use the program selector to select the
required program. Can be rotated in
either direction.
The appliance is switched on.
Operating the appliance en
33
The program default settings for the
selected program appear in the display
panel:
■ Temperature*,
■ Spin speed*,
■ The maximum load and the duration
of the program (alternately),
■ Energy consumption*.
*depending on the model
Change the programme
default settings
You can use the default settings or
change them.
To do this, repeatedly select the
corresponding button until the required
setting is displayed.
The settings are activated without
needing to be confirmed.
They are not saved when the appliance
is switched off.
Programme default settings
~ Page 30
Overview of programmes ~ Page 26
Select additional programme
settings
By selecting additional settings, you can
better adapt the washing process to
your items of laundry.
The settings can be selected or
deselected depending on the
programme progress.
The indicator lamp for the button lights
up if a setting is active.
The settings are not saved when the
appliance is switched off.
Additional settings ~ Page 31
Overview of programmes ~ Page 26
Placing laundry into the drum
:Warning
Danger of death!
Items of laundry pretreated with
cleaning agents that contain solvents,
e.g. stain remover/cleaning solvent,
may cause an explosion after being
loaded into the washing machine.
Hand-rinse items of laundry thoroughly
beforehand.
Notes
■ Mix items of laundry of varying sizes.
Laundry items of different sizes
distribute themselves better during
the spin cycle. Individual items of
laundry may lead to imbalances.
■ Observe the specified maximum
load. Overfilling has a negative
impact on the washing result and
promotes creasing.
1. Place presorted items of laundry
unfolded in the washing drum.
2. Make sure that no items of laundry
are trapped between the washing
machine door and the rubber seal,
and close the door.
The A Start/Reload button indicator
lamp flashes to indicate that the
washing program can be started. It is
possible to change the settings.
en Operating the appliance
34
Measure and add detergent
and care products
Caution!
Damage to the appliance!
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the appliance.
Keep these agents away from the
surfaces of the appliance. Using a
damp cloth, immediately remove any
fine spray residue and other residue or
droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent or care product may run
out.
Open the drawer carefully.
If detergent or care product comes
into contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
Notes
■ Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.
Starting the programme
Press the A Start/Reload button. The
indicator lamp lights up and the
program starts.
The display panel shows the Ready in
time while the program is running or the
program duration and the program
progress symbols once the wash cycle
has started.
Dispenser I Clothing disinfectant.
(Disinfectant additional
programme setting or
Disinfectant programme is
selected only.)
Dispenser i
Softener. Do not exceed
the maximum load.
Dispenser II Detergent for main wash,
liquid detergent.
Operating the appliance en
35
Note: Foam detection
If the Å symbol also lights up in the
display panel, the washing machine has
detected too much foam during the
wash cycle and automatically activated
additional rinse cycles to remove the
foam.
Add less detergent to the next wash
cycle with the same load.
If you want to lock the program to
prevent it from being inadvertently
adjusted, you can select the childproof
lock as follows.
Childproof lock
(E 3sec.)
You can lock the washing machine to
prevent the functions you have set from
being changed inadvertently. To do this,
activate the childproof lock when the
program has started.
To activate/deactivate, press and hold
the 0 rpm and ñ Finished In buttons at
the same time after the washing
program has started. Keep pressing the
two buttons for approx. three seconds.
The E symbol appears in the display
panel.
■ E lights up: The childproof lock is
active.
■ E flashes: The childproof lock is
active and the program selector has
been adjusted. To deactivate the
childproof lock, reset the program
selector to the initial program. The
symbol lights up again.
Note: To avoid the program to
terminate, do not turn the program
selector beyond the Off position.
Note: The childproof lock remains
active after the program has ended and
the appliance is switched off. You must
always deactivate the childproof lock if
you want to start a new program.
Adding/removing laundry
Following the start of the program, you
can add or remove laundry as required.
Press the A Start/Reload button to do
this.
The A Start/Reload button indicator
lamp flashes and the machine checks
whether it is possible to add laundry.
If the following appears in the display
panel:
■ The Õ symbol disappears: adding
laundry is possible.
■ The Õ symbol lights up: it is not
possible to add laundry.
To continue the program, press the
button A Start/Reload. The program
continues automatically.
Notes
■ Do not leave the door open for too
long when adding laundry as water
from the laundry may leak out.
■ For safety reasons, the door remains
locked when the water level or
temperature is high, or while the
drum is turning, and it is not possible
to add laundry during this time.
■ The load display is not active during
reloading.
Changing the programme
1. Press the A Start/Reload button.
2. Select another program.
3. Press the A Start/Reload
button.The new program starts from
the beginning.
en Operating the appliance
36
Cancel the programme
For programs at high temperature:
1. Press the A Start/Reload button.
2. To cool down laundry:
Select à Rinse.
3. Press the A Start/Reload button.
For programs at low temperature:
1. Press the A Start/Reload button.
2. Select 0 Spin.
3. Press the A Start/Reload button.
Programme end during rinse
hold
- - - - 0 appears in the display panel
and the indicator lamp of the A Start/
Reload button flashes.
Continue the program by:
■ Pressing the A Start/Reload button
(the laundry will be drained with the
default spin speed setting*) or
■ Selecting a spin speed or set the
program selector to 0 Spin and then
pressing the A Start/Reload button.
* depending on the chosen program ->
Overview of programmes
Programme end
End appears in the display panel and
the indicator lamp of the A Start/
Reload button is off.
Removing laundry/switching
off the appliance
1. Open the washing machine door
and remove the laundry.
2. Turn the programme selector to Off.
Appliance is switched off.
3. Turn off the tap.
Not required for Aqua-Stop models.
Contents of package
Notes
– Do not leave any items of laundry
in the drum. They may shrink in
the next wash or discolour
another item.
– Remove any foreign objects from
the drum and the rubber seal –
risk of rusting.
– Leave the washing machine door
and detergent drawer open so
that any residual water can dry
away.
– Always remove the washing.
– Always wait until the programme
ends, as the appliance could still
be locked. Switch the appliance
on and wait for the unlocking
device.
– If at the end of the programme
the display has gone out, the
energy saving mode is active. To
activate, select any button.
Setting the signal en
37
M Setting the signal
Setti ng the signal
You can change the following settings:
■ The volume for the information
signals (e.g. at the end of the
program) and/or
■ The volume of the audible button
signals.
You will need to activate the setting
mode in order to change these settings.
Activate setting mode:
1. Set the program selector to
position 1. The washing machine is
switched on.
2. Press the A Start/Reload button
and, at the same time, turn the
program selector clockwise to
position 2.Release the button.
The setting mode is activated and the
preset volume for the information
signals appears in the display panel
(e.g. at the end of the program).
Changing the volume
Use the ñ Finished In button to change
the following settings at the
corresponding program selector
positions:
■ 2: The volume of the information
signals and/or
■ 3: The volume of the button signals.
Exiting setting mode
You can now end the process and set
the program selector to the Off position.
The settings are saved.
H Sensors
Sensors
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the spin speed is reduced
or the spin cycle is not performed for
safety reasons.
Note: Place large and small items of
laundry evenly in the drum.
1/2/3/... positions on the program
selector
0 = off, 1 = quiet,
2 = medium, 3 = loud,
4 = very loud
en Cleaning and maintenance
38
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Switch off the appliance and unplug the
mains plug.
:Warning
Risk of poisoning!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
Damage to the appliance
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
machine.
Do not use cleaning agents that contain
solvents.
Machine housing/control
panel
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Remove the detergent residue
immediately.
■ Do not clean with a water jet.
Drum
Use chlorine-free cleaning agents, do
not use steel wool.
If there are odours in the washing
machine, or to clean the drum, run the
Drum Clean Û 90 °C or i
Cottons 90 °C program without
laundry. Add washing
powder.~ "Faults and what to do
about them" on page 43
Descaling
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from our
after-sales service. ~ Page 45
Detergent drawer and housing
If the detergent drawer contains
detergent or fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. To remove the insert: Push the insert
upwards from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Clean the inside of the
housing as well.
4. Fit the insert and lock it in place
(push the cylinder onto the guide
pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can
evaporate.
Cleaning and maintenance en
39
Detergent solution pump
blocked
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the water to cool down.
After the water has cooled down:
1. Turn off the water tap so that no
more water can flow in and has to be
drained via the drain pump.
2. Switch off the appliance.
3. Disconnect the mains plug.
4. Open and remove the service flap.
5. Take the drain hose out of the
retainer.
Remove the sealing cap, allow the
water to flow out into a suitable
container.
Replace the sealing cap and place
the drainage hose in the retainer.
6. Carefully unscrew the pump cover,
residual water may leak out.
Clean the interior, pump cover
thread and pump housing. The
impeller in the detergent solution
pump must be able to rotate.
Refit the pump cover and screw it on
tightly. The handle must be in a
vertical position.
7. Place the service flap back on, lock
it into place, and close it.
Note: To prevent unused detergent
from flowing straight into the drain
during the next wash, pour 1 litre of
water (without detergent) into
compartment II and start the 0 Spin
programme. Do the next wash as usual.
en Cleaning and maintenance
40
The drain hose at the siphon
is blocked
1. Switch off the appliance.
2. Disconnect the mains plug.
3. Loosen the hose clamp. Carefully
remove the drain hose; residual
water may leak out.
4. Clean the drain hose and siphon
connecting piece.
5. Reattach the drain hose and secure
the connection using the hose
clamp.
Filter in the water supply is
blocked
First, reduce the water pressure in the
supply hose:
1. Turn off the tap.
2. Select any program (except 0 Spin).
3. Press the A Start/Reload button.
Allow the program to run for
approximately 40 seconds.
4. Turn the program selector to off
position.
5. Pull out the mains plug.
6. Clean the filter on the tap:
Disconnect the hose from the tap.
Clean the filter with a small brush.
7. For standard and Aqua-Secure
models, clean the filter on the rear of
the appliance:
Remove the hose from the rear of
the appliance.
Use pliers to remove the filter and
then clean it.
8. Insert the filter, connect the hose and
check for leaks.
Faults and what to do about them en
41
3 Faults and what to do
about them
Faults and what to do about them
Emergency release
(depending on the model)
e.g. in the event of a power outage
Note: The programme will continue
running when the power supply has
been restored.
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with detergent
solution and laundry.
If possible, leave it to cool down.
:Warning
Risk of injury!
You may injure your hands if you reach
into the drum while it is turning.
Do not reach into the drum when it is
turning. Wait until the drum has stopped
turning.
Caution!
Water damage
Any escaping water may cause water
damage. Do not open the washing
machine door if water can be seen
through the glass.
If the laundry has to be removed, the
washing machine door can be opened
as follows:
1. Switch off the appliance.
2. Disconnect the mains plug.
3. Drain the water. ~ Page 39
4. Pull the emergency release
downwards with a tool and release.
The washing machine door can now
be opened.
en Faults and what to do about them
42
Information on the display panel
Display Cause/Remedy
Õ ■ Flashes fast + warning signal: The door was opened and the water level is
too high. Close the door, continue the programme with A Start/Reload button
or select 0 Spin programme.
■ Flashes slowly: The door lock temperature is too high to open the door. Wait
approx. 30 seconds until the door lock temperature cools down.
r ■ Flashes (no water supply): Tap turned on? Water inlet filter blocked? Clean
the water inlet filter.
If an additional water filter has been installed (depending on the model), check
for contaminants and clean if required ~ separate installation and cleaning
instruction for water filter.
Water hose kinked or blocked?
■ Lights up (low water pressure): For information only. This will not affect the
programme progress. The programme duration is extended.
E:18 Drain pump blocked; clean the drain pump. Clean the drainage hose on the siphon.
Other displays Switch off the appliance, wait for five seconds and then switch it on again. If the dis-
play appears again, call customer services.
Faults and what to do about them en
43
Faults and what to do about them
Faults Cause/Remedy
Water is leaking from the
machine.
■ Attach the drain hose correctly or replace it.
■ Tighten the screw connection of the drain hose.
The machine is not filling
with water.
Detergent is not being dis-
pensed.
■ Have you pressed the A Start/Reload button?
■ Is the tap turned on?
■ Could the filter be clogged? Clean the filter ~ Page 40
Note: If an additional water filter has been installed (depending on the
model), check for contaminants and clean if required ~ separate installa-
tion and cleaning instruction for water filter.
■ Is the supply hose kinked or trapped?
The door cannot be
opened.
■ The safety function is activated. Stop the program?
■ Is the E childproof lock activated? Deactivate.
■ Is “- - - -” selected (Rinse Stop = no final drain)?
■ Can the door only be opened by the emergency release?
The program will not
start.
■ Have you pressed the A Start/Reload or ñ Finished In button?
■ Is the door closed?
■ Is the E childproof lock activated? Deactivate.
The drum briefly jerks or
judders after the program
has started.
Not a fault – the internal motor test may cause the drum to jerk or judder briefly
when the wash program starts.
The water is not draining. ■ Is “- - - -” selected (Rinse Stop = no final drain)?
■ Clean the drain pump ~ Page 39
■ Clean the drain pipe and/or the drain hose.
Water is not visible in the
drum.
Not a fault – the water is below the visible area.
The spin result is not sat-
isfactory.
Laundry is wet/too damp.
■ Not a fault – the unbalanced load detection system has interrupted the spin
cycle because the laundry is unevenly distributed.
Distribute small and large items of laundry evenly in the drum.
■ Anti-crease (depending on the model) selected?
■ Is the selected speed too low?
The spin cycle runs sev-
eral times.
Not a fault – the unbalanced load detection system is adjusting an imbalance.
The program is taking
longer than usual.
■ Not a fault – the unbalanced load detection system is adjusting an imbal-
ance by repeatedly distributing the laundry.
■ Not a fault – the foam detection is system active – a rinse cycle has been
switched on.
The length of the program
changes during the wash
cycle.
Not a fault – the program sequence is optimised for the specific washing pro-
cess. This may change the length of the program shown in the display panel.
Residual water in the
care-product compart-
ment i .
■ Not a fault – the effect of the care product is not affected.
■ Clean the insert if necessary.
en Faults and what to do about them
44
Odours in the washing
machine.
Depending on the model, run the Drum Clean Û 90 °C or i Cottons 90 °C
program without laundry.
Add washing powder or a detergent containing bleach.
Note: To prevent foaming, only use half the amount of detergent recommended
by the detergent manufacturer. Do not use detergents designed for wool or del-
icates.
The Å symbol lights up
in the display panel. Foam
may also be leaking from
the detergent drawer.
Have you used too much detergent?
Mix one tablespoon of fabric softener with 1/2 litre of water and pour it into
compartment II (not suitable for outdoor clothing, sportswear or items stuffed
with down).
Use less detergent in the next wash cycle.
Loud noises, vibrations
and machine "move-
ment" during the spin
cycle.
■ Is the appliance aligned? Align the appliance ~ Page 17
■ Are the appliance's feet fixed? Secure the appliance's feet ~ Page 17
■ Have the transport braces been removed?
Remove the transport braces ~ Page 14
The display panel/indica-
tor lights do not work
while the appliance is run-
ning.
■ Has there been a power failure?
■ Have the fuses blown? Reset/replace the fuses.
■ If the fault occurs repeatedly, call customer services.
There is detergent resi-
due on the laundry.
■ Some phosphate-free detergents contain water-insoluble residue.
■ Select à Rinse or brush the laundry after washing.
The Õ symbol lights up
in the display in pause
mode.
■ Door is locked due to safety reasons (water level and/or temperature are
too high). It is not possible to add laundry. Close the door immediately, if
necessary.
■ Press the A Start/Reload button to continue the program.
If you cannot rectify a fault yourself (after switching the machine off and on again) or a repair is required:
■ Switch off the appliance and pull out the mains plug.
■ Turn off the tap and call customer services.
Faults Cause/Remedy
After-sales service en
45
4 After-sales service
After- sales service
If you cannot correct the fault yourself
~ "Faults and what to do about them"
on page 41 please contact our after-
sales service. ~ Back page
We will always find an appropriate
solution in order to avoid unnecessary
visits by engineers.
Please give the after-sales service the
product number (E no.) and the
production number (FD) of the
appliance.
You can find this information:
■ on the inside of the washing
machine door*
■ in the opened service flap*
■ on the rear of the appliance*
*depending on the model
Trust the expertise of the
manufacturer.
Contact us for assistance. By doing so,
you will ensure that the repairs are
carried out by trained service personnel
using genuine spare parts.
Product number Production number
(1U )'
en Supplementary sheet for the installation and operating instructions
46
[ Consumption values table
Supplementary sheet for the installation and operating instructions
Energy and water consumption, programme duration and residual moisture for
the main washing programme
(approximate values)
Programme Load
(Dry Clothes)
Energy
consumption*
Water
consumption*
Programme
duration*
i Cottons 20 °C 10 kg 0,39 kWh 90 l 3 h
i Cottons 40 °C 10 kg 1,29 kWh 90 l 3^ h
i Cottons Eco 40 °C ** 5 kg 0,47 kWh 47 l 6 h
i Cottons Eco 60 °C ** 5 kg 0,55 kWh 47 l 6 h
i Cottons Eco 60 °C ** 10 kg 0,82 kWh 60 l 6^ h
i Cottons 60 °C 10 kg 1,55 kWh 90 l 3] h
i Cottons 90 °C 10 kg 2,75 kWh 106 l 3 h
\ Synthetics 40 °C 4 kg 0,85 kWh 62 l 2 h
o Mix Load 40 °C 4 kg 0,66 kWh 45 l 1] h
“ Delicates/Silk 30 °C 2 kg 0,25 kWh 37 l _ h
l W Wool 30 °C 2 kg 0,22 kWh 41 l _ h
Programme Approximate information on the residual moisture***
WAU28460ID
Max. 1400 rpm
i Cottons 48 %
\ Synthetics 40 %
“ Delicates/Silk 30 %
l W Wool 45 %
Values determined according to EN60456.
* Observed values may deviate from the indicated values due to influence of water pressure, hardness
and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in power supply and selected additional functions.
** Program settings with maximum spin speed for testing and energy labeling in accordance with EU Di-
rective 2010/30/EU with cold water (15°C).
The programs are suitable for the cleaning of normally soiled cotton textiles and regarding the combi-
nation of energy and water consumption the most effective.
The specification of the programme temperature is based on the temperature stated on the care label
in the textiles. The actual washing temperature may deviate from the indicated programme temperature
for reasons of saving energy. The washing efficiency corresponds to the legal requirements.
*** Information on residual moisture based on program-dependent spin-speed limit and maximum loads.
Technical data en
47
J Technical data
Technical data
Dimensions:
848 mm x 598 mm x 590 mm
(height x width x depth)
Weight:
79 kg
Mains connection:
Nominal voltage 220-240V, 50 Hz
Minimum installation protection (c)
10 A
Nominal power 1900-2300 W
Water pressure:
100–1000 kPa (1–10 bar)
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001365603*
9001365603 (0006)
en
Thank you for buying a Bosch
Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
